SDD 2025: Pragmatic Gen AI: LLM-based applications - top patterns & solutions for successful adoption

Generative AI beyond buzzword bingo. In this session, Christian presents concrete patterns and solutions for integrating Large Language Models (LLMs) such as GPT, Mistral, Claude or Llama into your own software architectures. Important topics such as semantic routing, semantic caching, guarding, or observability are illustrated with code examples. Developers and architects can expect a pragmatic insight into possible implementations for their own projects.

Transcript

1. Pragmatic Gen AI LLM-based applications – top patterns & solutions for successful adoption Christian Weyer | Co-Founder & CTO | Thinktecture AG | christian.weyer@thinktecture.com
2. § Technology catalyst § AI-powered solutions § Pragmatic end-to-end architectures § Microsoft Regional Director § Microsoft MVP for AI § Google GDE for Web AI christian.weyer@thinktecture.com https://www.thinktecture.com Pragmatic Gen AI: LLM-based applications Top patterns & solutions for successful adoption Christian Weyer Co-Founder & CTO @ Thinktecture AG 2

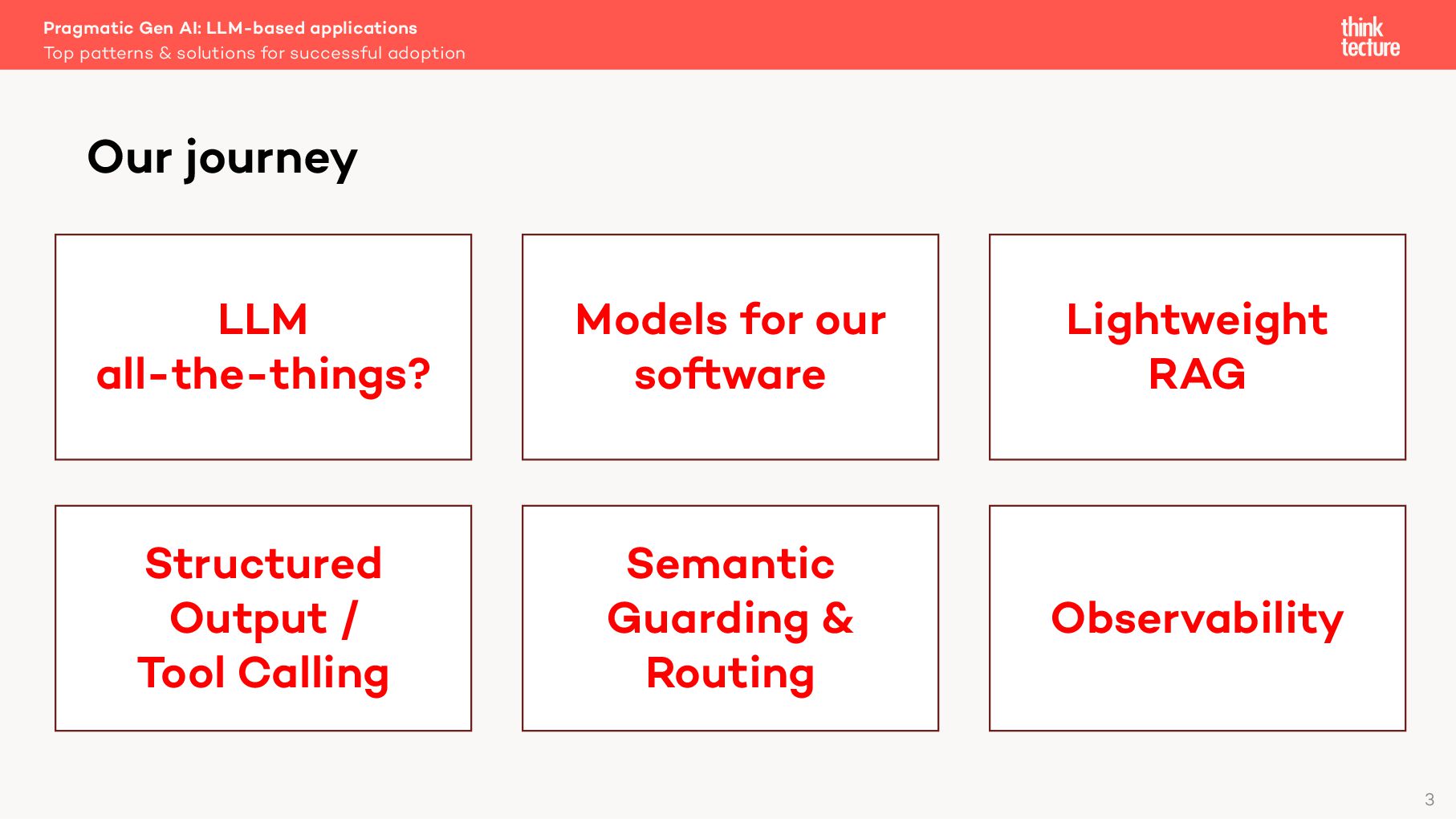

3. Pragmatic Gen AI: LLM-based applications Top patterns & solutions for successful adoption Our journey 3 Models for our software Lightweight RAG Semantic Guarding & Routing Observability LLM all-the-things? Structured Output / Tool Calling
4. Pragmatic Gen AI: LLM-based applications Top patterns & solutions for successful adoption LLM ALL-THE-THINGS? 4

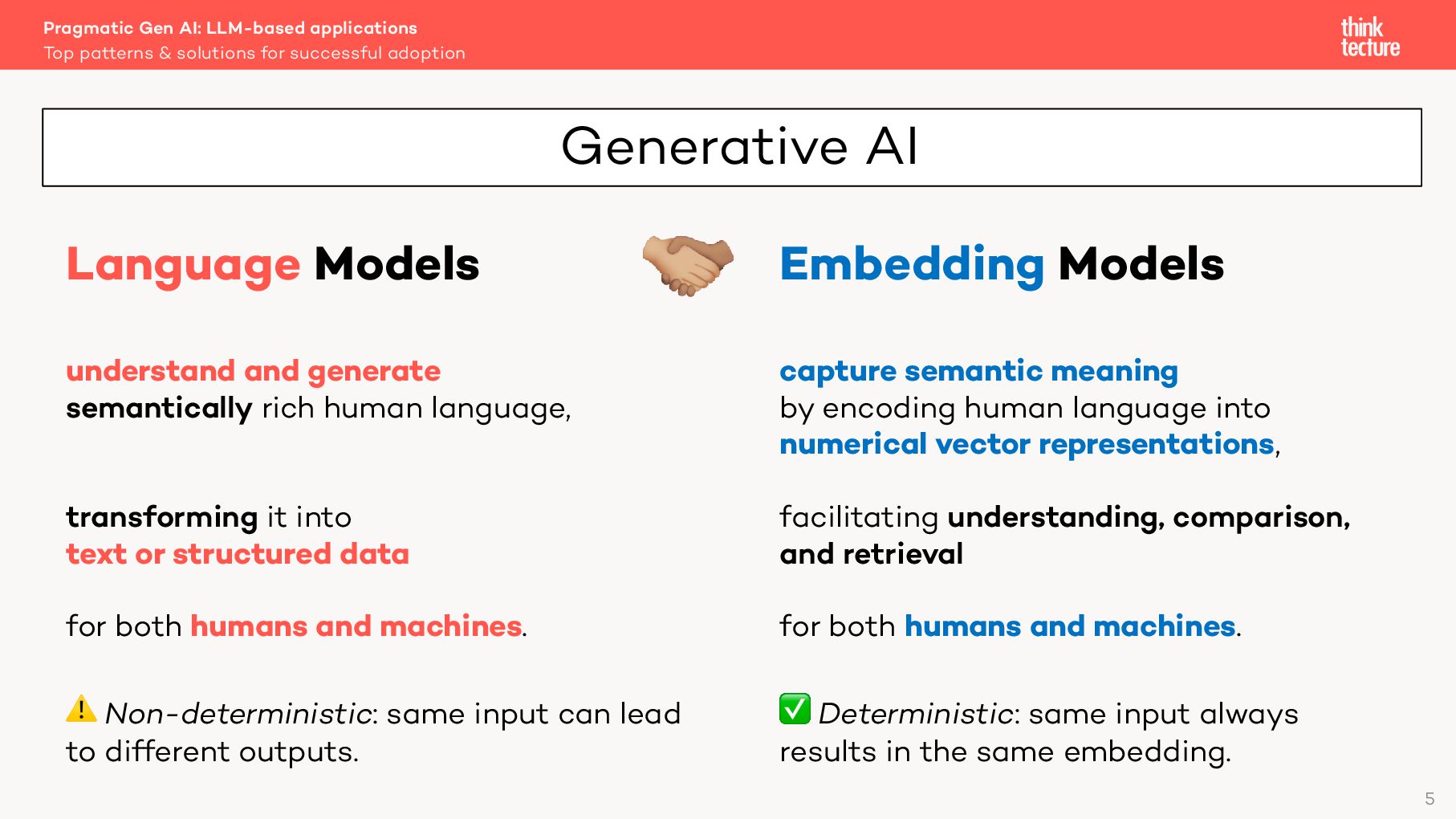

5. Language Models understand and generate semantically rich human language, transforming it into text or structured data for both humans and machines. ⚠ Non-deterministic: same input can lead to different outputs. Embedding Models capture semantic meaning by encoding human language into numerical vector representations, facilitating understanding, comparison, and retrieval for both humans and machines. ✅ Deterministic: same input always results in the same embedding. Pragmatic Gen AI: LLM-based applications Top patterns & solutions for successful adoption 5 🫱 🫲 Semantic AI Generative AI
6. § We rely on Language Model’s Language understanding NOT on its world knowledge Pragmatic Gen AI: LLM-based applications Top patterns & solutions for successful adoption ⚠ Important shoutout 6
7. Pragmatic Gen AI: LLM-based applications Top patterns & solutions for successful adoption MODELS FOR OUR SOFTWARE 7

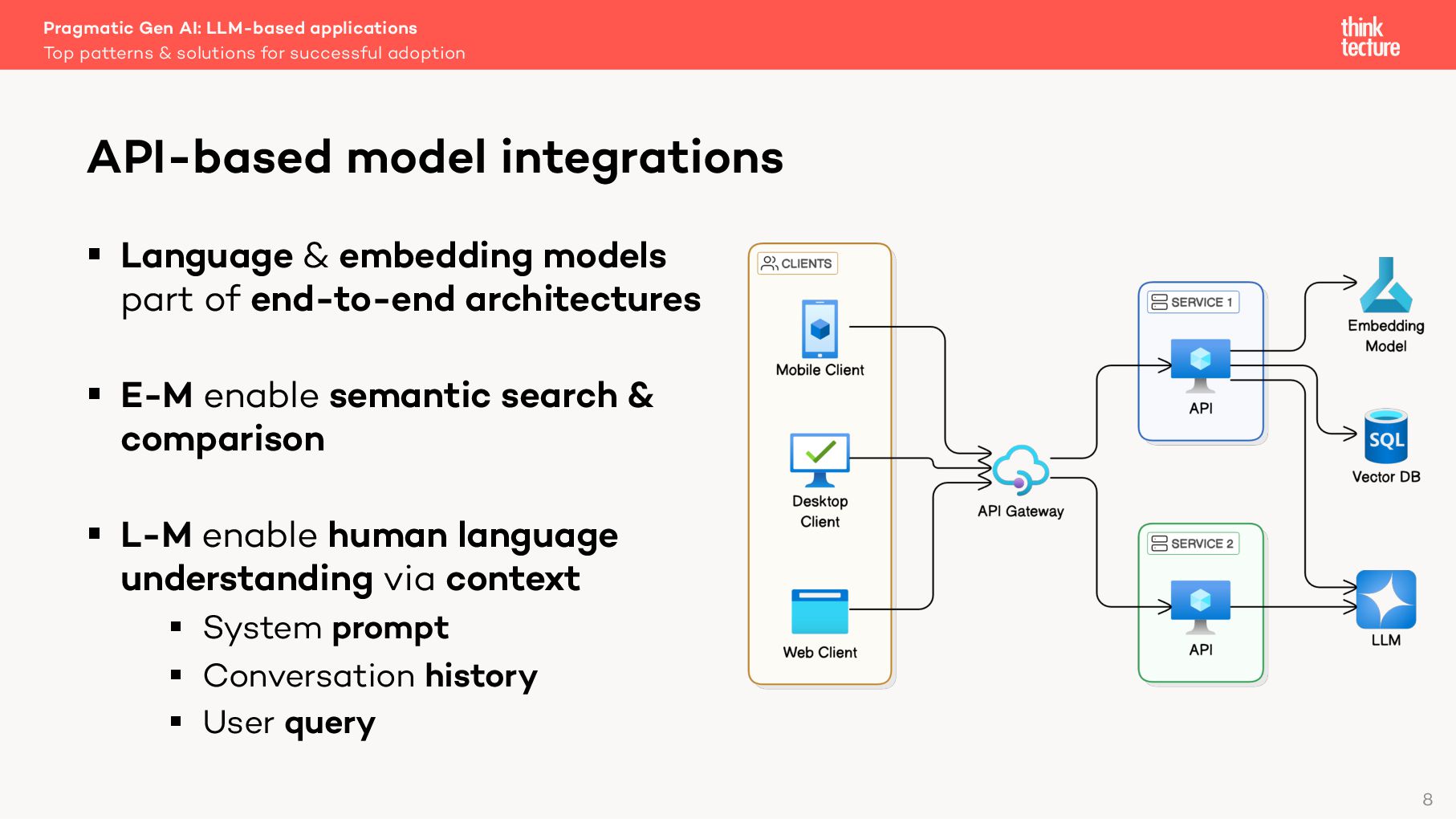

8. § Language & embedding models part of end-to-end architectures § E-M enable semantic search & comparison § L-M enable human language understanding via context § System prompt § Conversation history § User query Pragmatic Gen AI: LLM-based applications Top patterns & solutions for successful adoption API-based model integrations 8

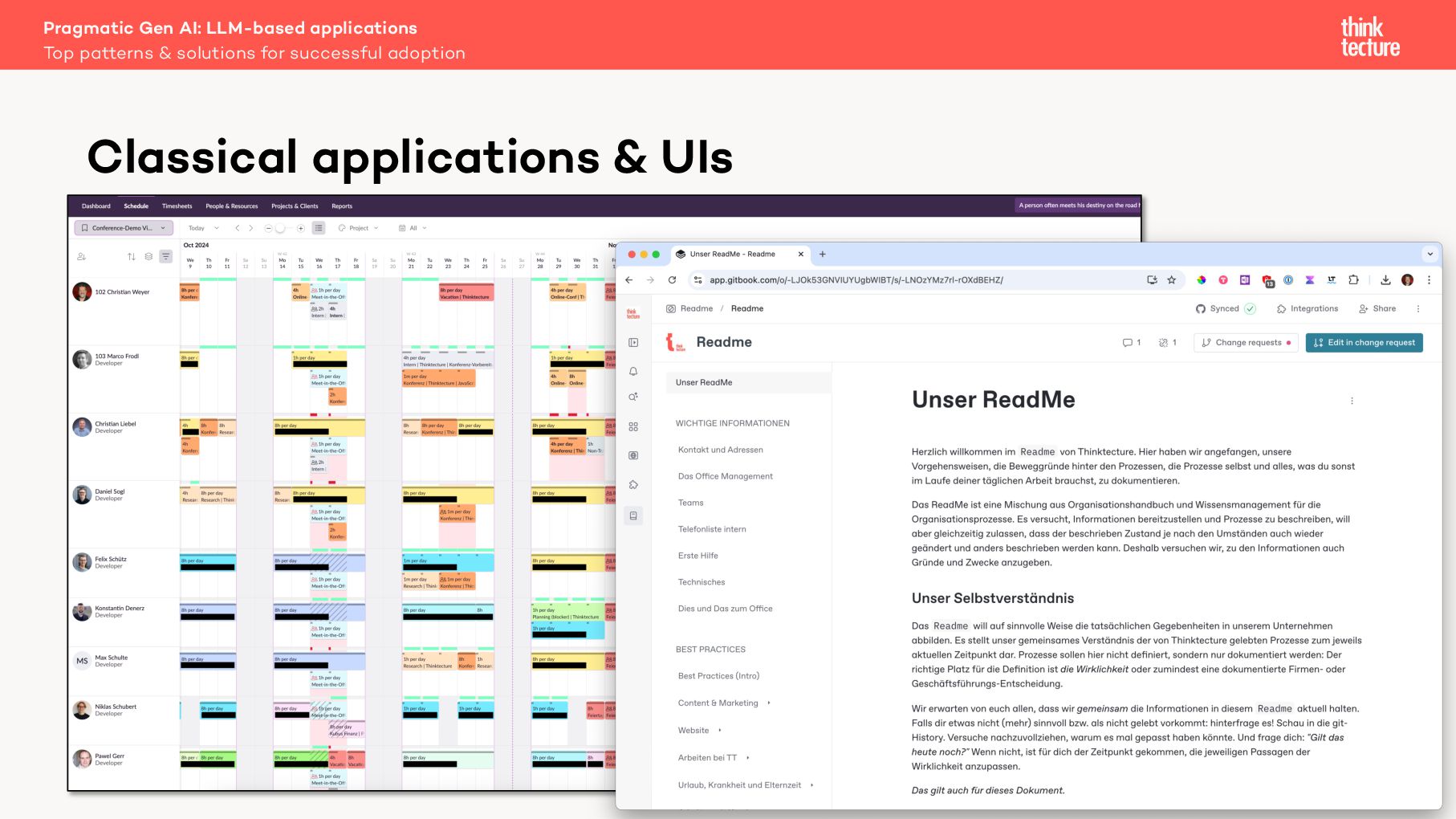

9. Pragmatic Gen AI: LLM-based applications Top patterns & solutions for successful adoption Classical applications & UIs 9

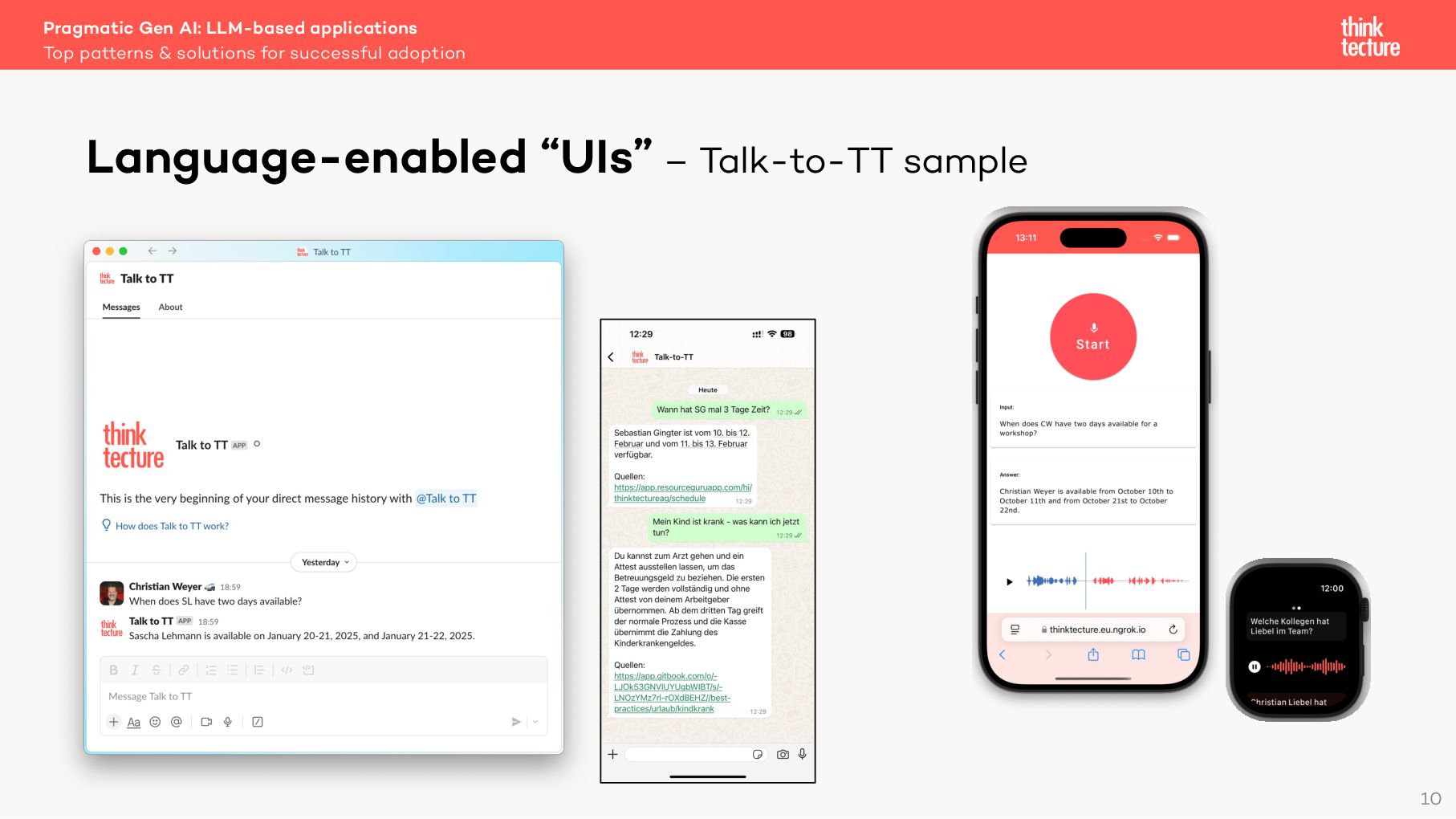

10. Pragmatic Gen AI: LLM-based applications Top patterns & solutions for successful adoption Language-enabled “UIs” – Talk-to-TT sample 10

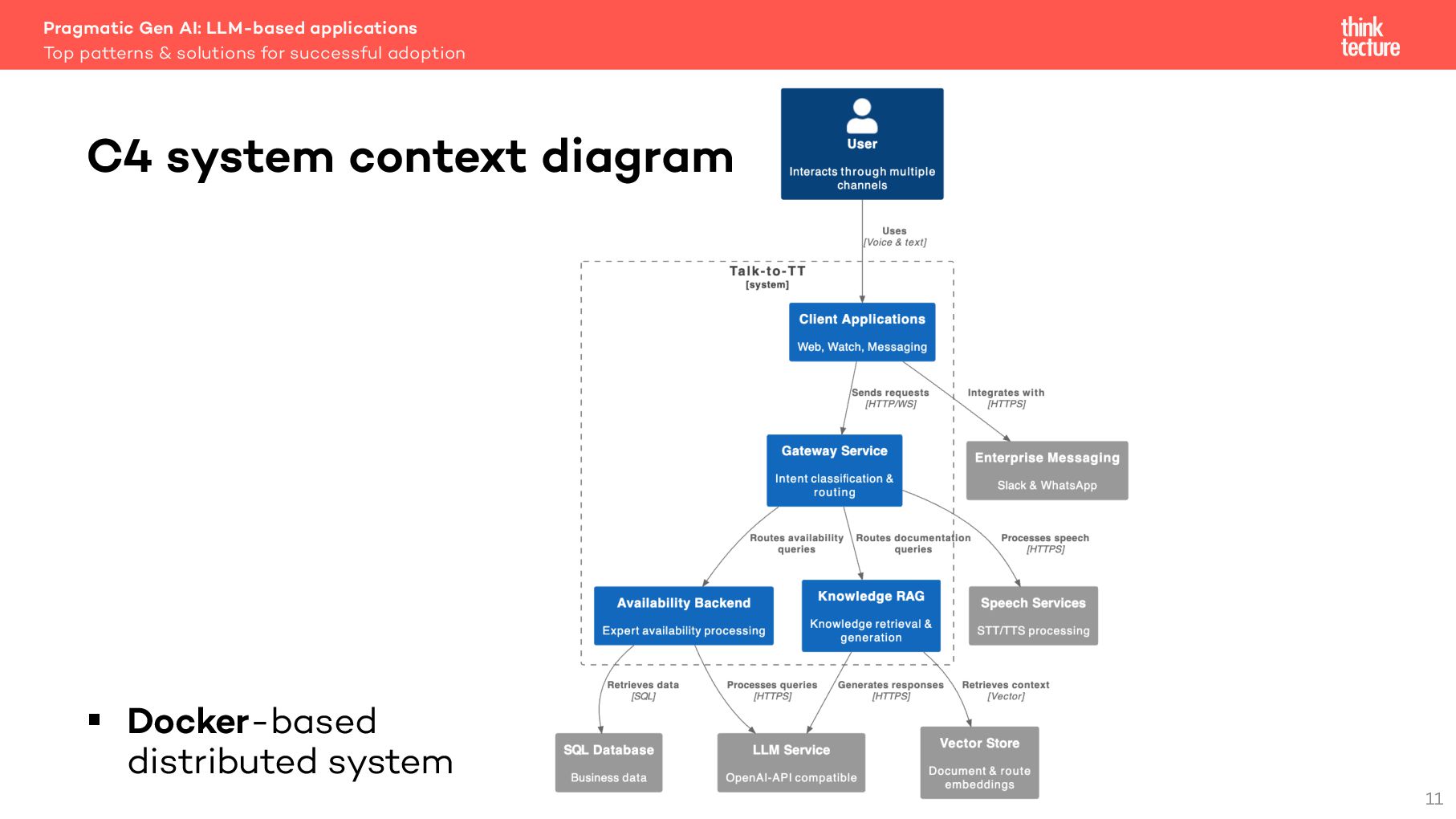

11. Pragmatic Gen AI: LLM-based applications Top patterns & solutions for successful adoption 11 C4 system context diagram § Docker-based distributed system
12. Pragmatic Gen AI: LLM-based applications Top patterns & solutions for successful adoption Sample solution - Technology stack 12 Services § Python as the go-to-platform for genuine ML/AI/Gen-AI § Esp. for local model execution § But: Most of the logic could be implemented in any language/platform Clients
13. Pragmatic Gen AI: LLM-based applications Top patterns & solutions for successful adoption PATTERN LIGHTWEIGHT RAG [RETRIEVAL-AUGMENTED GENERATION] 13

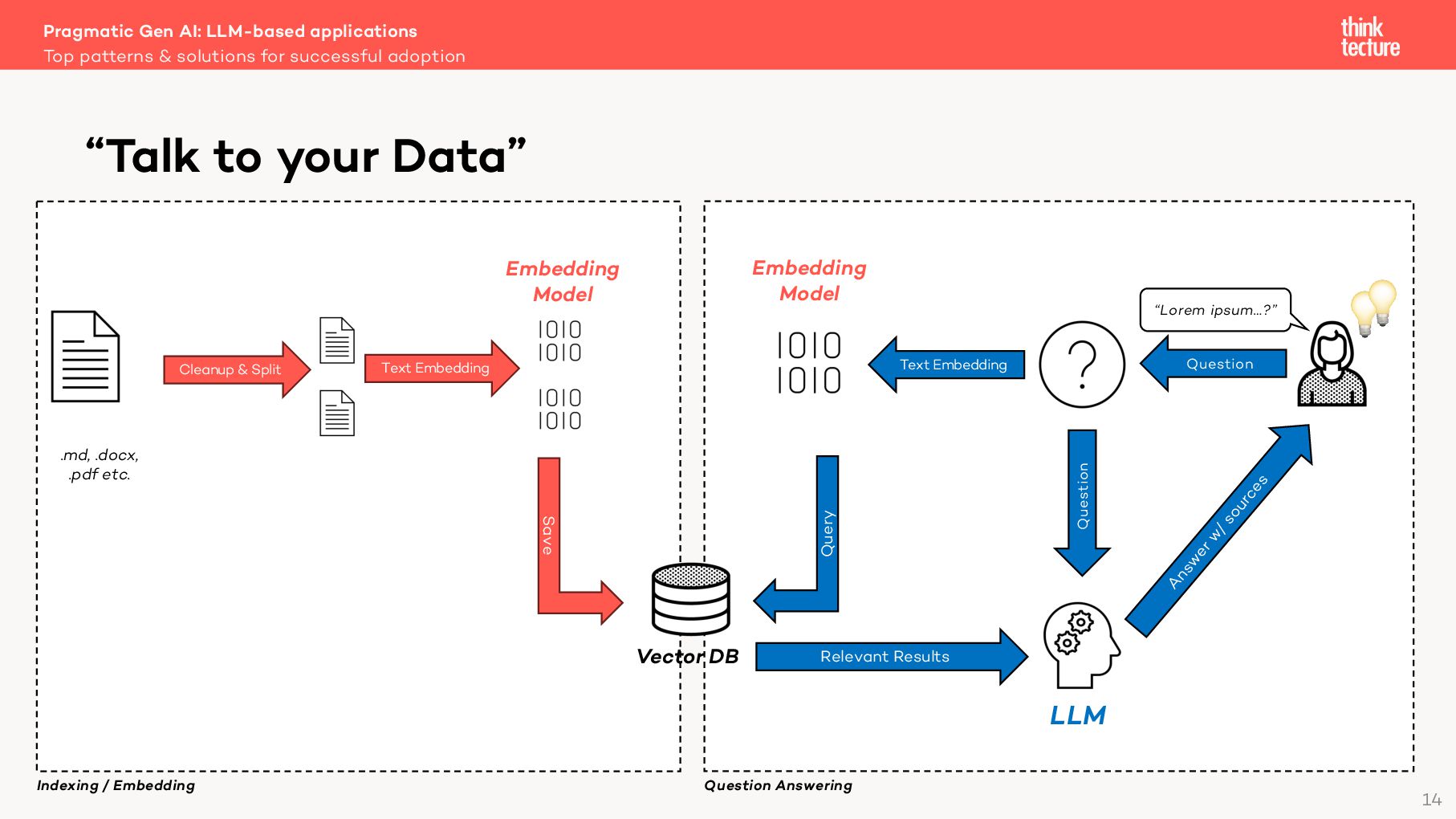

14. Pragmatic Gen AI: LLM-based applications Top patterns & solutions for successful adoption “Talk to your Data” Cleanup & Split Text Embedding Question Text Embedding Save Query Relevant Results Question Answ er w / sources LLM Embedding Model Embedding Model 💡 Indexing / Embedding Question Answering .md, .docx, .pdf etc. “Lorem ipsum…?” 💡 Vector DB 14

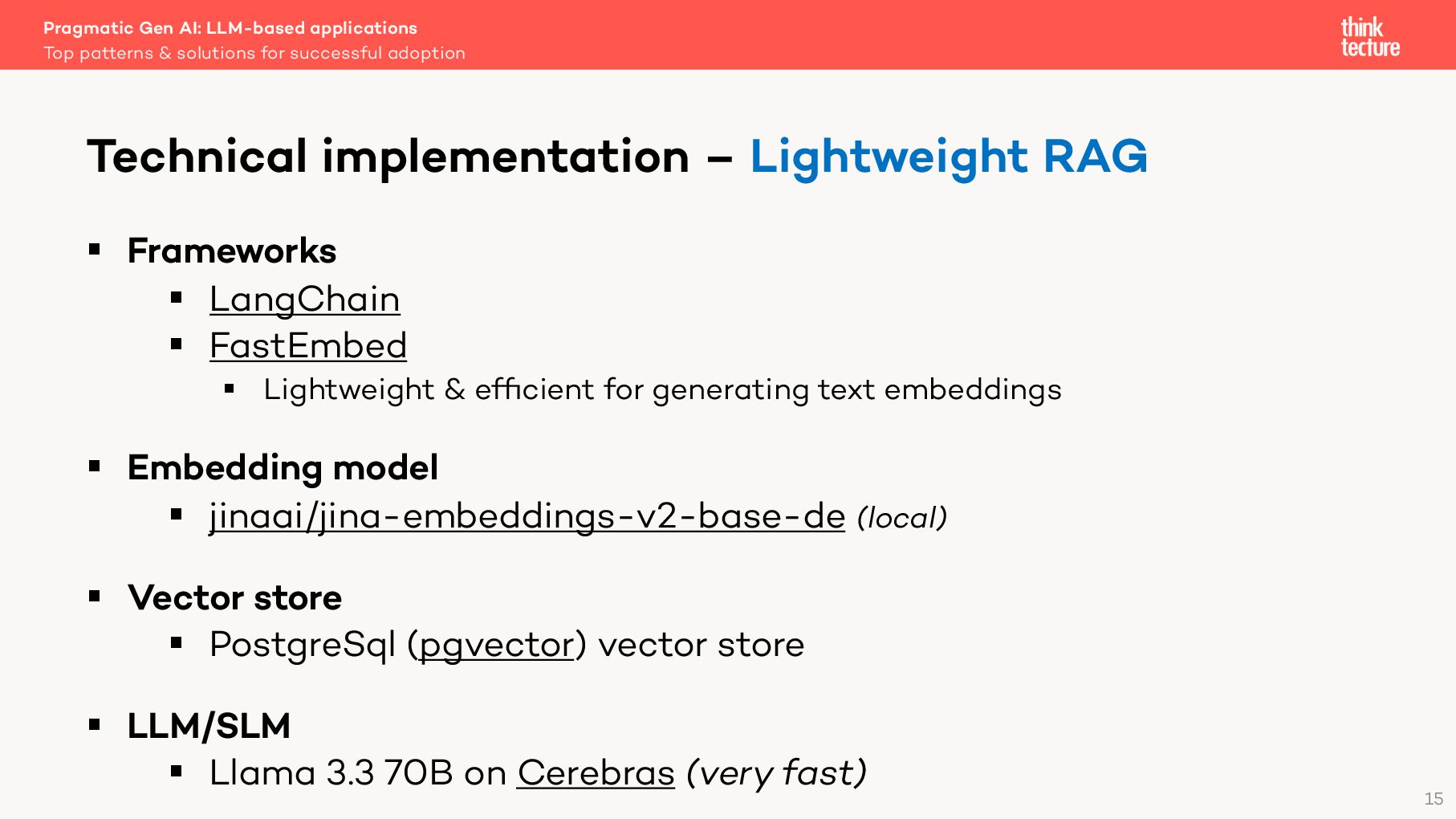

15. § Frameworks § LangChain § FastEmbed § Lightweight & efficient for generating text embeddings § Embedding model § jinaai/jina-embeddings-v2-base-de (local) § Vector store § PostgreSql (pgvector) vector store § LLM/SLM § Llama 3.3 70B on Cerebras (very fast) Pragmatic Gen AI: LLM-based applications Top patterns & solutions for successful adoption Technical implementation – Lightweight RAG 15
16. Pragmatic Gen AI: LLM-based applications Top patterns & solutions for successful adoption PATTERN STRUCTURED OUTPUT 16

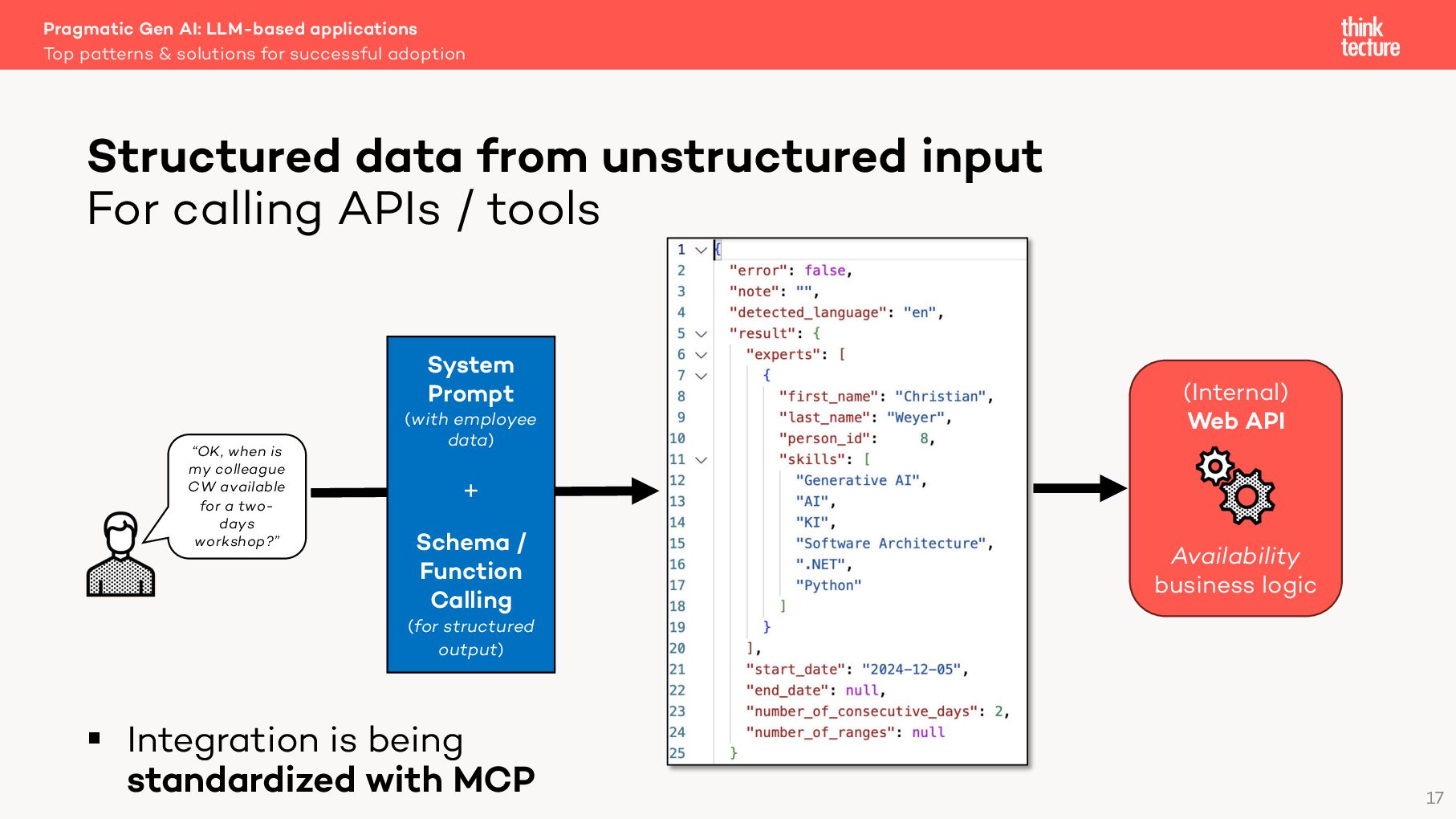

17. § Integration is being standardized with MCP Pragmatic Gen AI: LLM-based applications Top patterns & solutions for successful adoption Structured data from unstructured input For calling APIs / tools 17 “OK, when is my colleague CW available for a two- days workshop?” System Prompt (with employee data) + Schema / Function Calling (for structured output) (Internal) Web API Availability business logic

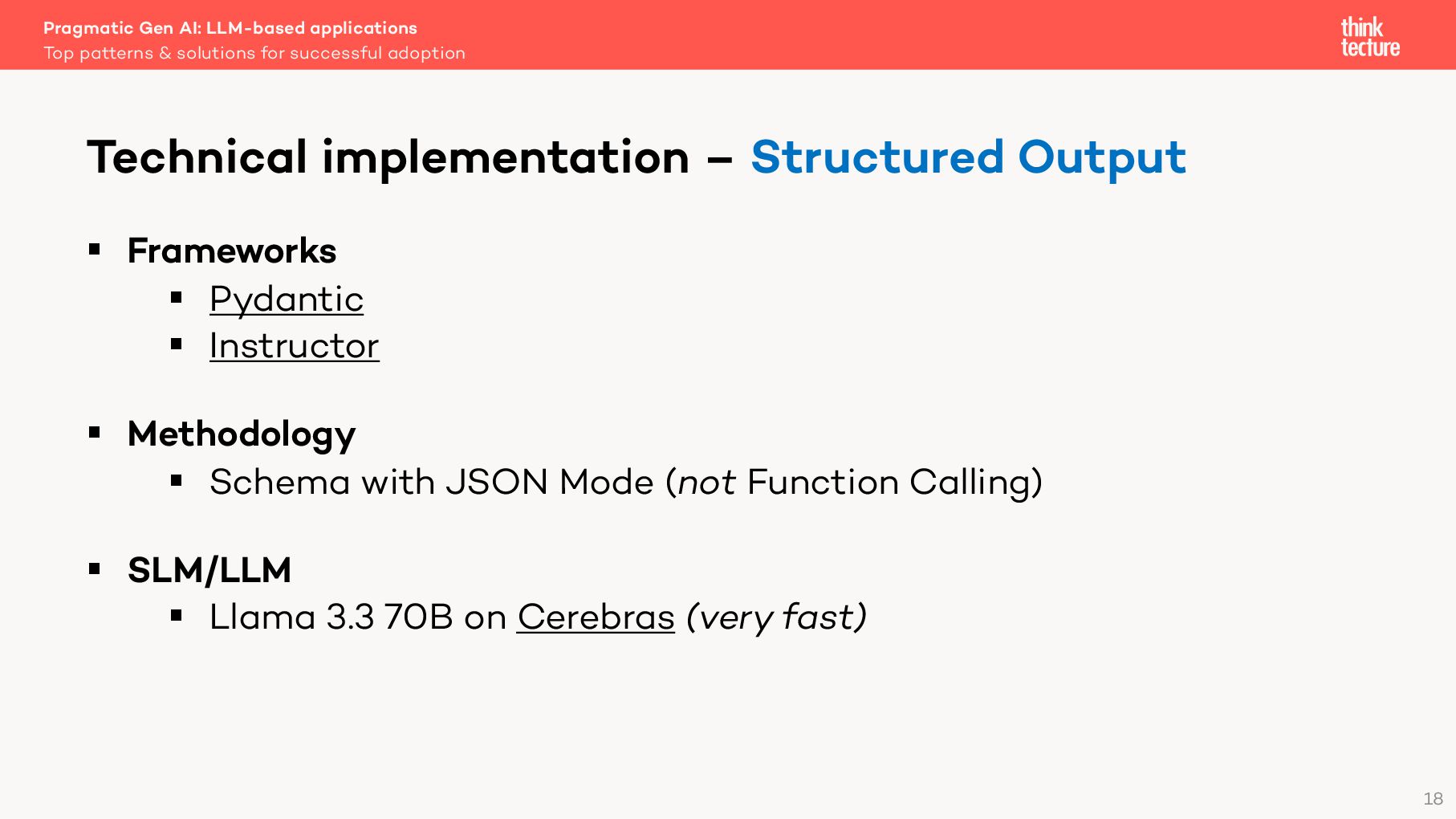

18. § Frameworks § Pydantic § Instructor § Methodology § Schema with JSON Mode (not Function Calling) § SLM/LLM § Llama 3.3 70B on Cerebras (very fast) Pragmatic Gen AI: LLM-based applications Top patterns & solutions for successful adoption Technical implementation – Structured Output 18
19. Pragmatic Gen AI: LLM-based applications Top patterns & solutions for successful adoption PATTERN SEMANTIC GUARDING & ROUTING 19

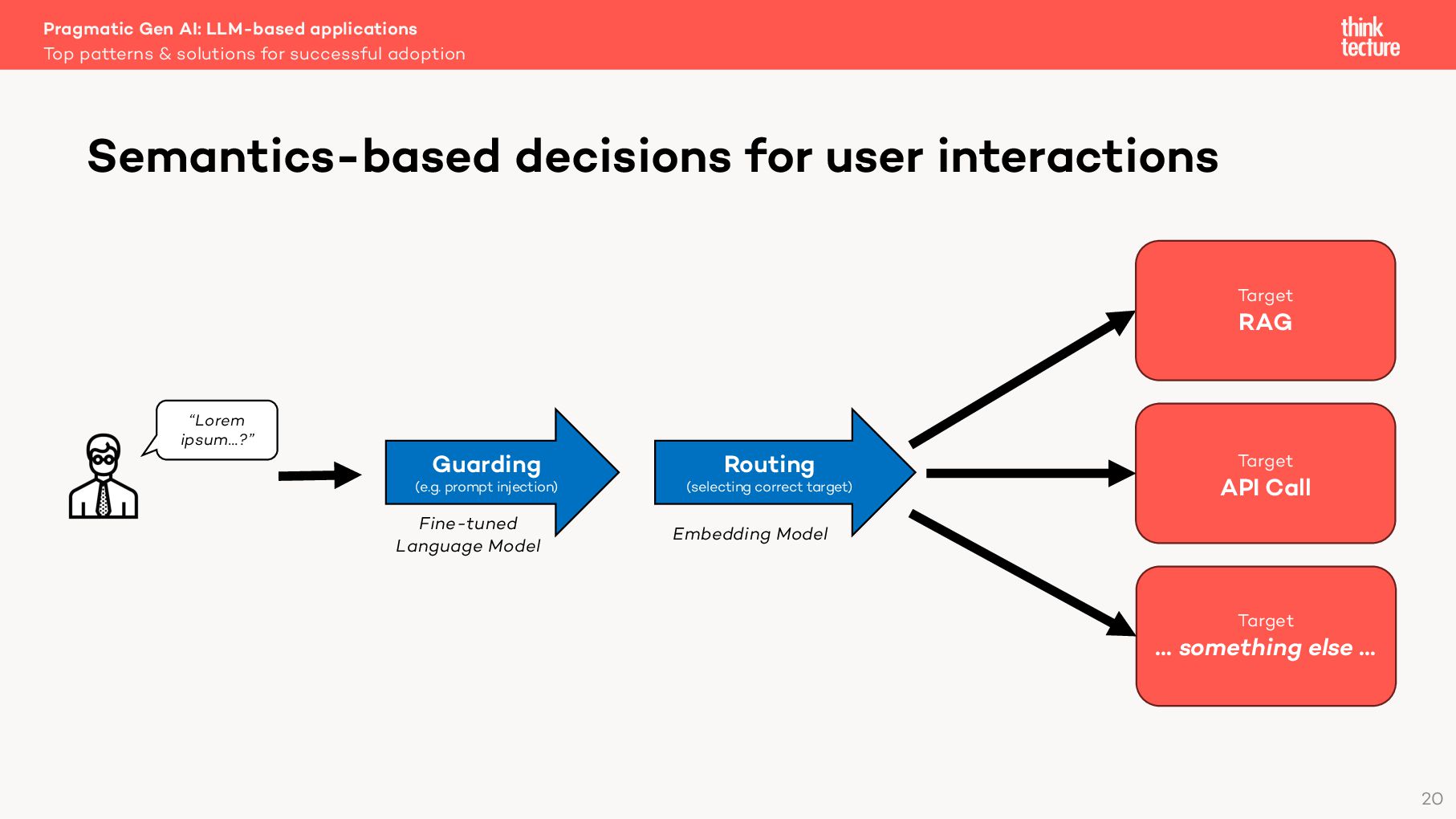

20. Pragmatic Gen AI: LLM-based applications Top patterns & solutions for successful adoption Semantics-based decisions for user interactions Guarding (e.g. prompt injection) Routing (selecting correct target) “Lorem ipsum…?” Target RAG Target API Call Target … something else … Fine-tuned Language Model Embedding Model 20

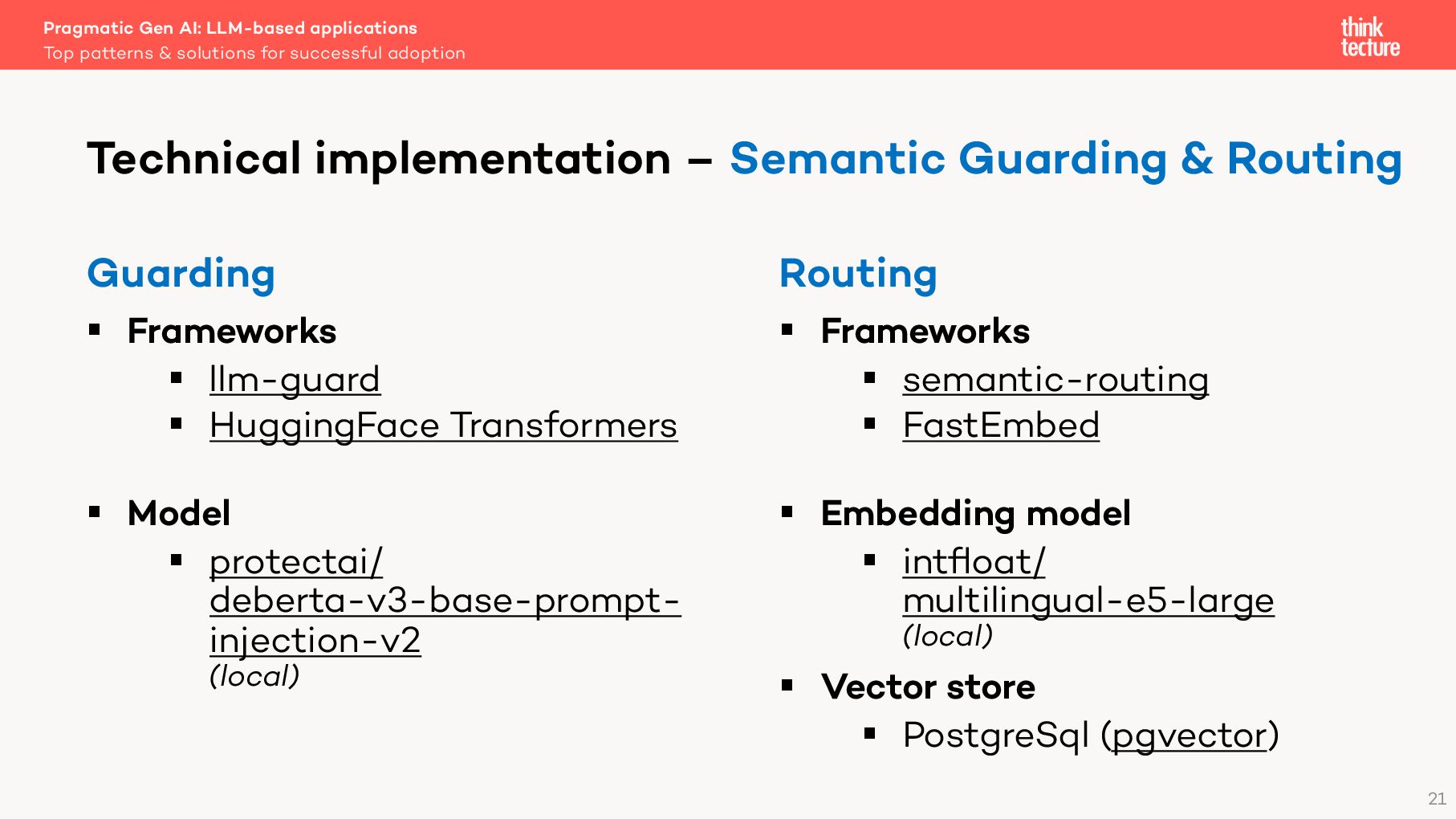

21. Guarding § Frameworks § llm-guard § HuggingFace Transformers § Model § protectai/ deberta-v3-base-prompt- injection-v2 (local) Routing § Frameworks § semantic-routing § FastEmbed § Embedding model § intfloat/ multilingual-e5-large (local) § Vector store § PostgreSql (pgvector) Pragmatic Gen AI: LLM-based applications Top patterns & solutions for successful adoption Technical implementation – Semantic Guarding & Routing 21
22. Pragmatic Gen AI: LLM-based applications Top patterns & solutions for successful adoption PATTERN / SOLUTION OBSERVABILITY 22

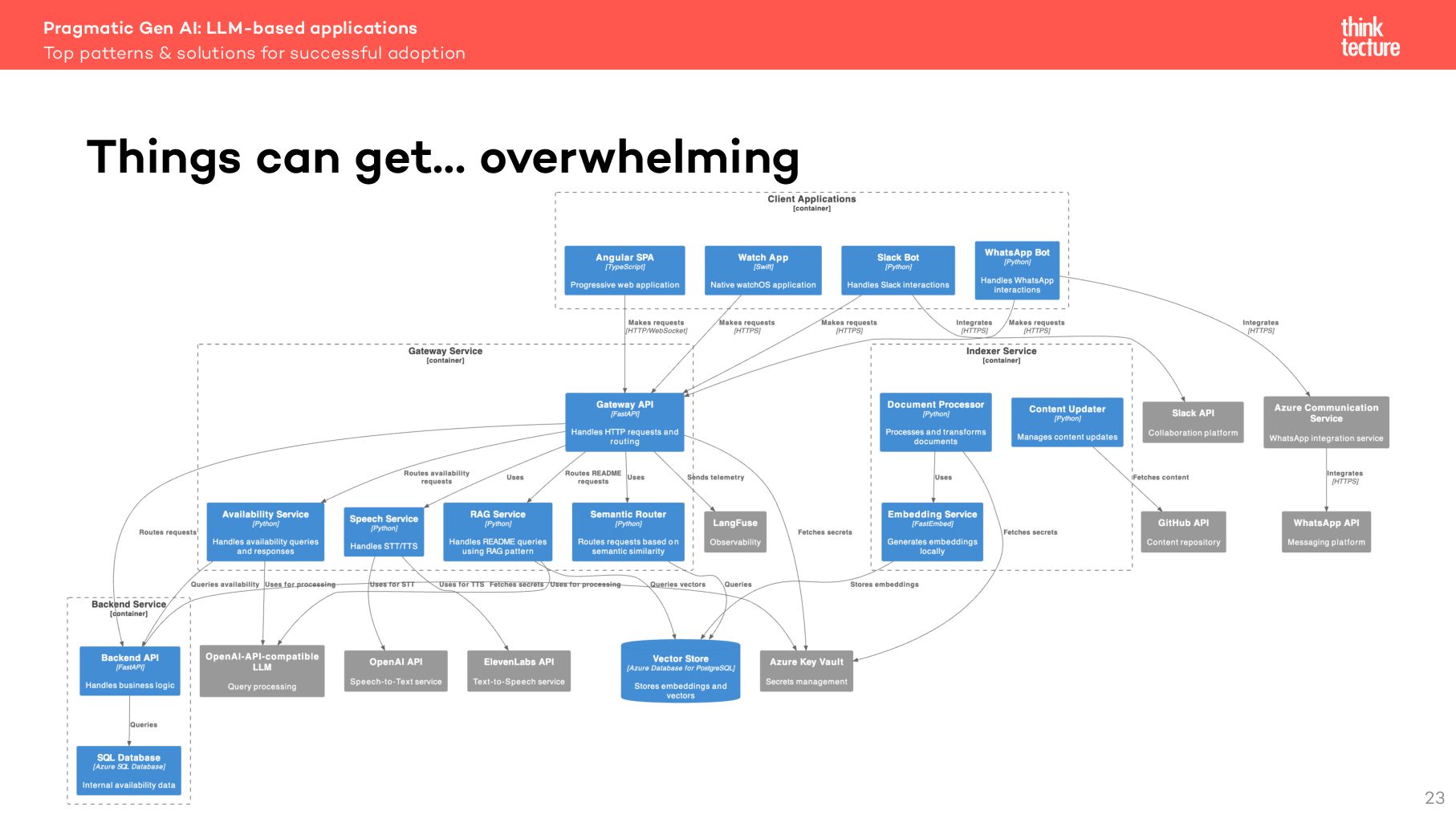

23. Pragmatic Gen AI: LLM-based applications Top patterns & solutions for successful adoption Things can get… overwhelming 23

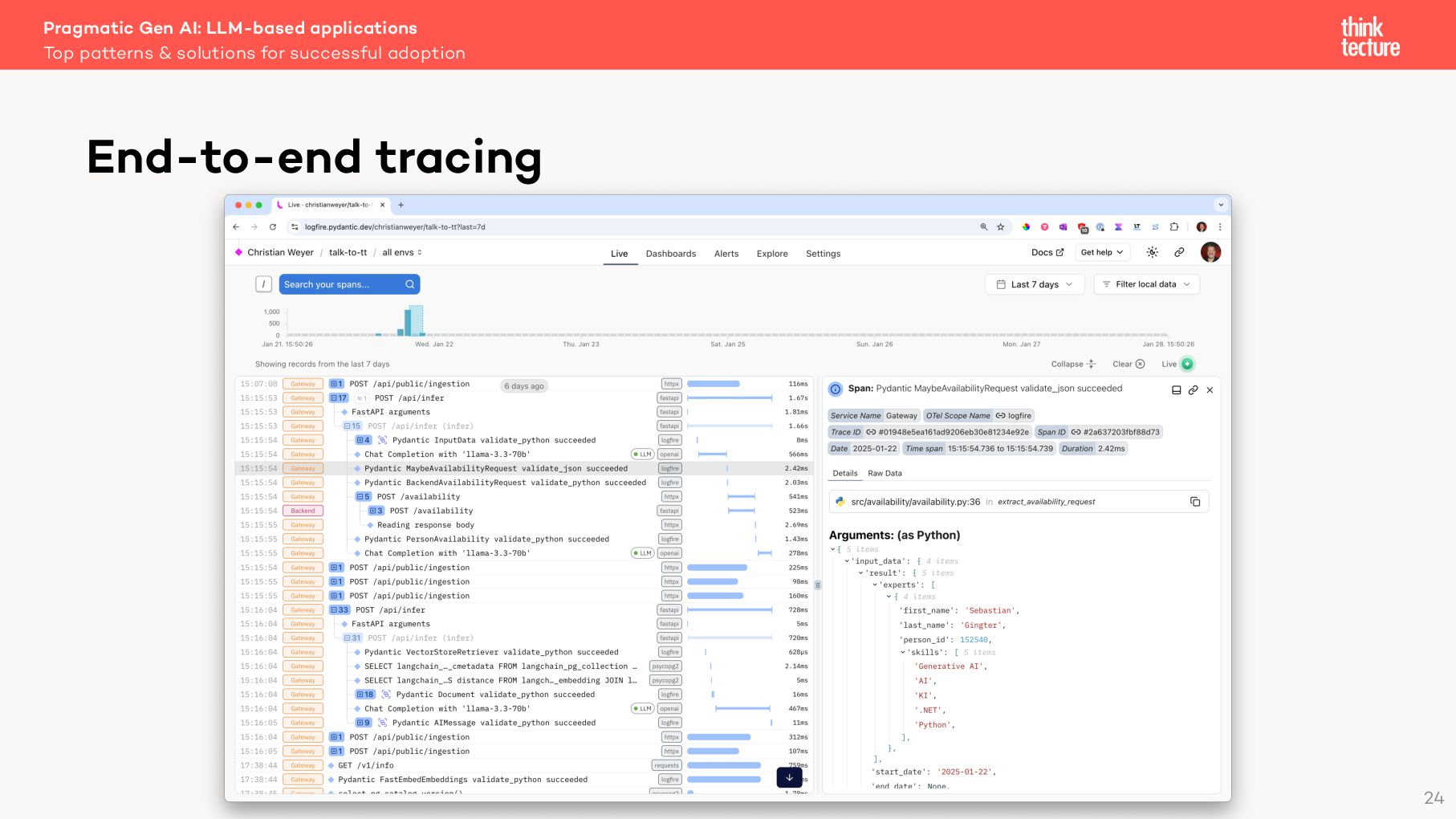

24. Pragmatic Gen AI: LLM-based applications Top patterns & solutions for successful adoption End-to-end tracing 24

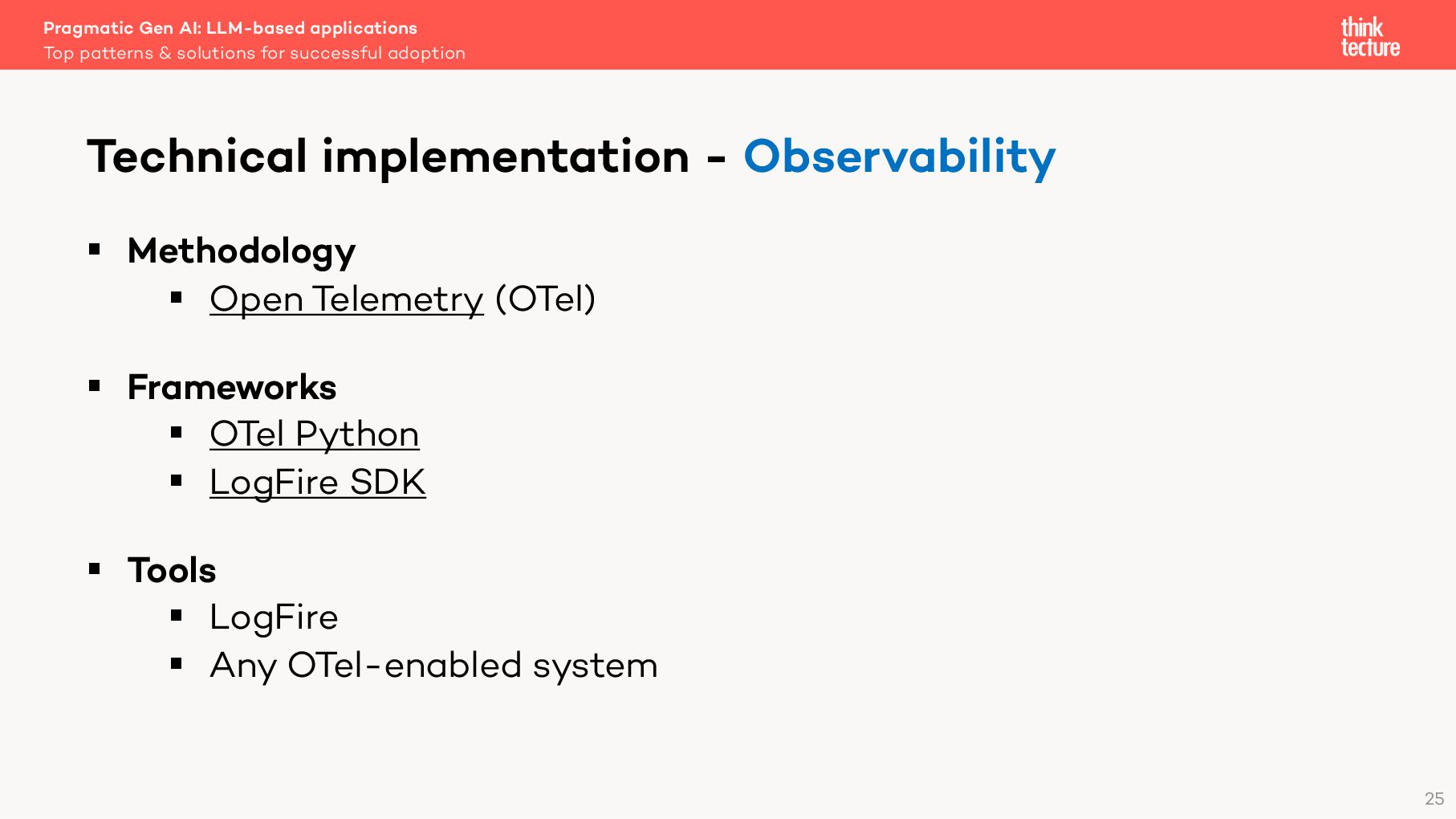

25. § Methodology § Open Telemetry (OTel) § Frameworks § OTel Python § LogFire SDK § Tools § LogFire § Any OTel-enabled system Pragmatic Gen AI: LLM-based applications Top patterns & solutions for successful adoption Technical implementation - Observability 25
26. Pragmatic Gen AI: LLM-based applications Top patterns & solutions for successful adoption END-TO-END SOLUTION ILLUSTRATED 26

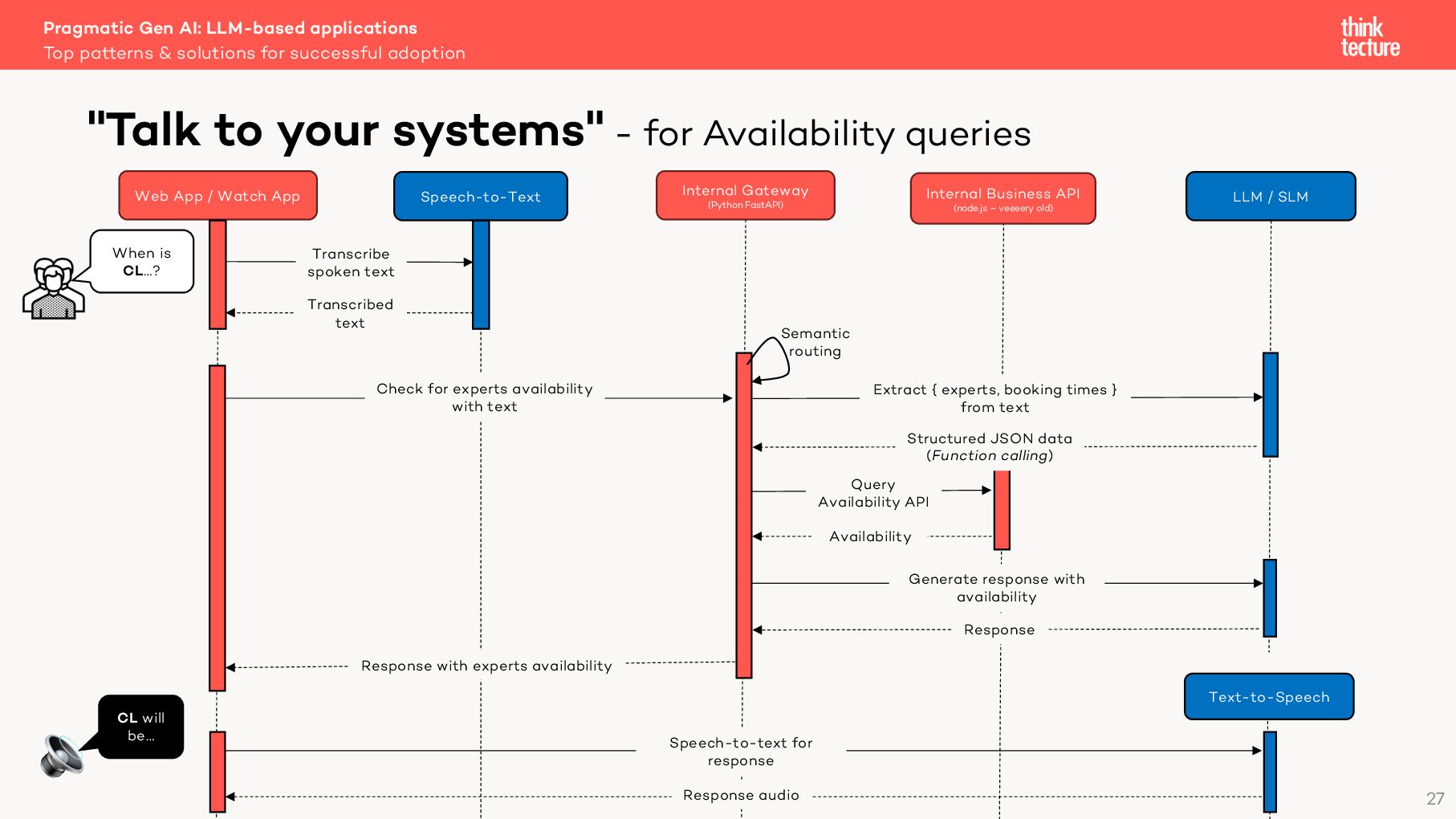

27. Semantic routing Pragmatic Gen AI: LLM-based applications Top patterns & solutions for successful adoption "Talk to your systems" - for Availability queries 27 Web App / Watch App Speech-to-Text Internal Gateway (Python FastAPI) LLM / SLM Text-to-Speech Transcribe spoken text Transcribed text Check for experts availability with text Extract { experts, booking times } from text Structured JSON data (Function calling) Generate response with availability Response Response with experts availability 🔉 Speech-to-text for response Response audio Internal Business API (node.js – veeeery old) Query Availability API Availability When is CL…? CL will be…
28. Pragmatic Gen AI: LLM-based applications Top patterns & solutions for successful adoption RECAP 28

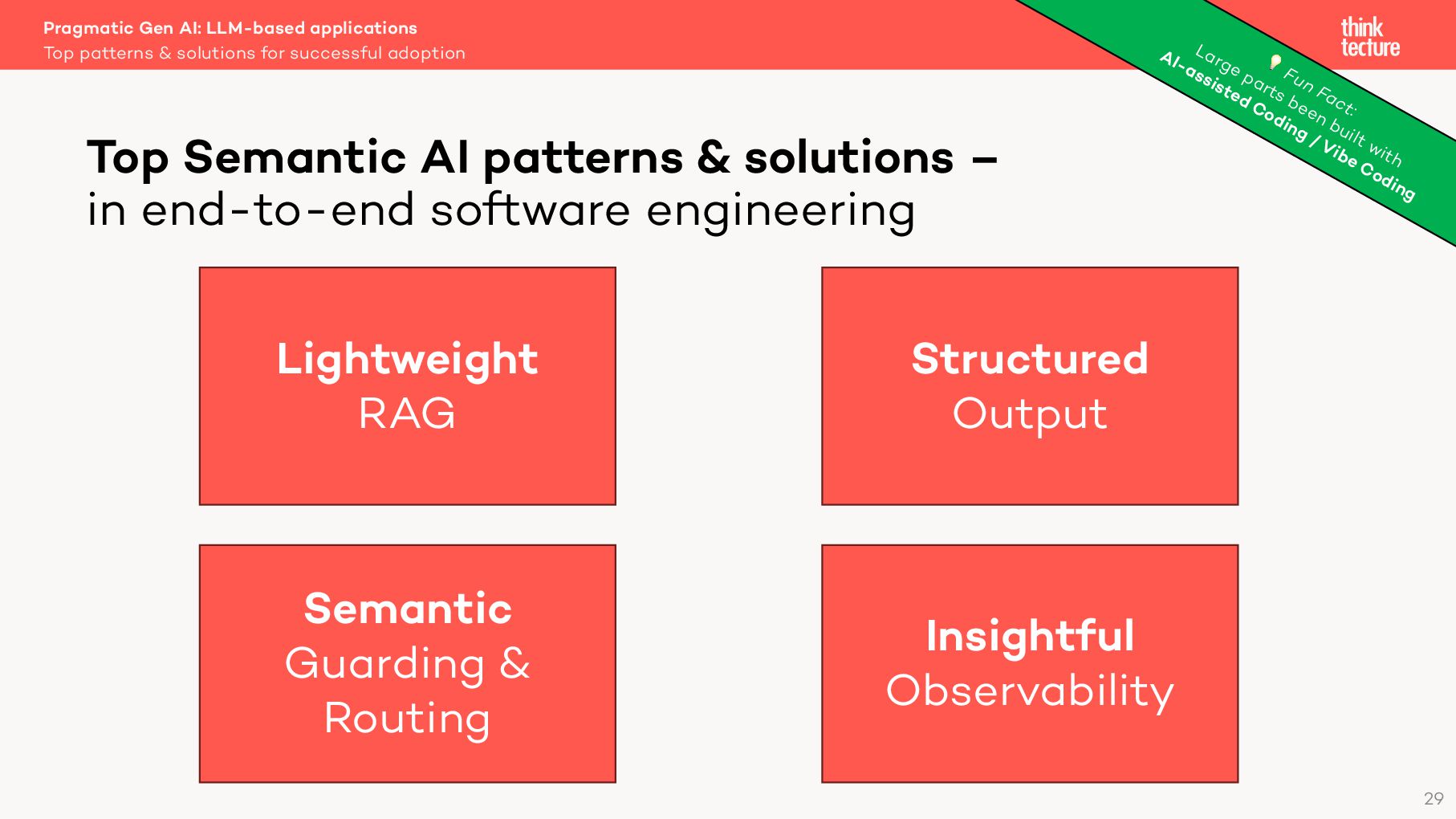

29. Pragmatic Gen AI: LLM-based applications Top patterns & solutions for successful adoption Top Semantic AI patterns & solutions – in end-to-end software engineering 29 Lightweight RAG Structured Output Semantic Guarding & Routing Insightful Observability 💡 Fun Fact: Large parts been built with AI-assisted Coding / Vibe Coding
30. Pragmatic Gen AI: LLM-based applications Top patterns & solutions for successful adoption Top Semantic AI patterns & solutions – in end-to-end software engineering 30 Lightweight RAG Structured Output Semantic Guarding & Routing Insightful Observability AI solutions are 10% AI. And 100% software engineering.
31. Thank you! Christian Weyer https://thinktecture.com/christian-weyer christian.weyer@thinktecture.com 31
