Greening Java - Effiziente Deployments mit Spring Boot

Meine These – 99% aller Spring Boot Anwendungen werden nicht optimal deployt. Es gibt diverse Methoden, um die Startup-Performance von Spring Boot zu verbessern: exploded JARs, Project CRaC, CDS, Project Leyden, GraalVM’s Native Image und noch mehr. Die Frage ist nur: Wann nimmt man was? Was sind die Vorteile, was die Nachteile? Und lohnt sich der ganze Aufwand überhaupt? In diesem Talk stellt Moritz verschiedene Techniken vor, die zu Scale to Zero führen können. Damit ihr eure Anwendungen optimal und ressourcenschonend deployen könnt – für eine grünere Zukunft und nebenbei mehr Geld in eurem Geldbeutel. Klingt nach einem Win-Win.

Transcript

1. Moritz Halbritter Spring Engineering Team @ Broadcom Greening Java - Effiziente Deployments mit Spring Boot Copyright © 2024 Broadcom, Inc. or its affiliates.
2. Agenda Motivation Project CraC CDS / AOT Cache GraalVM native-image Q&A
3. Why do we care about runtime efficiency? Cheaper hosting Sustainability Optimized containers
4. Project CRaC

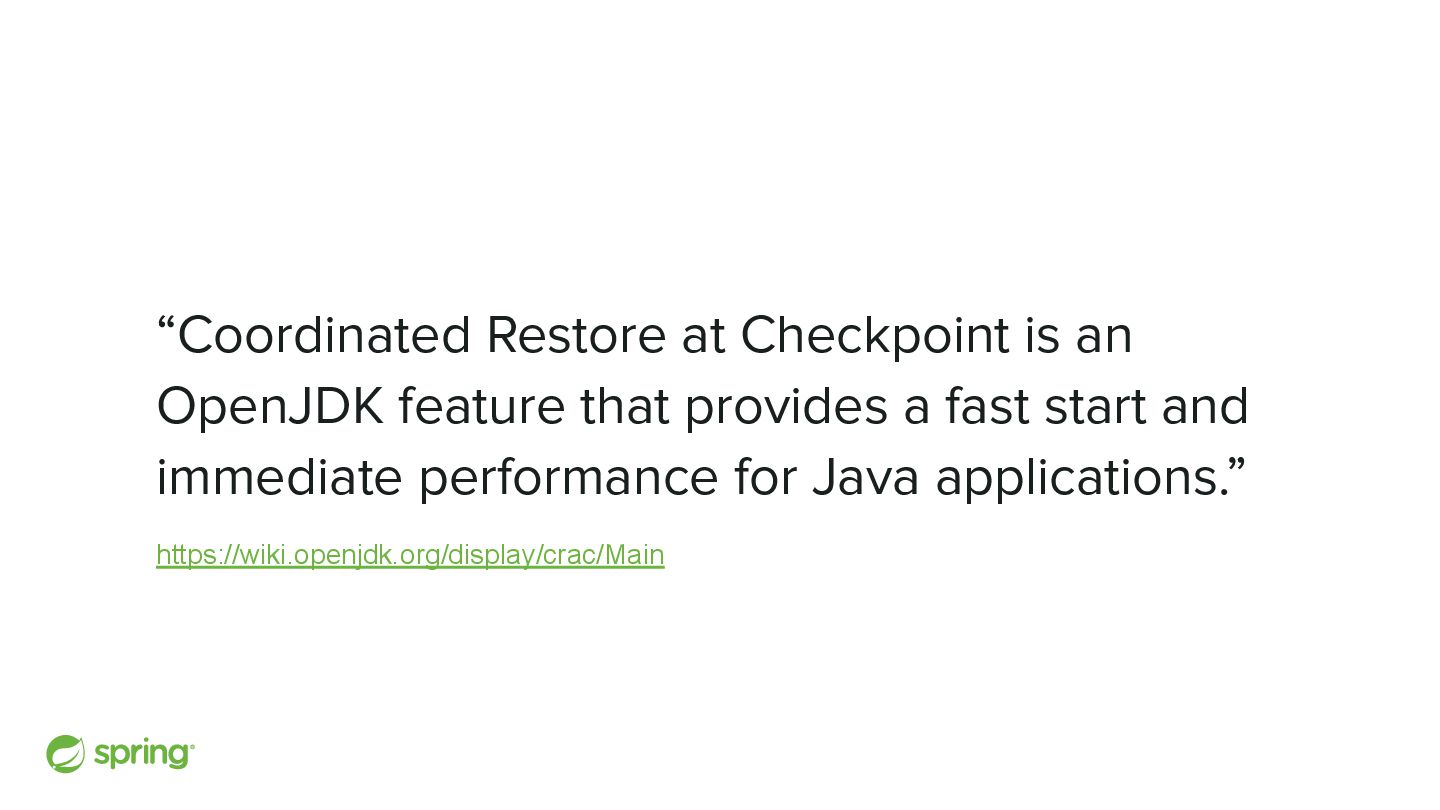

5. “Coordinated Restore at Checkpoint is an OpenJDK feature that provides a fast start and immediate performance for Java applications.” https://wiki.openjdk.org/display/crac/Main

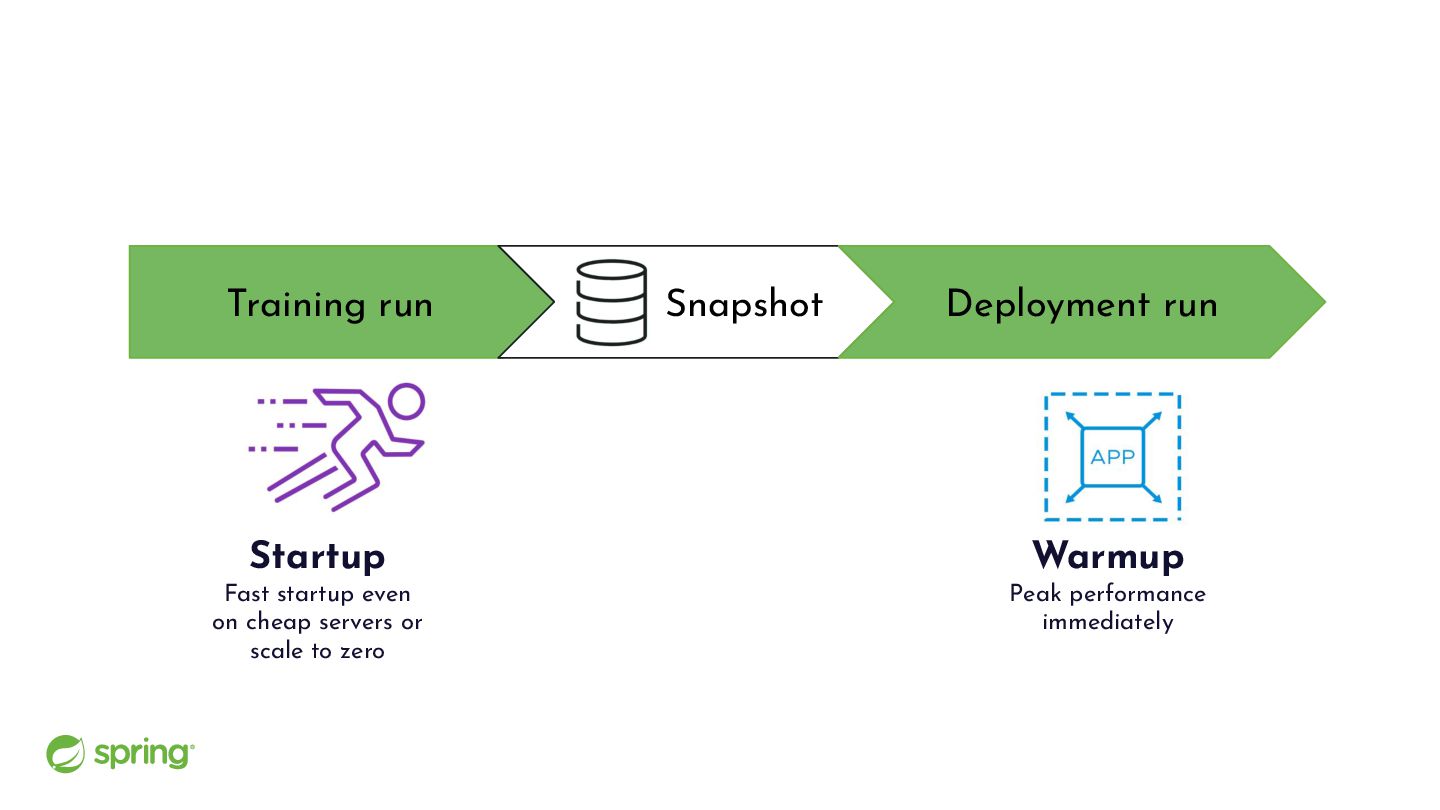

6. Training run Snapshot Deployment run Startup Fast startup even on cheap servers or scale to zero Warmup Peak performance immediately

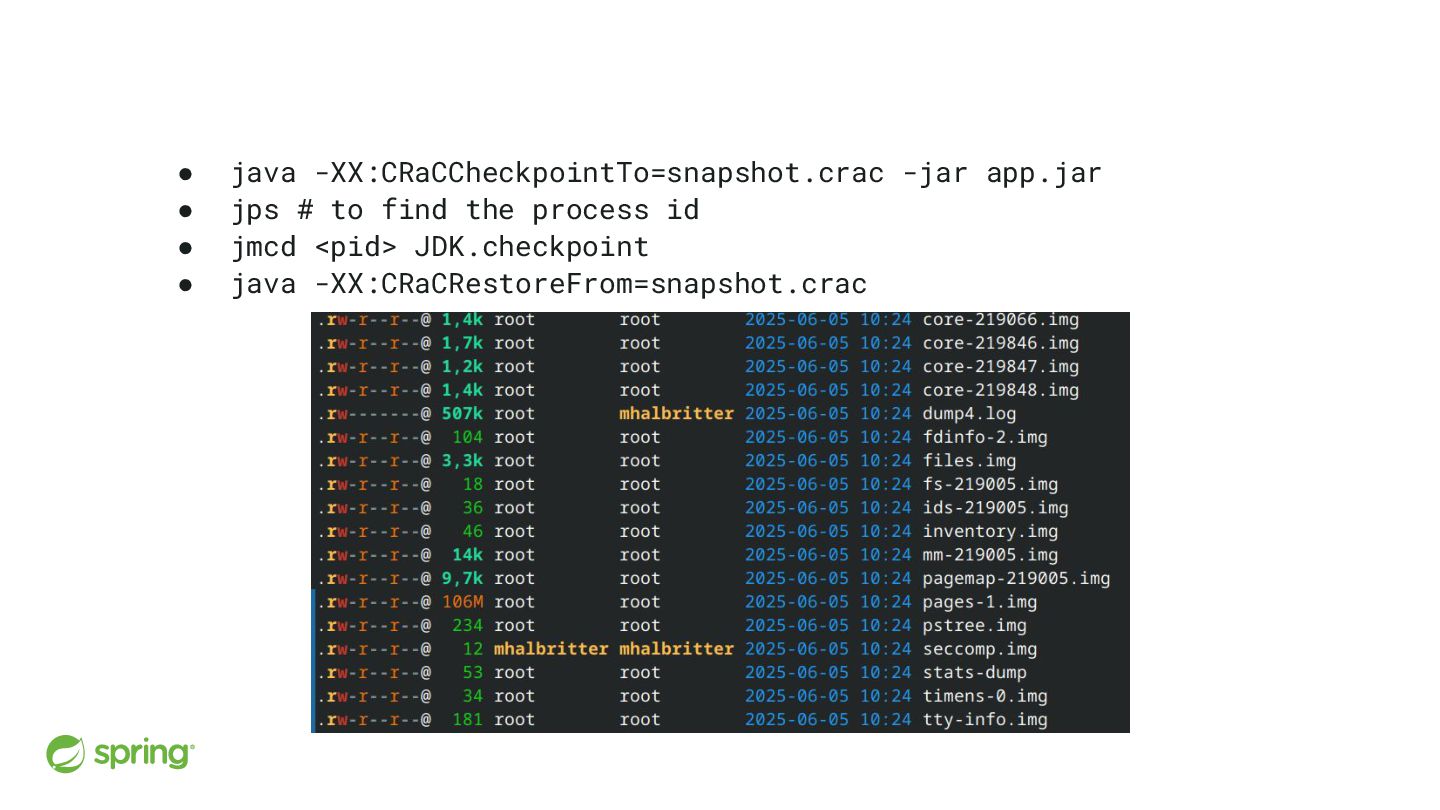

7. • java -XX:CRaCCheckpointTo=snapshot.crac -jar app.jar • jps # to find the process id • jmcd <pid> JDK.checkpoint • java -XX:CRaCRestoreFrom=snapshot.crac
8. SECRETS!

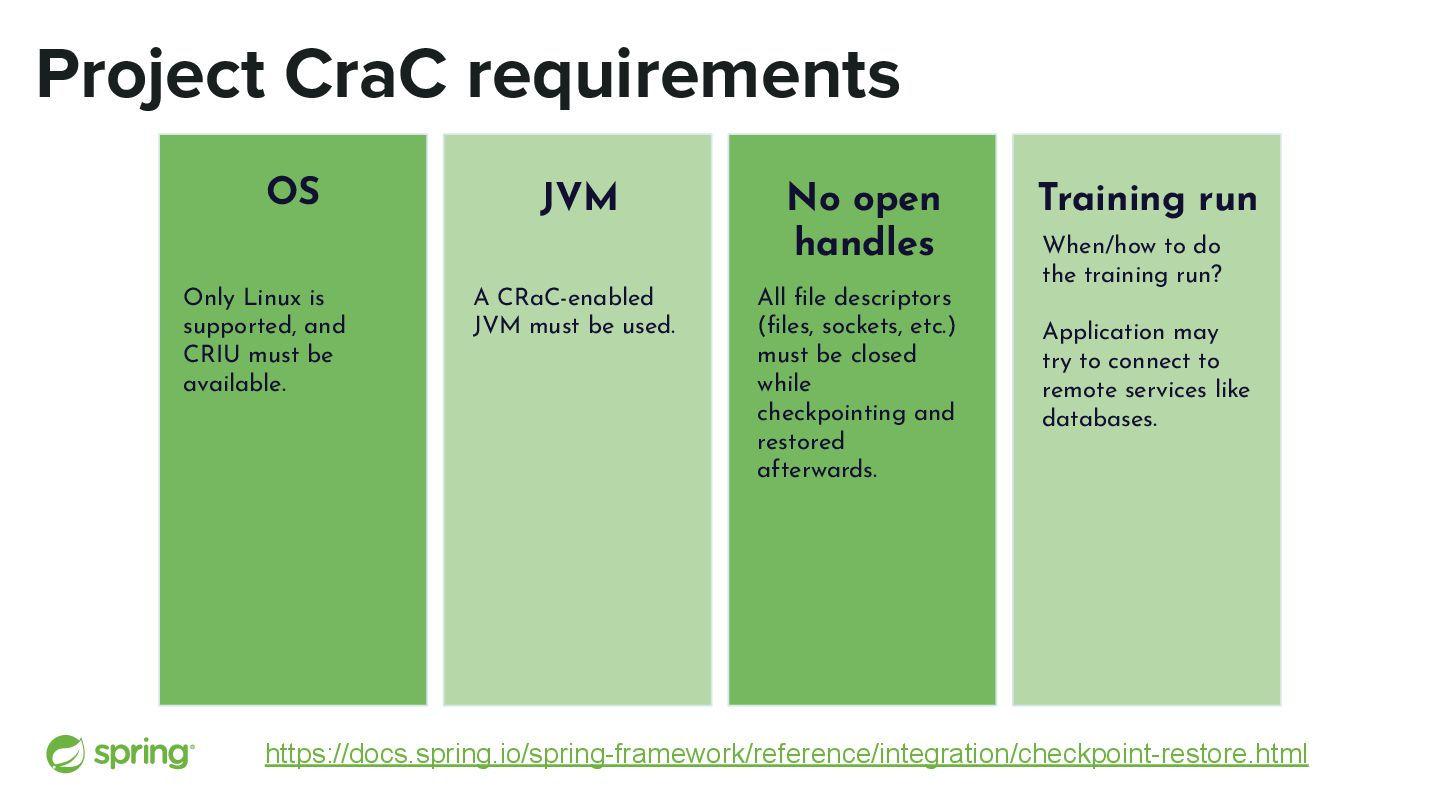

9. Project CraC requirements OS Only Linux is supported, and CRIU must be available. JVM A CRaC-enabled JVM must be used. No open handles All file descriptors (files, sockets, etc.) must be closed while checkpointing and restored afterwards. Training run When/how to do the training run? Application may try to connect to remote services like databases. https://docs.spring.io/spring-framework/reference/integration/checkpoint-restore.html
10. CDS / AOT Cache

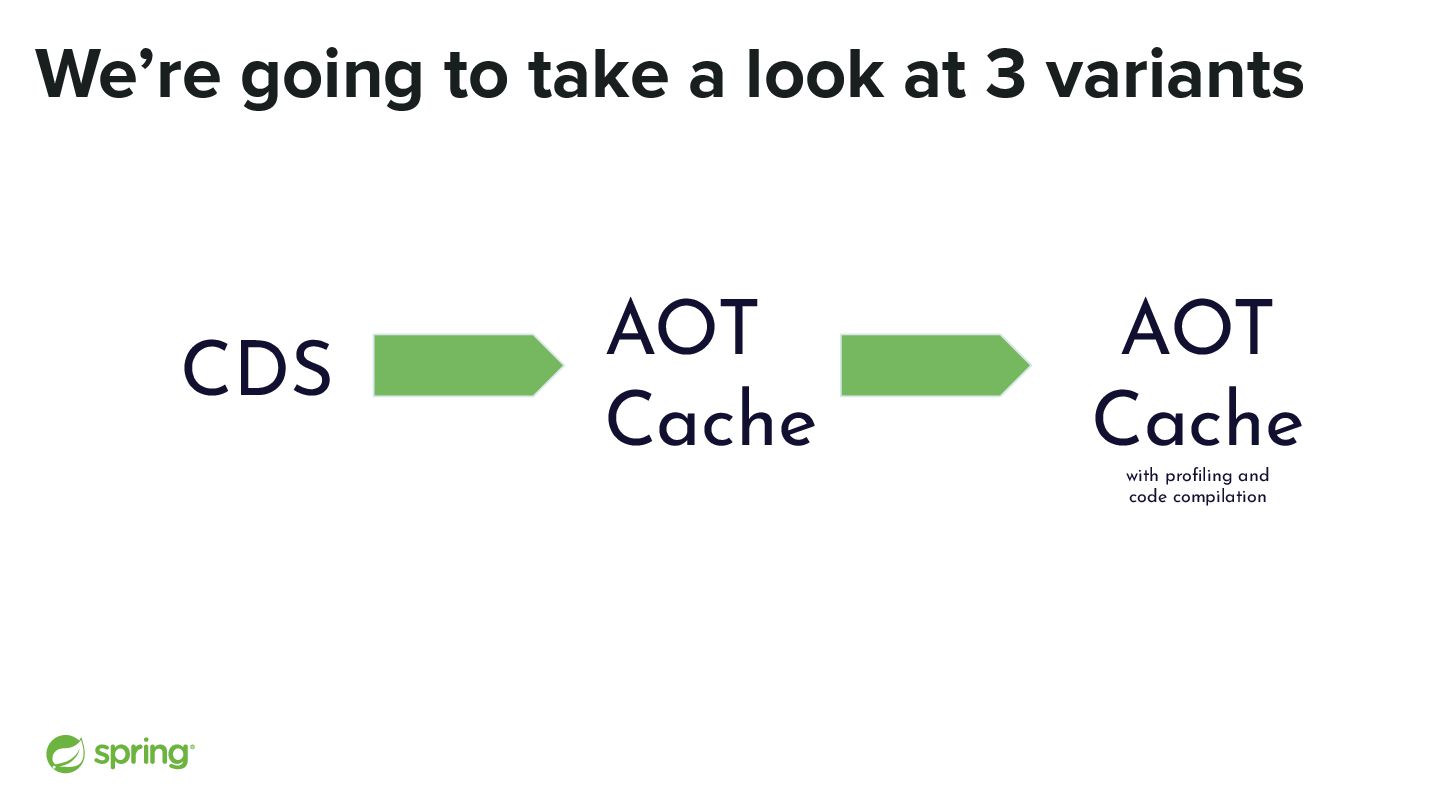

11. We’re going to take a look at 3 variants CDS AOT Cache AOT Cache with profiling and code compilation

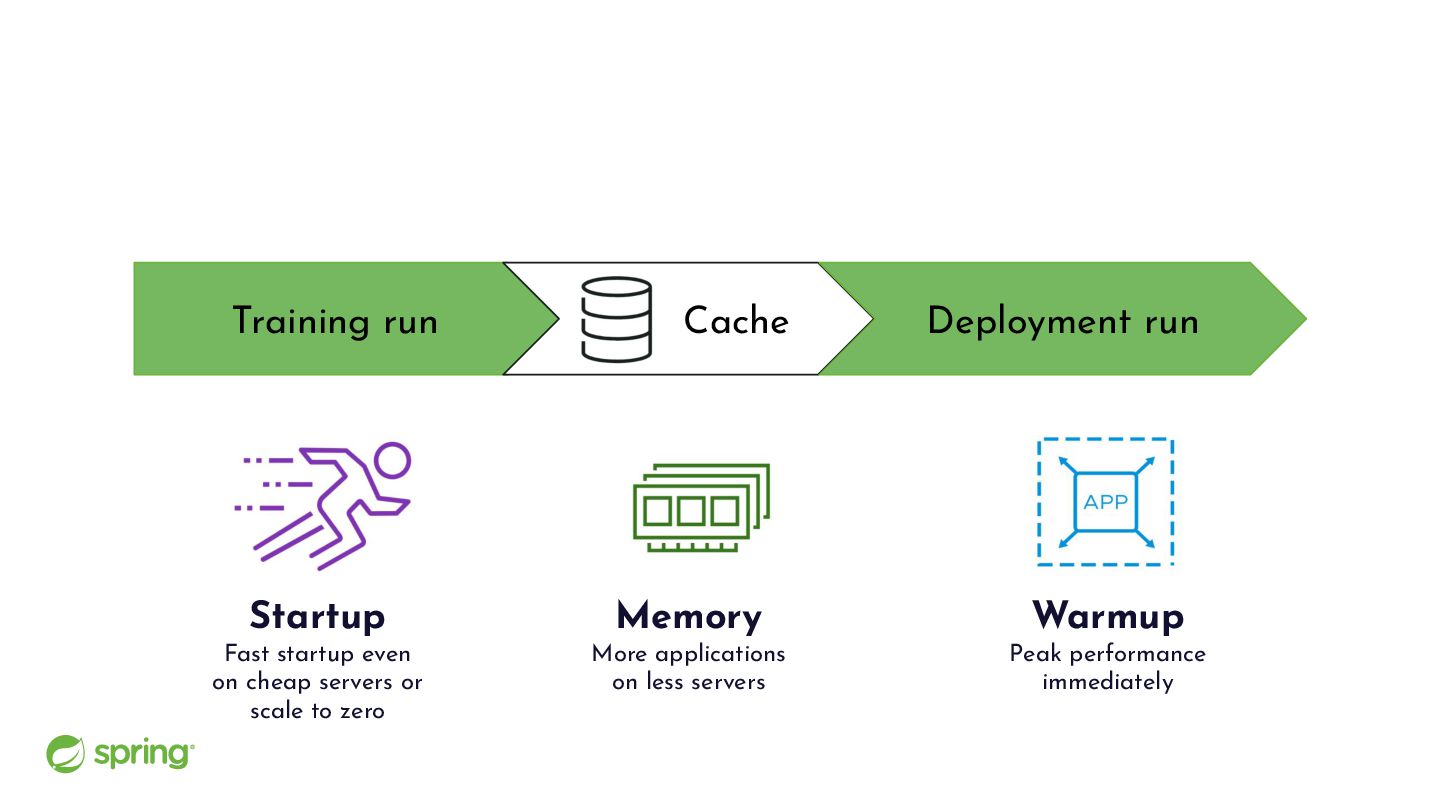

12. Training run Cache Deployment run Startup Fast startup even on cheap servers or scale to zero Memory More applications on less servers Warmup Peak performance immediately

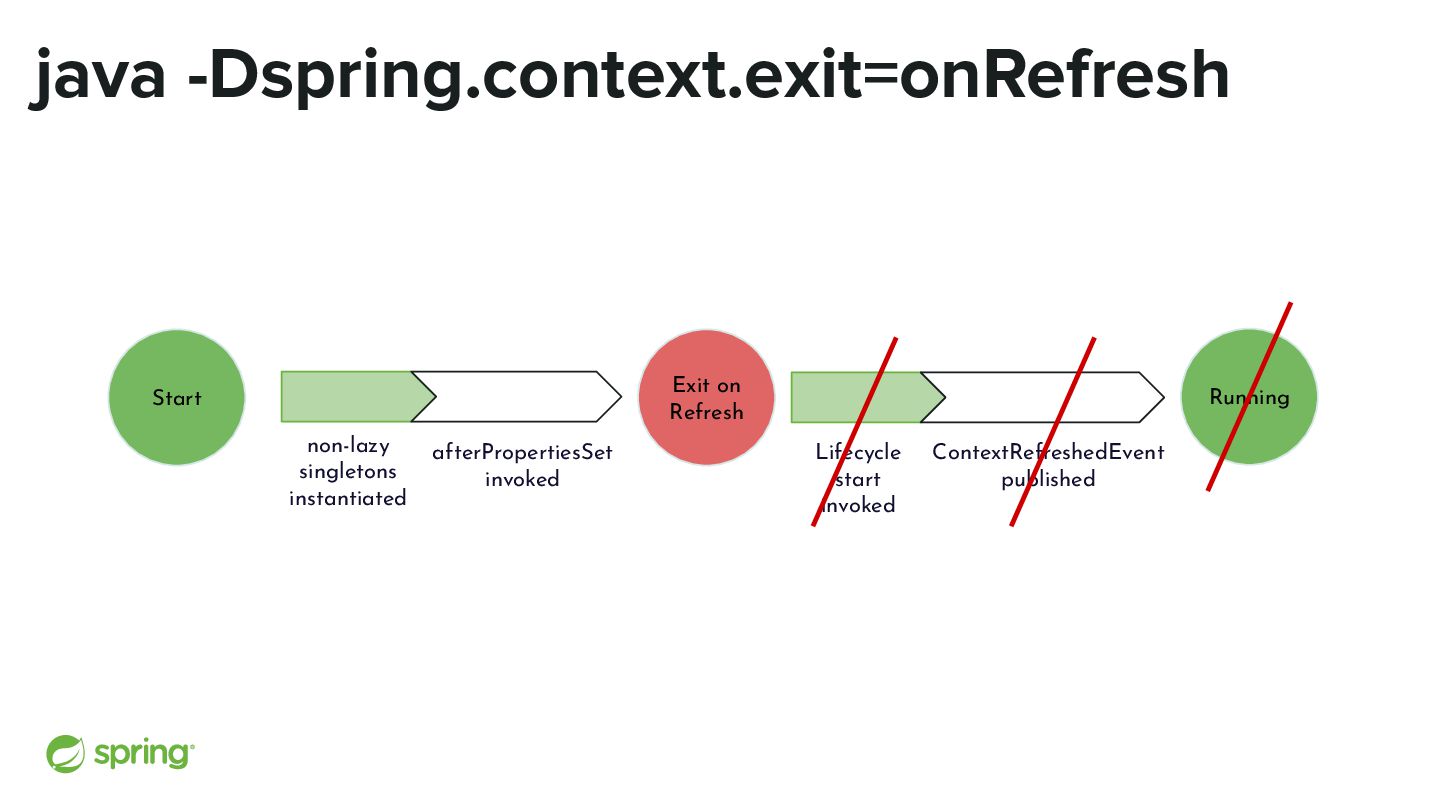

13. java -Dspring.context.exit=onRefresh Start Exit on Refresh non-lazy singletons instantiated afterPropertiesSet invoked Lifecycle start invoked ContextRefreshedEvent published Running

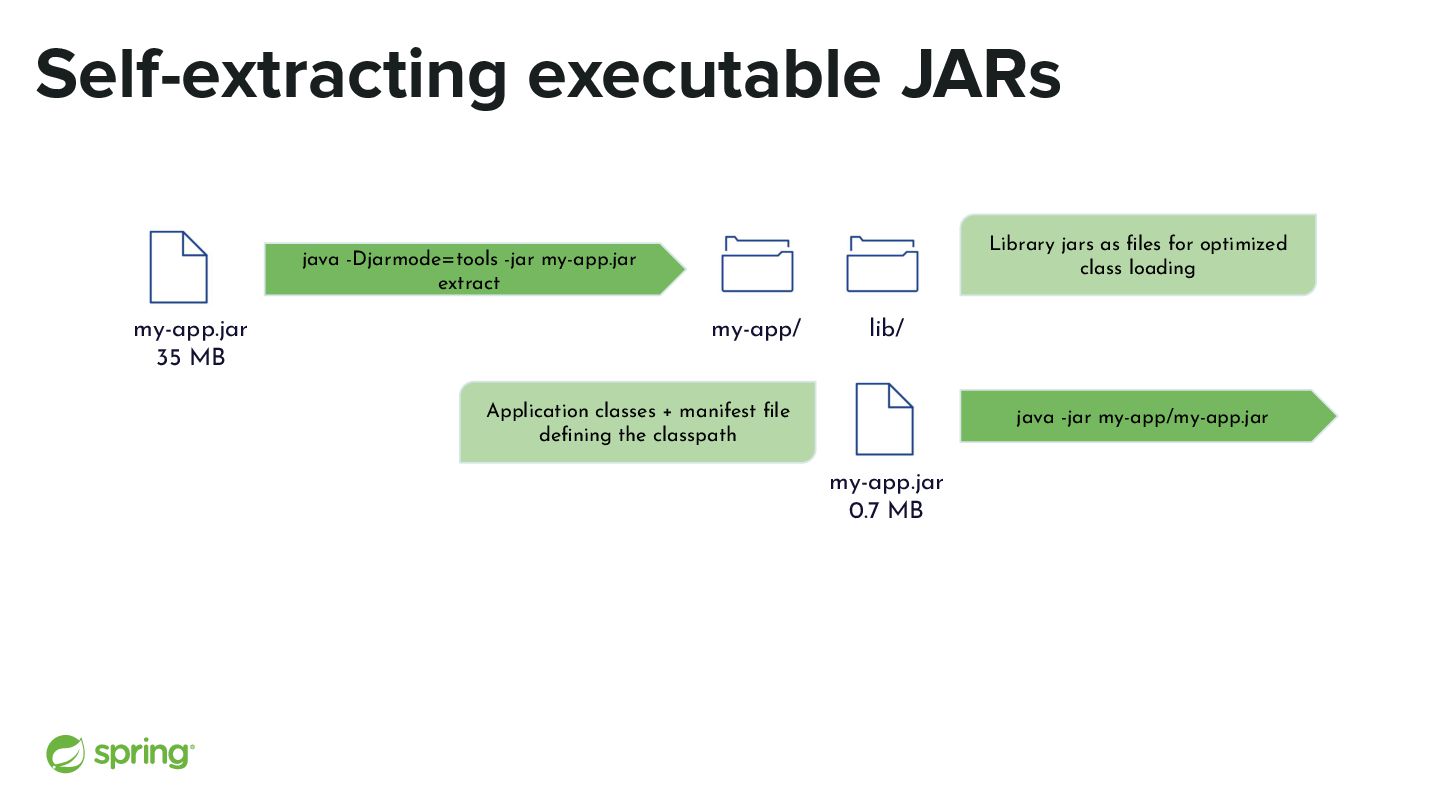

14. Self-extracting executable JARs my-app.jar 35 MB java -Djarmode=tools -jar my-app.jar extract my-app/ lib/ my-app.jar 0.7 MB Library jars as files for optimized class loading Application classes + manifest file defining the classpath java -jar my-app/my-app.jar
15. CDS
16. Requirements for Spring Boot with CDS Java 17+ Spring Boot 3.3+
17. CDS Demo

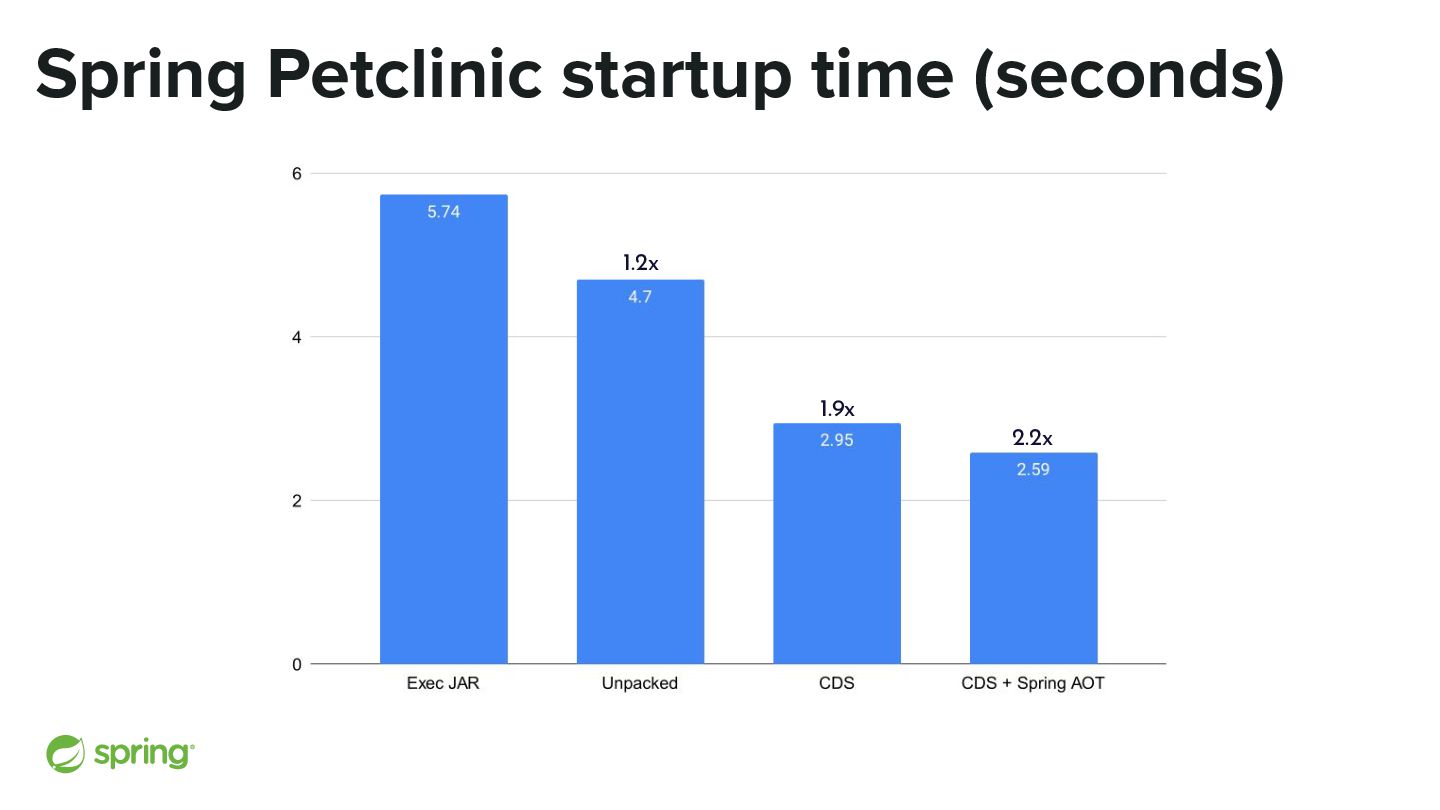

18. Spring Petclinic startup time (seconds) 1.2x 1.9x 2.2x

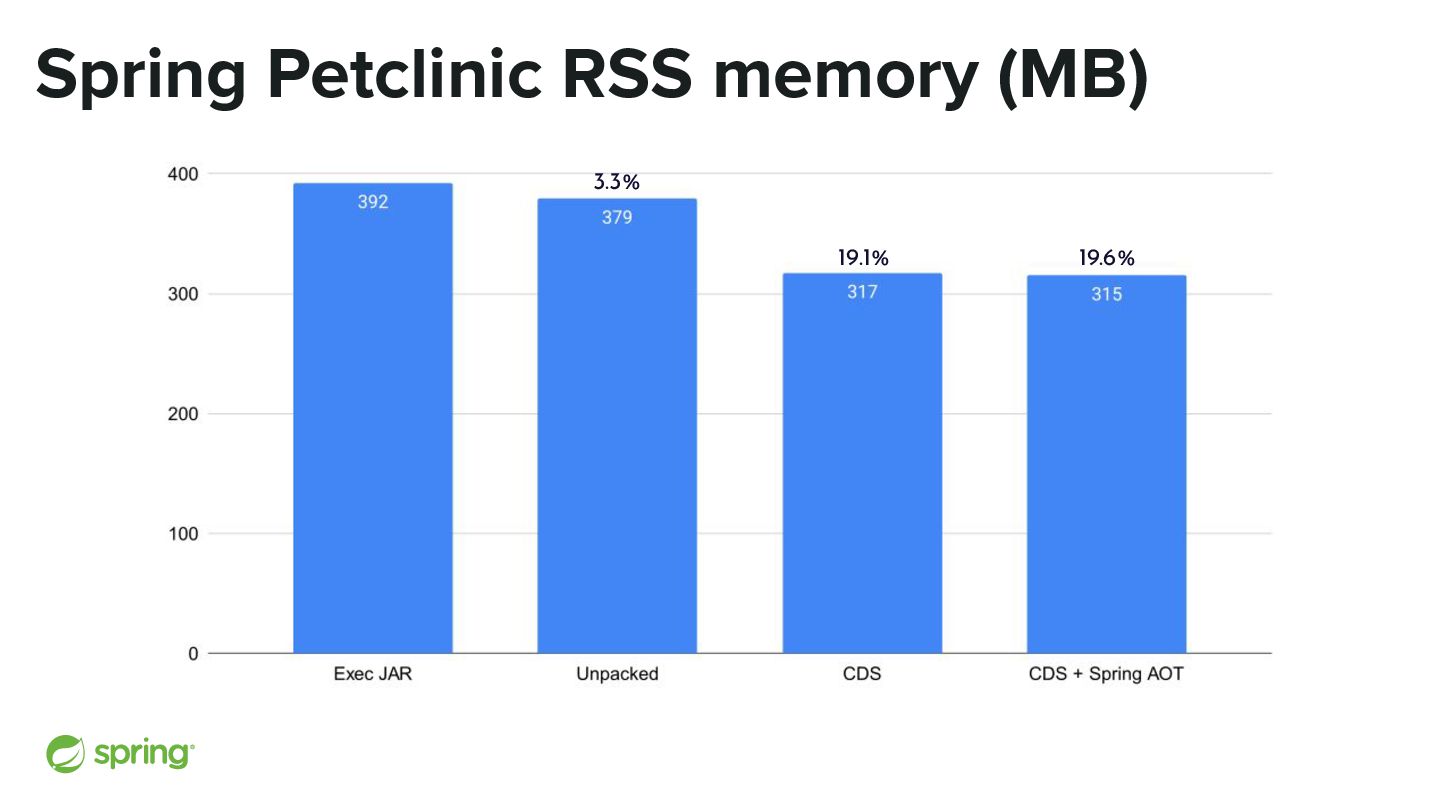

19. Spring Petclinic RSS memory (MB) 3.3% 19.1% 19.6%

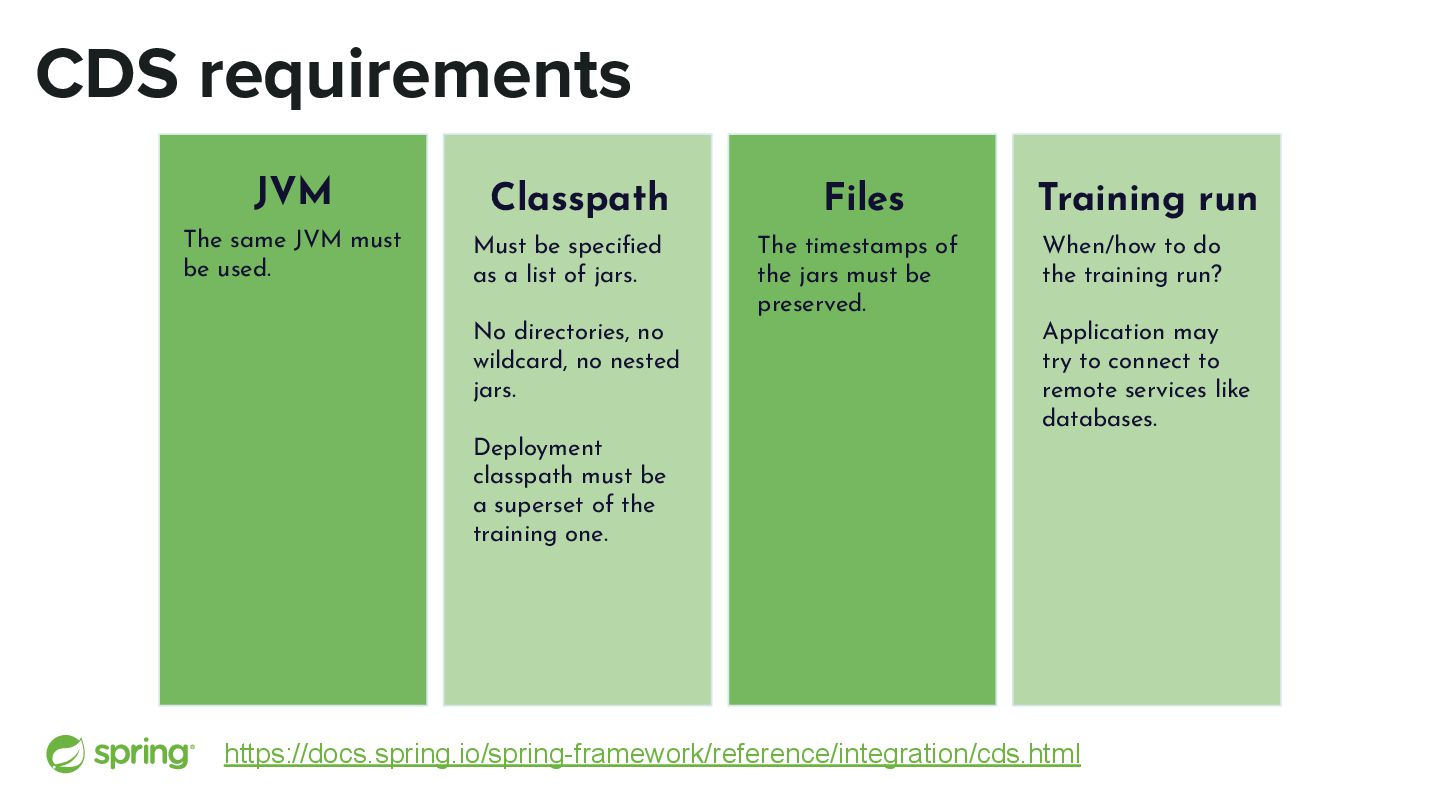

20. CDS requirements JVM The same JVM must be used. Classpath Must be specified as a list of jars. No directories, no wildcard, no nested jars. Deployment classpath must be a superset of the training one. Files The timestamps of the jars must be preserved. Training run When/how to do the training run? Application may try to connect to remote services like databases. https://docs.spring.io/spring-framework/reference/integration/cds.html

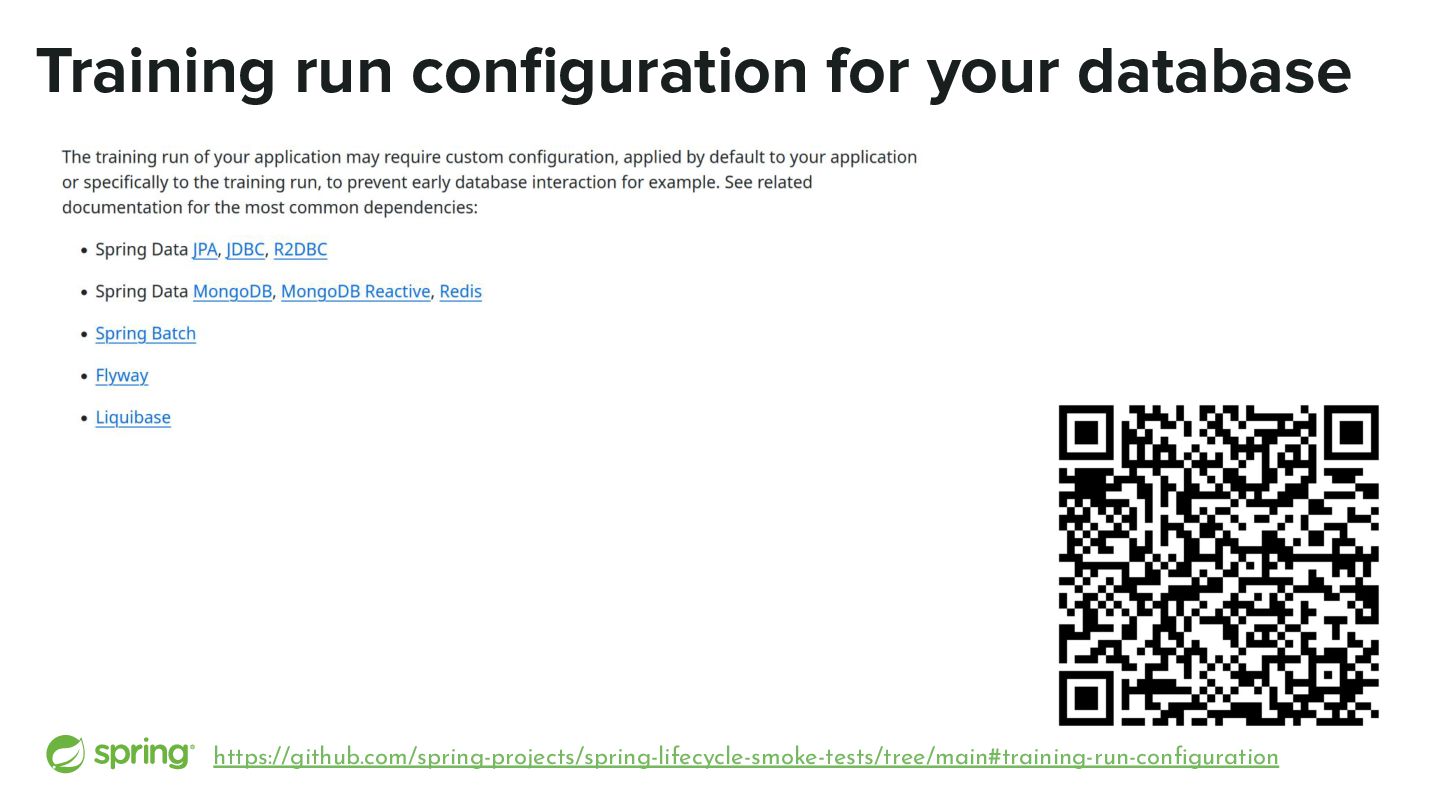

21. Training run configuration for your database https://github.com/spring-projects/spring-lifecycle-smoke-tests/tree/main#training-run-configuration

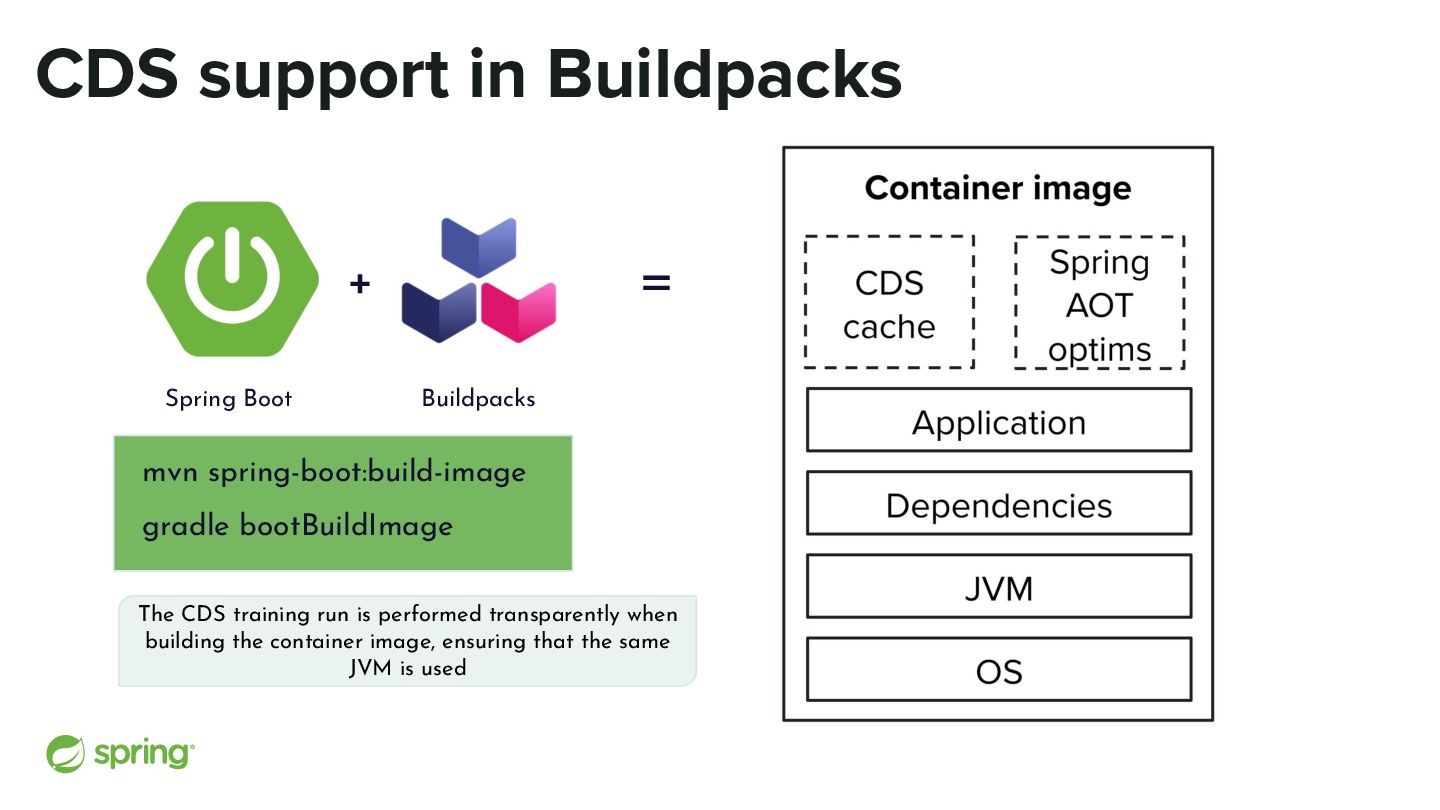

22. CDS support in Buildpacks Spring Boot Buildpacks + mvn spring-boot:build-image gradle bootBuildImage = The CDS training run is performed transparently when building the container image, ensuring that the same JVM is used
23. AOT Cache

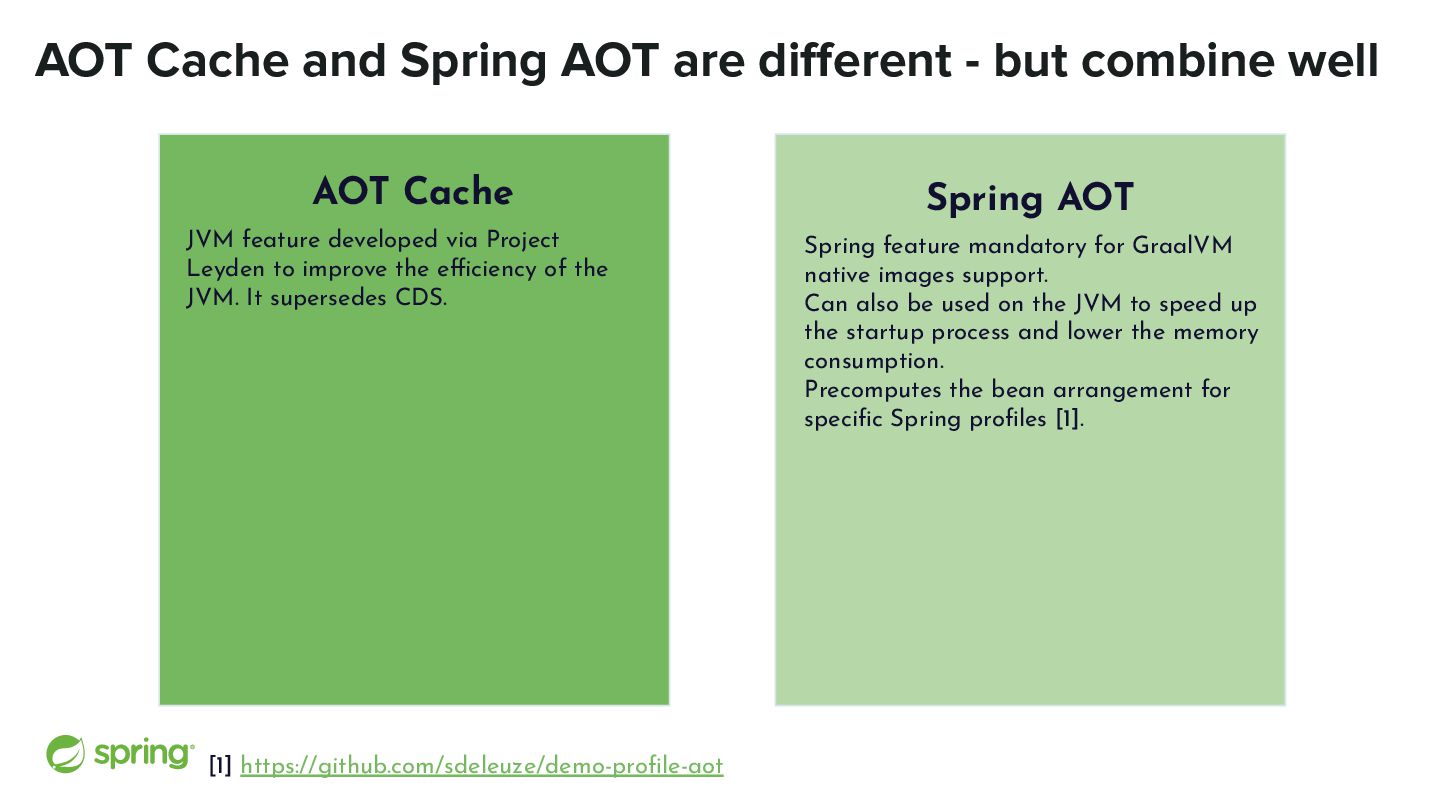

24. AOT Cache and Spring AOT are different - but combine well AOT Cache JVM feature developed via Project Leyden to improve the efficiency of the JVM. It supersedes CDS. Spring AOT Spring feature mandatory for GraalVM native images support. Can also be used on the JVM to speed up the startup process and lower the memory consumption. Precomputes the bean arrangement for specific Spring profiles [1]. [1] https://github.com/sdeleuze/demo-profile-aot
26. Requirements for Spring Boot with AOT Cache Java 24+ Spring Boot 3.3+ https://docs.spring.io/spring-framework/reference/7.0/integration/aot-cache.html
27. AOT Cache Demo

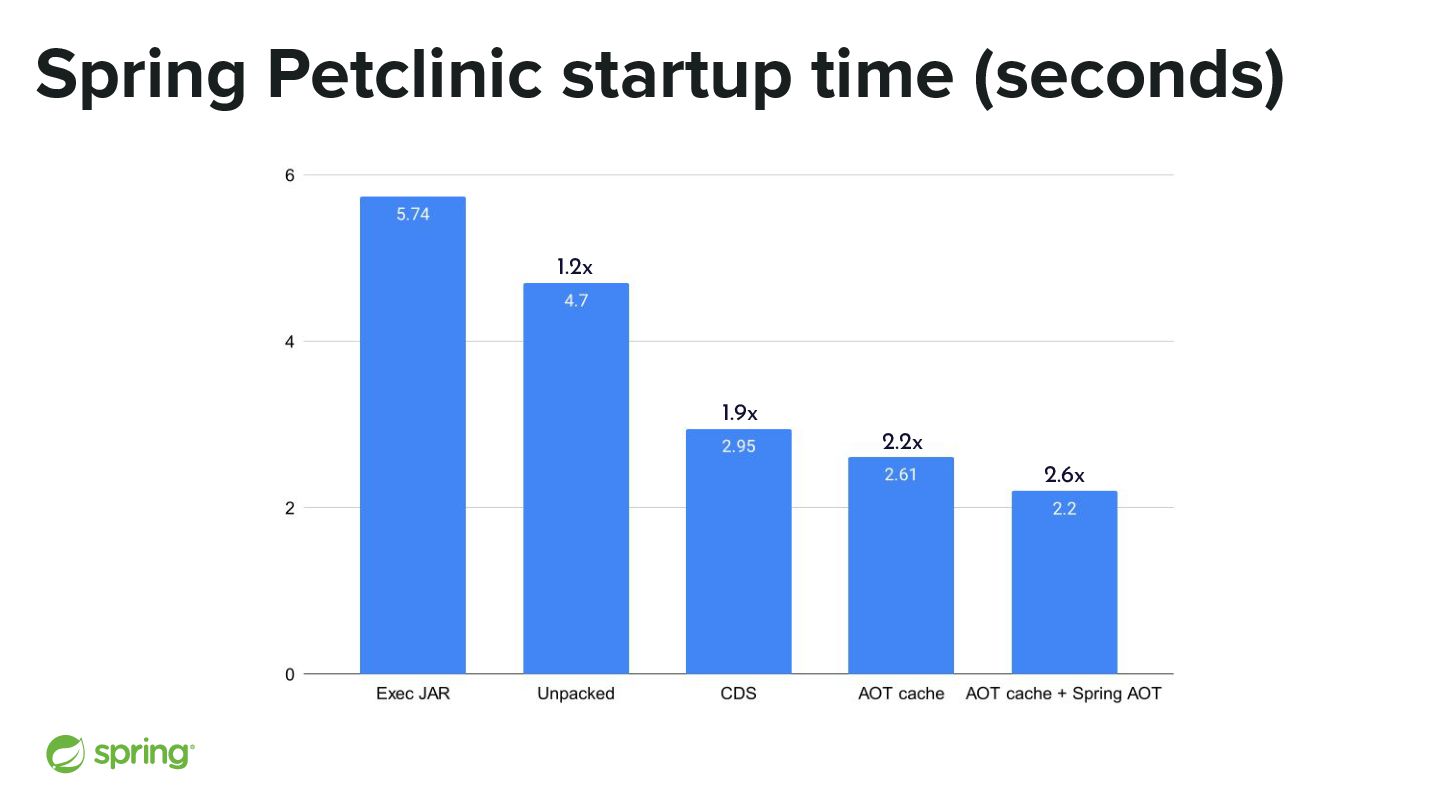

28. Spring Petclinic startup time (seconds) 1.2x 1.9x 2.2x 2.6x

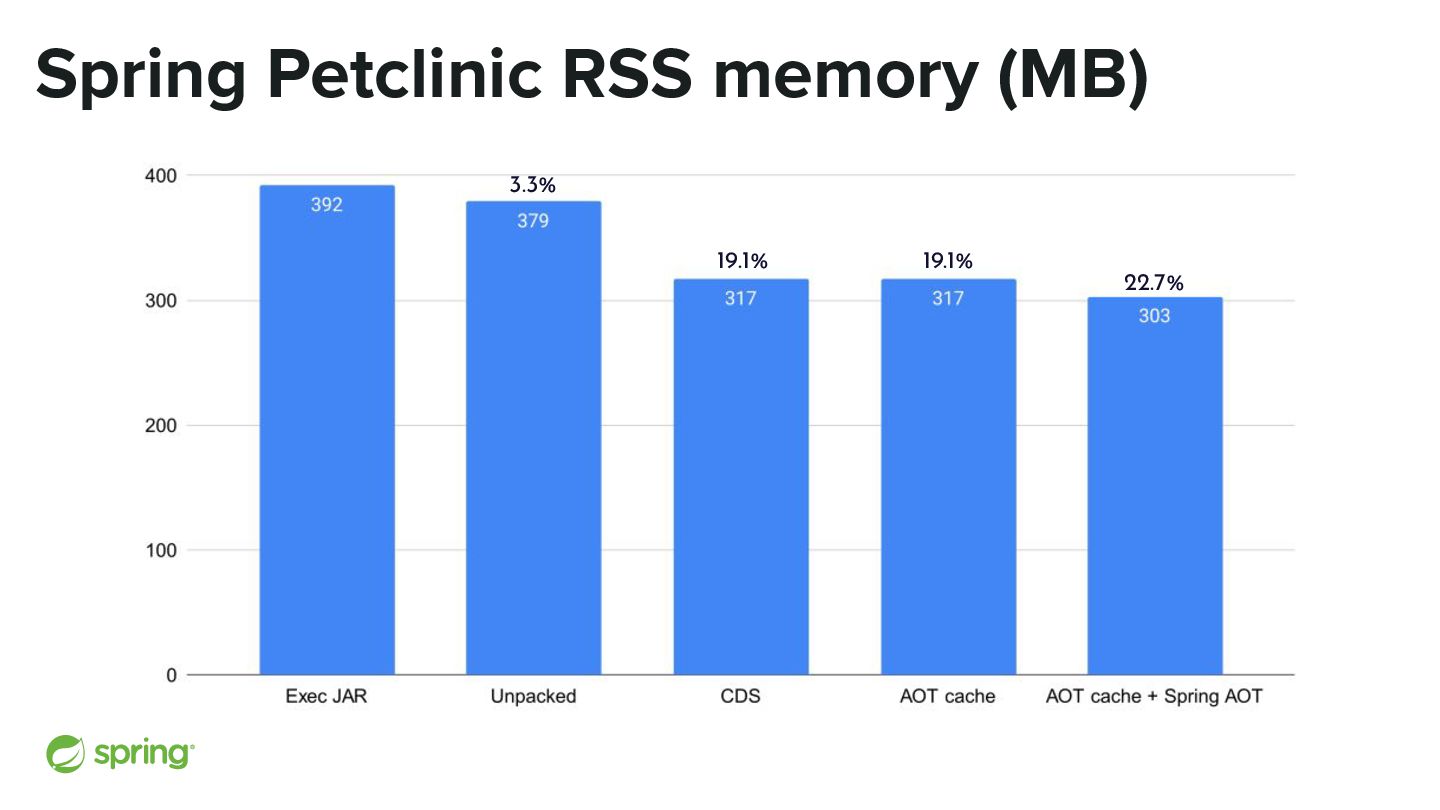

29. Spring Petclinic RSS memory (MB) 3.3% 19.1% 19.1% 22.7%

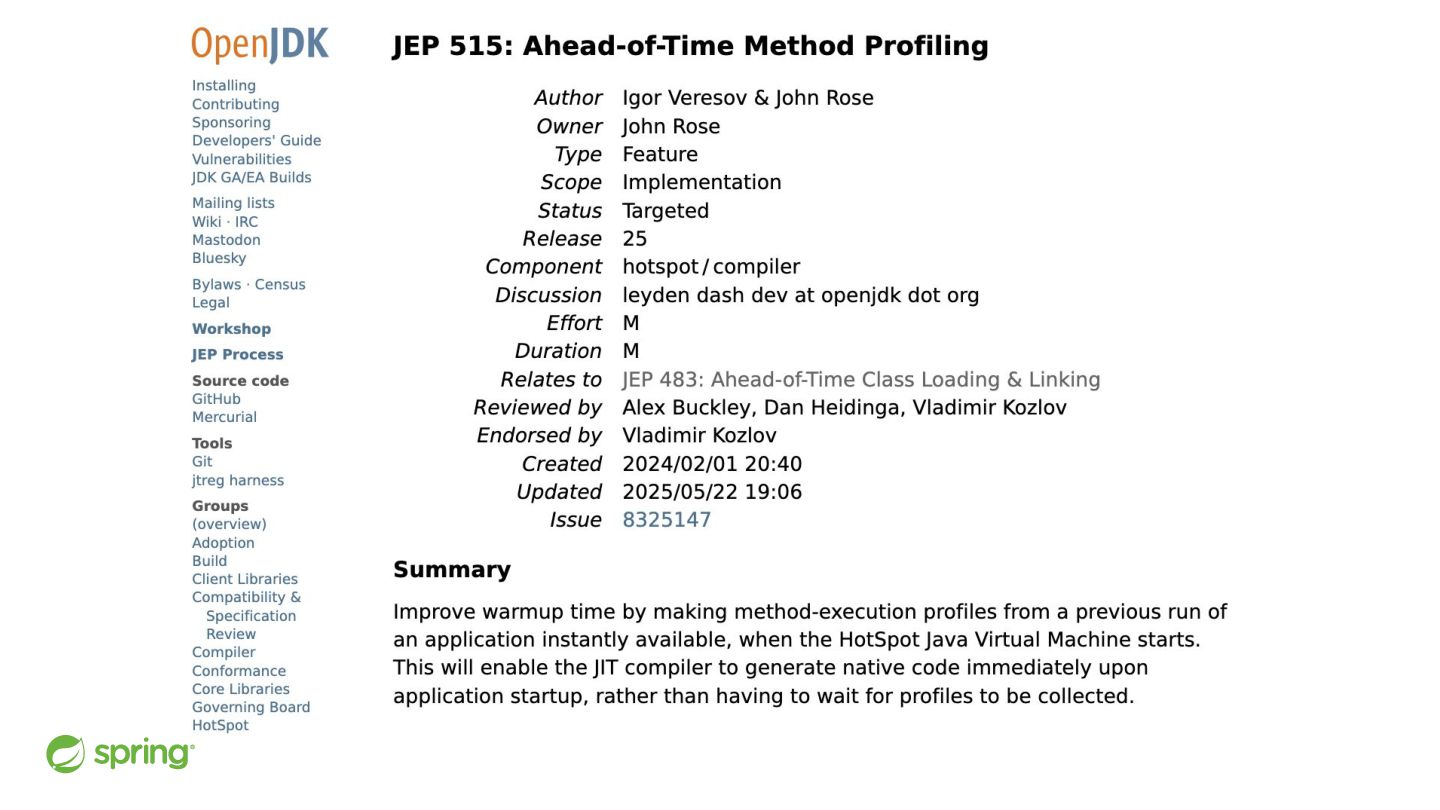

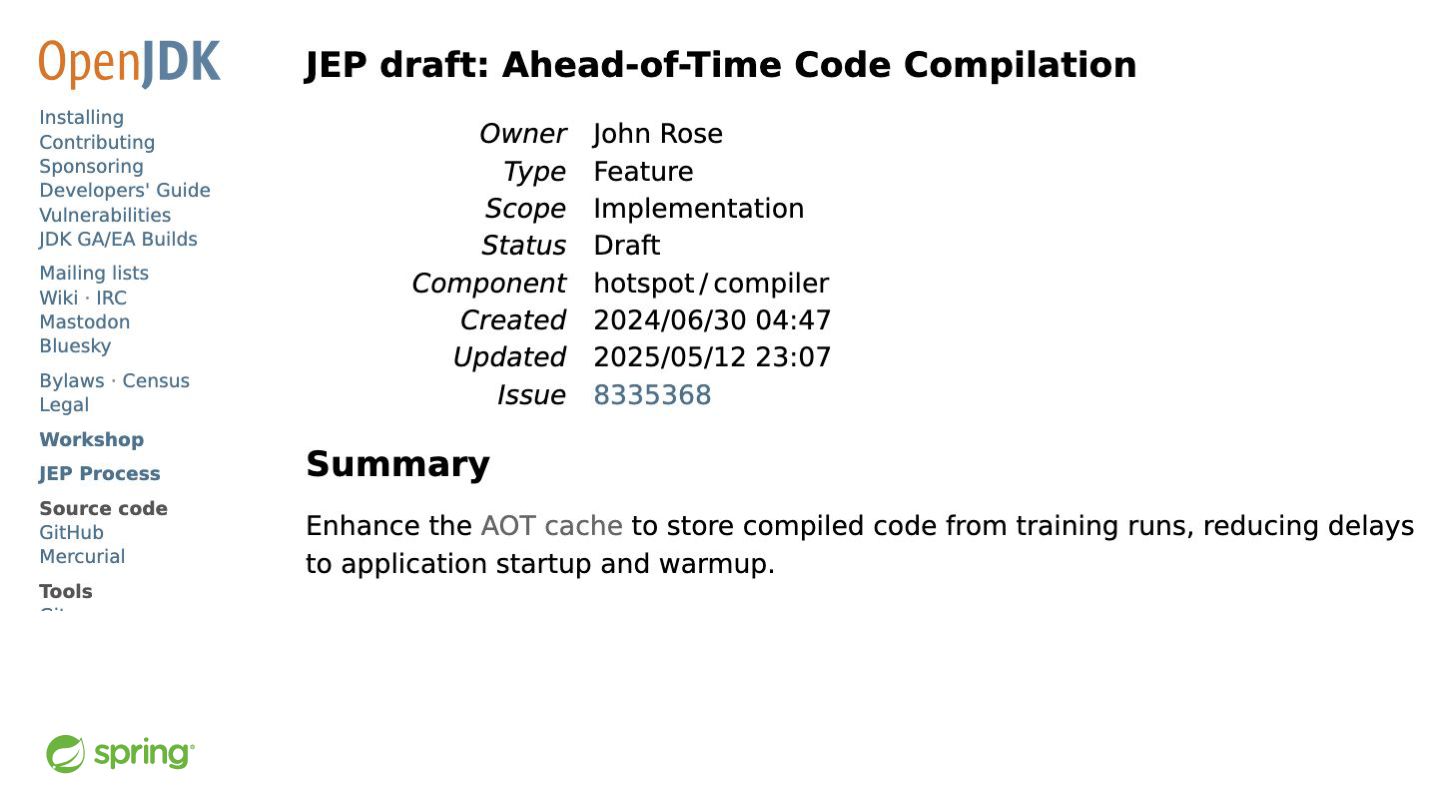

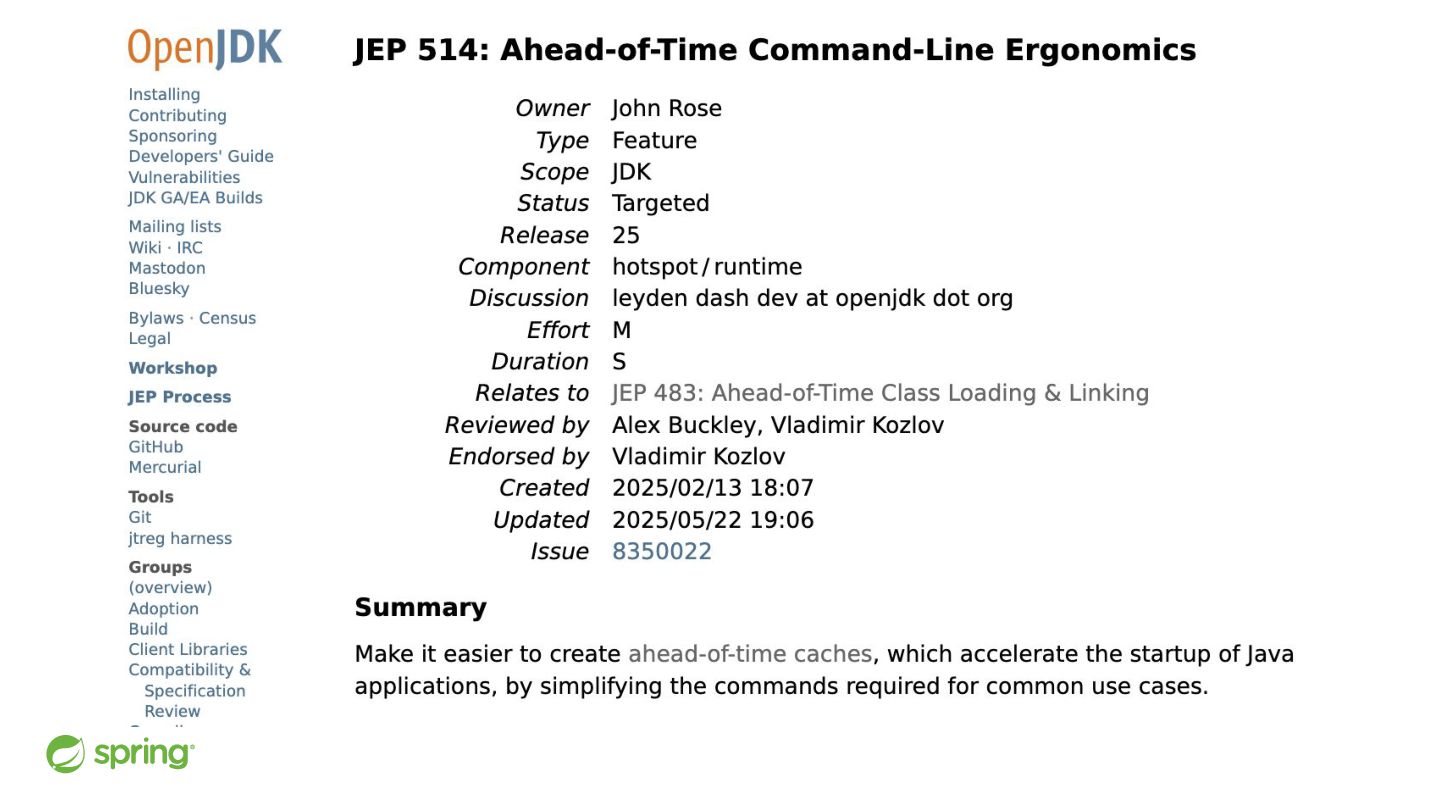

30. Project Leyden
34. Project Leyden Demo

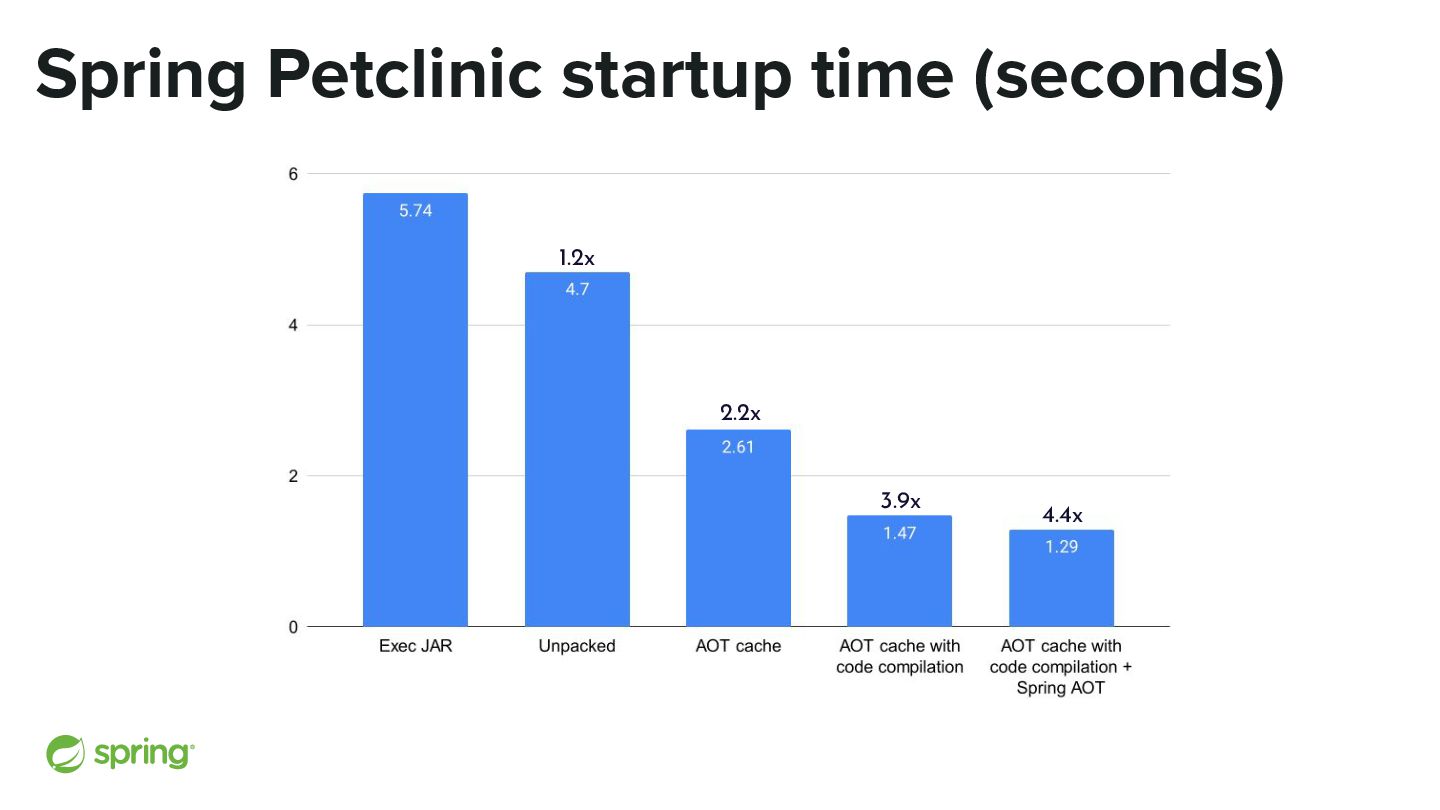

35. Spring Petclinic startup time (seconds) 1.2x 2.2x 3.9x 4.4x

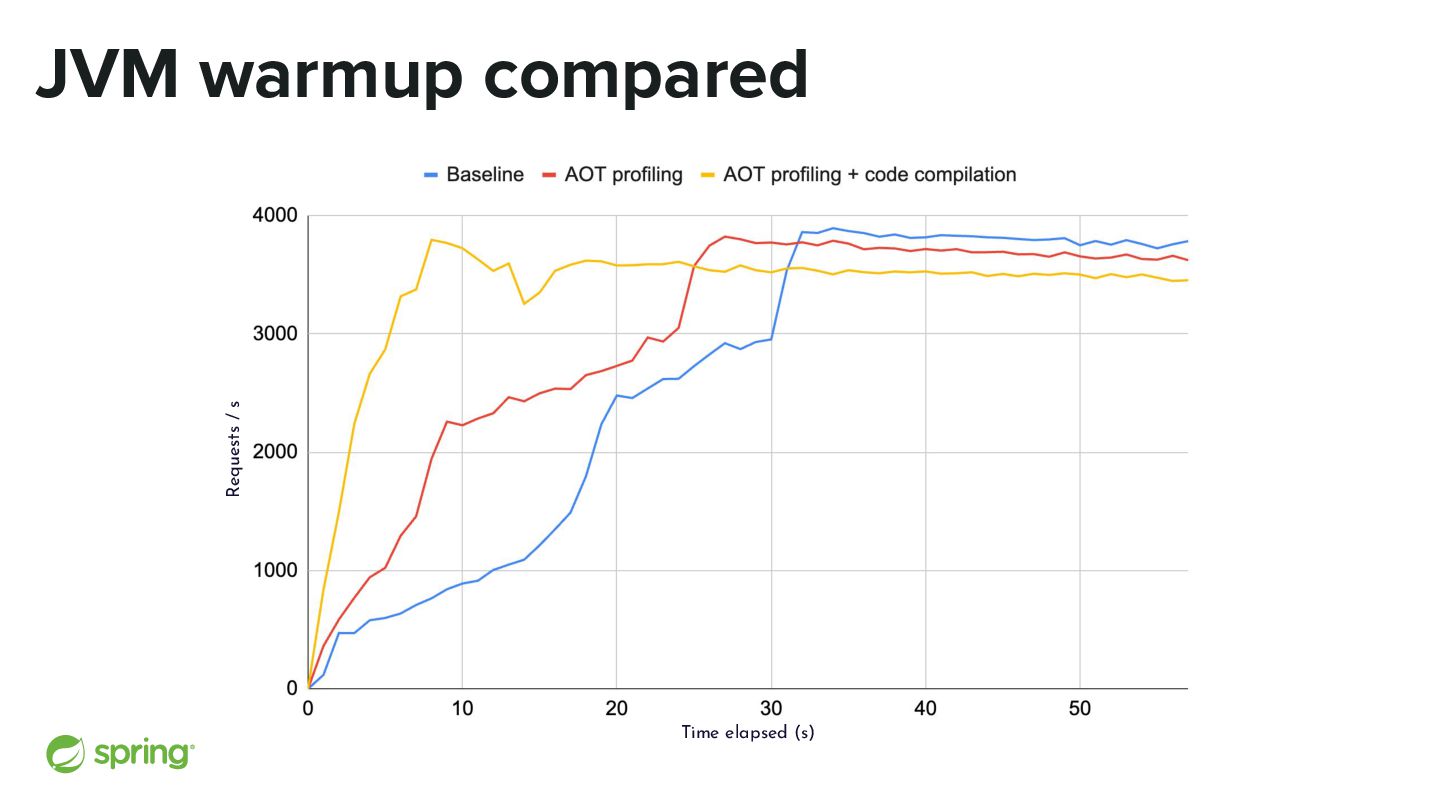

36. JVM warmup compared Time elapsed (s) Requests / s
37. GraalVM native-image

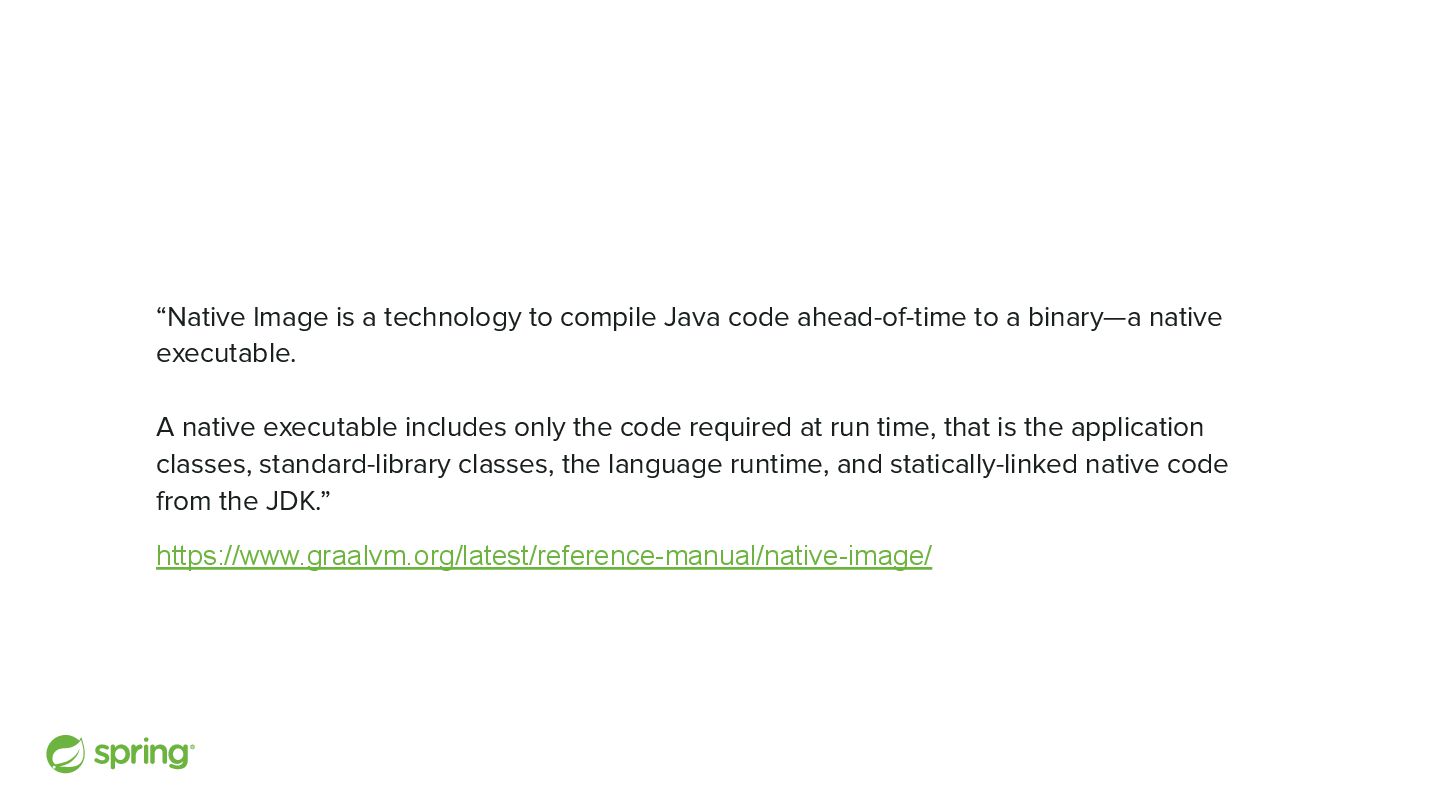

38. “Native Image is a technology to compile Java code ahead-of-time to a binary—a native executable. A native executable includes only the code required at run time, that is the application classes, standard-library classes, the language runtime, and statically-linked native code from the JDK.” https://www.graalvm.org/latest/reference-manual/native-image/
39. native-image Demo
40. Comparison Matrix

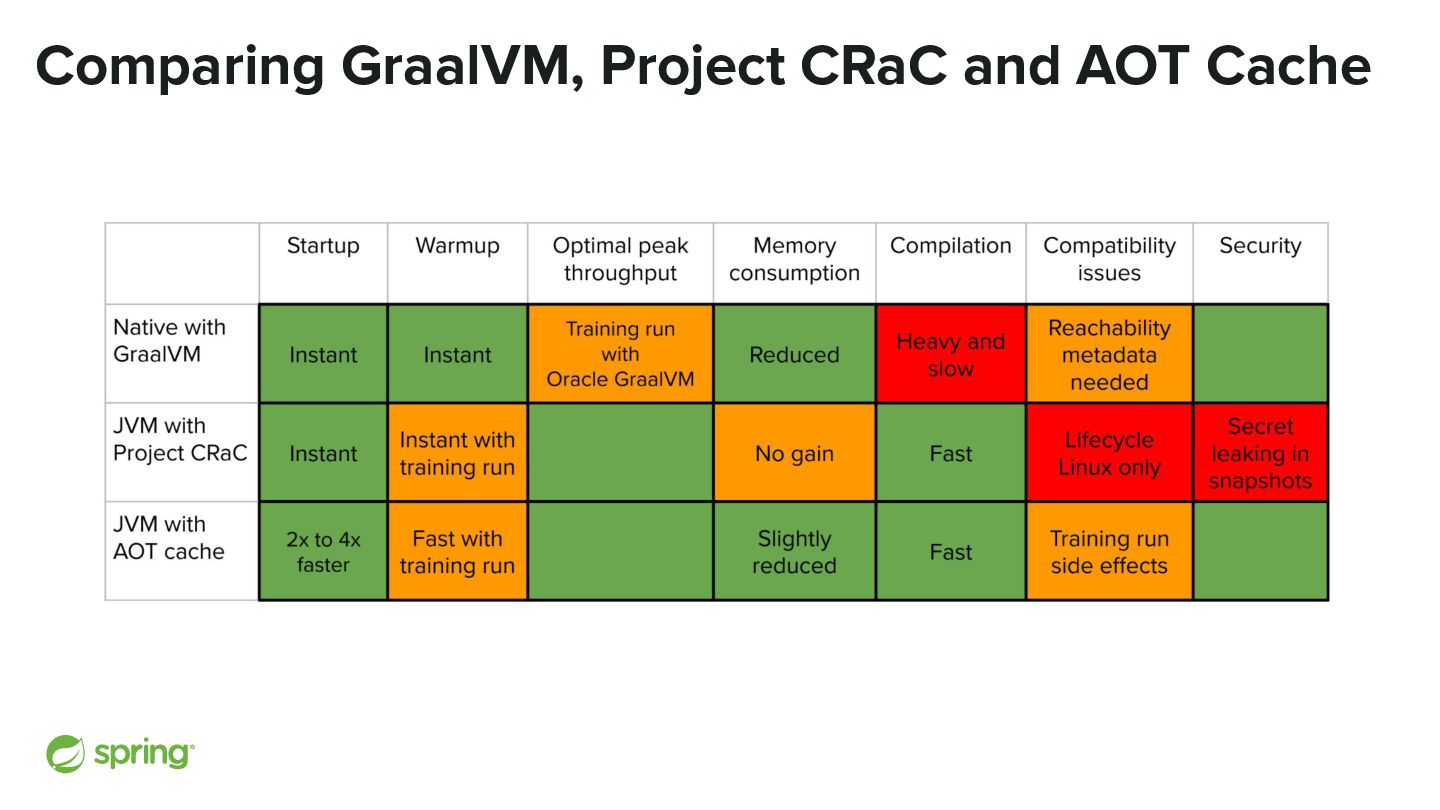

41. Comparing GraalVM, Project CRaC and AOT Cache
42. Q&A
43. Thank you mhalbritter.github.io Copyright © 2024 Broadcom, Inc. or its affiliates.
