Manifests, blobs et tags : les images de conteneurs enfin digest(es)

Conférence donnée à Sunny Tech 2025

Ça fait quelques temps maintenant que les conteneurs et leurs images sont partout. Que ce soit sur les machines de développement, sur les systèmes de production, ou comme moyen de packaging.

Mais d’ailleurs, une image OCI (Open Container Initiative), qu’est-ce que c’est exactement ?

Dans cette session, nous allons voir, de la manière la plus interactive possible, ce qu’est réellement une image :
- qu’est ce qui fait d’une image, une image ?
- comment on pull ou push une image ?
- un blob, un manifest, c’est quoi ?
- et les tags, les digests ?
- mon image fonctionne sur amd64 et arm64, comment est-ce possible ?
- est-ce qu’on peu aller plus loin ? Stocker autre chose dans une image ? Ou l’étendre ?

Partons à la découverte des images, étape par étape : créons une image à partir des outils existant, puis disséquons la.

Et à la fin, peut-être même que cela vous donnera des idées sur de nouveaux outils à créer pour exploiter ce format plus souple qu’il n’y parait au premier abord.

Avatar for Yves Brissaud

Yves Brissaud

June 27, 2025
Tweet

More Decks by Yves Brissaud

Other Decks in Technology

Transcript

  1. https://dagger.io Build your modern software factory. Work f lows a

    nd dev environments - For CI - For Agents By the cre a tors of Docker https://github.com/dagger/dagger https://github.com/dagger/container-use

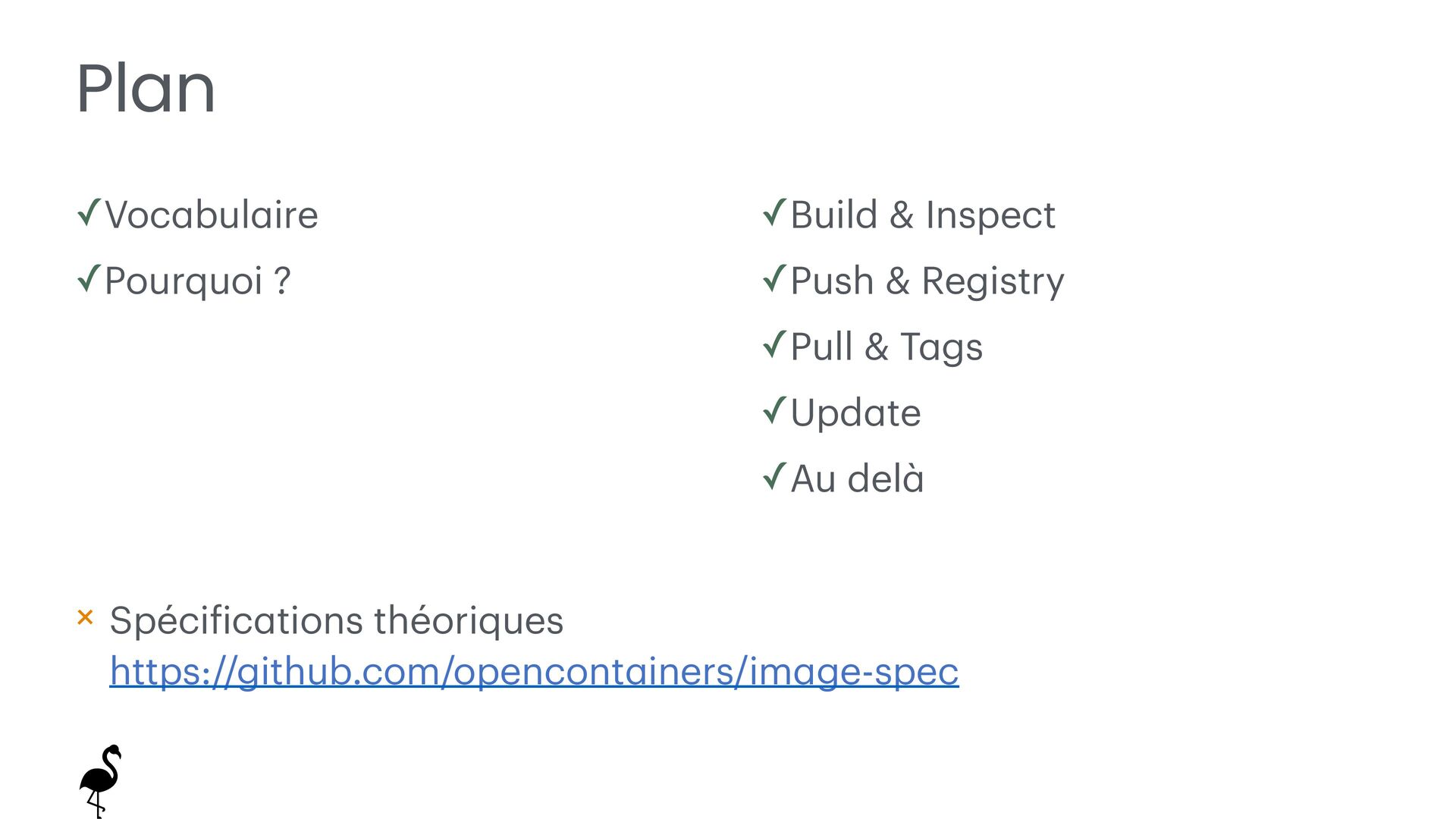

  2. Plan ✓Voc a bul a ire ✓Pourquoi ? ✓Build &

    Inspect ✓Push & Registry ✓Pull & T a gs ✓Upd a te ✓Au del à 𐄂 Spéci f ic a tions théoriques https://github.com/opencont a iners/im a ge-spec

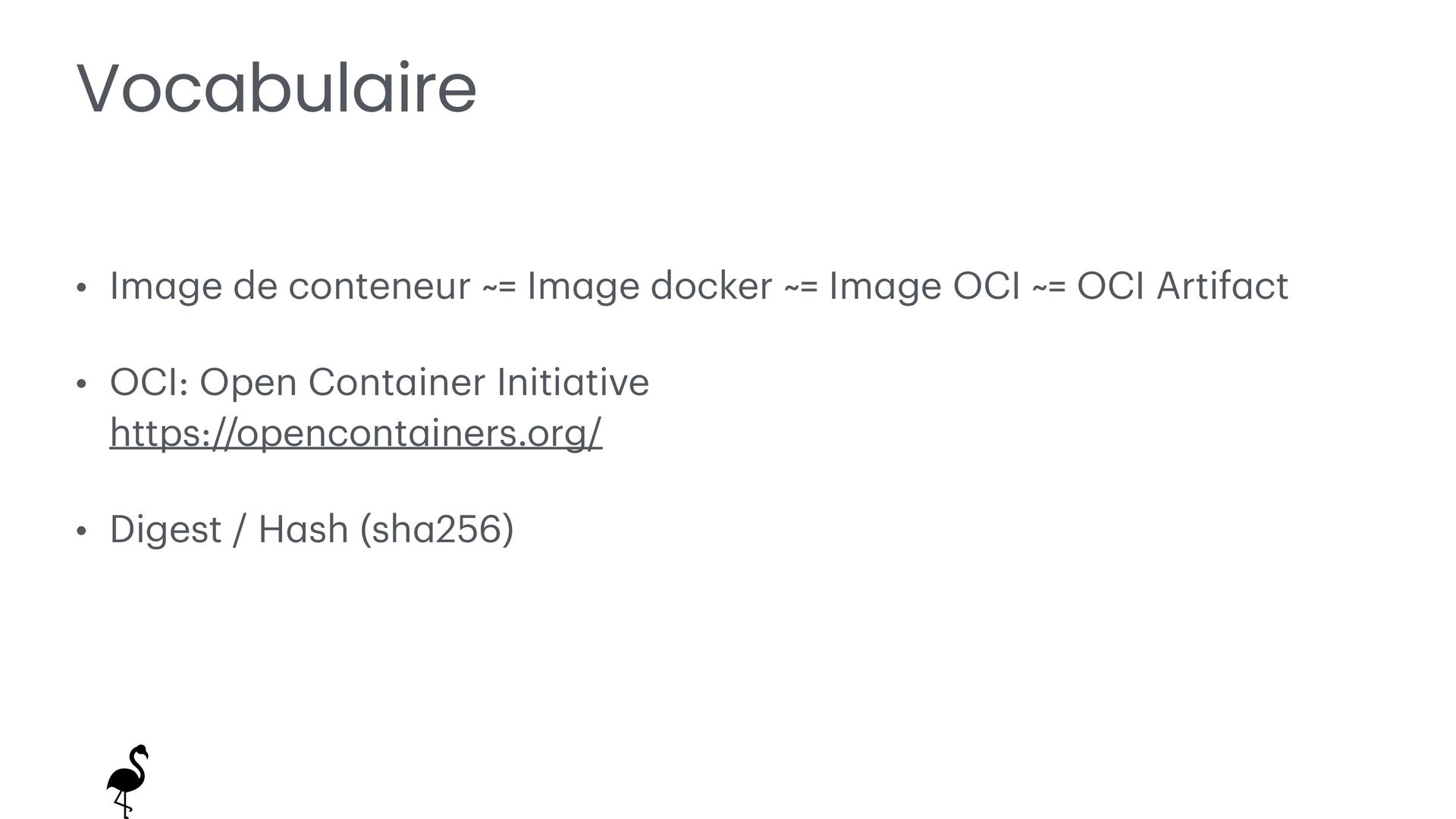

  3. Vocabulaire • Im a ge de conteneur ~= Im a

    ge docker ~= Im a ge OCI ~= OCI Artif a ct • OCI: Open Cont a iner Initi a tive https://opencont a iners.org/ • Digest / H a sh (sh a 256)

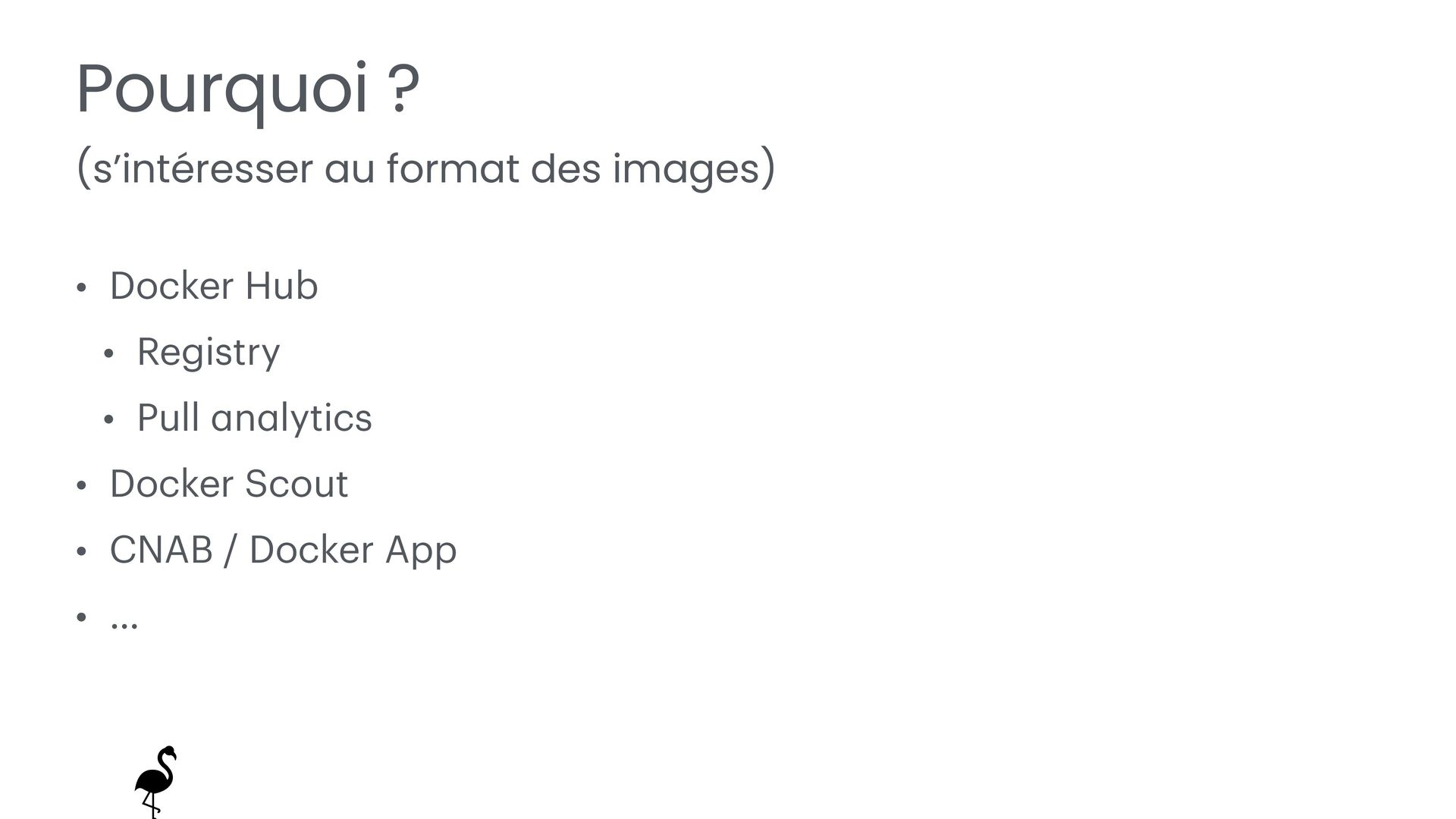

  4. (s’intéresser au format des images) Pourquoi ? • Docker Hub

    • Registry • Pull a n a lytics • Docker Scout • CNAB / Docker App • …
  5. (s’intéresser au format des images) Pourquoi ? • Homebrew ?

    -> Im a ge • LLM a vec Docker Model Runner ? -> Im a ge • Compose ? Helm ? -> Im a ge • AWS L a mbd a ? -> Im a ge • …

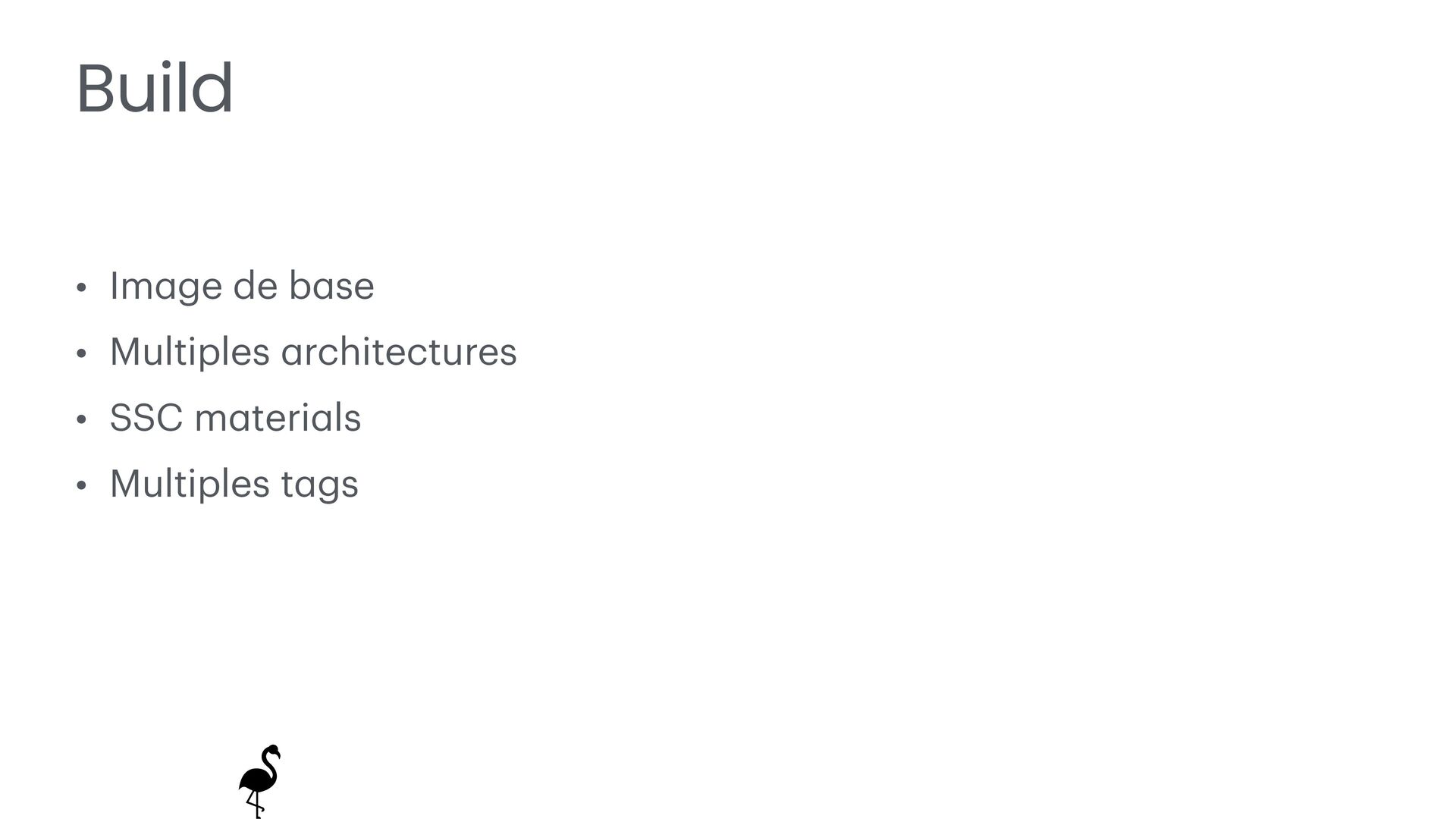

  6. Build • Im a ge de b a se •

    Multiples a rchitectures • SSC m a teri a ls • Multiples t a gs

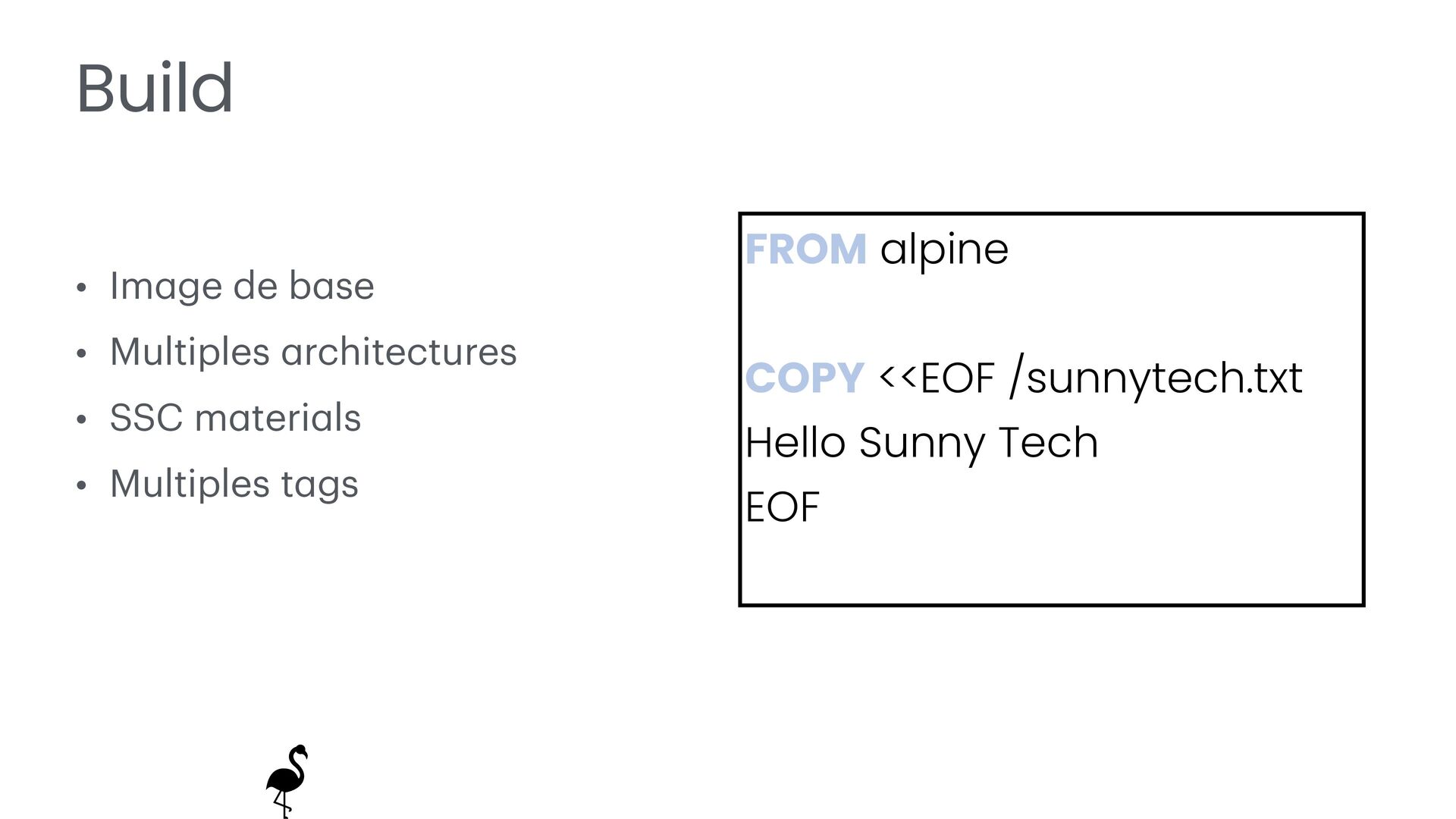

  7. Build • Im a ge de b a se •

    Multiples a rchitectures • SSC m a teri a ls • Multiples t a gs FROM alpine COPY <<EOF /sunnytech.txt Hello Sunny Tech EOF

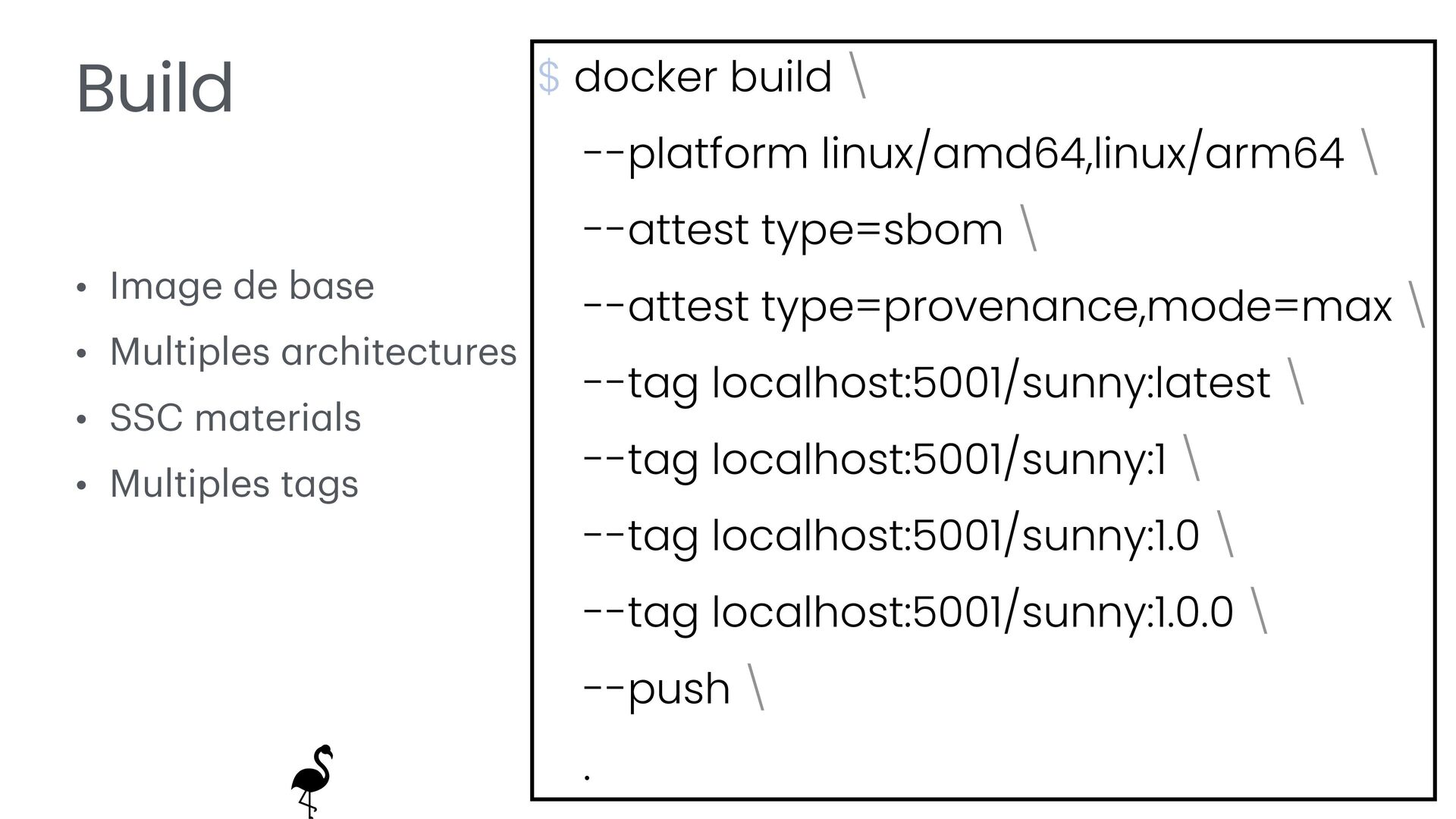

  8. Build • Im a ge de b a se •

    Multiples a rchitectures • SSC m a teri a ls • Multiples t a gs $ docker build \ --platform linux/amd64,linux/arm64 \ --attest type=sbom \ --attest type=provenance,mode=max \ --tag localhost:5001/sunny:latest \ --tag localhost:5001/sunny:1 \ --tag localhost:5001/sunny:1.0 \ --tag localhost:5001/sunny:1.0.0 \ --push \ .

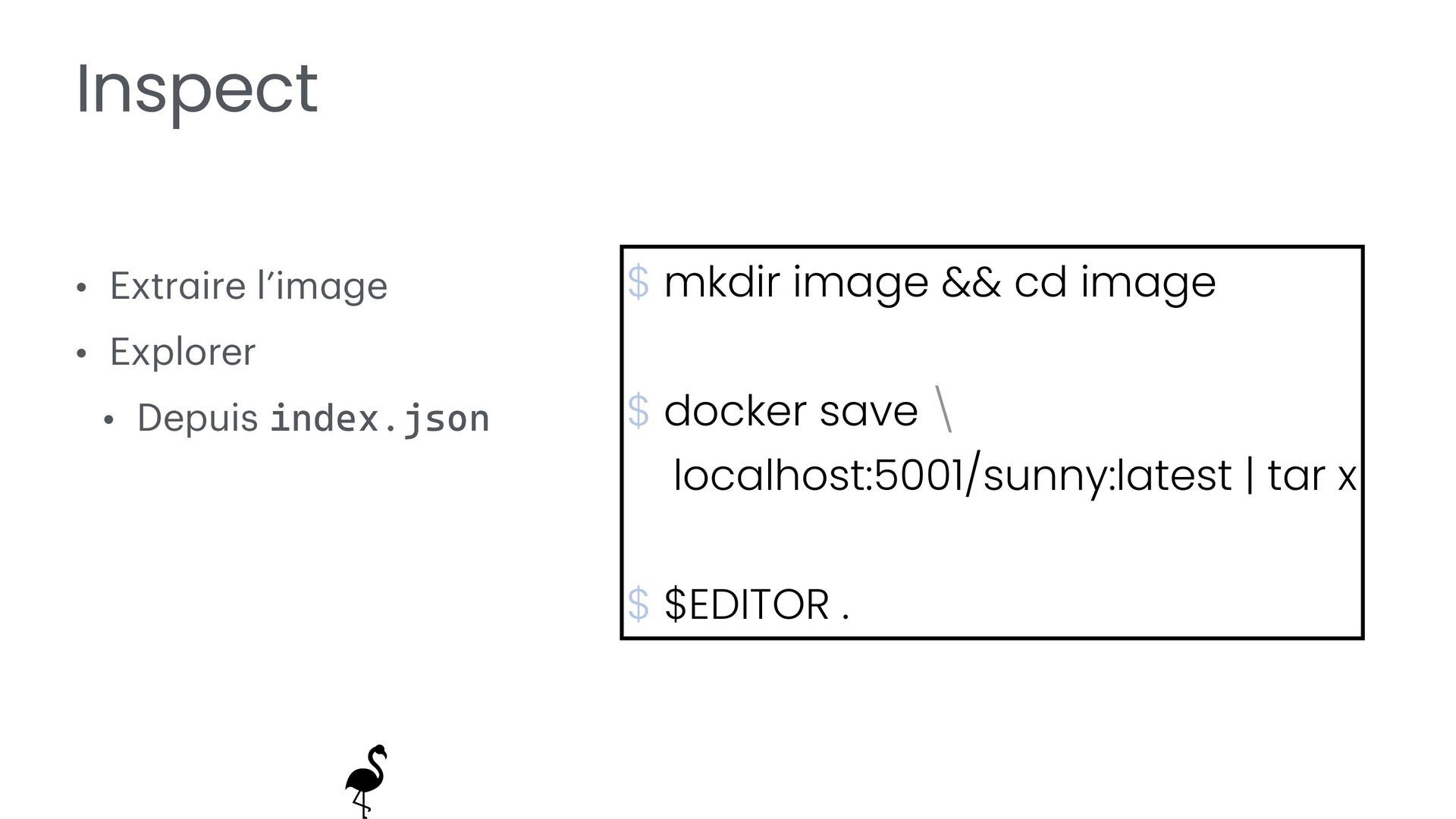

  9. Inspect • Extr a ire l’im a ge • Explorer

    • Depuis index.json $ mkdir image && cd image $ docker save \ localhost:5001/sunny:latest | tar x $ $EDITOR .

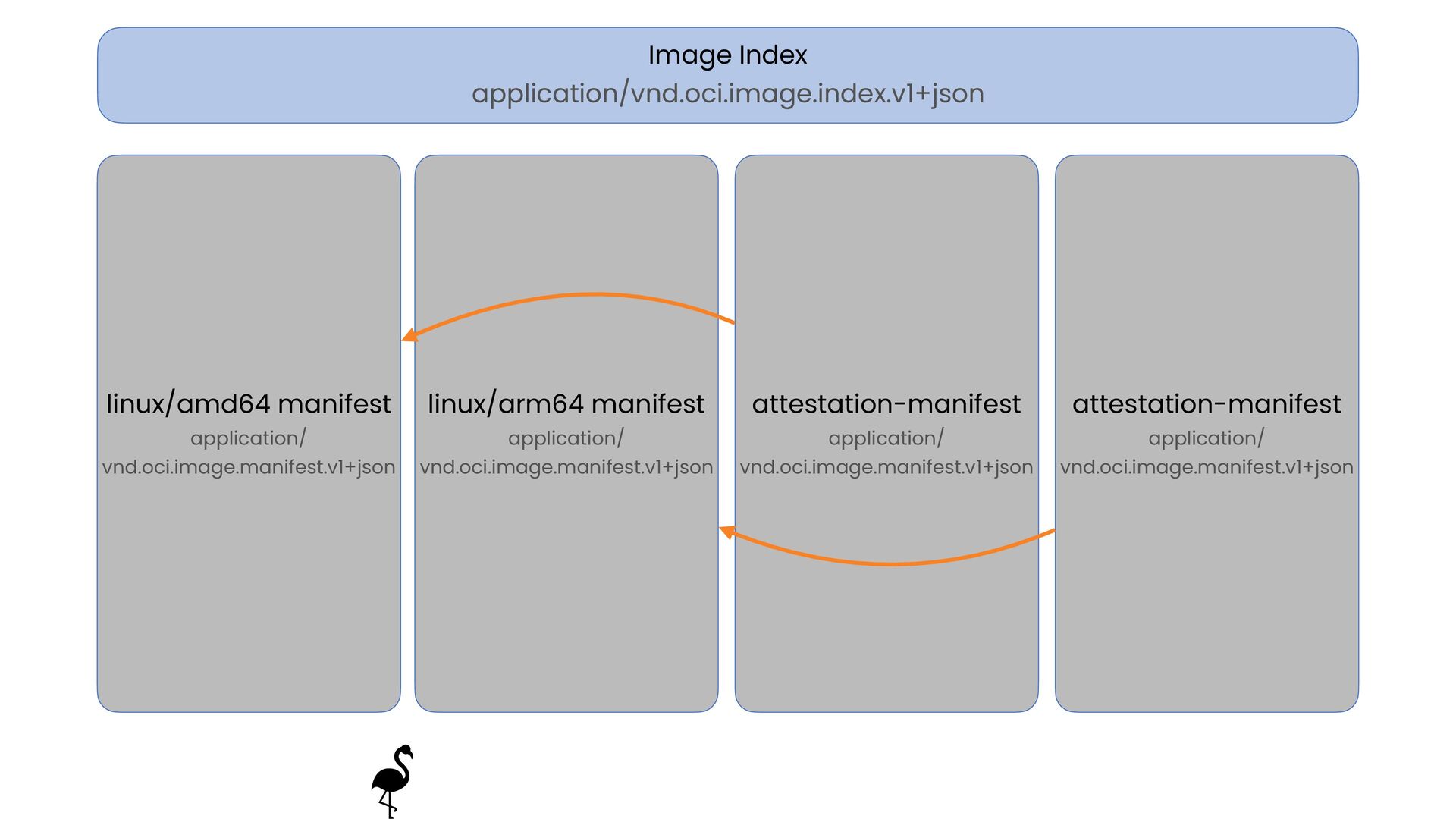

  10. Image Index application/vnd.oci.image.index.v1+json linux/amd64 manifest application/ vnd.oci.image.manifest.v1+json linux/arm64 manifest application/

    vnd.oci.image.manifest.v1+json attestation-manifest application/ vnd.oci.image.manifest.v1+json attestation-manifest application/ vnd.oci.image.manifest.v1+json

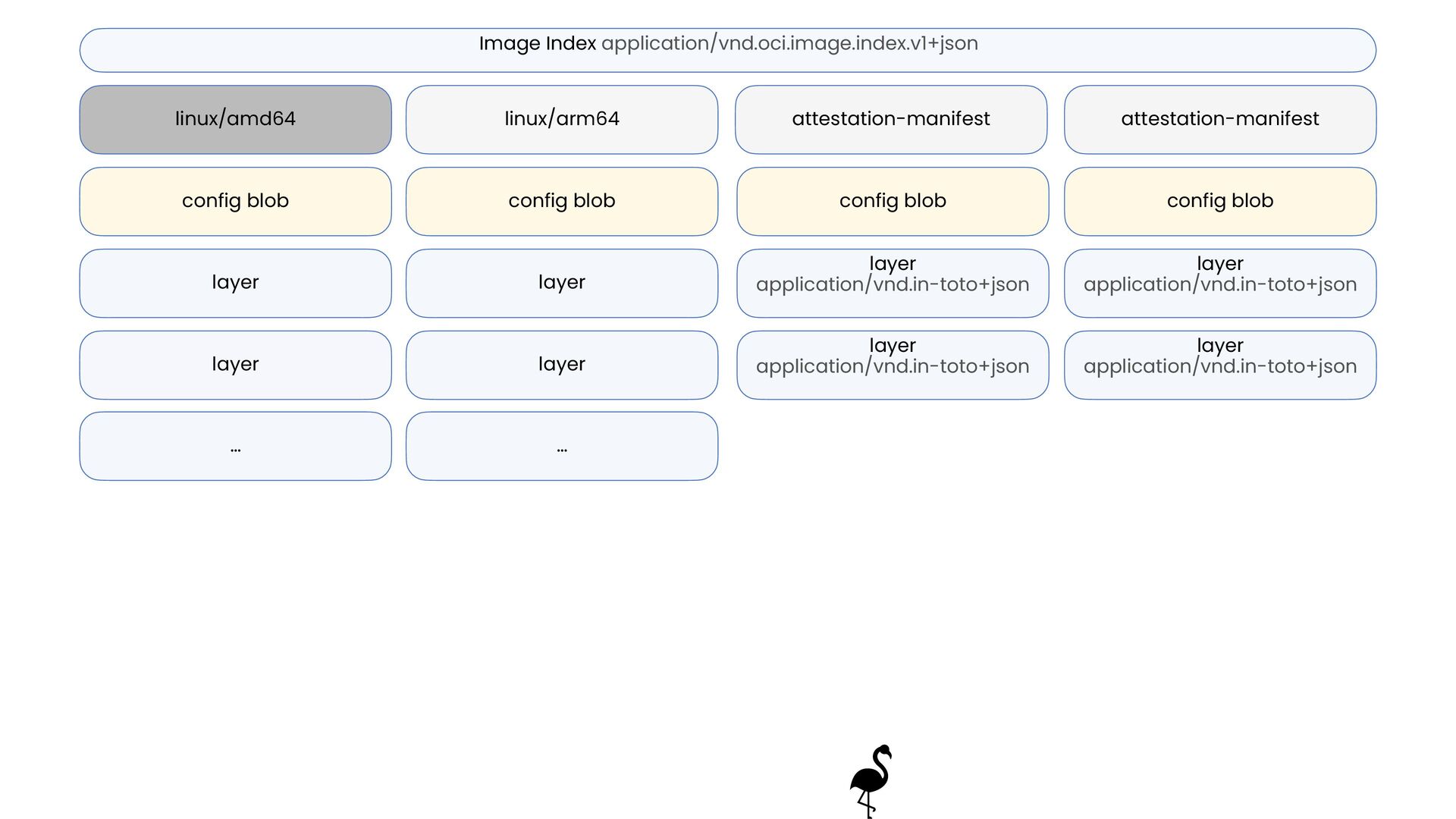

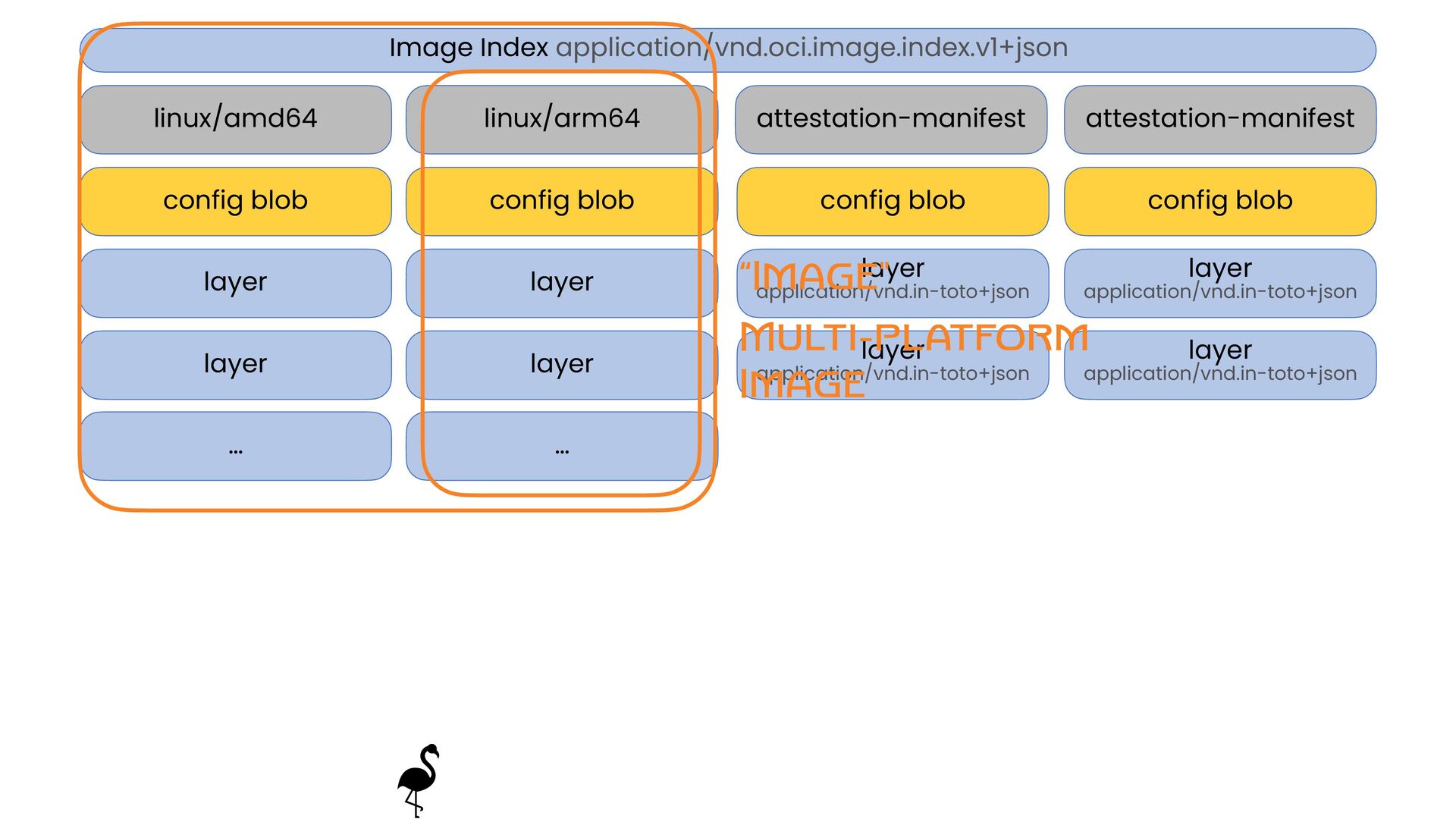

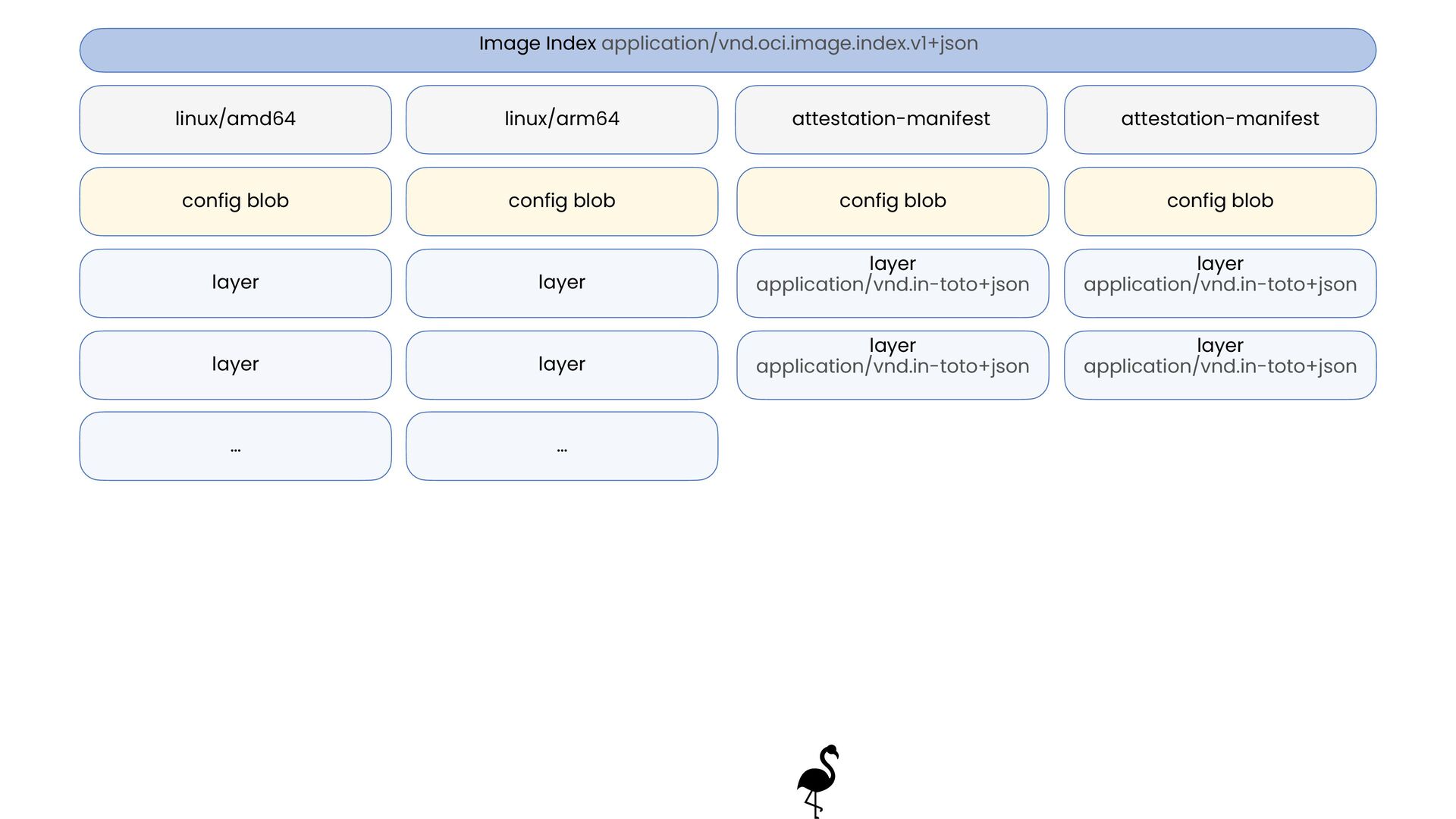

  11. Image Index application/vnd.oci.image.index.v1+json linux/amd64 linux/arm64 attestation-manifest attestation-manifest config blob layer

    layer … config blob layer layer … config blob config blob layer application/vnd.in-toto+json layer application/vnd.in-toto+json layer application/vnd.in-toto+json layer application/vnd.in-toto+json “Image" Multi-platform Image

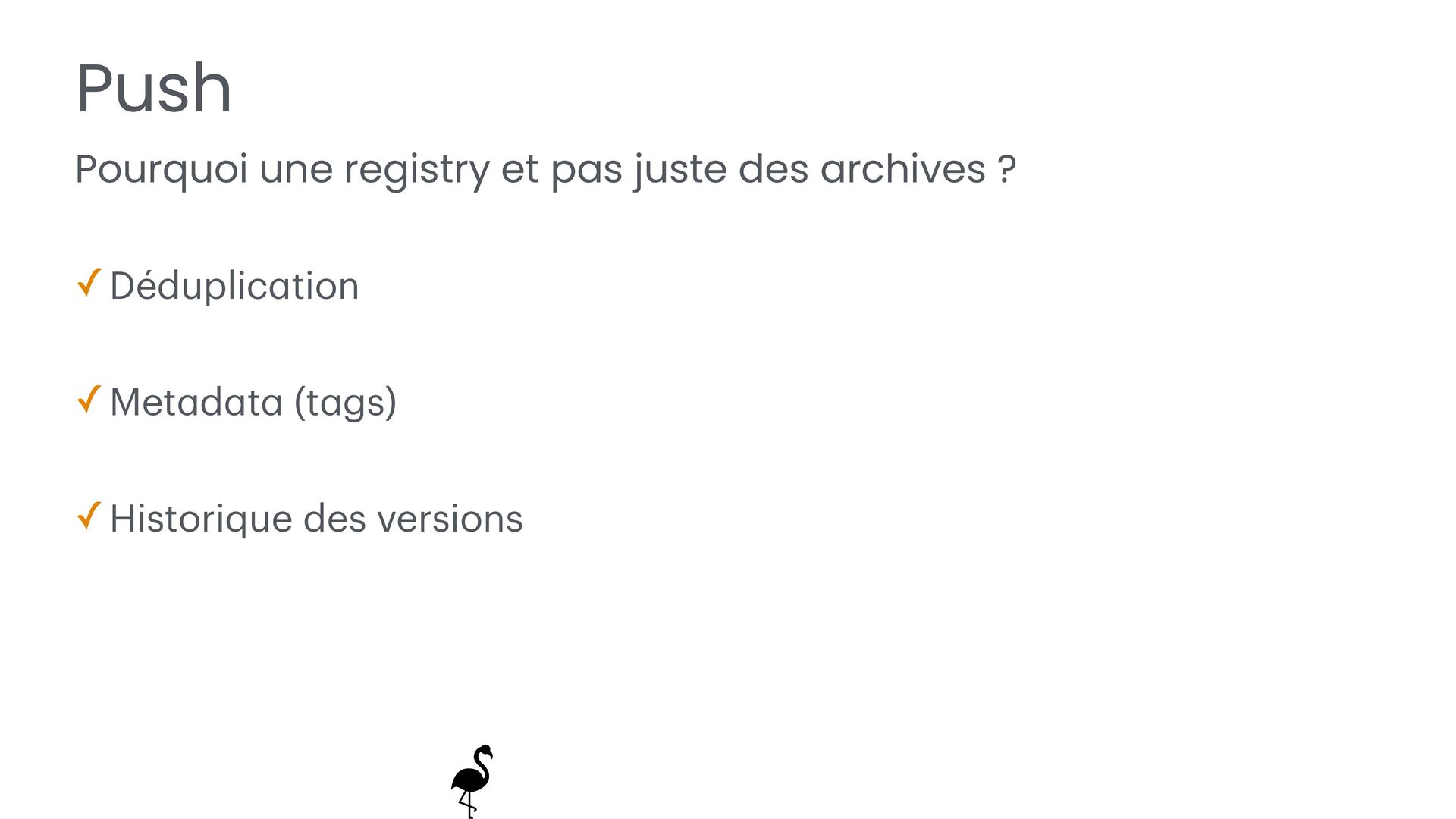

  12. Pourquoi une registry et pas juste des archives ? Push

    ✓Déduplic a tion ✓Met a d a t a (t a gs) ✓Historique des versions

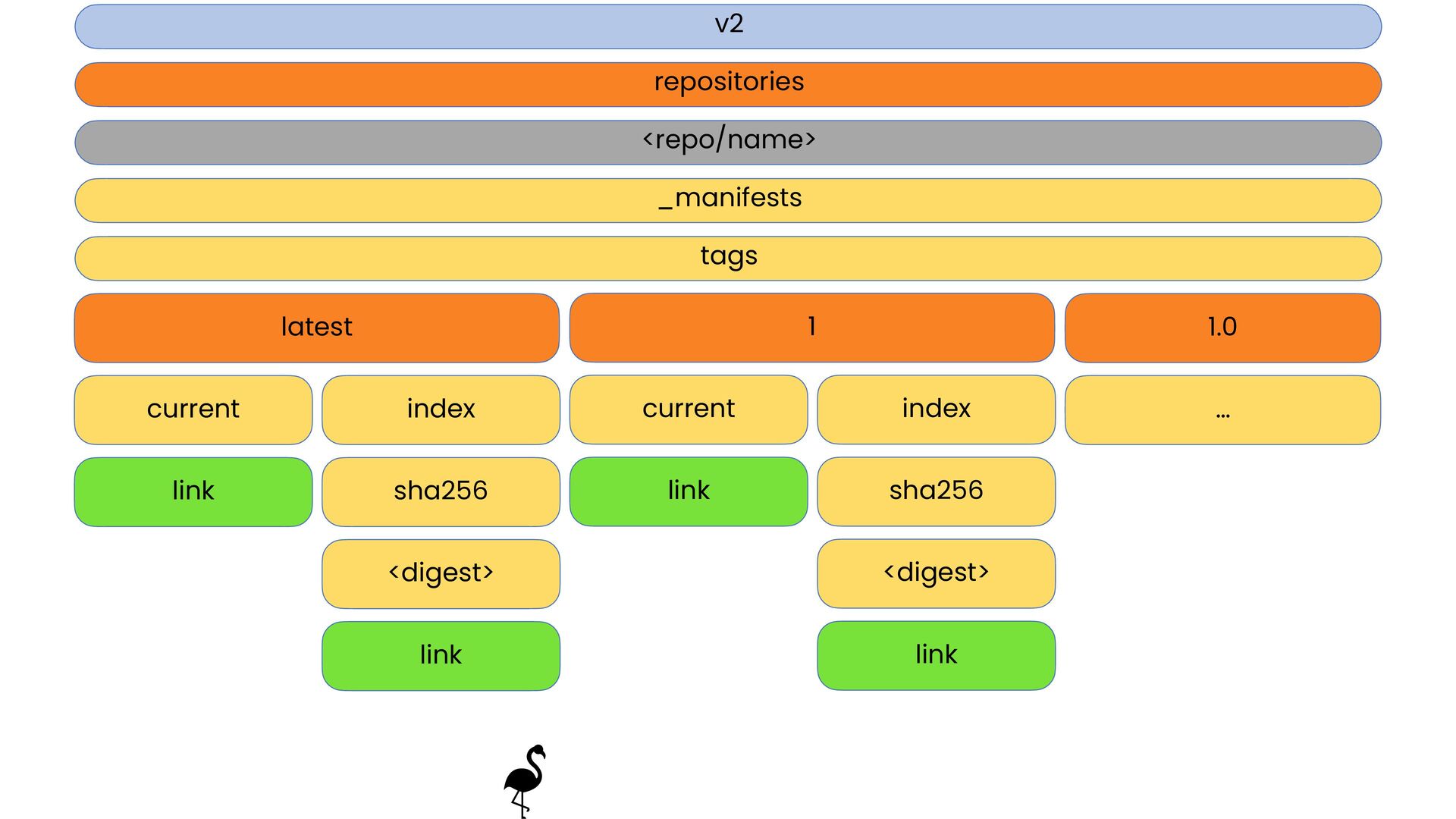

  13. v2 repositories <repo/name> _manifests tags latest current index sha256 <digest>

    link link 1 current index sha256 <digest> link link 1.0 …

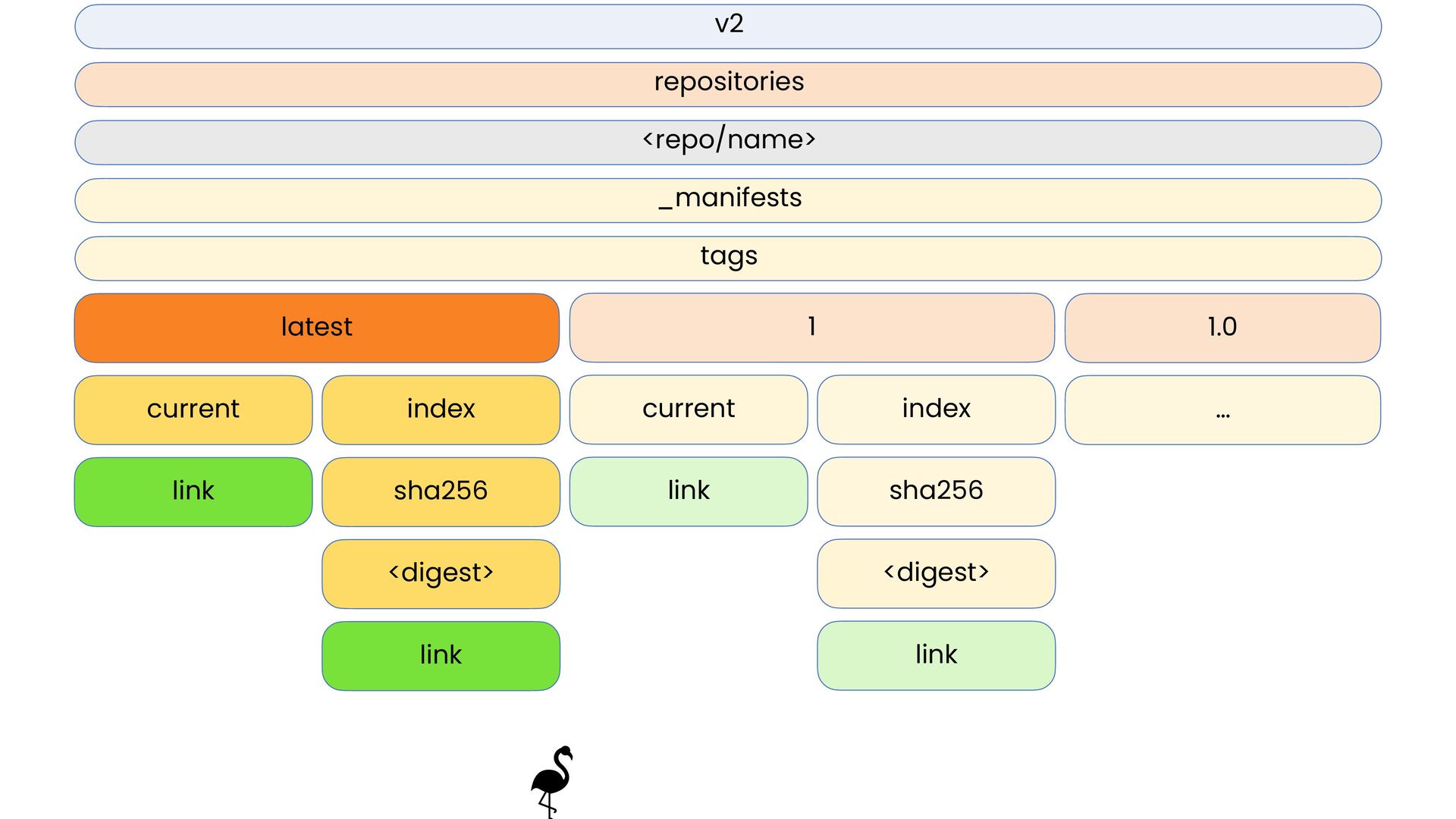

  14. v2 repositories <repo/name> _manifests tags latest current index sha256 <digest>

    link link 1 current index sha256 <digest> link link 1.0 …

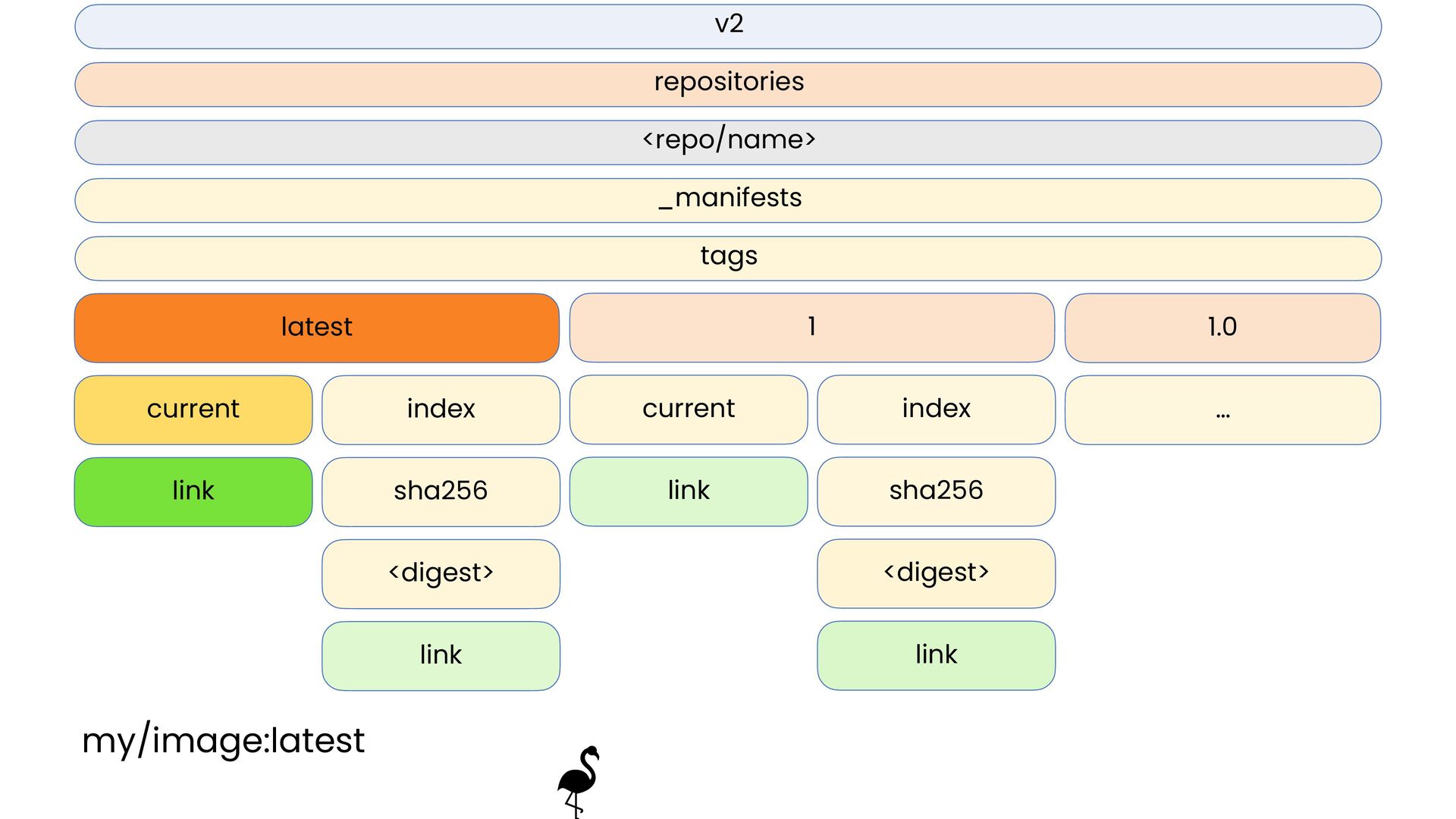

  15. v2 repositories <repo/name> _manifests tags latest current index sha256 <digest>

    link link 1 current index sha256 <digest> link link 1.0 … my/image:latest

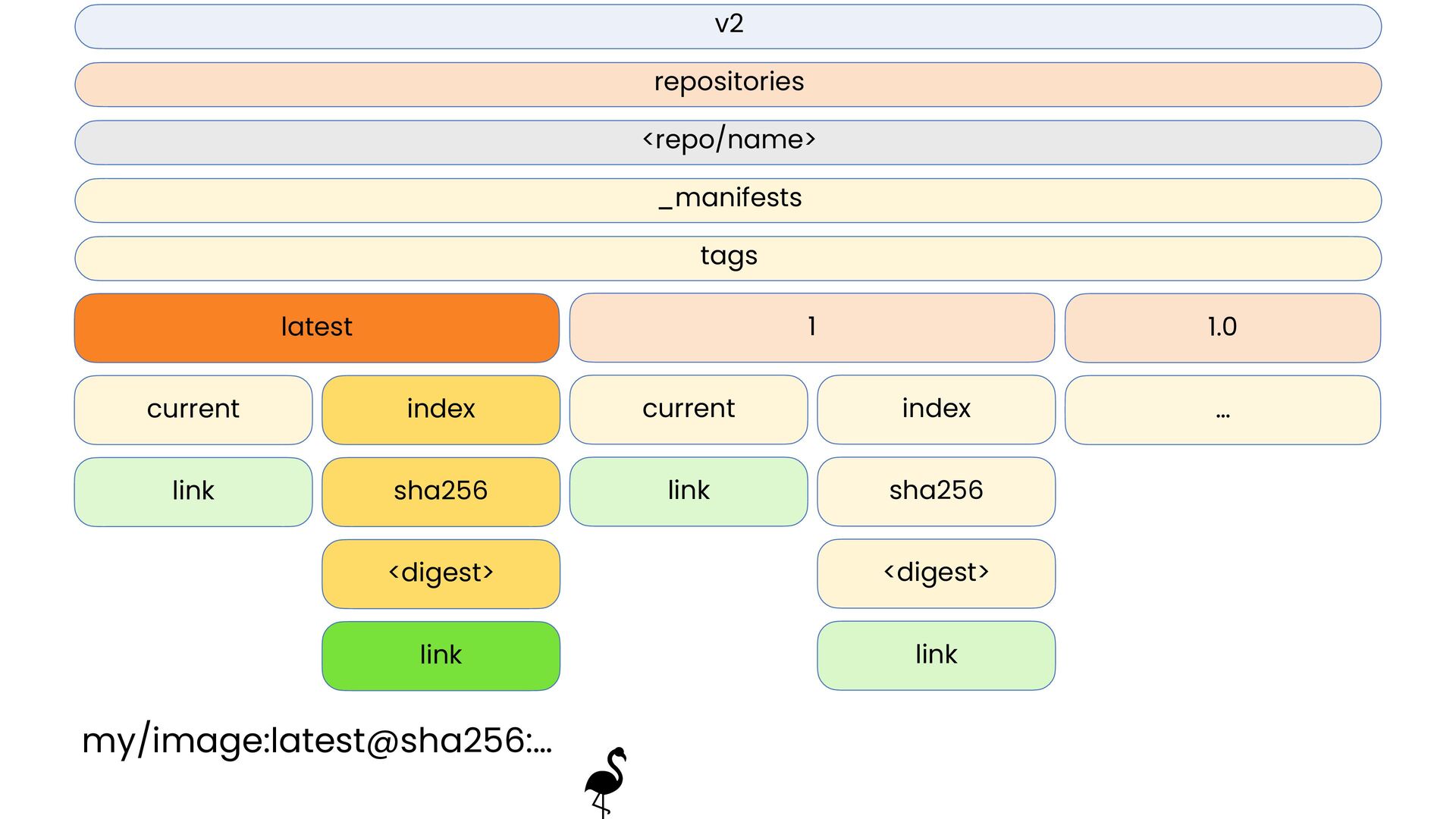

  16. v2 repositories <repo/name> _manifests tags latest current index sha256 <digest>

    link link 1 current index sha256 <digest> link link 1.0 … my/image:latest@sha256:…

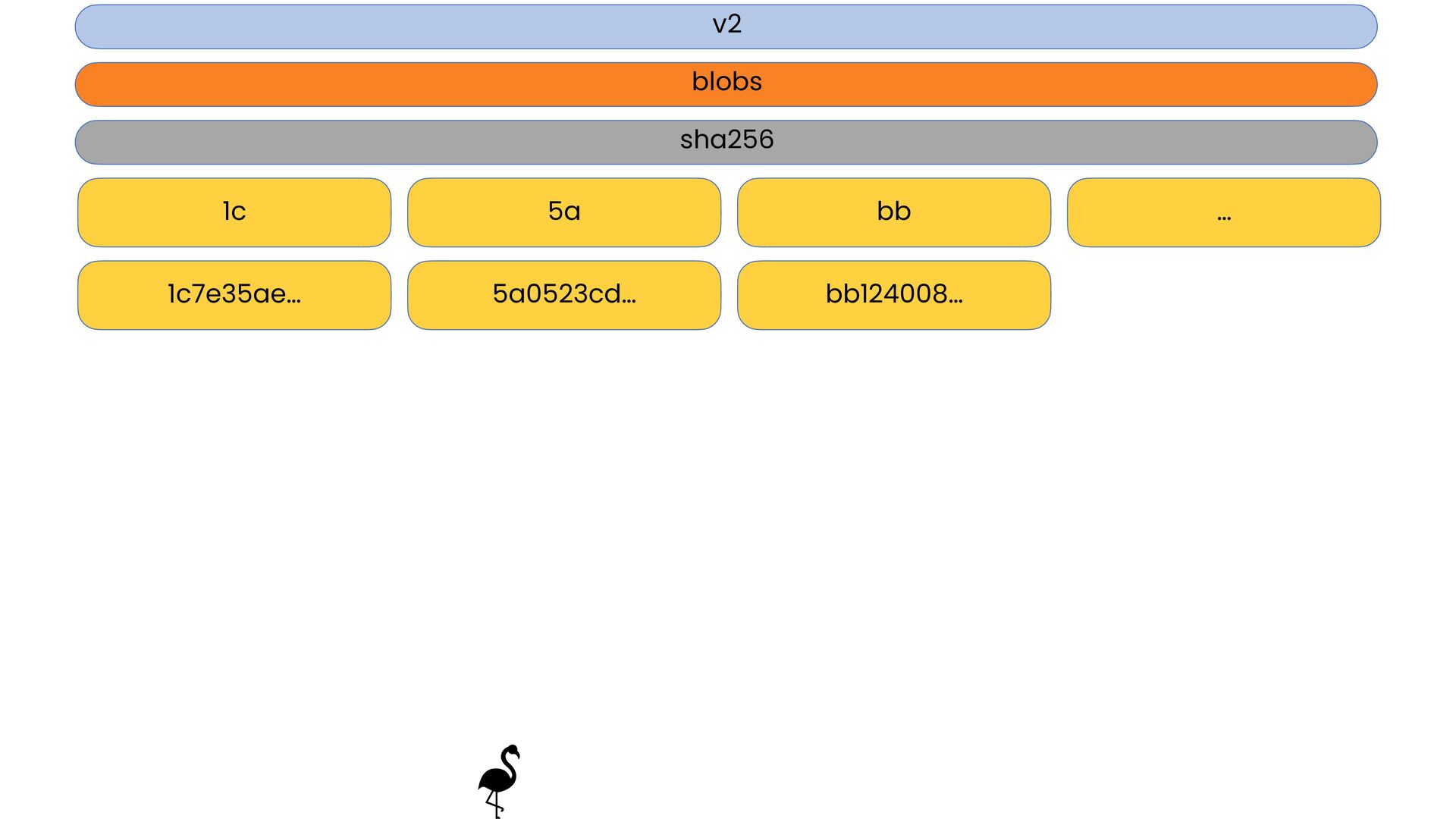

  17. v2 repositories <repo/name> _manifests tags latest current index sha256 <digest>

    link link 1 current index sha256 <digest> link link 1.0 … blobs sha256 1c 5a bb … 1c7e3… 5a052… bb124…
  18. v2 repositories <repo/name> _manifests tags latest current index sha256 <digest>

    link link 1 current index sha256 <digest> link link 1.0 … blobs sha256 1c 5a bb … 1c7e3… 5a052… bb124…

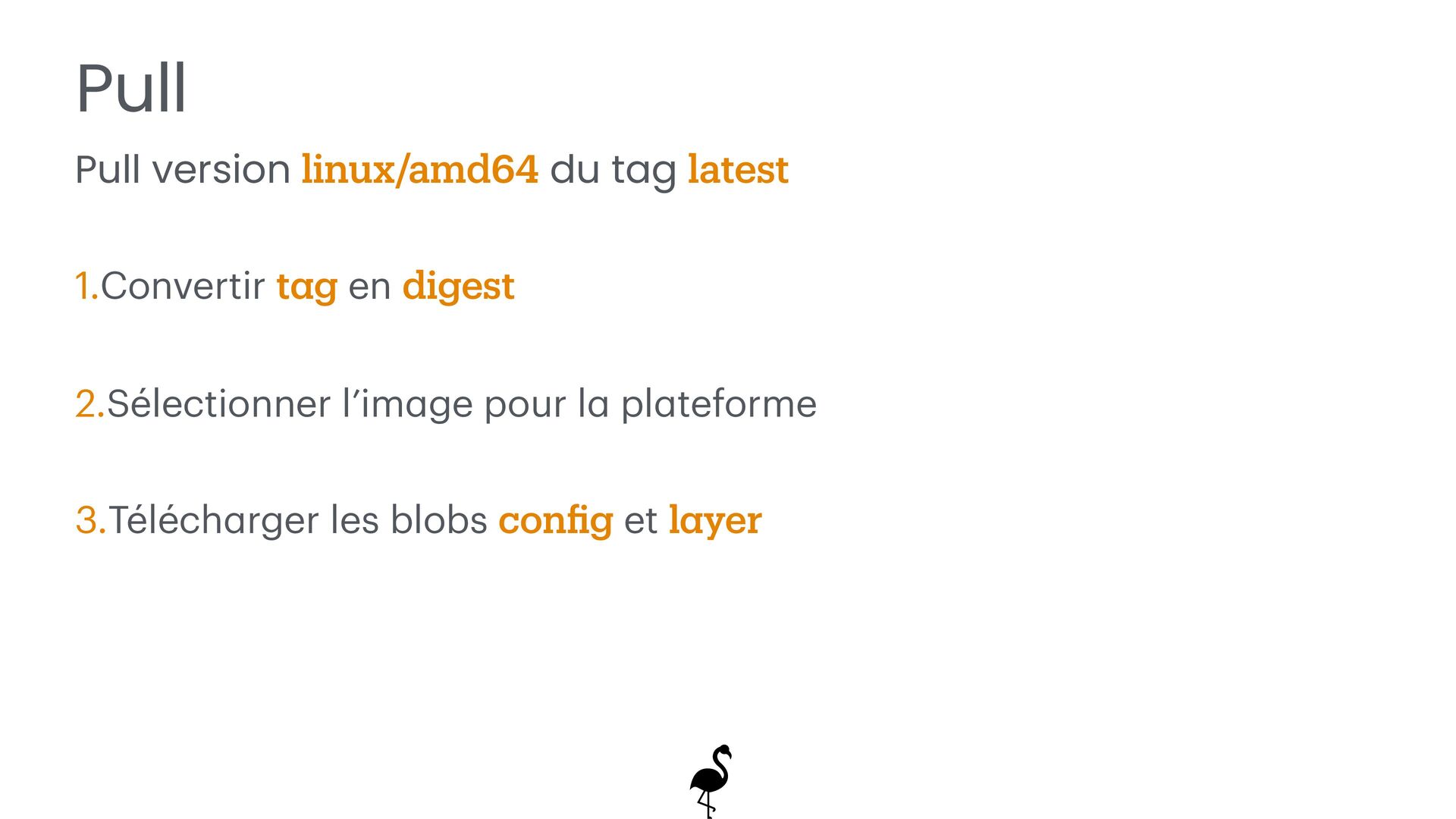

  19. Pull version linux/amd64 du tag latest Pull 1.Convertir t a

    g en digest 2.Sélectionner l’im a ge pour l a pl a teforme 3.Téléch a rger les blobs con fi g et l a yer

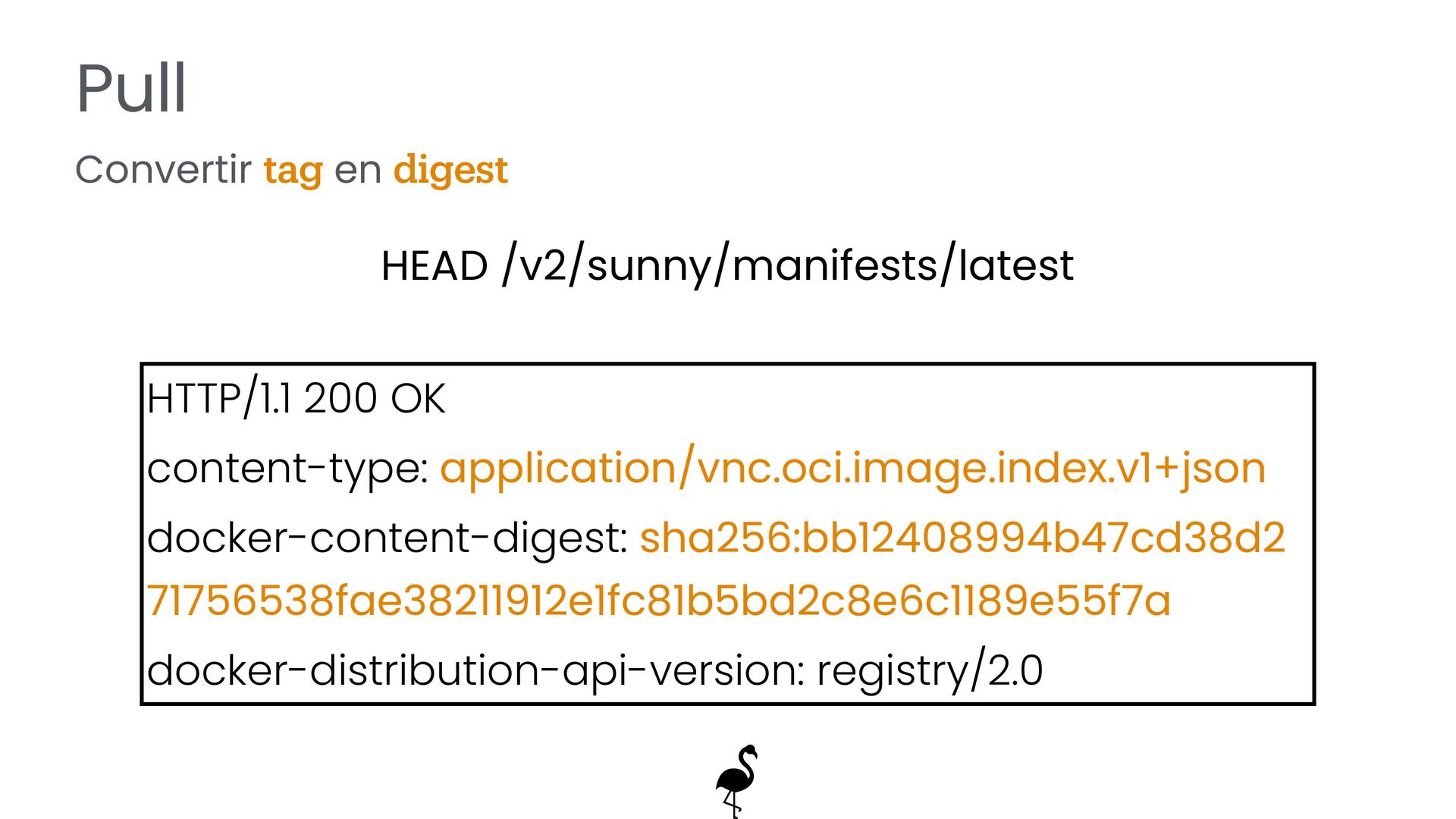

  20. Convertir tag en digest Pull HTTP/1.1 200 OK content-type: application/vnc.oci.image.index.v1+json

    docker-content-digest: sha256:bb12408994b47cd38d2 71756538fae38211912e1fc81b5bd2c8e6c1189e55f7a docker-distribution-api-version: registry/2.0 HEAD /v2/sunny/manifests/latest

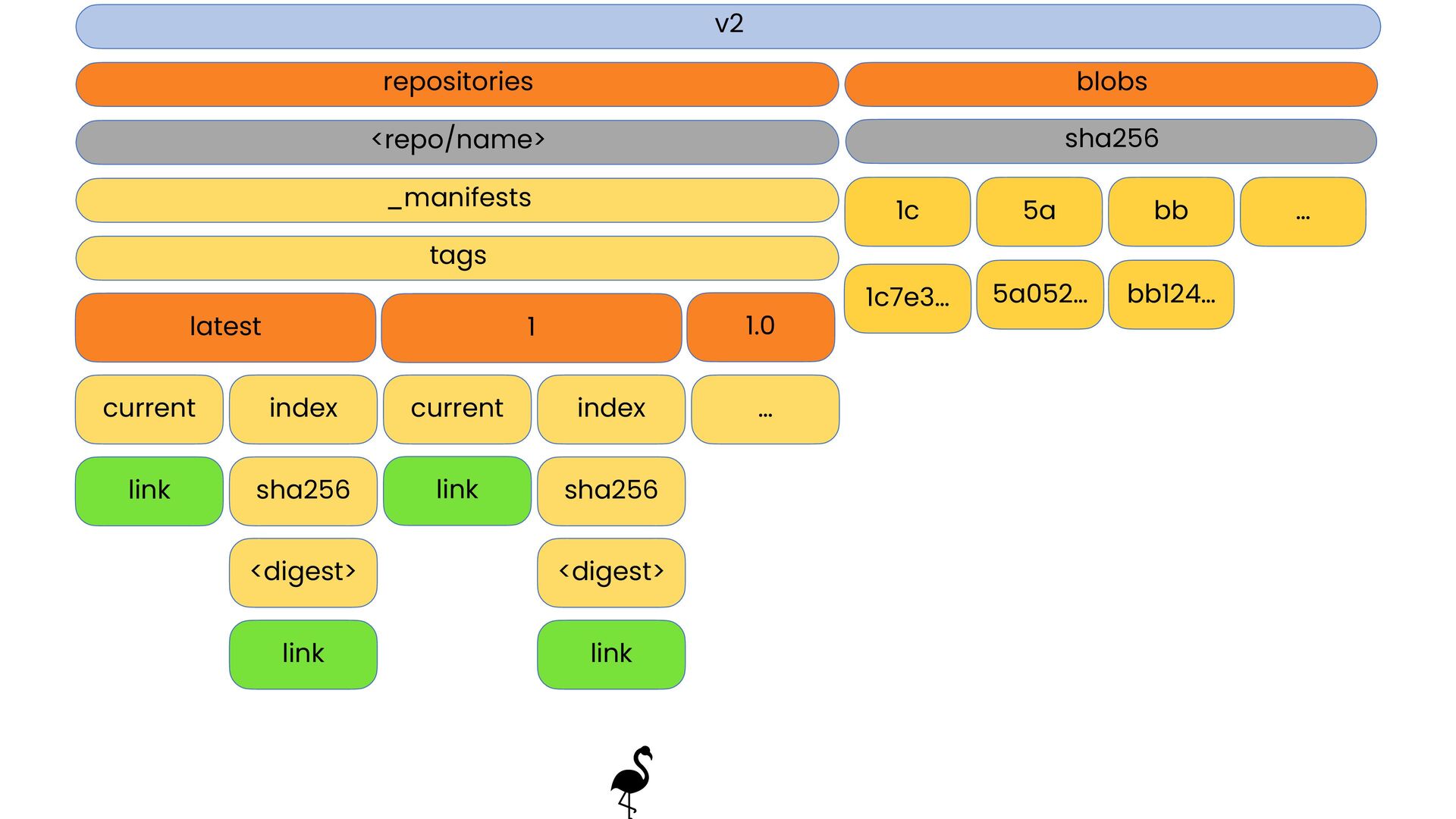

  21. v2 repositories <repo/name> _manifests tags latest current index sha256 <digest>

    link link 1 current index sha256 <digest> link link 1.0 … blobs sha256 1c 5a bb … 1c7e3… 5a052… bb124…

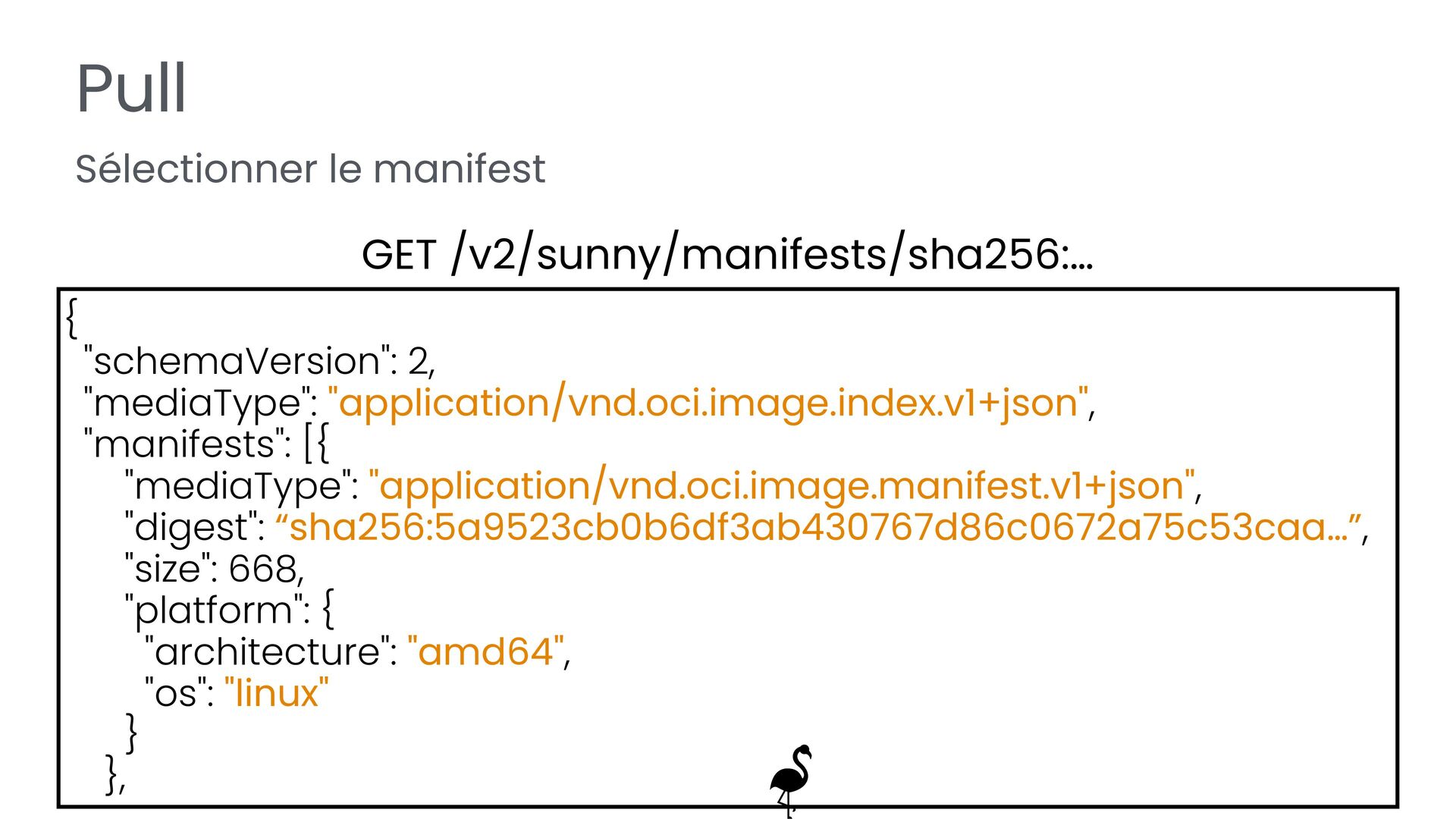

  22. Sélectionner le manifest Pull { "schemaVersion": 2, "mediaType": "application/vnd.oci.image.index.v1+json", "manifests":

    [{ "mediaType": "application/vnd.oci.image.manifest.v1+json", "digest": “sha256:5a9523cb0b6df3ab430767d86c0672a75c53caa…”, "size": 668, "platform": { "architecture": "amd64", "os": "linux" } }, GET /v2/sunny/manifests/sha256:…
  23. Image Index application/vnd.oci.image.index.v1+json linux/amd64 linux/arm64 attestation-manifest attestation-manifest config blob layer

    layer … config blob layer layer … config blob config blob layer application/vnd.in-toto+json layer application/vnd.in-toto+json layer application/vnd.in-toto+json layer application/vnd.in-toto+json

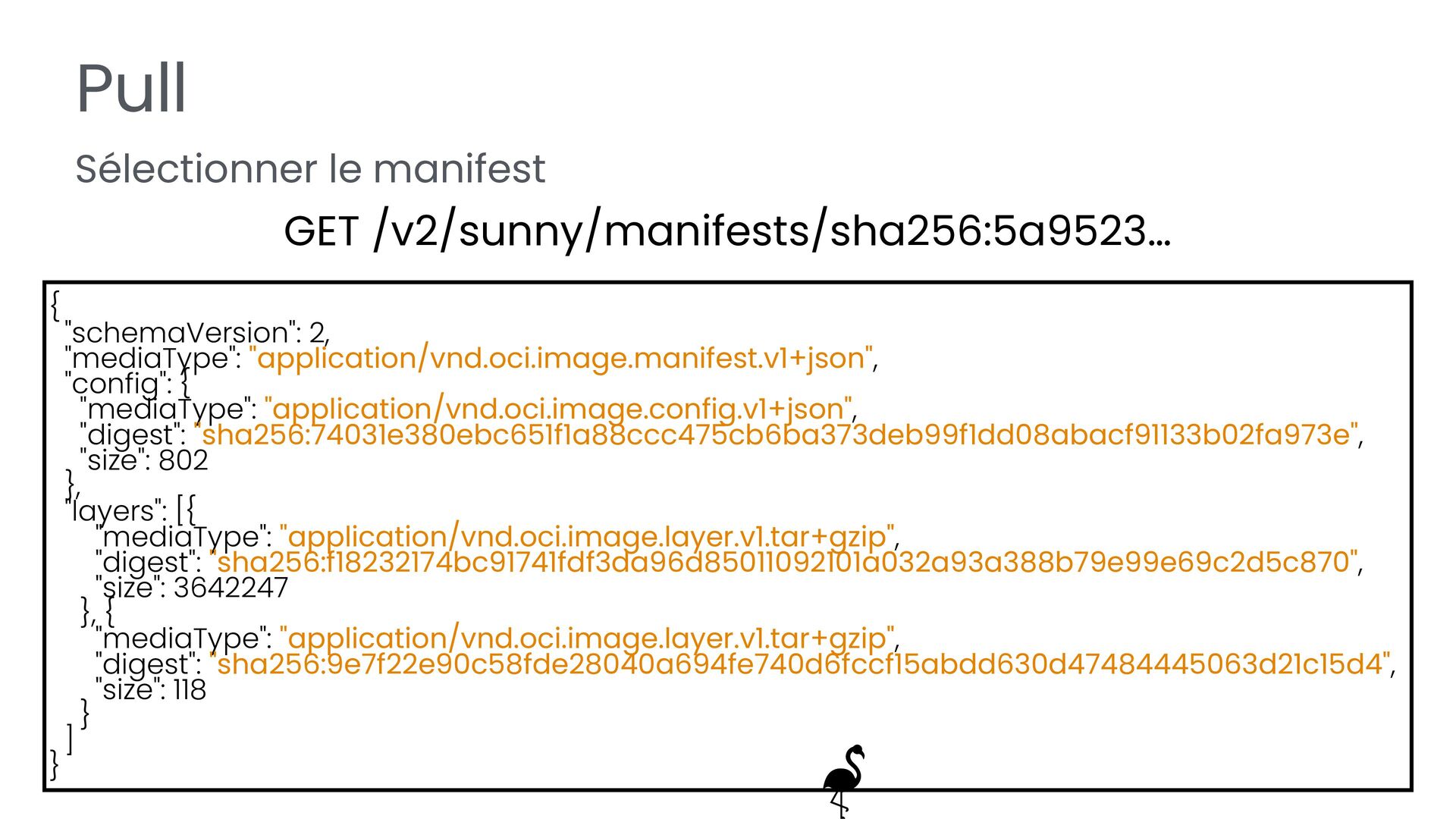

  24. Sélectionner le manifest Pull GET /v2/sunny/manifests/sha256:5a9523… { "schemaVersion": 2, "mediaType":

    "application/vnd.oci.image.manifest.v1+json", "config": { "mediaType": "application/vnd.oci.image.config.v1+json", "digest": "sha256:74031e380ebc651f1a88ccc475cb6ba373deb99f1dd08abacf91133b02fa973e", "size": 802 }, "layers": [{ "mediaType": "application/vnd.oci.image.layer.v1.tar+gzip", "digest": "sha256:f18232174bc91741fdf3da96d85011092101a032a93a388b79e99e69c2d5c870", "size": 3642247 }, { "mediaType": "application/vnd.oci.image.layer.v1.tar+gzip", "digest": "sha256:9e7f22e90c58fde28040a694fe740d6fccf15abdd630d47484445063d21c15d4", "size": 118 } ] }
  25. Image Index application/vnd.oci.image.index.v1+json linux/amd64 linux/arm64 attestation-manifest attestation-manifest config blob layer

    layer … config blob layer layer … config blob config blob layer application/vnd.in-toto+json layer application/vnd.in-toto+json layer application/vnd.in-toto+json layer application/vnd.in-toto+json

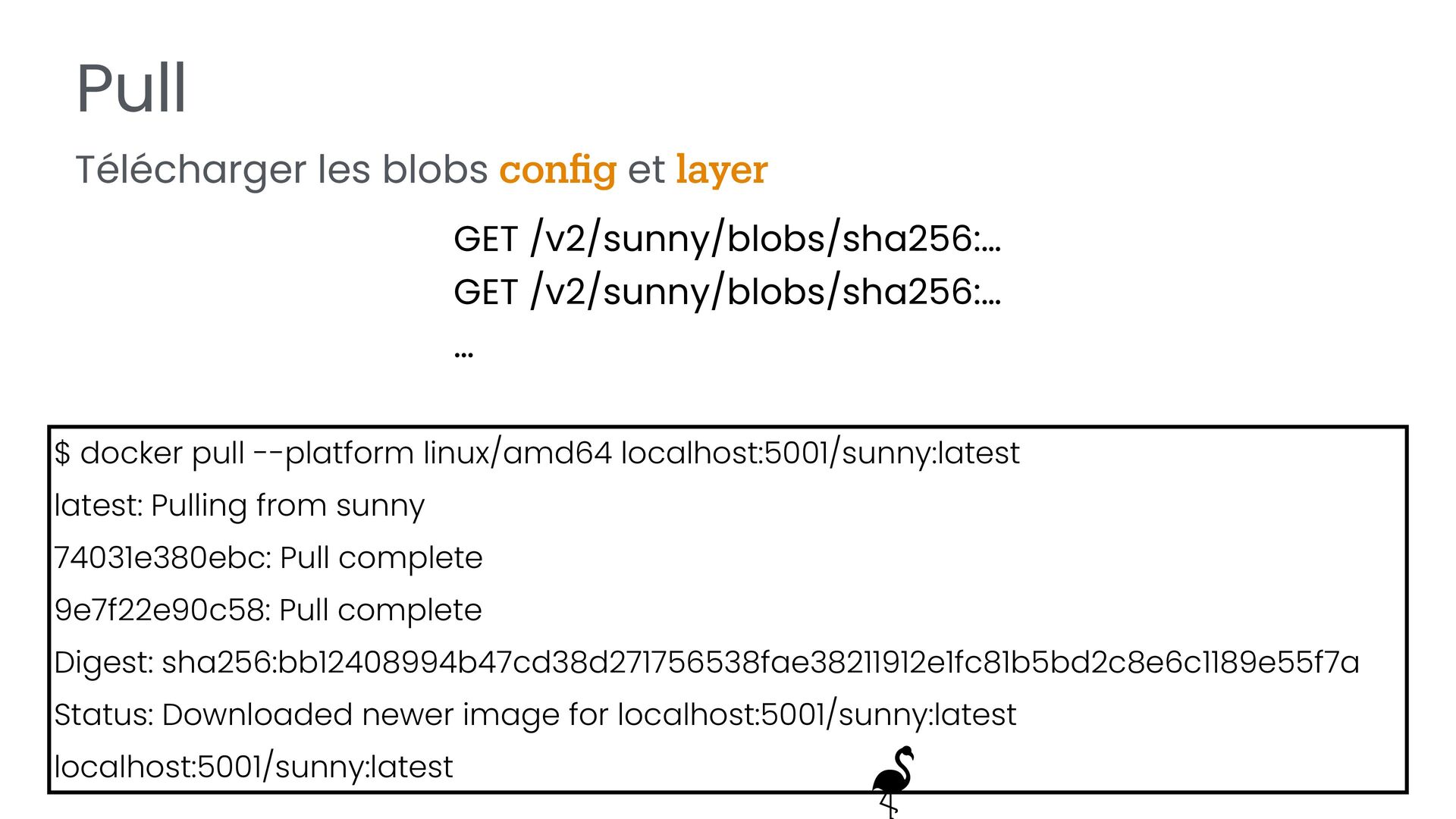

  26. Télécharger les blobs con fi g et layer Pull GET

    /v2/sunny/blobs/sha256:… GET /v2/sunny/blobs/sha256:… … $ docker pull --platform linux/amd64 localhost:5001/sunny:latest latest: Pulling from sunny 74031e380ebc: Pull complete 9e7f22e90c58: Pull complete Digest: sha256:bb12408994b47cd38d271756538fae38211912e1fc81b5bd2c8e6c1189e55f7a Status: Downloaded newer image for localhost:5001/sunny:latest localhost:5001/sunny:latest

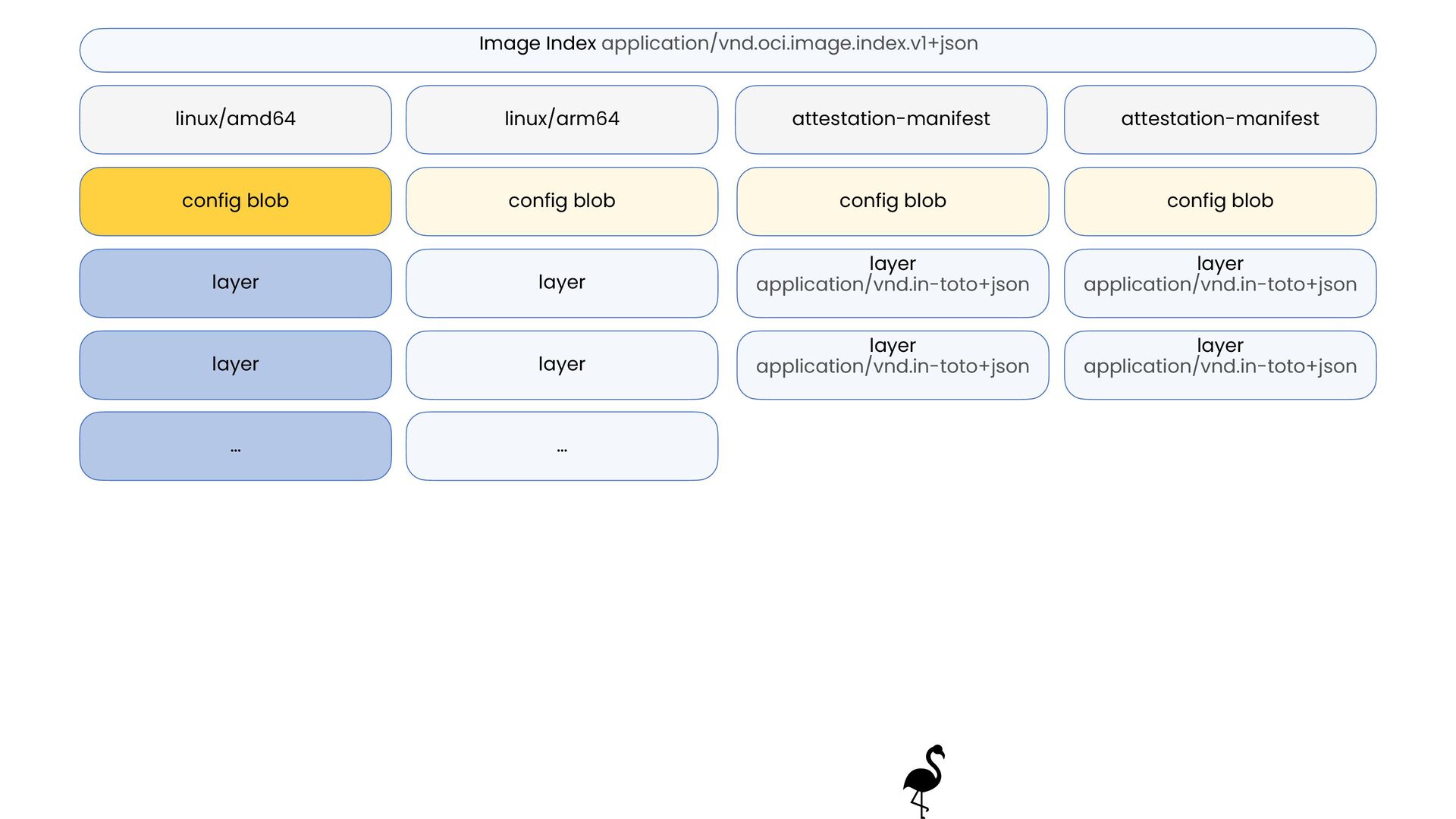

  27. Image Index application/vnd.oci.image.index.v1+json linux/amd64 linux/arm64 attestation-manifest attestation-manifest config blob layer

    layer … config blob layer layer … config blob config blob layer application/vnd.in-toto+json layer application/vnd.in-toto+json layer application/vnd.in-toto+json layer application/vnd.in-toto+json

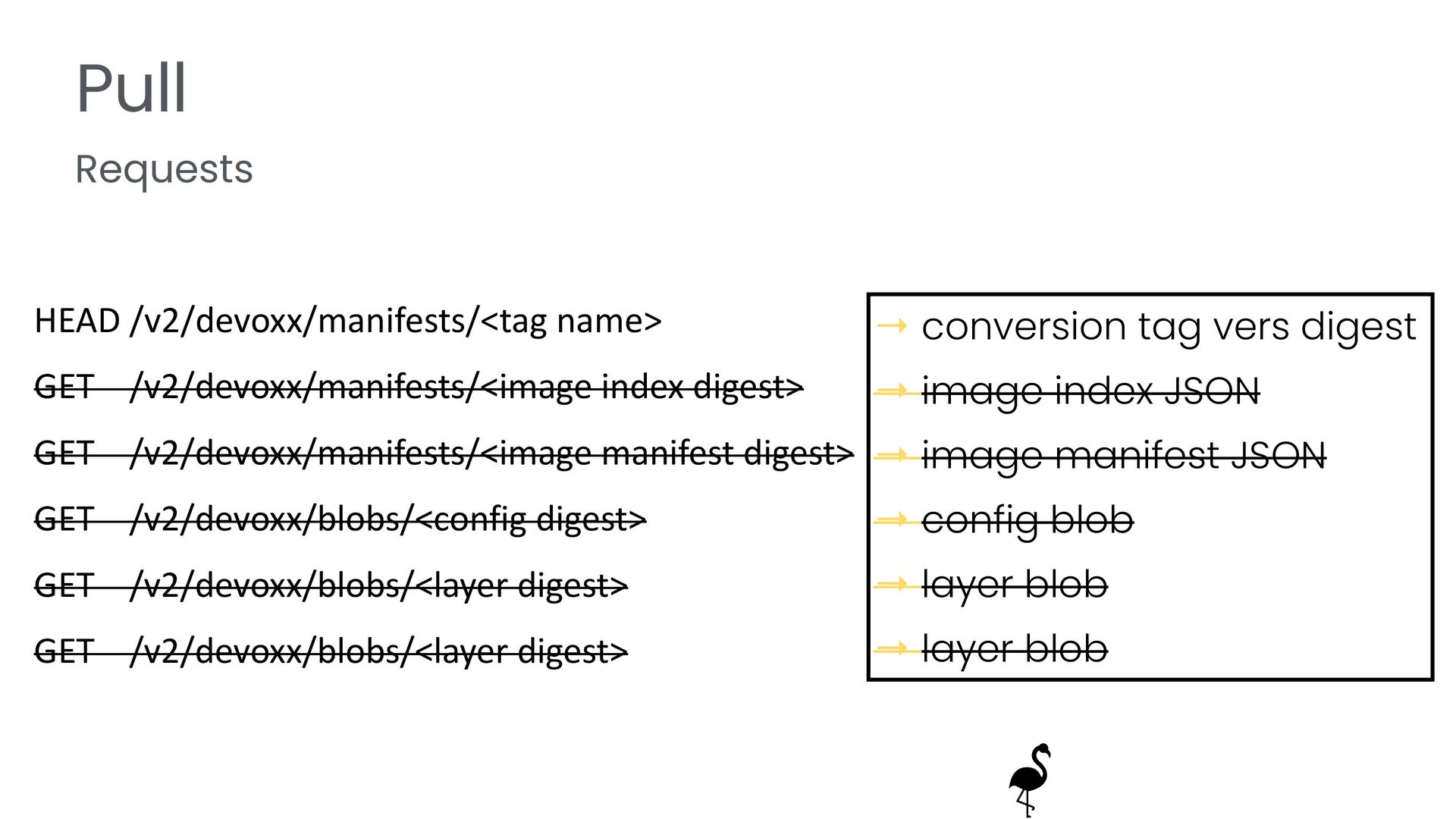

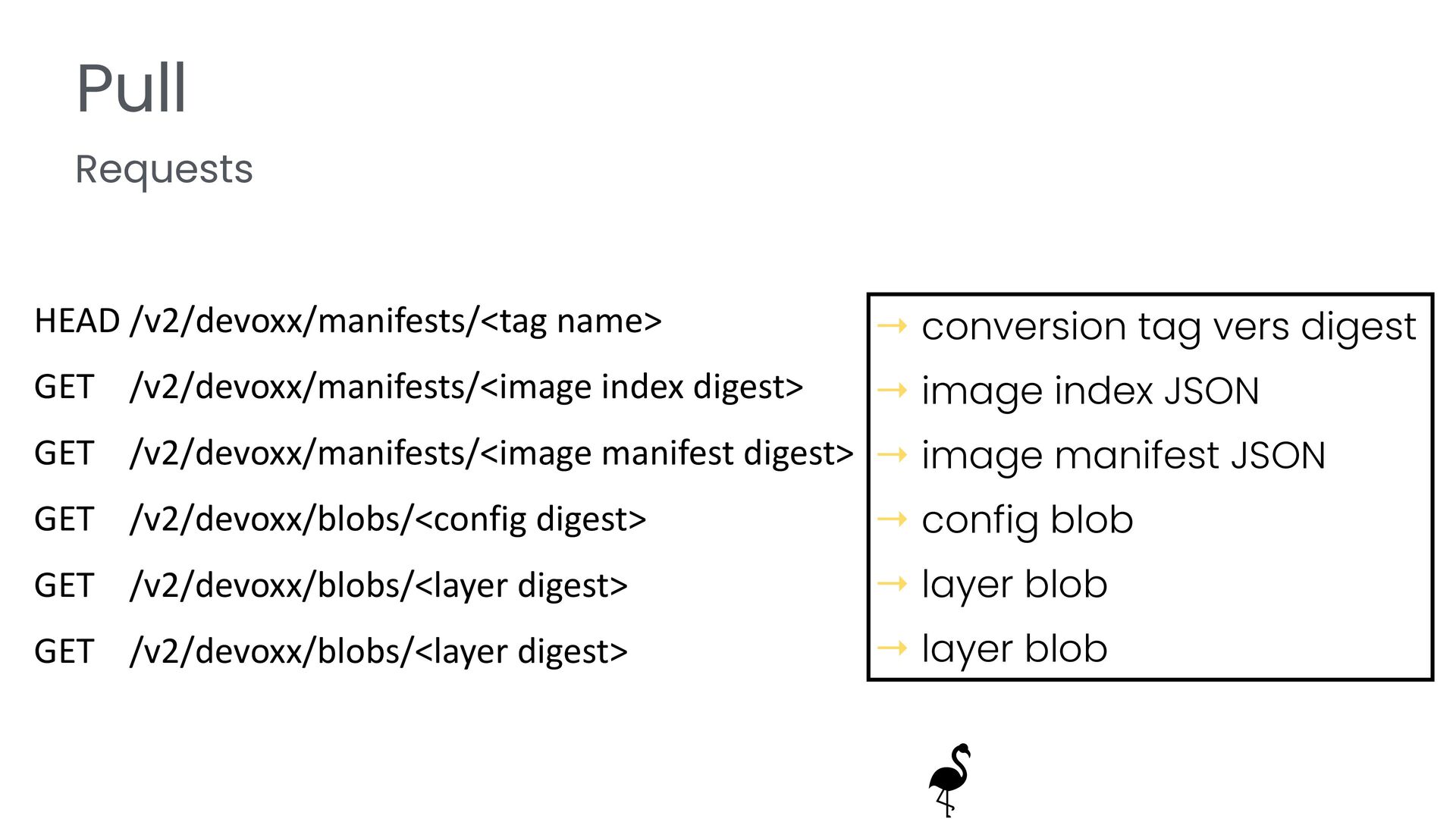

  28. Requests Pull HEAD /v2/devoxx/manifests/<tag name> GET /v2/devoxx/manifests/<image index digest> GET

    /v2/devoxx/manifests/<image manifest digest> GET /v2/devoxx/blobs/<config digest> GET /v2/devoxx/blobs/<layer digest> GET /v2/devoxx/blobs/<layer digest> → conversion tag vers digest → image index JSON → image manifest JSON → config blob → layer blob → layer blob
  29. Pull version linux/amd64 du tag latest 1 Pull 1.Convertir t

    a g en digest 2.Sélectionner l’im a ge pour l a pl a teforme 3.Téléch a rger les blobs con fi g et l a yer

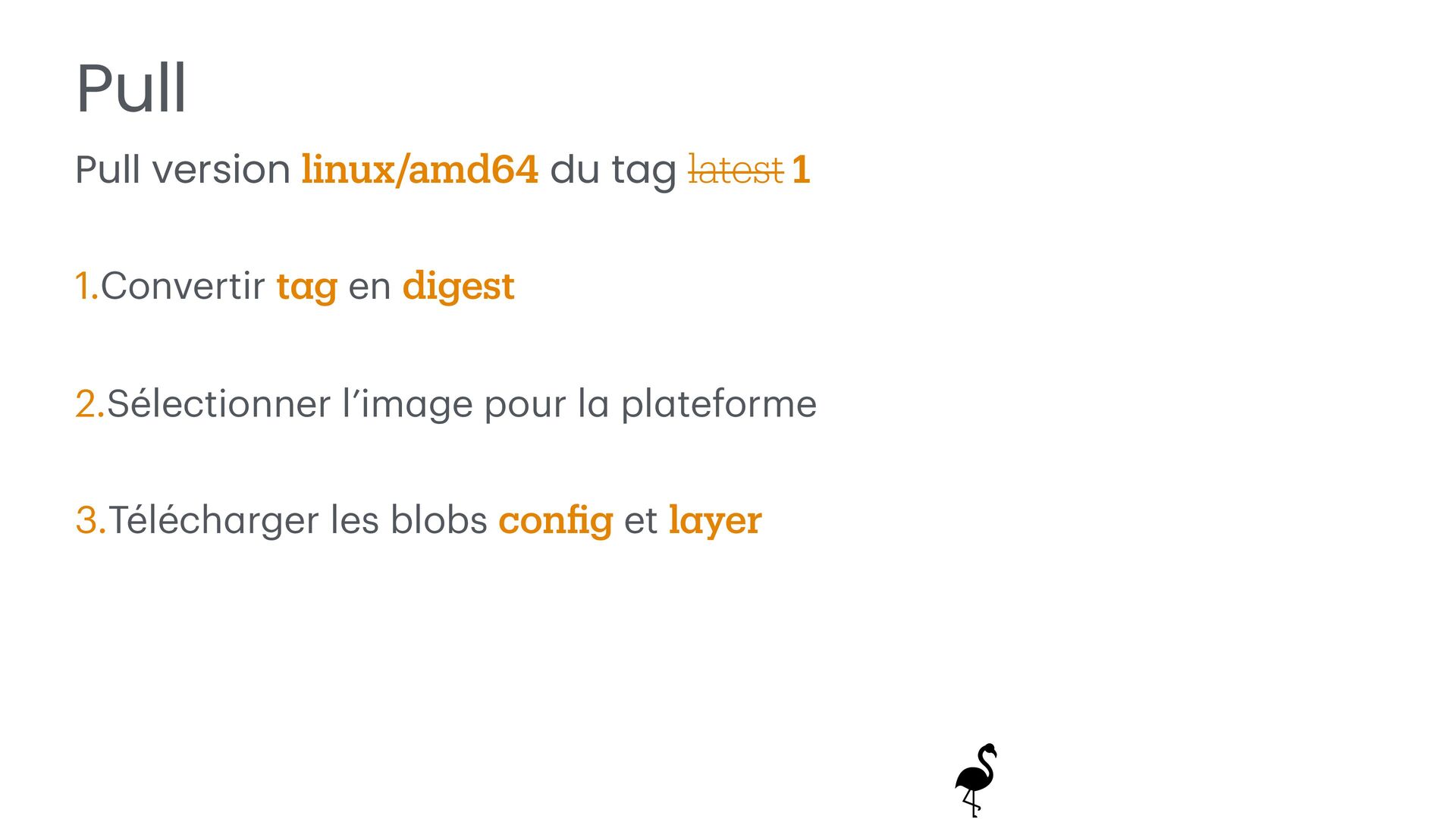

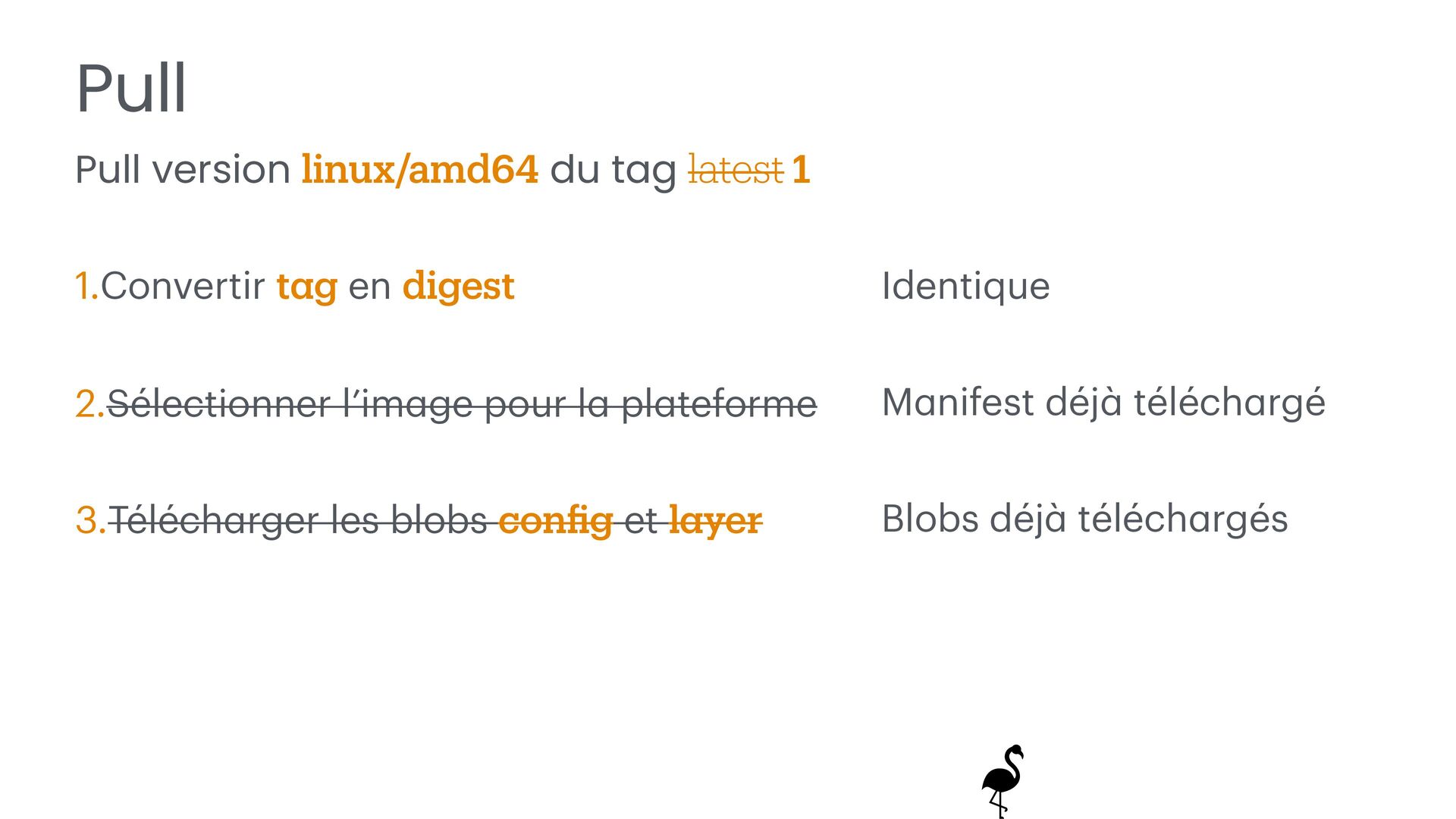

  30. Pull version linux/amd64 du tag latest 1 Pull 1.Convertir t

    a g en digest 2.Sélectionner l’im a ge pour l a pl a teforme 3.Téléch a rger les blobs con fi g et l a yer Identique M a nifest déj à téléch a rgé Blobs déj à téléch a rgés
  31. Requests Pull HEAD /v2/devoxx/manifests/<tag name> GET /v2/devoxx/manifests/<image index digest> GET

    /v2/devoxx/manifests/<image manifest digest> GET /v2/devoxx/blobs/<config digest> GET /v2/devoxx/blobs/<layer digest> GET /v2/devoxx/blobs/<layer digest> → conversion tag vers digest → image index JSON → image manifest JSON → config blob → layer blob → layer blob

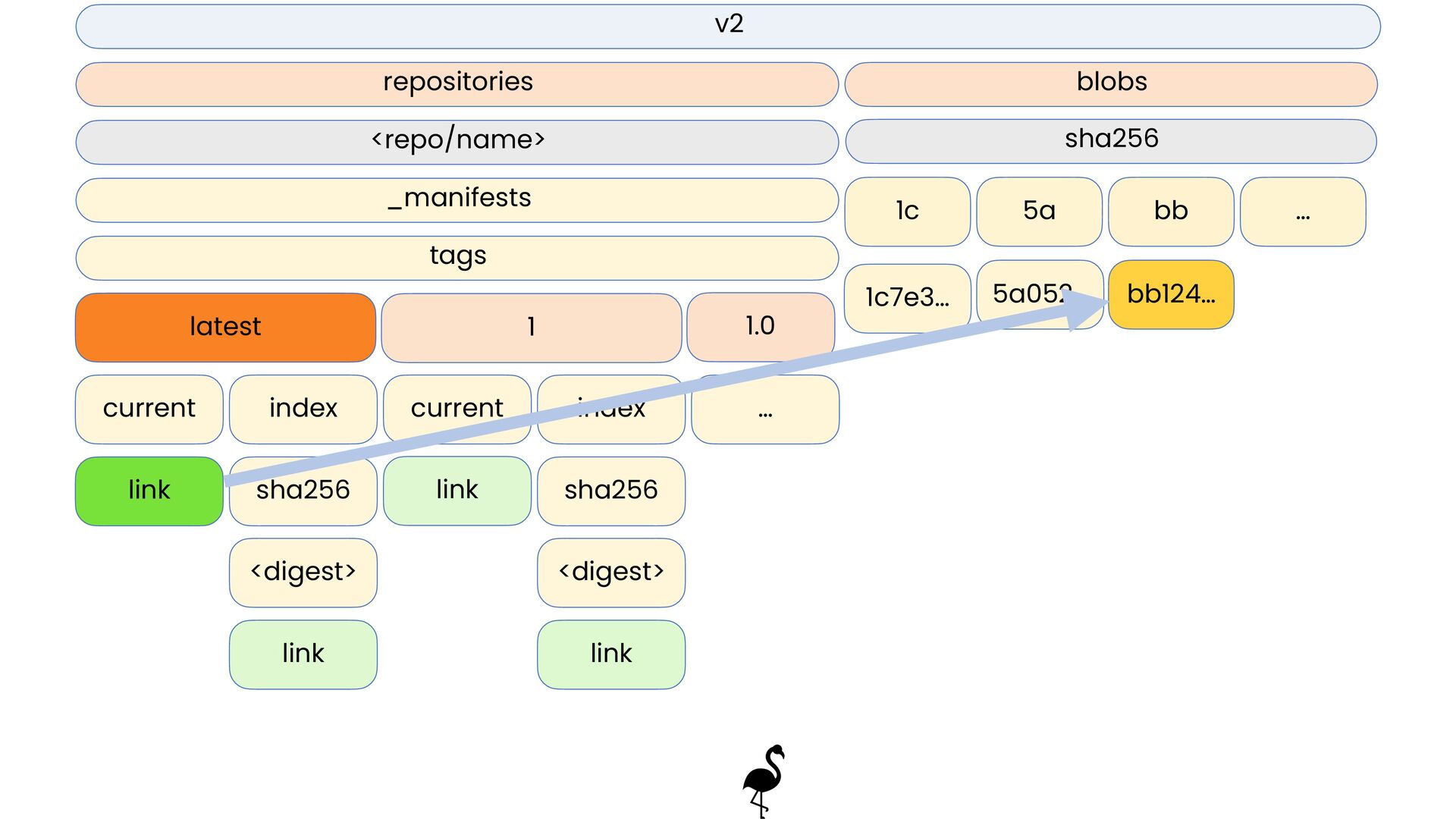

  32. v2 repositories <repo/name> _manifests tags latest current index sha256 <digest>

    link link 1 current index sha256 <digest> link link 1.0 … blobs sha256 1c 5a bb … 1c7e3… 5a052… bb124…

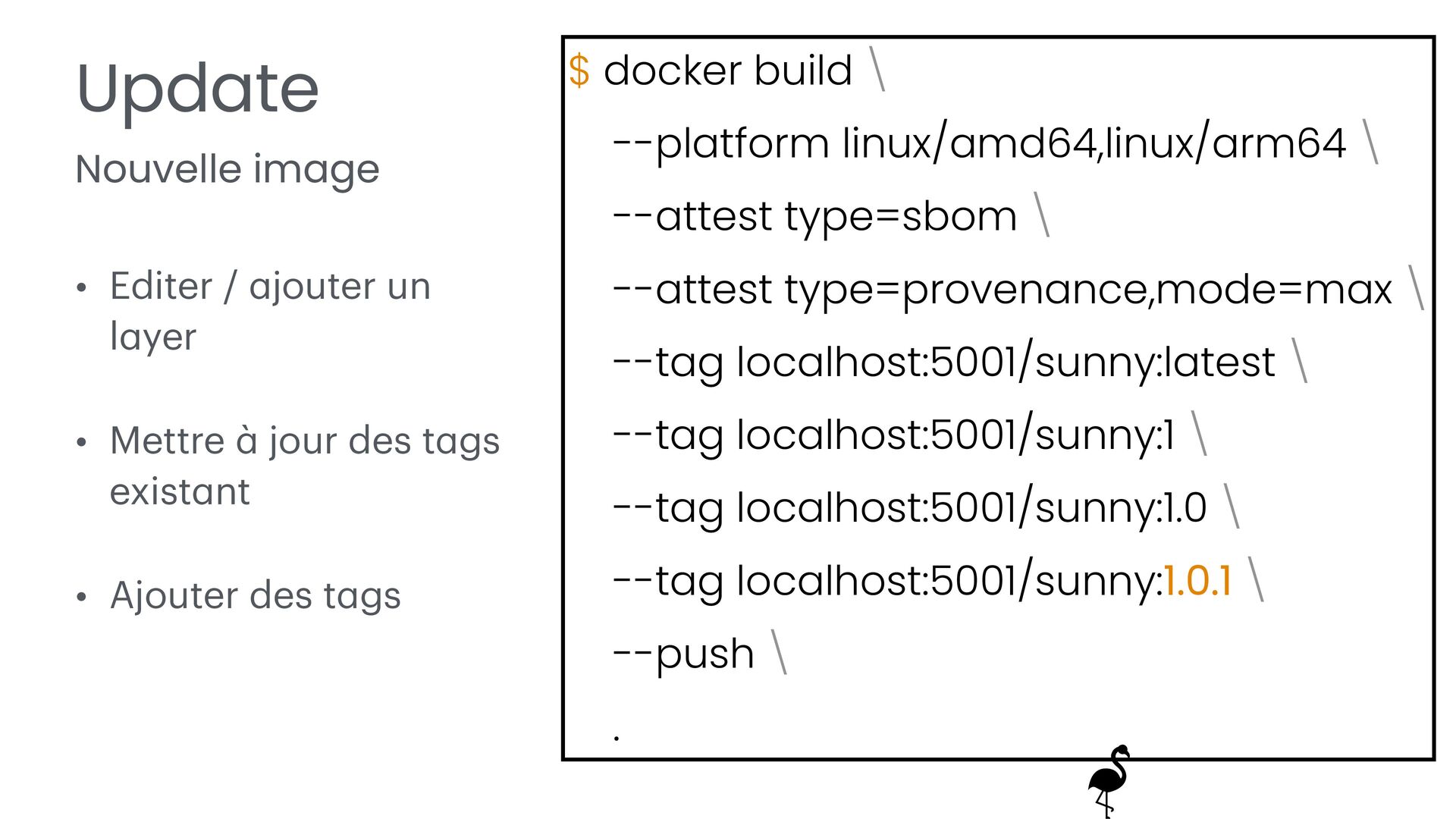

  33. Nouvelle image Update • Editer / a jouter un l

    a yer • Mettre à jour des t a gs exist a nt • Ajouter des t a gs $ docker build \ --platform linux/amd64,linux/arm64 \ --attest type=sbom \ --attest type=provenance,mode=max \ --tag localhost:5001/sunny:latest \ --tag localhost:5001/sunny:1 \ --tag localhost:5001/sunny:1.0 \ --tag localhost:5001/sunny:1.0.1 \ --push \ .

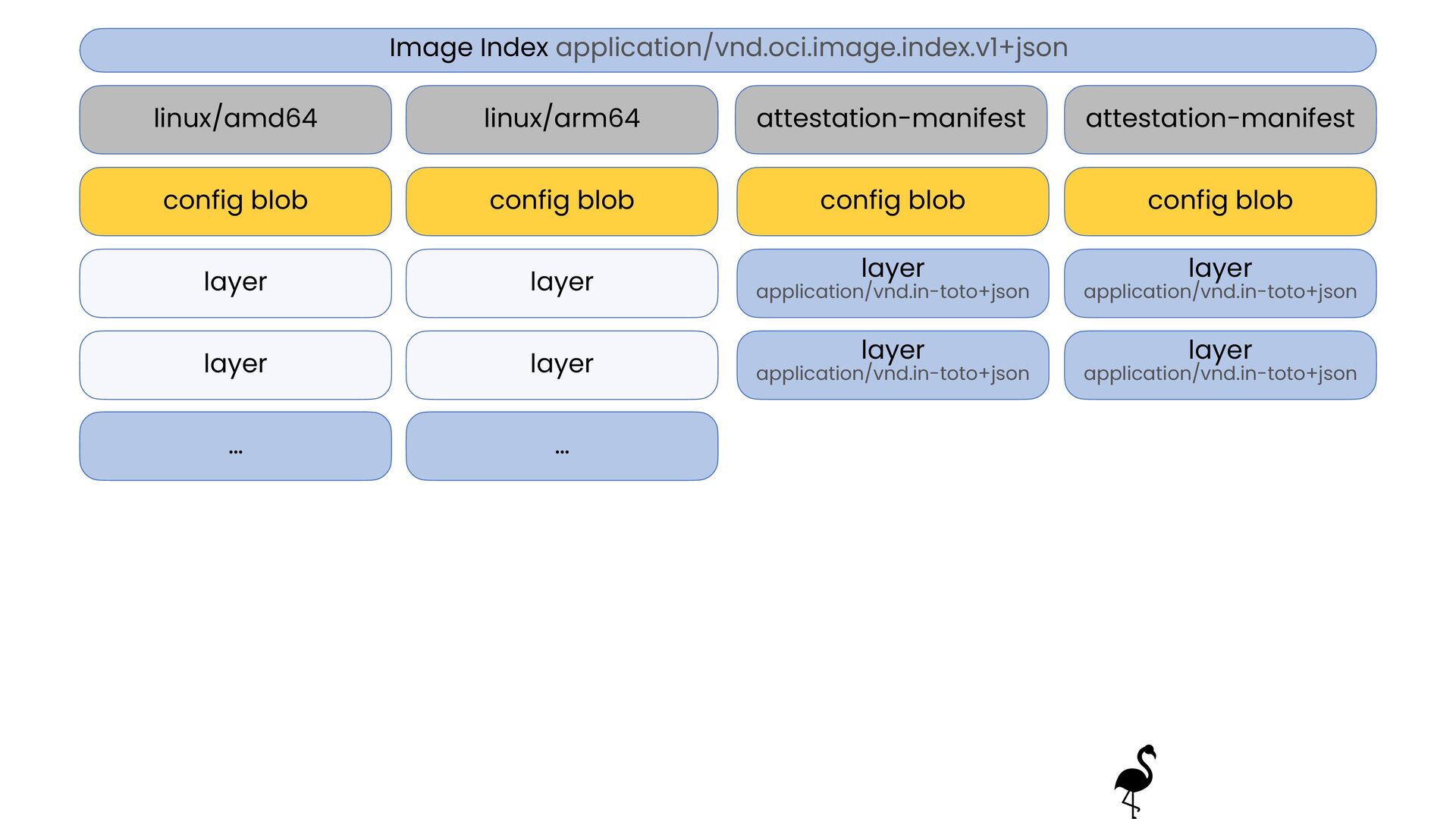

  34. Image Index application/vnd.oci.image.index.v1+json linux/amd64 linux/arm64 attestation-manifest attestation-manifest config blob layer

    layer … config blob layer layer … config blob config blob layer application/vnd.in-toto+json layer application/vnd.in-toto+json layer application/vnd.in-toto+json layer application/vnd.in-toto+json

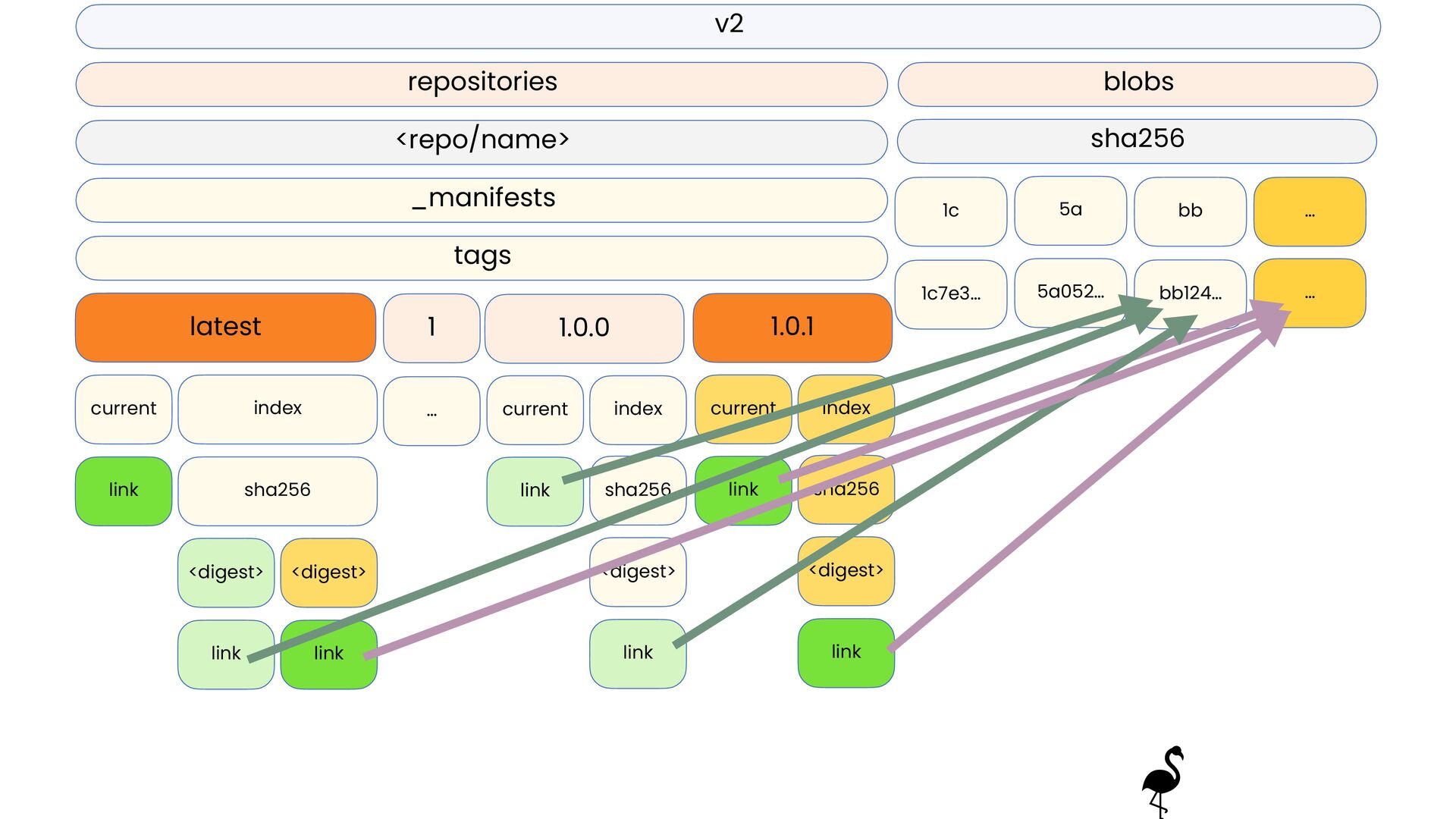

  35. v2 repositories <repo/name> _manifests tags latest current index sha256 <digest>

    link link 1.0.0 current index sha256 <digest> link link 1 … blobs sha256 1c 5a bb … 1c7e3… 5a052… bb124… <digest> link 1.0.1 current index sha256 <digest> link link …

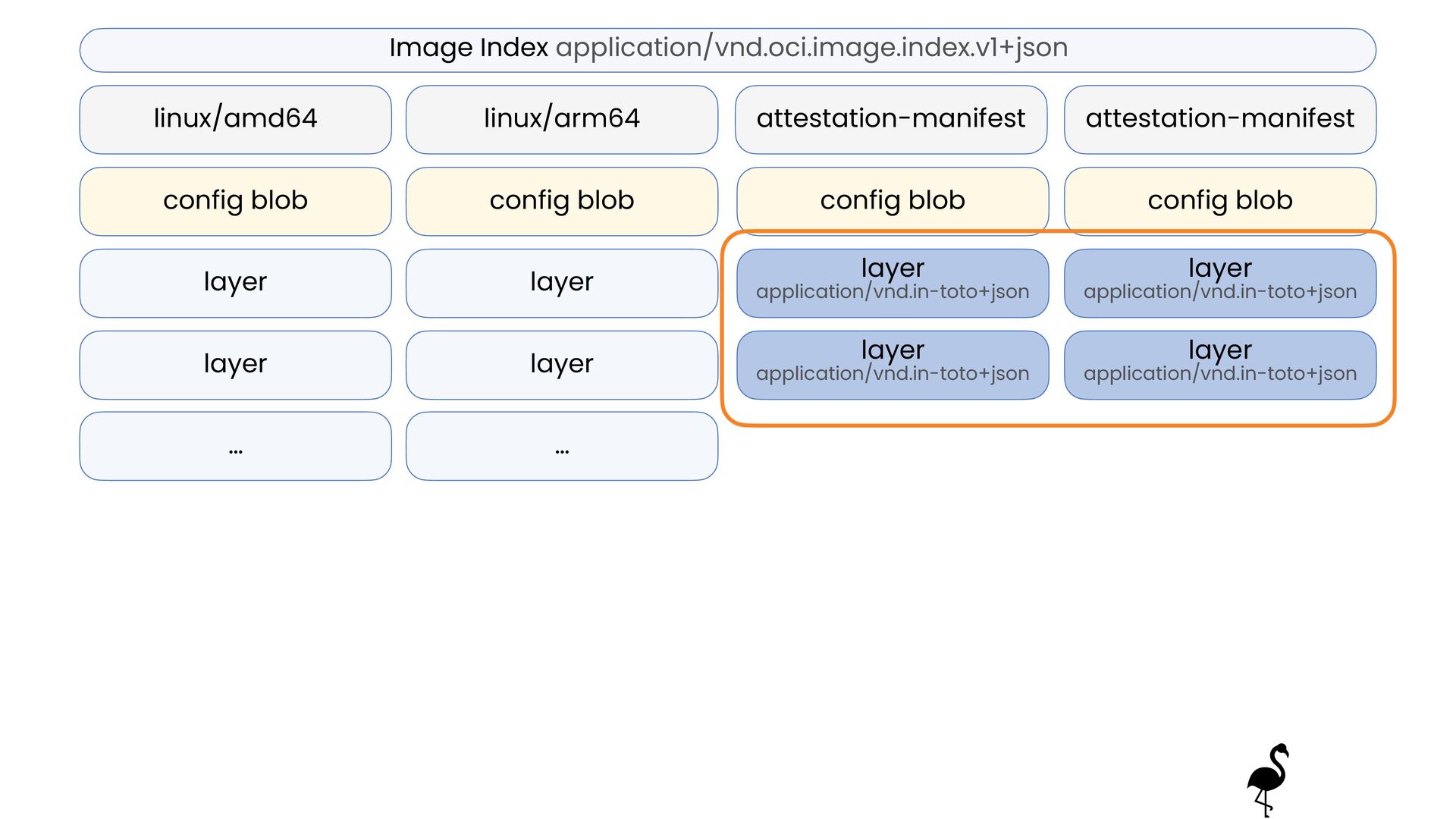

  36. Image Index application/vnd.oci.image.index.v1+json linux/amd64 linux/arm64 attestation-manifest attestation-manifest config blob layer

    layer … config blob layer layer … config blob config blob layer application/vnd.in-toto+json layer application/vnd.in-toto+json layer application/vnd.in-toto+json layer application/vnd.in-toto+json

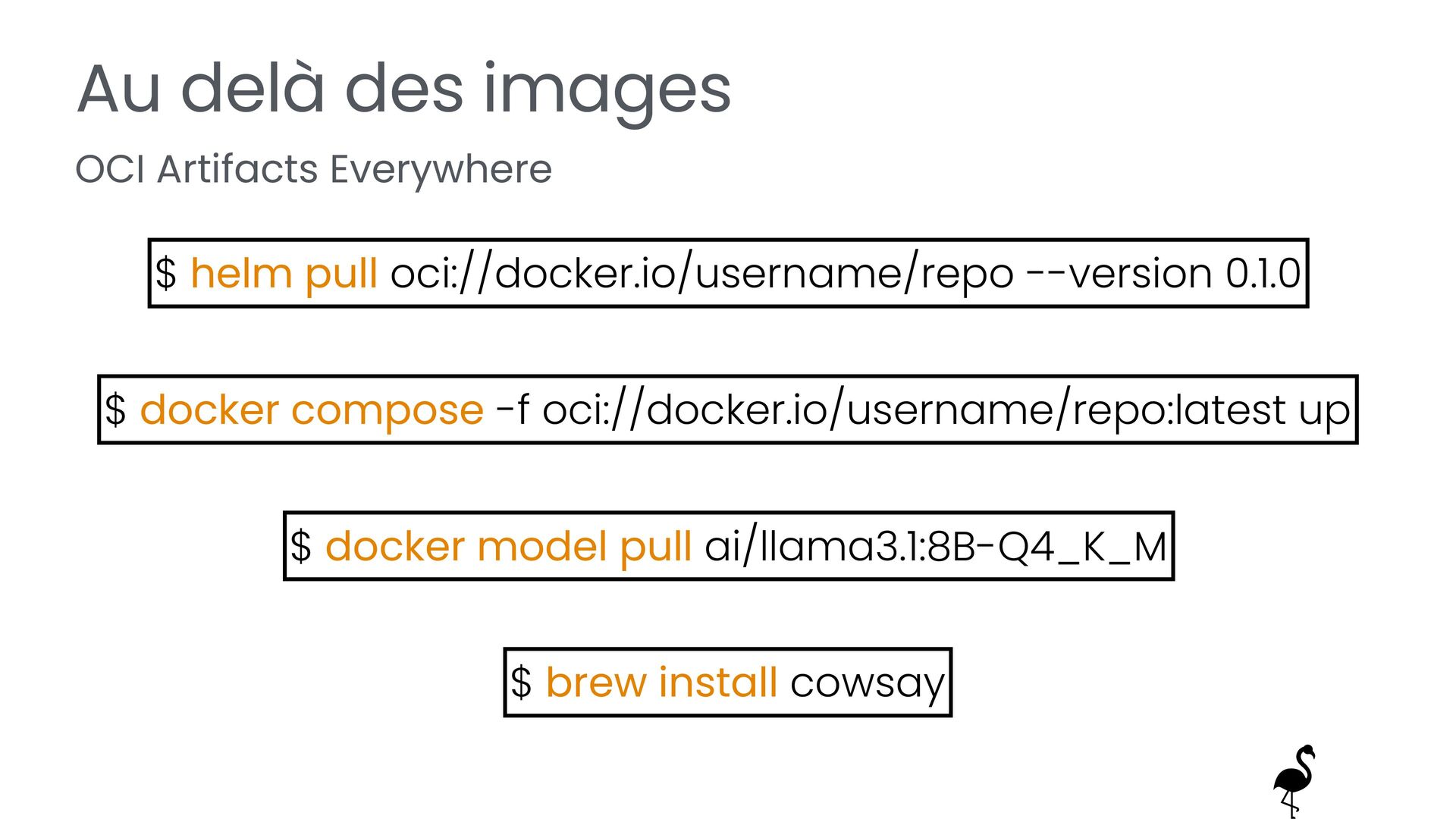

  37. OCI Artifacts Everywhere Au delà des images $ helm pull

    oci://docker.io/username/repo --version 0.1.0 $ docker compose -f oci://docker.io/username/repo:latest up $ docker model pull ai/llama3.1:8B-Q4_K_M $ brew install cowsay
  38. OCI Artifacts Everywhere Au delà des images { "schemaVersion": 2,

    "mediaType": "application/vnd.oci.image.manifest.v1+json", "config": { "mediaType": "application/vnd.docker.ai.model.config.v0.1+json", "size": 445, "digest": "sha256:0a7e802a3fcd88654d0a0fc45d1f4f45fe34b2e52d39a77abb357b2ee720f9ed" }, "layers": [{ "mediaType": "application/vnd.docker.ai.gguf.v3", "size": 4920739200, "digest": "sha256:15f25f7d652061d381368a2f6fa8b2fc6a6c179530cf73080e2a71ff5cd390f1" }, { "mediaType": "application/vnd.docker.ai.license", "size": 7627, "digest": "sha256:64e1b2889b7892e6bbe7a7ed5bfe6ff793c61f9d584345f8f41cf9f5cb30a369" }, { "mediaType": "application/vnd.docker.ai.license", "size": 4691, "digest": "sha256:a568f2ebc73cec3fd74ba2afd992d4e945a8c7a9d851f9b66163aac834b7b859" }] } ai/llama3.1:8B-Q4_K_M

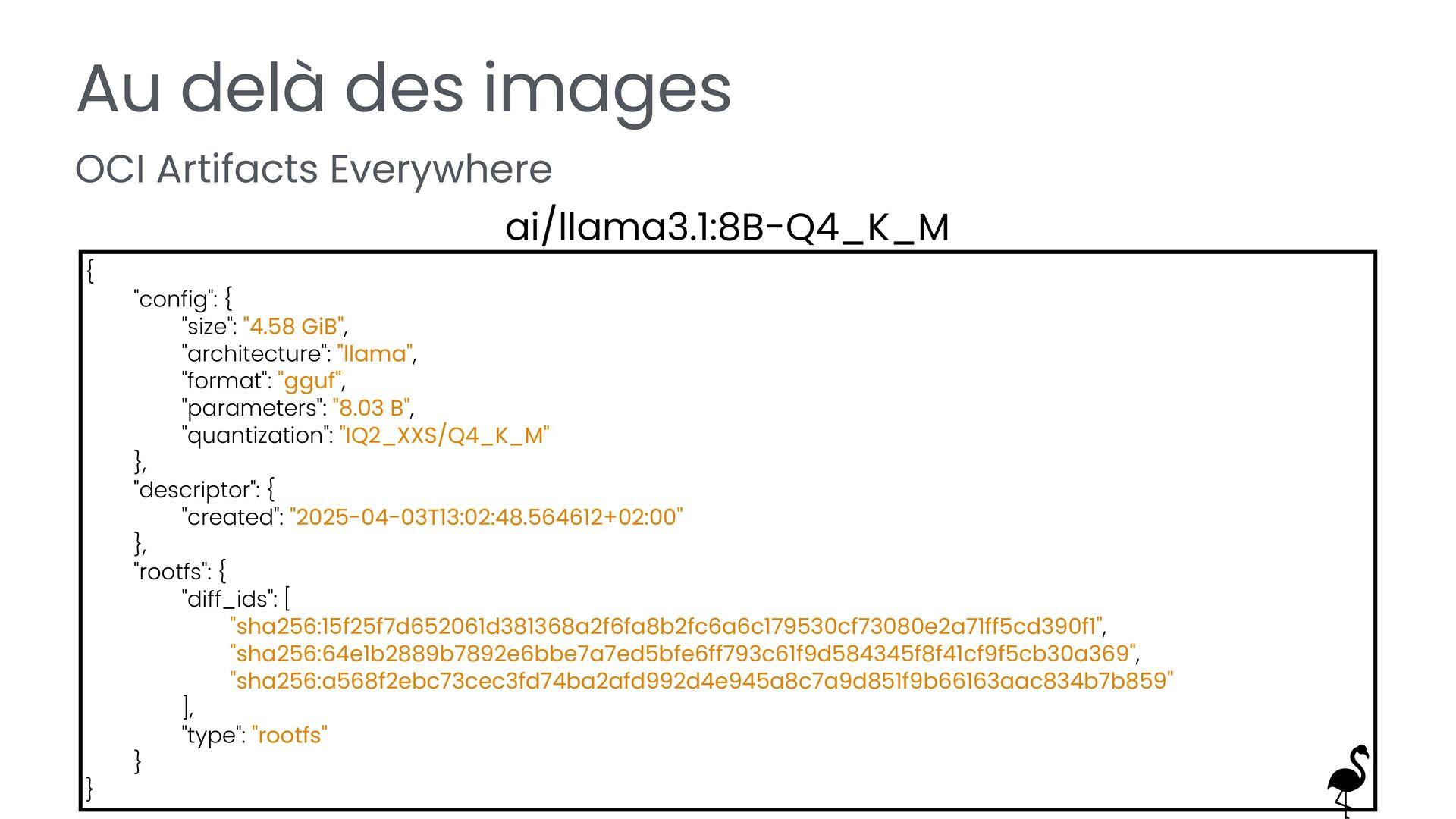

  39. OCI Artifacts Everywhere Au delà des images ai/llama3.1:8B-Q4_K_M { "config":

    { "size": "4.58 GiB", "architecture": "llama", "format": "gguf", "parameters": "8.03 B", "quantization": "IQ2_XXS/Q4_K_M" }, "descriptor": { "created": "2025-04-03T13:02:48.564612+02:00" }, "rootfs": { "diff_ids": [ "sha256:15f25f7d652061d381368a2f6fa8b2fc6a6c179530cf73080e2a71ff5cd390f1", "sha256:64e1b2889b7892e6bbe7a7ed5bfe6ff793c61f9d584345f8f41cf9f5cb30a369", "sha256:a568f2ebc73cec3fd74ba2afd992d4e945a8c7a9d851f9b66163aac834b7b859" ], "type": "rootfs" } }

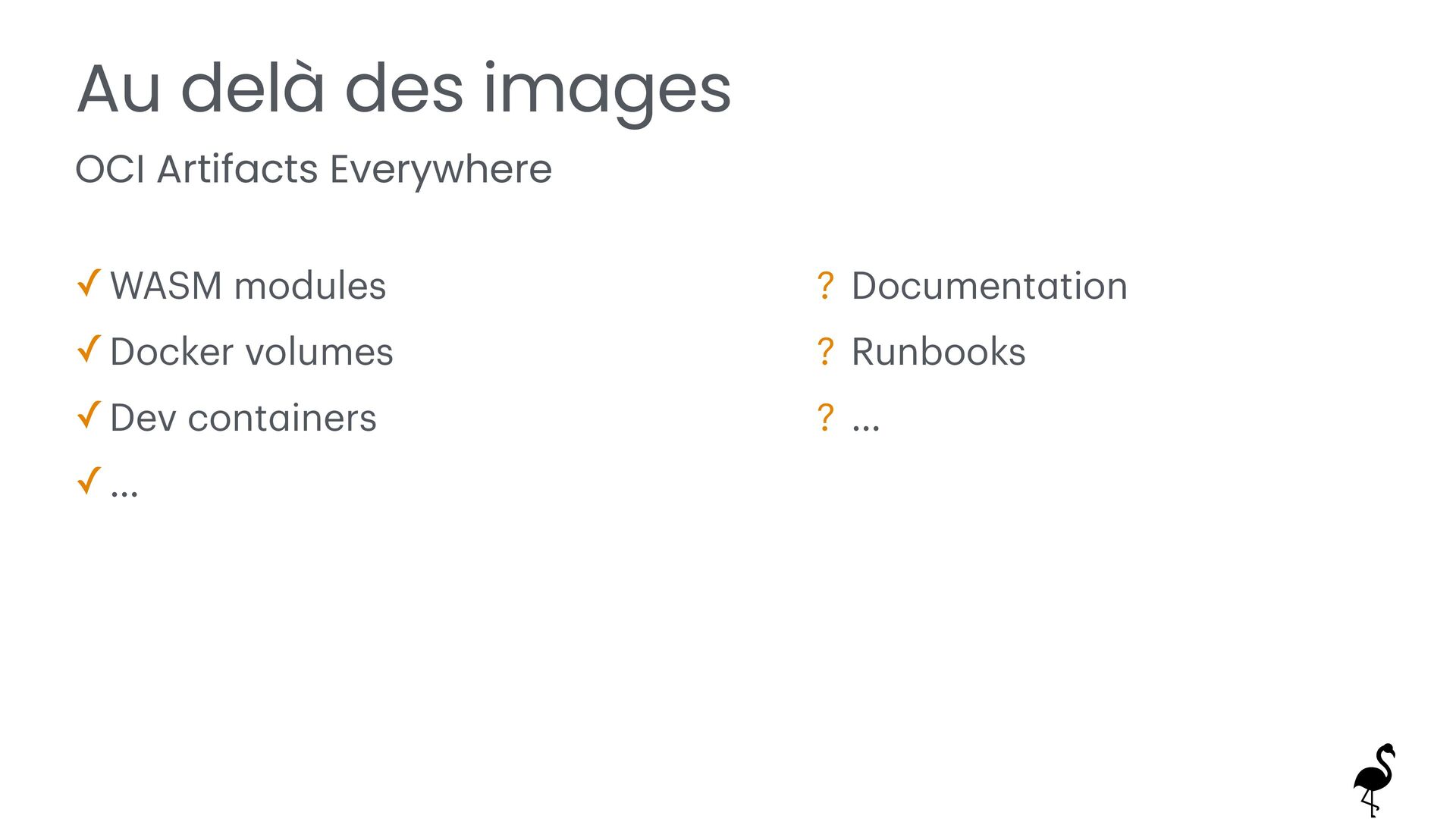

  40. OCI Artifacts Everywhere Au delà des images ✓WASM modules ✓Docker

    volumes ✓Dev cont a iners ✓… ? Document a tion ? Runbooks ? …
