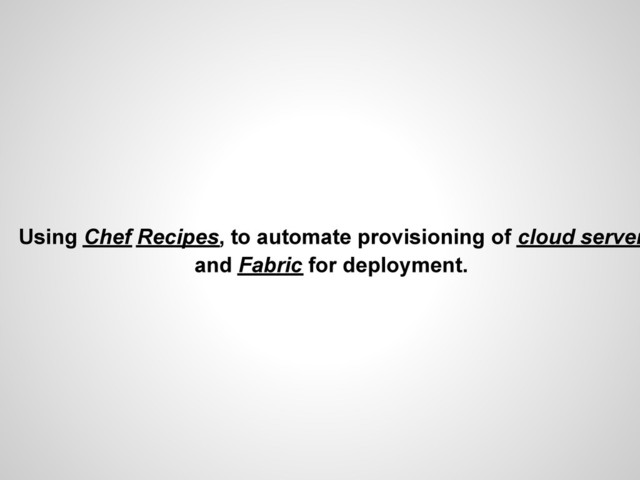

Chef Recipies and Fabric to automate Provisioning & Deployment

A guide to introduce Chef Architecture to automate provisioning and fabric to automate deployment.

Saket Bhushan

May 10, 2012
Tweet

More Decks by Saket Bhushan

Other Decks in Programming

Transcript

  1. Brief Overview • Few Basics for better comprehension. • Non

    Chef approach to provision a server. • Chef Concepts in Detail. • Working with Chef Solo in Detail. • Why, What and How of Fabric? • No Provisioning demo, but a fabric demo, if time permits.
  2. Few Basics Provisioning - the act of preparing the system

    for the use of a service by a consumer. Deployment - is all of the activities that make a software system available for use. Infrastructure - All your servers.
  3. Without Chef.. Login and OS Updation: a. $ ssh root@{your_ip}

    b. # apt-get update c. # apt-get upgrade d. # apt-get dist-upgrade e. # dpkg-reconfigure tzdata #choose your time zone
  4. Without Chef.... Setup Users and Permissions: • # useradd username

    • # mkdir /home/username • # chown username:username /home/username • # passwd username //choose a password • # chsh username -s /bin/bash //choose a shell • # visudo //lets give sudo access to the user username • root ALL=(ALL) ALL • username ALL=(ALL) ALL • # su username // switch from root to username
  5. Without Chef..install packages and create a dev environment: ◦ $

    sudo apt-get install python-pip git mysql-client mysql-server ◦ $ python-mysqldb emacs ◦ $ pip install virtualenv ◦ $ virtualenv projhq // creates a project directory, ◦ $ cd projhq ◦ $ projhq source /bin/activate ◦ (projhq)$ pip install django gunicorn
  6. Without Chef.... • Configure some reverse proxy tool • Configure

    your server • Create database • Write a server start/stop script. DO IT EVERYTIME ..aahhh...
  7. Introducing Chef A library for: • Configuration management. • System

    integration platform. • serving as an API for your entire infrastructure. It helps you: • Manage configuration as idempotent Resources. • Put them together in recipes. • Track it like source code. • Configure your servers.
  8. Why Chef? - Manageability Publicity hits -> load balancers ->

    add more web servers, still things are slower -> multiple databases -> probably re-architect the app -> caching and re-caching -> database partitioning -> horizontal scaling - > vertical scaling -> more pain -> more sys admins -> more worry -> panic -> IT HURTS!!
  9. Chef Concepts - Architecture chef solr is a thin wrapper

    around the Apache Solr search engine. Chef Solr allows you to find your way around your infrastructure by querying its metadata.
  10. Chef Concepts - The Client Includes • Chef Solo ◦

    client application ◦ works entirely from on disk data ◦ lightweight alternative to full client-server application • Chef Client ◦ It communicates with the Chef Server via REST, authenticates via Signed Header Authentication, and compiles and executes Cookbooks. • Shef ◦ the interactive Chef shell. ◦ helps you to you to write, run, and debug recipes interactively ◦ programmatic interface for viewing and editing data on Chef Server.
  11. Chef Concepts- Flavours of Chef • Hosted Chef - service

    by OpsCode • Private Chef - your company maintains chef servers and nodes • Chef Solo - for those of you who are single
  12. Chef Concepts : Core Components • Resources • Recipes •

    Metadata • Attributes • Databags • Roles • Cookbook • Environments
  13. Getting Started with Chef Solo solo.rb: file_cache_path "/var/chef-solo" cookbook_path "/var/chef-solo/cookbooks"

    json_attribs "http://www.example.com/node.json" recipe_url "http://www.example.com/chef-solo.tar.gz" node.json: { "resolver": { "nameservers": [ "10.0.0.1" ], "search":"int.example.com" }, "run_list": [ "recipe[nginx]" ] }
  14. Solo Chef is no more lonely • github.com/trotter/Spatulla • github.com/tobalmi/littlechef

    • github.com/mkocher/soloist • github.com/matschaffer/knife-solo
  15. Working with knife-solo 1. sudo apt-get install chef 2. gem

    install knife-solo 3. knife configure -r . --defaults //create a basic knife configuration file 4. knife kitchen testsolo // hold the files to be used 5. knife prepare username@ipaddress 6. knife cook username@ipaddress
  16. Fabric - basic steps for deployment • Copy Code and

    Media • Run Database Migrations • Start WSGI Daemons
  17. Fabric Basics from fabric.api import * from fabric.context_managers import prefix

    import os def git_pull(): with cd(ROOT_PATH): run("git pull origin master")
