1. ChengHao Yang (tico88612) @ CNTUG Meetup #67 / DevOps Meetup #69 Deep Dive into Tetragon Building Runtime Security and Observability with eBPF 1
2. ChengHao Yang (tico88612) • CNCF Ambassador • Kubestronaut • CNTUG meetup Co-organizer • KCD Taipei 2025 Lead organizer • Code Reviewer @ Kubespray • Release Signal Shadow @ Kubernetes v1.32 / v1.33 • 鏡 音 リン愛好者 $ whoami 2
3. 1. 祭出 swag、各 大 社群宣傳，但依 舊沒有 人 投稿。 2. 剛好公司想要來研究這主題，就 順便跟 大 家分享。 3. 跟 DevOps Taiwan 來交換 一 下主 題，來宣傳 一 下社群跟活動！ 為什麼會有這主題？ 投稿連結：https://sessionize.com/cntug-meetup/ 3
4. 工 商時間 4
5. 活動報名中！ • 活動 日 期：7/5 (Sat.) • 地點：臺科 大 國際 大 樓 • 除了雲端原 生 的議程以外，現場會 有從國外研討會帶回的趣味競賽 ClashLookBackO f ！ • 官網：https://kcd.taipei/2025 • 購票：https://i.kcd.taipei/2025- ticket KCD Taipei 2025 5 徵稿連結 多樣性獎學 金 申請 官 方 網站 Time out! QwQ
6. 每 月 聚會 + Call for Speaker • Cloud Native Taiwan User Group 是 CNCF 認可的在地社群。 • 活動皆免費*限額報名參與。 • 投稿後並完成演講，我們將會贈 送 CNCF Store 一 件禮物！ • 官 方 網站：https://cloudnative.tw CNTUG meetup 6 徵稿連結 CNTUG 聚會報名 官 方 網站 * 僅收場地費
7. 主題開始 7

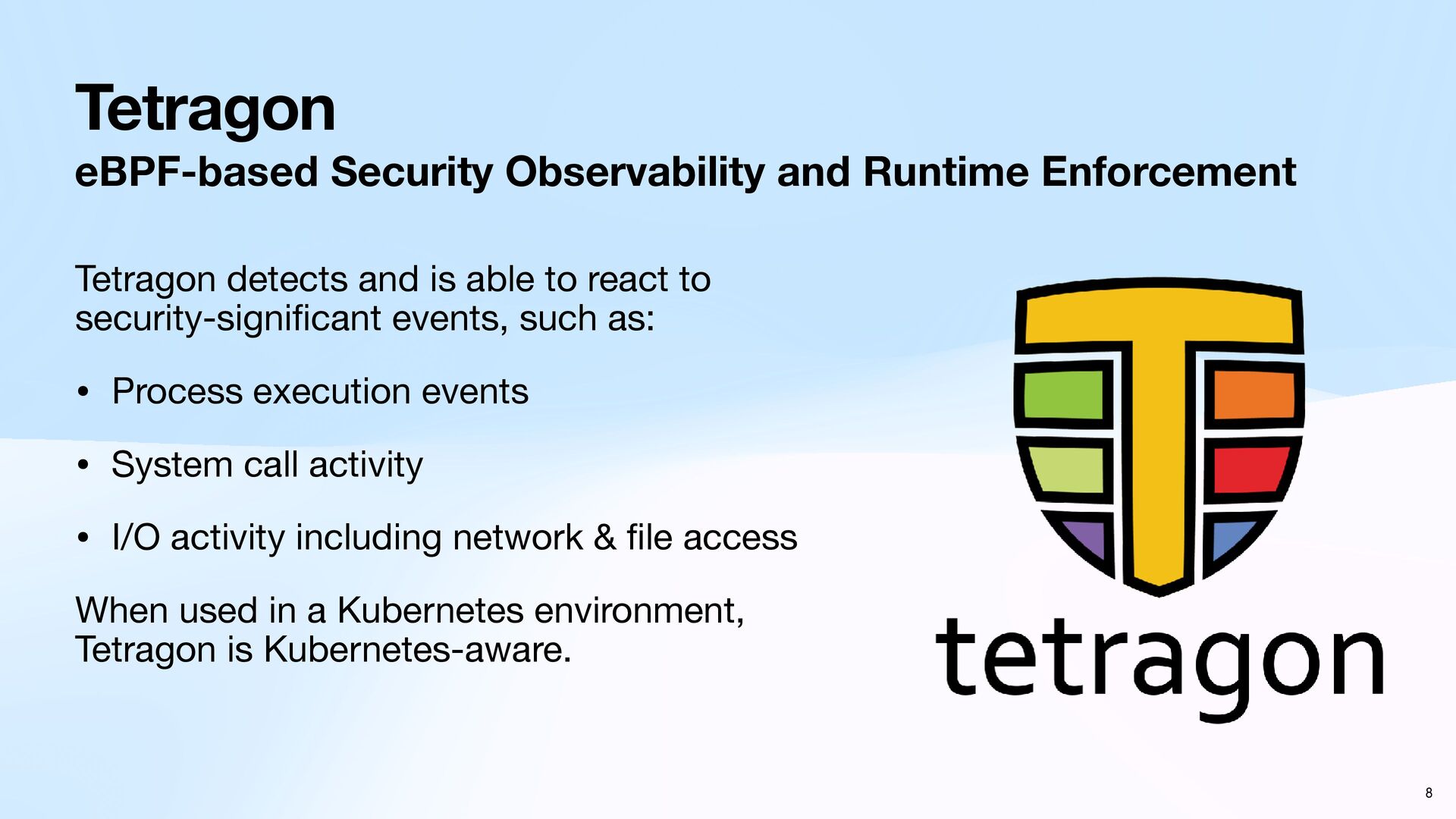

8. eBPF-based Security Observability and Runtime Enforcement Tetragon detects and is able to react to security-signi fi cant events, such as: • Process execution events • System call activity • I/O activity including network & fi le access When used in a Kubernetes environment, Tetragon is Kubernetes-aware. Tetragon 8

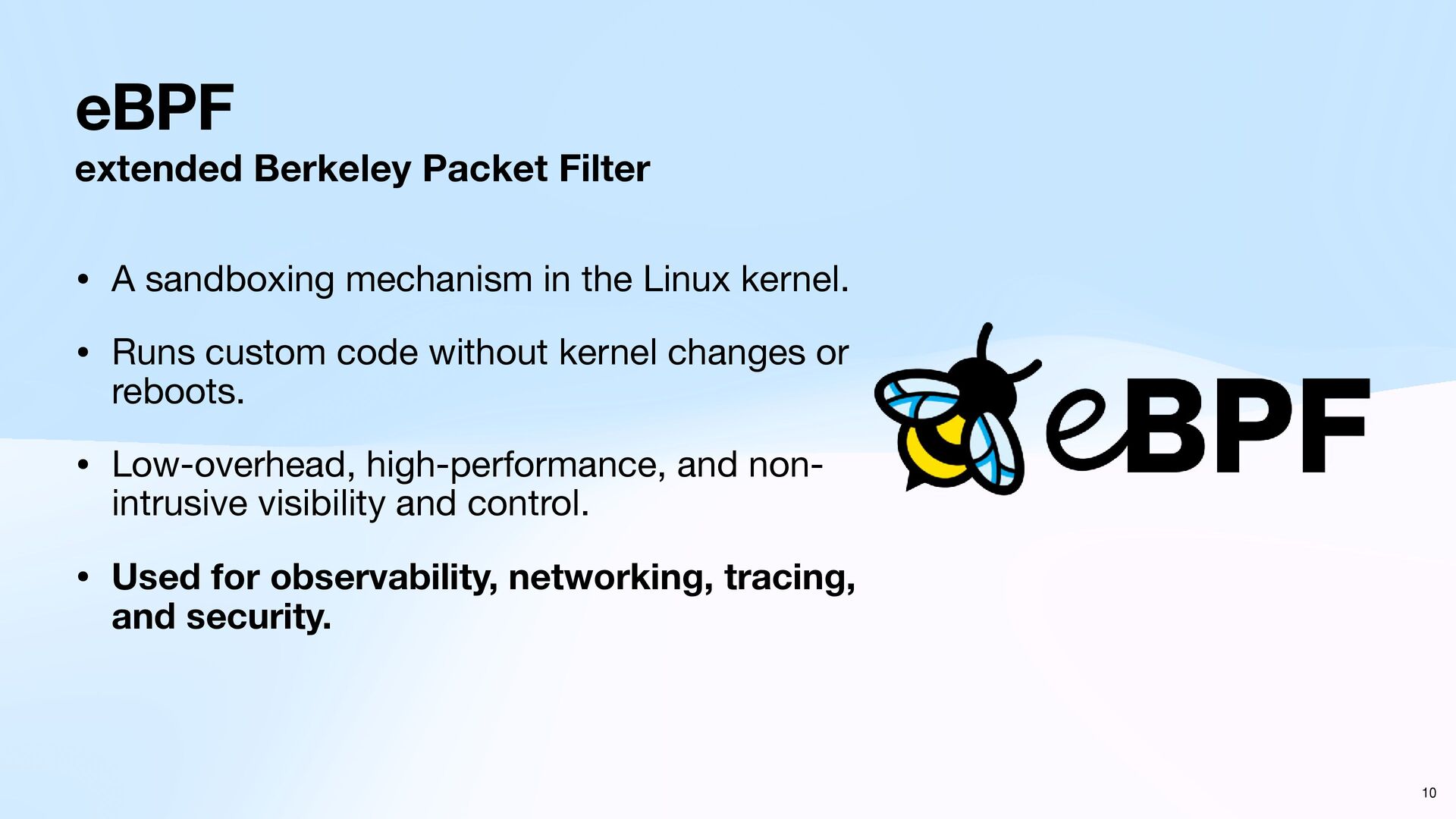

10. extended Berkeley Packet Filter • A sandboxing mechanism in the Linux kernel. • Runs custom code without kernel changes or reboots. • Low-overhead, high-performance, and non- intrusive visibility and control. • Used for observability, networking, tracing, and security. eBPF 10

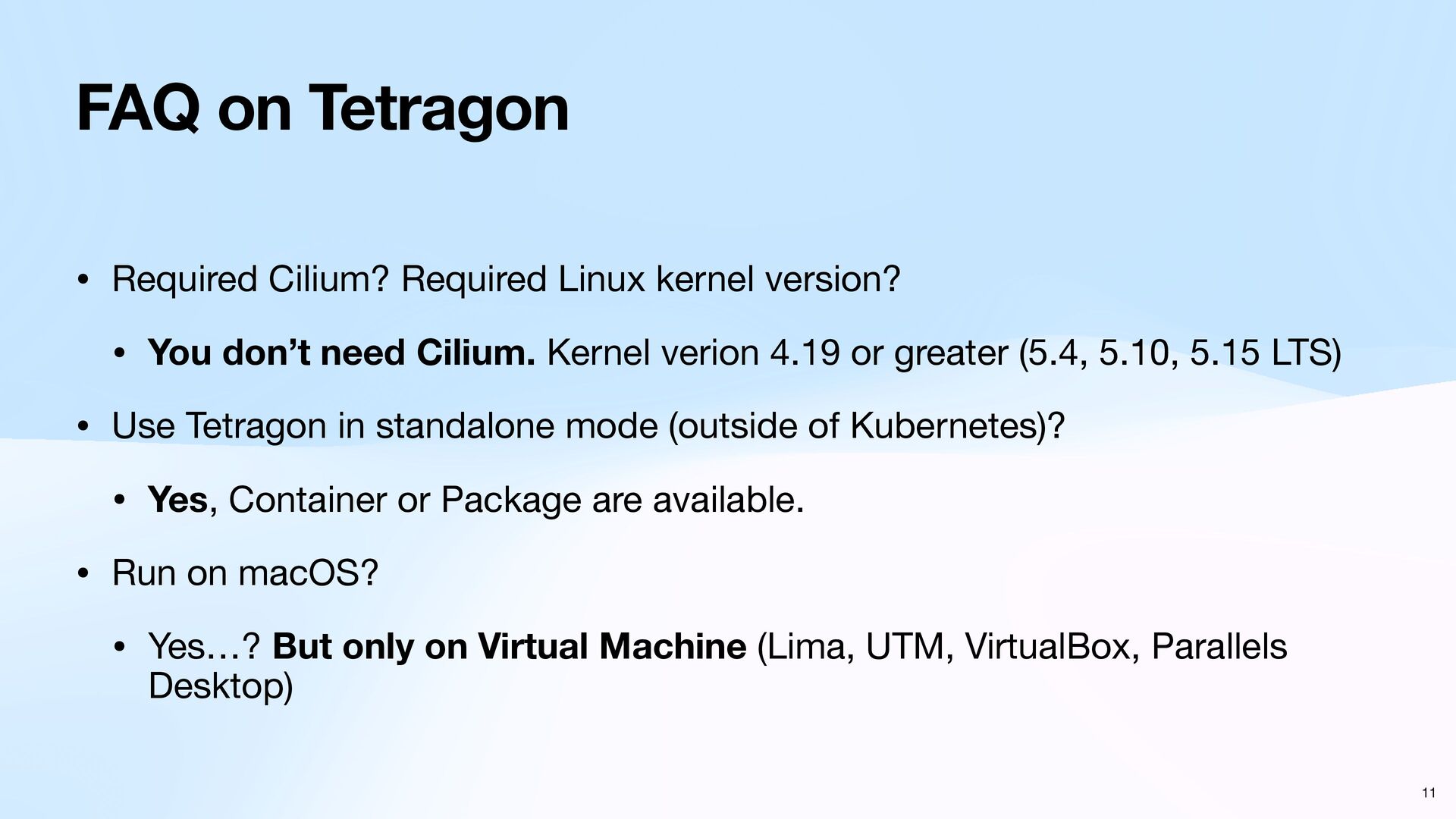

11. FAQ on Tetragon • Required Cilium? Required Linux kernel version? • You don’t need Cilium. Kernel verion 4.19 or greater (5.4, 5.10, 5.15 LTS) • Use Tetragon in standalone mode (outside of Kubernetes)? • Yes, Container or Package are available. • Run on macOS? • Yes…? But only on Virtual Machine (Lima, UTM, VirtualBox, Parallels Desktop) 11

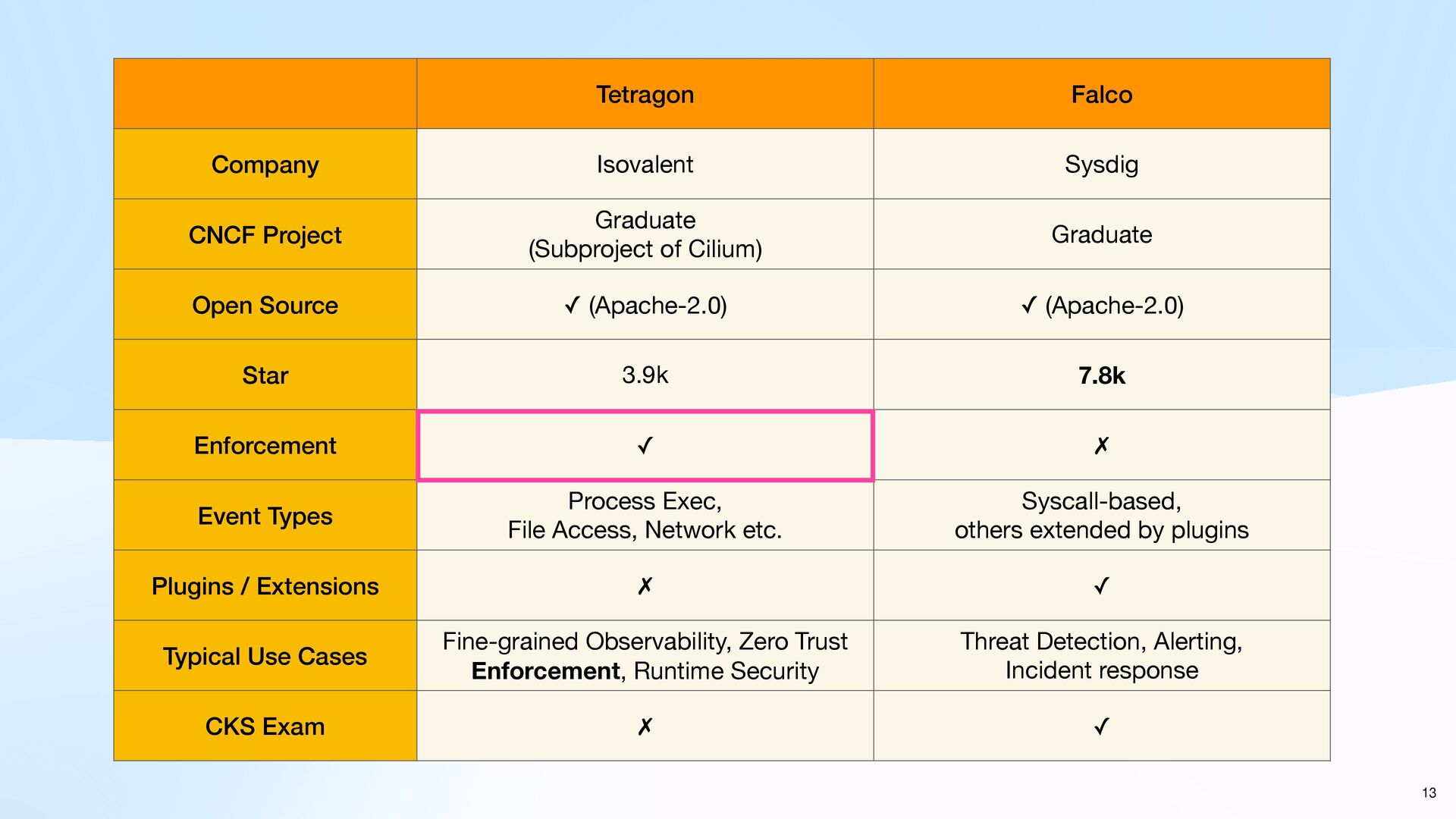

13. Tetragon Falco Company Isovalent Sysdig CNCF Project Graduate
 (Subproject of Cilium) Graduate Open Source ✓ (Apache-2.0) ✓ (Apache-2.0) Star 3.9k 7.8k Enforcement ✓ ✗ Event Types Process Exec,
 File Access, Network etc. Syscall-based,
 others extended by plugins Plugins / Extensions ✗ ✓ Typical Use Cases Fine-grained Observability, Zero Trust Enforcement, Runtime Security Threat Detection, Alerting,
 Incident response CKS Exam ✗ ✓ 13
14. DevOps DevSecOps SRE 14 Someone needs enforced policies

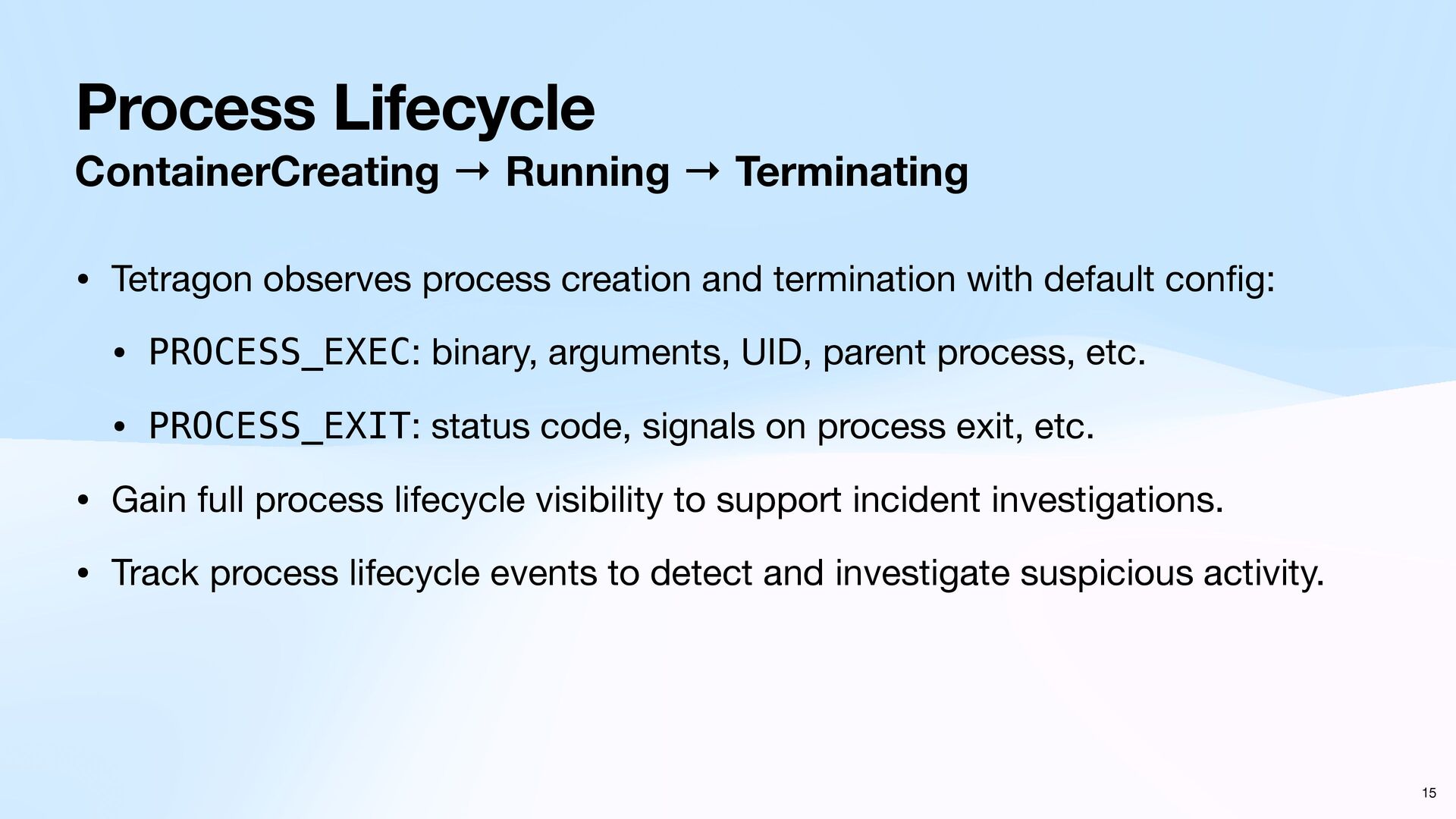

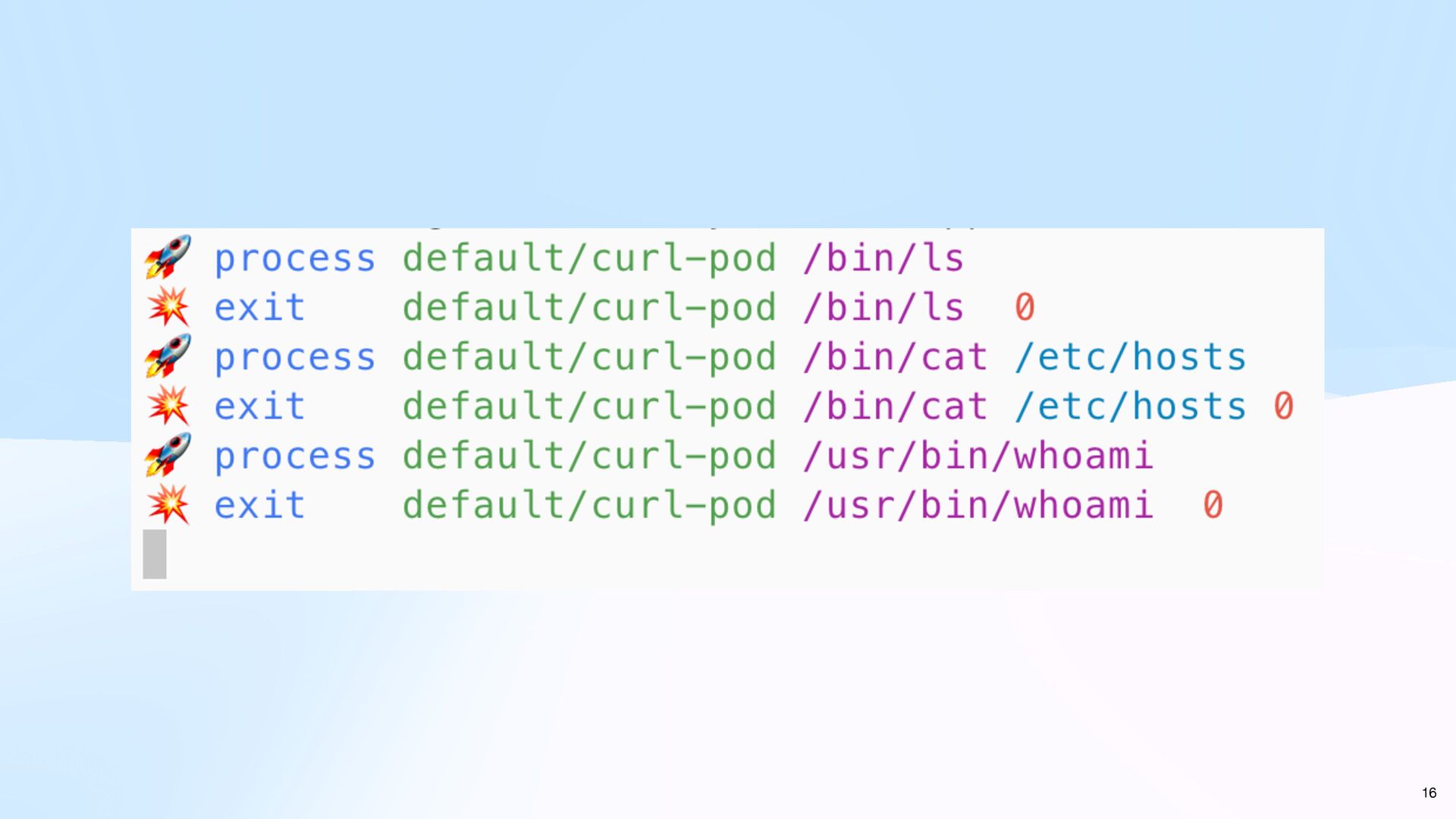

15. Process Lifecycle ContainerCreating → Running → Terminating • Tetragon observes process creation and termination with default con fi g: • PROCESS_EXEC: binary, arguments, UID, parent process, etc. • PROCESS_EXIT: status code, signals on process exit, etc. • Gain full process lifecycle visibility to support incident investigations. • Track process lifecycle events to detect and investigate suspicious activity. 15

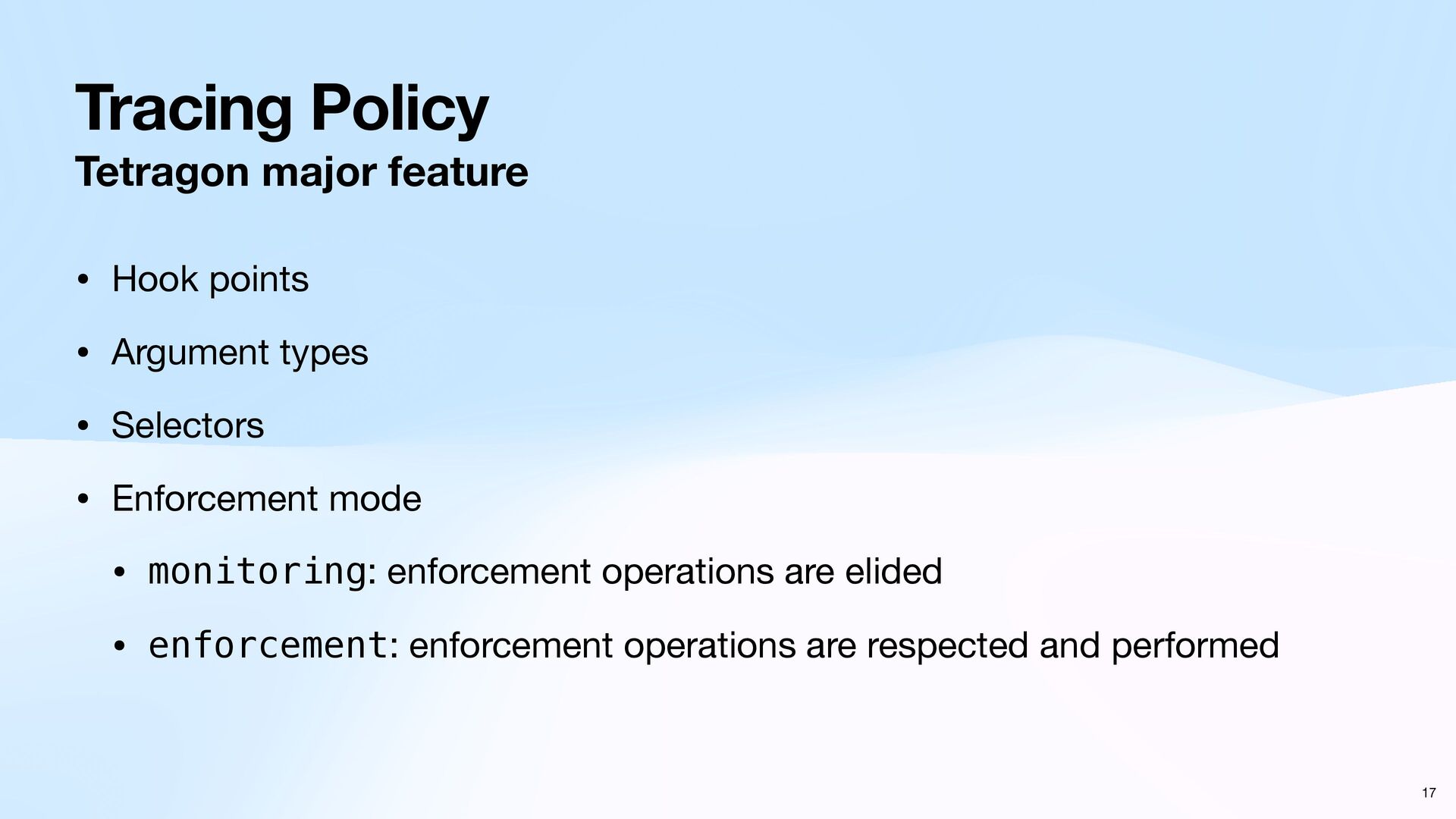

17. Tracing Policy Tetragon major feature • Hook points • Argument types • Selectors • Enforcement mode • monitoring: enforcement operations are elided • enforcement: enforcement operations are respected and performed 17

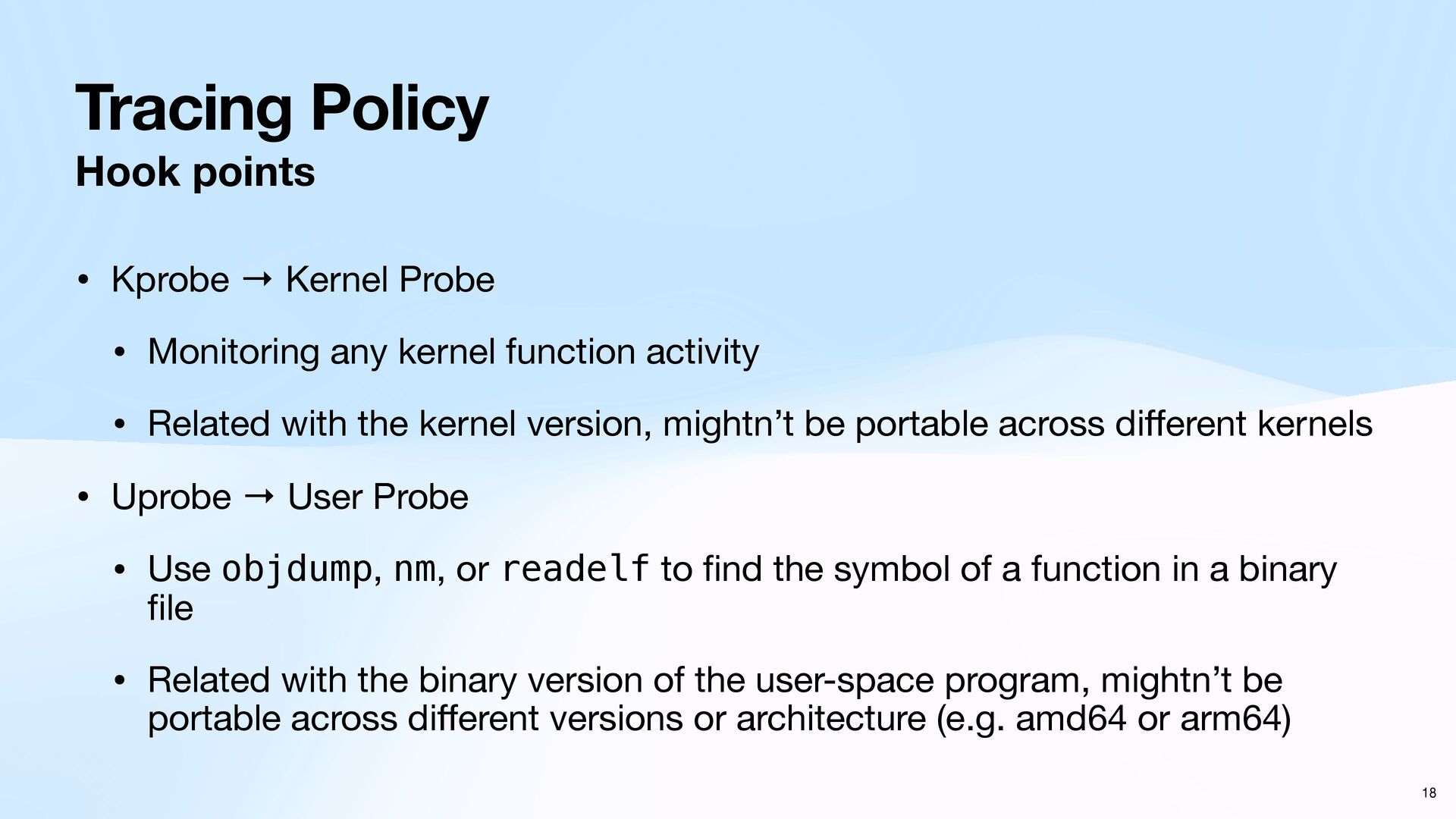

18. Tracing Policy Hook points • Kprobe → Kernel Probe • Monitoring any kernel function activity • Related with the kernel version, mightn’t be portable across di ff erent kernels • Uprobe → User Probe • Use objdump, nm, or readelf to fi nd the symbol of a function in a binary fi le • Related with the binary version of the user-space program, mightn’t be portable across di ff erent versions or architecture (e.g. amd64 or arm64) 18

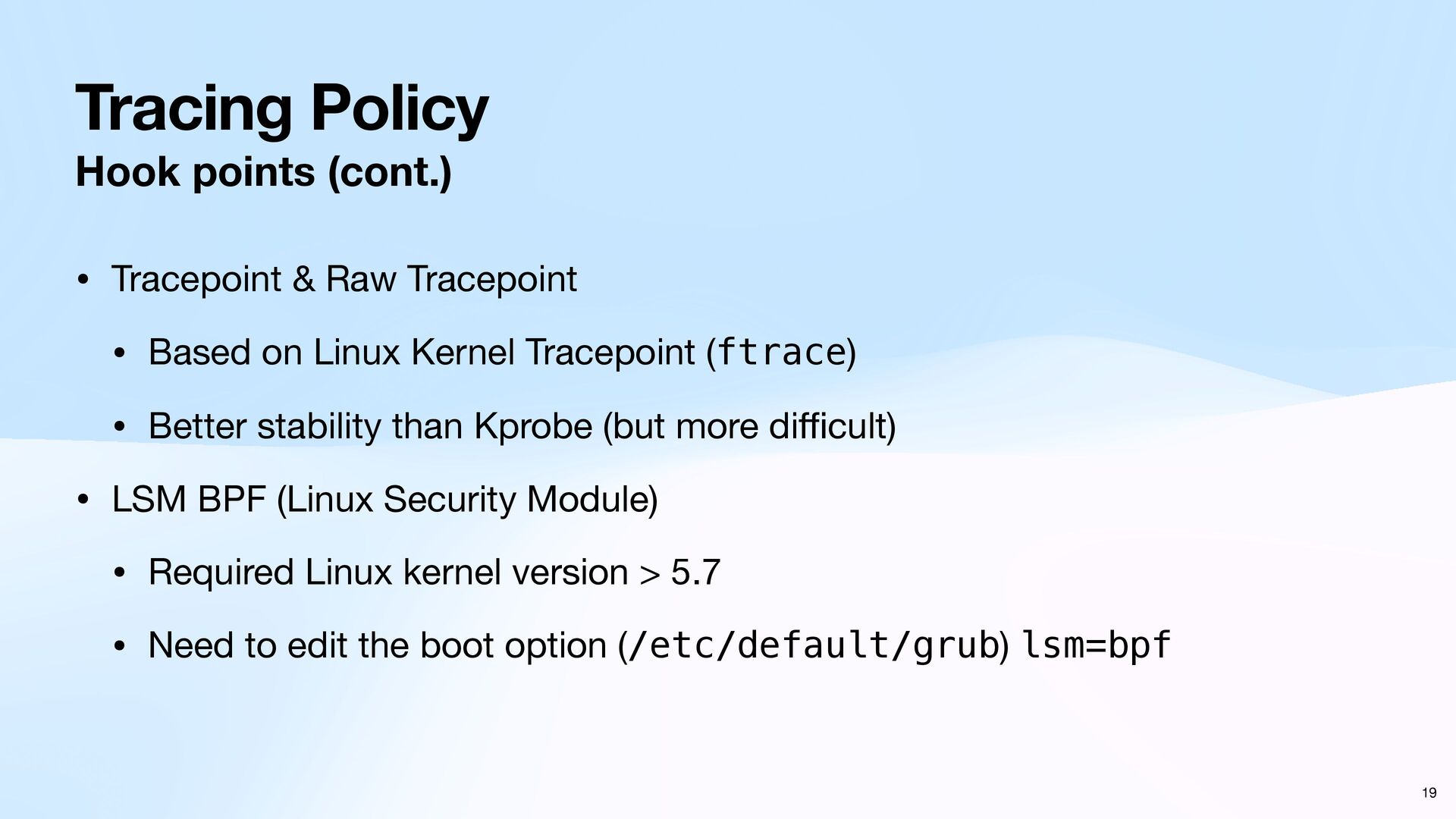

19. Tracing Policy Hook points (cont.) • Tracepoint & Raw Tracepoint • Based on Linux Kernel Tracepoint (ftrace) • Better stability than Kprobe (but more di ffi cult) • LSM BPF (Linux Security Module) • Required Linux kernel version > 5.7 • Need to edit the boot option (/etc/default/grub) lsm=bpf 19

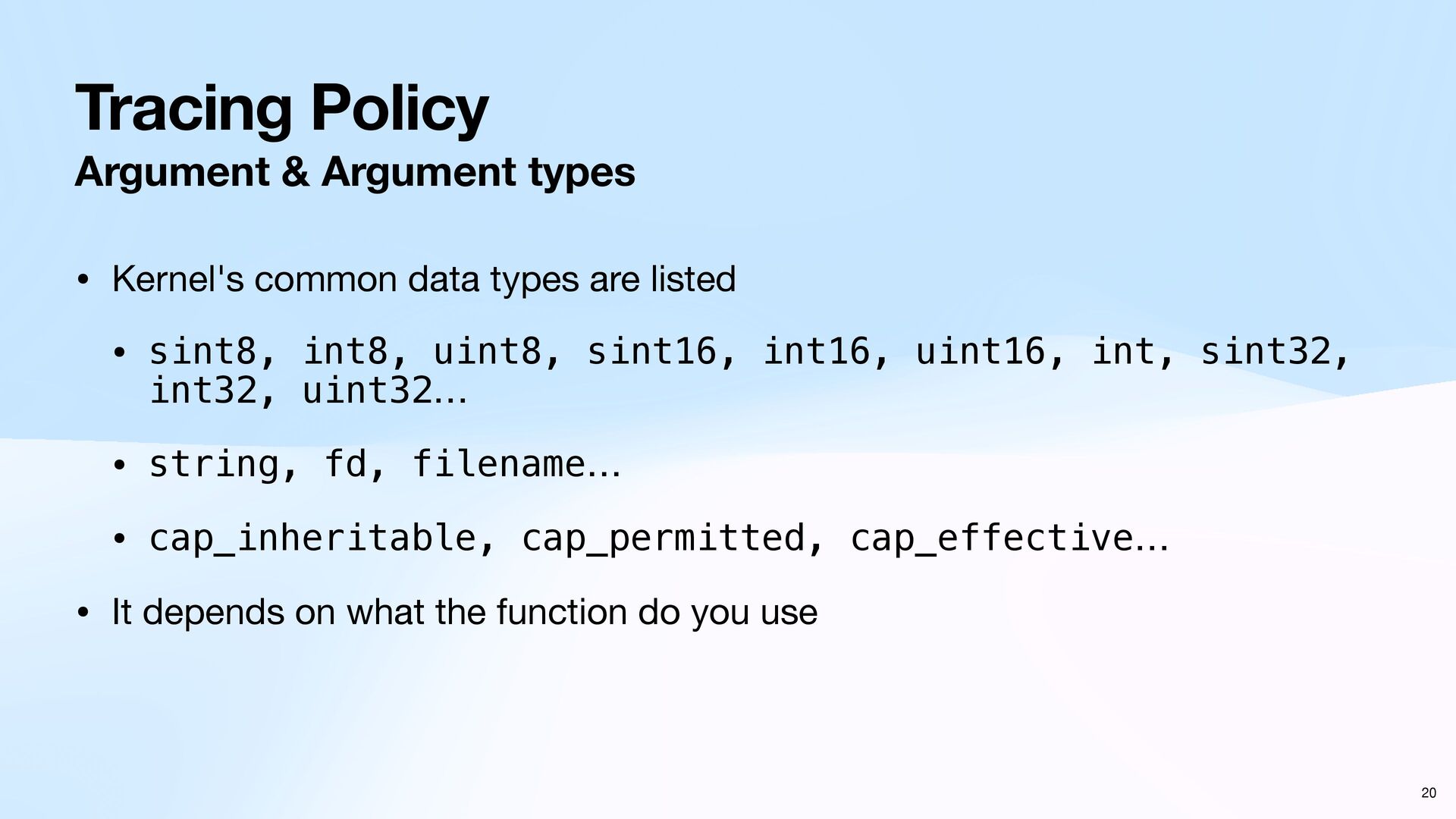

20. Tracing Policy Argument & Argument types • Kernel's common data types are listed • sint8, int8, uint8, sint16, int16, uint16, int, sint32, int32, uint32… • string, fd, filename… • cap_inheritable, cap_permitted, cap_effective… • It depends on what the function do you use 20

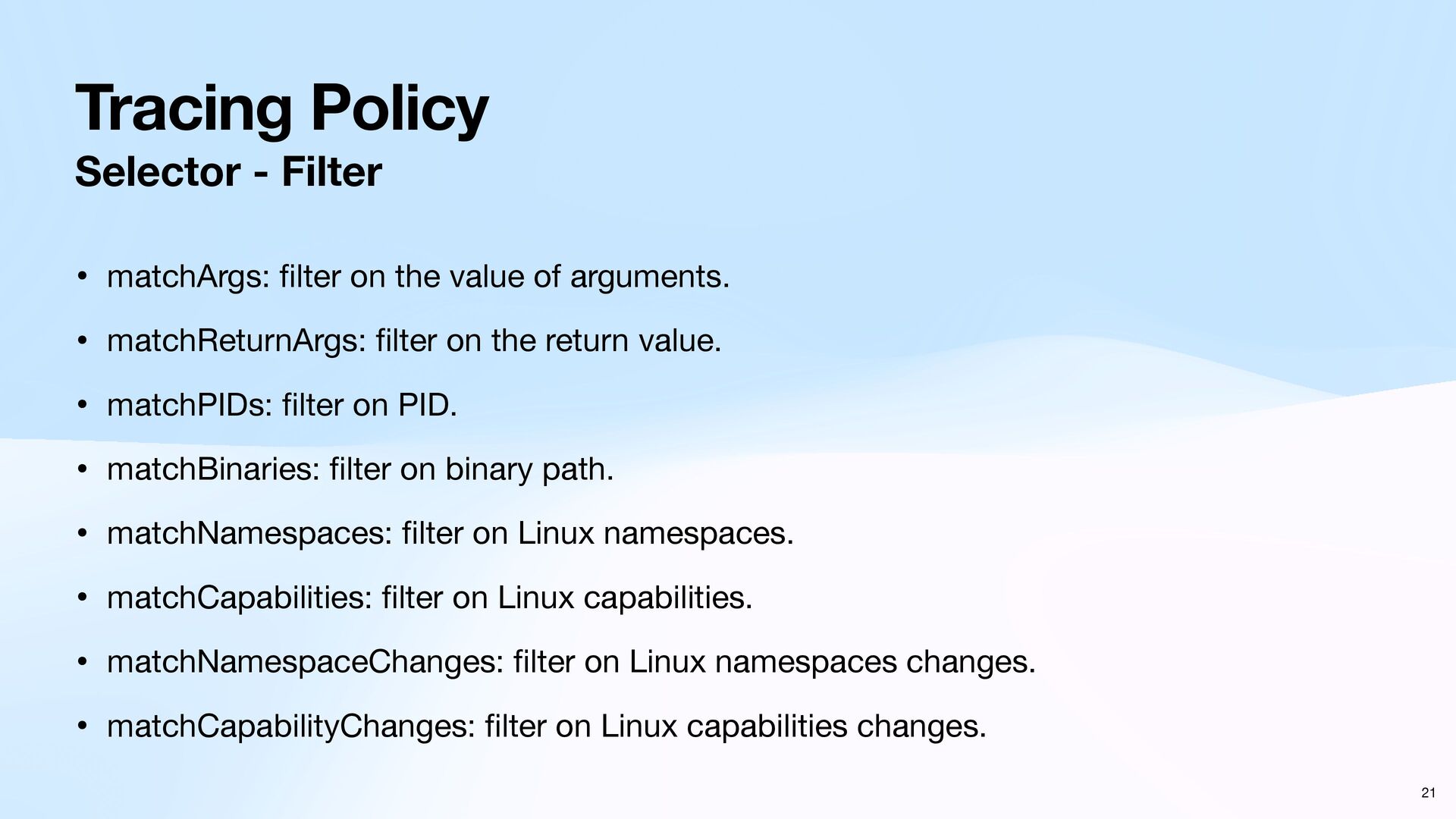

21. Tracing Policy Selector - Filter • matchArgs: fi lter on the value of arguments. • matchReturnArgs: fi lter on the return value. • matchPIDs: fi lter on PID. • matchBinaries: fi lter on binary path. • matchNamespaces: fi lter on Linux namespaces. • matchCapabilities: fi lter on Linux capabilities. • matchNamespaceChanges: fi lter on Linux namespaces changes. • matchCapabilityChanges: fi lter on Linux capabilities changes. 21

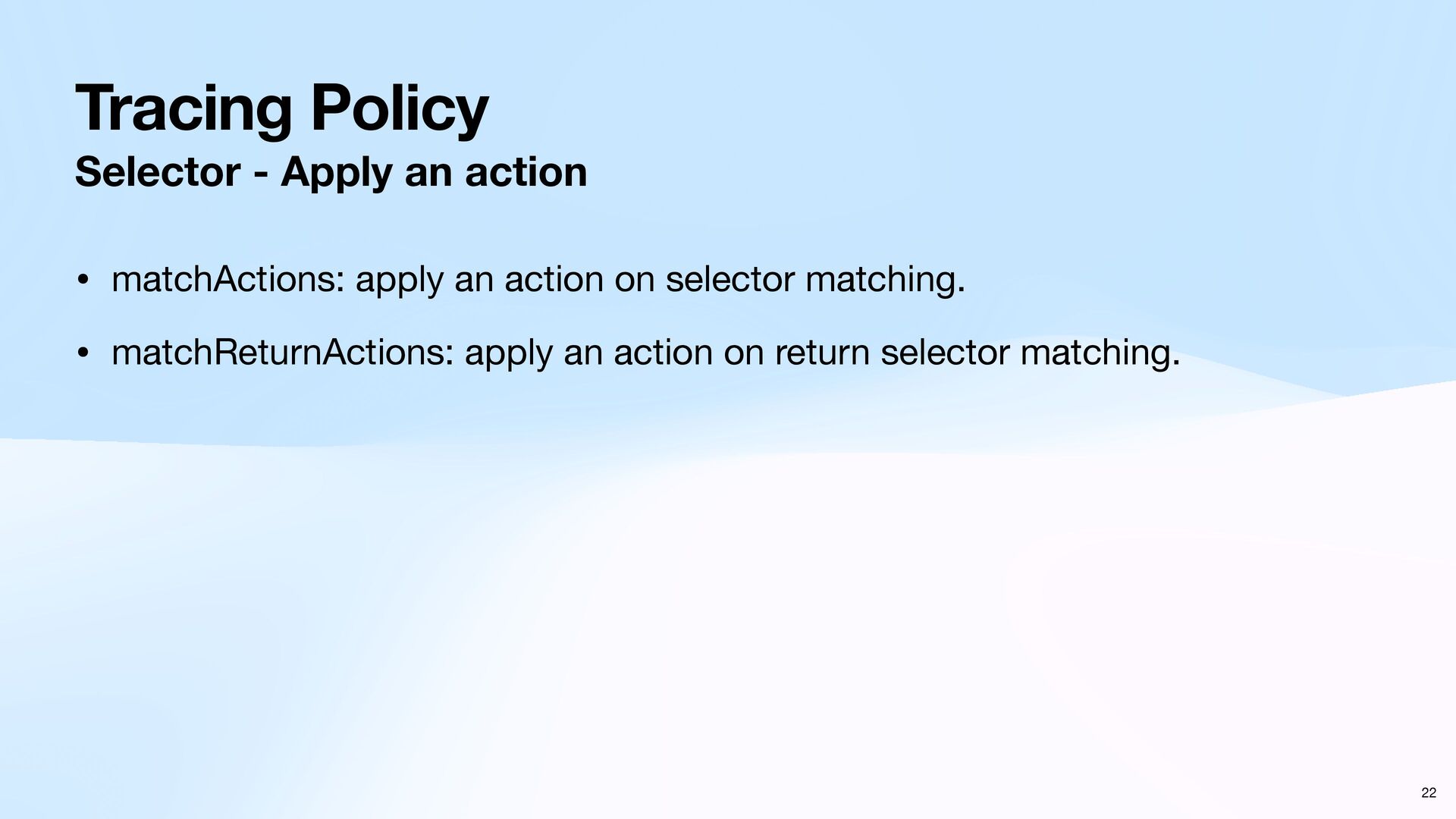

22. Tracing Policy Selector - Apply an action • matchActions: apply an action on selector matching. • matchReturnActions: apply an action on return selector matching. 22

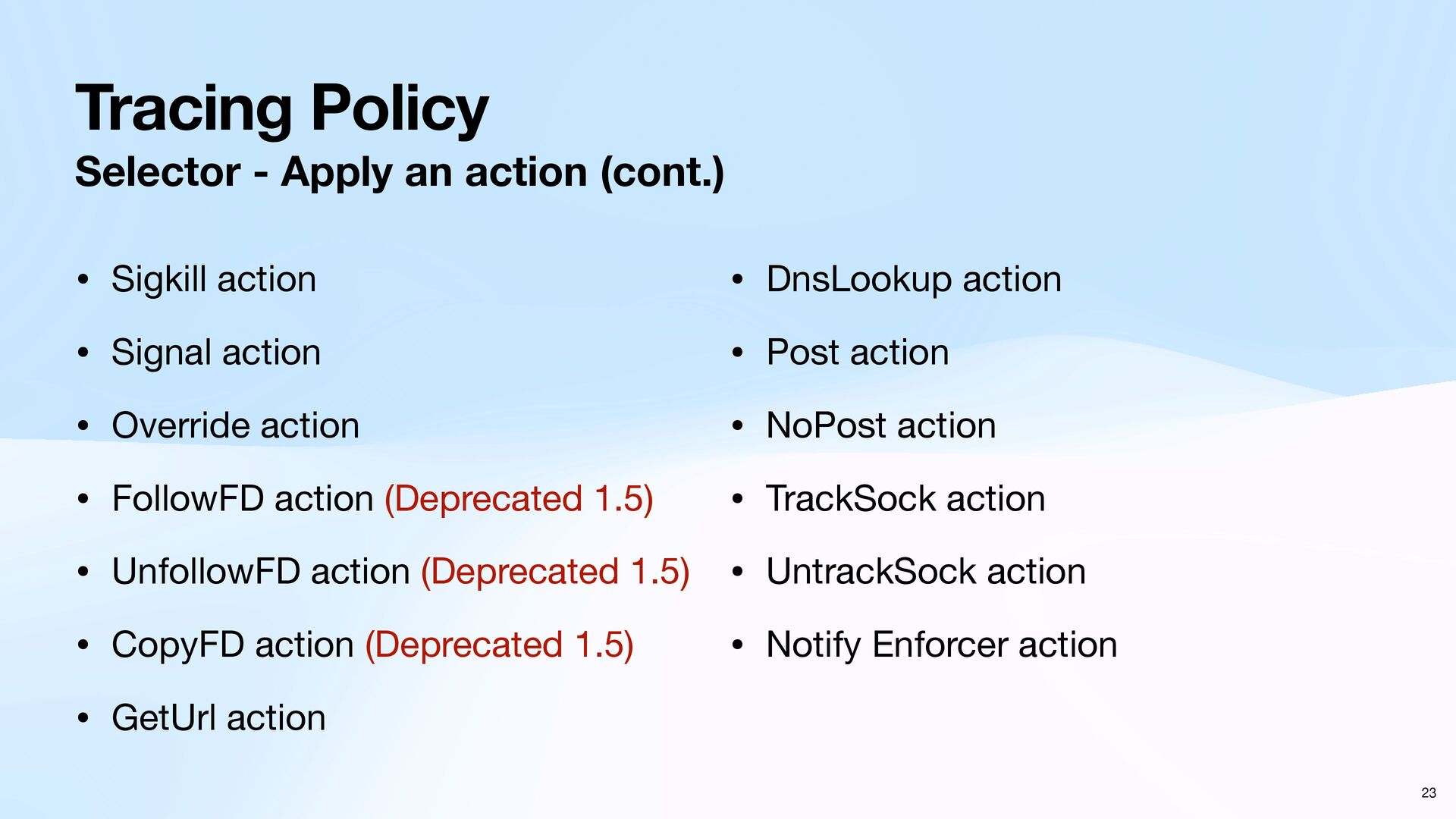

23. Tracing Policy Selector - Apply an action (cont.) 23 • Sigkill action • Signal action • Override action • FollowFD action (Deprecated 1.5) • UnfollowFD action (Deprecated 1.5) • CopyFD action (Deprecated 1.5) • GetUrl action • DnsLookup action • Post action • NoPost action • TrackSock action • UntrackSock action • Notify Enforcer action

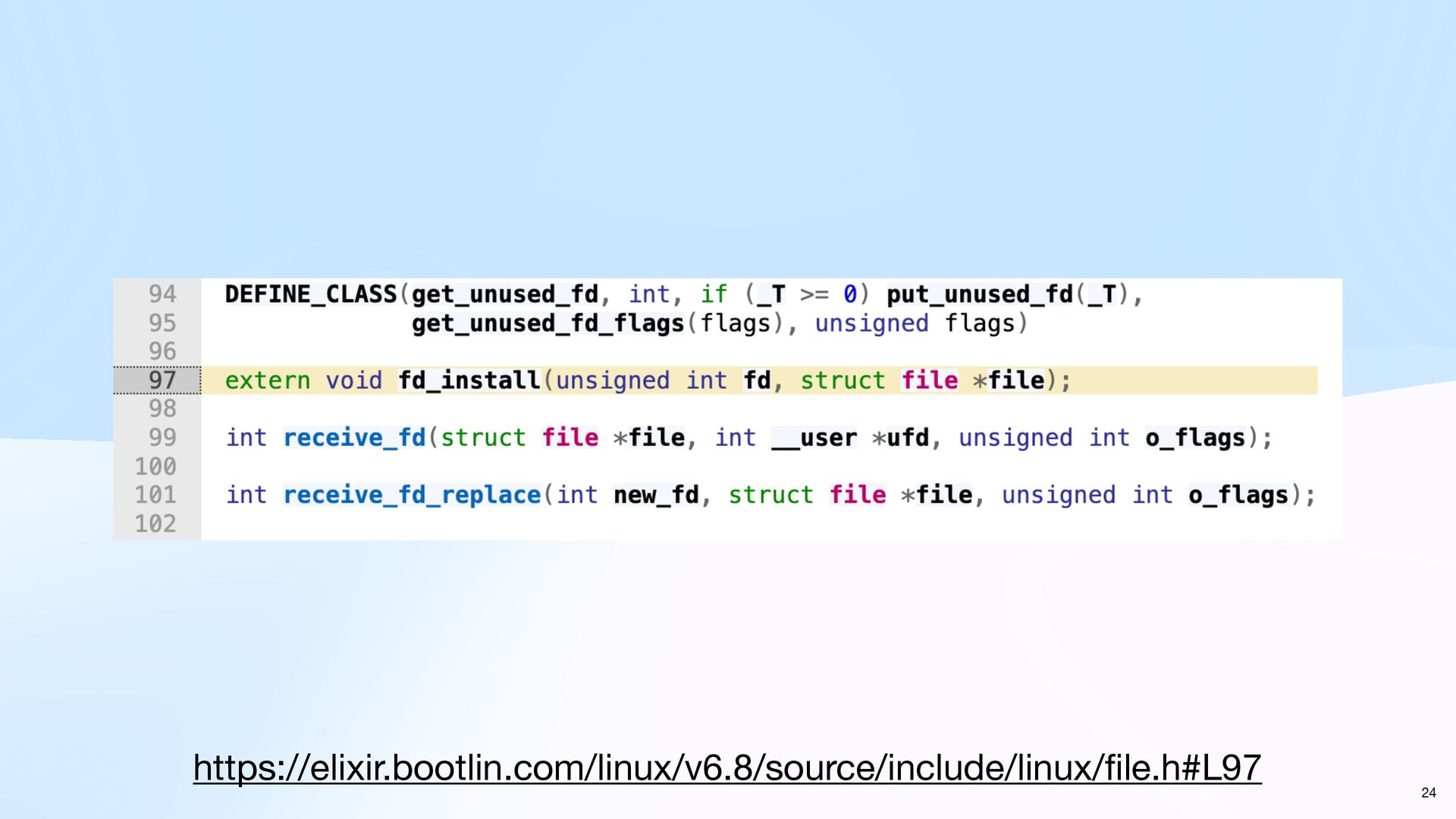

24. 24 https://elixir.bootlin.com/linux/v6.8/source/include/linux/ fi le.h#L97

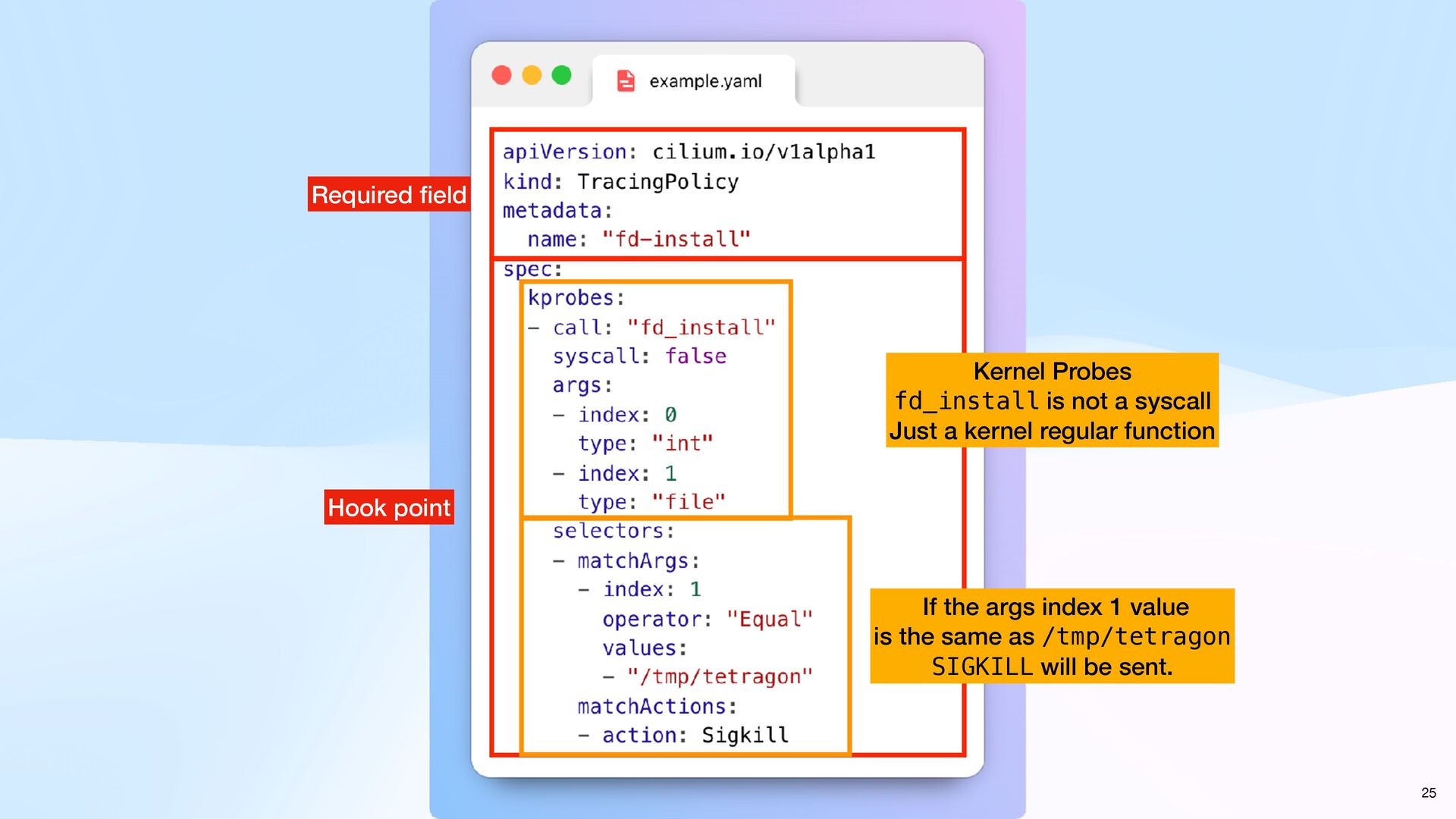

25. Required fi eld Hook point Kernel Probes fd_install is not a syscall Just a kernel regular function If the args index 1 value is the same as /tmp/tetragon SIGKILL will be sent. 25

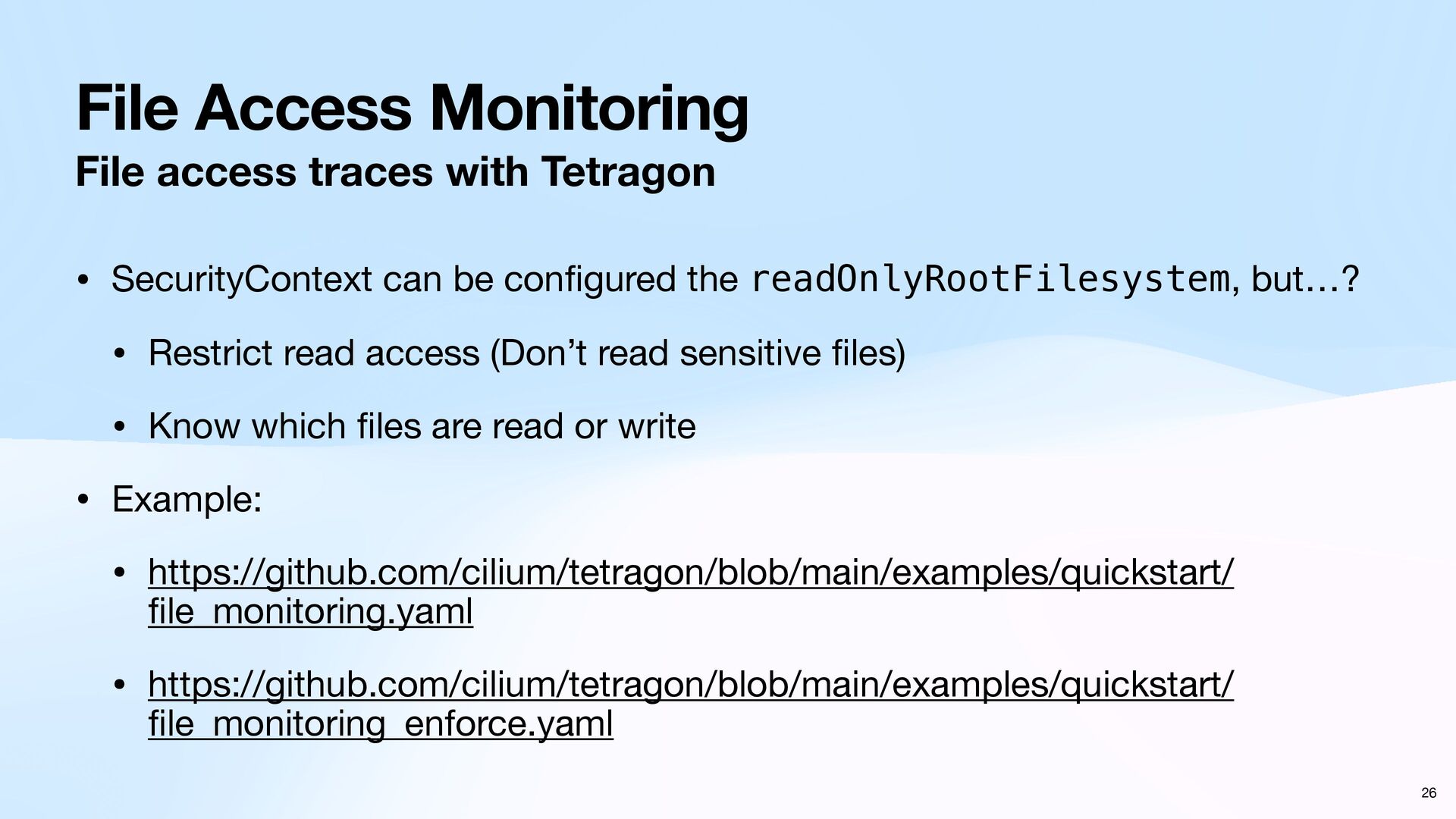

26. File Access Monitoring File access traces with Tetragon • SecurityContext can be con fi gured the readOnlyRootFilesystem, but…? • Restrict read access (Don’t read sensitive fi les) • Know which fi les are read or write • Example: • https://github.com/cilium/tetragon/blob/main/examples/quickstart/ fi le_monitoring.yaml • https://github.com/cilium/tetragon/blob/main/examples/quickstart/ fi le_monitoring_enforce.yaml 26

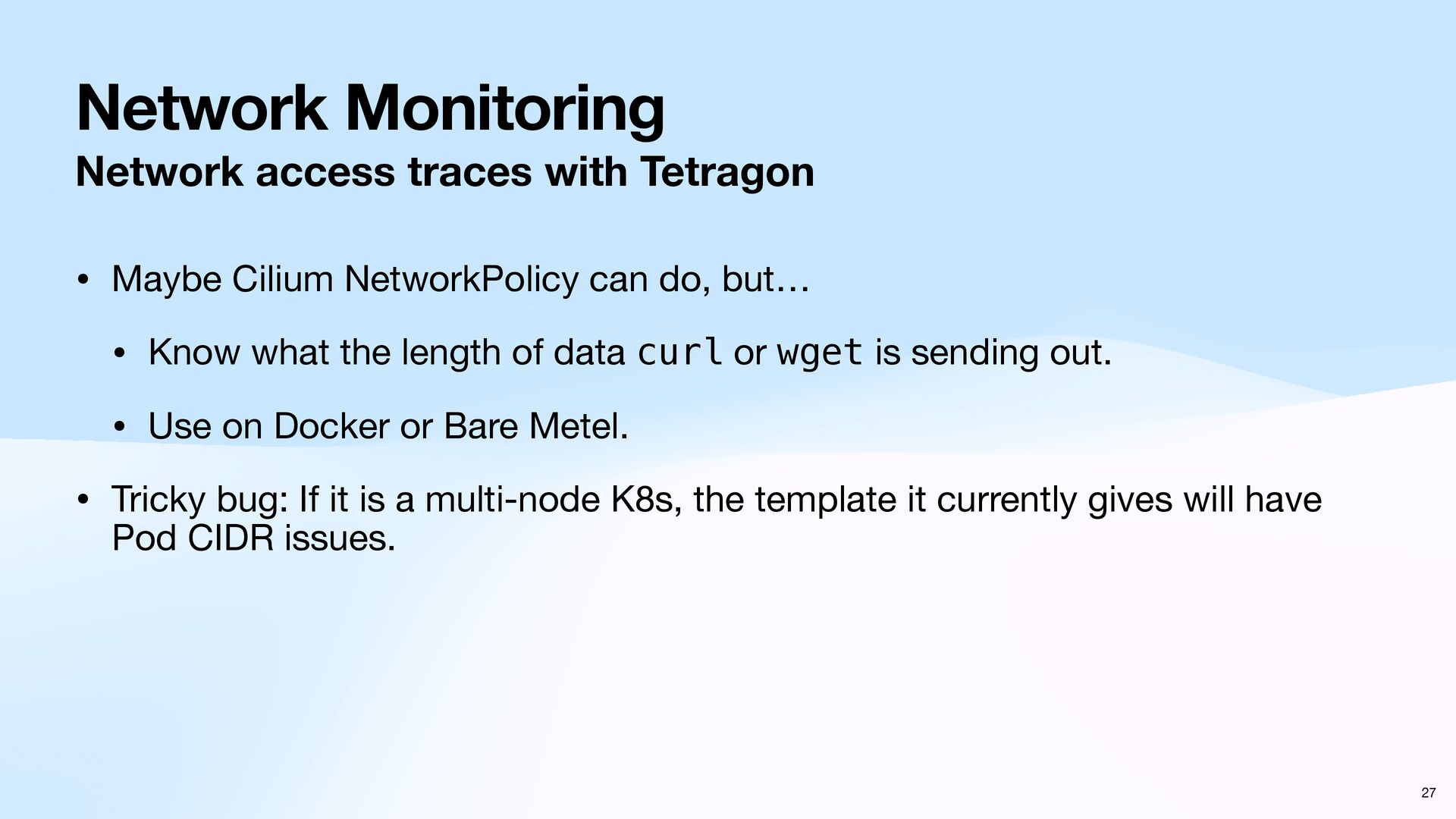

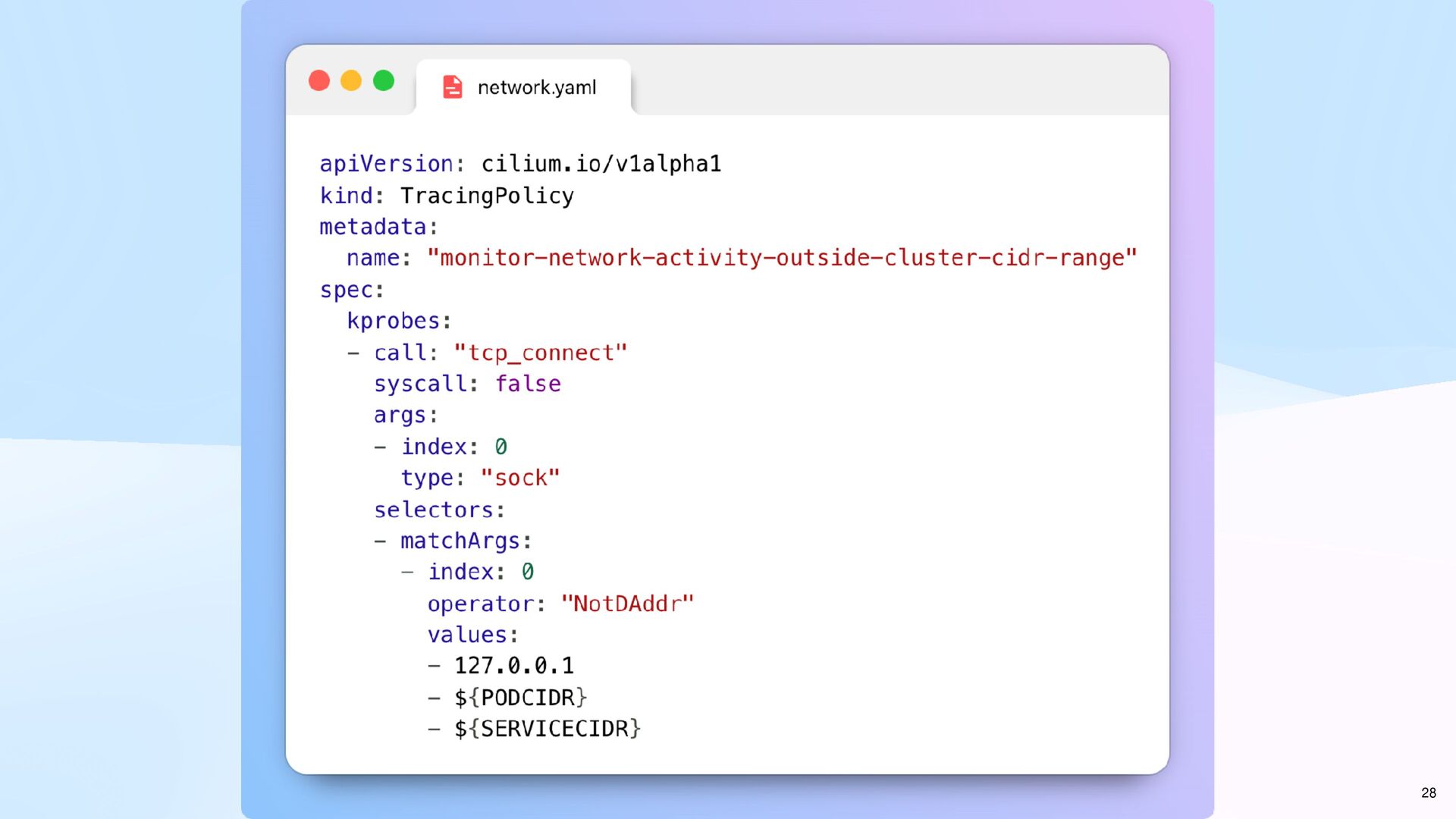

27. Network Monitoring Network access traces with Tetragon • Maybe Cilium NetworkPolicy can do, but… • Know what the length of data curl or wget is sending out. • Use on Docker or Bare Metel. • Tricky bug: If it is a multi-node K8s, the template it currently gives will have Pod CIDR issues. 27

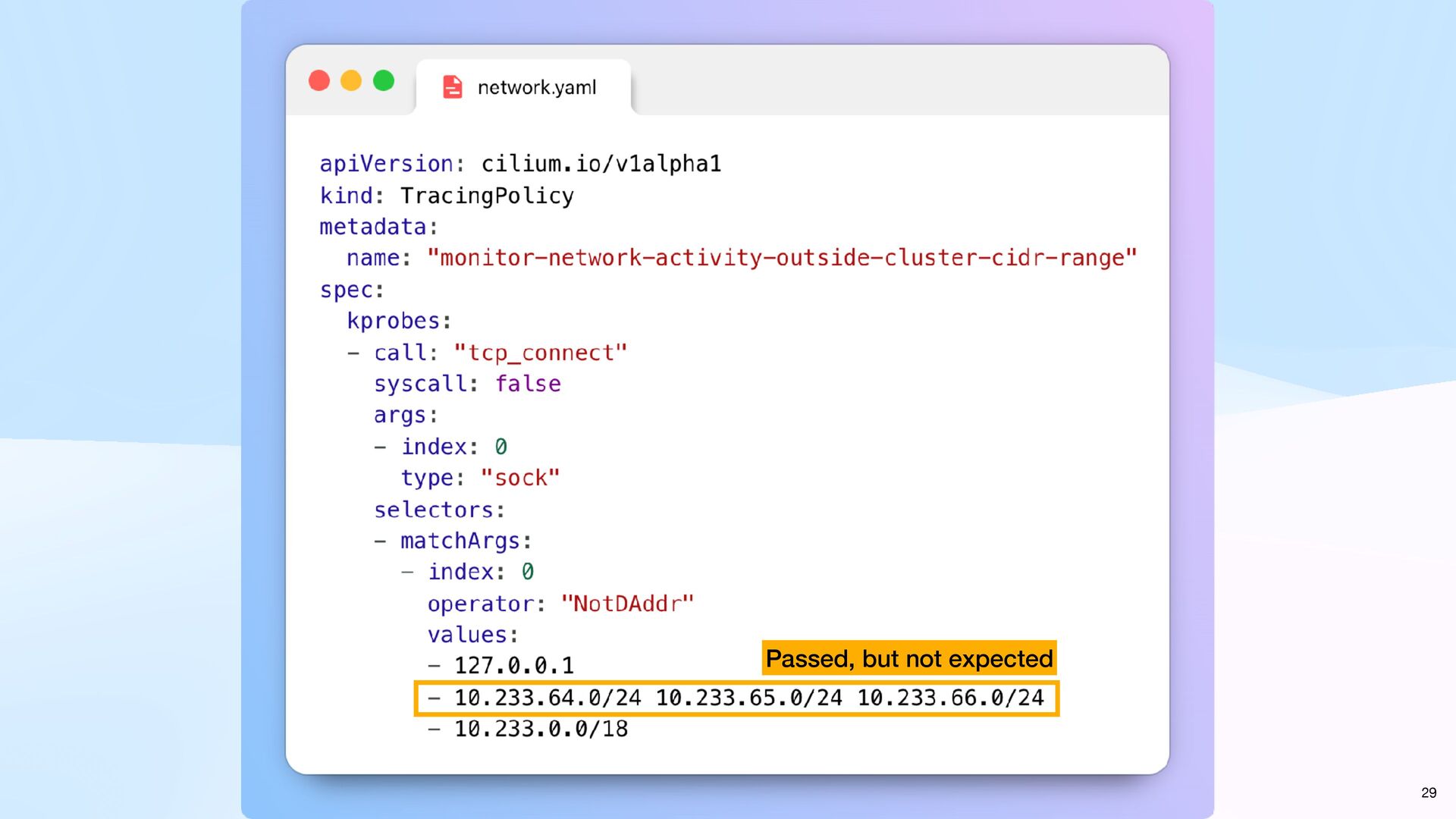

29. 29 Passed, but not expected

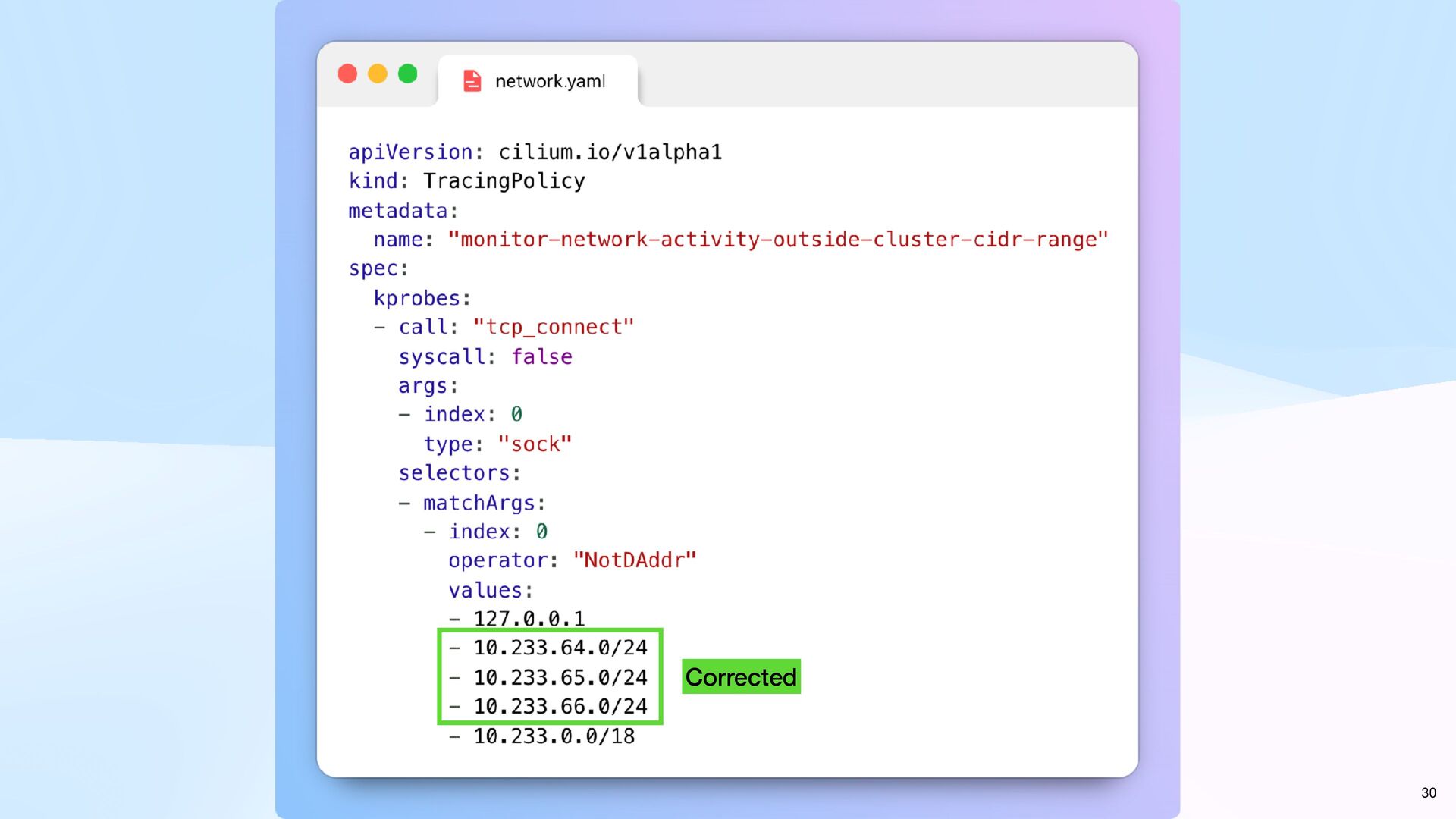

30. 30 Corrected
31. 31 If you know the kernel. The kernel will help you. TICO
32. 32 The audiences

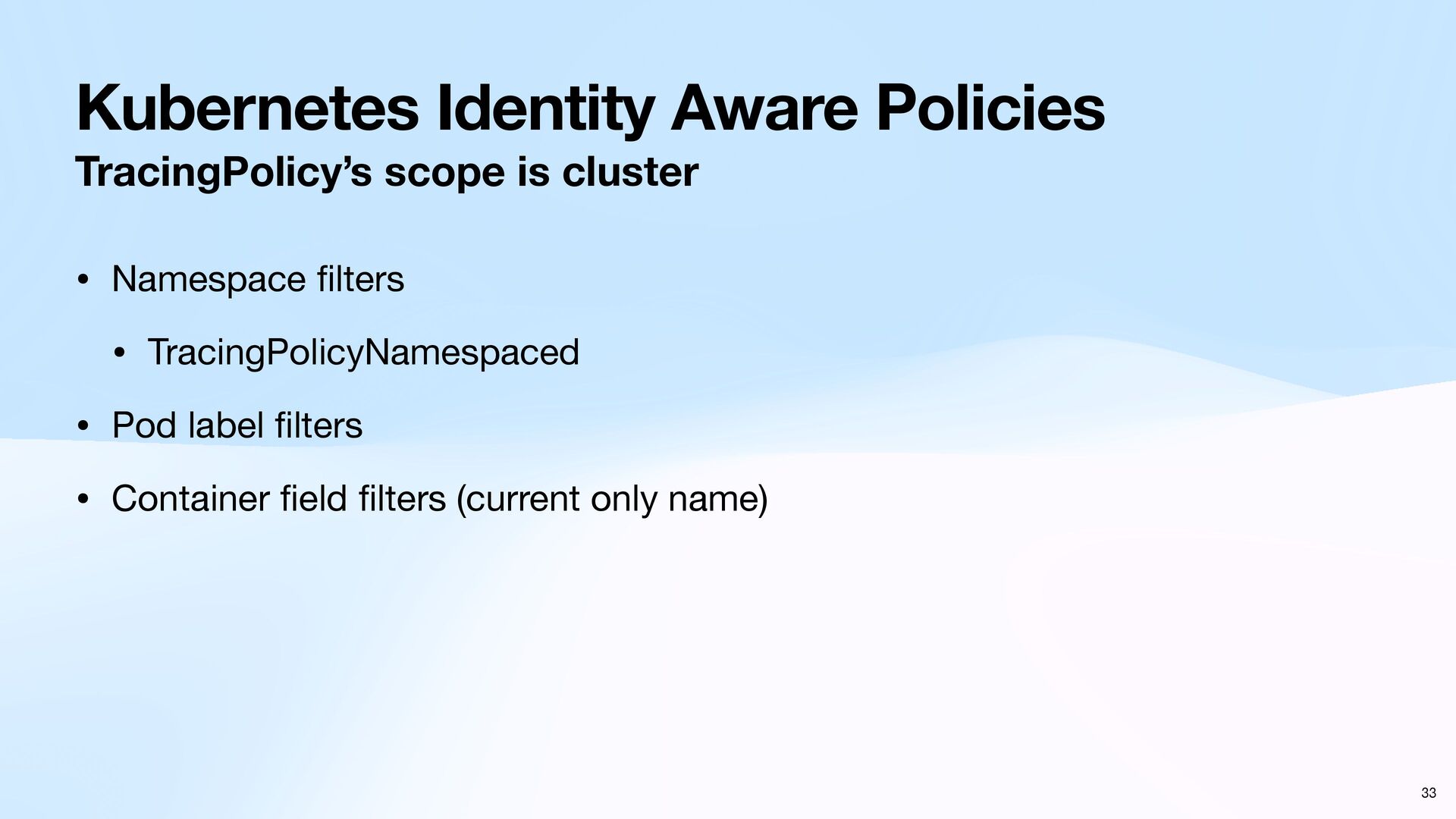

33. Kubernetes Identity Aware Policies TracingPolicy’s scope is cluster • Namespace fi lters • TracingPolicyNamespaced • Pod label fi lters • Container fi eld fi lters (current only name) 33

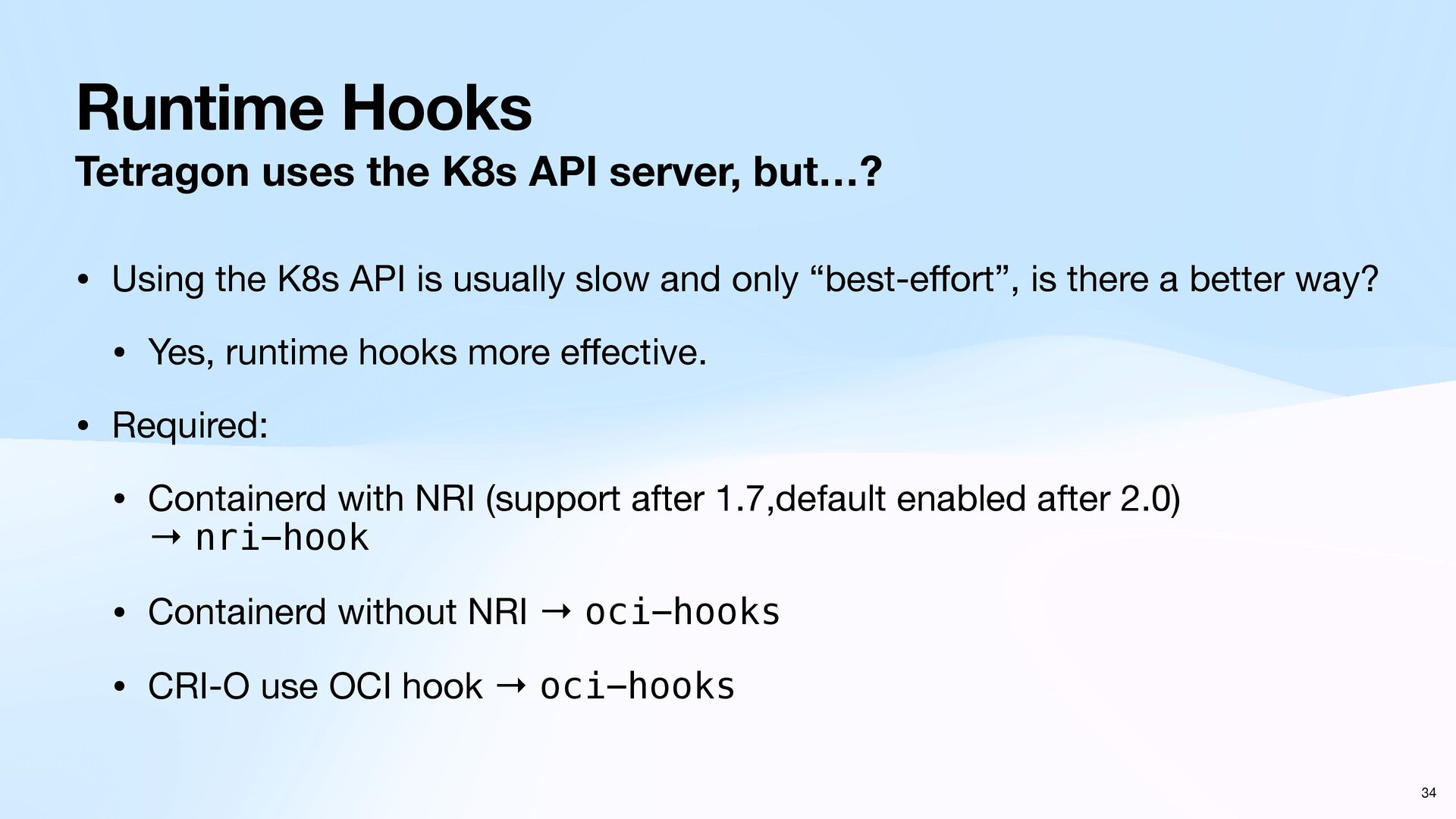

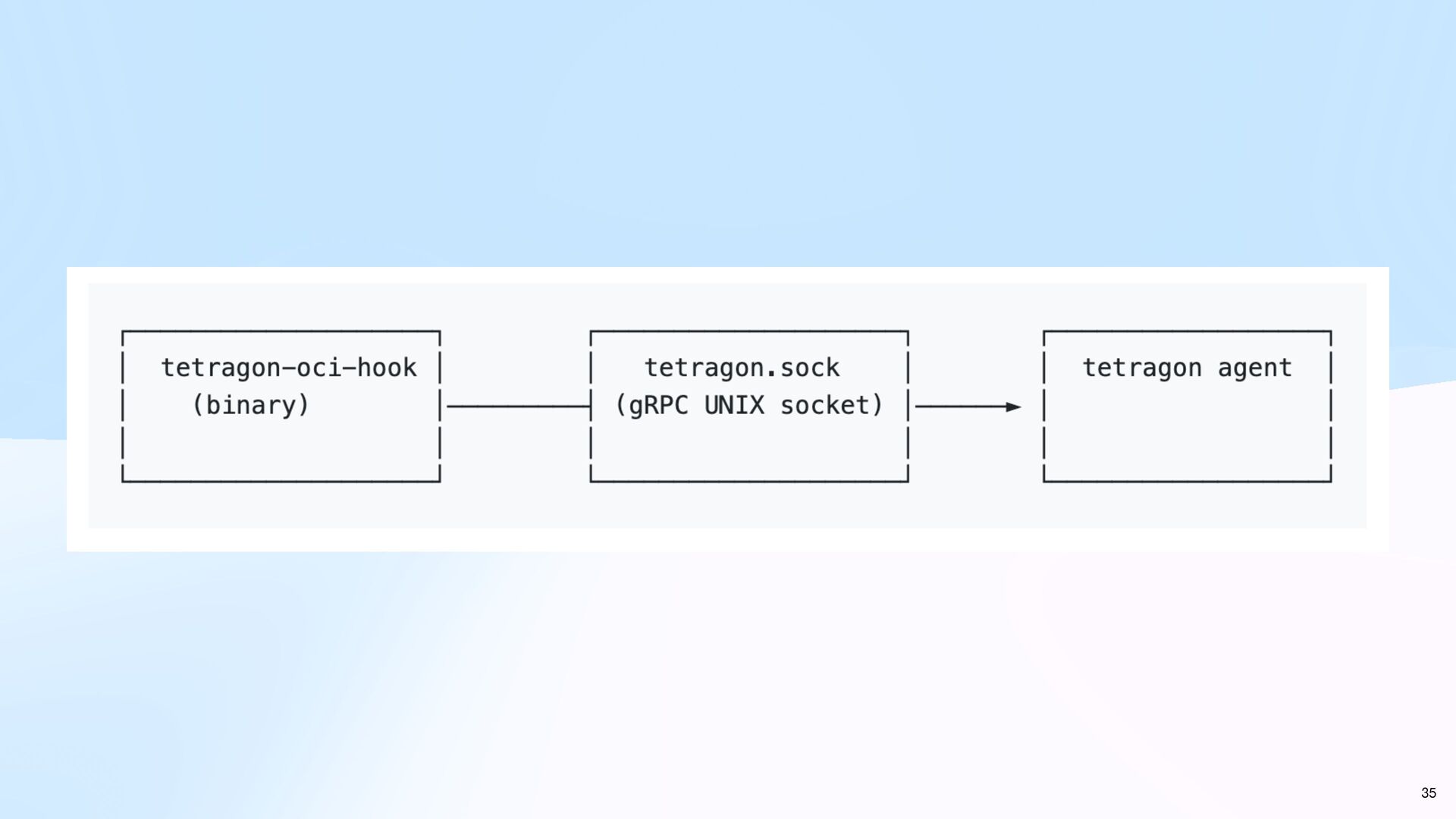

34. Runtime Hooks Tetragon uses the K8s API server, but…? • Using the K8s API is usually slow and only “best-e ff ort”, is there a better way? • Yes, runtime hooks more e ff ective. • Required: • Containerd with NRI (support after 1.7,default enabled after 2.0)
 → nri-hook • Containerd without NRI → oci-hooks • CRI-O use OCI hook → oci-hooks 34
36. Event throttling Monitor and throttle cgroup events rate • Disabled by default, at this moment, only for base sensor events: • PROCESS_EXEC • PROCESS_EXIT • The throttle action generates following events: • THROTTLE start event is sent when the group rate limit is crossed • THROTTLE stop event is sent when the cgroup rate is again below the limit stable for 5 seconds 36

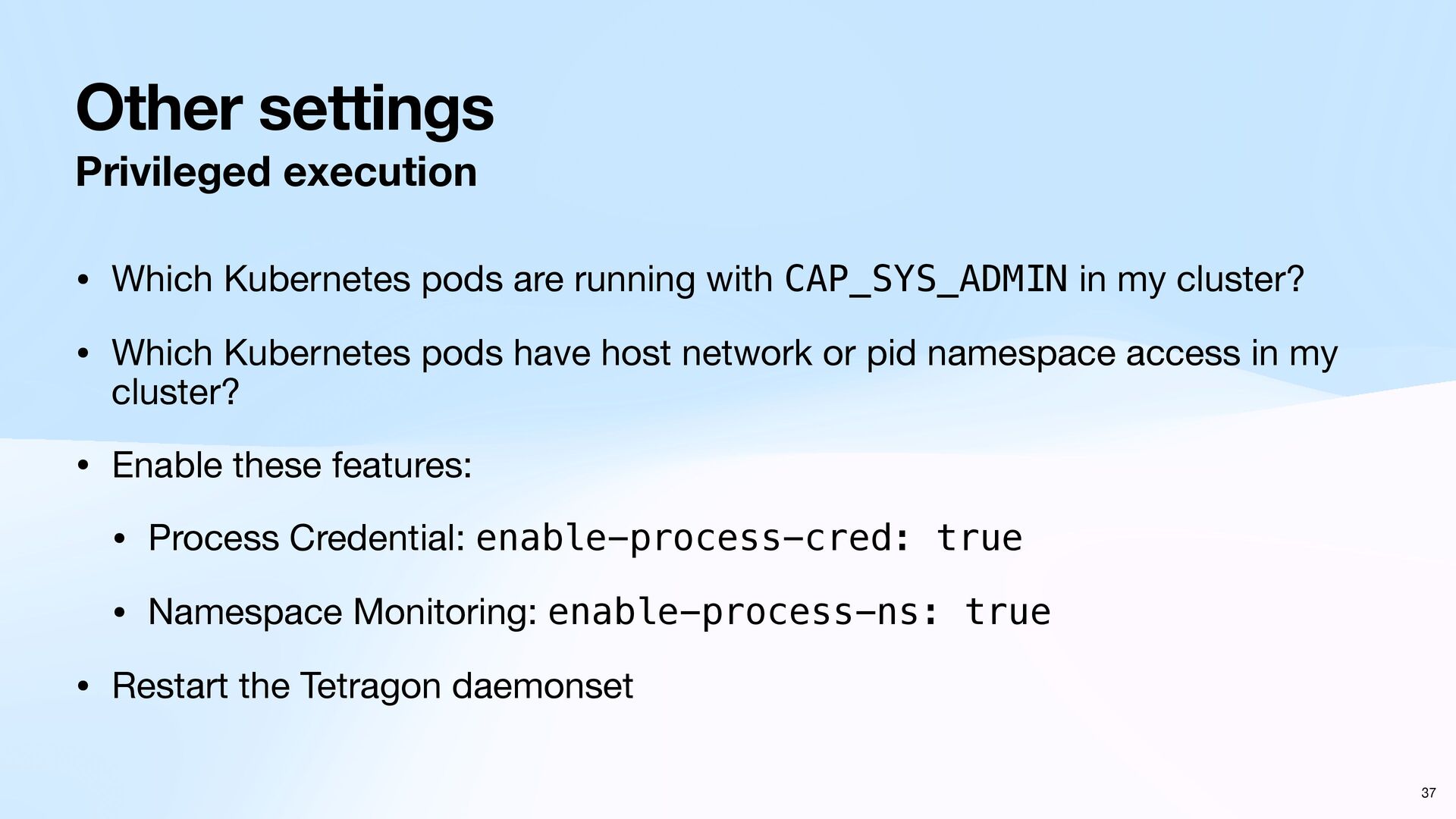

37. Other settings Privileged execution • Which Kubernetes pods are running with CAP_SYS_ADMIN in my cluster? • Which Kubernetes pods have host network or pid namespace access in my cluster? • Enable these features: • Process Credential: enable-process-cred: true • Namespace Monitoring: enable-process-ns: true • Restart the Tetragon daemonset 37

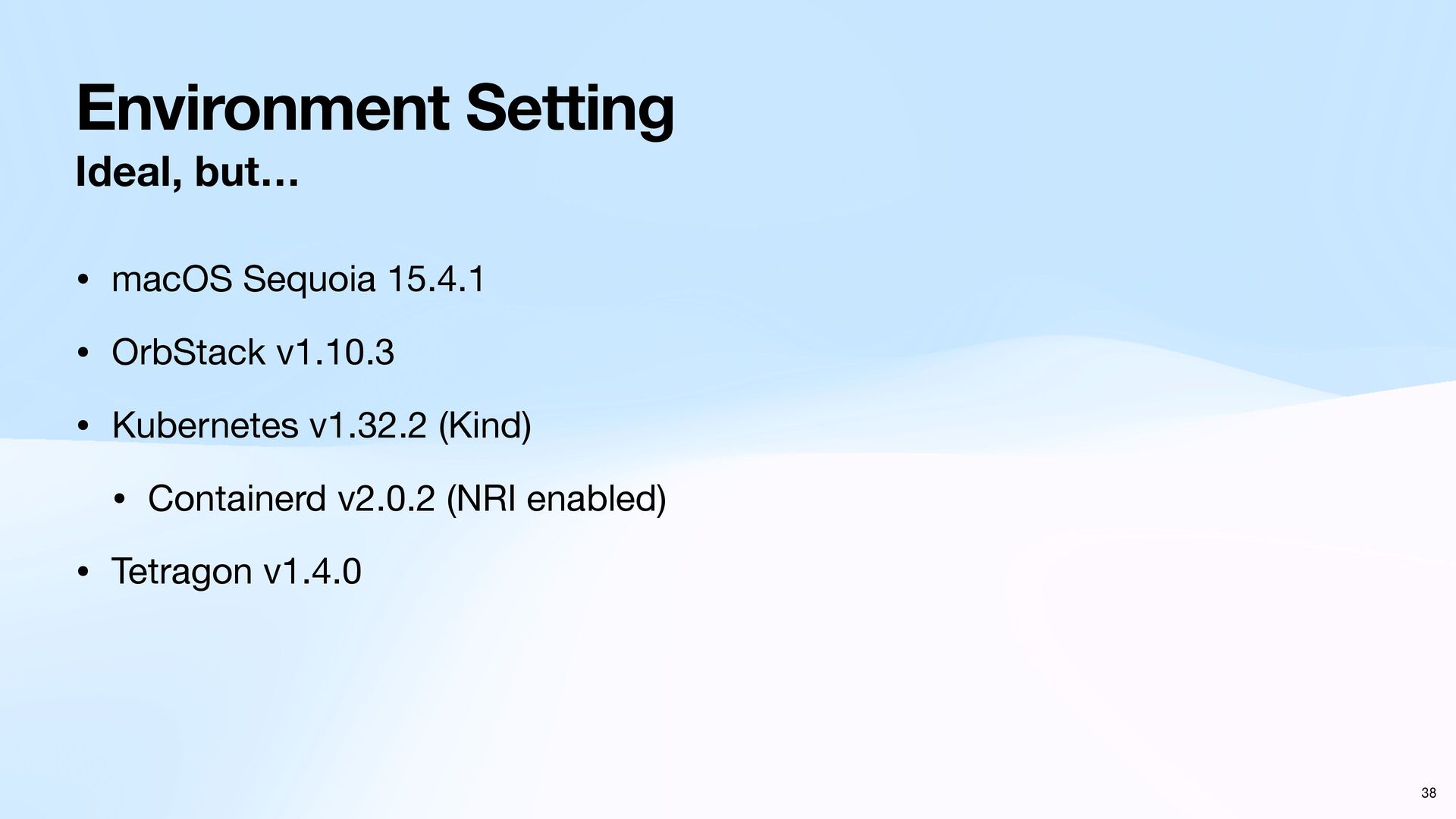

38. Environment Setting Ideal, but… • macOS Sequoia 15.4.1 • OrbStack v1.10.3 • Kubernetes v1.32.2 (Kind) • Containerd v2.0.2 (NRI enabled) • Tetragon v1.4.0 38

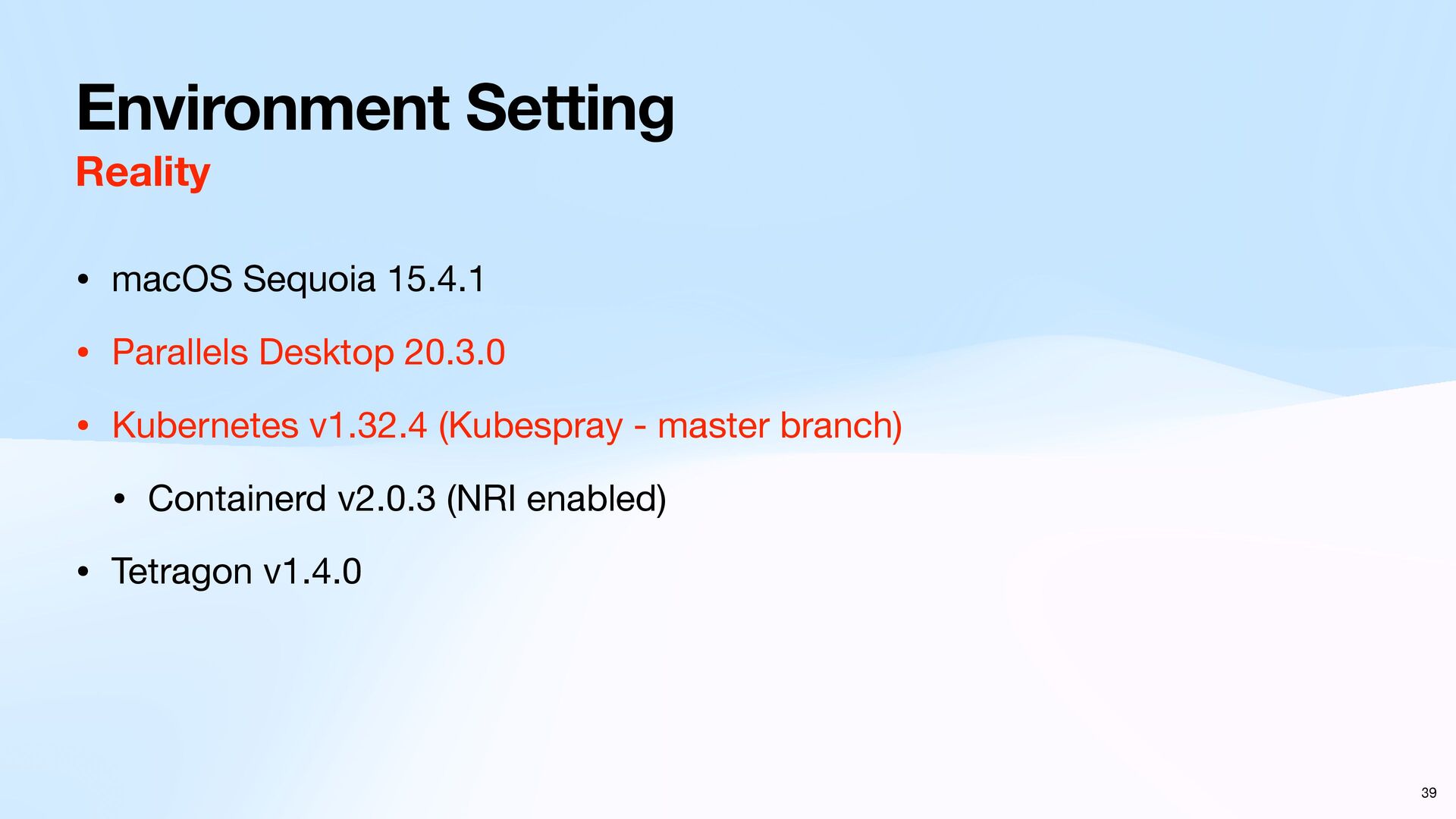

39. Environment Setting Reality • macOS Sequoia 15.4.1 • Parallels Desktop 20.3.0 • Kubernetes v1.32.4 (Kubespray - master branch) • Containerd v2.0.3 (NRI enabled) • Tetragon v1.4.0 39

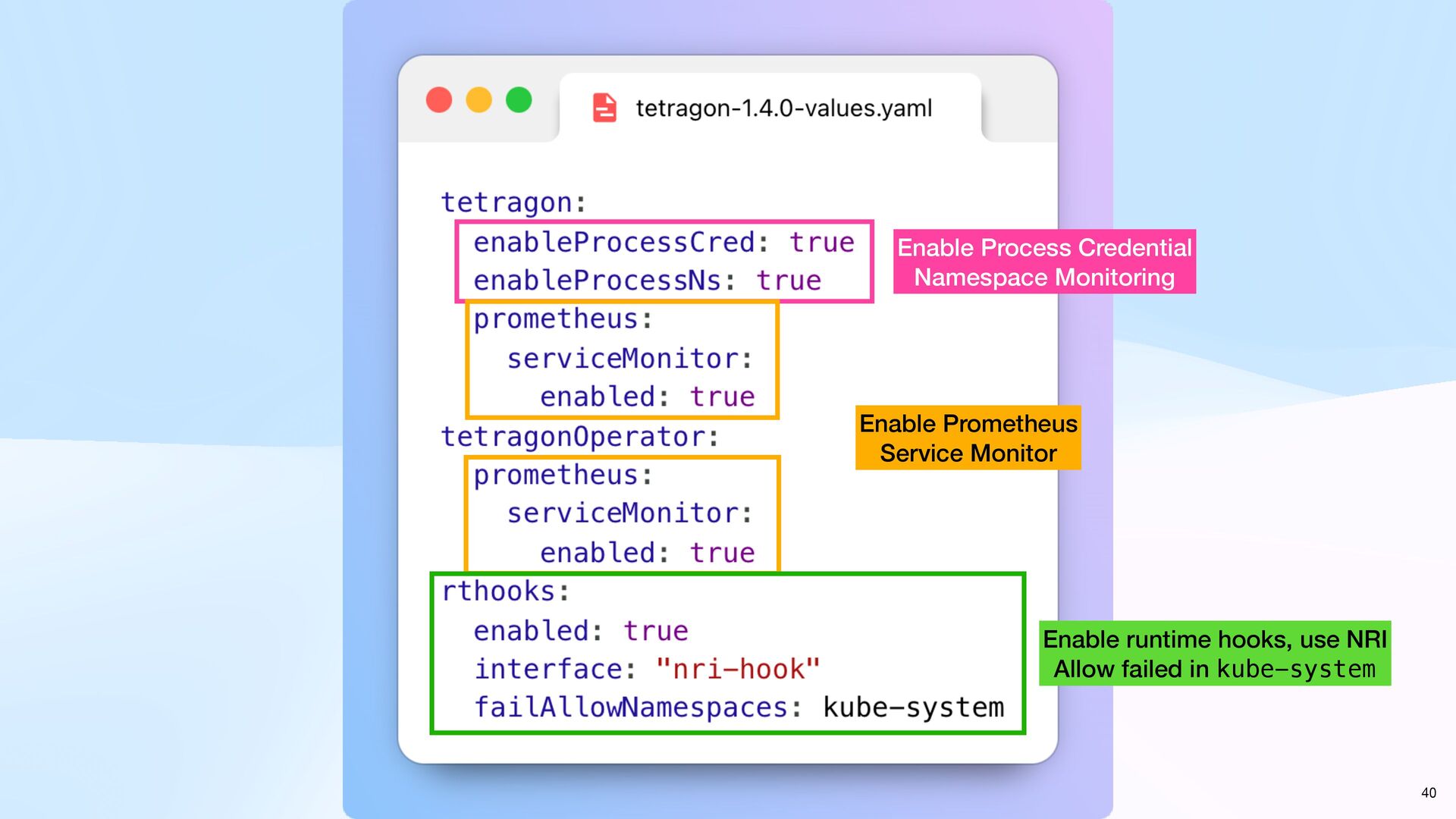

40. 40 Enable Process Credential Namespace Monitoring Enable Prometheus Service Monitor Enable runtime hooks, use NRI Allow failed in kube-system
41. Live Demo! 41

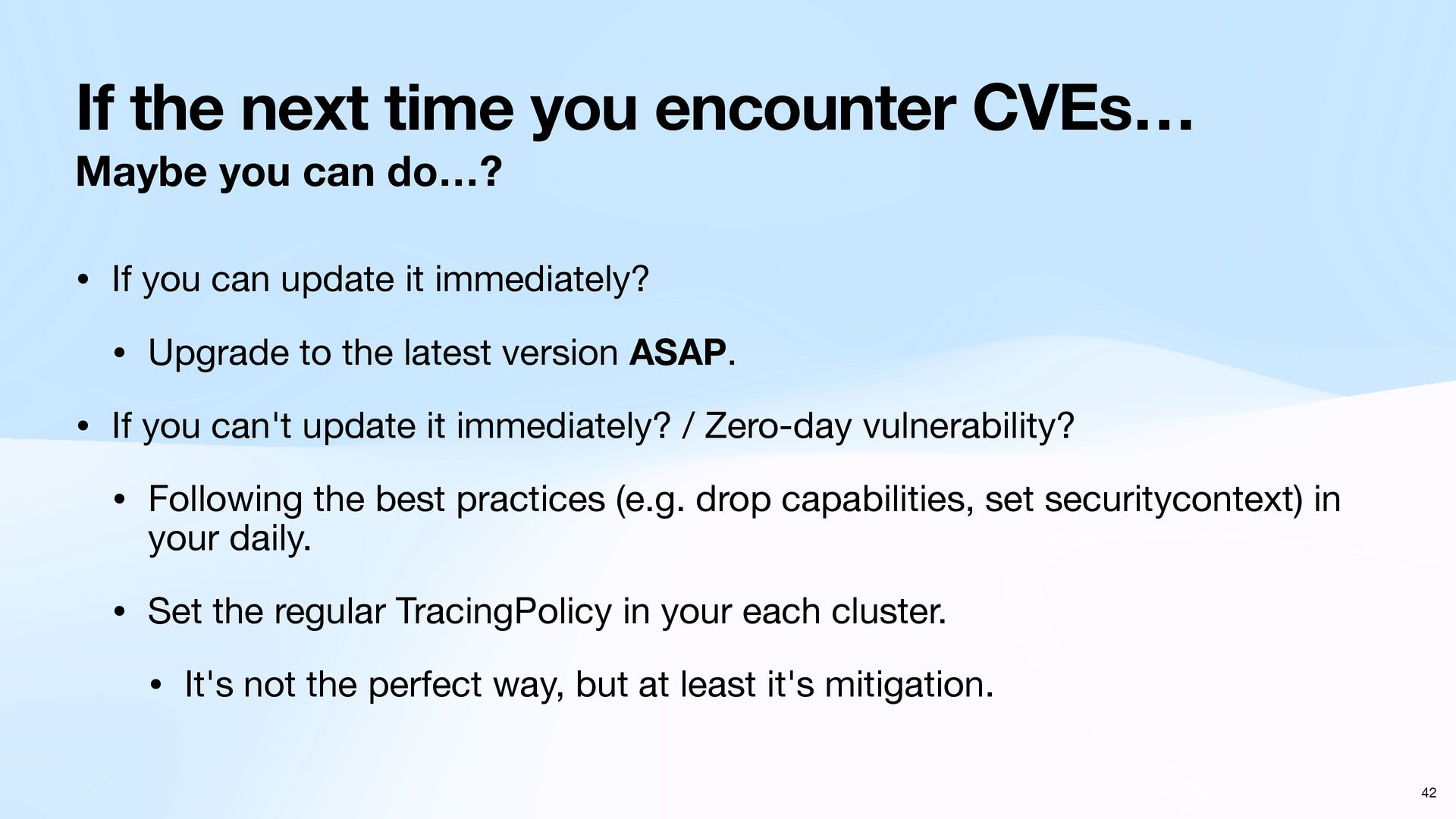

42. If the next time you encounter CVEs… Maybe you can do…? • If you can update it immediately? • Upgrade to the latest version ASAP. • If you can't update it immediately? / Zero-day vulnerability? • Following the best practices (e.g. drop capabilities, set securitycontext) in your daily. • Set the regular TracingPolicy in your each cluster. • It's not the perfect way, but at least it's mitigation. 42
43. But, what if… 43 ®
44. 44 Disclarmer: 本 言 論不代表本 人 立場

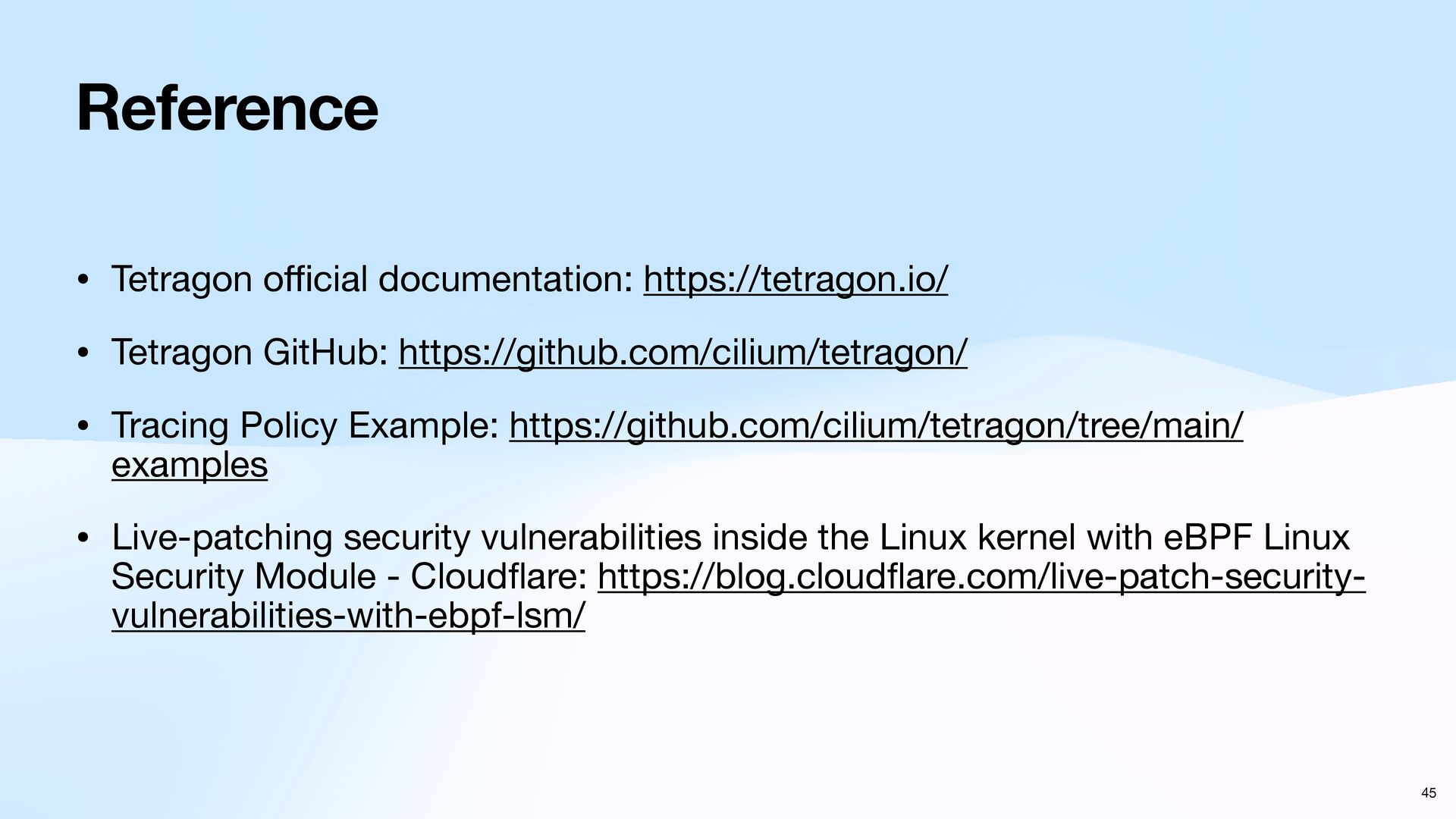

45. Reference • Tetragon o ff i cial documentation: https://tetragon.io/ • Tetragon GitHub: https://github.com/cilium/tetragon/ • Tracing Policy Example: https://github.com/cilium/tetragon/tree/main/ examples • Live-patching security vulnerabilities inside the Linux kernel with eBPF Linux Security Module - Cloud fl are: https://blog.cloud fl are.com/live-patch-security- vulnerabilities-with-ebpf-lsm/ 45
46. Please feel free to contact me! • Website: https://tico.tw • Facebook: @tico88612 • Instagram: @__tico88612__ • GitHub: @tico88612 • LinkedIn: in/tico88612 • Telegram: @tico88612 Thank You! 46
