Live Activities in LINE

Transcript

1. Live Activities in LINE
2. QC Li Senior iOS Developer Sr. iOS Developer @ LINE (TW) iOS Developer @ Booking.com (NL) Sr. Mobile App Developer @ Yahoo (TW) 2020- 2018-20 2014-17
3. 01 02 03 04 Overview Initiation Compromise How we start Reality Solutions Troubleshooting Live Activities 05 Takeaways Conclusions CONTENT
4. Overview 01 Live Activities

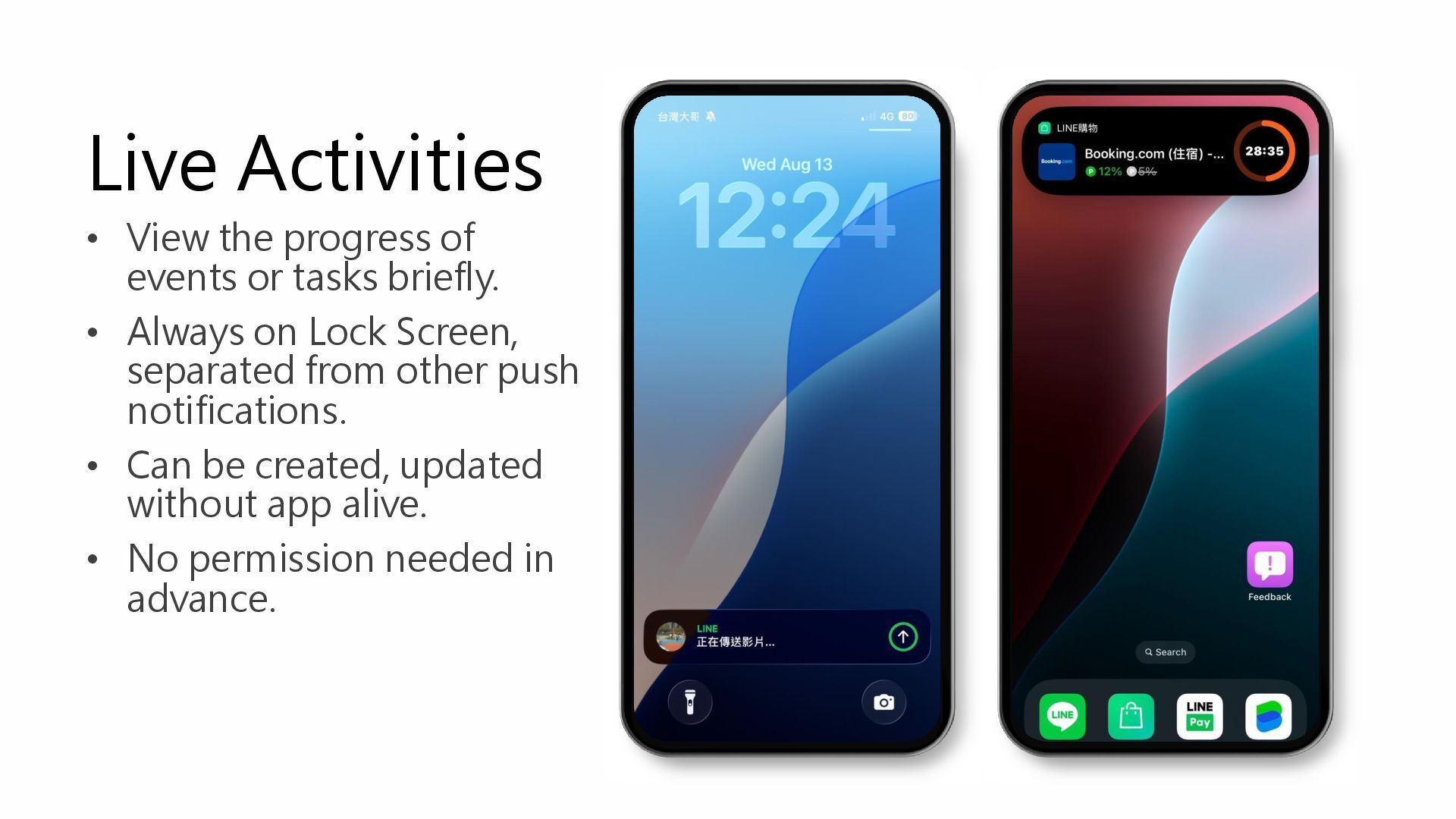

5. Live Activities • View the progress of events or tasks briefly. • Always on Lock Screen, separated from other push notifications. • Can be created, updated without app alive. • No permission needed in advance.

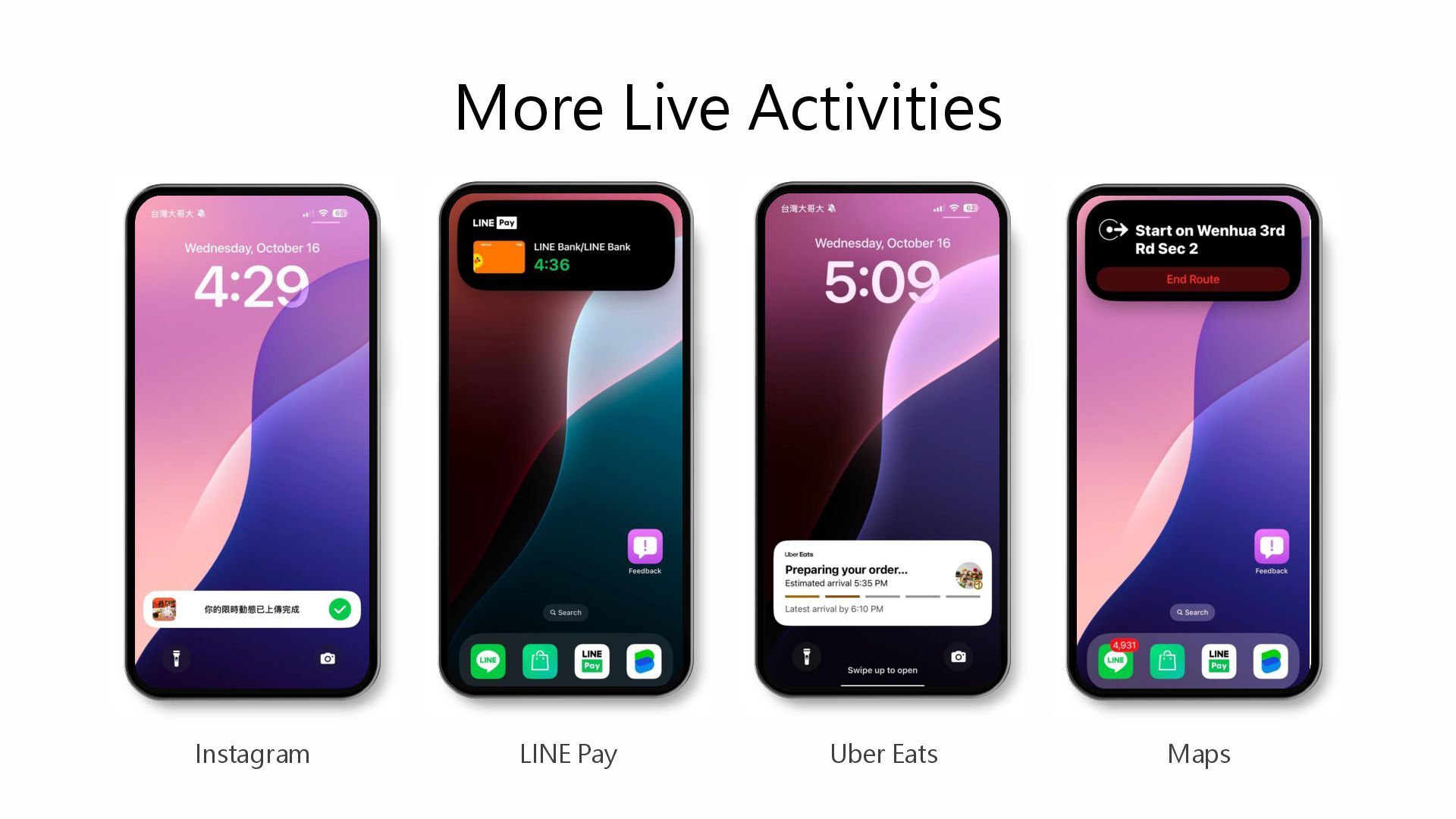

6. LINE Pay More Live Activities Instagram Uber Eats Maps
7. Supporting OS versions for Live Activity features OS Versions & Devices 18.0 Apple Watch 16.1 17.0 17.2 Remote Creation iPad Live Activity 26.0 CarPlay, macOS iPhone 16.2 API Change

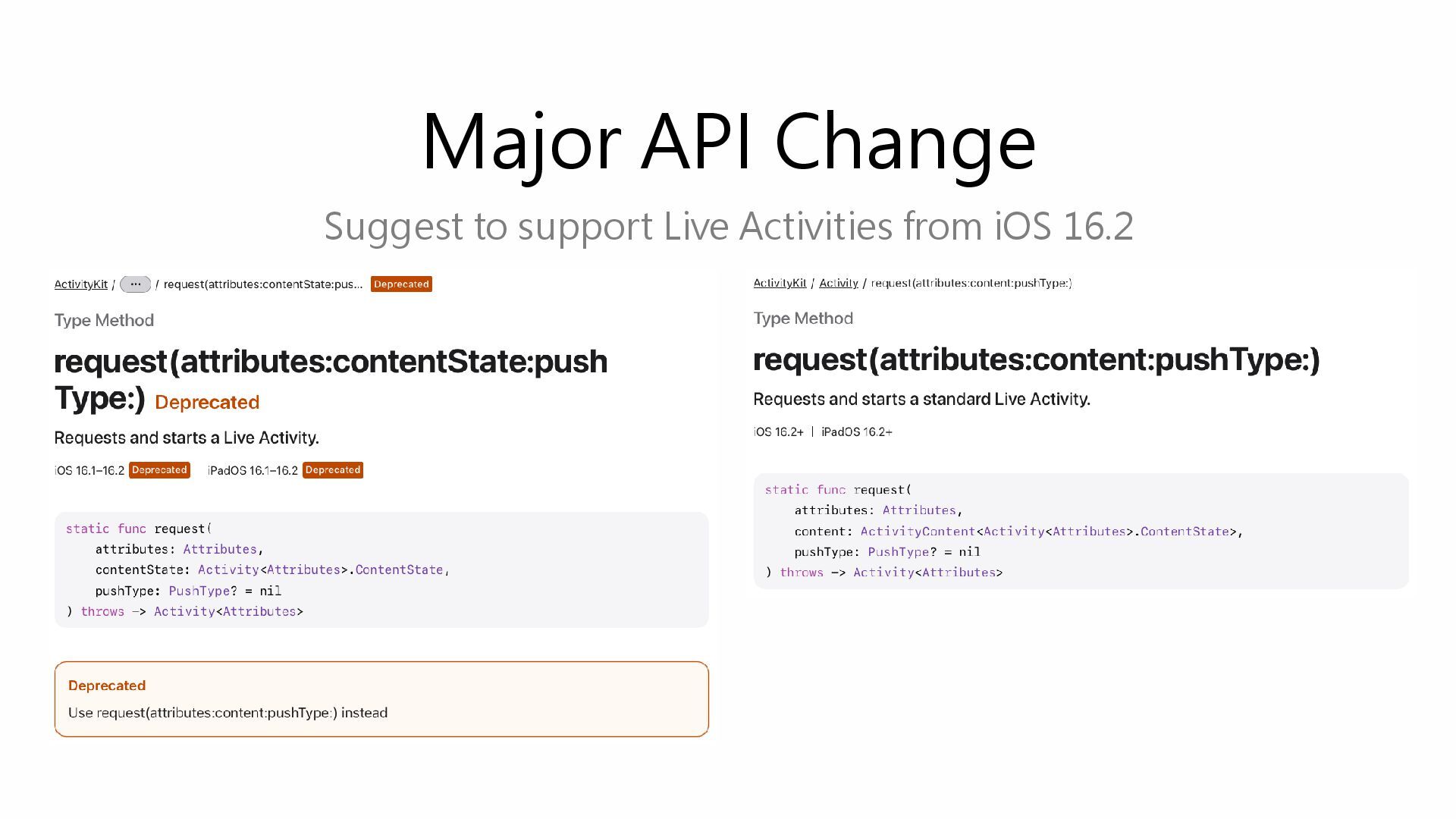

8. Suggest to support Live Activities from iOS 16.2 Major API Change

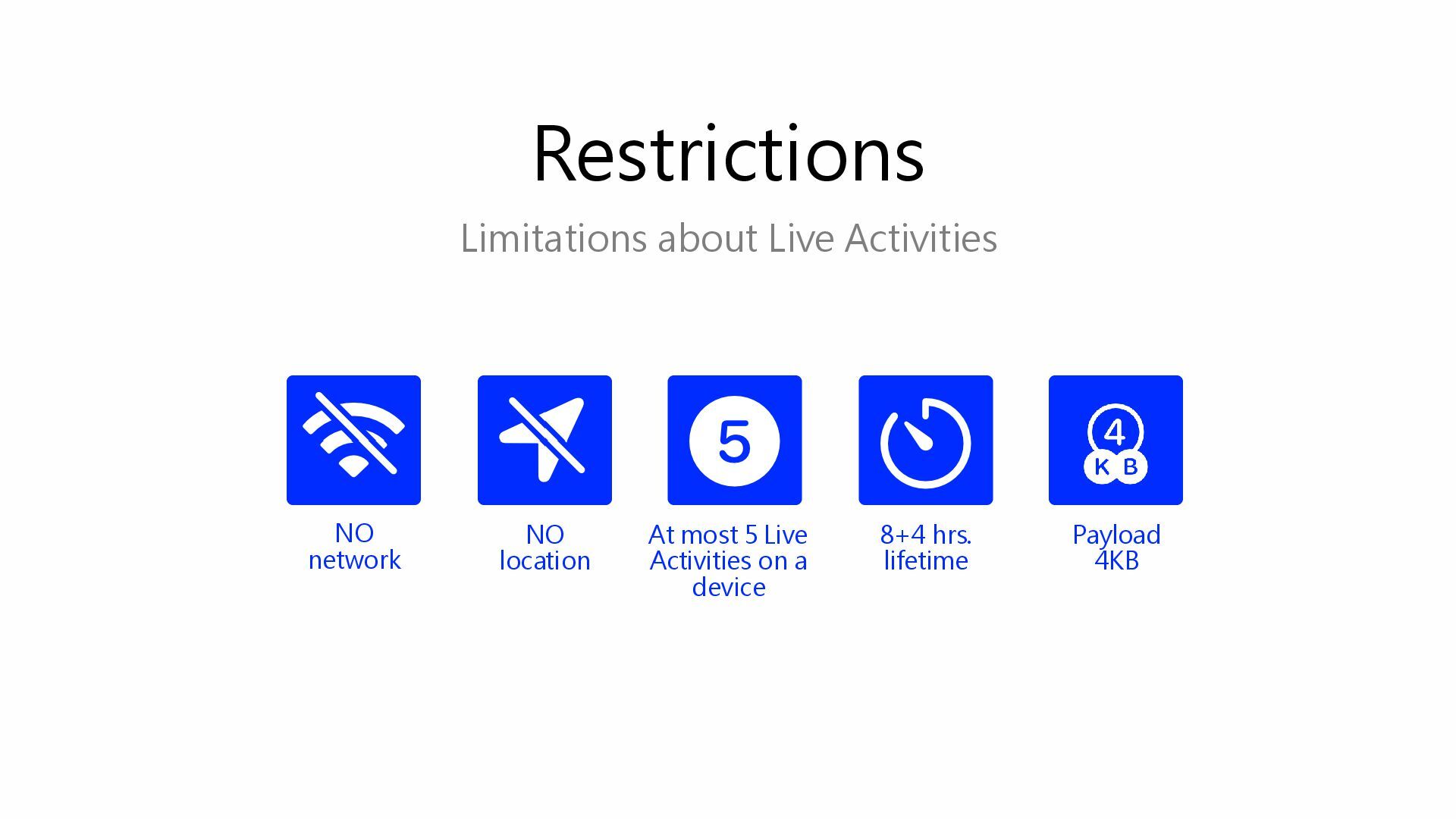

9. Limitations about Live Activities Restrictions NO location 8+4 hrs. lifetime NO network At most 5 Live Activities on a device Payload 4KB

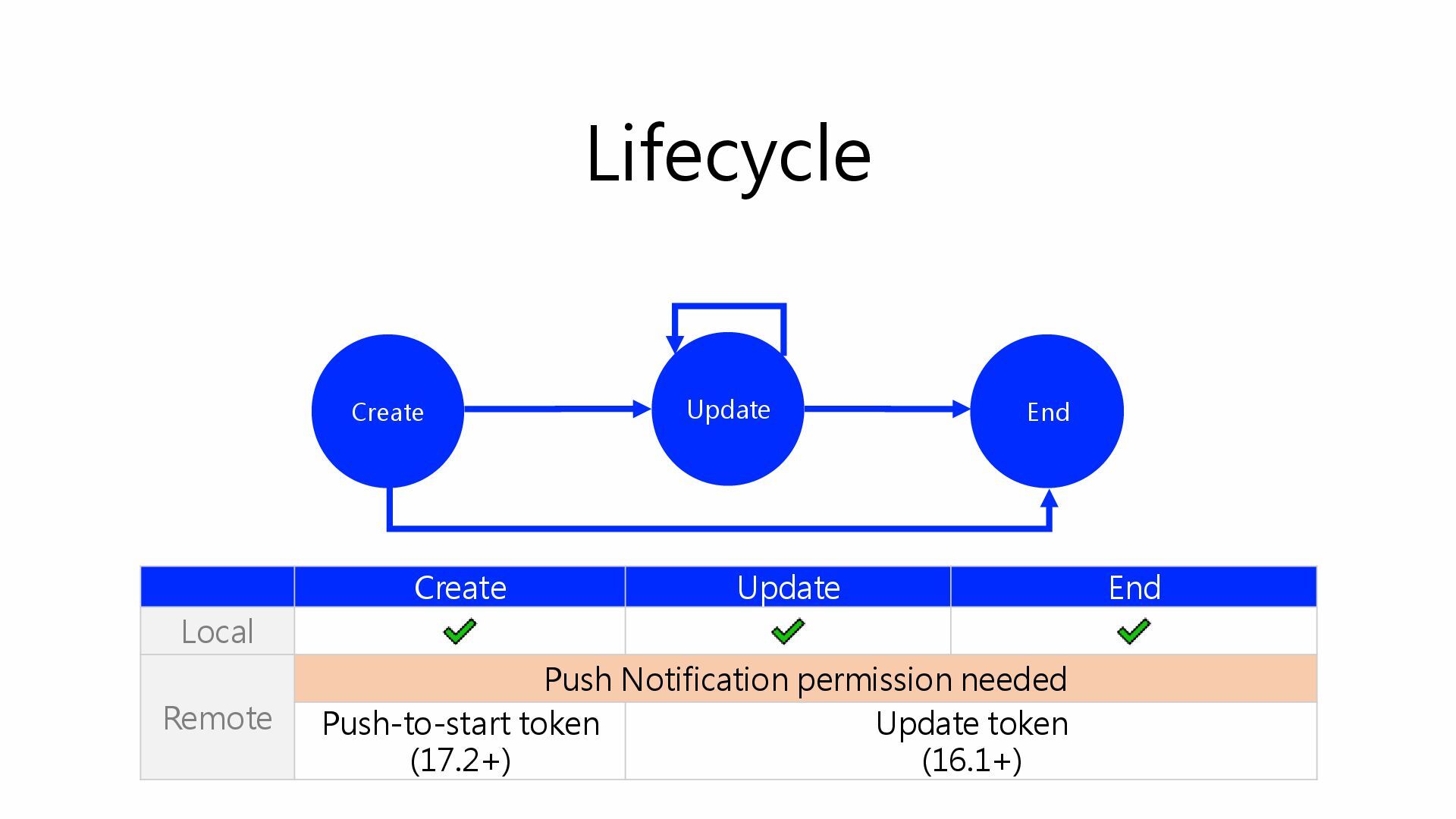

10. Lifecycle Create Update End Create Update End Local Remote Push Notification permission needed Push-to-start token (17.2+) Update token (16.1+)

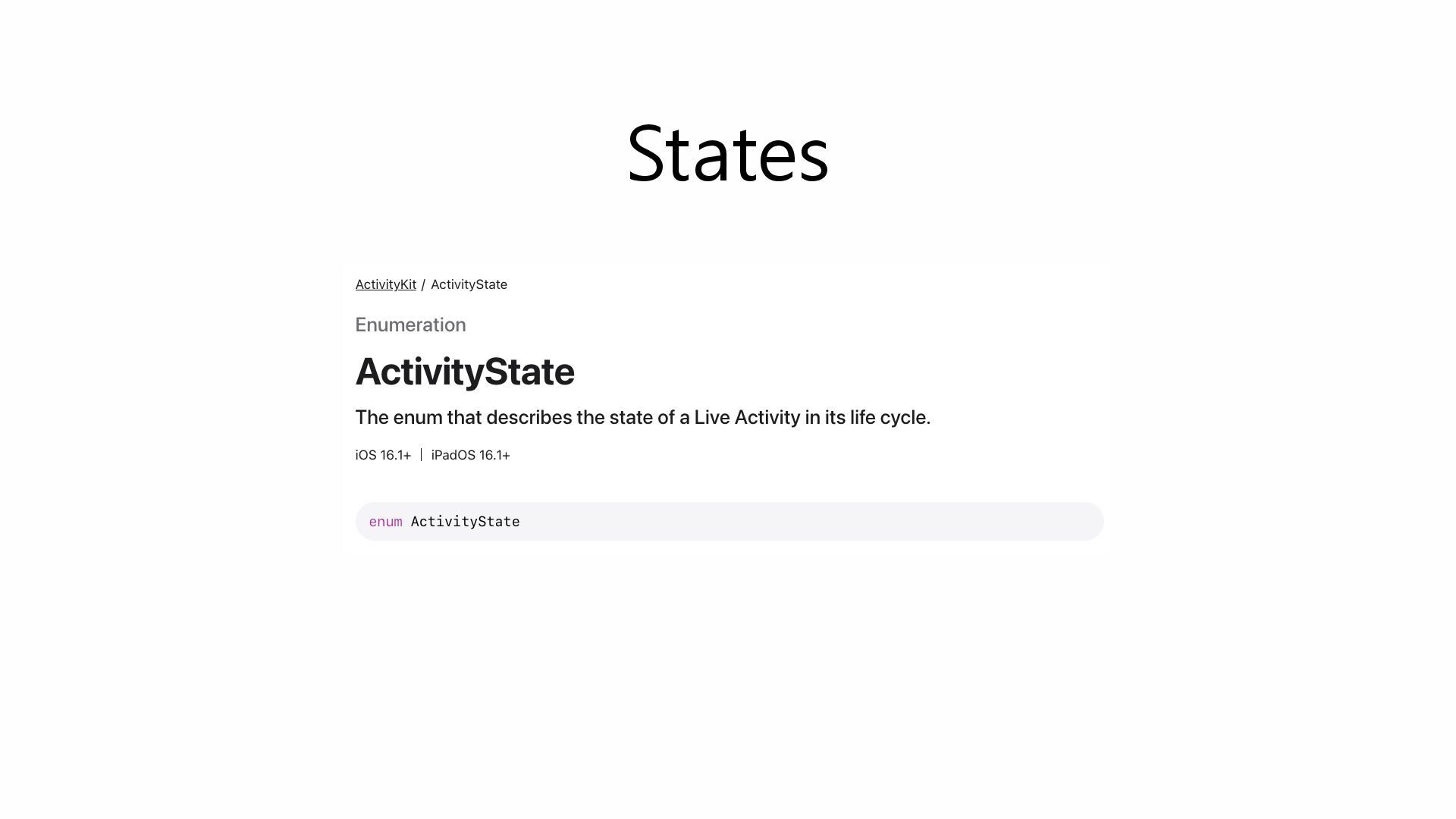

11. States
12. States Active Stale Dismissed Ended Create Update End End

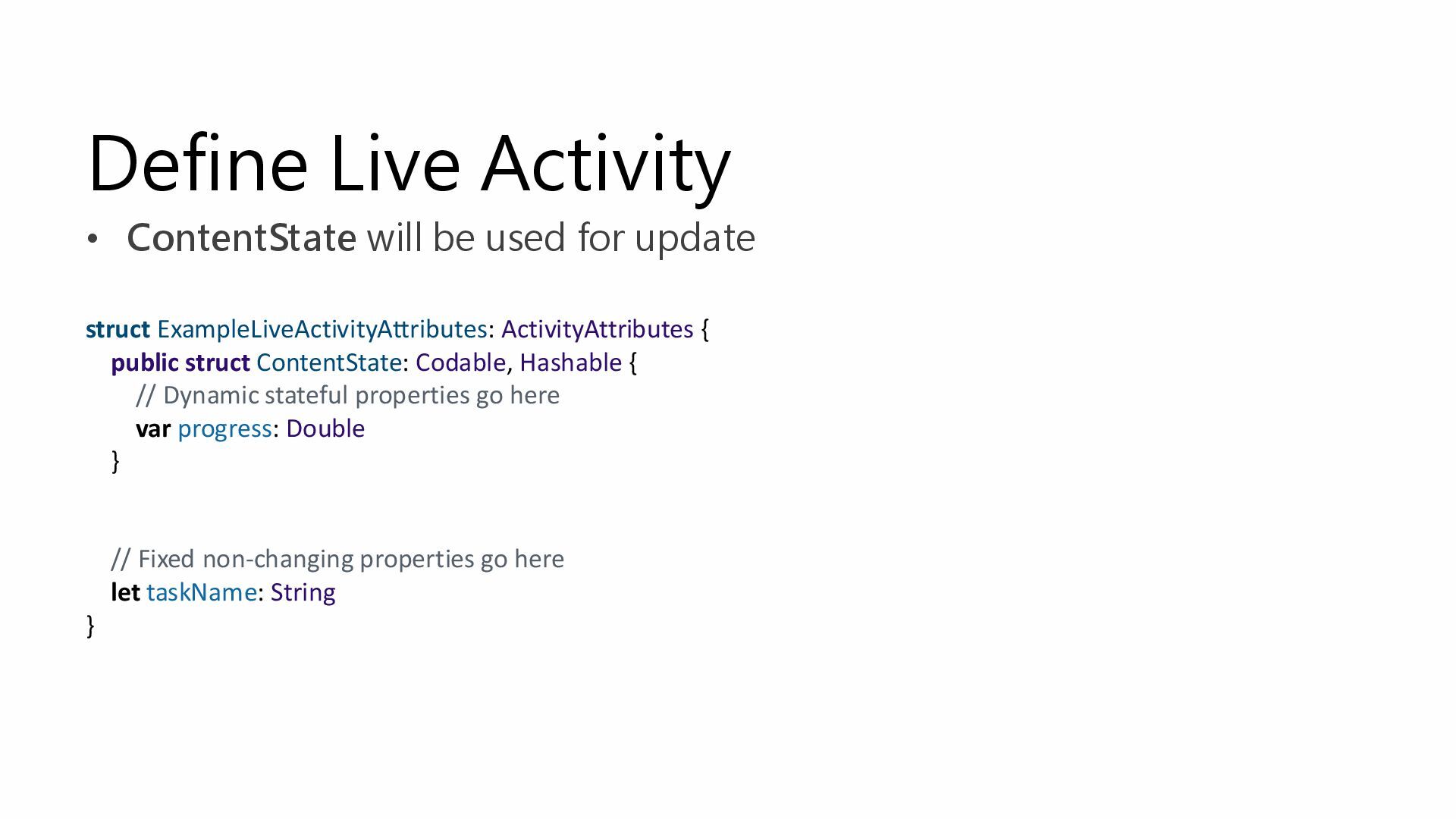

13. Define Live Activity • ContentState will be used for update struct ExampleLiveActivityAttributes: ActivityAttributes { public struct ContentState: Codable, Hashable { // Dynamic stateful properties go here var progress: Double } // Fixed non-changing properties go here let taskName: String }

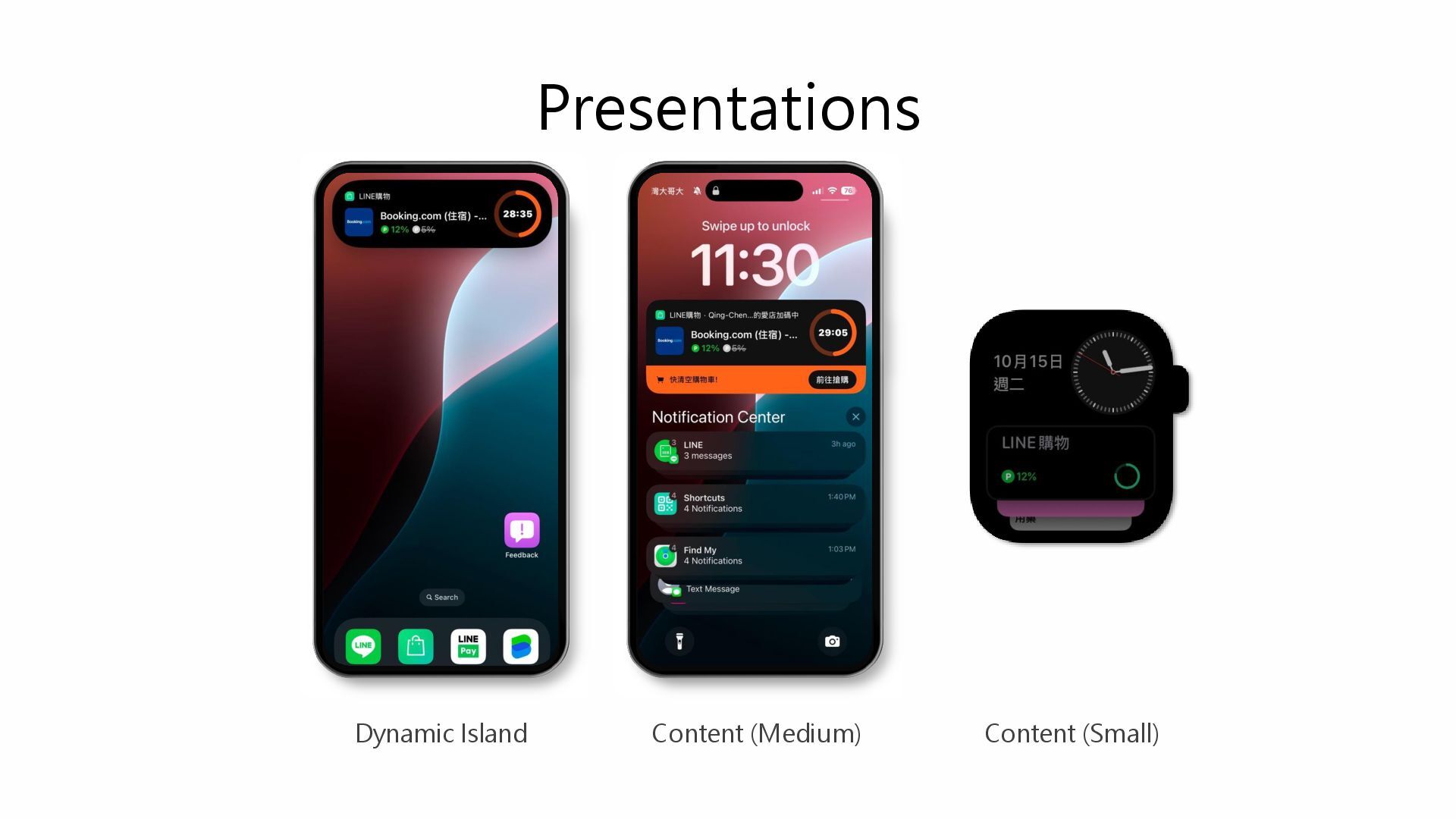

14. Content (Medium) Presentations Dynamic Island Content (Small)

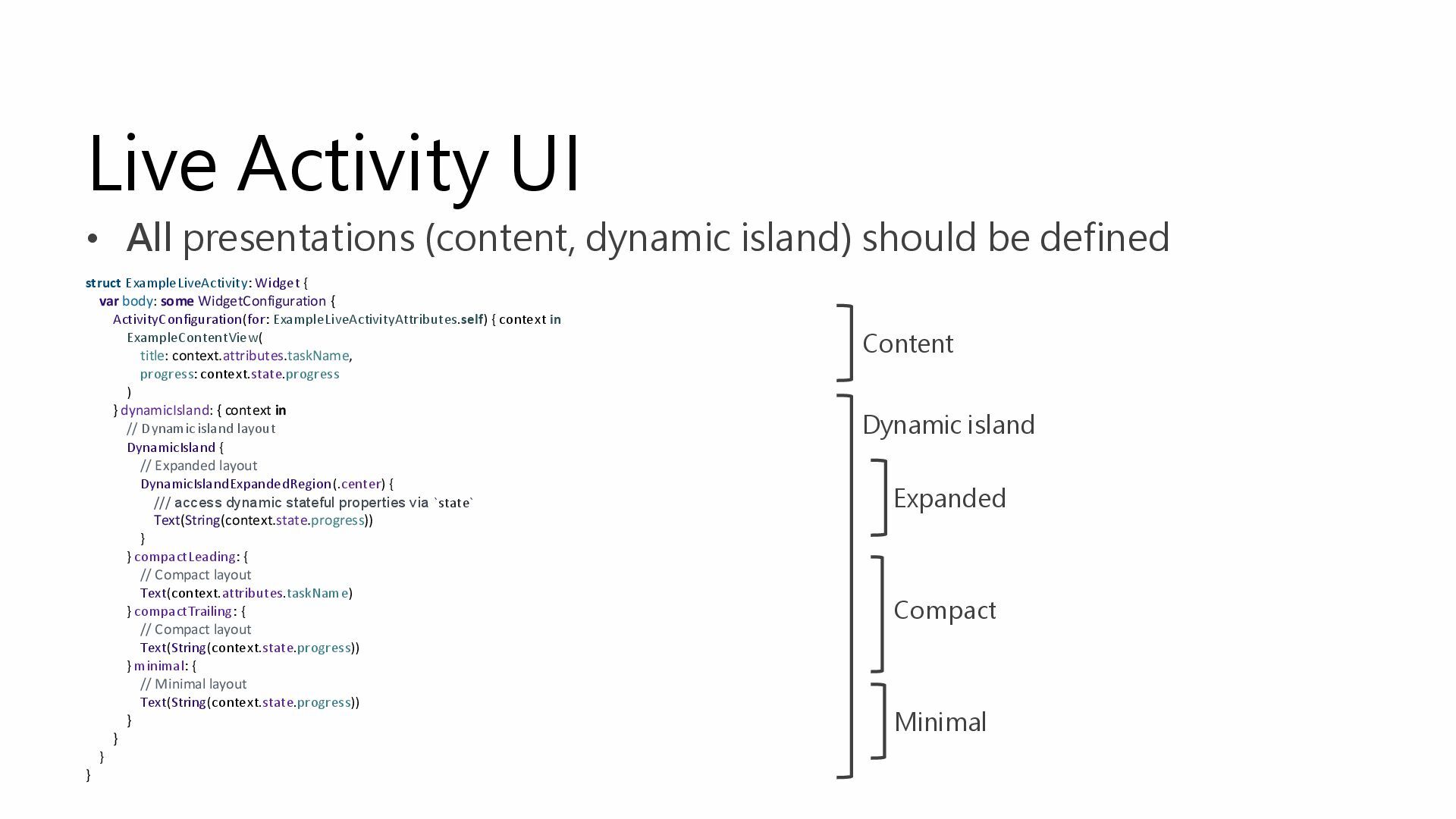

15. Live Activity UI • All presentations (content, dynamic island) should be defined Content Dynamic island Expanded Compact Minimal struct ExampleLiveActivity: Widget { var body: some WidgetConfiguration { ActivityConfiguration(for: ExampleLiveActivityAttributes.self) { context in ExampleContentView( title: context.attributes.taskName, progress: context.state.progress ) } dynamicIsland: { context in // Dynamic island layout DynamicIsland { // Expanded layout DynamicIslandExpandedRegion(.center) { /// access dynamic stateful properties via `state` Text(String(context.state.progress)) } } compactLeading: { // Compact layout Text(context.attributes.taskName) } compactTrailing: { // Compact layout Text(String(context.state.progress)) } minimal: { // Minimal layout Text(String(context.state.progress)) } } } }

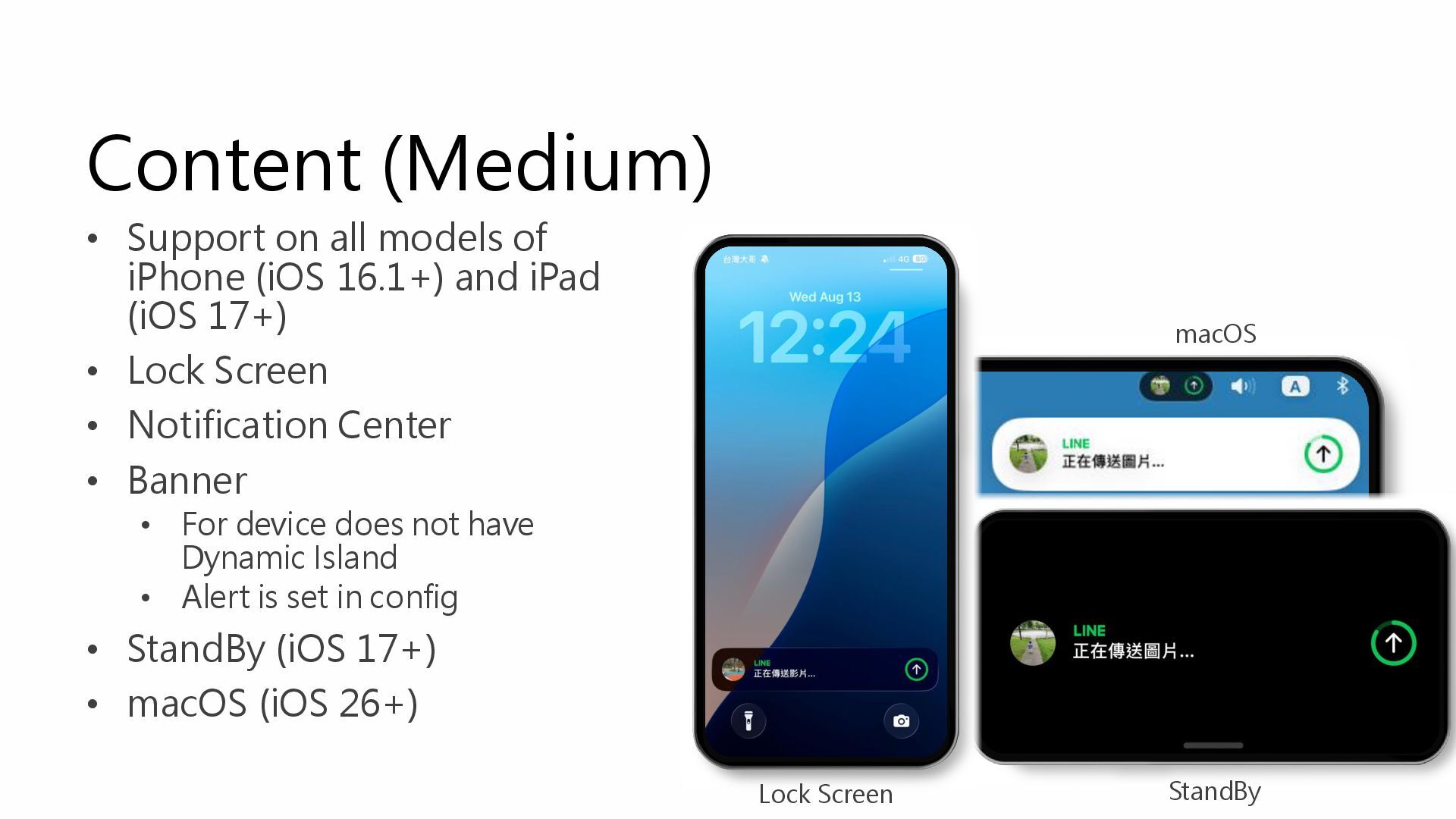

16. Content (Medium) • Support on all models of iPhone (iOS 16.1+) and iPad (iOS 17+) • Lock Screen • Notification Center • Banner • For device does not have Dynamic Island • Alert is set in config • StandBy (iOS 17+) • macOS (iOS 26+) Lock Screen macOS StandBy

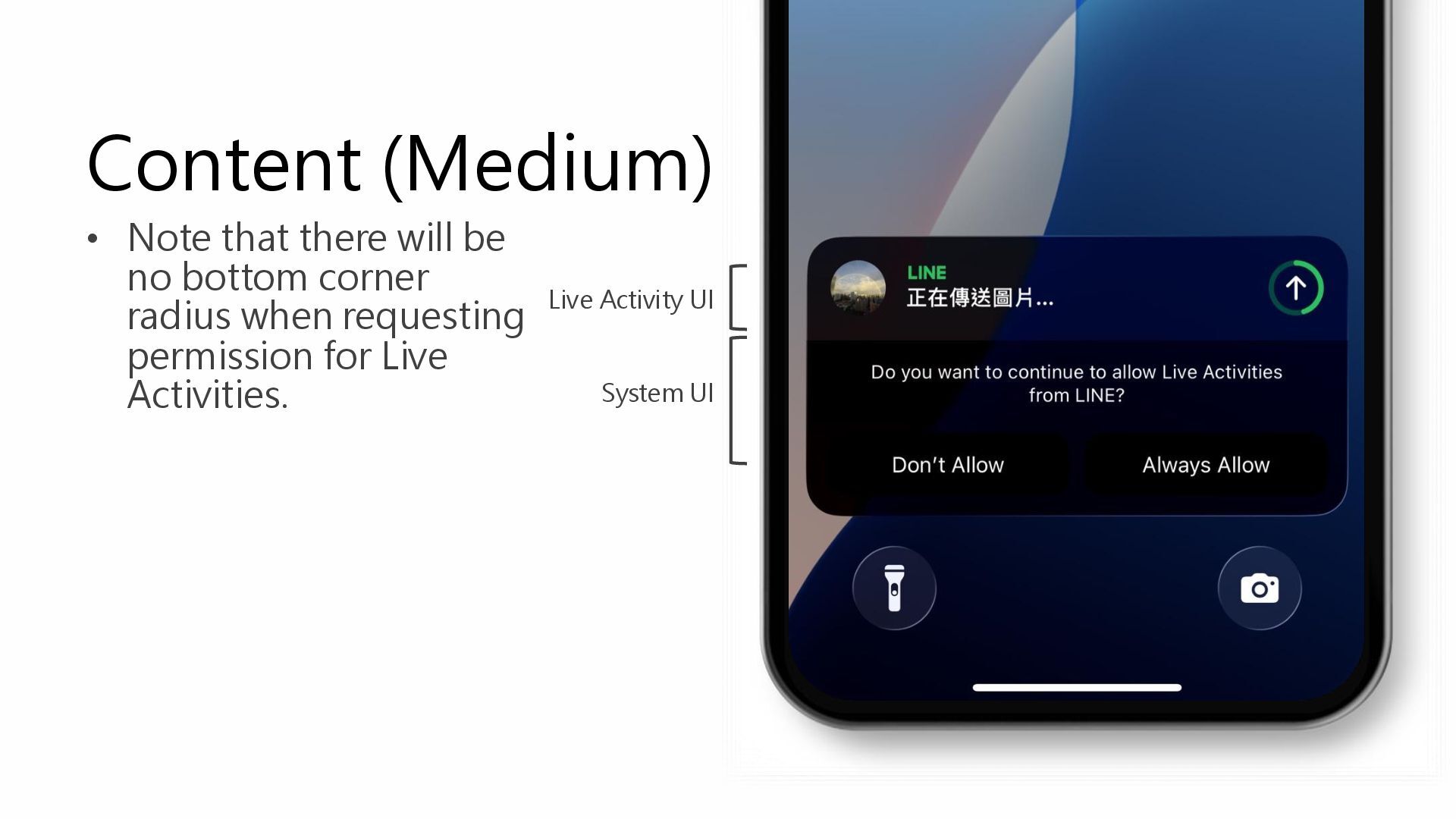

17. Content (Medium) • Note that there will be no bottom corner radius when requesting permission for Live Activities. System UI Live Activity UI

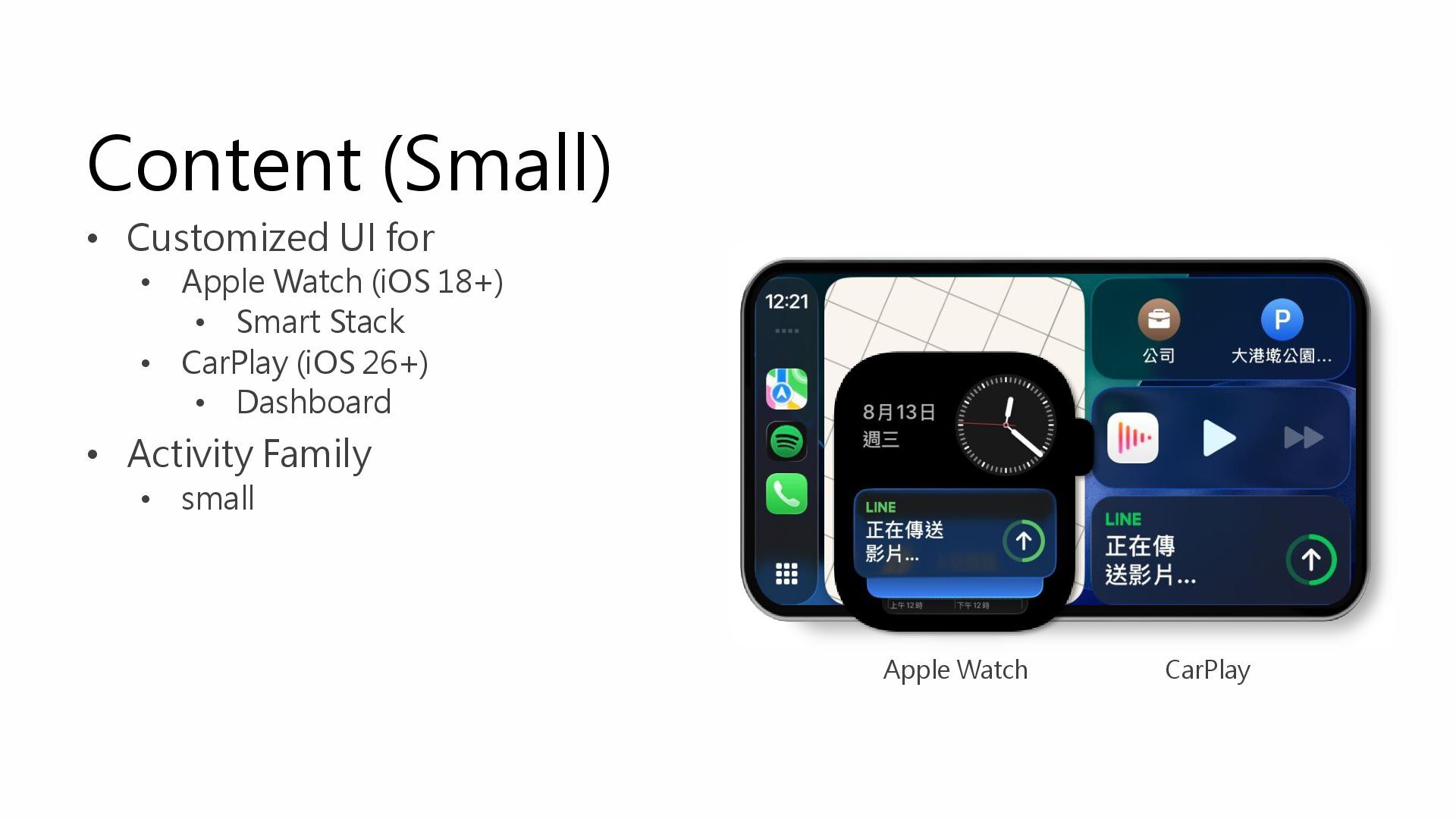

18. Content (Small) • Customized UI for • Apple Watch (iOS 18+) • Smart Stack • CarPlay (iOS 26+) • Dashboard • Activity Family • small Apple Watch CarPlay

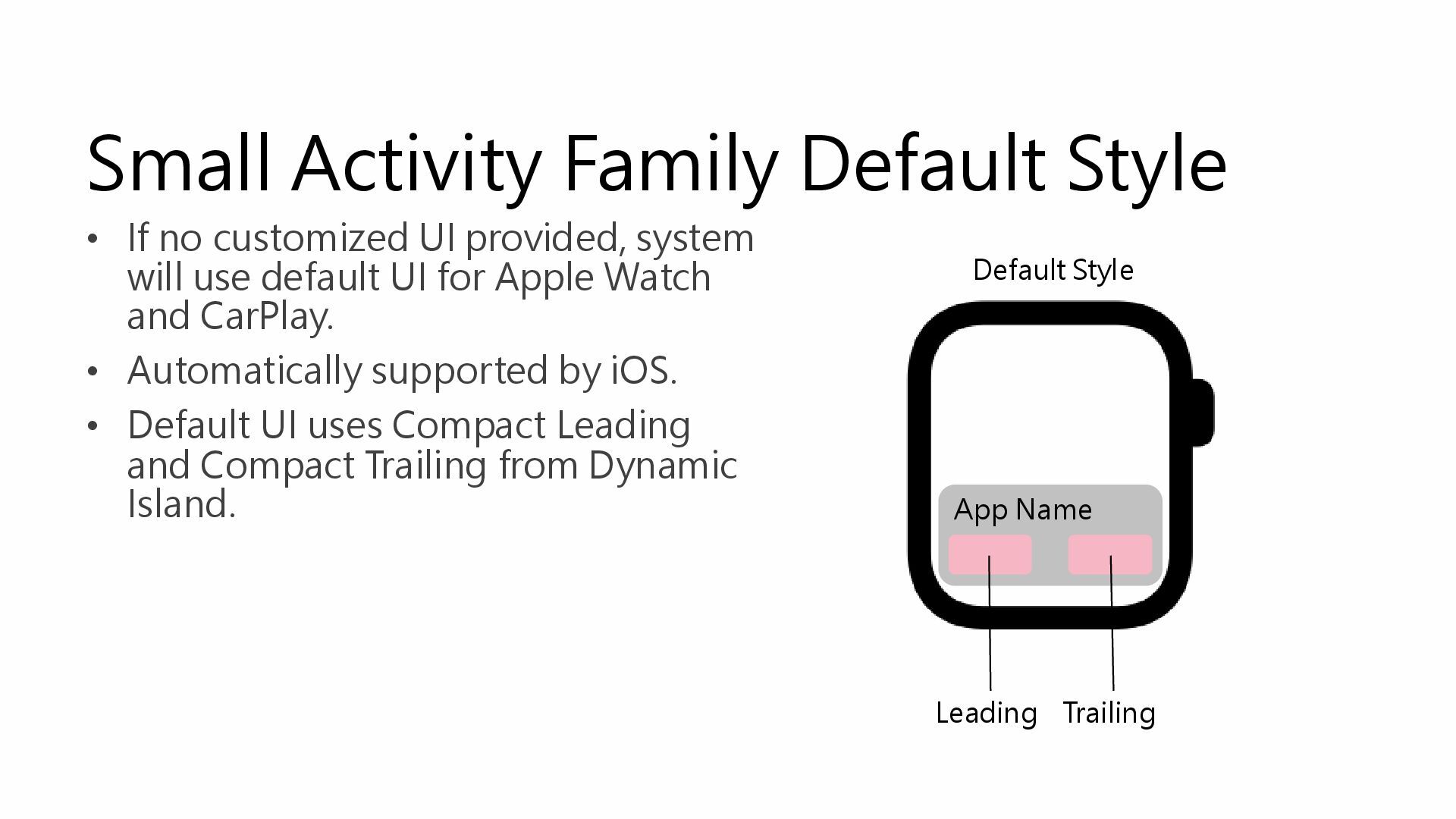

19. Small Activity Family Default Style • If no customized UI provided, system will use default UI for Apple Watch and CarPlay. • Automatically supported by iOS. • Default UI uses Compact Leading and Compact Trailing from Dynamic Island. Leading Trailing App Name Default Style

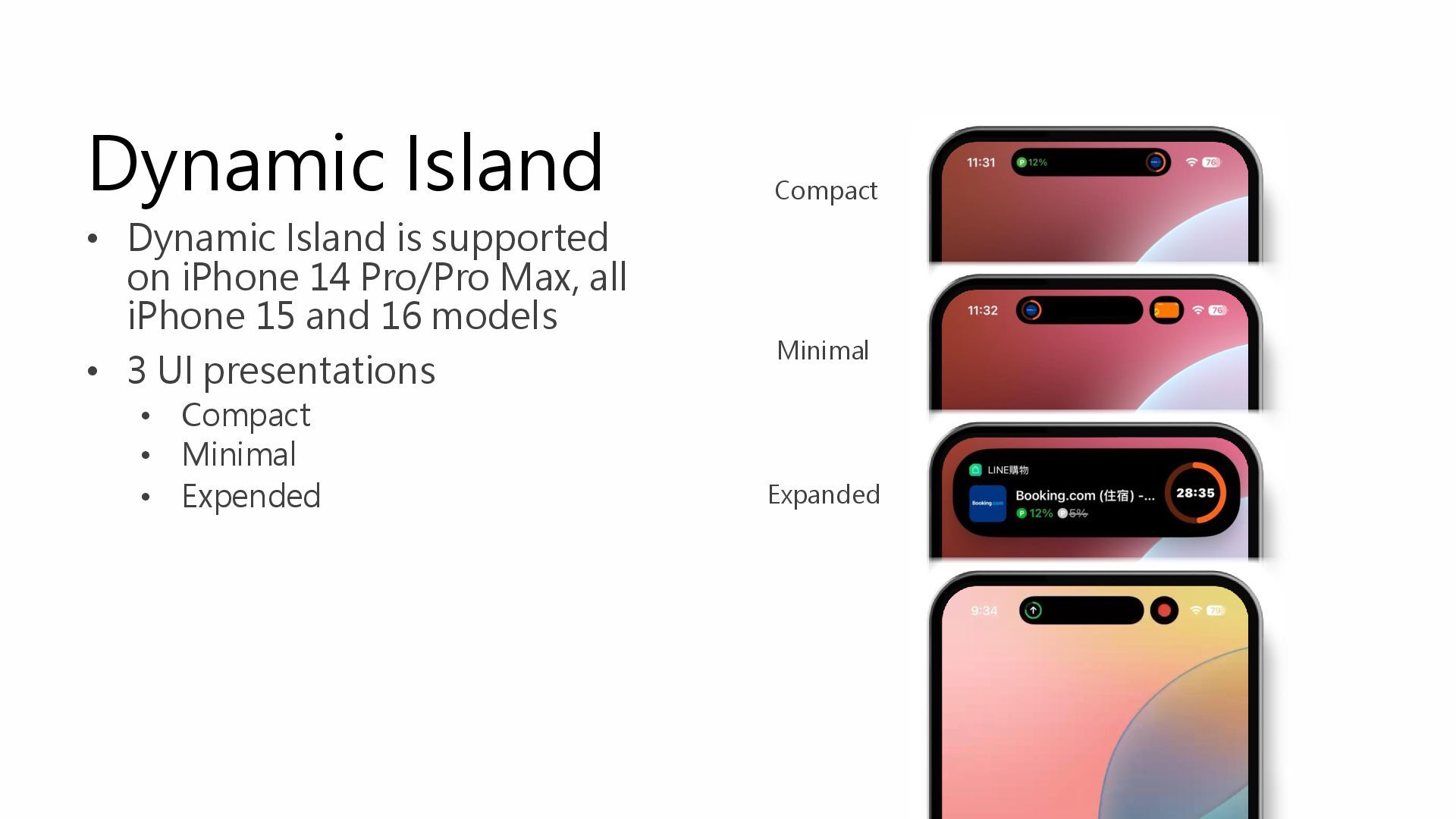

20. Dynamic Island • Dynamic Island is supported on iPhone 14 Pro/Pro Max, all iPhone 15 and 16 models • 3 UI presentations • Compact • Minimal • Expended Compact Minimal Expanded

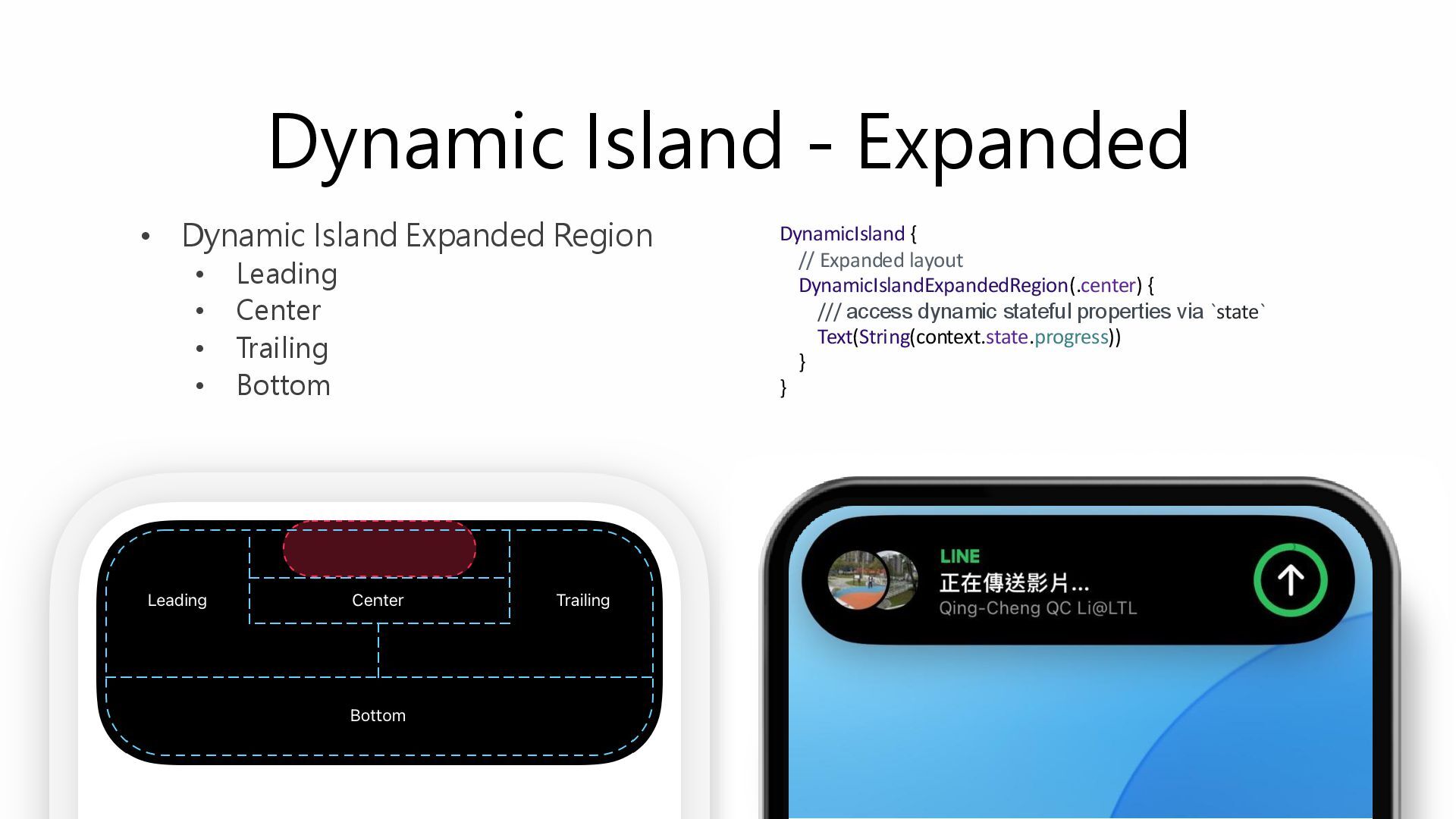

21. Dynamic Island - Expanded • Dynamic Island Expanded Region • Leading • Center • Trailing • Bottom DynamicIsland { // Expanded layout DynamicIslandExpandedRegion(.center) { /// access dynamic stateful properties via `state` Text(String(context.state.progress)) } }
22. Dynamic Island - Compact Dynamic Island macOS

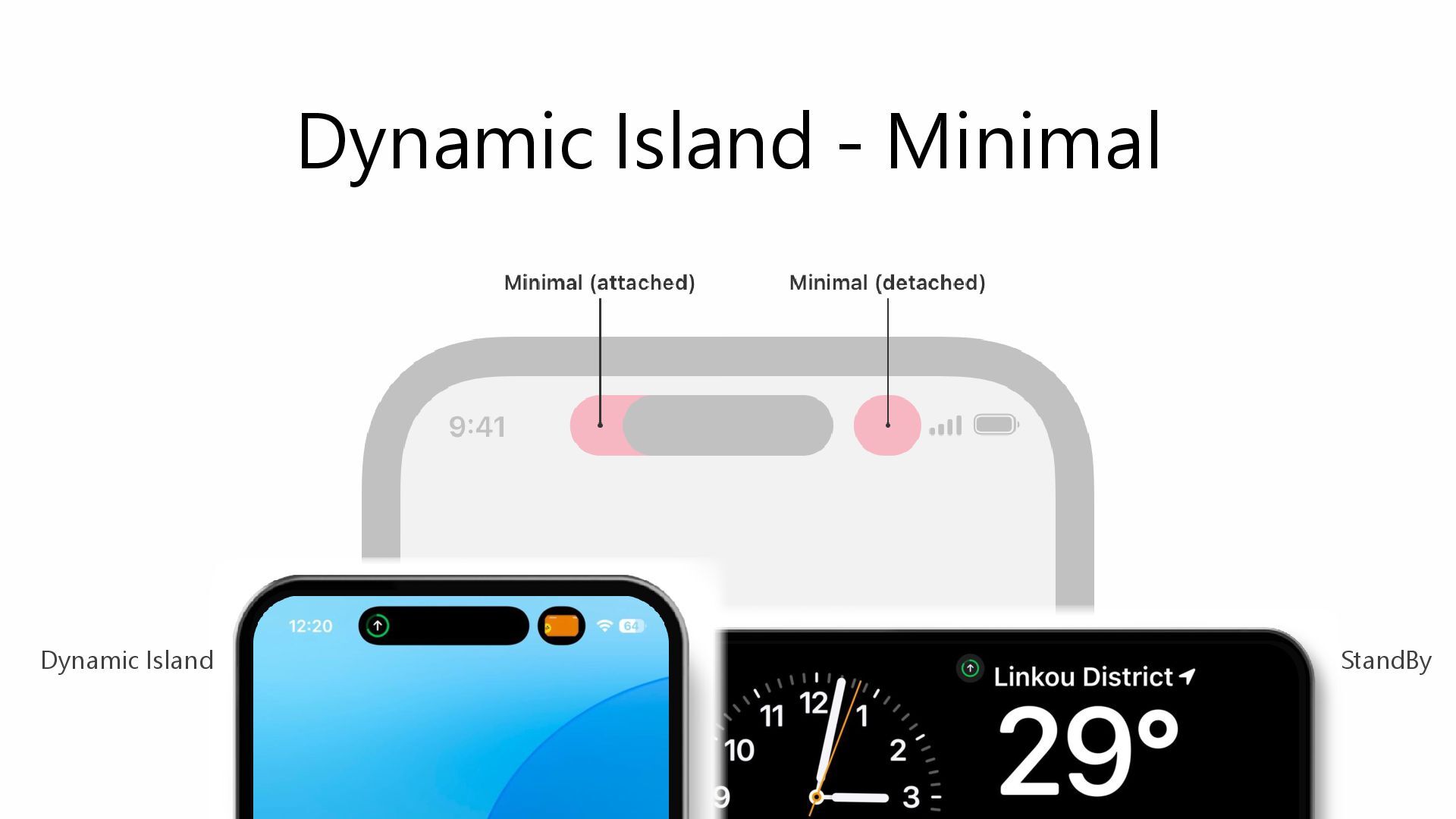

23. Dynamic Island - Minimal StandBy Dynamic Island

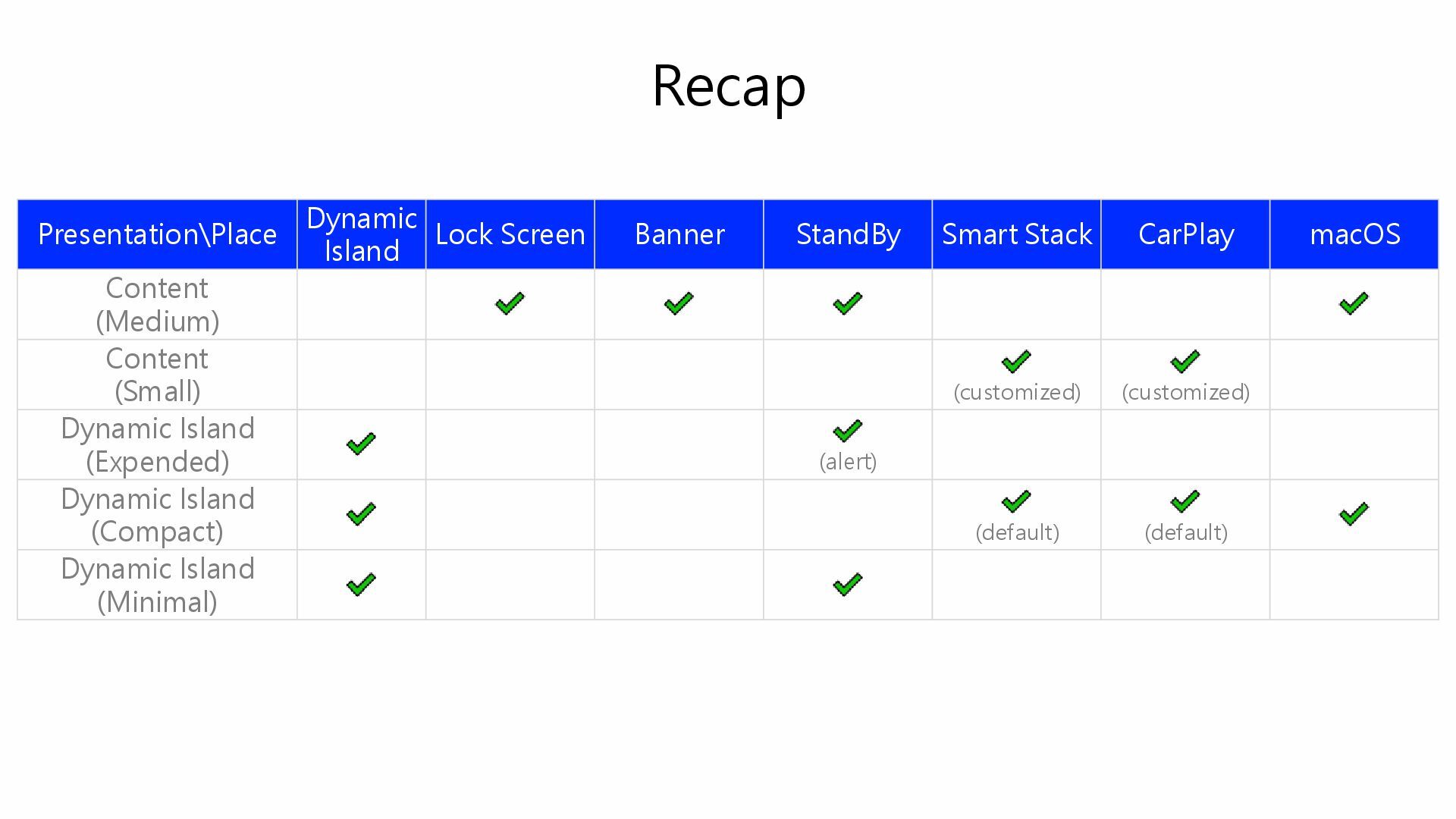

24. Recap Presentation\Place Dynamic Island Lock Screen Banner StandBy Smart Stack CarPlay macOS Content (Medium) Content (Small) (customized) (customized) Dynamic Island (Expended) (alert) Dynamic Island (Compact) (default) (default) Dynamic Island (Minimal)
25. Initiation 02 How we start

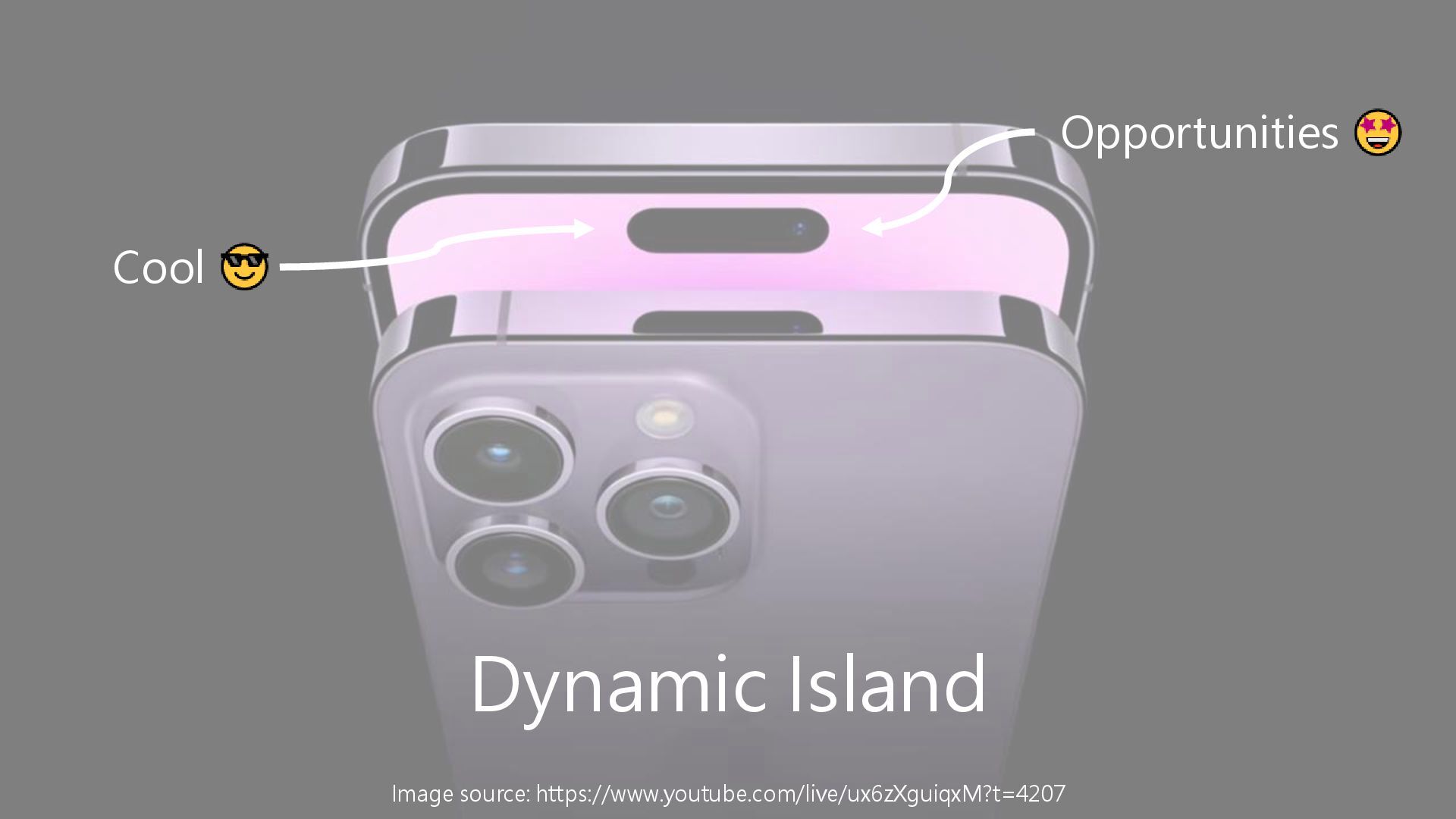

26. Dynamic Island Image source: https://www.youtube.com/live/ux6zXguiqxM?t=4207 Cool Opportunities

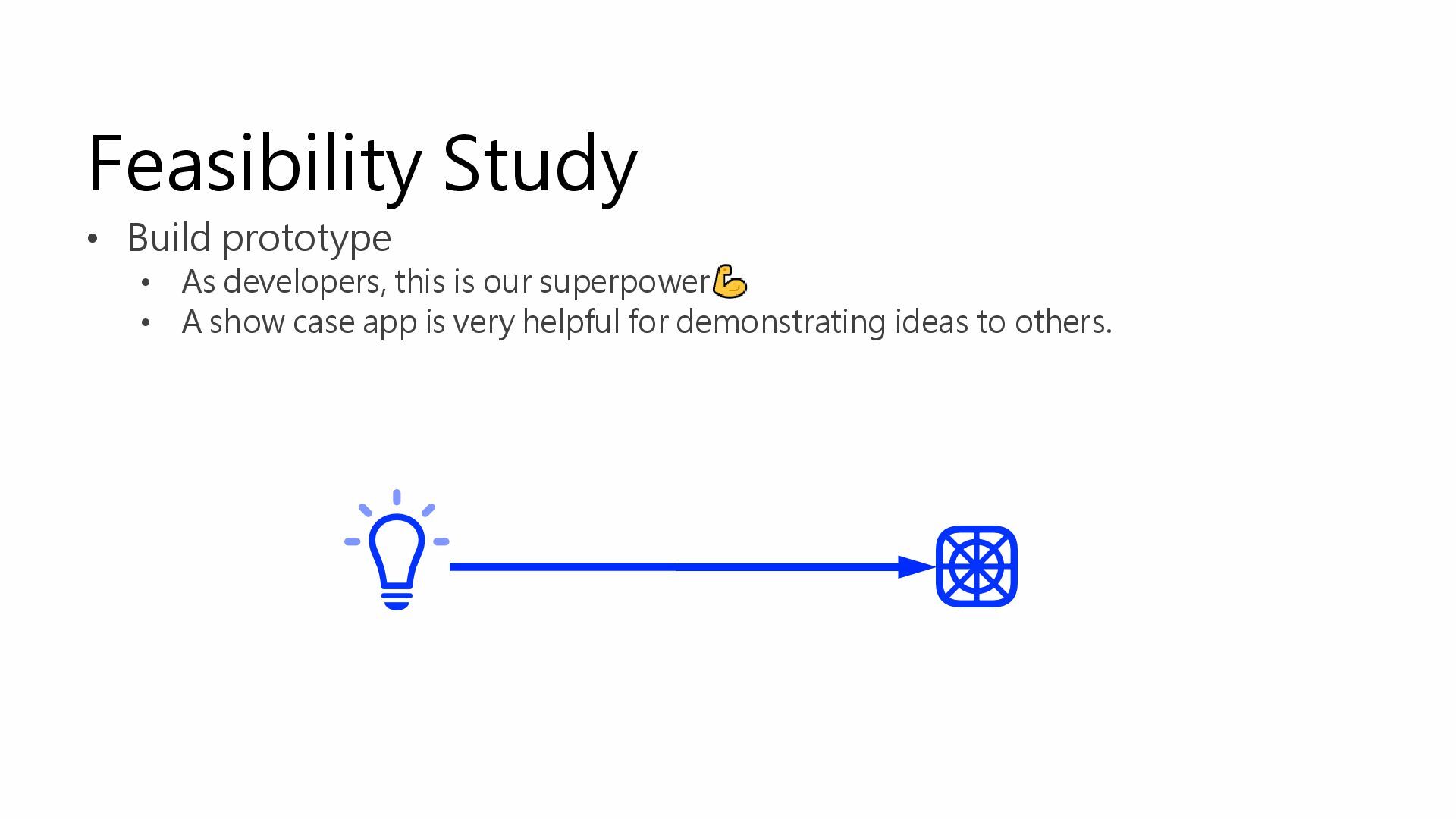

27. Feasibility Study • Build prototype • As developers, this is our superpower • A show case app is very helpful for demonstrating ideas to others.

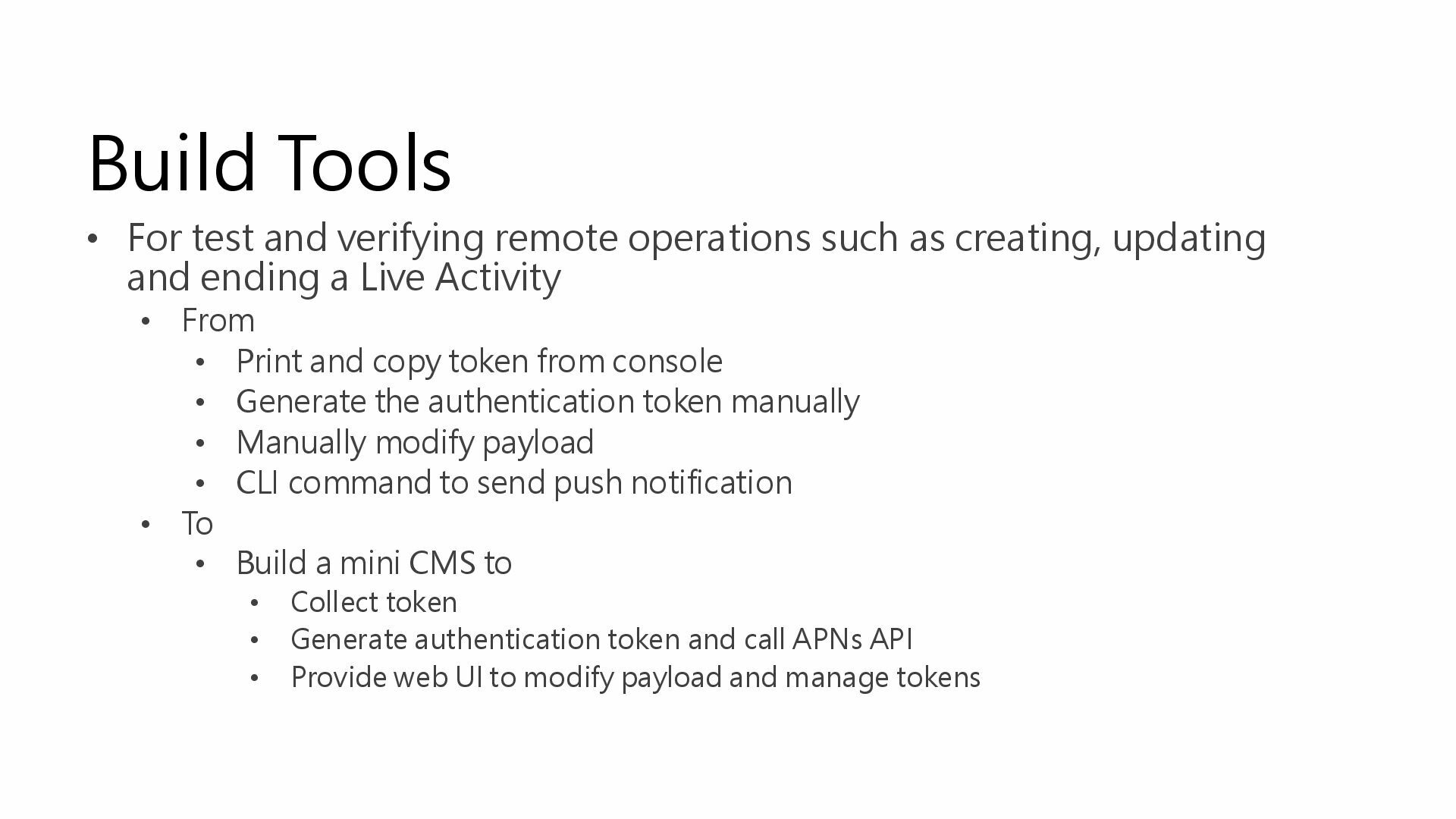

28. Build Tools • For test and verifying remote operations such as creating, updating and ending a Live Activity • From • Print and copy token from console • Generate the authentication token manually • Manually modify payload • CLI command to send push notification • To • Build a mini CMS to • Collect token • Generate authentication token and call APNs API • Provide web UI to modify payload and manage tokens

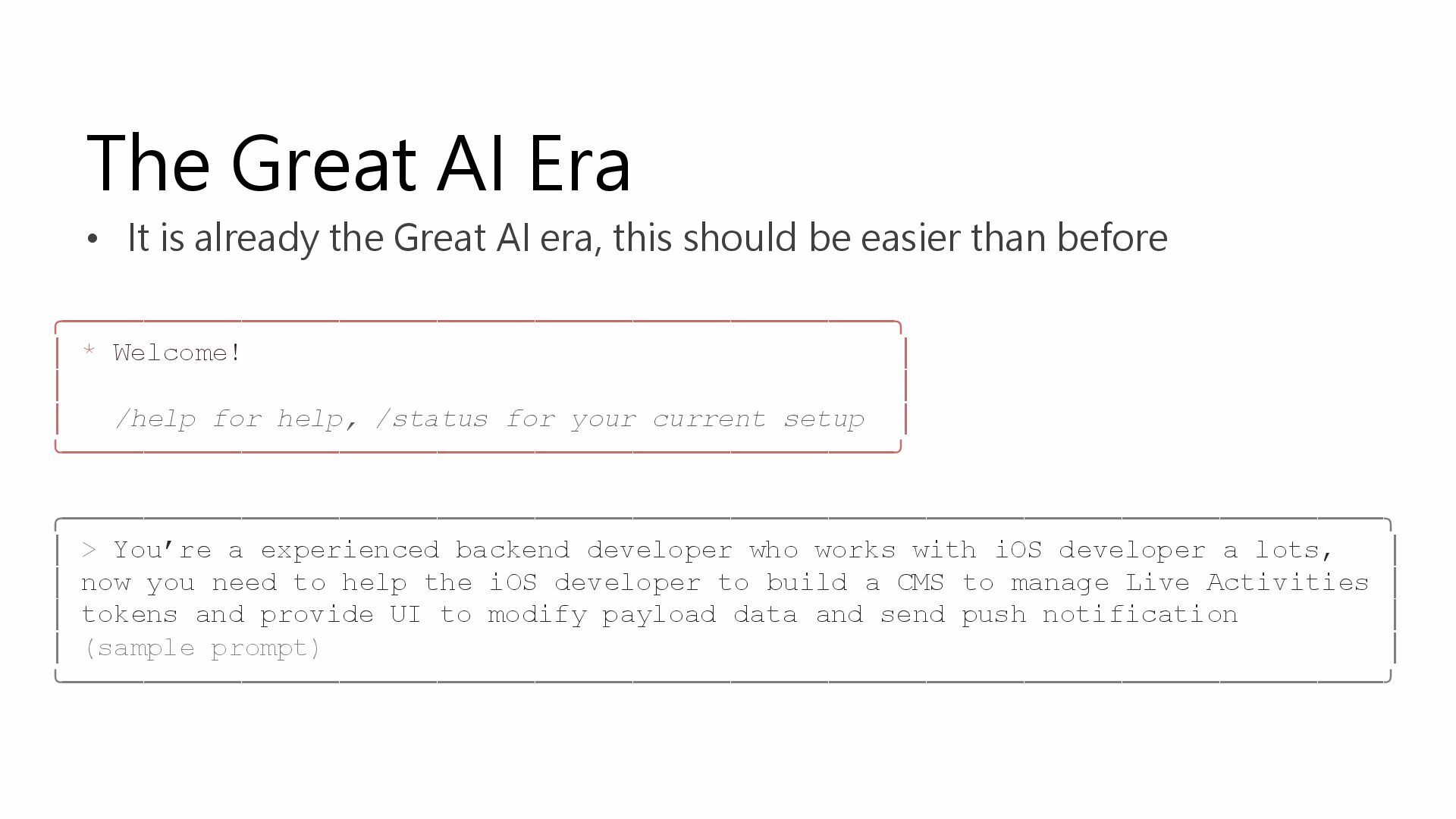

29. The Great AI Era • It is already the Great AI era, this should be easier than before ╭───────────────────────────────────────────────────╮ │ * Welcome! │ │ │ │ /help for help, /status for your current setup │ ╰───────────────────────────────────────────────────╯ ╭─────────────────────────────────────────────────────────────────────────────────╮ │ > You’re a experienced backend developer who works with iOS developer a lots, │ │ now you need to help the iOS developer to build a CMS to manage Live Activities │ │ tokens and provide UI to modify payload data and send push notification │ │ (sample prompt) │ ╰─────────────────────────────────────────────────────────────────────────────────╯
30. Promote • Bring ideas to stakeholders • Find people who can make decision • Let ideas come to dev team • Let others know that we can do this

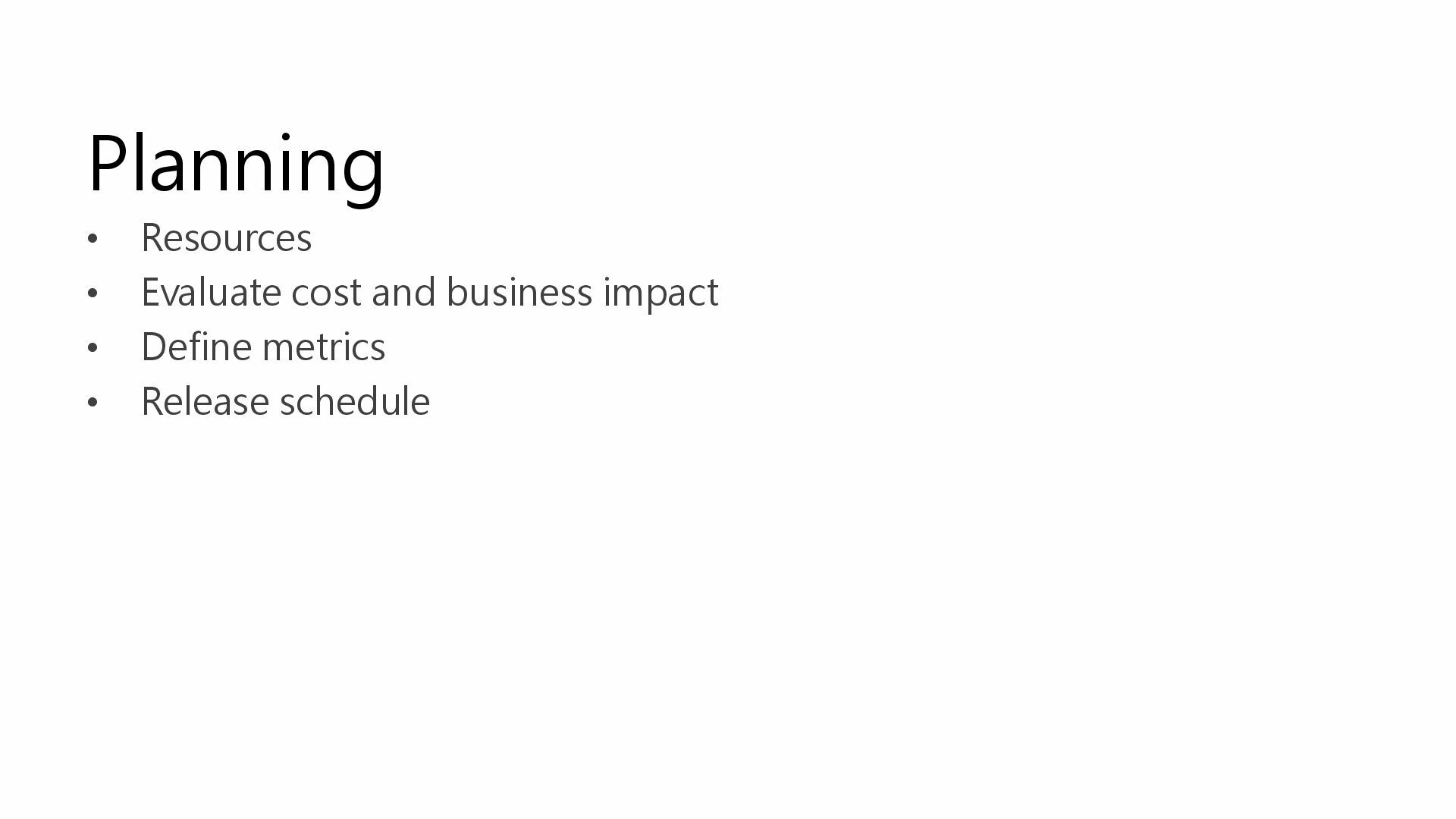

31. Planning • Resources • Evaluate cost and business impact • Define metrics • Release schedule
32. Live Activities in LINE • LINE Shopping: Shop Rebate Count Down • LINE: Media Upload Live Activity
33. Compromises 03 Reality
34. • Local team has ownership • Local team can make decisions Ok, do it! Local Product
35. Global Product Can I do this? Who own this part?
36. Local Feature on a Global Product 🫠 Can I do this? Who own this part? Who can make decision? Is it allowed?
37. People need to work together Stakeholders Developer Designer Planner Business
38. Ideal 《龍拳》, 周杰倫, 2002 「我就是那條龍」
39. Reality 《台北物語》, Tony, 2017 「士農工商各司其職」

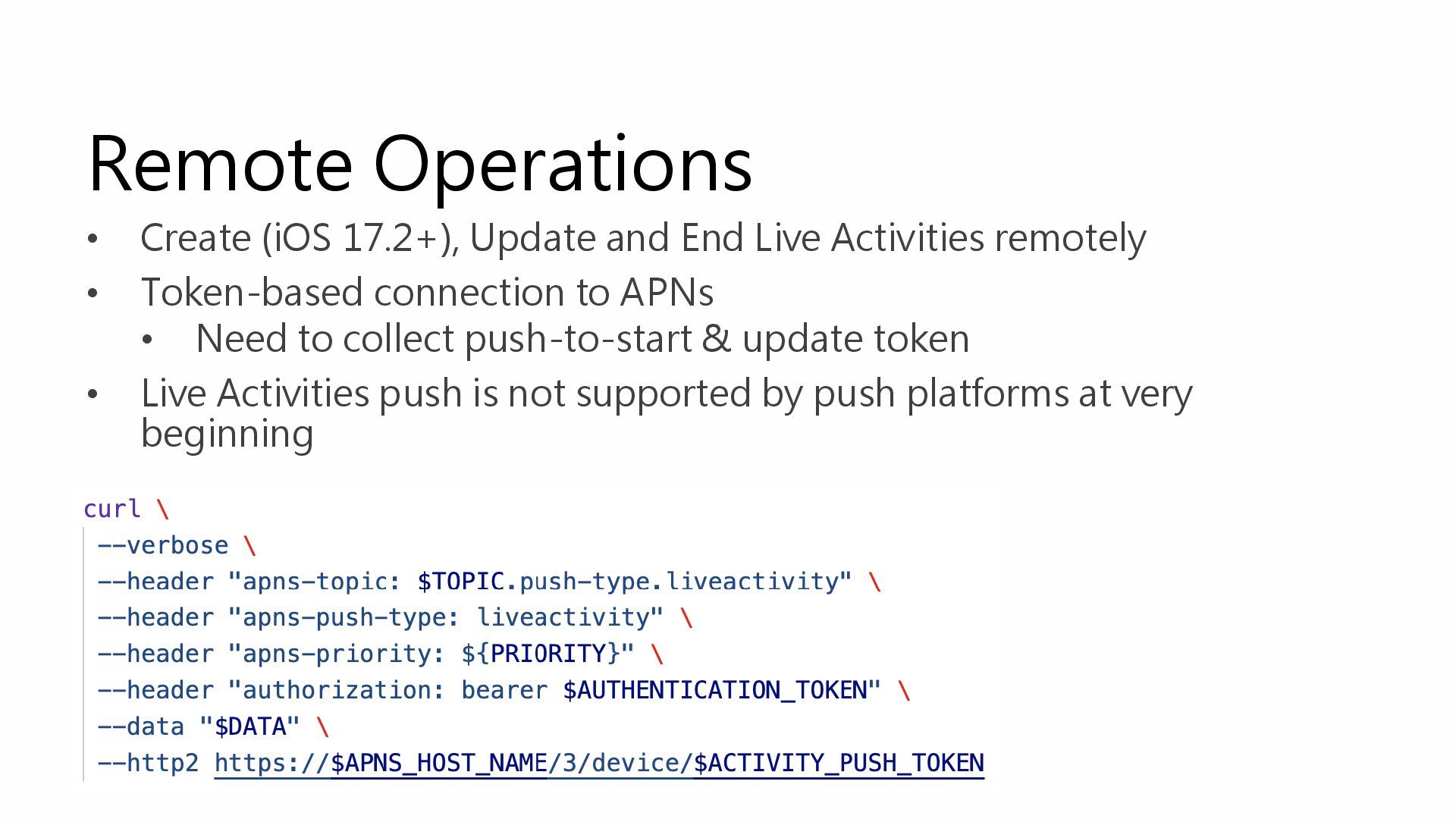

40. Remote Operations • Create (iOS 17.2+), Update and End Live Activities remotely • Token-based connection to APNs • Need to collect push-to-start & update token • Live Activities push is not supported by push platforms at very beginning

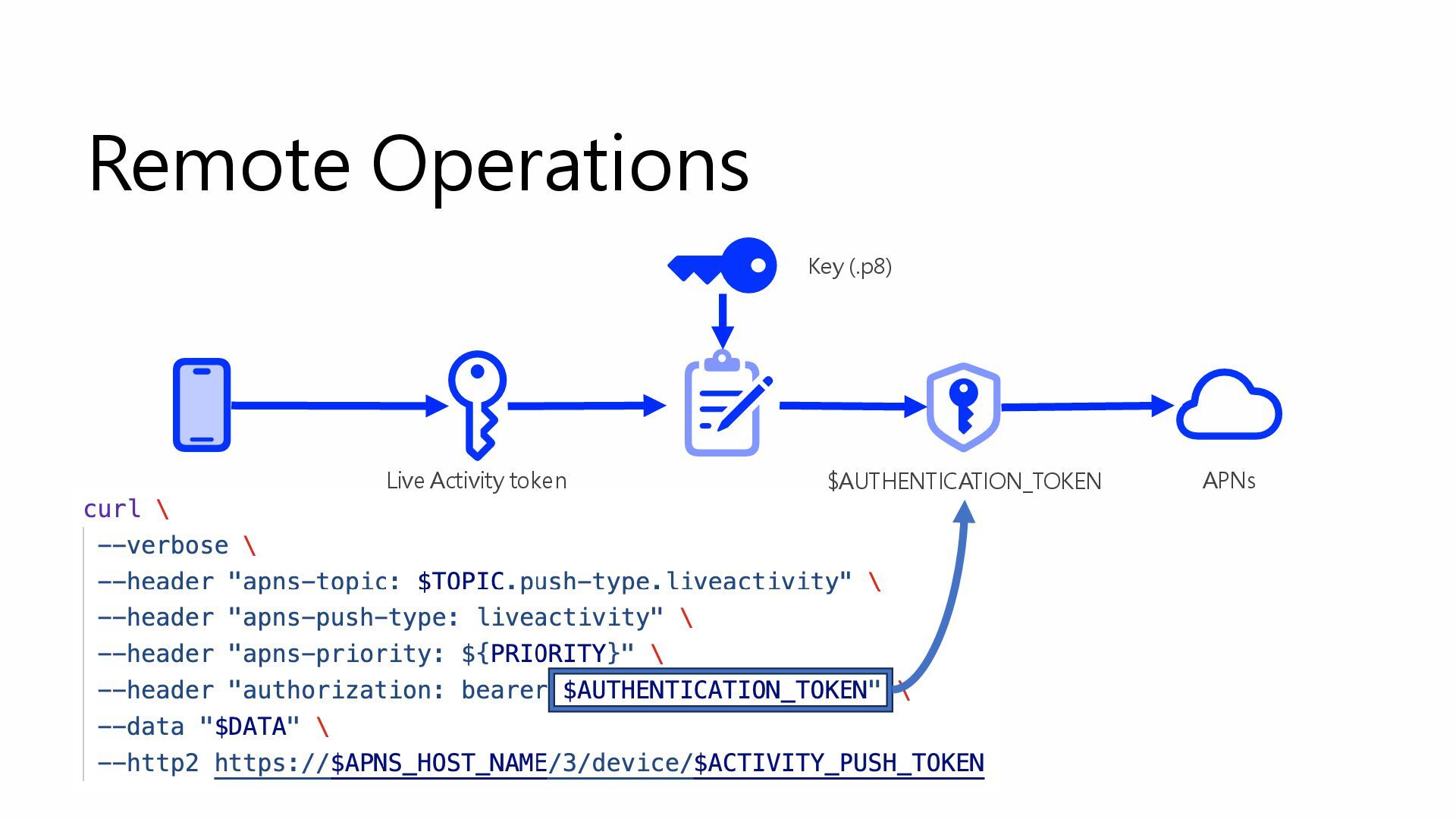

41. Remote Operations $AUTHENTICATION_TOKEN Live Activity token APNs Key (.p8)

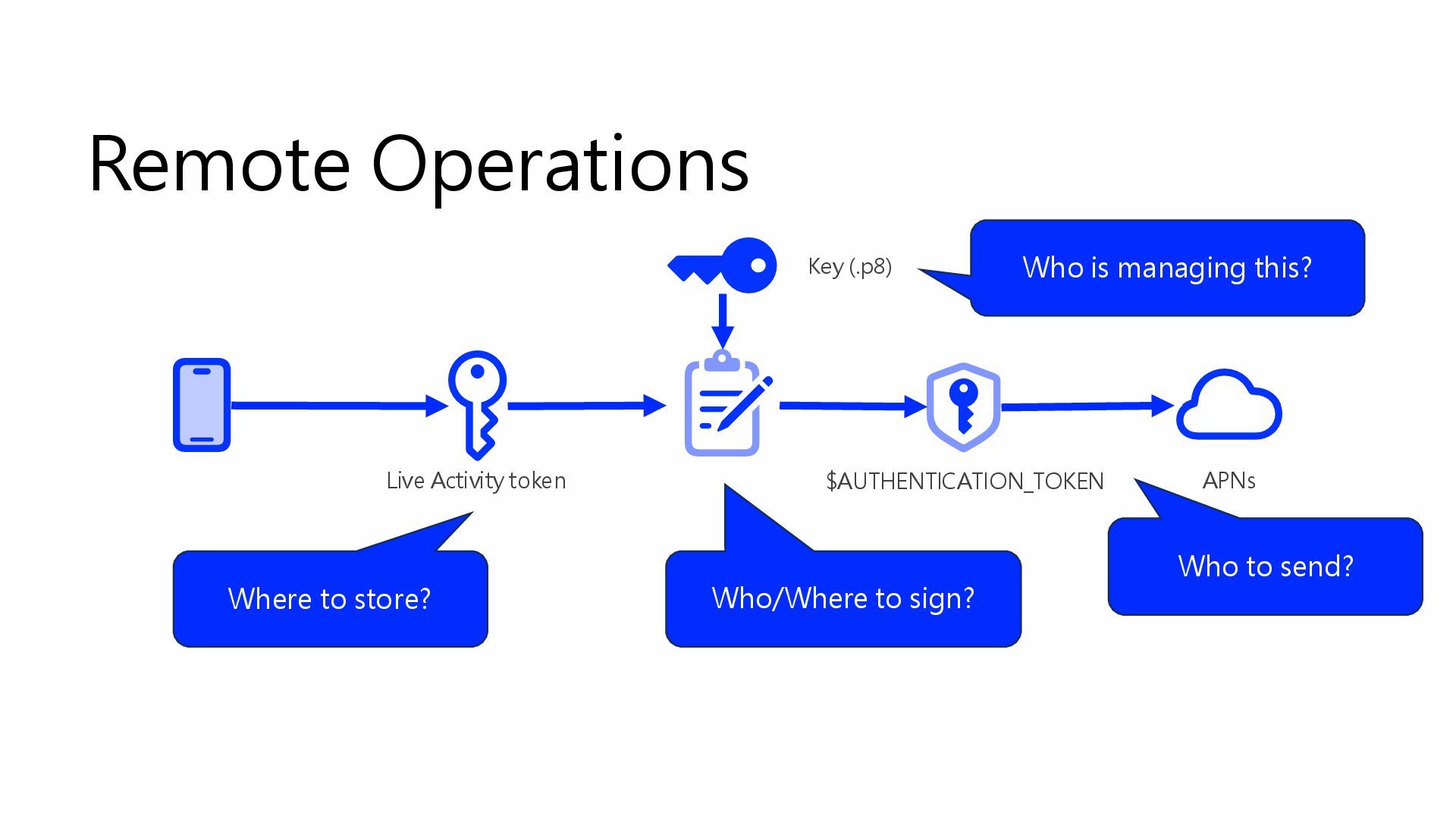

42. Remote Operations Where to store? Who to send? Who is managing this? Who/Where to sign? $AUTHENTICATION_TOKEN Live Activity token APNs Key (.p8)

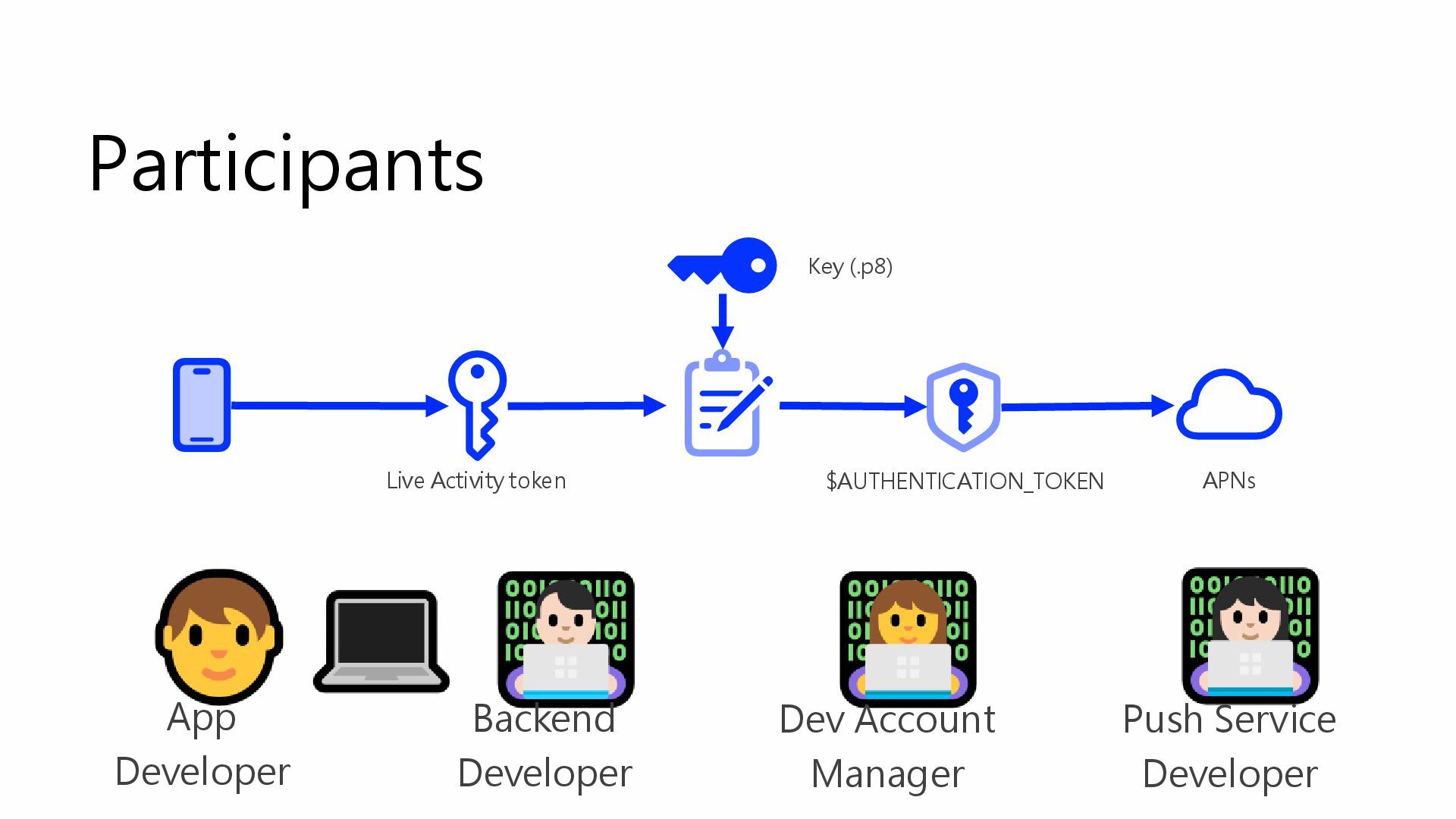

43. Participants App Developer Backend Developer Push Service Developer Dev Account Manager $AUTHENTICATION_TOKEN Live Activity token APNs Key (.p8)
44. Minimal Viable Product

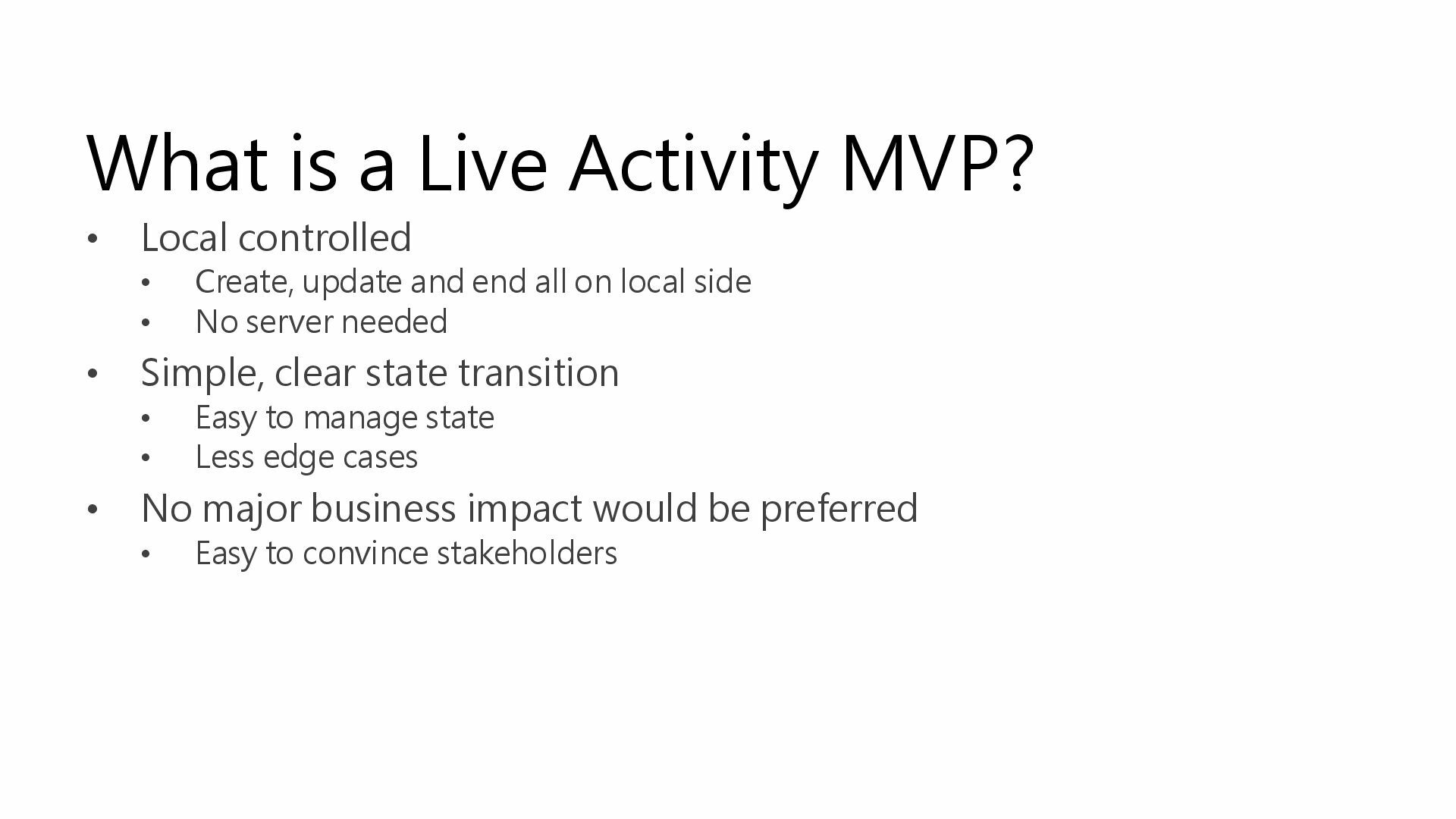

45. What is a Live Activity MVP? • Local controlled • Create, update and end all on local side • No server needed • Simple, clear state transition • Easy to manage state • Less edge cases • No major business impact would be preferred • Easy to convince stakeholders
46. Solutions 04 Troubleshooting

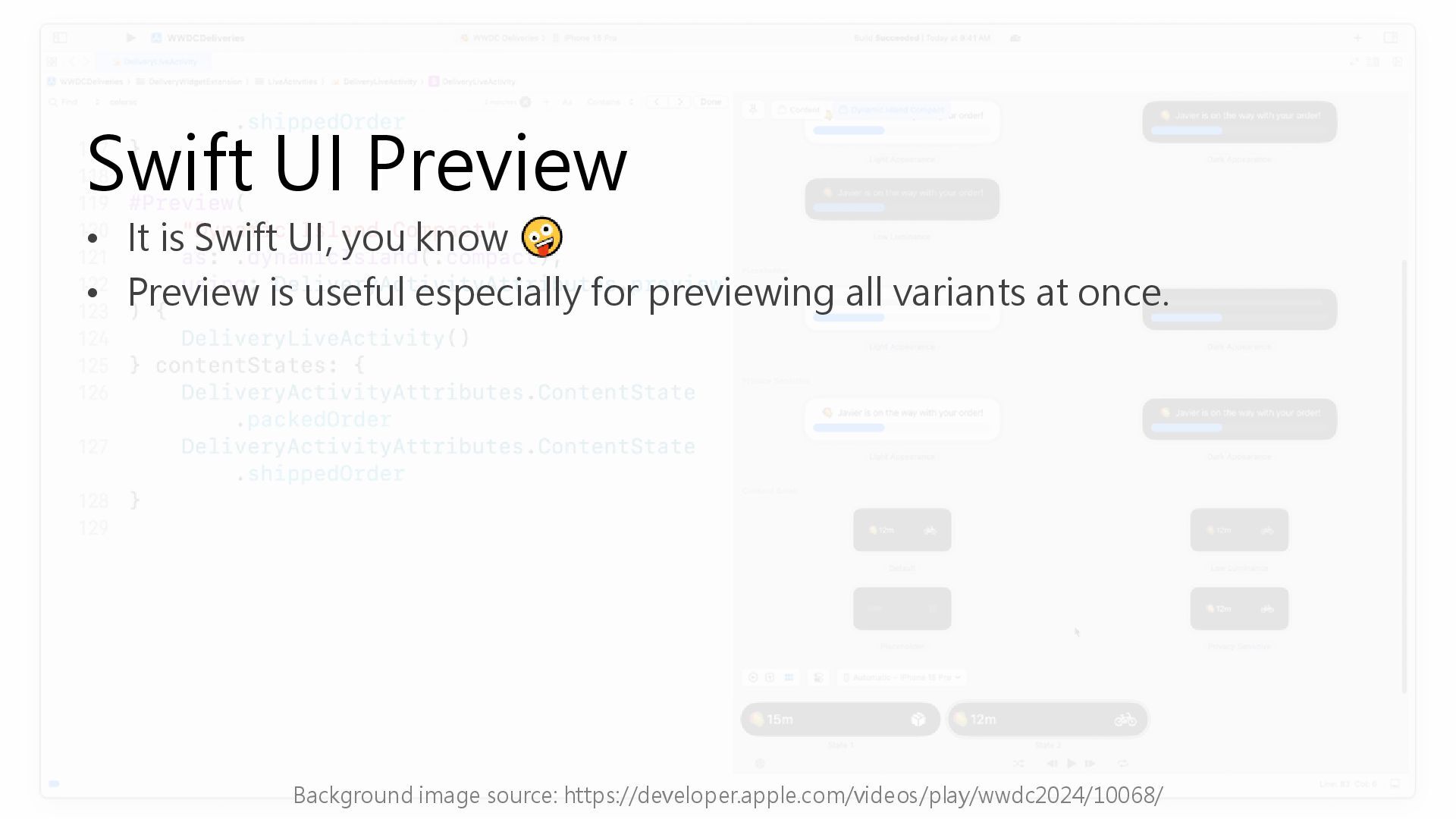

47. Swift UI Preview • It is Swift UI, you know • Preview is useful especially for previewing all variants at once. Background image source: https://developer.apple.com/videos/play/wwdc2024/10068/
48. Swift UI Preview

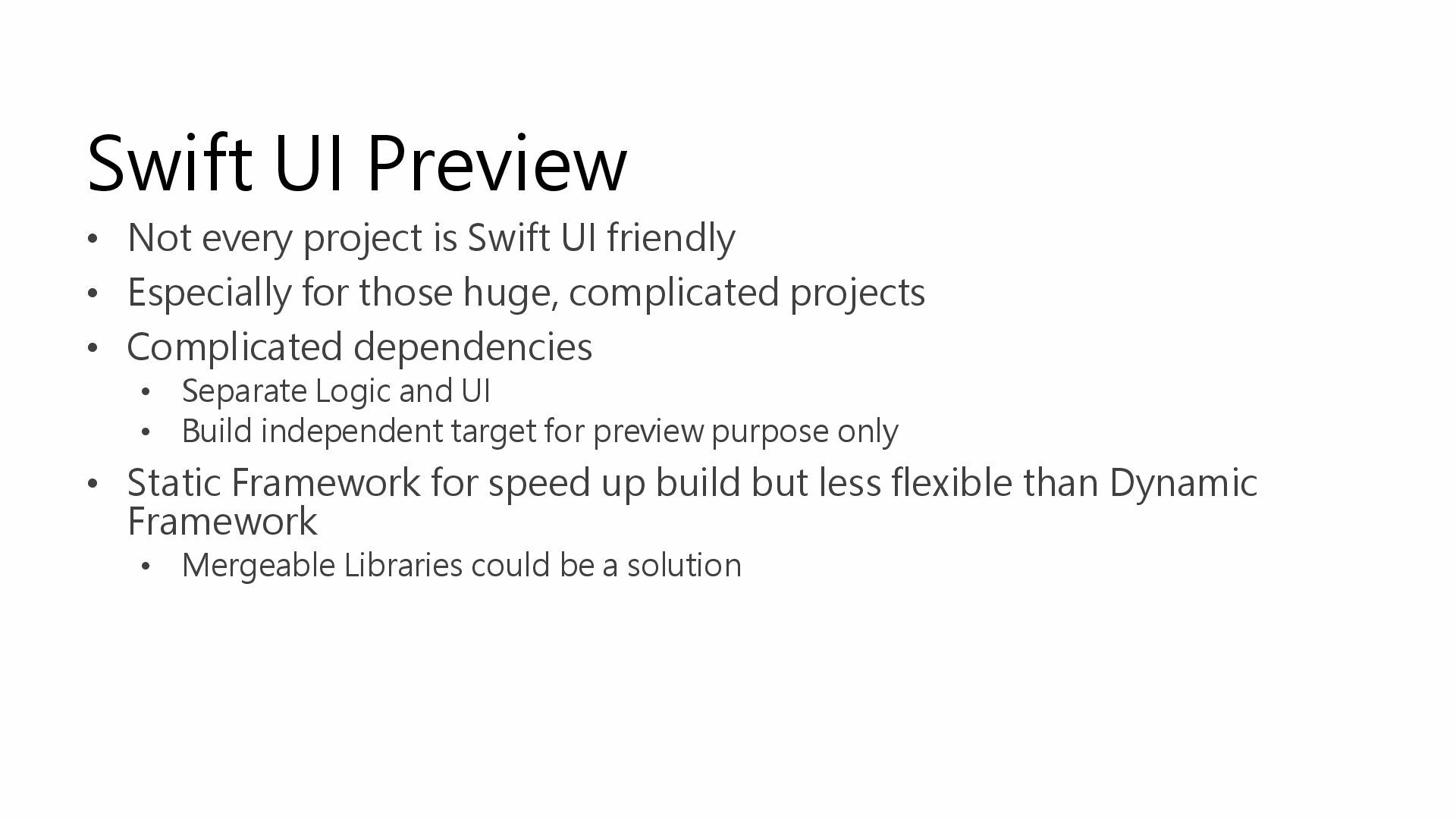

49. Swift UI Preview • Not every project is Swift UI friendly • Especially for those huge, complicated projects • Complicated dependencies • Separate Logic and UI • Build independent target for preview purpose only • Static Framework for speed up build but less flexible than Dynamic Framework • Mergeable Libraries could be a solution

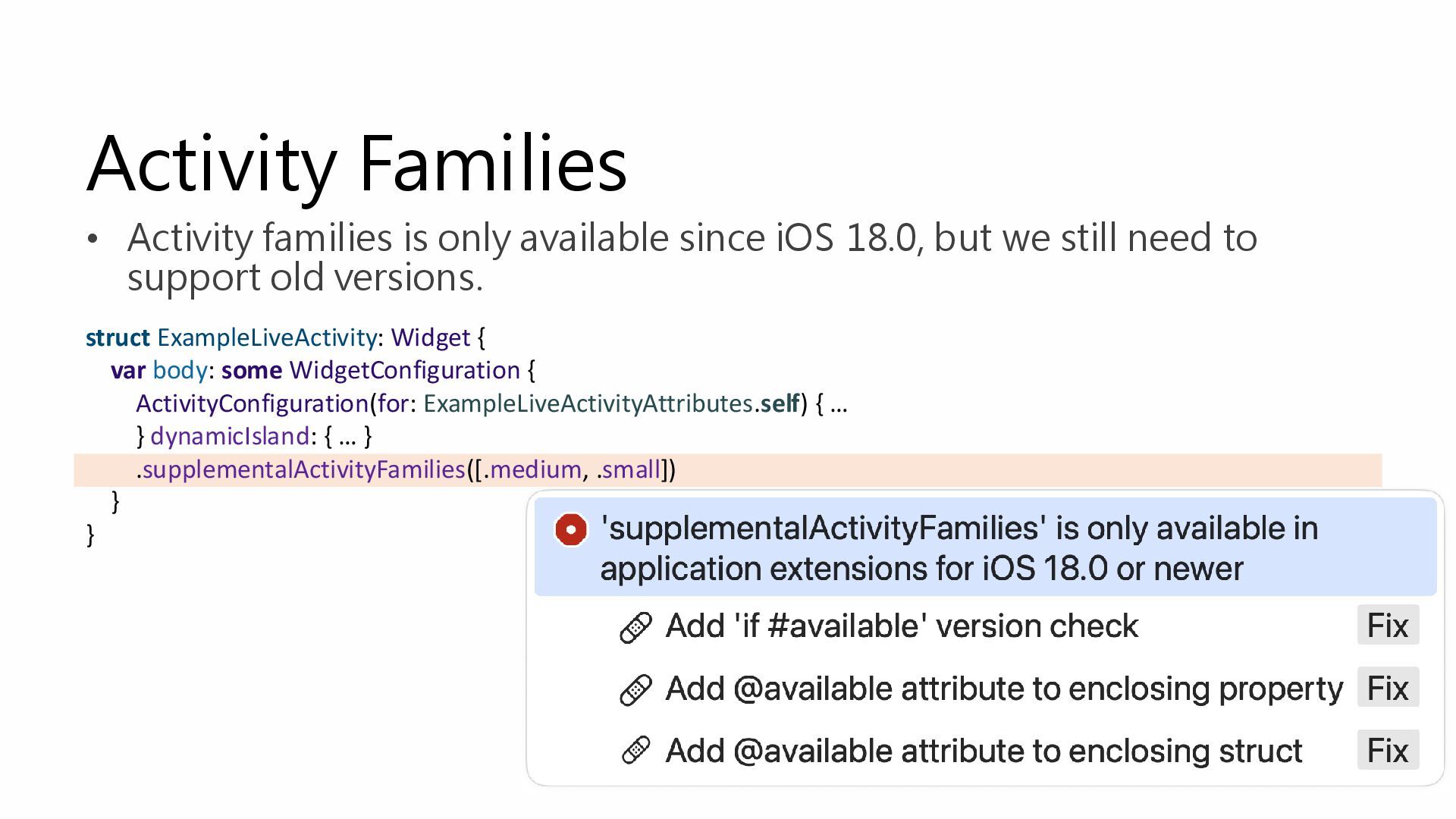

50. • Activity families is only available since iOS 18.0, but we still need to support old versions. struct ExampleLiveActivity: Widget { var body: some WidgetConfiguration { ActivityConfiguration(for: ExampleLiveActivityAttributes.self) { … } dynamicIsland: { … } .supplementalActivityFamilies([.medium, .small]) } } Activity Families
51. Activity Families • Extract existing ActivityConfiguration as variable • Check OS version to decide whether to add modifier or not. struct ExampleLiveActivity: Widget { var activityConfiguration: ActivityConfiguration<ExampleLiveActivityAttributes> { ActivityConfiguration(for: ExampleLiveActivityAttributes.self) { context in … } dynamicIsland: { context in … } } var body: some WidgetConfiguration { if #available(iOS 18, *) { // for iOS 18.0+, customized for Apple Watch return activityConfiguration .supplementalActivityFamilies([.medium, .small]) } else { // for old versions return activityConfiguration } } }
52. Activity Families • @Environment(\.activityFamily) in View has similar issue struct ExampleContentView: View { @Environment(\.activityFamily) var activityFamily let title: String let progress: Double var body: some View { if activityFamily == .small { … } else { … } } }

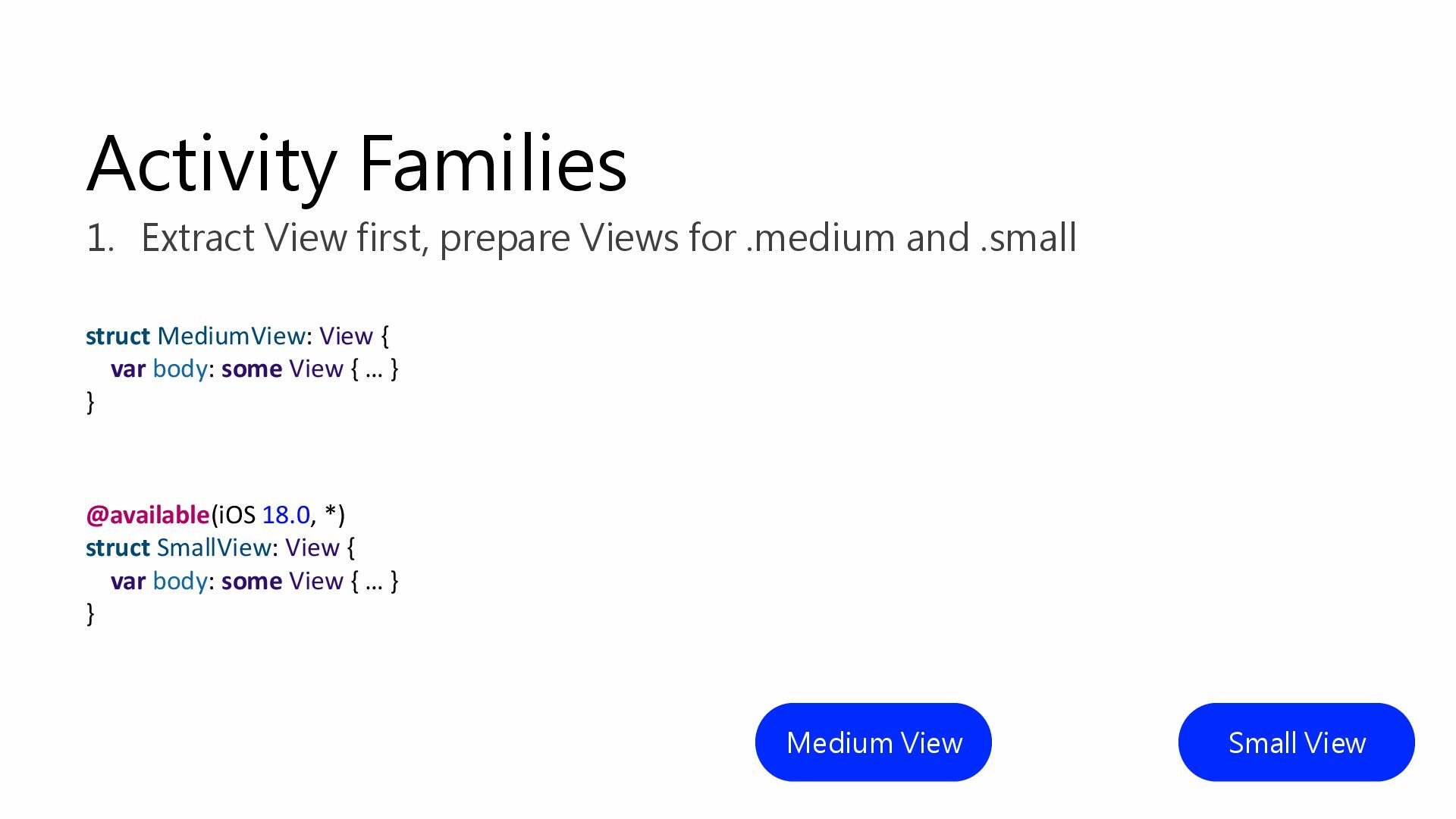

53. Activity Families Medium View Small View 1. Extract View first, prepare Views for .medium and .small struct MediumView: View { var body: some View { … } } @available(iOS 18.0, *) struct SmallView: View { var body: some View { … } }

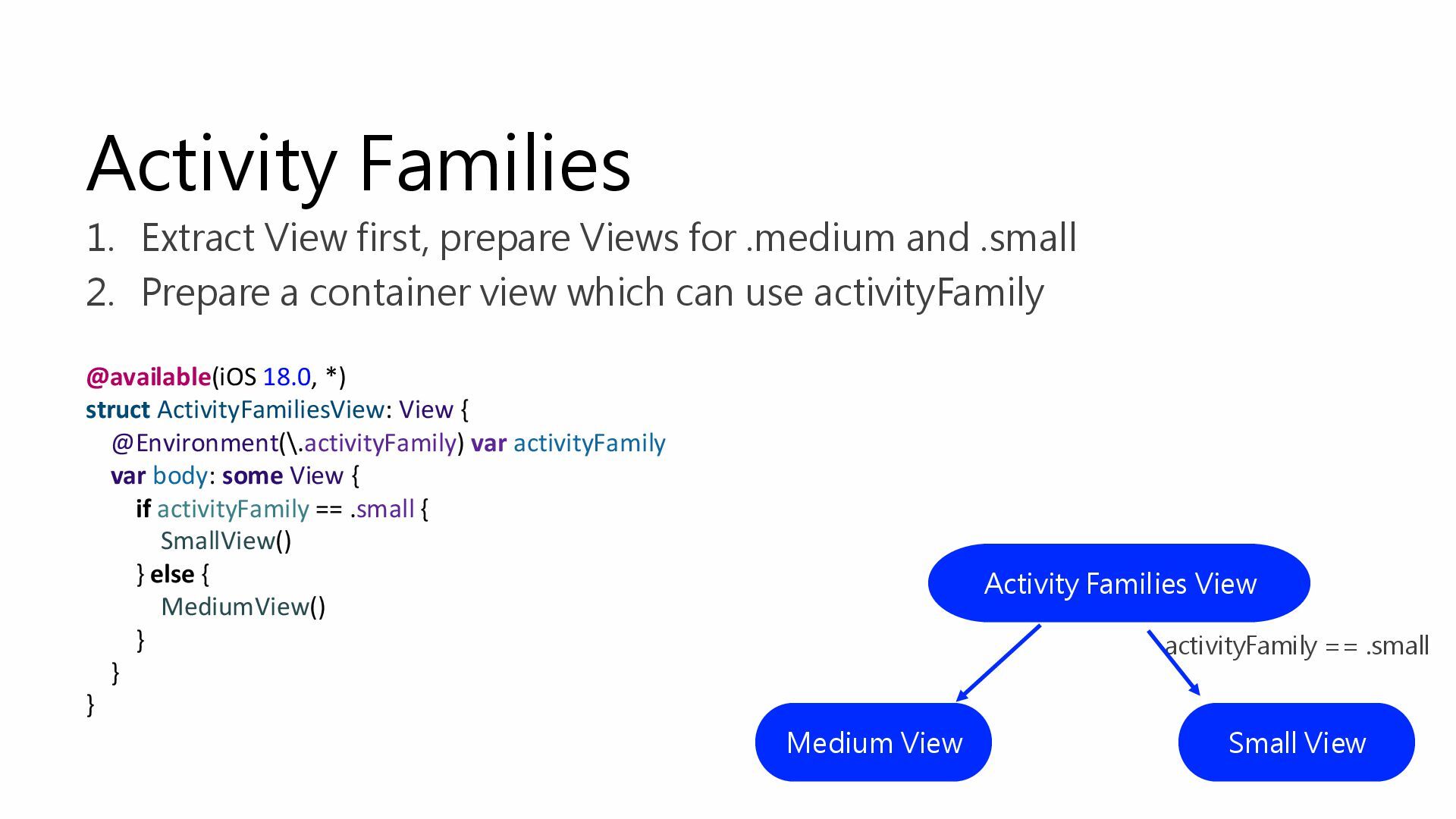

54. @available(iOS 18.0, *) struct ActivityFamiliesView: View { @Environment(\.activityFamily) var activityFamily var body: some View { if activityFamily == .small { SmallView() } else { MediumView() } } } Activity Families 1. Extract View first, prepare Views for .medium and .small 2. Prepare a container view which can use activityFamily Medium View Small View activityFamily == .small Activity Families View

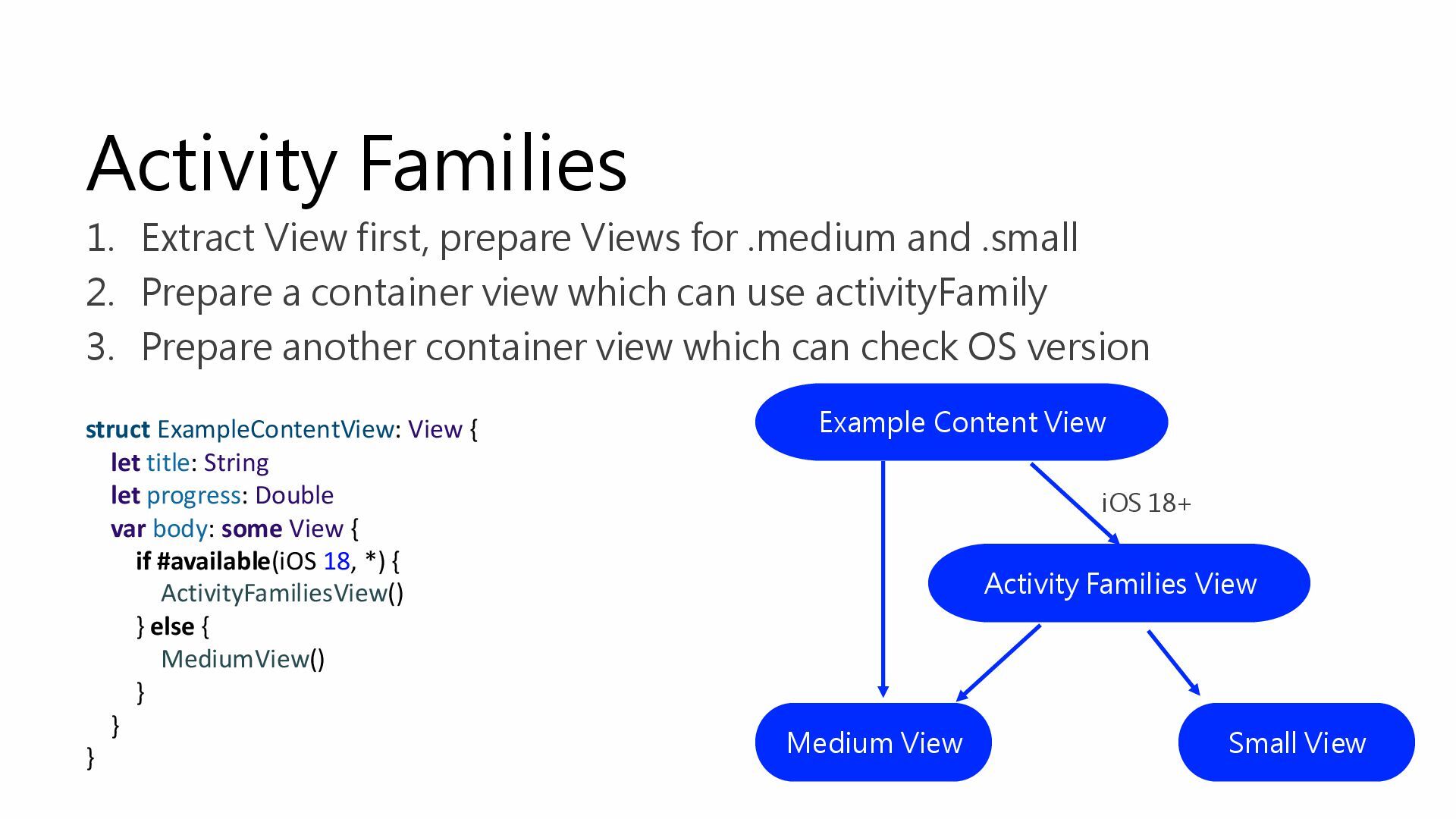

55. Activity Families 1. Extract View first, prepare Views for .medium and .small 2. Prepare a container view which can use activityFamily 3. Prepare another container view which can check OS version Medium View Small View Activity Families View Example Content View iOS 18+ struct ExampleContentView: View { let title: String let progress: Double var body: some View { if #available(iOS 18, *) { ActivityFamiliesView() } else { MediumView() } } }

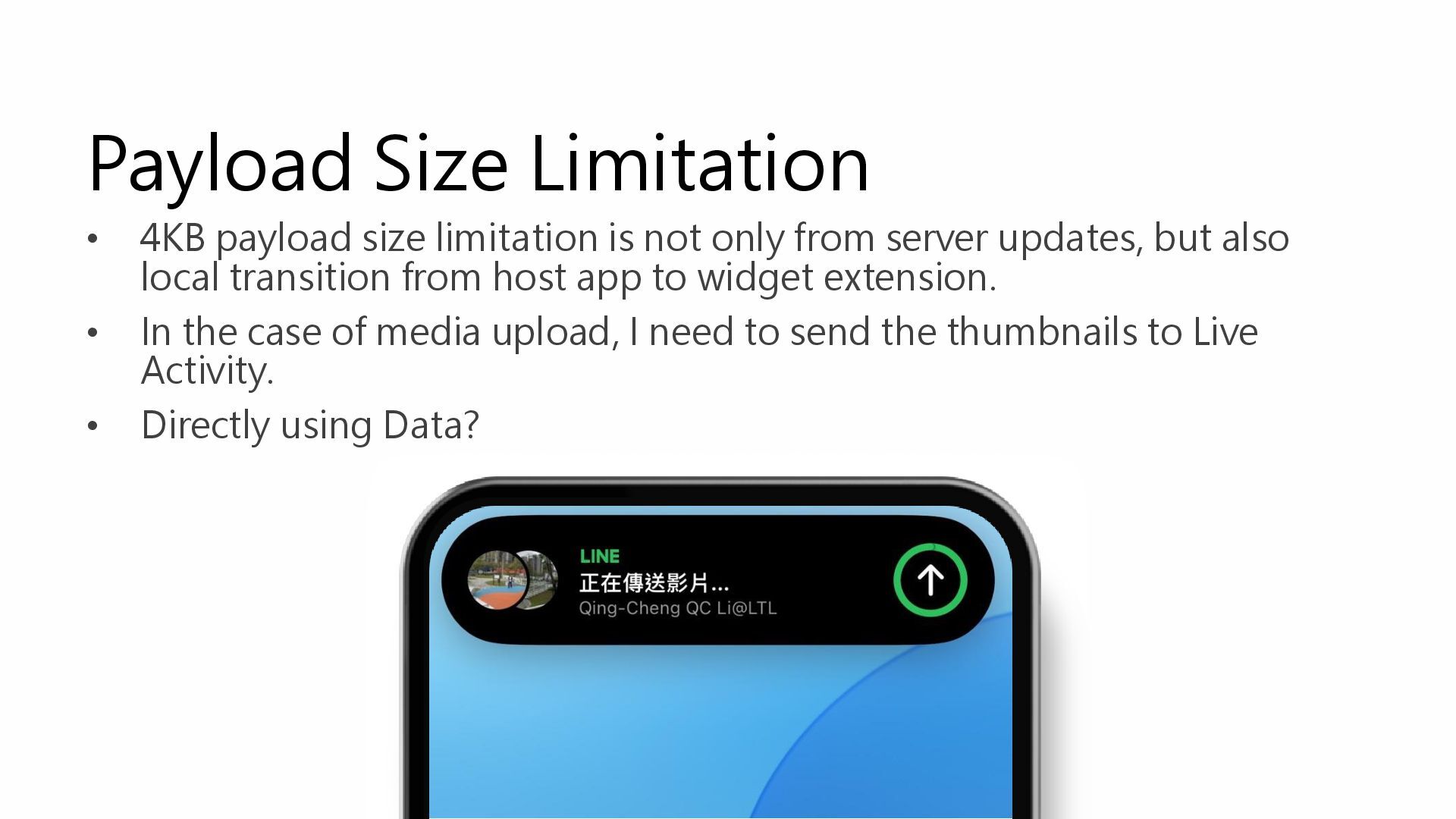

56. Payload Size Limitation • 4KB payload size limitation is not only from server updates, but also local transition from host app to widget extension. • In the case of media upload, I need to send the thumbnails to Live Activity. • Directly using Data?

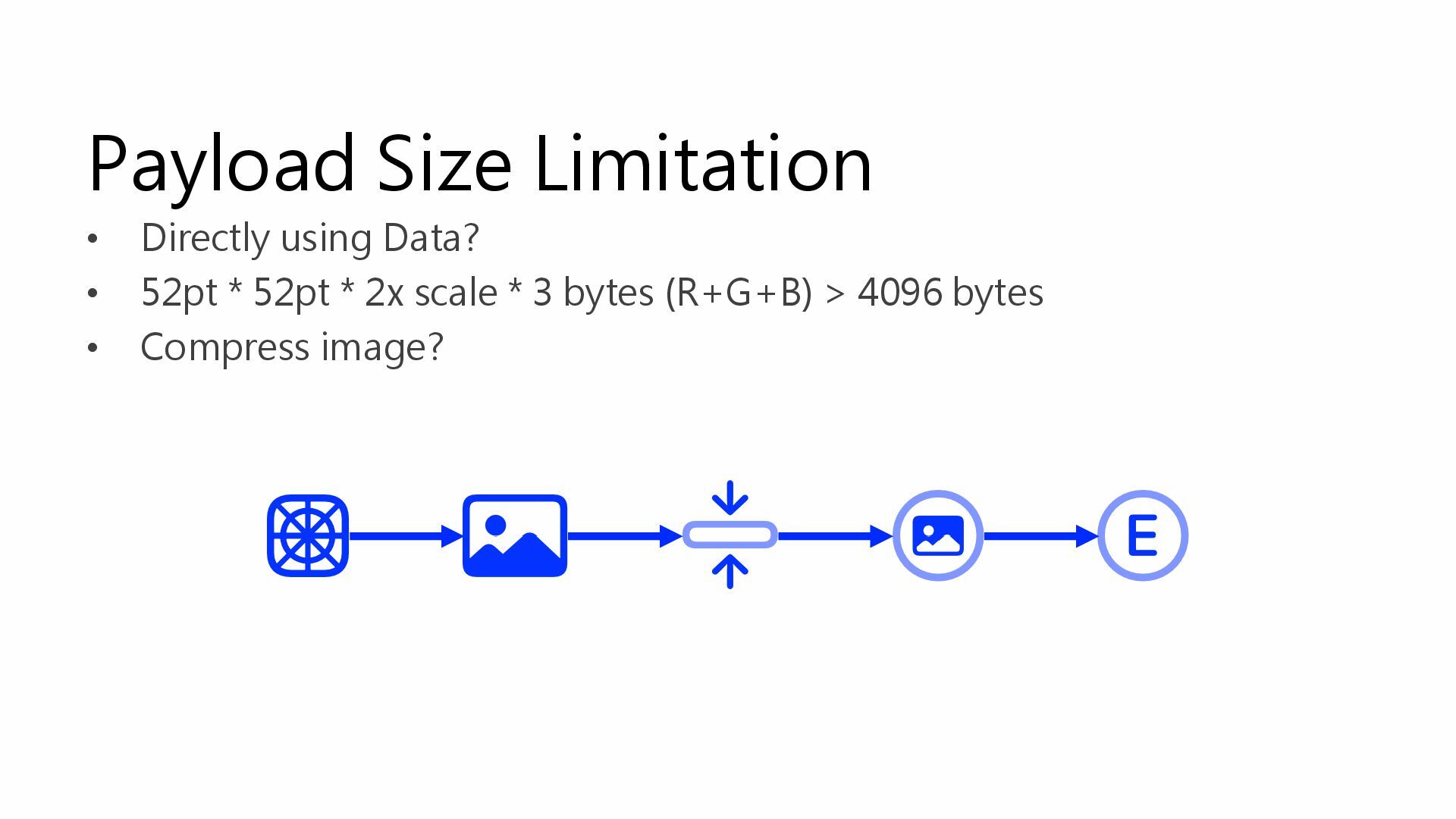

57. Payload Size Limitation • Directly using Data? • 52pt * 52pt * 2x scale * 3 bytes (R+G+B) > 4096 bytes • Compress image?

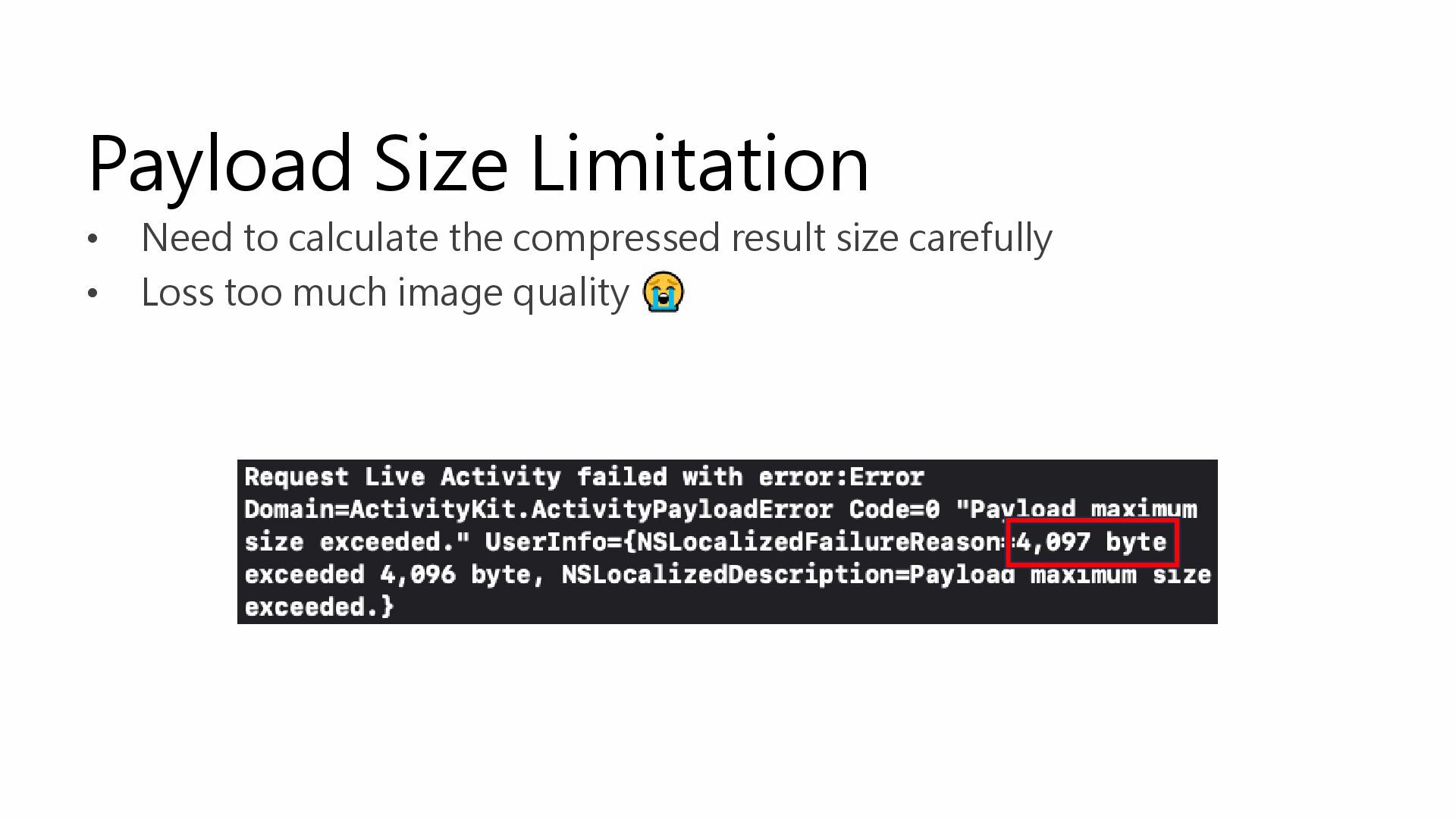

58. Payload Size Limitation • Need to calculate the compressed result size carefully • Loss too much image quality

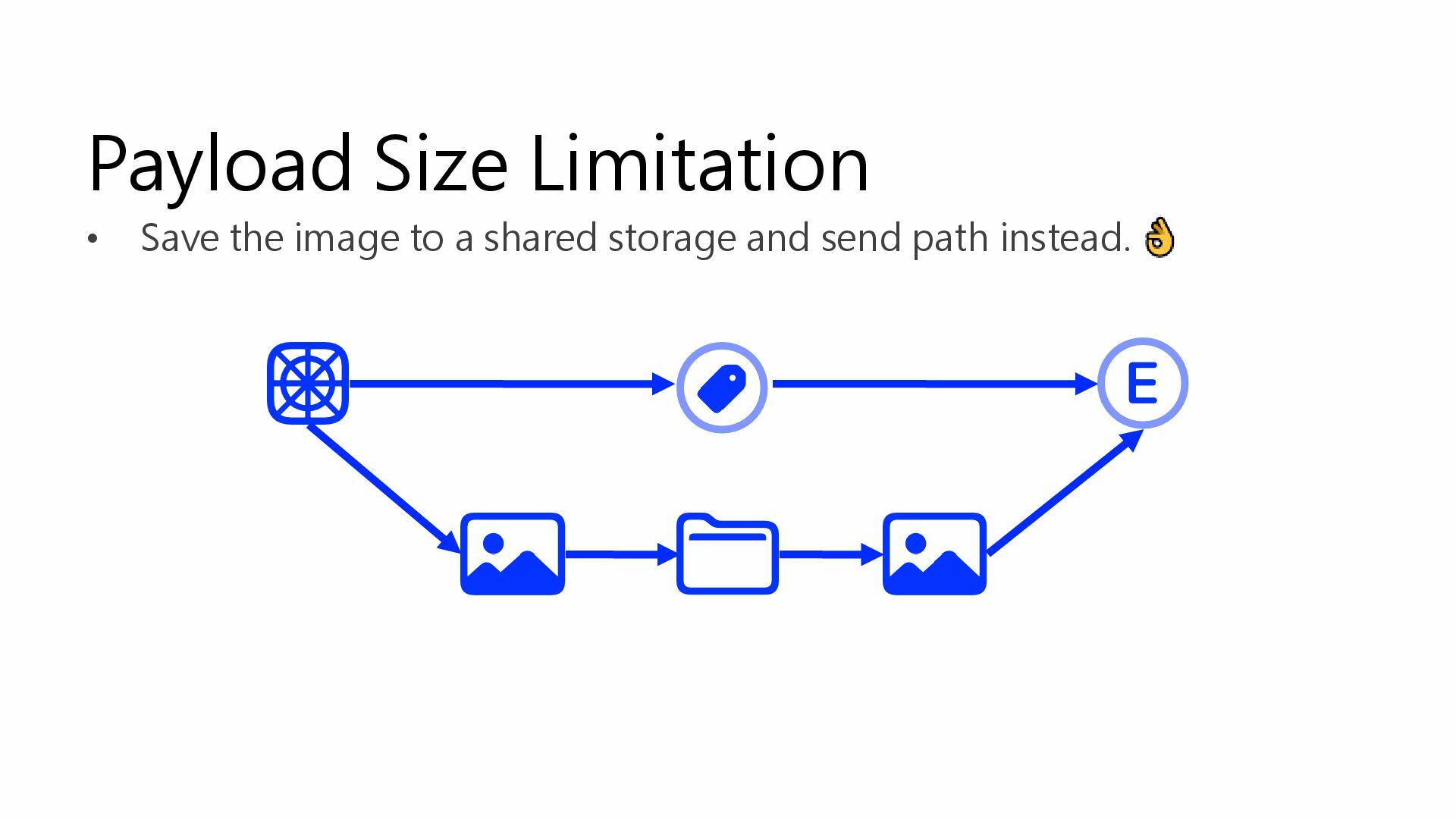

59. Payload Size Limitation • Save the image to a shared storage and send path instead.

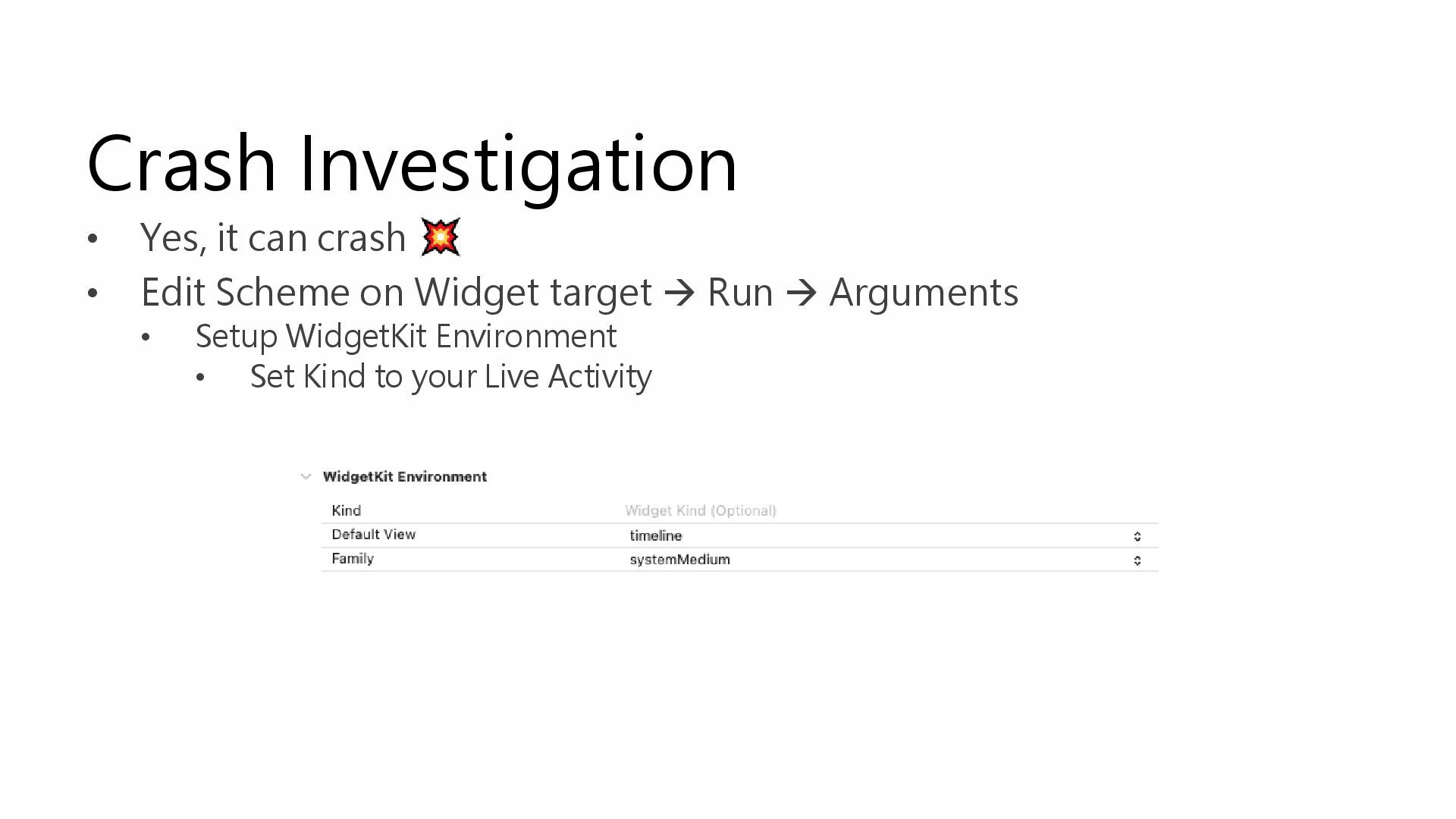

60. Crash Investigation • Yes, it can crash • Edit Scheme on Widget target → Run → Arguments • Setup WidgetKit Environment • Set Kind to your Live Activity

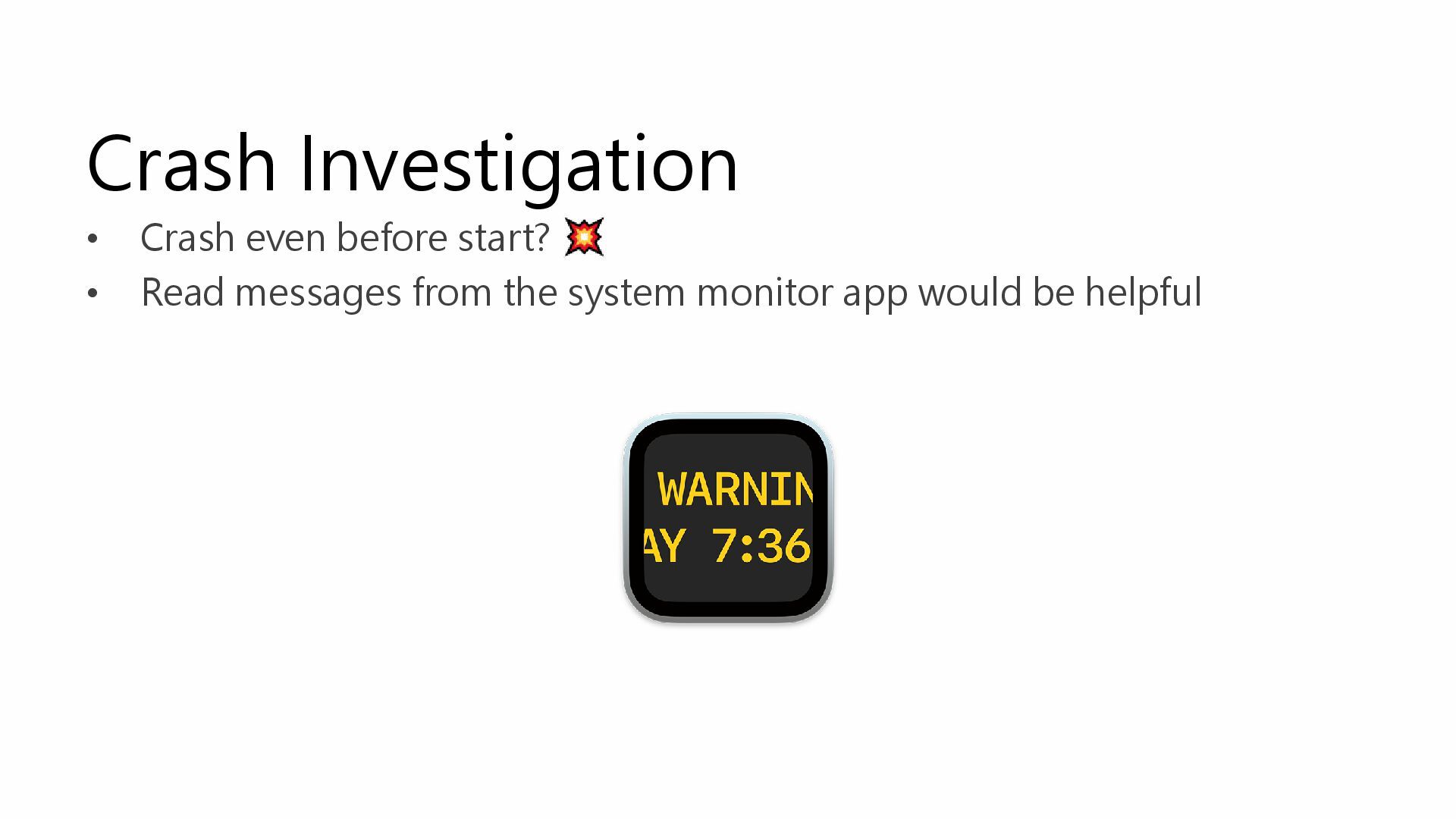

61. Crash Investigation • Crash even before start? • Read messages from the system monitor app would be helpful

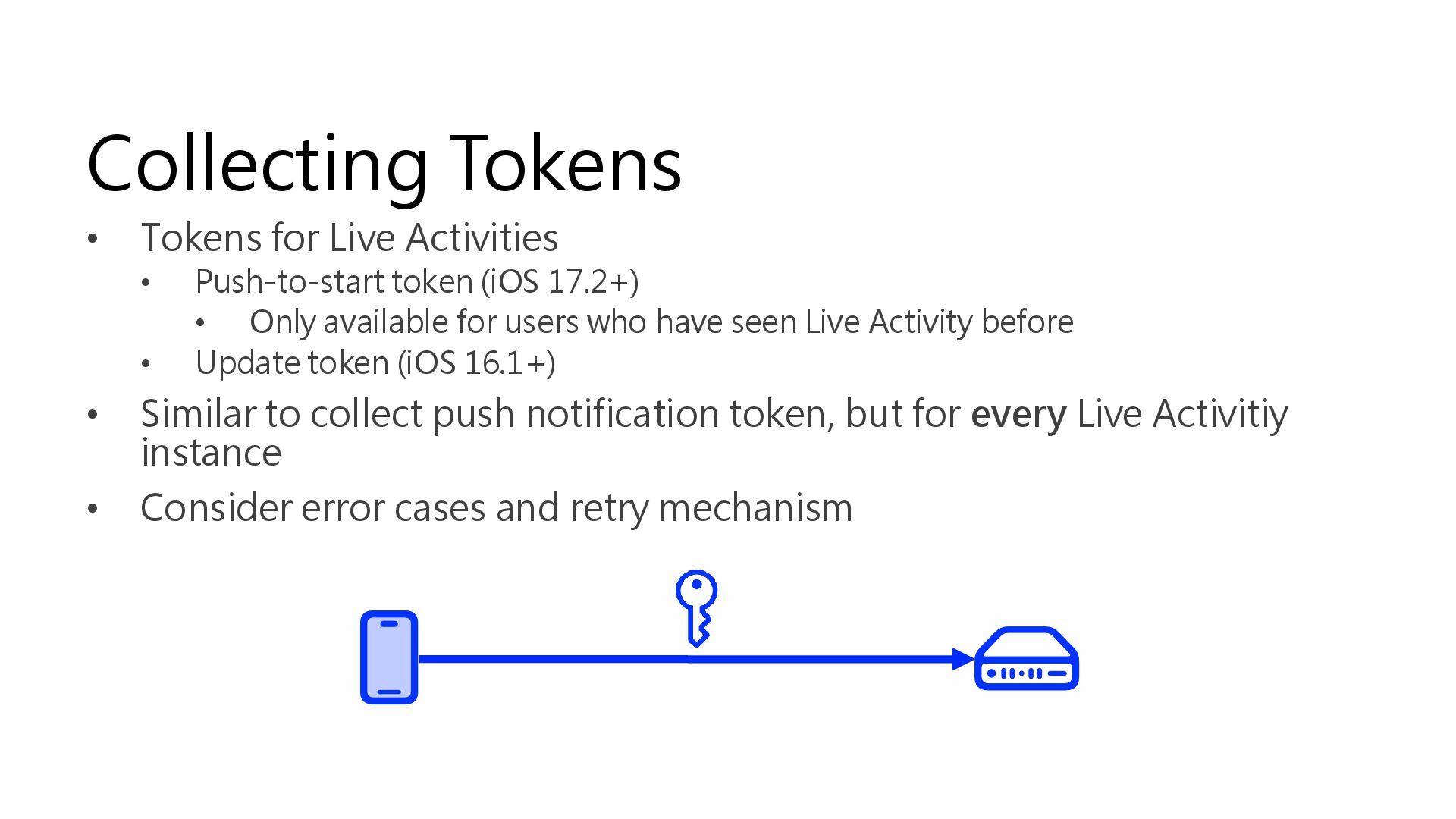

62. Collecting Tokens • Tokens for Live Activities • Push-to-start token (iOS 17.2+) • Only available for users who have seen Live Activity before • Update token (iOS 16.1+) • Similar to collect push notification token, but for every Live Activitiy instance • Consider error cases and retry mechanism
63. Prepare for Unexpected Retry mechanism Tracking & monitoring Feature toggle
64. Takeaways 05 Conclusions

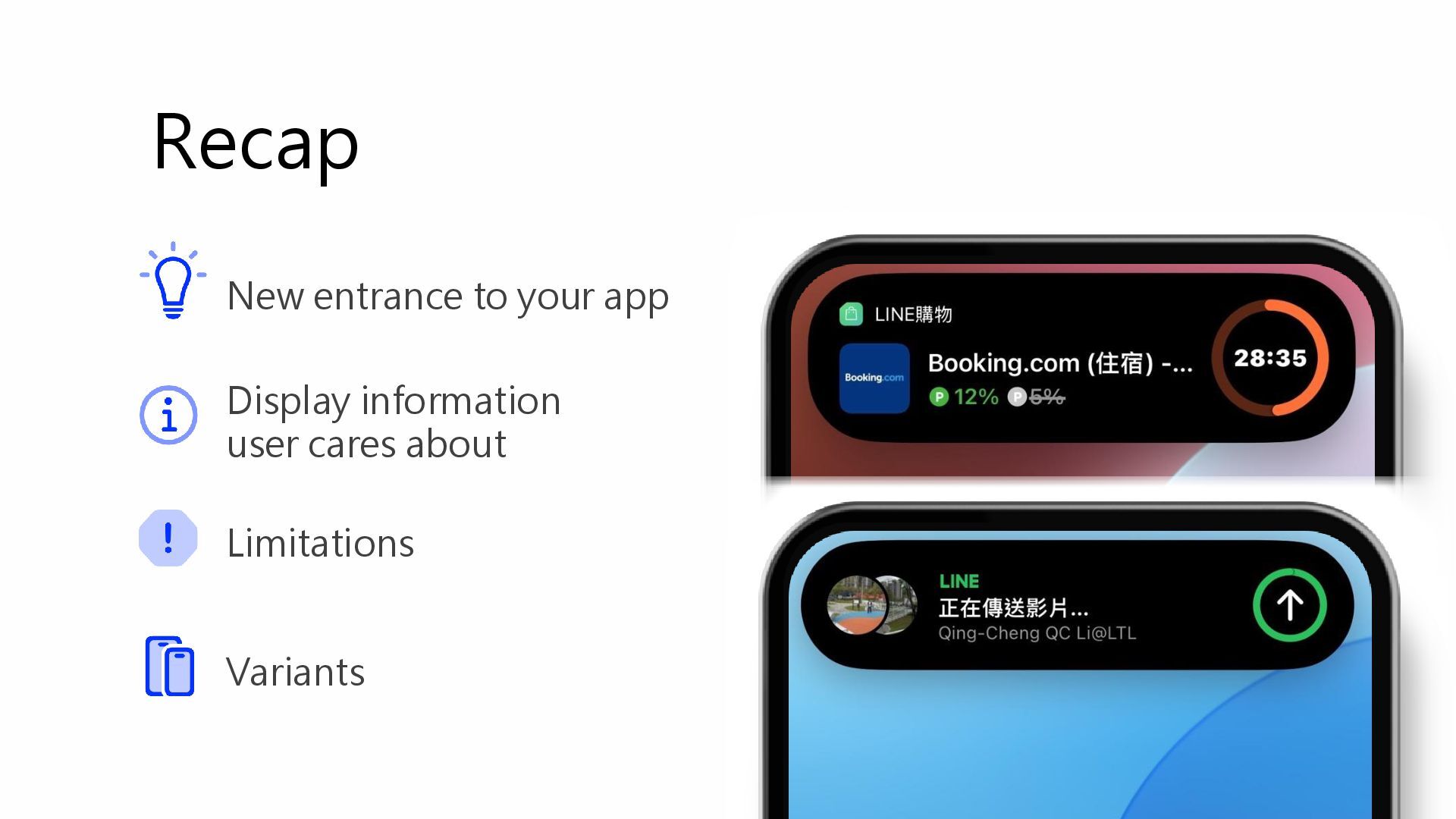

65. Recap New entrance to your app Display information user cares about Limitations Variants
66. Developer-Driven Innovation Passion Tech Expertise Fast Prototyping
67. Process Stakeholders Resources Leverage points Big Picture
