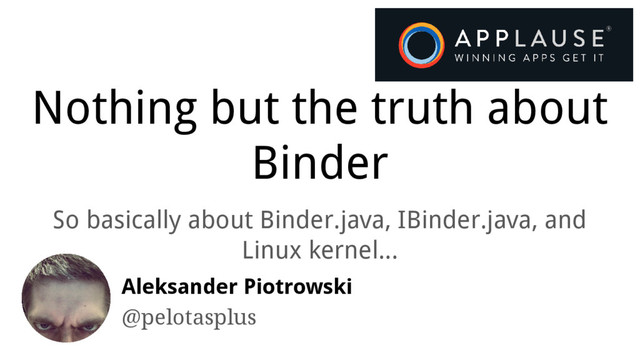

  1. Nothing but the truth about Binder So basically about Binder.java,

    IBinder.java, and Linux kernel... Aleksander Piotrowski @pelotasplus
  2. Dianne Hackborn • using Google+ • 2 years Be Inc.

    • 4 years at PalmSource • 10 years at Google • Android Framework team
  3. Dianne Hackborn "This post is by Dianne Hackborn, a Software

    Engineer who sits very near the exact center of everything Android.” — Tim Bray The Android 3.0 Fragments API http://android-developers.blogspot.com/2011/02/android-30-fragments-api.html
  4. Androidisms • low memory killer • wakelocks • ashmem •

    alarms • paranoid network • Binder ◦ implements IPC ◦ security mechanism • ... http://www.elinux.org/Android_Kernel_Features
  5. IPC basics • all processes have separate address spaces •

    cannot directly access another process memory ◦ stability reasons ◦ security reasons • structured way, a mechanism to offer some services across multiple processes • all Unix-like systems have some kind of IPC • discovery • interaction
  6. IPC Unix roots • files • signals • sockets ◦

    UNIX domain ◦ TCP/IP • pipes • semaphores • shared memory
  7. Binder IPC designed for BeOS IPC designed for BeOS PalmOS

    IPC designed for BeOS PalmOS Android!
  8. Binder basics • based on OpenBinder, ~2005 • brand new

    implementation • distributed component architecture • message-passing • method invocation system • runs on a single device • doesn’t support RPC across the network • kernel-part of Linux version in kernel version 3.19, Feb 2015 http://www.angryredplanet.com/~hackbod/openbinder/docs/html/
  9. Binder terminology • Binder ◦ the Binder ◦ a Binder

    • IBinder interface • Binder or Binder Object • Binder Service and Client • Binder Protocol • Binder token • Binder Context Manager • Binder driver
  10. Linux kernel Dalvik Libraries Android Framework Applications SQLite Wi-Fi driver

    Window Manager Facebook Package Manager Chrome Camera Driver BINDER BINDER BINDER BINDER
  11. Service Manager aka Binder Context Manager • /system/bin/servicemanager • information

    directory • started by init at system start • register itself as Binder Context Manager • applications get handlers to services from SM • via Binder mechanism • implements IServiceManager interface • glue in ServiceManager.java
  12. System Services • 79 as of KitKat • implement fundamental

    Android features ◦ display & touch screen ◦ telephony ◦ android.app.DownloadManager ◦ android.app.job.JobScheduler • define a remote interface • can be called from other services and applications • of course using Binder • mostly in Java but few are native
  13. System Services list via System Manager root@vbox86p:/ # service list

    Found 94 services: 0 sip: [android.net.sip.ISipService] 1 phone: [com.android.internal.telephony.ITelephony] 18 dreams: [android.service.dreams.IDreamManager] 25 jobscheduler: [android.app.job.IJobScheduler] 30 audio: [android.media.IAudioService] 35 search: [android.app.ISearchManager] 37 location: [android.location.ILocationManager] 39 notification: [android.app.INotificationManager] 42 connectivity: [android.net.IConnectivityManager] 45 wifi: [android.net.wifi.IWifiManager] 60 window: [android.view.IWindowManager] 65 account: [android.accounts.IAccountManager] 79 activity: [android.app.IActivityManager] 80 user: [android.os.IUserManager] 81 package: [android.content.pm.IPackageManager]
  14. Process A Process B Kernel ioctl() ioctl() struct binder_write_read struct

    binder_write_read /dev/binder Binder driver Binder managed memory region ?
  15. Binder features • two-way or one-way communication • manage ◦

    threads ◦ memory ◦ object mapping ◦ reference counting • notification • identification ◦ UID, PID ◦ token
  16. Binder features • marshalling of transaction data aka parcels •

    security ◦ based on UIDs and PIDs ◦ and tokens • share file descriptor • local execution mode
  17. public void iLoveCracow(Context context) { Uri uri = Uri.parse("http://partykrakow.co.uk/"); Intent

    intent = new Intent(Intent.ACTION_VIEW, uri); context.startActivity(intent); }
  18. Intents • higher-level abstraction on top of Binder • easier

    to use • but a bit limited • API is loosely-defined • so prone to run-time errors • class Intent implements Parcelable, Cloneable • ActivityMangerService Activity A Application X Activity B Application Y startActivity(intent) setResult(RESULT_O K, intent)
  19. Where is the binder in Intents? • frameworks/base/core/java/android/app/ActivityManagerNative.java 5 9

    9 1 • frameworks/base/core/java/android/app/IActivityManager.java 8 6 7 • frameworks/base/core/java/android/app/ContextImpl.java 2 0 4 3 • frameworks/base/.../com/android/server/am/ActivityManagerService.java 2 0 7 4 4
  20. public void grazynaIsAwesome(Context context) { String action = "pl.droidcon.service"; Intent

    intent = new Intent(action); intent.putExtras(bundle); context.startService(intent); } Messenger messenger = new Messenger(handler); intent.putExtra("messenger", messenger); }
  21. Messenger • a reference to Handler • can be send

    to another process • used to send Messages via Handler • like Intents, have an action and data ◦ int what, int arg1, int arg2, and Object • asynchronous • lower overhead than Intents
  22. public final class Messenger implements Parcelable { private final IMessenger

    mTarget; // [...] public IBinder getBinder() { return mTarget.asBinder(); } // [...] } public final class Message implements Parcelable { // [...] }
  23. public interface IBusinessLogic extends android.os.IInterface { public static abstract class

    Stub extends android.os.Binder implments IBusinessLogic { // onTransact } private static class Proxy implements IBusinessLogic { // IBinder mRemote } void add(Product product) throws android.os.RemoteException; java.util.List<Product> getProducts() throws android.os.RemoteException; }
  24. AIDL • Android Interface Definition Language • for defining Binder-based

    services • Java-like language • supports plenty of types ◦ null, float, char[] ◦ Map<,>, Bundle, List, Parcelable ◦ File descriptor ◦ IBinder • limited exceptions supported
  25. Bring It On by smooved System service, if you have
