Adding PG15 Support to Citus Extension: Strategies and Lessons Learned | PGCon 2023 | Abdullah Hanefi Onaldi & Naisila Puka

n this talk, we will delve into the complexities of maintaining support for multiple versions of PostgreSQL within the Citus extension. Citus is a powerful extension of PostgreSQL that is designed to be compatible with the last 2-3 major versions of the database management system. However, this is no easy feat and requires a significant amount of effort to ensure that Citus remains an updated extension rather than a fork.

We will also share insights on the bugs that we encountered while working with PostgreSQL 15 and the strategies we employed to overcome integration issues during the beta and release candidate stages. This talk will provide a behind-the-scenes look at the challenges of keeping Citus up-to-date and provide practical tips for managing similar issues in other PostgreSQL extensions.

Citus Data

June 01, 2023
Tweet

More Decks by Citus Data

Other Decks in Technology

Transcript

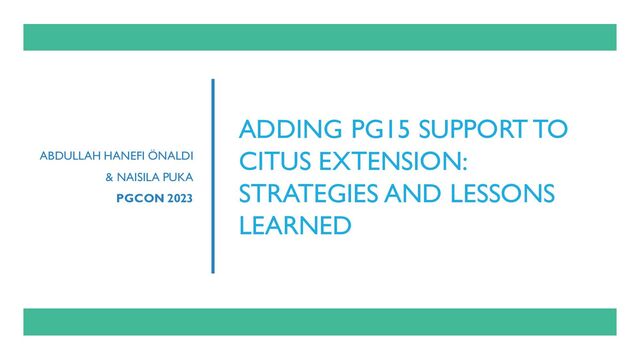

  1. ADDING PG15 SUPPORT TO CITUS EXTENSION: STRATEGIES AND LESSONS LEARNED

    ABDULLAH HANEFI ÖNALDI & NAISILA PUKA PGCON 2023
  2. ABOUT US Naisila Puka  Software Engineer @ Microsoft 

    Working on the Citus extension for 2+ years.  [email protected]  From Albania Abdullah Hanefi Önaldı  Software Engineer @ Microsoft  Working on the Citus extension for 4+ years.  [email protected]  From Turkey
  3. OUTLINE  Citus: Distributed PostgreSQL as an Extension  Maintaining

    a Postgres extension like Citus  PG15 Support Timeline  PG15 Support Steps - Compilation  PG15 Support Steps - Current logic sanity  PG15 Support Steps - PG15 new features integration  How we tracked new features in PG15  Revisit PG15 Support Timeline  New feature in PG15 – Is it supported in Citus?
  4. CITUS: DISTRIBUTED POSTGRESQL AS AN EXTENSION  Citus is a

    PostgreSQL extension that adds the ability to distribute and replicate PostgreSQL tables across a shared-nothing PostgreSQL cluster  Open-source repo on GitHub: https://github.com/citusdata/citus  Core component of Azure Cosmos DB for PostgreSQL  Citus supports latest 3 PG releases in one codebase.  We want to "demystify" what it means to keep Citus an updated extension of Postgres – and not just a fork!
  5. PURPOSE OF THIS PRESENTATION Share the strategies and lessons learned

    on dividing tasks & resources for PG15 support Serve as a reference for future PG integrations in Citus and other extensions
  6. MAINTAINING A POSTGRES EXTENSION LIKE CITUS Citus is a HUGE

    extension of Postgres: • Multi Node Postgres! • Intercept Postgres’s planner & executor • Citus Utility hook and Columnar Utility hook before Postgres’s standard utility process • Extend database directory, extend the deparser • Citus’s own configuration parameters, own custom scan nodes • Etc … Bigger Extension <-> More work on supporting new PG versions
  7. PG15 SUPPORT TIMELINE  Real-time following PG updates step by

    step  Supporting PG15 was a moving target in a window of 5 months in 2022:  Start - PostgreSQL 15 Beta 1 – May 19th  PostgreSQL 15 Beta 2 – June 30th  PostgreSQL 15 Beta 3 – August 11th  PostgreSQL 15 Beta 4 – September 8th  PostgreSQL 15 RC 1 – September 29th  PostgreSQL 15 RC 2 – October 6th  Finish - PostgreSQL 15 – October 13th
  8. FIRST – SUCCESSFUL COMPILATION  Update CONFIGURE script to include

    PG15  Some variables no longer exist / have been replaced, e.g:  Value node struct has been removed, replaced by separate Integer, Float, String, and BitString node types  Functions/Objects/Variables/Properties added/renamed/changed, e.g: #if PG_VERSION_NUM >= PG_VERSION_15 #define RelationCreateStorage_compat(RelFileNode rnode, char relpersistence, bool register_delete) RelationCreateStorage(rnode, relpersistence, register_delete) #else #define RelationCreateStorage_compat(RelFileNode rnode, char relpersistence, bool register_delete) RelationCreateStorage(rnode, relpersistence)  PG15 specific: new shmem_request_hook hook introduced to request additional shared mem for extensions
  9. SECOND – CURRENT LOGIC SANITY  Successful compilation is NOT

    enough.  Should update INTERNAL LOGIC accordingly to make sure current features function properly.  Example: Pre PG15, tgisinternal = true for a "child" trigger on a partition In PG15, tgisinternal = false in that case. In Citus, we used tgisinternal value to prevent trigger creation conflicts on partitions when adding a new node. RESULT -> adding a new node FAILED in PG15, even though Citus compiled successfully.
  10. SECOND – CURRENT LOGIC SANITY  Updating internal logic sounds

    great – but where to start?  First: PORT THE RULEUTILS CHANGES  Ruleutils: Functions to convert stored expressions/querytrees back to source text  We maintain a copy of ruleutils in Citus repo for static functions and shard-specific deparsing functions  We port all static function changes one by one
  11. SECOND – CURRENT LOGIC SANITY NEXT:  We can proudly

    say that Citus has an extensive and thorough test suite ☺  Making sure our test suite passes with PG15 helps A LOT!
  12. SECOND – CURRENT LOGIC SANITY  Process: Simple tgisternal flag

    example 1. Find the relevant PG commit breaking the current logic Create foreign key triggers in partitioned tables too · postgres/postgres@f456634 (github.com) descr: …this commit also changes what tgisinternal means in some cases… 2. Fix the logic in Citus and put a reference to the PG commit in the commit description Prevent creating child triggers on partitions when adding new node descr: Pre PG15, tgisinternal is true for a "child" trigger on a partition cloned from the trigger on the parent. In PG15, tgisinternal is false in that case. However, we don't want to create this trigger on the partition since it will create a conflict when we try to attach the partition to the parent table: ERROR: trigger "..." for relation "{partition_name}" already exists Solution: add an extra check on whether the parent id is invalid to make sure this is not a child trigger Relevant PG commit: f4566345cf40b068368cb5617e61318da60676ec
  13. HOW WE TRACKED NEW FEATURES IN PG15  Official git

    repository for PostgreSQL, particularly REL_15_STABLE branch  PostgreSQL: Release Notes  PostgreSQL: Feature Matrix  PostgreSQL 15 New Features (hpe.com) – initially released for beta1, updated for GA  pg15 – select * from depesz; - Great blog authored by Hubert "depesz" Lubaczewski  Postgres 15 support - Missing features in Citus · Issue #6162 - Parent issue to track all PG15 changes
  14. REVISIT TIMELINE  PostgreSQL 15 Beta 1 – May 19th

     PostgreSQL 15 Beta 2 – June 30th  PostgreSQL 15 Beta 3 – August 11th  PostgreSQL 15 Beta 4 – September 8th  PostgreSQL 15 RC 1 – September 29th  PostgreSQL 15 RC 2 – October 6th  PostgreSQL 15 – October 13th
  15. REVISIT TIMELINE  PostgreSQL 15 Beta 1 – May 19th

    : SQL/JSON feature  PostgreSQL 15 Beta 2 – June 30th : improvements to SQL/JSON feature  PostgreSQL 15 Beta 3 – August 11th  PostgreSQL 15 Beta 4 – September 8th : SQL/JSON feature is reverted, builds are broken  PostgreSQL 15 RC 1 – September 29th : message wording change, tests are broken  PostgreSQL 15 RC 2 – October 6th  PostgreSQL 15 – October 13th : Introduces new function, builds are ok, tests are broken
  16. PG15 SUPPORT TIMELINE  Important to carefully follow each beta

    and RC release: test Citus PG compatibility frequently.  Check builds everyday, run all regression tests for Citus by building PostgreSQL from source.  The SQL/JSON features proposed for this PG release in beta1 have been removed as of beta4.  We also reverted our commits for these features.  Cannot even trust Release Candidates: Function name conflict ReplicationSlotName after RC2 !  We renamed our function to ReplicationSlotNameForNodeAndOwner.
  17. VERSION SUPPORT MATRIX  Supported  Tests Fail  Not

    Supported beta4 rc1 rc2 GA 11.1.0 11.1.1 11.1.2 11.1.3 11.1.4
  18. NEW FEATURE IN PG15 – IS IT SUPPORTED IN CITUS?

     Depending on the feature, we give 3 different answers to this question: 1. Yes, and we have tests to prove it. 2. Yes, and we tested it manually and we are confident that it will work. 3. No, but we print meaningful error messages and hints.
  19. NEW FEATURE IN PG15 – IS IT SUPPORTED IN CITUS?

    Yes, and we have tests to prove it  NULLS NOT DISTINCT  New regexp SQL functions,  HEADER option in COPY,  Numeric type with negative scale (only on non- distribution columns) Yes, and we tested manually  Prevent CREATE OR REPLACE VIEW from changing collation of output columns.  log_destination=jsonlog  Archiving via loadable modules
  20. NEW FEATURE IN PG15 – IS IT SUPPORTED IN CITUS?

    No, but we print meaningful error messages and hints.  CLUSTER commands on partitioned tables  MERGE command on distributed tables (implemented later in the following Citus 11.2 release)  ALTER TABLE .. SET ACCESS METHOD (implemented later in the following Citus 11.2 release)
  21. NEXT - PG16  Just recently we started working on

    supporting PG16  PG16Beta1 released on May 25th – draft PR already open in Citus GitHub repo  Focus Areas: Update the planner hook with the new permission info entry; vars are outer-join-aware. Update Columnar Extension to use the new relation physical identifiers PG16 new feature: SQL/JSON constructors and identity functions List will be updated as we further progress into it
  22.  Special thanks to Önder Kalacı for his contributions and

    guidance throughout this whole process.  [email protected] Principal Software Engineer  Thank you all for your attention.  Q&A
  23. REFERENCES  KEYNOTE: The Distributed PostgreSQL Problem & How Citus

    Solves it | Citus Con 2023 | Marco Slot - Speaker Deck
