Small Area Temporal Household Electricity Demand Models for New Zealand: Why, how and how far have we got?

Paper presented at 2019 RSA Australasia Conference, Christchurch, Aotearoa New Zealand, February 13th 2019

Reproducible research - :-)
* Code: https://git.soton.ac.uk/ba1e12/spatialec
* Data: http://archive.stats.govt.nz/Census/2013-census/data-tables/meshblock-dataset.aspx and http://reshare.ukdataservice.ac.uk/853334/

Transcript

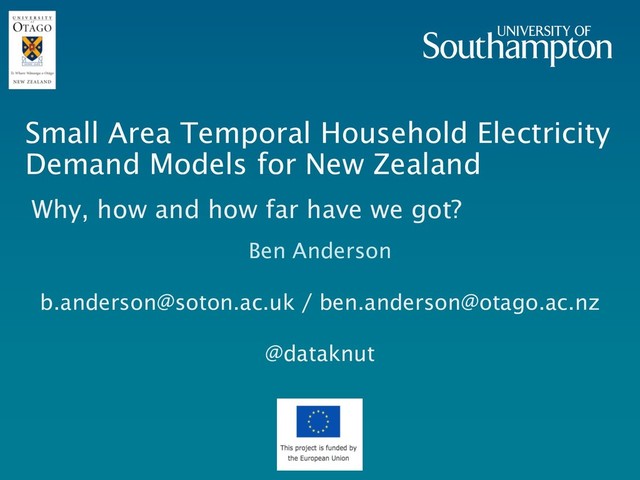

1. Small Area Temporal Household Electricity Demand Models for New Zealand Ben Anderson b.anderson@soton.ac.uk / ben.anderson@otago.ac.nz @dataknut Why, how and how far have we got?
2. @dataknut The menu § The problem • Local demand peaks § The solution • Local demand models § Initial results • Observation based • Time-Use based § Where have we got to? § Where next? 2
3. @dataknut What’s the problem? 3 Total NZ electricity demand per half hour (June) Source: Electricity Authority GW (sum)
4. @dataknut Estimating the Technical Potential for Residential Demand Response in New Zealand Fig. 3 illustrates electricity generation by time of day on GWh per half-hour trading period. Times of peak electricity generation are characterised by a higher electricity supply and demand at certain times and occur in early morning and evening hours in winter 2017. The maximum power on an average day in winter 2017 was 6.2 GW (equi- valent to 3.1 GWh per half-hour) and 5 GW in summer. Times of electricity peaks change by season. In summer 2017, the evening peak was much flatter and occurred slightly earlier compared to winter of the same year. This change in the electricity supply pat- tern is caused by weather conditions in December that do not necessitate appliances such as electrical heating systems to be activated, coupled with daylight saving and also longer daylight hours for summer, a lower use of lighting technologies in the early even- ing. All figures and calculations in this report consider New Zealand daylight saving. Fig. 3| Daily average half-hour electricity generation profile in summer and winter 2017 Source: Based on (Electricity Authority, 2018c) Increased demand during time intervals of high electricity demand are largely supplied by hydro electricity generation. Hydro electricity generation as depicted in Fig. 4 rep- resents a significant part of New Zealand’s electricity supply and necessitates active Page 17 of 113 What’s the ‘peak’ problem? • ‘Dirty’ energy (?) Carbon problems: • Higher priced energy Cost problems: • Inefficient use of resources; • ‘Local’ overload; Infrastructure problems: 4 Filling the trough Peak load Depends on hydro levels in Feb – April Khan et al (2018) 10.1016/j.jclepro.2018.02.309
5. @dataknut Estimating the Technical Potential for Residential Demand Response in New Zealand Fig. 3 illustrates electricity generation by time of day on GWh per half-hour trading period. Times of peak electricity generation are characterised by a higher electricity supply and demand at certain times and occur in early morning and evening hours in winter 2017. The maximum power on an average day in winter 2017 was 6.2 GW (equi- valent to 3.1 GWh per half-hour) and 5 GW in summer. Times of electricity peaks change by season. In summer 2017, the evening peak was much flatter and occurred slightly earlier compared to winter of the same year. This change in the electricity supply pat- tern is caused by weather conditions in December that do not necessitate appliances such as electrical heating systems to be activated, coupled with daylight saving and also longer daylight hours for summer, a lower use of lighting technologies in the early even- ing. All figures and calculations in this report consider New Zealand daylight saving. Fig. 3| Daily average half-hour electricity generation profile in summer and winter 2017 Source: Based on (Electricity Authority, 2018c) Increased demand during time intervals of high electricity demand are largely supplied by hydro electricity generation. Hydro electricity generation as depicted in Fig. 4 rep- resents a significant part of New Zealand’s electricity supply and necessitates active Page 17 of 113 What makes up peak demand? What might be reduced? Who might respond? And what are the local network consequences? What to do? Storage •Just reducing it per se Demand Reduction •Shifting it somewhere else in time (or space and time) Demand Response 5
6. @dataknut Estimating the Technical Potential for Residential Demand Response in New Zealand Fig. 3 illustrates electricity generation by time of day on GWh per half-hour trading period. Times of peak electricity generation are characterised by a higher electricity supply and demand at certain times and occur in early morning and evening hours in winter 2017. The maximum power on an average day in winter 2017 was 6.2 GW (equi- valent to 3.1 GWh per half-hour) and 5 GW in summer. Times of electricity peaks change by season. In summer 2017, the evening peak was much flatter and occurred slightly earlier compared to winter of the same year. This change in the electricity supply pat- tern is caused by weather conditions in December that do not necessitate appliances such as electrical heating systems to be activated, coupled with daylight saving and also longer daylight hours for summer, a lower use of lighting technologies in the early even- ing. All figures and calculations in this report consider New Zealand daylight saving. Fig. 3| Daily average half-hour electricity generation profile in summer and winter 2017 Source: Based on (Electricity Authority, 2018c) Increased demand during time intervals of high electricity demand are largely supplied by hydro electricity generation. Hydro electricity generation as depicted in Fig. 4 rep- resents a significant part of New Zealand’s electricity supply and necessitates active Page 17 of 113 The local problem 6 Areas with more electric heating? Areas with larger households? Areas with more EVs? 1. Targeted interventions 2. Network investment decisions £££ Estimating the Technical Potential for Residential Demand Response in New Zealand Fig. 3 illustrates electricity generation by time of day on GWh per half-hour trading period. Times of peak electricity generation are characterised by a higher electricity supply and demand at certain times and occur in early morning and evening hours in winter 2017. The maximum power on an average day in winter 2017 was 6.2 GW (equi- valent to 3.1 GWh per half-hour) and 5 GW in summer. Times of electricity peaks change by season. In summer 2017, the evening peak was much flatter and occurred slightly earlier compared to winter of the same year. This change in the electricity supply pat- tern is caused by weather conditions in December that do not necessitate appliances such as electrical heating systems to be activated, coupled with daylight saving and also longer daylight hours for summer, a lower use of lighting technologies in the early even- ing. All figures and calculations in this report consider New Zealand daylight saving. Fig. 3| Daily average half-hour electricity generation profile in summer and winter 2017 Source: Based on (Electricity Authority, 2018c) Increased demand during time intervals of high electricity demand are largely supplied by hydro electricity generation. Hydro electricity generation as depicted in Fig. 4 rep- resents a significant part of New Zealand’s electricity supply and necessitates active Page 17 of 113 Estimating the Technical Potential for Residential Demand Response in New Zealand Fig. 3 illustrates electricity generation by time of day on GWh per half-hour trading period. Times of peak electricity generation are characterised by a higher electricity supply and demand at certain times and occur in early morning and evening hours in winter 2017. The maximum power on an average day in winter 2017 was 6.2 GW (equi- valent to 3.1 GWh per half-hour) and 5 GW in summer. Times of electricity peaks change by season. In summer 2017, the evening peak was much flatter and occurred slightly earlier compared to winter of the same year. This change in the electricity supply pat- tern is caused by weather conditions in December that do not necessitate appliances such as electrical heating systems to be activated, coupled with daylight saving and also longer daylight hours for summer, a lower use of lighting technologies in the early even- ing. All figures and calculations in this report consider New Zealand daylight saving. Fig. 3| Daily average half-hour electricity generation profile in summer and winter 2017 Source: Based on (Electricity Authority, 2018c) Increased demand during time intervals of high electricity demand are largely supplied by hydro electricity generation. Hydro electricity generation as depicted in Fig. 4 rep- resents a significant part of New Zealand’s electricity supply and necessitates active Page 17 of 113 Estimating the Technical Potential for Residential Demand Response in New Zealand Fig. 3 illustrates electricity generation by time of day on GWh per half-hour trading period. Times of peak electricity generation are characterised by a higher electricity supply and demand at certain times and occur in early morning and evening hours in winter 2017. The maximum power on an average day in winter 2017 was 6.2 GW (equi- valent to 3.1 GWh per half-hour) and 5 GW in summer. Times of electricity peaks change by season. In summer 2017, the evening peak was much flatter and occurred slightly earlier compared to winter of the same year. This change in the electricity supply pat- tern is caused by weather conditions in December that do not necessitate appliances such as electrical heating systems to be activated, coupled with daylight saving and also longer daylight hours for summer, a lower use of lighting technologies in the early even- ing. All figures and calculations in this report consider New Zealand daylight saving. Fig. 3| Daily average half-hour electricity generation profile in summer and winter 2017 Source: Based on (Electricity Authority, 2018c) Increased demand during time intervals of high electricity demand are largely supplied by hydro electricity generation. Hydro electricity generation as depicted in Fig. 4 rep- resents a significant part of New Zealand’s electricity supply and necessitates active Page 17 of 113 Estimating the Technical Potential for Residential Demand Response in New Zealand Fig. 3 illustrates electricity generation by time of day on GWh per half-hour trading period. Times of peak electricity generation are characterised by a higher electricity supply and demand at certain times and occur in early morning and evening hours in winter 2017. The maximum power on an average day in winter 2017 was 6.2 GW (equi- valent to 3.1 GWh per half-hour) and 5 GW in summer. Times of electricity peaks change by season. In summer 2017, the evening peak was much flatter and occurred slightly earlier compared to winter of the same year. This change in the electricity supply pat- tern is caused by weather conditions in December that do not necessitate appliances such as electrical heating systems to be activated, coupled with daylight saving and also longer daylight hours for summer, a lower use of lighting technologies in the early even- ing. All figures and calculations in this report consider New Zealand daylight saving. Fig. 3| Daily average half-hour electricity generation profile in summer and winter 2017 Source: Based on (Electricity Authority, 2018c) Increased demand during time intervals of high electricity demand are largely supplied by hydro electricity generation. Hydro electricity generation as depicted in Fig. 4 rep- resents a significant part of New Zealand’s electricity supply and necessitates active Page 17 of 113
7. @dataknut The menu § The problem • Local demand peaks § The solution • Local demand models § Initial results • Observation based • Time-Use based § Where have we got to? § Where next? 7 period. Times of peak electricity generation are characterised by a higher electricity supply and demand at certain times and occur in early morning and evening hours in winter 2017. The maximum power on an average day in winter 2017 was 6.2 GW (equi- valent to 3.1 GWh per half-hour) and 5 GW in summer. Times of electricity peaks change by season. In summer 2017, the evening peak was much flatter and occurred slightly earlier compared to winter of the same year. This change in the electricity supply pat- tern is caused by weather conditions in December that do not necessitate appliances such as electrical heating systems to be activated, coupled with daylight saving and also longer daylight hours for summer, a lower use of lighting technologies in the early even- ing. All figures and calculations in this report consider New Zealand daylight saving. Fig. 3| Daily average half-hour electricity generation profile in summer and winter 2017 Source: Based on (Electricity Authority, 2018c) Increased demand during time intervals of high electricity demand are largely supplied by hydro electricity generation. Hydro electricity generation as depicted in Fig. 4 rep- resents a significant part of New Zealand’s electricity supply and necessitates active Page 17 of 113
8. @dataknut Local demand models: Concept Synthetic Electricity Census Census data Household data (demand) 8 Source: http://datashine.org.uk • NZ examples: • Area Units • ~ 600 households • Meshblock areas • ~ 100 households period. Times of peak electricity generation are characterised by a higher electricity supply and demand at certain times and occur in early morning and evening hours in winter 2017. The maximum power on an average day in winter 2017 was 6.2 GW (equi- valent to 3.1 GWh per half-hour) and 5 GW in summer. Times of electricity peaks change by season. In summer 2017, the evening peak was much flatter and occurred slightly earlier compared to winter of the same year. This change in the electricity supply pat- tern is caused by weather conditions in December that do not necessitate appliances such as electrical heating systems to be activated, coupled with daylight saving and also longer daylight hours for summer, a lower use of lighting technologies in the early even- ing. All figures and calculations in this report consider New Zealand daylight saving. Fig. 3| Daily average half-hour electricity generation profile in summer and winter 2017 Source: Based on (Electricity Authority, 2018c) Increased demand during time intervals of high electricity demand are largely supplied by hydro electricity generation. Hydro electricity generation as depicted in Fig. 4 rep- resents a significant part of New Zealand’s electricity supply and necessitates active Page 17 of 113
9. @dataknut Local demand models: Data Synthetic Electricity Census Census data Household data (demand) 9 Source: http://datashine.org.uk Household attributes (area level) Bespoke kW monitoring? Household attributes Trials: kW demand response? Time Use Survey Data? (imputed kW) Smart meter kW?
10. @dataknut Conceptually… 10 AU 2 Survey households with ‘constraint’ variables + kW AU 1 Iterative Proportional Fitting Deming and Stephan 1940; Fienberg 1970; Wong 1992 Birkin & Clarke, 1989; Ballas et al, 1999 Ballas et al (2005) R package: ipfp Blocker (2016) Weights Census ‘constraint’ tables
11. @dataknut GREENGrid area unit model (v0.01a) 11 • Sample of ~ 30 monitored households • Hawke’s Bay & Taranaki Using NZ GREENGrid Data • ~ 600 households per AU • For Hawke’s Bay & Taranaki At NZ Area Unit level • IPF re-weighting of survey cases (Ballas et al, 2005) Spatial Microsimulation Method Estimating the Technical Potential for Residential Demand Response in New Zealand Fig. 3 illustrates electricity generation by time of day on GWh per half-hour trading period. Times of peak electricity generation are characterised by a higher electricity supply and demand at certain times and occur in early morning and evening hours in winter 2017. The maximum power on an average day in winter 2017 was 6.2 GW (equi- valent to 3.1 GWh per half-hour) and 5 GW in summer. Times of electricity peaks change by season. In summer 2017, the evening peak was much flatter and occurred slightly earlier compared to winter of the same year. This change in the electricity supply pat- tern is caused by weather conditions in December that do not necessitate appliances such as electrical heating systems to be activated, coupled with daylight saving and also longer daylight hours for summer, a lower use of lighting technologies in the early even- ing. All figures and calculations in this report consider New Zealand daylight saving. Fig. 3| Daily average half-hour electricity generation profile in summer and winter 2017 Source: Based on (Electricity Authority, 2018c) Increased demand during time intervals of high electricity demand are largely supplied by hydro electricity generation. Hydro electricity generation as depicted in Fig. 4 rep- resents a significant part of New Zealand’s electricity supply and necessitates active Page 17 of 113
12. @dataknut Data: NZ GREENGrid 12 Get the data: https://dx.doi.org/10.5255/UKDA-SN-853334 • Circuits measured: • Hot water • Lighting • Heat pumps • Kitchen • Bedrooms • etc • Data: • Household survey • Mean power (W) per minute
13. @dataknut Data: NZ GREENGrid 13 Get the data: https://dx.doi.org/10.5255/UKDA-SN-853334 We want to estimate these for each unit area!
14. @dataknut § Area Unit level • Hawke’s Bay • Taranaki § Variables used: • N bedrooms • N people • Presence children § Potential future variables: • Main heating fuel • Dwelling type • Income band • Age of adults/children Data: NZ Census 14 Matches GREENGrid sample ~ 90,000 households Some are not in GREENGrid data Because they correlate with demand
15. @dataknut Remember how this works… 15 AU 2 Survey households with ‘constraint’ variables + kW AU 1 Iterative Proportional Fitting Deming and Stephan 1940; Fienberg 1970; Wong 1992 Birkin & Clarke, 1989; Ballas et al, 1999 Ballas et al (2005) R package: ipfp Blocker (2016) Weights Census ‘constraint’ tables
16. @dataknut Remember how this works… 16 AU 2 Survey households with ‘constraint’ variables + kW AU 1 Iterative Proportional Fitting Deming and Stephan 1940; Fienberg 1970; Wong 1992 Birkin & Clarke, 1989; Ballas et al, 1999 Ballas et al (2005) R package: ipfp Blocker (2016) Weights Census ‘constraint’ tables
17. @dataknut The consequence… 17 Source: Author’s calculations using NZ GREENGrid data [https://dx.doi.org/10.5255/UKDA-SN-853334], weighted), NZ Census 2013 small area tables [http://archive.stats.govt.nz/Census/2013-census/data- tables/meshblock-dataset.aspx] We might get ‘odd’ results
18. @dataknut The menu § The problem • Local demand peaks § The solution • Local demand models § Initial results • Observation based • Time-Use based § Where have we got to? § Where next? 18 period. Times of peak electricity generation are characterised by a higher electricity supply and demand at certain times and occur in early morning and evening hours in winter 2017. The maximum power on an average day in winter 2017 was 6.2 GW (equi- valent to 3.1 GWh per half-hour) and 5 GW in summer. Times of electricity peaks change by season. In summer 2017, the evening peak was much flatter and occurred slightly earlier compared to winter of the same year. This change in the electricity supply pat- tern is caused by weather conditions in December that do not necessitate appliances such as electrical heating systems to be activated, coupled with daylight saving and also longer daylight hours for summer, a lower use of lighting technologies in the early even- ing. All figures and calculations in this report consider New Zealand daylight saving. Fig. 3| Daily average half-hour electricity generation profile in summer and winter 2017 Source: Based on (Electricity Authority, 2018c) Increased demand during time intervals of high electricity demand are largely supplied by hydro electricity generation. Hydro electricity generation as depicted in Fig. 4 rep- resents a significant part of New Zealand’s electricity supply and necessitates active Page 17 of 113
19. @dataknut Example: Hot Water (25th May 2015) 19 Source: Author’s calculations using NZ GREENGrid data [https://dx.doi.org/10.5255/UKDA-SN-853334], unweighted] Small n… As measured (mean)
20. @dataknut Example: Hot Water (25th May 2015) 20 Source: Author’s calculations using NZ GREENGrid data [https://dx.doi.org/10.5255/UKDA-SN-853334], unweighted) Real world heterogeneity As measured Households
21. @dataknut Example: Hot Water (25th May 2015) 21 As modelled Source: Author’s calculations using NZ GREENGrid data [https://dx.doi.org/10.5255/UKDA-SN-853334], weighted), NZ Census 2013 small area tables [http://archive.stats.govt.nz/Census/2013-census/data- tables/meshblock-dataset.aspx] Area units Shiftable demand? Met by V2G?
22. @dataknut Example: Lighting (seasonal) 22 Source: Author’s calculations using NZ GREENGrid data [https://dx.doi.org/10.5255/UKDA-SN-853334], unweighted] VERY small n… As measured
23. @dataknut Example: Lighting (seasonal) 23 Source: Author’s calculations using NZ GREENGrid data [https://dx.doi.org/10.5255/UKDA-SN-853334], unweighted) Real world heterogeneity As measured VERY small n…
24. @dataknut Example: Lighting (seasonal) 24 As modelled Source: Author’s calculations using NZ GREENGrid data [https://dx.doi.org/10.5255/UKDA-SN-853334], weighted), NZ Census 2013 small area tables [http://archive.stats.govt.nz/Census/2013-census/data- tables/meshblock-dataset.aspx] Area units Where might LEDs reduce demand?
25. @dataknut The menu § The problem • Local demand peaks § The solution • Local demand models § Initial results • Observation based • Time-Use based § Where have we got to? § Where next? 25 period. Times of peak electricity generation are characterised by a higher electricity supply and demand at certain times and occur in early morning and evening hours in winter 2017. The maximum power on an average day in winter 2017 was 6.2 GW (equi- valent to 3.1 GWh per half-hour) and 5 GW in summer. Times of electricity peaks change by season. In summer 2017, the evening peak was much flatter and occurred slightly earlier compared to winter of the same year. This change in the electricity supply pat- tern is caused by weather conditions in December that do not necessitate appliances such as electrical heating systems to be activated, coupled with daylight saving and also longer daylight hours for summer, a lower use of lighting technologies in the early even- ing. All figures and calculations in this report consider New Zealand daylight saving. Fig. 3| Daily average half-hour electricity generation profile in summer and winter 2017 Source: Based on (Electricity Authority, 2018c) Increased demand during time intervals of high electricity demand are largely supplied by hydro electricity generation. Hydro electricity generation as depicted in Fig. 4 rep- resents a significant part of New Zealand’s electricity supply and necessitates active Page 17 of 113
26. @dataknut § We have shown: – The method works… – But the GREENGrid data is insufficient – The results are probably garbage § We need to: – Gather better kW data – Impute demand from Time Use Surveys Where have we got to? 26
27. @dataknut Questions? § @dataknut § www.energy.soton.ac.uk/tag/spatialec – 2 year EU Global Fellowship @Otago CfS – 2017-2019 27 pixabay.com
