Root Knot Nematodes: understanding their evolution, diversity, and threat through comparative genomics

Talk to Association of Applied Biologists

Dave Lunt

December 16, 2014
Tweet

More Decks by Dave Lunt

Other Decks in Science

Transcript

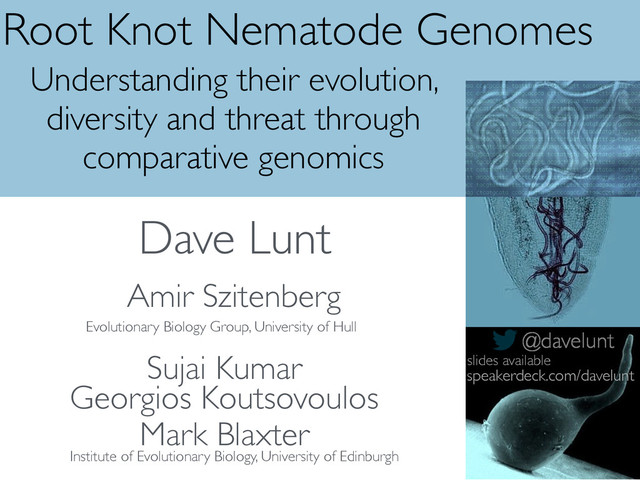

  1. Root Knot Nematode Genomes JD Eisenback RKN juveniles enter root

    tip SEM Meloidogyne female JD Eisenback Understanding their evolution, diversity and threat through comparative genomics Amir Szitenberg Georgios Koutsovoulos Mark Blaxter Sujai Kumar Evolutionary Biology Group, University of Hull Institute of Evolutionary Biology, University of Edinburgh @davelunt speakerdeck.com/davelunt slides available Dave Lunt
  2. THE MELOIDOGYNE RKN SYSTEM Meloidogyne Root Knot Nematodes • Globally

    important agricultural pest species • ~5% loss of world agriculture • Enormous plant host range • parasitise all main crop plants JD Eisenback RKN juveniles enter root tip infected uninfected SEM Meloidogyne female JD Eisenback
  3. THE MELOIDOGYNE RKN SYSTEM Meloidogyne Reproduction • Mitotic parthenogens (apomixis)

    without chromosome pairs. Asexuals- meiosis absent • Meiotic parthenogens (automixis) • Obligatory outbreeding sexuals with males & females (amphimixis) Sexuals- meiosis present Wide variety of reproductive modes in a single genus
  4. MELOIDOGYNE HYBRIDISATION Hybrid Speciation Once thought that hybrid speciation was

    rare and inconsequential in animals Genome biology is revealing a very different view Heliconius butterflies Lak Malawi cichlids Polar and brown bears
  5. MELOIDOGYNE HYBRIDISATION Hybrid Speciation in Meloidogyne? Previous work suggests interspecific

    hybridisation may be involved with Meloidogyne asexual species Heliconius butterflies Lake Malawi cichlids Root knot nematodes?
  6. Is M. floridensis the parent of the asexuals? M. floridensis

    is found within the phylogenetic diversity of asexual species It reproduces sexually by automixis MELOIDOGYNE HYBRIDISATION GENOMICS M.floridensis M. ??? M. incognita M. javanica M. arenaria x apomicts parental species automict apomict apomict automict
  7. M.floridensis M. ??? M. incognita M. javanica M. arenaria x

    apomicts parental species automict Is M. floridensis the parent of the asexuals? Could it be a parent of the asexual lineages via interspecific hybridisation? MELOIDOGYNE HYBRIDISATION GENOMICS apomict apomict automict What can that tell us about the origins of crop pathogenicity?
  8. MELOIDOGYNE COMPARATIVE GENOMICS From Genomics to Biology Genomics and bioinformatics

    can reveal complex biological stories, and suggest novel approaches to agricultural problems
  9. MELOIDOGYNE HYBRIDISATION GENOMICS Meloidogyne comparative genomics We have sequenced M.

    floridensis genome and compare to 2 other published Meloidogyne genomes M.floridensis M. ??? M. incognita M. javanica M. arenaria x apomicts parental species automict asexual, hybrid? sexual, parental? sexual, outgroup 100MB, 100x coverage, 15.3k protein coding loci
  10. Is M. floridensis the parent of the asexuals? 1. look

    at the within-genome patterns of diversity to determine hybrid nature of genomes 2. look at phylogenetic relationships of all genes to study origins and parents MELOIDOGYNE HYBRIDISATION GENOMICS 1: Intra-genomic diversity 2: Phylogenomics Investigated using whole genome sequences and 2 distinct approaches;
  11. 1. INTRA-GENOMIC ANALYSES Divergence of protein-coding alleles Lunt et al

    arXiv 2013 http://arxiv.org/abs/1306.6163 Coding sequences from each species were compared to loci in the same species The percent identity of the best match was plotted Self identity comparisons Both M. incognita and M. floridensis show evidence of presence of many duplicates, while M. hapla does not
  12. 1. INTRA-GENOMIC ANALYSES Divergence of protein-coding alleles Lunt et al

    arXiv 2013 http://arxiv.org/abs/1306.6163 Self identity comparisons Both M. incognita and M. floridensis show evidence of presence of many duplicates, while M. hapla does not This is exactly the pattern expected for hybrid genomes
  13. Is M. floridensis the parent of the asexuals? look at

    phylogenetic relationships of all genes to study origins and parents MELOIDOGYNE HYBRIDISATION GENOMICS 1: Intra-genomic diversity 2: Phylogenomics
  14. Hybridisation Hypotheses Lunt et al arXiv 2013 http://arxiv.org/abs/1306.6163 There are

    very many ways species could hybridise, duplicate genes, lose genes We have selected a broad range of possibilities informed by prior knowledge We have tested their predictions phylogenetically M. hapla X Z M. floridensis M. incognita X Z+Z A Scenario 1 & 2 A M. hapla X Z M. floridensis M. incognita X X+Z B Scenario 3 M. hapla X Z M. floridensis M. incognita X Z+Z A Scenario 1 & 2 B M. hapla X Y Z M. floridensis M. incognita X+Y Y+Z C Scenario 4 M. hapla X Z M. floridensis M. incognita X X+Z B Scenario 3 M. hapla X Z M. floridensis M. incognita X Z+Z A Scenario 1 & 2 C M. hapla X Y Z M. floridensis M. incognita X+Y Y+Z M. hapla X Y Z M. floridensis M. incognita X+Y (X+Y)+Z M. hapla X Z M. floridensis M. incognita X X+Z M. hapla X Z M. floridensis M. incognita X Z+Z X+Y D 2. PHYLOGENOMIC ANALYSES
  15. 17 M. hapla X Y Z M. floridensis M. incognita

    X+Y Y+Z C Scenario 4 M. hapla X Y Z M. floridensis M. incognita X+Y (X+Y)+Z D Scenario 5 M. hapla X Z M. floridensis M. incognita X X+Z B Scenario 3 Z M. incognita Z+Z 1 & 2 X+Y M. hapla X Y Z M. floridensis M. incognita X+Y Y+Z C Scenario 4 M. hapla X Y Z M. floridensis M. incognita X+Y (X+Y)+Z D Scenario 5 Z M. incognita +Z X+Y M. hapla X Y M. floridensis X+Y C Scenario 4 M. hapla X Z M. floridensis M. incognita X X+Z B Scenario 3 M. hapla X Z M. floridensis M. incognita X Z+Z A Scenario 1 & 2 M. hapla X Y Z M. floridensis M. incognita X+Y Y+Z C Scenario 4 M. hapla D M. hapla X Z M. floridensis M. incognita X X+Z B Scenario 3 M. hapla X Z M. floridensis M. incognita X Z+Z A Scenario 1 & 2 Hybridisation hypotheses A B C D We have selected a broad range of possibilities informed by prior knowledge We have tested their predictions phylogenetically
  16. M. hapla X M. floridensis X B Scenario M. hapla

    X Z M. floridensis M. incognita X Z+Z A Scenario 1 & 2 (A) Whole genome duplication(s)
  17. 19 M. hapla X M. floridensis X+Y C Scena M.

    hapla X Z M. floridensis M. incognita X X+Z B Scenario 3 M. incognita Z (B) M. incognita is an interspecific hybrid with M. floridensis as one parent
  18. M. hapla X Y Z M. floridensis M. incognita X+Y

    Y+Z C Scenario 4 M. hapla X Y M. florid X+Y D Scenario X+Y (C) M. incognita and M. floridensis are independent hybrids sharing one parent
  19. Z M. hapla X Y Z M. floridensis M. incognita

    X+Y (X+Y)+Z D Scenario 5 X+Y (D) M. floridensis is a hybrid and M. incognita is a secondary hybrid between M. floridensis and a 3rd parent
  20. 2. PHYLOGENOMIC ANALYSES Testing by Phylogenomics Lunt et al arXiv

    2013 http://arxiv.org/abs/1306.6163 M. hapla M. hapla X Z M. floridensis M. incognita X X+Z B Scenario 3 M. hapla X Z M. floridensis M. incognita X Z+Z A Scenario 1 & 2 A M. hapla X Z M. floridensis M. incognita X X+Z B Scenario 3 M. hapla X Z M. floridensis M. incognita X Z+Z A Scenario 1 & 2 B M. hapla X Y Z M. floridensis M. incognita X+Y Y+Z C Scenario 4 M. hapla X Y Z M. floridensis M. incognita X+Y (X+Y)+Z D Scenario 5 M. hapla X Z M. floridensis M. incognita X X+Z B Scenario 3 M. hapla X Z M. floridensis M. incognita X Z+Z A Scenario 1 & 2 X+Y C M. hapla X Y Z M. floridensis M. incognita X+Y Y+Z C Scenario 4 M. hapla X Y Z M. floridensis M. incognita X+Y (X+Y)+Z D Scenario 5 M. hapla X Z M. floridensis M. incognita X X+Z B Scenario 3 M. hapla X Z M. floridensis M. incognita X Z+Z A Scenario 1 & 2 X+Y D • Recover all genes from 3 genomes • CDS orthologues determined by InParanoid • 4018 ortholog clusters included all 3 species • Retained those with a single copy in the outgroup M. hapla • ML Phylogenies of relationships between Mi and Mf gene copies • Trees parsed and pooled to represent frequencies of different relationships
  21. 23 Each tree contains a single M. hapla sequence as

    outgroup (black square) Grey square indicates relative frequency of those topologies Trees are pooled within squares into different patterns of relationships Grid squares represent different numbers of gene copies
  22. 2. PHYLOGENOMIC ANALYSES Testing by Phylogenomics Lunt et al arXiv

    2013 http://arxiv.org/abs/1306.6163 M. hapla M. hapla X Z M. floridensis M. incognita X X+Z B Scenario 3 M. hapla X Z M. floridensis M. incognita X Z+Z A Scenario 1 & 2 A M. hapla X Z M. floridensis M. incognita X X+Z B Scenario 3 M. hapla X Z M. floridensis M. incognita X Z+Z A Scenario 1 & 2 B M. hapla X Y Z M. floridensis M. incognita X+Y Y+Z C Scenario 4 M. hapla X Y Z M. floridensis M. incognita X+Y (X+Y)+Z D Scenario 5 M. hapla X Z M. floridensis M. incognita X X+Z B Scenario 3 M. hapla X Z M. floridensis M. incognita X Z+Z A Scenario 1 & 2 X+Y C M. hapla X Y Z M. floridensis M. incognita X+Y Y+Z C Scenario 4 M. hapla X Y Z M. floridensis M. incognita X+Y (X+Y)+Z D Scenario 5 M. hapla X Z M. floridensis M. incognita X X+Z B Scenario 3 M. hapla X Z M. floridensis M. incognita X Z+Z A Scenario 1 & 2 X+Y D We assess the fit of the tree topologies to our hypotheses • Five out of seven cluster sets, and 95% of all trees, support hybrid origins for both M. floridensis and M. incognita • ie exclude hypotheses A and B • Hypothesis C best explains 17 trees • Hypothesis D best explains 1335 trees
  23. 2. PHYLOGENOMIC ANALYSES Testing by Phylogenomics Lunt et al arXiv

    2013 http://arxiv.org/abs/1306.6163 M. hapla X Y Z M. floridensis M. incognita X+Y Y+Z M. hapla X Y Z M. floridensis M. incognita X+Y (X+Y)+Z M. hapla X Z M. floridensis M. incognita X X+Z M. hapla X Z M. floridensis M. incognita X Z+Z X+Y A M. hapla X Y Z M. floridensis M. incognita X+Y Y+Z M. hapla X Y Z M. floridensis M. incognita X+Y (X+Y)+Z M. hapla X Z M. floridensis M. incognita X X+Z M. hapla X Z M. floridensis M. incognita X Z+Z X+Y B M. hapla X Y Z M. floridensis M. incognita X+Y Y+Z M. hapla X Y Z M. floridensis M. incognita X+Y (X+Y)+Z M. hapla X Z M. floridensis M. incognita X X+Z M. hapla X Z M. floridensis M. incognita X Z+Z X+Y C M. floridensis is a parental species of “double hybrid” M. incognita with other parent unknown M. hapla X Y Z M. floridensis M. incognita X+Y Y+Z C Scenario 4 M. hapla X Y Z M. floridensis M. incognita X+Y (X+Y)+Z D Scenario 5 X Z M. floridensis M. incognita X X+Z B Scenario 3 X+Y Hypothesis D Conclusion:
  24. 2. PHYLOGENOMIC ANALYSES Testing by Phylogenomics Lunt et al arXiv

    2013 http://arxiv.org/abs/1306.6163 Pooled analysis of ~1000 gene loci M. hapla M. incognita M. floridensis M. incognita Two topologies are present ‘Conflict’ is evidence for hybridisation
  25. MELOIDOGYNE COMPARATIVE GENOMICS From Genomics to Biology Genomics reveals that

    both species are hybrids and M. floridensis is a parent of M. incognita
  26. MELOIDOGYNE COMPARATIVE GENOMICS From Genomics to Biology Hybridisation seems common

    in this group Genomics reveals that both species are hybrids and M. floridensis is a parent of M. incognita
  27. MELOIDOGYNE COMPARATIVE GENOMICS 1. Ongoing Work Genomes in a phylogenetic

    design Testing effect of recombination & breeding system on genome change • hybrids, inbred, outbred, loss of meiosis, TEs, mutational patterns, gene families
  28. MELOIDOGYNE COMPARATIVE GENOMICS 1. Ongoing Work DNA transposons RNA transposons

    transposon evolution in Nematoda sequenced nematode genome
  29. MELOIDOGYNE COMPARATIVE GENOMICS 1. Ongoing Work • Diverse sampling of

    most important species • Intraspecific diversity and interspecific divergence • Polymorphisms and gene loci linked to resistance change Meloidogyne diversity and adaptation to crop parasitism
  30. MELOIDOGYNE COMPARATIVE GENOMICS 2. Future work • Increase sampling of

    Meloidogyne species • fully represent this genus • determine intraspecific variation • detect parental species Dave Lunt Evolutionary Biology Group, University of Hull [email protected] davelunt.net I’m happy to collaborate
  31. MELOIDOGYNE COMPARATIVE GENOMICS 2. Future work • Functional Meloidogyne genomics

    • what is the genomic basis of resistance breaking lines? • can pathogenicity be predicted from genotype? • diagnostic tools for functional genomics? Dave Lunt Evolutionary Biology Group, University of Hull [email protected] davelunt.net
  32. MELOIDOGYNE COMPARATIVE GENOMICS 2. Future work • Increase sampling of

    Meloidogyne species • What genes are associated with pathogenicity? • Adaptation to crops through transgressive segregation? • The ‘hybrid threat’ • Other nematode species Dave Lunt Evolutionary Biology Group, University of Hull [email protected] davelunt.net
  33. MELOIDOGYNE COMPARATIVE GENOMICS 2. Future work • Transgressive segregation and

    polyphagy • testing transgressive segregation • genome reorganisation in hybridogenesis Dave Lunt Evolutionary Biology Group, University of Hull [email protected] davelunt.net
  34. ADAPTATION TO THE AGRICULTURAL ENVIRONMENT Transgressive segregation Transgressive segregation is

    when the absolute values of traits in some hybrids exceed the trait variation shown by either parental lineage Hybrid Parent 1 Parent 2 Arrows represent ‘phenotypic range’
  35. MELOIDOGYNE COMPARATIVE GENOMICS 2. Future work Dave Lunt Evolutionary Biology

    Group, University of Hull [email protected] davelunt.net Question If hybridisation can lead to extreme polyphagy and crop pathogenicity, do we need to monitor the “hybrid threat”? speakerdeck.com/davelunt slides available
  36. MELOIDOGYNE COMPARATIVE GENOMICS Root Knot Nematode Genomes Dave Lunt Evolutionary

    Biology Group, University of Hull [email protected] davelunt.net speakerdeck.com/davelunt slides available
