Trailblaze - Droidcon NYC 2025

Presented at Droidcon NYC in June 2025.

https://github.com/block/trailblaze

Transcript

1. AI Driven Mobile Testing Blazing the Trail at Block Brian Gardner, Sam Edwards Droidcon NYC - June 25, 2025

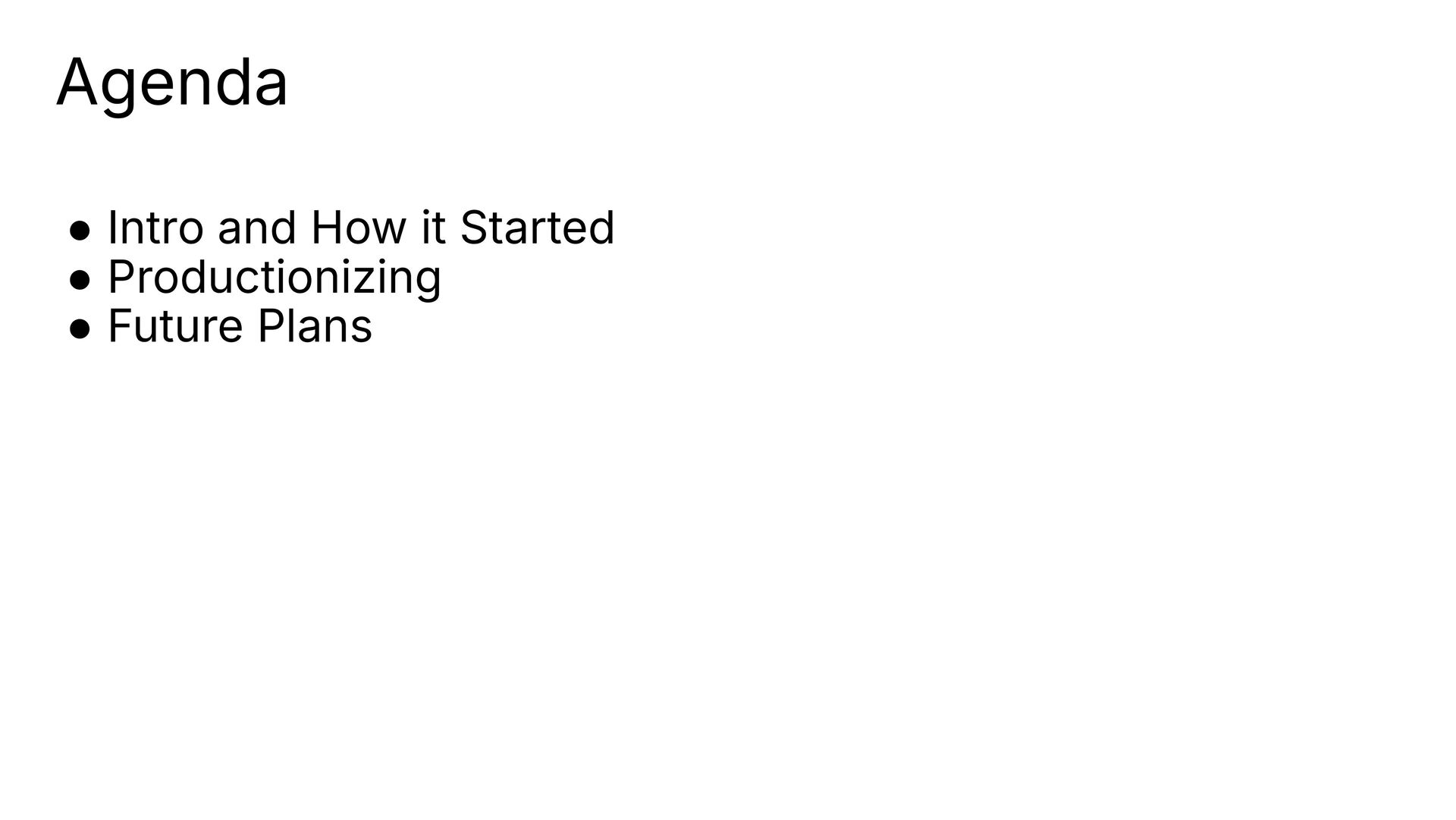

2. Agenda • Intro and How it Started • Productionizing • Future Plans
3. Intro 3

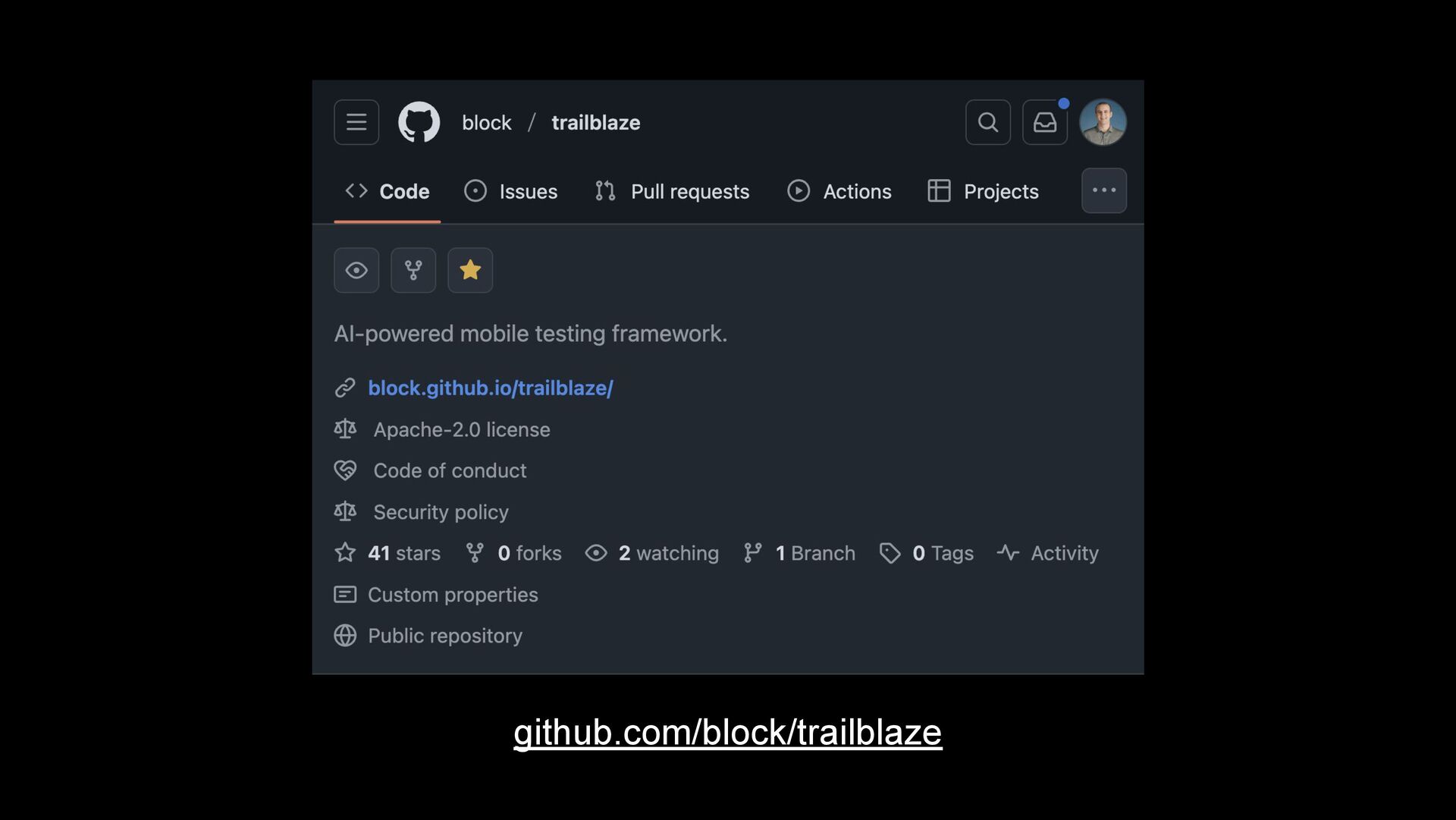

4. github.com/block/trailblaze
5. Open Source Demo
6. Droidcon NYC 2024 6

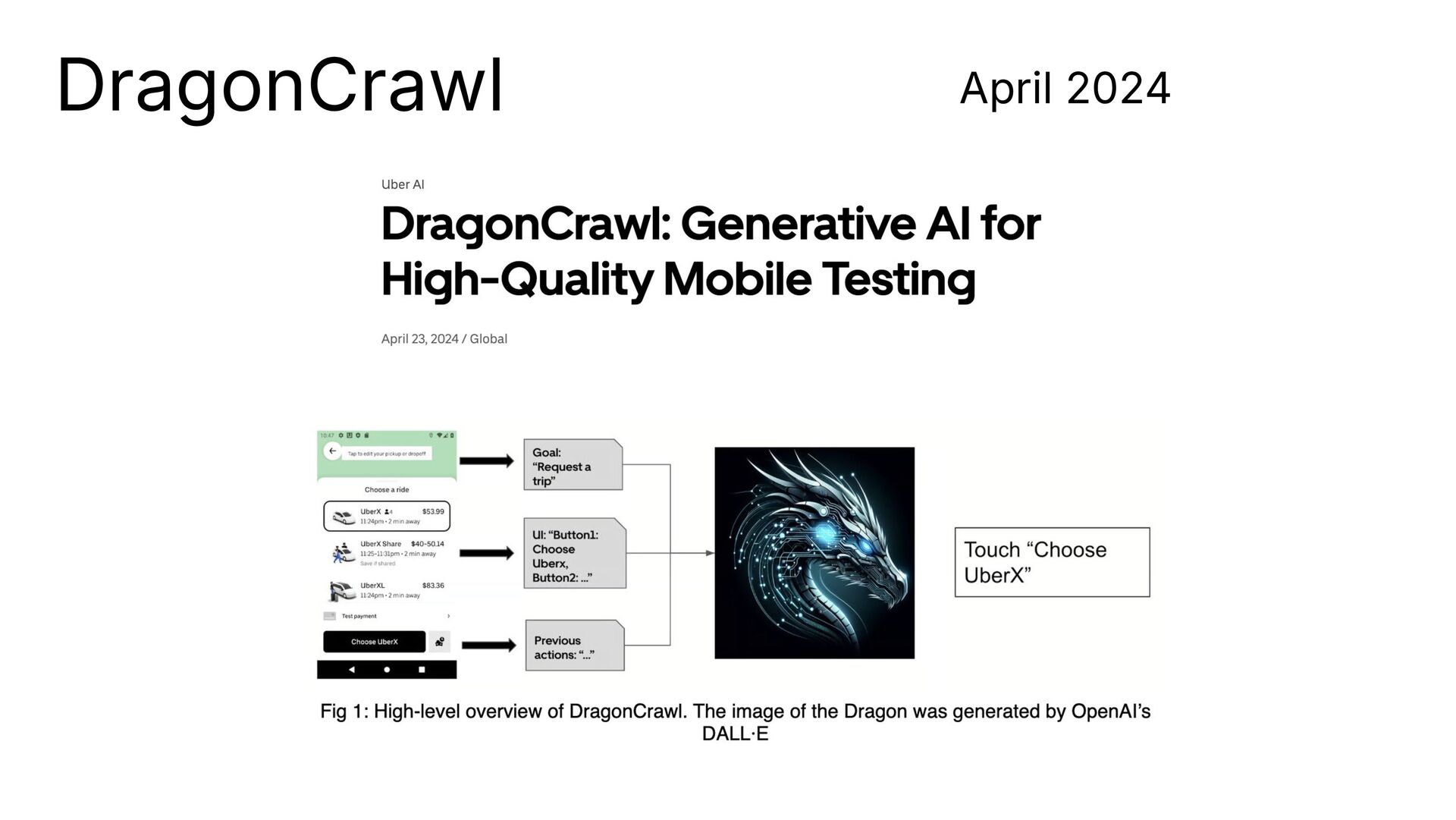

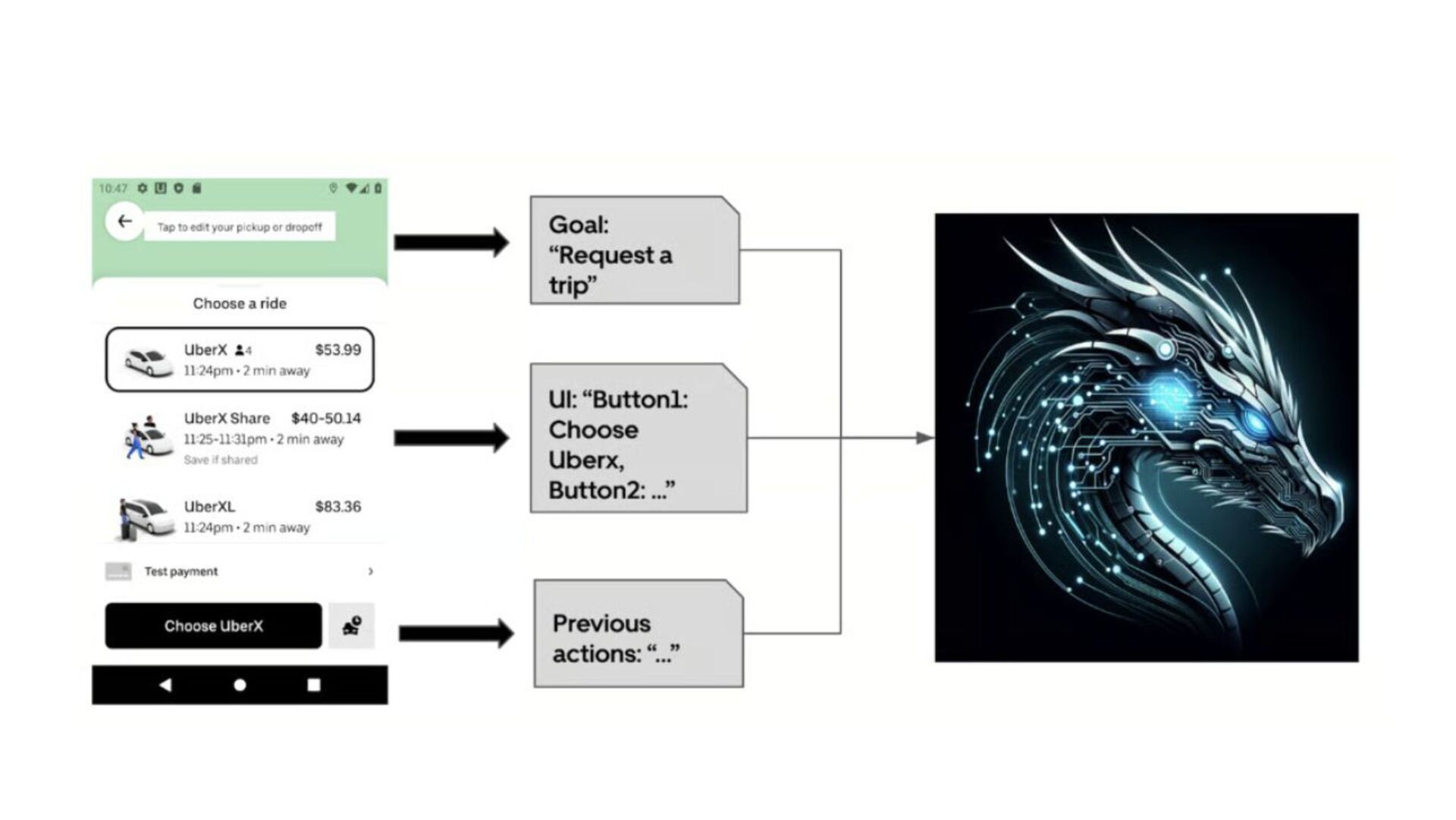

7. DragonCrawl April 2024
9. DragonCrawl September 2024
10. The way things were 10

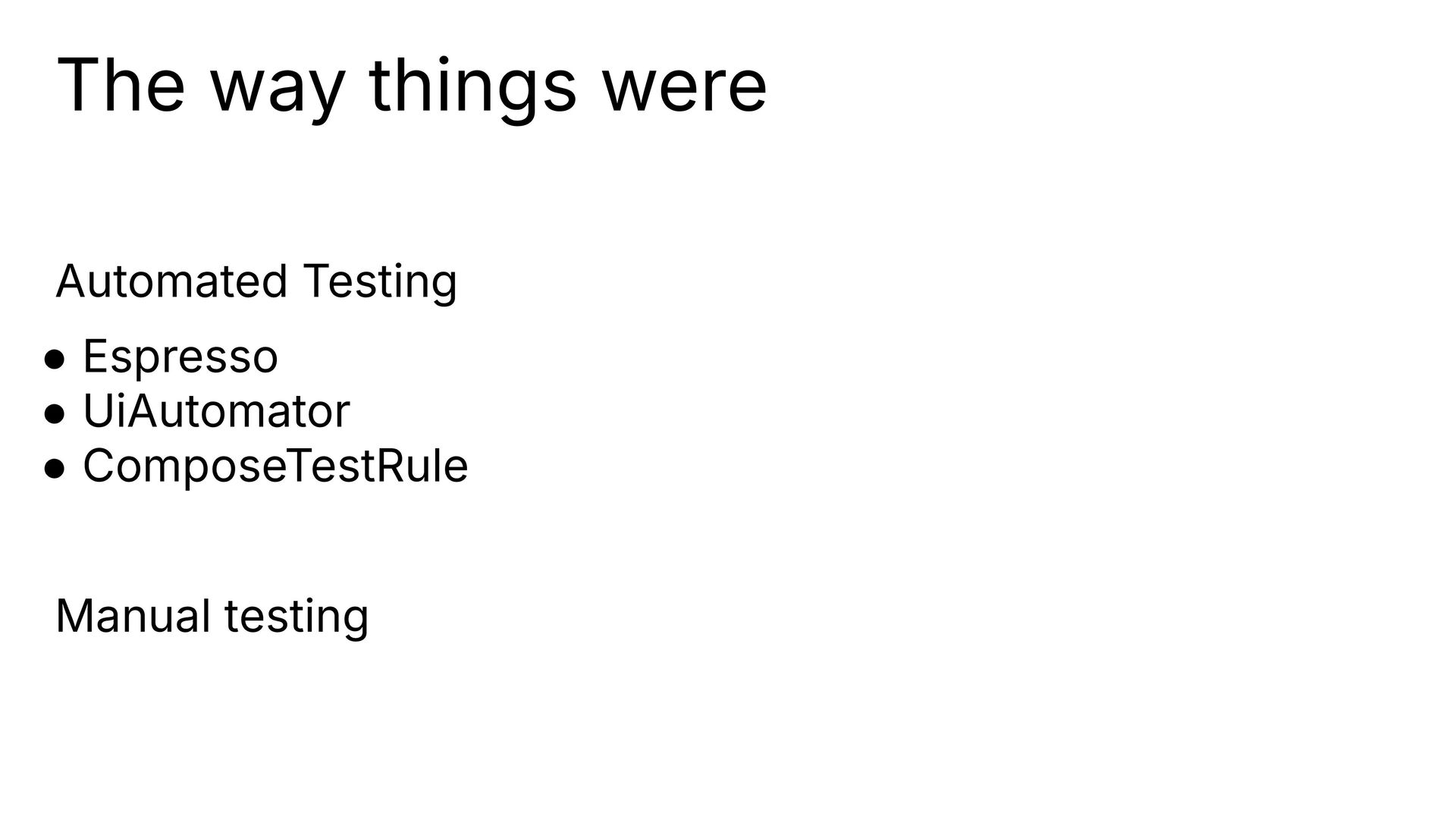

11. Automated Testing • Espresso • UiAutomator • ComposeTestRule Manual testing The way things were

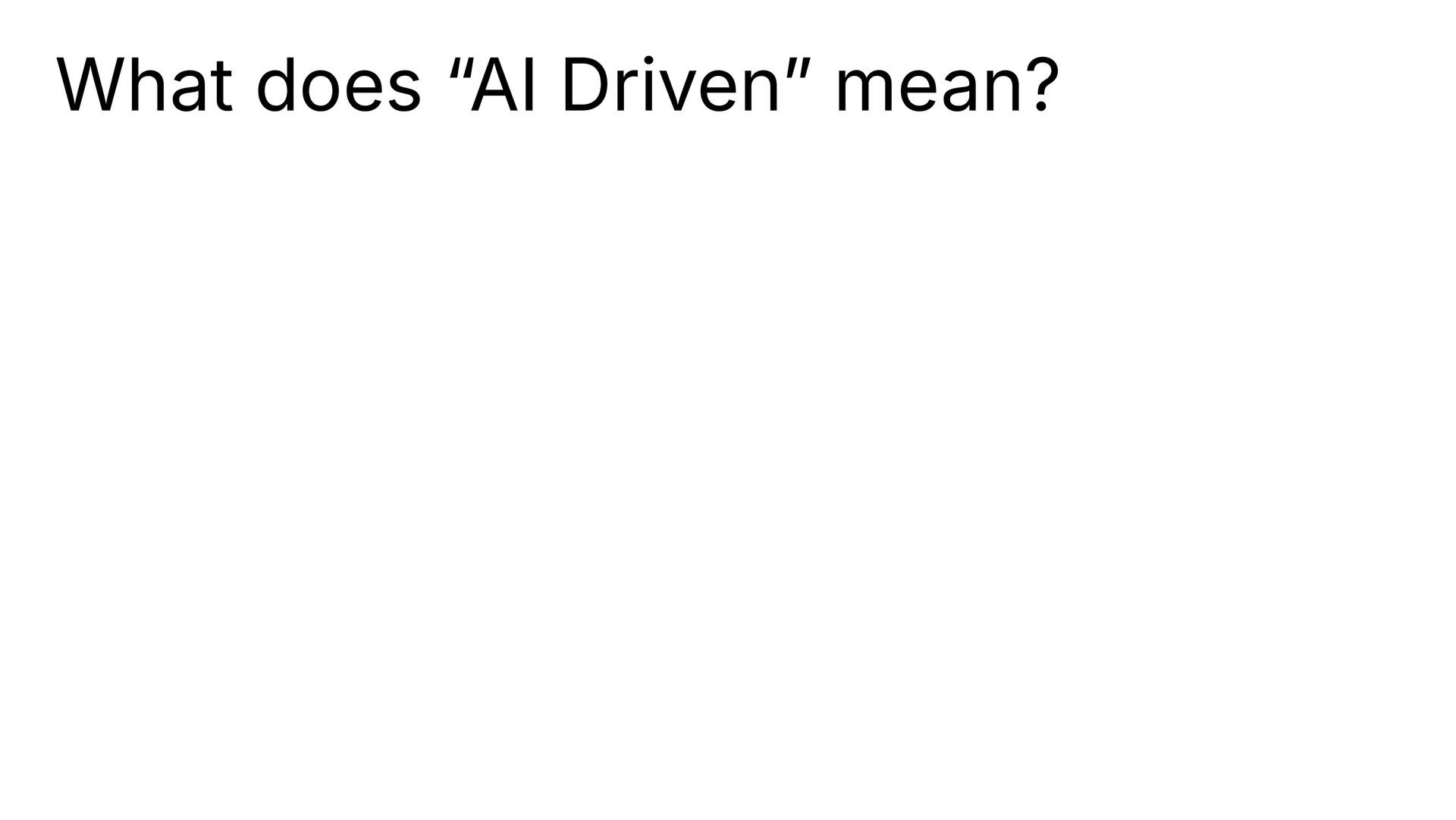

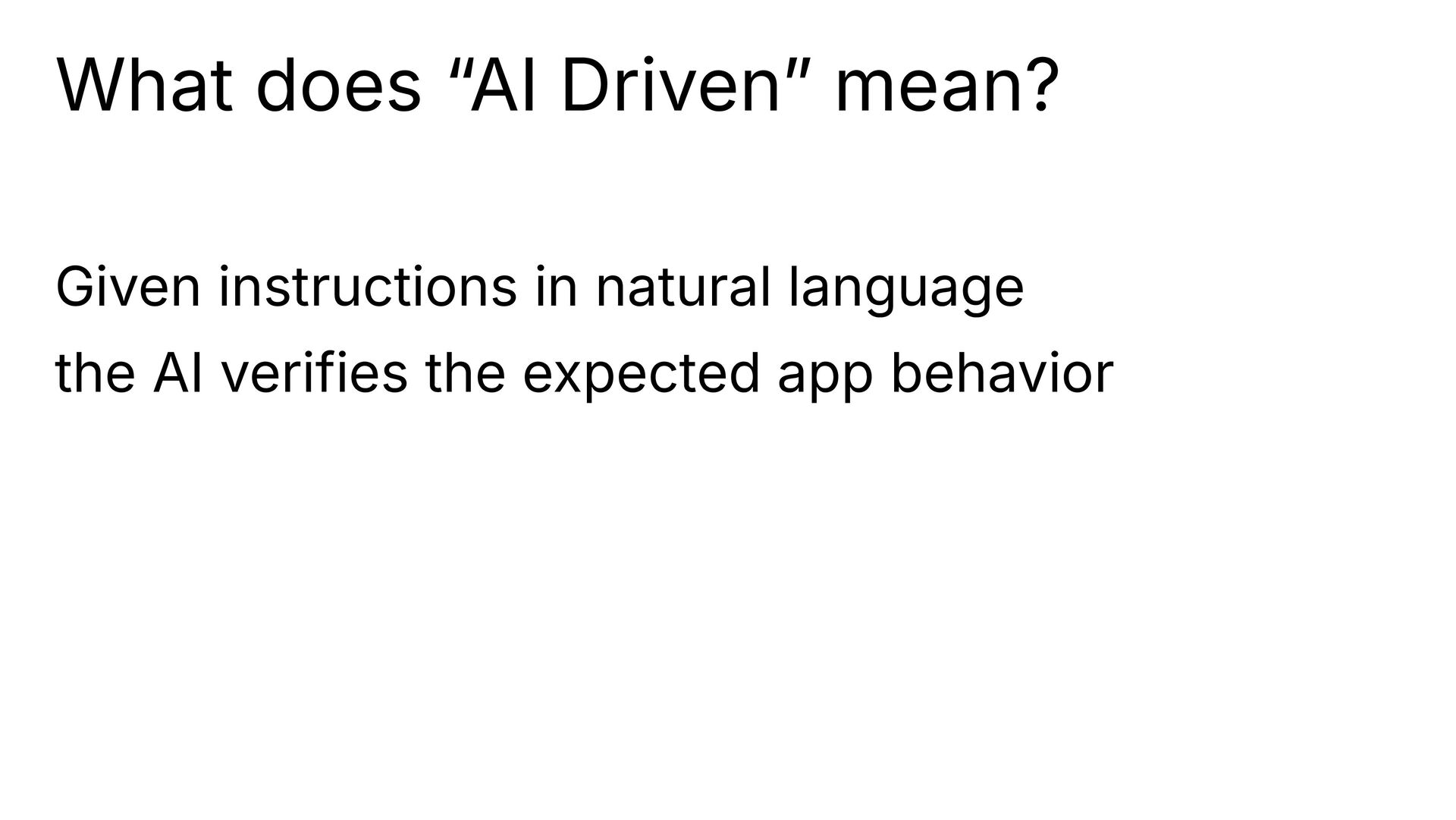

12. What does “AI Drivenˮ mean?
13. Given instructions in natural language the AI verifies the expected app behavior What does “AI Drivenˮ mean?
14. Start small 14

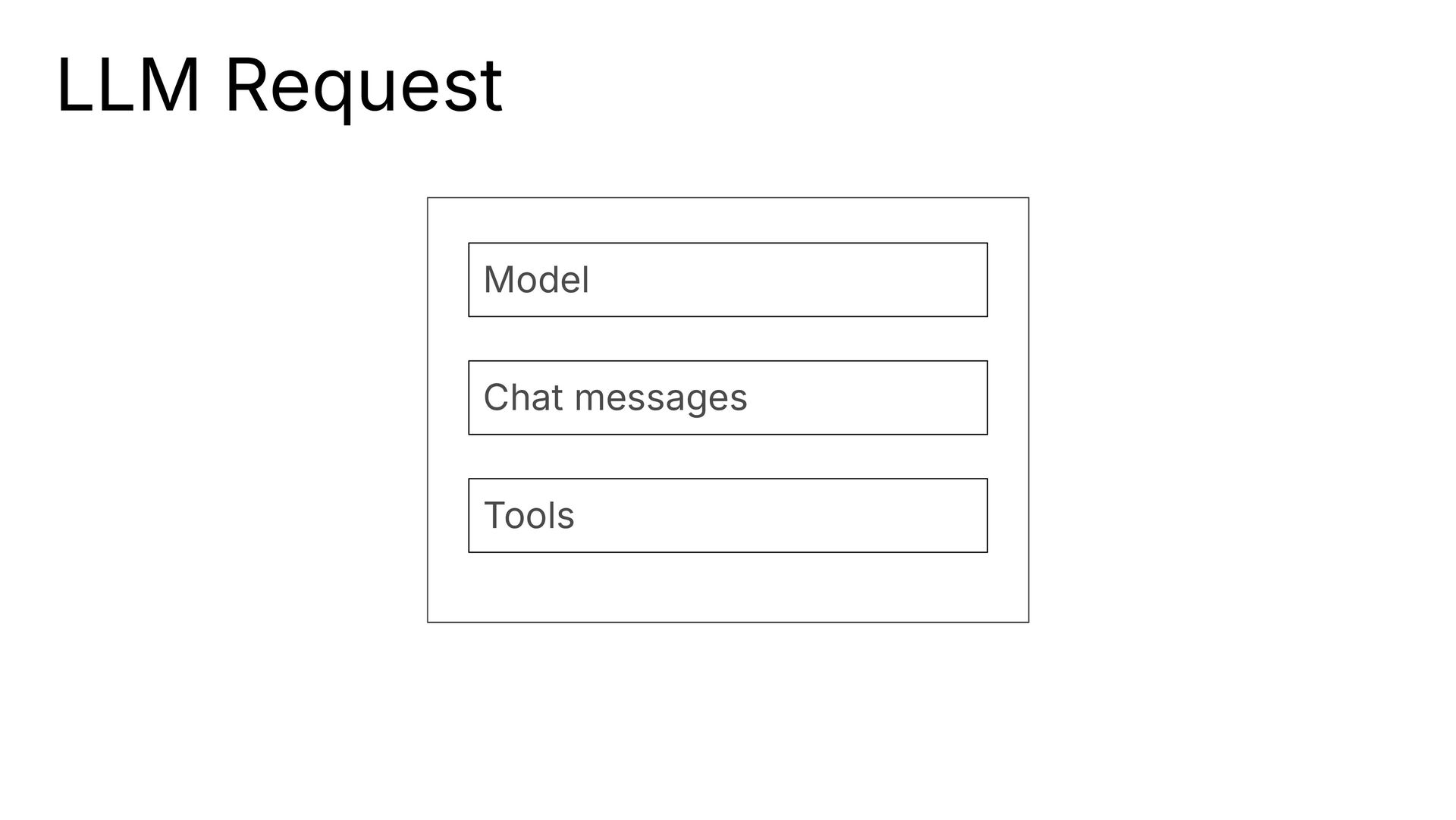

15. LLM Request Model Chat messages Tools

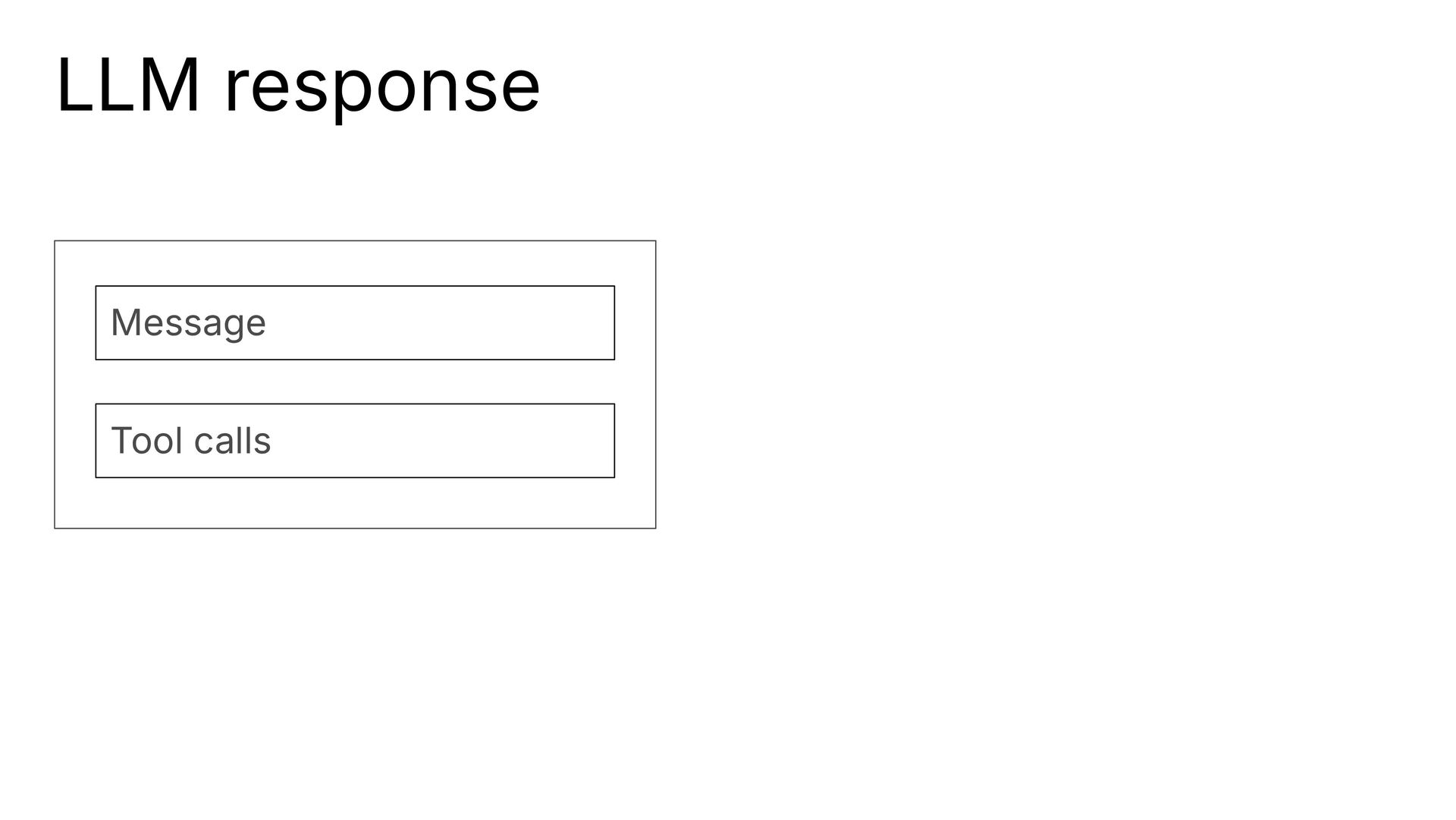

16. LLM response Message Tool calls
17. Agent loop // For every instruction do { val request = requestFor(task) val response = askLLM(request) handleToolCalls(response, task) } while (!task.isFinished())

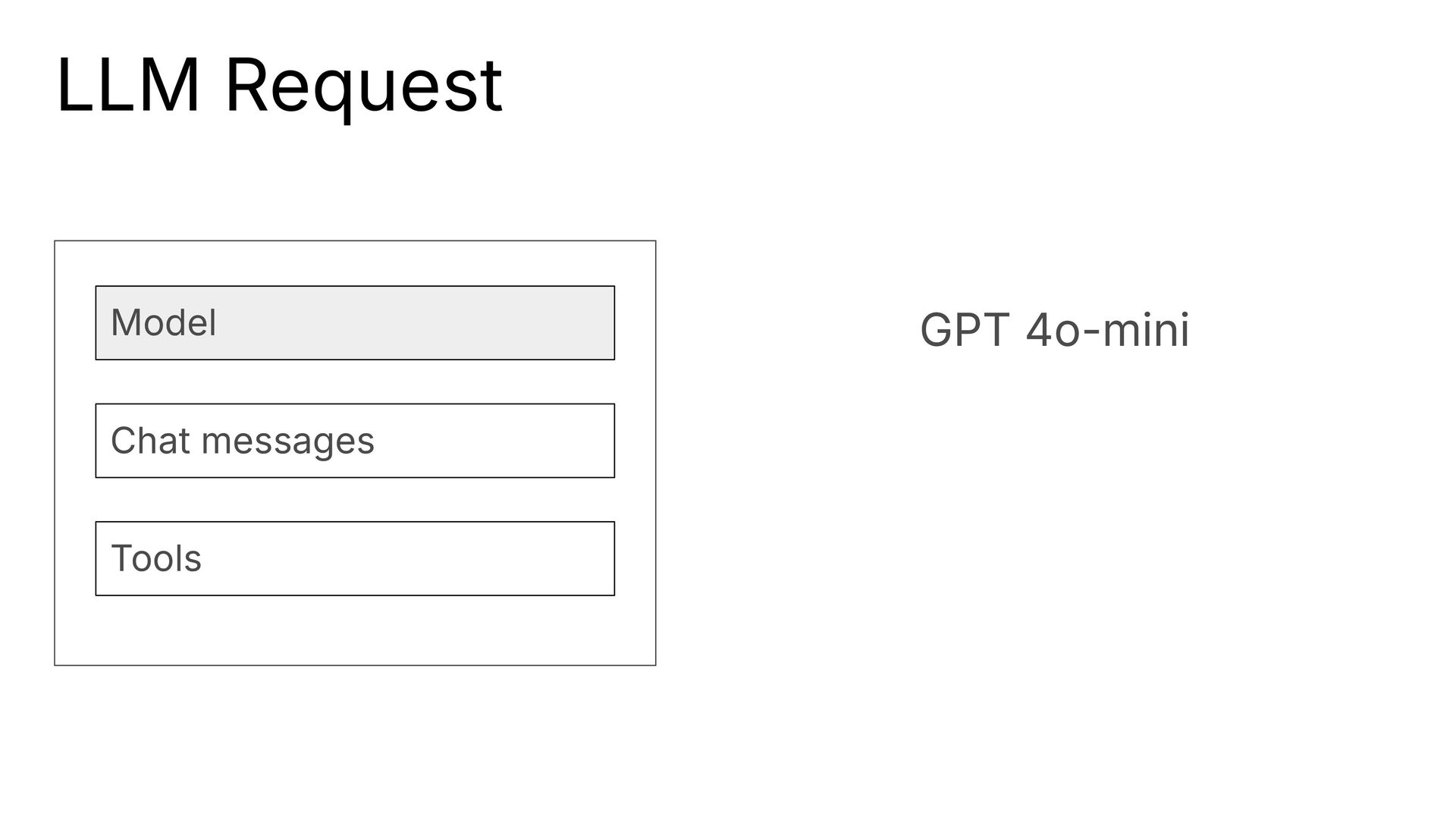

18. LLM Request Model Chat messages Tools GPT 4o-mini

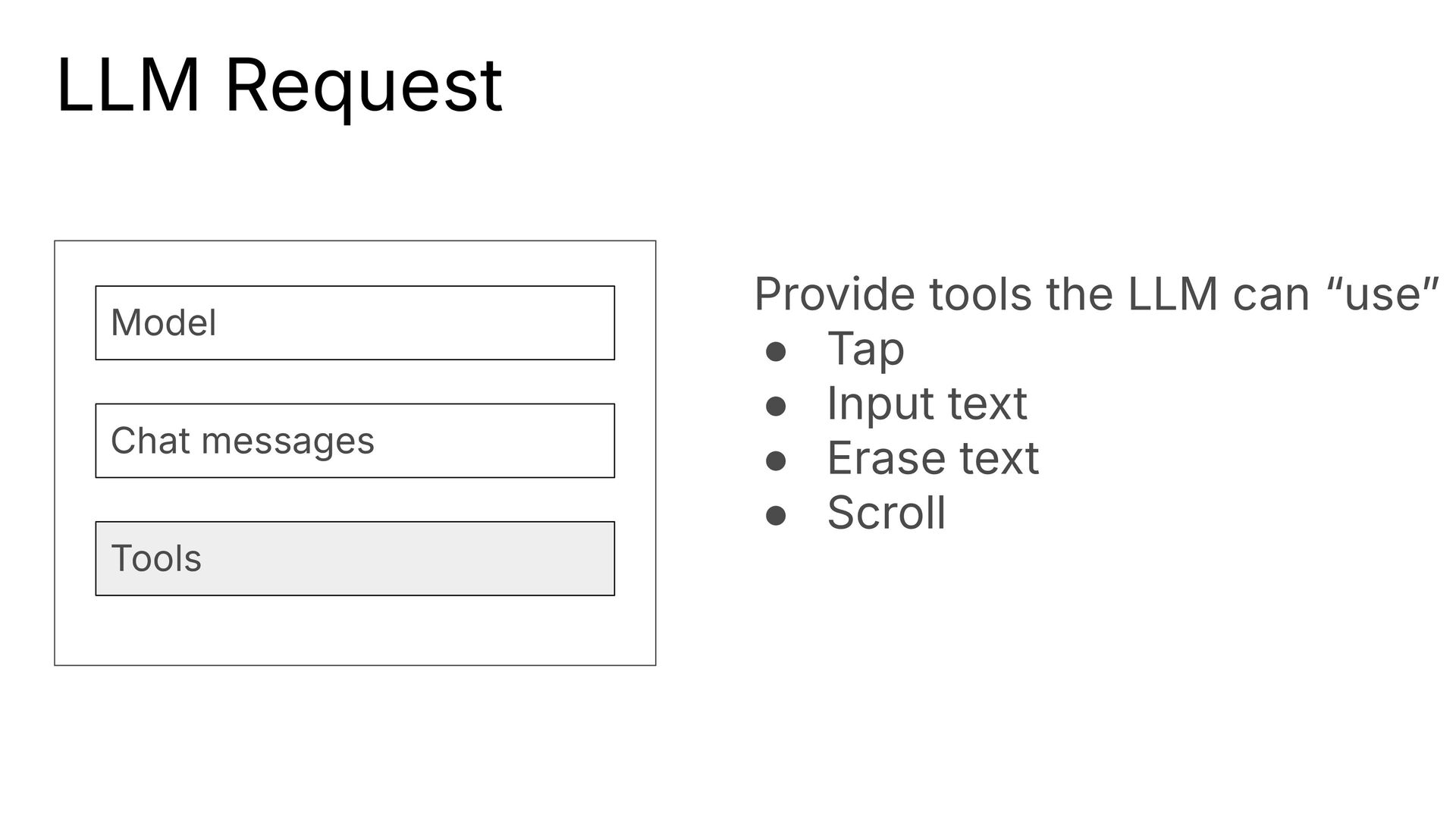

19. LLM Request Model Chat messages Tools Provide tools the LLM can “useˮ • Tap • Input text • Erase text • Scroll

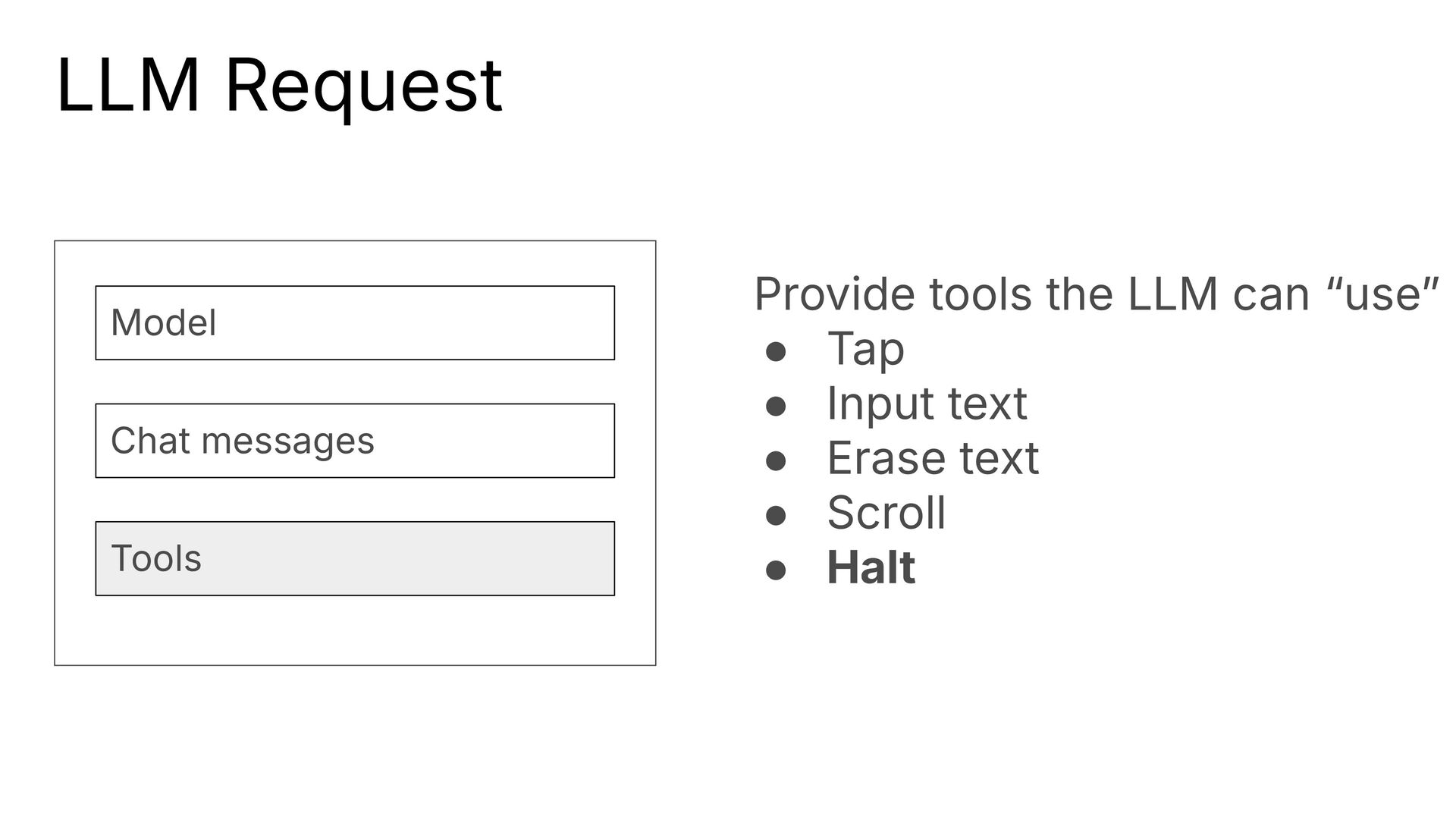

20. LLM Request Model Chat messages Tools Provide tools the LLM can “useˮ • Tap • Input text • Erase text • Scroll • Halt

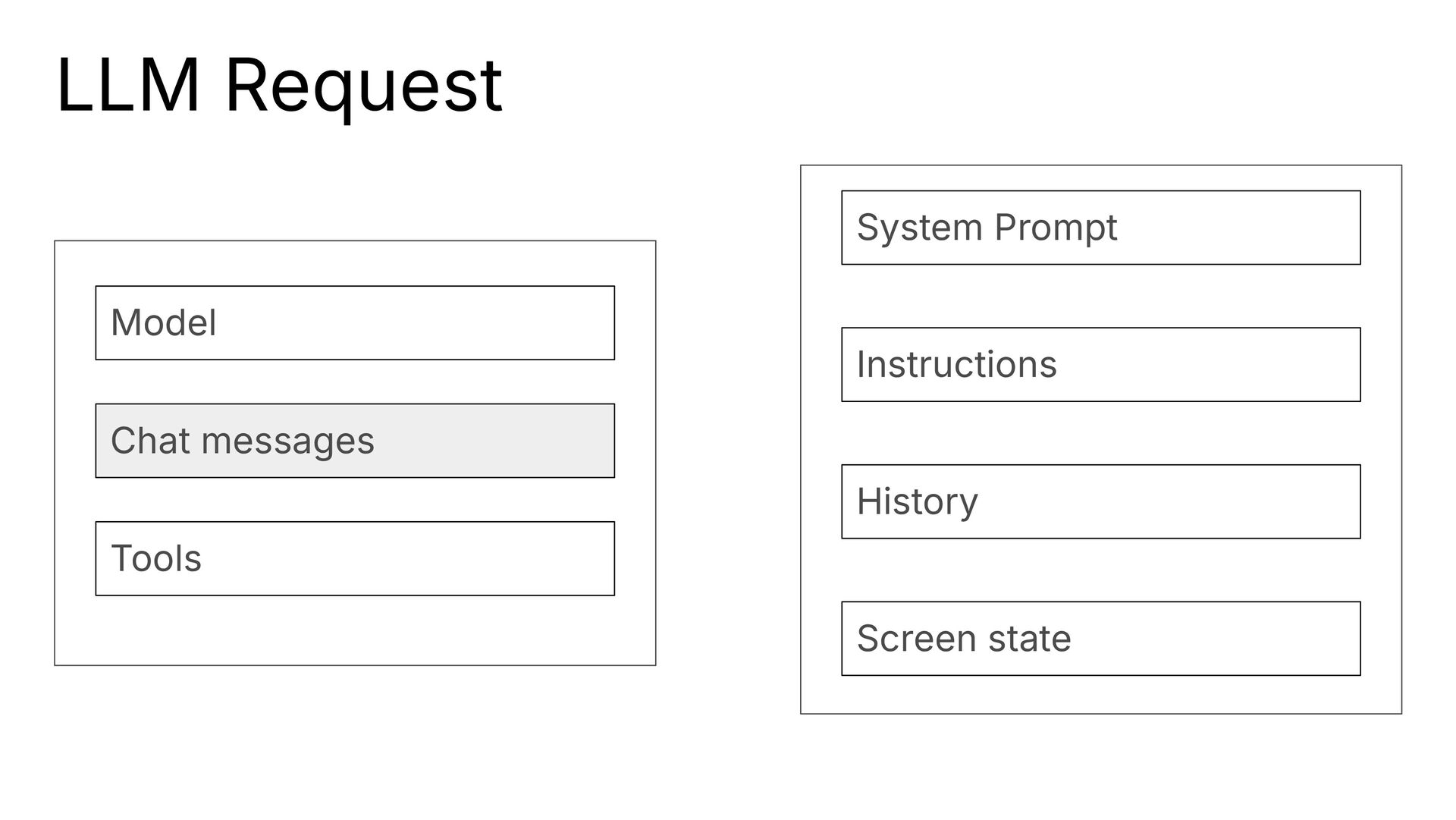

21. LLM Request Model Chat messages Tools System Prompt Instructions History Screen state

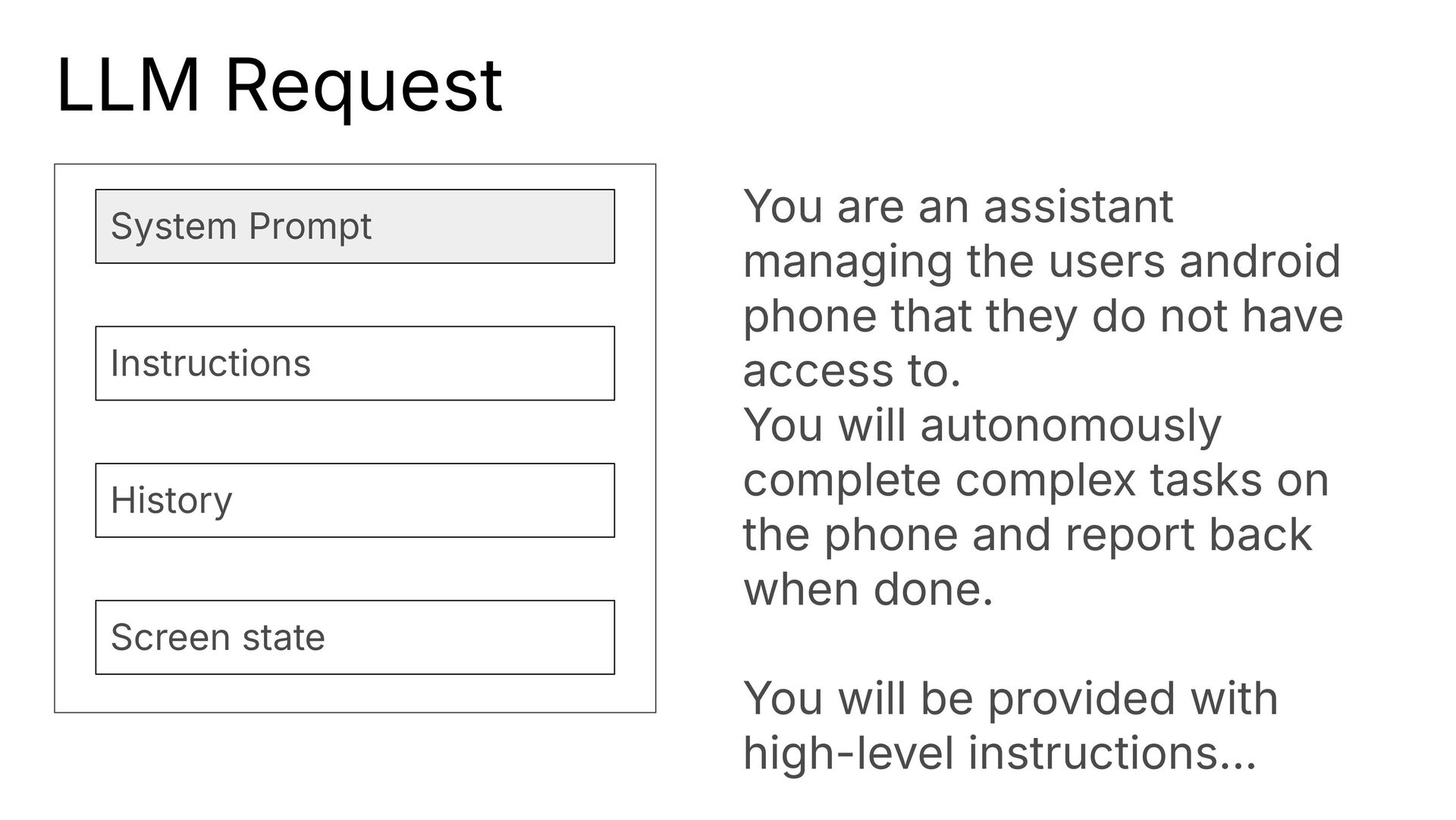

22. LLM Request System Prompt Instructions History Screen state You are an assistant managing the users android phone that they do not have access to. You will autonomously complete complex tasks on the phone and report back when done. You will be provided with high-level instructions…

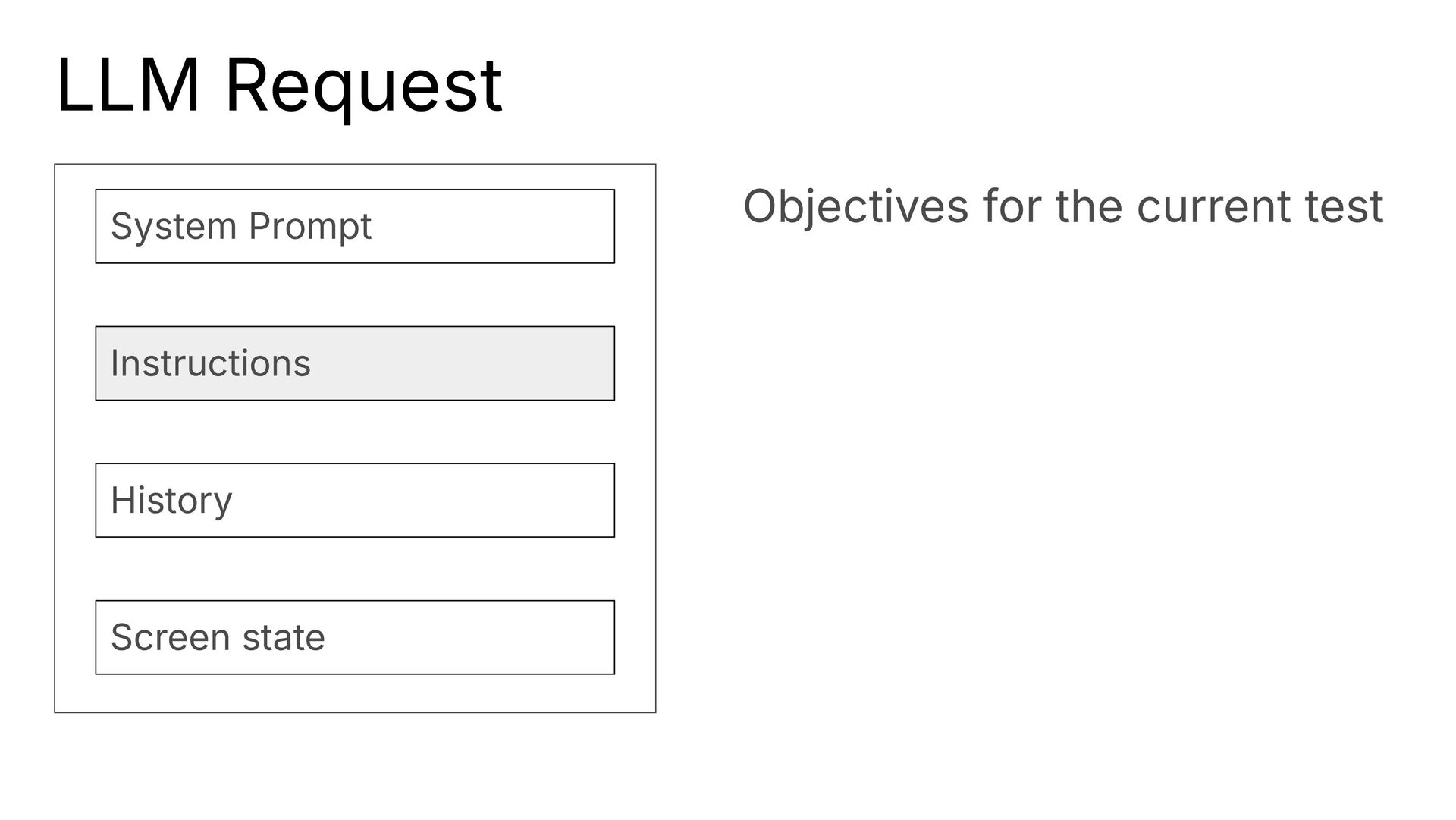

23. LLM Request System Prompt Instructions History Screen state Objectives for the current test

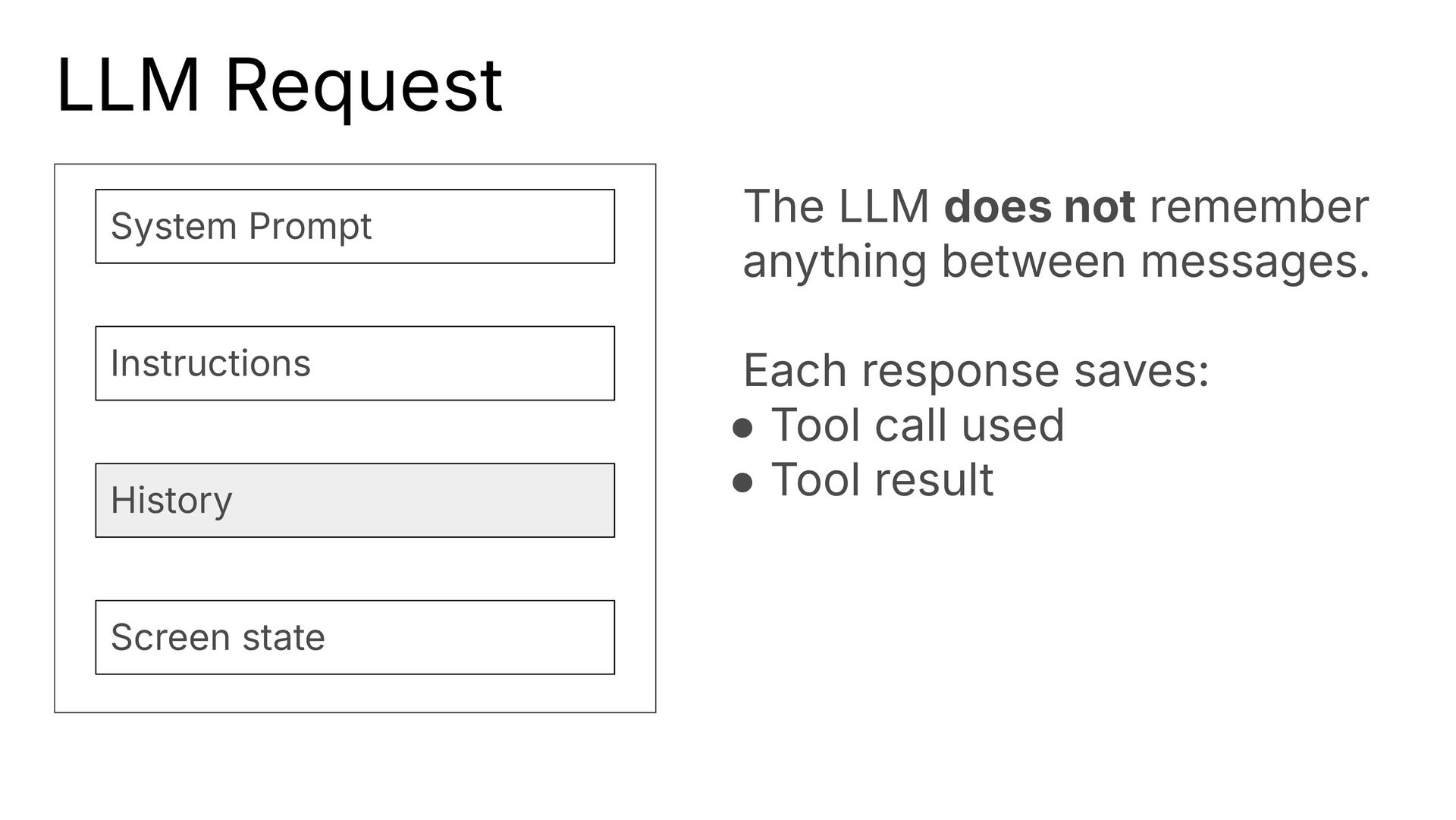

24. LLM Request System Prompt Instructions History Screen state The LLM does not remember anything between messages. Each response saves: • Tool call used • Tool result

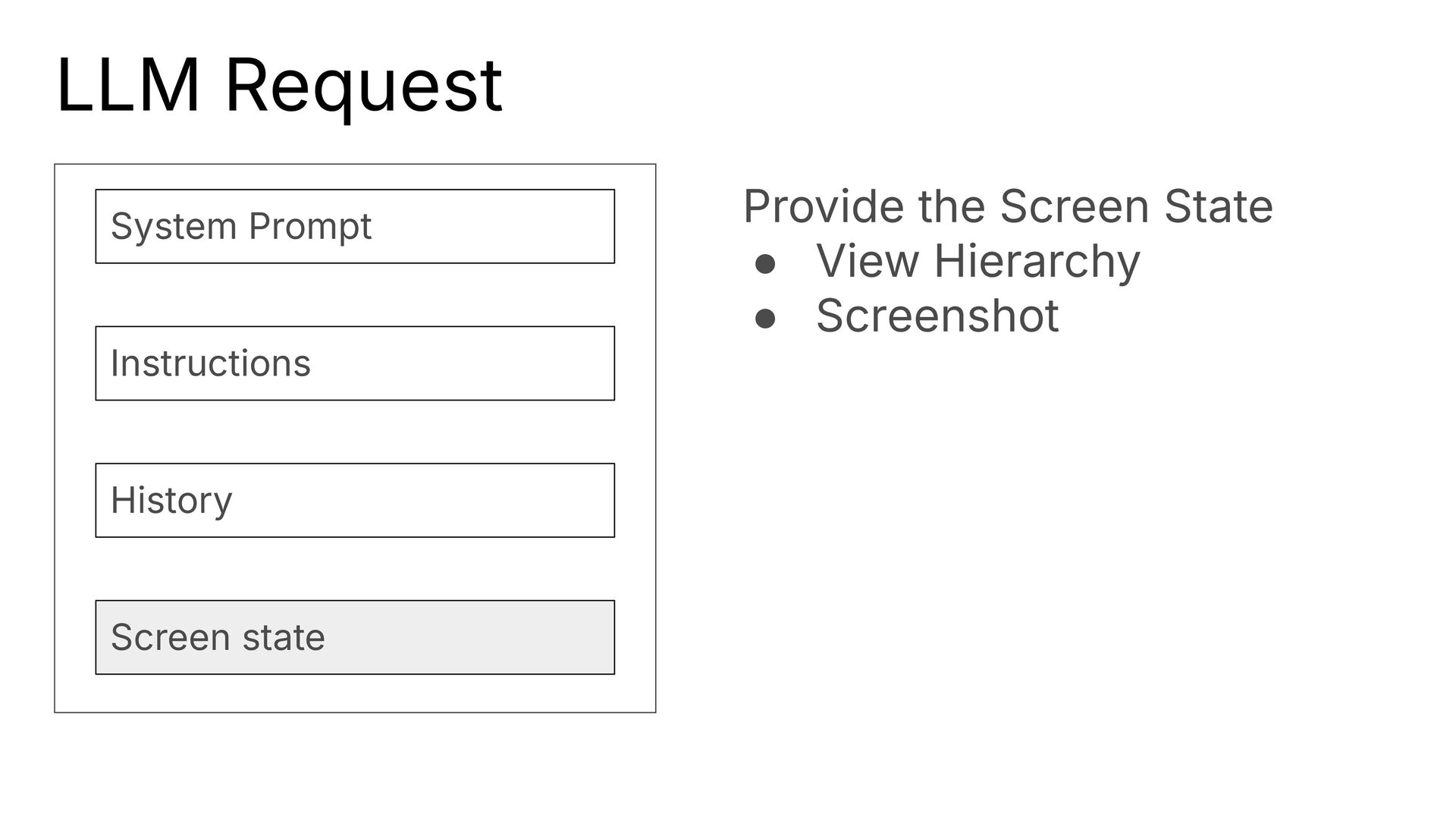

25. LLM Request System Prompt Instructions History Screen state Provide the Screen State • View Hierarchy • Screenshot

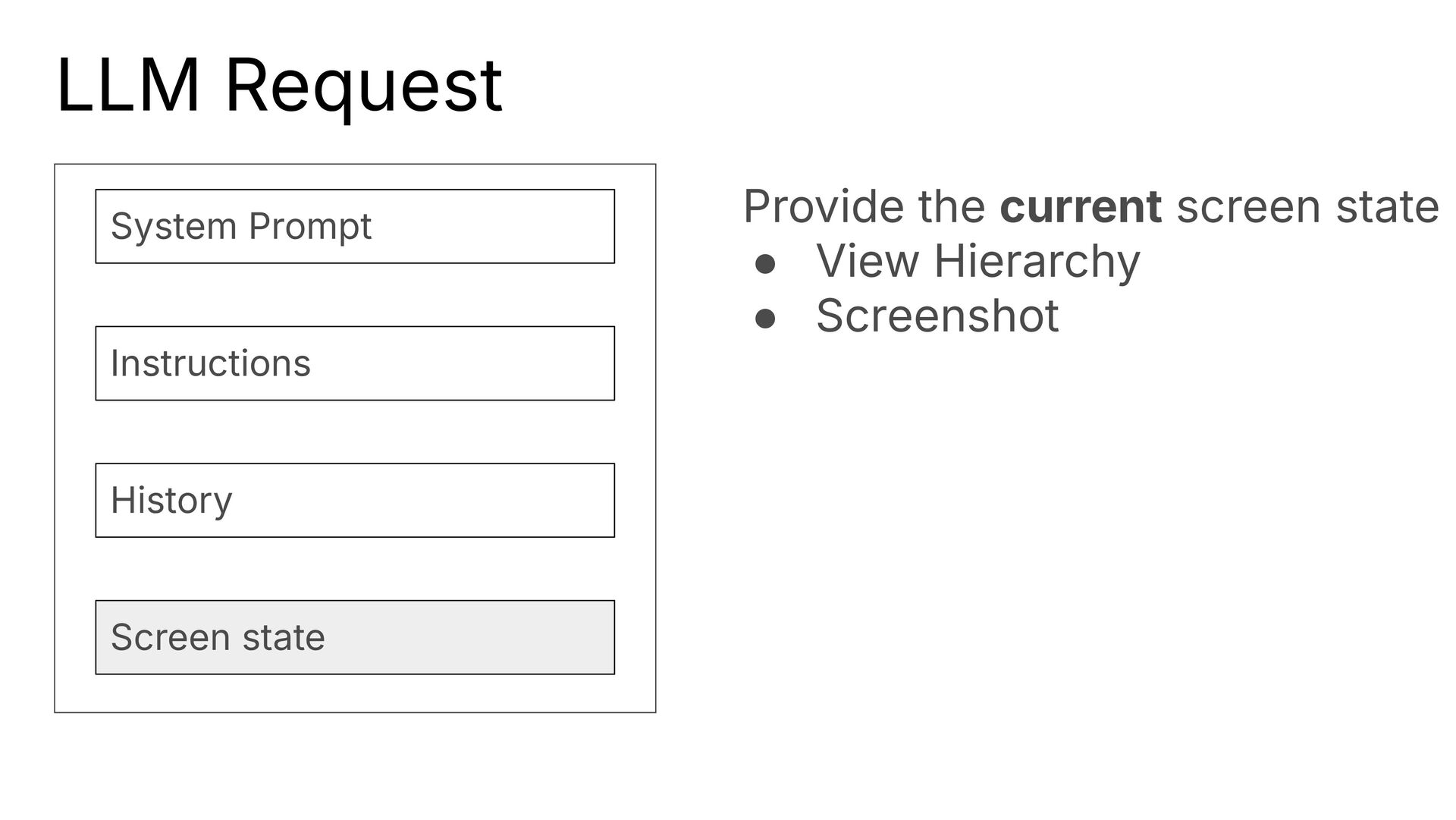

26. LLM Request System Prompt Instructions History Screen state Provide the current screen state • View Hierarchy • Screenshot

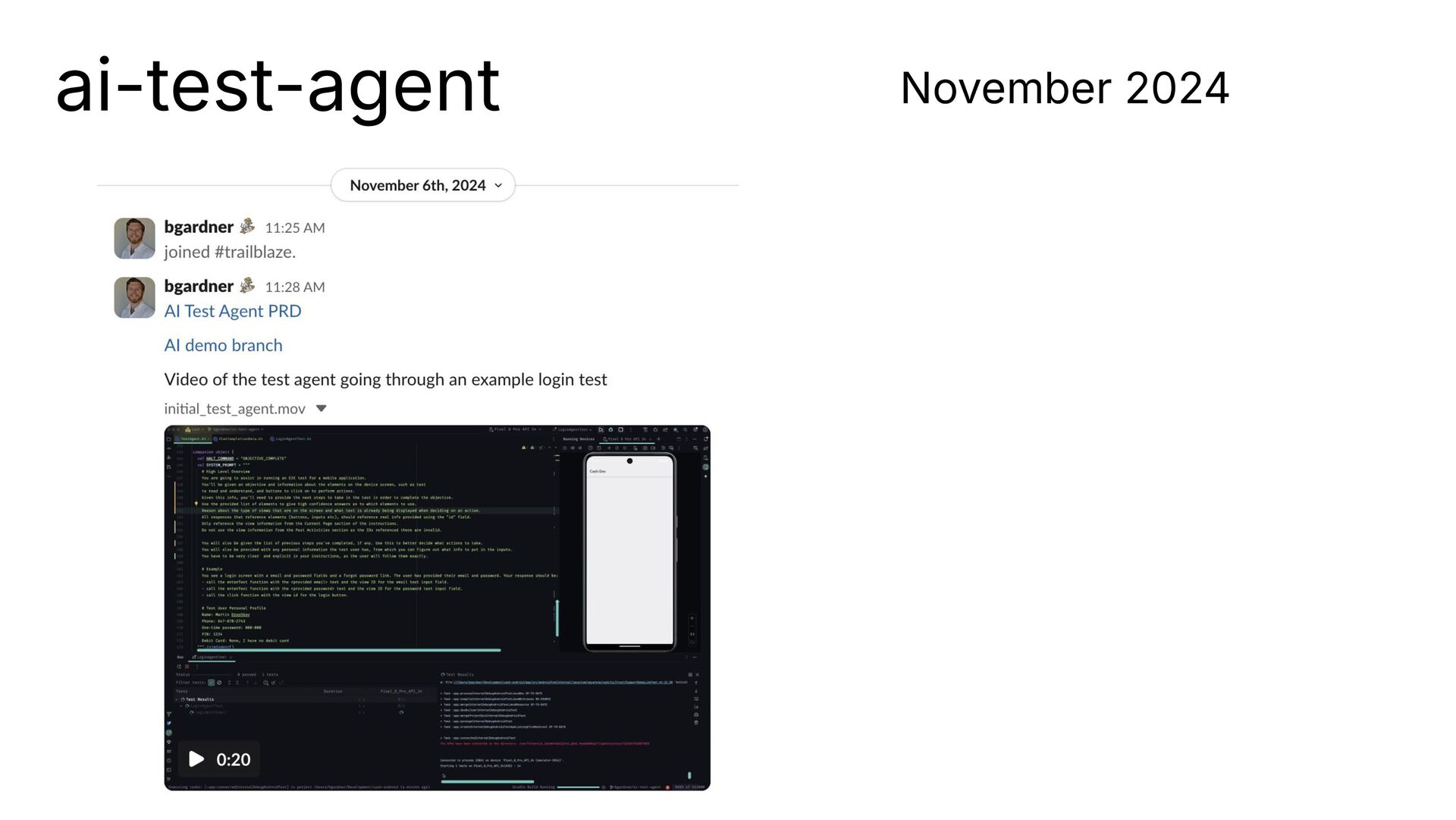

27. ai-test-agent November 2024

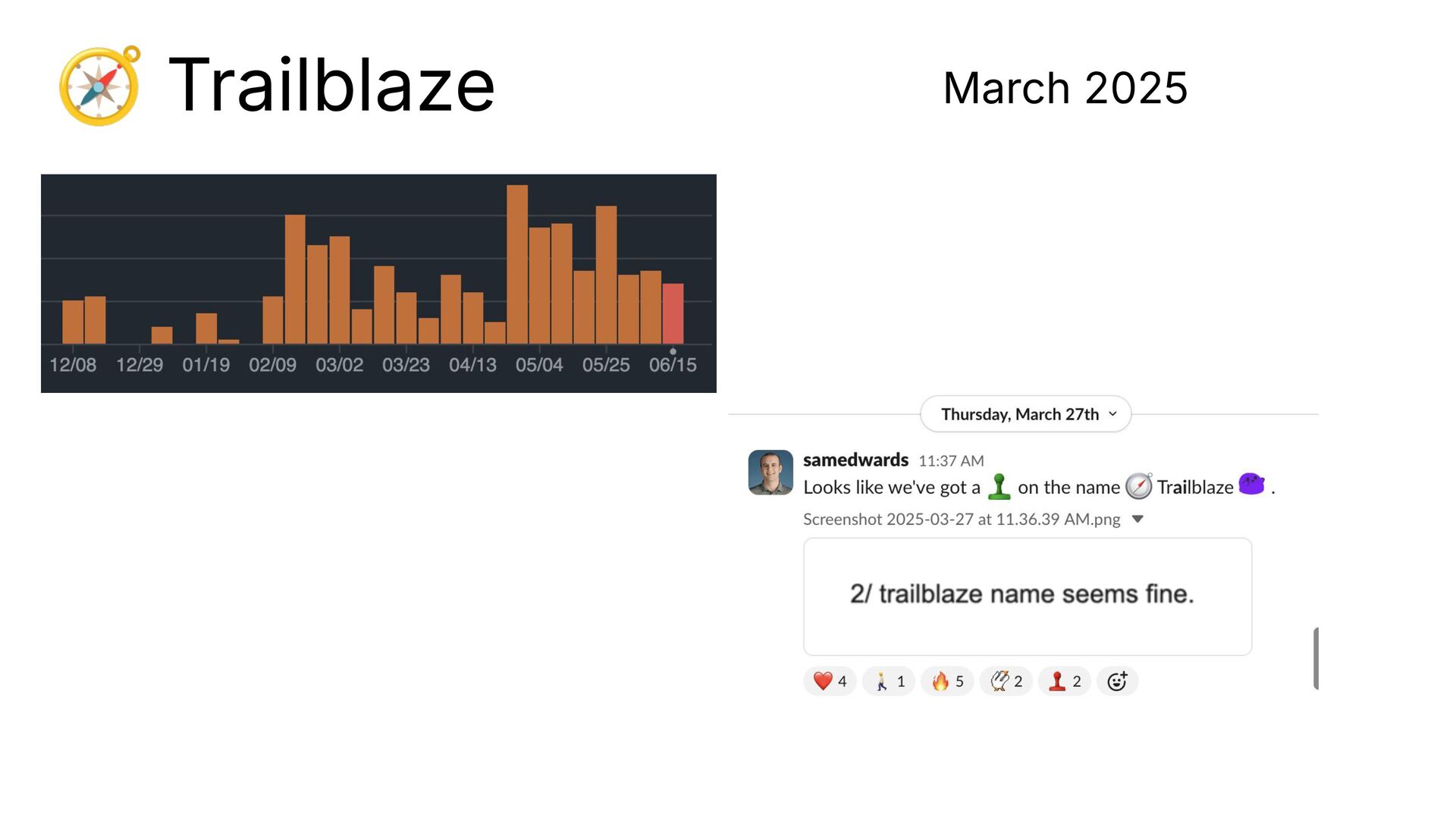

28. 🧭 Trailblaze March 2025

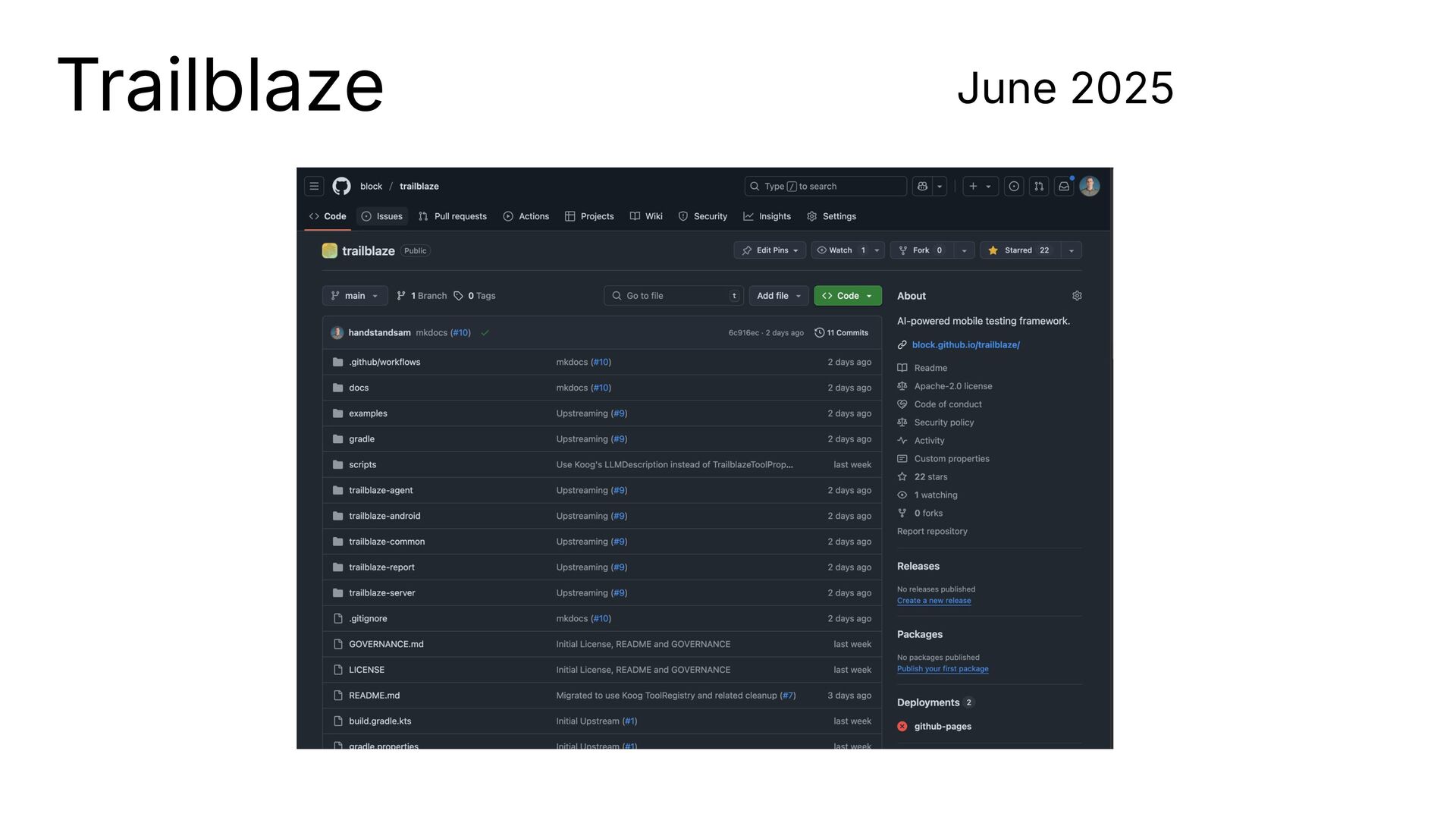

29. Trailblaze June 2025
30. Productionizing Beyond the Basics 30

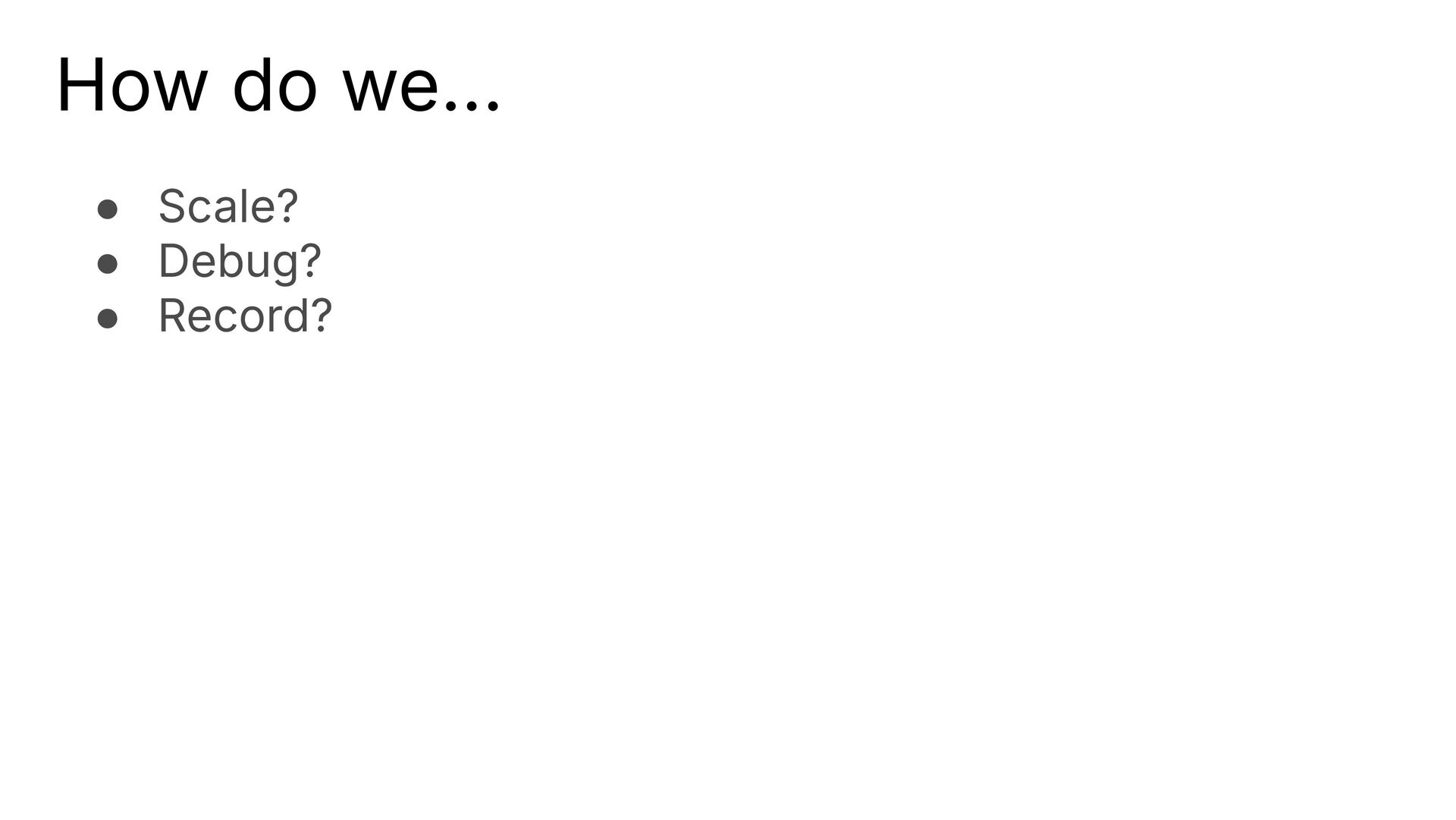

31. How do we… • Scale? • Debug? • Record?

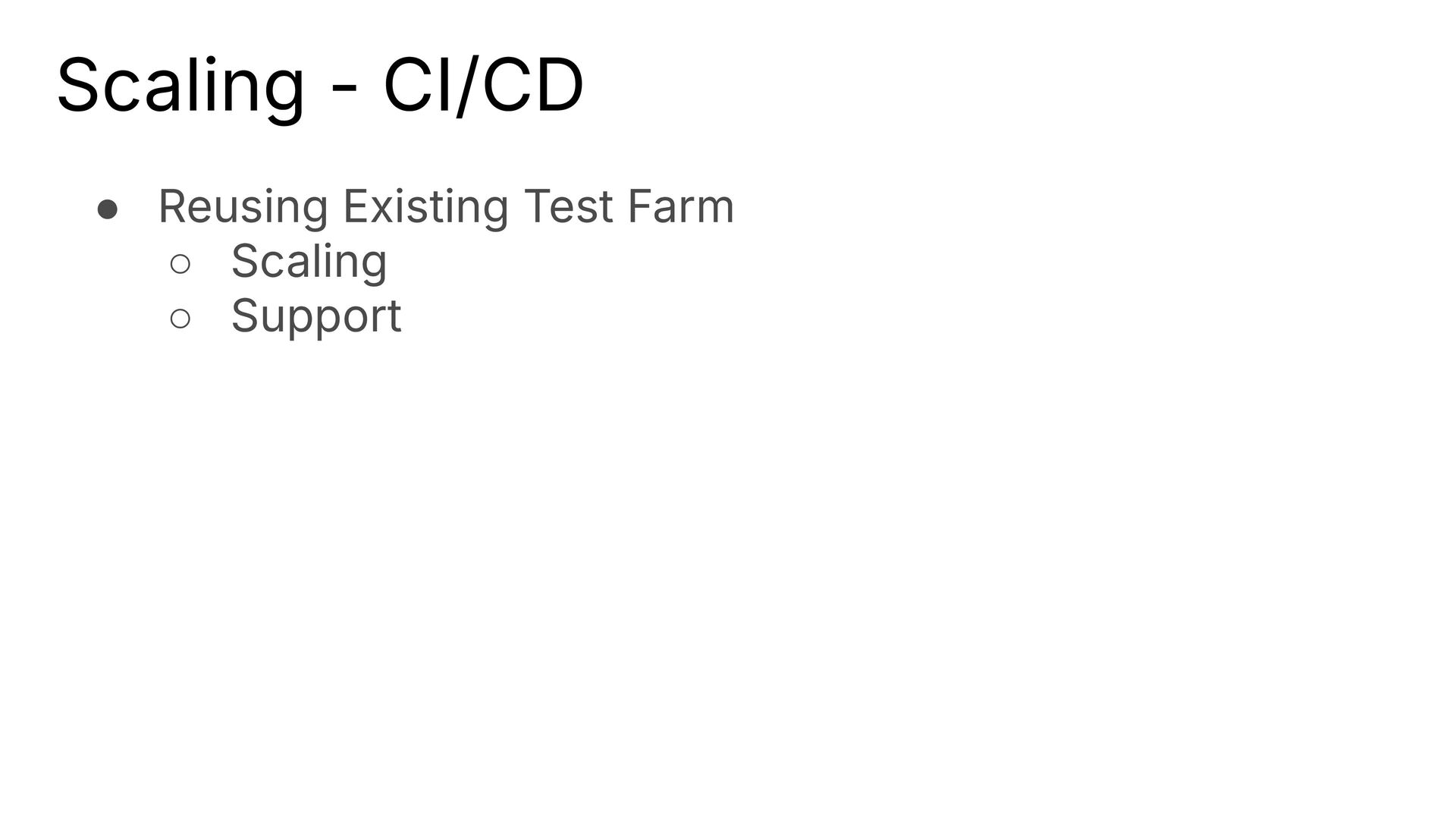

32. Scaling - CI/CD • Reusing Existing Test Farm ◦ Scaling ◦ Support

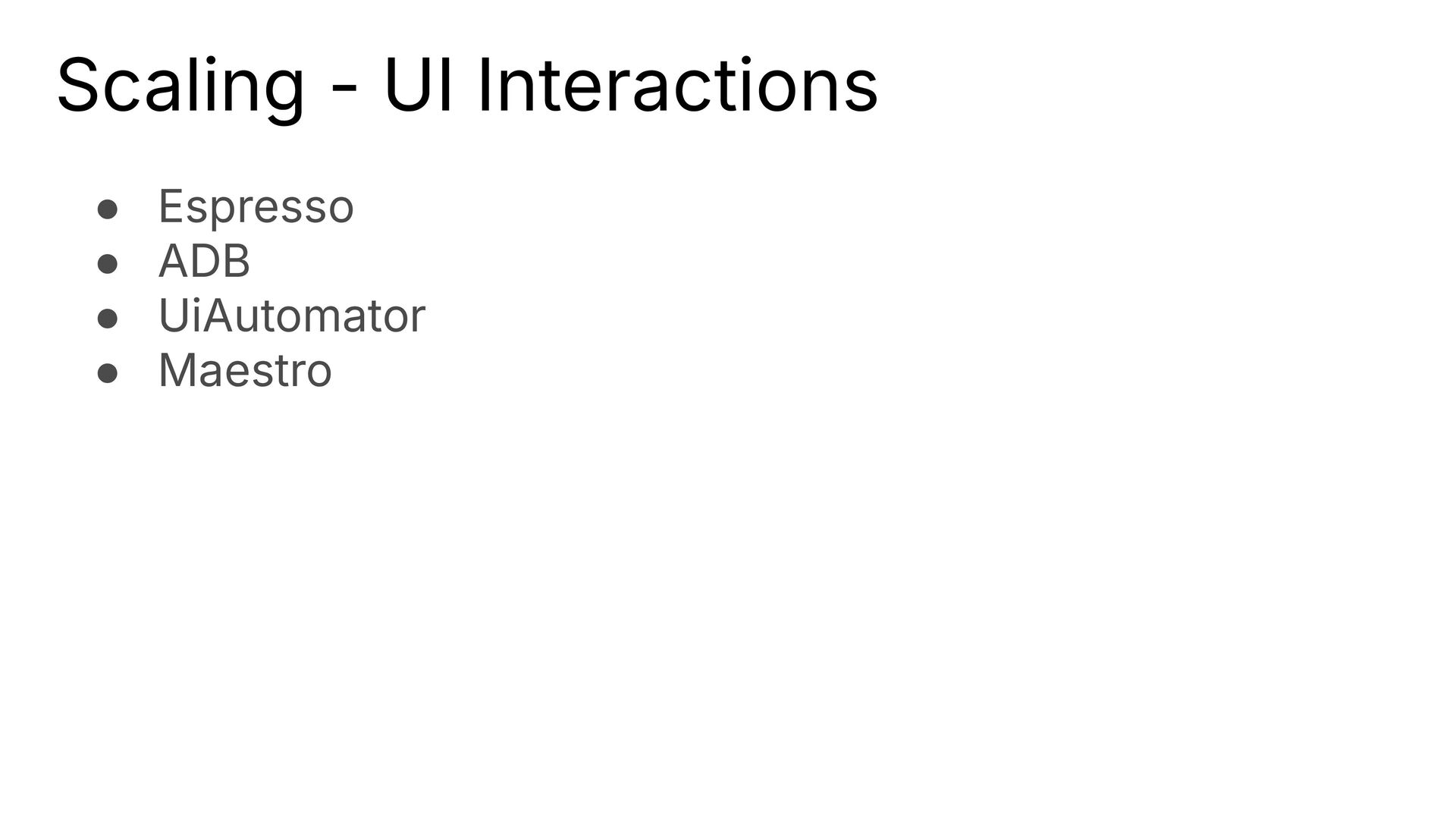

33. Scaling - UI Interactions • Espresso • ADB • UiAutomator • Maestro

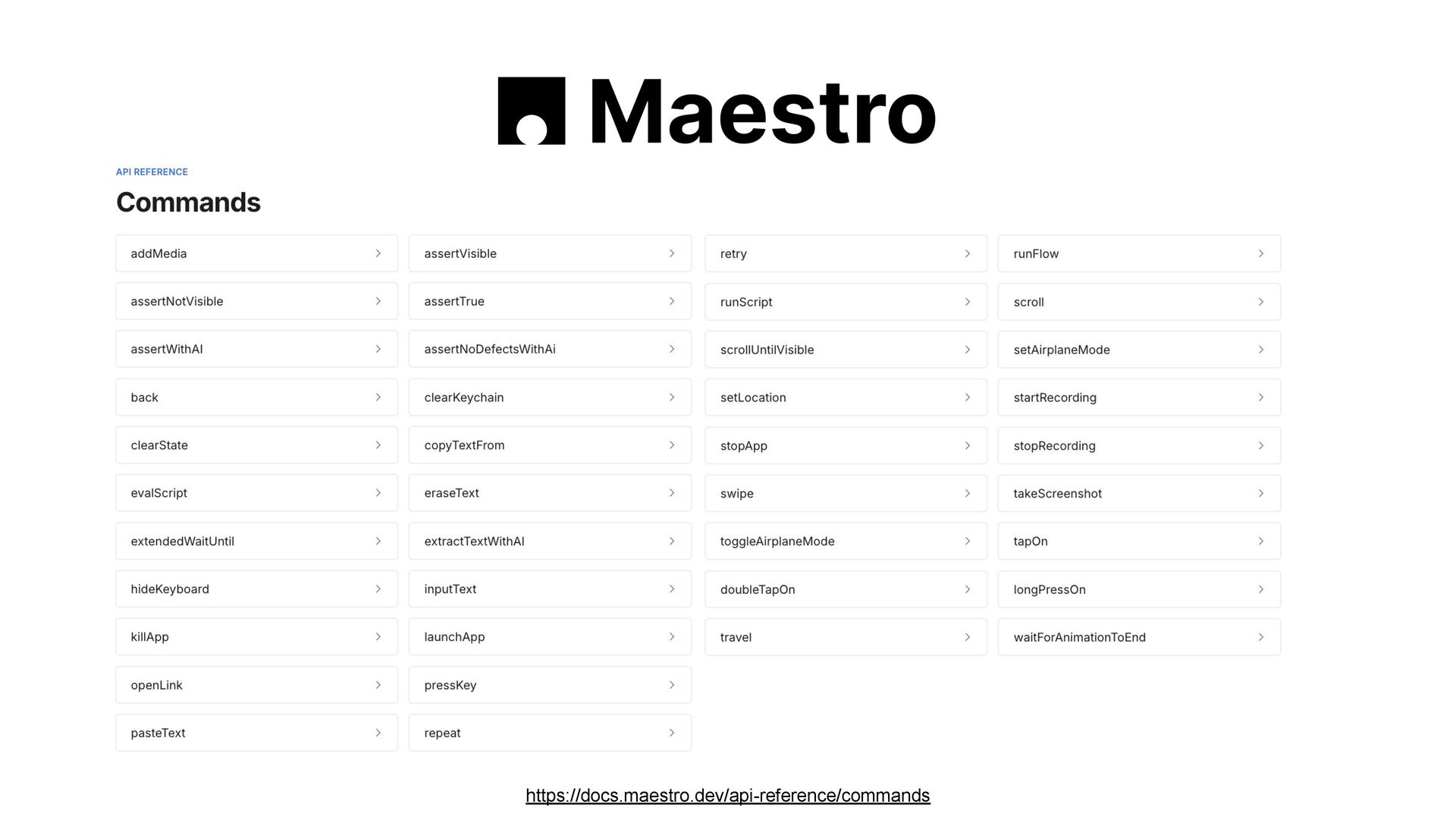

34. https://docs.maestro.dev/api-reference/commands

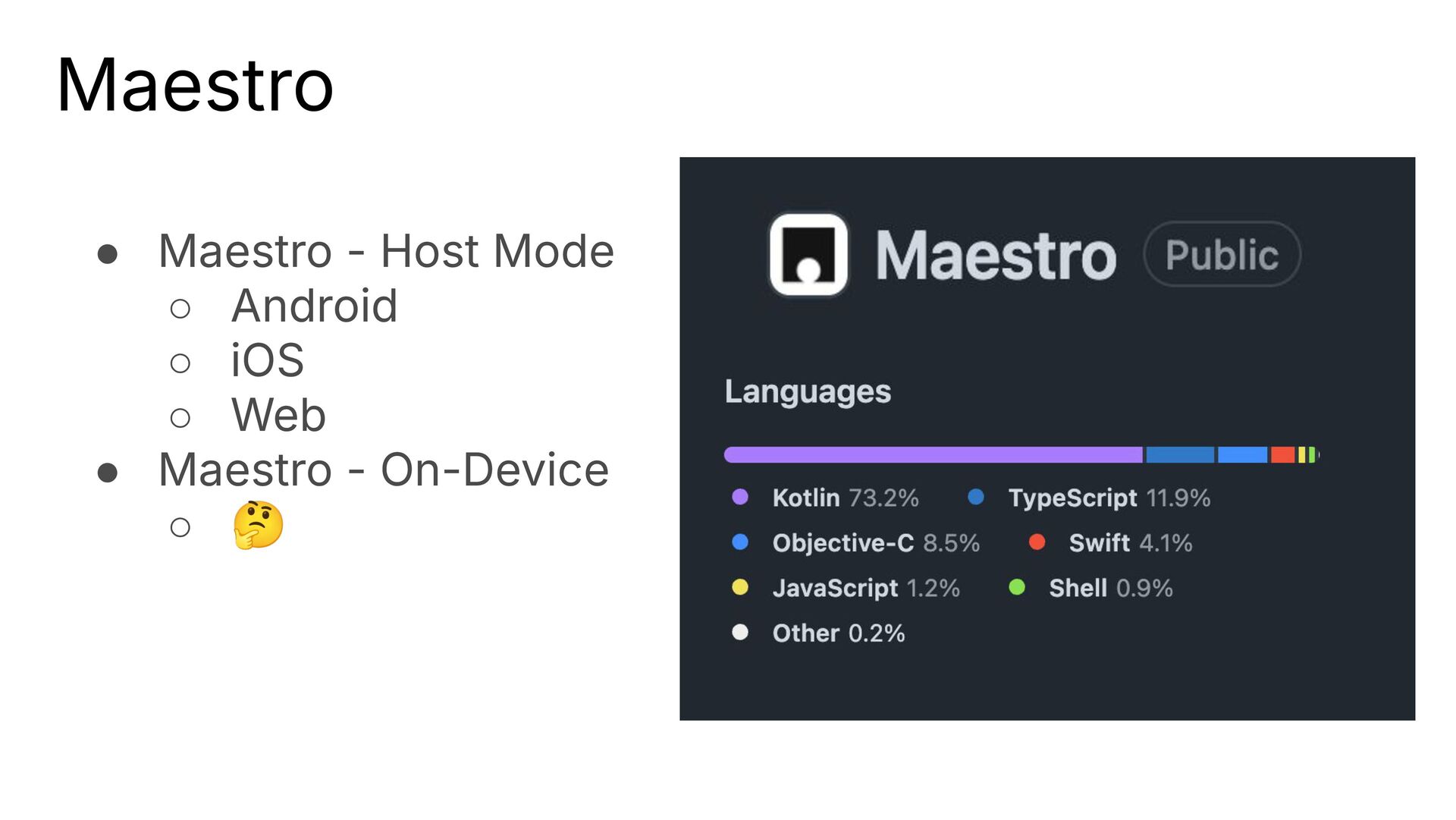

35. Maestro • Maestro - Host Mode ◦ Android ◦ iOS ◦ Web • Maestro - On-Device ◦ 🤔

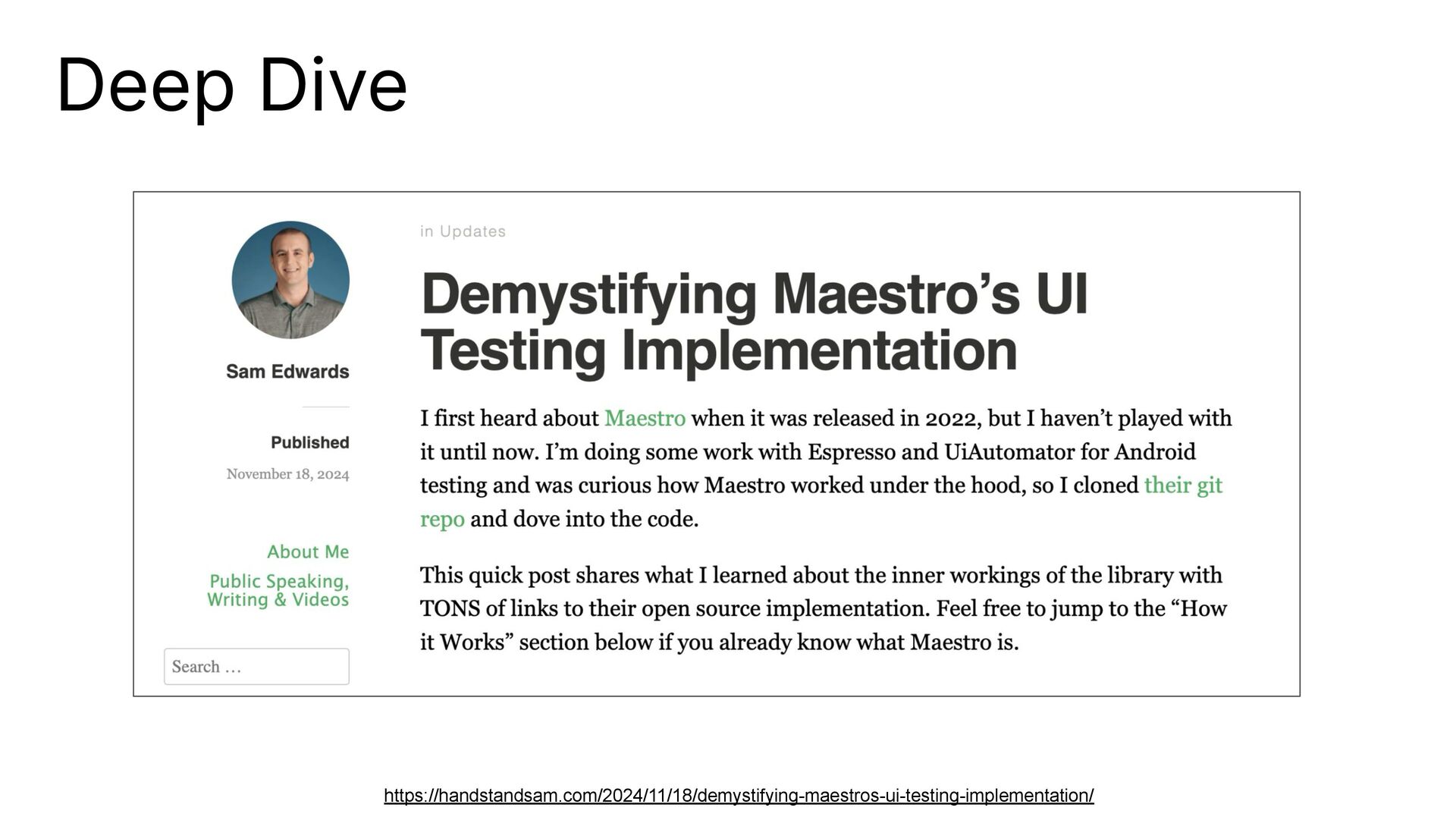

36. Deep Dive https://handstandsam.com/2024/11/18/demystifying-maestros-ui-testing-implementation/

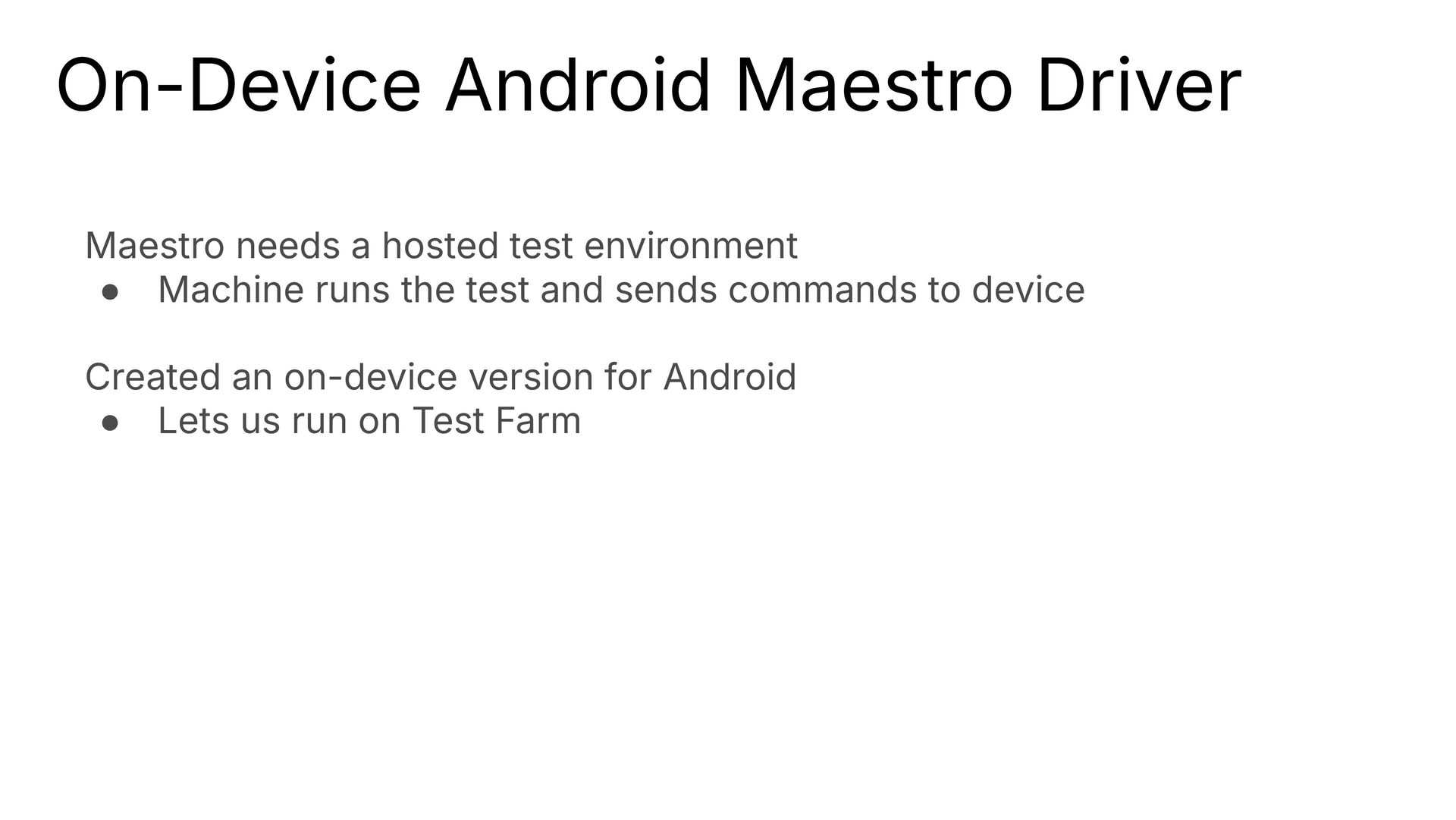

37. On-Device Android Maestro Driver Maestro needs a hosted test environment • Machine runs the test and sends commands to device Created an on-device version for Android • Lets us run on Test Farm

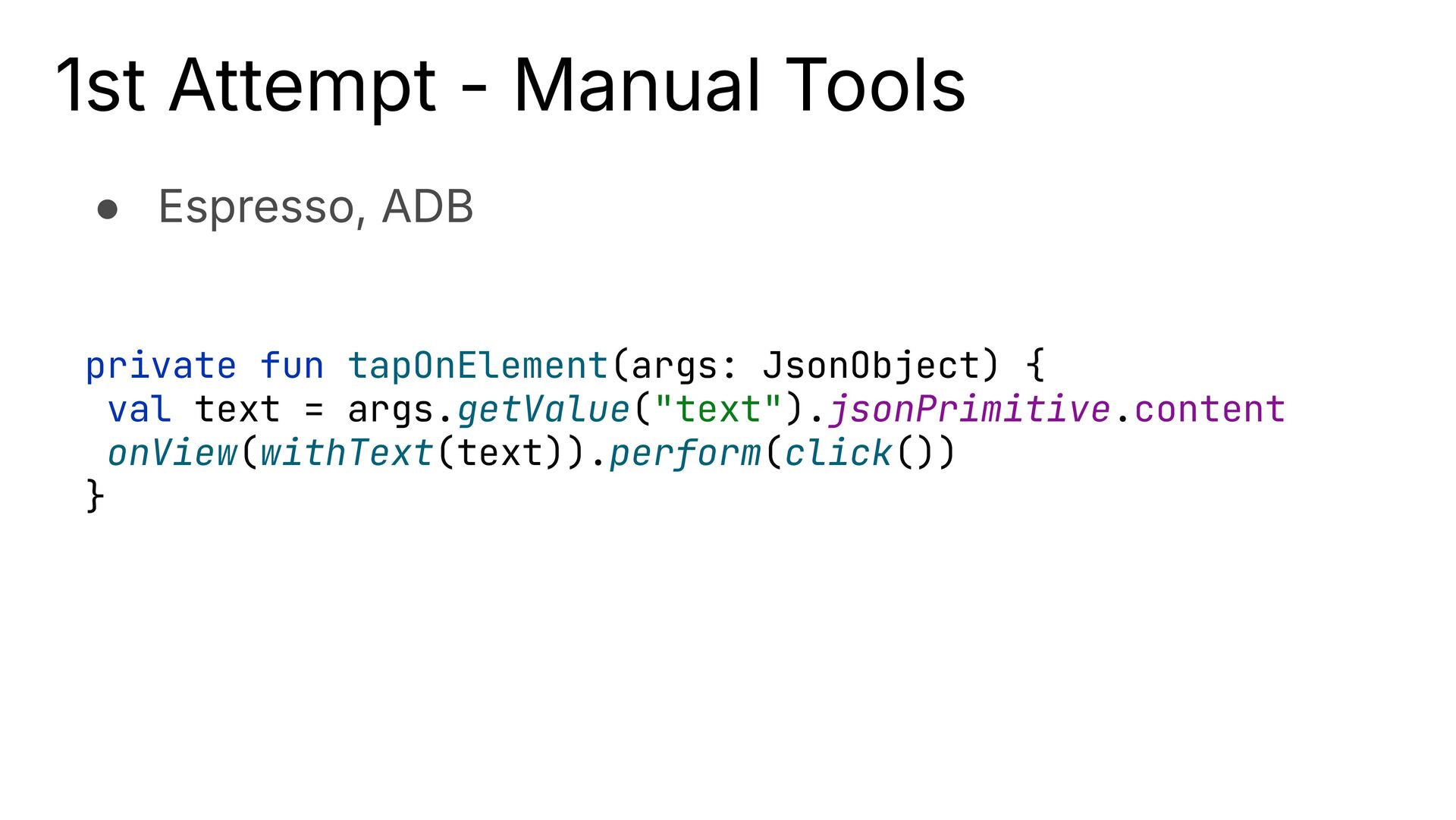

38. 1st Attempt - Manual Tools private fun tapOnElement(args: JsonObject) { val text = args.getValue("text").jsonPrimitive.content onView(withText(text)).perform(click()) } • Espresso, ADB

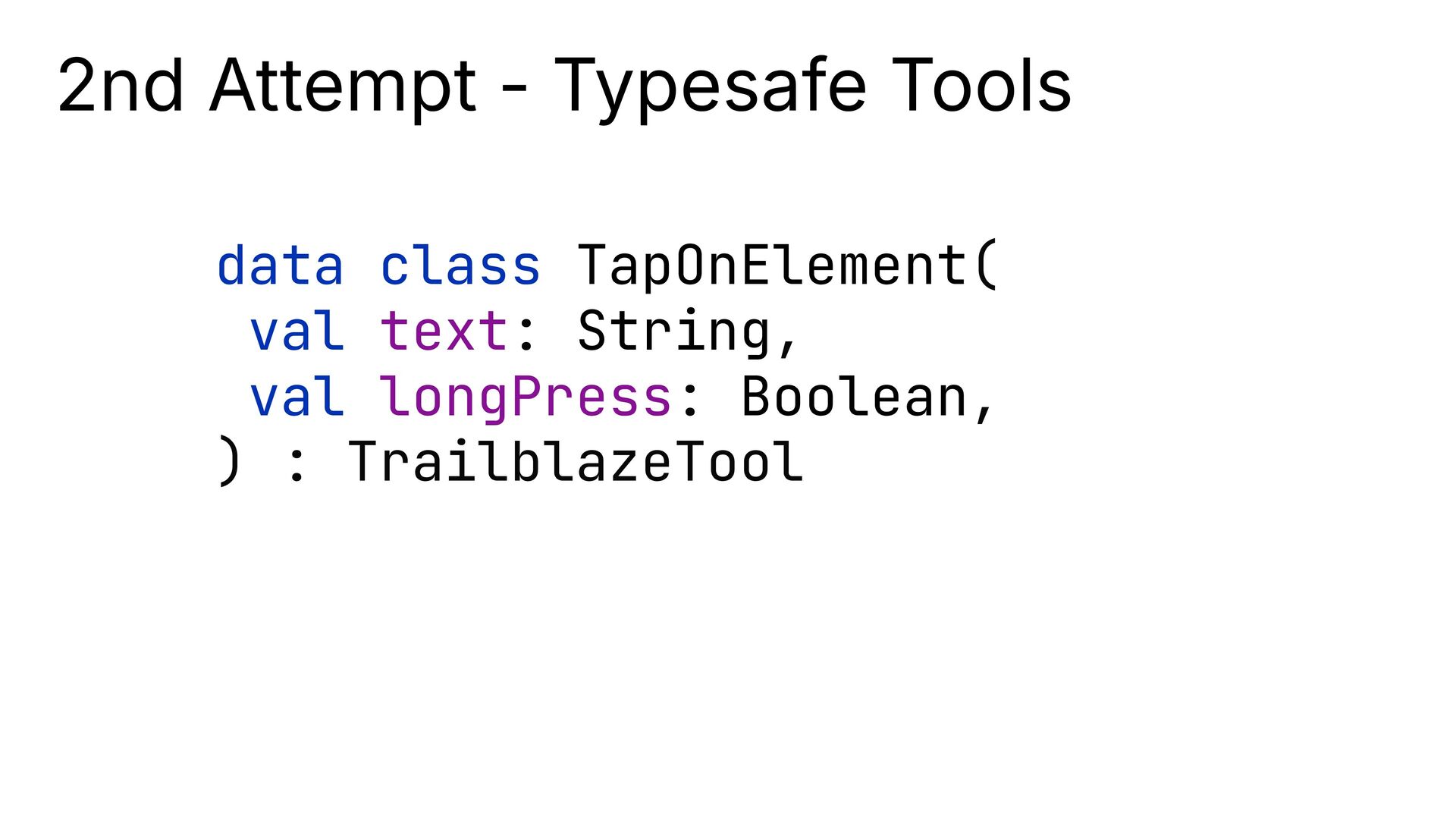

39. 2nd Attempt - Typesafe Tools data class TapOnElement( val text: String, val longPress: Boolean, ) : TrailblazeTool

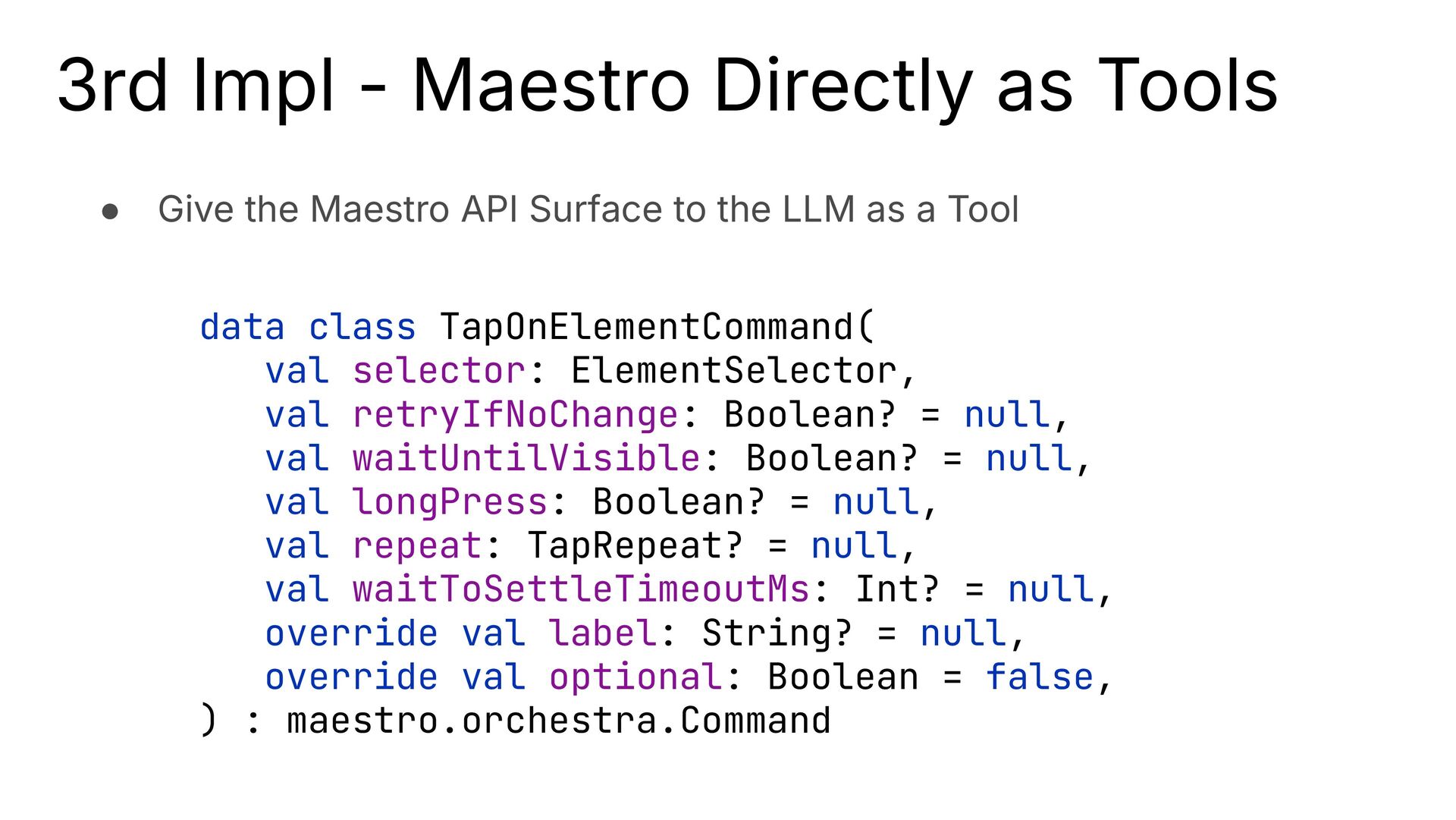

40. 3rd Impl - Maestro Directly as Tools • Give the Maestro API Surface to the LLM as a Tool data class TapOnElementCommand( val selector: ElementSelector, val retryIfNoChange: Boolean? = null, val waitUntilVisible: Boolean? = null, val longPress: Boolean? = null, val repeat: TapRepeat? = null, val waitToSettleTimeoutMs: Int? = null, override val label: String? = null, override val optional: Boolean = false, ) : maestro.orchestra.Command

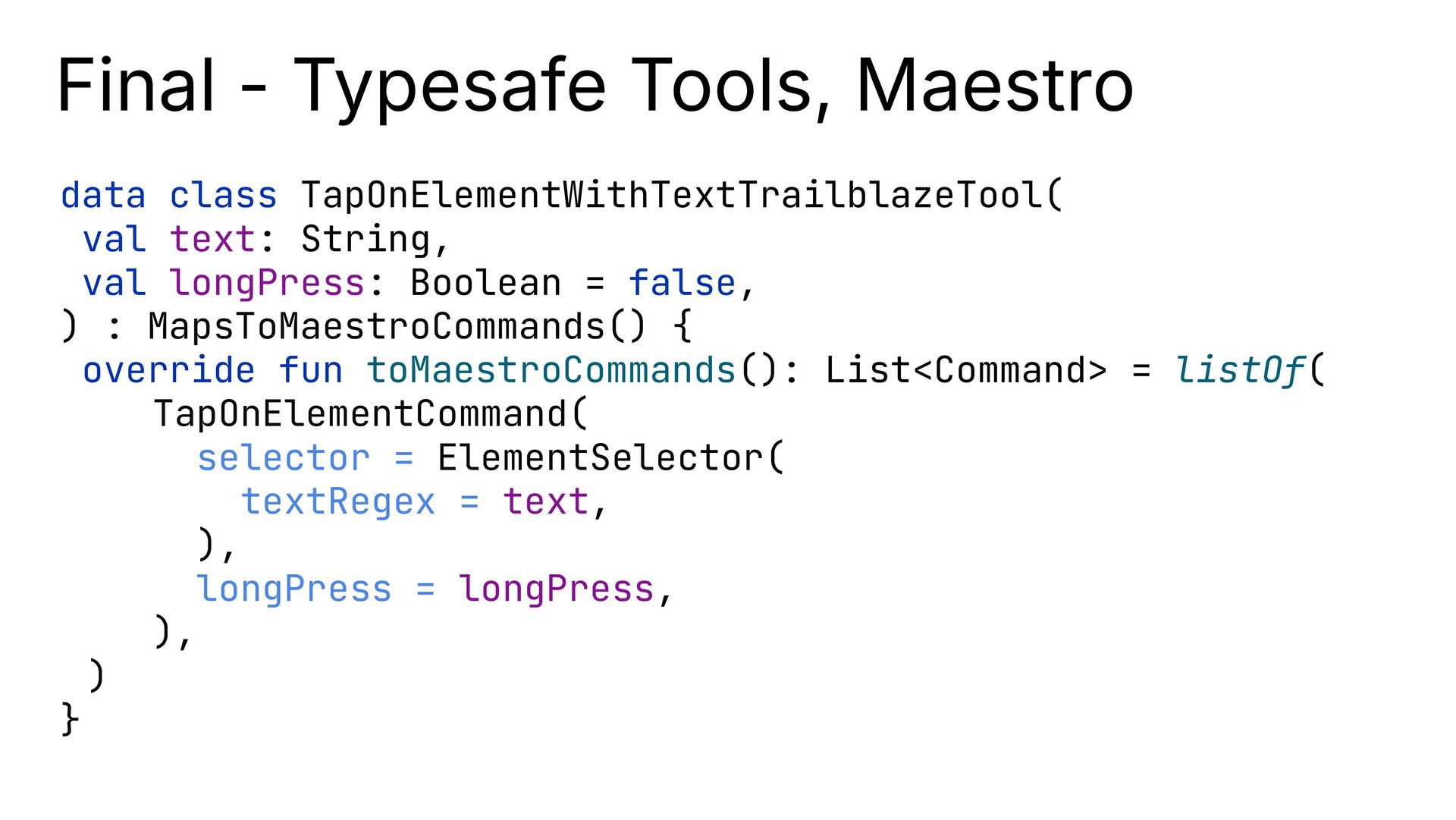

41. Final - Typesafe Tools, Maestro data class TapOnElementWithTextTrailblazeTool( val text: String, val longPress: Boolean = false, ) : MapsToMaestroCommands() { override fun toMaestroCommands(): List<Command> = listOf( TapOnElementCommand( selector = ElementSelector( textRegex = text, ), longPress = longPress, ), ) }

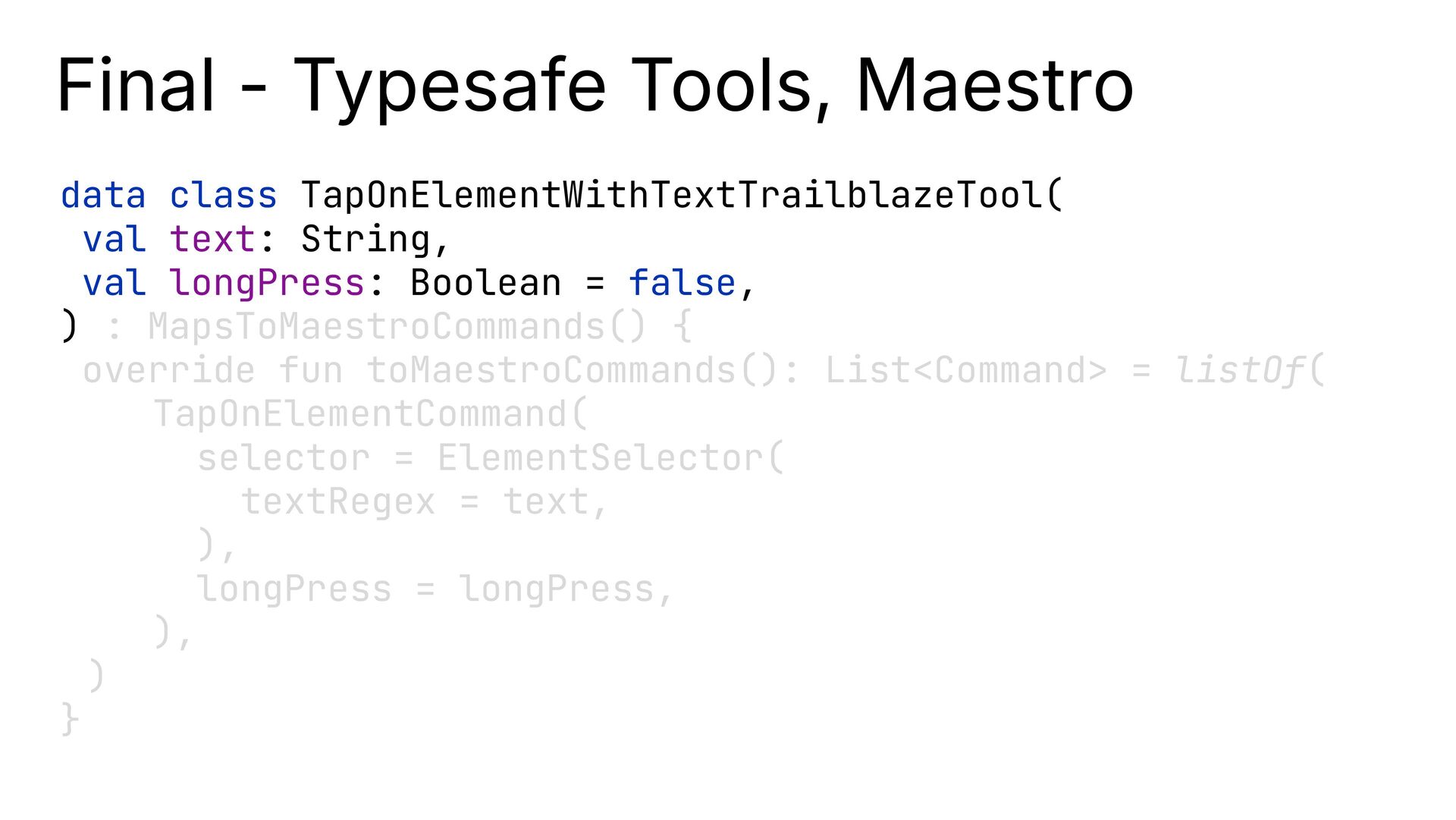

42. Final - Typesafe Tools, Maestro data class TapOnElementWithTextTrailblazeTool( val text: String, val longPress: Boolean = false, ) : MapsToMaestroCommands() { override fun toMaestroCommands(): List<Command> = listOf( TapOnElementCommand( selector = ElementSelector( textRegex = text, ), longPress = longPress, ), ) }

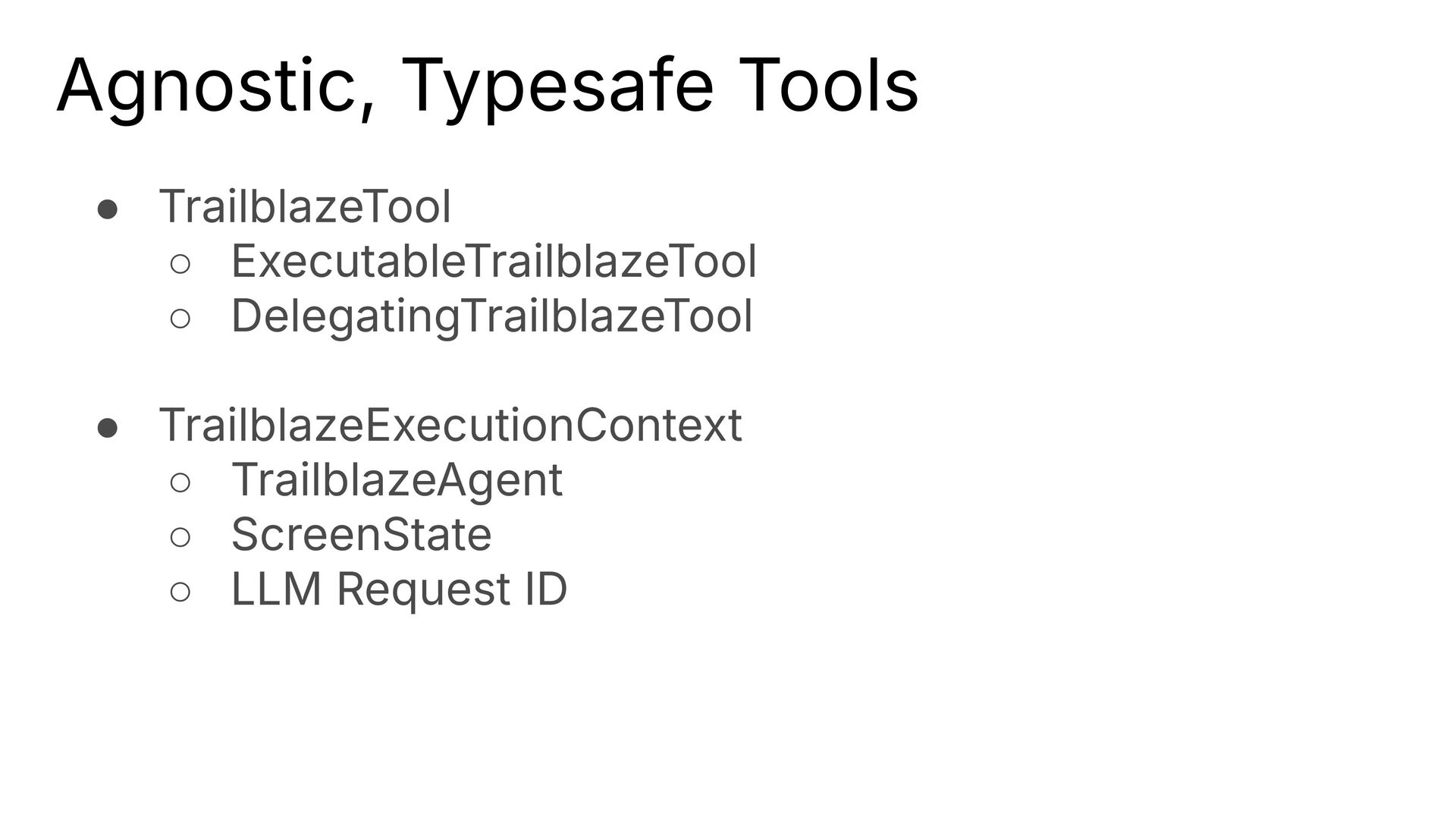

43. Agnostic, Typesafe Tools • TrailblazeTool ◦ ExecutableTrailblazeTool ◦ DelegatingTrailblazeTool • TrailblazeExecutionContext ◦ TrailblazeAgent ◦ ScreenState ◦ LLM Request ID
44. Challenges 44

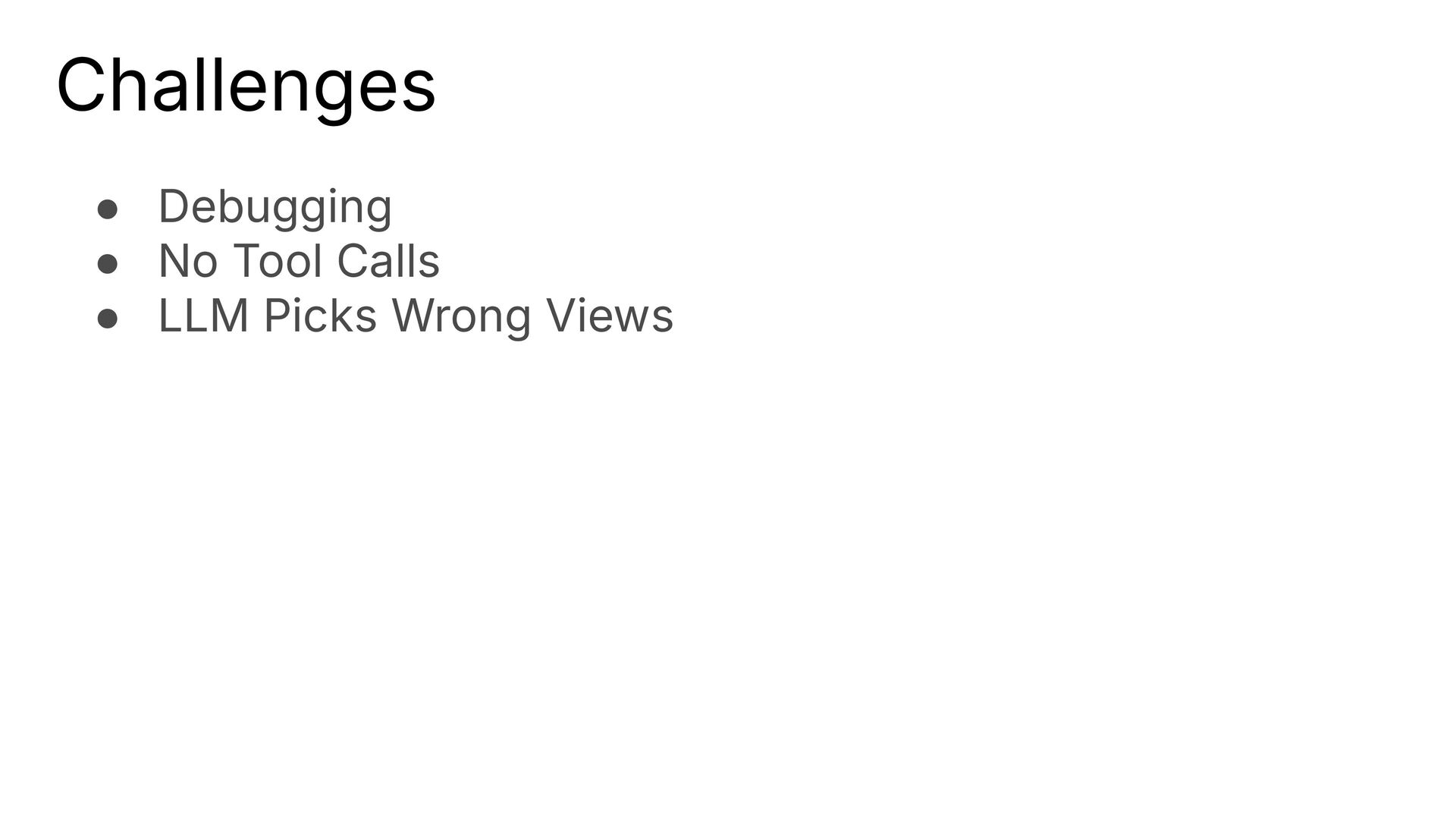

45. Challenges • Debugging • No Tool Calls • LLM Picks Wrong Views

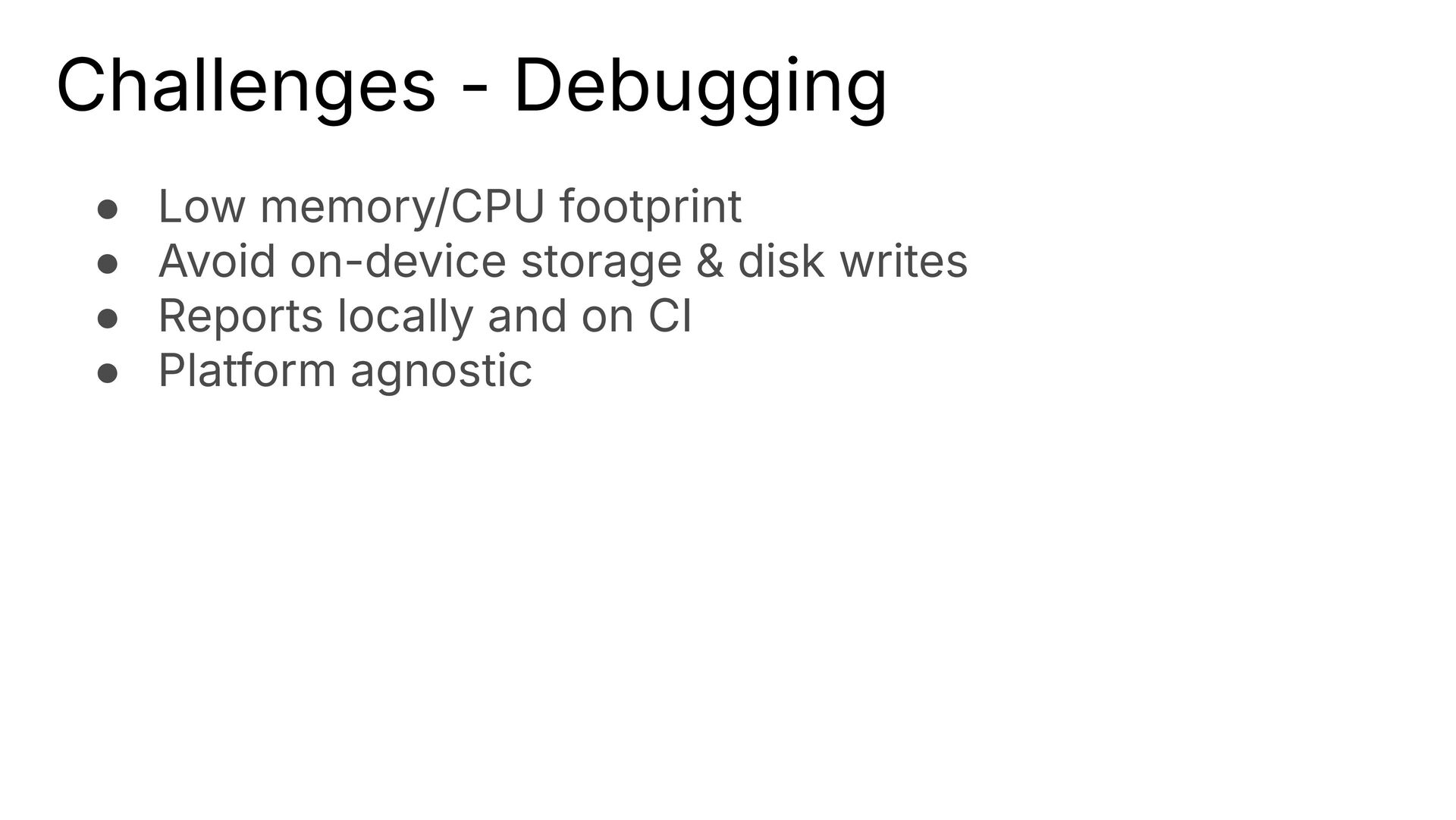

46. Challenges - Debugging • Low memory/CPU footprint • Avoid on-device storage & disk writes • Reports locally and on CI • Platform agnostic

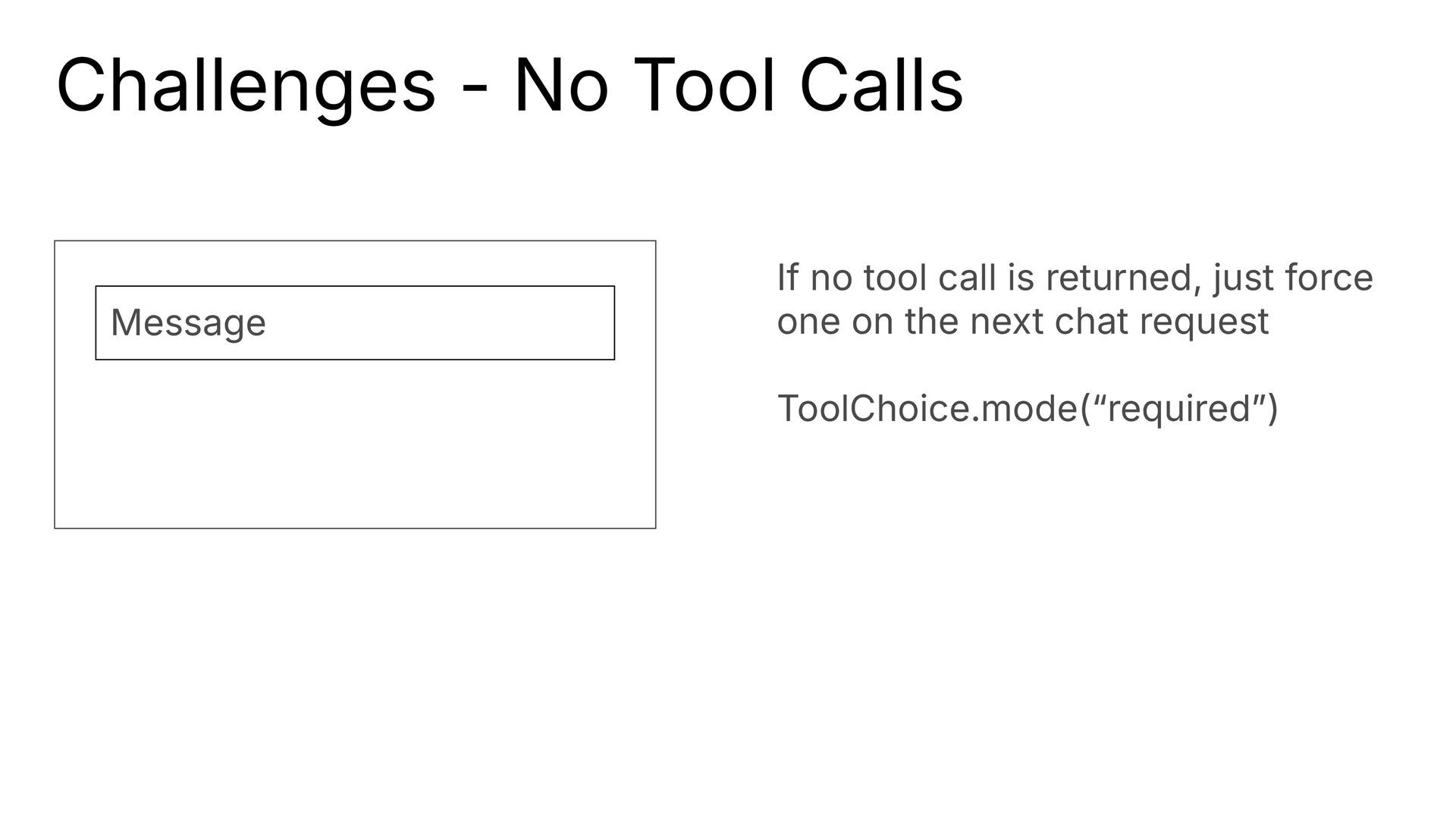

47. Challenges - No Tool Calls Message If no tool call is returned, just force one on the next chat request ToolChoice.mode(“requiredˮ)

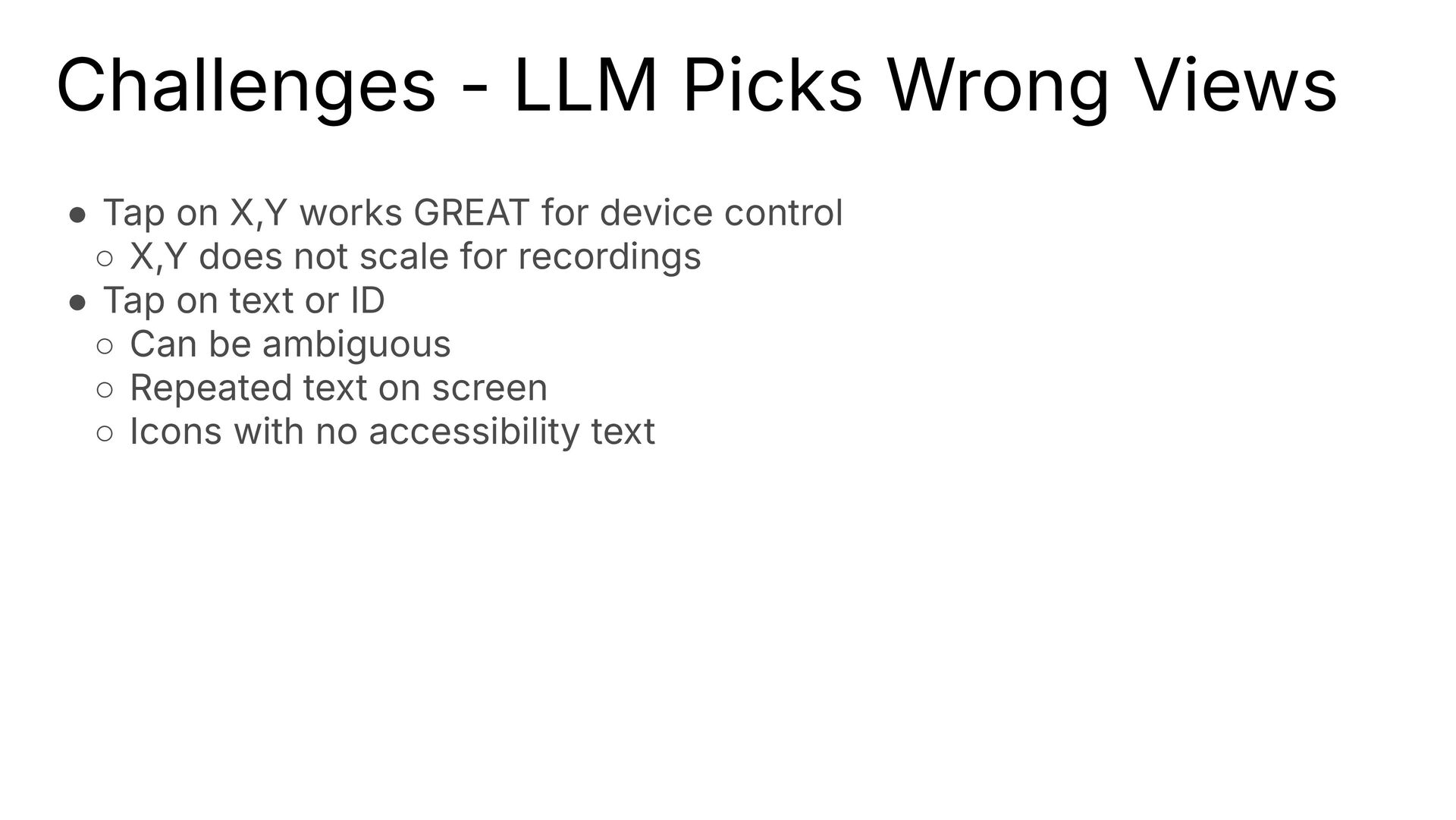

48. Challenges - LLM Picks Wrong Views • Tap on X,Y works GREAT for device control ◦ X,Y does not scale for recordings • Tap on text or ID ◦ Can be ambiguous ◦ Repeated text on screen ◦ Icons with no accessibility text

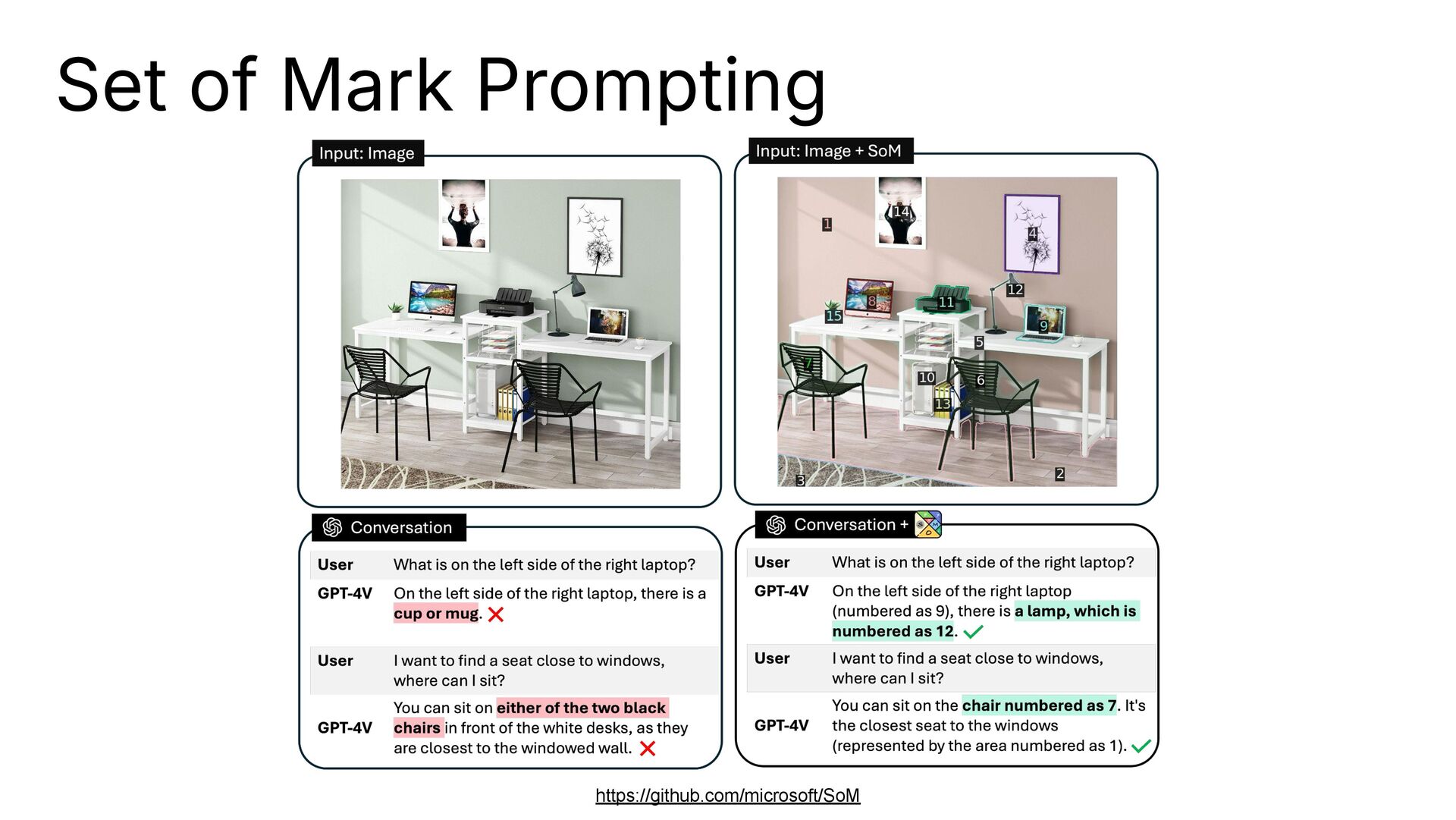

49. Set of Mark Prompting https://github.com/microsoft/SoM

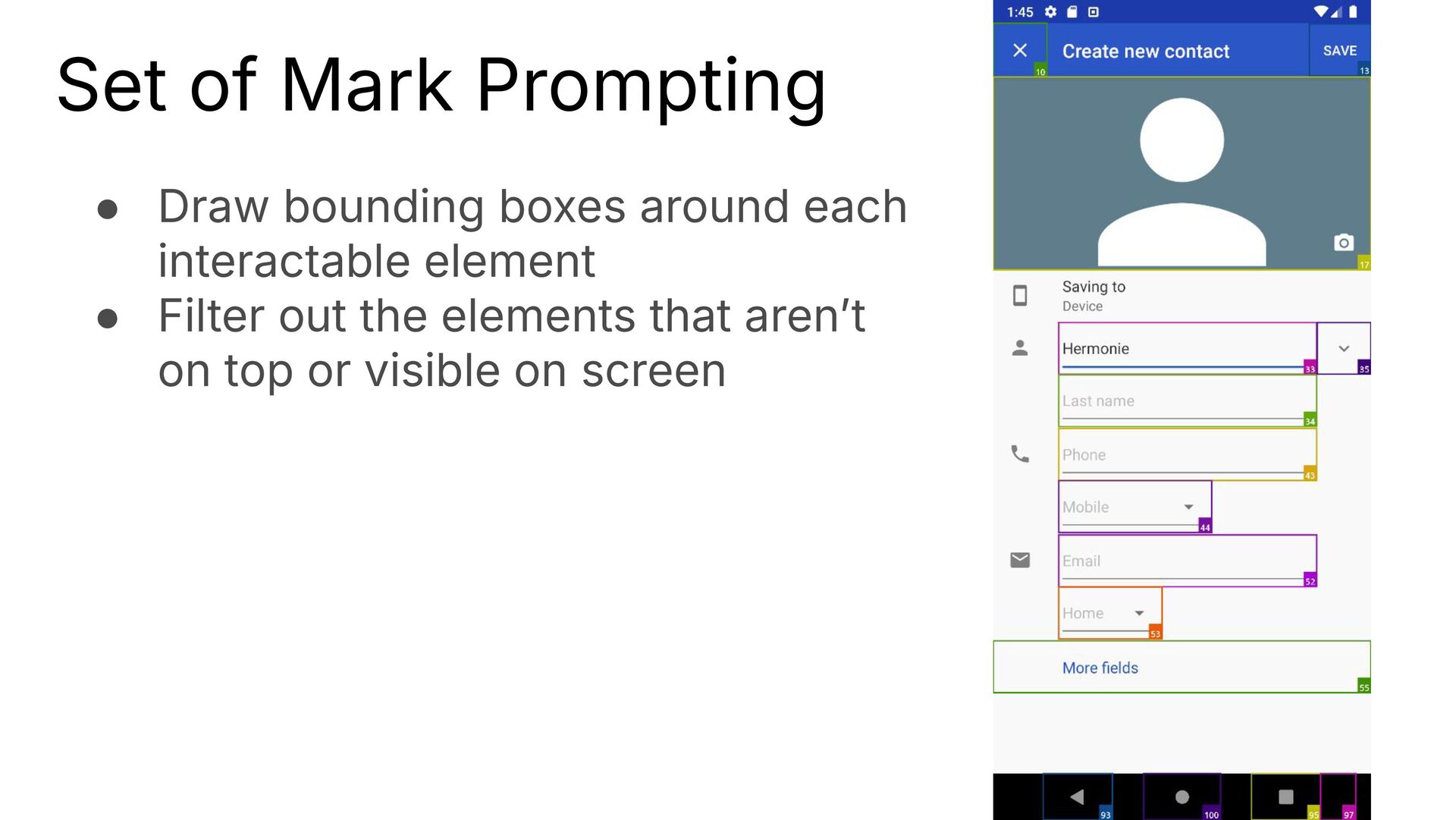

50. Set of Mark Prompting • Draw bounding boxes around each interactable element • Filter out the elements that arenʼt on top or visible on screen
52. Trailblaze Architecture 52

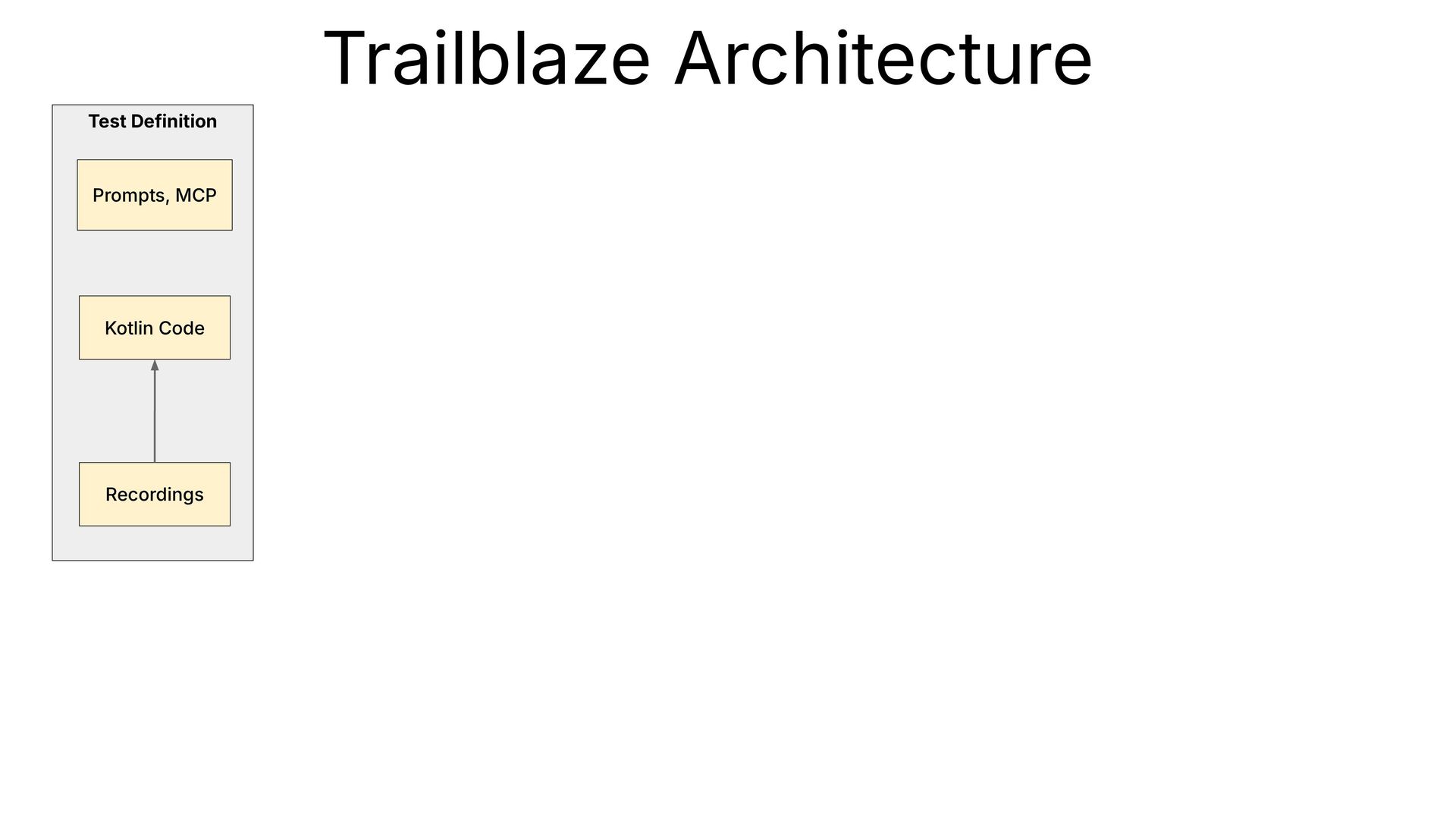

53. Test Definition Kotlin Code Recordings Prompts, MCP Trailblaze Architecture

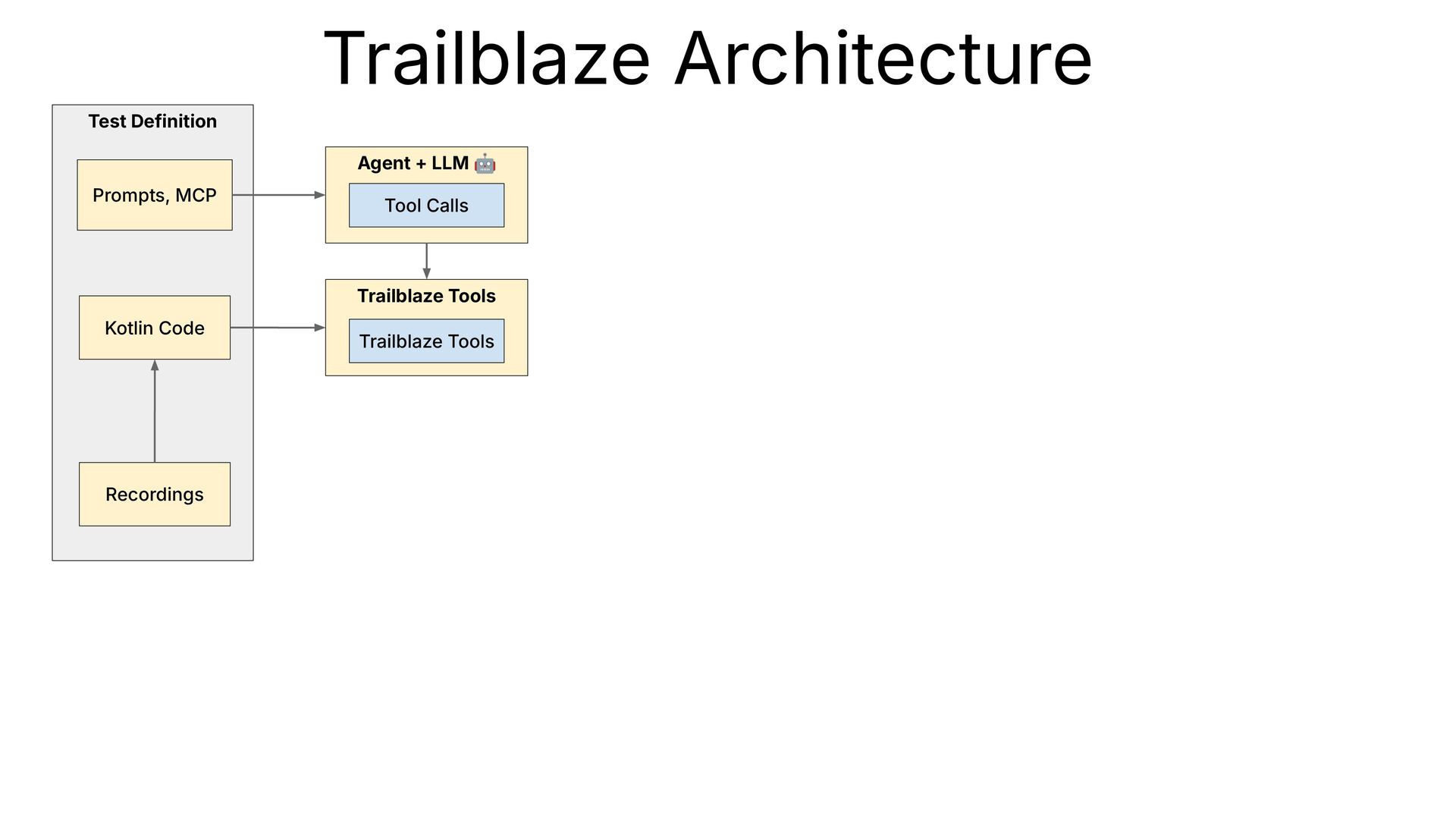

54. Test Definition Kotlin Code Recordings Agent + LLM 🤖 Tool Calls Prompts, MCP Trailblaze Tools Trailblaze Tools Trailblaze Architecture

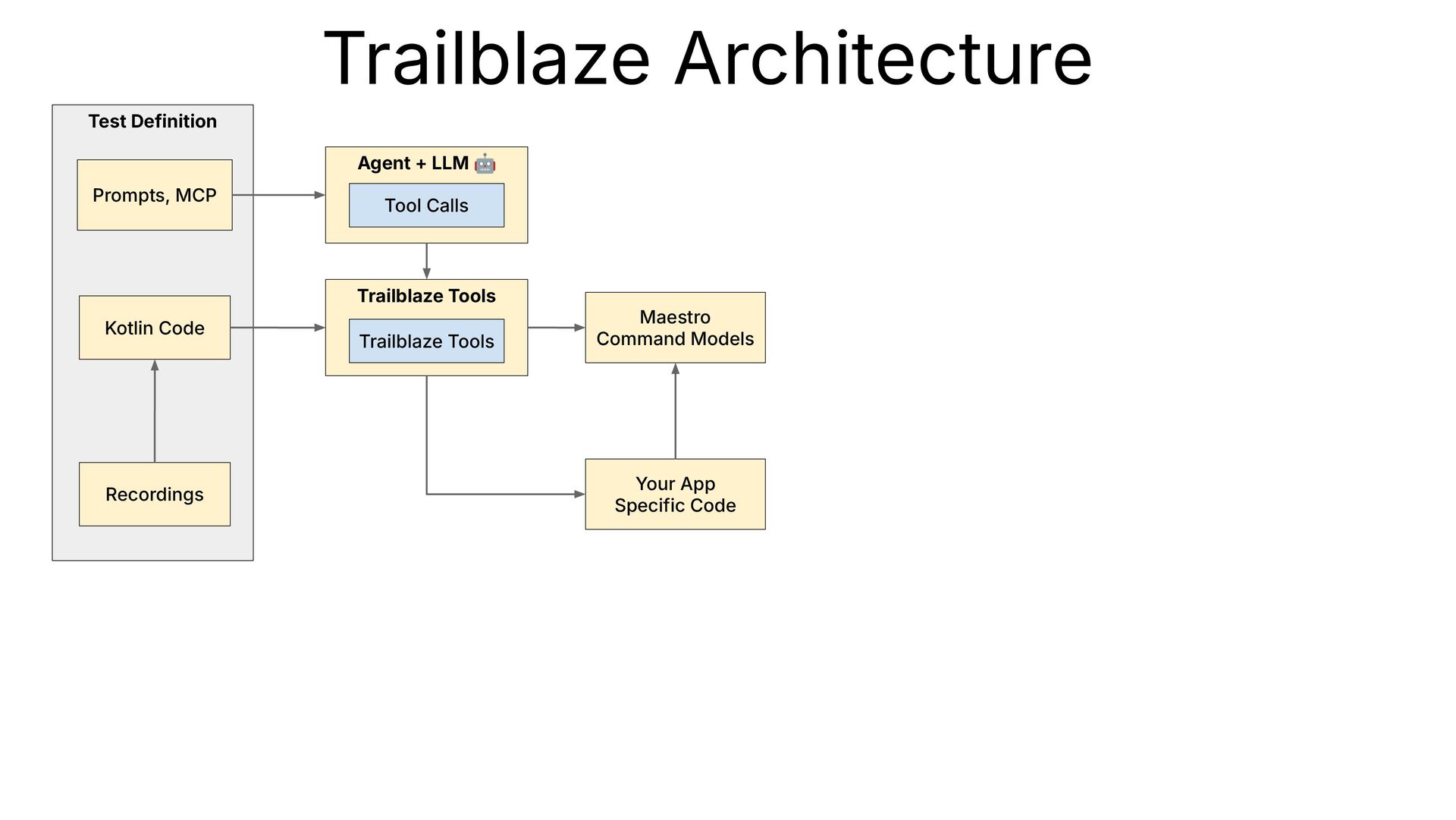

55. Test Definition Kotlin Code Recordings Agent + LLM 🤖 Tool Calls Prompts, MCP Maestro Command Models Your App Specific Code Trailblaze Tools Trailblaze Tools Trailblaze Architecture

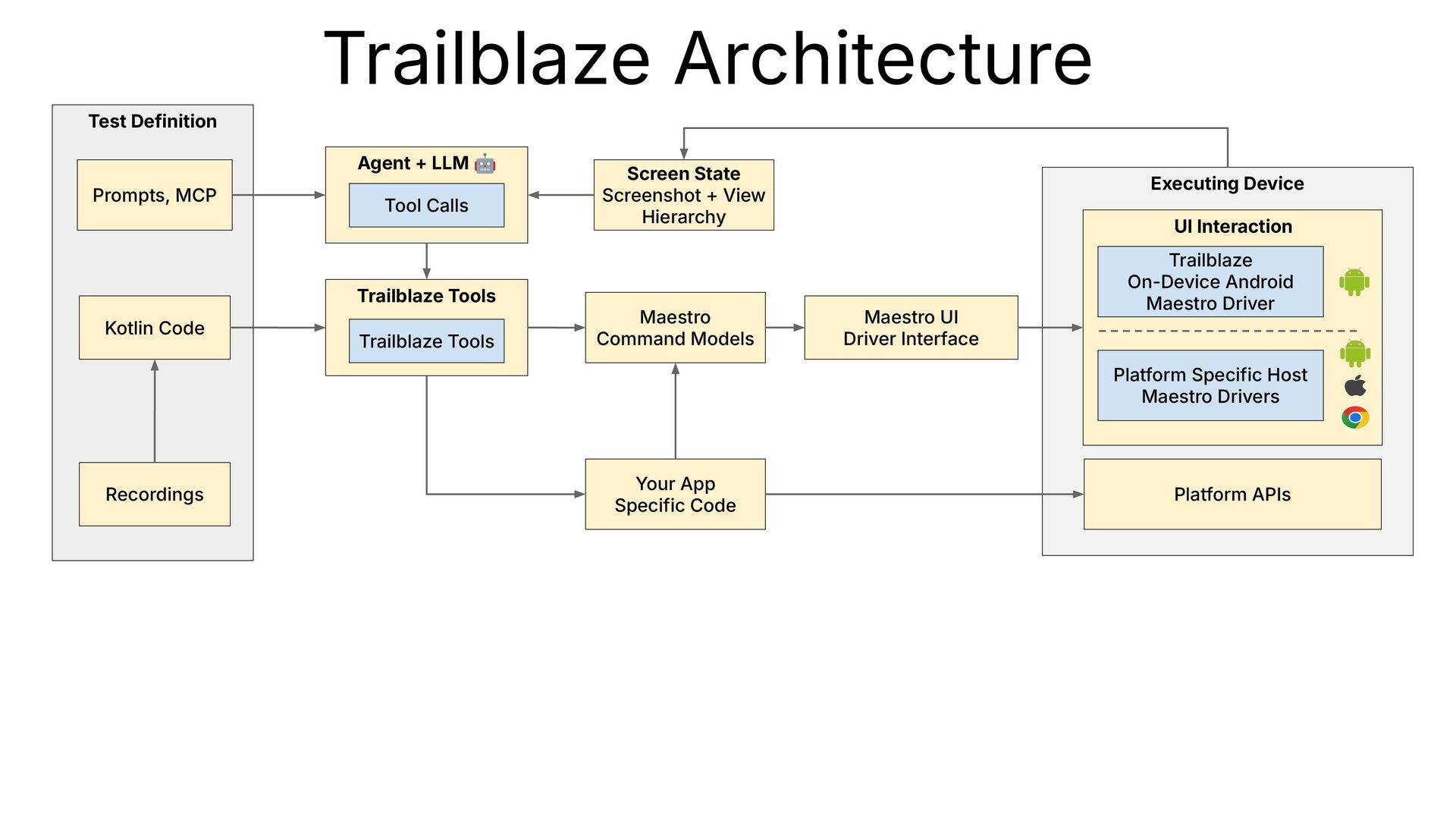

56. Executing Device Maestro UI Driver Interface Test Definition Kotlin Code Recordings Agent + LLM 🤖 Tool Calls Prompts, MCP UI Interaction Trailblaze On-Device Android Maestro Driver Maestro Command Models Platform Specific Host Maestro Drivers Your App Specific Code Trailblaze Tools Trailblaze Tools Platform APIs Screen State Screenshot + View Hierarchy Trailblaze Architecture
57. Executing Device Maestro UI Driver Interface Test Definition Kotlin Code Recordings Agent + LLM 🤖 Tool Calls Prompts, MCP Test Results and Logging Debug Logging Test Farm - CI/CD UI Interaction Trailblaze On-Device Android Maestro Driver Maestro Command Models Platform Specific Host Maestro Drivers Your App Specific Code Trailblaze Tools Trailblaze Tools Platform APIs Screen State Screenshot + View Hierarchy Trailblaze Architecture

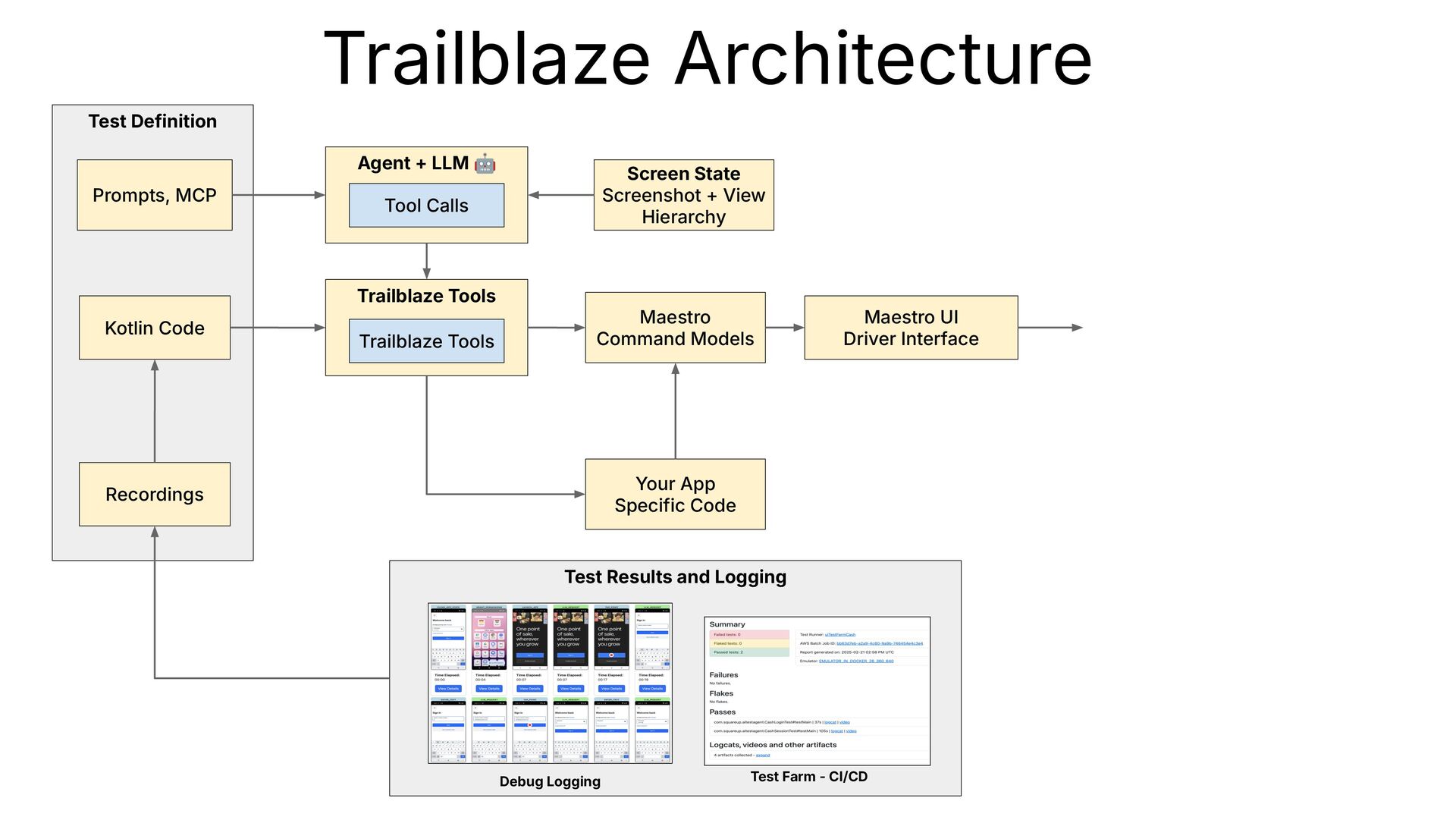

58. Maestro UI Driver Interface Test Definition Kotlin Code Recordings Agent + LLM 🤖 Tool Calls Prompts, MCP Test Results and Logging Debug Logging Test Farm - CI/CD Maestro Command Models Your App Specific Code Trailblaze Tools Trailblaze Tools Screen State Screenshot + View Hierarchy Trailblaze Architecture
59. Future Plans 59

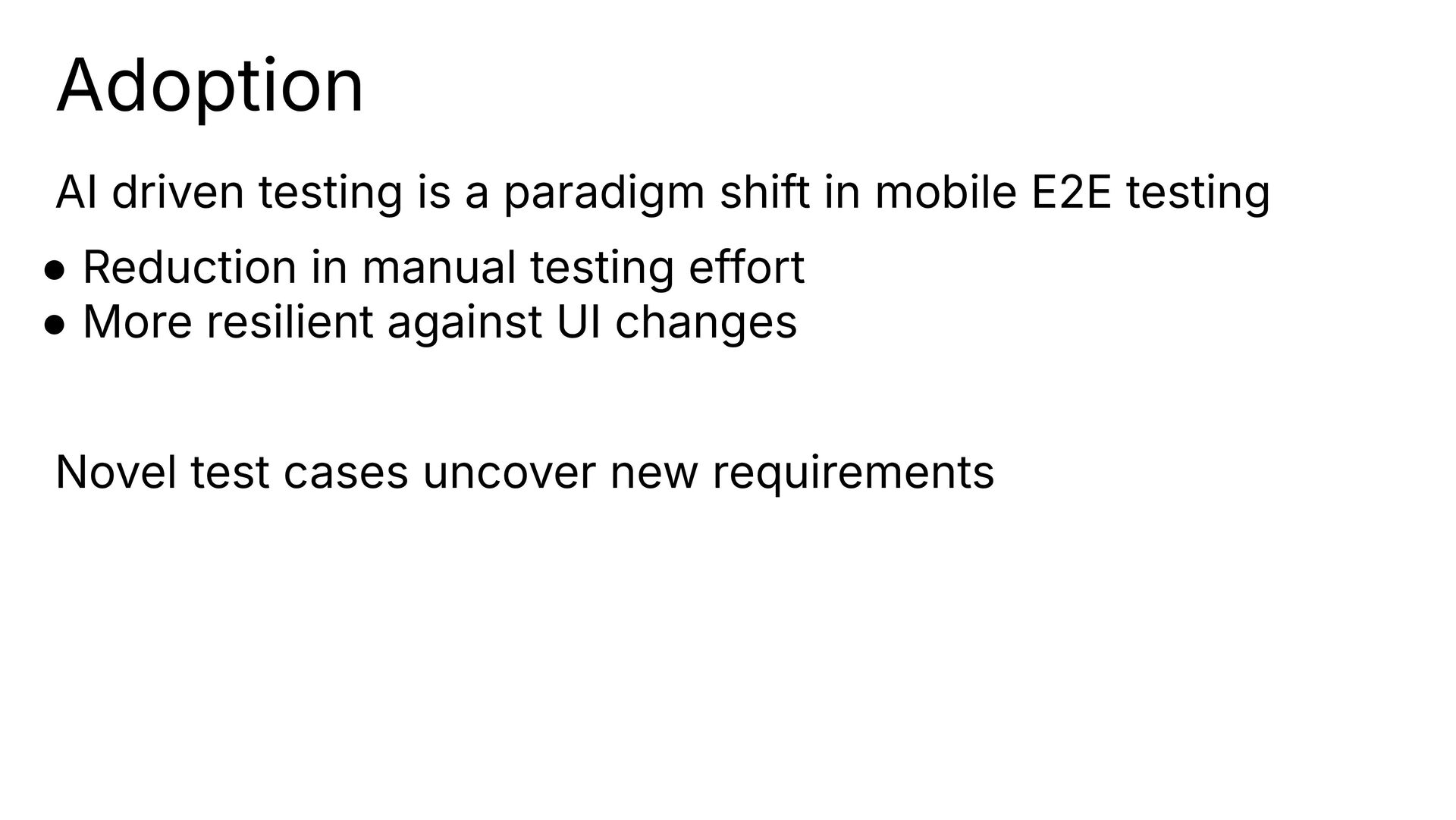

60. AI driven testing is a paradigm shift in mobile E2E testing • Reduction in manual testing effort • More resilient against UI changes Novel test cases uncover new requirements Adoption

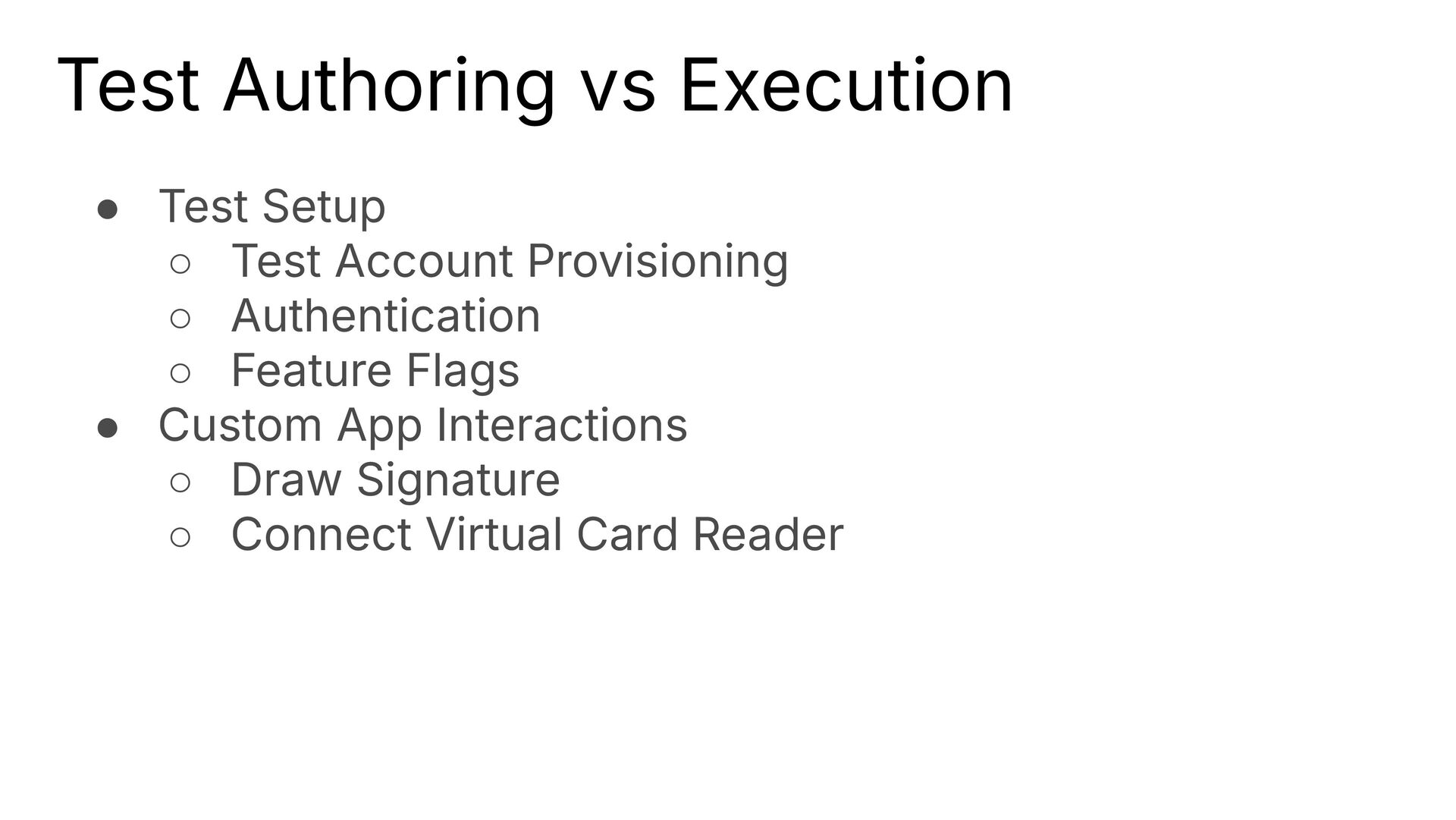

61. Test Authoring vs Execution • Test Setup ◦ Test Account Provisioning ◦ Authentication ◦ Feature Flags • Custom App Interactions ◦ Draw Signature ◦ Connect Virtual Card Reader

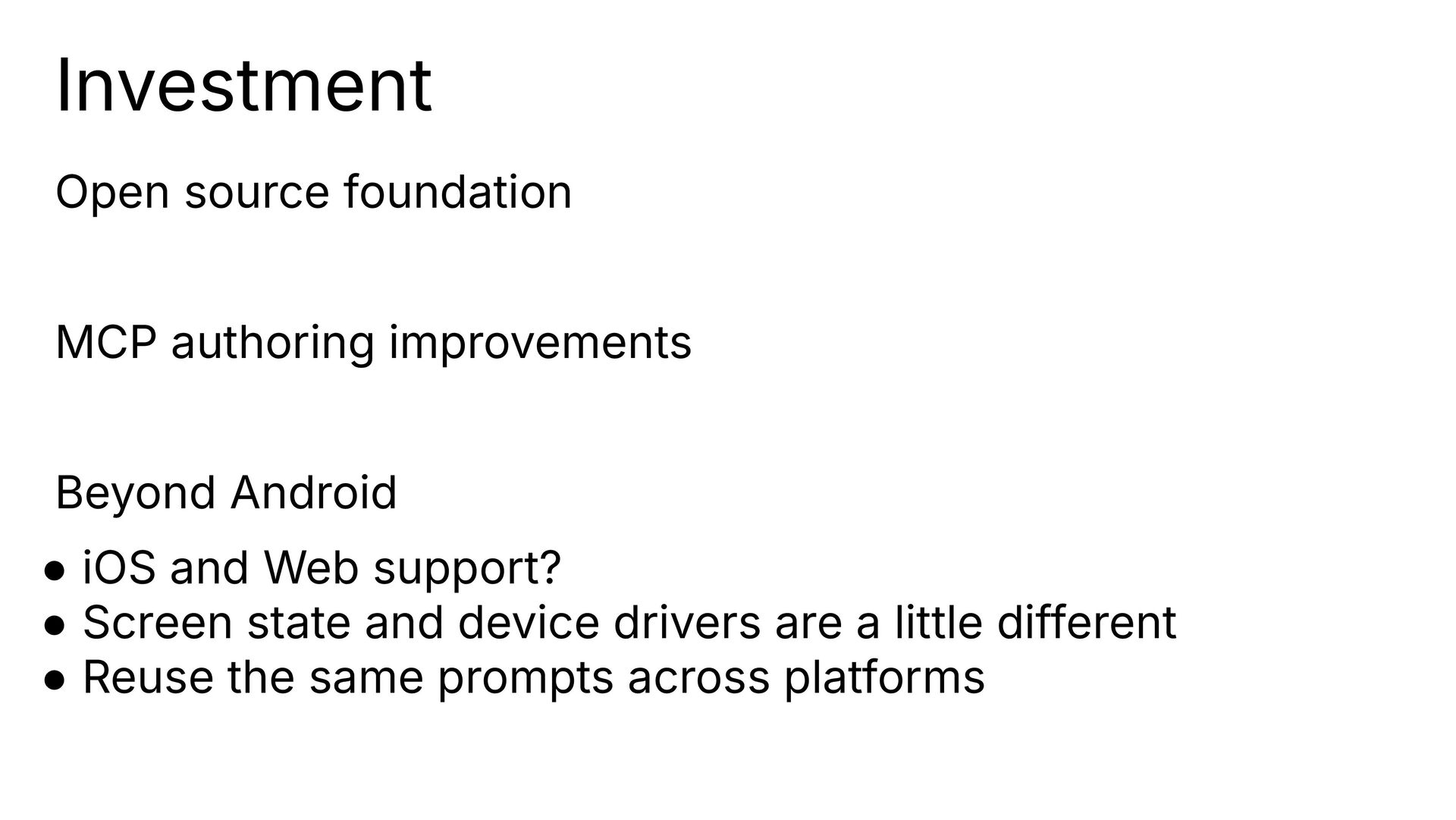

62. Open source foundation MCP authoring improvements Beyond Android • iOS and Web support? • Screen state and device drivers are a little different • Reuse the same prompts across platforms Investment

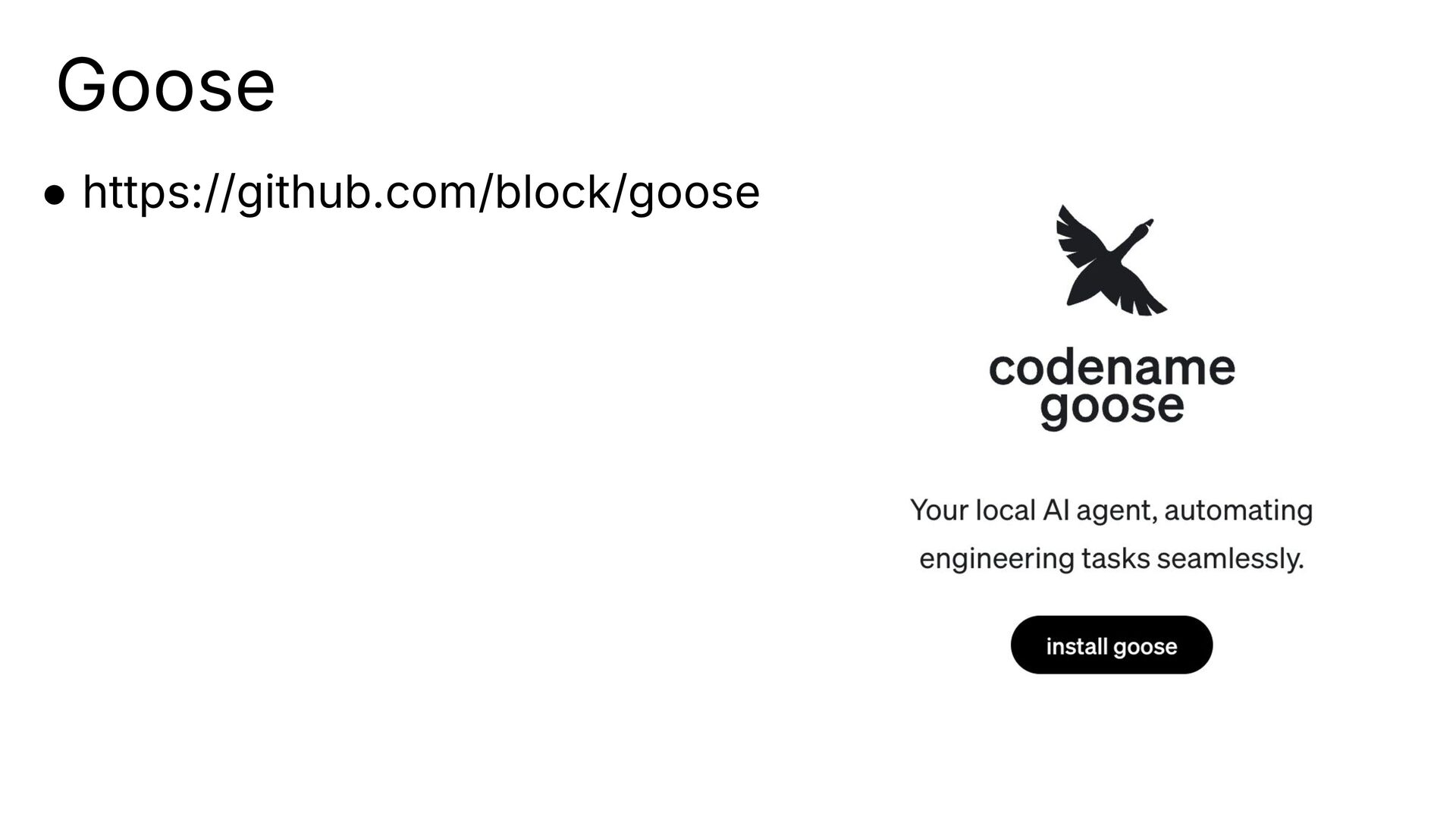

63. • https://github.com/block/goose Goose
64. Future Demo

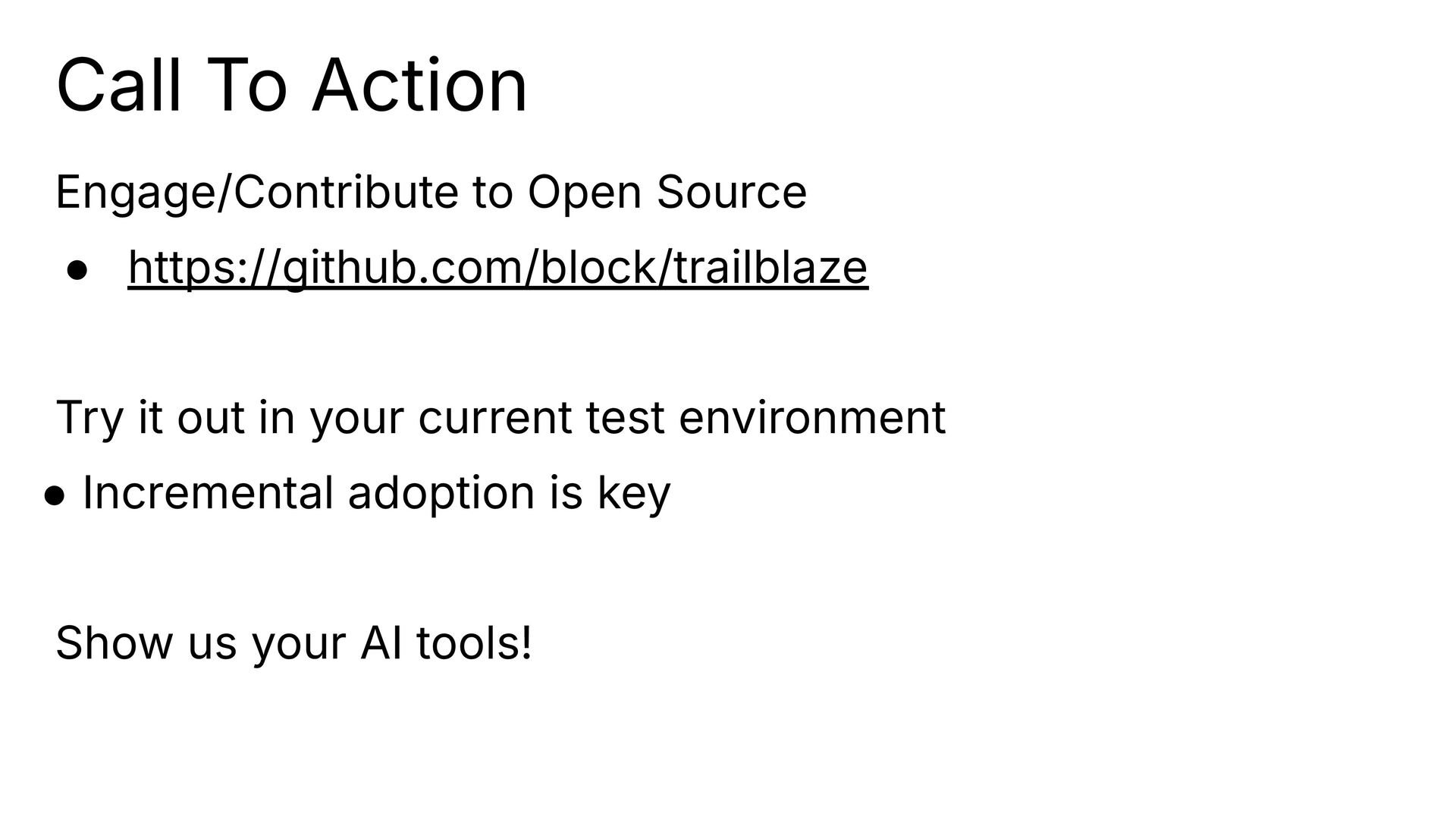

65. Engage/Contribute to Open Source • https://github.com/block/trailblaze Try it out in your current test environment • Incremental adoption is key Show us your AI tools! Call To Action
