JRuby 10: Improve your Ruby with JIT, GC, and Libraries from the JVM

JRuby 10: Improve your Ruby with JIT, GC, and Libraries from the JVM

Presented at Krakow Ruby User Group on May 13, 2025

Transcript

1. JRuby 10 Improve your Ruby with JIT, GC, and Libraries from the JVM
2. Hello! • Charles Oliver Nutter • @headius(@mastodon.social) • headius@headius.com • JRuby developer since 2004 • Full-time JVM language advocate

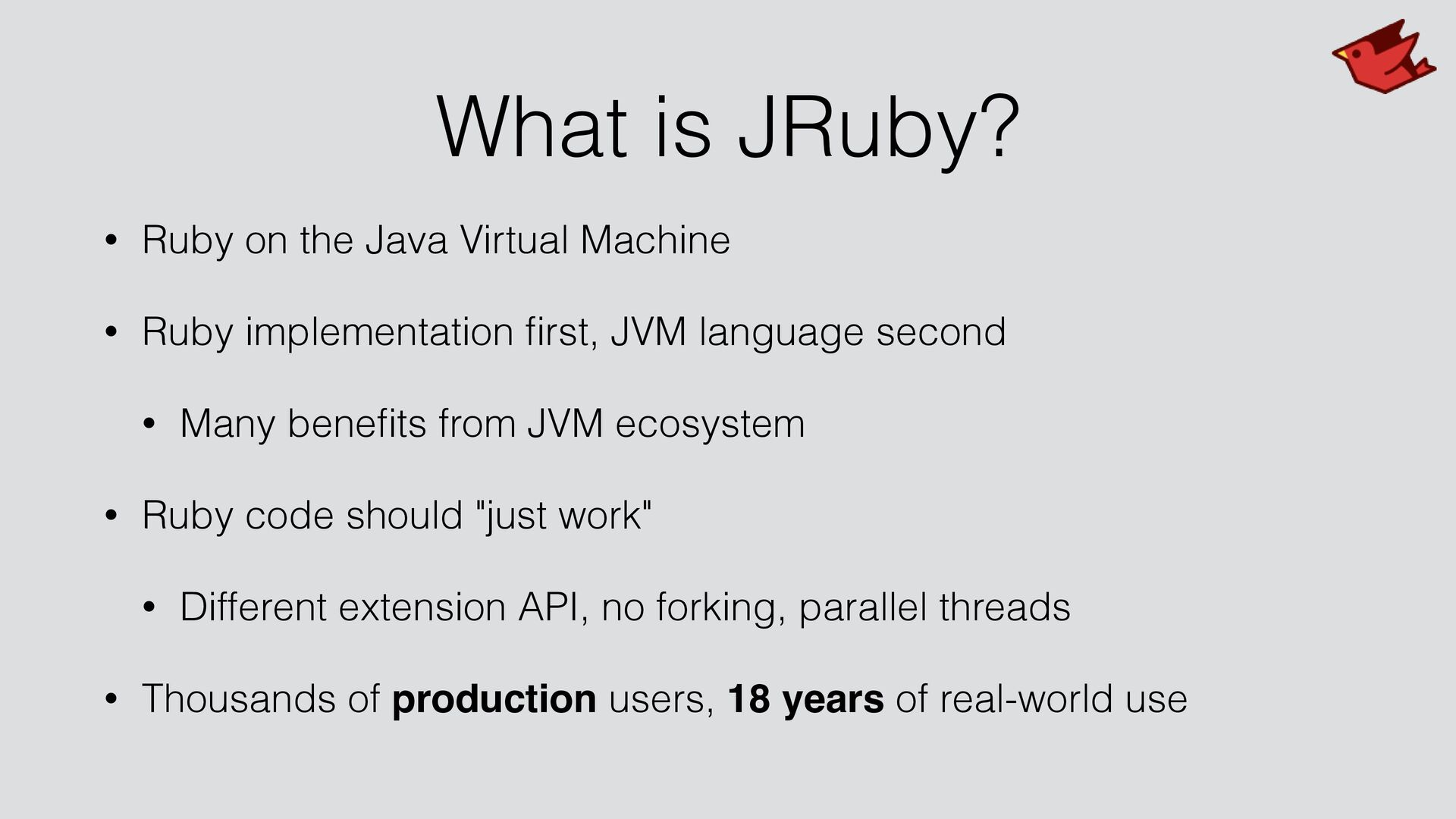

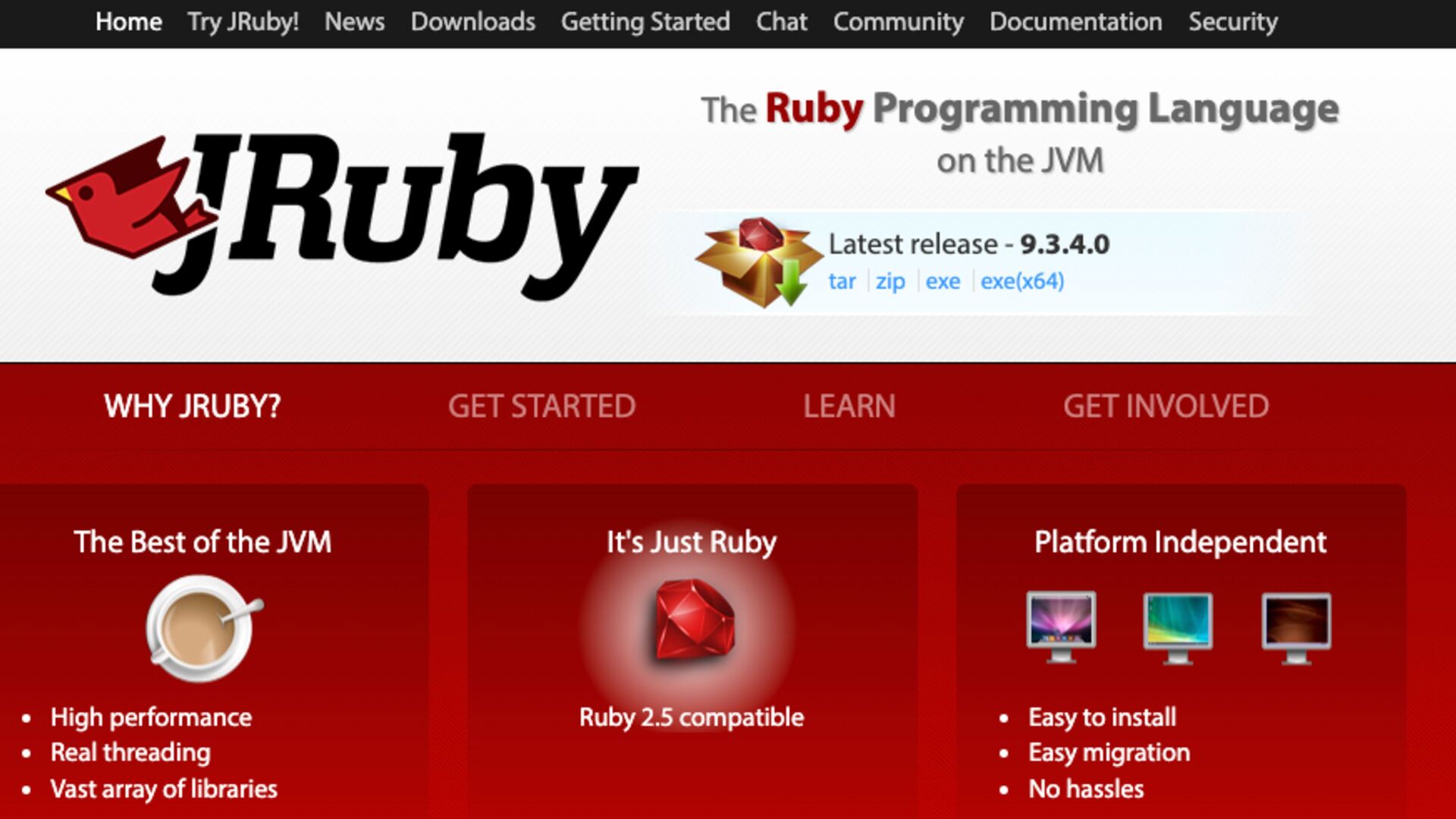

4. What is JRuby? • Ruby on the Java Virtual Machine • Ruby implementation fi rst, JVM language second • Many bene fi ts from JVM ecosystem • Ruby code should "just work" • Different extension API, no forking, parallel threads • Thousands of production users, 18 years of real-world use

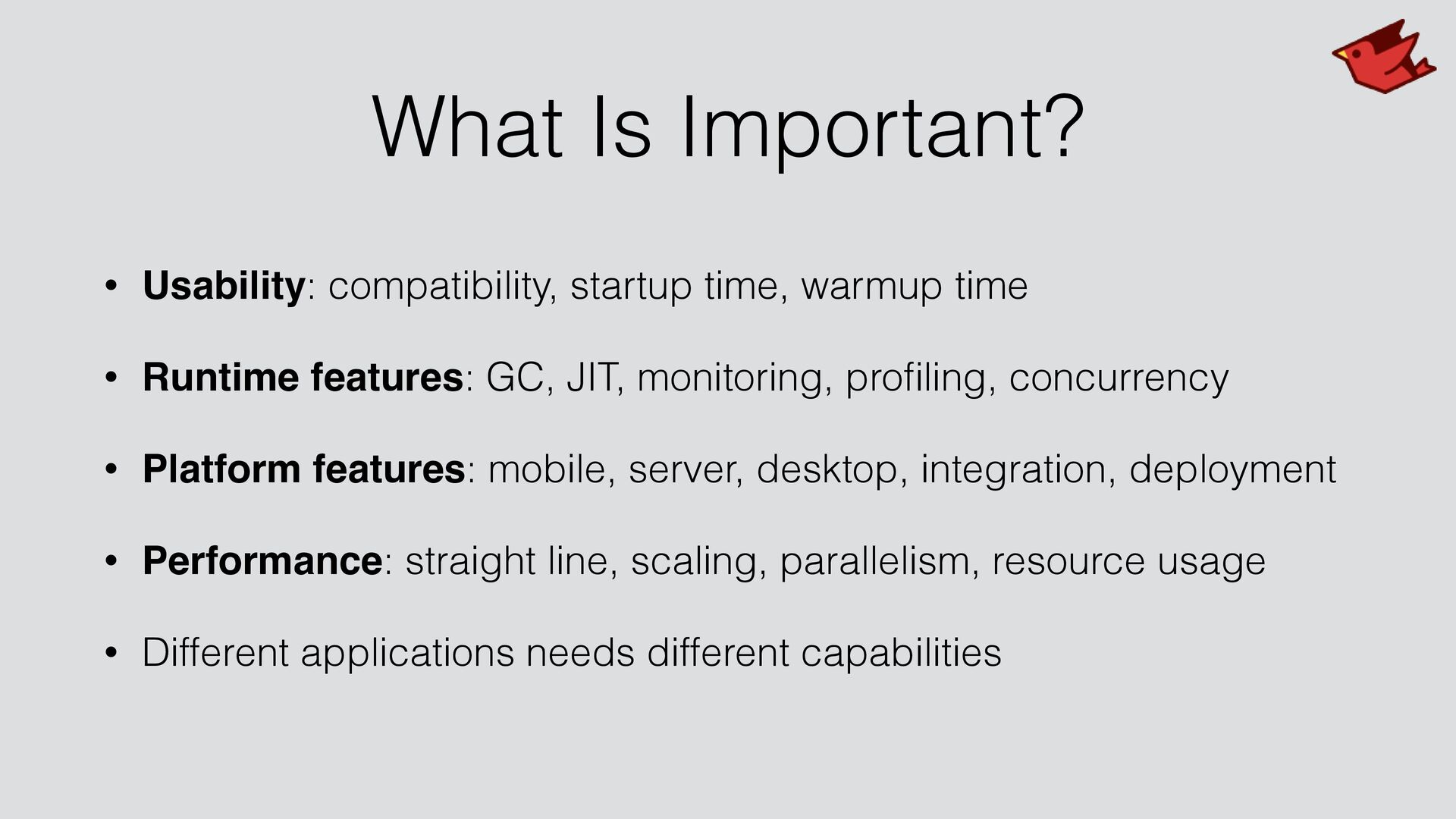

5. What Is Important? • Usability: compatibility, startup time, warmup time • Runtime features: GC, JIT, monitoring, pro fi ling, concurrency • Platform features: mobile, server, desktop, integration, deployment • Performance: straight line, scaling, parallelism, resource usage • Different applications needs different capabilities
6. Getting Started

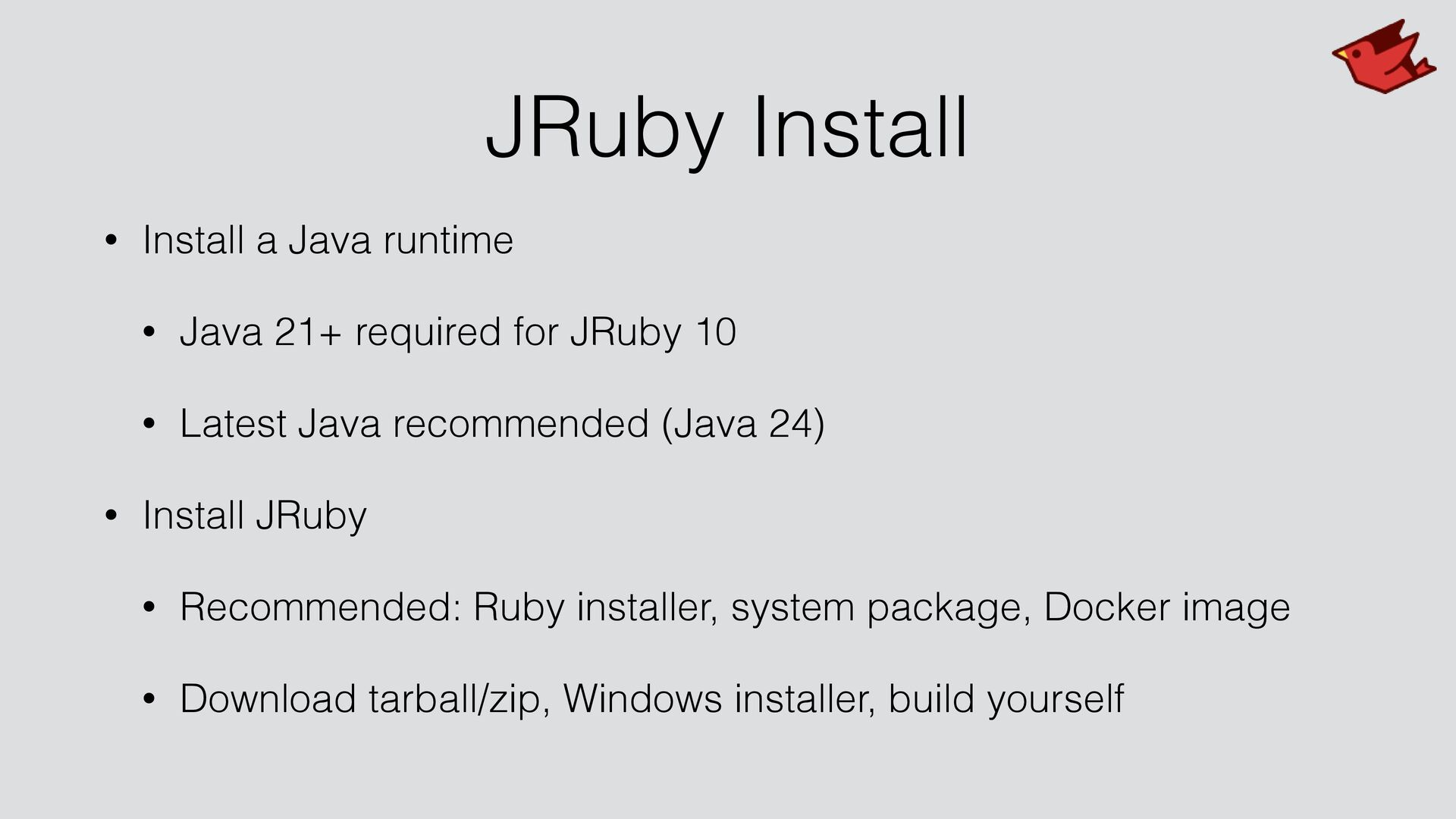

8. JRuby Install • Install a Java runtime • Java 21+ required for JRuby 10 • Latest Java recommended (Java 24) • Install JRuby • Recommended: Ruby installer, system package, Docker image • Download tarball/zip, Windows installer, build yourself

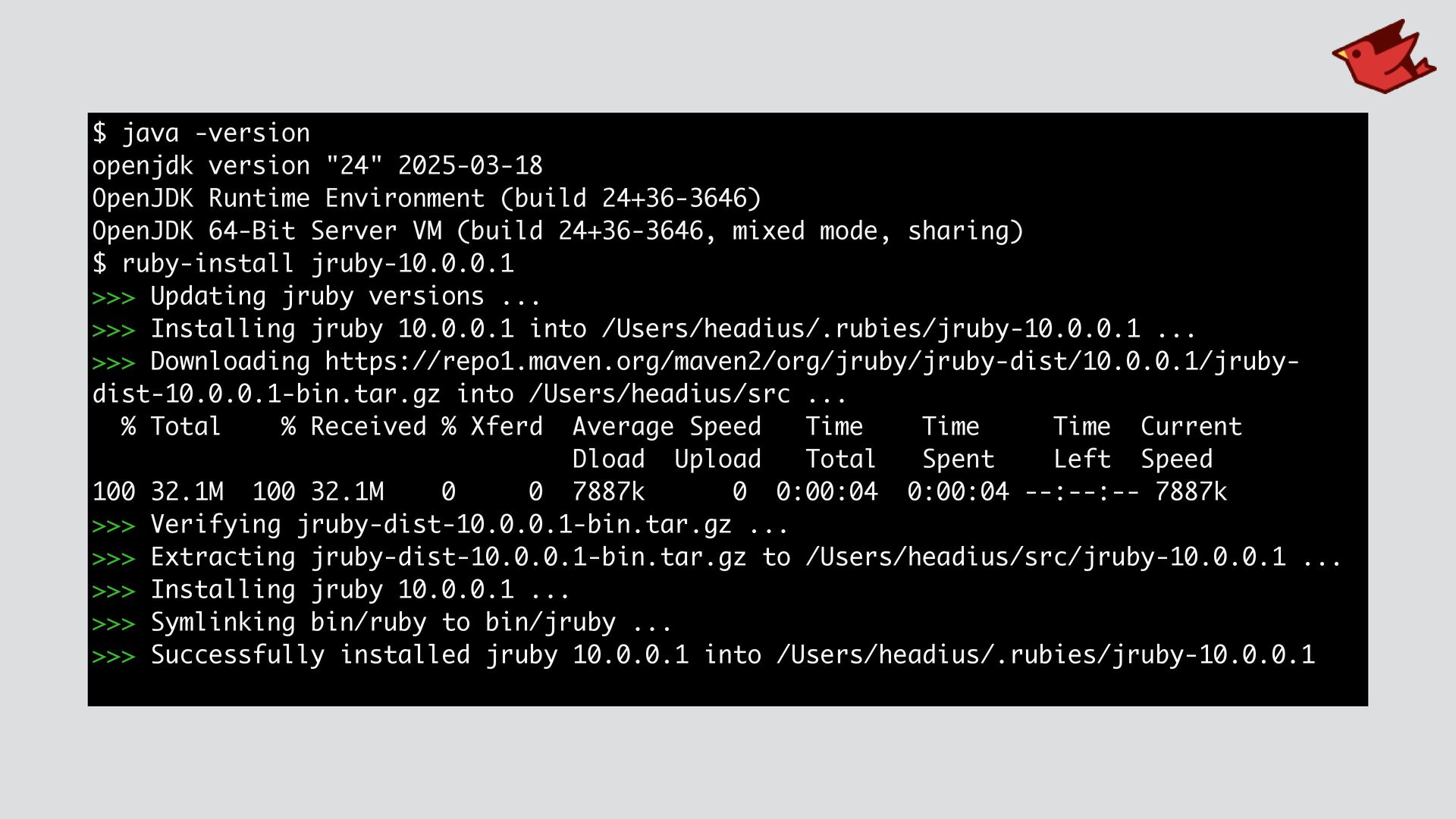

9. $ java -version openjdk version "24" 2025-03-18 OpenJDK Runtime Environment (build 24+36-3646) OpenJDK 64-Bit Server VM (build 24+36-3646, mixed mode, sharing) $ ruby-install jruby-10.0.0.1 >>> Updating jruby versions ... >>> Installing jruby 10.0.0.1 into /Users/headius/.rubies/jruby-10.0.0.1 ... >>> Downloading https://repo1.maven.org/maven2/org/jruby/jruby-dist/10.0.0.1/jruby- dist-10.0.0.1-bin.tar.gz into /Users/headius/src ... % Total % Received % Xferd Average Speed Time Time Time Current Dload Upload Total Spent Left Speed 100 32.1M 100 32.1M 0 0 7887k 0 0:00:04 0:00:04 --:--:-- 7887k >>> Verifying jruby-dist-10.0.0.1-bin.tar.gz ... >>> Extracting jruby-dist-10.0.0.1-bin.tar.gz to /Users/headius/src/jruby-10.0.0.1 ... >>> Installing jruby 10.0.0.1 ... >>> Symlinking bin/ruby to bin/jruby ... >>> Successfully installed jruby 10.0.0.1 into /Users/headius/.rubies/jruby-10.0.0.1

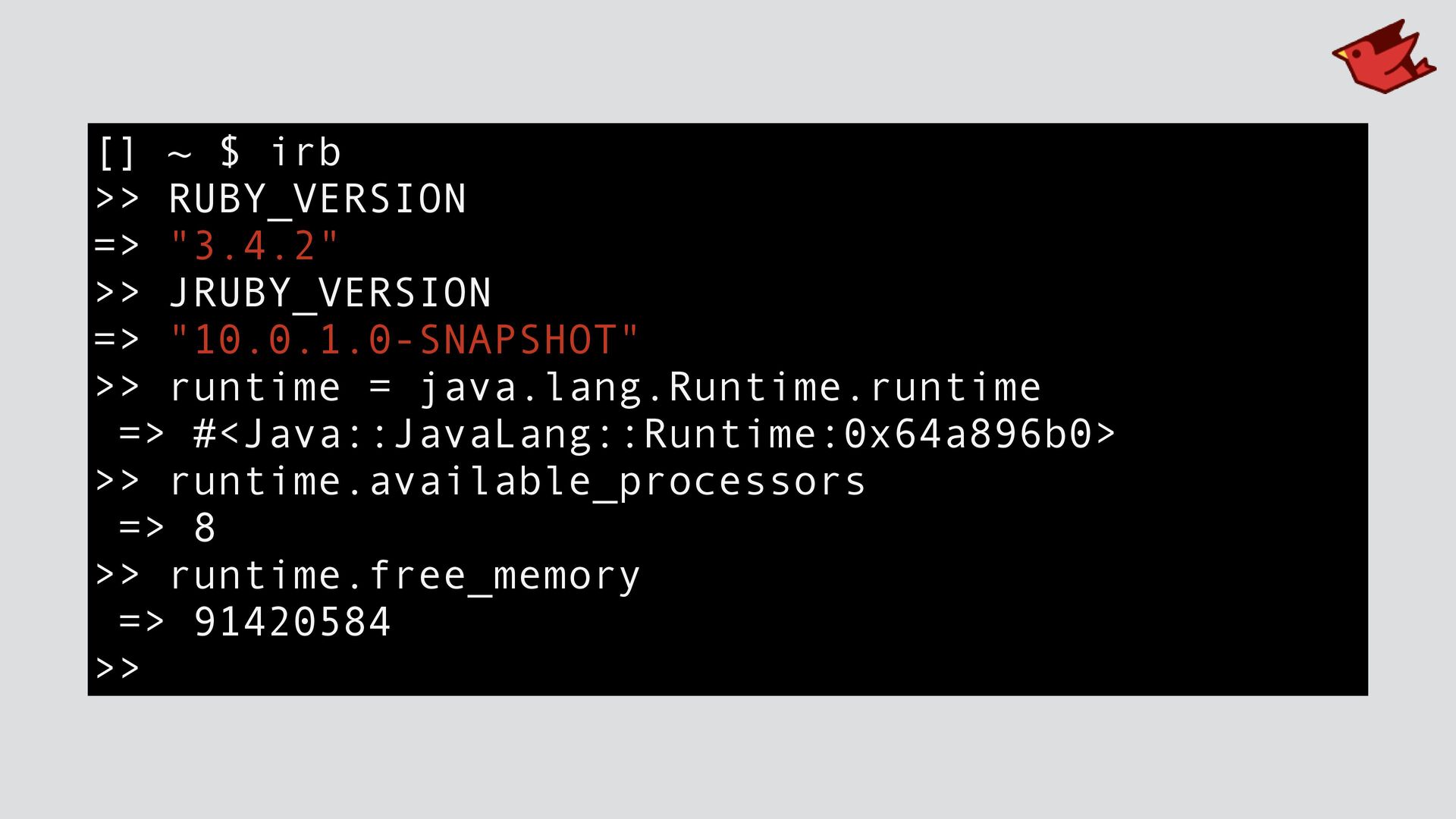

10. [] ~ $ irb >> RUBY_VERSION => "3.4.2" >> JRUBY_VERSION => "10.0.1.0-SNAPSHOT" >> runtime = java.lang.Runtime.runtime => #<Java::JavaLang::Runtime:0x64a896b0> >> runtime.available_processors => 8 >> runtime.free_memory => 91420584 >>

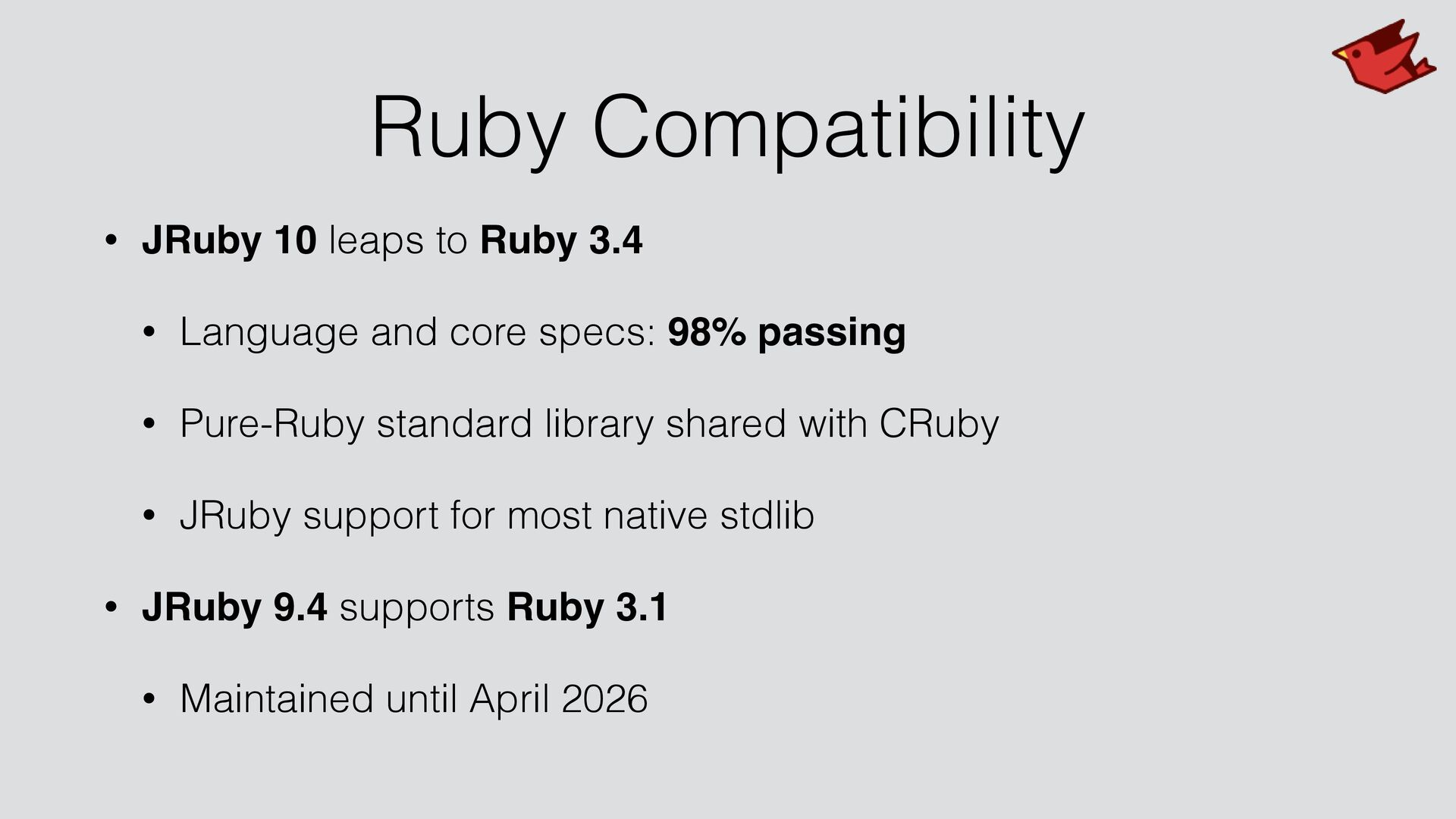

11. Ruby Compatibility • JRuby 10 leaps to Ruby 3.4 • Language and core specs: 98% passing • Pure-Ruby standard library shared with CRuby • JRuby support for most native stdlib • JRuby 9.4 supports Ruby 3.1 • Maintained until April 2026
12. JVM Libraries

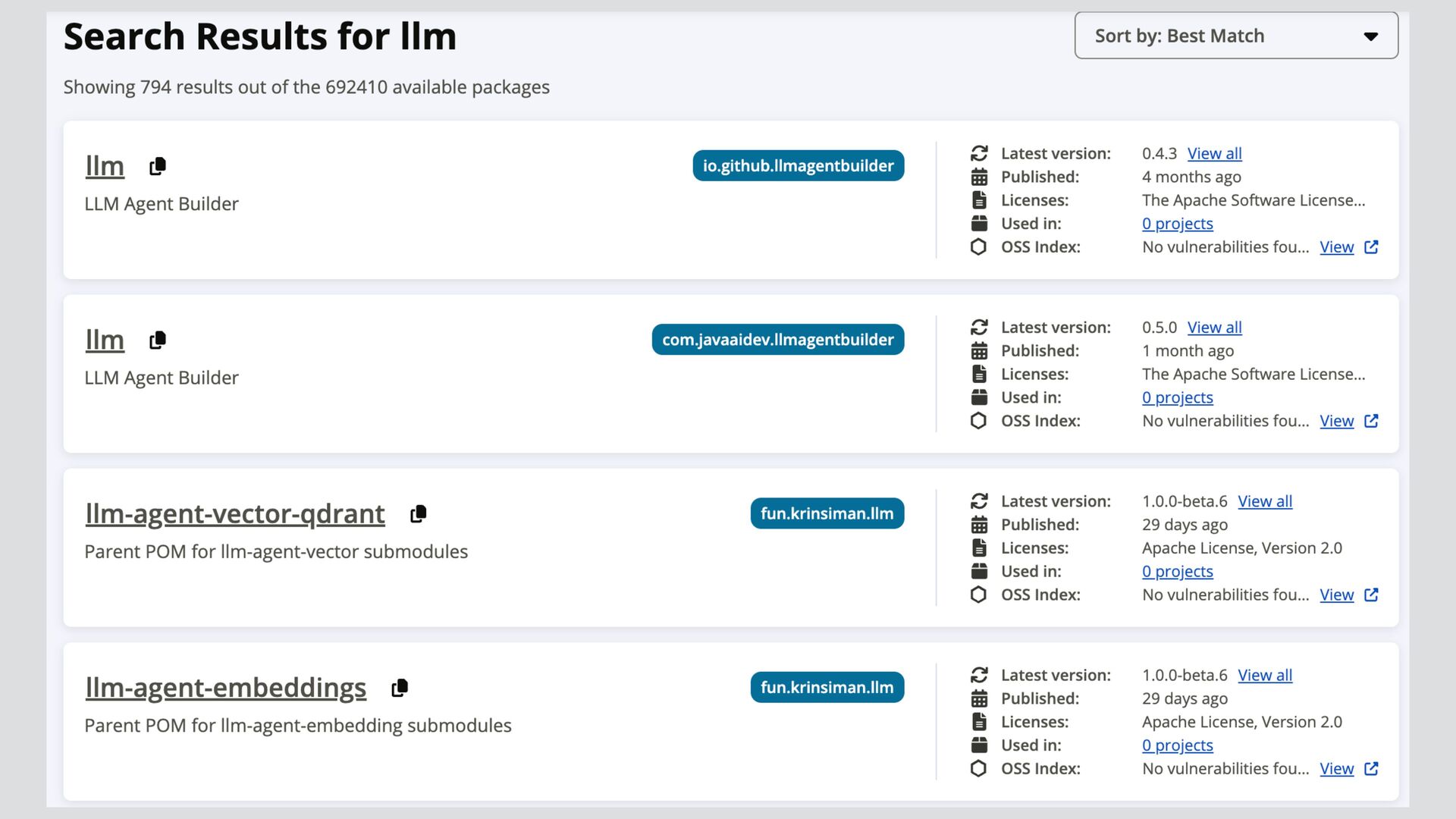

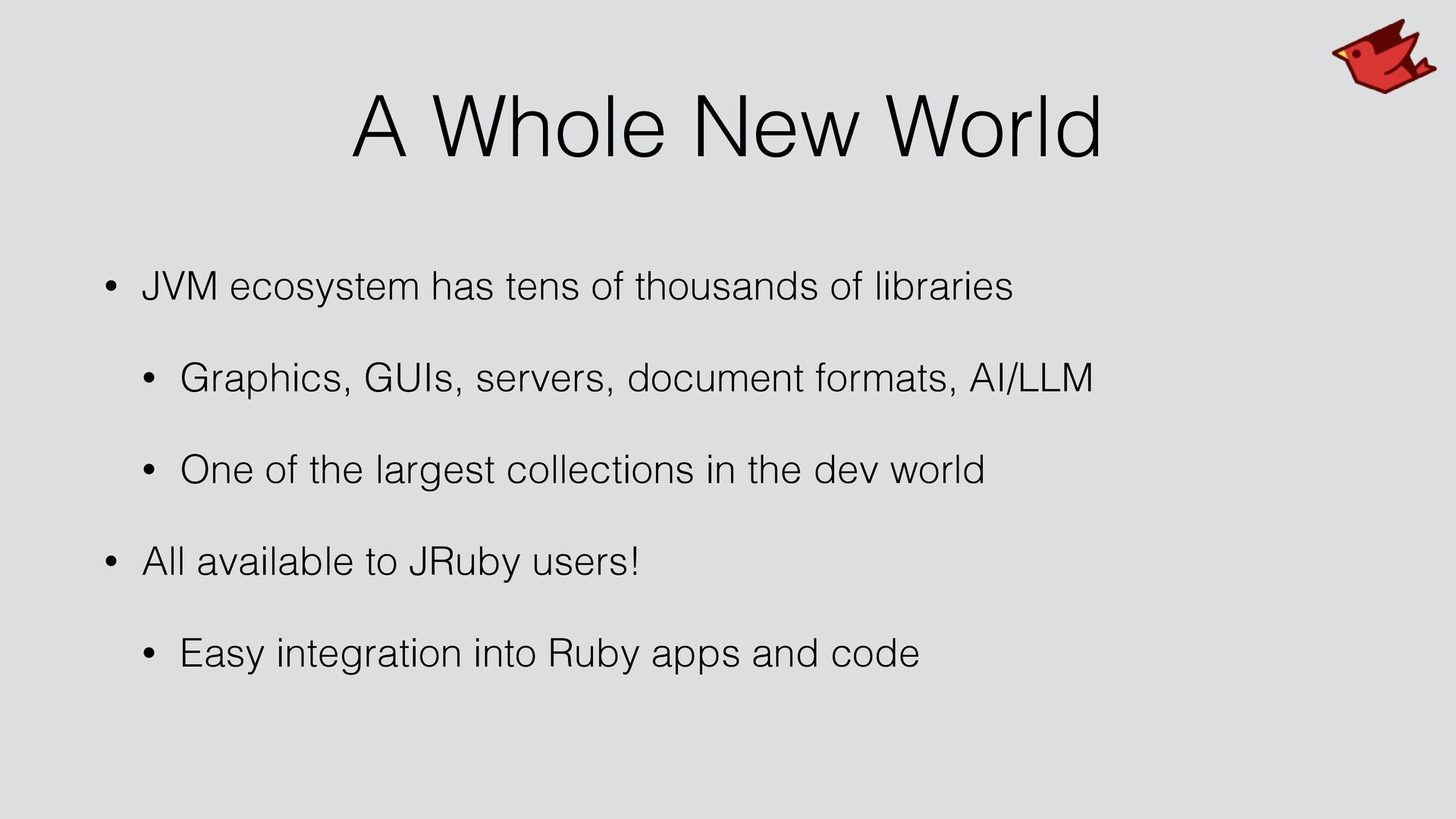

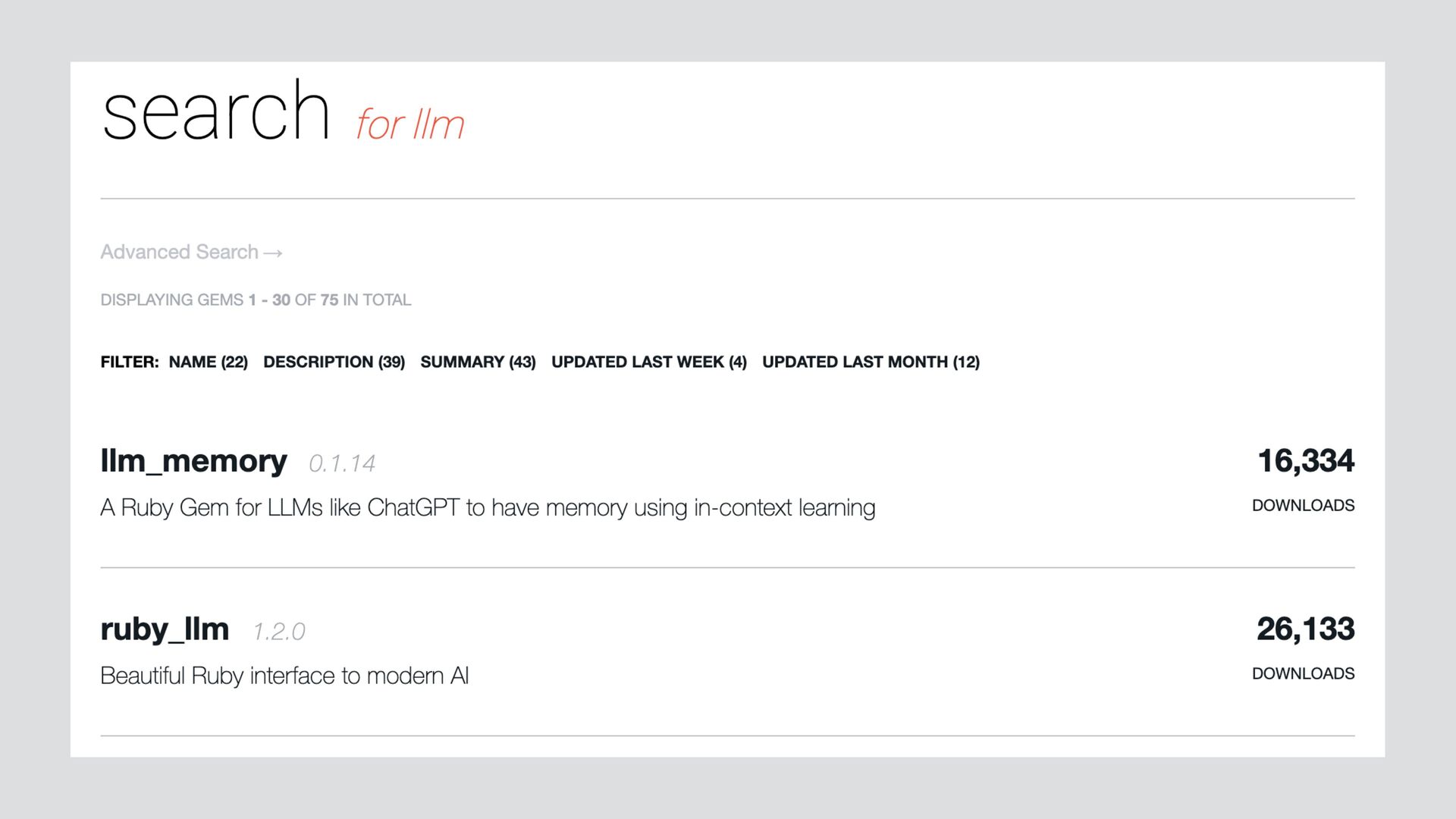

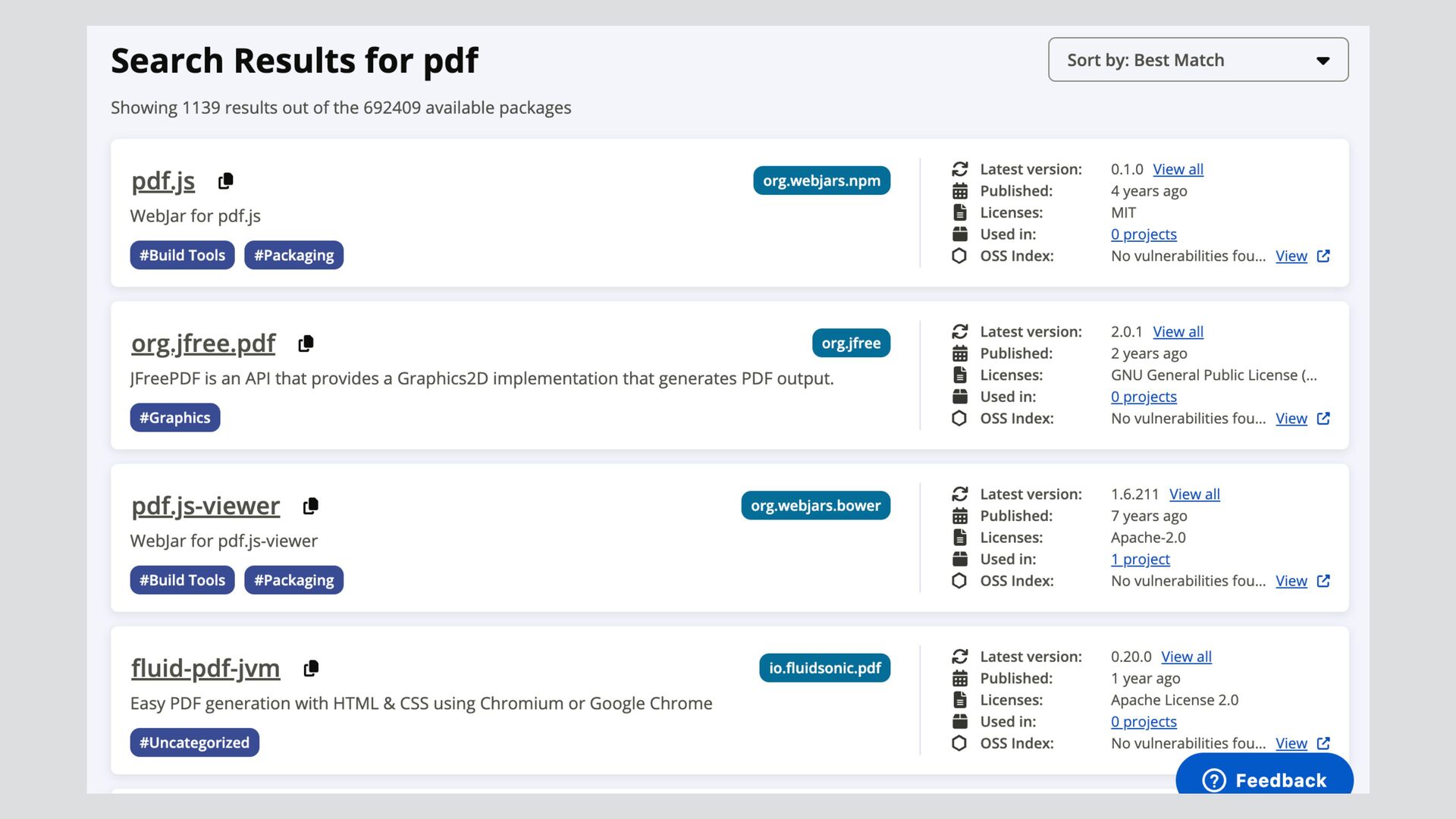

13. A Whole New World • JVM ecosystem has tens of thousands of libraries • Graphics, GUIs, servers, document formats, AI/LLM • One of the largest collections in the dev world • All available to JRuby users! • Easy integration into Ruby apps and code

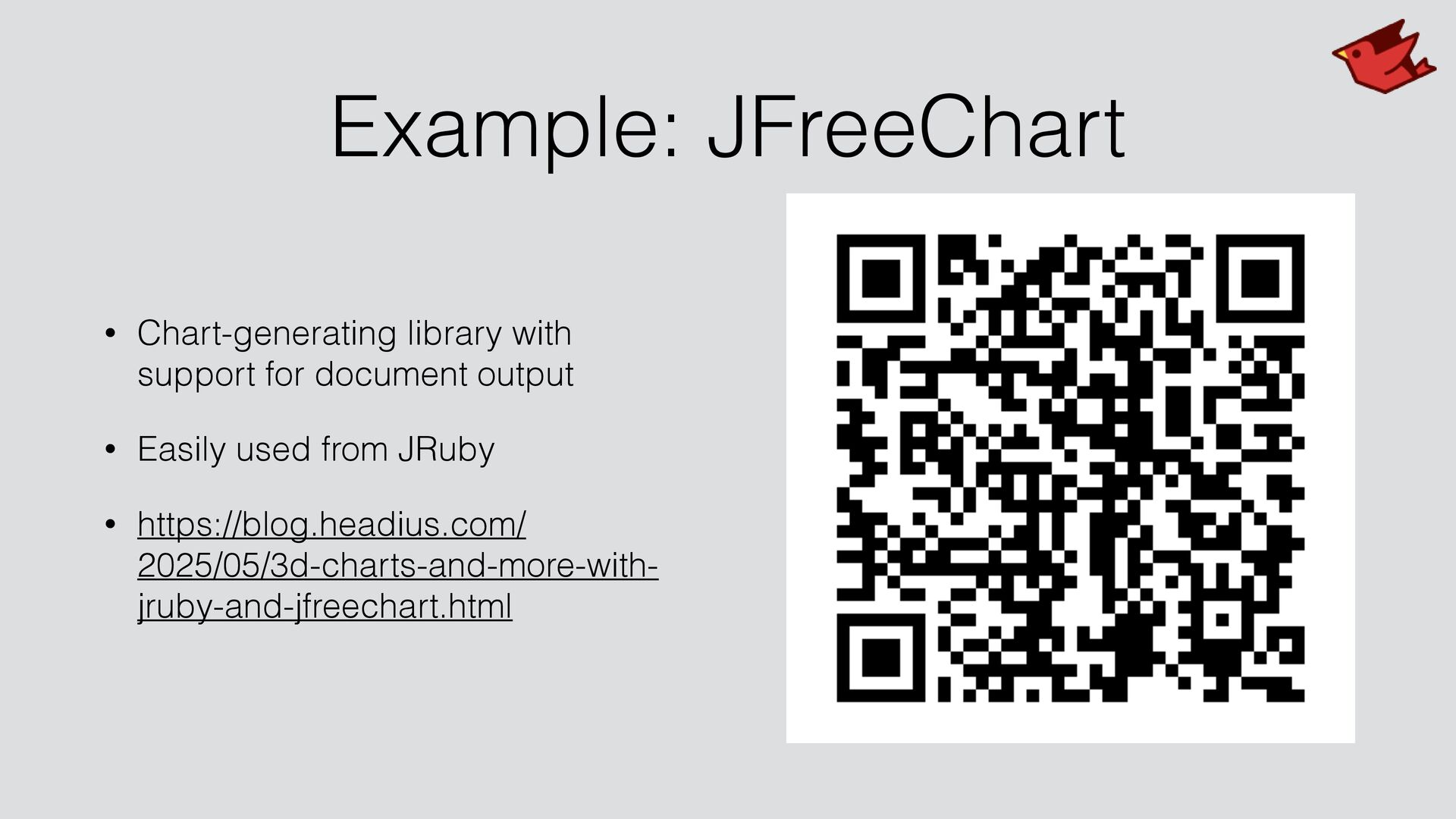

17. Example: JFreeChart • Chart-generating library with support for document output • Easily used from JRuby • https://blog.headius.com/ 2025/05/3d-charts-and-more-with- jruby-and-jfreechart.html

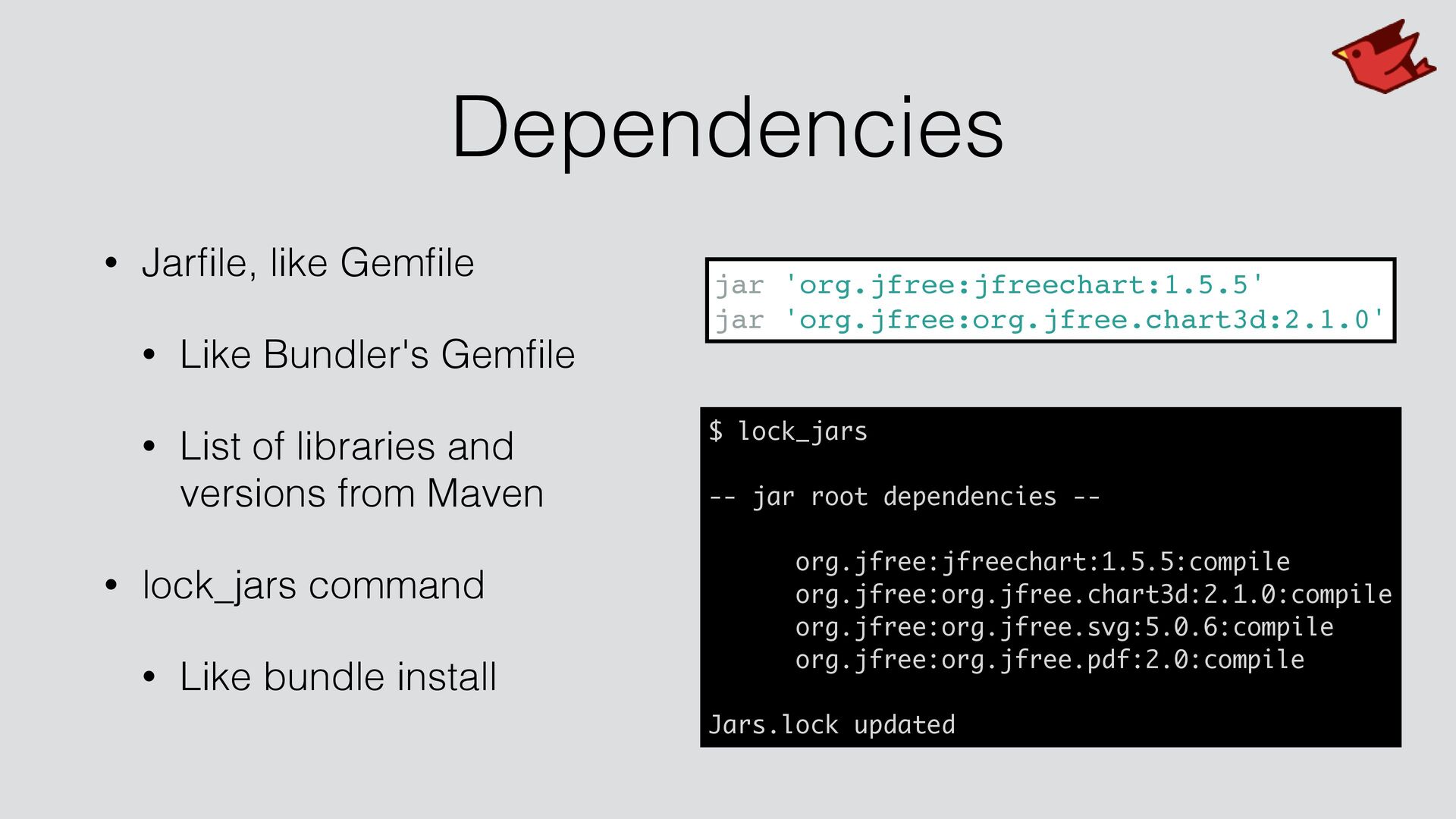

18. Dependencies • Jar fi le, like Gem fi le • Like Bundler's Gem fi le • List of libraries and versions from Maven • lock_jars command • Like bundle install jar 'org.jfree:jfreechart:1.5.5' jar 'org.jfree:org.jfree.chart3d:2.1.0' $ lock_jars -- jar root dependencies -- org.jfree:jfreechart:1.5.5:compile org.jfree:org.jfree.chart3d:2.1.0:compile org.jfree:org.jfree.svg:5.0.6:compile org.jfree:org.jfree.pdf:2.0:compile Jars.lock updated

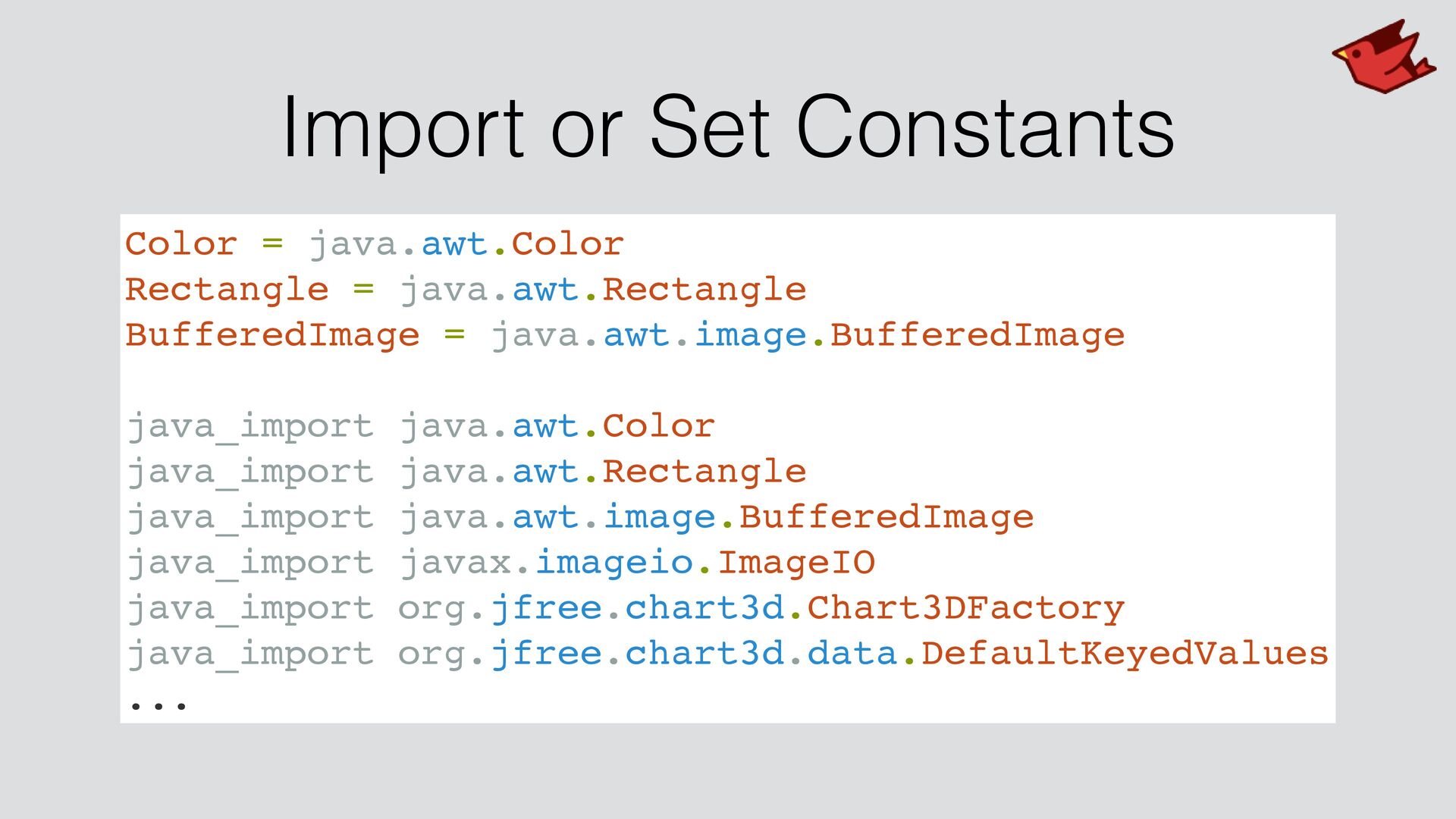

19. Import or Set Constants Color = java.awt.Color Rectangle = java.awt.Rectangle BufferedImage = java.awt.image.BufferedImage java_import java.awt.Color java_import java.awt.Rectangle java_import java.awt.image.BufferedImage java_import javax.imageio.ImageIO java_import org.jfree.chart3d.Chart3DFactory java_import org.jfree.chart3d.data.DefaultKeyedValues ...

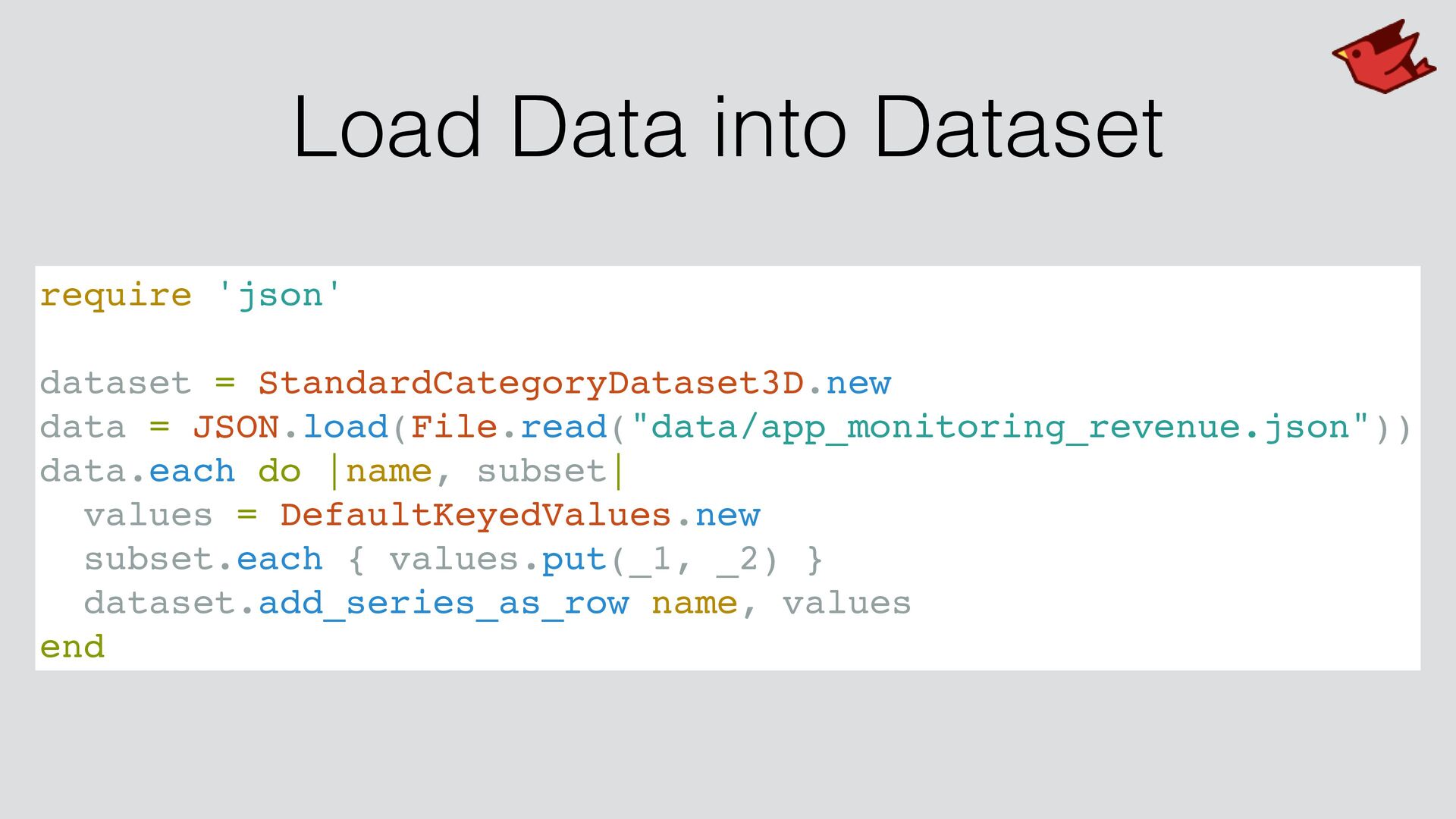

20. Load Data into Dataset require 'json' dataset = StandardCategoryDataset3D.new data = JSON.load(File.read("data/app_monitoring_revenue.json")) data.each do |name, subset| values = DefaultKeyedValues.new subset.each { values.put(_1, _2) } dataset.add_series_as_row name, values end

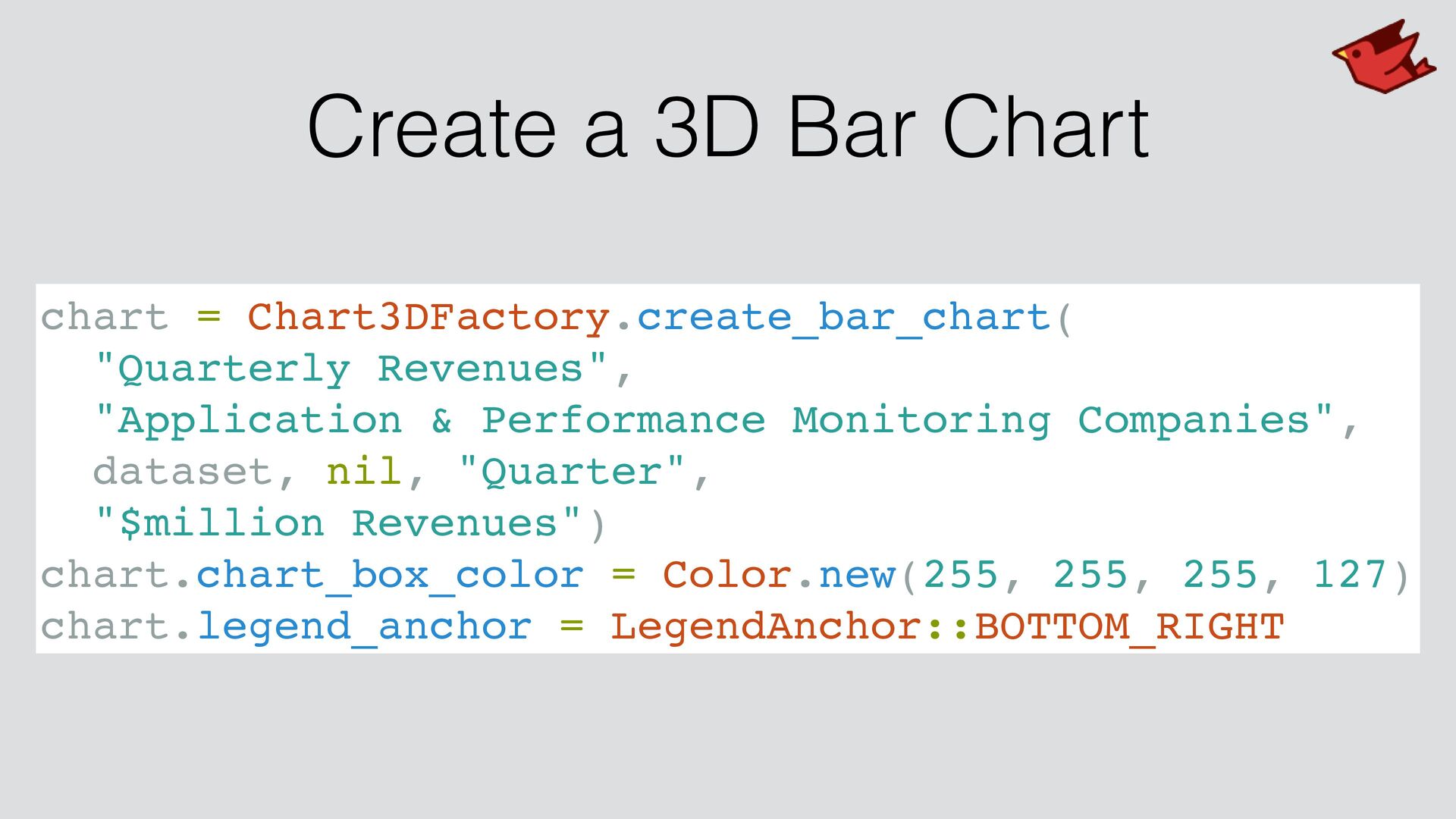

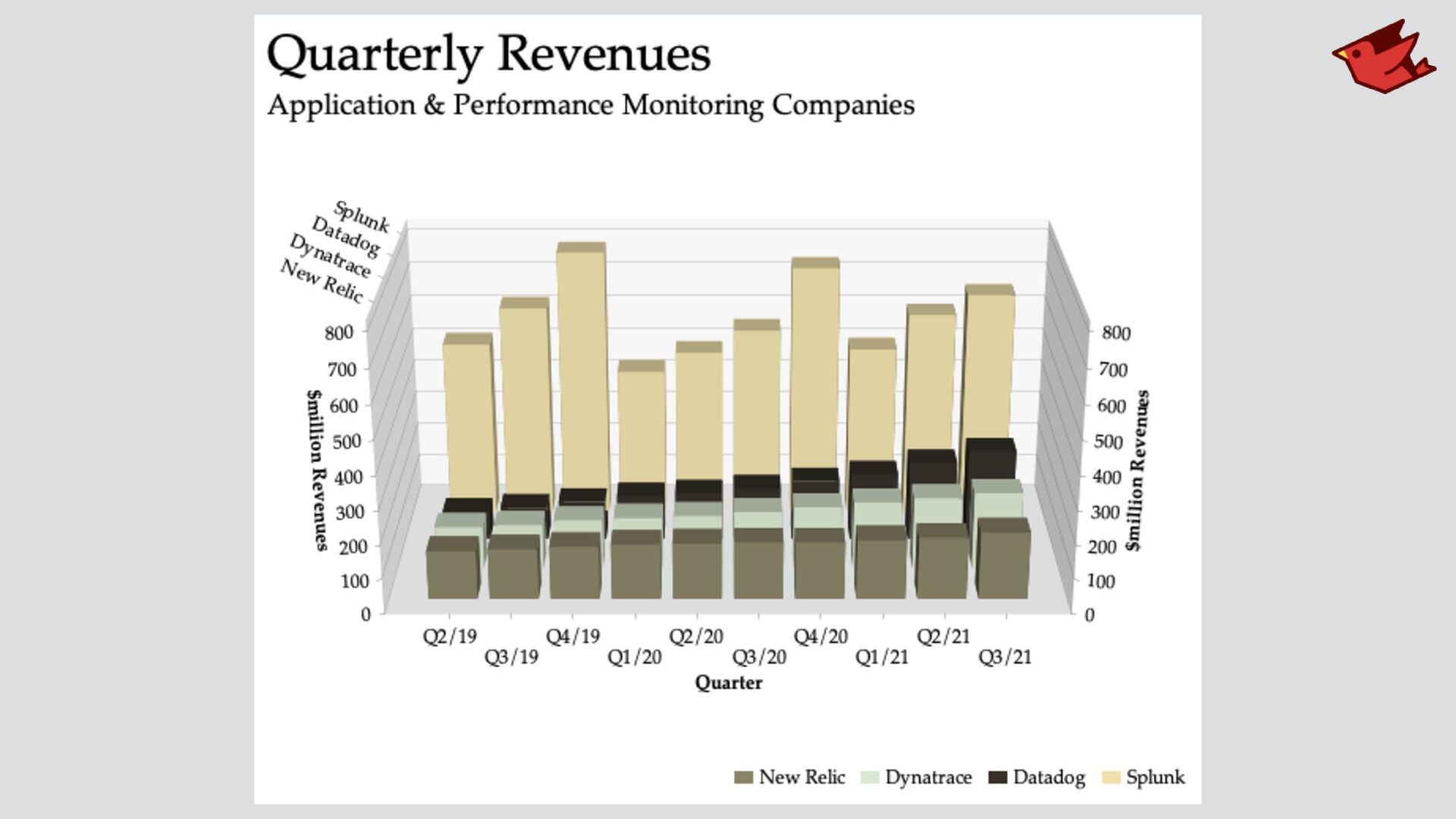

21. Create a 3D Bar Chart chart = Chart3DFactory.create_bar_chart( "Quarterly Revenues", "Application & Performance Monitoring Companies", dataset, nil, "Quarter", "$million Revenues") chart.chart_box_color = Color.new(255, 255, 255, 127) chart.legend_anchor = LegendAnchor::BOTTOM_RIGHT

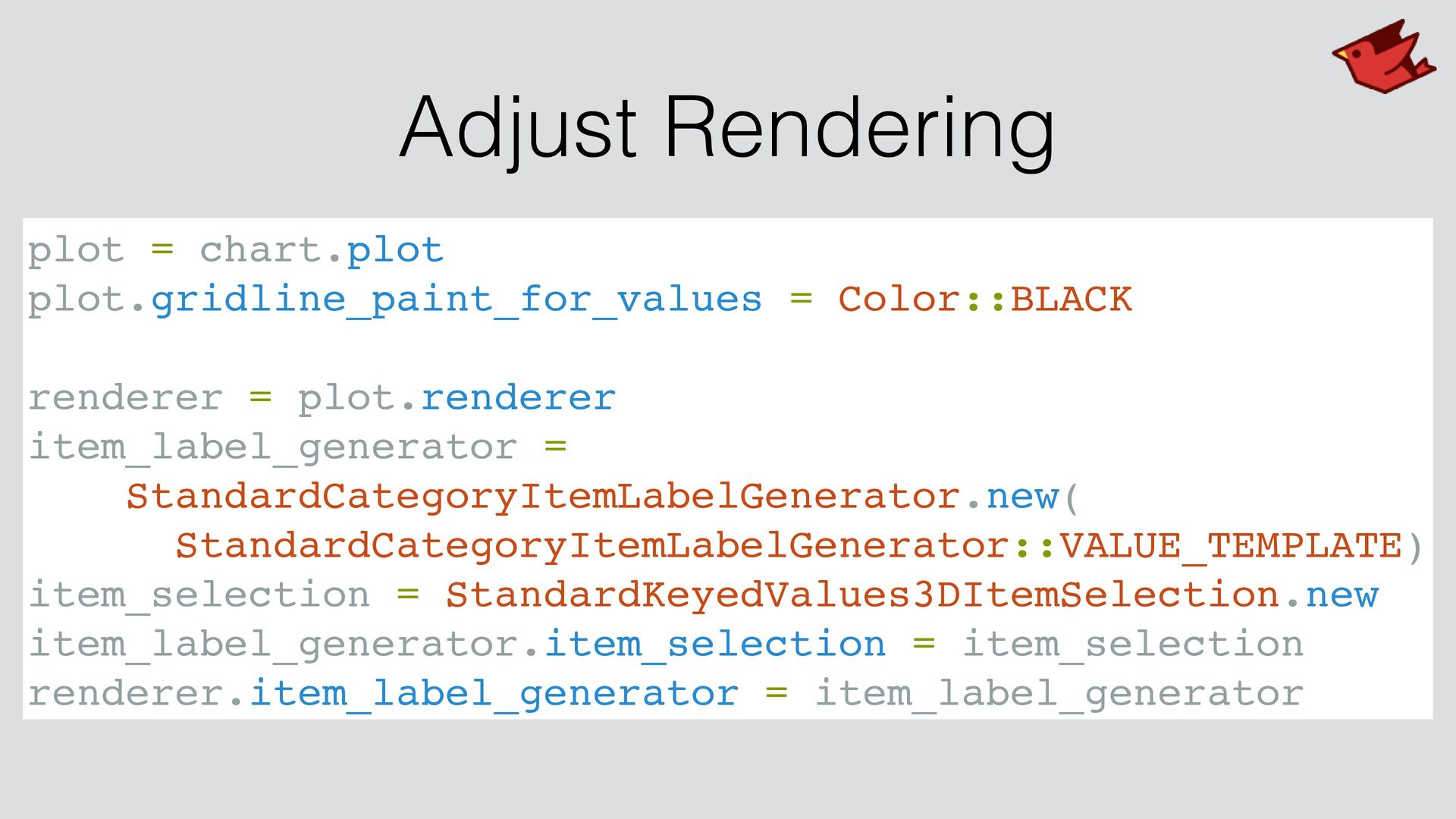

22. Adjust Rendering plot = chart.plot plot.gridline_paint_for_values = Color::BLACK renderer = plot.renderer item_label_generator = StandardCategoryItemLabelGenerator.new( StandardCategoryItemLabelGenerator::VALUE_TEMPLATE) item_selection = StandardKeyedValues3DItemSelection.new item_label_generator.item_selection = item_selection renderer.item_label_generator = item_label_generator

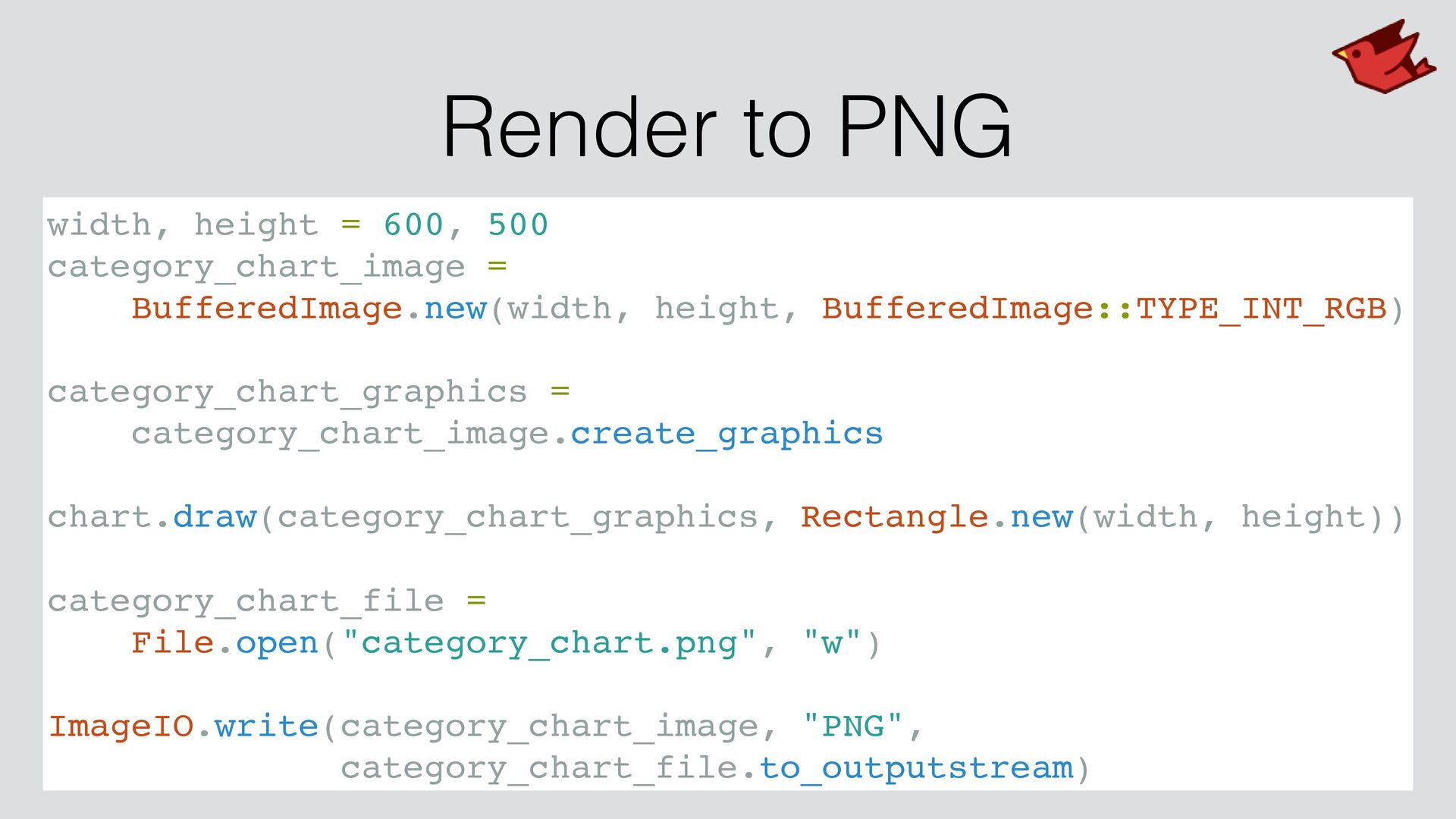

23. Render to PNG width, height = 600, 500 category_chart_image = BufferedImage.new(width, height, BufferedImage::TYPE_INT_RGB) category_chart_graphics = category_chart_image.create_graphics chart.draw(category_chart_graphics, Rectangle.new(width, height)) category_chart_file = File.open("category_chart.png", "w") ImageIO.write(category_chart_image, "PNG", category_chart_file.to_outputstream)

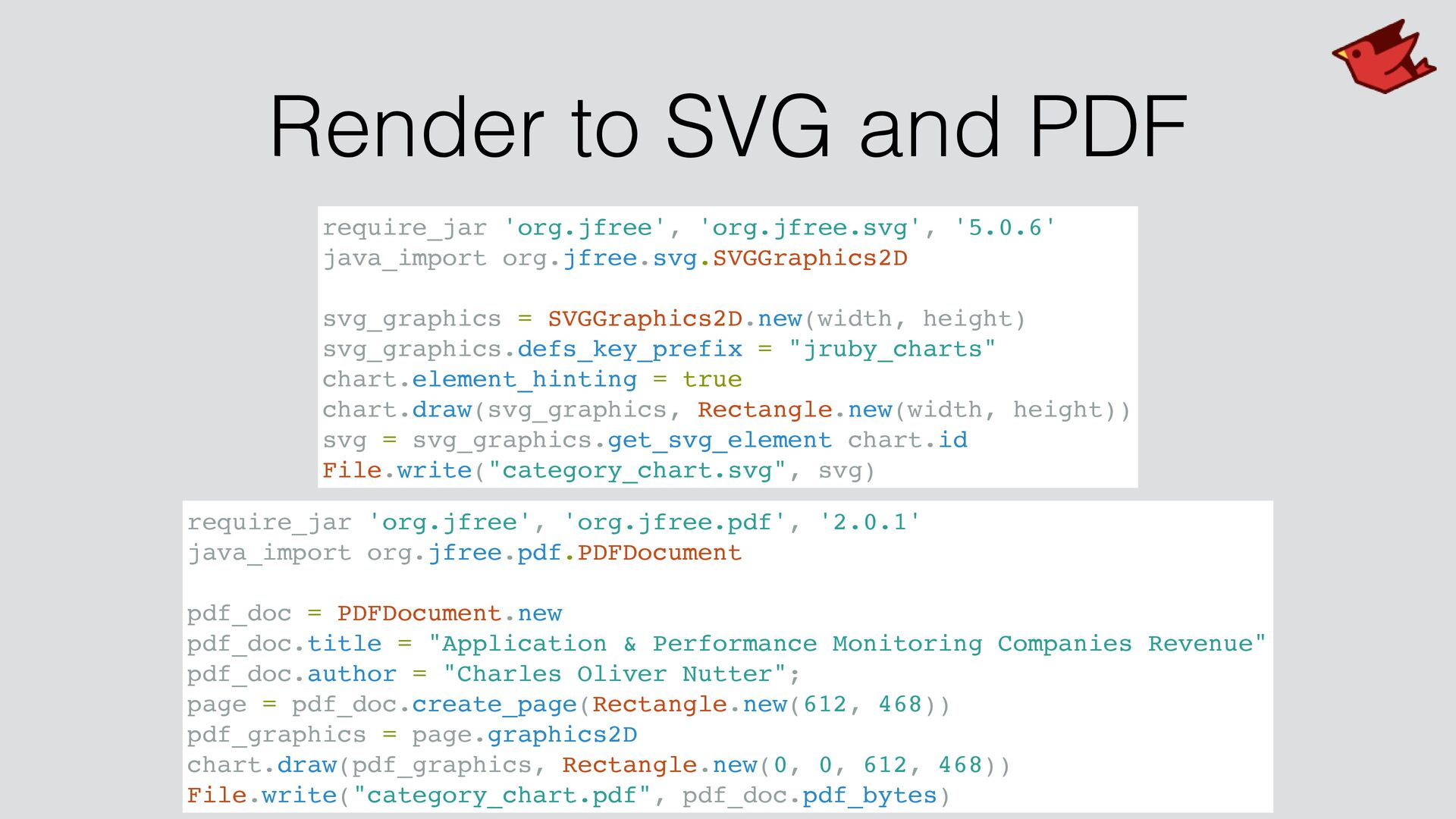

25. Render to SVG and PDF require_jar 'org.jfree', 'org.jfree.svg', '5.0.6' java_import org.jfree.svg.SVGGraphics2D svg_graphics = SVGGraphics2D.new(width, height) svg_graphics.defs_key_prefix = "jruby_charts" chart.element_hinting = true chart.draw(svg_graphics, Rectangle.new(width, height)) svg = svg_graphics.get_svg_element chart.id File.write("category_chart.svg", svg) require_jar 'org.jfree', 'org.jfree.pdf', '2.0.1' java_import org.jfree.pdf.PDFDocument pdf_doc = PDFDocument.new pdf_doc.title = "Application & Performance Monitoring Companies Revenue" pdf_doc.author = "Charles Oliver Nutter"; page = pdf_doc.create_page(Rectangle.new(612, 468)) pdf_graphics = page.graphics2D chart.draw(pdf_graphics, Rectangle.new(0, 0, 612, 468)) File.write("category_chart.pdf", pdf_doc.pdf_bytes)

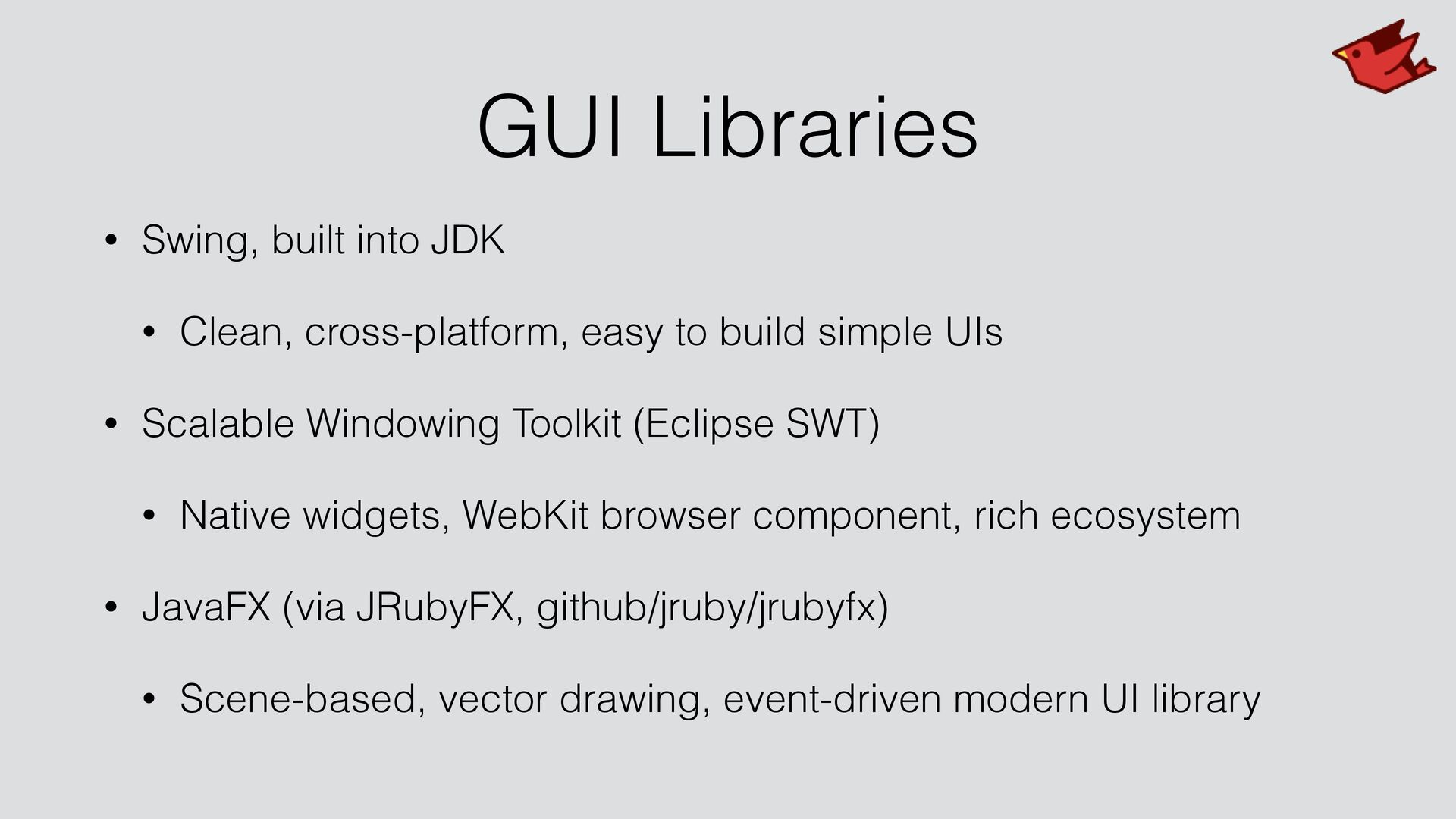

26. GUI Libraries • Swing, built into JDK • Clean, cross-platform, easy to build simple UIs • Scalable Windowing Toolkit (Eclipse SWT) • Native widgets, WebKit browser component, rich ecosystem • JavaFX (via JRubyFX, github/jruby/jrubyfx) • Scene-based, vector drawing, event-driven modern UI library

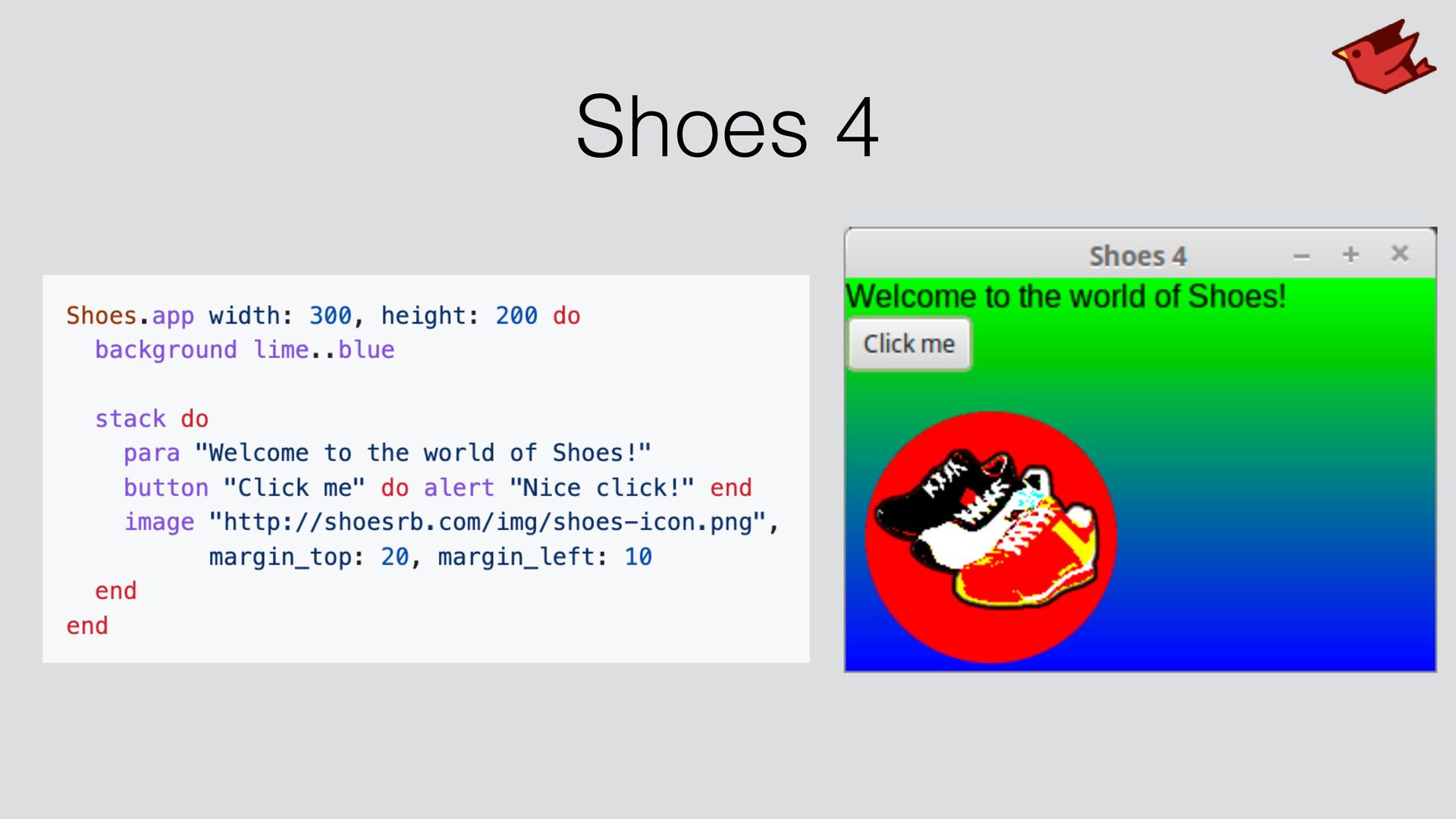

27. Shoes 4

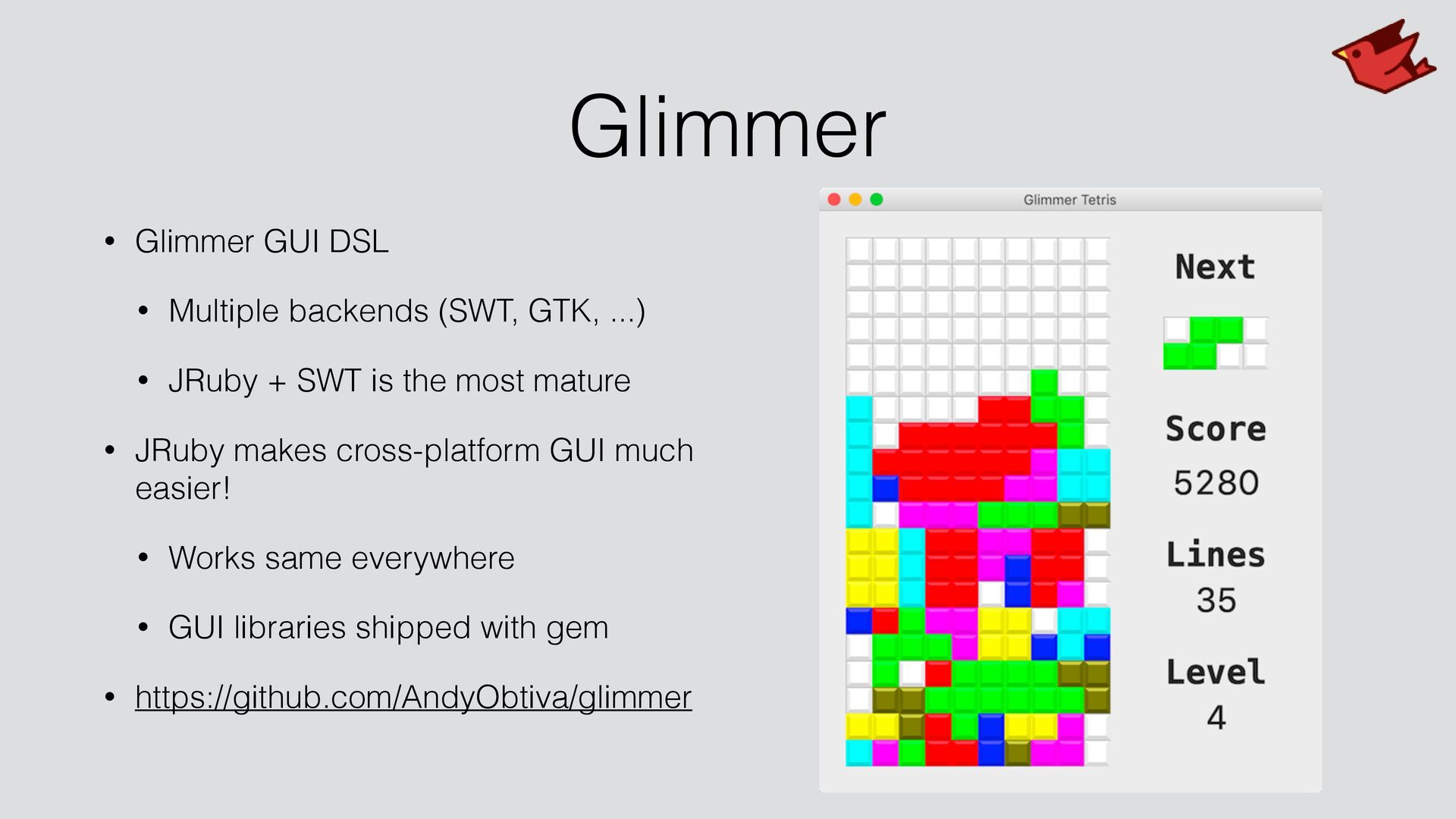

28. Glimmer • Glimmer GUI DSL • Multiple backends (SWT, GTK, ...) • JRuby + SWT is the most mature • JRuby makes cross-platform GUI much easier! • Works same everywhere • GUI libraries shipped with gem • https://github.com/AndyObtiva/glimmer

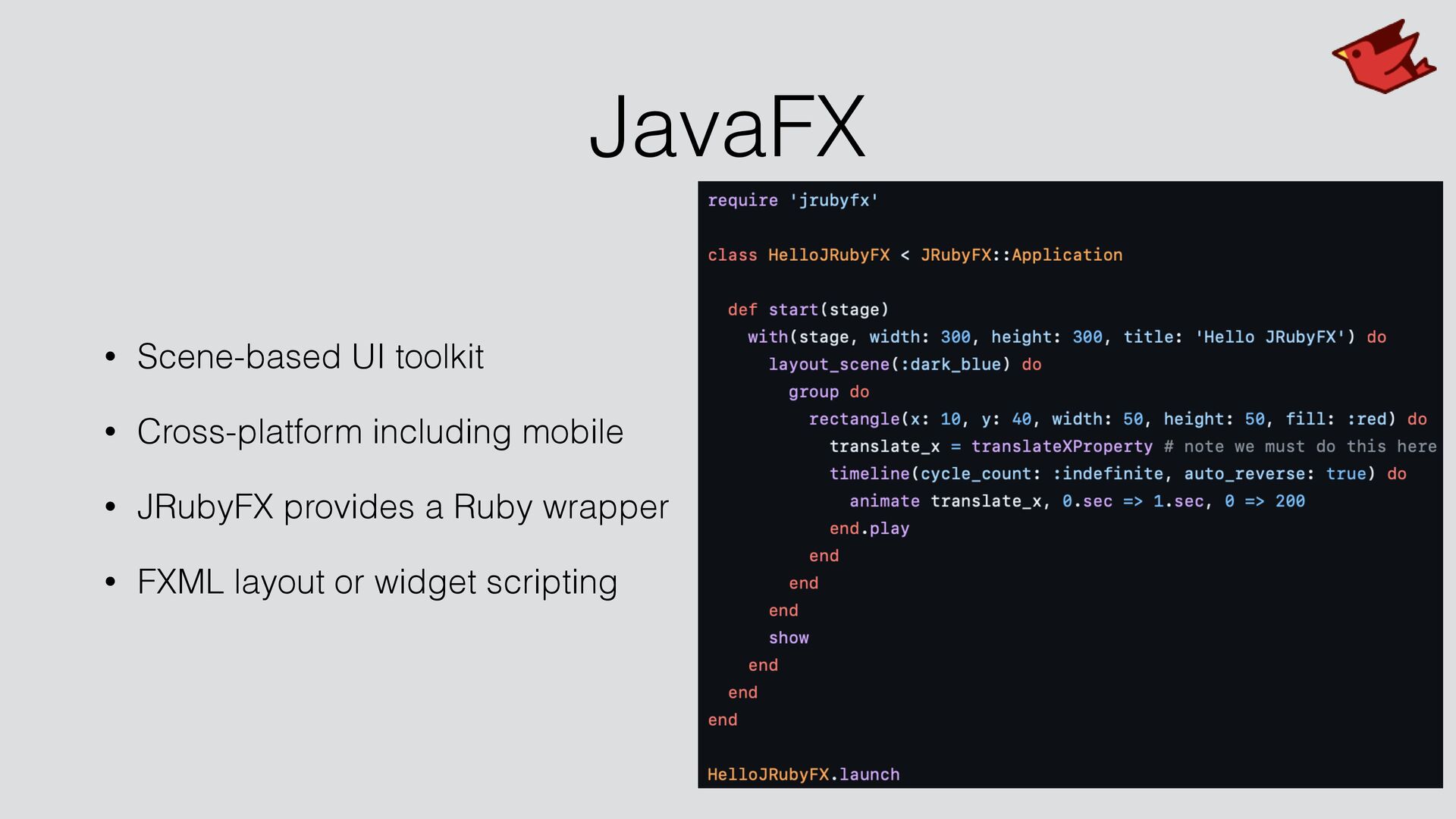

29. JavaFX • Scene-based UI toolkit • Cross-platform including mobile • JRubyFX provides a Ruby wrapper • FXML layout or widget scripting

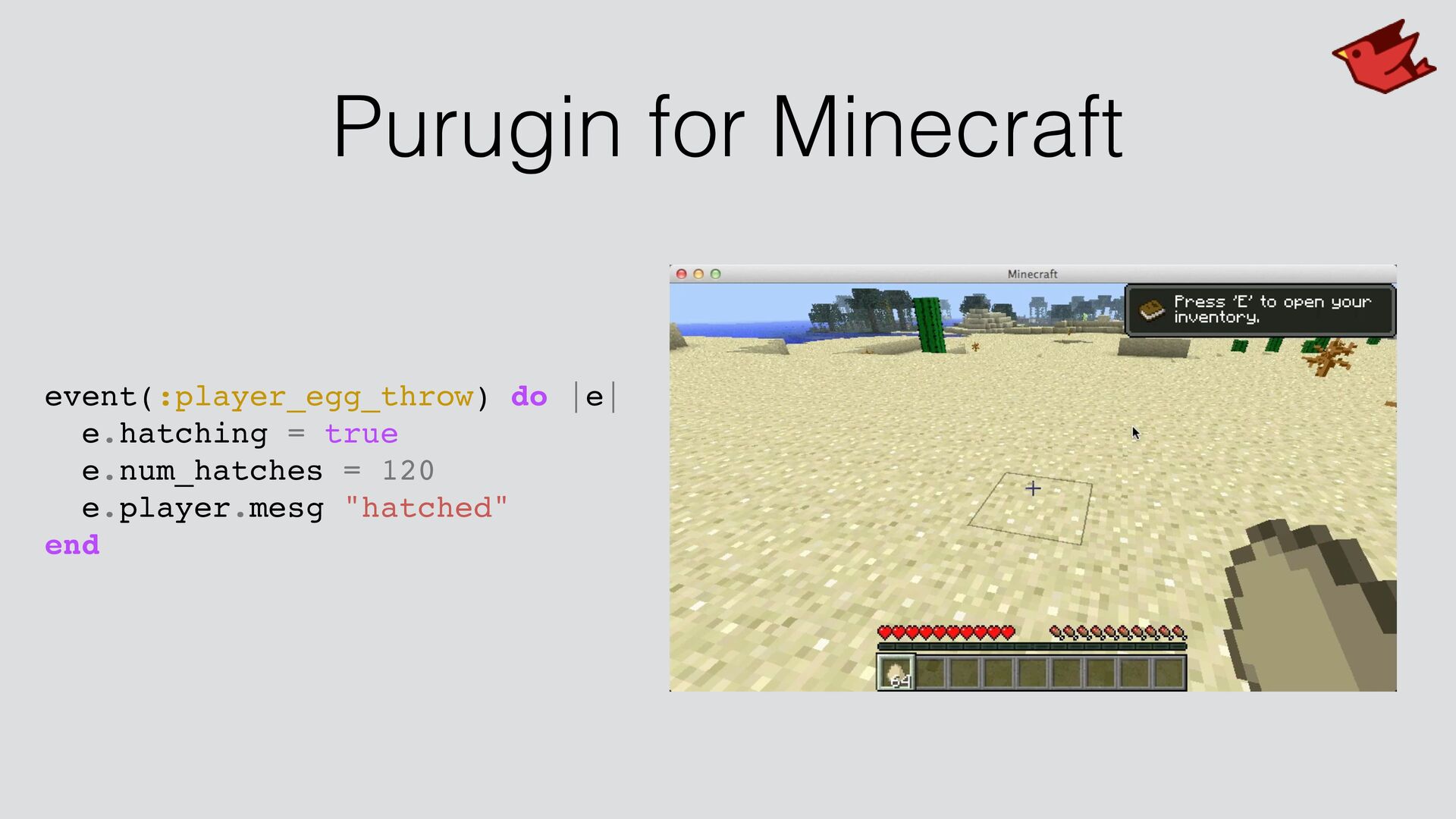

30. Purugin for Minecraft event(:player_egg_throw) do |e| e.hatching = true e.num_hatches = 120 e.player.mesg "hatched" end
31. GUIs... like Android?

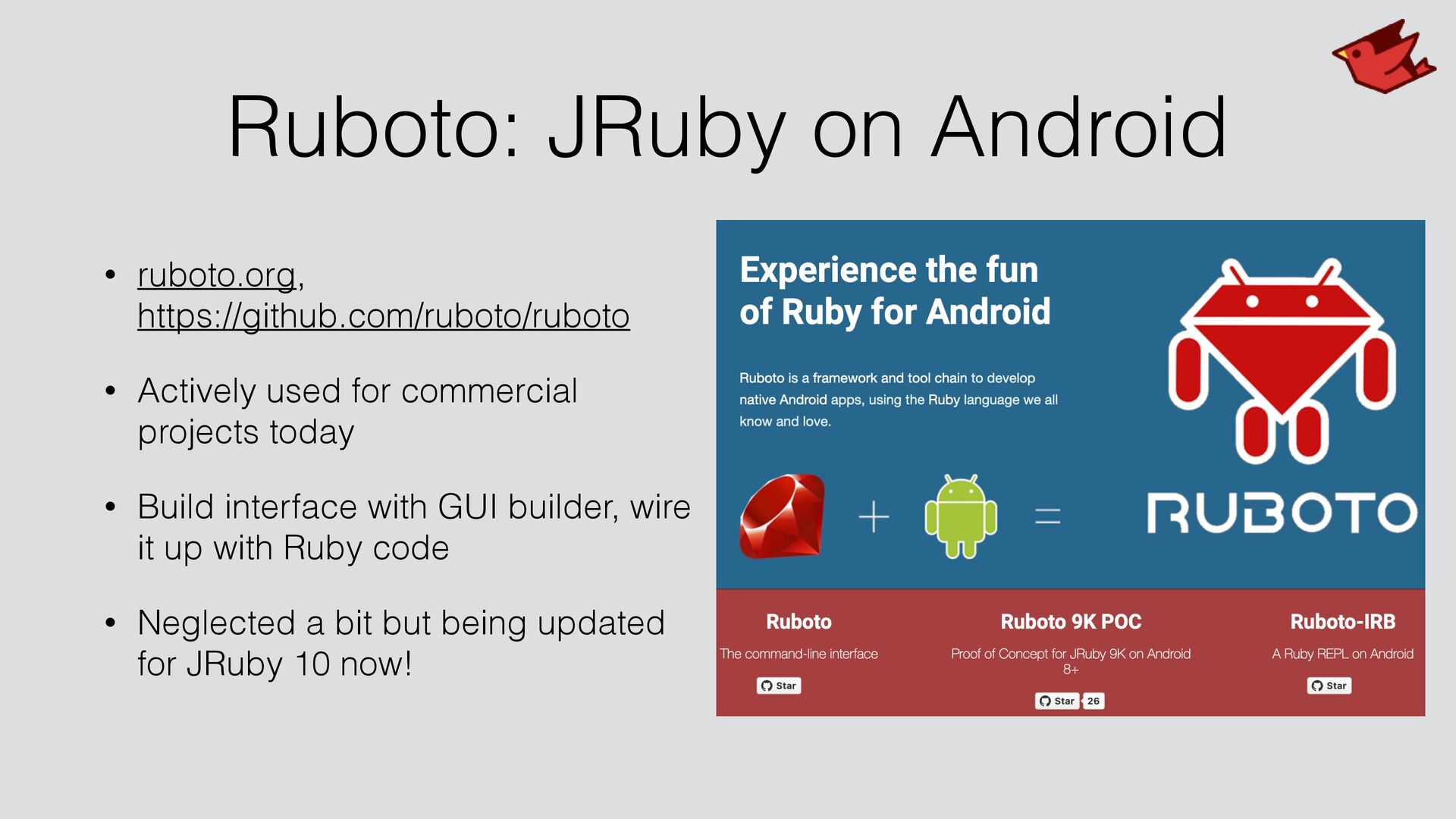

32. Ruboto: JRuby on Android • ruboto.org, https://github.com/ruboto/ruboto • Actively used for commercial projects today • Build interface with GUI builder, wire it up with Ruby code • Neglected a bit but being updated for JRuby 10 now!

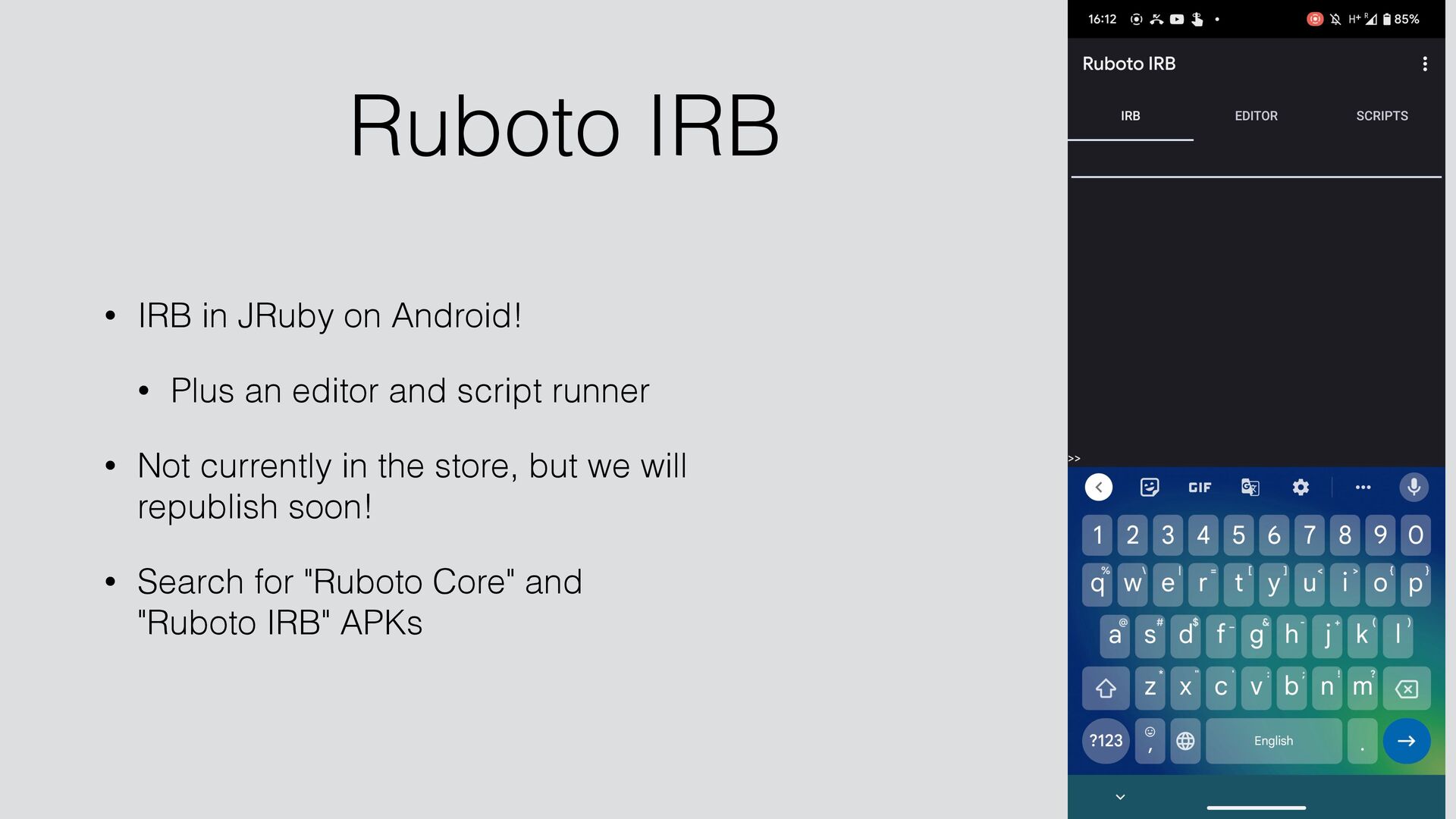

33. Ruboto IRB • IRB in JRuby on Android! • Plus an editor and script runner • Not currently in the store, but we will republish soon! • Search for "Ruboto Core" and "Ruboto IRB" APKs
34. JVM Features

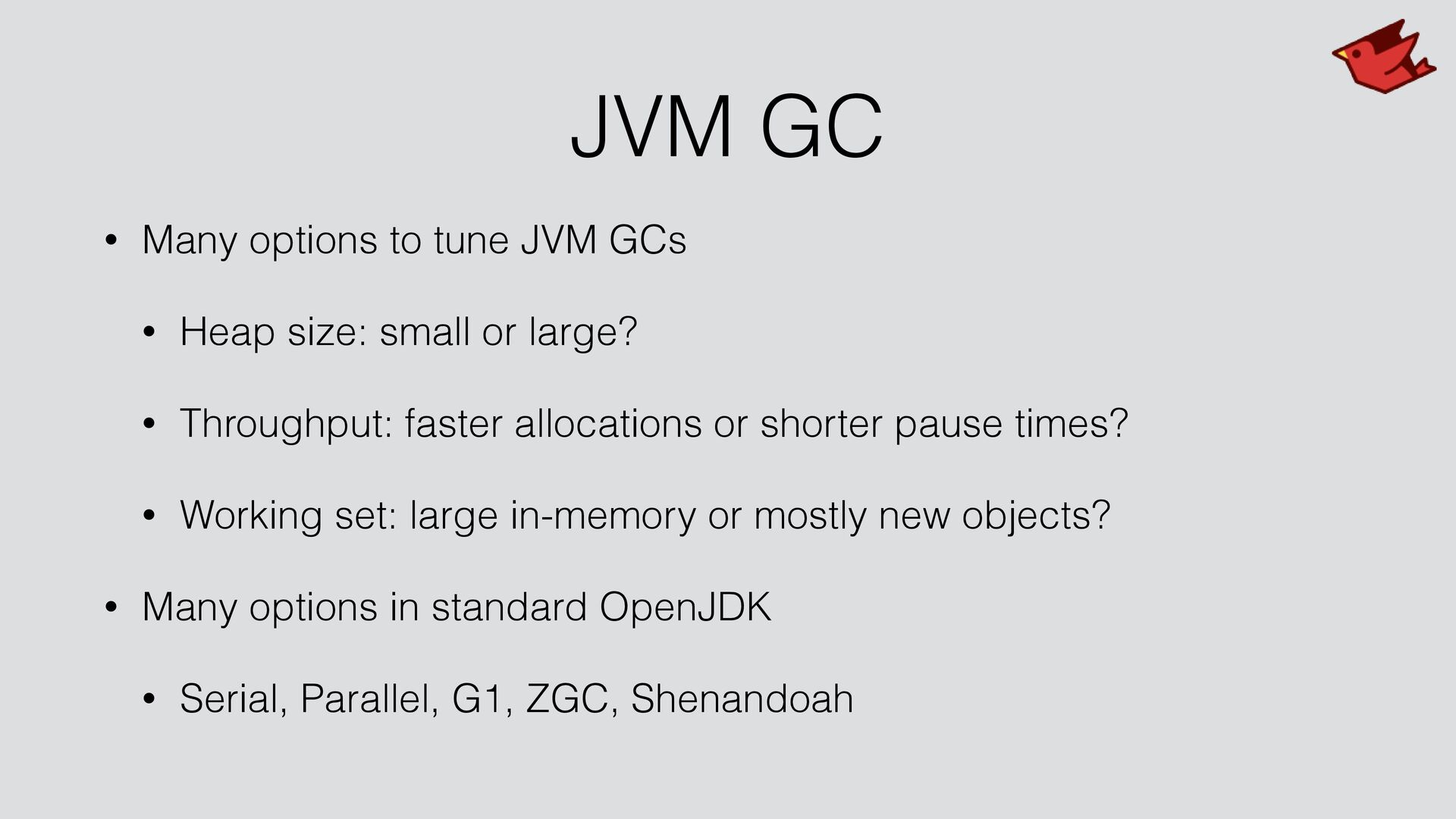

35. JVM GC • Many options to tune JVM GCs • Heap size: small or large? • Throughput: faster allocations or shorter pause times? • Working set: large in-memory or mostly new objects? • Many options in standard OpenJDK • Serial, Parallel, G1, ZGC, Shenandoah

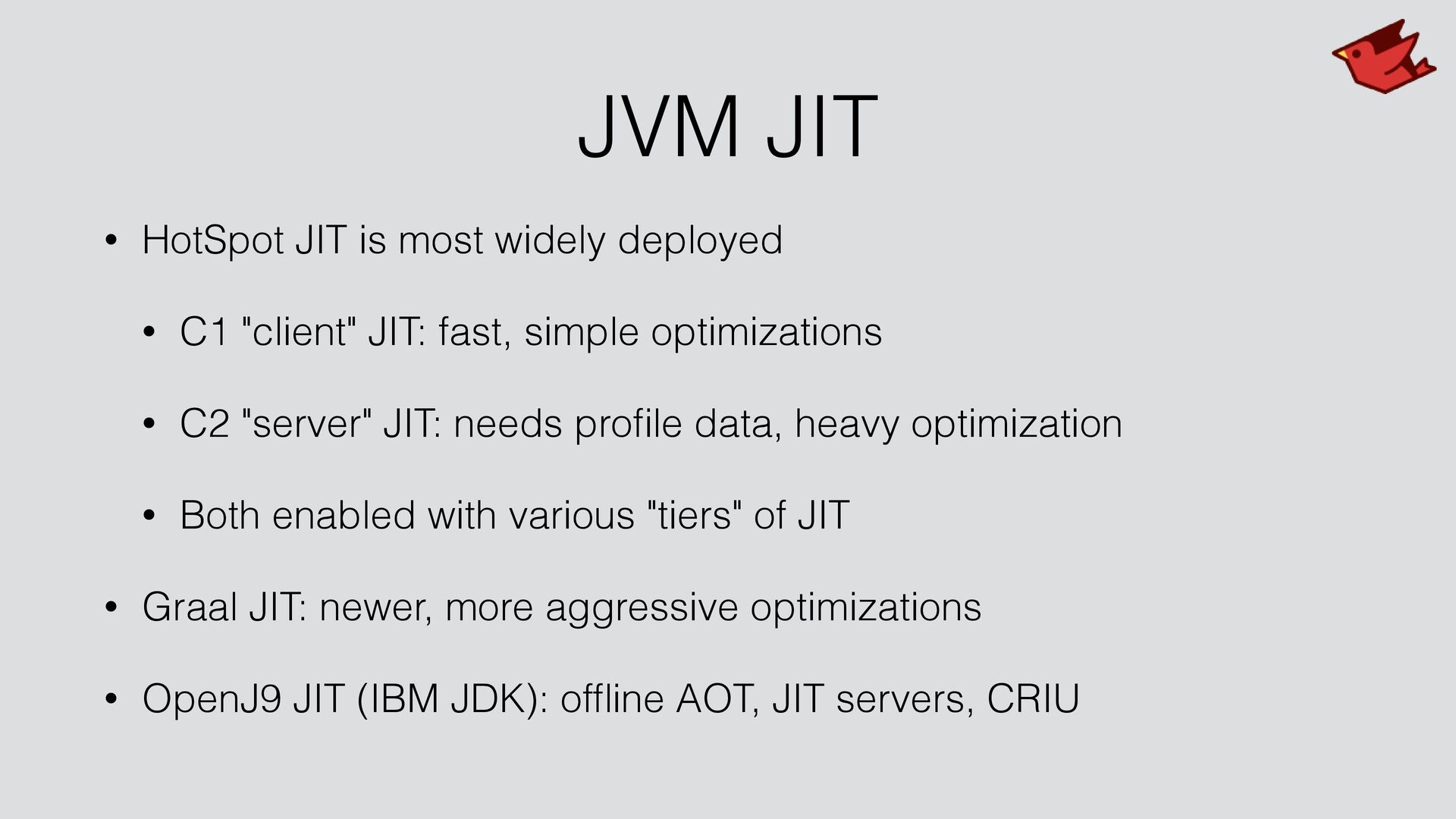

36. JVM JIT • HotSpot JIT is most widely deployed • C1 "client" JIT: fast, simple optimizations • C2 "server" JIT: needs pro fi le data, heavy optimization • Both enabled with various "tiers" of JIT • Graal JIT: newer, more aggressive optimizations • OpenJ9 JIT (IBM JDK): of fl ine AOT, JIT servers, CRIU

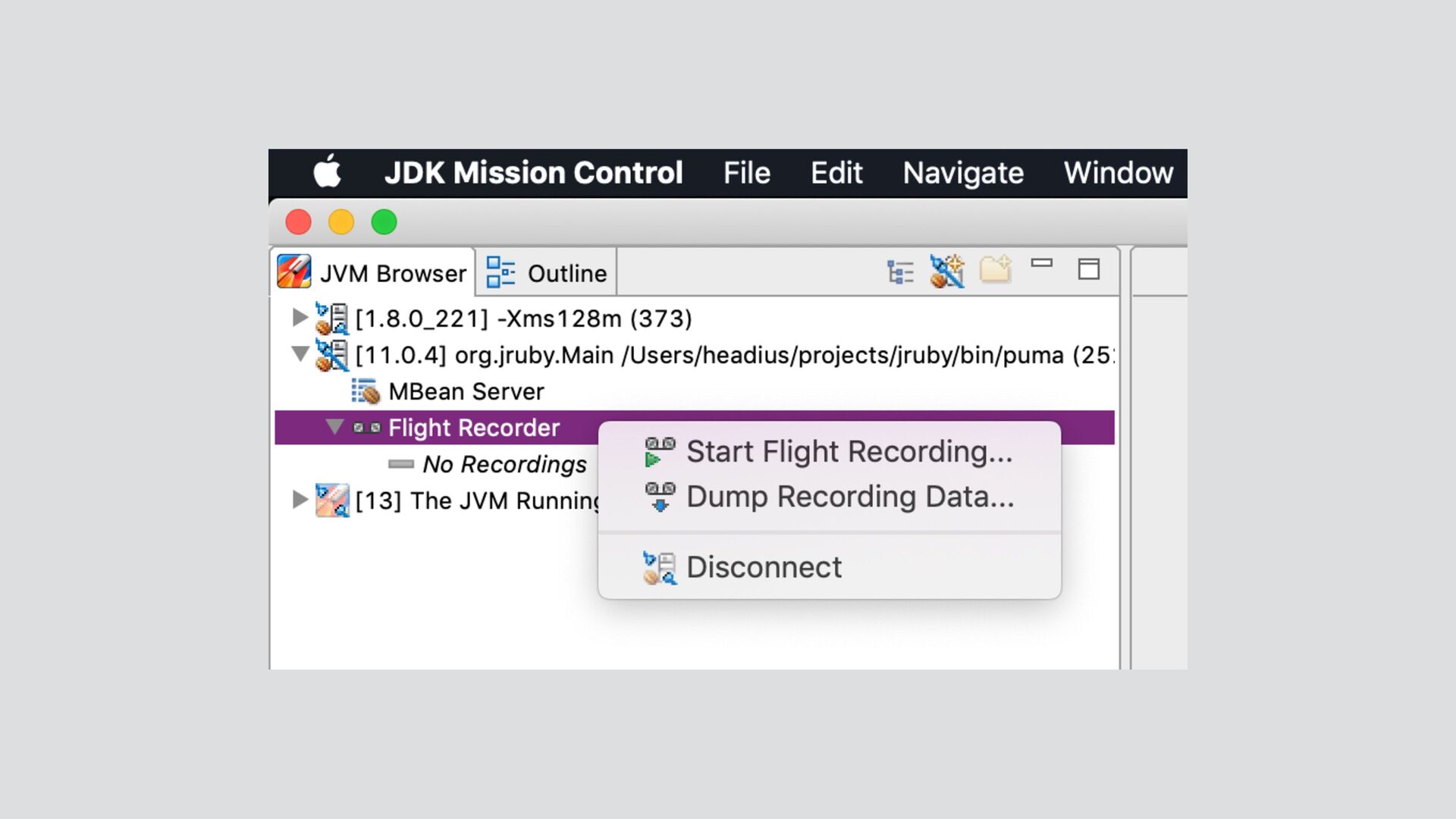

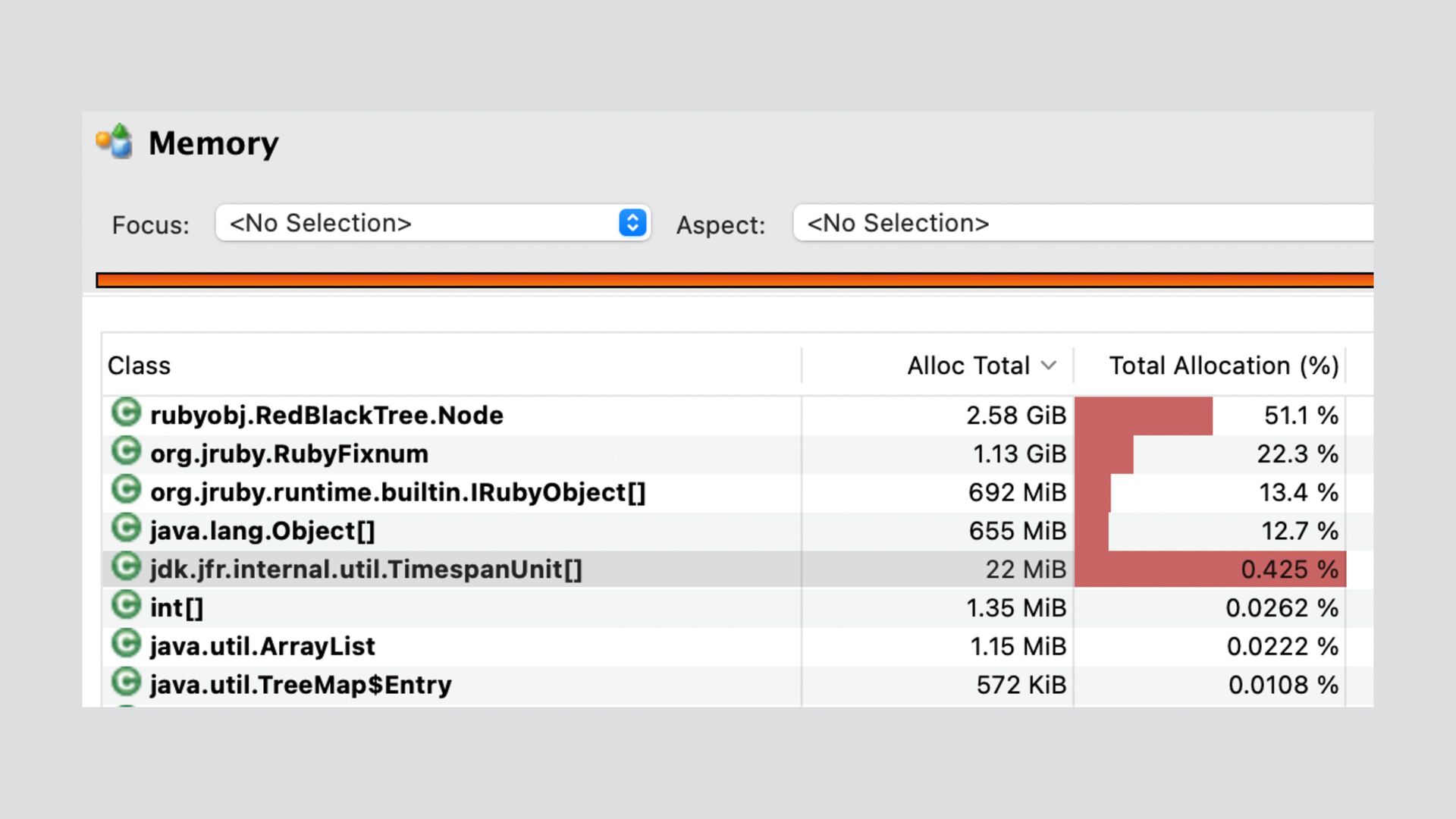

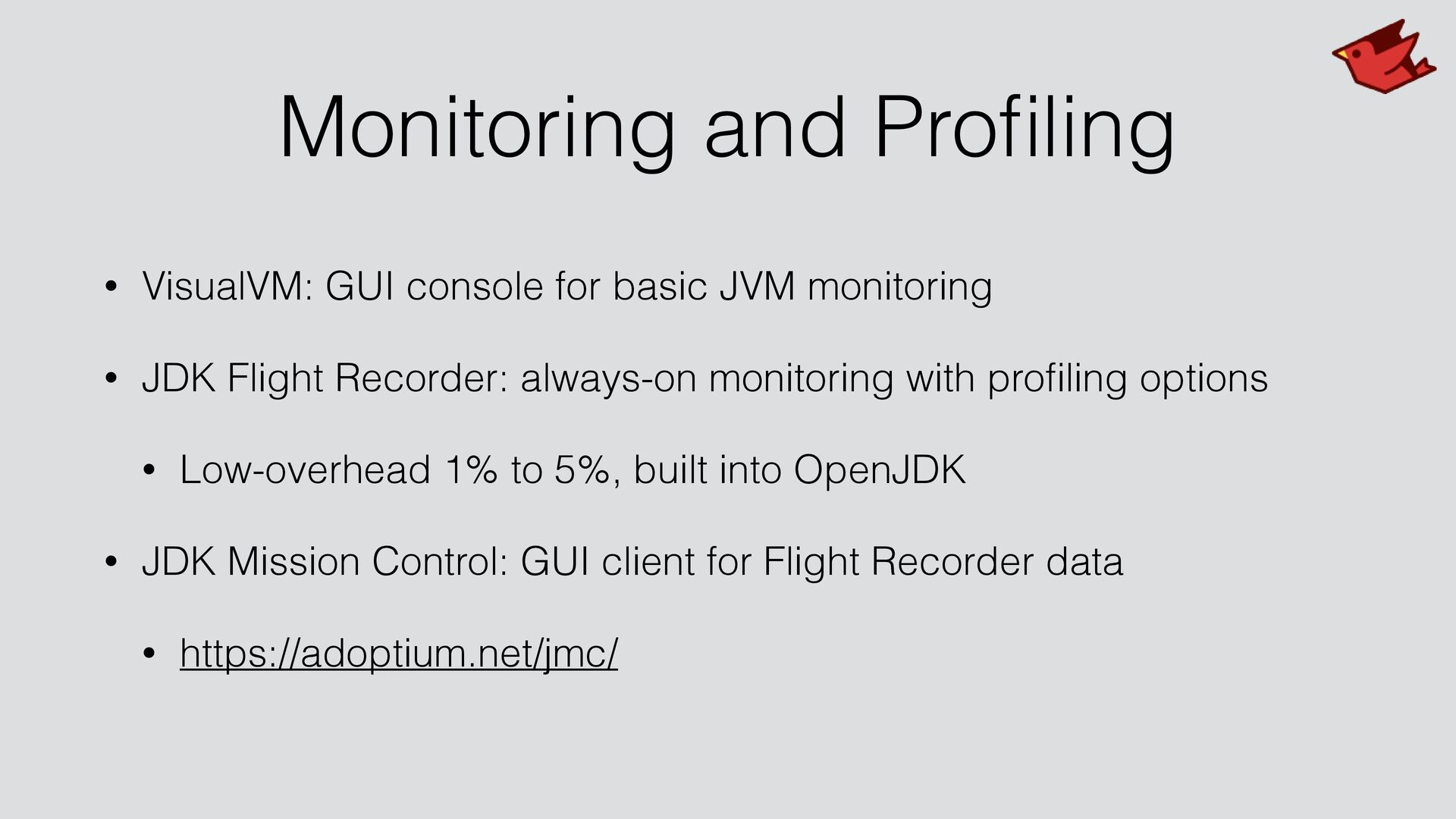

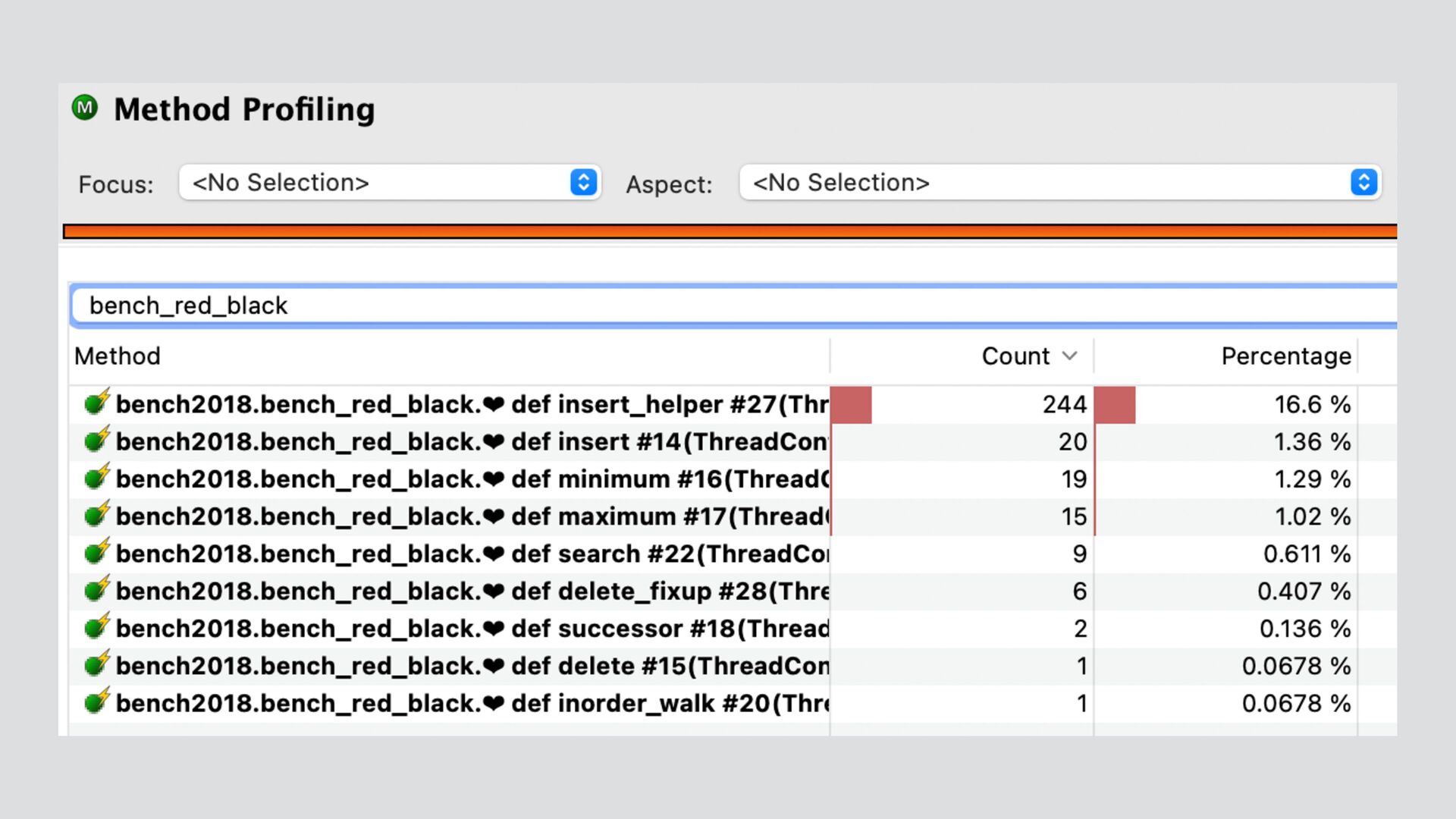

37. Monitoring and Pro fi ling • VisualVM: GUI console for basic JVM monitoring • JDK Flight Recorder: always-on monitoring with pro fi ling options • Low-overhead 1% to 5%, built into OpenJDK • JDK Mission Control: GUI client for Flight Recorder data • https://adoptium.net/jmc/

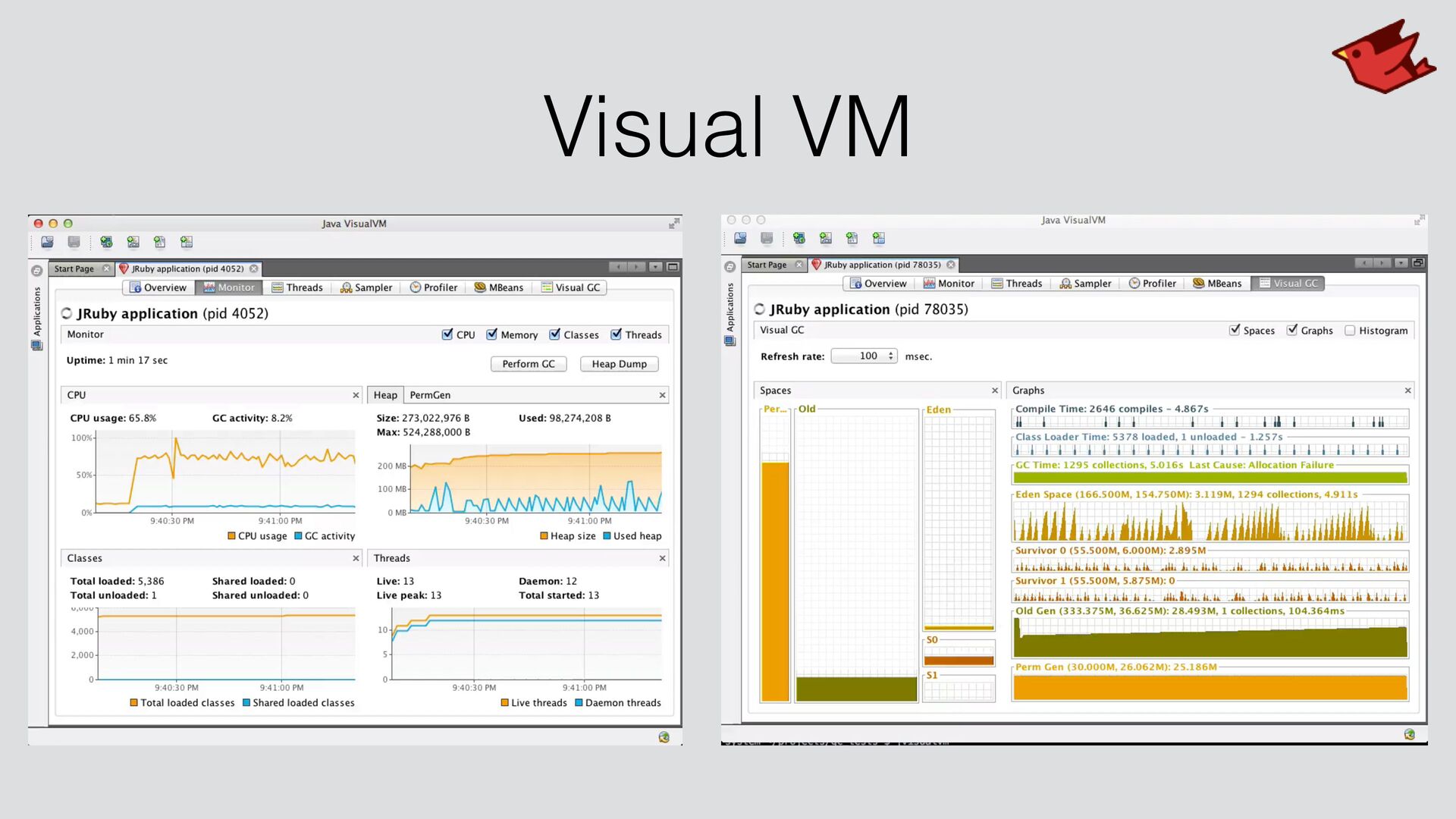

38. Visual VM
42. Performance and Scaling

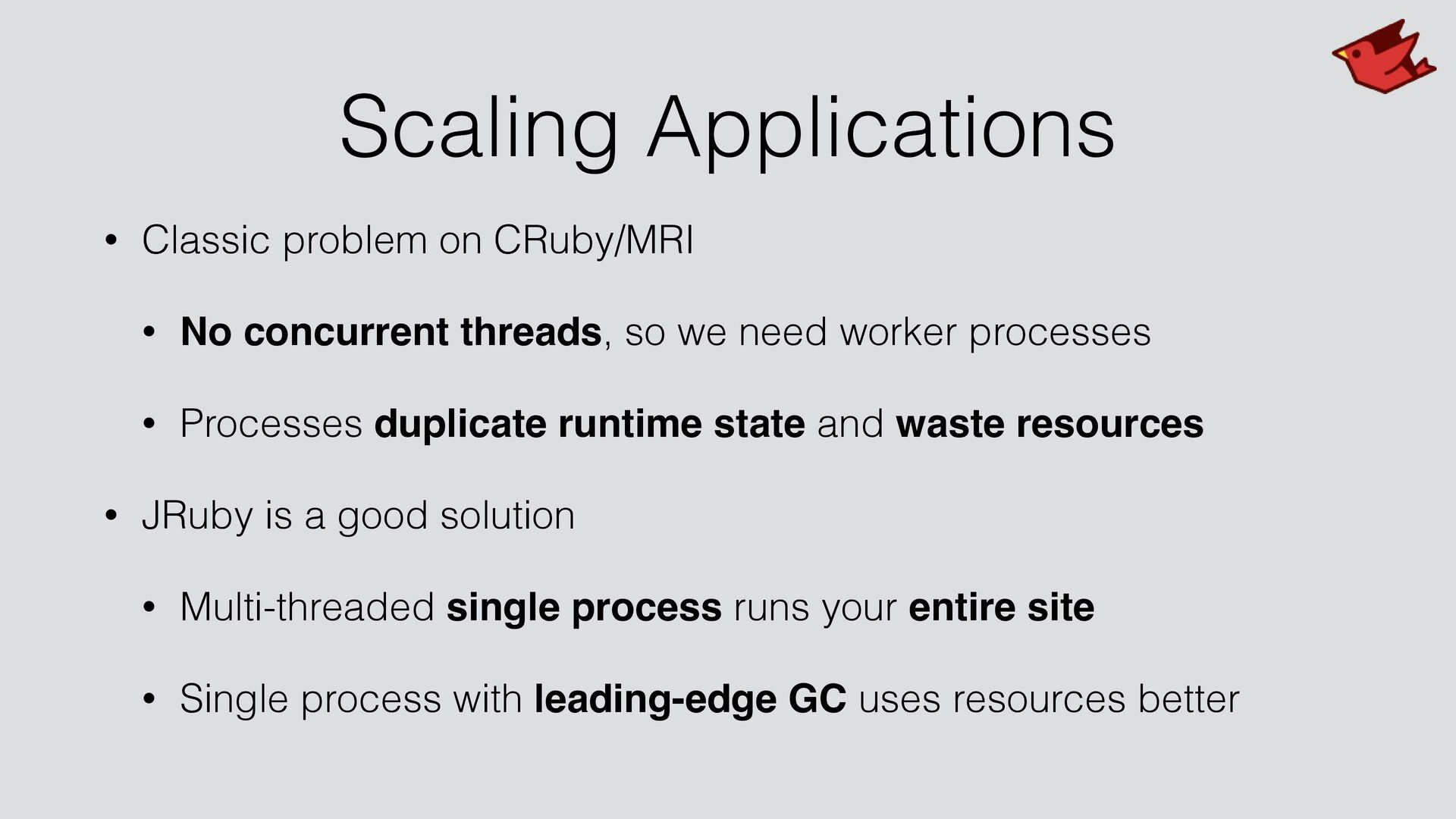

43. Scaling Applications • Classic problem on CRuby/MRI • No concurrent threads, so we need worker processes • Processes duplicate runtime state and waste resources • JRuby is a good solution • Multi-threaded single process runs your entire site • Single process with leading-edge GC uses resources better

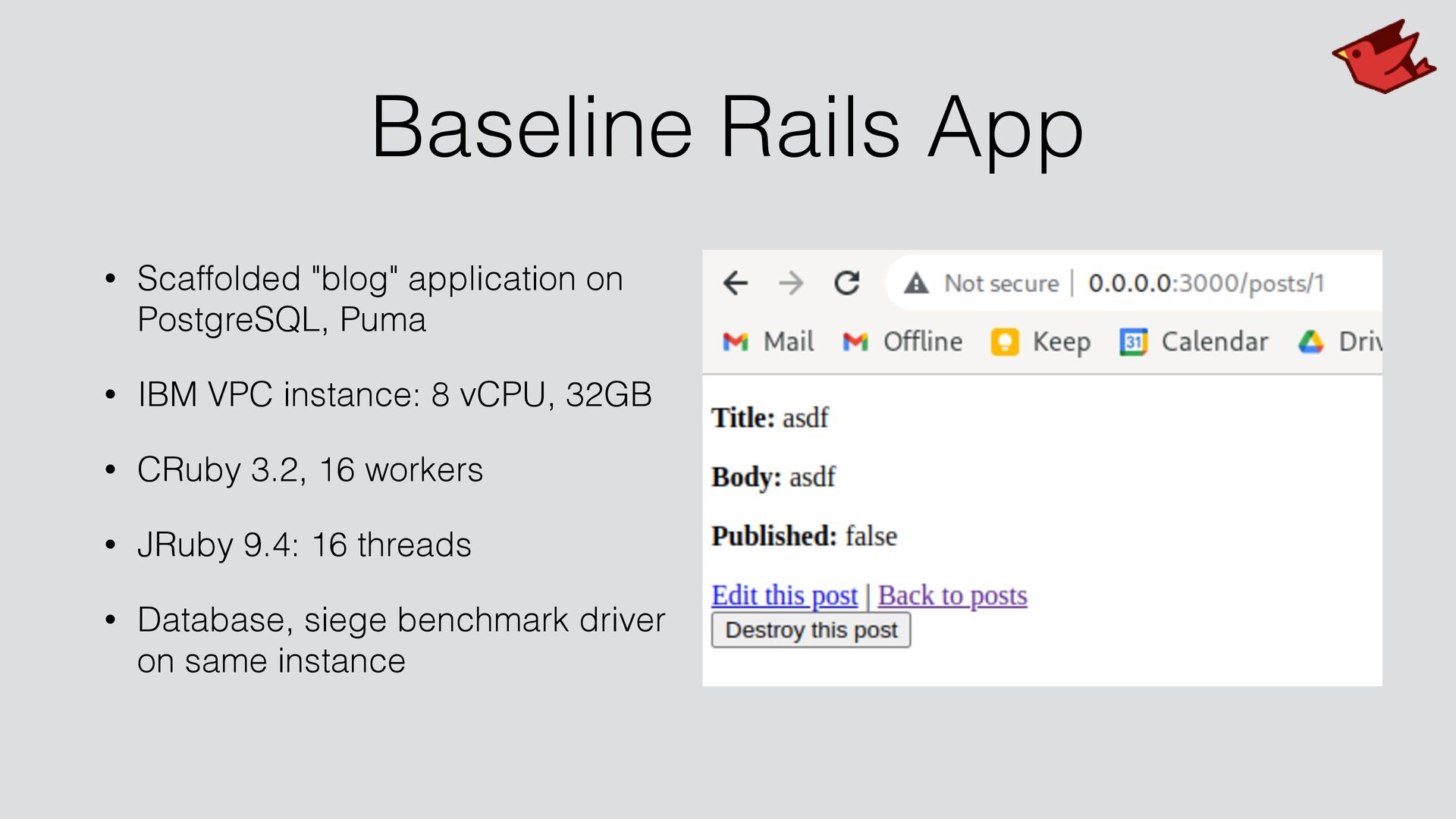

44. Baseline Rails App • Scaffolded "blog" application on PostgreSQL, Puma • IBM VPC instance: 8 vCPU, 32GB • CRuby 3.2, 16 workers • JRuby 9.4: 16 threads • Database, siege benchmark driver on same instance

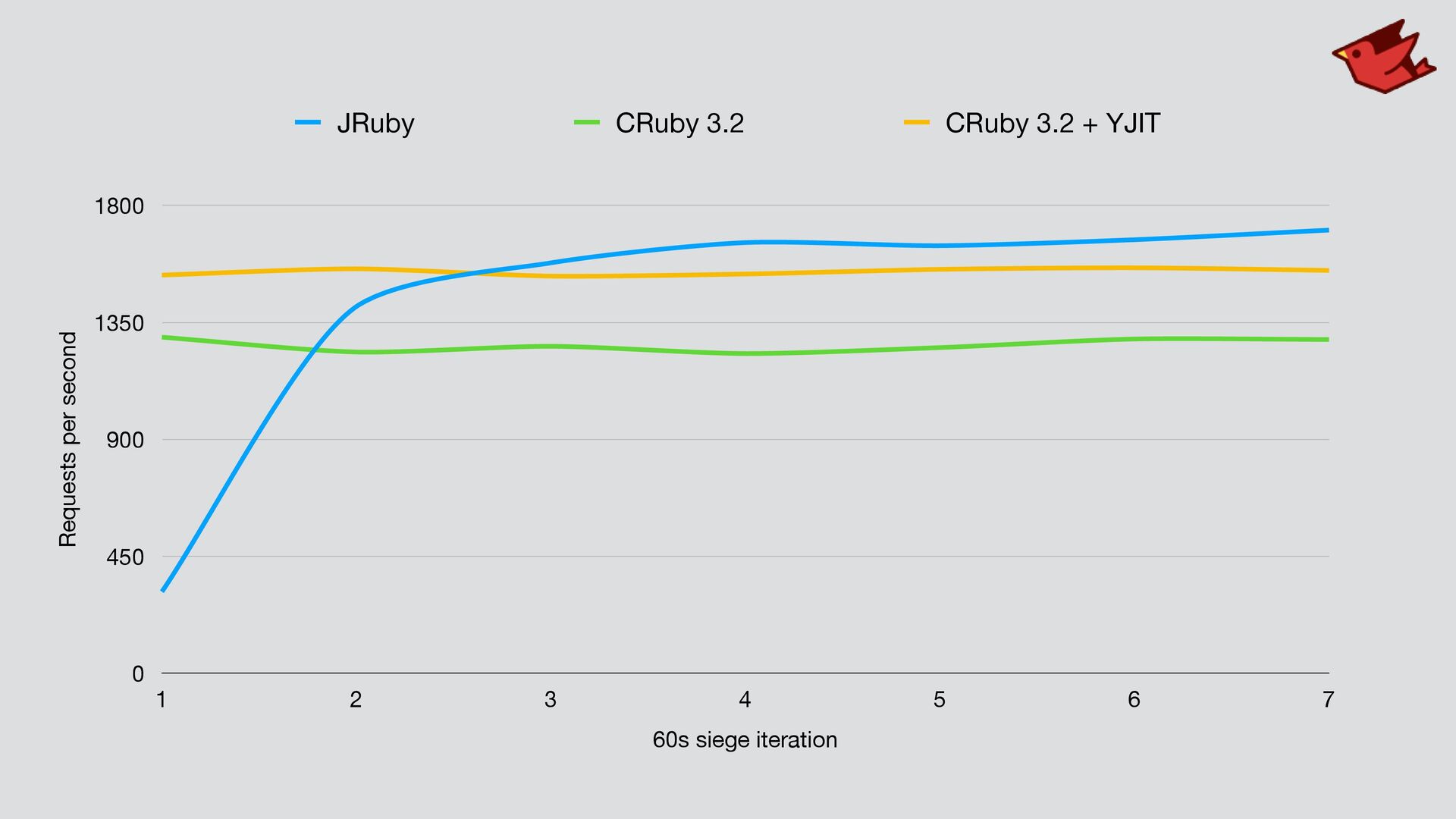

45. Requests per second 0 450 900 1350 1800 60s siege iteration 1 2 3 4 5 6 7 JRuby CRuby 3.2 CRuby 3.2 + YJIT

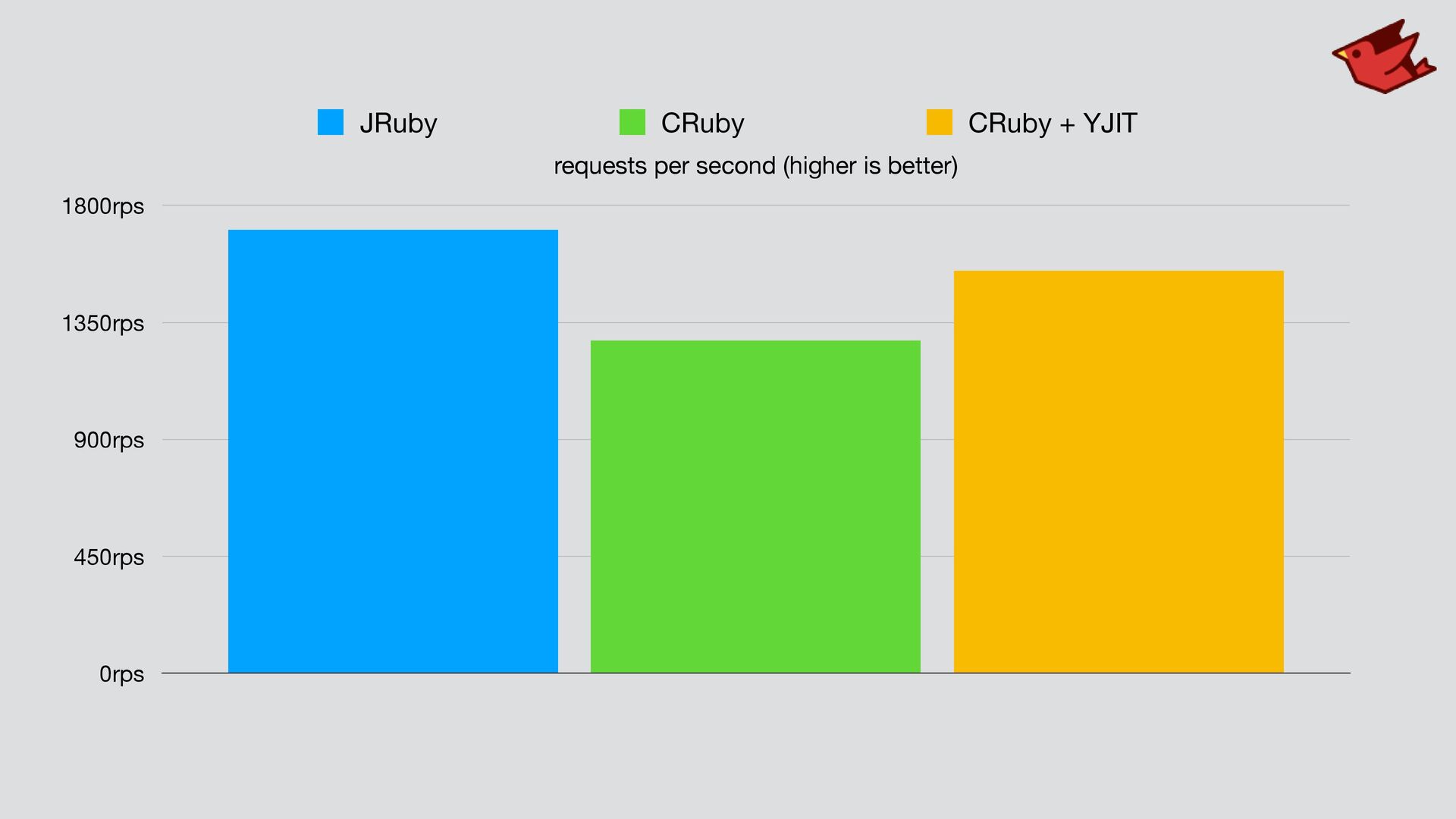

46. requests per second (higher is better) 0rps 450rps 900rps 1350rps 1800rps 1,550rps 1,280rps 1,705rps JRuby CRuby CRuby + YJIT

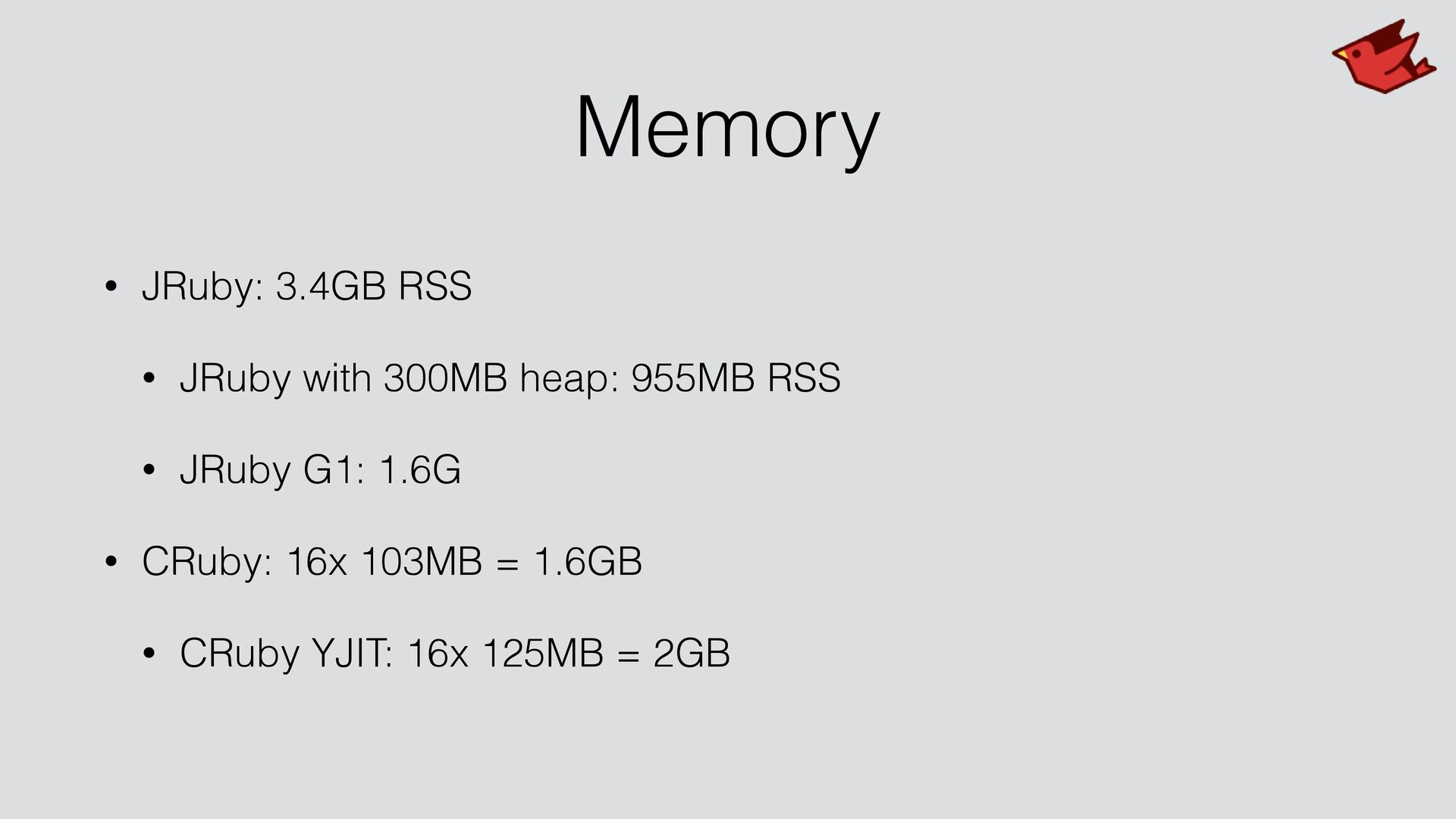

47. Memory • JRuby: 3.4GB RSS • JRuby with 300MB heap: 955MB RSS • JRuby G1: 1.6G • CRuby: 16x 103MB = 1.6GB • CRuby YJIT: 16x 125MB = 2GB

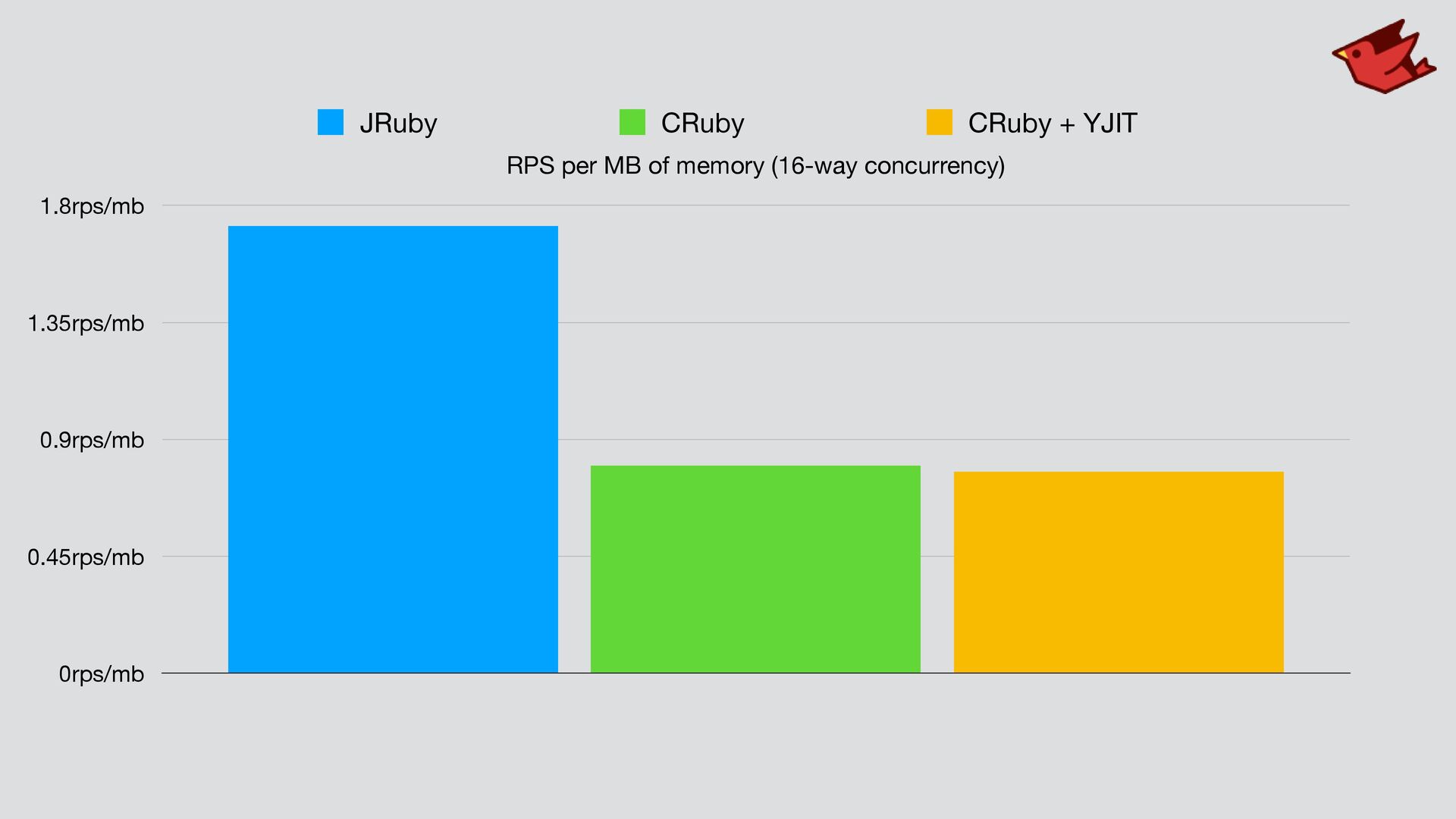

48. RPS per MB of memory (16-way concurrency) 0rps/mb 0.45rps/mb 0.9rps/mb 1.35rps/mb 1.8rps/mb 0.775 rps/MB 0.8 rps/MB 1.72 rps/MB JRuby CRuby CRuby + YJIT

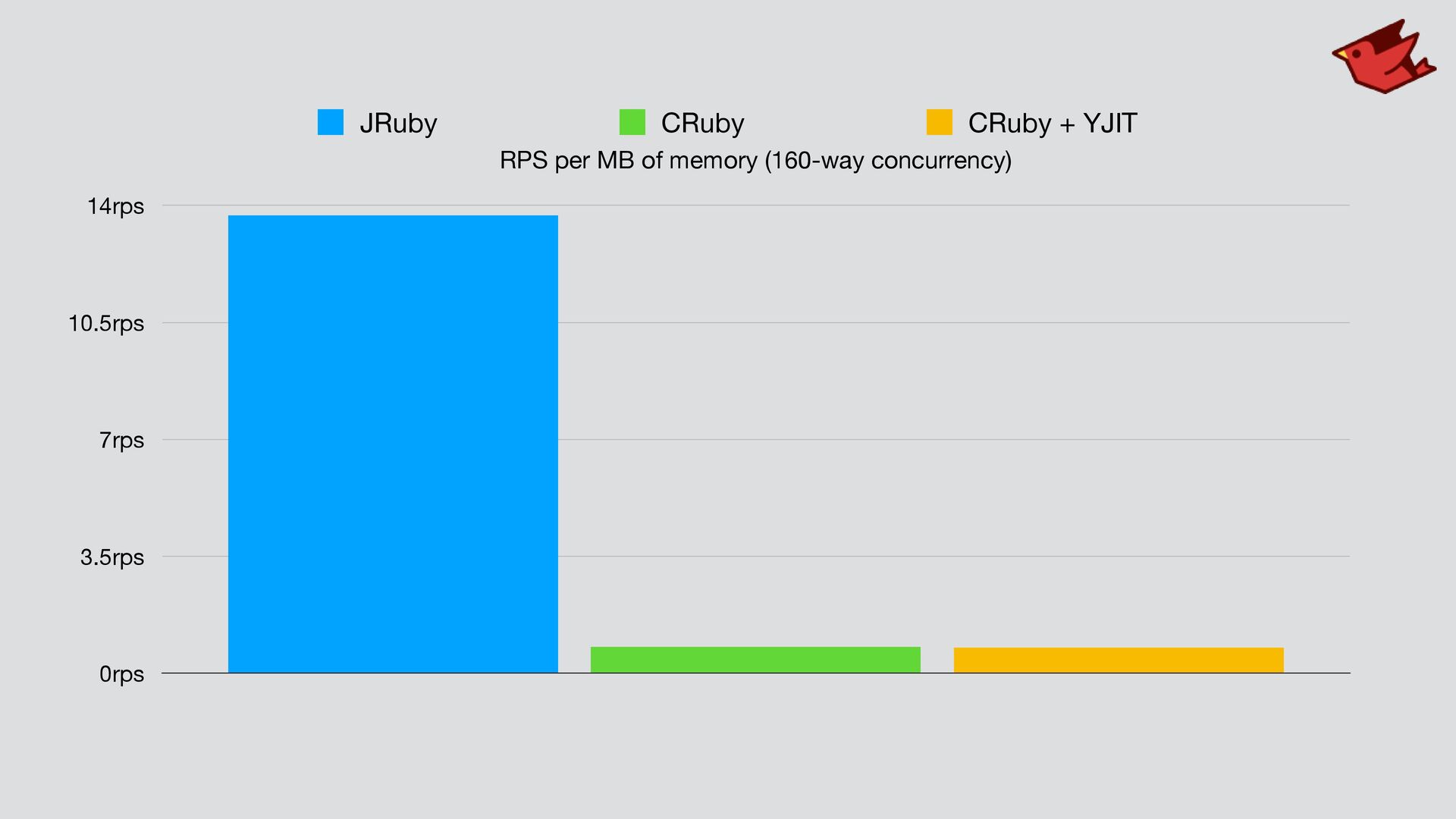

49. RPS per MB of memory (160-way concurrency) 0rps 3.5rps 7rps 10.5rps 14rps 0.775 rps/MB 0.8 rps/MB 13.692 rps/MB JRuby CRuby CRuby + YJIT
50. Optimizing JRuby 10
51. Optimizing Startup

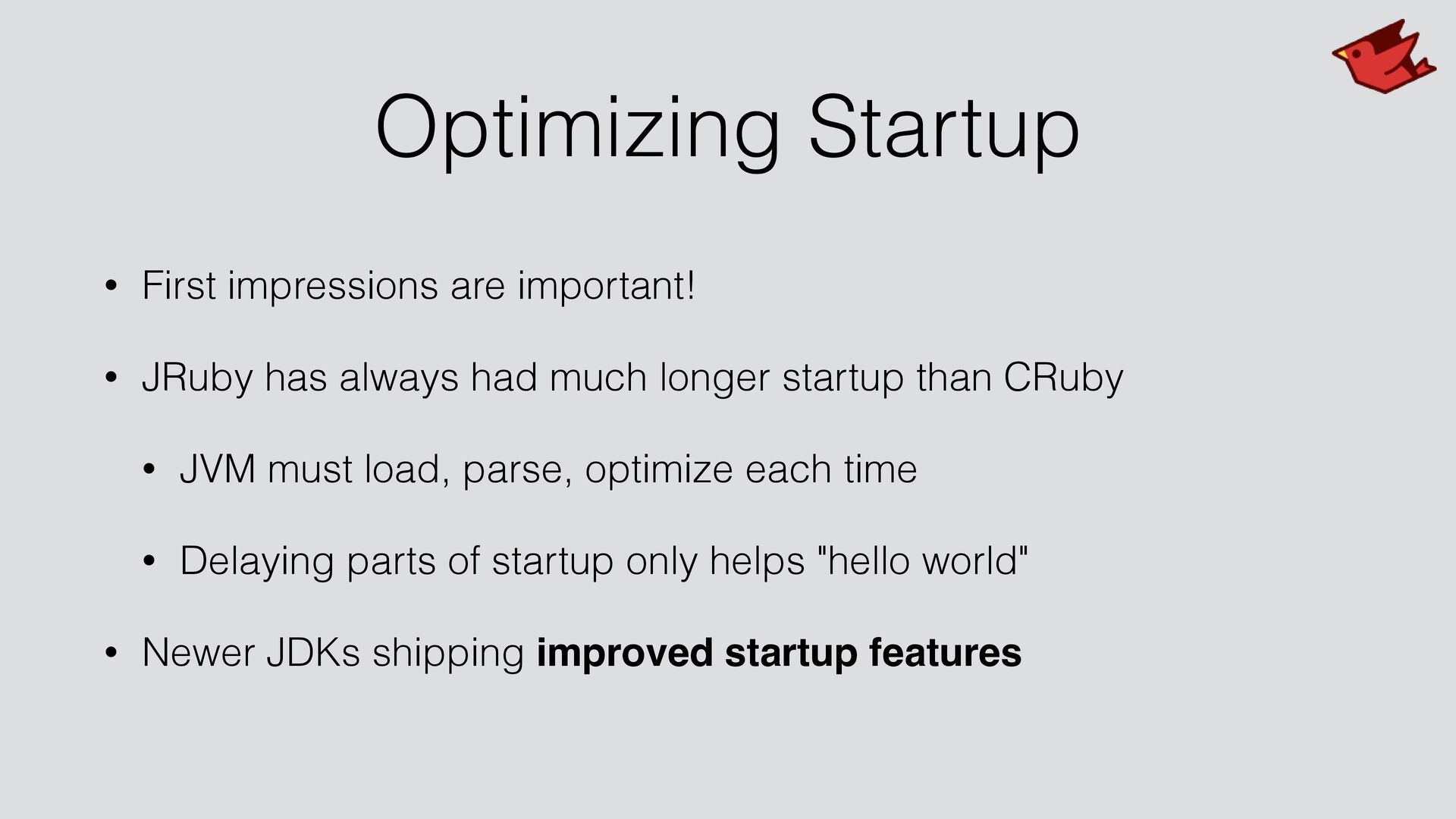

52. Optimizing Startup • First impressions are important! • JRuby has always had much longer startup than CRuby • JVM must load, parse, optimize each time • Delaying parts of startup only helps "hello world" • Newer JDKs shipping improved startup features

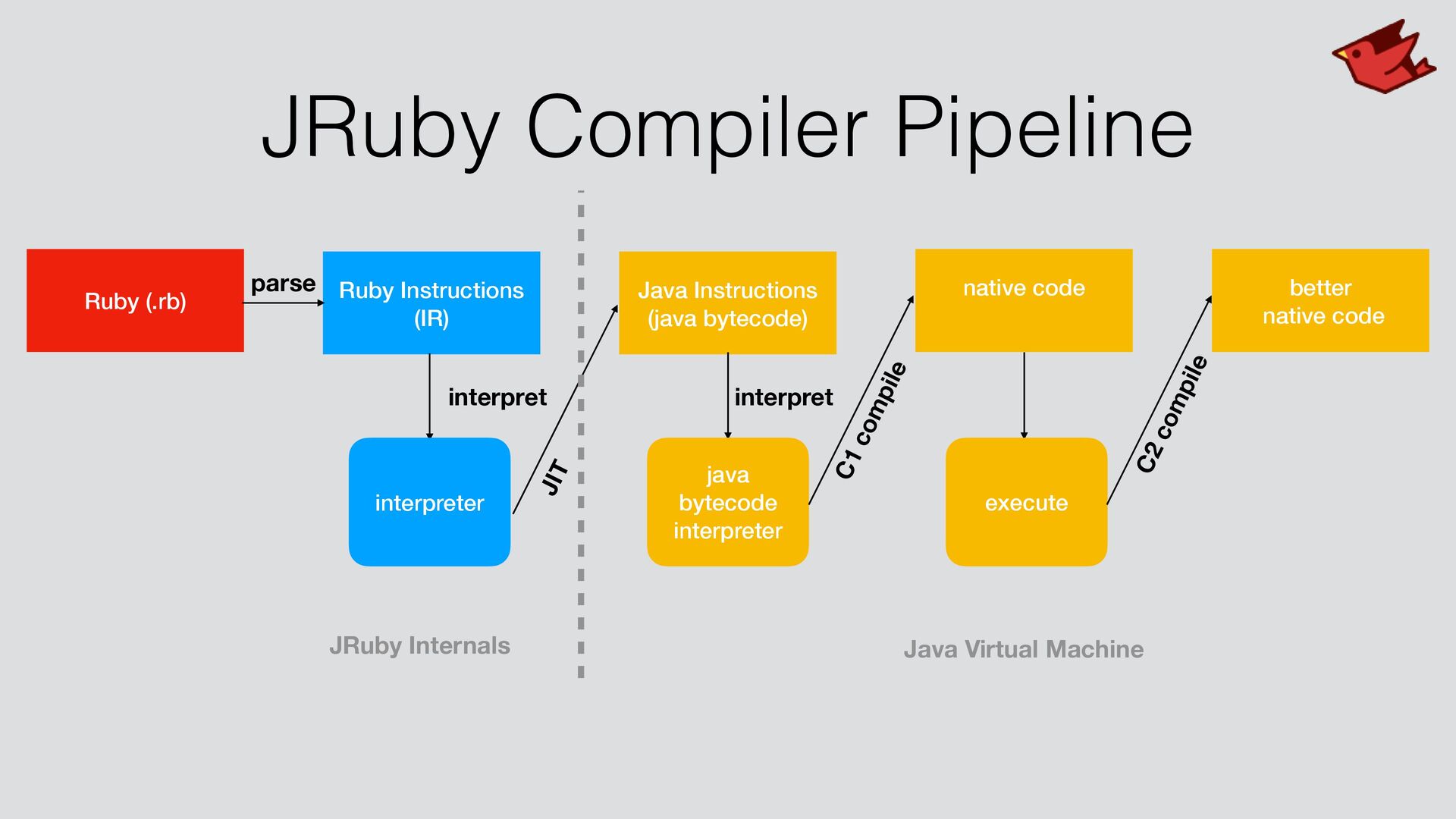

53. JRuby Compiler Pipeline Ruby (.rb) JIT Java Instructions (java bytecode) Ruby Instructions (IR) parse interpret interpreter interpret C1 compile native code better native code java bytecode interpreter execute C2 compile Java Virtual Machine JRuby Internals

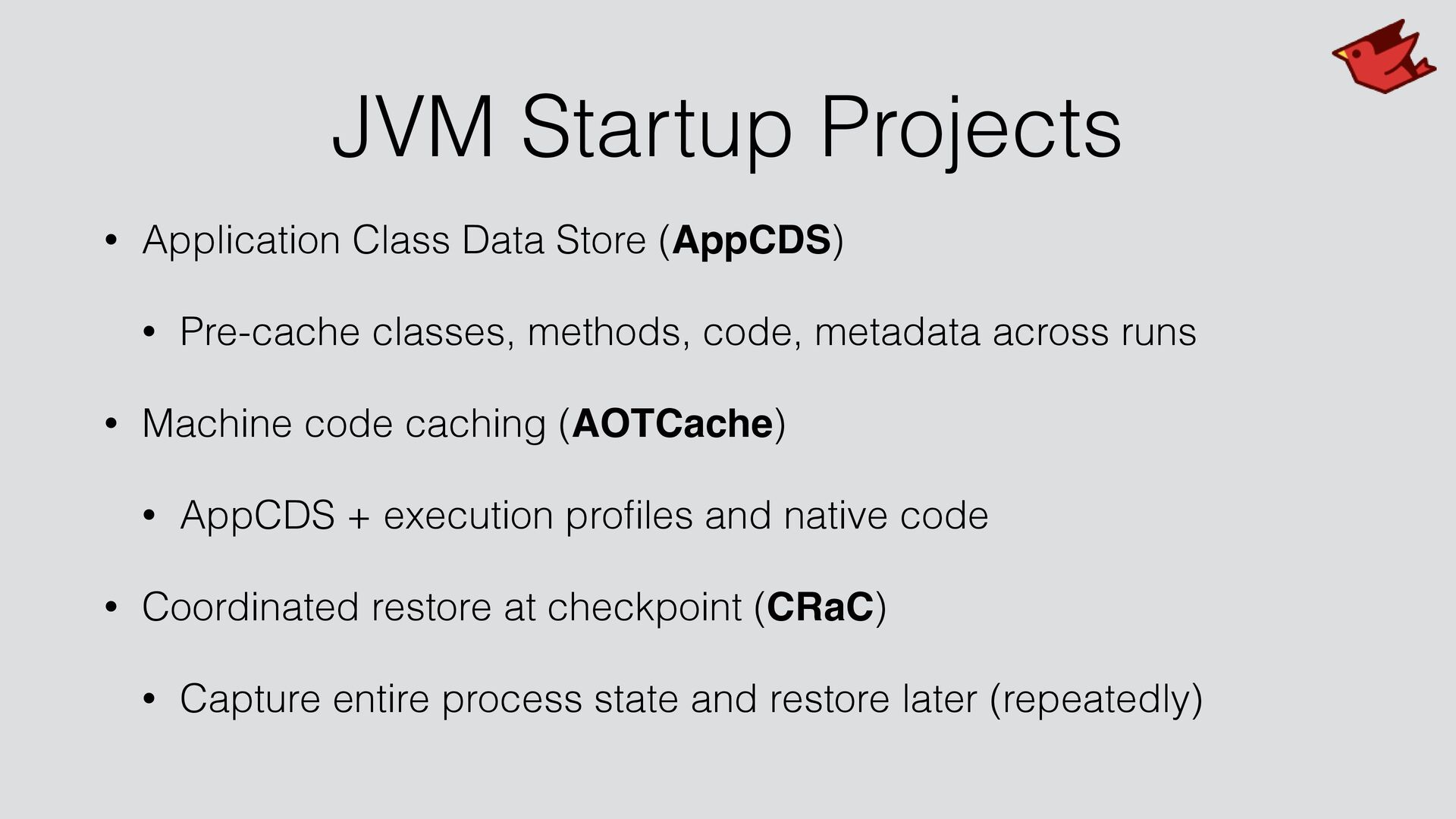

54. JVM Startup Projects • Application Class Data Store (AppCDS) • Pre-cache classes, methods, code, metadata across runs • Machine code caching (AOTCache) • AppCDS + execution pro fi les and native code • Coordinated restore at checkpoint (CRaC) • Capture entire process state and restore later (repeatedly)

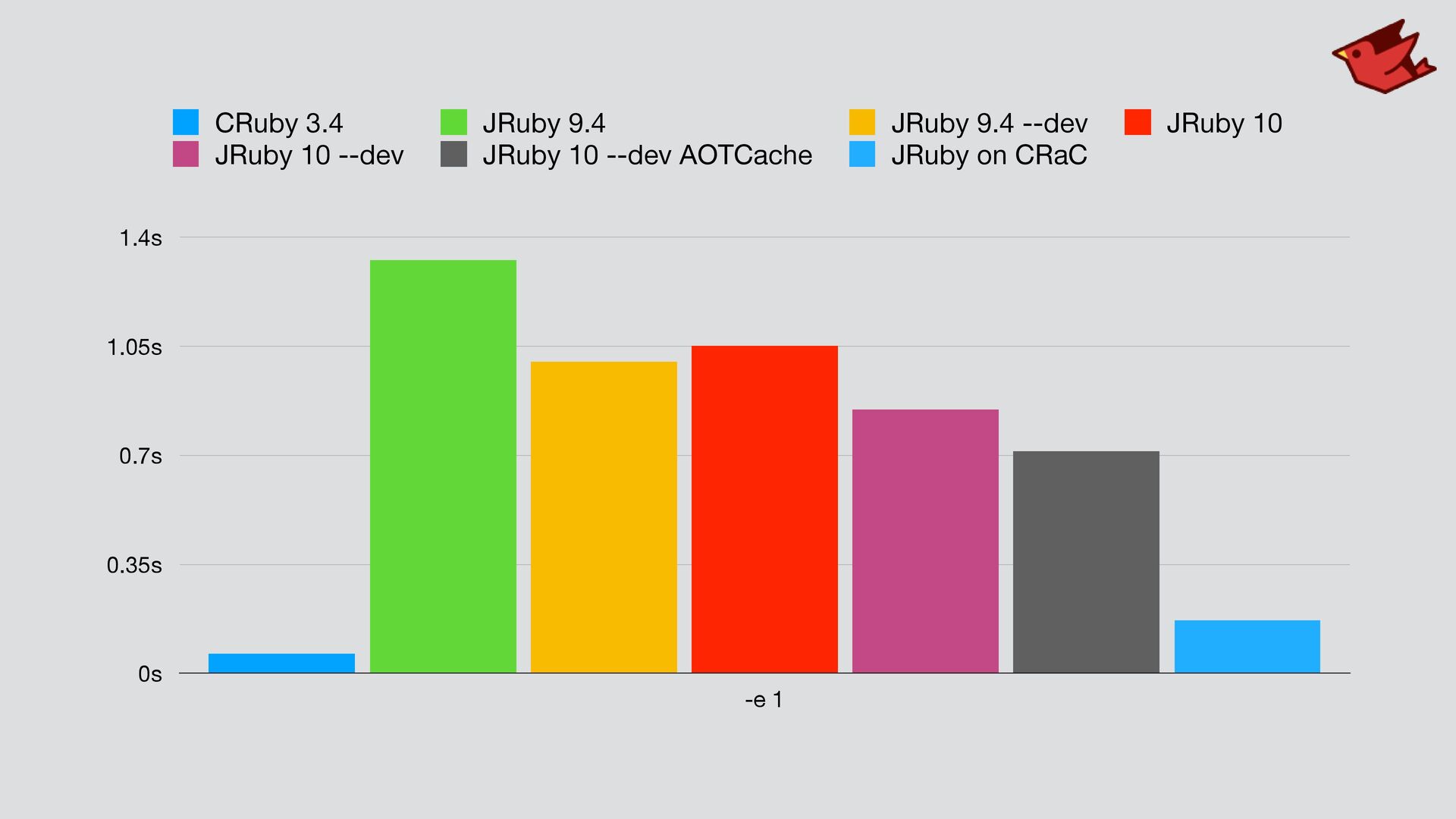

55. 0s 0.35s 0.7s 1.05s 1.4s -e 1 0.17 0.712 0.847s 1.051s 1.001s 1.327s 0.064s CRuby 3.4 JRuby 9.4 JRuby 9.4 --dev JRuby 10 JRuby 10 --dev JRuby 10 --dev AOTCache JRuby on CRaC
56. Optimizing Performance

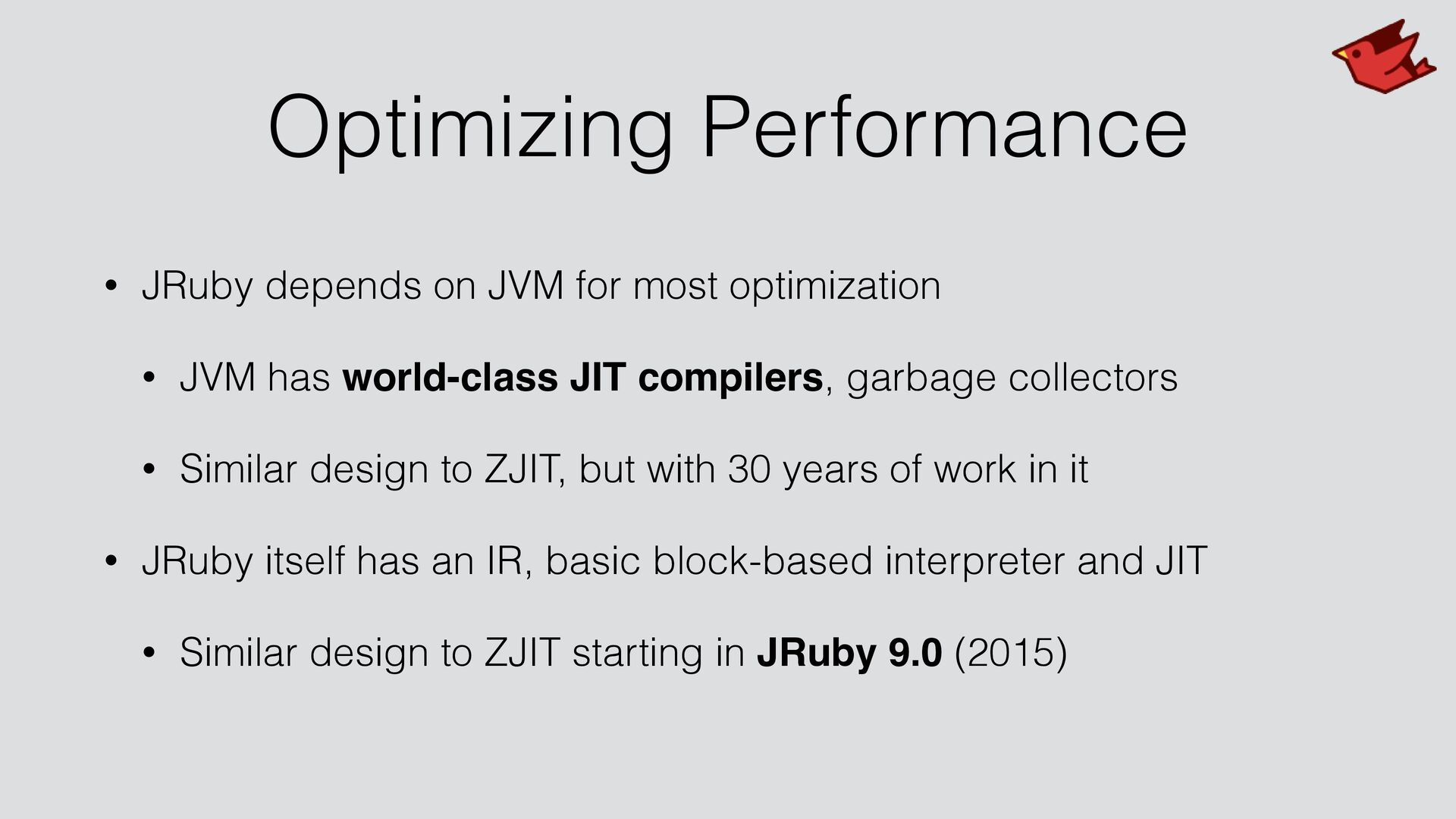

57. Optimizing Performance • JRuby depends on JVM for most optimization • JVM has world-class JIT compilers, garbage collectors • Similar design to ZJIT, but with 30 years of work in it • JRuby itself has an IR, basic block-based interpreter and JIT • Similar design to ZJIT starting in JRuby 9.0 (2015)

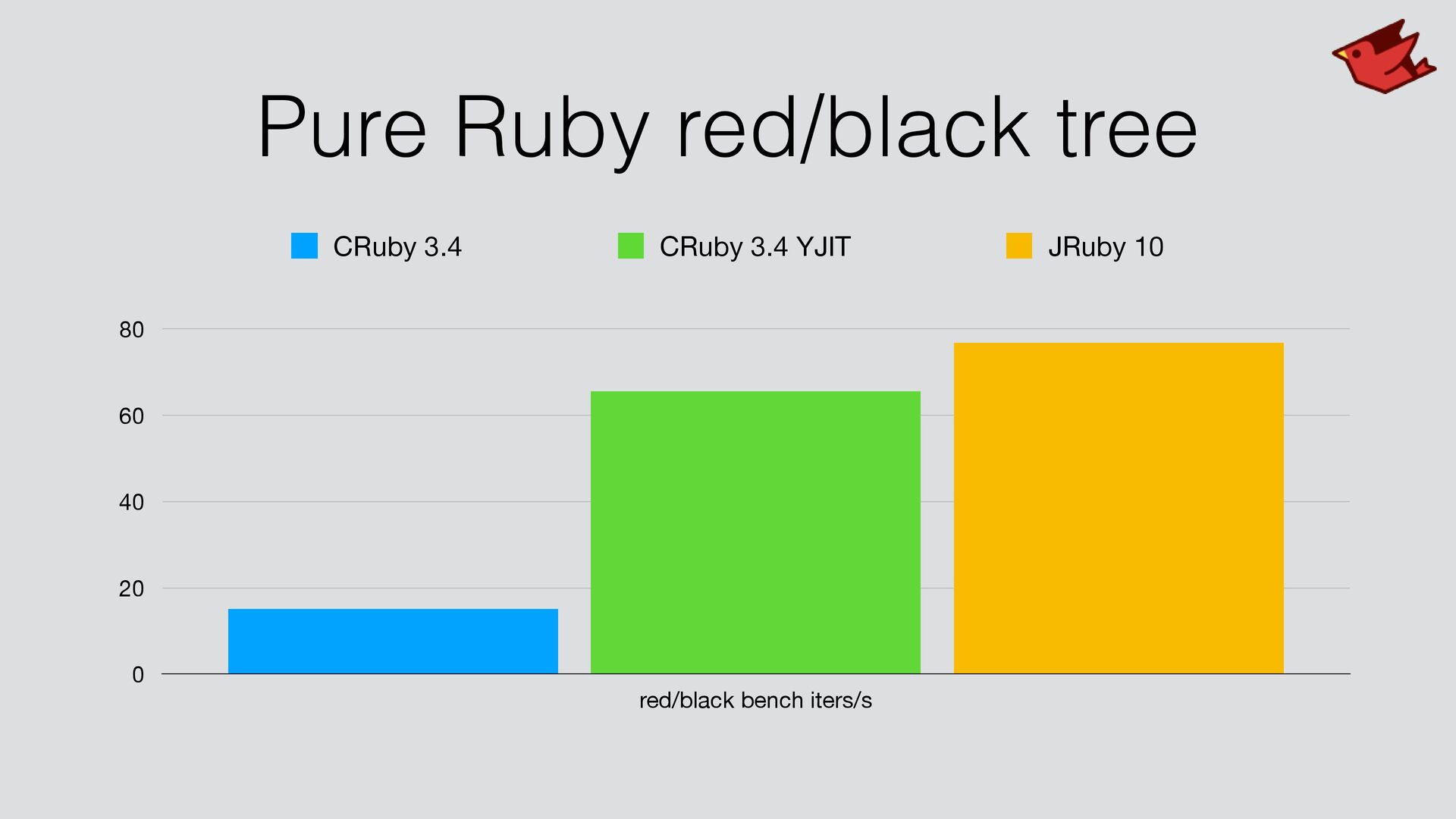

58. Pure Ruby red/black tree 0 20 40 60 80 red/black bench iters/s 76.8 iters/sec 65.5 iters/sec 15.1 iters/sec CRuby 3.4 CRuby 3.4 YJIT JRuby 10
59. Better Extension Performance 0M 0.3M 0.6M 0.9M 1.2M small medium large 0.13 0.29 1.1 0.06 0.11 0.72 MRI (oj) JRuby (oj) Millions of loads per second (higher is better)

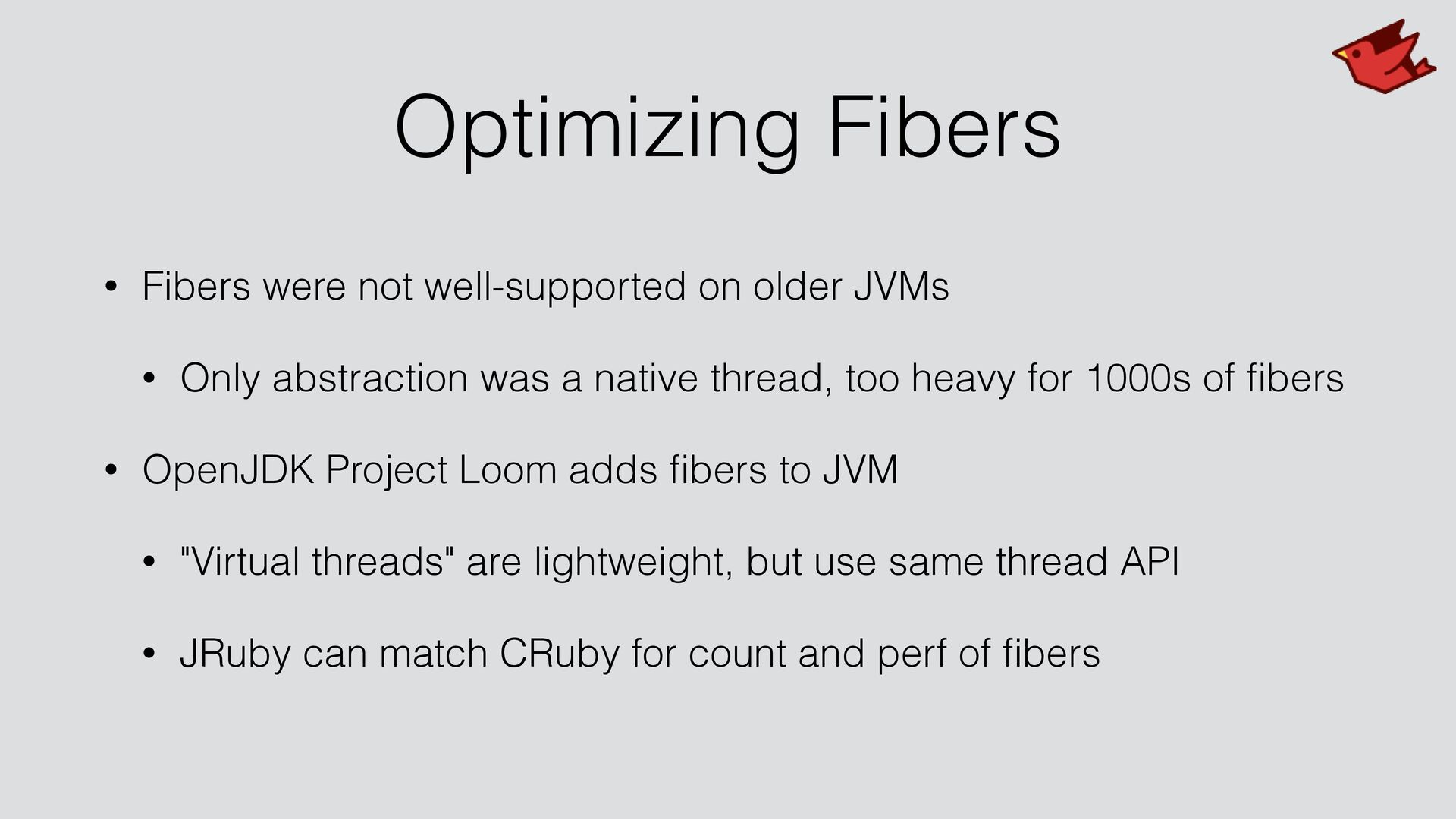

60. Optimizing Fibers • Fibers were not well-supported on older JVMs • Only abstraction was a native thread, too heavy for 1000s of fi bers • OpenJDK Project Loom adds fi bers to JVM • "Virtual threads" are lightweight, but use same thread API • JRuby can match CRuby for count and perf of fi bers

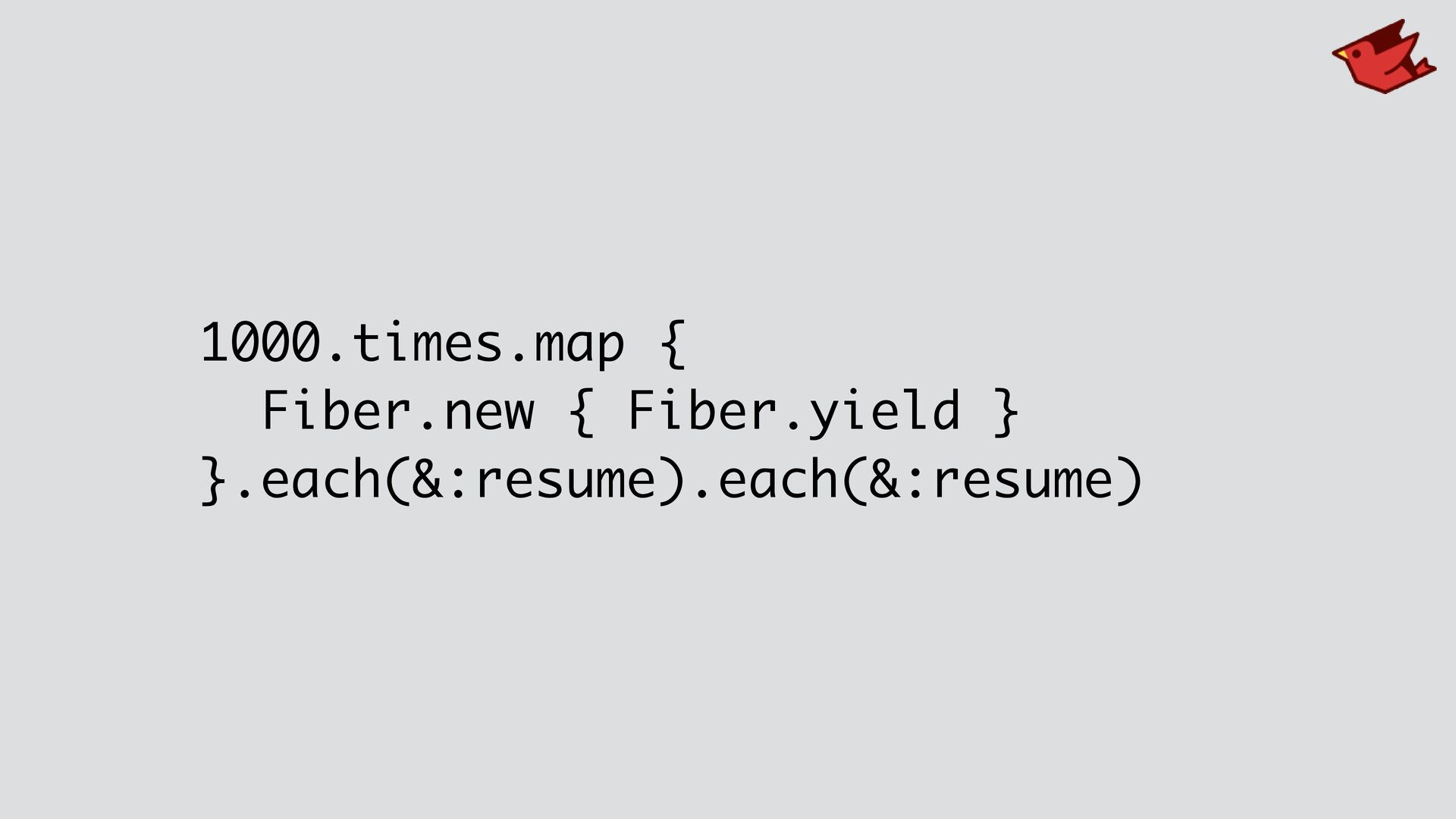

61. 1000.times.map { Fiber.new { Fiber.yield } }.each(&:resume).each(&:resume)

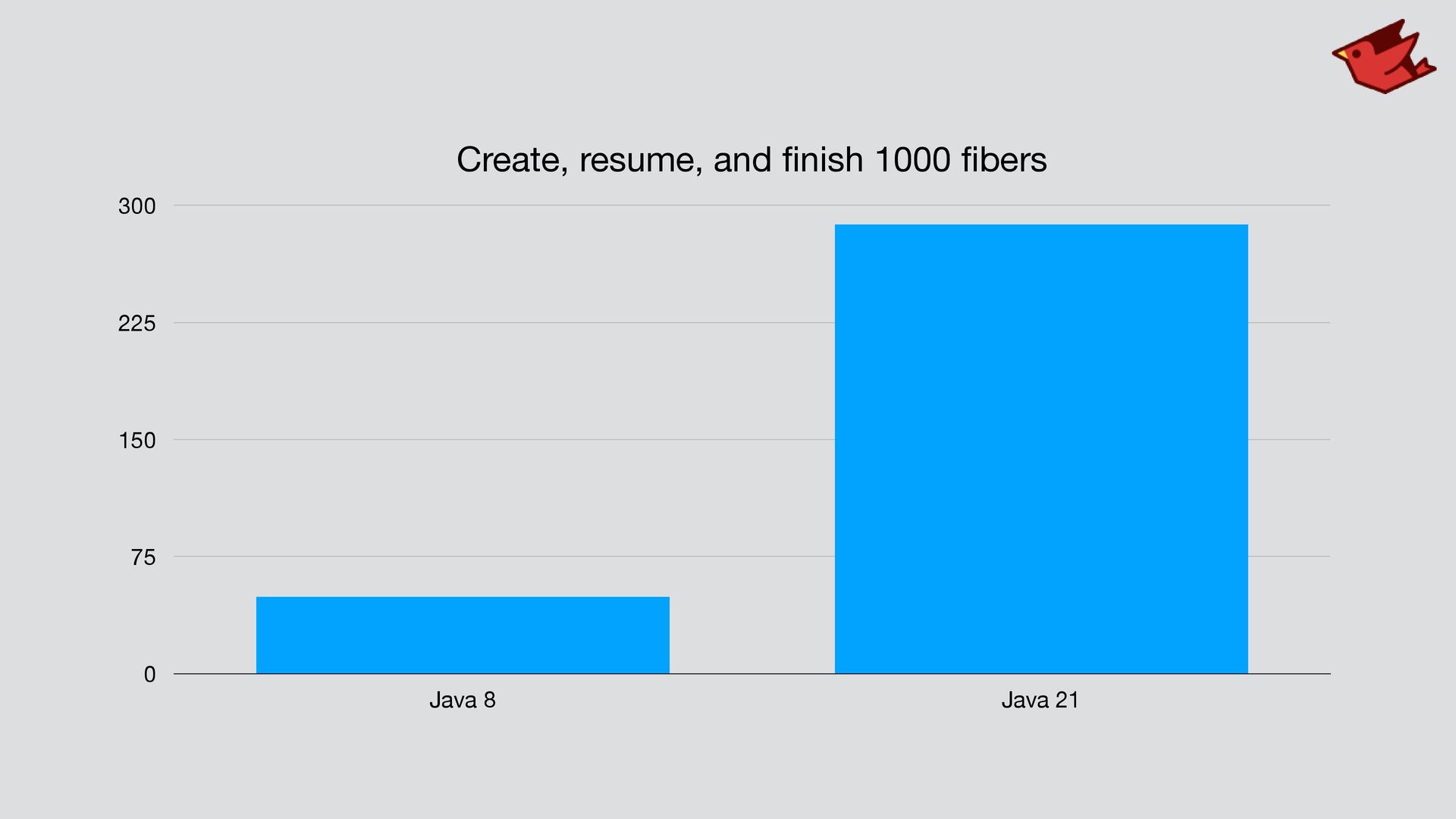

62. Create, resume, and fi nish 1000 fi bers 0 75 150 225 300 Java 8 Java 21 288 iters/s 49 iters/s

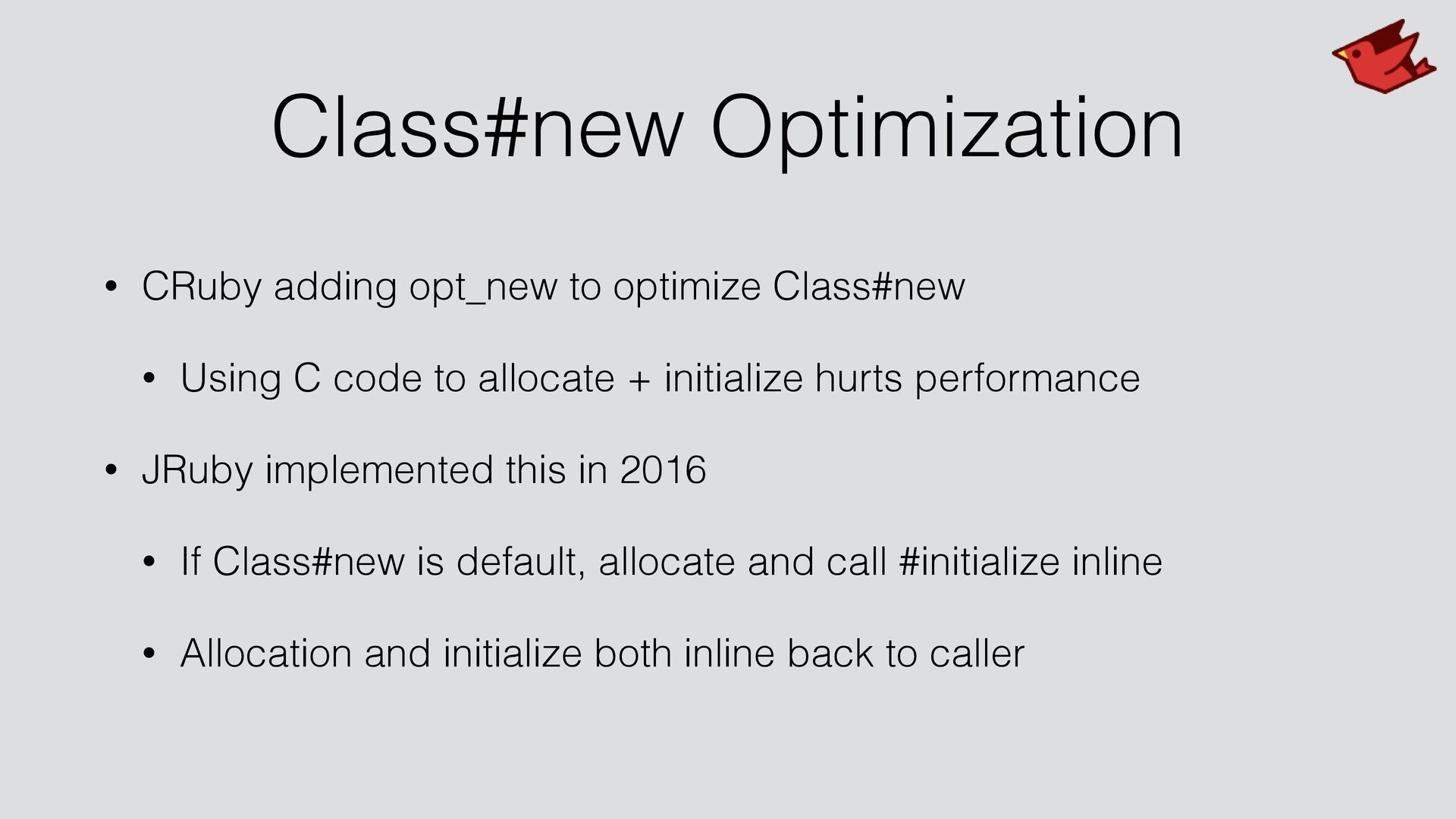

63. Class#new Optimization • CRuby adding opt_new to optimize Class#new • Using C code to allocate + initialize hurts performance • JRuby implemented this in 2016 • If Class#new is default, allocate and call #initialize inline • Allocation and initialize both inline back to caller
64. Object.new

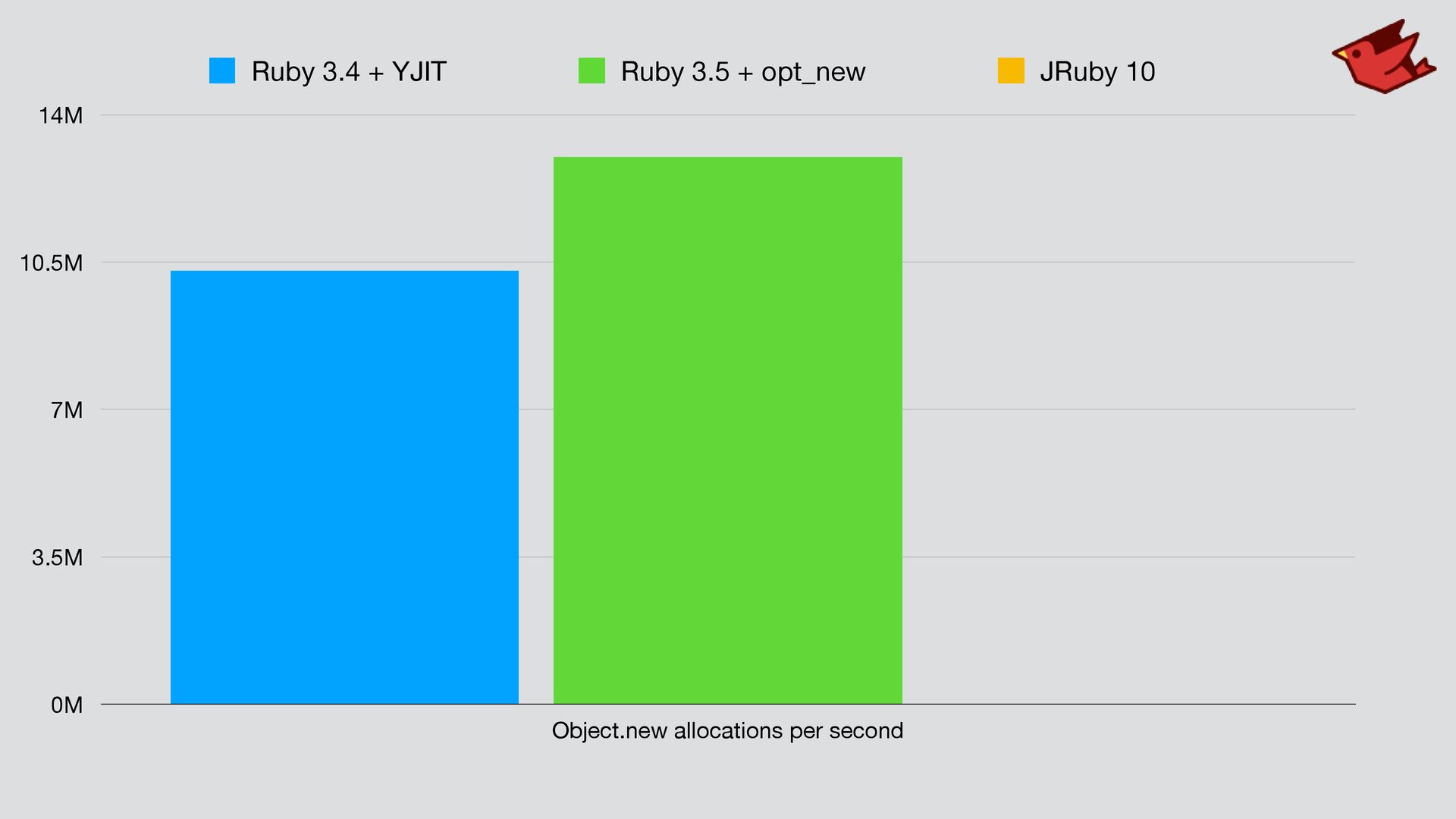

65. 0M 3.5M 7M 10.5M 14M Object.new allocations per second 0M 13M 10.3M Ruby 3.4 + YJIT Ruby 3.5 + opt_new JRuby 10

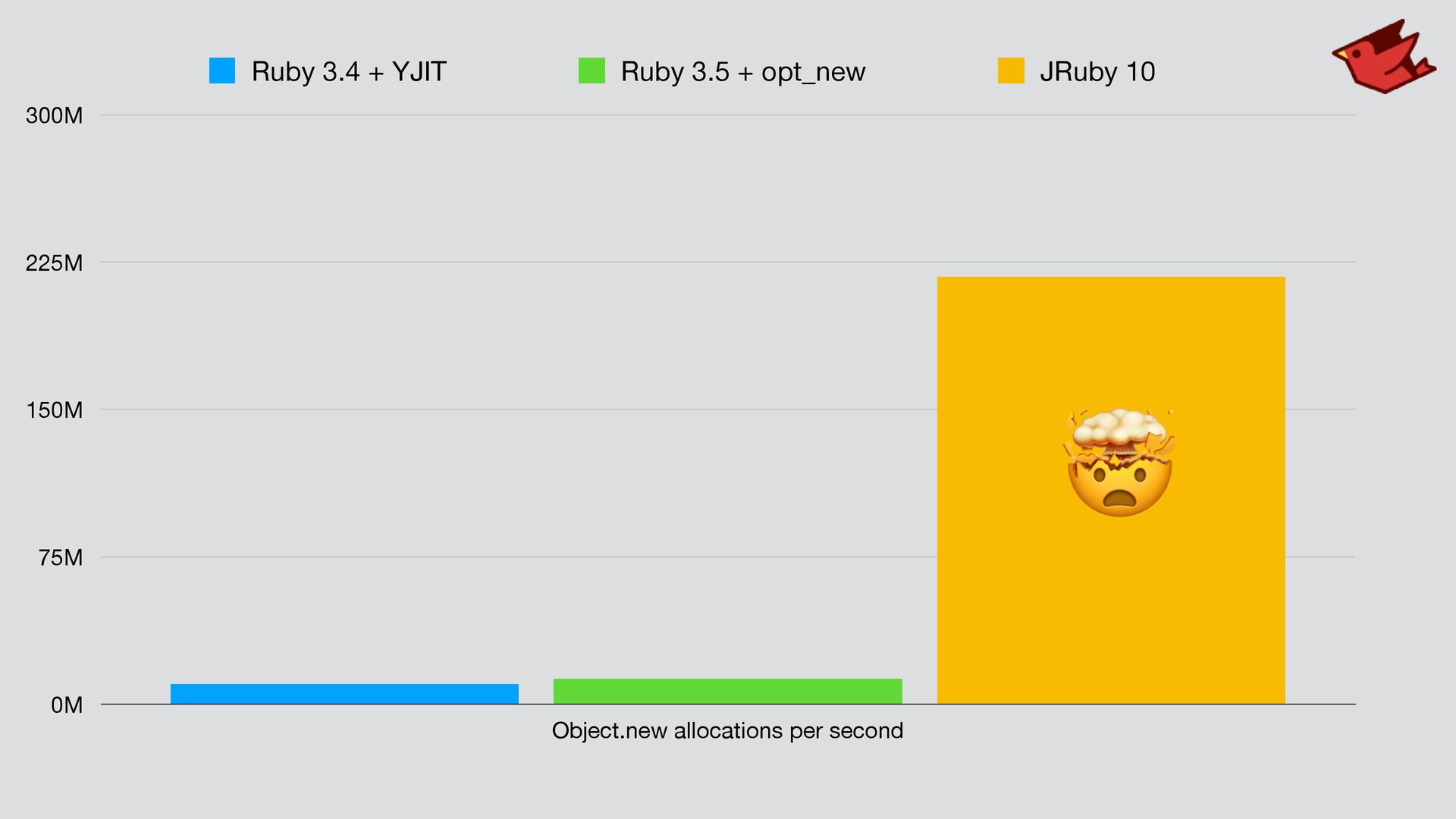

66. 0M 75M 150M 225M 300M Object.new allocations per second 217.5M 13M 10.3M Ruby 3.4 + YJIT Ruby 3.5 + opt_new JRuby 10 🤯

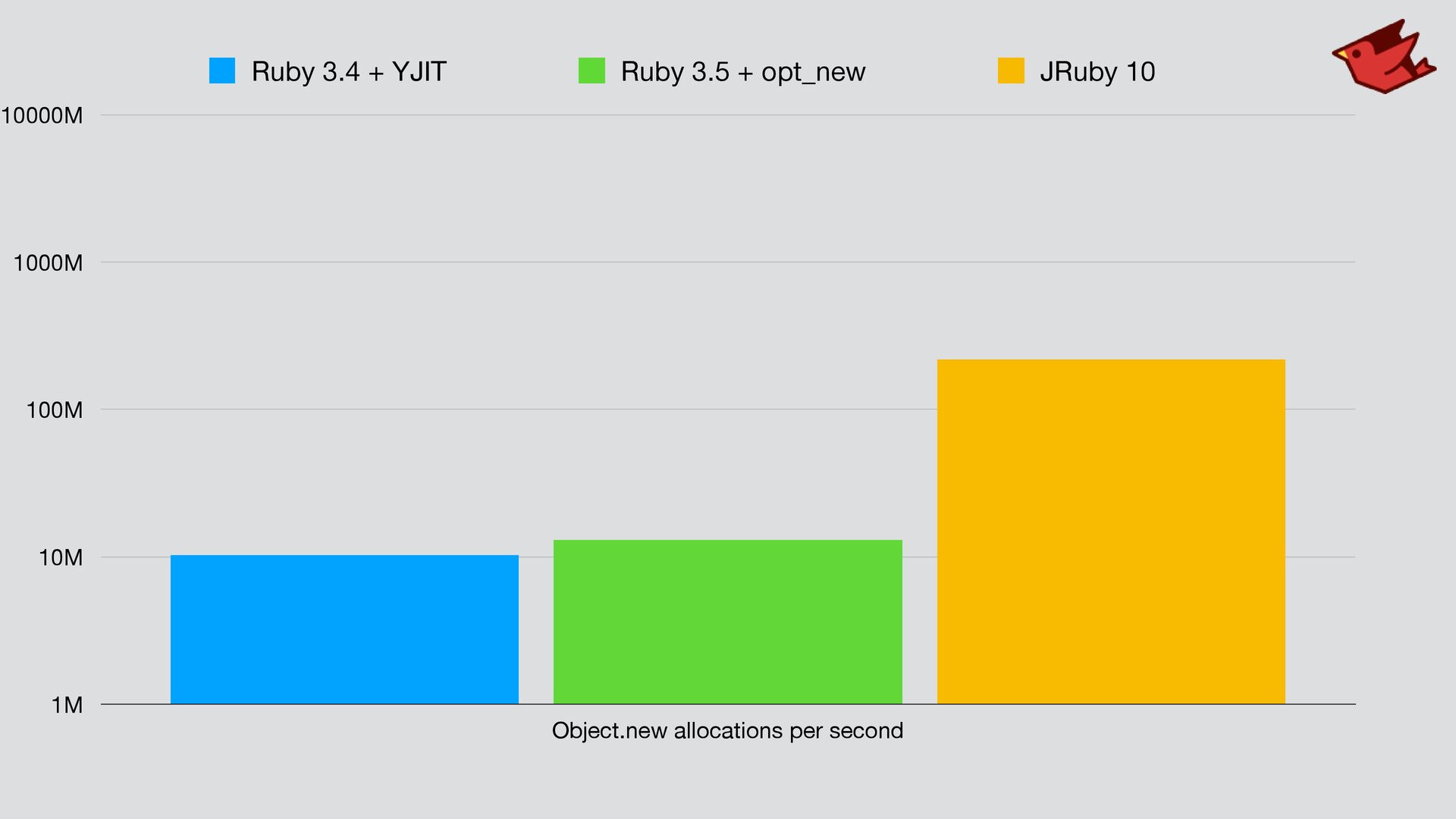

67. 1M 10M 100M 1000M 10000M Object.new allocations per second 217.5M 13M 10.3M Ruby 3.4 + YJIT Ruby 3.5 + opt_new JRuby 10
68. Allocation Pro fi le

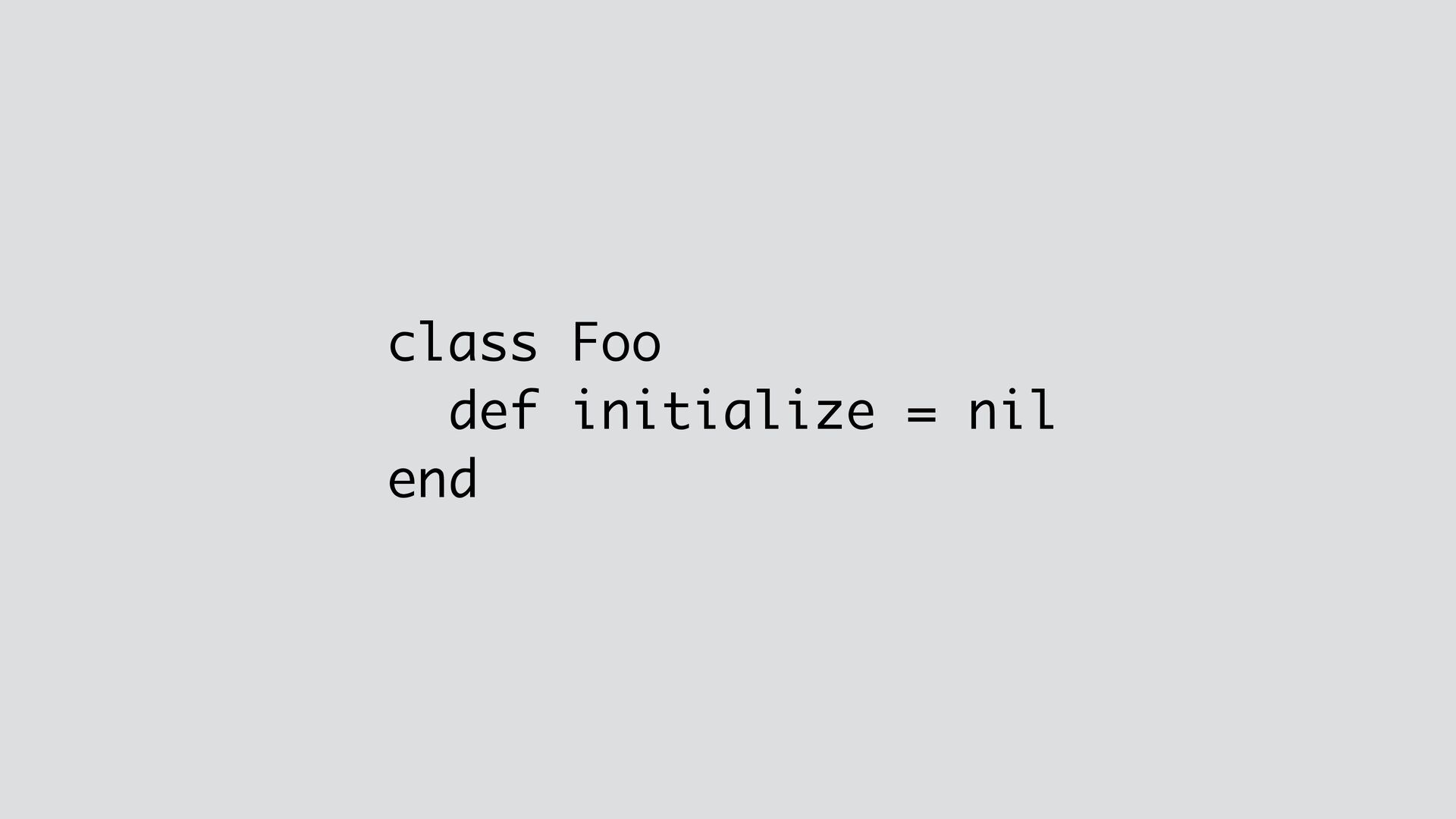

69. class Foo def initialize = nil end

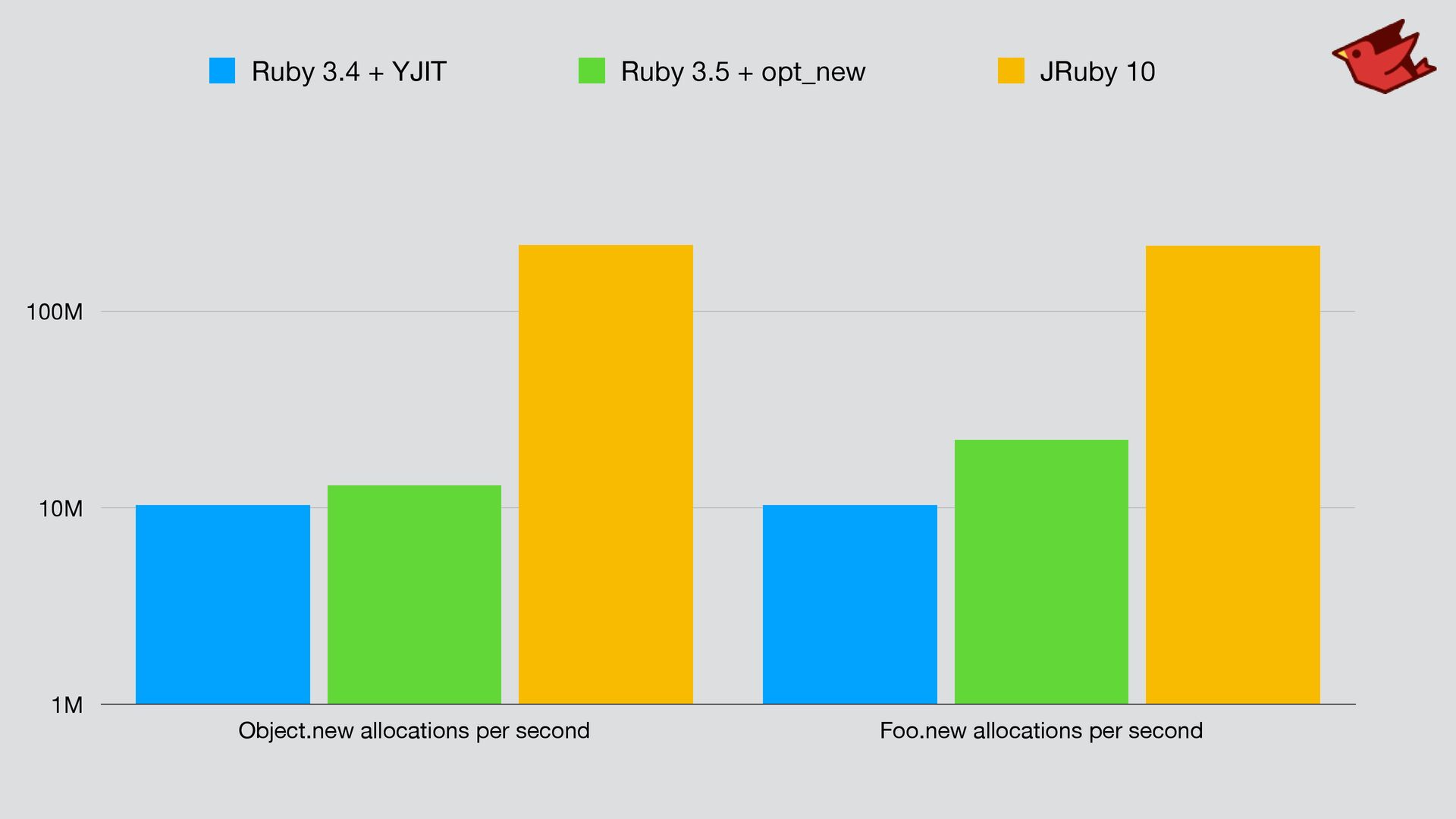

70. 1M 10M 100M Object.new allocations per second Foo.new allocations per second 216M 217.5M 22.1M 13M 10.3M 10.3M Ruby 3.4 + YJIT Ruby 3.5 + opt_new JRuby 10

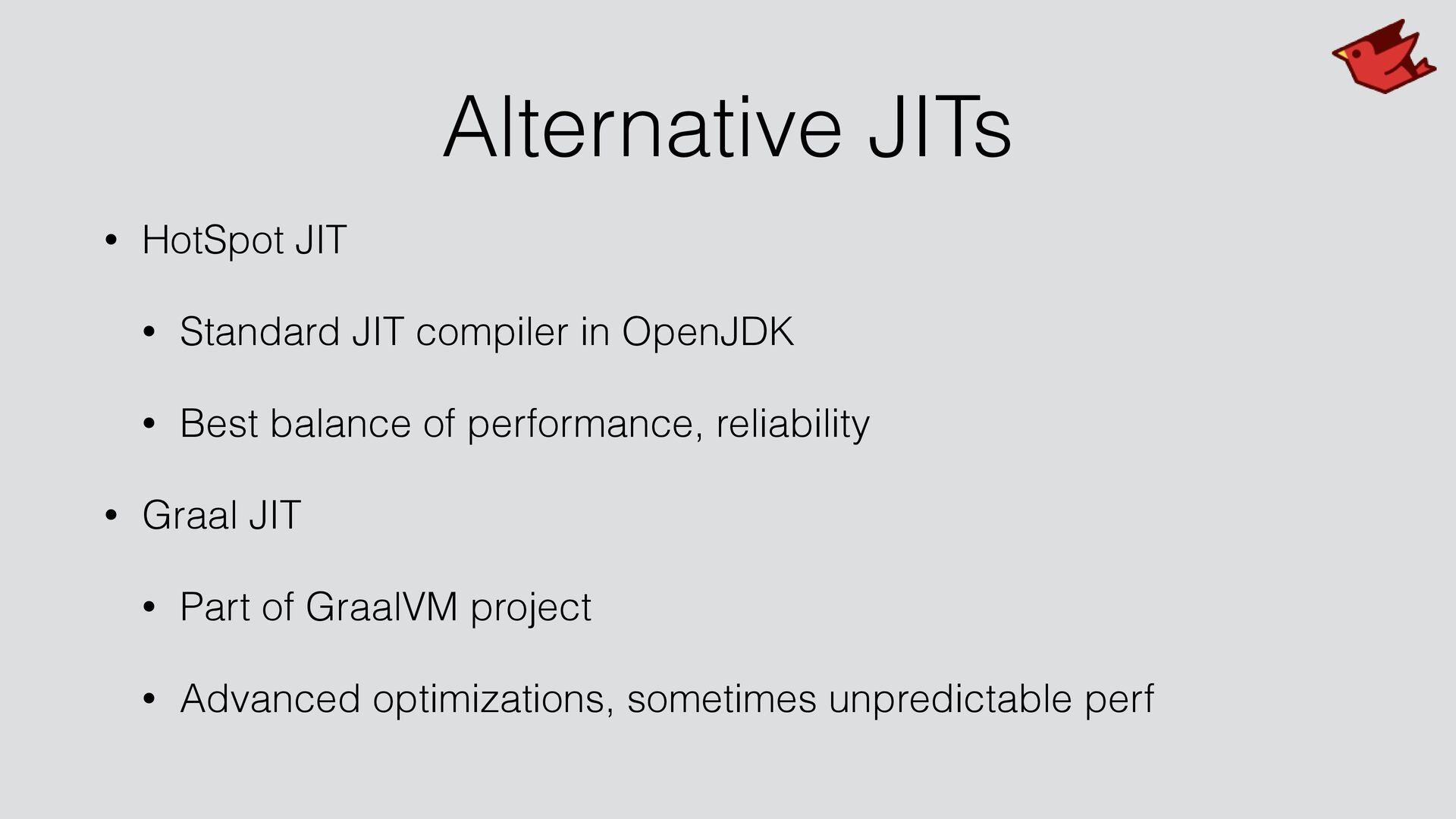

71. Alternative JITs • HotSpot JIT • Standard JIT compiler in OpenJDK • Best balance of performance, reliability • Graal JIT • Part of GraalVM project • Advanced optimizations, sometimes unpredictable perf
72. 0M 750M 1500M 2250M 3000M Foo.new allocations per second 2,591.1M 216M JRuby 10 JRuby 10 + Graal 🤯

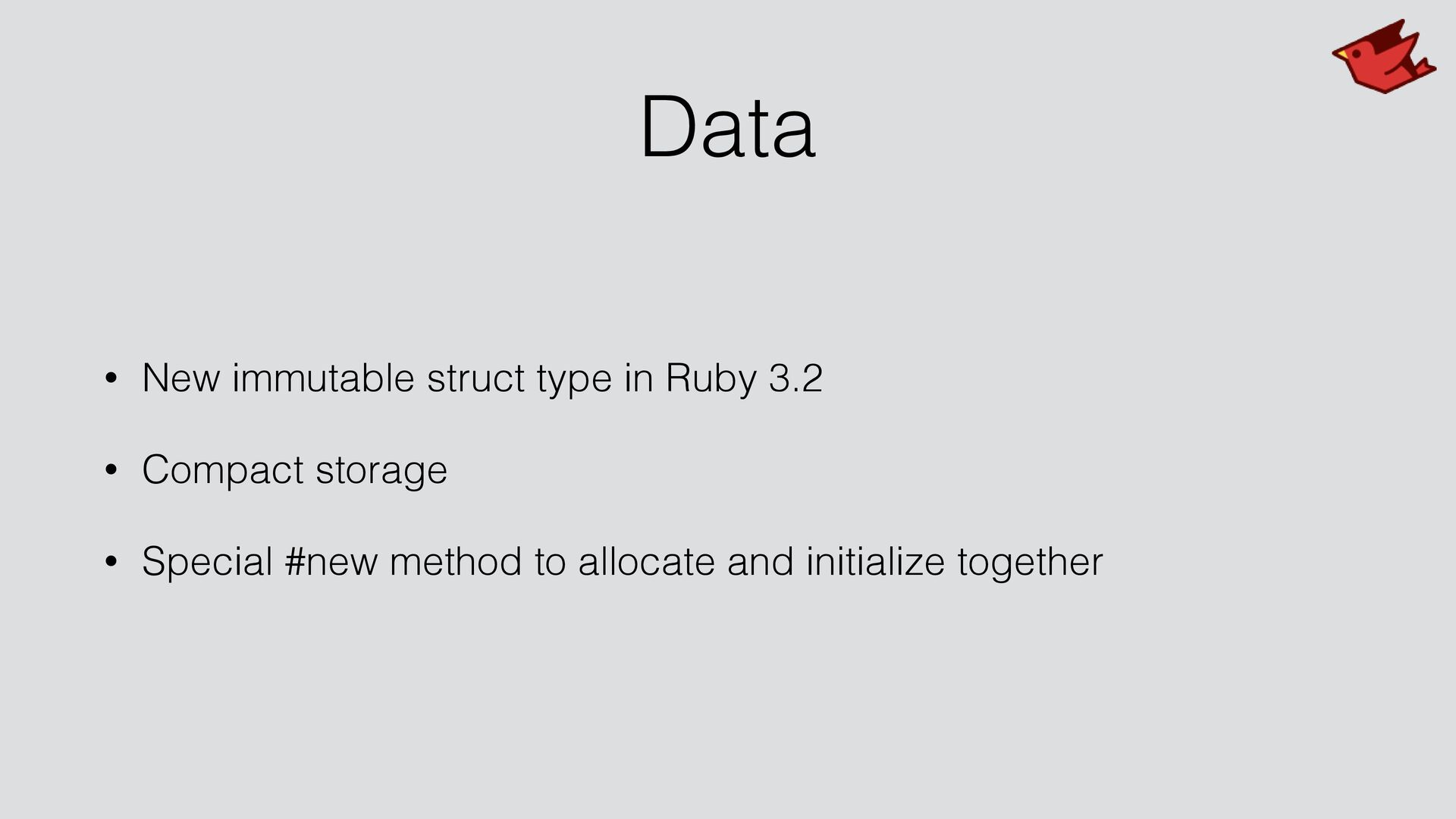

73. Data • New immutable struct type in Ruby 3.2 • Compact storage • Special #new method to allocate and initialize together

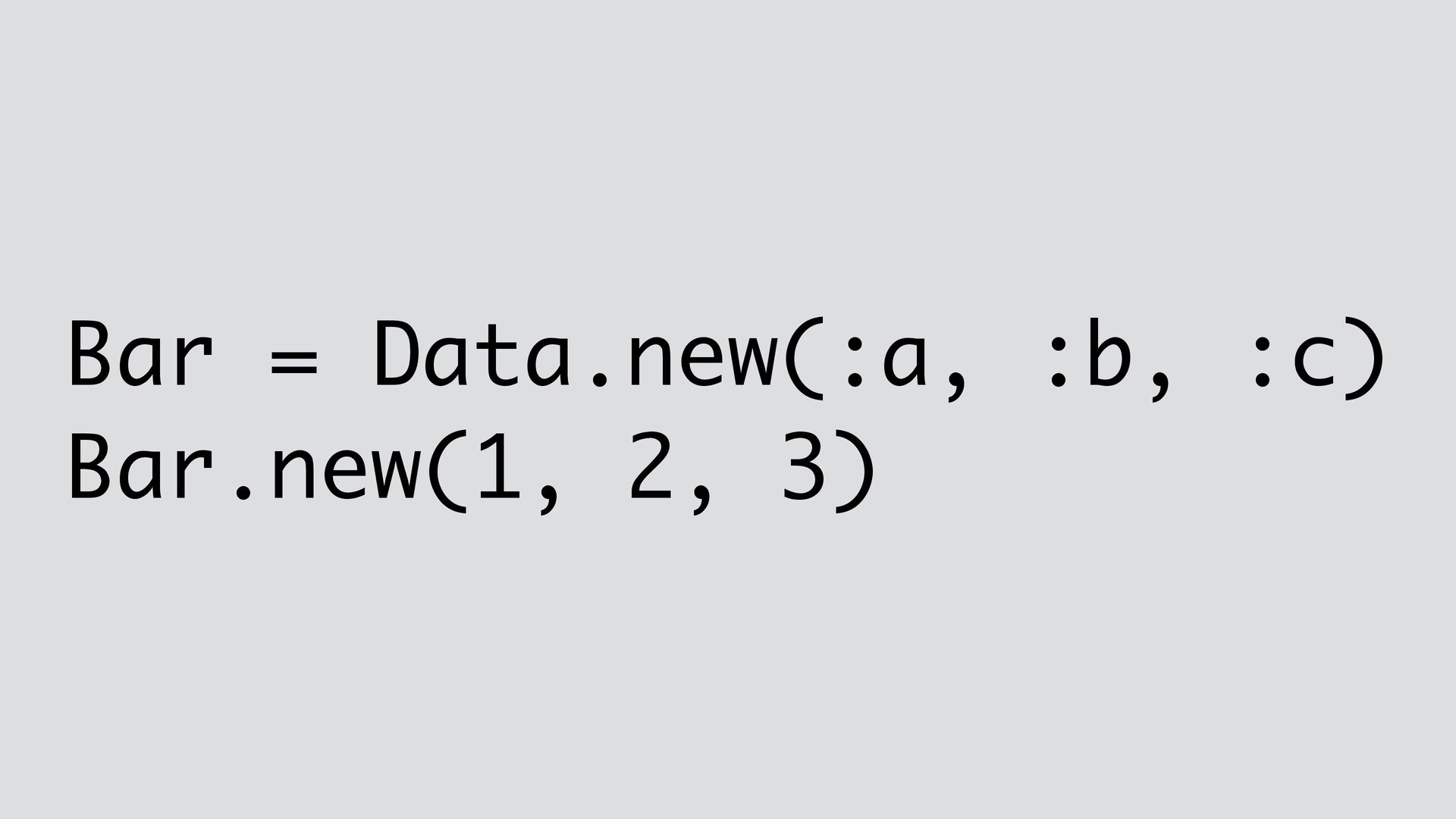

74. Bar = Data.new(:a, :b, :c) Bar.new(1, 2, 3)

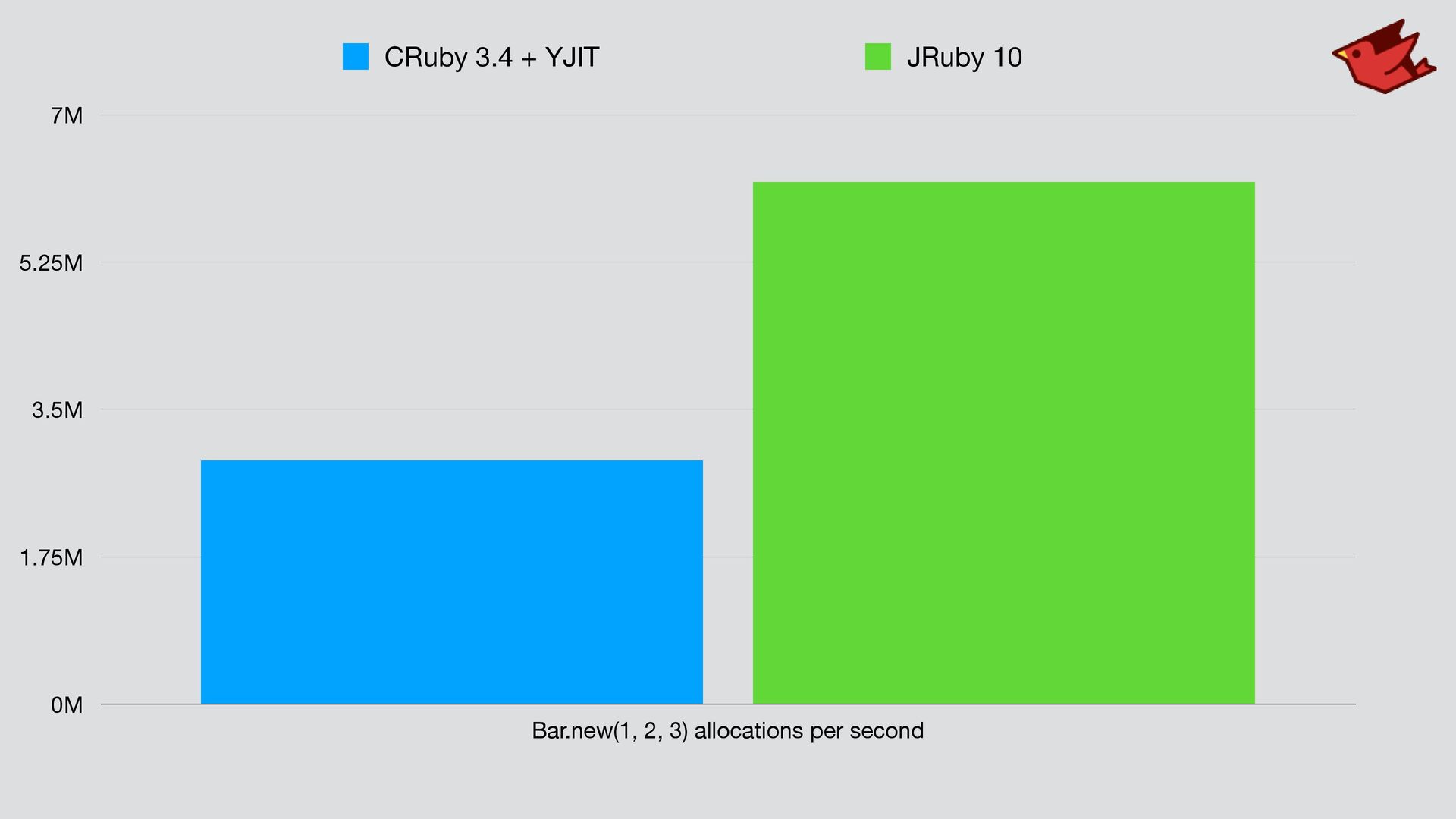

75. 0M 1.75M 3.5M 5.25M 7M Bar.new(1, 2, 3) allocations per second 6.2M 2.9M CRuby 3.4 + YJIT JRuby 10
76. Optimizing Concurrency

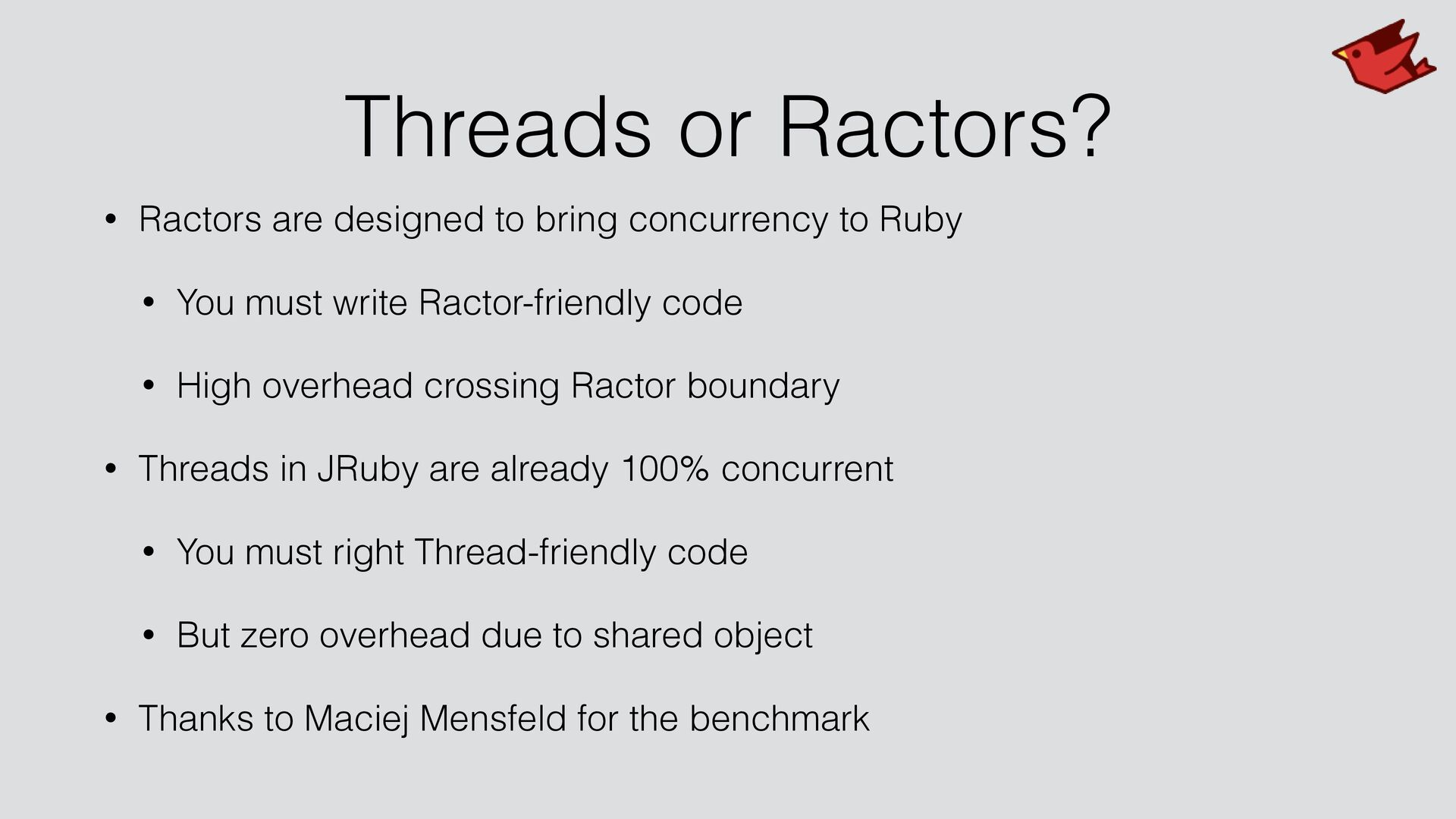

77. Threads or Ractors? • Ractors are designed to bring concurrency to Ruby • You must write Ractor-friendly code • High overhead crossing Ractor boundary • Threads in JRuby are already 100% concurrent • You must right Thread-friendly code • But zero overhead due to shared object • Thanks to Maciej Mensfeld for the benchmark

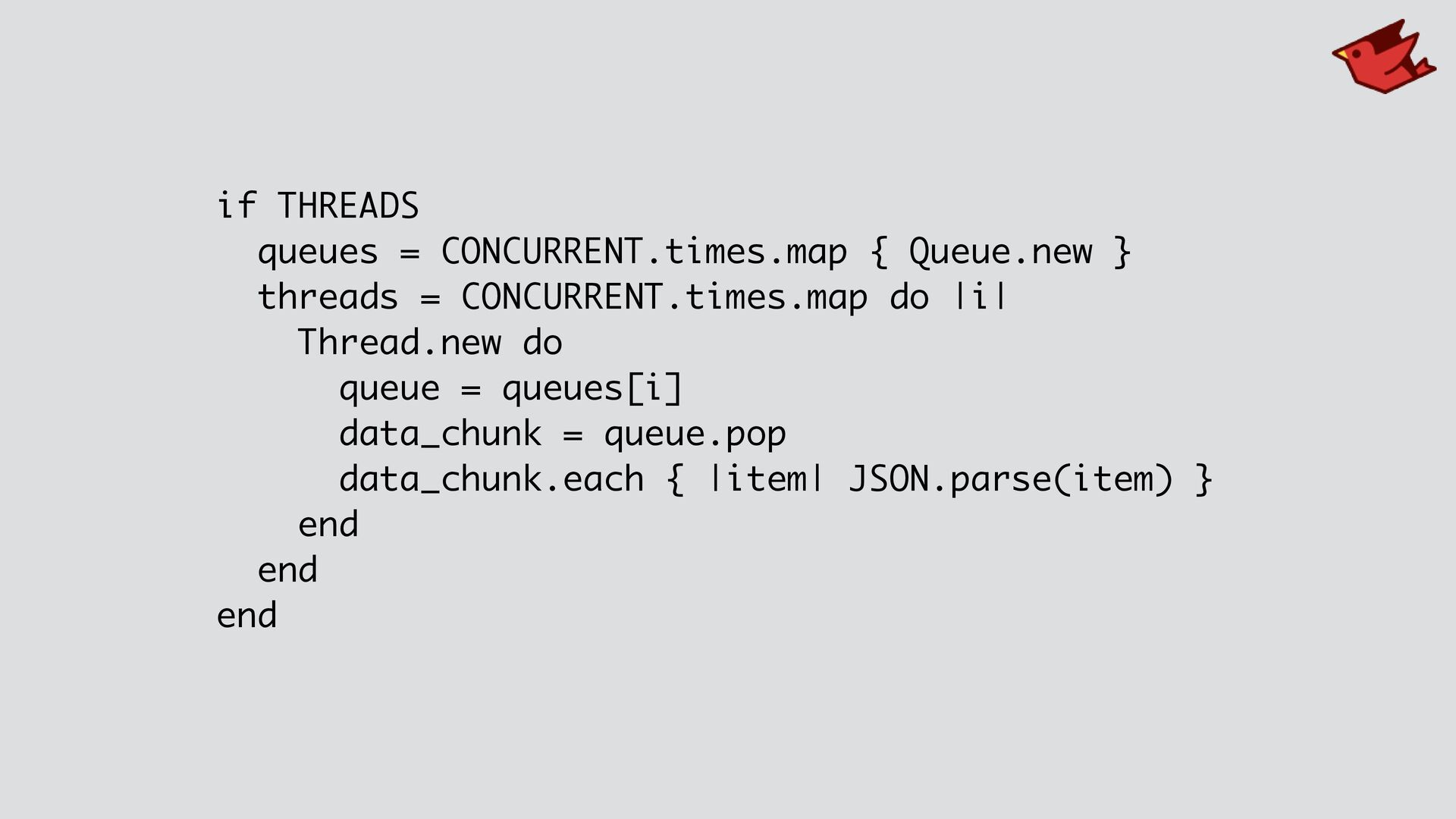

78. if THREADS queues = CONCURRENT.times.map { Queue.new } threads = CONCURRENT.times.map do |i| Thread.new do queue = queues[i] data_chunk = queue.pop data_chunk.each { |item| JSON.parse(item) } end end end

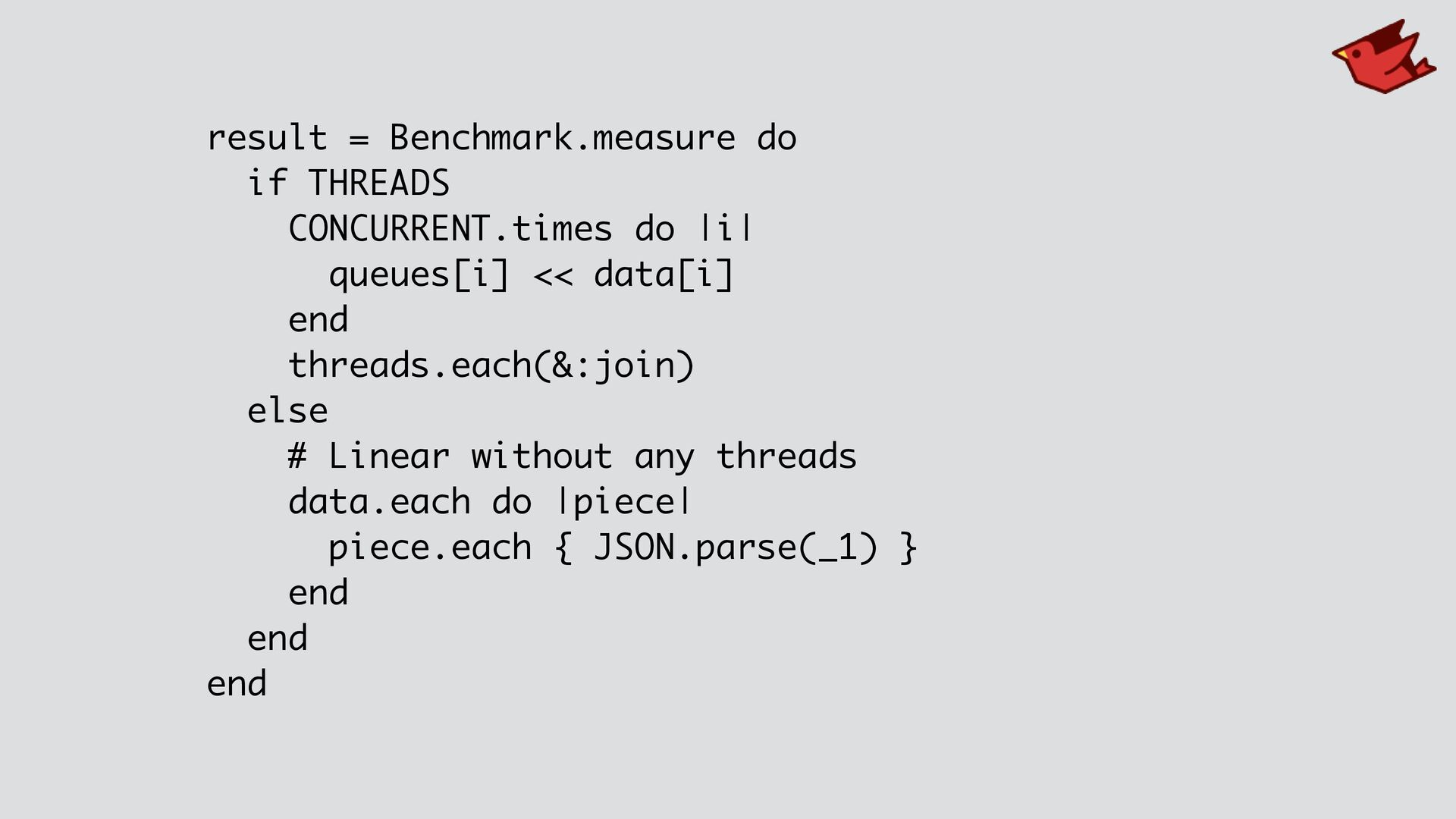

79. result = Benchmark.measure do if THREADS CONCURRENT.times do |i| queues[i] << data[i] end threads.each(&:join) else # Linear without any threads data.each do |piece| piece.each { JSON.parse(_1) } end end end

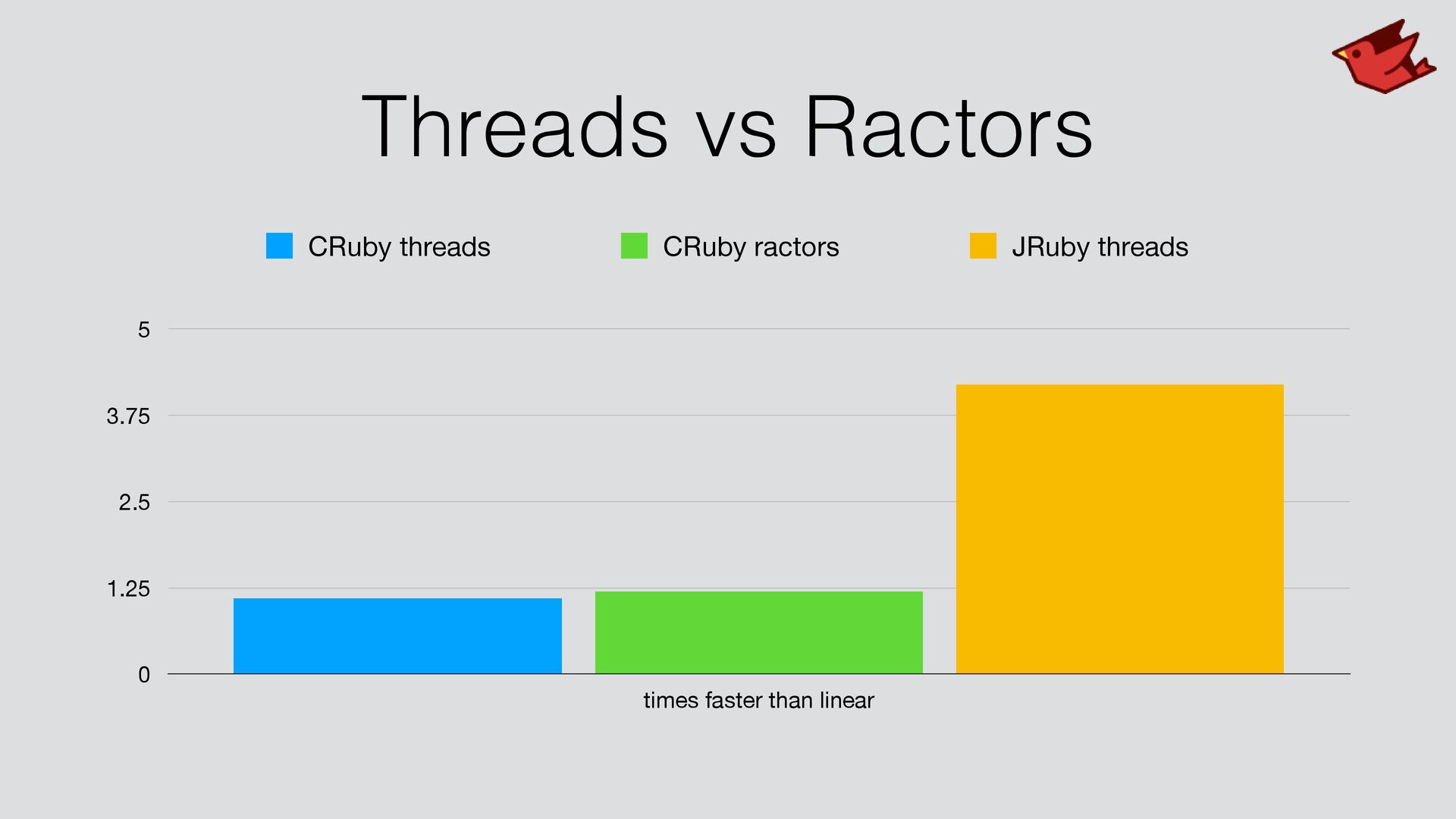

80. Threads vs Ractors 0 1.25 2.5 3.75 5 times faster than linear 4.2x 1.2x 1.1x CRuby threads CRuby ractors JRuby threads
81. JRuby Future
82. Supporting JRuby • I work for you! • Helping Ruby users with JRuby • Keep making JRuby better • Sponsorships from users • Every little bit helps! • JRuby and Ruby support • Migration, updates, performance work

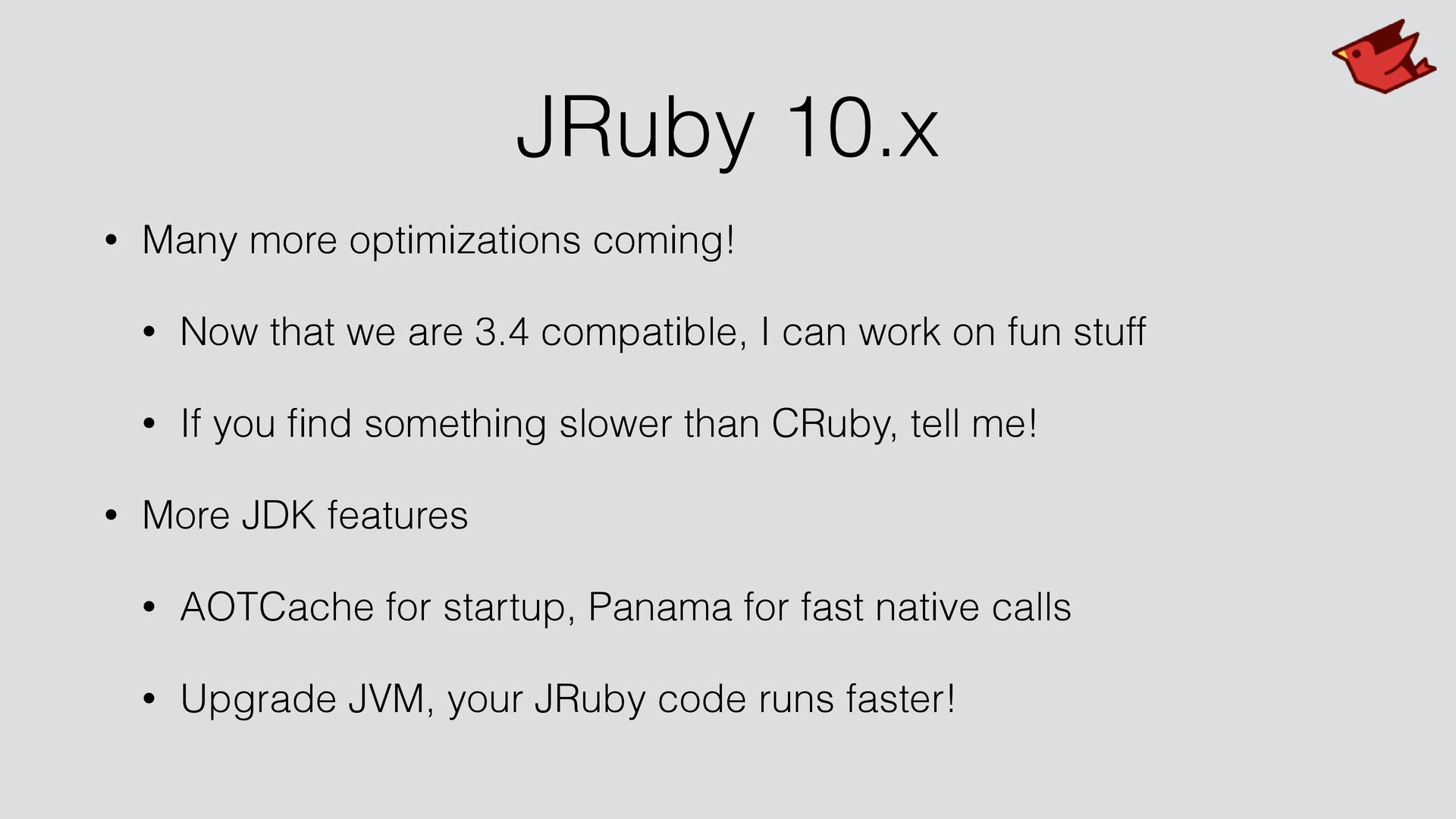

83. JRuby 10.x • Many more optimizations coming! • Now that we are 3.4 compatible, I can work on fun stuff • If you fi nd something slower than CRuby, tell me! • More JDK features • AOTCache for startup, Panama for fast native calls • Upgrade JVM, your JRuby code runs faster!
84. Thank You! • Charles Oliver Nutter • @headius • @mastodon.social • .bsky.social • headius@headius.com • Help me keep working on JRuby!
