1. CSC 3100 Software Engineering Lecture 13. We Need a Cloud! Dr. Javier Gonzalez-Sanchez javiergs@calpoly.edu www.javiergs.info ffi o ce: 14 -227
5. We need a Cloud!

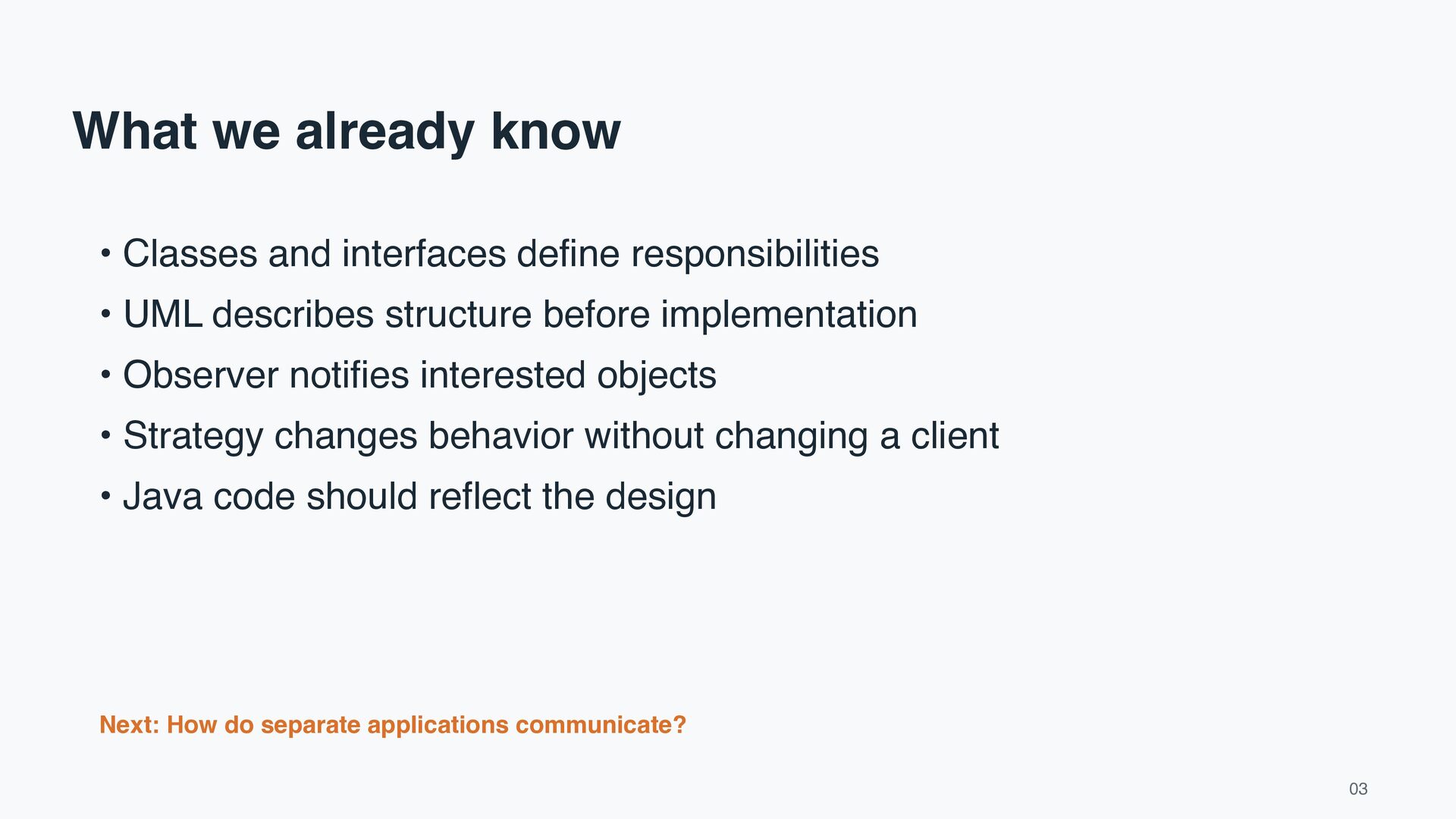

6. What we already know • Classes and interfaces define responsibilities • UML describes structure before implementation • Observer notifies interested objects • Strategy changes behavior without changing a client • Java code should reflect the design Next: How do separate applications communicate? 03

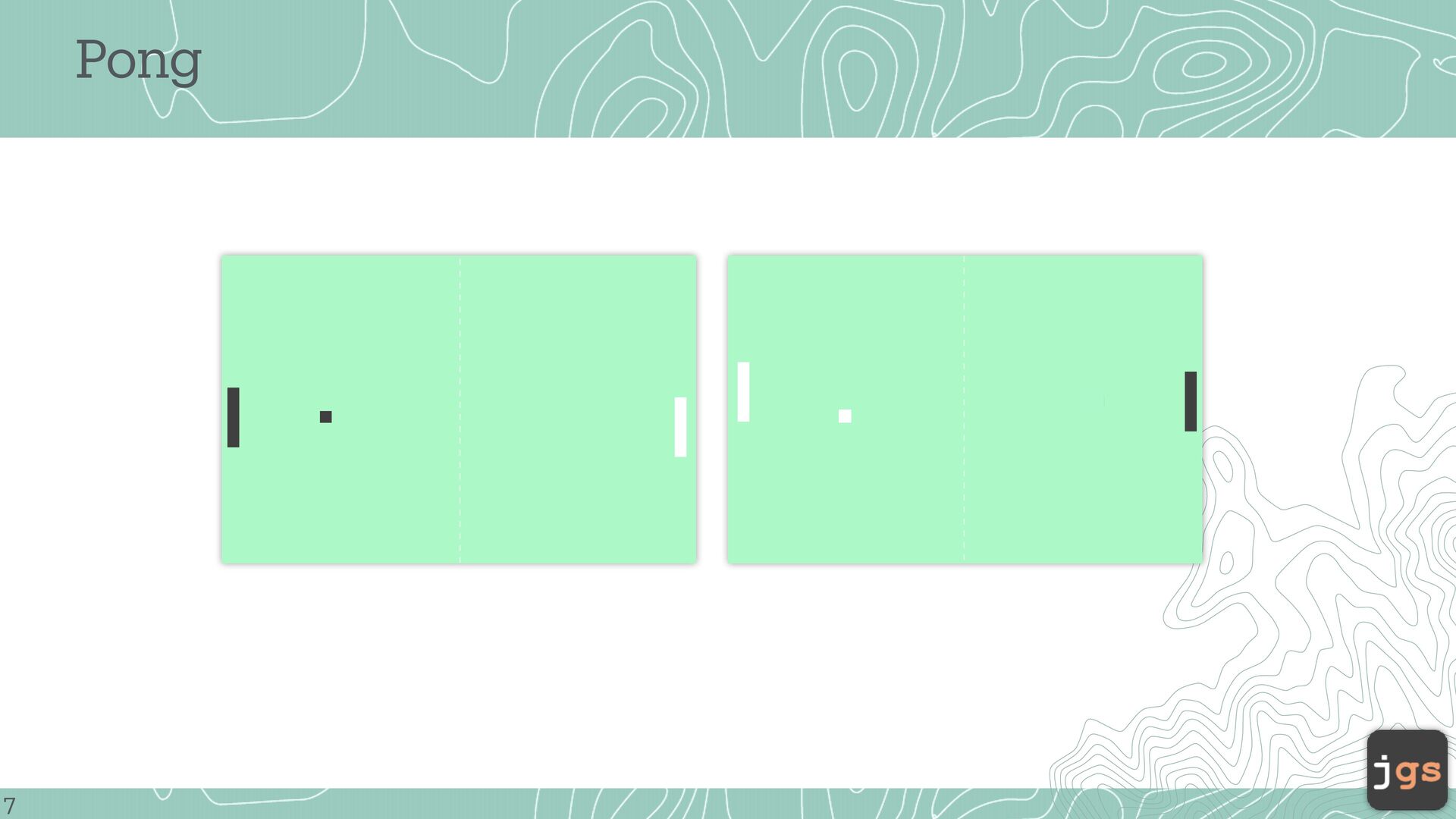

7. Pong https://github.com/CSC3100/Pong-Game 7

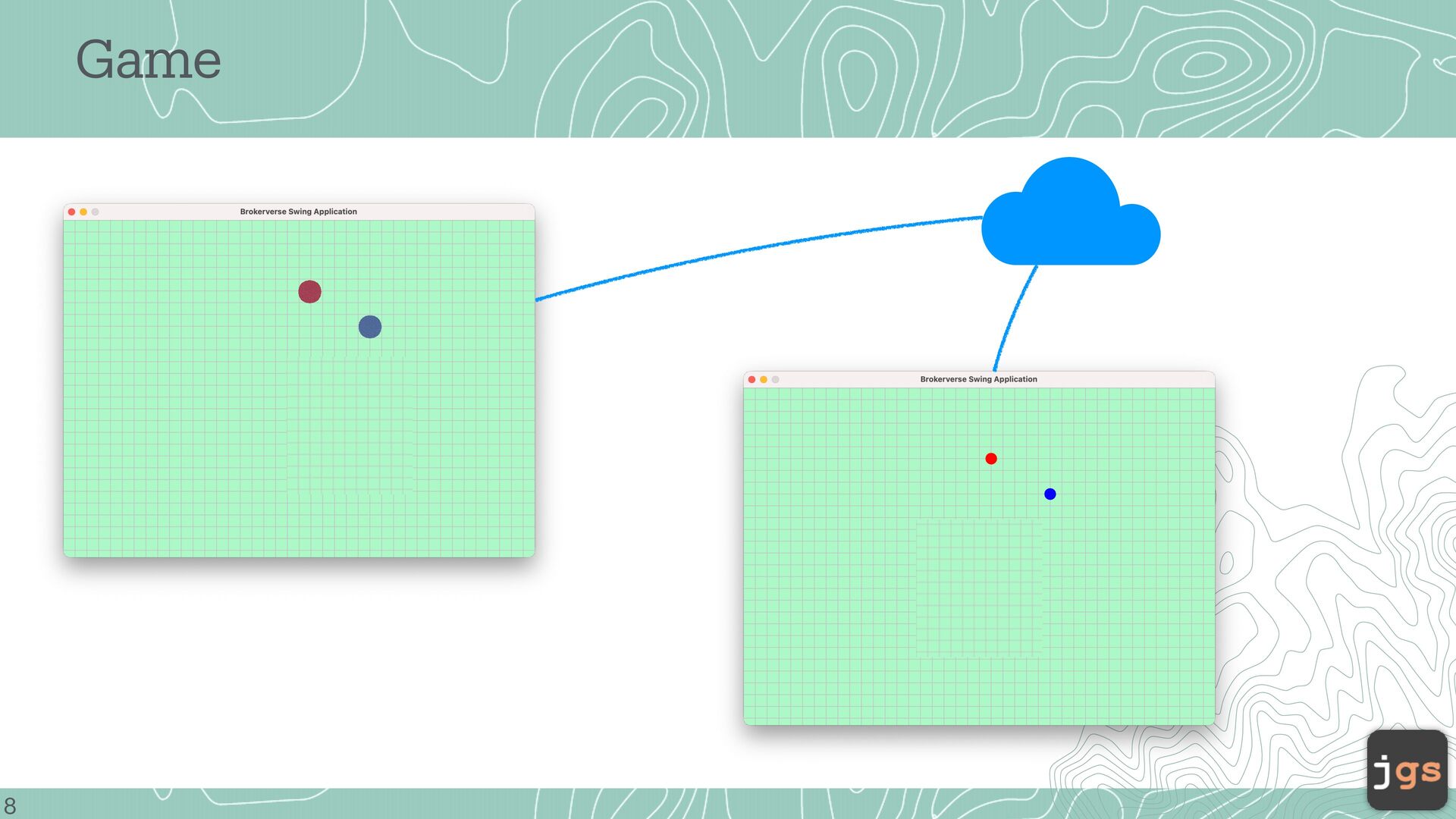

8. Game 8

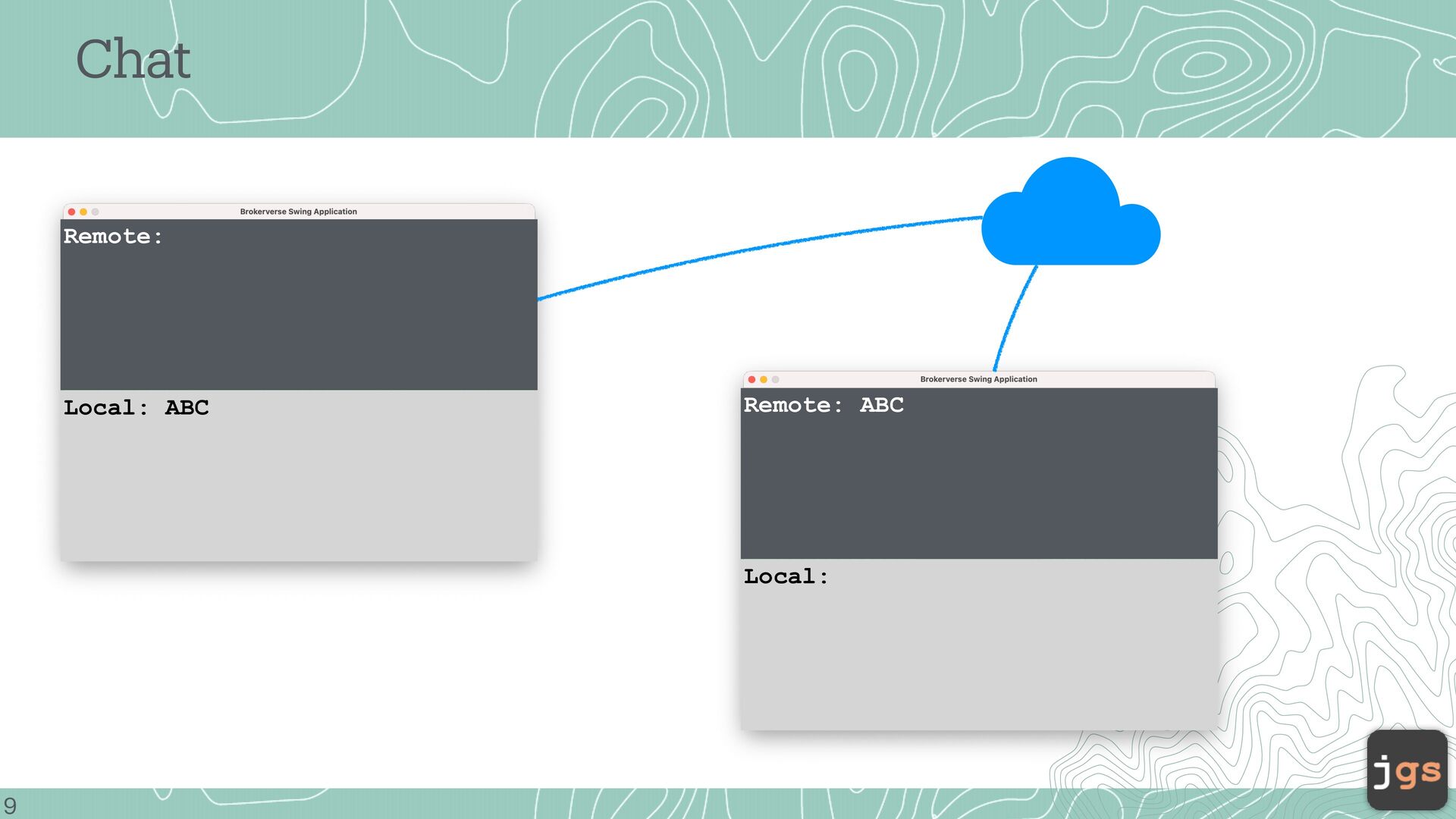

9. Chat Remote: Local: ABC Remote: ABC Local: 9

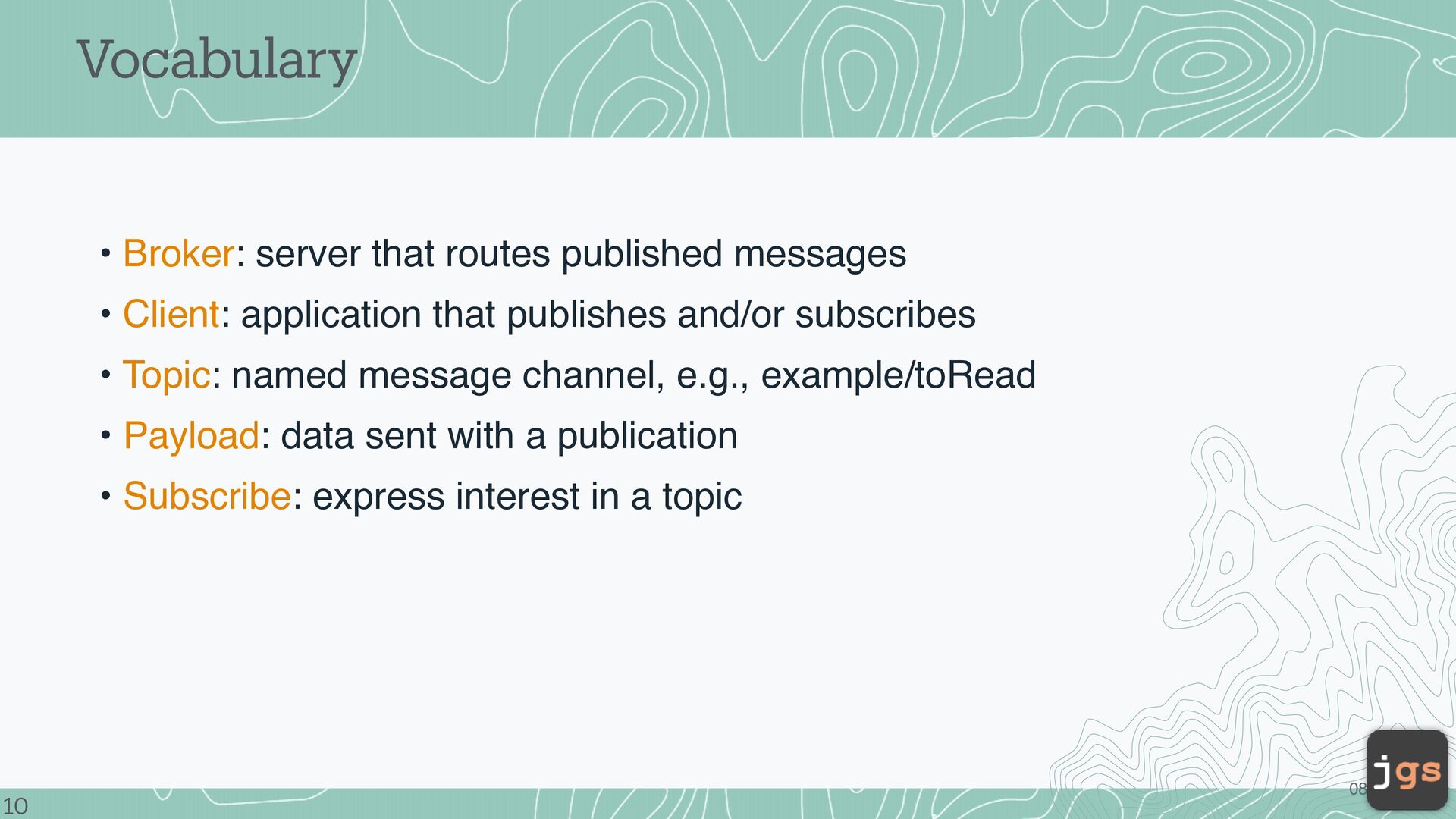

10. Vocabulary • Broker: server that routes published messages • Client: application that publishes and/or subscribes • Topic: named message channel, e.g., example/toRead • Payload: data sent with a publication • Subscribe: express interest in a topic 10 08

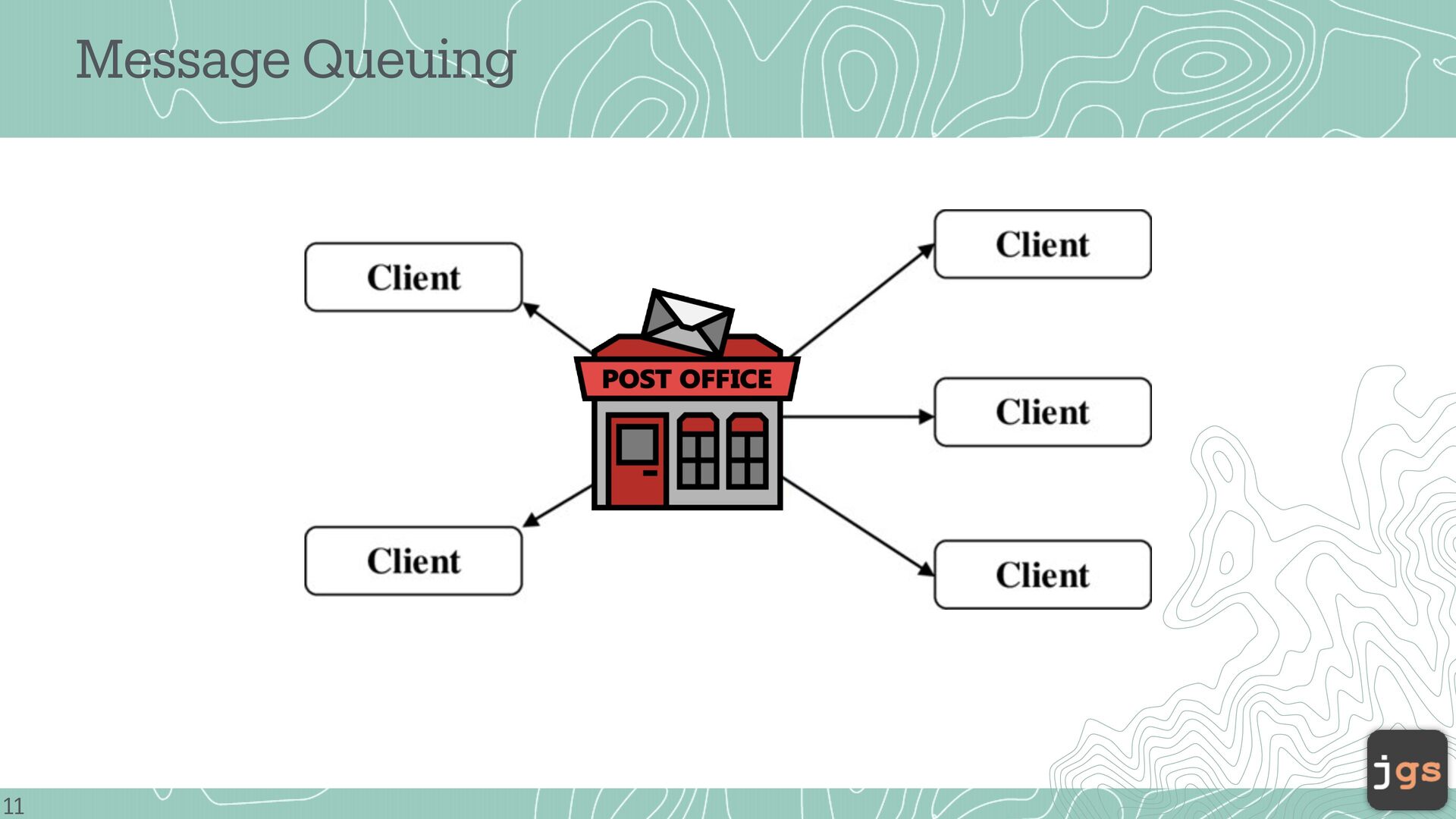

11. Message Queuing 11

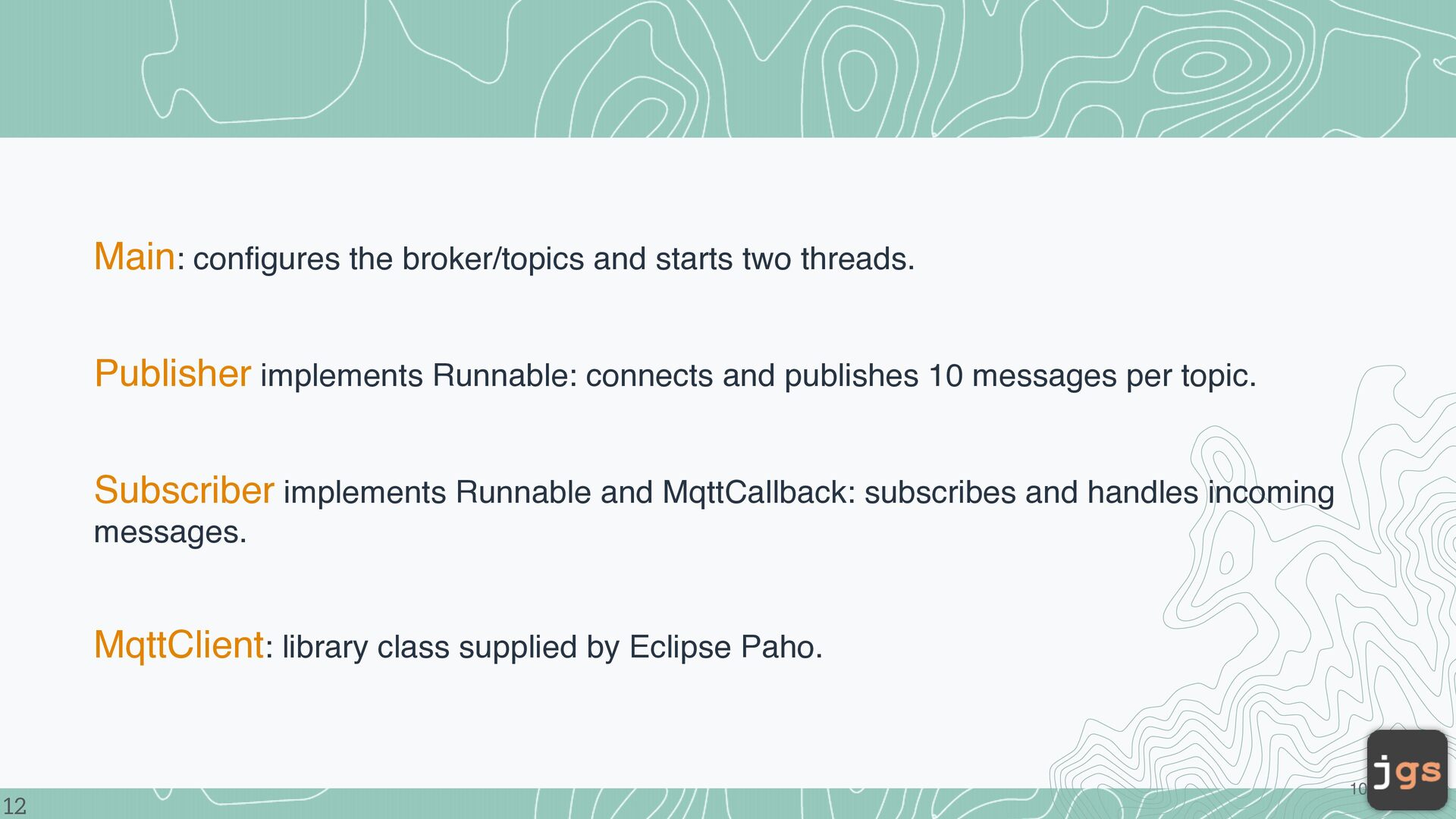

12. Main: configures the broker/topics and starts two threads. Publisher implements Runnable: connects and publishes 10 messages per topic. Subscriber implements Runnable and MqttCallback: subscribes and handles incoming messages. MqttClient: library class supplied by Eclipse Paho. 12 10

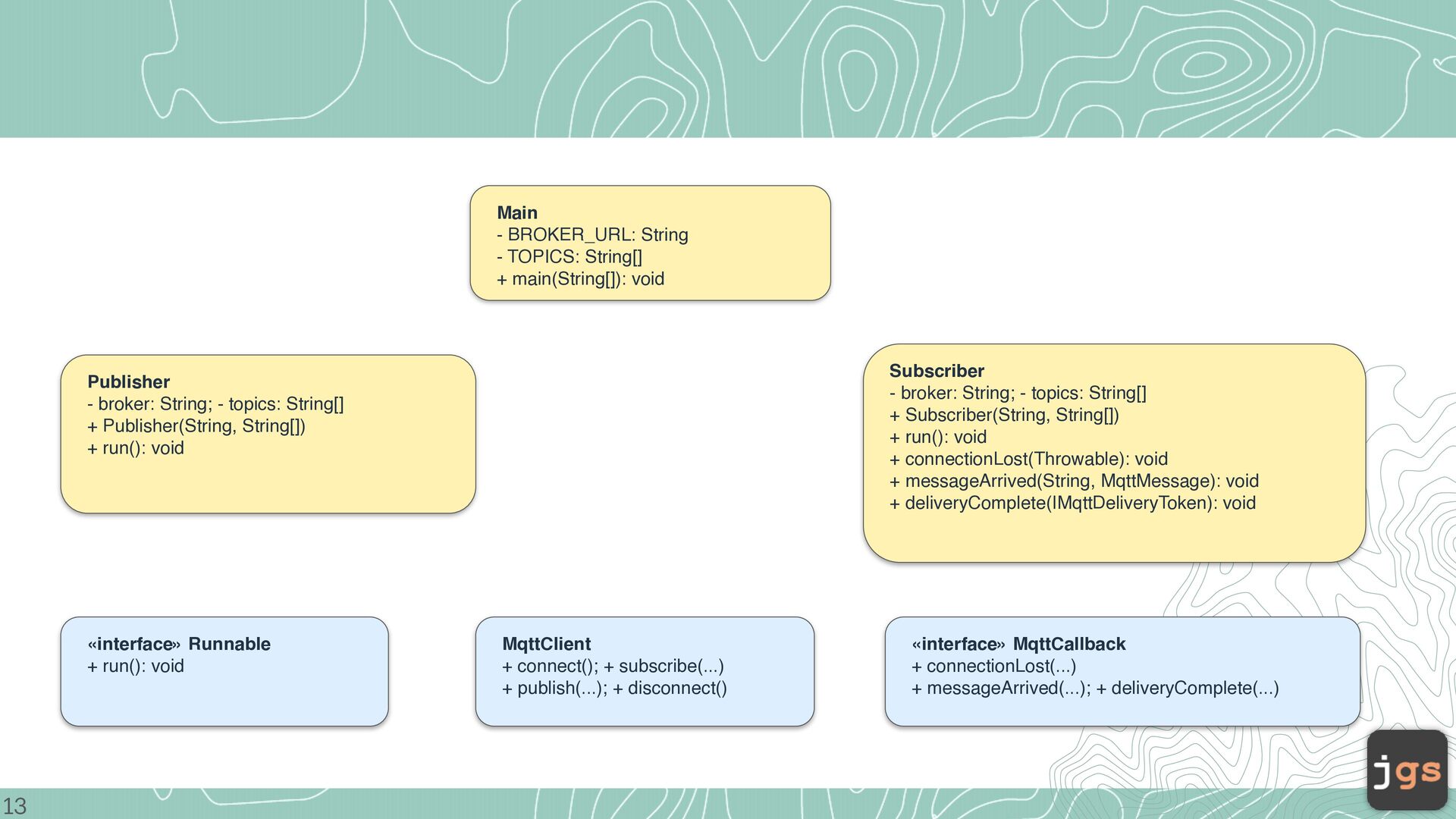

13. Main - BROKER_URL: String - TOPICS: String[] + main(String[]): void Subscriber - broker: String; - topics: String[] + Subscriber(String, String[]) + run(): void + connectionLost(Throwable): void + messageArrived(String, MqttMessage): void + deliveryComplete(IMqttDeliveryToken): void Publisher - broker: String; - topics: String[] + Publisher(String, String[]) + run(): void «interface» Runnable + run(): void 13 MqttClient + connect(); + subscribe(...) + publish(...); + disconnect() «interface» MqttCallback + connectionLost(...) + messageArrived(...); + deliveryComplete(...)
14. Libraries

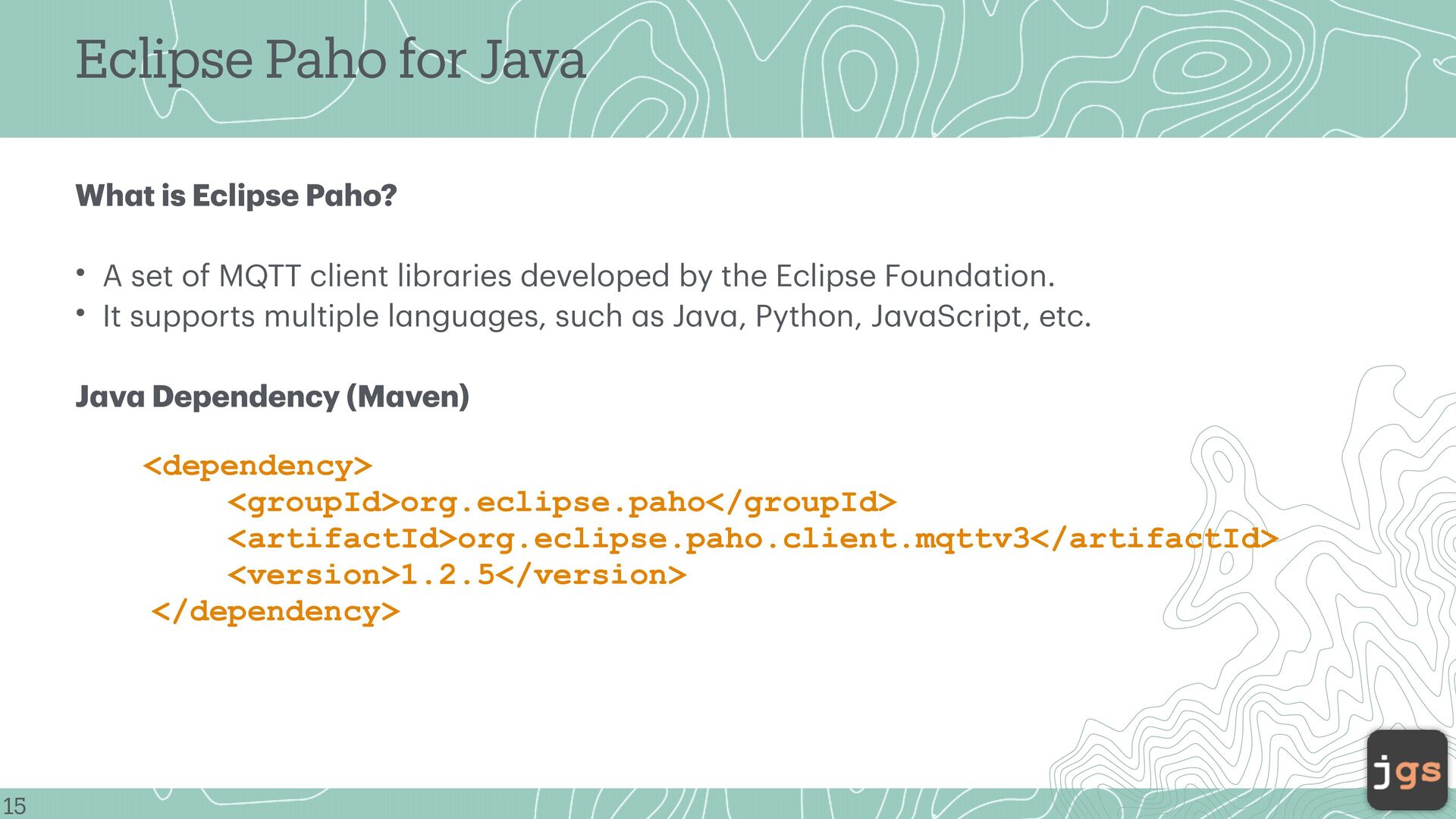

15. Eclipse Paho for Java Wh t is Eclipse P ho? • A set of MQTT client libr ries developed by the Eclipse Found tion. • It supports multiple l ngu ges, such s J v , Python, J v Script, etc. J v Dependency (M ven) a a a a a a a a a a a a a 15 a <dependency> <groupId>org.eclipse.paho</groupId> <artifactId>org.eclipse.paho.client.mqttv3</artifactId> <version>1.2.5</version> </dependency>
16. Coding

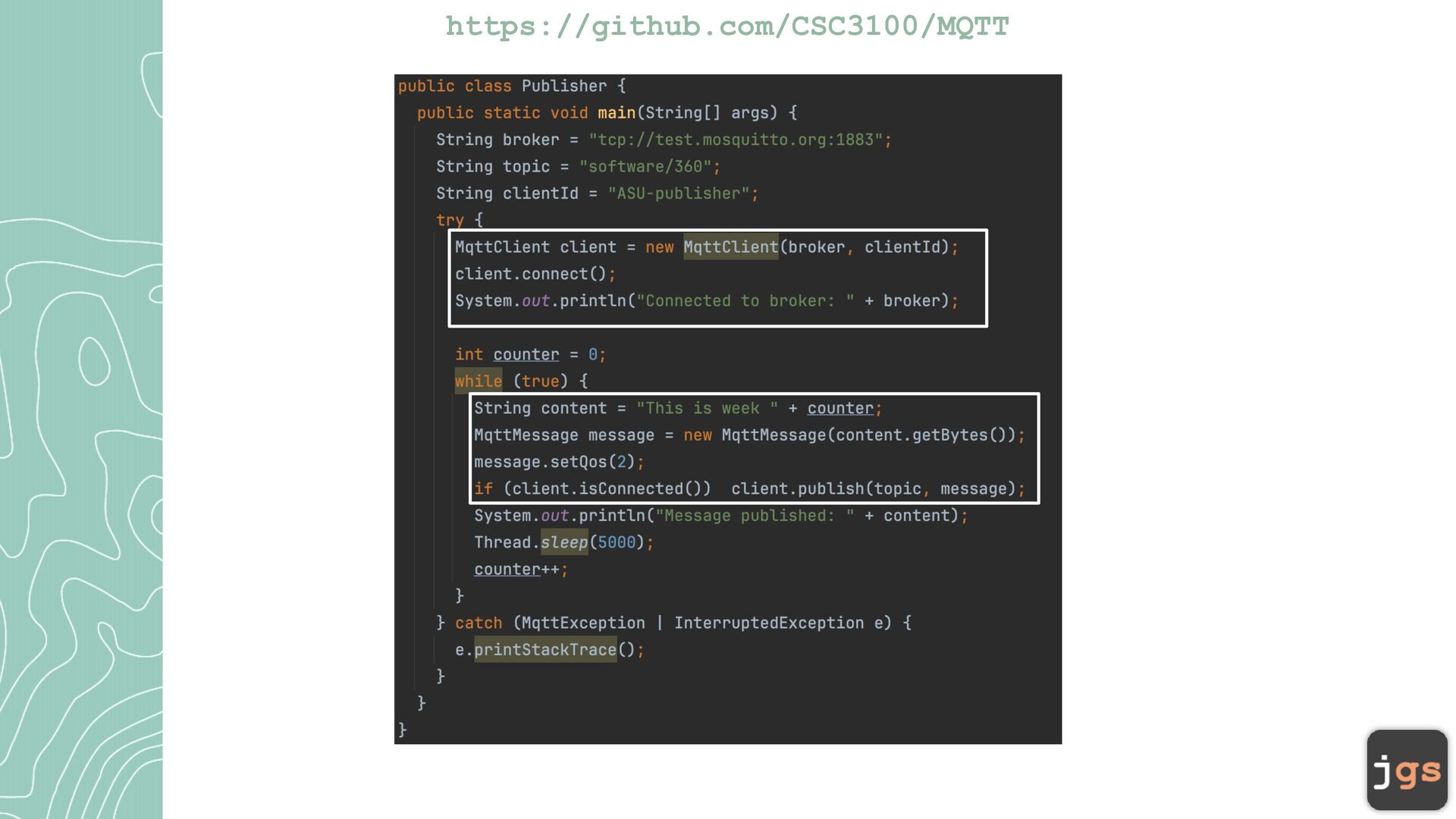

17. https://github.com/CSC3100/MQTT

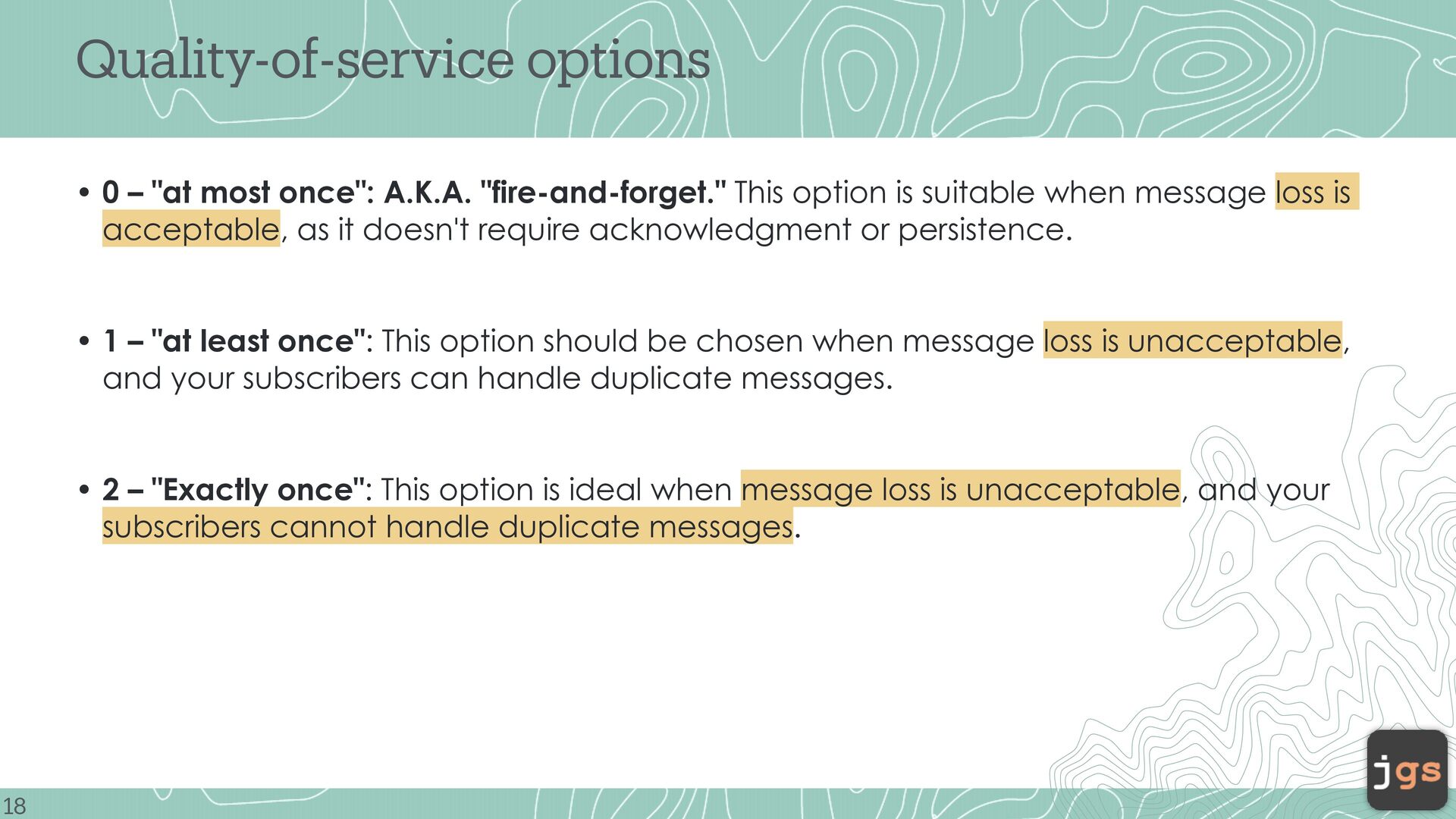

18. Quality-of-service options • 0 – "at most once": A.K.A. "fire-and-forget." This option is suitable when message loss is acceptable, as it doesn't require acknowledgment or persistence. • 1 – "at least once": This option should be chosen when message loss is unacceptable, and your subscribers can handle duplicate messages. • 2 – "Exactly once": This option is ideal when message loss is unacceptable, and your subscribers cannot handle duplicate messages. 18

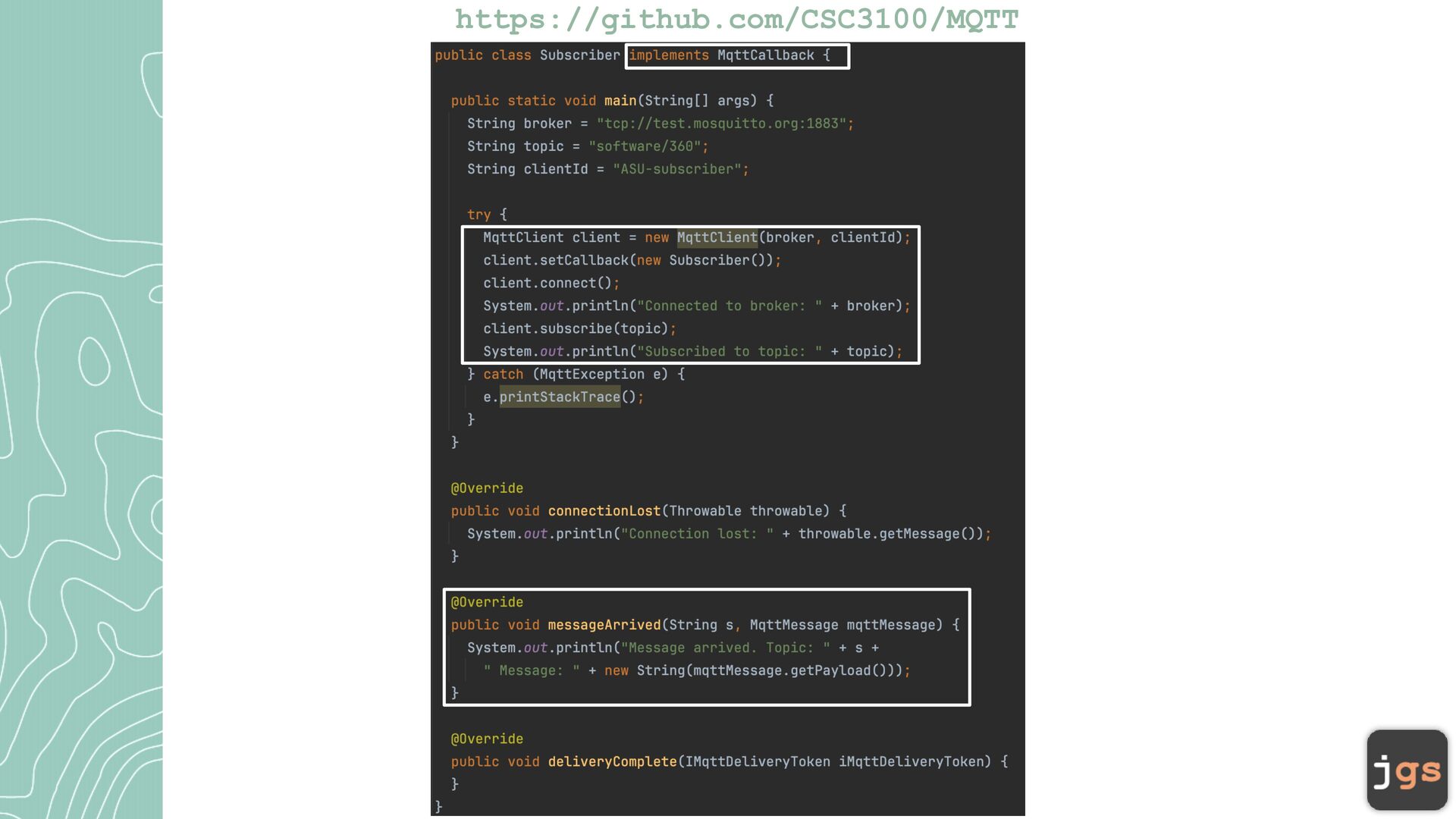

20. https://github.com/CSC3100/MQTT
21. To be continued...
23. Game
24. Game 24

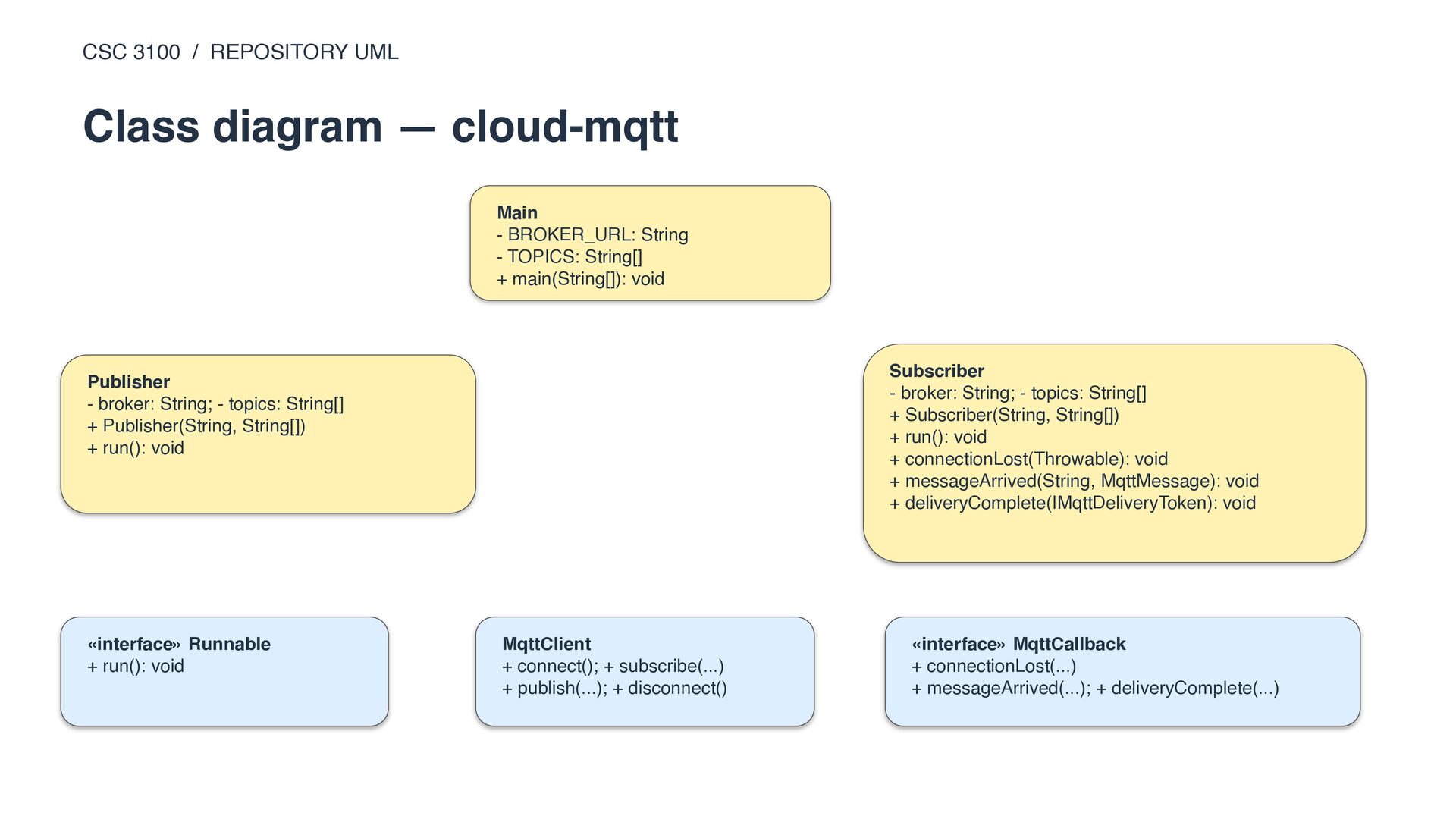

25. CSC 3100 / REPOSITORY UML Class diagram — cloud-mqtt Main - BROKER_URL: String - TOPICS: String[] + main(String[]): void Subscriber - broker: String; - topics: String[] + Subscriber(String, String[]) + run(): void + connectionLost(Throwable): void + messageArrived(String, MqttMessage): void + deliveryComplete(IMqttDeliveryToken): void Publisher - broker: String; - topics: String[] + Publisher(String, String[]) + run(): void «interface» Runnable + run(): void MqttClient + connect(); + subscribe(...) + publish(...); + disconnect() «interface» MqttCallback + connectionLost(...) + messageArrived(...); + deliveryComplete(...)

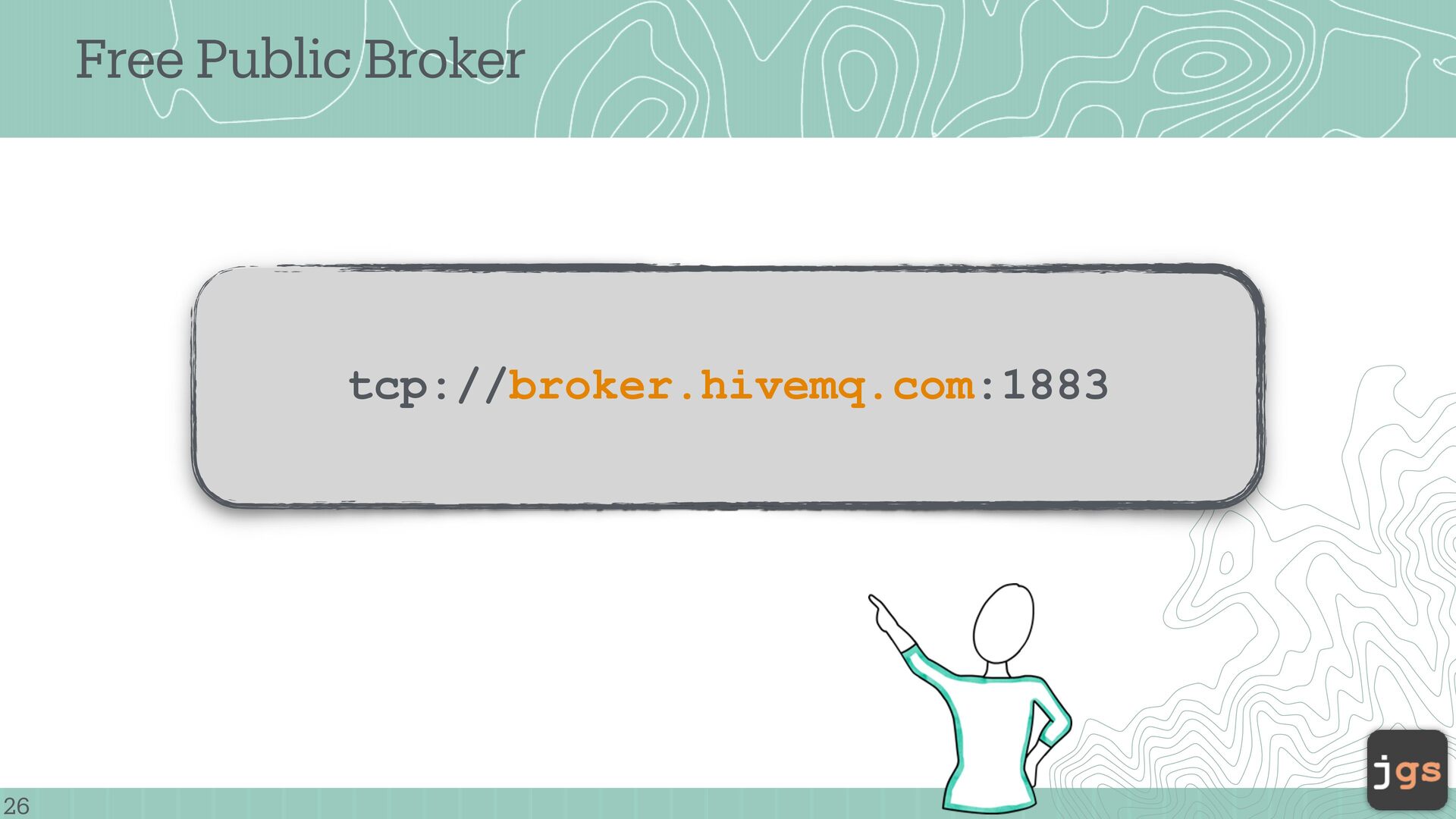

26. Free Public Broker tcp://broker.hivemq.com:1883 26

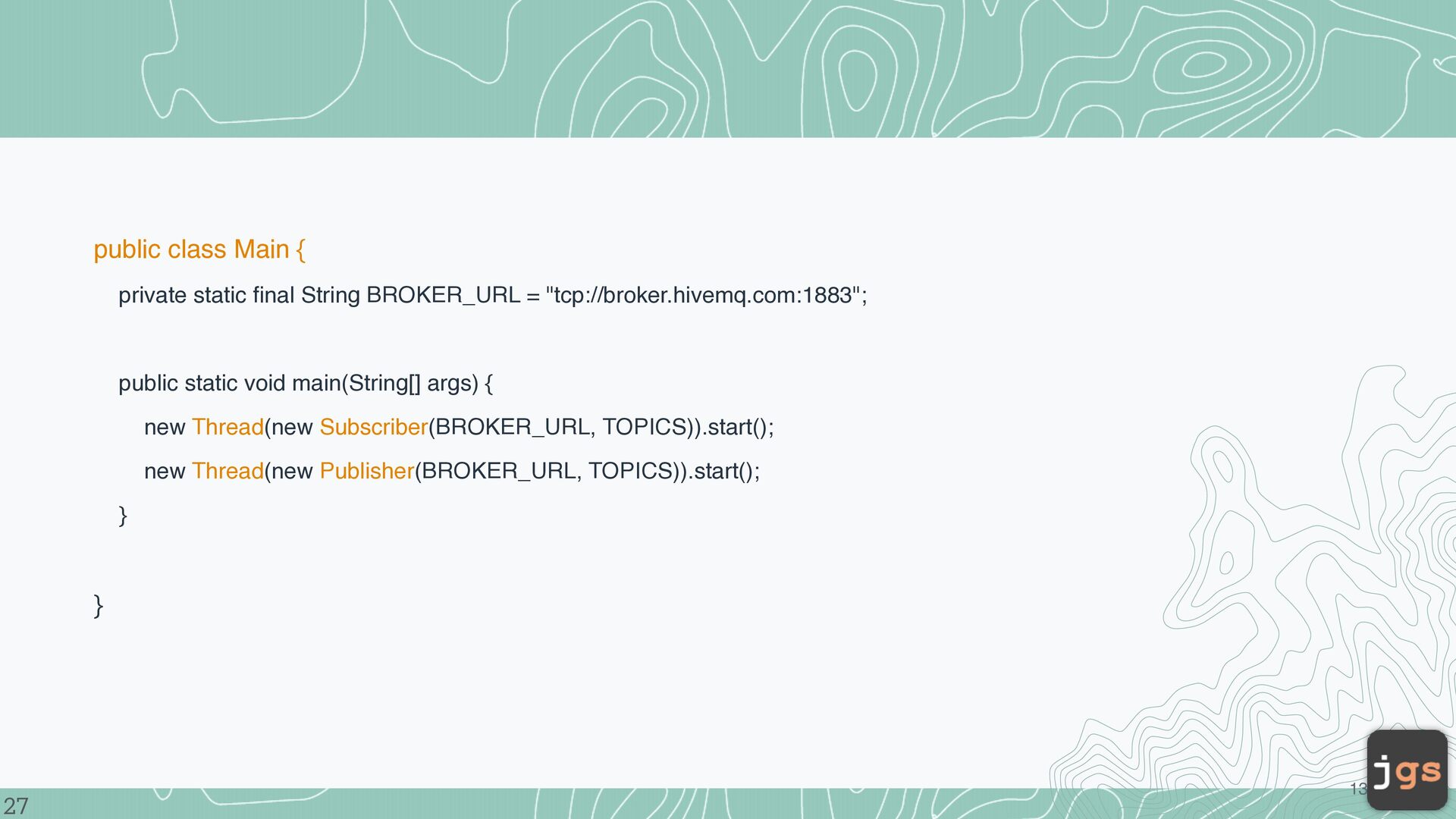

27. public class Main { private static final String BROKER_URL = "tcp://broker.hivemq.com:1883"; public static void main(String[] args) { new Thread(new Subscriber(BROKER_URL, TOPICS)).start(); new Thread(new Publisher(BROKER_URL, TOPICS)).start(); } } 27 13

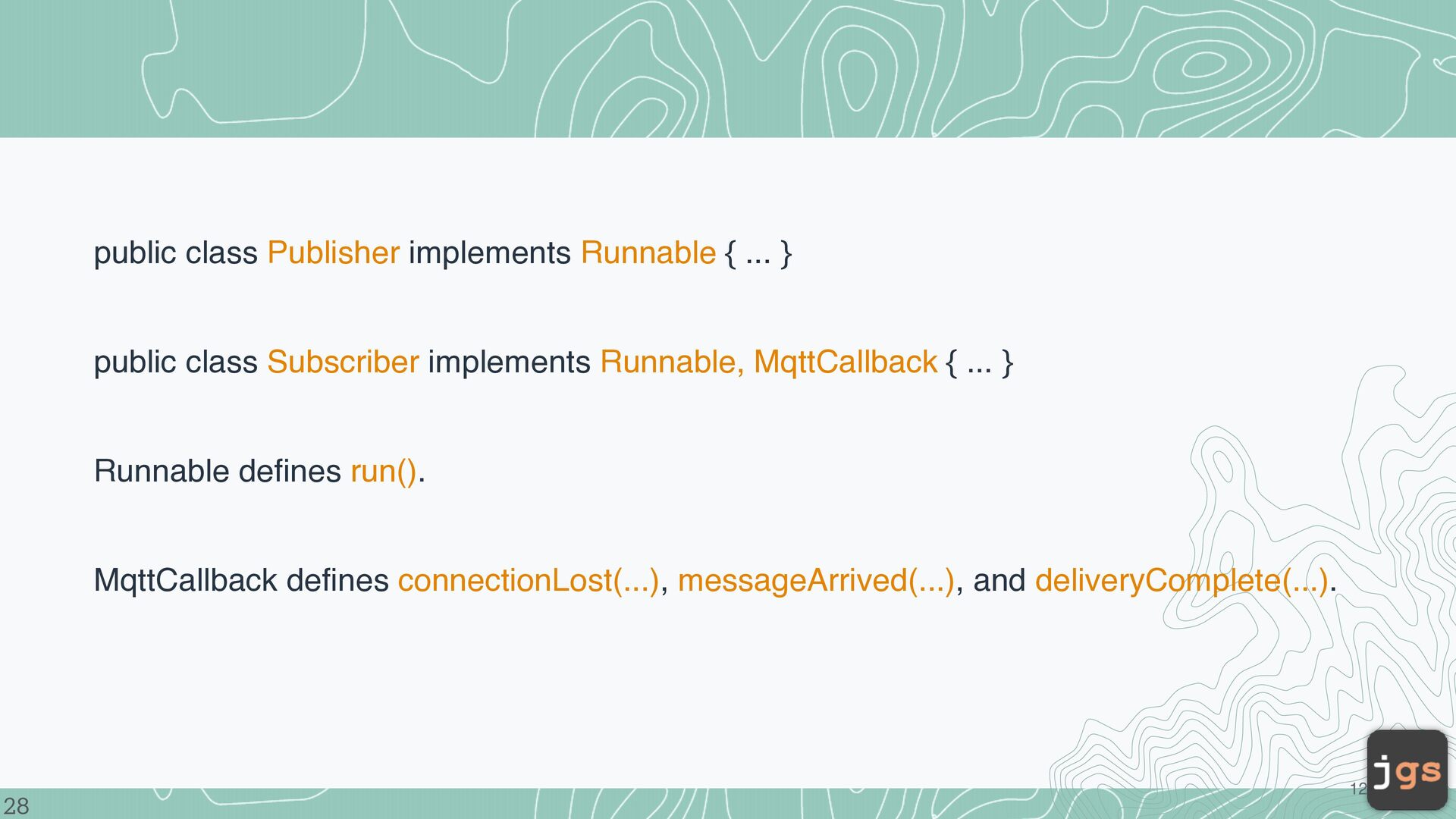

28. public class Publisher implements Runnable { ... } public class Subscriber implements Runnable, MqttCallback { ... } Runnable defines run(). MqttCallback defines connectionLost(...), messageArrived(...), and deliveryComplete(...). 28 12

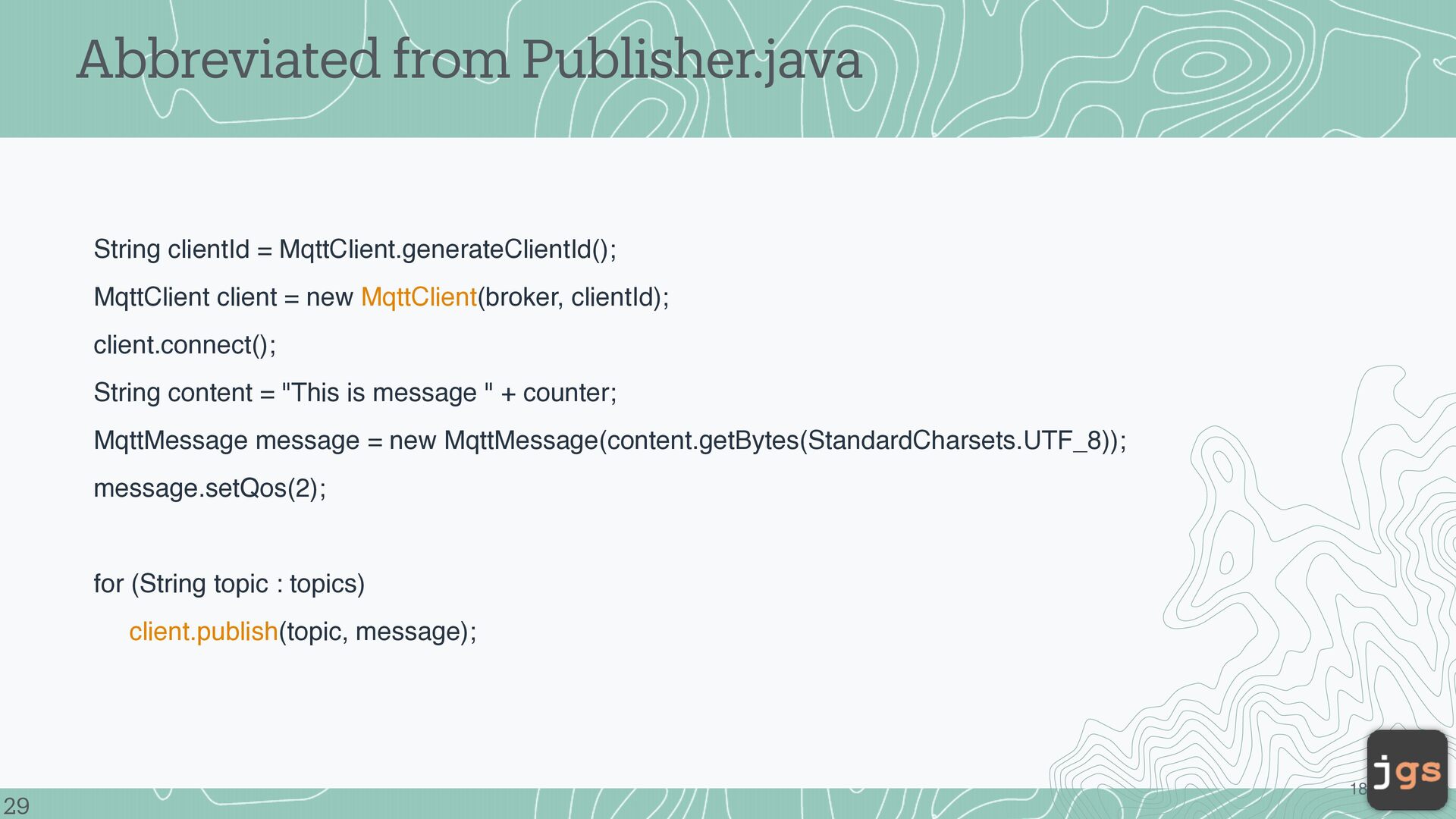

29. Abbreviated from Publisher.java String clientId = MqttClient.generateClientId(); MqttClient client = new MqttClient(broker, clientId); client.connect(); String content = "This is message " + counter; MqttMessage message = new MqttMessage(content.getBytes(StandardCharsets.UTF_8)); message.setQos(2); for (String topic : topics) client.publish(topic, message); 29 18

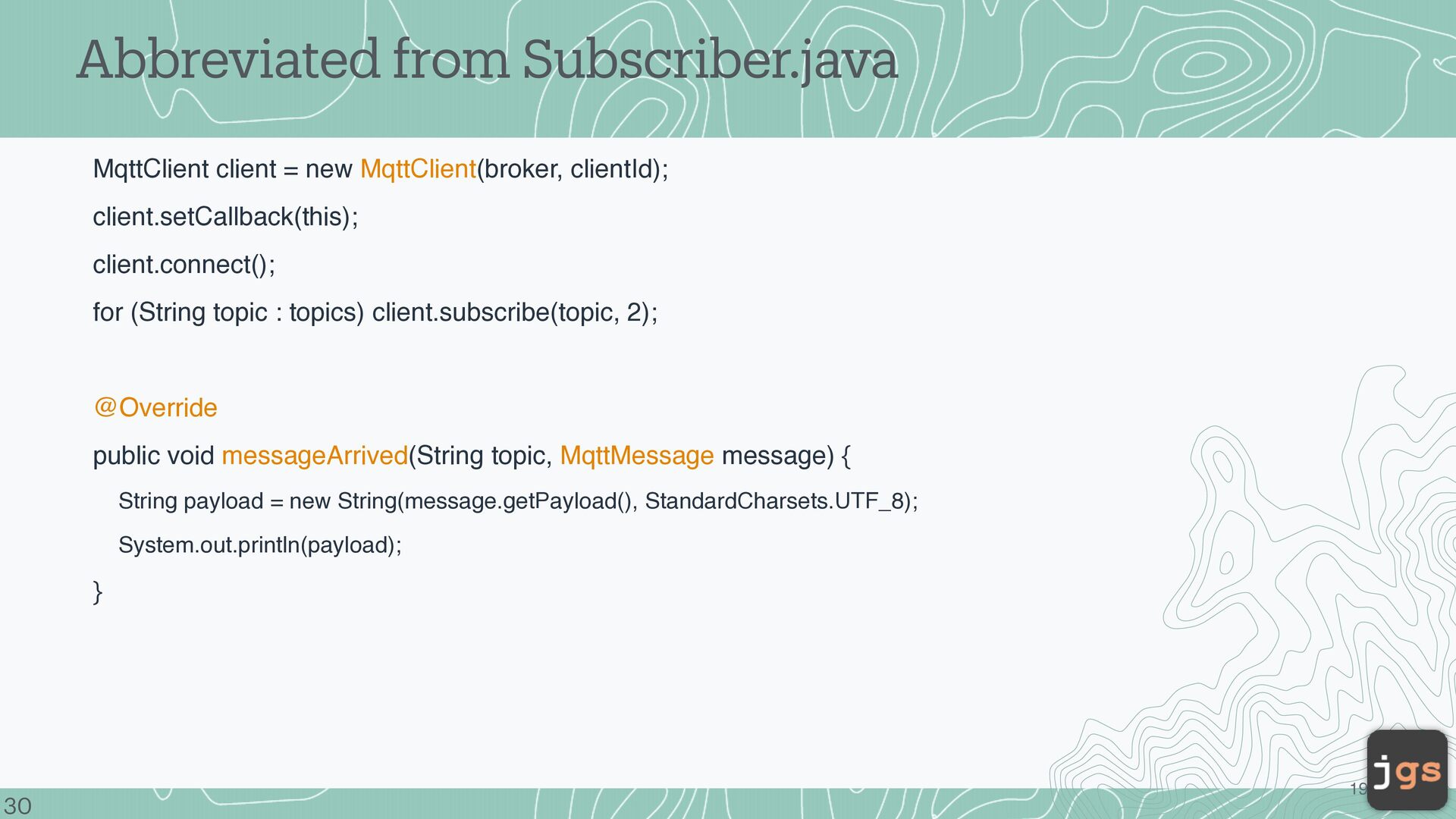

30. Abbreviated from Subscriber.java MqttClient client = new MqttClient(broker, clientId); client.setCallback(this); client.connect(); for (String topic : topics) client.subscribe(topic, 2); @Override public void messageArrived(String topic, MqttMessage message) { String payload = new String(message.getPayload(), StandardCharsets.UTF_8); System.out.println(payload); } 30 19

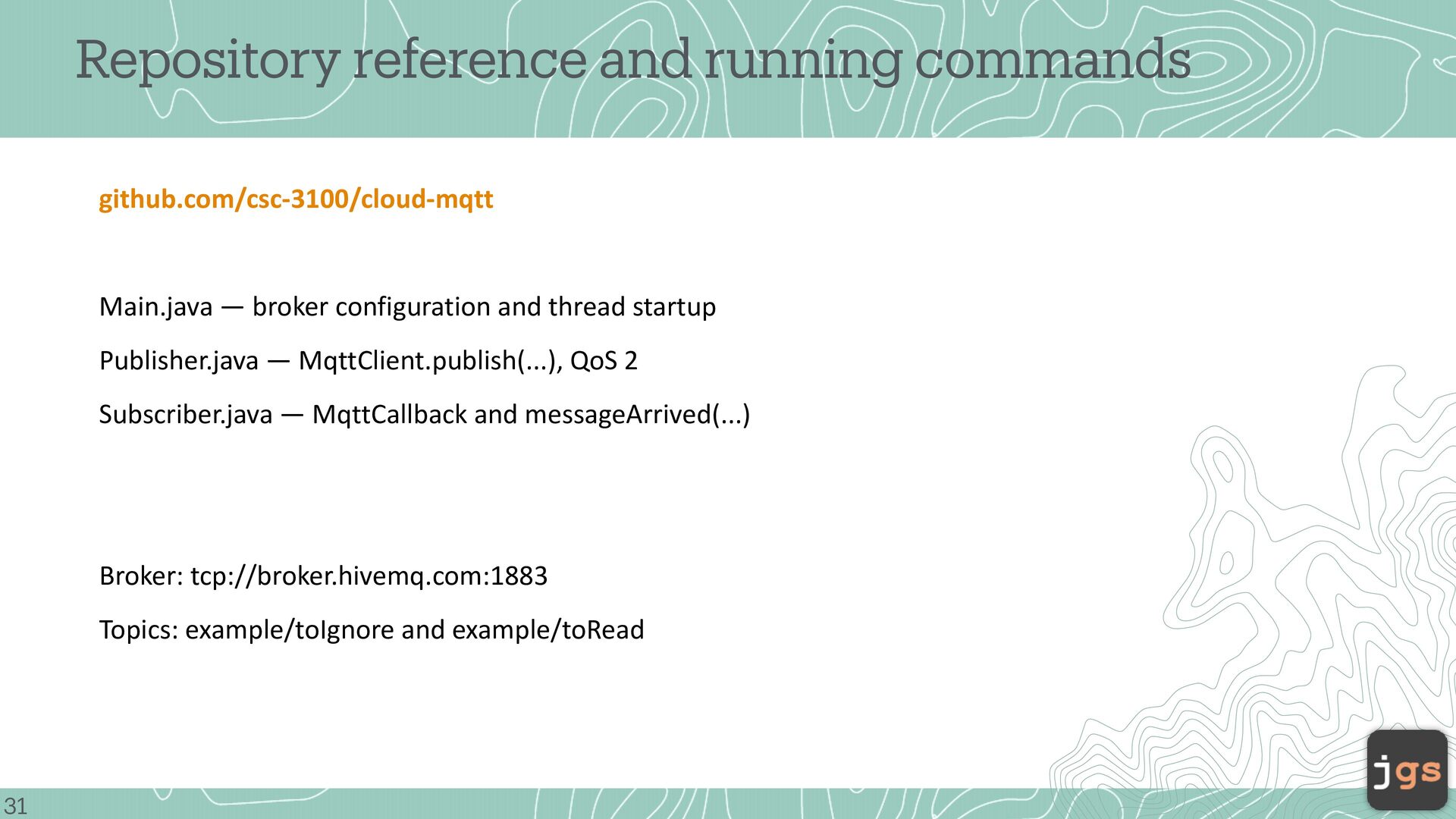

31. Repository reference and running commands github.com/csc-3100/cloud-mqtt Main.java — broker configuration and thread startup Publisher.java — MqttClient.publish(...), QoS 2 Subscriber.java — MqttCallback and messageArrived(...) Broker: tcp://broker.hivemq.com:1883 Topics: example/toIgnore and example/toRead 31
32. Questions 32
