Quarkusで作るInteractive Stream Application

JJUG CCC Fall 2025の登壇資料です。
QuarkusとKafka Streamsを組み合わせる活用法の解説と事例の紹介です。

Tomohiro Hashidate

November 15, 2025

Transcript

33 slides

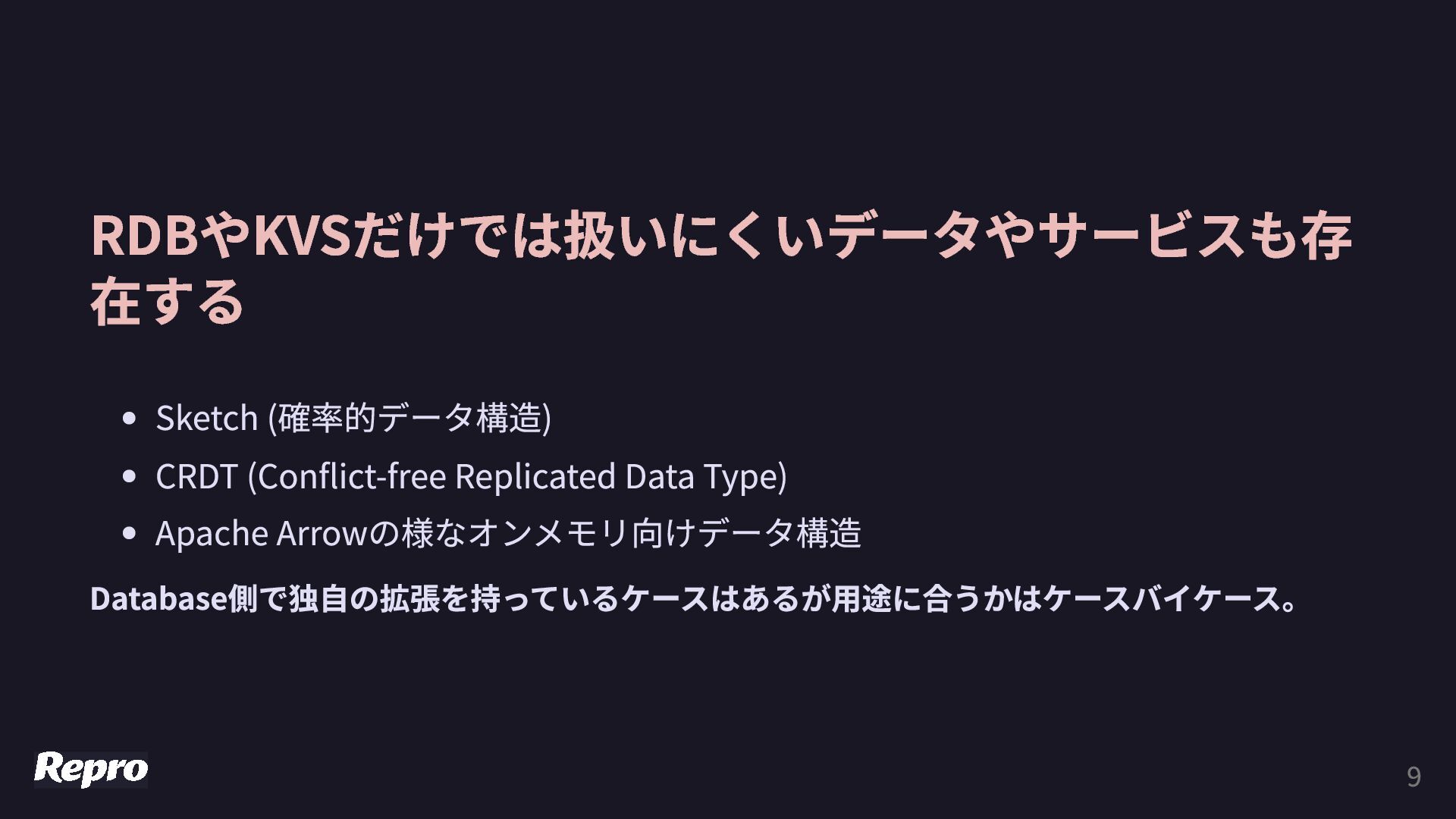

  1. RDBやKVSだけでは扱いにくいデータやサービスも存 在する Sketch (確率的データ構造) CRDT (Conflict-free Replicated Data Type) Apache

    Arrowの様なオンメモリ向けデータ構造 Database側で独自の拡張を持っているケースはあるが用途に合うかはケースバイケース。 9

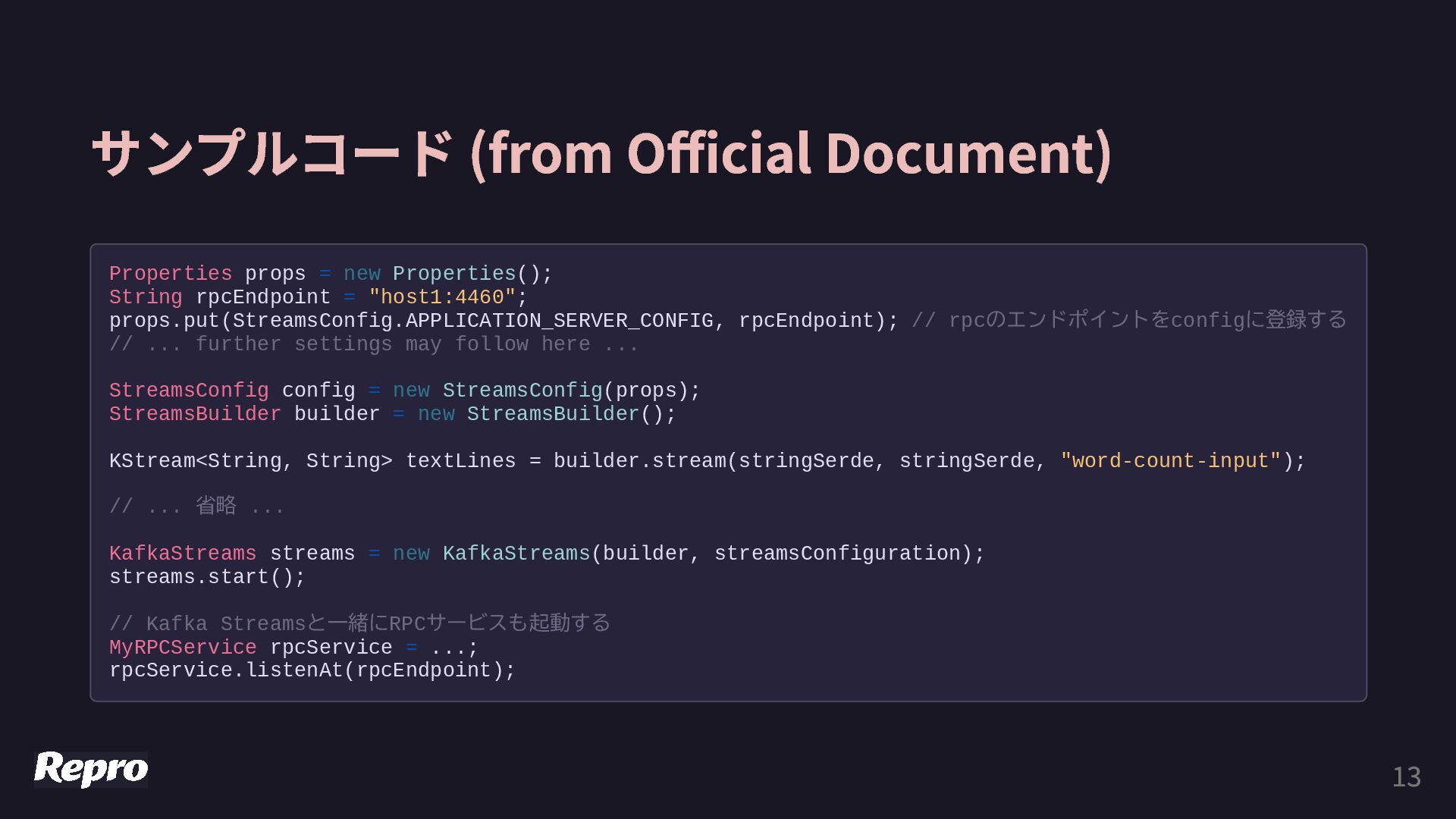

  2. サンプルコード (from Official Document) Properties props = new Properties(); String

    rpcEndpoint = "host1:4460"; props.put(StreamsConfig.APPLICATION_SERVER_CONFIG, rpcEndpoint); // rpcのエンドポイントをconfigに登録する // ... further settings may follow here ... StreamsConfig config = new StreamsConfig(props); StreamsBuilder builder = new StreamsBuilder(); KStream<String, String> textLines = builder.stream(stringSerde, stringSerde, "word-count-input"); // ... 省略 ... KafkaStreams streams = new KafkaStreams(builder, streamsConfiguration); streams.start(); // Kafka Streamsと一緒にRPCサービスも起動する MyRPCService rpcService = ...; rpcService.listenAt(rpcEndpoint); 13

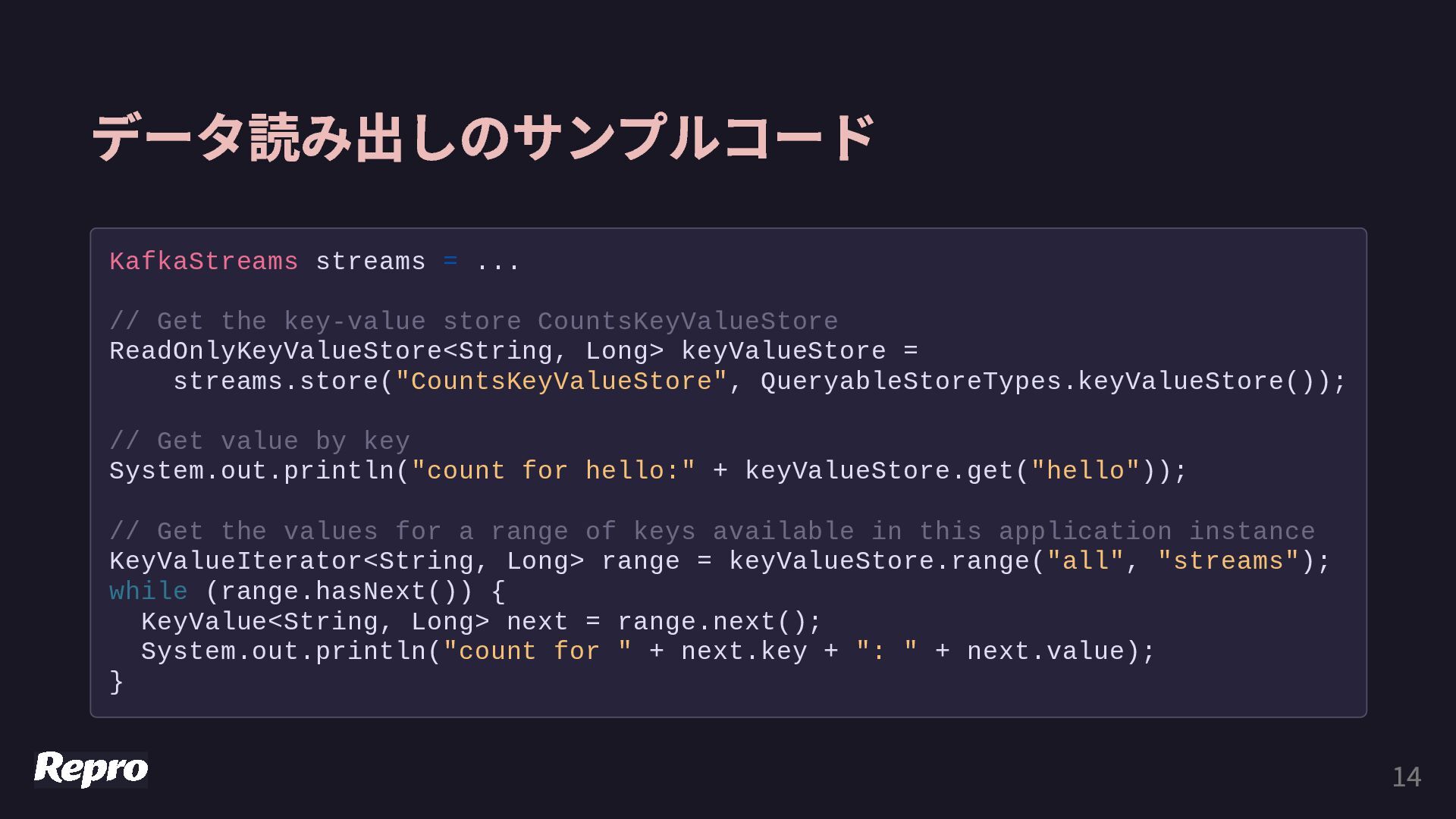

  3. データ読み出しのサンプルコード KafkaStreams streams = ... // Get the key-value store

    CountsKeyValueStore ReadOnlyKeyValueStore<String, Long> keyValueStore = streams.store("CountsKeyValueStore", QueryableStoreTypes.keyValueStore()); // Get value by key System.out.println("count for hello:" + keyValueStore.get("hello")); // Get the values for a range of keys available in this application instance KeyValueIterator<String, Long> range = keyValueStore.range("all", "streams"); while (range.hasNext()) { KeyValue<String, Long> next = range.next(); System.out.println("count for " + next.key + ": " + next.value); } 14

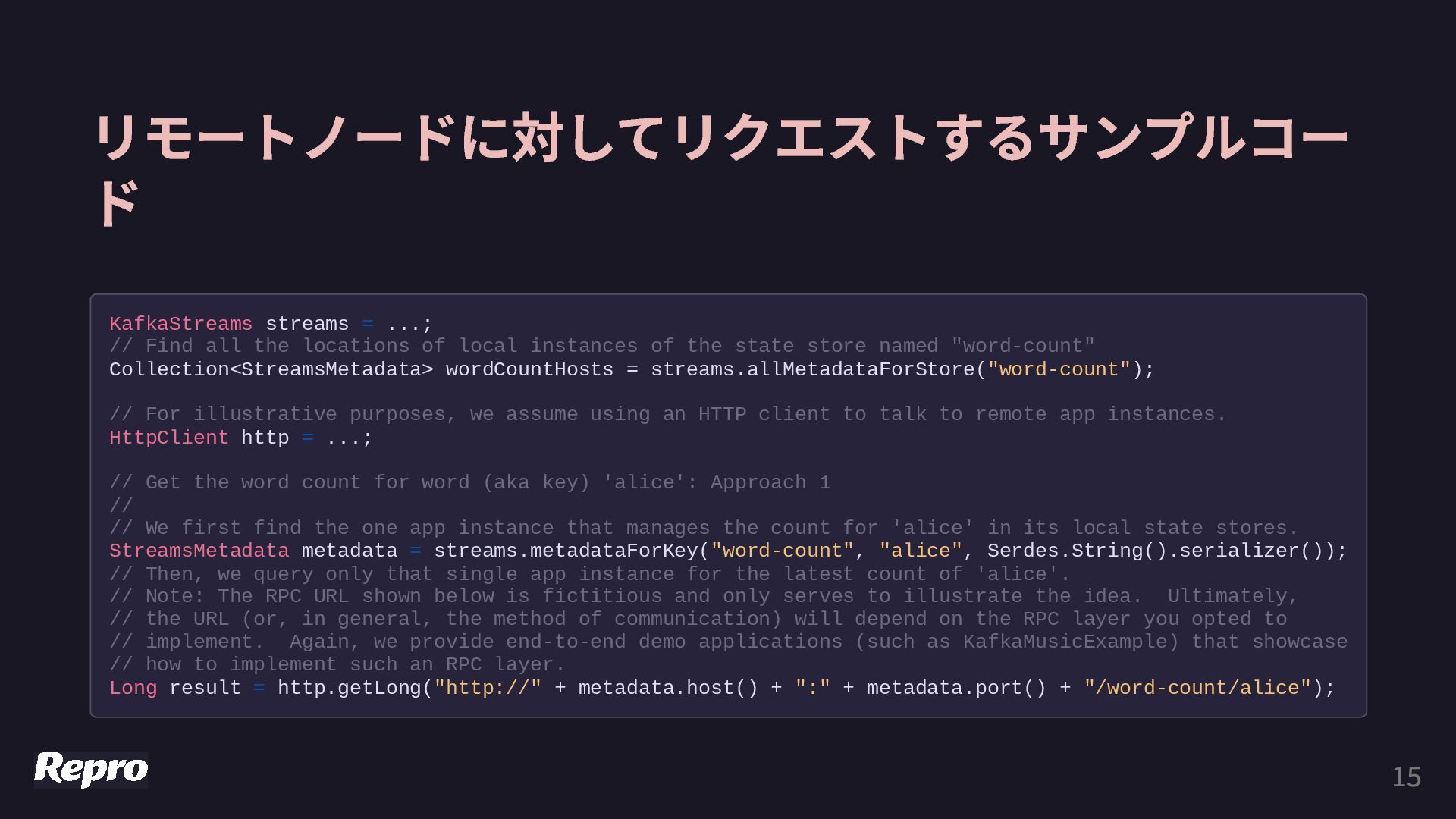

  4. リモートノードに対してリクエストするサンプルコー ド KafkaStreams streams = ...; // Find all the

    locations of local instances of the state store named "word-count" Collection<StreamsMetadata> wordCountHosts = streams.allMetadataForStore("word-count"); // For illustrative purposes, we assume using an HTTP client to talk to remote app instances. HttpClient http = ...; // Get the word count for word (aka key) 'alice': Approach 1 // // We first find the one app instance that manages the count for 'alice' in its local state stores. StreamsMetadata metadata = streams.metadataForKey("word-count", "alice", Serdes.String().serializer()); // Then, we query only that single app instance for the latest count of 'alice'. // Note: The RPC URL shown below is fictitious and only serves to illustrate the idea. Ultimately, // the URL (or, in general, the method of communication) will depend on the RPC layer you opted to // implement. Again, we provide end-to-end demo applications (such as KafkaMusicExample) that showcase // how to implement such an RPC layer. Long result = http.getLong("http://" + metadata.host() + ":" + metadata.port() + "/word-count/alice"); 15

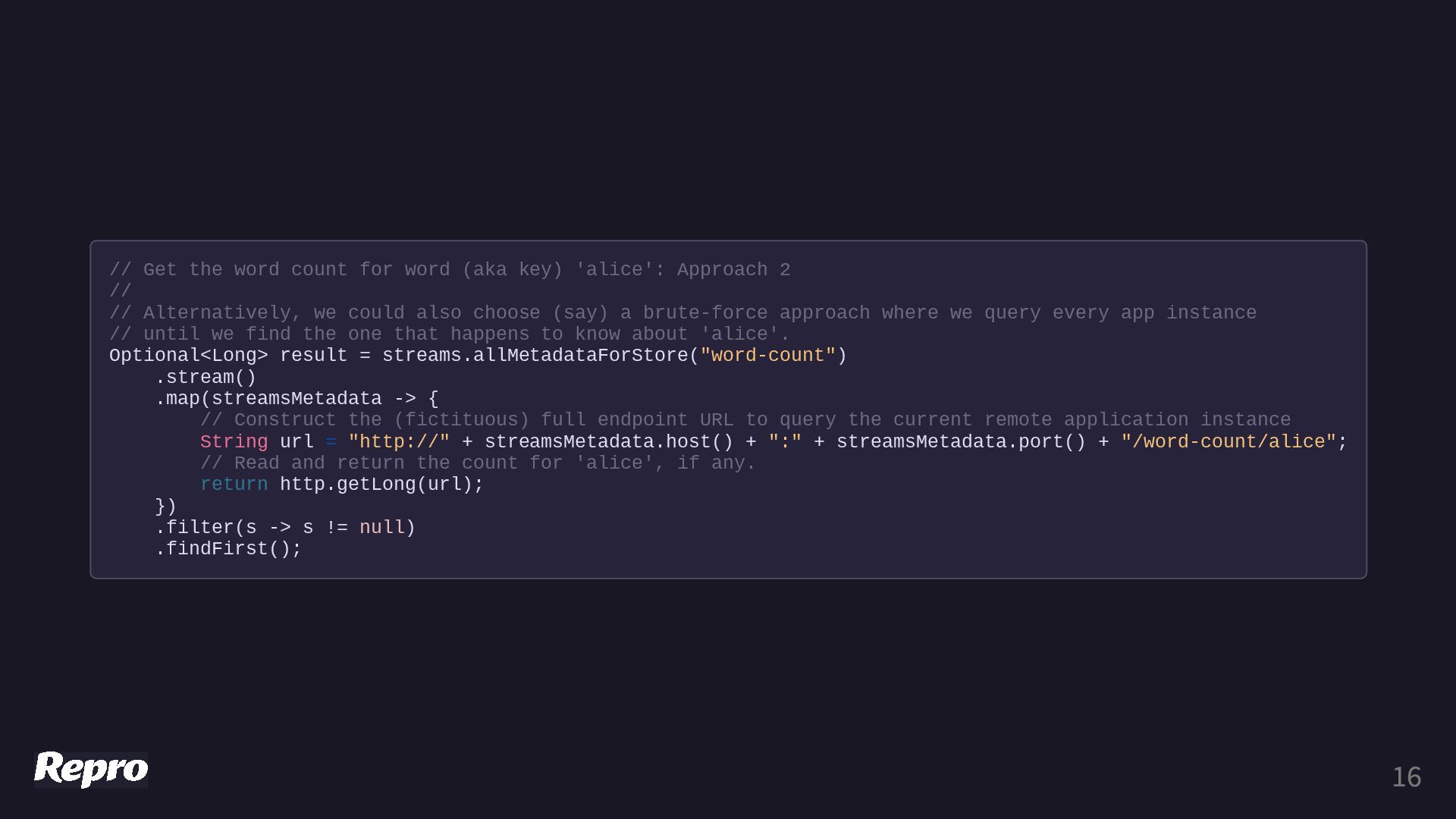

  5. // Get the word count for word (aka key) 'alice':

    Approach 2 // // Alternatively, we could also choose (say) a brute-force approach where we query every app instance // until we find the one that happens to know about 'alice'. Optional<Long> result = streams.allMetadataForStore("word-count") .stream() .map(streamsMetadata -> { // Construct the (fictituous) full endpoint URL to query the current remote application instance String url = "http://" + streamsMetadata.host() + ":" + streamsMetadata.port() + "/word-count/alice"; // Read and return the count for 'alice', if any. return http.getLong(url); }) .filter(s -> s != null) .findFirst(); 16

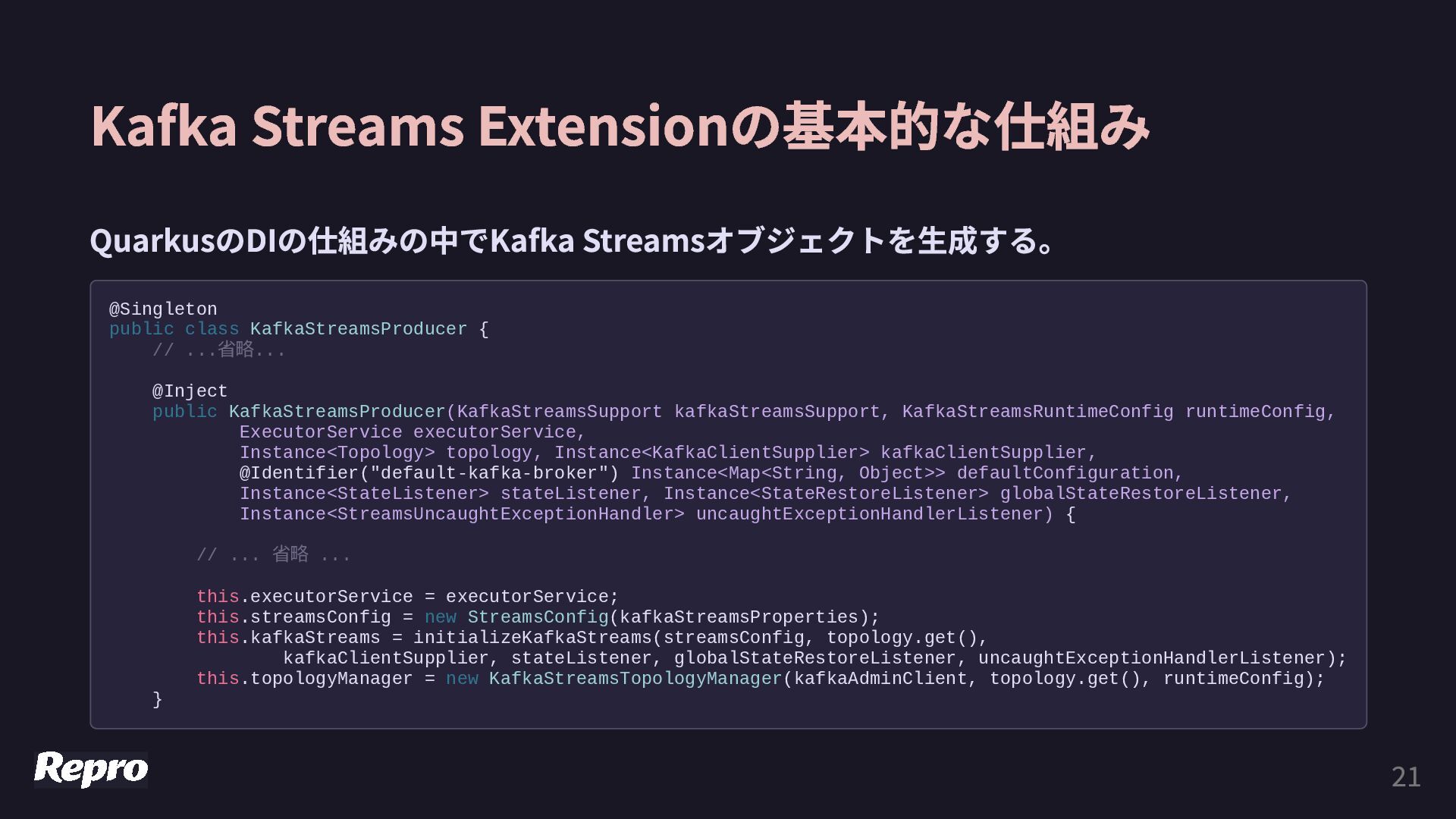

  6. Kafka Streams Extensionの基本的な仕組み QuarkusのDIの仕組みの中でKafka Streamsオブジェクトを生成する。 @Singleton public class KafkaStreamsProducer {

    // ...省略... @Inject public KafkaStreamsProducer(KafkaStreamsSupport kafkaStreamsSupport, KafkaStreamsRuntimeConfig runtimeConfig, ExecutorService executorService, Instance<Topology> topology, Instance<KafkaClientSupplier> kafkaClientSupplier, @Identifier("default-kafka-broker") Instance<Map<String, Object>> defaultConfiguration, Instance<StateListener> stateListener, Instance<StateRestoreListener> globalStateRestoreListener, Instance<StreamsUncaughtExceptionHandler> uncaughtExceptionHandlerListener) { // ... 省略 ... this.executorService = executorService; this.streamsConfig = new StreamsConfig(kafkaStreamsProperties); this.kafkaStreams = initializeKafkaStreams(streamsConfig, topology.get(), kafkaClientSupplier, stateListener, globalStateRestoreListener, uncaughtExceptionHandlerListener); this.topologyManager = new KafkaStreamsTopologyManager(kafkaAdminClient, topology.get(), runtimeConfig); } 21

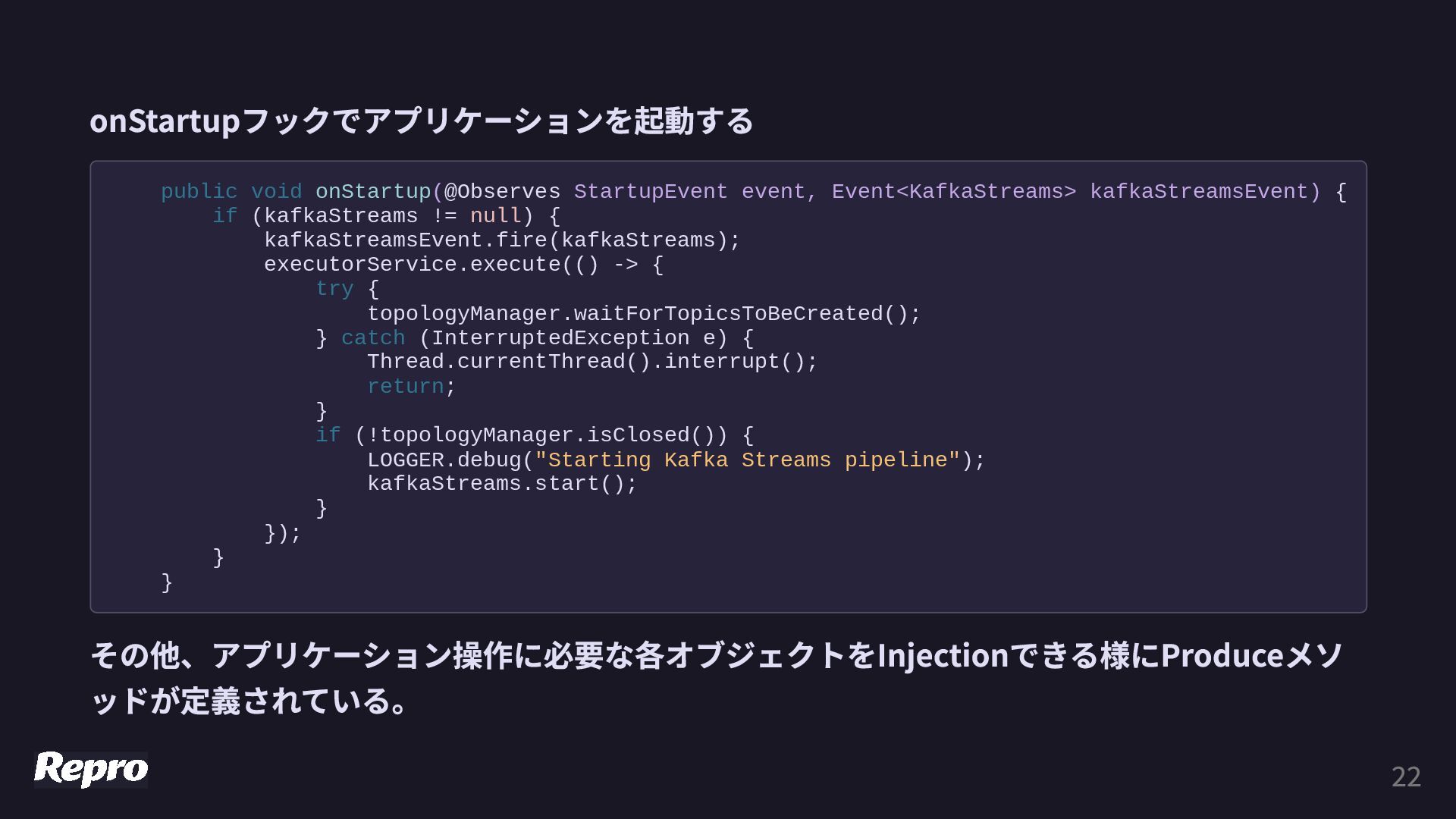

  7. onStartupフックでアプリケーションを起動する public void onStartup(@Observes StartupEvent event, Event<KafkaStreams> kafkaStreamsEvent) { if

    (kafkaStreams != null) { kafkaStreamsEvent.fire(kafkaStreams); executorService.execute(() -> { try { topologyManager.waitForTopicsToBeCreated(); } catch (InterruptedException e) { Thread.currentThread().interrupt(); return; } if (!topologyManager.isClosed()) { LOGGER.debug("Starting Kafka Streams pipeline"); kafkaStreams.start(); } }); } } その他、アプリケーション操作に必要な各オブジェクトをInjectionできる様にProduceメソ ッドが定義されている。 22

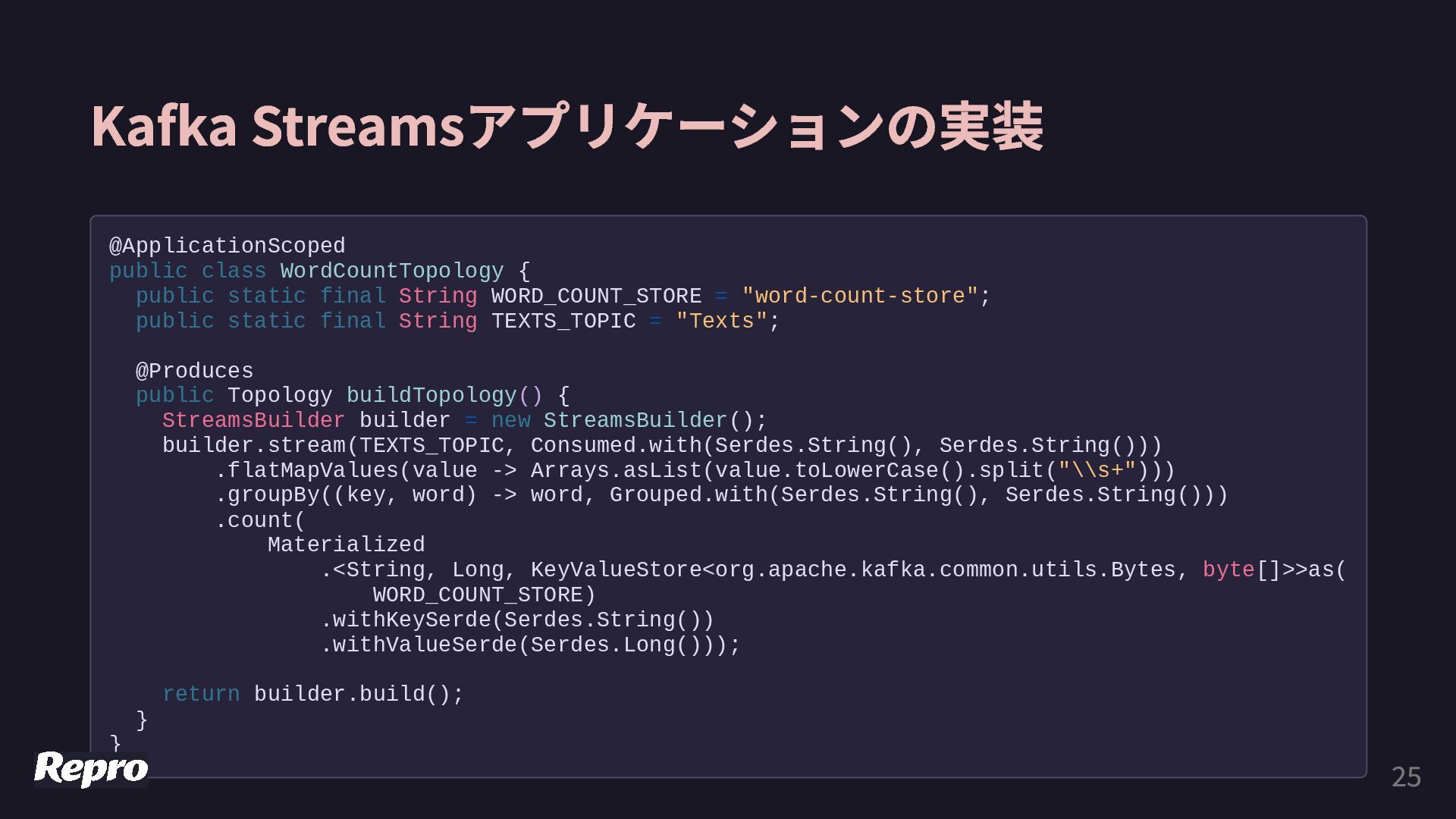

  8. Kafka Streamsアプリケーションの実装 @ApplicationScoped public class WordCountTopology { public static final

    String WORD_COUNT_STORE = "word-count-store"; public static final String TEXTS_TOPIC = "Texts"; @Produces public Topology buildTopology() { StreamsBuilder builder = new StreamsBuilder(); builder.stream(TEXTS_TOPIC, Consumed.with(Serdes.String(), Serdes.String())) .flatMapValues(value -> Arrays.asList(value.toLowerCase().split("\\s+"))) .groupBy((key, word) -> word, Grouped.with(Serdes.String(), Serdes.String())) .count( Materialized .<String, Long, KeyValueStore<org.apache.kafka.common.utils.Bytes, byte[]>>as( WORD_COUNT_STORE) .withKeySerde(Serdes.String()) .withValueSerde(Serdes.Long())); return builder.build(); } } 25

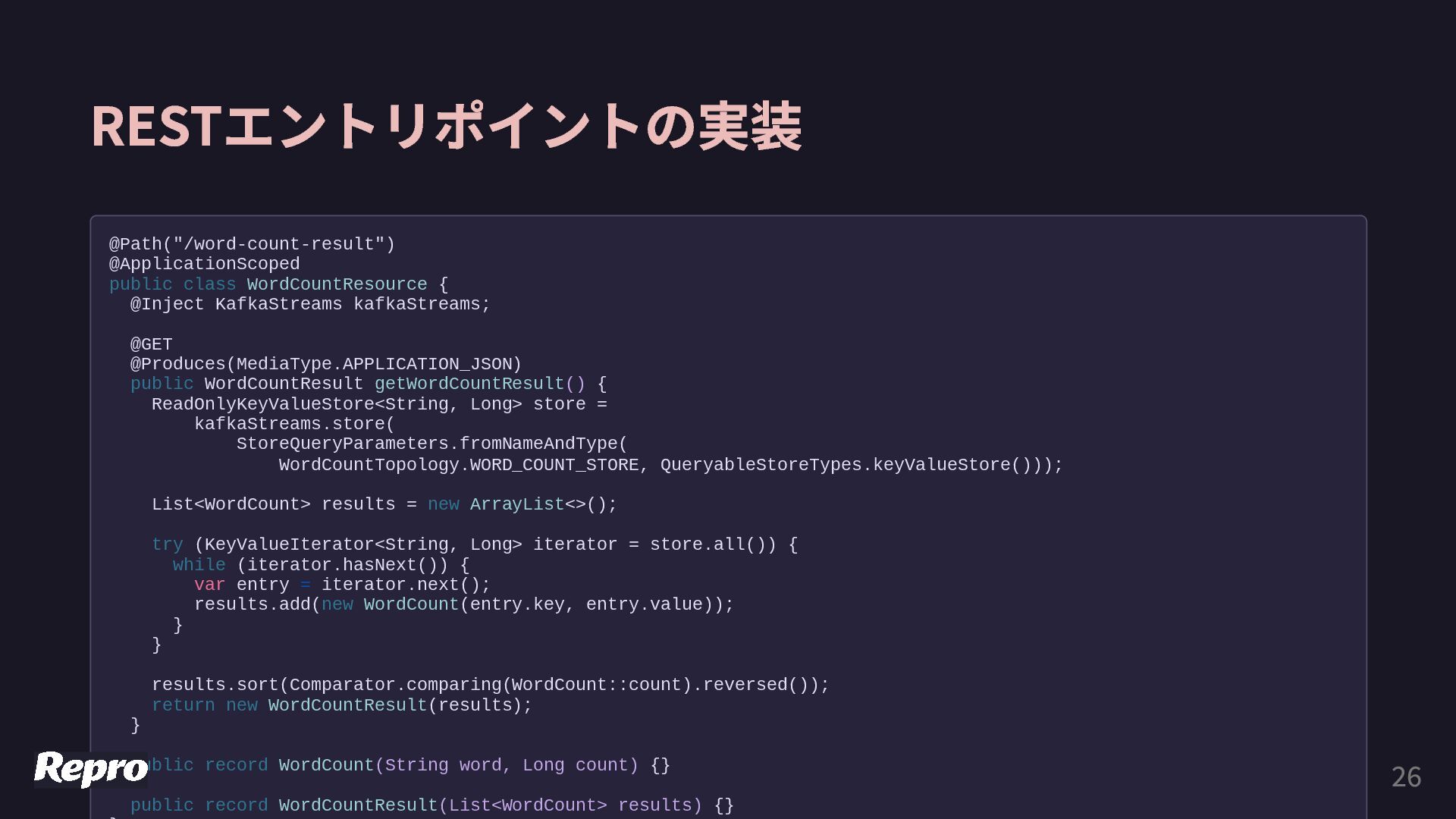

  9. RESTエントリポイントの実装 @Path("/word-count-result") @ApplicationScoped public class WordCountResource { @Inject KafkaStreams kafkaStreams;

    @GET @Produces(MediaType.APPLICATION_JSON) public WordCountResult getWordCountResult() { ReadOnlyKeyValueStore<String, Long> store = kafkaStreams.store( StoreQueryParameters.fromNameAndType( WordCountTopology.WORD_COUNT_STORE, QueryableStoreTypes.keyValueStore())); List<WordCount> results = new ArrayList<>(); try (KeyValueIterator<String, Long> iterator = store.all()) { while (iterator.hasNext()) { var entry = iterator.next(); results.add(new WordCount(entry.key, entry.value)); } } results.sort(Comparator.comparing(WordCount::count).reversed()); return new WordCountResult(results); } public record WordCount(String word, Long count) {} public record WordCountResult(List<WordCount> results) {} 26
