The Nature of Complexity in John Ousterhout’s Philosophy of Software Design

The Nature of Complexity in the second chapter of John Ousterhout’s Philosophy of Software Design.

Keywords: "complexity", "dependencies", "obscurity", "change amplification", "cognitive load", "unknown unknowns", "obvious system", "good design"

Transcript

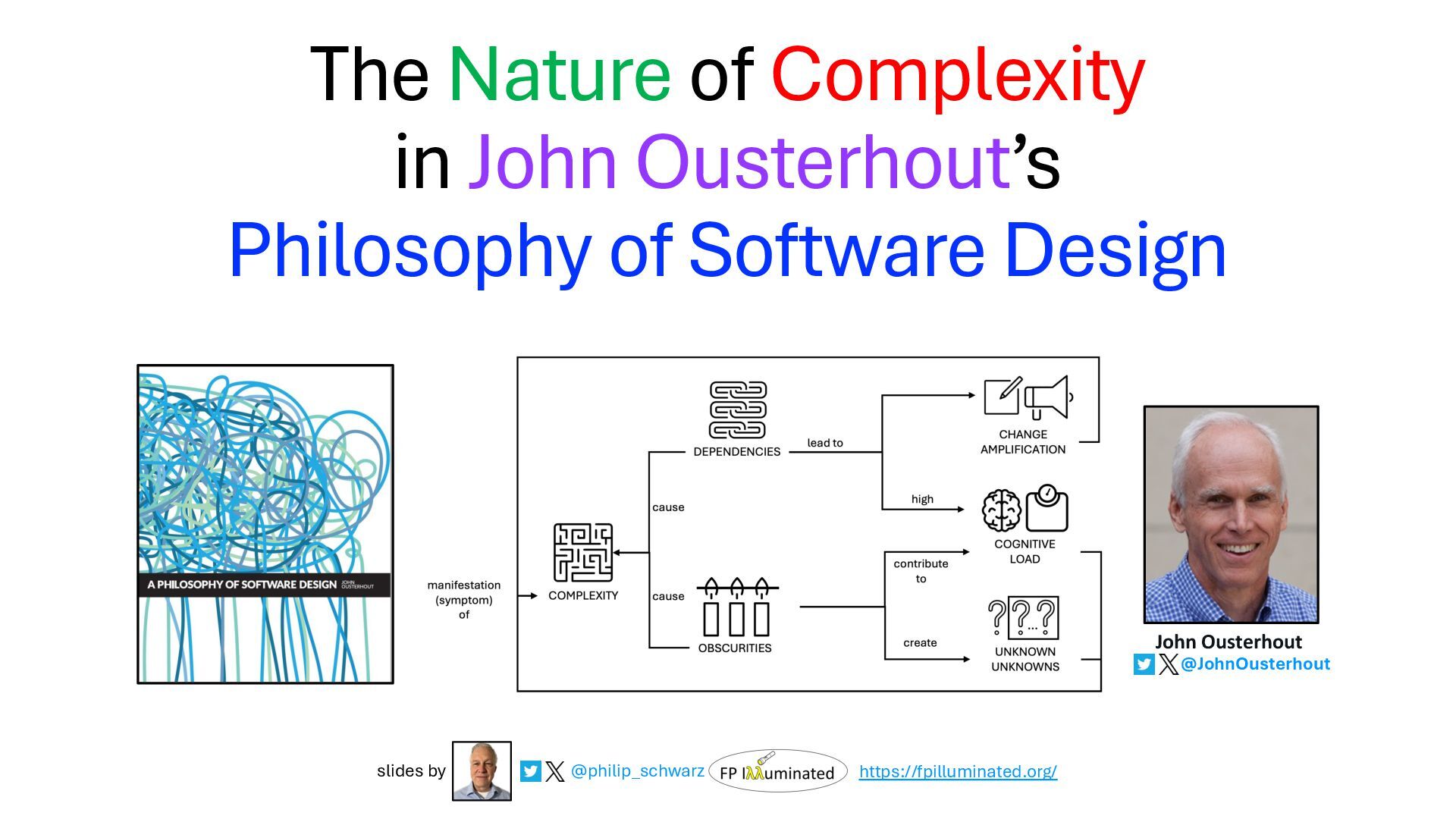

1. The Nature of Complexity in John Ousterhout’s Philosophy of Software Design John Ousterhout @philip_schwarz slides by https://fpilluminated.org/ @JohnOusterhout

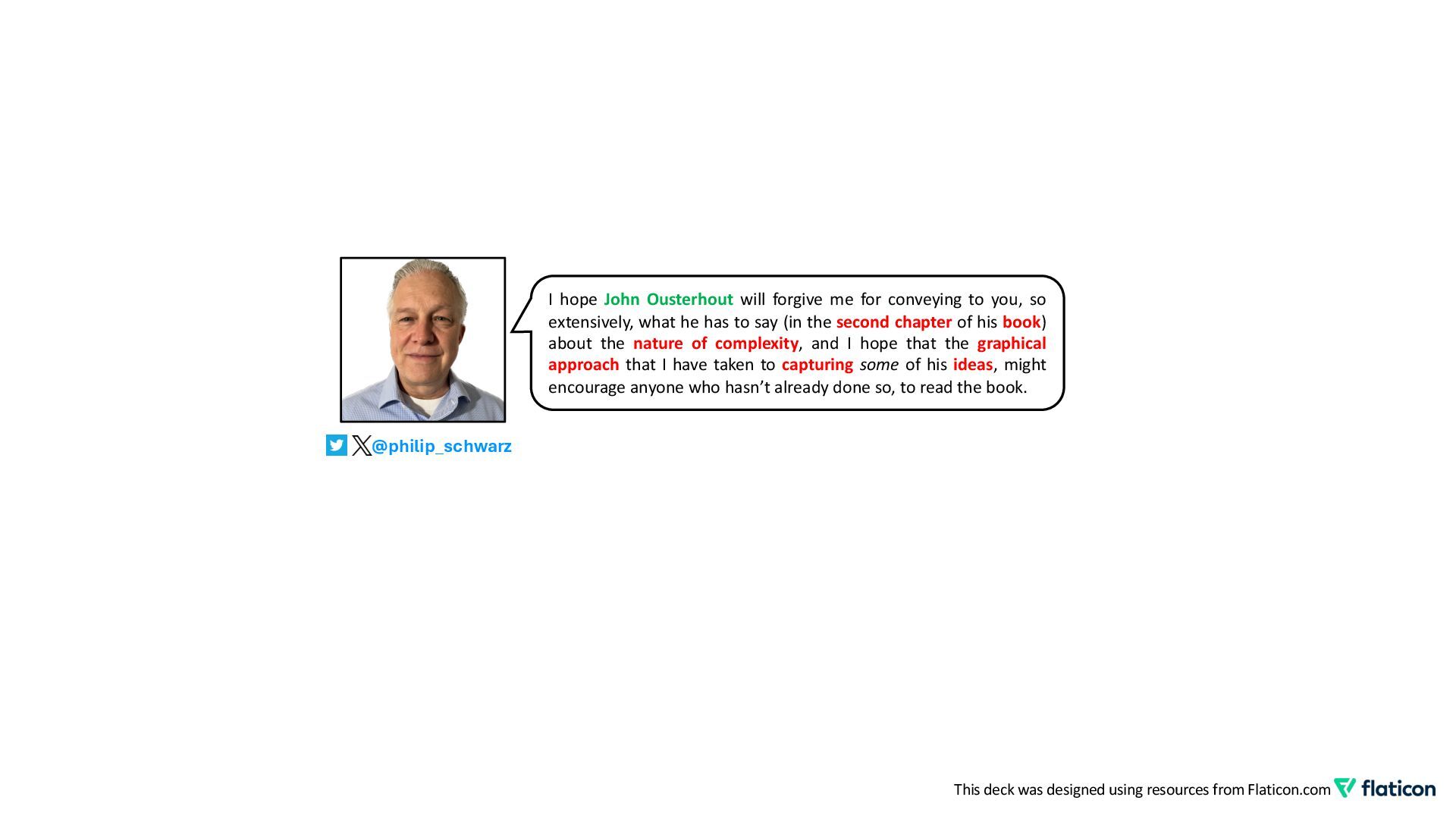

2. I hope John Ousterhout will forgive me for conveying to you, so extensively, what he has to say (in the second chapter of his book) about the nature of complexity, and I hope that the graphical approach that I have taken to capturing some of his ideas, might encourage anyone who hasn’t already done so, to read the book. @philip_schwarz This deck was designed using resources from Flaticon.com

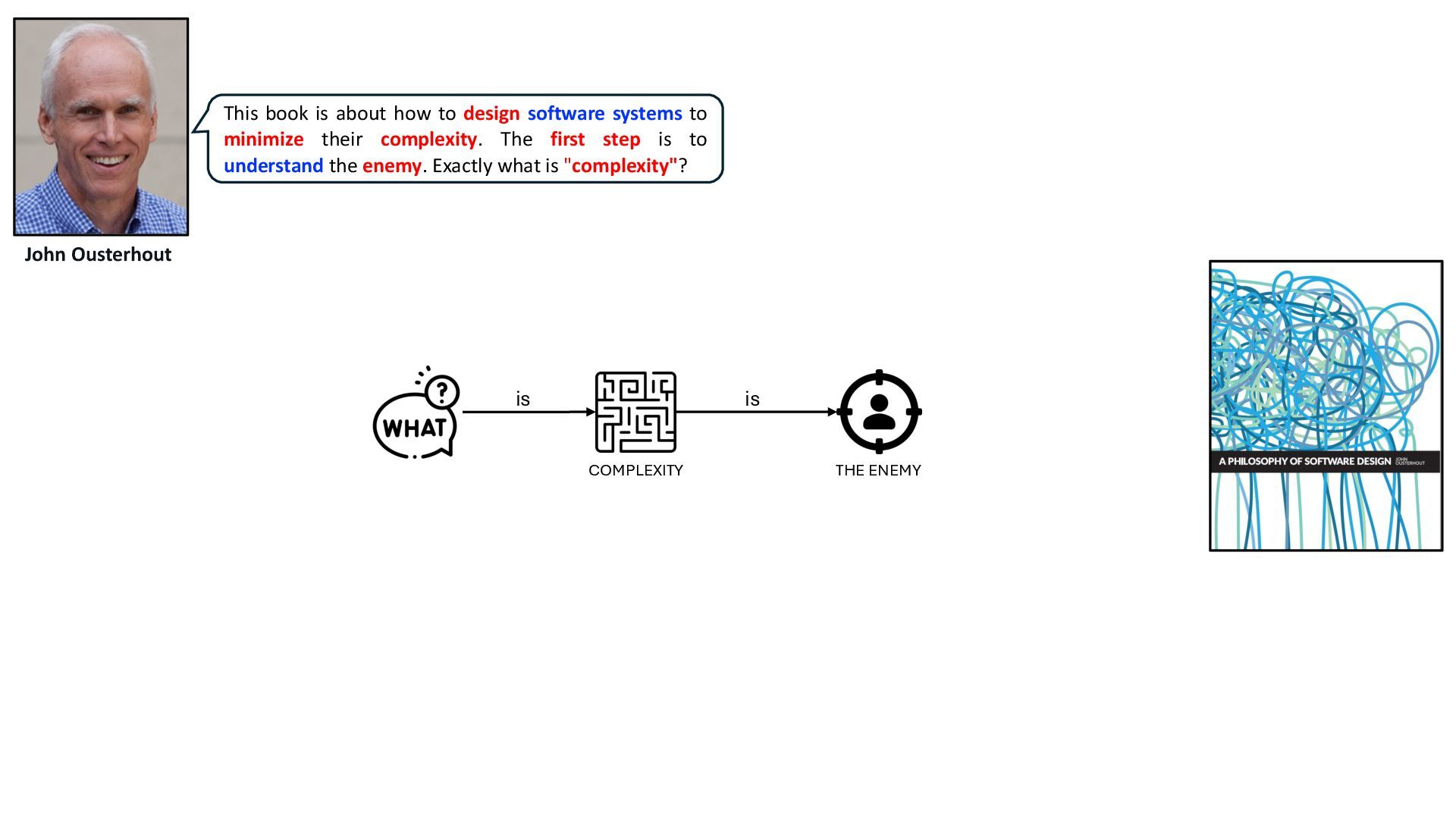

3. John Ousterhout This book is about how to design software systems to minimize their complexity. The first step is to understand the enemy. Exactly what is "complexity"? COMPLEXITY THE ENEMY is is

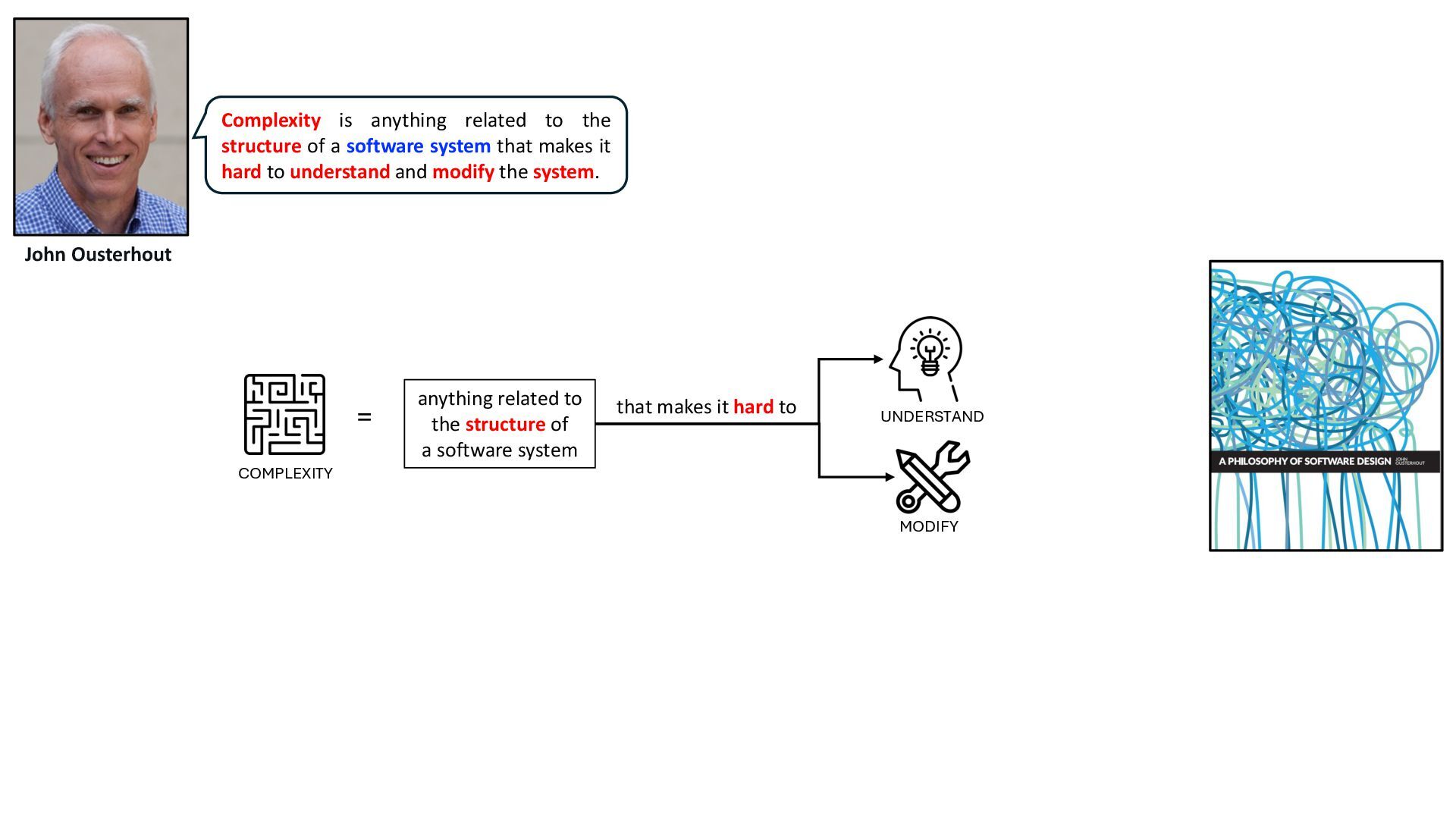

4. John Ousterhout Complexity is anything related to the structure of a software system that makes it hard to understand and modify the system. COMPLEXITY = anything related to the structure of a software system that makes it hard to UNDERSTAND MODIFY

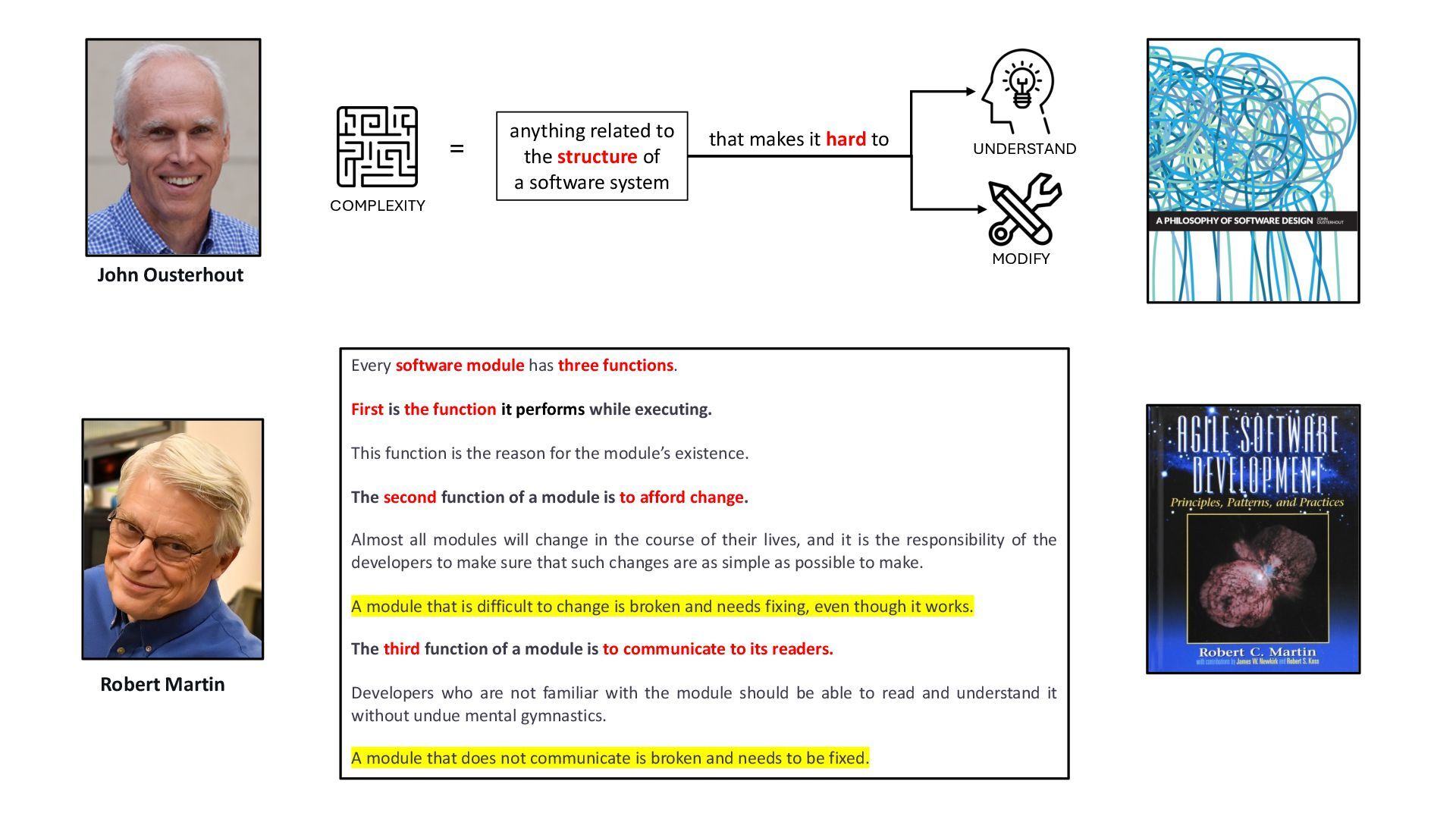

5. Every software module has three functions. First is the function it performs while executing. This function is the reason for the module’s existence. The second function of a module is to afford change. Almost all modules will change in the course of their lives, and it is the responsibility of the developers to make sure that such changes are as simple as possible to make. A module that is difficult to change is broken and needs fixing, even though it works. The third function of a module is to communicate to its readers. Developers who are not familiar with the module should be able to read and understand it without undue mental gymnastics. A module that does not communicate is broken and needs to be fixed. Robert Martin John Ousterhout COMPLEXITY = anything related to the structure of a software system that makes it hard to UNDERSTAND MODIFY

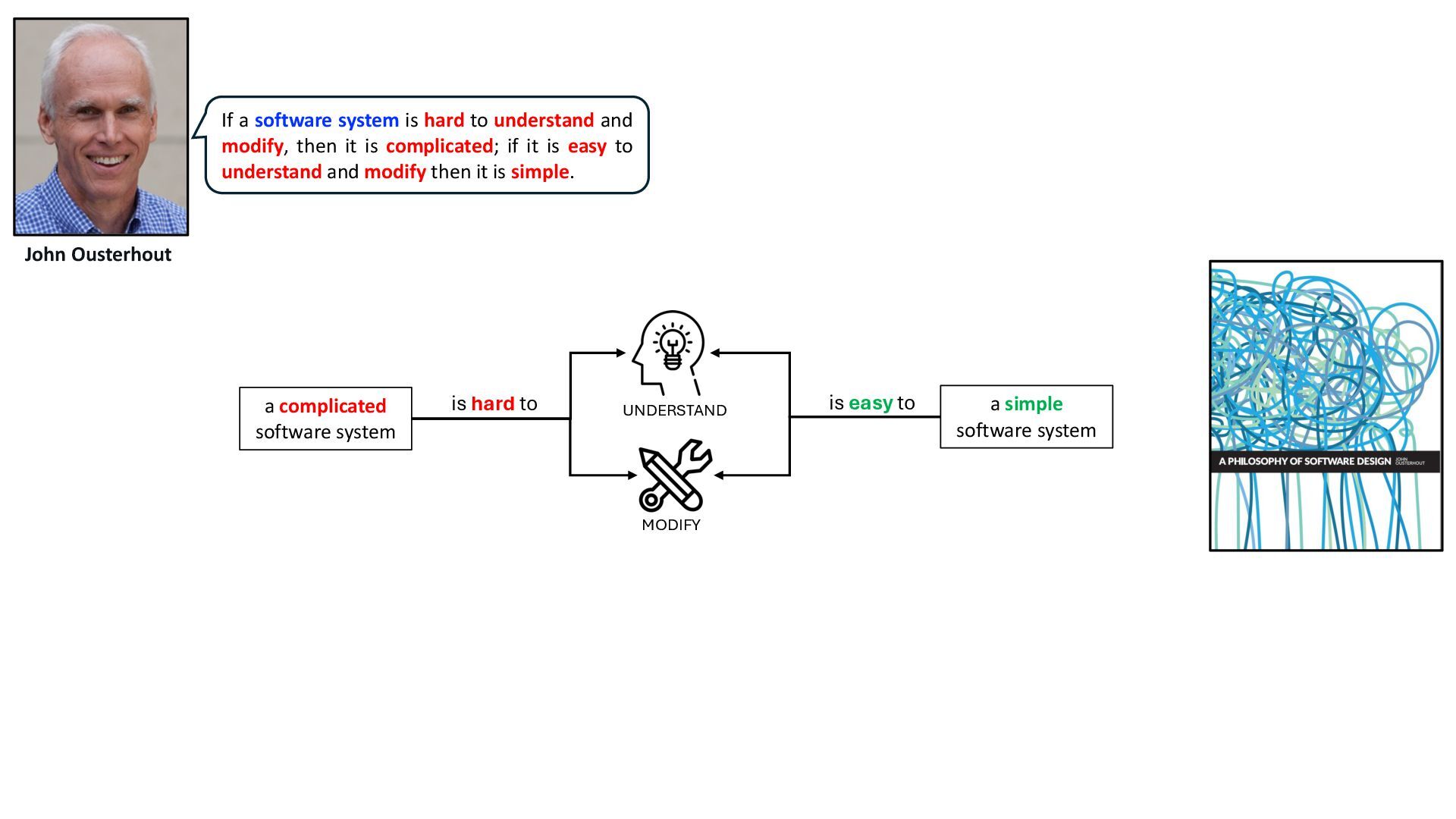

6. a complicated software system is hard to a simple software system is easy to John Ousterhout If a software system is hard to understand and modify, then it is complicated; if it is easy to understand and modify then it is simple. UNDERSTAND MODIFY

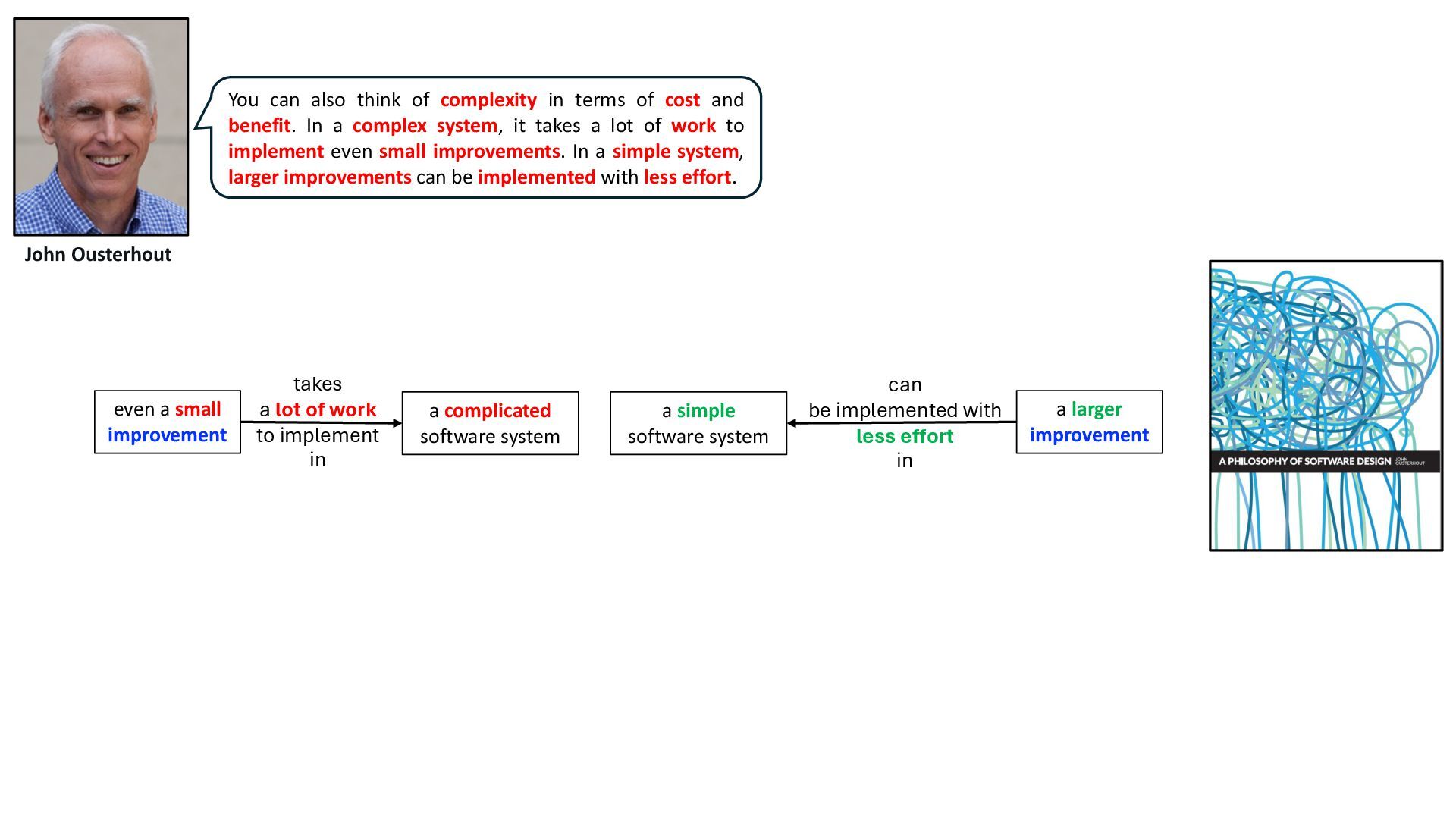

7. John Ousterhout You can also think of complexity in terms of cost and benefit. In a complex system, it takes a lot of work to implement even small improvements. In a simple system, larger improvements can be implemented with less effort. a complicated software system a simple software system a larger improvement even a small improvement can be implemented with less effort in takes a lot of work to implement in

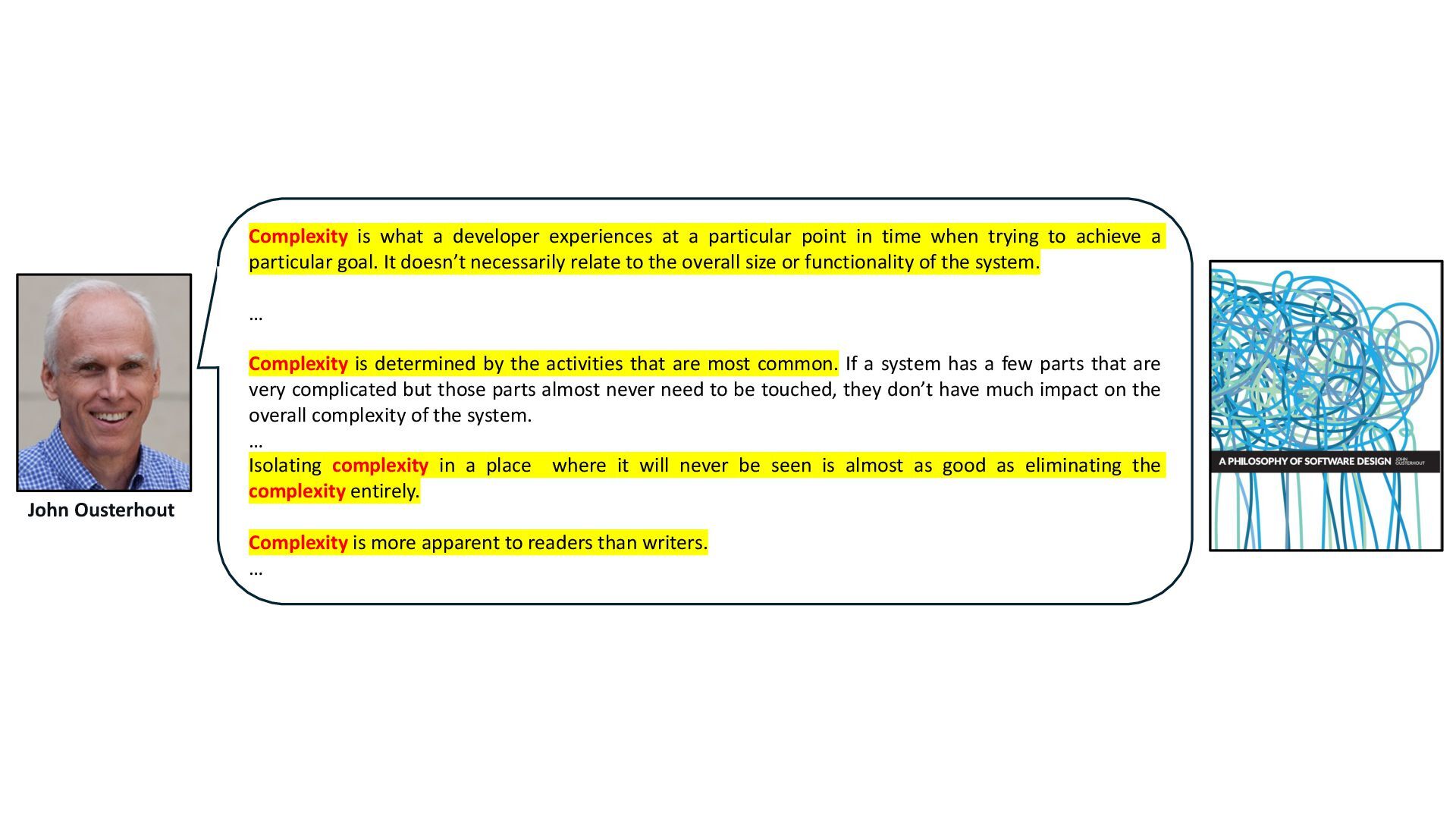

8. John Ousterhout Complexity is what a developer experiences at a particular point in time when trying to achieve a particular goal. It doesn’t necessarily relate to the overall size or functionality of the system. … Complexity is determined by the activities that are most common. If a system has a few parts that are very complicated but those parts almost never need to be touched, they don’t have much impact on the overall complexity of the system. … Isolating complexity in a place where it will never be seen is almost as good as eliminating the complexity entirely. Complexity is more apparent to readers than writers. …

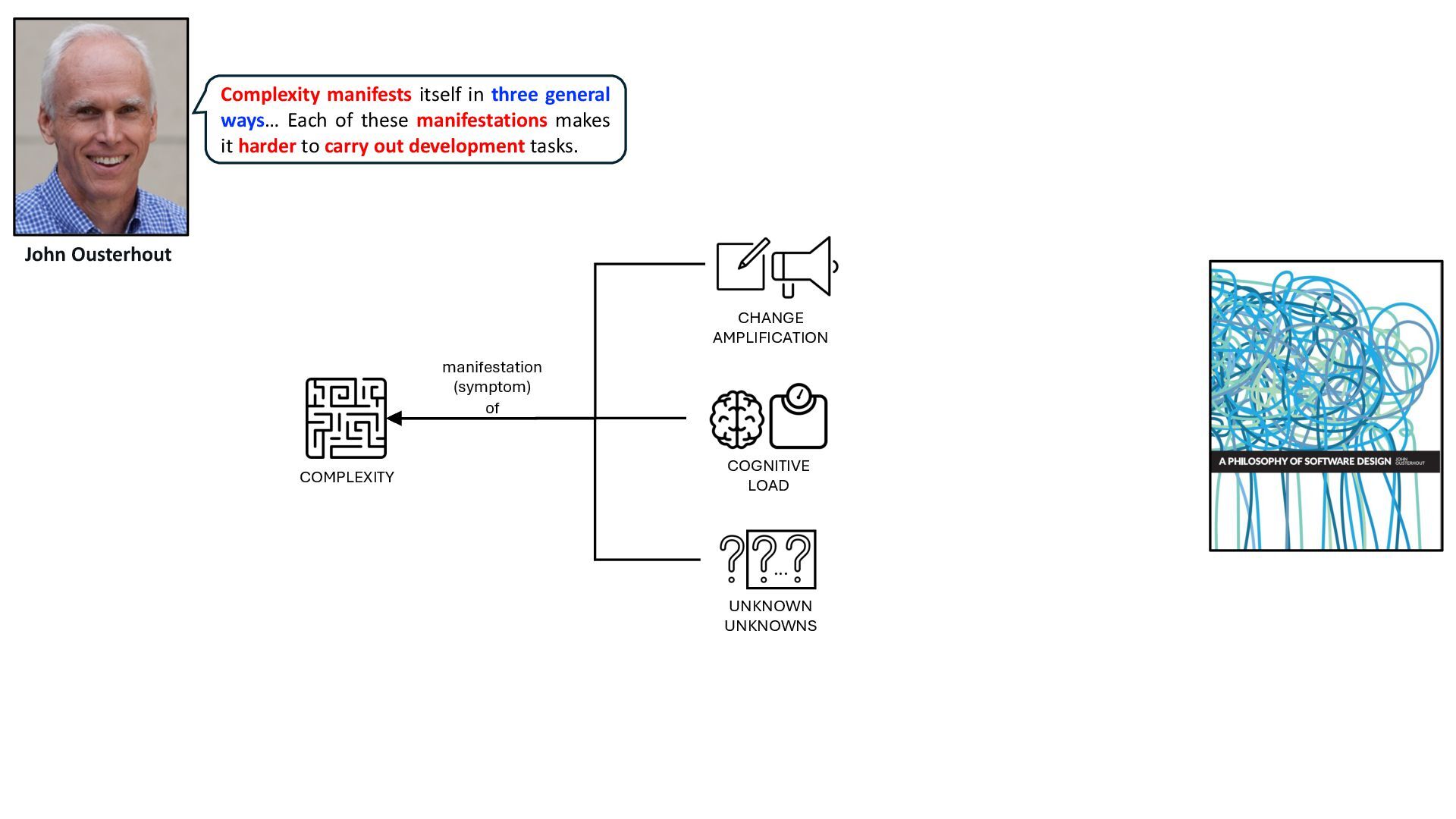

9. John Ousterhout Complexity manifests itself in three general ways… Each of these manifestations makes it harder to carry out development tasks. CHANGE AMPLIFICATION COGNITIVE LOAD UNKNOWN UNKNOWNS … COMPLEXITY manifestation (symptom) of

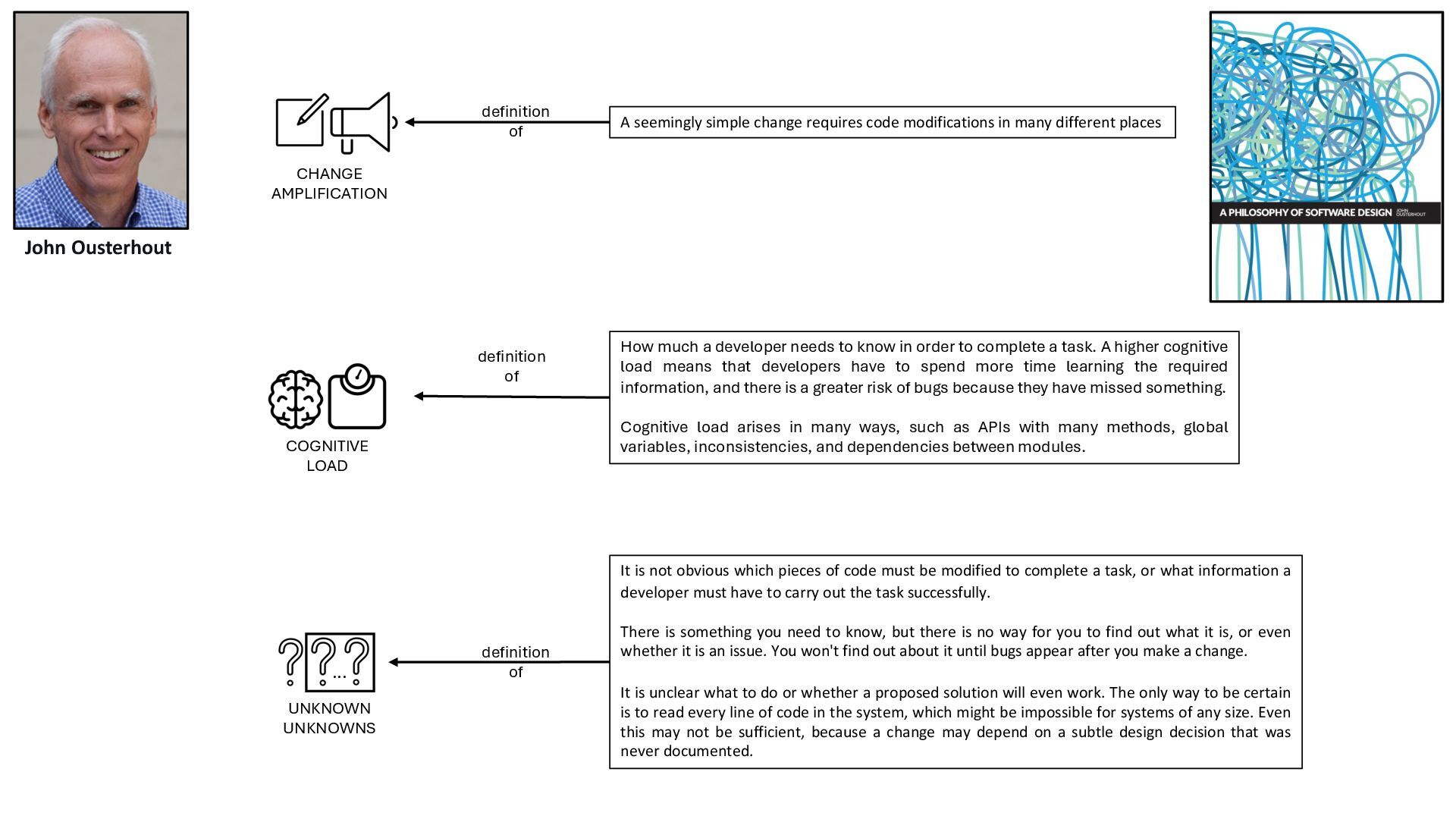

10. A seemingly simple change requires code modifications in many different places definition of CHANGE AMPLIFICATION COGNITIVE LOAD UNKNOWN UNKNOWNS … How much a developer needs to know in order to complete a task. A higher cognitive load means that developers have to spend more time learning the required information, and there is a greater risk of bugs because they have missed something. Cognitive load arises in many ways, such as APIs with many methods, global variables, inconsistencies, and dependencies between modules. It is not obvious which pieces of code must be modified to complete a task, or what information a developer must have to carry out the task successfully. There is something you need to know, but there is no way for you to find out what it is, or even whether it is an issue. You won't find out about it until bugs appear after you make a change. It is unclear what to do or whether a proposed solution will even work. The only way to be certain is to read every line of code in the system, which might be impossible for systems of any size. Even this may not be sufficient, because a change may depend on a subtle design decision that was never documented. definition of definition of John Ousterhout

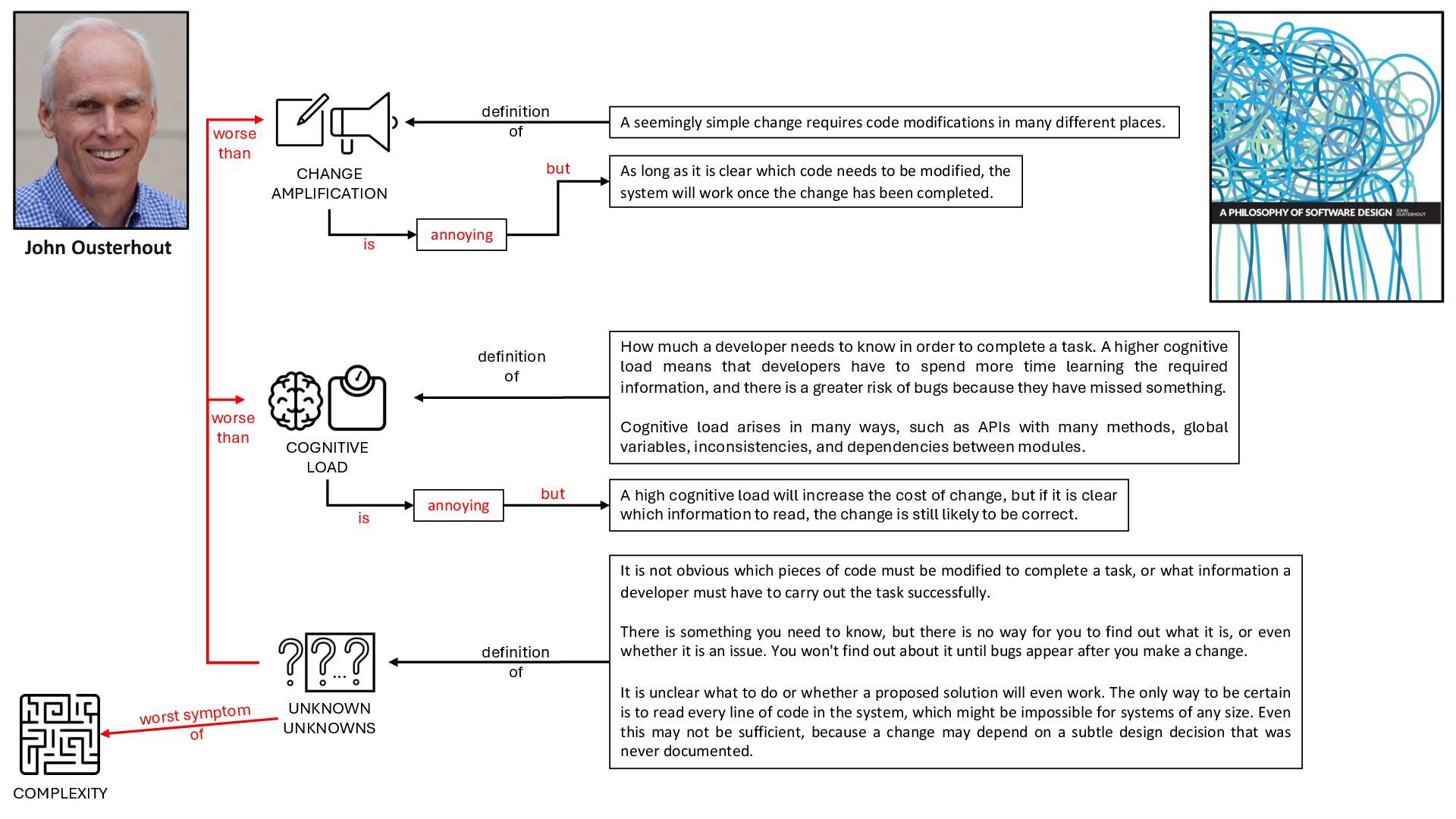

11. A seemingly simple change requires code modifications in many different places. definition of CHANGE AMPLIFICATION COGNITIVE LOAD UNKNOWN UNKNOWNS … How much a developer needs to know in order to complete a task. A higher cognitive load means that developers have to spend more time learning the required information, and there is a greater risk of bugs because they have missed something. Cognitive load arises in many ways, such as APIs with many methods, global variables, inconsistencies, and dependencies between modules. It is not obvious which pieces of code must be modified to complete a task, or what information a developer must have to carry out the task successfully. There is something you need to know, but there is no way for you to find out what it is, or even whether it is an issue. You won't find out about it until bugs appear after you make a change. It is unclear what to do or whether a proposed solution will even work. The only way to be certain is to read every line of code in the system, which might be impossible for systems of any size. Even this may not be sufficient, because a change may depend on a subtle design decision that was never documented. definition of definition of John Ousterhout worse than A high cognitive load will increase the cost of change, but if it is clear which information to read, the change is still likely to be correct. As long as it is clear which code needs to be modified, the system will work once the change has been completed. annoying is but worst symptom of worse than annoying but is COMPLEXITY

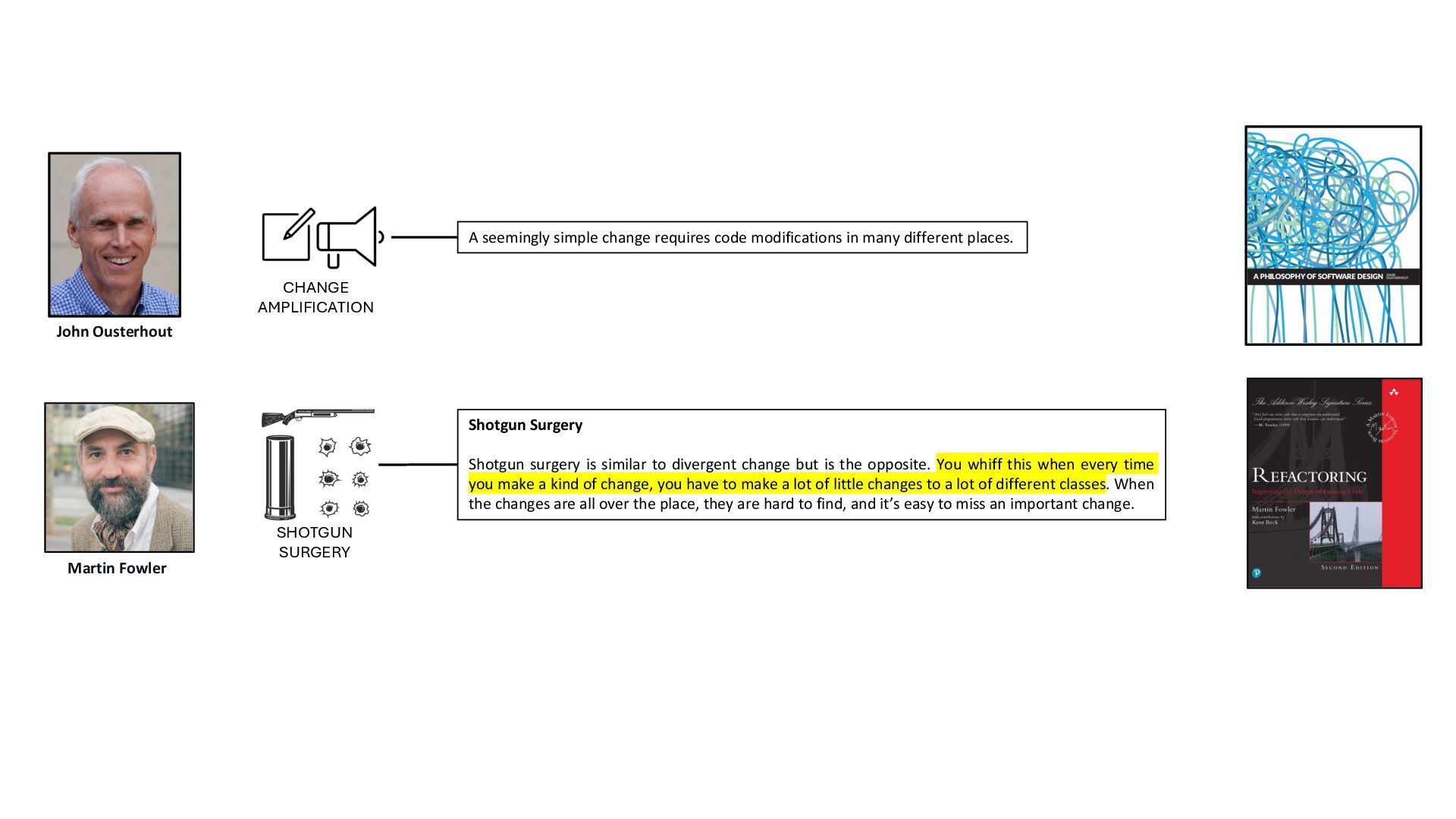

12. A seemingly simple change requires code modifications in many different places. CHANGE AMPLIFICATION John Ousterhout Martin Fowler Shotgun Surgery Shotgun surgery is similar to divergent change but is the opposite. You whiff this when every time you make a kind of change, you have to make a lot of little changes to a lot of different classes. When the changes are all over the place, they are hard to find, and it’s easy to miss an important change. SHOTGUN SURGERY

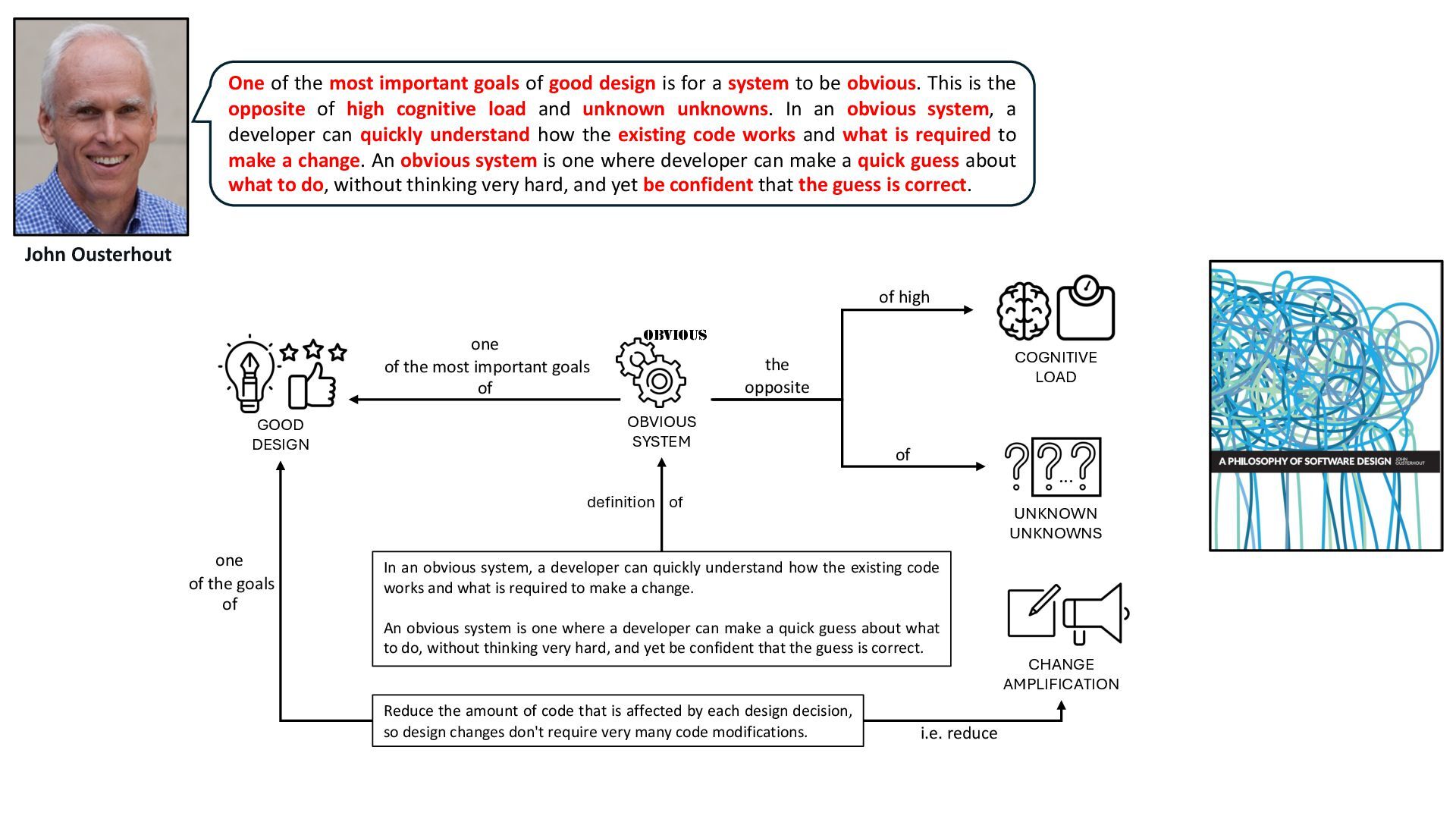

13. John Ousterhout One of the most important goals of good design is for a system to be obvious. This is the opposite of high cognitive load and unknown unknowns. In an obvious system, a developer can quickly understand how the existing code works and what is required to make a change. An obvious system is one where developer can make a quick guess about what to do, without thinking very hard, and yet be confident that the guess is correct. COGNITIVE LOAD UNKNOWN UNKNOWNS … GOOD DESIGN OBVIOUS OBVIOUS SYSTEM one of the most important goals of the opposite of high of In an obvious system, a developer can quickly understand how the existing code works and what is required to make a change. An obvious system is one where a developer can make a quick guess about what to do, without thinking very hard, and yet be confident that the guess is correct. definition of CHANGE AMPLIFICATION Reduce the amount of code that is affected by each design decision, so design changes don't require very many code modifications. one of the goals of i.e. reduce

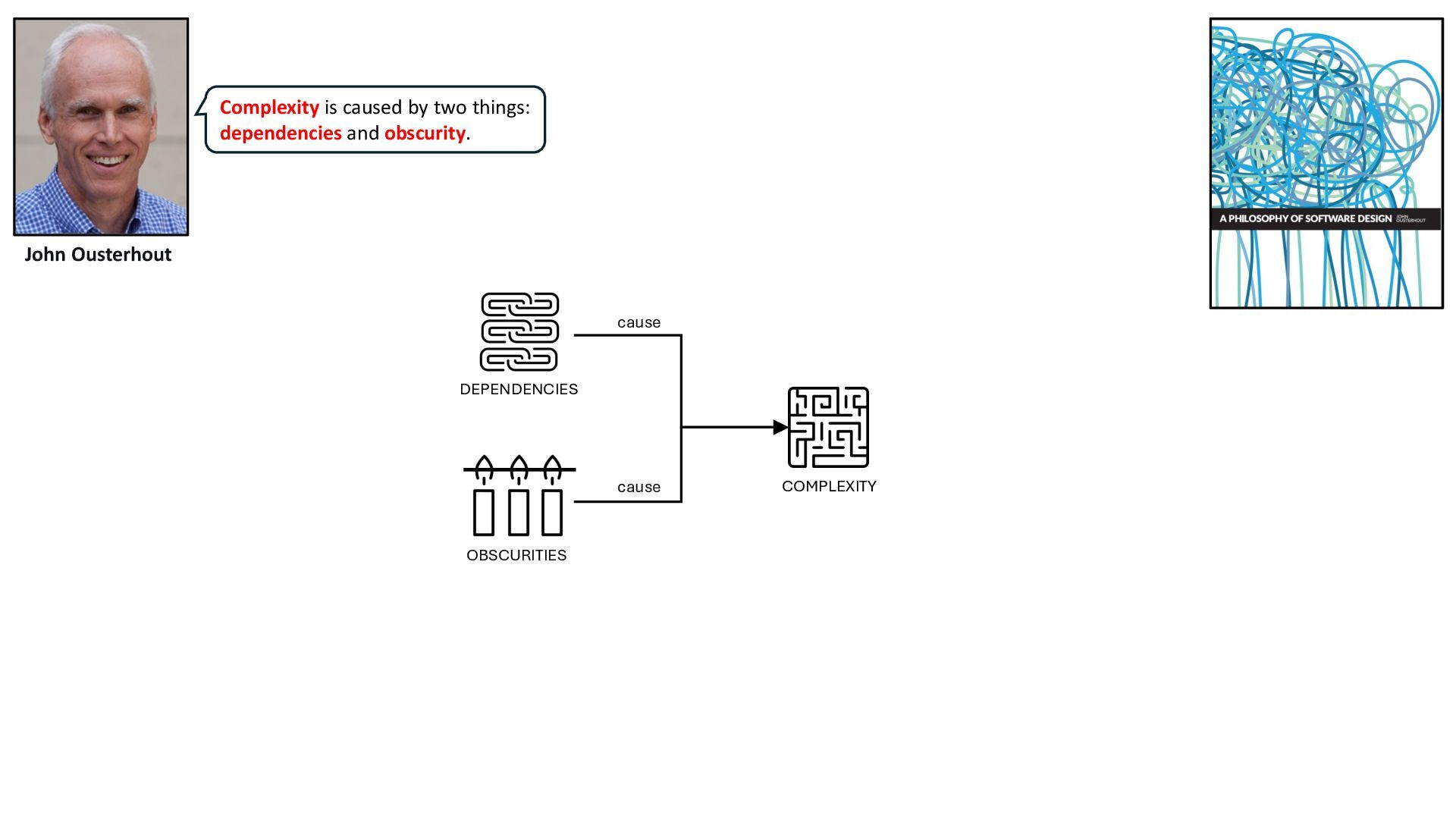

14. John Ousterhout Complexity is caused by two things: dependencies and obscurity. COMPLEXITY DEPENDENCIES OBSCURITIES cause cause

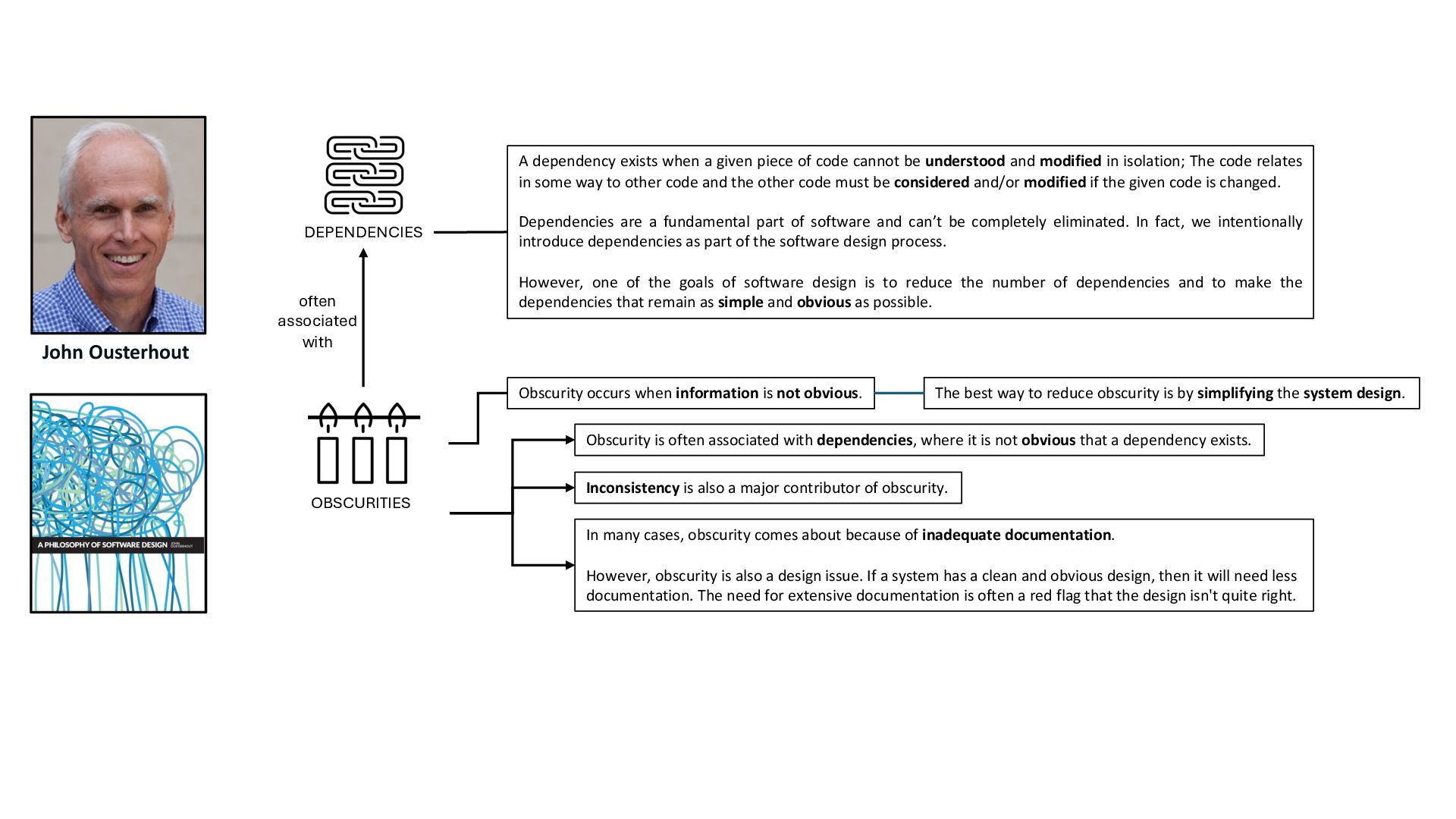

15. John Ousterhout DEPENDENCIES OBSCURITIES A dependency exists when a given piece of code cannot be understood and modified in isolation; The code relates in some way to other code and the other code must be considered and/or modified if the given code is changed. Dependencies are a fundamental part of software and can’t be completely eliminated. In fact, we intentionally introduce dependencies as part of the software design process. However, one of the goals of software design is to reduce the number of dependencies and to make the dependencies that remain as simple and obvious as possible. Obscurity occurs when information is not obvious. Obscurity is often associated with dependencies, where it is not obvious that a dependency exists. The best way to reduce obscurity is by simplifying the system design. In many cases, obscurity comes about because of inadequate documentation. However, obscurity is also a design issue. If a system has a clean and obvious design, then it will need less documentation. The need for extensive documentation is often a red flag that the design isn't quite right. Inconsistency is also a major contributor of obscurity. often associated with

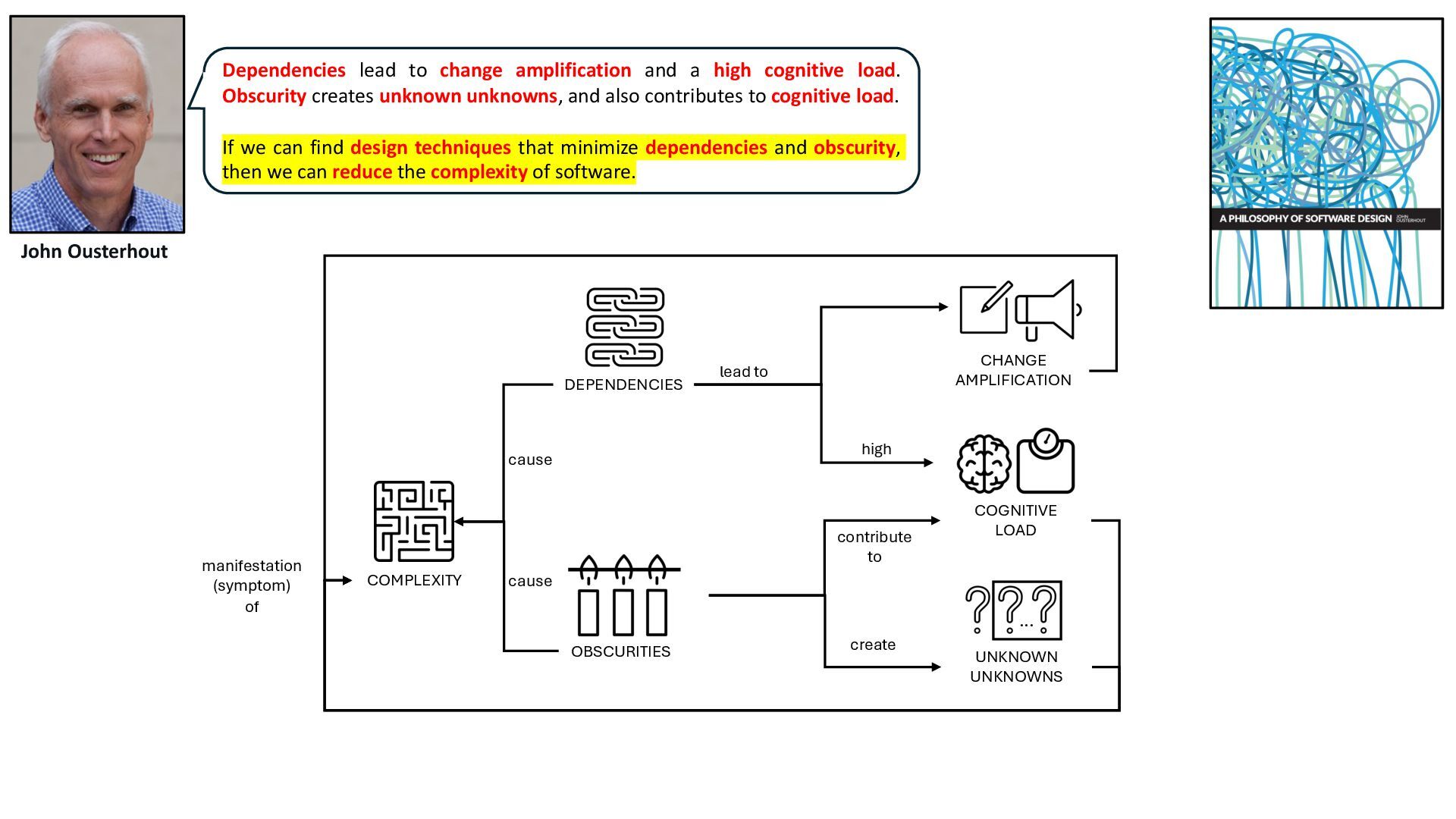

16. DEPENDENCIES OBSCURITIES CHANGE AMPLIFICATION COGNITIVE LOAD UNKNOWN UNKNOWNS … lead to high contribute to create John Ousterhout Dependencies lead to change amplification and a high cognitive load. Obscurity creates unknown unknowns, and also contributes to cognitive load. If we can find design techniques that minimize dependencies and obscurity, then we can reduce the complexity of software. COMPLEXITY cause cause manifestation (symptom) of

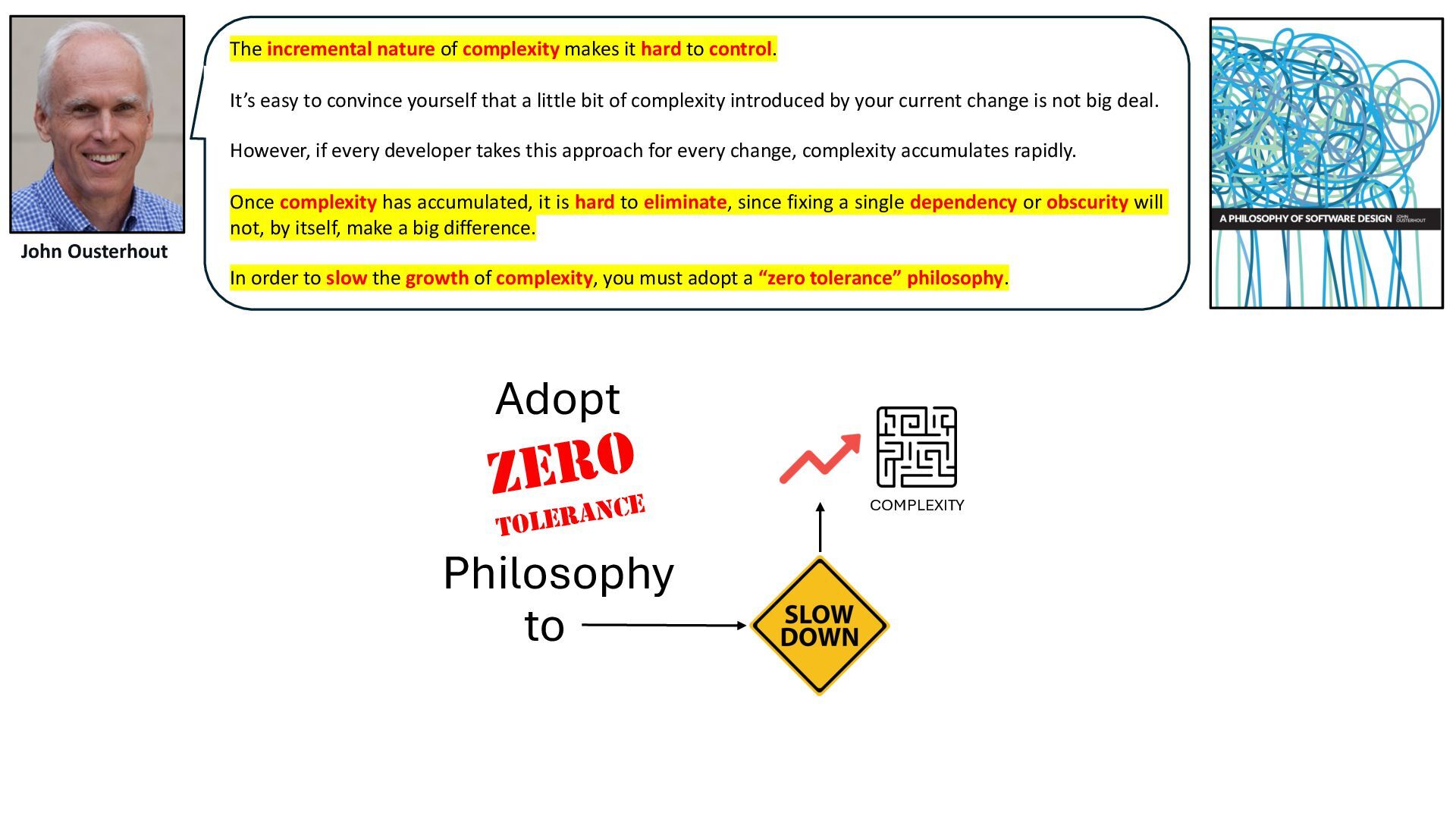

17. The incremental nature of complexity makes it hard to control. It’s easy to convince yourself that a little bit of complexity introduced by your current change is not big deal. However, if every developer takes this approach for every change, complexity accumulates rapidly. Once complexity has accumulated, it is hard to eliminate, since fixing a single dependency or obscurity will not, by itself, make a big difference. In order to slow the growth of complexity, you must adopt a “zero tolerance” philosophy. ZERO TOLERANCE John Ousterhout Adopt Philosophy COMPLEXITY to
18. Conclusion

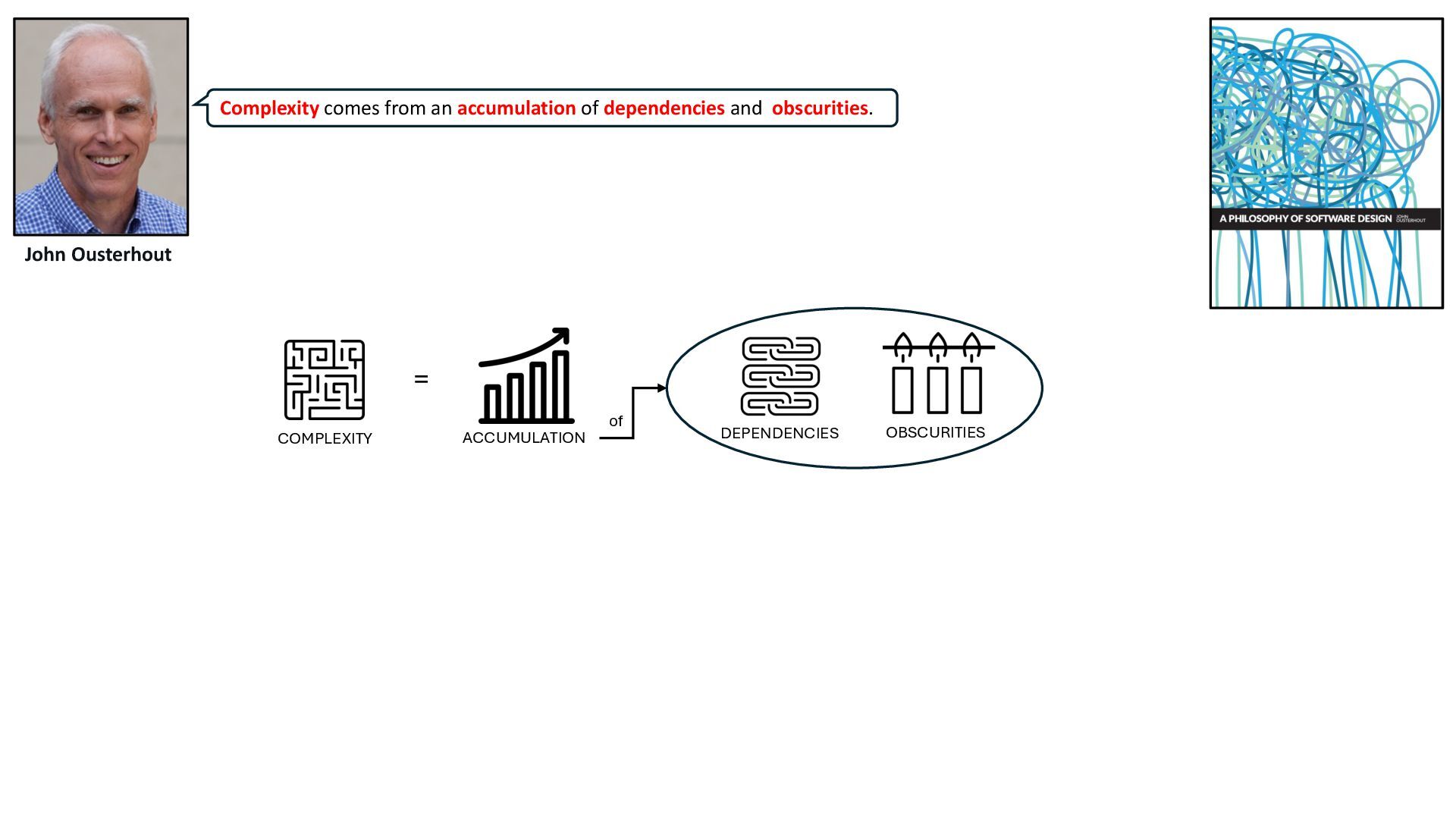

19. Complexity comes from an accumulation of dependencies and obscurities. John Ousterhout COMPLEXITY ACCUMULATION = DEPENDENCIES OBSCURITIES of

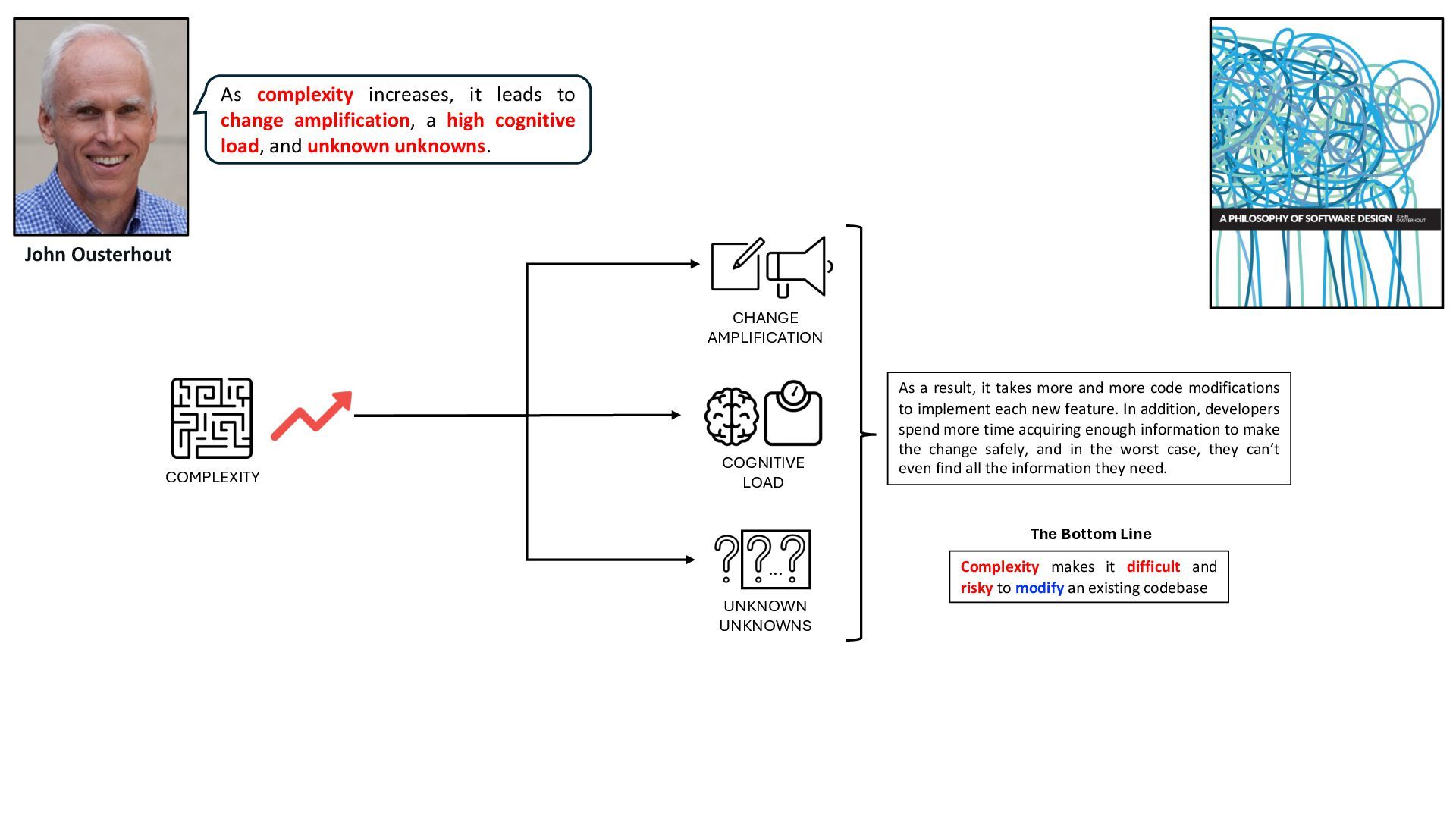

20. CHANGE AMPLIFICATION COGNITIVE LOAD UNKNOWN UNKNOWNS … John Ousterhout As complexity increases, it leads to change amplification, a high cognitive load, and unknown unknowns. COMPLEXITY As a result, it takes more and more code modifications to implement each new feature. In addition, developers spend more time acquiring enough information to make the change safely, and in the worst case, they can’t even find all the information they need. Complexity makes it difficult and risky to modify an existing codebase The Bottom Line
21. I hope you found that useful.
