1. Drawing Heighway’s Dragon Simplification Through Separation of Concerns Rotation Without Matrix Multiplication @philip_schwarz slides by https://fpilluminated.org/ Part 3

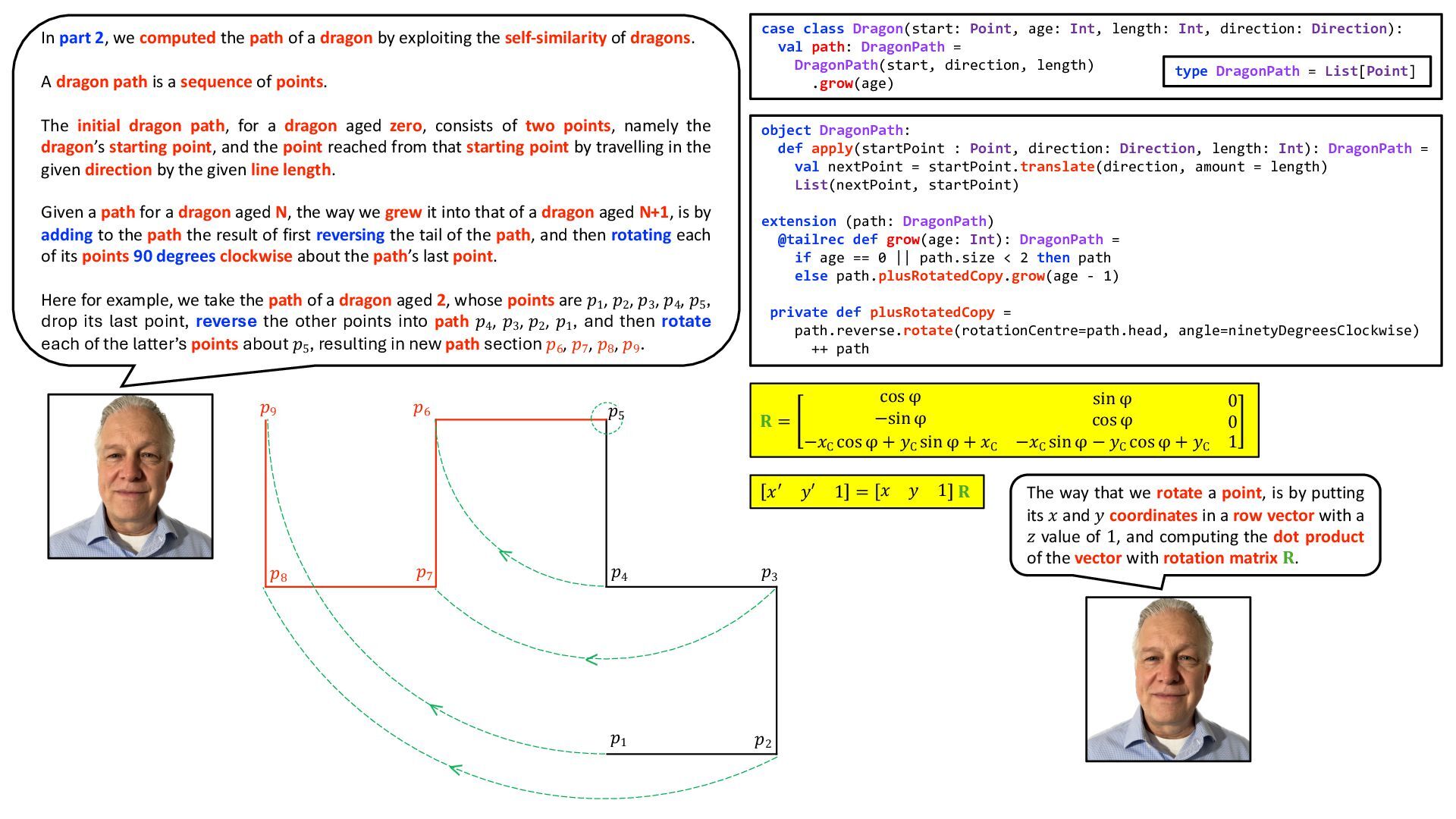

2. The way that we rotate a point, is by putting its 𝑥 and 𝑦 coordinates in a row vector with a 𝑧 value of 1, and computing the dot product of the vector with rotation matrix 𝐑. object DragonPath: def apply(startPoint : Point, direction: Direction, length: Int): DragonPath = val nextPoint = startPoint.translate(direction, amount = length) List(nextPoint, startPoint) extension (path: DragonPath) @tailrec def grow(age: Int): DragonPath = if age == 0 || path.size < 2 then path else path.plusRotatedCopy.grow(age - 1) private def plusRotatedCopy = path.reverse.rotate(rotationCentre=path.head, angle=ninetyDegreesClockwise) ++ path case class Dragon(start: Point, age: Int, length: Int, direction: Direction): val path: DragonPath = DragonPath(start, direction, length) .grow(age) In part 2, we computed the path of a dragon by exploiting the self-similarity of dragons. A dragon path is a sequence of points. The initial dragon path, for a dragon aged zero, consists of two points, namely the dragon’s starting point, and the point reached from that starting point by travelling in the given direction by the given line length. Given a path for a dragon aged N, the way we grew it into that of a dragon aged N+1, is by adding to the path the result of first reversing the tail of the path, and then rotating each of its points 90 degrees clockwise about the path’s last point. Here for example, we take the path of a dragon aged 2, whose points are 𝑝1 , 𝑝2 , 𝑝3 , 𝑝4 , 𝑝5 , drop its last point, reverse the other points into path 𝑝4 , 𝑝3 , 𝑝2 , 𝑝1 , and then rotate each of the latter’s points about 𝑝5 , resulting in new path section 𝑝6 , 𝑝7 , 𝑝8 , 𝑝9 . type DragonPath = List[Point] 𝑝1 𝑝2 𝑝3 𝑝4 𝑝5 𝑝6 𝑝7 𝑝8 𝑝9 𝑥! 𝑦′ 1 = 𝑥 𝑦 1 𝐑 𝐑 = cos φ −sin φ sin φ cos φ 0 0 −𝑥C cos φ + 𝑦C sin φ + 𝑥C −𝑥C sin φ − 𝑦C cos φ + 𝑦C 1

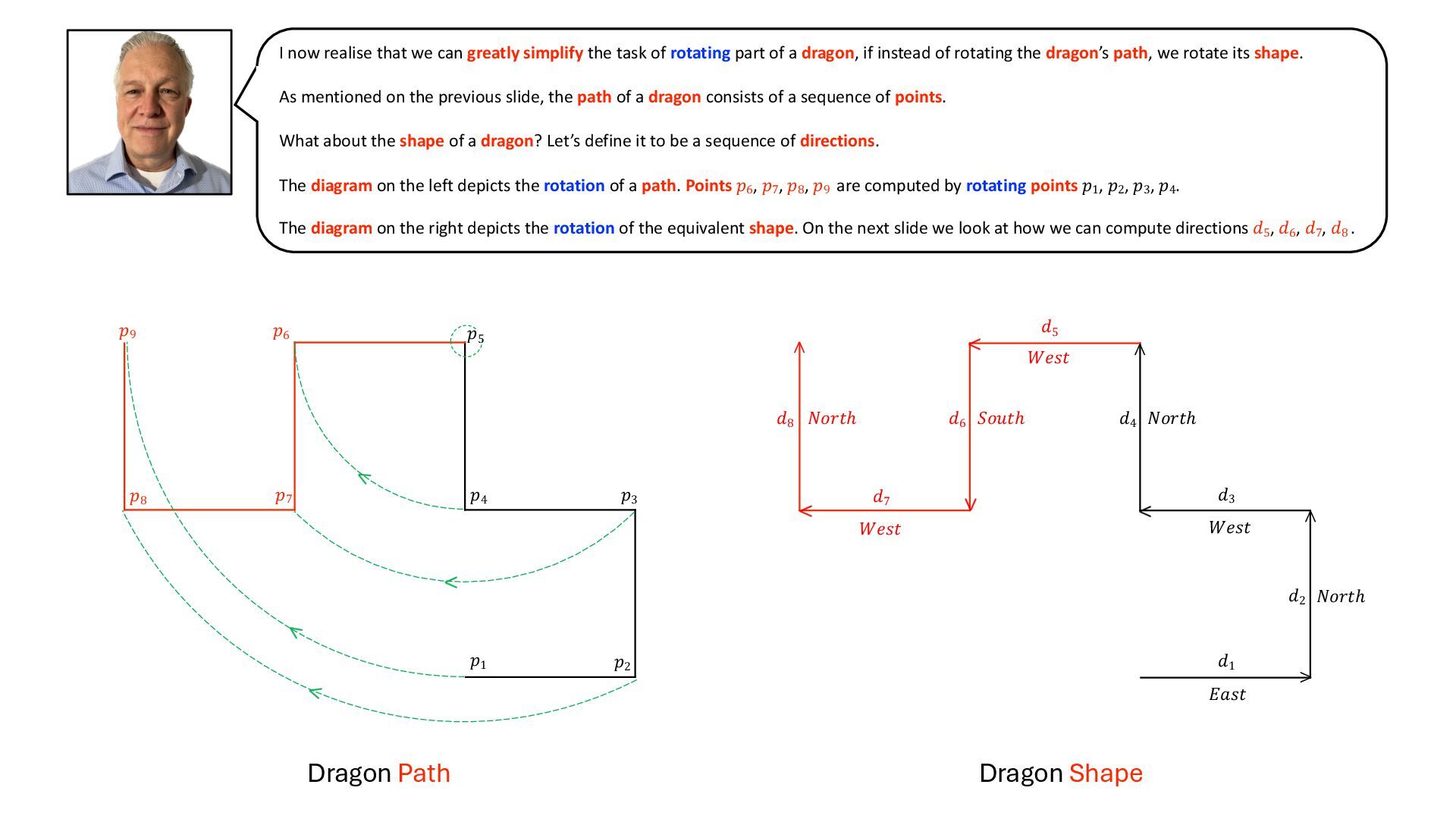

3. 𝑝1 𝑝2 𝑝3 𝑝4 𝑝5 𝑝6 𝑝7 𝑝8 𝑝9 > 𝑑1 𝐸𝑎𝑠𝑡 𝑑8 𝑑2 𝑁𝑜𝑟𝑡ℎ 𝑁𝑜𝑟𝑡ℎ 𝑑7 𝑊𝑒𝑠𝑡 𝑑3 𝑊𝑒𝑠𝑡 𝑑6 𝑆𝑜𝑢𝑡ℎ 𝑑4 𝑁𝑜𝑟𝑡ℎ 𝑑5 𝑊𝑒𝑠𝑡 > > > I now realise that we can greatly simplify the task of rotating part of a dragon, if instead of rotating the dragon’s path, we rotate its shape. As mentioned on the previous slide, the path of a dragon consists of a sequence of points. What about the shape of a dragon? Let’s define it to be a sequence of directions. The diagram on the left depicts the rotation of a path. Points 𝑝6 , 𝑝7 , 𝑝8 , 𝑝9 are computed by rotating points 𝑝1 , 𝑝2 , 𝑝3 , 𝑝4 . The diagram on the right depicts the rotation of the equivalent shape. On the next slide we look at how we can compute directions 𝑑5 , 𝑑6 , 𝑑7 , 𝑑8 . Dragon Path Dragon Shape

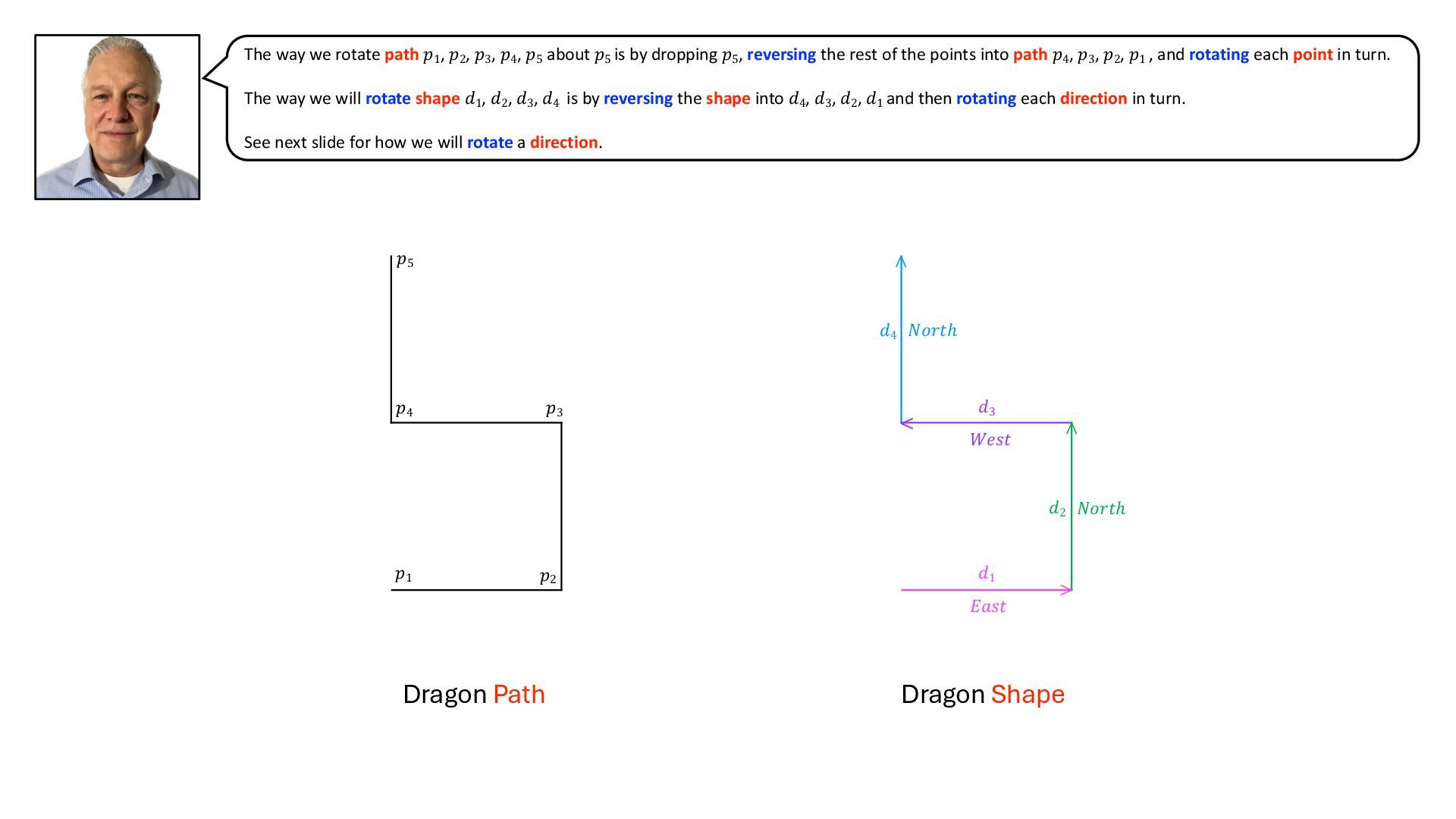

4. 𝑝1 𝑝2 𝑝3 𝑝4 𝑝5 > 𝑑1 𝐸𝑎𝑠𝑡 𝑑2 𝑁𝑜𝑟𝑡ℎ 𝑑3 𝑊𝑒𝑠𝑡 𝑑4 𝑁𝑜𝑟𝑡ℎ > > Dragon Path Dragon Shape The way we rotate path 𝑝1 , 𝑝2 , 𝑝3 , 𝑝4 , 𝑝5 about 𝑝5 is by dropping 𝑝5 , reversing the rest of the points into path 𝑝4 , 𝑝3 , 𝑝2 , 𝑝1 , and rotating each point in turn. The way we will rotate shape 𝑑1 , 𝑑2 , 𝑑3 , 𝑑4 is by reversing the shape into 𝑑4 , 𝑑3 , 𝑑2 , 𝑑1 and then rotating each direction in turn. See next slide for how we will rotate a direction.

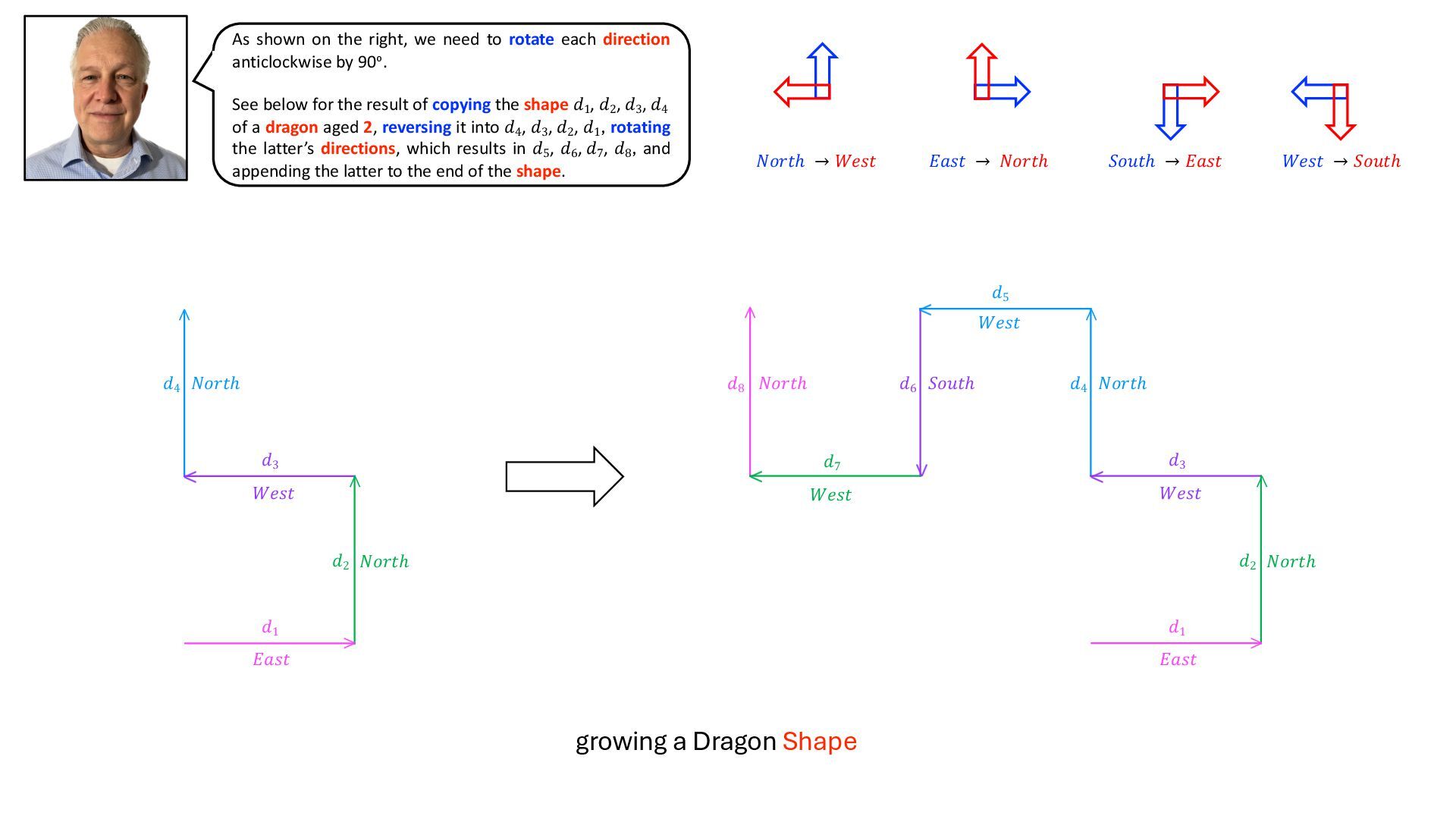

5. > 𝑑1 𝐸𝑎𝑠𝑡 𝑑2 𝑁𝑜𝑟𝑡ℎ 𝑑3 𝑊𝑒𝑠𝑡 𝑑4 𝑁𝑜𝑟𝑡ℎ > > > 𝑑1 𝐸𝑎𝑠𝑡 𝑑8 𝑑2 𝑁𝑜𝑟𝑡ℎ 𝑁𝑜𝑟𝑡ℎ 𝑑7 𝑊𝑒𝑠𝑡 𝑑3 𝑊𝑒𝑠𝑡 𝑑6 𝑆𝑜𝑢𝑡ℎ 𝑑4 𝑁𝑜𝑟𝑡ℎ 𝑑5 𝑊𝑒𝑠𝑡 > > > 𝑁𝑜𝑟𝑡ℎ → 𝑊𝑒𝑠𝑡 𝐸𝑎𝑠𝑡 → 𝑁𝑜𝑟𝑡ℎ 𝑆𝑜𝑢𝑡ℎ → 𝐸𝑎𝑠𝑡 𝑊𝑒𝑠𝑡 → 𝑆𝑜𝑢𝑡ℎ As shown on the right, we need to rotate each direction anticlockwise by 90o. See below for the result of copying the shape 𝑑1 , 𝑑2 , 𝑑3 , 𝑑4 of a dragon aged 2, reversing it into 𝑑4 , 𝑑3 , 𝑑2 , 𝑑1 , rotating the latter’s directions, which results in 𝑑5 , 𝑑6 , 𝑑7 , 𝑑8 , and appending the latter to the end of the shape. growing a Dragon Shape
6. Let’s see how we need to change our functional core logic in order to adopt the new approach to rotation.
7. case class Dragon(start: Point, age: Int, length: Int, direction: Direction): val path: DragonPath = DragonPath(start, direction, length) .grow(age) case class Dragon(start: Point, age: Int, length: Int, direction: Direction): val path: DragonPath = DragonShape.initial(direction) .grow(age) .path(startPoint, length) The first thing we need to do is change how we compute the path of a dragon. Here is how we have been doing it so far: 1. create an initial dragon path 2. 'grow the path And here is how we want to do it now: 1. create an initial dragon shape 2. 'grow the shape 3. turn the shape into a path

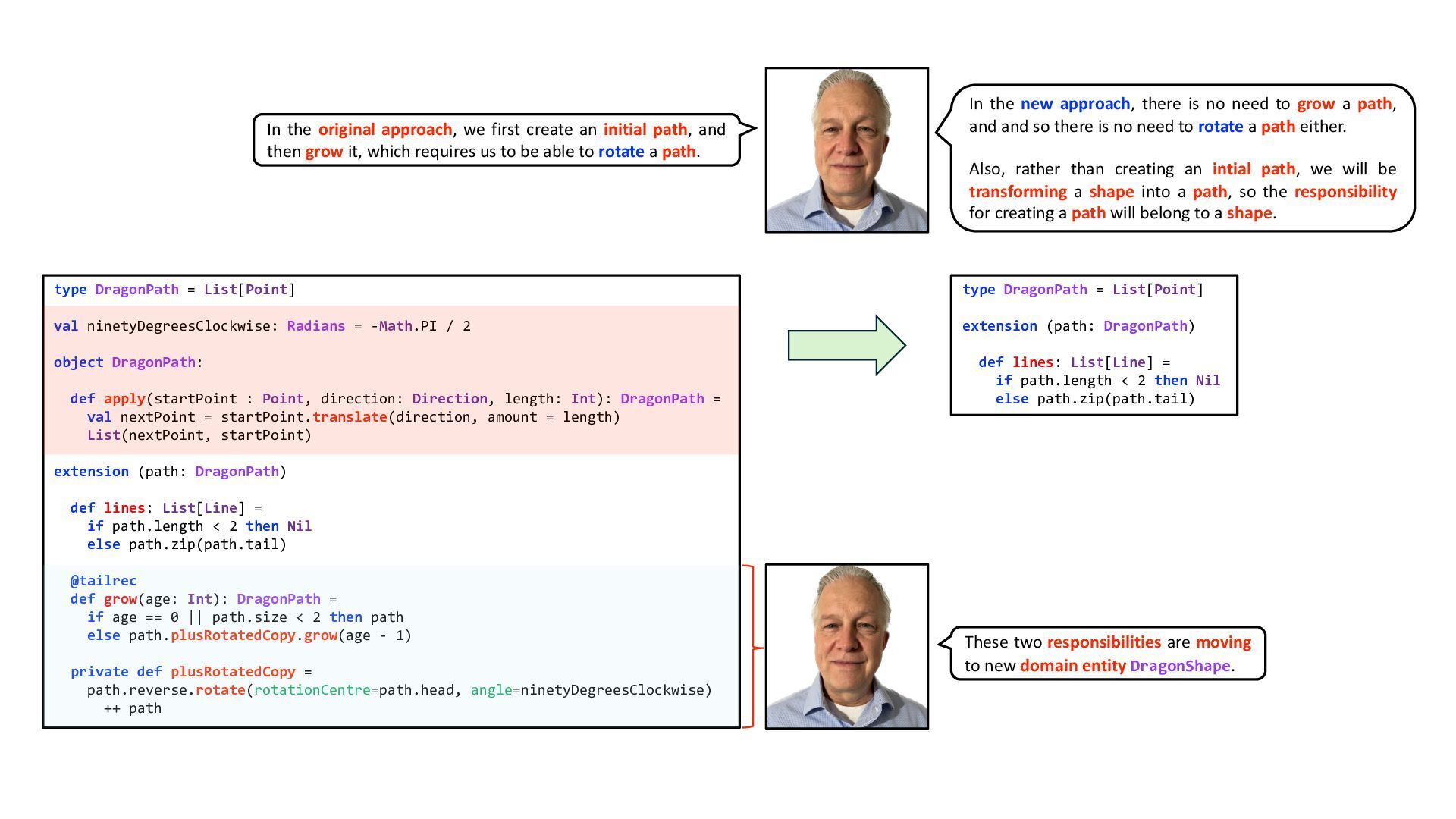

8. In the new approach, there is no need to grow a path, and and so there is no need to rotate a path either. Also, rather than creating an intial path, we will be transforming a shape into a path, so the responsibility for creating a path will belong to a shape. type DragonPath = List[Point] val ninetyDegreesClockwise: Radians = -Math.PI / 2 object DragonPath: def apply(startPoint : Point, direction: Direction, length: Int): DragonPath = val nextPoint = startPoint.translate(direction, amount = length) List(nextPoint, startPoint) extension (path: DragonPath) def lines: List[Line] = if path.length < 2 then Nil else path.zip(path.tail) @tailrec def grow(age: Int): DragonPath = if age == 0 || path.size < 2 then path else path.plusRotatedCopy.grow(age - 1) private def plusRotatedCopy = path.reverse.rotate(rotationCentre=path.head, angle=ninetyDegreesClockwise) ++ path type DragonPath = List[Point] extension (path: DragonPath) def lines: List[Line] = if path.length < 2 then Nil else path.zip(path.tail) In the original approach, we first create an initial path, and then grow it, which requires us to be able to rotate a path. These two responsibilities are moving to new domain entity DragonShape.

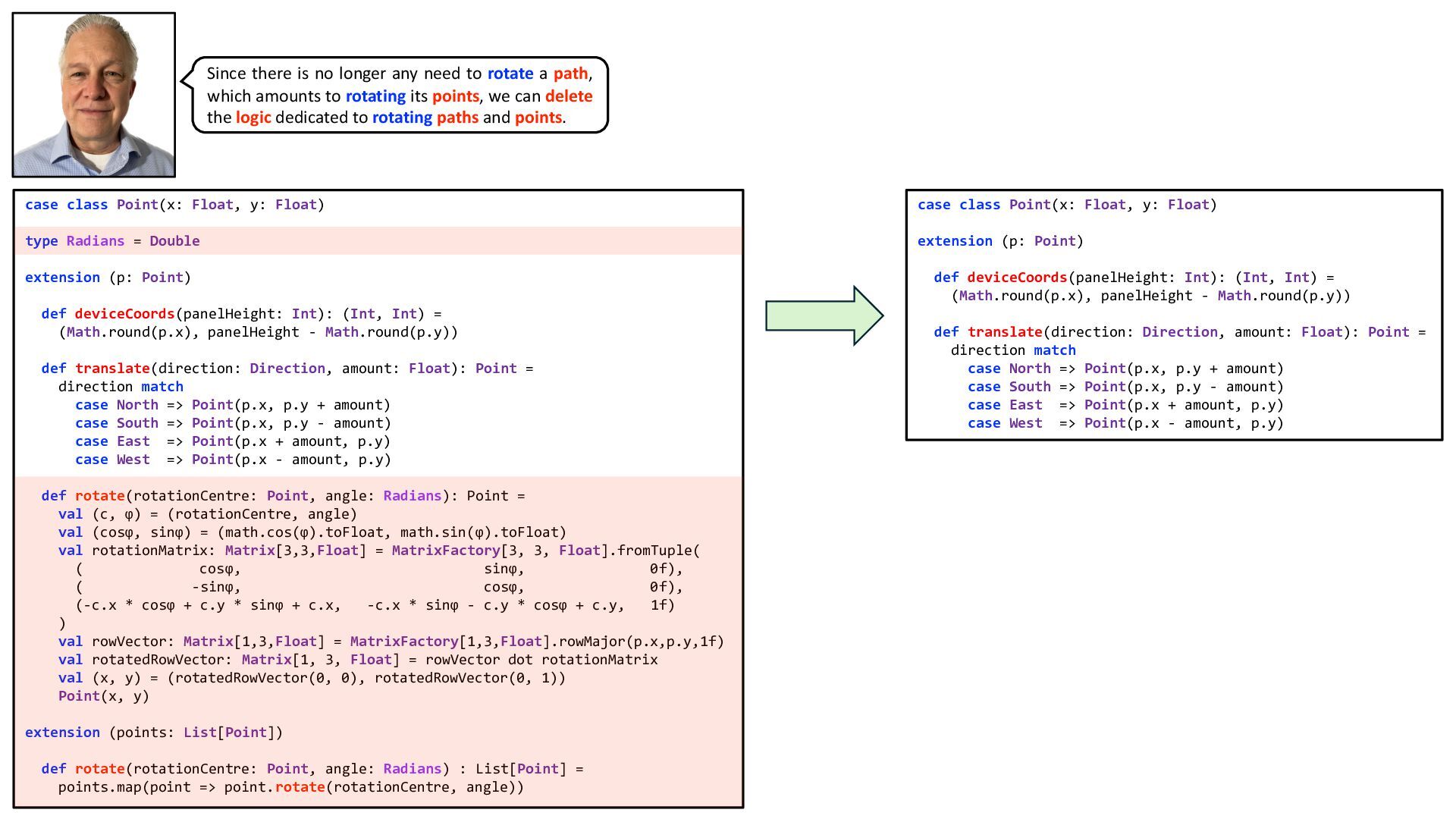

9. case class Point(x: Float, y: Float) type Radians = Double extension (p: Point) def deviceCoords(panelHeight: Int): (Int, Int) = (Math.round(p.x), panelHeight - Math.round(p.y)) def translate(direction: Direction, amount: Float): Point = direction match case North => Point(p.x, p.y + amount) case South => Point(p.x, p.y - amount) case East => Point(p.x + amount, p.y) case West => Point(p.x - amount, p.y) def rotate(rotationCentre: Point, angle: Radians): Point = val (c, ϕ) = (rotationCentre, angle) val (cosϕ, sinϕ) = (math.cos(ϕ).toFloat, math.sin(ϕ).toFloat) val rotationMatrix: Matrix[3,3,Float] = MatrixFactory[3, 3, Float].fromTuple( ( cosϕ, sinϕ, 0f), ( -sinϕ, cosϕ, 0f), (-c.x * cosϕ + c.y * sinϕ + c.x, -c.x * sinϕ - c.y * cosϕ + c.y, 1f) ) val rowVector: Matrix[1,3,Float] = MatrixFactory[1,3,Float].rowMajor(p.x,p.y,1f) val rotatedRowVector: Matrix[1, 3, Float] = rowVector dot rotationMatrix val (x, y) = (rotatedRowVector(0, 0), rotatedRowVector(0, 1)) Point(x, y) extension (points: List[Point]) def rotate(rotationCentre: Point, angle: Radians) : List[Point] = points.map(point => point.rotate(rotationCentre, angle)) case class Point(x: Float, y: Float) extension (p: Point) def deviceCoords(panelHeight: Int): (Int, Int) = (Math.round(p.x), panelHeight - Math.round(p.y)) def translate(direction: Direction, amount: Float): Point = direction match case North => Point(p.x, p.y + amount) case South => Point(p.x, p.y - amount) case East => Point(p.x + amount, p.y) case West => Point(p.x - amount, p.y) Since there is no longer any need to rotate a path, which amounts to rotating its points, we can delete the logic dedicated to rotating paths and points.

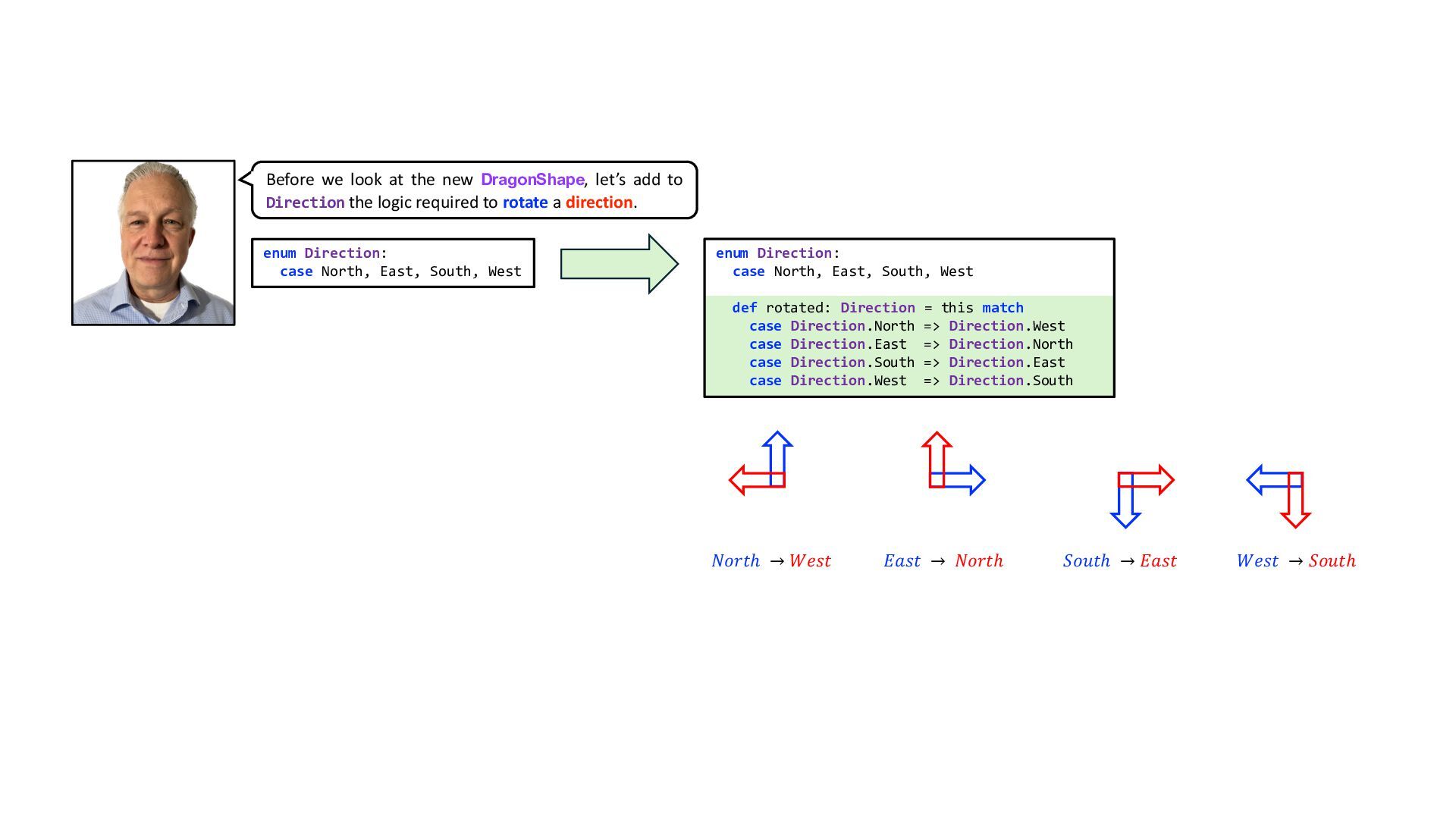

10. enum Direction: case North, East, South, West enum Direction: case North, East, South, West def rotated: Direction = this match case Direction.North => Direction.West case Direction.East => Direction.North case Direction.South => Direction.East case Direction.West => Direction.South Before we look at the new DragonShape, let’s add to Direction the logic required to rotate a direction. 𝑁𝑜𝑟𝑡ℎ → 𝑊𝑒𝑠𝑡 𝐸𝑎𝑠𝑡 → 𝑁𝑜𝑟𝑡ℎ 𝑆𝑜𝑢𝑡ℎ → 𝐸𝑎𝑠𝑡 𝑊𝑒𝑠𝑡 → 𝑆𝑜𝑢𝑡ℎ

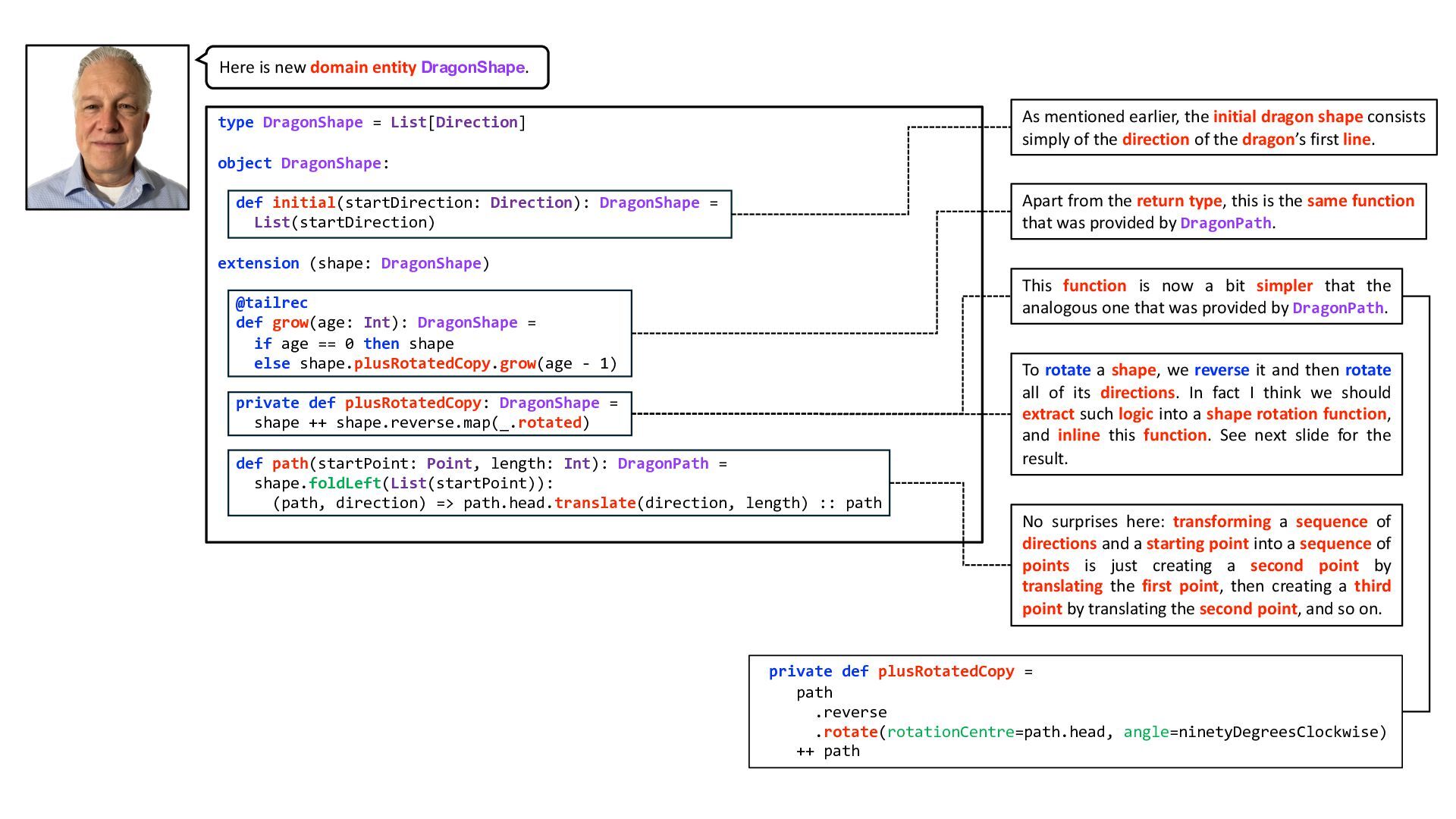

11. type DragonShape = List[Direction] object DragonShape: def initial(startDirection: Direction): DragonShape = List(startDirection) extension (shape: DragonShape) @tailrec def grow(age: Int): DragonShape = if age == 0 then shape else shape.plusRotatedCopy.grow(age - 1) private def plusRotatedCopy: DragonShape = shape ++ shape.reverse.map(_.rotated) def path(startPoint: Point, length: Int): DragonPath = shape.foldLeft(List(startPoint)): (path, direction) => path.head.translate(direction, length) :: path As mentioned earlier, the initial dragon shape consists simply of the direction of the dragon’s first line. No surprises here: transforming a sequence of directions and a starting point into a sequence of points is just creating a second point by translating the first point, then creating a third point by translating the second point, and so on. This function is now a bit simpler that the analogous one that was provided by DragonPath. Apart from the return type, this is the same function that was provided by DragonPath. private def plusRotatedCopy = path .reverse .rotate(rotationCentre=path.head, angle=ninetyDegreesClockwise) ++ path Here is new domain entity DragonShape. To rotate a shape, we reverse it and then rotate all of its directions. In fact I think we should extract such logic into a shape rotation function, and inline this function. See next slide for the result.

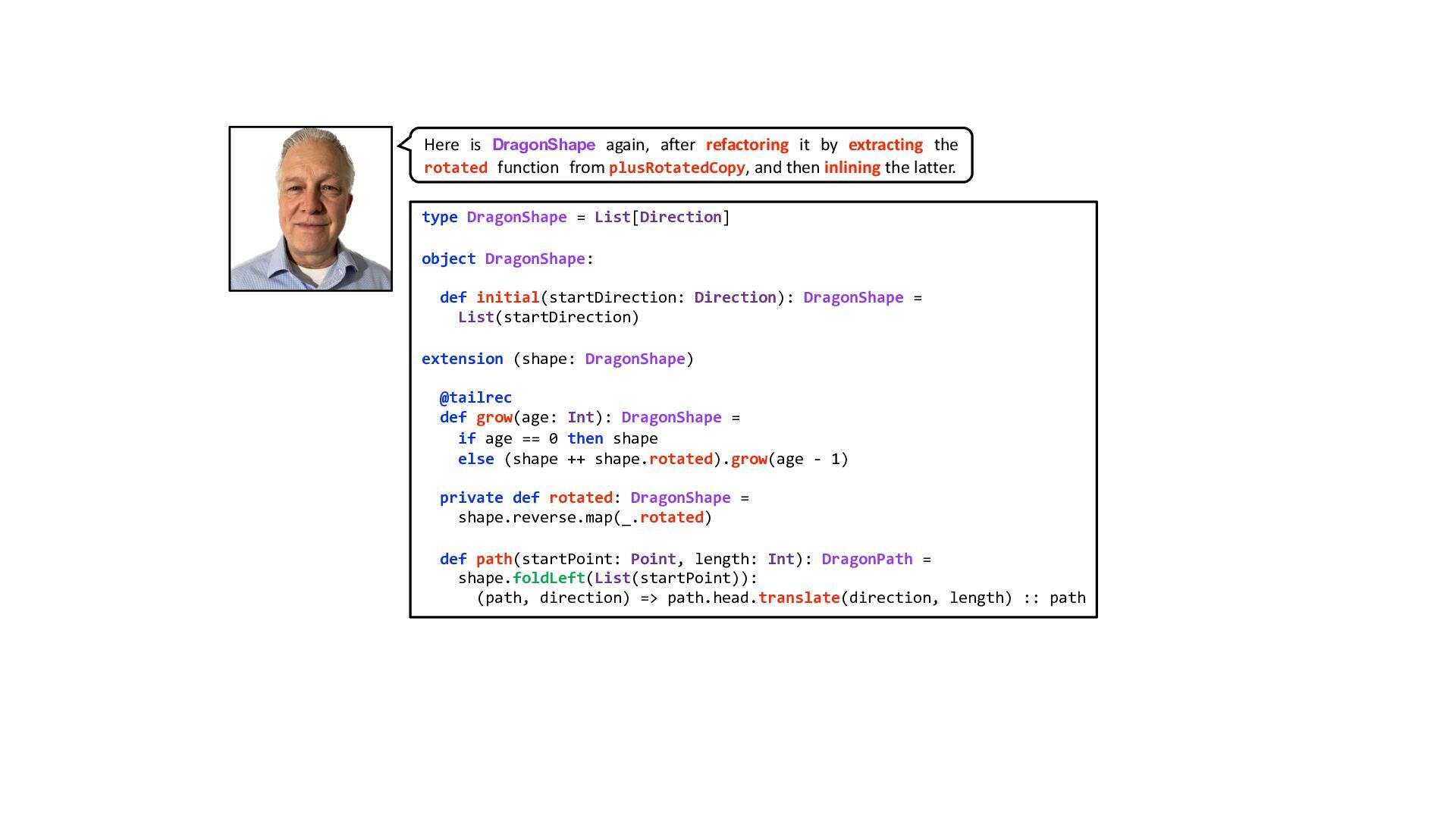

12. type DragonShape = List[Direction] object DragonShape: def initial(startDirection: Direction): DragonShape = List(startDirection) extension (shape: DragonShape) @tailrec def grow(age: Int): DragonShape = if age == 0 then shape else (shape ++ shape.rotated).grow(age - 1) private def rotated: DragonShape = shape.reverse.map(_.rotated) def path(startPoint: Point, length: Int): DragonPath = shape.foldLeft(List(startPoint)): (path, direction) => path.head.translate(direction, length) :: path Here is DragonShape again, after refactoring it by extracting the rotated function from plusRotatedCopy, and then inlining the latter.

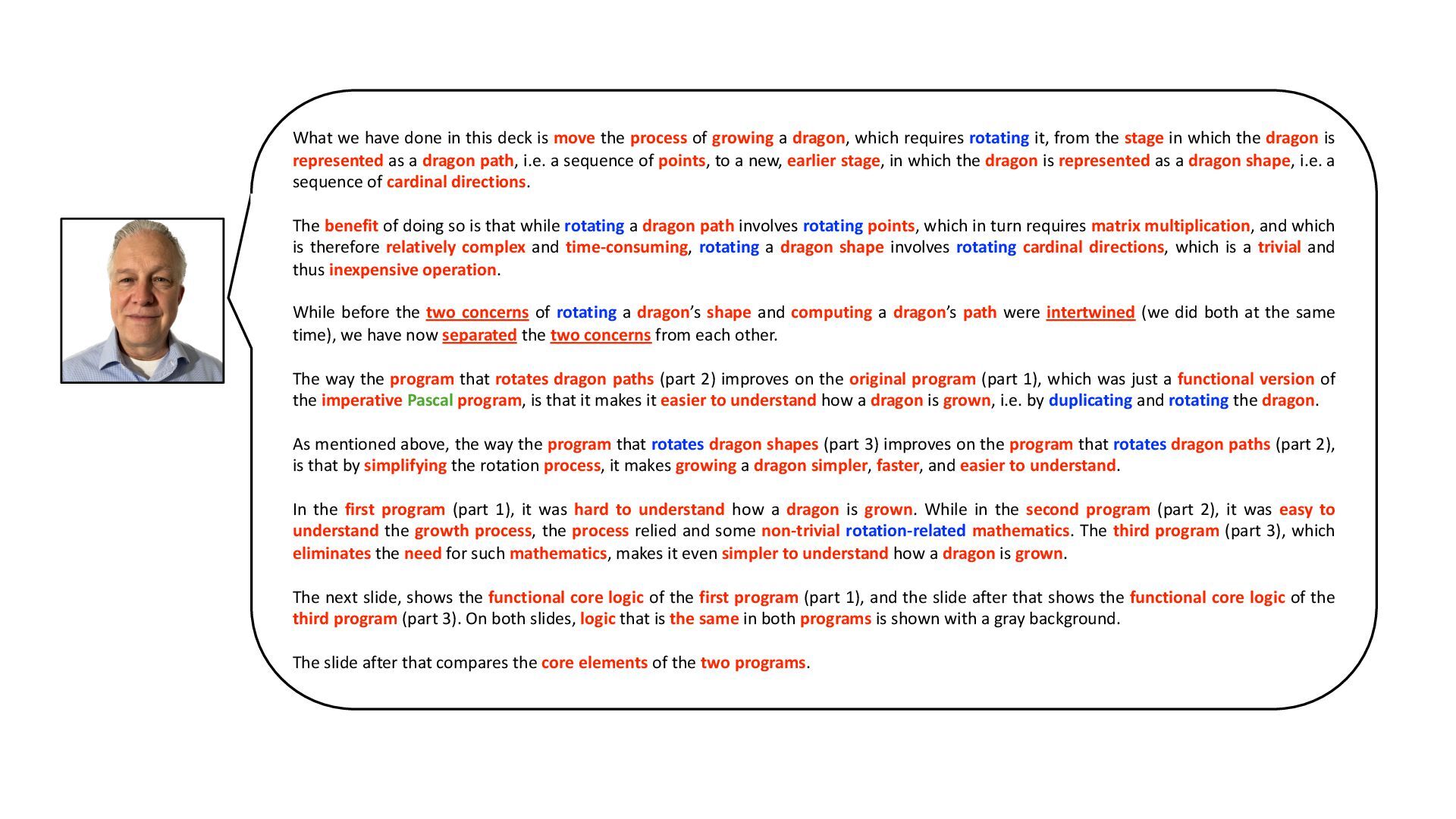

13. What we have done in this deck is move the process of growing a dragon, which requires rotating it, from the stage in which the dragon is represented as a dragon path, i.e. a sequence of points, to a new, earlier stage, in which the dragon is represented as a dragon shape, i.e. a sequence of cardinal directions. The benefit of doing so is that while rotating a dragon path involves rotating points, which in turn requires matrix multiplication, and which is therefore relatively complex and time-consuming, rotating a dragon shape involves rotating cardinal directions, which is a trivial and thus inexpensive operation. While before the two concerns of rotating a dragon’s shape and computing a dragon’s path were intertwined (we did both at the same time), we have now separated the two concerns from each other. The way the program that rotates dragon paths (part 2) improves on the original program (part 1), which was just a functional version of the imperative Pascal program, is that it makes it easier to understand how a dragon is grown, i.e. by duplicating and rotating the dragon. As mentioned above, the way the program that rotates dragon shapes (part 3) improves on the program that rotates dragon paths (part 2), is that by simplifying the rotation process, it makes growing a dragon simpler, faster, and easier to understand. In the first program (part 1), it was hard to understand how a dragon is grown. While in the second program (part 2), it was easy to understand the growth process, the process relied and some non-trivial rotation-related mathematics. The third program (part 3), which eliminates the need for such mathematics, makes it even simpler to understand how a dragon is grown. The next slide, shows the functional core logic of the first program (part 1), and the slide after that shows the functional core logic of the third program (part 3). On both slides, logic that is the same in both programs is shown with a gray background. The slide after that compares the core elements of the two programs.

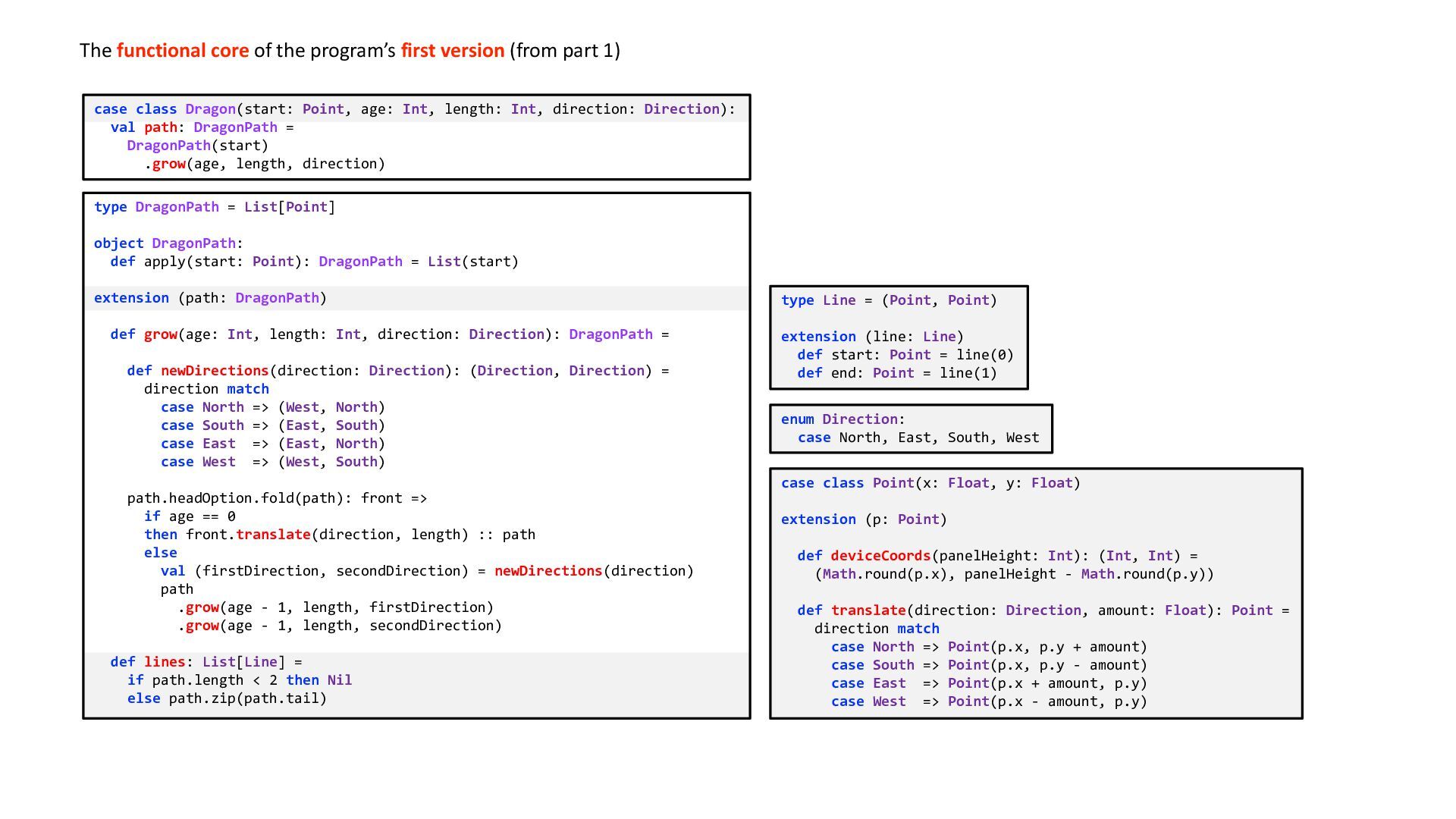

14. type DragonPath = List[Point] object DragonPath: def apply(start: Point): DragonPath = List(start) extension (path: DragonPath) def grow(age: Int, length: Int, direction: Direction): DragonPath = def newDirections(direction: Direction): (Direction, Direction) = direction match case North => (West, North) case South => (East, South) case East => (East, North) case West => (West, South) path.headOption.fold(path): front => if age == 0 then front.translate(direction, length) :: path else val (firstDirection, secondDirection) = newDirections(direction) path .grow(age - 1, length, firstDirection) .grow(age - 1, length, secondDirection) def lines: List[Line] = if path.length < 2 then Nil else path.zip(path.tail) case class Dragon(start: Point, age: Int, length: Int, direction: Direction): val path: DragonPath = DragonPath(start) .grow(age, length, direction) case class Point(x: Float, y: Float) extension (p: Point) def deviceCoords(panelHeight: Int): (Int, Int) = (Math.round(p.x), panelHeight - Math.round(p.y)) def translate(direction: Direction, amount: Float): Point = direction match case North => Point(p.x, p.y + amount) case South => Point(p.x, p.y - amount) case East => Point(p.x + amount, p.y) case West => Point(p.x - amount, p.y) type Line = (Point, Point) extension (line: Line) def start: Point = line(0) def end: Point = line(1) enum Direction: case North, East, South, West The functional core of the program’s first version (from part 1)

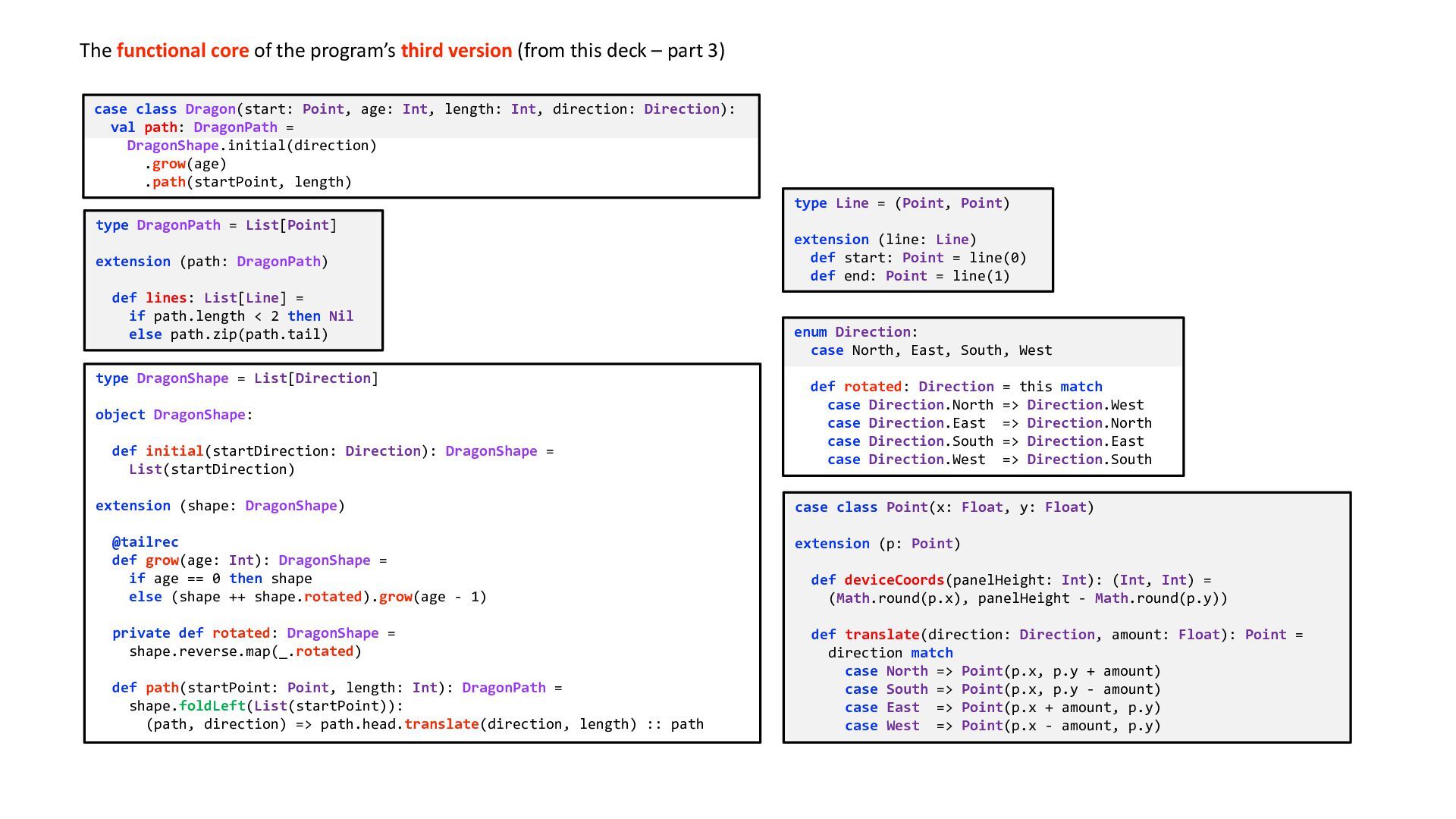

15. case class Dragon(start: Point, age: Int, length: Int, direction: Direction): val path: DragonPath = DragonShape.initial(direction) .grow(age) .path(startPoint, length) type DragonShape = List[Direction] object DragonShape: def initial(startDirection: Direction): DragonShape = List(startDirection) extension (shape: DragonShape) @tailrec def grow(age: Int): DragonShape = if age == 0 then shape else (shape ++ shape.rotated).grow(age - 1) private def rotated: DragonShape = shape.reverse.map(_.rotated) def path(startPoint: Point, length: Int): DragonPath = shape.foldLeft(List(startPoint)): (path, direction) => path.head.translate(direction, length) :: path type DragonPath = List[Point] extension (path: DragonPath) def lines: List[Line] = if path.length < 2 then Nil else path.zip(path.tail) type Line = (Point, Point) extension (line: Line) def start: Point = line(0) def end: Point = line(1) case class Point(x: Float, y: Float) extension (p: Point) def deviceCoords(panelHeight: Int): (Int, Int) = (Math.round(p.x), panelHeight - Math.round(p.y)) def translate(direction: Direction, amount: Float): Point = direction match case North => Point(p.x, p.y + amount) case South => Point(p.x, p.y - amount) case East => Point(p.x + amount, p.y) case West => Point(p.x - amount, p.y) enum Direction: case North, East, South, West def rotated: Direction = this match case Direction.North => Direction.West case Direction.East => Direction.North case Direction.South => Direction.East case Direction.West => Direction.South The functional core of the program’s third version (from this deck – part 3)

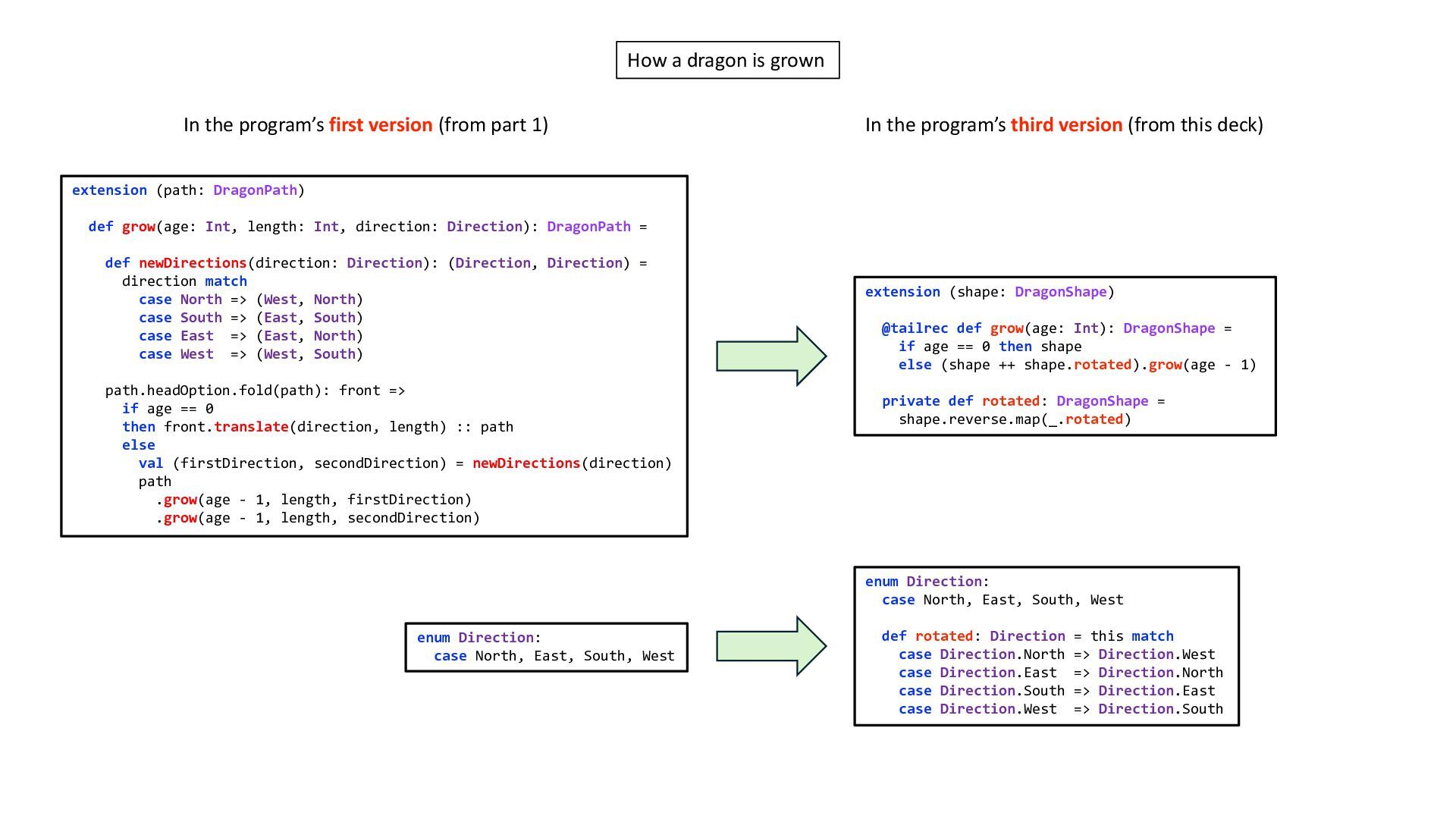

16. extension (path: DragonPath) def grow(age: Int, length: Int, direction: Direction): DragonPath = def newDirections(direction: Direction): (Direction, Direction) = direction match case North => (West, North) case South => (East, South) case East => (East, North) case West => (West, South) path.headOption.fold(path): front => if age == 0 then front.translate(direction, length) :: path else val (firstDirection, secondDirection) = newDirections(direction) path .grow(age - 1, length, firstDirection) .grow(age - 1, length, secondDirection) extension (shape: DragonShape) @tailrec def grow(age: Int): DragonShape = if age == 0 then shape else (shape ++ shape.rotated).grow(age - 1) private def rotated: DragonShape = shape.reverse.map(_.rotated) enum Direction: case North, East, South, West def rotated: Direction = this match case Direction.North => Direction.West case Direction.East => Direction.North case Direction.South => Direction.East case Direction.West => Direction.South enum Direction: case North, East, South, West In the program’s first version (from part 1) In the program’s third version (from this deck) How a dragon is grown

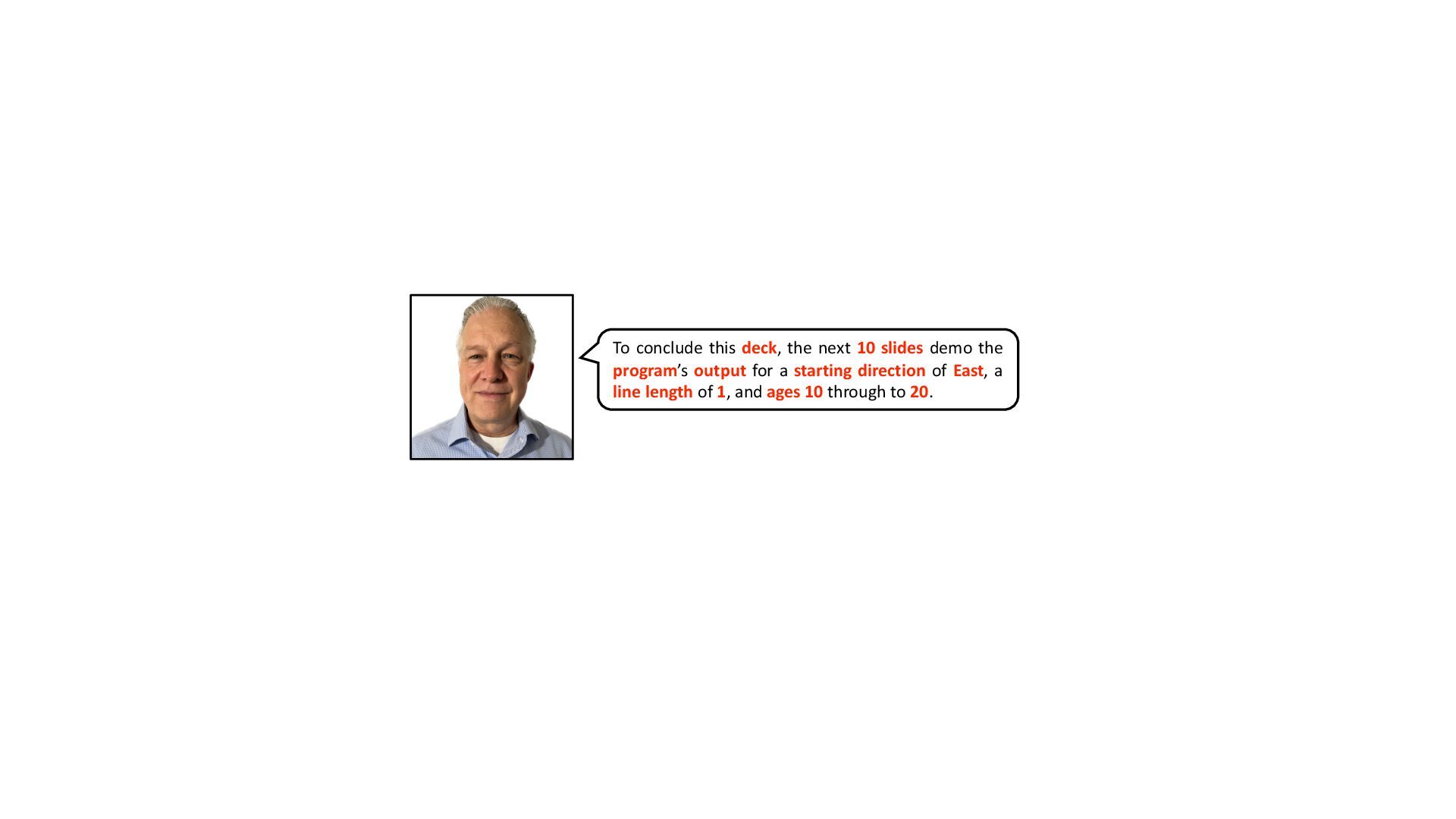

17. To conclude this deck, the next 10 slides demo the program’s output for a starting direction of East, a line length of 1, and ages 10 through to 20.

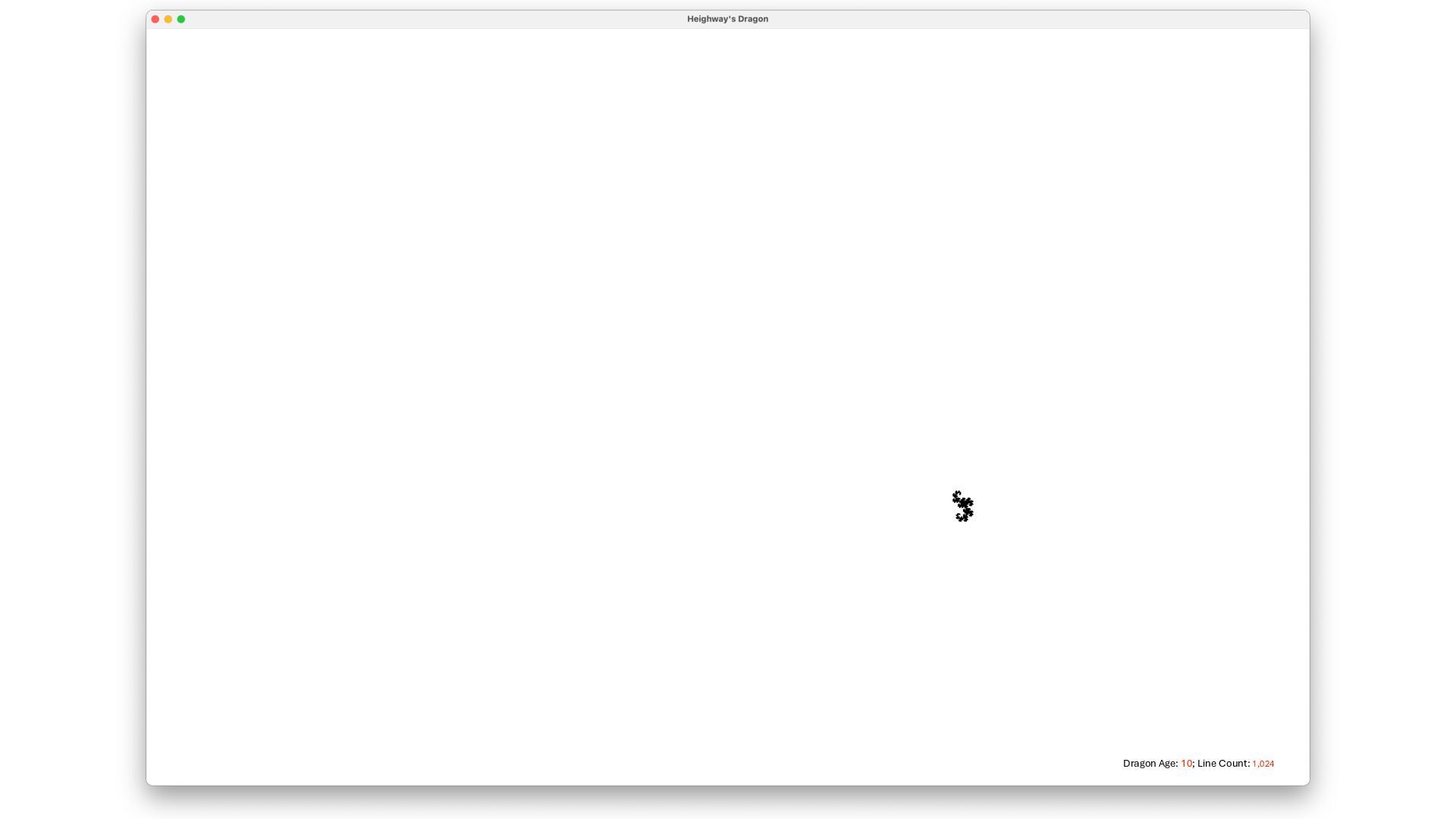

18. Dragon Age: 10; Line Count: 1,024

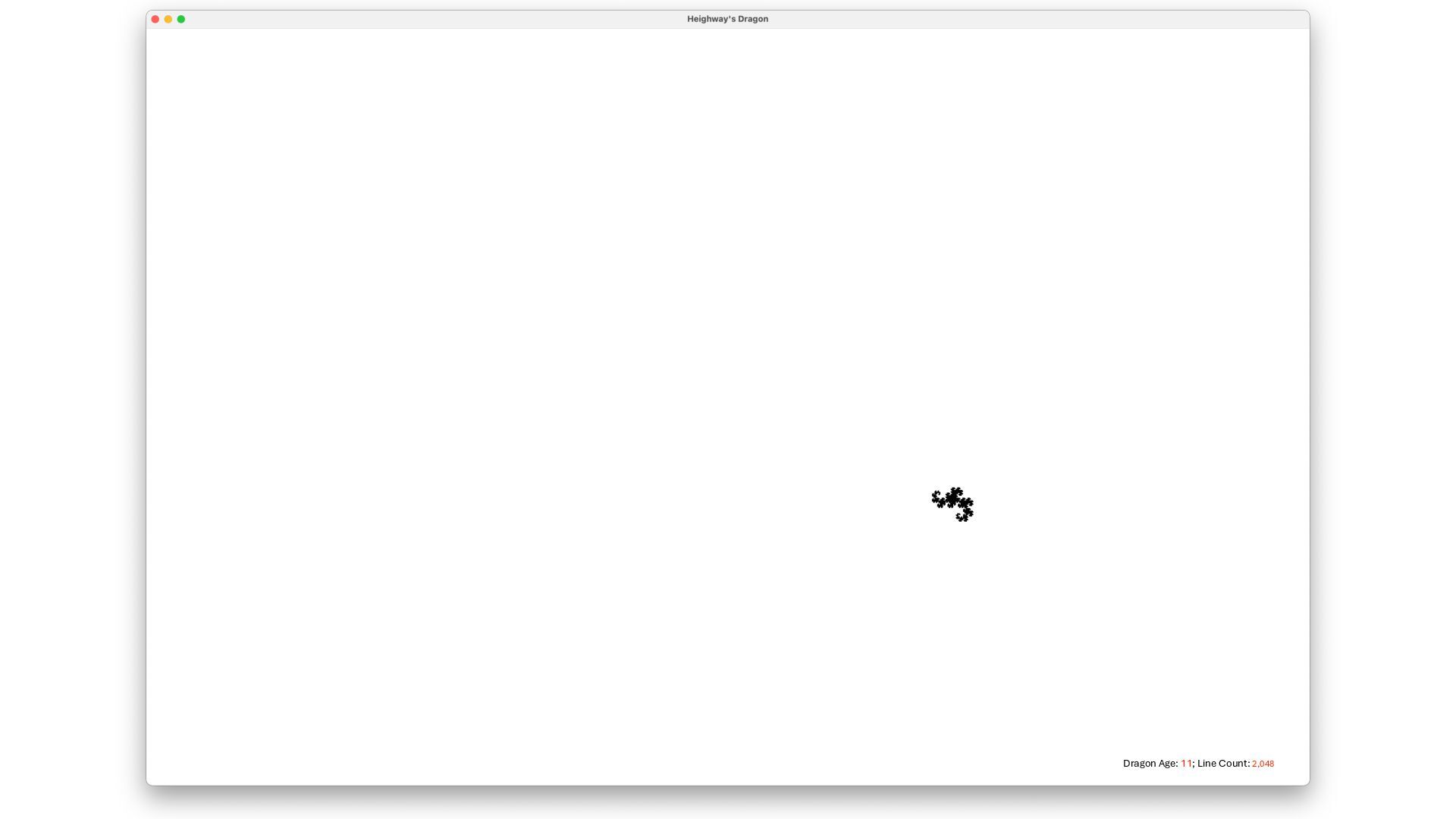

19. Dragon Age: 11; Line Count: 2,048

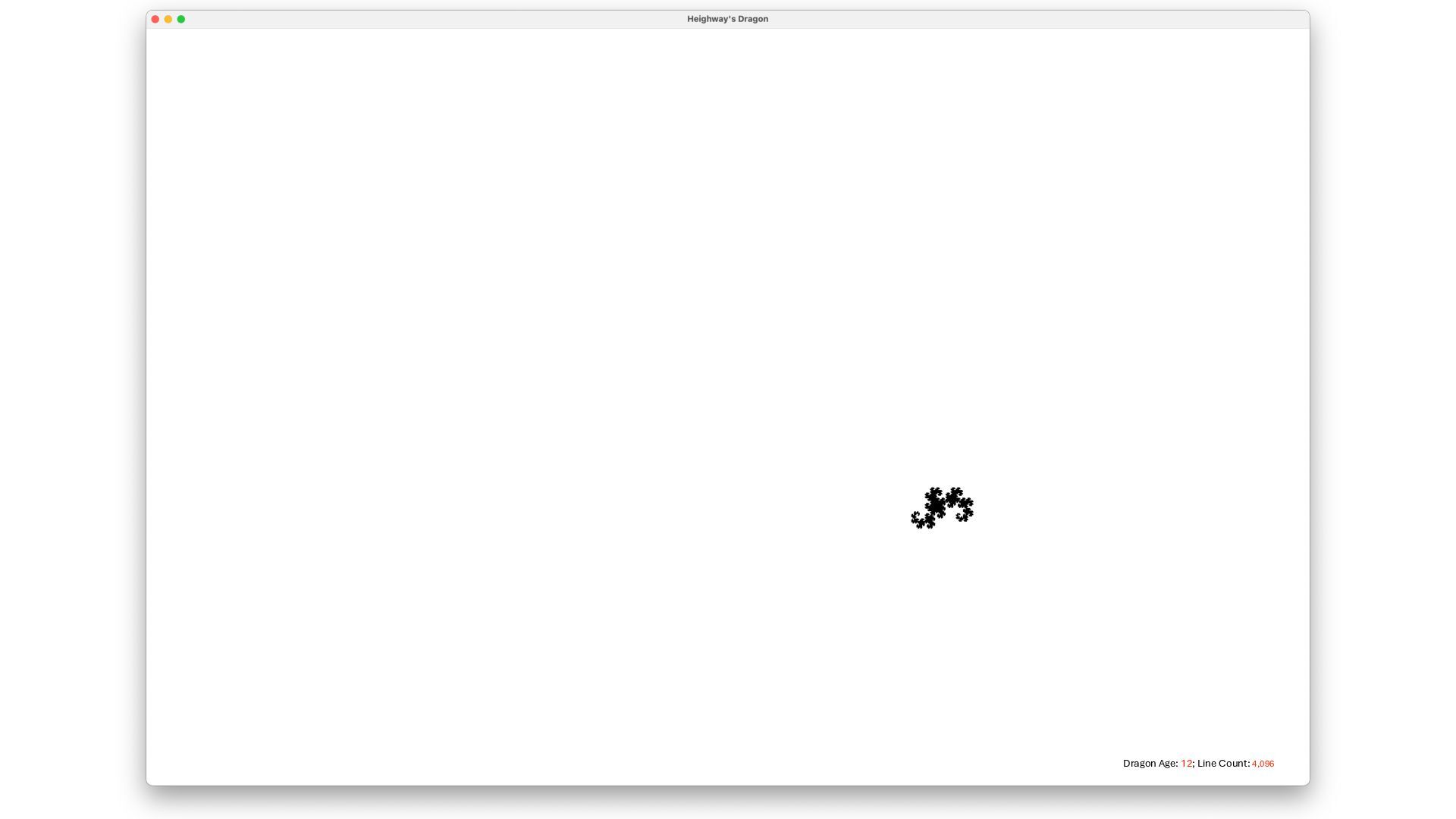

20. Dragon Age: 12; Line Count: 4,096

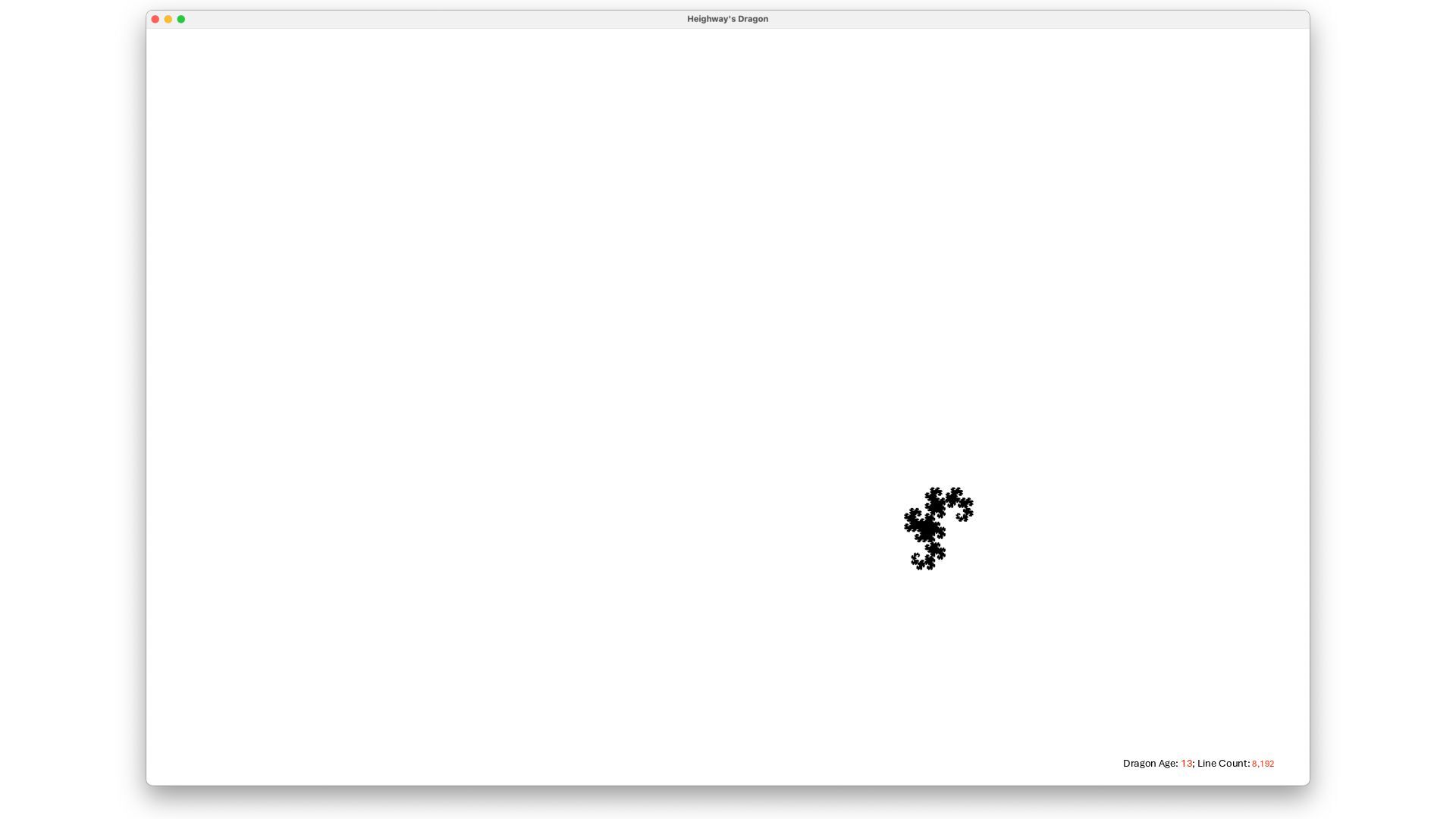

21. Dragon Age: 13; Line Count: 8,192

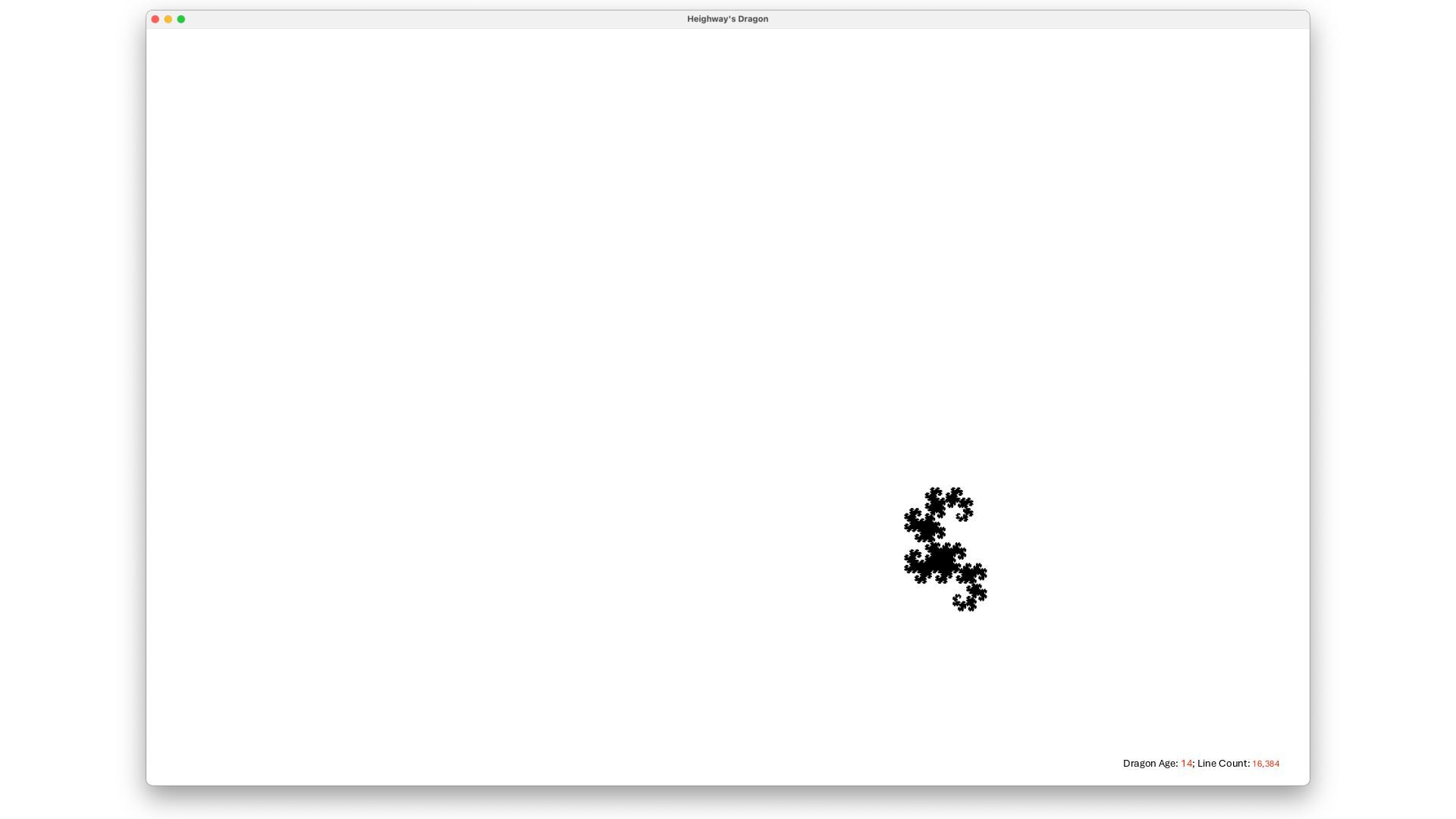

22. Dragon Age: 14; Line Count: 16,384
23. Dragon Age: 15; Line Count: 32,768
24. Dragon Age: 16; Line Count: 65,536

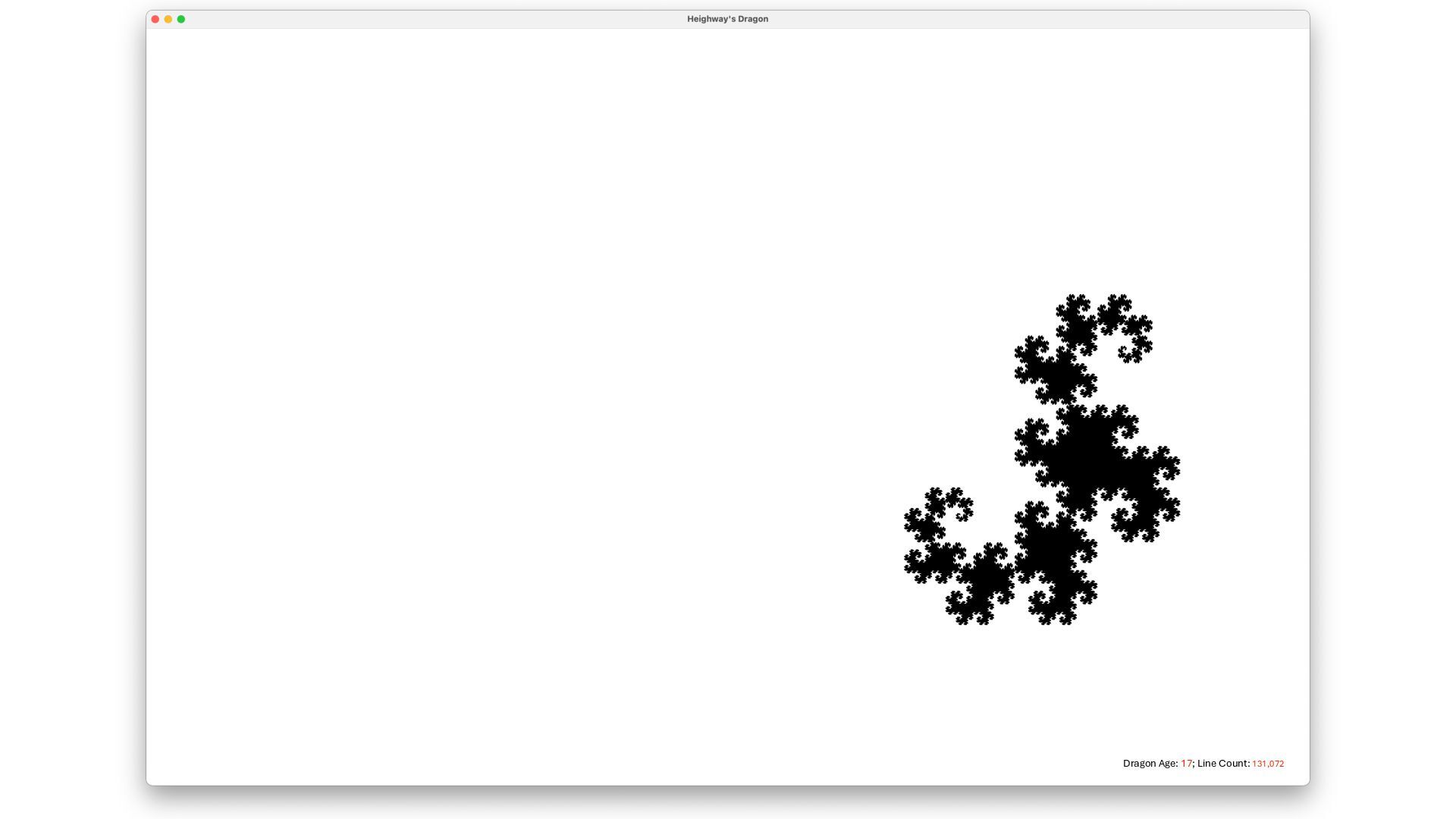

25. Dragon Age: 17; Line Count: 131,072

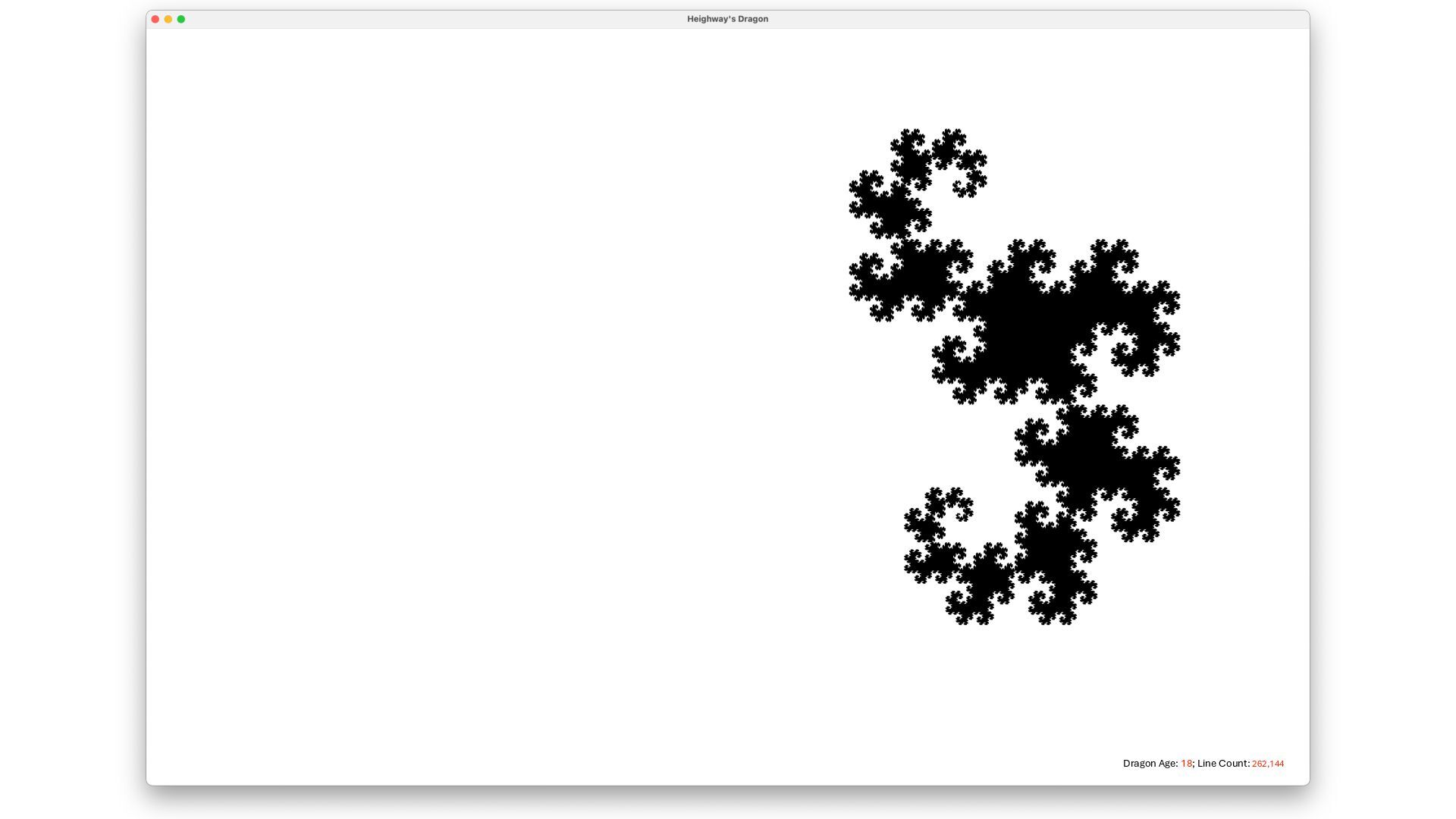

26. Dragon Age: 18; Line Count: 262,144
27. Dragon Age: 19; Line Count: 524,288

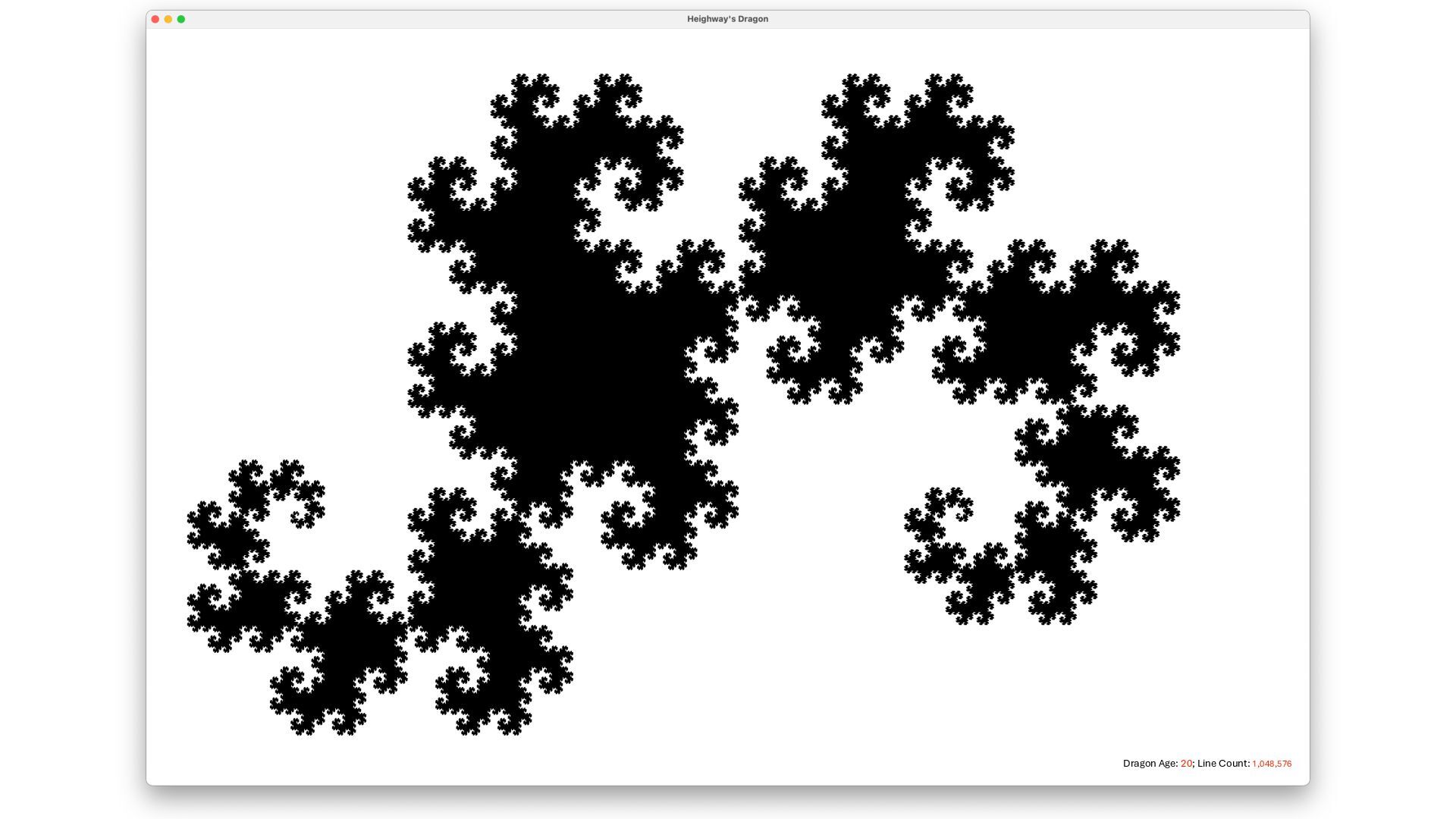

28. Dragon Age: 20; Line Count: 1,048,576
29. That’s all for part 3. I hope you enjoyed that. At the end of part 1 I said that in part 2 we were going to make the program much more convenient in that it would allow us to easily change dragon parameters and redraw the dragon each time without having to rerun the program. That never happened, so let’s do it in part 4. See you there.
