Android Librarian's Guide: Building Robust Libraries and SDKs

Transcript

1. Android Librarian's Guide: Building Robust Libraries and SDKs September 2025
2. skydoves @github_skydoves Senior Developer Advocate @ RevenueCat Jaewoong Eum
3. Open-Source Projects 21,000,000+ library downloads every year 1,500,000,000+ end-user devices
4. API Surfaces
5. What is an API? API Surfaces

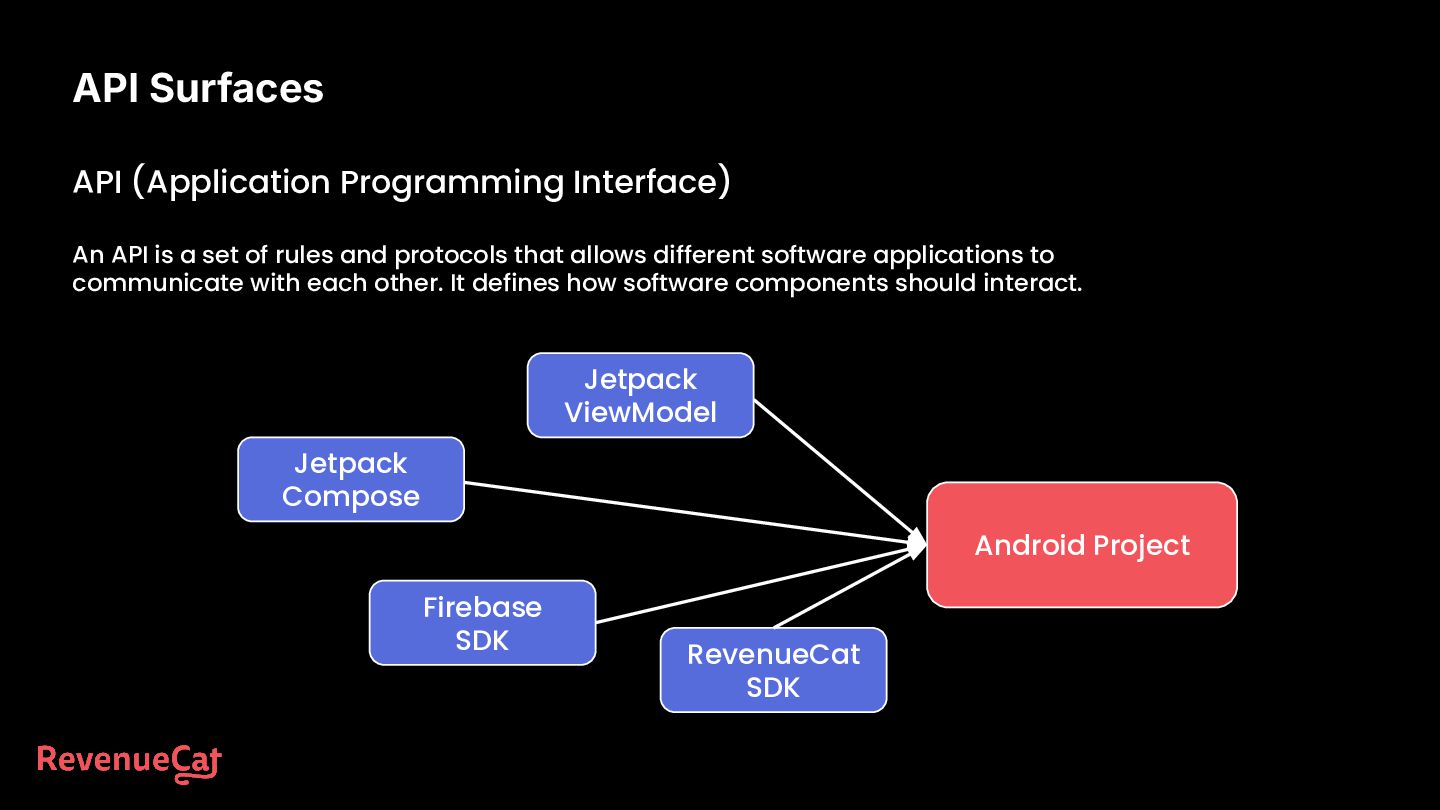

6. API Surfaces API (Application Programming Interface) An API is a set of rules and protocols that allows different software applications to communicate with each other. It defines how software components should interact. Android Project Jetpack ViewModel Jetpack Compose Firebase SDK RevenueCat SDK

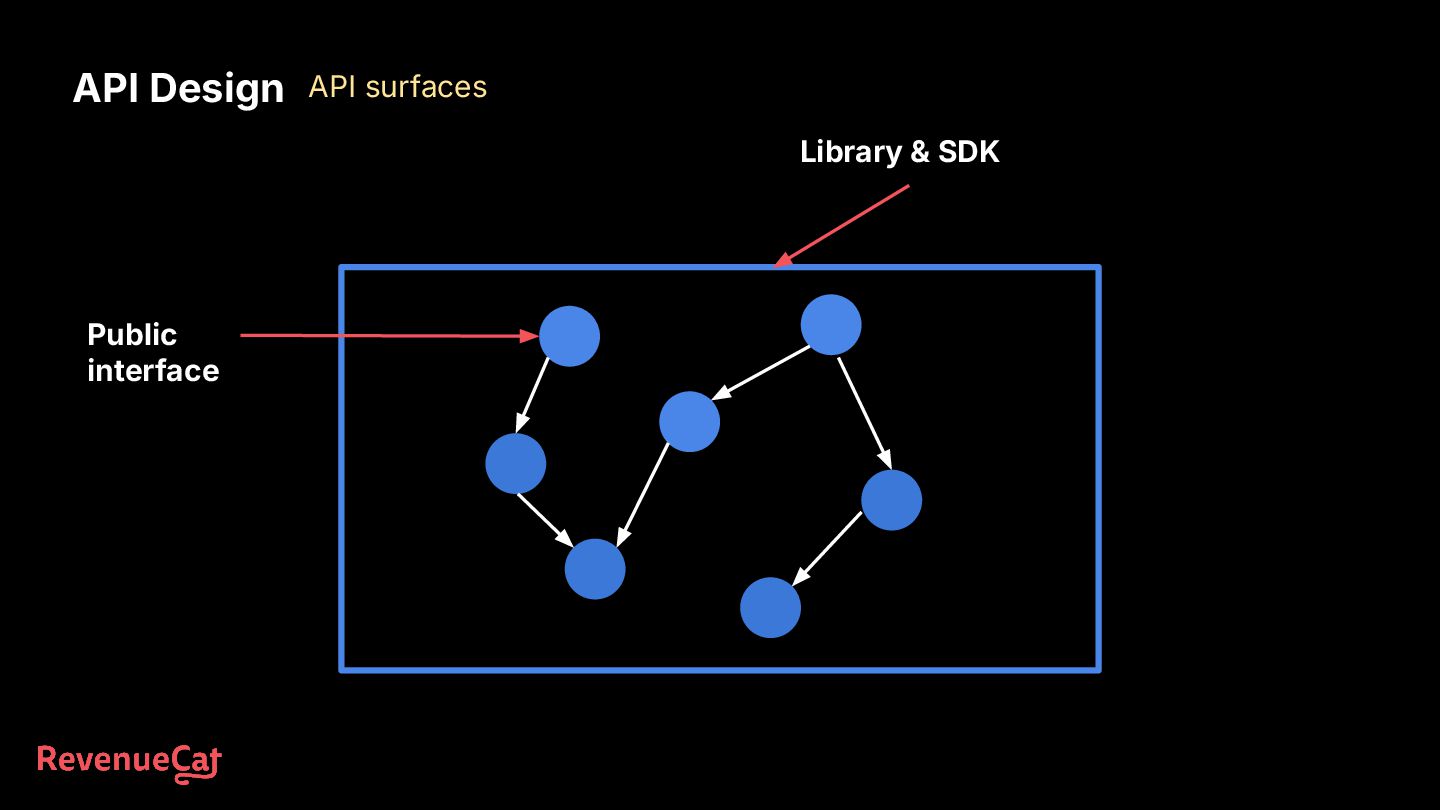

7. Public interface Library & SDK API surfaces API Design

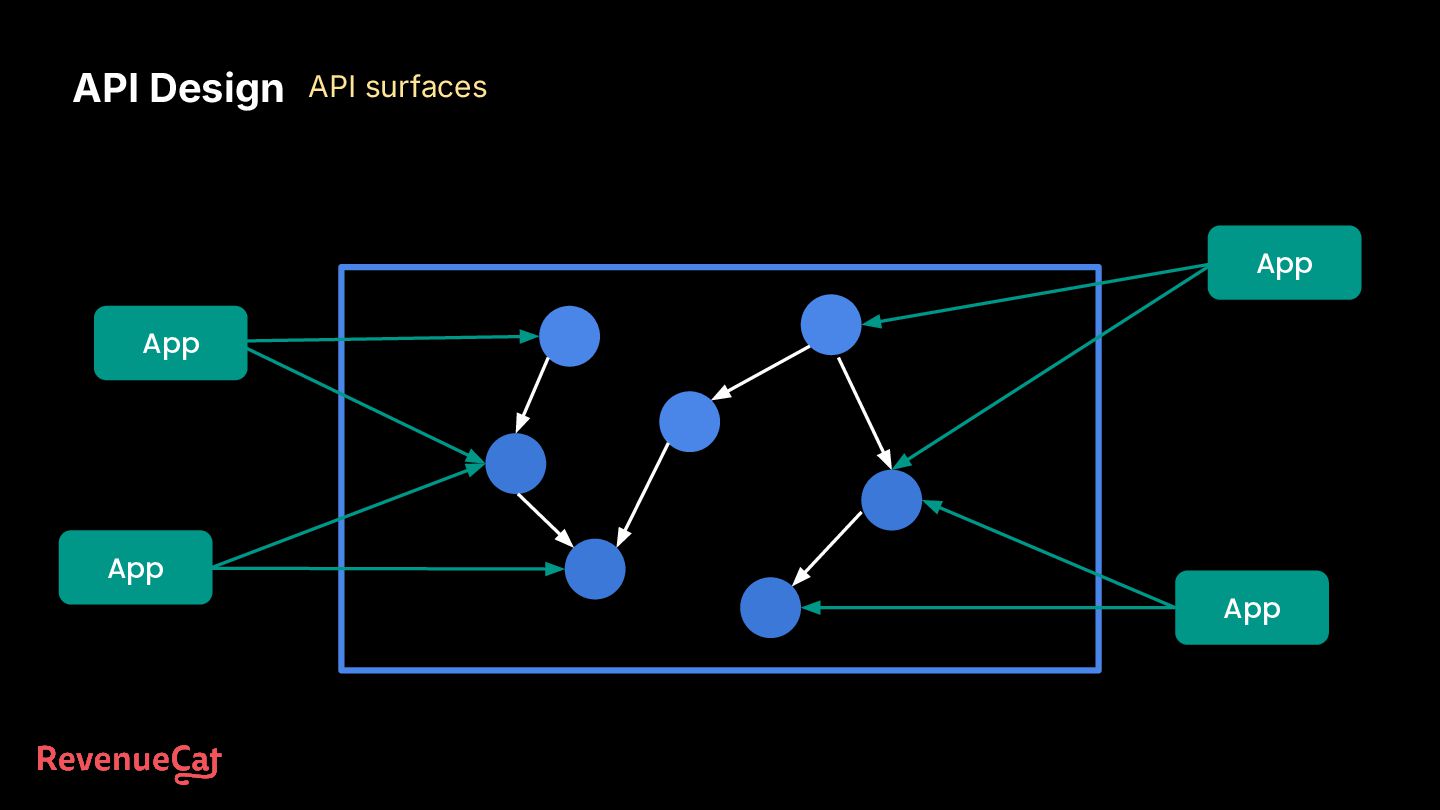

8. API surfaces API Design App App App App

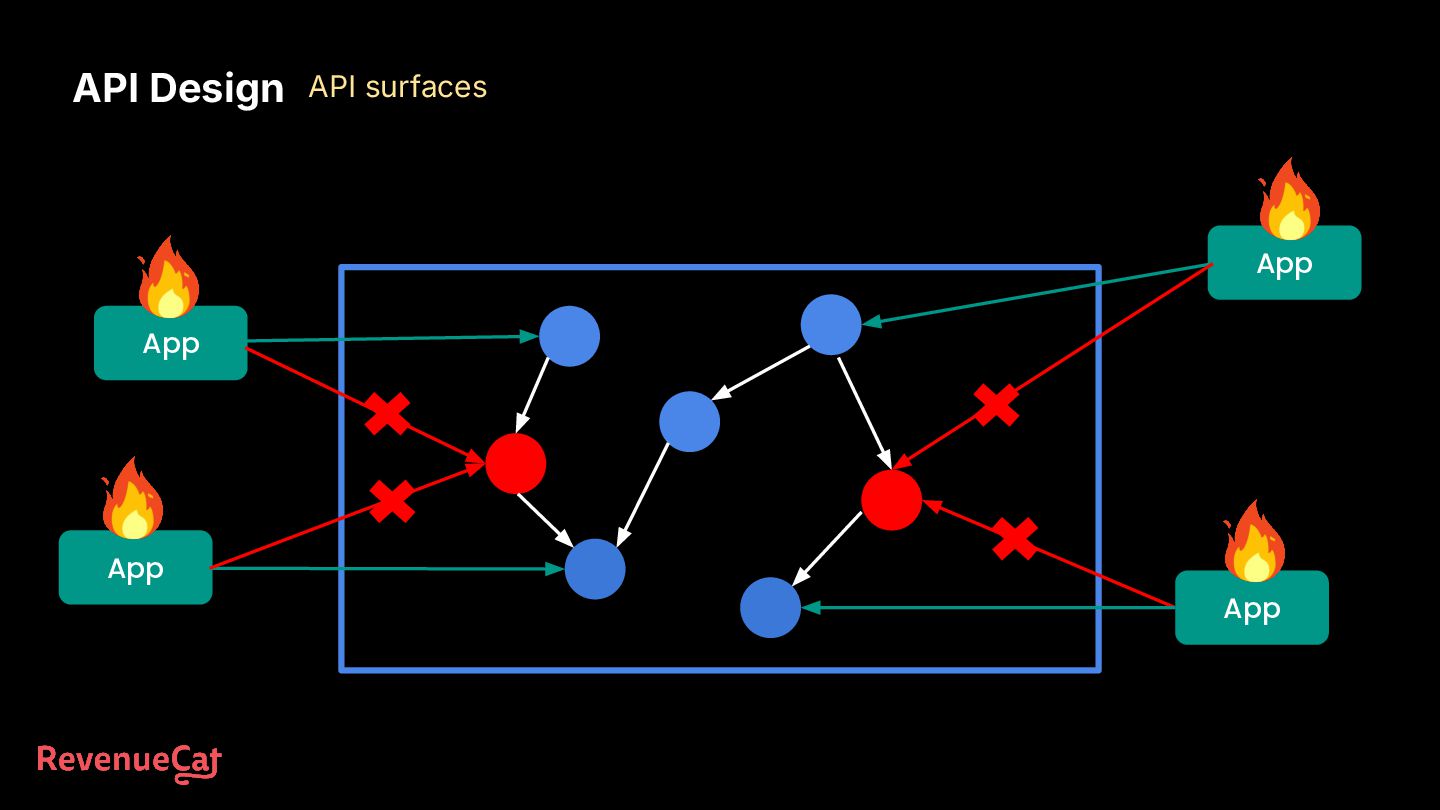

9. API surfaces API Design App App App App
10. App App App App API surfaces API Design

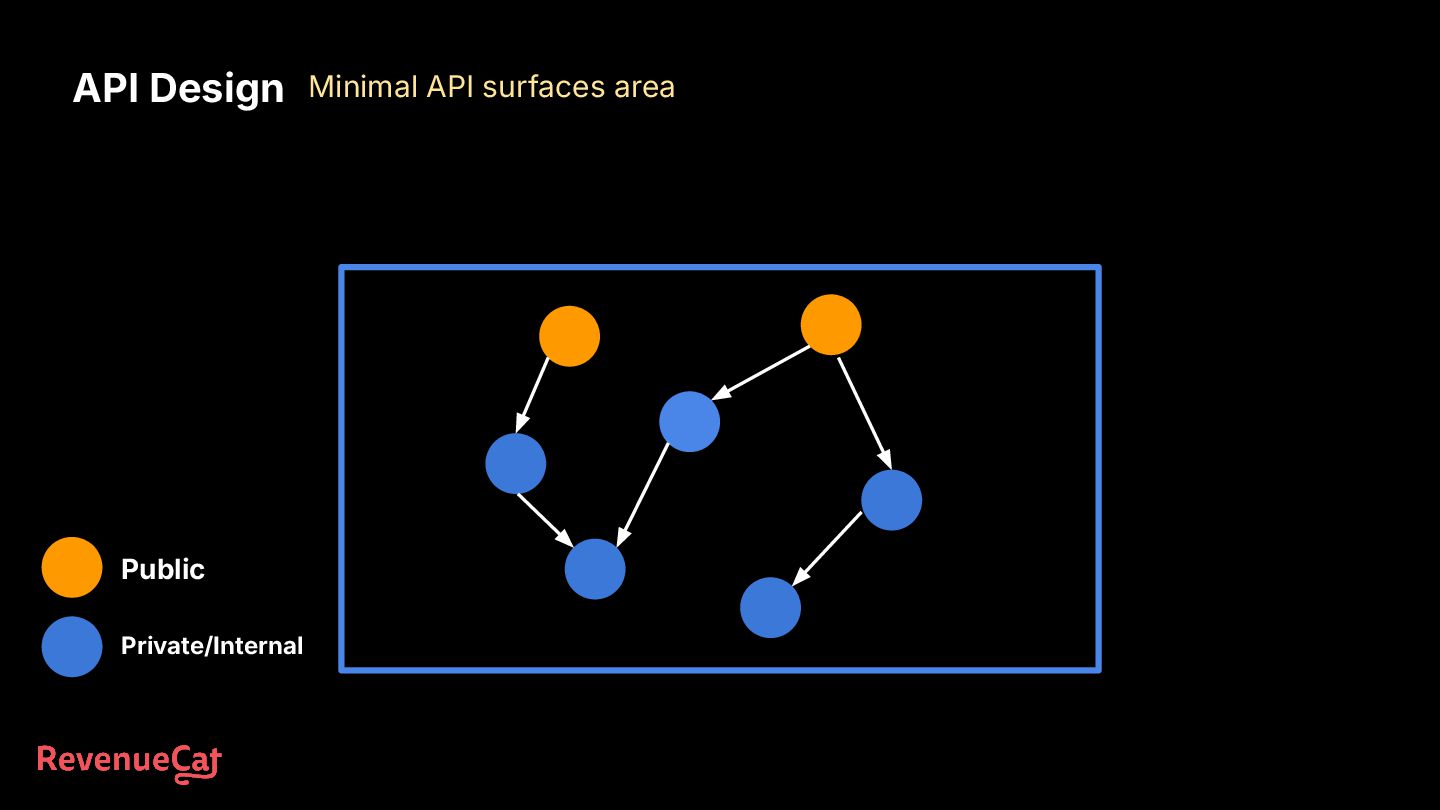

11. Minimal API surfaces area API Design Public Private/Internal

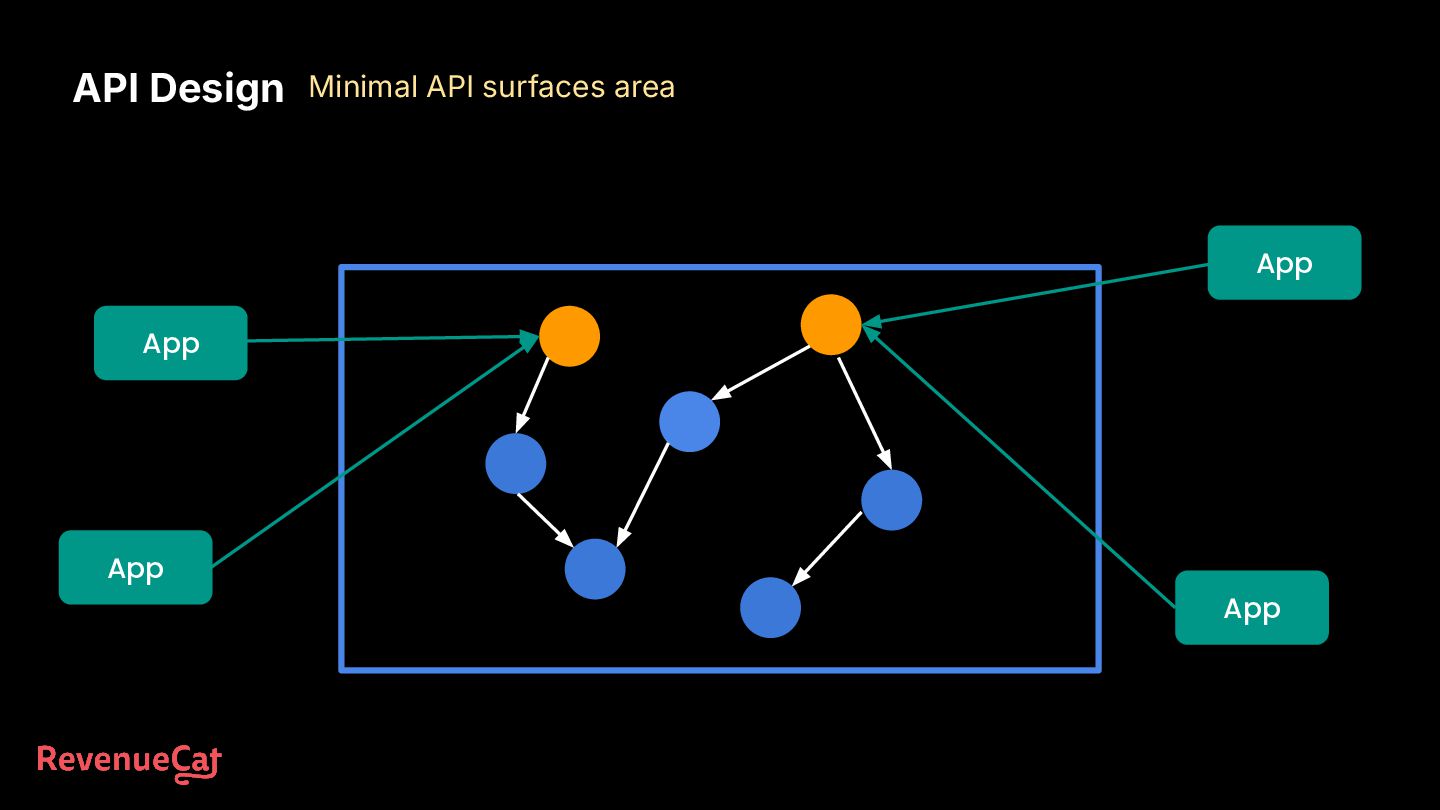

12. Minimal API surfaces area API Design App App App App

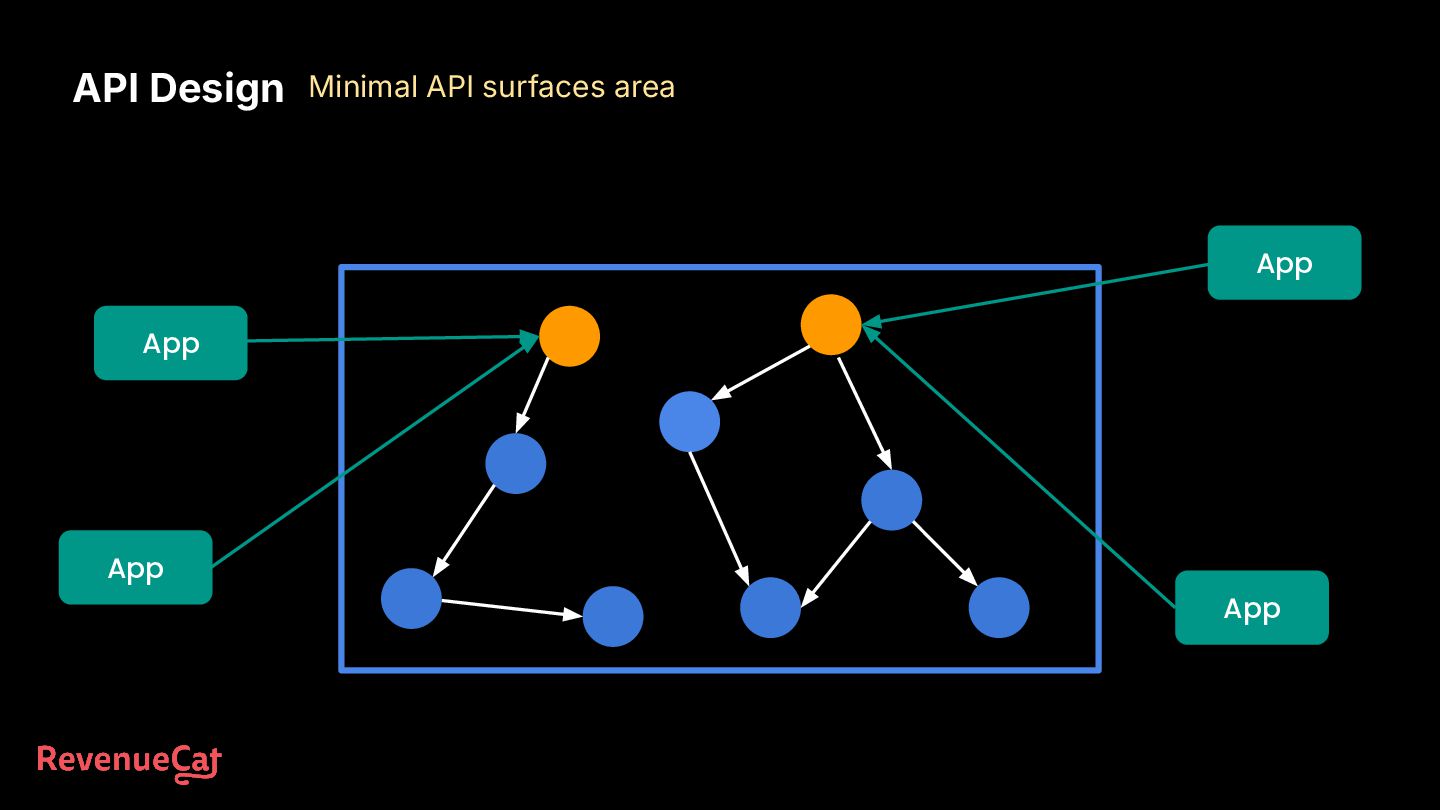

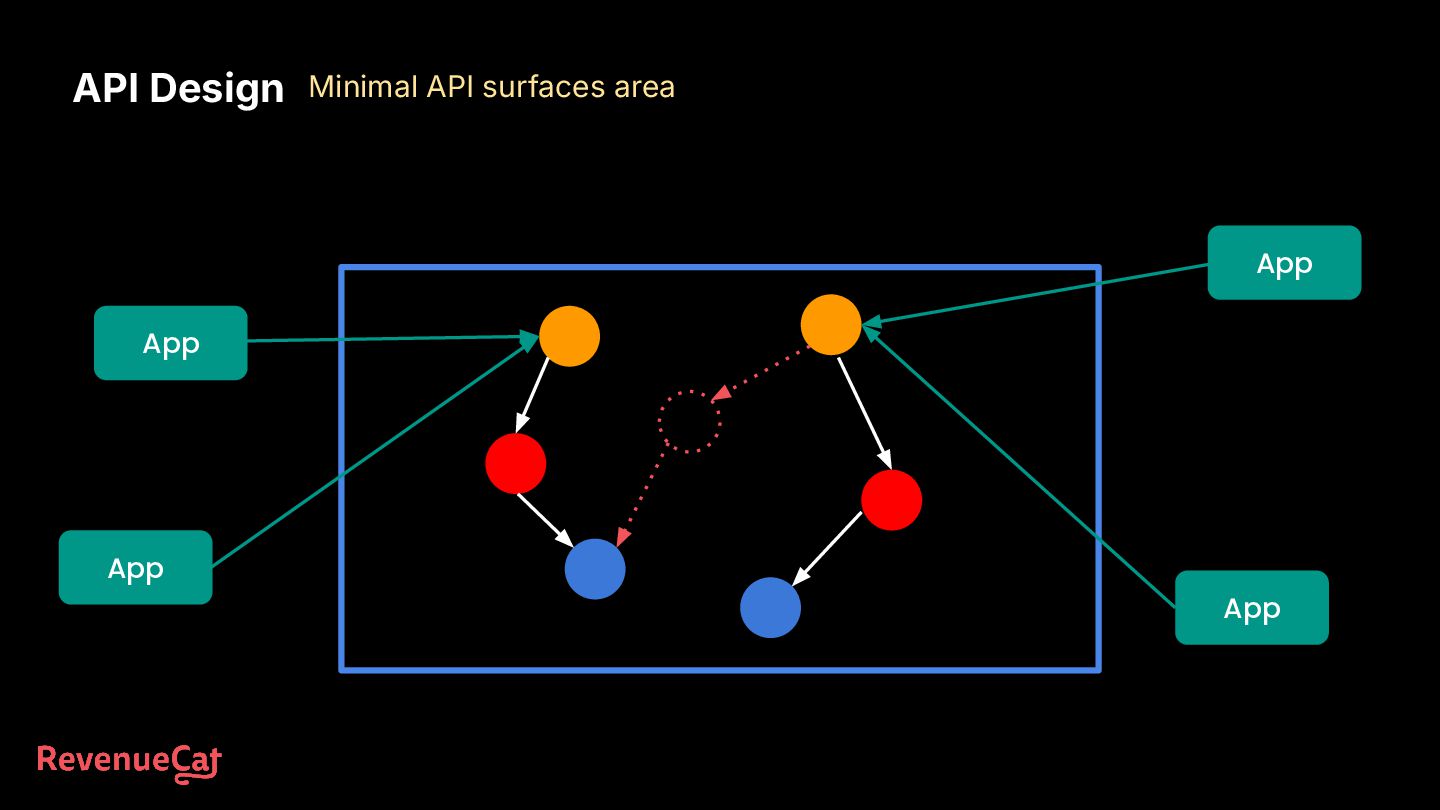

13. Minimal API surfaces area API Design App App App App
14. Minimal API surfaces area API Design App App App App

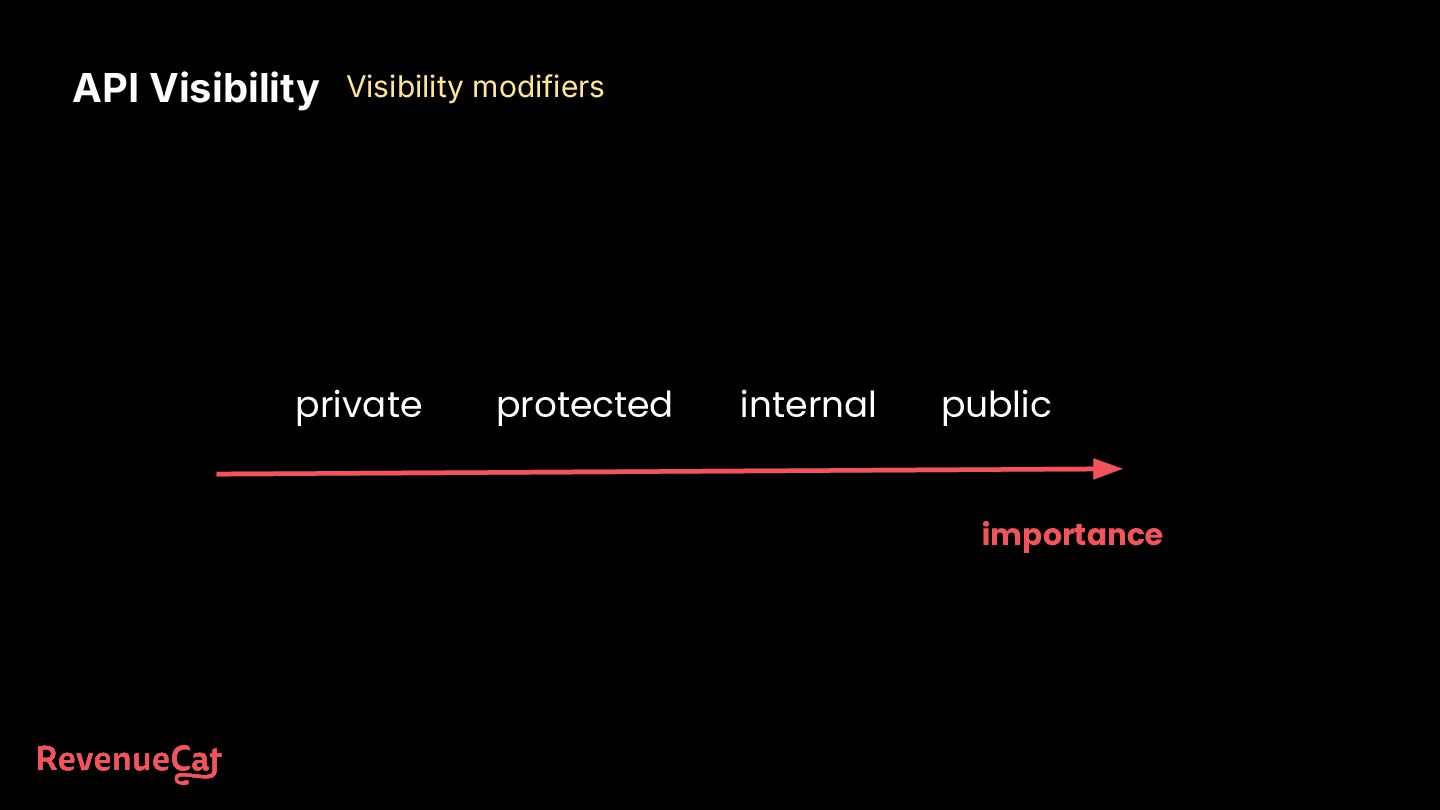

15. private internal importance protected public API Visibility Visibility modifiers

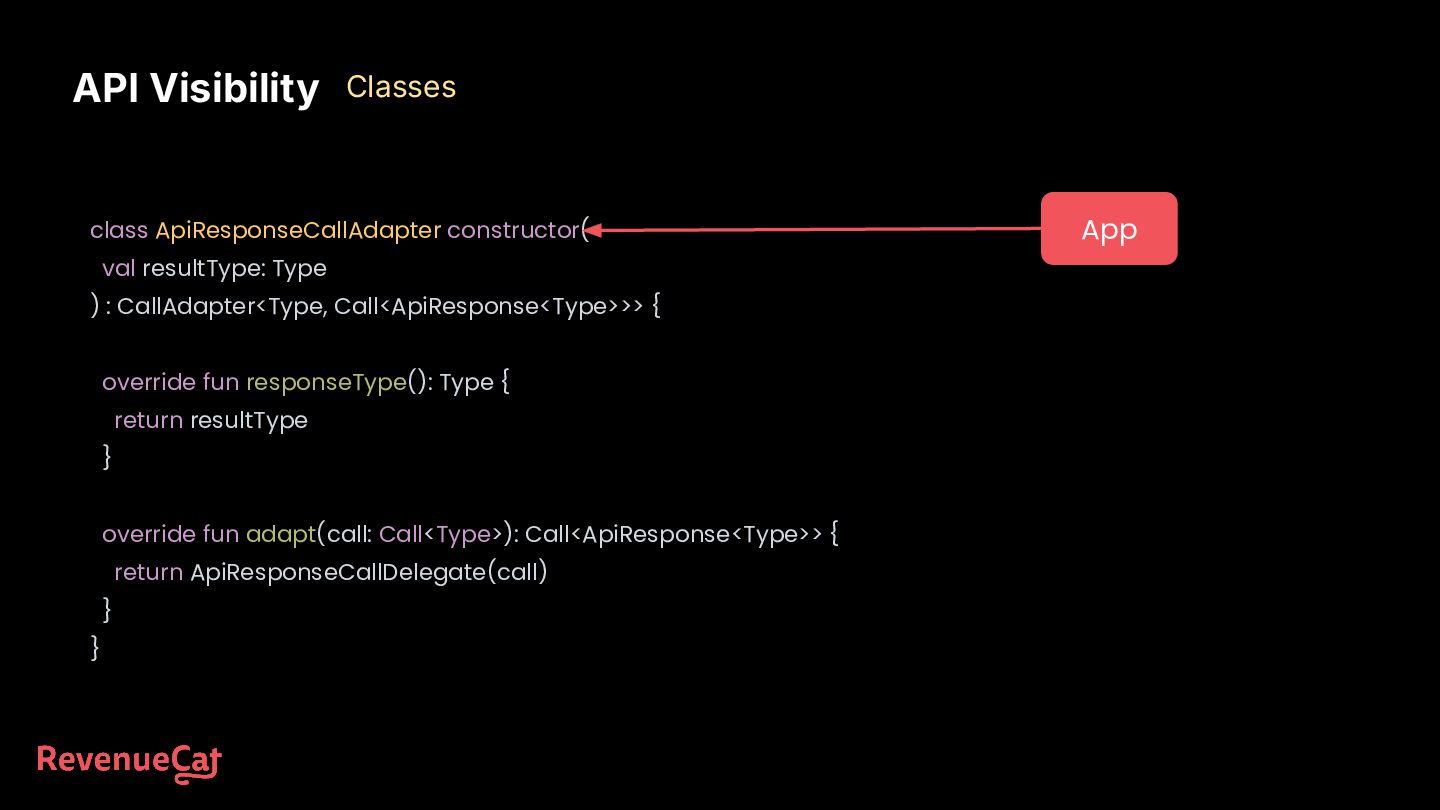

16. private internal importance protected public App App App API Visibility Visibility modifiers
17. class ApiResponseCallAdapter constructor( val resultType: Type ) : CallAdapter<Type, Call<ApiResponse<Type>>> { override fun responseType(): Type { return resultType } override fun adapt(call: Call<Type>): Call<ApiResponse<Type>> { return ApiResponseCallDelegate(call) } } App API Visibility Classes

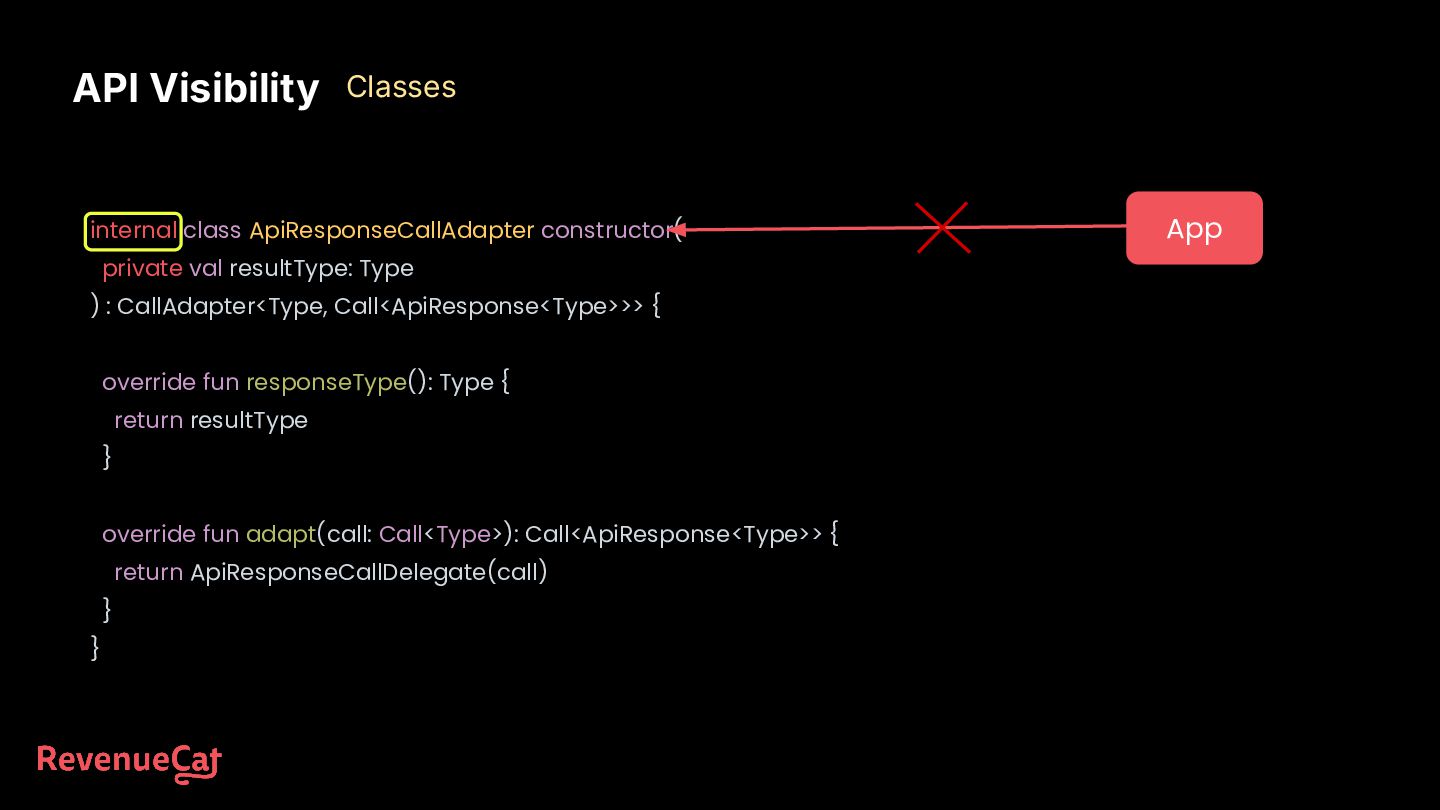

18. internal class ApiResponseCallAdapter constructor( private val resultType: Type ) : CallAdapter<Type, Call<ApiResponse<Type>>> { override fun responseType(): Type { return resultType } override fun adapt(call: Call<Type>): Call<ApiResponse<Type>> { return ApiResponseCallDelegate(call) } } App API Visibility Classes

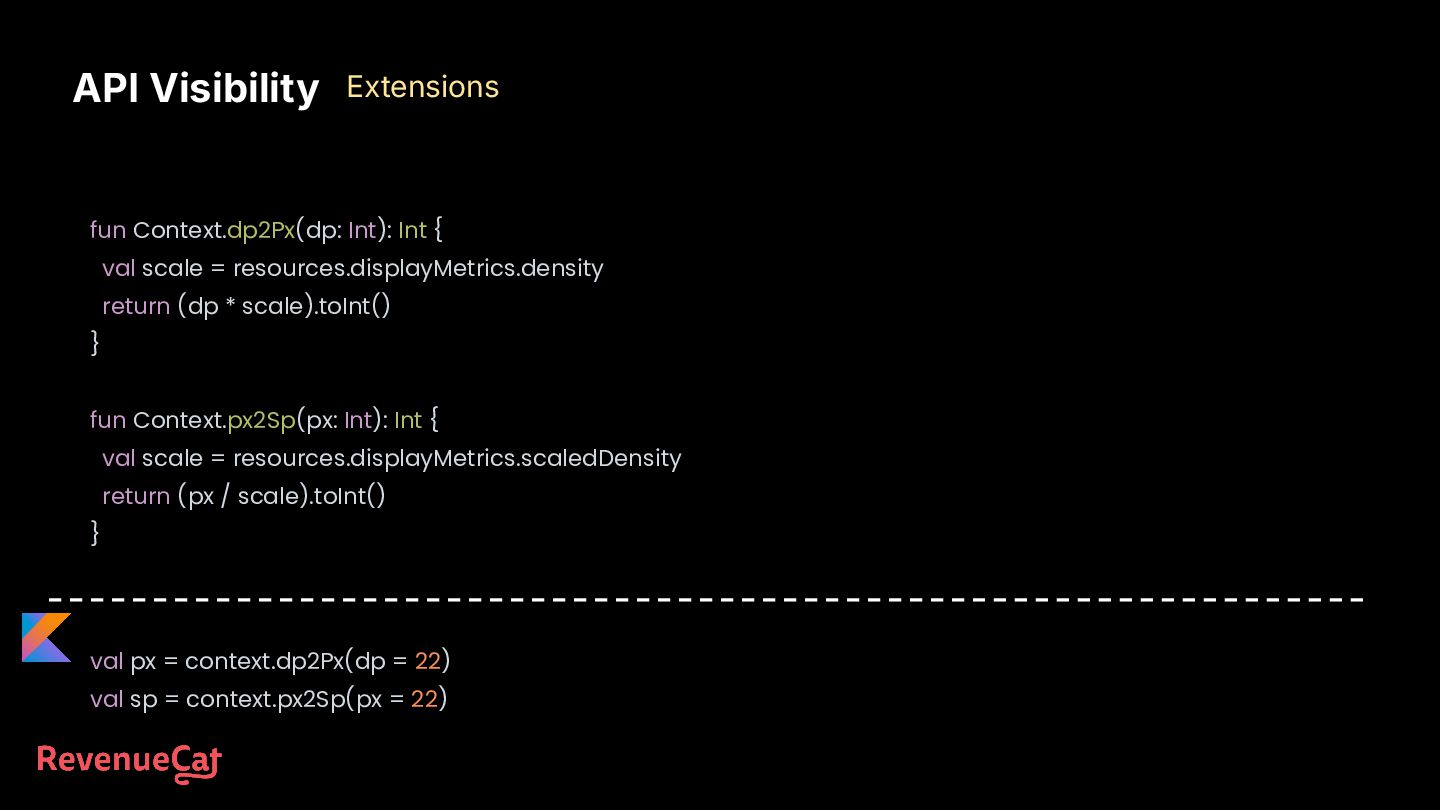

19. fun Context.dp2Px(dp: Int): Int { val scale = resources.displayMetrics.density return (dp * scale).toInt() } fun Context.px2Sp(px: Int): Int { val scale = resources.displayMetrics.scaledDensity return (px / scale).toInt() } val px = context.dp2Px(dp = 22) val sp = context.px2Sp(px = 22) API Visibility Extensions
20. internal fun Context.dp2Px(dp: Int): Int { val scale = resources.displayMetrics.density return (dp * scale).toInt() } internal fun Context.px2Sp(px: Int): Int { val scale = resources.displayMetrics.scaledDensity return (px / scale).toInt() } val px = context.dp2Px(dp = 22) // Unresolved reference val sp = context.px2Sp(px = 22) // Unresolved reference API Visibility Extensions

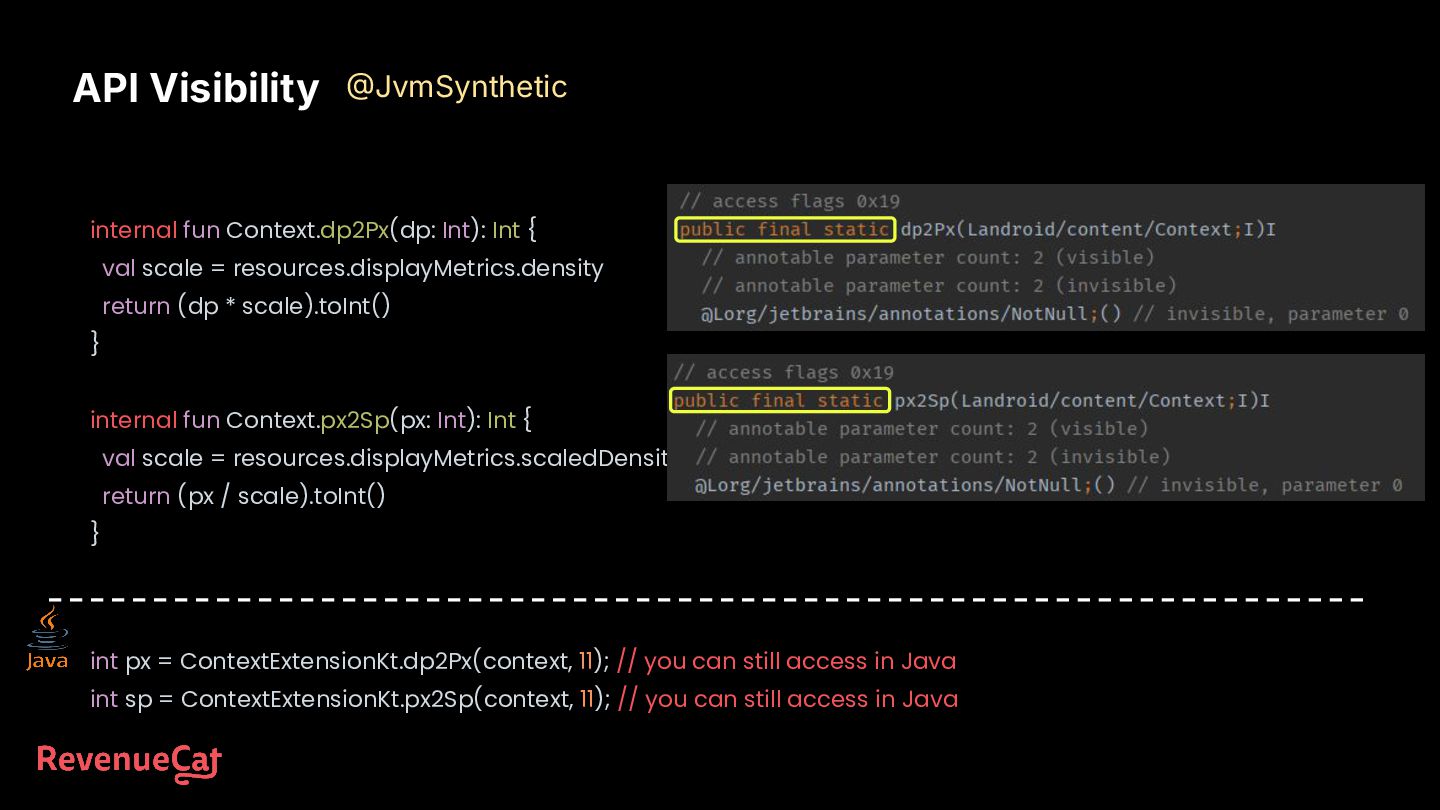

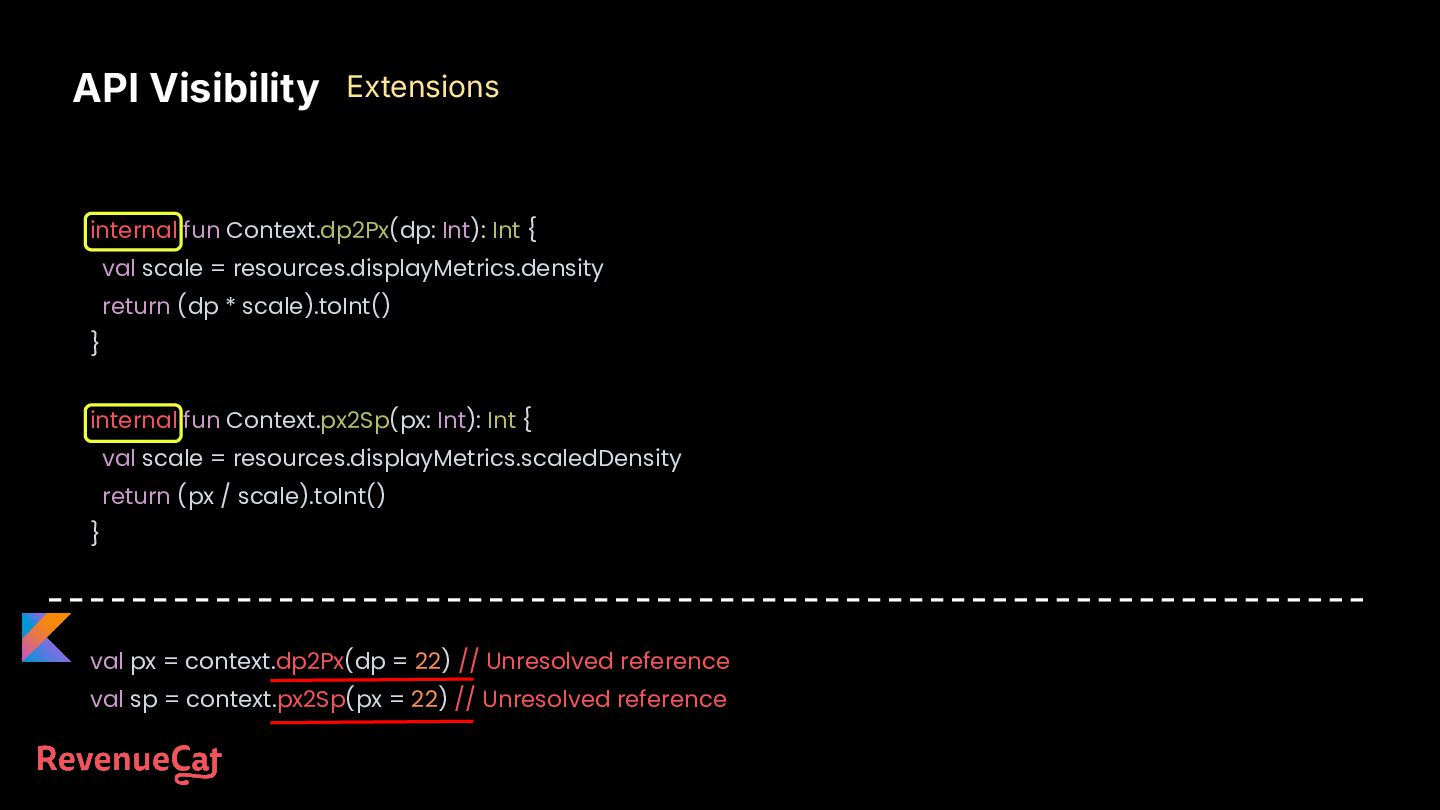

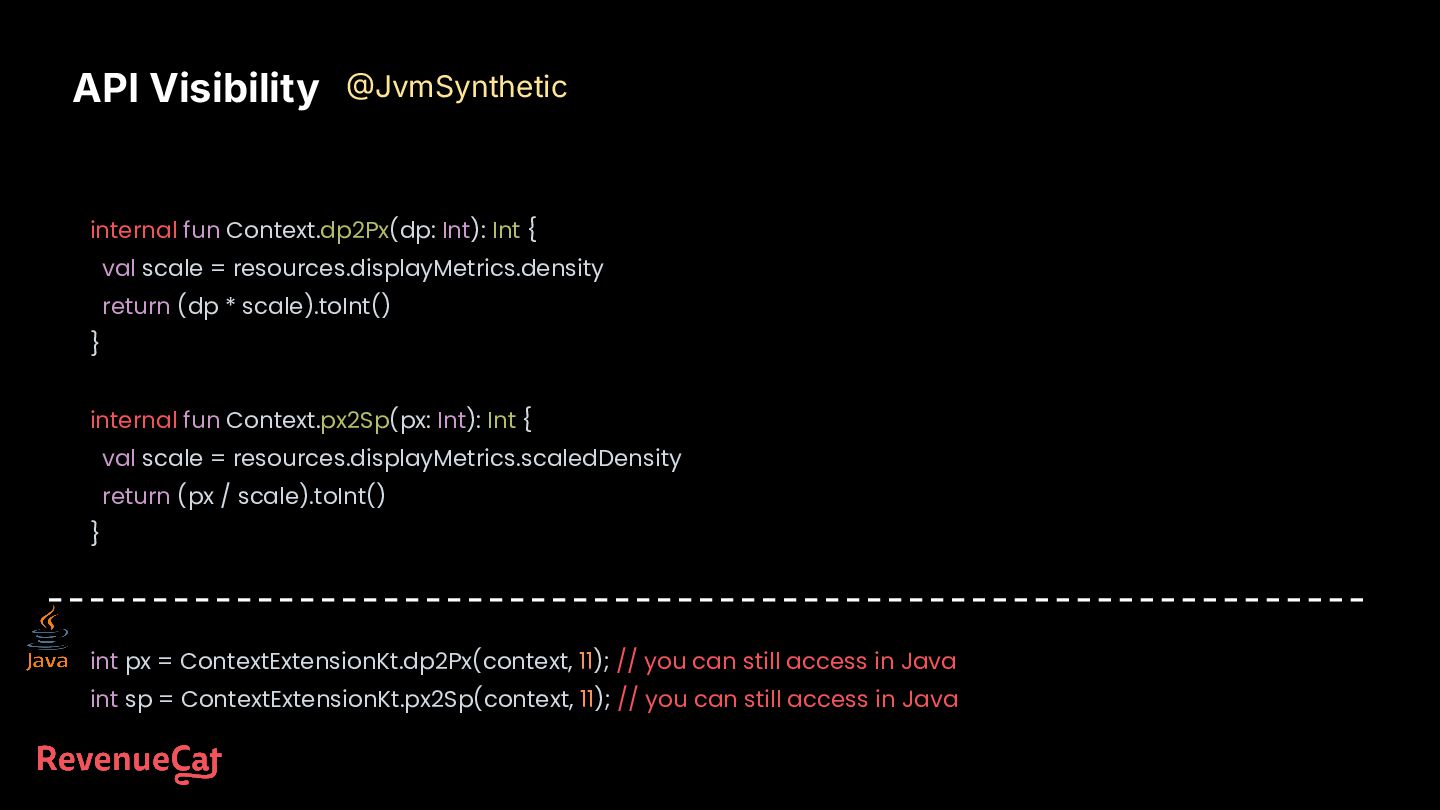

21. internal fun Context.dp2Px(dp: Int): Int { val scale = resources.displayMetrics.density return (dp * scale).toInt() } internal fun Context.px2Sp(px: Int): Int { val scale = resources.displayMetrics.scaledDensity return (px / scale).toInt() } int px = ContextExtensionKt.dp2Px(context, 11); // you can still access in Java int sp = ContextExtensionKt.px2Sp(context, 11); // you can still access in Java API Visibility JvmSynthetic
22. internal fun Context.dp2Px(dp: Int): Int { val scale = resources.displayMetrics.density return (dp * scale).toInt() } internal fun Context.px2Sp(px: Int): Int { val scale = resources.displayMetrics.scaledDensity return (px / scale).toInt() } API Visibility JvmSynthetic int px = ContextExtensionKt.dp2Px(context, 11); // you can still access in Java int sp = ContextExtensionKt.px2Sp(context, 11); // you can still access in Java

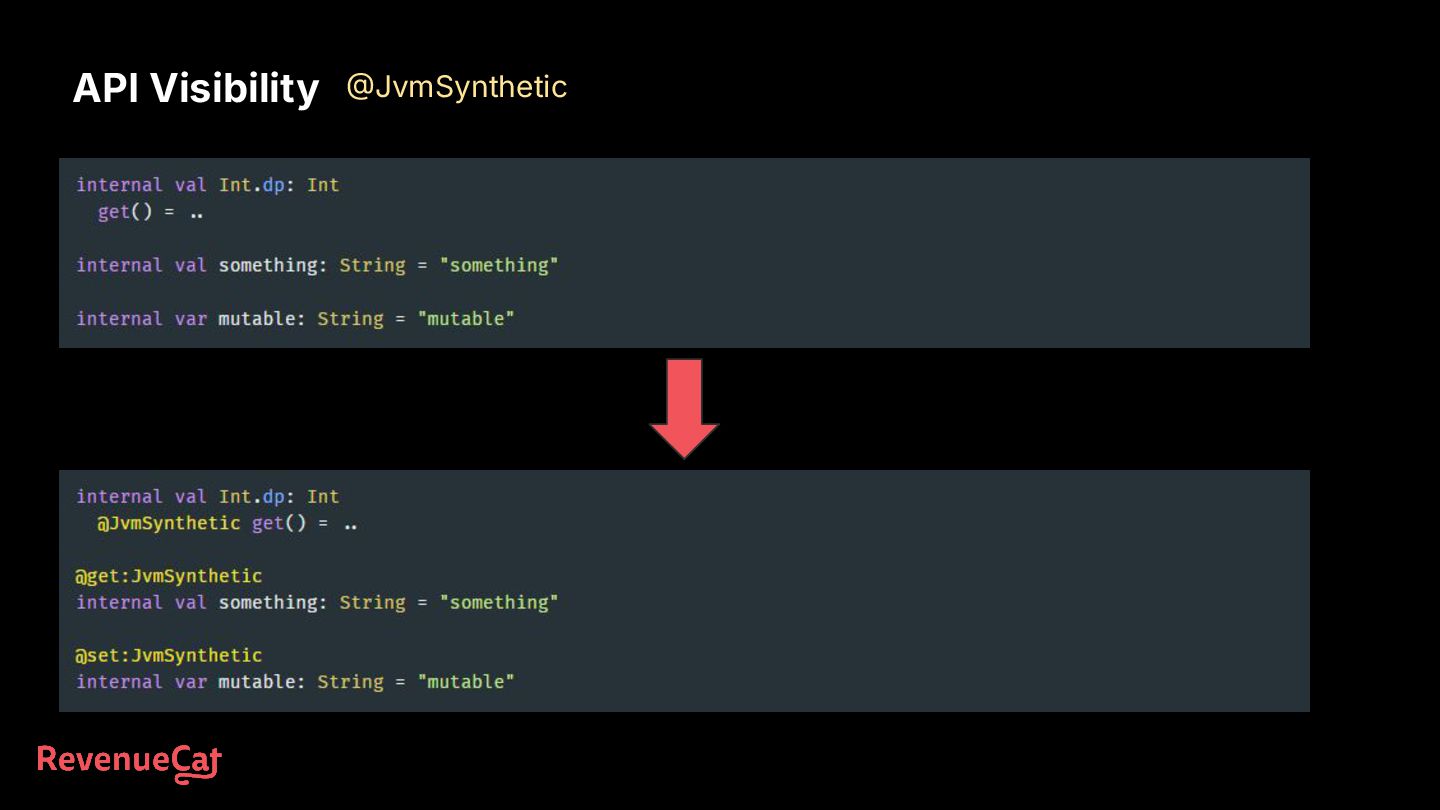

23. @JvmSynthetic internal fun Context.dp2Px(dp: Int): Int { val scale = resources.displayMetrics.density return (dp * scale).toInt() } @JvmSynthetic internal fun Context.px2Sp(px: Int): Int { val scale = resources.displayMetrics.scaledDensity return (px / scale).toInt() } int px = ContextExtensionKt.dp2Px(context, 11); // Unresolved reference int sp = ContextExtensionKt.px2Sp(context, 11); // Unresolved reference API Visibility JvmSynthetic
24. API Visibility JvmSynthetic

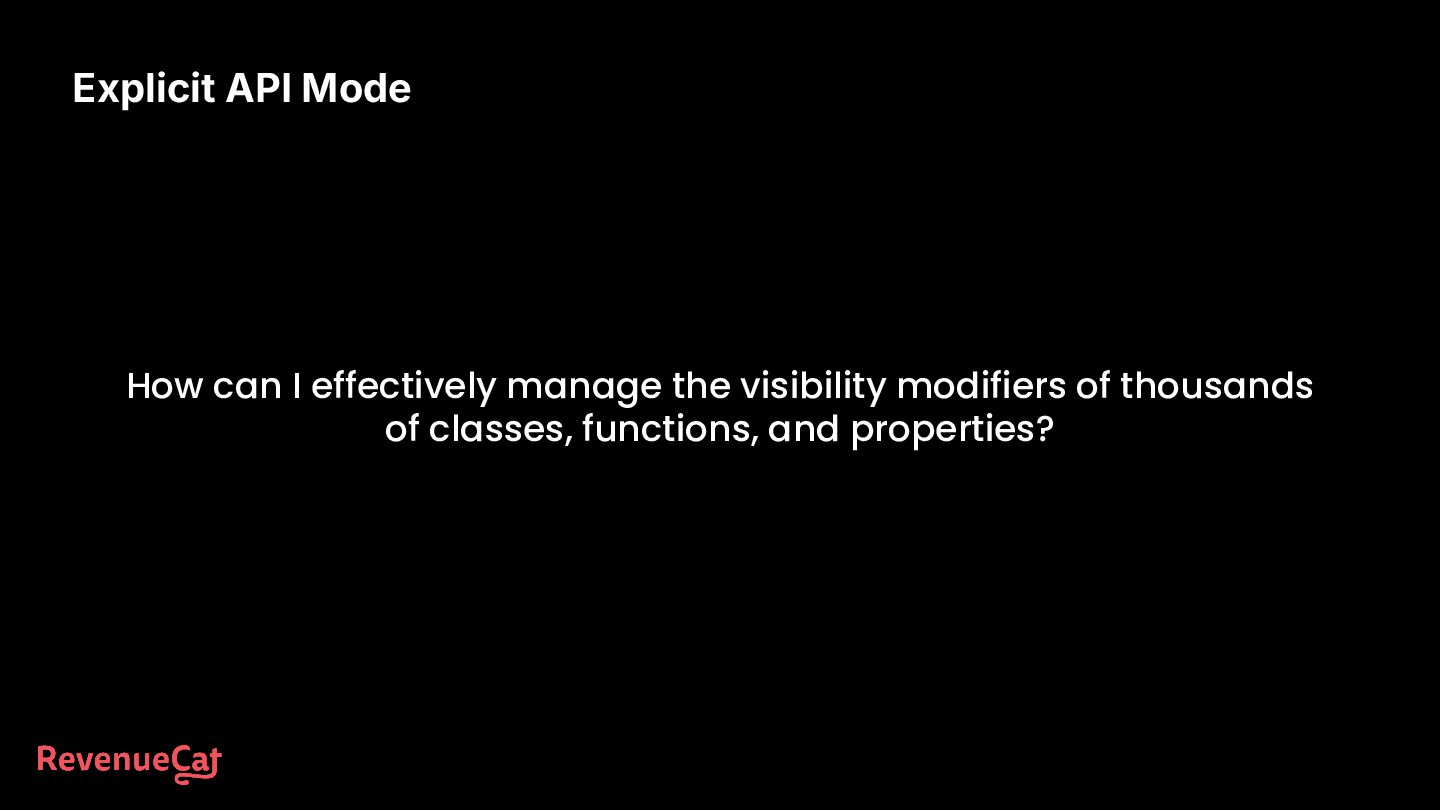

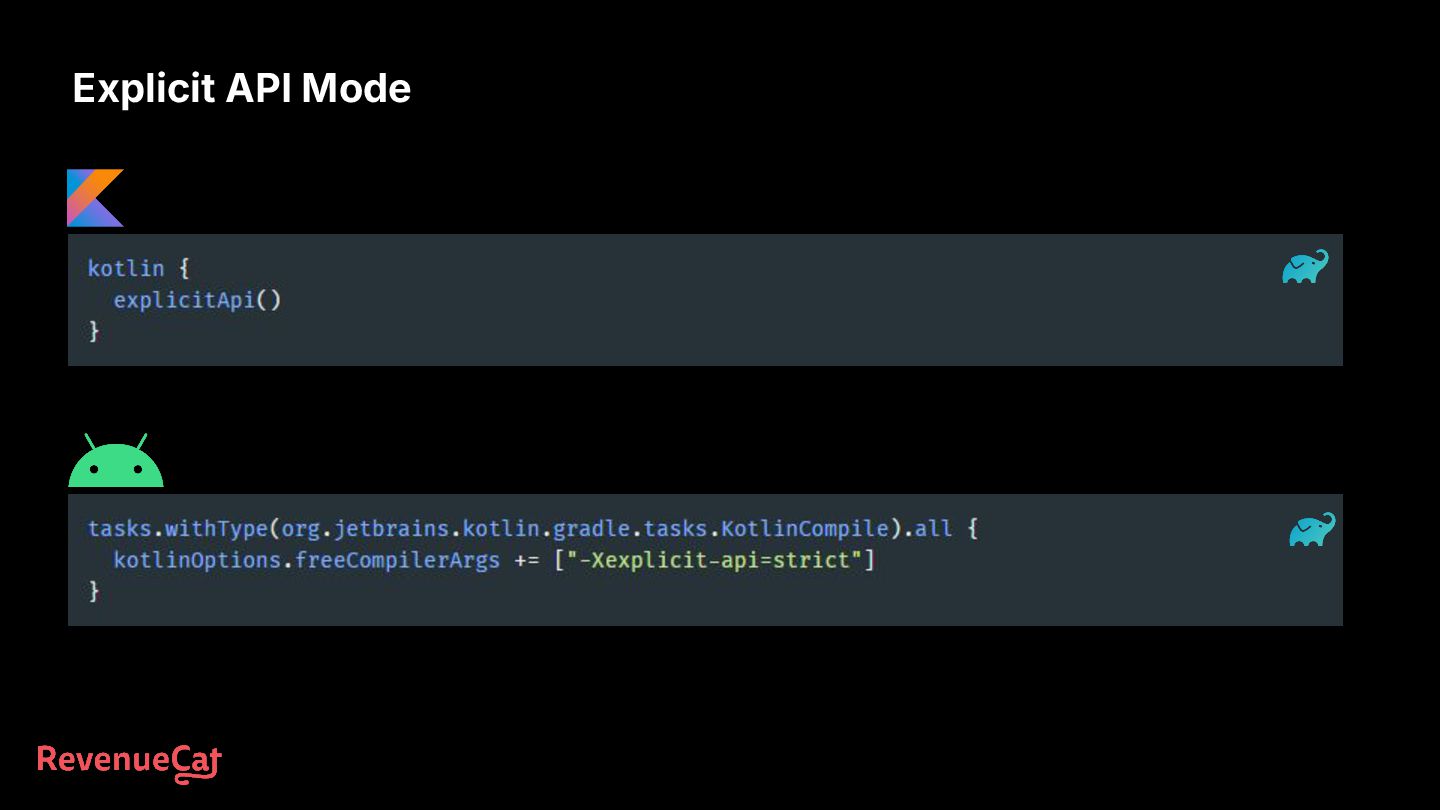

25. How can I effectively manage the visibility modifiers of thousands of classes, functions, and properties? Explicit API Mode
26. Explicit API Mode

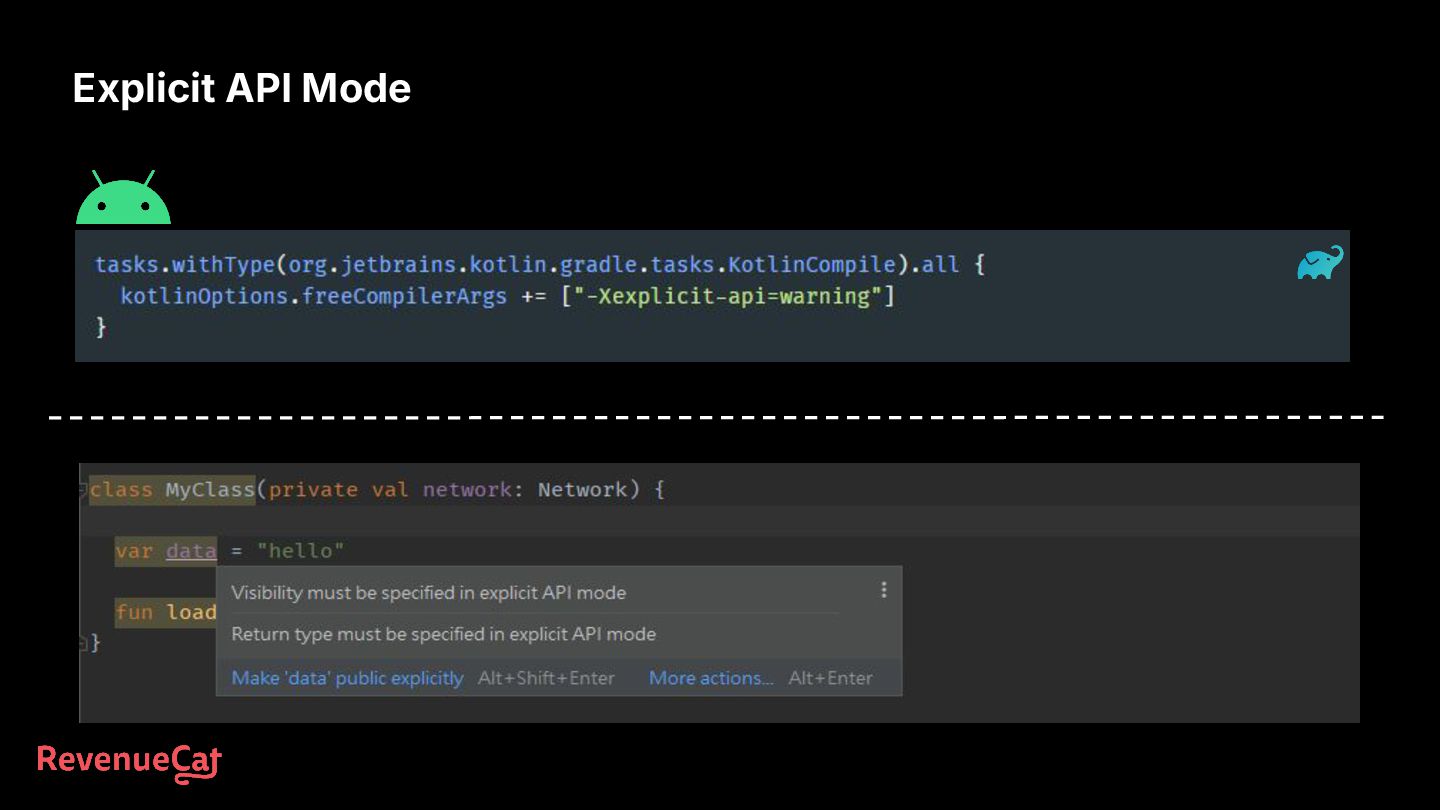

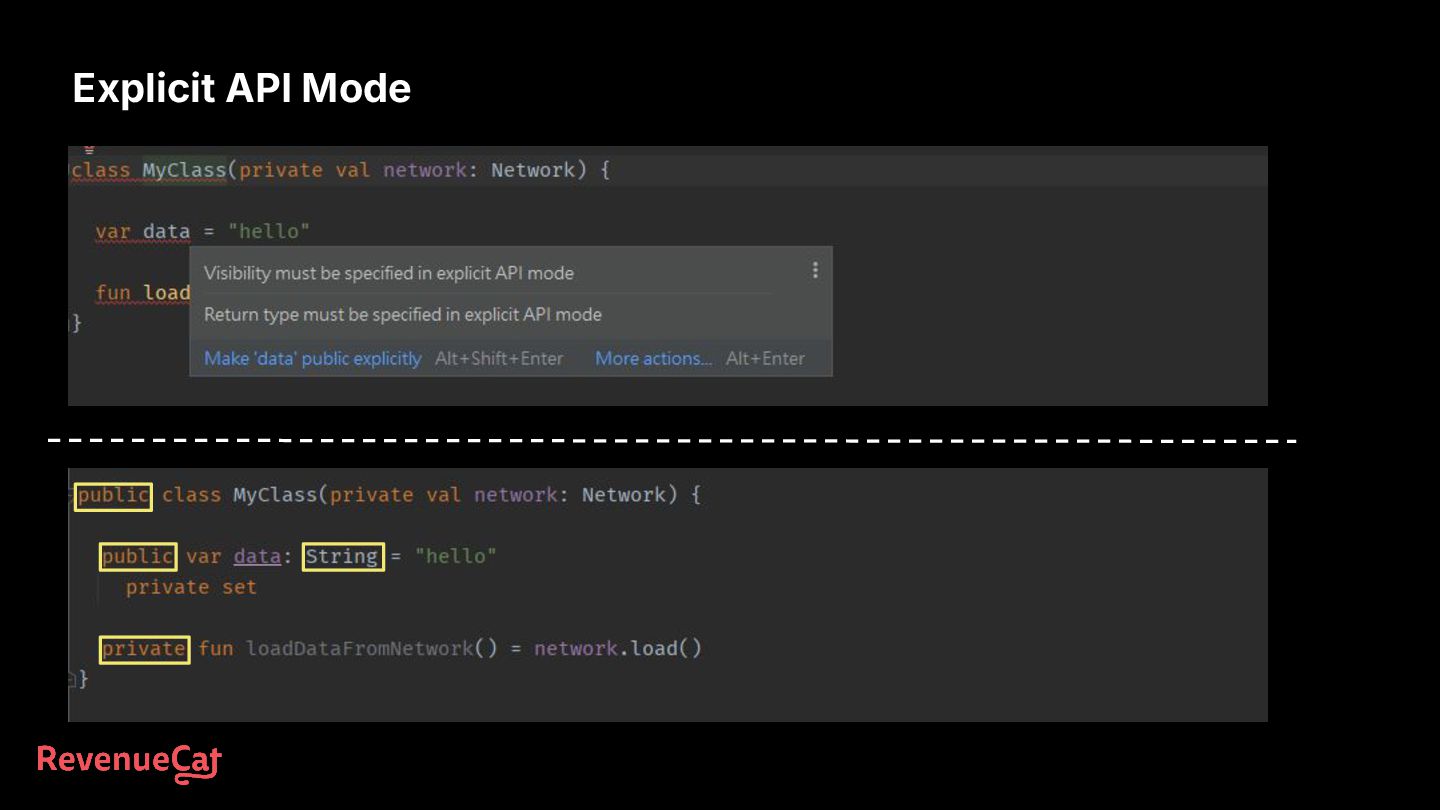

27. Explicit API Mode
28. Explicit API Mode
29. Explicit API Mode

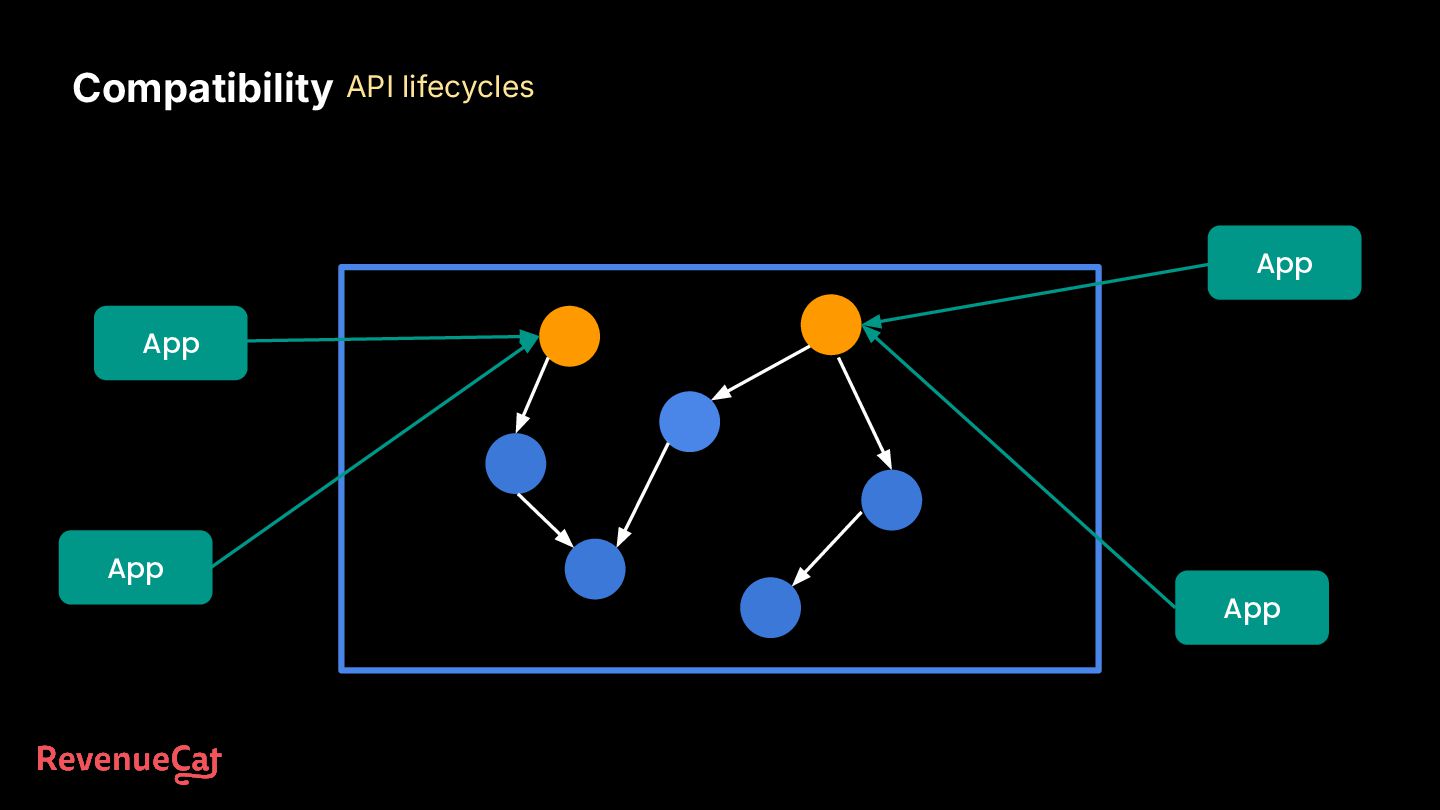

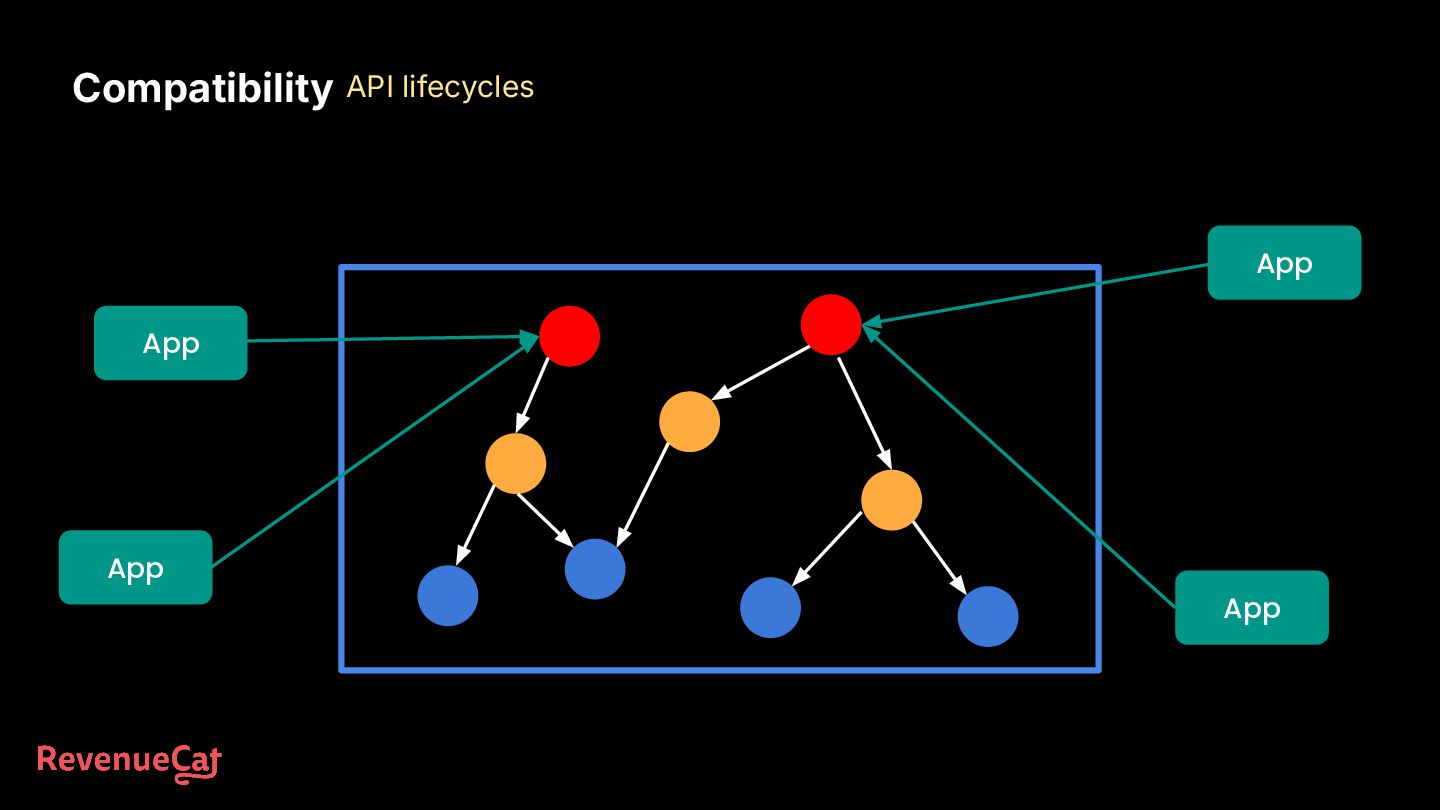

30. API lifecycles Compatibility App App App App
31. App App App App API lifecycles Compatibility

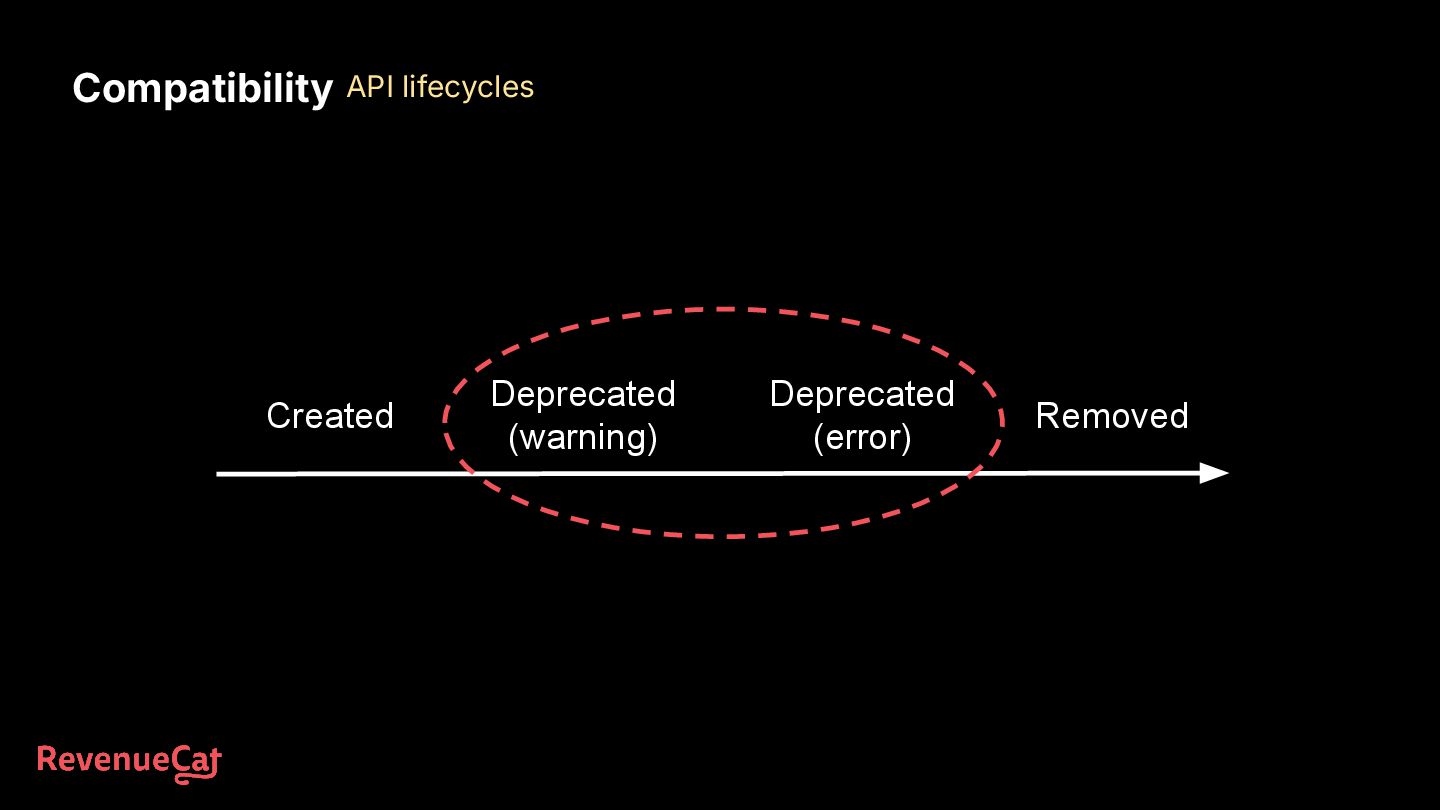

32. Created Deprecated (warning) Removed Deprecated (error) API lifecycles Compatibility

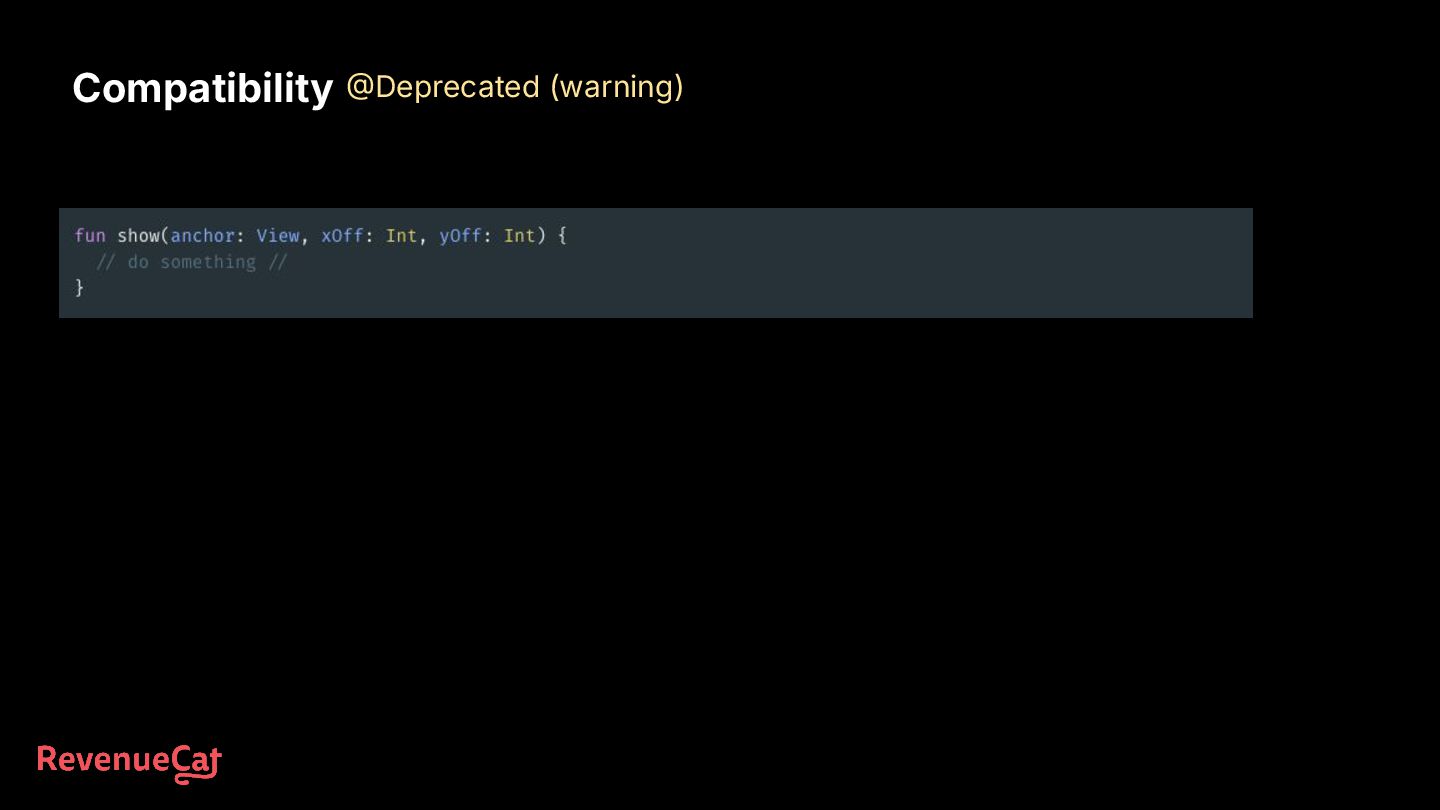

33. Deprecated (warning) Compatibility

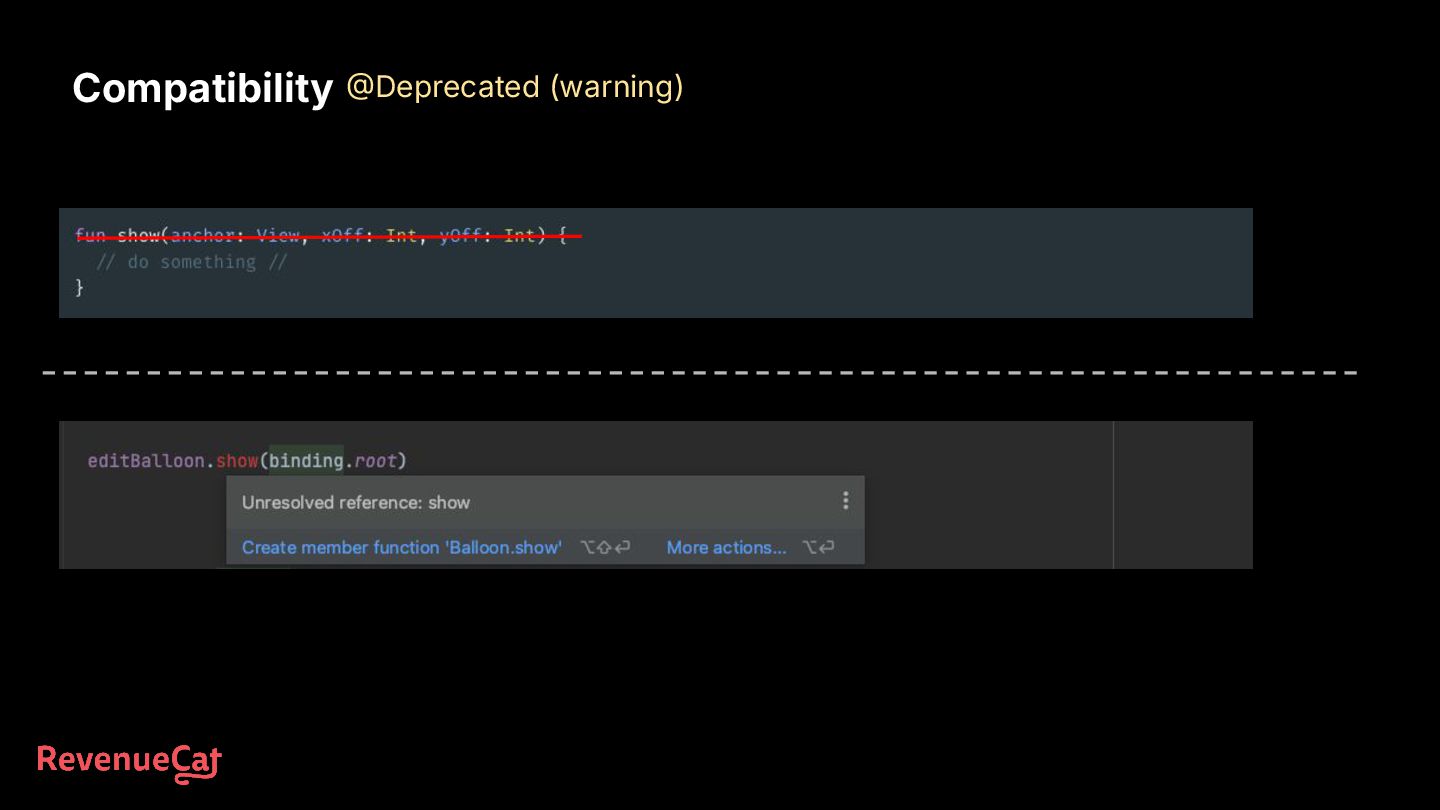

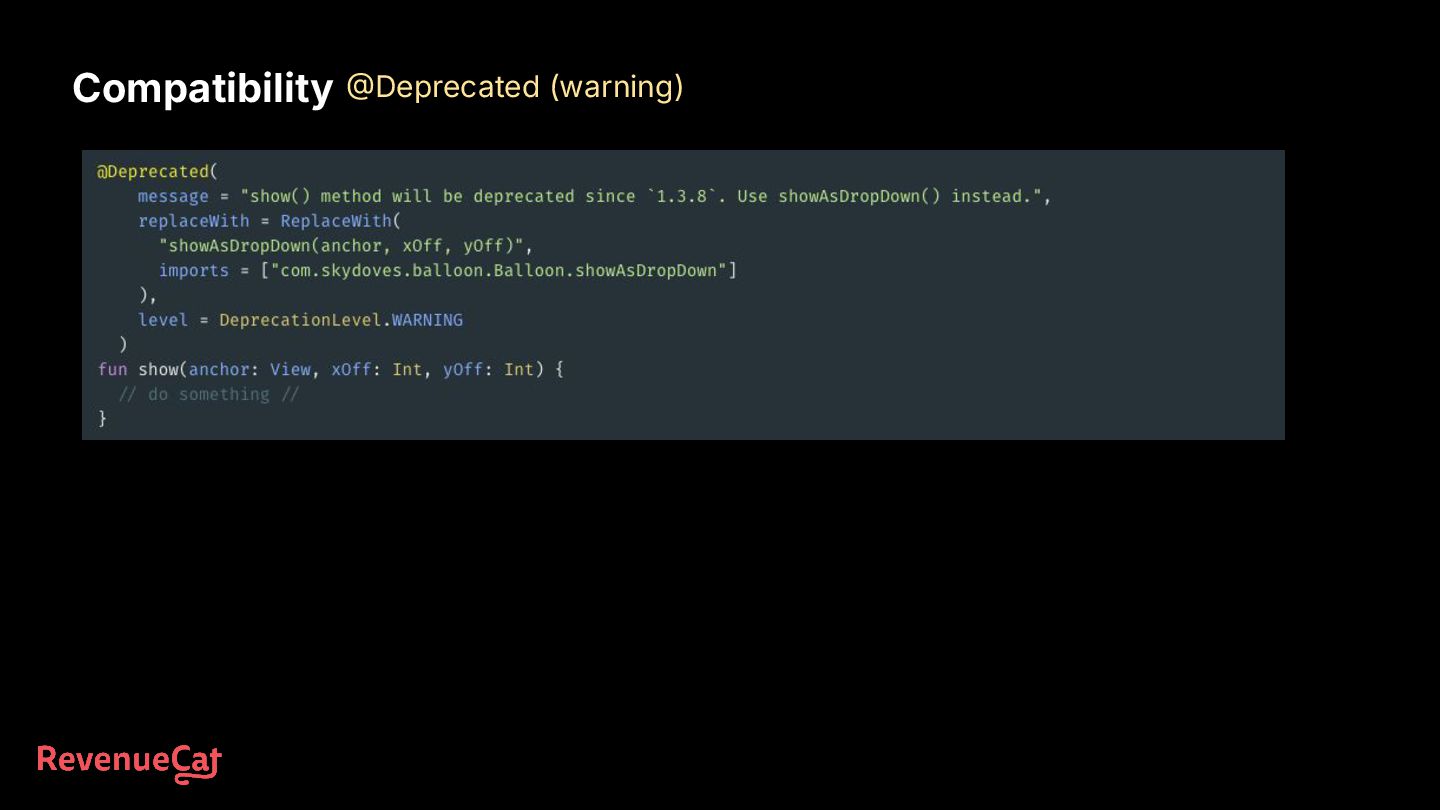

34. Deprecated (warning) Compatibility

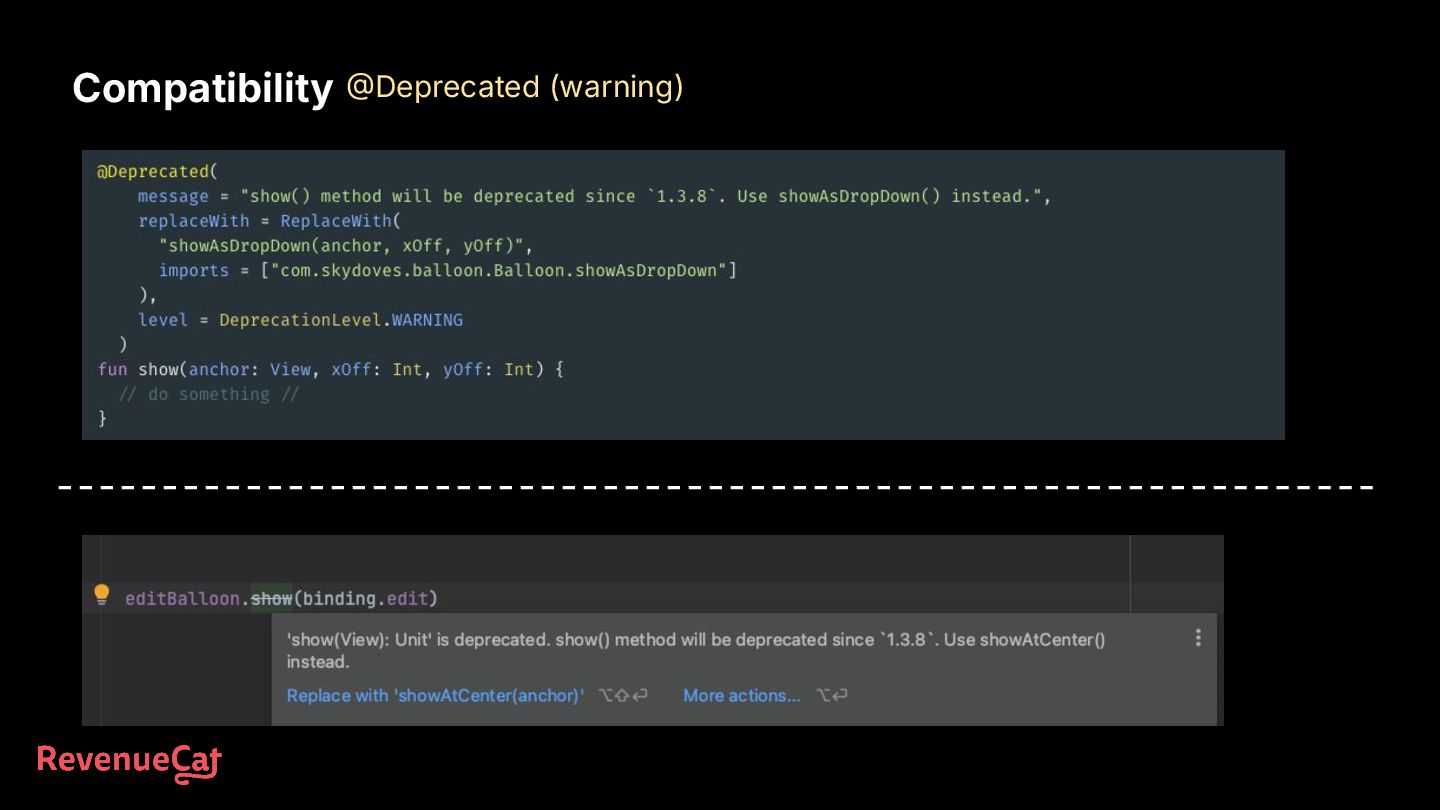

35. Deprecated (warning) Compatibility
36. Deprecated (warning) Compatibility

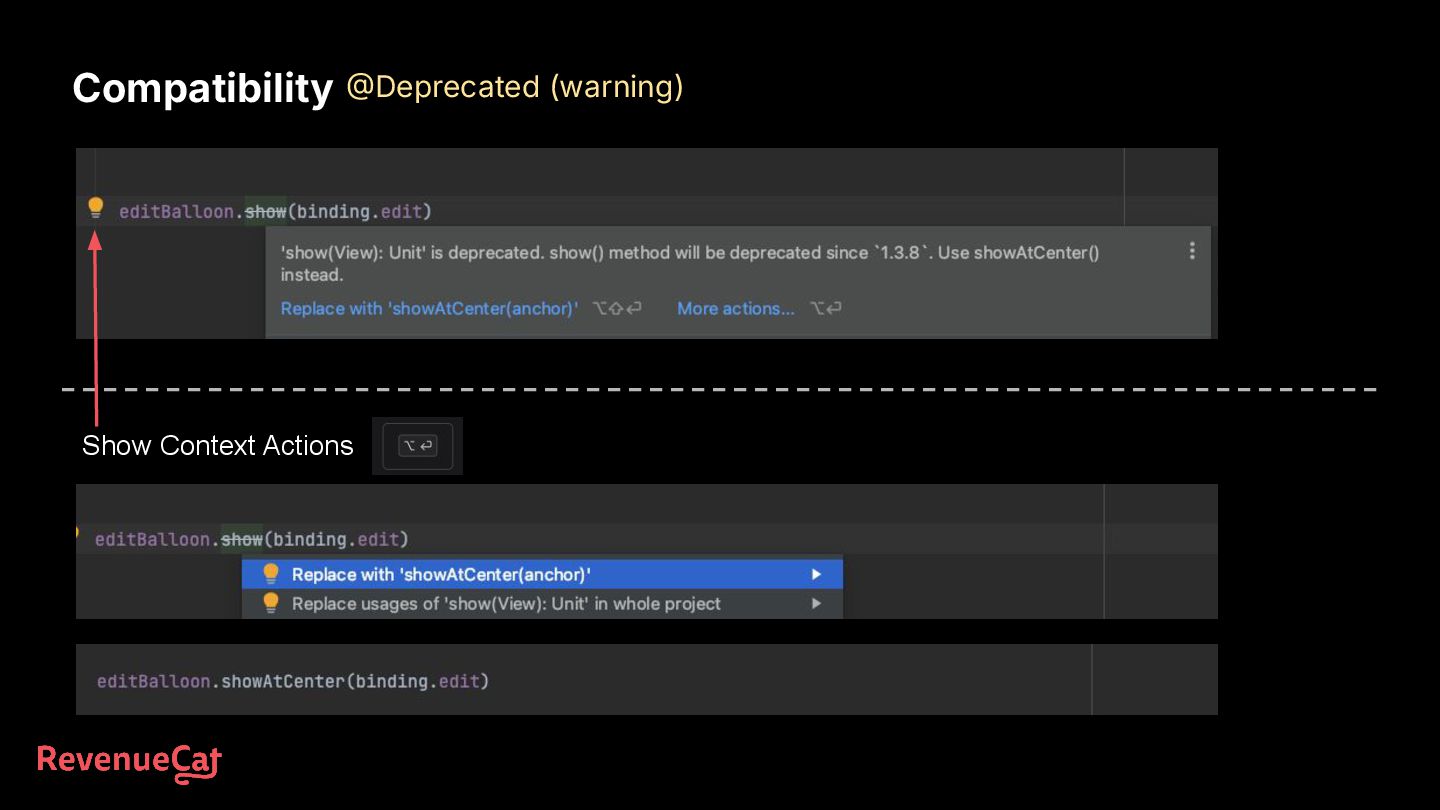

37. Deprecated (warning) Compatibility Show Context Actions

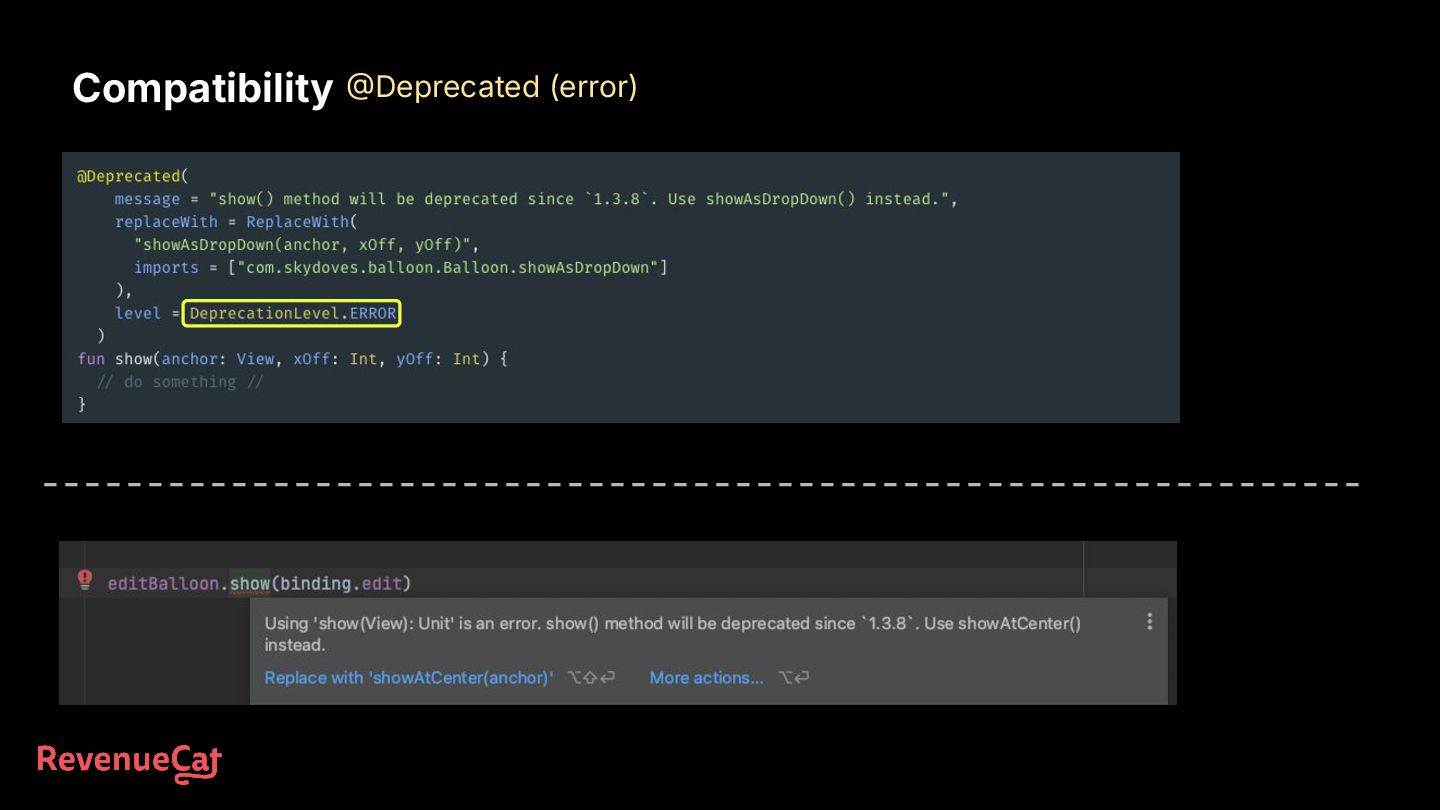

38. Deprecated (error) Compatibility

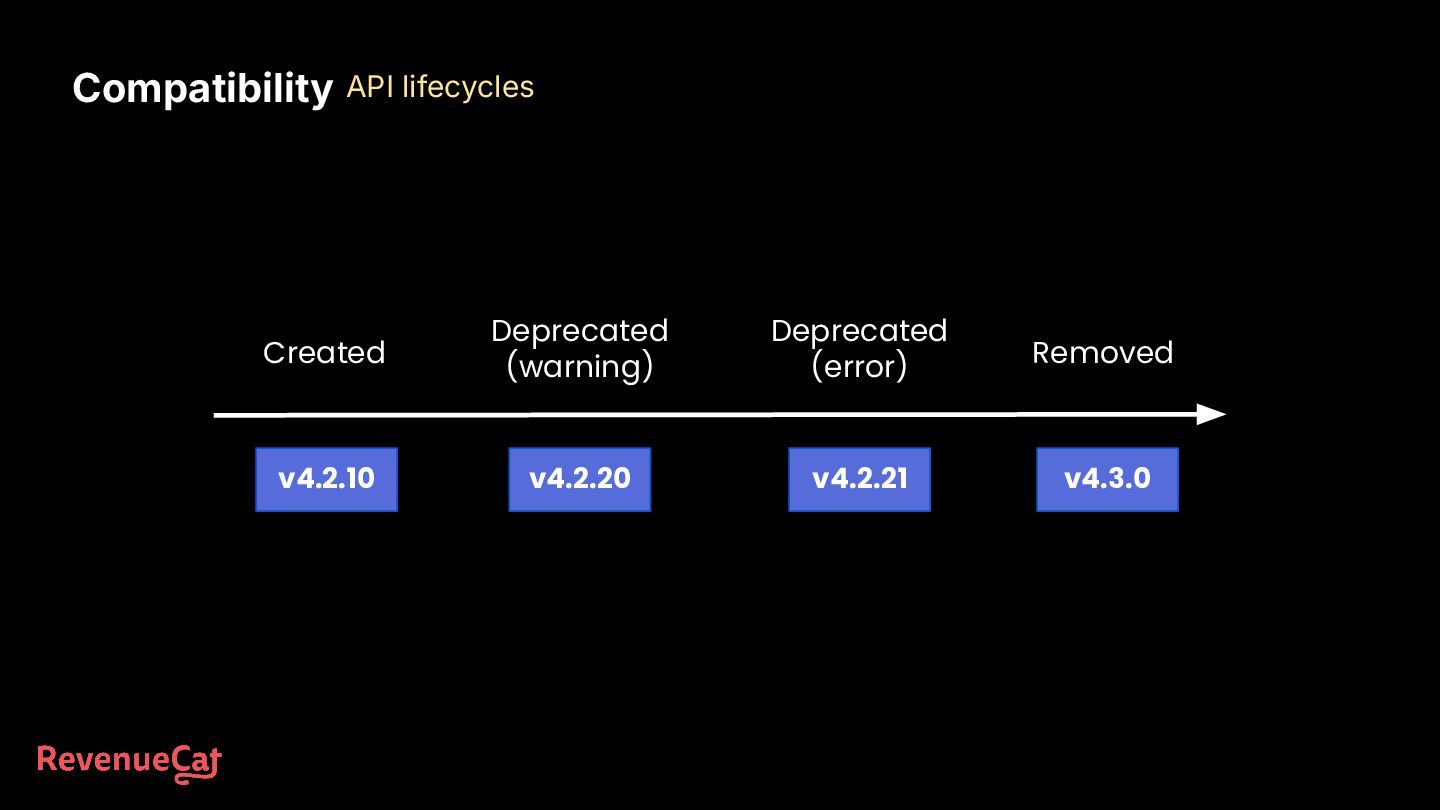

39. API lifecycles Compatibility Created Deprecated (warning) Removed Deprecated (error) v4.2.10 v4.2.20 v4.2.21 v4.3.0
40. API lifecycles Compatibility Created Deprecated (warning) Removed Deprecated (error) v4.2.10 v4.2.20 v4.2.21 v4.3.0

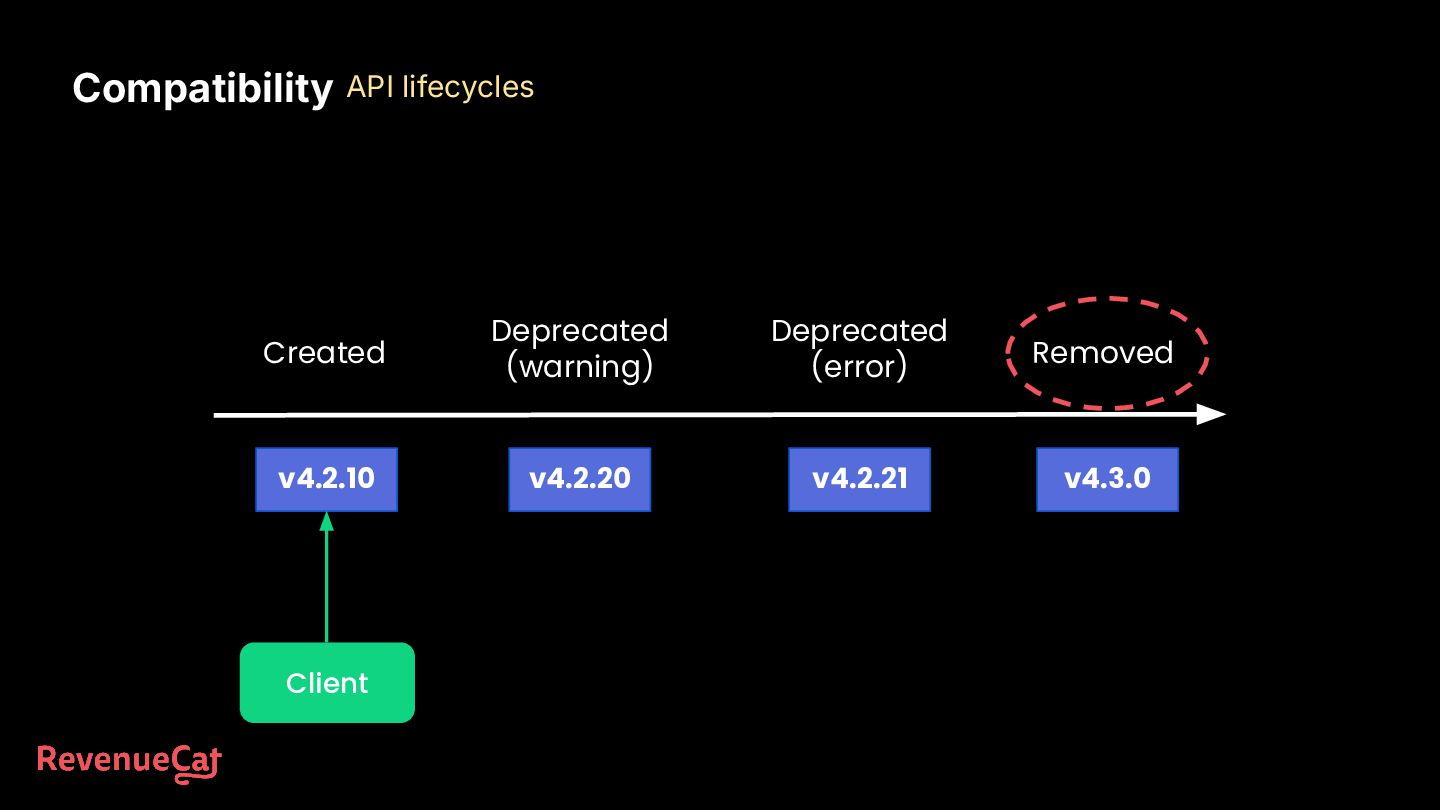

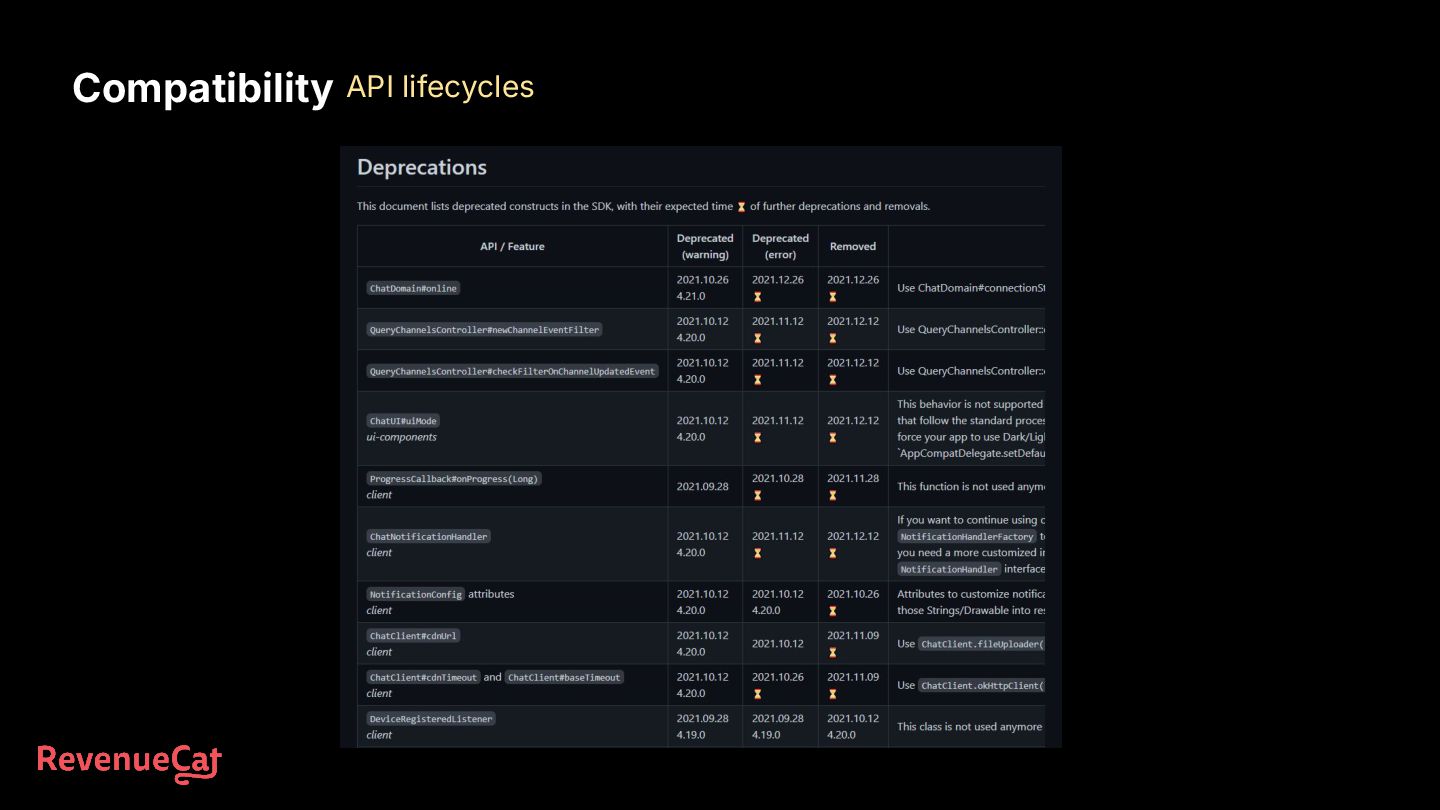

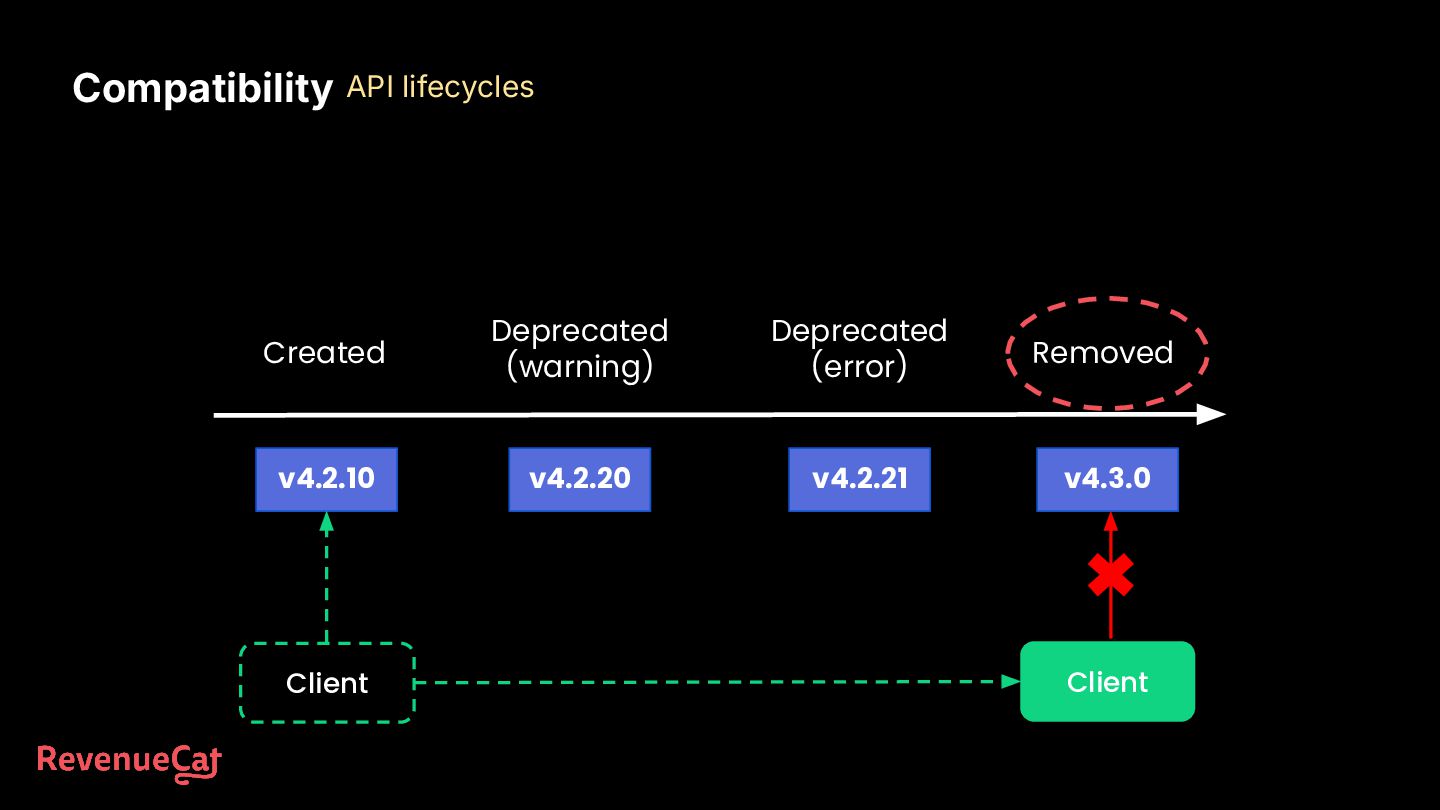

41. API lifecycles Compatibility Created Deprecated (warning) Removed Deprecated (error) v4.2.10 v4.2.20 v4.2.21 v4.3.0 Client
42. API lifecycles Compatibility Created Deprecated (warning) Removed Deprecated (error) v4.2.10 v4.2.20 v4.2.21 v4.3.0 Client Client
43. API lifecycles Compatibility
44. Is there any way to detect public API changes? Binary Compatibility

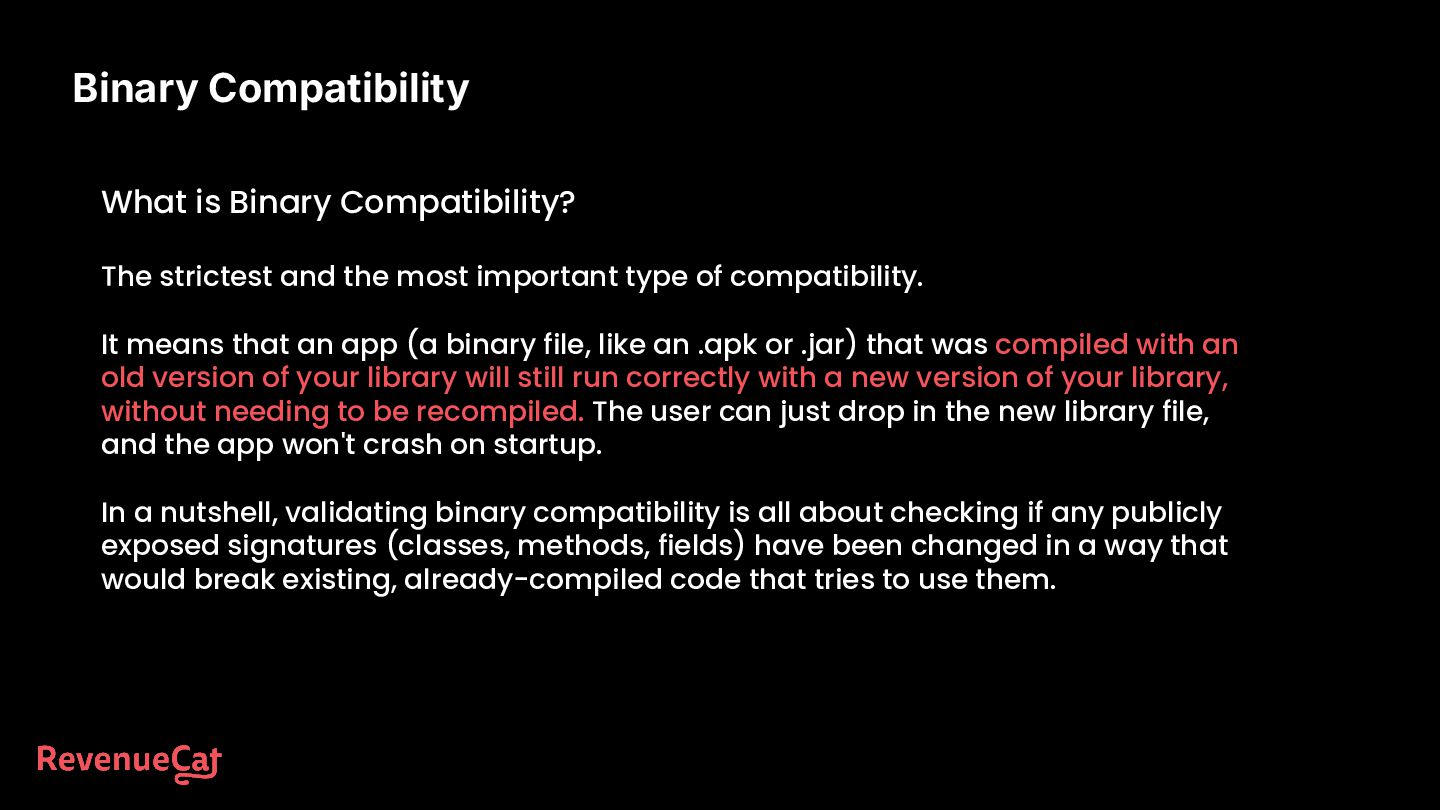

45. Binary Compatibility What is Binary Compatibility? The strictest and the most important type of compatibility. It means that an app (a binary file, like an .apk or .jar) that was compiled with an old version of your library will still run correctly with a new version of your library, without needing to be recompiled. The user can just drop in the new library file, and the app won't crash on startup. In a nutshell, validating binary compatibility is all about checking if any publicly exposed signatures (classes, methods, fields) have been changed in a way that would break existing, already-compiled code that tries to use them.

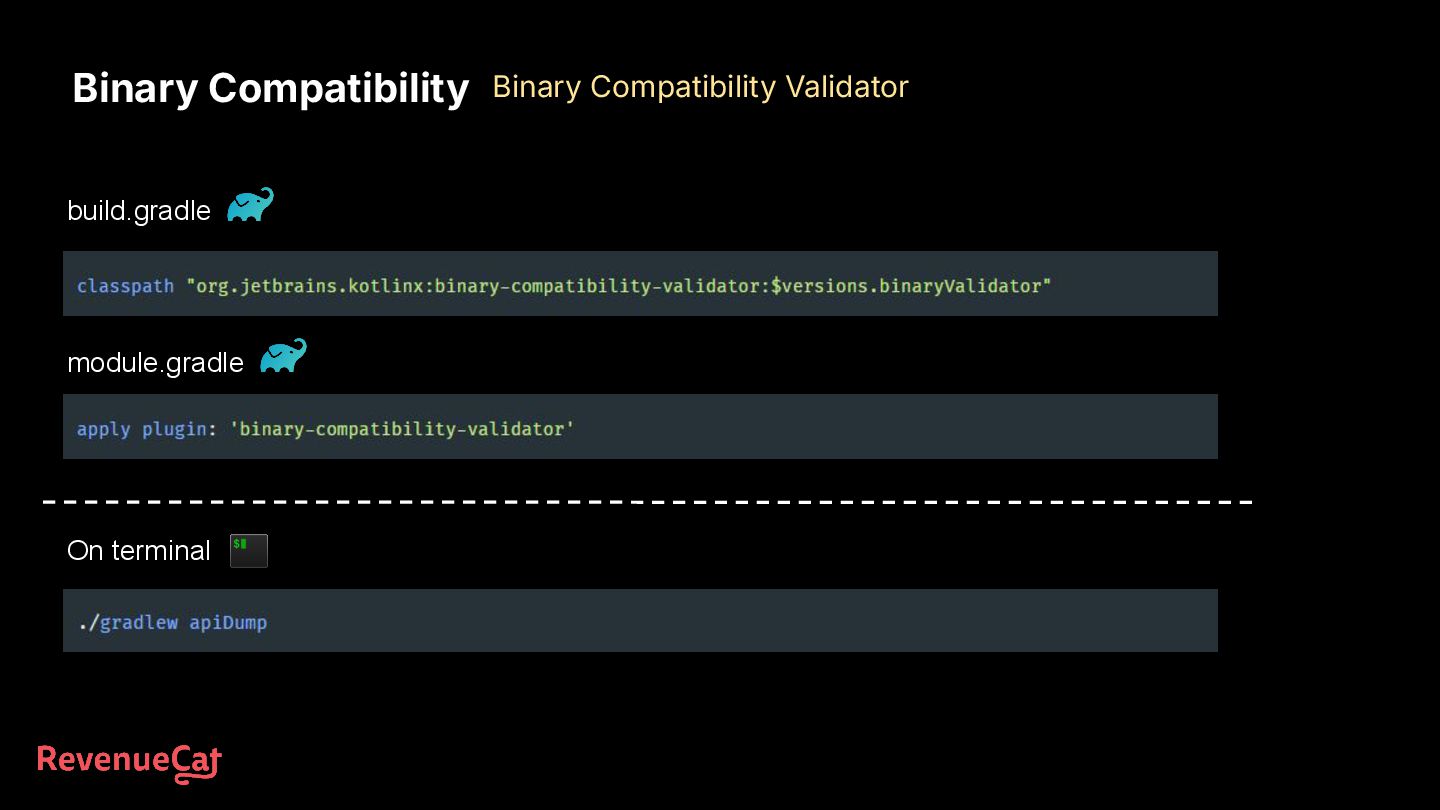

46. build.gradle module.gradle On terminal Binary Compatibility Binary Compatibility Validator

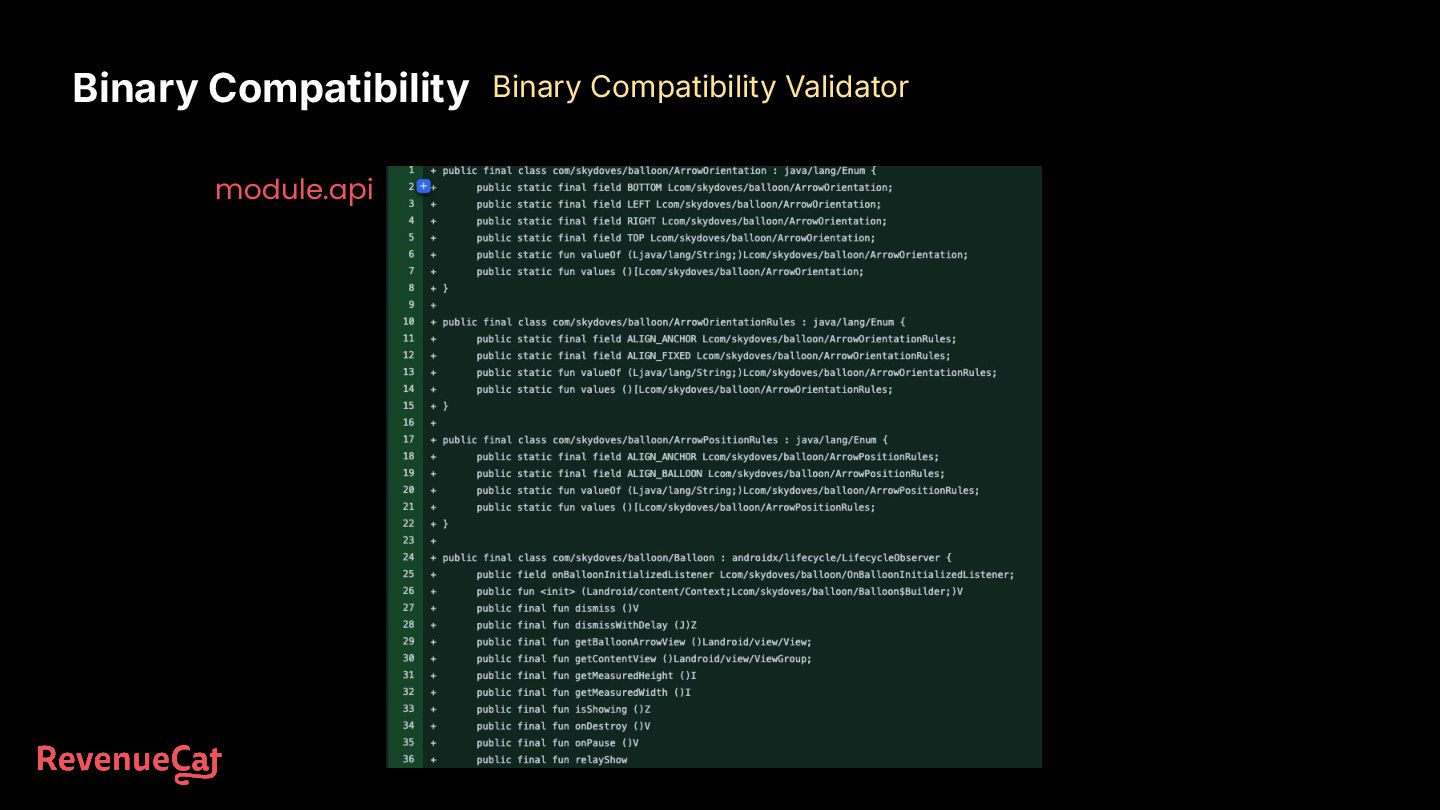

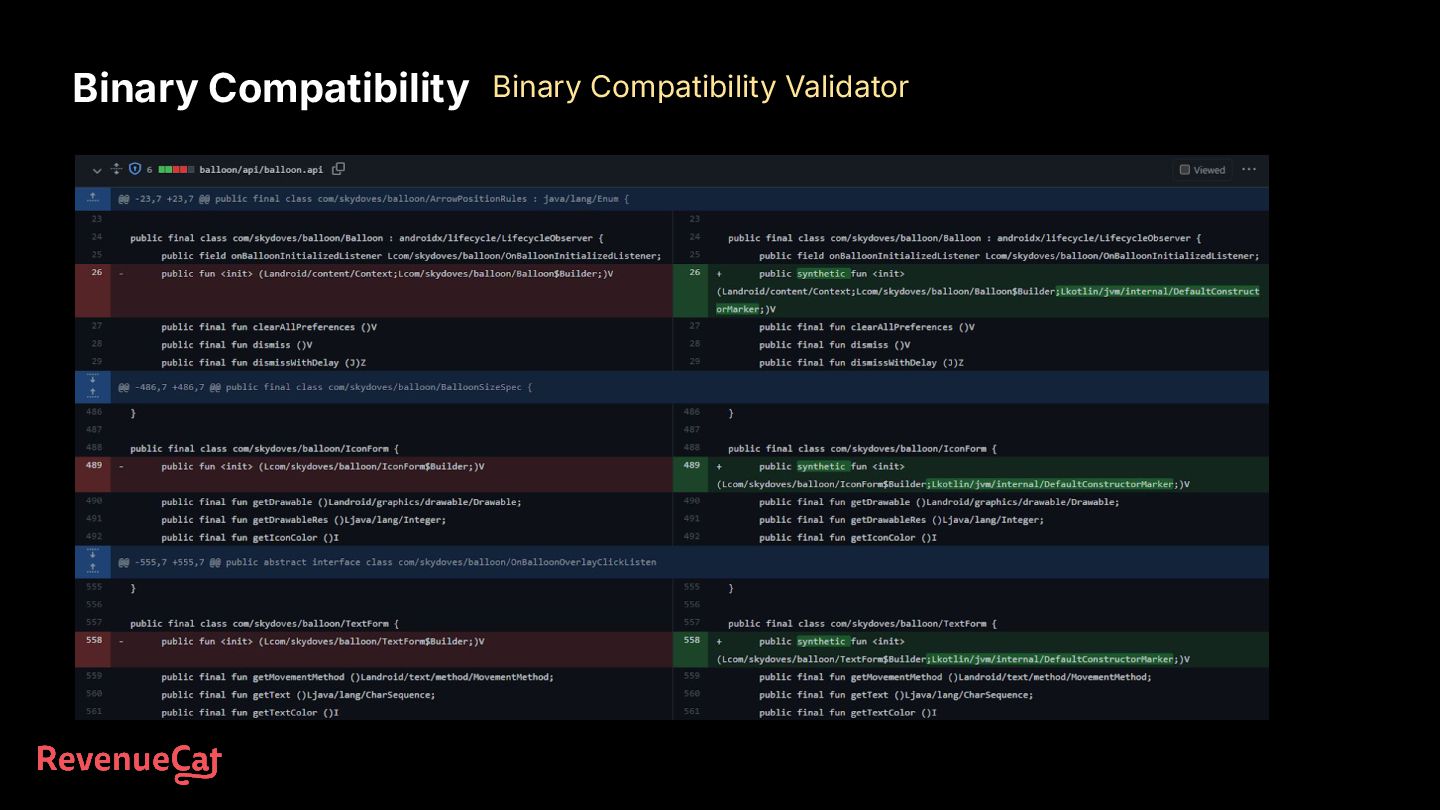

47. module.api Binary Compatibility Binary Compatibility Validator
48. Binary Compatibility Binary Compatibility Validator

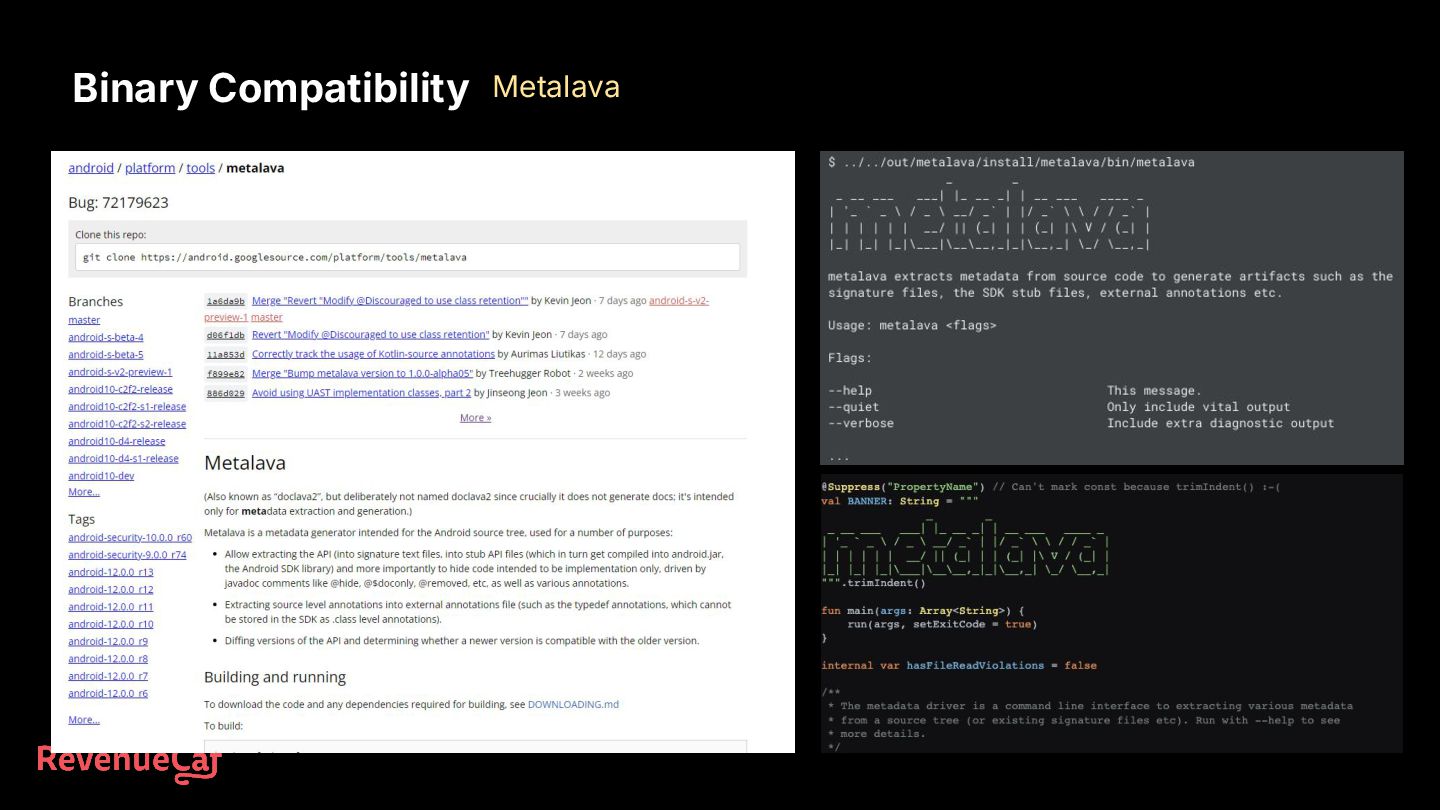

49. Binary Compatibility Metalava
50. Binary Compatibility Metalava Google’s AndroidX Jetpack libraries & RevenueCat SDK are using Metalava. Metalava offers: • Excluding specific source sets • Naming for output files • Hidden annotations • Adding arguments • etc

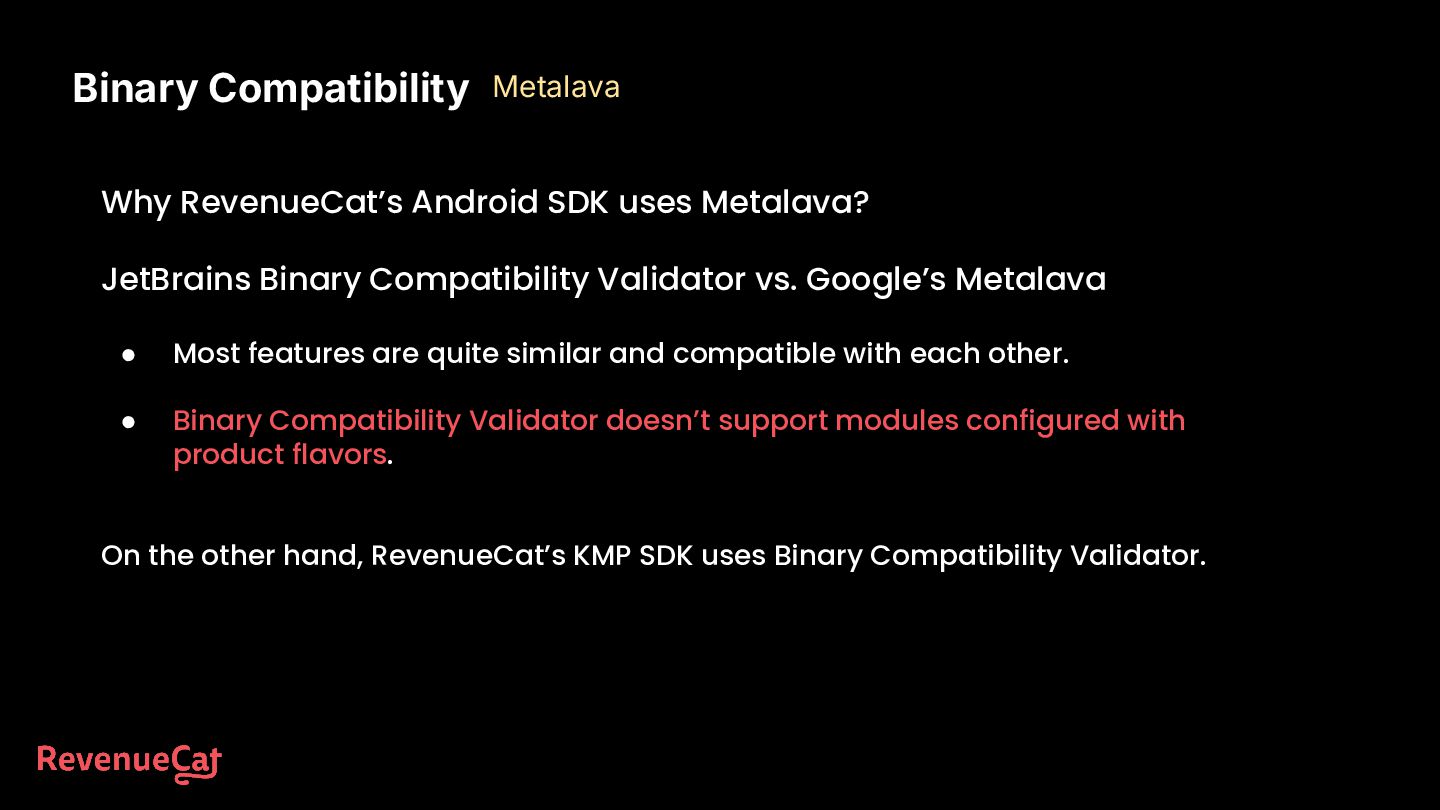

51. Why RevenueCat’s Android SDK uses Metalava? JetBrains Binary Compatibility Validator vs. Google’s Metalava • Most features are quite similar and compatible with each other. • Binary Compatibility Validator doesn’t support modules configured with product flavors. On the other hand, RevenueCat’s KMP SDK uses Binary Compatibility Validator. Binary Compatibility Metalava

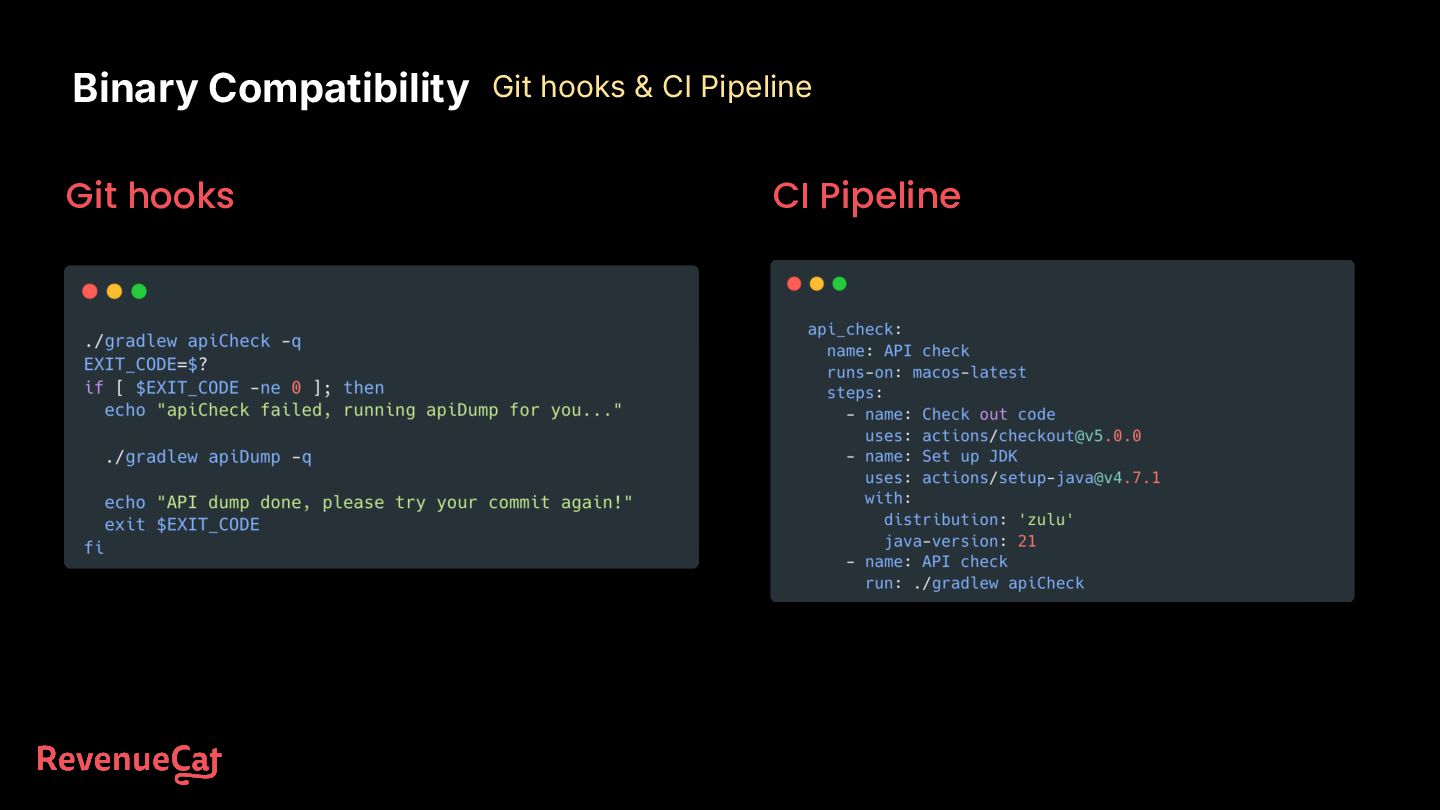

52. Binary Compatibility Git hooks & CI Pipeline Git hooks CI Pipeline
53. UIs in Library

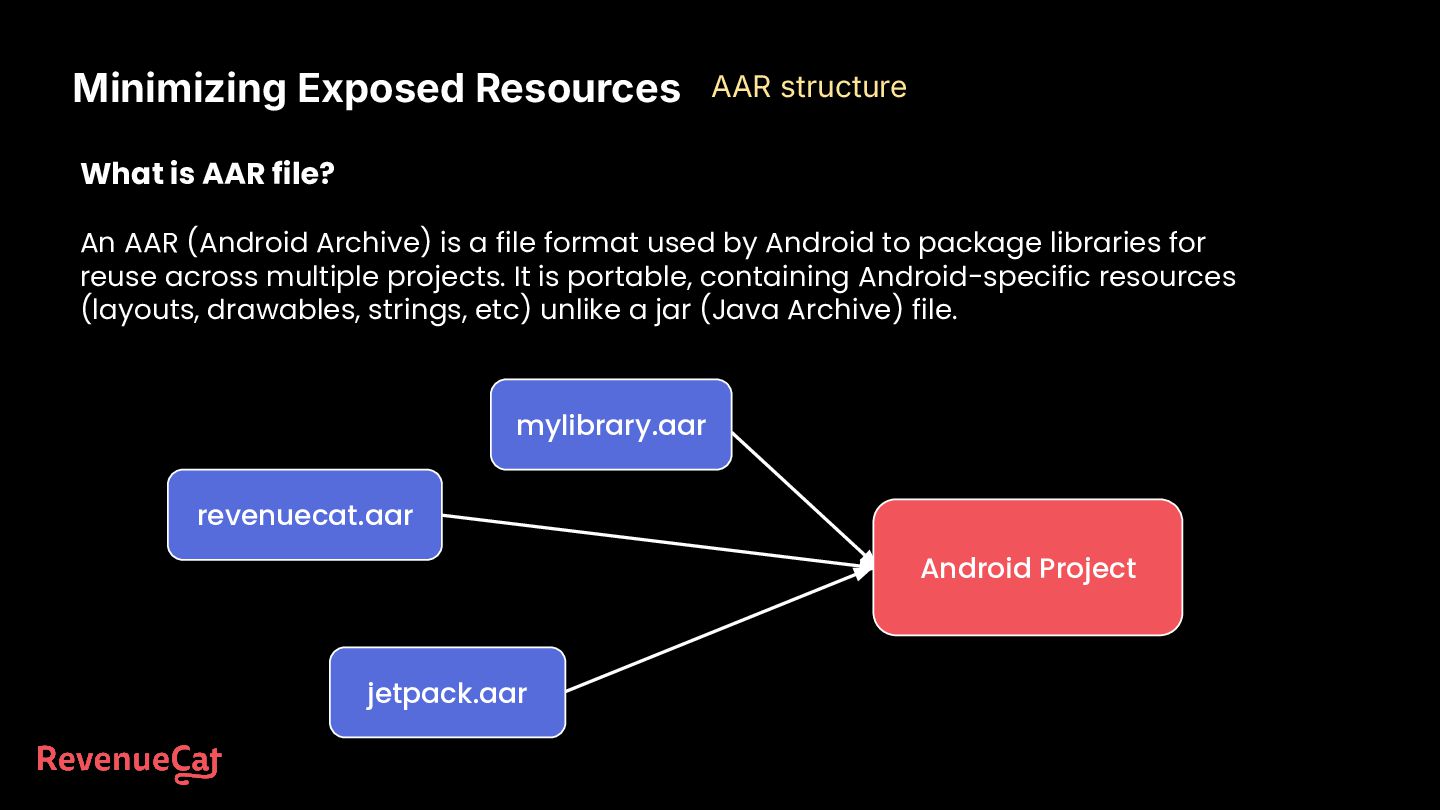

54. What is AAR file? An AAR (Android Archive) is a file format used by Android to package libraries for reuse across multiple projects. It is portable, containing Android-specific resources (layouts, drawables, strings, etc) unlike a jar (Java Archive) file. Minimizing Exposed Resources AAR structure mylibrary.aar revenuecat.aar jetpack.aar Android Project

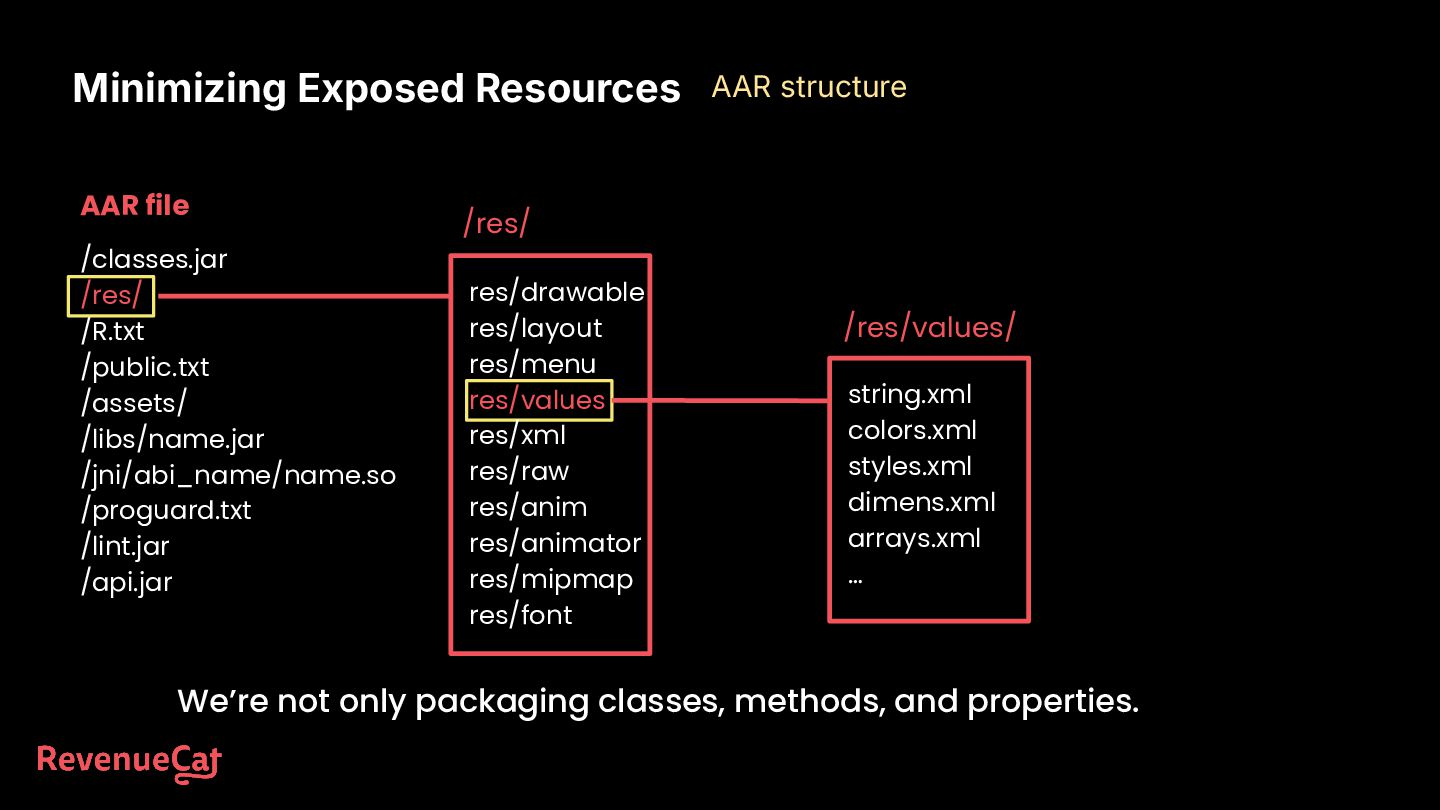

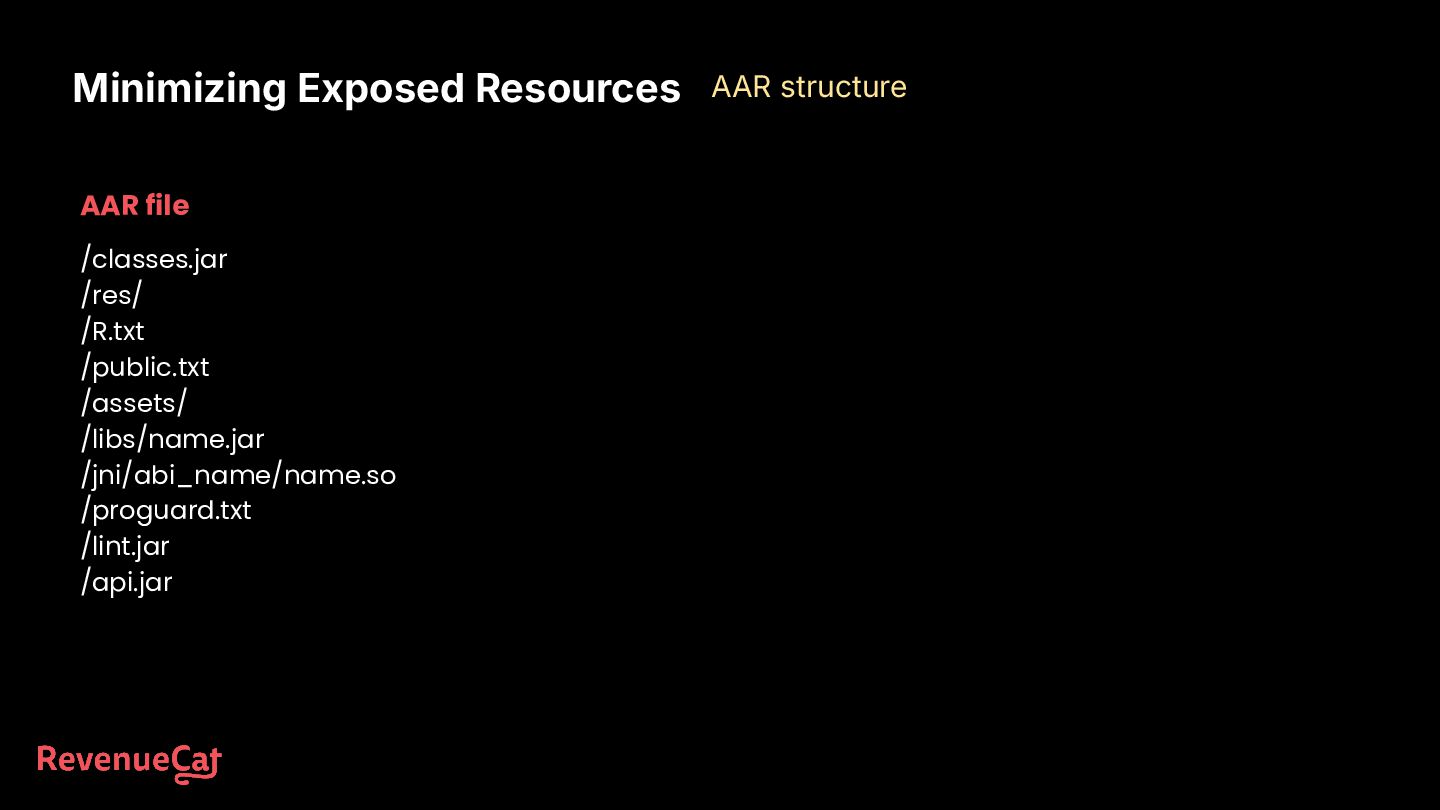

55. /classes.jar /res/ /R.txt /public.txt /assets/ /libs/name.jar /jni/abi_name/name.so /proguard.txt /lint.jar /api.jar AAR file Minimizing Exposed Resources AAR structure
56. /classes.jar /res/ /R.txt /public.txt /assets/ /libs/name.jar /jni/abi_name/name.so /proguard.txt /lint.jar /api.jar AAR file Minimizing Exposed Resources res/drawable res/layout res/menu res/values res/xml res/raw res/anim res/animator res/mipmap res/font /res/ /res/values/ string.xml colors.xml styles.xml dimens.xml arrays.xml … AAR structure We’re not only packaging classes, methods, and properties.
57. <resources> <color name="white">#FFFFFF/color> <color name="black">#000000/color> <color name="blue">#57A8D8/color> <color name="yellow">#FBC02D/color> </resources> Library v1.0 (colors.xml) Project val whiteColor = ContextCompat.getColor(this, R.color.white) binding.myView.setBackgroundColor(whiteColor) <TextView android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_gravity="center_horizontal" android:text="skydoves" android:textColor="@color/yellow" /> Minimizing Exposed Resources Transitive resources

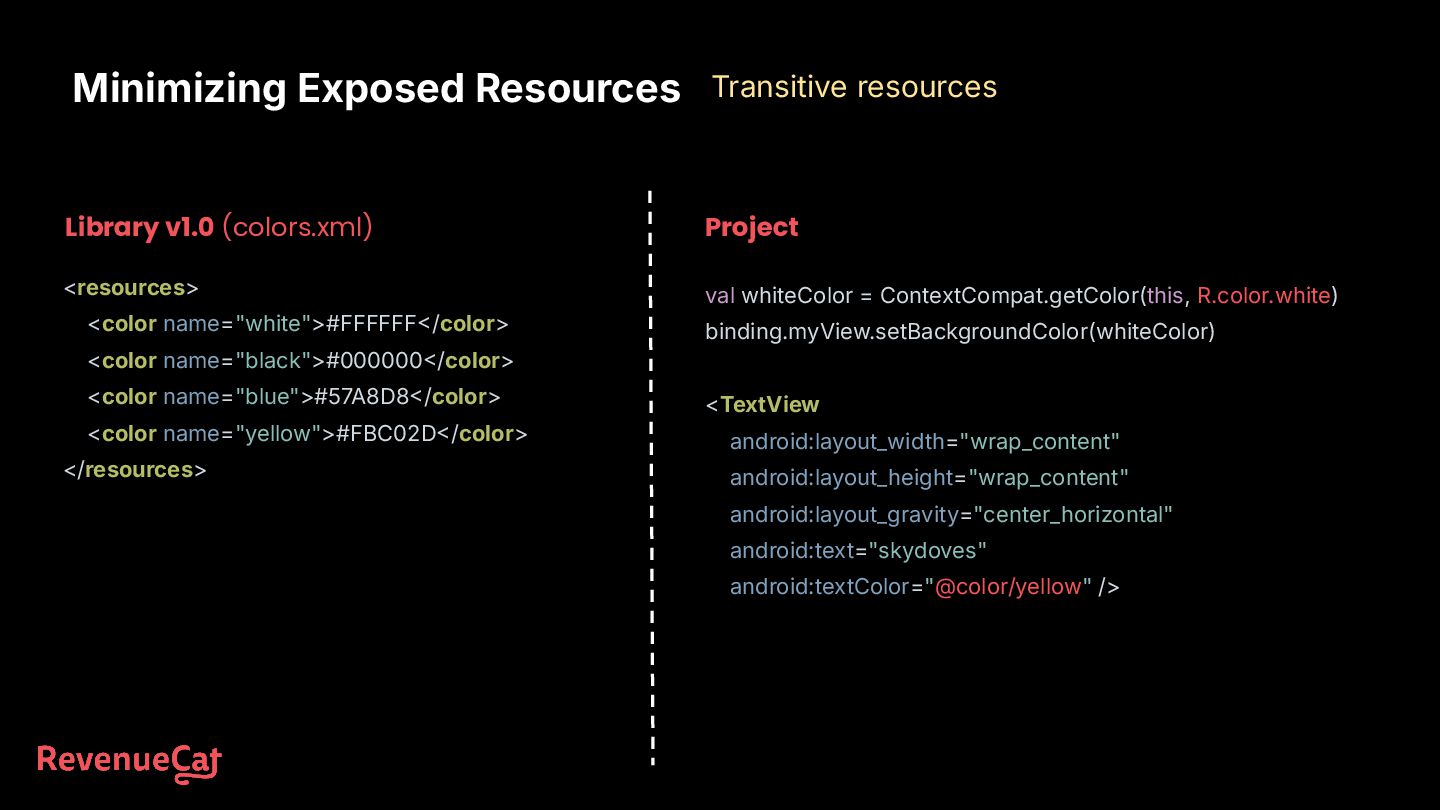

58. <resources> <color name="white">#FFFFFF/color> <color name="black">#000000/color> <color name="blue">#57A8D8/color> <color name="yellow">#FBC02D/color> </resources> Library v2.0 (colors.xml) val whiteColor = ContextCompat.getColor(this, R.color.white) binding.myView.setBackgroundColor(whiteColor) <TextView android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_gravity="center_horizontal" android:text="skydoves" android:textColor="@color/yellow" /> Project compile error! Minimizing Exposed Resources Transitive resources
59. <public /> Minimizing Exposed Resources <public/>

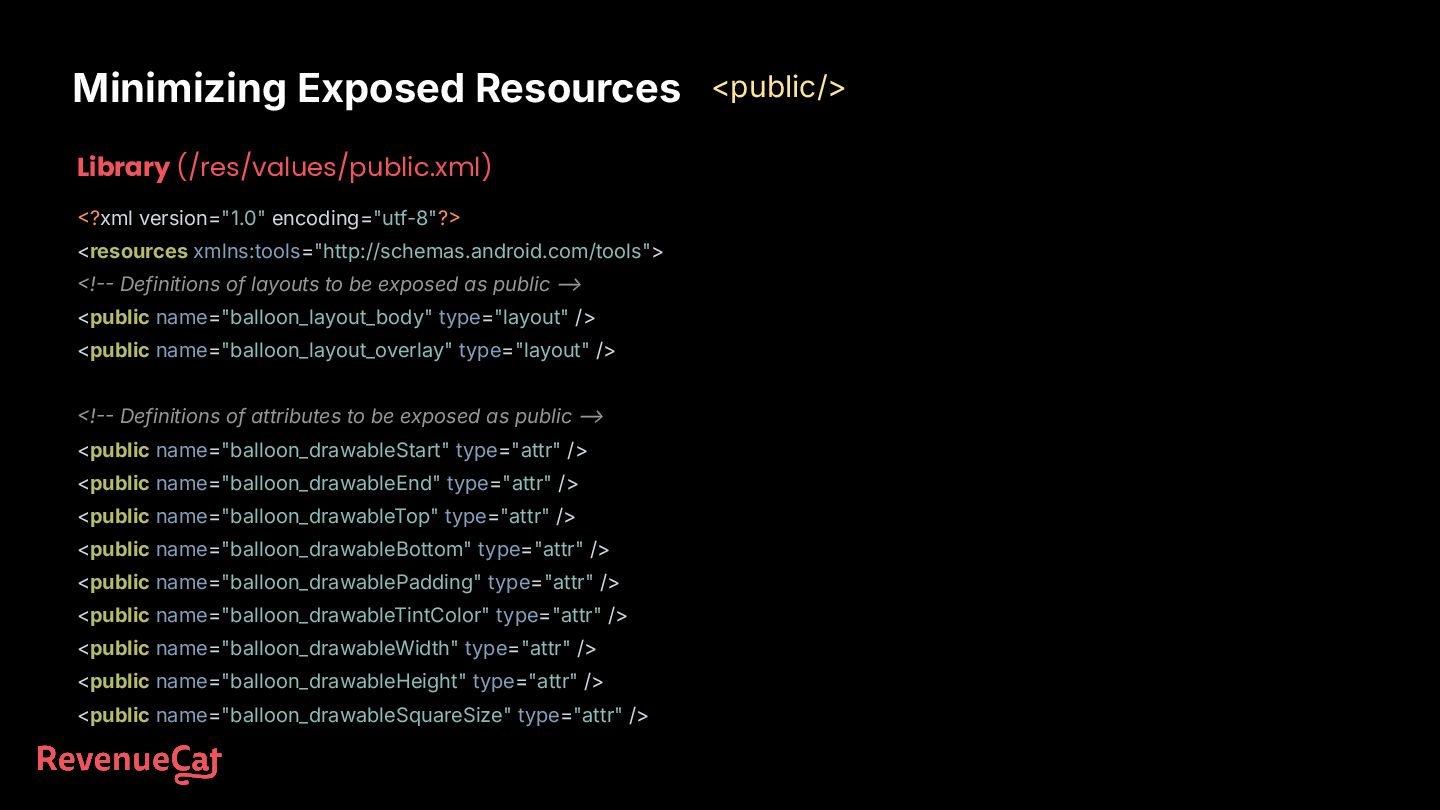

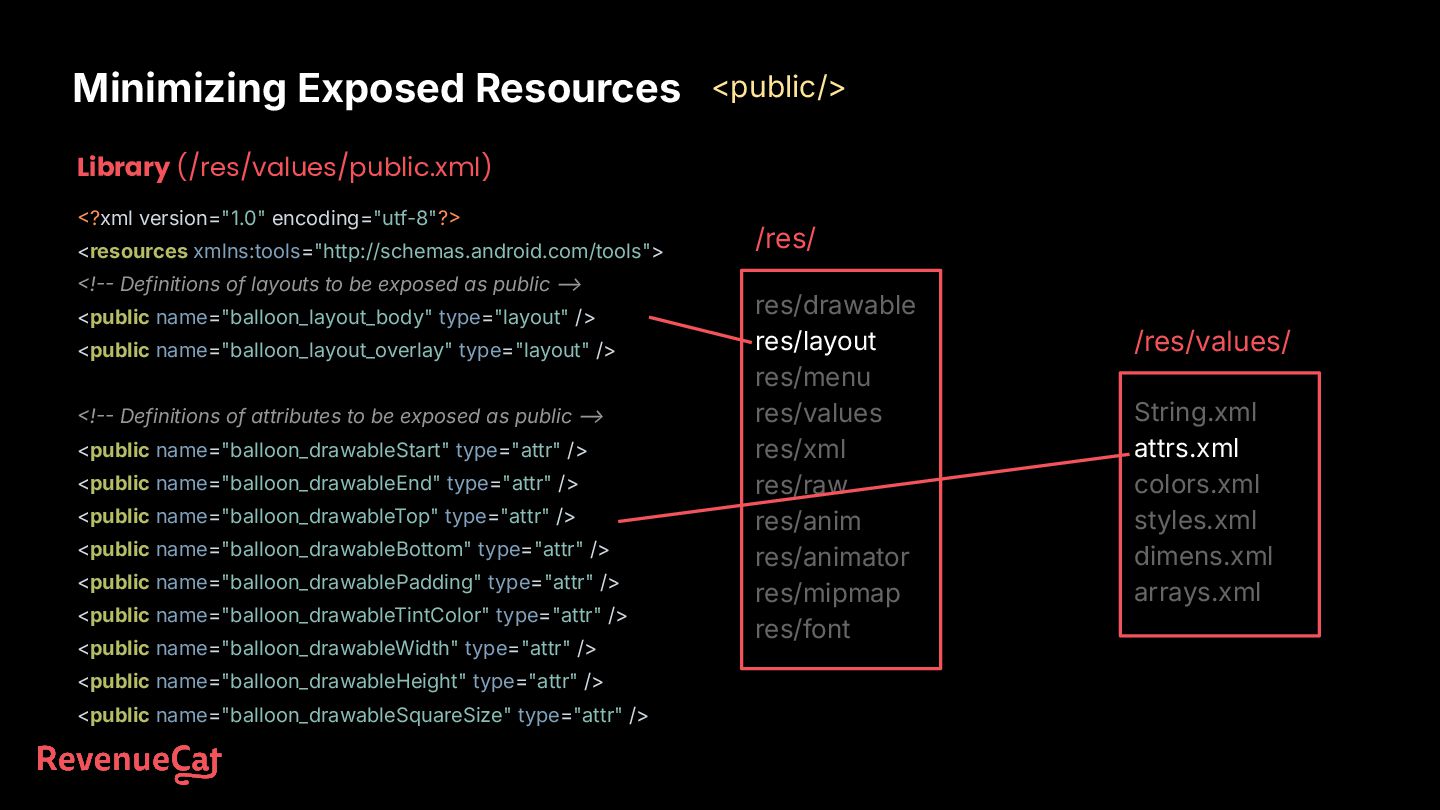

60. Minimizing Exposed Resources <public/> ?xml version="1.0" encoding="utf-8"? <resources xmlns:tools="http://schemas.android.com/tools"> ! Definitions of layouts to be exposed as public ⟶ <public name="balloon_layout_body" type="layout" /> <public name="balloon_layout_overlay" type="layout" /> ! Definitions of attributes to be exposed as public ⟶ <public name="balloon_drawableStart" type="attr" /> <public name="balloon_drawableEnd" type="attr" /> <public name="balloon_drawableTop" type="attr" /> <public name="balloon_drawableBottom" type="attr" /> <public name="balloon_drawablePadding" type="attr" /> <public name="balloon_drawableTintColor" type="attr" /> <public name="balloon_drawableWidth" type="attr" /> <public name="balloon_drawableHeight" type="attr" /> <public name="balloon_drawableSquareSize" type="attr" /> Library (/res/values/public.xml)
61. ?xml version="1.0" encoding="utf-8"? <resources xmlns:tools="http://schemas.android.com/tools"> ! Definitions of layouts to be exposed as public ⟶ <public name="balloon_layout_body" type="layout" /> <public name="balloon_layout_overlay" type="layout" /> ! Definitions of attributes to be exposed as public ⟶ <public name="balloon_drawableStart" type="attr" /> <public name="balloon_drawableEnd" type="attr" /> <public name="balloon_drawableTop" type="attr" /> <public name="balloon_drawableBottom" type="attr" /> <public name="balloon_drawablePadding" type="attr" /> <public name="balloon_drawableTintColor" type="attr" /> <public name="balloon_drawableWidth" type="attr" /> <public name="balloon_drawableHeight" type="attr" /> <public name="balloon_drawableSquareSize" type="attr" /> res/drawable res/layout res/menu res/values res/xml res/raw res/anim res/animator res/mipmap res/font String.xml attrs.xml colors.xml styles.xml dimens.xml arrays.xml /res/ /res/values/ Library (/res/values/public.xml) Minimizing Exposed Resources <public/>

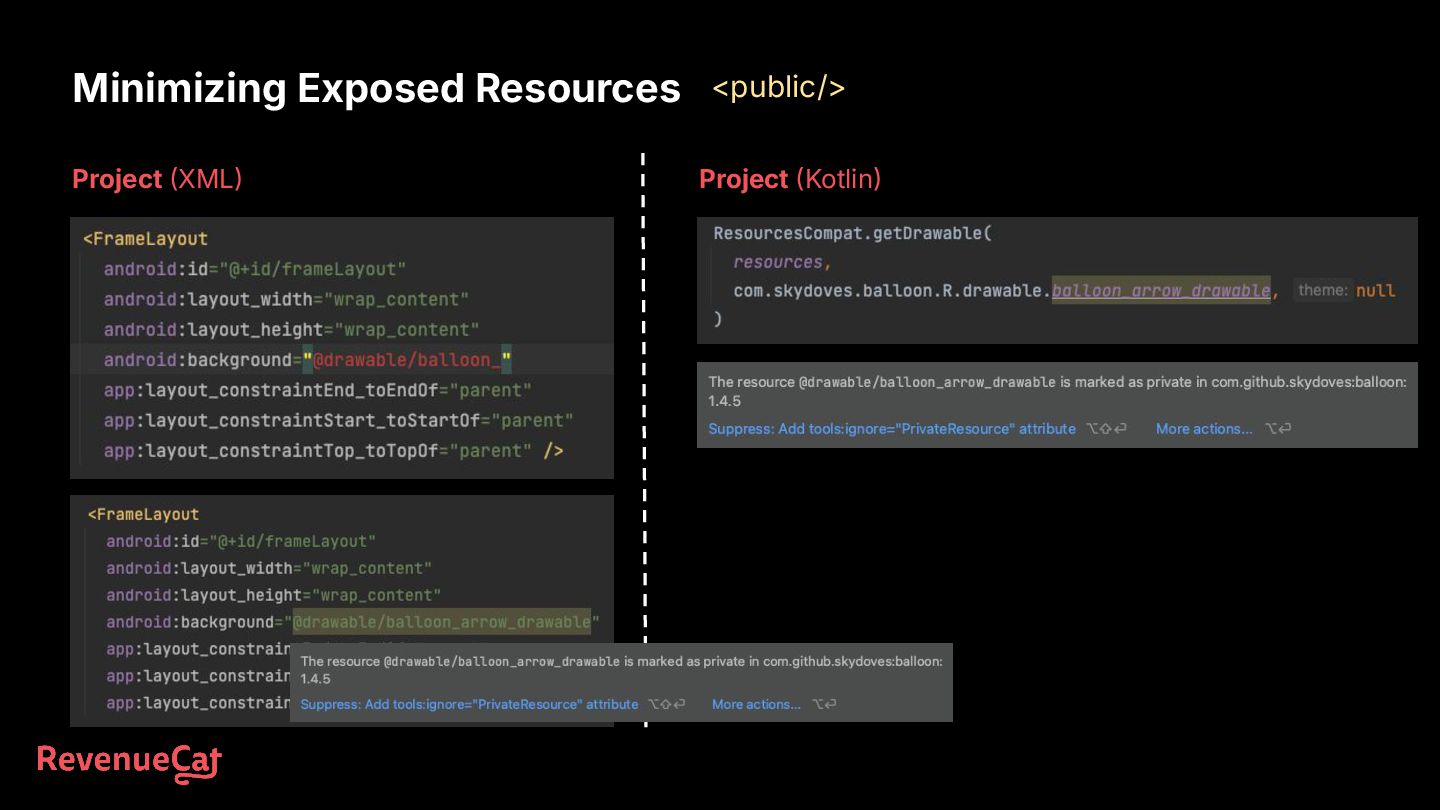

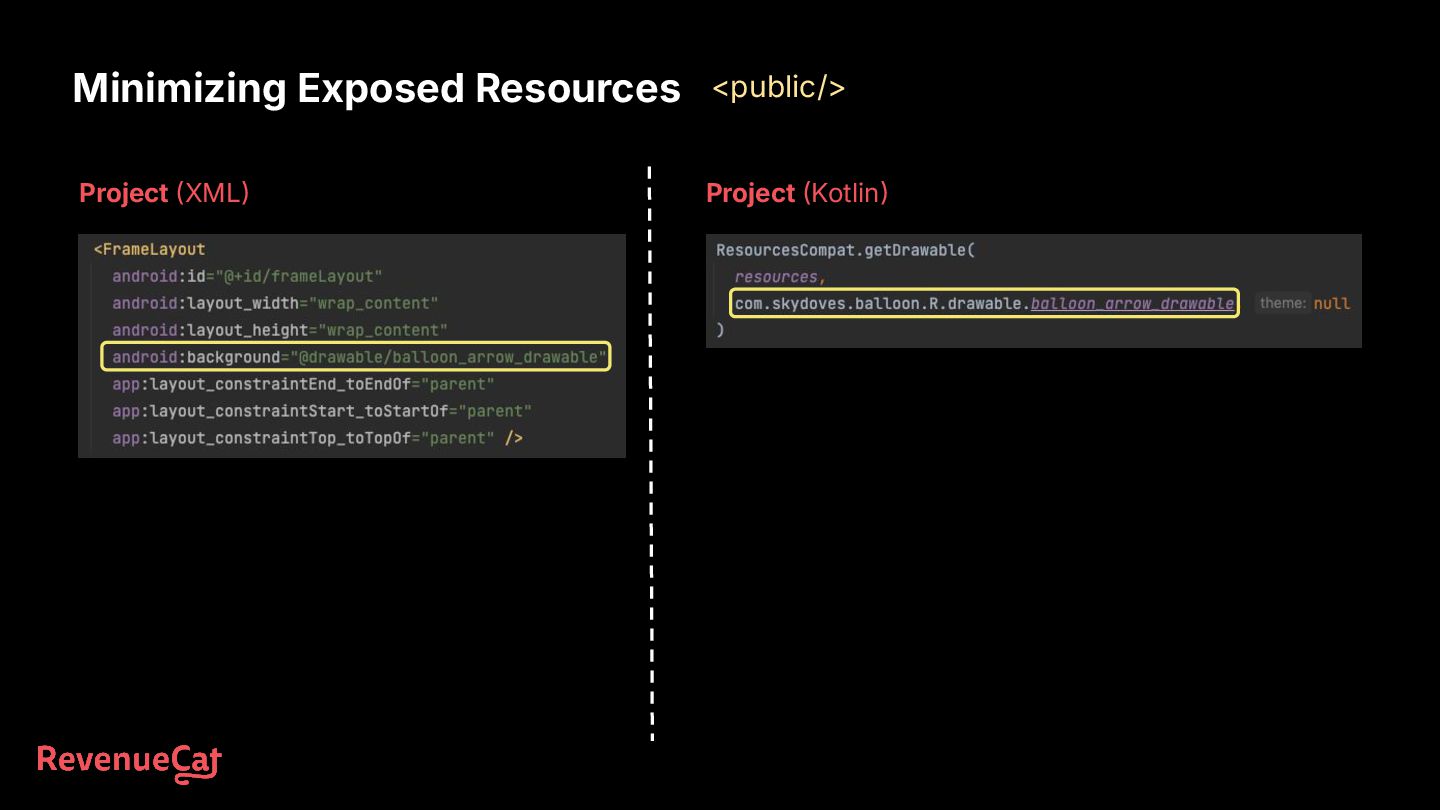

62. Project XML Project Kotlin Minimizing Exposed Resources <public/>

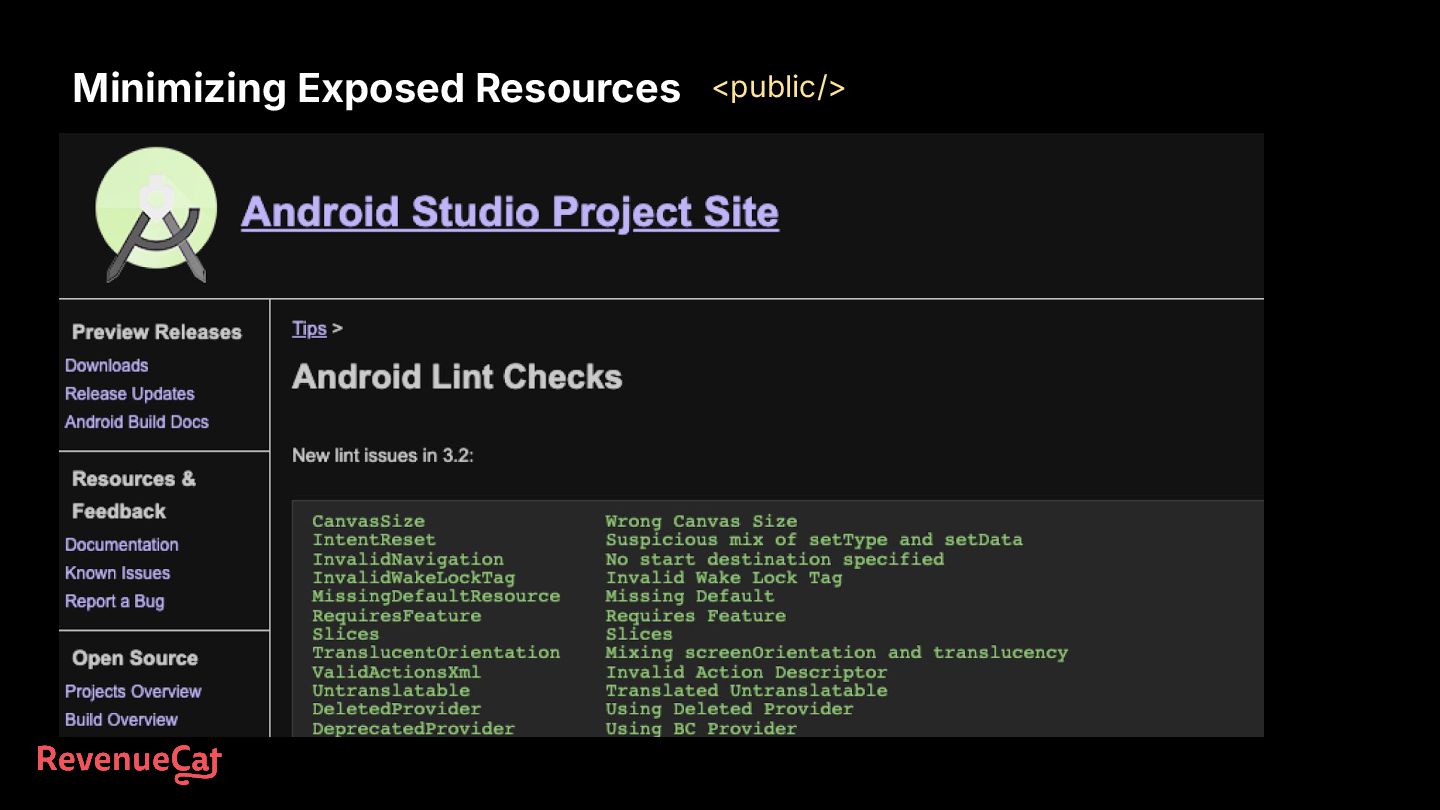

63. Project XML Project Kotlin Minimizing Exposed Resources <public/>
64. Minimizing Exposed Resources <public/>

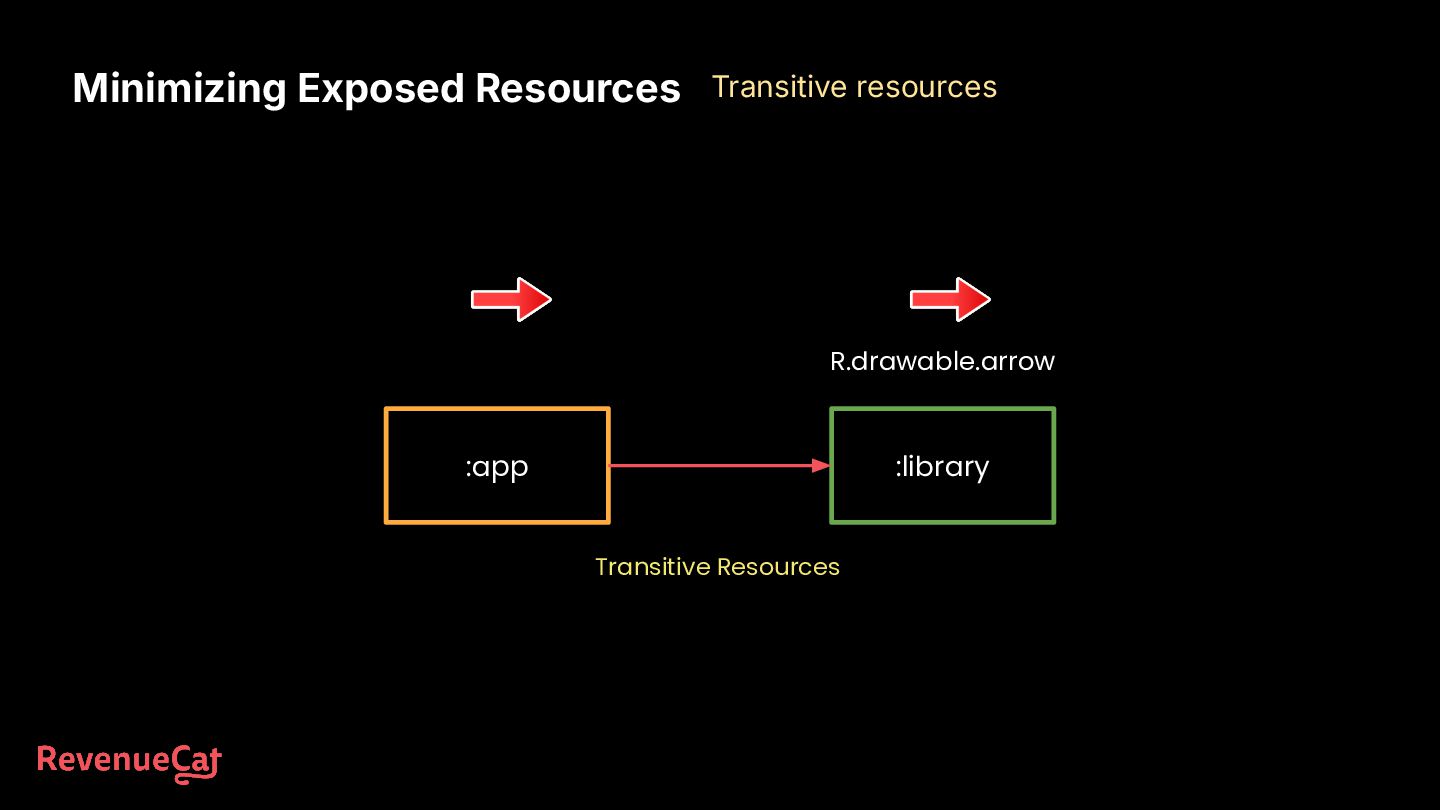

65. Minimizing Exposed Resources Transitive resources :app :library R.drawable.arrow Transitive Resources

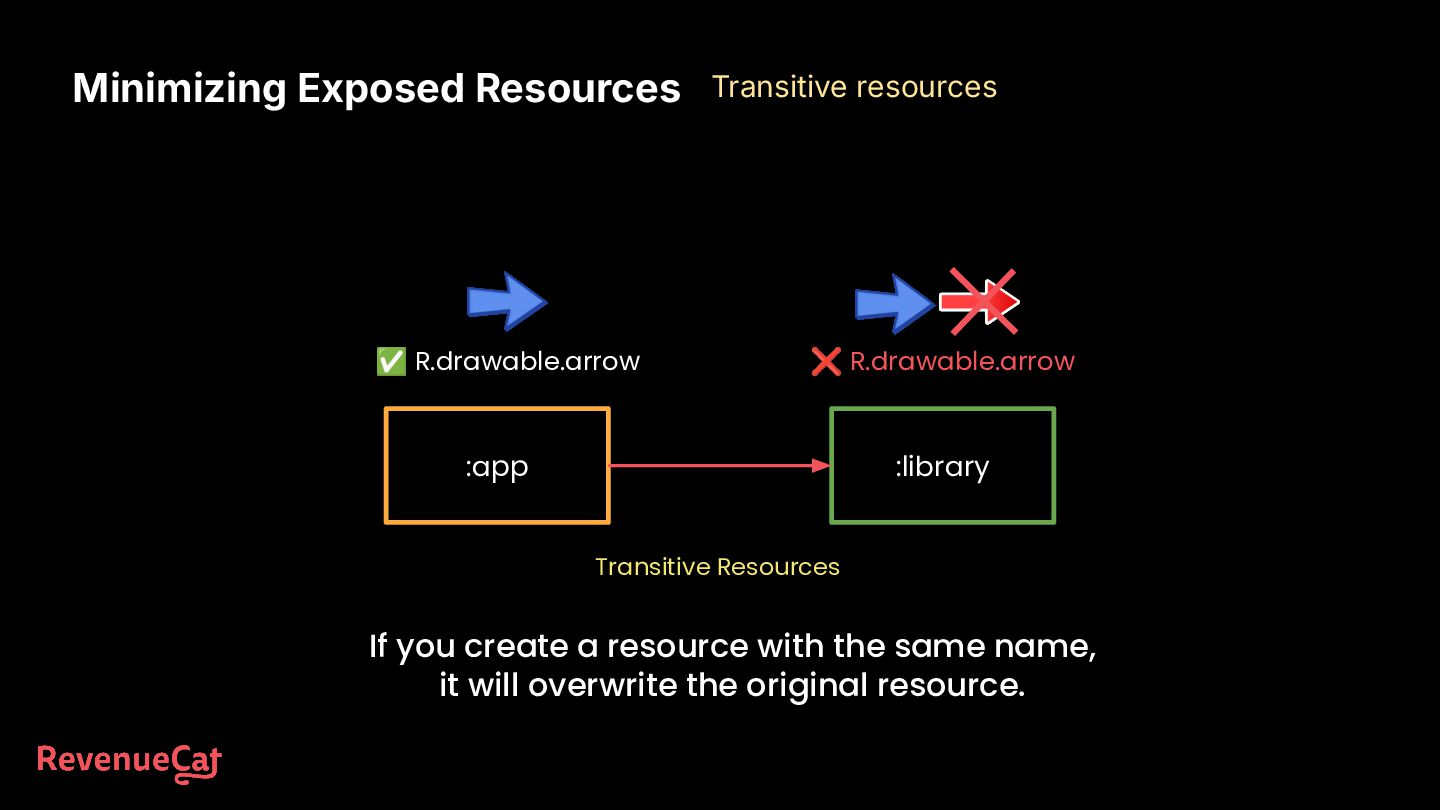

66. Minimizing Exposed Resources :app :library ❌ R.drawable.arrow ✅ R.drawable.arrow Transitive resources Transitive Resources If you create a resource with the same name, it will overwrite the original resource.
67. resourcePrefix Minimizing Exposed Resources Resource prefix

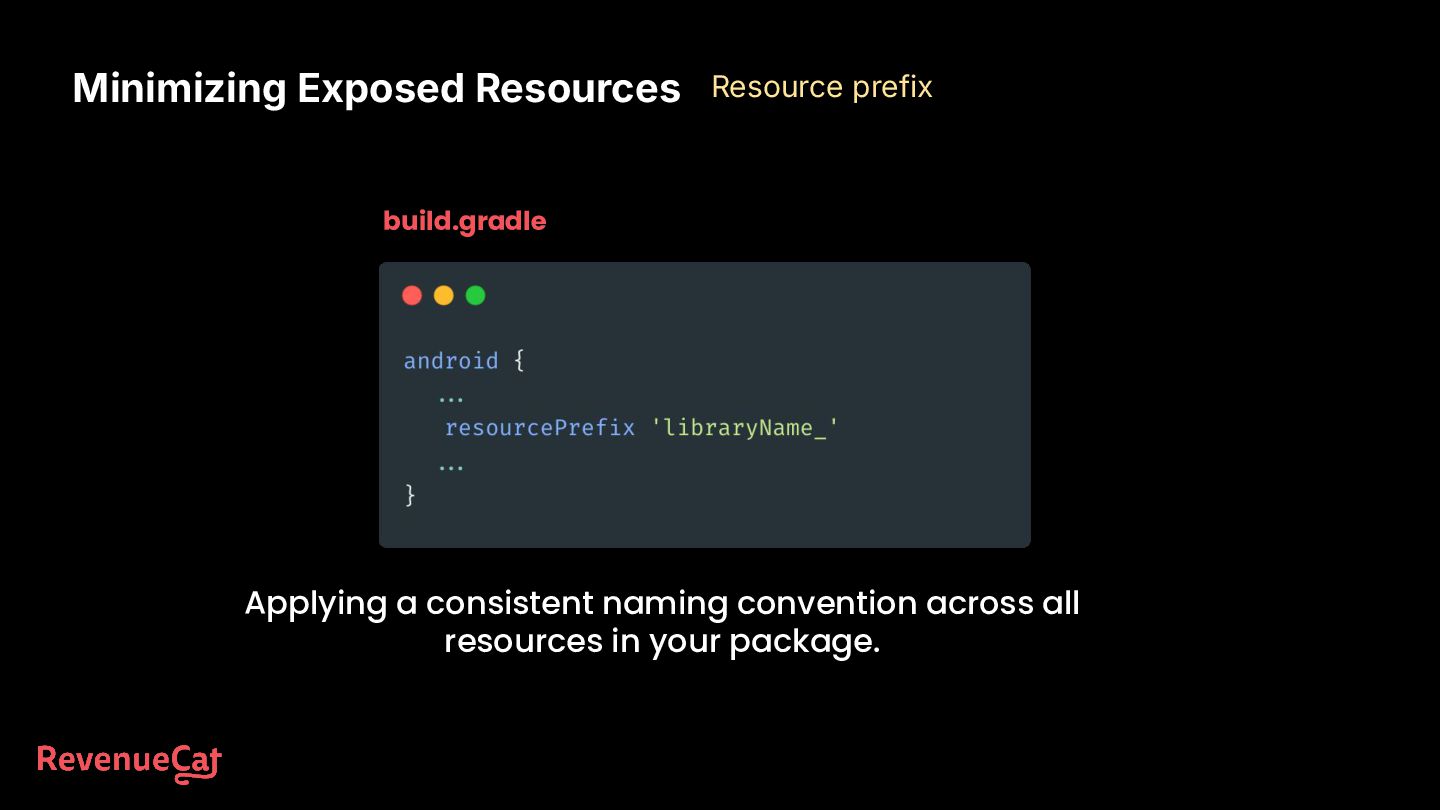

68. Minimizing Exposed Resources Resource prefix build.gradle Applying a consistent naming convention across all resources in your package.

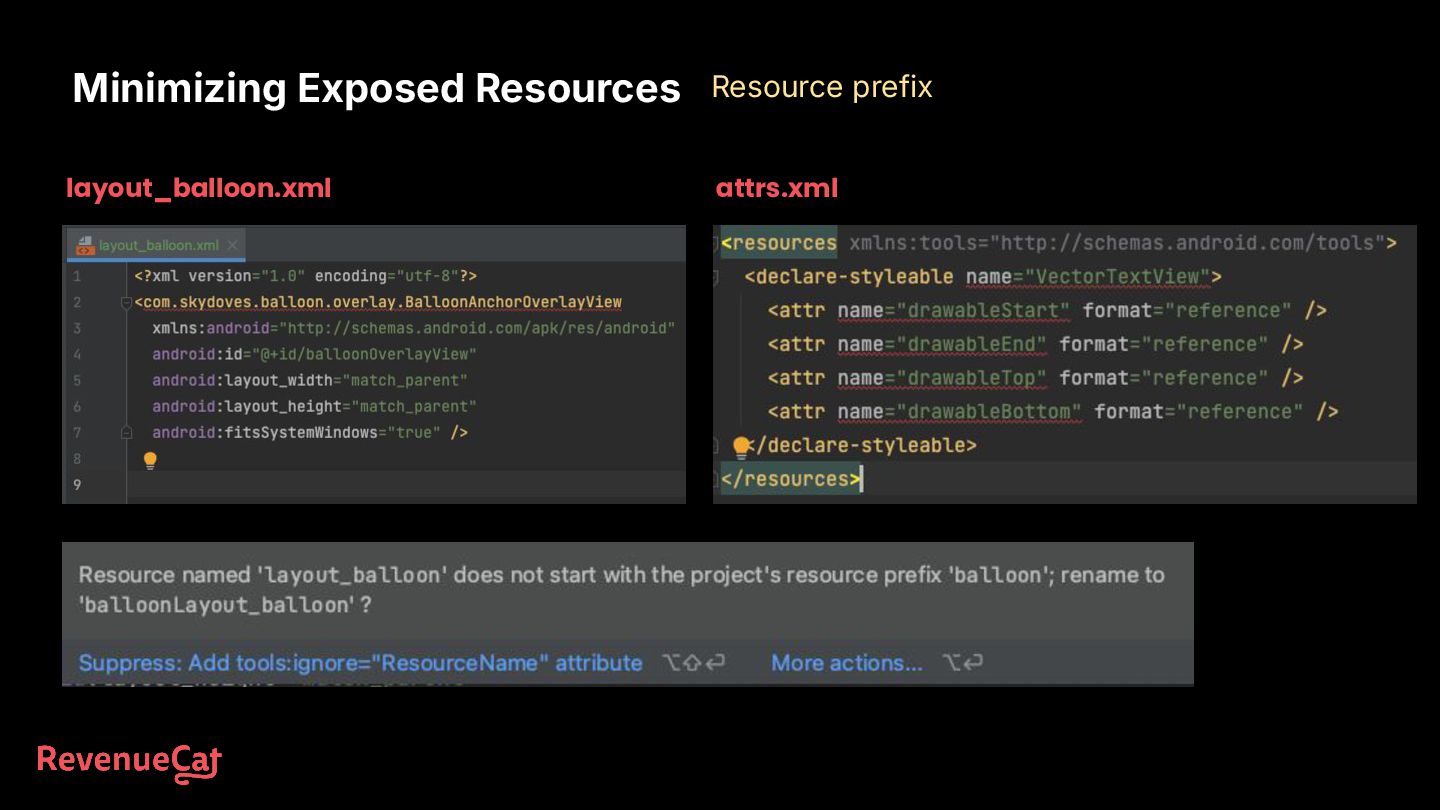

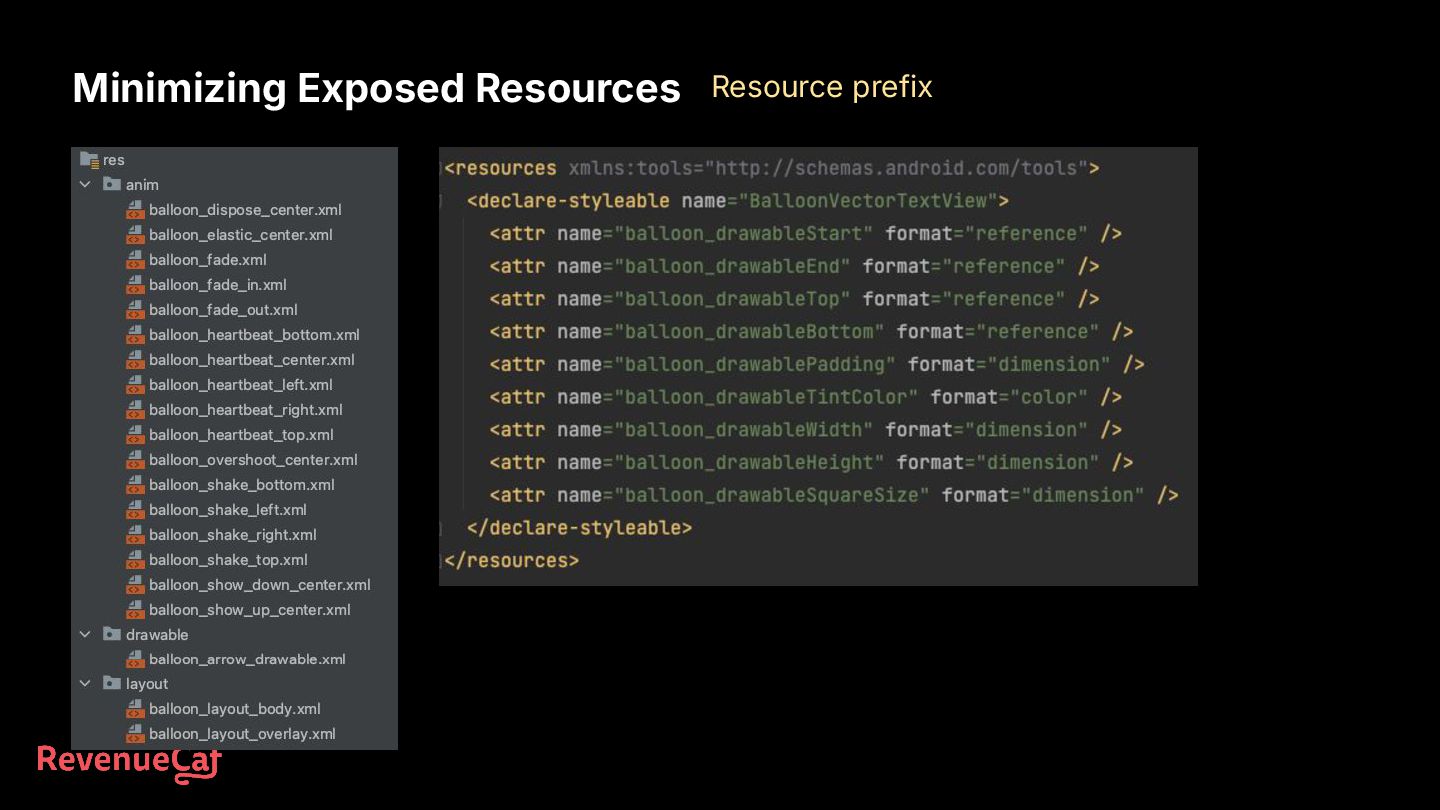

69. layout_balloon.xml attrs.xml Minimizing Exposed Resources Resource prefix
70. Minimizing Exposed Resources Resource prefix
71. Dependencies

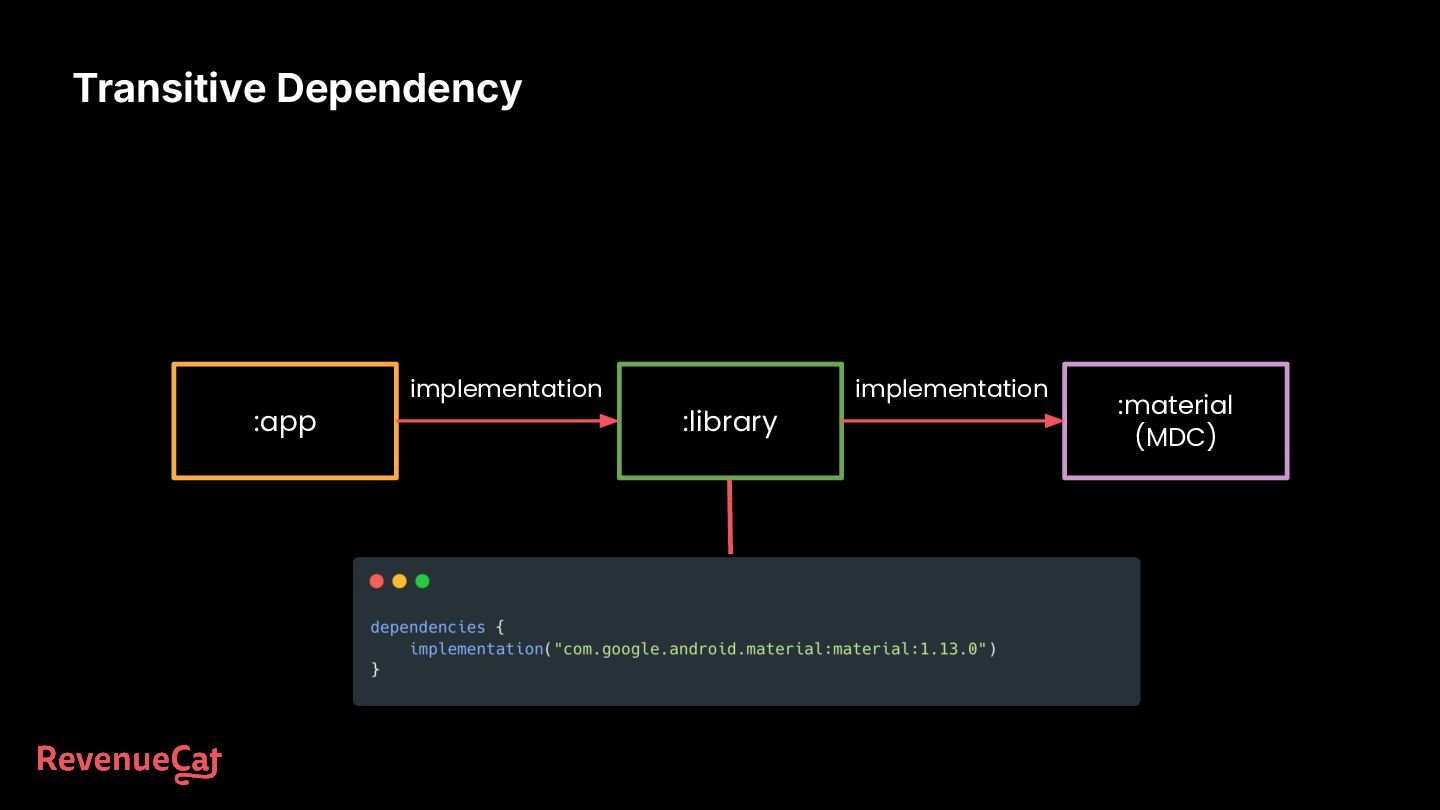

72. Transitive Dependency :app :library :material (MDC) implementation implementation
73. Transitive Dependency :app :library :material (MDC) implementation api Transitive dependency

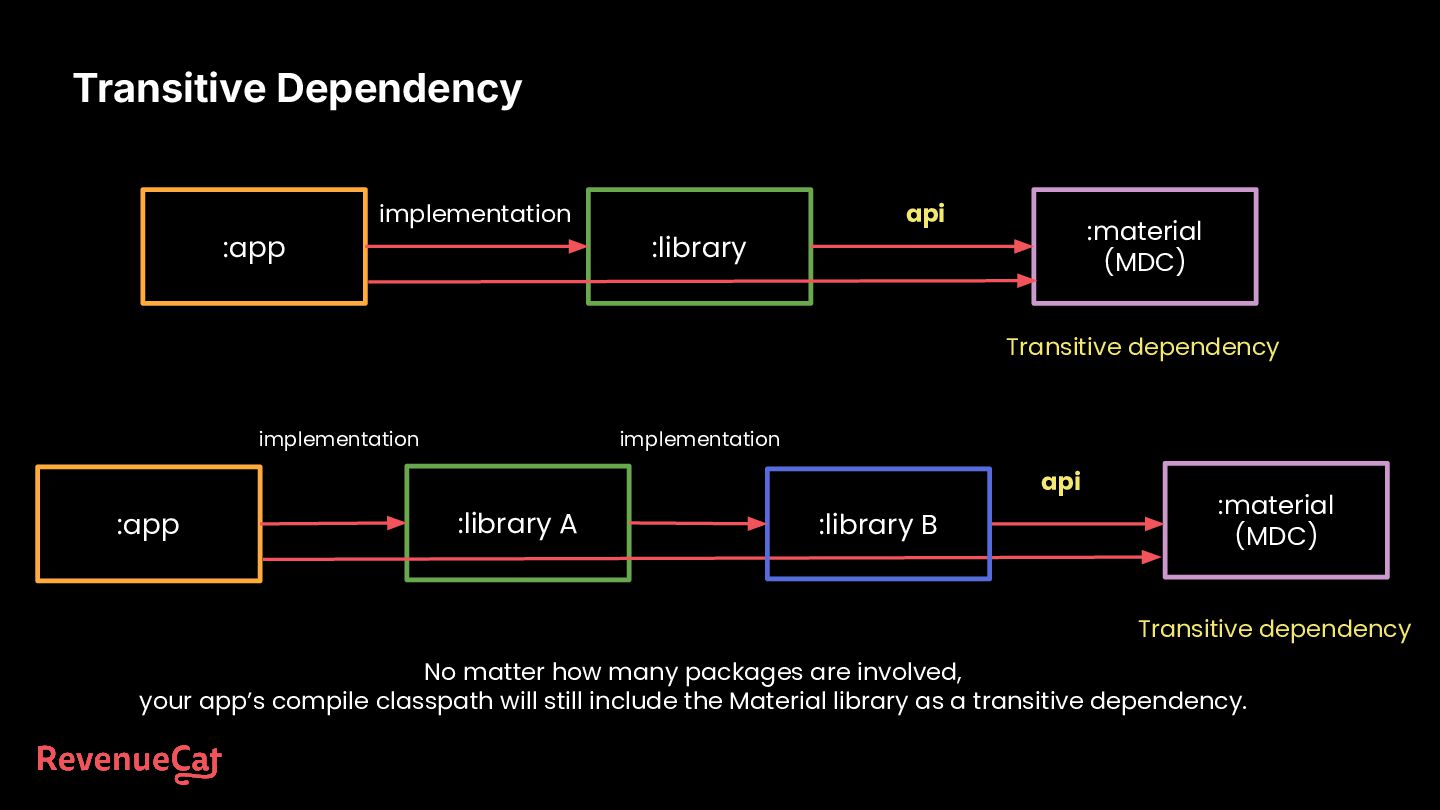

74. Transitive Dependency :app :library :material (MDC) implementation api Transitive dependency :app :library A :material (MDC) implementation api Transitive dependency :library B implementation No matter how many packages are involved, your app’s compile classpath will still include the Material library as a transitive dependency.

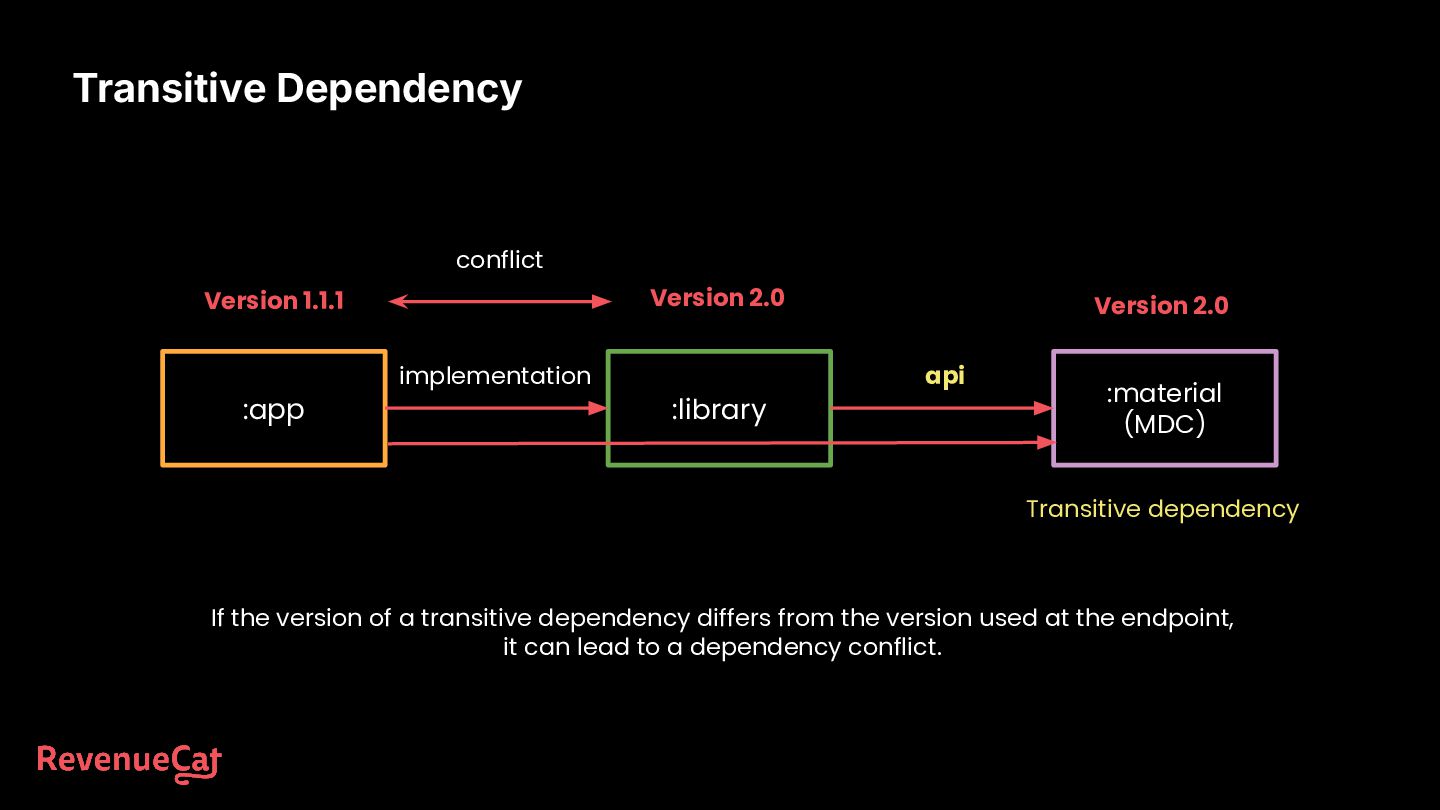

75. Transitive Dependency :app :library :material (MDC) implementation api Transitive dependency If the version of a transitive dependency differs from the version used at the endpoint, it can lead to a dependency conflict. Version 2.0 Version 1.1.1 Version 2.0 conflict

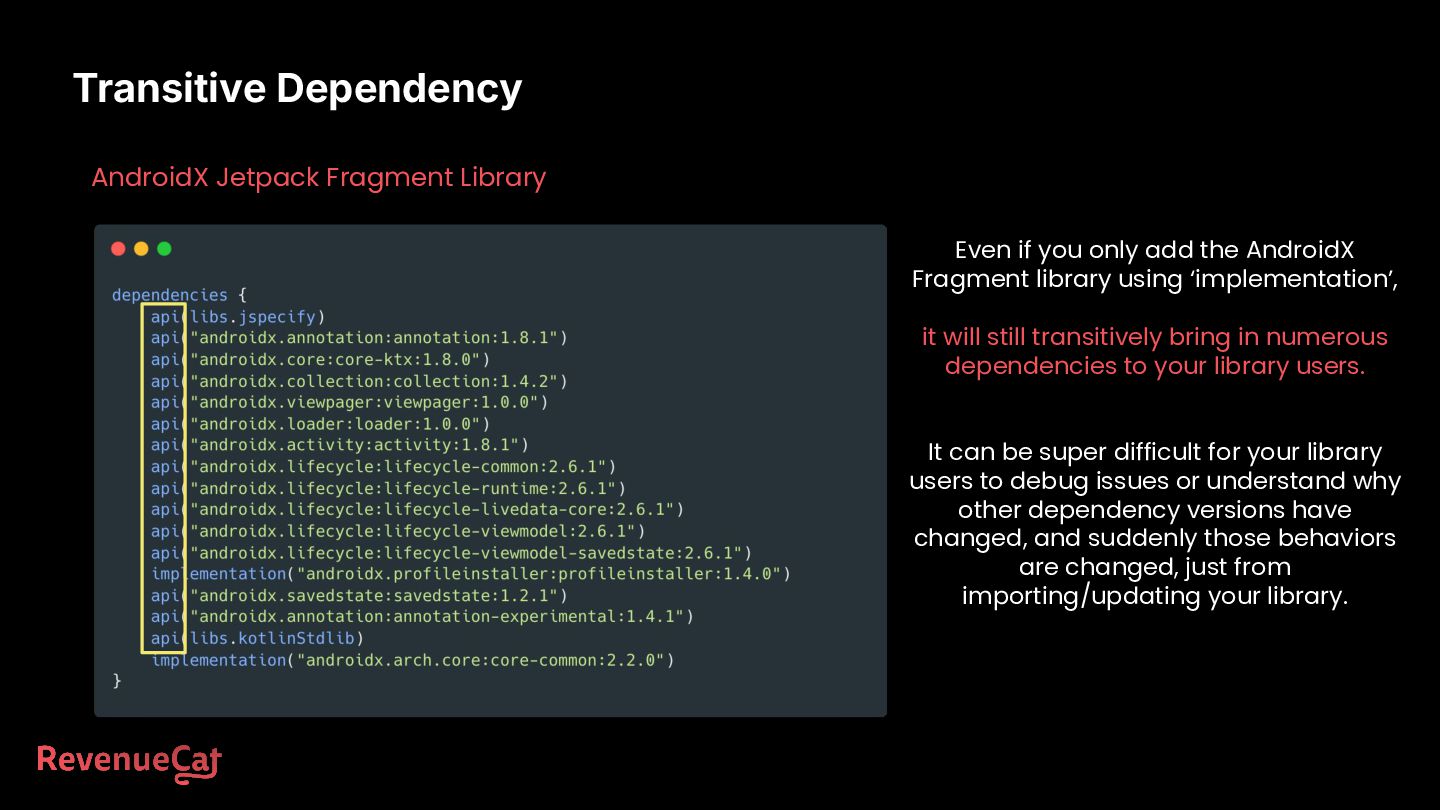

76. Transitive Dependency AndroidX Jetpack Fragment Library Even if you only add the AndroidX Fragment library using ‘implementation’, it will still transitively bring in numerous dependencies to your library users. It can be super difficult for your library users to debug issues or understand why other dependency versions have changed, and suddenly those behaviors are changed, just from importing/updating your library.

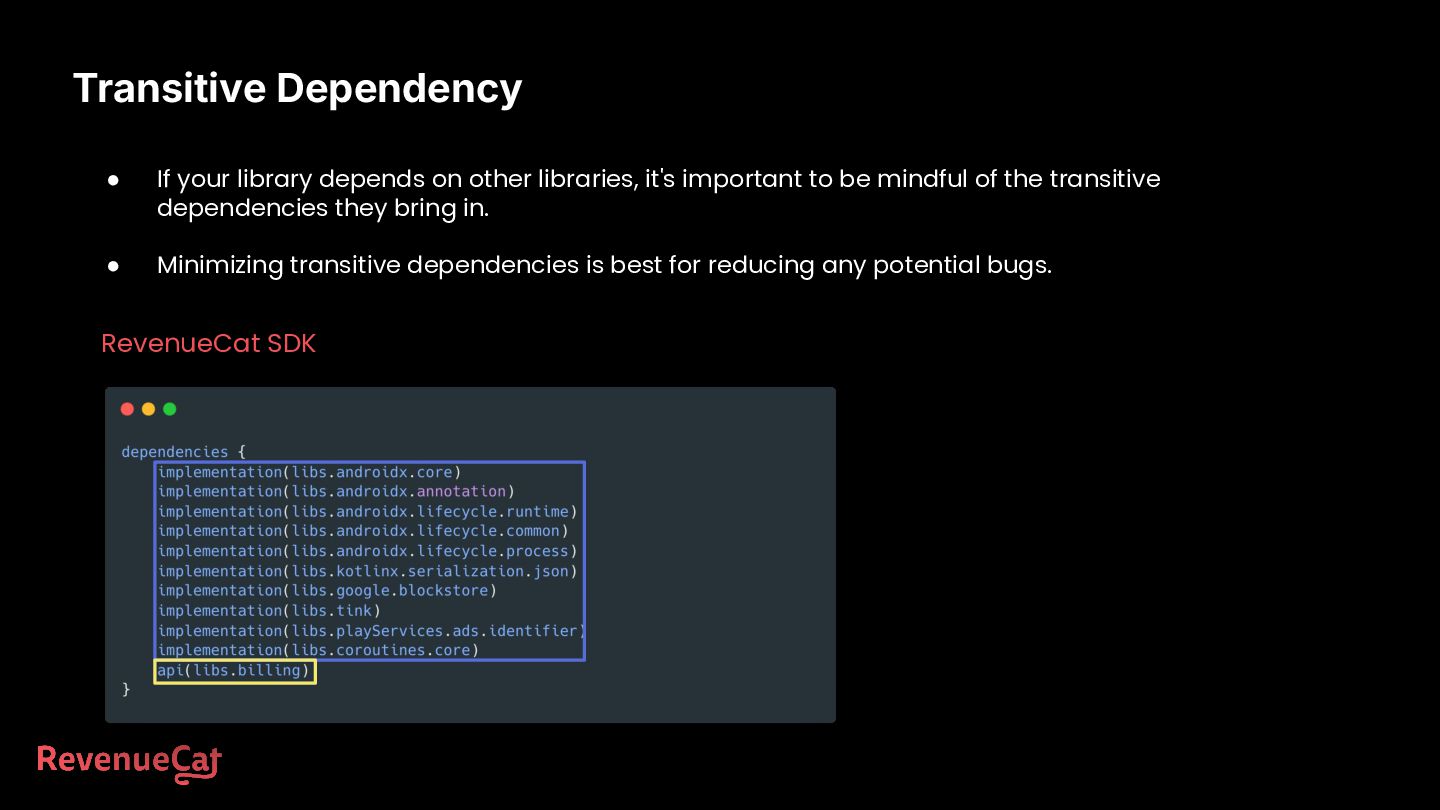

77. Transitive Dependency • If your library depends on other libraries, it's important to be mindful of the transitive dependencies they bring in. • Minimizing transitive dependencies is best for reducing any potential bugs. RevenueCat SDK
78. R class Transitive Dependency

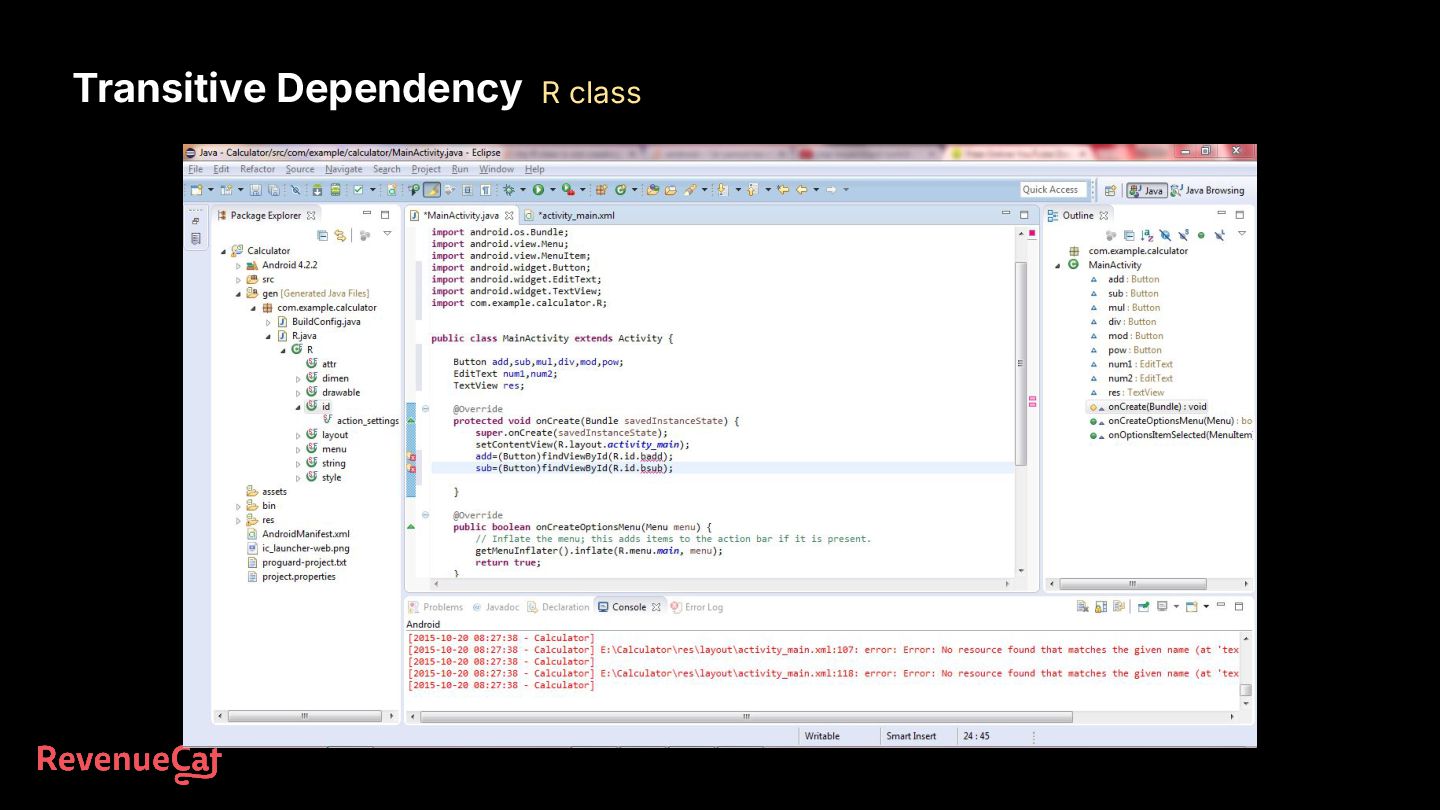

79. Transitive Dependency R class

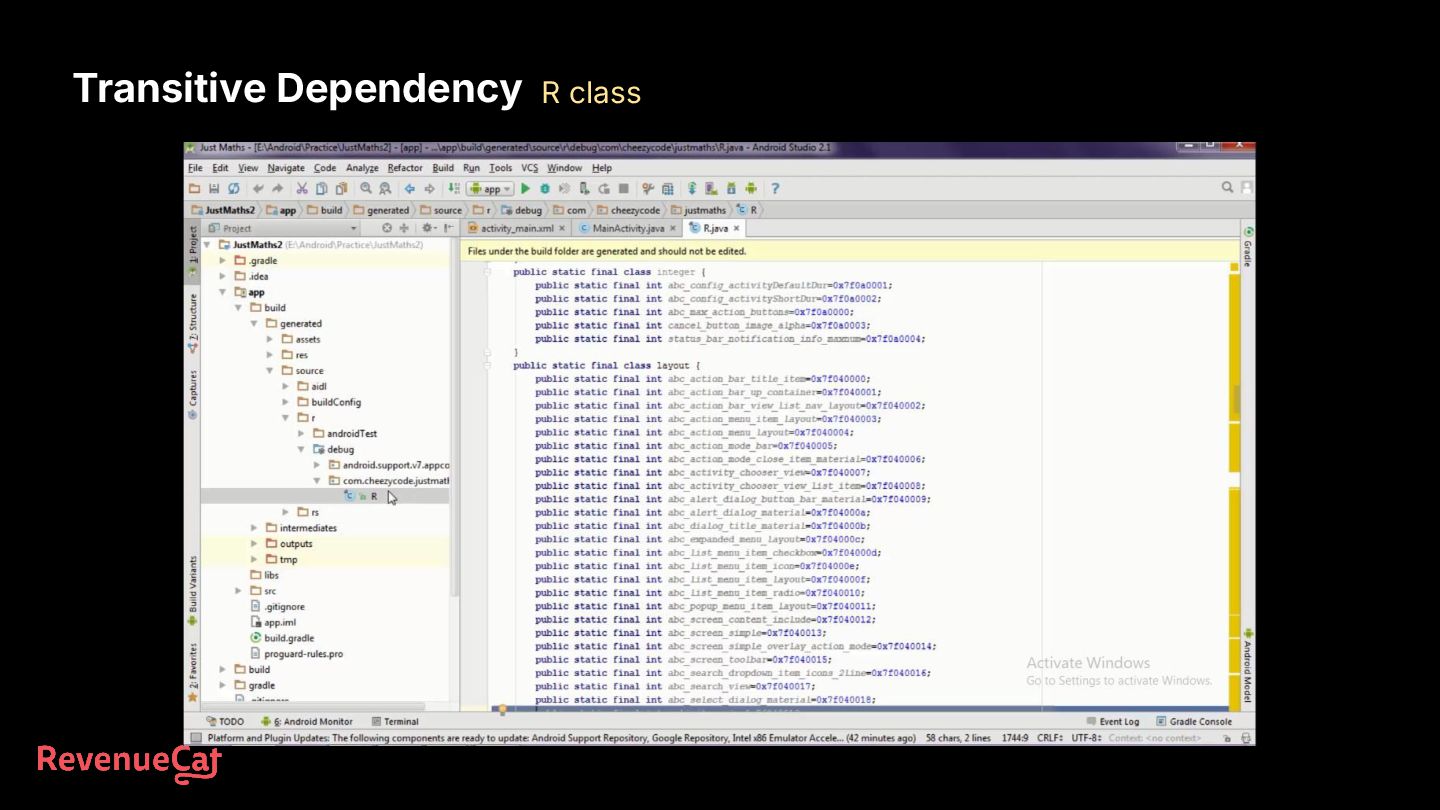

80. Transitive Dependency R class

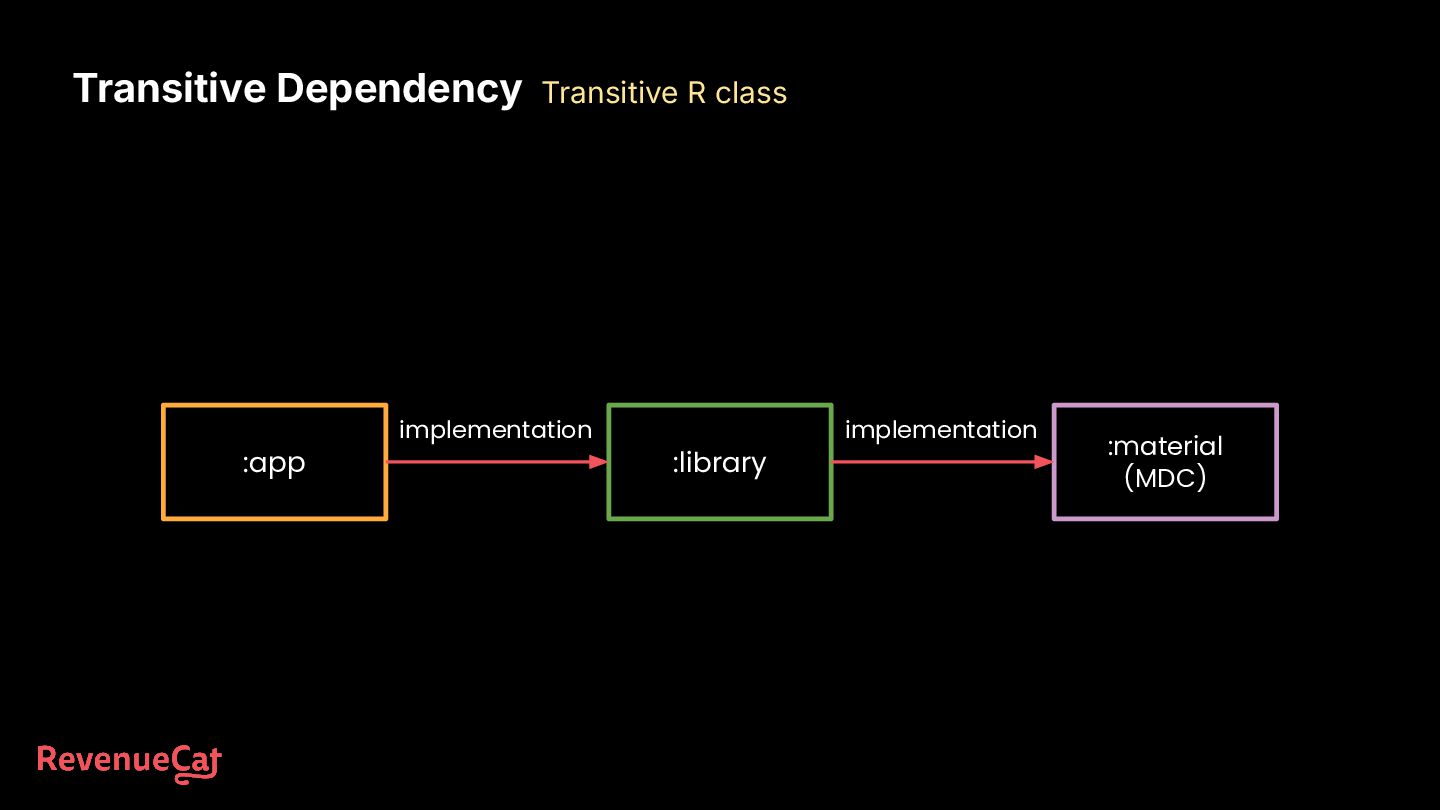

81. :app :library :material (MDC) implementation implementation Transitive Dependency Transitive R class

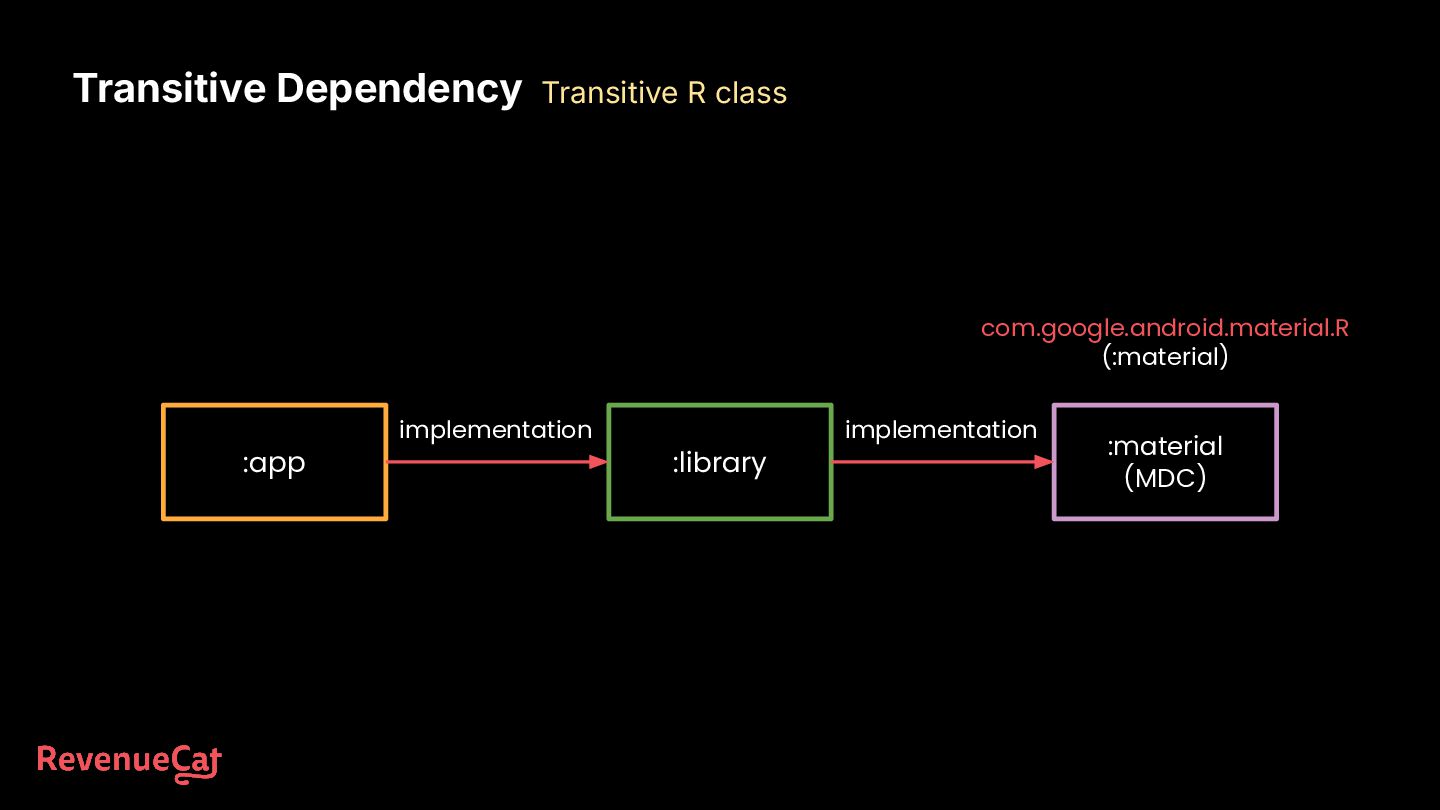

82. :app :library :material (MDC) com.google.android.material.R (:material) implementation implementation Transitive Dependency Transitive R class

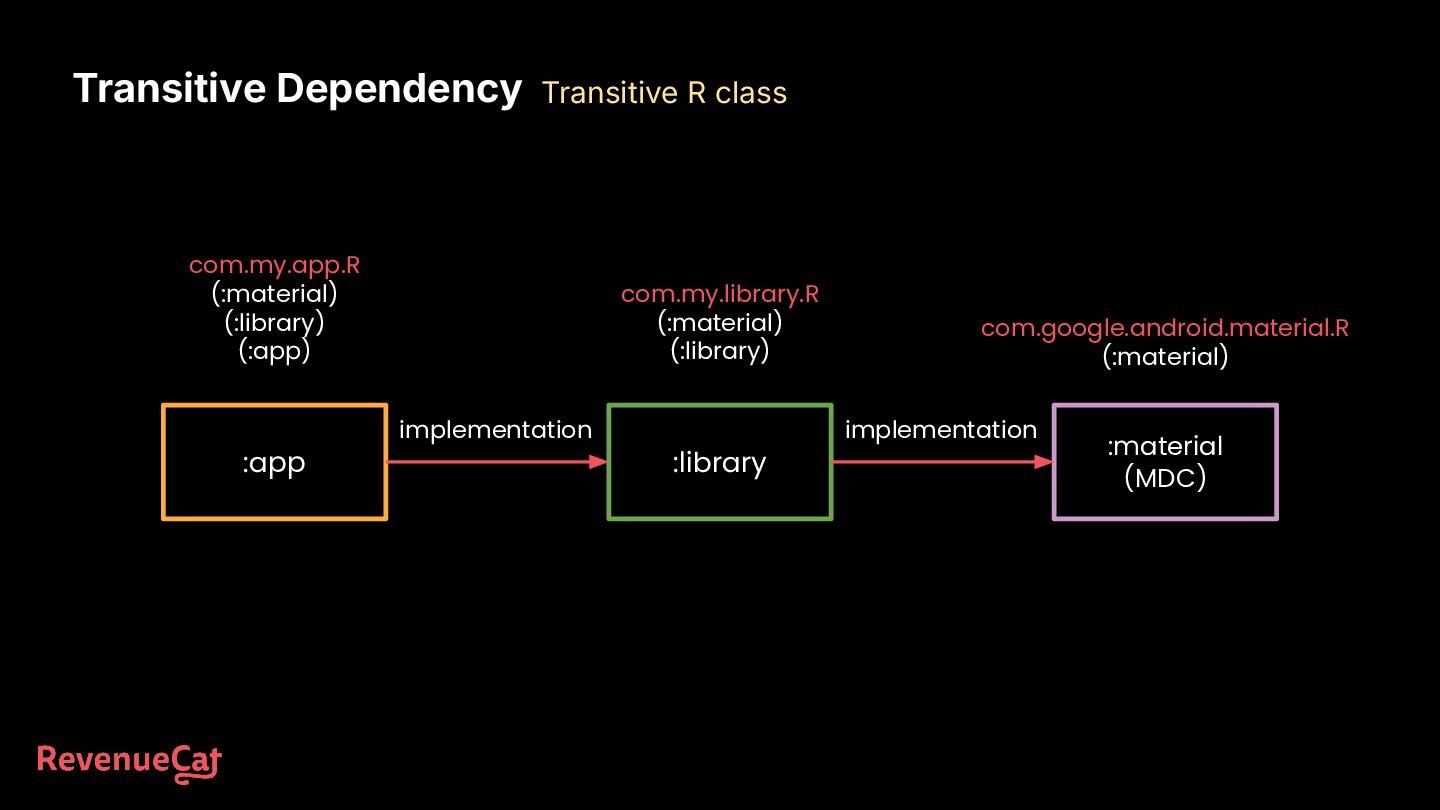

83. :app :library :material (MDC) com.my.library.R (:material) (:library) com.google.android.material.R (:material) implementation implementation Transitive Dependency Transitive R class
84. :app :library :material (MDC) com.my.library.R (:material) (:library) com.google.android.material.R (:material) implementation implementation com.my.app.R (:material) (:library) (:app) Transitive Dependency Transitive R class

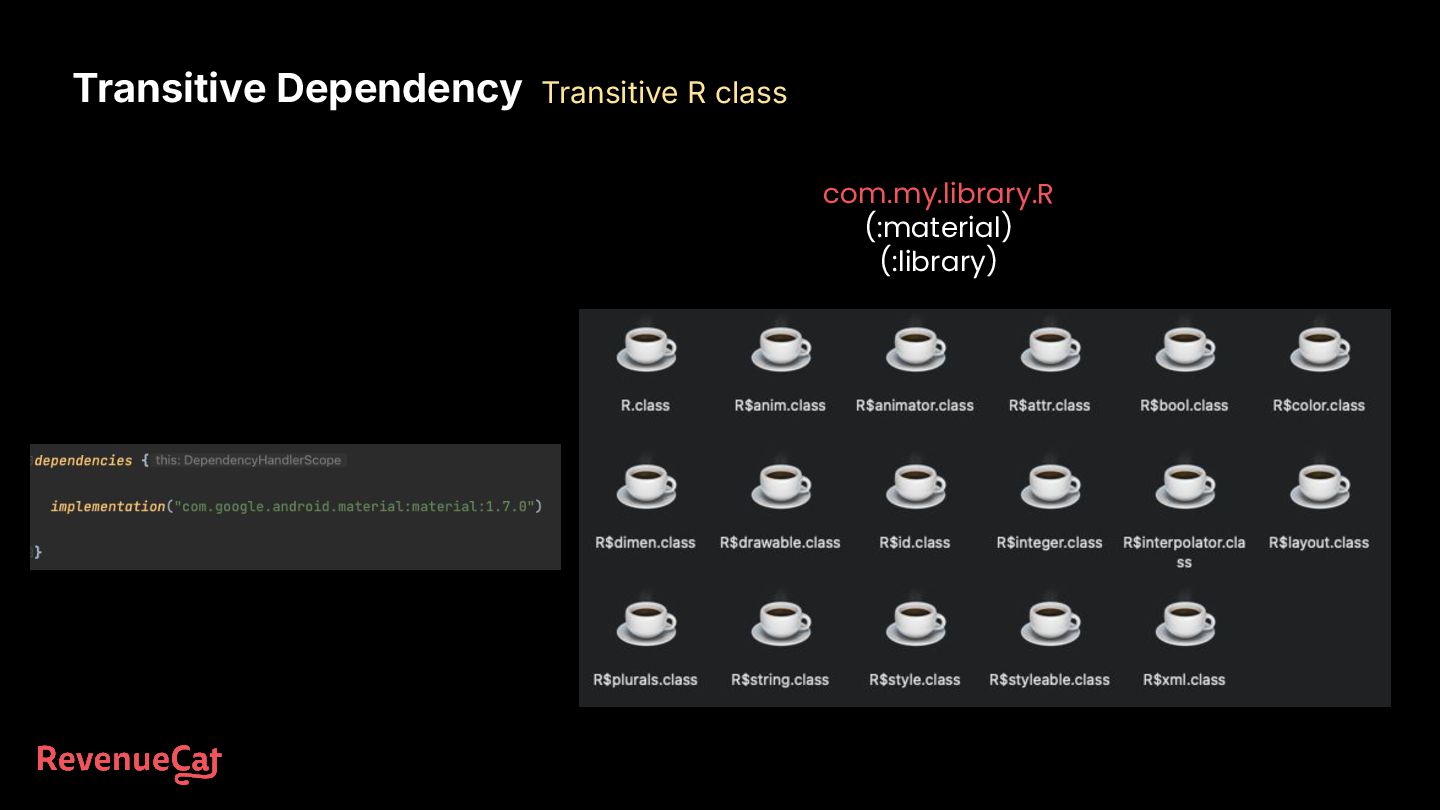

85. :app :library :material (MDC) com.my.library.R (:material) (:library) com.google.android.material.R (:material) implementation implementation com.my.app.R (:material) (:library) (:app) Transitive R Class Transitive Dependency Transitive R class

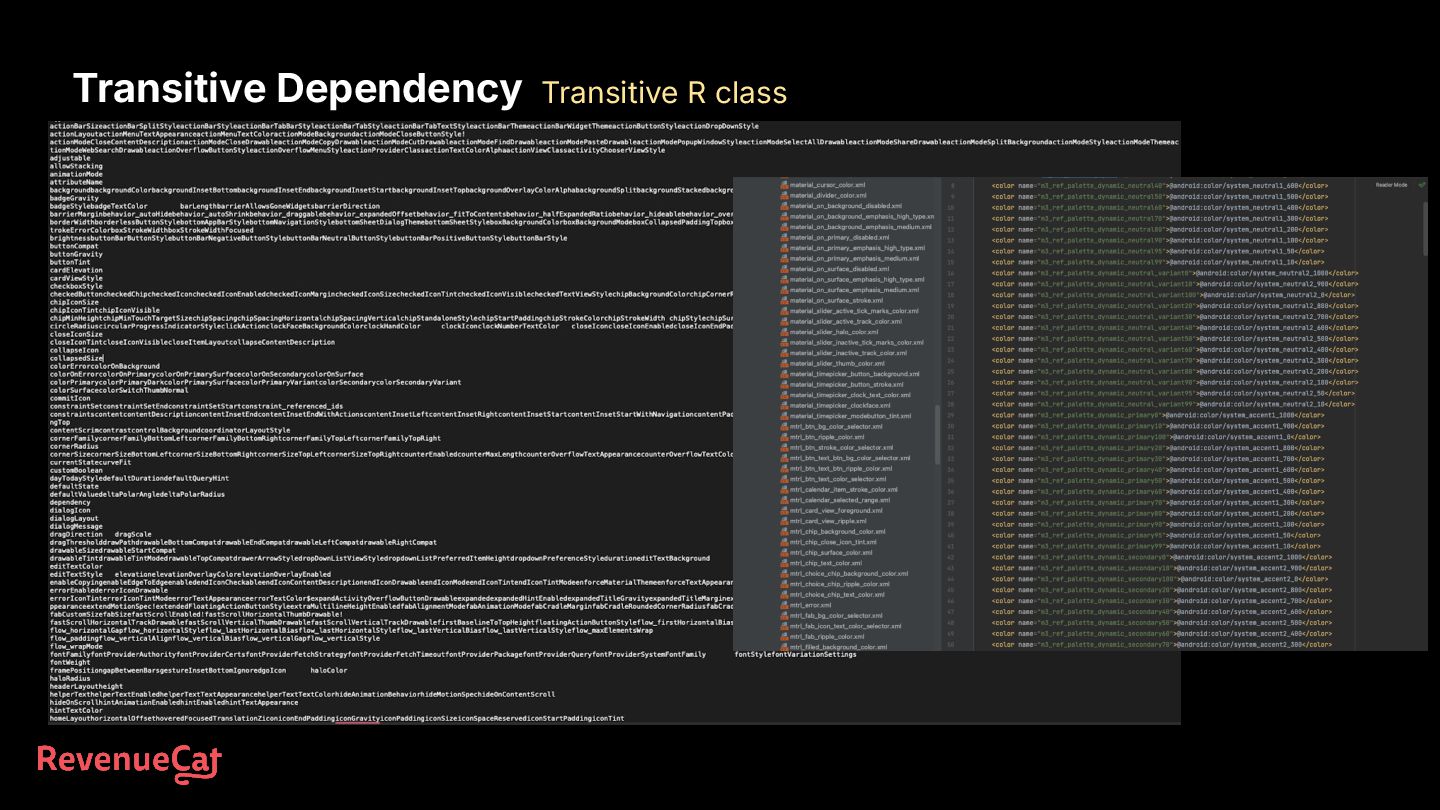

86. com.my.library.R (:material) (:library) Transitive Dependency Transitive R class
87. Transitive Dependency Transitive R class

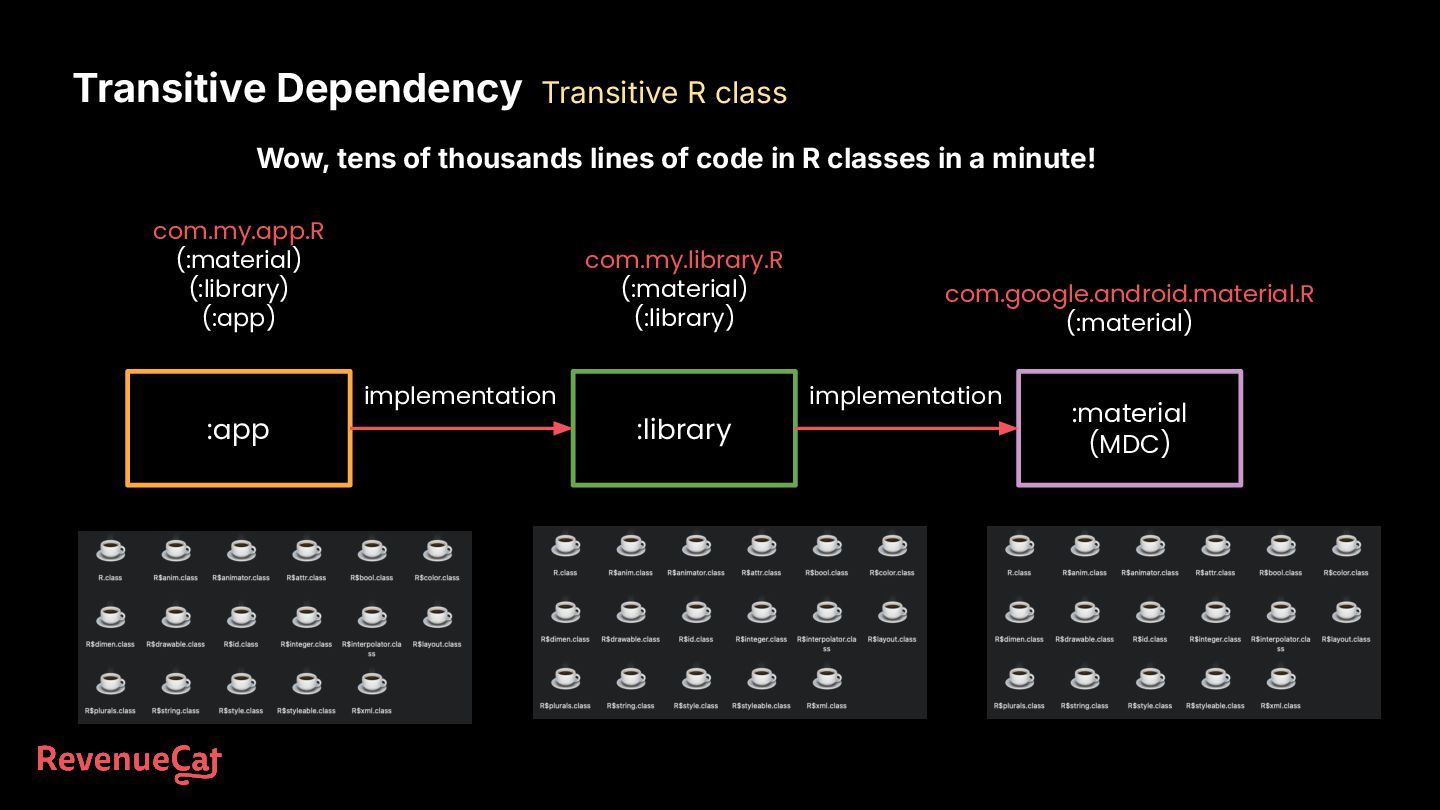

88. Wow, tens of thousands lines of code in R classes in a minute! :app :library :material (MDC) com.my.library.R (:material) (:library) com.google.android.material.R (:material) implementation implementation com.my.app.R (:material) (:library) (:app) Transitive Dependency Transitive R class

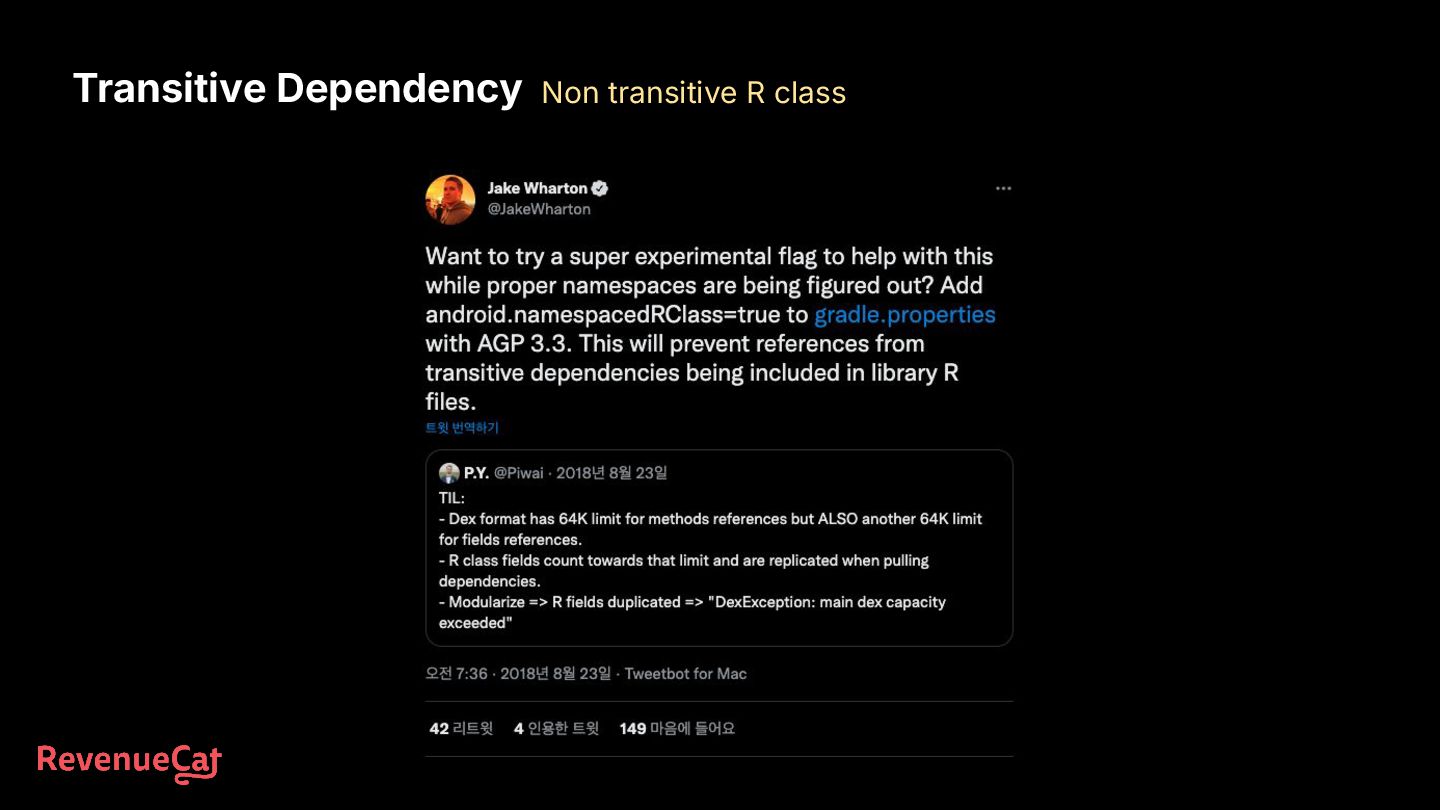

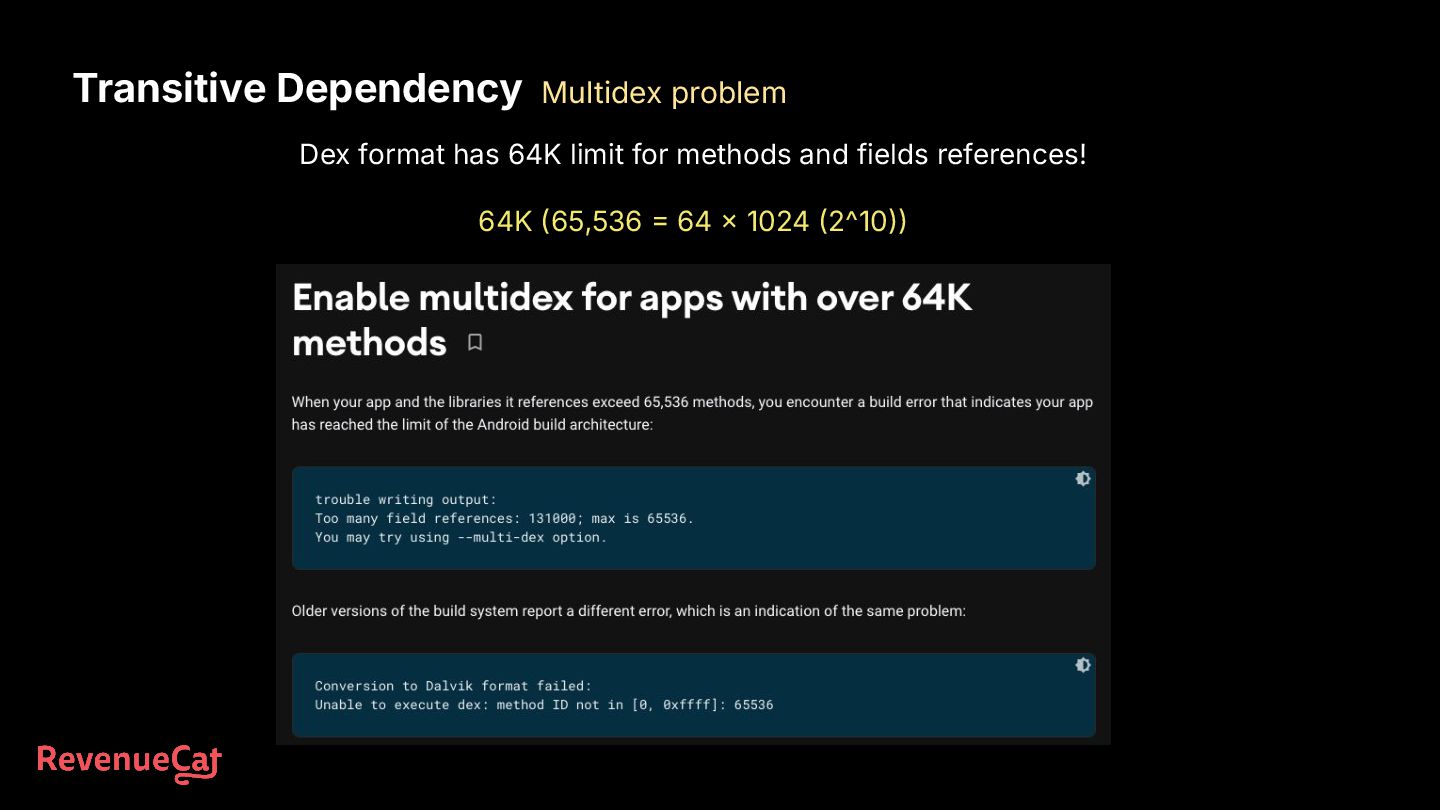

89. Dex format has 64K limit for methods and fields references! 64K 65,536  64  1024 2^10 Transitive Dependency Multidex problem
90. Transitive Dependency Non transitive R class

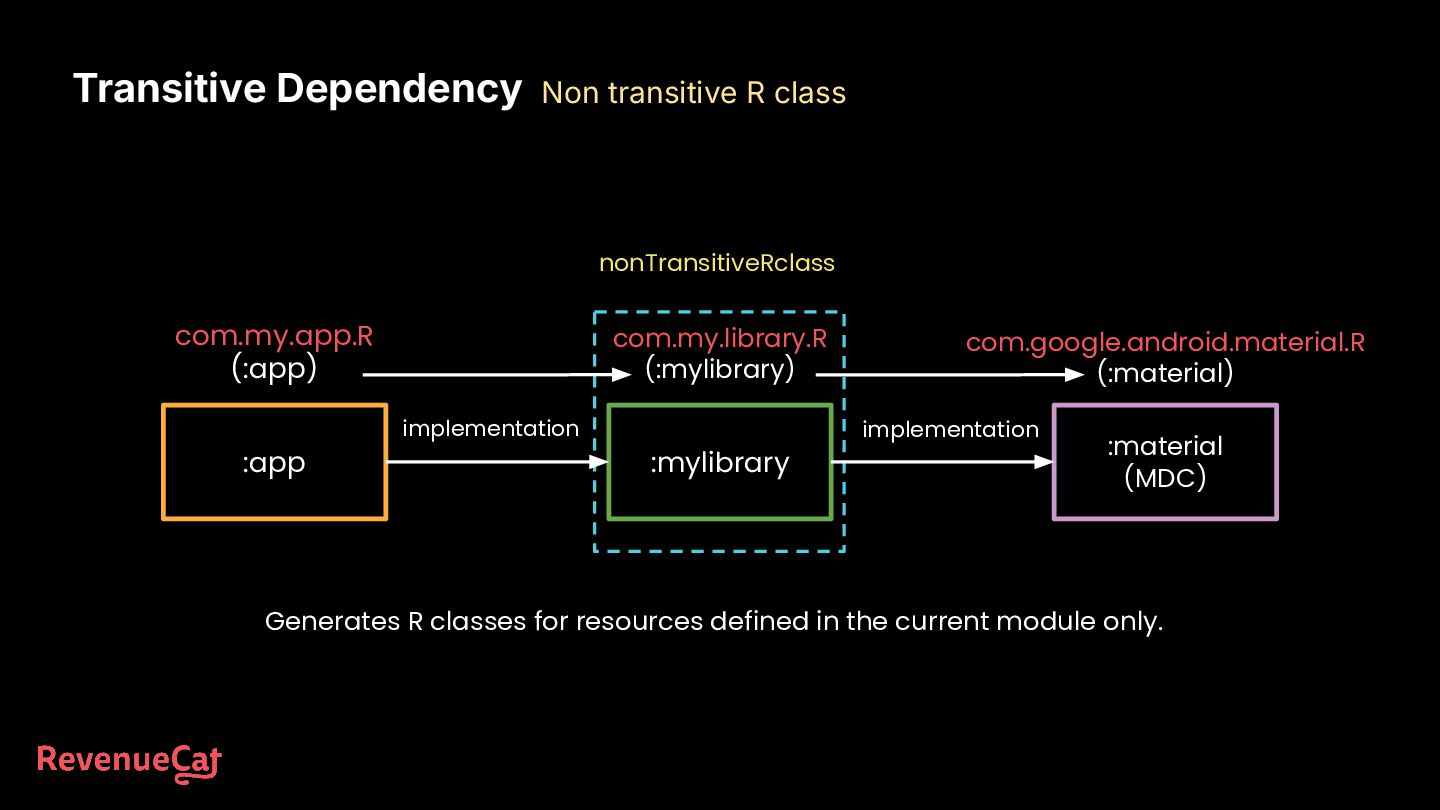

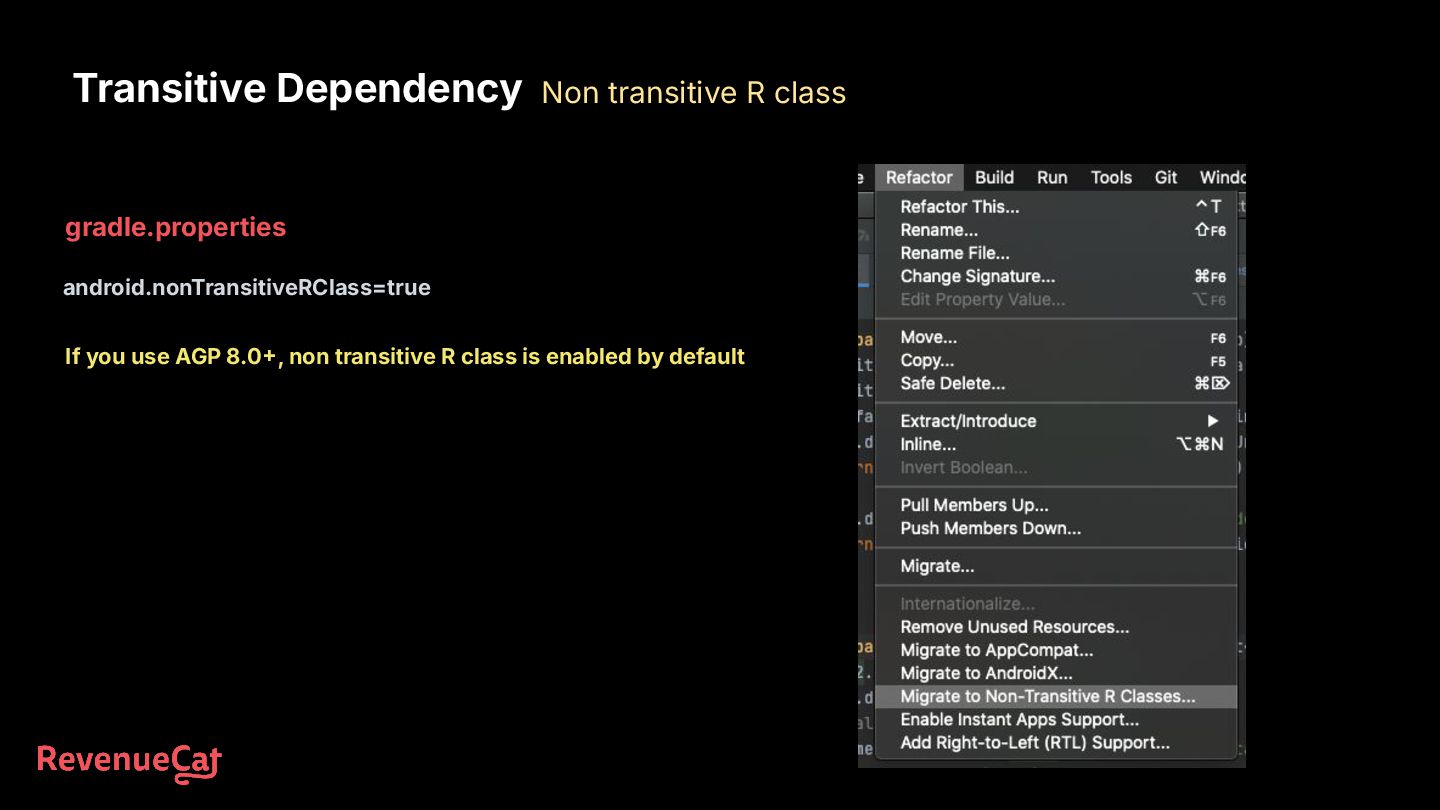

91. android.nonTransitiveRClass=true gradle.properties Transitive Dependency Non transitive R class If you use AGP 8.0, non transitive R class is enabled by default
92. :app :mylibrary :material (MDC) implementation implementation com.my.library.R (:mylibrary) com.google.android.material.R (:material) com.my.app.R (:app) Generates R classes for resources defined in the current module only. Transitive Dependency Non transitive R class nonTransitiveRclass

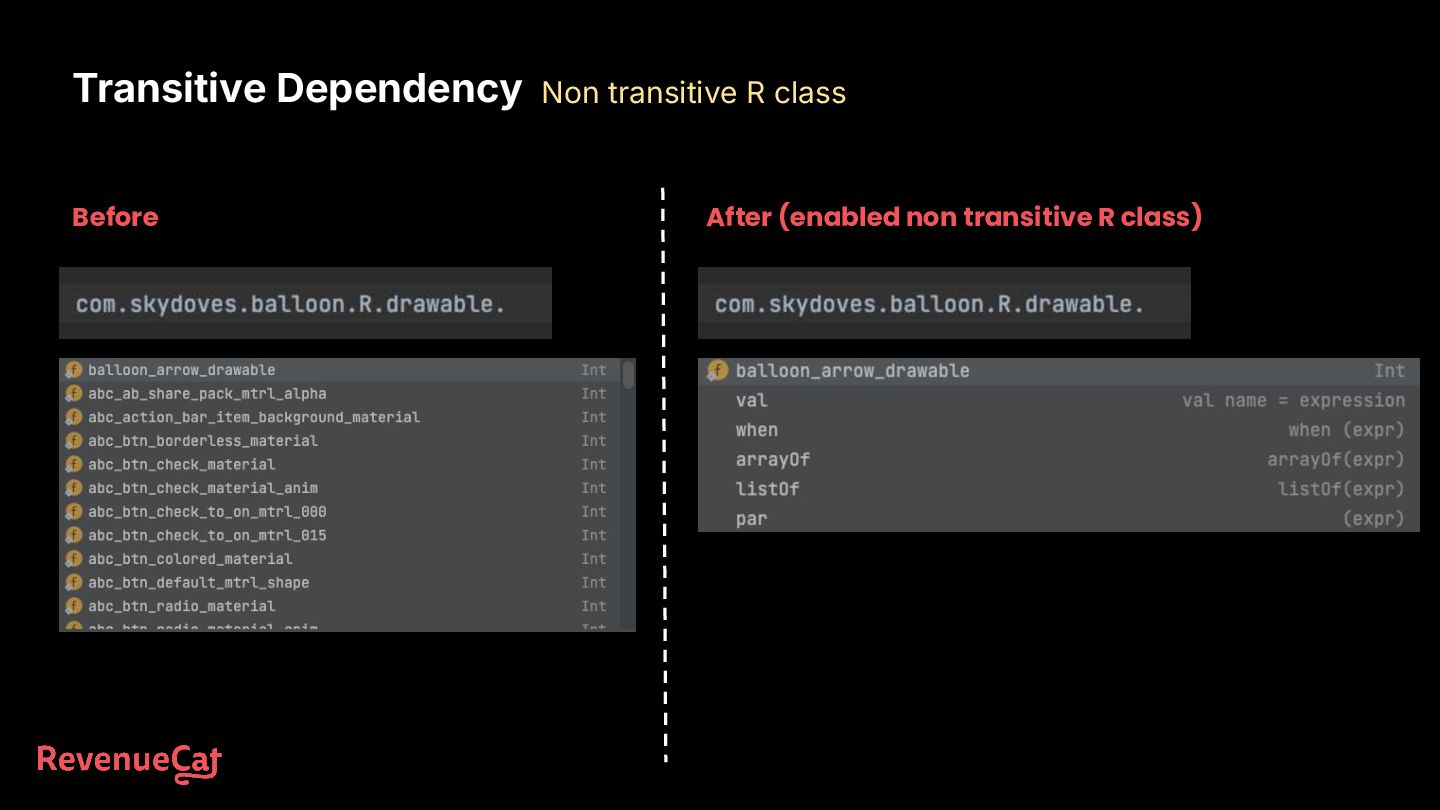

93. Before After (enabled non transitive R class) Transitive Dependency Non transitive R class

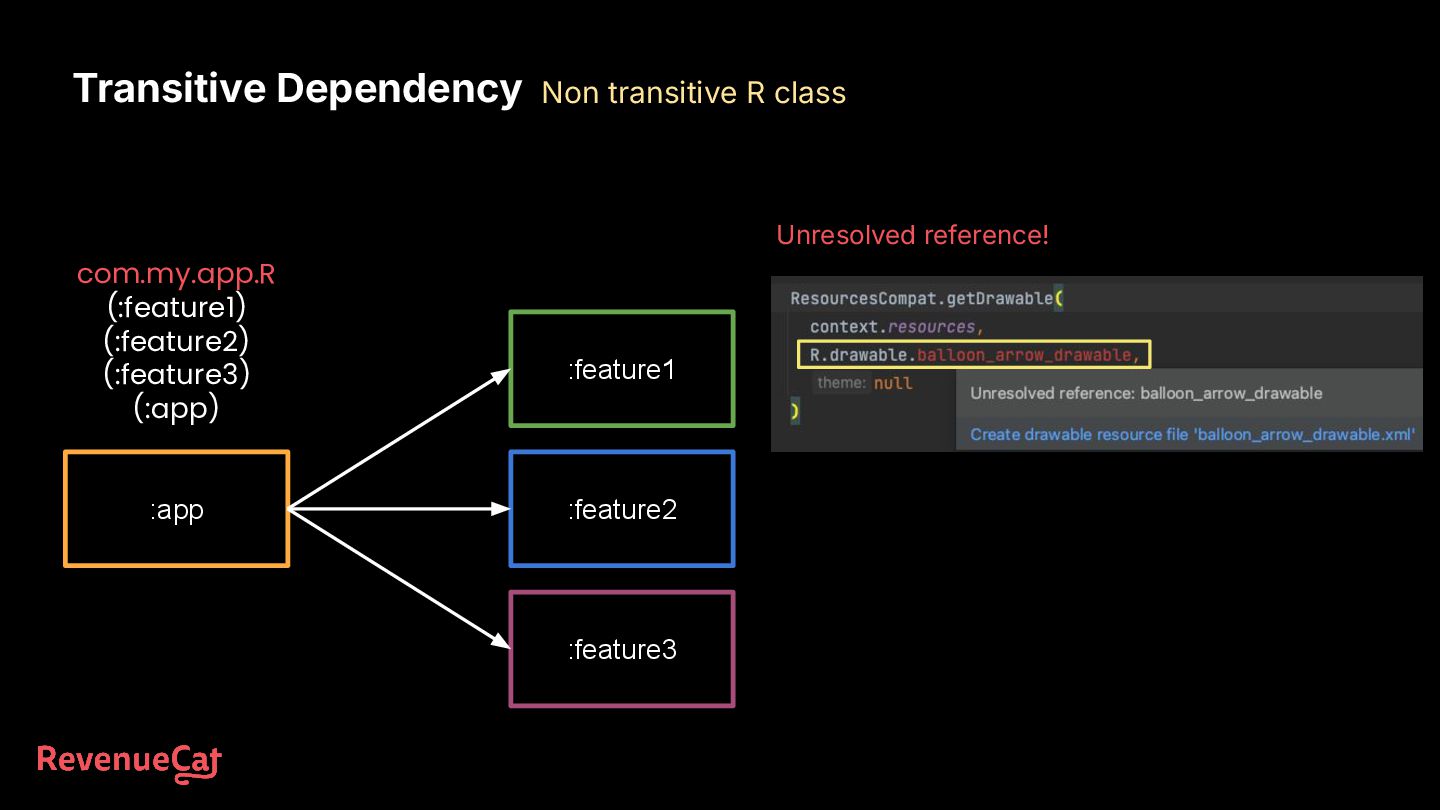

94. :app :feature1 :feature2 :feature3 com.my.app.R (:feature1) (:feature2) (:feature3) (:app) Unresolved reference! Transitive Dependency Non transitive R class

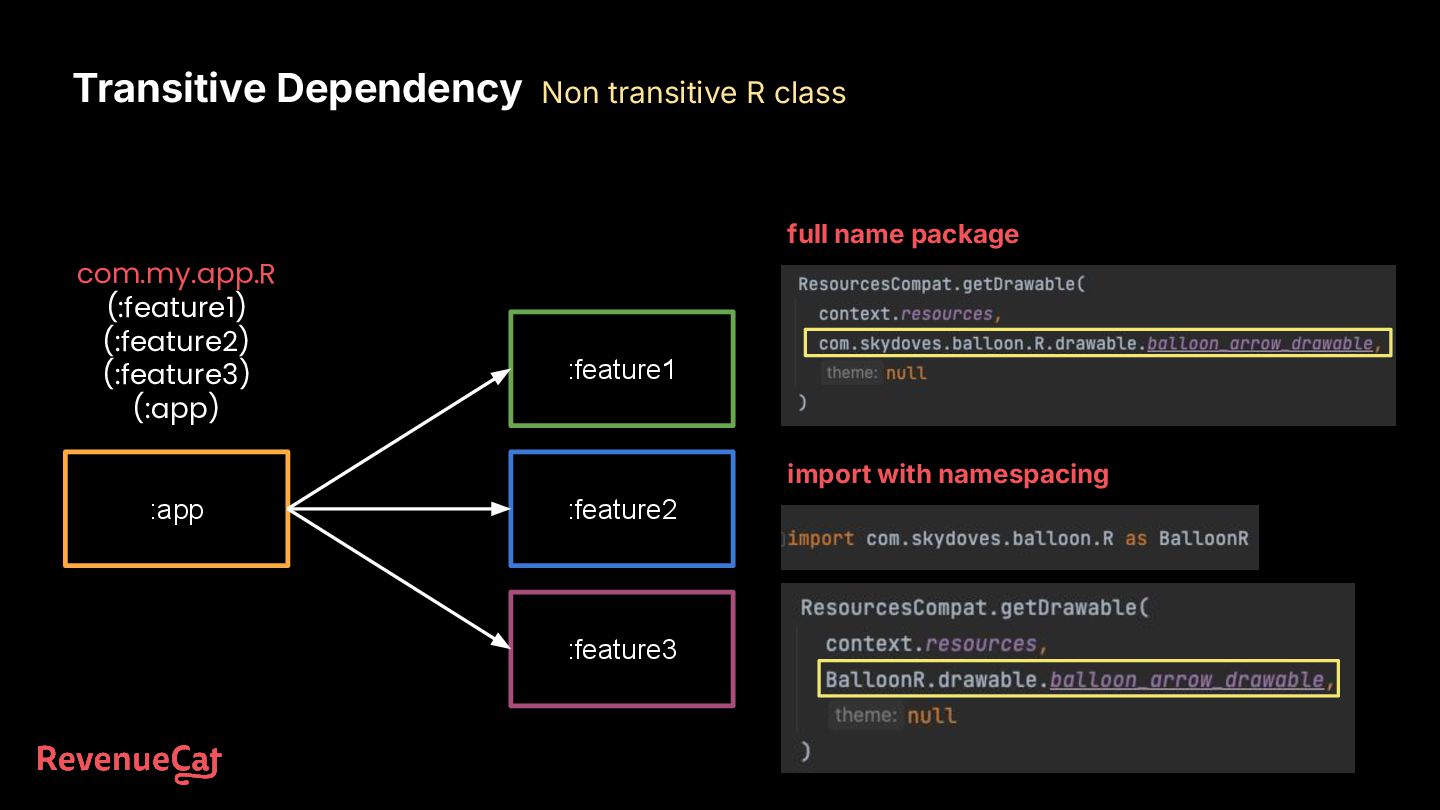

95. :app :feature1 :feature2 :feature3 com.my.app.R (:feature1) (:feature2) (:feature3) (:app) full name package import with namespacing Transitive Dependency Non transitive R class

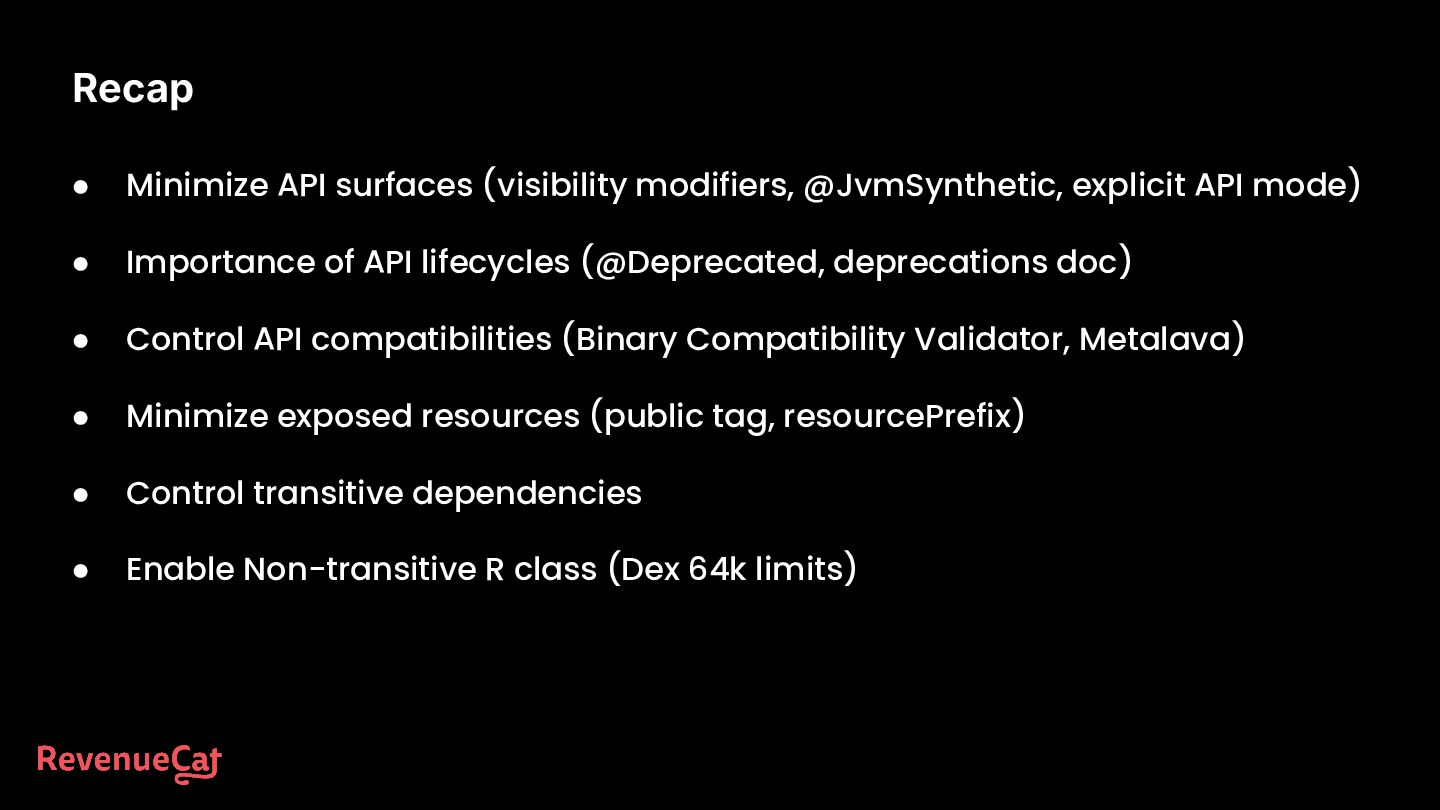

96. Recap • Minimize API surfaces (visibility modifiers, @JvmSynthetic, explicit API mode) • Importance of API lifecycles (@Deprecated, deprecations doc) • Control API compatibilities (Binary Compatibility Validator, Metalava) • Minimize exposed resources (public tag, resourcePrefix) • Control transitive dependencies • Enable Non-transitive R class (Dex 64k limits)
