1. AI Tool Calling And What We Can Do With Them Tamar Twena-Stern
2. Tamar Twena-Stern twitter @sterntwena linkedin /tamarstern tamar.twena@gmail.com
3. I am Asking My LLM A Question - I am a huge Judo fan - Does Inbar Lanir won an olympic medal ?

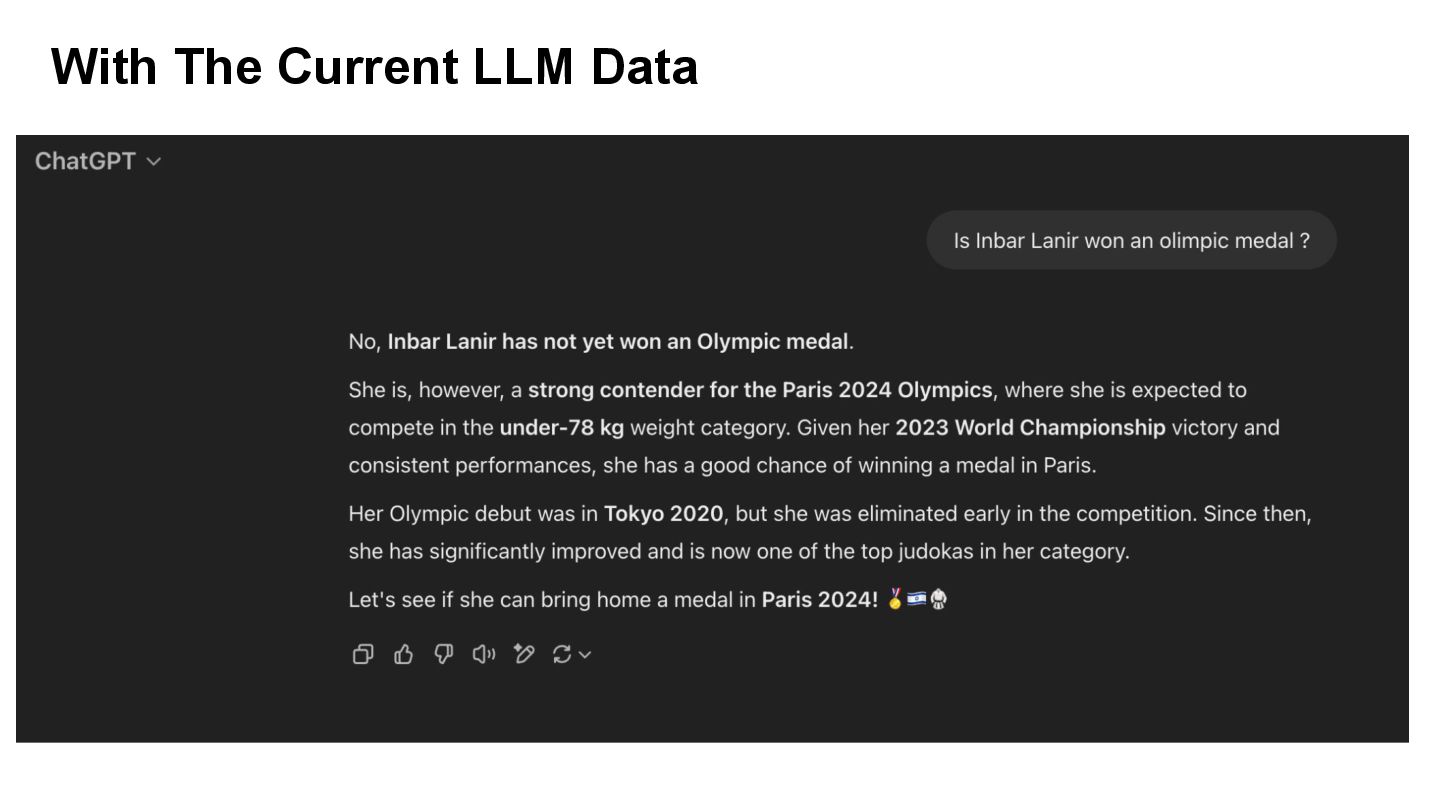

4. With The Current LLM Data
5. Now, Let’s allow our LLM to search through the web

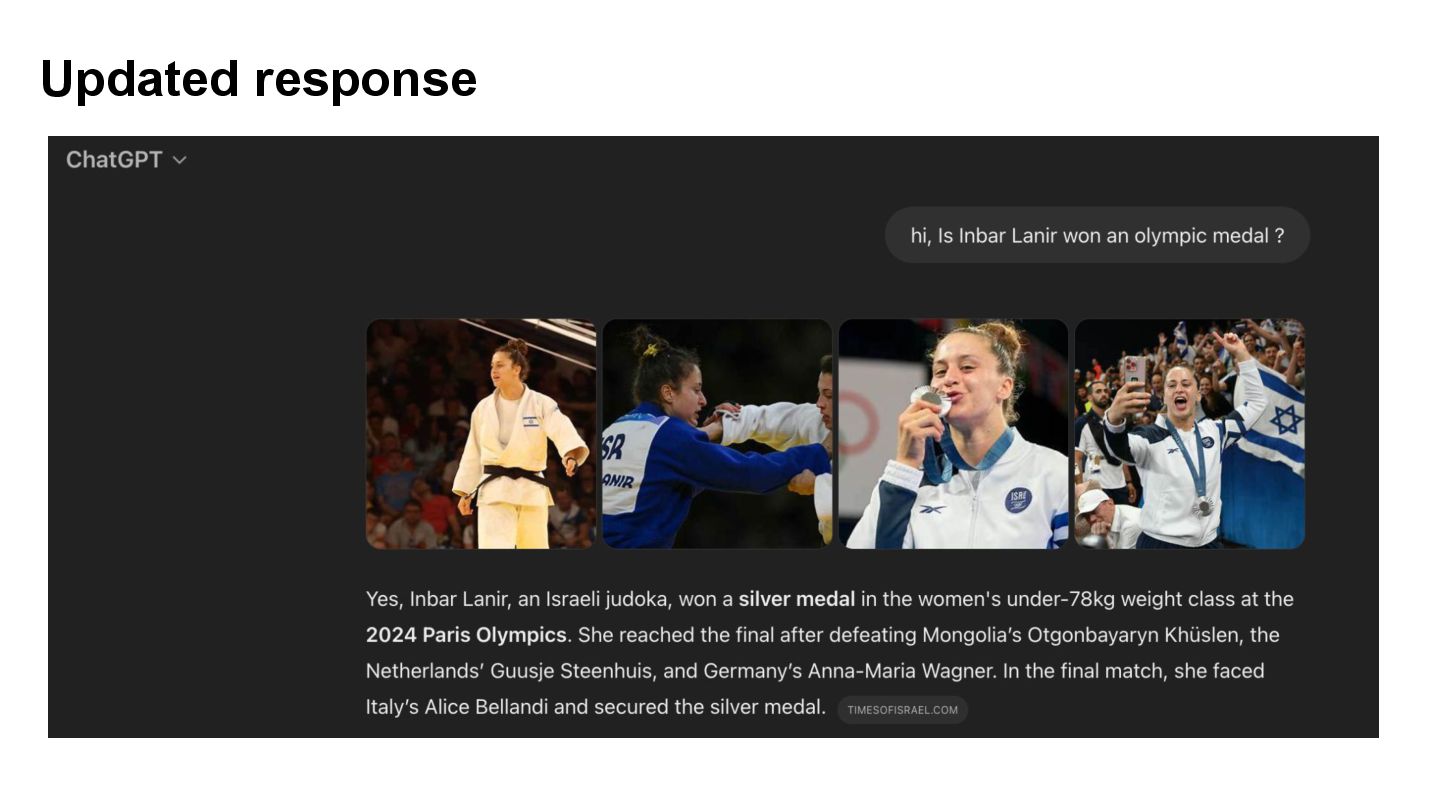

6. Updated response
7. How The LLM Has The Ability To Search In The Web ?
8. Introduction
9. What Is An LLM And How It Works?
10. Large language models (LLMs) are machine learning models that can comprehend and generate human language text. They work by analyzing massive data sets of language.

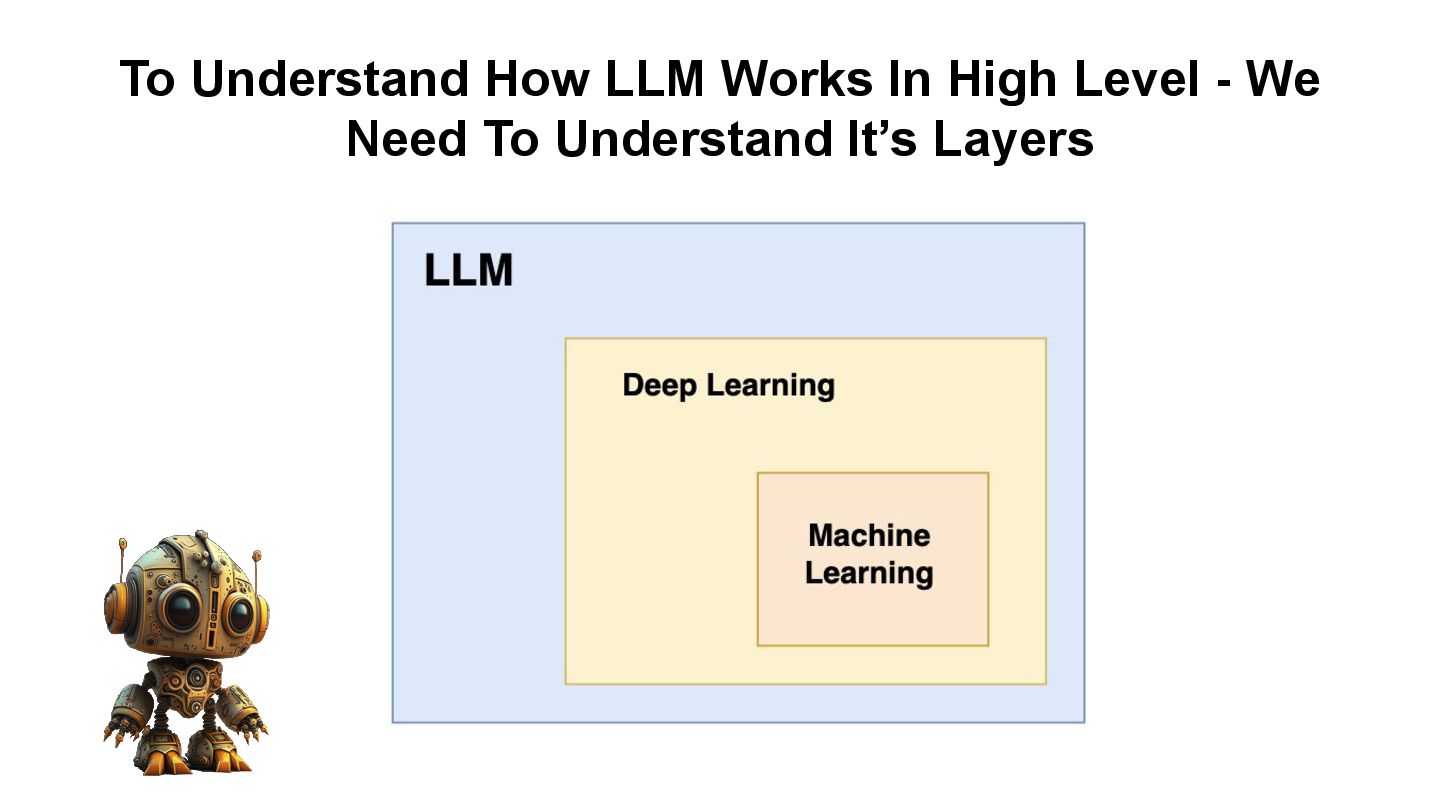

11. To Understand How LLM Works In High Level - We Need To Understand It’s Layers

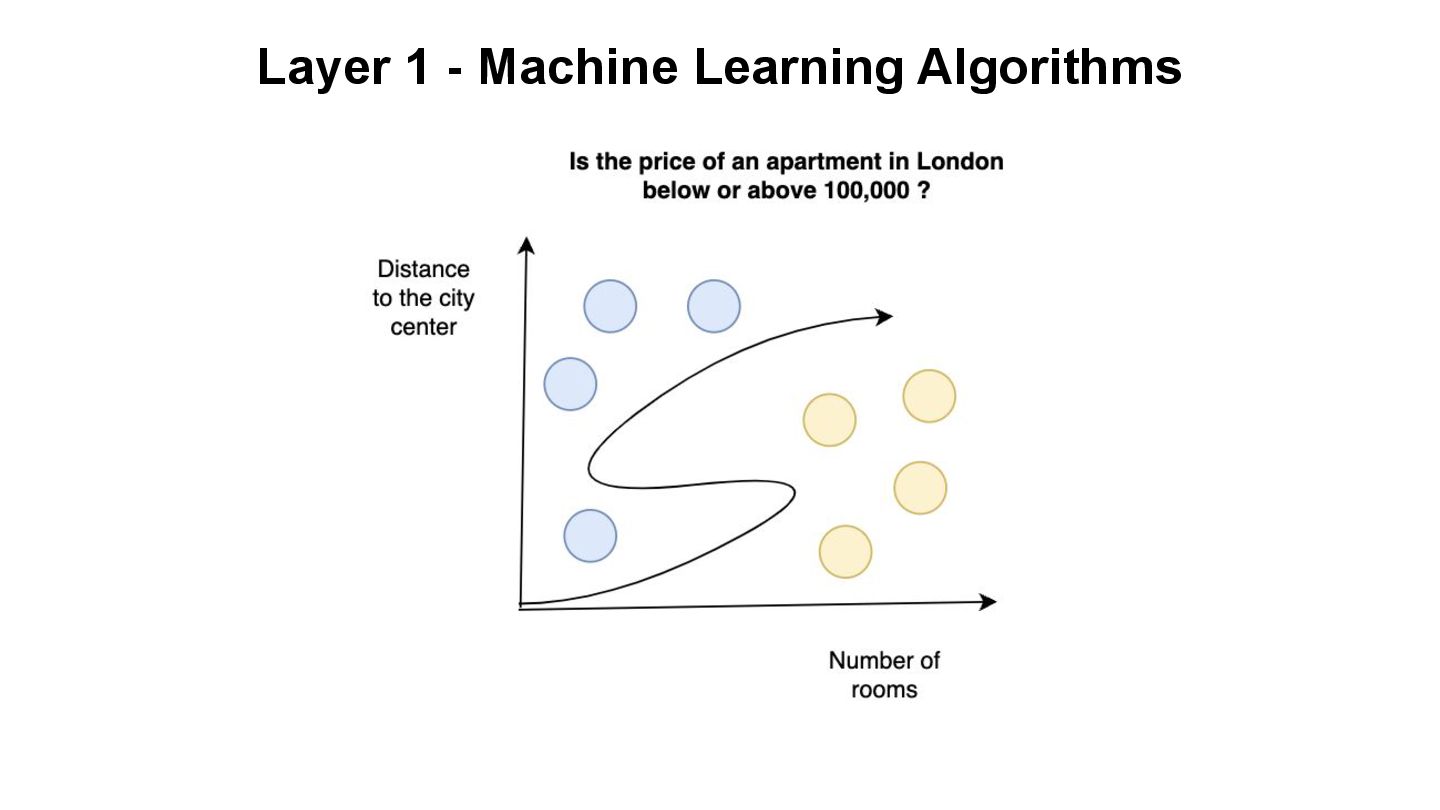

12. Layer 1 - Machine Learning Algorithms

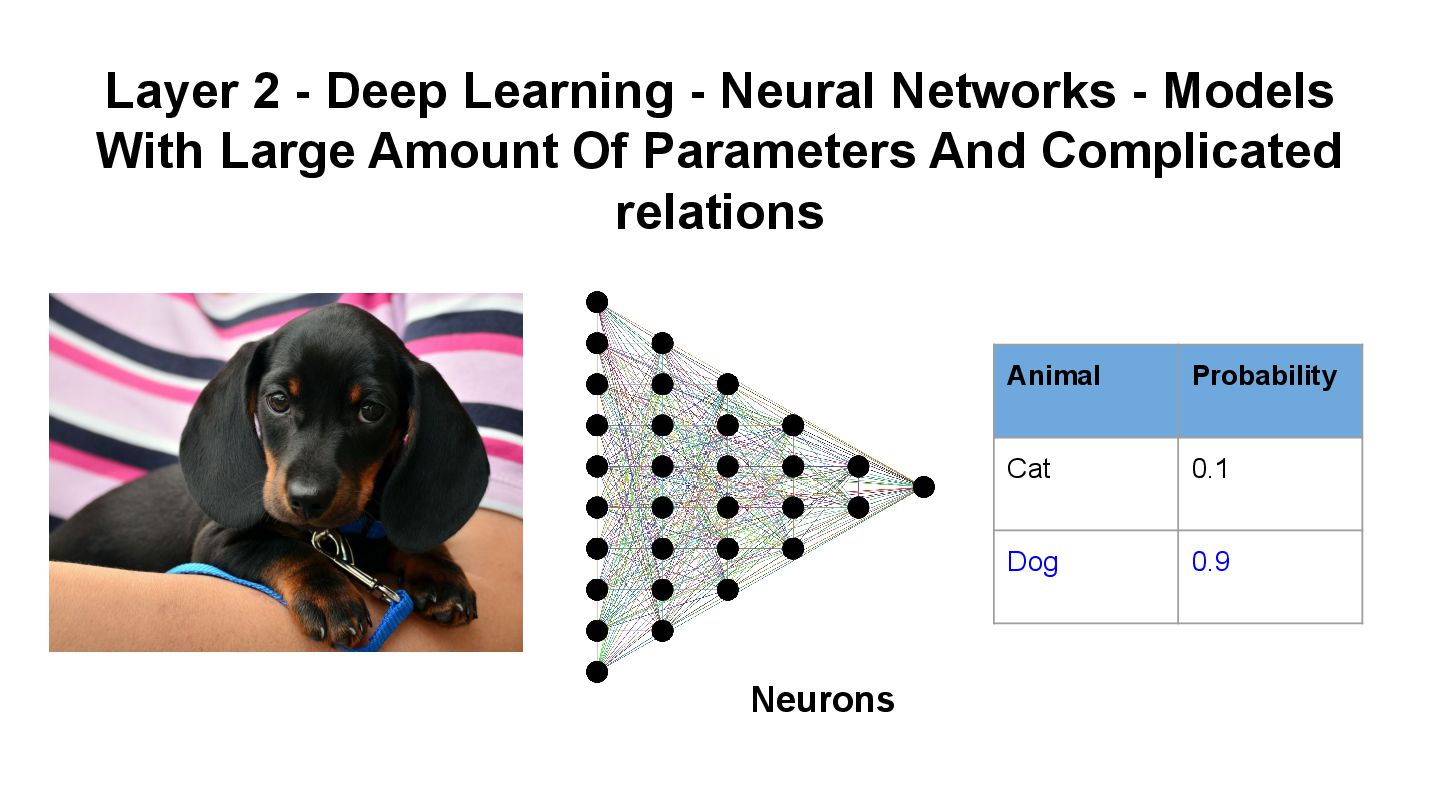

13. Layer 2 - Deep Learning - Neural Networks - Models With Large Amount Of Parameters And Complicated relations Animal Probability Cat 0.1 Dog 0.9 Neurons

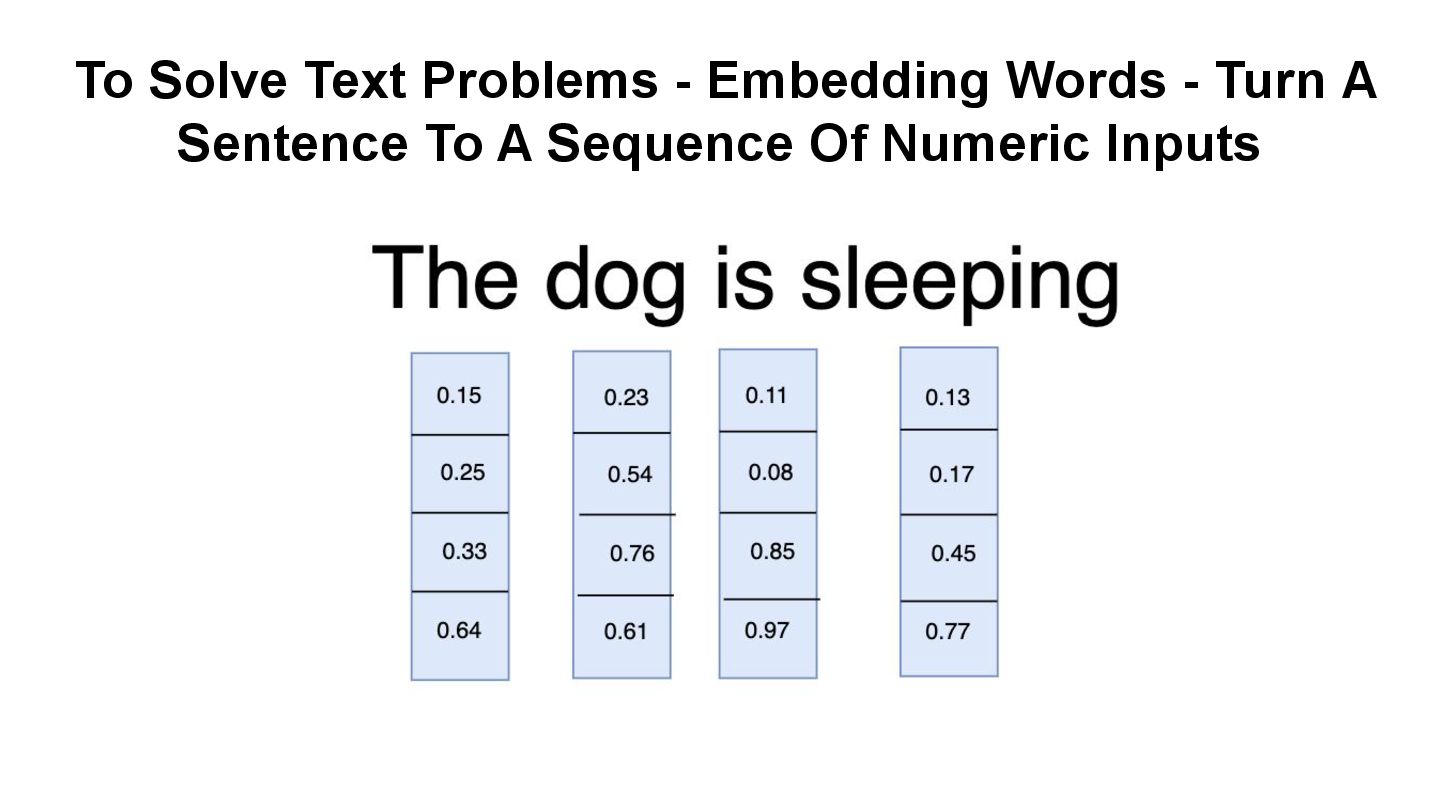

14. To Solve Text Problems - Embedding Words - Turn A Sentence To A Sequence Of Numeric Inputs
15. Layer 3 - The LLMs

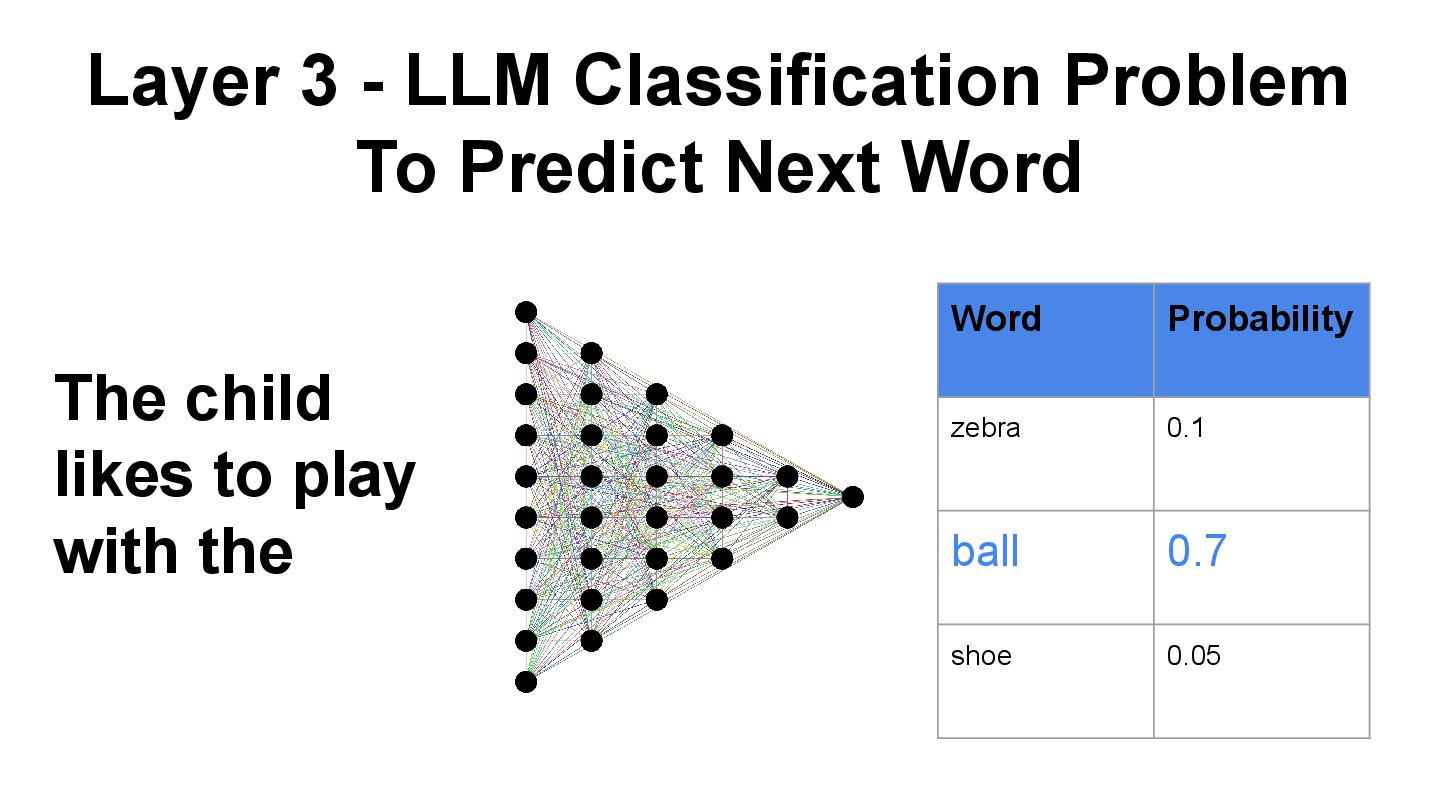

16. Layer 3 - LLM Classification Problem To Predict Next Word The child likes to play with the Word Probability zebra 0.1 ball 0.7 shoe 0.05

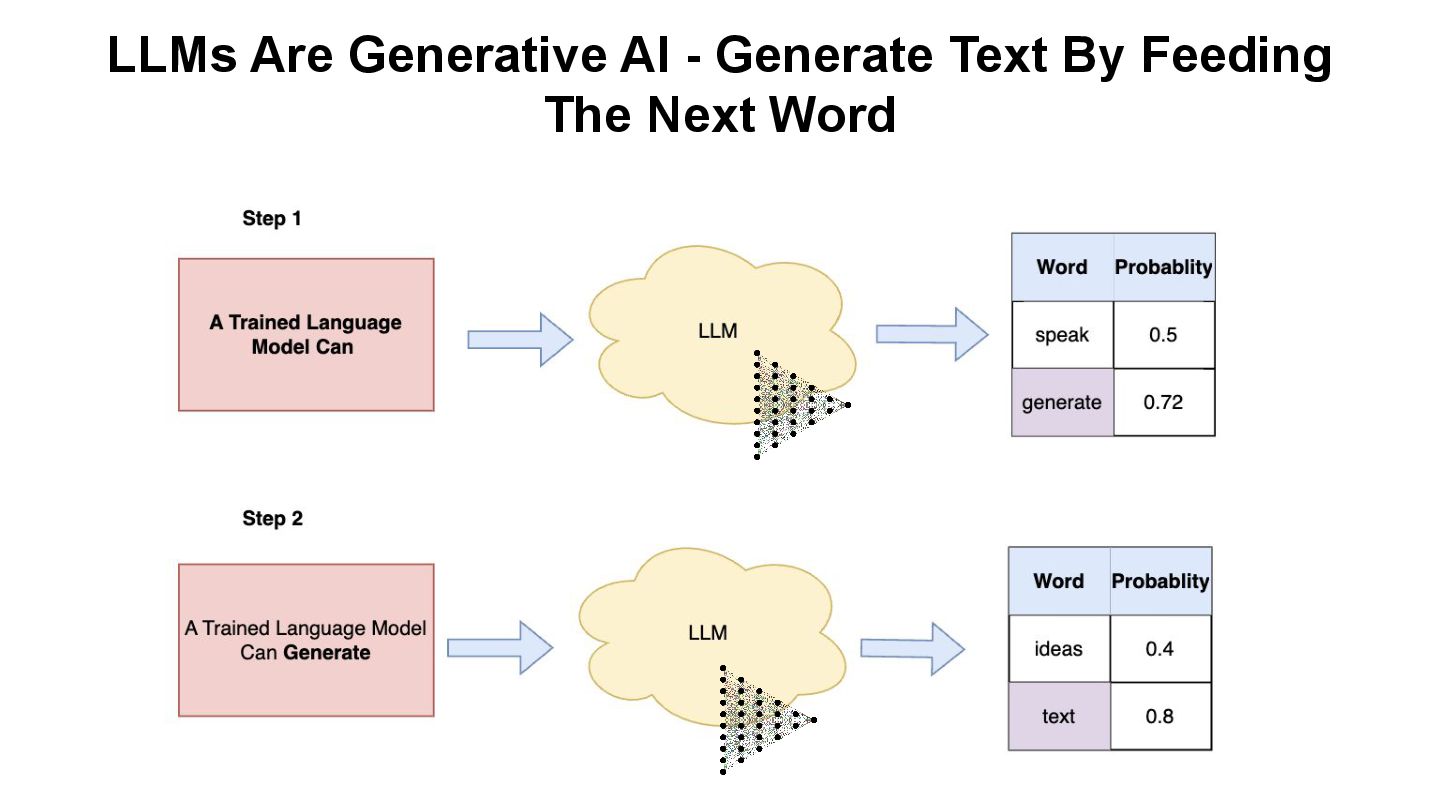

17. LLMs Are Generative AI - Generate Text By Feeding The Next Word
18. ChatGPT - 175B Neurons Human Brain - 100B Neurons Fun Fact
19. LLM Building Blocks That You Should Know
20. LLM Tokens nm, Node.js is an open source, cross platform JavaScript runtime environment that allows developers to run code outside the web browser.
21. Temperature - LLM Setting to Guess Words With Smaller Probablity The child likes to play with the Word Probability zebra 0.1 ball 0.7 shoe 0.05
22. LLM Response With Low Temperature

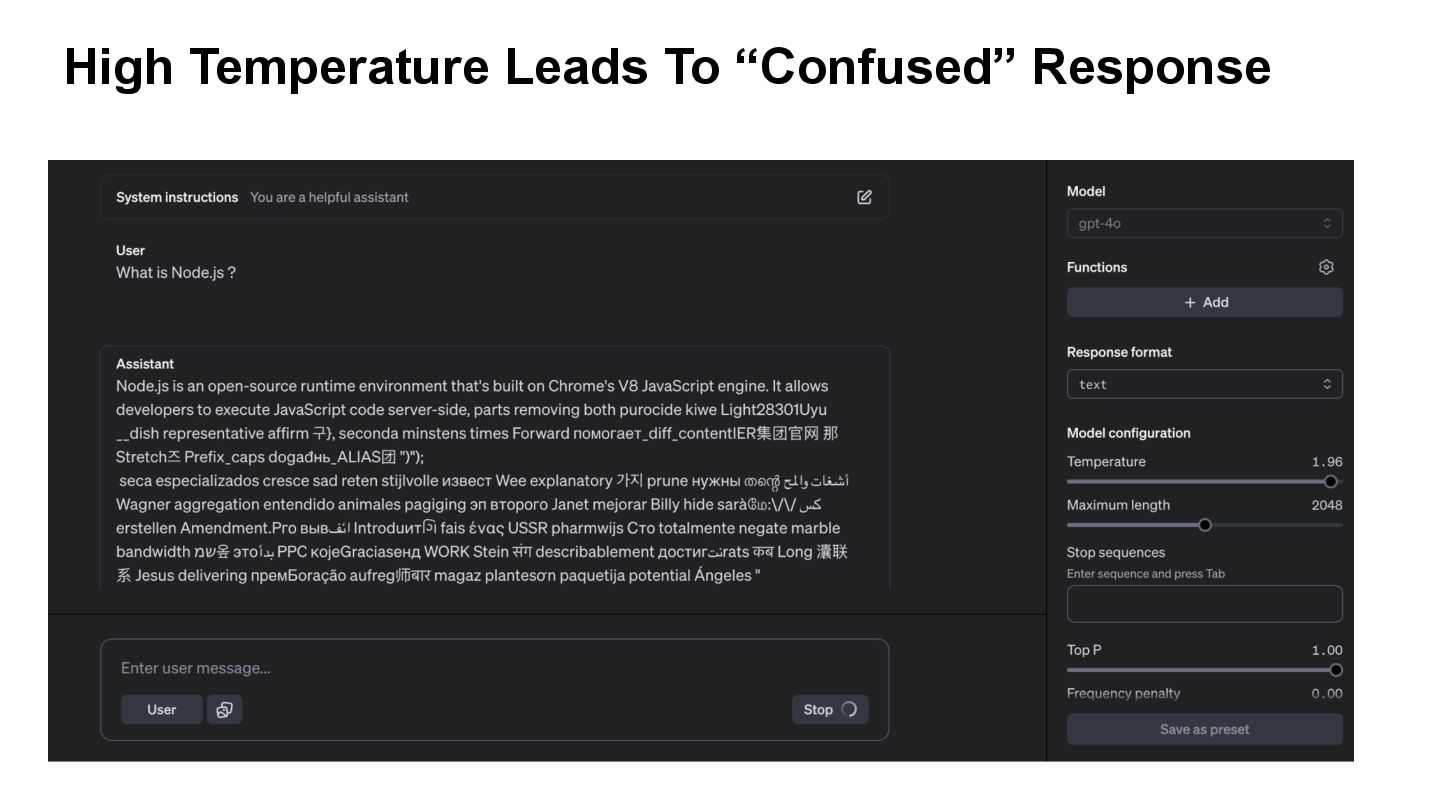

23. High Temperature Leads To “Confused” Response

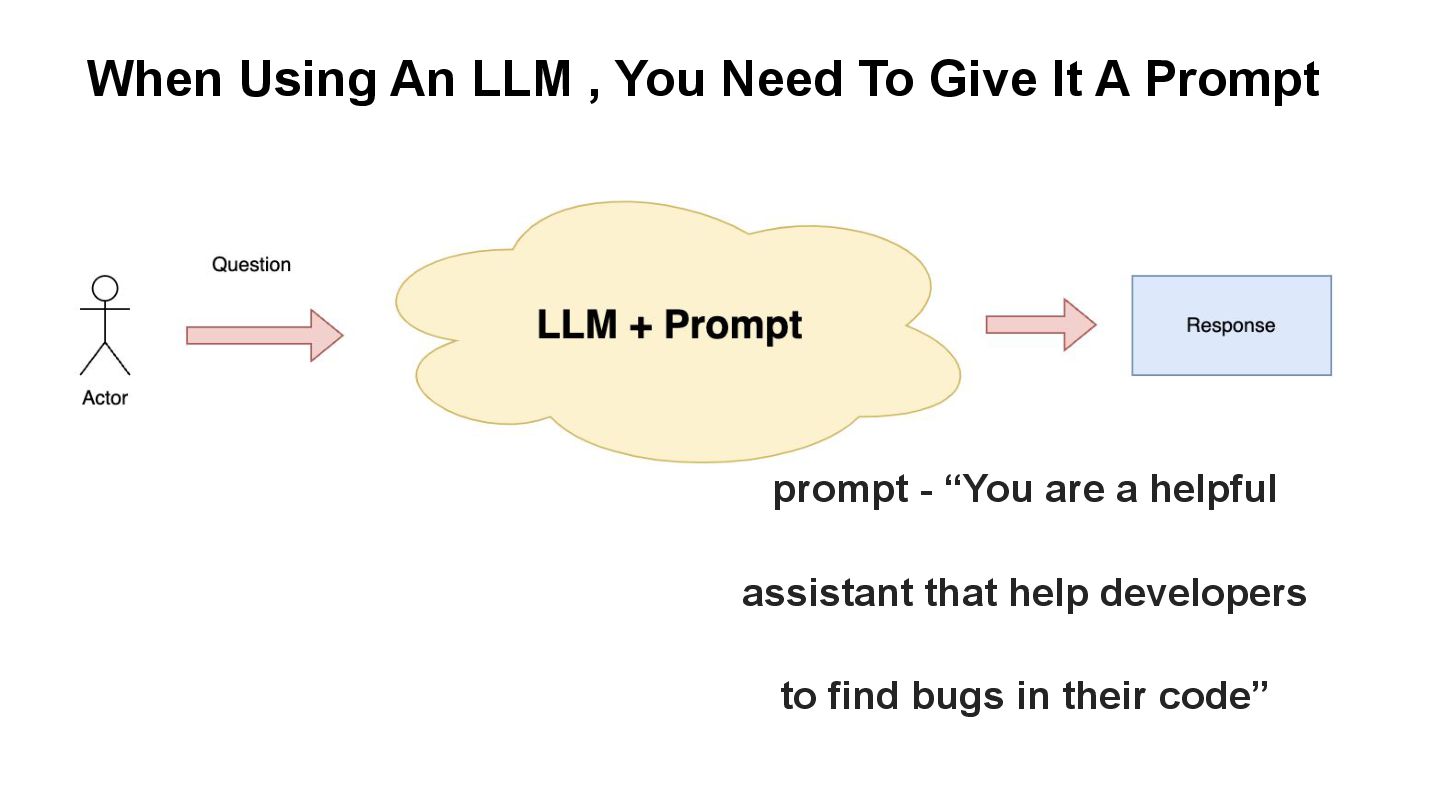

24. When Using An LLM , You Need To Give It A Prompt prompt - “You are a helpful assistant that help developers to find bugs in their code”
25. LLM can hallucinate - Generate a grammatically correct answer with incorrect data

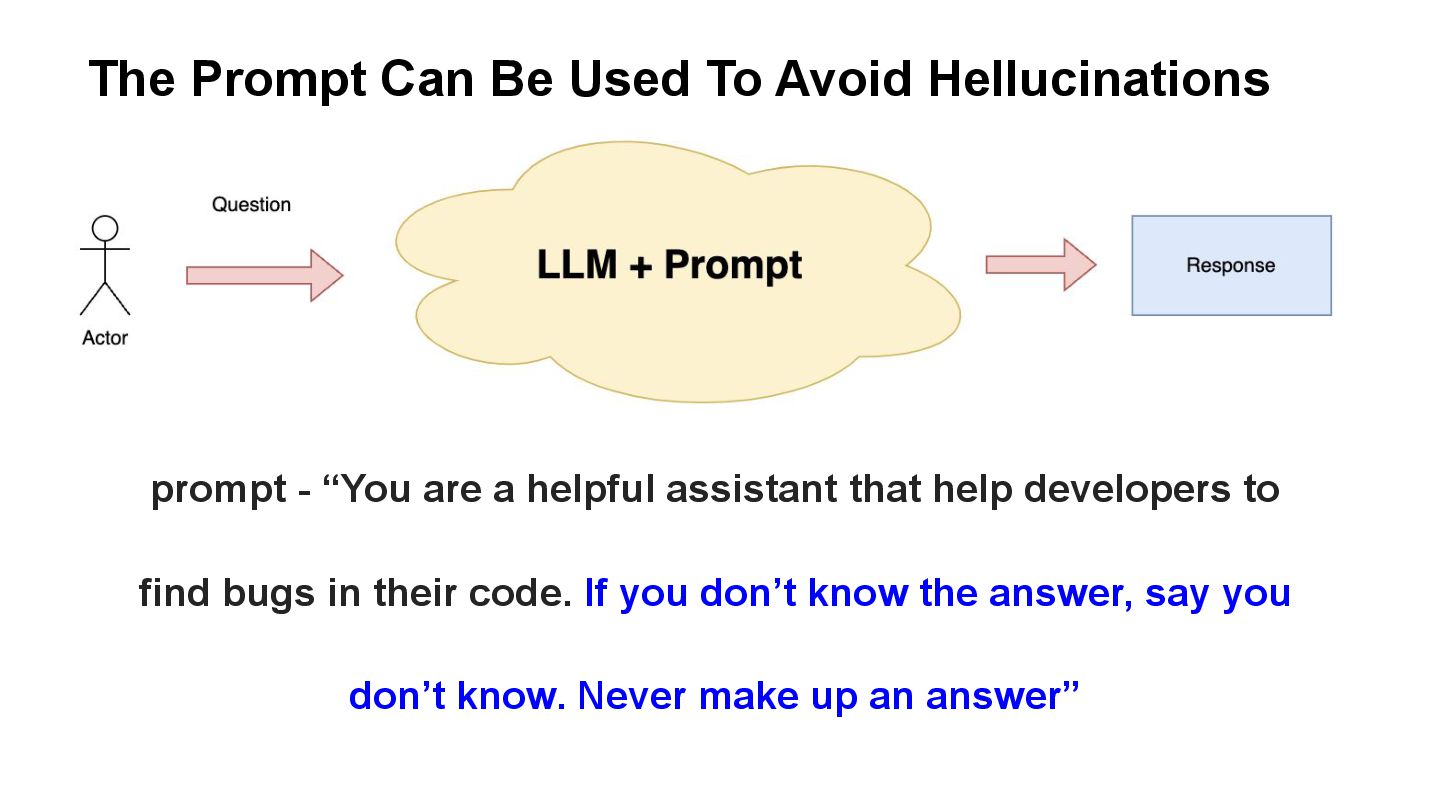

26. The Prompt Can Be Used To Avoid Hellucinations prompt - “You are a helpful assistant that help developers to find bugs in their code. If you don’t know the answer, say you don’t know. Never make up an answer”

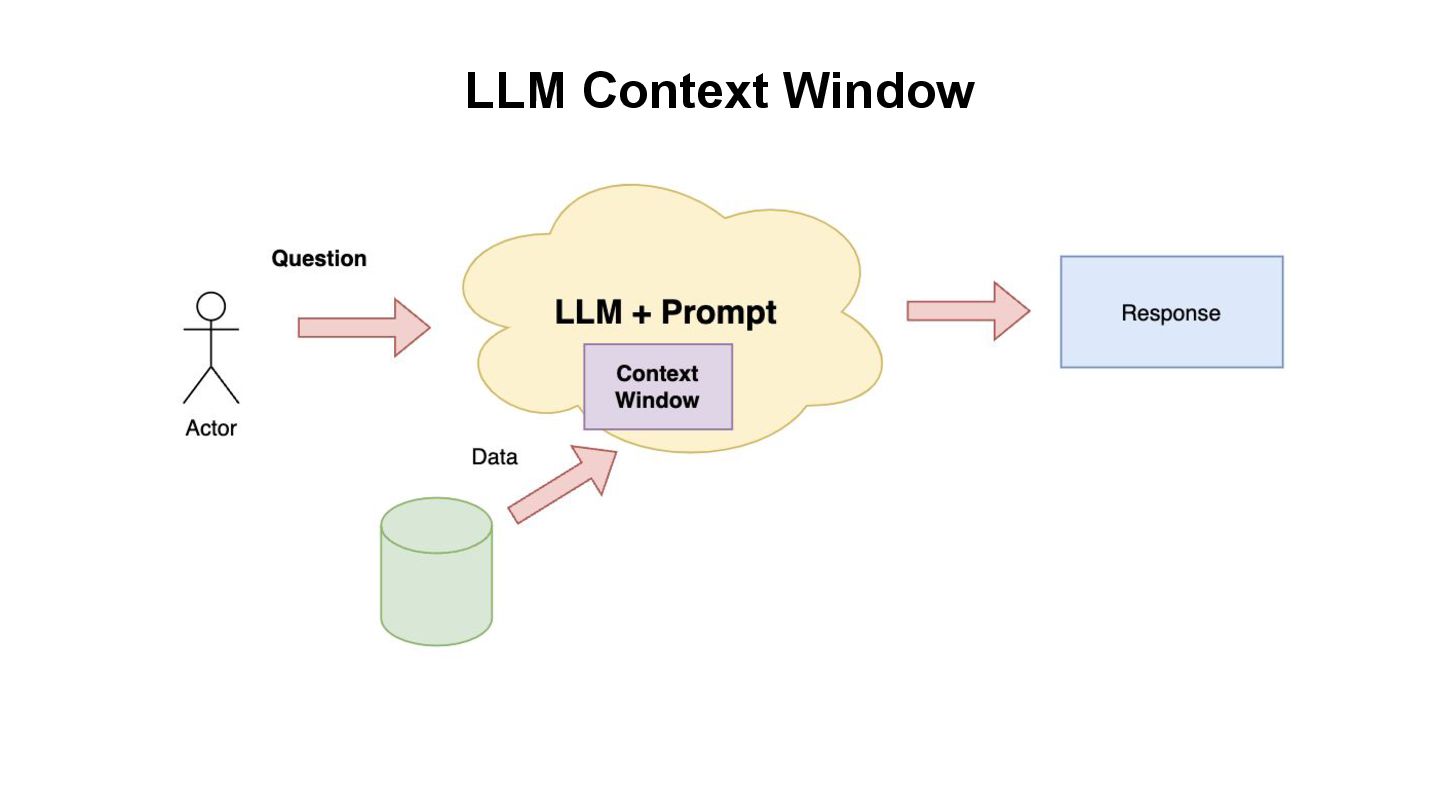

27. LLM Context Window

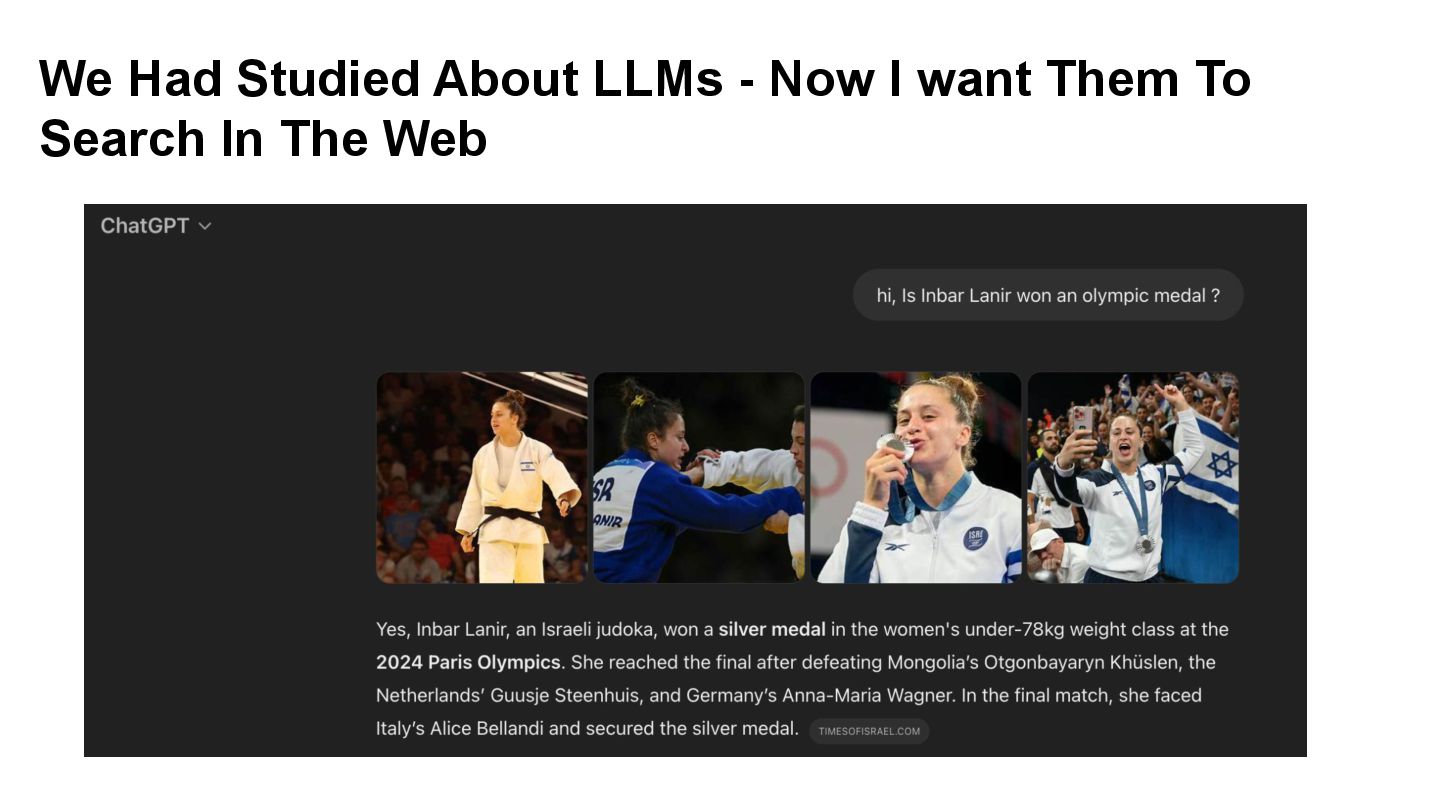

28. We Had Studied About LLMs - Now I want Them To Search In The Web
29. Giving The LLM The Ability To To Search Through The Web Is By Tool Calling

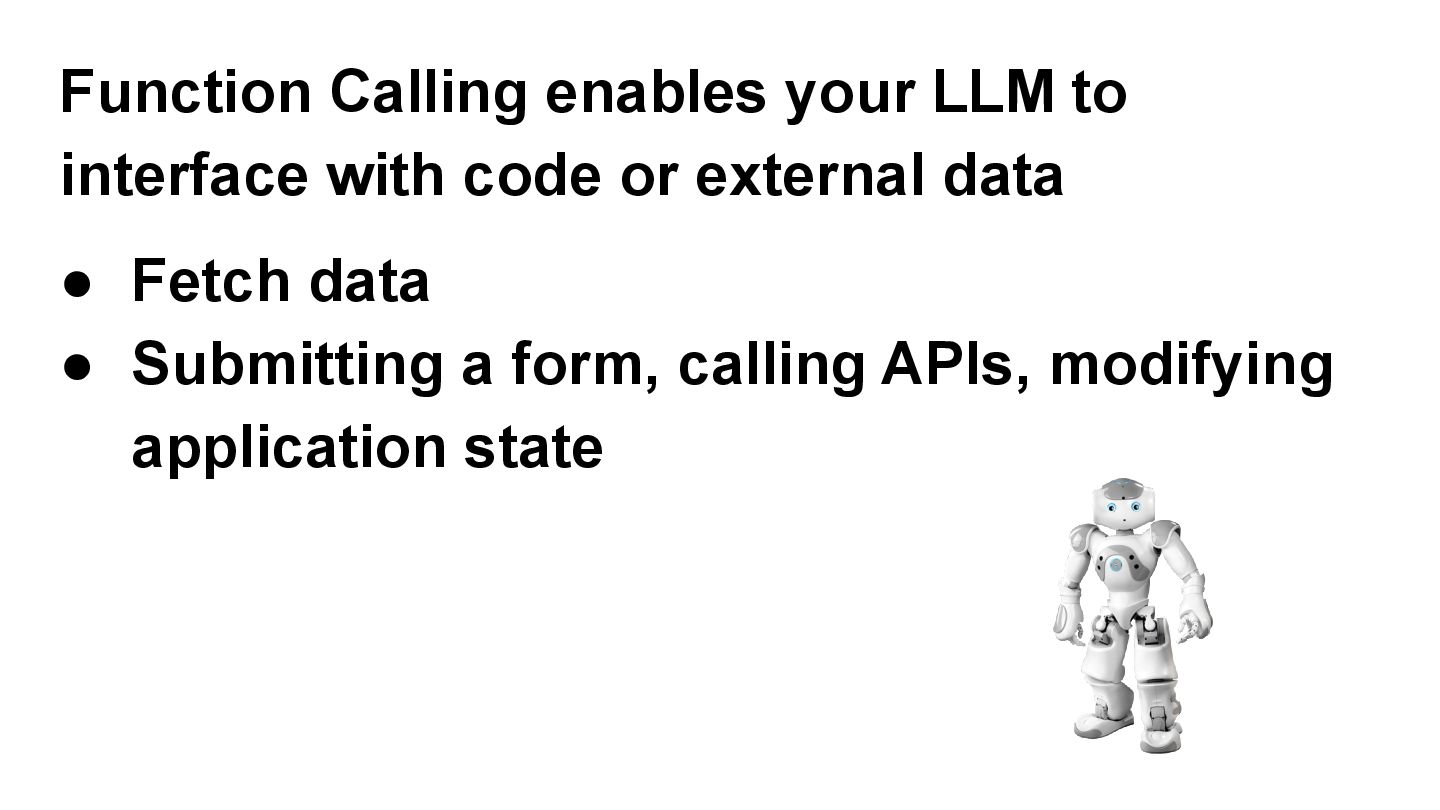

30. Function Calling enables your LLM to interface with code or external data • Fetch data • Submitting a form, calling APIs, modifying application state
31. Function Calling - Basic Example
32. Demo - Call Calculating Tool

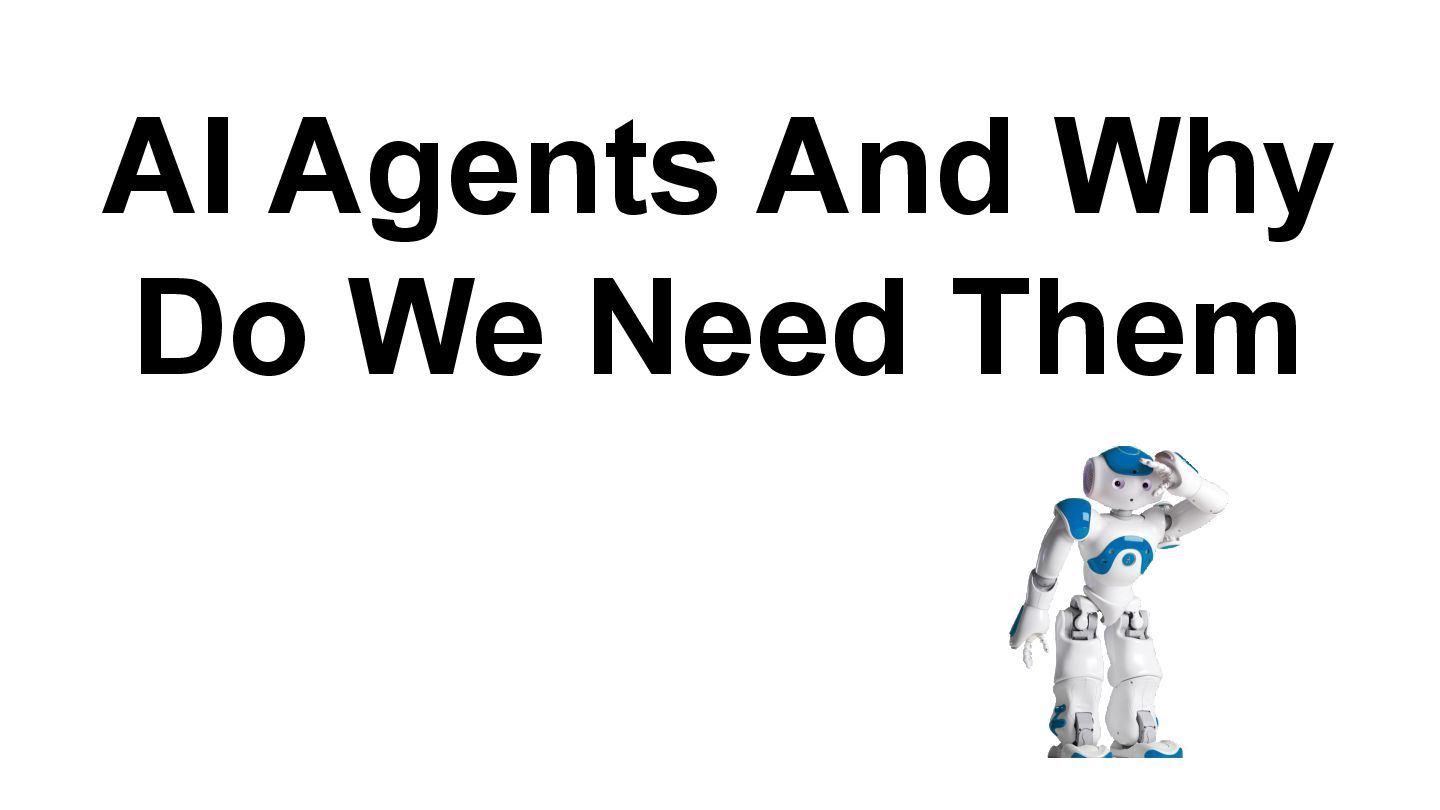

33. AI Agents And Why Do We Need Them

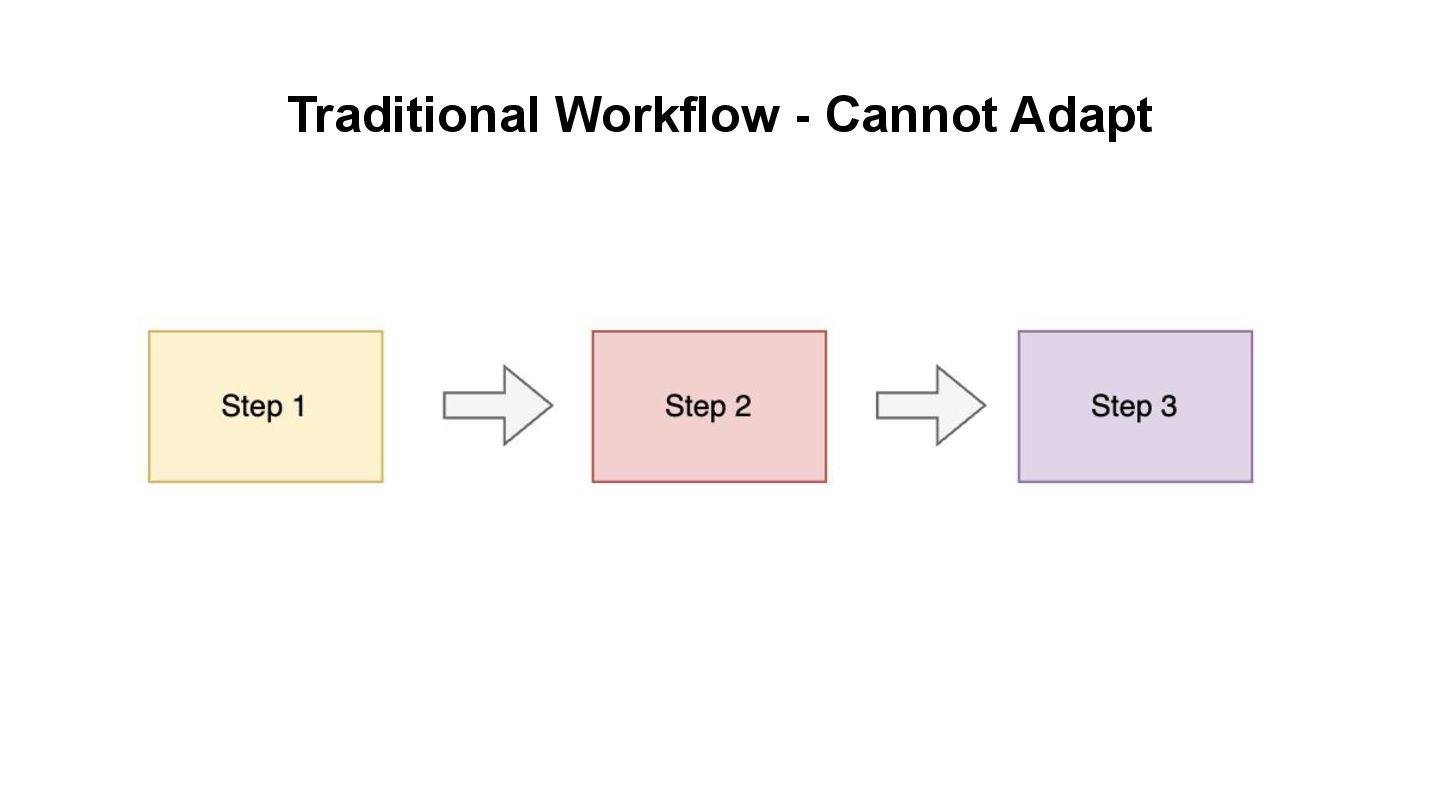

34. Traditional Workflow - Cannot Adapt
35. AI Agent An AI agent is a system that can perceive its environment, make decisions, and take actions to achieve specific goals — often autonomously and continuously over time.

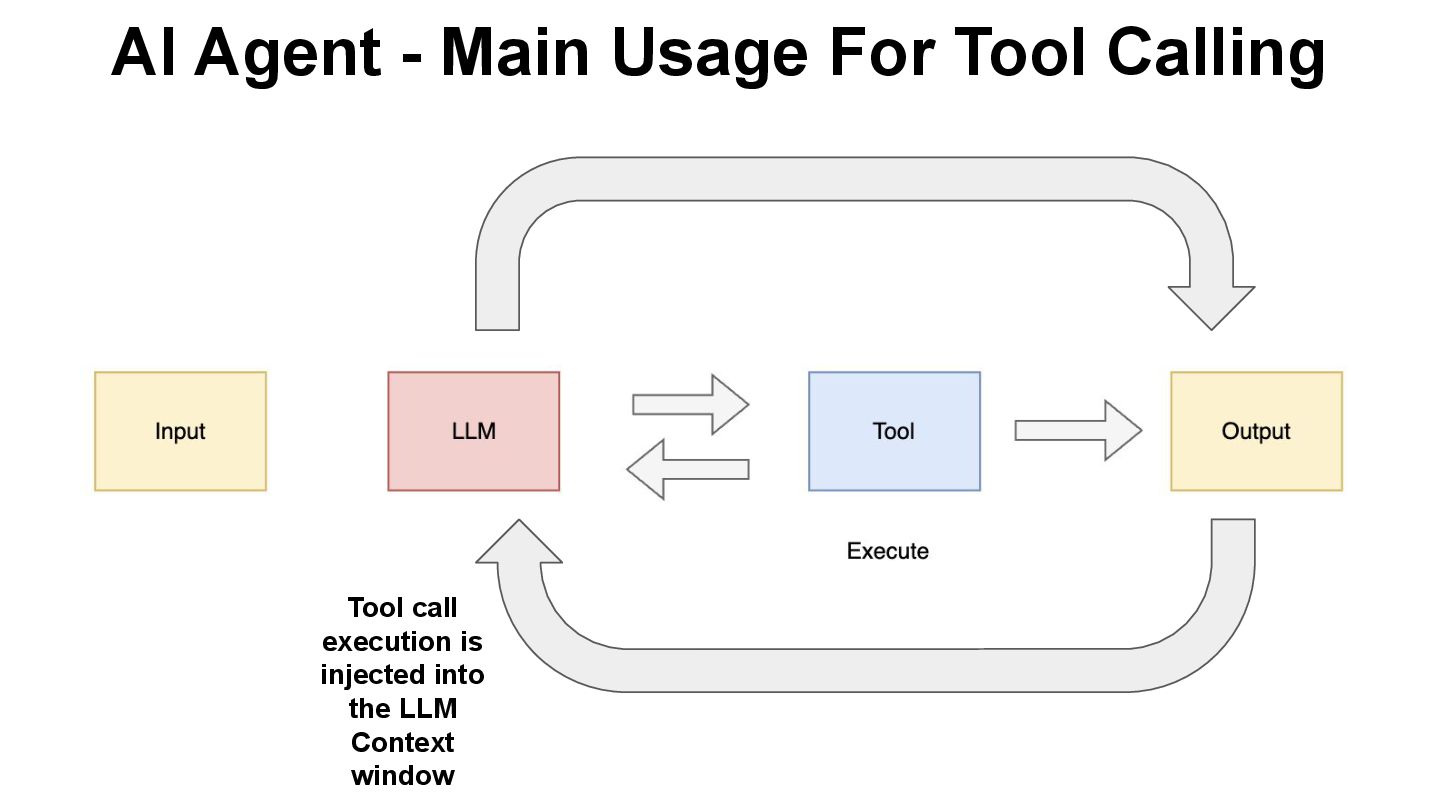

36. AI Agent - Main Usage For Tool Calling Tool call execution is injected into the LLM Context window
37. The AI Agent Code

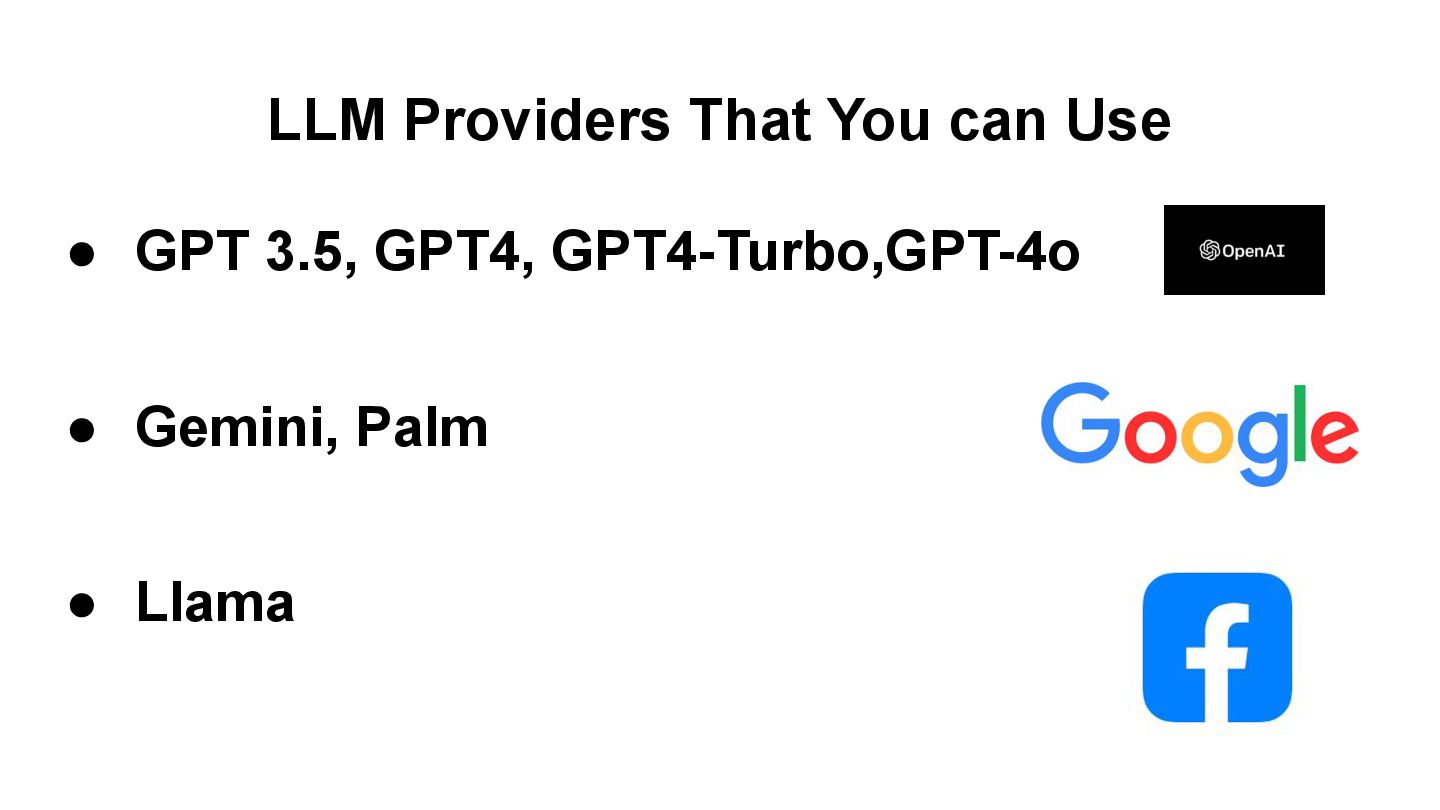

38. LLM Providers That You can Use • GPT 3.5, GPT4, GPT4-Turbo,GPT-4o • Gemini, Palm • Llama
39. We will develop our bot with OpenAI model And Langchain and LangGraph - frameworks for developing applications powered by large language models (LLMs).

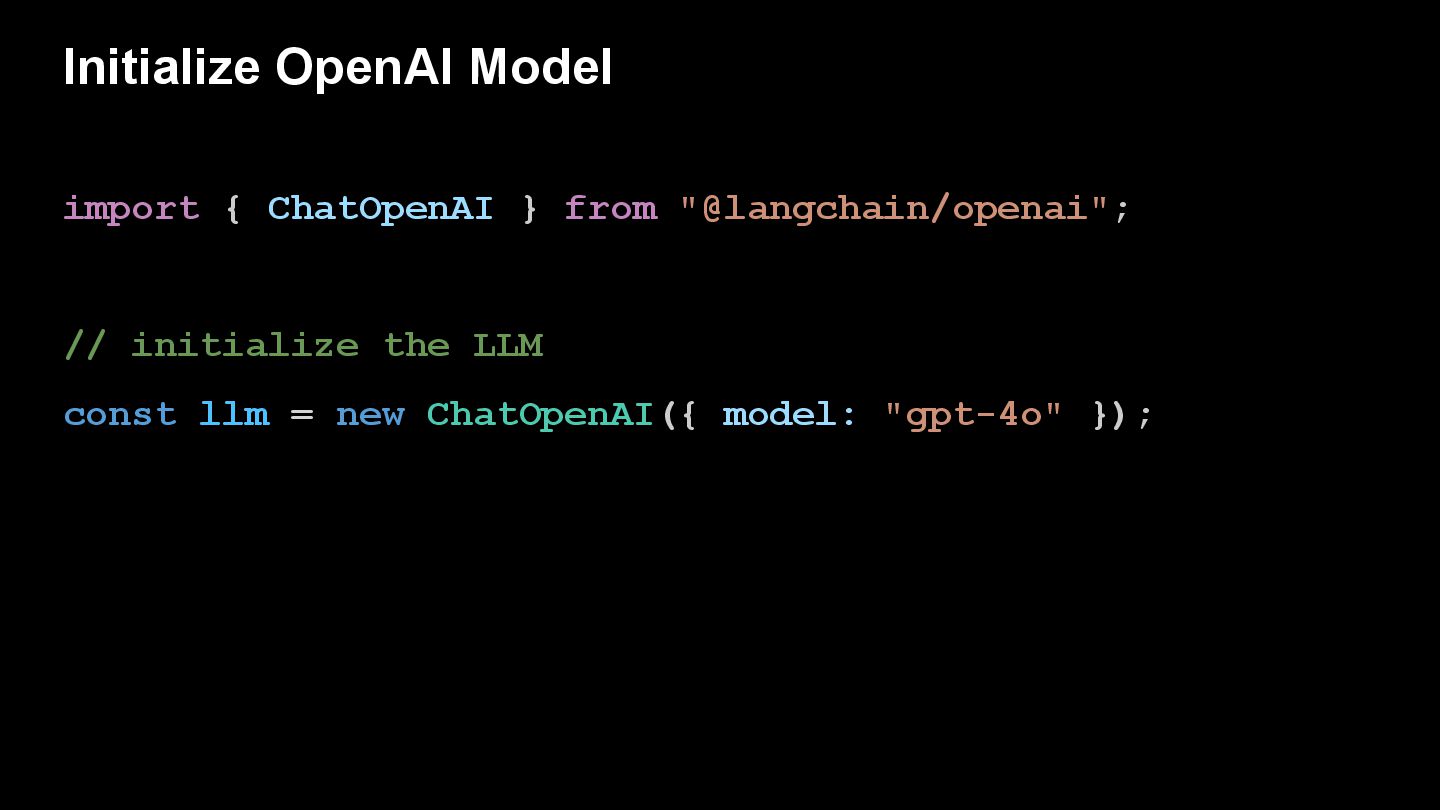

40. Initialize OpenAI Model import { ChatOpenAI } from "@langchain/openai"; // initialize the LLM const llm = new ChatOpenAI({ model: "gpt-4o" });

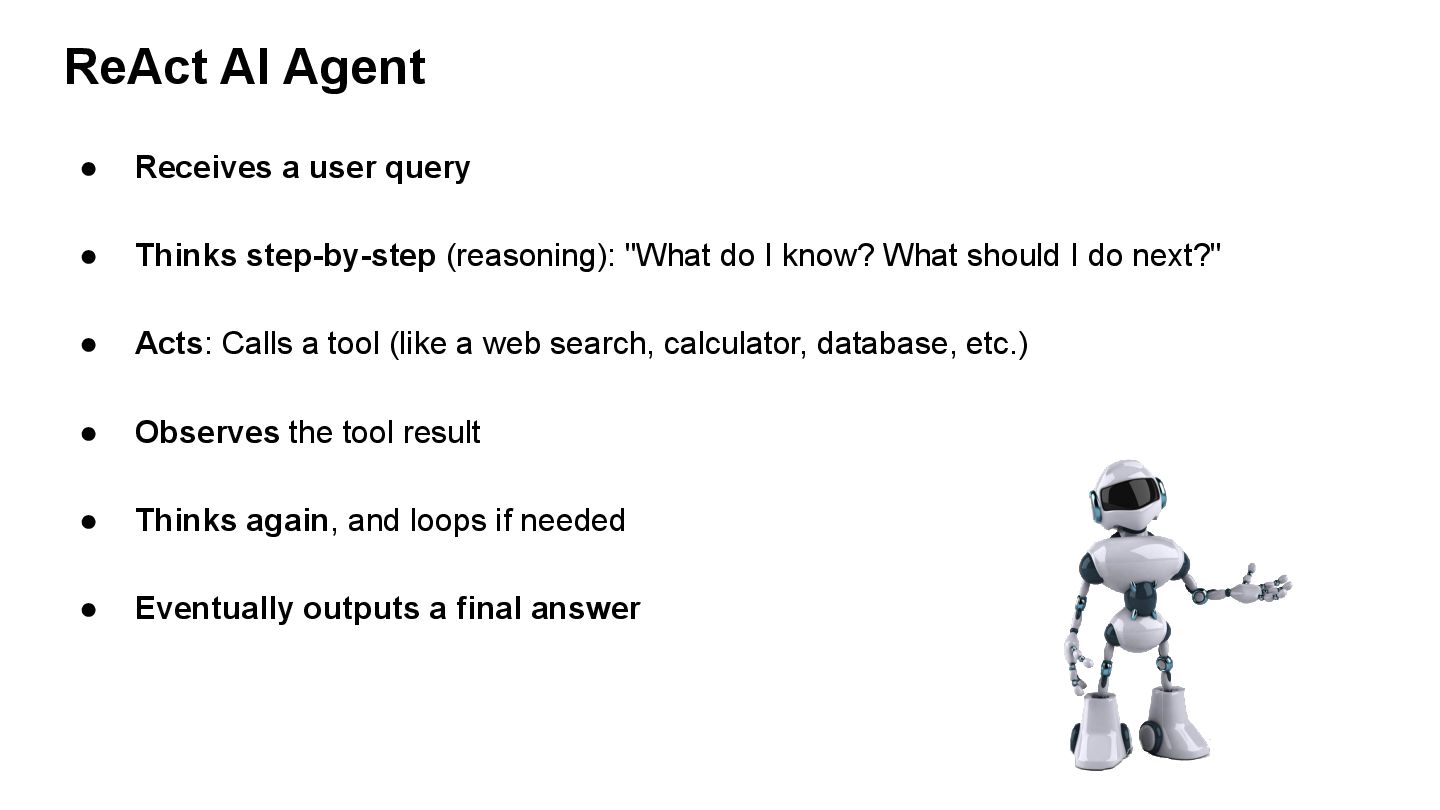

41. ReAct AI Agent • Receives a user query • Thinks step-by-step (reasoning): "What do I know? What should I do next?" • Acts: Calls a tool (like a web search, calculator, database, etc.) • Observes the tool result • Thinks again, and loops if needed • Eventually outputs a final answer

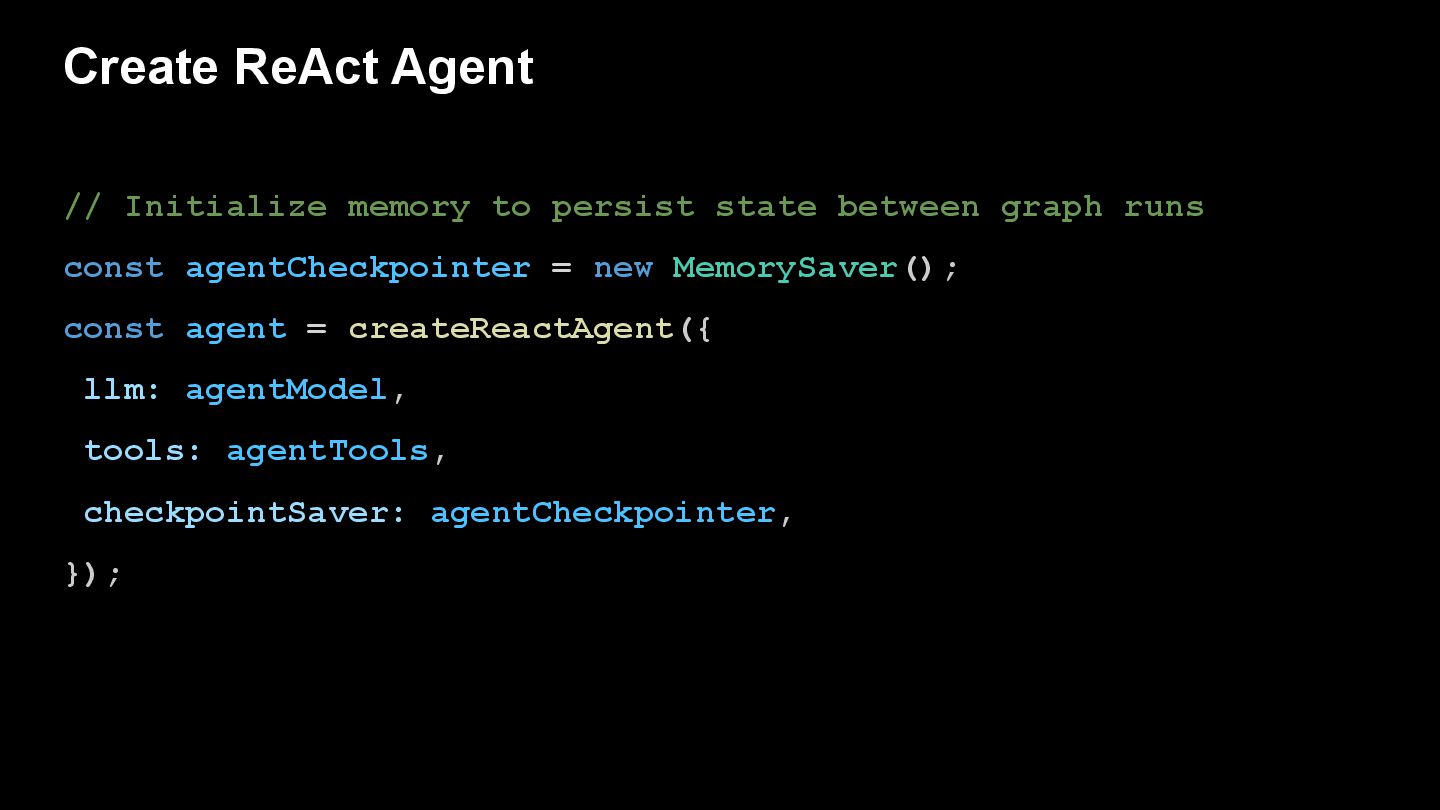

42. Create ReAct Agent // Initialize memory to persist state between graph runs const agentCheckpointer = new MemorySaver(); const agent = createReactAgent({ llm: agentModel, tools: agentTools, checkpointSaver: agentCheckpointer, });

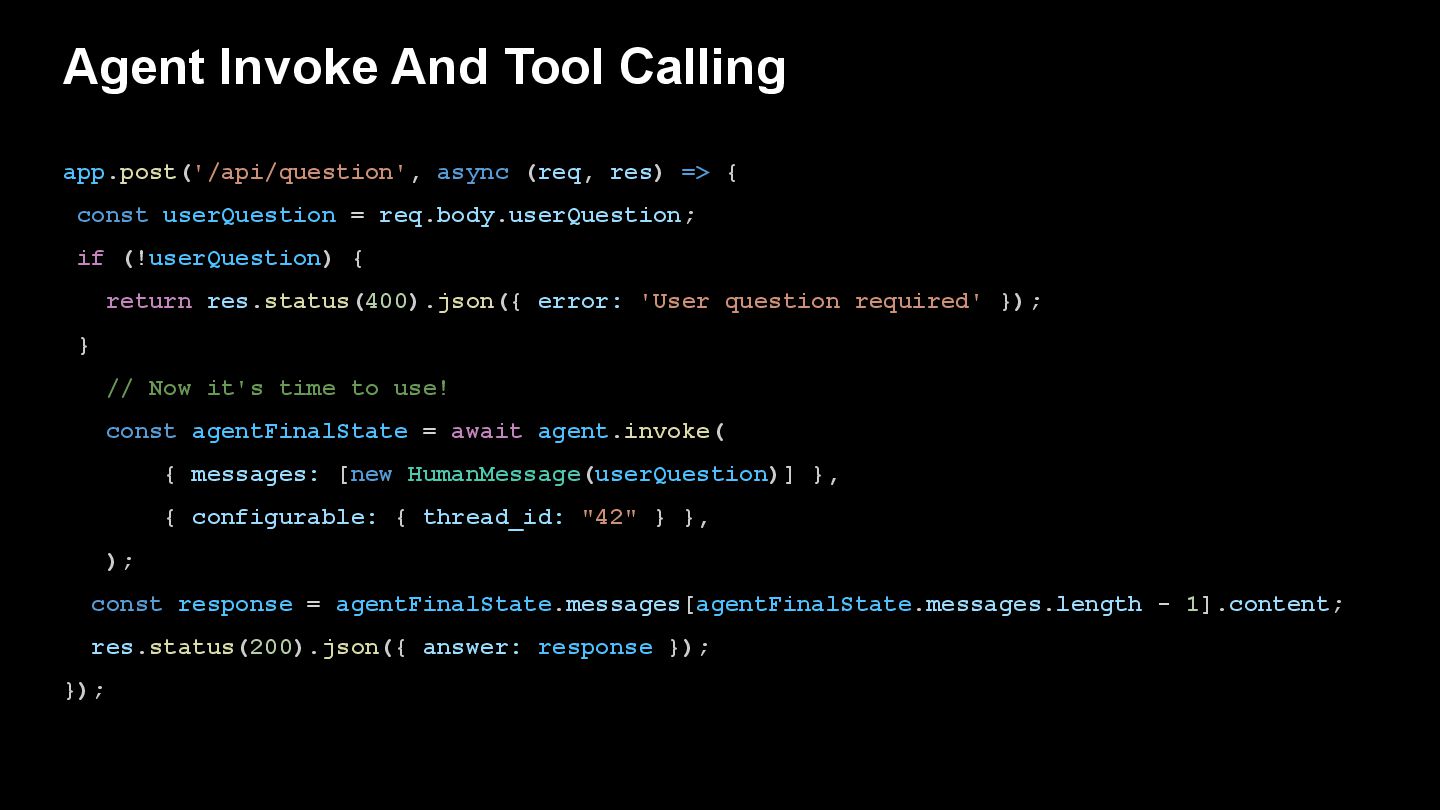

43. Agent Invoke And Tool Calling app.post('/api/question', async (req, res) => { const userQuestion = req.body.userQuestion; if (!userQuestion) { return res.status(400).json({ error: 'User question required' }); } // Now it's time to use! const agentFinalState = await agent.invoke( { messages: [new HumanMessage(userQuestion)] }, { configurable: { thread_id: "42" } }, ); const response = agentFinalState.messages[agentFinalState.messages.length - 1].content; res.status(200).json({ answer: response }); });
44. Live Demo - ReAct Agent In Action
45. AI CO-Pilot

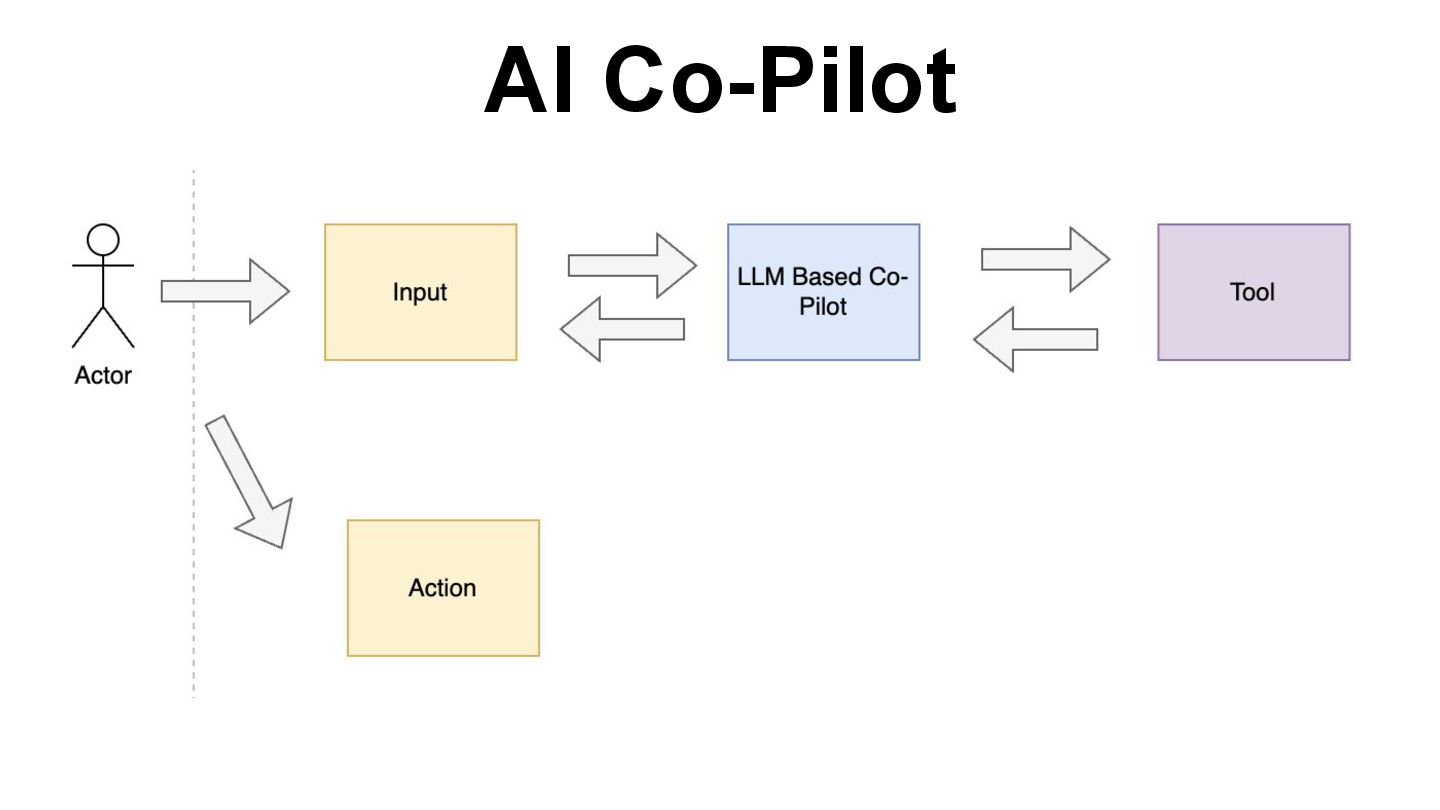

46. AI Co-Pilot
47. The Co-Pilot Code

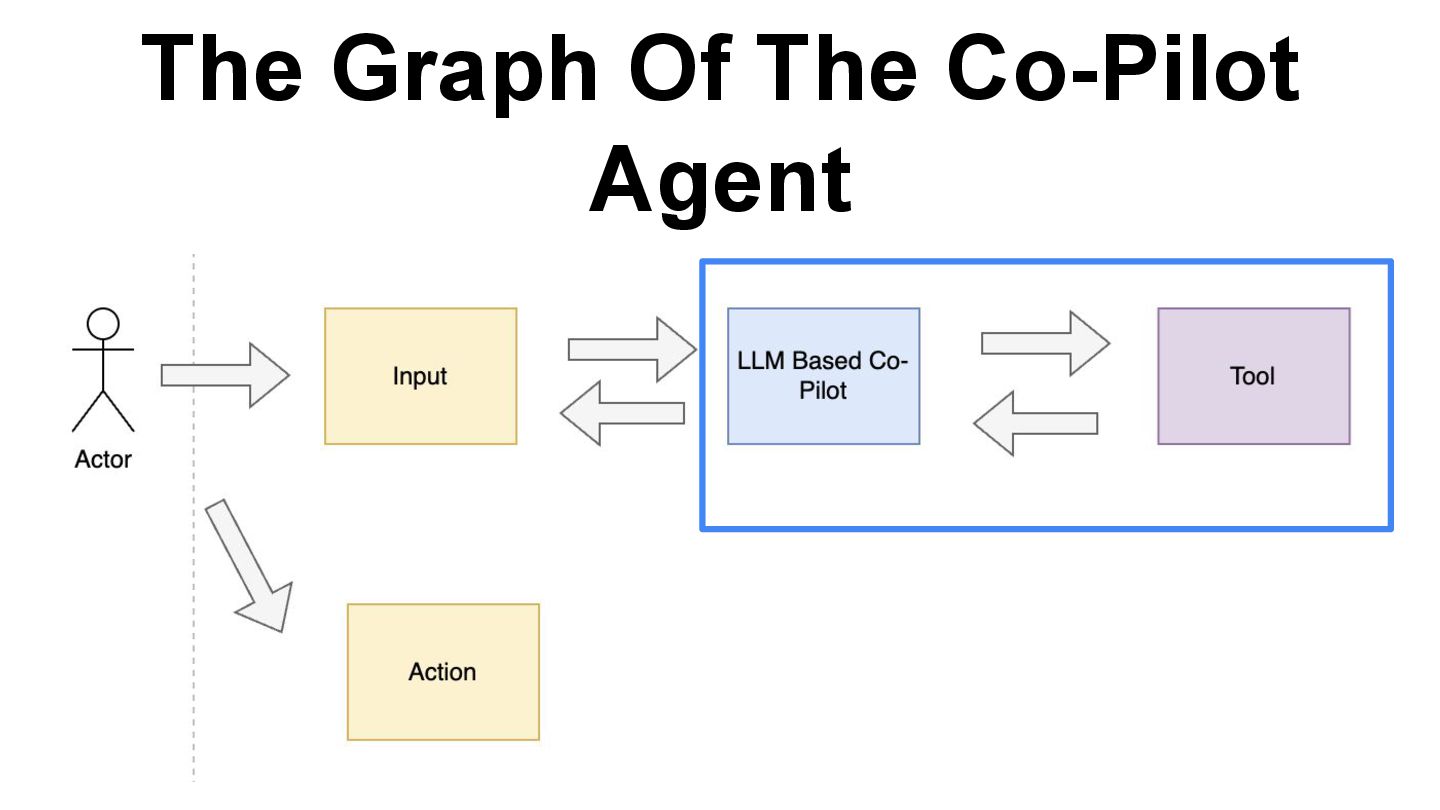

48. The Graph Of The Co-Pilot Agent

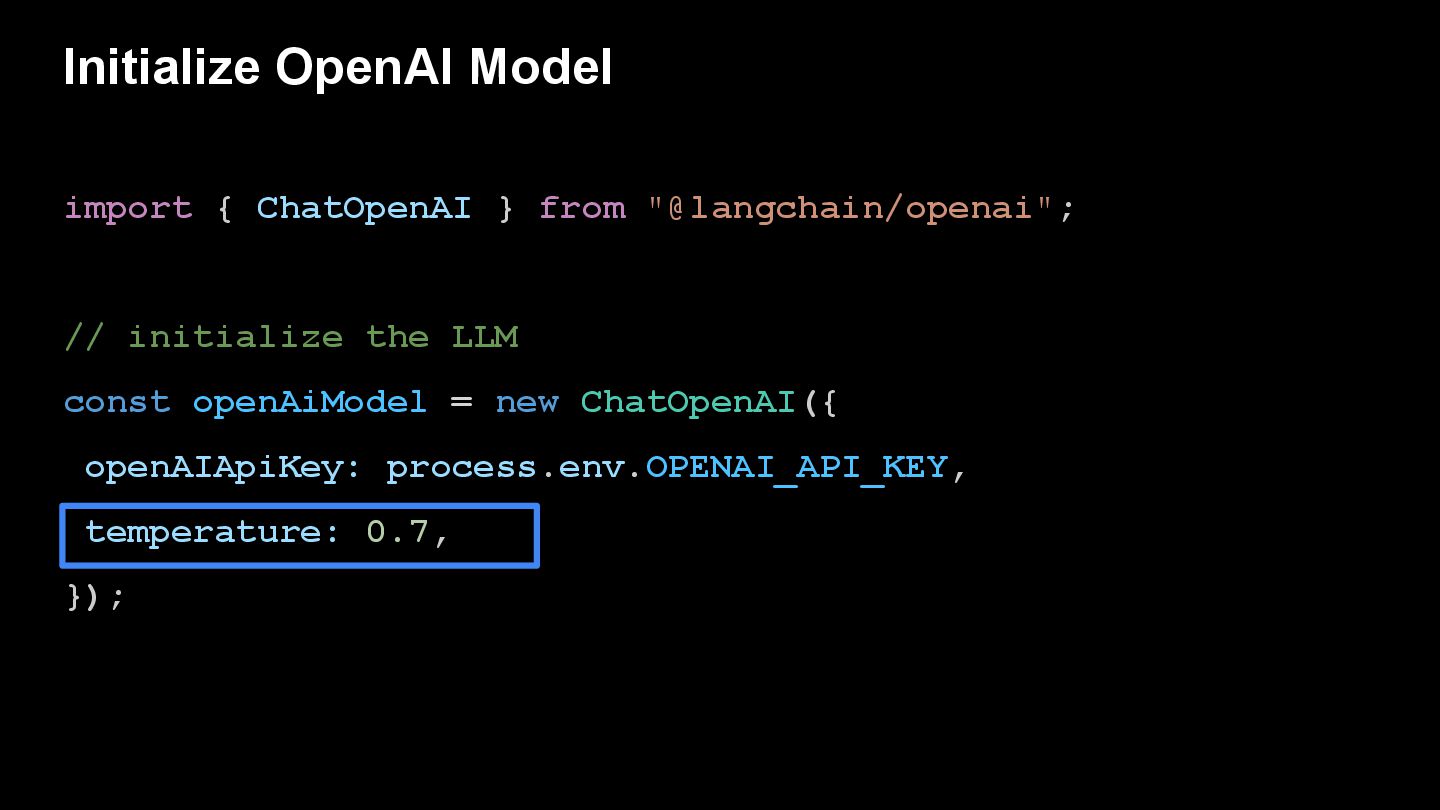

49. Initialize OpenAI Model import { ChatOpenAI } from "@langchain/openai"; // initialize the LLM const openAiModel = new ChatOpenAI({ openAIApiKey: process.env.OPENAI_API_KEY, temperature: 0.7, });

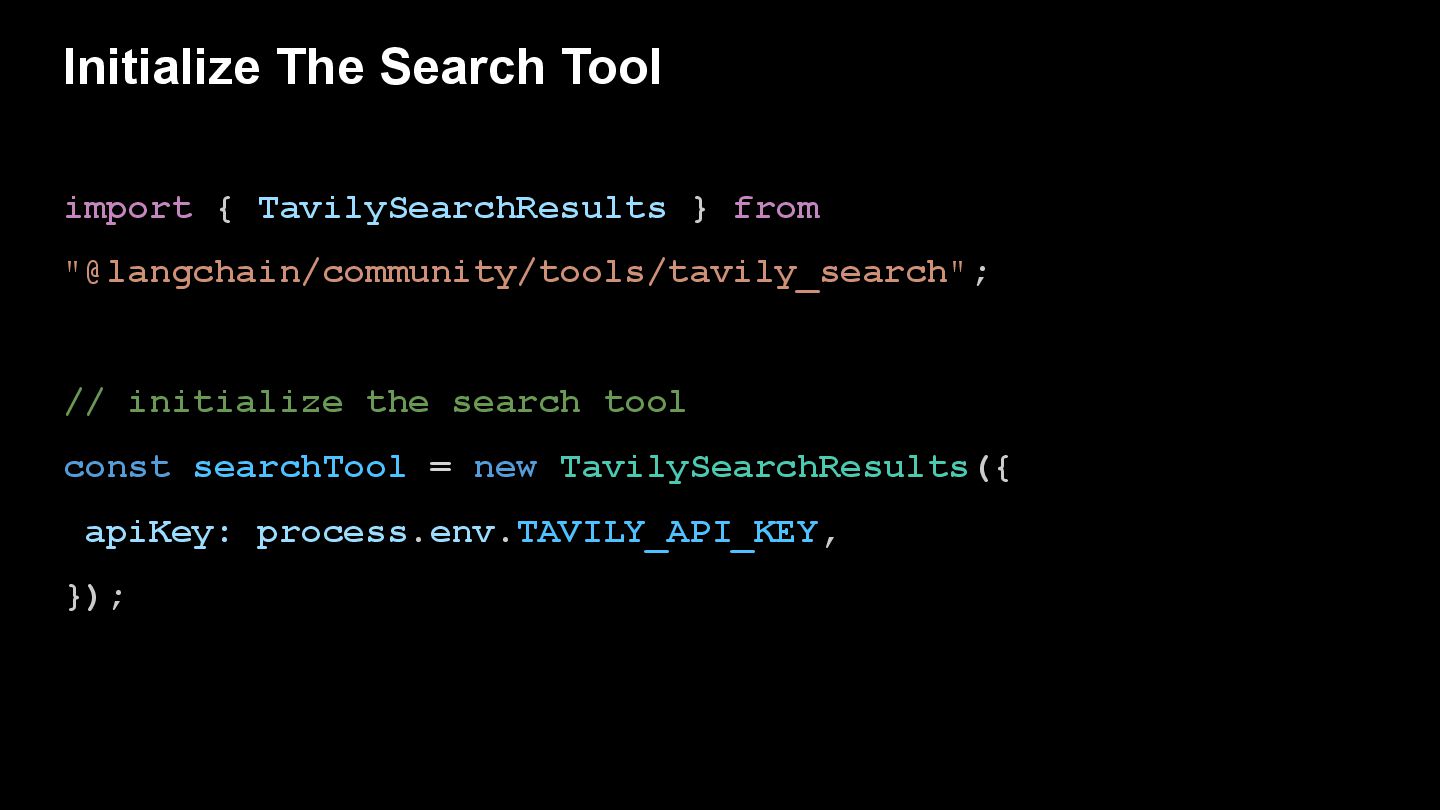

50. Initialize The Search Tool import { TavilySearchResults } from "@langchain/community/tools/tavily_search"; // initialize the search tool const searchTool = new TavilySearchResults({ apiKey: process.env.TAVILY_API_KEY, });
51. The Graph - Creation And Nodes import { Graph } from "@langchain/langgraph"; // Create graph const graph = new Graph(); // Start node graph.addEdge("__start__", "UserInput"); // Node: UserInput graph.addNode("UserInput", async (query) => { log("UserInput node:", query); return { query }; });

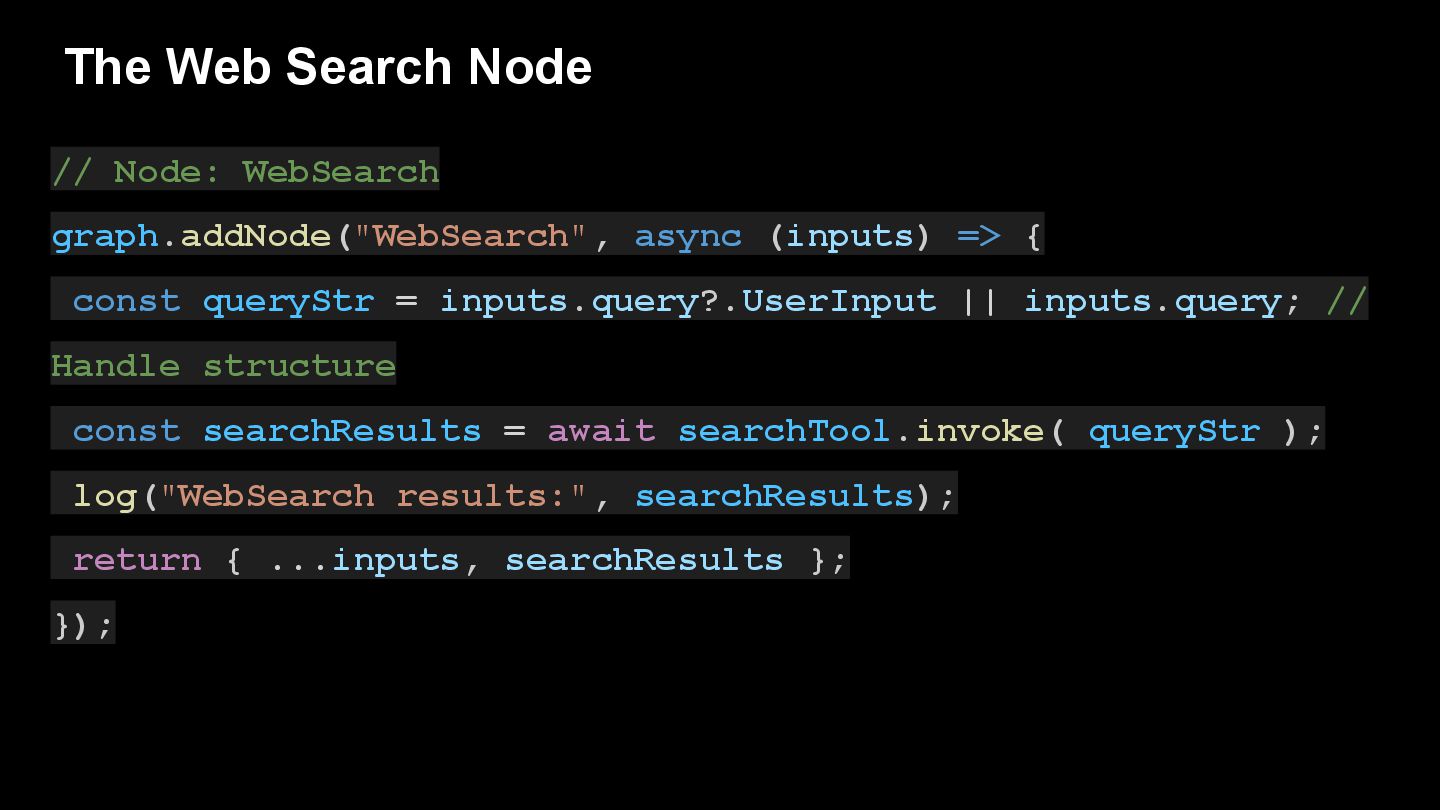

52. The Web Search Node // Node: WebSearch graph.addNode("WebSearch", async (inputs) => { const queryStr = inputs.query?.UserInput || inputs.query; // Handle structure const searchResults = await searchTool.invoke( queryStr ); log("WebSearch results:", searchResults); return { ...inputs, searchResults }; });

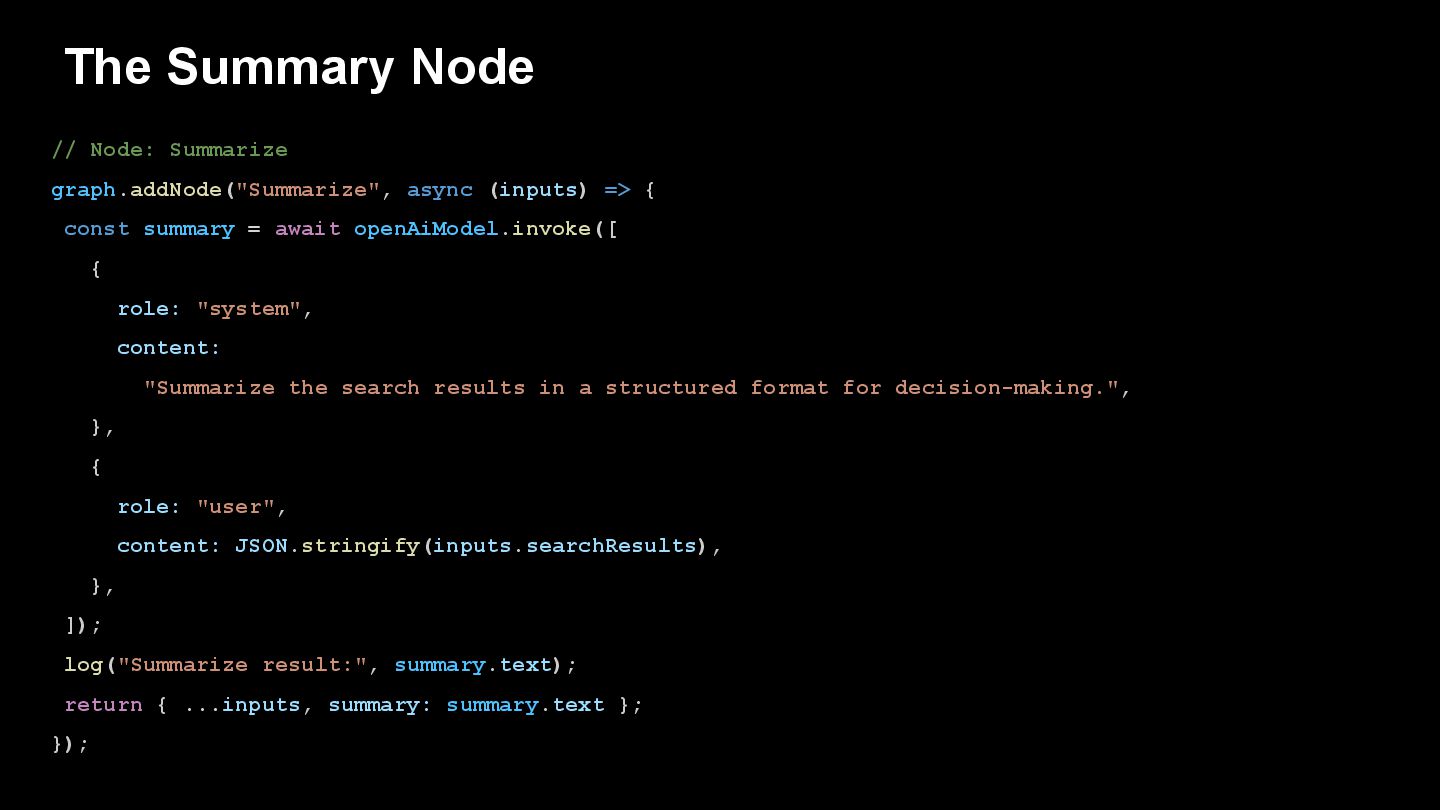

53. The Summary Node // Node: Summarize graph.addNode("Summarize", async (inputs) => { const summary = await openAiModel.invoke([ { role: "system", content: "Summarize the search results in a structured format for decision-making.", }, { role: "user", content: JSON.stringify(inputs.searchResults), }, ]); log("Summarize result:", summary.text); return { ...inputs, summary: summary.text }; });

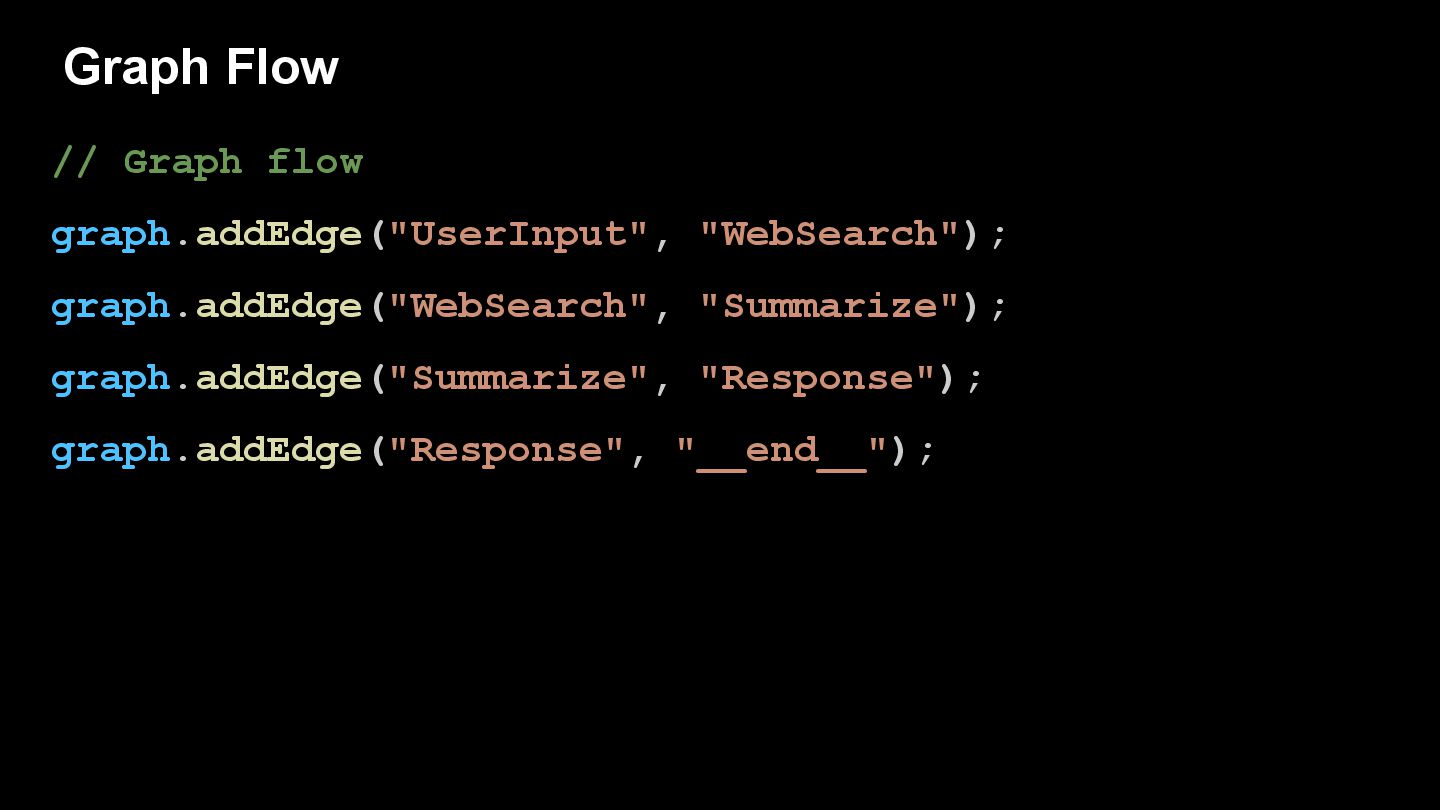

54. Graph Flow // Graph flow graph.addEdge("UserInput", "WebSearch"); graph.addEdge("WebSearch", "Summarize"); graph.addEdge("Summarize", "Response"); graph.addEdge("Response", "__end__");
55. Live Demo - Lets See An AI Co- Pilot In Action
56. Questions ?
