An Intro to Docker for Djangonauts

If you've never used it before, Docker can be a little overwhelming. There is new vocabulary to learn, new commands to memorize, and new files to add to each project. Most resources fall into one of two camps: they teach you the bare bones of Docker but still leave you with too many questions to comfortably try it on your own, or they throw you into the deep end by assuming you're more familiar with Docker than you are.

In this talk, you will find that middle ground: a talk that doesn't assume you're familiar with Docker and so keeps everything simple, but leaves you with enough information that you can get started as soon as you leave the room.

Presented at DjangoCon Europe 2018.

Transcript

1. An Intro to Docker for Djangonauts Lacey Williams Henschel DjangoCon Europe 2018 @laceynwilliams
2. @laceynwilliams
3. What is Docker? ! @laceynwilliams | Source: XKCD
4. magic @laceynwilliams

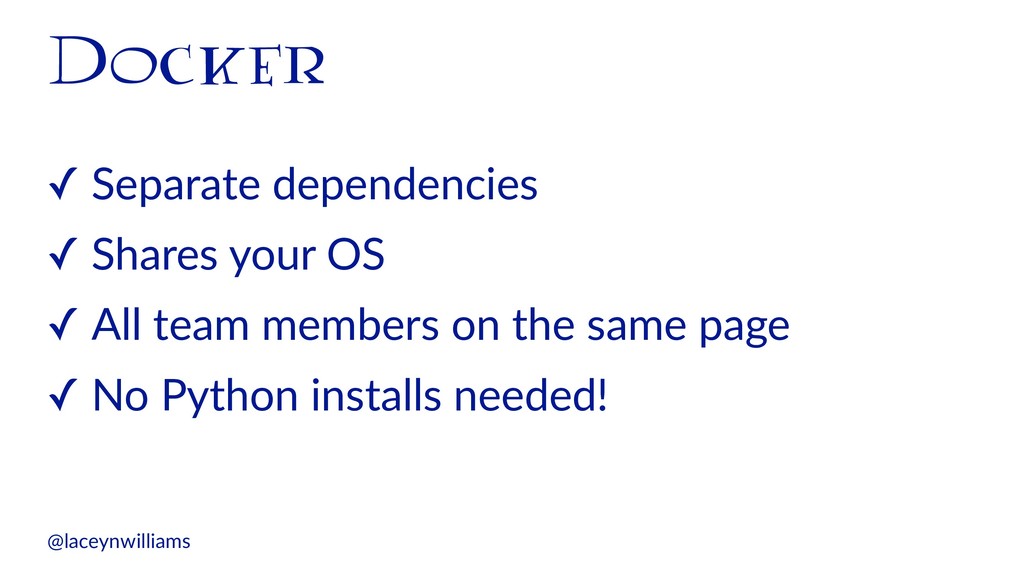

5. Docker ✓ Separate dependencies ✓ Shares your OS ✓ All team members on the same page ✓ No Python installs needed! @laceynwilliams
6. But... ✓ Learning curve @laceynwilliams

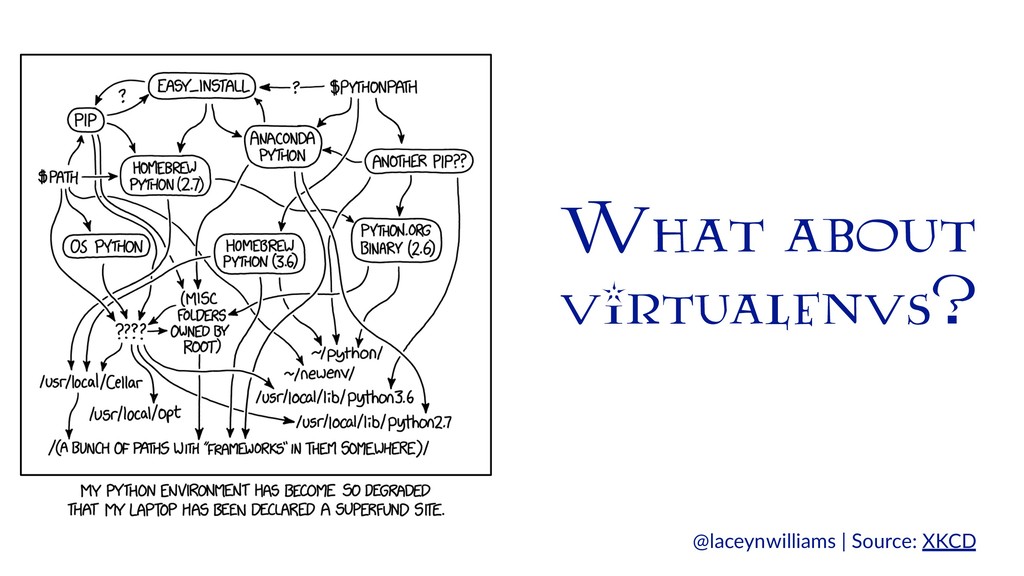

7. What about virtualenvs? @laceynwilliams | Source: XKCD
8. Polyjuice Potion Images and Containers @laceynwilliams
9. Docker is the potion @laceynwilliams | Source: Karen Roe
10. The image is the person you want to turn into @laceynwilliams | Source: Harry Po5er Wiki
11. The container is you @laceynwilliams

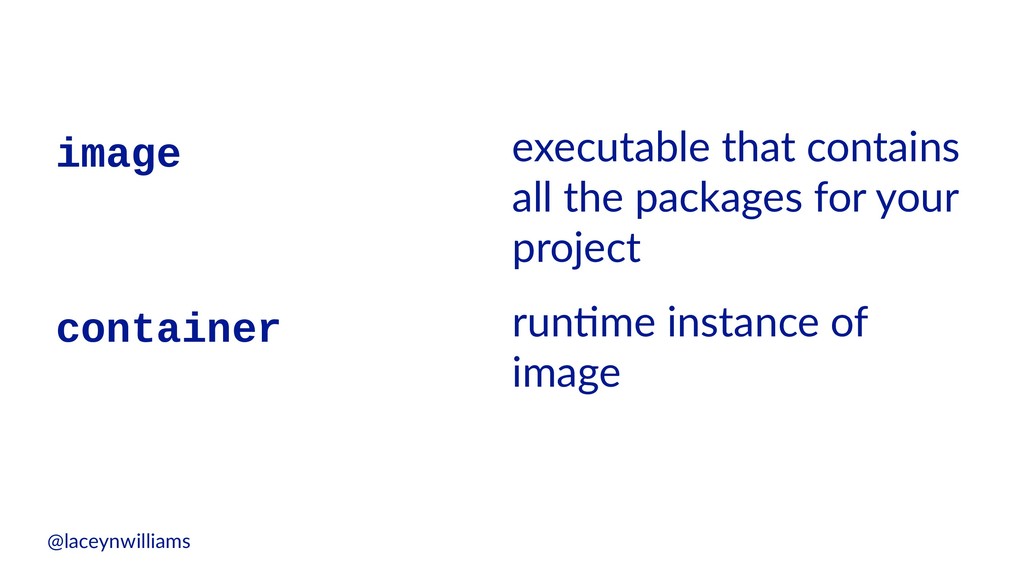

12. image executable that contains all the packages for your project container run6me instance of image @laceynwilliams
13. The Dockerfile is the hair of the person you want to turn into @laceynwilliams | Source: Beth Purchases
14. Dockerfile is the DNA @laceynwilliams

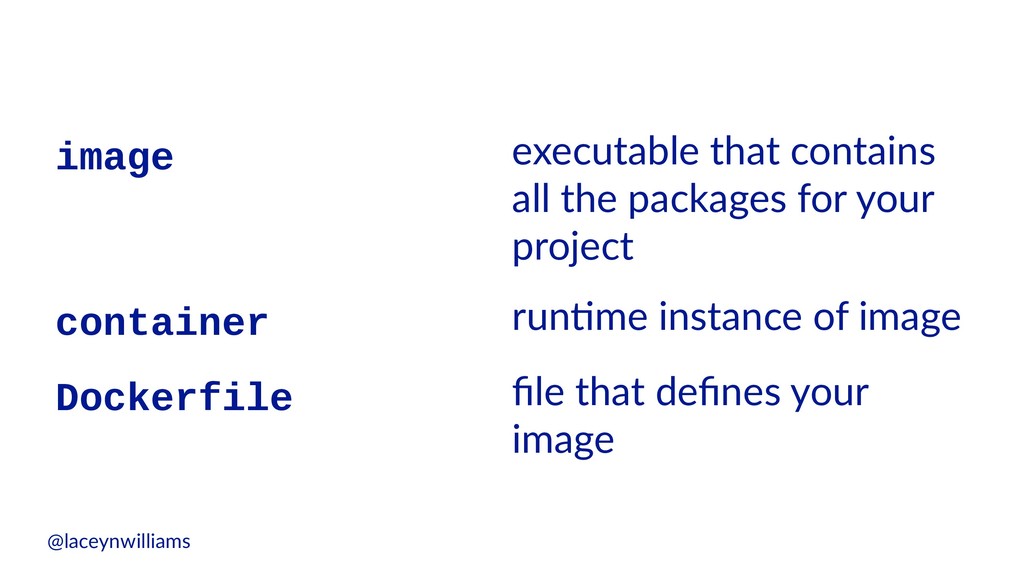

15. image executable that contains all the packages for your project container run6me instance of image Dockerfile file that defines your image @laceynwilliams

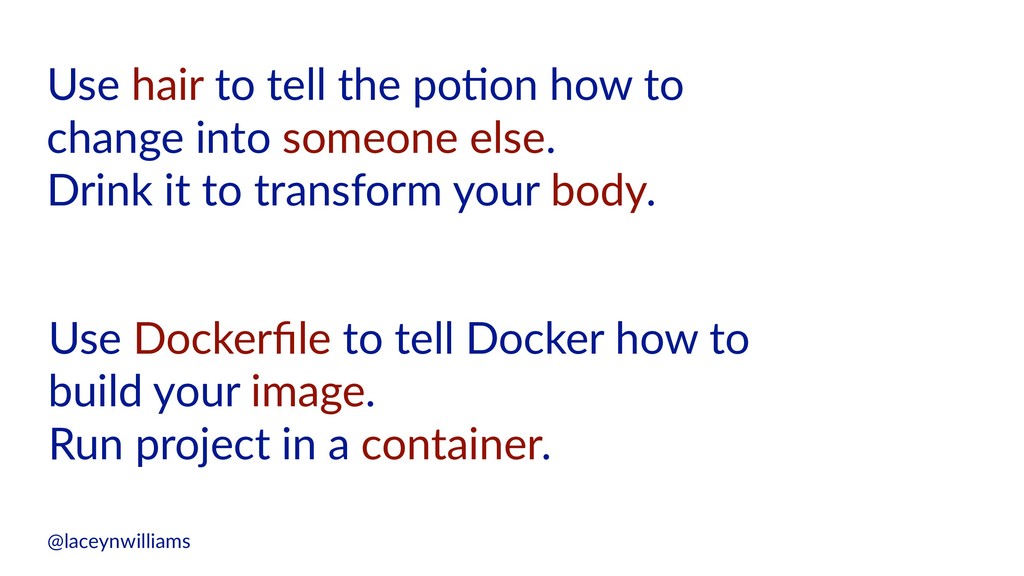

16. Use hair to tell the po-on how to change into someone else. Drink it to transform your body. Use Dockerfile to tell Docker how to build your image. Run project in a container. @laceynwilliams

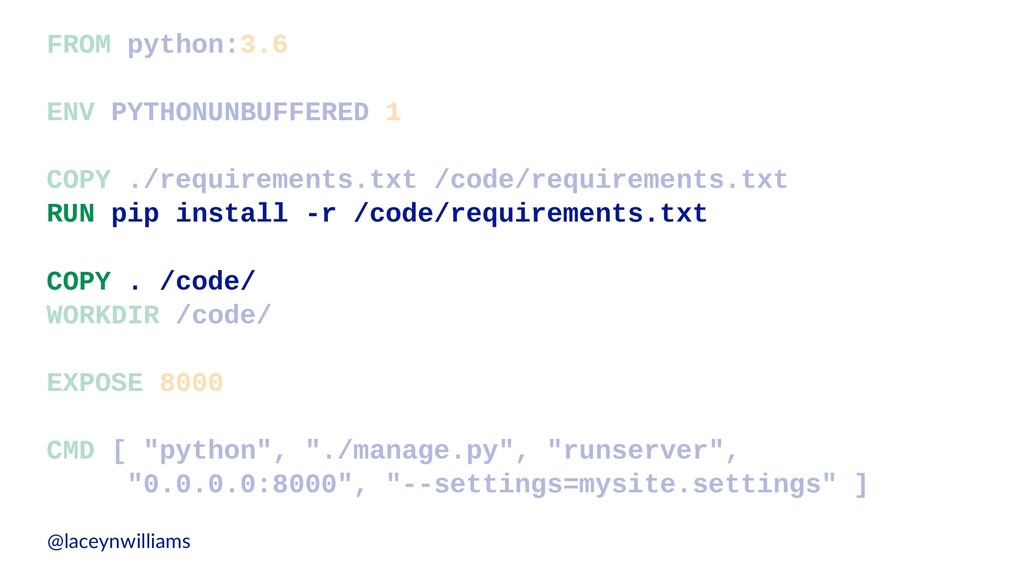

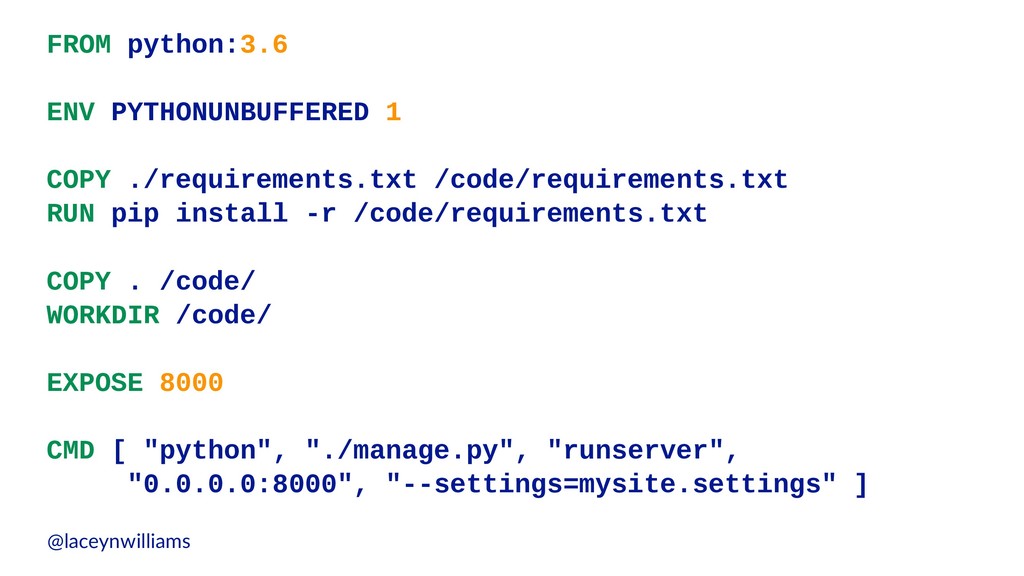

17. FROM python:3.6 ENV PYTHONUNBUFFERED 1 COPY ./requirements.txt /code/requirements.txt RUN pip install -r /code/requirements.txt COPY . /code/ WORKDIR /code/ EXPOSE 8000 CMD [ "python", "./manage.py", "runserver", "0.0.0.0:8000", "--settings=mysite.settings" ] @laceynwilliams

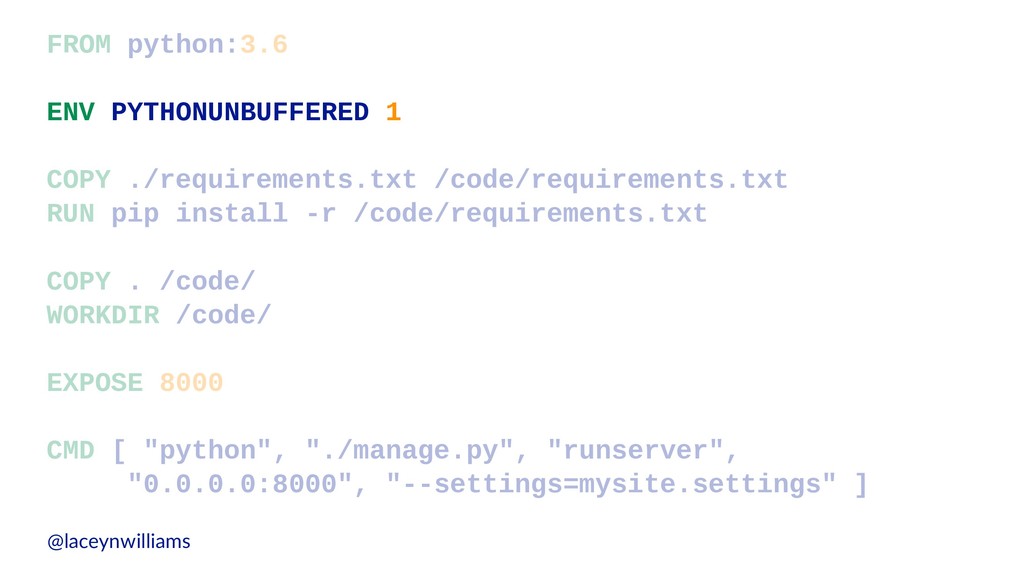

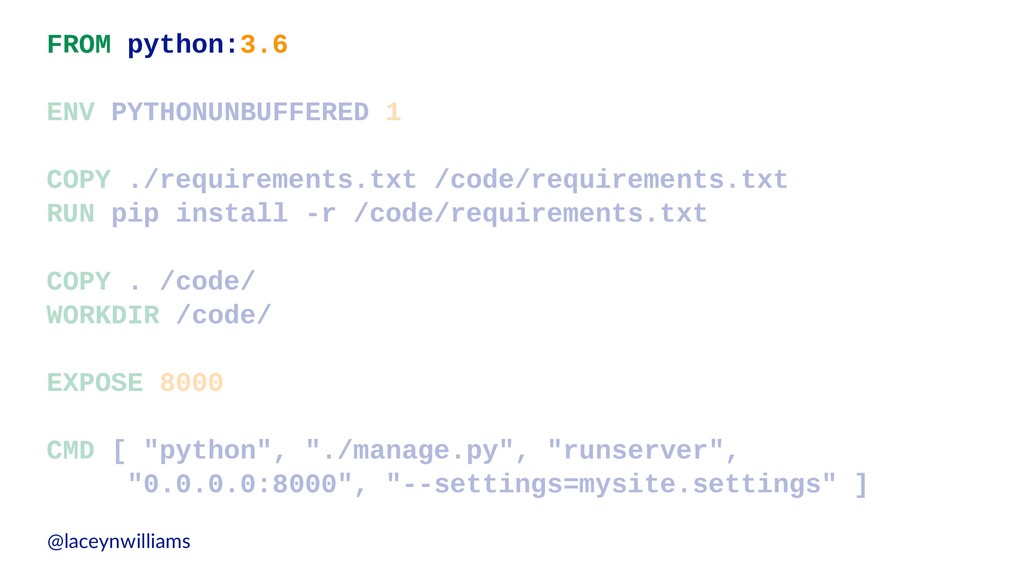

18. FROM python:3.6 ENV PYTHONUNBUFFERED 1 COPY ./requirements.txt /code/requirements.txt RUN pip install -r /code/requirements.txt COPY . /code/ WORKDIR /code/ EXPOSE 8000 CMD [ "python", "./manage.py", "runserver", "0.0.0.0:8000", "--settings=mysite.settings" ] @laceynwilliams

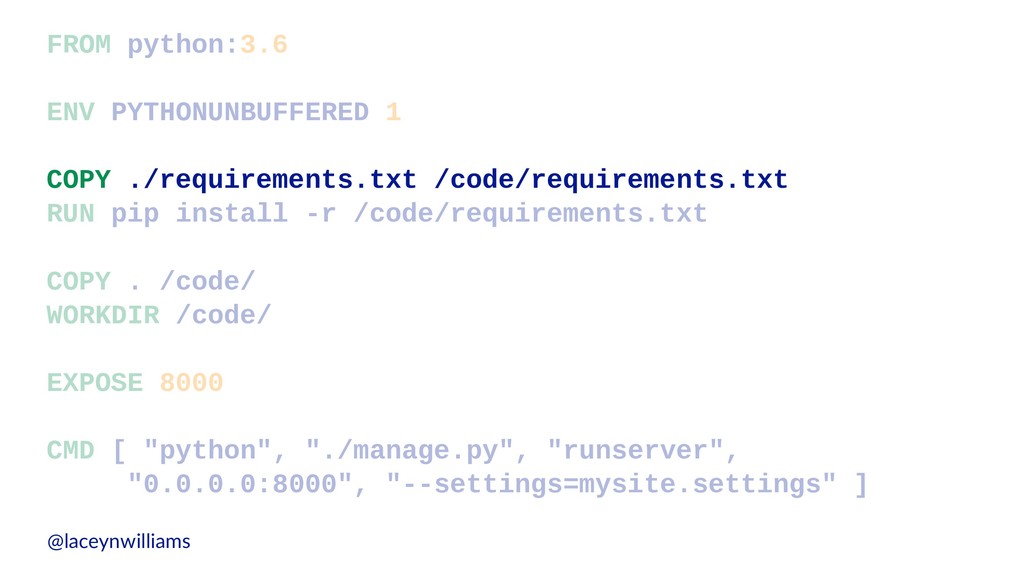

19. FROM python:3.6 ENV PYTHONUNBUFFERED 1 COPY ./requirements.txt /code/requirements.txt RUN pip install -r /code/requirements.txt COPY . /code/ WORKDIR /code/ EXPOSE 8000 CMD [ "python", "./manage.py", "runserver", "0.0.0.0:8000", "--settings=mysite.settings" ] @laceynwilliams
20. FROM python:3.6 ENV PYTHONUNBUFFERED 1 COPY ./requirements.txt /code/requirements.txt RUN pip install -r /code/requirements.txt COPY . /code/ WORKDIR /code/ EXPOSE 8000 CMD [ "python", "./manage.py", "runserver", "0.0.0.0:8000", "--settings=mysite.settings" ] @laceynwilliams

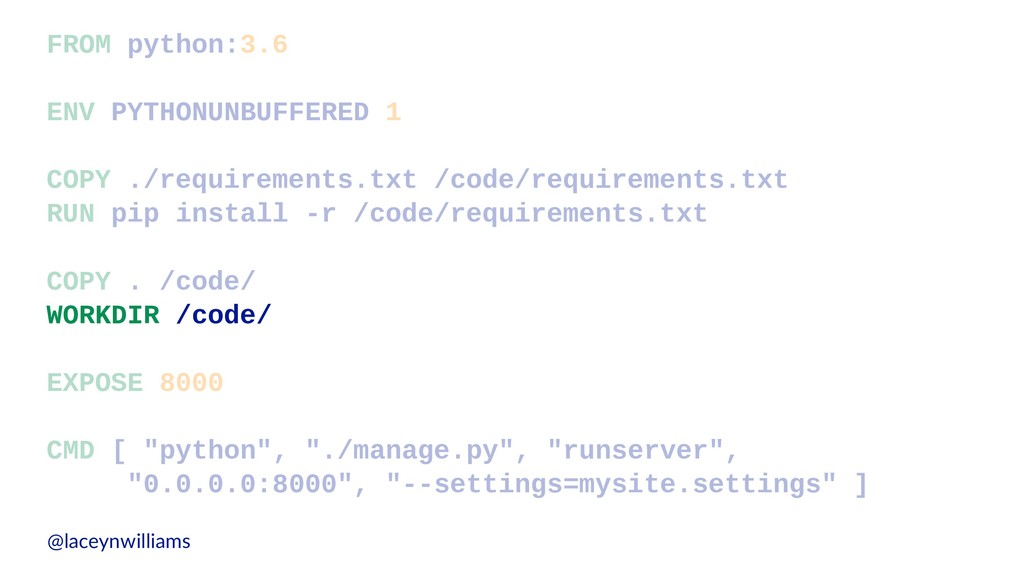

21. FROM python:3.6 ENV PYTHONUNBUFFERED 1 COPY ./requirements.txt /code/requirements.txt RUN pip install -r /code/requirements.txt COPY . /code/ WORKDIR /code/ EXPOSE 8000 CMD [ "python", "./manage.py", "runserver", "0.0.0.0:8000", "--settings=mysite.settings" ] @laceynwilliams

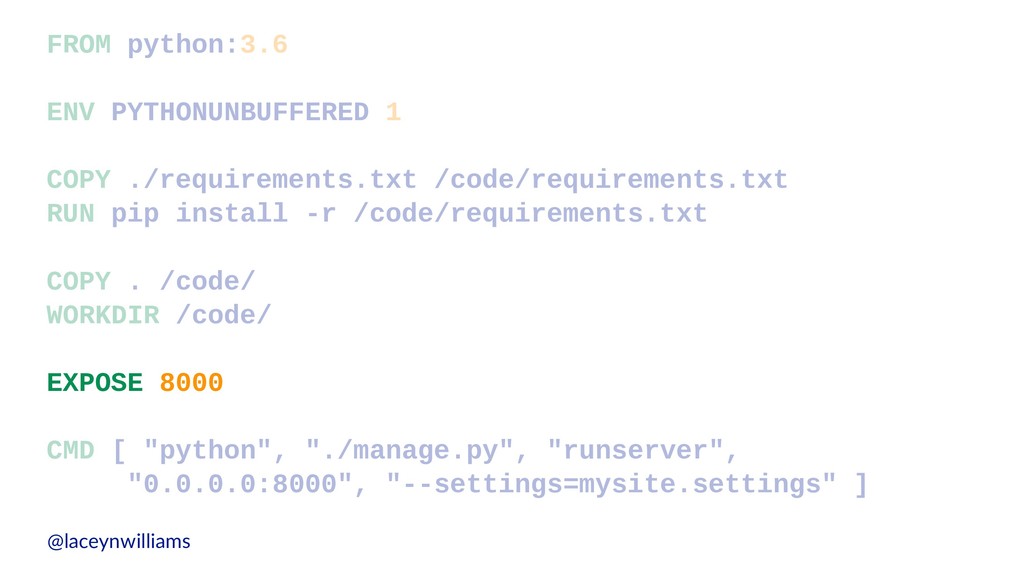

22. FROM python:3.6 ENV PYTHONUNBUFFERED 1 COPY ./requirements.txt /code/requirements.txt RUN pip install -r /code/requirements.txt COPY . /code/ WORKDIR /code/ EXPOSE 8000 CMD [ "python", "./manage.py", "runserver", "0.0.0.0:8000", "--settings=mysite.settings" ] @laceynwilliams

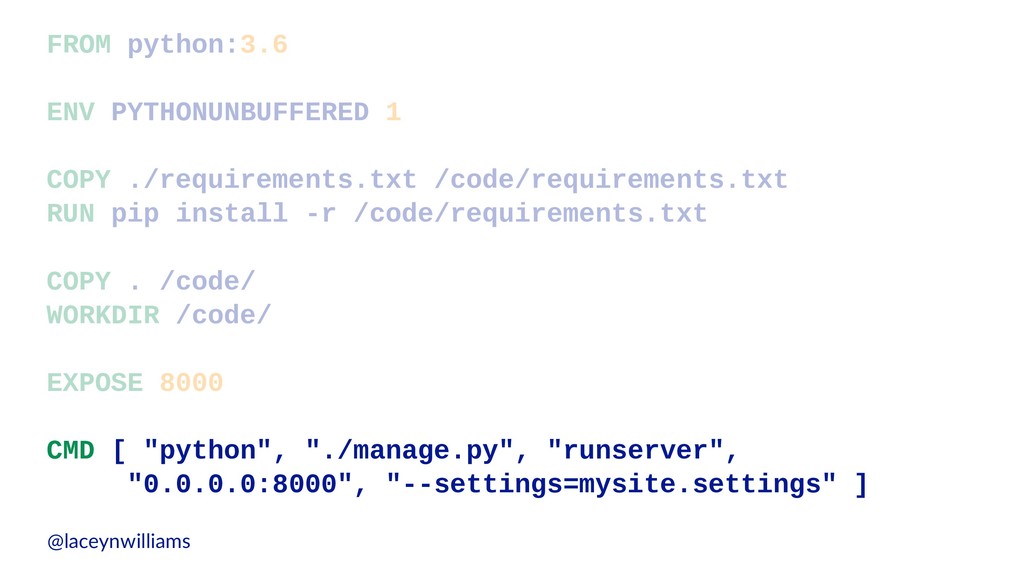

23. FROM python:3.6 ENV PYTHONUNBUFFERED 1 COPY ./requirements.txt /code/requirements.txt RUN pip install -r /code/requirements.txt COPY . /code/ WORKDIR /code/ EXPOSE 8000 CMD [ "python", "./manage.py", "runserver", "0.0.0.0:8000", "--settings=mysite.settings" ] @laceynwilliams
24. FROM python:3.6 ENV PYTHONUNBUFFERED 1 COPY ./requirements.txt /code/requirements.txt RUN pip install -r /code/requirements.txt COPY . /code/ WORKDIR /code/ EXPOSE 8000 CMD [ "python", "./manage.py", "runserver", "0.0.0.0:8000", "--settings=mysite.settings" ] @laceynwilliams

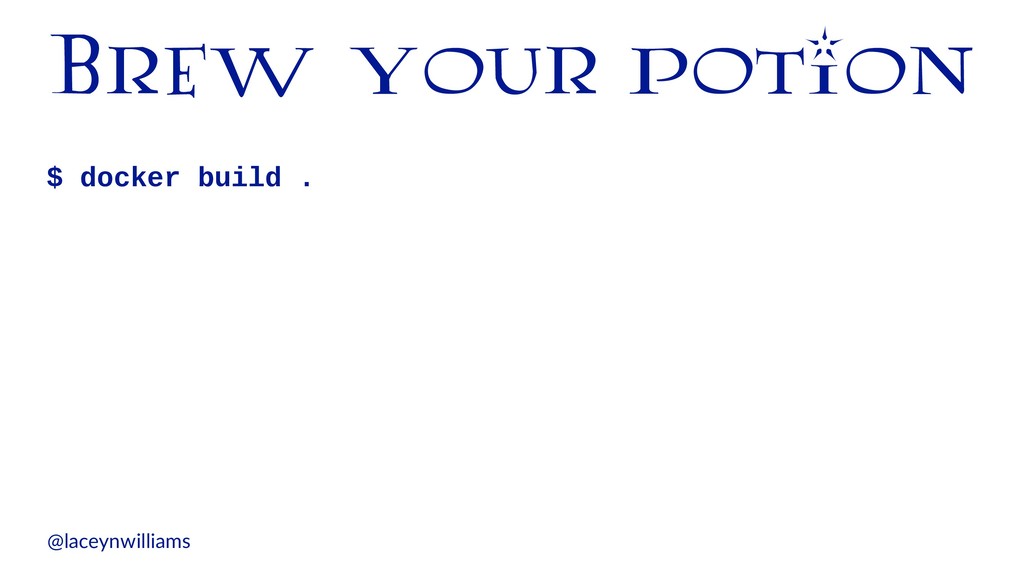

25. Brew your potion $ docker build . @laceynwilliams

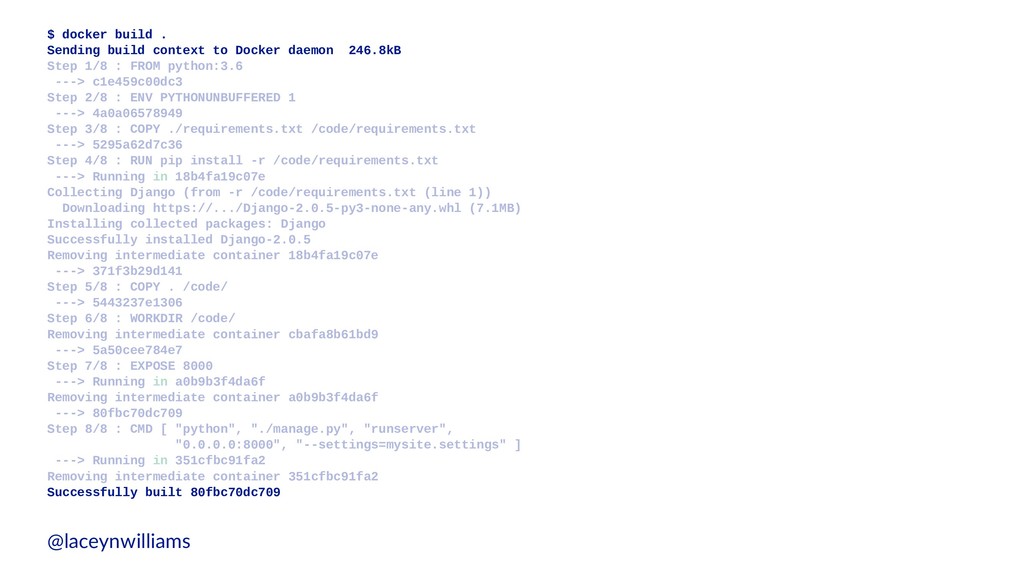

26. $ docker build . Sending build context to Docker daemon 246.8kB Step 1/8 : FROM python:3.6 ---> c1e459c00dc3 Step 2/8 : ENV PYTHONUNBUFFERED 1 ---> 4a0a06578949 Step 3/8 : COPY ./requirements.txt /code/requirements.txt ---> 5295a62d7c36 Step 4/8 : RUN pip install -r /code/requirements.txt ---> Running in 18b4fa19c07e Collecting Django (from -r /code/requirements.txt (line 1)) Downloading https://.../Django-2.0.5-py3-none-any.whl (7.1MB) Installing collected packages: Django Successfully installed Django-2.0.5 Removing intermediate container 18b4fa19c07e ---> 371f3b29d141 Step 5/8 : COPY . /code/ ---> 5443237e1306 Step 6/8 : WORKDIR /code/ Removing intermediate container cbafa8b61bd9 ---> 5a50cee784e7 Step 7/8 : EXPOSE 8000 ---> Running in a0b9b3f4da6f Removing intermediate container a0b9b3f4da6f ---> 80fbc70dc709 Step 8/8 : CMD [ "python", "./manage.py", "runserver", "0.0.0.0:8000", "--settings=mysite.settings" ] ---> Running in 351cfbc91fa2 Removing intermediate container 351cfbc91fa2 Successfully built 80fbc70dc709 @laceynwilliams

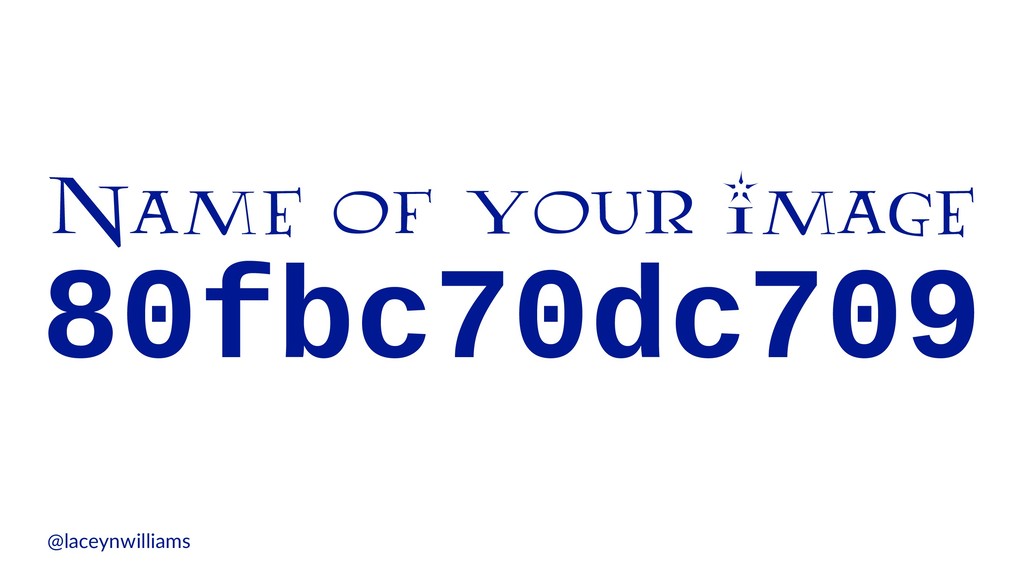

27. Name of your image 80fbc70dc709 @laceynwilliams

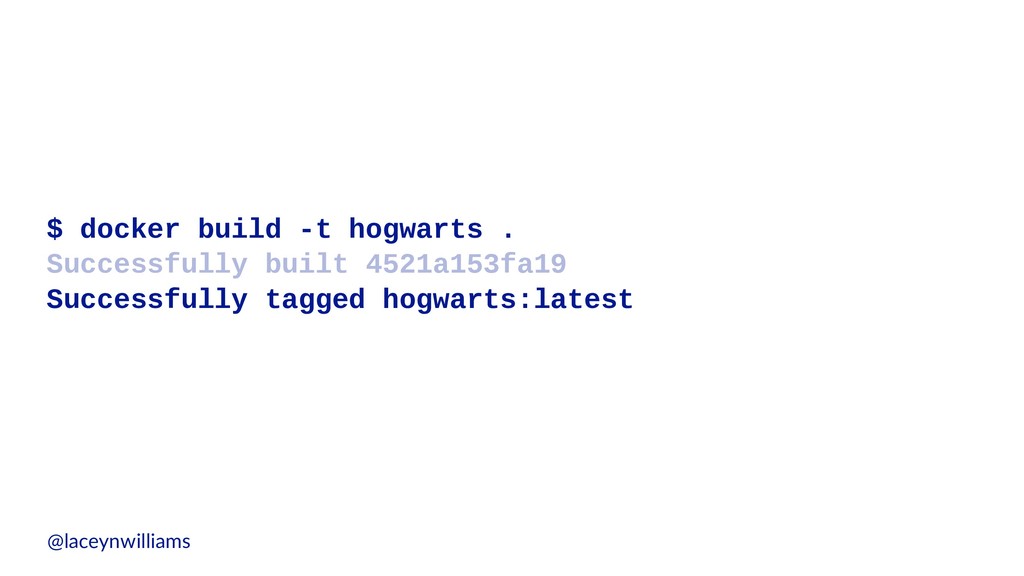

28. $ docker build -t hogwarts . Successfully built 4521a153fa19 Successfully tagged hogwarts:latest @laceynwilliams

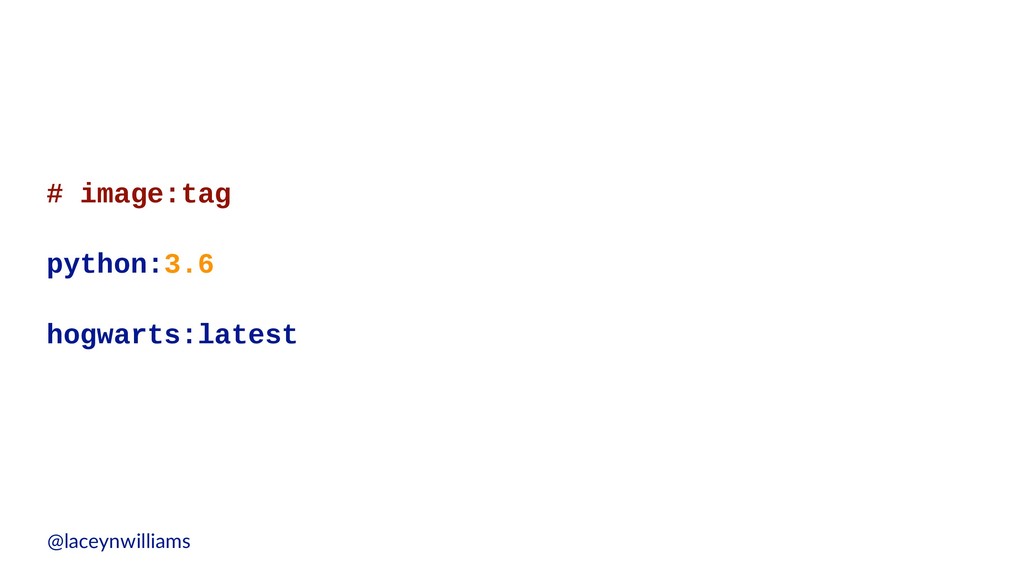

29. # image:tag python:3.6 hogwarts:latest @laceynwilliams
30. Layers @laceynwilliams | S/ll from Harry Po5er and the Chamber of Secrets

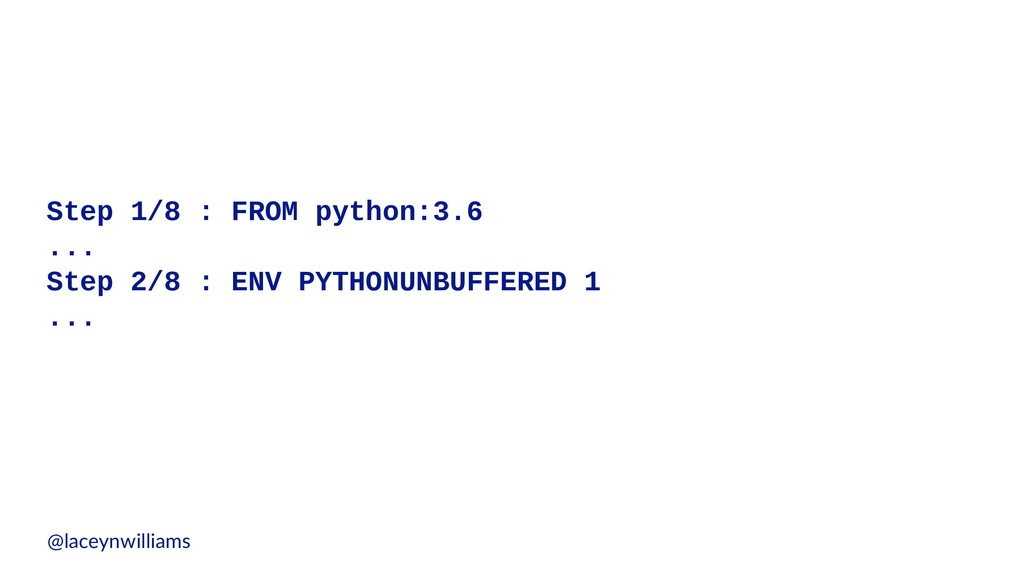

31. Step 1/8 : FROM python:3.6 ... Step 2/8 : ENV PYTHONUNBUFFERED 1 ... @laceynwilliams

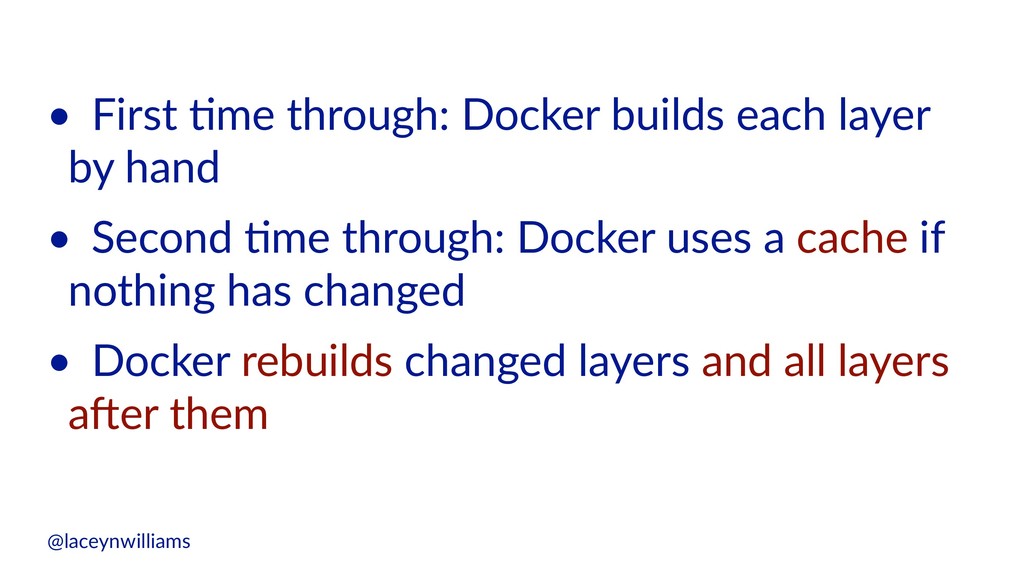

32. • First (me through: Docker builds each layer by hand • Second (me through: Docker uses a cache if nothing has changed • Docker rebuilds changed layers and all layers a;er them @laceynwilliams

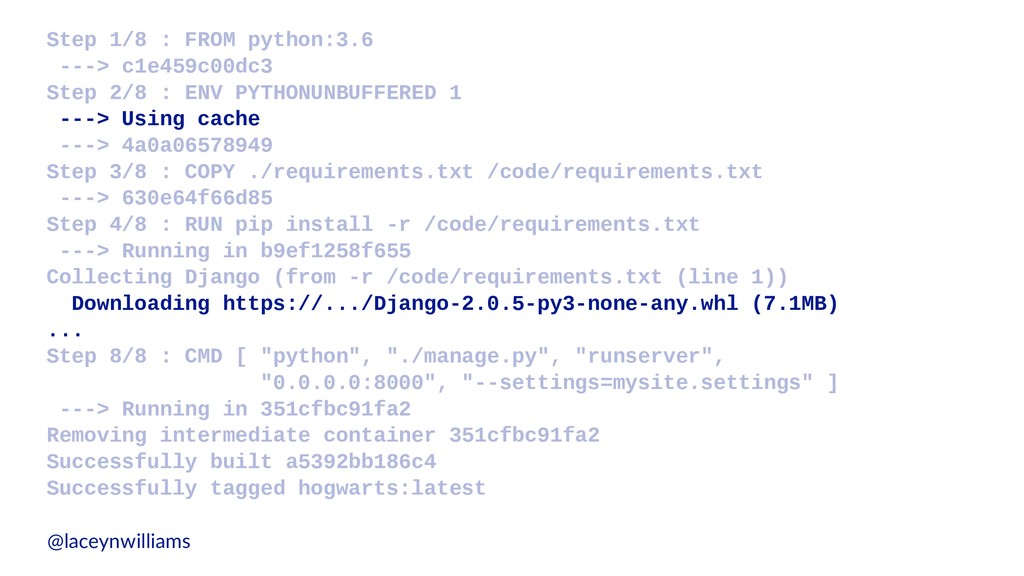

33. Step 1/8 : FROM python:3.6 ---> c1e459c00dc3 Step 2/8 : ENV PYTHONUNBUFFERED 1 ---> Using cache ---> 4a0a06578949 Step 3/8 : COPY ./requirements.txt /code/requirements.txt ---> 630e64f66d85 Step 4/8 : RUN pip install -r /code/requirements.txt ---> Running in b9ef1258f655 Collecting Django (from -r /code/requirements.txt (line 1)) Downloading https://.../Django-2.0.5-py3-none-any.whl (7.1MB) ... Step 8/8 : CMD [ "python", "./manage.py", "runserver", "0.0.0.0:8000", "--settings=mysite.settings" ] ---> Running in 351cfbc91fa2 Removing intermediate container 351cfbc91fa2 Successfully built a5392bb186c4 Successfully tagged hogwarts:latest @laceynwilliams
34. The Standard Book of Spells Grade 1 Docker Edition @laceynwilliams

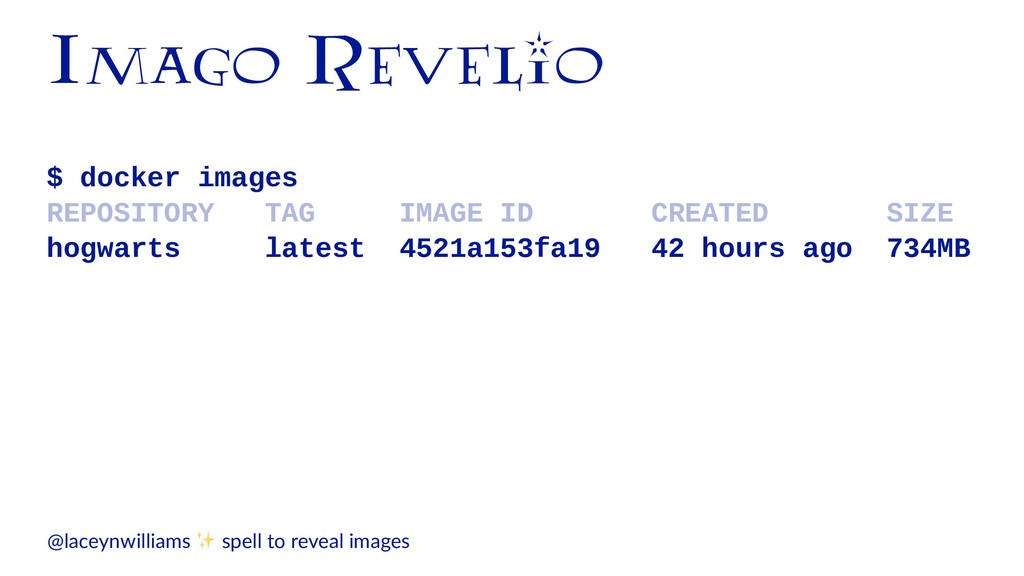

35. Imago Revelio $ docker images REPOSITORY TAG IMAGE ID CREATED SIZE hogwarts latest 4521a153fa19 42 hours ago 734MB @laceynwilliams ✨ spell to reveal images

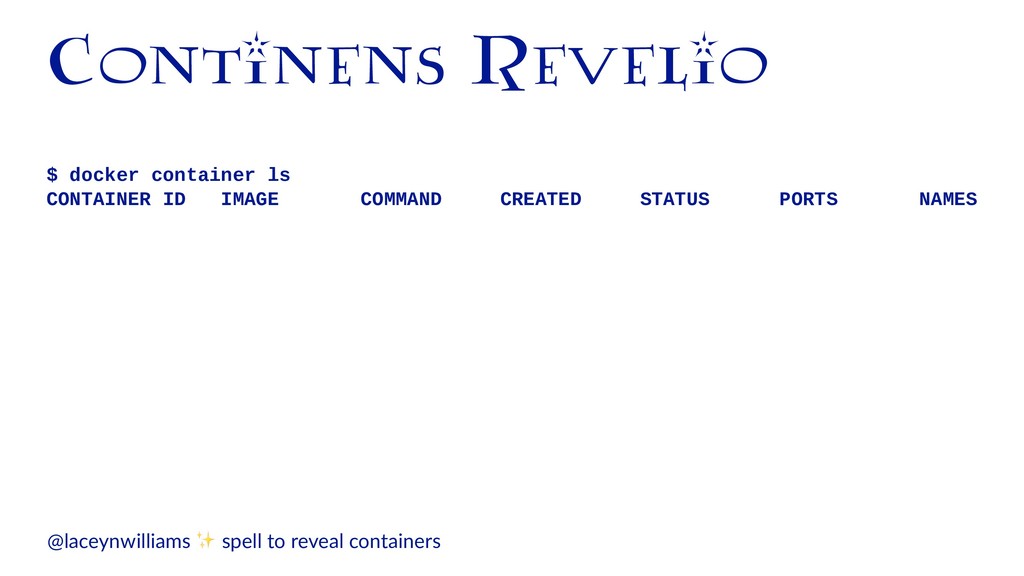

36. Continens Revelio $ docker container ls CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES @laceynwilliams ✨ spell to reveal containers

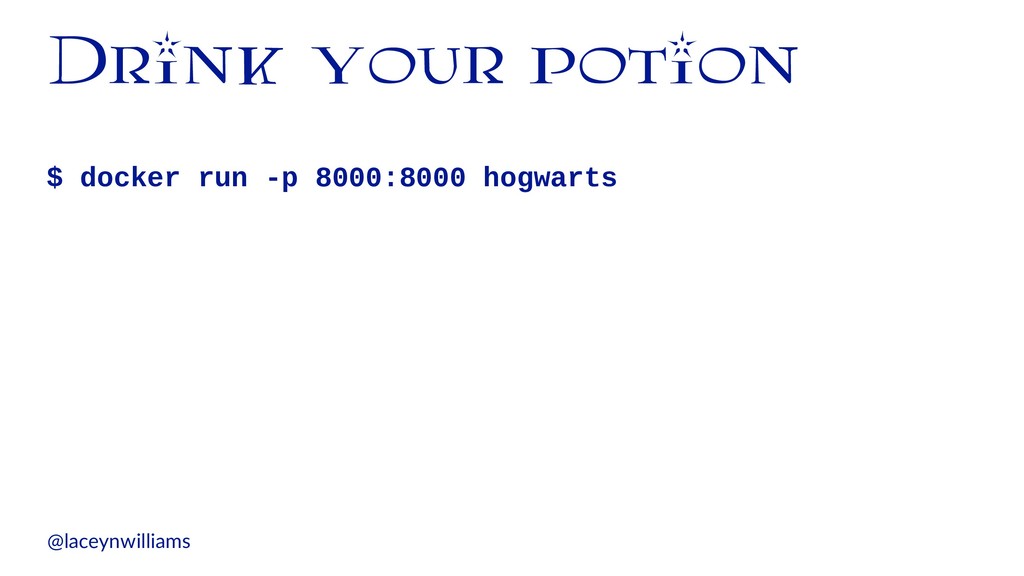

37. Drink your potion $ docker run -p 8000:8000 hogwarts @laceynwilliams

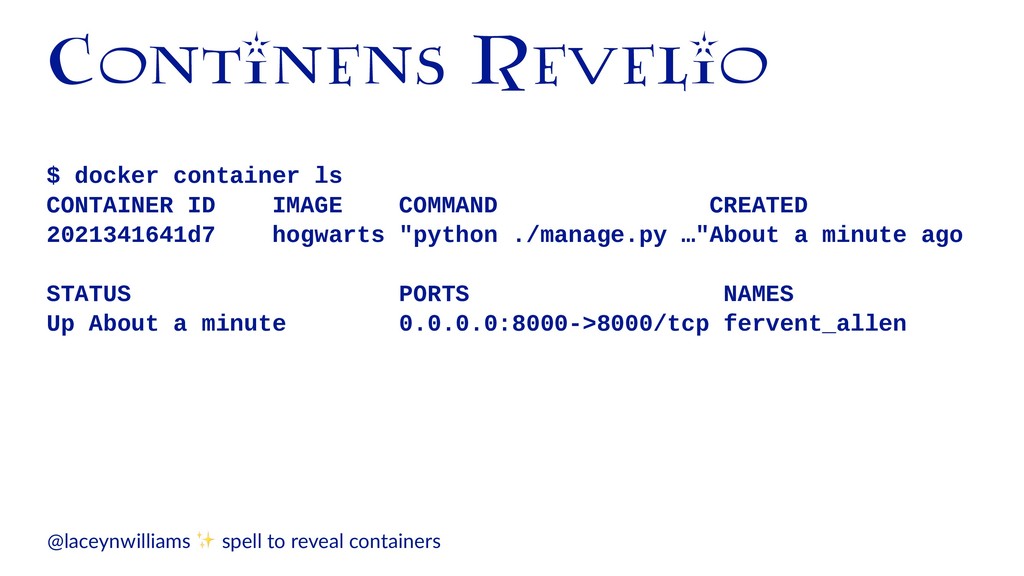

38. Continens Revelio $ docker container ls CONTAINER ID IMAGE COMMAND CREATED 2021341641d7 hogwarts "python ./manage.py …"About a minute ago STATUS PORTS NAMES Up About a minute 0.0.0.0:8000->8000/tcp fervent_allen @laceynwilliams ✨ spell to reveal containers

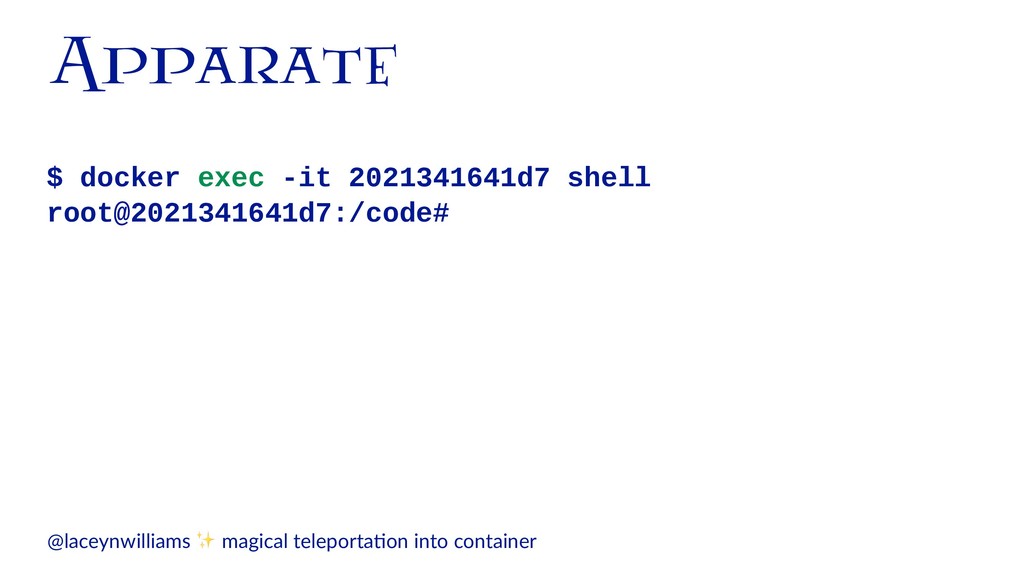

39. Apparate $ docker exec -it 2021341641d7 shell root@2021341641d7:/code# @laceynwilliams ✨ magical teleporta2on into container

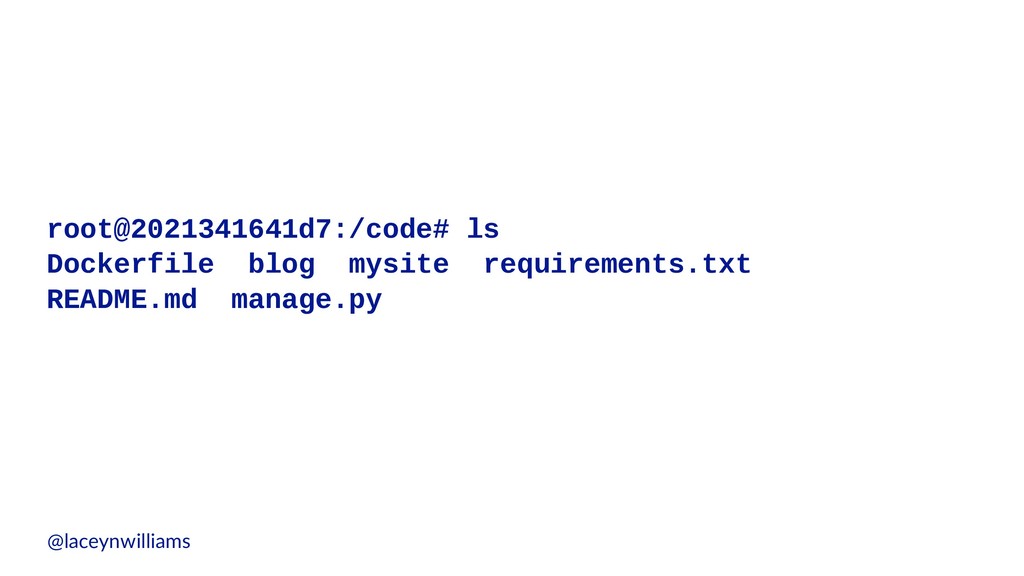

40. root@2021341641d7:/code# ls Dockerfile blog mysite requirements.txt README.md manage.py @laceynwilliams

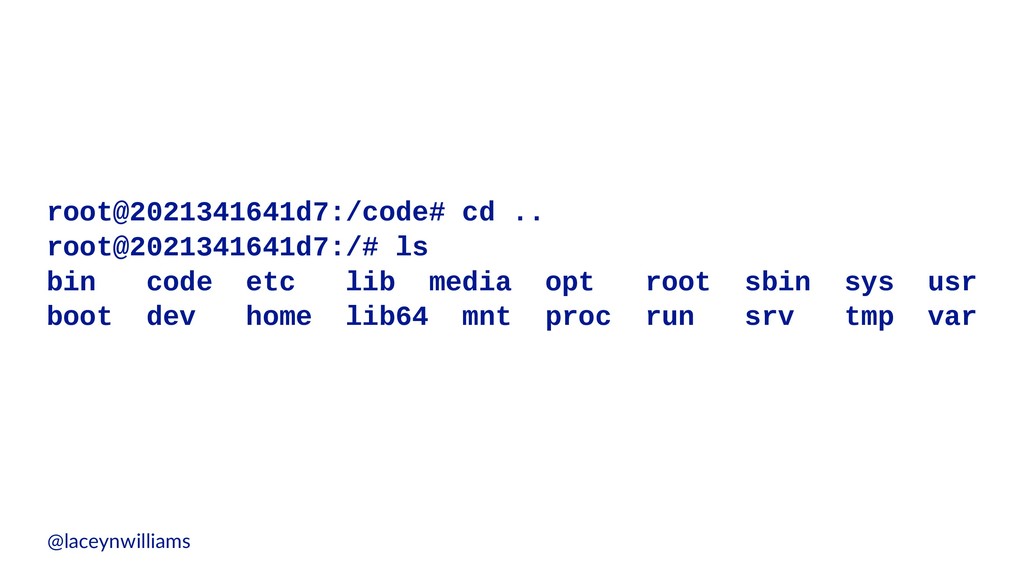

41. root@2021341641d7:/code# cd .. root@2021341641d7:/# ls bin code etc lib media opt root sbin sys usr boot dev home lib64 mnt proc run srv tmp var @laceynwilliams

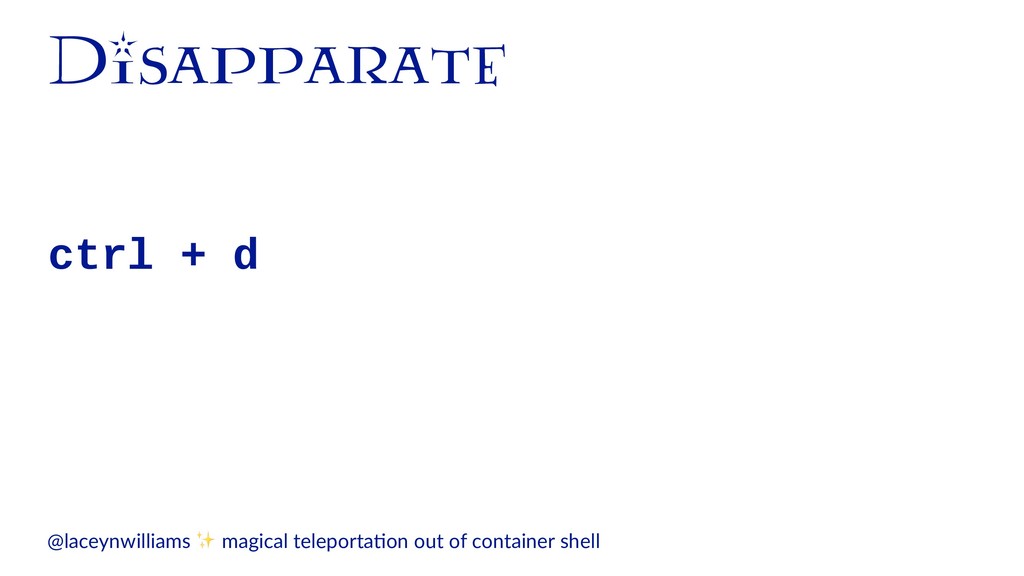

42. Disapparate ctrl + d @laceynwilliams ✨ magical teleporta2on out of container shell

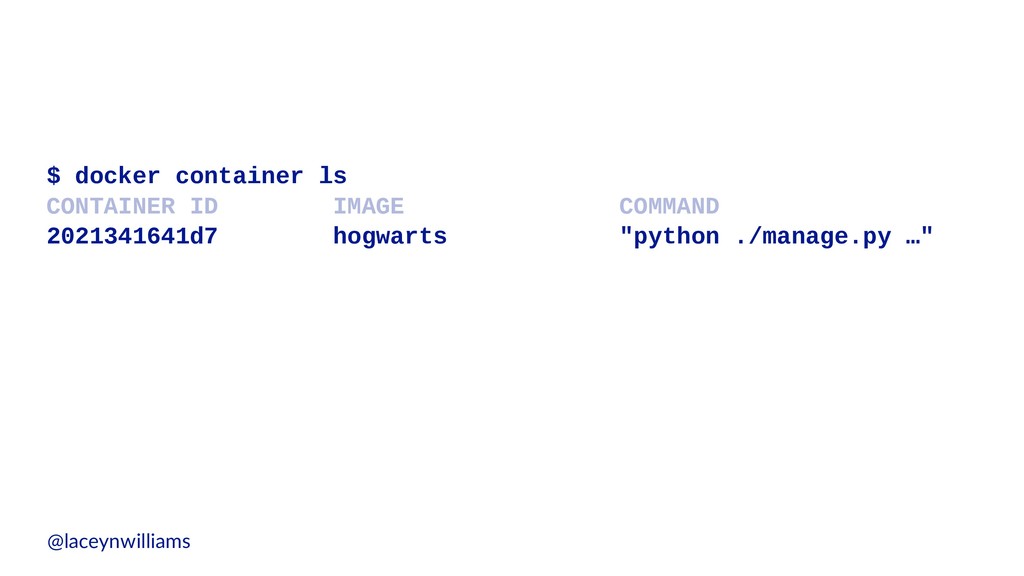

43. $ docker container ls CONTAINER ID IMAGE COMMAND 2021341641d7 hogwarts "python ./manage.py …" @laceynwilliams

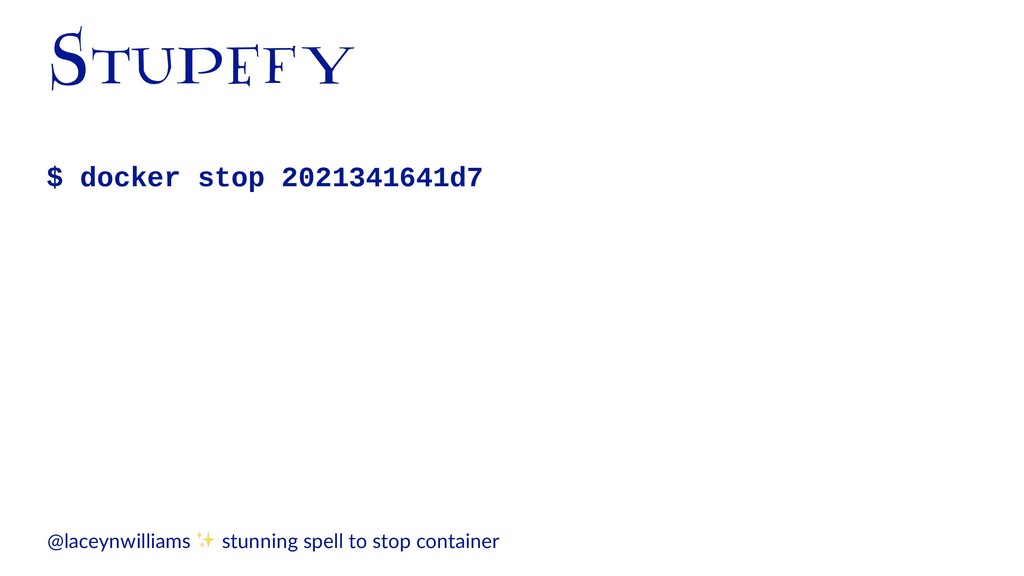

44. Stupefy $ docker stop 2021341641d7 @laceynwilliams ✨ stunning spell to stop container

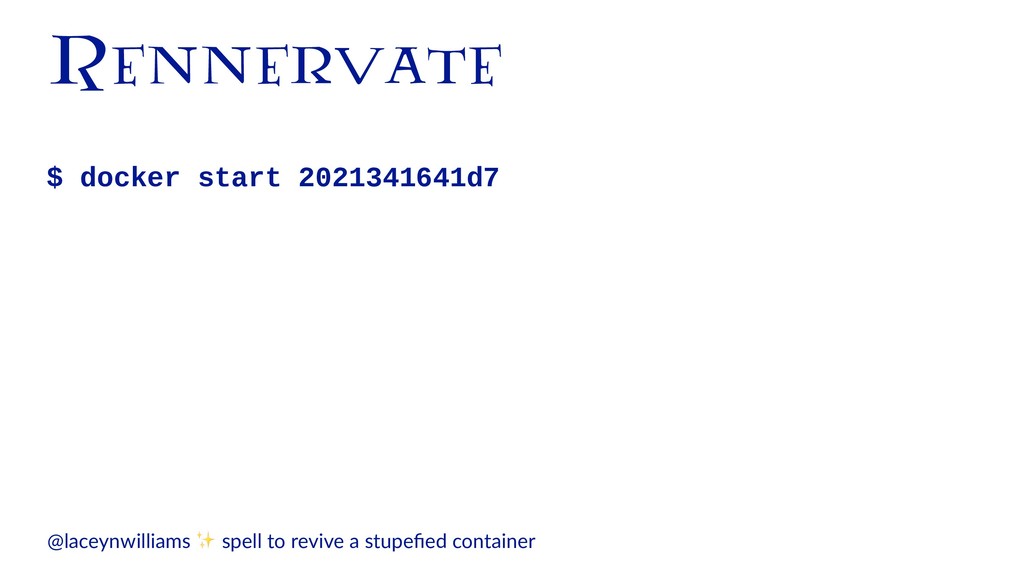

45. Rennervate $ docker start 2021341641d7 @laceynwilliams ✨ spell to revive a stupefied container

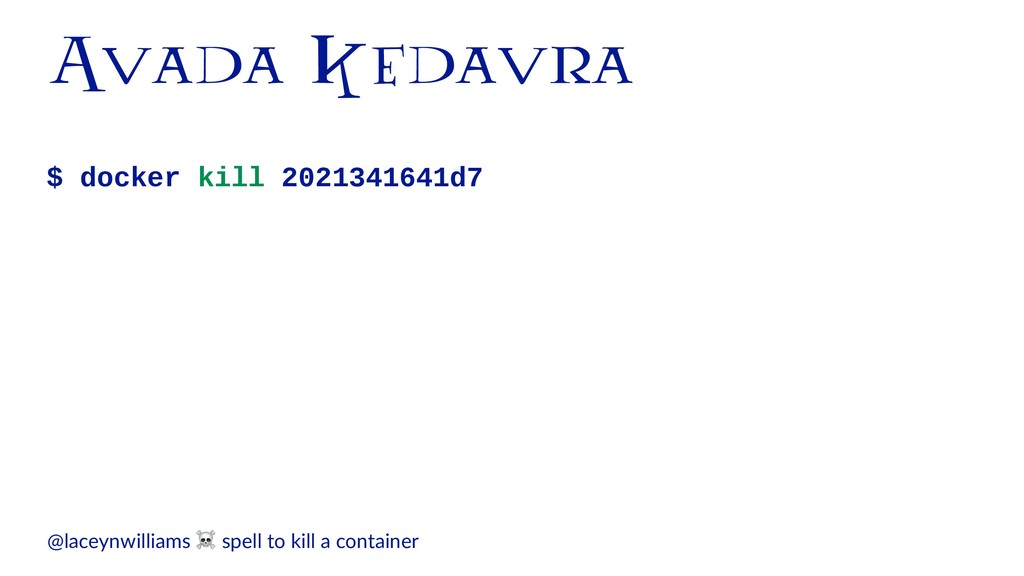

46. Avada Kedavra $ docker kill 2021341641d7 @laceynwilliams ☠ spell to kill a container
47. Advanced Potions Docker Compose @laceynwilliams

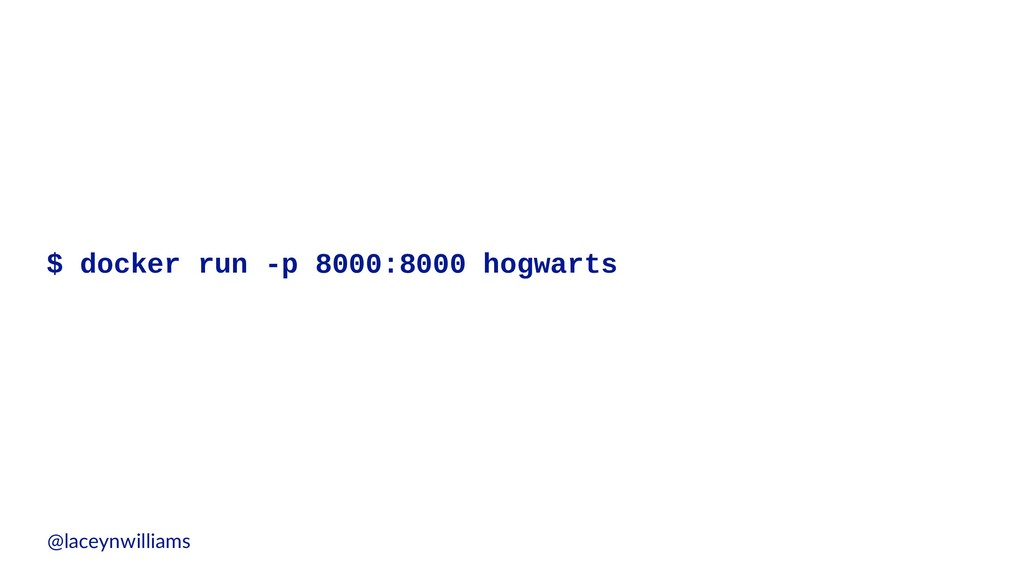

48. $ docker run -p 8000:8000 hogwarts @laceynwilliams

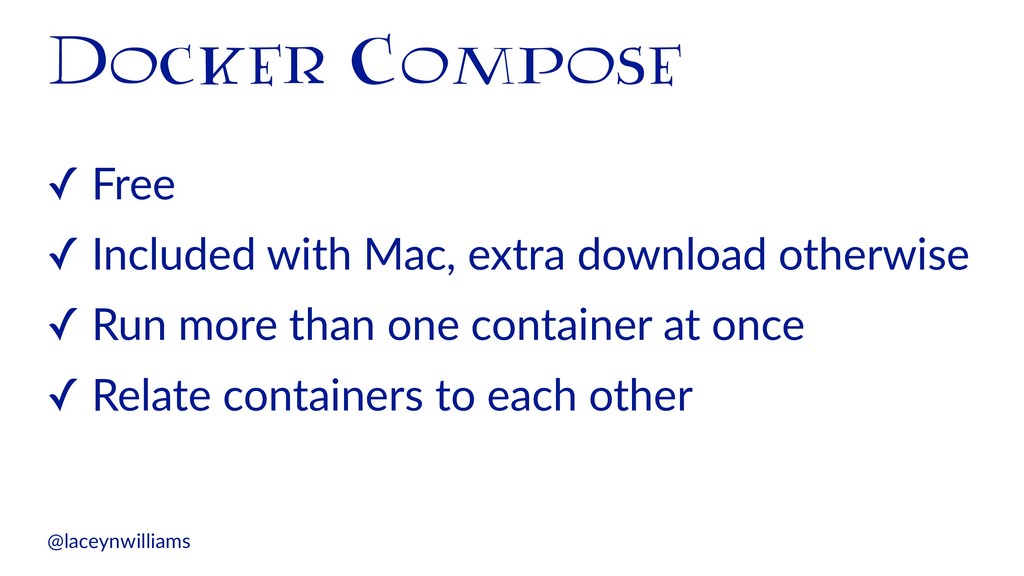

49. Docker Compose ✓ Free ✓ Included with Mac, extra download otherwise ✓ Run more than one container at once ✓ Relate containers to each other @laceynwilliams
50. Hermione's magic bag @laceynwilliams

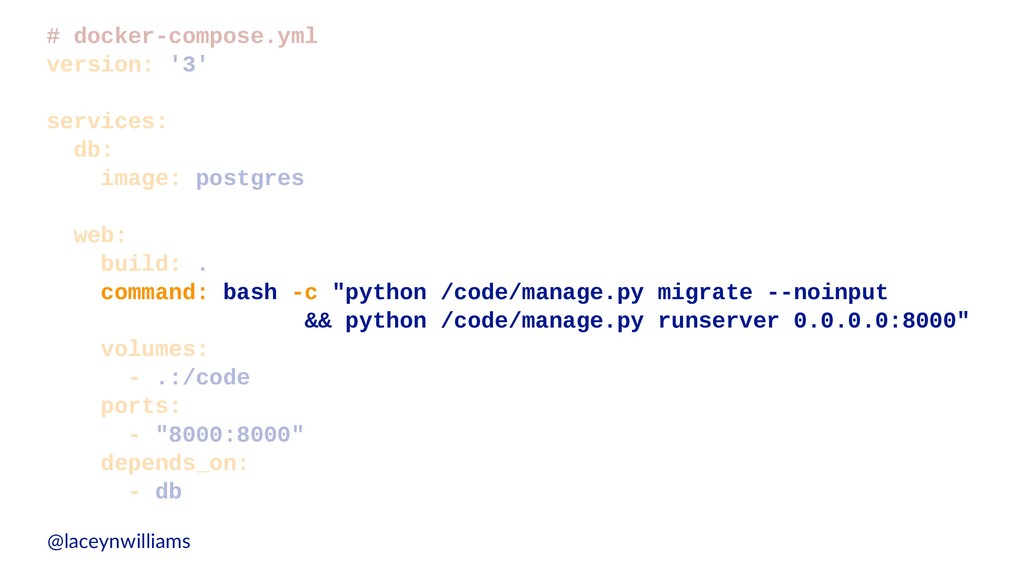

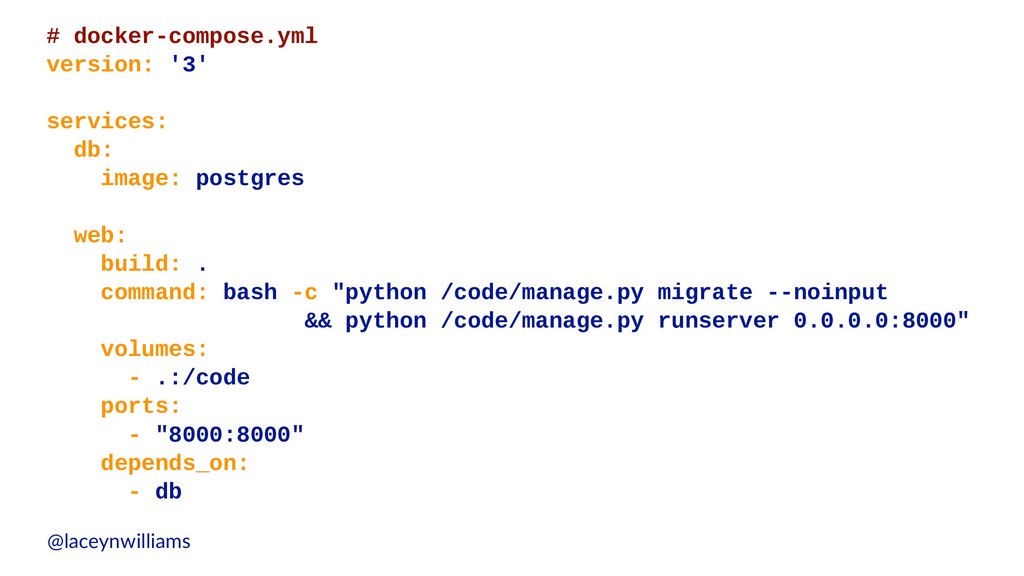

51. # docker-compose.yml version: '3' services: db: image: postgres web: build: . command: bash -c "python /code/manage.py migrate --noinput && python /code/manage.py runserver 0.0.0.0:8000" volumes: - .:/code ports: - "8000:8000" depends_on: - db @laceynwilliams

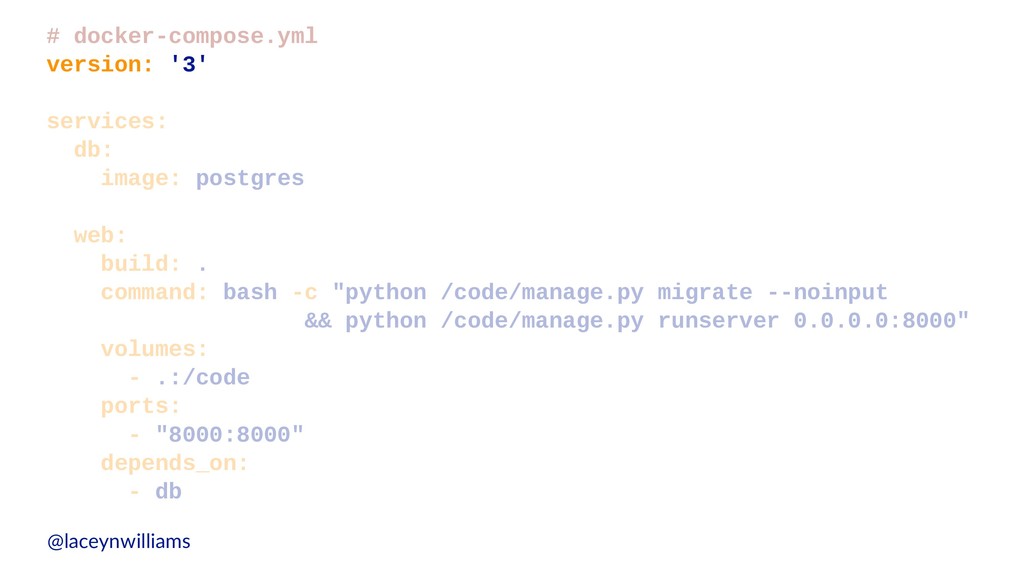

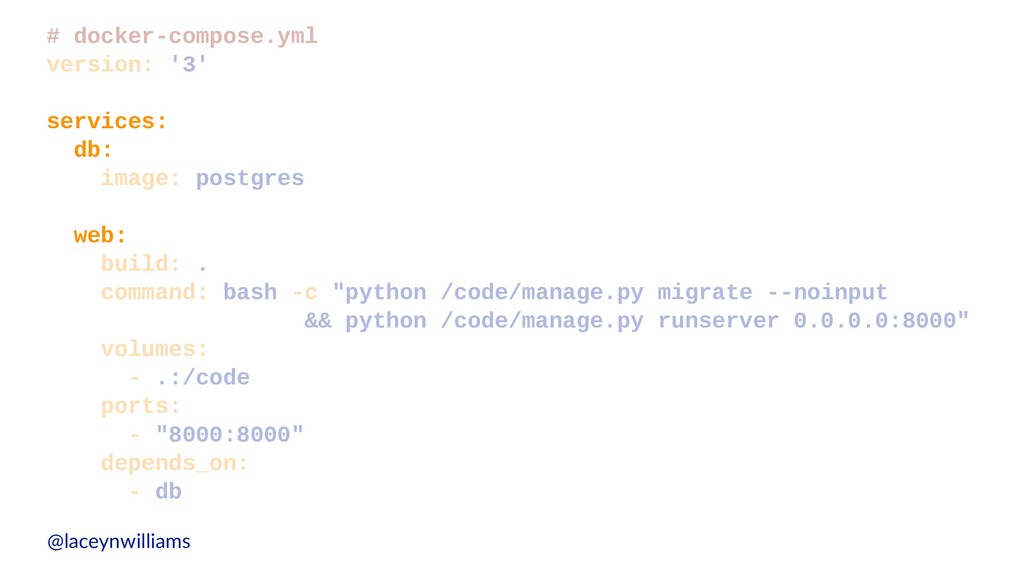

52. # docker-compose.yml version: '3' services: db: image: postgres web: build: . command: bash -c "python /code/manage.py migrate --noinput && python /code/manage.py runserver 0.0.0.0:8000" volumes: - .:/code ports: - "8000:8000" depends_on: - db @laceynwilliams

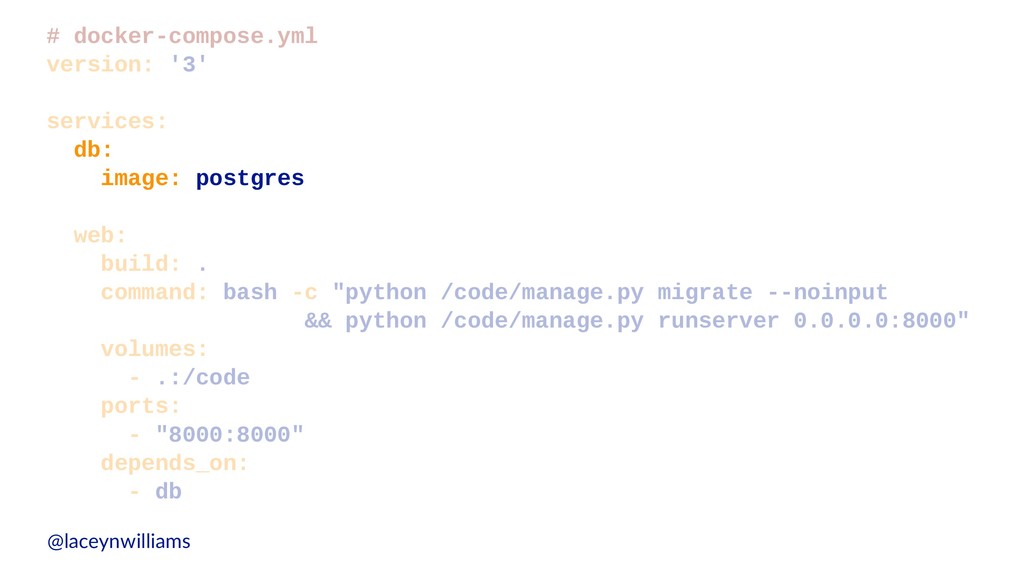

53. # docker-compose.yml version: '3' services: db: image: postgres web: build: . command: bash -c "python /code/manage.py migrate --noinput && python /code/manage.py runserver 0.0.0.0:8000" volumes: - .:/code ports: - "8000:8000" depends_on: - db @laceynwilliams
54. # docker-compose.yml version: '3' services: db: image: postgres web: build: . command: bash -c "python /code/manage.py migrate --noinput && python /code/manage.py runserver 0.0.0.0:8000" volumes: - .:/code ports: - "8000:8000" depends_on: - db @laceynwilliams
55. then update settings.py @laceynwilliams

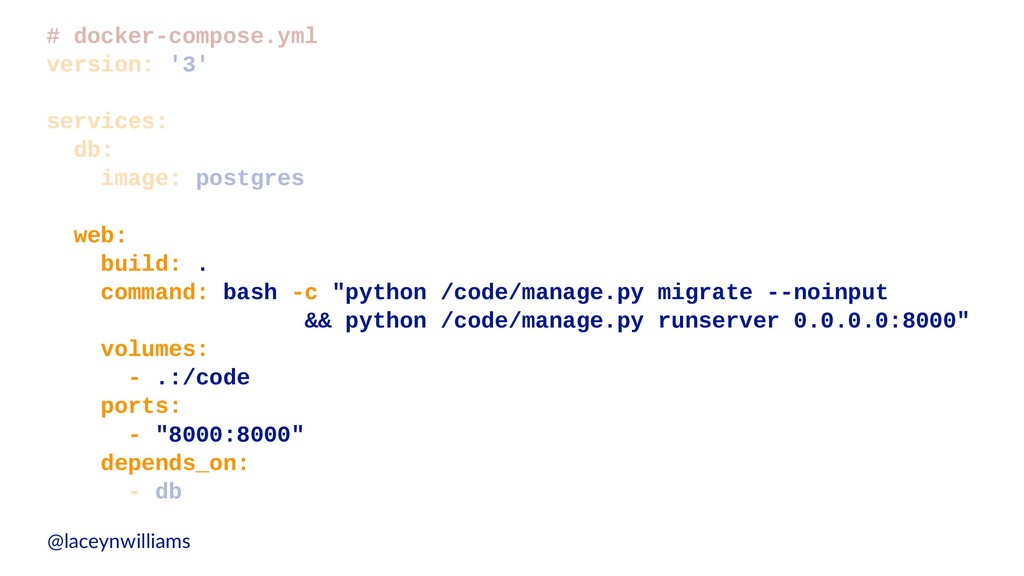

56. # docker-compose.yml version: '3' services: db: image: postgres web: build: . command: bash -c "python /code/manage.py migrate --noinput && python /code/manage.py runserver 0.0.0.0:8000" volumes: - .:/code ports: - "8000:8000" depends_on: - db @laceynwilliams

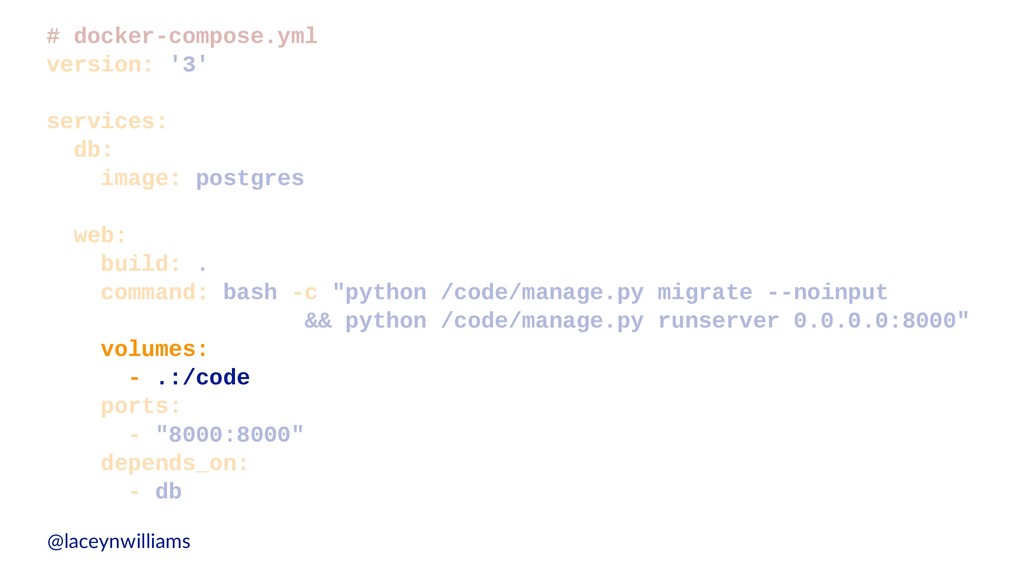

57. # docker-compose.yml version: '3' services: db: image: postgres web: build: . command: bash -c "python /code/manage.py migrate --noinput && python /code/manage.py runserver 0.0.0.0:8000" volumes: - .:/code ports: - "8000:8000" depends_on: - db @laceynwilliams

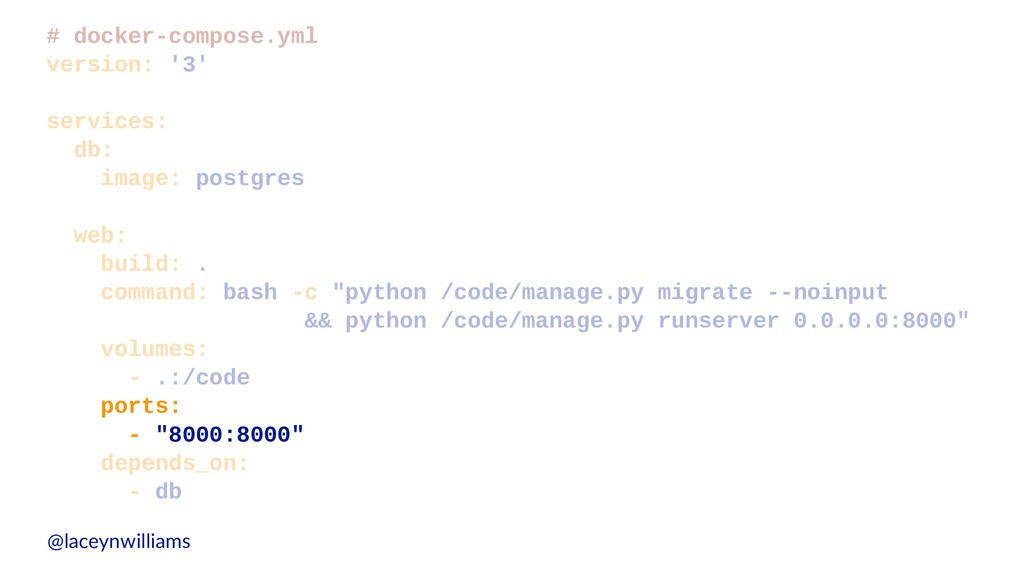

58. # docker-compose.yml version: '3' services: db: image: postgres web: build: . command: bash -c "python /code/manage.py migrate --noinput && python /code/manage.py runserver 0.0.0.0:8000" volumes: - .:/code ports: - "8000:8000" depends_on: - db @laceynwilliams

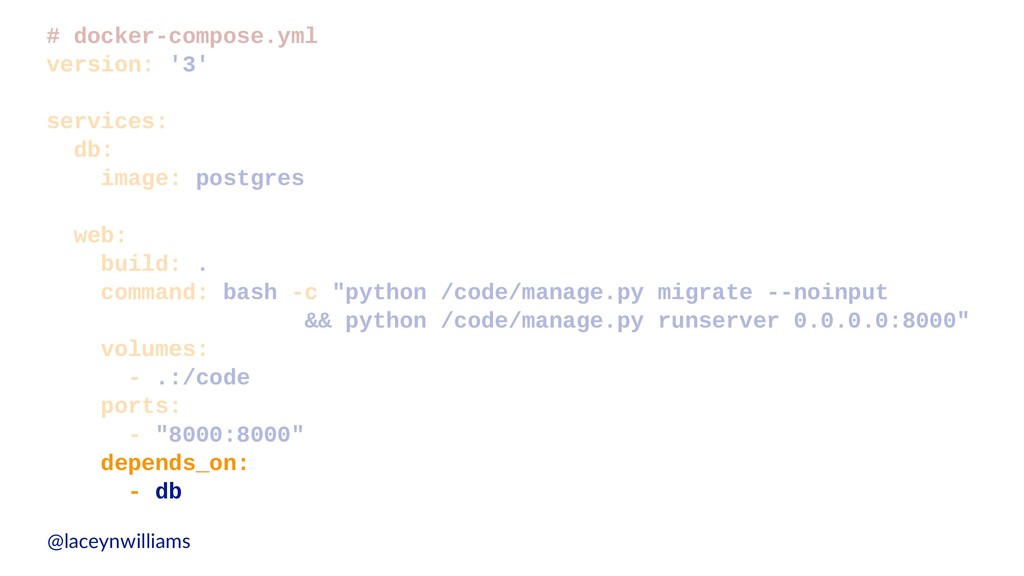

59. # docker-compose.yml version: '3' services: db: image: postgres web: build: . command: bash -c "python /code/manage.py migrate --noinput && python /code/manage.py runserver 0.0.0.0:8000" volumes: - .:/code ports: - "8000:8000" depends_on: - db @laceynwilliams
60. # docker-compose.yml version: '3' services: db: image: postgres web: build: . command: bash -c "python /code/manage.py migrate --noinput && python /code/manage.py runserver 0.0.0.0:8000" volumes: - .:/code ports: - "8000:8000" depends_on: - db @laceynwilliams

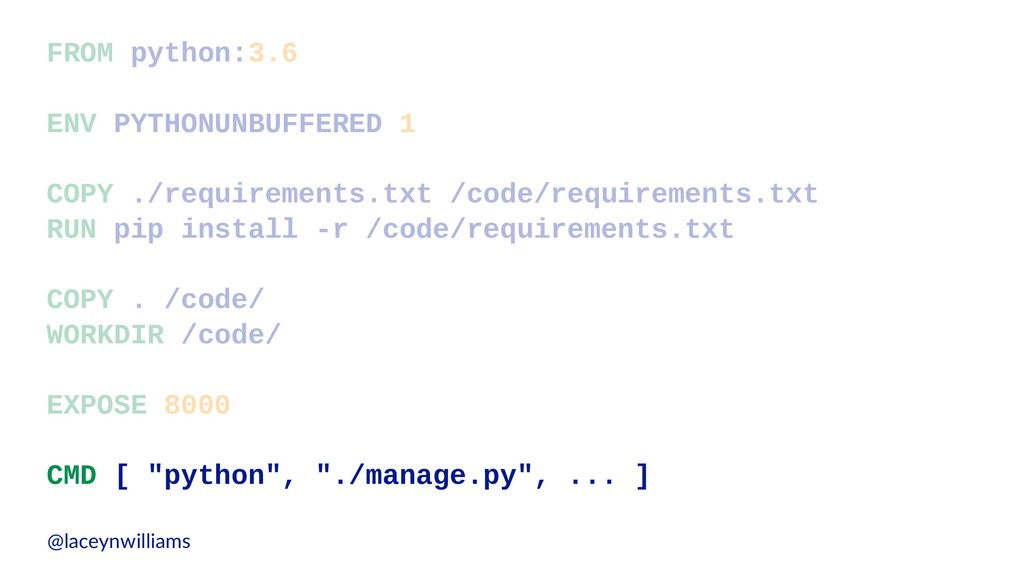

61. FROM python:3.6 ENV PYTHONUNBUFFERED 1 COPY ./requirements.txt /code/requirements.txt RUN pip install -r /code/requirements.txt COPY . /code/ WORKDIR /code/ EXPOSE 8000 CMD [ "python", "./manage.py", ... ] @laceynwilliams

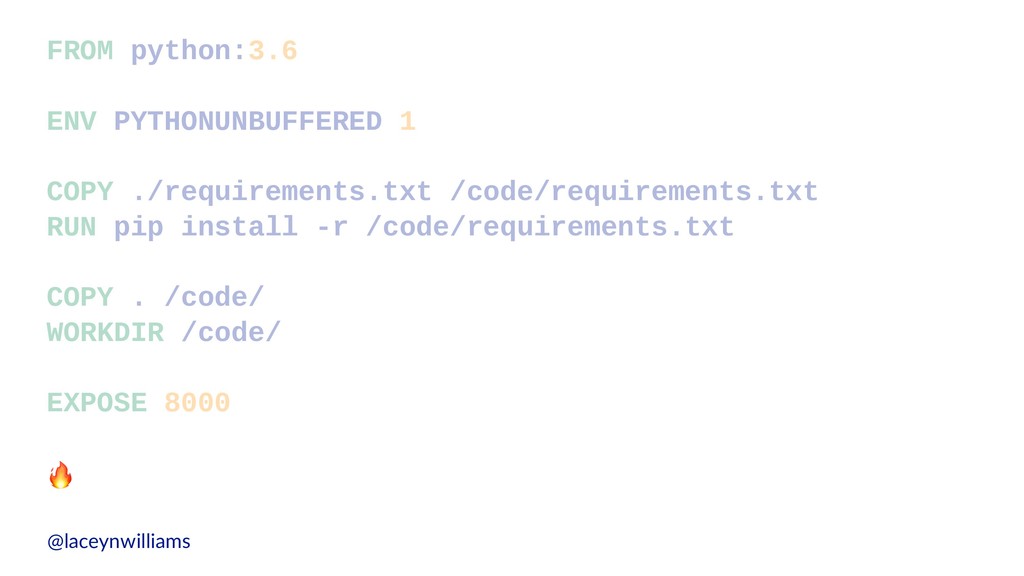

62. FROM python:3.6 ENV PYTHONUNBUFFERED 1 COPY ./requirements.txt /code/requirements.txt RUN pip install -r /code/requirements.txt COPY . /code/ WORKDIR /code/ EXPOSE 8000 ! @laceynwilliams

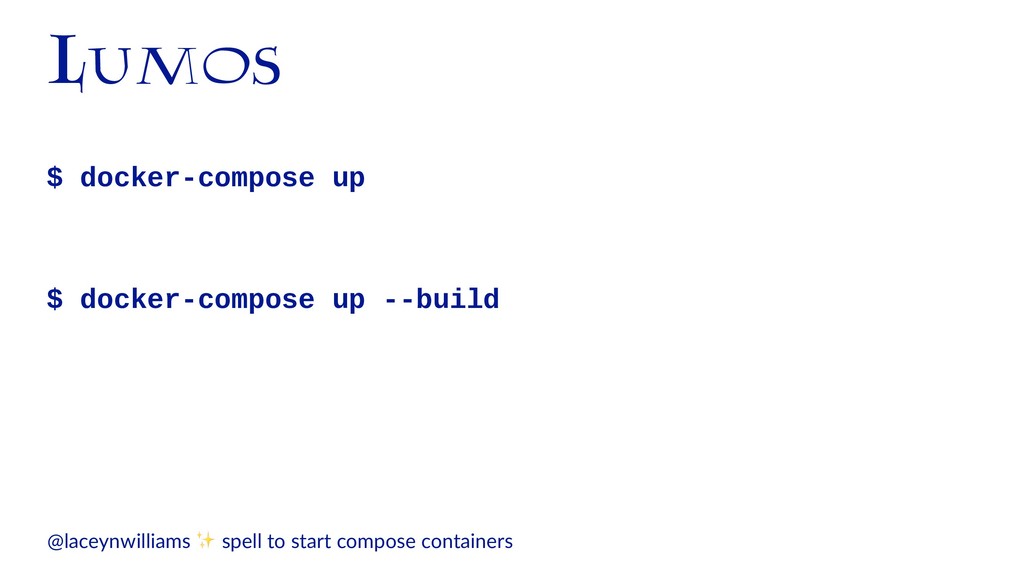

63. Lumos $ docker-compose up $ docker-compose up --build @laceynwilliams ✨ spell to start compose containers

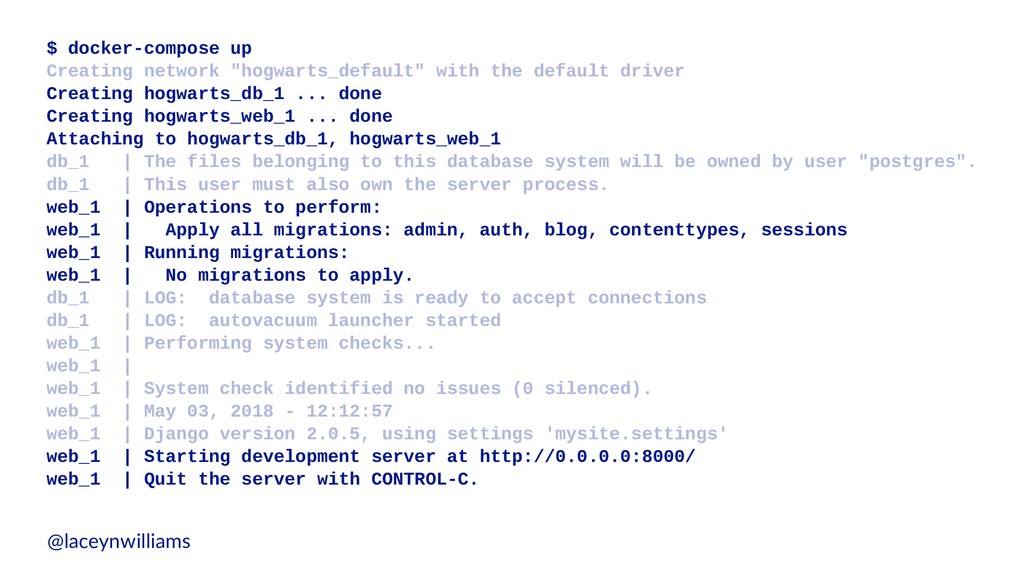

64. $ docker-compose up Creating network "hogwarts_default" with the default driver Creating hogwarts_db_1 ... done Creating hogwarts_web_1 ... done Attaching to hogwarts_db_1, hogwarts_web_1 db_1 | The files belonging to this database system will be owned by user "postgres". db_1 | This user must also own the server process. web_1 | Operations to perform: web_1 | Apply all migrations: admin, auth, blog, contenttypes, sessions web_1 | Running migrations: web_1 | No migrations to apply. db_1 | LOG: database system is ready to accept connections db_1 | LOG: autovacuum launcher started web_1 | Performing system checks... web_1 | web_1 | System check identified no issues (0 silenced). web_1 | May 03, 2018 - 12:12:57 web_1 | Django version 2.0.5, using settings 'mysite.settings' web_1 | Starting development server at http://0.0.0.0:8000/ web_1 | Quit the server with CONTROL-C. @laceynwilliams

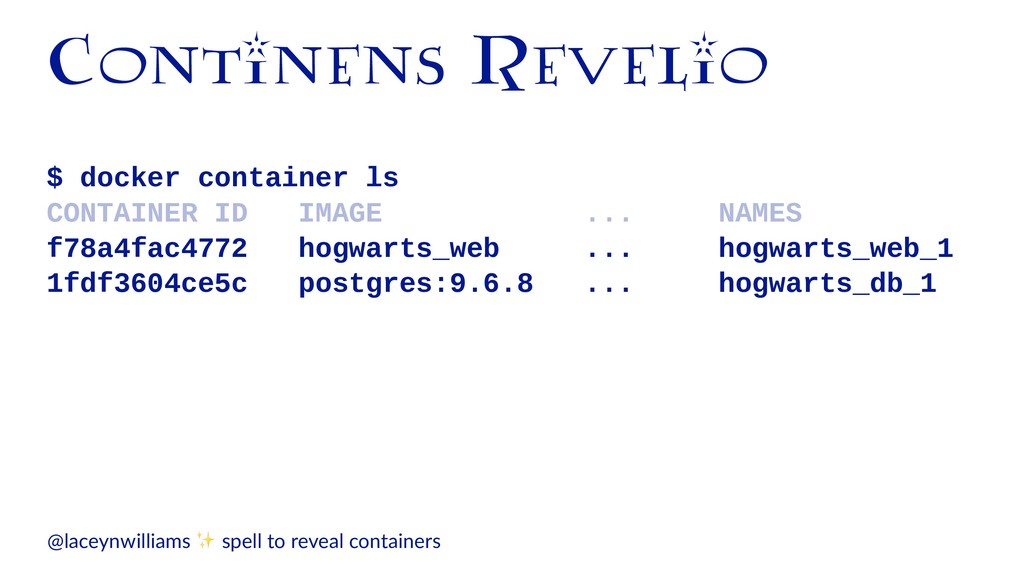

65. Continens Revelio $ docker container ls CONTAINER ID IMAGE ... NAMES f78a4fac4772 hogwarts_web ... hogwarts_web_1 1fdf3604ce5c postgres:9.6.8 ... hogwarts_db_1 @laceynwilliams ✨ spell to reveal containers

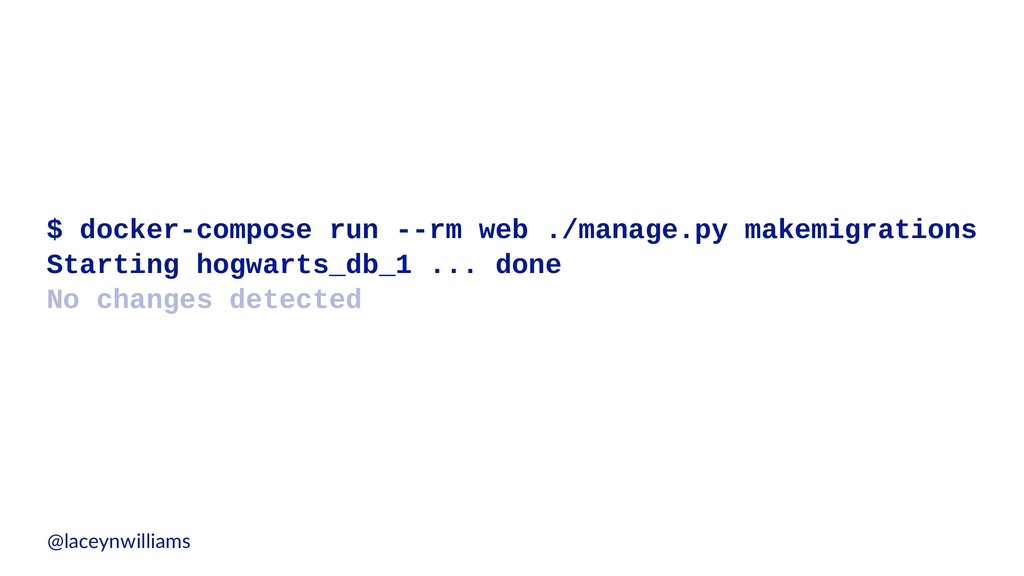

66. $ docker-compose run --rm web ./manage.py makemigrations Starting hogwarts_db_1 ... done No changes detected @laceynwilliams

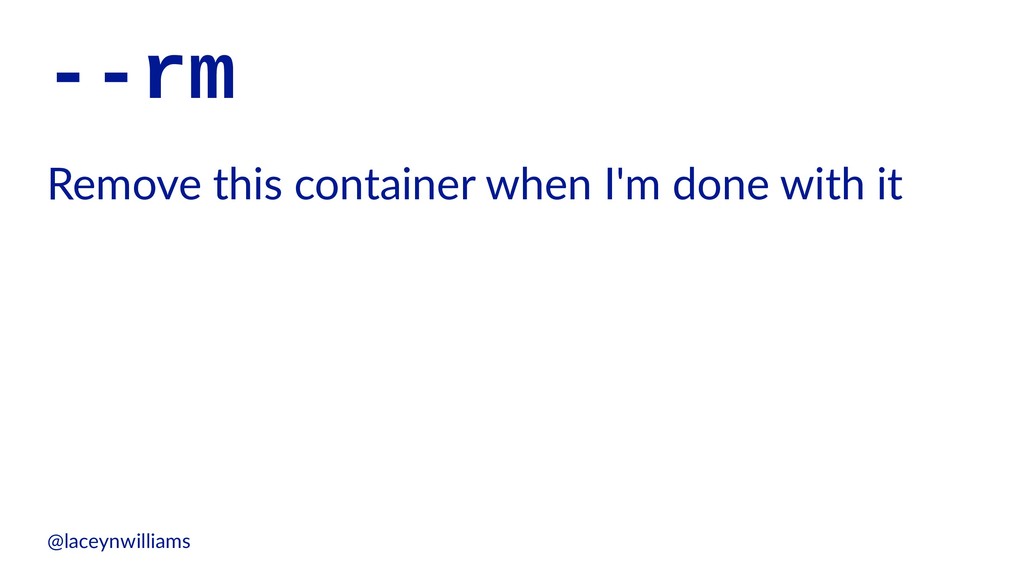

67. --rm Remove this container when I'm done with it @laceynwilliams

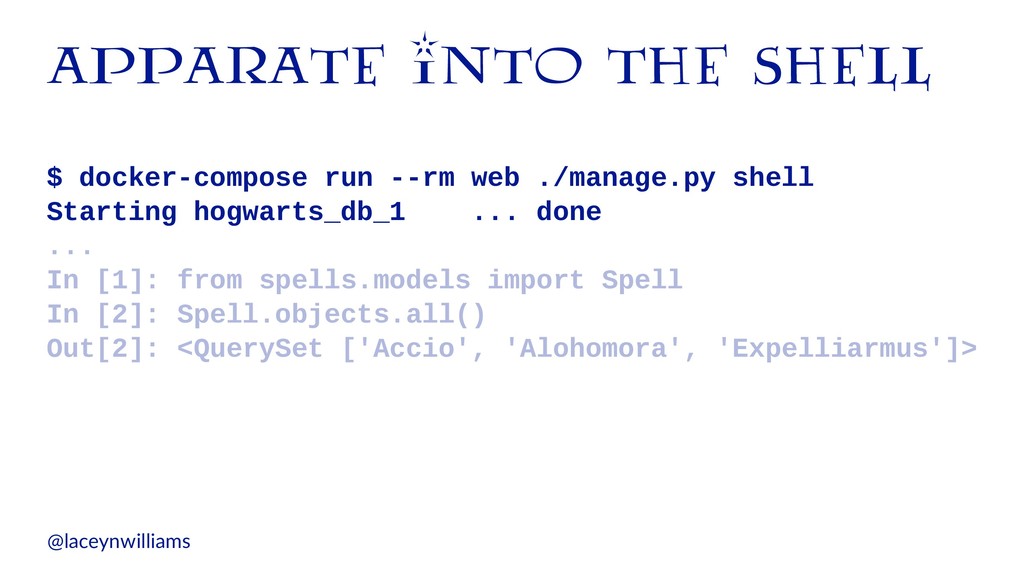

68. apparate into the shell $ docker-compose run --rm web ./manage.py shell Starting hogwarts_db_1 ... done ... In [1]: from spells.models import Spell In [2]: Spell.objects.all() Out[2]: <QuerySet ['Accio', 'Alohomora', 'Expelliarmus']> @laceynwilliams

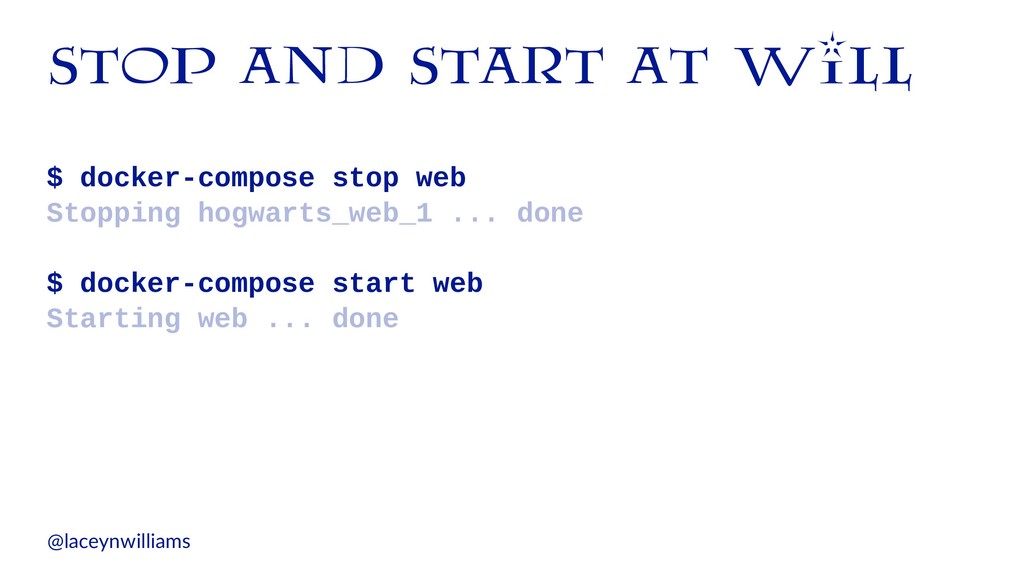

69. stop and start at will $ docker-compose stop web Stopping hogwarts_web_1 ... done $ docker-compose start web Starting web ... done @laceynwilliams

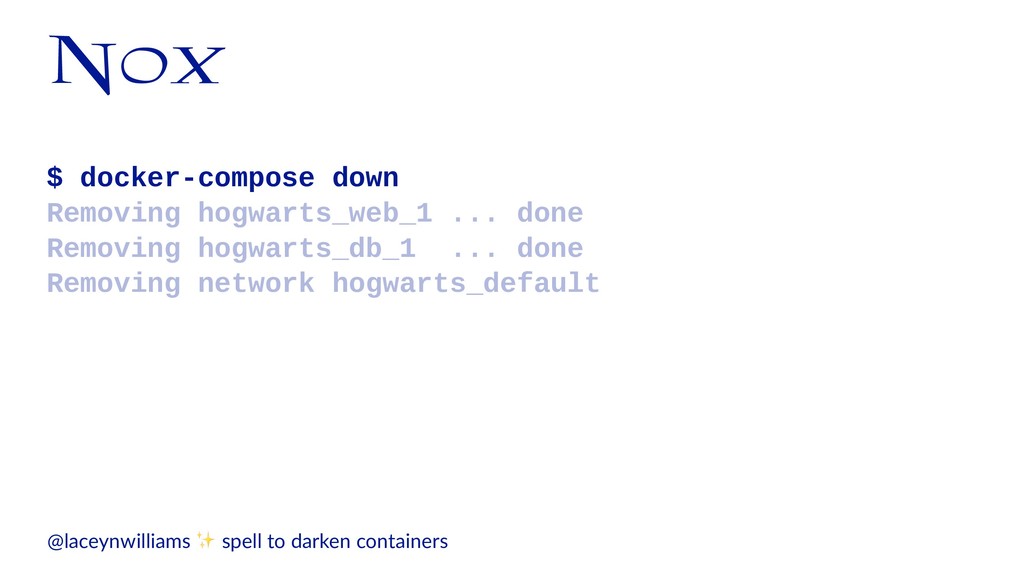

70. Nox $ docker-compose down Removing hogwarts_web_1 ... done Removing hogwarts_db_1 ... done Removing network hogwarts_default @laceynwilliams ✨ spell to darken containers

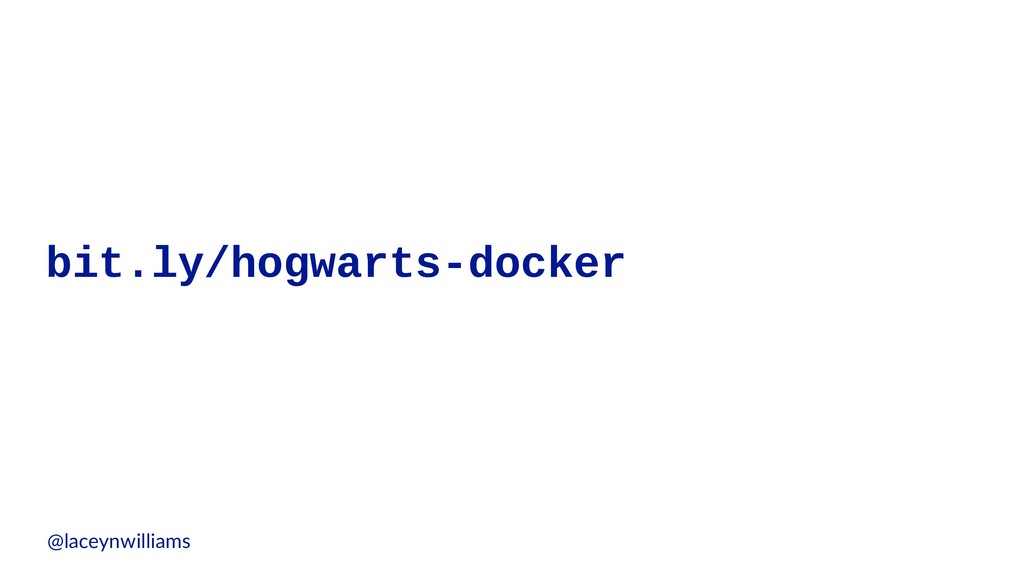

71. bit.ly/hogwarts-docker @laceynwilliams
72. It is the unknown we fear when we look upon Docker, nothing more. — Albus Dumbledore, probably @laceynwilliams | S/ll from Harry Po5er and the Order of the Phoenix

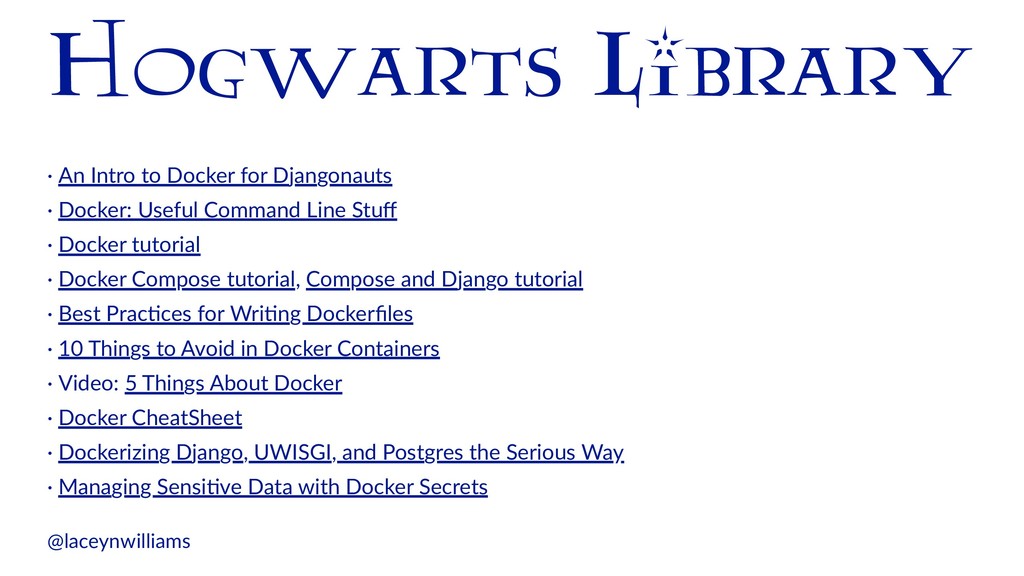

73. Hogwarts Library · An Intro to Docker for Djangonauts · Docker: Useful Command Line Stuff · Docker tutorial · Docker Compose tutorial, Compose and Django tutorial · Best PracAces for WriAng Dockerfiles · 10 Things to Avoid in Docker Containers · Video: 5 Things About Docker · Docker CheatSheet · Dockerizing Django, UWISGI, and Postgres the Serious Way · Managing SensiAve Data with Docker Secrets @laceynwilliams
