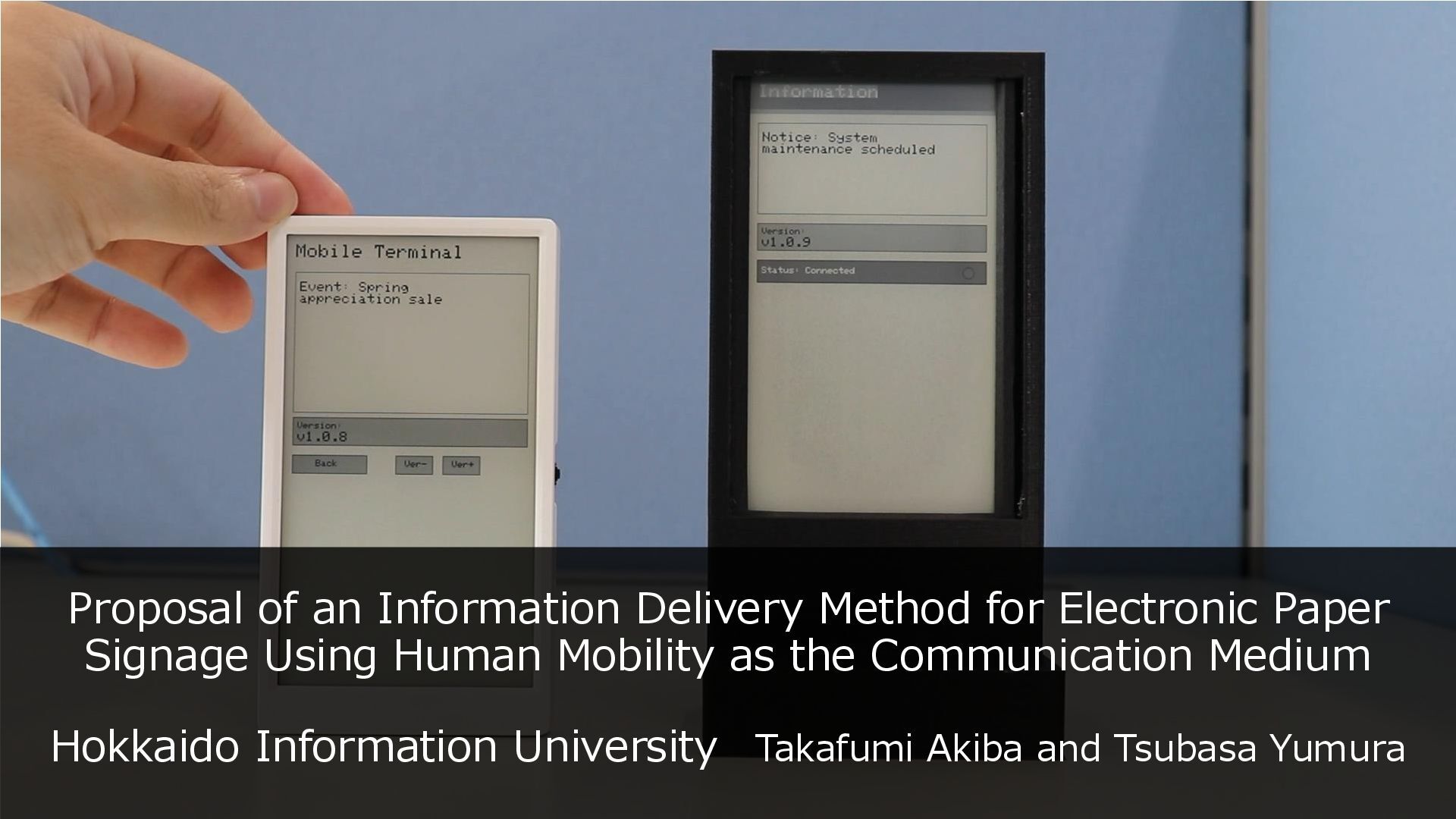

Proposal of an Information Delivery Method for Electronic Paper Signage Using Human Mobility as the Communication Medium

2025年10月27日(月)〜29日(水)に韓国・釜山で開催された国際会議IEEE/IEIE ICCE-Asia 2025 (The 10th International Conference On Consumer Electronics Asia)の発表資料

Transcript

1. Proposal of an Information Delivery Method for Electronic Paper Signage Using Human Mobility as the Communication Medium Hokkaido Information University Takafumi Akiba and Tsubasa Yumura
2. Introduction | Digital Signage • Digital Signage • Signage that leverages digital technology • Displays information such as advertisements in the form of images and videos 2 Digital Signage Market 2023- Size, Share, Trends, Statistics, Top Leaders, & Research Report 2028 - Industry Today https://industrytoday.co.uk/market-research-industry-today/digital-signage- market-2023-size-share-trends-statistics-top-leaders-research-report-2028 • Electronic Paper Signage (EPS) • Digital signage employing electronic paper technology • Electronic paper consumes power only when updating the display E-paper E-link Solar Powered 13.3inch Display | AVLink Digital Signage https://www.lcdhome.live/product/e-paper-e- link-solar-powered-13-3inch-display/ ePaper Digital Signage: Technology and Sustainability https://castitsignage.com/digital-signage- hardware/epaper-digital-signage

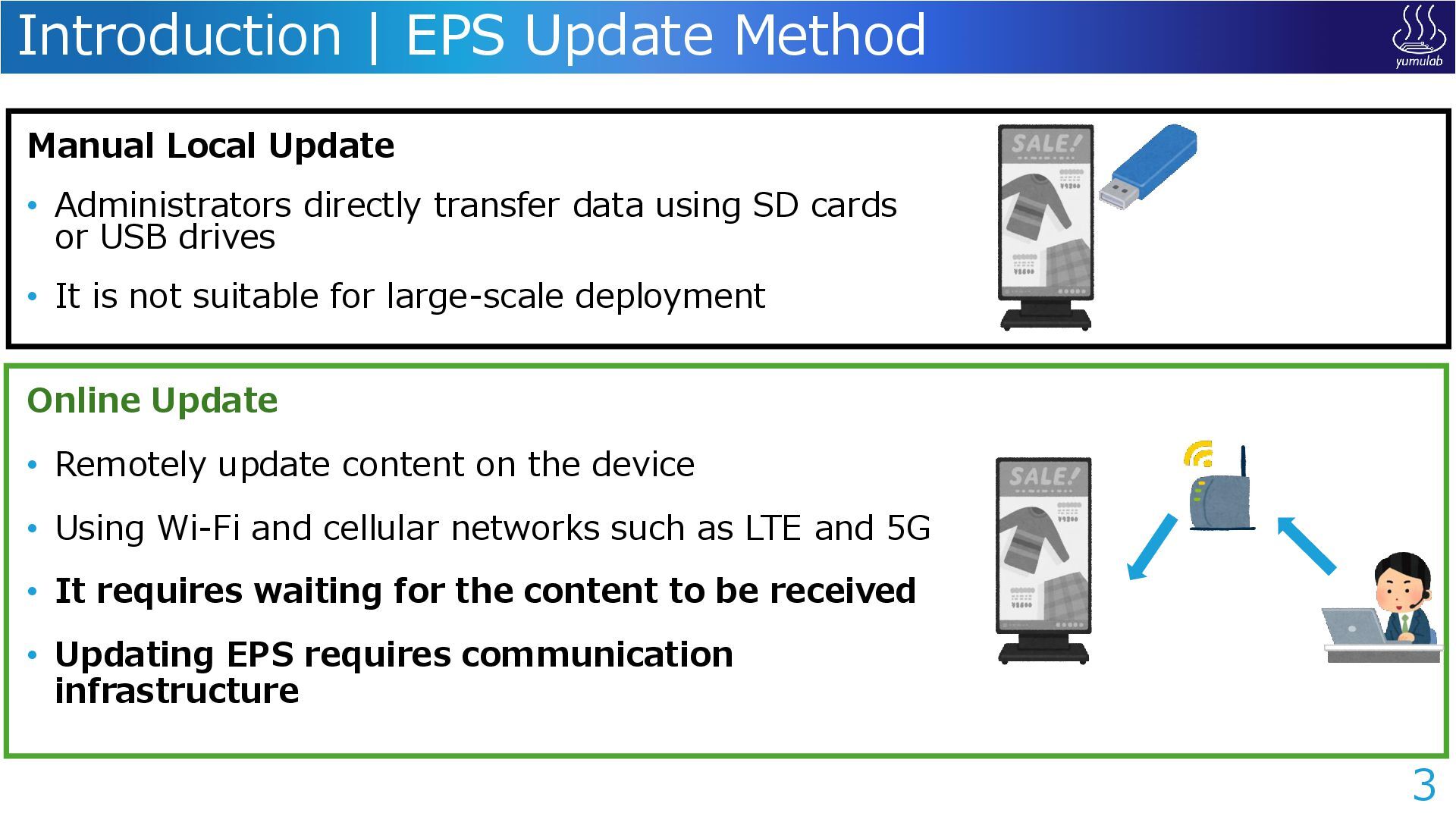

3. Introduction | EPS Update Method 3 Manual Local Update • Administrators directly transfer data using SD cards or USB drives • It is not suitable for large-scale deployment Online Update • Remotely update content on the device • Using Wi-Fi and cellular networks such as LTE and 5G • It requires waiting for the content to be received • Updating EPS requires communication infrastructure

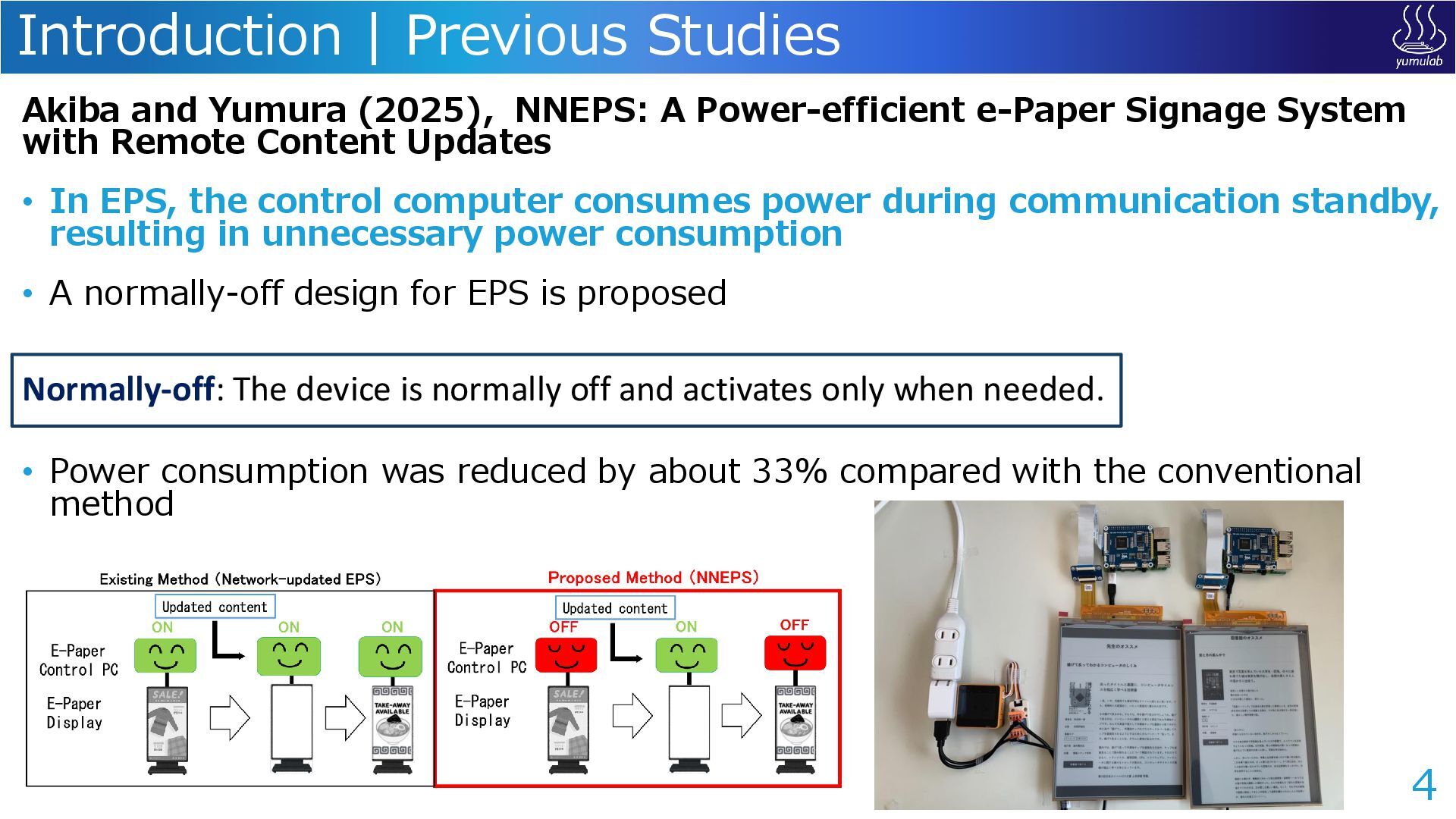

4. Introduction | Previous Studies Akiba and Yumura (2025)，NNEPS: A Power-efficient e-Paper Signage System with Remote Content Updates • In EPS, the control computer consumes power during communication standby, resulting in unnecessary power consumption • A normally-off design for EPS is proposed • Power consumption was reduced by about 33% compared with the conventional method 4 Normally-off: The device is normally off and activates only when needed.

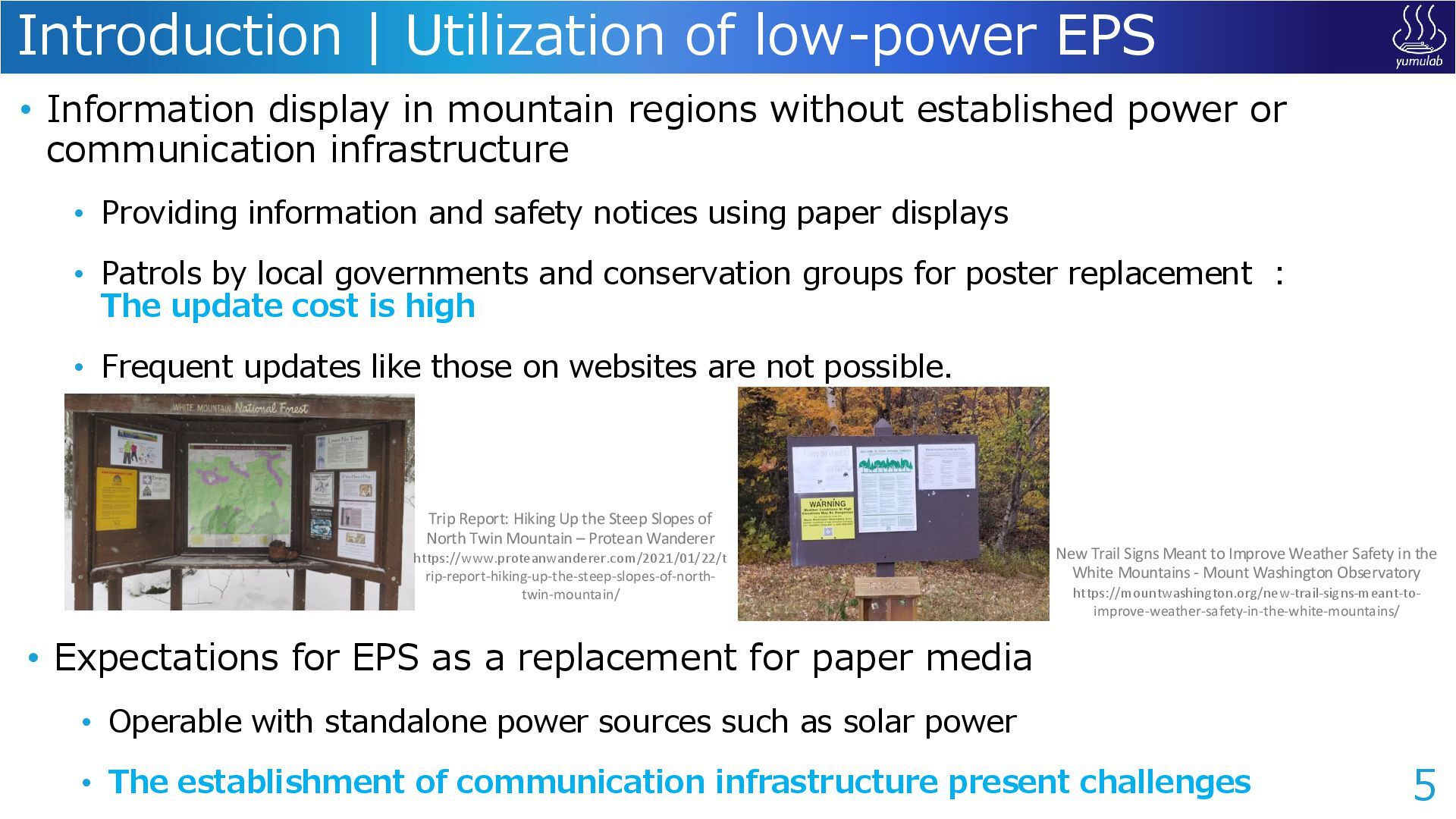

5. Introduction | Utilization of low-power EPS • Information display in mountain regions without established power or communication infrastructure • Providing information and safety notices using paper displays • Patrols by local governments and conservation groups for poster replacement : The update cost is high • Frequent updates like those on websites are not possible. 5 • Expectations for EPS as a replacement for paper media • Operable with standalone power sources such as solar power • The establishment of communication infrastructure present challenges New Trail Signs Meant to Improve Weather Safety in the White Mountains - Mount Washington Observatory https://mountwashington.org/new-trail-signs-meant-to- improve-weather-safety-in-the-white-mountains/ Trip Report: Hiking Up the Steep Slopes of North Twin Mountain – Protean Wanderer https://www.proteanwanderer.com/2021/01/22/t rip-report-hiking-up-the-steep-slopes-of-north- twin-mountain/
6. Problem and Research Objectives Problem • Frequent information updates on EPS require Internet-based communication • In mountainous areas where communication infrastructure cannot be established, it is difficult to install network-update-type EPS • A method is needed to deliver necessary information to EPS without relying on communication infrastructure 6 EPS Update Method Independent of the Communication Infrastructure Research Objectives

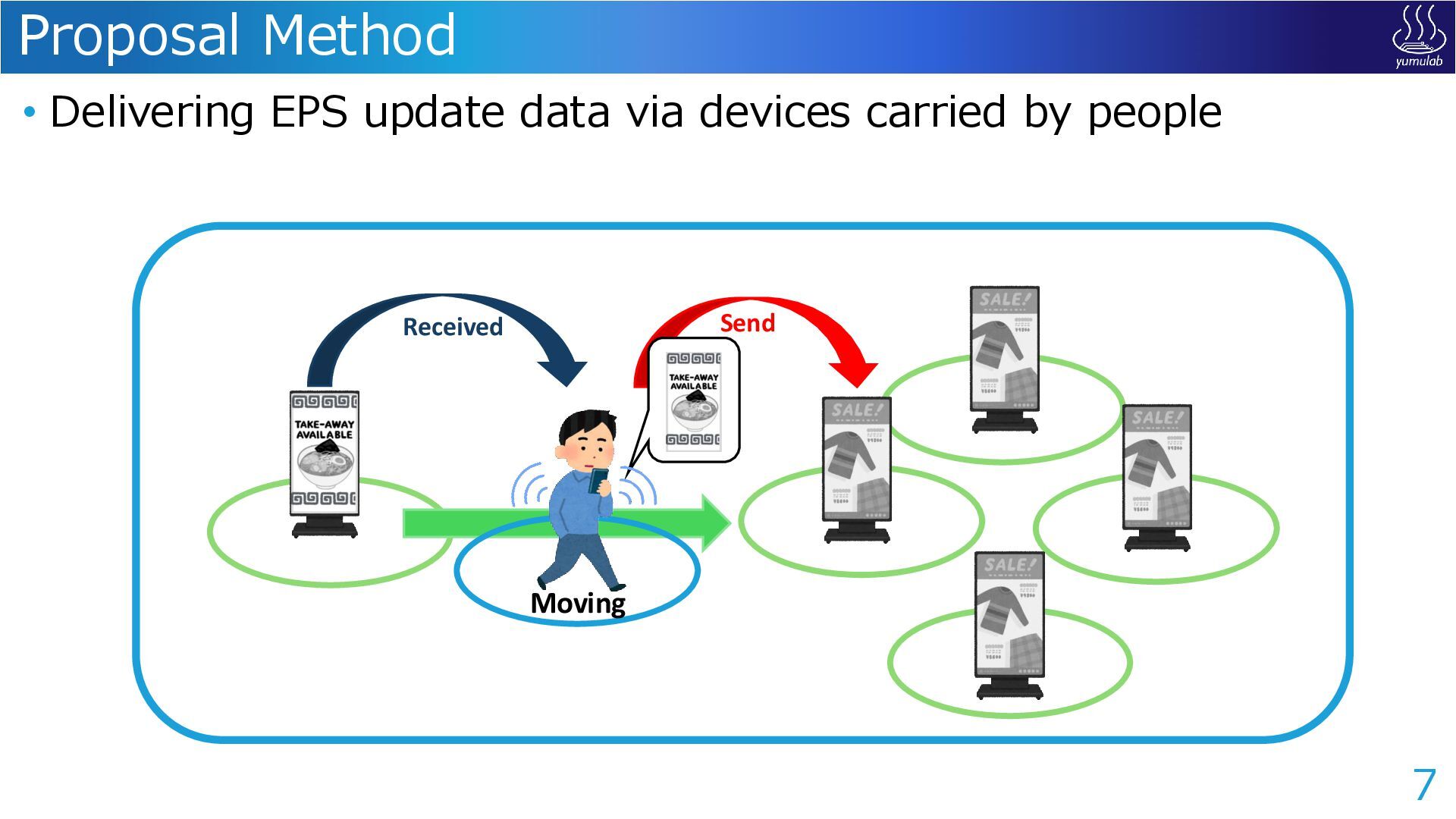

7. Proposal Method • Delivering EPS update data via devices carried by people 7 Received Send Moving

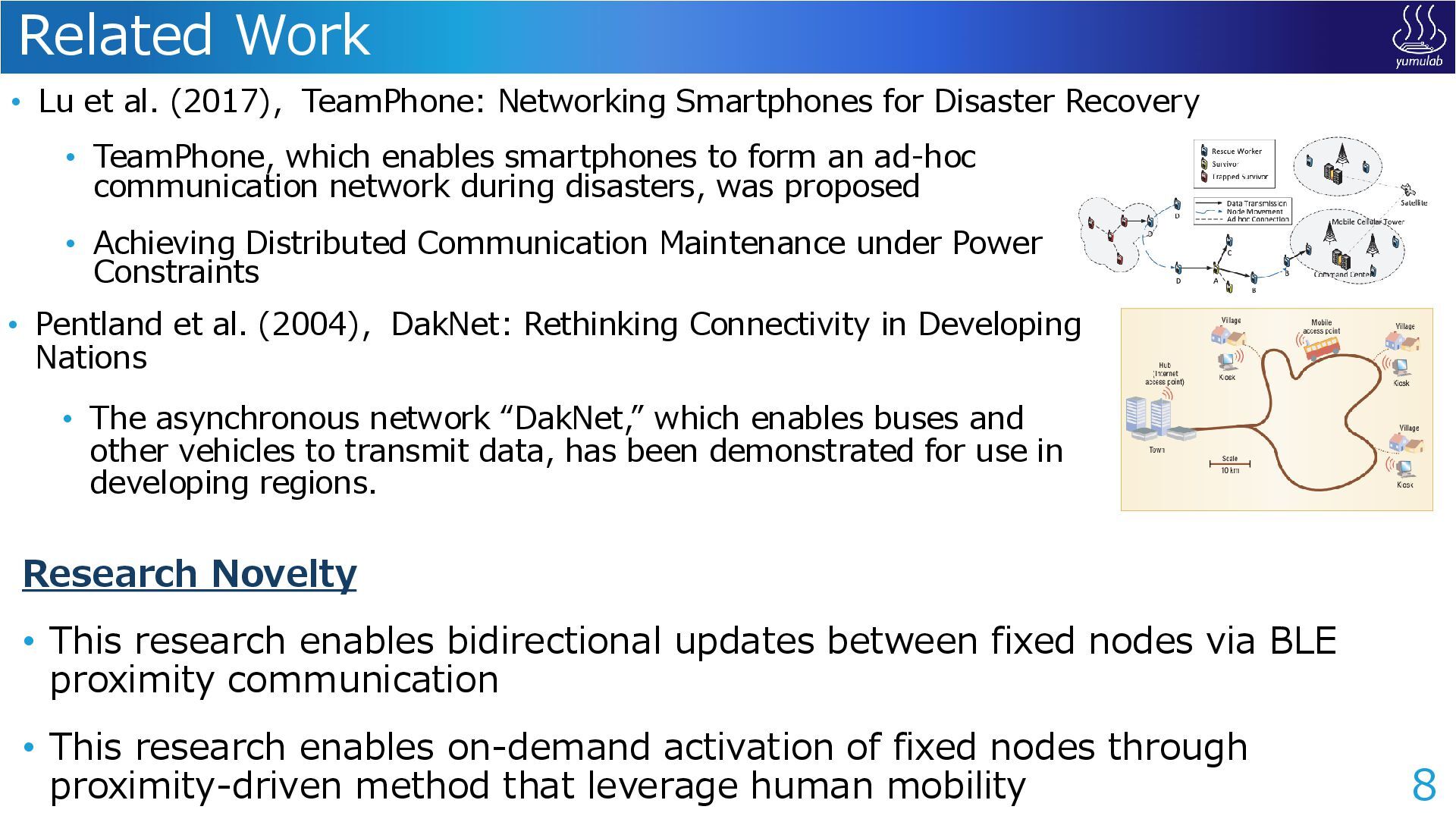

8. Related Work 8 • Lu et al. (2017)，TeamPhone: Networking Smartphones for Disaster Recovery • TeamPhone, which enables smartphones to form an ad-hoc communication network during disasters, was proposed • Achieving Distributed Communication Maintenance under Power Constraints • Pentland et al. (2004)，DakNet: Rethinking Connectivity in Developing Nations • The asynchronous network “DakNet,” which enables buses and other vehicles to transmit data, has been demonstrated for use in developing regions. Research Novelty • This research enables bidirectional updates between fixed nodes via BLE proximity communication • This research enables on-demand activation of fixed nodes through proximity-driven method that leverage human mobility

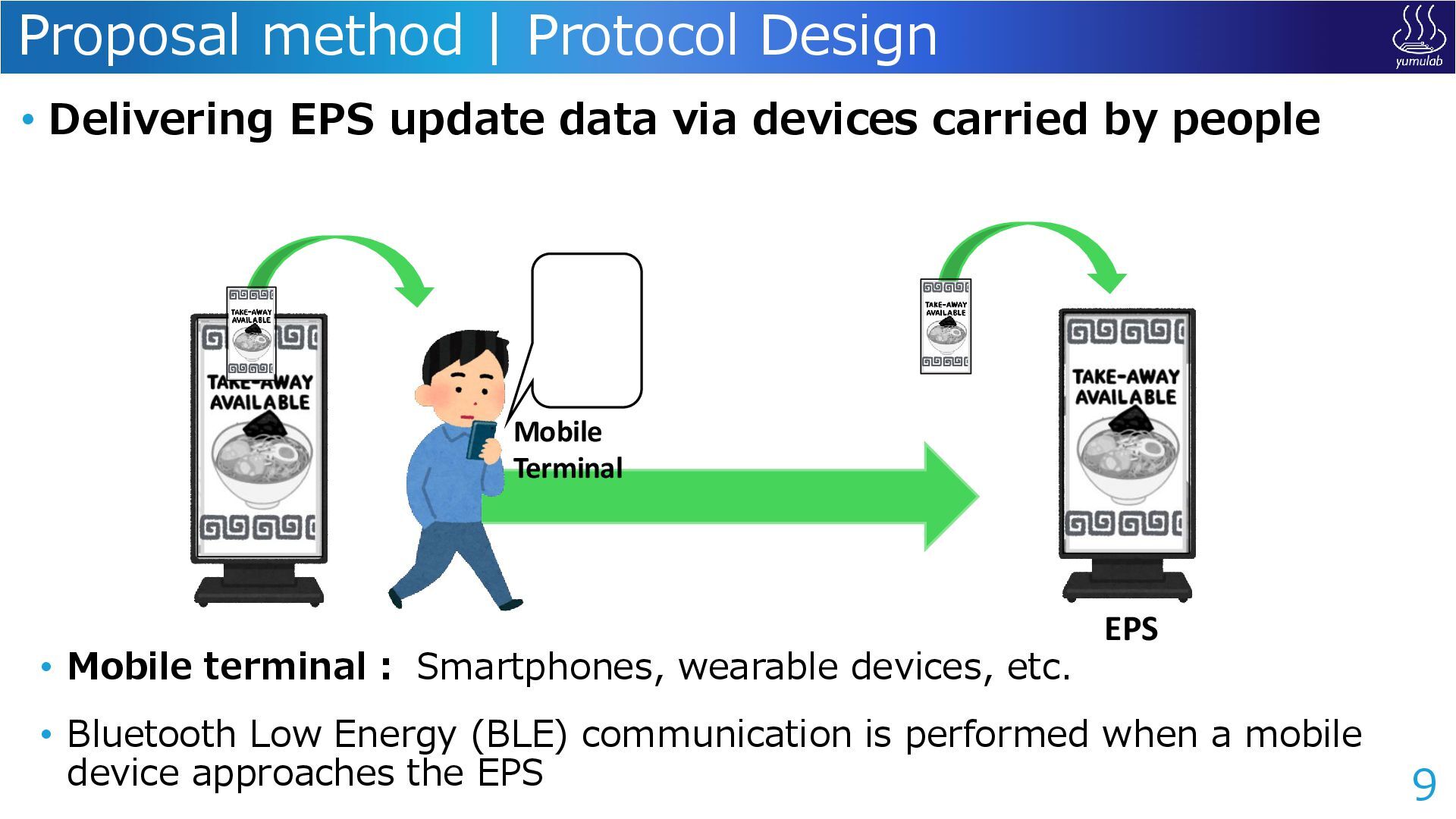

9. Mobile Terminal Proposal method | Protocol Design 9 • Mobile terminal： Smartphones, wearable devices, etc. • Bluetooth Low Energy (BLE) communication is performed when a mobile device approaches the EPS EPS • Delivering EPS update data via devices carried by people

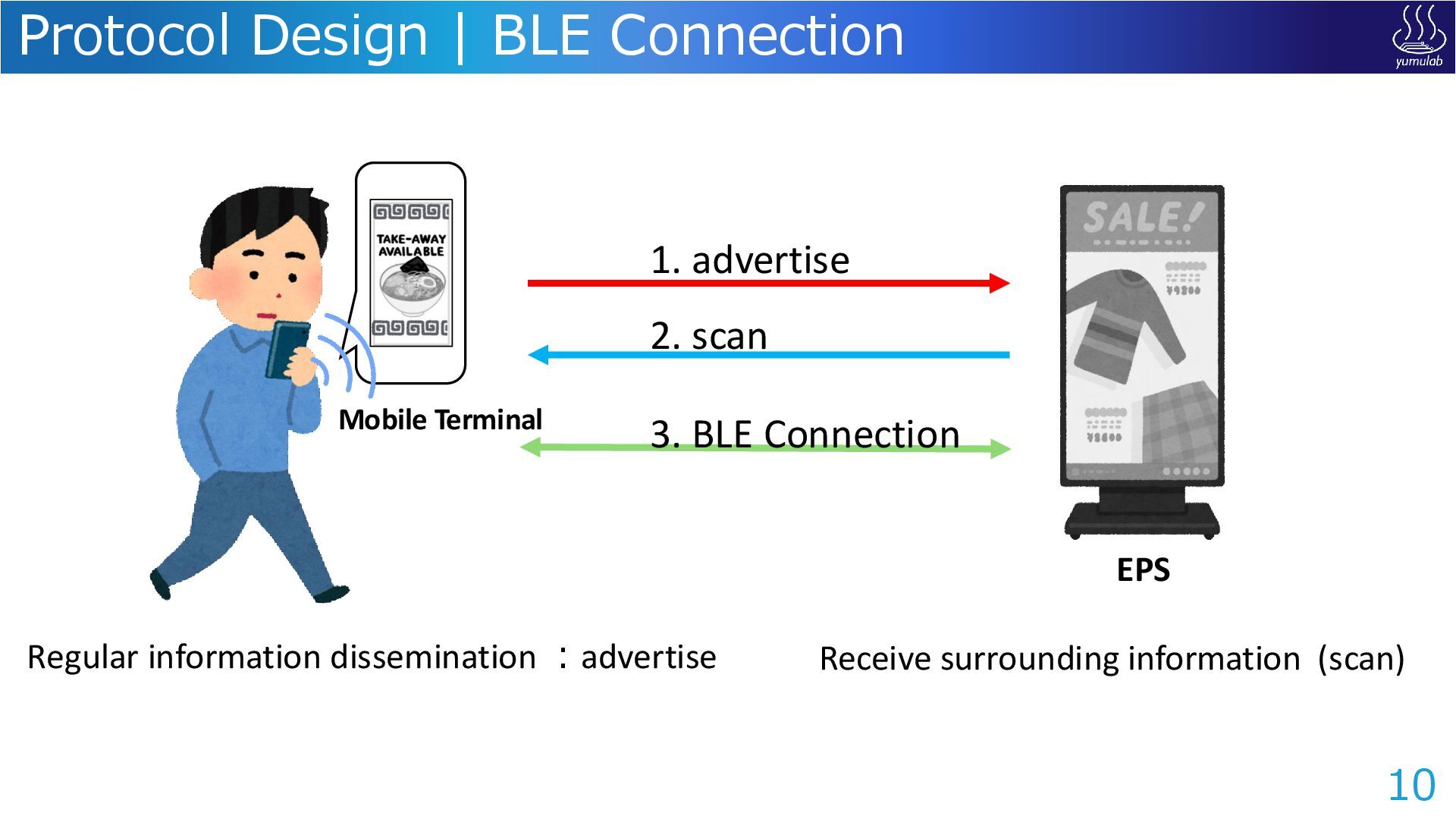

10. Protocol Design | BLE Connection 10 EPS Mobile Terminal 1. advertise 2. scan 3. BLE Connection Regular information dissemination ：advertise Receive surrounding information (scan)

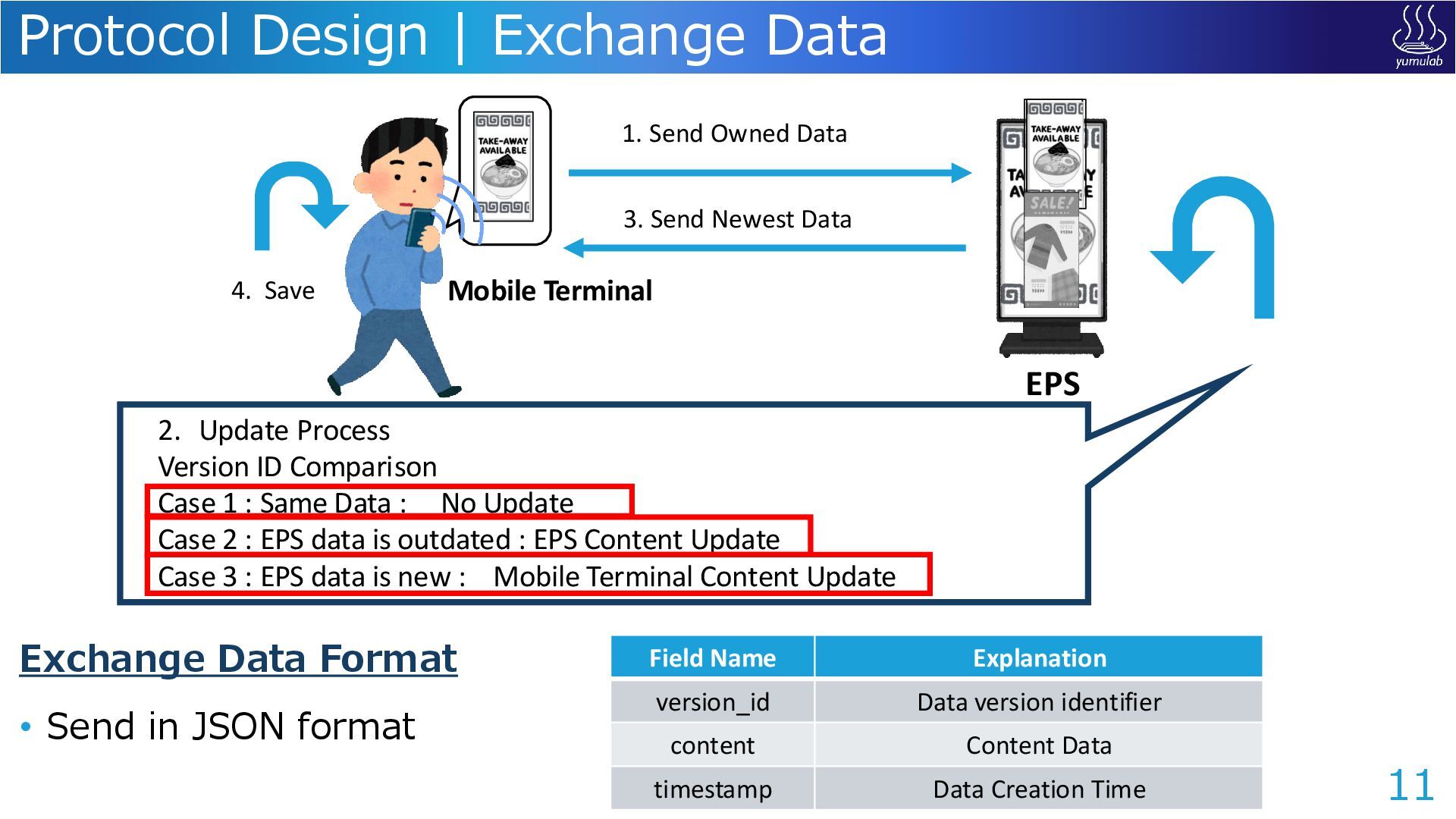

11. Protocol Design | Exchange Data Exchange Data Format • Send in JSON format 11 EPS Mobile Terminal Field Name Explanation version_id Data version identifier content Content Data timestamp Data Creation Time 1. Send Owned Data 4. Save 3. Send Newest Data 2. Update Process Version ID Comparison Case 1 : Same Data : No Update Case 2 : EPS data is outdated : EPS Content Update Case 3 : EPS data is new : Mobile Terminal Content Update

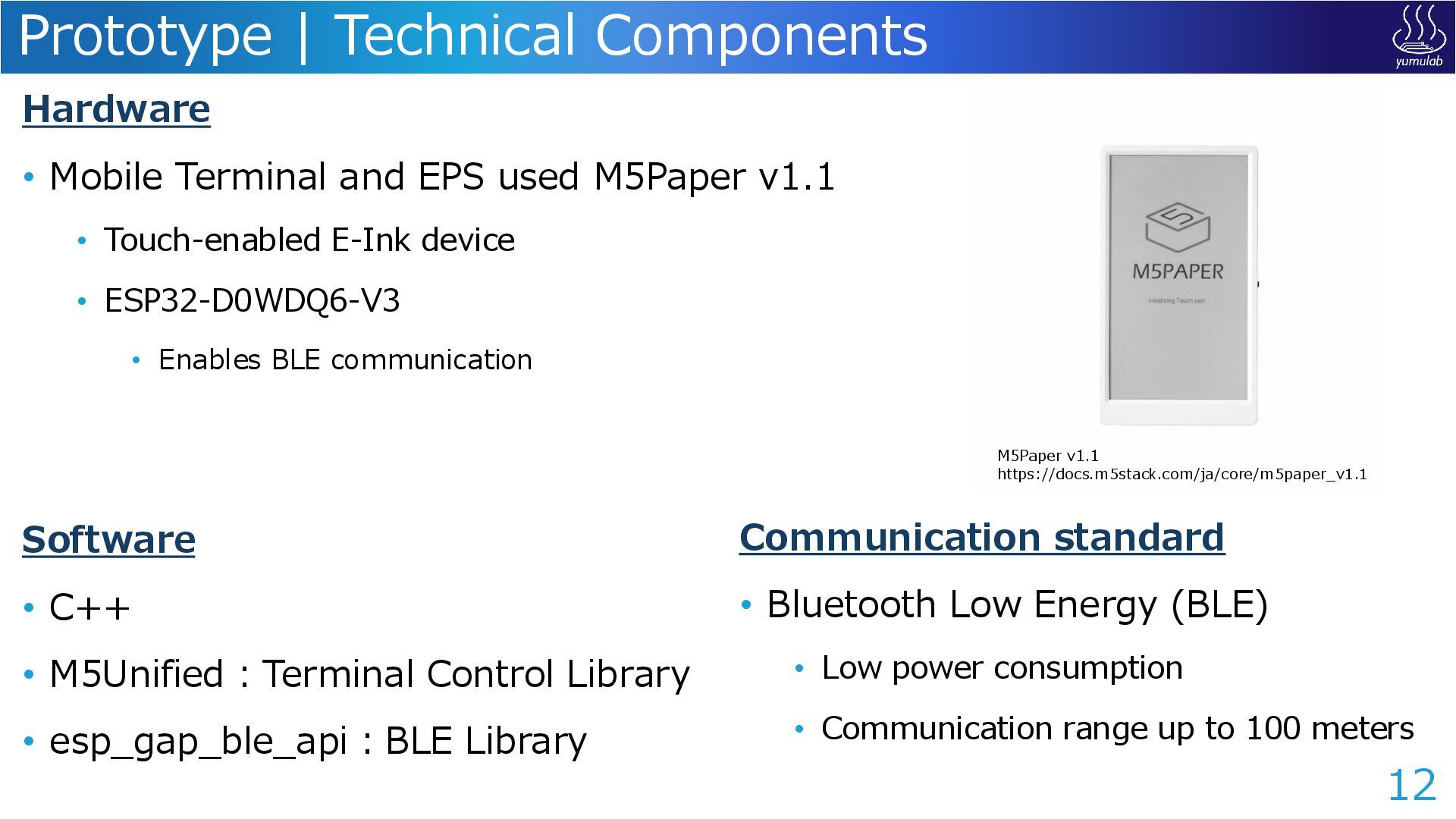

12. Prototype | Technical Components 12 M5Paper v1.1 https://docs.m5stack.com/ja/core/m5paper_v1.1 Hardware • Mobile Terminal and EPS used M5Paper v1.1 • Touch-enabled E-Ink device • ESP32-D0WDQ6-V3 • Enables BLE communication Software • C++ • M5Unified：Terminal Control Library • esp_gap_ble_api：BLE Library Communication standard • Bluetooth Low Energy (BLE) • Low power consumption • Communication range up to 100 meters

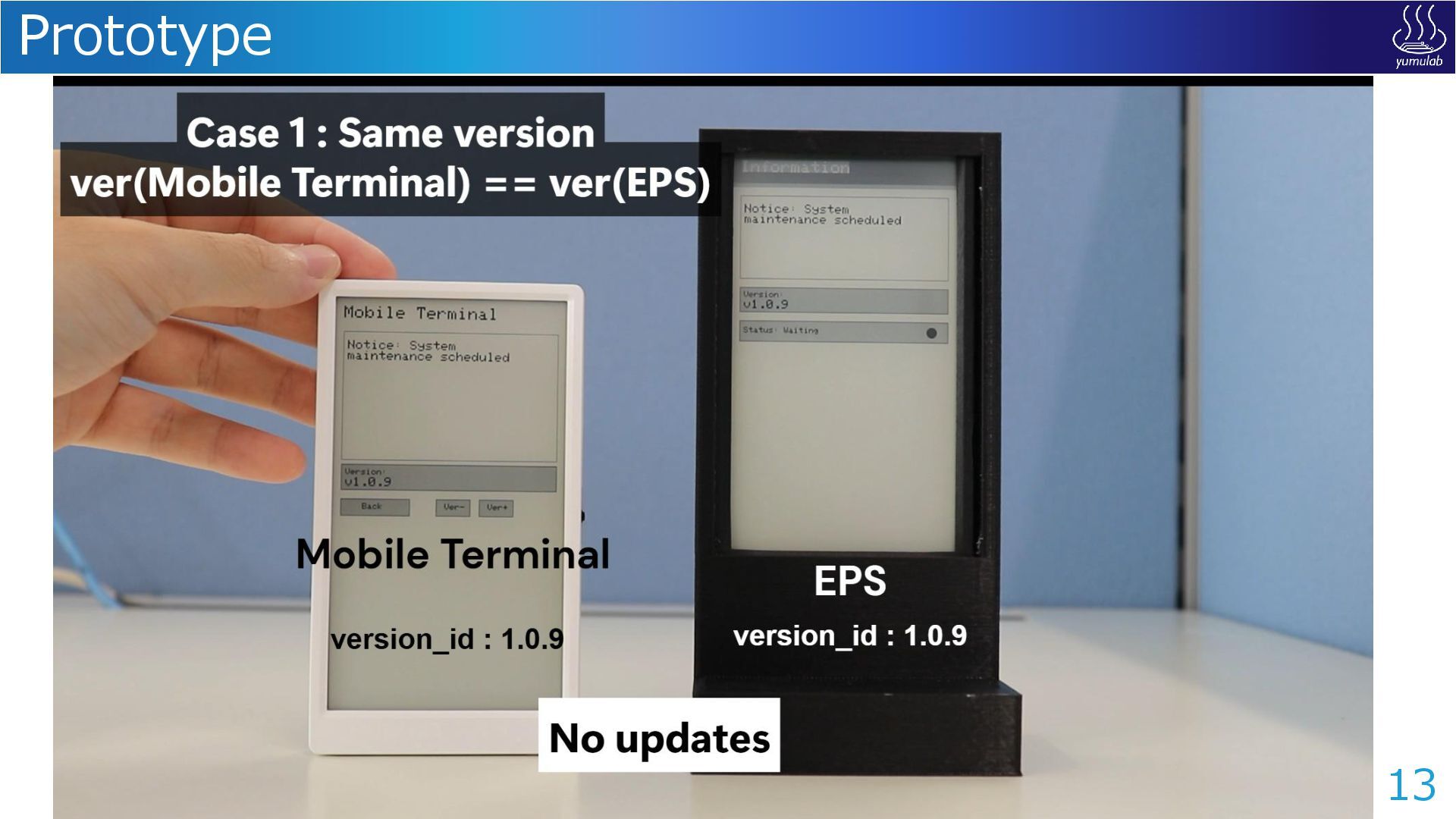

13. Prototype 13

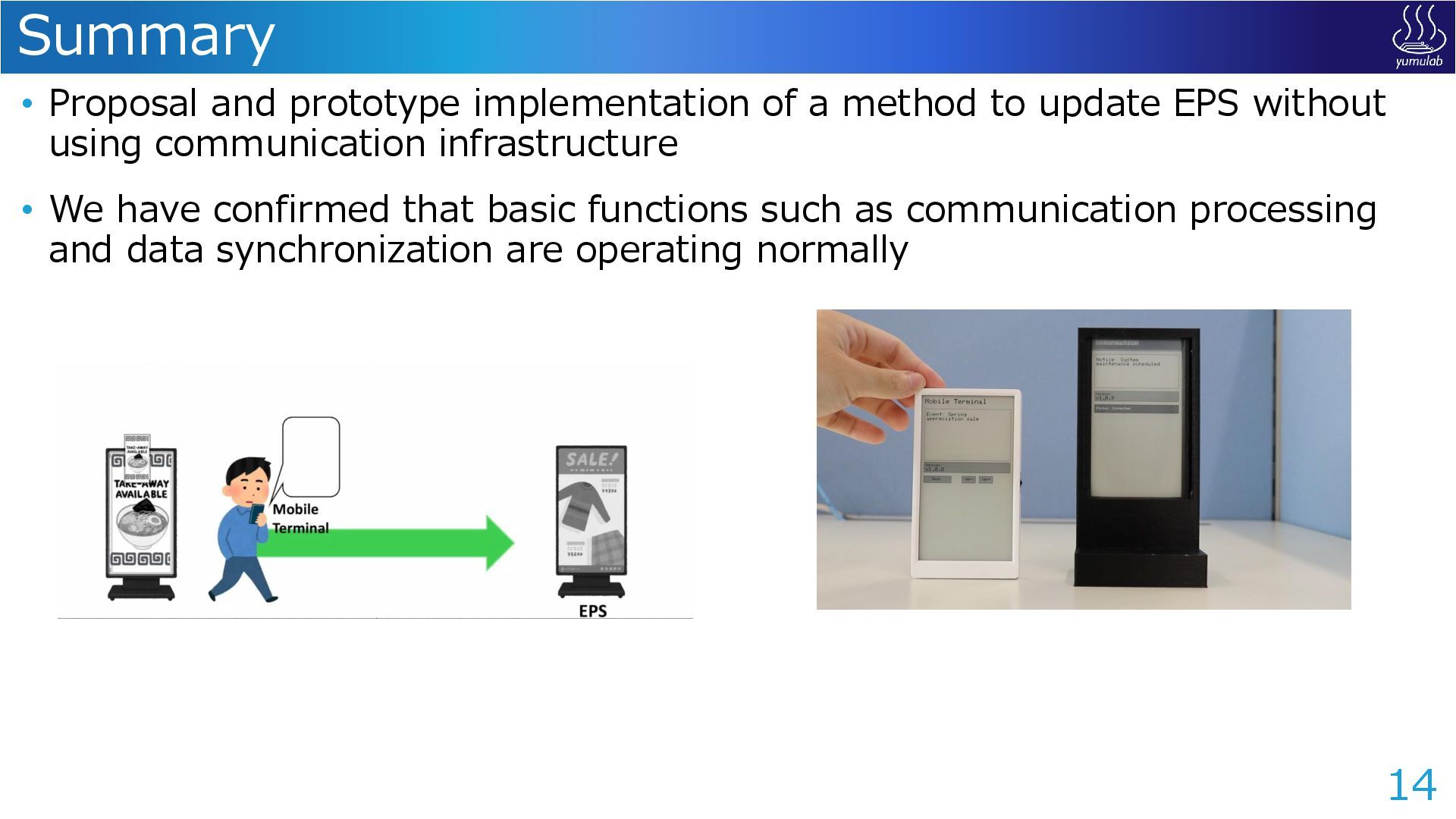

14. Summary 14 • Proposal and prototype implementation of a method to update EPS without using communication infrastructure • We have confirmed that basic functions such as communication processing and data synchronization are operating normally
