Creative UIs with Compose: Kotlinconf 2025

While most of the time following platform conventions makes sense, Compose UI allows us to be more expressive than ever before.

This talk walks through how UIs have become a little stale, and what videos games can show us about creativity in UIs. Specifically, we recreate part of Persona 5's UI to demonstrate just how far we can push Compose UI.

All art and character designs in this presentation are the property of Atlus Co., Ltd. Material is used for reference and educational purposes only. ©ATLUS ©SEGA

Transcript

1. Creative UIs with Compose Chris Horner
2. We ’ re going to analyse and build a complex UI But first…
5. I arrange rectangles. - A designer I worked with
6. - A designer I worked with I arrange rectangles. Sometimes, if I want to get fancy, I round the corners.

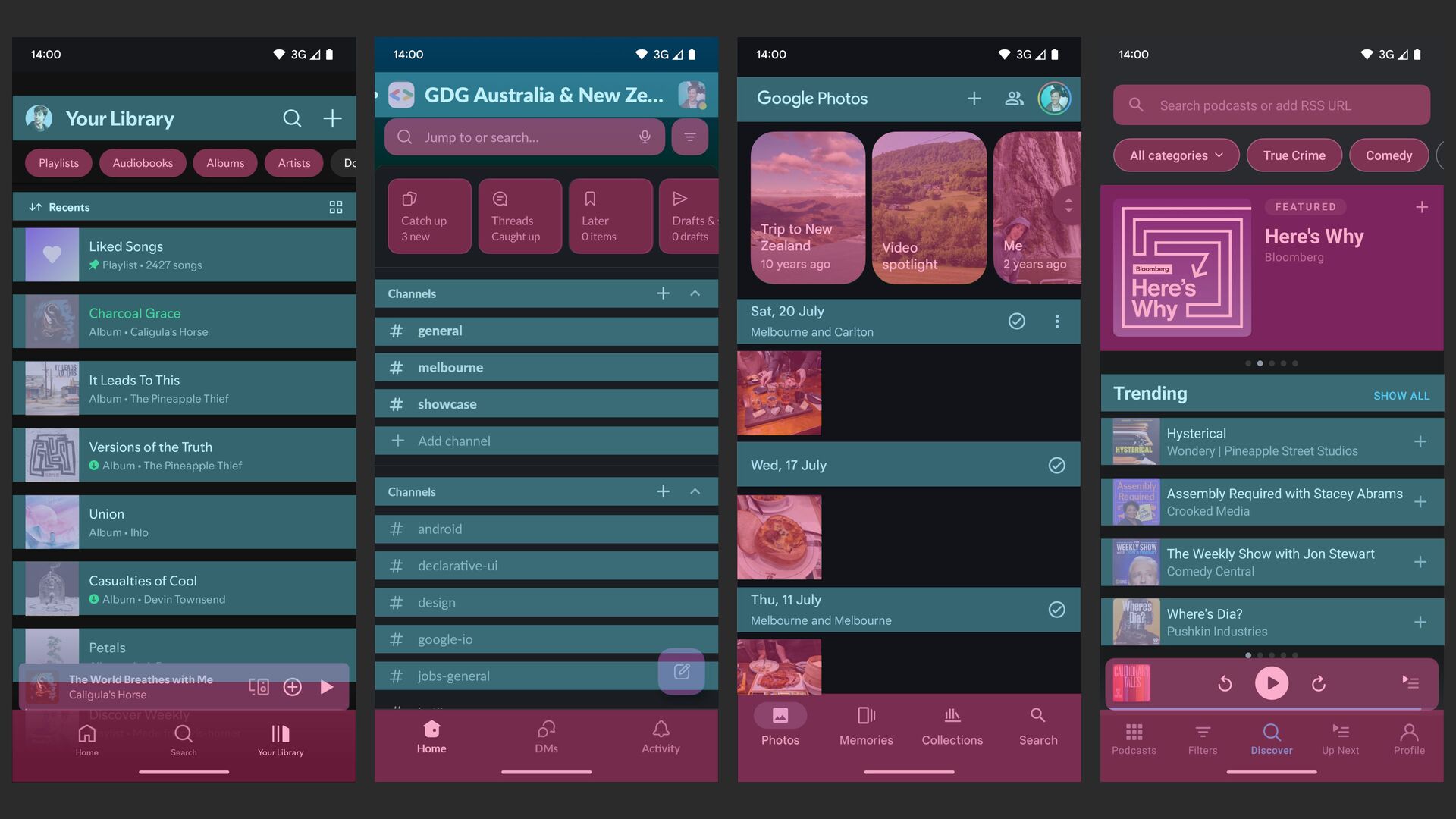

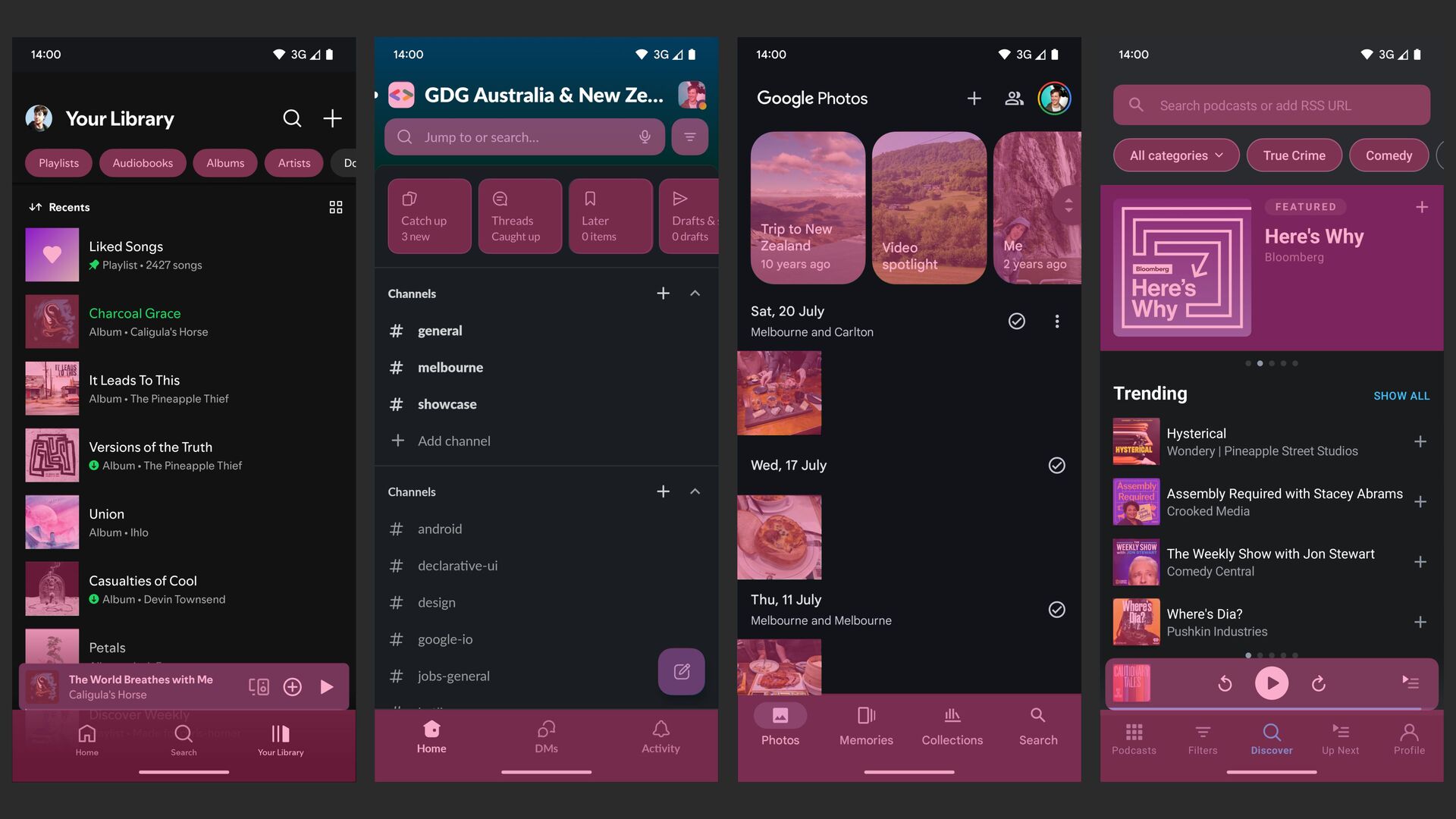

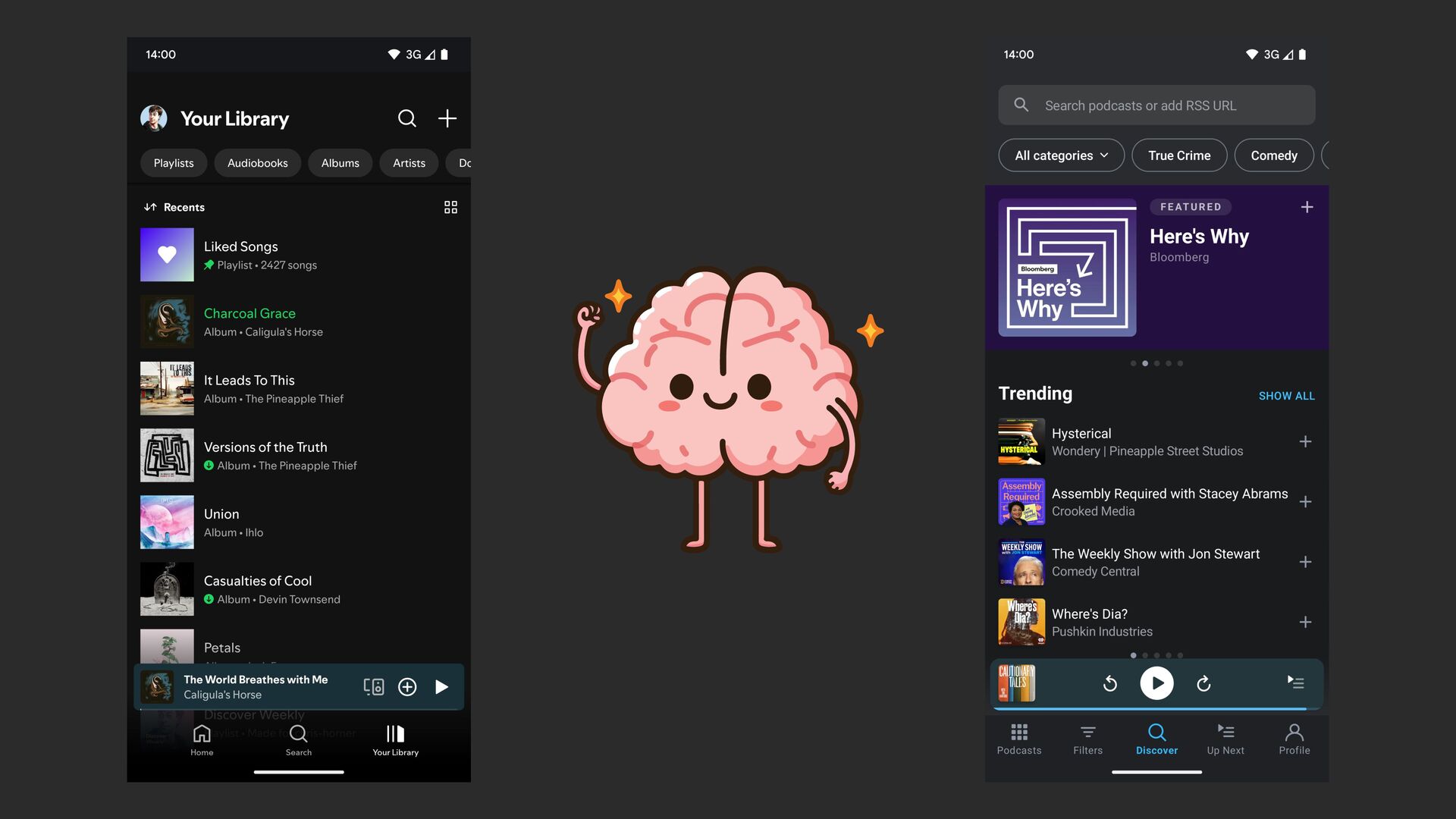

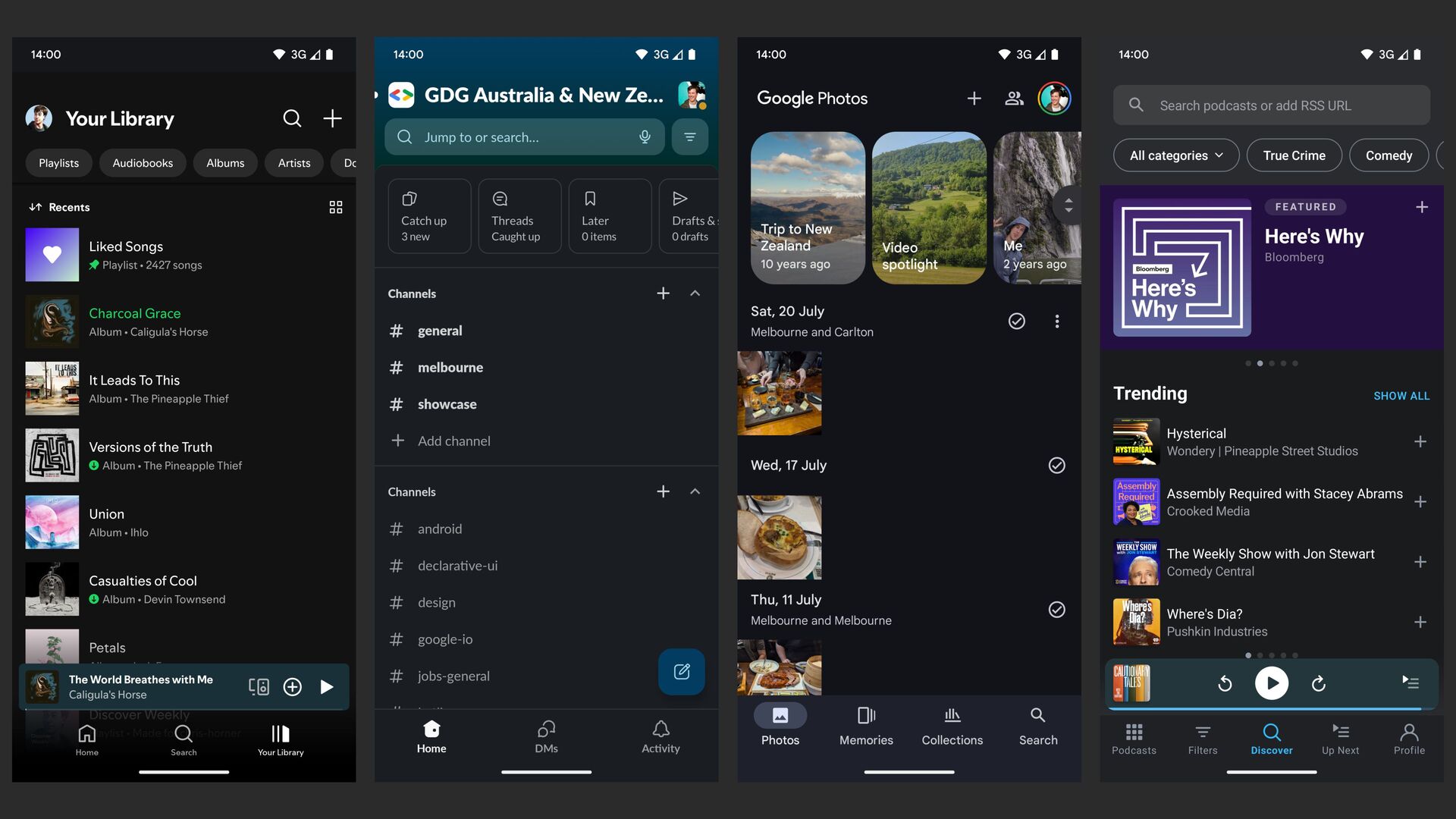

10. UI frameworks are built around rectangles

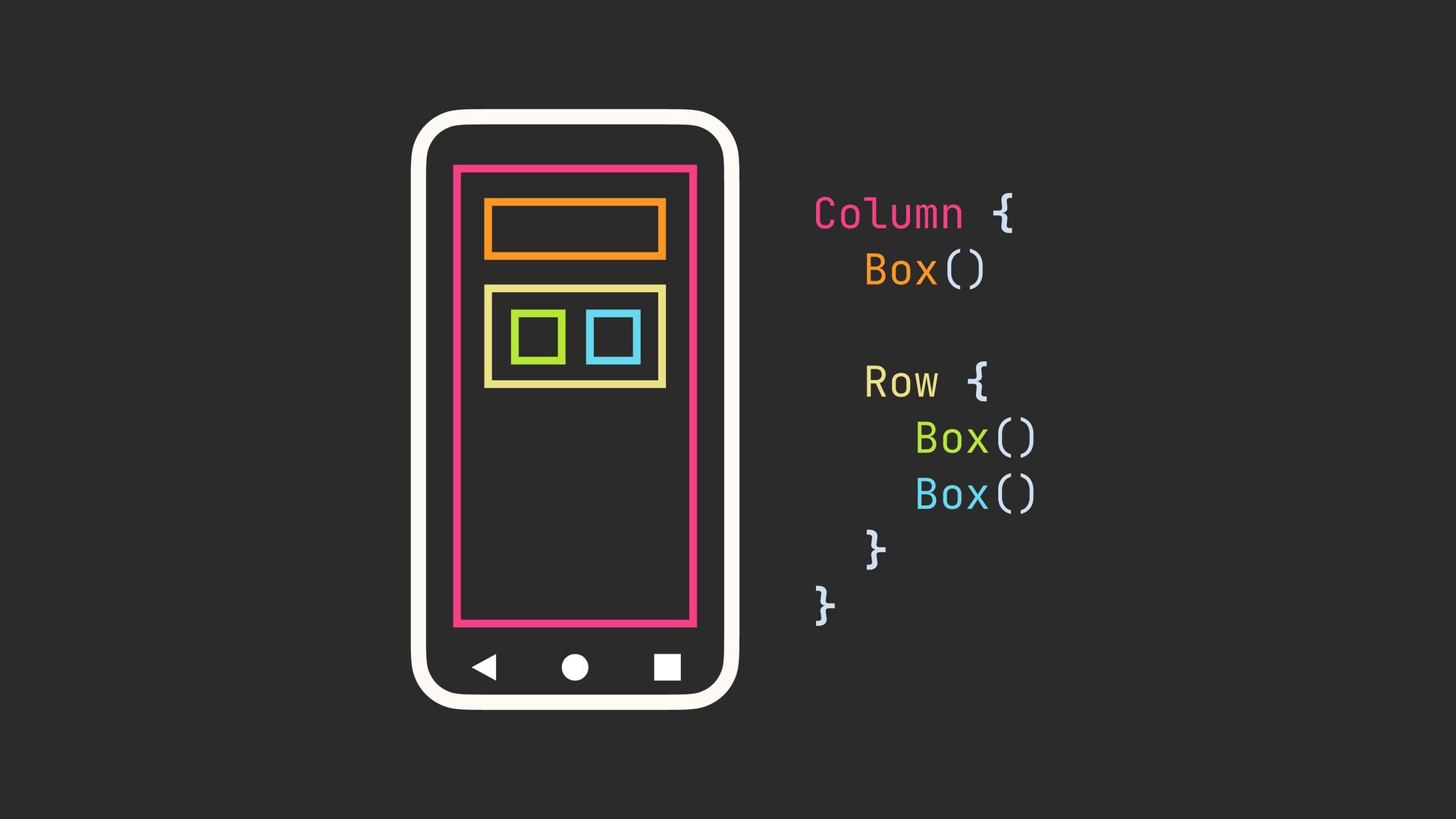

12. Column { Box() Row { Box() Box() } }

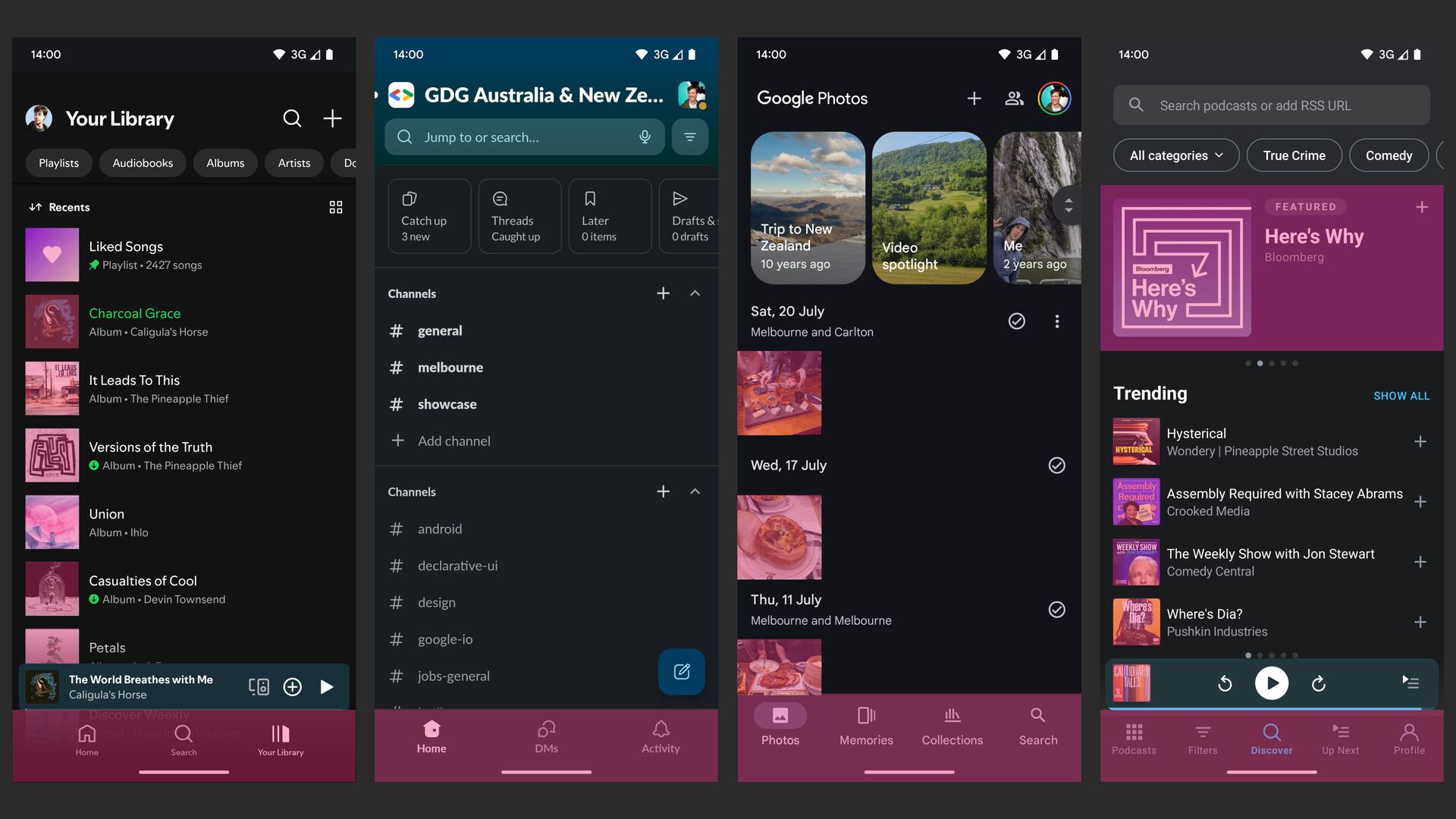

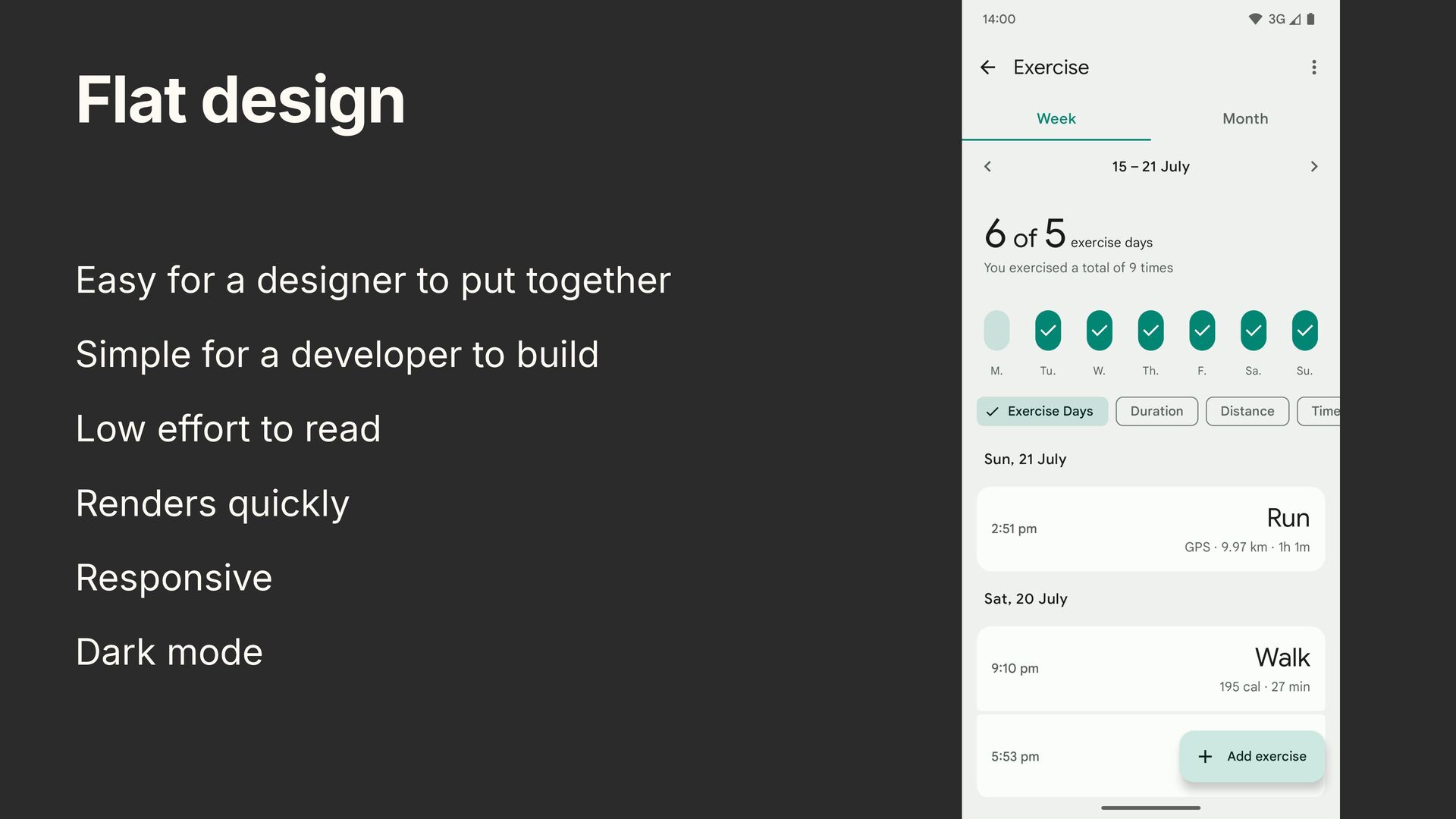

13. Flat design Easy for a designer to put together Simple for a developer to build Low effort to read Renders quickly Responsive Dark mode
14. Boring 😴 is good

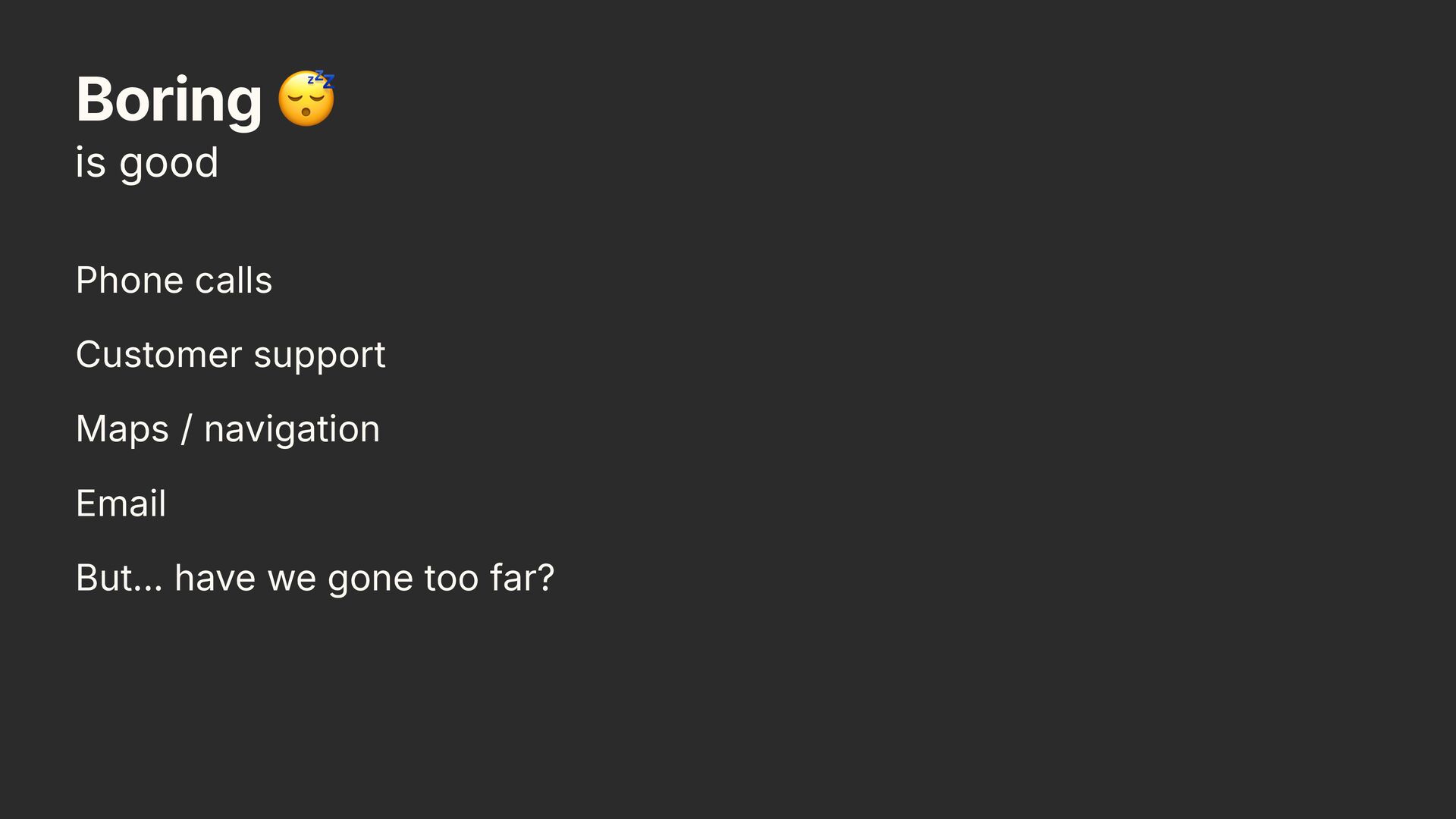

15. Boring 😴 is good Phone calls Customer support Maps / navigation Email But… have we gone too far?
16. Let ’ s go back in time…

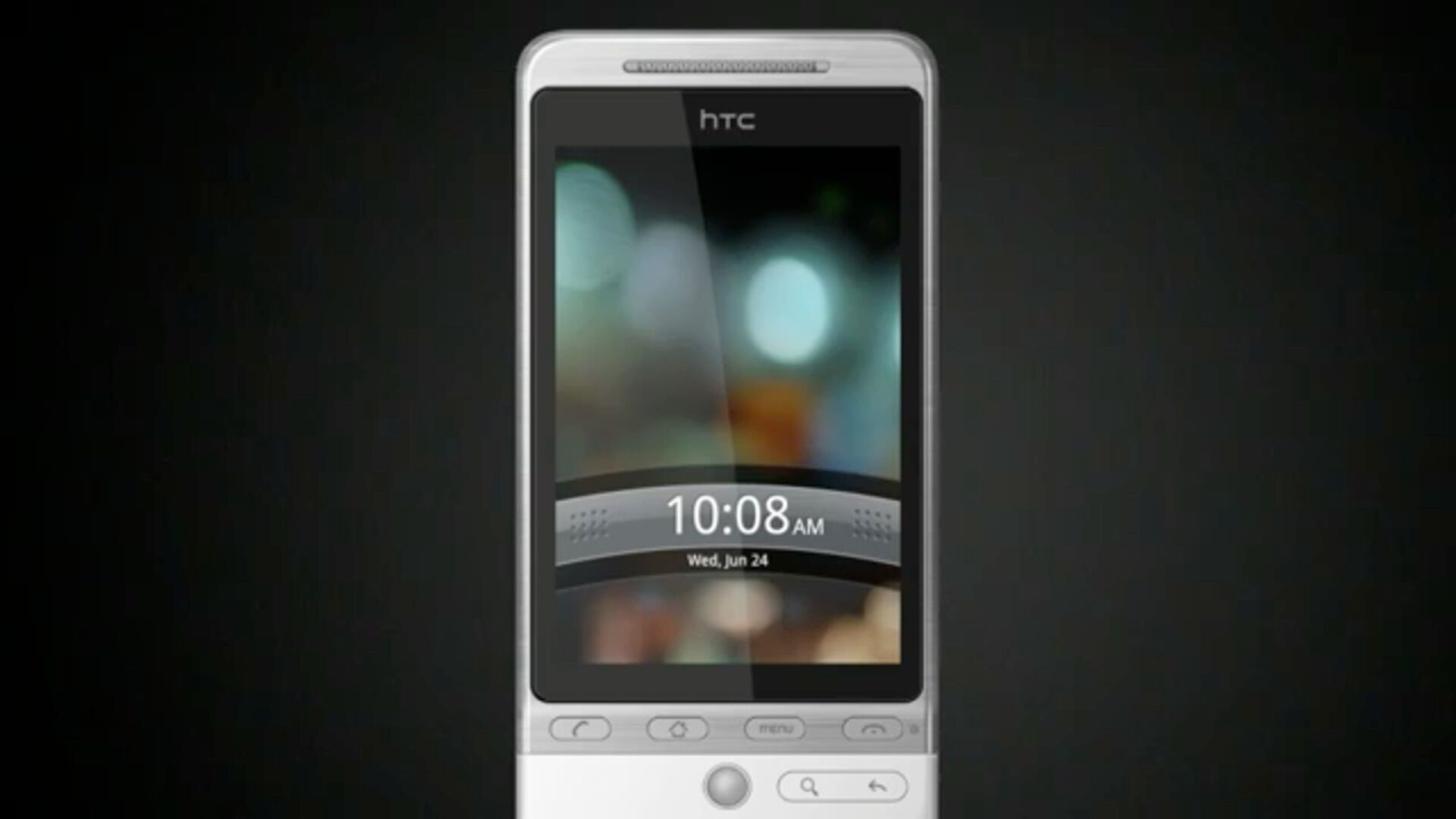

18. appleinsider.com

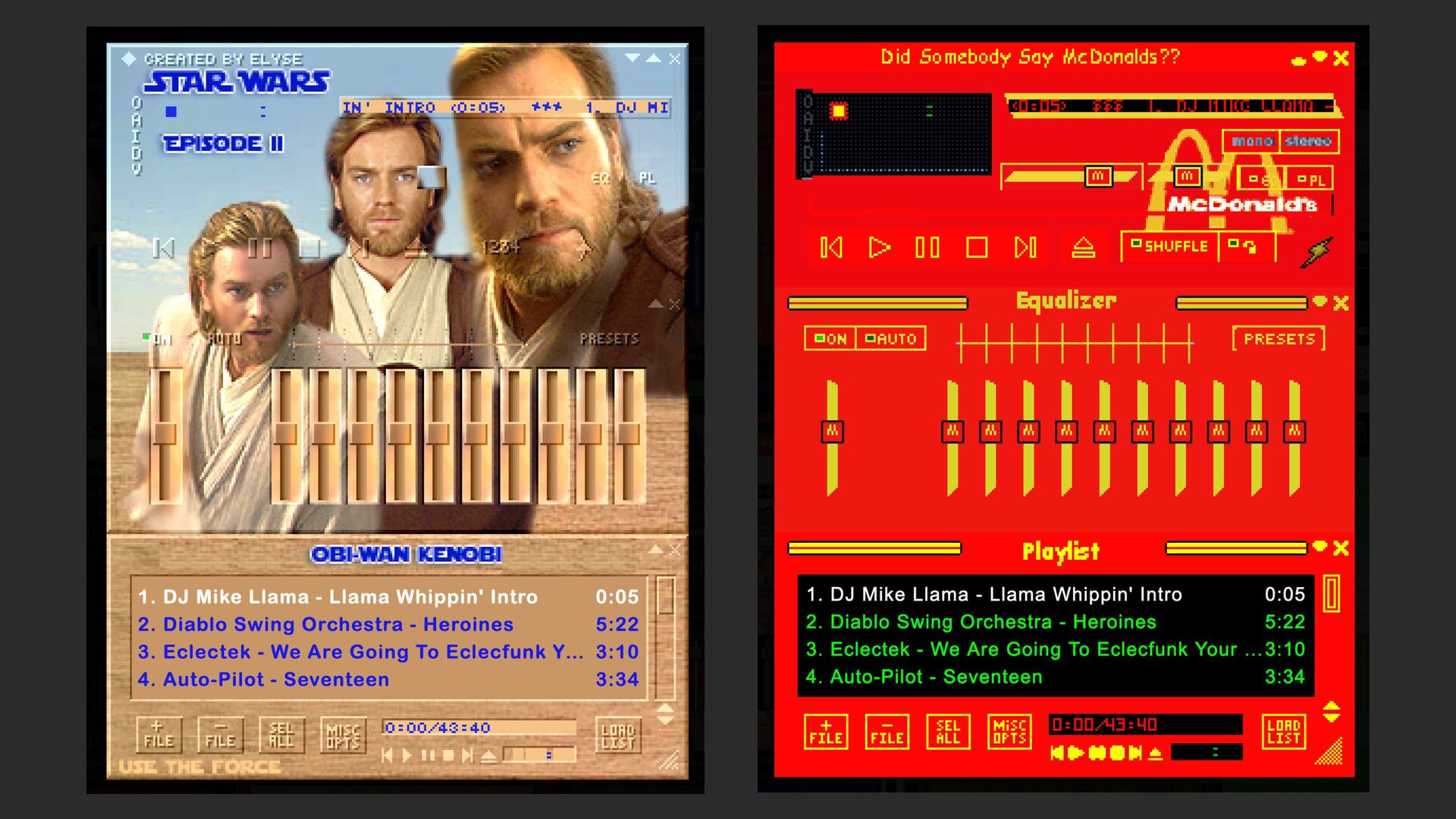

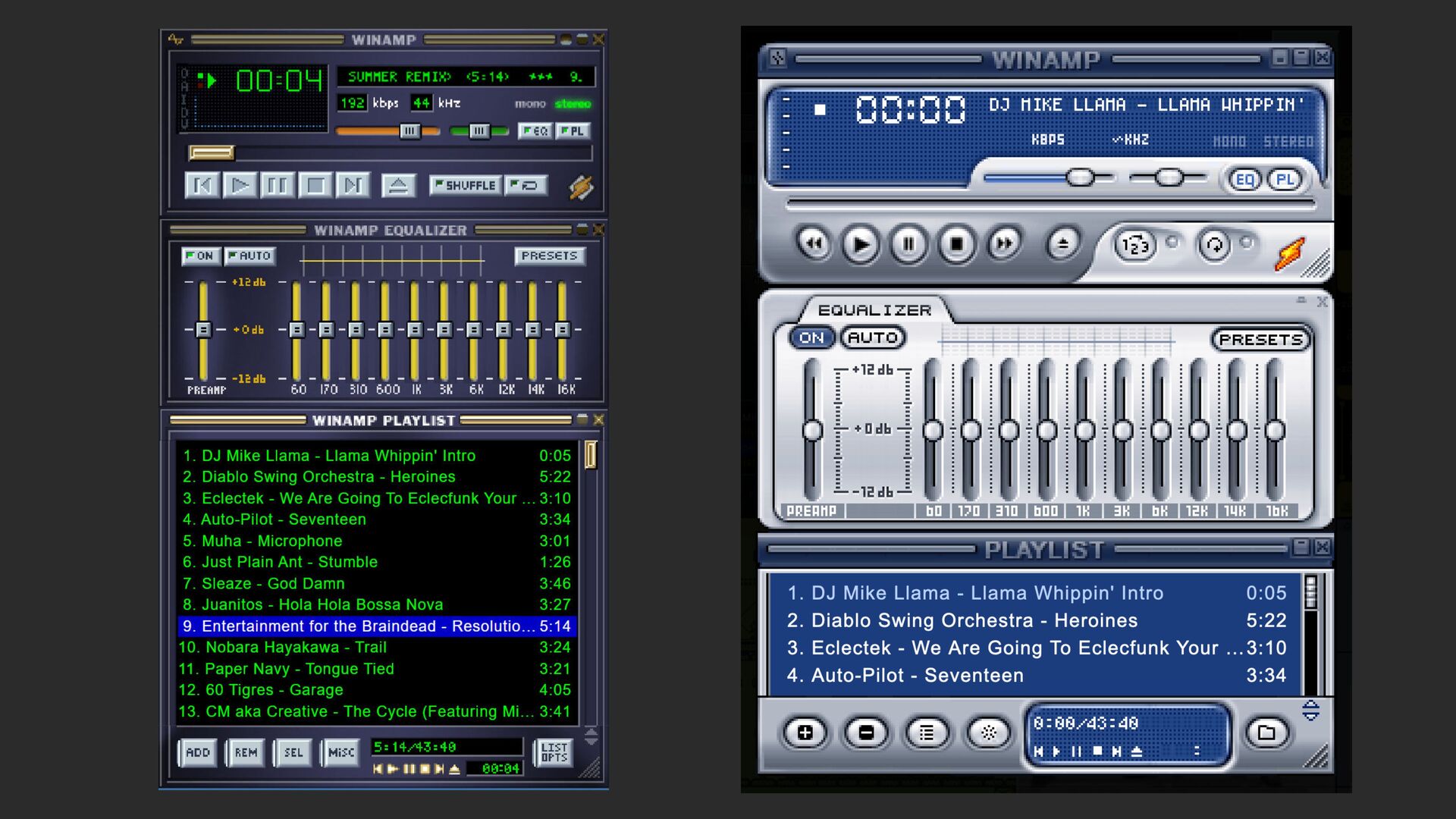

23. skins.webamp.org

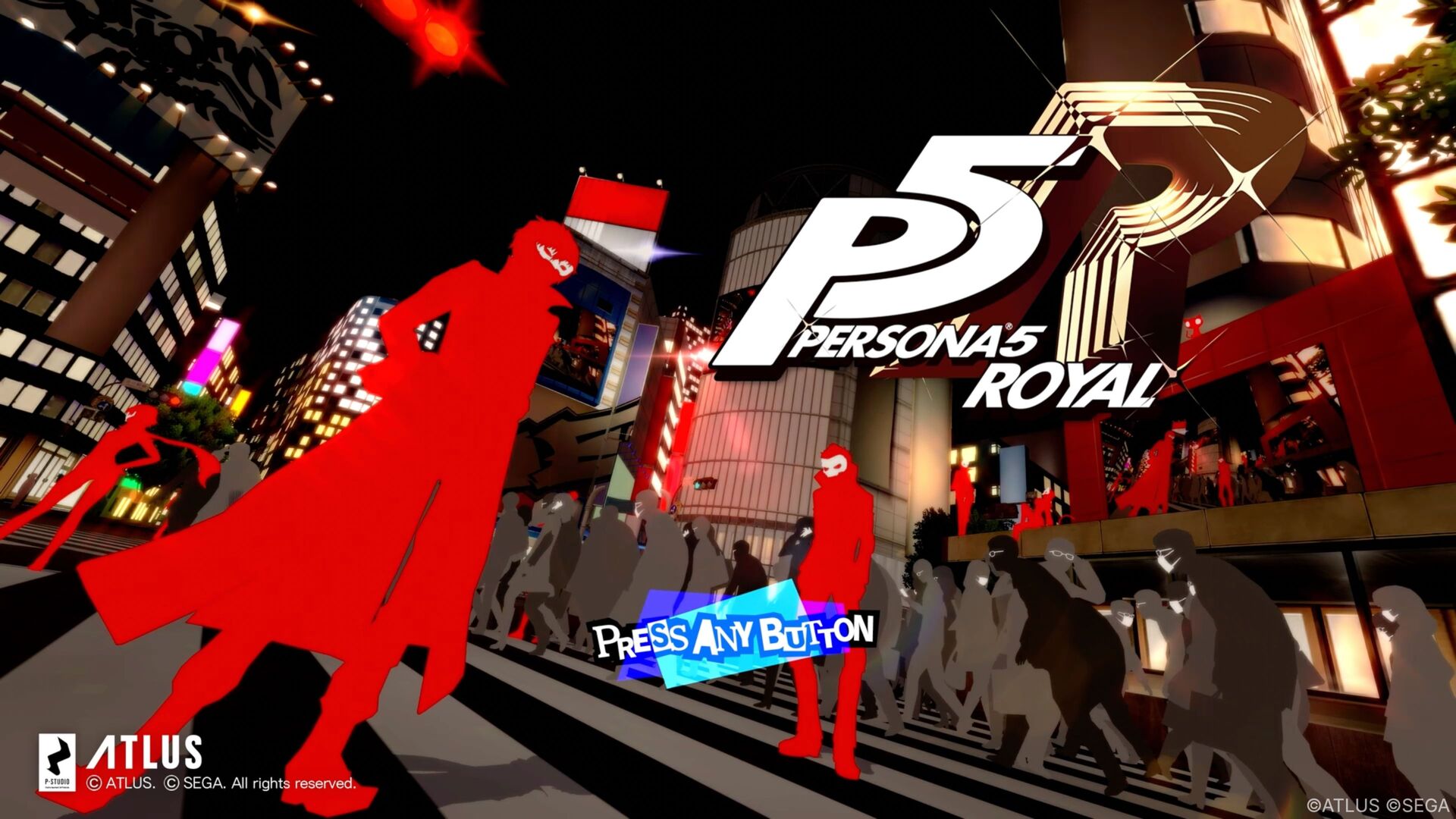

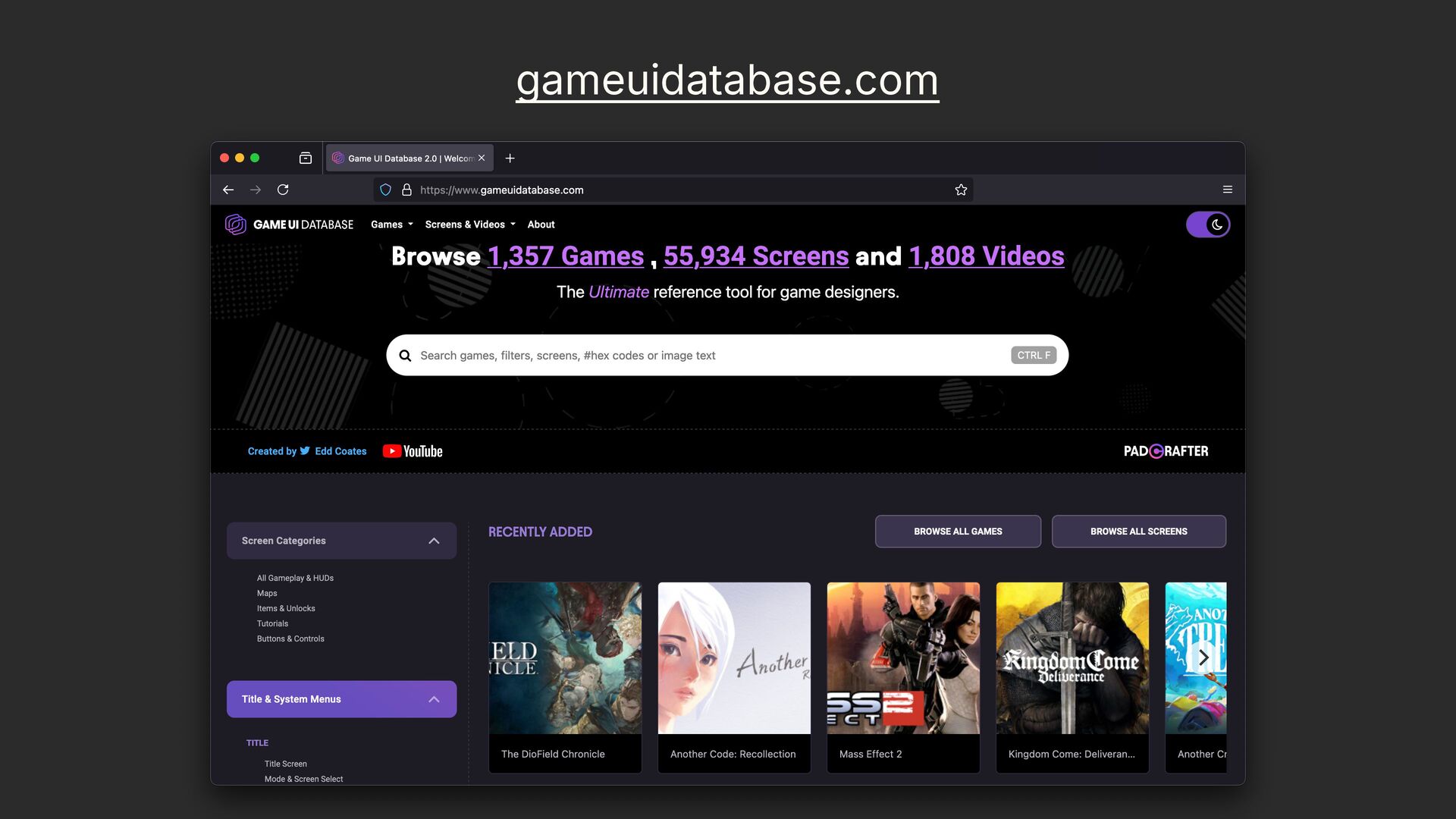

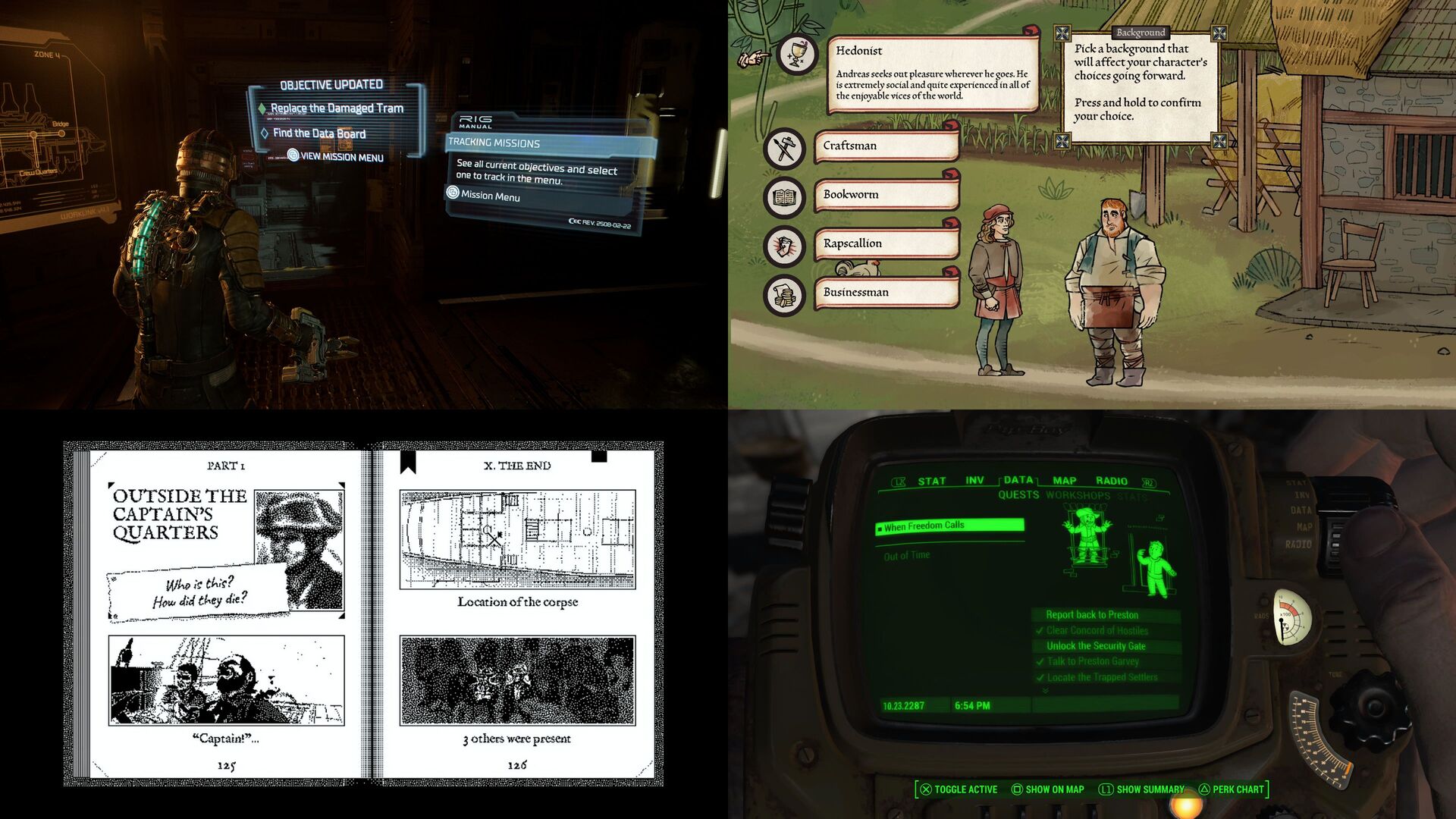

24. gameuidatabase.com

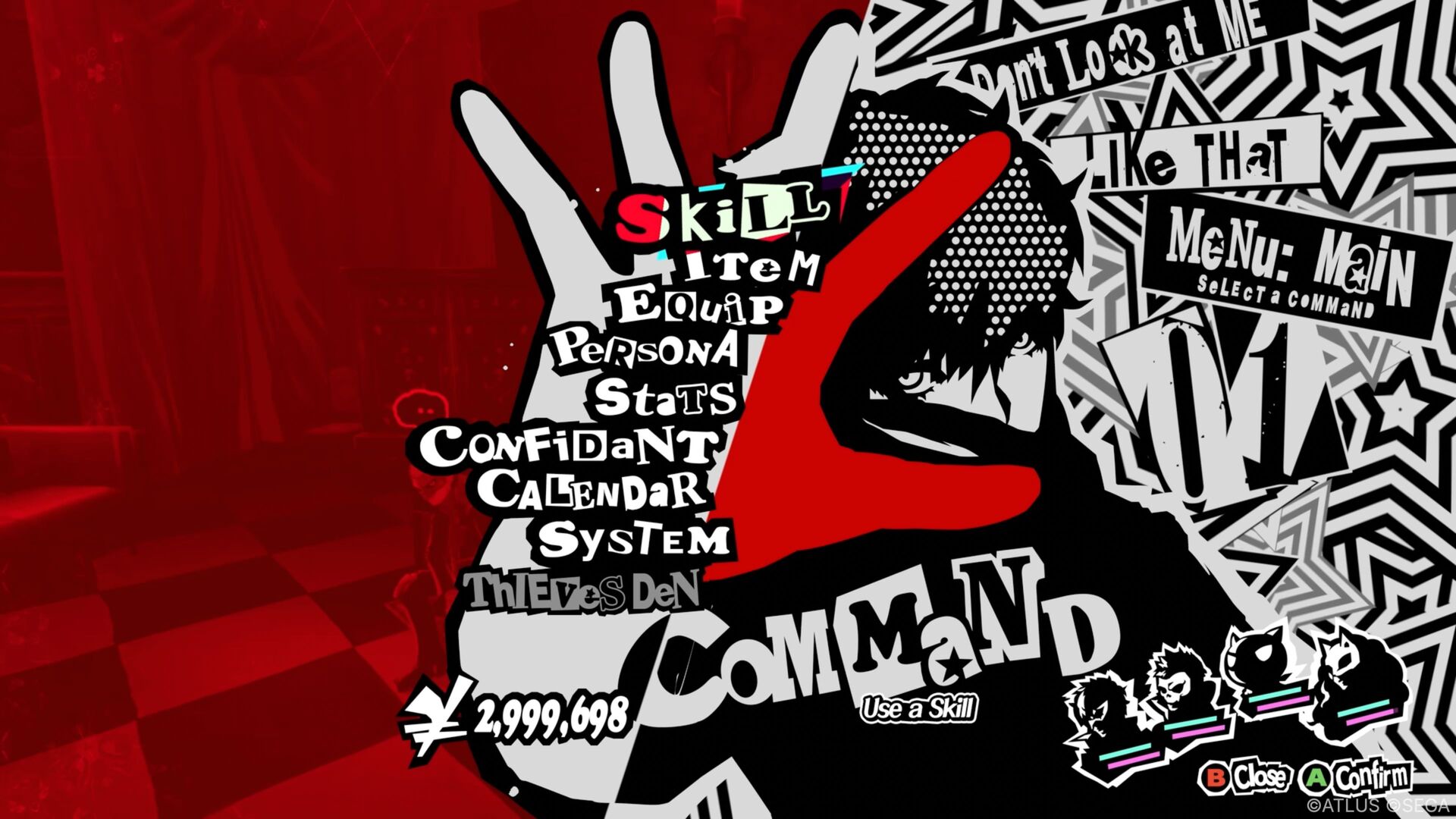

25. ©ATLUS ©SEGA
26. Credit to Miika Laaksonen
27. garystormsongs.com

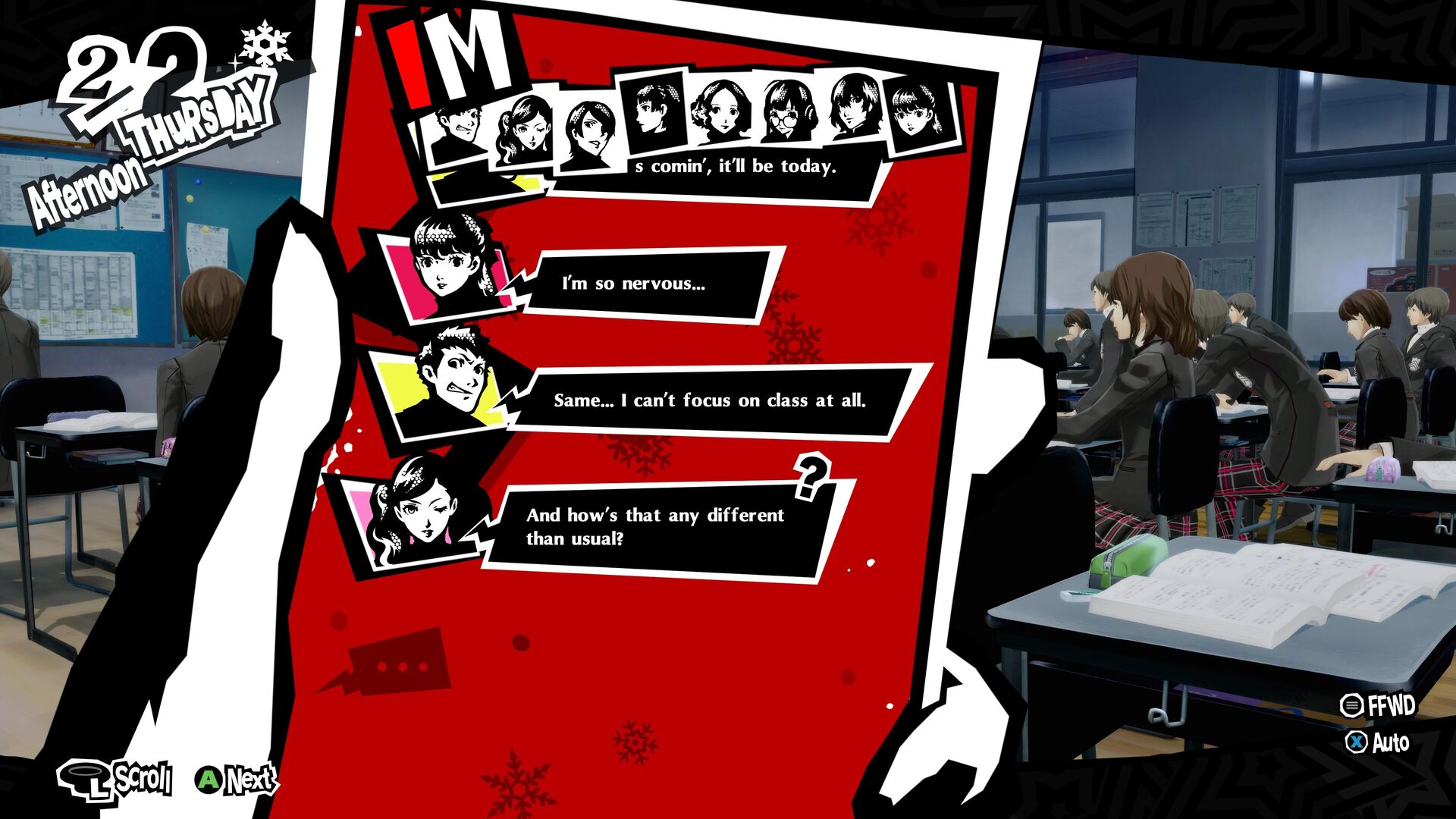

28. ©ATLUS ©SEGA
29. ©ATLUS ©SEGA
30. How could we build this with Compose UI in Kotlin?
31. ©ATLUS ©SEGA
32. ©ATLUS ©SEGA

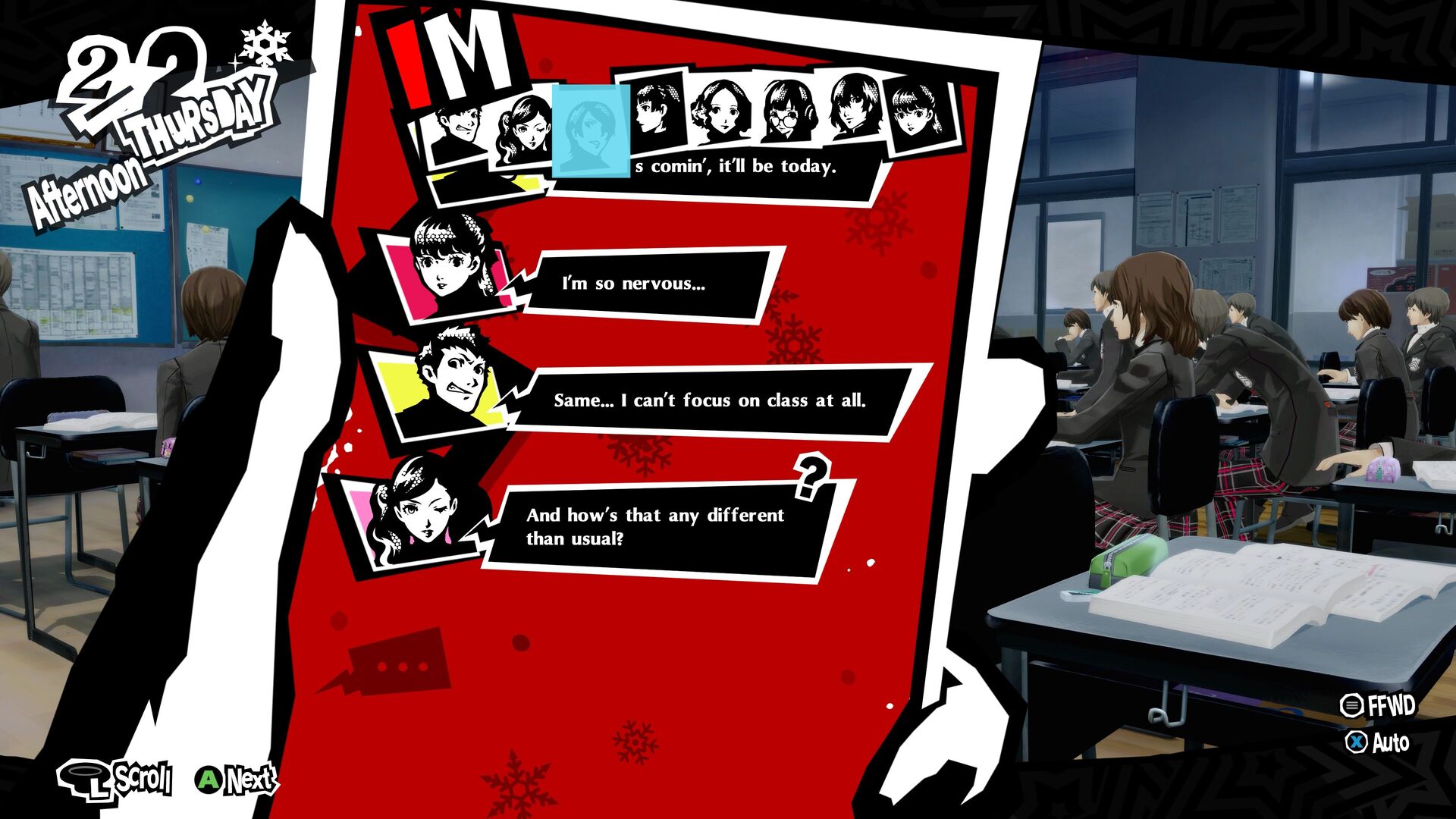

33. ©ATLUS ©SEGA

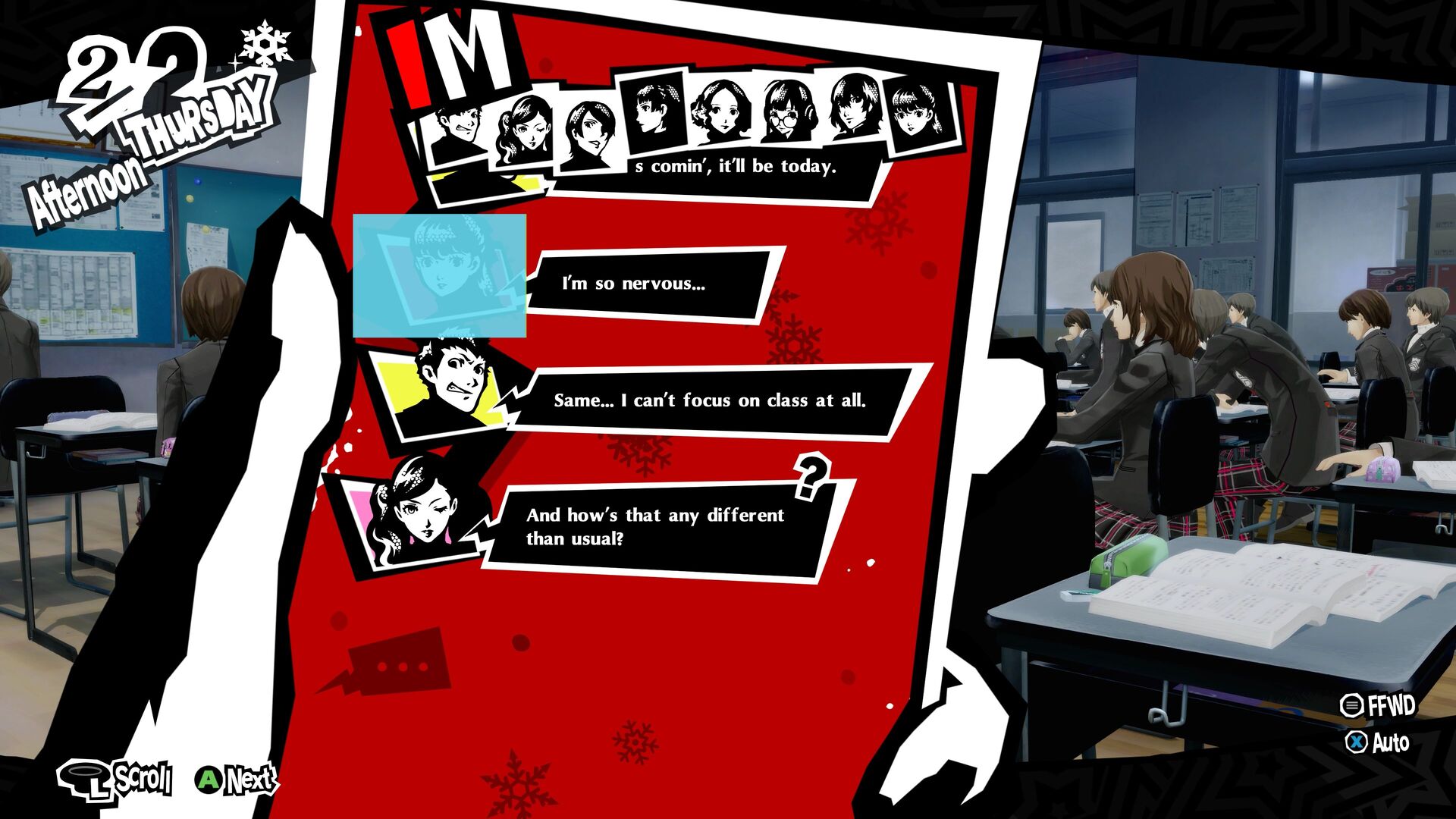

34. ©ATLUS ©SEGA
35. ©ATLUS ©SEGA
36. ©ATLUS ©SEGA

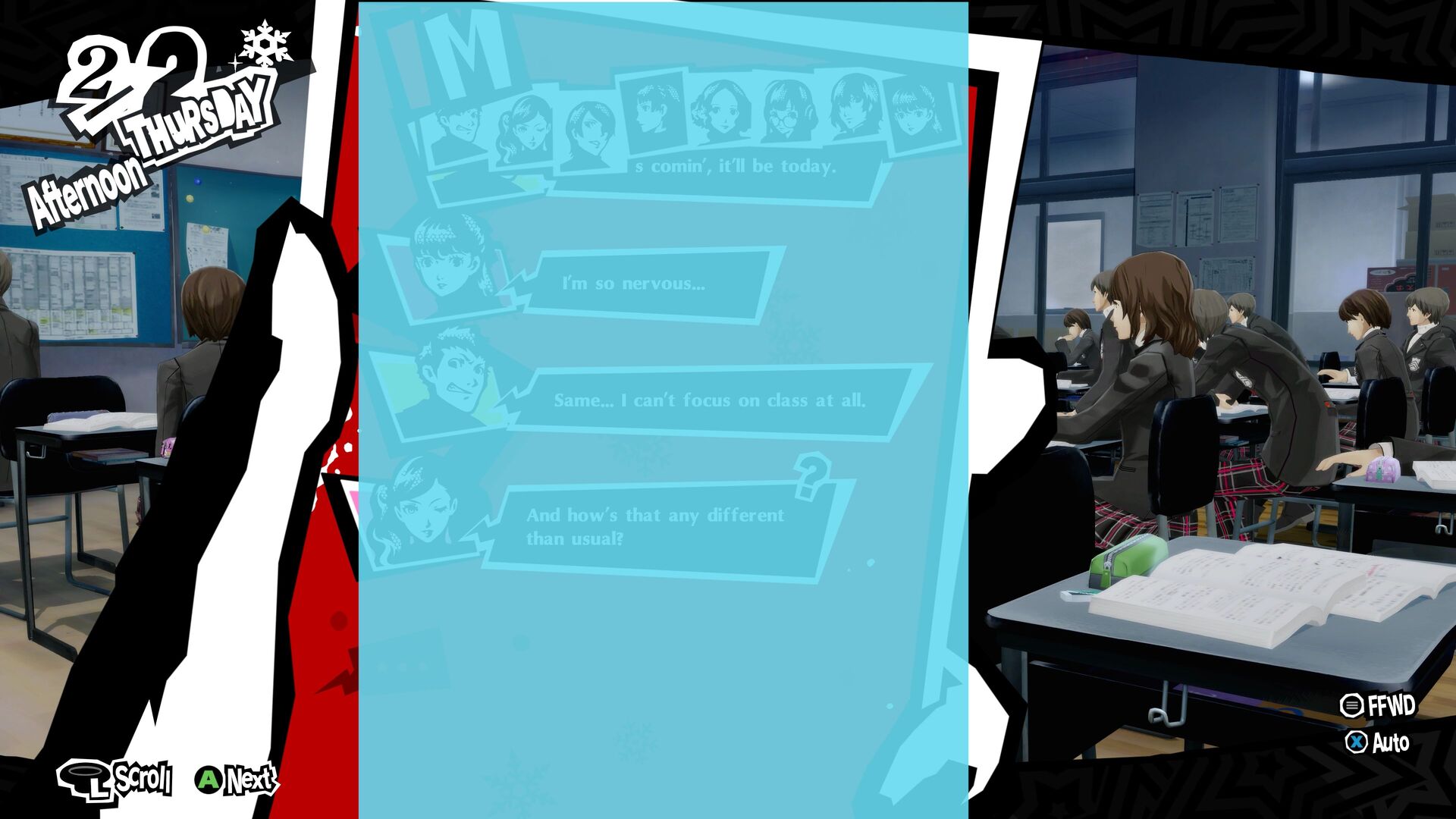

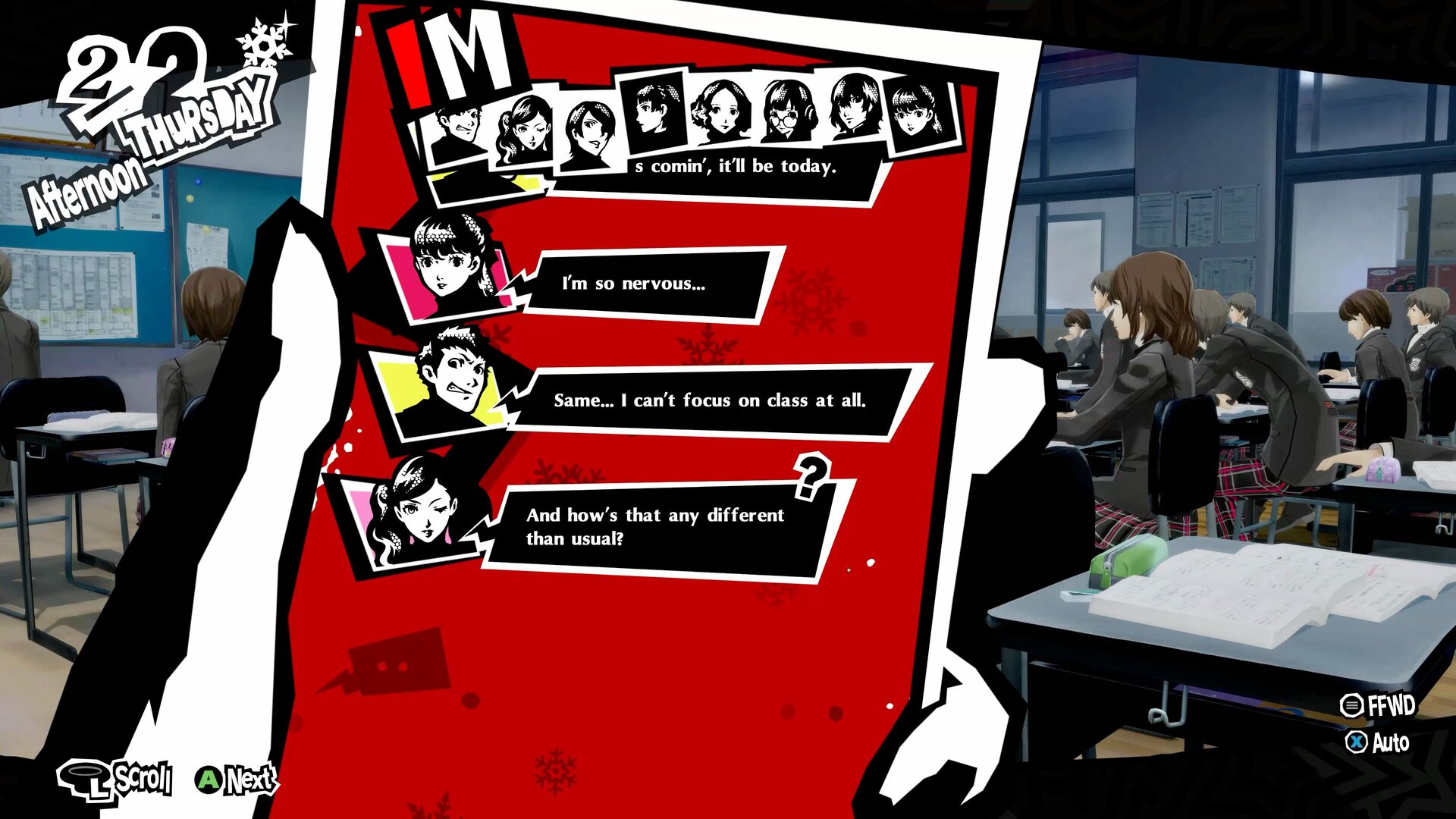

37. ©ATLUS ©SEGA

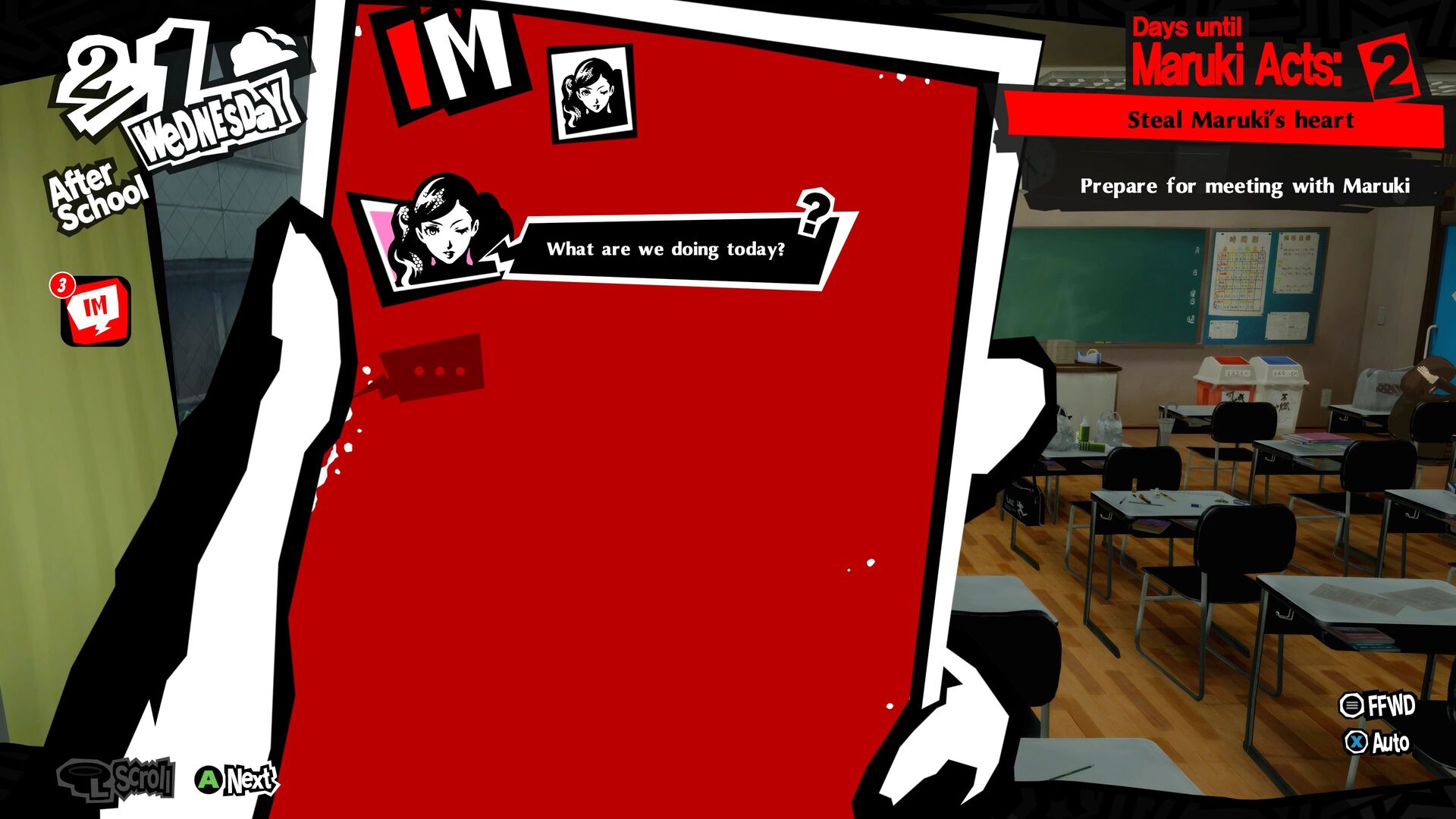

38. Background
39. ©ATLUS ©SEGA

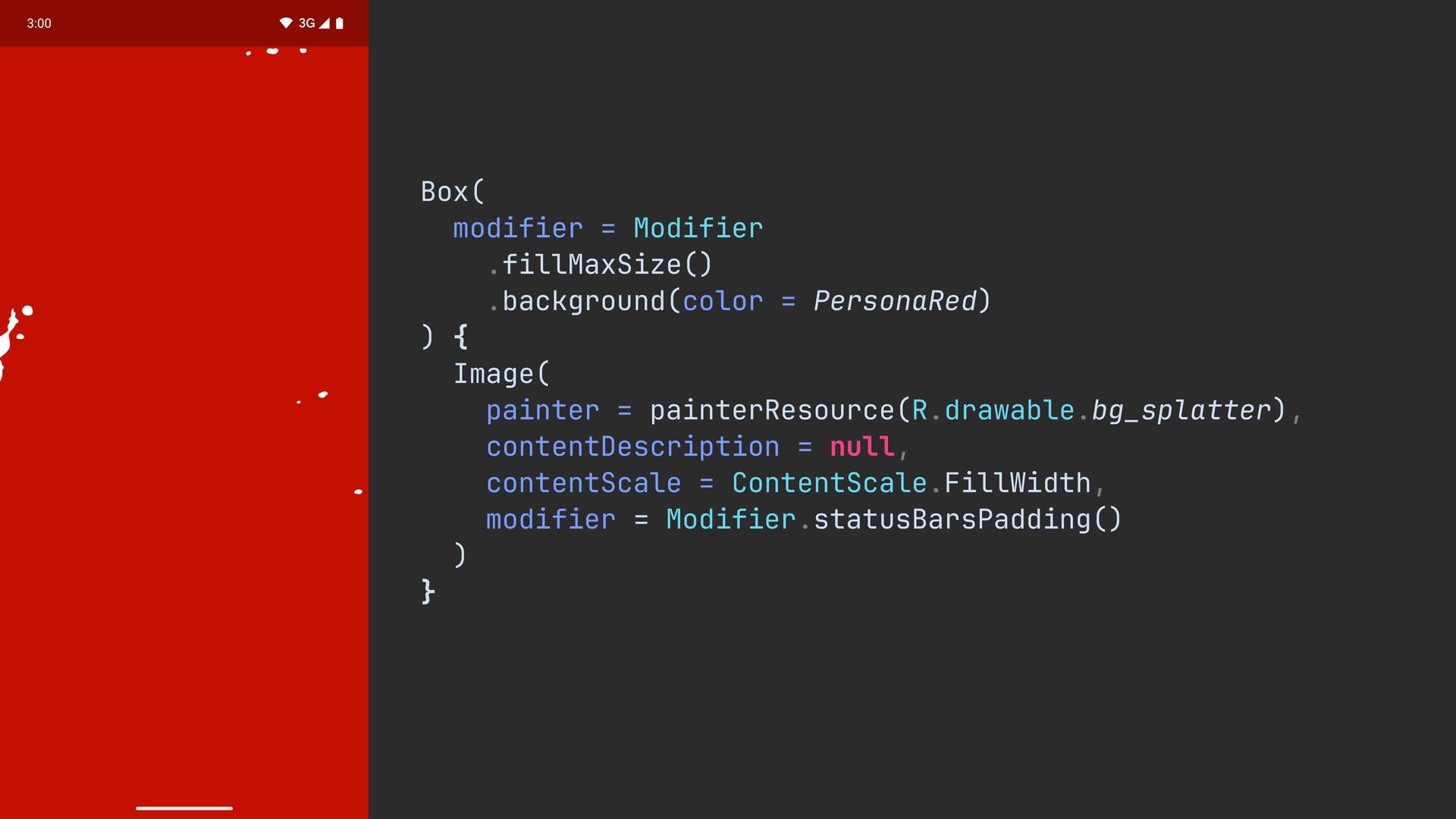

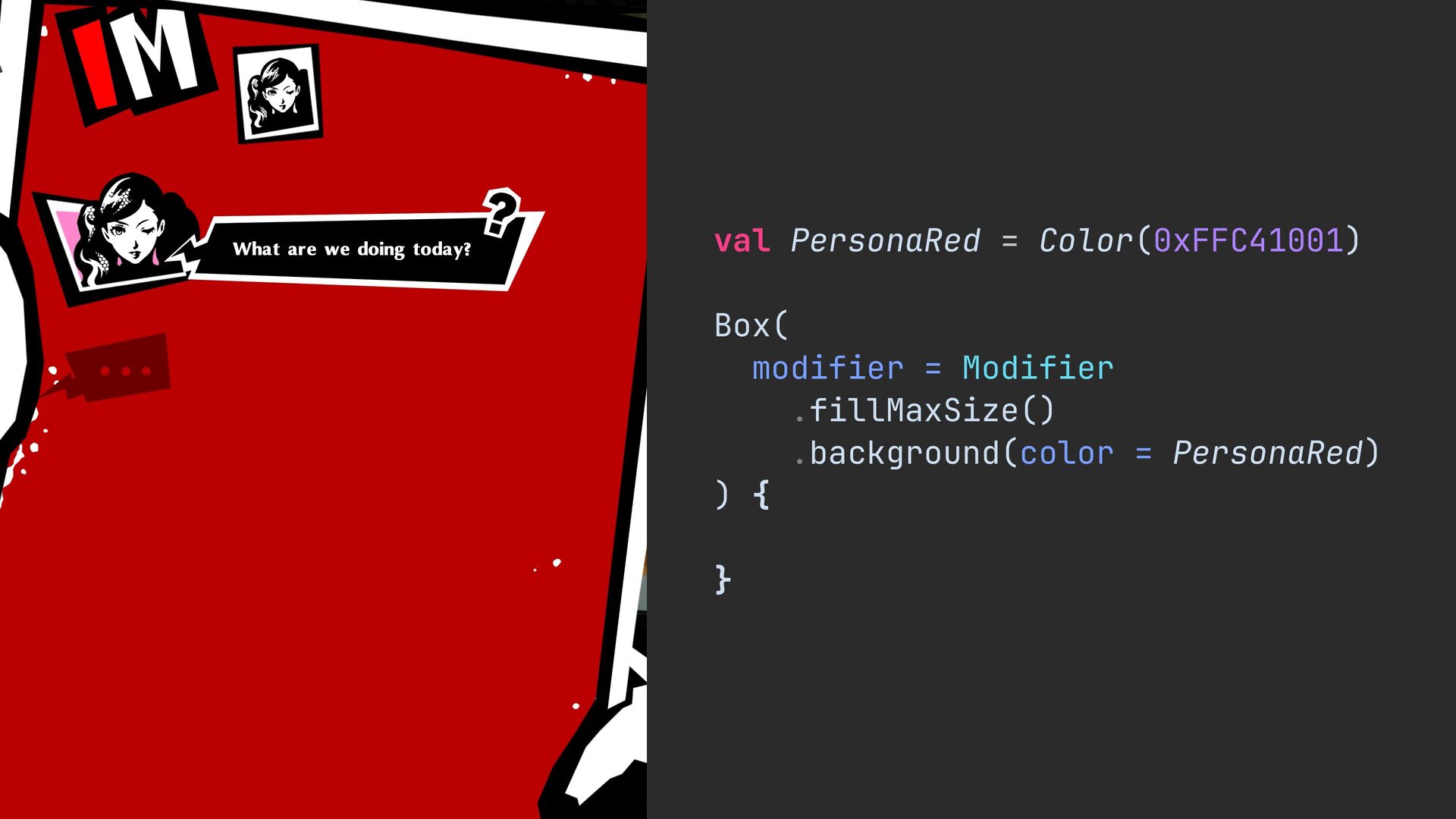

40. val PersonaRed = Color(0xFFC41001) Box( modifier = Modifier .fillMaxSize() .background(color = PersonaRed) ) { } ©ATLUS ©SEGA
41. val PersonaRed = Color(0xFFC41001) Box( modifier = Modifier .fillMaxSize() .background(color = PersonaRed) ) { } ©ATLUS ©SEGA
42. Box( m​ odifier = Modifier .fillMaxSize() .background(color = PersonaRed) ) { I​ mage( painter = painterResource(R.drawable.bg_splatter), c​ ontentDescription = null, contentScale = ContentScale.FillWidth, m​ odifier = M​ odifier.statusBarsPadding() ​)​ } ©ATLUS ©SEGA

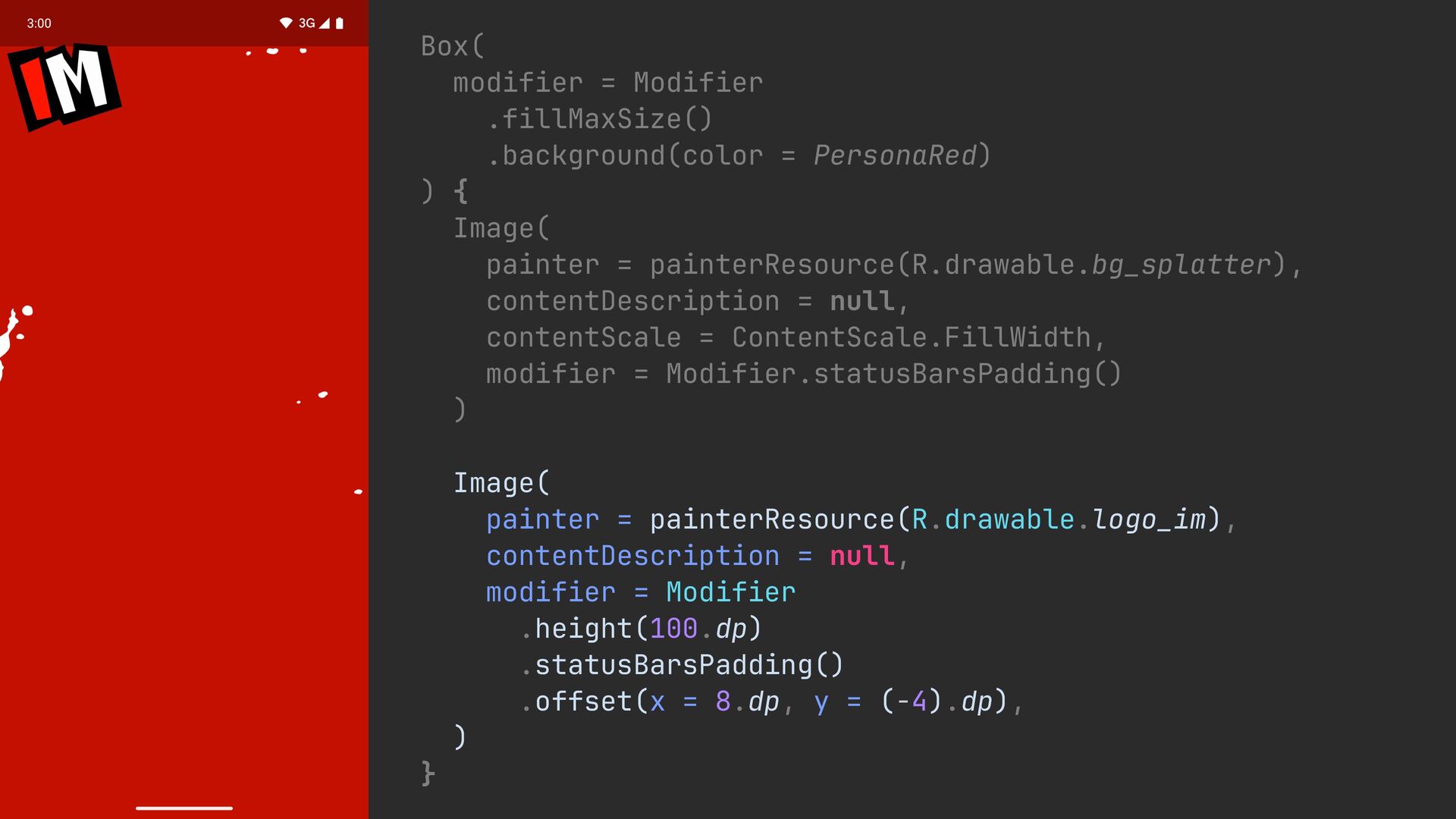

43. Box( m​ odifier = Modifier .fillMaxSize() .background(color = PersonaRed) ) { I​ mage( painter = painterResource(R.drawable.bg_splatter), c​ ontentDescription = null, contentScale = ContentScale.FillWidth, m​ odifier = M​ odifier.statusBarsPadding() ​)​ Image( painter = painterResource(R.drawable.logo_im), contentDescription = null, modifier = Modifier .height(100.dp) .statusBarsPadding() .offset(x = 8.dp, y = (-4).dp), ) } ©ATLUS ©SEGA

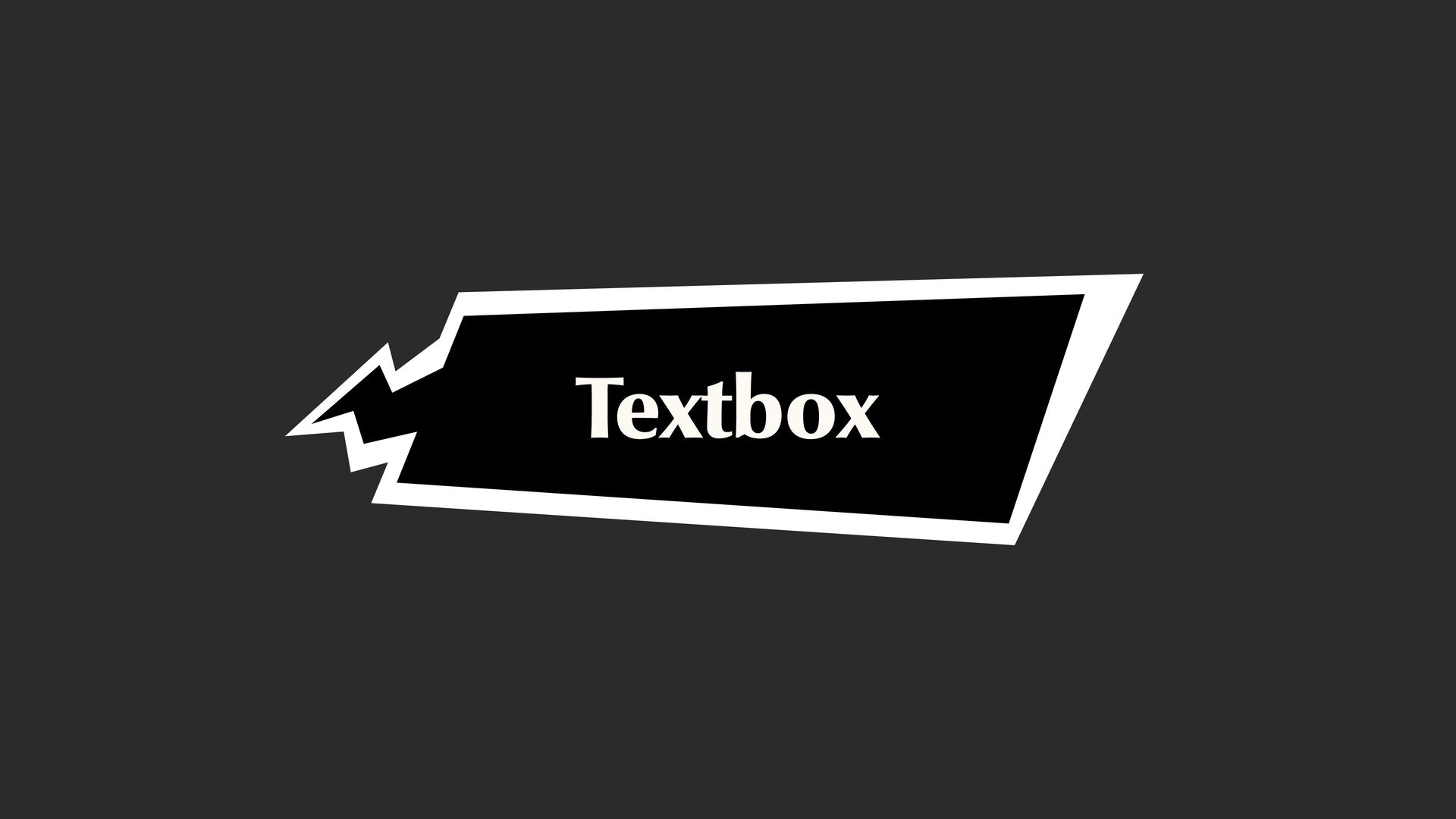

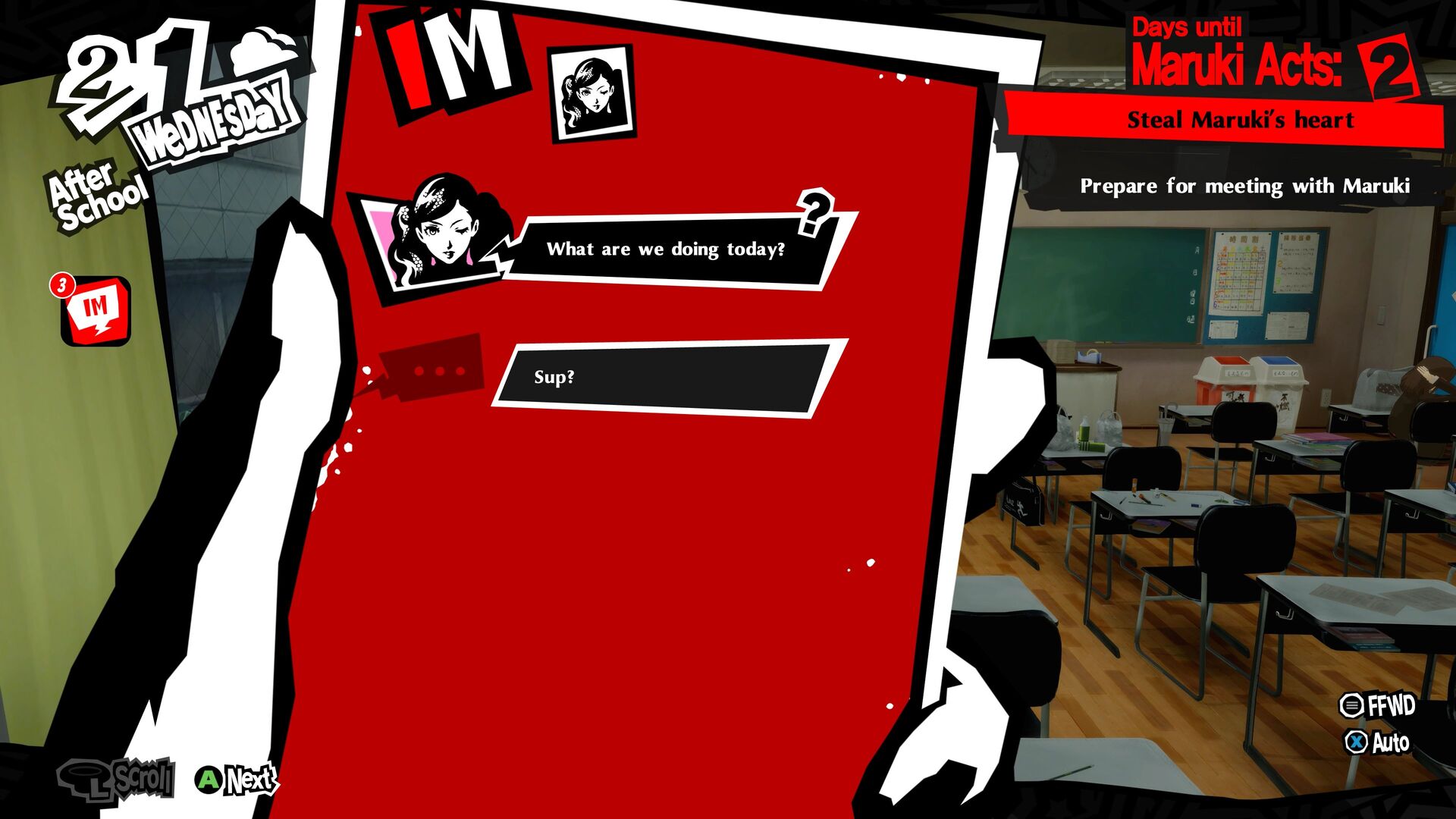

44. Textbox ©ATLUS ©SEGA

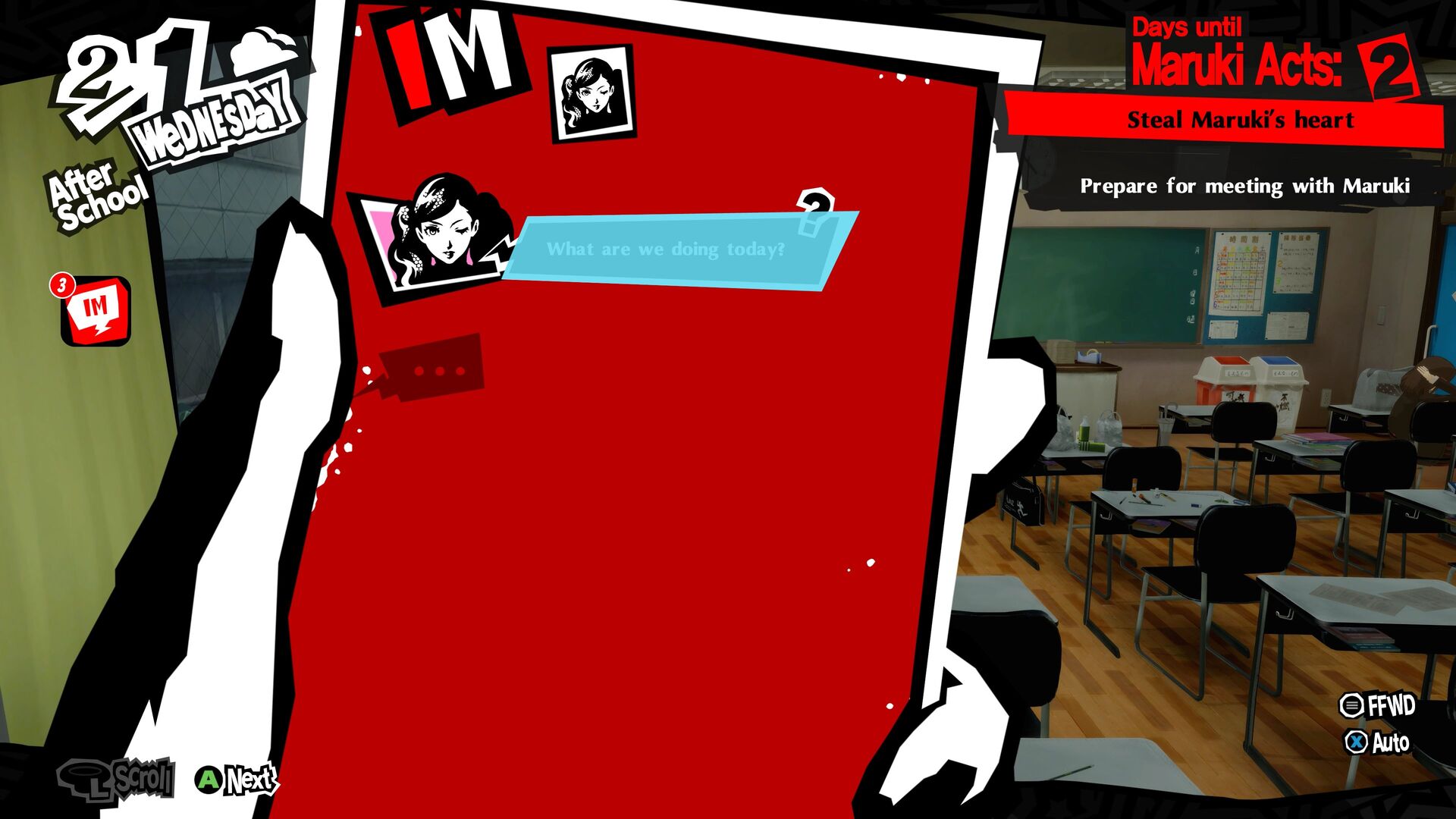

45. ©ATLUS ©SEGA
46. ©ATLUS ©SEGA

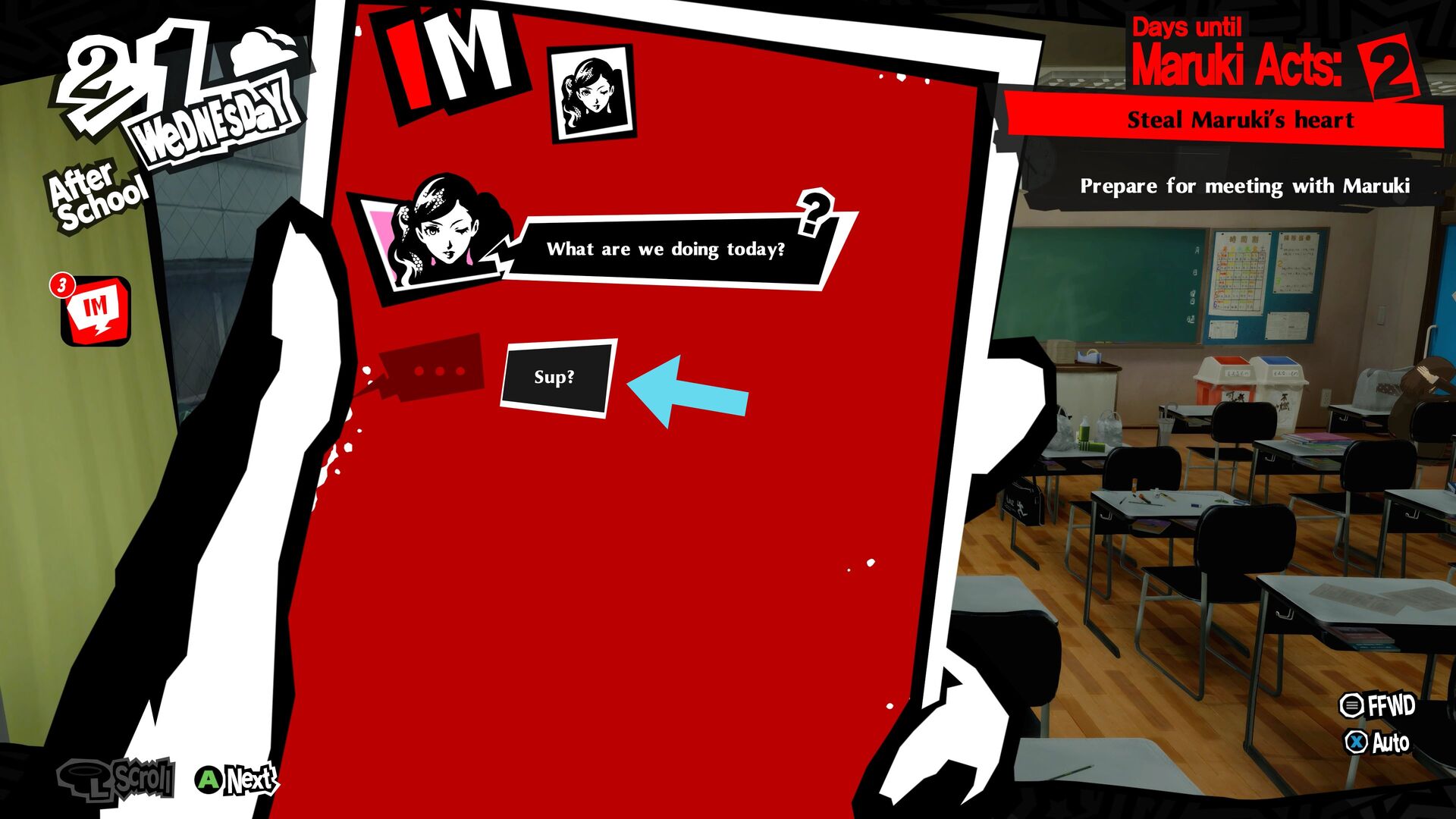

47. Sup? ©ATLUS ©SEGA
48. Sup? ©ATLUS ©SEGA

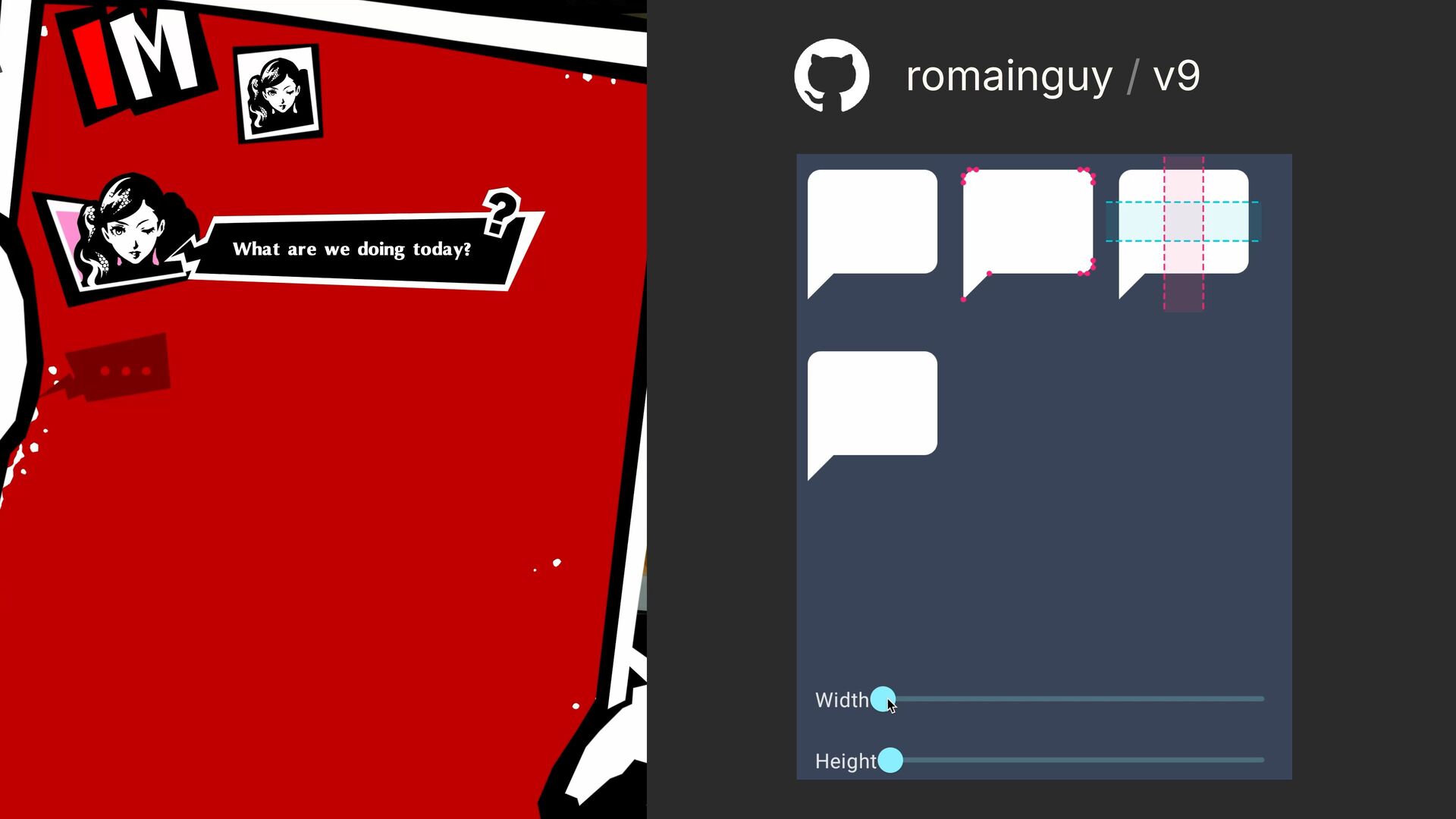

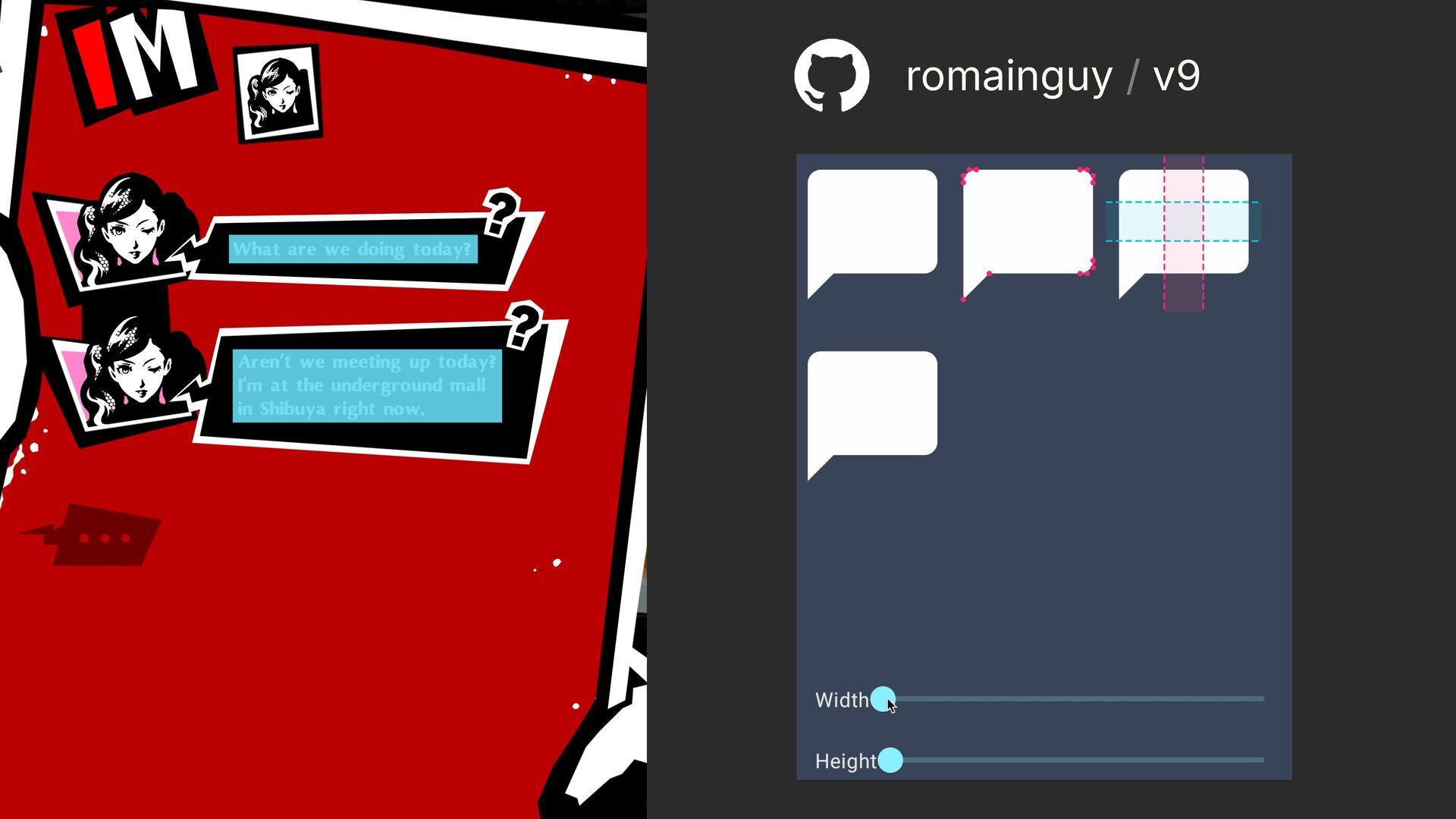

49. romainguy / v9 ©ATLUS ©SEGA
50. romainguy / v9 ©ATLUS ©SEGA

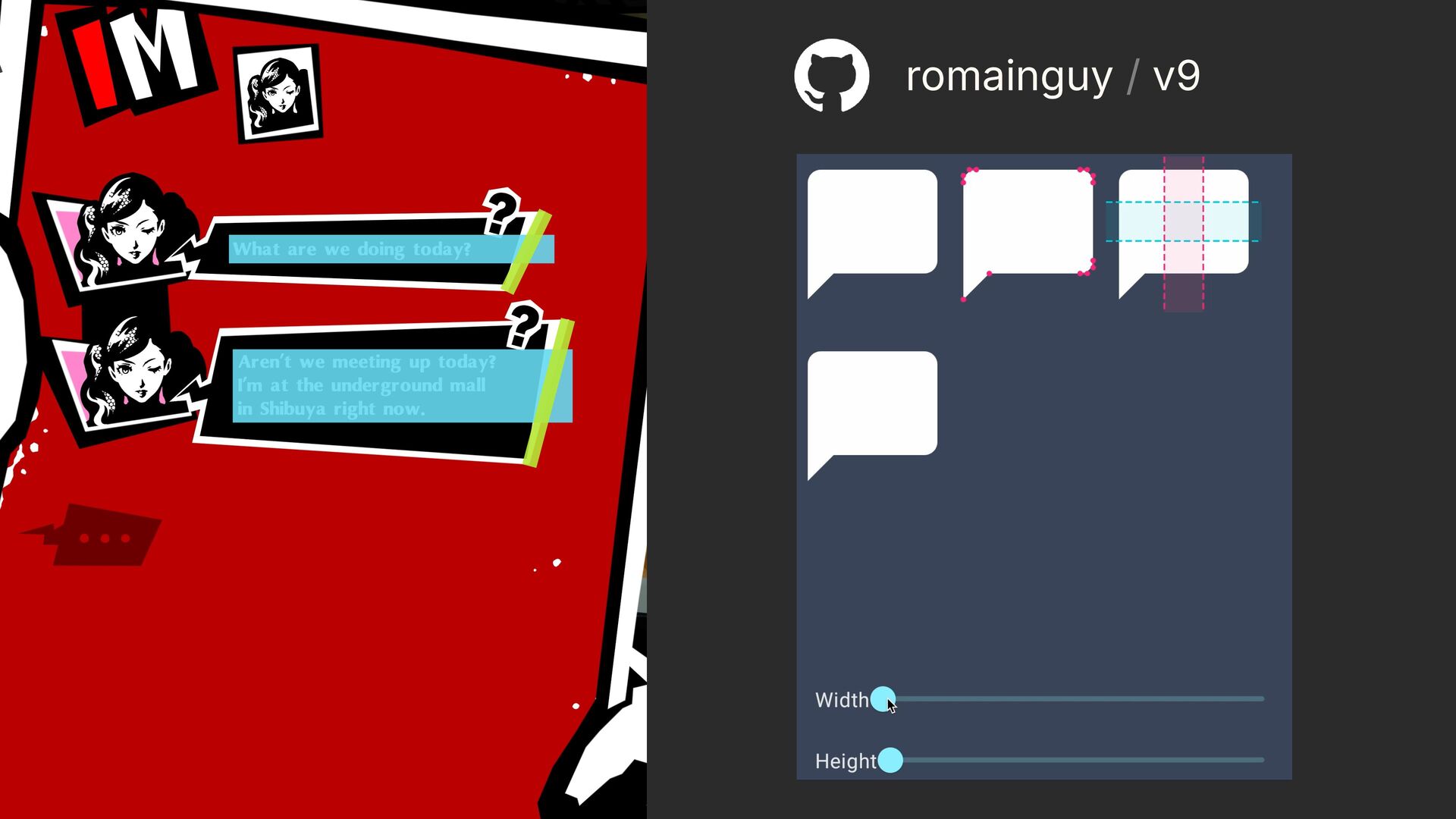

51. romainguy / v9 ©ATLUS ©SEGA
52. romainguy / v9 ©ATLUS ©SEGA

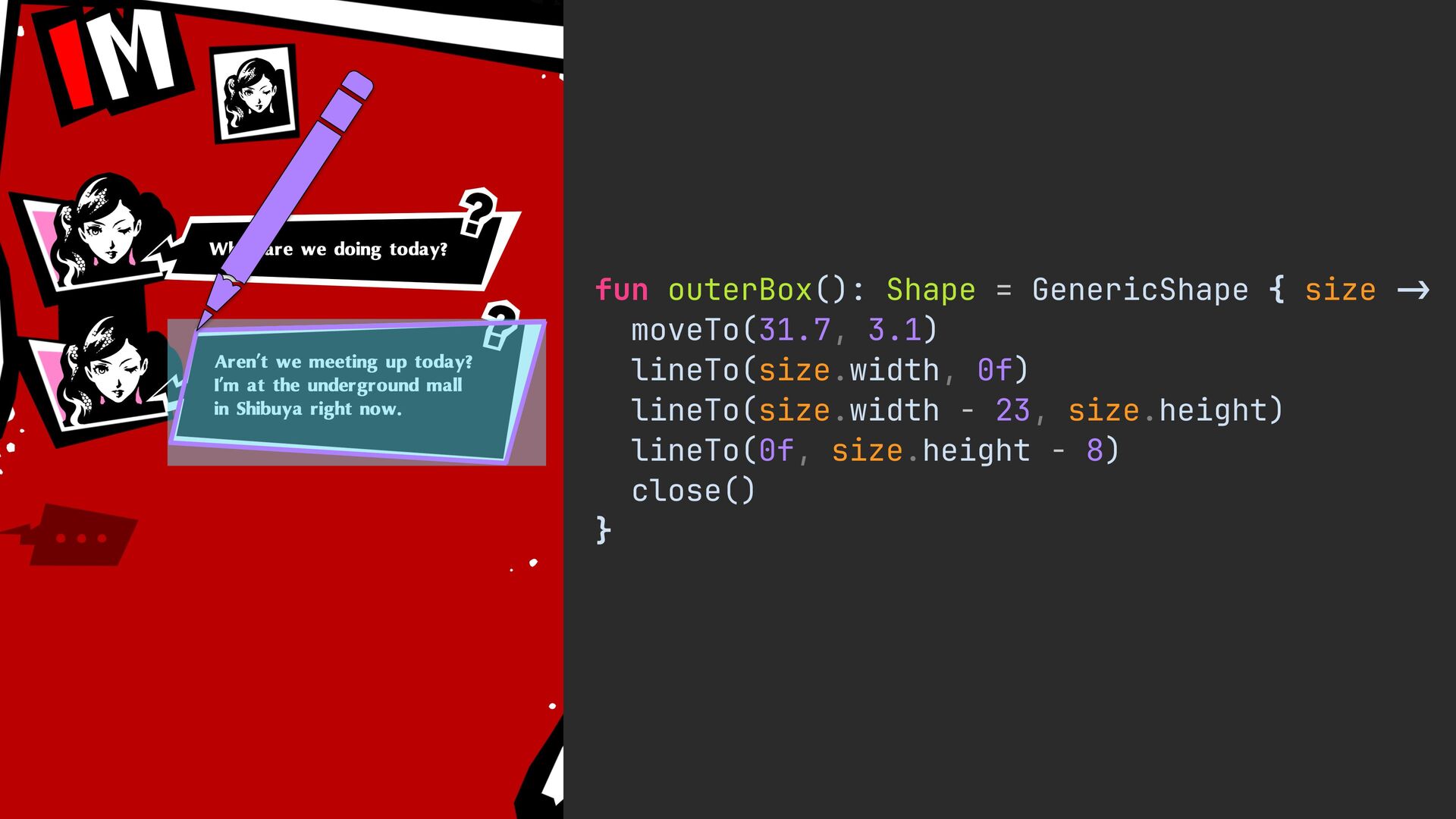

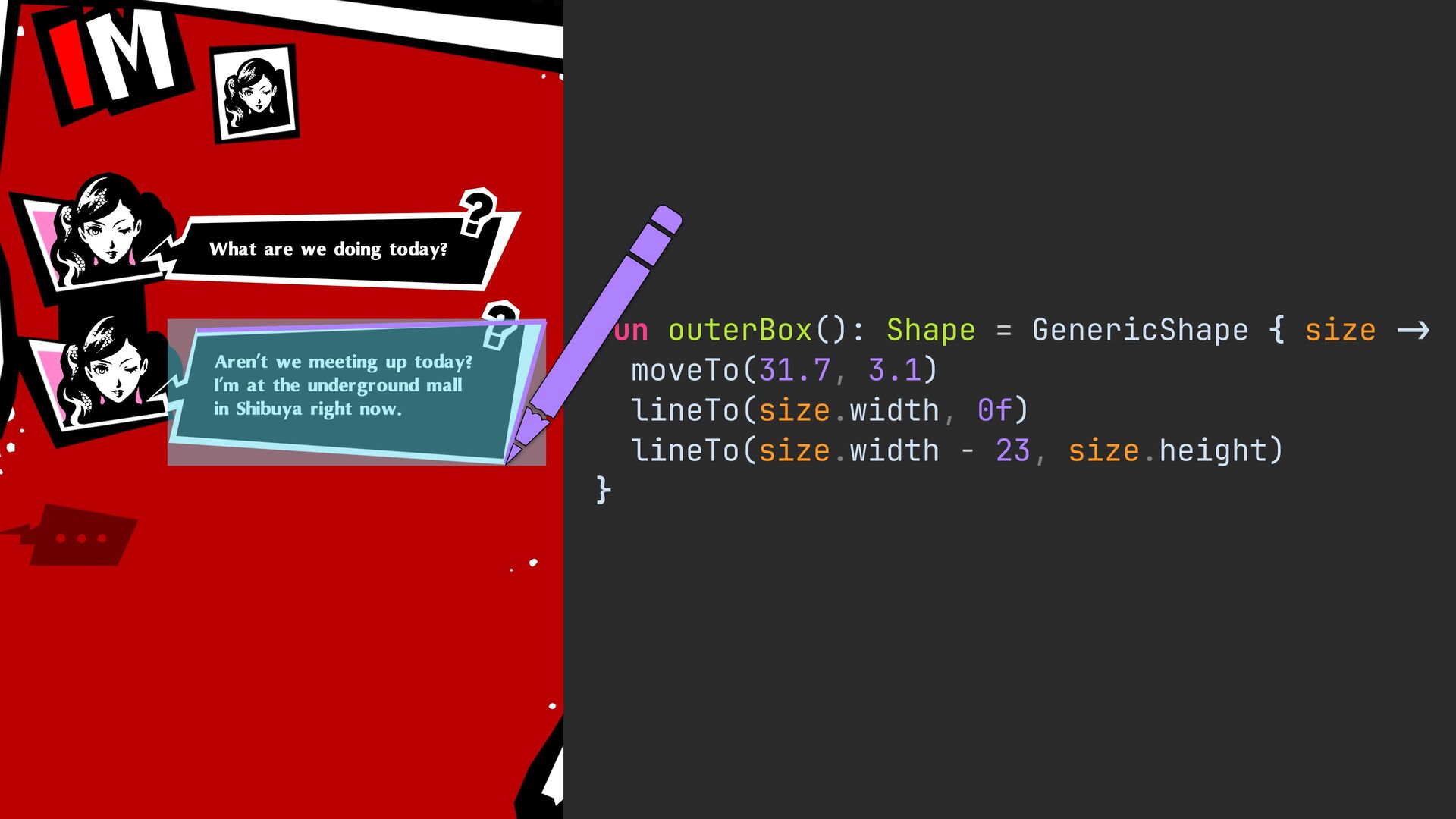

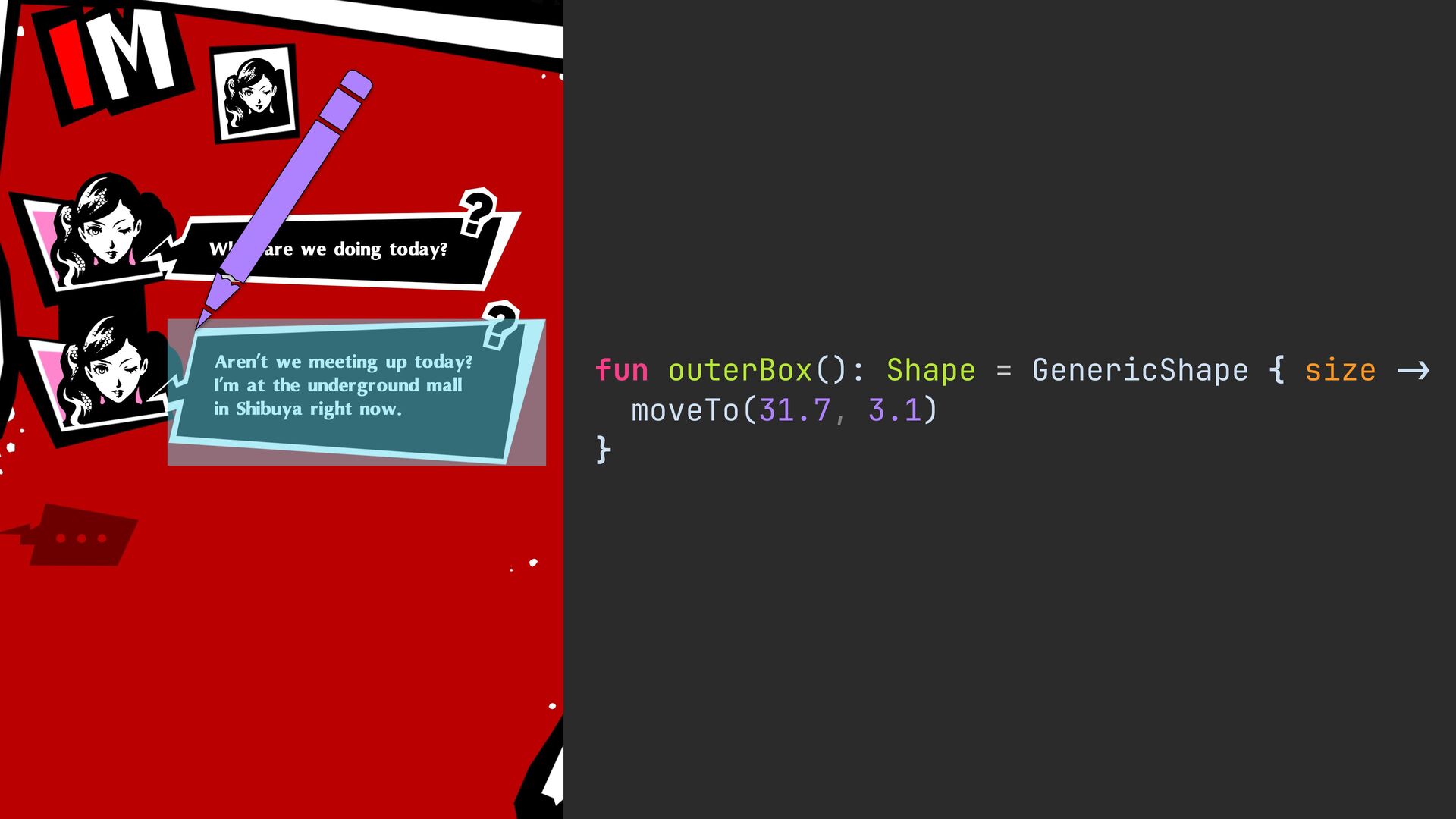

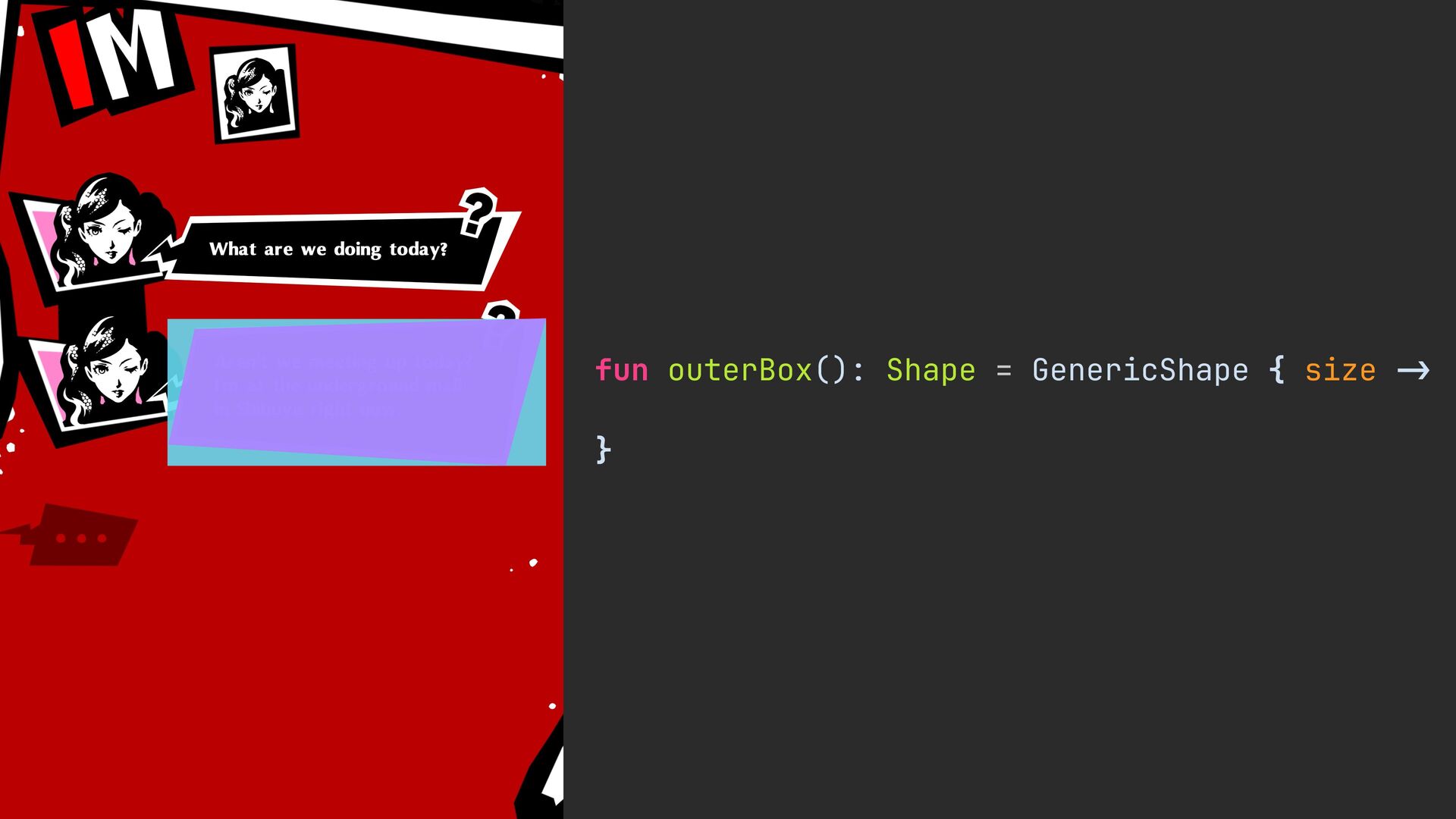

53. fun outerBox(): Shape = GenericShape { size -> } ©ATLUS ©SEGA

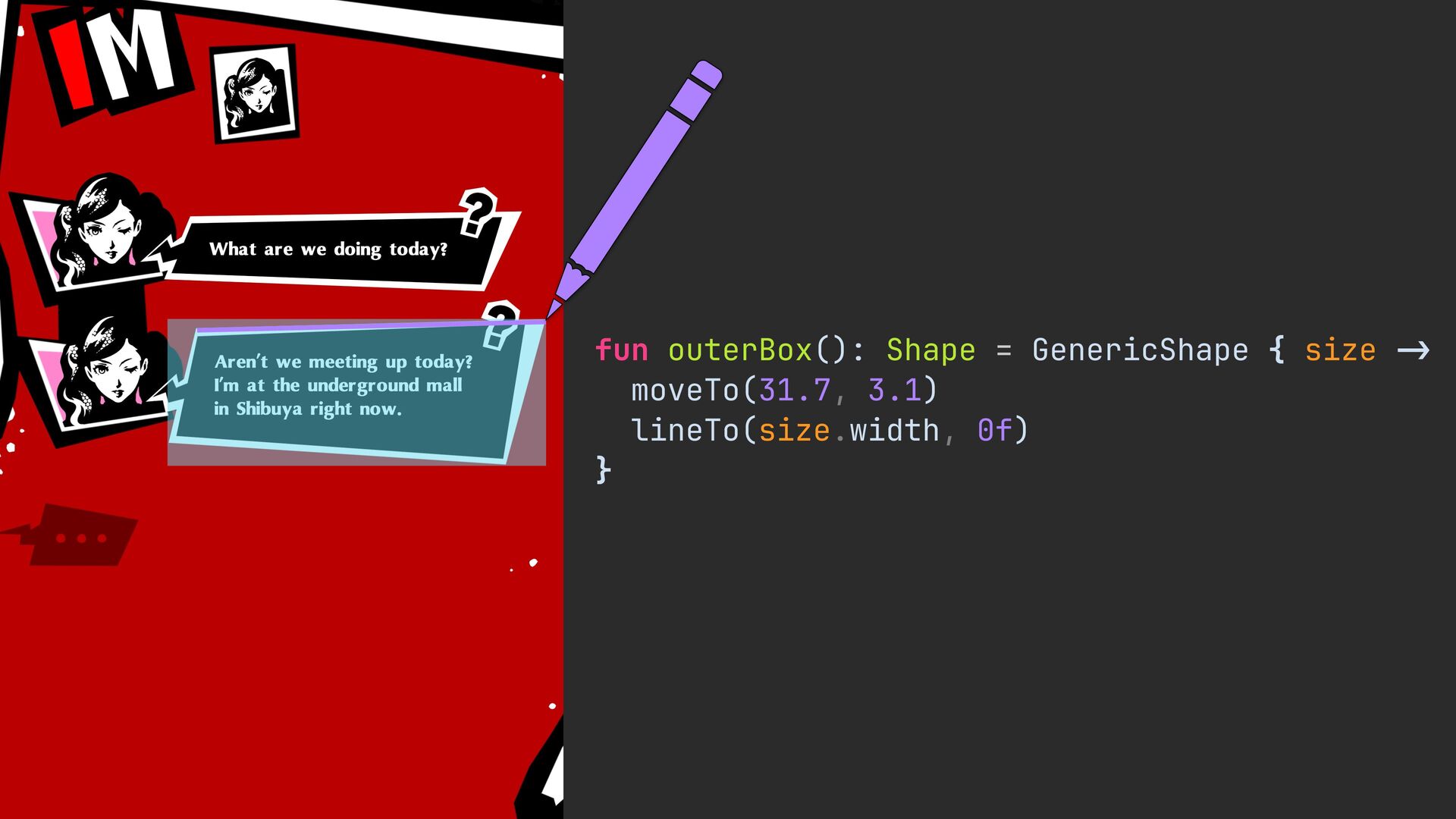

54. fun outerBox(): Shape = GenericShape { size -> moveTo(31.7, 3.1) } ©ATLUS ©SEGA
55. fun outerBox(): Shape = GenericShape { size -> moveTo(31.7, 3.1) lineTo(size.width, 0f) } ©ATLUS ©SEGA
56. fun outerBox(): Shape = GenericShape { size -> moveTo(31.7, 3.1) lineTo(size.width, 0f) lineTo(size.width - 23, size.height) } ©ATLUS ©SEGA

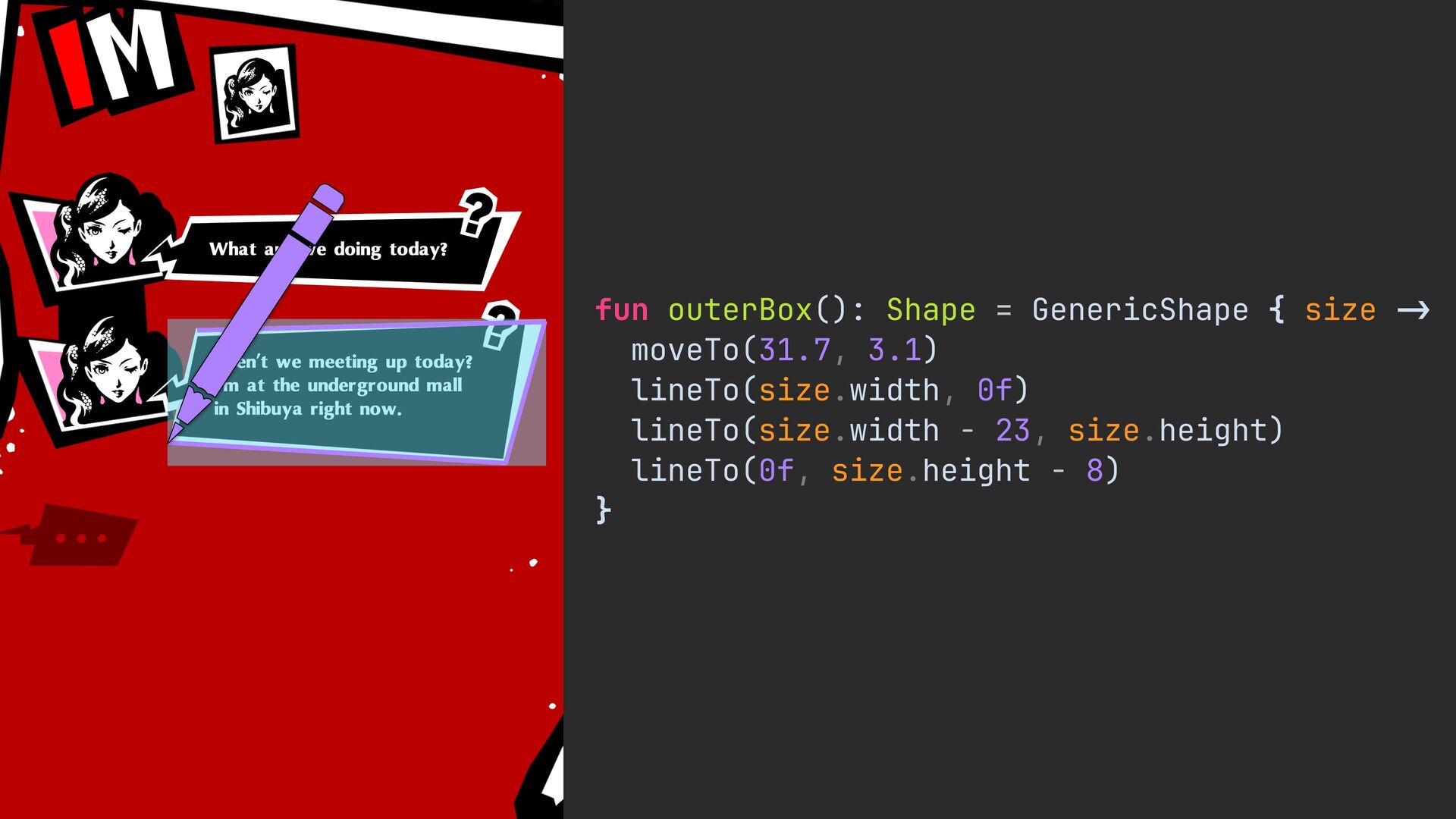

57. fun outerBox(): Shape = GenericShape { size -> moveTo(31.7, 3.1) lineTo(size.width, 0f) lineTo(size.width - 23, size.height) lineTo(0f, size.height - 8) } ©ATLUS ©SEGA

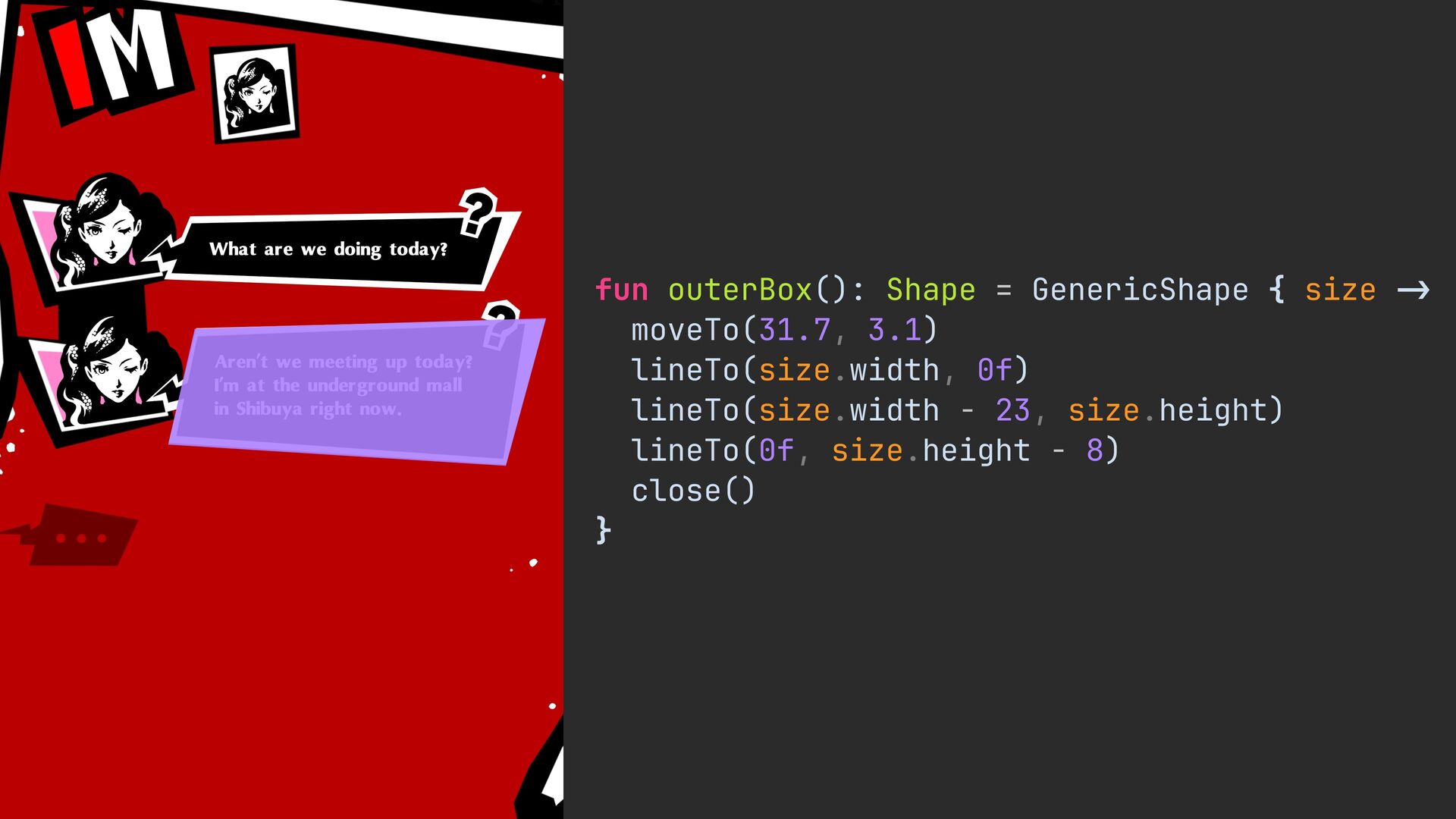

58. fun outerBox(): Shape = GenericShape { size -> moveTo(31.7, 3.1) lineTo(size.width, 0f) lineTo(size.width - 23, size.height) lineTo(0f, size.height - 8) close() } ©ATLUS ©SEGA
59. fun outerBox(): Shape = GenericShape { size -> moveTo(31.7, 3.1) lineTo(size.width, 0f) lineTo(size.width - 23, size.height) lineTo(0f, size.height - 8) close() } ©ATLUS ©SEGA

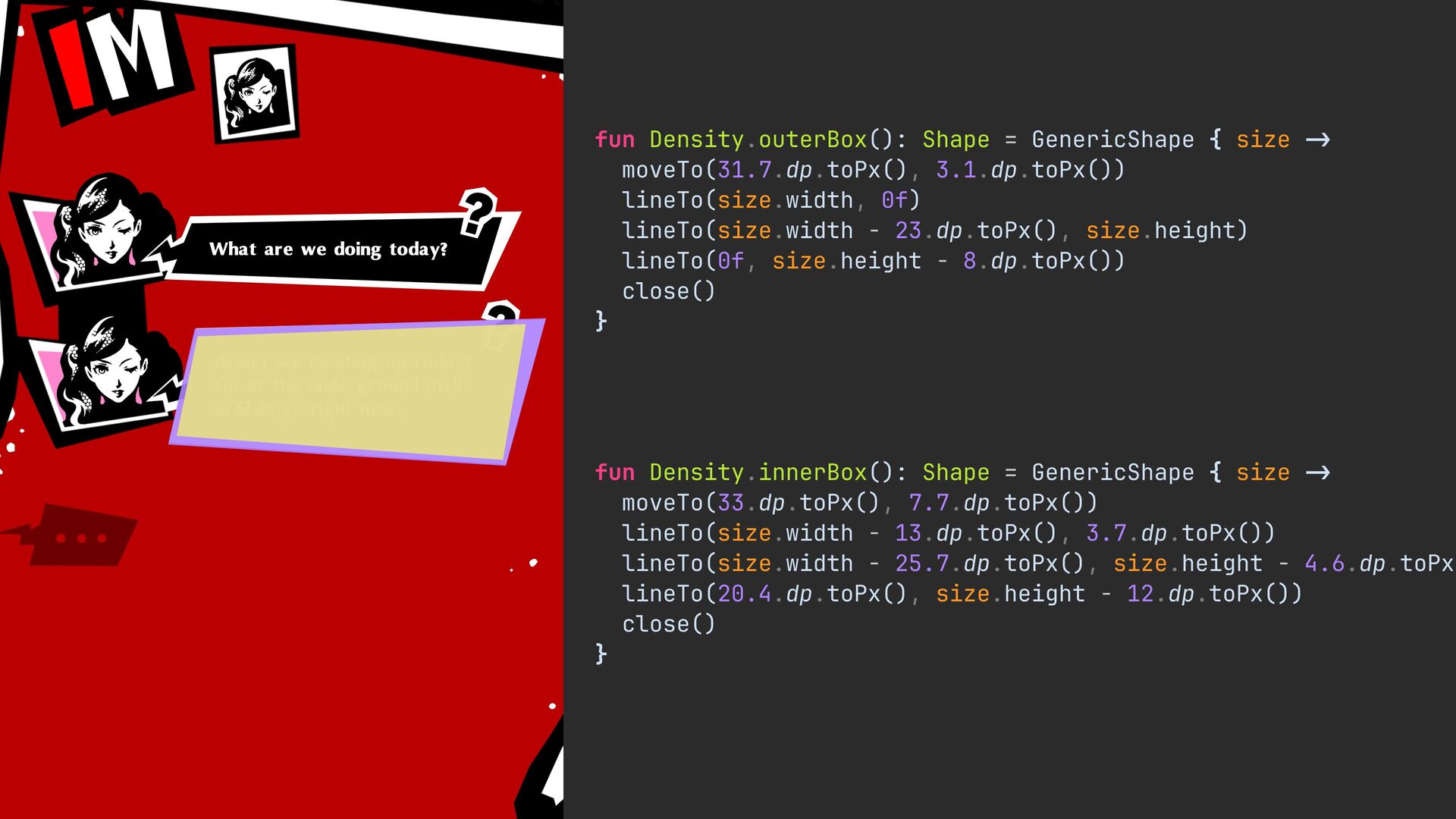

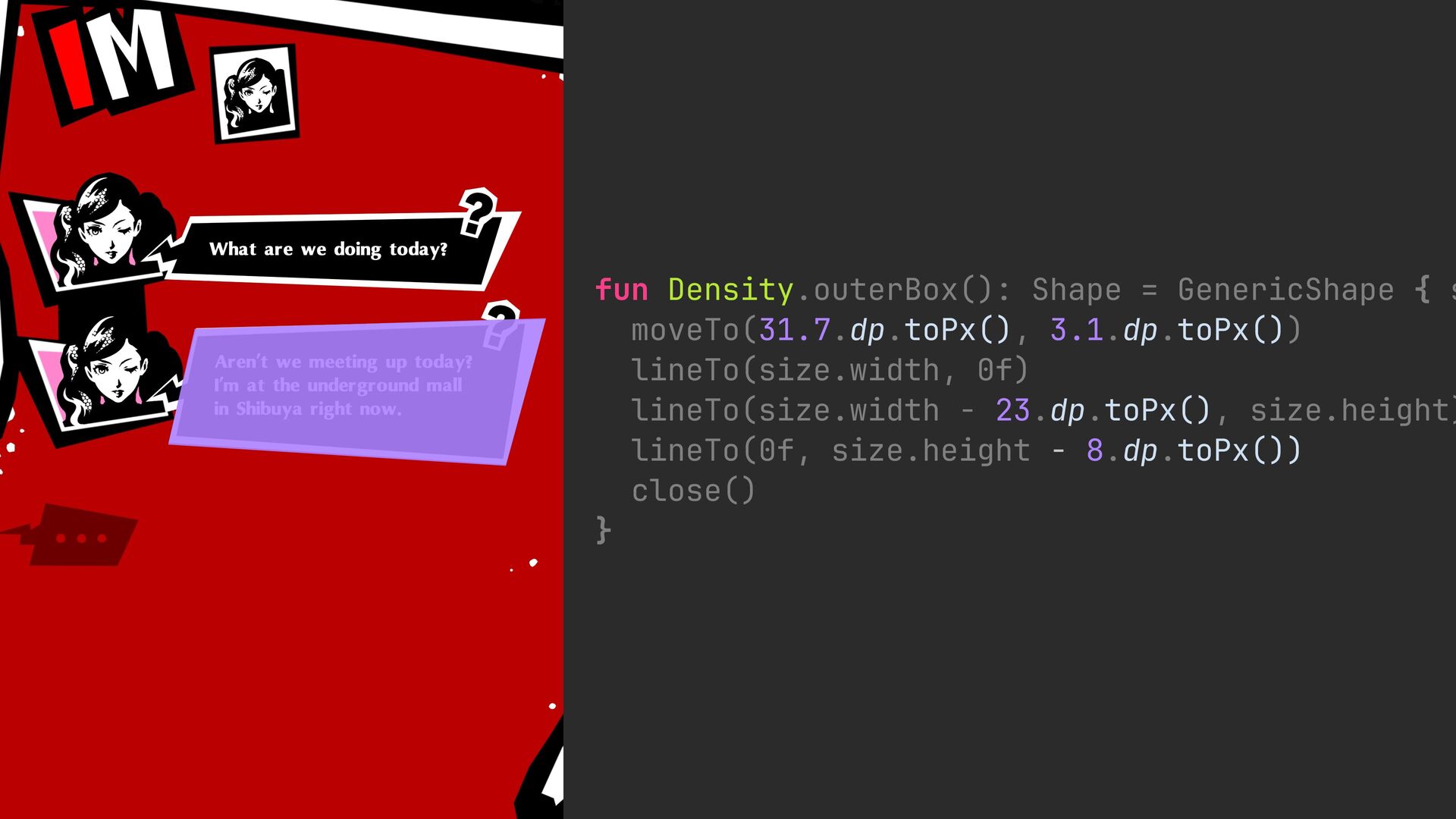

60. fun Density.outerBox(): Shape = GenericShape { s -> moveTo(31.7.dp.toPx(), 3.1.dp.toPx()) lineTo(size.width, 0f) lineTo(size.width - 23.dp.toPx(), size.height) lineTo(0f, size.height - 8.dp.toPx( )​ ) c​ lose() } ©ATLUS ©SEGA
61. fun Density.outerBox(): Shape = GenericShape { size -> moveTo(31.7.dp.toPx(), 3.1.dp.toPx()) lineTo(size.width, 0f) lineTo(size.width - 23.dp.toPx(), size.height) lineTo(0f, size.height - 8.dp.toPx()) ​c​ lose( )​ } fun Density.innerBox(): Shape = GenericShape { size -> moveTo(33.dp.toPx(), 7.7.dp.toPx()) lineTo(size.width - 13.dp.toPx(), 3.7.dp.toPx()) lineTo(size.width - 25.7.dp.toPx(), size.height - 4.6.dp.toPx( lineTo(20.4.dp.toPx(), size.height - 12.dp.toPx()) close() } ©ATLUS ©SEGA

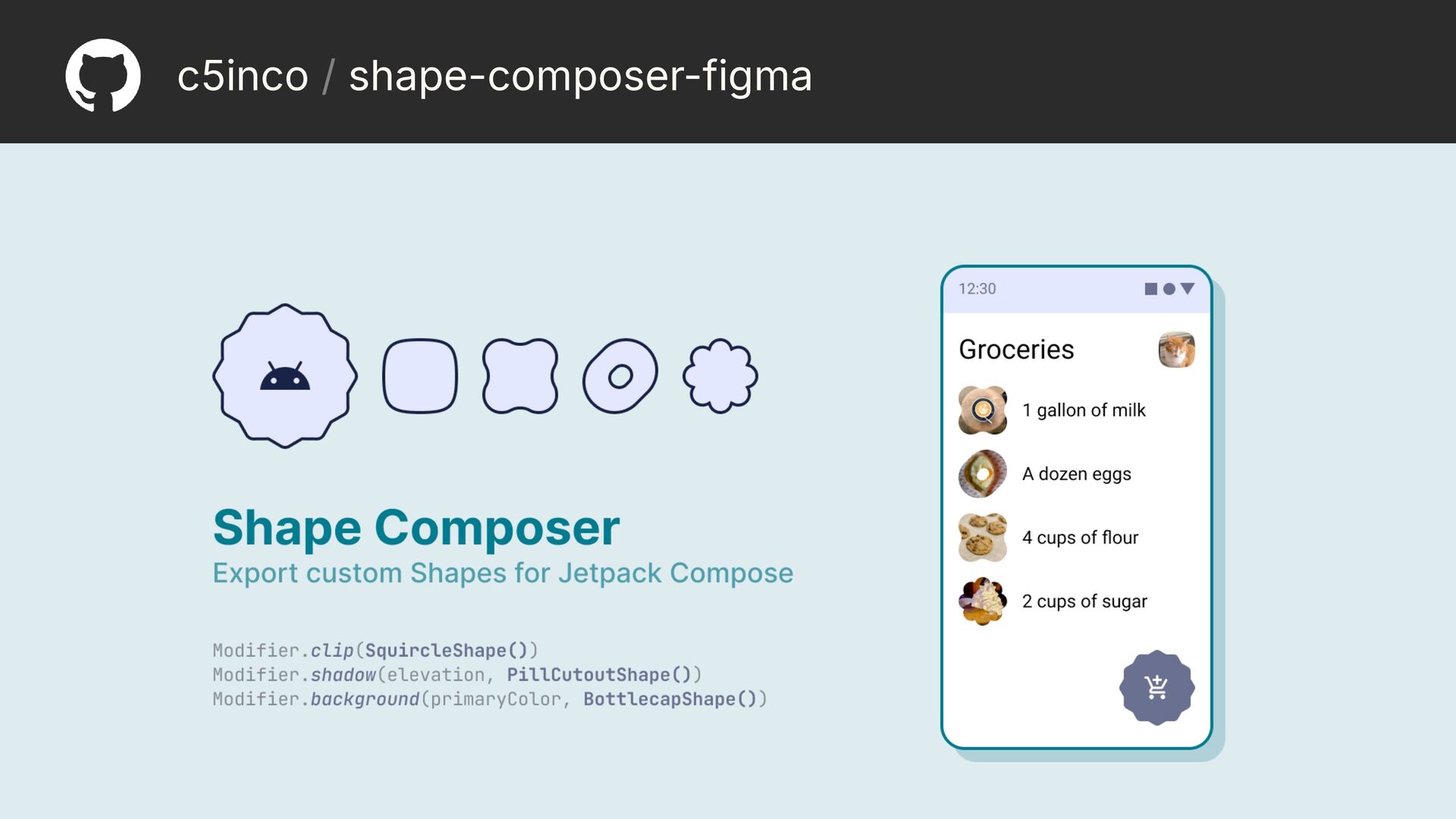

62. c5inco / shape-composer-figma

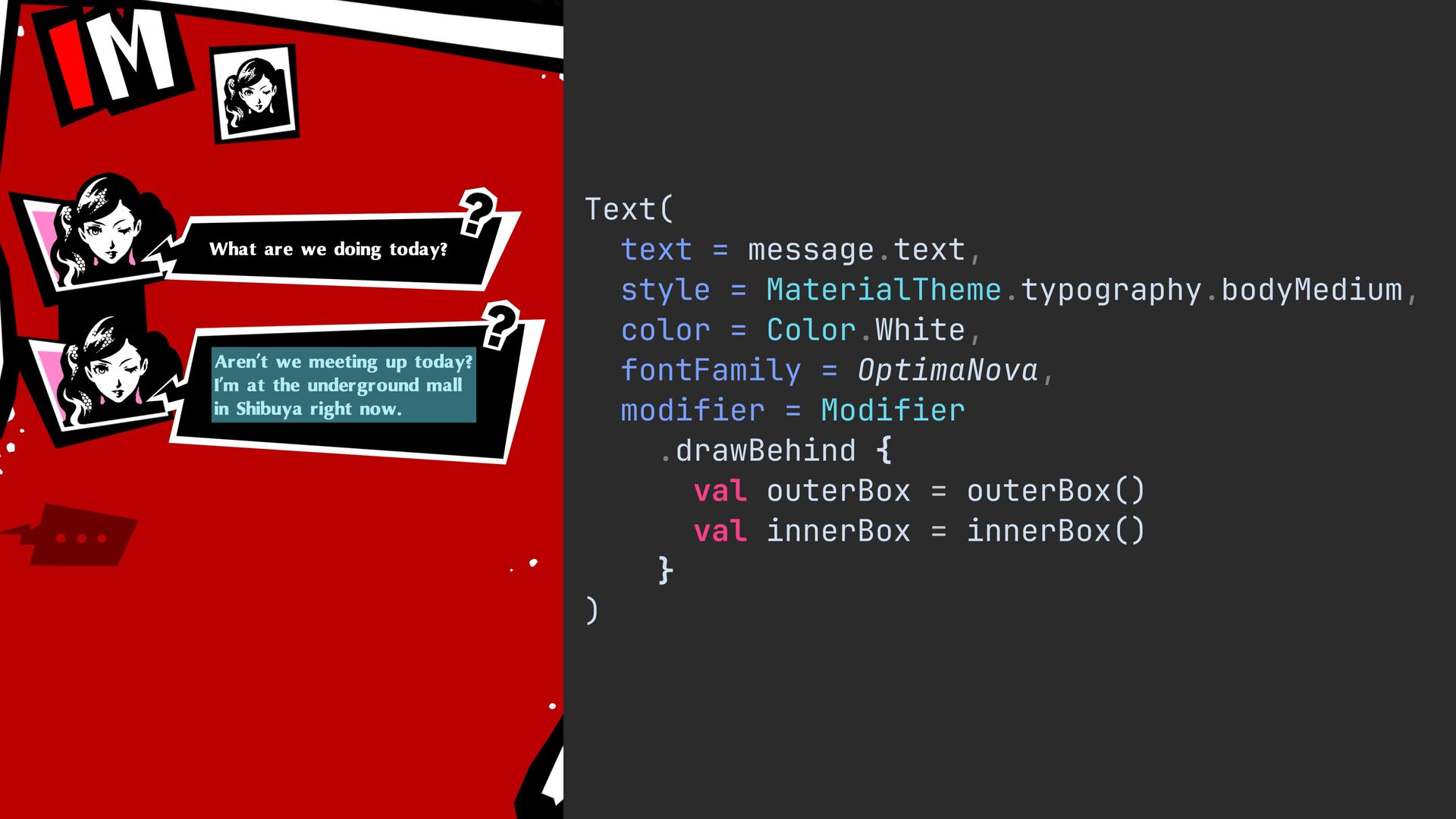

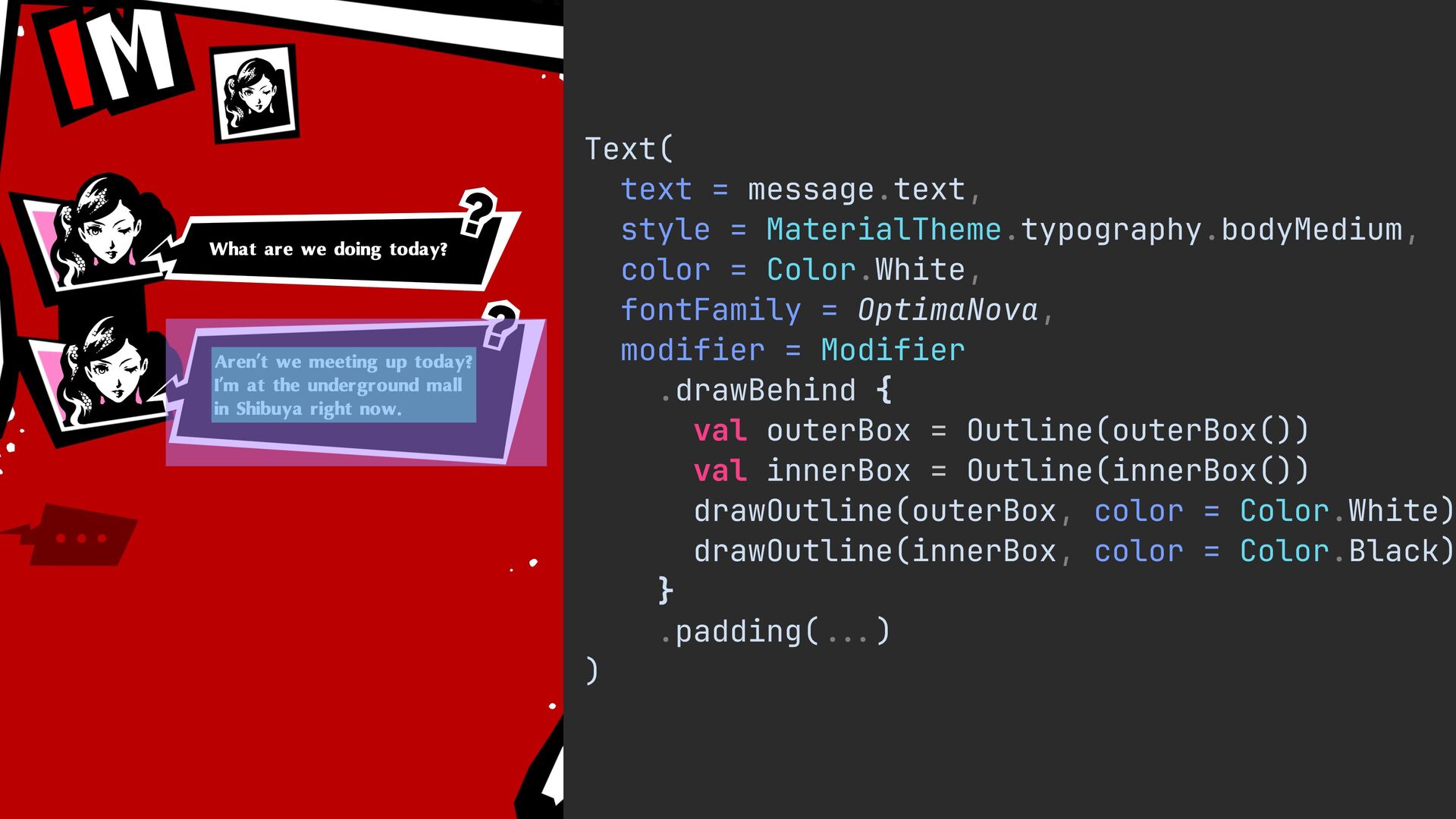

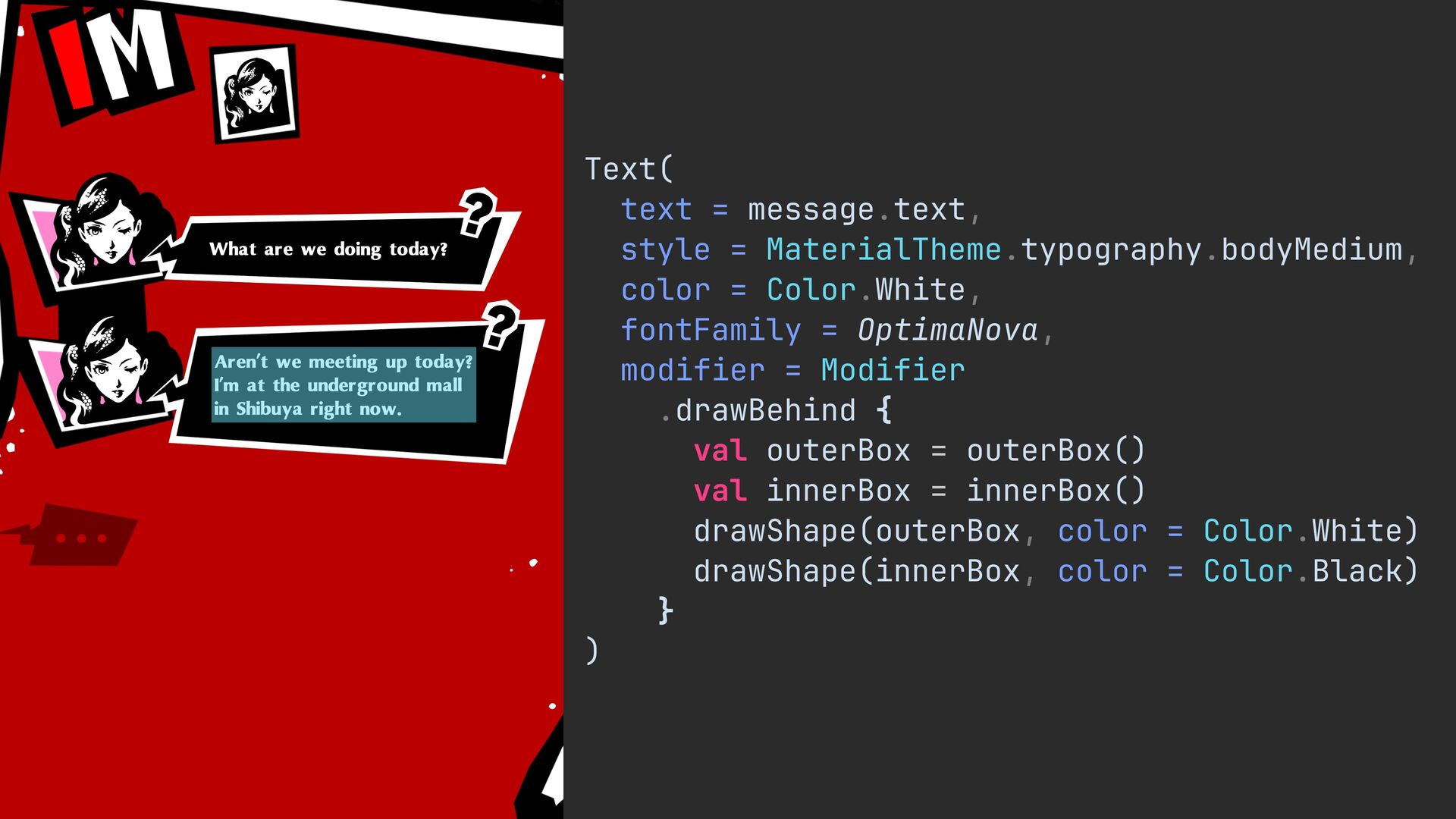

63. Text( text = message.text, style = MaterialTheme.typography.bodyMedium, color = Color.White, fontFamily = OptimaNova, ) ©ATLUS ©SEGA
64. Text( text = message.text, style = MaterialTheme.typography.bodyMedium, color = Color.White, fontFamily = OptimaNova, modifier = Modifier .drawBehind { val outerBox = outerBox() val innerBox = innerBox() } ) ©ATLUS ©SEGA

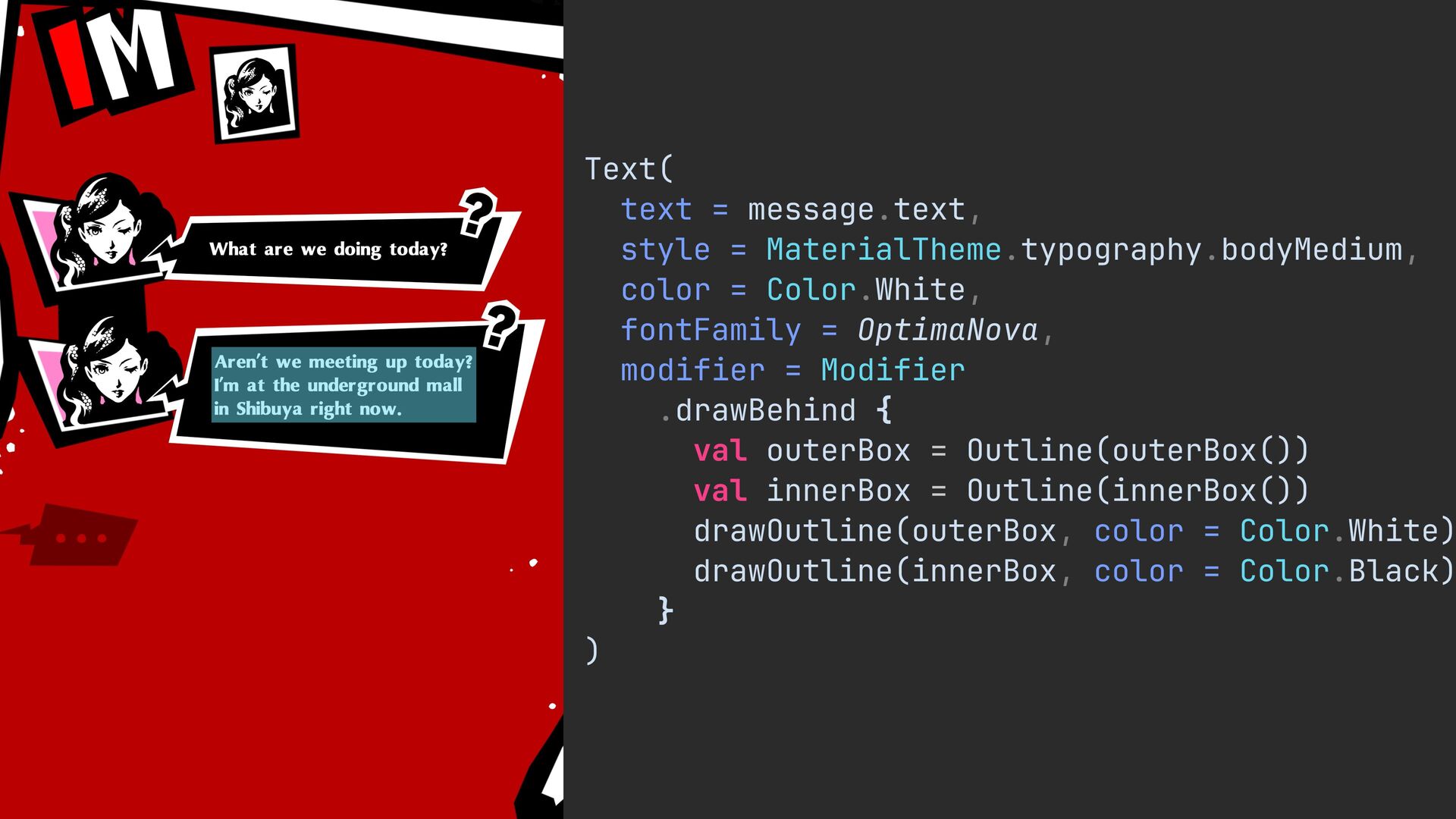

65. Text( text = message.text, style = MaterialTheme.typography.bodyMedium, color = Color.White, fontFamily = OptimaNova, modifier = Modifier .drawBehind { val outerBox = outerBox() val innerBox = innerBox() drawShape(outerBox, color = Color.White) drawShape(innerBox, color = Color.Black) } ) ©ATLUS ©SEGA
66. Text( text = message.text, style = MaterialTheme.typography.bodyMedium, color = Color.White, fontFamily = OptimaNova, modifier = Modifier .drawBehind { val outerBox = Outline(outerBox()) val innerBox = Outline(innerBox()) drawOutline(outerBox, color = Color.White) drawOutline(innerBox, color = Color.Black) } ) ©ATLUS ©SEGA
67. Text( text = message.text, style = MaterialTheme.typography.bodyMedium, color = Color.White, fontFamily = OptimaNova, modifier = Modifier .drawBehind { val outerBox = Outline(outerBox()) val innerBox = Outline(innerBox()) drawOutline(outerBox, color = Color.White) drawOutline(innerBox, color = Color.Black) } .padding( ... ) ) ©ATLUS ©SEGA

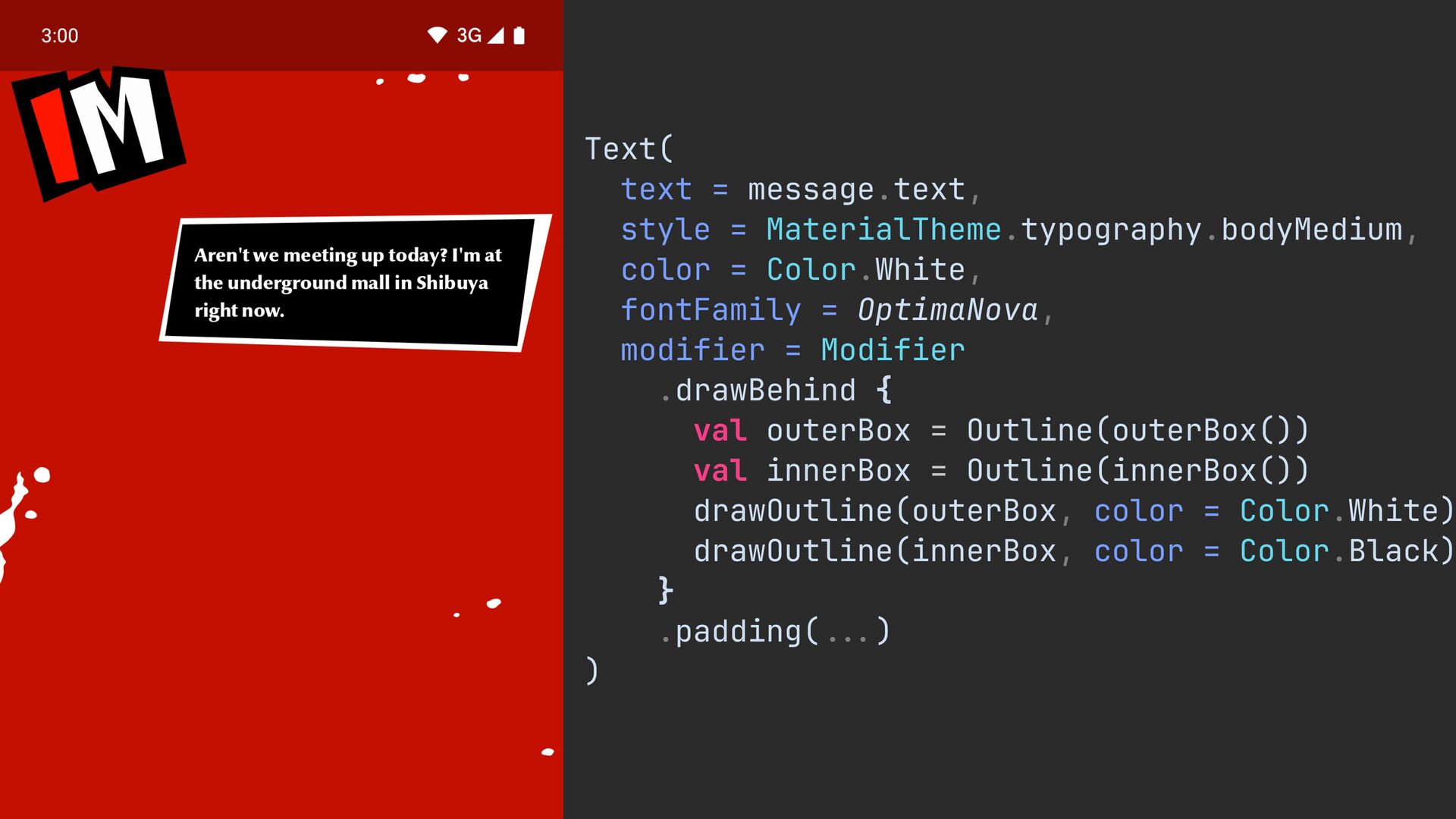

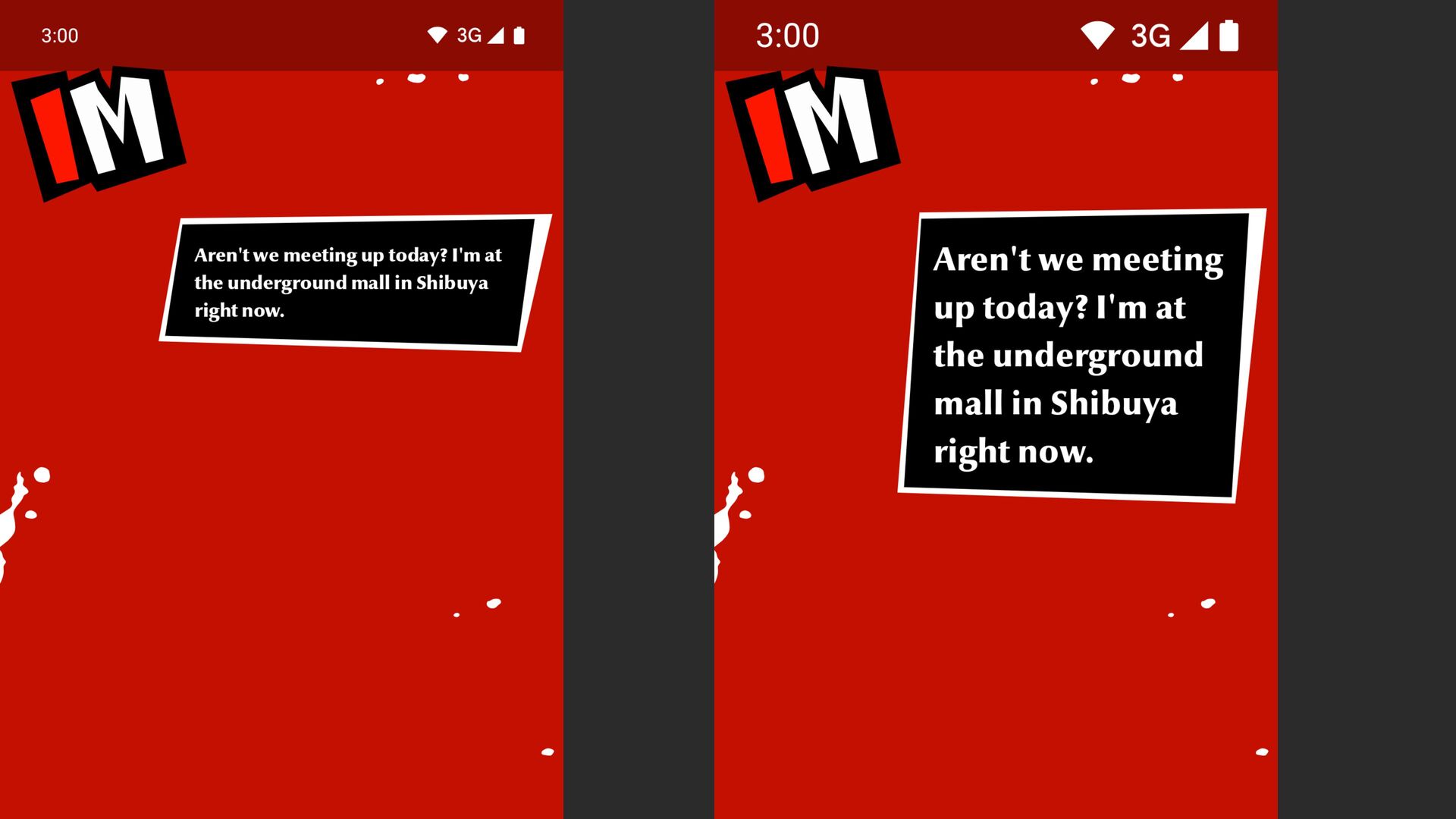

68. Text( text = message.text, style = MaterialTheme.typography.bodyMedium, color = Color.White, fontFamily = OptimaNova, modifier = Modifier .drawBehind { val outerBox = Outline(outerBox()) val innerBox = Outline(innerBox()) drawOutline(outerBox, color = Color.White) drawOutline(innerBox, color = Color.Black) } .padding( ... ) ) ©ATLUS ©SEGA
69. ©ATLUS ©SEGA

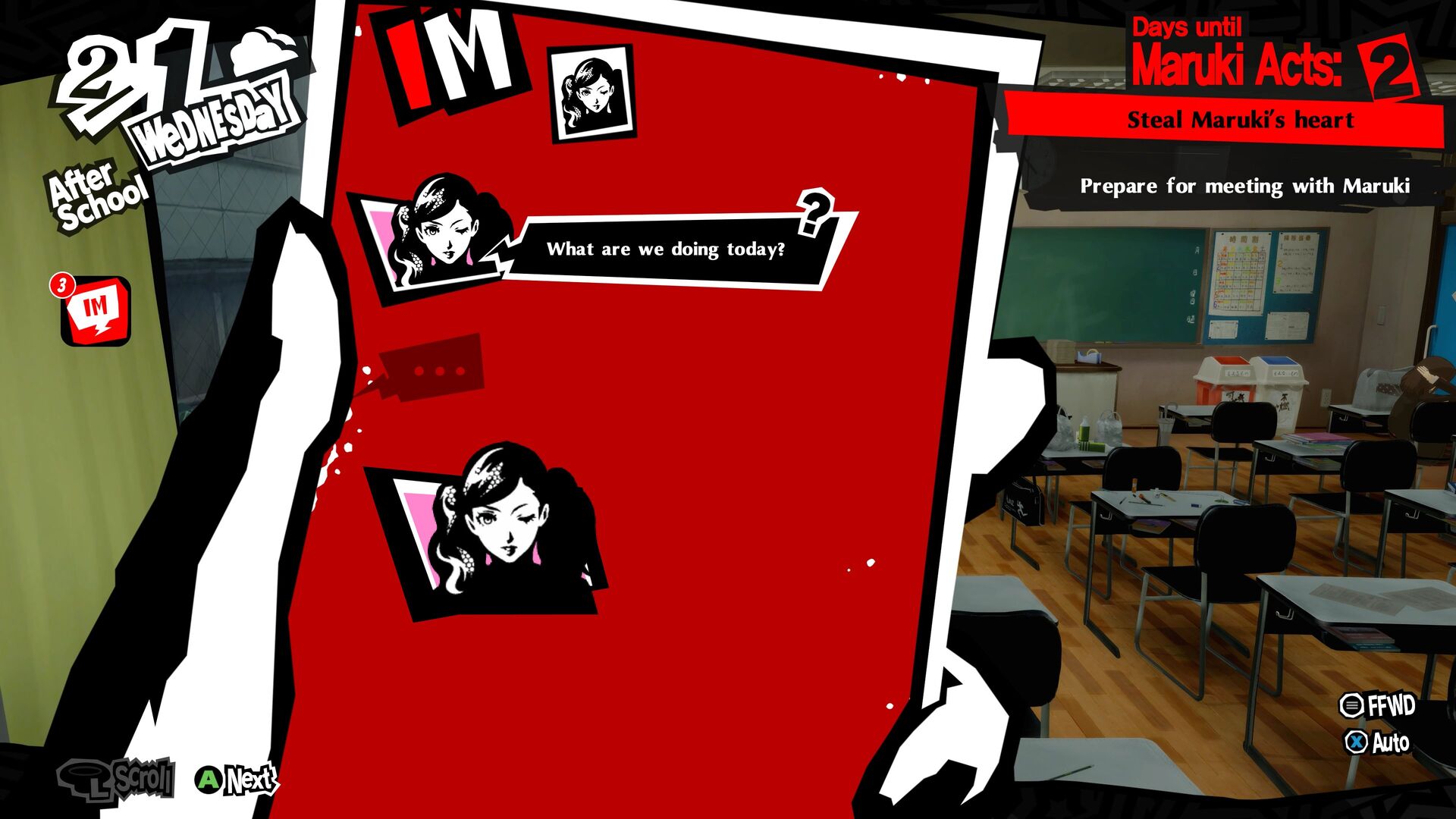

70. Avatar ©ATLUS ©SEGA
71. ©ATLUS ©SEGA

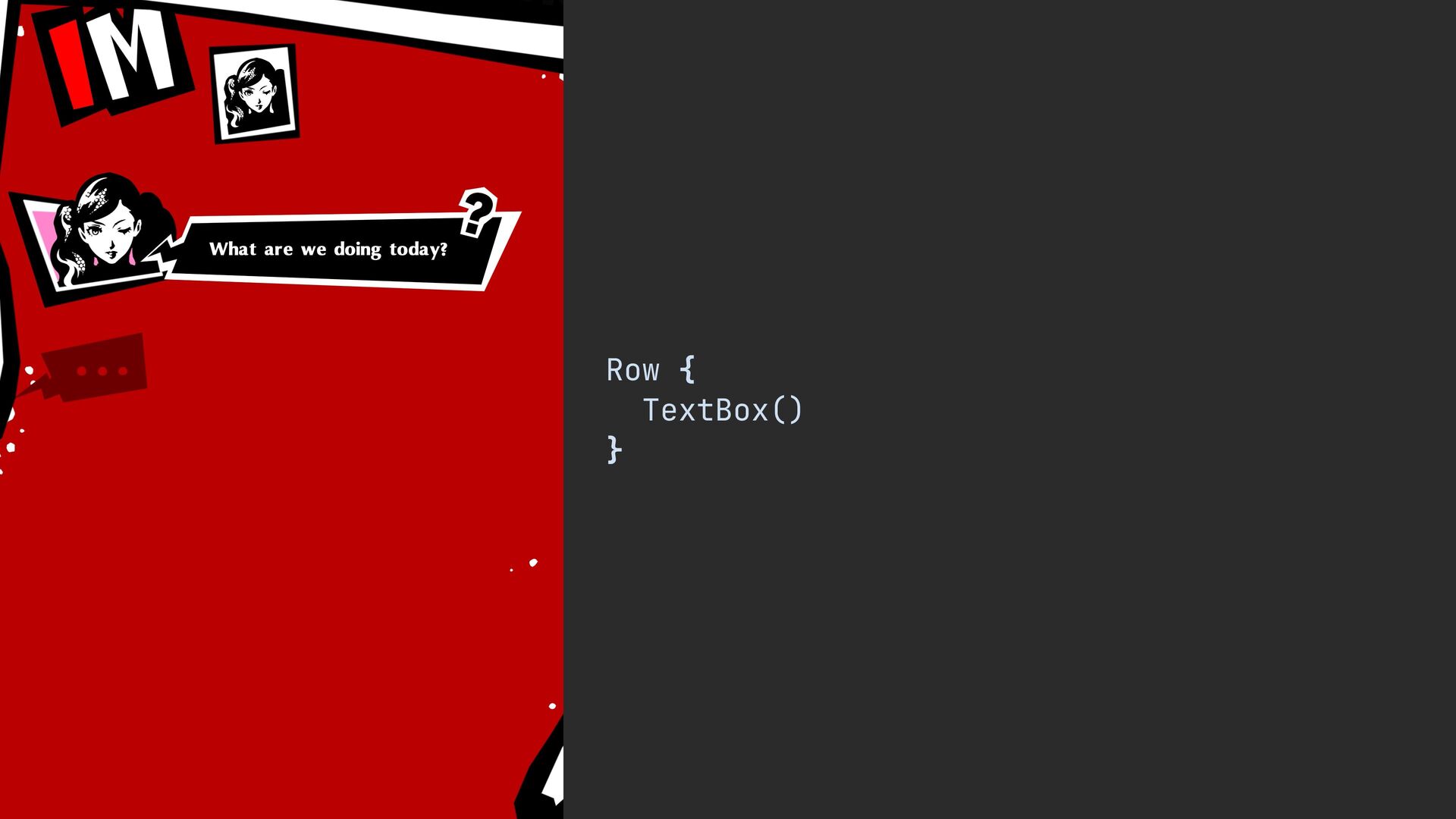

72. Row { TextBox() } ©ATLUS ©SEGA

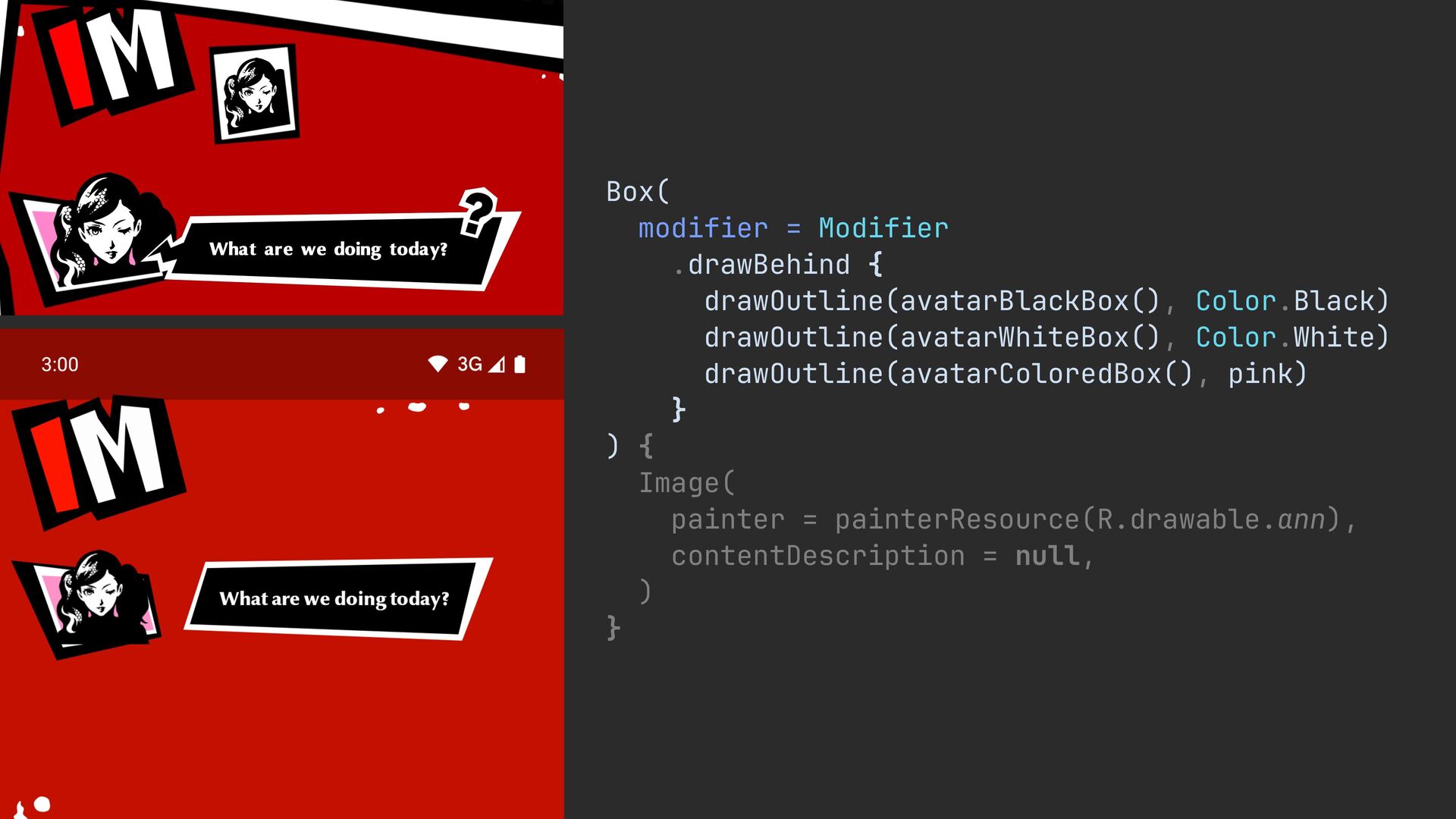

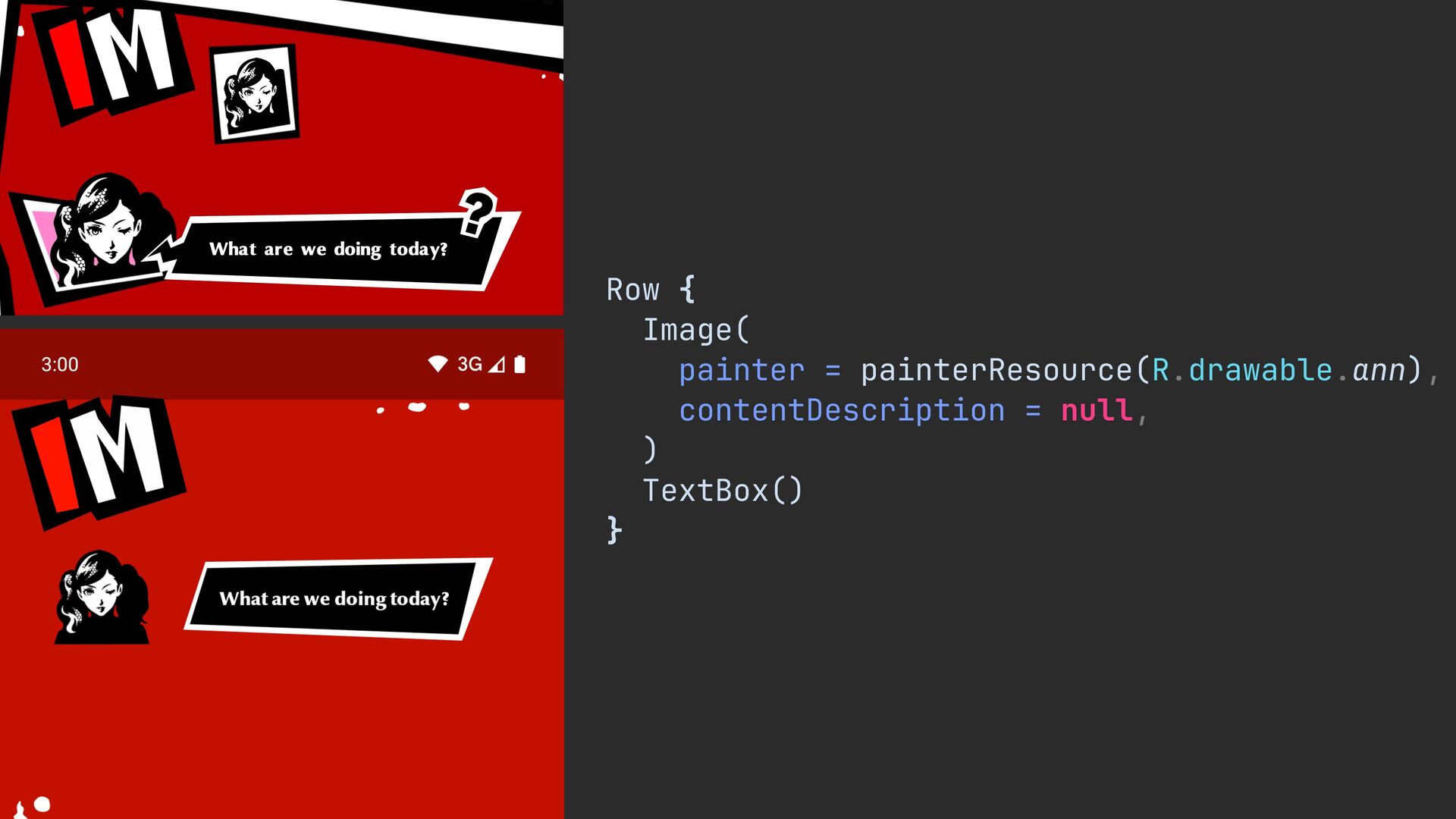

73. Row { Image( painter = painterResource(R.drawable.ann), contentDescription = null, ) TextBox() } ©ATLUS ©SEGA
74. Box( modifier = Modifier .drawBehind { drawOutline(avatarBlackBox(), Color.Black) drawOutline(avatarWhiteBox(), Color.White) drawOutline(avatarColoredBox(), pink) } ) { Image( painter = painterResource(R.drawable.ann), contentDescription = null, ) } ©ATLUS ©SEGA

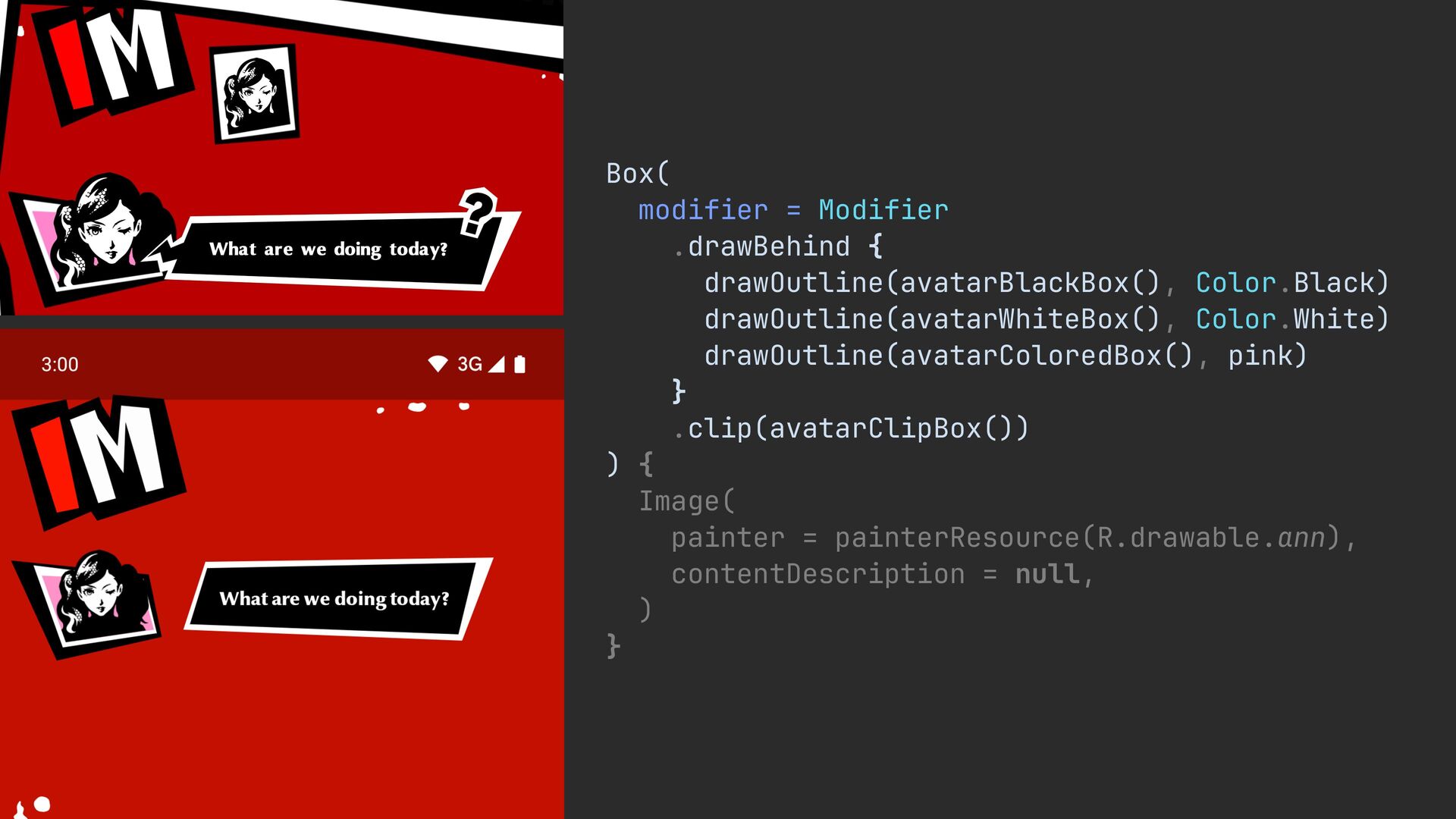

75. Box( modifier = Modifier .drawBehind { drawOutline(avatarBlackBox(), Color.Black) drawOutline(avatarWhiteBox(), Color.White) drawOutline(avatarColoredBox(), pink) drawOutline (​ avatarClipBox(), Color.Magenta) } ) { Image( painter = painterResource(R.drawable.ann), contentDescription = null, ) } ©ATLUS ©SEGA
76. Box( modifier = Modifier .drawBehind { drawOutline(avatarBlackBox(), Color.Black) drawOutline(avatarWhiteBox(), Color.White) drawOutline(avatarColoredBox(), pink) } .clip (​ avatarClipBox( )​ ) ) { Image( painter = painterResource(R.drawable.ann), contentDescription = null, ) } ©ATLUS ©SEGA

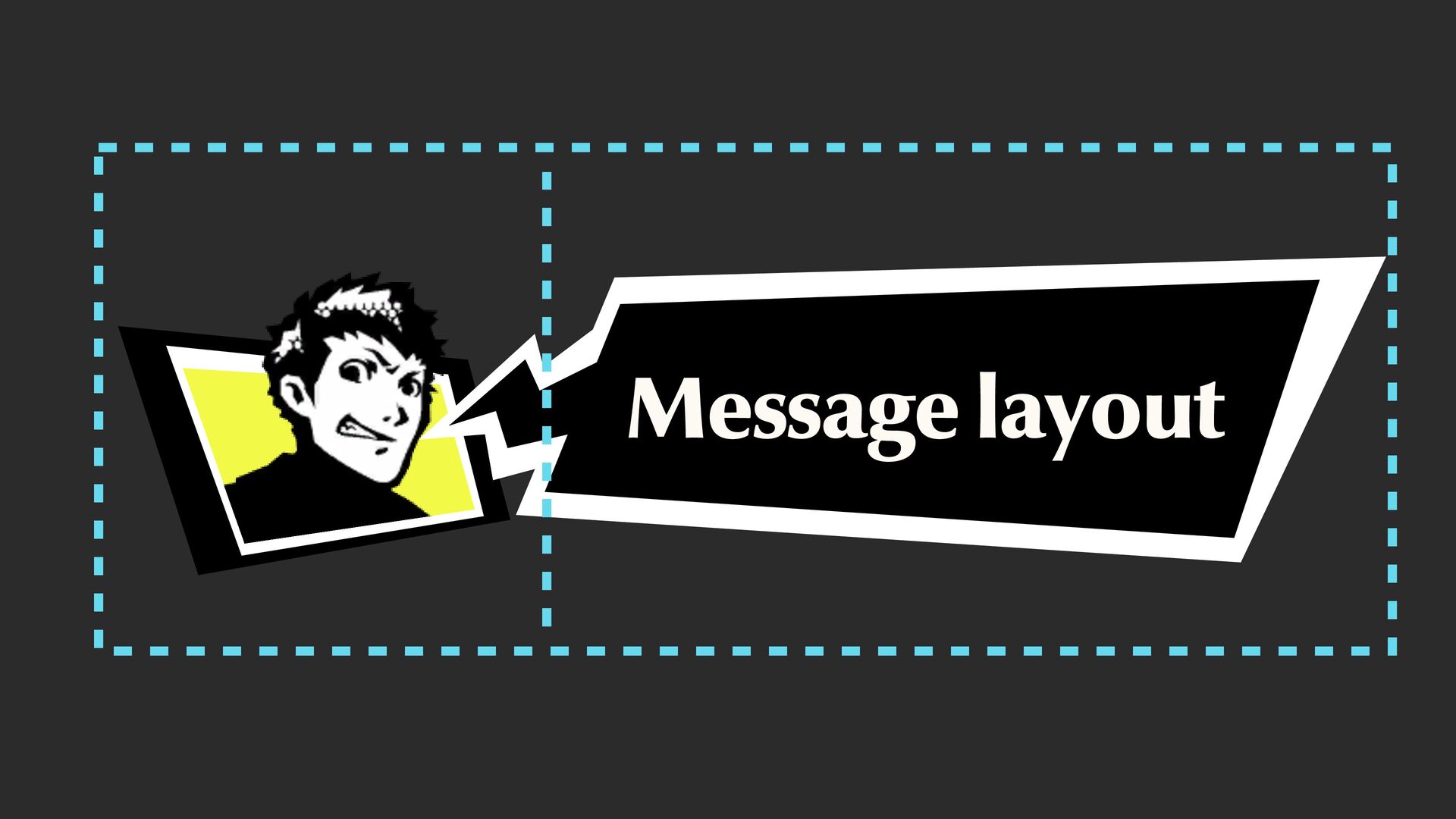

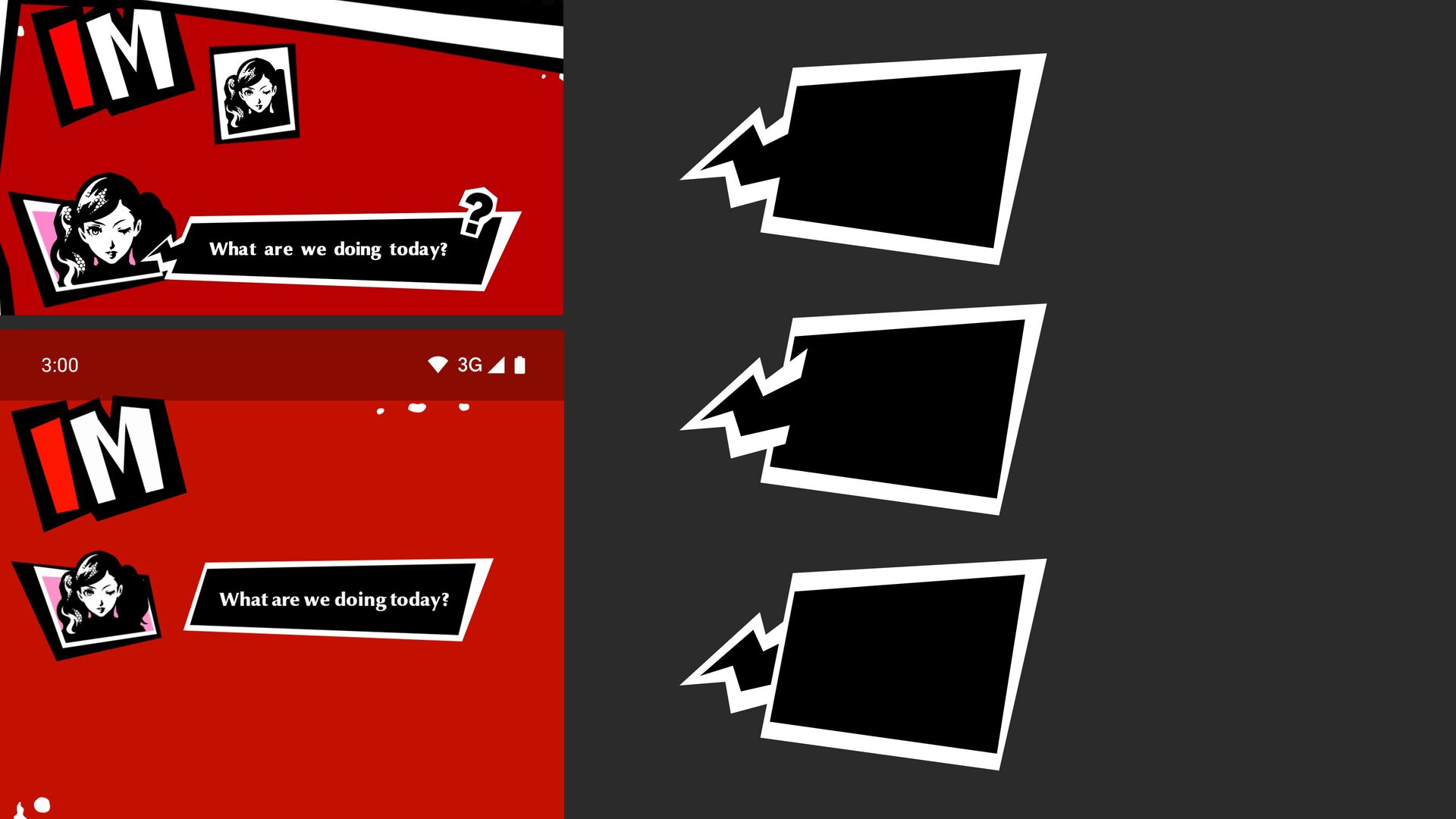

77. Message layout ©ATLUS ©SEGA
78. Row { Avatar() TextBox() } ©ATLUS ©SEGA

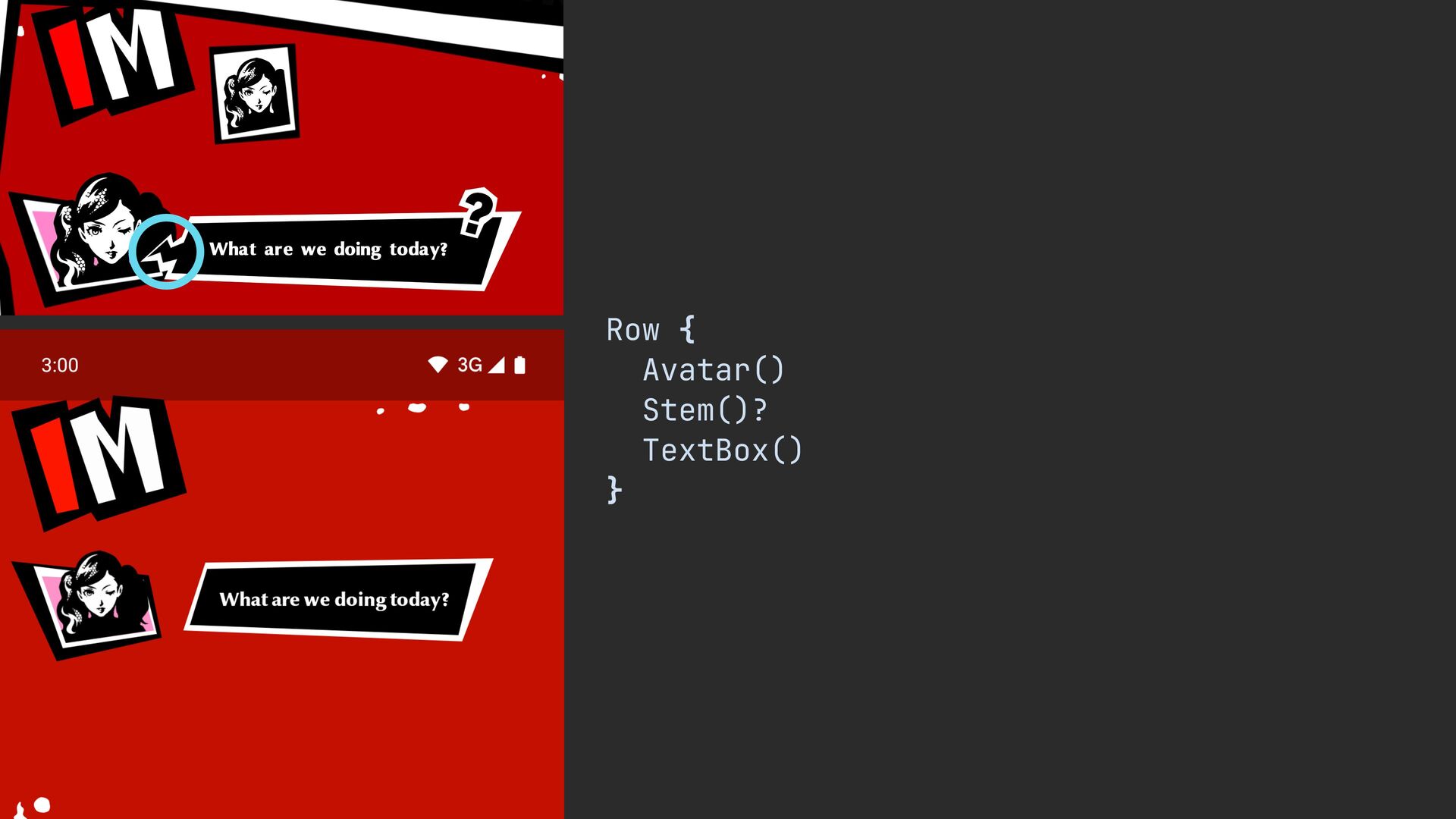

79. Row { Avatar() Stem()? TextBox() } ©ATLUS ©SEGA
80. ©ATLUS ©SEGA
81. ©ATLUS ©SEGA
82. Row { Avatar() TextBox() } ©ATLUS ©SEGA

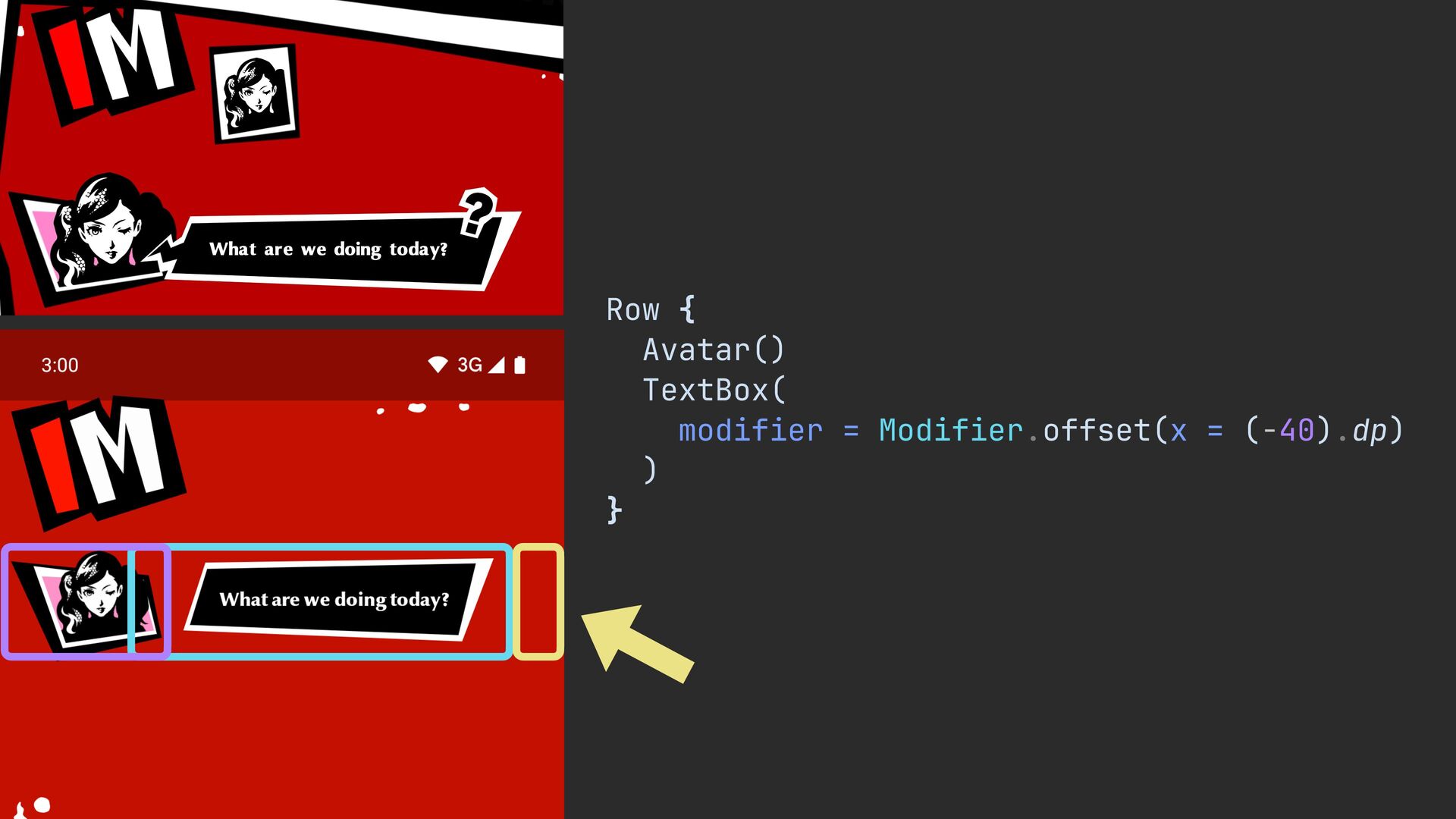

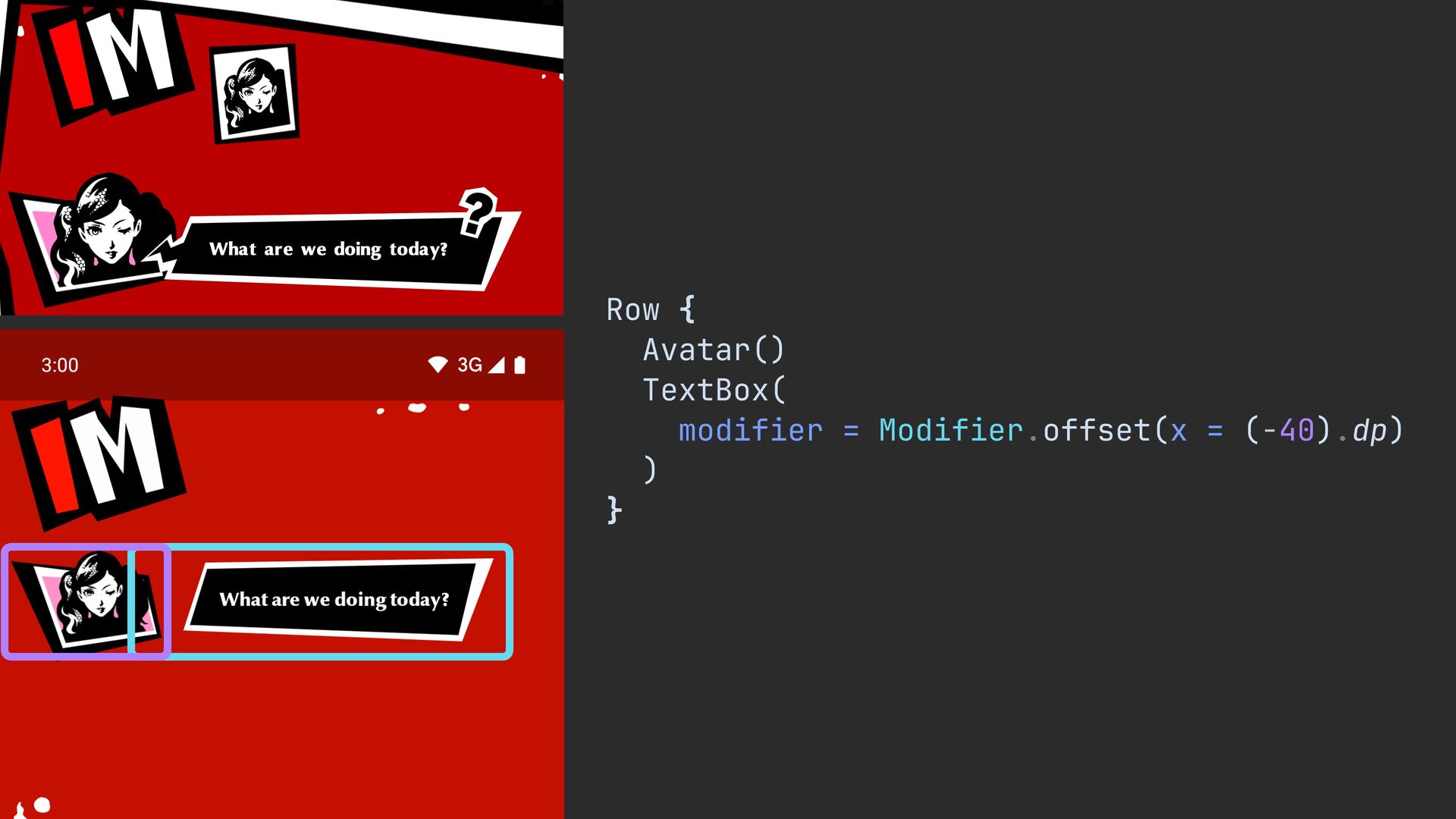

83. Row { Avatar() TextBox( modifier = Modifier.offset(x = (-40).dp) ) } ©ATLUS ©SEGA

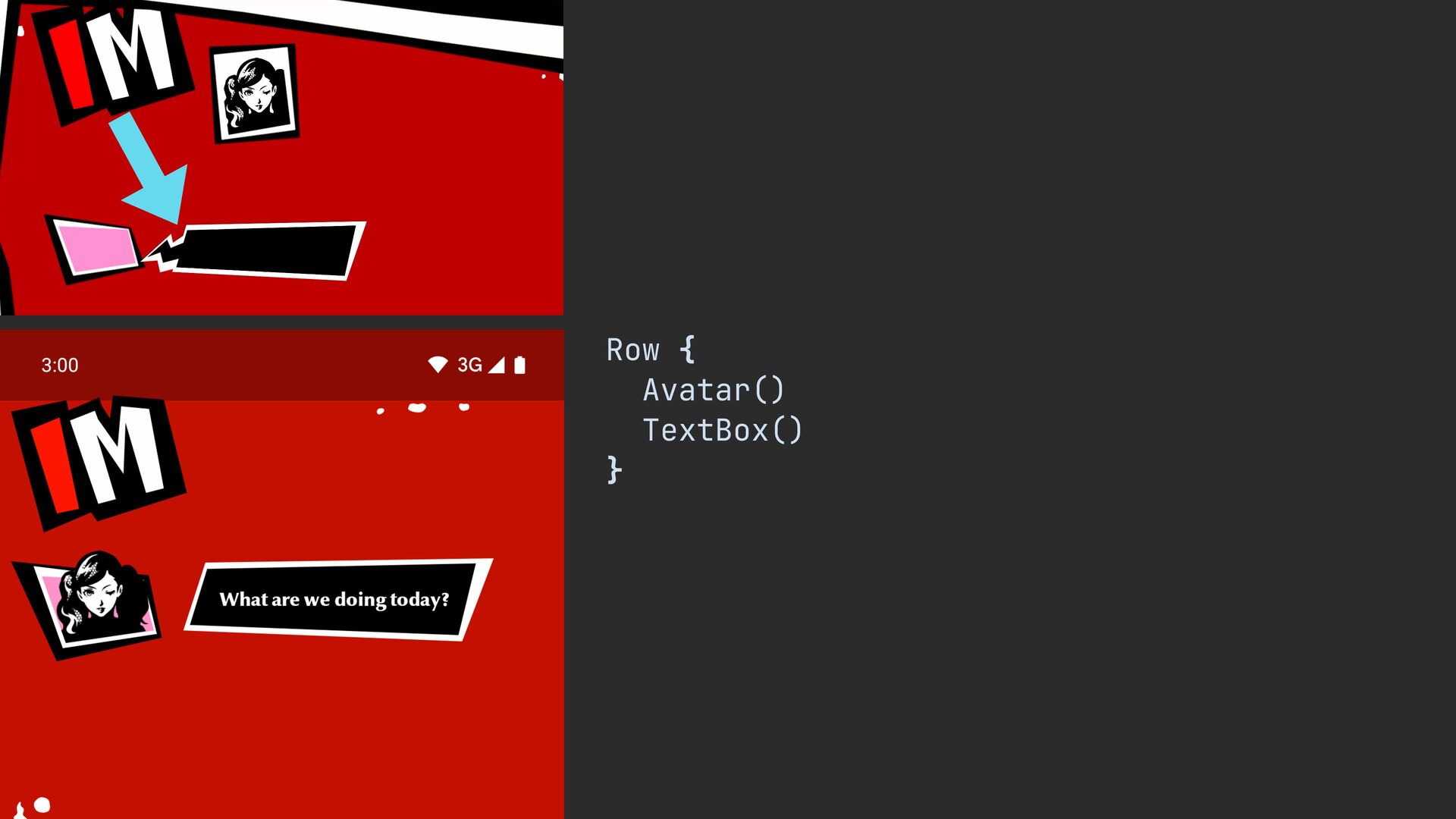

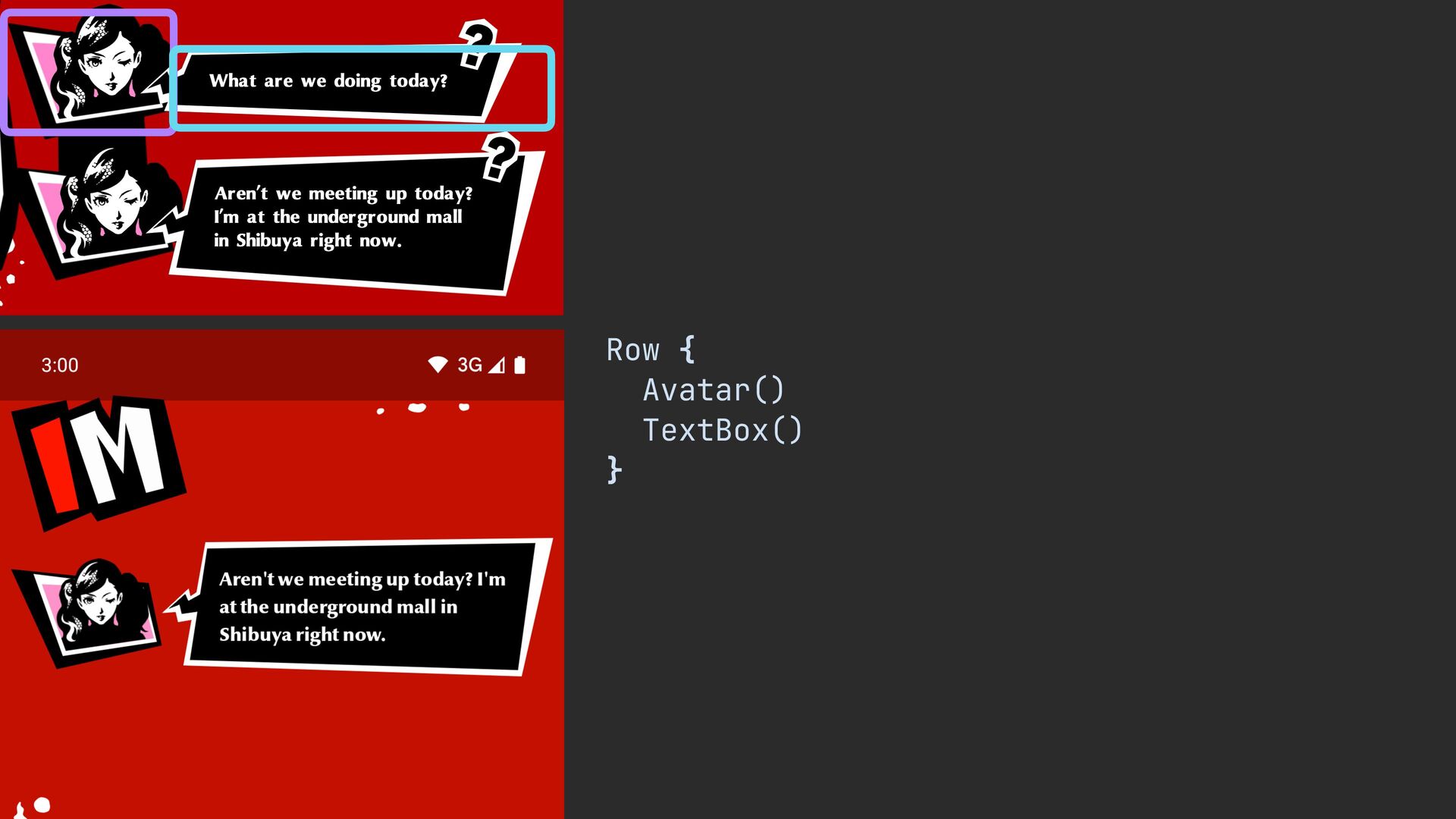

84. Row { Avatar() TextBox( modifier = Modifier.offset(x = (-40).dp) ) } ©ATLUS ©SEGA

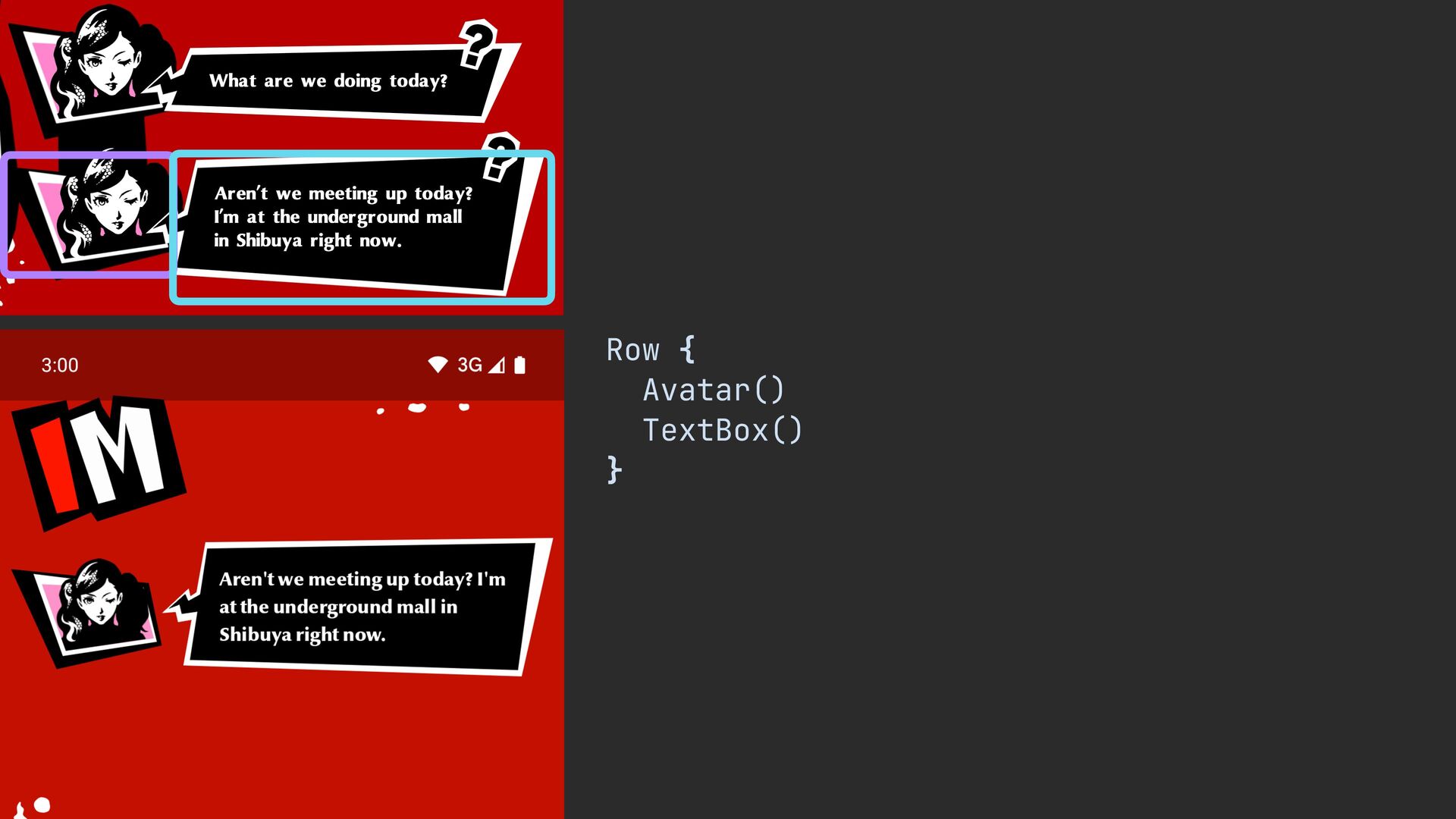

85. Row { Avatar() TextBox() } ©ATLUS ©SEGA
86. Row { Avatar() TextBox() } ©ATLUS ©SEGA

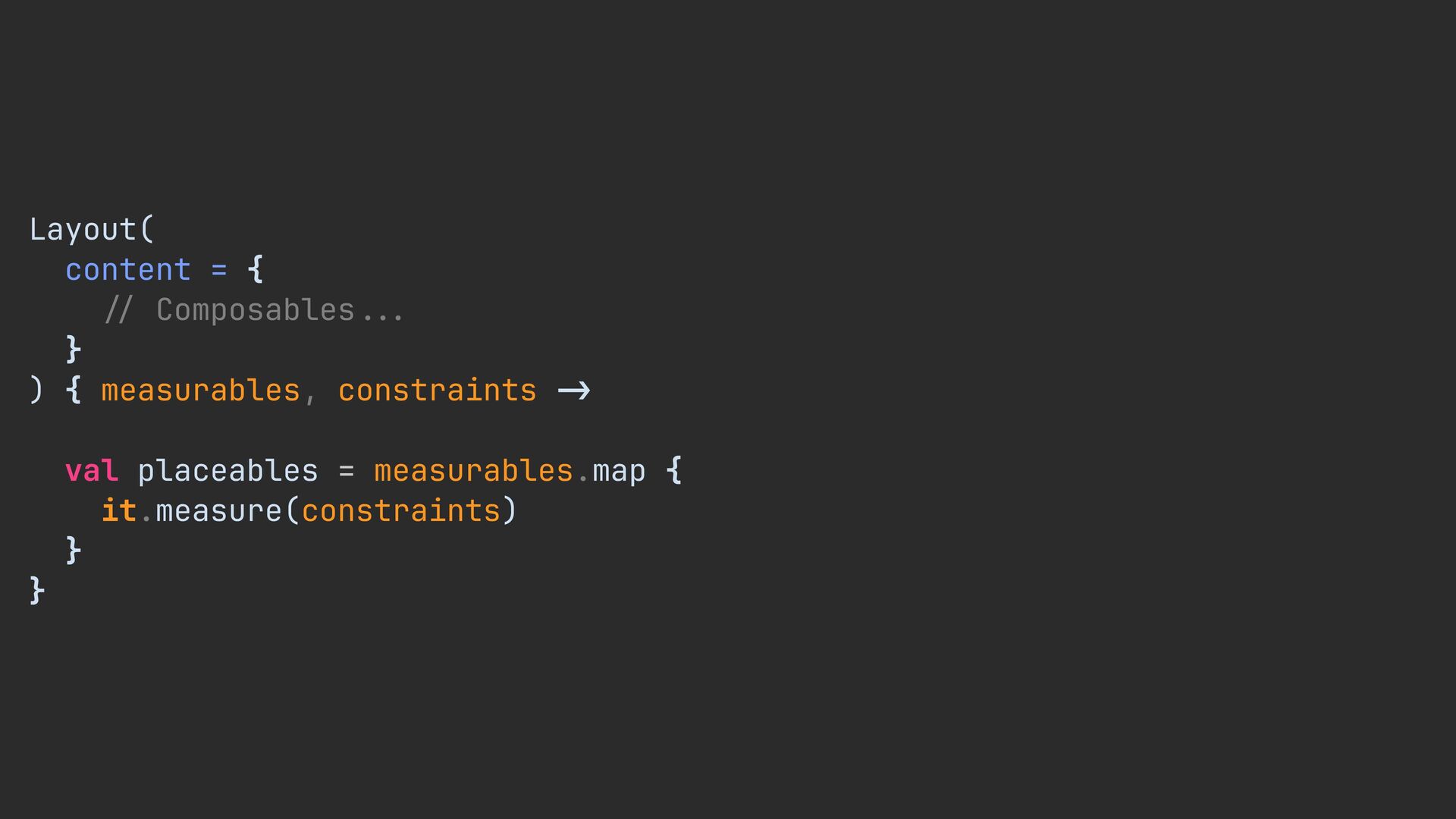

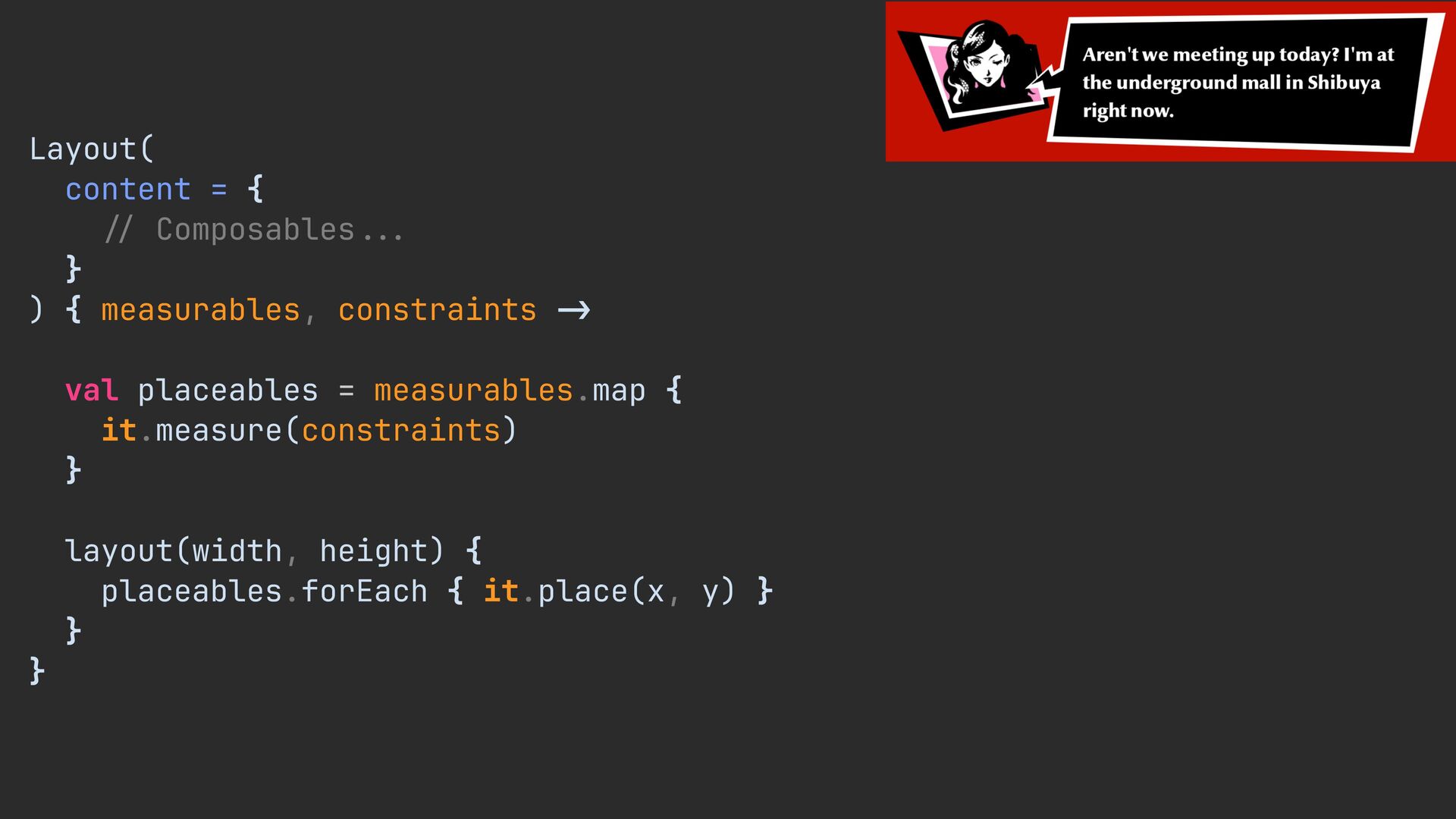

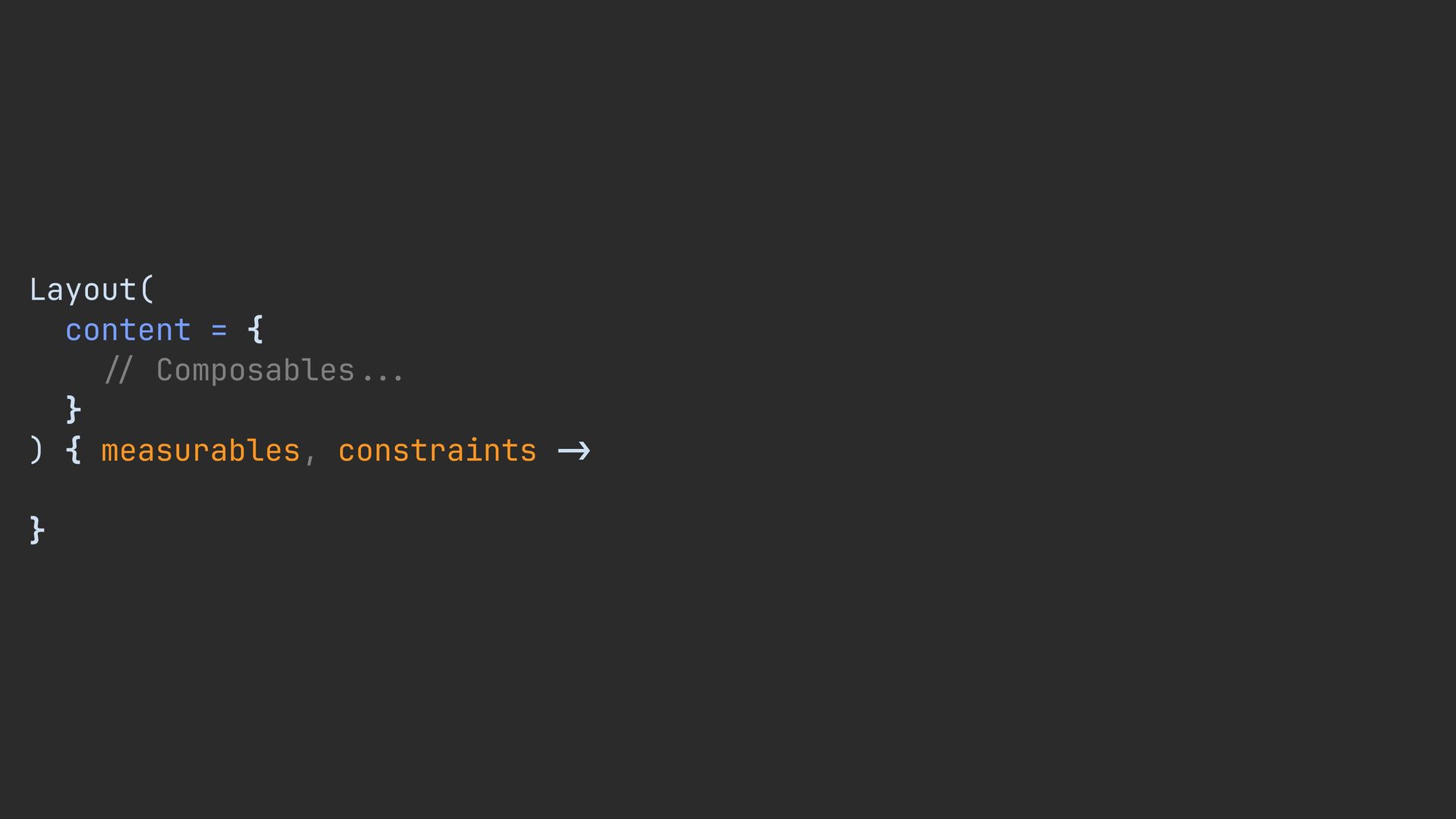

87. Layout( content = { // Composables ... } ) { measurables, constraints -> }
88. Layout( content = { // Composables ... } ) { measurables, constraints -> val placeables = measurables.map { it.measure(constraints) } }

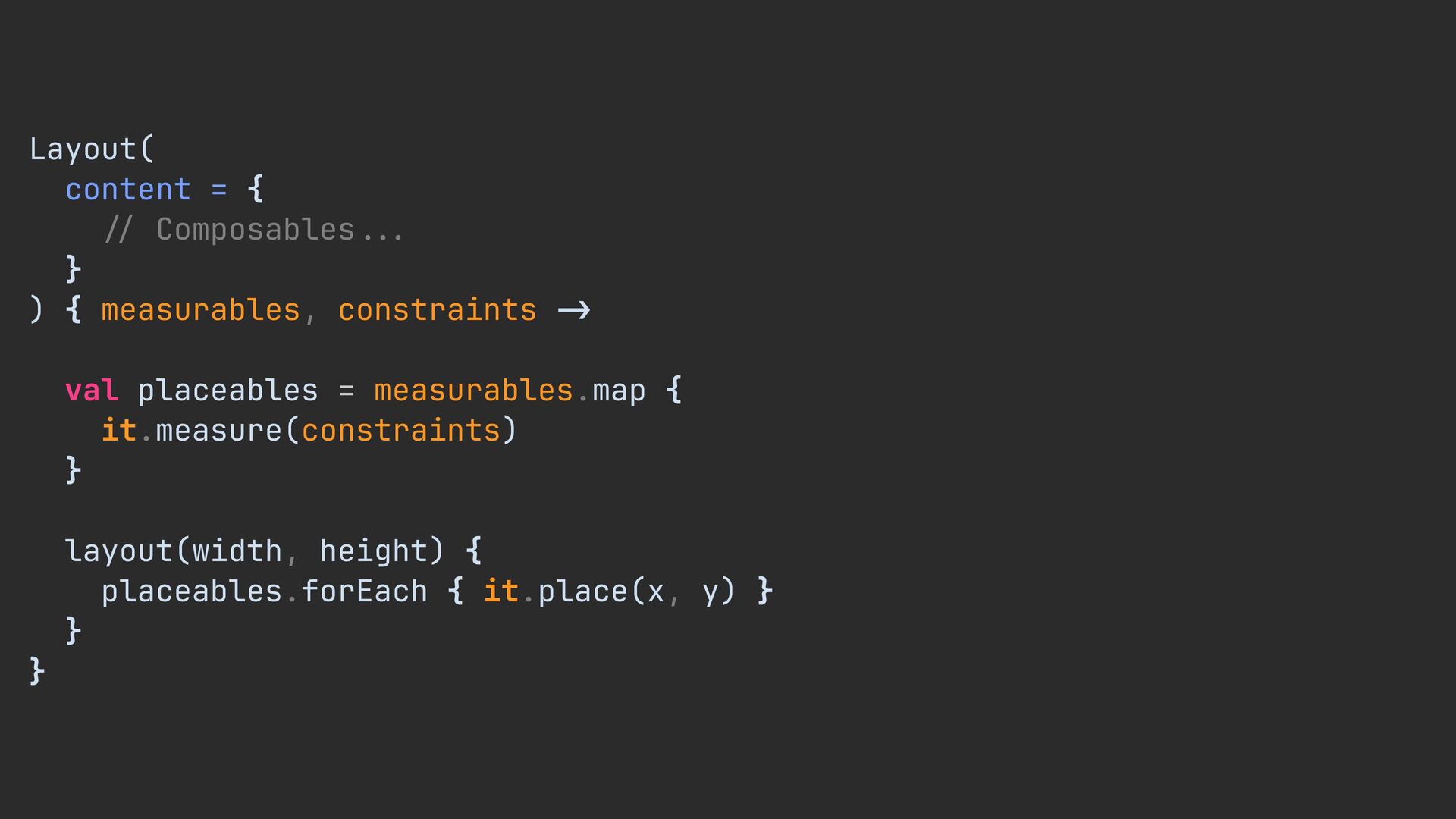

89. Layout( content = { // Composables ... } ) { measurables, constraints -> val placeables = measurables.map { it.measure(constraints) } layout(width, height) { placeables.forEach { it.place(x, y) } } }
90. Layout( content = { // Composables ... } ) { measurables, constraints -> val placeables = measurables.map { it.measure(constraints) } layout(width, height) { placeables.forEach { it.place(x, y) } } } ©ATLUS ©SEGA

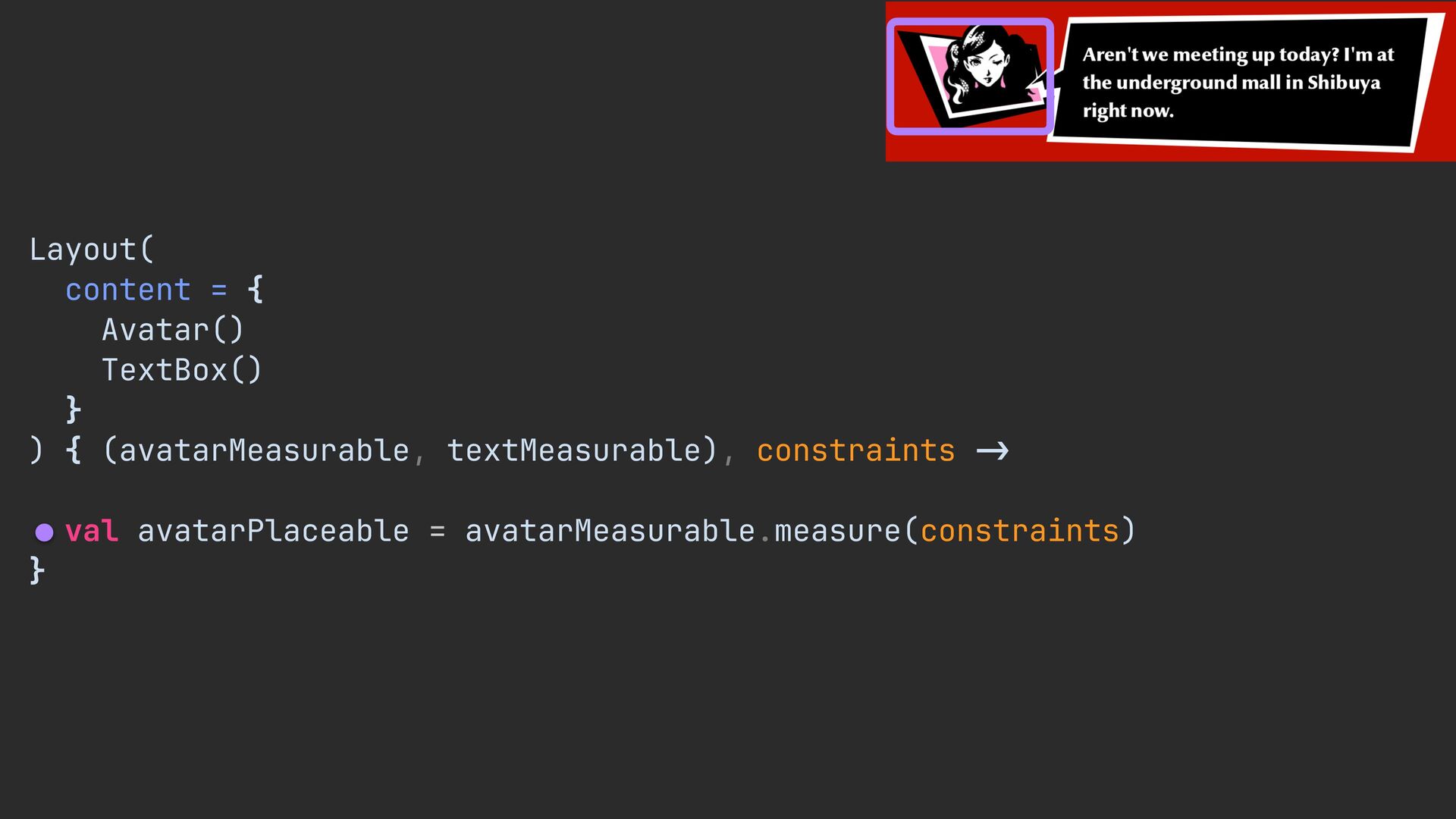

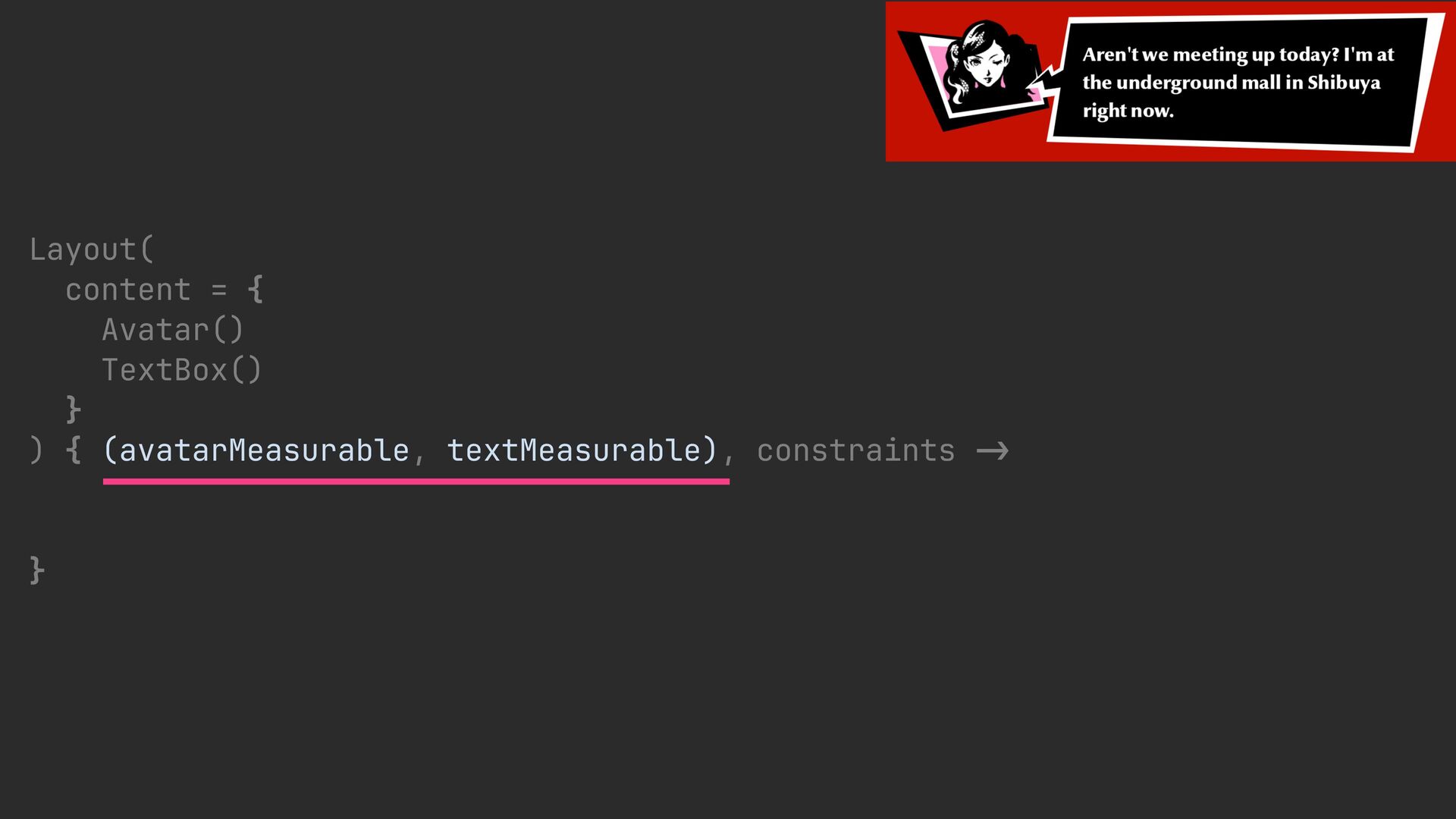

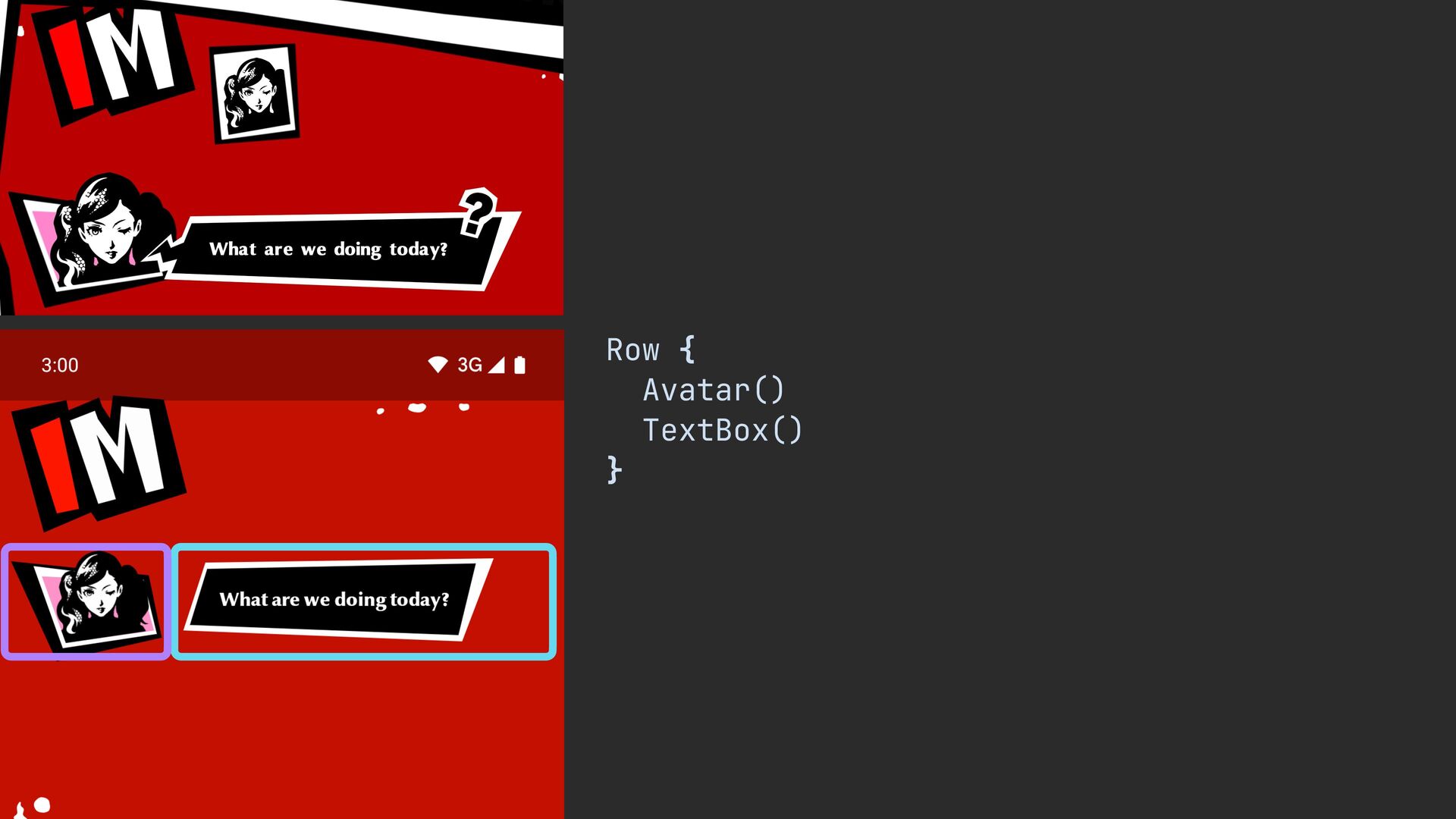

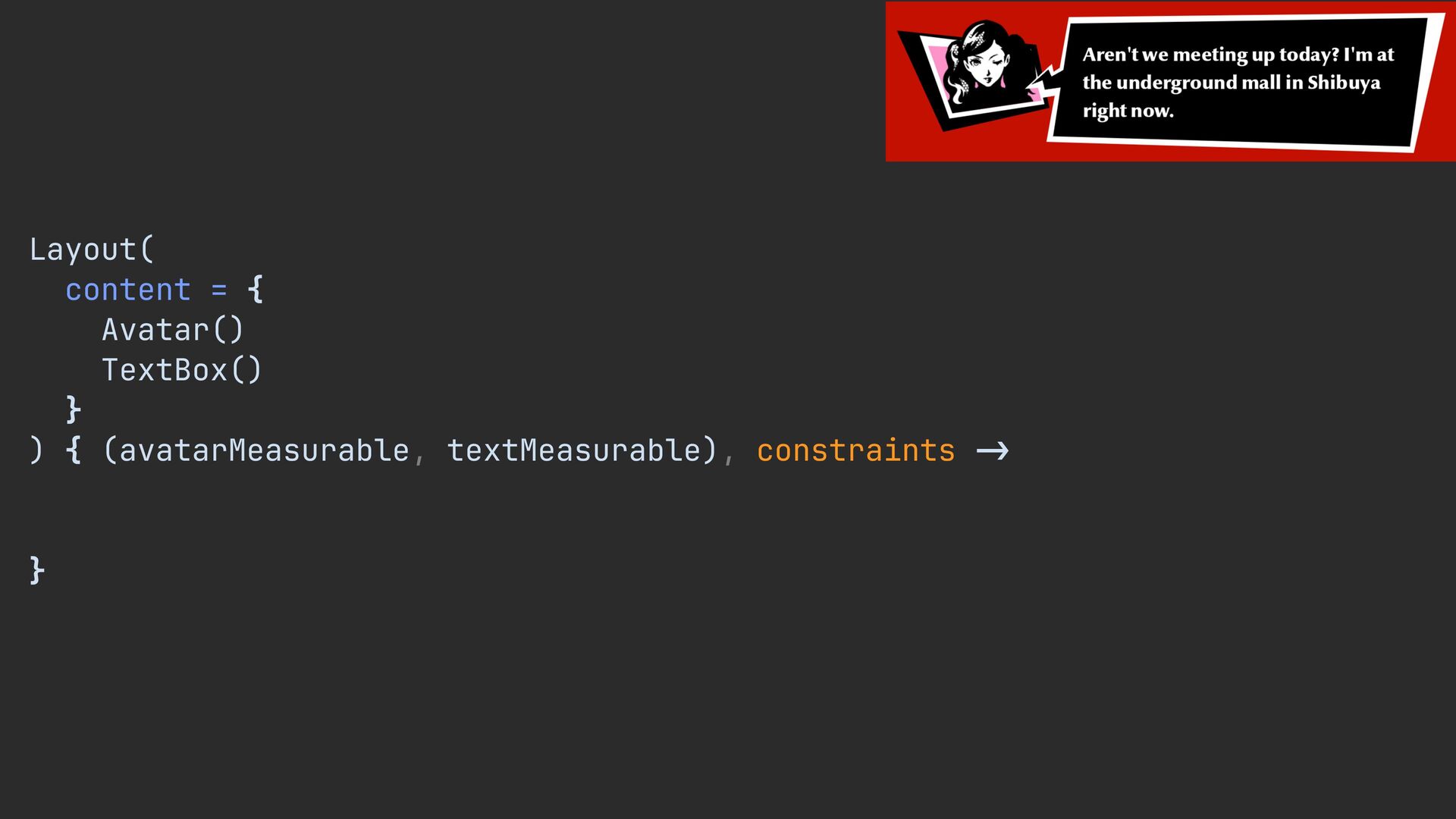

91. Layout( content = { Avatar() TextBox() } ) { (avatarMeasurable, textMeasurable), constraints -> } ©ATLUS ©SEGA
92. Layout( content = { Avatar() TextBox() } ) { (avatarMeasurable, textMeasurable), constraints -> } ©ATLUS ©SEGA

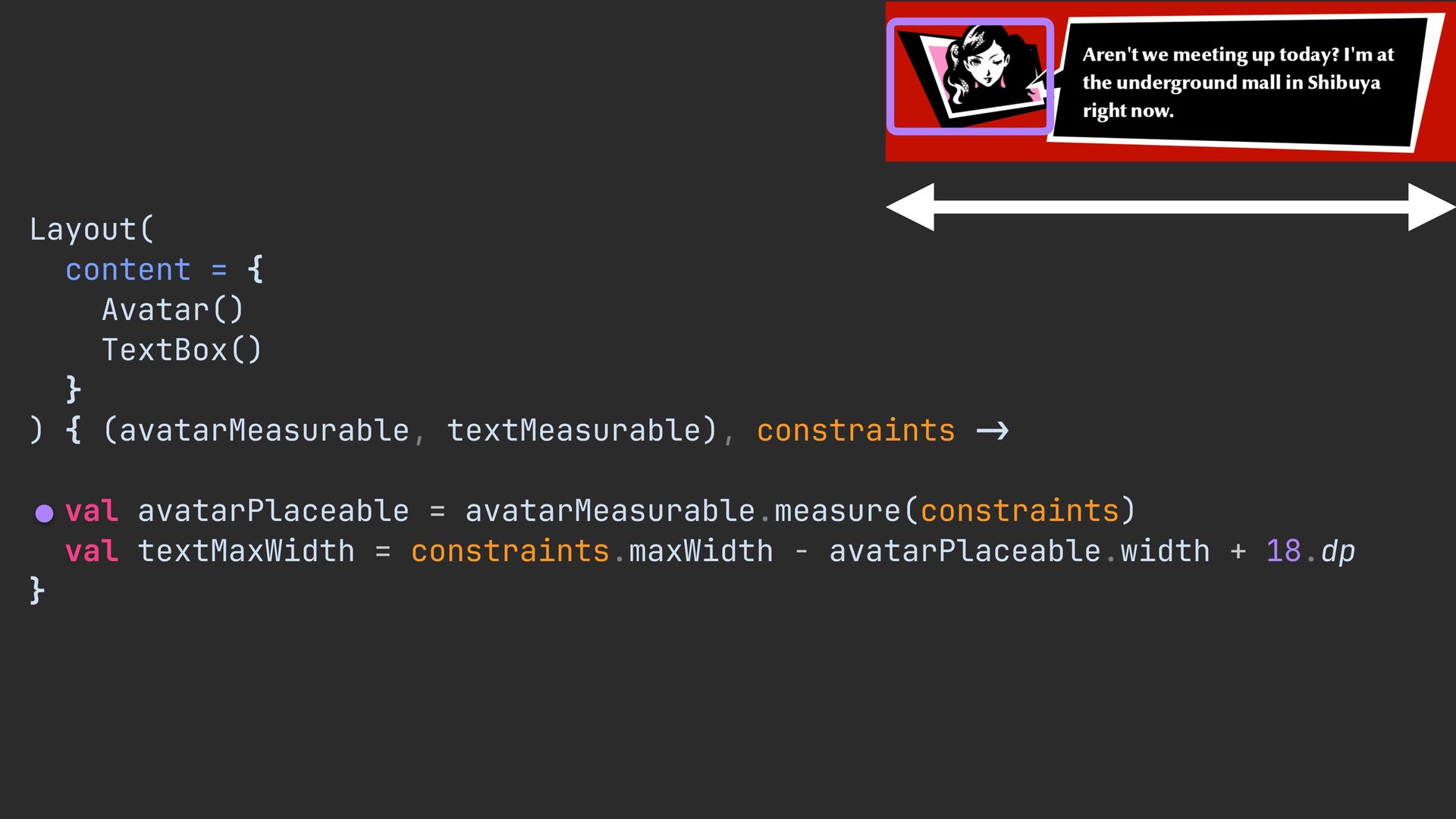

93. Layout( content = { Avatar() TextBox() } ) { (avatarMeasurable, textMeasurable), constraints -> val avatarPlaceable = avatarMeasurable.measure(constraints) } ©ATLUS ©SEGA
94. Layout( content = { Avatar() TextBox() } ) { (avatarMeasurable, textMeasurable), constraints -> val avatarPlaceable = avatarMeasurable.measure(constraints) val textMaxWidth = constraints.maxWidth - avatarPlaceable.width + 18.dp } ©ATLUS ©SEGA

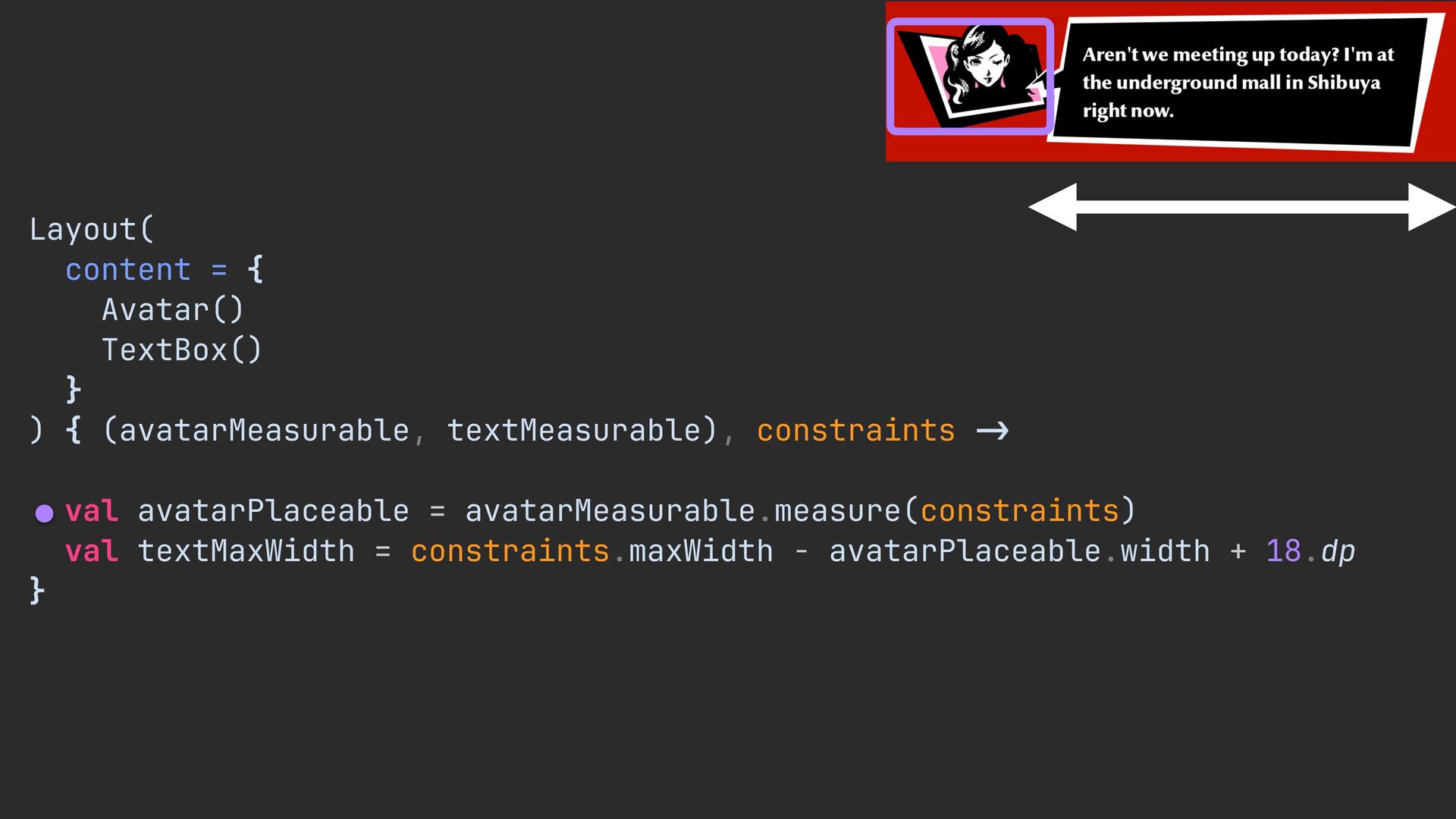

95. Layout( content = { Avatar() TextBox() } ) { (avatarMeasurable, textMeasurable), constraints -> val avatarPlaceable = avatarMeasurable.measure(constraints) val textMaxWidth = constraints.maxWidth - avatarPlaceable.width + 18.dp } ©ATLUS ©SEGA
96. Layout( content = { Avatar() TextBox() } ) { (avatarMeasurable, textMeasurable), constraints -> val avatarPlaceable = avatarMeasurable.measure(constraints) val textMaxWidth = constraints.maxWidth - avatarPlaceable.width + 18.dp val textConstraints = constraints.copy(maxWidth = textMaxWidth) val textPlaceable = textMeasurable.measure(textConstraints) } ©ATLUS ©SEGA

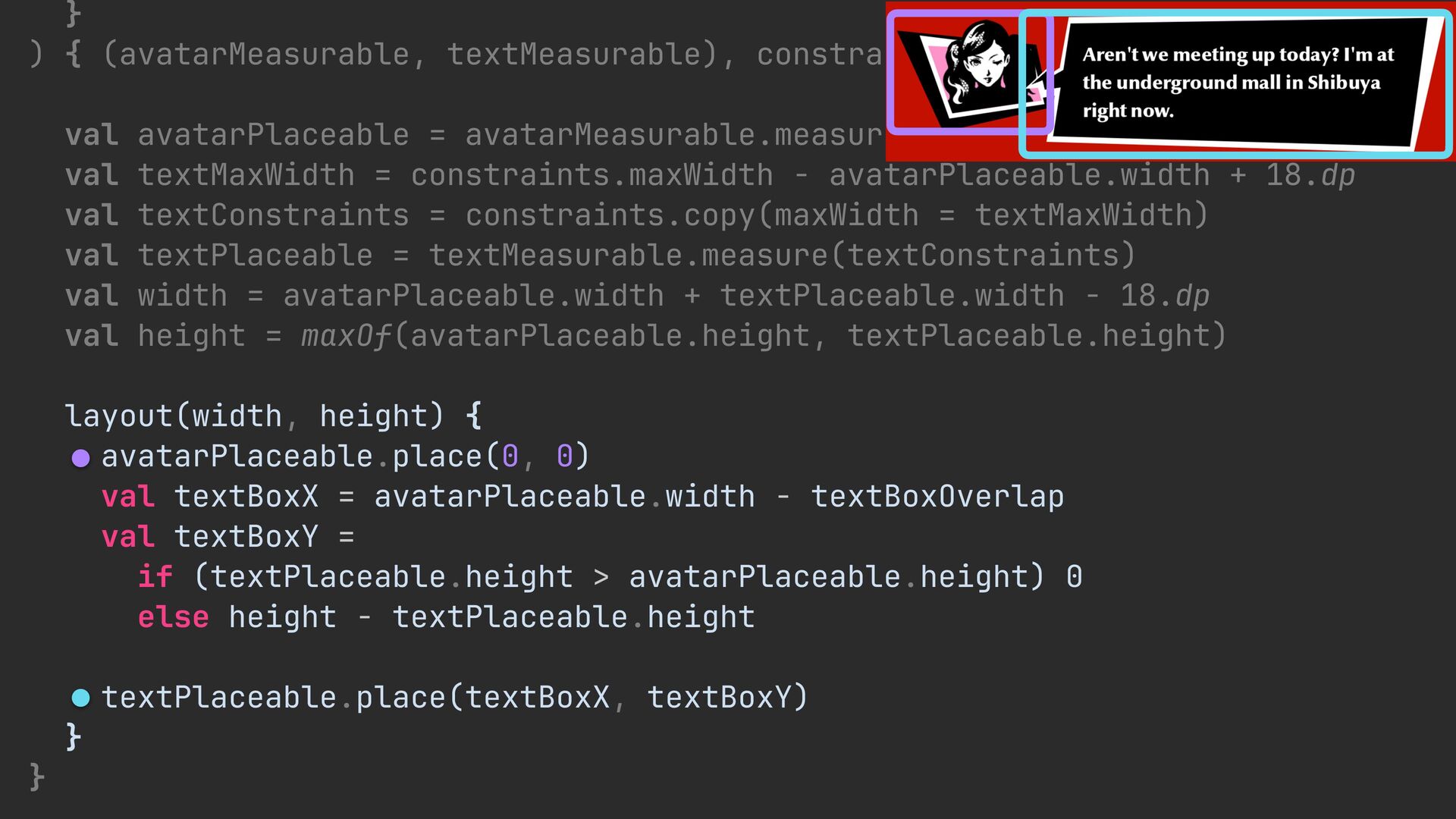

97. Layout( content = { Avatar() TextBox() } ) { (avatarMeasurable, textMeasurable), constraints -> val avatarPlaceable = avatarMeasurable.measure(constraints) val textMaxWidth = constraints.maxWidth - avatarPlaceable.width + 18.dp val textConstraints = constraints.copy(maxWidth = textMaxWidth) val textPlaceable = textMeasurable.measure(textConstraints) val width = avatarPlaceable.width + textPlaceable.width - 18.dp val height = maxOf(avatarPlaceable.height, textPlaceable.height) } ©ATLUS ©SEGA

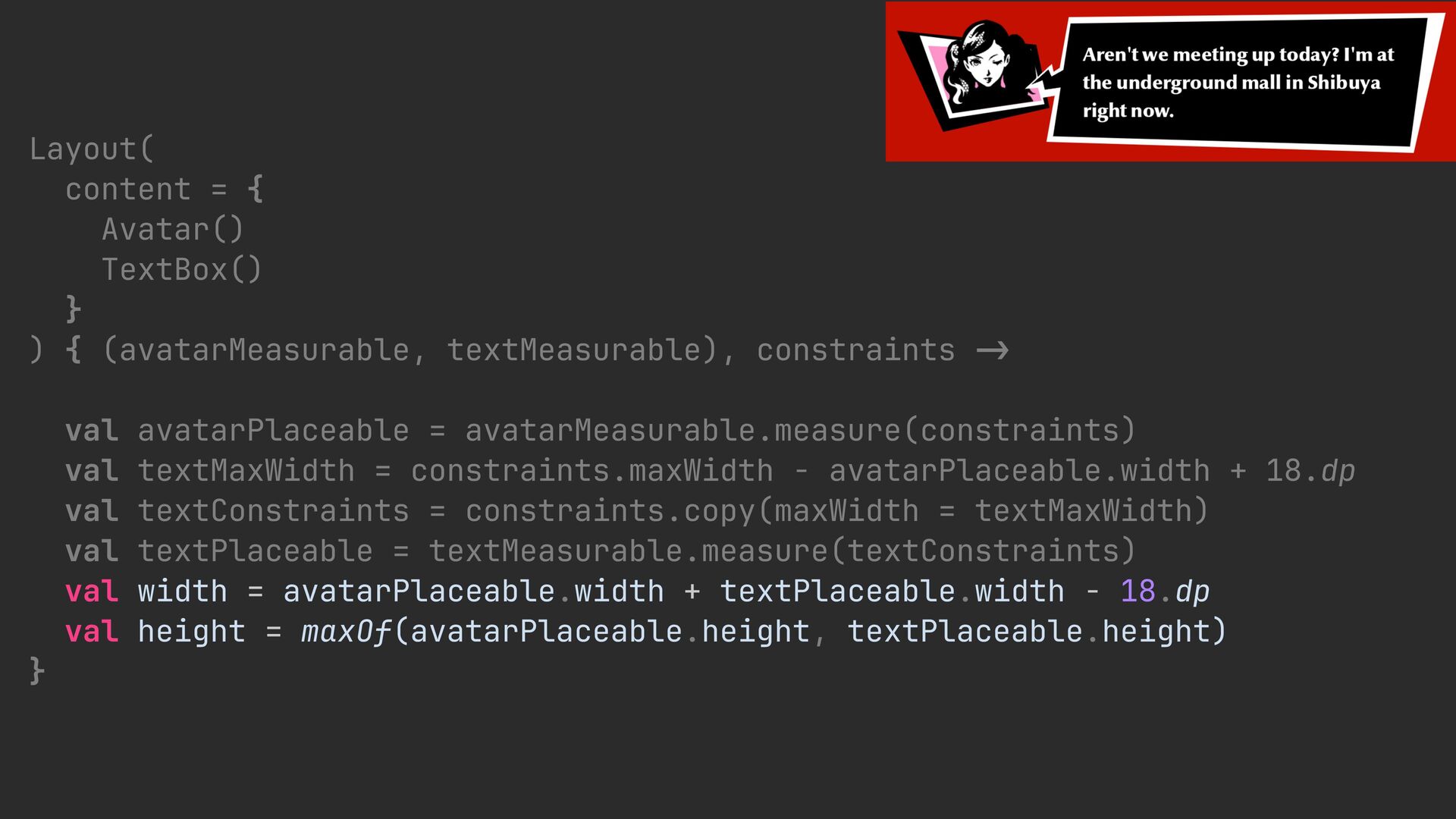

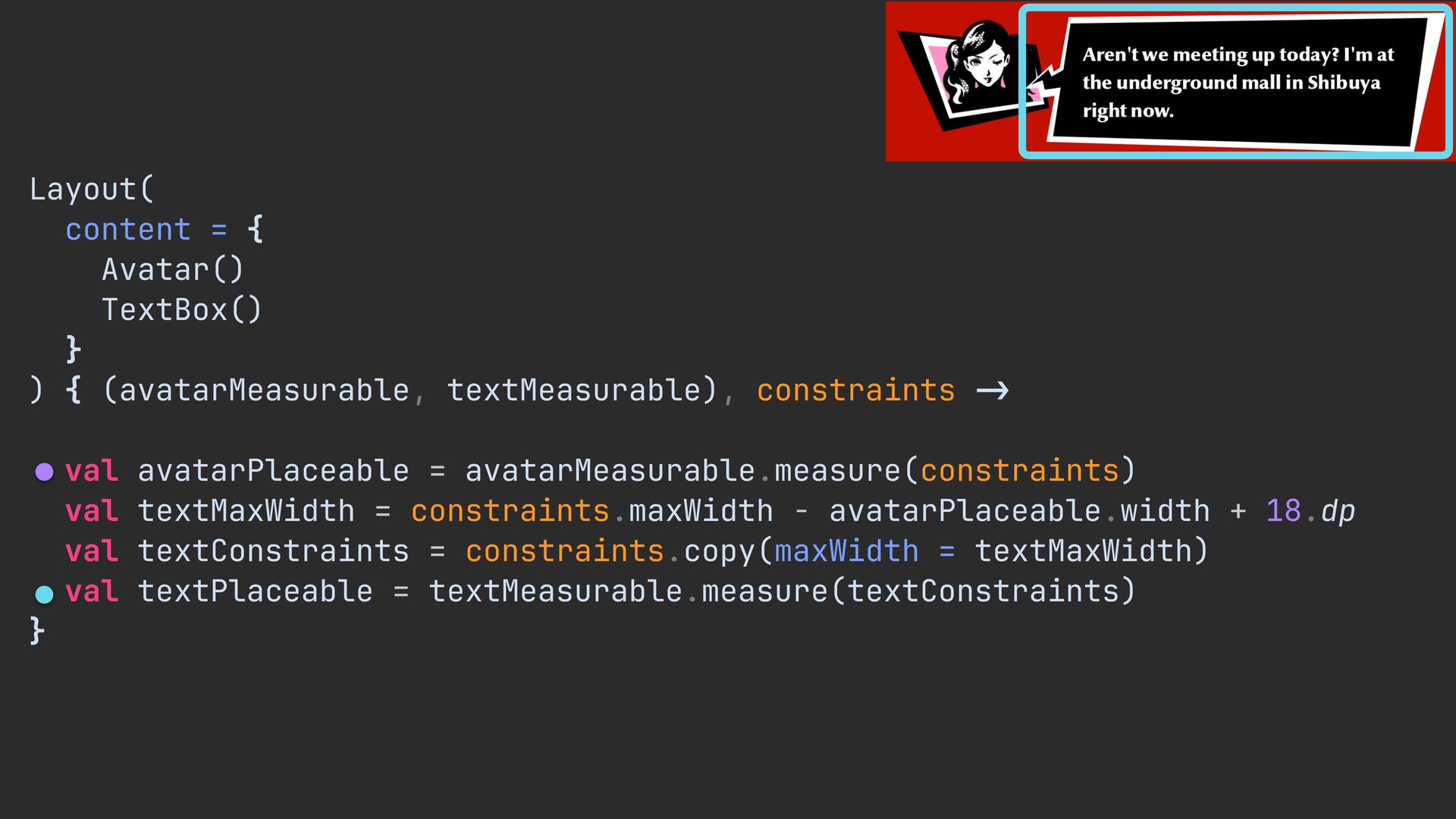

98. Layout( content = { Avatar() TextBox() } ) { (avatarMeasurable, textMeasurable), constraints -> val avatarPlaceable = avatarMeasurable.measure(constraints) val textMaxWidth = constraints.maxWidth - avatarPlaceable.width + 18.dp val textConstraints = constraints.copy(maxWidth = textMaxWidth) val textPlaceable = textMeasurable.measure(textConstraints) val width = avatarPlaceable.width + textPlaceable.width - 18.dp val height = maxOf(avatarPlaceable.height, textPlaceable.height) layout(width, height) { avatarPlaceable.place(0, 0) } } ©ATLUS ©SEGA

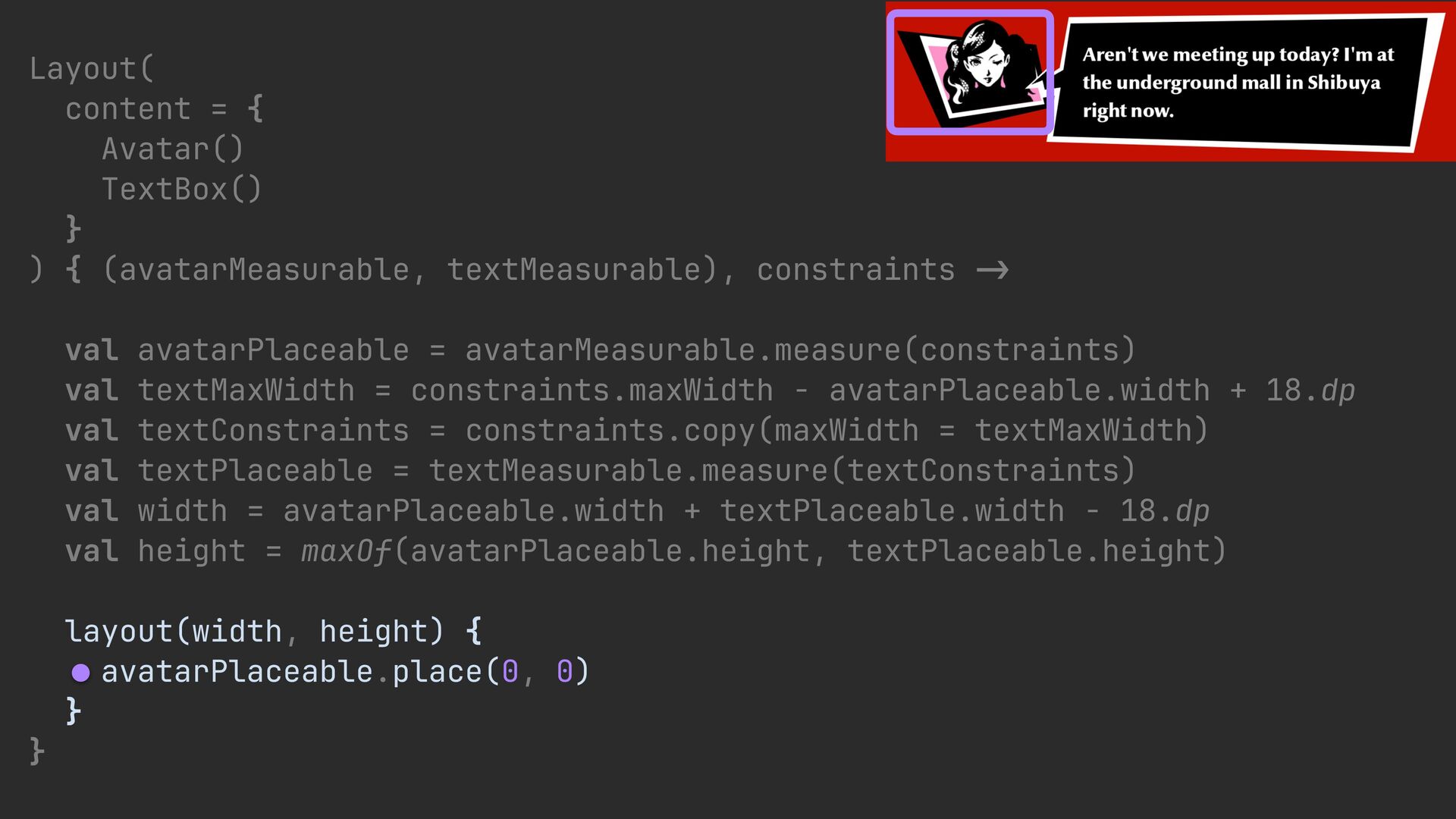

99. } ) { (avatarMeasurable, textMeasurable), constraints -> val avatarPlaceable = avatarMeasurable.measure(constraints) val textMaxWidth = constraints.maxWidth - avatarPlaceable.width + 18.dp val textConstraints = constraints.copy(maxWidth = textMaxWidth) val textPlaceable = textMeasurable.measure(textConstraints) val width = avatarPlaceable.width + textPlaceable.width - 18.dp val height = maxOf(avatarPlaceable.height, textPlaceable.height) layout(width, height) { avatarPlaceable.place(0, 0) val textBoxX = avatarPlaceable.width - textBoxOverlap val textBoxY = if (textPlaceable.height > avatarPlaceable.height) 0 else height - textPlaceable.height textPlaceable.place(textBoxX, textBoxY) } } ©ATLUS ©SEGA

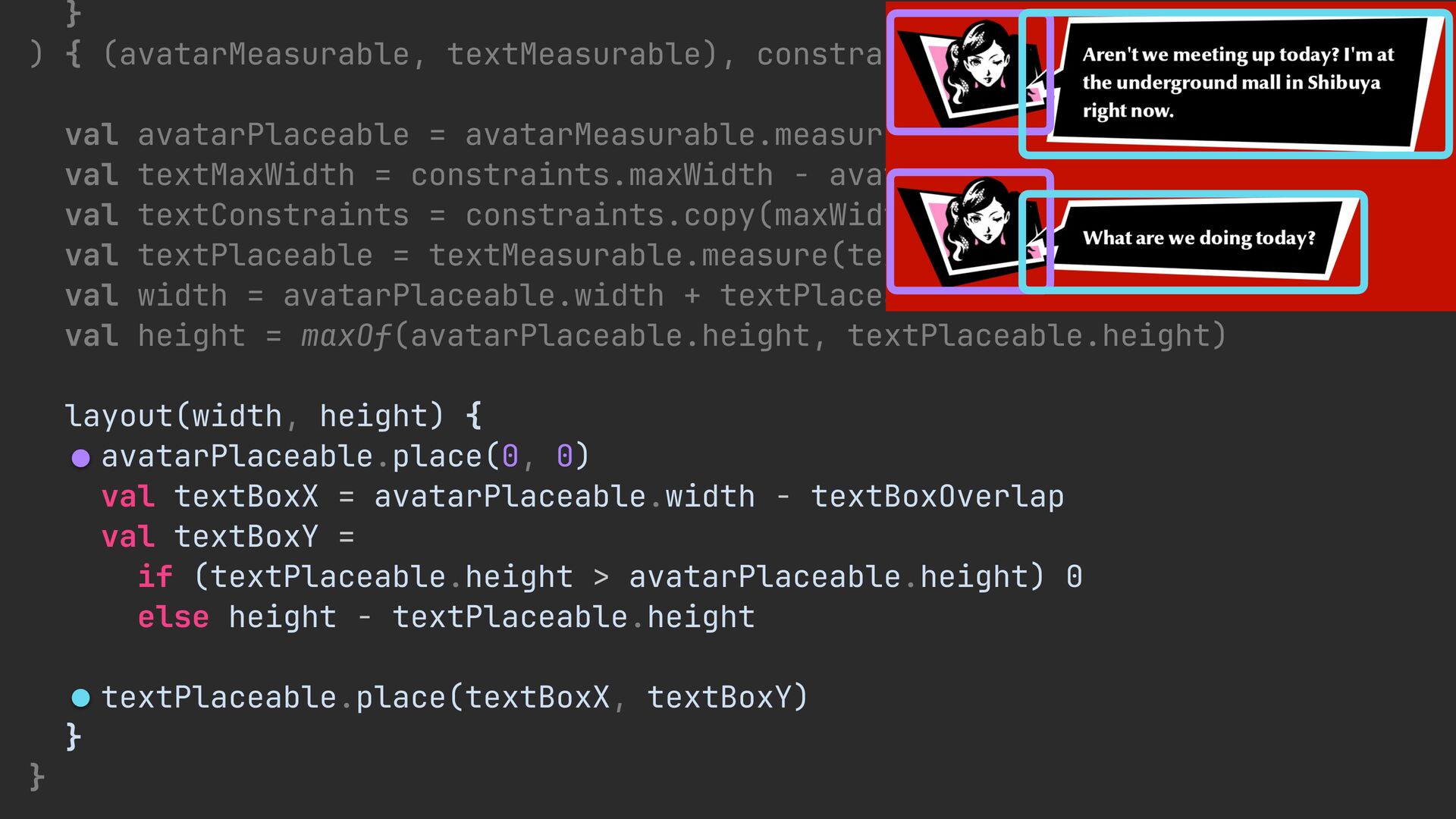

100. } ) { (avatarMeasurable, textMeasurable), constraints -> val avatarPlaceable = avatarMeasurable.measure(constraints) val textMaxWidth = constraints.maxWidth - avatarPlaceable.width + 18.dp val textConstraints = constraints.copy(maxWidth = textMaxWidth) val textPlaceable = textMeasurable.measure(textConstraints) val width = avatarPlaceable.width + textPlaceable.width - 18.dp val height = maxOf(avatarPlaceable.height, textPlaceable.height) layout(width, height) { avatarPlaceable.place(0, 0) val textBoxX = avatarPlaceable.width - textBoxOverlap val textBoxY = if (textPlaceable.height > avatarPlaceable.height) 0 else height - textPlaceable.height textPlaceable.place(textBoxX, textBoxY) } } ©ATLUS ©SEGA

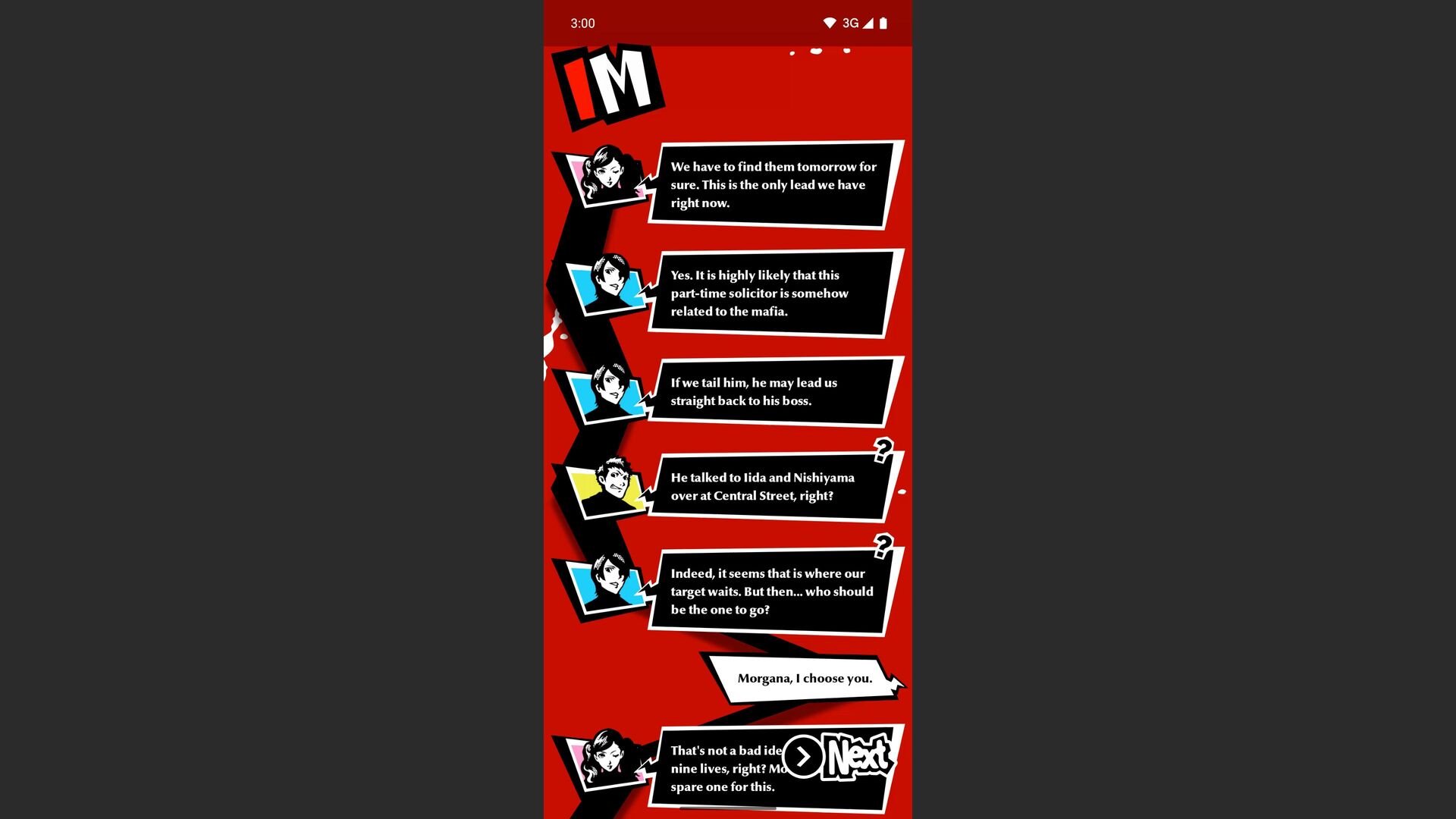

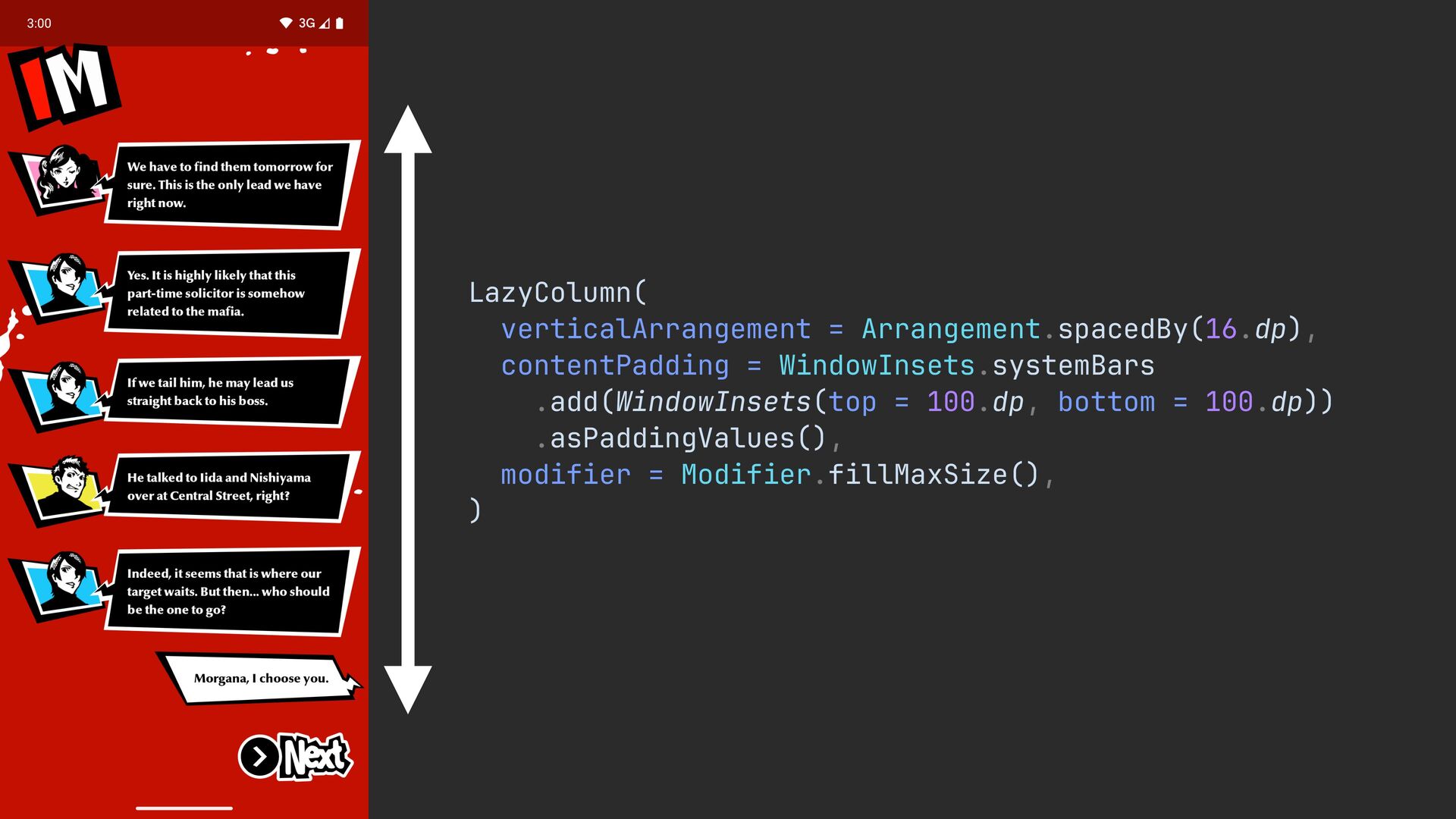

101. LazyColumn( verticalArrangement = Arrangement.spacedBy(16.dp), contentPadding = WindowInsets.systemBars .add(WindowInsets(top = 100.dp, bottom = 100.dp)) .asPaddingValues(), modifier = Modifier.fillMaxSize(), ) ©ATLUS ©SEGA
102. Line ©ATLUS ©SEGA
103. ©ATLUS ©SEGA

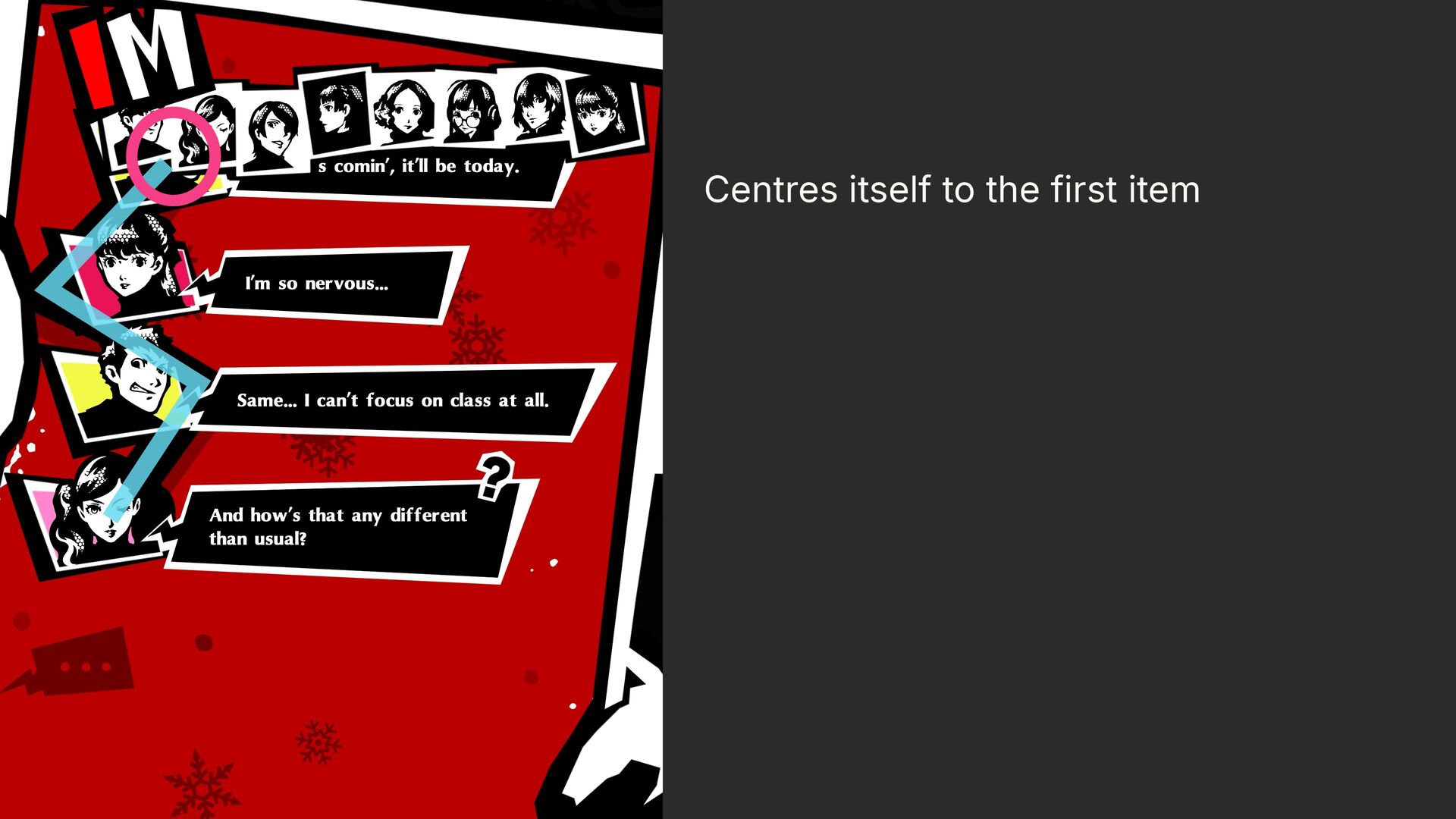

104. Centres itself to the first item ©ATLUS ©SEGA

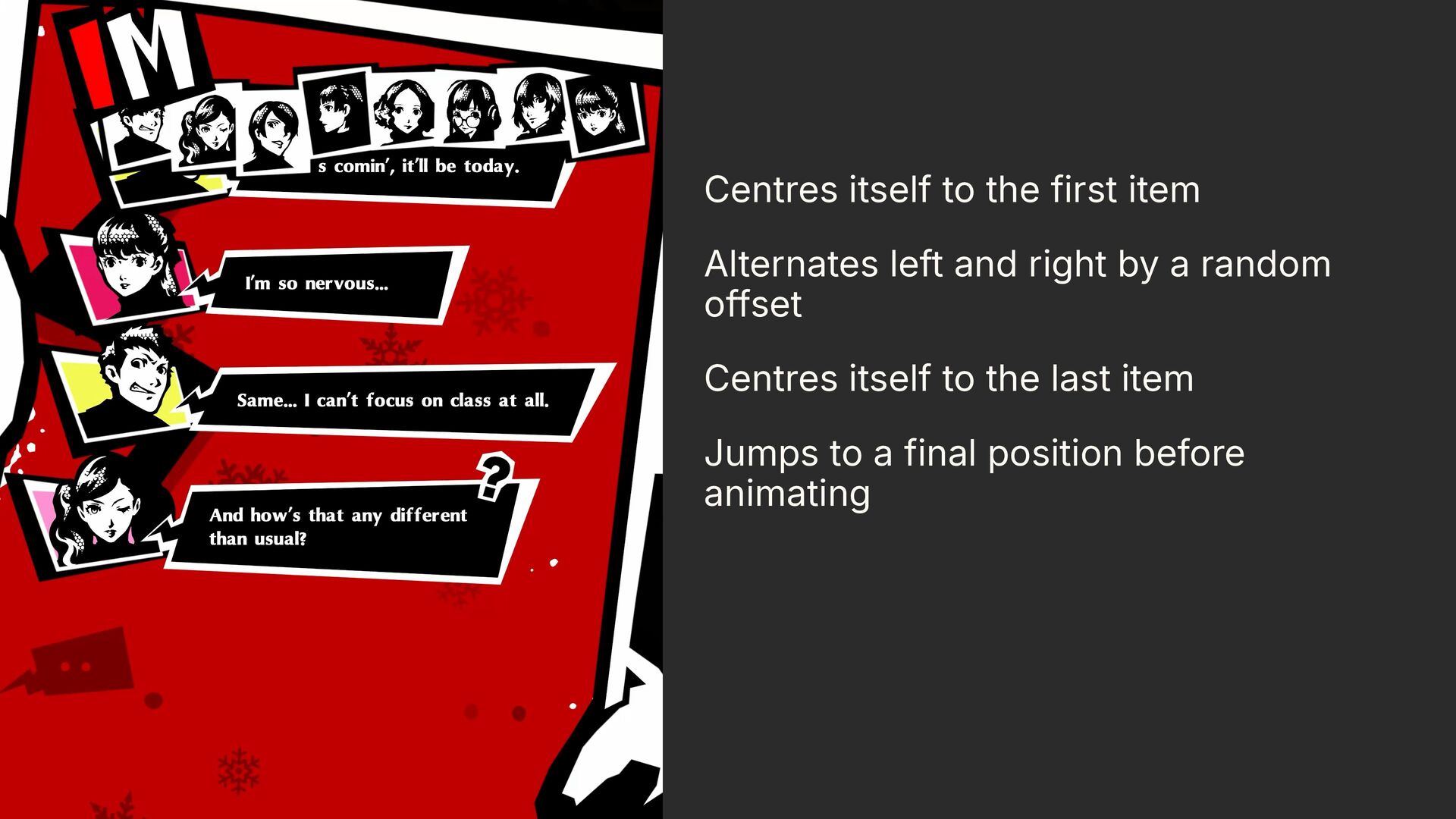

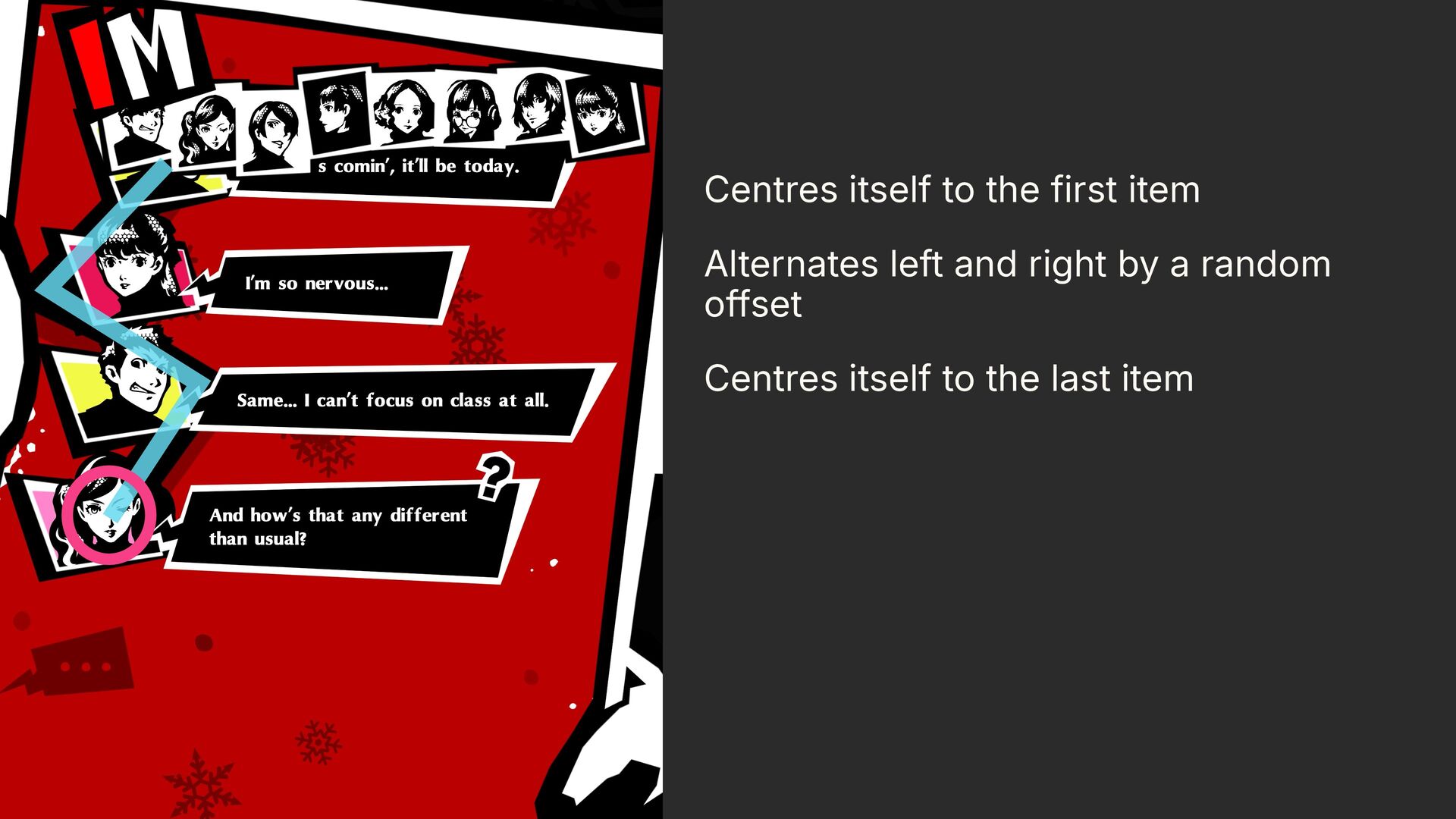

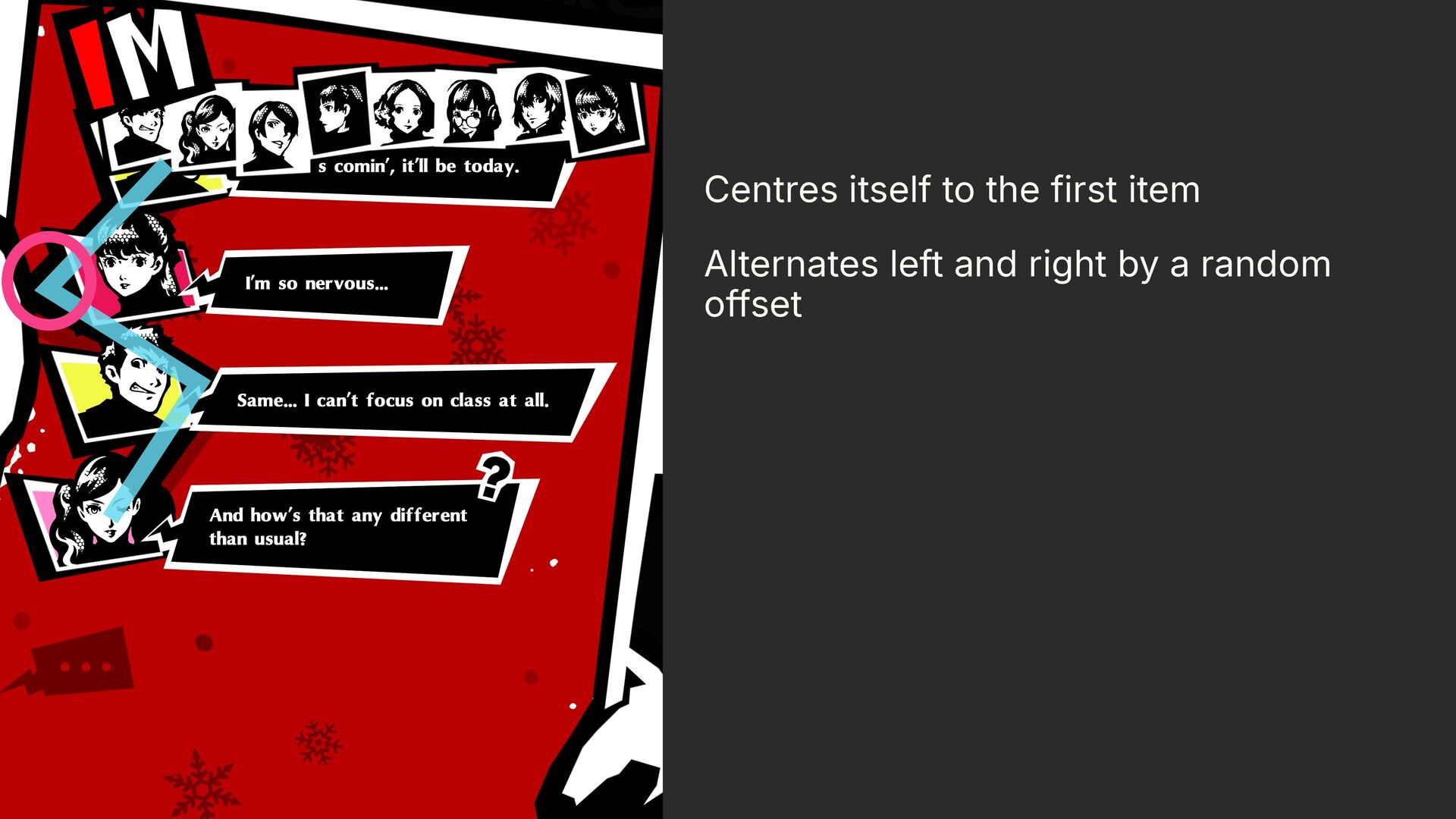

105. Centres itself to the first item Alternates left and right by a random offset ©ATLUS ©SEGA
106. Centres itself to the first item Alternates left and right by a random offset Centres itself to the last item ©ATLUS ©SEGA
107. Centres itself to the first item Alternates left and right by a random offset Centres itself to the last item Jumps to a final position before animating ©ATLUS ©SEGA

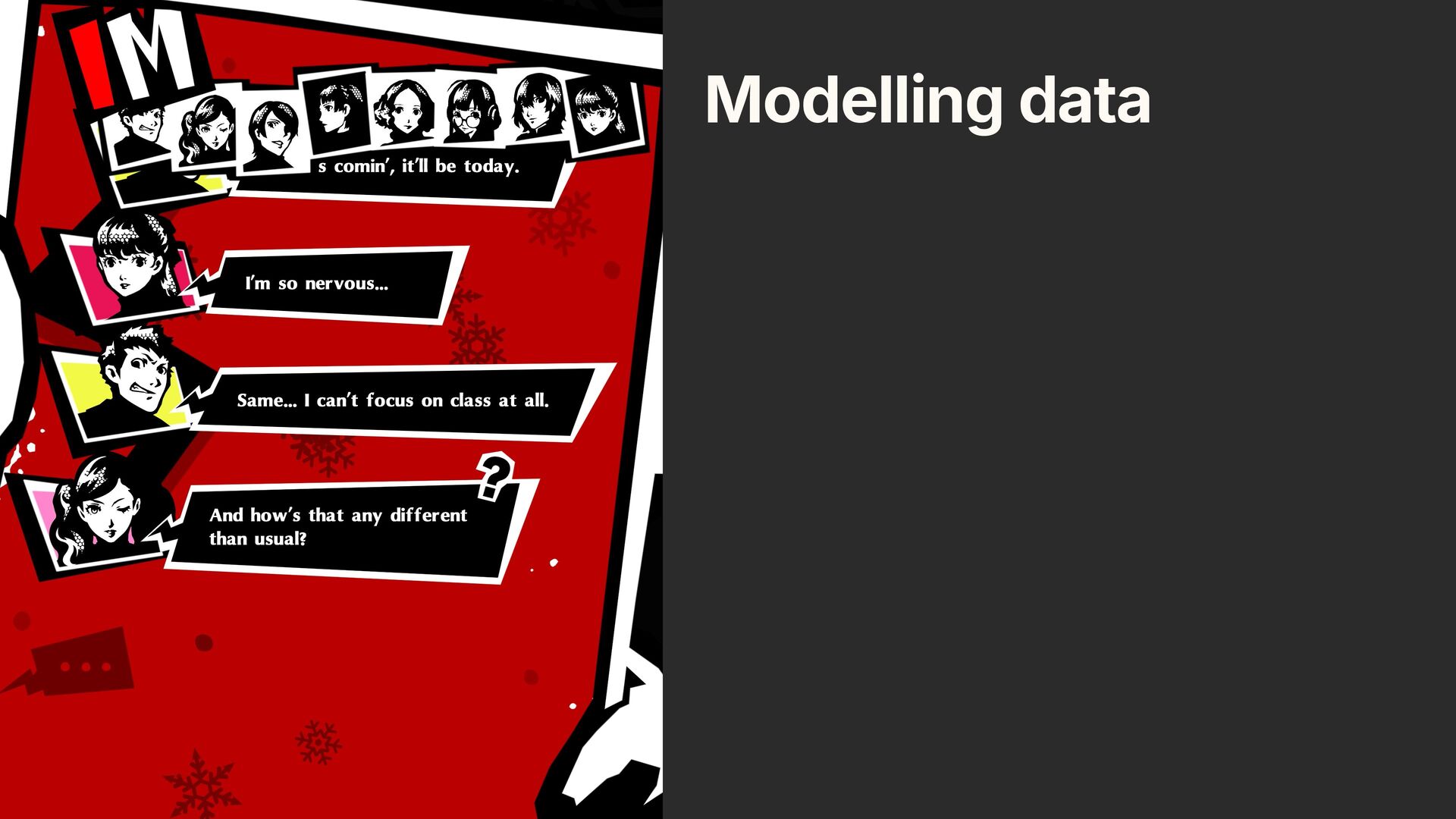

108. Modelling data Modelling data ©ATLUS ©SEGA

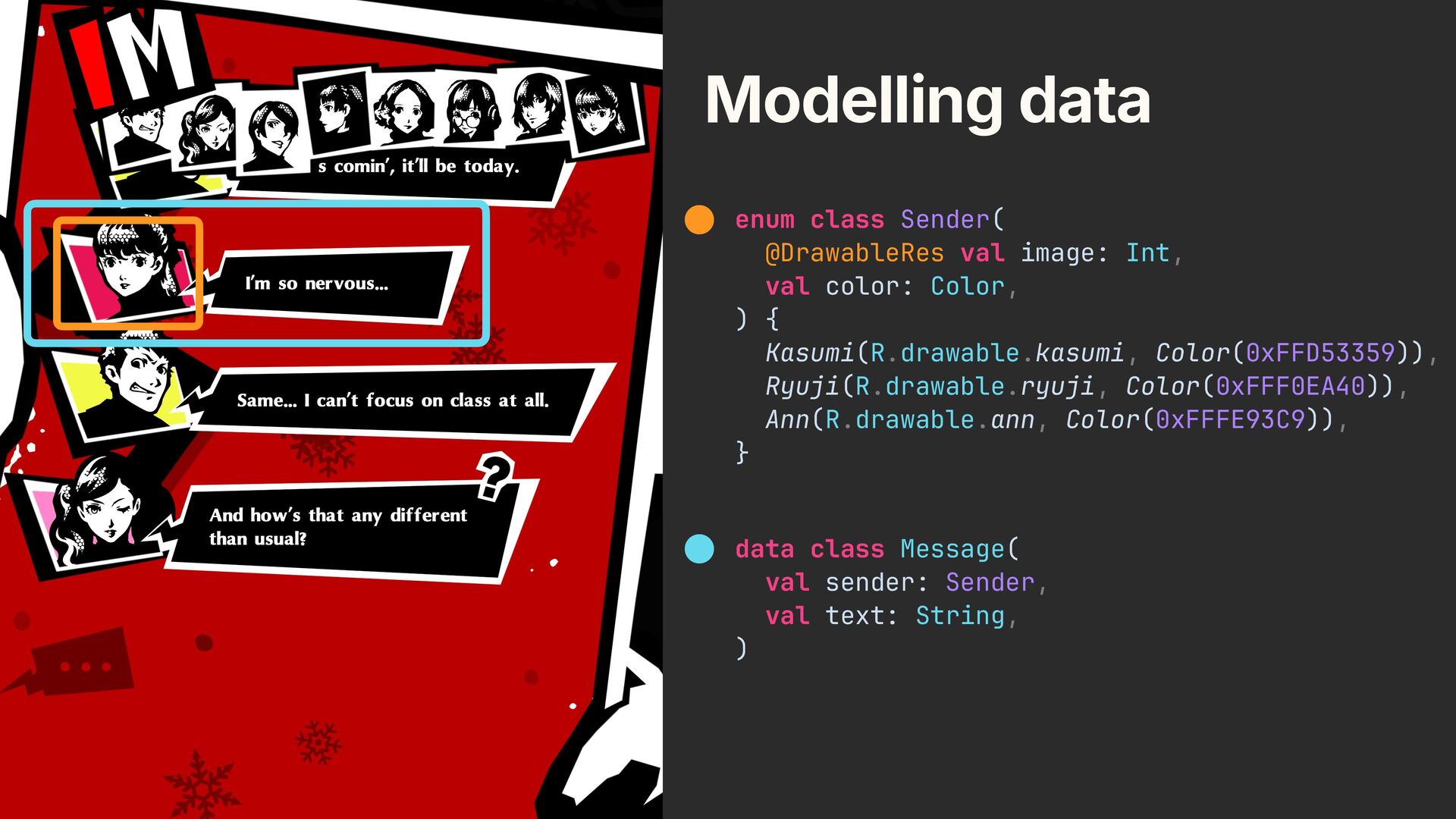

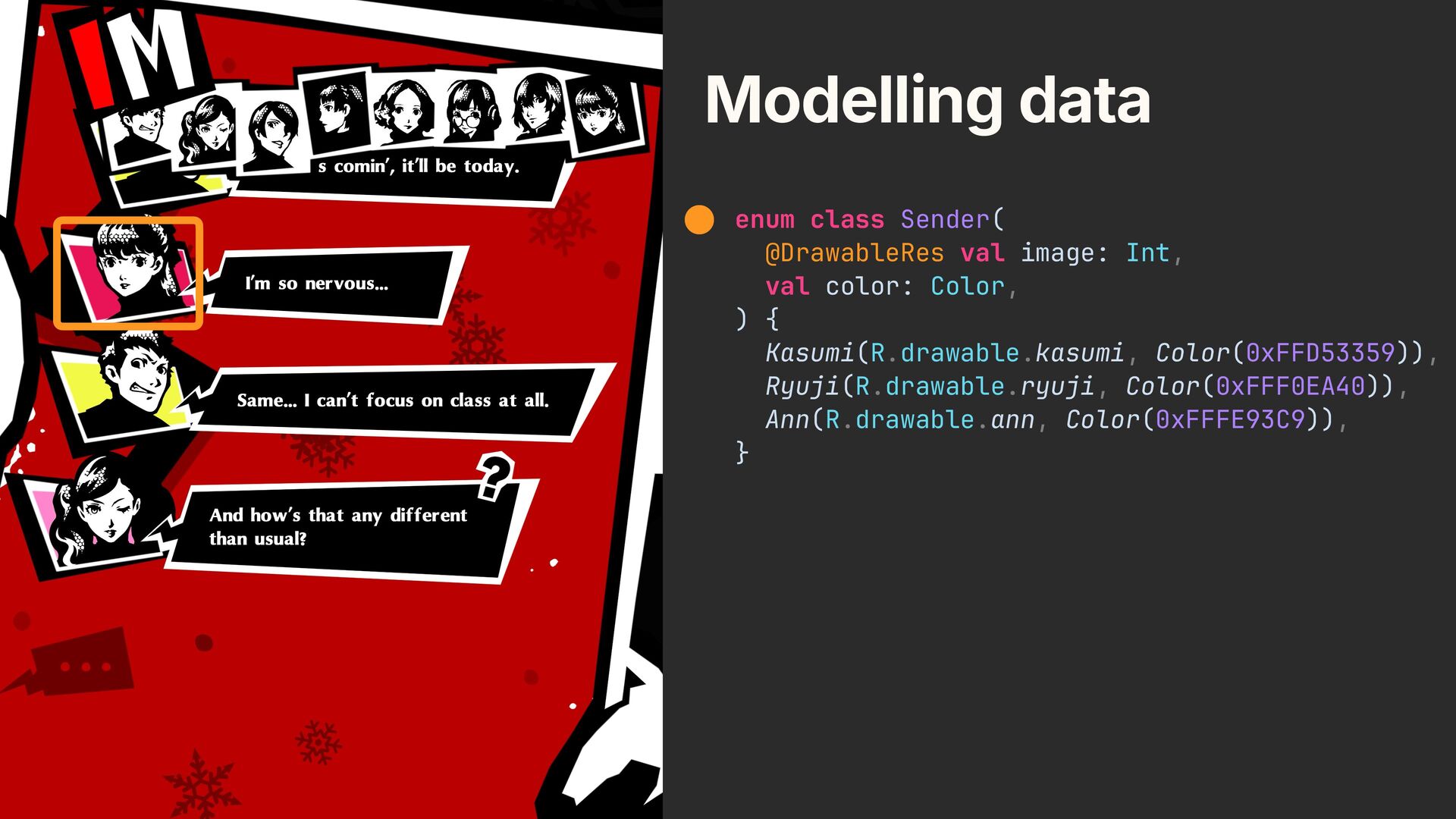

109. Modelling data enum class Sender( @DrawableRes val image: Int, val color: Color, ) { Kasumi(R.drawable.kasumi, Color(0xFFD53359)), Ryuji(R.drawable.ryuji, Color(0xFFF0EA40)), Ann(R.drawable.ann, Color(0xFFFE93C9)), } Modelling data ©ATLUS ©SEGA
110. Modelling data Modelling data data class Message( val sender: Sender, val text: String, ) enum class Sender( @DrawableRes val image: Int, val color: Color, ) { Kasumi(R.drawable.kasumi, Color(0xFFD53359)), Ryuji(R.drawable.ryuji, Color(0xFFF0EA40)), Ann(R.drawable.ann, Color(0xFFFE93C9)), } ©ATLUS ©SEGA

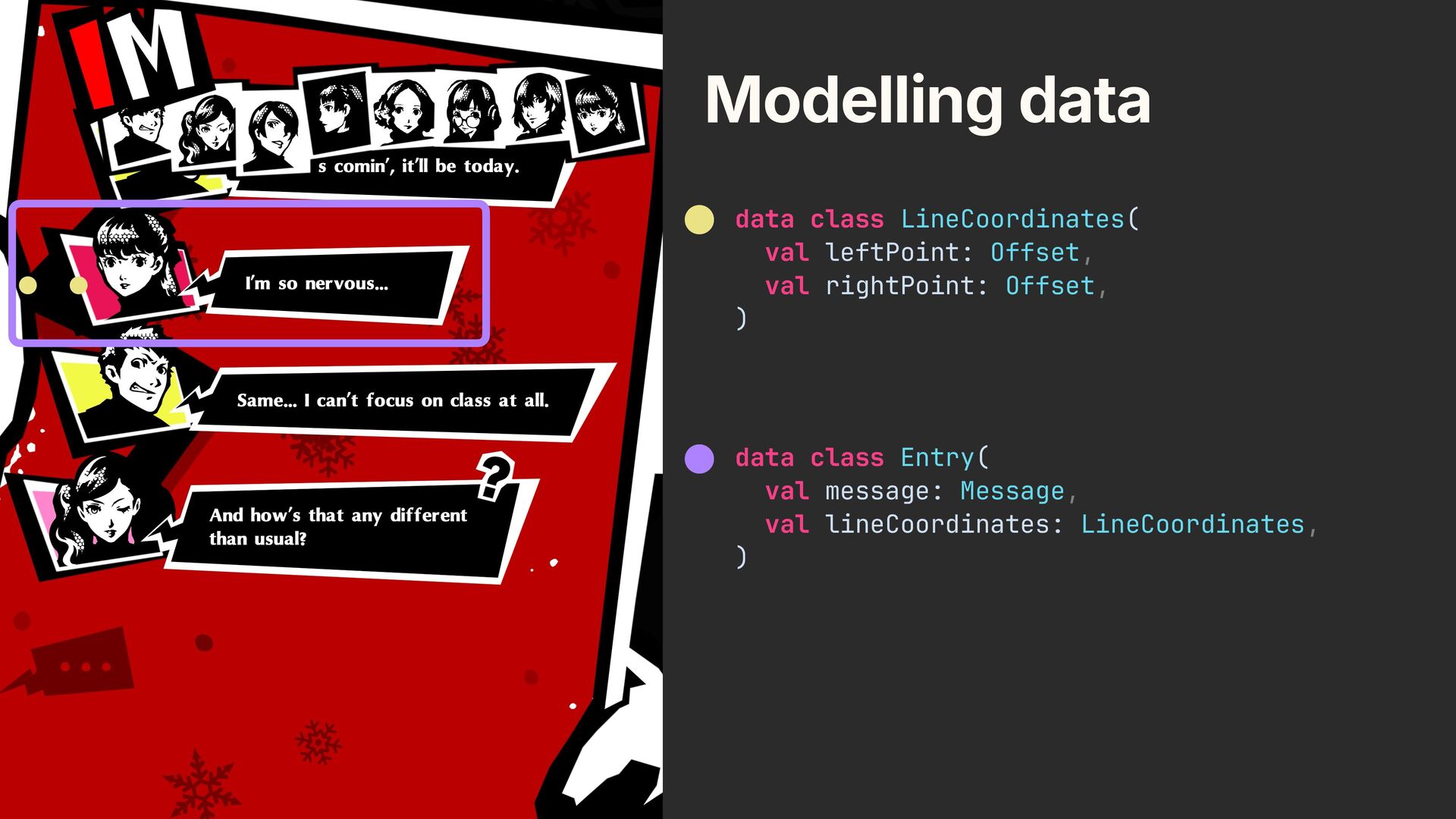

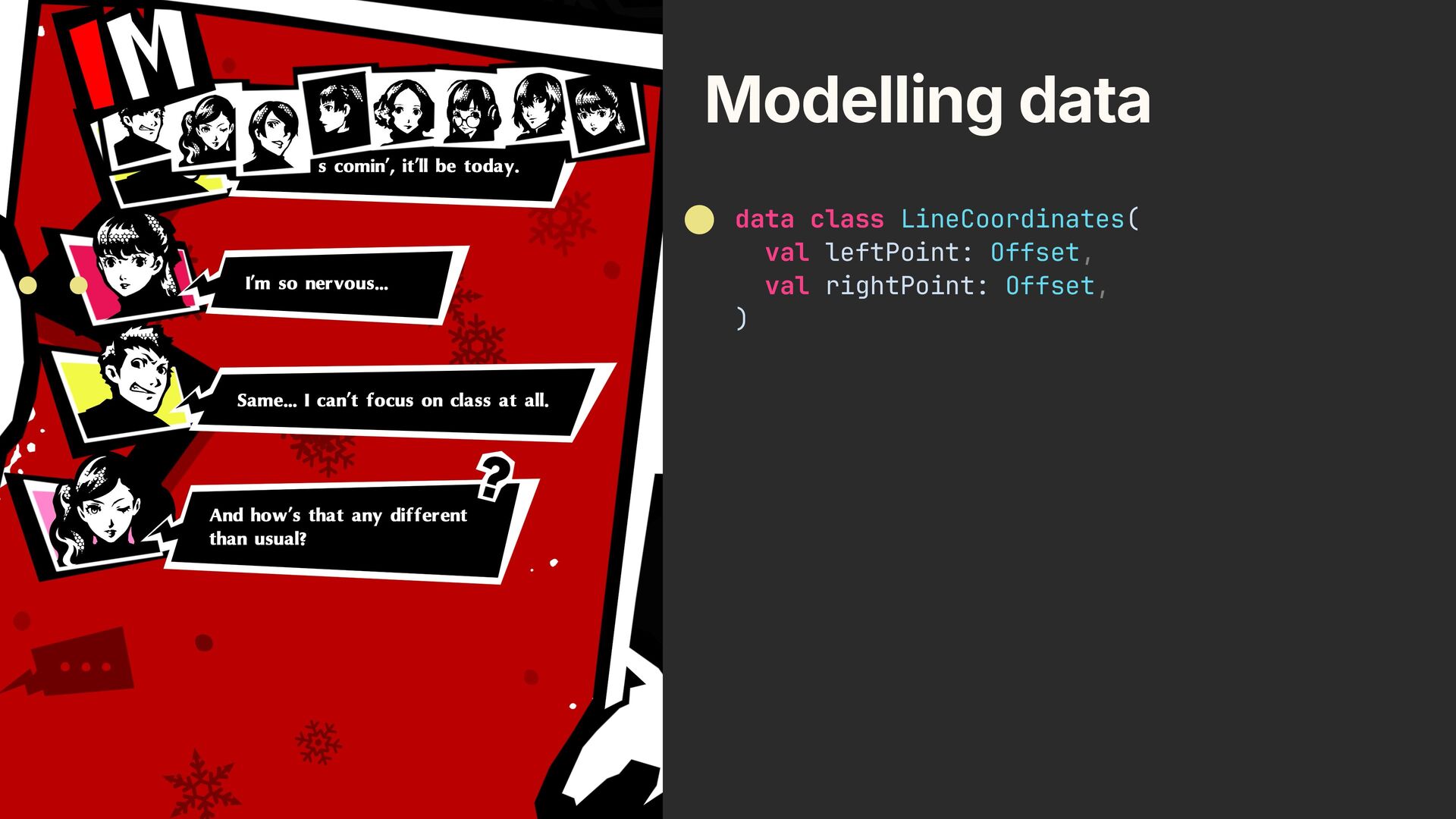

111. Modelling data Modelling data data class LineCoordinates( val leftPoint: Offset, val rightPoint: Offset, ) ©ATLUS ©SEGA
112. Modelling data Modelling data data class Entry( val message: Message, val lineCoordinates: LineCoordinates, ) data class LineCoordinates( val leftPoint: Offset, val rightPoint: Offset, ) ©ATLUS ©SEGA

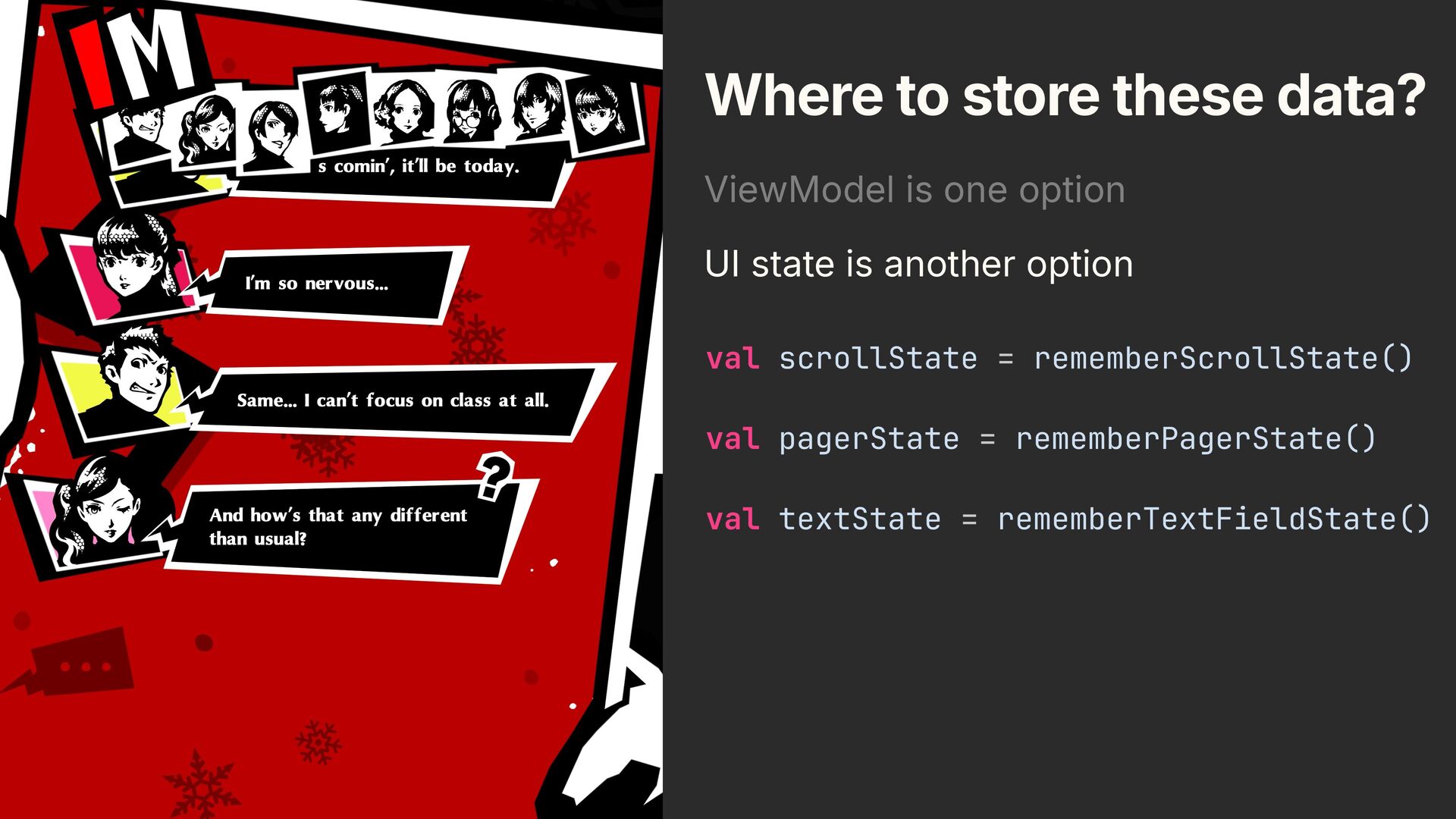

113. Where to store these data? ViewModel is one option UI state is another option ©ATLUS ©SEGA
114. Where to store these data? ViewModel is one option UI state is another option val scrollState = rememberScrollState() val pagerState = rememberPagerState() val textState = rememberTextFieldState() ©ATLUS ©SEGA

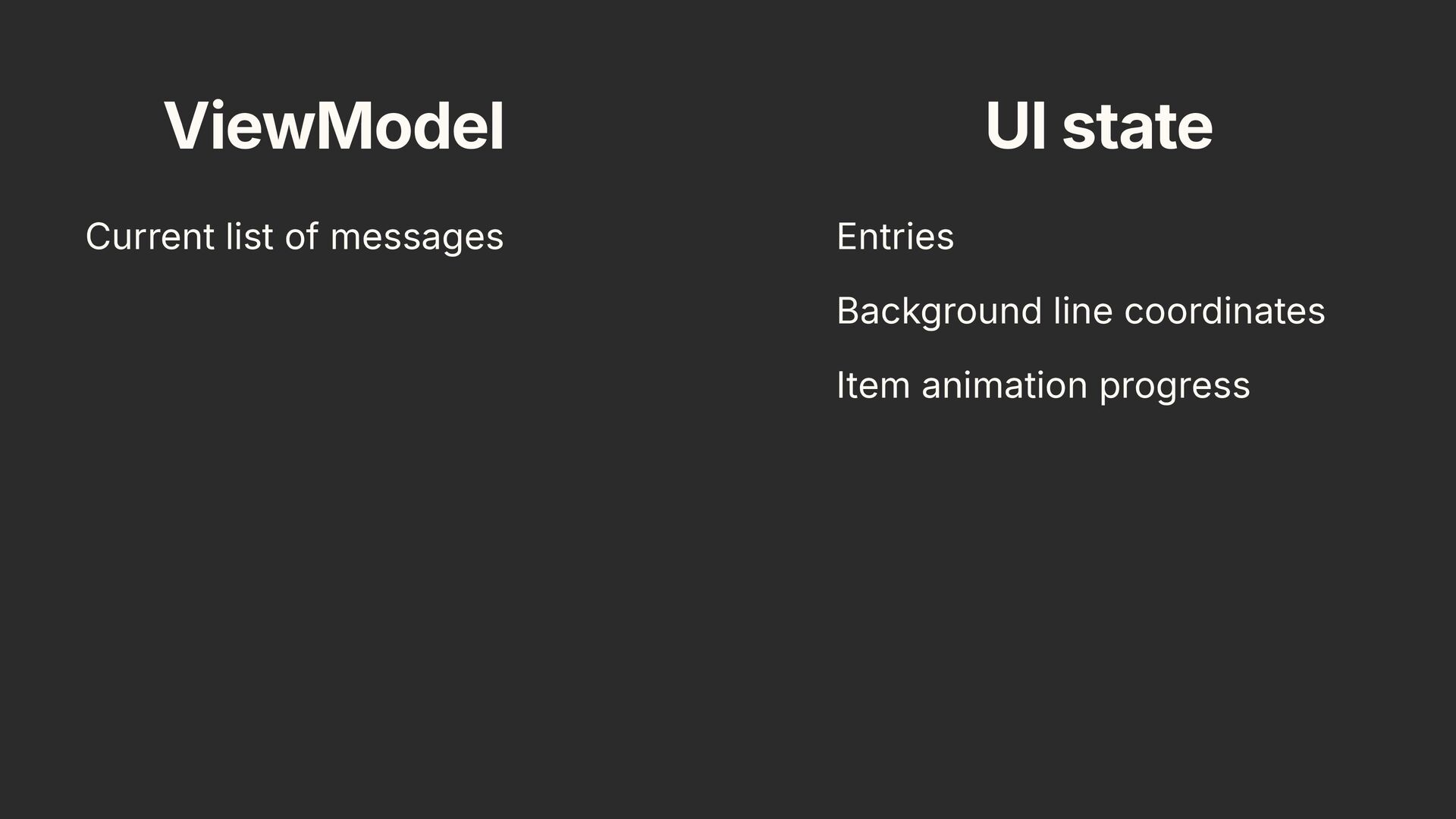

115. ViewModel UI state Current list of messages Entries Background line coordinates Item animation progress
116. ViewModel UI state LazyColumn
117. @Composable fun rememberTranscriptState(): TranscriptState { val density = LocalDensity.current val coroutineScope = rememberCoroutineScope() return remember(density) { TranscriptState(density, coroutineScope) } }

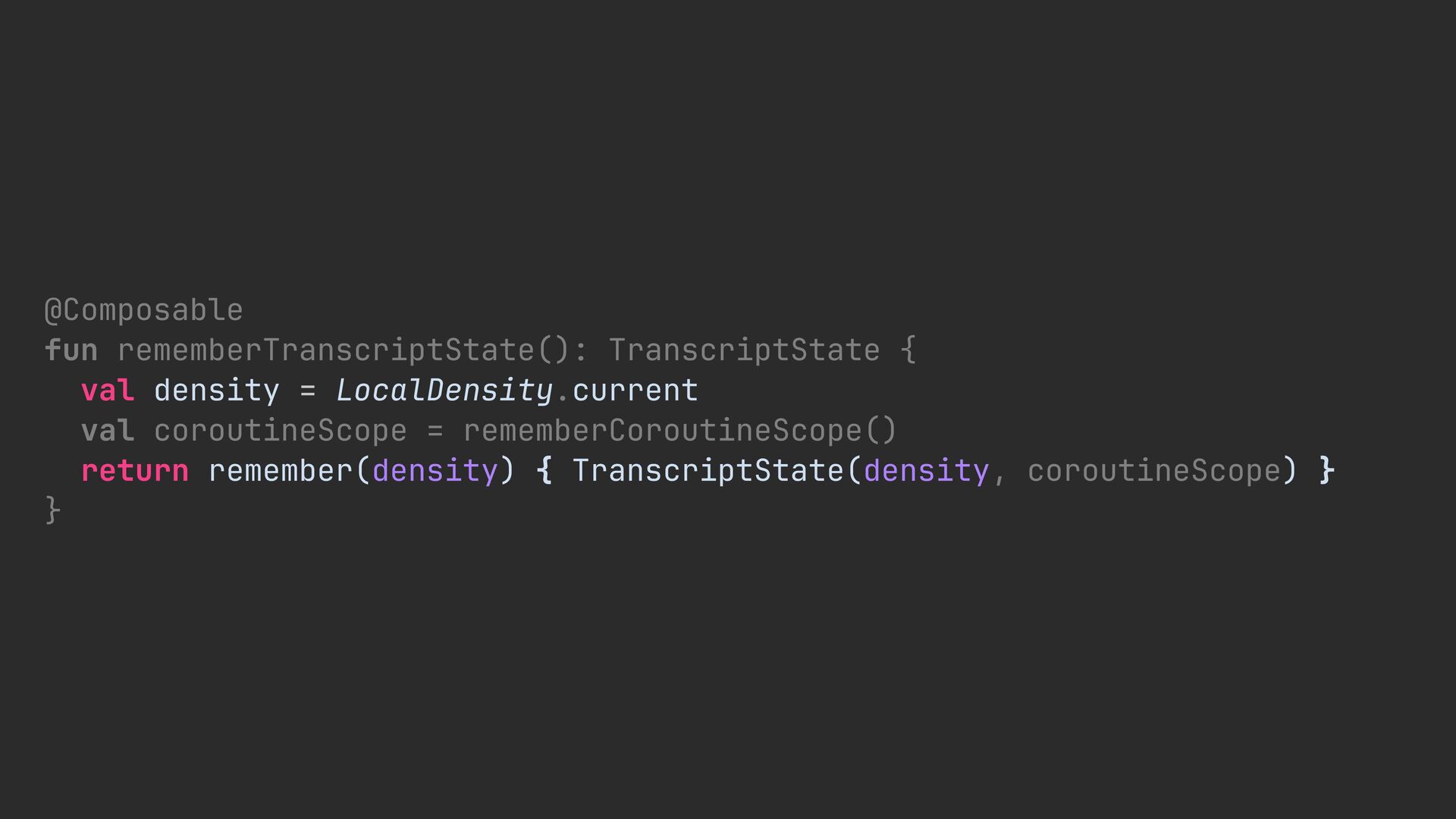

118. @Composable fun rememberTranscriptState(): TranscriptState { val density = LocalDensity.current val coroutineScope = rememberCoroutineScope() return remember(density) { TranscriptState(density, coroutineScope) } }

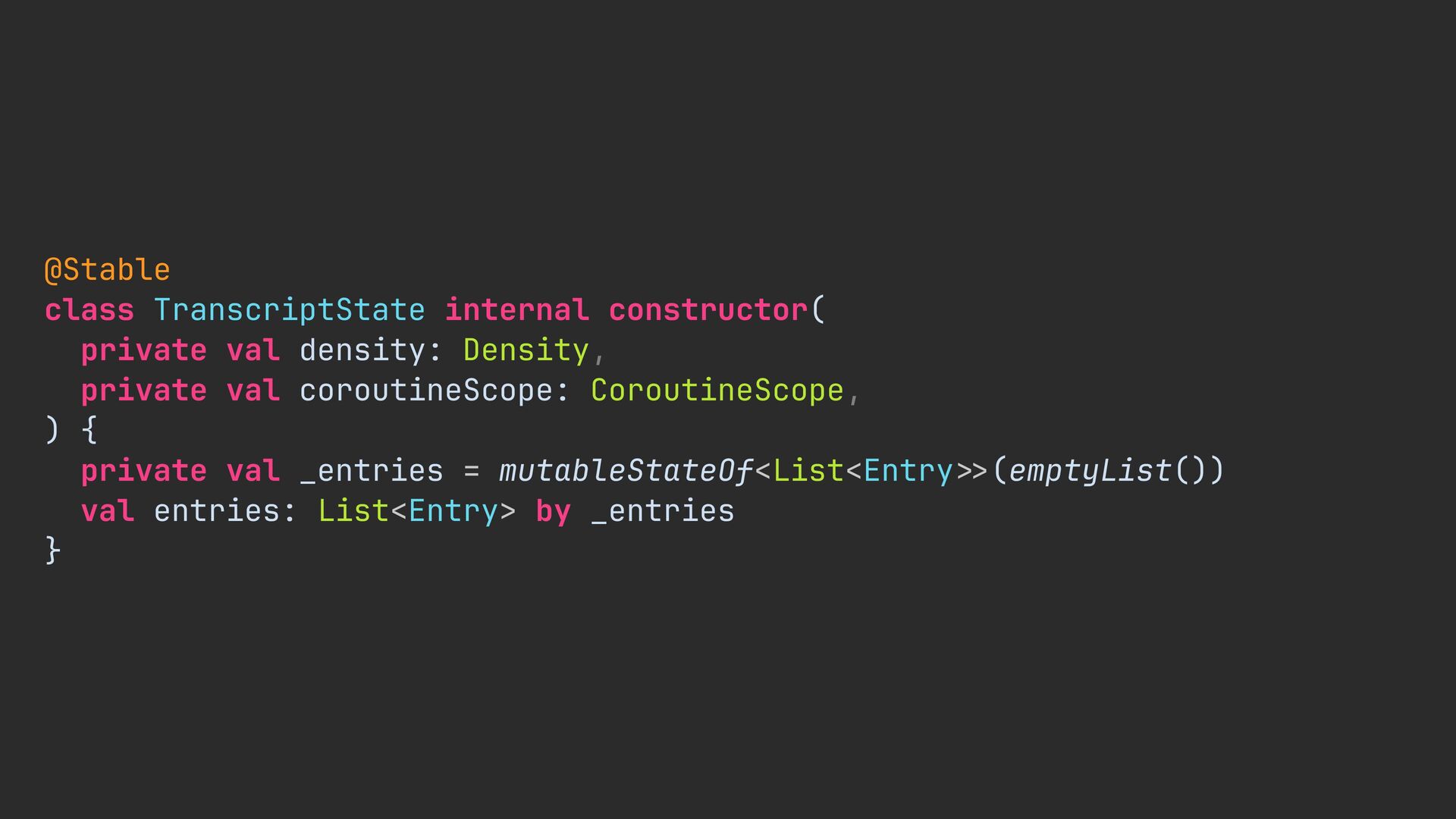

119. @Stable class TranscriptState internal constructor( private val density: Density, private val coroutineScope: CoroutineScope, ) { private val _entries = mutableStateOf<List<Entry >> (emptyList()) val entries: List<Entry> by _entries }

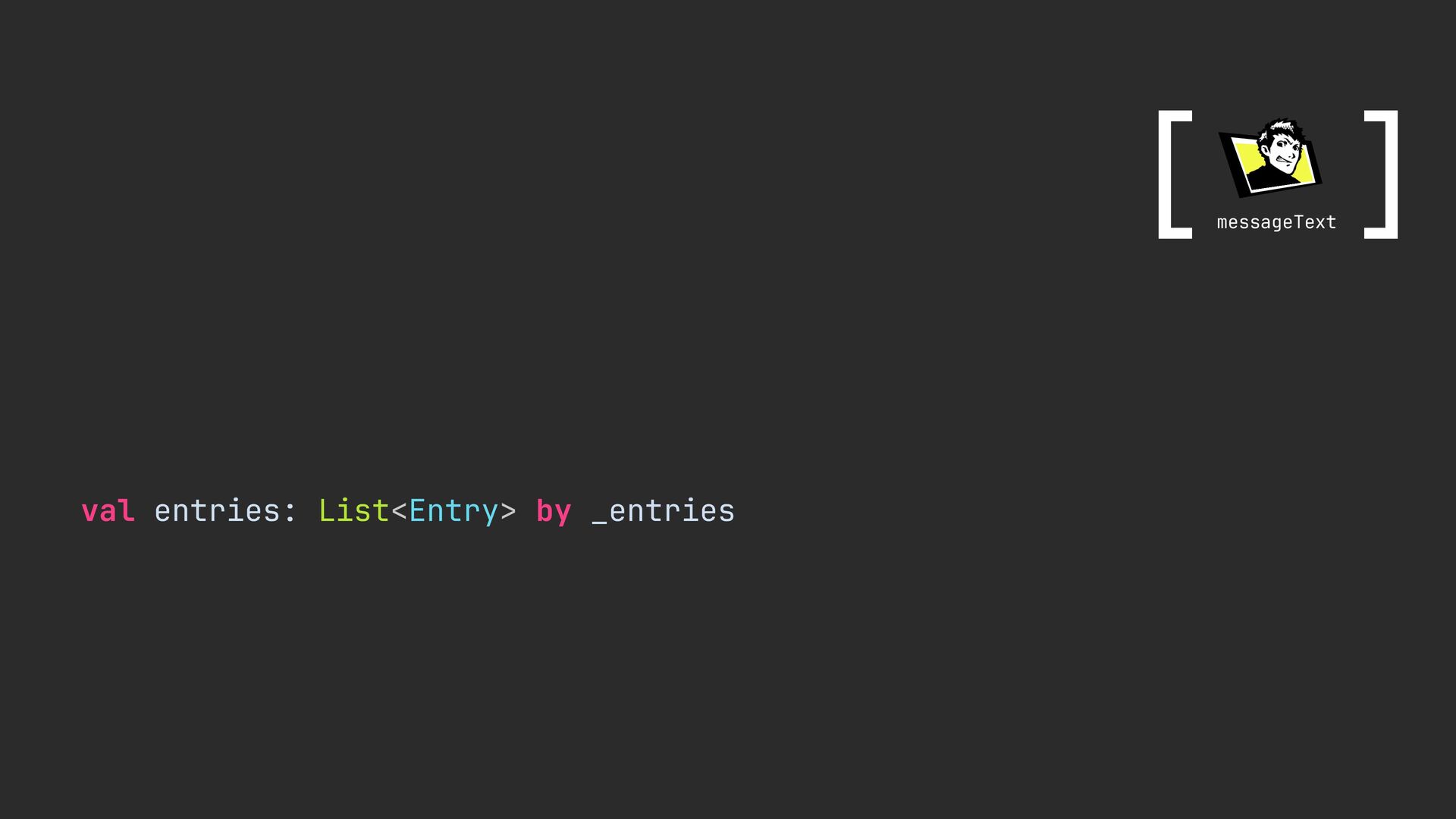

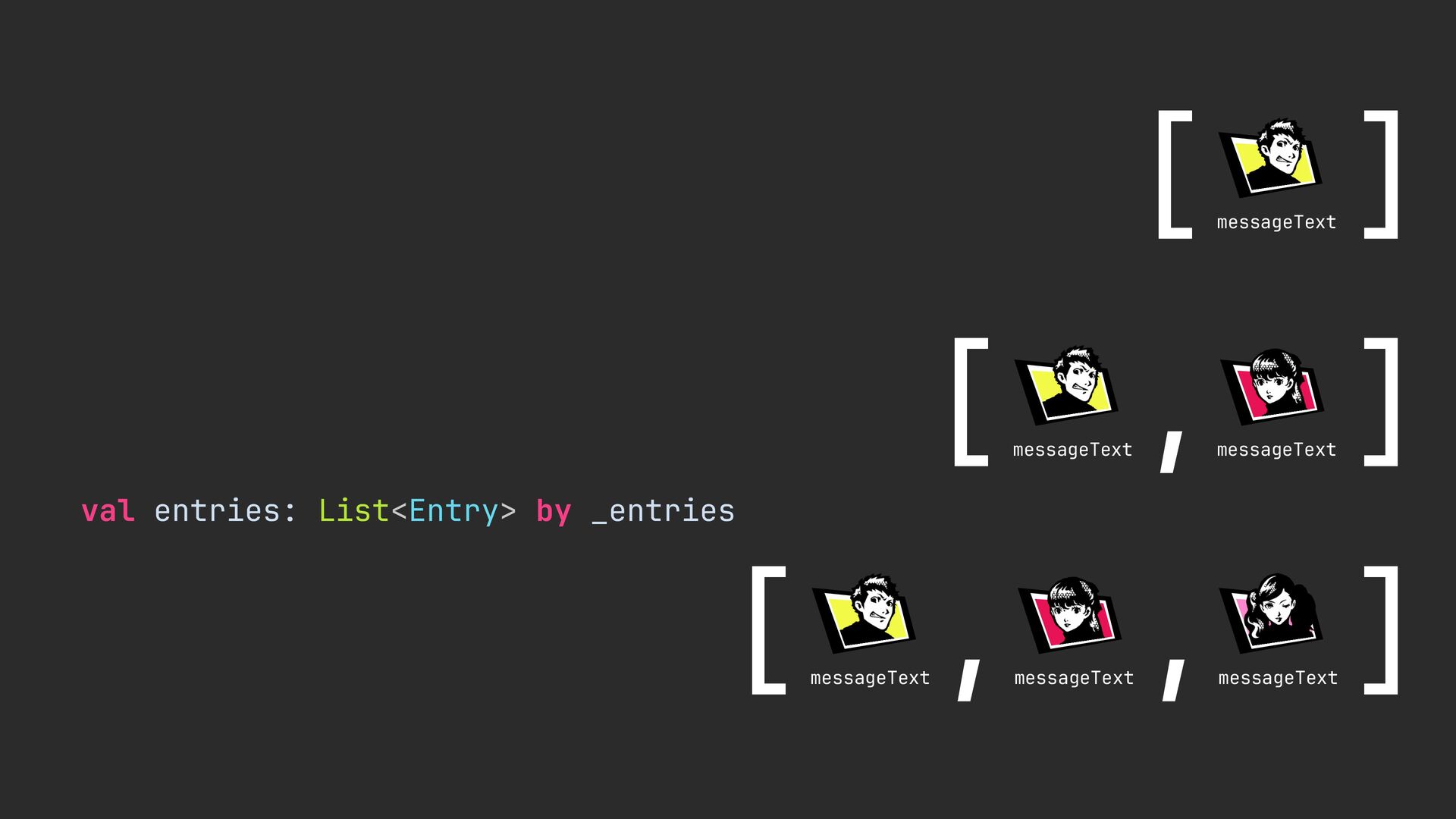

120. messageText [ ] val entries: List<Entry> by _entries ©ATLUS ©SEGA

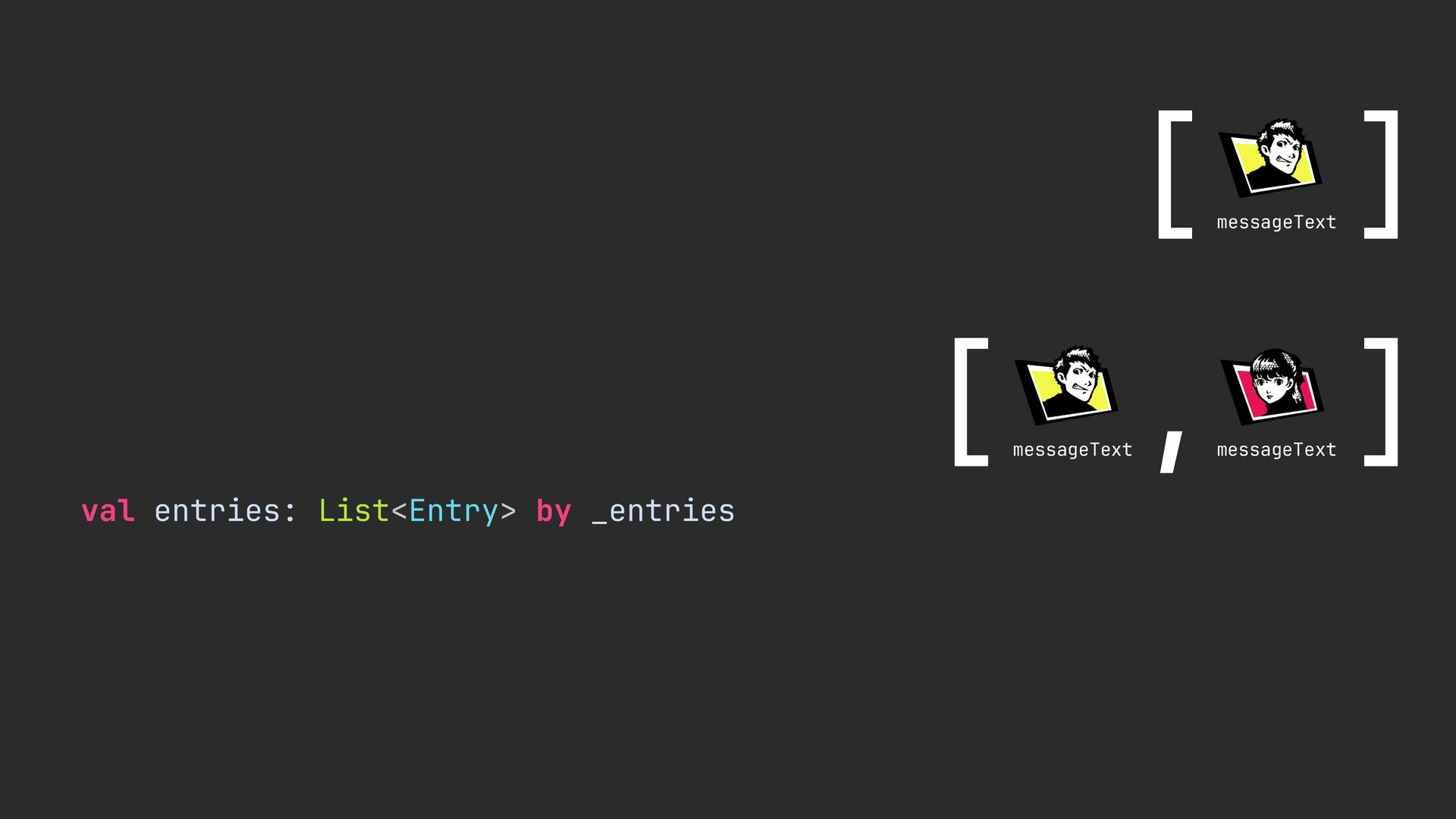

121. messageText [ ] messageText messageText [ ] , val entries: List<Entry> by _entries ©ATLUS ©SEGA
122. messageText [ ] messageText messageText [ ] , messageText messageText messageText [ ] , , val entries: List<Entry> by _entries ©ATLUS ©SEGA

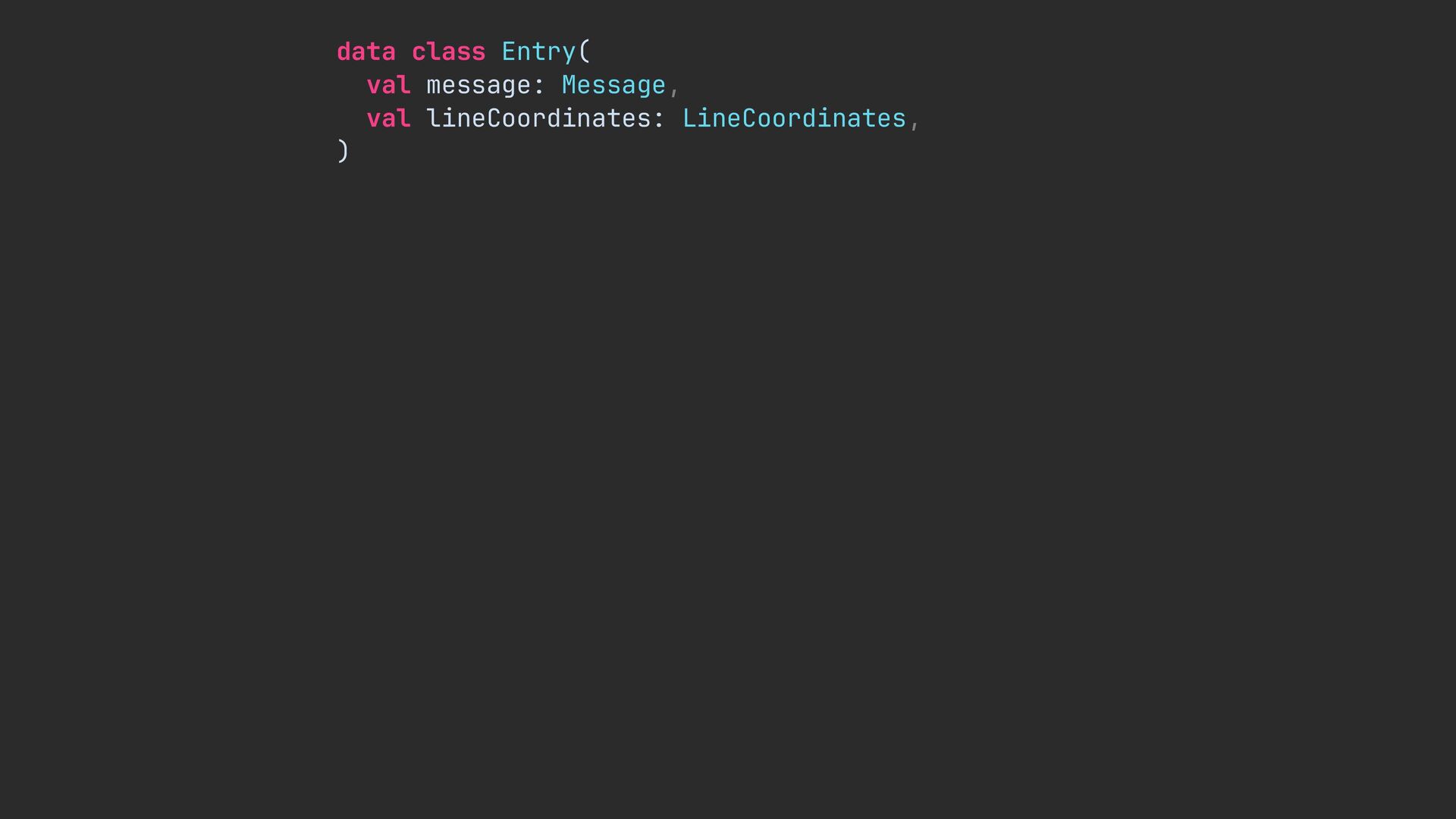

123. data class Entry( val message: Message, val lineCoordinates: LineCoordinates, ) ©ATLUS ©SEGA
124. data class Entry( val message: Message, val lineCoordinates: LineCoordinates, ) ©ATLUS ©SEGA
125. data class Entry( val message: Message, val lineCoordinates: LineCoordinates, ) val leftX = (AvatarSize.width / 2f) - (lineWidth / 2f) ©ATLUS ©SEGA

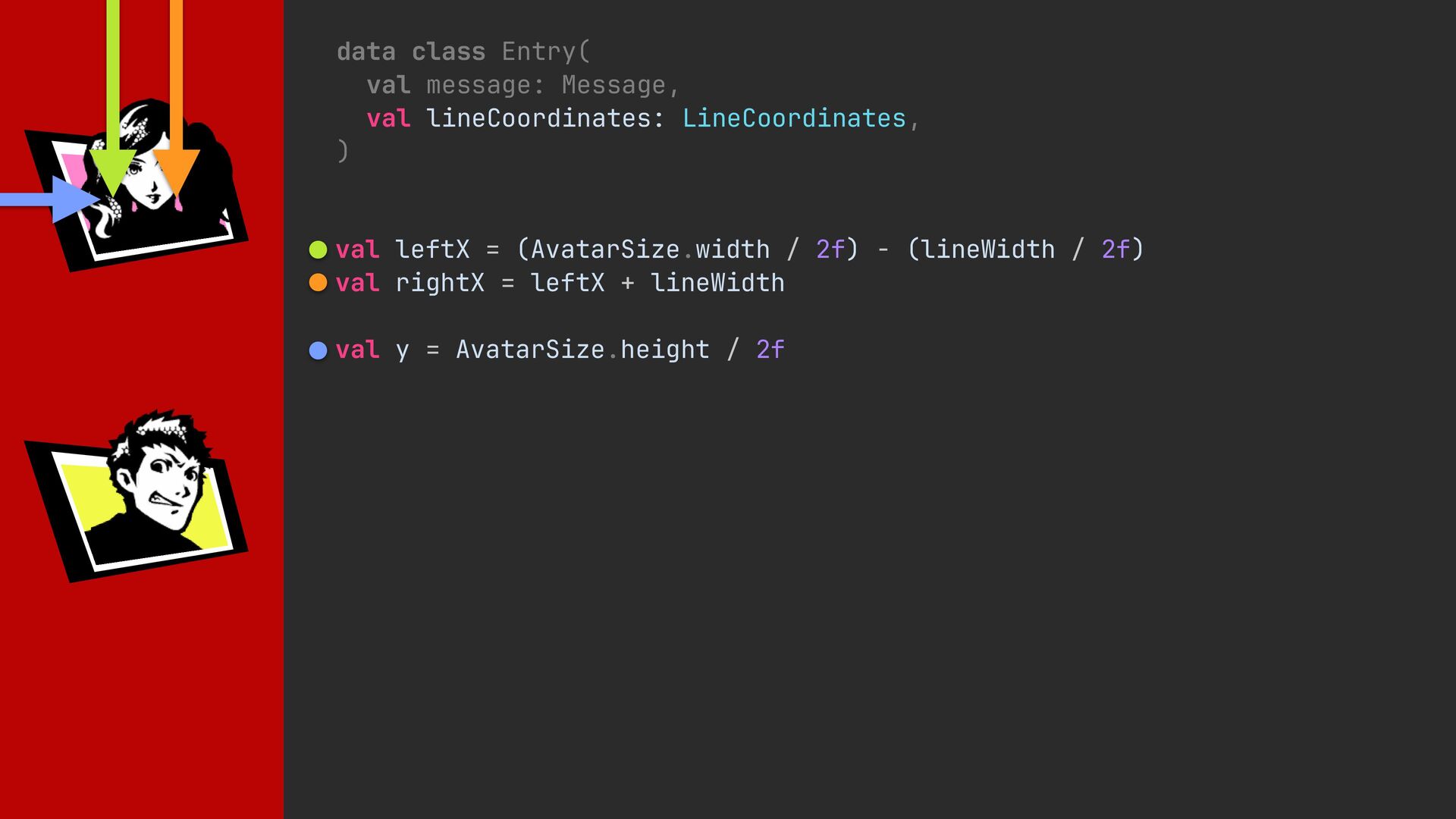

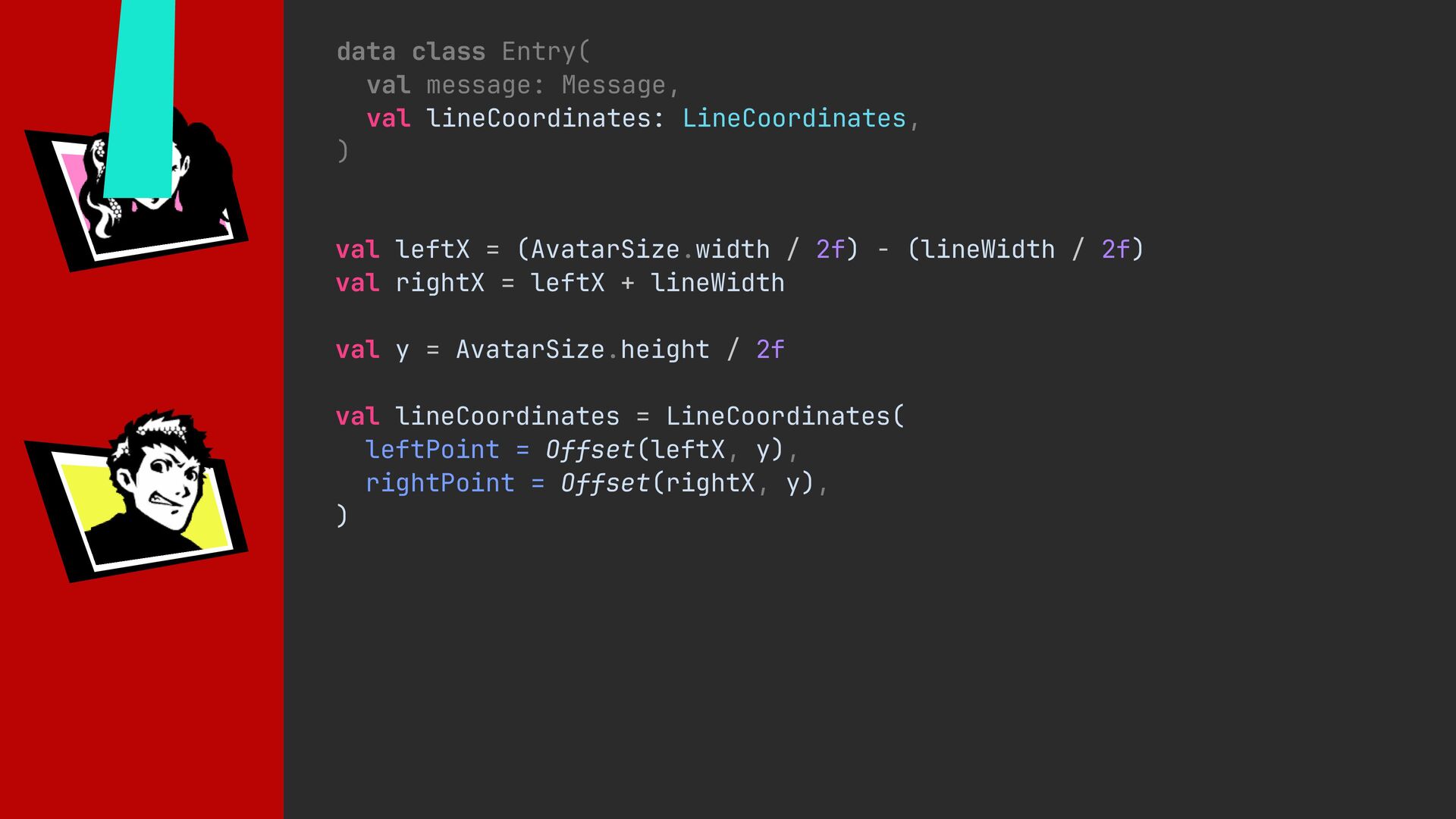

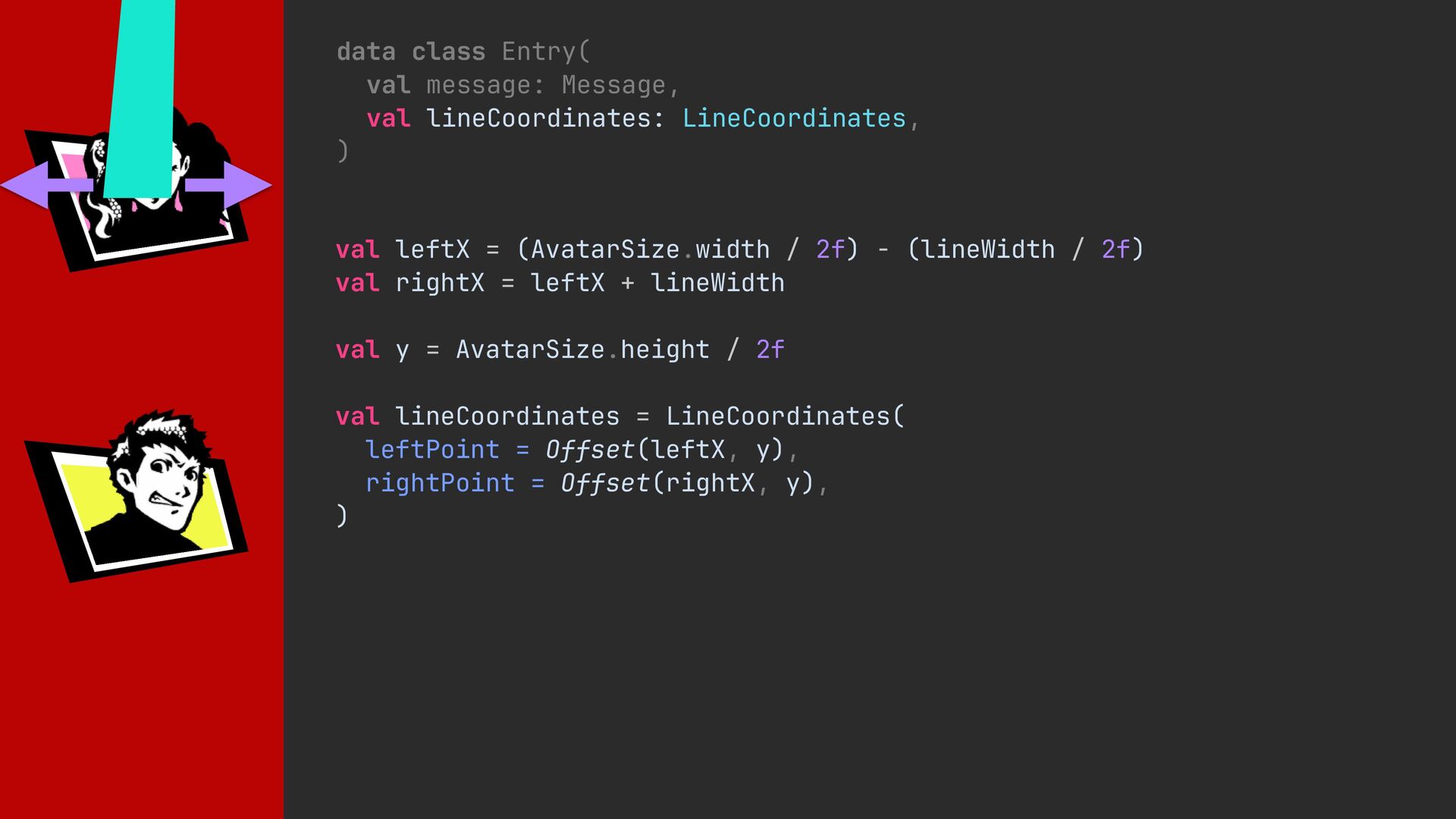

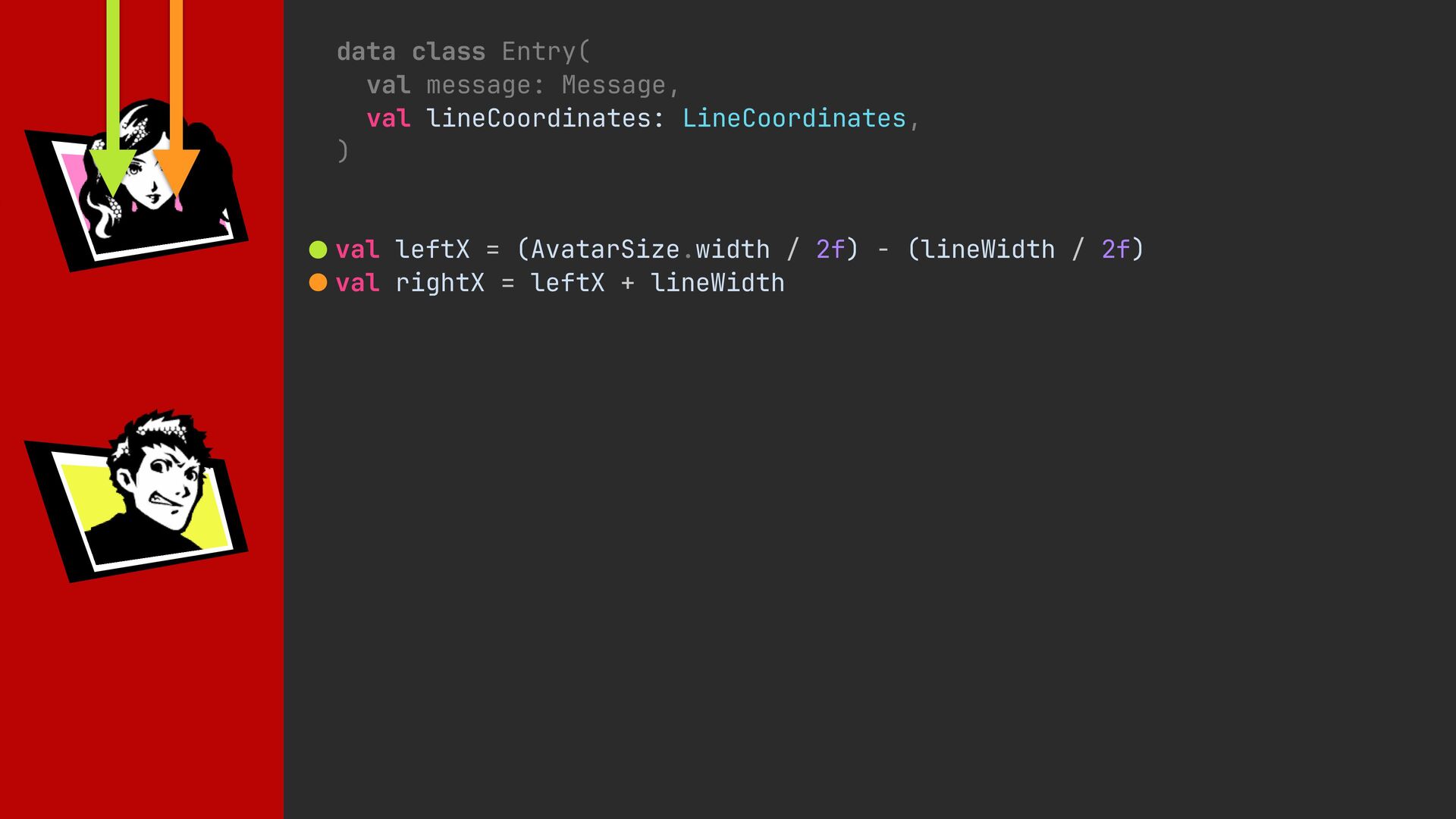

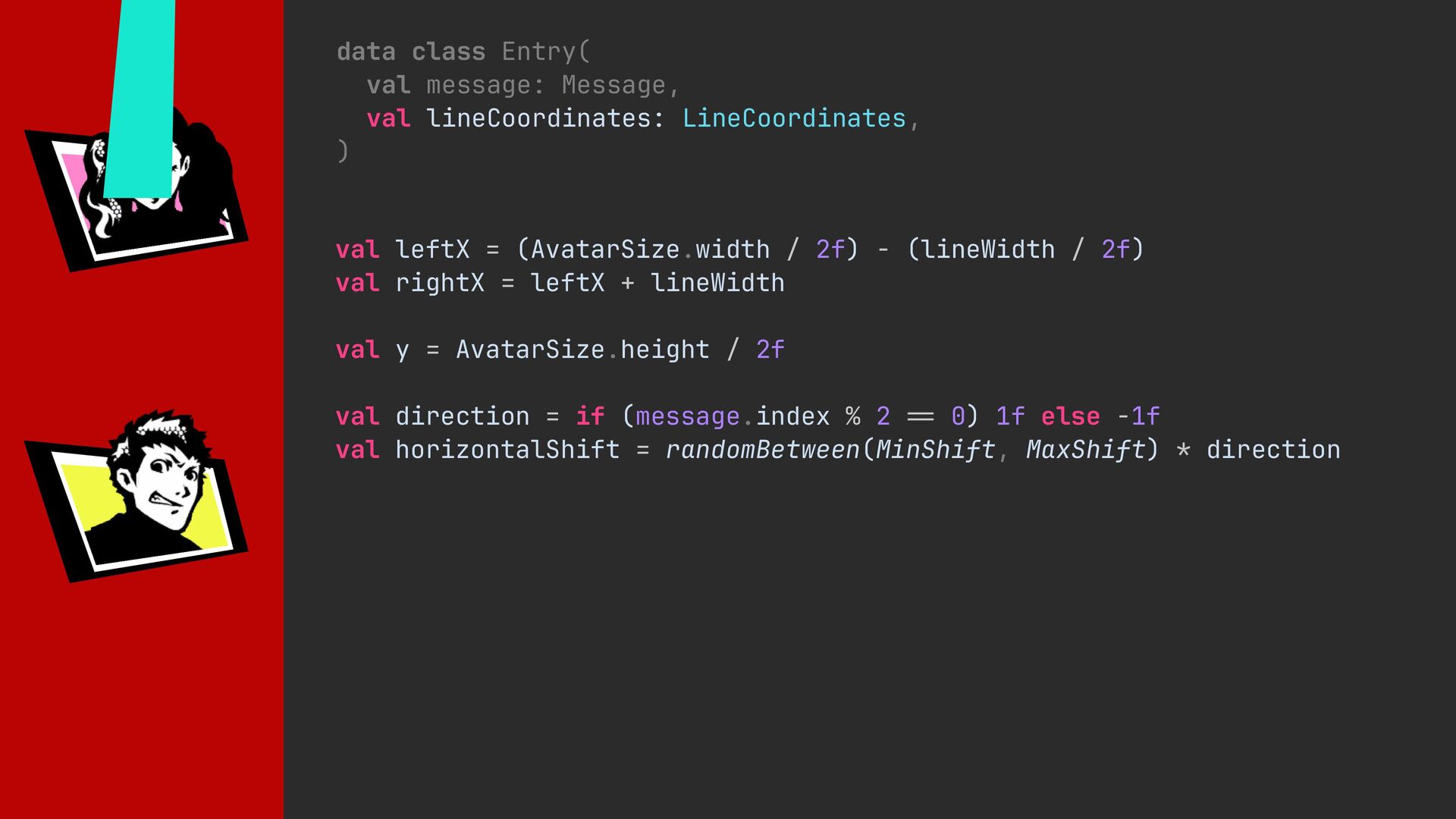

126. val leftX = (AvatarSize.width / 2f) - (lineWidth / 2f) val rightX = leftX + lineWidth data class Entry( val message: Message, val lineCoordinates: LineCoordinates, ) ©ATLUS ©SEGA
127. val leftX = (AvatarSize.width / 2f) - (lineWidth / 2f) val rightX = leftX + lineWidth val y = AvatarSize.height / 2f data class Entry( val message: Message, val lineCoordinates: LineCoordinates, ) ©ATLUS ©SEGA

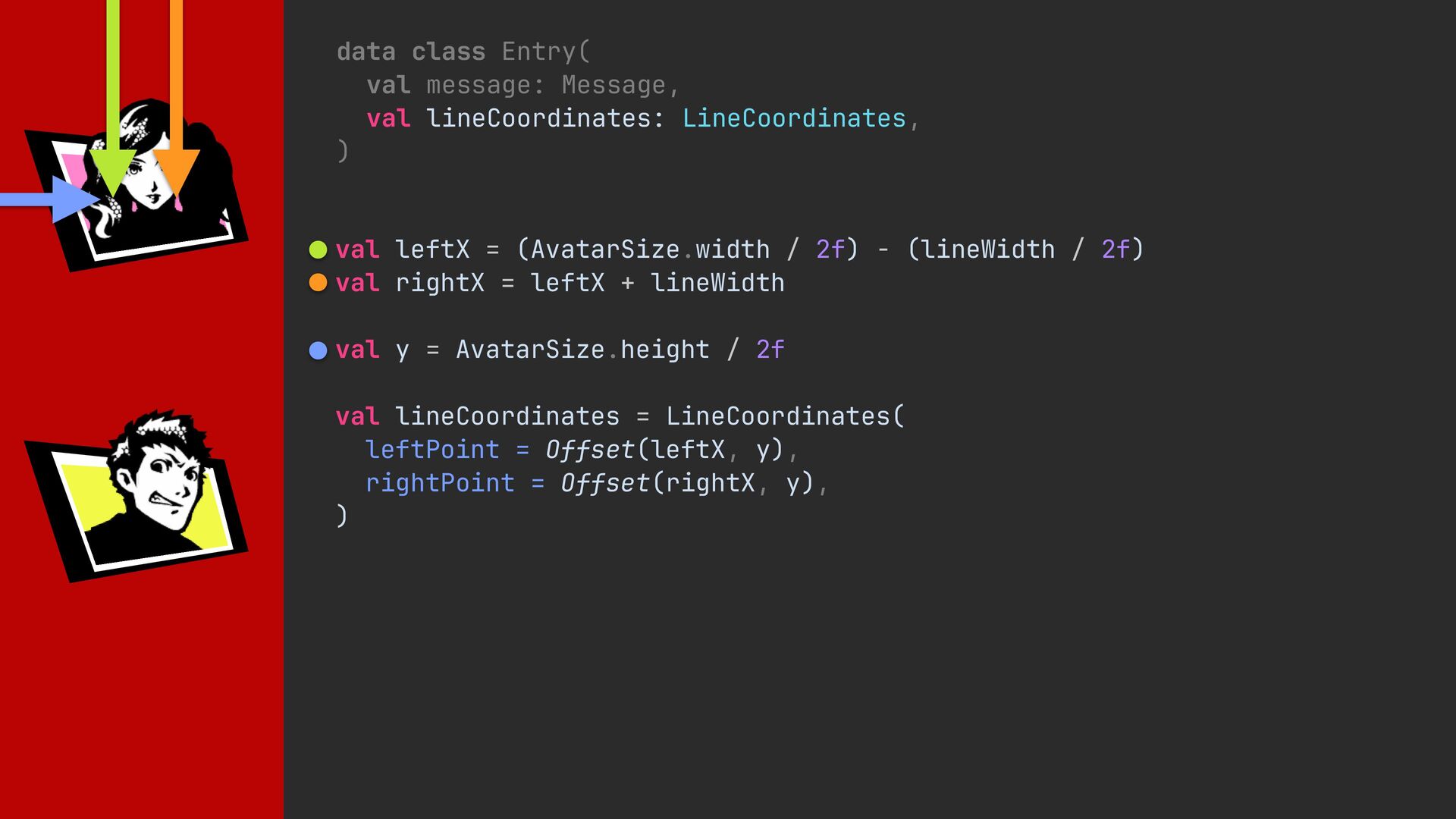

128. val leftX = (AvatarSize.width / 2f) - (lineWidth / 2f) val rightX = leftX + lineWidth val y = AvatarSize.height / 2f data class Entry( val message: Message, val lineCoordinates: LineCoordinates, ) val lineCoordinates = LineCoordinates( leftPoint = Offset(leftX, y), rightPoint = Offset(rightX, y), ) ©ATLUS ©SEGA

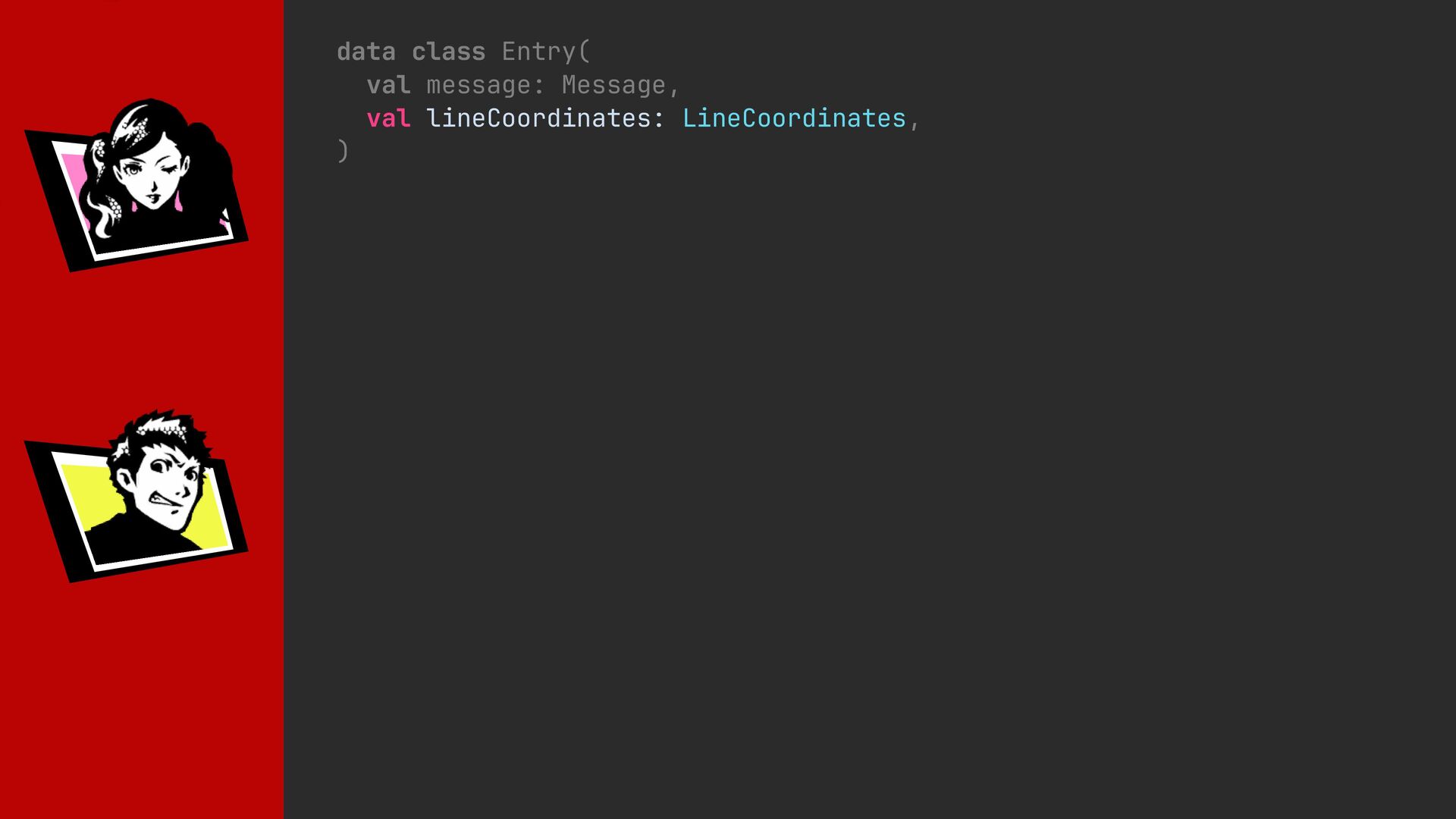

129. val leftX = (AvatarSize.width / 2f) - (lineWidth / 2f) val rightX = leftX + lineWidth val y = AvatarSize.height / 2f data class Entry( val message: Message, val lineCoordinates: LineCoordinates, ) val lineCoordinates = LineCoordinates( leftPoint = Offset(leftX, y), rightPoint = Offset(rightX, y), ) ©ATLUS ©SEGA
130. val leftX = (AvatarSize.width / 2f) - (lineWidth / 2f) val rightX = leftX + lineWidth val y = AvatarSize.height / 2f data class Entry( val message: Message, val lineCoordinates: LineCoordinates, ) val lineCoordinates = LineCoordinates( leftPoint = Offset(leftX, y), rightPoint = Offset(rightX, y), ) ©ATLUS ©SEGA
131. val leftX = (AvatarSize.width / 2f) - (lineWidth / 2f) val rightX = leftX + lineWidth val y = AvatarSize.height / 2f data class Entry( val message: Message, val lineCoordinates: LineCoordinates, ) val direction = if (message.index % 2 = = 0) 1f else -1f ©ATLUS ©SEGA

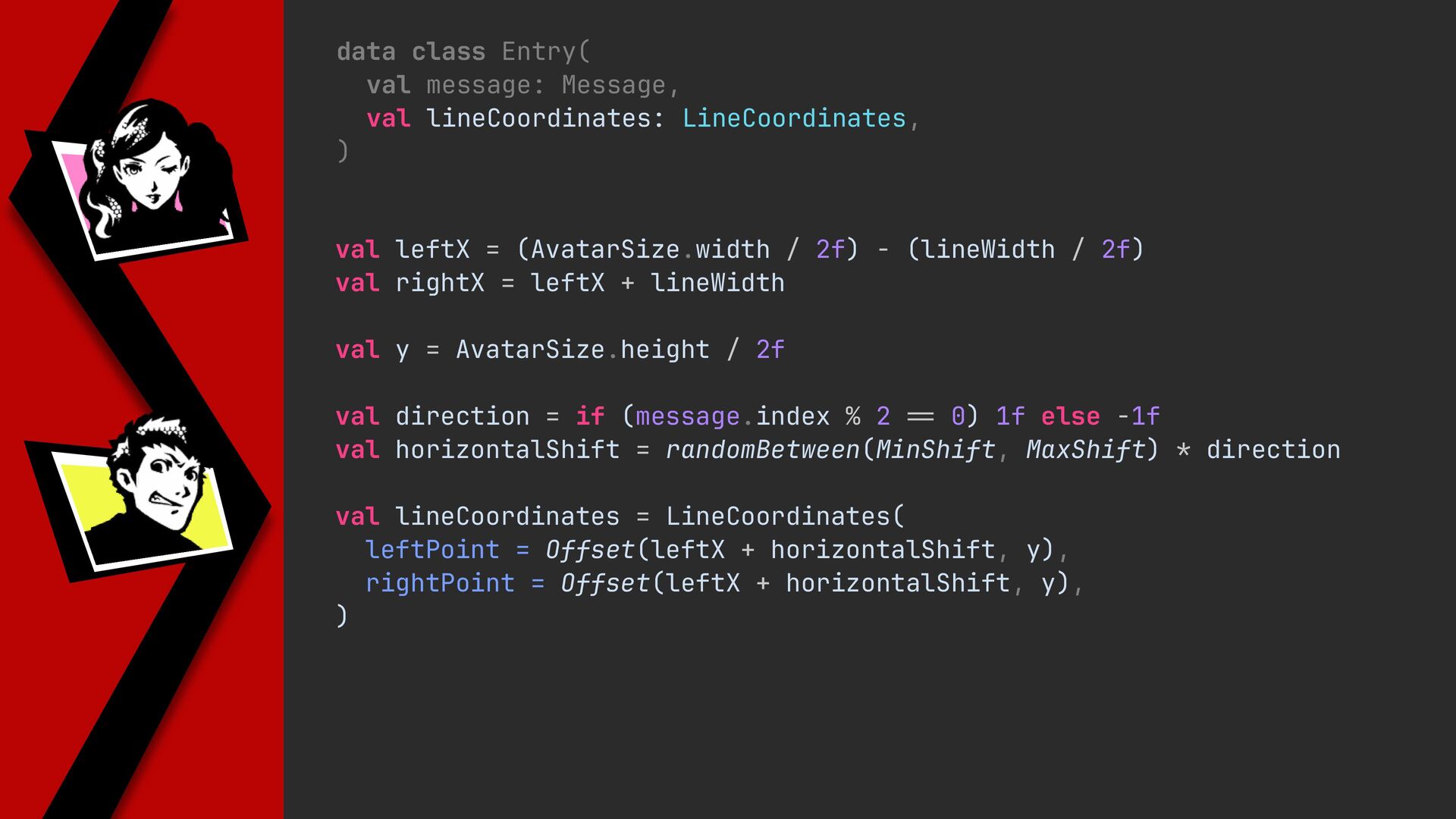

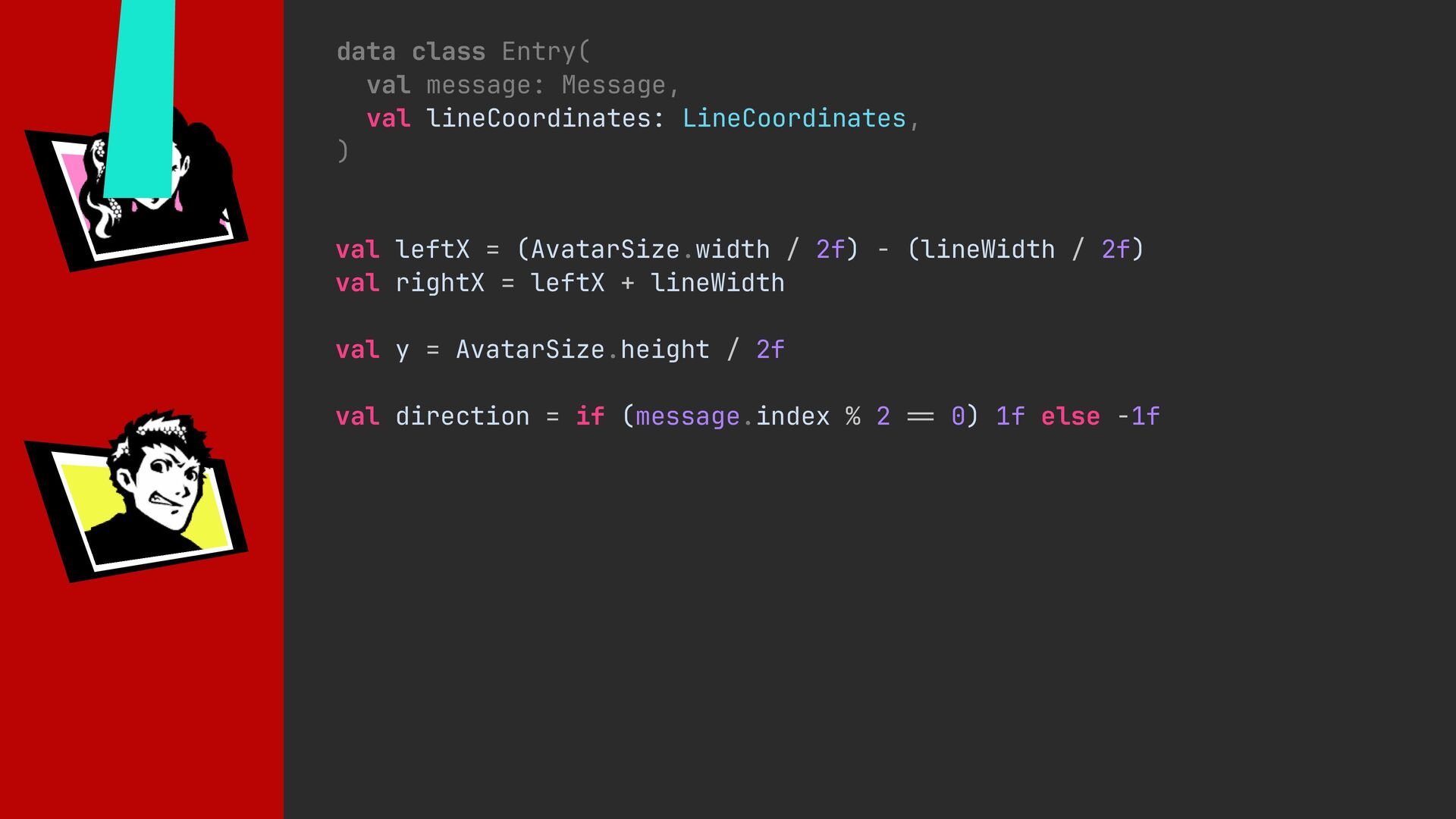

132. val leftX = (AvatarSize.width / 2f) - (lineWidth / 2f) val rightX = leftX + lineWidth val y = AvatarSize.height / 2f data class Entry( val message: Message, val lineCoordinates: LineCoordinates, ) val direction = if (message.index % 2 = = 0) 1f else -1f val horizontalShift = randomBetween(MinShift, MaxShift) * direction ©ATLUS ©SEGA
133. val leftX = (AvatarSize.width / 2f) - (lineWidth / 2f) val rightX = leftX + lineWidth val y = AvatarSize.height / 2f data class Entry( val message: Message, val lineCoordinates: LineCoordinates, ) val direction = if (message.index % 2 = = 0) 1f else -1f val horizontalShift = randomBetween(MinShift, MaxShift) * direction val lineCoordinates = LineCoordinates( leftPoint = Offset(leftX + horizontalShift, y), rightPoint = Offset(leftX + horizontalShift, y), ) ©ATLUS ©SEGA

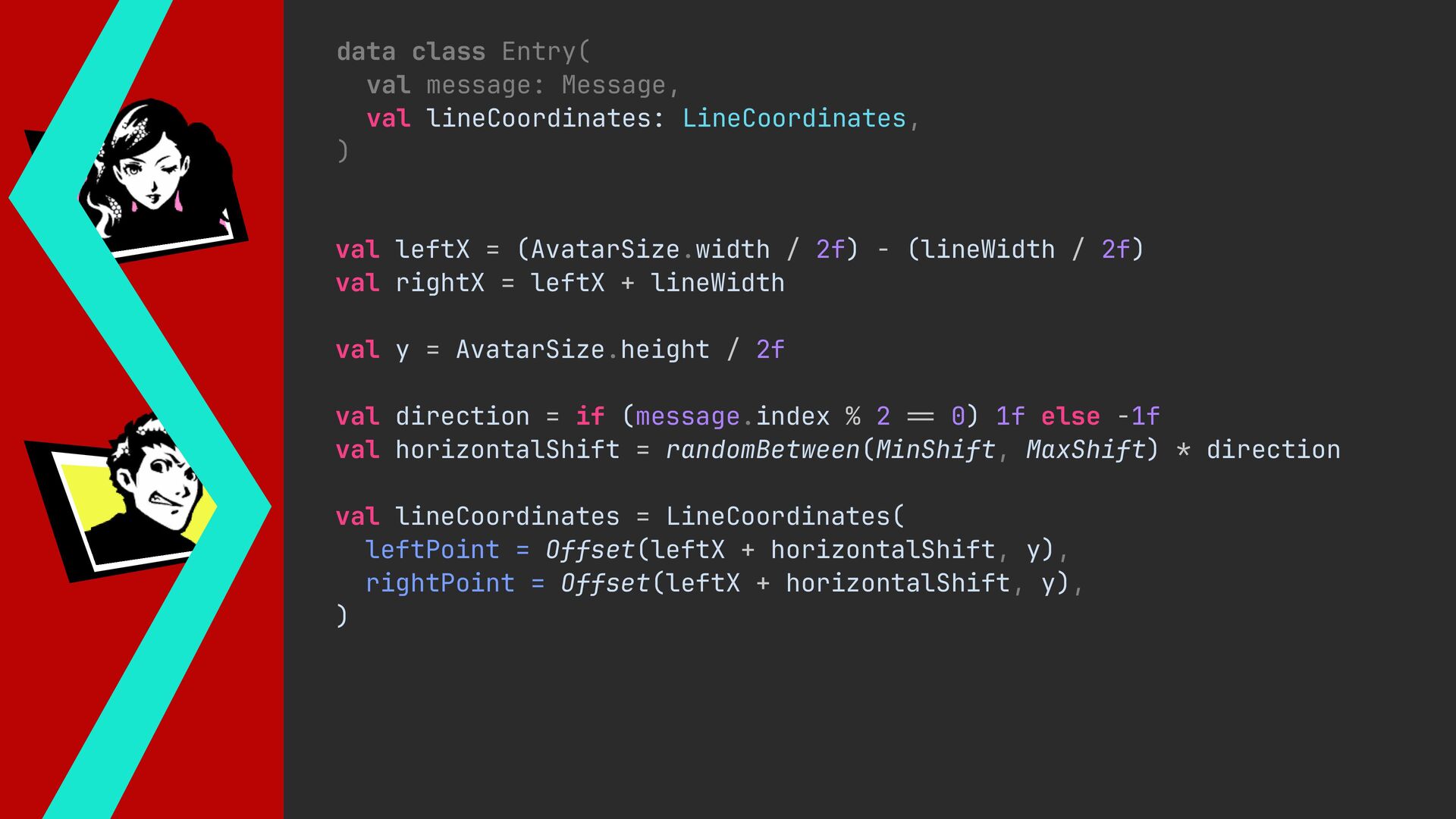

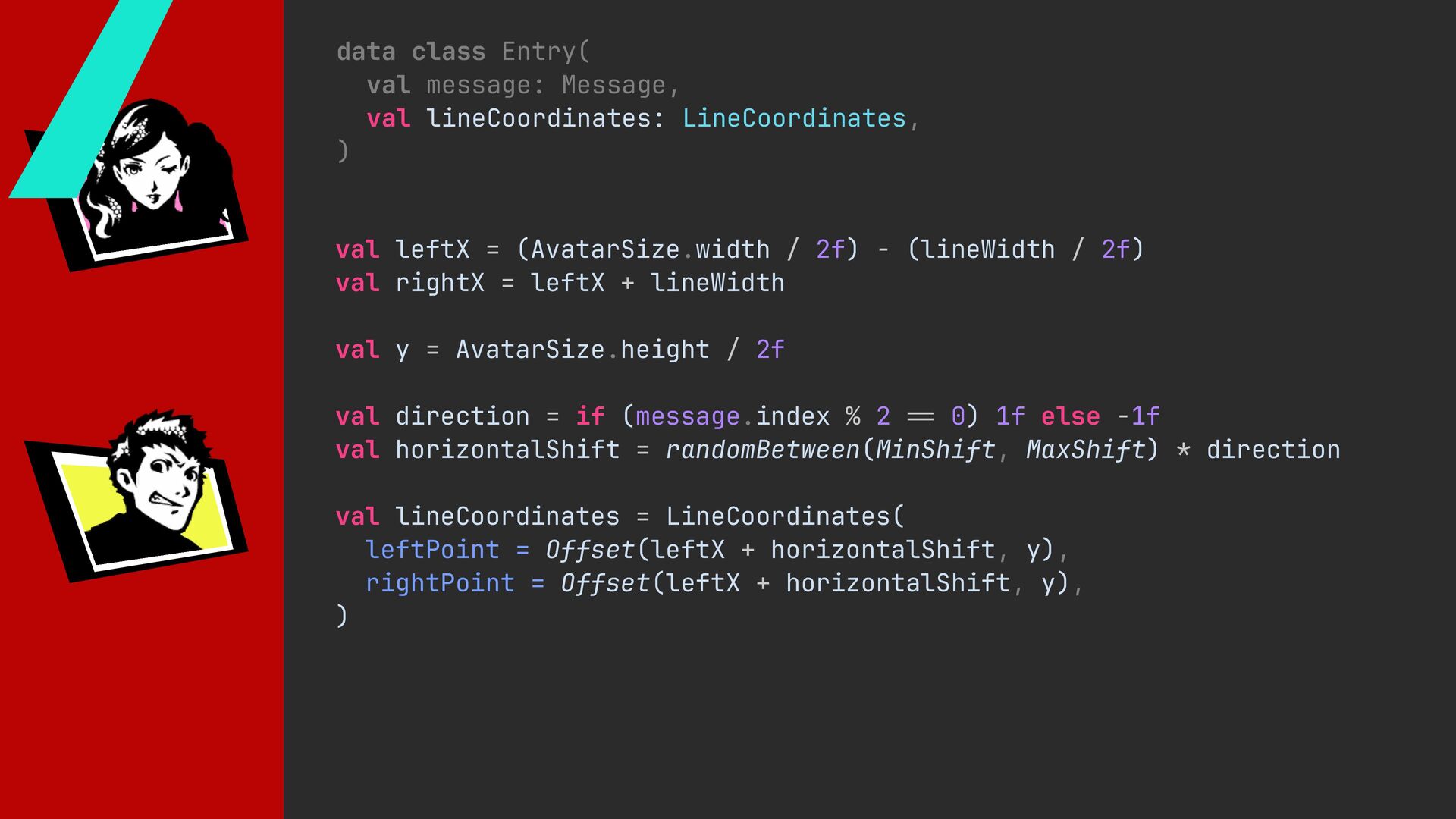

134. data class Entry( val message: Message, val lineCoordinates: LineCoordinates, ) val leftX = (AvatarSize.width / 2f) - (lineWidth / 2f) val rightX = leftX + lineWidth val y = AvatarSize.height / 2f val direction = if (message.index % 2 = = 0) 1f else -1f val horizontalShift = randomBetween(MinShift, MaxShift) * direction val lineCoordinates = LineCoordinates( leftPoint = Offset(leftX + horizontalShift, y), rightPoint = Offset(leftX + horizontalShift, y), ) ©ATLUS ©SEGA
135. data class Entry( val message: Message, val lineCoordinates: LineCoordinates, ) val leftX = (AvatarSize.width / 2f) - (lineWidth / 2f) val rightX = leftX + lineWidth val y = AvatarSize.height / 2f val direction = if (message.index % 2 = = 0) 1f else -1f val horizontalShift = randomBetween(MinShift, MaxShift) * direction val lineCoordinates = LineCoordinates( leftPoint = Offset(leftX + horizontalShift, y), rightPoint = Offset(leftX + horizontalShift, y), ) ©ATLUS ©SEGA
136. data class Entry( val message: Message, val lineCoordinates: LineCoordinates, ) val leftX = (AvatarSize.width / 2f) - (lineWidth / 2f) val rightX = leftX + lineWidth val y = AvatarSize.height / 2f val direction = if (message.index % 2 = = 0) 1f else -1f val horizontalShift = randomBetween(MinShift, MaxShift) * direction val lineCoordinates = LineCoordinates( leftPoint = Offset(leftX + horizontalShift, y), rightPoint = Offset(leftX + horizontalShift, y), ) ©ATLUS ©SEGA
137. ©ATLUS ©SEGA

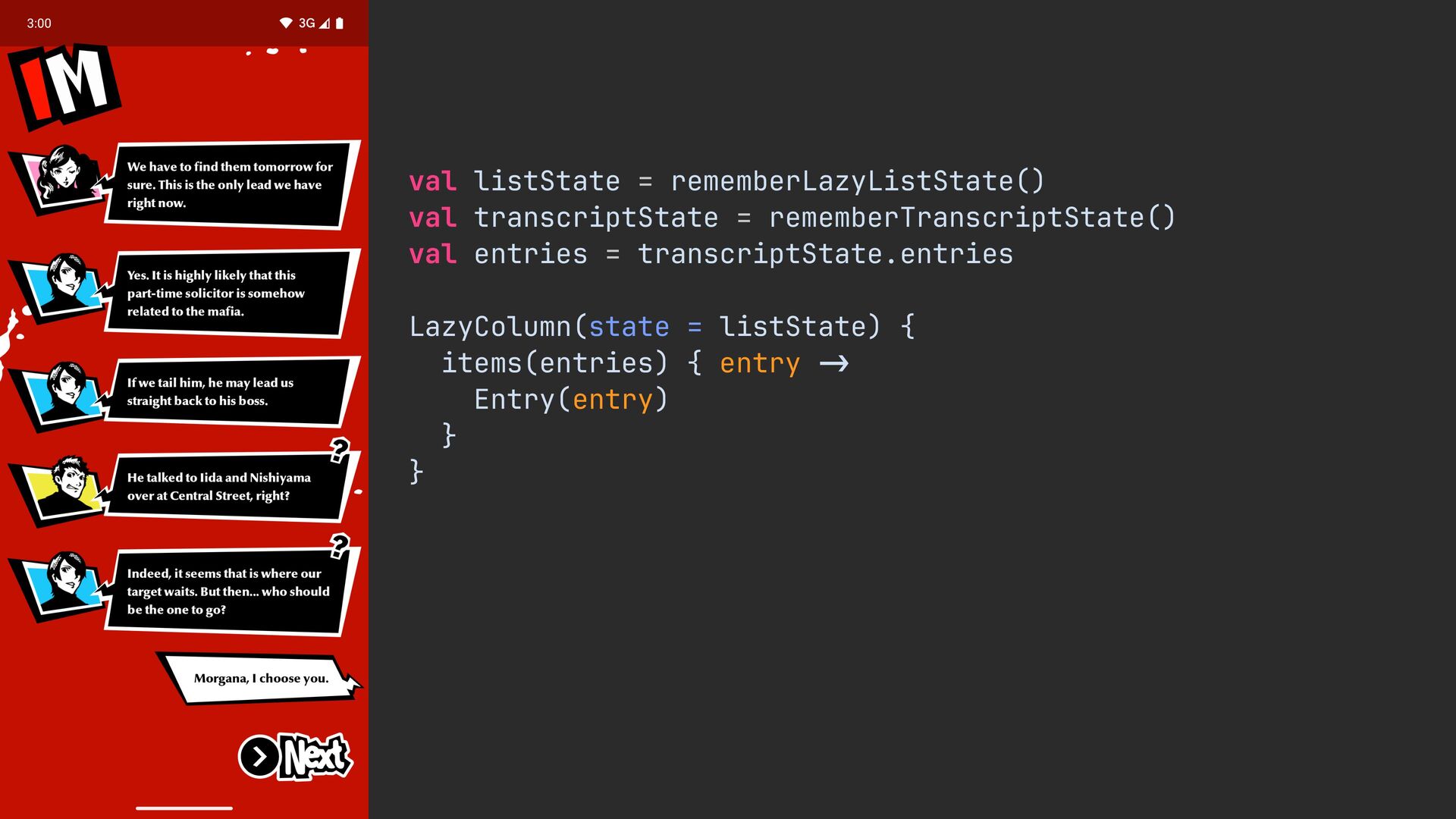

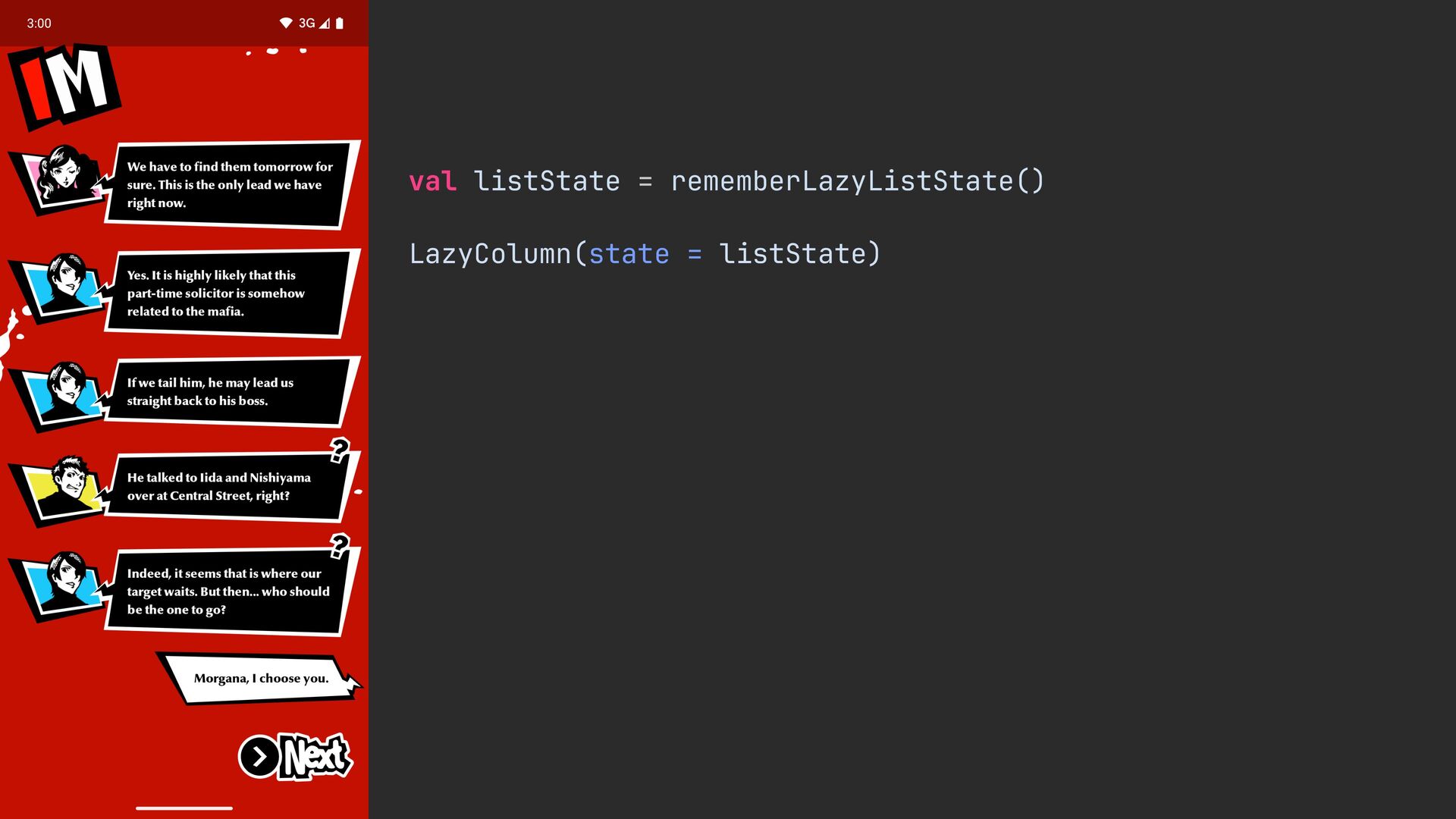

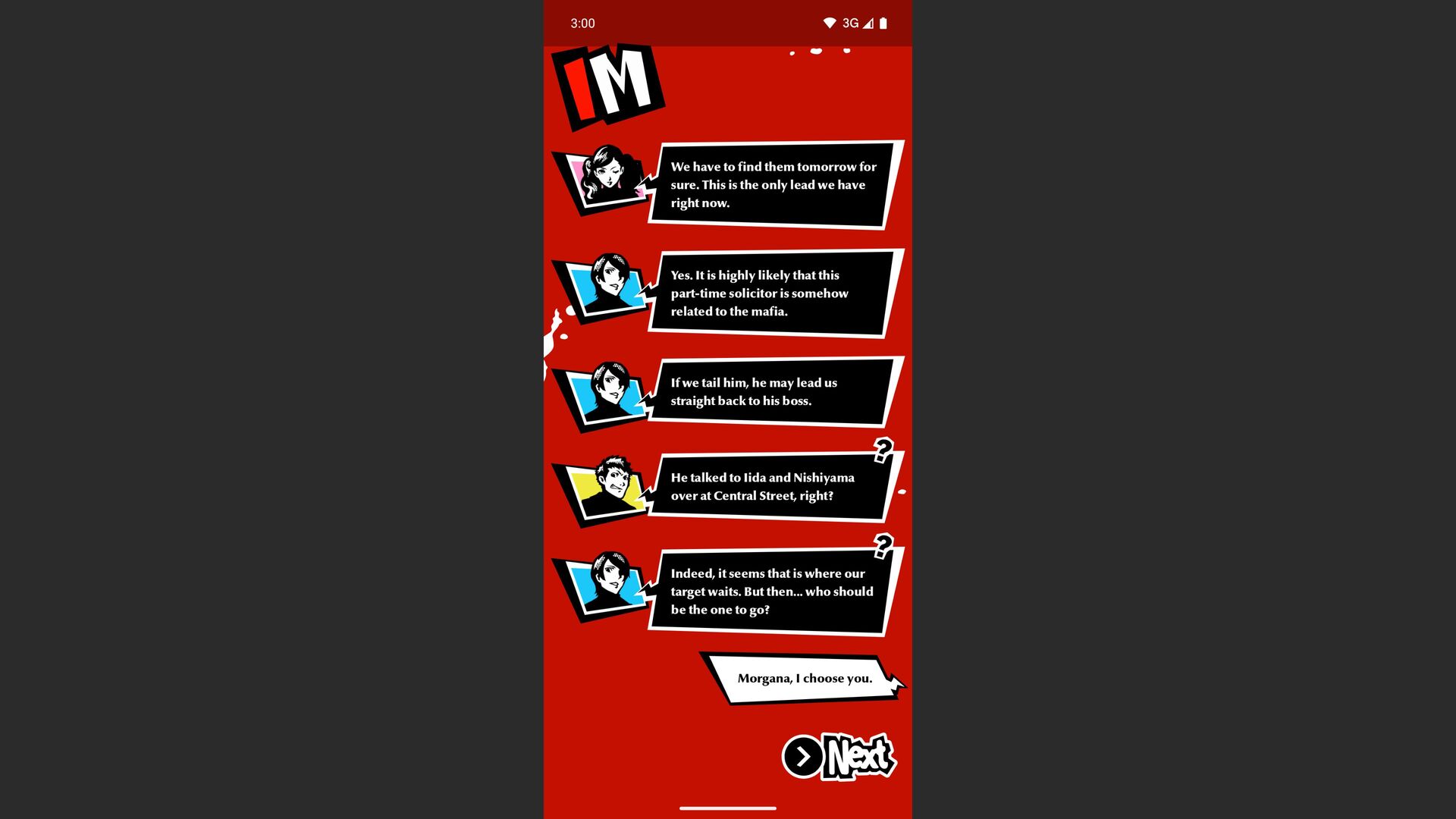

138. val listState = rememberLazyListState() LazyColumn(state = listState) ©ATLUS ©SEGA
139. val listState = rememberLazyListState() val transcriptState = rememberTranscriptState() val entries = transcriptState.entries LazyColumn(state = listState) ©ATLUS ©SEGA
140. val listState = rememberLazyListState() val transcriptState = rememberTranscriptState() val entries = transcriptState.entries LazyColumn(state = listState) { items(entries) { entry -> Entry(entry) } } ©ATLUS ©SEGA
141. val listState = rememberLazyListState() val transcriptState = rememberTranscriptState() val entries = transcriptState.entries BackgroundLine(listState, entries) LazyColumn(state = listState) { items(entries) { entry -> Entry(entry) } } ©ATLUS ©SEGA

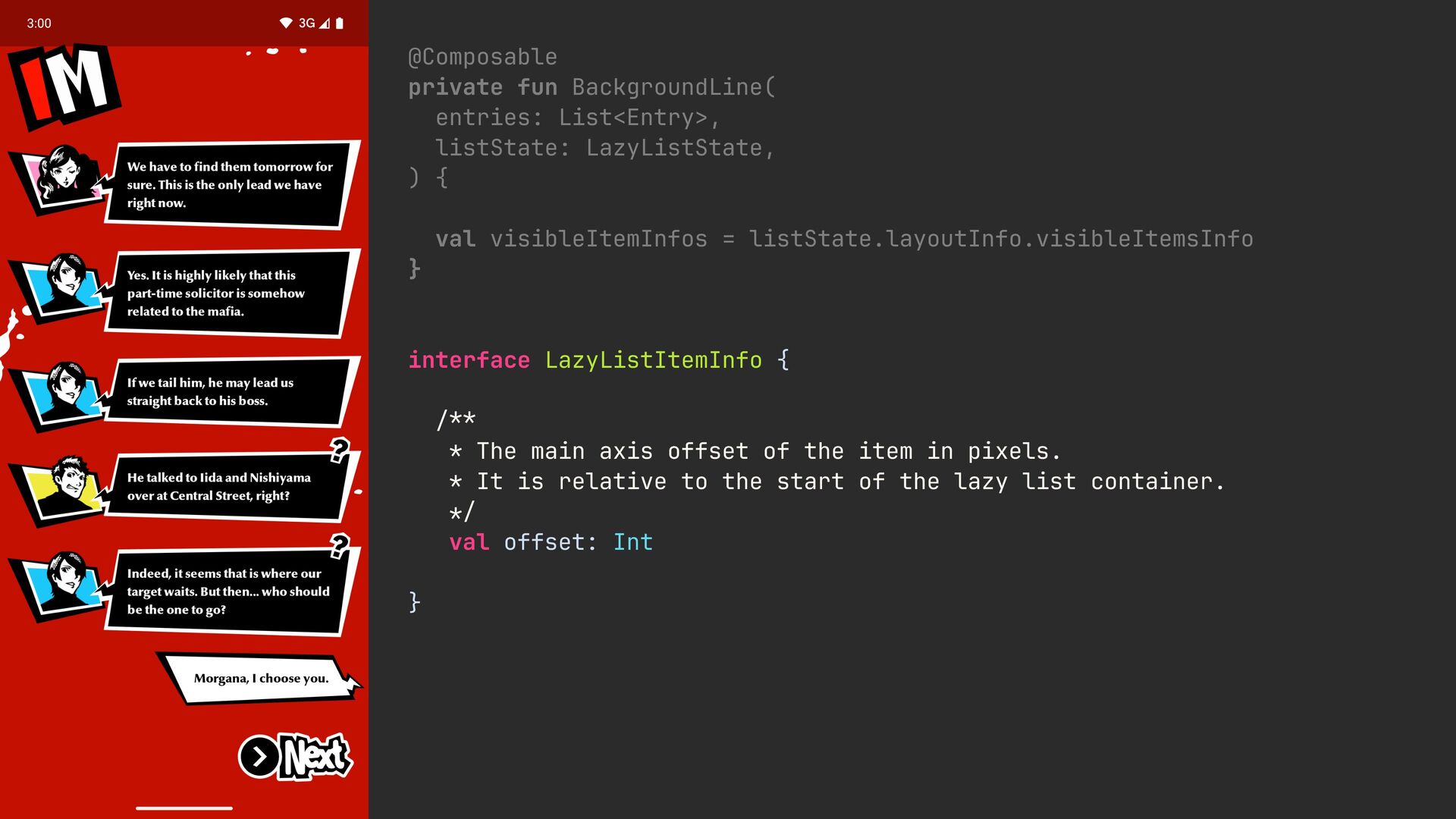

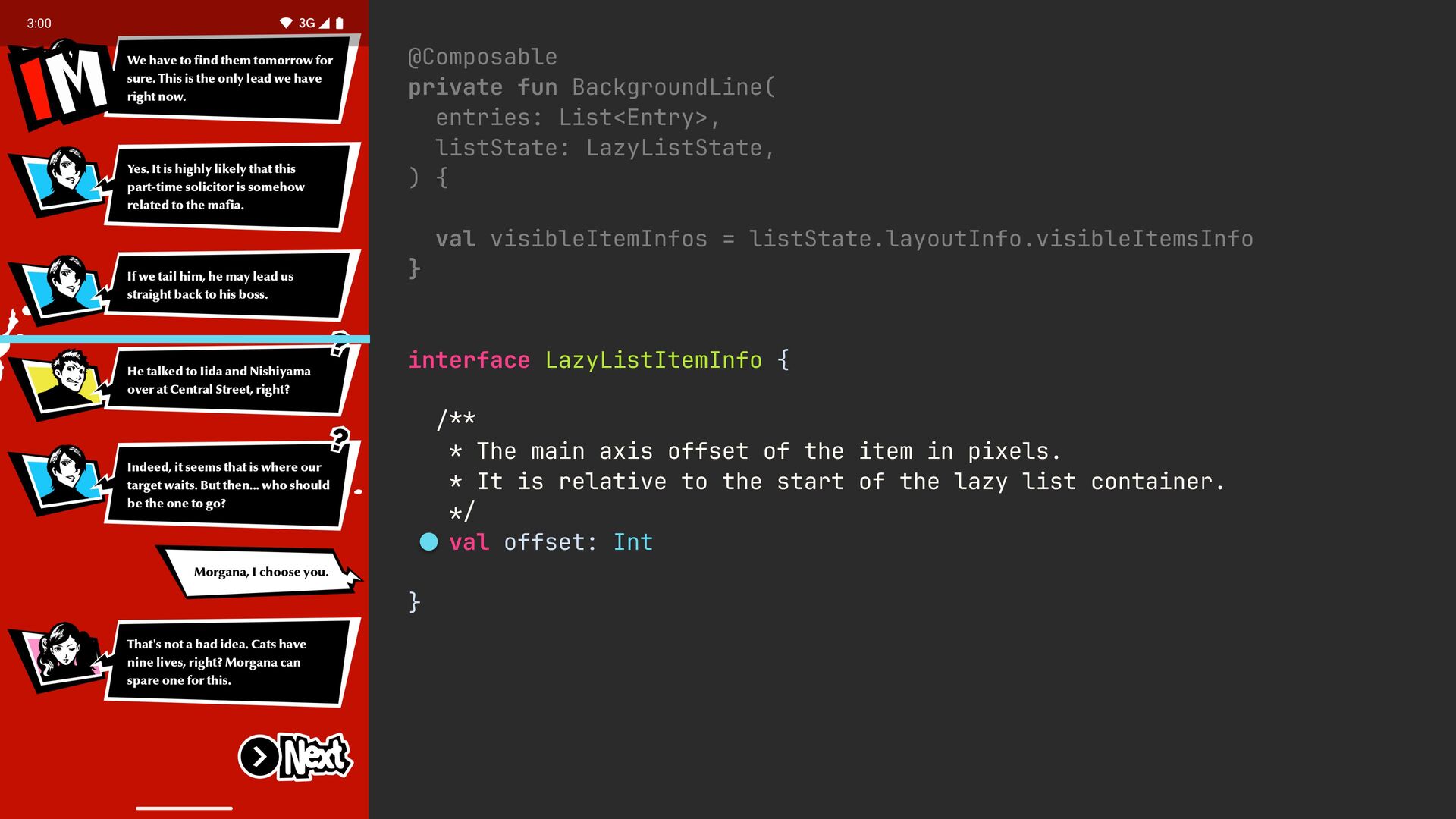

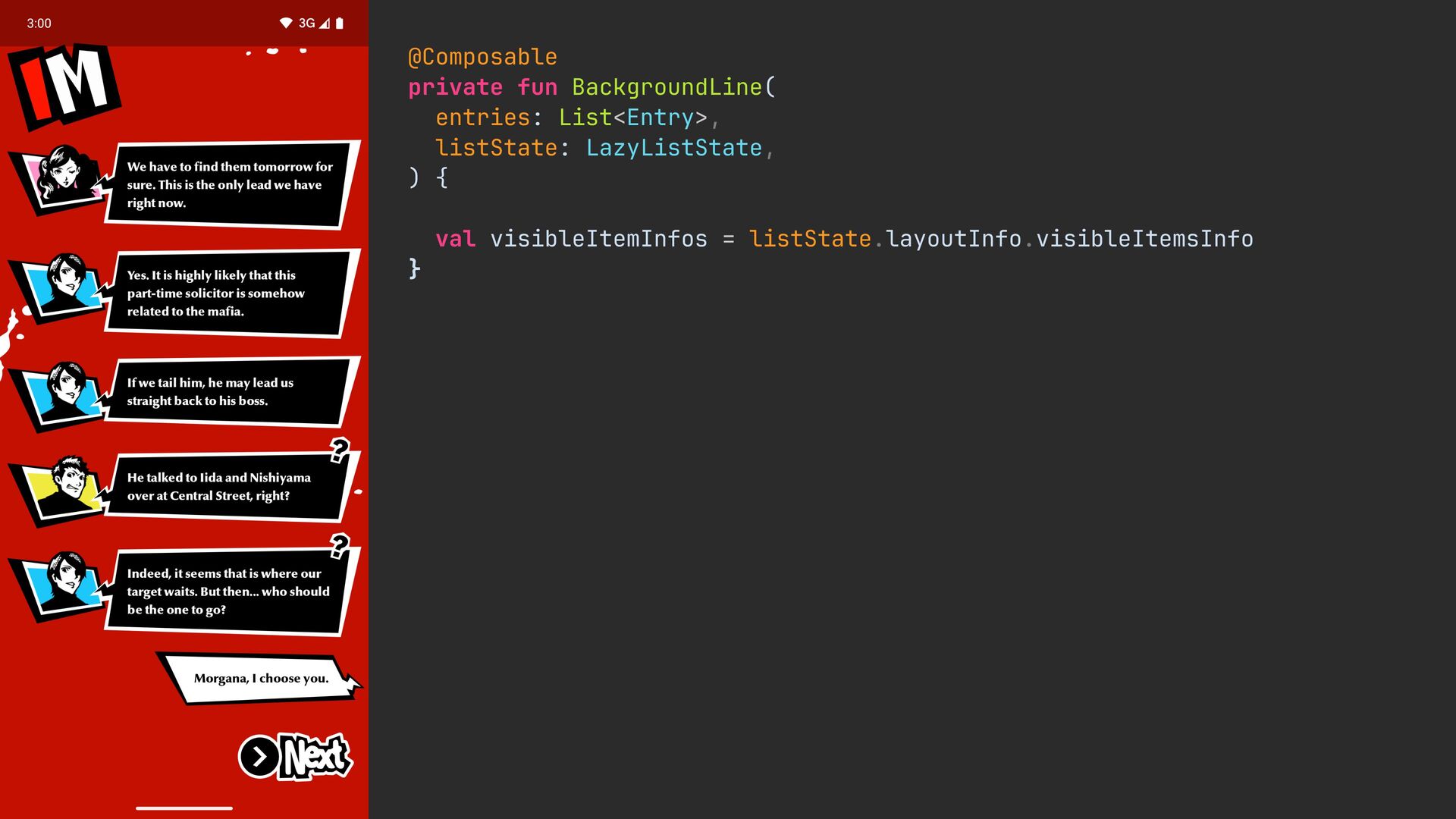

142. @Composable private fun BackgroundLine( entries: List<Entry>, listState: LazyListState, ) { val visibleItemInfos = listState.layoutInfo.visibleItemsInfo } ©ATLUS ©SEGA
143. @Composable private fun BackgroundLine( entries: List<Entry>, listState: LazyListState, ) { val visibleItemInfos = listState.layoutInfo.visibleItemsInfo } interface LazyListItemInfo { /** * The main axis offset of the item in pixels. * It is relative to the start of the lazy list container. */ val offset: Int } ©ATLUS ©SEGA
144. @Composable private fun BackgroundLine( entries: List<Entry>, listState: LazyListState, ) { val visibleItemInfos = listState.layoutInfo.visibleItemsInfo } interface LazyListItemInfo { /** * The main axis offset of the item in pixels. * It is relative to the start of the lazy list container. */ val offset: Int } ©ATLUS ©SEGA
145. @Composable private fun BackgroundLine( entries: List<Entry>, listState: LazyListState, ) { val visibleItemInfos = listState.layoutInfo.visibleItemsInfo } interface LazyListItemInfo { /** * The main axis offset of the item in pixels. * It is relative to the start of the lazy list container. */ v​ al offset: Int } ©ATLUS ©SEGA

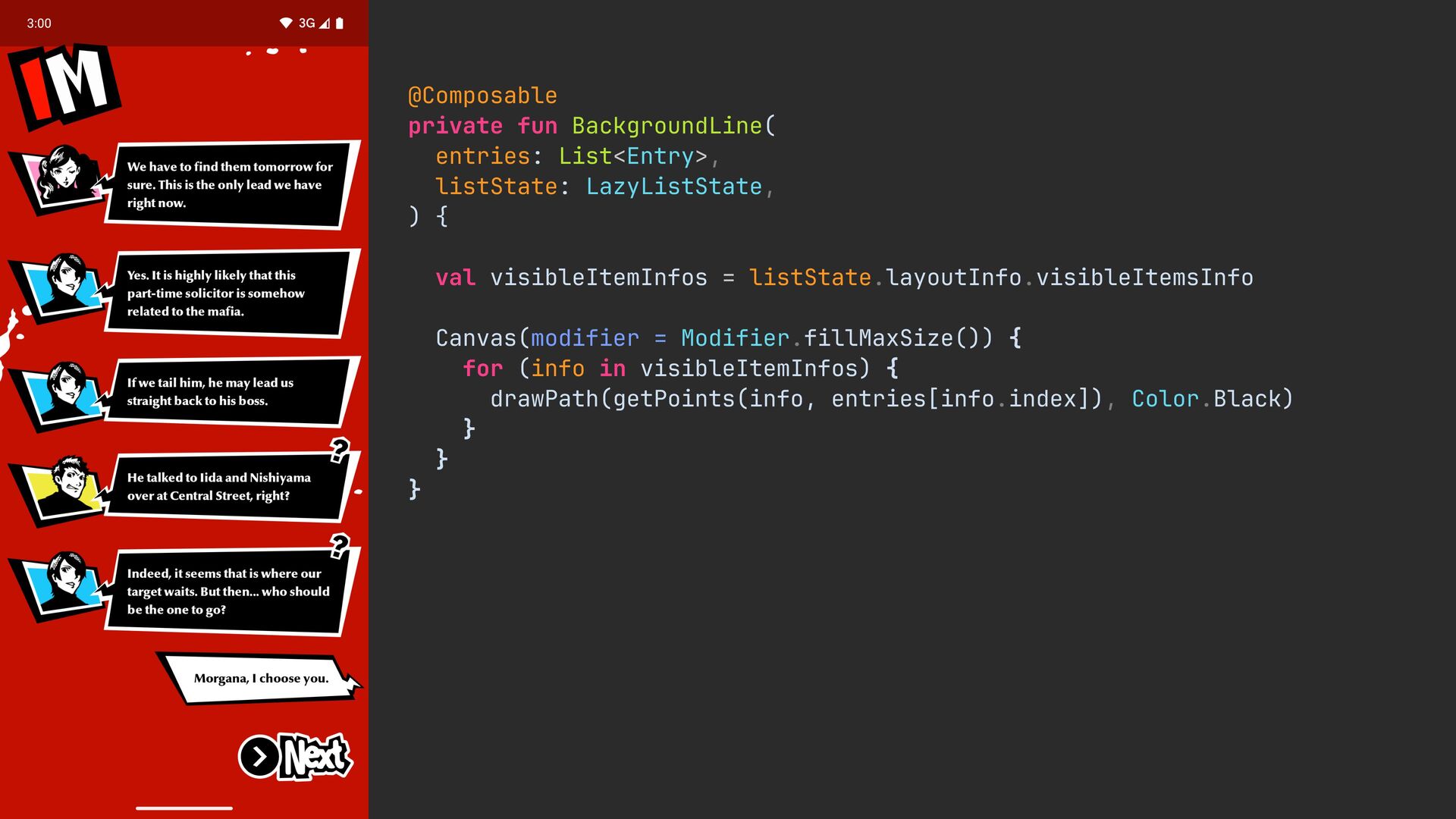

146. @Composable private fun BackgroundLine( entries: List<Entry>, listState: LazyListState, ) { val visibleItemInfos = listState.layoutInfo.visibleItemsInfo Canvas(modifier = Modifier.fillMaxSize()) { for (info in visibleItemInfos) { drawPath(getPoints(info, entries[info.index]), Color.Black) } } } interface LazyListItemInfo { * * The main axis offset of the item in pixels. * It is relative to the start of the lazy list container. / v​ } ©ATLUS ©SEGA
147. ©ATLUS ©SEGA

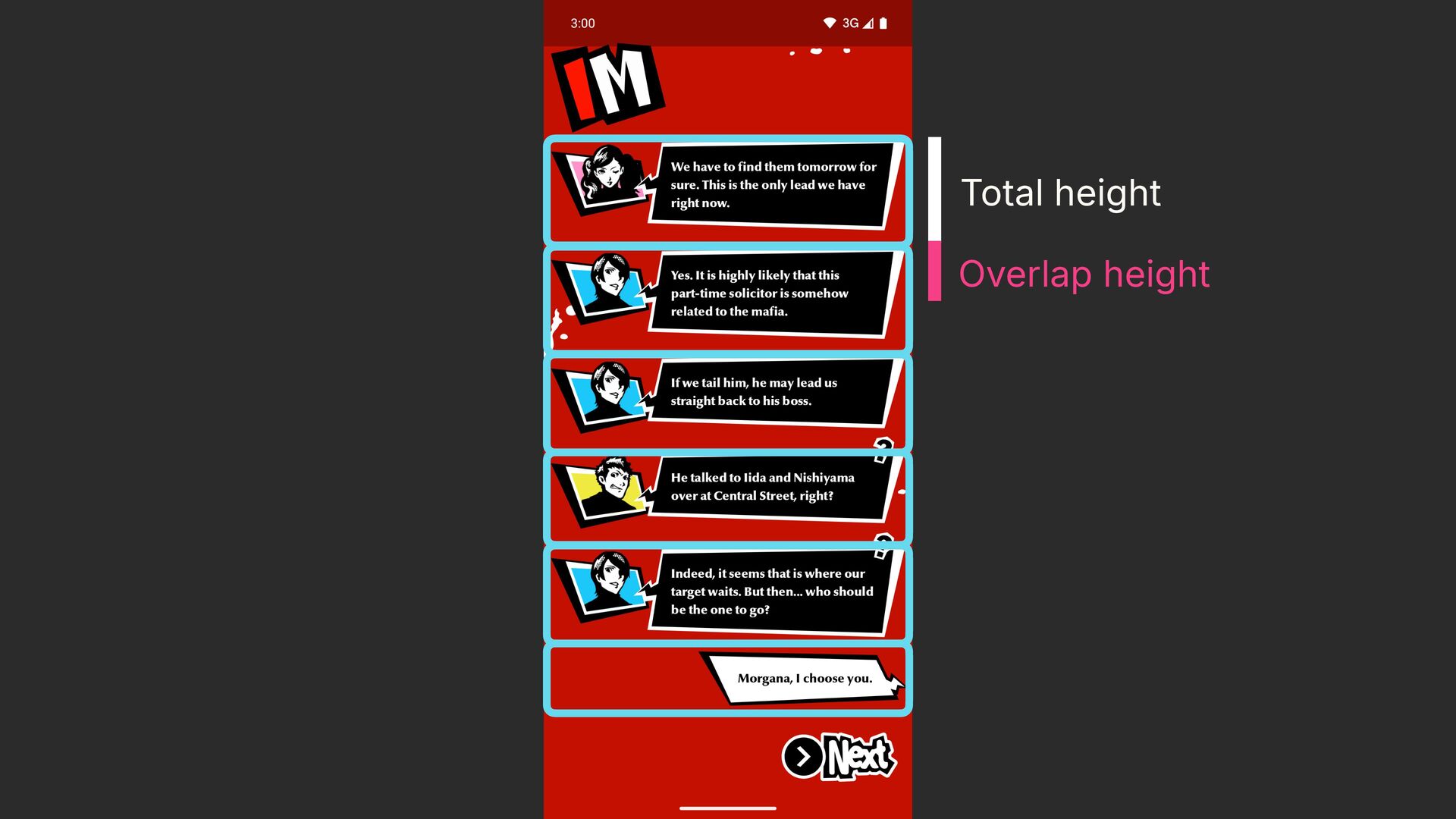

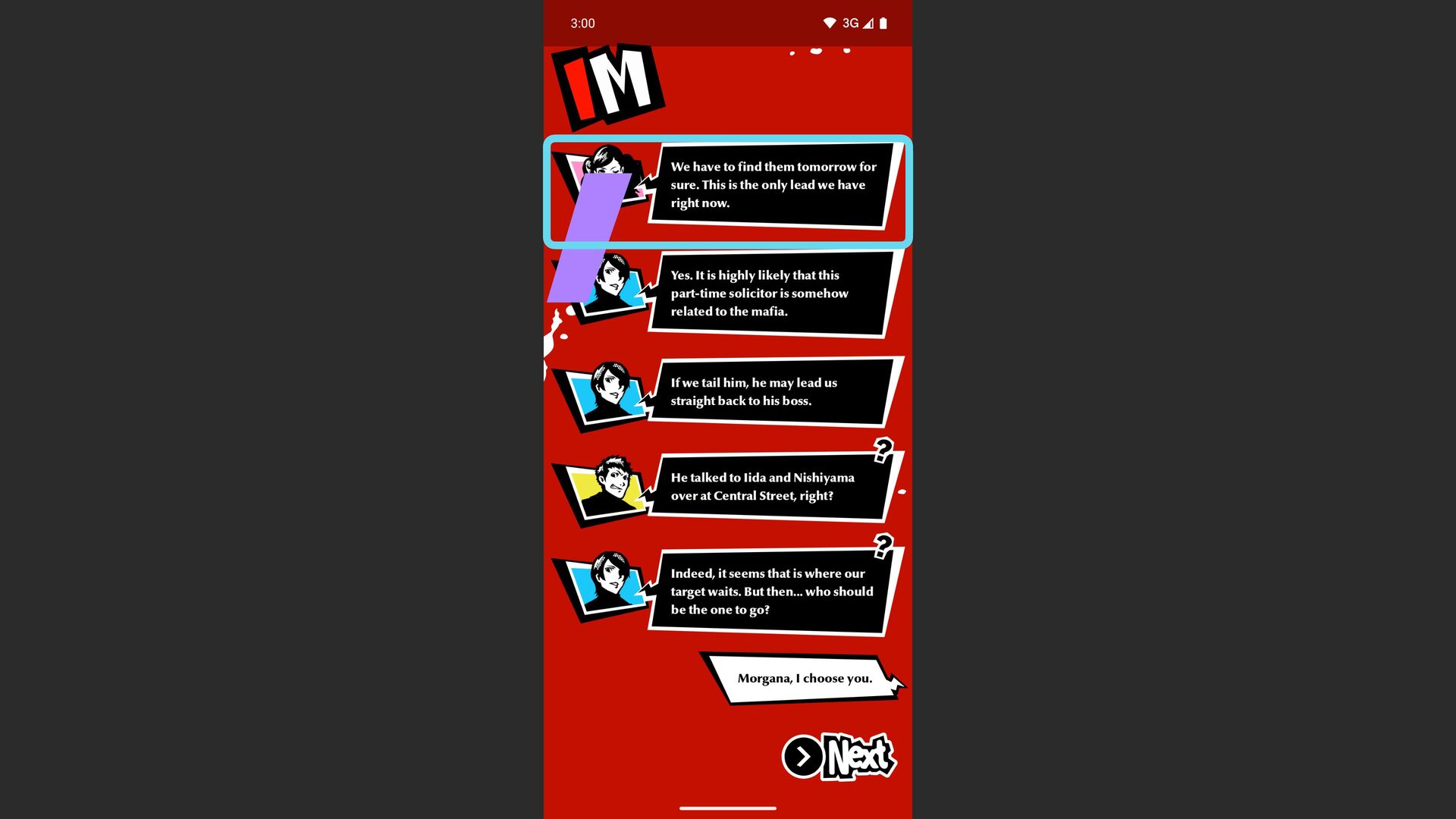

148. Total height Overlap height ©ATLUS ©SEGA
149. ©ATLUS ©SEGA
150. ©ATLUS ©SEGA

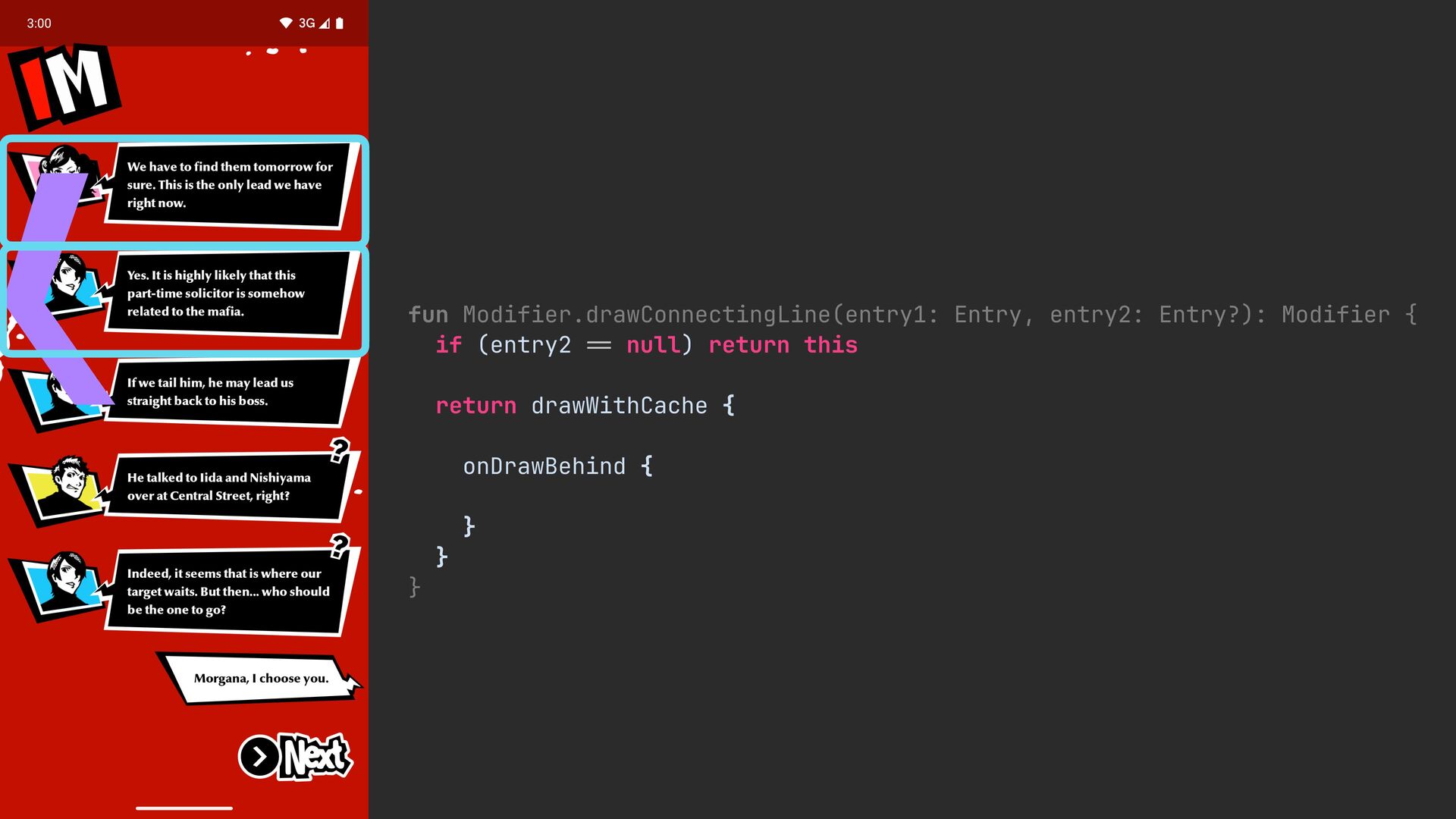

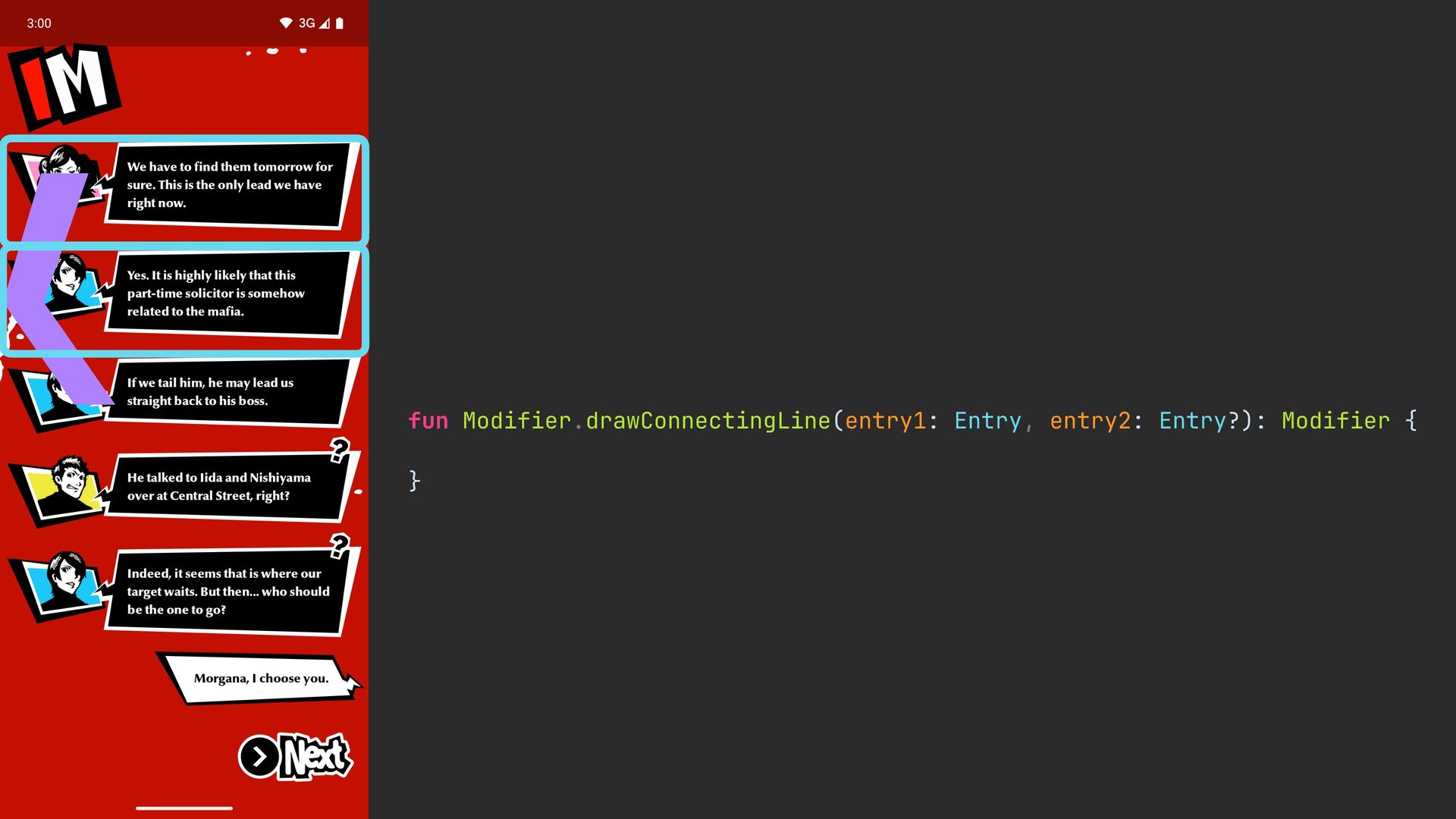

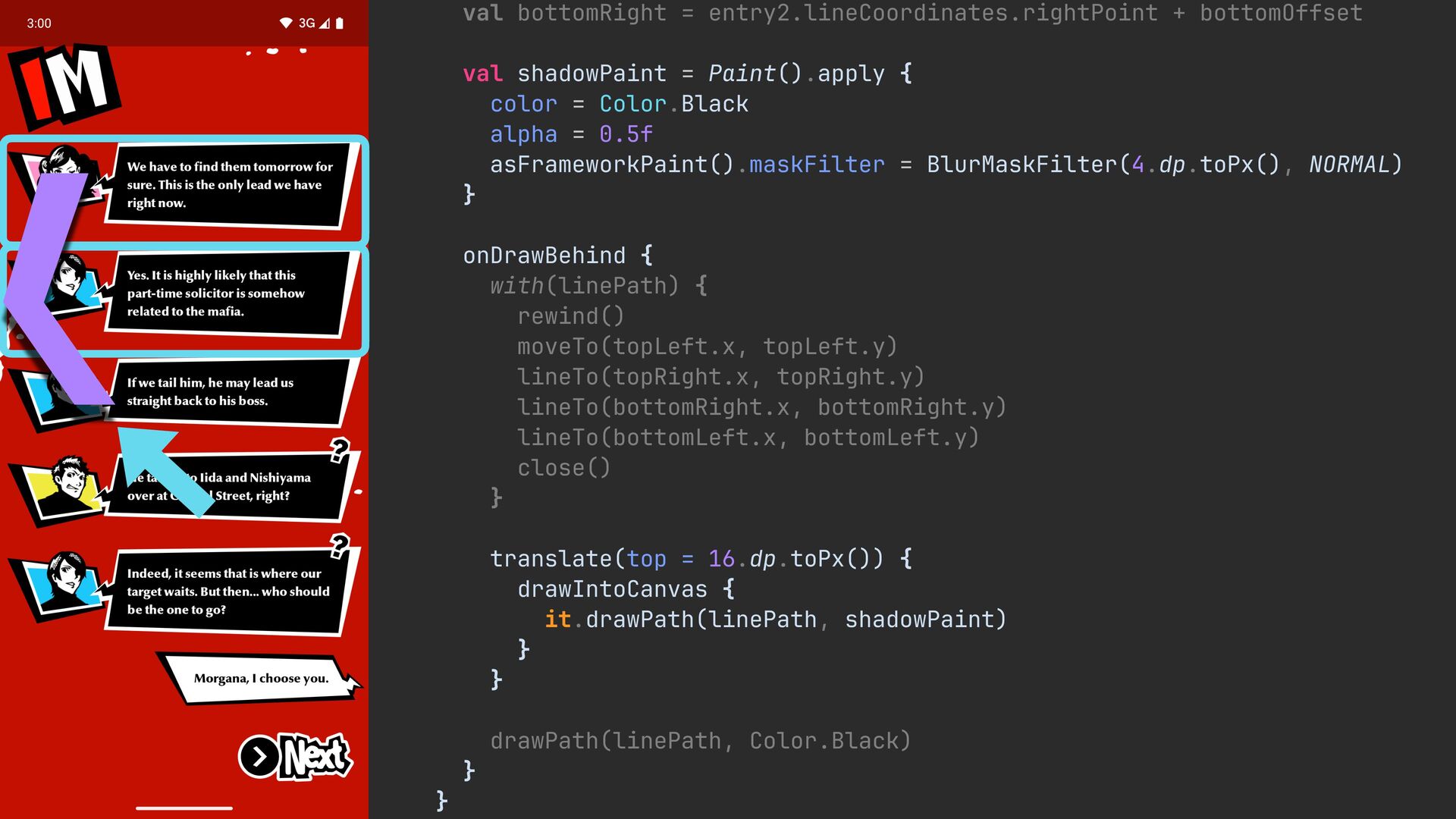

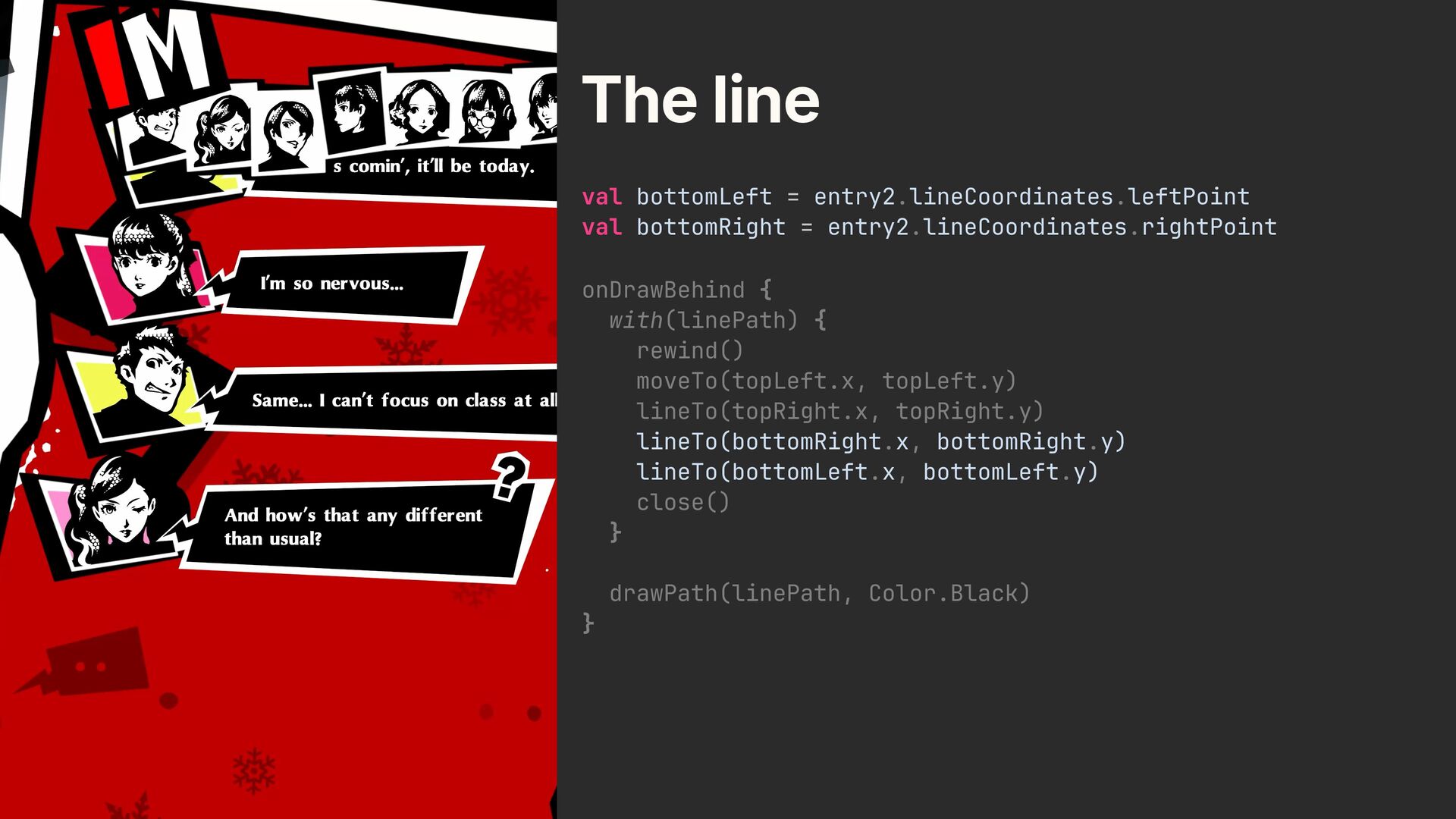

151. fun Modifier.drawConnectingLine(entry1: Entry, entry2: Entry?): Modifier { } ©ATLUS ©SEGA
152. fun Modifier.drawConnectingLine(entry1: Entry, entry2: Entry?): Modifier { if (entry2 == null) return this return drawWithCache { onDrawBehind { } } } ©ATLUS ©SEGA

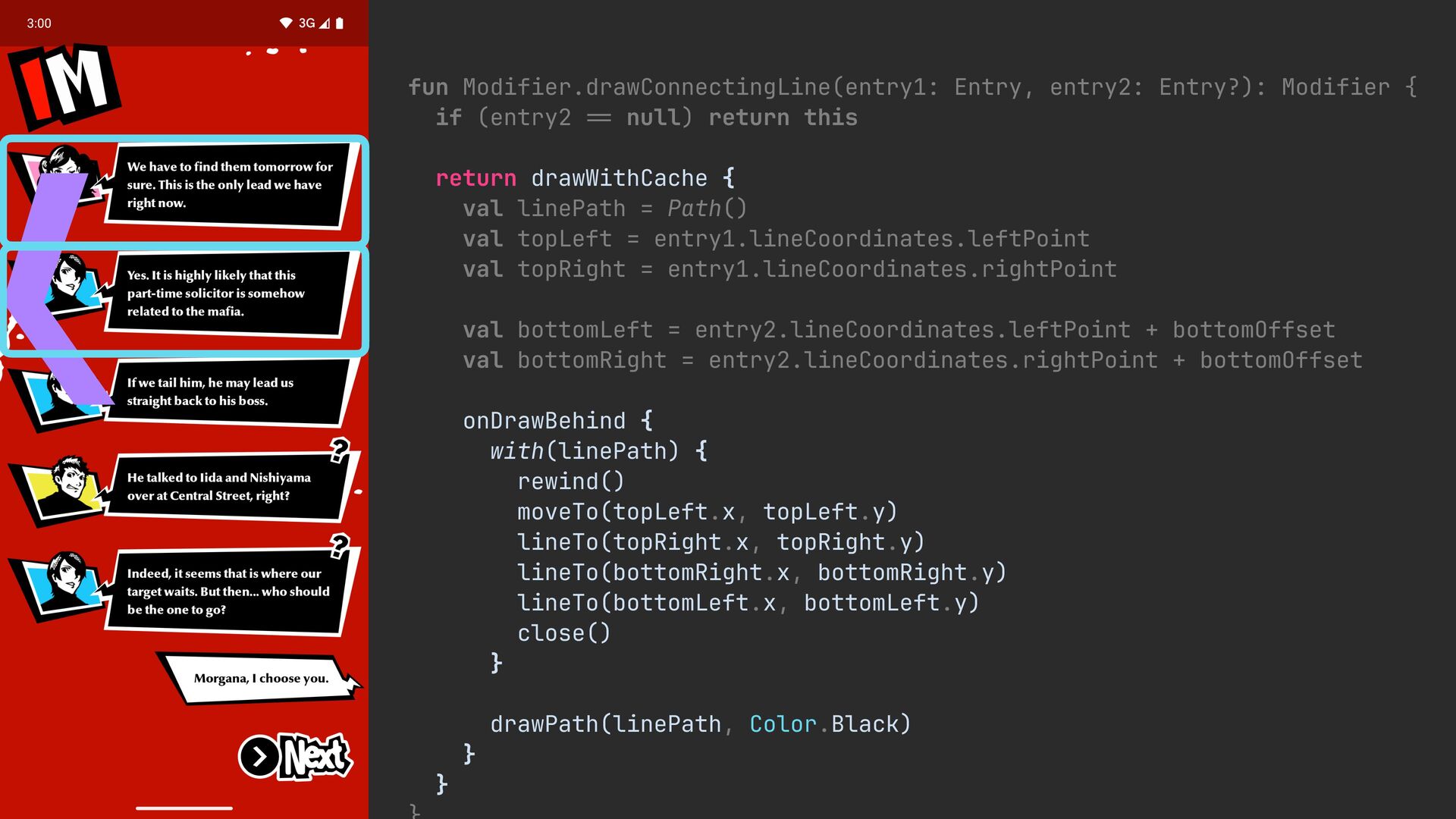

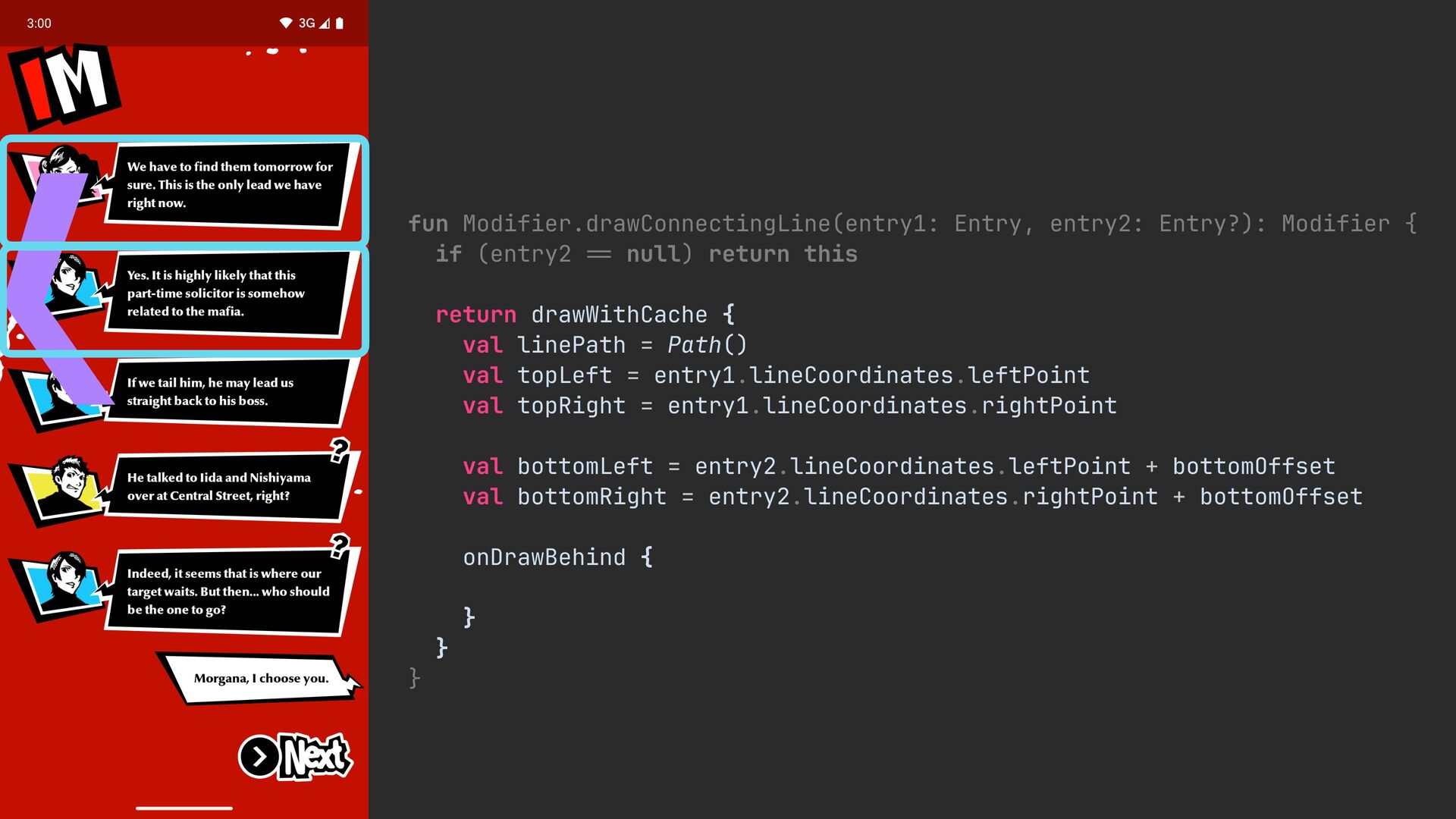

153. fun Modifier.drawConnectingLine(entry1: Entry, entry2: Entry?): Modifier { if (entry2 == null) return this return drawWithCache { val linePath = Path() val topLeft = entry1.lineCoordinates.leftPoint val topRight = entry1.lineCoordinates.rightPoint val bottomLeft = entry2.lineCoordinates.leftPoint + bottomOffset val bottomRight = entry2.lineCoordinates.rightPoint + bottomOffset onDrawBehind { } } } ©ATLUS ©SEGA
154. fun Modifier.drawConnectingLine(entry1: Entry, entry2: Entry?): Modifier { if (entry2 == null) return this return drawWithCache { val linePath = Path() val topLeft = entry1.lineCoordinates.leftPoint val topRight = entry1.lineCoordinates.rightPoint val bottomLeft = entry2.lineCoordinates.leftPoint + bottomOffset val bottomRight = entry2.lineCoordinates.rightPoint + bottomOffset onDrawBehind { with(linePath) { rewind() moveTo(topLeft.x, topLeft.y) lineTo(topRight.x, topRight.y) lineTo(bottomRight.x, bottomRight.y) lineTo(bottomLeft.x, bottomLeft.y) close() } drawPath(linePath, Color.Black) } } ©ATLUS ©SEGA
155. val bottomRight = entry2.lineCoordinates.rightPoint + bottomOffset val shadowPaint = Paint().apply { color = Color.Black alpha = 0.5f asFrameworkPaint().maskFilter = BlurMaskFilter(4.dp.toPx(), NORMAL) } onDrawBehind { with(linePath) { rewind() moveTo(topLeft.x, topLeft.y) lineTo(topRight.x, topRight.y) lineTo(bottomRight.x, bottomRight.y) lineTo(bottomLeft.x, bottomLeft.y) close() } translate(top = 16.dp.toPx()) { drawIntoCanvas { it.drawPath(linePath, shadowPaint) } } drawPath(linePath, Color.Black) } } ©ATLUS ©SEGA
156. ©ATLUS ©SEGA

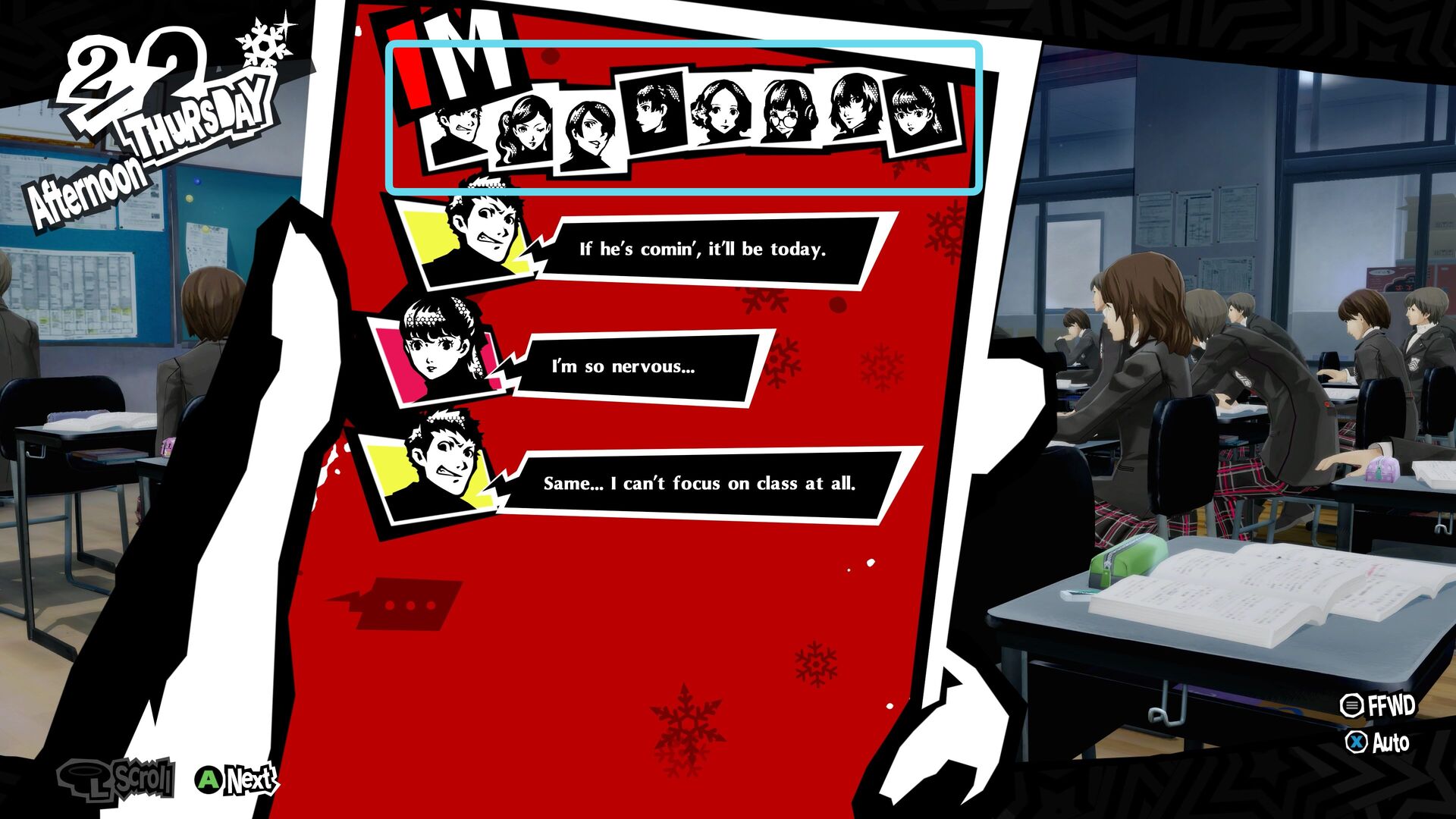

157. ©ATLUS ©SEGA Portraits
158. ©ATLUS ©SEGA
159. ©ATLUS ©SEGA
160. ©ATLUS ©SEGA

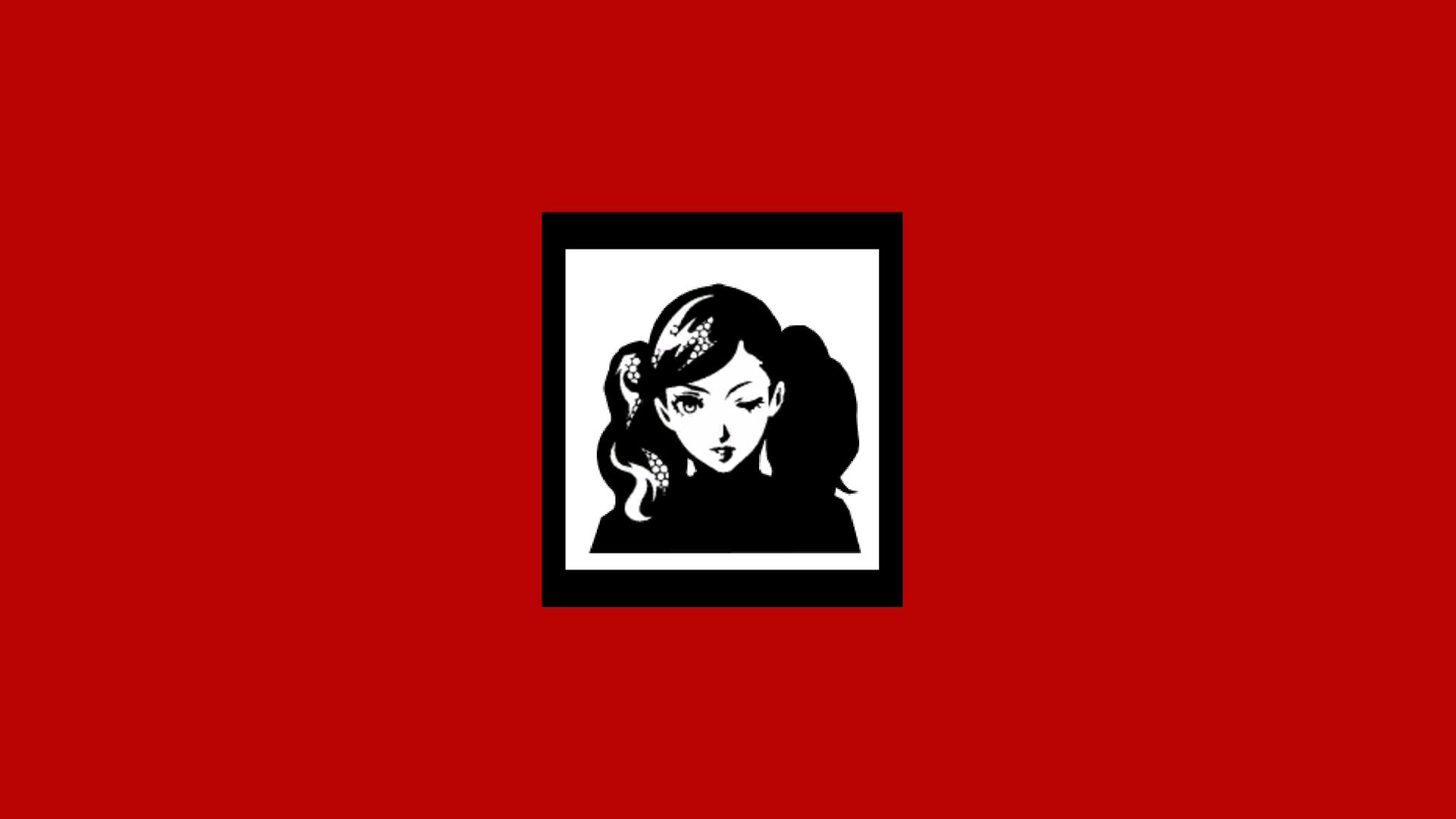

161. ©ATLUS ©SEGA

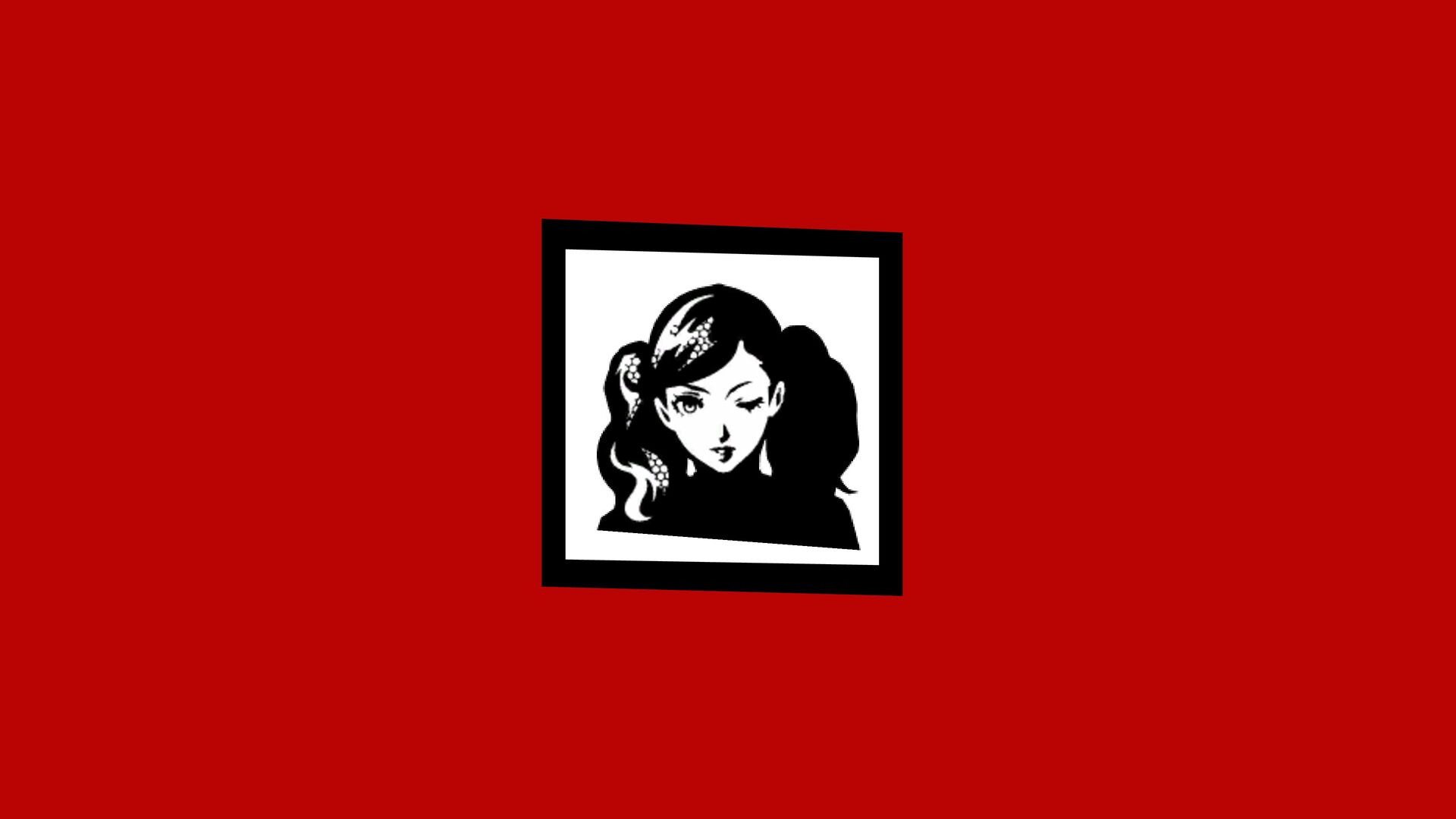

162. ©ATLUS ©SEGA

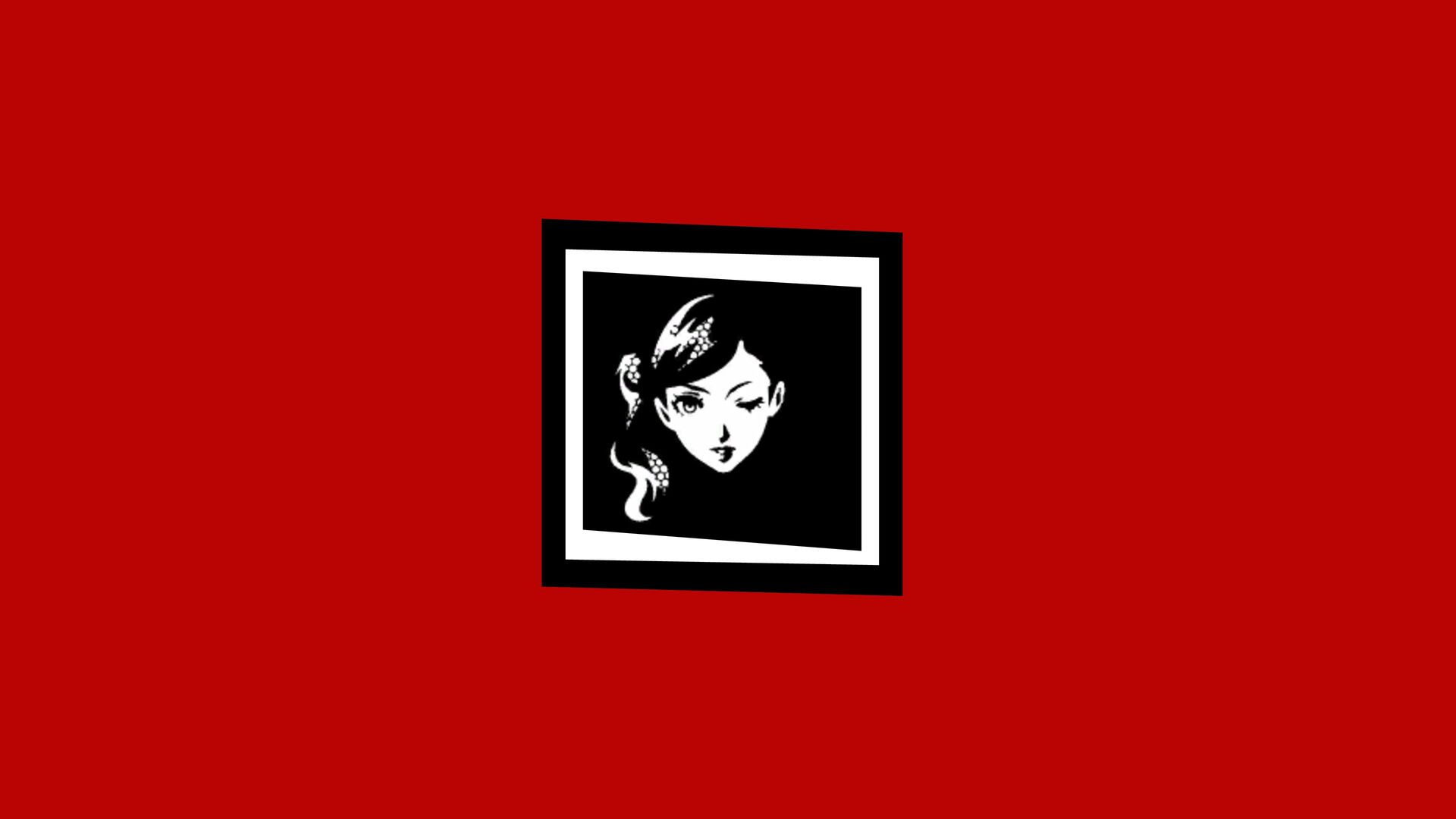

163. ©ATLUS ©SEGA

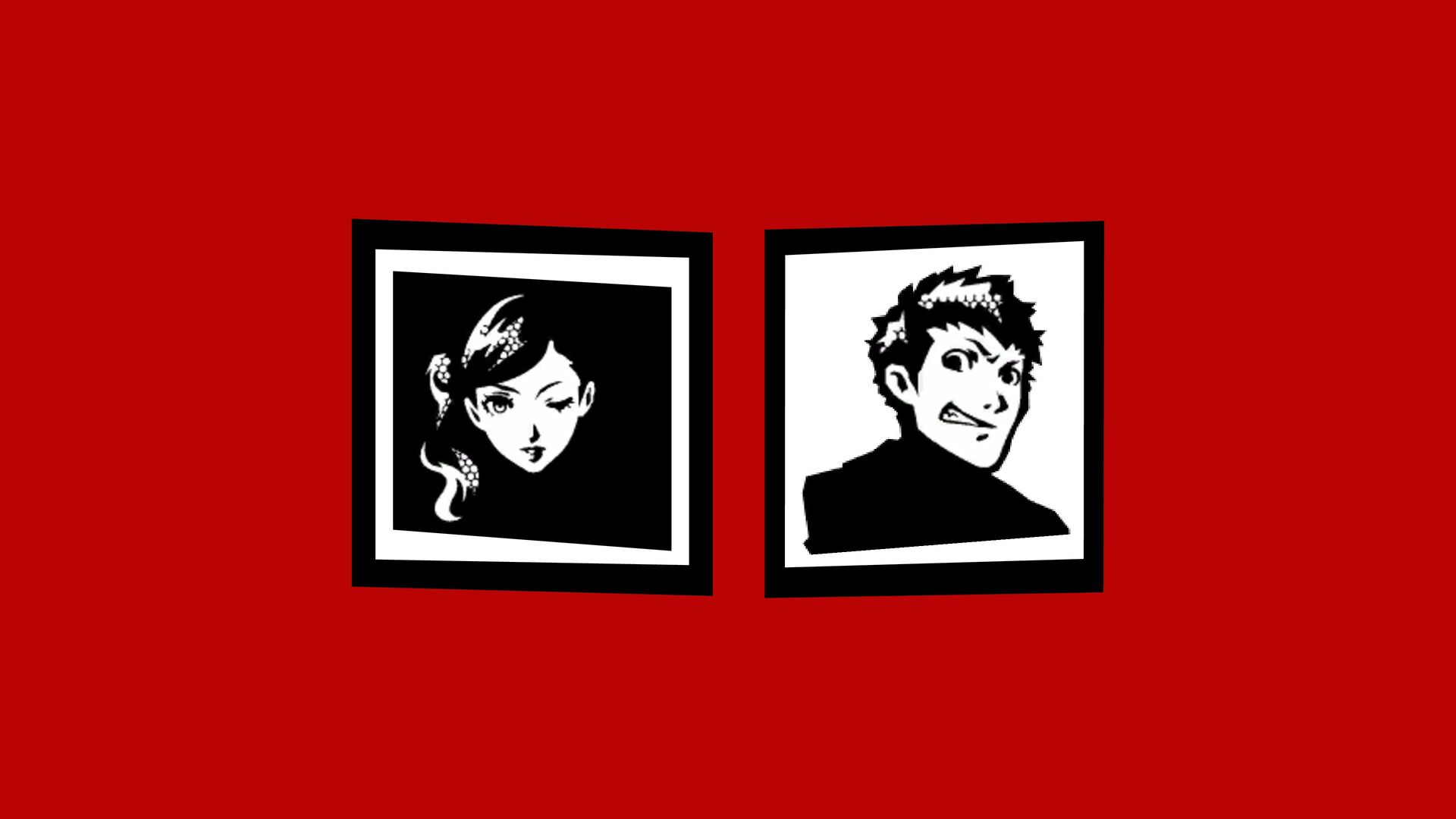

164. ©ATLUS ©SEGA

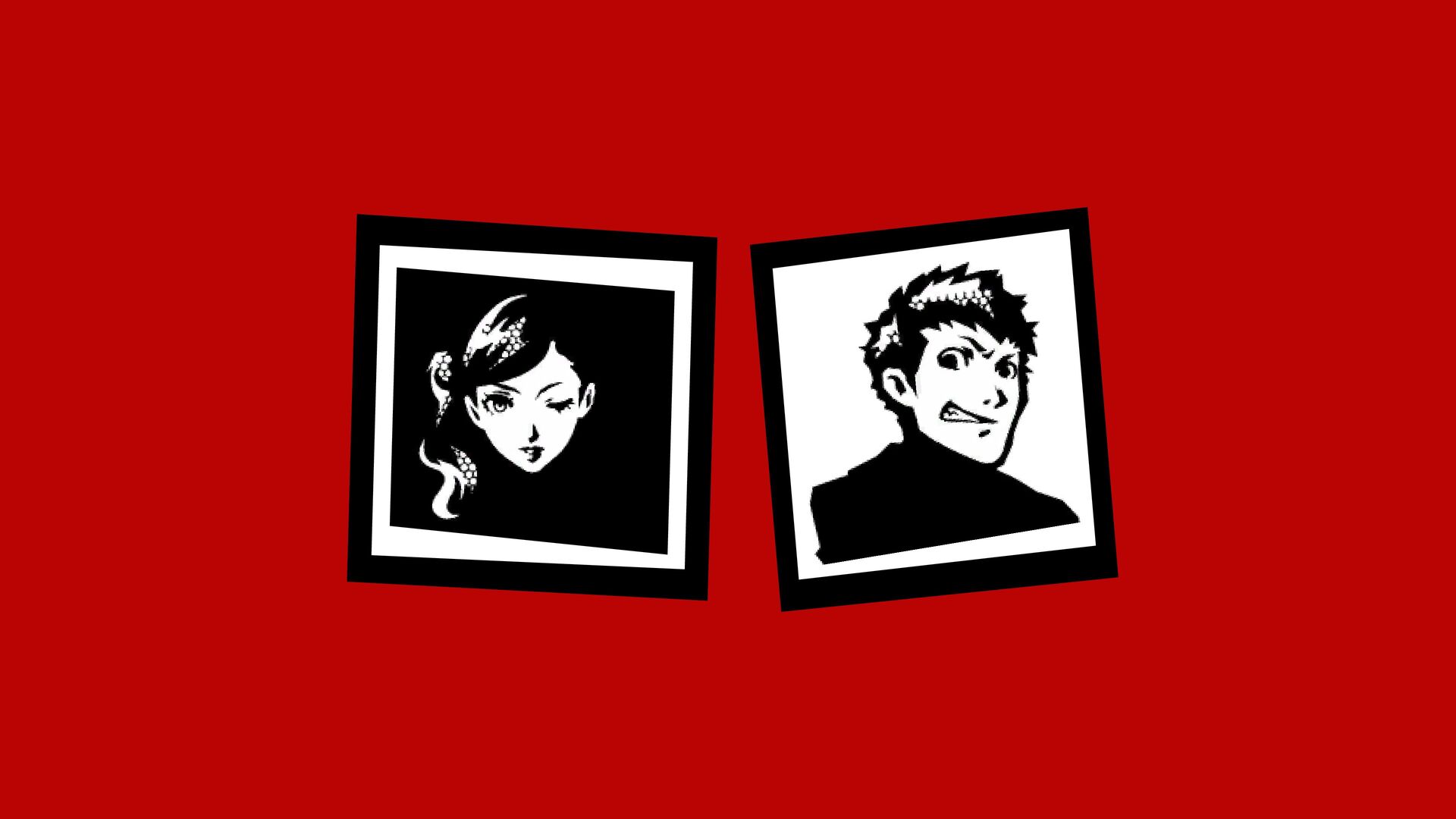

165. ©ATLUS ©SEGA

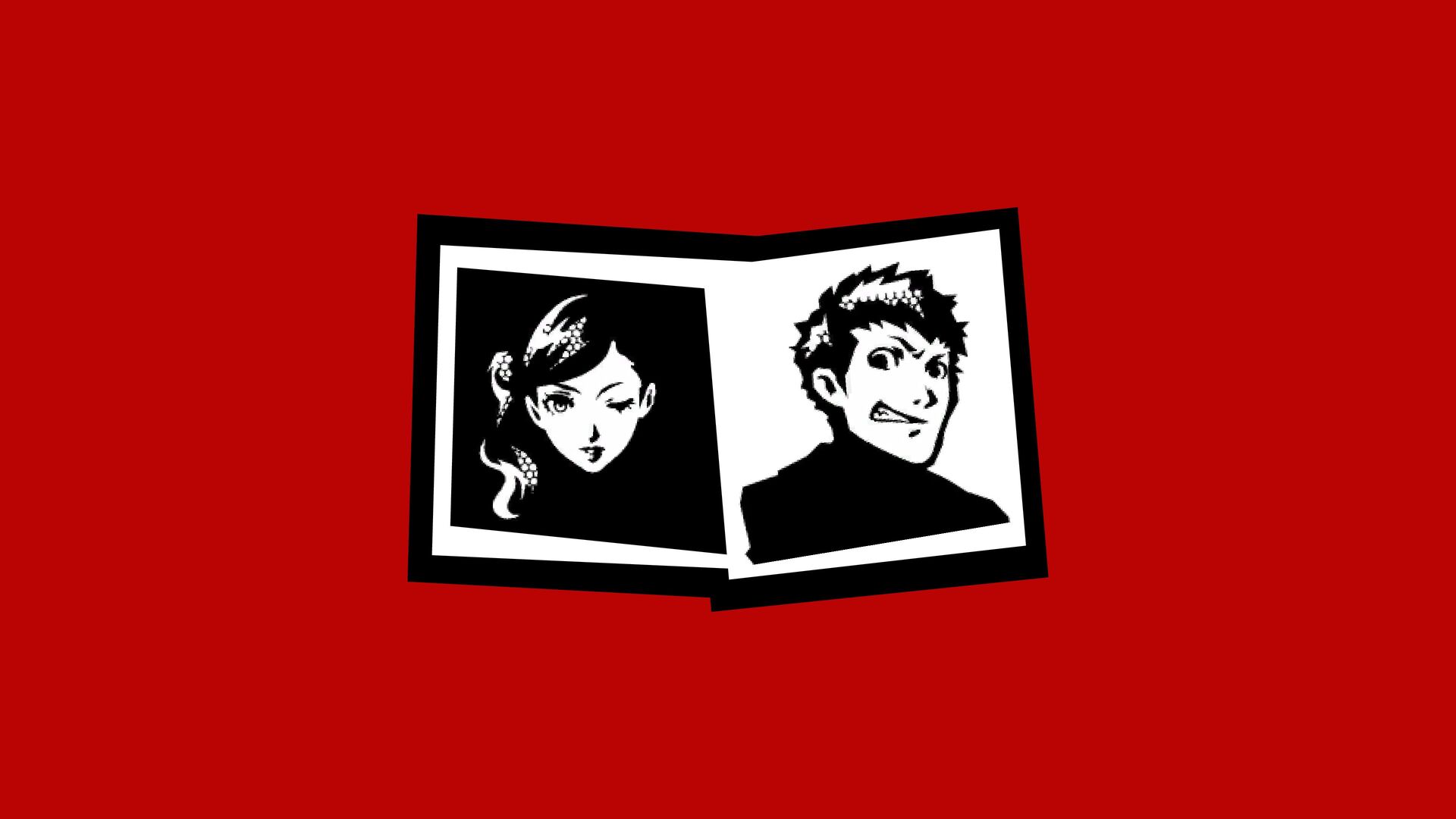

166. ©ATLUS ©SEGA

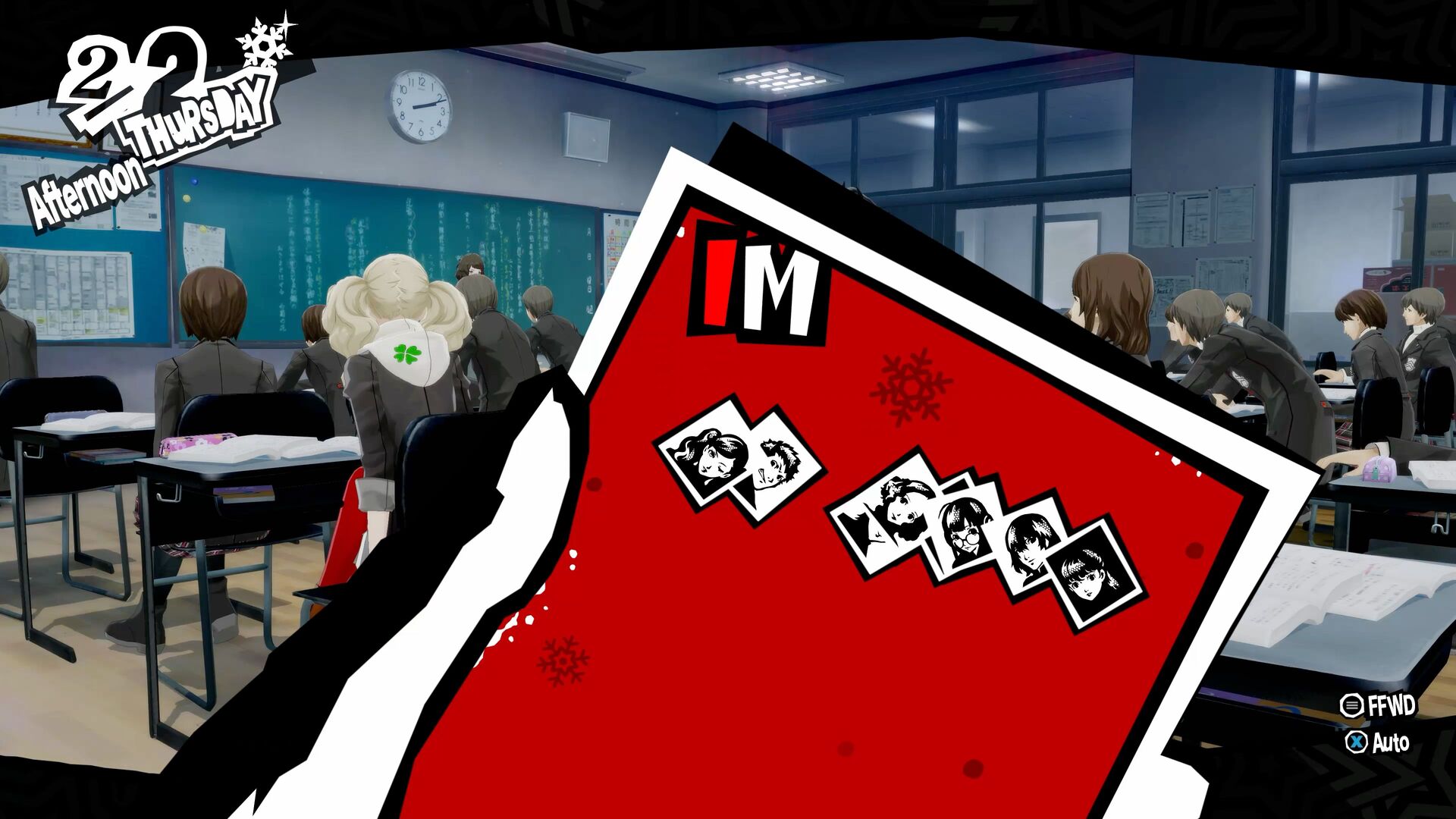

167. ©ATLUS ©SEGA

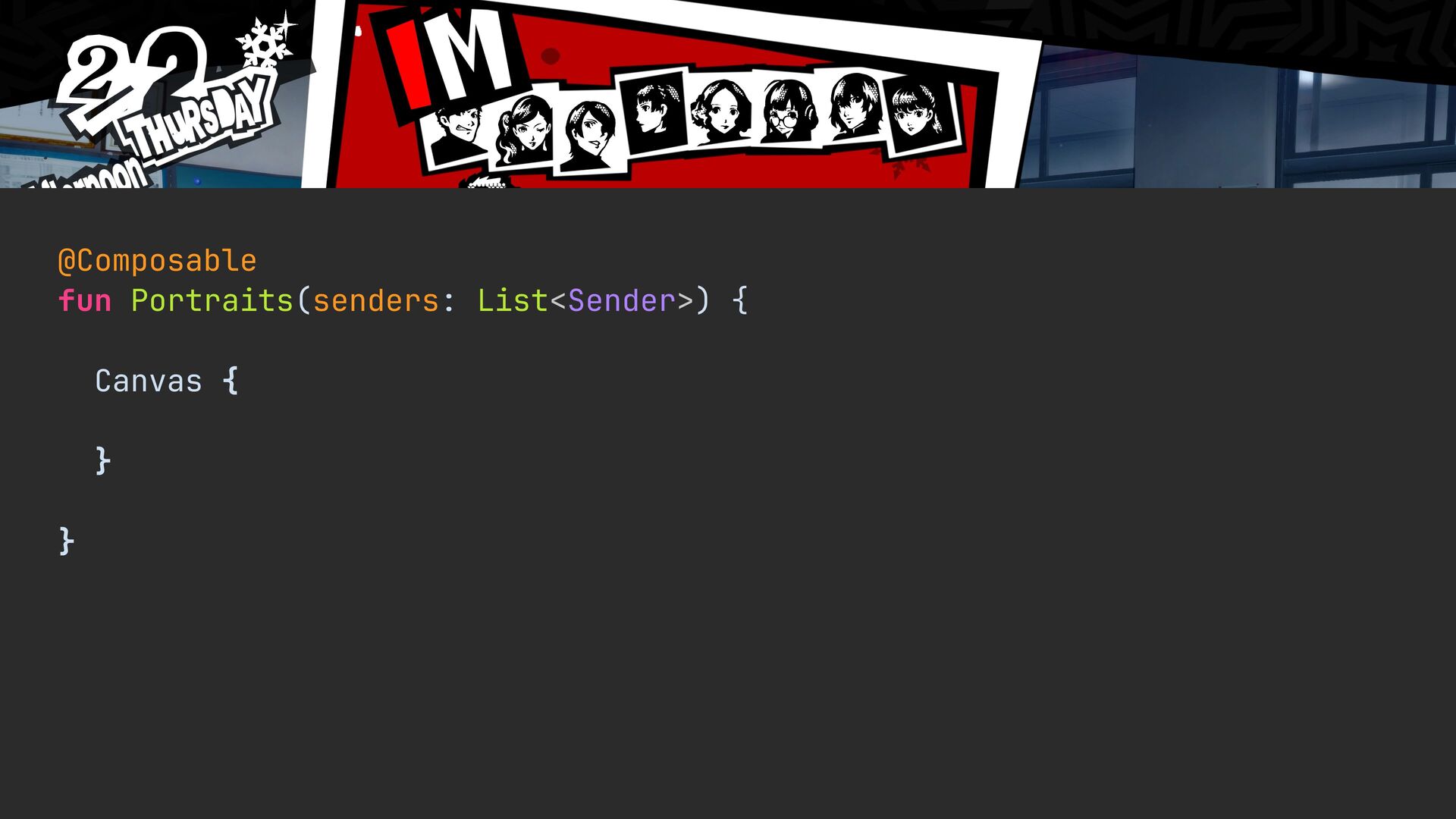

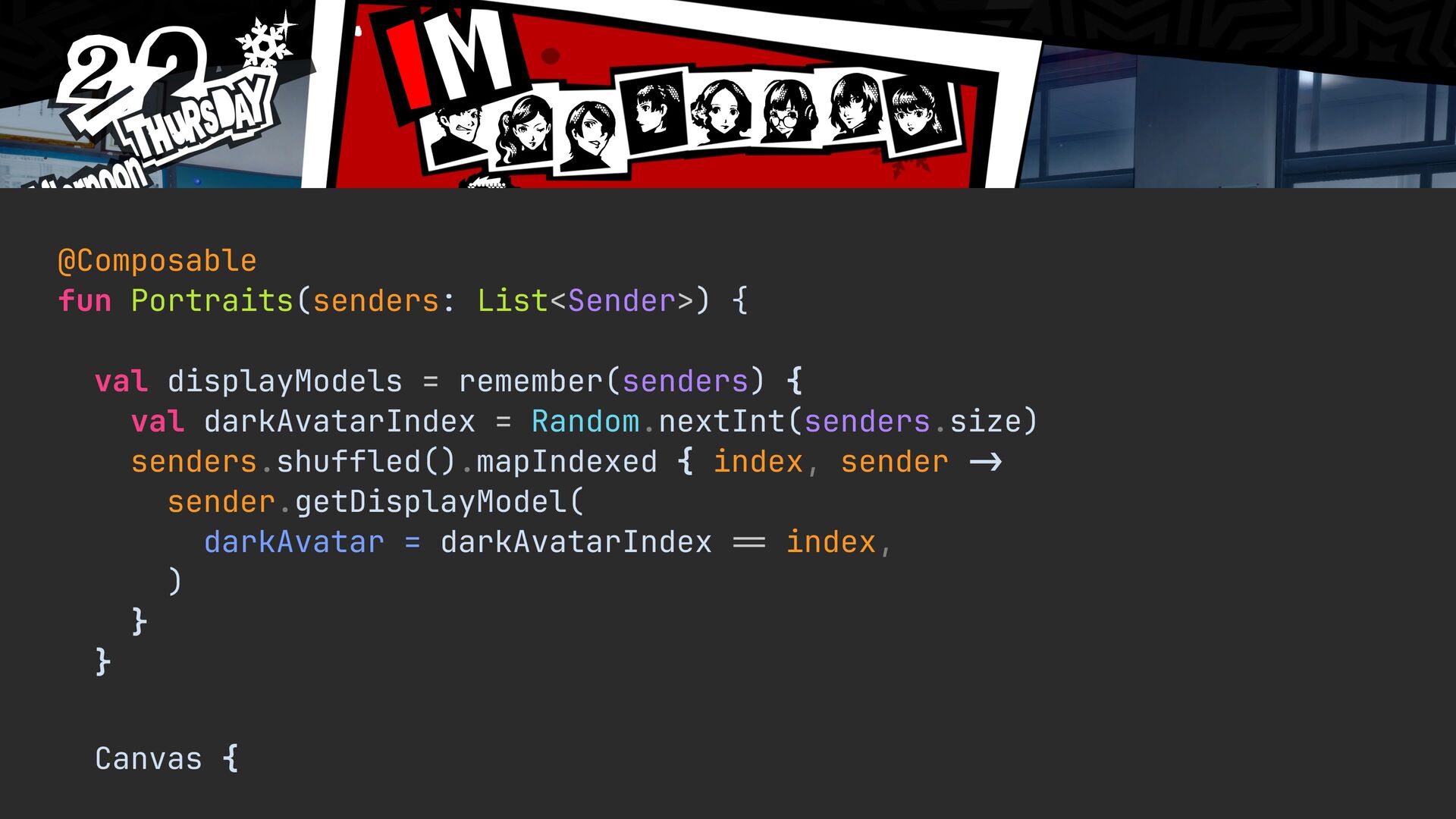

168. ©ATLUS ©SEGA @Composable fun Portraits(senders: List<Sender>) { Canvas { } }

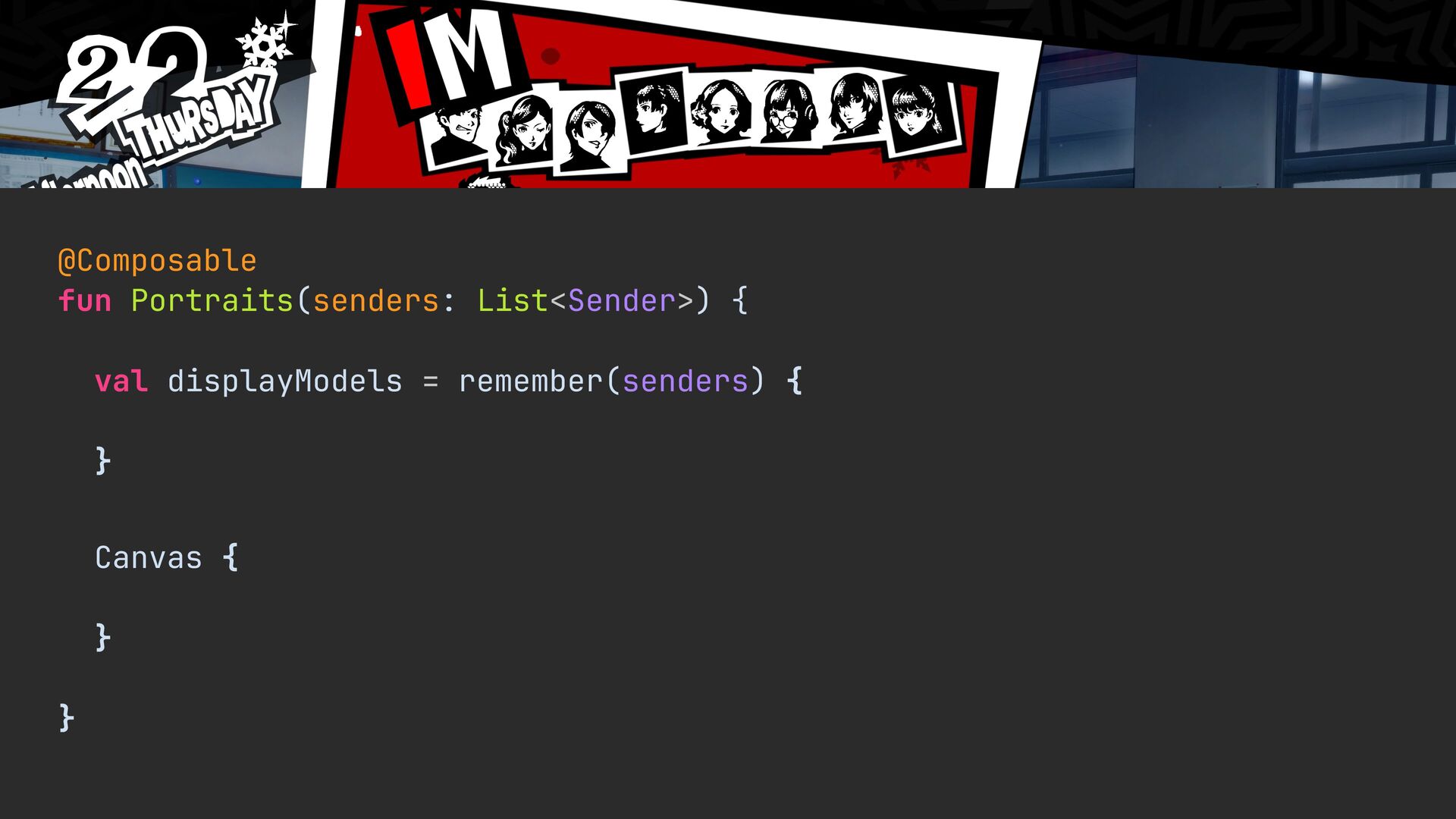

169. ©ATLUS ©SEGA @Composable fun Portraits(senders: List<Sender>) { val displayModels = remember(senders) { } Canvas { } }
170. ©ATLUS ©SEGA @Composable fun Portraits(senders: List<Sender>) { val displayModels = remember(senders) { val darkAvatarIndex = Random.nextInt(senders.size) senders.shuffled().mapIndexed { index, sender -> sender.getDisplayModel( darkAvatar = darkAvatarIndex == index, ) } } Canvas {

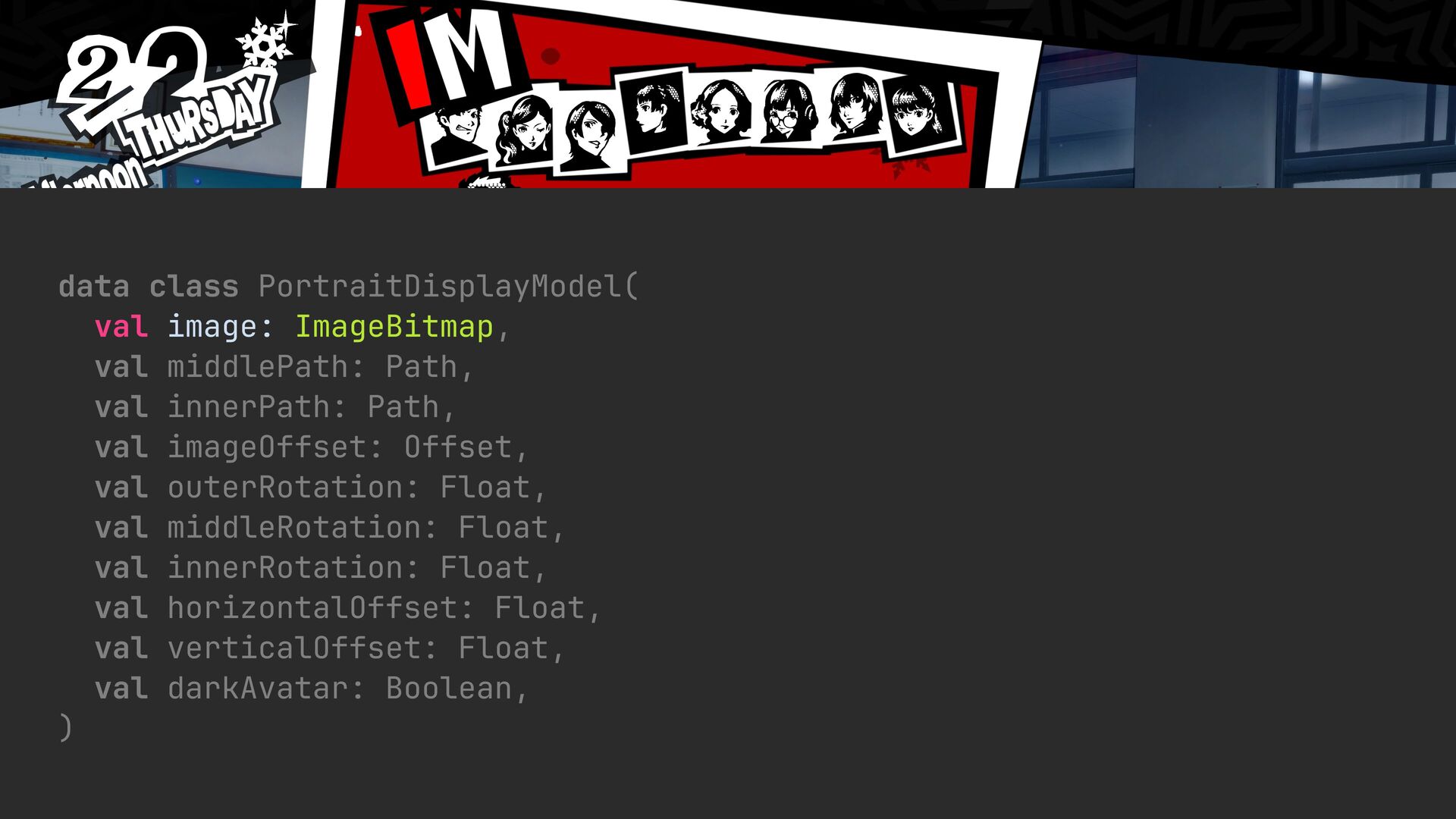

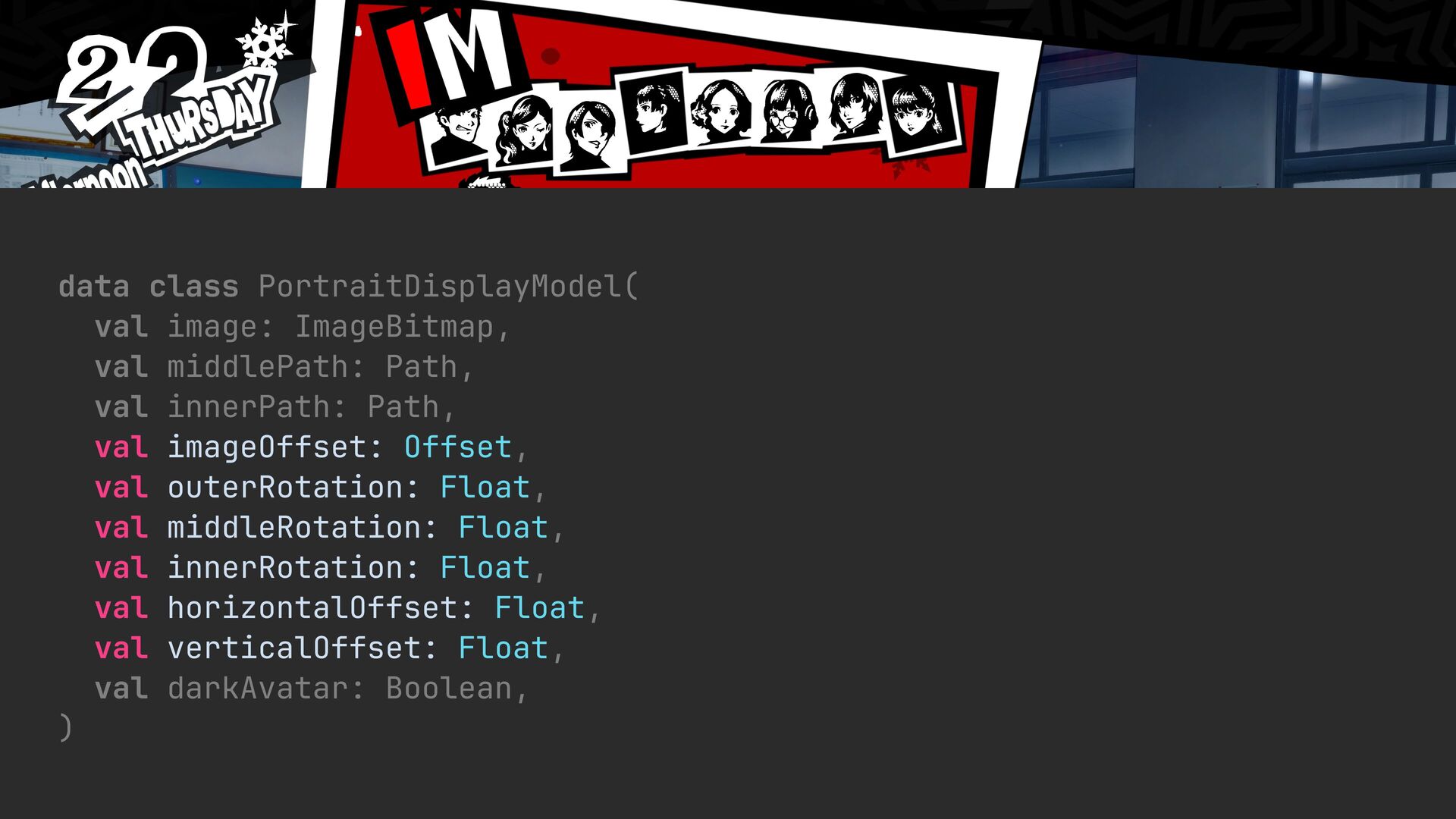

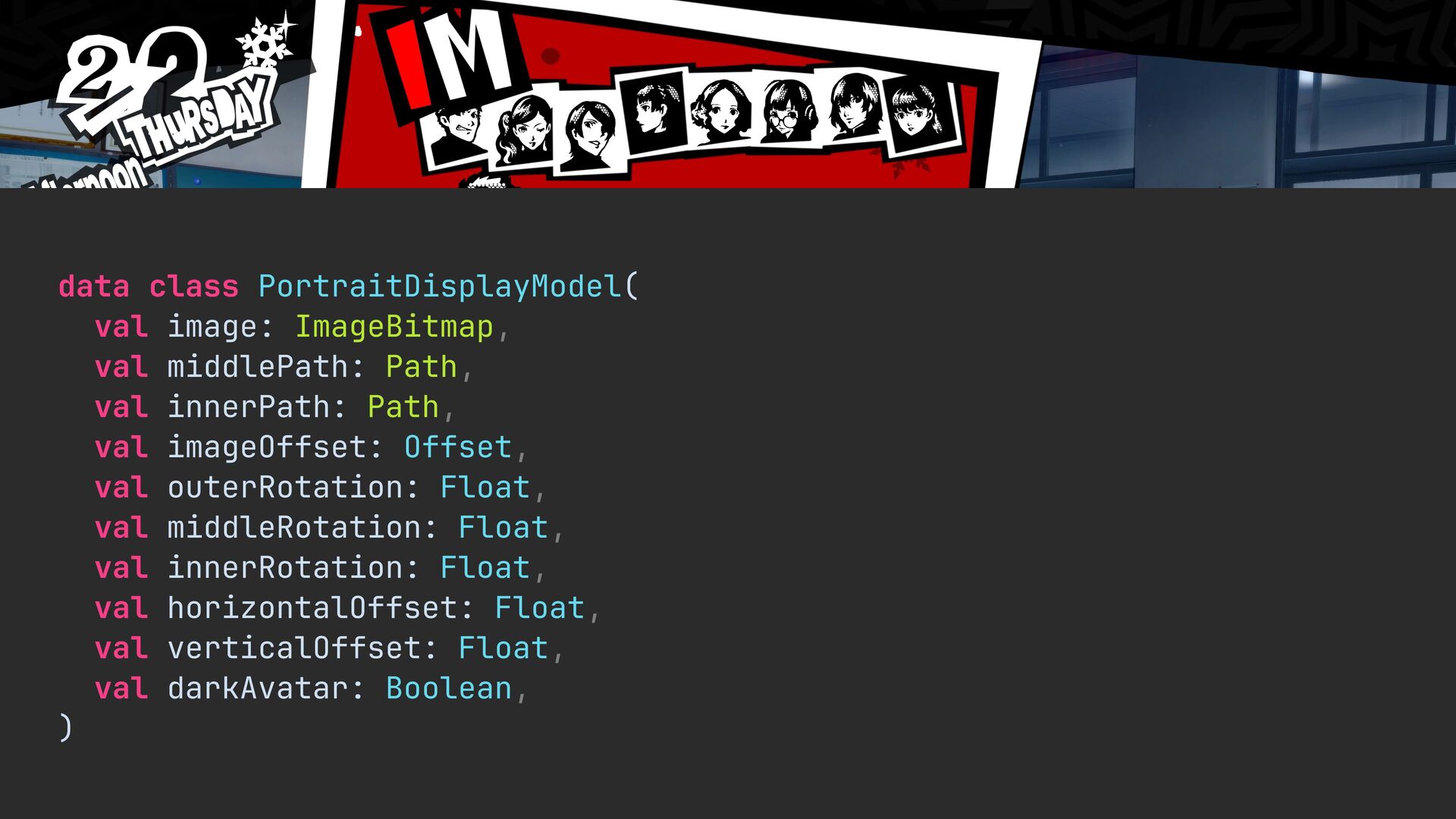

171. ©ATLUS ©SEGA data class PortraitDisplayModel( val image: ImageBitmap, val middlePath: Path, val innerPath: Path, val imageOffset: Offset, val outerRotation: Float, val middleRotation: Float, val innerRotation: Float, val horizontalOffset: Float, val verticalOffset: Float, val darkAvatar: Boolean, )
172. ©ATLUS ©SEGA data class PortraitDisplayModel( val image: ImageBitmap, val middlePath: Path, val innerPath: Path, val imageOffset: Offset, val outerRotation: Float, val middleRotation: Float, val innerRotation: Float, val horizontalOffset: Float, val verticalOffset: Float, val darkAvatar: Boolean, )
173. ©ATLUS ©SEGA data class PortraitDisplayModel( val image: ImageBitmap, val middlePath: Path, val innerPath: Path, val imageOffset: Offset, val outerRotation: Float, val middleRotation: Float, val innerRotation: Float, val horizontalOffset: Float, val verticalOffset: Float, val darkAvatar: Boolean, )
174. ©ATLUS ©SEGA data class PortraitDisplayModel( val image: ImageBitmap, val middlePath: Path, val innerPath: Path, val imageOffset: Offset, val outerRotation: Float, val middleRotation: Float, val innerRotation: Float, val horizontalOffset: Float, val verticalOffset: Float, val darkAvatar: Boolean, )

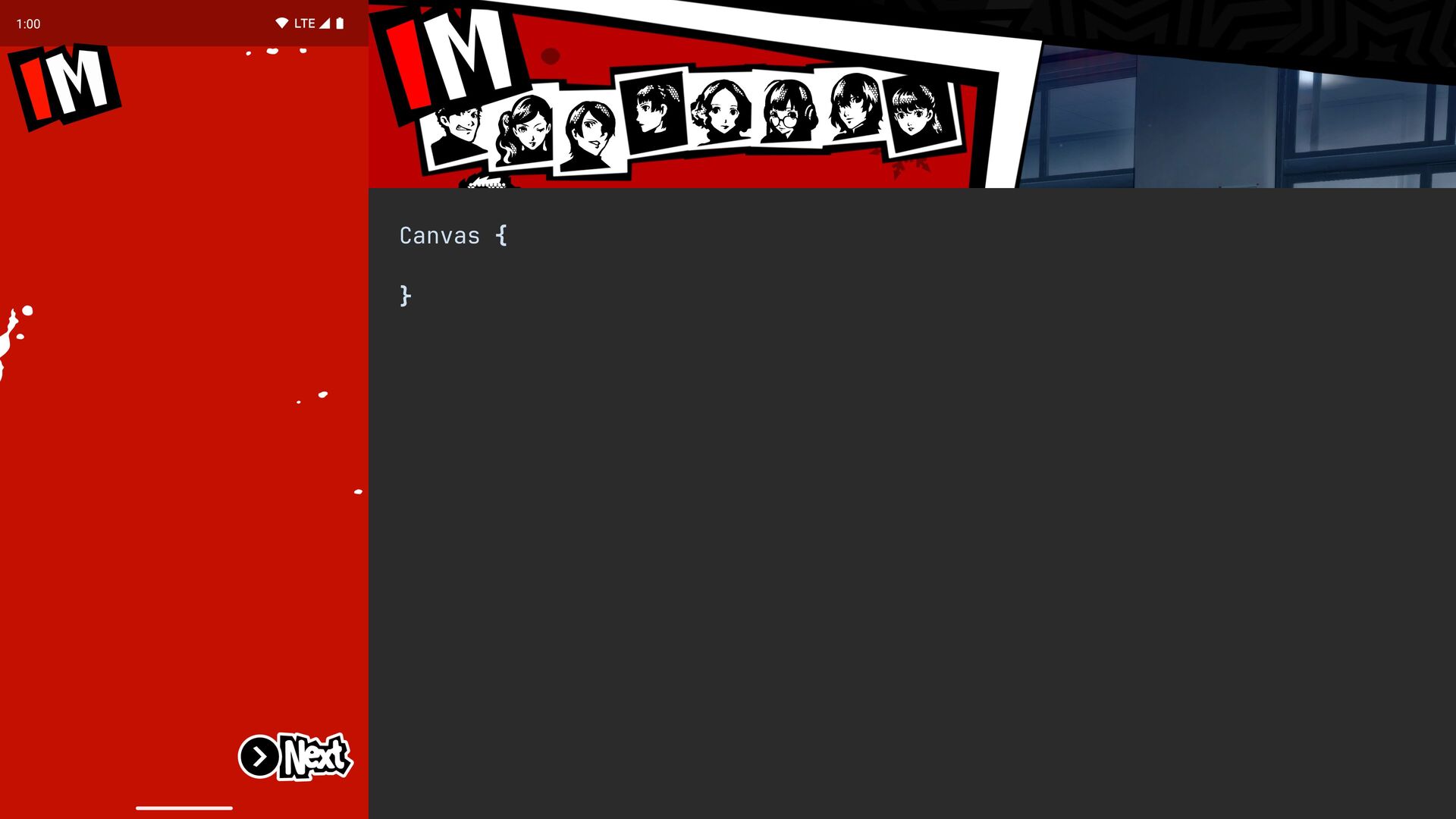

175. ©ATLUS ©SEGA Canvas { }
176. ©ATLUS ©SEGA Canvas { }

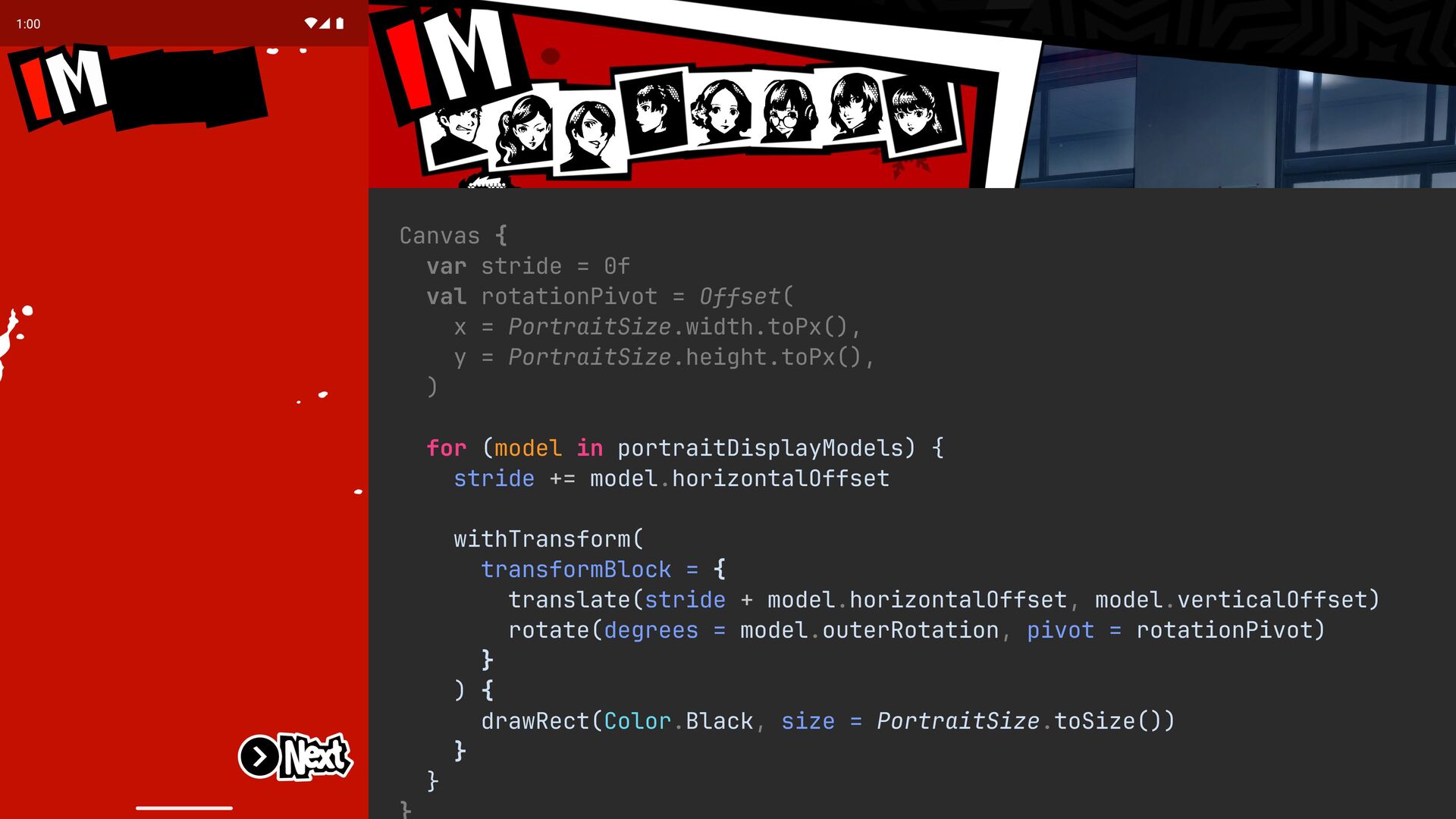

177. Canvas { var stride = 0f val rotationPivot = Offset( x = PortraitSize.width.toPx(), y = PortraitSize.height.toPx(), ) for (model in portraitDisplayModels) { } } ©ATLUS ©SEGA
178. Canvas { var stride = 0f val rotationPivot = Offset( x = PortraitSize.width.toPx(), y = PortraitSize.height.toPx(), ) for (model in portraitDisplayModels) { stride += model.horizontalOffset withTransform( transformBlock = { translate(stride + model.horizontalOffset, model.verticalOffset) rotate(degrees = model.outerRotation, pivot = rotationPivot) } ) { drawRect(Color.Black, size = PortraitSize.toSize()) } } ©ATLUS ©SEGA
179. Canvas { var stride = 0f val rotationPivot = Offset( x = PortraitSize.width.toPx(), y = PortraitSize.height.toPx(), ) for (model in portraitDisplayModels) { stride += model.horizontalOffset withTransform( transformBlock = { translate(stride + model.horizontalOffset, model.verticalOffset) rotate(degrees = model.outerRotation, pivot = rotationPivot) } ) { drawRect(Color.Black, size = PortraitSize.toSize()) } stride += PortraitSize.width.toPx() } ©ATLUS ©SEGA
180. Canvas { var stride = 0f val rotationPivot = Offset( x = PortraitSize.width.toPx(), y = PortraitSize.height.toPx(), ) for (model in portraitDisplayModels) { stride += model.horizontalOffset withTransform( transformBlock = { translate(stride + model.horizontalOffset, model.verticalOffset) rotate(degrees = model.outerRotation, pivot = rotationPivot) } ) { drawRect(Color.Black, size = PortraitSize.toSize()) } stride += PortraitSize.width.toPx() } stride = 0f for (model in portraitDisplayModels) { } ©ATLUS ©SEGA
181. withTransform( transformBlock = { translate(stride + model.horizontalOffset, model.verticalOffset) rotate(degrees = model.outerRotation, pivot = rotationPivot) } ) { drawRect(Color.Black, size = PortraitSize.toSize()) } stride += PortraitSize.width.toPx() } stride = 0f for (model in portraitDisplayModels) { stride += model.horizontalOffset withTransform( transformBlock = { translate(stride + model.horizontalOffset, model.verticalOffset) rotate(model.middleRotation, pivot = rotationPivot) } ) { drawPath(model.middlePath, Color.White) } } ©ATLUS ©SEGA

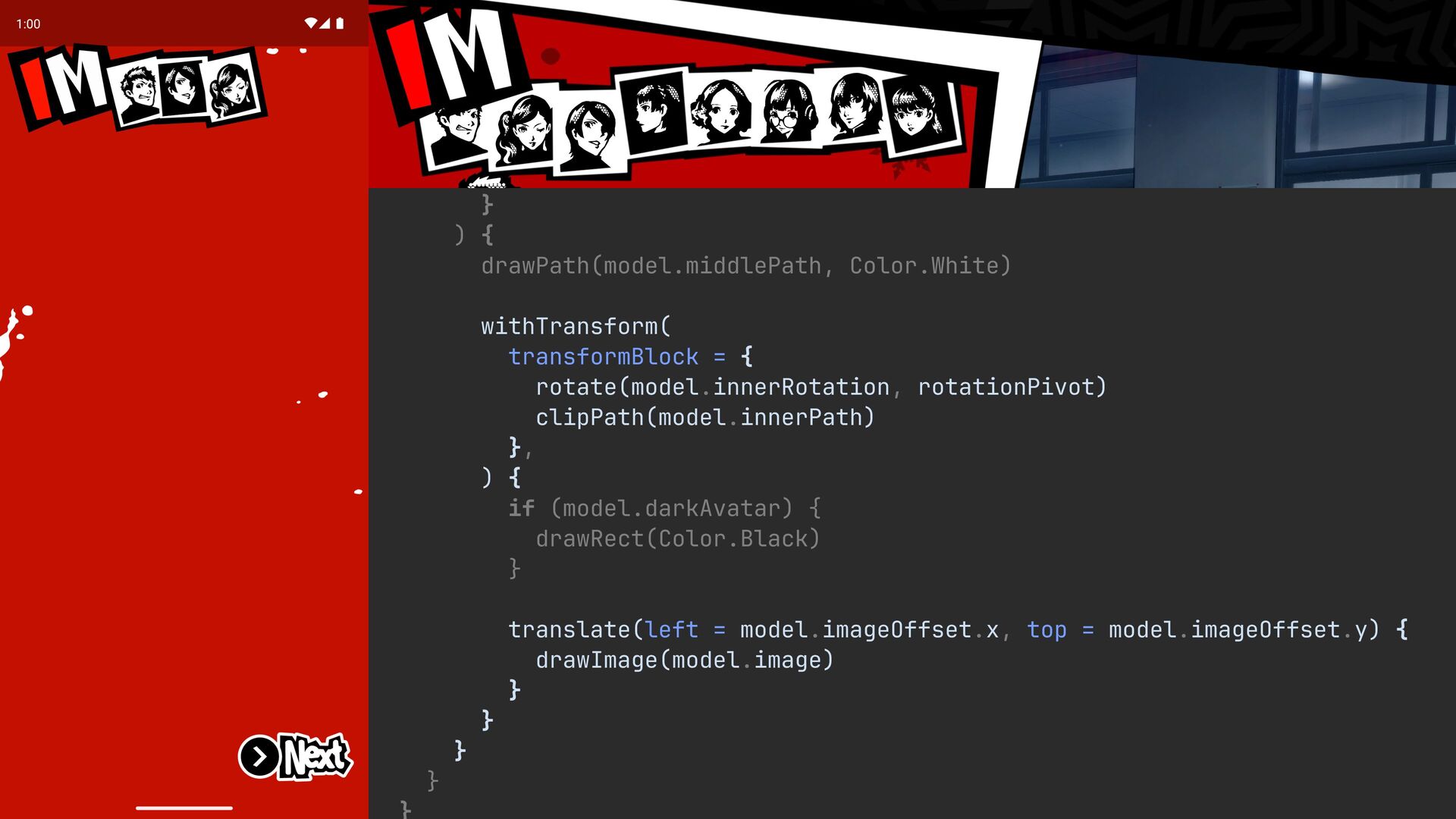

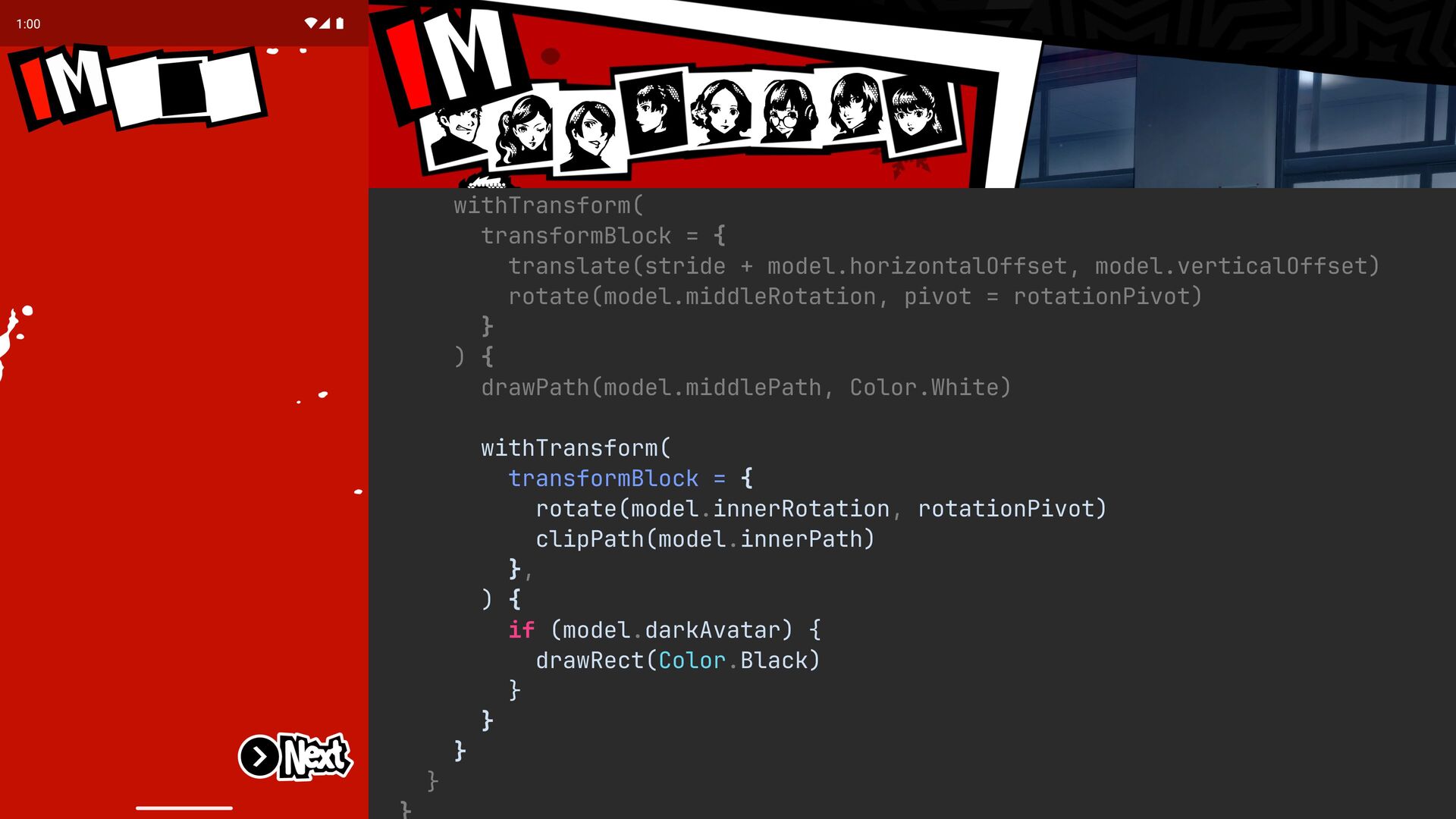

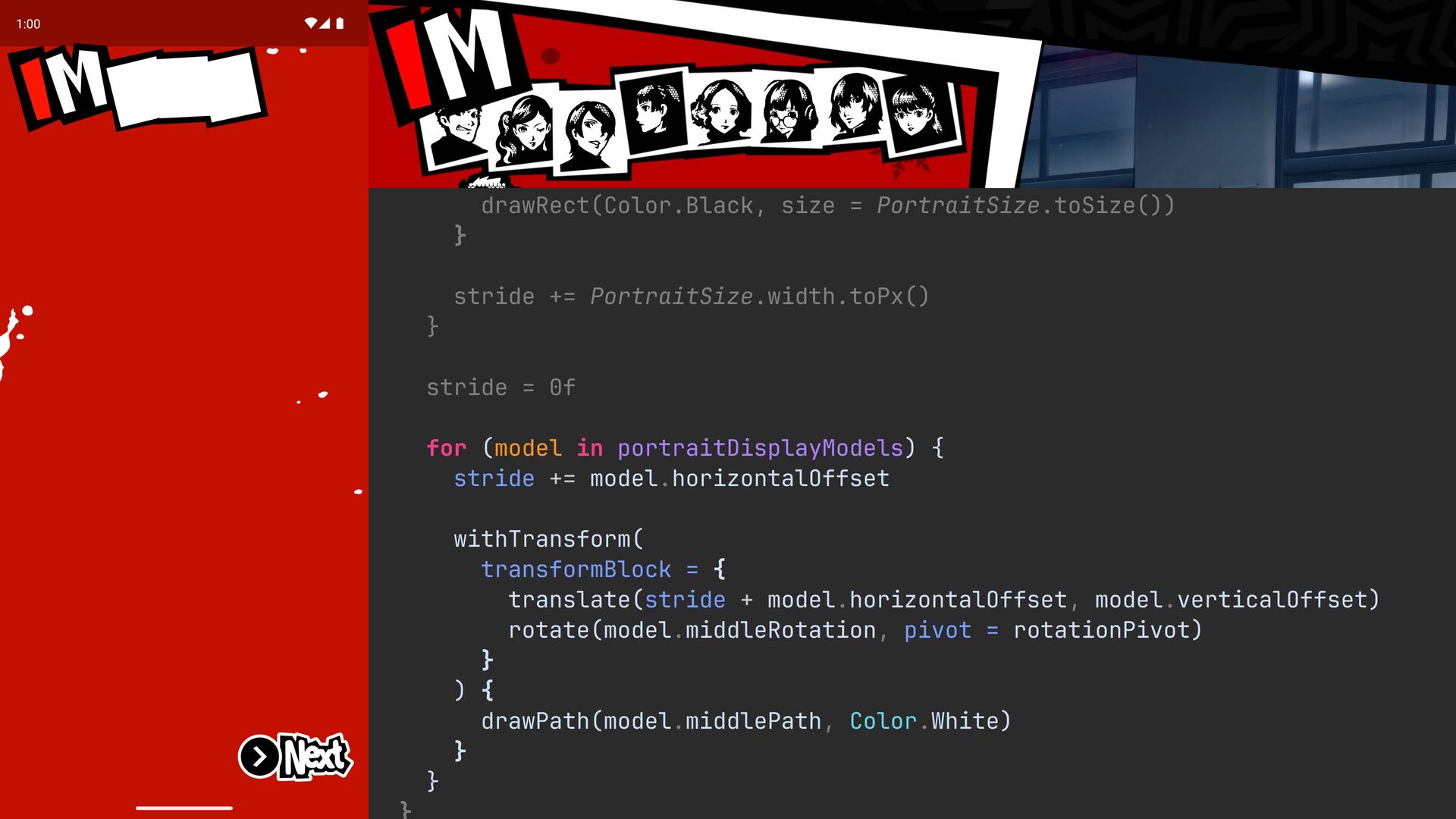

182. } stride = 0f for (model in portraitDisplayModels) { stride += model.horizontalOffset withTransform( transformBlock = { translate(stride + model.horizontalOffset, model.verticalOffset) rotate(model.middleRotation, pivot = rotationPivot) } ) { drawPath(model.middlePath, Color.White) withTransform( transformBlock = { rotate(model.innerRotation, rotationPivot) clipPath(model.innerPath) }, ) { if (model.darkAvatar) { drawRect(Color.Black) } } } } ©ATLUS ©SEGA

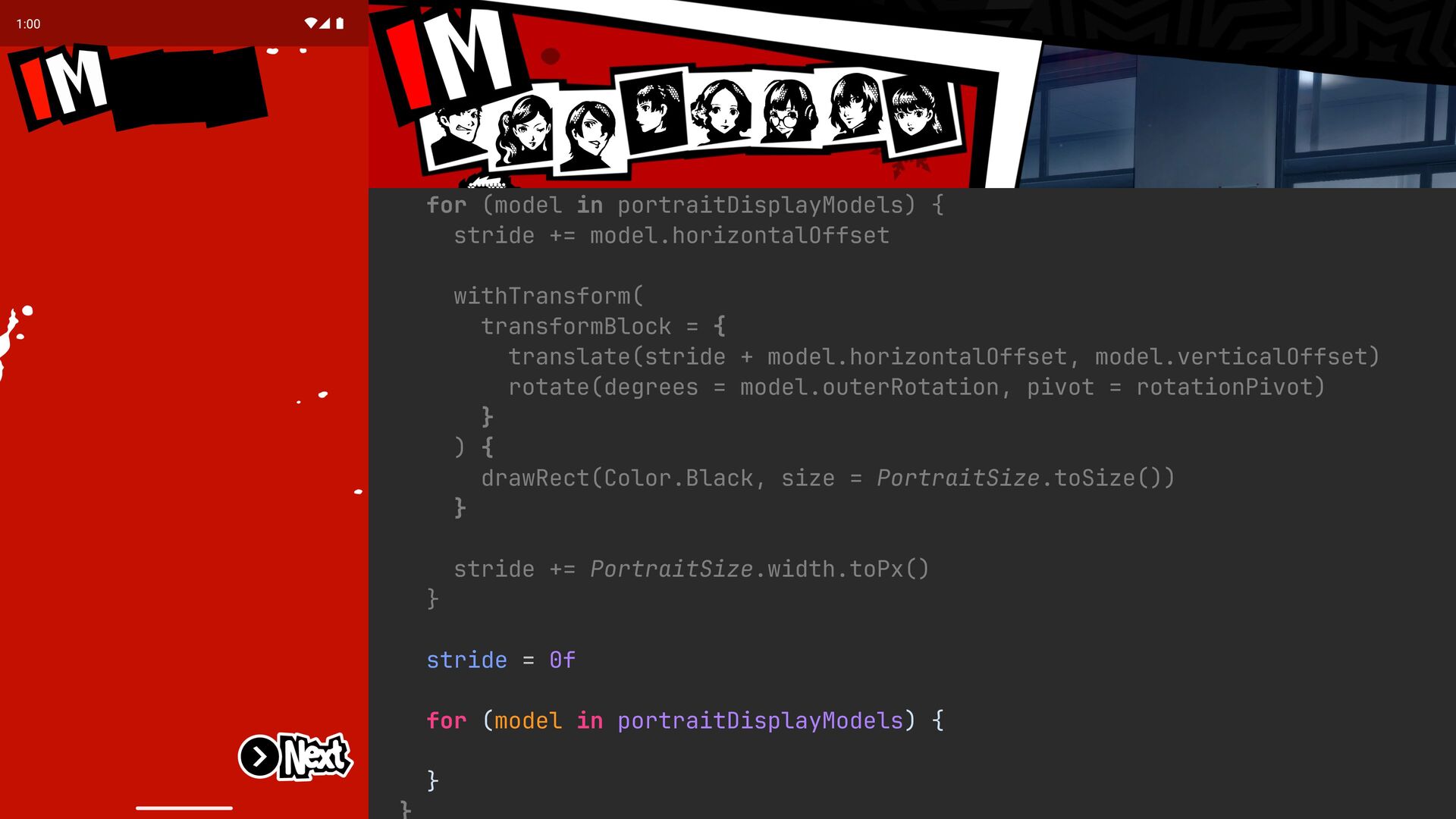

183. for (model in portraitDisplayModels) { stride += model.horizontalOffset withTransform( transformBlock = { translate(stride + model.horizontalOffset, model.verticalOffset) rotate(model.middleRotation, pivot = rotationPivot) } ) { drawPath(model.middlePath, Color.White) withTransform( transformBlock = { rotate(model.innerRotation, rotationPivot) clipPath(model.innerPath) }, ) { if (model.darkAvatar) { drawRect(Color.Black) } translate(left = model.imageOffset.x, top = model.imageOffset.y) { drawImage(model.image) } } } } ©ATLUS ©SEGA

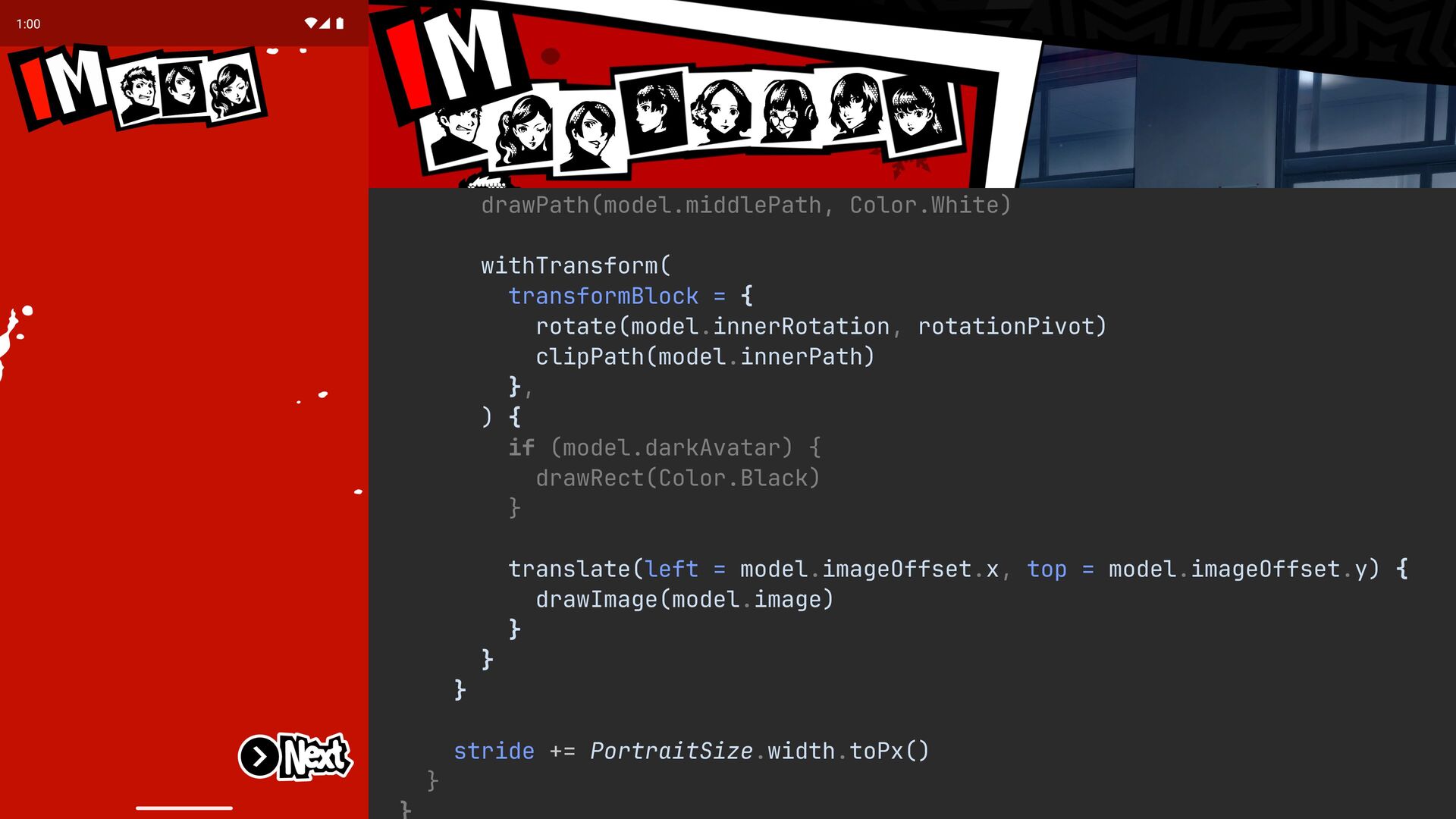

184. withTransform( transformBlock = { translate(stride + model.horizontalOffset, model.verticalOffset) rotate(model.middleRotation, pivot = rotationPivot) } ) { drawPath(model.middlePath, Color.White) withTransform( transformBlock = { rotate(model.innerRotation, rotationPivot) clipPath(model.innerPath) }, ) { if (model.darkAvatar) { drawRect(Color.Black) } translate(left = model.imageOffset.x, top = model.imageOffset.y) { drawImage(model.image) } } } stride += PortraitSize.width.toPx() } ©ATLUS ©SEGA
185. Animations ©ATLUS ©SEGA

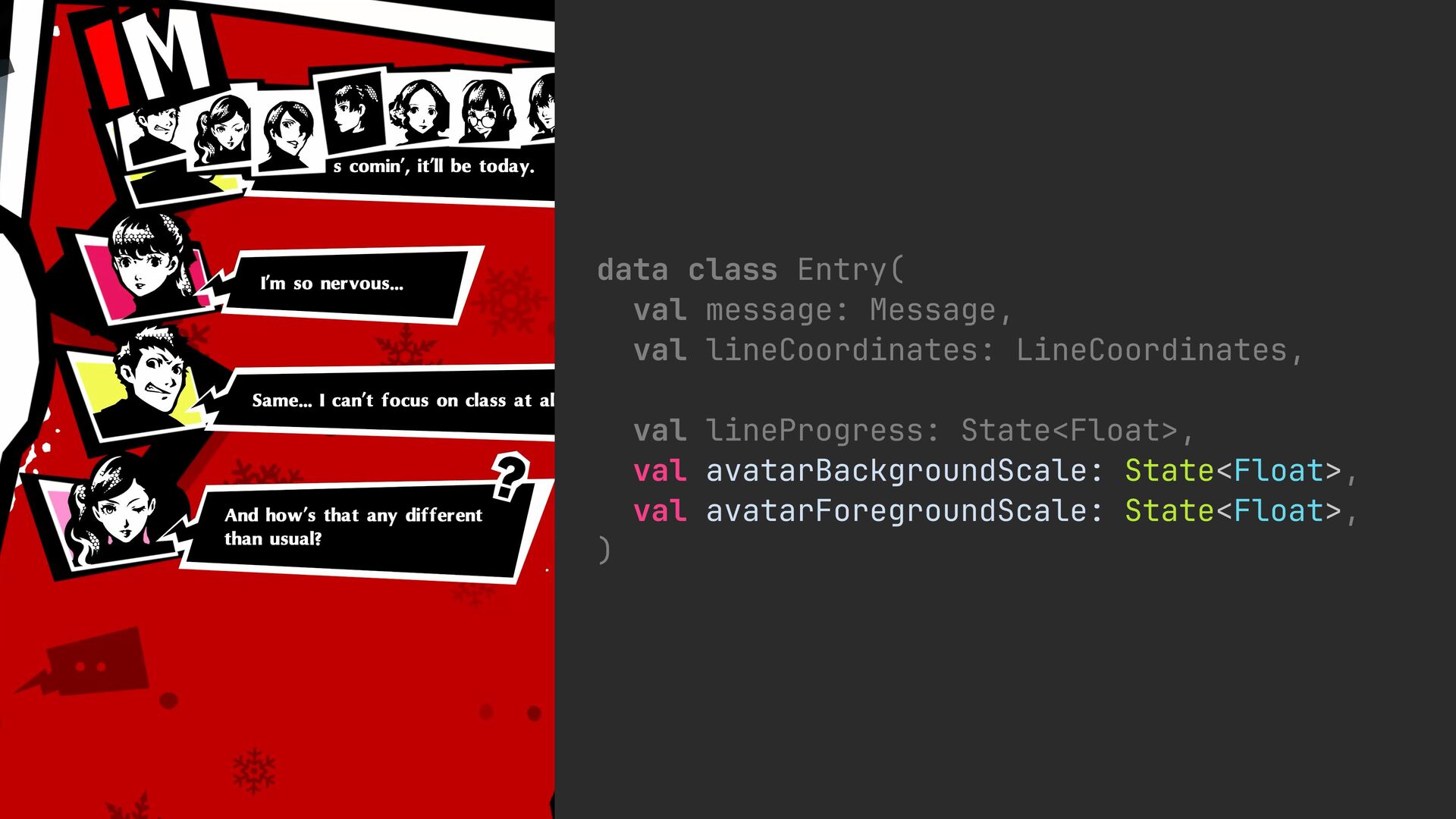

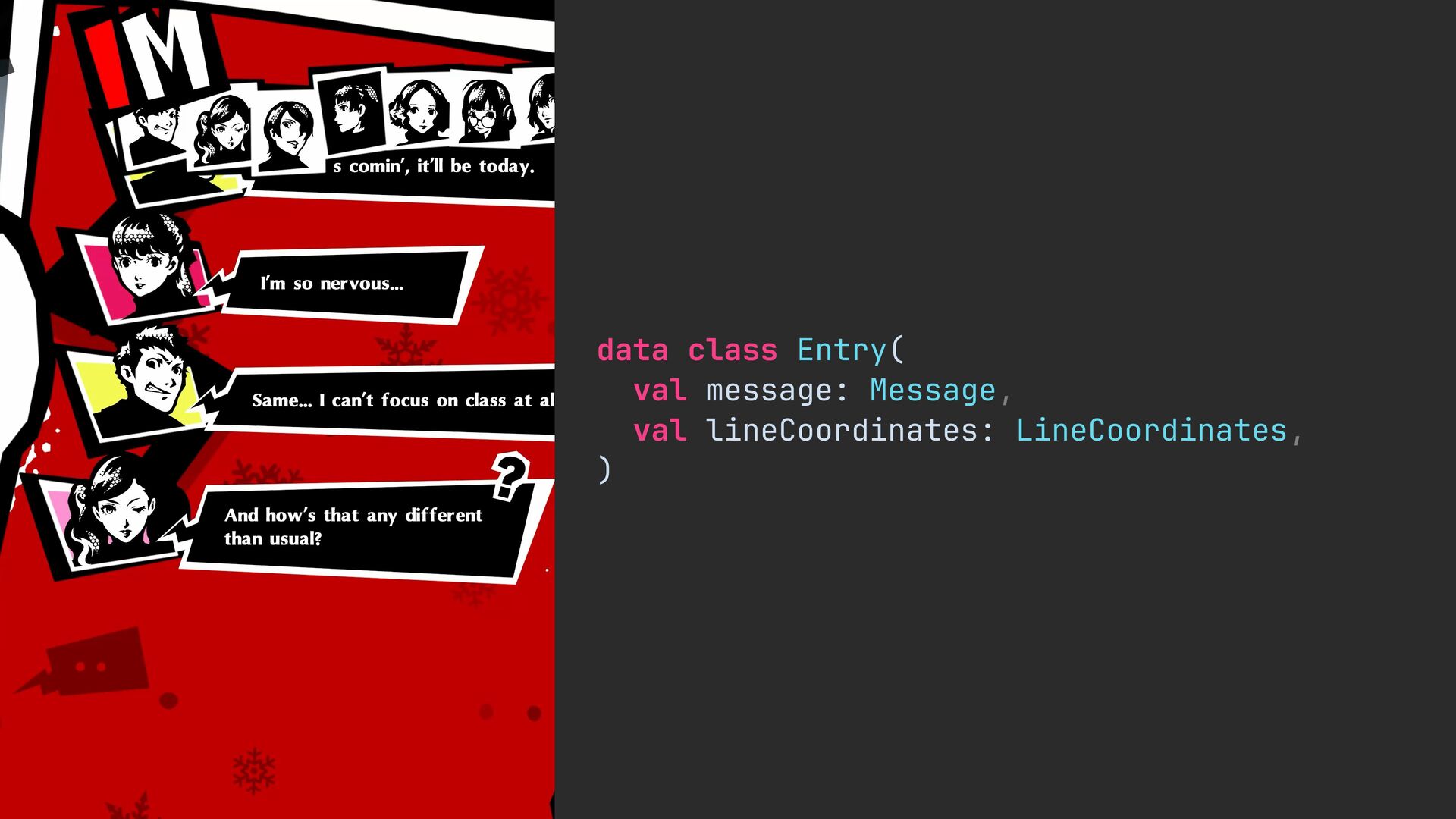

186. data class Entry( val message: Message, val lineCoordinates: LineCoordinates, ) ©ATLUS ©SEGA

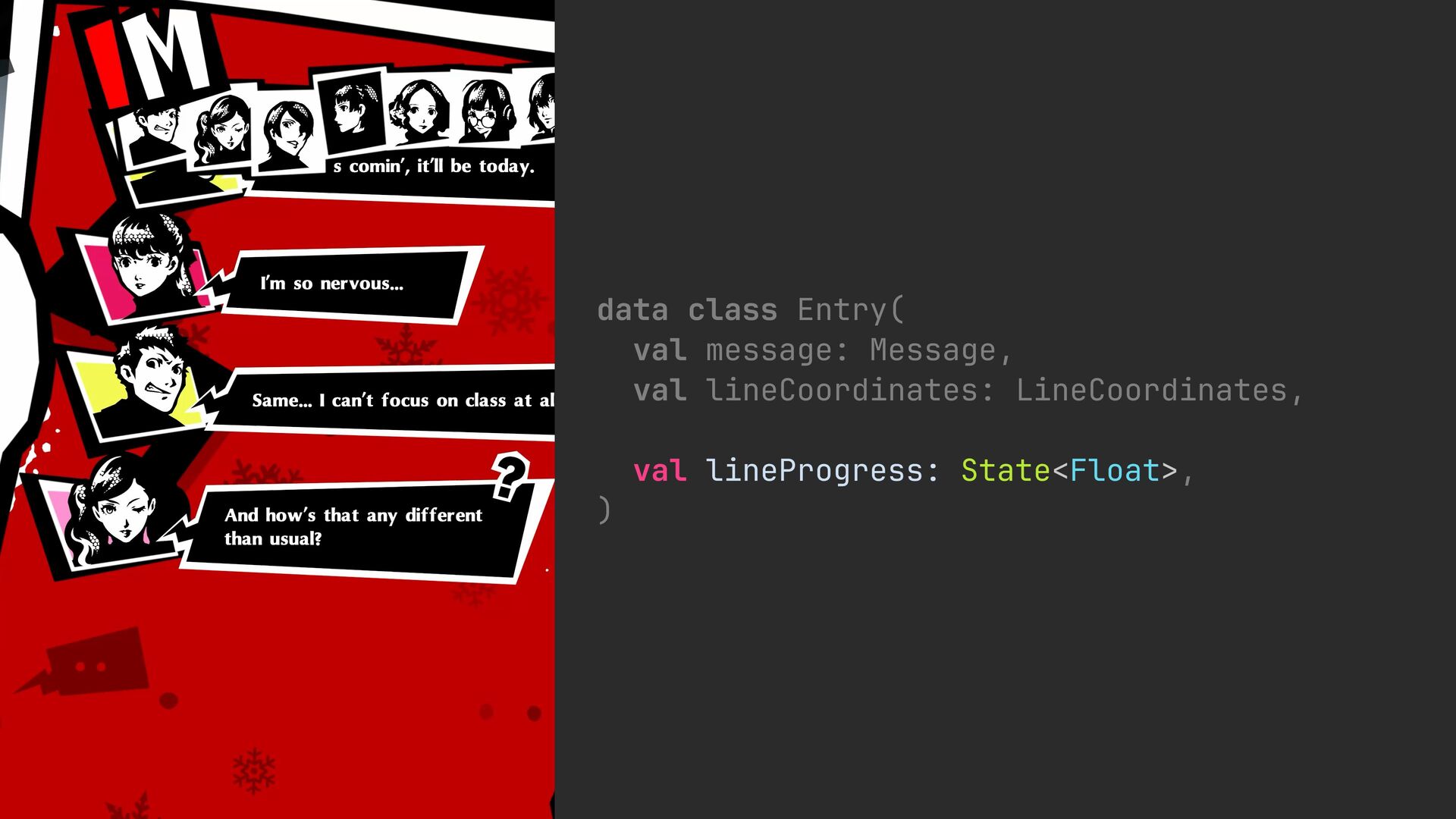

187. data class Entry( val message: Message, val lineCoordinates: LineCoordinates, val lineProgress: State<Float>, ) ©ATLUS ©SEGA
188. data class Entry( val message: Message, val lineCoordinates: LineCoordinates, val lineProgress: State<Float>, val avatarBackgroundScale: State<Float>, val avatarForegroundScale: State<Float>, ) ©ATLUS ©SEGA

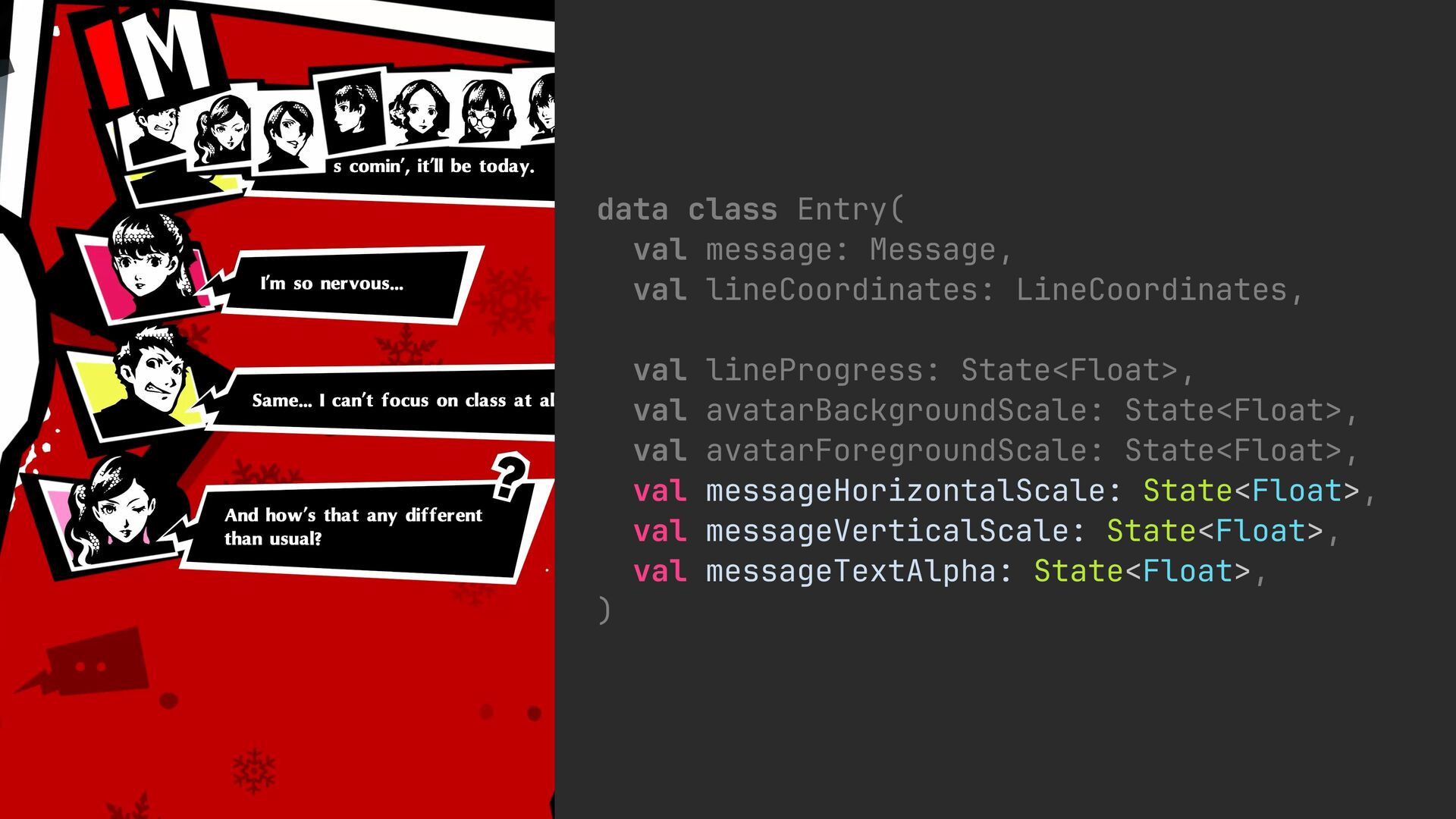

189. data class Entry( val message: Message, val lineCoordinates: LineCoordinates, val lineProgress: State<Float>, val avatarBackgroundScale: State<Float>, val avatarForegroundScale: State<Float>, val messageHorizontalScale: State<Float>, val messageVerticalScale: State<Float>, val messageTextAlpha: State<Float>, ) ©ATLUS ©SEGA

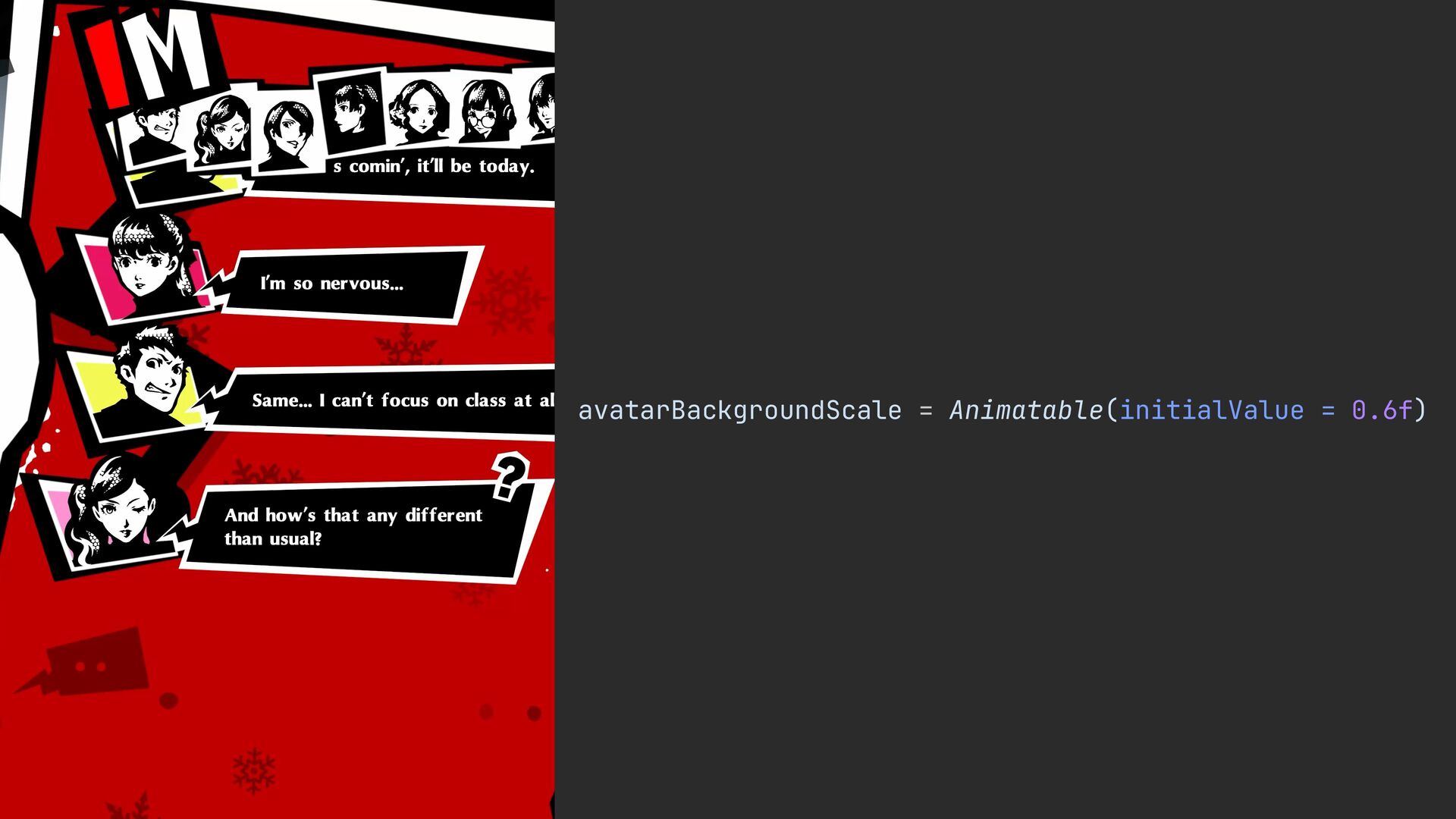

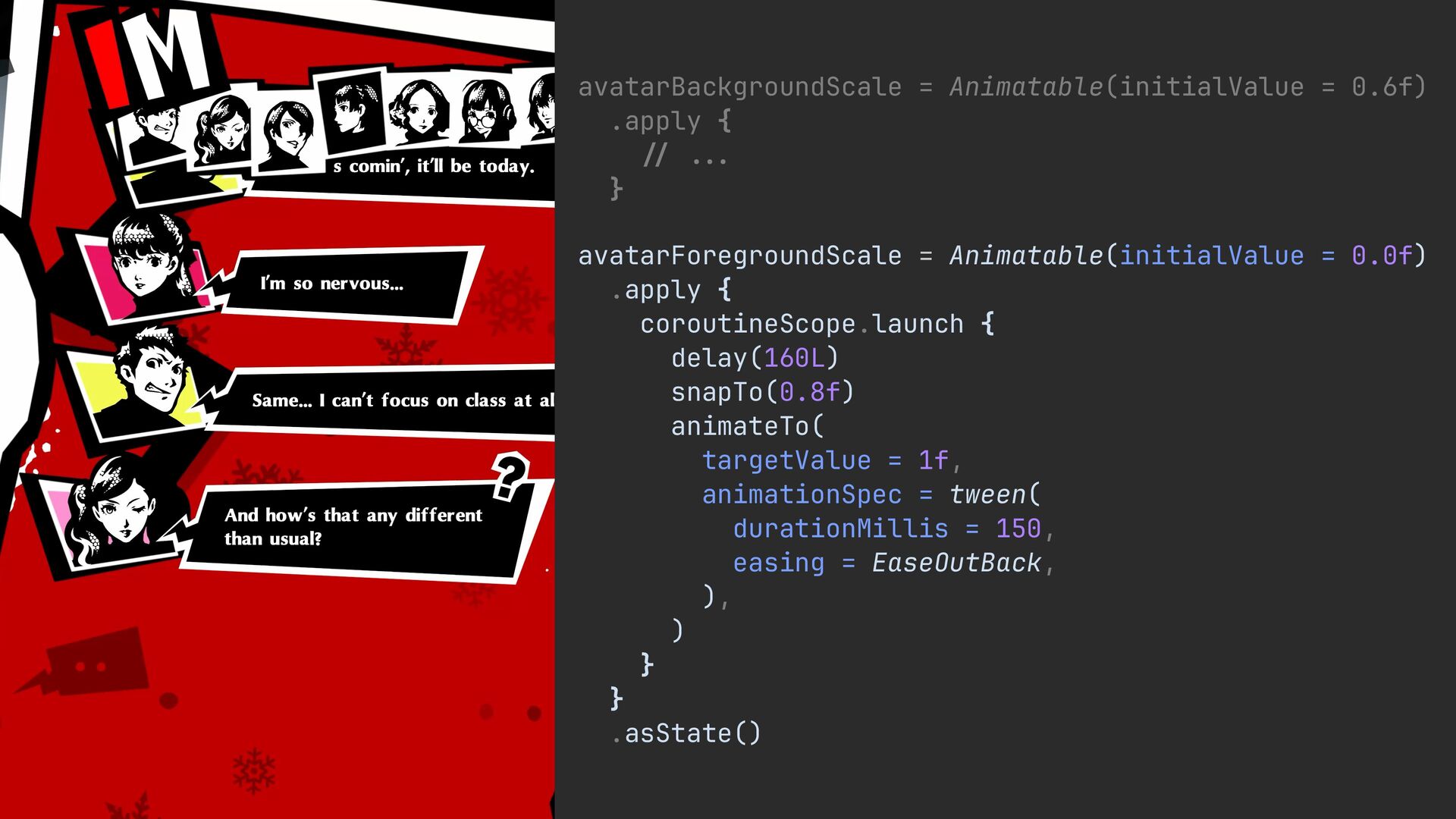

190. avatarBackgroundScale = Animatable(initialValue = 0.6f) ©ATLUS ©SEGA

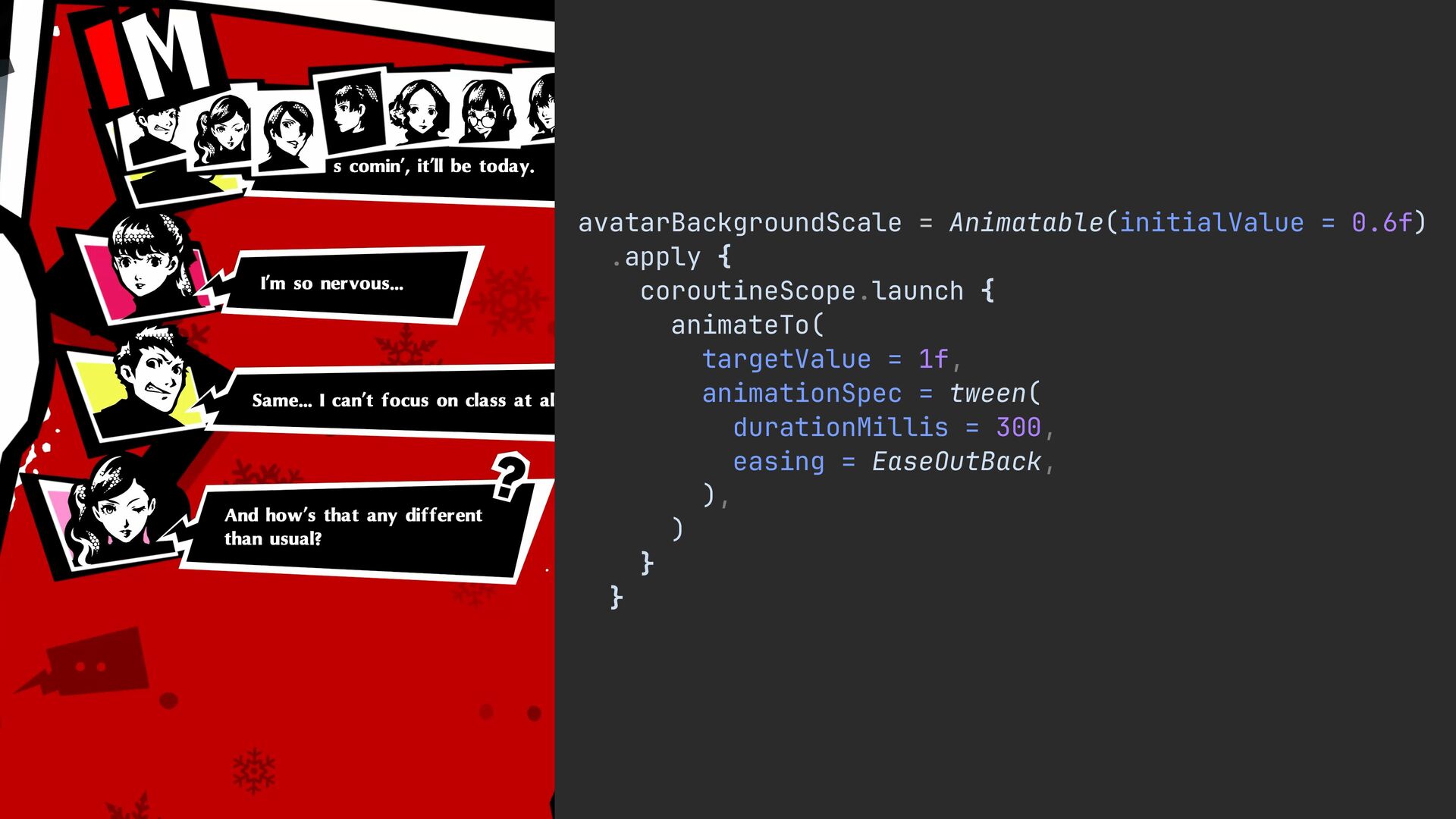

191. avatarBackgroundScale = Animatable(initialValue = 0.6f) .apply { coroutineScope.launch { animateTo( targetValue = 1f, animationSpec = tween( durationMillis = 300, easing = EaseOutBack, ), ) } } ©ATLUS ©SEGA

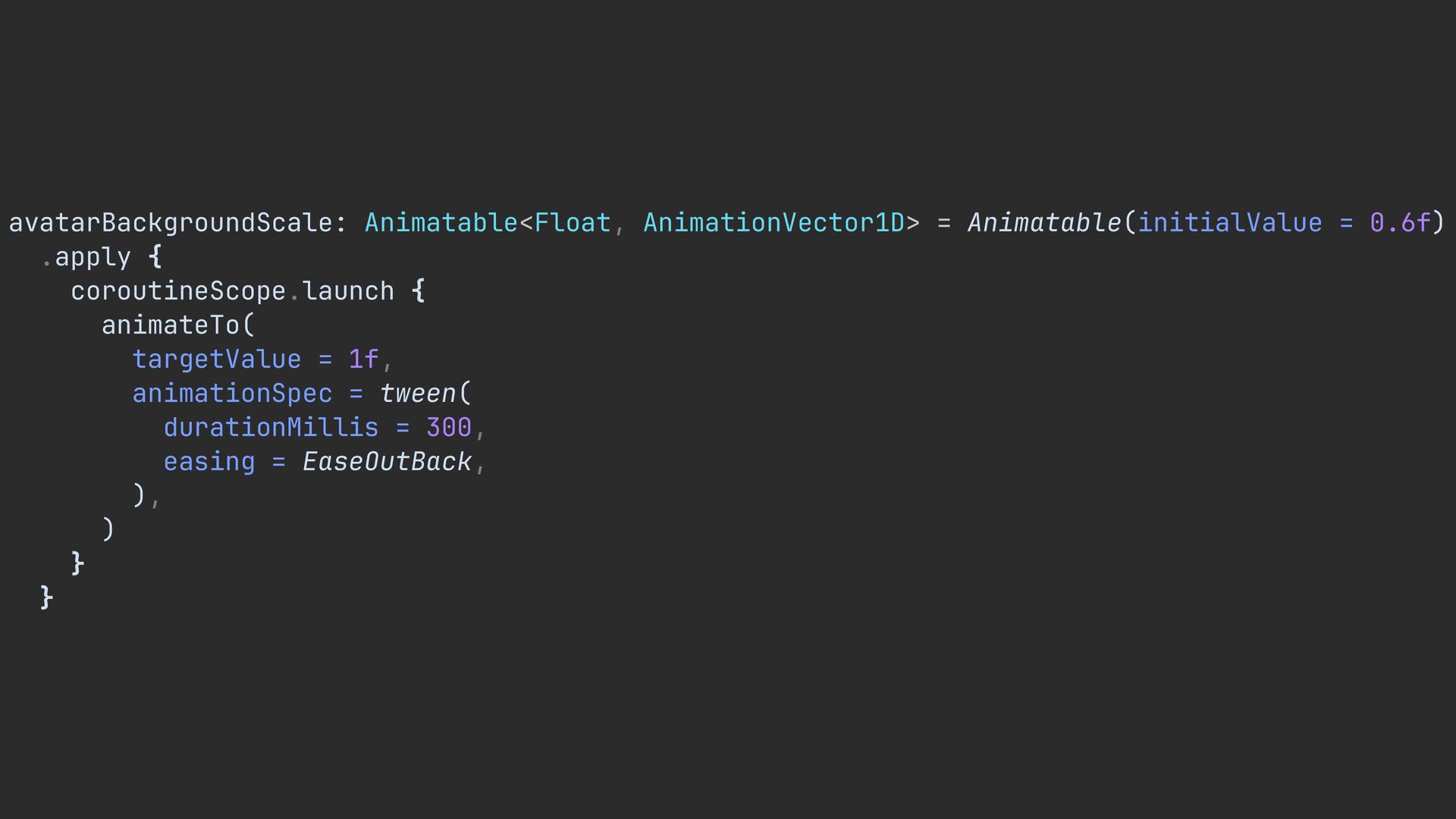

192. avatarBackgroundScale: Animatable<Float, AnimationVector1D> = Animatable(initialValue = 0.6f) .apply { coroutineScope.launch { animateTo( targetValue = 1f, animationSpec = tween( durationMillis = 300, easing = EaseOutBack, ), ) } } ©ATLUS ©SEGA

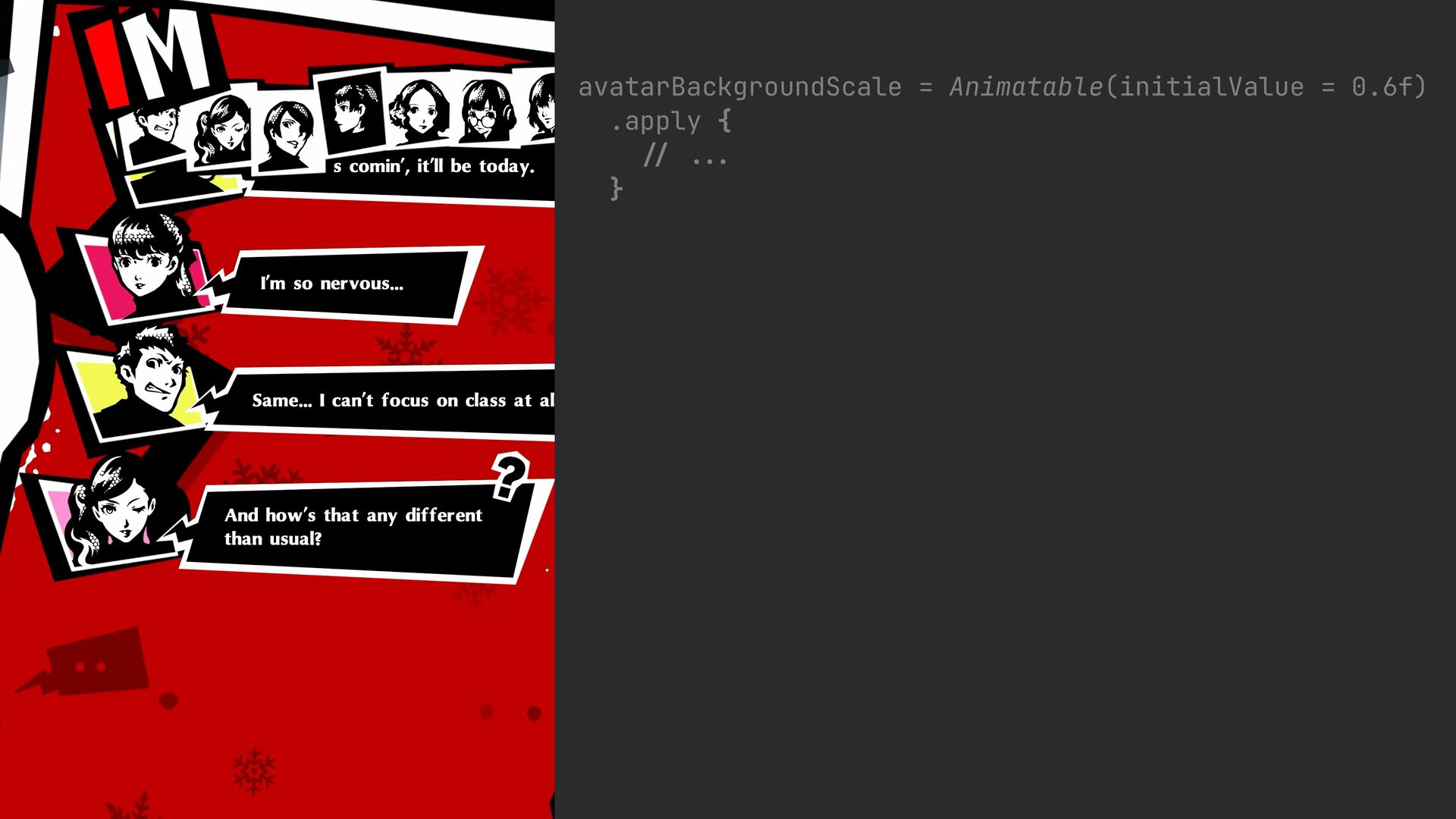

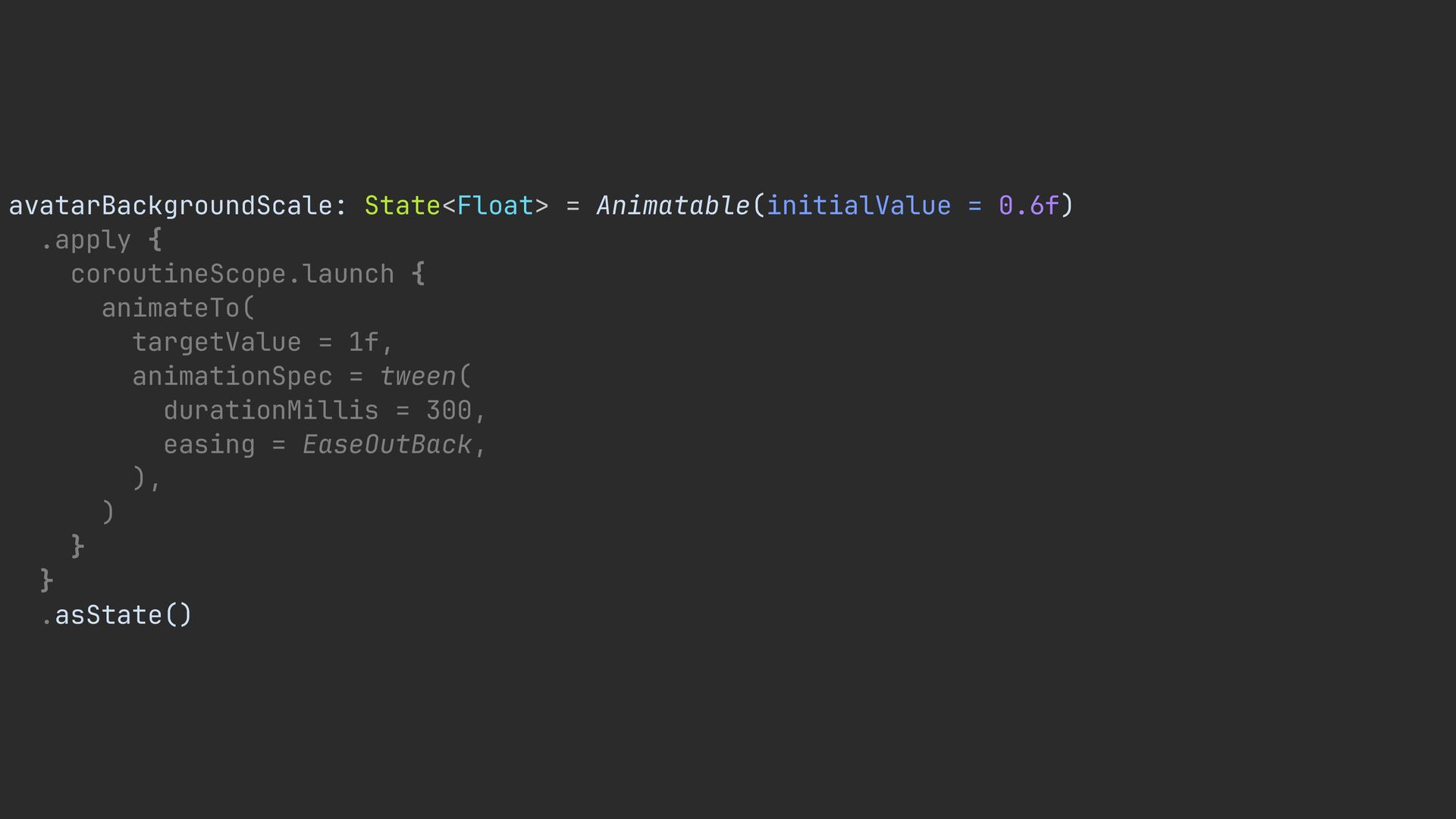

193. avatarBackgroundScale: State<Float> = Animatable(initialValue = 0.6f) .apply { coroutineScope.launch { animateTo( targetValue = 1f, animationSpec = tween( durationMillis = 300, easing = EaseOutBack, ), ) } } .asState() ©ATLUS ©SEGA
194. avatarBackgroundScale = Animatable(initialValue = 0.6f) .apply { // . .. } ©ATLUS ©SEGA
195. avatarBackgroundScale = Animatable(initialValue = 0.6f) .apply { // . .. } avatarForegroundScale = Animatable(initialValue = 0.0f) .apply { coroutineScope.launch { delay(160L) snapTo(0.8f) animateTo( targetValue = 1f, animationSpec = tween( durationMillis = 150, easing = EaseOutBack, ), ) } } .asState() ©ATLUS ©SEGA

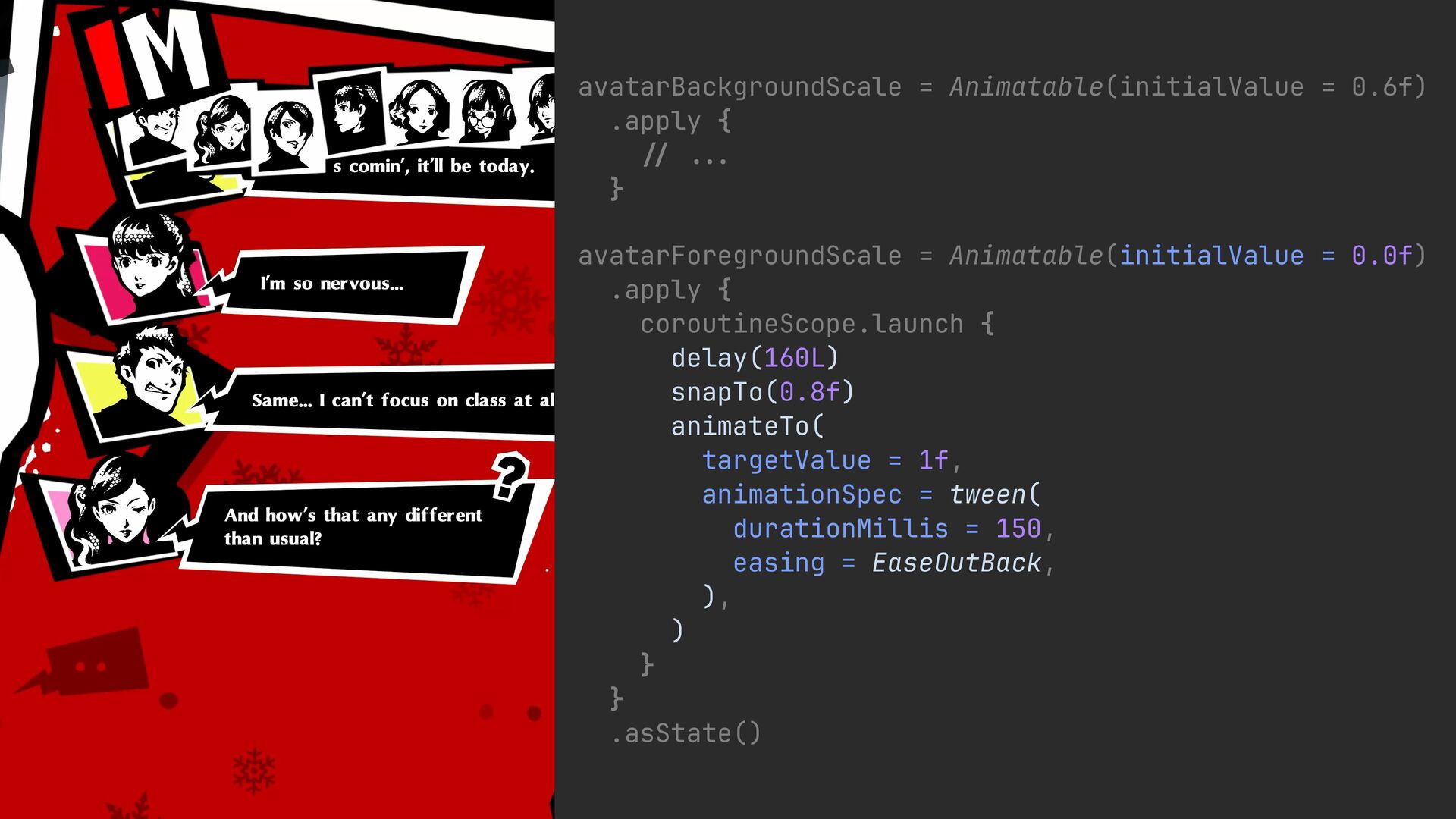

196. avatarBackgroundScale = Animatable(initialValue = 0.6f) .apply { // . .. } avatarForegroundScale = Animatable(initialValue = 0.0f) .apply { coroutineScope.launch { delay(160L) snapTo(0.8f) animateTo( targetValue = 1f, animationSpec = tween( durationMillis = 150, easing = EaseOutBack, ), ) } } .asState() ©ATLUS ©SEGA

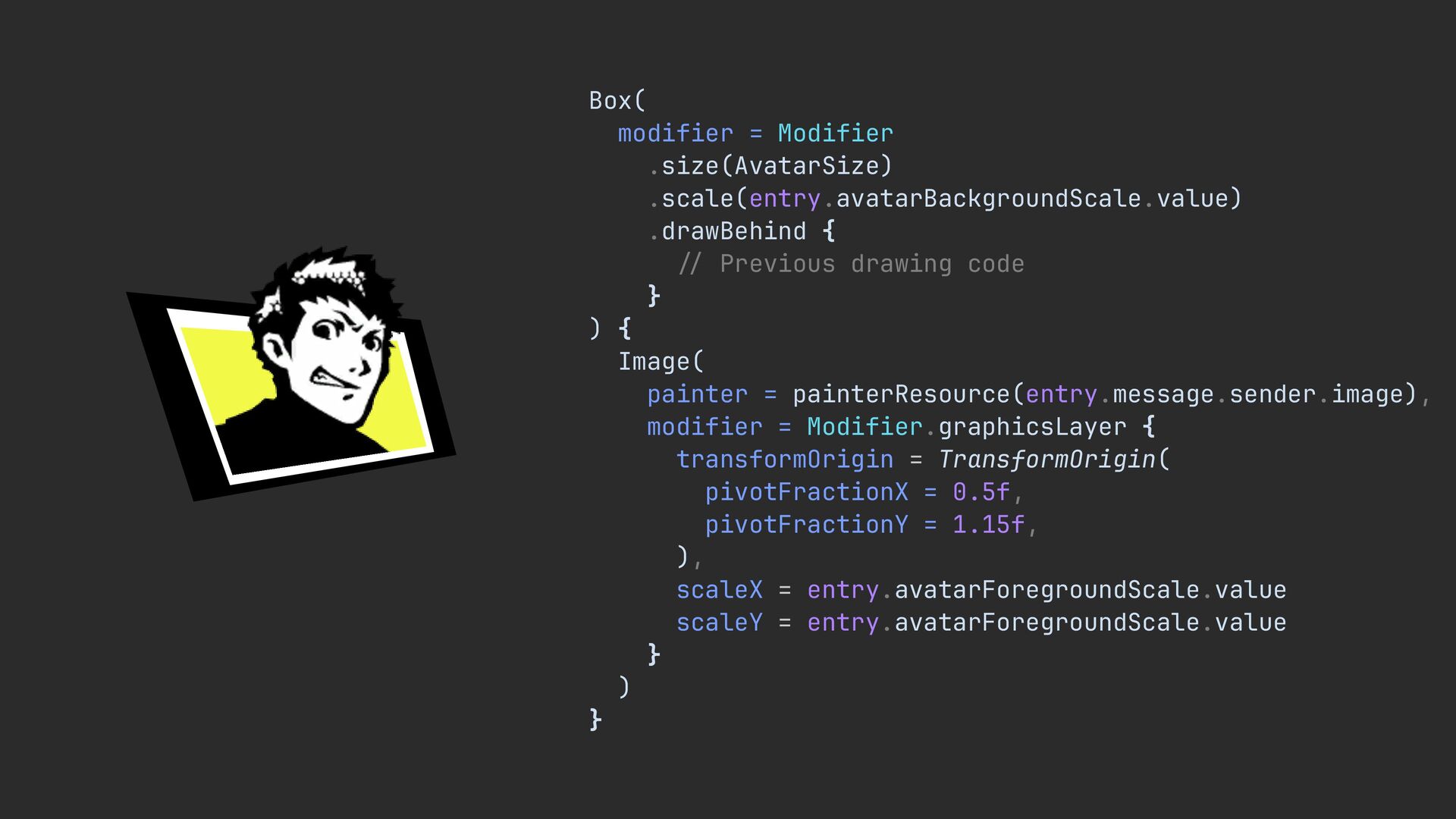

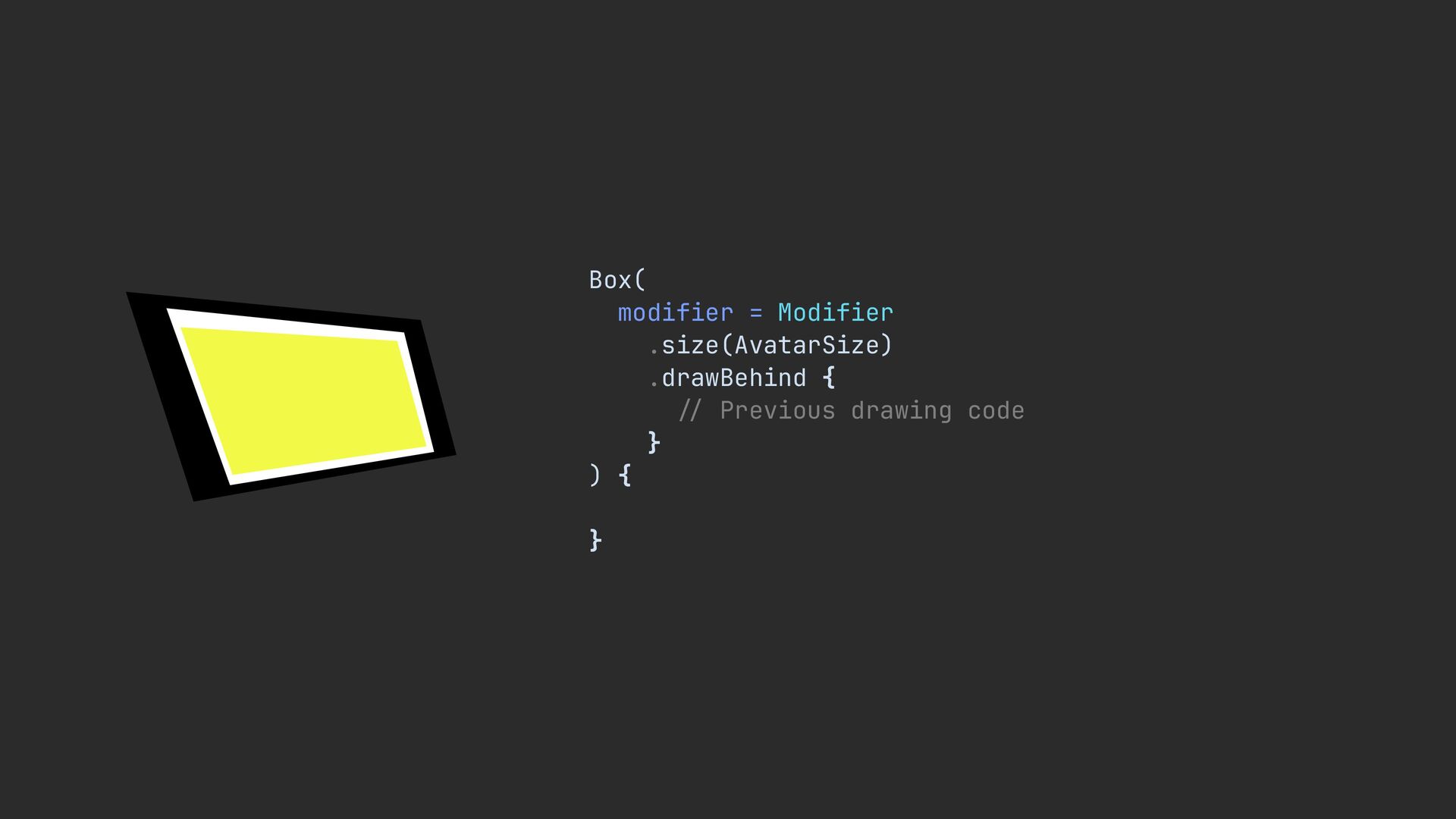

197. Box( modifier = Modifier .size(AvatarSize) .drawBehind { // Previous drawing code } ) { } ©ATLUS ©SEGA

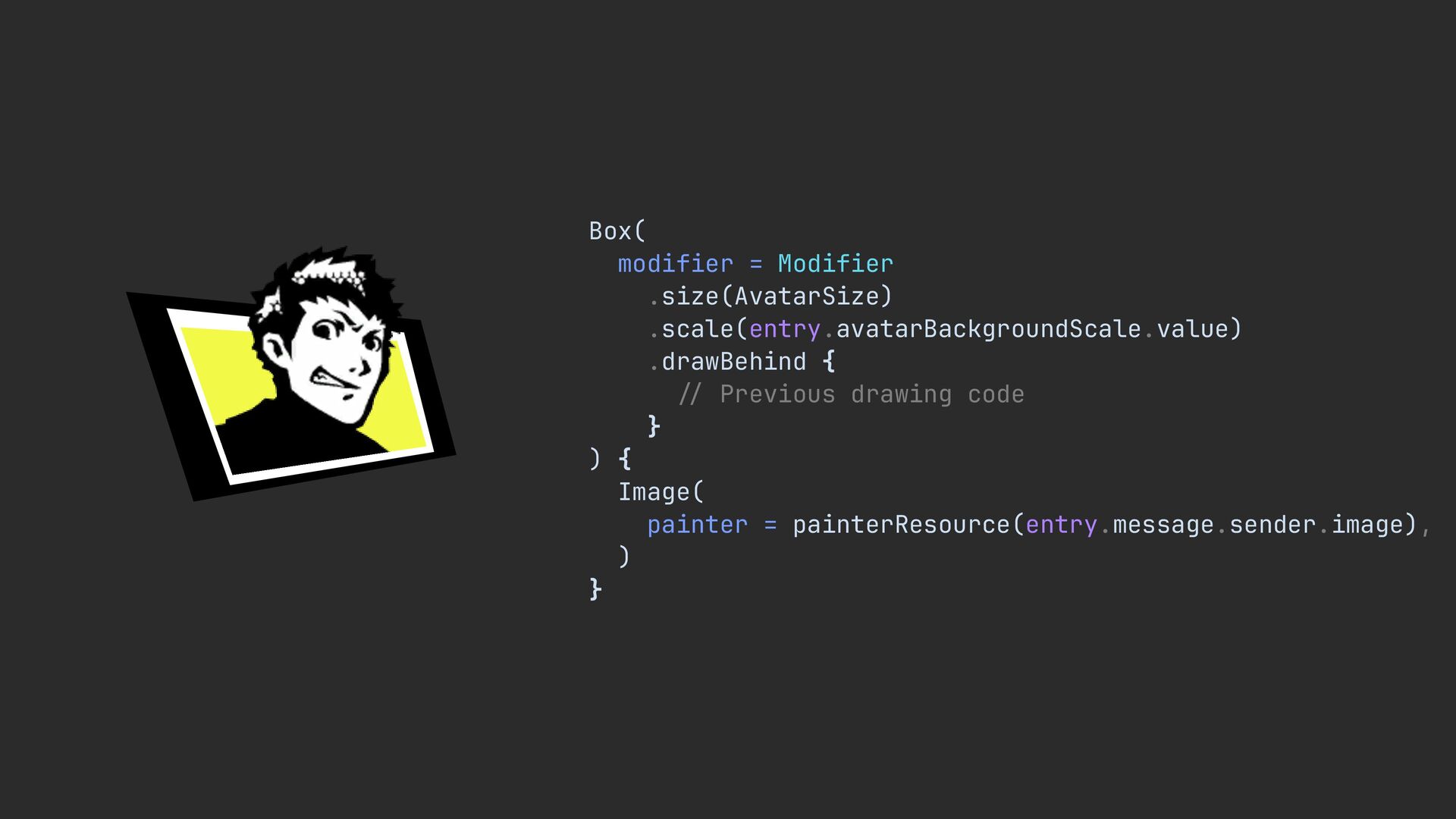

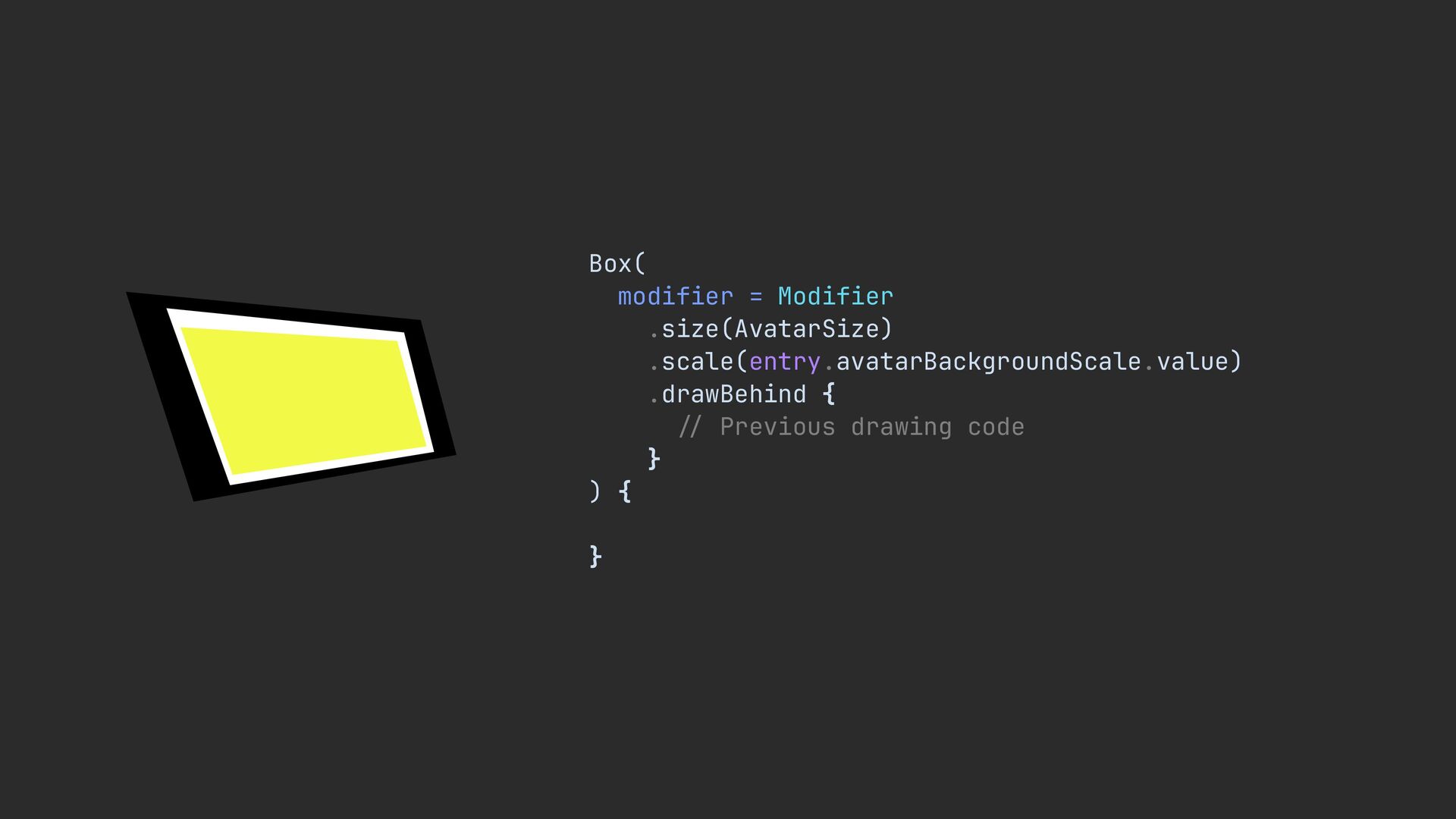

198. Box( modifier = Modifier .size(AvatarSize) .scale(entry.avatarBackgroundScale.value) .drawBehind { // Previous drawing code } ) { } ©ATLUS ©SEGA
199. Box( modifier = Modifier .size(AvatarSize) .scale(entry.avatarBackgroundScale.value) .drawBehind { // Previous drawing code } ) { Image( painter = painterResource(entry.message.sender.image), ) } ©ATLUS ©SEGA
200. Box( modifier = Modifier .size(AvatarSize) .scale(entry.avatarBackgroundScale.value) .drawBehind { // Previous drawing code } ) { Image( painter = painterResource(entry.message.sender.image), modifier = Modifier.graphicsLayer { transformOrigin = TransformOrigin( pivotFractionX = 0.5f, pivotFractionY = 1.15f, ), scaleX = entry.avatarForegroundScale.value scaleY = entry.avatarForegroundScale.value } ) } ©ATLUS ©SEGA

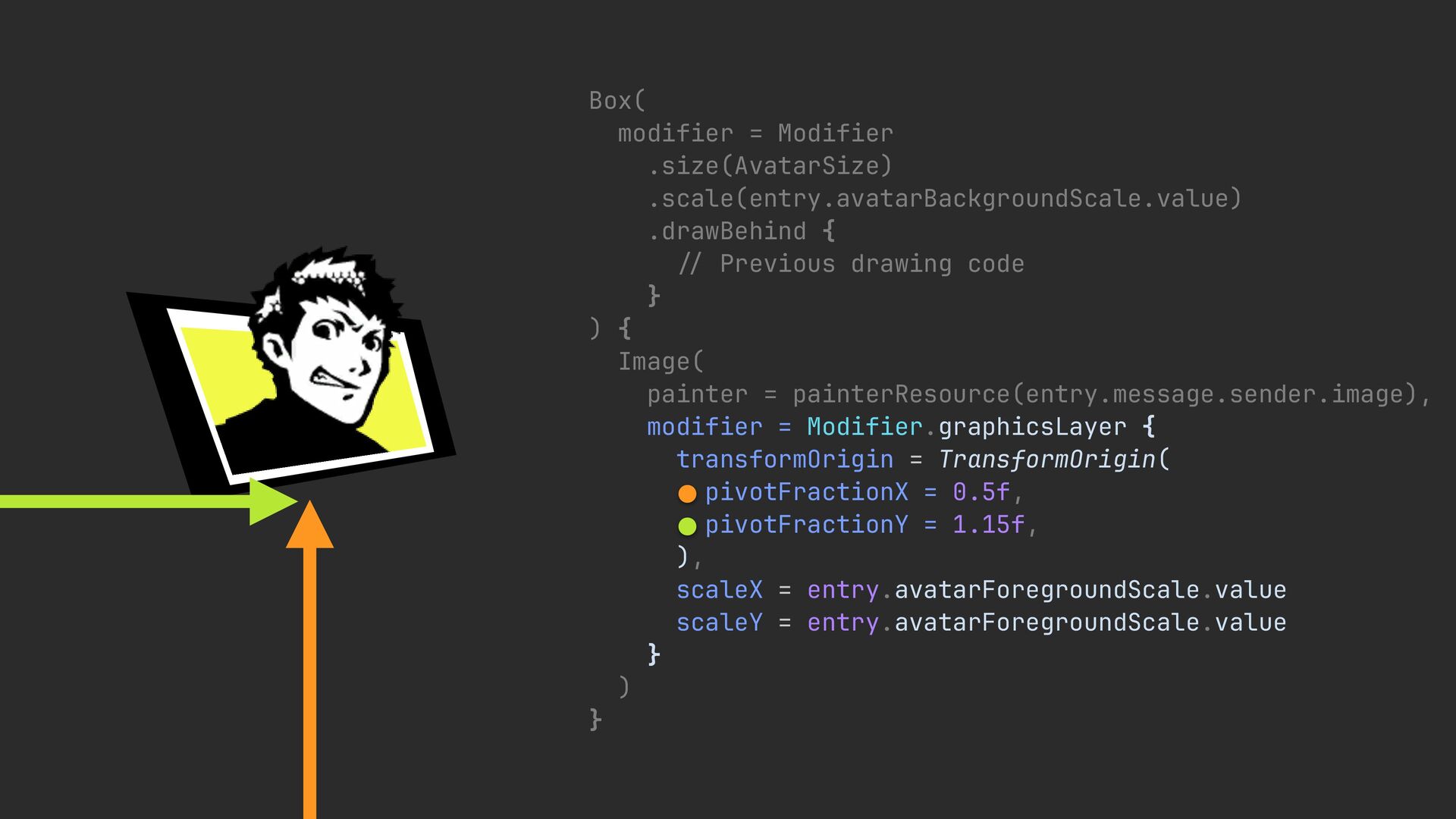

201. Box( modifier = Modifier .size(AvatarSize) .scale(entry.avatarBackgroundScale.value) .drawBehind { // Previous drawing code } ) { Image( painter = painterResource(entry.message.sender.image), modifier = Modifier.graphicsLayer { transformOrigin = TransformOrigin( pivotFractionX = 0.5f, pivotFractionY = 1.15f, ), scaleX = entry.avatarForegroundScale.value scaleY = entry.avatarForegroundScale.value } ) } ©ATLUS ©SEGA

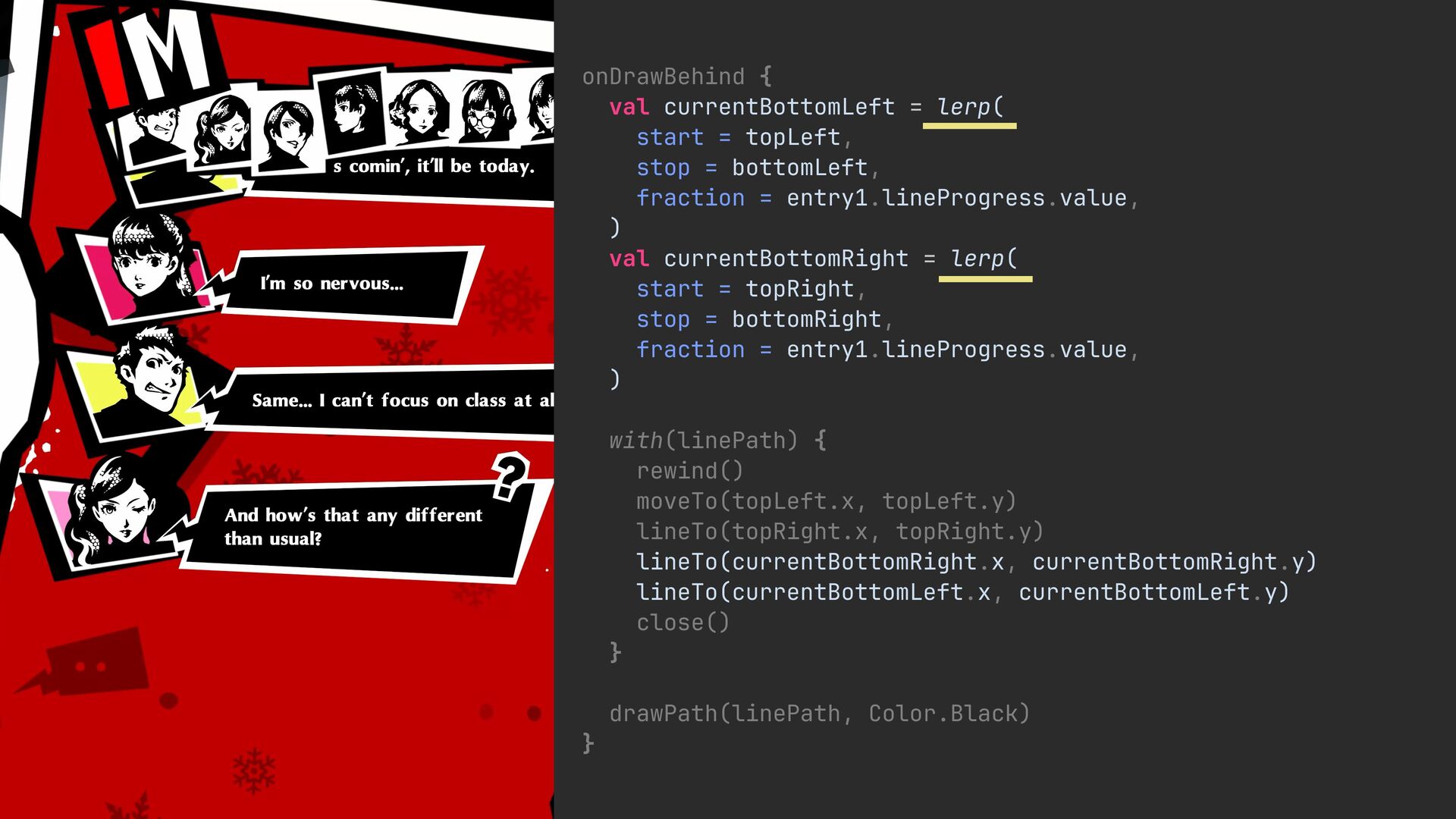

202. onDrawBehind { with(linePath) { rewind() moveTo(topLeft.x, topLeft.y) lineTo(topRight.x, topRight.y) lineTo (​ bottomRight.x, bottomRight.y) lineTo (​ bottomLeft.x, bottomLeft.y) close() } drawPath(linePath, Color.Black) } v​ al b​ ottomLeft = entry2.lineCoordinates.leftPoint v​ al b​ ottomRight = entry2.lineCoordinates.rightPoint The line ©ATLUS ©SEGA

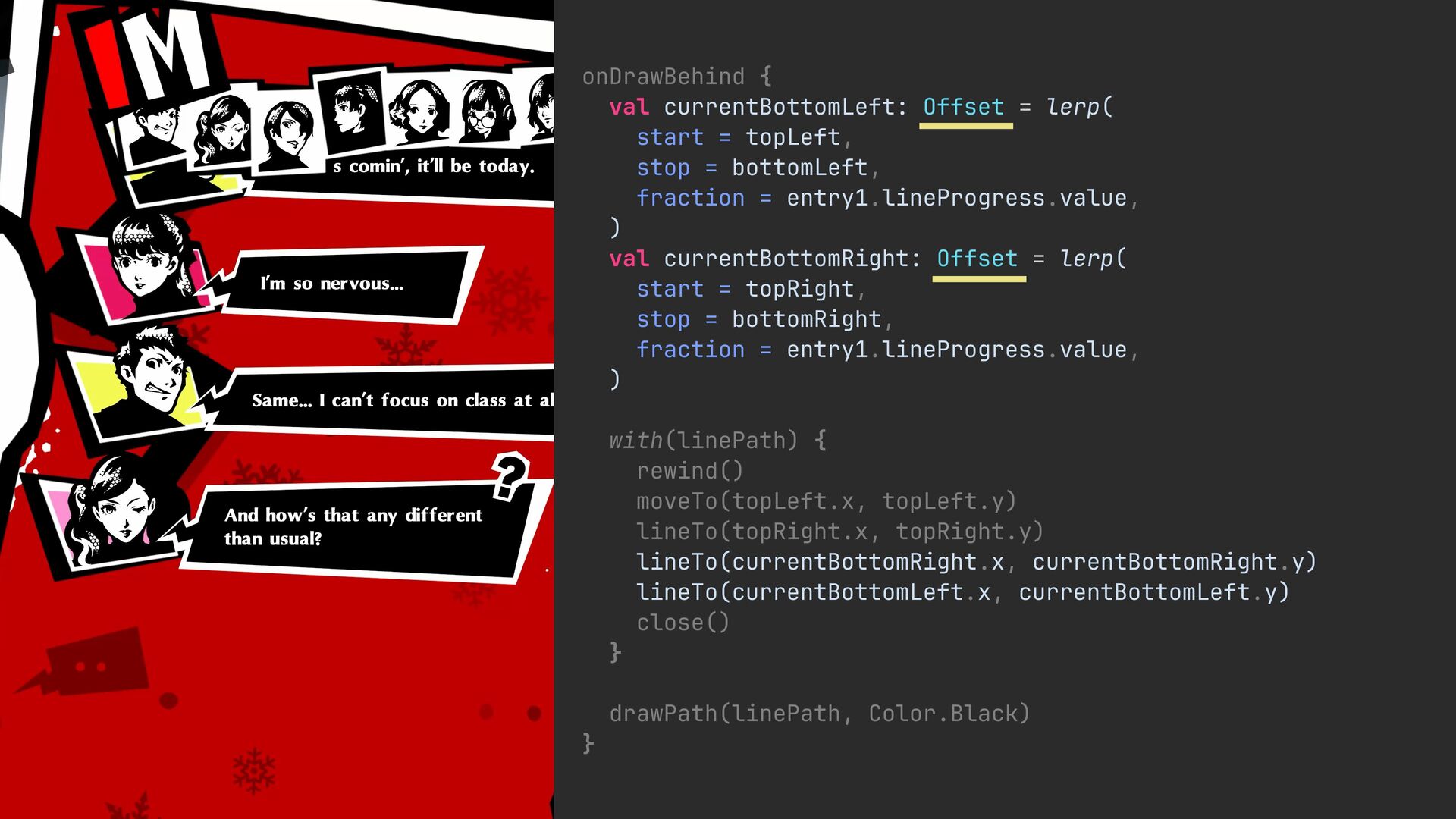

203. onDrawBehind { val currentBottomLeft = lerp( start = topLeft, stop = bottomLeft, fraction = entry1.lineProgress.value, ) val currentBottomRight = lerp( start = topRight, stop = bottomRight, fraction = entry1.lineProgress.value, ) with(linePath) { rewind() moveTo(topLeft.x, topLeft.y) lineTo(topRight.x, topRight.y) lineTo (​ currentBottomRight.x, currentBottomRight.y) lineTo (​ currentBottomLeft.x, currentBottomLeft.y) close() } drawPath(linePath, Color.Black) } ©ATLUS ©SEGA
204. onDrawBehind { val currentBottomLeft: Offset = lerp( start = topLeft, stop = bottomLeft, fraction = entry1.lineProgress.value, ) val currentBottomRight: Offset = lerp( start = topRight, stop = bottomRight, fraction = entry1.lineProgress.value, ) with(linePath) { rewind() moveTo(topLeft.x, topLeft.y) lineTo(topRight.x, topRight.y) lineTo (​ currentBottomRight.x, currentBottomRight.y) lineTo (​ currentBottomLeft.x, currentBottomLeft.y) close() } drawPath(linePath, Color.Black) } ©ATLUS ©SEGA

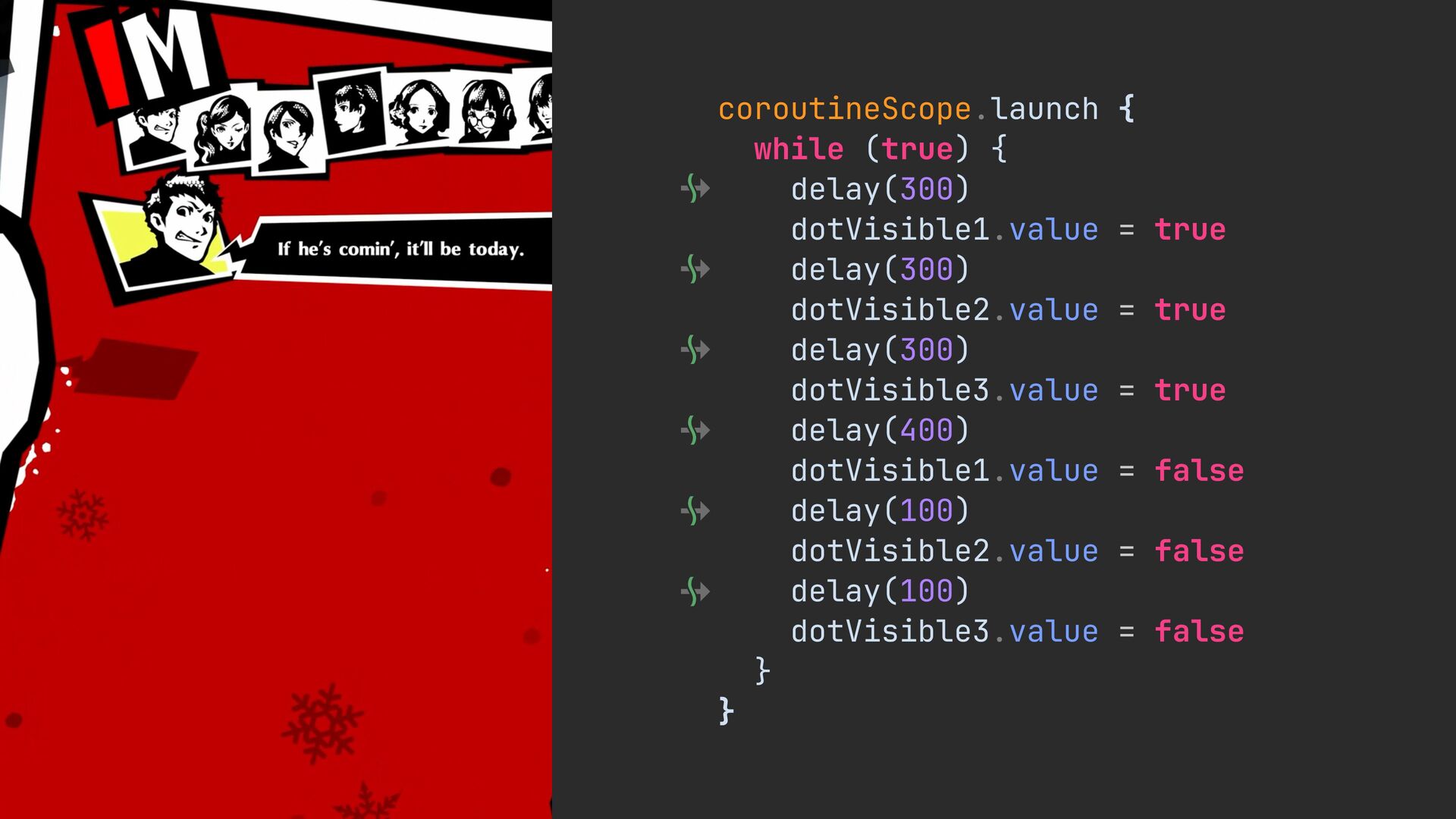

205. coroutineScope.launch { while (true) { delay(300) dotVisible1.value = true delay(300) dotVisible2.value = true delay(300) dotVisible3.value = true delay(400) dotVisible1.value = false delay(100) dotVisible2.value = false delay(100) dotVisible3.value = false } } ©ATLUS ©SEGA

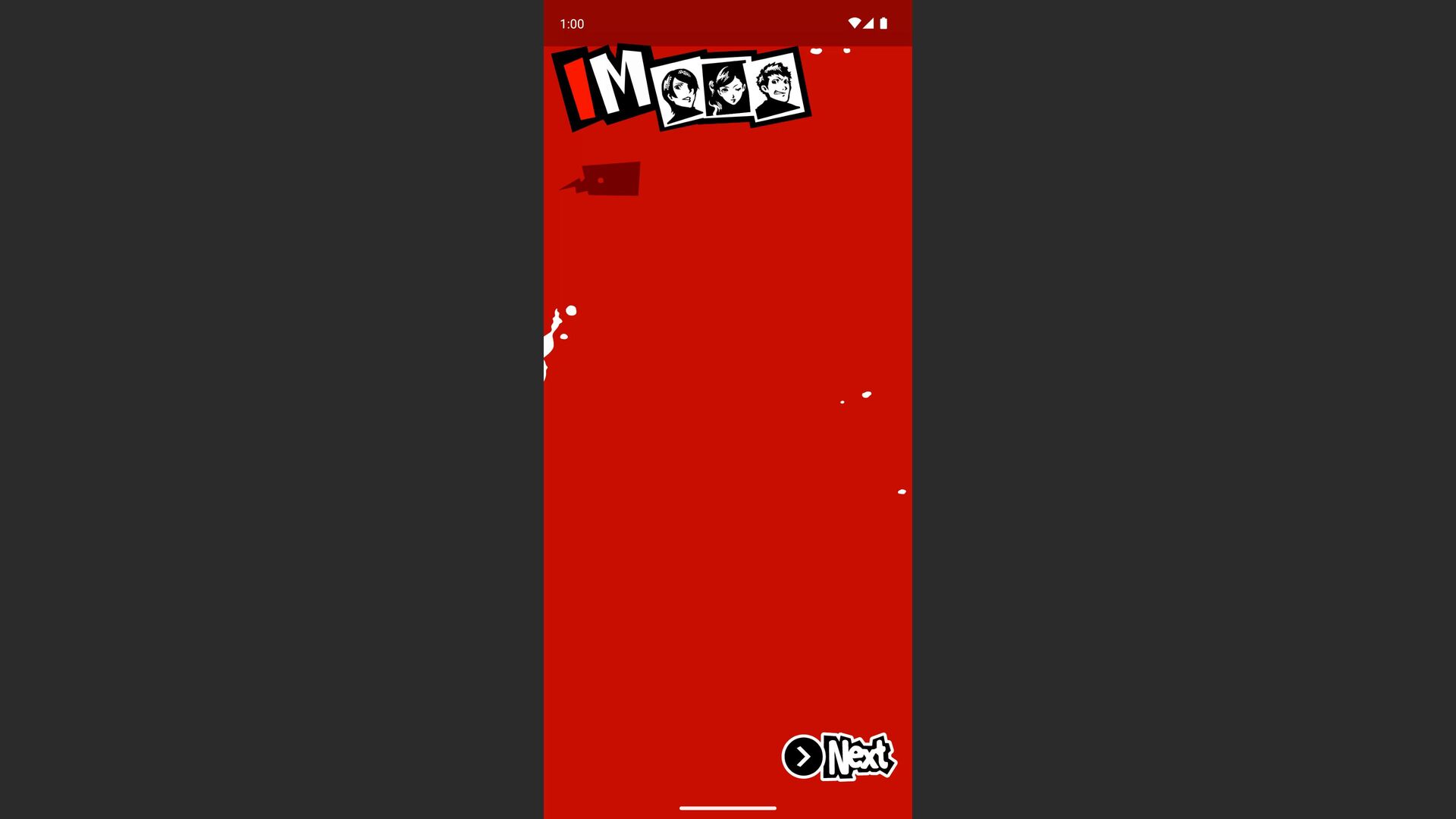

206. ©ATLUS ©SEGA

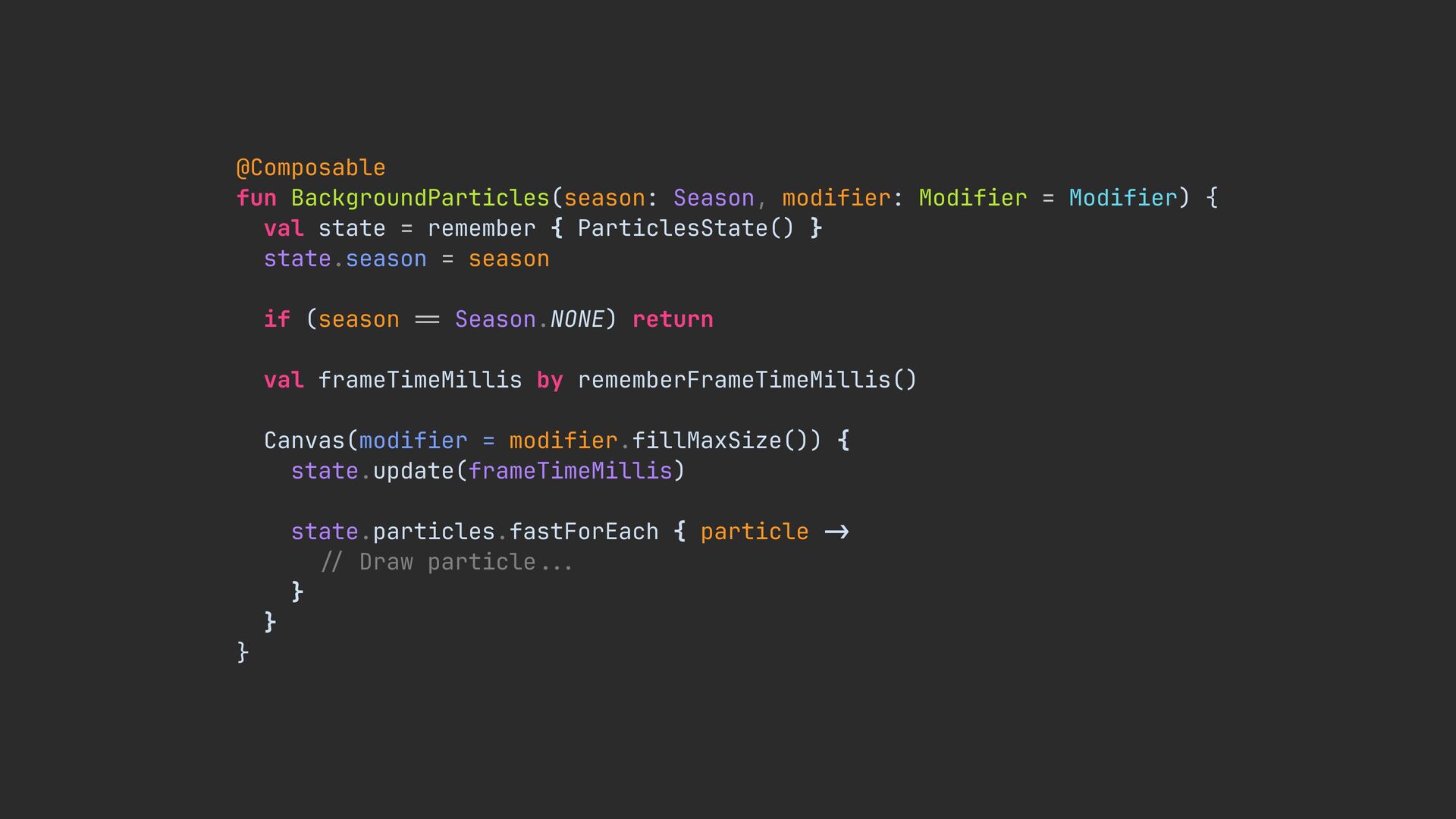

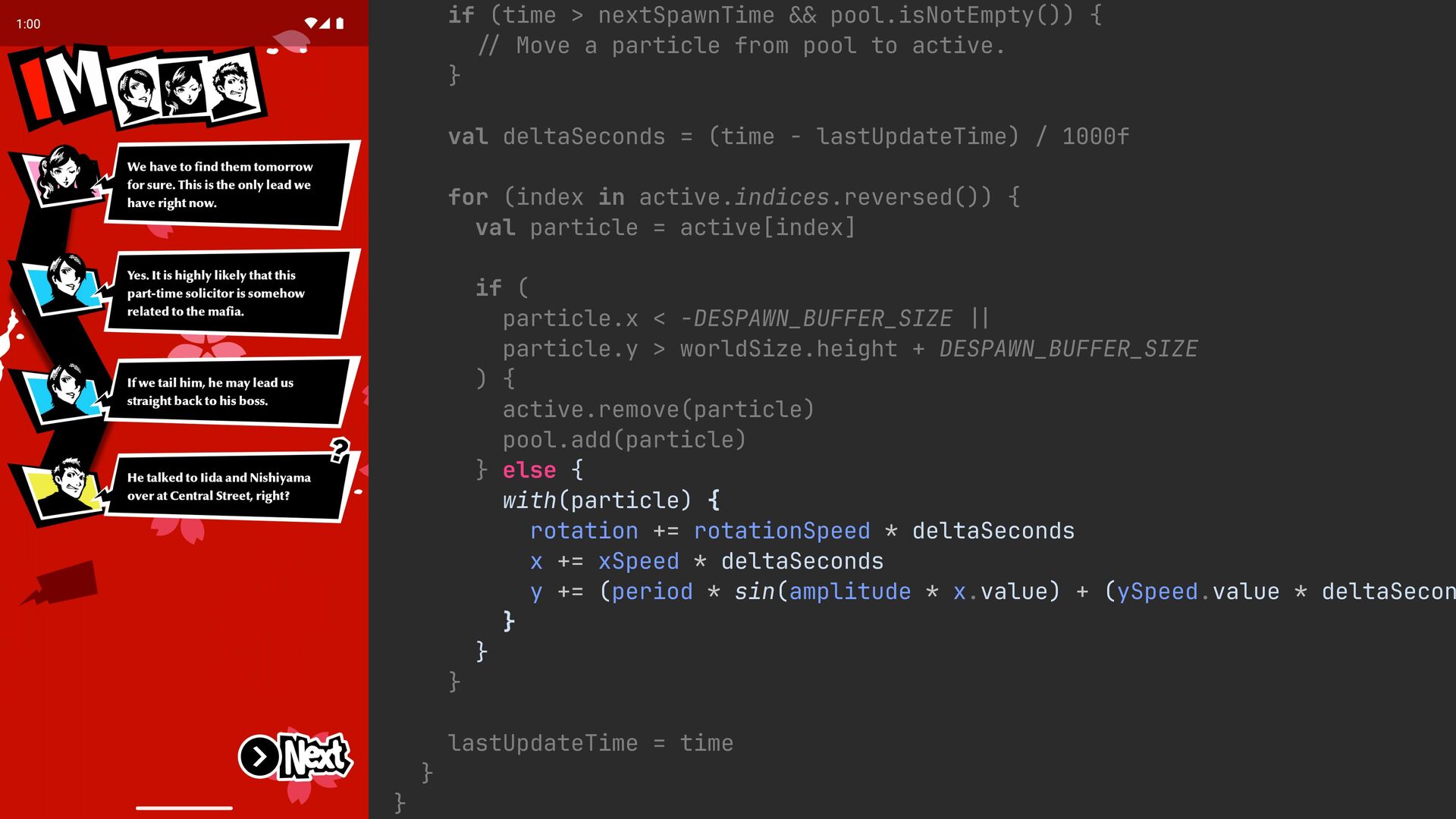

207. @Composable fun BackgroundParticles(season: Season, modifier: Modifier = Modifier) { val state = remember { ParticlesState() } state.season = season if (season == Season.NONE) return val frameTimeMillis by rememberFrameTimeMillis() Canvas(modifier = modifier.fillMaxSize()) { state.update(frameTimeMillis) state.particles.fastForEach { particle -> // Draw particle ... } } }
208. @Composable fun BackgroundParticles(season: Season, modifier: Modifier = Modifier) { val state = remember { ParticlesState() } state.season = season if (season == Season.NONE) return val frameTimeMillis by rememberFrameTimeMillis() Canvas(modifier = modifier.fillMaxSize()) { state.update(frameTimeMillis) state.particles.fastForEach { particle -> // Draw particle ... } } }

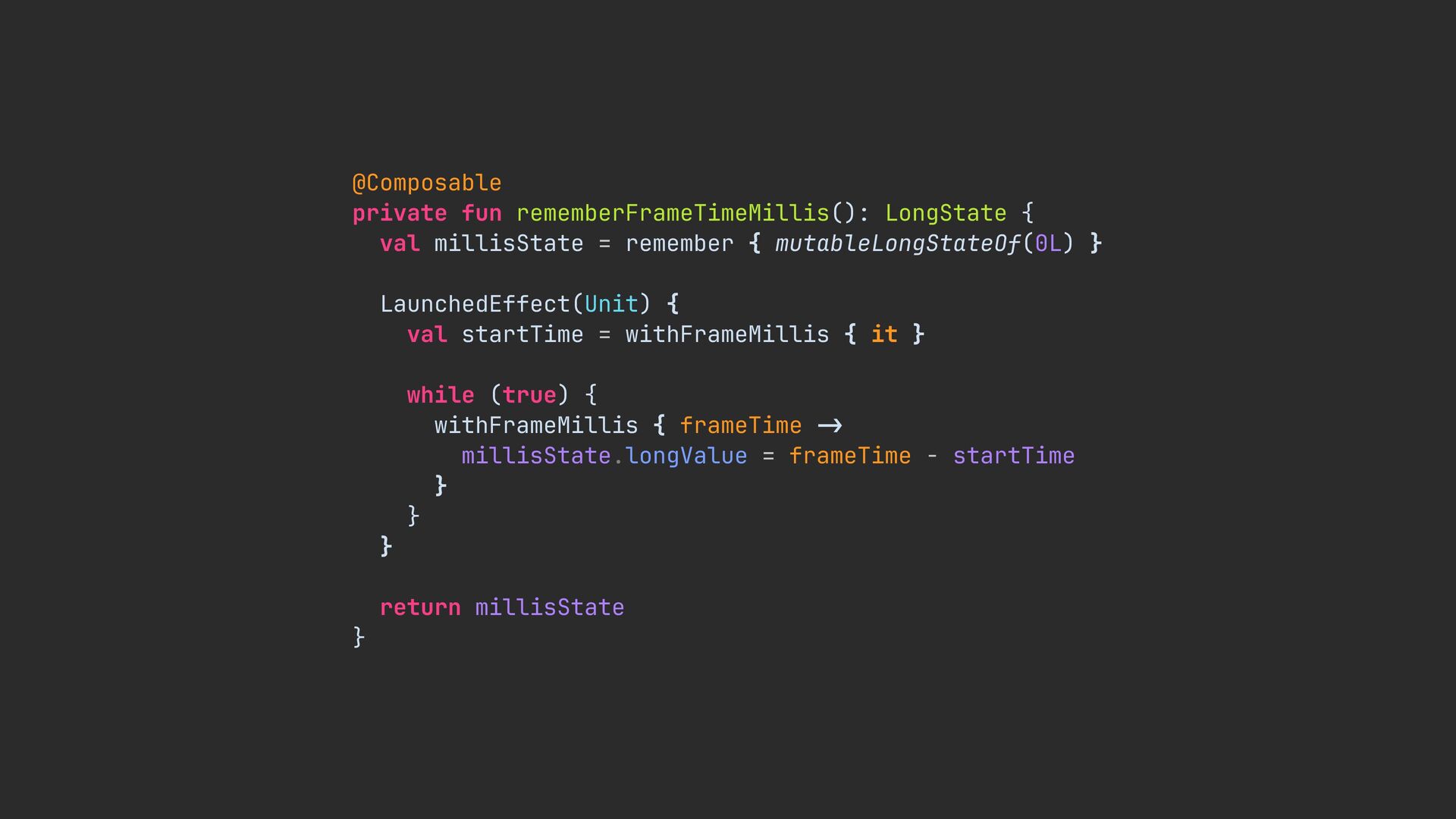

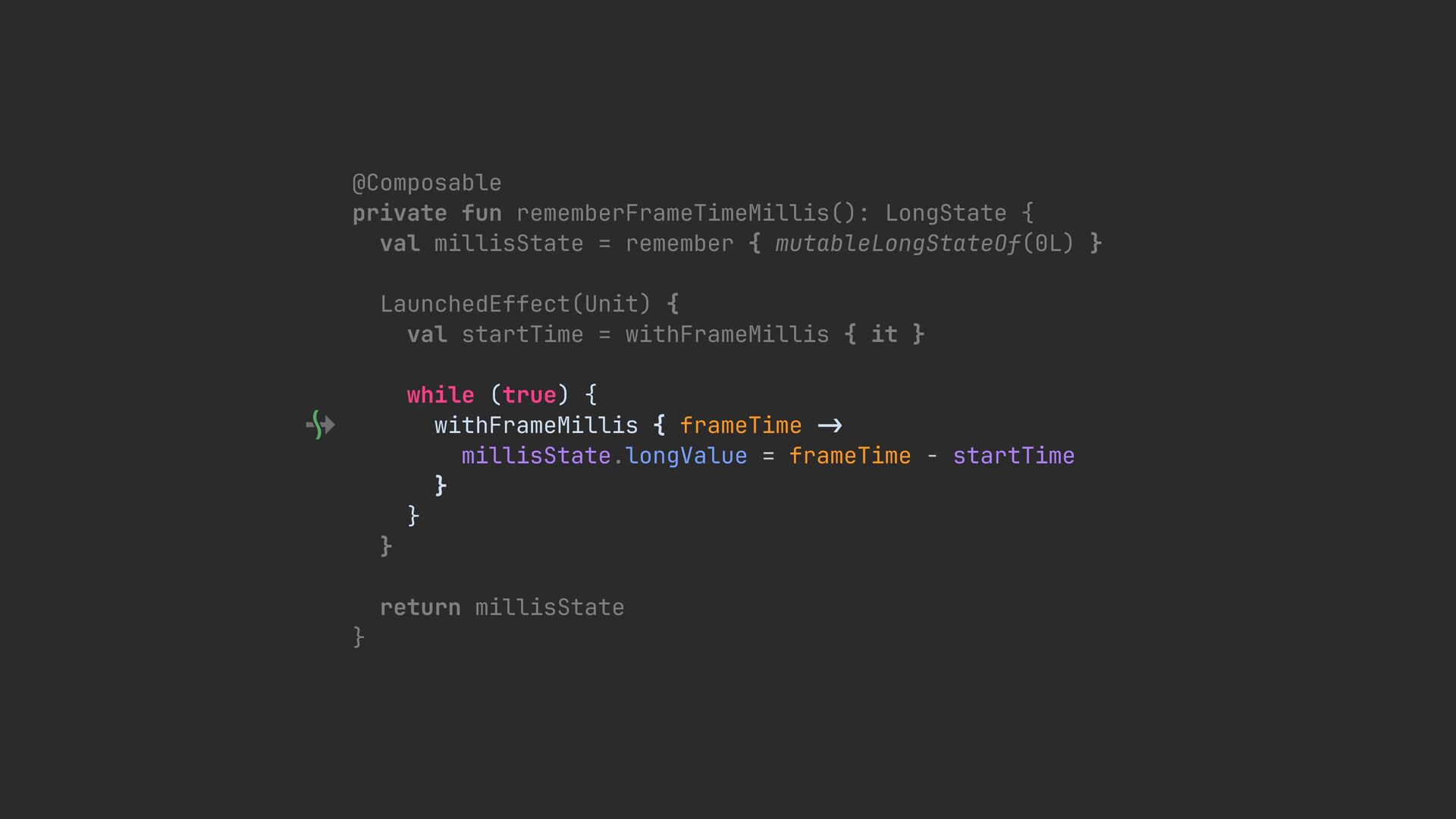

209. @Composable private fun rememberFrameTimeMillis(): LongState { val millisState = remember { mutableLongStateOf(0L) } LaunchedEffect(Unit) { val startTime = withFrameMillis { it } while (true) { withFrameMillis { frameTime -> millisState.longValue = frameTime - startTime } } } return millisState }
210. @Composable private fun rememberFrameTimeMillis(): LongState { val millisState = remember { mutableLongStateOf(0L) } LaunchedEffect(Unit) { val startTime = withFrameMillis { it } while (true) { withFrameMillis { frameTime -> millisState.longValue = frameTime - startTime } } } return millisState }

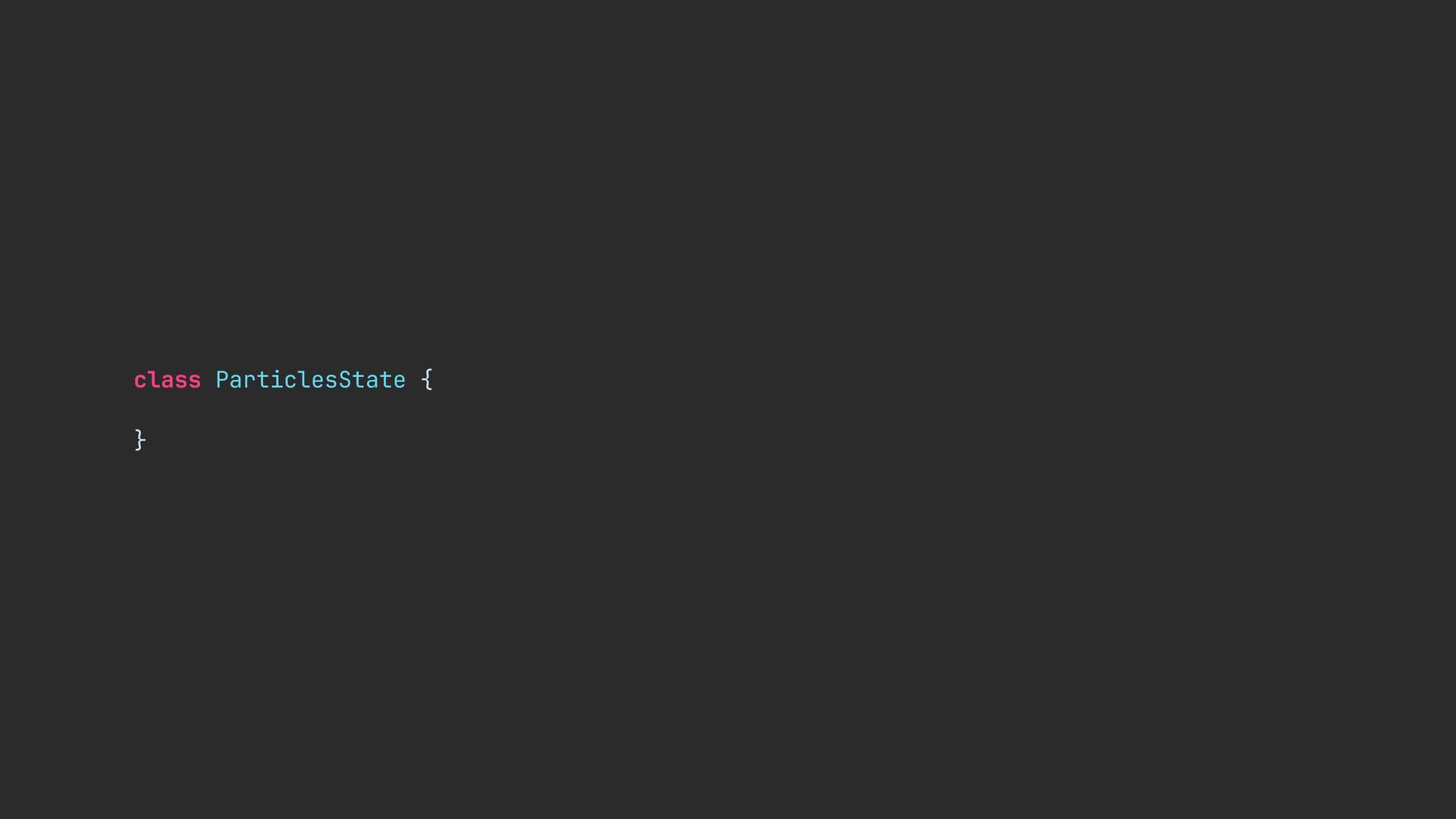

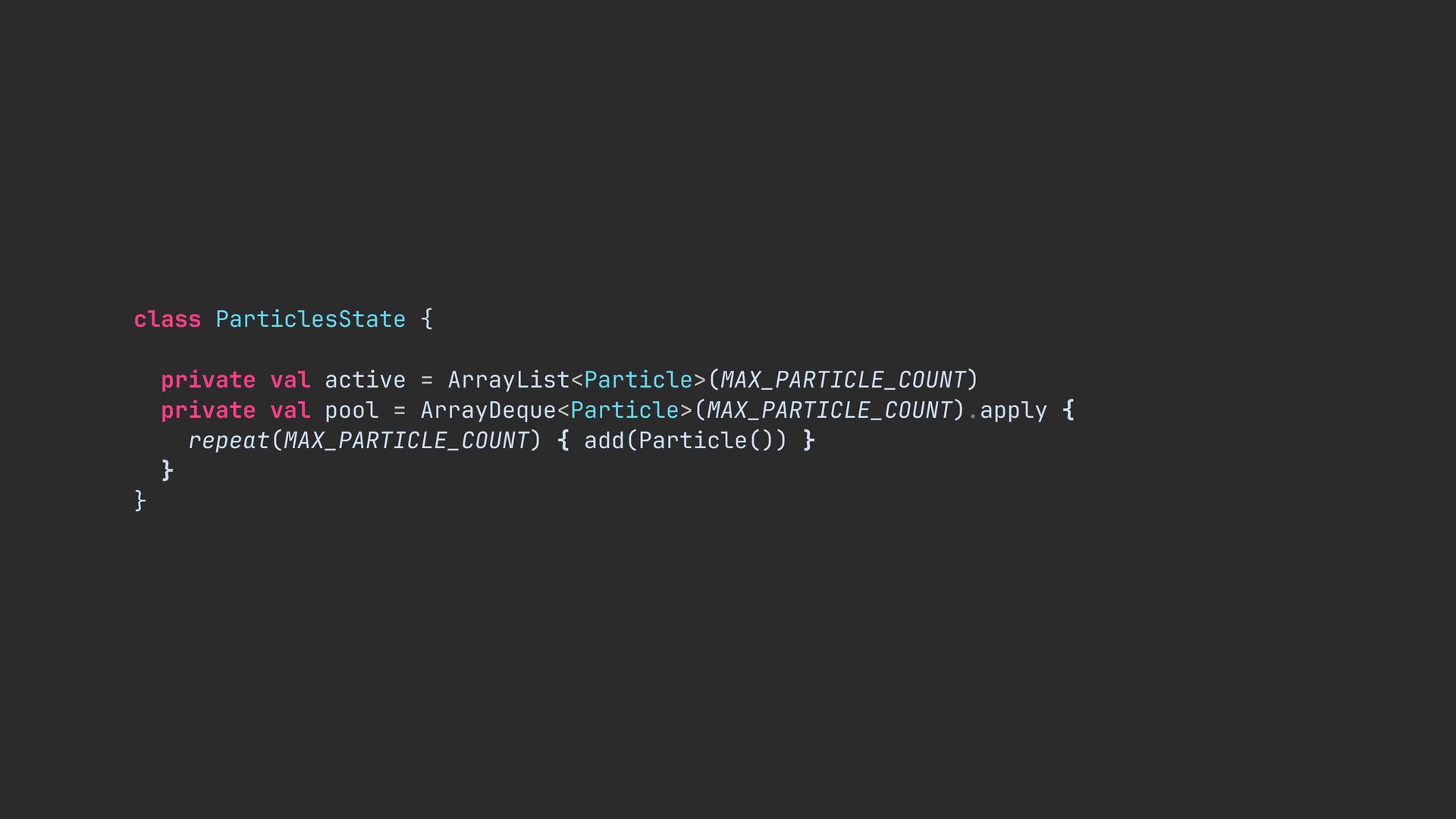

211. class ParticlesState { }
212. class ParticlesState { private val active = ArrayList<Particle>(MAX_PARTICLE_COUNT) private val pool = ArrayDeque<Particle>(MAX_PARTICLE_COUNT).apply { repeat(MAX_PARTICLE_COUNT) { add(Particle()) } } }

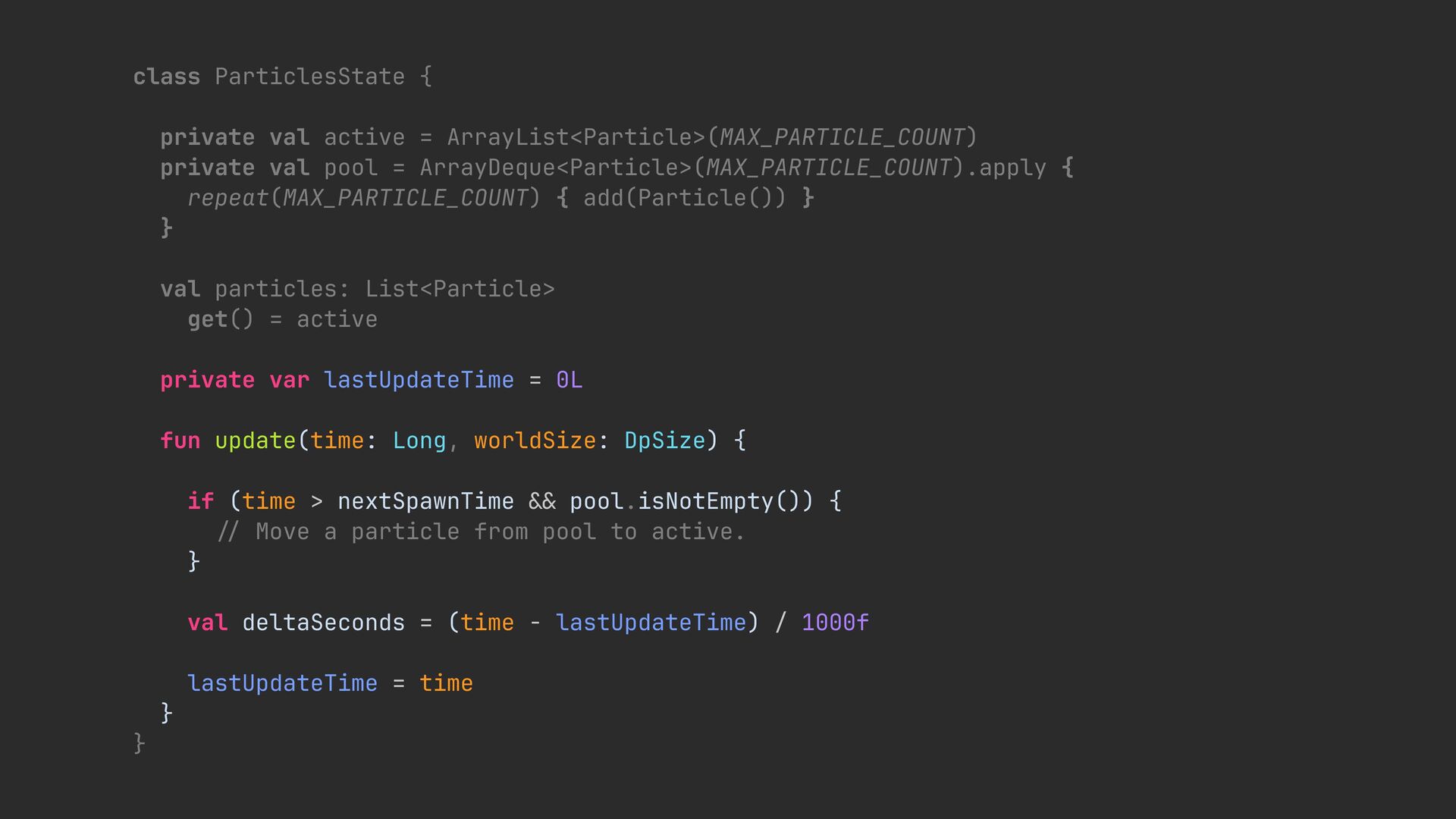

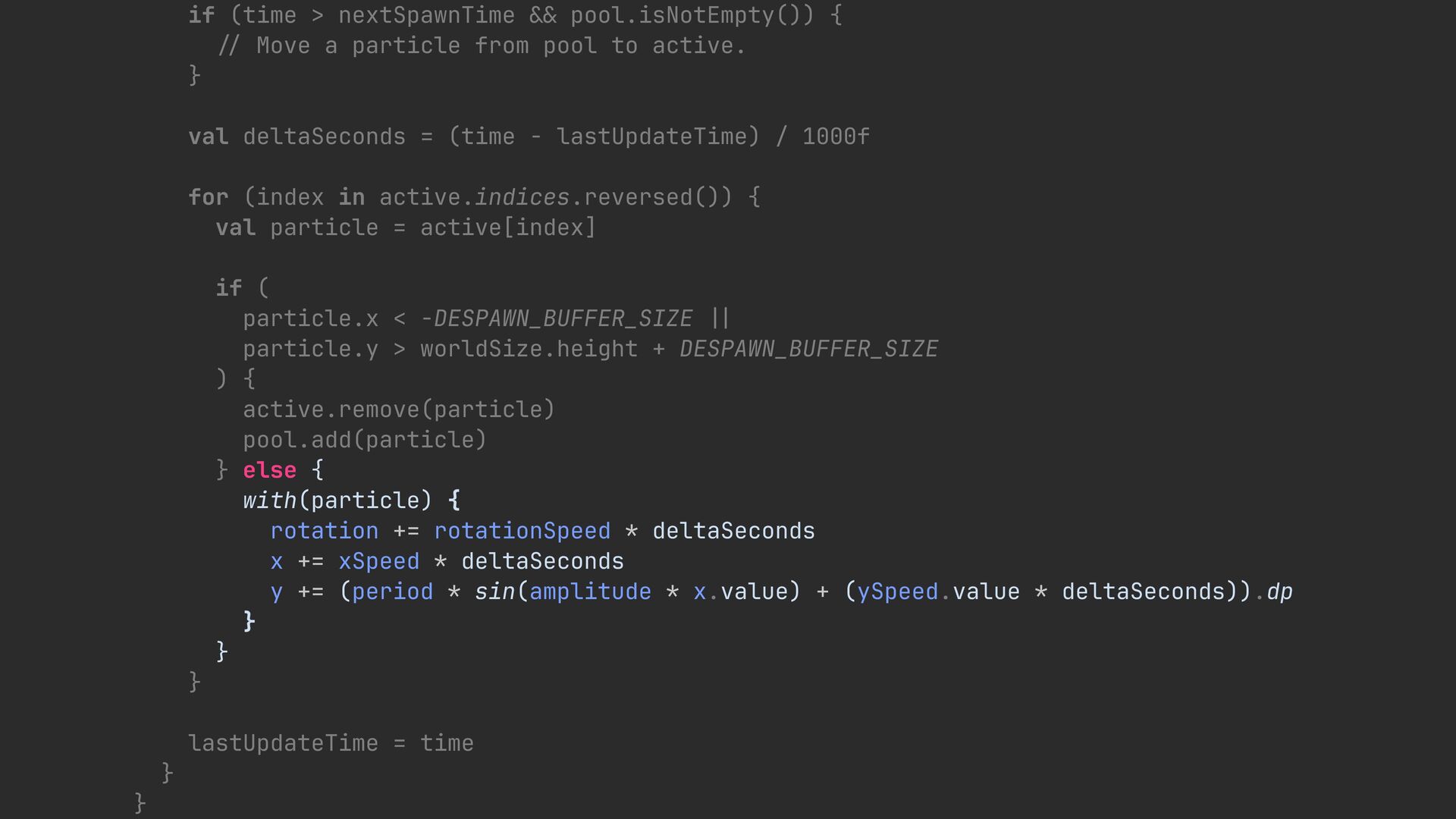

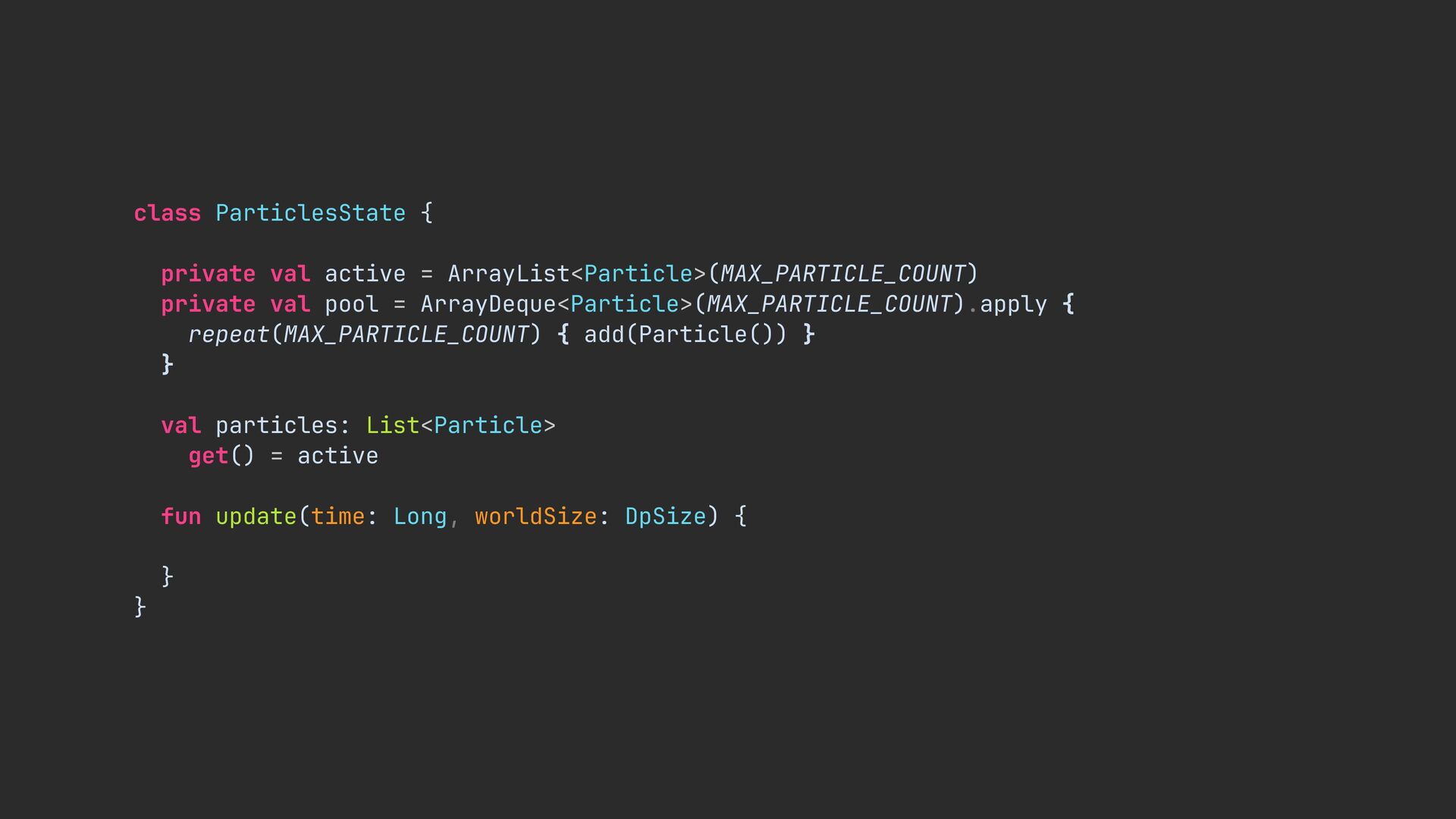

213. class ParticlesState { private val active = ArrayList<Particle>(MAX_PARTICLE_COUNT) private val pool = ArrayDeque<Particle>(MAX_PARTICLE_COUNT).apply { repeat(MAX_PARTICLE_COUNT) { add(Particle()) } } val particles: List<Particle> get() = active fun update(time: Long, worldSize: DpSize) { } }
214. class ParticlesState { private val active = ArrayList<Particle>(MAX_PARTICLE_COUNT) private val pool = ArrayDeque<Particle>(MAX_PARTICLE_COUNT).apply { repeat(MAX_PARTICLE_COUNT) { add(Particle()) } } val particles: List<Particle> get() = active private var lastUpdateTime = 0L fun update(time: Long, worldSize: DpSize) { if (time > nextSpawnTime && pool.isNotEmpty()) { // Move a particle from pool to active. } val deltaSeconds = (time - lastUpdateTime) / 1000f lastUpdateTime = time } }

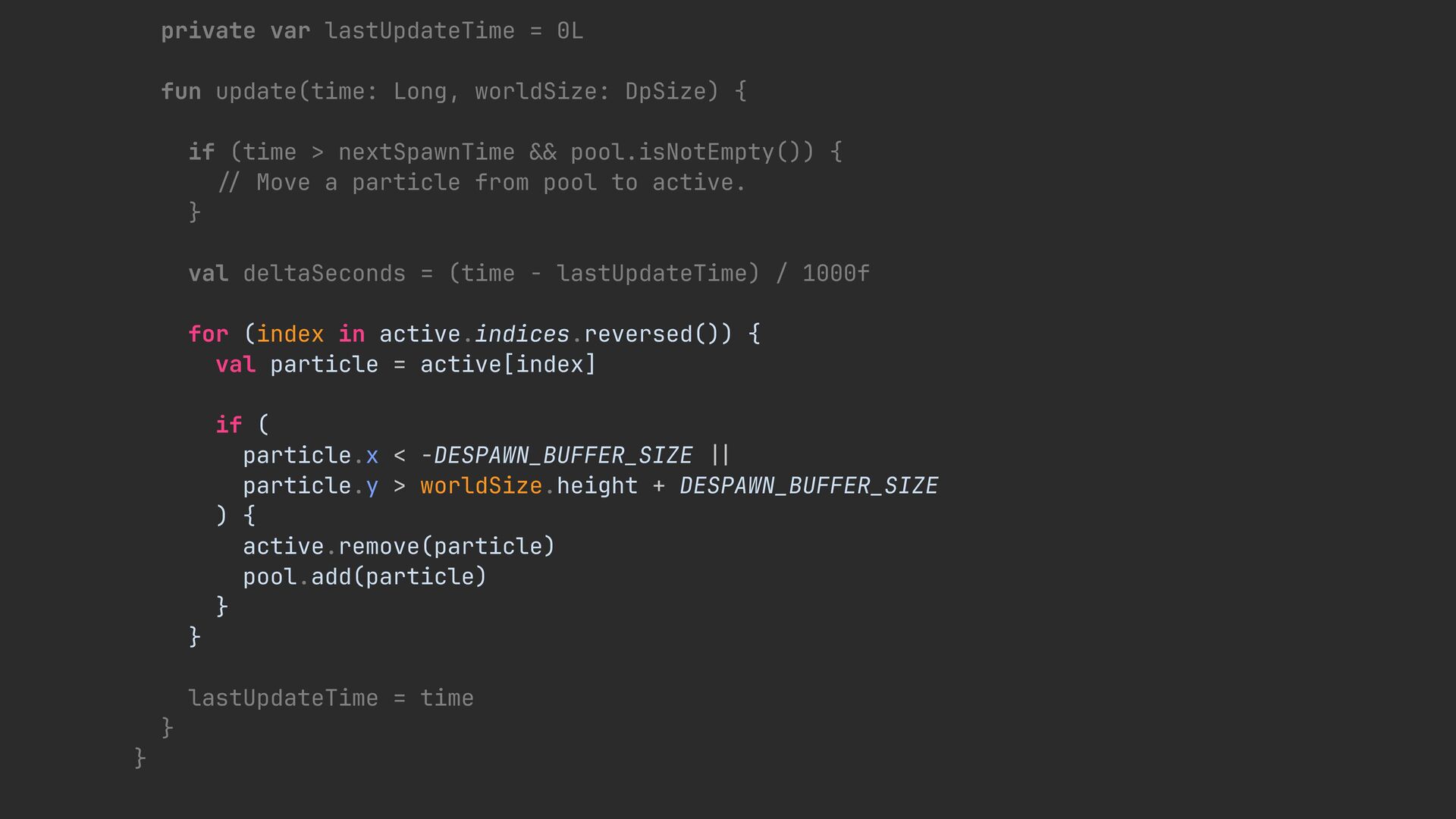

215. private var lastUpdateTime = 0L fun update(time: Long, worldSize: DpSize) { if (time > nextSpawnTime && pool.isNotEmpty()) { // Move a particle from pool to active. } val deltaSeconds = (time - lastUpdateTime) / 1000f for (index in active.indices.reversed()) { val particle = active[index] if ( particle.x < -DESPAWN_BUFFER_SIZE || particle.y > worldSize.height + DESPAWN_BUFFER_SIZE ) { active.remove(particle) pool.add(particle) } } lastUpdateTime = time } }
216. if (time > nextSpawnTime && pool.isNotEmpty()) { // Move a particle from pool to active. } val deltaSeconds = (time - lastUpdateTime) / 1000f for (index in active.indices.reversed()) { val particle = active[index] if ( particle.x < -DESPAWN_BUFFER_SIZE || particle.y > worldSize.height + DESPAWN_BUFFER_SIZE ) { active.remove(particle) pool.add(particle) } else { with(particle) { rotation += rotationSpeed * deltaSeconds x += xSpeed * deltaSeconds y += (period * sin(amplitude * x.value) + (ySpeed.value * deltaSeconds)).dp } } } lastUpdateTime = time } }
217. if (time > nextSpawnTime && pool.isNotEmpty()) { // Move a particle from pool to active. } val deltaSeconds = (time - lastUpdateTime) / 1000f for (index in active.indices.reversed()) { val particle = active[index] if ( particle.x < -DESPAWN_BUFFER_SIZE || particle.y > worldSize.height + DESPAWN_BUFFER_SIZE ) { active.remove(particle) pool.add(particle) } else { with(particle) { rotation += rotationSpeed * deltaSeconds x += xSpeed * deltaSeconds y += (period * sin(amplitude * x.value) + (ySpeed.value * deltaSecon } } } lastUpdateTime = time } }

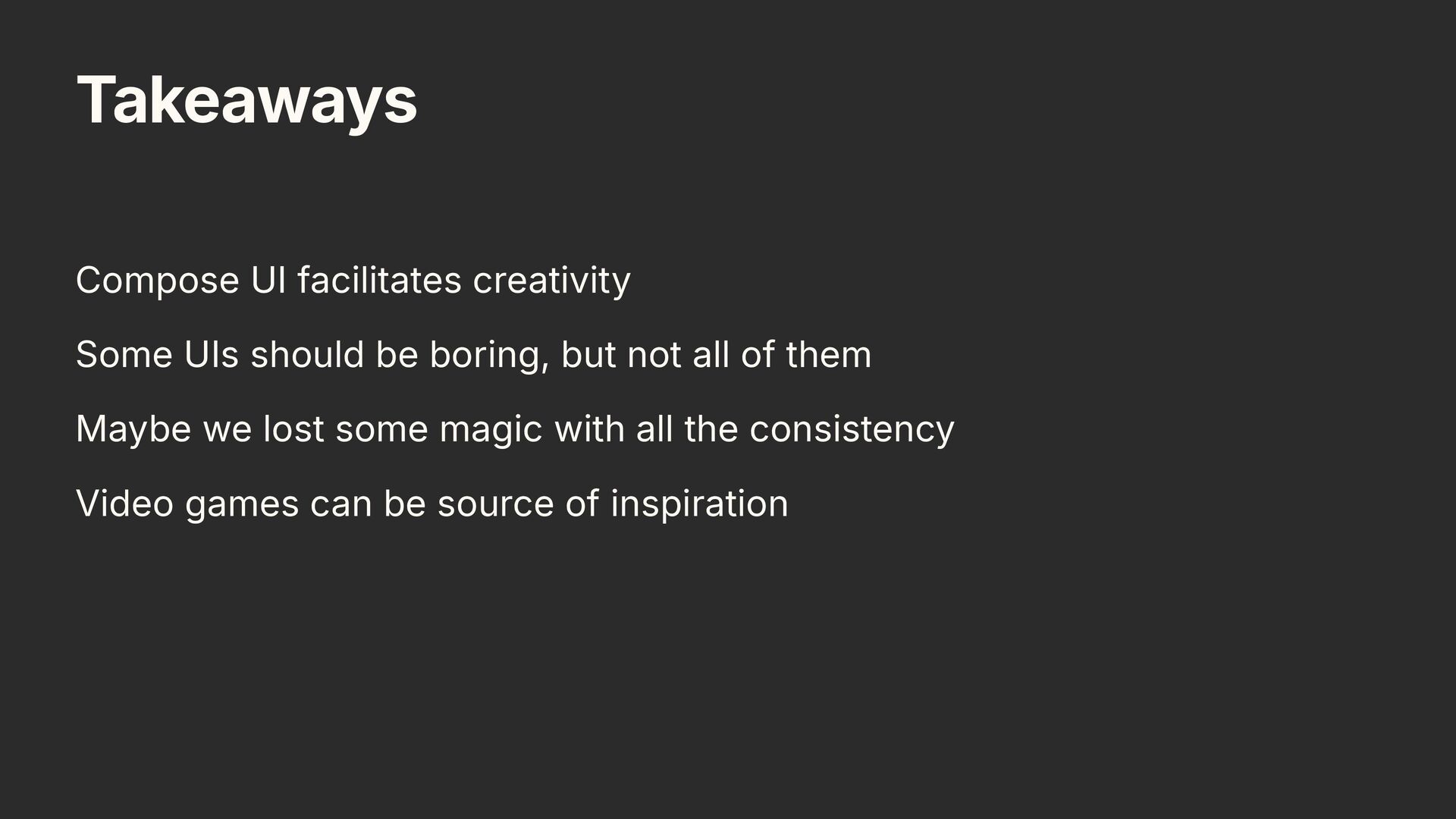

218. Takeaways Compose UI facilitates creativity Some UIs should be boring, but not all of them Maybe we lost some magic with all the consistency Video games can be source of inspiration
222. gameuidatabase.com
223. gameuidatabase.com ©ATLUS ©SEGA
224. Thank you, and don’t forget to vote
225. Creative UIs with Compose github.com/chris-horner/persona-im All art and character designs in this presentation are the property of Atlus Co., Ltd. Material is used for reference and educational purposes only. © @chris-horner@bsky.social
