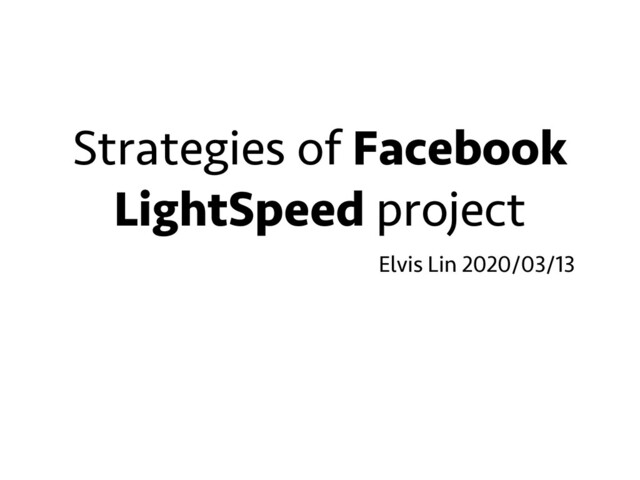

Strategies of Facebook LightSpeed project

Strategies of Facebook LightSpeed project

A brief summary of the strategies of Facebook LightSpeed project

Avatar for Elvis Lin

Elvis Lin

March 12, 2020
Tweet

More Decks by Elvis Lin

Other Decks in Programming

Transcript

  1. The motivation • Messenger first became a standalone app in

    2011 • The app that looked simple on the surface was far more complex behind the scenes • At its peak, the app’s binary size was greater than 130 MB • To make Messenger’s iOS app faster, smaller, and simpler
  2. The gains • Reduce 84% LoC (from 1.7M lines to

    360,000 lines) • The binary size becomes one-fourth of its original size (130 MB) • Twice as fast to launch
  3. Unified Architecture • Use the OS • Reuse the UI

    • Leverage the SQLite database • Use the Server (Push other logics to the server)
  4. Use the OS • If the OS did something well,

    used it (ex: the JSON processing library) • If the OS didn’t do something, found or wrote the smallest possible library code to address the specific need • For any cross-platform logic, used an operating extension built in native C code (ex: the Facebook-specific networking)
  5. Reuse the UI • Constrained the design to force the

    reuse of the same structure for different views • Instead of having the app store multiple screen designs, the database now holds instructions for how to display different building blocks depending on the various sub- features being loaded
  6. Use SQLite (2/2) • Simply using SQLite and letting it

    handle concurrency, caching, and transactions • All the caching, filtering, transactions, and queries are all done in SQLite. The UI merely reflects the tables in the database • built a platform (MSYS) to orchestrate all access to the database • MSYS is a cross-platform library built in C with 100 percent line code/test coverage
  7. Use the Server • How the server communicate with the

    client, https:// www.facebook.com/Engineering/videos/ 3509976602377949/ • A universal flexible sync system that allows the server to define and implement business and sync logic and ensures that all interactions between the client and the server are uniform • Built a server broker to support all these scenarios while the actual server back-end infrastructure supports the features
  8. Summary • More tests (tests are easily written) • Business

    Logic == Data Logic • Reduce + Reuse + Recycle • Global Metrics > Local Metrics (why uses a unified architecture) • Preventing future code growth (hugely)
  9. Reference • Project LightSpeed: Rewriting the Messenger codebase for a

    faster, smaller, and simpler messaging app
 https://engineering.fb.com/data-infrastructure/messenger/ • F8 2019: Facebook: Lighter, Faster, Simpler Messenger
 https://youtu.be/ulVLD2yzCrc • Discussion of LightSpeed on Hacker News
 https://news.ycombinator.com/item?id=22466462
