SMT-Friendly Formalization of the Solidity Memory Model

Talk @ SMT 2020 about ESOP 2020 paper, link: https://dx.doi.org/10.1007/978-3-030-44914-8_9

The paper presents a high-level formalization of the Solidity language with a focus on the memory model. The formalization is implemented in the SOLC-VERIFY verifier tool (see https://github.com/SRI-CSL/solidity).

More Decks by Critical Systems Research Group

Other Decks in Research

Transcript

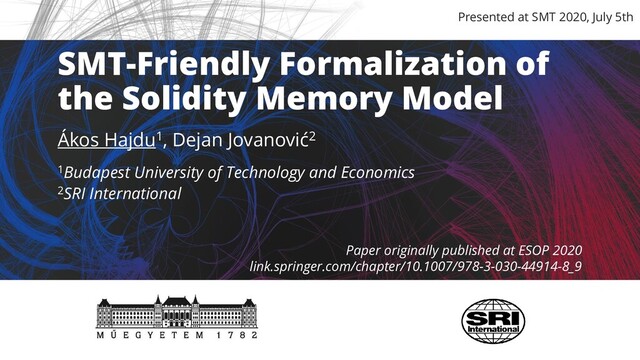

  1. SMT-Friendly Formalization of the Solidity Memory Model Ákos Hajdu1, Dejan

    Jovanović2 1Budapest University of Technology and Economics 2SRI International Paper originally published at ESOP 2020 link.springer.com/chapter/10.1007/978-3-030-44914-8_9 Presented at SMT 2020, July 5th
  2. 3 • Store data (blockchain) and execute code (smart contracts)

    • No trusted central party • Consensus protocol Distributed Computing Platforms SMT-Friendly Formalization of the Solidity Memory Model
  3. 4 • Conceptually a single-world-computer abstraction – Example: Ethereum Distributed

    Computing Platforms SMT-Friendly Formalization of the Solidity Memory Model
  4. 5 Solidity Smart Contracts SMT-Friendly Formalization of the Solidity Memory

    Model contract DataStorage { } Complex datatype State variable(s): permanent storage (blockchain) Function(s): called with transactions Parameters, return values, local variables in transient memory struct Record { bool set; int[] data; } mapping(address=>Record) private records; function append(address at, int d) public { Record storage r = records[at]; r.set = true; r.data.push(d); } function get(address at) public view returns (int[] memory ret) { require(isset(records[at])); ret = records[at].data; } function isset(Record storage r) internal view returns (bool s) { s = r.set; } Pointers to storage in internal scope
  5. 6 • Bytecode-level tools – Slither, Mythril, … – Various

    formalizations – Mostly vulnerable patterns – Limited effectiveness and automation for high-level properties • Solidity-level tools – SMTchecker, solc-verify, VeriSol, … – High-level, functional properties – Usually based on SMT – Modular verification, bounded model checking, symbolic execution – Precise formalization required Verification Landscape SMT-Friendly Formalization of the Solidity Memory Model 010101 111000 001010 Memory model lacks detailed and effective formalization
  6. 7 • Simple SMT-based program – Types: primitive, datatype, array

    – Variable declarations – Statements: assign, assume, if-then-else – Expressions: identifier, array read/write, datatype constructor, member selector, conditional, basic arithmetic • Can be expressed in any SMT-based tool – Boogie, Why3, Dafny, … – Check by translating to SSA Target Language SMT-Friendly Formalization of the Solidity Memory Model Point(x : int, y : int) pts[0] := Point(1, 2) pts[1].x := pts[0].x + 1 pts : [int]Point
  7. 9 • Memory: reference semantics Overview SMT-Friendly Formalization of the

    Solidity Memory Model • Storage: value semantics contract C { struct S { int x; T[] ta; } struct T { int z; } } T t1; S s1; S[] sa; T t1 S T T s1 S T S T T sa T function f() public { T storage tp = sa[1].ta[2]; } g(tp); function g(T storage t) internal { t.z = 5; } • Local storage pointers function f() public pure { } T S T sm1 t S sm2 S memory sm1 = S(1, new T[](2)); T memory t = sm.ta[1]; S memory sm2 = S(2, sm1.ta); No mixing
  8. 10 • Standard heap model (per type) – Pointer: SMT

    integer – Struct: SMT datatype – Array: SMT array + length – No null, default values recursively Encoding the Memory SMT-Friendly Formalization of the Solidity Memory Model struct T { int z; } struct S { int x; T[] ta; } S memory sm1 = S(1, new T[](2)); Tmem (z : int) Tmemarr (arr : [int]int, len : int) Smem (x : int, ta : int) heapT : [int]Tmem heapTA : [int]Tmemarr heapS : [int]Smem sm1 : int heapT [0] := Tmem (0) heapT [1] := Tmem (0) heapTA [2] := Tmemarr ([0, 1], 2) heapS [3] := Smem (1, 2) sm1 := 3 sm1 .z Allocation counter .ta[1].z; heapT [heapTA [heapS [3].ta].arr[1]] heapTA [heapS [3].ta] heapS [3]
  9. 11 • Scope limited to a single transaction • Non-aliasing

    and new allocations – Require quantifiers in the general case (decidable fragment) Encoding the Memory SMT-Friendly Formalization of the Solidity Memory Model function f(S memory sm) { ... = S(...) } assume(sm < refcnt) assume(heapS [sm].ta < refcnt) forall 0 <= i < heapTA [heapS [sm].ta].len: assume(heapTA [heapS [sm].ta].arr[i] < refcnt) struct T { int z; } struct S { int x; T[] ta; } sm sm.ta sm.ta[i] (for each i) New allocations should not alias with sm Allocation counter
  10. 12 • Encode with SMT datatypes without heaps – Non-aliasing

    and deep copy ensured out-of-the-box – Especially useful in modular verification – Otherwise many framing conditions for functions Encoding the Storage SMT-Friendly Formalization of the Solidity Memory Model struct T { int z; } struct S { int x; T[] ta; } contract C { T t1; S s1; S[] sa; } Tstor (z : int) Tstorarr (arr : [int]Tstor , len : int) Sstor (x : int, ta : Tstorarr ) Sstorarr (arr : [int]Sstor , len : int) t1: Tstor s1: Sstor sa: Sstorarr Local storage pointers?
  11. 13 • Storage is a finite-depth tree of values* •

    Each element identified by path  encode with SMT integer array Local Storage Pointers SMT-Friendly Formalization of the Solidity Memory Model *Limited support for recursive data types, not used in practice. contract C { struct T { int z; } struct S { int x; T t; T[] ta; } T t1; S s1; S[] sa; } C T S S[] T T[] S T T[] T T t1 s1 sa t ta [i] t ta [i] [i] 0 1 2 0 1 0 1 i i i
  12. T S T T[] T T t1 s1 t ta

    [i] t 0 1 0 1 0 i 14 • Packing: expression to SMT array – Fit expression to tree Local Storage Pointers SMT-Friendly Formalization of the Solidity Memory Model contract C { struct T { int z; } struct S { int x; T t; T[] ta; } T t1; S s1; S[] sa; } C S[] S T[] T sa ta [i] [i] 2 1 i i T storage t = sa[8].ta[5]; t : [int]int t := [2, 8, 1, 5]
  13. T S T T[] T T t1 s1 t ta

    [i] t 0 1 0 1 0 i 15 • Unpacking: SMT array to expression – Conditional based on tree Local Storage Pointers SMT-Friendly Formalization of the Solidity Memory Model contract C { struct T { int z; } struct S { int x; T t; T[] ta; } T t1; S s1; S[] sa; } C S[] S T[] T sa ta [i] [i] 2 1 i i function f(T storage ptr) { ... ptr.z; } ite(ptr[0] = 0, t1, ite(ptr[0] = 1, ite(ptr[1] = 0, s1.t, s1.ta[ptr[2]]), … ).z
  14. 16 Assignments Between Data Locations SMT-Friendly Formalization of the Solidity

    Memory Model • Ensured by construction • Ensured by pack/unpack • Need manual copying – Requires quantifiers in the general case LHS/RHS Storage Memory Storage ptr. Storage Deep copy Deep copy Deep copy Memory Deep copy Pointer assign Deep copy Storage ptr. Pointer assign Error Pointer assign
  15. 19 • solc-verify (our tool) github.com/SRI-CSL/solidity – Modular verifier based

    on Boogie/SMT and the presented encoding • Mythril github.com/ConsenSys/mythril – Symbolic execution engine running over bytecode • VeriSol github.com/microsoft/verisol – Modular/BMC tool based on Boogie/SMT – Heap-based modeling of memory and storage • SMTchecker github.com/ethereum/solidity – SMT-based intra-function analyzer built into the compiler Compared Tools SMT-Friendly Formalization of the Solidity Memory Model
  16. 20 • „Real world” contracts: limited for evaluating memory semantics

    – Many old versions, new features are rare – Many toy examples, overrepresented categories – Complex contracts depend on other features • Manually developed tests – 325 test cases organized into categories – Assign, delete, init, storage, storage pointer – Exercise a specific feature, check result with assertion Tests SMT-Friendly Formalization of the Solidity Memory Model contract InitMemoryArrayFixedSize { function test() public pure { int[2] memory a; assert(a.length == 2); assert(a[0] == 0); assert(a[1] == 0); } } github.com/dddejan/solidity-semantics-tests
  17. 21 • Bytecode level is precise • solc-verify comes close

    – We have some unimplemented features Results SMT-Friendly Formalization of the Solidity Memory Model 0 20 40 60 80 100 myth verisol smt-checker solc-verify 0 2 4 6 8 10 12 14 myth verisol smt-checker solc-verify 0 5 10 15 myth verisol smt-checker solc-verify 0 5 10 15 20 25 myth verisol smt-checker solc-verify 0 50 100 150 myth verisol smt-checker solc-verify assign delete init storage storageptr Mythril bug report: github.com/ConsenSys/mythril/issues/1282
  18. 22 • Low computational cost for solc-verify Results SMT-Friendly Formalization

    of the Solidity Memory Model 1,00 10,00 100,00 1000,00 assigment delete init storage storageptr Execution time (s) solc-verify smt-checker verisol myth
  19. 24 • SMT-friendly formalization of the Solidity memory model –

    Memory: standard heap – Storage: values – Local storage pointers: encode path • Implementation – solc-verify: modular verifier – Extensive set of test cases – On par with bytecode-level tools, at low computational cost Summary SMT-Friendly Formalization of the Solidity Memory Model T S T S T S T T assigment delete init storage storageptr hajduakos.github.io csl.sri.com/users/dejan arxiv.org/abs/2001.03256 github.com/SRI-CSL/solidity
