Transcript

1. Design Pressure Hynek Schlawack hynek.me

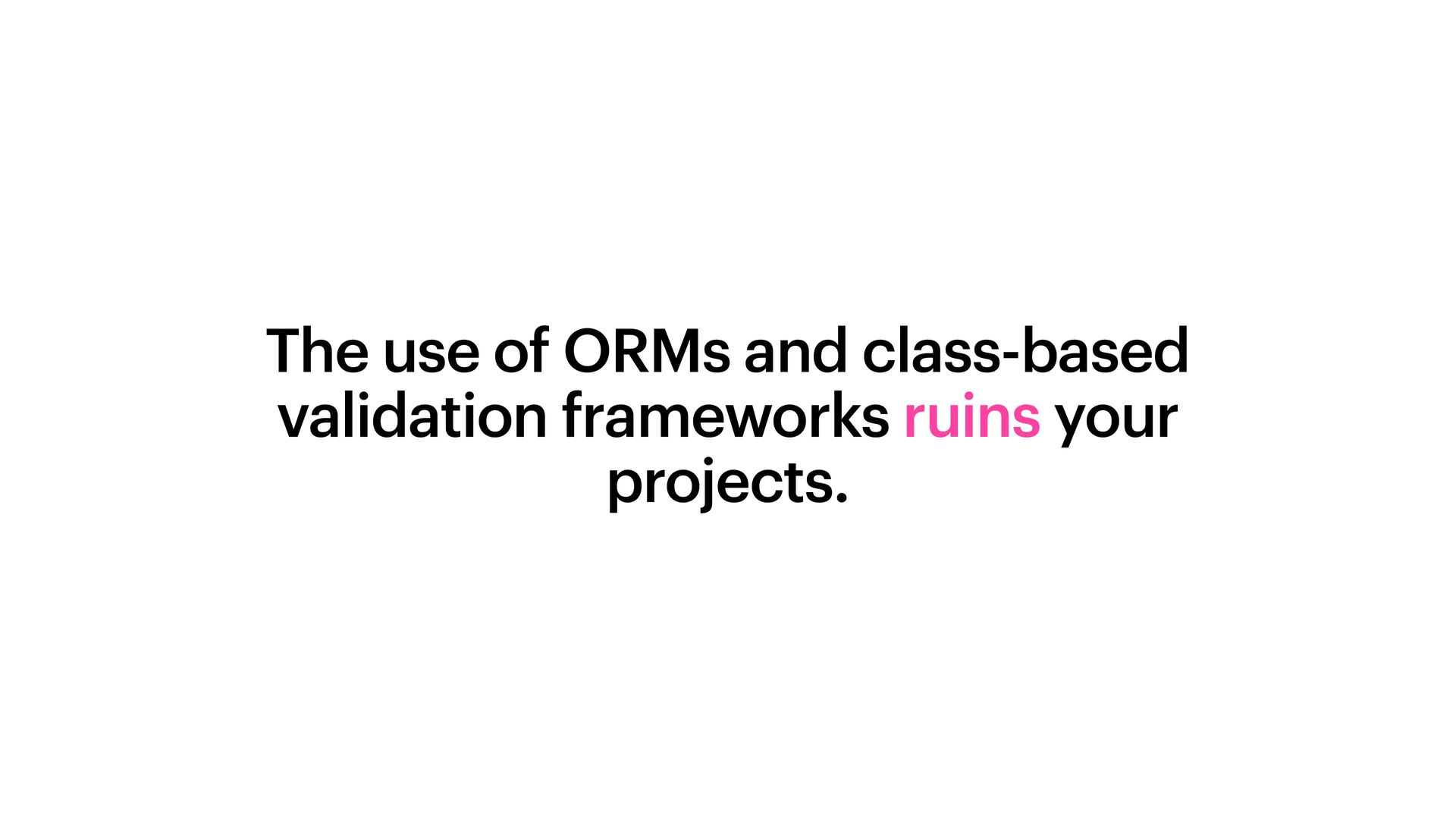

2. The use of ORMs and class-based validation frameworks ruins your projects.

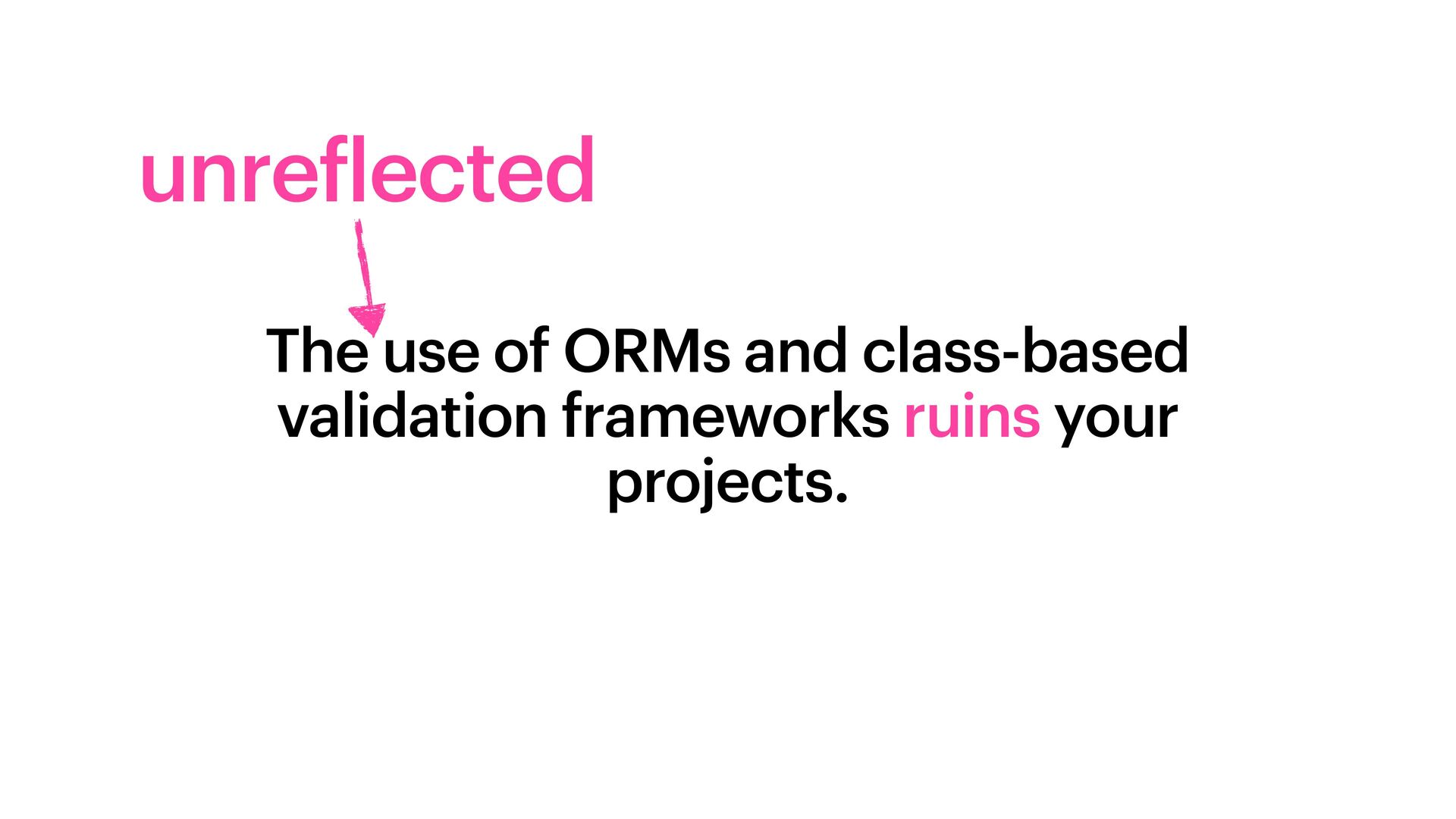

3. The use of ORMs and class-based validation frameworks ruins your projects. unre f lected
4. Not here to tell you to stop using your favorite tool.
5. “Until you make the unconscious conscious, it will direct your life and you will call it fate.” ― C.G. Jung
6. Why do we write software?
7. Business logic
8. if form.valid(): user = db_session.execute( select(User).where(User.id == form.user_id) ) if user.something and form.something_else: ruin_life(user) db_session.commit()
9. Therac-25
10. British Post O ff ice scandal
11. Design pressure
12. Two pieces of code are coupled if they can only be understood by looking at both.
13. Testable code is better code

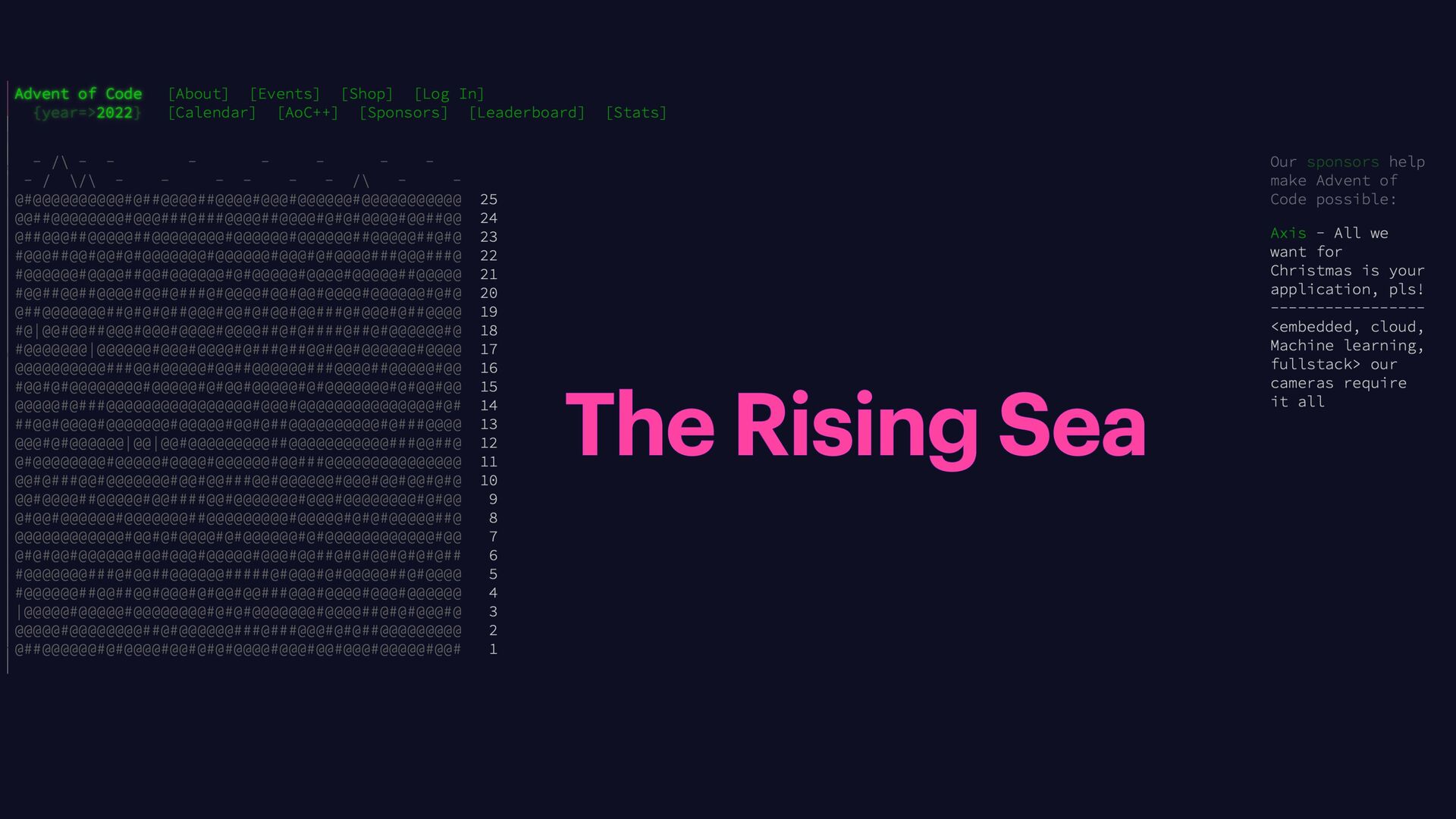

14. The Rising Sea

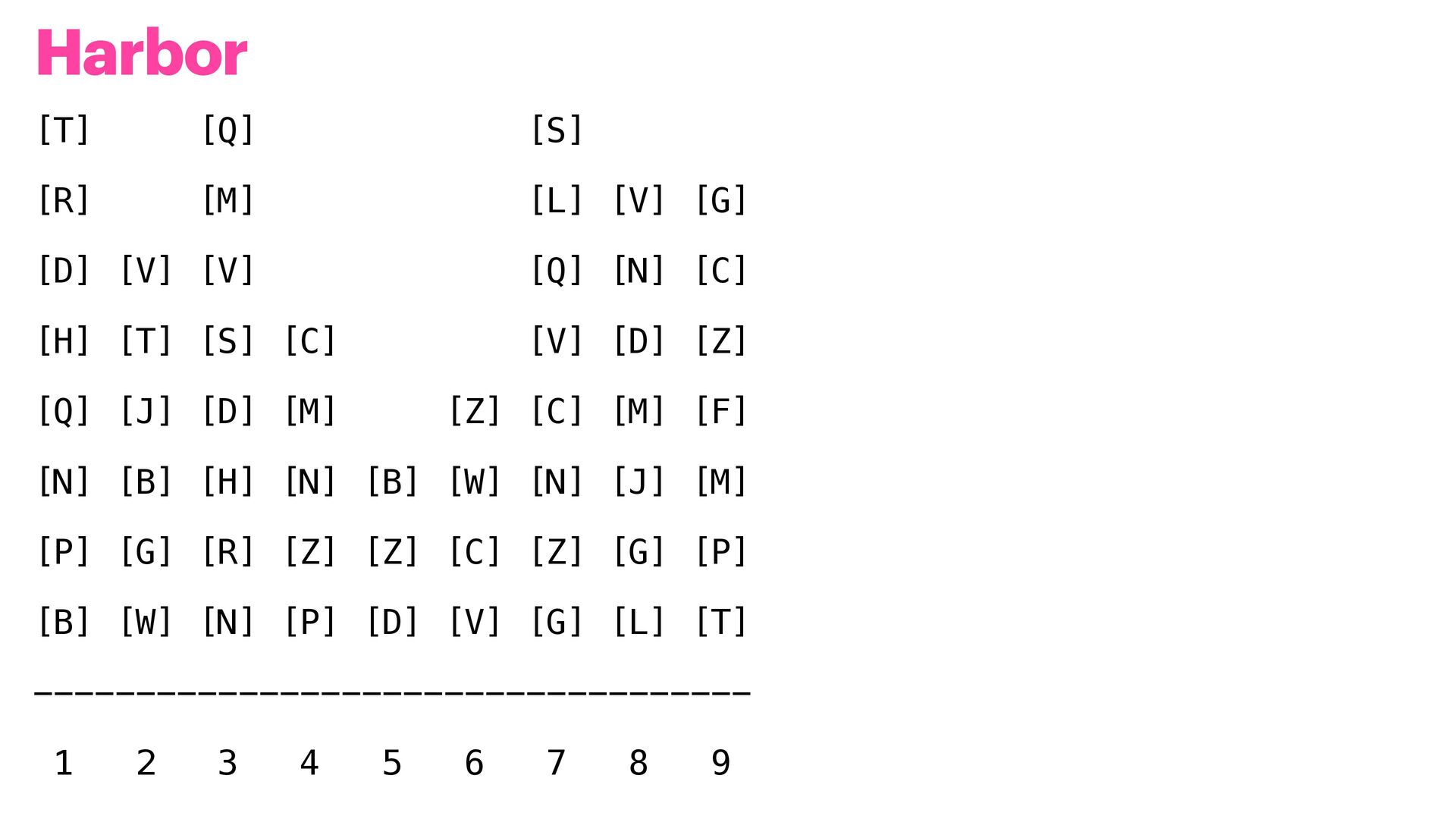

15. [T] [Q] [S] [R] [M] [L] [V] [G] [D] [V] [V] [Q] [N] [C] [H] [T] [S] [C] [V] [D] [Z] [Q] [J] [D] [M] [Z] [C] [M] [F] [N] [B] [H] [N] [B] [W] [N] [J] [M] [P] [G] [R] [Z] [Z] [C] [Z] [G] [P] [B] [W] [N] [P] [D] [V] [G] [L] [T] ----------------------------------- 1 2 3 4 5 6 7 8 9 Harbor

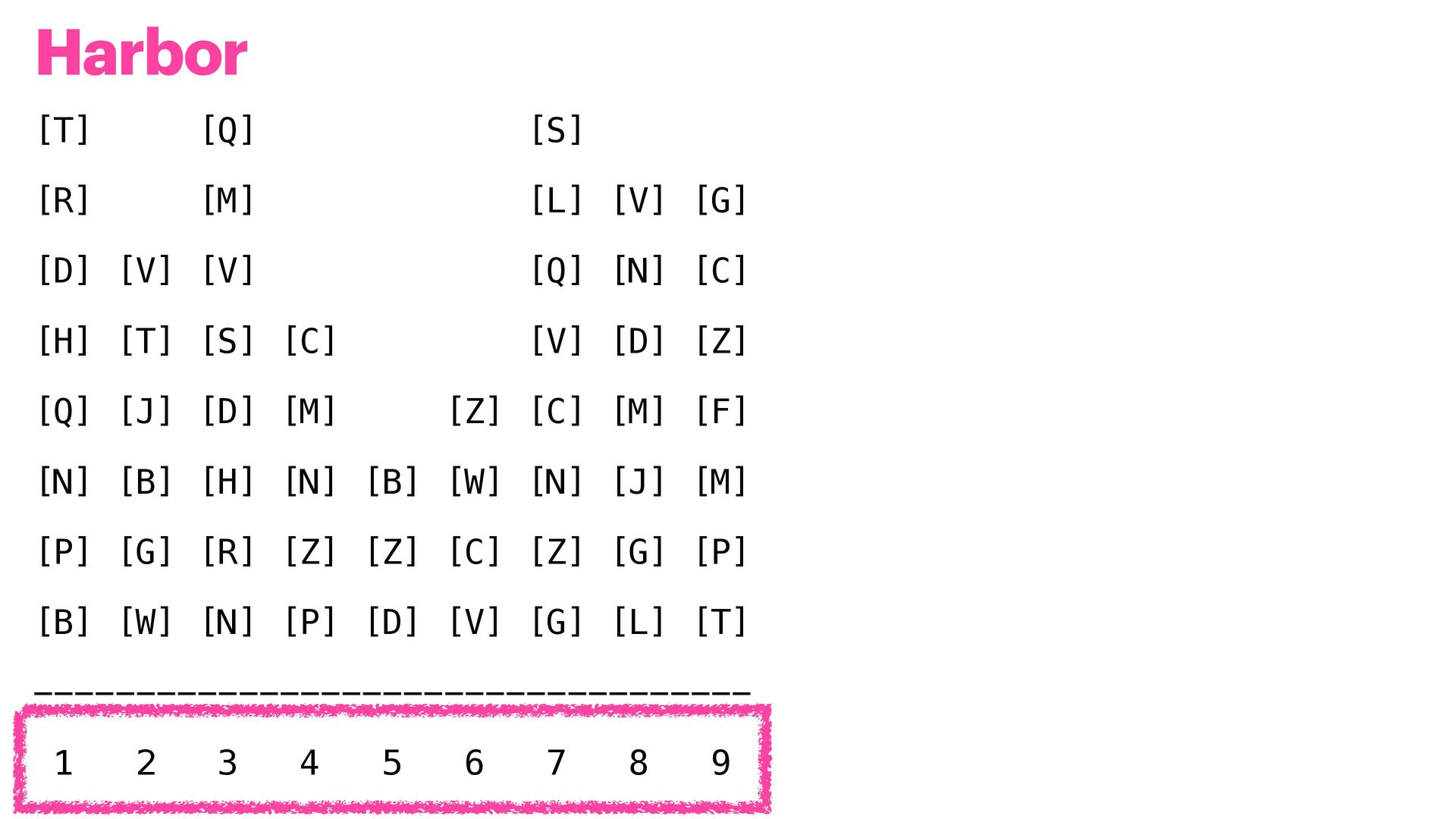

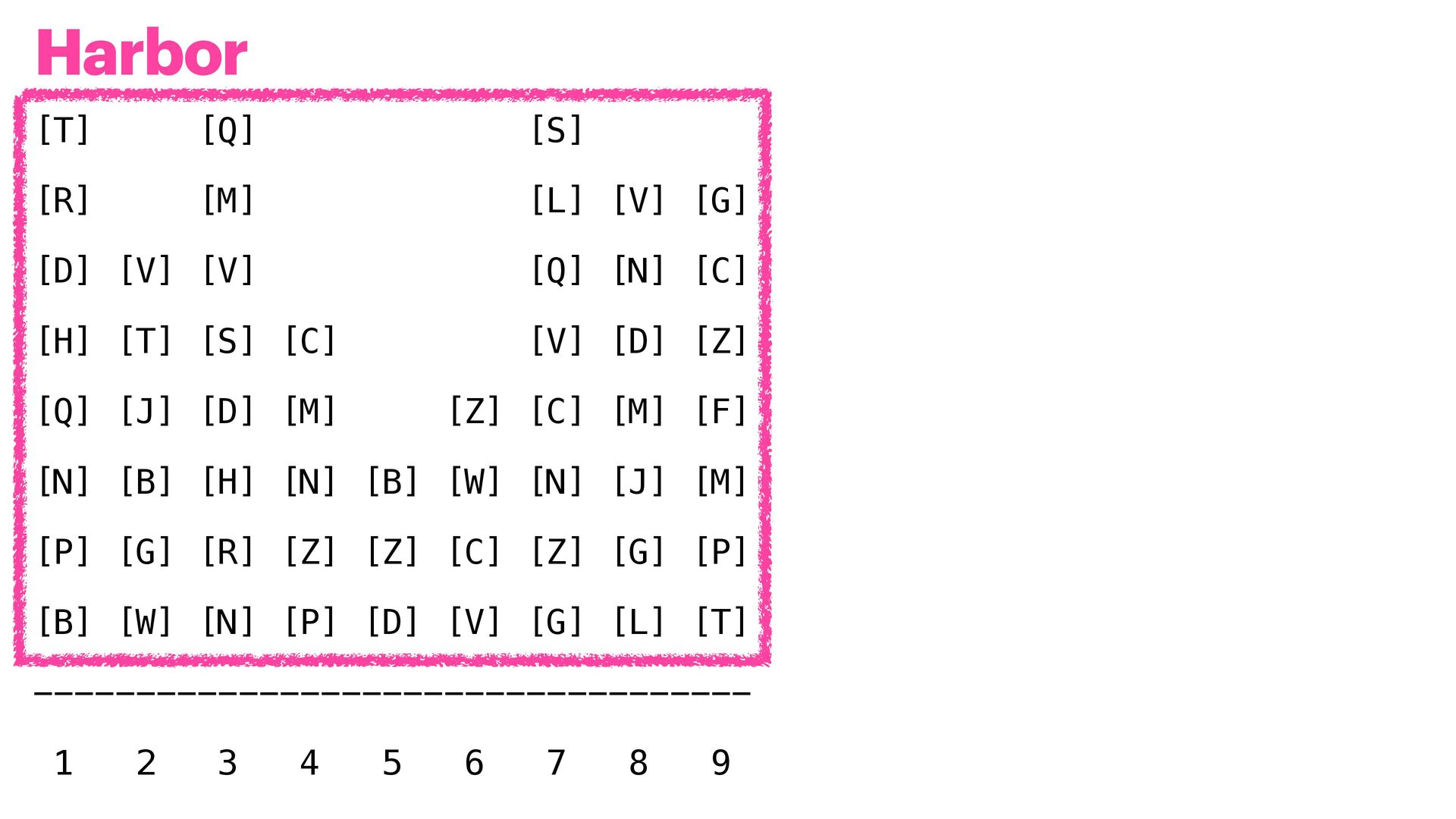

16. [T] [Q] [S] [R] [M] [L] [V] [G] [D] [V] [V] [Q] [N] [C] [H] [T] [S] [C] [V] [D] [Z] [Q] [J] [D] [M] [Z] [C] [M] [F] [N] [B] [H] [N] [B] [W] [N] [J] [M] [P] [G] [R] [Z] [Z] [C] [Z] [G] [P] [B] [W] [N] [P] [D] [V] [G] [L] [T] ----------------------------------- 1 2 3 4 5 6 7 8 9 Harbor
17. [T] [Q] [S] [R] [M] [L] [V] [G] [D] [V] [V] [Q] [N] [C] [H] [T] [S] [C] [V] [D] [Z] [Q] [J] [D] [M] [Z] [C] [M] [F] [N] [B] [H] [N] [B] [W] [N] [J] [M] [P] [G] [R] [Z] [Z] [C] [Z] [G] [P] [B] [W] [N] [P] [D] [V] [G] [L] [T] ----------------------------------- 1 2 3 4 5 6 7 8 9 Harbor

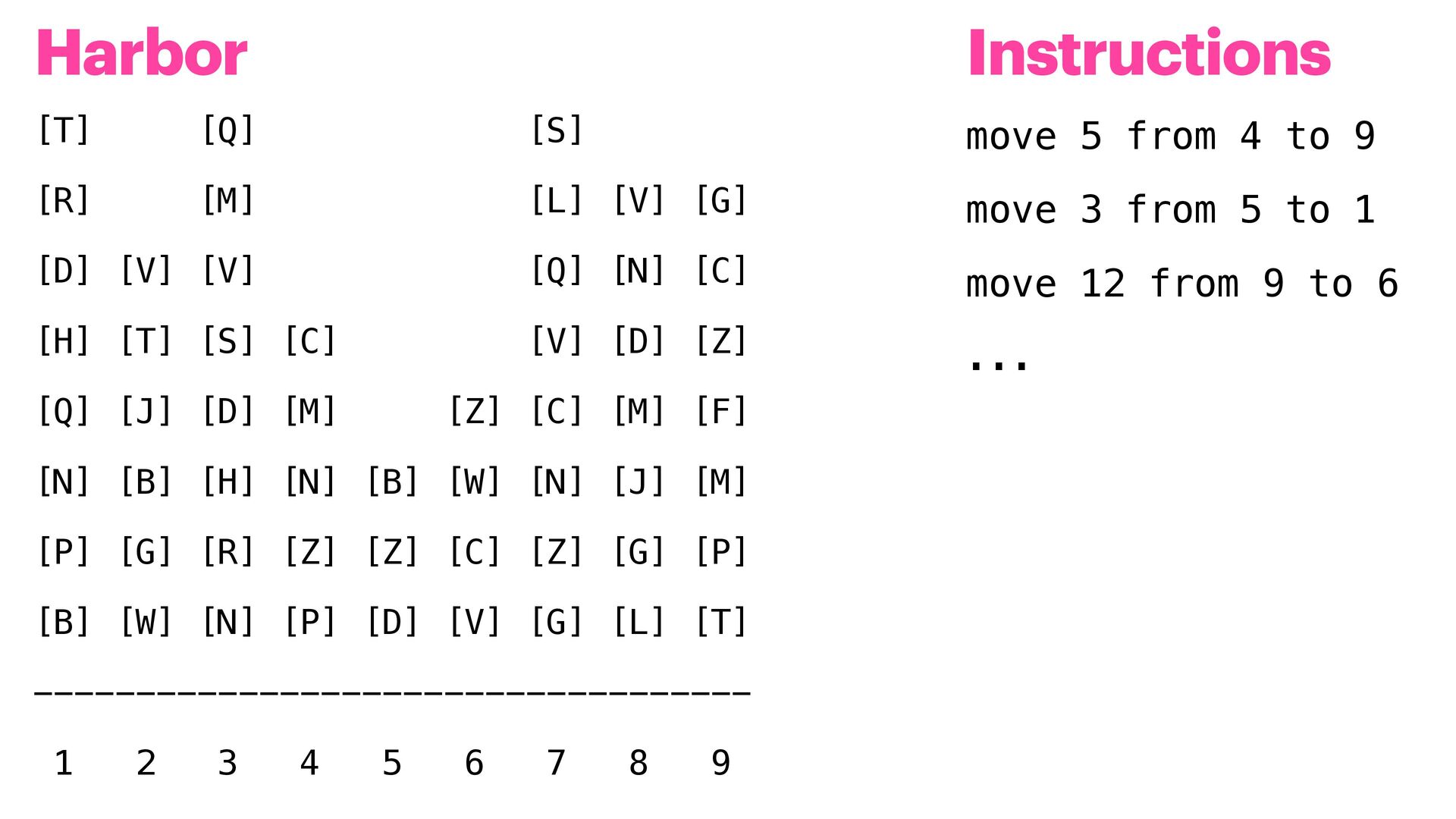

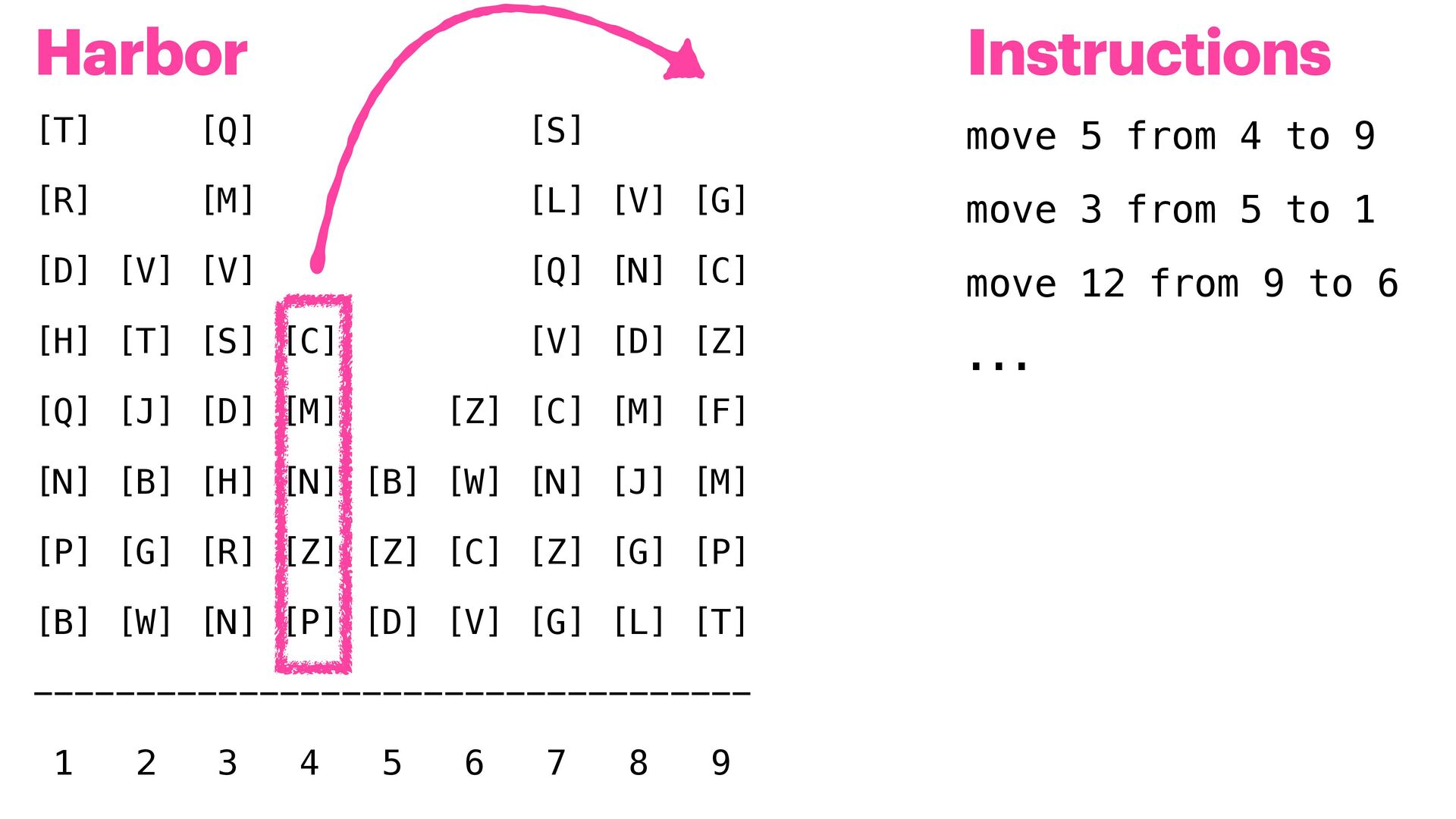

18. [T] [Q] [S] [R] [M] [L] [V] [G] [D] [V] [V] [Q] [N] [C] [H] [T] [S] [C] [V] [D] [Z] [Q] [J] [D] [M] [Z] [C] [M] [F] [N] [B] [H] [N] [B] [W] [N] [J] [M] [P] [G] [R] [Z] [Z] [C] [Z] [G] [P] [B] [W] [N] [P] [D] [V] [G] [L] [T] ----------------------------------- 1 2 3 4 5 6 7 8 9 Harbor move 5 from 4 to 9 move 3 from 5 to 1 move 12 from 9 to 6 ... Instructions
19. [T] [Q] [S] [R] [M] [L] [V] [G] [D] [V] [V] [Q] [N] [C] [H] [T] [S] [C] [V] [D] [Z] [Q] [J] [D] [M] [Z] [C] [M] [F] [N] [B] [H] [N] [B] [W] [N] [J] [M] [P] [G] [R] [Z] [Z] [C] [Z] [G] [P] [B] [W] [N] [P] [D] [V] [G] [L] [T] ----------------------------------- 1 2 3 4 5 6 7 8 9 Harbor move 5 from 4 to 9 move 3 from 5 to 1 move 12 from 9 to 6 ... Instructions
20. [T] [Q] [S] [R] [M] [L] [V] [G] [D] [V] [V] [Q] [N] [C] [H] [T] [S] [C] [V] [D] [Z] [Q] [J] [D] [M] [Z] [C] [M] [F] [N] [B] [H] [N] [B] [W] [N] [J] [M] [P] [G] [R] [Z] [Z] [C] [Z] [G] [P] [B] [W] [N] [P] [D] [V] [G] [L] [T] ----------------------------------- 1 2 3 4 5 6 7 8 9 Harbor move 5 from 4 to 9 move 3 from 5 to 1 move 12 from 9 to 6 ... Instructions “You should structure your data so that the problem solves itself.”

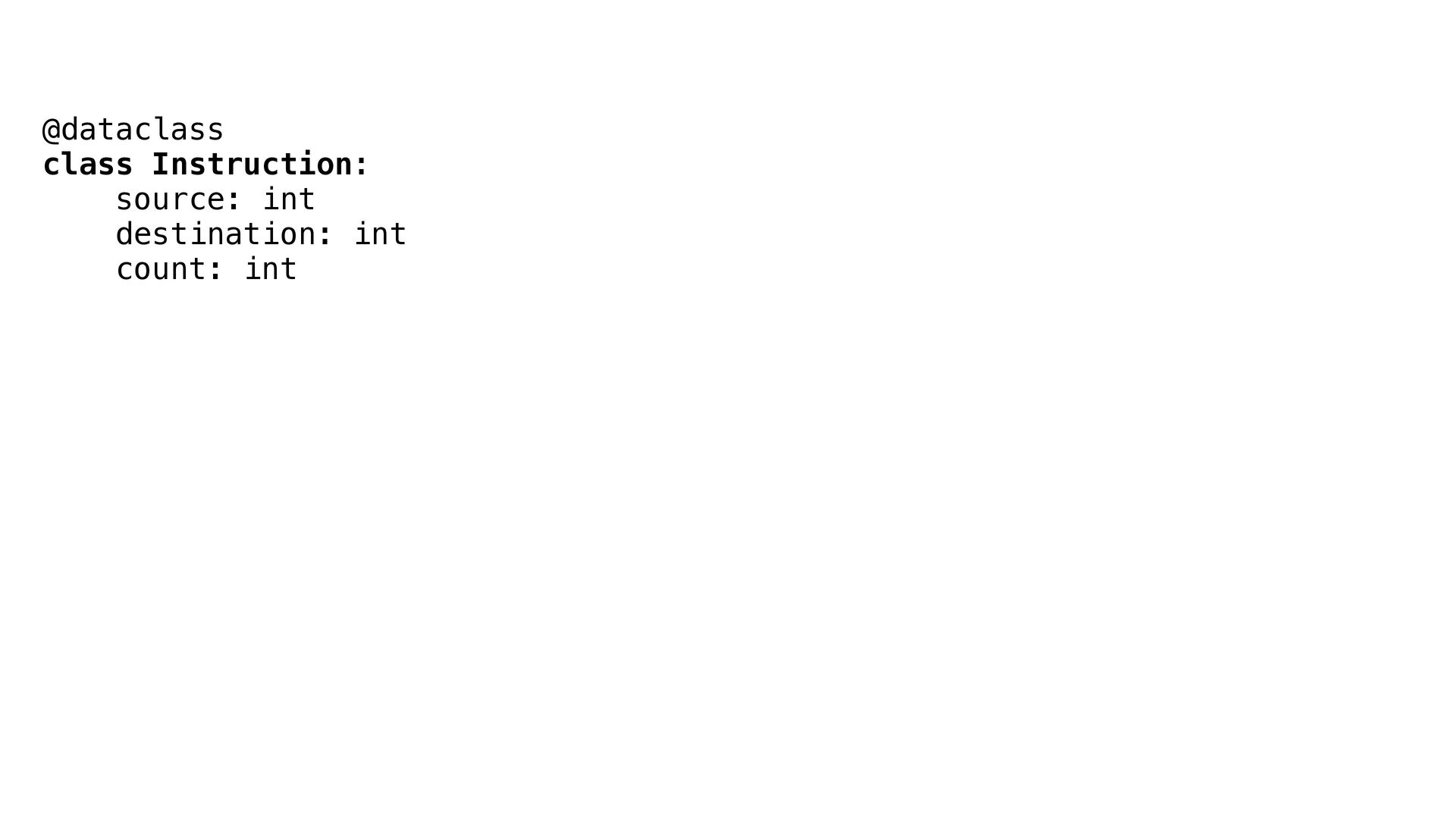

21. @dataclass class Instruction: source: int destination: int count: int

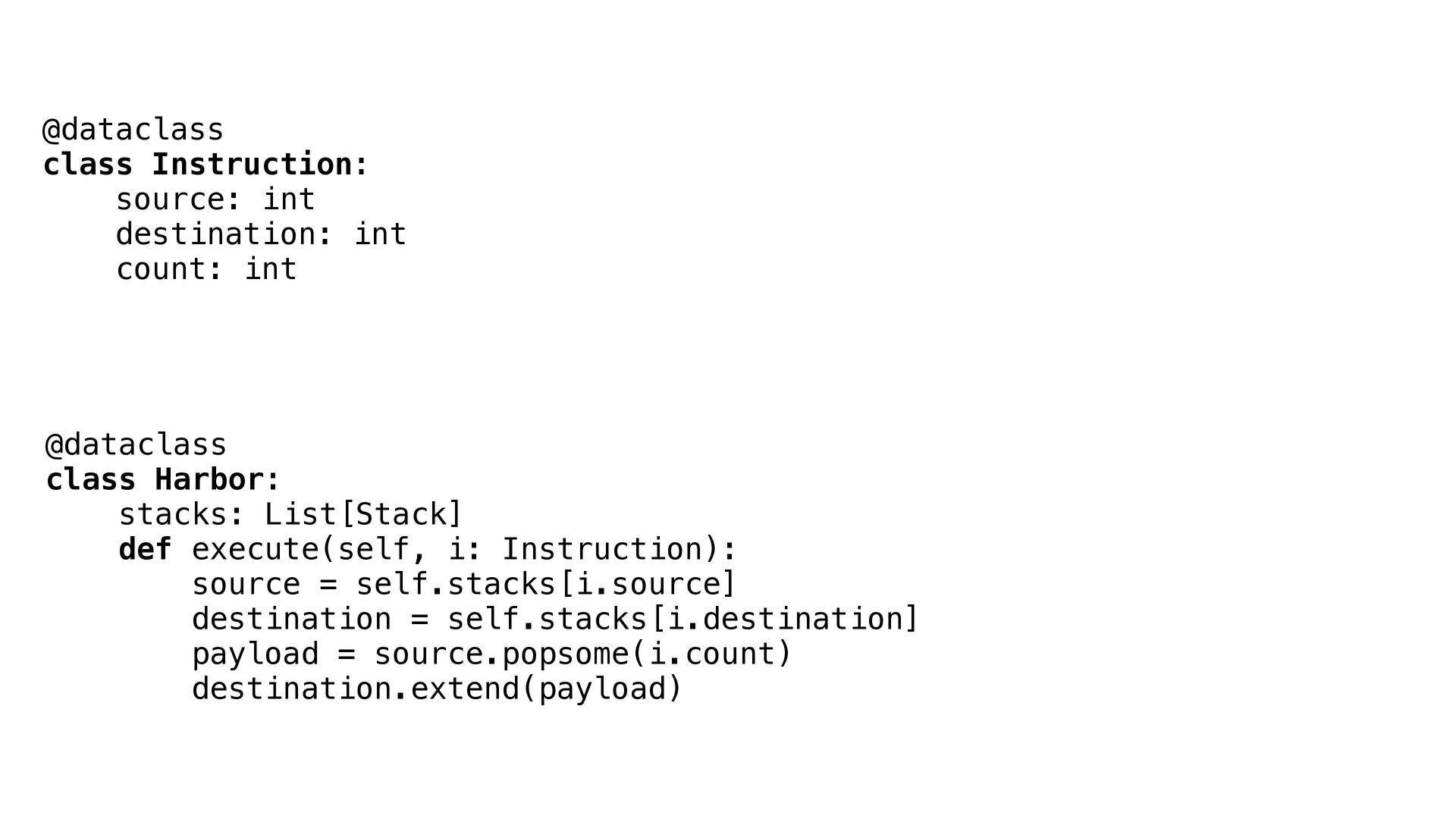

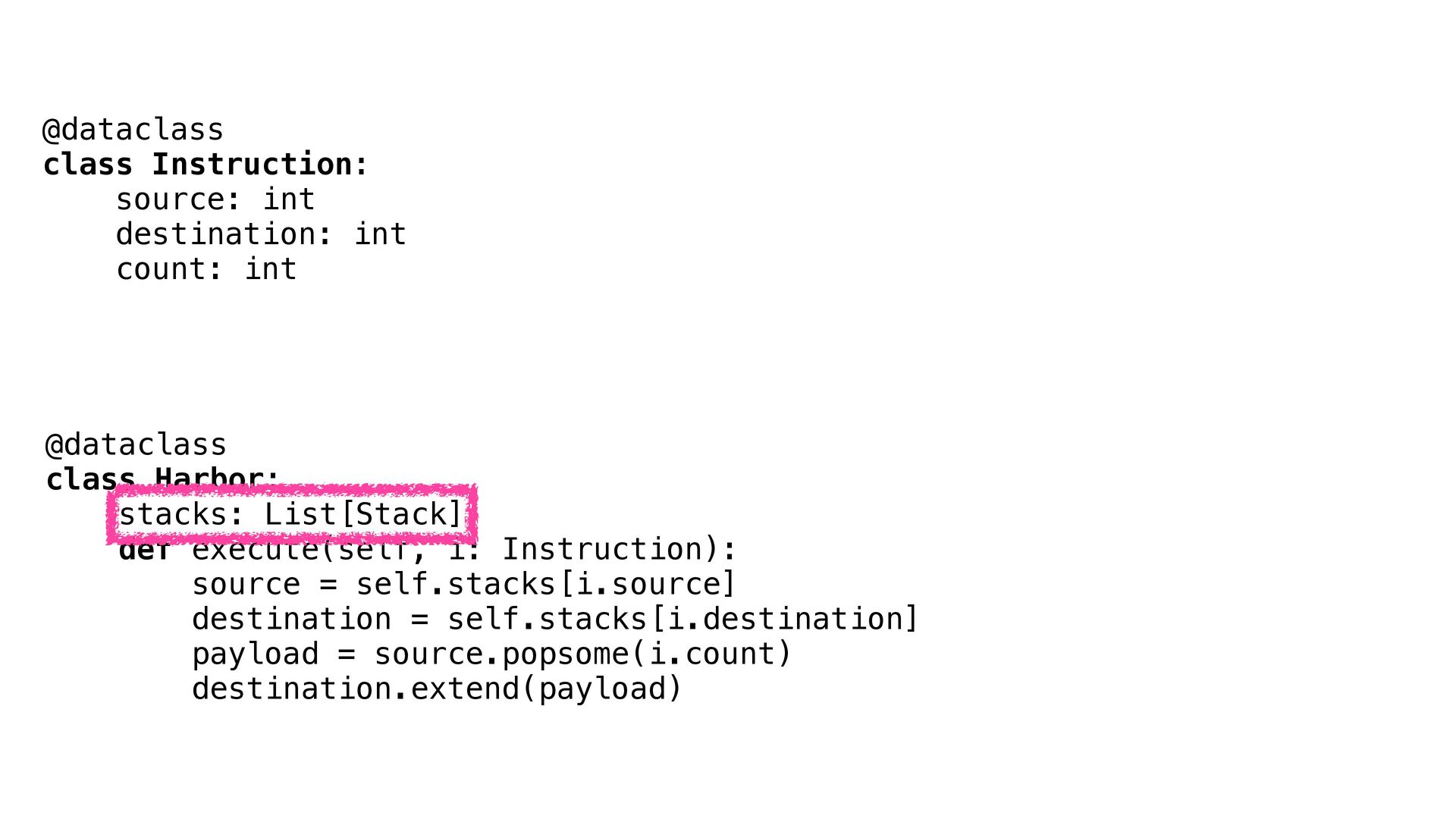

22. @dataclass class Instruction: source: int destination: int count: int @dataclass class Harbor: stacks: List[Stack] def execute(self, i: Instruction): source = self.stacks[i.source] destination = self.stacks[i.destination] payload = source.popsome(i.count) destination.extend(payload)

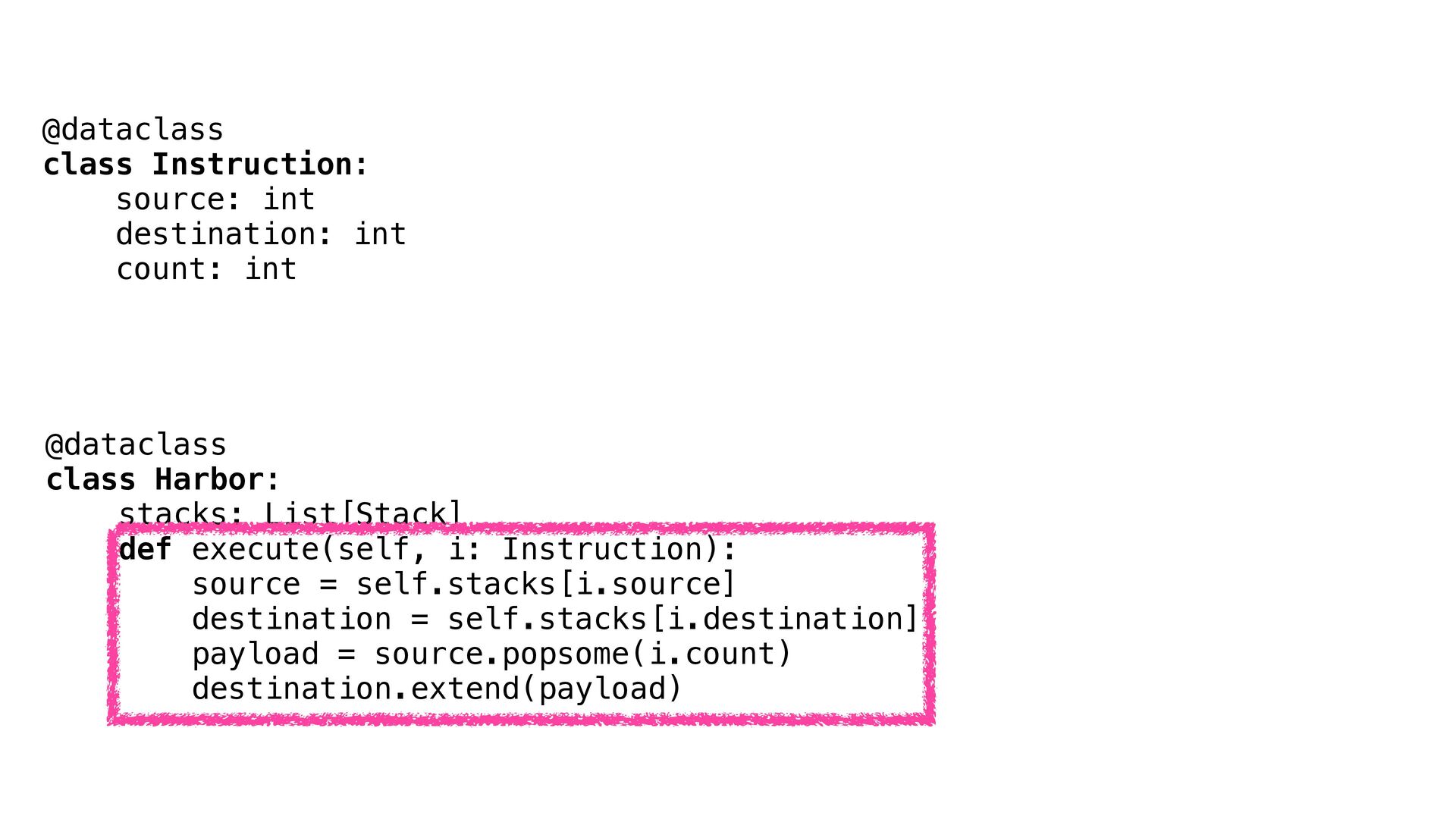

23. @dataclass class Instruction: source: int destination: int count: int @dataclass class Harbor: stacks: List[Stack] def execute(self, i: Instruction): source = self.stacks[i.source] destination = self.stacks[i.destination] payload = source.popsome(i.count) destination.extend(payload)
24. @dataclass class Instruction: source: int destination: int count: int @dataclass class Harbor: stacks: List[Stack] def execute(self, i: Instruction): source = self.stacks[i.source] destination = self.stacks[i.destination] payload = source.popsome(i.count) destination.extend(payload)

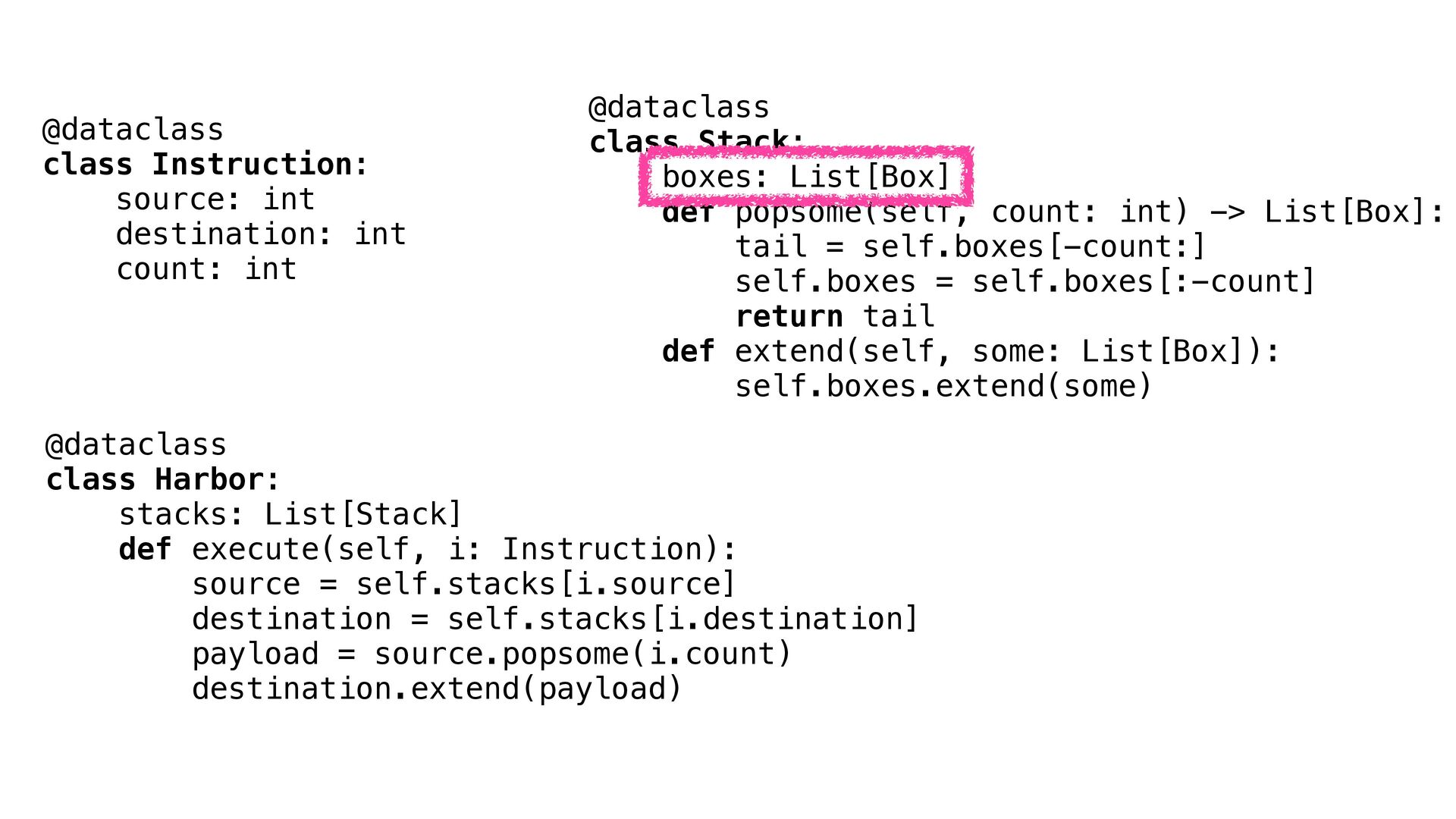

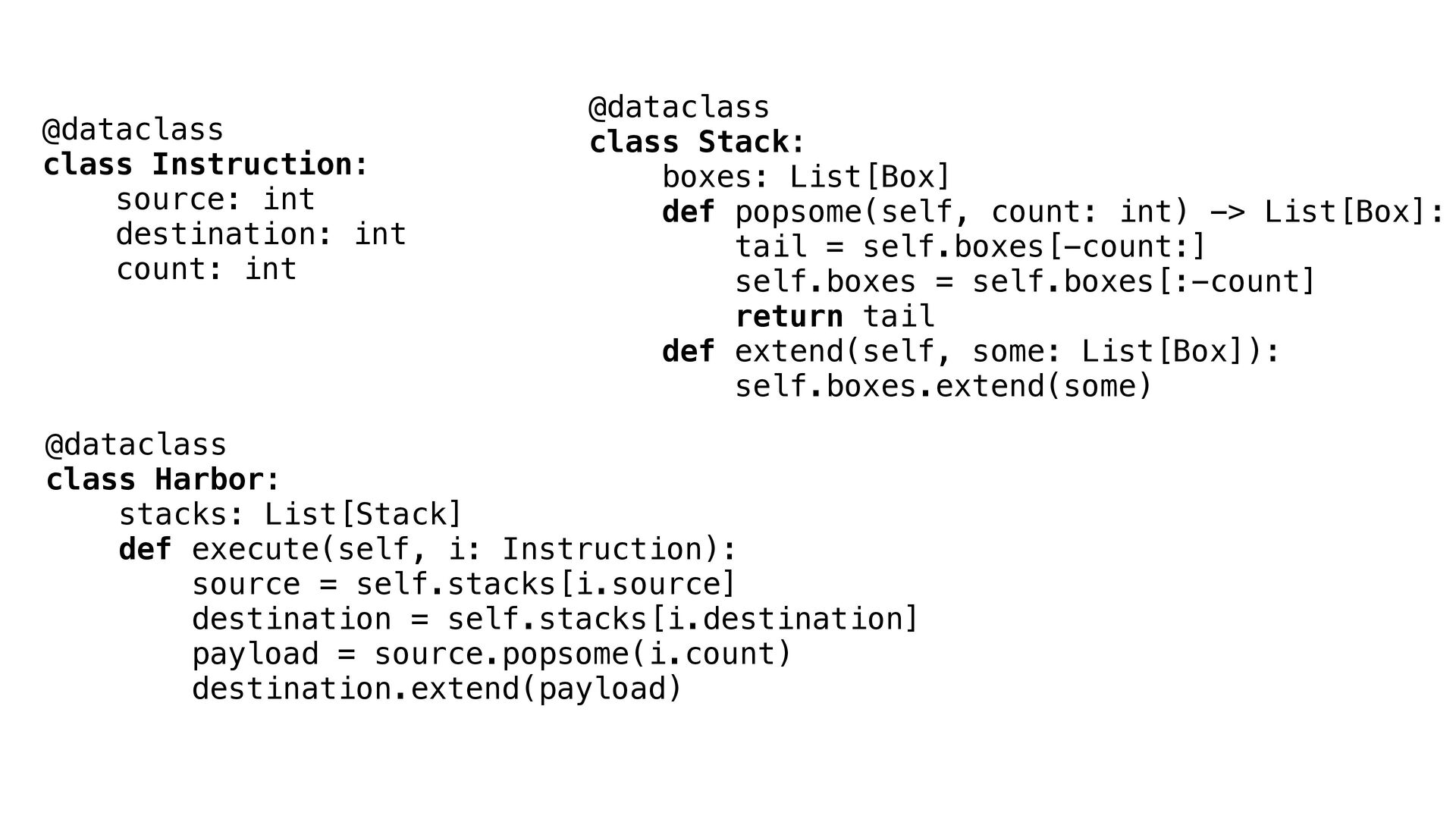

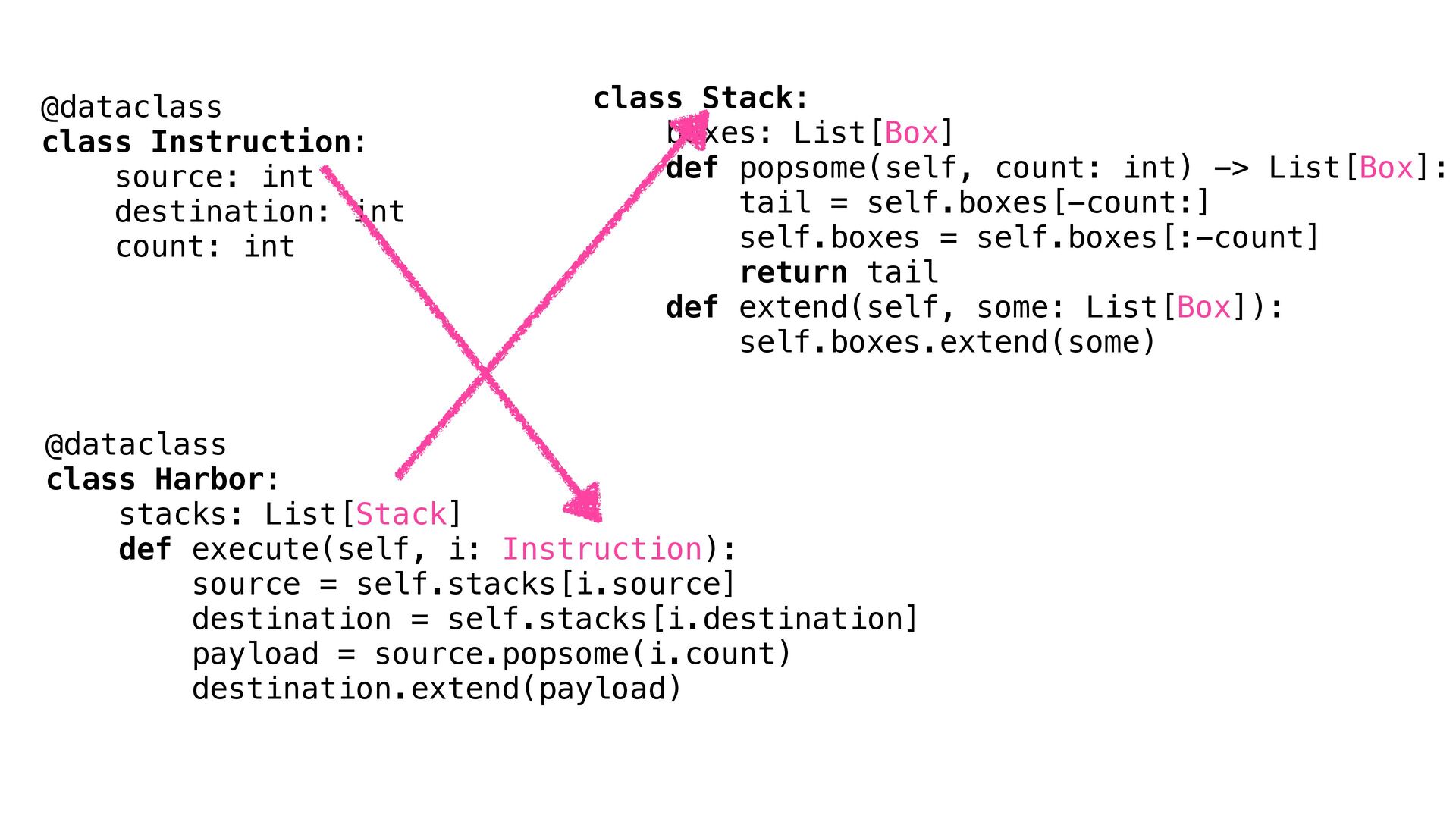

25. @dataclass class Instruction: source: int destination: int count: int @dataclass class Harbor: stacks: List[Stack] def execute(self, i: Instruction): source = self.stacks[i.source] destination = self.stacks[i.destination] payload = source.popsome(i.count) destination.extend(payload) @dataclass class Stack: boxes: List[Box] def popsome(self, count: int) -> List[Box]: tail = self.boxes[-count:] self.boxes = self.boxes[:-count] return tail def extend(self, some: List[Box]): self.boxes.extend(some)

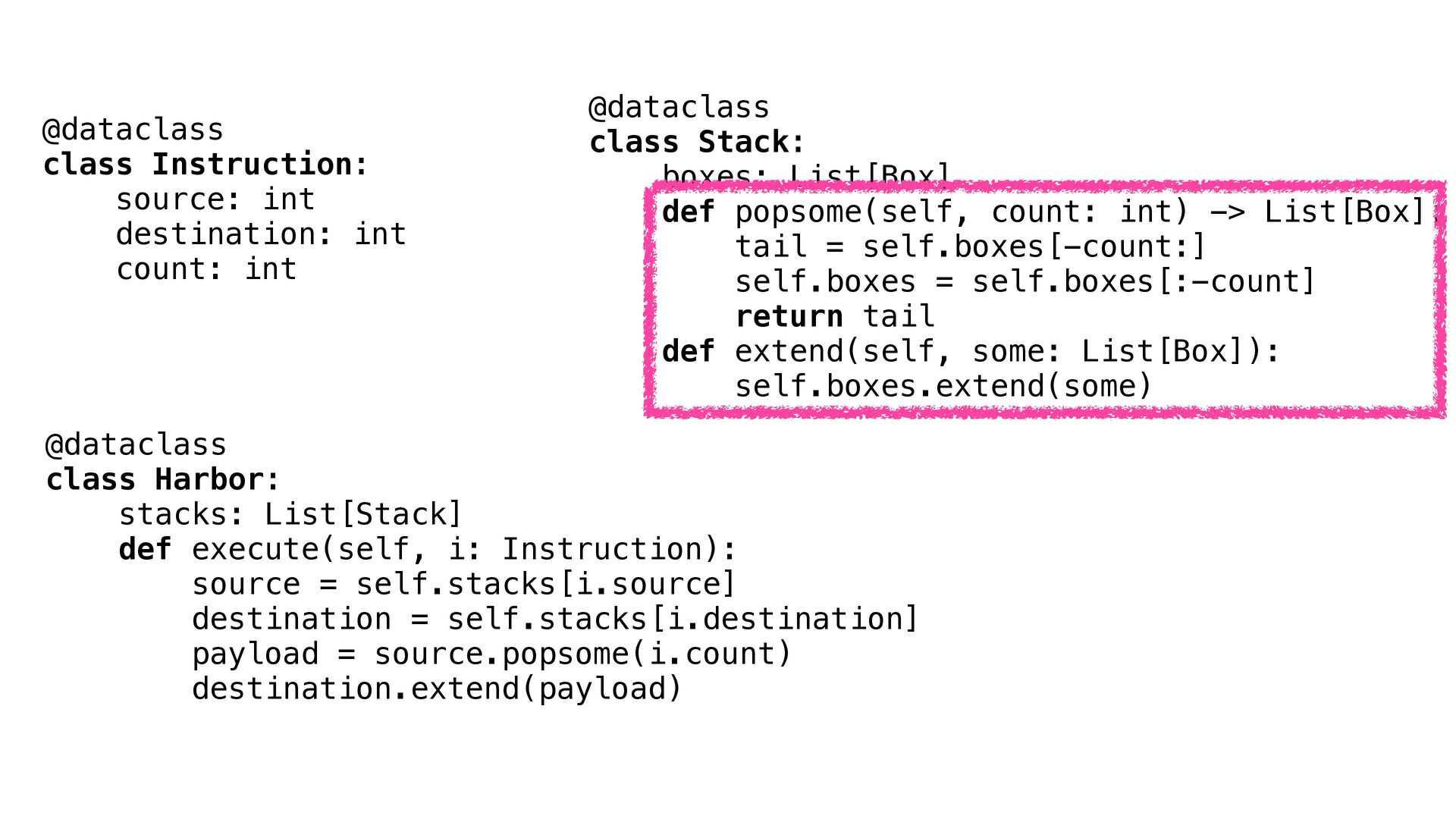

26. @dataclass class Instruction: source: int destination: int count: int @dataclass class Harbor: stacks: List[Stack] def execute(self, i: Instruction): source = self.stacks[i.source] destination = self.stacks[i.destination] payload = source.popsome(i.count) destination.extend(payload) @dataclass class Stack: boxes: List[Box] def popsome(self, count: int) -> List[Box]: tail = self.boxes[-count:] self.boxes = self.boxes[:-count] return tail def extend(self, some: List[Box]): self.boxes.extend(some)
27. @dataclass class Instruction: source: int destination: int count: int @dataclass class Harbor: stacks: List[Stack] def execute(self, i: Instruction): source = self.stacks[i.source] destination = self.stacks[i.destination] payload = source.popsome(i.count) destination.extend(payload) @dataclass class Stack: boxes: List[Box] def popsome(self, count: int) -> List[Box]: tail = self.boxes[-count:] self.boxes = self.boxes[:-count] return tail def extend(self, some: List[Box]): self.boxes.extend(some)
28. @dataclass class Instruction: source: int destination: int count: int @dataclass class Harbor: stacks: List[Stack] def execute(self, i: Instruction): source = self.stacks[i.source] destination = self.stacks[i.destination] payload = source.popsome(i.count) destination.extend(payload) @dataclass class Stack: boxes: List[Box] def popsome(self, count: int) -> List[Box]: tail = self.boxes[-count:] self.boxes = self.boxes[:-count] return tail def extend(self, some: List[Box]): self.boxes.extend(some)

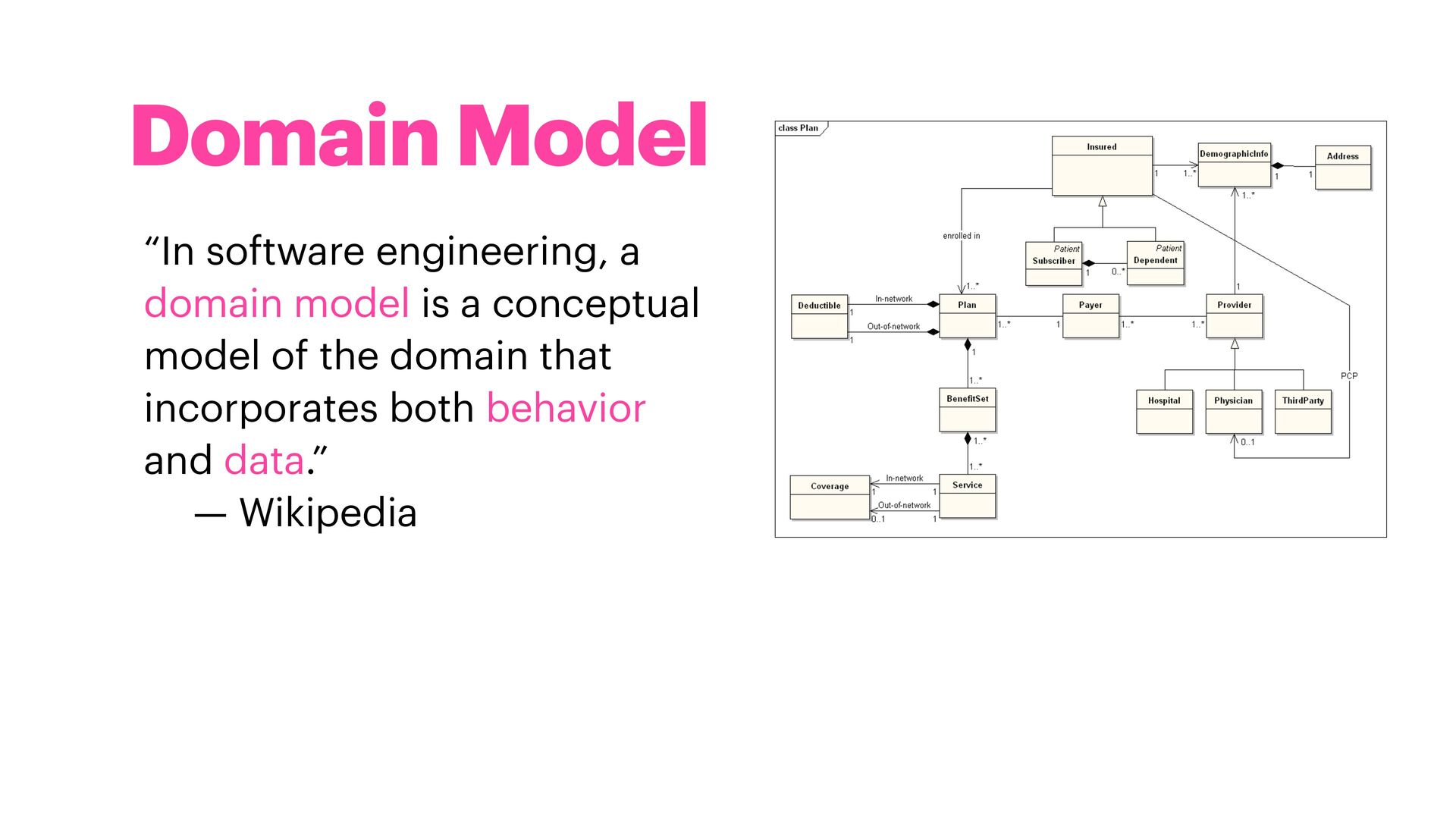

29. “In software engineering, a domain model is a conceptual model of the domain that incorporates both behavior and data.” — Wikipedia Domain Model

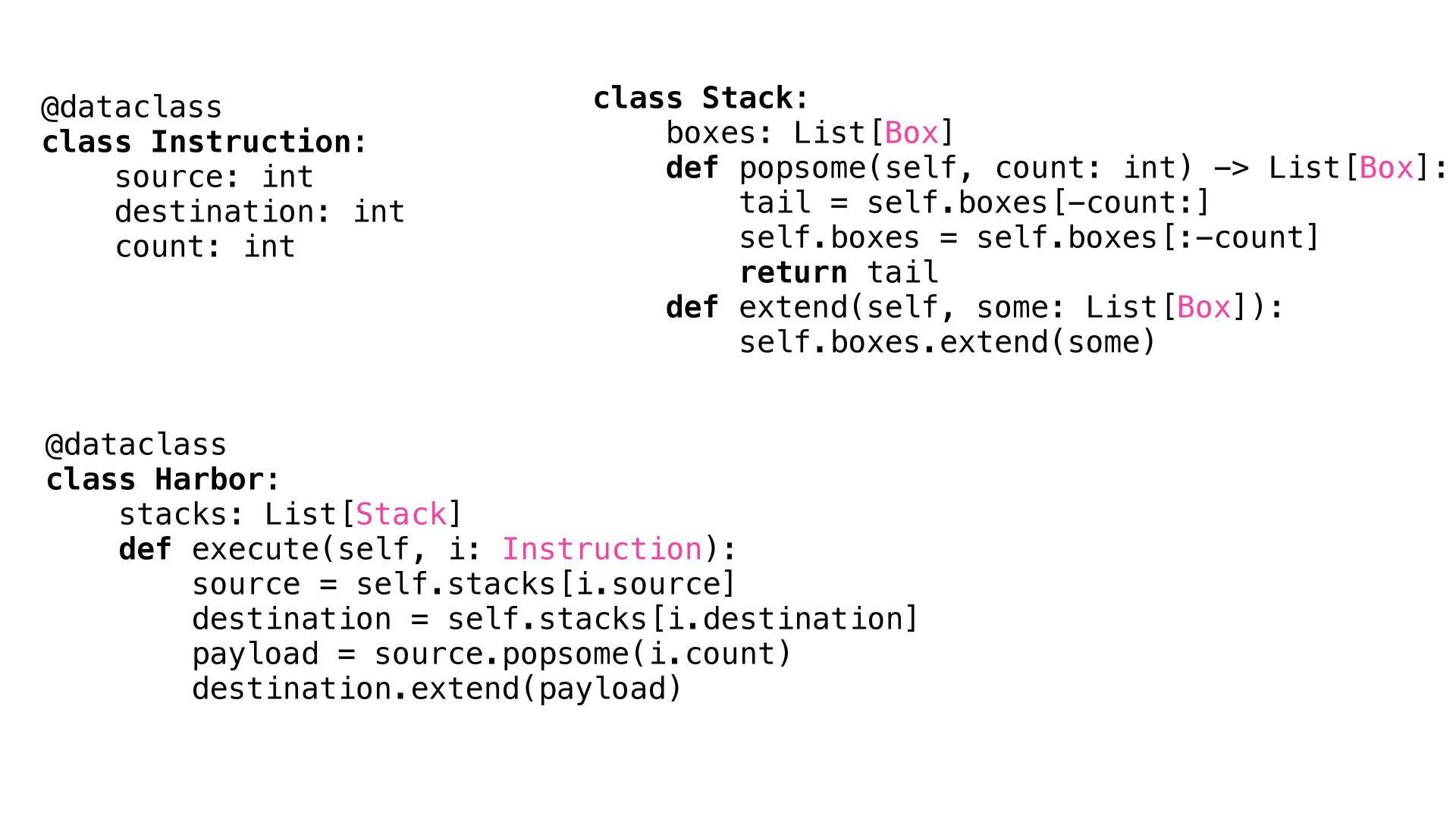

30. @dataclass class Instruction: source: int destination: int count: int @dataclass class Harbor: stacks: List[Stack] def execute(self, i: Instruction): source = self.stacks[i.source] destination = self.stacks[i.destination] payload = source.popsome(i.count) destination.extend(payload) class Stack: boxes: List[Box] def popsome(self, count: int) -> List[Box]: tail = self.boxes[-count:] self.boxes = self.boxes[:-count] return tail def extend(self, some: List[Box]): self.boxes.extend(some)
31. @dataclass class Instruction: source: int destination: int count: int @dataclass class Harbor: stacks: List[Stack] def execute(self, i: Instruction): source = self.stacks[i.source] destination = self.stacks[i.destination] payload = source.popsome(i.count) destination.extend(payload) class Stack: boxes: List[Box] def popsome(self, count: int) -> List[Box]: tail = self.boxes[-count:] self.boxes = self.boxes[:-count] return tail def extend(self, some: List[Box]): self.boxes.extend(some)

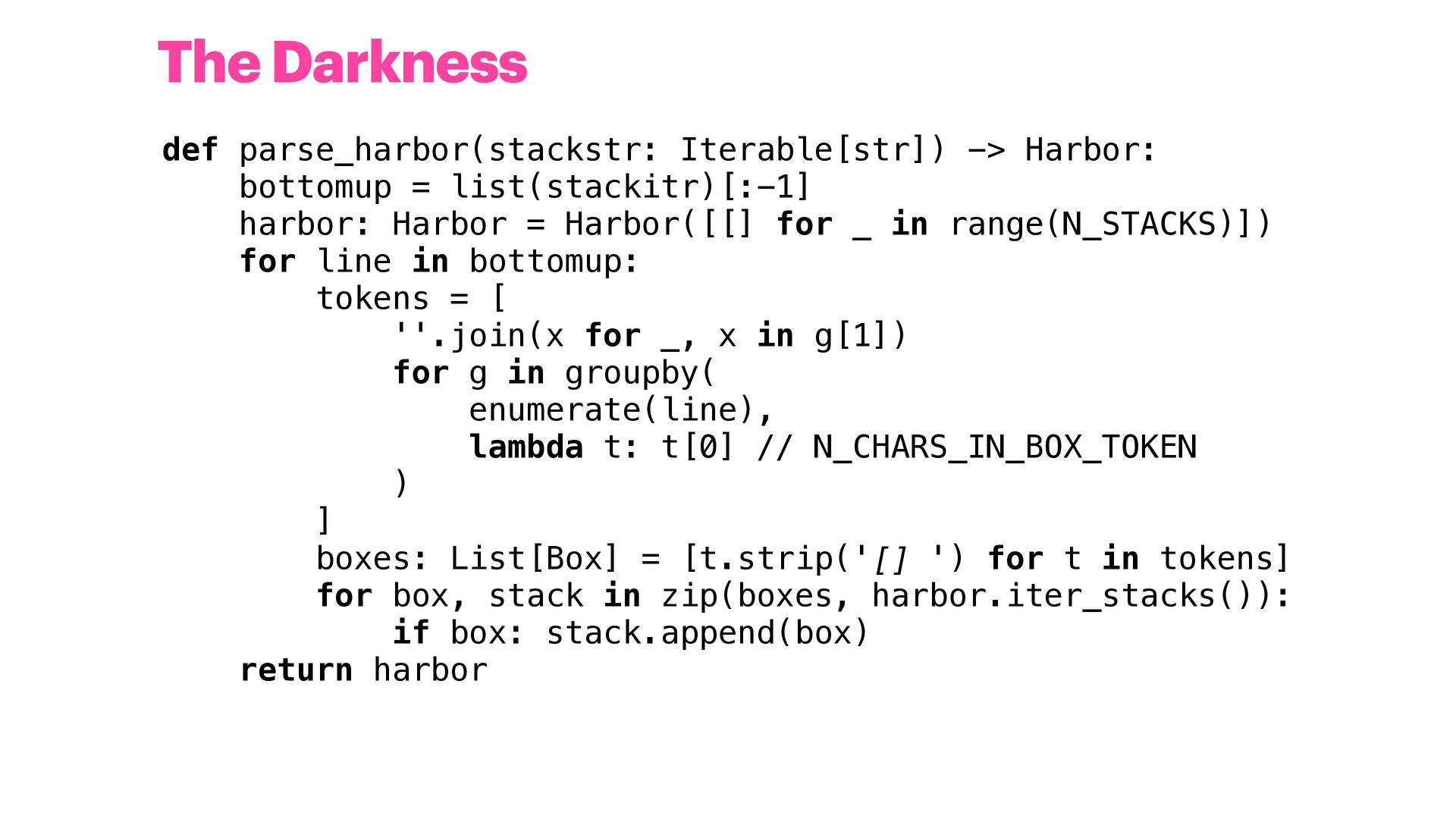

32. The Darkness def parse_harbor(stackstr: Iterable[str]) -> Harbor: bottomup = list(stackitr)[:-1] harbor: Harbor = Harbor([[] for _ in range(N_STACKS)]) for line in bottomup: tokens = [ ''.join(x for _, x in g[1]) for g in groupby( enumerate(line), lambda t: t[0] // N_CHARS_IN_BOX_TOKEN ) ] boxes: List[Box] = [t.strip('[] ') for t in tokens] for box, stack in zip(boxes, harbor.iter_stacks()): if box: stack.append(box) return harbor
33. “The shitty stu ff should happen on the outside layer of your program, that interacts with the "outside world". Once it's inside, organize it into nice data structures so that operations (i.e. code) are as self evident as possible.” — Matthew Drury

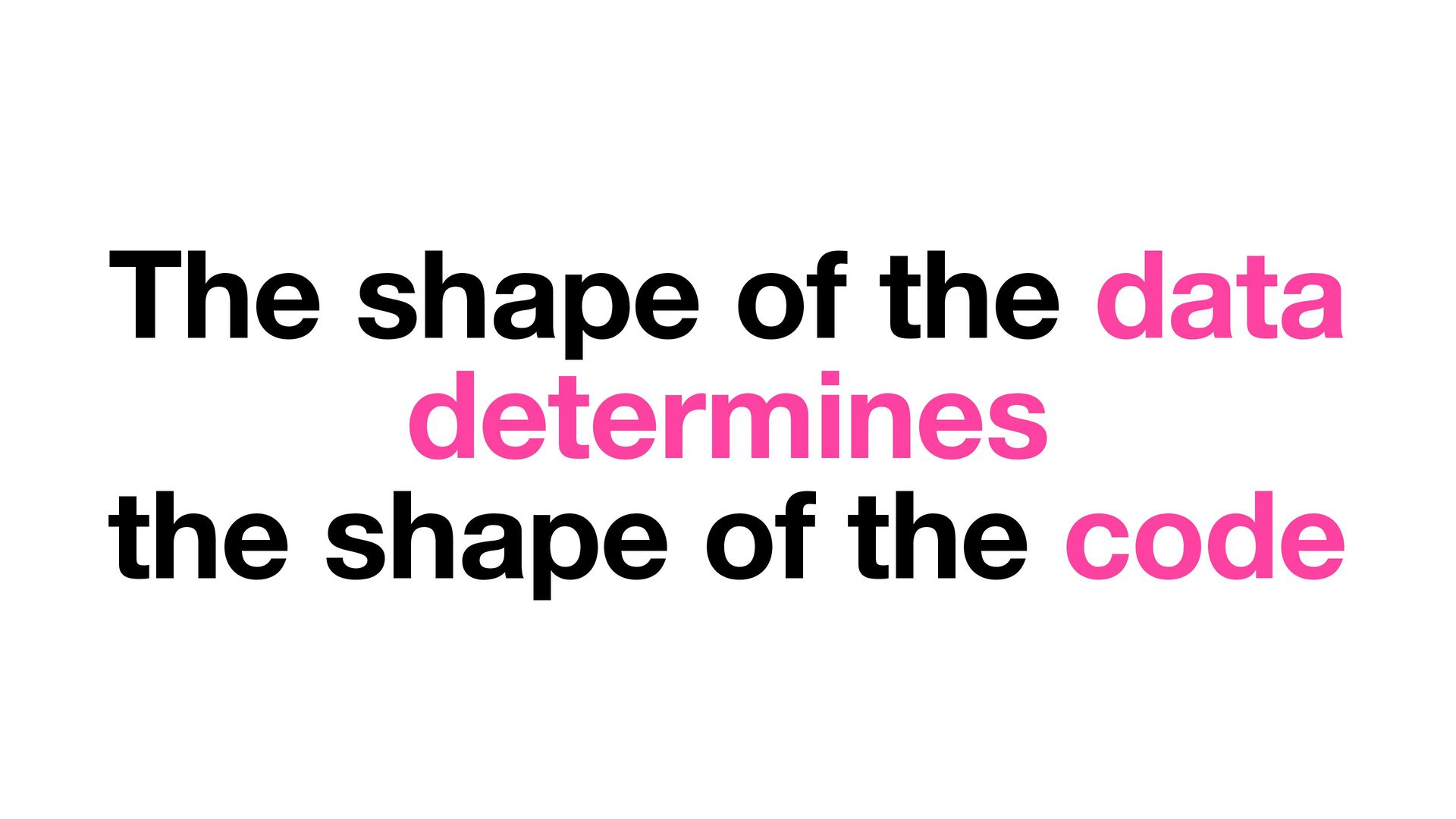

34. The shape of the data determines the shape of the code
35. Problem #1 best model for web apis ≠ best model for business logic ≠ best model for databases

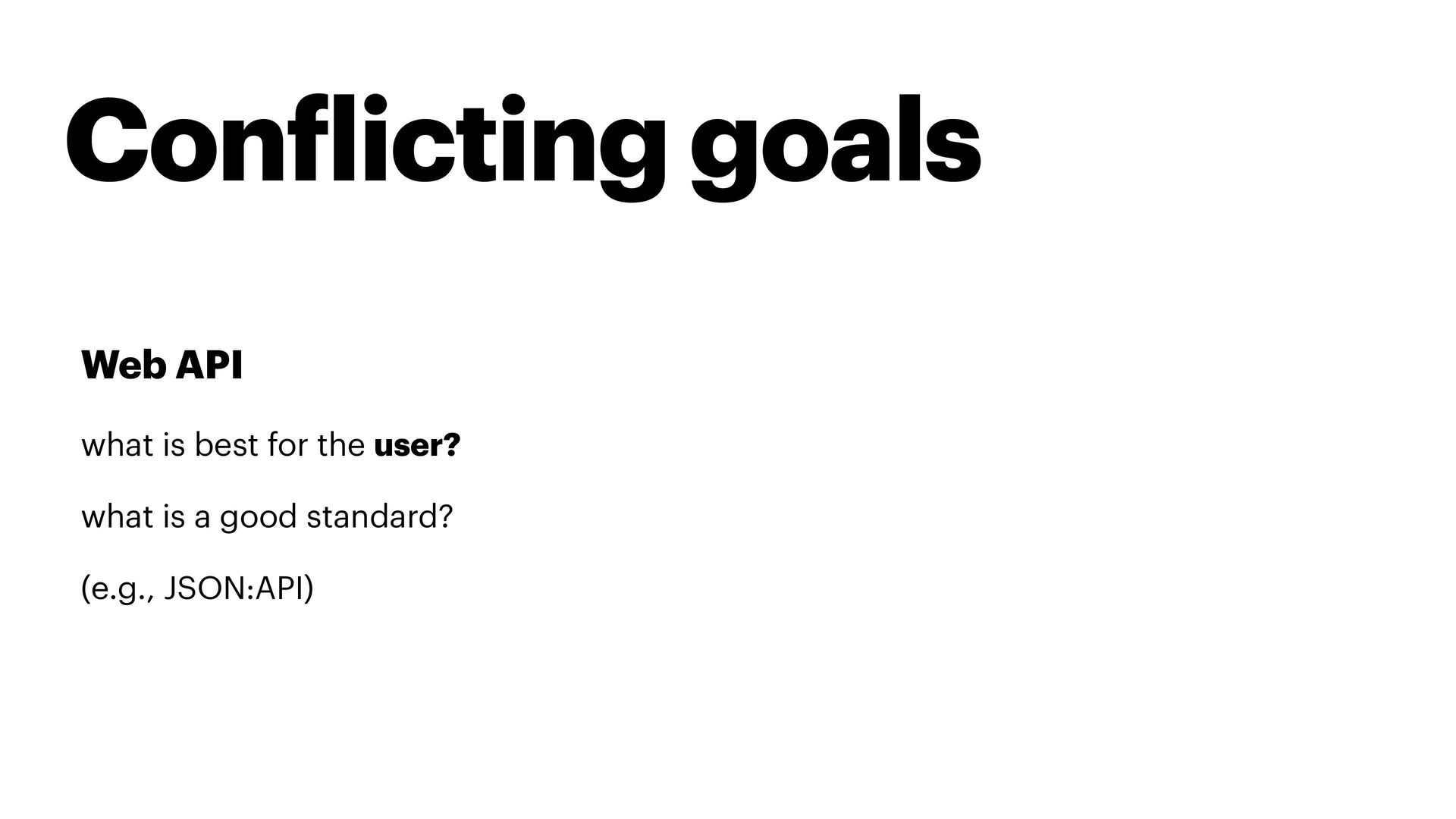

36. Con f licting goals Web API what is best for the user? what is a good standard? (e.g., JSON:API)

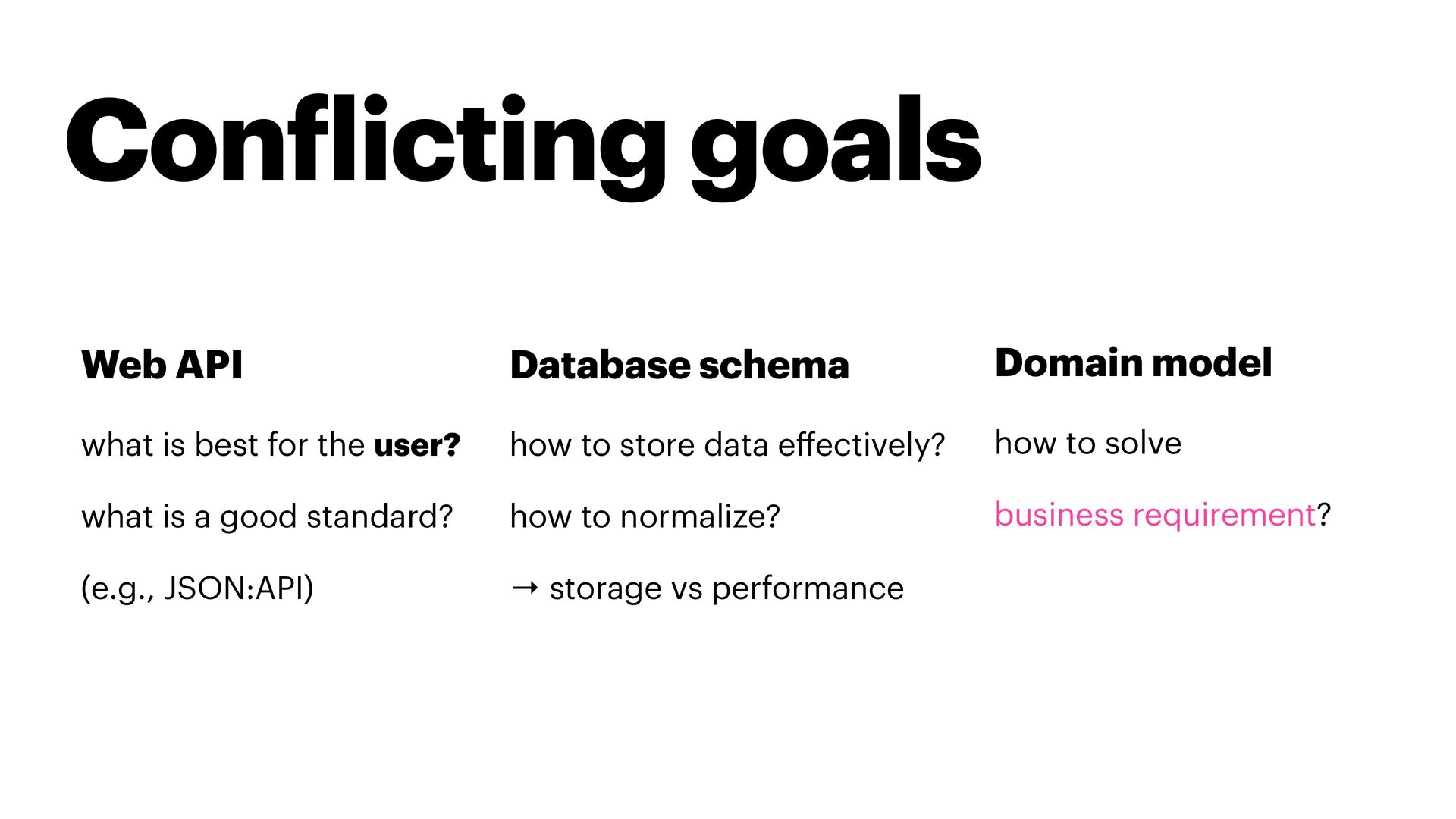

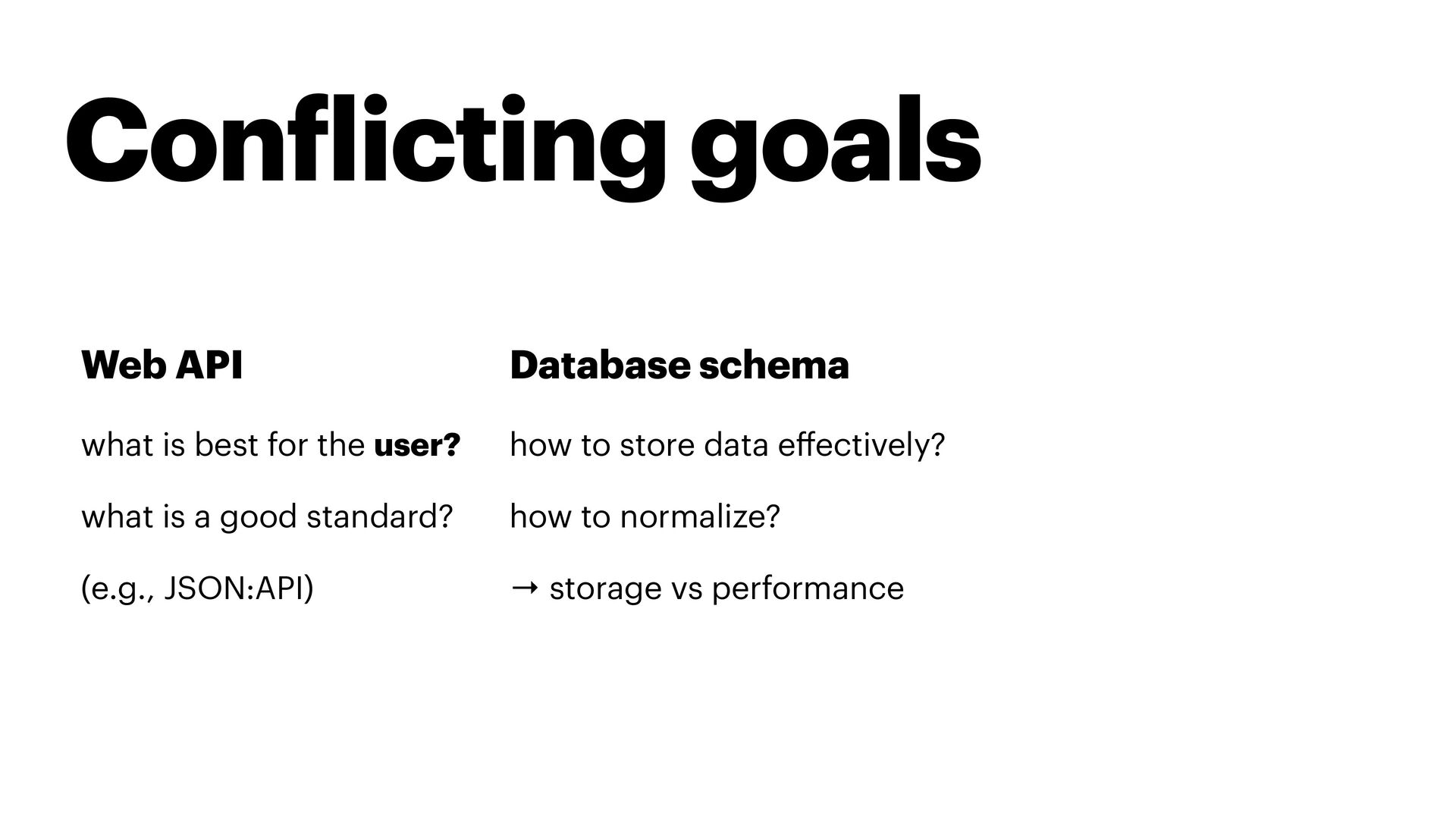

37. Con f licting goals Web API what is best for the user? what is a good standard? (e.g., JSON:API) Database schema how to store data e ff ectively? how to normalize? → storage vs performance
38. Con f licting goals Web API what is best for the user? what is a good standard? (e.g., JSON:API) Database schema how to store data e ff ectively? how to normalize? → storage vs performance Domain model how to solve business requirement?
39. Con f licting goals Web API what is best for the user? what is a good standard? (e.g., JSON:API) Database schema how to store data e ff ectively? how to normalize? → storage vs performance Domain model how to solve business requirement?
40. Con f licting goals Web API what is best for the user? what is a good standard? (e.g., JSON:API) Database schema how to store data e ff ectively? how to normalize? → storage vs performance Domain model how to solve business requirement?

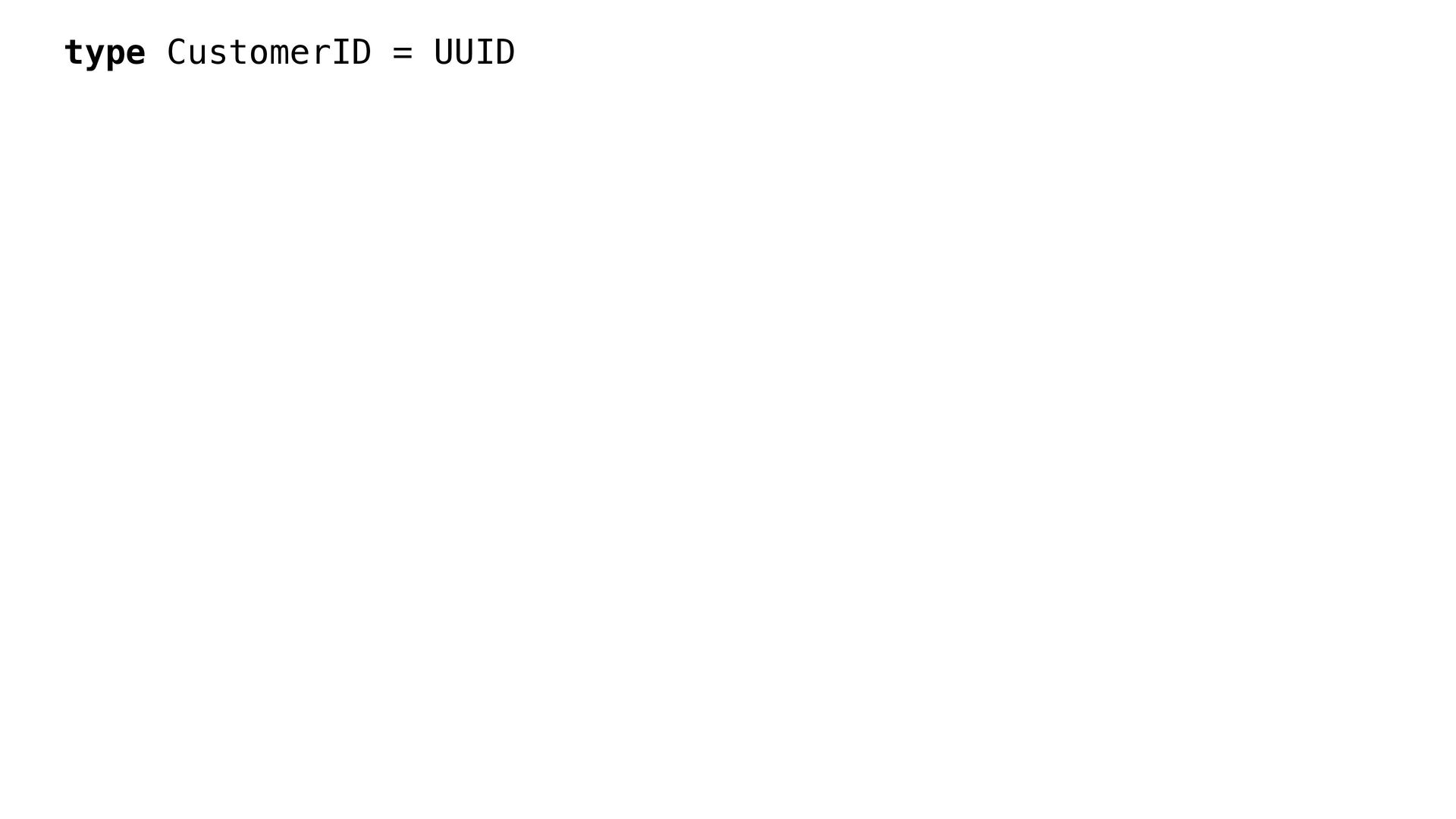

43. type CustomerID = UUID

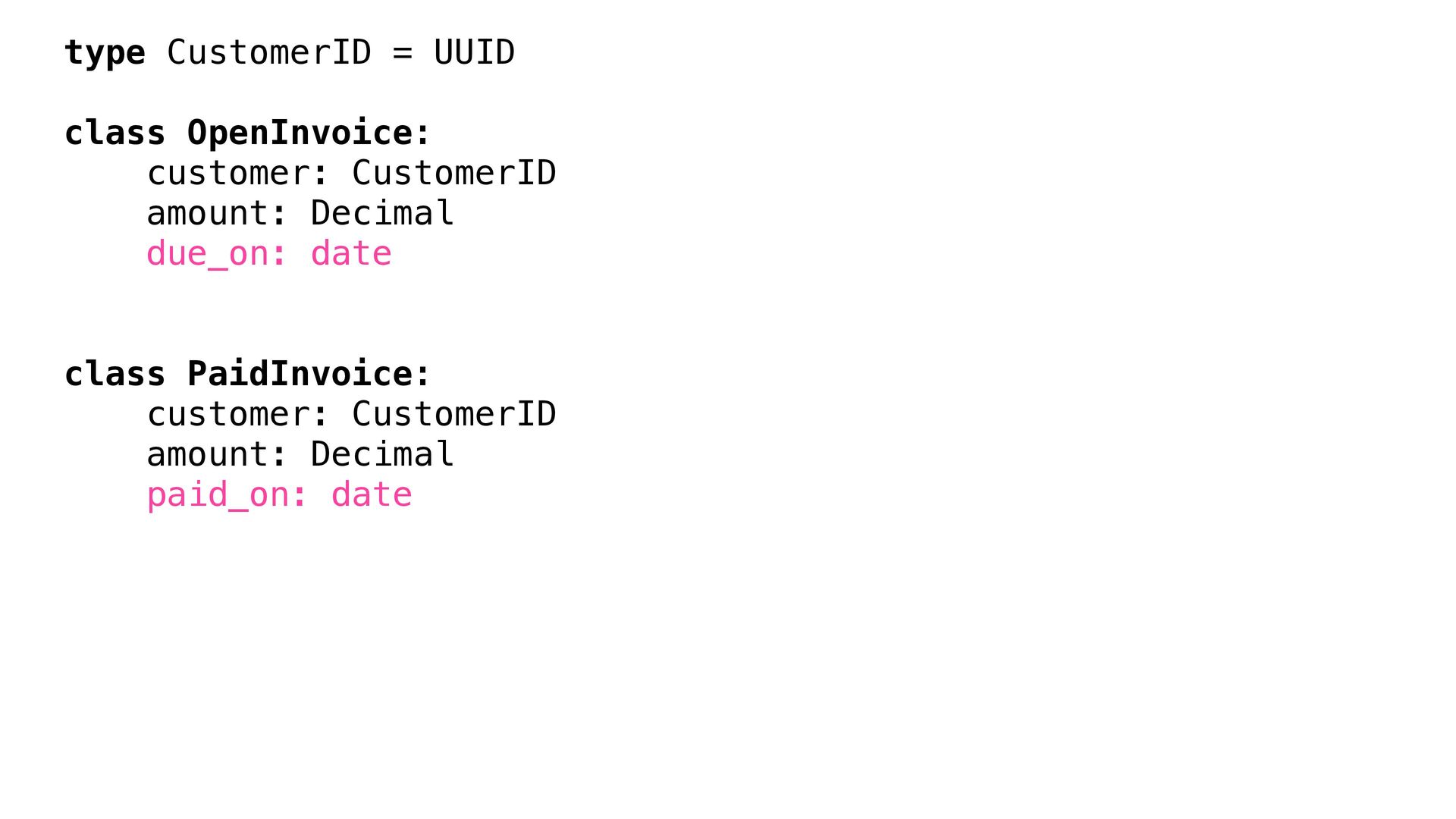

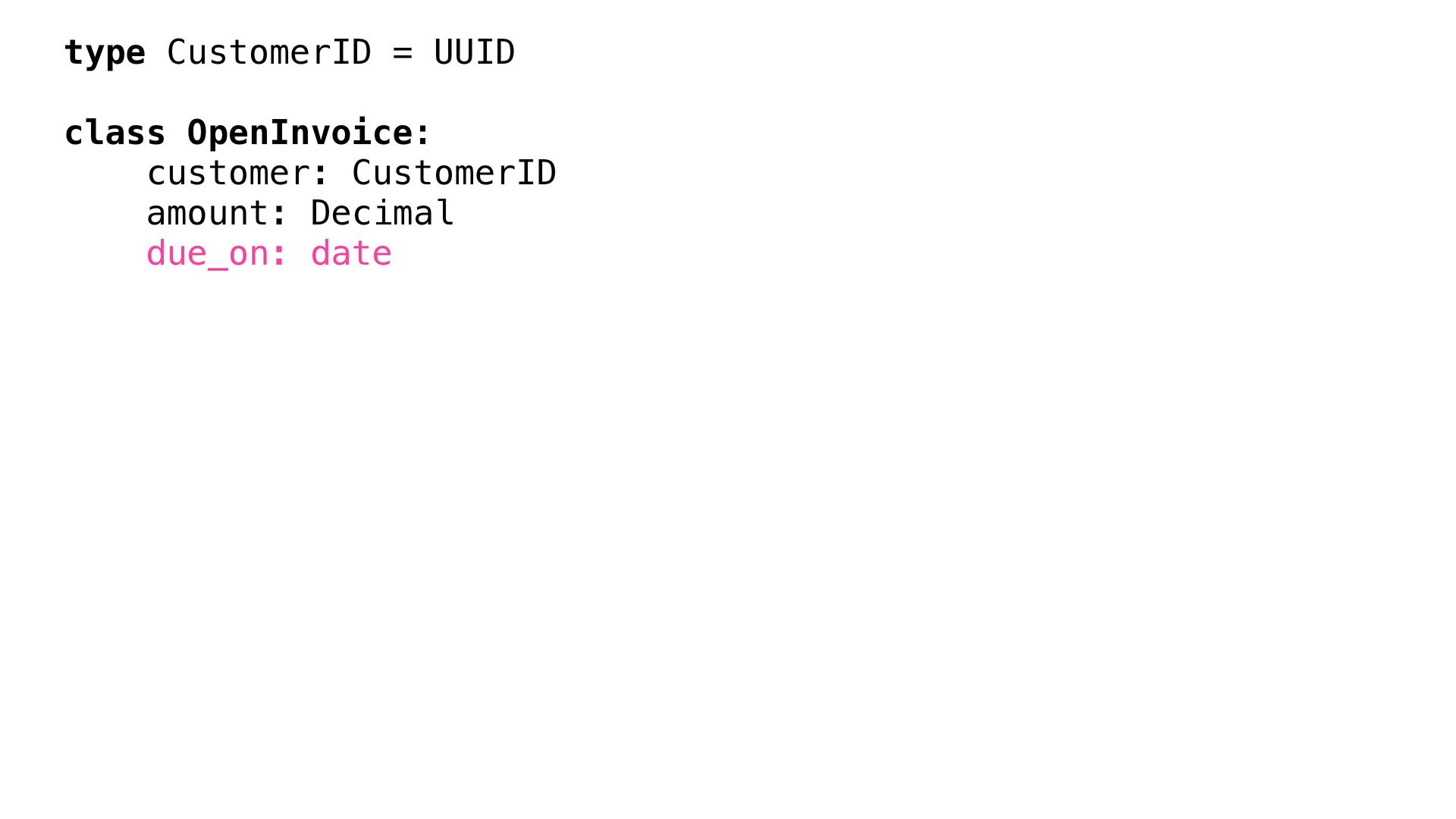

44. type CustomerID = UUID class OpenInvoice: customer: CustomerID amount: Decimal due_on: date
45. type CustomerID = UUID class OpenInvoice: customer: CustomerID amount: Decimal due_on: date class PaidInvoice: customer: CustomerID amount: Decimal paid_on: date

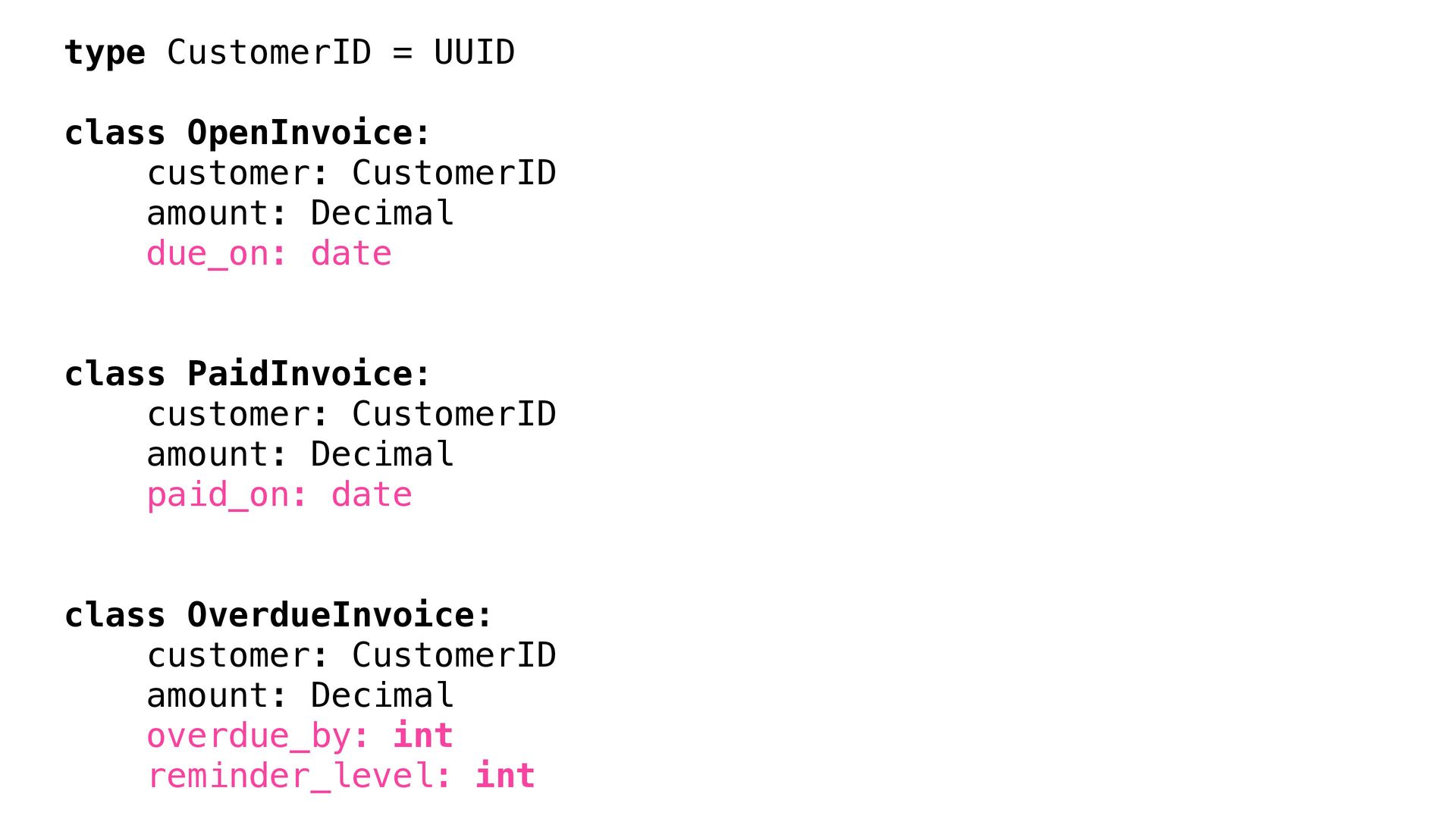

46. type CustomerID = UUID class OpenInvoice: customer: CustomerID amount: Decimal due_on: date class PaidInvoice: customer: CustomerID amount: Decimal paid_on: date class OverdueInvoice: customer: CustomerID amount: Decimal overdue_by: int reminder_level: int

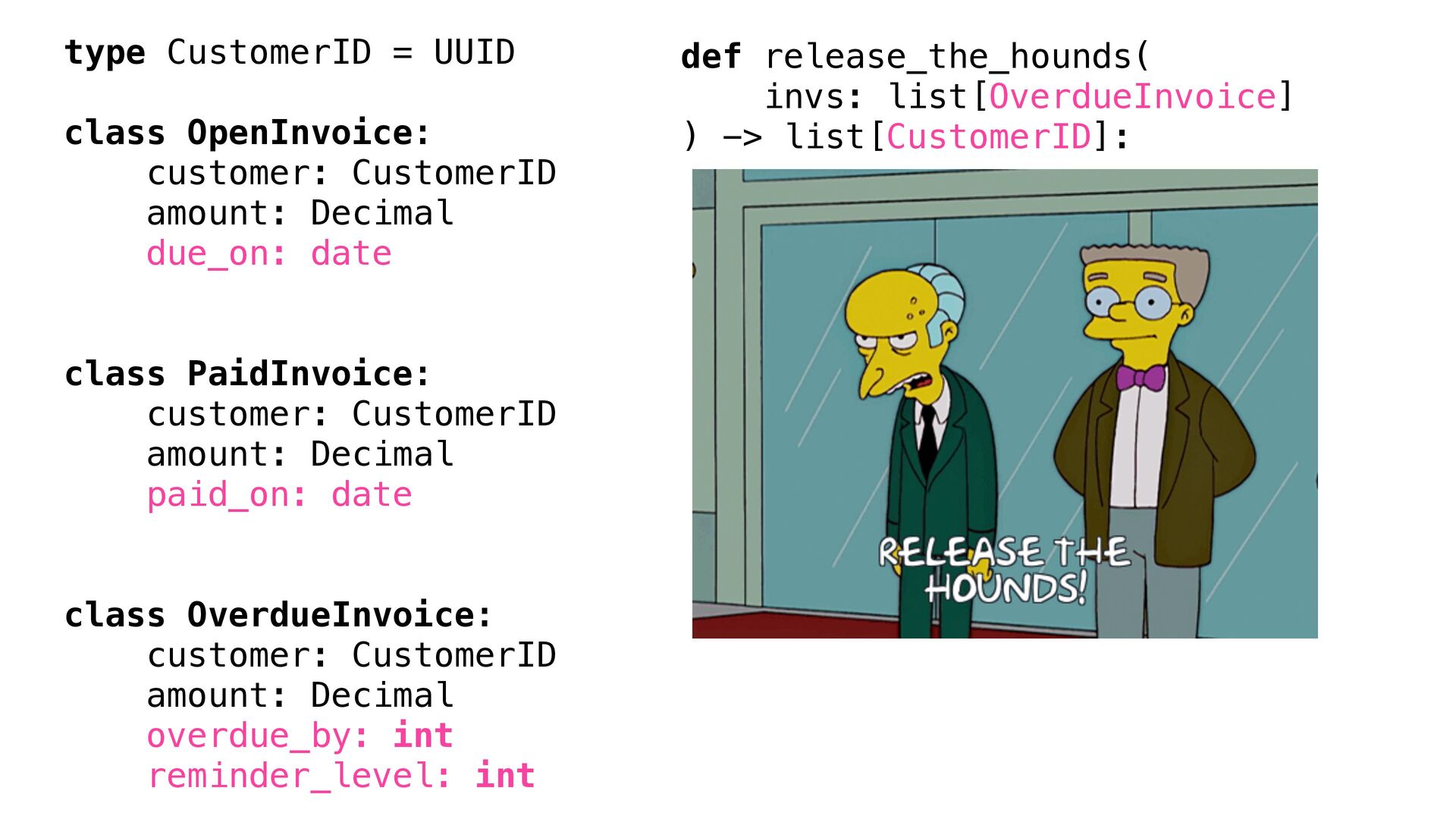

47. type CustomerID = UUID class OpenInvoice: customer: CustomerID amount: Decimal due_on: date class PaidInvoice: customer: CustomerID amount: Decimal paid_on: date class OverdueInvoice: customer: CustomerID amount: Decimal overdue_by: int reminder_level: int def release_the_hounds( invs: list[OverdueInvoice] ) -> list[CustomerID]: ...
48. Approach 1 (bad) ORM xor Web = primary
49. Approach 1 (bad) ORM xor Web = primary database-driven “design”

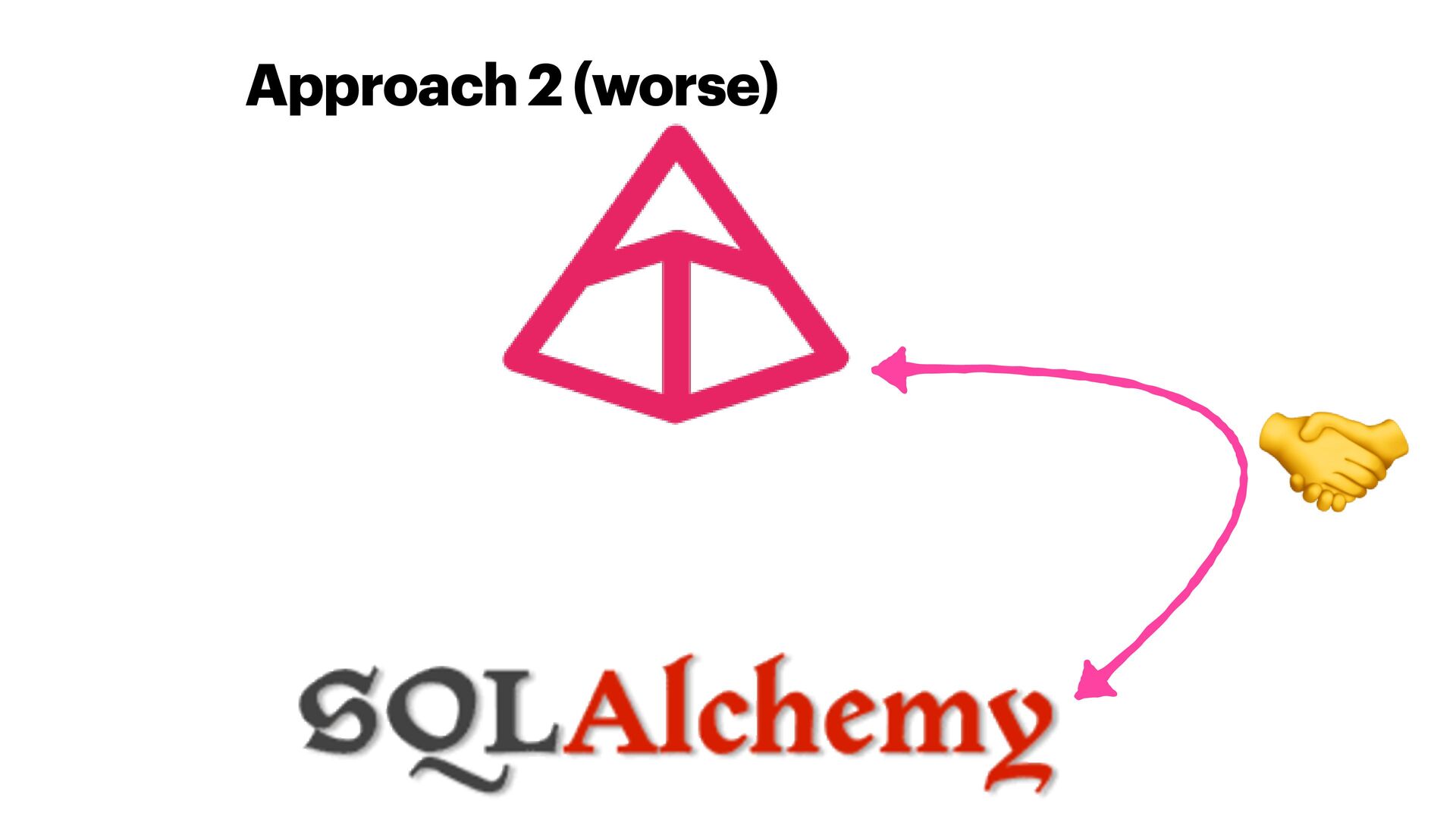

51. Approach 2 (worse) 🤝

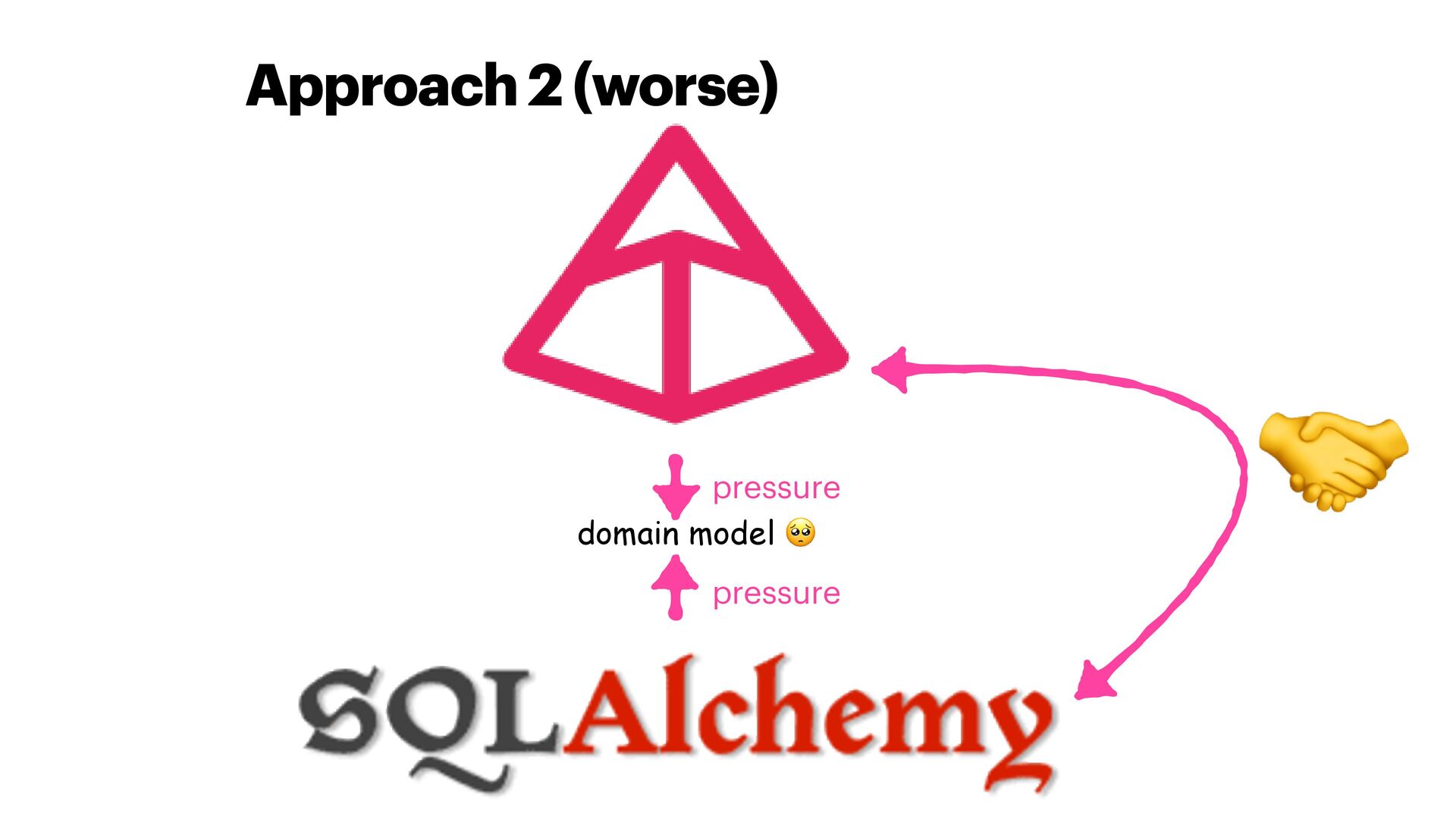

52. Approach 2 (worse) domain model 🥺 pressure pressure 🤝
53. Problem #2 Both calcify (eventually)
54. Problem #2 Both calcify (eventually)
55. You have lost control over your domain model and therefore over your business logic.

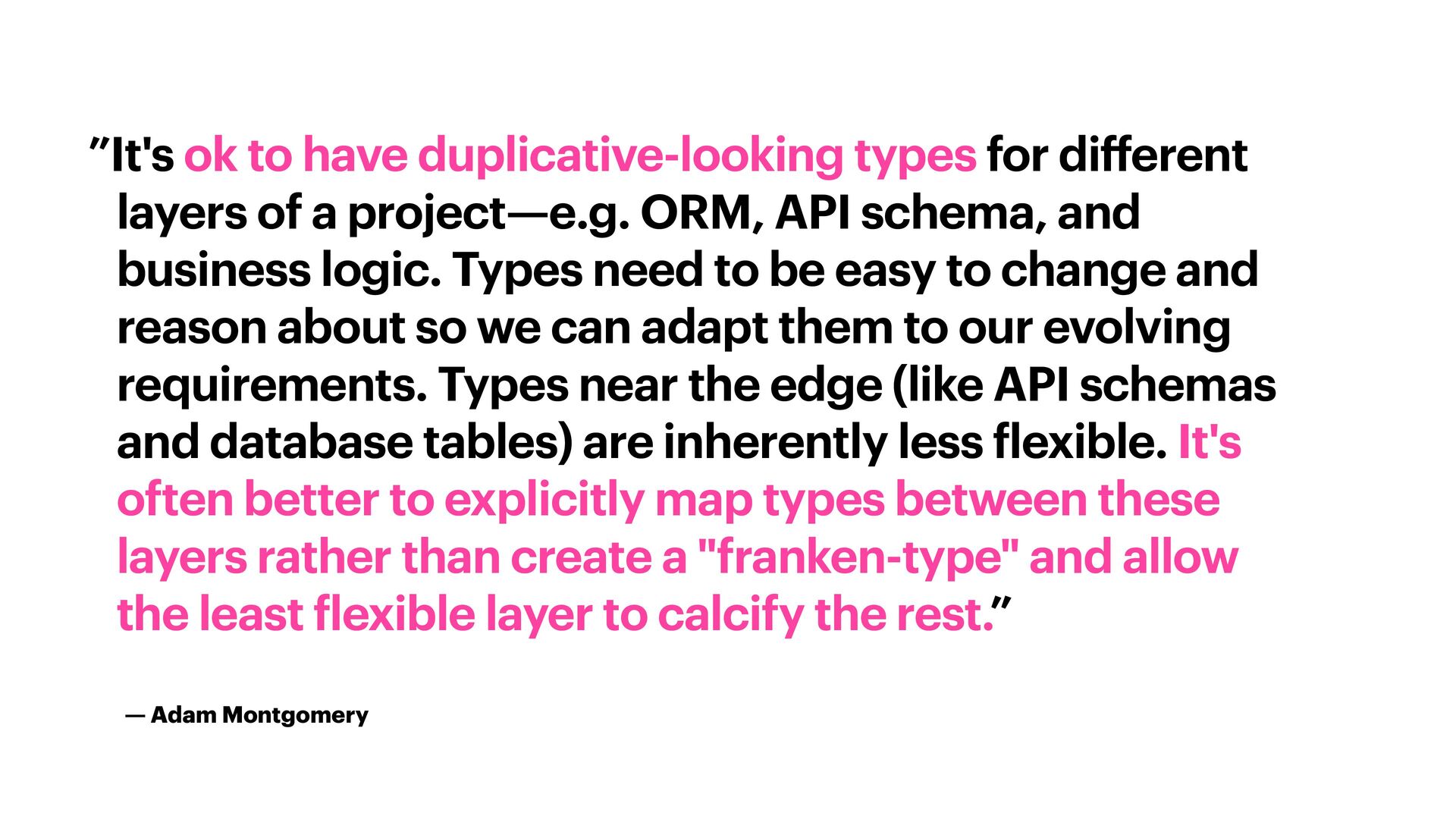

56. ”It's ok to have duplicative-looking types for di ff erent layers of a project—e.g. ORM, API schema, and business logic. Types need to be easy to change and reason about so we can adapt them to our evolving requirements. Types near the edge (like API schemas and database tables) are inherently less f lexible. It's often better to explicitly map types between these layers rather than create a "franken-type" and allow the least f lexible layer to calcify the rest.” — Adam Montgomery
57. ”good examples are by far the hardest part of explaining design” — Kent Beck

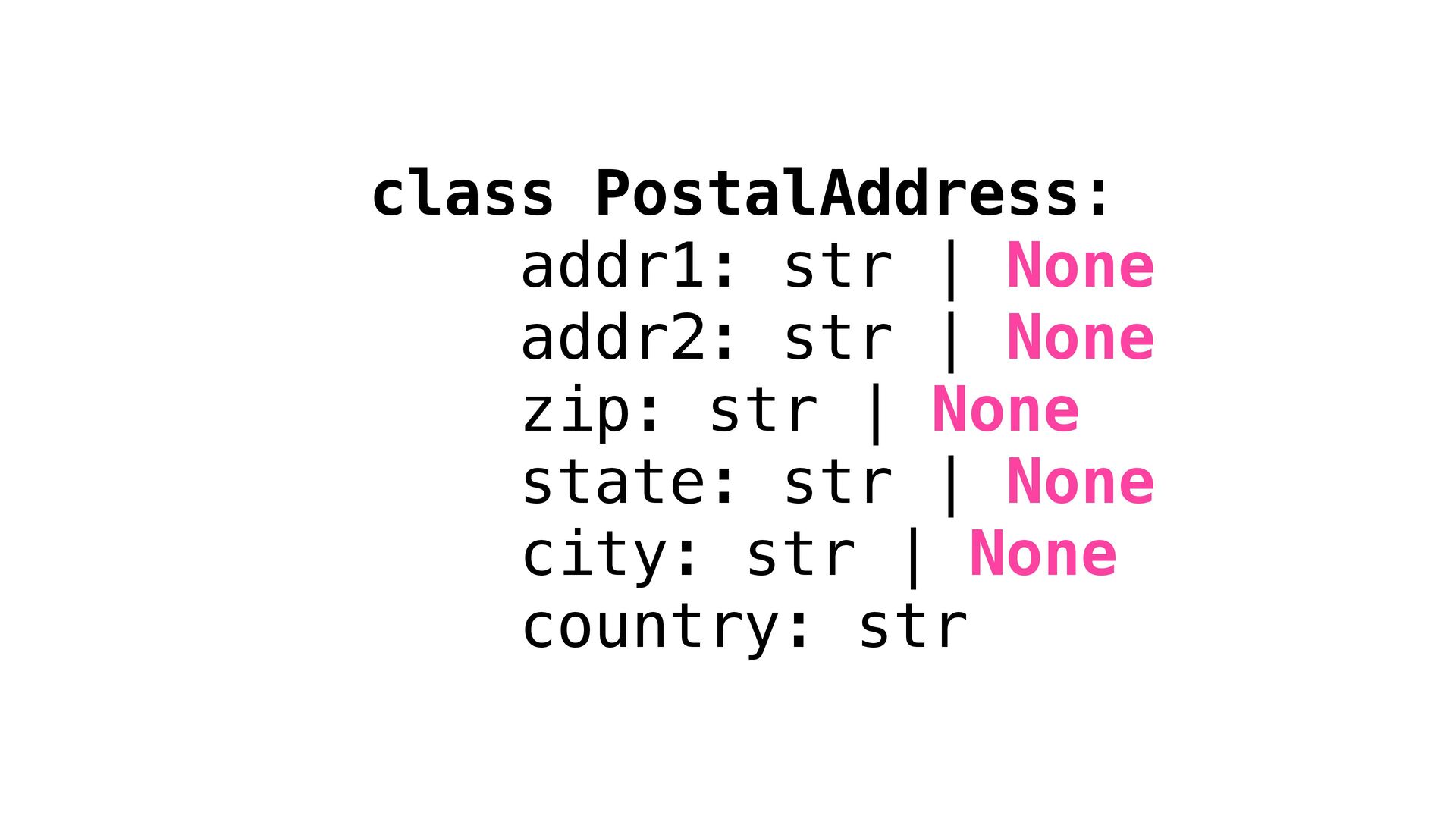

60. class PostalAddress: addr1: str | None addr2: str | None zip: str | None state: str | None city: str | None country: str

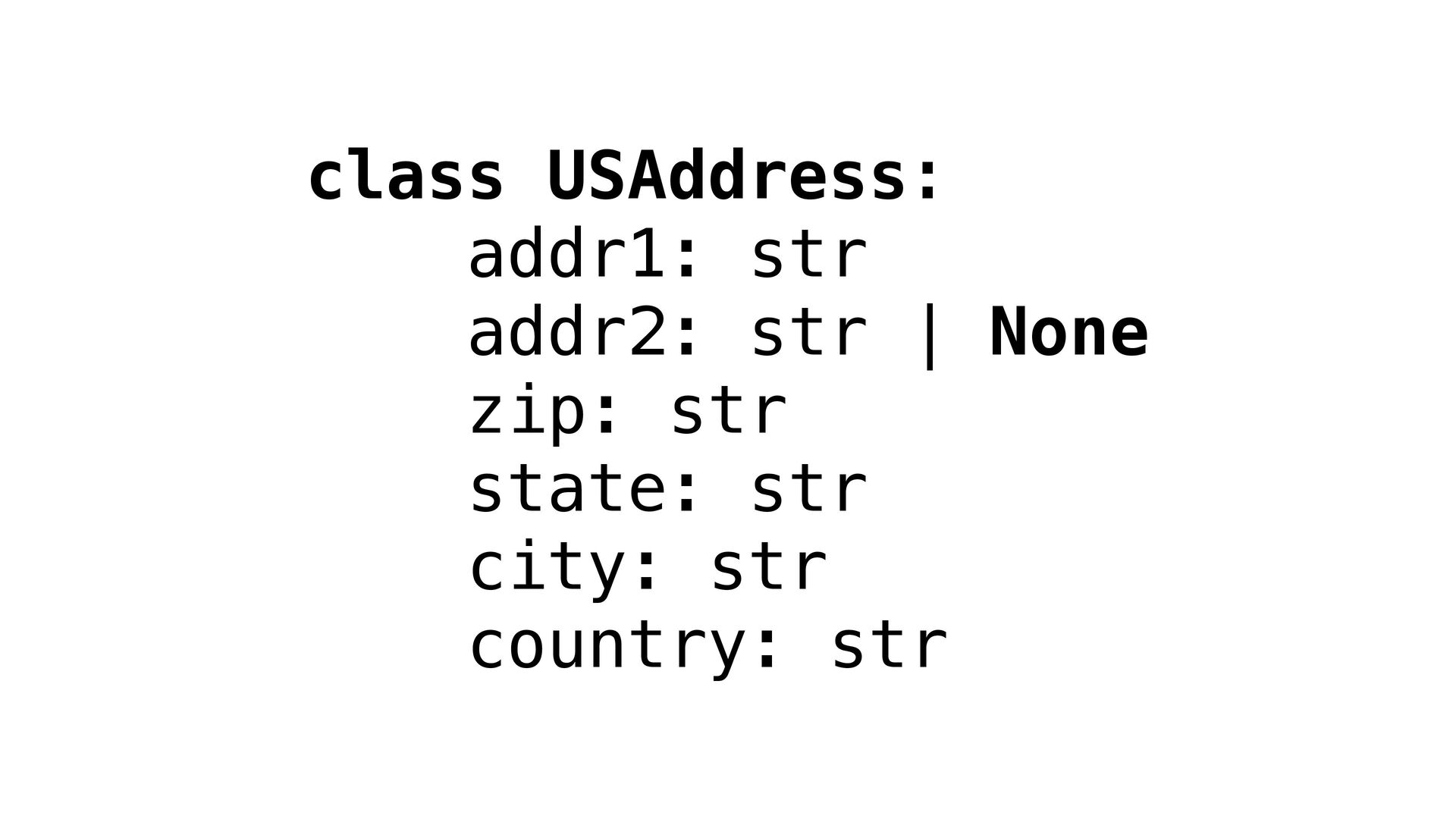

61. class USAddress: addr1: str addr2: str | None zip: str state: str city: str country: str

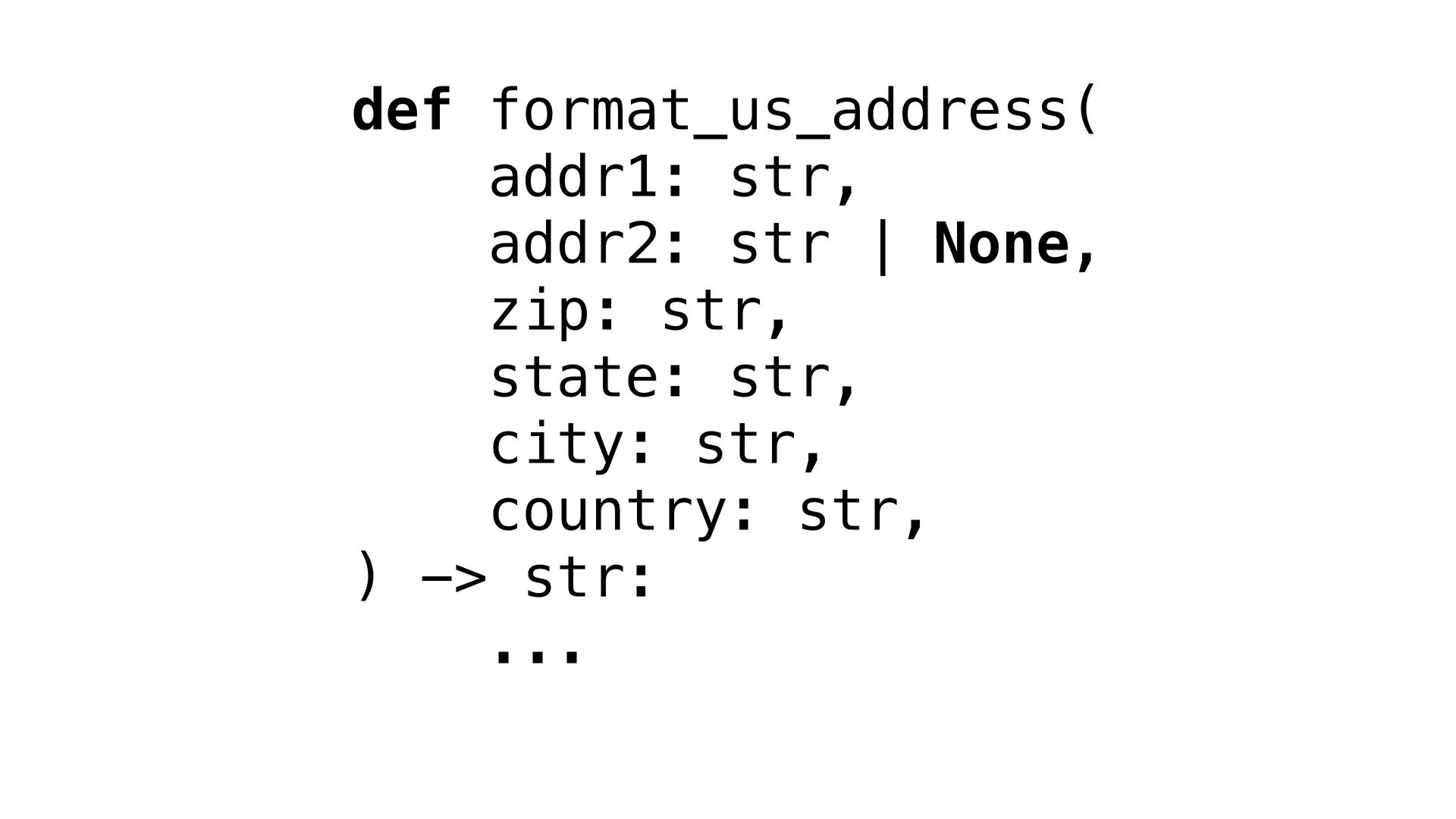

62. def format_us_address( addr1: str, addr2: str | None, zip: str, state: str, city: str, country: str, ) -> str: ...
63. Start with the domain model
64. Start with the domain model
65. Start with the domain model then start ~engineering~ It depends, but
68. “To me, complexity is not about how many keys I have to press – it’s about how di ff icult it is to reason about the consequences of what I’m doing.” — me We’re too lazy to type.
69. Takeaways

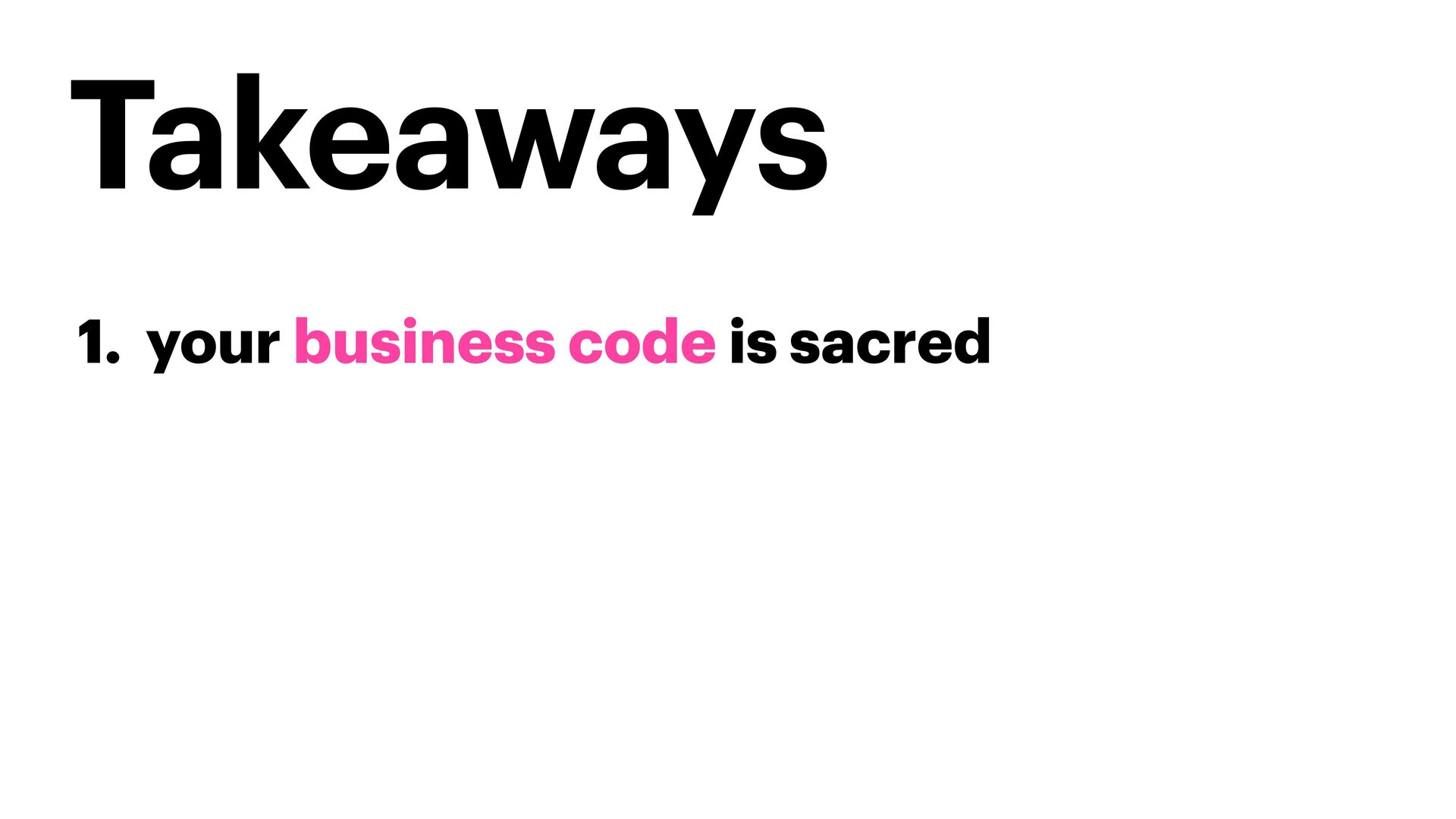

70. Takeaways 1. your business code is sacred

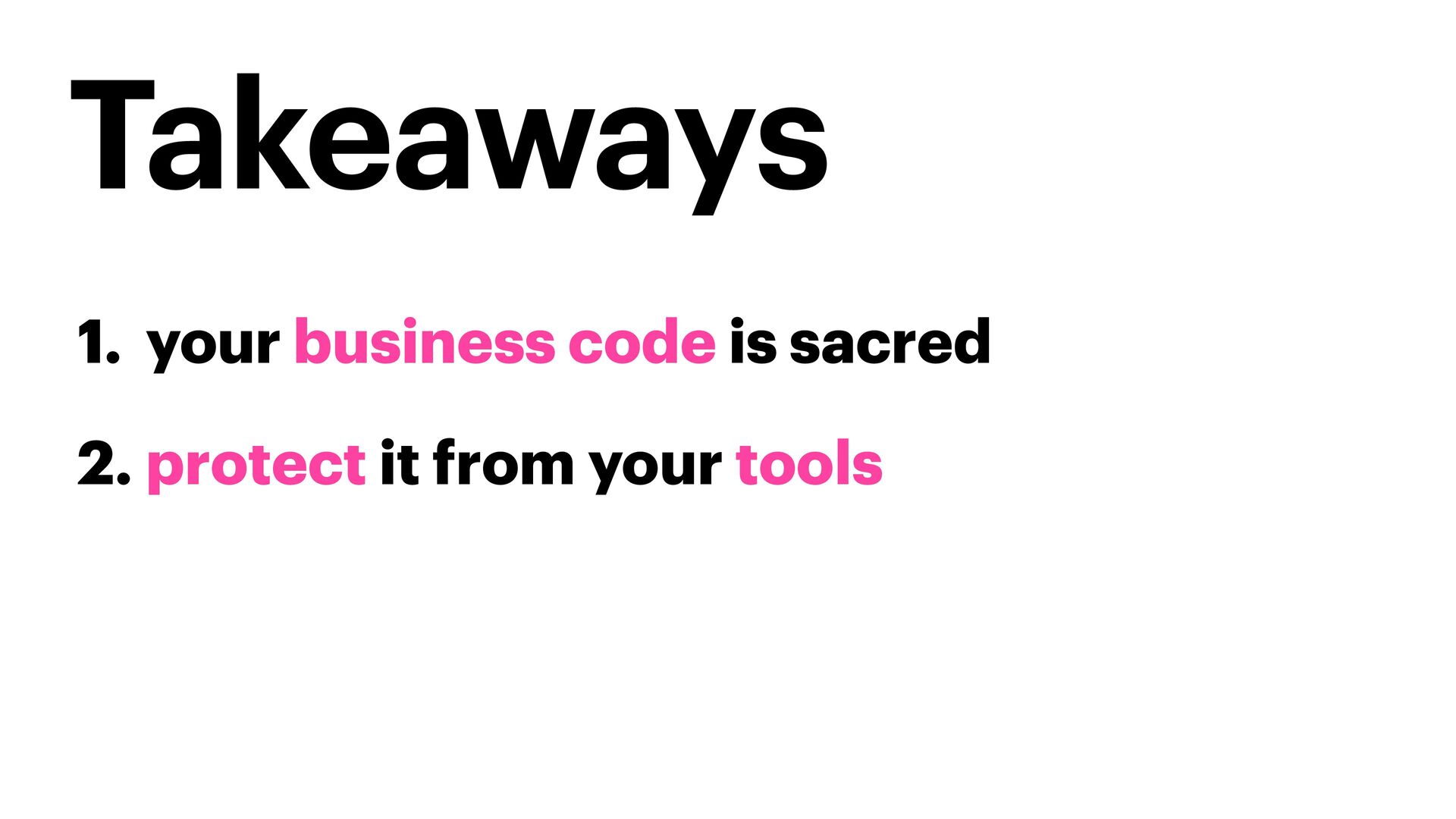

71. Takeaways 1. your business code is sacred 2. protect it from your tools

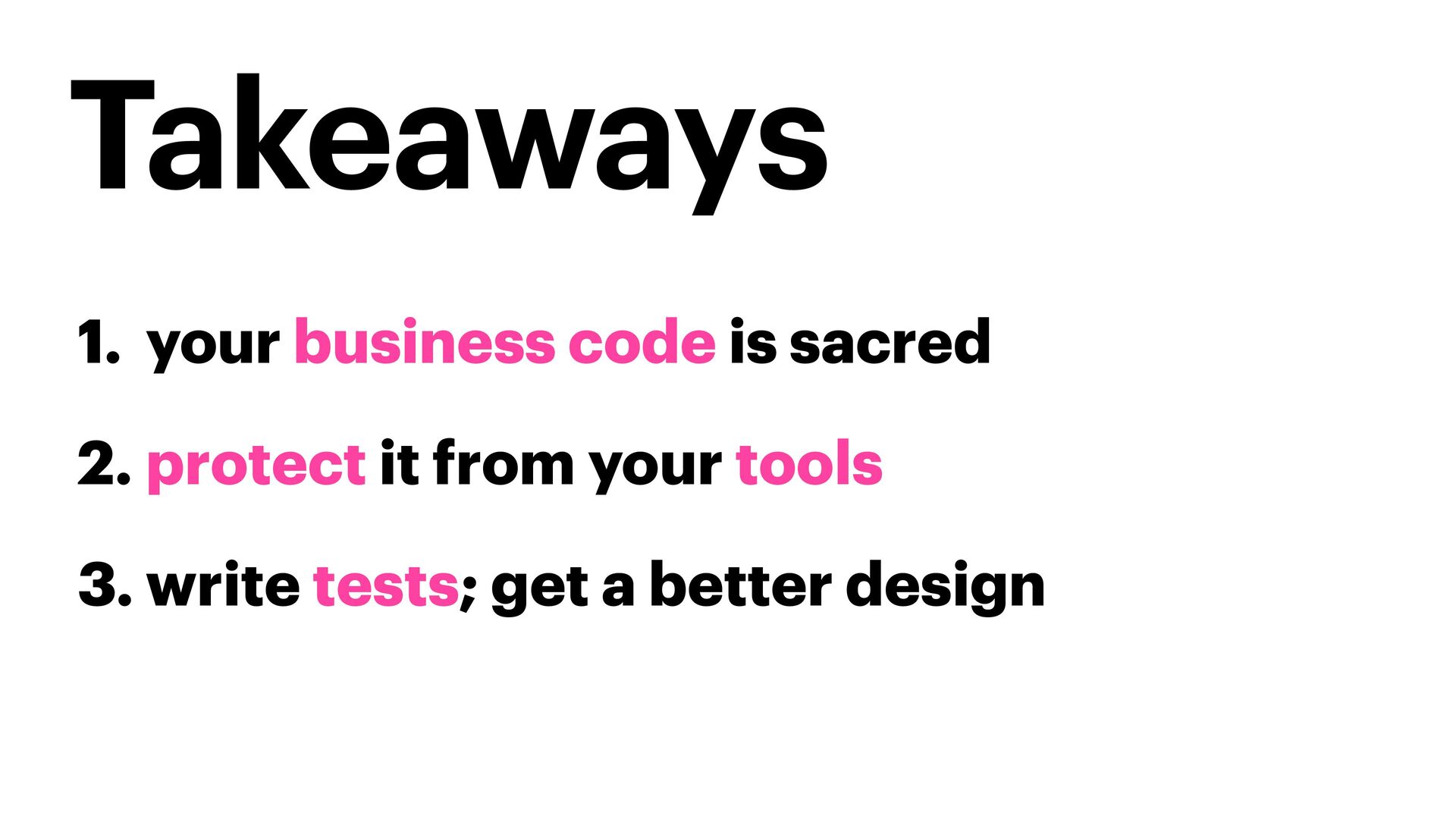

72. Takeaways 1. your business code is sacred 2. protect it from your tools 3. write tests; get a better design
74. OX.CX/DESIGN
75. OX.CX/DESIGN
76. OX.CX/DESIGN VRMD.DE
77. OX.CX/DESIGN VRMD.DE HYNEK.ME
78. OX.CX/DESIGN VRMD.DE HYNEK.ME YOUTUBE.COM/ @THE_HYNEK
