Transcript

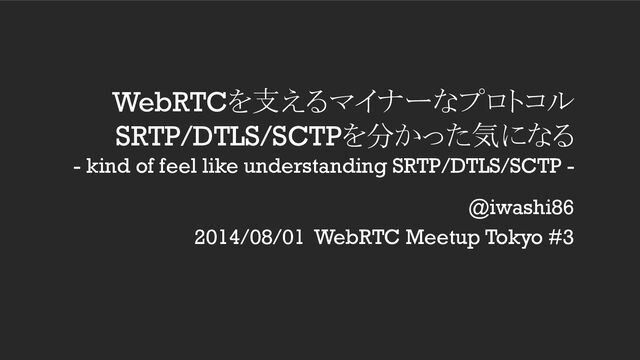

WebRTCを支えるマイナーなプロトコル SRTP/DTLS/SCTPを分かった気になる - kind of feel like understanding SRTP/DTLS/SCTP -
@iwashi86 2014/08/01 WebRTC Meetup Tokyo #3
•Attribute Name Yoshimasa Iwase @iwashi86 web iwashi.co •Work ・Web Engineer@NTT
Com ・HTML5 Experts.jp Editor •Recently ・has become PHPer for 2 months (ついにぺちぱーになりました)
Takeaway 本日お持ち帰りいただくこと
IP UDP DTLS SRTP SCTP Audio/Video Data WebRTC protocol stack
IP UDP DTLS SRTP SCTP Audio/Video Data Understanding…
After this talk you’ll be able to answer このお話が終わる頃には 次の質問に答えられるように
What’s DTLS? What’s SRTP? What’s SCTP? DTLS,SRTP,SCTP? 何それ美味しいの?
Caveat ※注
Feel like understanding (Please check RFC for further information) 分かった気になってるだけ
(詳細はRFC読んでね)
Main Topic ここから本題
IP UDP DTLS SRTP SCTP Audio/Video Data Let’s start with
SRTP ではSRTPから
SRTP
S + RTP
S + RTP Secure
S + RTP Secure Real-time Transport Protocol
RTP?
Protocol for Send/Receive and Audio/Video Real-time 音声映像をリアルタイムに送受信するプロトコルのこと
Why? How? 何で必要なの?どう動くの?
H e l l o Ideal(理想)
Real world with UDP/IP
H e l l o Jitter(ゆらぎ) Real world with UDP/IP
H e l l o Jitter(ゆらぎ) Out-of-order (ホレルになった) H o
l e l Real world with UDP/IP
H e l l o Jitter(ゆらぎ) Out-of-order (ホレルになった) Loss (まさかの地獄行き)
H e l l o H o l e l Real world with UDP/IP
Problem and Solutions of RTP 課題とその解決方法 Jitter (ゆらぎ) Out-of-order (順序逆転)
Loss (消失)
Jitter (ゆらぎ) Out-of-order (順序逆転) Loss (消失) Timestamp タイムスタンプでいつ送ったか記録しておけば タイミングよく再生できるよ Problem
and Solutions of RTP 課題とその解決方法
Jitter (ゆらぎ) Out-of-order (順序逆転) Loss (消失) Timestamp タイムスタンプでいつ送ったか記録しておけば タイミングよく再生できるよ Sequence
Number シーケンス番号があれば並べ替えできるよ Problem and Solutions of RTP 課題とその解決方法
Jitter (ゆらぎ) Out-of-order (順序逆転) Loss (消失) Timestamp タイムスタンプでいつ送ったか記録しておけば タイミングよく再生できるよ Sequence
Number シーケンス番号があれば並べ替えできるよ Give up (don’t have time of retransmission) 再送するほど暇じゃない Problem and Solutions of RTP 課題とその解決方法
RTP is a thin wrapper of UDP RTPはUDPの薄皮みたいなもの http://www.cl.cam.ac.uk/~jac22/books/mm/book/node159.html
SRTP is a just secure RTP SRTPはRTPを安全にしただけ Encrypted Payload 暗号化されたペイロード
http://flylib.com/books/2/110/1/html/2/images/ct402614.jpg
Hey, where is encryption key? あれ? 暗号化の鍵はどこにあるの?
IP UDP DTLS SRTP SCTP Audio/Video Data That’s why we
have DTLS そこでDTLSですよ
DTLS
D + TLS Datagram (UDPの)
D + TLS Datagram (UDPの) Transport Layer Security
TLS?
You know! 知らないとは言わせない
This one! ここ!
Under the food of HTTPS 内部ではこう動いている https://devcentral.f5.com/Portals/0/images/metapost/News-Articles/ltwagnon/2013/Jun/Windows-Live-Writer-525a2ddcdc82_787C-Modif ied%20TLS%20Handshake_2.jpg
What if there is a packet loss パケロスがあったら… https://devcentral.f5.com/Portals/0/images/metapost/News-Articles/ltwagnon/2013/Jun/Windows-Live-Writer-525a2ddcdc82_787C-Modif ied%20TLS%20Handshake_2.jpg
What if there is a packet loss パケロスがあったら… https://devcentral.f5.com/Portals/0/images/metapost/News-Articles/ltwagnon/2013/Jun/Windows-Live-Writer-525a2ddcdc82_787C-Modif ied%20TLS%20Handshake_2.jpg
Can’t share key 鍵を共有できない
We need reliability! 信頼性さえあれば!
So we’ve added TCP functions to TLS そこでTLSにTCPの機能をつけてみた
DLTS = TLS + TCP (ex. Seq, Order-control) DTLSはTLSにTCPの機能つけたようなもの Retransmission
再送する
IP UDP DTLS SRTP SCTP Audio/Video Data End with SCTP
最後は SCTP
You’re using now! 使ってないとは言わせない
STCP is running in LTE core NW SCTPはLTEキャリアコア網の中で動いている https://www.nttdocomo.co.jp/binary/pdf/corporate/technology/rd/technical_journal/bn/vol19_1/vol19_1_011jp.pdf
SCTP ≒ TCP 結構似てる(似せられる) SCTP ≒ HTTP2 レイヤは違えど考え方が似ている
Handshake SYN SYN + ACK ACK INIT INIT-ACK COOKIE COOKIE-ECHO
TCP SCTP
Difference between STCP and TCP で、何が違うの? SCTP TCP UDP(参考) Reliability
到達保証 Configurable 選べる Yes No Order 順序制御 Configurable 選べる Yes No Transmission 転送志向 Message メッセージ志向 Byte バイト志向 Message メッセージ志向 Multi Stream マルチストリーム有無 Yes No - Flow / Congestion Control 流量/輻輳制御 Yes Yes No
Now you might be able to answer そろそろなんとなく答えられるはず?
What’s DTLS? What’s SRTP? What’s SCTP?
Thanks! おしまい
