1. jgs jgs Compilers Lecture 25: Intermediate Code II Dr. Javier Gonzalez-Sanchez jgonzalezs@up.edu.mx

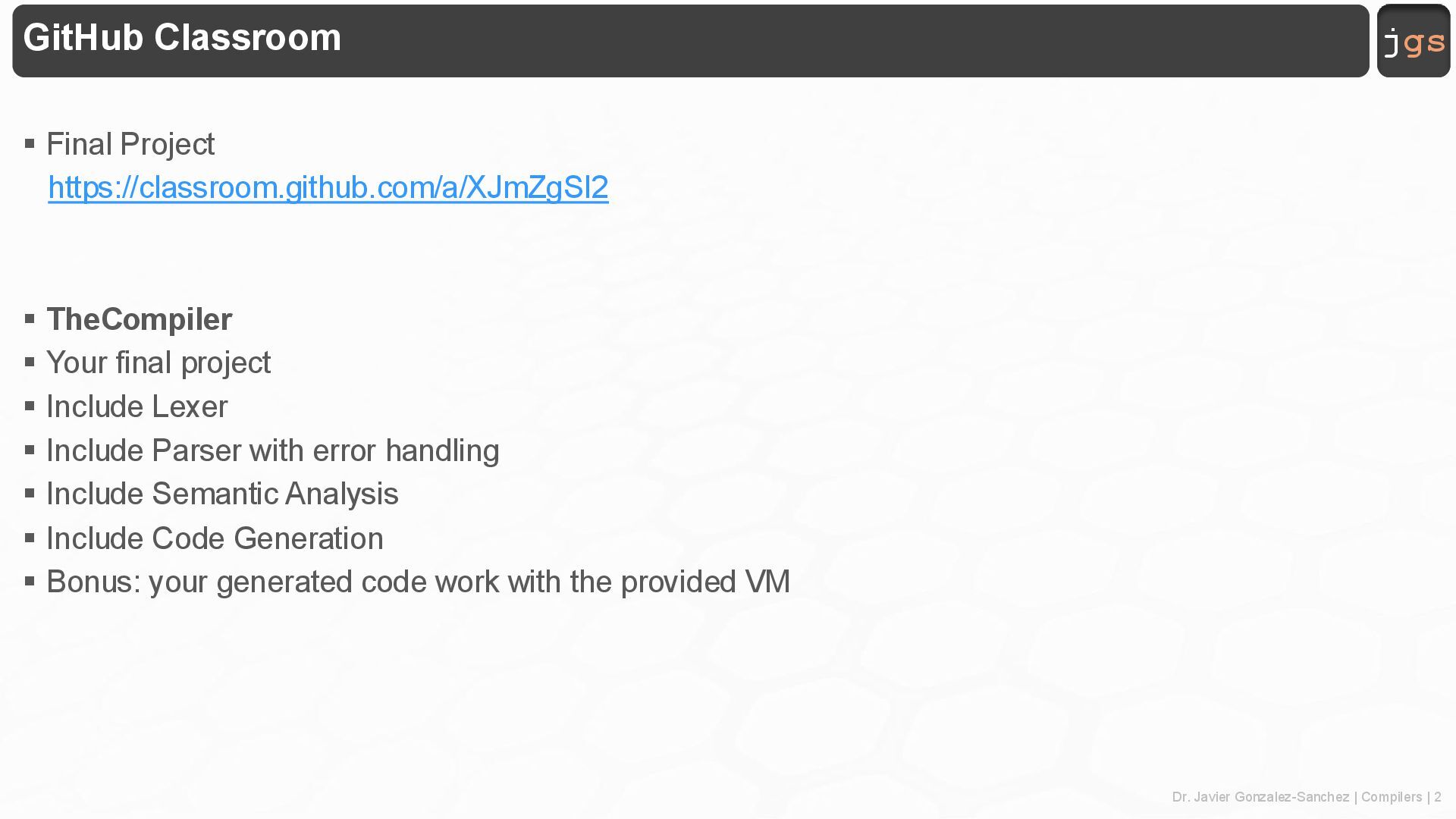

2. Dr. Javier Gonzalez-Sanchez | Compilers | 2 jgs jgs GitHub Classroom ▪ Final Project https://classroom.github.com/a/XJmZgSI2 ▪ TheCompiler ▪ Your final project ▪ Include Lexer ▪ Include Parser with error handling ▪ Include Semantic Analysis ▪ Include Code Generation ▪ Bonus: your generated code work with the provided VM

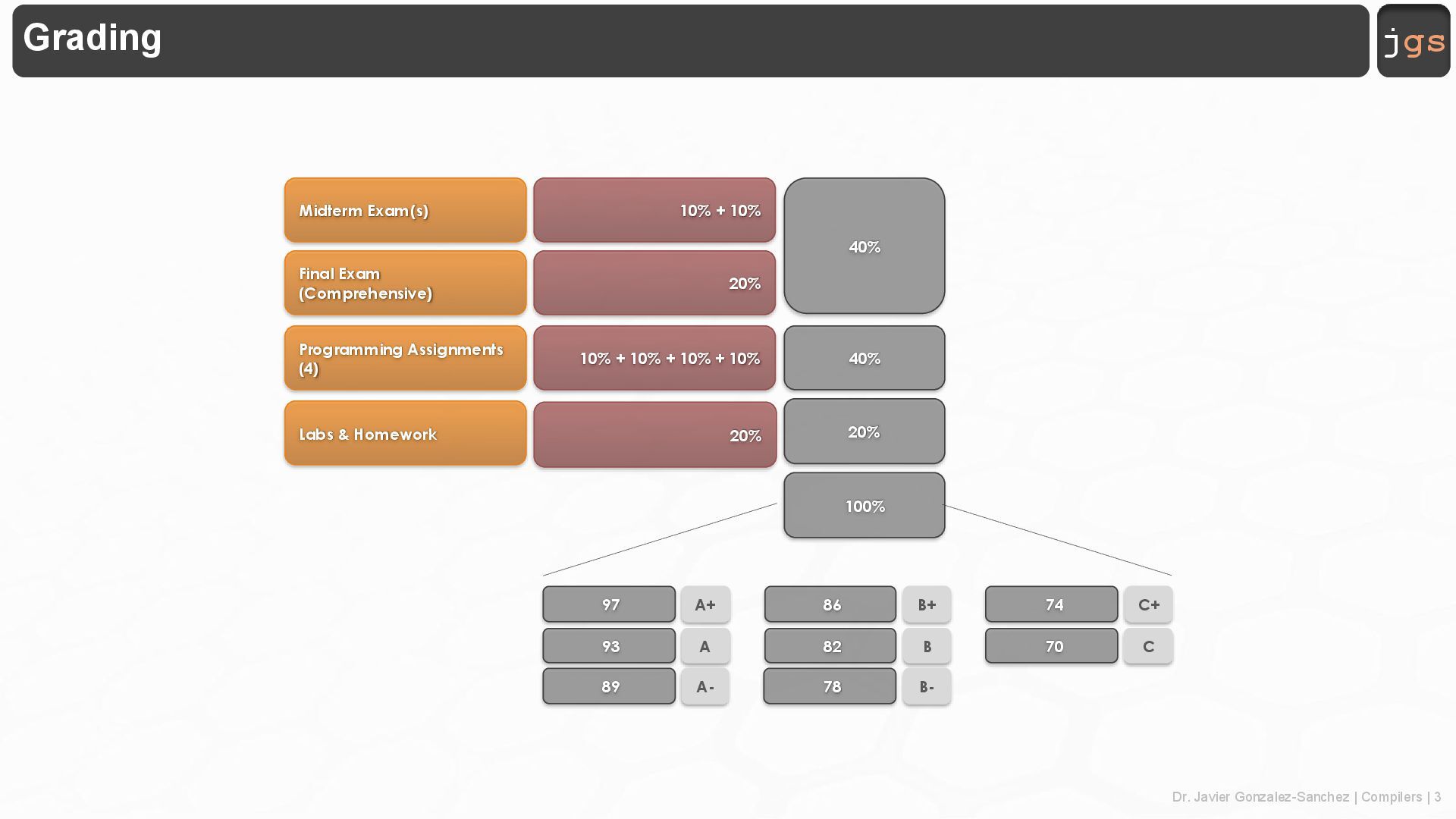

3. Dr. Javier Gonzalez-Sanchez | Compilers | 3 jgs jgs Grading Midterm Exam(s) 40% 10% + 10% 20% Final Exam (Comprehensive) 40% 10% + 10% + 10% + 10% Programming Assignments (4) 100% A+ 97 A 93 A- 89 B+ 86 B 82 B- 78 C+ 74 C 70 Labs & Homework 20% 20%

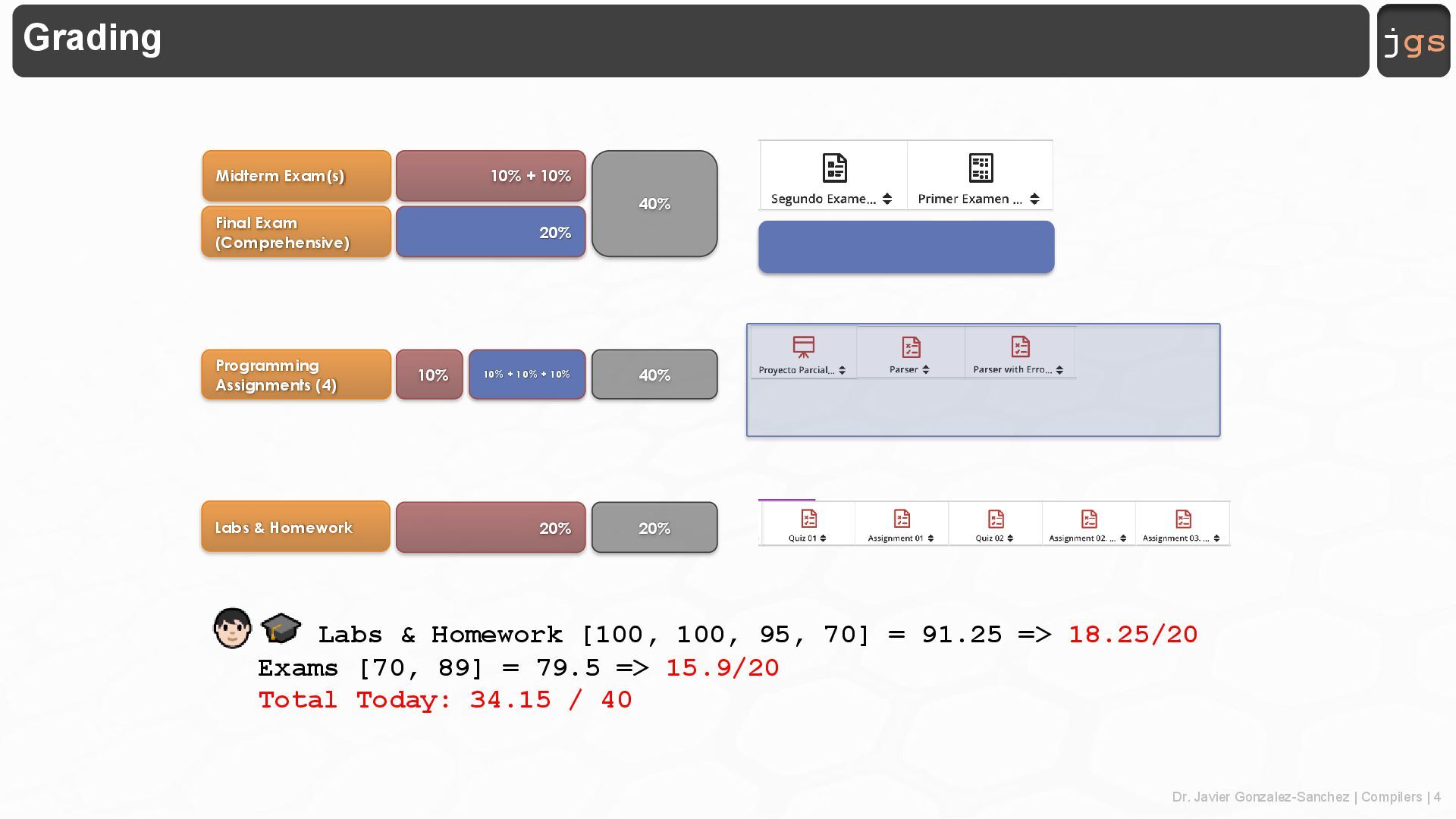

4. Dr. Javier Gonzalez-Sanchez | Compilers | 4 jgs jgs Grading Midterm Exam(s) 40% 10% + 10% 20% Final Exam (Comprehensive) 40% 10% Programming Assignments (4) Labs & Homework 20% 20% 10% + 10% + 10% Labs & Homework [100, 100, 95, 70] = 91.25 => 18.25/20 Exams [70, 89] = 79.5 => 15.9/20 Total Today: 34.15 / 40
5. jgs jgs Previously …

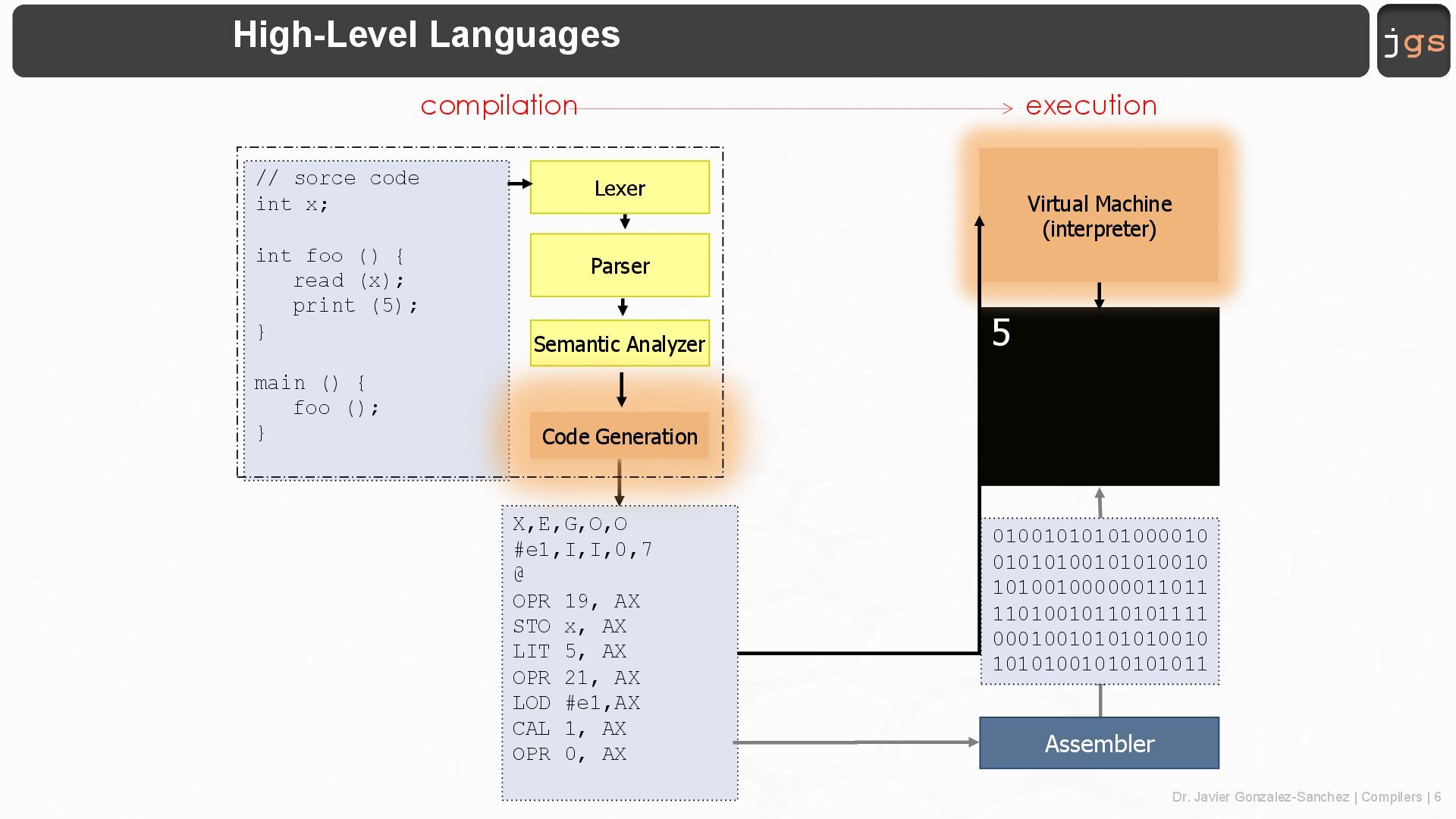

6. Dr. Javier Gonzalez-Sanchez | Compilers | 6 jgs jgs High-Level Languages X,E,G,O,O #e1,I,I,0,7 @ OPR 19, AX STO x, AX LIT 5, AX OPR 21, AX LOD #e1,AX CAL 1, AX OPR 0, AX 5 Virtual Machine (interpreter) // sorce code int x; int foo () { read (x); print (5); } main () { foo (); } Lexer Parser Semantic Analyzer Code Generation 01001010101000010 01010100101010010 10100100000011011 11010010110101111 00010010101010010 10101001010101011 Assembler compilation execution
7. Dr. Javier Gonzalez-Sanchez | Compilers | 7 jgs jgs Translate Source to Object { int a; int b; int c; int d; if (a != 5) { b = c + d; } print (a); } a,int,global 0 b,int,global 0 c,int,global 0 d,int,global 0 #E1,int,label,9 #P,int,label,1 @ lod , 0 lit 5, 0 opr 14, 0 jmc #e1, false lod c, 0 lod d, 0 opr 2, 0 sto b, 0 lod a, 0 opr 21, 0 opr 1, 0

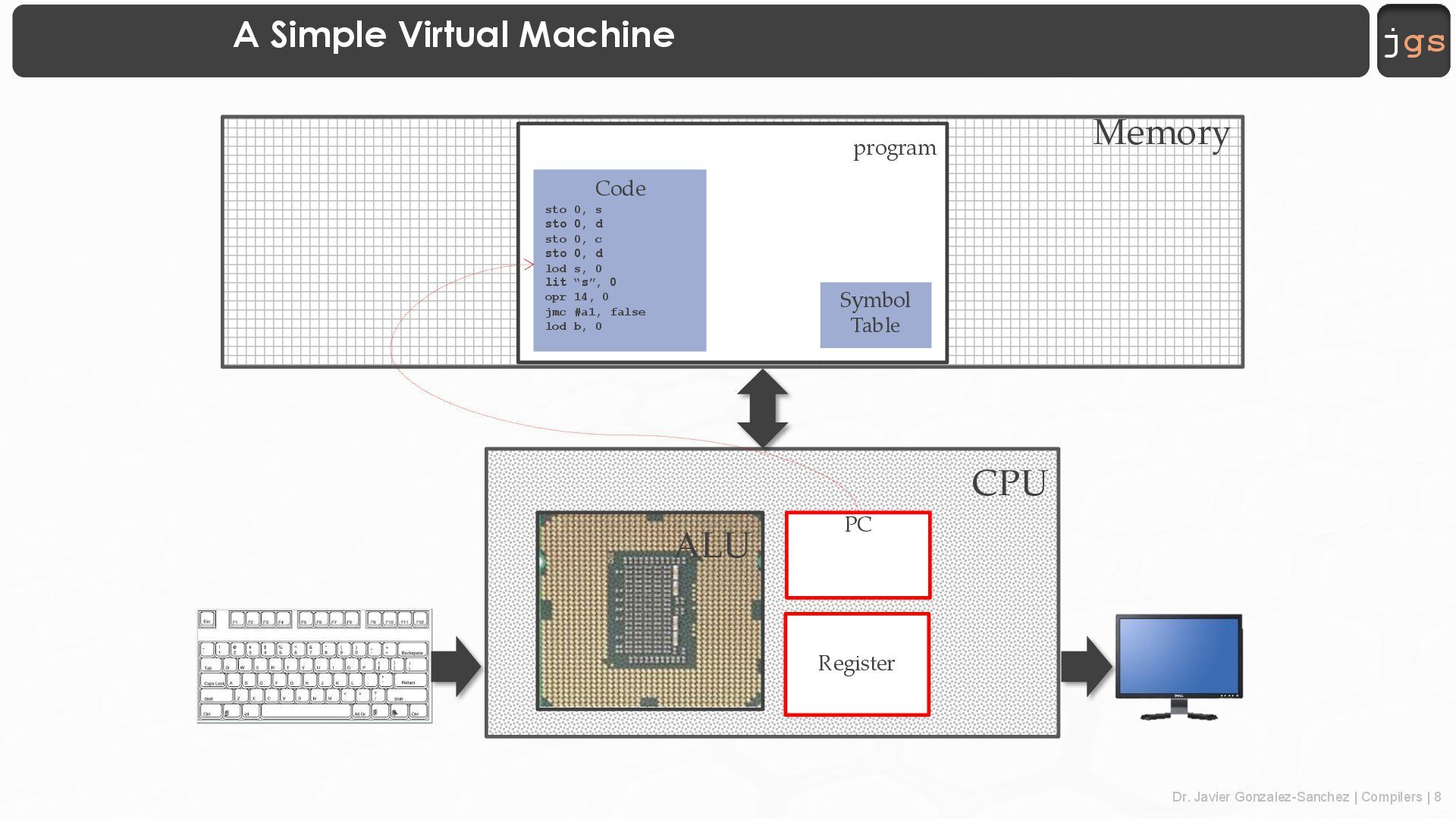

8. Dr. Javier Gonzalez-Sanchez | Compilers | 8 jgs jgs A Simple Virtual Machine CPU ALU Register PC Memory program Code sto 0, s sto 0, d sto 0, c sto 0, d lod s, 0 lit “s”, 0 opr 14, 0 jmc #a1, false lod b, 0 Symbol Table

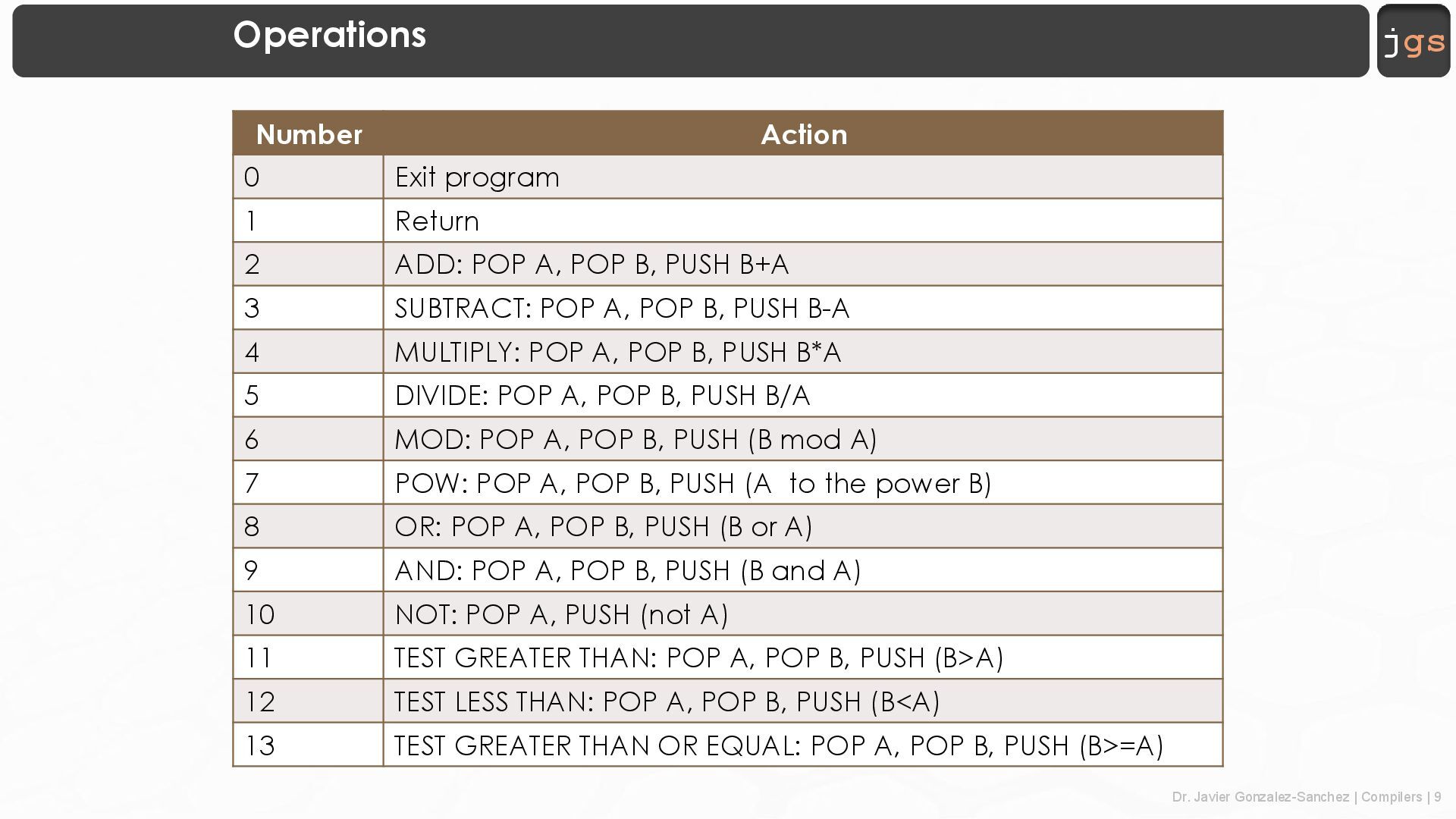

9. Dr. Javier Gonzalez-Sanchez | Compilers | 9 jgs jgs Operations Number Action 0 Exit program 1 Return 2 ADD: POP A, POP B, PUSH B+A 3 SUBTRACT: POP A, POP B, PUSH B-A 4 MULTIPLY: POP A, POP B, PUSH B*A 5 DIVIDE: POP A, POP B, PUSH B/A 6 MOD: POP A, POP B, PUSH (B mod A) 7 POW: POP A, POP B, PUSH (A to the power B) 8 OR: POP A, POP B, PUSH (B or A) 9 AND: POP A, POP B, PUSH (B and A) 10 NOT: POP A, PUSH (not A) 11 TEST GREATER THAN: POP A, POP B, PUSH (B>A) 12 TEST LESS THAN: POP A, POP B, PUSH (B<A) 13 TEST GREATER THAN OR EQUAL: POP A, POP B, PUSH (B>=A)
10. Dr. Javier Gonzalez-Sanchez | Compilers | 10 jgs jgs Operations Number Action 14 TEST LESS THAN OR EQUAL: POP A, POP B, PUSH (B<=A) 15 TEST EQUAL: POP A, POP B, PUSH (B=A) 16 TEST NOT EQUAL: POP A, POP B, PUSH (B<>A) 17 18 clear screen 19 read a value from the standard input 20 print a value to the standard output 21 print a value to the standard output and a newline character
11. jgs jgs Let’s Review

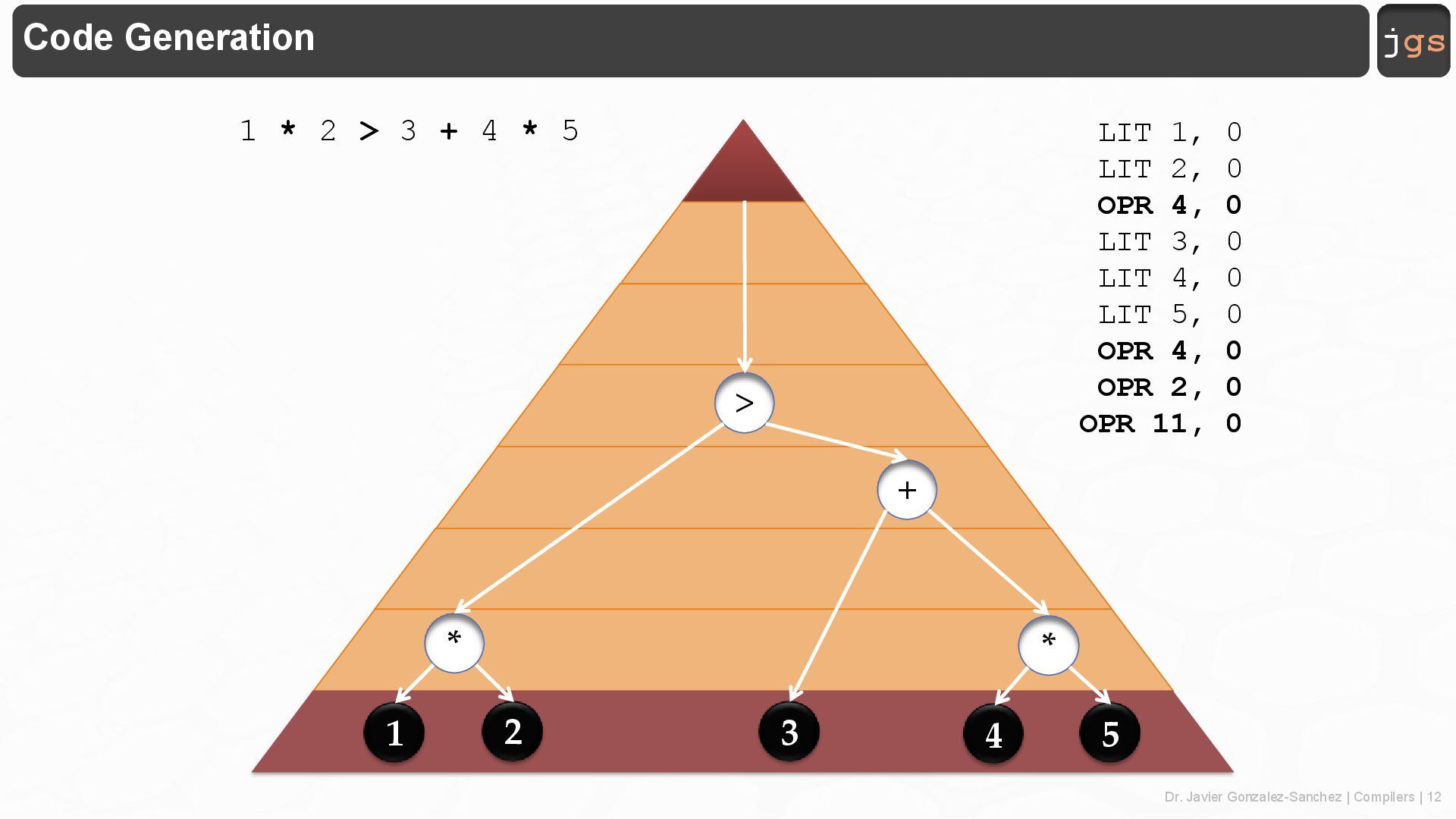

12. Dr. Javier Gonzalez-Sanchez | Compilers | 12 jgs jgs Code Generation * 1 2 * 4 5 + 3 > 1 * 2 > 3 + 4 * 5 LIT 1, 0 LIT 2, 0 OPR 4, 0 LIT 3, 0 LIT 4, 0 LIT 5, 0 OPR 4, 0 OPR 2, 0 OPR 11, 0

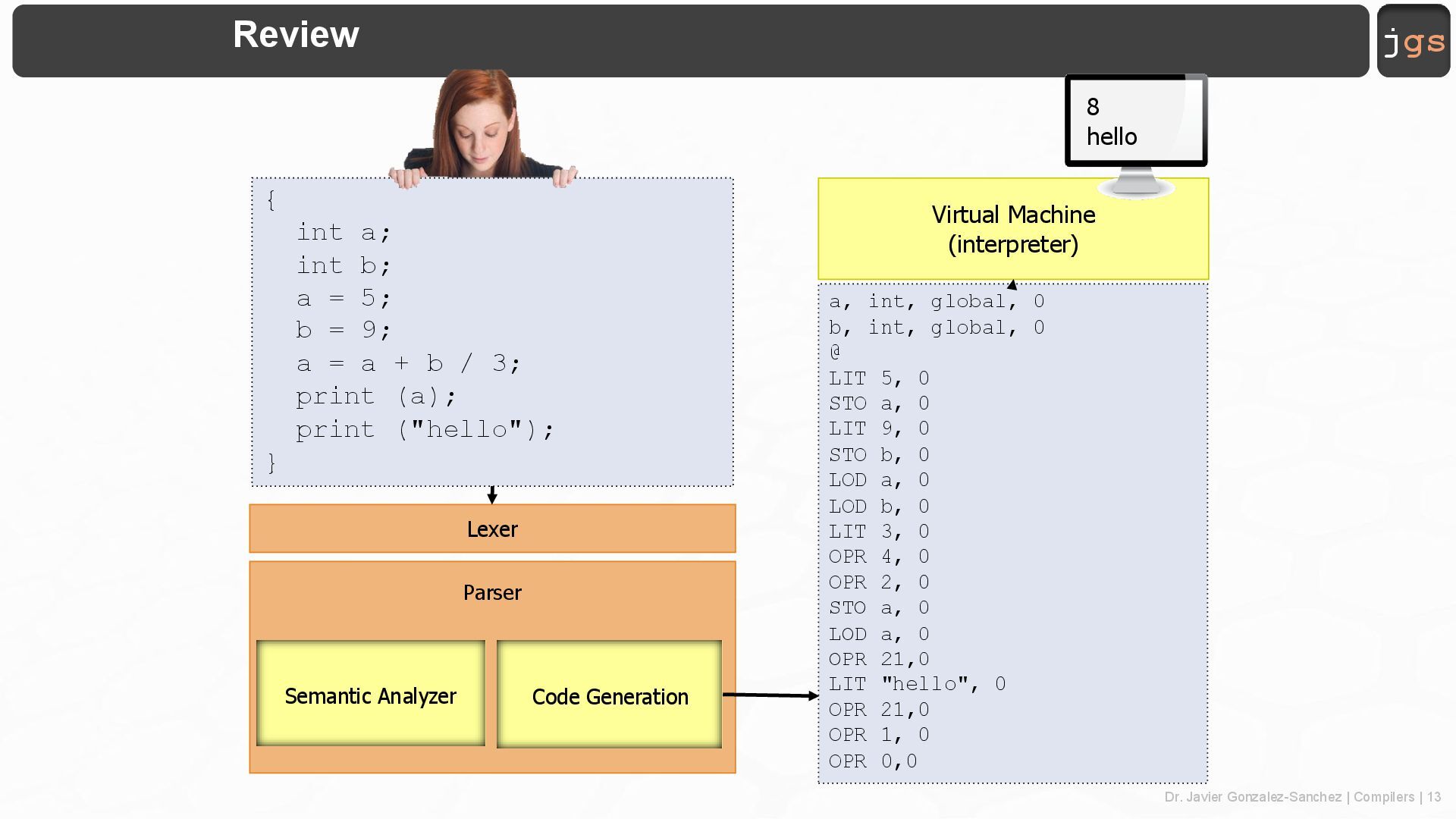

13. Dr. Javier Gonzalez-Sanchez | Compilers | 13 jgs jgs Review a, int, global, 0 b, int, global, 0 @ LIT 5, 0 STO a, 0 LIT 9, 0 STO b, 0 LOD a, 0 LOD b, 0 LIT 3, 0 OPR 4, 0 OPR 2, 0 STO a, 0 LOD a, 0 OPR 21,0 LIT "hello", 0 OPR 21,0 OPR 1, 0 OPR 0,0 Virtual Machine (interpreter) { int a; int b; a = 5; b = 9; a = a + b / 3; print (a); print ("hello"); } Lexer Parser Semantic Analyzer Code Generation 8 hello

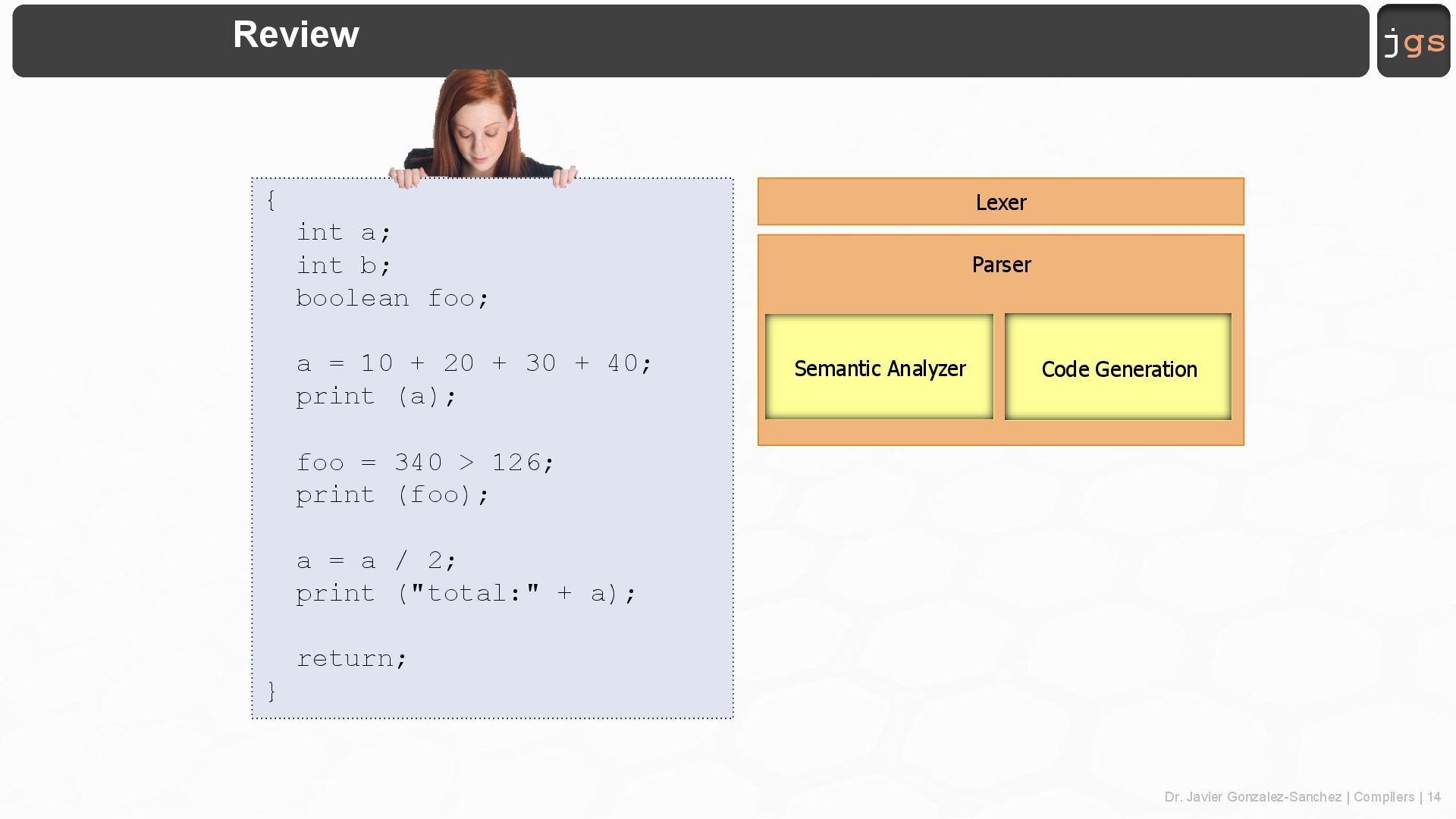

14. Dr. Javier Gonzalez-Sanchez | Compilers | 14 jgs jgs Review { int a; int b; boolean foo; a = 10 + 20 + 30 + 40; print (a); foo = 340 > 126; print (foo); a = a / 2; print ("total:" + a); return; } Lexer Parser Semantic Analyzer Code Generation

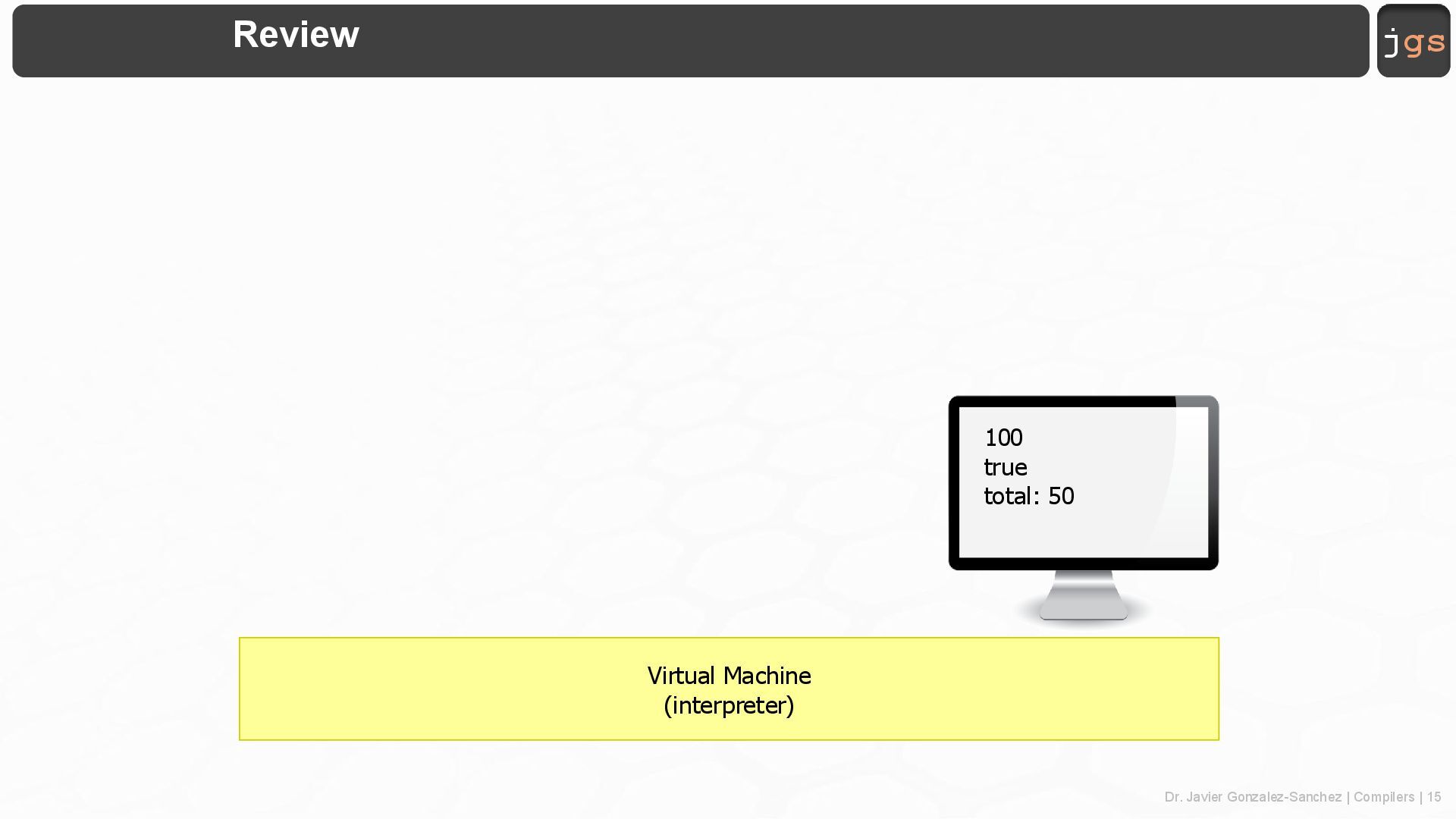

15. Dr. Javier Gonzalez-Sanchez | Compilers | 15 jgs jgs Review Virtual Machine (interpreter) 100 true total: 50
16. jgs jgs What’s next?
17. Dr. Javier Gonzalez-Sanchez | Compilers | 17 jgs jgs Your Code Should be

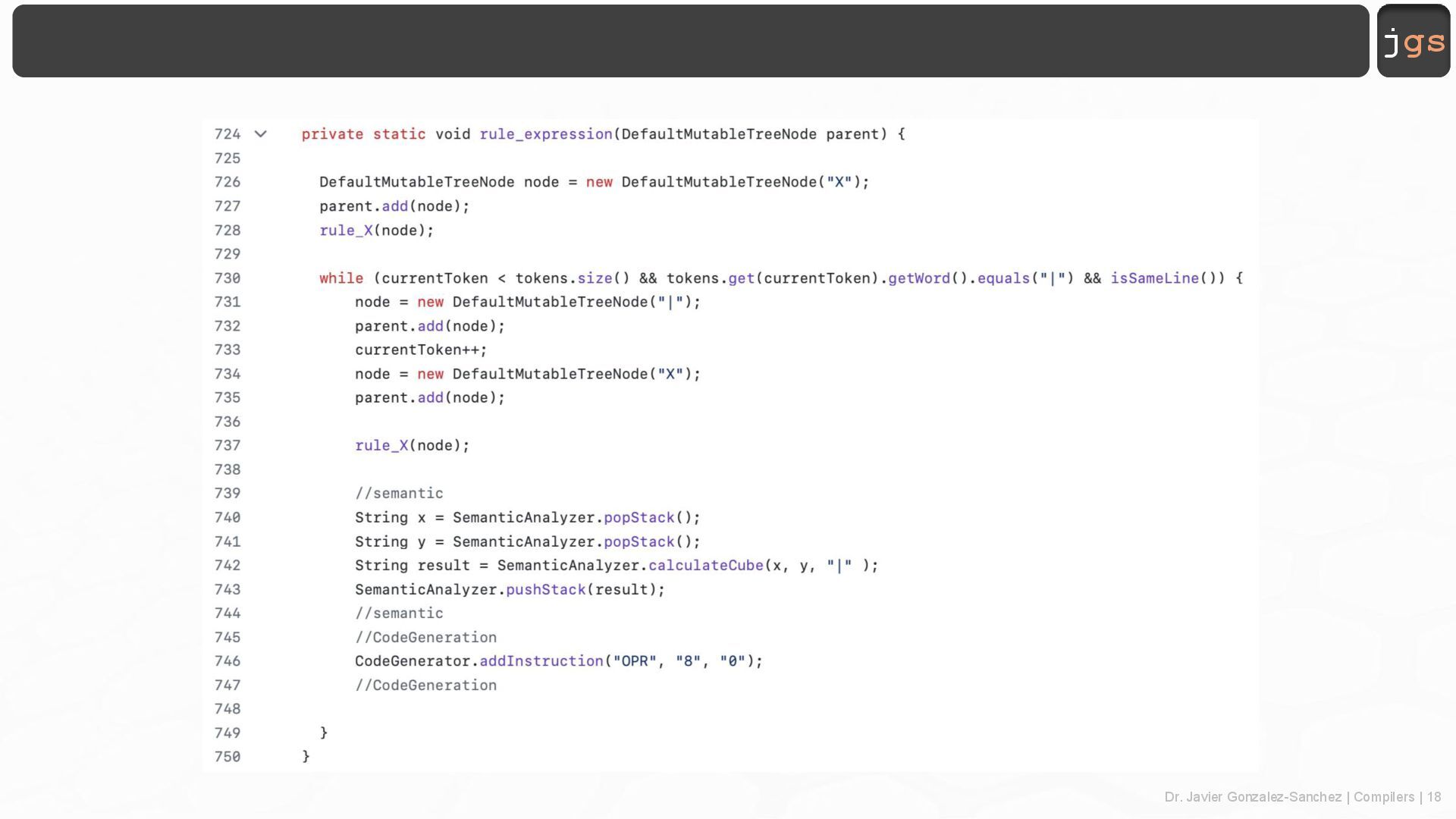

18. Dr. Javier Gonzalez-Sanchez | Compilers | 18 jgs jgs

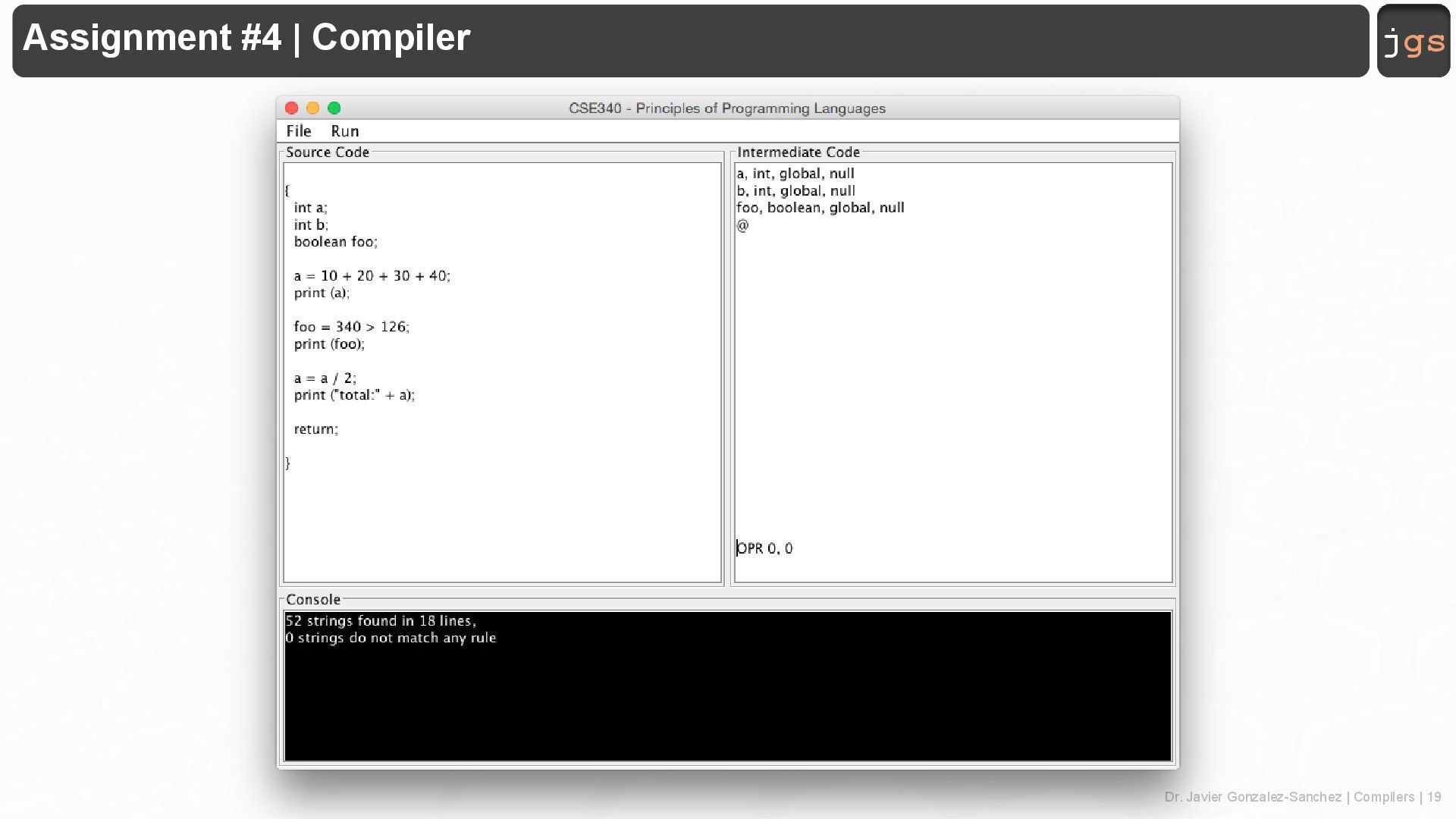

19. Dr. Javier Gonzalez-Sanchez | Compilers | 19 jgs jgs Assignment #4 | Compiler

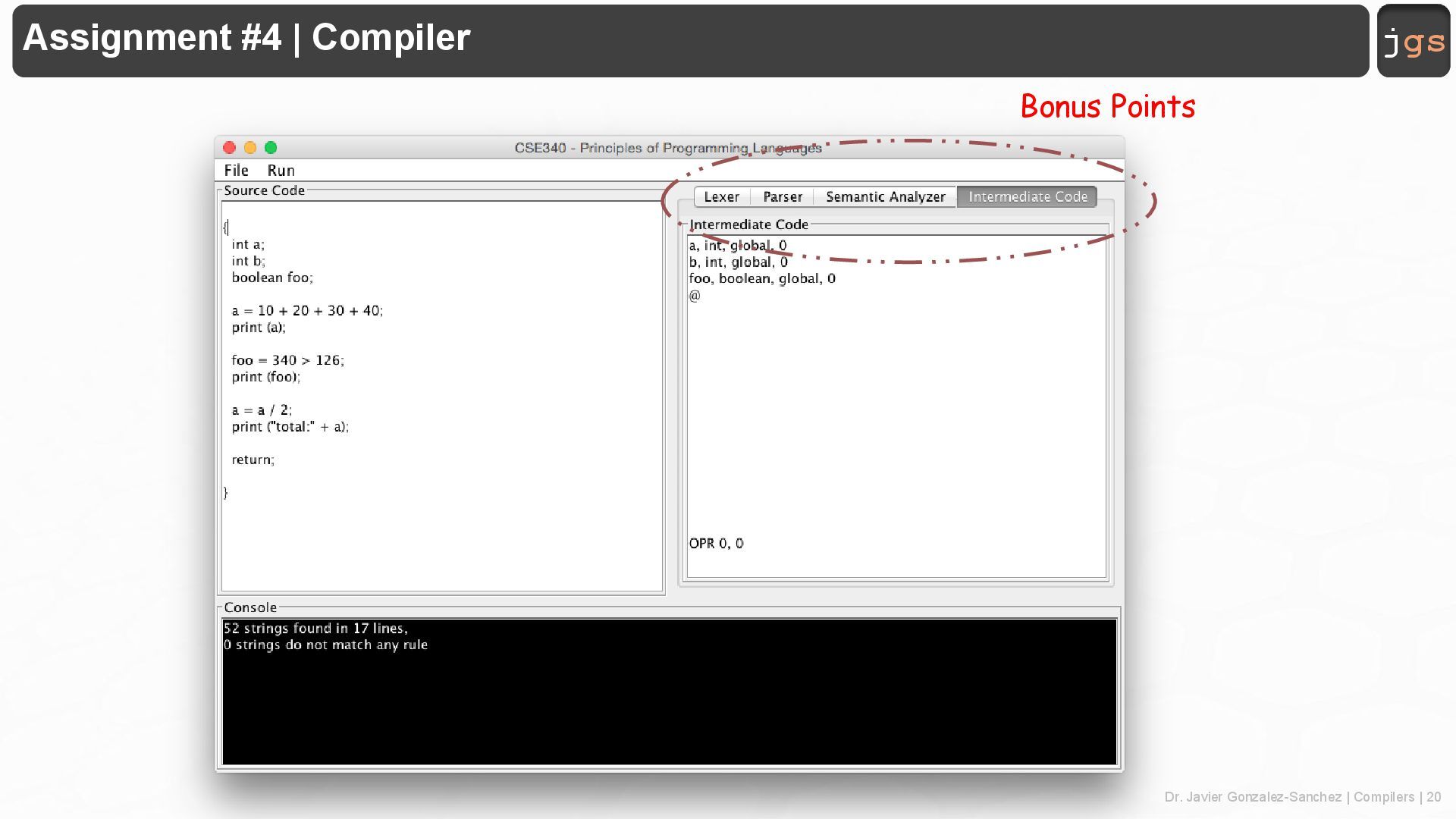

20. Dr. Javier Gonzalez-Sanchez | Compilers | 20 jgs jgs Assignment #4 | Compiler Bonus Points

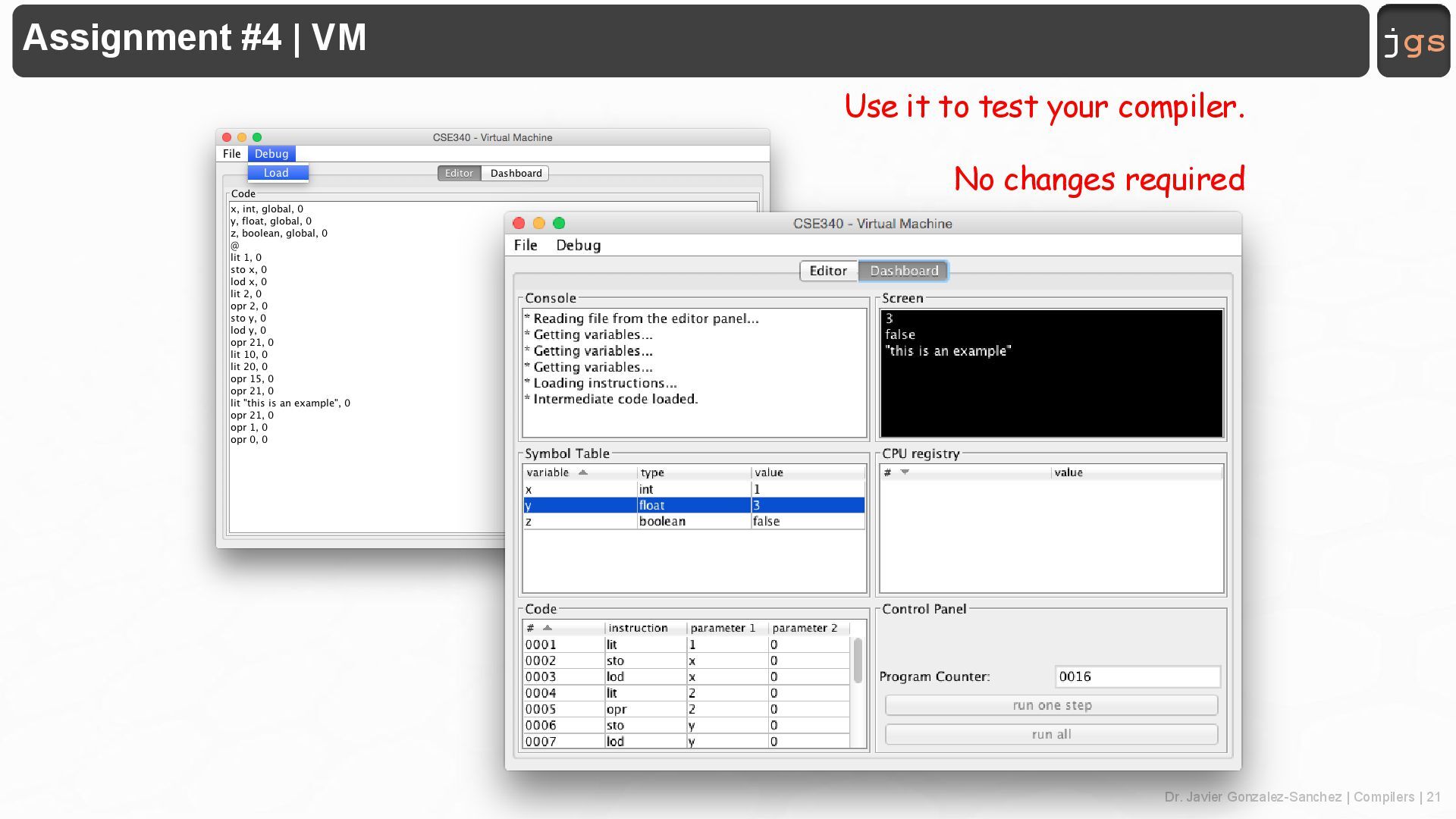

21. Dr. Javier Gonzalez-Sanchez | Compilers | 21 jgs jgs Assignment #4 | VM Use it to test your compiler. No changes required
22. Dr. Javier Gonzalez-Sanchez | Compilers | 22 jgs jgs Implementing Intermediate Code Generation
23. Dr. Javier Gonzalez-Sanchez | Compilers | 23 jgs jgs Review Programming Assignment 4 Level 1 LIT, LOD, STO, OPR

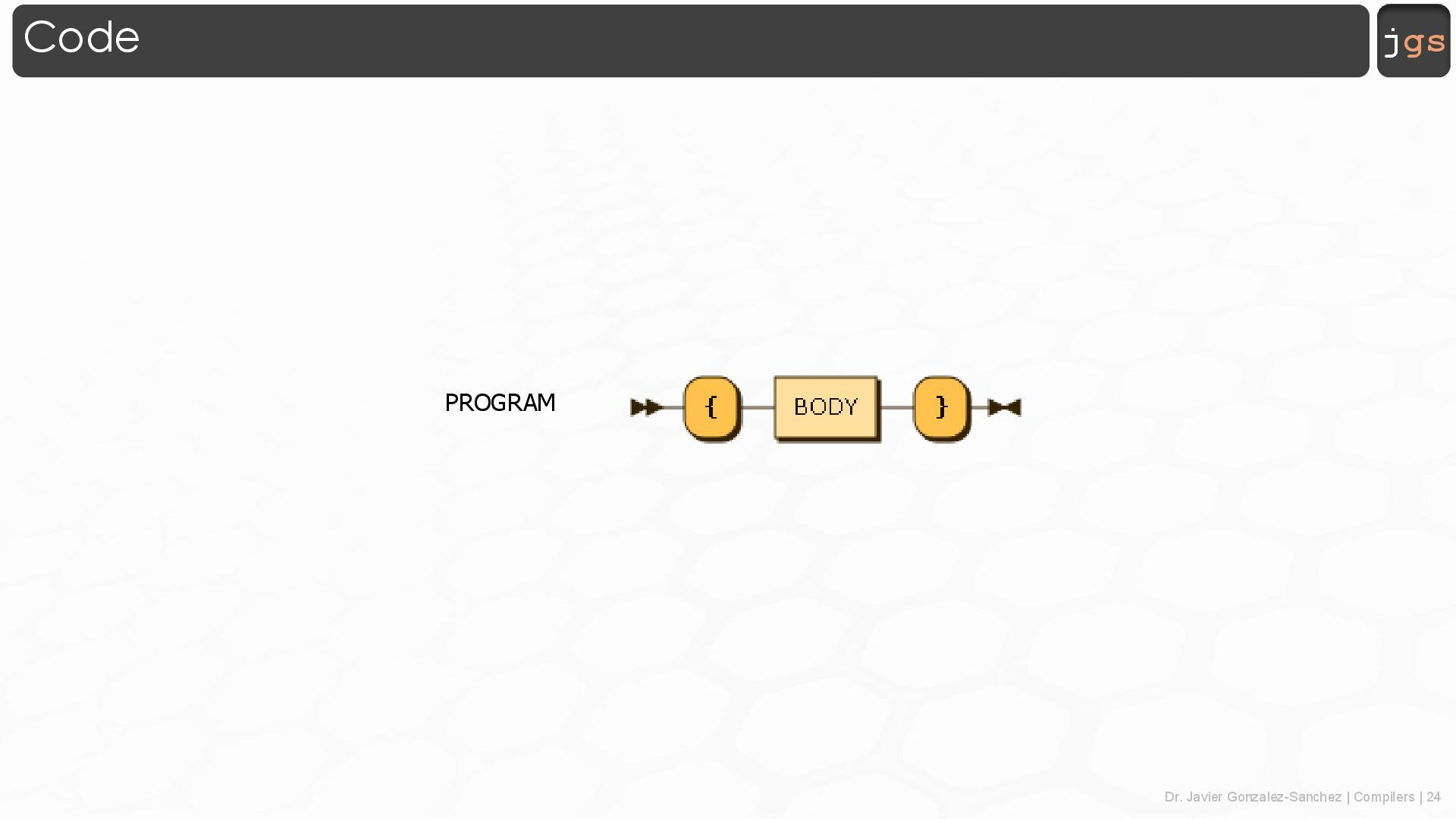

24. Dr. Javier Gonzalez-Sanchez | Compilers | 24 jgs jgs Code PROGRAM

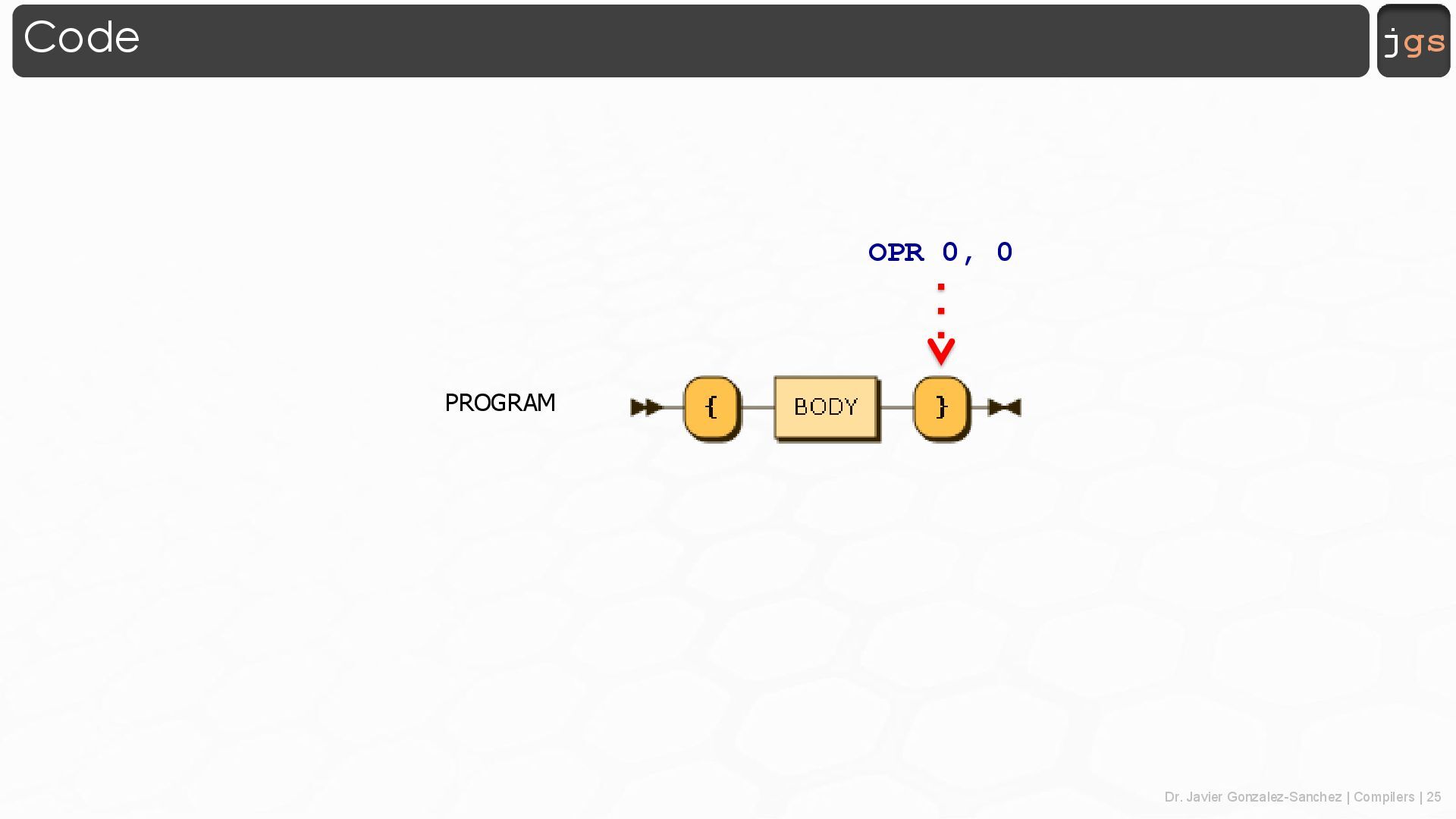

25. Dr. Javier Gonzalez-Sanchez | Compilers | 25 jgs jgs Code PROGRAM OPR 0, 0

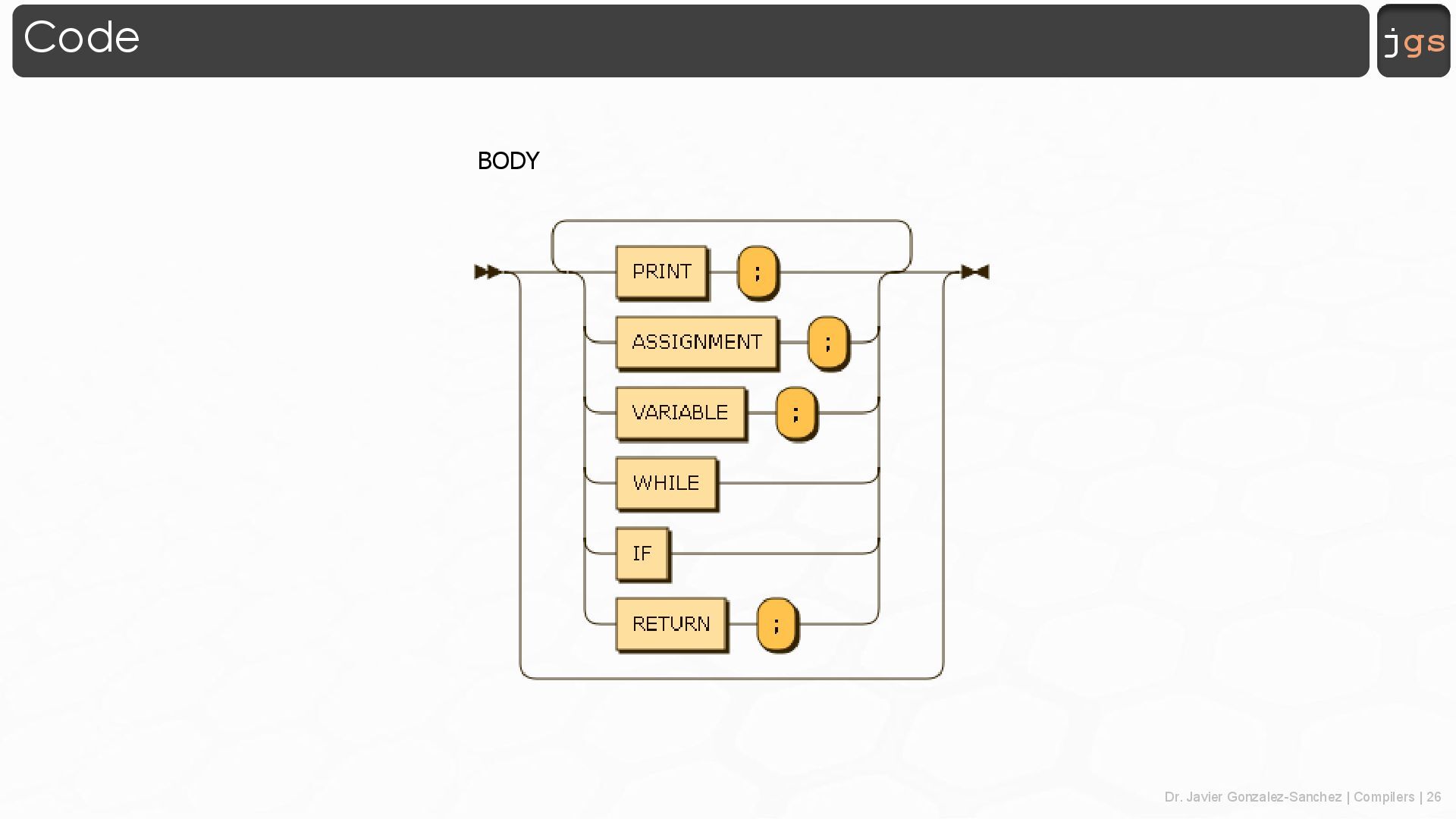

26. Dr. Javier Gonzalez-Sanchez | Compilers | 26 jgs jgs Code BODY
27. Dr. Javier Gonzalez-Sanchez | Compilers | 27 jgs jgs Code BODY
28. Dr. Javier Gonzalez-Sanchez | Compilers | 28 jgs jgs Code PRINT

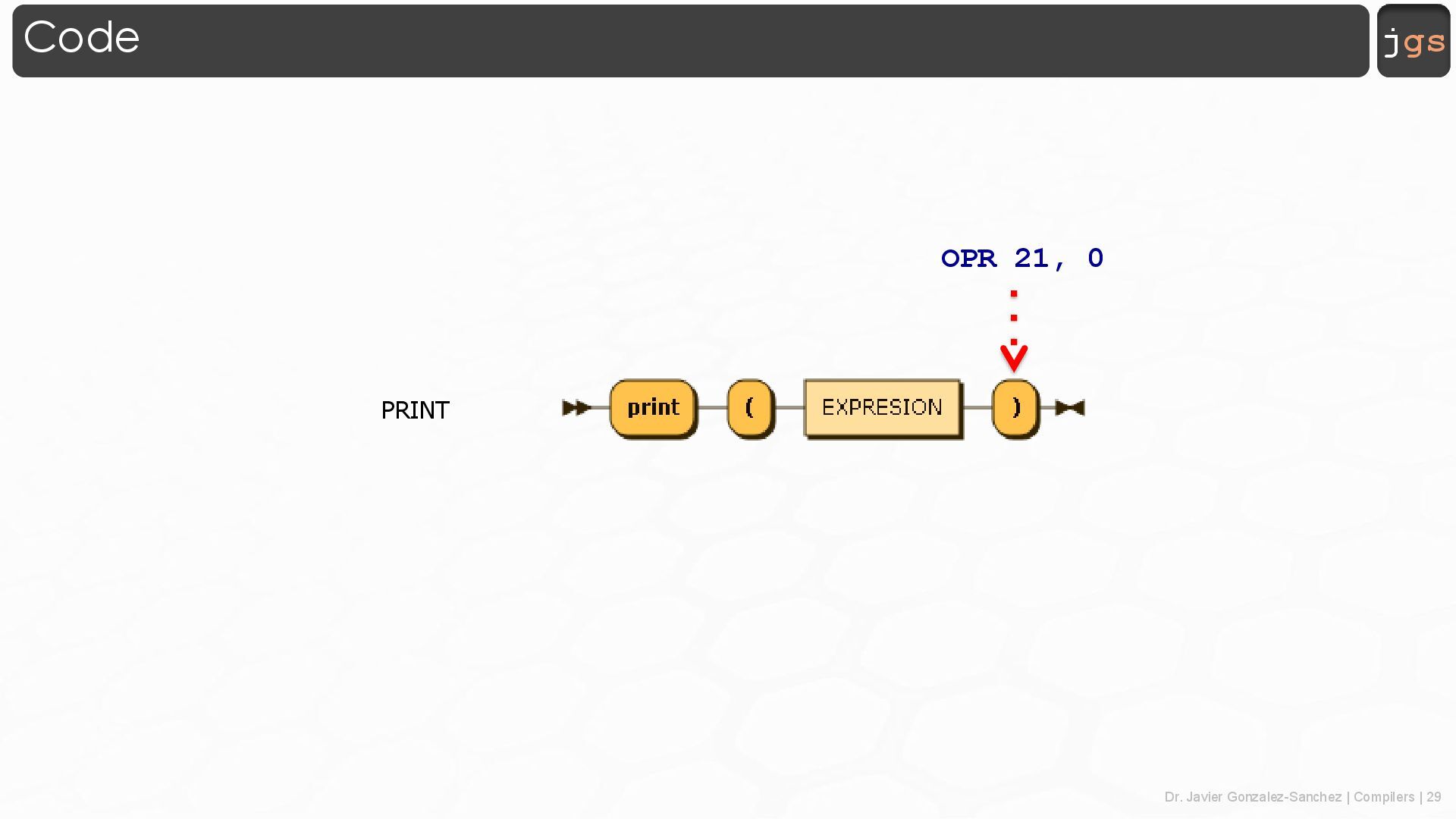

29. Dr. Javier Gonzalez-Sanchez | Compilers | 29 jgs jgs Code PRINT OPR 21, 0

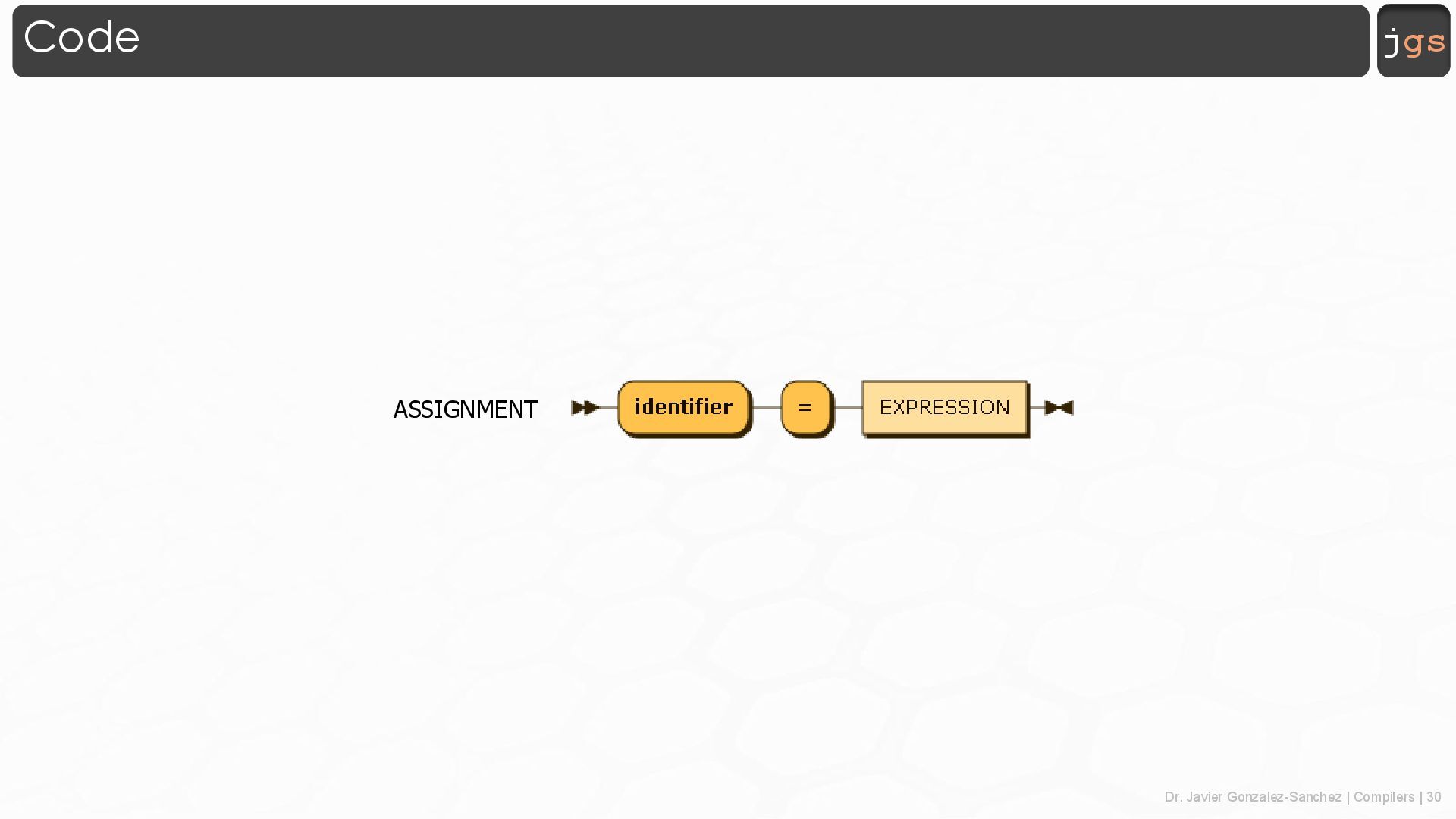

30. Dr. Javier Gonzalez-Sanchez | Compilers | 30 jgs jgs Code ASSIGNMENT

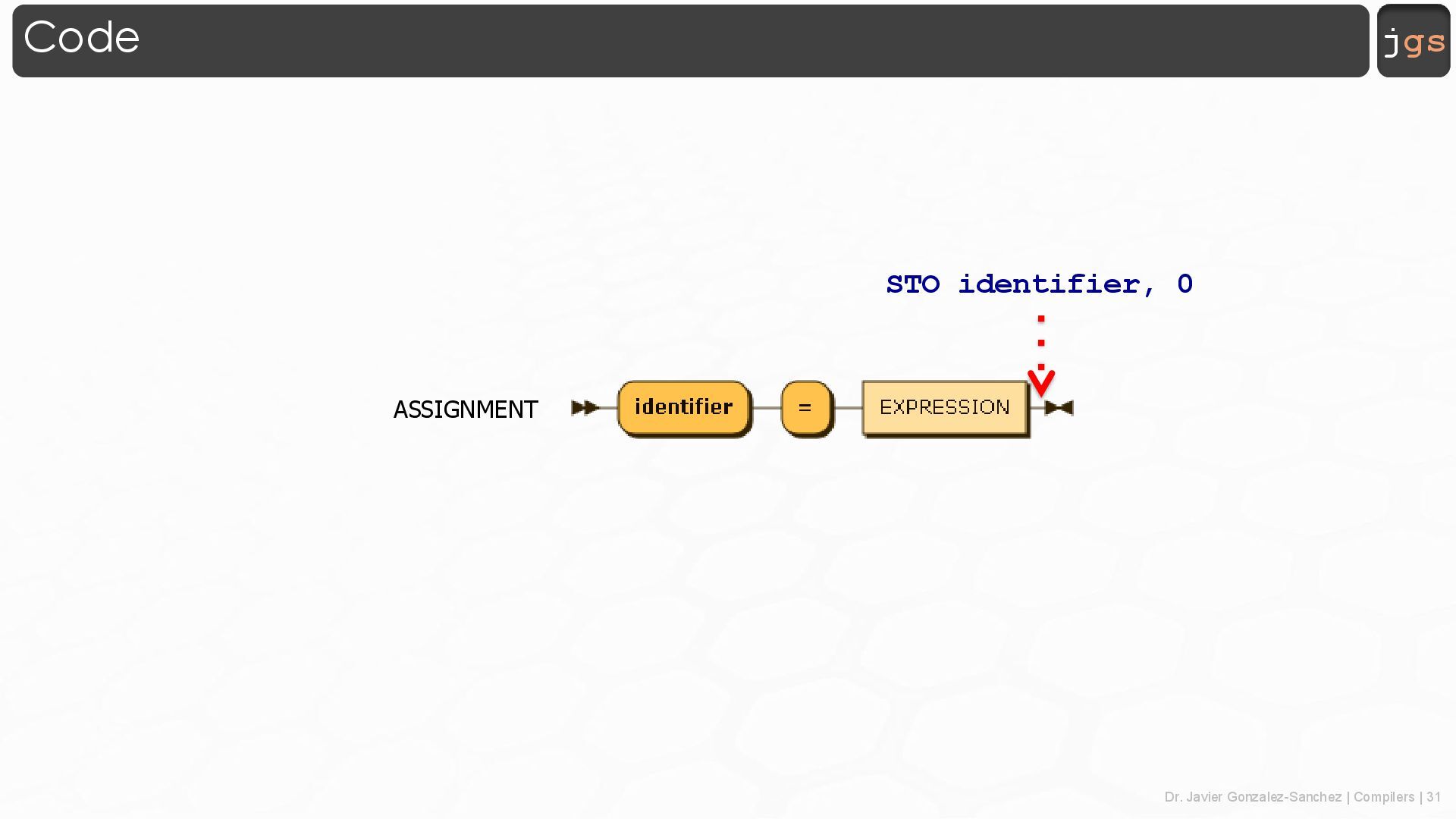

31. Dr. Javier Gonzalez-Sanchez | Compilers | 31 jgs jgs Code ASSIGNMENT STO identifier, 0

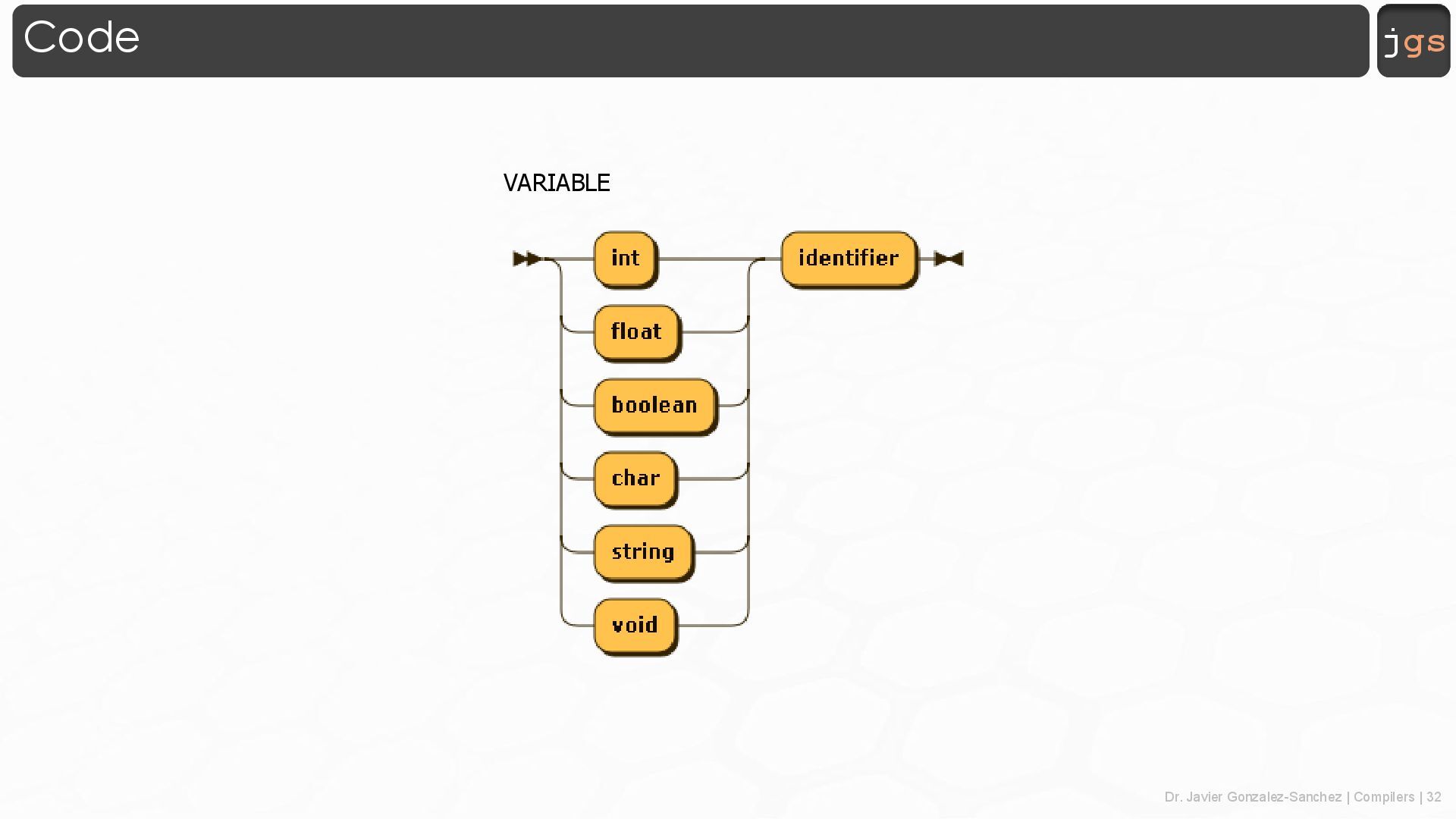

32. Dr. Javier Gonzalez-Sanchez | Compilers | 32 jgs jgs Code VARIABLE

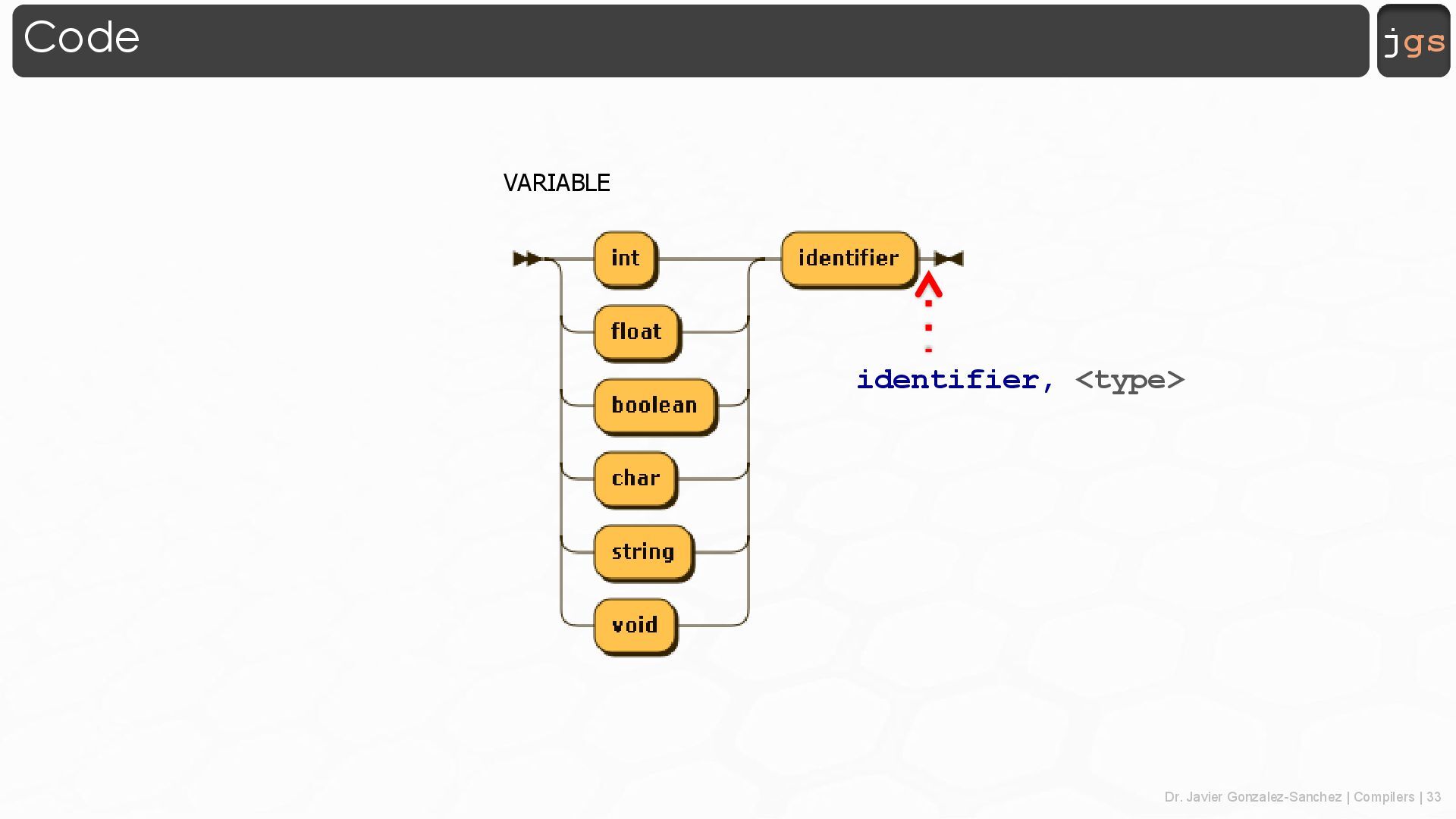

33. Dr. Javier Gonzalez-Sanchez | Compilers | 33 jgs jgs Code VARIABLE identifier, <type>

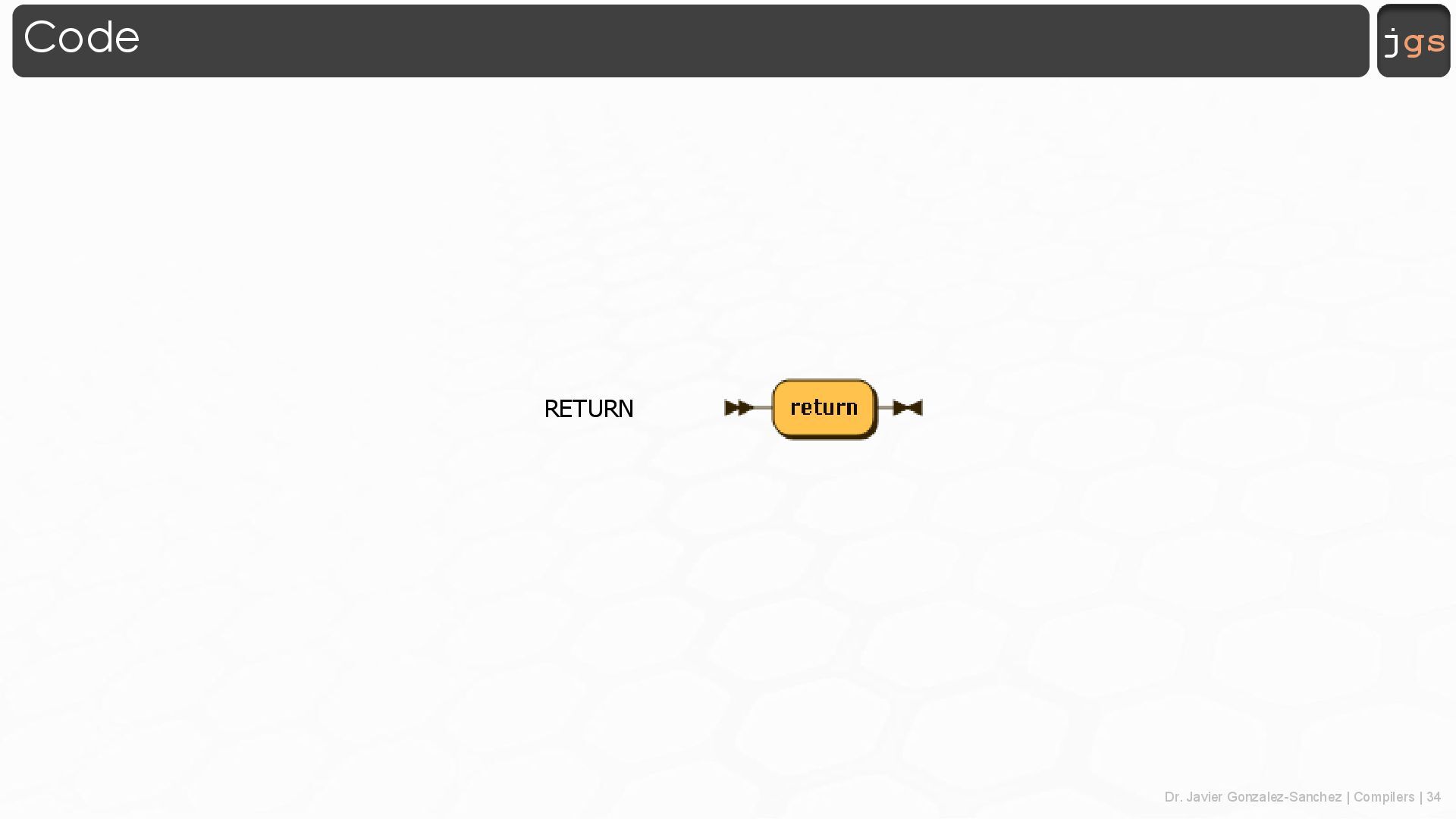

34. Dr. Javier Gonzalez-Sanchez | Compilers | 34 jgs jgs Code RETURN

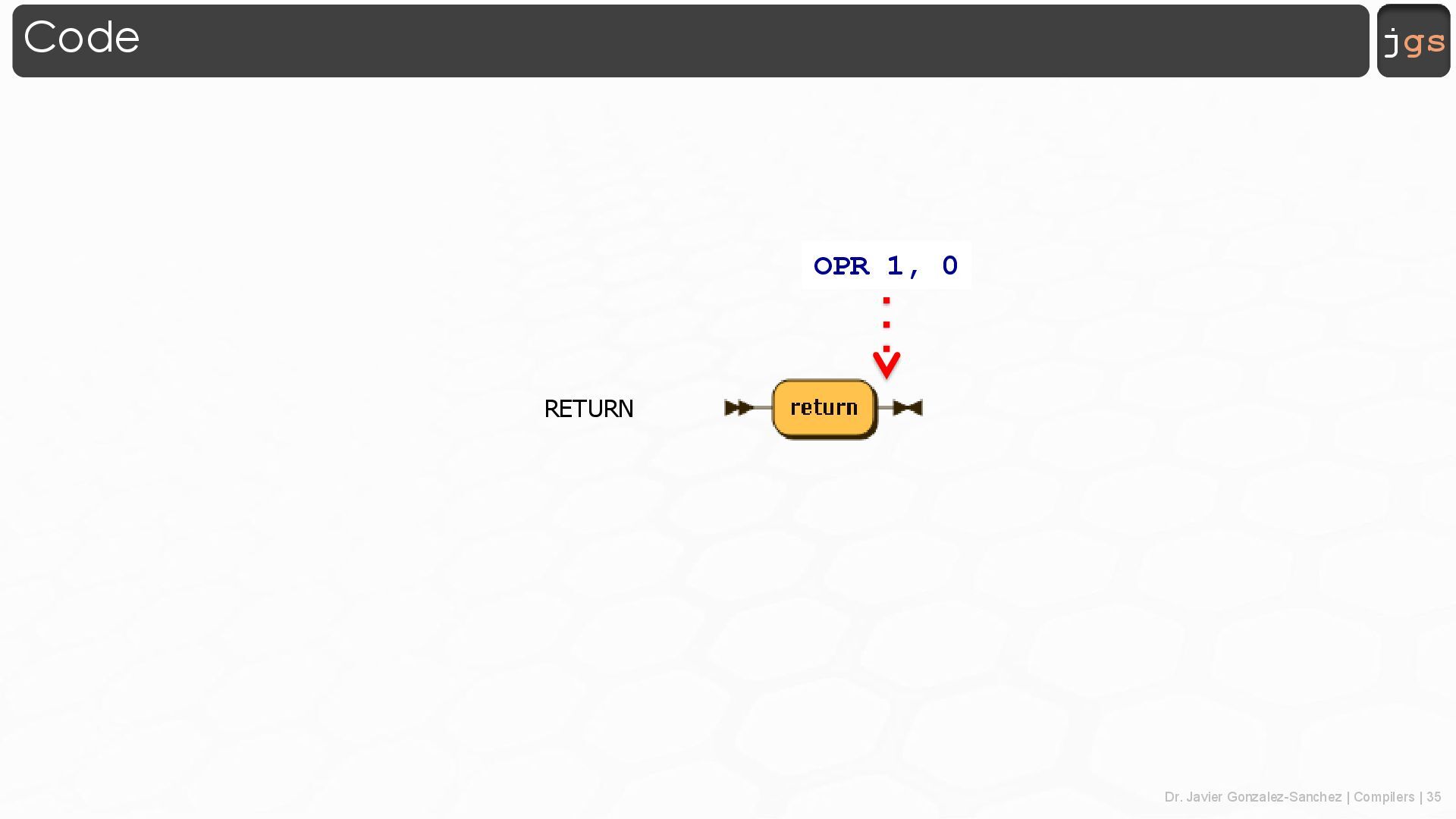

35. Dr. Javier Gonzalez-Sanchez | Compilers | 35 jgs jgs Code RETURN OPR 1, 0

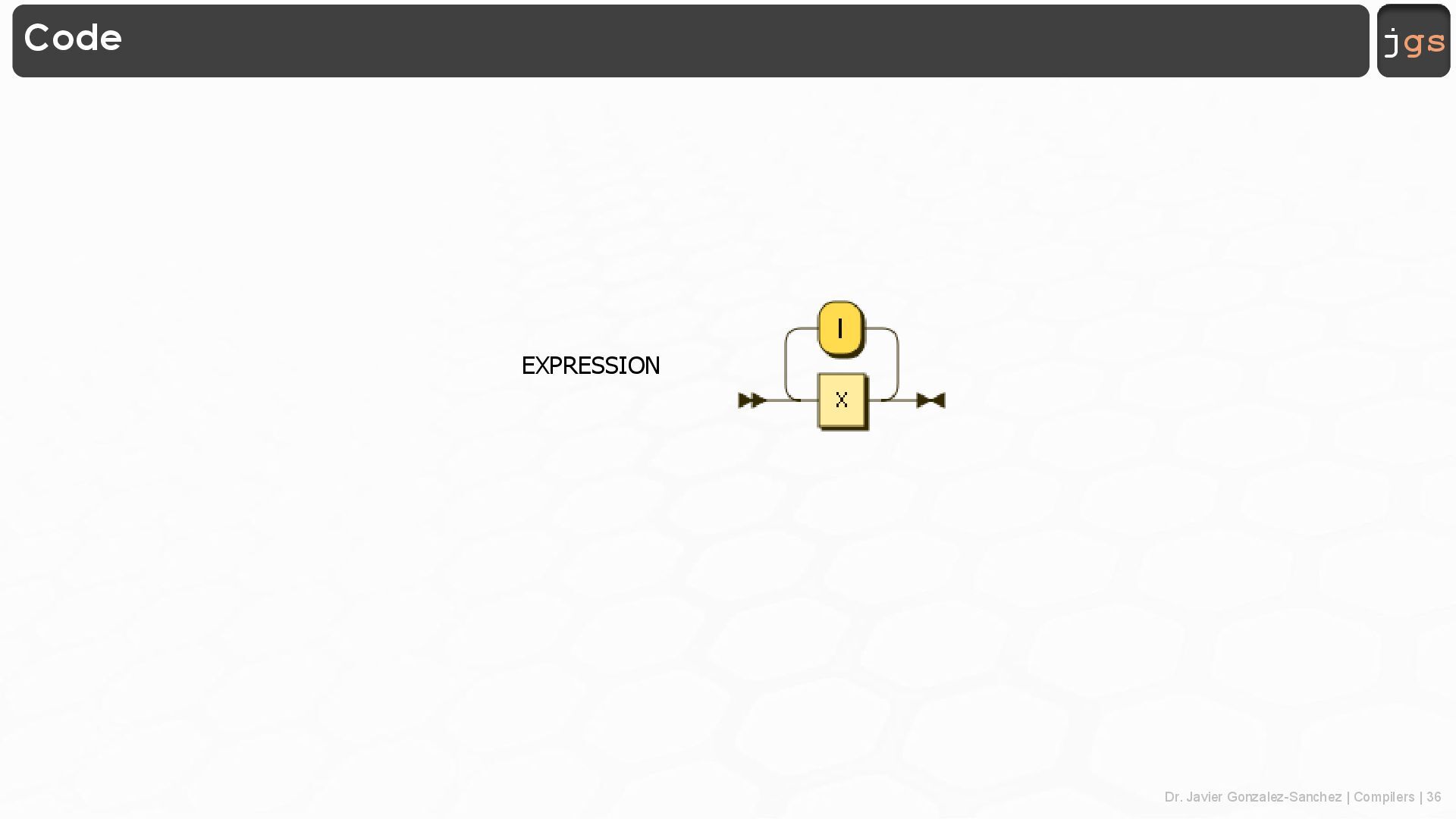

36. Dr. Javier Gonzalez-Sanchez | Compilers | 36 jgs jgs Code EXPRESSION
37. Dr. Javier Gonzalez-Sanchez | Compilers | 37 jgs jgs Parser EXPRESSION if (twice) { OPR 8, 0 }

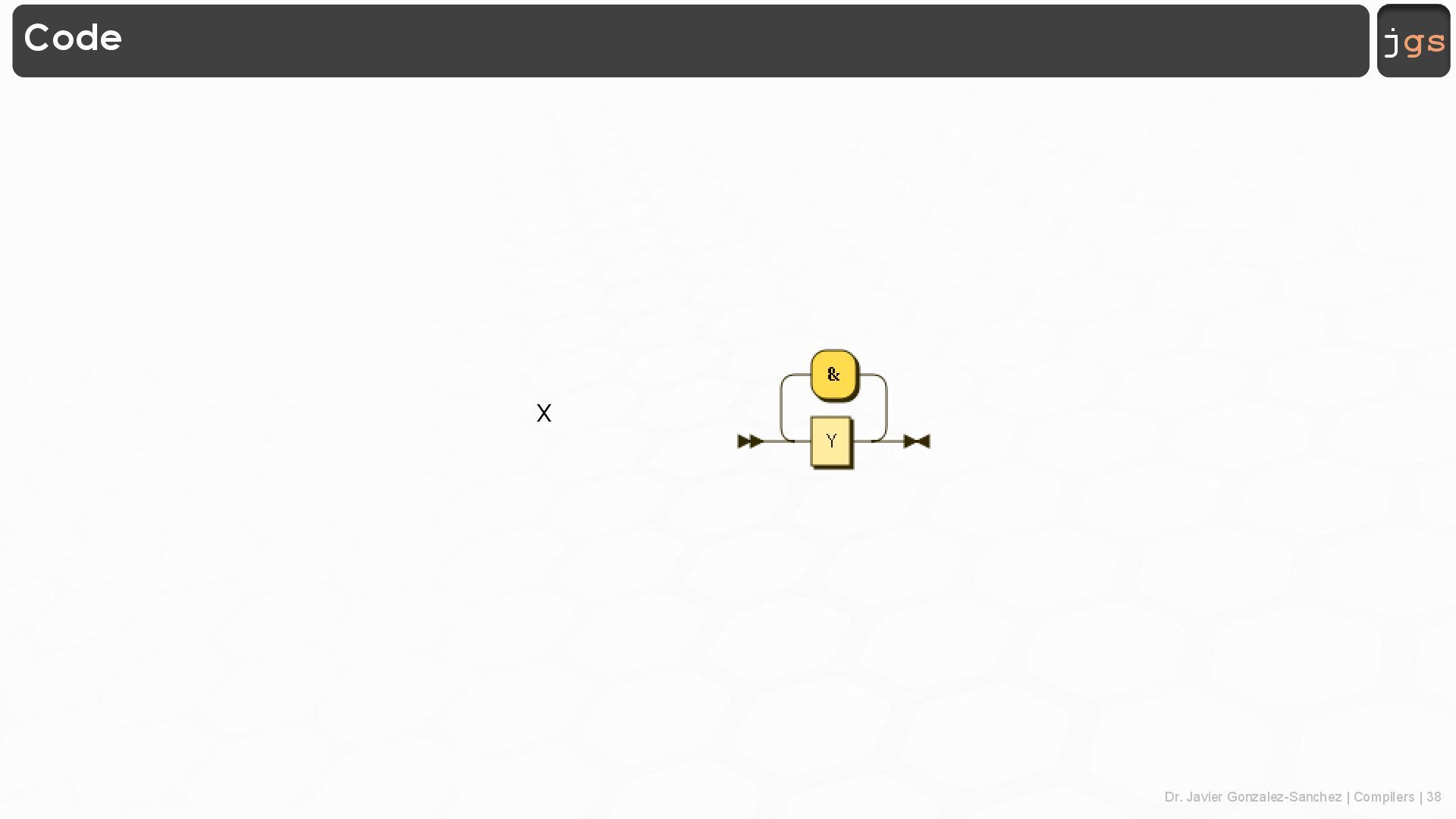

38. Dr. Javier Gonzalez-Sanchez | Compilers | 38 jgs jgs Code X

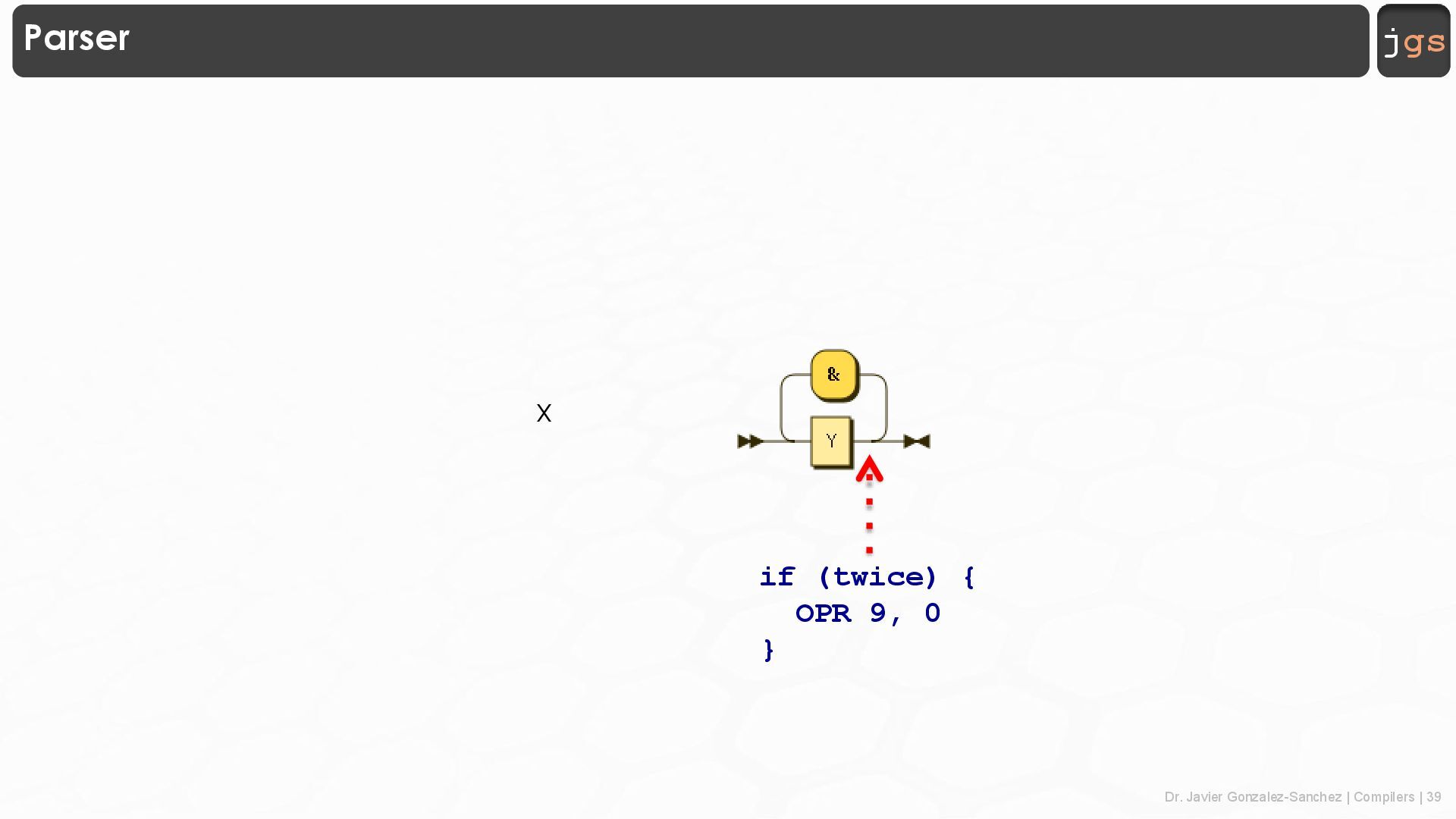

39. Dr. Javier Gonzalez-Sanchez | Compilers | 39 jgs jgs Parser X if (twice) { OPR 9, 0 }

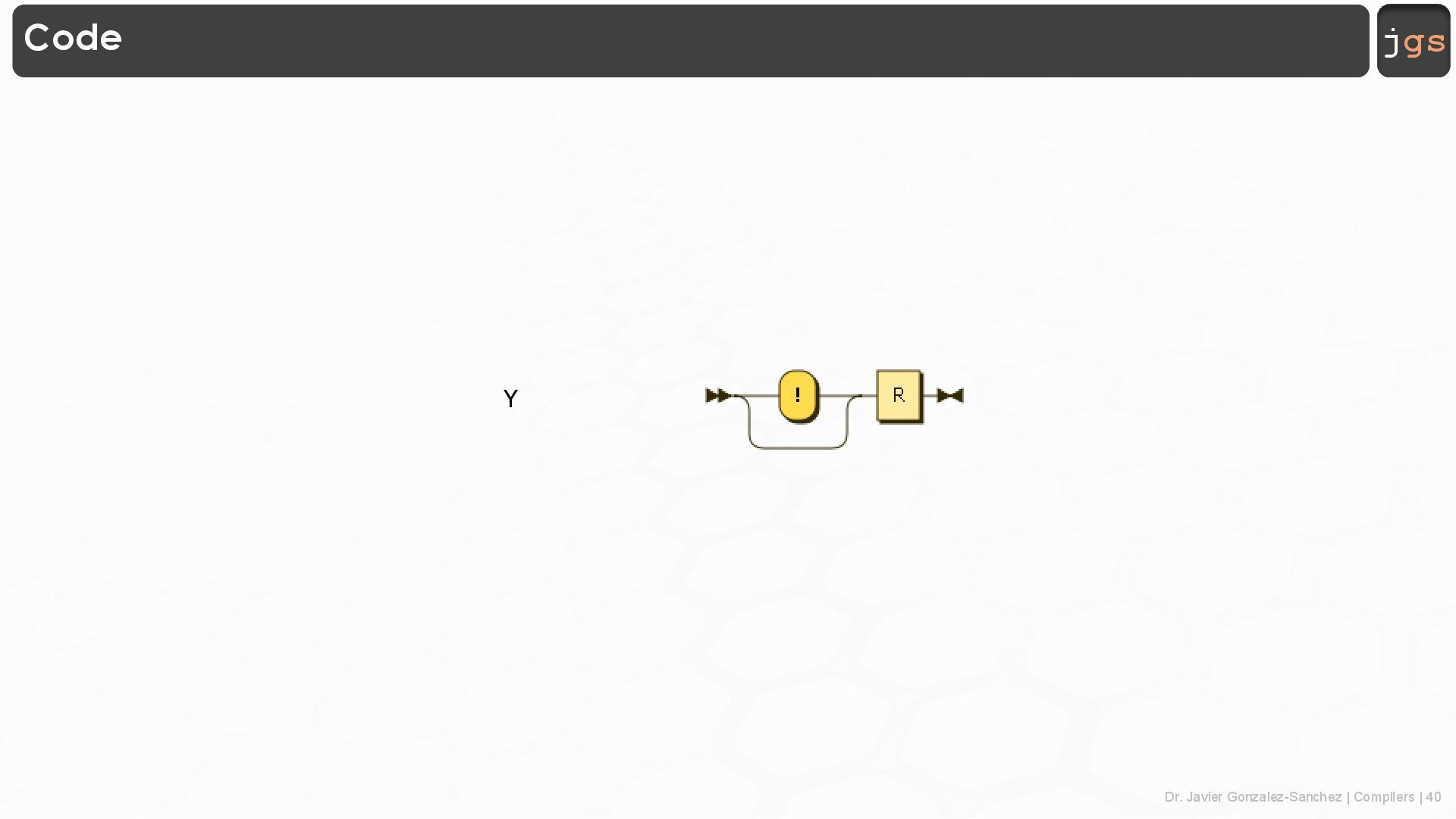

40. Dr. Javier Gonzalez-Sanchez | Compilers | 40 jgs jgs Code Y

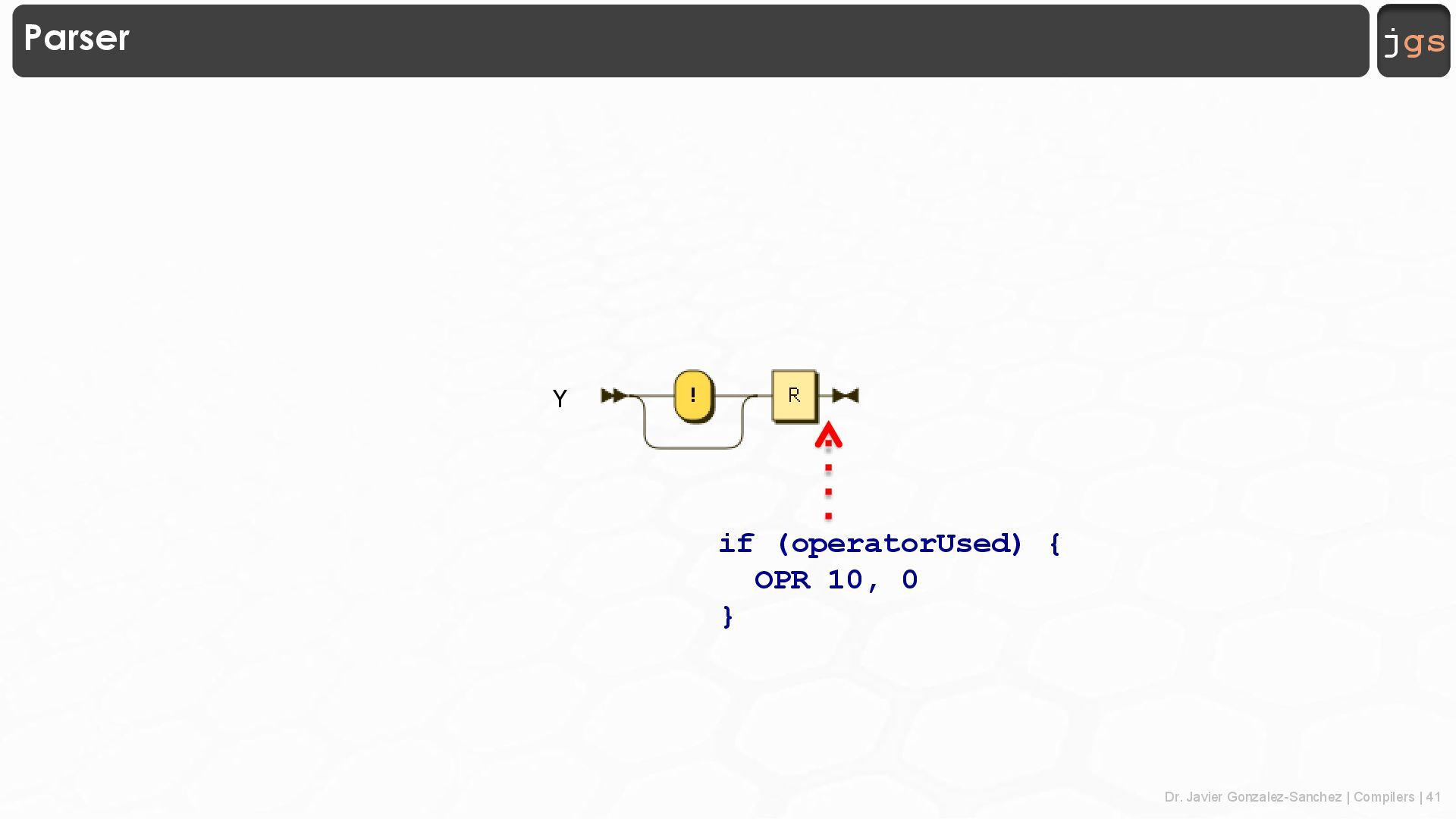

41. Dr. Javier Gonzalez-Sanchez | Compilers | 41 jgs jgs Parser Y if (operatorUsed) { OPR 10, 0 }
42. Dr. Javier Gonzalez-Sanchez | Compilers | 42 jgs jgs Code R

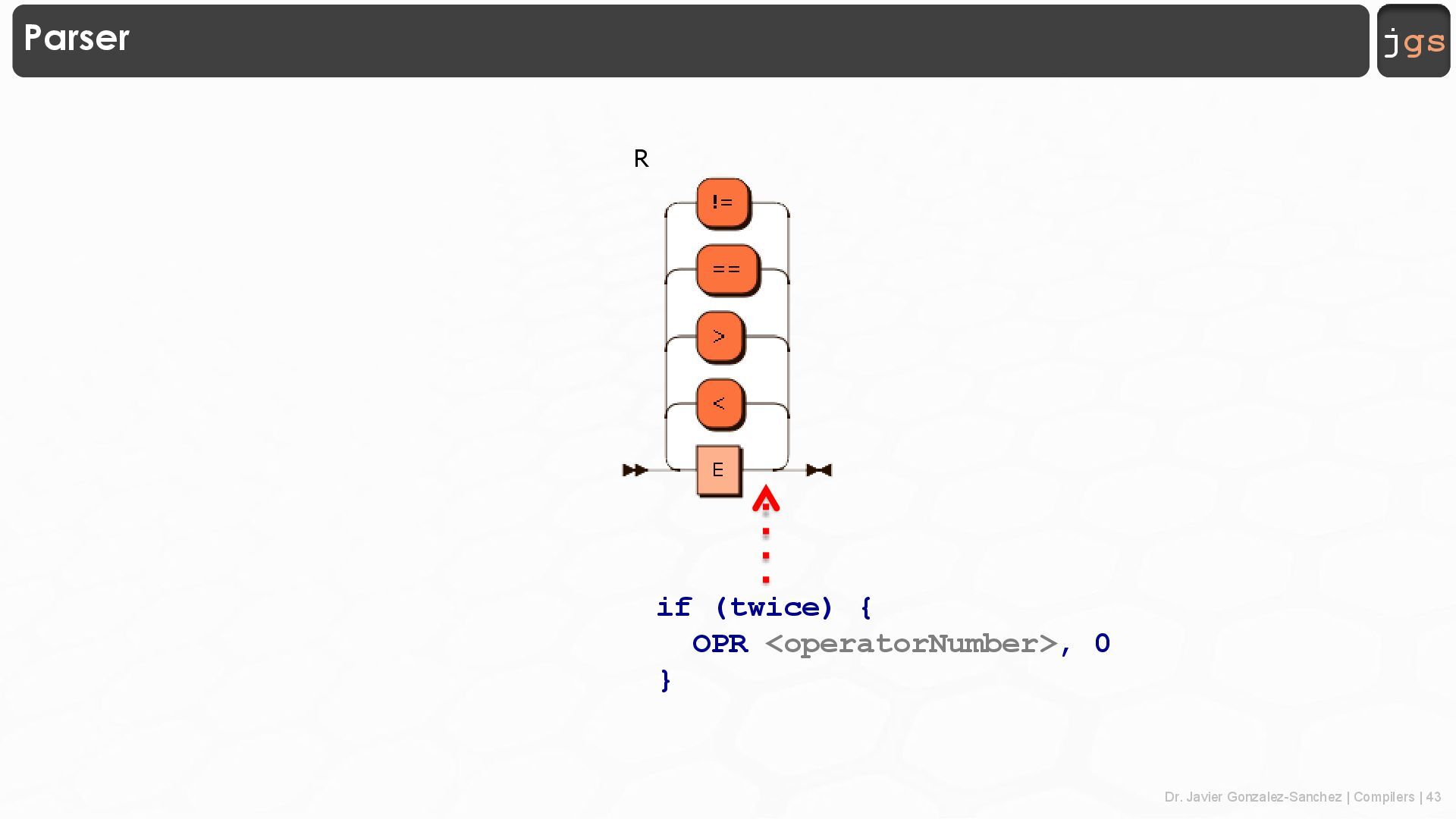

43. Dr. Javier Gonzalez-Sanchez | Compilers | 43 jgs jgs Parser R if (twice) { OPR <operatorNumber>, 0 }

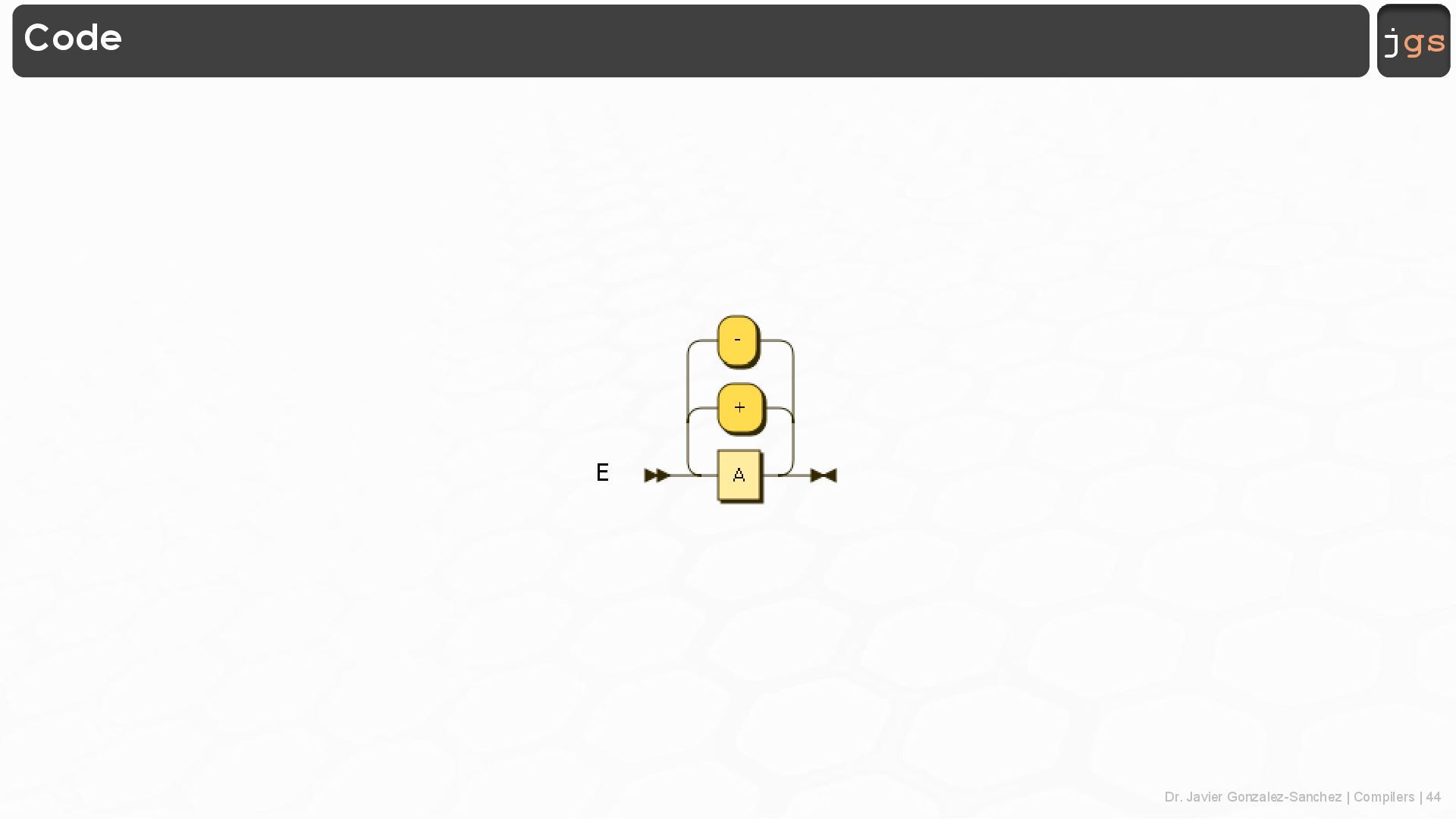

44. Dr. Javier Gonzalez-Sanchez | Compilers | 44 jgs jgs Code E

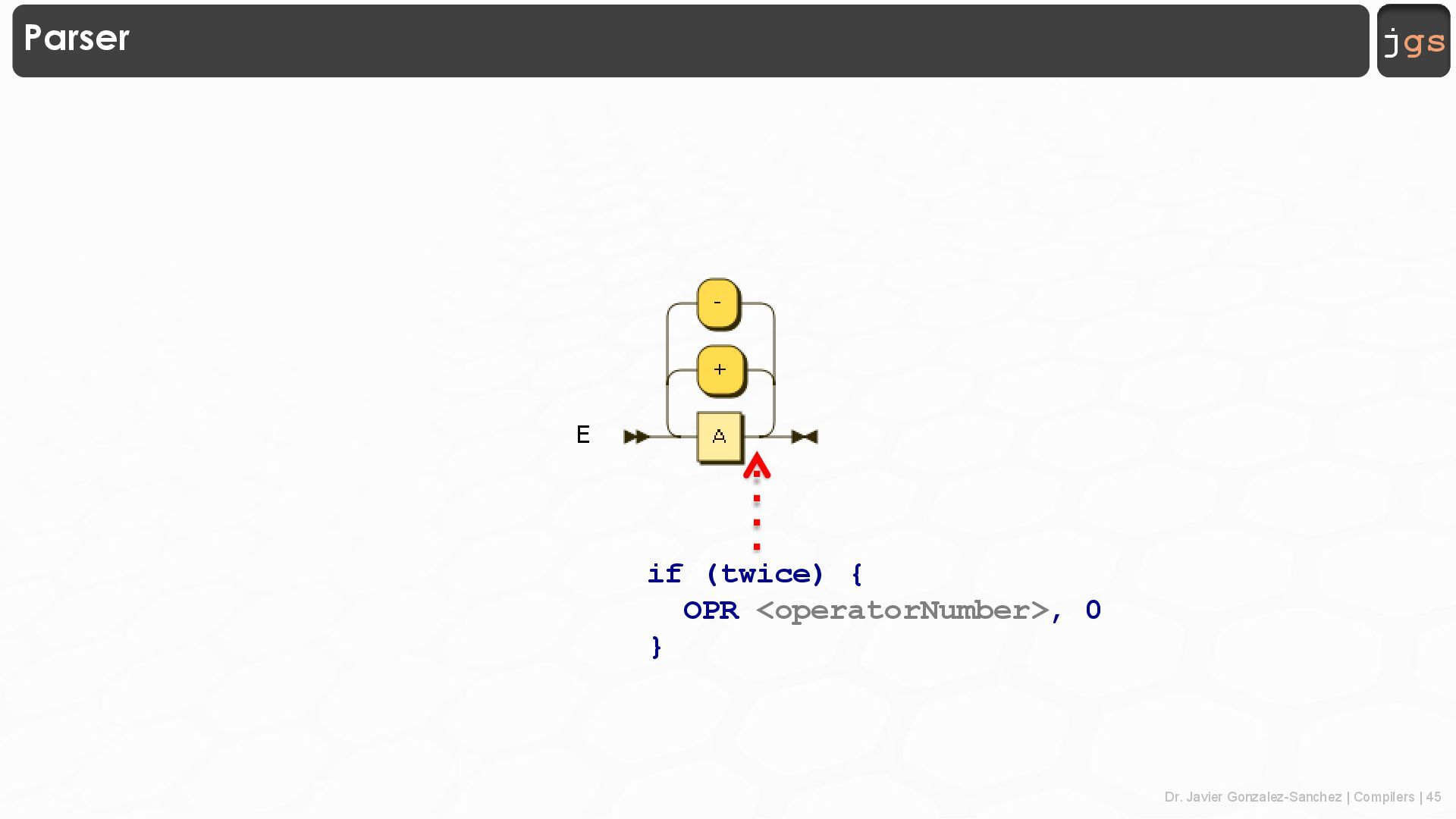

45. Dr. Javier Gonzalez-Sanchez | Compilers | 45 jgs jgs Parser E if (twice) { OPR <operatorNumber>, 0 }

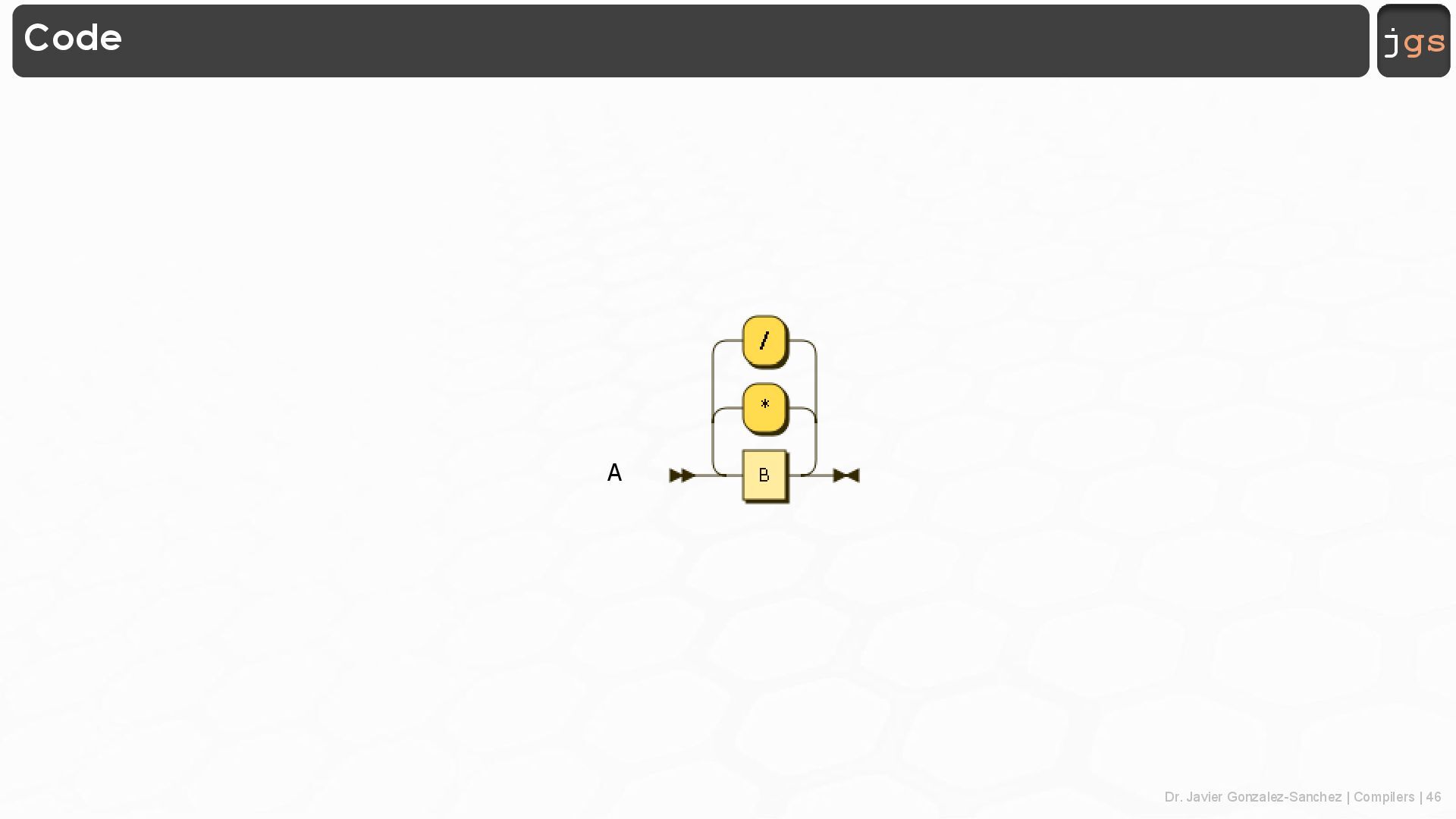

46. Dr. Javier Gonzalez-Sanchez | Compilers | 46 jgs jgs Code A
47. Dr. Javier Gonzalez-Sanchez | Compilers | 47 jgs jgs Parser A if (twice) { OPR <operatorNumber>, 0 }

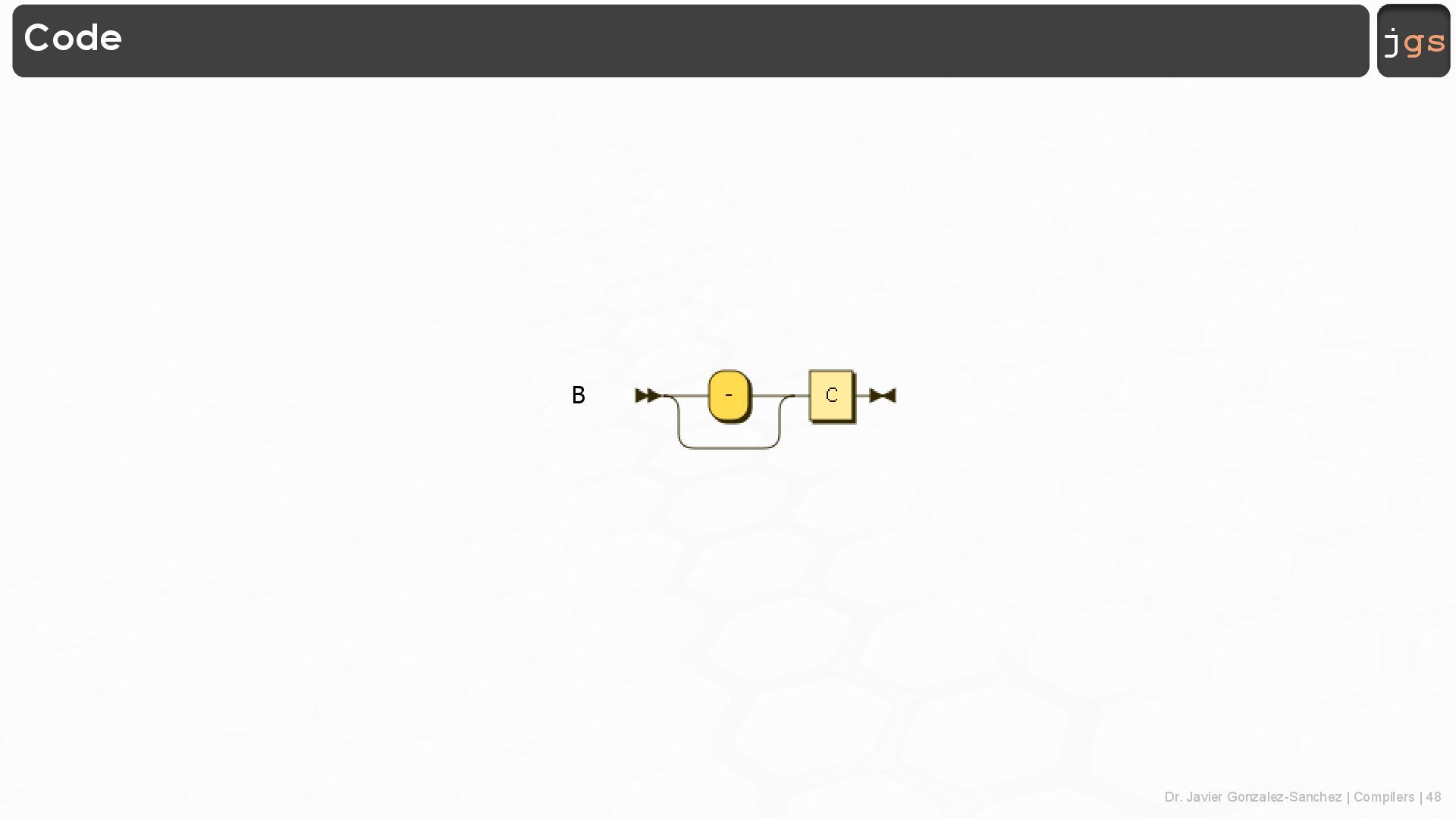

48. Dr. Javier Gonzalez-Sanchez | Compilers | 48 jgs jgs Code B

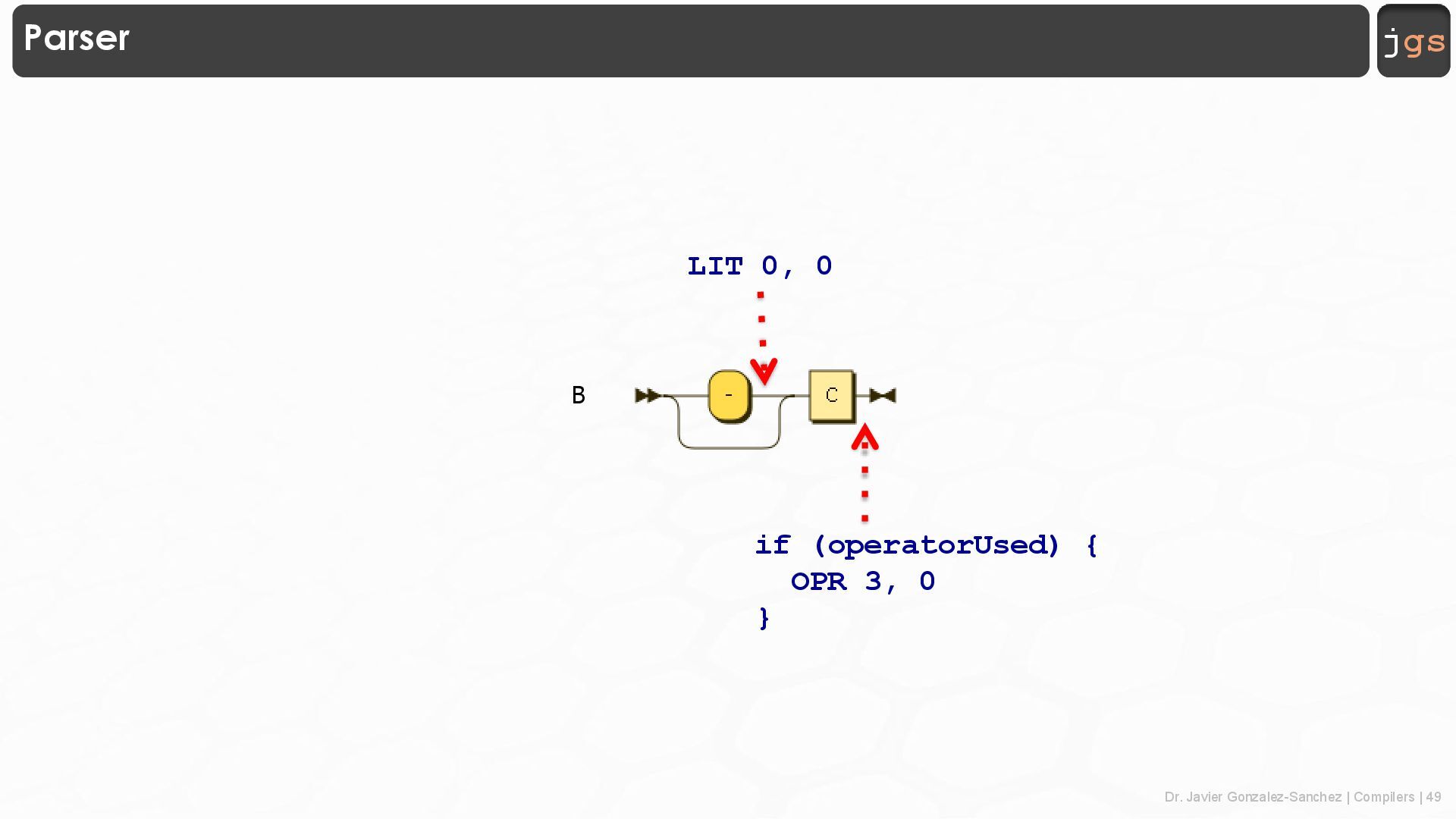

49. Dr. Javier Gonzalez-Sanchez | Compilers | 49 jgs jgs Parser B if (operatorUsed) { OPR 3, 0 } LIT 0, 0

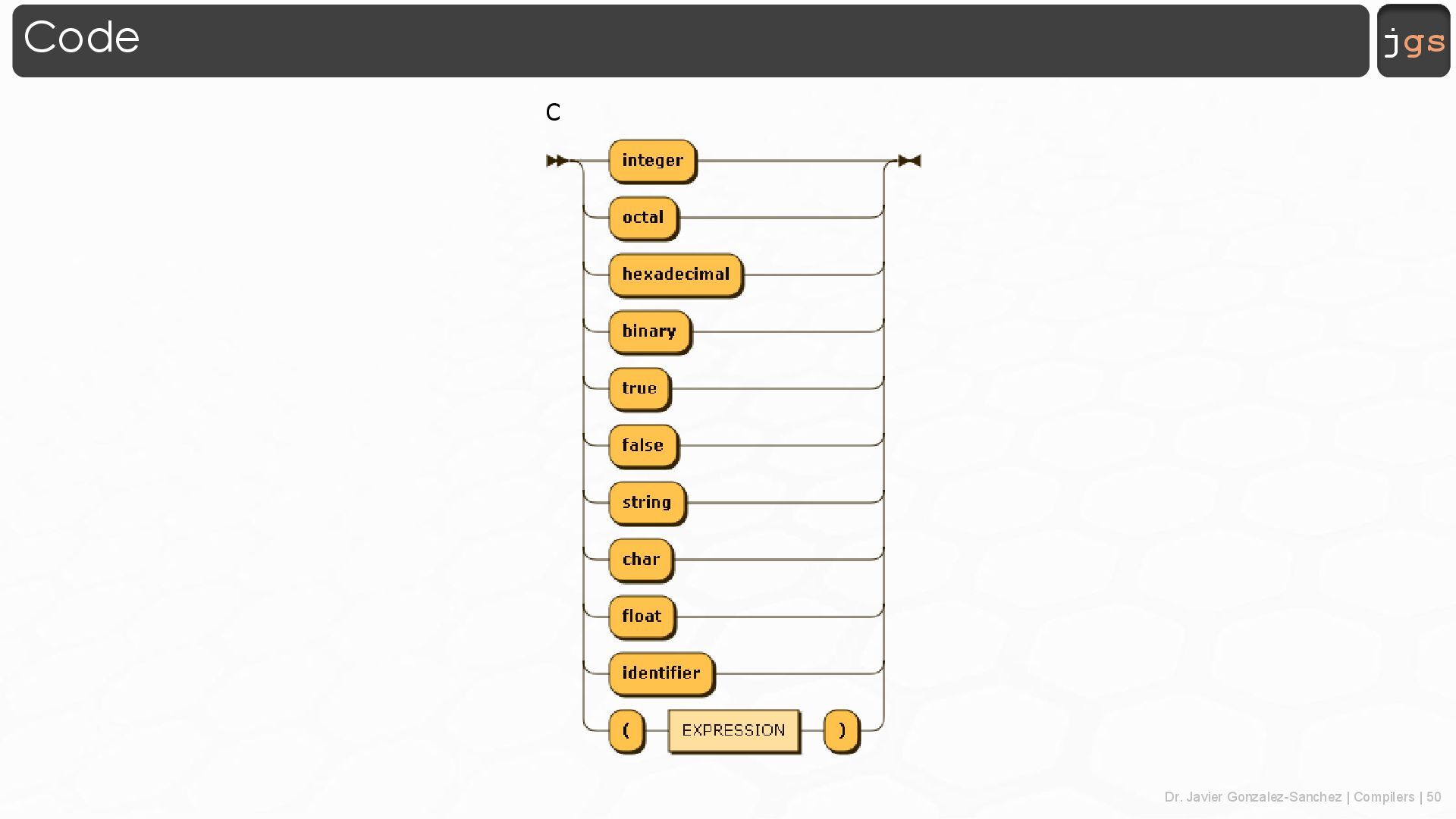

50. Dr. Javier Gonzalez-Sanchez | Compilers | 50 jgs jgs Code C

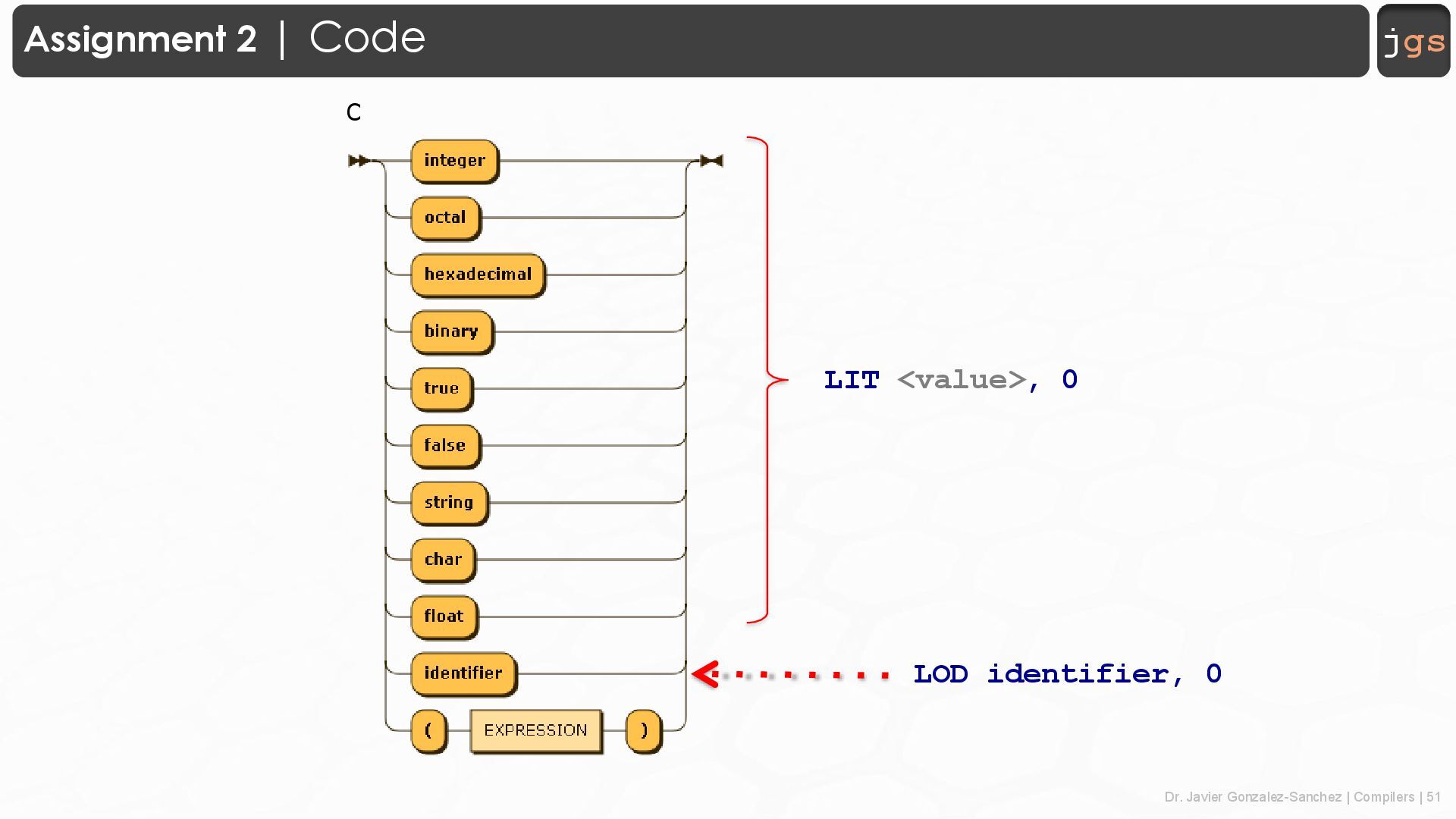

51. Dr. Javier Gonzalez-Sanchez | Compilers | 51 jgs jgs Assignment 2 | Code C LIT <value>, 0 LOD identifier, 0
52. jgs jgs To be continued …
53. Dr. Javier Gonzalez-Sanchez | Compilers | 53 jgs jgs Questions
54. jgs jgs Compilers Javier Gonzalez-Sanchez, Ph.D. jgonzalezs@up.edu.mx Spring 2025 Copyright. These slides can only be used as study material for the Compilers course at Universidad Panamericana. They cannot be distributed or used for another purpose.
