[SnowOne 2025] Роман Артемьев: ART Memory Management

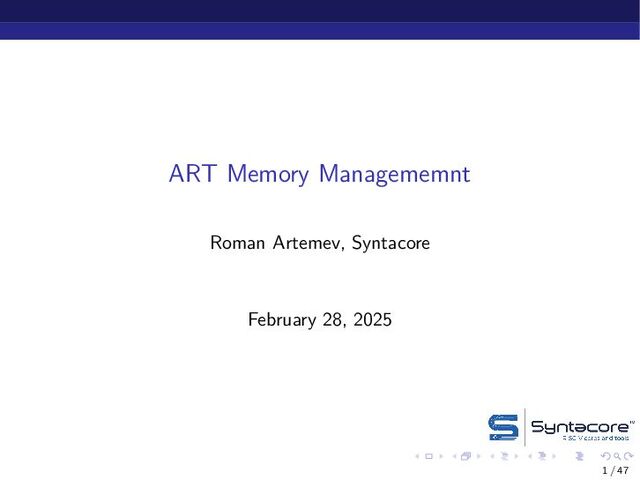

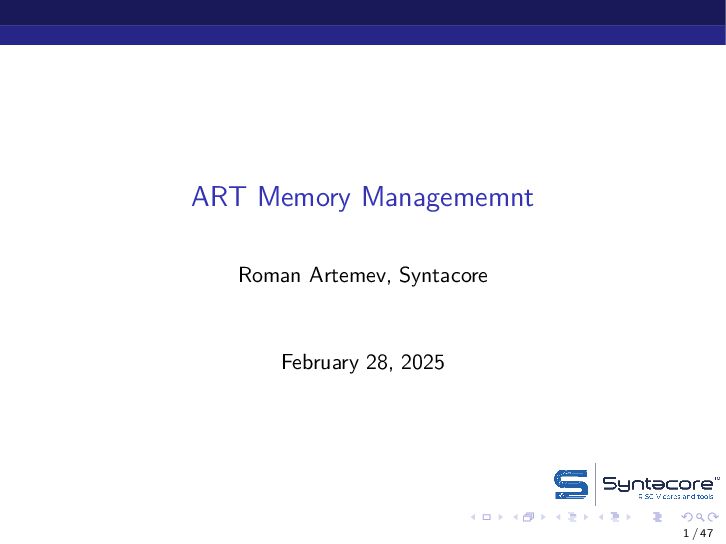

ART Memory Managememnt Roman Artemev, Syntacore February 28, 2025 1
/ 47

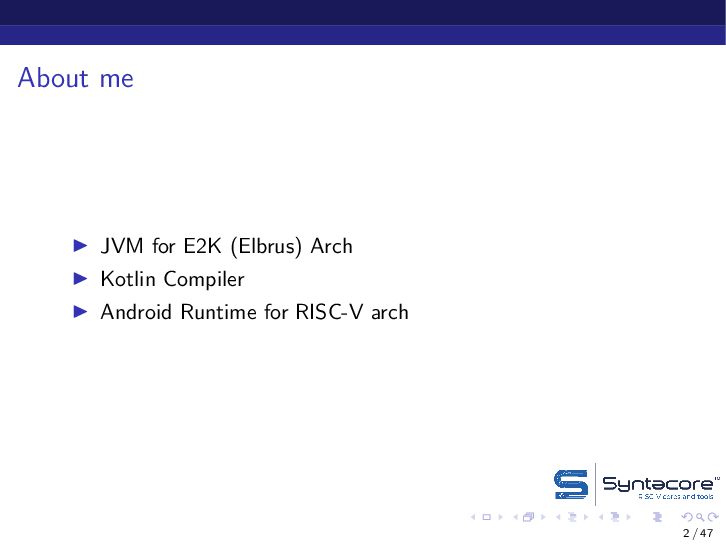

About me ▶ JVM for E2K (Elbrus) Arch ▶ Kotlin
Compiler ▶ Android Runtime for RISC-V arch 2 / 47

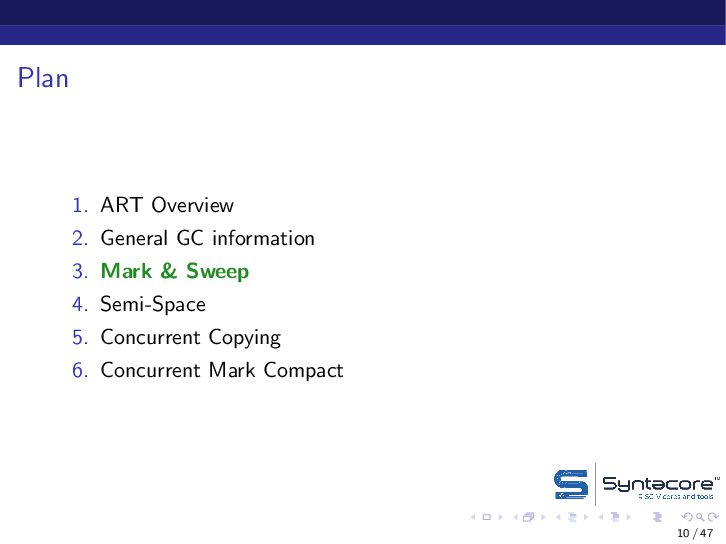

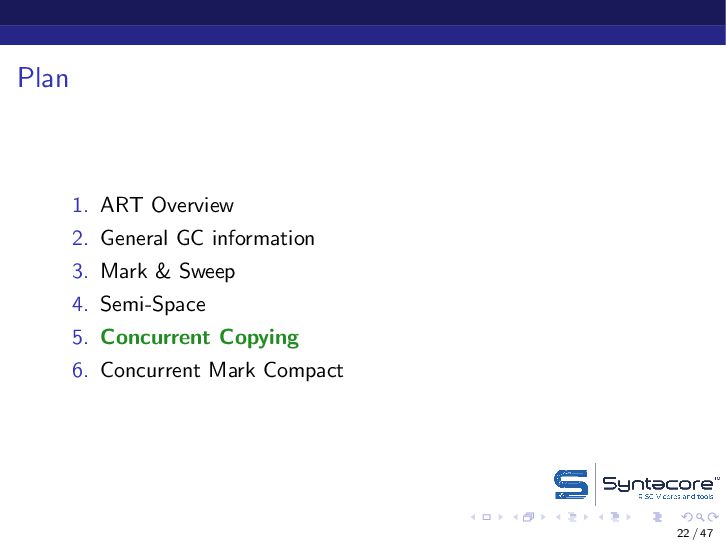

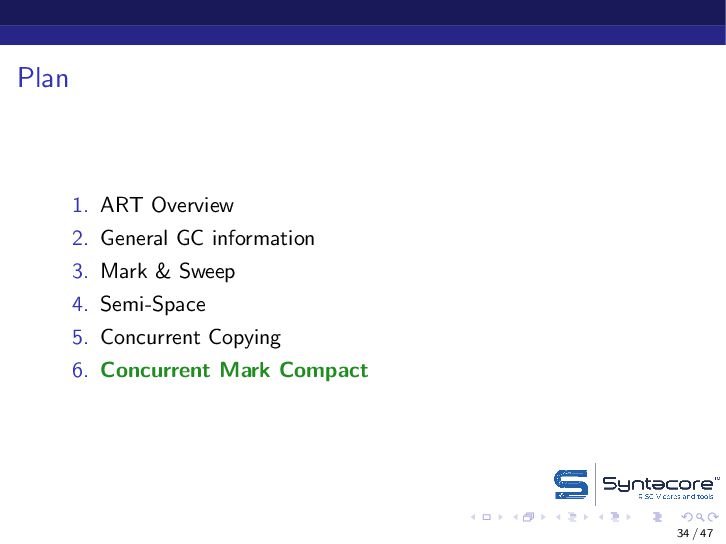

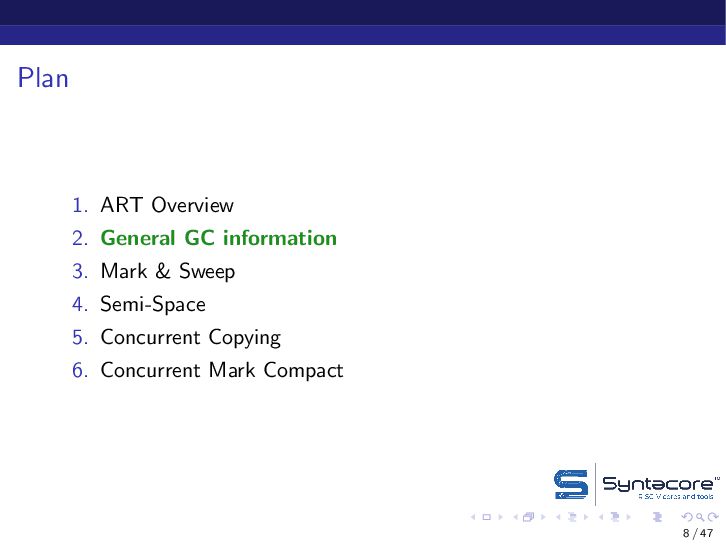

Plan 1. ART Overview 2. General GC information 3. Mark
& Sweep 4. Semi-Space 5. Concurrent Copying 6. Concurrent Mark Compact 3 / 47

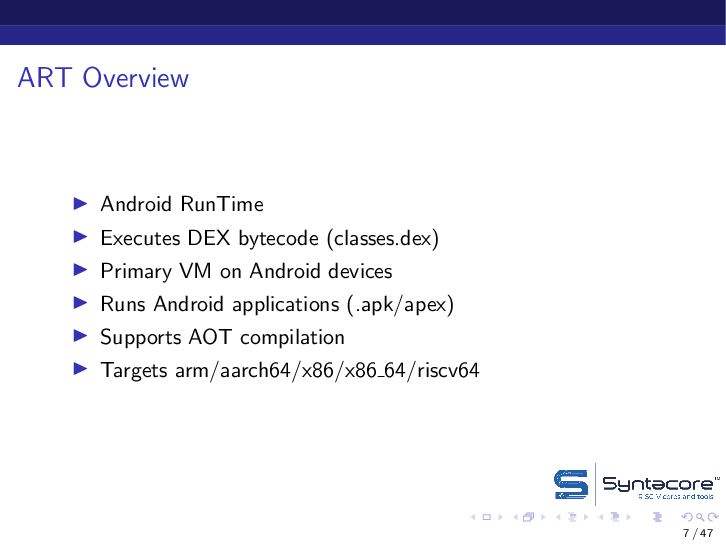

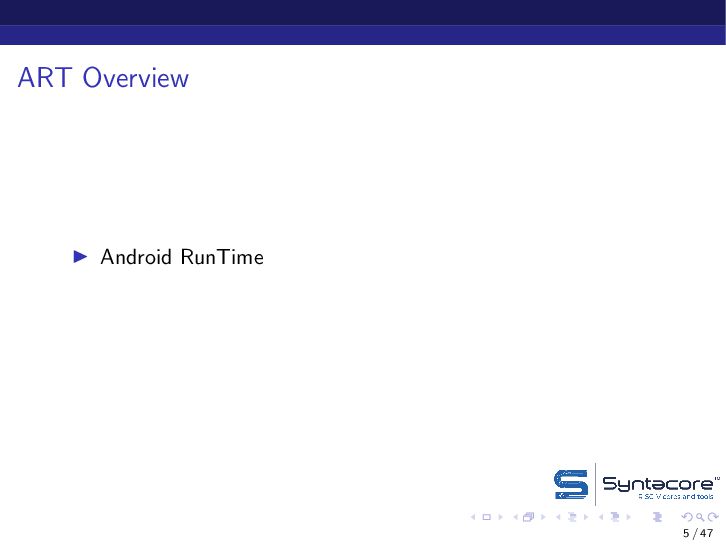

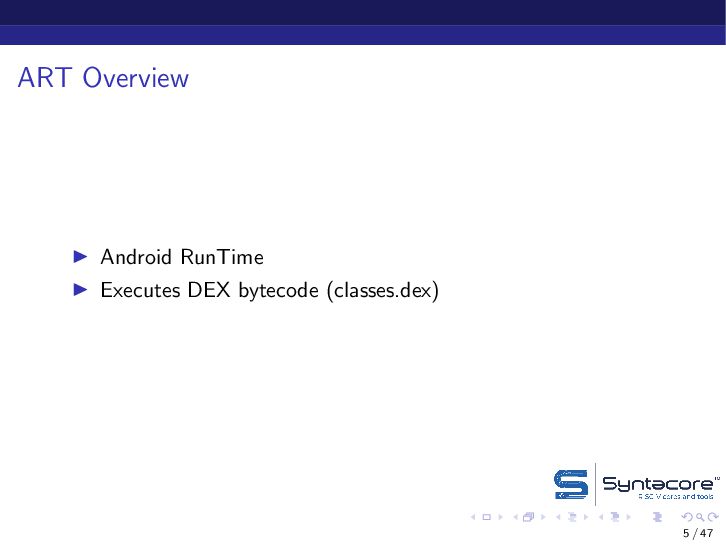

ART Overview ▶ Android RunTime 5 / 47

ART Overview ▶ Android RunTime ▶ Executes DEX bytecode (classes.dex)
5 / 47

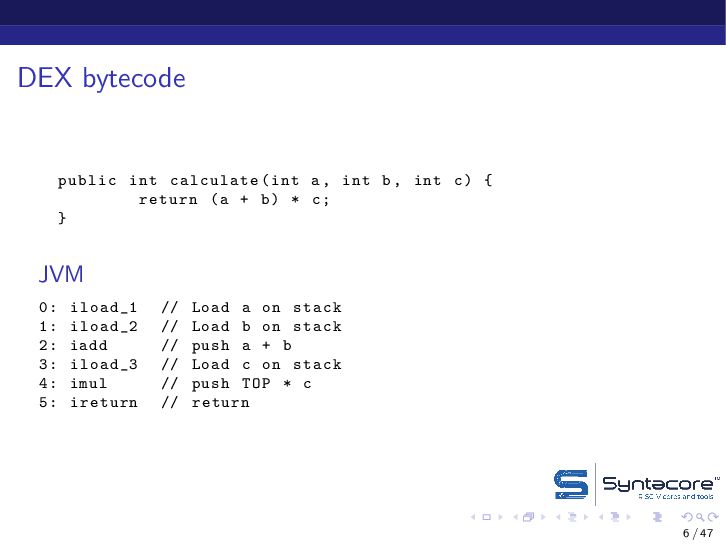

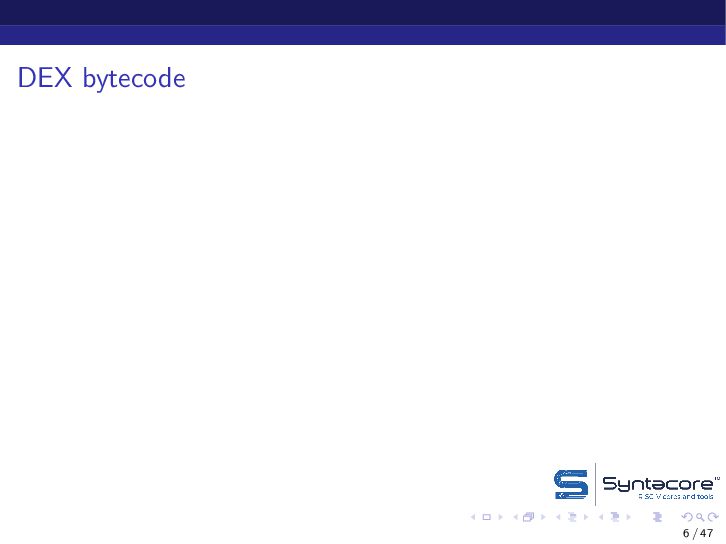

DEX bytecode 6 / 47

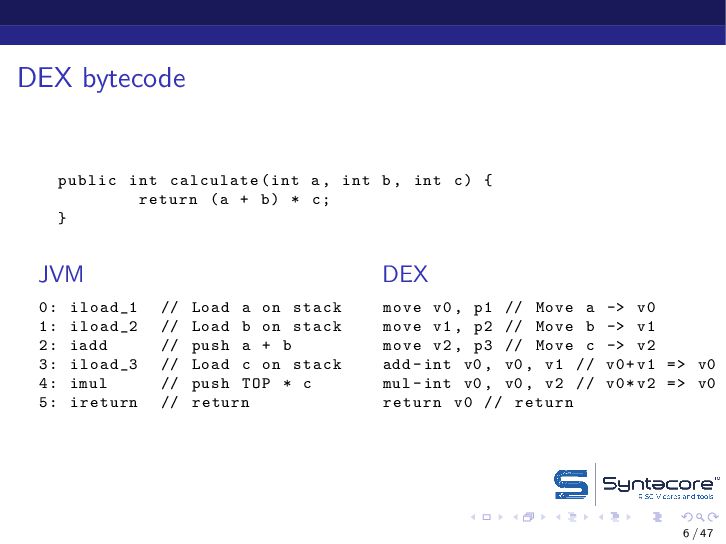

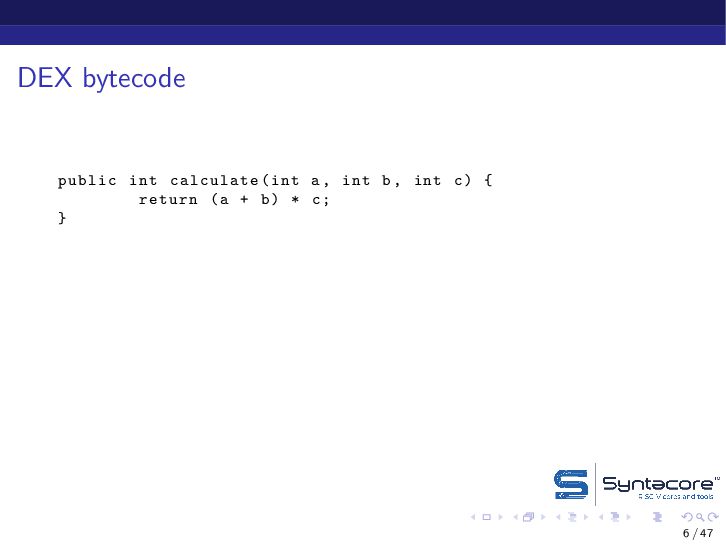

DEX bytecode public int calculate(int a, int b, int c)
{ return (a + b) * c; } 6 / 47

{ return (a + b) * c; } JVM 0: iload_1 // Load a on stack 1: iload_2 // Load b on stack 2: iadd // push a + b 3: iload_3 // Load c on stack 4: imul // push TOP * c 5: ireturn // return 6 / 47

{ return (a + b) * c; } JVM 0: iload_1 // Load a on stack 1: iload_2 // Load b on stack 2: iadd // push a + b 3: iload_3 // Load c on stack 4: imul // push TOP * c 5: ireturn // return DEX move v0 , p1 // Move a -> v0 move v1 , p2 // Move b -> v1 move v2 , p3 // Move c -> v2 add -int v0 , v0 , v1 // v0+v1 => v0 mul -int v0 , v0 , v2 // v0*v2 => v0 return v0 // return 6 / 47

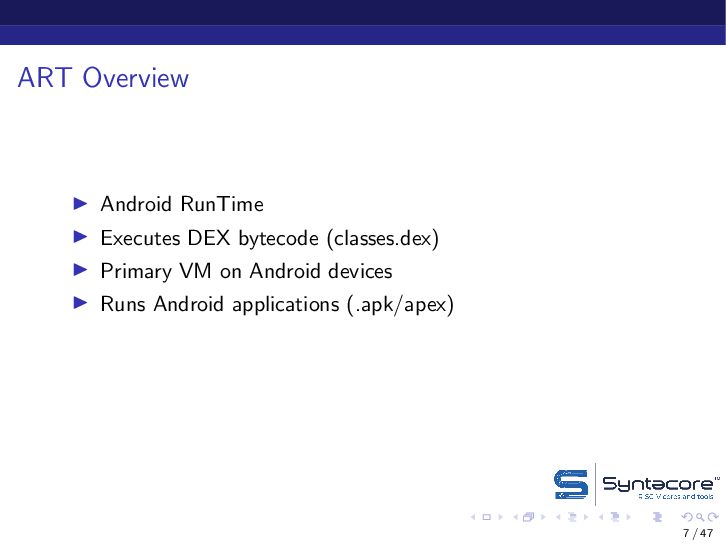

▶ Primary VM on Android devices 7 / 47

▶ Primary VM on Android devices ▶ Runs Android applications (.apk/apex) 7 / 47

▶ Primary VM on Android devices ▶ Runs Android applications (.apk/apex) ▶ Supports AOT compilation 7 / 47

▶ Primary VM on Android devices ▶ Runs Android applications (.apk/apex) ▶ Supports AOT compilation ▶ Targets arm/aarch64/x86/x86 64/riscv64 7 / 47

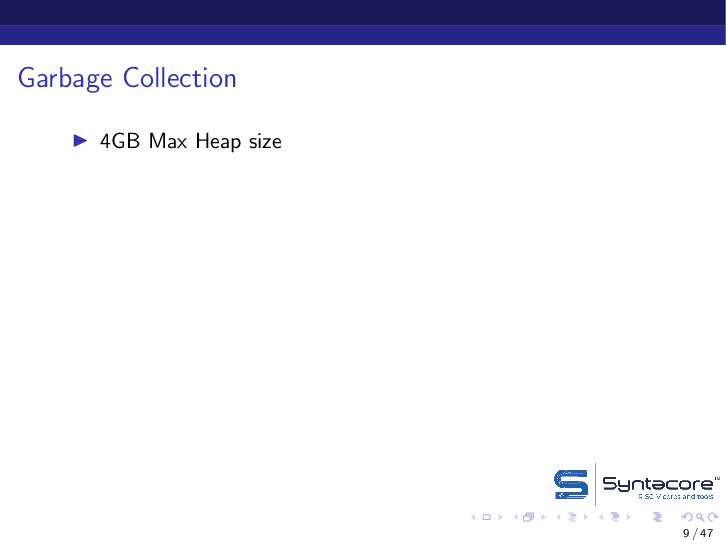

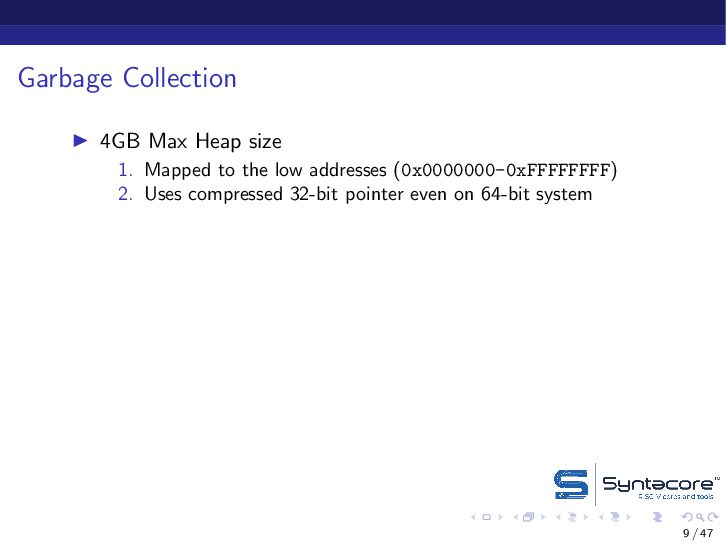

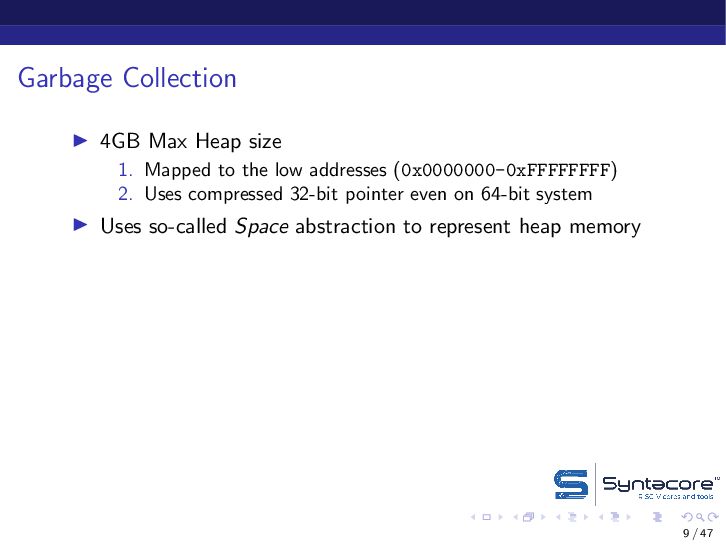

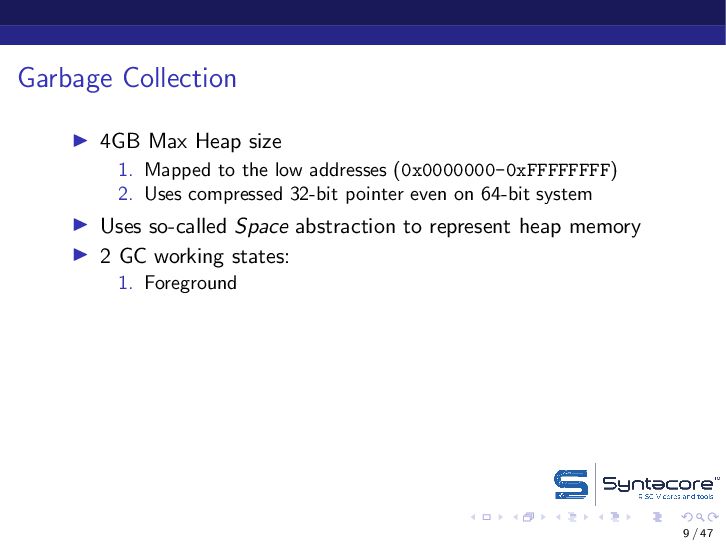

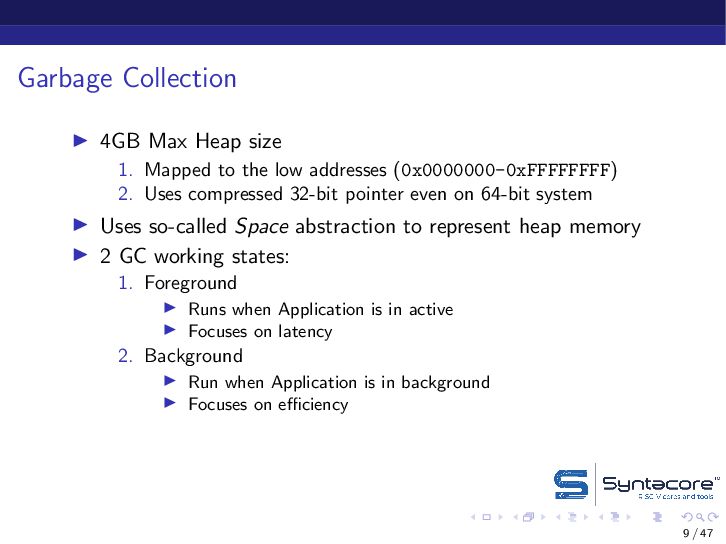

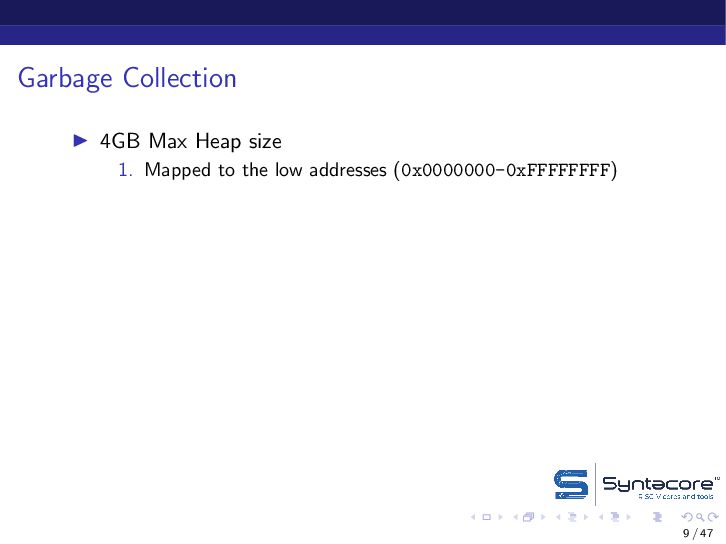

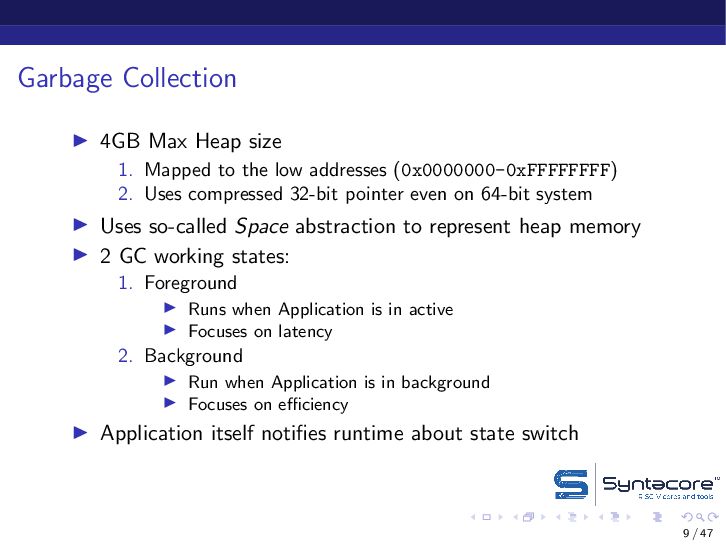

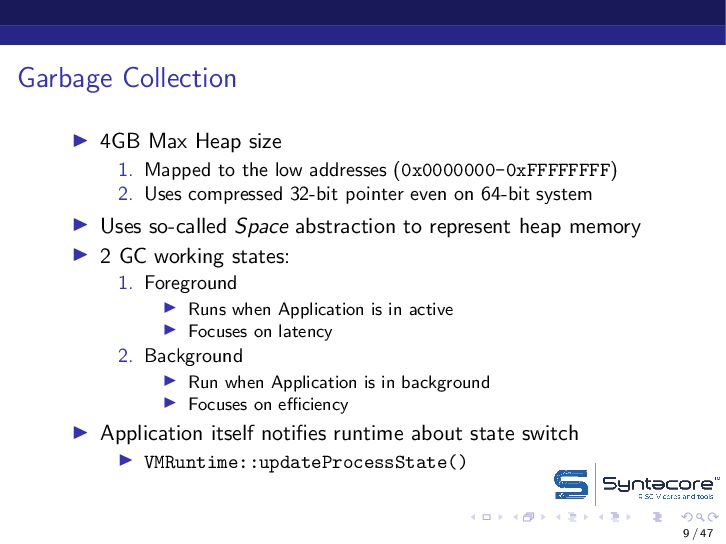

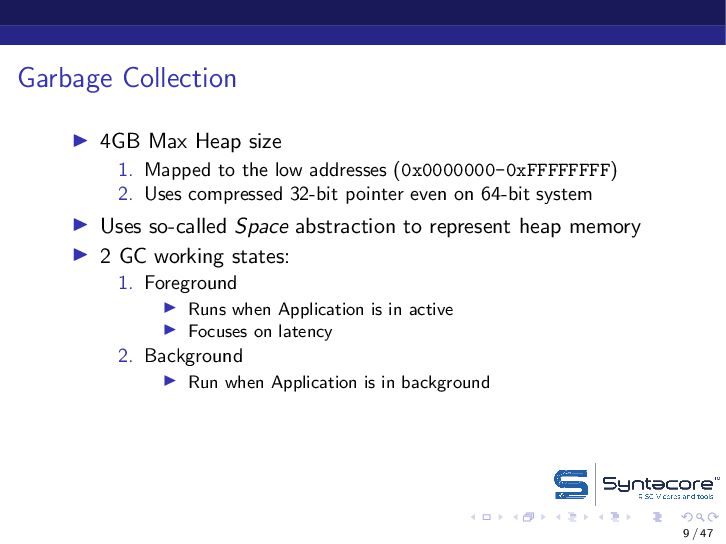

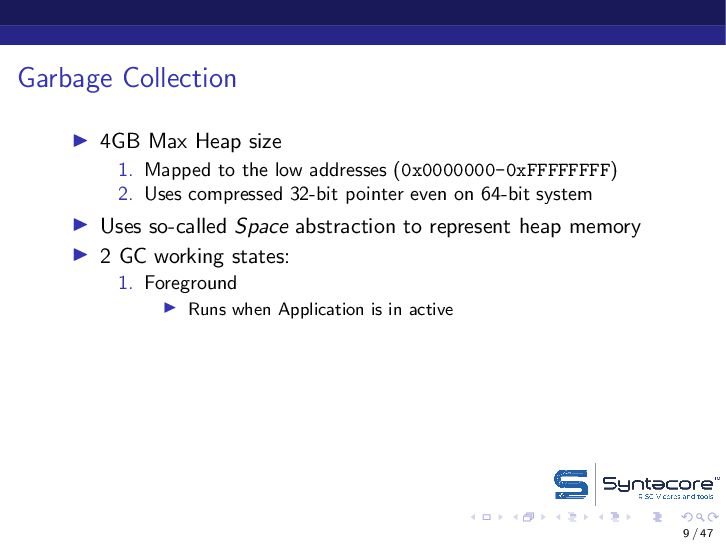

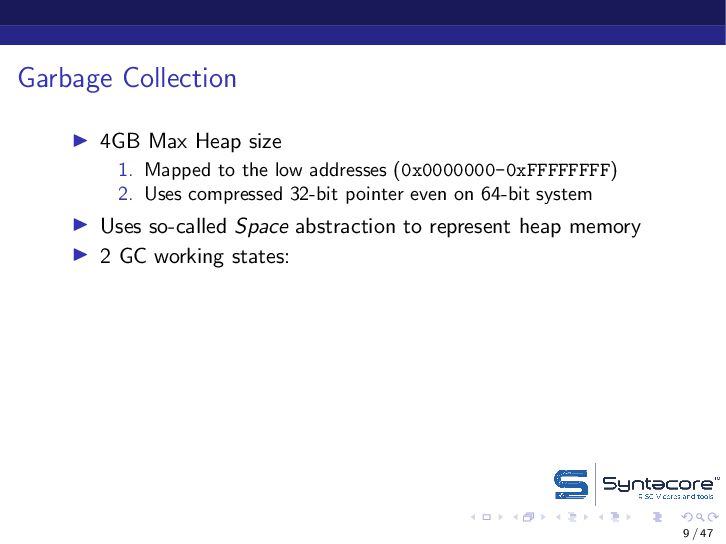

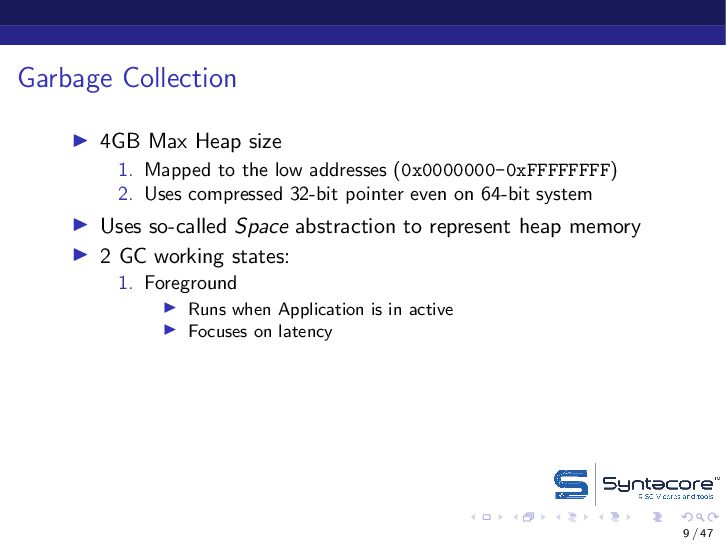

Garbage Collection ▶ 4GB Max Heap size 9 / 47

Garbage Collection ▶ 4GB Max Heap size 1. Mapped to
the low addresses (0x0000000-0xFFFFFFFF) 9 / 47

the low addresses (0x0000000-0xFFFFFFFF) 2. Uses compressed 32-bit pointer even on 64-bit system 9 / 47

the low addresses (0x0000000-0xFFFFFFFF) 2. Uses compressed 32-bit pointer even on 64-bit system ▶ Uses so-called Space abstraction to represent heap memory 9 / 47

the low addresses (0x0000000-0xFFFFFFFF) 2. Uses compressed 32-bit pointer even on 64-bit system ▶ Uses so-called Space abstraction to represent heap memory ▶ 2 GC working states: 9 / 47

the low addresses (0x0000000-0xFFFFFFFF) 2. Uses compressed 32-bit pointer even on 64-bit system ▶ Uses so-called Space abstraction to represent heap memory ▶ 2 GC working states: 1. Foreground 9 / 47

the low addresses (0x0000000-0xFFFFFFFF) 2. Uses compressed 32-bit pointer even on 64-bit system ▶ Uses so-called Space abstraction to represent heap memory ▶ 2 GC working states: 1. Foreground ▶ Runs when Application is in active 9 / 47

the low addresses (0x0000000-0xFFFFFFFF) 2. Uses compressed 32-bit pointer even on 64-bit system ▶ Uses so-called Space abstraction to represent heap memory ▶ 2 GC working states: 1. Foreground ▶ Runs when Application is in active ▶ Focuses on latency 9 / 47

the low addresses (0x0000000-0xFFFFFFFF) 2. Uses compressed 32-bit pointer even on 64-bit system ▶ Uses so-called Space abstraction to represent heap memory ▶ 2 GC working states: 1. Foreground ▶ Runs when Application is in active ▶ Focuses on latency 2. Background 9 / 47

the low addresses (0x0000000-0xFFFFFFFF) 2. Uses compressed 32-bit pointer even on 64-bit system ▶ Uses so-called Space abstraction to represent heap memory ▶ 2 GC working states: 1. Foreground ▶ Runs when Application is in active ▶ Focuses on latency 2. Background ▶ Run when Application is in background 9 / 47

the low addresses (0x0000000-0xFFFFFFFF) 2. Uses compressed 32-bit pointer even on 64-bit system ▶ Uses so-called Space abstraction to represent heap memory ▶ 2 GC working states: 1. Foreground ▶ Runs when Application is in active ▶ Focuses on latency 2. Background ▶ Run when Application is in background ▶ Focuses on efficiency 9 / 47

the low addresses (0x0000000-0xFFFFFFFF) 2. Uses compressed 32-bit pointer even on 64-bit system ▶ Uses so-called Space abstraction to represent heap memory ▶ 2 GC working states: 1. Foreground ▶ Runs when Application is in active ▶ Focuses on latency 2. Background ▶ Run when Application is in background ▶ Focuses on efficiency ▶ Application itself notifies runtime about state switch 9 / 47

the low addresses (0x0000000-0xFFFFFFFF) 2. Uses compressed 32-bit pointer even on 64-bit system ▶ Uses so-called Space abstraction to represent heap memory ▶ 2 GC working states: 1. Foreground ▶ Runs when Application is in active ▶ Focuses on latency 2. Background ▶ Run when Application is in background ▶ Focuses on efficiency ▶ Application itself notifies runtime about state switch ▶ VMRuntime::updateProcessState() 9 / 47

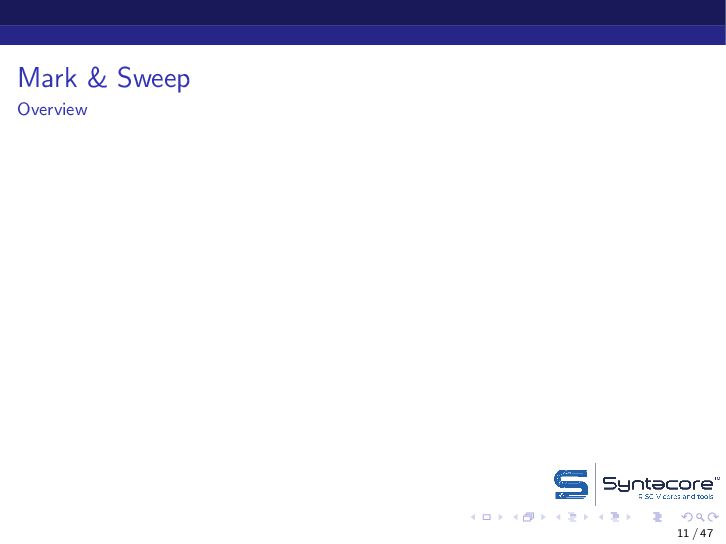

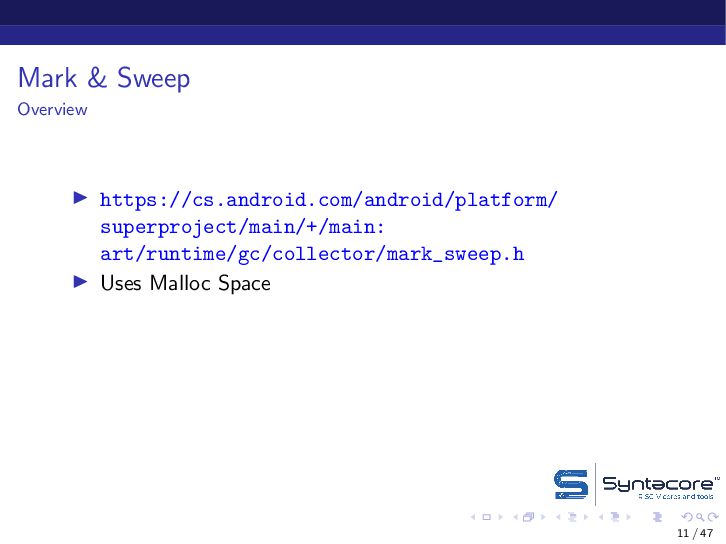

Mark & Sweep Overview 11 / 47

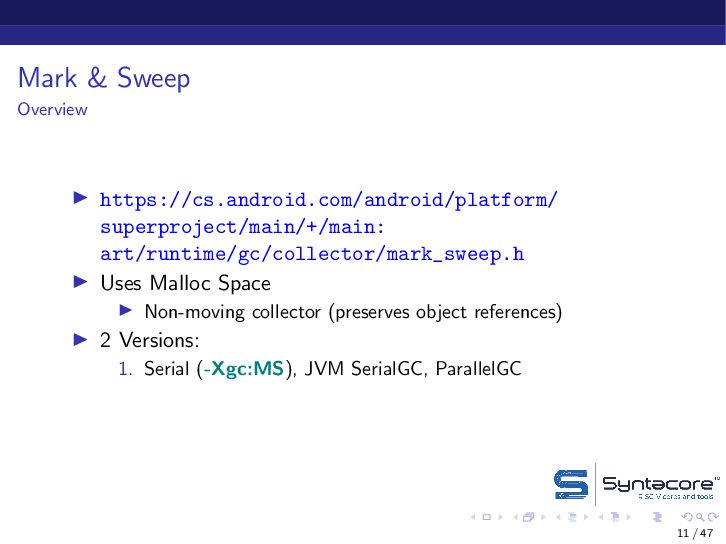

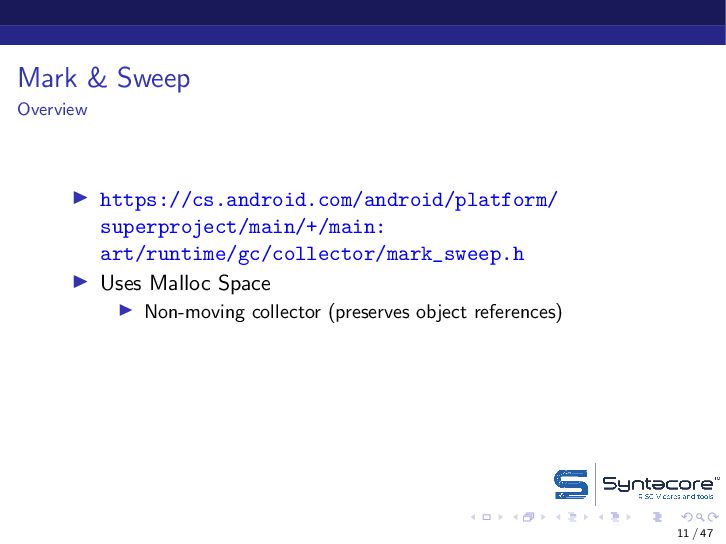

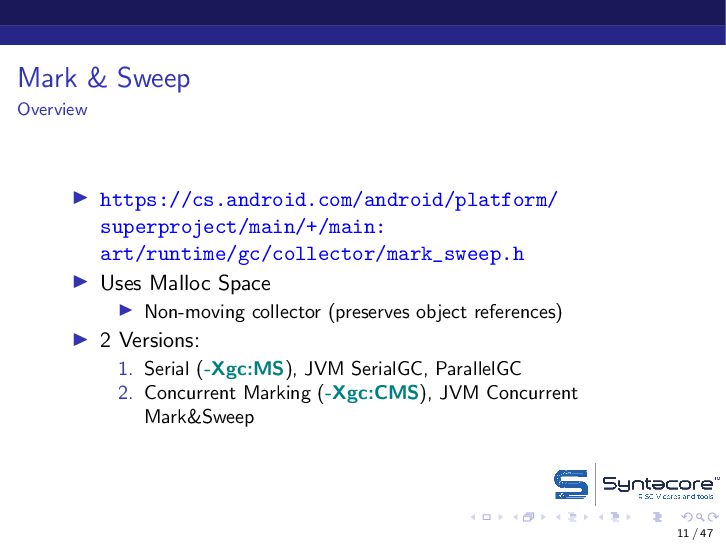

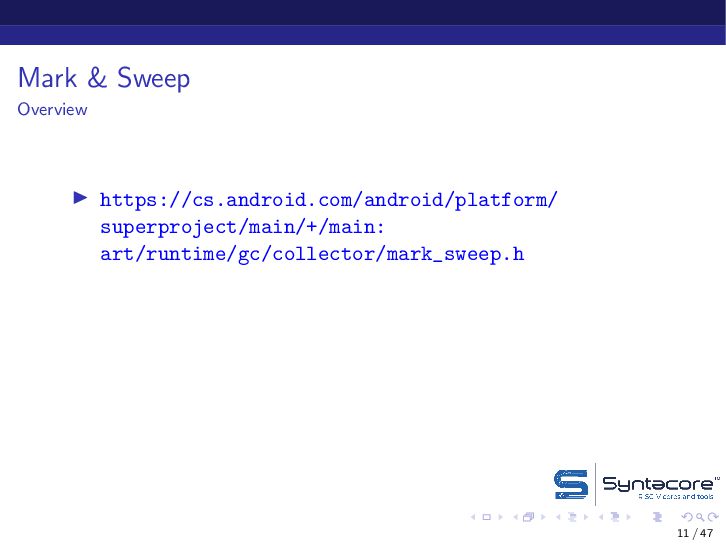

Mark & Sweep Overview ▶ https://cs.android.com/android/platform/ superproject/main/+/main: art/runtime/gc/collector/mark_sweep.h 11 /
47

Mark & Sweep Overview ▶ https://cs.android.com/android/platform/ superproject/main/+/main: art/runtime/gc/collector/mark_sweep.h ▶ Uses
Malloc Space 11 / 47

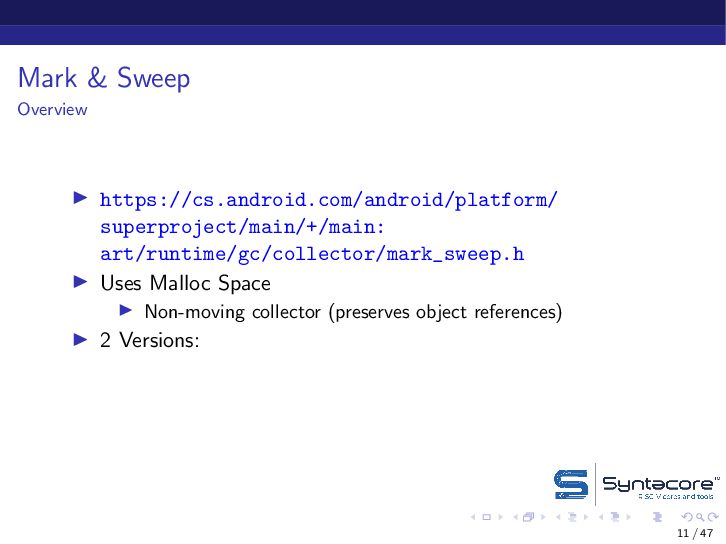

Malloc Space ▶ Non-moving collector (preserves object references) 11 / 47

Malloc Space ▶ Non-moving collector (preserves object references) ▶ 2 Versions: 11 / 47

Malloc Space ▶ Non-moving collector (preserves object references) ▶ 2 Versions: 1. Serial (-Xgc:MS), JVM SerialGC, ParallelGC 11 / 47

Malloc Space ▶ Non-moving collector (preserves object references) ▶ 2 Versions: 1. Serial (-Xgc:MS), JVM SerialGC, ParallelGC 2. Concurrent Marking (-Xgc:CMS), JVM Concurrent Mark&Sweep 11 / 47

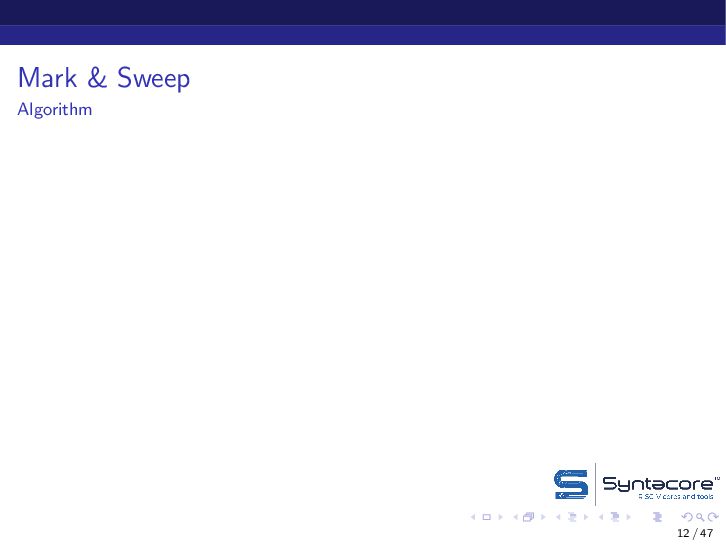

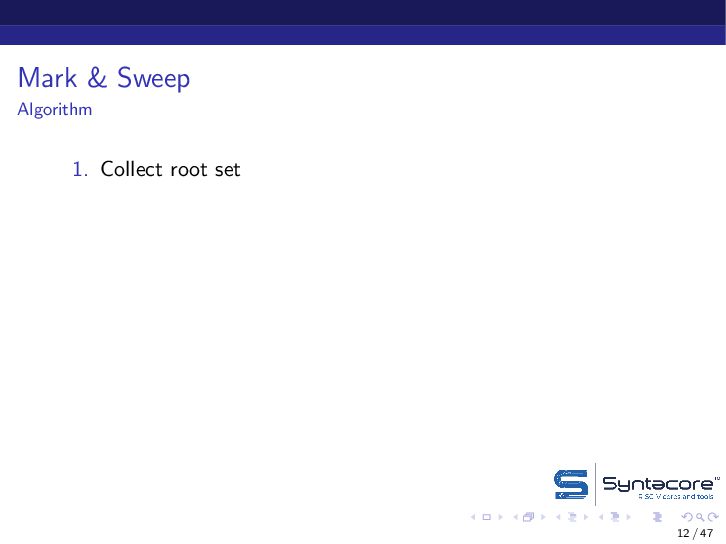

Mark & Sweep Algorithm 12 / 47

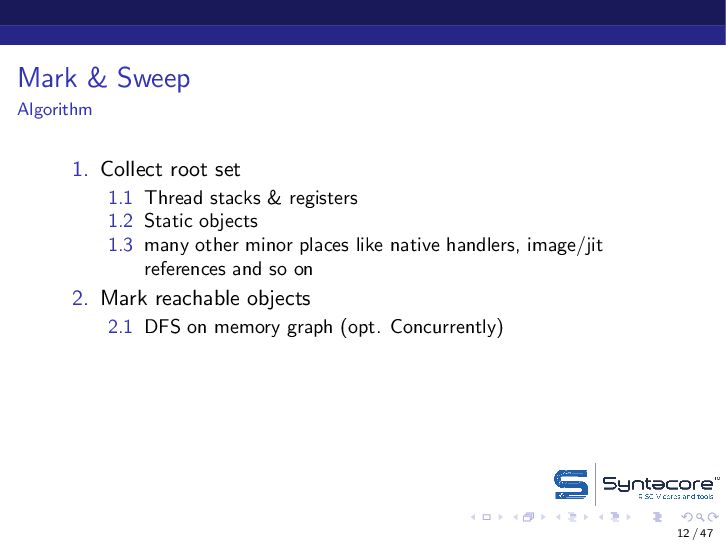

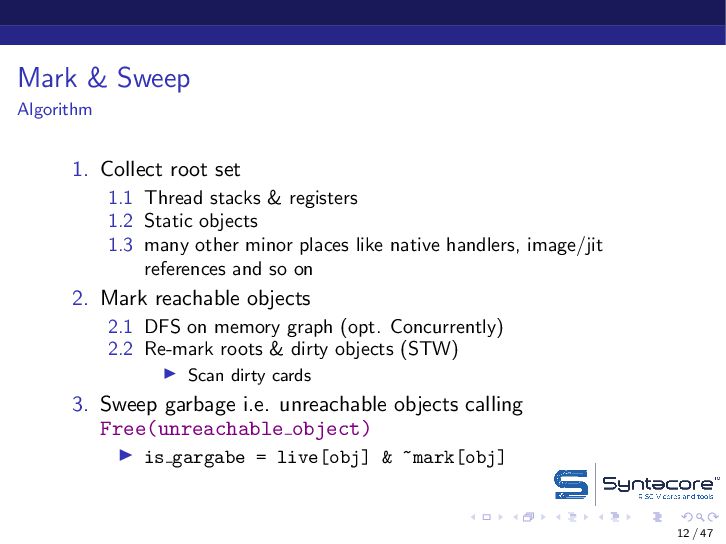

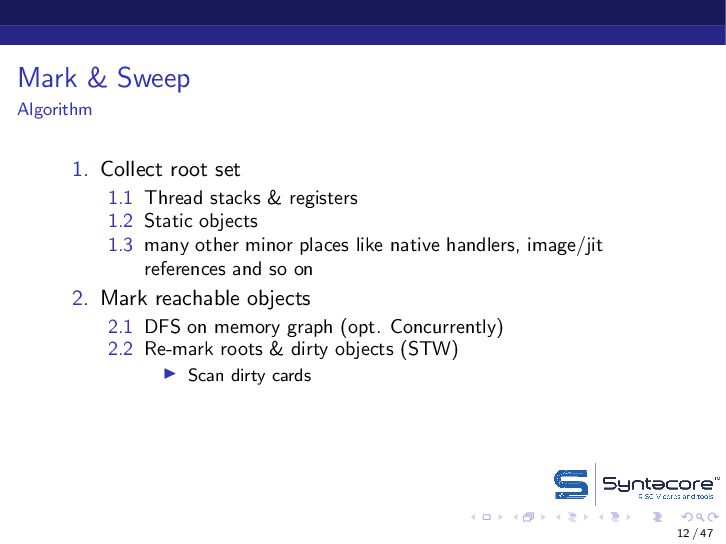

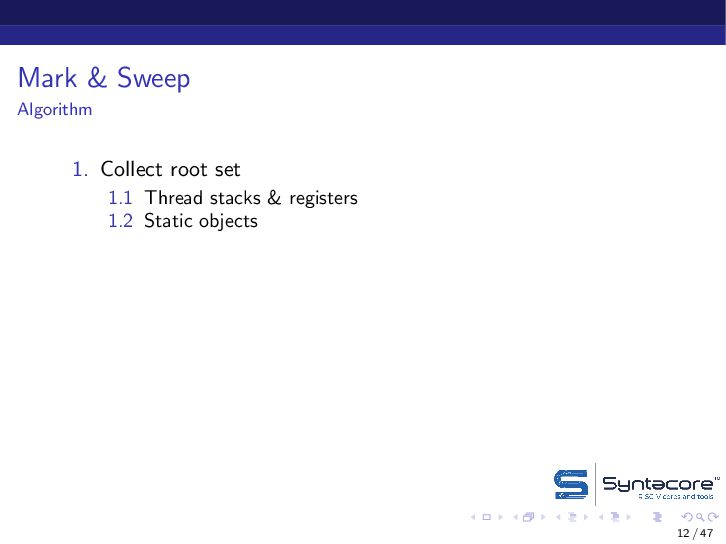

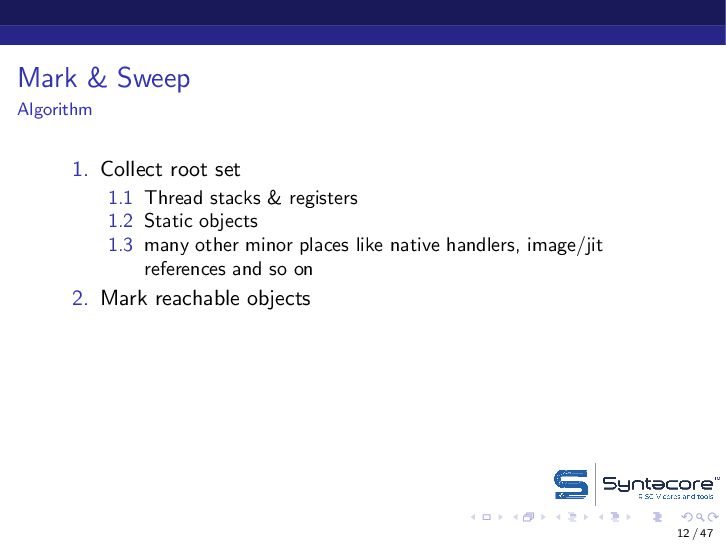

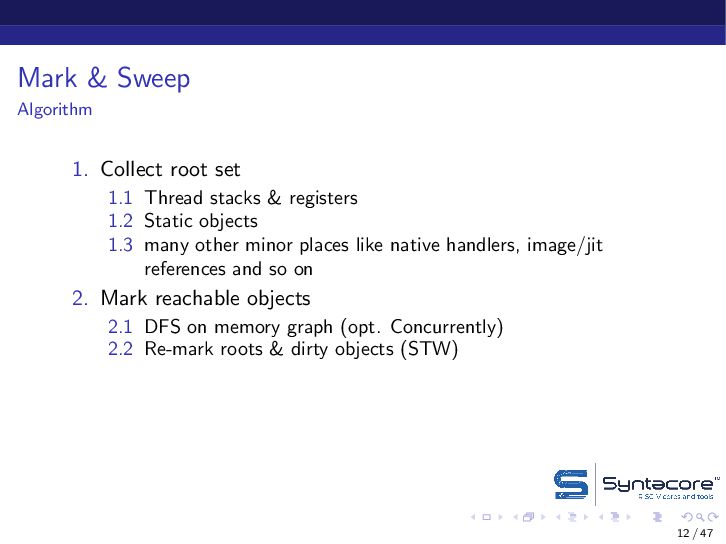

Mark & Sweep Algorithm 1. Collect root set 12 /
47

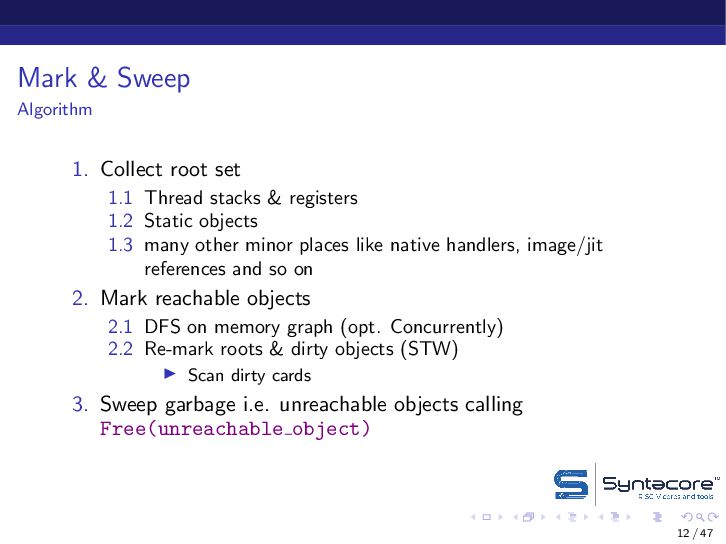

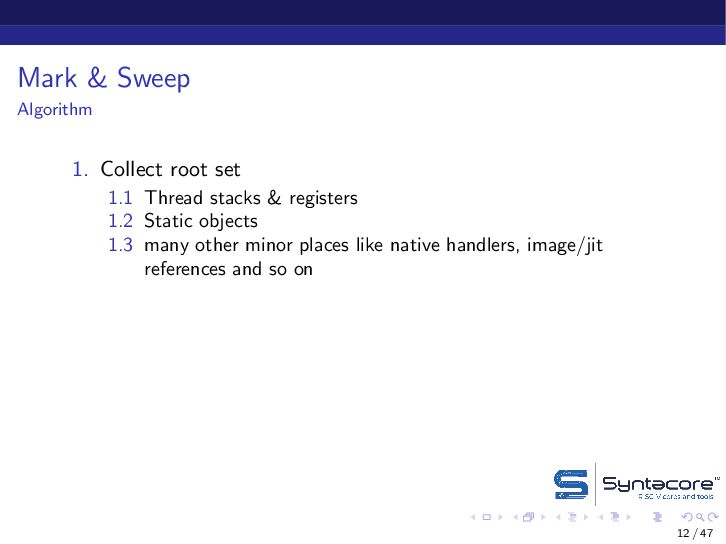

Mark & Sweep Algorithm 1. Collect root set 1.1 Thread
stacks & registers 12 / 47

stacks & registers 1.2 Static objects 12 / 47

stacks & registers 1.2 Static objects 1.3 many other minor places like native handlers, image/jit references and so on 12 / 47

stacks & registers 1.2 Static objects 1.3 many other minor places like native handlers, image/jit references and so on 2. Mark reachable objects 12 / 47

stacks & registers 1.2 Static objects 1.3 many other minor places like native handlers, image/jit references and so on 2. Mark reachable objects 2.1 DFS on memory graph (opt. Concurrently) 12 / 47

stacks & registers 1.2 Static objects 1.3 many other minor places like native handlers, image/jit references and so on 2. Mark reachable objects 2.1 DFS on memory graph (opt. Concurrently) 2.2 Re-mark roots & dirty objects (STW) 12 / 47

stacks & registers 1.2 Static objects 1.3 many other minor places like native handlers, image/jit references and so on 2. Mark reachable objects 2.1 DFS on memory graph (opt. Concurrently) 2.2 Re-mark roots & dirty objects (STW) ▶ Scan dirty cards 12 / 47

stacks & registers 1.2 Static objects 1.3 many other minor places like native handlers, image/jit references and so on 2. Mark reachable objects 2.1 DFS on memory graph (opt. Concurrently) 2.2 Re-mark roots & dirty objects (STW) ▶ Scan dirty cards 3. Sweep garbage i.e. unreachable objects calling Free(unreachable object) 12 / 47

stacks & registers 1.2 Static objects 1.3 many other minor places like native handlers, image/jit references and so on 2. Mark reachable objects 2.1 DFS on memory graph (opt. Concurrently) 2.2 Re-mark roots & dirty objects (STW) ▶ Scan dirty cards 3. Sweep garbage i.e. unreachable objects calling Free(unreachable object) ▶ is gargabe = live[obj] & ~mark[obj] 12 / 47

stacks & registers 1.2 Static objects 1.3 many other minor places like native handlers, image/jit references and so on 2. Mark reachable objects 2.1 DFS on memory graph (opt. Concurrently) 2.2 Re-mark roots & dirty objects (STW) ▶ Scan dirty cards 3. Sweep garbage i.e. unreachable objects calling Free(unreachable object) ▶ is gargabe = live[obj] & ~mark[obj] 13 / 47

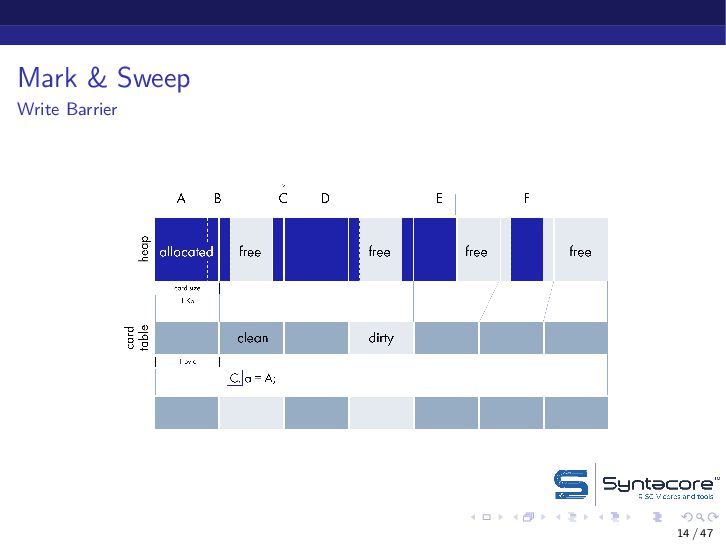

Mark & Sweep Write Barrier 14 / 47

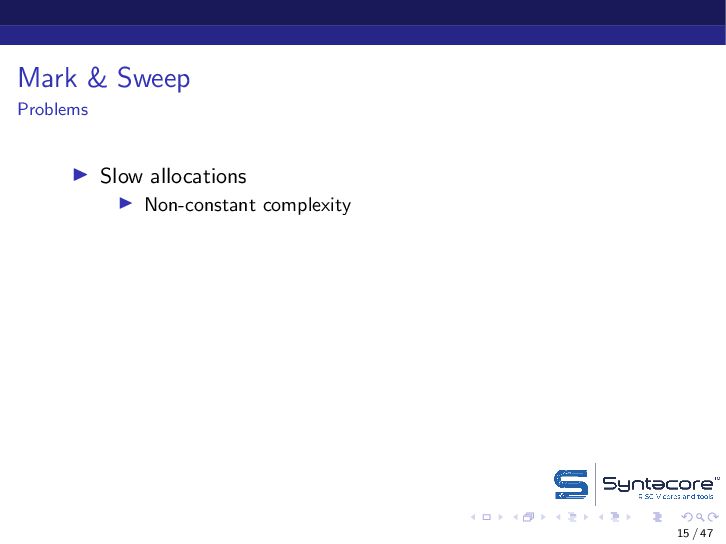

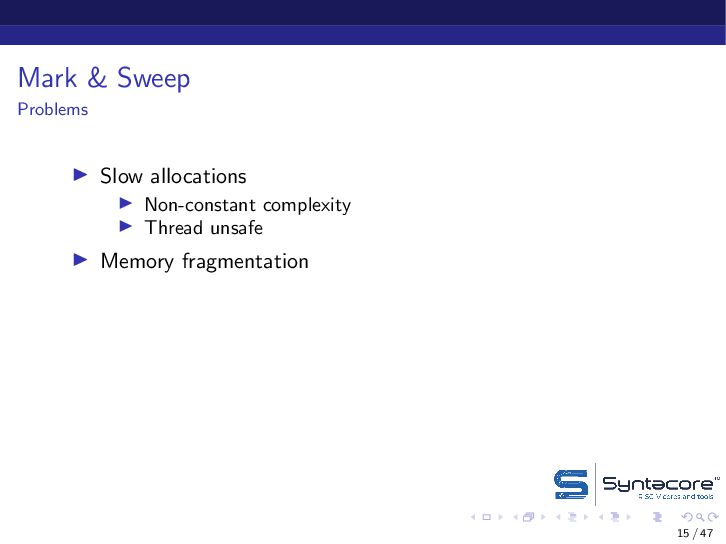

Mark & Sweep Problems 15 / 47

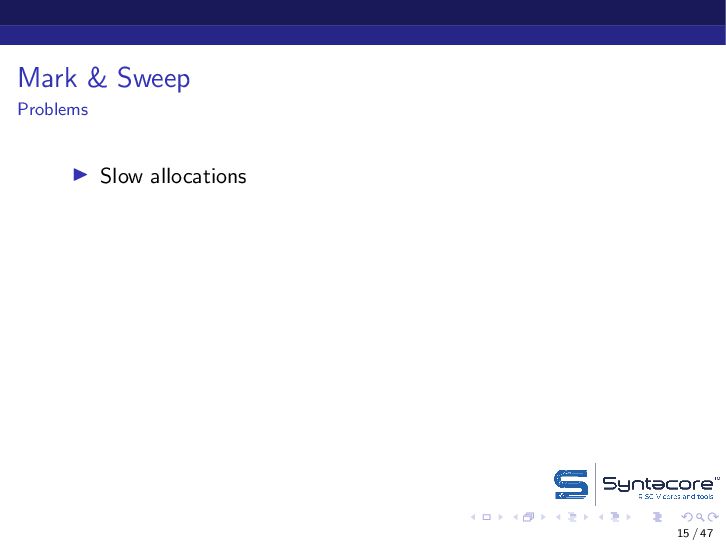

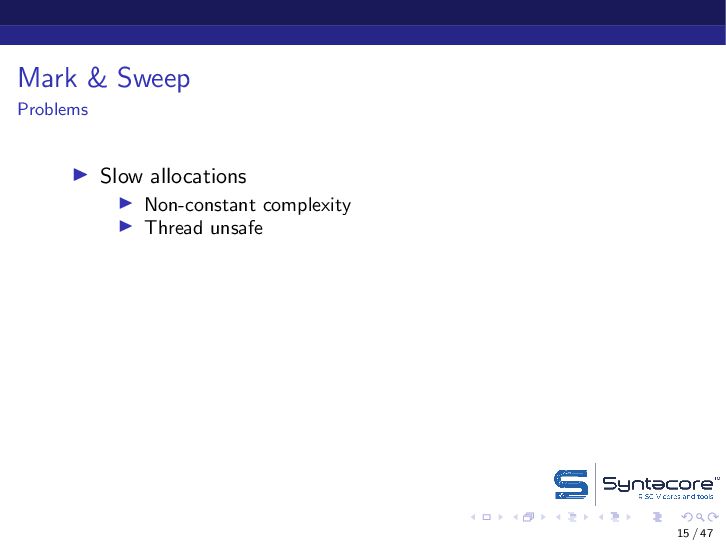

Mark & Sweep Problems ▶ Slow allocations 15 / 47

Mark & Sweep Problems ▶ Slow allocations ▶ Non-constant complexity
15 / 47

▶ Thread unsafe 15 / 47

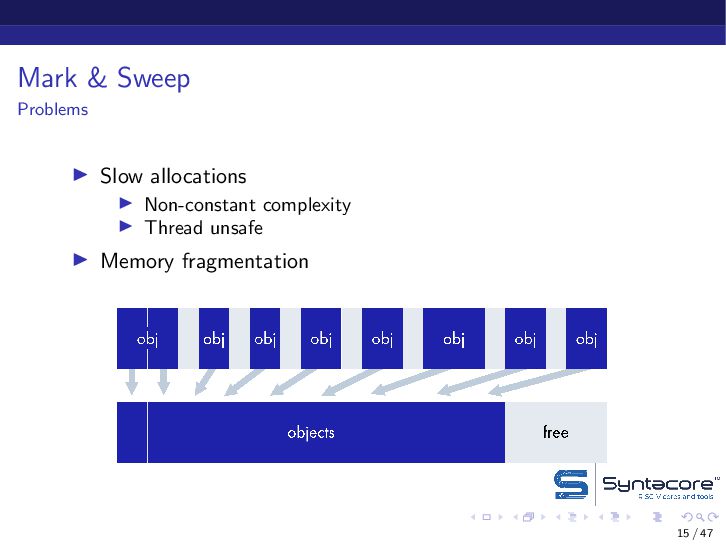

▶ Thread unsafe ▶ Memory fragmentation 15 / 47

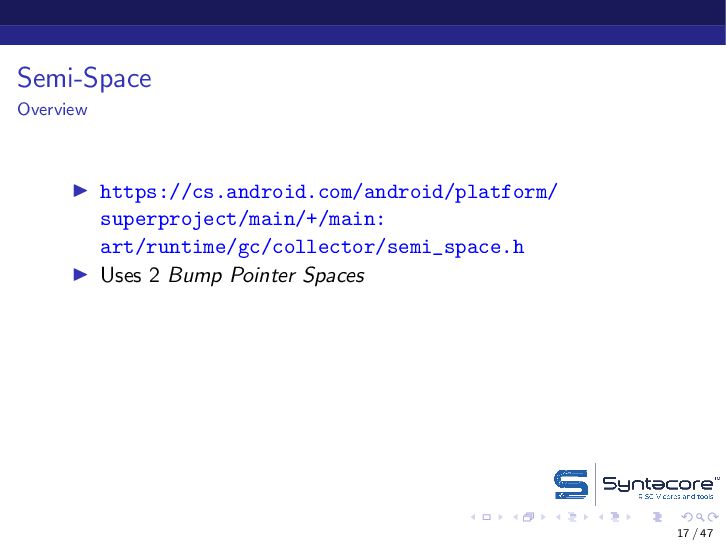

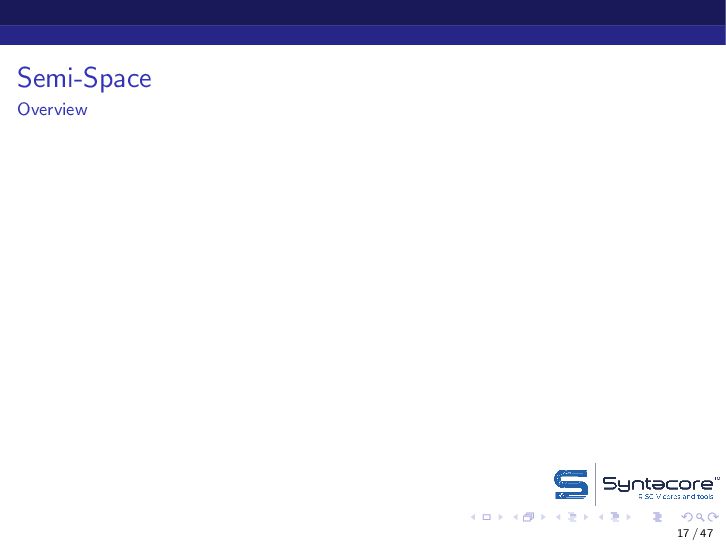

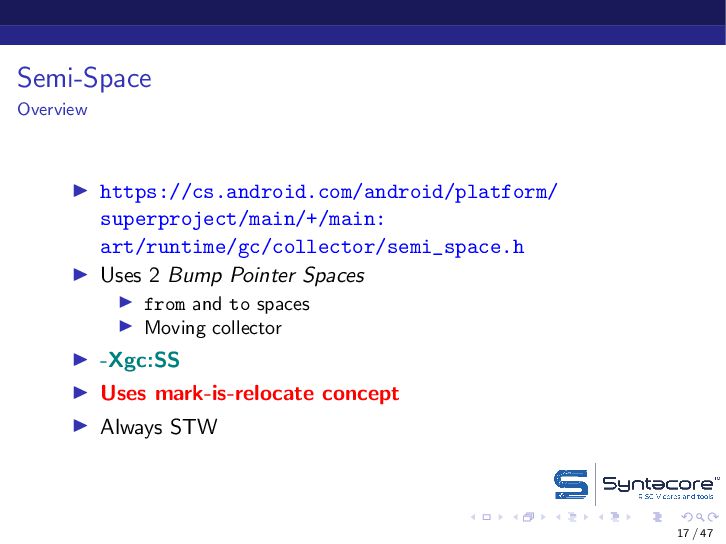

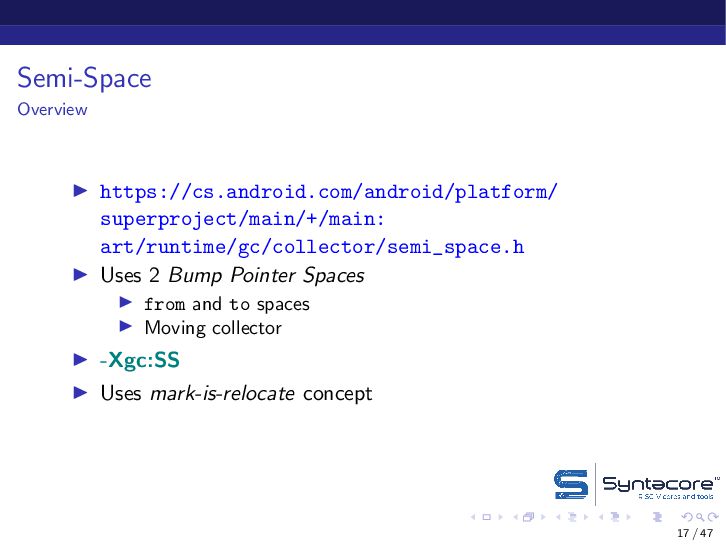

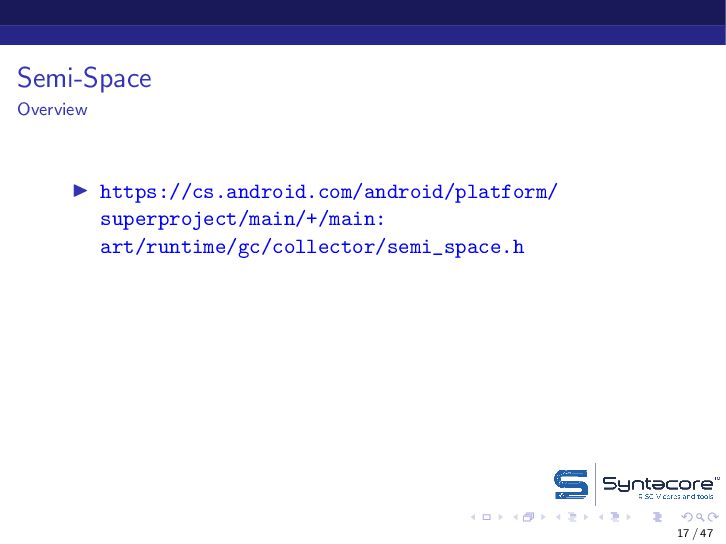

Semi-Space Overview 17 / 47

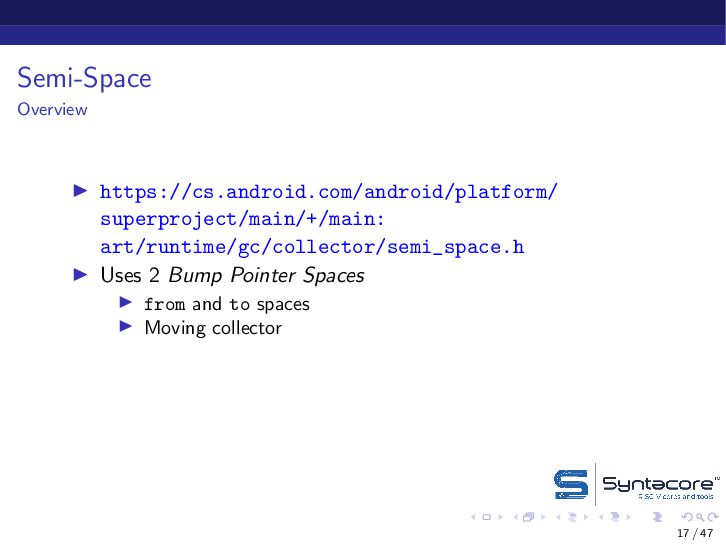

Semi-Space Overview ▶ https://cs.android.com/android/platform/ superproject/main/+/main: art/runtime/gc/collector/semi_space.h 17 / 47

Semi-Space Overview ▶ https://cs.android.com/android/platform/ superproject/main/+/main: art/runtime/gc/collector/semi_space.h ▶ Uses 2 Bump
Pointer Spaces 17 / 47

Pointer Spaces ▶ from and to spaces 17 / 47

Pointer Spaces ▶ from and to spaces ▶ Moving collector 17 / 47

Pointer Spaces ▶ from and to spaces ▶ Moving collector ▶ -Xgc:SS 17 / 47

Pointer Spaces ▶ from and to spaces ▶ Moving collector ▶ -Xgc:SS ▶ Uses mark-is-relocate concept 17 / 47

Pointer Spaces ▶ from and to spaces ▶ Moving collector ▶ -Xgc:SS ▶ Uses mark-is-relocate concept ▶ Always STW 17 / 47

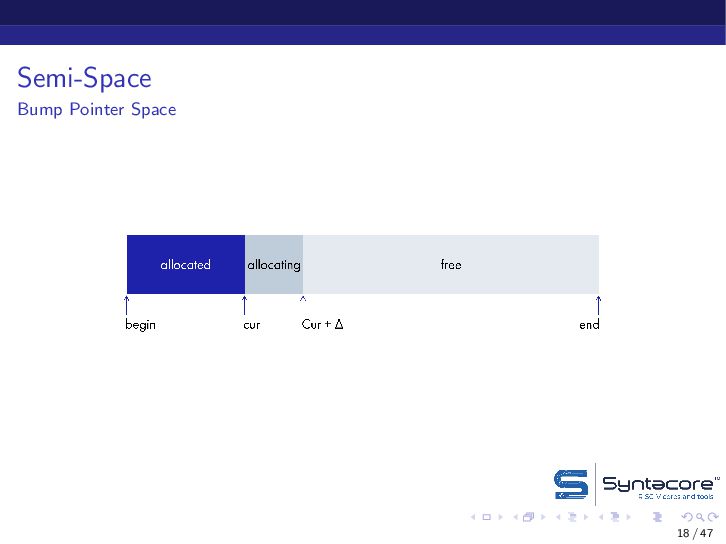

Semi-Space Bump Pointer Space 18 / 47

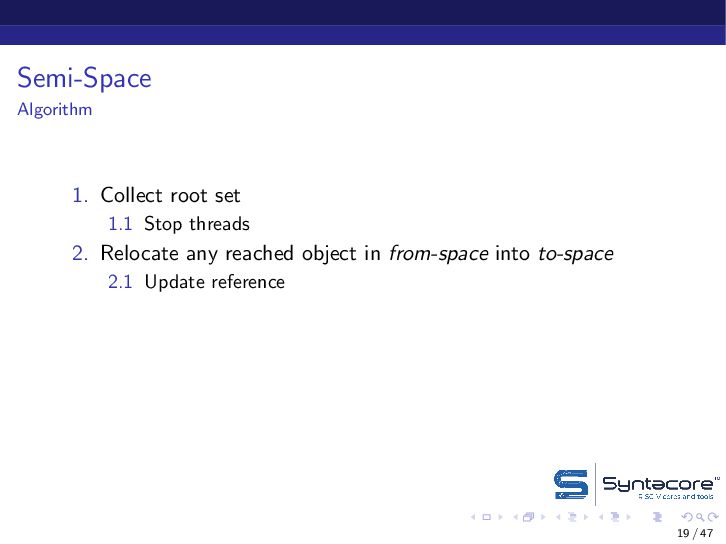

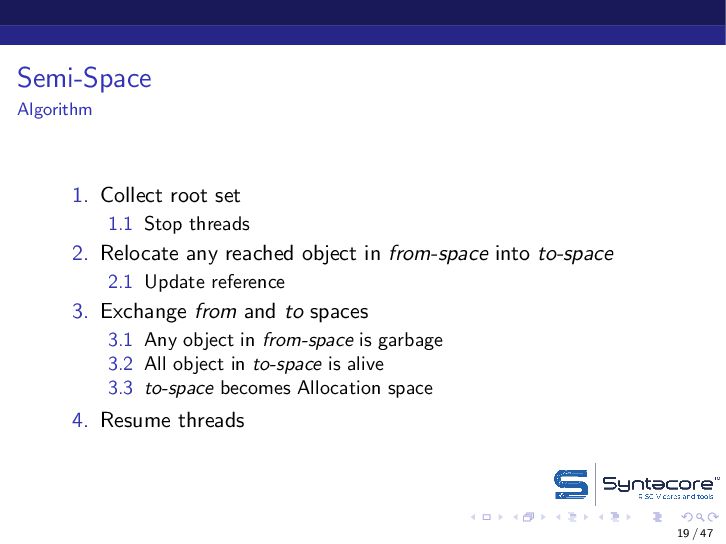

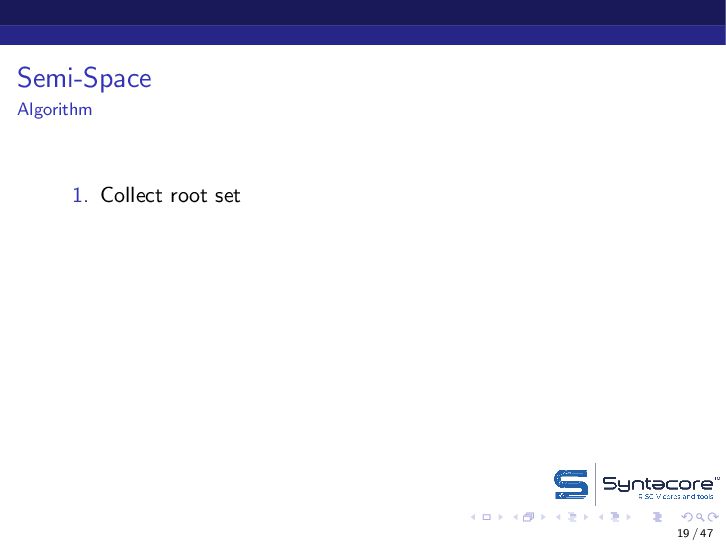

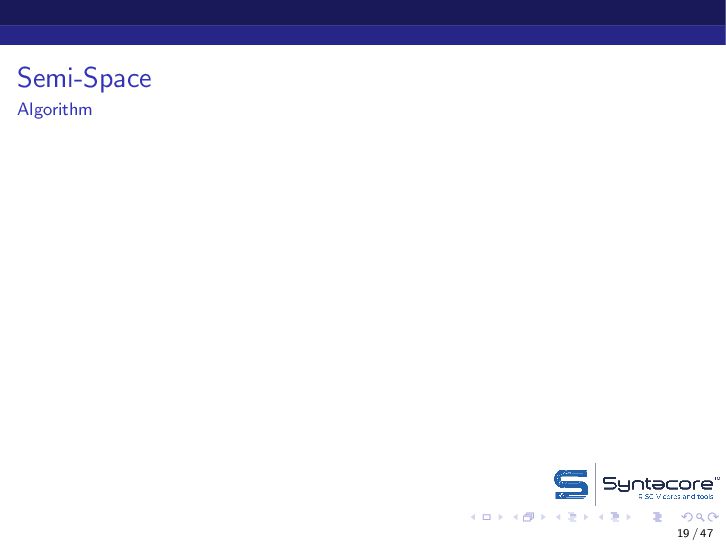

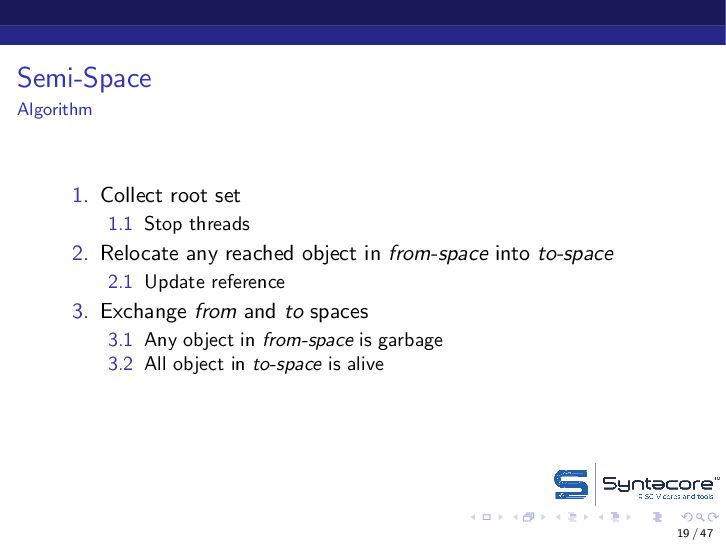

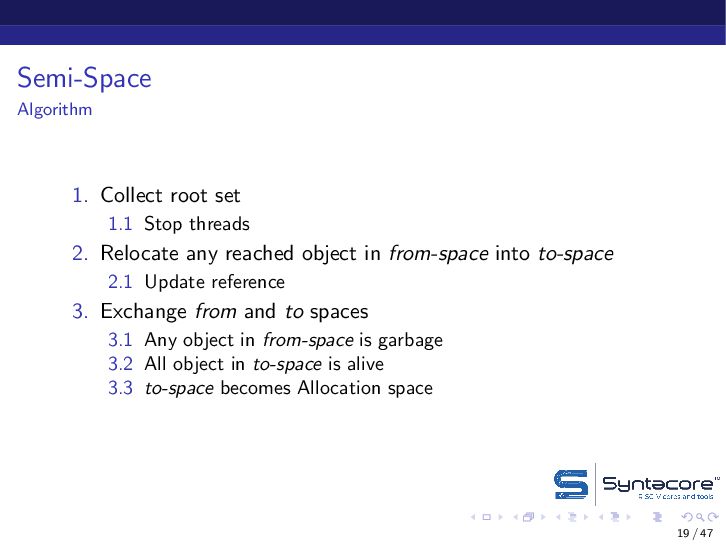

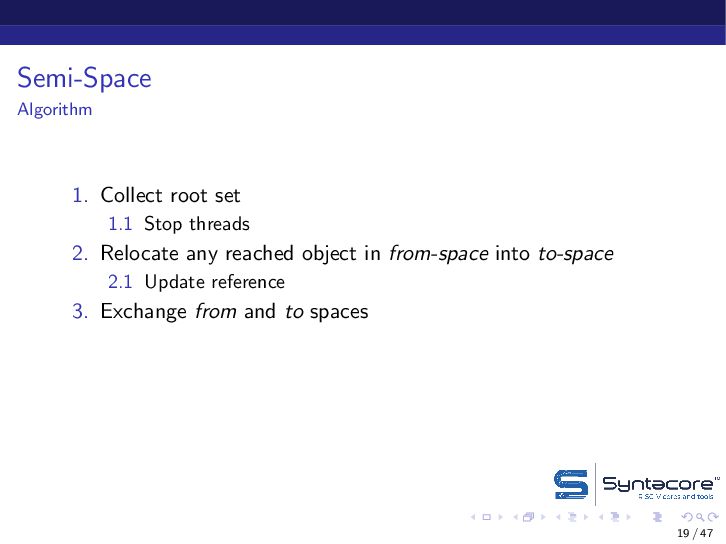

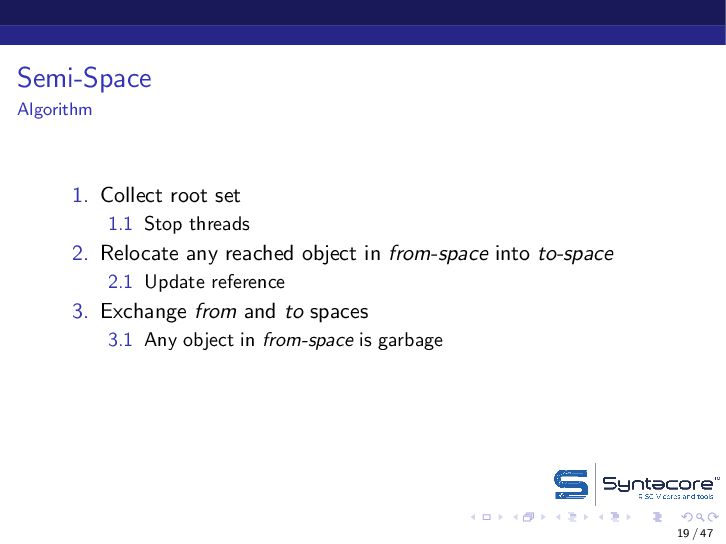

Semi-Space Algorithm 19 / 47

Semi-Space Algorithm 1. Collect root set 19 / 47

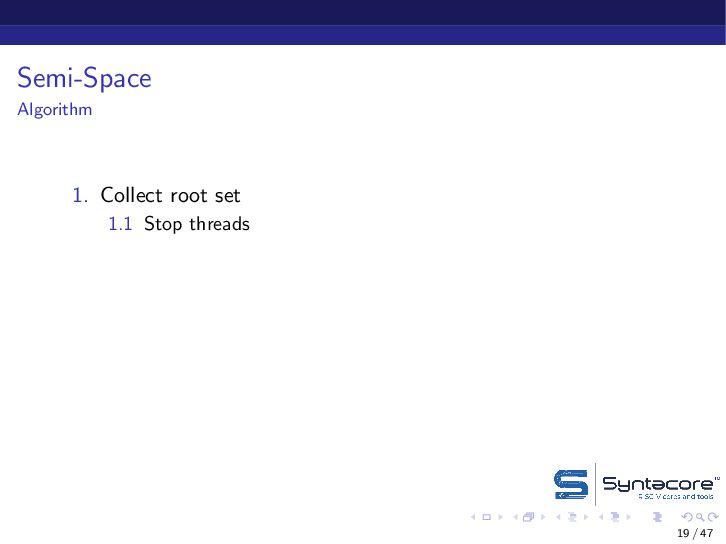

Semi-Space Algorithm 1. Collect root set 1.1 Stop threads 19
/ 47

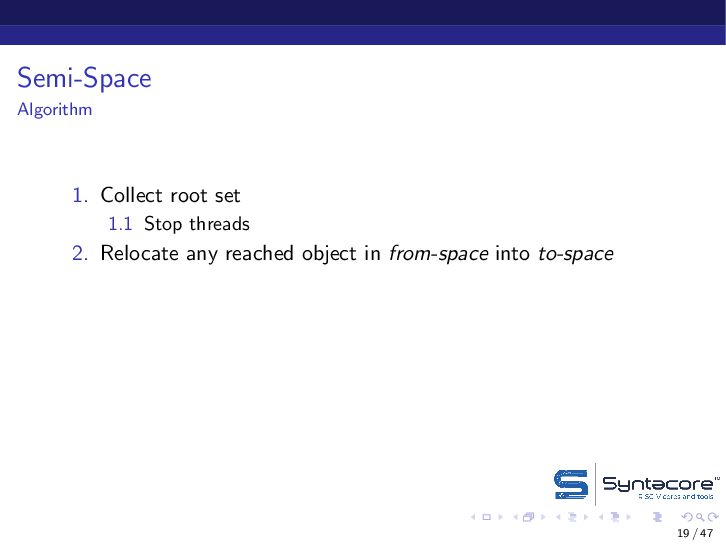

Semi-Space Algorithm 1. Collect root set 1.1 Stop threads 2.
Relocate any reached object in from-space into to-space 19 / 47

Relocate any reached object in from-space into to-space 2.1 Update reference 19 / 47

Relocate any reached object in from-space into to-space 2.1 Update reference 3. Exchange from and to spaces 19 / 47

Relocate any reached object in from-space into to-space 2.1 Update reference 3. Exchange from and to spaces 3.1 Any object in from-space is garbage 19 / 47

Relocate any reached object in from-space into to-space 2.1 Update reference 3. Exchange from and to spaces 3.1 Any object in from-space is garbage 3.2 All object in to-space is alive 19 / 47

Relocate any reached object in from-space into to-space 2.1 Update reference 3. Exchange from and to spaces 3.1 Any object in from-space is garbage 3.2 All object in to-space is alive 3.3 to-space becomes Allocation space 19 / 47

Relocate any reached object in from-space into to-space 2.1 Update reference 3. Exchange from and to spaces 3.1 Any object in from-space is garbage 3.2 All object in to-space is alive 3.3 to-space becomes Allocation space 4. Resume threads 19 / 47

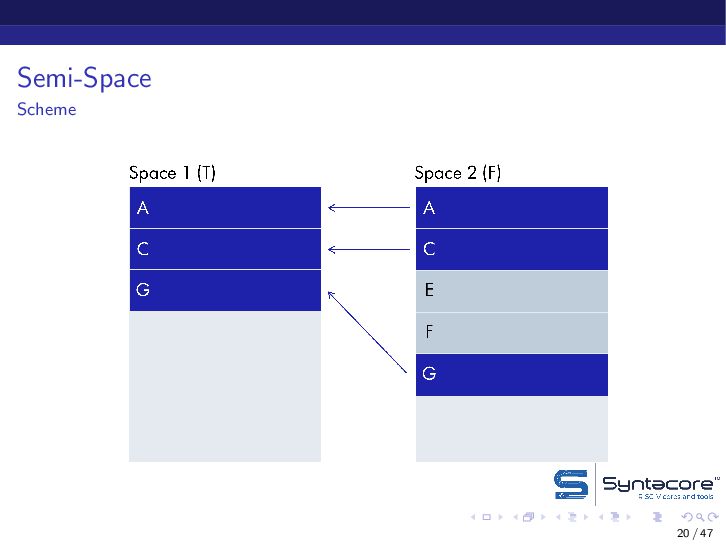

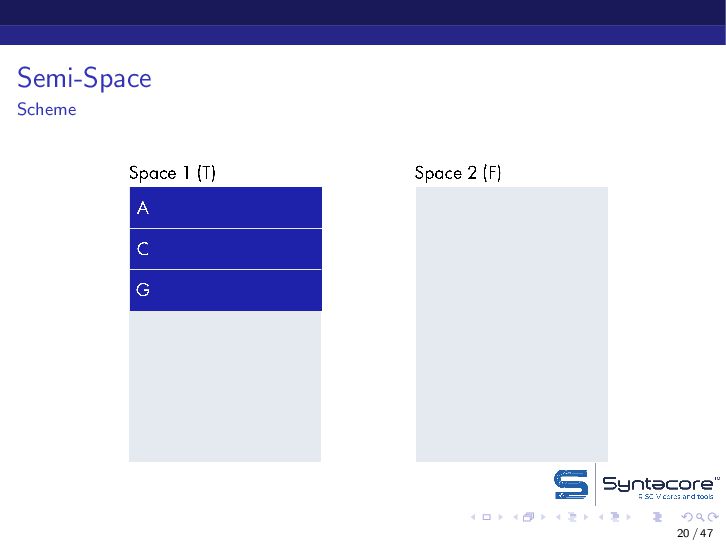

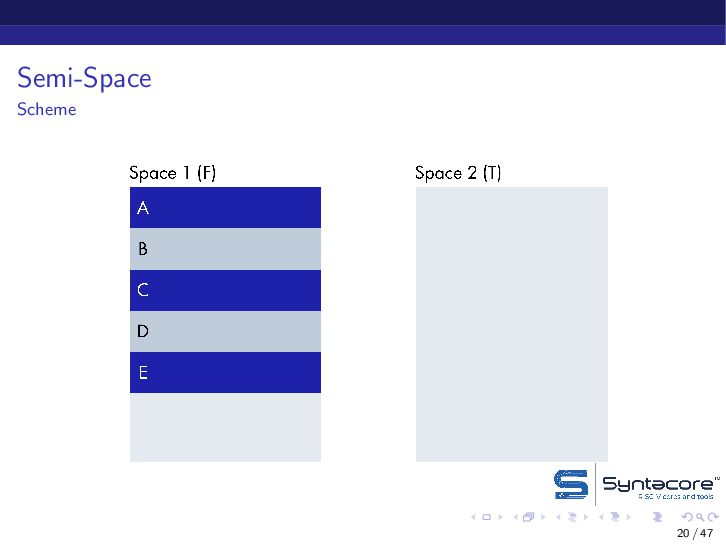

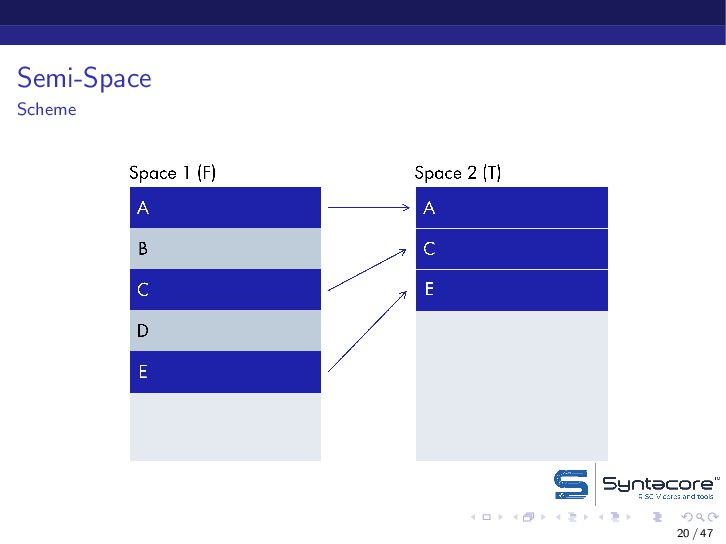

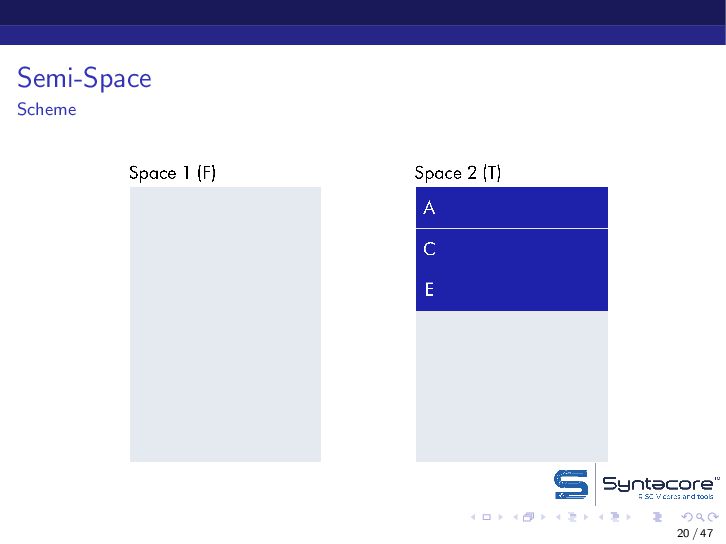

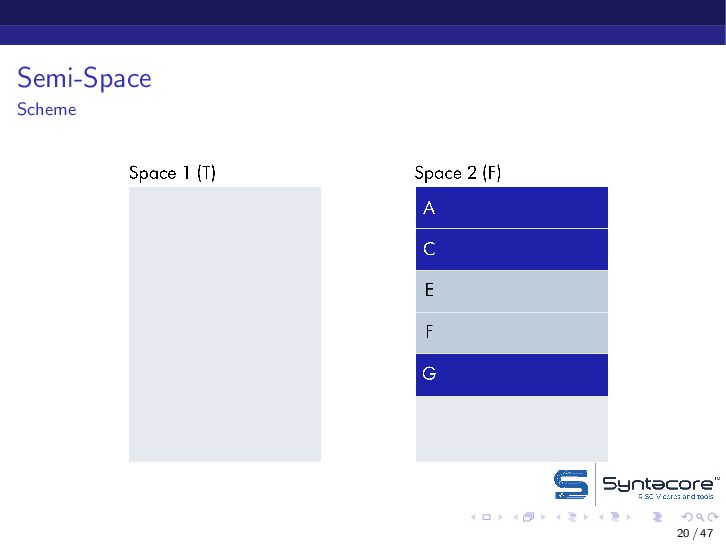

Semi-Space Scheme 20 / 47

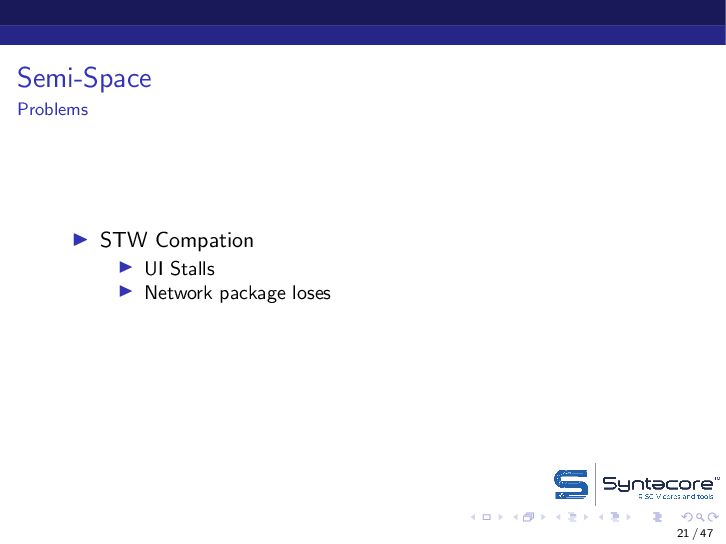

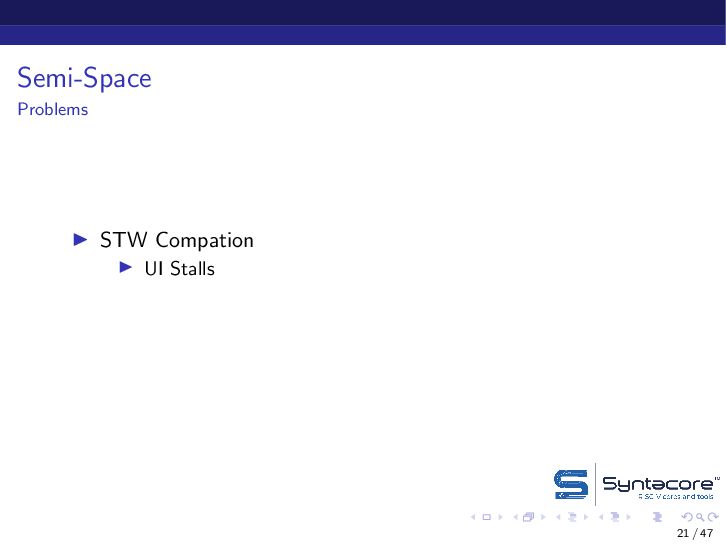

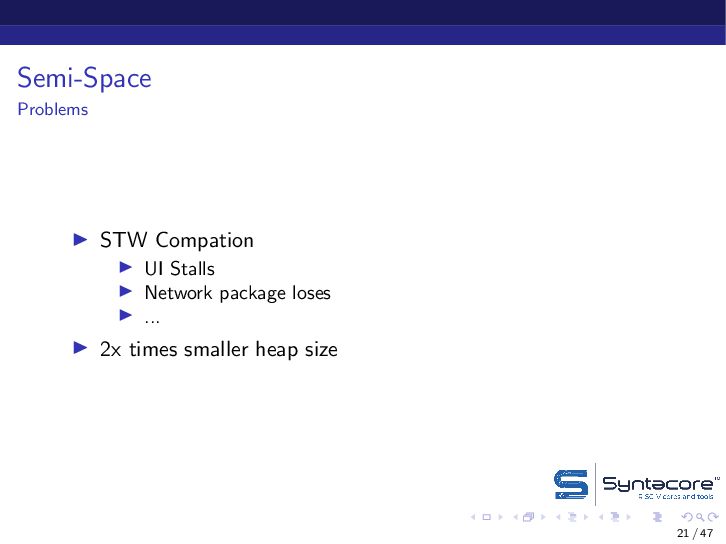

Semi-Space Problems 21 / 47

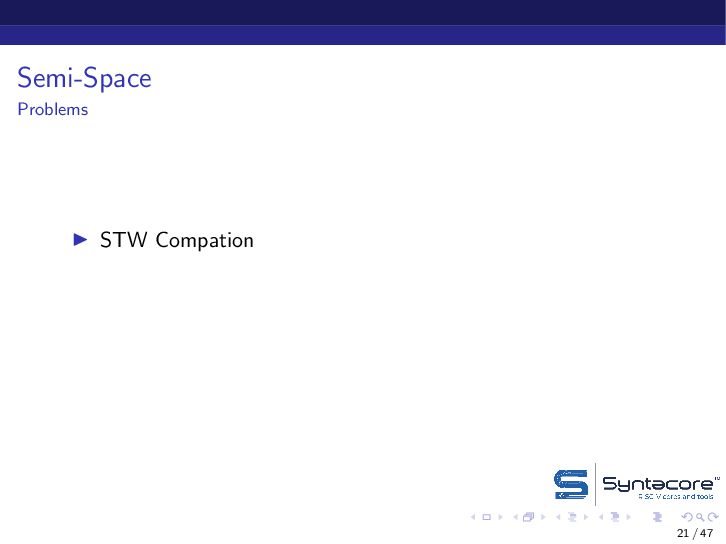

Semi-Space Problems ▶ STW Compation 21 / 47

Semi-Space Problems ▶ STW Compation ▶ UI Stalls 21 /
47

Semi-Space Problems ▶ STW Compation ▶ UI Stalls ▶ Network
package loses 21 / 47

package loses ▶ ... 21 / 47

package loses ▶ ... ▶ 2x times smaller heap size 21 / 47

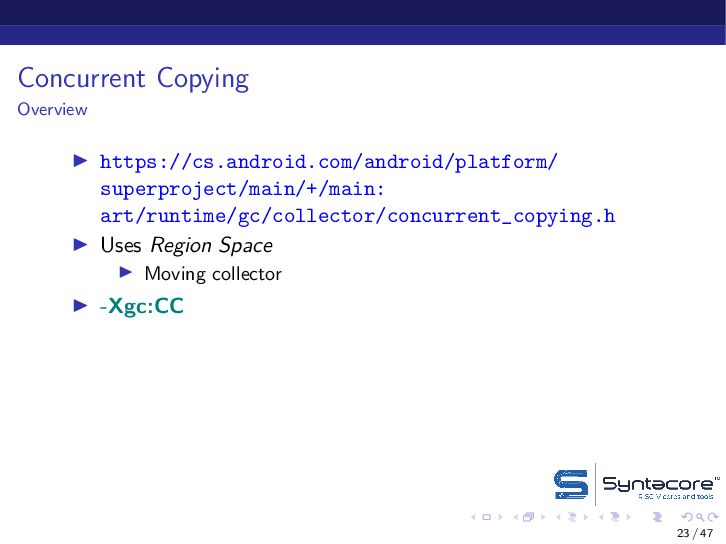

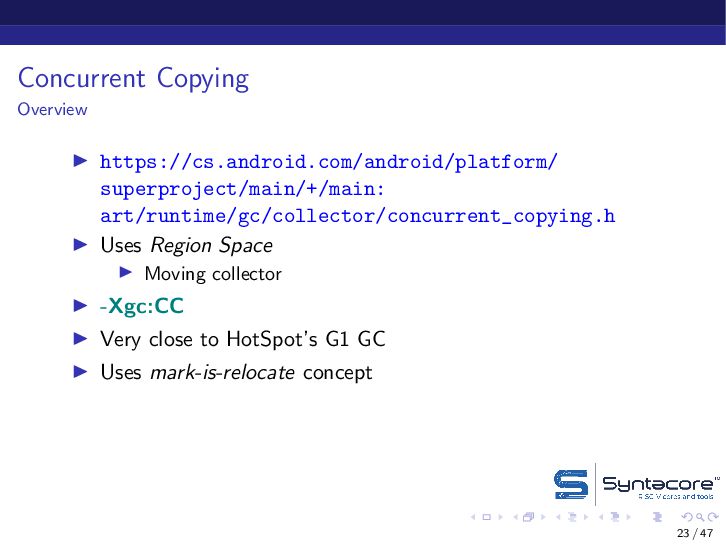

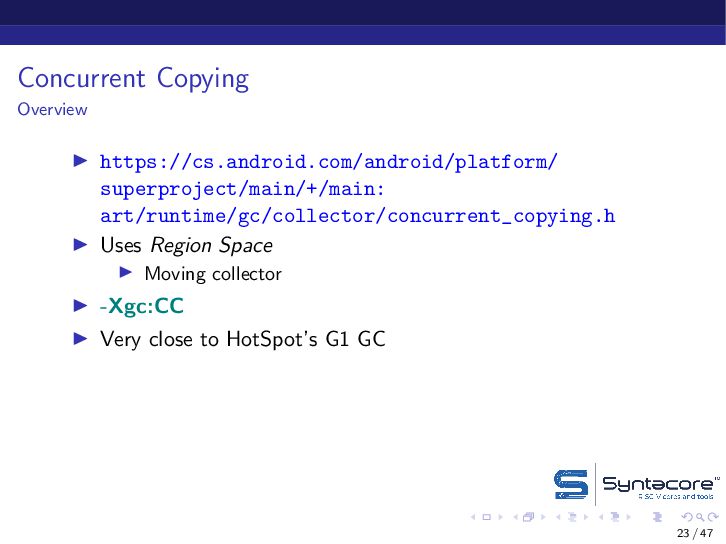

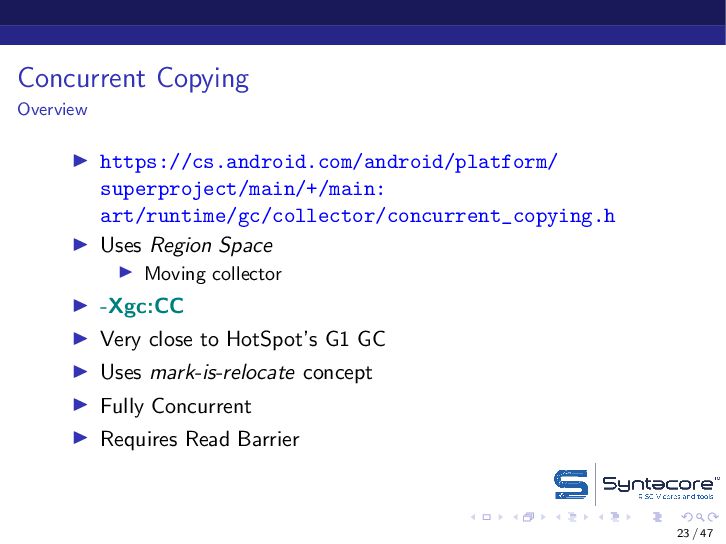

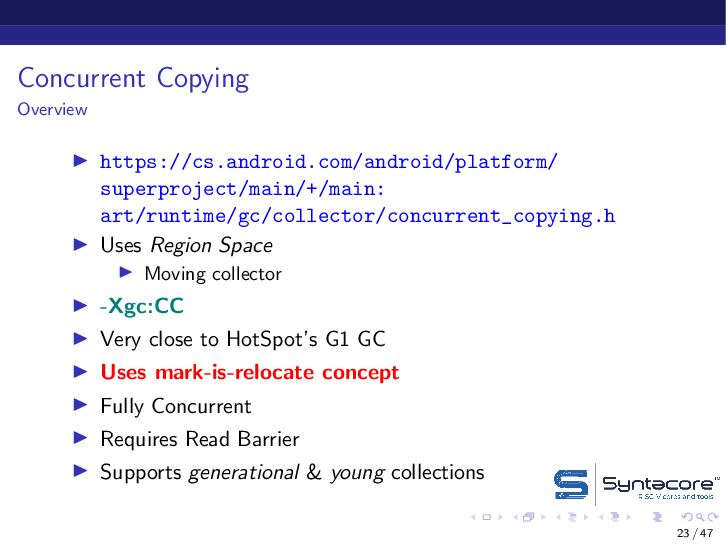

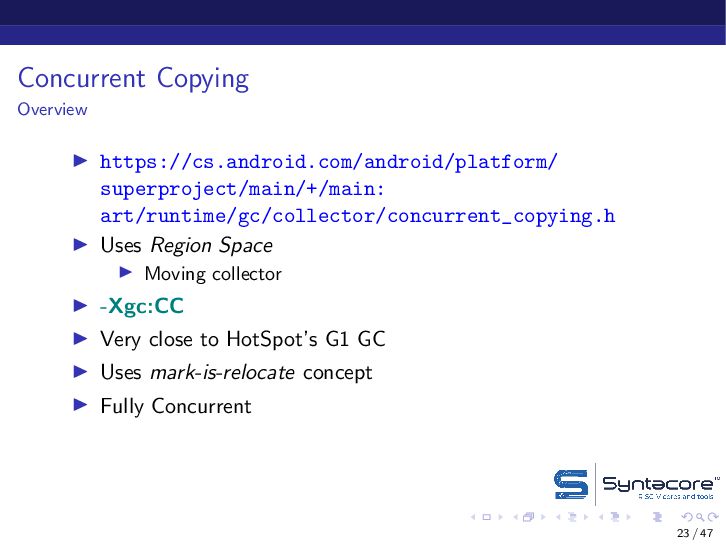

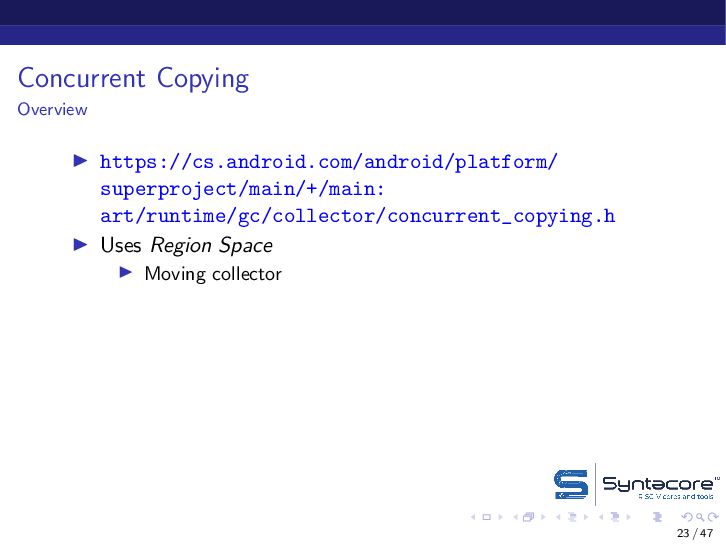

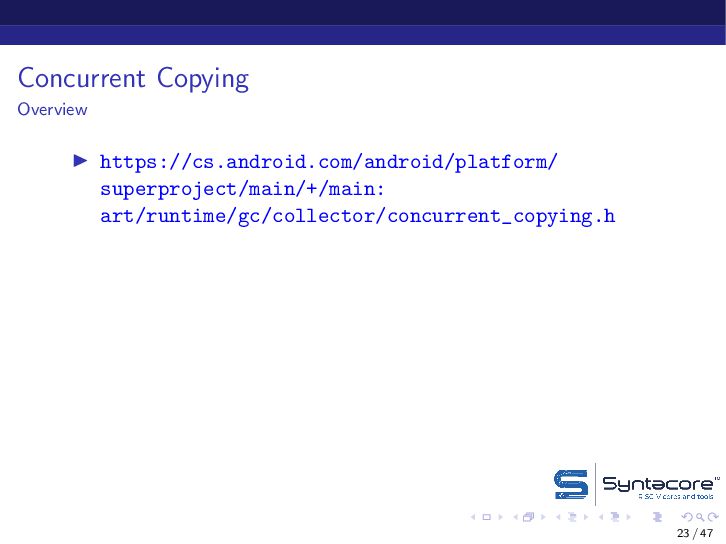

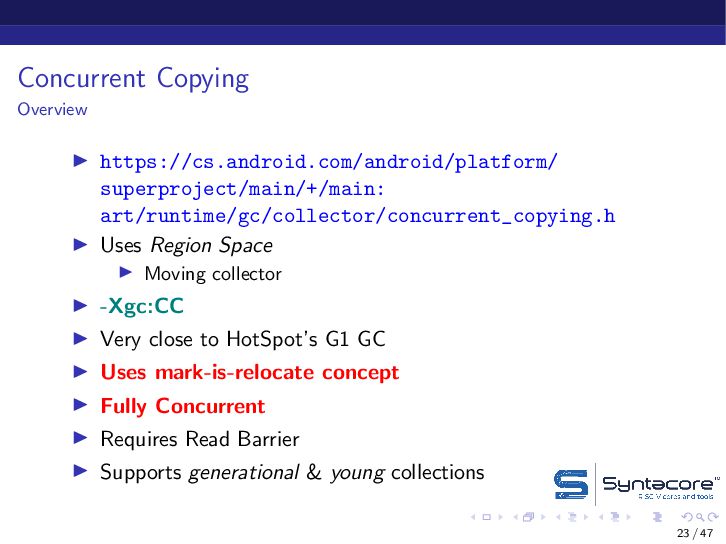

Concurrent Copying Overview 23 / 47

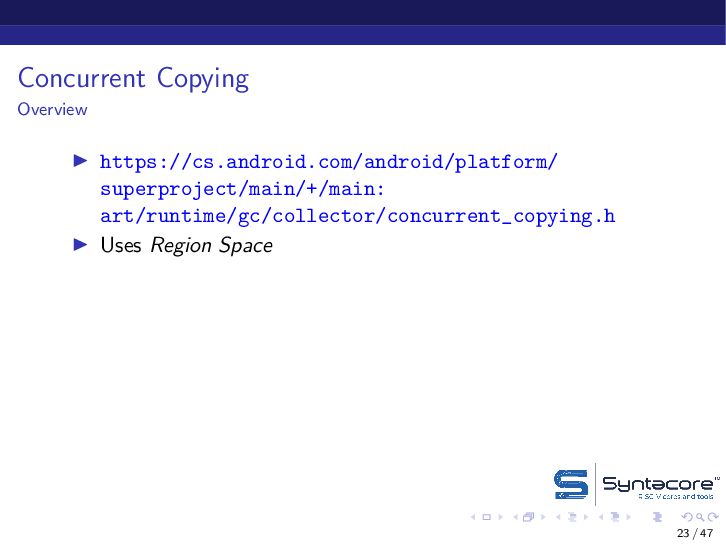

Concurrent Copying Overview ▶ https://cs.android.com/android/platform/ superproject/main/+/main: art/runtime/gc/collector/concurrent_copying.h 23 / 47

Concurrent Copying Overview ▶ https://cs.android.com/android/platform/ superproject/main/+/main: art/runtime/gc/collector/concurrent_copying.h ▶ Uses Region
Space 23 / 47

Space ▶ Moving collector 23 / 47

Space ▶ Moving collector ▶ -Xgc:CC 23 / 47

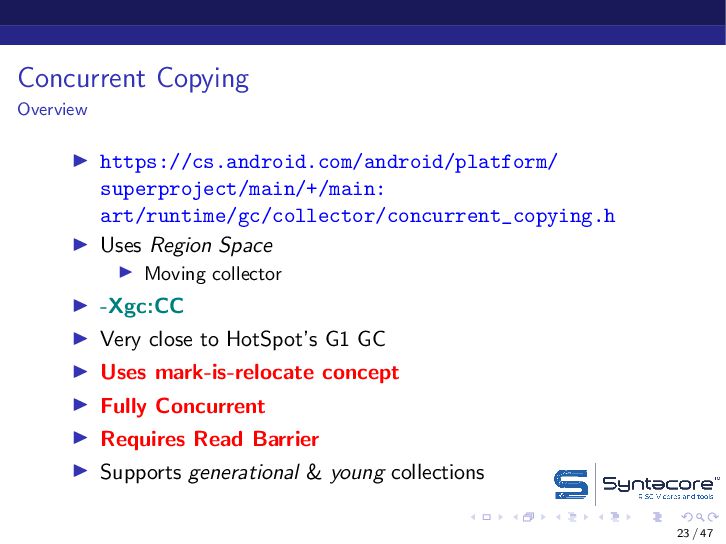

Space ▶ Moving collector ▶ -Xgc:CC ▶ Very close to HotSpot’s G1 GC 23 / 47

Space ▶ Moving collector ▶ -Xgc:CC ▶ Very close to HotSpot’s G1 GC ▶ Uses mark-is-relocate concept 23 / 47

Space ▶ Moving collector ▶ -Xgc:CC ▶ Very close to HotSpot’s G1 GC ▶ Uses mark-is-relocate concept ▶ Fully Concurrent 23 / 47

Space ▶ Moving collector ▶ -Xgc:CC ▶ Very close to HotSpot’s G1 GC ▶ Uses mark-is-relocate concept ▶ Fully Concurrent ▶ Requires Read Barrier 23 / 47

Space ▶ Moving collector ▶ -Xgc:CC ▶ Very close to HotSpot’s G1 GC ▶ Uses mark-is-relocate concept ▶ Fully Concurrent ▶ Requires Read Barrier ▶ Supports generational & young collections 23 / 47

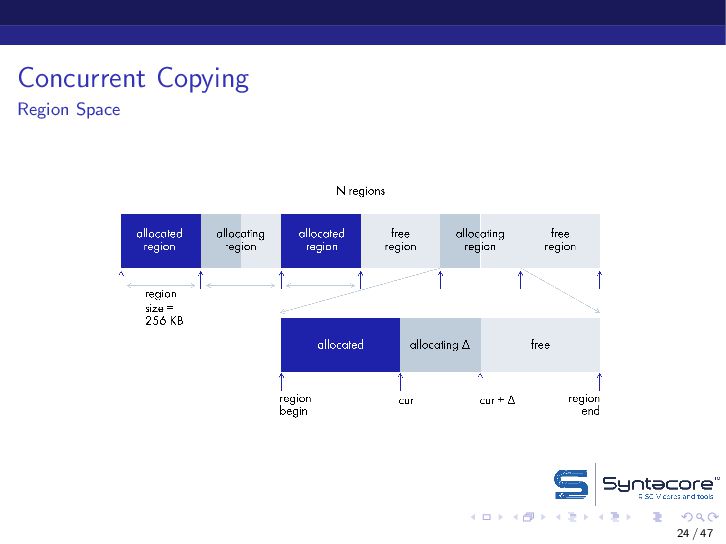

Concurrent Copying Region Space 24 / 47

Concurrent Copying 25 / 47

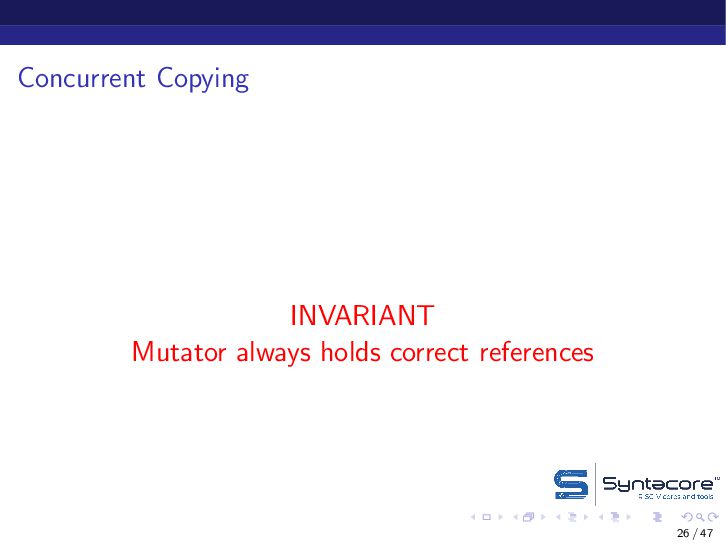

Concurrent Copying INVARIANT Mutator always holds correct references 26 /
47

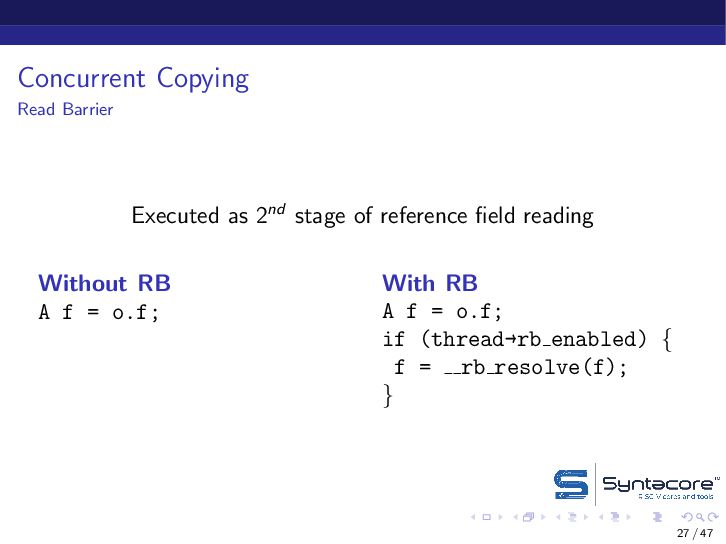

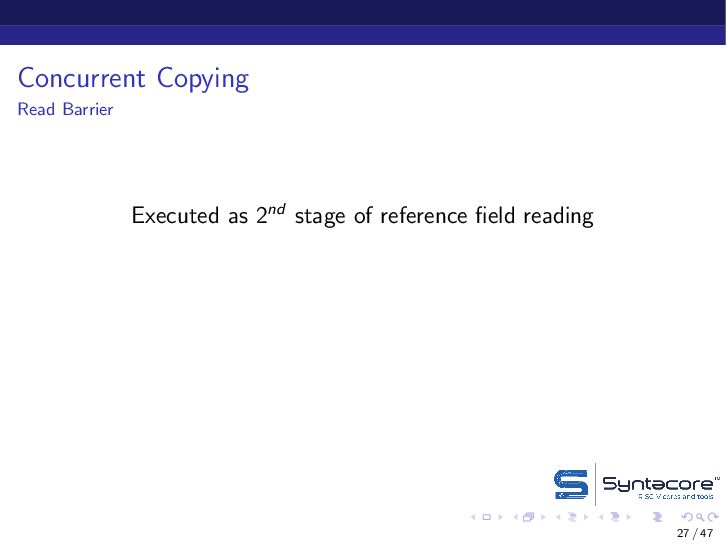

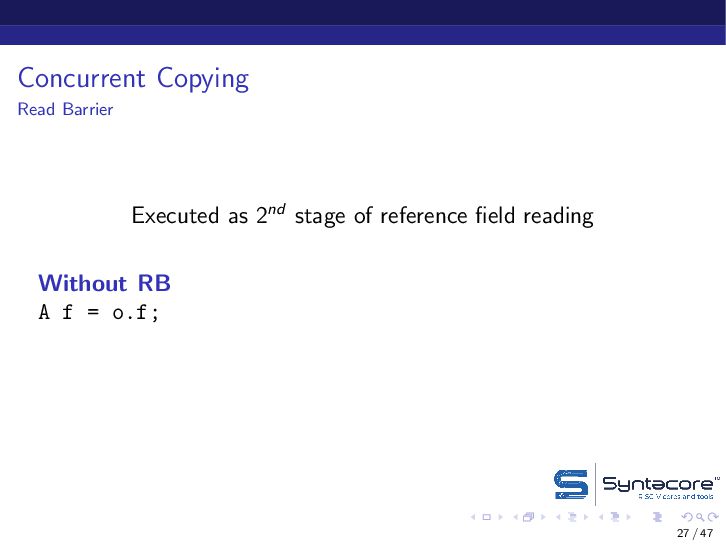

Concurrent Copying Read Barrier Executed as 2nd stage of reference
field reading 27 / 47

field reading Without RB A f = o.f; 27 / 47

field reading Without RB A f = o.f; With RB A f = o.f; if (threadrb enabled) { f = rb resolve(f); } 27 / 47

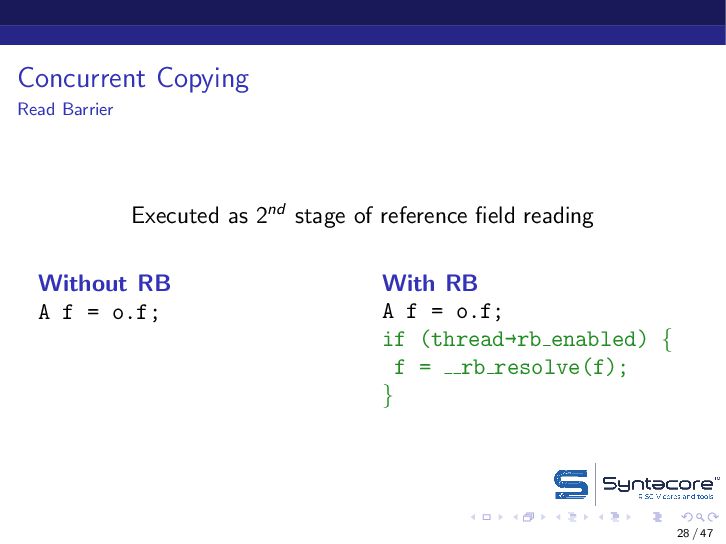

field reading Without RB A f = o.f; With RB A f = o.f; if (threadrb enabled) { f = rb resolve(f); } 28 / 47

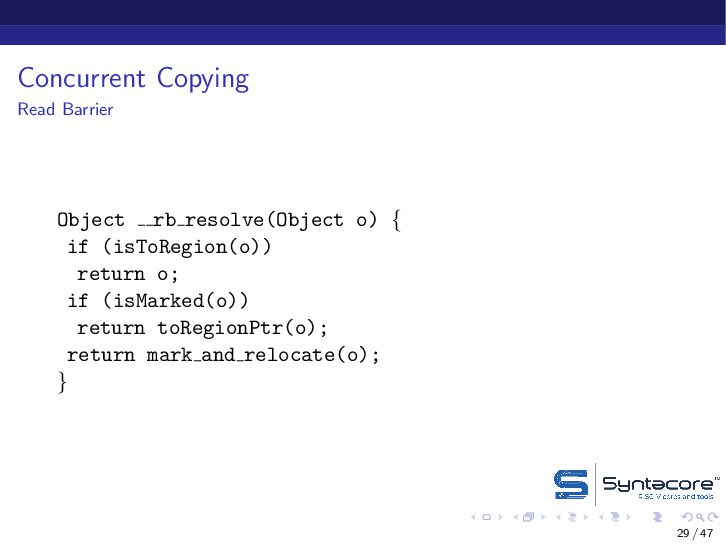

Concurrent Copying Read Barrier Object rb resolve(Object o) { if
(isToRegion(o)) return o; if (isMarked(o)) return toRegionPtr(o); return mark and relocate(o); } 29 / 47

Concurrent Copying Pointer Forwarding 30 / 47

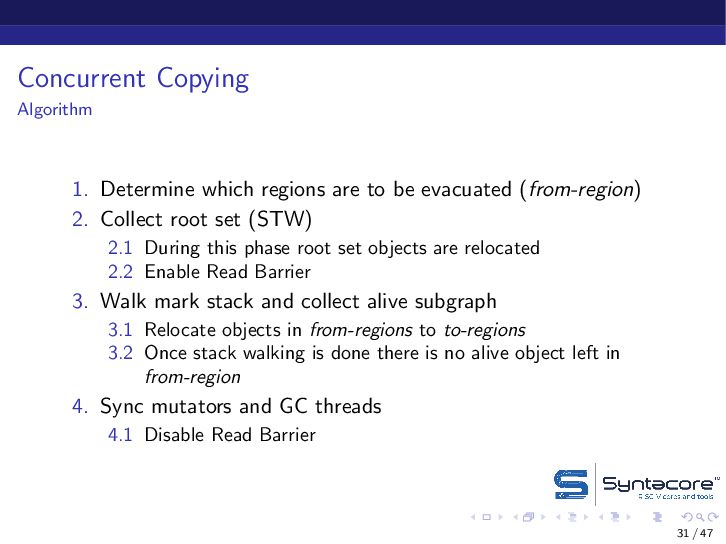

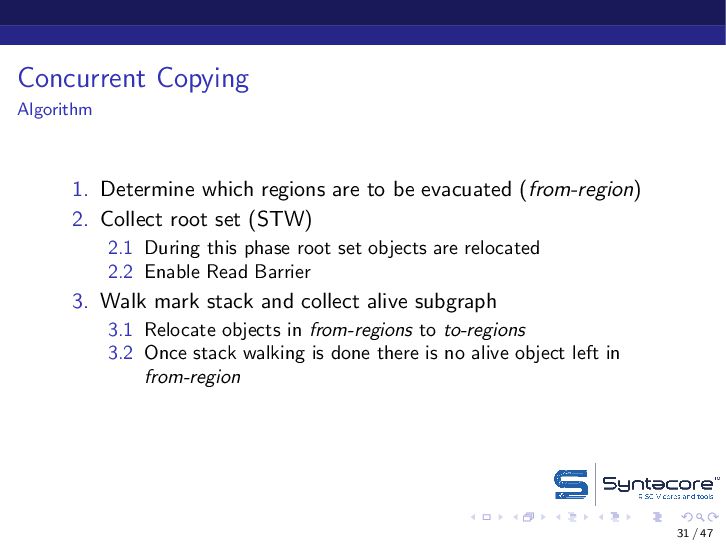

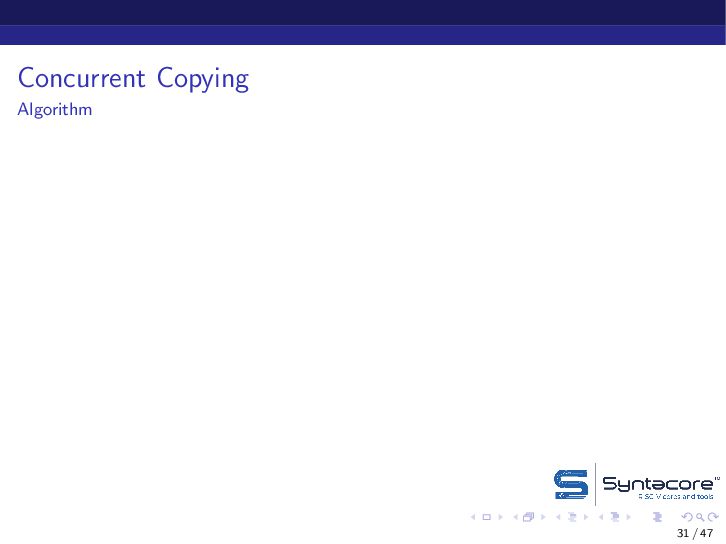

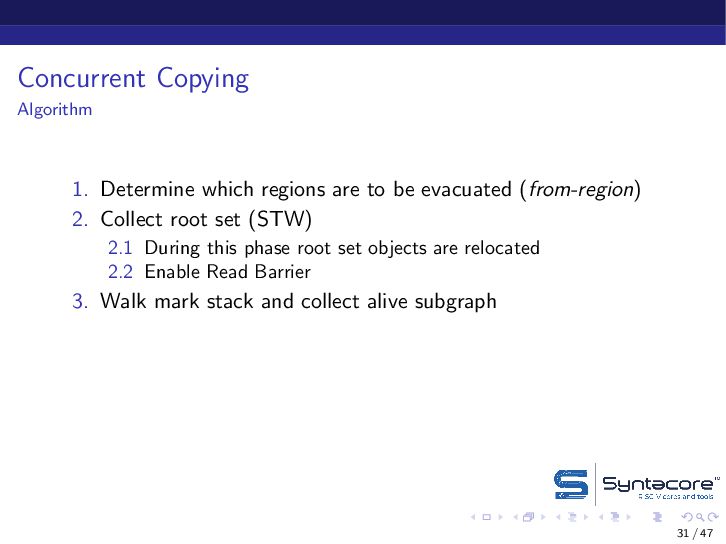

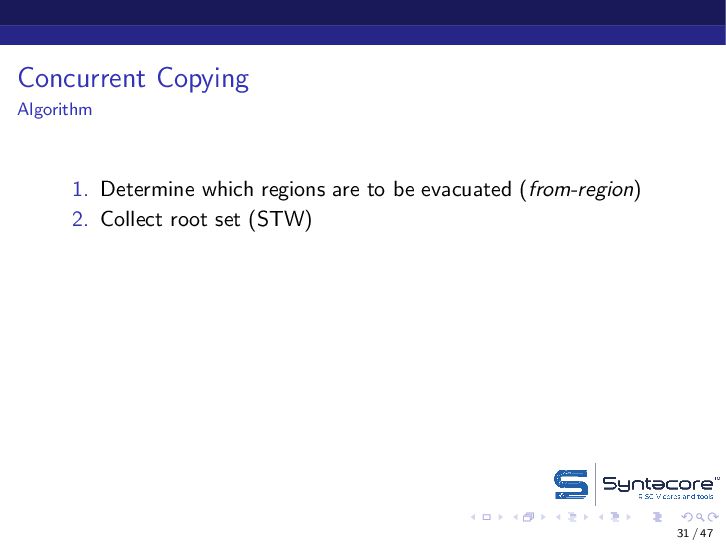

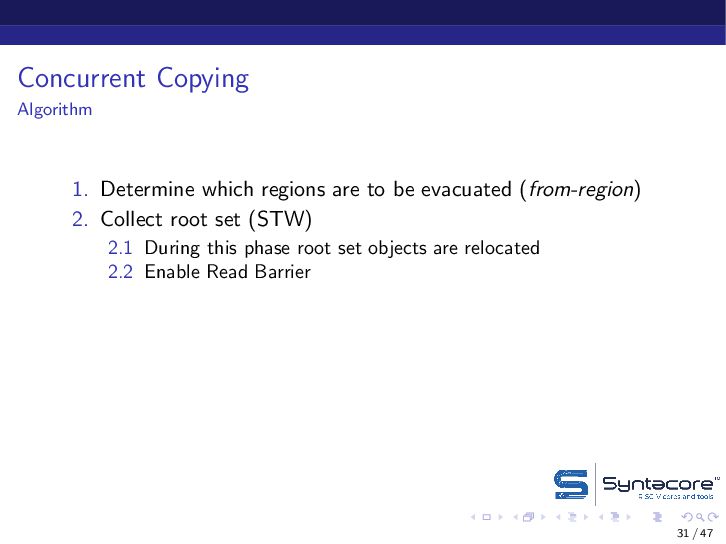

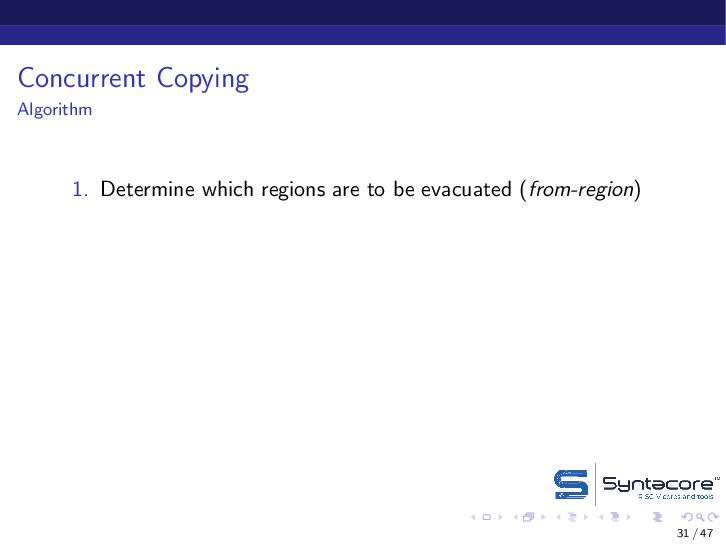

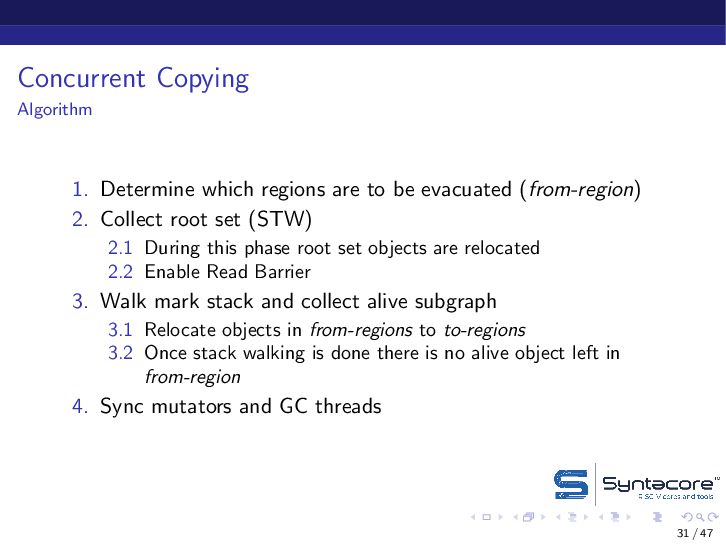

Concurrent Copying Algorithm 31 / 47

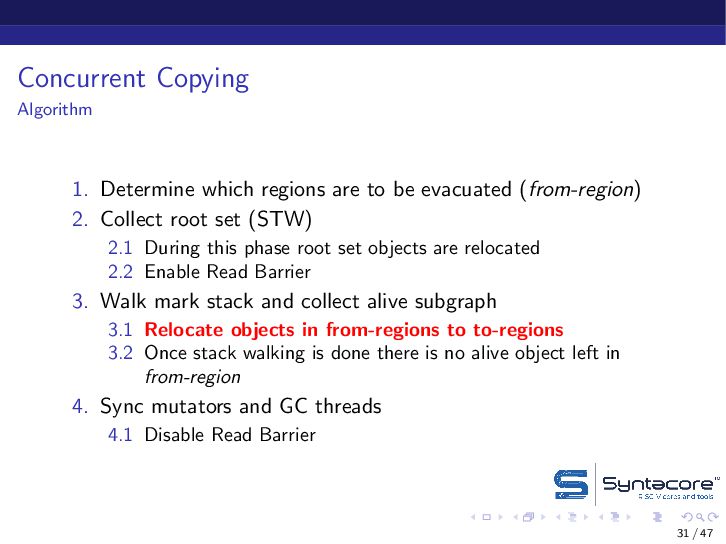

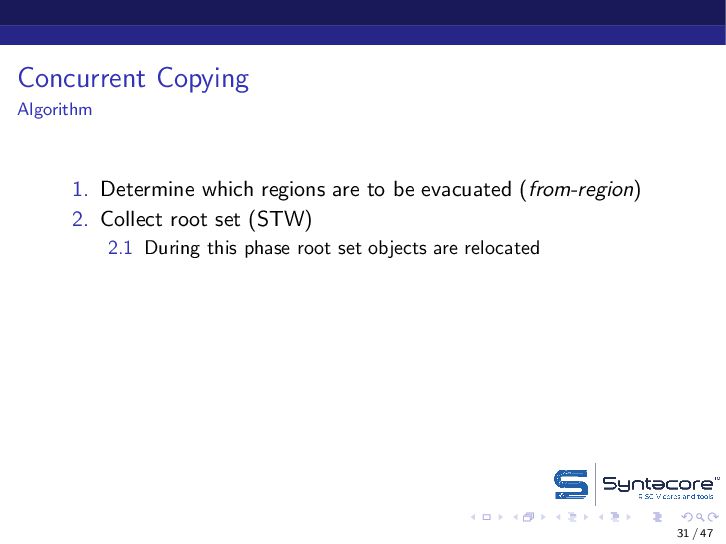

Concurrent Copying Algorithm 1. Determine which regions are to be
evacuated (from-region) 31 / 47

evacuated (from-region) 2. Collect root set (STW) 31 / 47

evacuated (from-region) 2. Collect root set (STW) 2.1 During this phase root set objects are relocated 31 / 47

evacuated (from-region) 2. Collect root set (STW) 2.1 During this phase root set objects are relocated 2.2 Enable Read Barrier 31 / 47

evacuated (from-region) 2. Collect root set (STW) 2.1 During this phase root set objects are relocated 2.2 Enable Read Barrier 3. Walk mark stack and collect alive subgraph 31 / 47

evacuated (from-region) 2. Collect root set (STW) 2.1 During this phase root set objects are relocated 2.2 Enable Read Barrier 3. Walk mark stack and collect alive subgraph 3.1 Relocate objects in from-regions to to-regions 31 / 47

evacuated (from-region) 2. Collect root set (STW) 2.1 During this phase root set objects are relocated 2.2 Enable Read Barrier 3. Walk mark stack and collect alive subgraph 3.1 Relocate objects in from-regions to to-regions 3.2 Once stack walking is done there is no alive object left in from-region 31 / 47

evacuated (from-region) 2. Collect root set (STW) 2.1 During this phase root set objects are relocated 2.2 Enable Read Barrier 3. Walk mark stack and collect alive subgraph 3.1 Relocate objects in from-regions to to-regions 3.2 Once stack walking is done there is no alive object left in from-region 4. Sync mutators and GC threads 31 / 47

evacuated (from-region) 2. Collect root set (STW) 2.1 During this phase root set objects are relocated 2.2 Enable Read Barrier 3. Walk mark stack and collect alive subgraph 3.1 Relocate objects in from-regions to to-regions 3.2 Once stack walking is done there is no alive object left in from-region 4. Sync mutators and GC threads 4.1 Disable Read Barrier 31 / 47

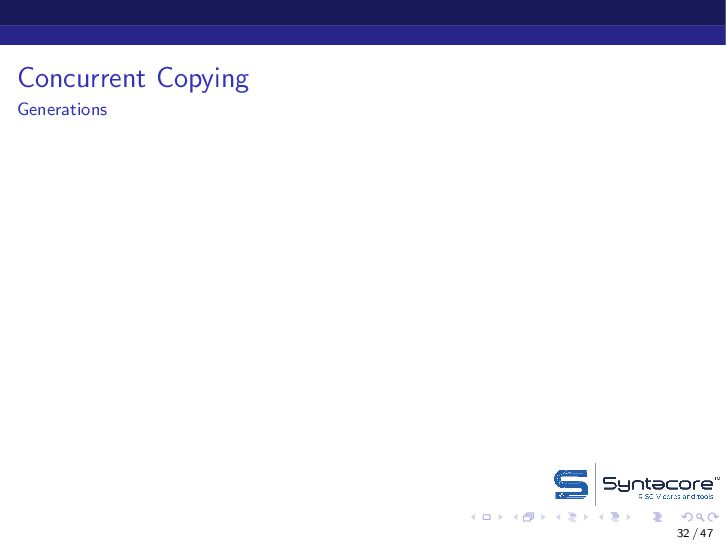

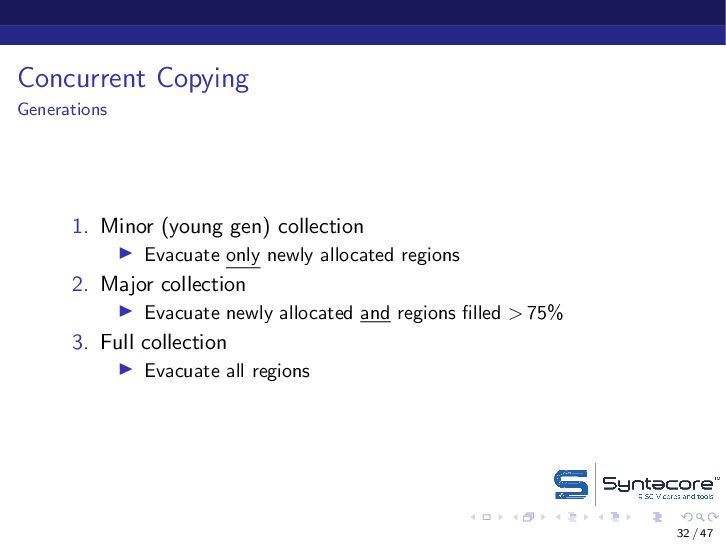

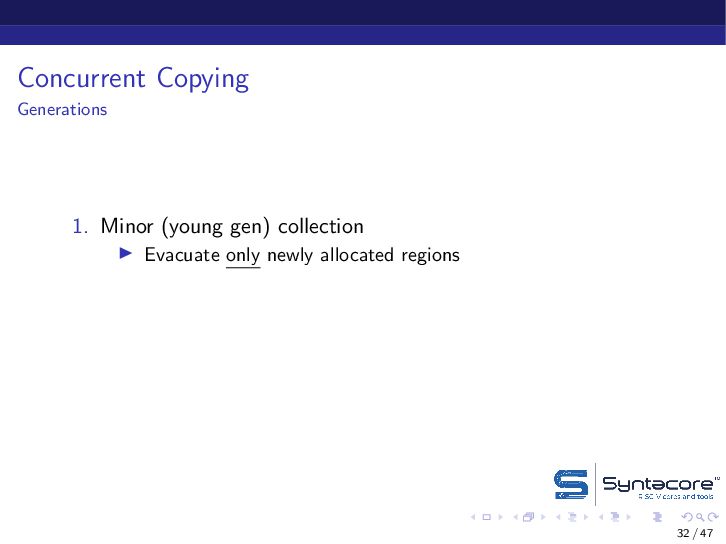

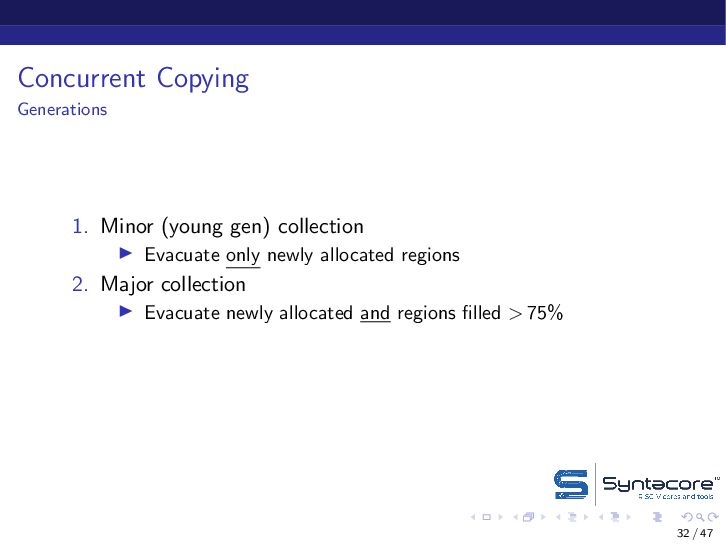

Concurrent Copying Generations 32 / 47

Concurrent Copying Generations 1. Minor (young gen) collection ▶ Evacuate
only newly allocated regions 32 / 47

only newly allocated regions 2. Major collection ▶ Evacuate newly allocated and regions filled > 75% 32 / 47

only newly allocated regions 2. Major collection ▶ Evacuate newly allocated and regions filled > 75% 3. Full collection ▶ Evacuate all regions 32 / 47

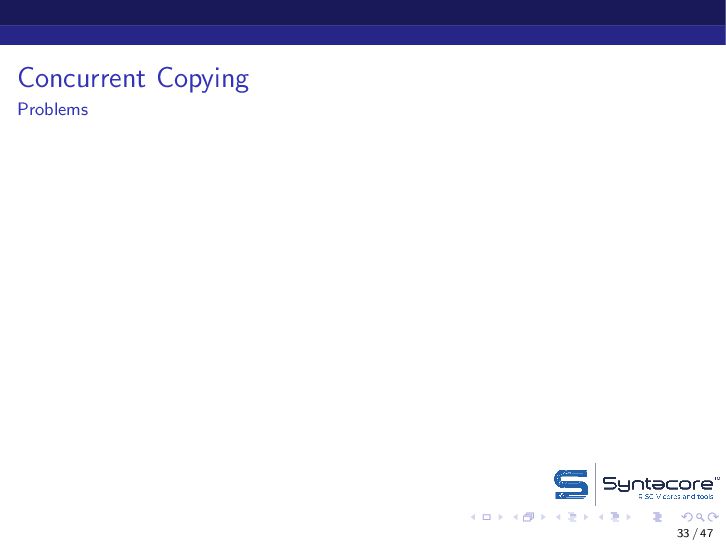

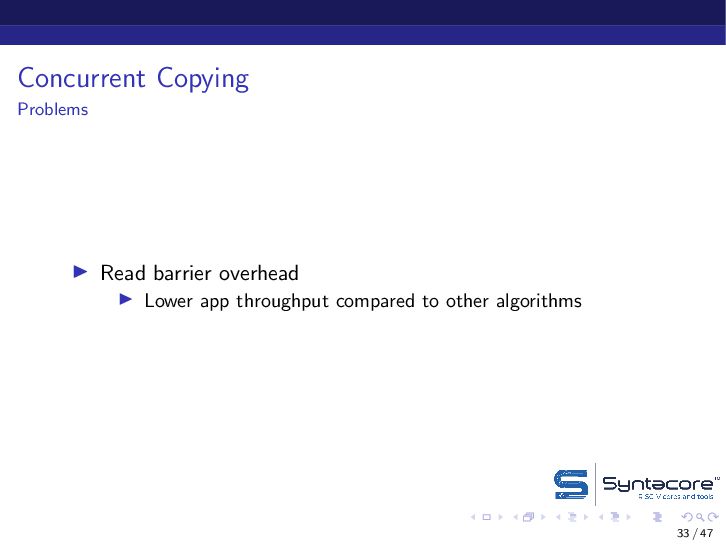

Concurrent Copying Problems 33 / 47

Concurrent Copying Problems ▶ Read barrier overhead ▶ Lower app
throughput compared to other algorithms 33 / 47

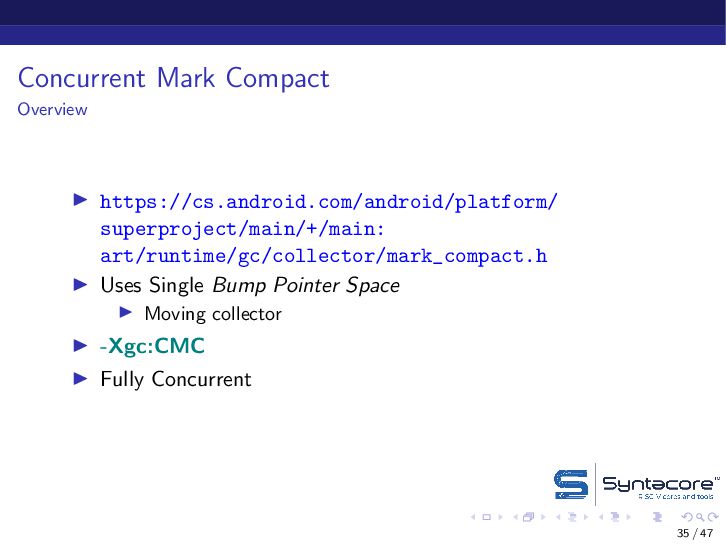

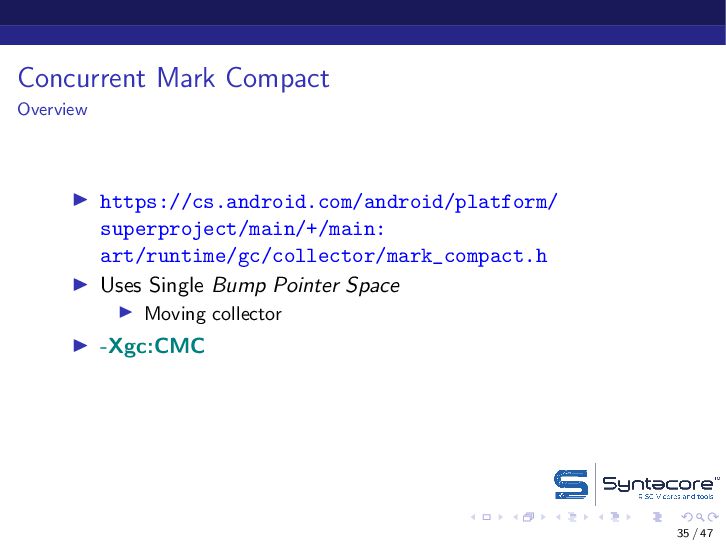

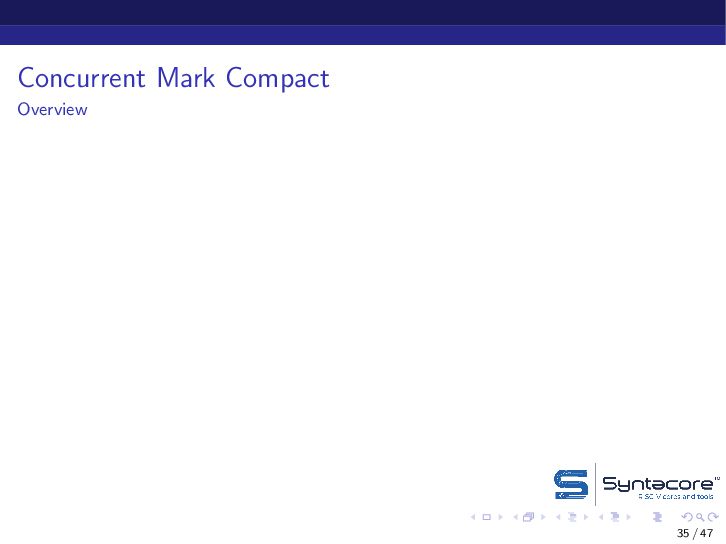

Concurrent Mark Compact Overview 35 / 47

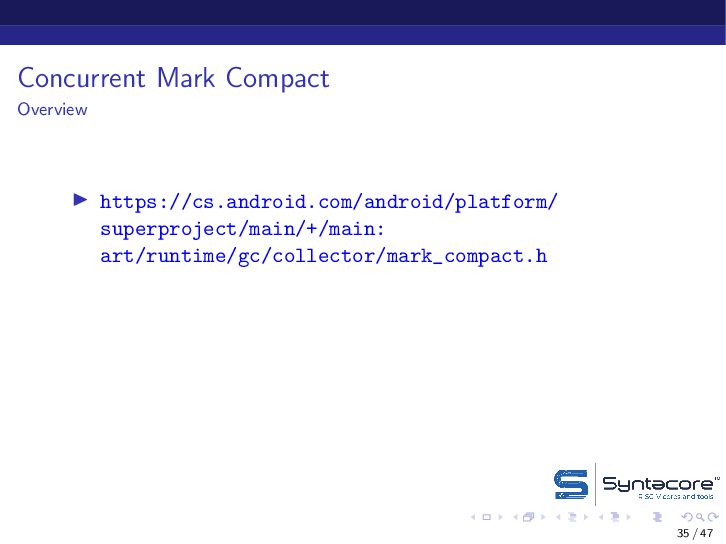

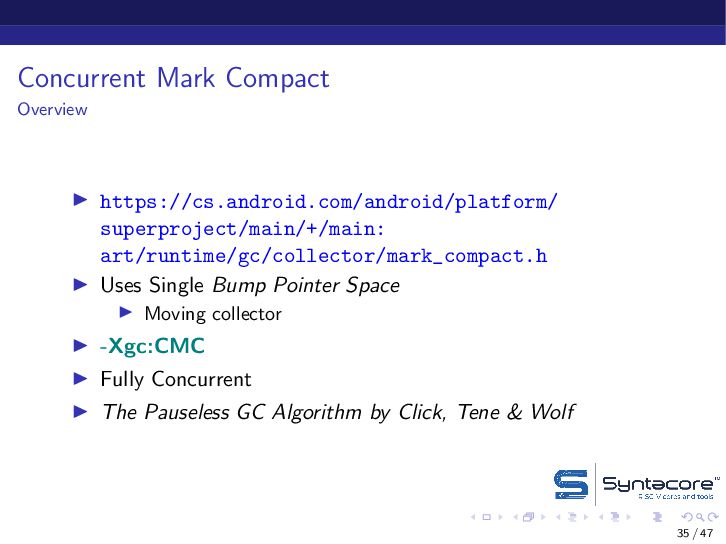

Concurrent Mark Compact Overview ▶ https://cs.android.com/android/platform/ superproject/main/+/main: art/runtime/gc/collector/mark_compact.h 35 /
47

Concurrent Mark Compact Overview ▶ https://cs.android.com/android/platform/ superproject/main/+/main: art/runtime/gc/collector/mark_compact.h ▶ Uses

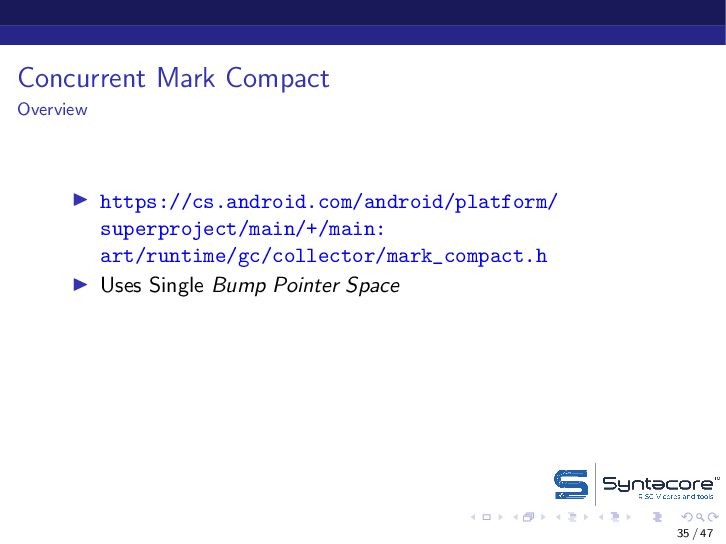

Single Bump Pointer Space 35 / 47

Single Bump Pointer Space ▶ Moving collector 35 / 47

Single Bump Pointer Space ▶ Moving collector ▶ -Xgc:CMC 35 / 47

Single Bump Pointer Space ▶ Moving collector ▶ -Xgc:CMC ▶ Fully Concurrent 35 / 47

Single Bump Pointer Space ▶ Moving collector ▶ -Xgc:CMC ▶ Fully Concurrent ▶ The Pauseless GC Algorithm by Click, Tene & Wolf 35 / 47

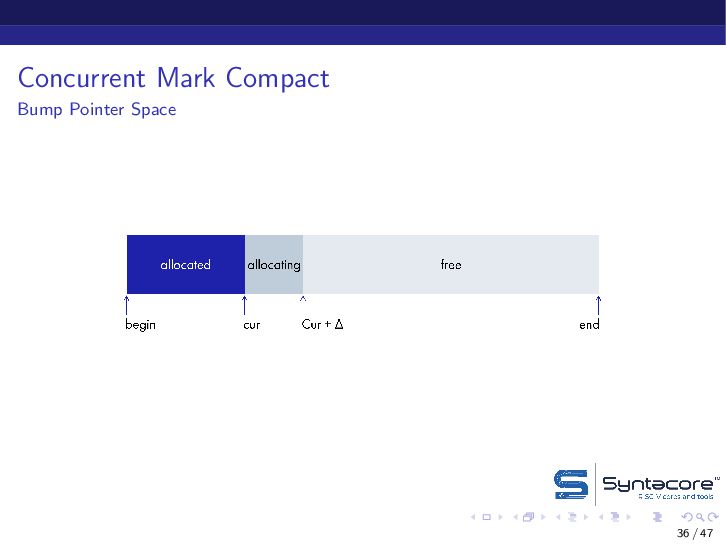

Concurrent Mark Compact Bump Pointer Space 36 / 47

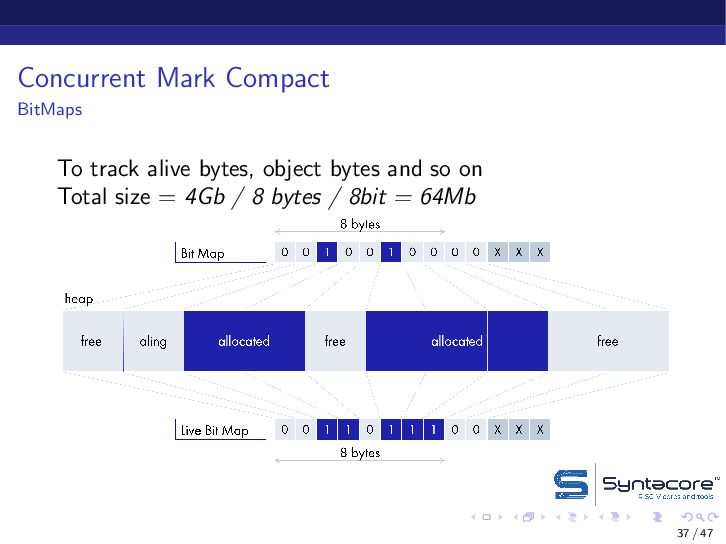

Concurrent Mark Compact BitMaps To track alive bytes, object bytes
and so on Total size = 4Gb / 8 bytes / 8bit = 64Mb 37 / 47

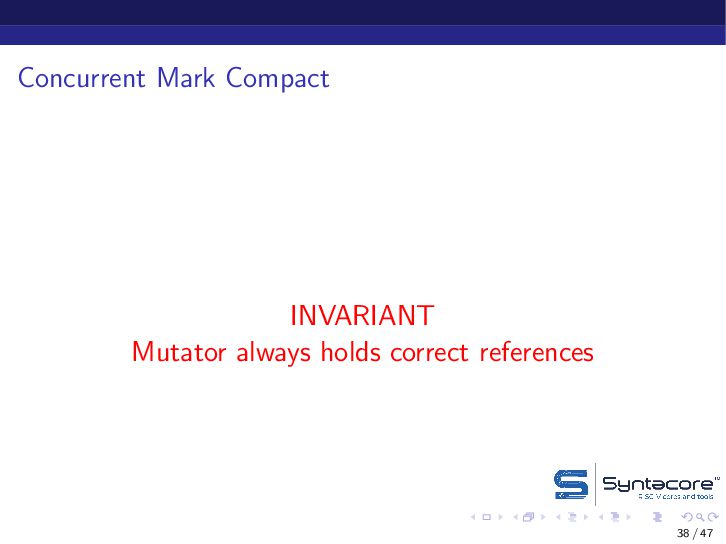

Concurrent Mark Compact INVARIANT Mutator always holds correct references 38
/ 47

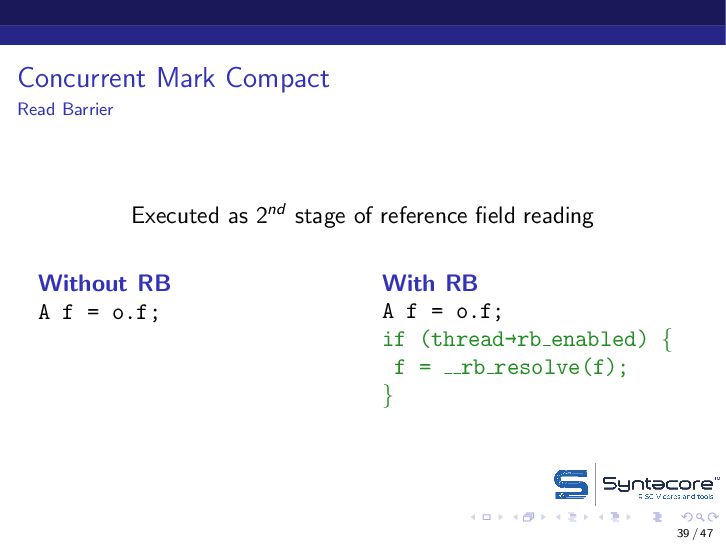

Concurrent Mark Compact Read Barrier Executed as 2nd stage of
reference field reading Without RB A f = o.f; With RB A f = o.f; if (threadrb enabled) { f = rb resolve(f); } 39 / 47

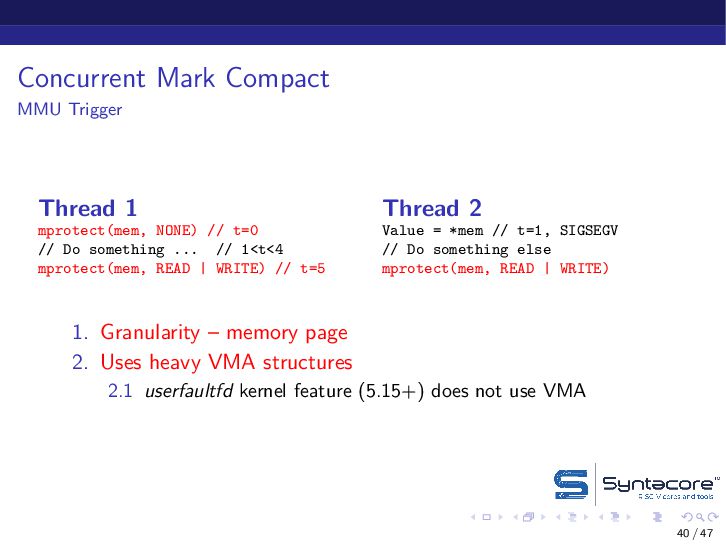

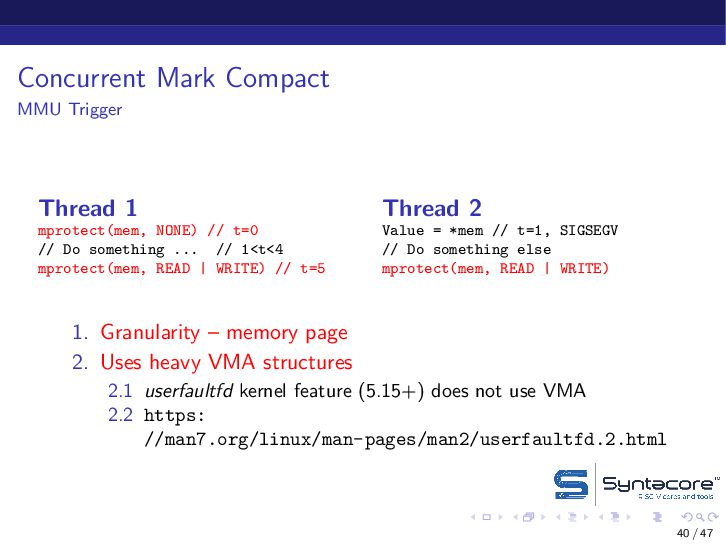

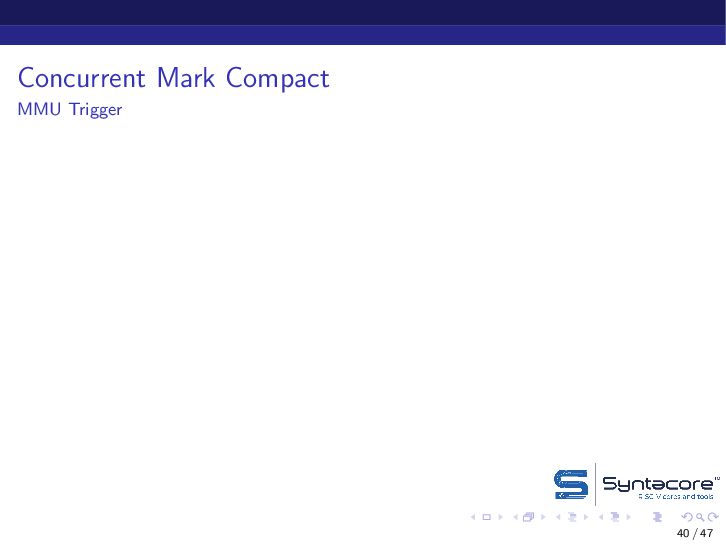

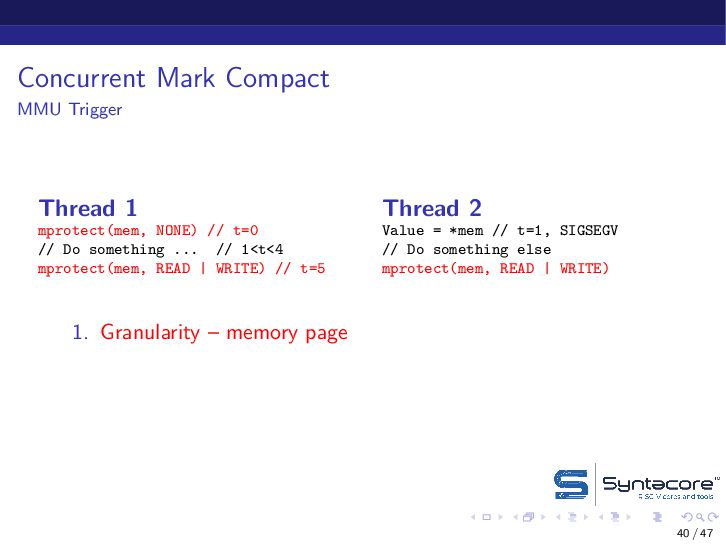

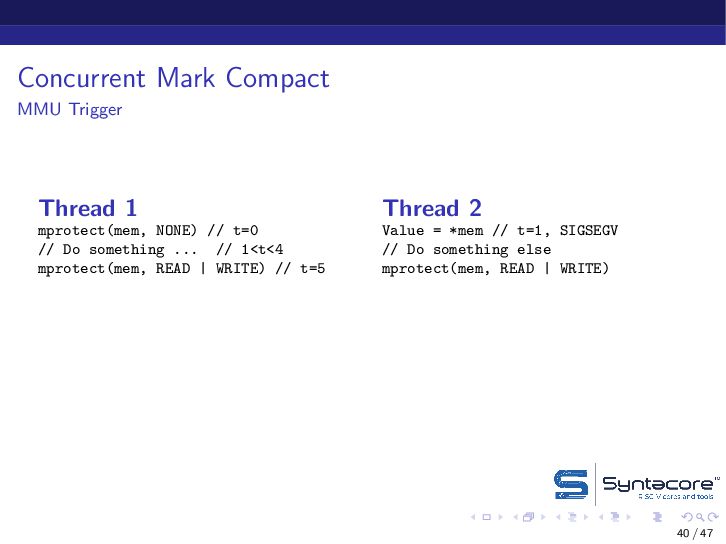

Concurrent Mark Compact MMU Trigger 40 / 47

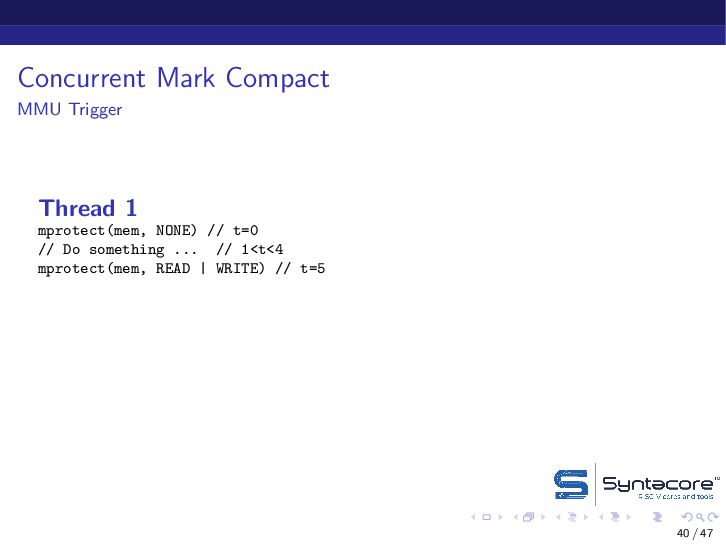

Concurrent Mark Compact MMU Trigger Thread 1 mprotect(mem, NONE) //
t=0 // Do something ... // 1<t<4 mprotect(mem, READ | WRITE) // t=5 40 / 47

t=0 // Do something ... // 1<t<4 mprotect(mem, READ | WRITE) // t=5 Thread 2 Value = *mem // t=1, SIGSEGV // Do something else mprotect(mem, READ | WRITE) 40 / 47

t=0 // Do something ... // 1<t<4 mprotect(mem, READ | WRITE) // t=5 Thread 2 Value = *mem // t=1, SIGSEGV // Do something else mprotect(mem, READ | WRITE) 1. Granularity – memory page 40 / 47

t=0 // Do something ... // 1<t<4 mprotect(mem, READ | WRITE) // t=5 Thread 2 Value = *mem // t=1, SIGSEGV // Do something else mprotect(mem, READ | WRITE) 1. Granularity – memory page 2. Uses heavy VMA structures 40 / 47

t=0 // Do something ... // 1<t<4 mprotect(mem, READ | WRITE) // t=5 Thread 2 Value = *mem // t=1, SIGSEGV // Do something else mprotect(mem, READ | WRITE) 1. Granularity – memory page 2. Uses heavy VMA structures 2.1 userfaultfd kernel feature (5.15+) does not use VMA 40 / 47

t=0 // Do something ... // 1<t<4 mprotect(mem, READ | WRITE) // t=5 Thread 2 Value = *mem // t=1, SIGSEGV // Do something else mprotect(mem, READ | WRITE) 1. Granularity – memory page 2. Uses heavy VMA structures 2.1 userfaultfd kernel feature (5.15+) does not use VMA 2.2 https: //man7.org/linux/man-pages/man2/userfaultfd.2.html 40 / 47

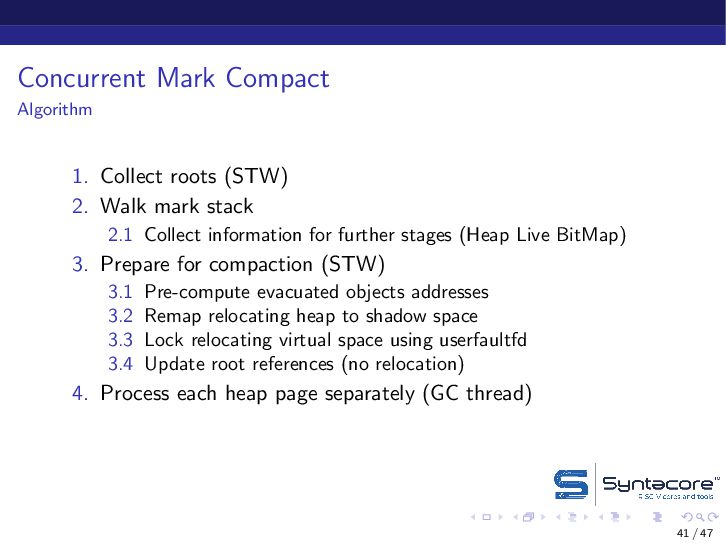

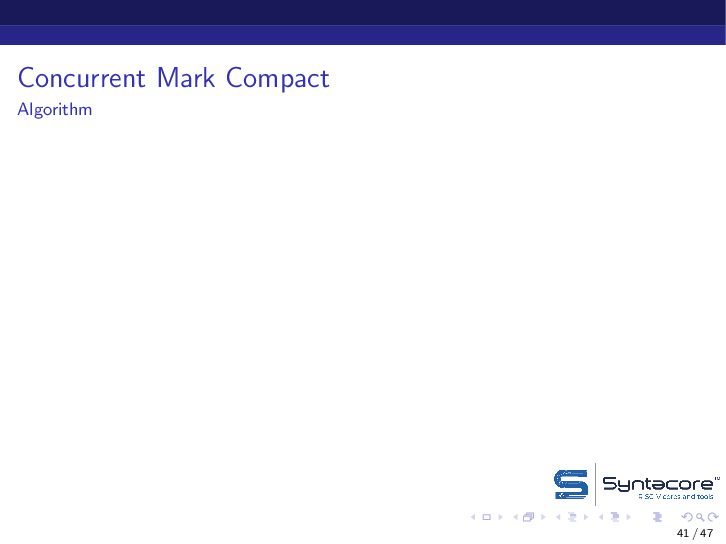

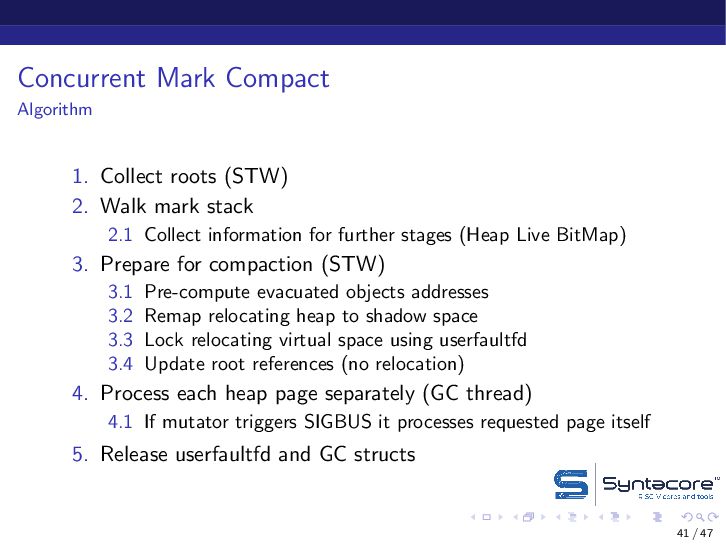

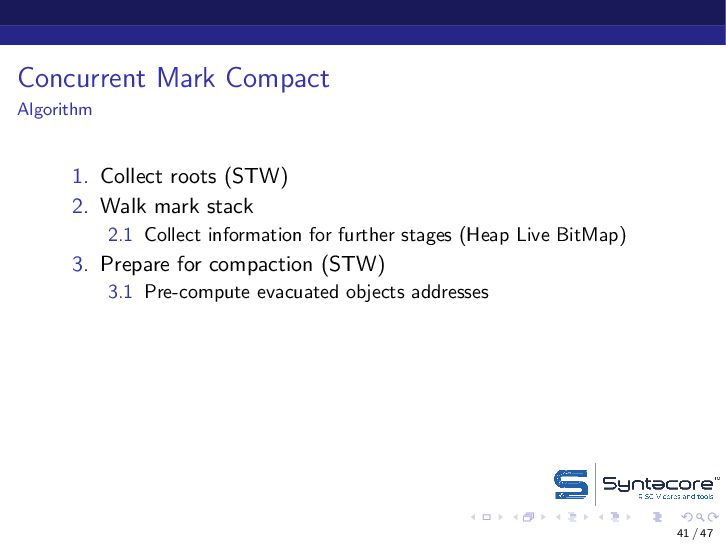

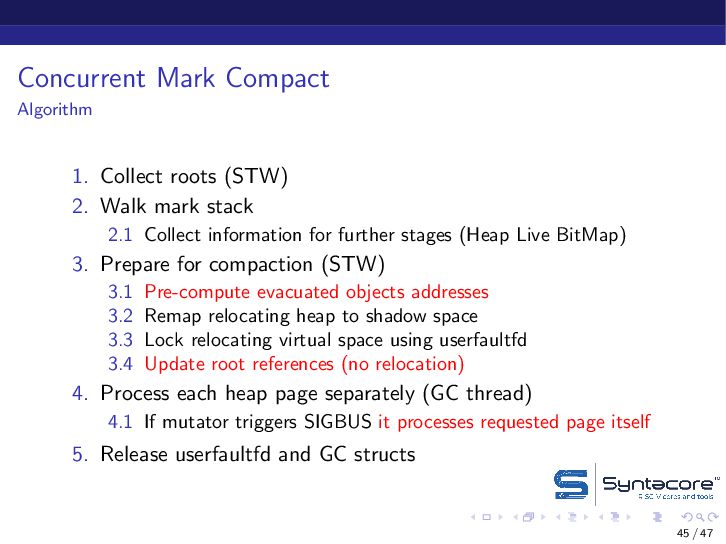

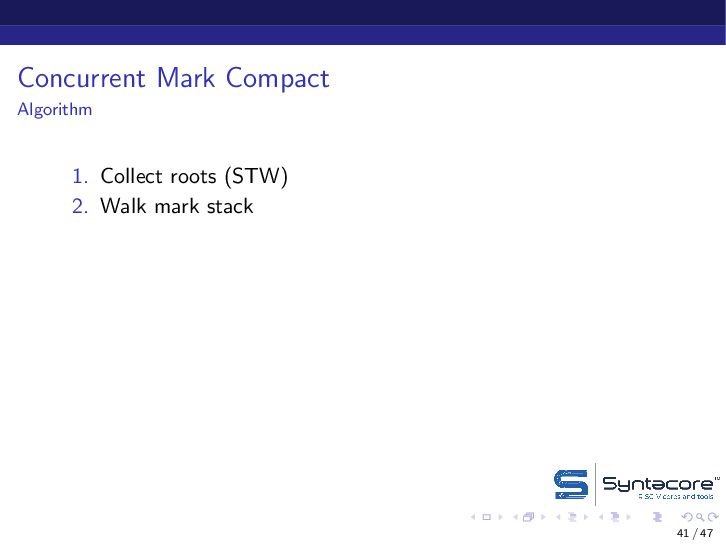

Concurrent Mark Compact Algorithm 41 / 47

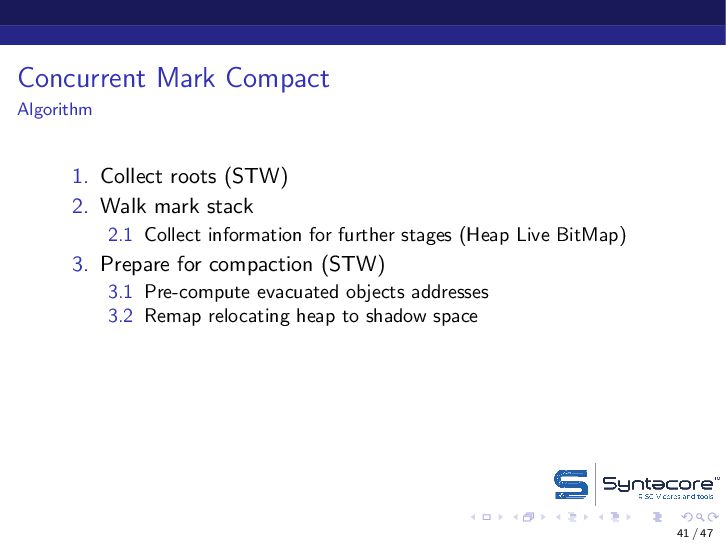

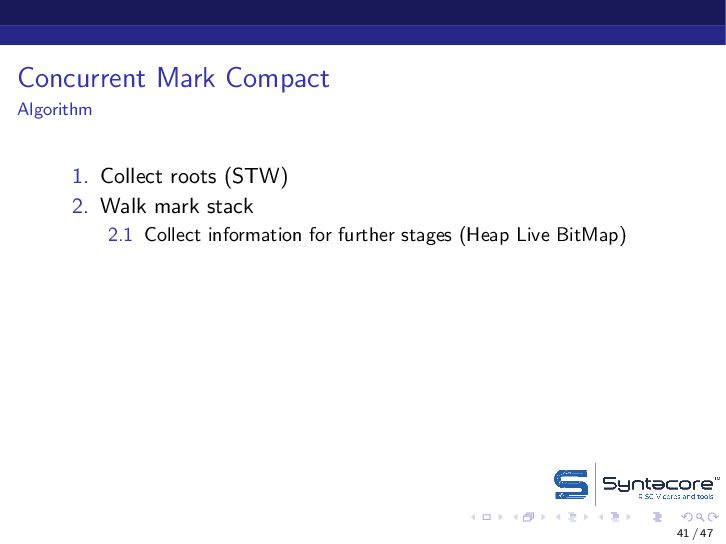

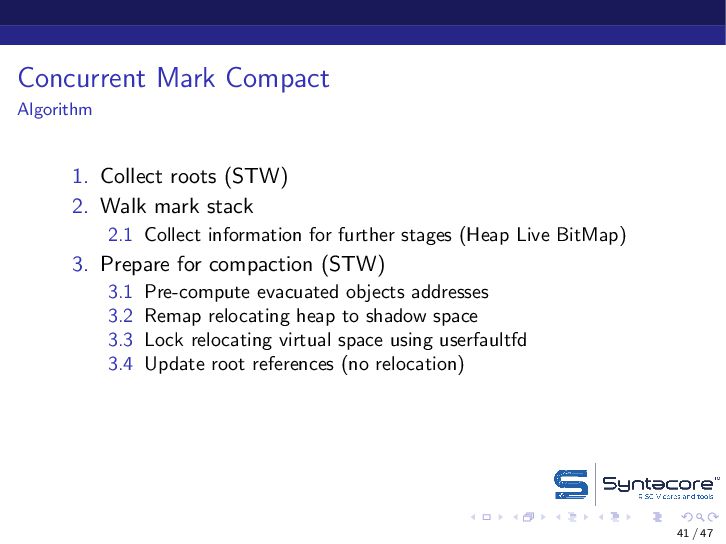

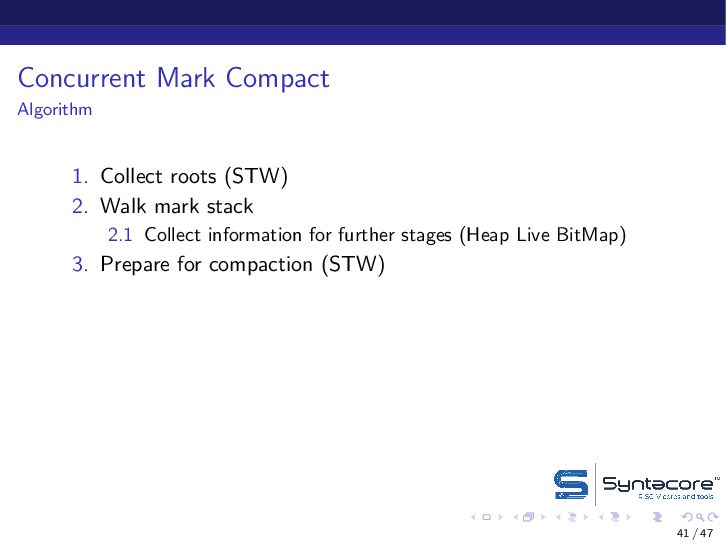

Concurrent Mark Compact Algorithm 1. Collect roots (STW) 41 /
47

Concurrent Mark Compact Algorithm 1. Collect roots (STW) 2. Walk
mark stack 41 / 47

mark stack 2.1 Collect information for further stages (Heap Live BitMap) 41 / 47

mark stack 2.1 Collect information for further stages (Heap Live BitMap) 3. Prepare for compaction (STW) 41 / 47

mark stack 2.1 Collect information for further stages (Heap Live BitMap) 3. Prepare for compaction (STW) 3.1 Pre-compute evacuated objects addresses 41 / 47

mark stack 2.1 Collect information for further stages (Heap Live BitMap) 3. Prepare for compaction (STW) 3.1 Pre-compute evacuated objects addresses 3.2 Remap relocating heap to shadow space 41 / 47

mark stack 2.1 Collect information for further stages (Heap Live BitMap) 3. Prepare for compaction (STW) 3.1 Pre-compute evacuated objects addresses 3.2 Remap relocating heap to shadow space 3.3 Lock relocating virtual space using userfaultfd 41 / 47

mark stack 2.1 Collect information for further stages (Heap Live BitMap) 3. Prepare for compaction (STW) 3.1 Pre-compute evacuated objects addresses 3.2 Remap relocating heap to shadow space 3.3 Lock relocating virtual space using userfaultfd 3.4 Update root references (no relocation) 41 / 47

mark stack 2.1 Collect information for further stages (Heap Live BitMap) 3. Prepare for compaction (STW) 3.1 Pre-compute evacuated objects addresses 3.2 Remap relocating heap to shadow space 3.3 Lock relocating virtual space using userfaultfd 3.4 Update root references (no relocation) 4. Process each heap page separately (GC thread) 41 / 47

mark stack 2.1 Collect information for further stages (Heap Live BitMap) 3. Prepare for compaction (STW) 3.1 Pre-compute evacuated objects addresses 3.2 Remap relocating heap to shadow space 3.3 Lock relocating virtual space using userfaultfd 3.4 Update root references (no relocation) 4. Process each heap page separately (GC thread) 4.1 If mutator triggers SIGBUS it processes requested page itself 41 / 47

mark stack 2.1 Collect information for further stages (Heap Live BitMap) 3. Prepare for compaction (STW) 3.1 Pre-compute evacuated objects addresses 3.2 Remap relocating heap to shadow space 3.3 Lock relocating virtual space using userfaultfd 3.4 Update root references (no relocation) 4. Process each heap page separately (GC thread) 4.1 If mutator triggers SIGBUS it processes requested page itself 5. Release userfaultfd and GC structs 41 / 47

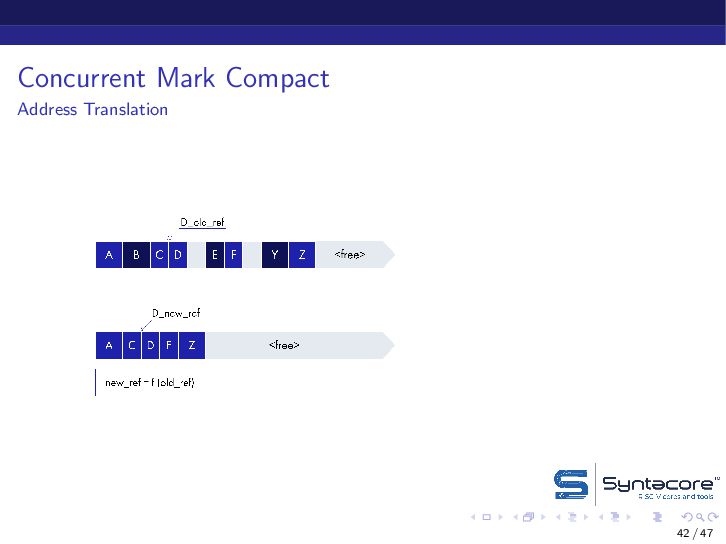

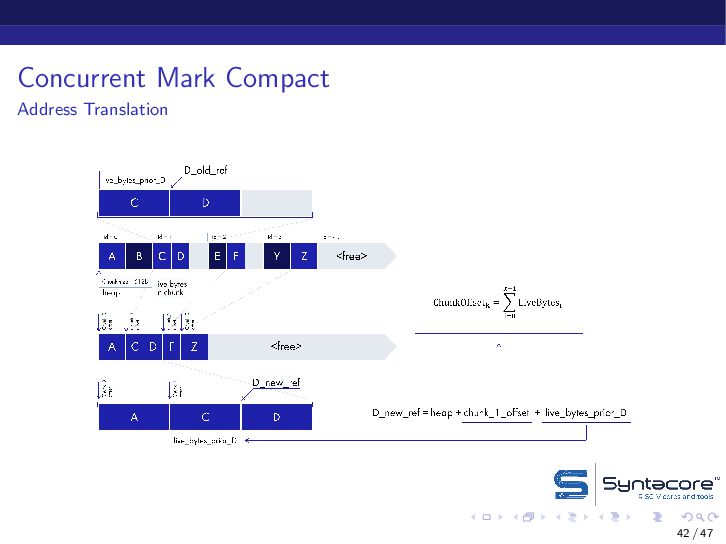

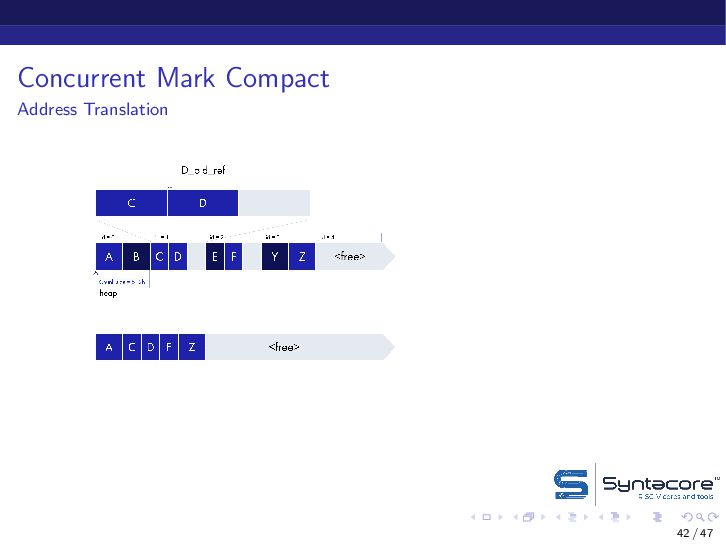

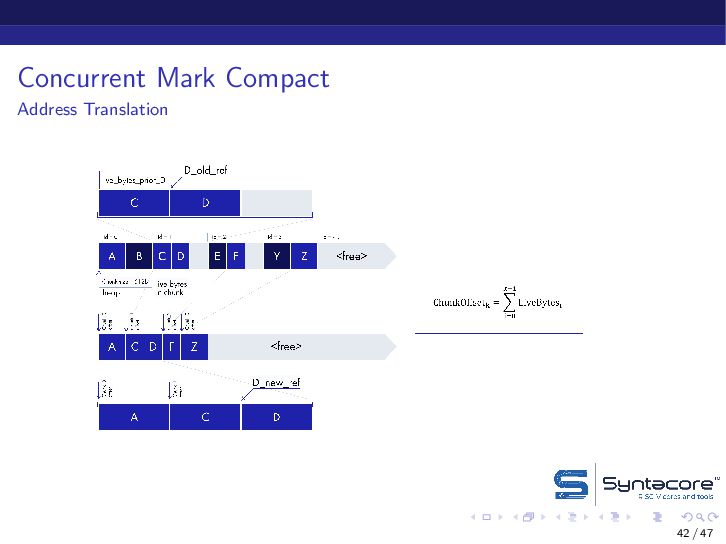

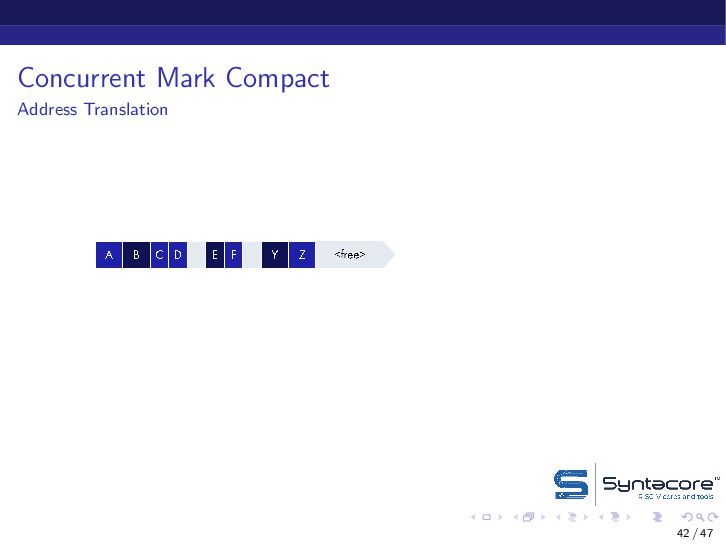

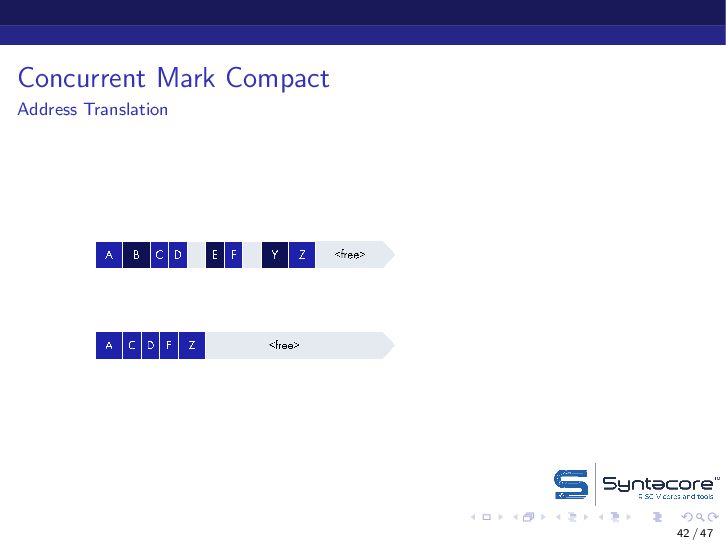

Concurrent Mark Compact Address Translation 42 / 47

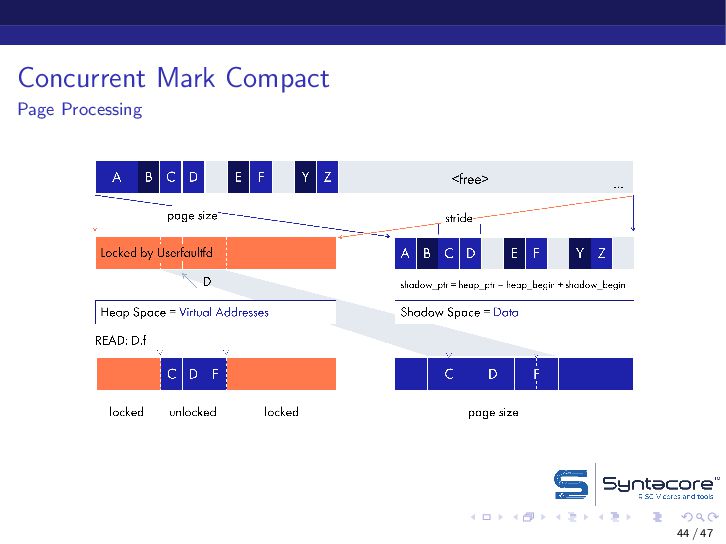

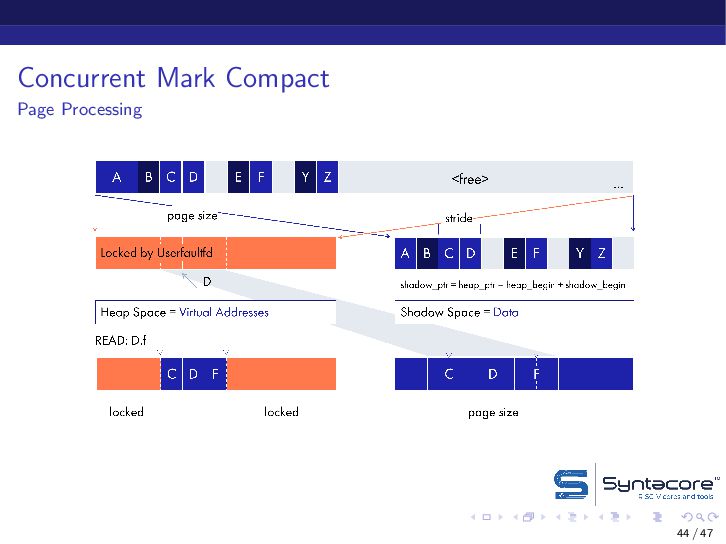

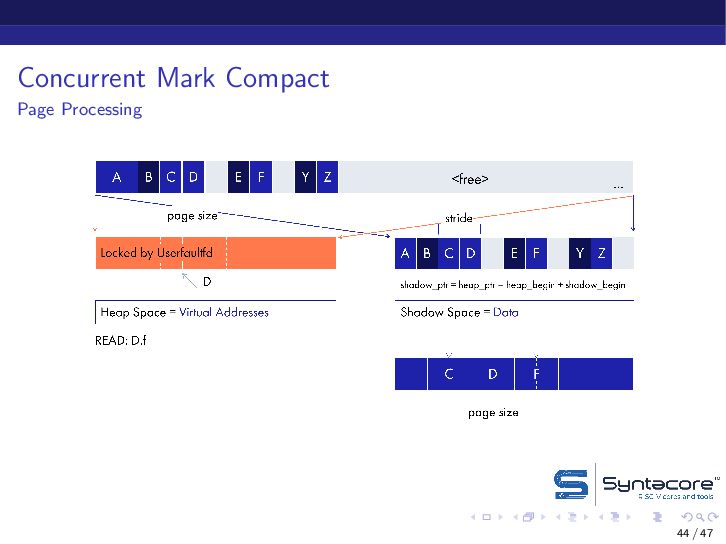

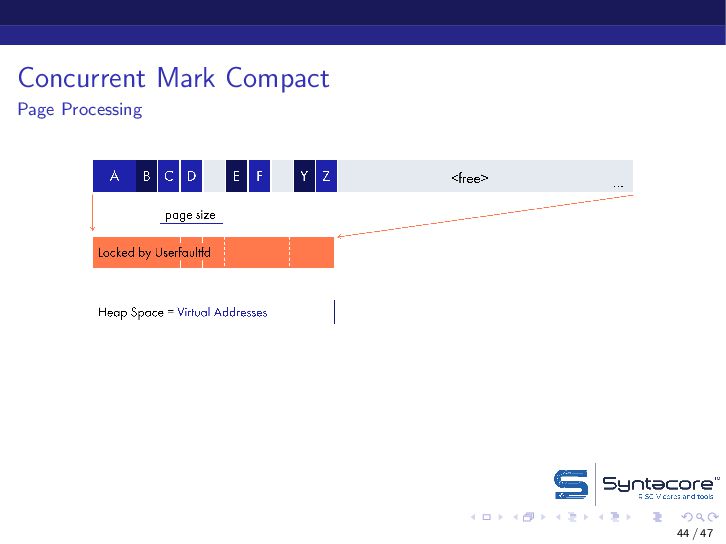

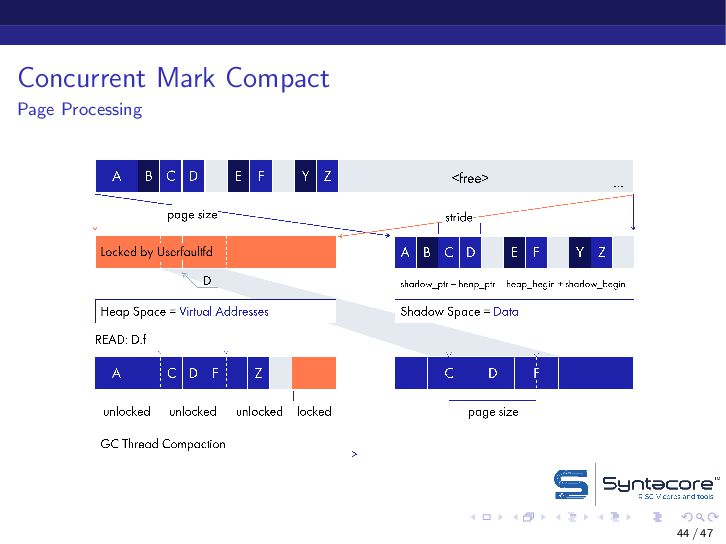

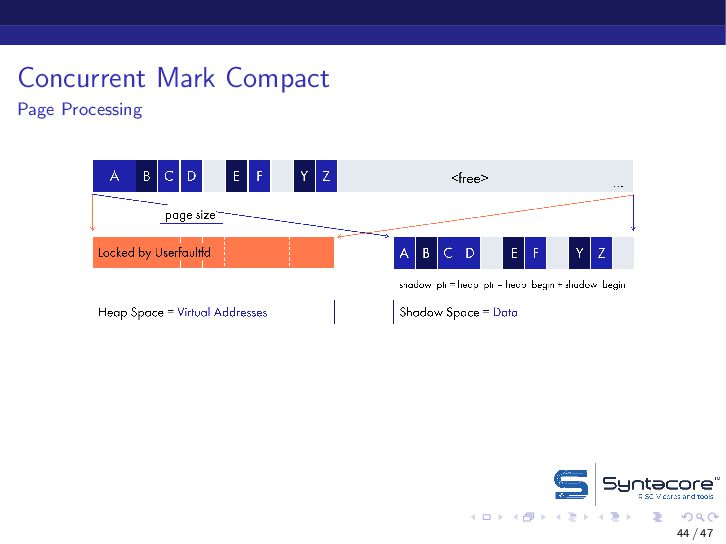

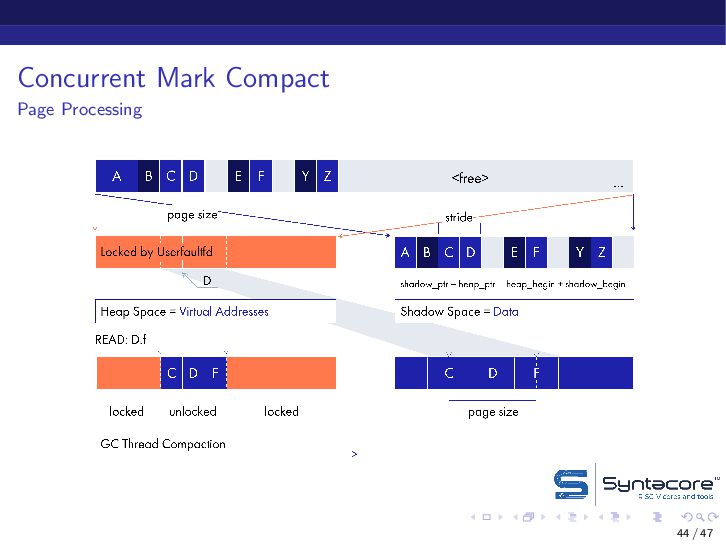

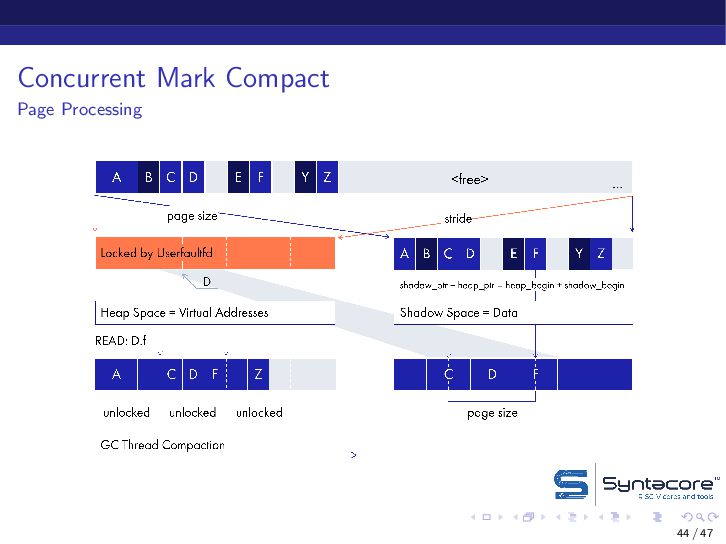

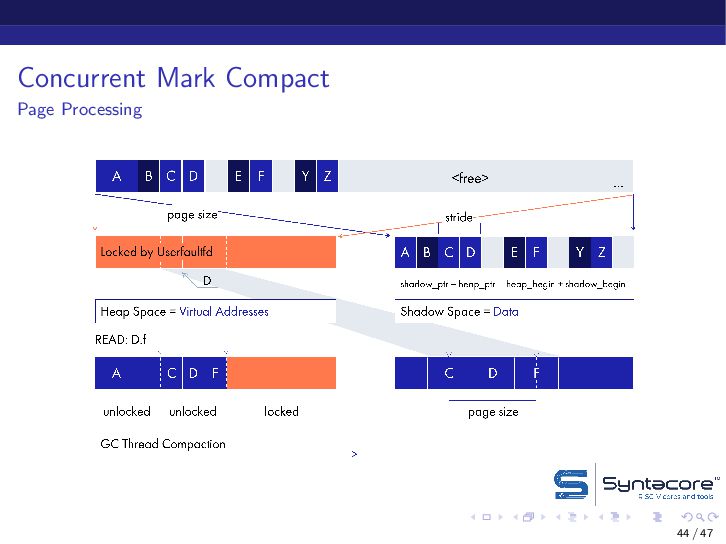

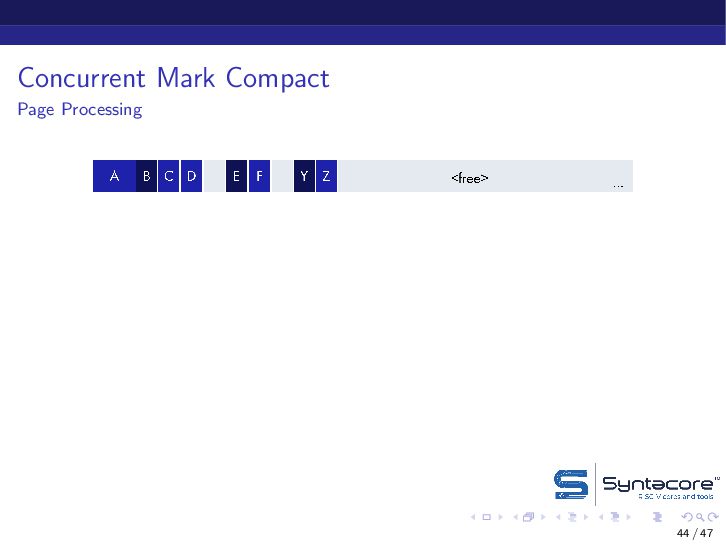

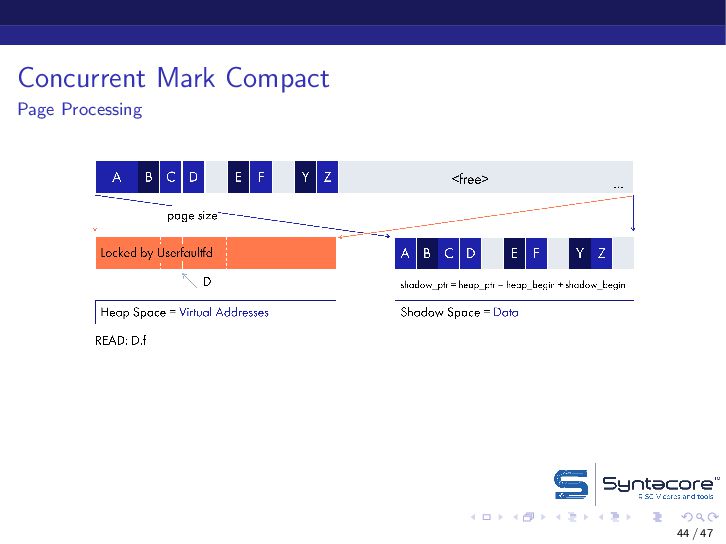

Concurrent Mark Compact Page Processing 44 / 47

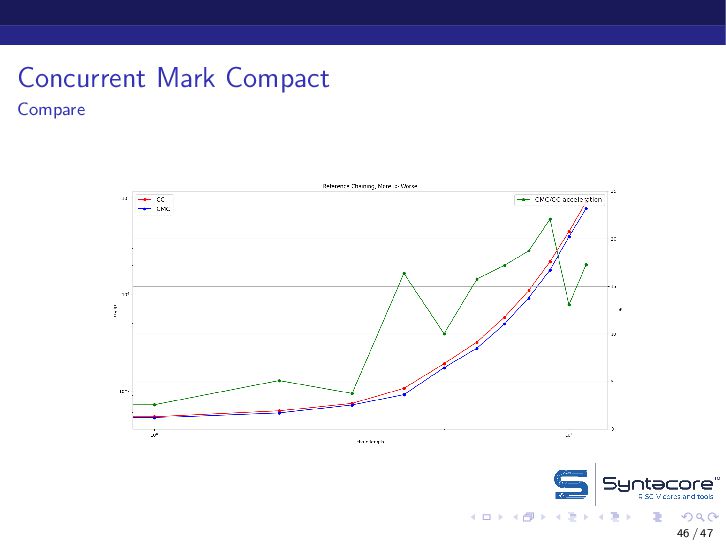

Concurrent Mark Compact Compare 46 / 47
