Design of three-dimensional binary manipulators for pick-and-place task avoiding obstacles (IECON2024)

Title: Design of three-dimensional binary manipulators for pick-and-place task avoiding obstacles

This research result is an extension of our previous work (https://speakerdeck.com/konakalab/design-of-three-dimensional-binary-manipulators-based-on-the-ks-statistic-and-maximum-empty-circles-iecon2023).

This presented was at IEEE IECON 2024(https://www.iecon-2024.org/). Movies are not included due to the specifications of speakedeck.

Avatar for konakalab

konakalab

November 04, 2024
Tweet

More Decks by konakalab

Other Decks in Science

Transcript

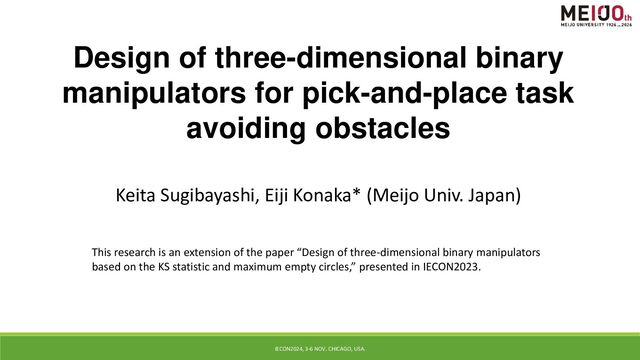

  1. Keita Sugibayashi, Eiji Konaka* (Meijo Univ. Japan) Design of three-dimensional

    binary manipulators for pick-and-place task avoiding obstacles This research is an extension of the paper “Design of three-dimensional binary manipulators based on the KS statistic and maximum empty circles,” presented in IECON2023. IECON2024, 3-6 NOV. CHICAGO, USA.
  2. Outline Background: Binary Manipulator Problem setup: task and performance index

    Summary of proposed method Numerical result and conclusion IECON2024, 3-6 NOV. CHICAGO, USA.
  3. What is “Binary manipulator” ? ⚫Binary Manipulator consists of binary

    modules ⚫Binary module consists of binary actuator ⚫Binary actuator: its state is ON/OFF ⚫E.g. expand/contract ⚫Pros: lightweight, low-bit communication ⚫Design variable: ON/OFF length 𝑑max , 𝑑min ⚫Design objective: Pick-and-place avoiding obstacles One binary module ON:𝑑max ON:𝑑max OFF:𝑑min IECON2024, 3-6 NOV. CHICAGO, USA.
  4. What is “Binary manipulator” ? ⚫Binary Manipulator consists of binary

    modules ⚫Binary module consists of binary actuator ⚫Binary actuator: its state is ON/OFF ⚫E.g. expand/contract ⚫Pros: lightweight, low-bit communication ⚫Design variable: ON/OFF length 𝑑max , 𝑑min ⚫Design objective: Pick-and-place avoiding obstacles IECON2024, 3-6 NOV. CHICAGO, USA.
  5. What is “Binary manipulator” ? ⚫Binary Manipulator consists of binary

    modules ⚫Binary module consists of binary actuator ⚫Binary actuator: its state is ON/OFF ⚫E.g. expand/contract ⚫Pros: lightweight, low-bit communication ⚫Design variable: ON/OFF length 𝑑max , 𝑑min ⚫Design objective: Pick-and-place avoiding obstacles Before designing ON/OFF length Reachable points IECON2024, 3-6 NOV. CHICAGO, USA.
  6. Outline Background: Binary Manipulator Problem setup: task and performance index

    Summary of proposed method Numerical result and conclusion IECON2024, 3-6 NOV. CHICAGO, USA.
  7. Task: pick-and-place ⚫Task description: Pick and place workpieces from Working

    Areas 𝑊1 to 𝑊2 through Path Area 𝑃 avoiding obstacles ⚫Design problem: Given 𝑊1 , 𝑊2 and 𝑃, find the optimal 𝑑min , 𝑑max the minimizes the performance index 𝐽. ⚫𝐽 consists of: ⚫End-effecter positioning accuracy in 𝑊. ⚫Path existence in 𝑃. 𝑊1 𝑊2 𝑃 IECON2024, 3-6 NOV. CHICAGO, USA.
  8. 𝑊1 𝑊2 𝑃 Performance index ⚫The set of reachable points

    of end effecter should have … ⚫High density and small “hole” in working areas: Maximum Empty Circle (MEC) ⚫Uniformly distributed in working areas: Kolmogorov-Smirnov (KS) statistic IECON2024, 3-6 NOV. CHICAGO, USA.
  9. Performance index: Maximum Empty Circle (MEC) ⚫High density and small

    “hole” in working areas: Maximum Empty Circle (MEC) large small low high MEC radius density Small MEC radius = small positioning error & high density IECON2024, 3-6 NOV. CHICAGO, USA.
  10. Performance index: KS-statistic ⚫KS-statistic measures distance from uniform distribution •

    𝐺(𝑥): Hypothetical CDF(Cumulative distribution function) • CDF of uniform distribution • ෠ 𝐹(𝑥): Empirical CDF • CDF of reachable points of the manipulator 𝐷𝑥 = max 𝑥 ෠ 𝐹 𝑥 − 𝐺(𝑥) One-dimensional example 𝐷𝑥 IECON2024, 3-6 NOV. CHICAGO, USA.
  11. Performance index 𝑤1 , 𝑤2 > 0 𝑤1 +𝑤2 =

    1 𝐽 = 𝑤1 × 𝑟𝑚𝑒𝑐 + 𝑤2 × 𝐷 Radius of MEC KS-Statistic • Small MEC = high density • Small KS statistic = close to uniform distribution • Design of binary manipulator = minimize J IECON2024, 3-6 NOV. CHICAGO, USA.
  12. Outline Background: Binary Manipulator Problem setup: task and performance index

    Summary of proposed method Numerical result and conclusion IECON2024, 3-6 NOV. CHICAGO, USA.
  13. Proposed method: GA-based stochastic optimization ⚫Genetic Algorithm (GA) ⚫Gene: ON/OFF

    length of actuators ⚫Standard Elite strategy, crossover, mutation process ∆𝒅 = ∆𝑑1 , ⋯ ∆𝑑𝑖 , ⋯ ∆𝑑6×𝐵 𝑇 Genes in one gen. Elite strategy & feasibility check Crossover & mutation Next gen. IECON2024, 3-6 NOV. CHICAGO, USA.
  14. 𝑊1 𝑊2 𝑃 GA process: elite strategy and feasibility check

    ⚫Calculate reachable points and performance index for each gene (ON/OFF length) ⚫Feasibility check: if no path from 𝑊1 to 𝑊2 through 𝑃, remove the gene. ⚫Elite strategy: Genes with small 𝐽 are selected with high probability. Genes in one gen. Elite strategy & feasibility check IECON2024, 3-6 NOV. CHICAGO, USA.
  15. GA process: crossover and mutation ⚫Crossover: select two parents, and

    mix their genes ⚫Mutation: randomly changes the value of genes Genes in one gen. Elite strategy & feasibility check Crossover & mutation Next gen. Repeat the process until we can find good design IECON2024, 3-6 NOV. CHICAGO, USA.
  16. Outline Background: Binary Manipulator Problem setup: task and performance index

    Summary of proposed method Numerical result and conclusion IECON2024, 3-6 NOV. CHICAGO, USA.
  17. Numerical example Parameters used in GA process ⚫Initial design Problem:

    Design ON/OFF lengths for a binary manipulator with 4 modules Symbol Value Weight (𝑤1 , 𝑤2 ) (0.75,0.25) Population 𝐼 50 Mutation ratio 𝑚 0.15 Generations 𝐺 500 Work areas Path area IECON2024, 3-6 NOV. CHICAGO, USA.
  18. Main result: design process and result REACHABLE POINTS (DESIGNED) ACTUATOR

    LENGTHS (DESIGNED) IECON2024, 3-6 NOV. CHICAGO, USA.
  19. Main result: pick-and-place trajectory ⚫The proposed method realizes pick- and-place

    between work areas through path area (avoiding obstacle) We can verify that … ⚫Proposed performance index design is GOOD ⚫Proposed optimization algorithm (GA) is GOOD IECON2024, 3-6 NOV. CHICAGO, USA.
