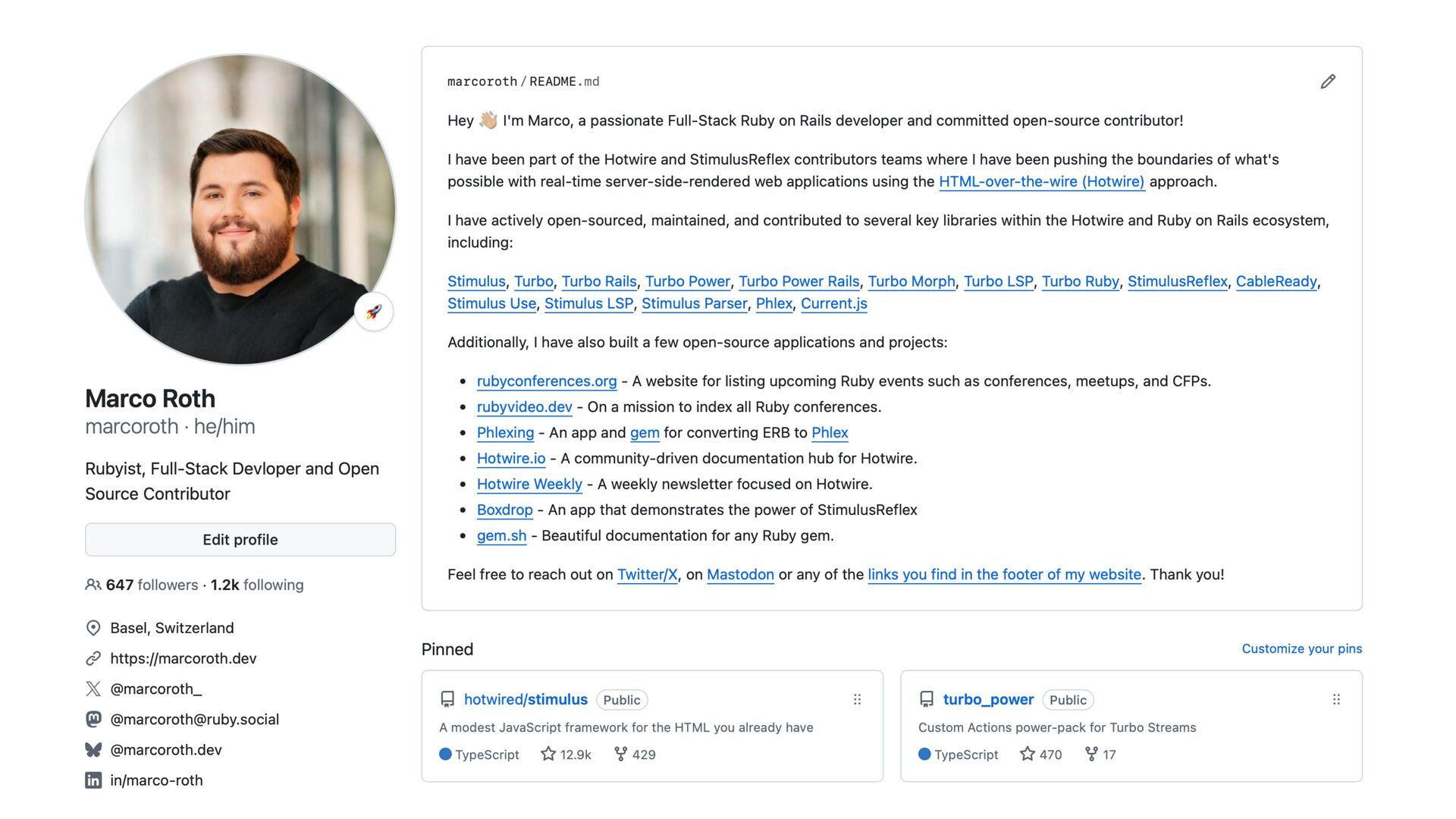

  1. Marco Roth !  @marcoroth_  @[email protected] 🌐 marcoroth.dev 

    @marcoroth Full-Stack Developer & Open Source Contributor  @marcoroth.dev
  2. <div> <span><%= @user.firstname %></span> <b><%= @user.lastname %></b> </div> <div> <span><%=

    @user.firstname %></span> <b><%= @user.lastname %></b> </div>

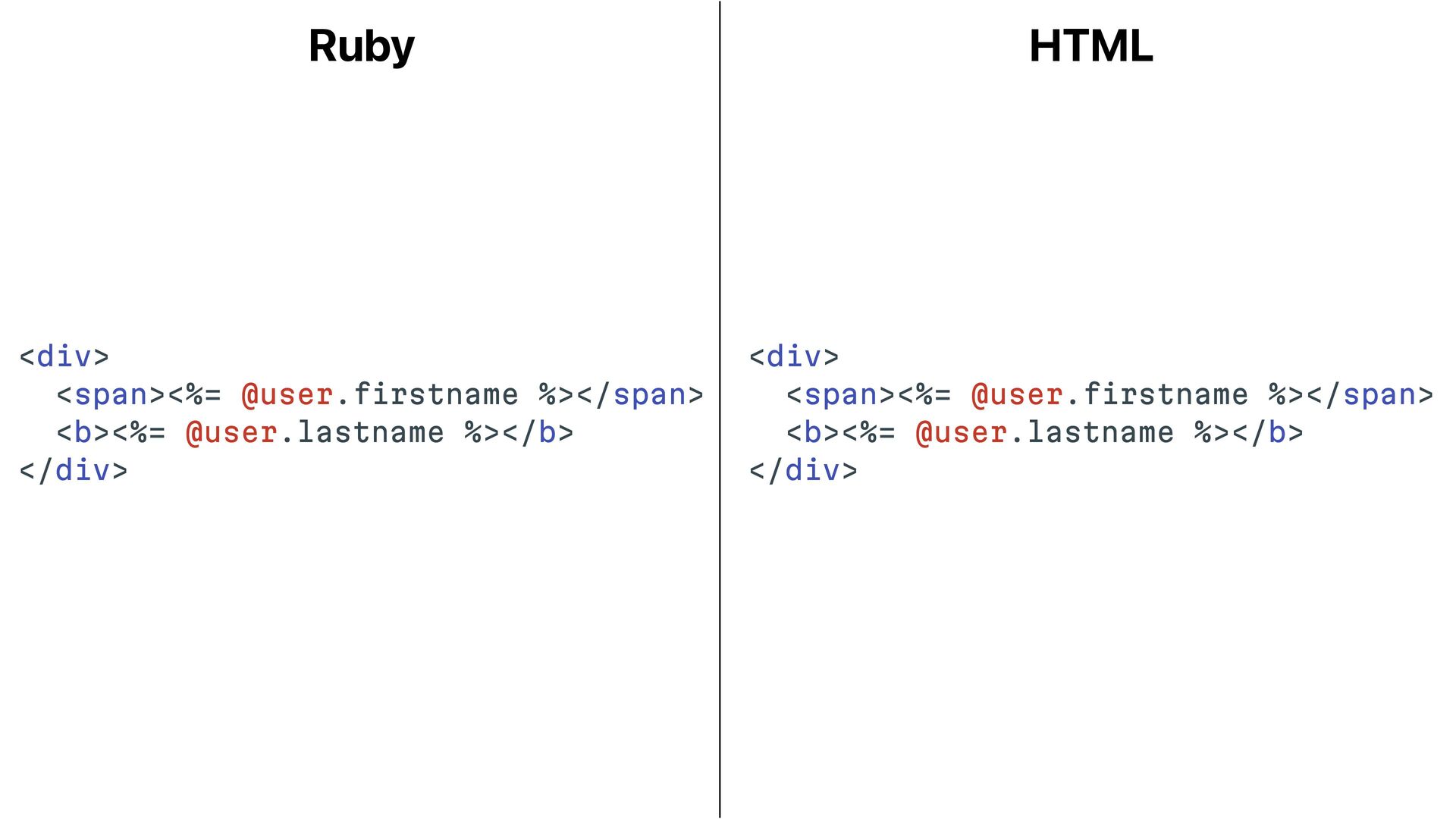

  3. Ruby HTML <div> <span><%= @user.firstname %></span> <b><%= @user.lastname %></b> </div>

    <div> <span><%= @user.firstname %></span> <b><%= @user.lastname %></b> </div>
  4. Ruby HTML <div> <span><%= @user.firstname %></span> <b><%= @user.lastname %></b> </div>

    <div> <span><%= @user.firstname %></span> <b><%= @user.lastname %></b> </div>

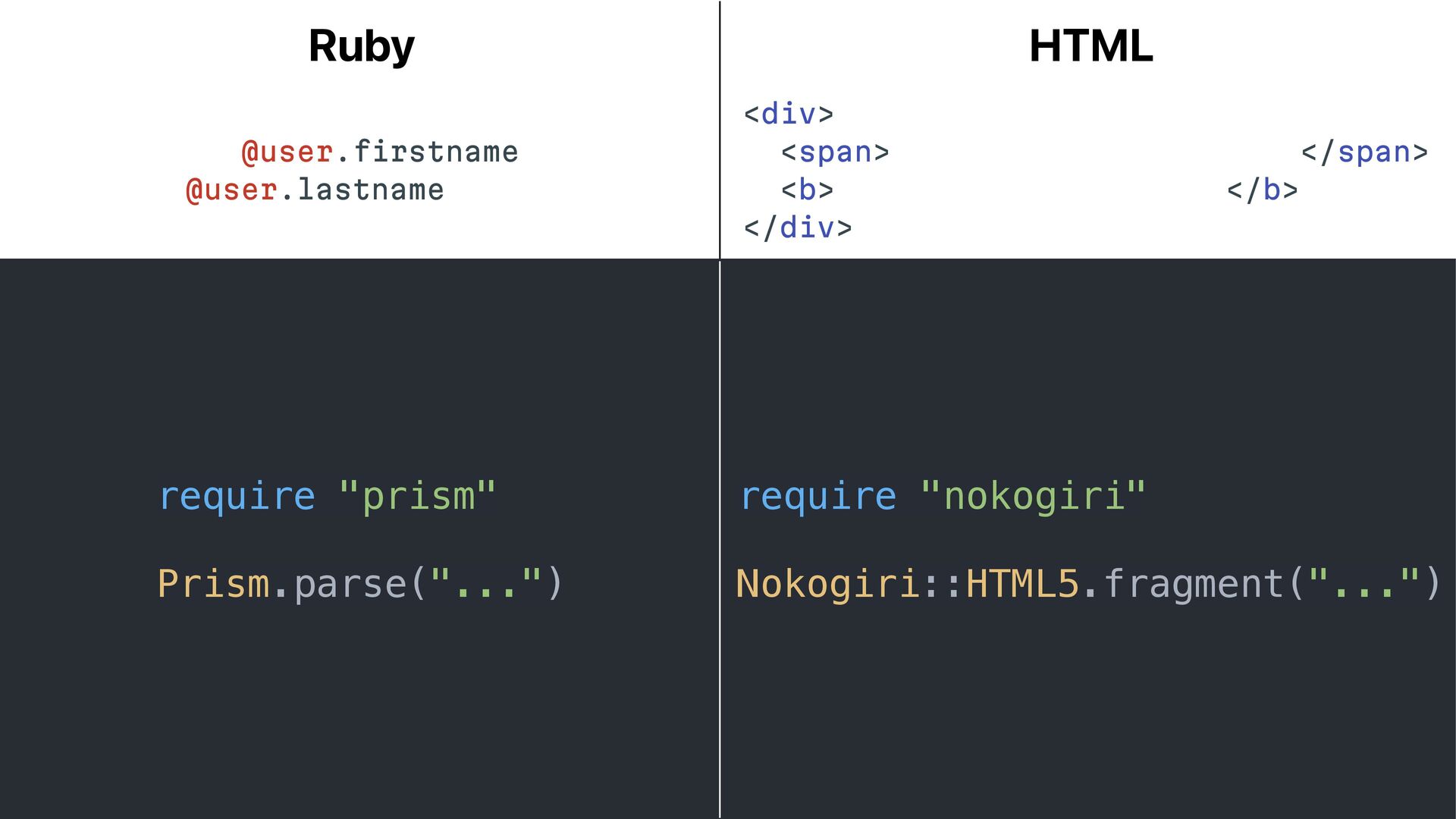

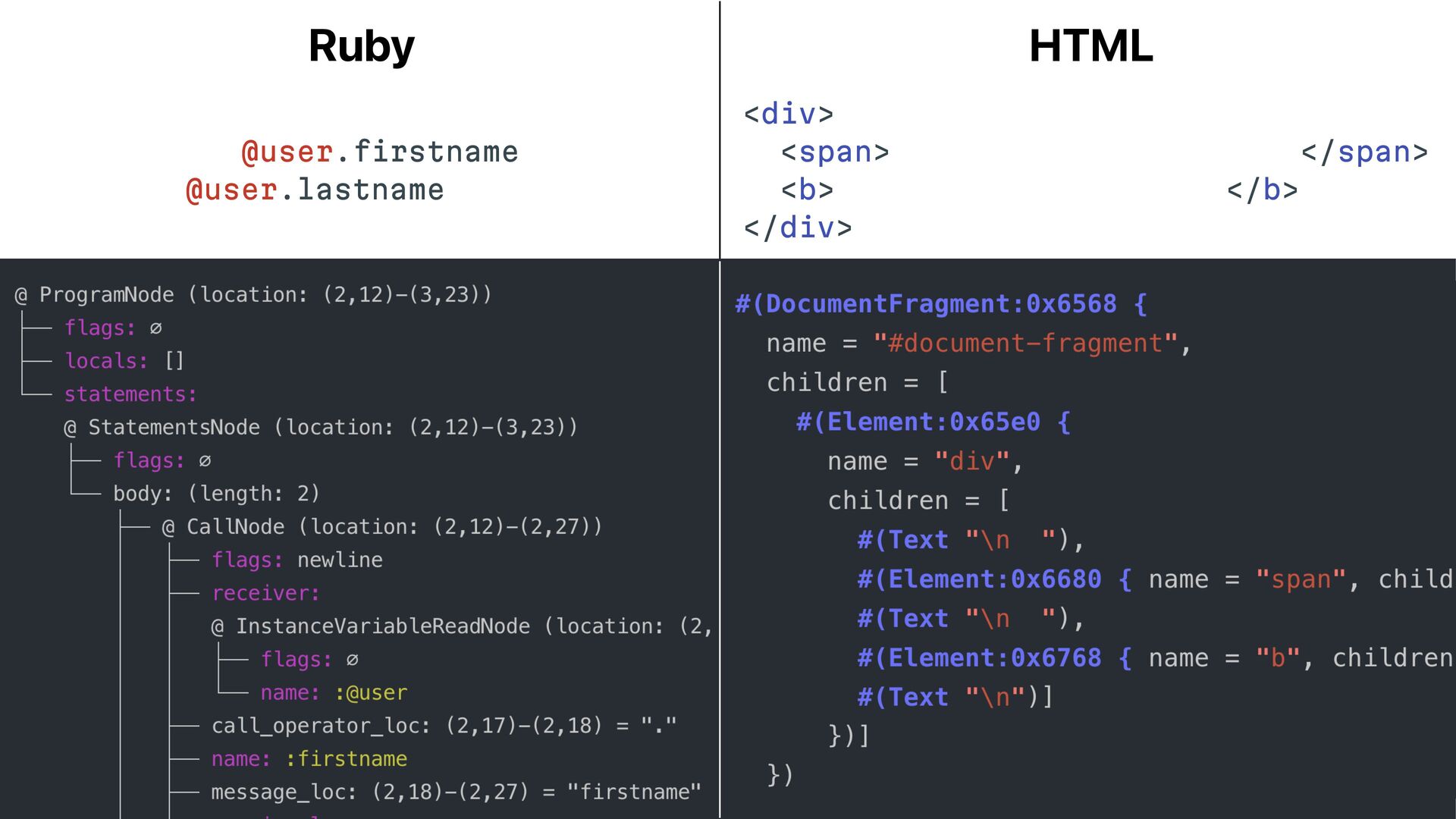

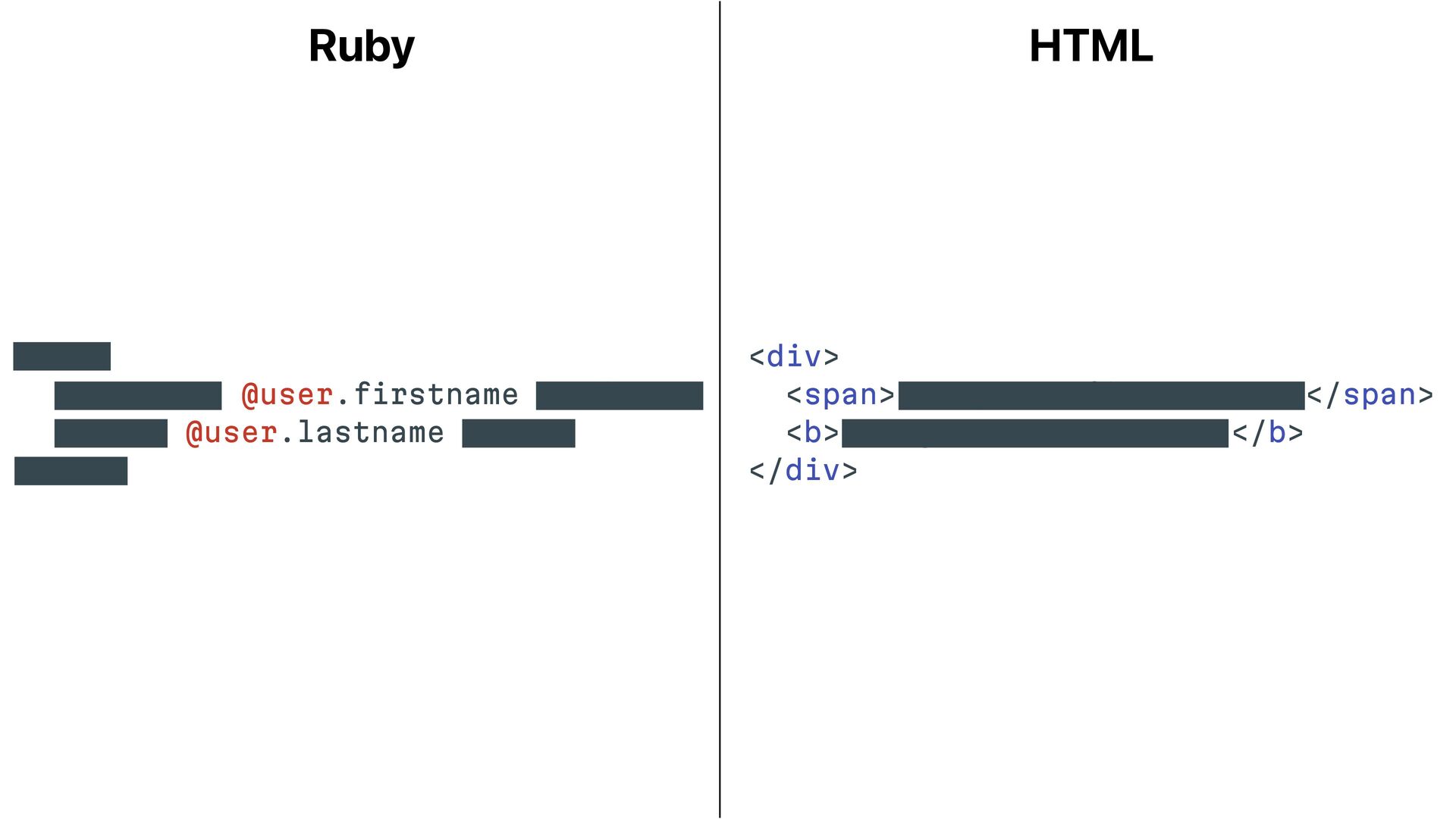

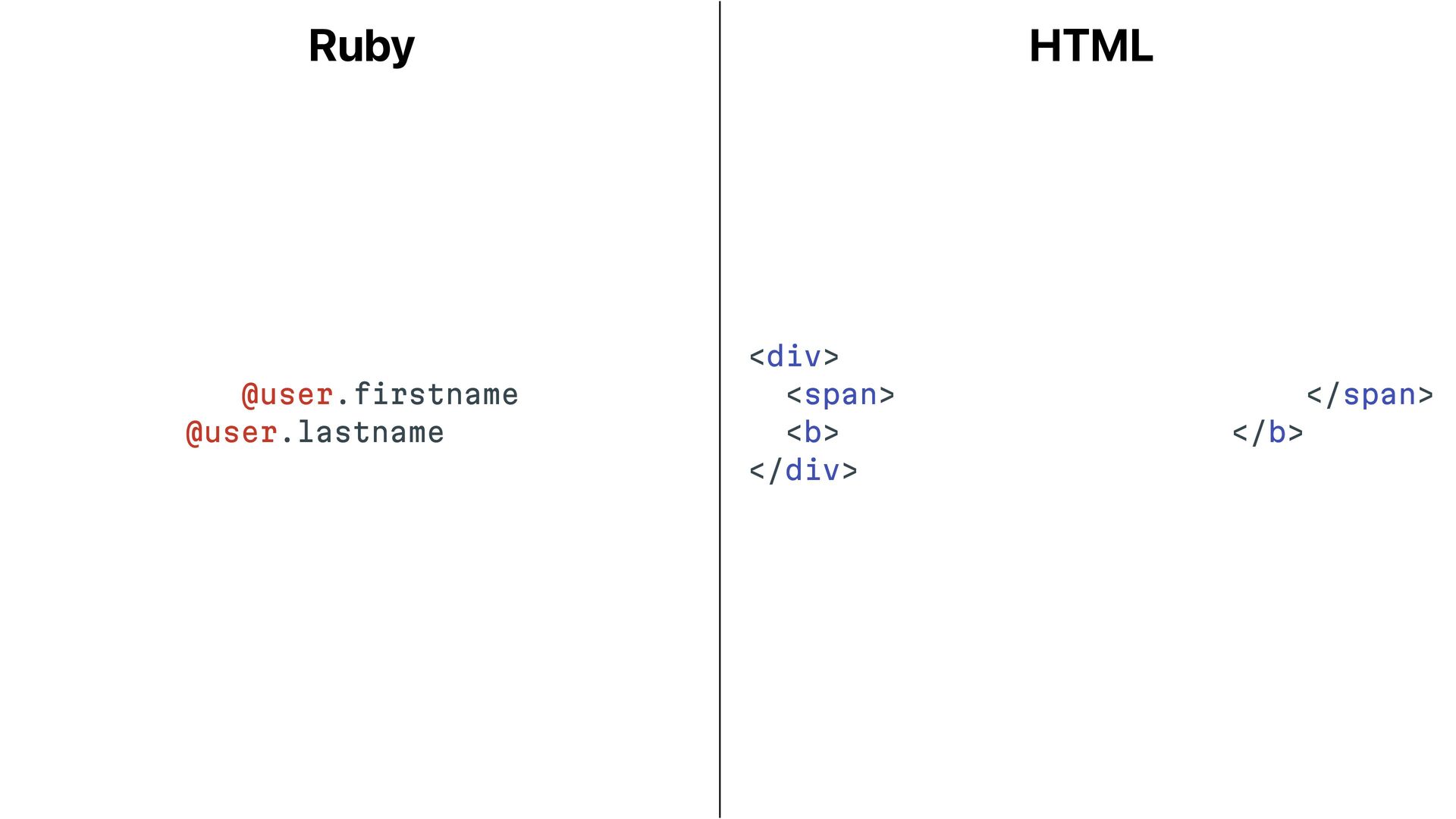

  5. Ruby HTML @user.firstname @user.lastname <div> <span> </span> <b> </b> </div>

    t require "prism" Prism.parse("...") require "nokogiri" Nokogiri::HTML5.fragment("...")

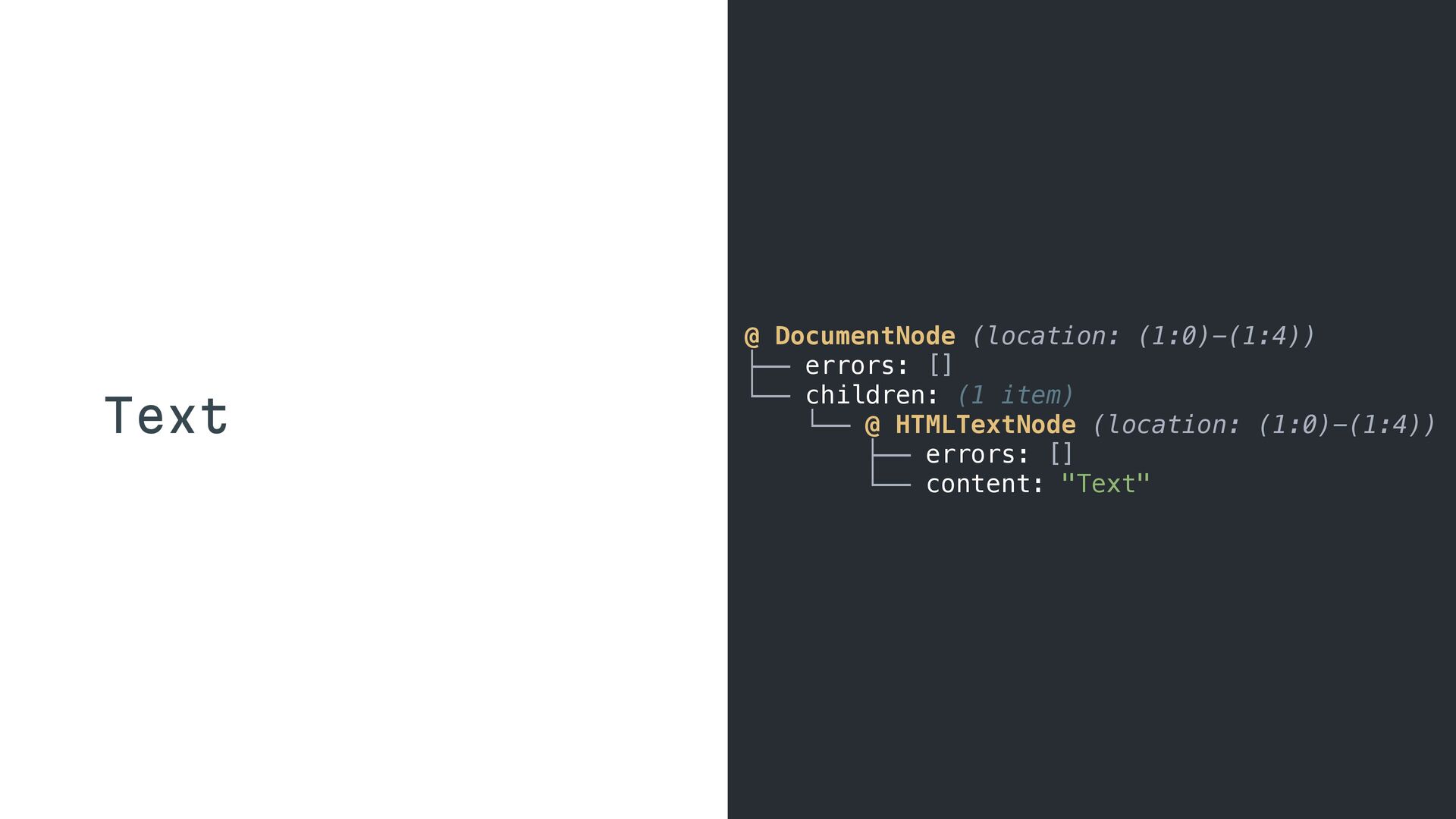

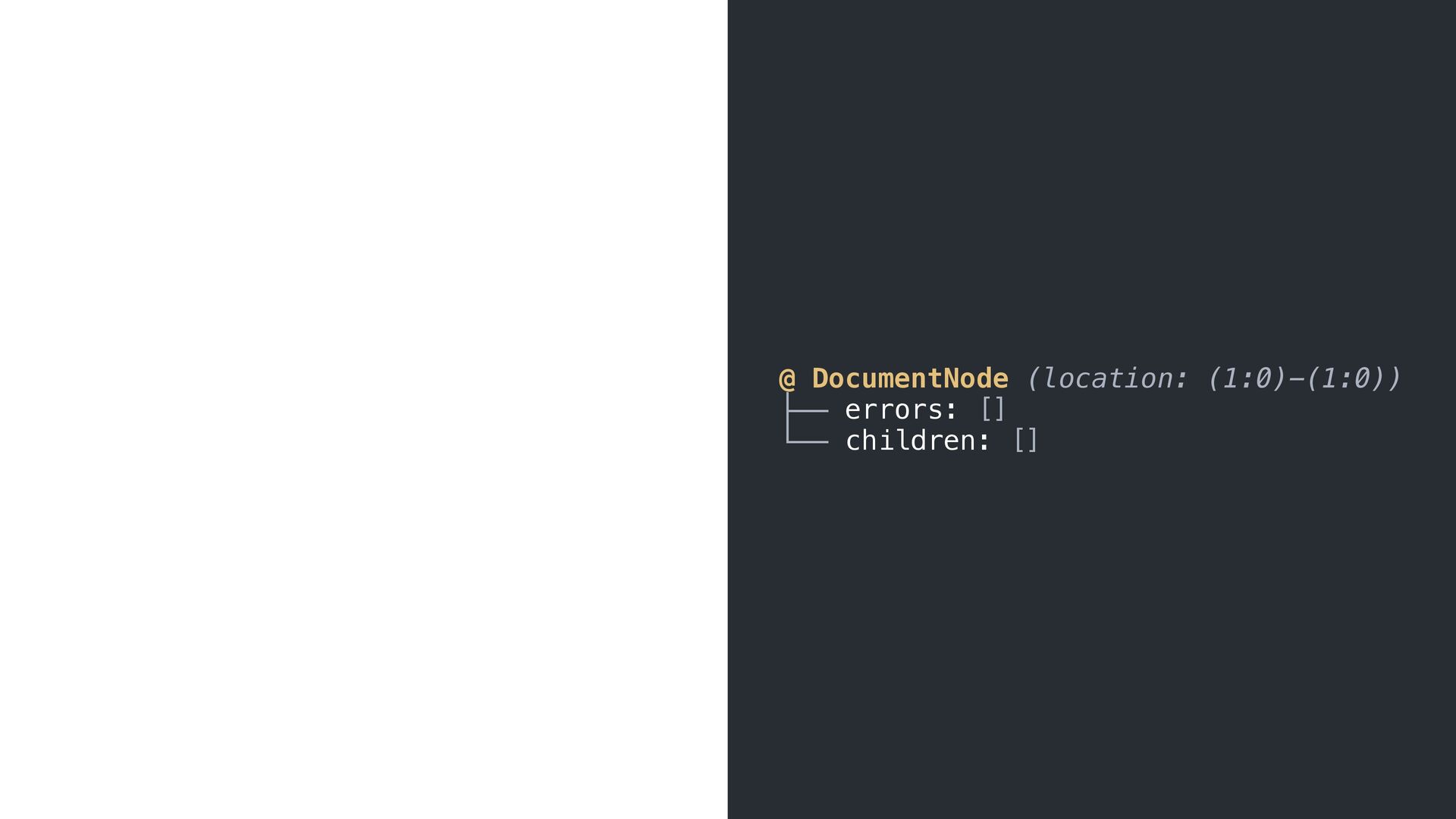

  6. Text @ DocumentNode (location: (1:0)-(1:4)) ├── errors: [] └── children:

    (1 item) └── @ HTMLTextNode (location: (1:0)-(1:4)) ├── errors: [] └── content: "Text"

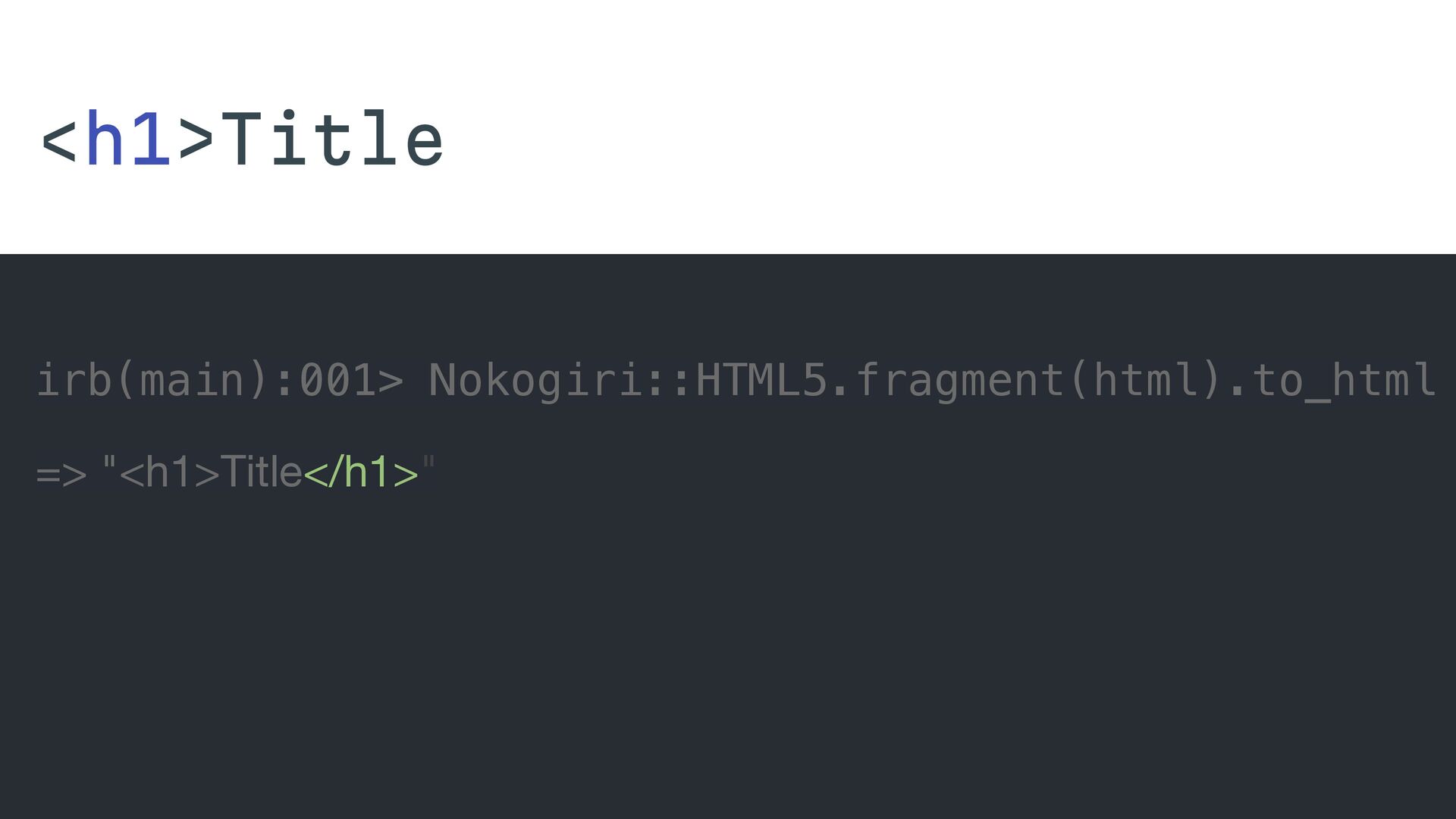

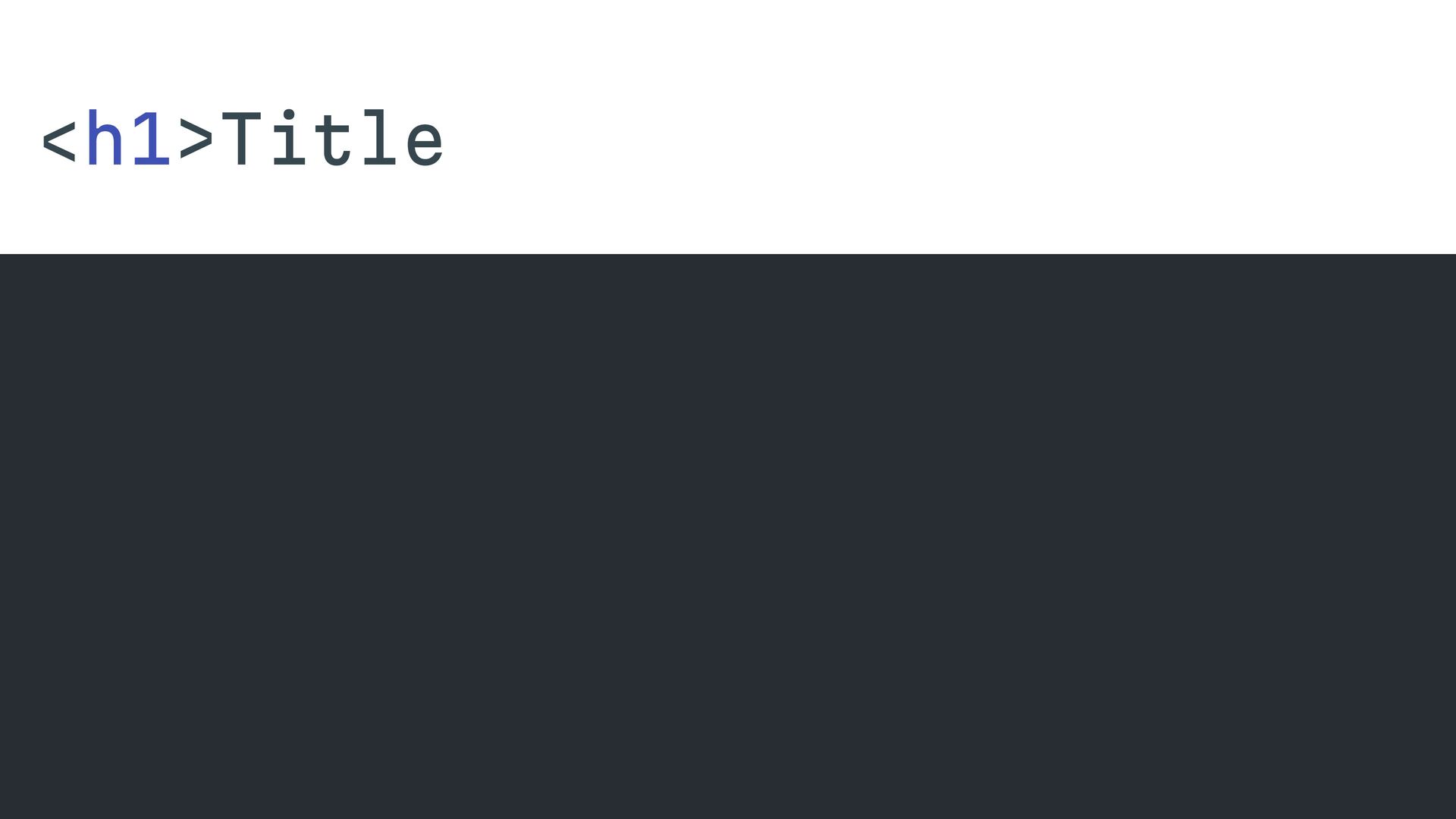

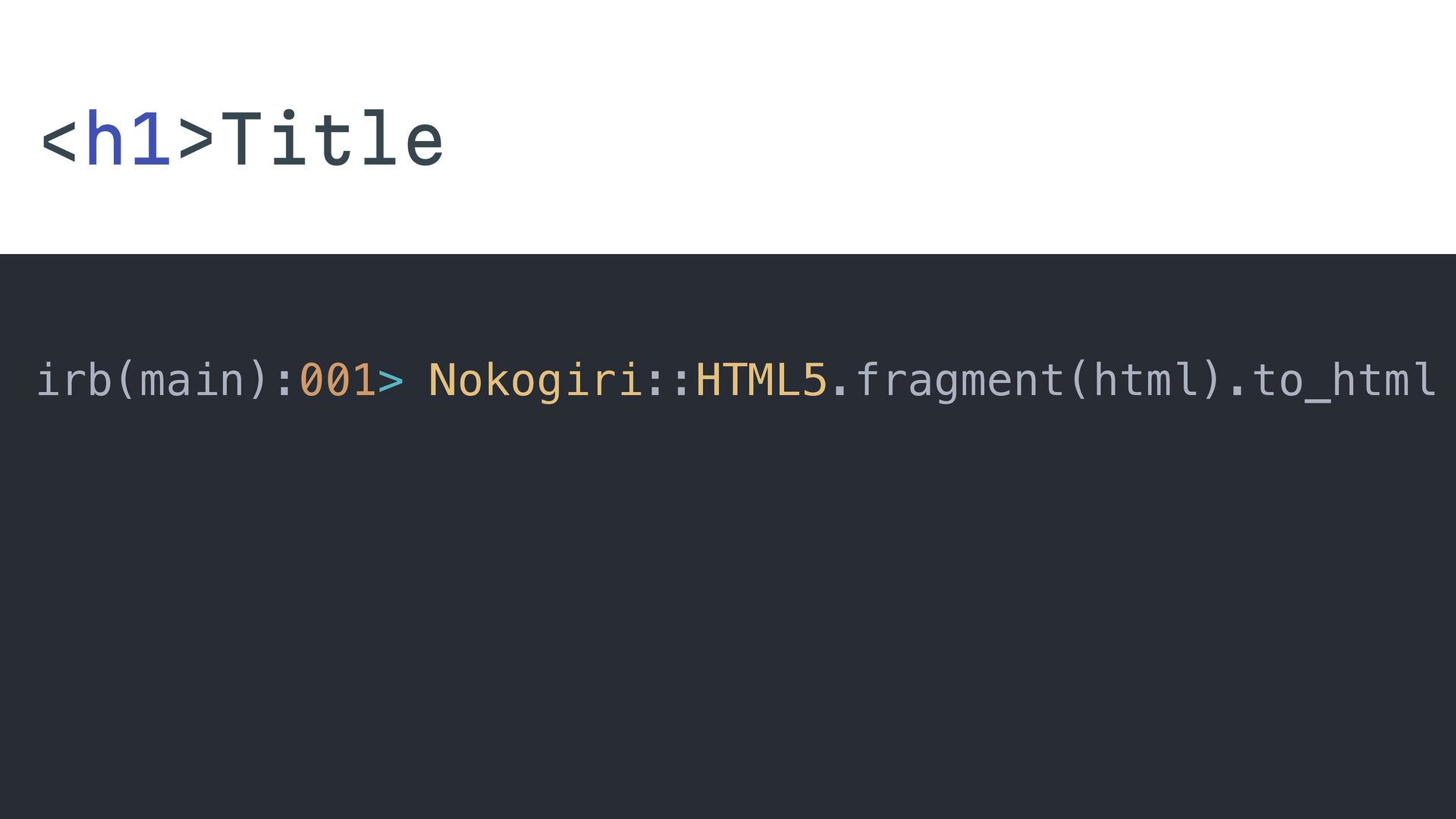

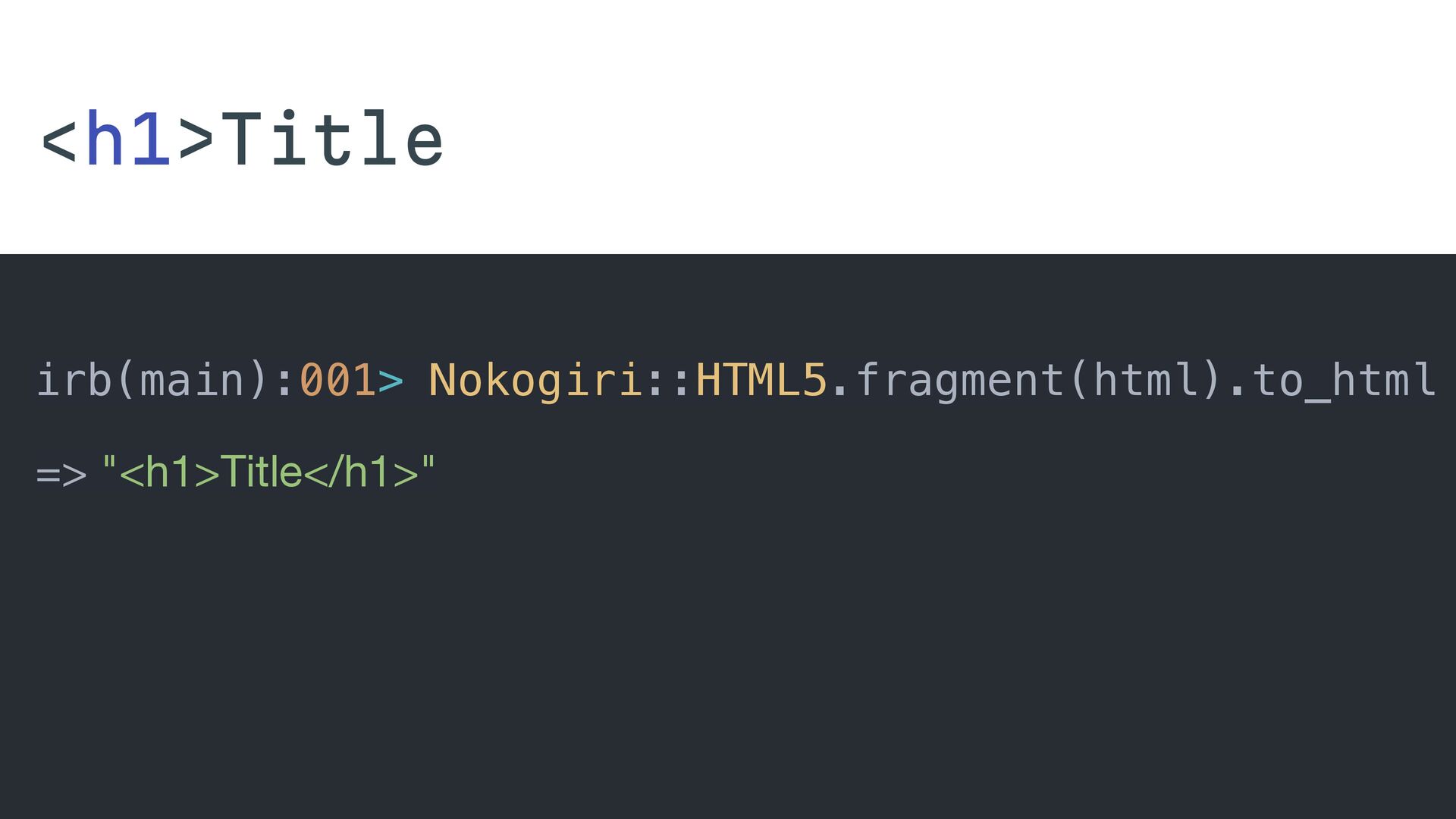

  7. <h1>Title @ HTMLElementNode ├── errors: (1 item) │ └── @

    MissingClosingTagError │ ├── message: " │ │ Opening tag `<h1>` at (1:1) │ │ doesn't have a matching │ │ closing tag `</h1>`. │ │ " │ └── opening_tag: "h1" │ ├── open_tag: │ └── @ HTMLOpenTagNode │ ├── tag_opening: "<" │ ├── tag_name: "h1" │ ├── tag_closing: ">" │ ├── children: [] │ └── is_void: false │ ├── tag_name: "h1" ├── body: (1 item) │ └── @ HTMLTextNode │ └── content: "Title" │ ├── close_tag: ∅ └── is_void: false ^^^^^
  8. <h1>Title @ HTMLElementNode │── errors: (1 item) │ └── @

    MissingClosingTagError │ ├── message: " │ │ Opening tag `<h1>` at (1:1) │ │ doesn't have a matching │ │ closing tag `</h1>`. │ │ " │ └── opening_tag: "h1" │ ├── open_tag: │ └── @ HTMLOpenTagNode │ ├── tag_opening: "<" │ ├── tag_name: "h1" │ ├── tag_closing: ">" │ ├── children: [] │ └── is_void: false │ │── tag_name: "h1" │── body: (1 item) │ └── @ HTMLTextNode │ └── content: "Title" │ └── close_tag: ∅ └── is_void: false ^^^^^

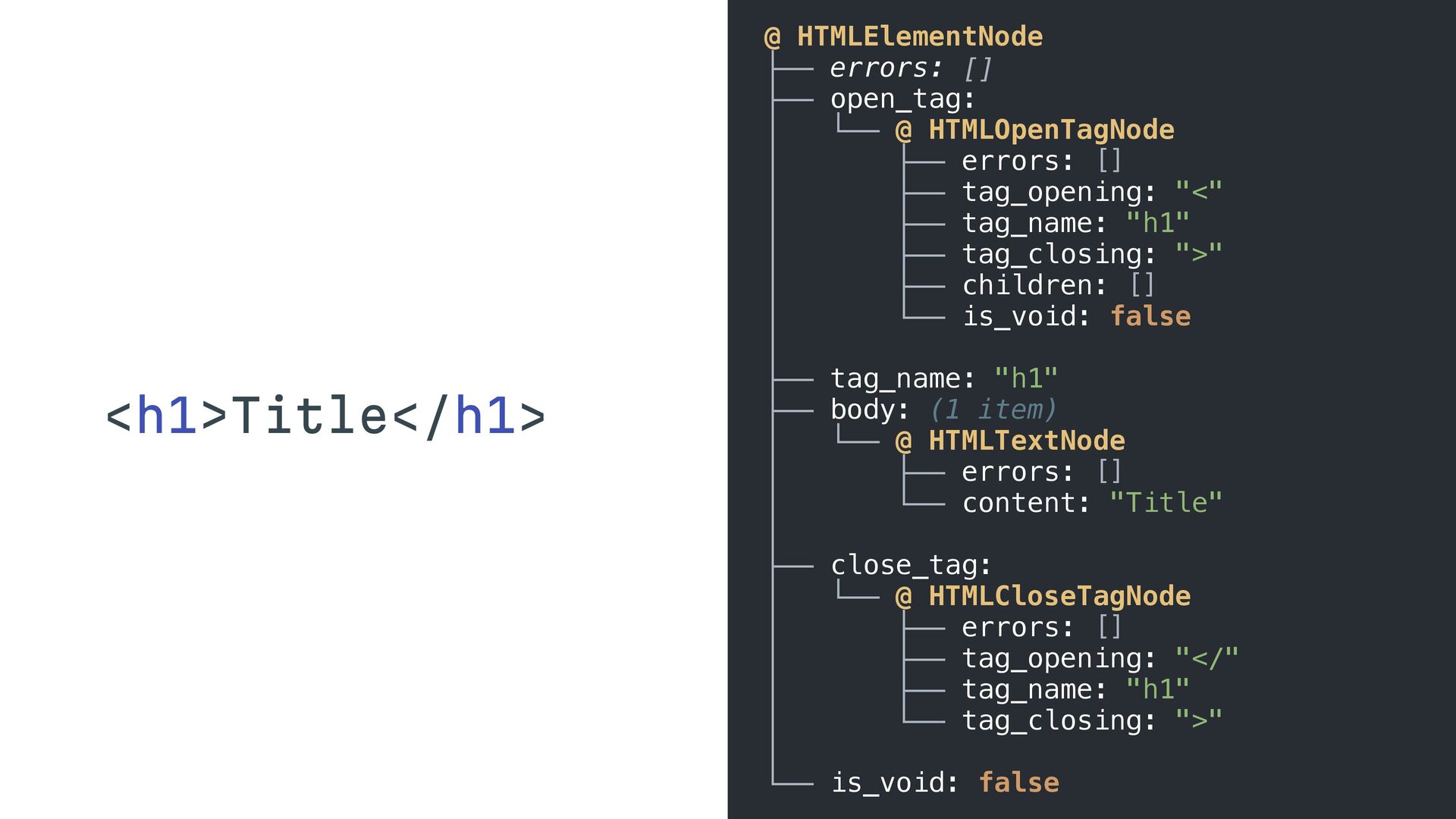

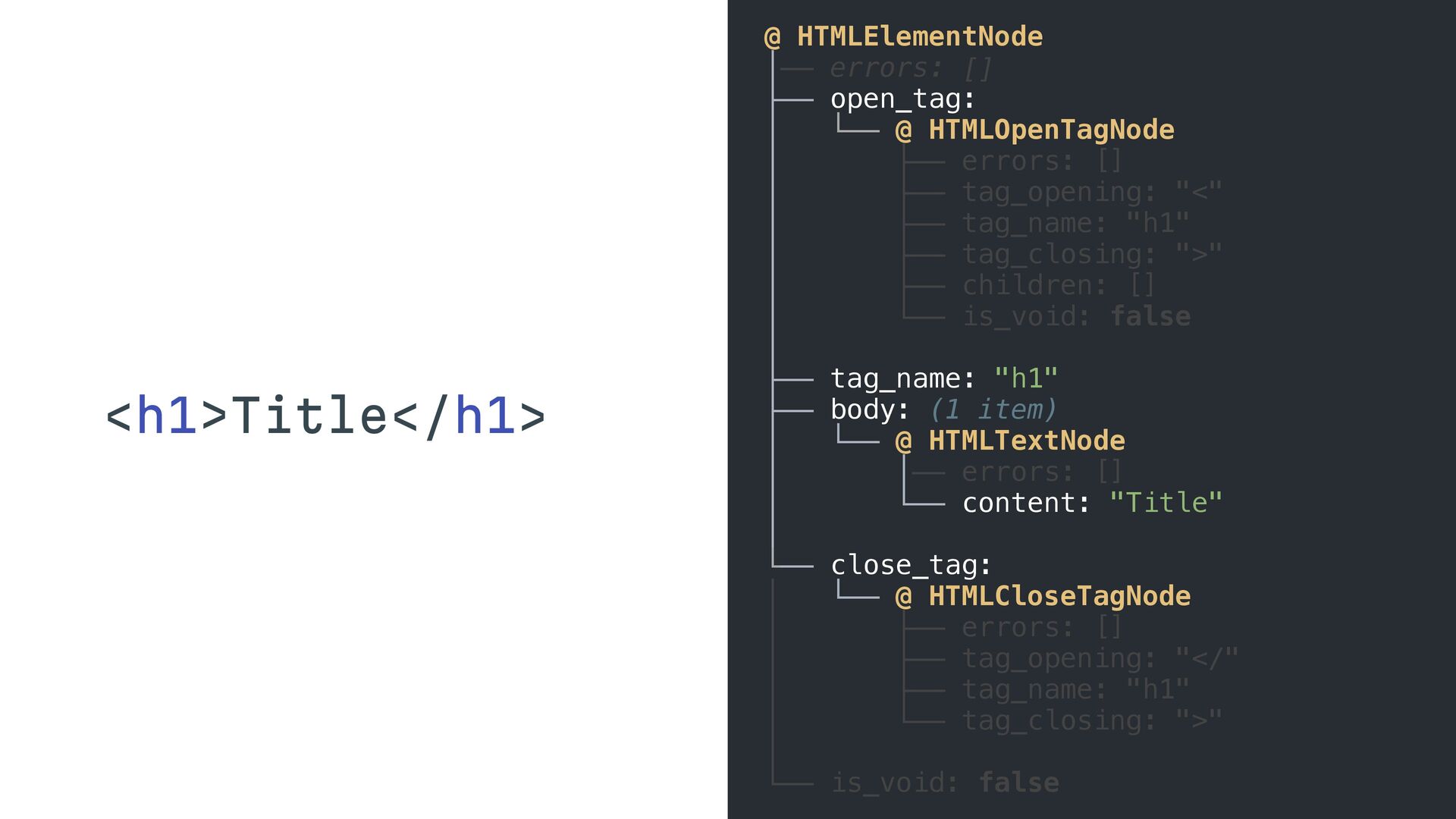

  9. <h1>Title</h1> @ HTMLElementNode ├── errors: [] ├── open_tag: │ └──

    @ HTMLOpenTagNode │ ├── errors: [] │ ├── tag_opening: "<" │ ├── tag_name: "h1" │ ├── tag_closing: ">" │ ├── children: [] │ └── is_void: false │ ├── tag_name: "h1" ├── body: (1 item) │ └── @ HTMLTextNode │ ├── errors: [] │ └── content: "Title" │ ├── close_tag: │ └── @ HTMLCloseTagNode │ ├── errors: [] │ ├── tag_opening: "</" │ ├── tag_name: "h1" │ └── tag_closing: ">" │ └── is_void: false
  10. <h1>Title</h1> @ HTMLElementNode │── errors: [] ├── open_tag: │ └──

    @ HTMLOpenTagNode │ ├── errors: [] │ ├── tag_opening: "<" │ ├── tag_name: "h1" │ ├── tag_closing: ">" │ ├── children: [] │ └── is_void: false │ ├── tag_name: "h1" ├── body: (1 item) │ └── @ HTMLTextNode │ │── errors: [] │ └── content: "Title" │ └── close_tag: │ └── @ HTMLCloseTagNode │ ├── errors: [] │ ├── tag_opening: "</" │ ├── tag_name: "h1" │ └── tag_closing: ">" │ └── is_void: false

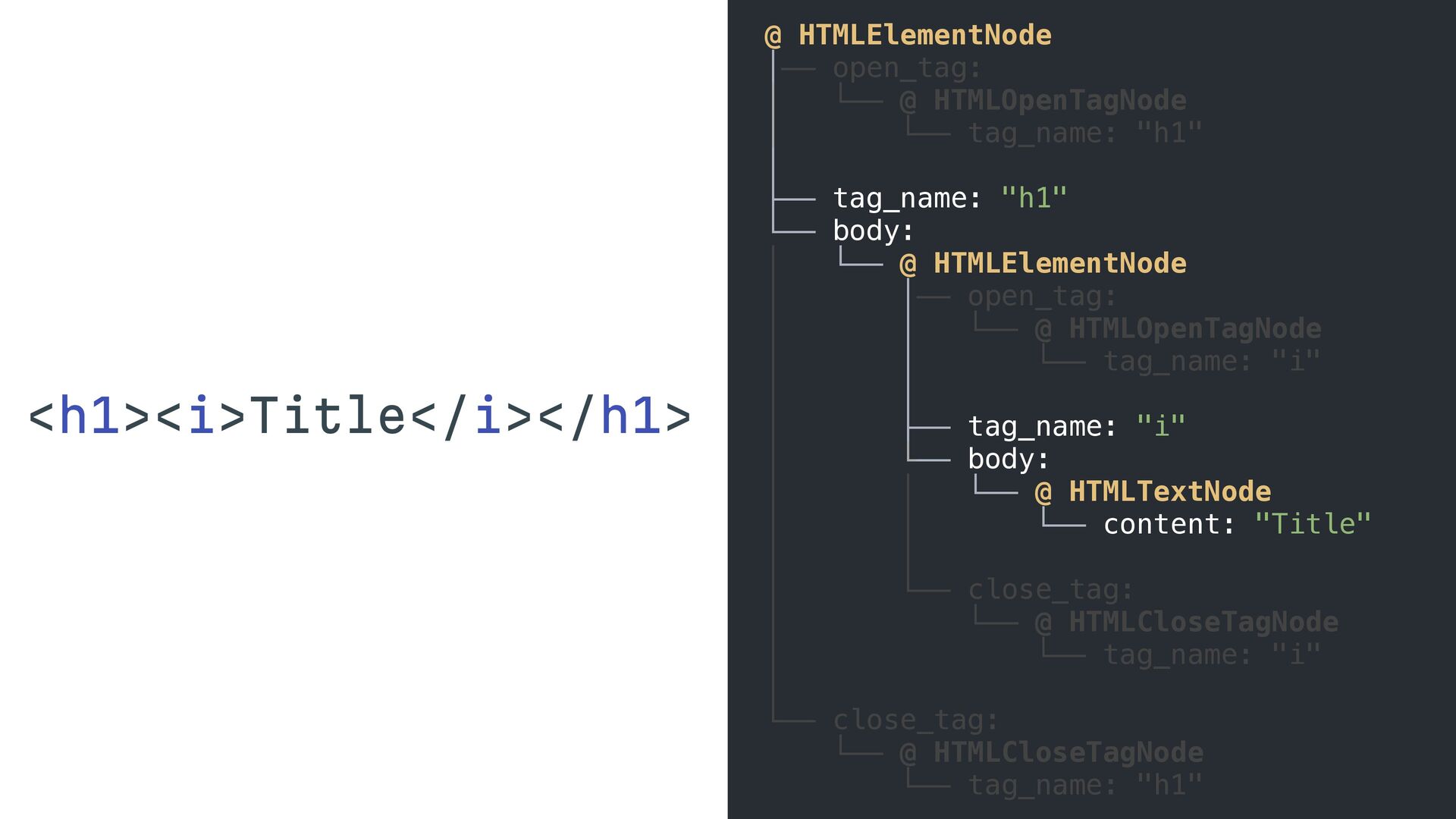

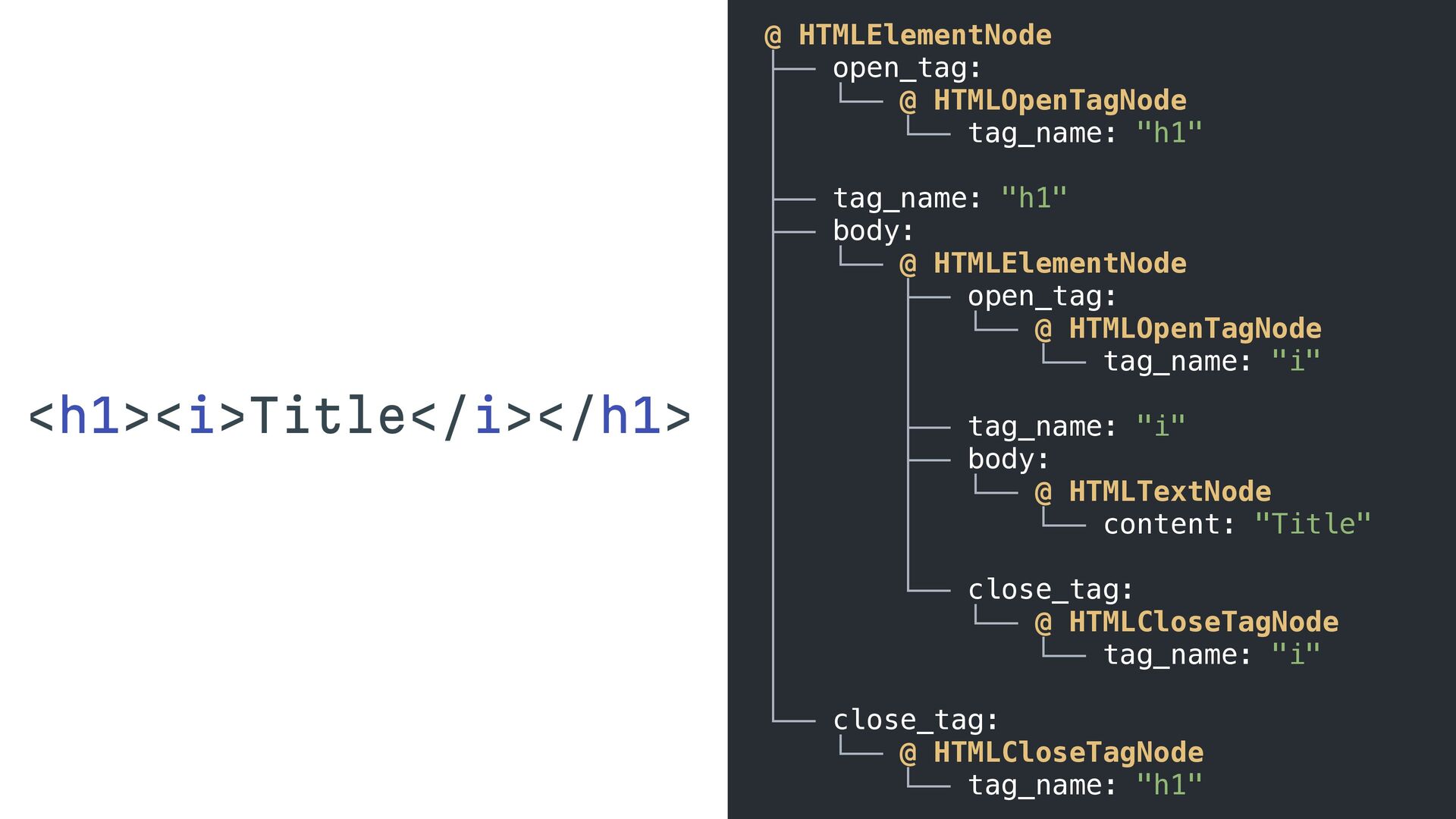

  11. <h1><i>Title</i></h1> @ HTMLElementNode ├── open_tag: │ └── @ HTMLOpenTagNode │

    └── tag_name: "h1" │ ├── tag_name: "h1" ├── body: │ └── @ HTMLElementNode │ ├── open_tag: │ │ └── @ HTMLOpenTagNode │ │ └── tag_name: "i" │ │ │ ├── tag_name: "i" │ ├── body: │ │ └── @ HTMLTextNode │ │ └── content: "Title" │ │ │ └── close_tag: │ └── @ HTMLCloseTagNode │ └── tag_name: "i" │ └── close_tag: └── @ HTMLCloseTagNode └── tag_name: "h1"
  12. <h1><i>Title</i></h1> @ HTMLElementNode │── open_tag: │ └── @ HTMLOpenTagNode │

    └── tag_name: "h1" │ ├── tag_name: "h1" └── body: │ └── @ HTMLElementNode │ │── open_tag: │ │ └── @ HTMLOpenTagNode │ │ └── tag_name: "i" │ │ │ ├── tag_name: "i" │ └── body: │ │ └── @ HTMLTextNode │ │ └── content: "Title" │ │ │ └── close_tag: │ └── @ HTMLCloseTagNode │ └── tag_name: "i" │ └── close_tag: └── @ HTMLCloseTagNode └── tag_name: "h1"

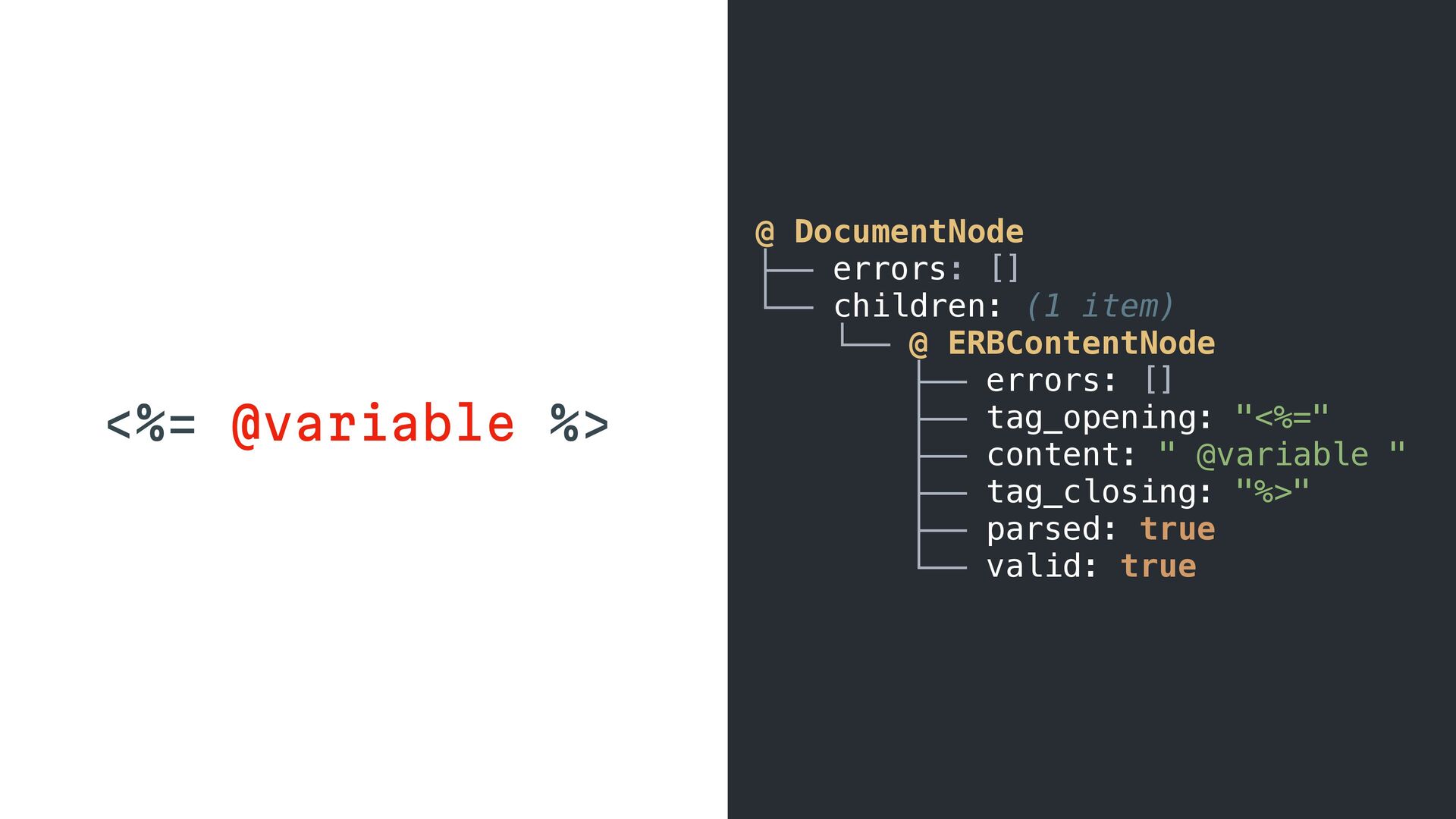

  13. <%= @variable %> @ DocumentNode ├── errors: [] └── children:

    (1 item) └── @ ERBContentNode ├── errors: [] ├── tag_opening: "<%=" ├── content: " @variable " ├── tag_closing: "%>" ├── parsed: true └── valid: true

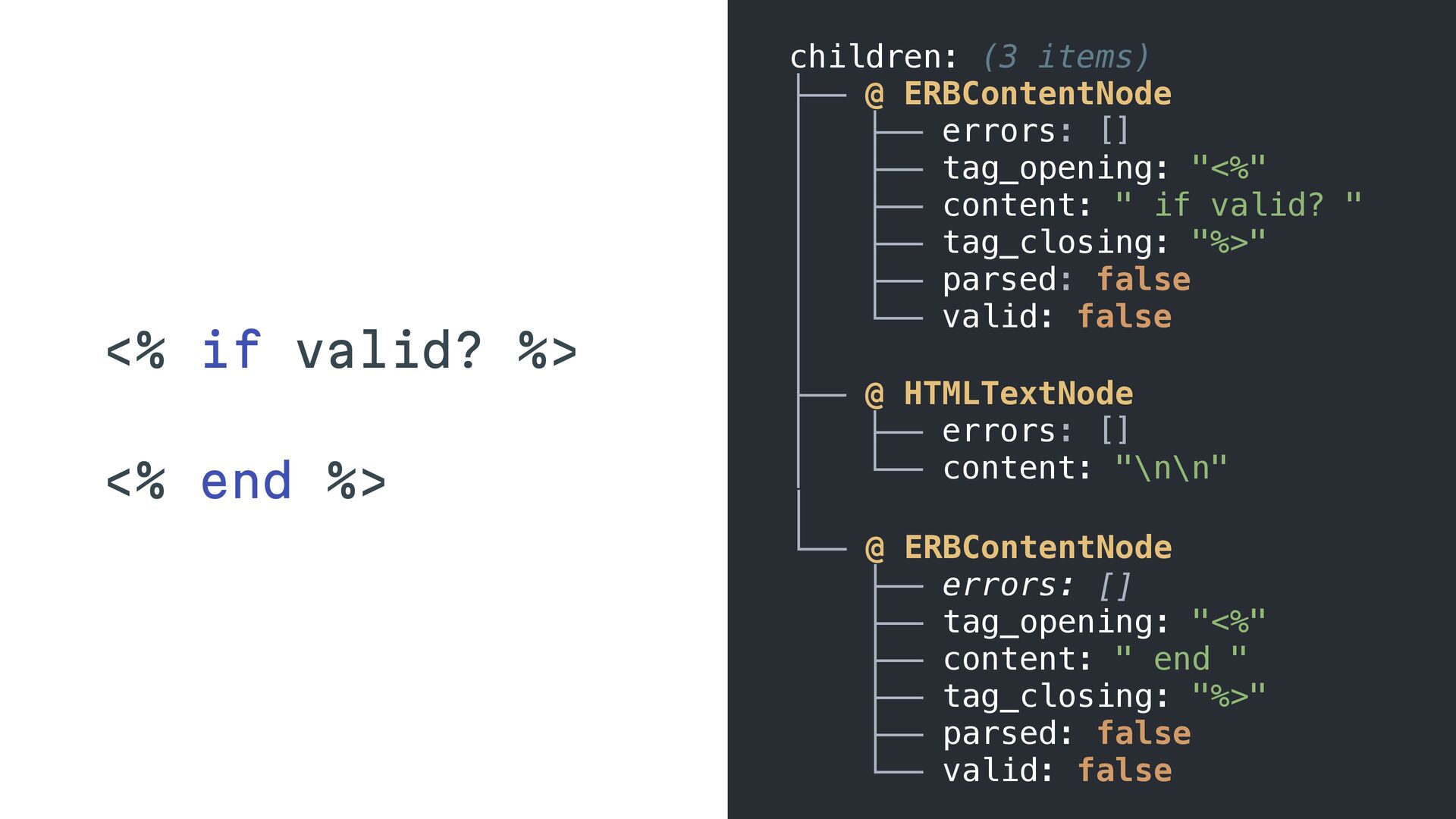

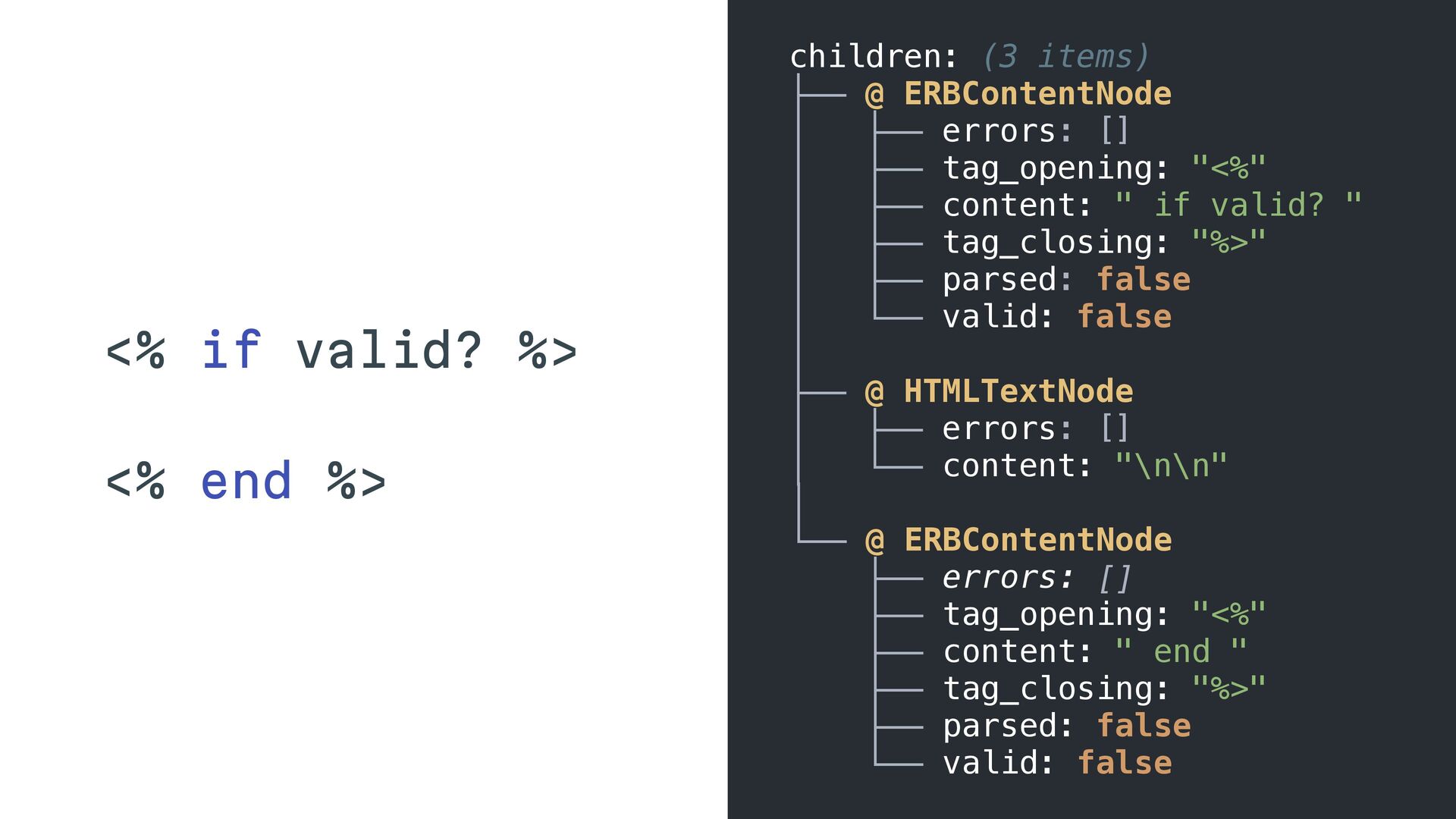

  14. <% if valid? %> <% end %> children: (3 items)

    ├── @ ERBContentNode │ ├── errors: [] │ ├── tag_opening: "<%" │ ├── content: " if valid? " │ ├── tag_closing: "%>" │ ├── parsed: false │ └── valid: false │ │ └── @ ERBContentNode ├── errors: [] ├── tag_opening: "<%" ├── content: " end " ├── tag_closing: "%>" ├── parsed: false └── valid: false ├── @ HTMLTextNode │ ├── errors: [] │ └── content: "\n\n"
  15. <% if valid? %> <% end %> ├── @ ERBContentNode

    │ ├── errors: [] │ ├── tag_opening: "<%" │ ├── content: " if valid? " │ ├── tag_closing: "%>" │ ├── parsed: false │ └── valid: false │ │ └── @ ERBContentNode ├── errors: [] ├── tag_opening: "<%" ├── content: " end " ├── tag_closing: "%>" ├── parsed: false └── valid: false ├── @ HTMLTextNode │ ├── errors: [] │ └── content: "\n\n" children: (3 items)

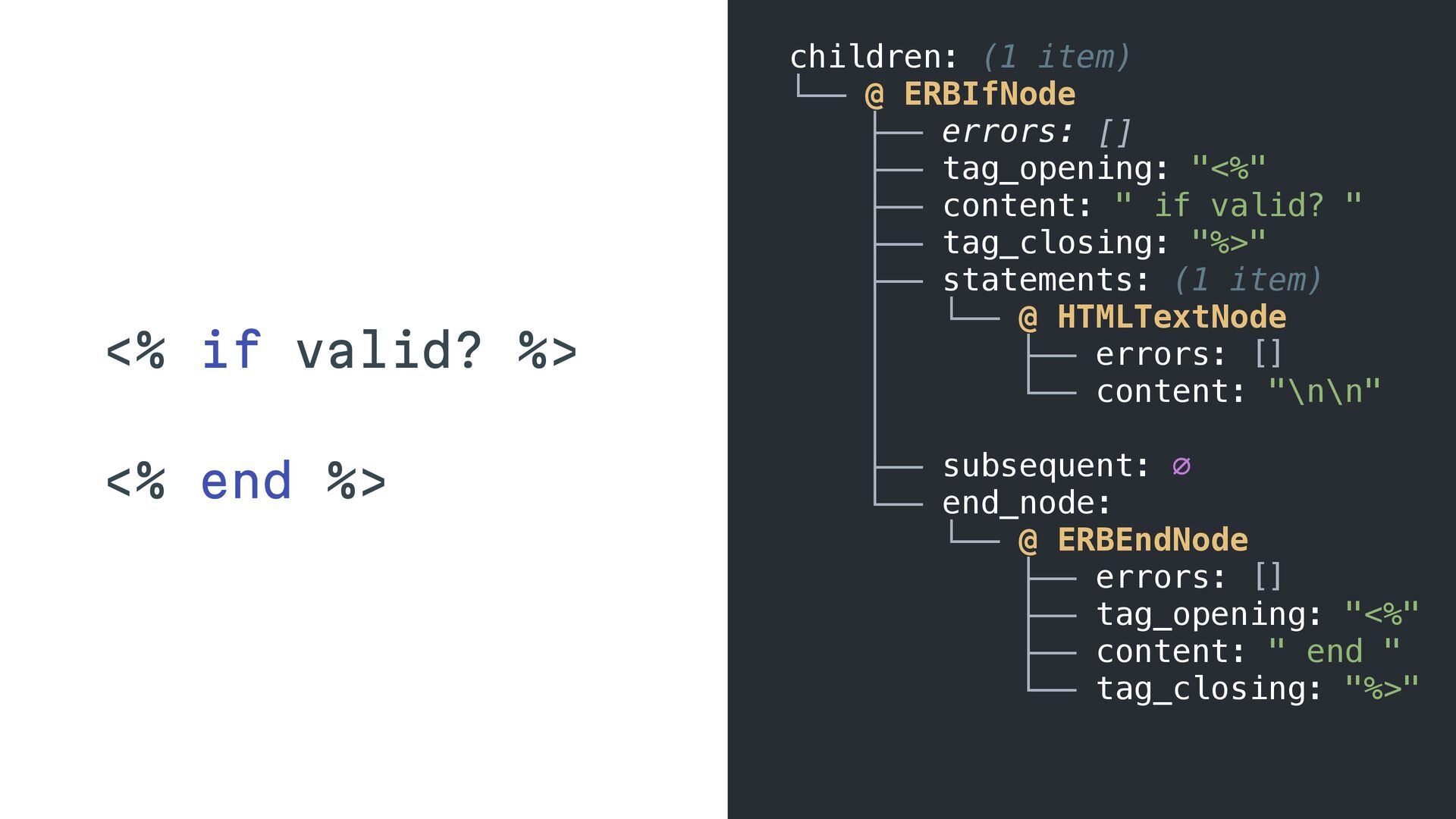

  16. <% if valid? %> <% end %> children: (1 item)

    └── @ ERBIfNode ├── errors: [] ├── tag_opening: "<%" ├── content: " if valid? " ├── tag_closing: "%>" ├── statements: (1 item) │ └── @ HTMLTextNode │ ├── errors: [] │ └── content: "\n\n" │ ├── subsequent: ∅ └── end_node: └── @ ERBEndNode ├── errors: [] ├── tag_opening: "<%" ├── content: " end " └── tag_closing: "%>"

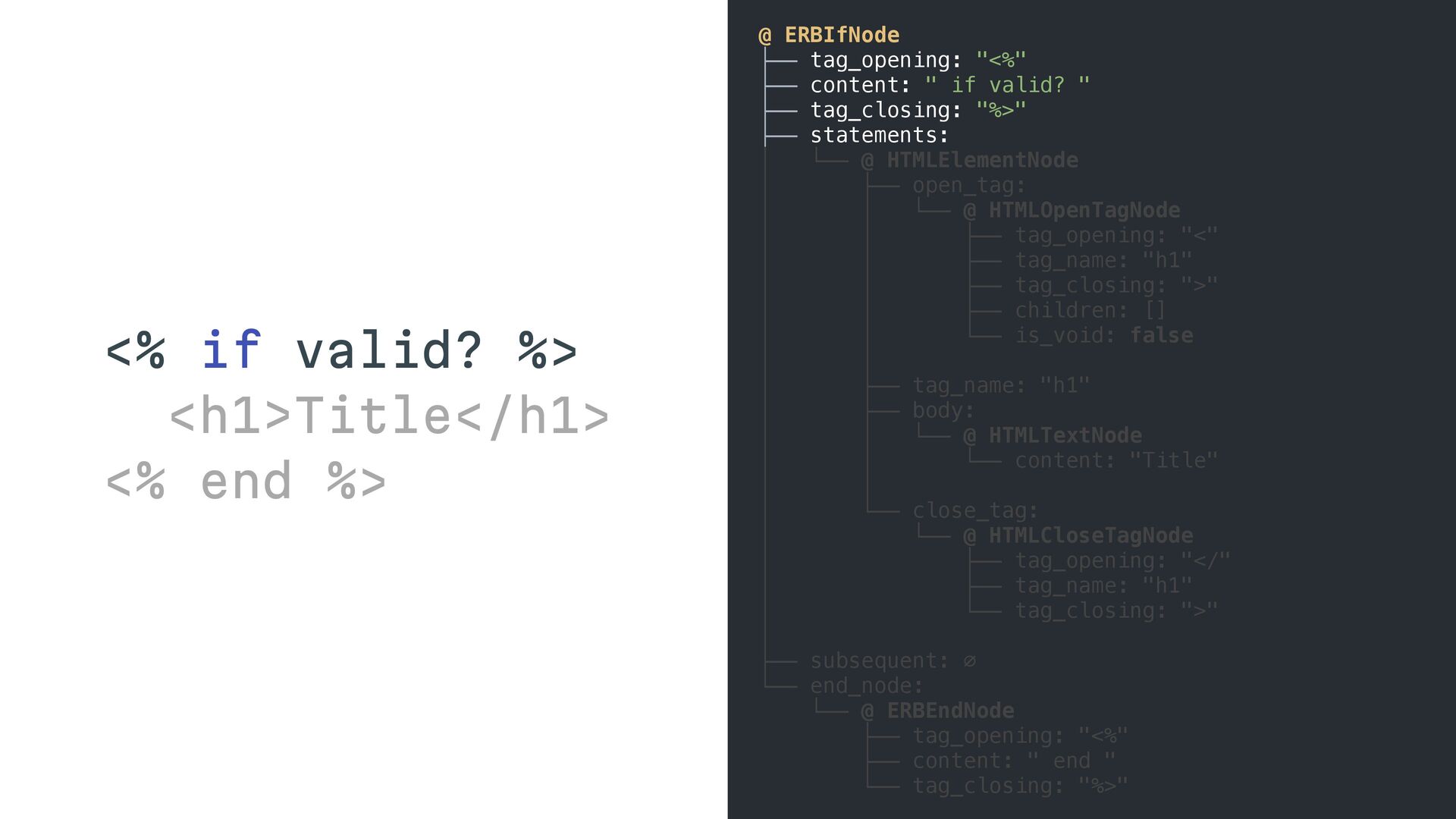

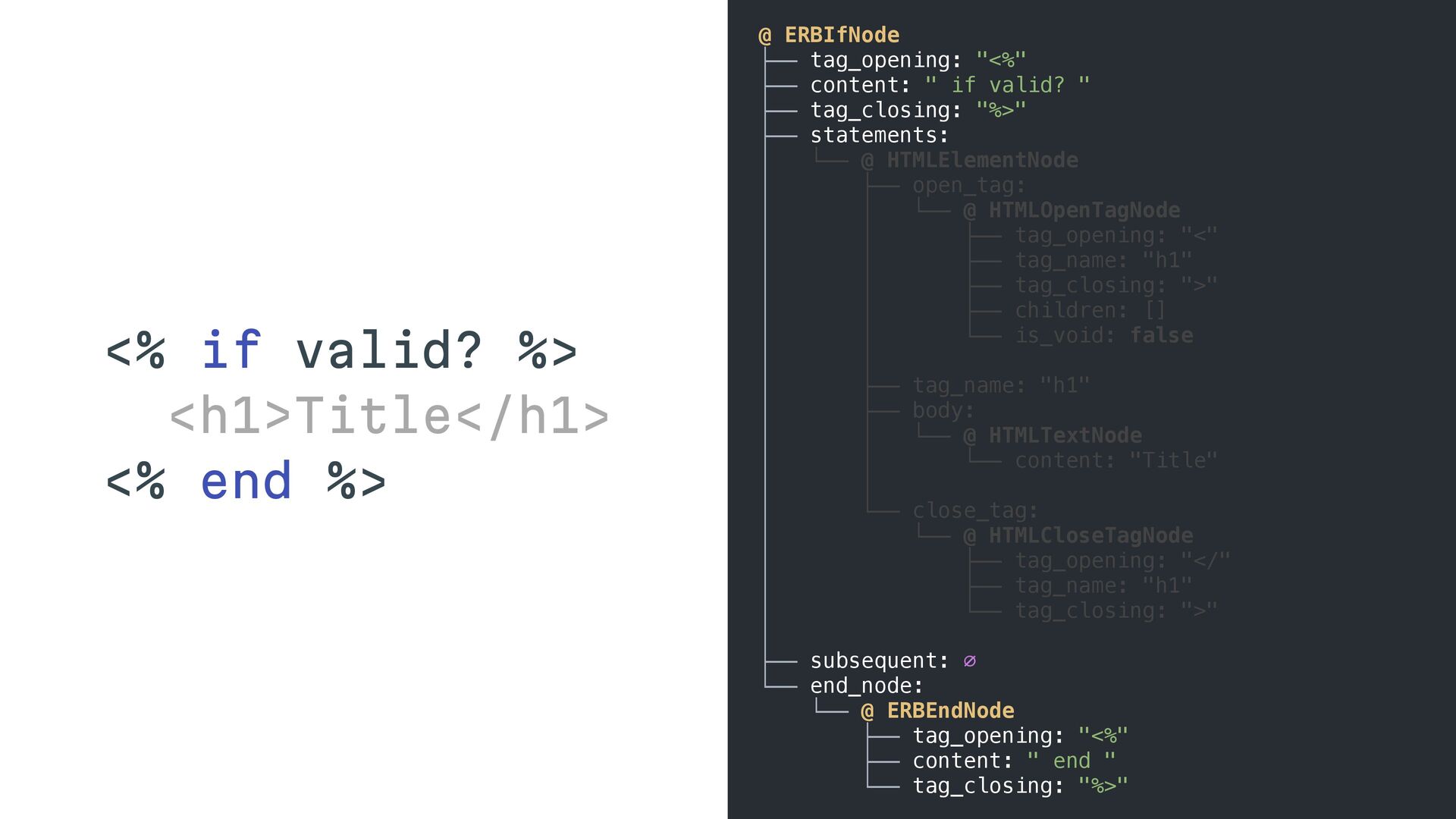

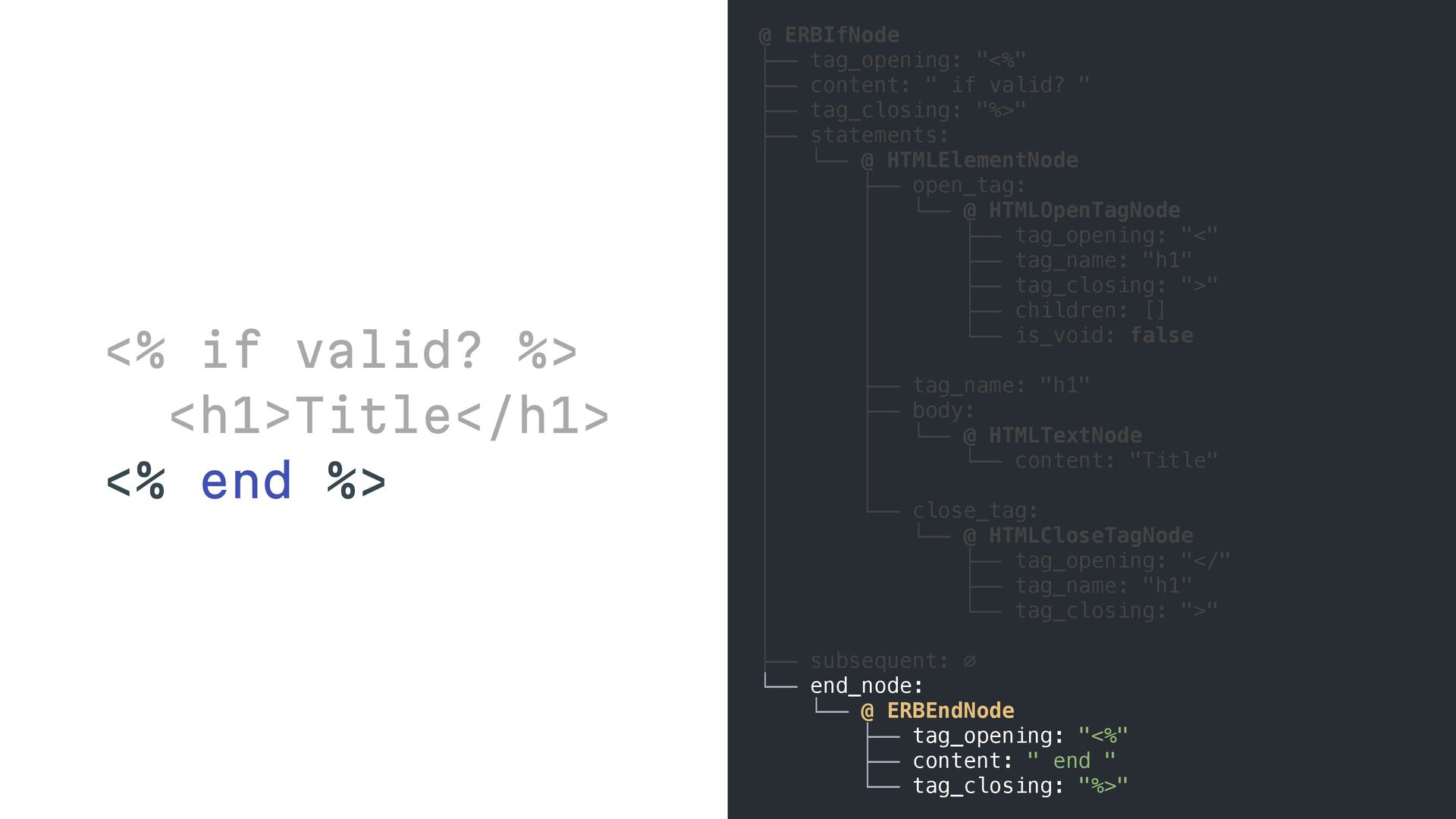

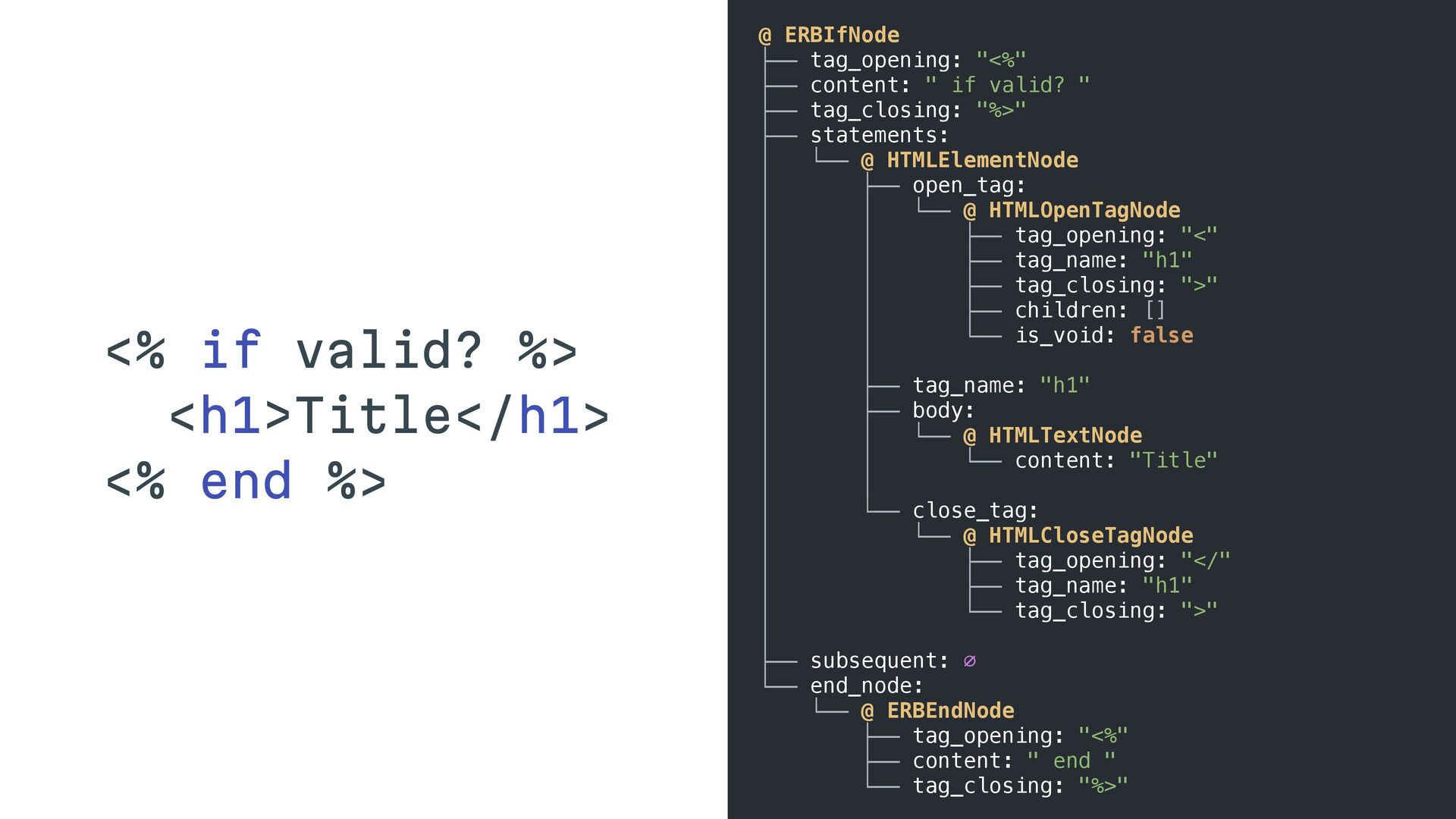

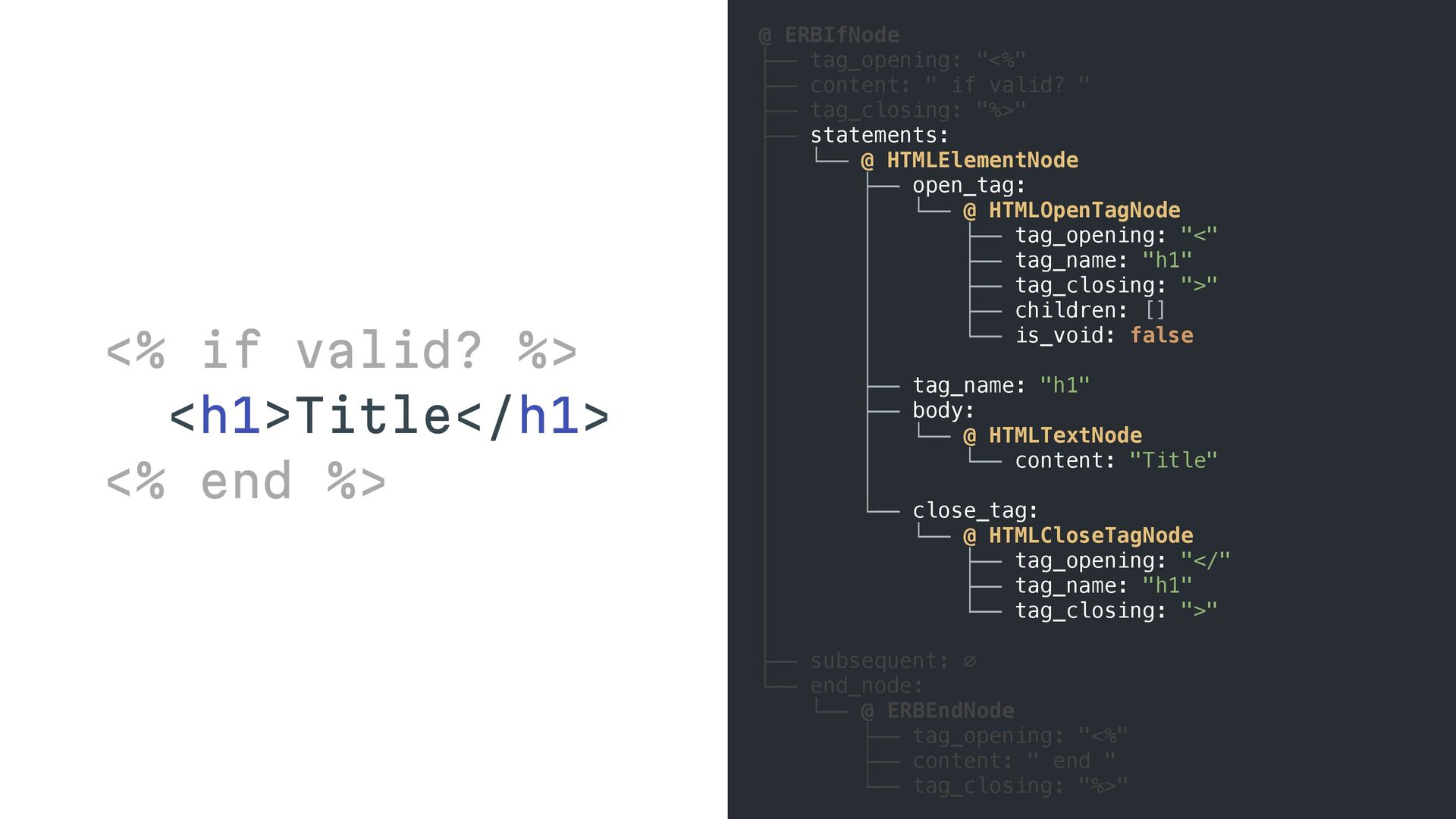

  17. <% if valid? %> <h1>Title</h1> <% end %> @ ERBIfNode

    ├── tag_opening: "<%" ├── content: " if valid? " ├── tag_closing: "%>" ├── statements: │ └── @ HTMLElementNode │ ├── open_tag: │ │ └── @ HTMLOpenTagNode │ │ ├── tag_opening: "<" │ │ ├── tag_name: "h1" │ │ ├── tag_closing: ">" │ │ ├── children: [] │ │ └── is_void: false │ │ │ ├── tag_name: "h1" │ ├── body: │ │ └── @ HTMLTextNode │ │ └── content: "Title" │ │ │ └── close_tag: │ └── @ HTMLCloseTagNode │ ├── tag_opening: "</" │ ├── tag_name: "h1" │ └── tag_closing: ">" │ ├── subsequent: ∅ └── end_node: └── @ ERBEndNode ├── tag_opening: "<%" ├── content: " end " └── tag_closing: "%>"
  18. <% if valid? %> <h1>Title</h1> <% end %> @ ERBIfNode

    ├── tag_opening: "<%" ├── content: " if valid? " ├── tag_closing: "%>" ├── statements: │ └── @ HTMLElementNode │ ├── open_tag: │ │ └── @ HTMLOpenTagNode │ │ ├── tag_opening: "<" │ │ ├── tag_name: "h1" │ │ ├── tag_closing: ">" │ │ ├── children: [] │ │ └── is_void: false │ │ │ ├── tag_name: "h1" │ ├── body: │ │ └── @ HTMLTextNode │ │ └── content: "Title" │ │ │ └── close_tag: │ └── @ HTMLCloseTagNode │ ├── tag_opening: "</" │ ├── tag_name: "h1" │ └── tag_closing: ">" │ ├── subsequent: ∅ └── end_node: └── @ ERBEndNode ├── tag_opening: "<%" ├── content: " end " └── tag_closing: "%>"
  19. <% if valid? %> <h1>Title</h1> <% end %> @ ERBIfNode

    ├── tag_opening: "<%" ├── content: " if valid? " ├── tag_closing: "%>" ├── statements: │ └── @ HTMLElementNode │ ├── open_tag: │ │ └── @ HTMLOpenTagNode │ │ ├── tag_opening: "<" │ │ ├── tag_name: "h1" │ │ ├── tag_closing: ">" │ │ ├── children: [] │ │ └── is_void: false │ │ │ ├── tag_name: "h1" │ ├── body: │ │ └── @ HTMLTextNode │ │ └── content: "Title" │ │ │ └── close_tag: │ └── @ HTMLCloseTagNode │ ├── tag_opening: "</" │ ├── tag_name: "h1" │ └── tag_closing: ">" │ ├── subsequent: ∅ └── end_node: └── @ ERBEndNode ├── tag_opening: "<%" ├── content: " end " └── tag_closing: "%>"
  20. <% if valid? %> <h1>Title</h1> <% end %> @ ERBIfNode

    ├── tag_opening: "<%" ├── content: " if valid? " ├── tag_closing: "%>" ├── statements: │ └── @ HTMLElementNode │ ├── open_tag: │ │ └── @ HTMLOpenTagNode │ │ ├── tag_opening: "<" │ │ ├── tag_name: "h1" │ │ ├── tag_closing: ">" │ │ ├── children: [] │ │ └── is_void: false │ │ │ ├── tag_name: "h1" │ ├── body: │ │ └── @ HTMLTextNode │ │ └── content: "Title" │ │ │ └── close_tag: │ └── @ HTMLCloseTagNode │ ├── tag_opening: "</" │ ├── tag_name: "h1" │ └── tag_closing: ">" │ ├── subsequent: ∅ └── end_node: └── @ ERBEndNode ├── tag_opening: "<%" ├── content: " end " └── tag_closing: "%>"
  21. <% if valid? %> <h1>Title</h1> <% end %> @ ERBIfNode

    ├── tag_opening: "<%" ├── content: " if valid? " ├── tag_closing: "%>" ├── statements: │ └── @ HTMLElementNode │ ├── open_tag: │ │ └── @ HTMLOpenTagNode │ │ ├── tag_opening: "<" │ │ ├── tag_name: "h1" │ │ ├── tag_closing: ">" │ │ ├── children: [] │ │ └── is_void: false │ │ │ ├── tag_name: "h1" │ ├── body: │ │ └── @ HTMLTextNode │ │ └── content: "Title" │ │ │ └── close_tag: │ └── @ HTMLCloseTagNode │ ├── tag_opening: "</" │ ├── tag_name: "h1" │ └── tag_closing: ">" │ ├── subsequent: ∅ └── end_node: └── @ ERBEndNode ├── tag_opening: "<%" ├── content: " end " └── tag_closing: "%>"
  22. <% if valid? %> <h1>Title</h1> <% end %> @ ERBIfNode

    ├── tag_opening: "<%" ├── content: " if valid? " ├── tag_closing: "%>" ├── statements: │ └── @ HTMLElementNode │ ├── open_tag: │ │ └── @ HTMLOpenTagNode │ │ ├── tag_opening: "<" │ │ ├── tag_name: "h1" │ │ ├── tag_closing: ">" │ │ ├── children: [] │ │ └── is_void: false │ │ │ ├── tag_name: "h1" │ ├── body: │ │ └── @ HTMLTextNode │ │ └── content: "Title" │ │ │ └── close_tag: │ └── @ HTMLCloseTagNode │ ├── tag_opening: "</" │ ├── tag_name: "h1" │ └── tag_closing: ">" │ ├── subsequent: ∅ └── end_node: └── @ ERBEndNode ├── tag_opening: "<%" ├── content: " end " └── tag_closing: "%>"
  23. I invite you to give it a shot to see

    what you can build with it.

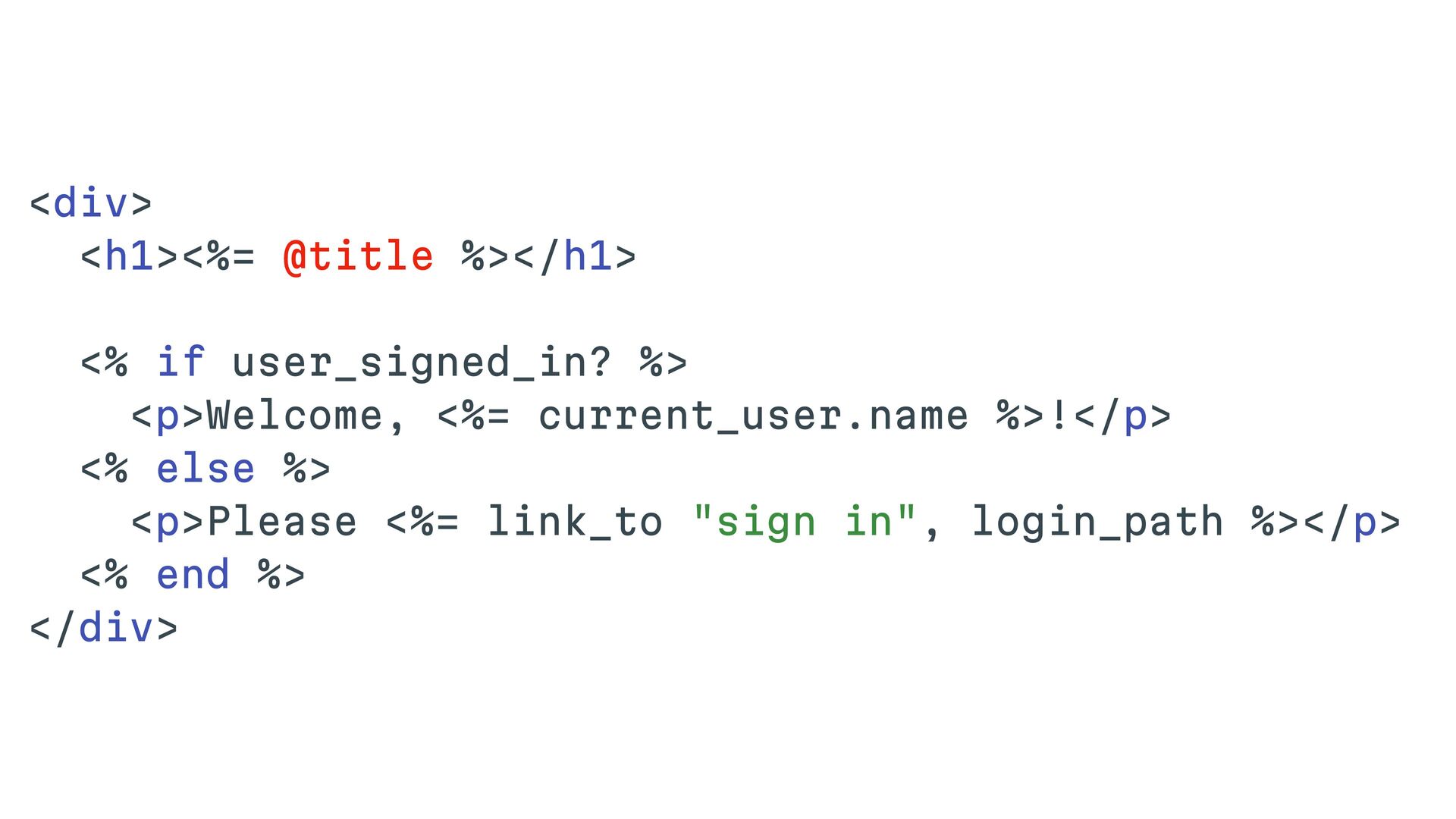

  24. <div> <h1><%= @title %></h1> <% if user_signed_in? %> <p>Welcome, <%=

    current_user.name %>!</p> <% else %> <p>Please <%= link_to "sign in", login_path %></p> <% end %> </div>

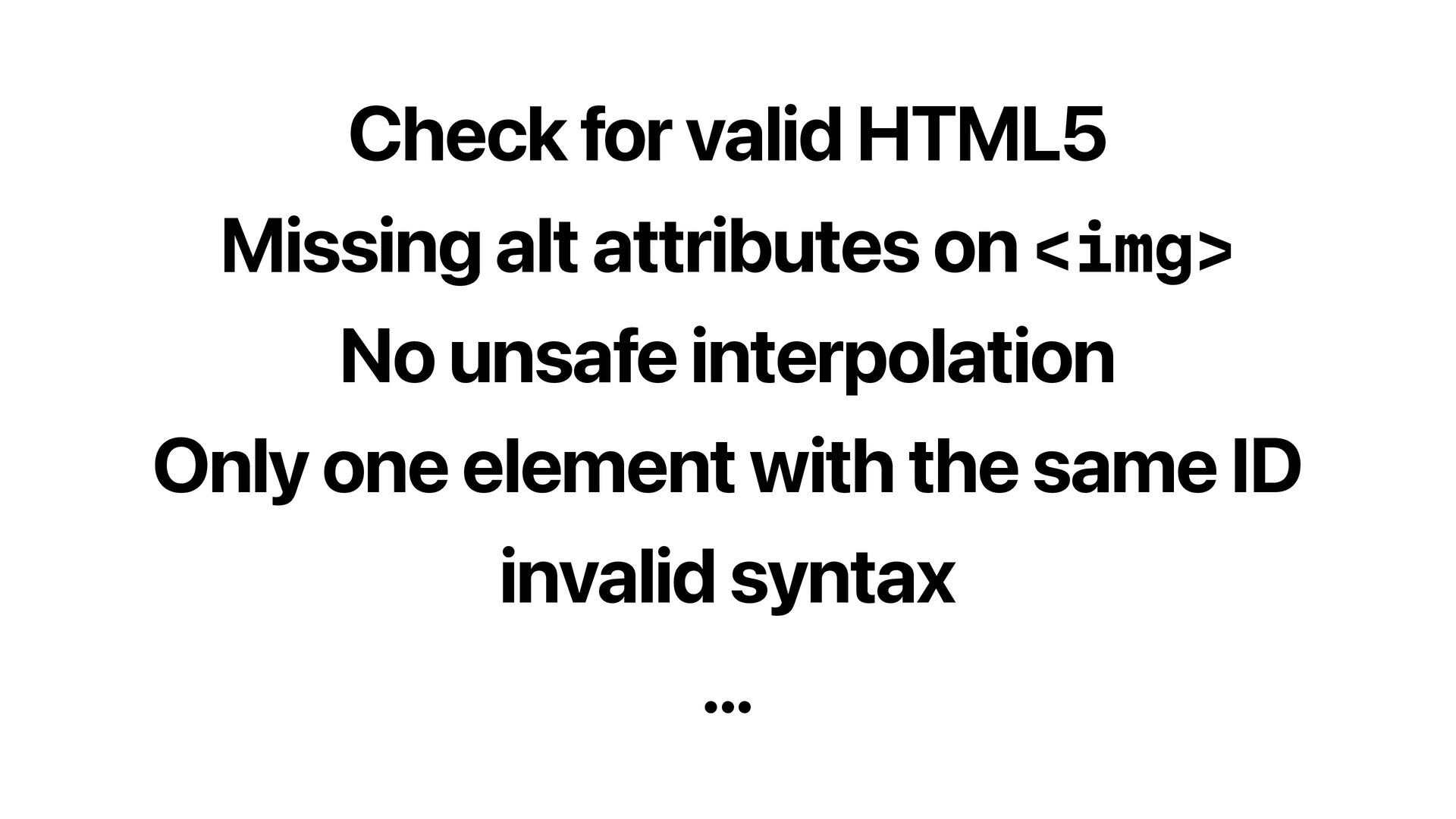

  25. Check for valid HTML5 Missing alt attributes on <img> No

    unsafe interpolation Only one element with the same ID invalid syntax ...
  26. <ul> <% @items do |item| %> <li><%= item %></li> <%

    end %> </ul> @items = [1, 2, 3] <ul> <li>1</li> <li>2</li> <li>3</li> </ul> State View Template Rendered View Log Initial view rendered

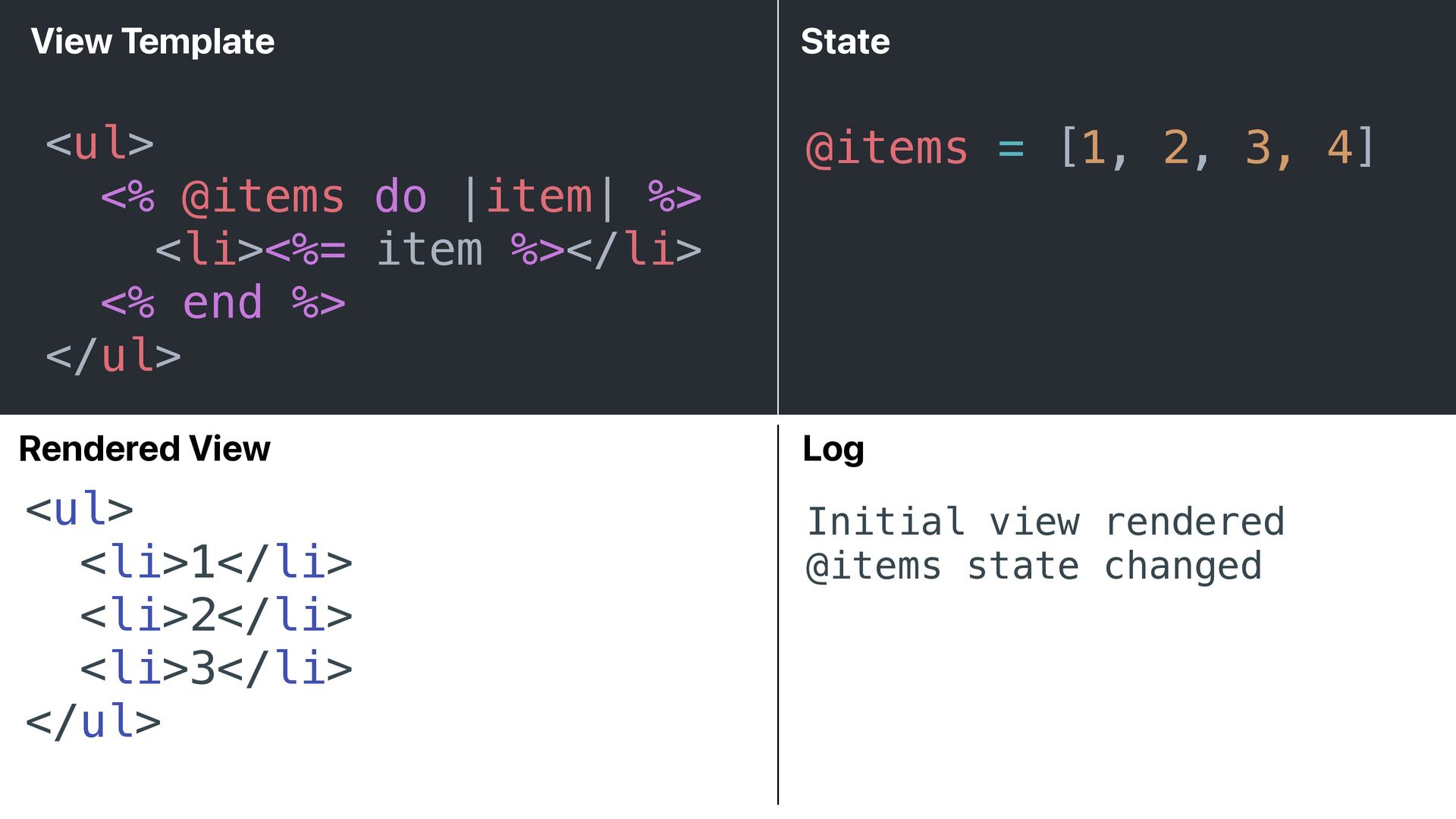

  27. <ul> <% @items do |item| %> <li><%= item %></li> <%

    end %> </ul> @items = [1, 2, 3, 4] <ul> <li>1</li> <li>2</li> <li>3</li> </ul> State View Template Rendered View Log Initial view rendered @items state changed
  28. <ul> <% @items do |item| %> <li><%= item %></li> <%

    end %> </ul> @items = [1, 2, 3, 4] <ul> <li>1</li> <li>2</li> <li>3</li> </ul> State View Template Rendered View Log Initial view rendered @items state changed re-rendering view

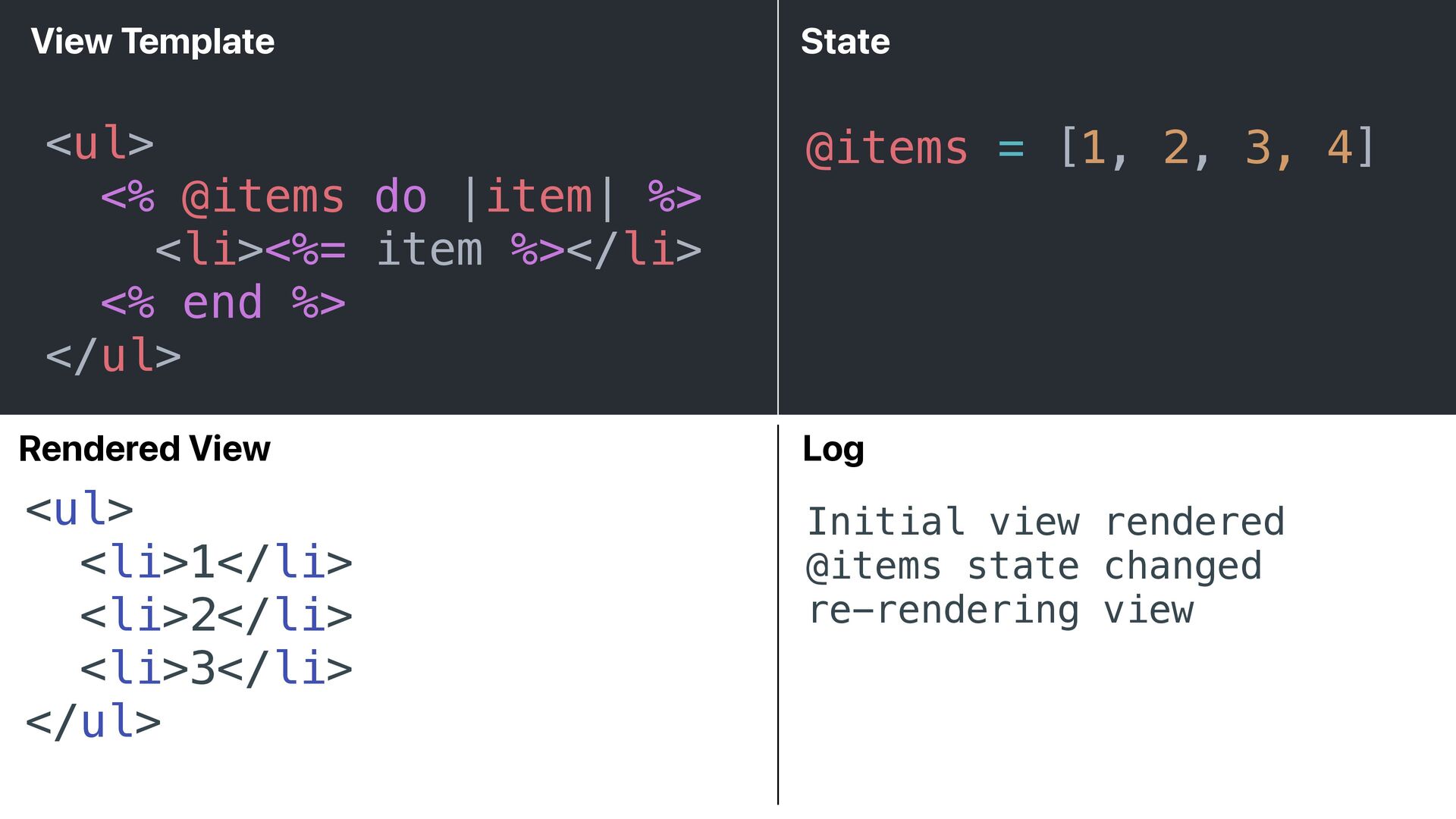

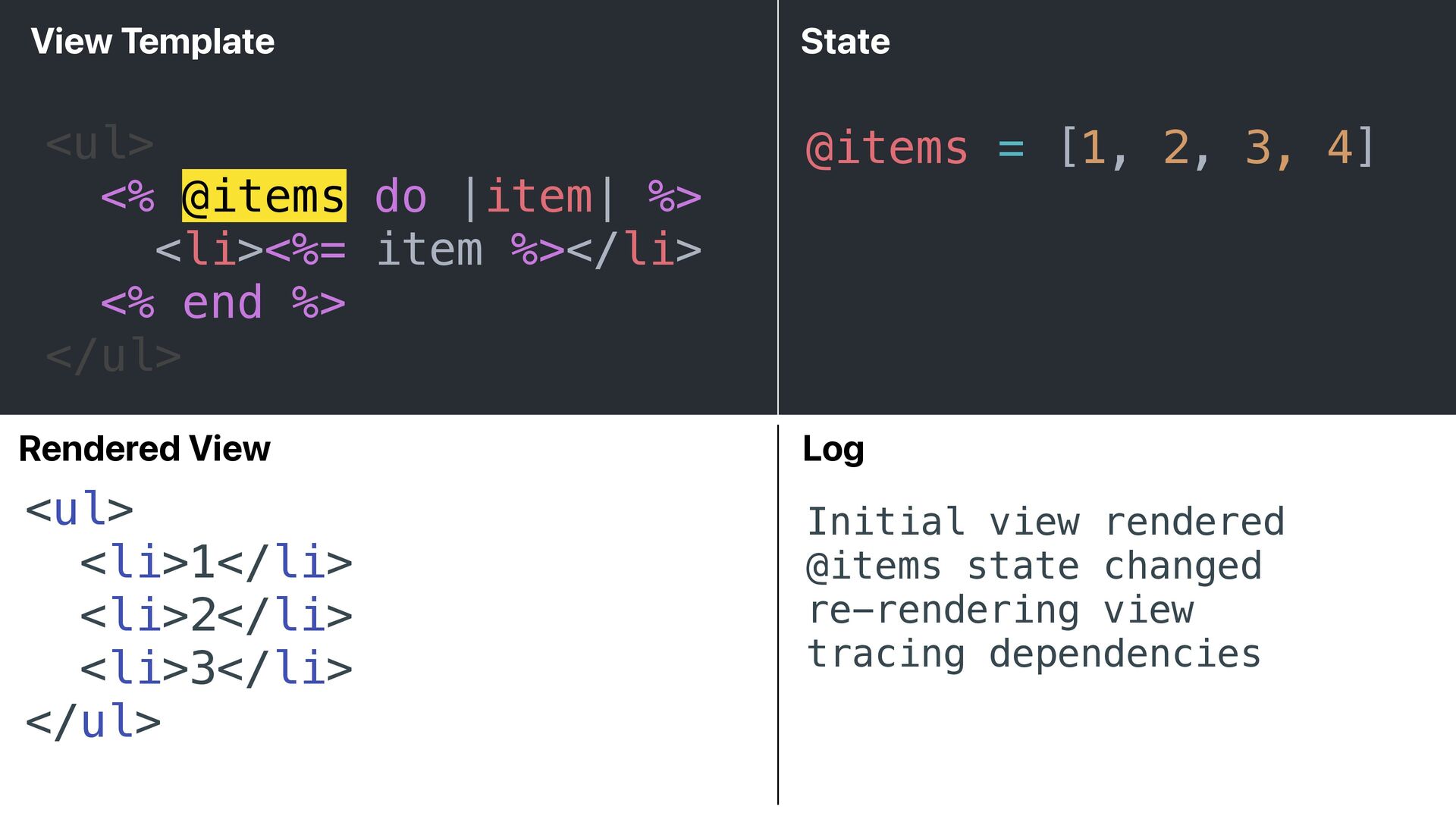

  29. <ul> <% @items do |item| %> <li><%= item %></li> <%

    end %> </ul> @items = [1, 2, 3, 4] <ul> <li>1</li> <li>2</li> <li>3</li> </ul> State View Template Rendered View Log Initial view rendered @items state changed re-rendering view tracing dependencies

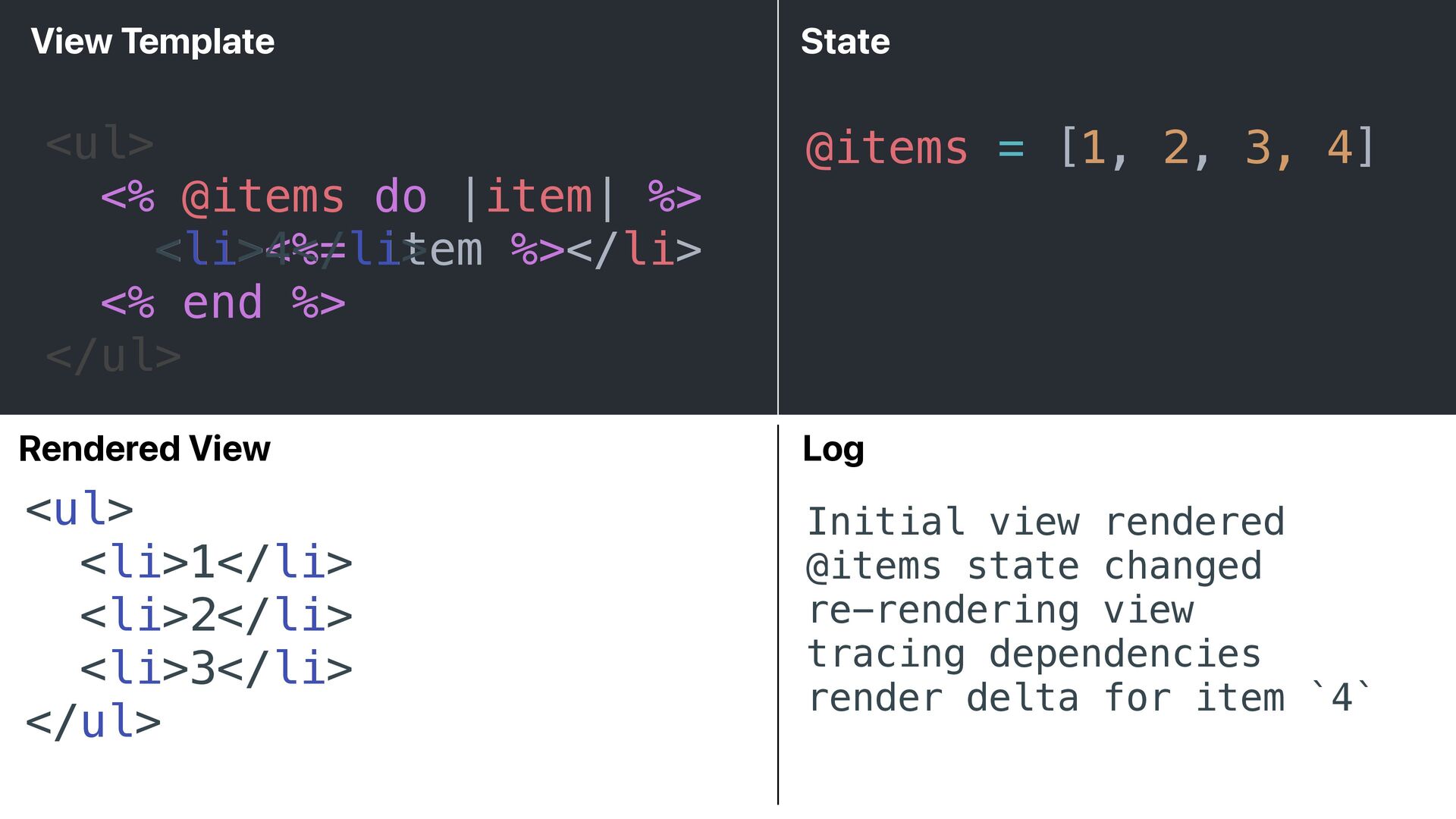

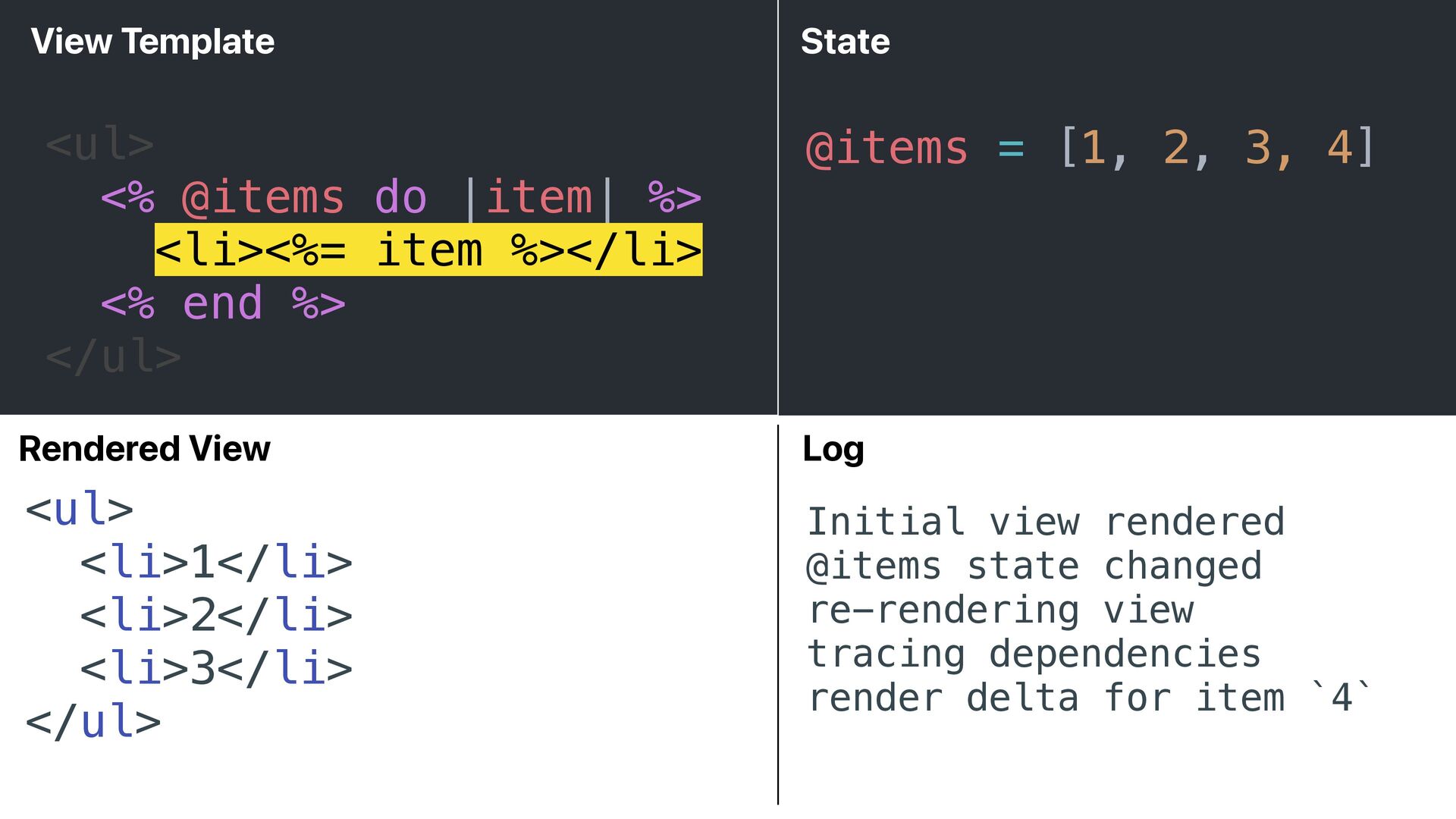

  30. <ul> <% @items do |item| %> <li><%= item %></li> <%

    end %> </ul> @items = [1, 2, 3, 4] <ul> <li>1</li> <li>2</li> <li>3</li> </ul> State View Template Rendered View Log Initial view rendered @items state changed re-rendering view tracing dependencies render delta for item `4`
  31. <ul> <% @items do |item| %> <li><%= item %></li> <%

    end %> </ul> @items = [1, 2, 3, 4] <ul> <li>1</li> <li>2</li> <li>3</li> </ul> State View Template Rendered View Log Initial view rendered @items state changed re-rendering view tracing dependencies render delta for item `4` <li>4</li>
  32. <ul> <% @items do |item| %> <li><%= item %></li> <%

    end %> </ul> @items = [1, 2, 3, 4] <ul> <li>1</li> <li>2</li> <li>3</li> </ul> State View Template Rendered View Log Initial view rendered @items state changed re-rendering view tracing dependencies render delta for item `4` <li>4</li>

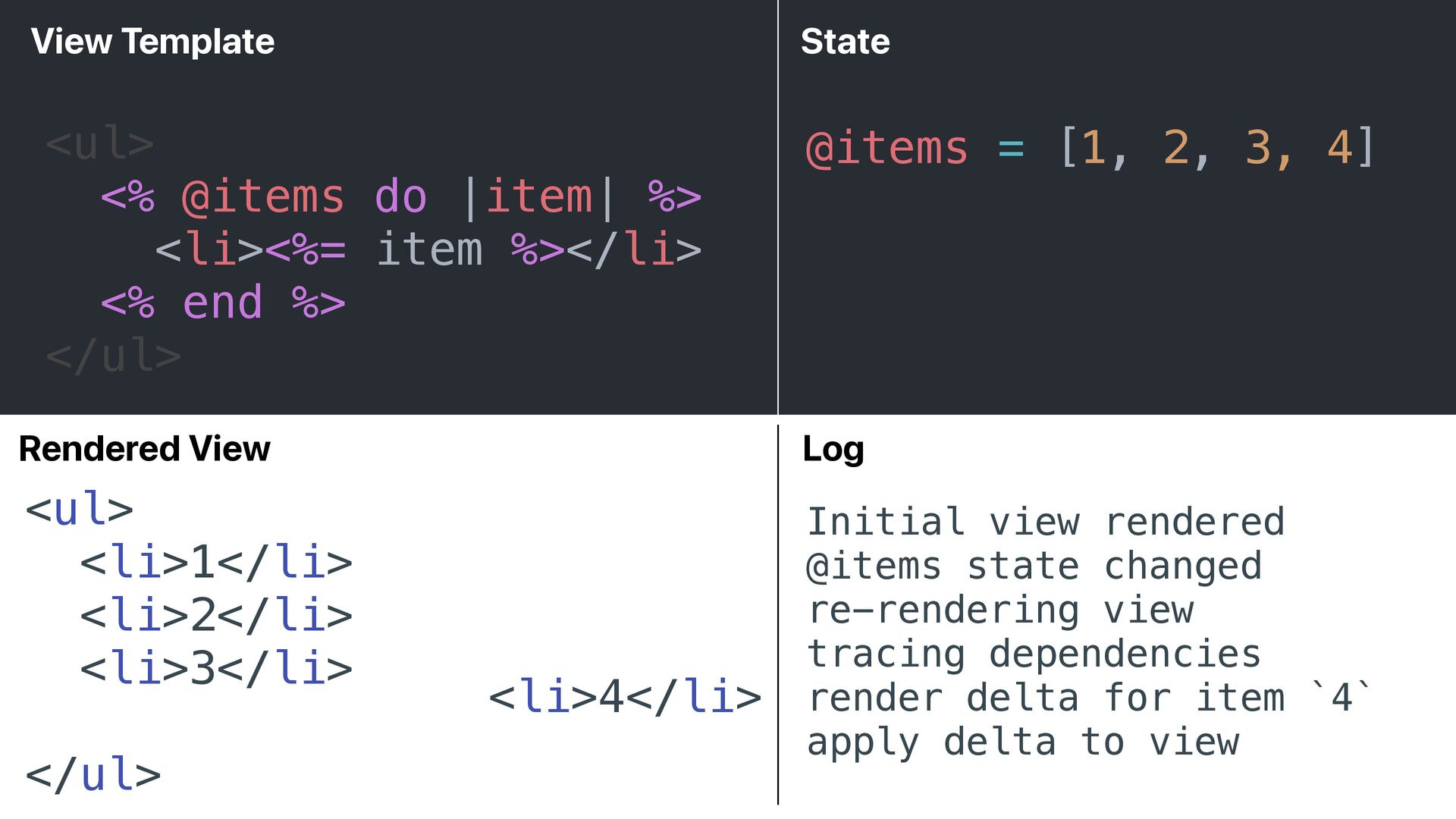

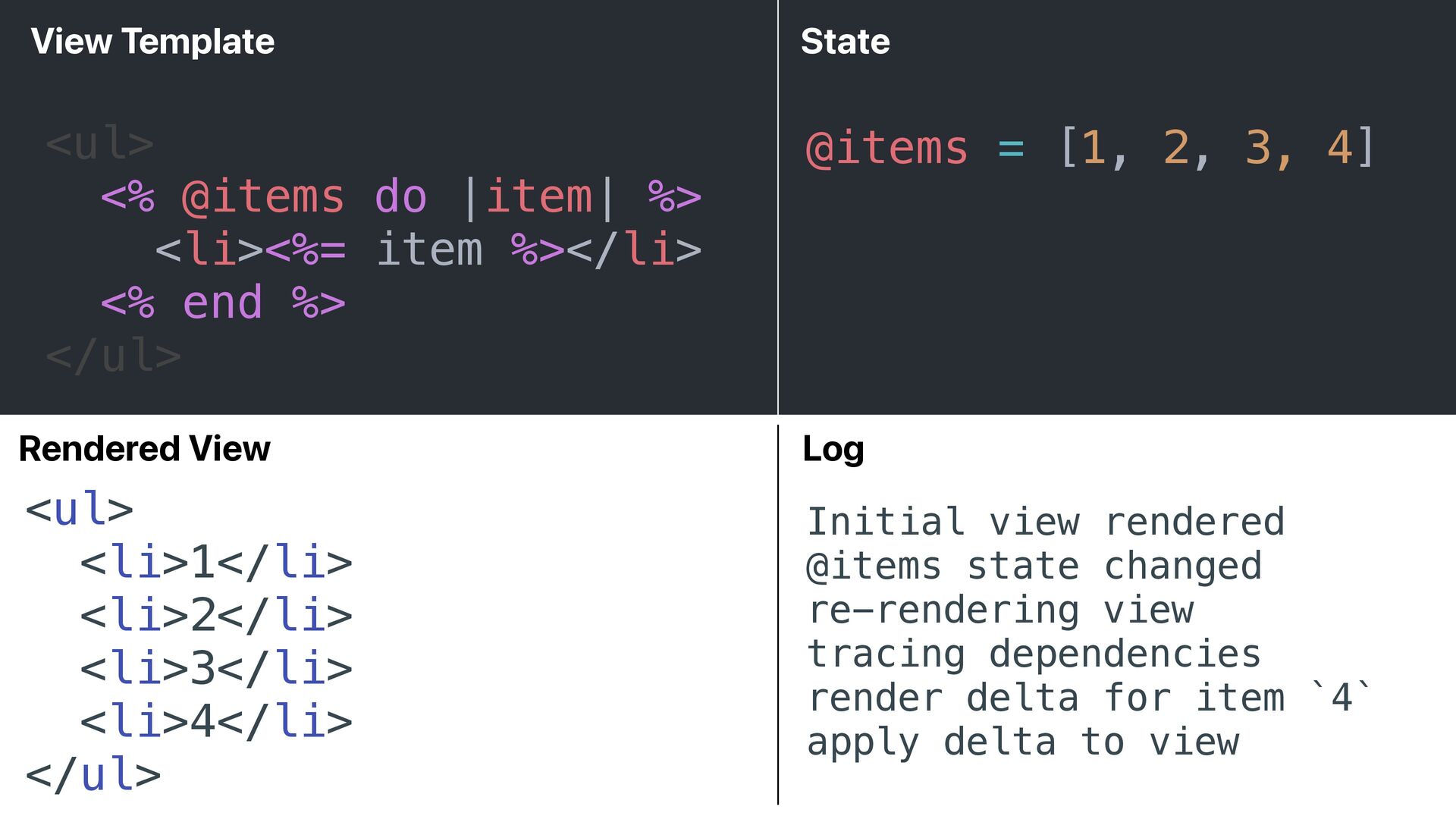

  33. <ul> <% @items do |item| %> <li><%= item %></li> <%

    end %> </ul> @items = [1, 2, 3, 4] <ul> <li>1</li> <li>2</li> <li>3</li> </ul> State View Template Rendered View Log Initial view rendered @items state changed re-rendering view tracing dependencies render delta for item `4` apply delta to view <li>4</li>
  34. <ul> <% @items do |item| %> <li><%= item %></li> <%

    end %> </ul> @items = [1, 2, 3, 4] <ul> <li>1</li> <li>2</li> <li>3</li> <li>4</li> </ul> State View Template Rendered View Log Initial view rendered @items state changed re-rendering view tracing dependencies render delta for item `4` apply delta to view

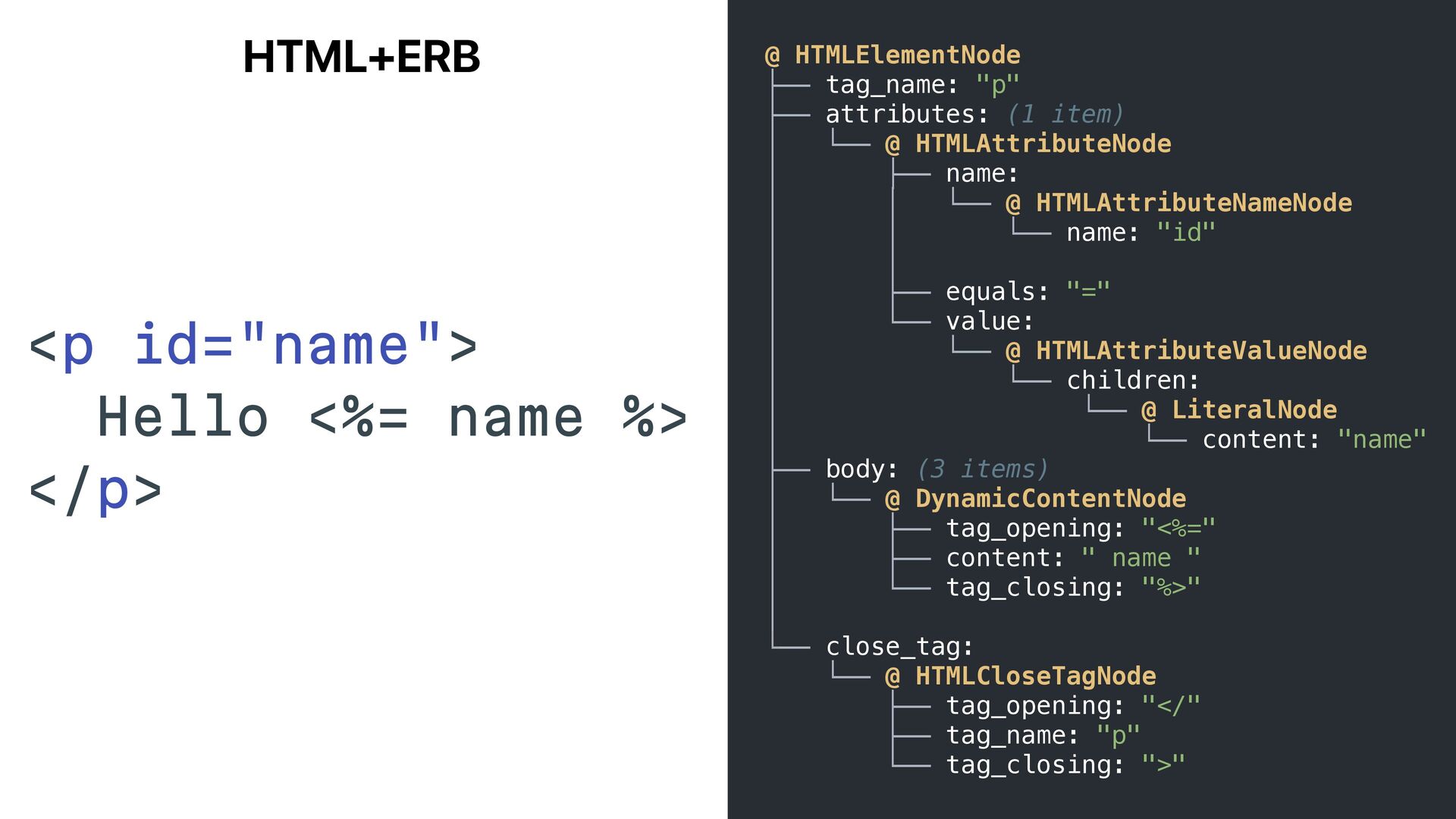

  35. tHTML+ERB <p id="name"> Hello <%= name %> </p> @ HTMLElementNode

    ├── tag_name: "p" ├── attributes: (1 item) │ └── @ HTMLAttributeNode │ ├── name: │ │ └── @ HTMLAttributeNameNode │ │ └── name: "id" │ │ │ ├── equals: "=" │ └── value: │ └── @ HTMLAttributeValueNode │ └── children: │ └── @ LiteralNode │ └── content: "name" ├── body: (3 items) │ └── @ DynamicContentNode │ ├── tag_opening: "<%=" │ ├── content: " name " │ └── tag_closing: "%>" │ └── close_tag: └── @ HTMLCloseTagNode ├── tag_opening: "</" ├── tag_name: "p" └── tag_closing: ">" HTML+ERB

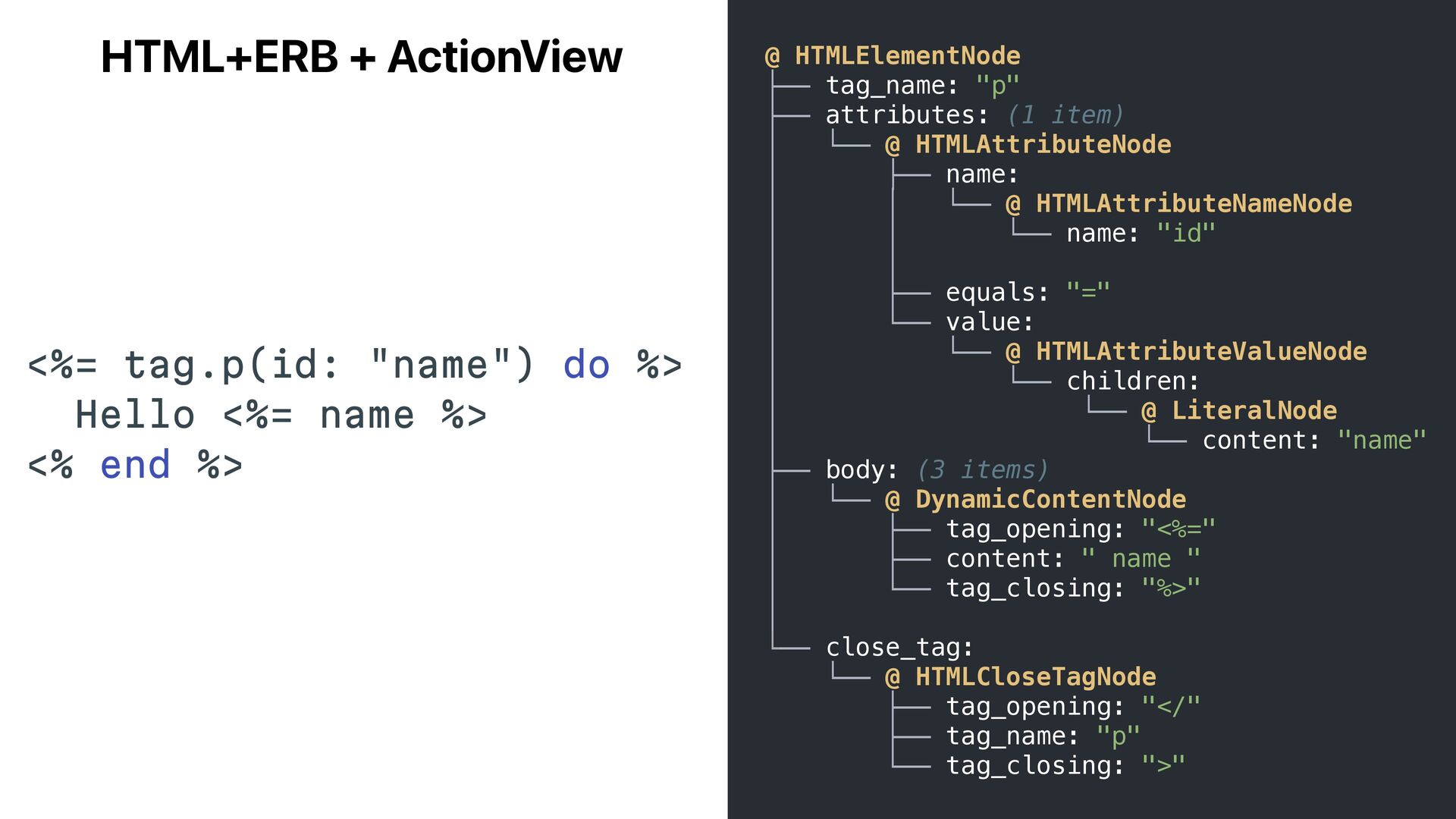

  36. <%= tag.p(id: "name") do %> Hello <%= name %> <%

    end %> @ HTMLElementNode ├── tag_name: "p" ├── attributes: (1 item) │ └── @ HTMLAttributeNode │ ├── name: │ │ └── @ HTMLAttributeNameNode │ │ └── name: "id" │ │ │ ├── equals: "=" │ └── value: │ └── @ HTMLAttributeValueNode │ └── children: │ └── @ LiteralNode │ └── content: "name" ├── body: (3 items) │ └── @ DynamicContentNode │ ├── tag_opening: "<%=" │ ├── content: " name " │ └── tag_closing: "%>" │ └── close_tag: └── @ HTMLCloseTagNode ├── tag_opening: "</" ├── tag_name: "p" └── tag_closing: ">" HTML+ERB + ActionView

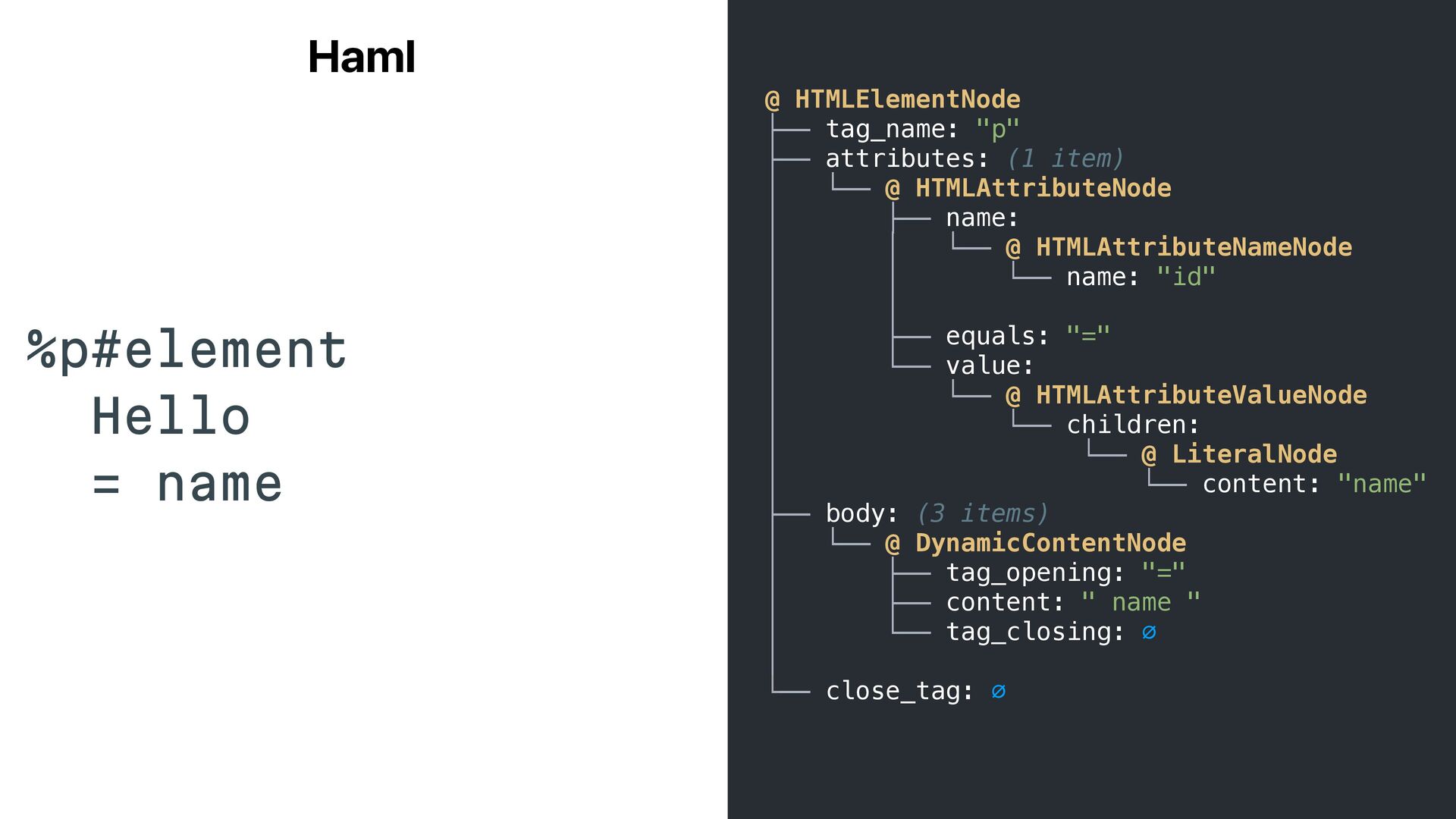

  37. %p#element Hello = name @ HTMLElementNode ├── tag_name: "p" ├──

    attributes: (1 item) │ └── @ HTMLAttributeNode │ ├── name: │ │ └── @ HTMLAttributeNameNode │ │ └── name: "id" │ │ │ ├── equals: "=" │ └── value: │ └── @ HTMLAttributeValueNode │ └── children: │ └── @ LiteralNode │ └── content: "name" ├── body: (3 items) │ └── @ DynamicContentNode │ ├── tag_opening: "=" │ ├── content: " name " │ └── tag_closing: ∅ │ └── close_tag: ∅ Haml

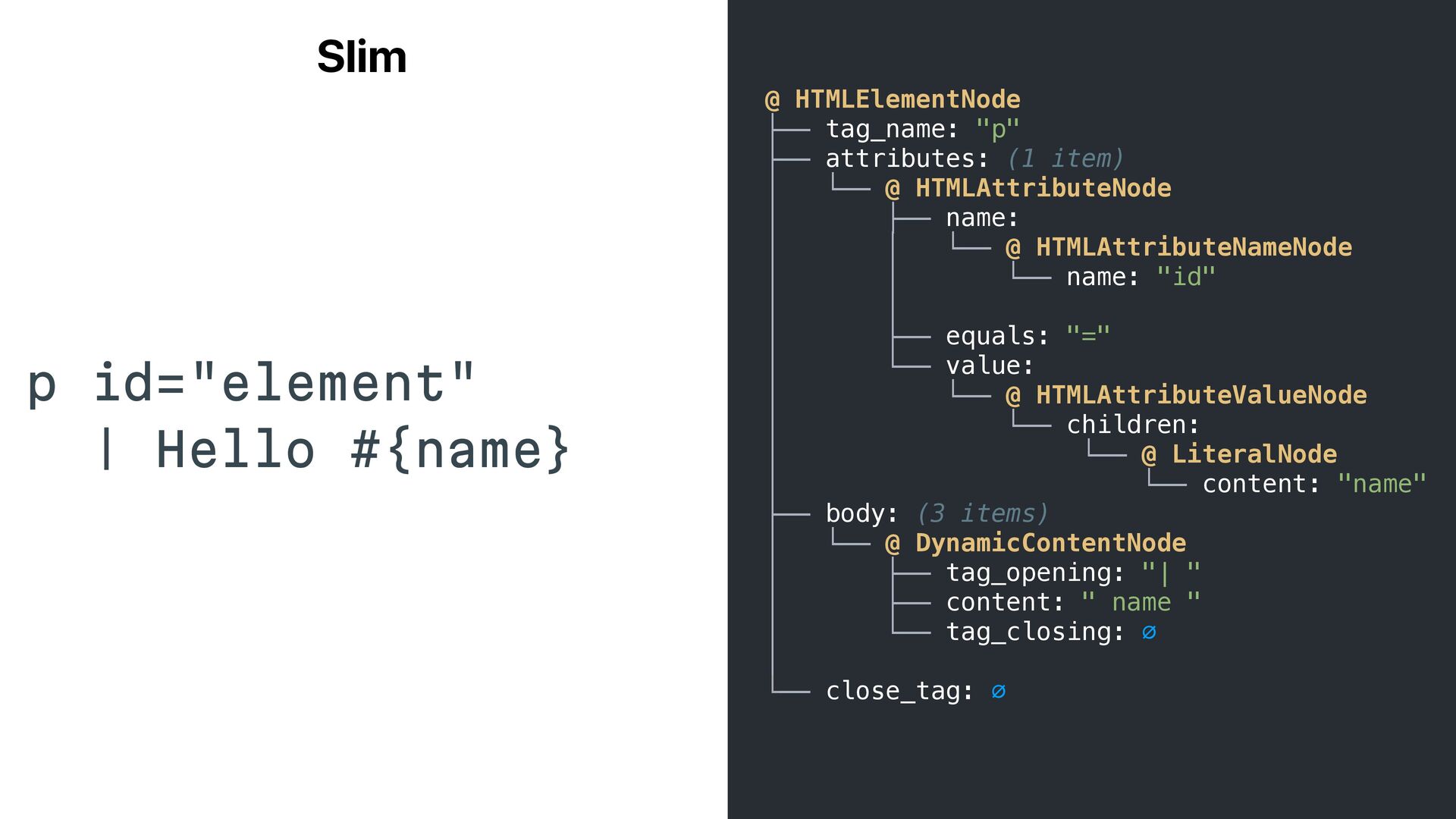

  38. p id="element" | Hello #{name} @ HTMLElementNode ├── tag_name: "p"

    ├── attributes: (1 item) │ └── @ HTMLAttributeNode │ ├── name: │ │ └── @ HTMLAttributeNameNode │ │ └── name: "id" │ │ │ ├── equals: "=" │ └── value: │ └── @ HTMLAttributeValueNode │ └── children: │ └── @ LiteralNode │ └── content: "name" ├── body: (3 items) │ └── @ DynamicContentNode │ ├── tag_opening: "| " │ ├── content: " name " │ └── tag_closing: ∅ │ └── close_tag: ∅ Slim

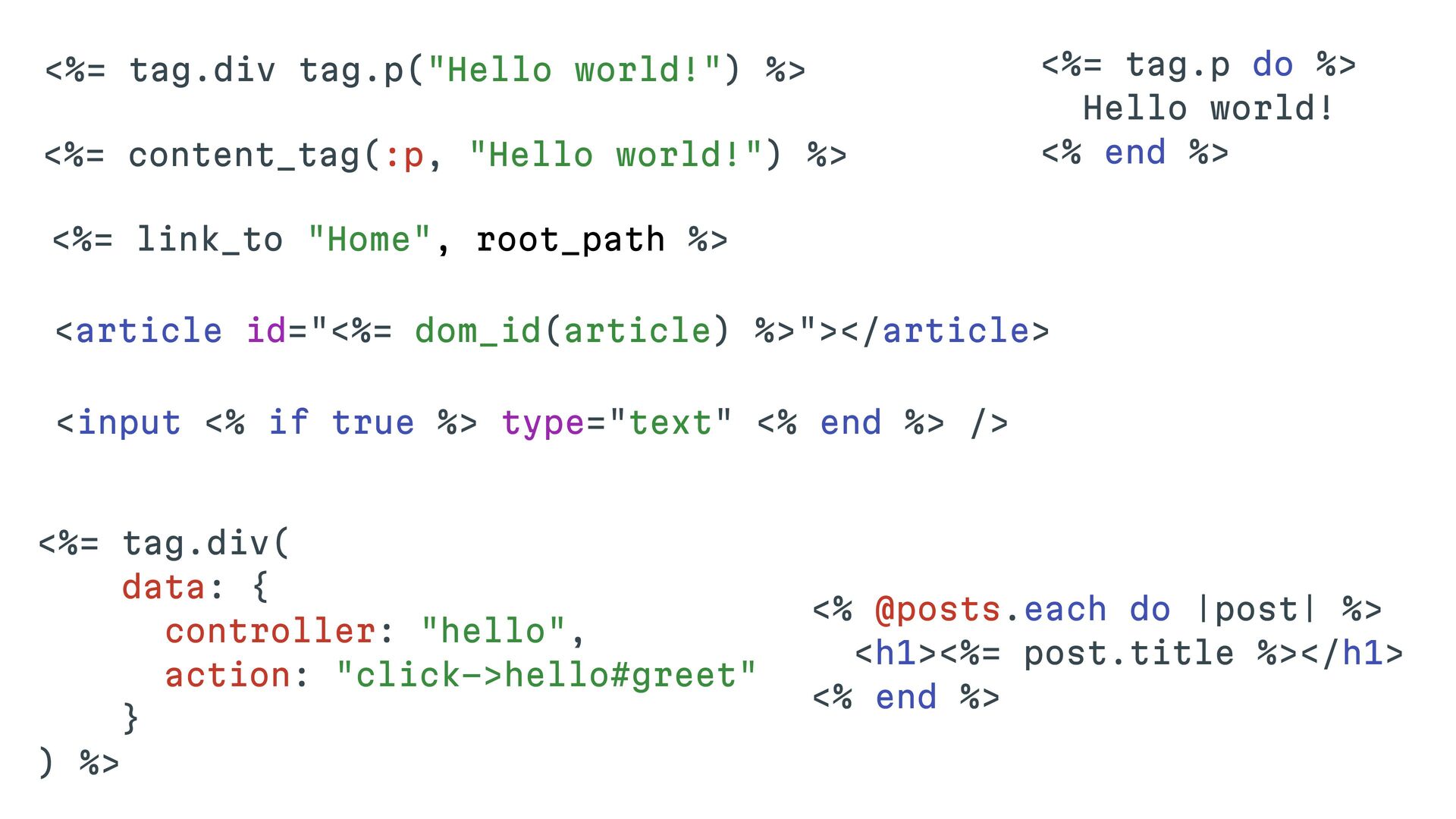

  39. <article id="<%= dom_id(article) %>"></article> <input <% if true %> type="text"

    <% end %> /> <% @posts.each do |post| %> <h1><%= post.title %></h1> <% end %> <%= content_tag(:p, "Hello world!") %> <%= tag.div tag.p("Hello world!") %> <%= tag.p do %> Hello world! <% end %> <%= tag.div( data: { controller: "hello", action: "click->hello#greet" } ) %> <%= link_to "Home", root_path %>

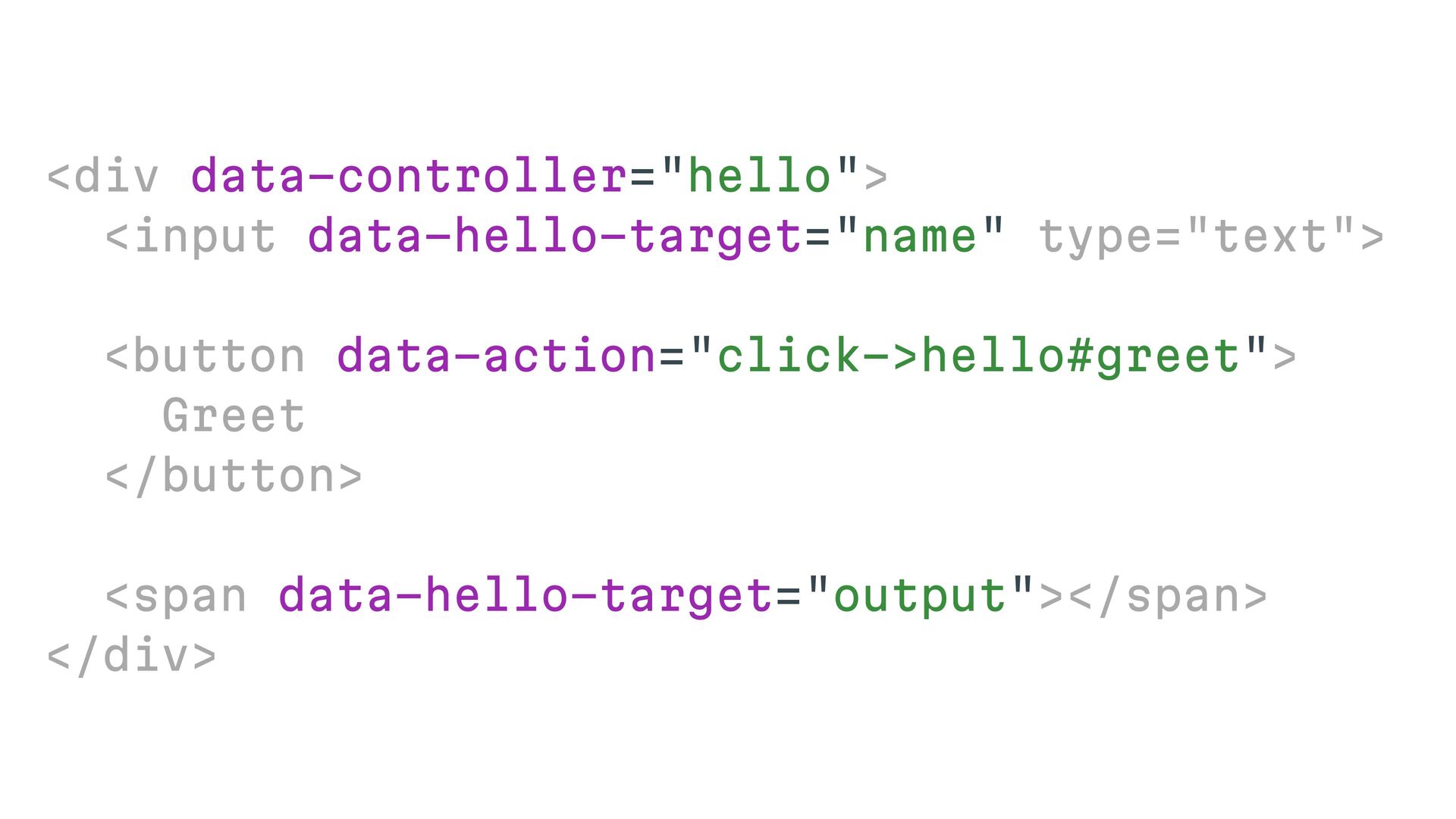

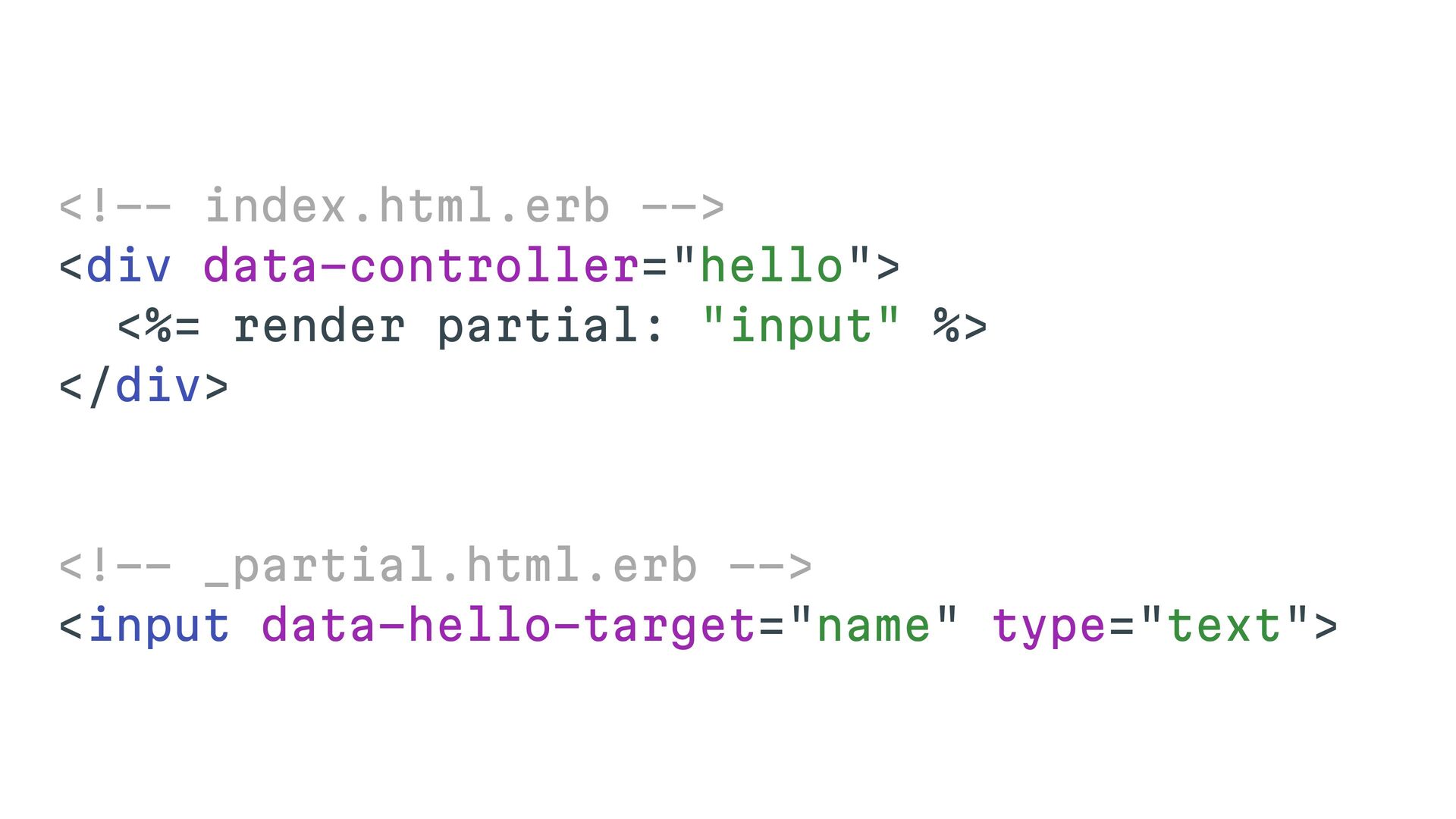

  40. <!-- index.html.erb --> <div data-controller="hello"> <%= render partial: "input" %>

    </div> <!-- _partial.html.erb --> <input data-hello-target="name" type="text">
  41. Come find my after the talk, I'd love to hear

    your ideas, questions and opinions.
  42. Thank you /  @marcoroth_  @[email protected] 🌐 marcoroth.dev 

    @marcoroth  @marcoroth.dev  /in/marco-roth
