How and why I turned my old Java projects into ...

How and why I turned my old Java projects into a first-class serverless component

Mario Fusco

March 01, 2023
Tweet

More Decks by Mario Fusco

Other Decks in Programming

Transcript

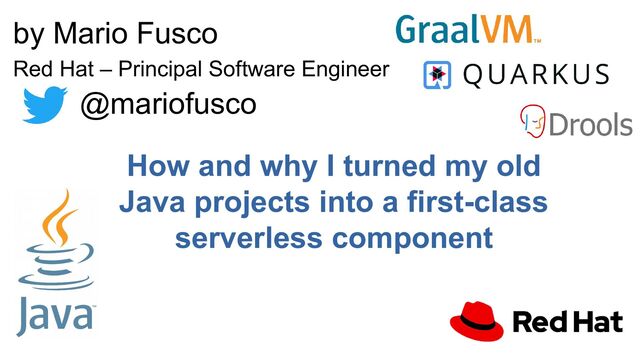

  1. How and why I turned my old Java projects into

    a first-class serverless component by Mario Fusco Red Hat – Principal Software Engineer @mariofusco
  2. Agenda ➢ Declarative vs. Imperative programming ➢ What is a

    rule engine and how it works ➢ A simple example ➢ From drl to Java: the executable model
  3. Agenda ➢ Declarative vs. Imperative programming ➢ What is a

    rule engine and how it works ➢ A simple example ➢ From drl to Java: the executable model ➢ What is GraalVM ➢ AoT compilation ➢ Limitations ➢ Refactoring Drools to (natively) compile on GraalVM
  4. Agenda ➢ Declarative vs. Imperative programming ➢ What is a

    rule engine and how it works ➢ A simple example ➢ From drl to Java: the executable model ➢ What is GraalVM ➢ AoT compilation ➢ Limitations ➢ Refactoring Drools to (natively) compile on GraalVM ➢ What is Quarkus ➢ Quarkus features ➢ Integrating Drools with Quarkus ➢ Writing a Quarkus extension for Drools
  5. What a rule-based program is ➢ A rule-based program is

    made up of discrete rules, each of which applies to a subset of the problem ➢ It is simpler, because you can concentrate on the rules for one situation at a time ➢ It can be more flexible in the face of fragmentary or poorly conditioned inputs ➢ Used for problems involving control, diagnosis, prediction, classification, pattern recognition … in short, all problems without clear algorithmic solutions
  6. What a rule-based program is ➢ A rule-based program is

    made up of discrete rules, each of which applies to a subset of the problem ➢ It is simpler, because you can concentrate on the rules for one situation at a time ➢ It can be more flexible in the face of fragmentary or poorly conditioned inputs ➢ Used for problems involving control, diagnosis, prediction, classification, pattern recognition … in short, all problems without clear algorithmic solutions Declarative (What to do) Imperative (How to do it) Vs. public void helloMark(Person person) { if ( person.getName().equals( “Mark” ) { System.out.println( “Hello Mark” ); } } rule “Hello Mark” when Person( name == “Mark” ) then System.out.println( “Hello Mark” ); end
  7. What a rule-based program is ➢ A rule-based program is

    made up of discrete rules, each of which applies to a subset of the problem ➢ It is simpler, because you can concentrate on the rules for one situation at a time ➢ It can be more flexible in the face of fragmentary or poorly conditioned inputs ➢ Used for problems involving control, diagnosis, prediction, classification, pattern recognition … in short, all problems without clear algorithmic solutions Declarative (What to do) Imperative (How to do it) Vs. public void helloMark(Person person) { if ( person.getName().equals( “Mark” ) { System.out.println( “Hello Mark” ); } } rule “Hello Mark” when Person( name == “Mark” ) then System.out.println( “Hello Mark” ); end A method must be called directly Rules can never be called directly
  8. What a rule-based program is ➢ A rule-based program is

    made up of discrete rules, each of which applies to a subset of the problem ➢ It is simpler, because you can concentrate on the rules for one situation at a time ➢ It can be more flexible in the face of fragmentary or poorly conditioned inputs ➢ Used for problems involving control, diagnosis, prediction, classification, pattern recognition … in short, all problems without clear algorithmic solutions Declarative (What to do) Imperative (How to do it) Vs. public void helloMark(Person person) { if ( person.getName().equals( “Mark” ) { System.out.println( “Hello Mark” ); } } rule “Hello Mark” when Person( name == “Mark” ) then System.out.println( “Hello Mark” ); end A method must be called directly Specific passing of arguments Rules can never be called directly Specific instances cannot be passed but are automatically selected with pattern-matching
  9. Introducing ➢ Easier to understand → Requirements can be more

    naturally translated into rules. It is more likely for a technically skilled business analyst to verify, validate or even change a rule than a piece of Java code ➢ Improved maintainability → We don't care about how to implement a solution only what needs to be done to solve a problem ➢ Deals with evolving complexity → It's easier to modify a rule than a Java program and to determine the impact of this change on the rest of the application ➢ Modularity → Each rule models an isolated and small portion of your business logic and is not part of a monolithic program ➢ Clear separation of business logic from the rest of the system → Business and infrastructural code have very different lifecycles ➢ Complex Event Processing → Facts can be handled like timestamped events allowing temporal reasoning on them RULES
  10. How a rule-based system works ➢ The Rule Base contains

    a computation efficient representation of the set of the defined rules ➢ The Working Memory contains the set of facts inserted into sessions ➢ The engine matches the fact in the working memory against the rules set ➢ When a match is found it creates an activation and put it into the agenda ➢ An activation is the tuple of facts matching the conditions of a rule plus the rule itself ➢ When all activations have been created the agenda elects through a conflict resolution strategy the one to be executed ➢ The elected activation is passed to the execution engine and the fired
  11. A simple rule set rule RaiseAlarm when exists Fire() then

    insert( new Alarm( "house1" ) ); System.out.println( "Raise the Alarm"); end rule CancelAlarm when not Fire() a : Alarm() then delete( a ); System.out.println( "Cancel the Alarm"); end rule TurnSprinklerOn when s : Sprinkler( on == false ) f : Fire( room == s.room ) then modify( s ) { setOn( true ) } System.out.println( "Turn on the sprinkler for room " + f.getRoom().getName() ); end rule TurnSprinklerOff when s : Sprinkler( on == true ) not Fire( room == s.room ) then modify( s ) { setOn( false ) } System.out.println( "Turn off the sprinkler for room " + s.getRoom().getName() ); end rule OK when not Alarm() not Sprinkler( on == true ) then System.out.println( "Everything is ok" ); end Pattern-matching against objects in the Working Memory Code executed when a match is found
  12. What is used by Quarkus ➢ A polyglot VM with

    cross-language JIT supporting • Java Bytecode and JVM languages • Interop with different languages • Dynamic languages through Truffle API ➢ Cross-language interop out of the box • Simple AST-based interpreter • JIT across language boundaries ➢ Support for native binary compilation (SubstrateVM) • faster boot-up • lower memory footprint
  13. AoT compilation with GraalVM ➢ Static analysis ➢ Closed world

    assumption ➢ Dead code elimination: classes, fields, methods, branches
  14. AoT compilation with GraalVM ➢ Static analysis ➢ Closed world

    assumption ➢ Dead code elimination: classes, fields, methods, branches 🚀 Fast process start 🔬 Less memory 💾 Small size on disk
  15. GraalVM Limitations Dynaminc Classloading Deloying jars, wars, etc. at runtime

    impossible public class InternalClassLoader extends ClassLoader { public Class<?> defineClass( String name, byte[] bytecode ) { return defineClass( name, bytecode, 0, bytecode.length ); } }
  16. GraalVM Limitations Dynaminc Classloading Deloying jars, wars, etc. at runtime

    impossible public class InternalClassLoader extends ClassLoader { public Class<?> defineClass( String name, byte[] bytecode ) { return defineClass( name, bytecode, 0, bytecode.length ); } }
  17. GraalVM Limitations Dynaminc Classloading Deloying jars, wars, etc. at runtime

    impossible public class InternalClassLoader extends ClassLoader { public Class<?> defineClass( String name, byte[] bytecode ) { return defineClass( name, bytecode, 0, bytecode.length ); } } JVMTI, JMX + other native VM interfaces No agents → No JRebel, Byteman, profilers, tracers Miscellaneous ➢ Security Manager ➢ finalize() (depreceated anyway) ➢ InvokeDynamic and MethodHandle
  18. GraalVM Limitations Dynaminc Classloading Deloying jars, wars, etc. at runtime

    impossible public class InternalClassLoader extends ClassLoader { public Class<?> defineClass( String name, byte[] bytecode ) { return defineClass( name, bytecode, 0, bytecode.length ); } } JVMTI, JMX + other native VM interfaces No agents → No JRebel, Byteman, profilers, tracers Miscellaneous ➢ Security Manager ➢ finalize() (depreceated anyway) ➢ InvokeDynamic and MethodHandle
  19. GraalVM Limitations Dynaminc Classloading Deloying jars, wars, etc. at runtime

    impossible public class InternalClassLoader extends ClassLoader { public Class<?> defineClass( String name, byte[] bytecode ) { return defineClass( name, bytecode, 0, bytecode.length ); } } JVMTI, JMX + other native VM interfaces No agents → No JRebel, Byteman, profilers, tracers Miscellaneous ➢ Security Manager ➢ finalize() (depreceated anyway) ➢ InvokeDynamic and MethodHandle Reflection Requires registration (closed world assumption)
  20. GraalVM Limitations Dynaminc Classloading Deloying jars, wars, etc. at runtime

    impossible public class InternalClassLoader extends ClassLoader { public Class<?> defineClass( String name, byte[] bytecode ) { return defineClass( name, bytecode, 0, bytecode.length ); } } JVMTI, JMX + other native VM interfaces No agents → No JRebel, Byteman, profilers, tracers Miscellaneous ➢ Security Manager ➢ finalize() (depreceated anyway) ➢ InvokeDynamic and MethodHandle [ { "name" : "org.domain.model.Person", "allPublicConstructors" : true, "allPublicMethods" : true } ] Reflection Requires registration (closed world assumption) -H:ReflectionConfigurationFiles=src/main/resources/reflection.json
  21. Drools on GraalVM - Executable Model rule "Older than Mark"

    when $p1: Person( name == "Mark" ) $p2: Person( name != "Mark", age > $p1.age ) then System.out.println( $p1.getName() + " is older than " + $p2.getName() ); end Variable<Person> markV = declarationOf( Person.class ); Variable<Person> olderV = declarationOf( Person.class ); Rule rule = rule( "Older than Mark" ) .build( pattern(markV) .expr("exprA", p -> p.getName().equals( "Mark" ), alphaIndexedBy( String.class, ConstraintType.EQUAL, 1, p -> p.getName(), "Mark" ), reactOn( "name", "age" )), pattern(olderV) .expr("exprB", p -> !p.getName().equals("Mark"), alphaIndexedBy( String.class, ConstraintType.NOT_EQUAL, 1, p -> p.getName(), "Mark" ), reactOn( "name" )) .expr("exprC", markV, (p1, p2) -> p1.getAge() > p2.getAge(), betaIndexedBy( int.class, ConstraintType.GREATER_THAN, 0, p -> p.getAge(), p -> p.getAge() ), reactOn( "age" )), on(olderV, markV).execute((p1, p2) -> System.out.println( p1.getName() + " is older than " + p2.getName() )) )
  22. Drools on GraalVM - Executable Model rule "Older than Mark"

    when $p1: Person( name == "Mark" ) $p2: Person( name != "Mark", age > $p1.age ) then System.out.println( $p1.getName() + " is older than " + $p2.getName() ); end Variable<Person> markV = declarationOf( Person.class ); Variable<Person> olderV = declarationOf( Person.class ); Rule rule = rule( "Older than Mark" ) .build( pattern(markV) .expr("exprA", p -> p.getName().equals( "Mark" ), alphaIndexedBy( String.class, ConstraintType.EQUAL, 1, p -> p.getName(), "Mark" ), reactOn( "name", "age" )), pattern(olderV) .expr("exprB", p -> !p.getName().equals("Mark"), alphaIndexedBy( String.class, ConstraintType.NOT_EQUAL, 1, p -> p.getName(), "Mark" ), reactOn( "name" )) .expr("exprC", markV, (p1, p2) -> p1.getAge() > p2.getAge(), betaIndexedBy( int.class, ConstraintType.GREATER_THAN, 0, p -> p.getAge(), p -> p.getAge() ), reactOn( "age" )), on(olderV, markV).execute((p1, p2) -> System.out.println( p1.getName() + " is older than " + p2.getName() )) )
  23. Drools on GraalVM - Executable Model rule "Older than Mark"

    when $p1: Person( name == "Mark" ) $p2: Person( name != "Mark", age > $p1.age ) then System.out.println( $p1.getName() + " is older than " + $p2.getName() ); end Variable<Person> markV = declarationOf( Person.class ); Variable<Person> olderV = declarationOf( Person.class ); Rule rule = rule( "Older than Mark" ) .build( pattern(markV) .expr("exprA", p -> p.getName().equals( "Mark" ), alphaIndexedBy( String.class, ConstraintType.EQUAL, 1, p -> p.getName(), "Mark" ), reactOn( "name", "age" )), pattern(olderV) .expr("exprB", p -> !p.getName().equals("Mark"), alphaIndexedBy( String.class, ConstraintType.NOT_EQUAL, 1, p -> p.getName(), "Mark" ), reactOn( "name" )) .expr("exprC", markV, (p1, p2) -> p1.getAge() > p2.getAge(), betaIndexedBy( int.class, ConstraintType.GREATER_THAN, 0, p -> p.getAge(), p -> p.getAge() ), reactOn( "age" )), on(olderV, markV).execute((p1, p2) -> System.out.println( p1.getName() + " is older than " + p2.getName() )) ) Executable model Indexes and reactivity explicitly defined
  24. Executable Model at a glance ➢ A pure Java DSL

    for Drools rules authoring ➢ A pure Java canonical representation of a rule base ➢ Automatically generated by Maven plugin or Quarkus extension • Can be embedded in jar • Faster boot ➢ Improve Backward/Forward compatibility ➢ Allow for faster prototyping and experimentation of new features ➢ Prerequisite to make Drools natively compilable on GraalVM
  25. public class InternalClassLoader extends ClassLoader { public Class<?> defineClass( String

    name, byte[] bytecode ) { throw new UnsupportedOperationException(); } } Drools on GraalVM – other refactors Dynamic class definition is no longer necessary
  26. public class InternalClassLoader extends ClassLoader { public Class<?> defineClass( String

    name, byte[] bytecode ) { throw new UnsupportedOperationException(); } } Drools on GraalVM – other refactors Dynamic class definition is no longer necessary <?xml version="1.0" encoding="UTF-8"?> <kmodule xmlns="http://jboss.org/kie/6.0.0/kmodule"> <kbase name="simpleKB" packages="org.drools.simple.project"> <ksession name="simpleKS" default="true"/> </kbase> </kmodule> var m = KieServices.get().newKieModuleModel(); var kb = m.newKieBaseModel("simpleKB"); kb.setEventProcessingMode(CLOUD); kb.addPackage("org.drools.simple.project"); var ks = kb.newKieSessionModel("simpleKS"); ks.setDefault(true); ks.setType(STATEFUL); ks.setClockType(ClockTypeOption.get("realtime"));
  27. public class InternalClassLoader extends ClassLoader { public Class<?> defineClass( String

    name, byte[] bytecode ) { throw new UnsupportedOperationException(); } } Drools on GraalVM – other refactors Dynamic class definition is no longer necessary <?xml version="1.0" encoding="UTF-8"?> <kmodule xmlns="http://jboss.org/kie/6.0.0/kmodule"> <kbase name="simpleKB" packages="org.drools.simple.project"> <ksession name="simpleKS" default="true"/> </kbase> </kmodule> var m = KieServices.get().newKieModuleModel(); var kb = m.newKieBaseModel("simpleKB"); kb.setEventProcessingMode(CLOUD); kb.addPackage("org.drools.simple.project"); var ks = kb.newKieSessionModel("simpleKS"); ks.setDefault(true); ks.setType(STATEFUL); ks.setClockType(ClockTypeOption.get("realtime")); org.kie.api.io.KieResources = org.drools.core.io.impl.ResourceFactoryServiceImpl org.kie.api.marshalling.KieMarshallers = org.drools.core.marshalling.MarshallerProviderImpl org.kie.api.concurrent.KieExecutors = org.drools.core.concurrent.ExecutorProviderImpl Map<Class<?>, Object> serviceMap = new HashMap<>(); void wireServices() { serviceMap.put( ServiceInterface.class, Class.forName("org.drools.ServiceImpl") .newInstance()); // … more services here }
  28. Introducing ➢ A Framework for writing (fast and lightweight) Java

    applications ➢ (Optionally) allowing generation of native executable via GraalVM *.class QUARKUS optimized jar native executable JVM Maven/Gradle plugin
  29. Introducing ➢ A Framework for writing (fast and lightweight) Java

    applications ➢ (Optionally) allowing generation of native executable via GraalVM ➢ Based on existing standard • Servlet • JAX-RS • JPA, JDBC • CDI • Bean Validation • Transactions • Logging • Microprofile *.class QUARKUS optimized jar native executable JVM Maven/Gradle plugin
  30. Introducing ➢ A Framework for writing (fast and lightweight) Java

    applications ➢ (Optionally) allowing generation of native executable via GraalVM ➢ Based on existing standard • Servlet • JAX-RS • JPA, JDBC • CDI • Bean Validation • Transactions • Logging • Microprofile ➢ Out-of-the-box integration with libraries that you already know *.class QUARKUS optimized jar native executable JVM Maven/Gradle plugin
  31. Why Quarkus Lower memory usage Faster startup Optimized for short-lived

    processes Kubernetes Native Live reload Microservices
  32. Why Quarkus Lower memory usage Faster startup Optimized for short-lived

    processes Kubernetes Native Live reload Microservices
  33. • A cloud-native development, deployment and execution platform for business

    automation: ◦ Rules and Decisions ◦ Processes and Cases • ... under the covers ◦ the backbone is code generation based on business assets ◦ executable model for the process/rule/decision definitions ◦ type safe data model that encapsulates variables ◦ REST api for each public business process/decision/rule Introducing
  34. Compile generate Java sources in memory Integrating Quarkus and Kogito

    Writing a Quarkus extension public class KogitoAssetProcessor { @BuildStep(providesCapabilities = "io.quarkus.kogito") public void generateModel( ArchiveRootBuildItem root, BuildProducer<GeneratedBeanBuildItem> generatedBeans, LaunchModeBuildItem launchMode) throws IOException { LaunchMode launchMode = launchModeItem.getLaunchMode(); if (hotReload(launchMode)) { return; } ApplicationGenerator appGen = createApplicationGenerator(root, launchMode); Collection<GeneratedFile> generatedFiles = appGen.generate(); if (!generatedFiles.isEmpty()) { MemoryFileSystem trgMfs = new MemoryFileSystem(); CompilationResult result = compile( root, trgMfs, generatedFiles, generatedBeans, launchMode ); register( trgMfs, generatedBeans, launchMode, result ); } } } Avoid recompiling everything during an hot reload Generate executable model source files Register generated classes into Quarkus runtime
  35. Kogito hot reload public class KogitoCompilationProvider extends JavaCompilationProvider { @Override

    public final void compile(Set<File> filesToCompile, Context context) { File outputDirectory = context.getOutputDirectory(); try { ApplicationGenerator appGen = new ApplicationGenerator( appPackageName, outputDirectory ); Generator generator = addGenerator(appGen, filesToCompile, context); Collection<GeneratedFile> generatedFiles = generator.generate(); HashSet<File> generatedSourceFiles = new HashSet<>(); for (GeneratedFile file : generatedFiles) { Path path = pathOf(outputDirectory.getPath(), file.relativePath()); Files.write(path, file.contents()); generatedSourceFiles.add(path.toFile()); } super.compile(generatedSourceFiles, context); } catch (IOException e) { throw new KogitoCompilerException(e); } } } Write regenerated source in the file system Extends Java hot reload mechanism provided by Quarkus Regenerate executable model only for changed sources Pass the list of generated sources to super in order to recompile them
  36. A simple Quarkus-based REST endpoint using Kogito @Path("/candrink/{name}/{age}") public class

    CanDrinkResource { @Inject @Named("canDrinkKS") RuleUnit<SessionMemory> ruleUnit; @GET @Produces(MediaType.TEXT_PLAIN) public String canDrink( @PathParam("name") String name, @PathParam("age") int age ) { SessionMemory memory = new SessionMemory(); Result result = new Result(); memory.add(result); memory.add(new Person( name, age )); ruleUnit.evaluate(memory); return result.toString(); } }
