Metadataquoi??

Une nouvelle version de Kotlin vient de sortir! Yoohooo 🙌 C'est parti! C'est le moment de tout mettre à jour 🚀

Et c'est là que les ennuis commencent... Entre les erreurs Gradle, les dépendances transitives, les erreurs au runtime sur les vieilles versions d'Android, les cache miss, etc, difficile de s'y retrouver.

Dans cette session, nous regarderons les différentes garanties offertes par les différents composants de l'écosystème et les outils pour gérer de manière fine leur évolution.

Les metadatas n'auront plus de secrets pour vous!

Transcript

1. Android Makers 2025 - Martin Bonnin Metadaquoi??? Gérez la compatibilité de vos applications et bibliothèques Kotlin

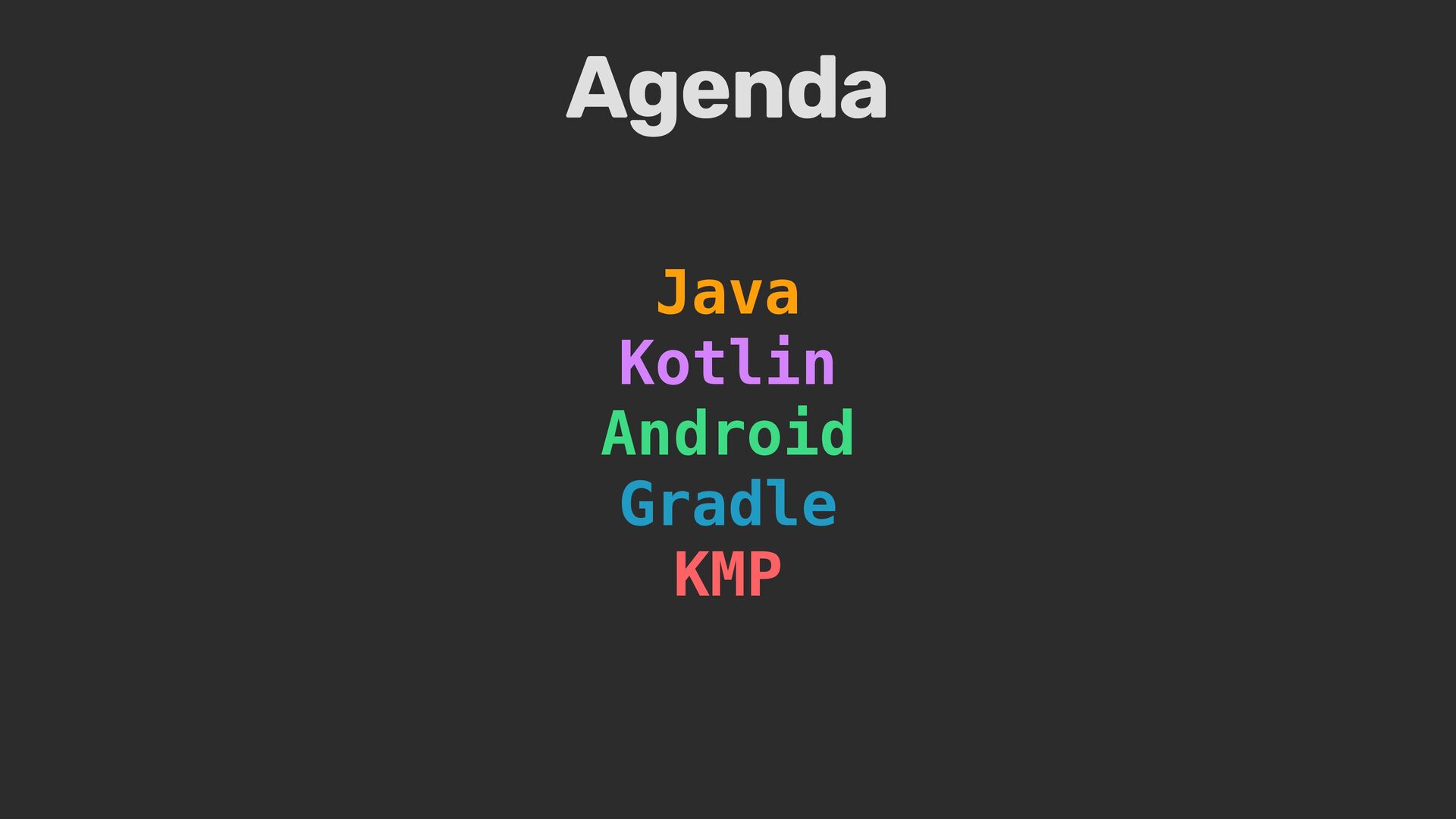

3. Agenda Java Kotlin Android Gradle KMP
4. Java features static public void doStuff() { var numbers = new ArrayList<Integer>(); numbers.add(1); numbers.add(2); numbers.add(3); numbers.removeFirst(); numbers.forEach(System.out :: println); } Java 10 (source) Java 21 (api) Java 8 (source) Java 7 (target)

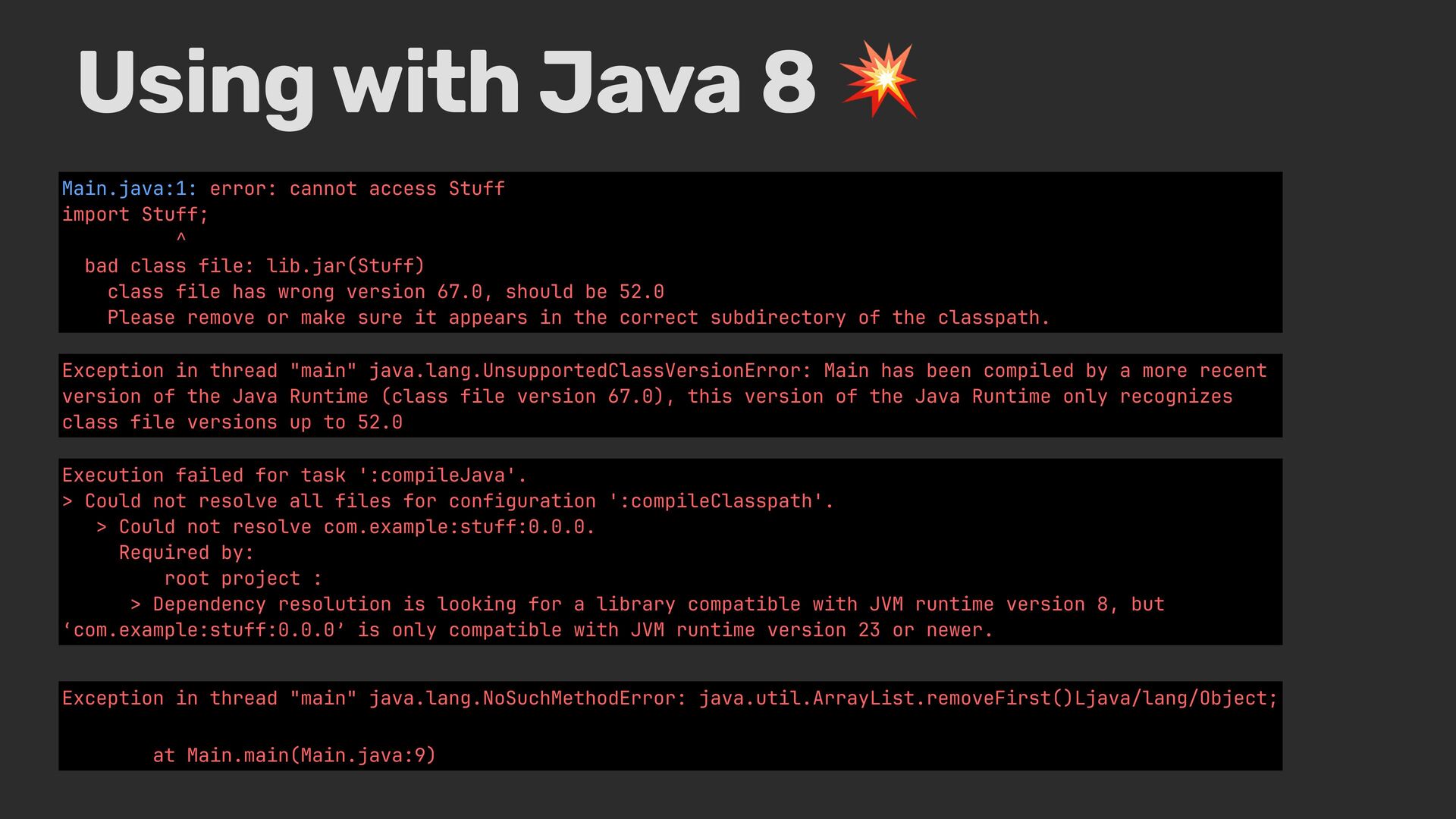

5. Main.java:1: error: cannot access Stuff import Stuff; ^ bad class file: lib.jar(Stuff) class file has wrong version 67.0, should be 52.0 Please remove or make sure it appears in the correct subdirectory of the classpath. Execution failed for task ':compileJava'. > Could not resolve all files for configuration ':compileClasspath'. > Could not resolve com.example:stuff:0.0.0. Required by: root project : > Dependency resolution is looking for a library compatible with JVM runtime version 8, but ‘com.example:stuff:0.0.0’ is only compatible with JVM runtime version 23 or newer. Exception in thread "main" java.lang.UnsupportedClassVersionError: Main has been compiled by a more recent version of the Java Runtime (class file version 67.0), this version of the Java Runtime only recognizes class file versions up to 52.0 Exception in thread "main" java.lang.NoSuchMethodError: java.util.ArrayList.removeFirst()Ljava/lang/Object; at Main.main(Main.java:9) Using with Java 8 💥
6. java { toolchain { languageVersion = JavaLanguageVersion.of(8) } }

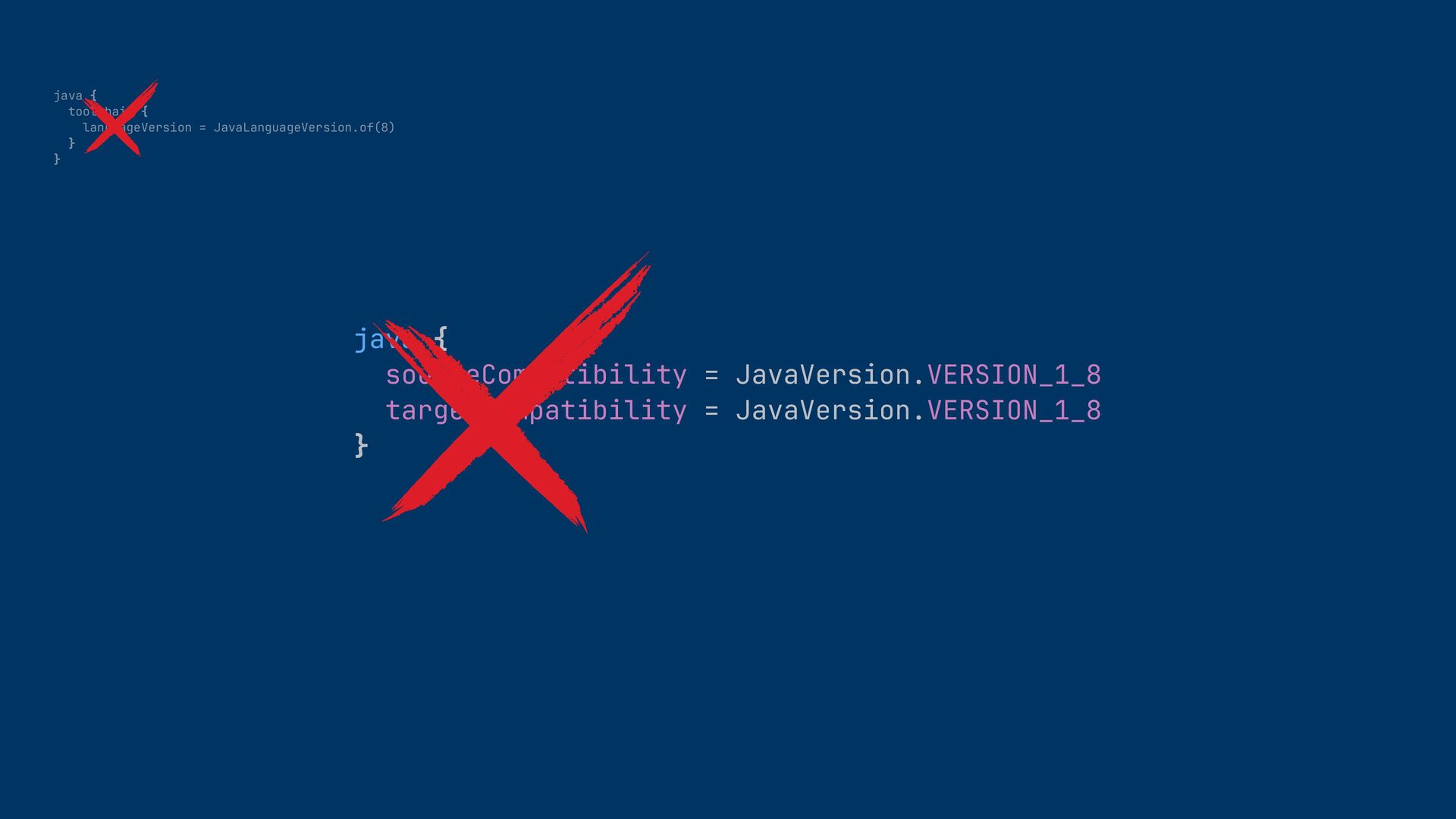

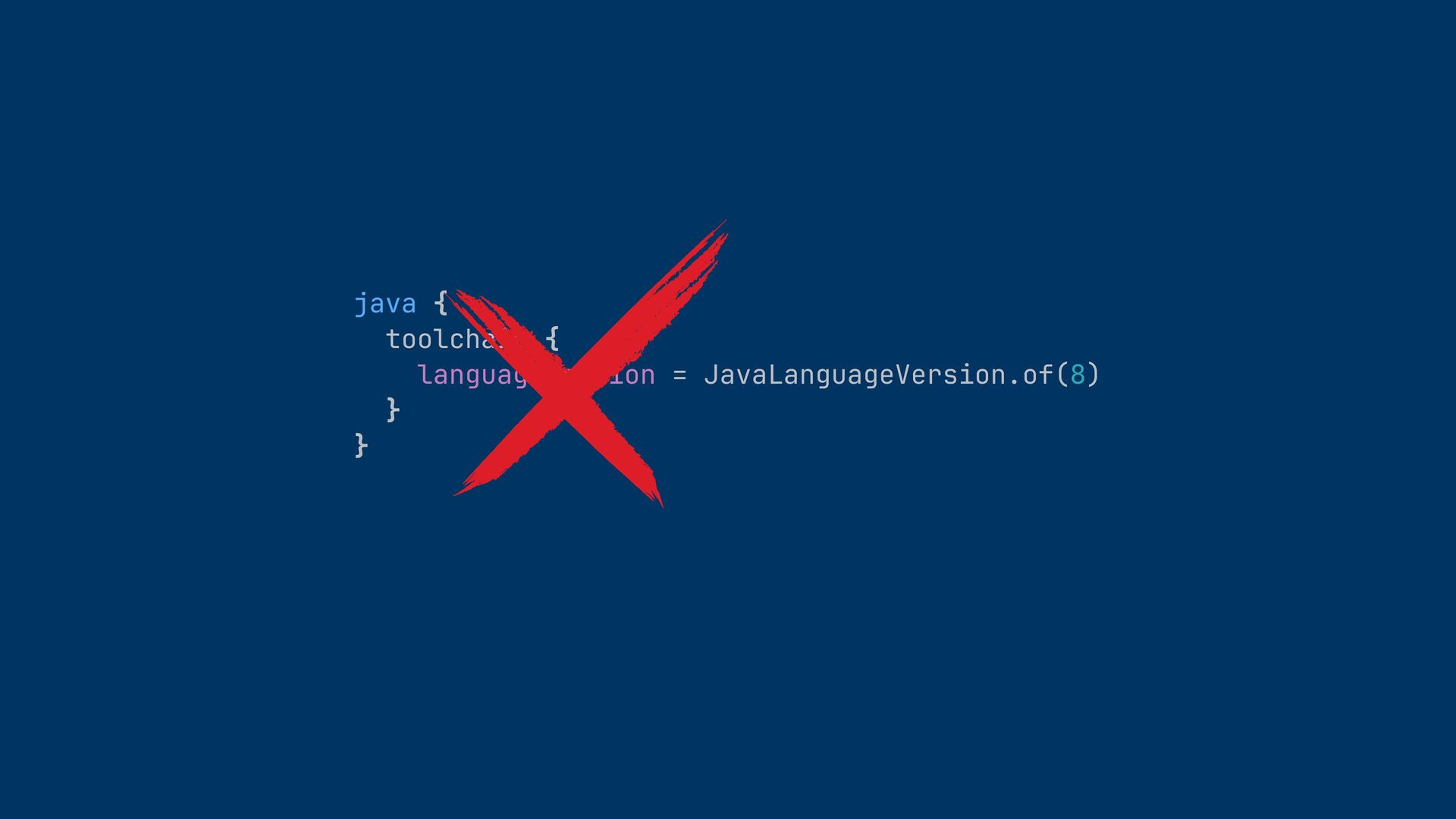

7. java { toolchain { languageVersion = JavaLanguageVersion.of(8) } } java { sourceCompatibility = JavaVersion.VERSION_1_8 targetCompatibility = JavaVersion.VERSION_1_8 }

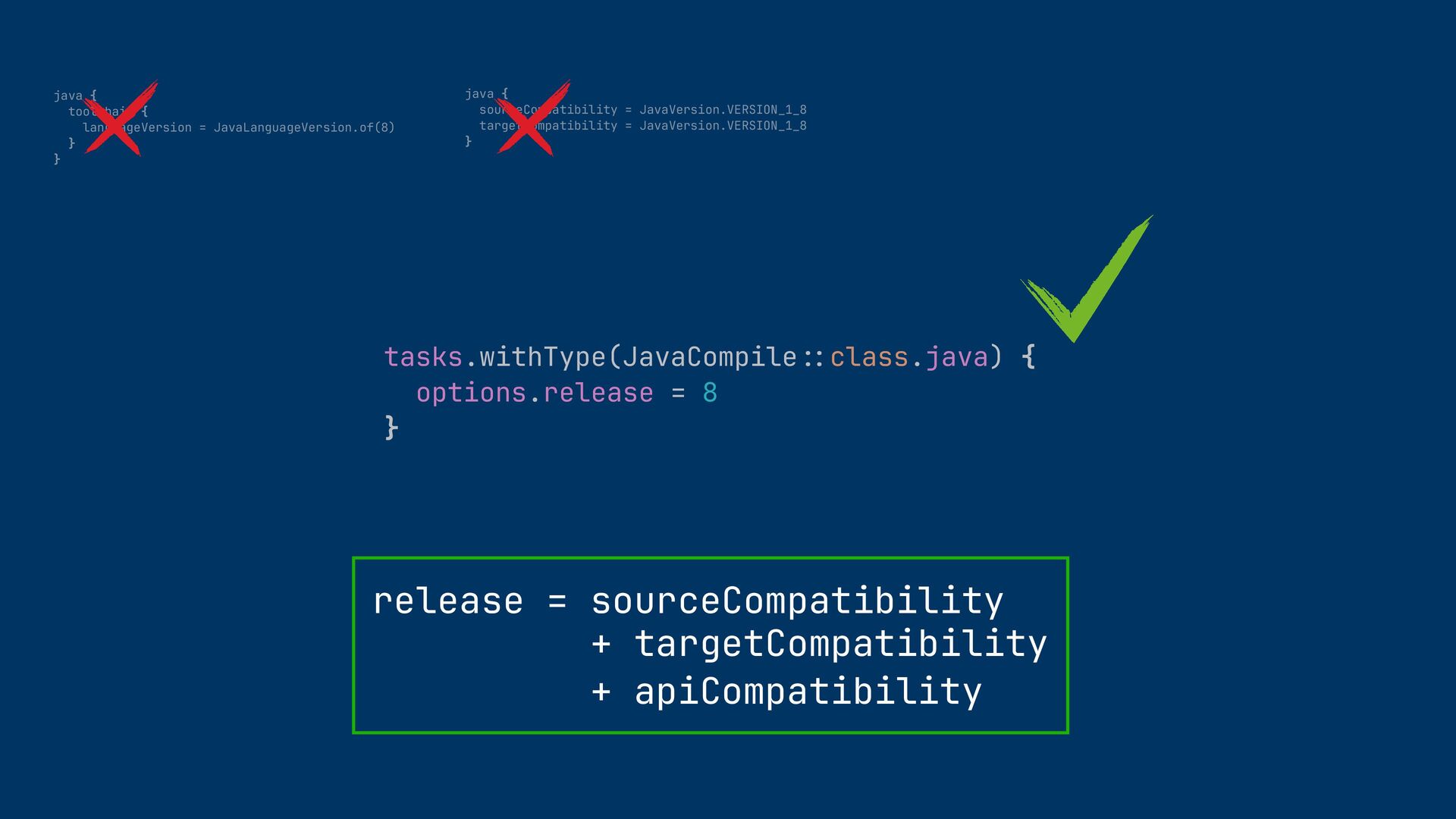

8. java { toolchain { languageVersion = JavaLanguageVersion.of(8) } } java { sourceCompatibility = JavaVersion.VERSION_1_8 targetCompatibility = JavaVersion.VERSION_1_8 } tasks.withType(JavaCompile :: class.java) { options.release = 8 } release = sourceCompatibility + targetCompatibility + apiCompatibility

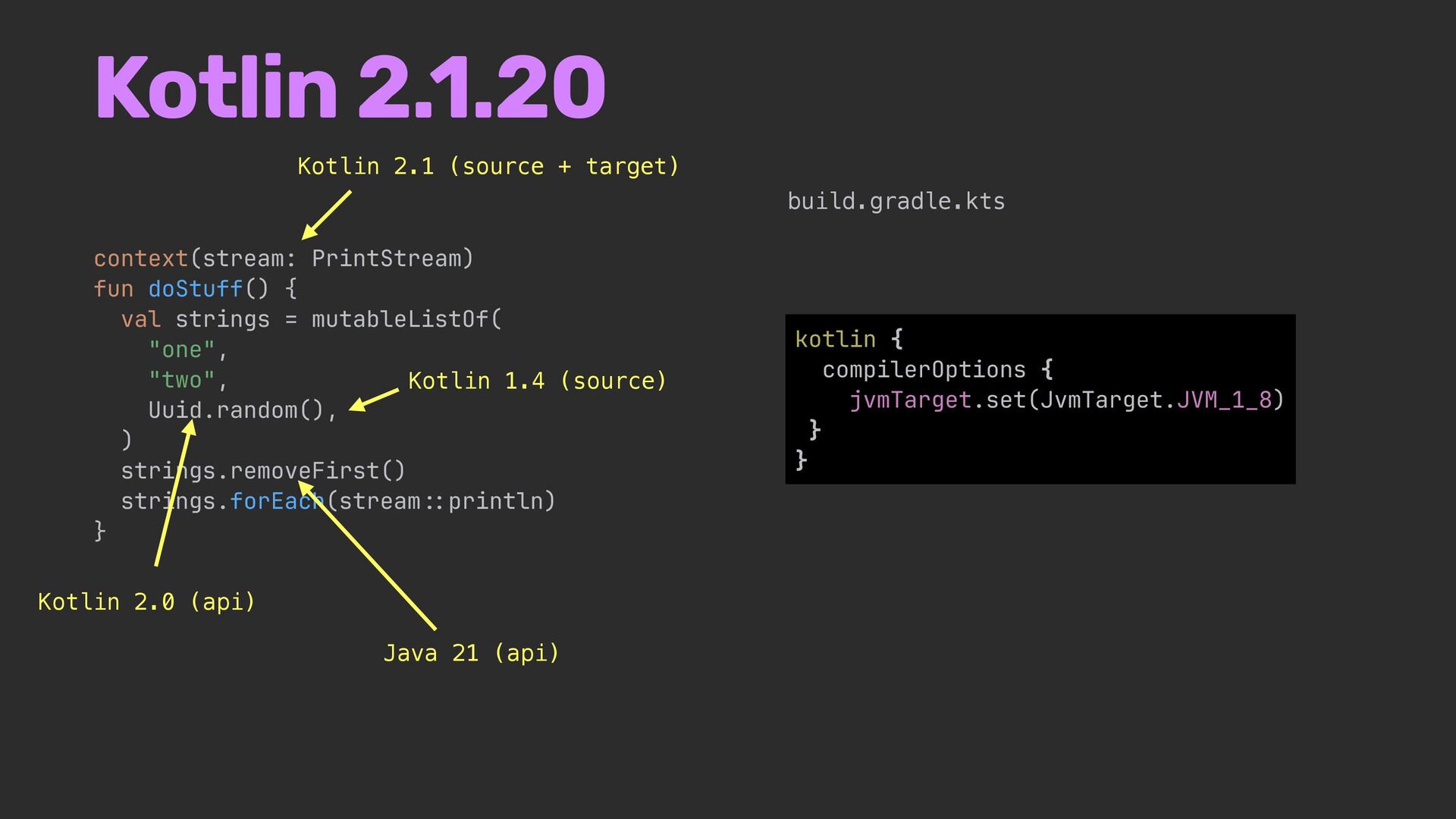

9. Kotlin 2.1.20 context(stream: PrintStream) fun doStuff() { val strings = mutableListOf( "one", "two", Uuid.random(), ) strings.removeFirst() strings.forEach(stream :: println) } kotlin { compilerOptions { jvmTarget.set(JvmTarget.JVM_1_8) } } Kotlin 2.1 (source + target) Kotlin 2.0 (api) Java 21 (api) build.gradle.kts Kotlin 1.4 (source)

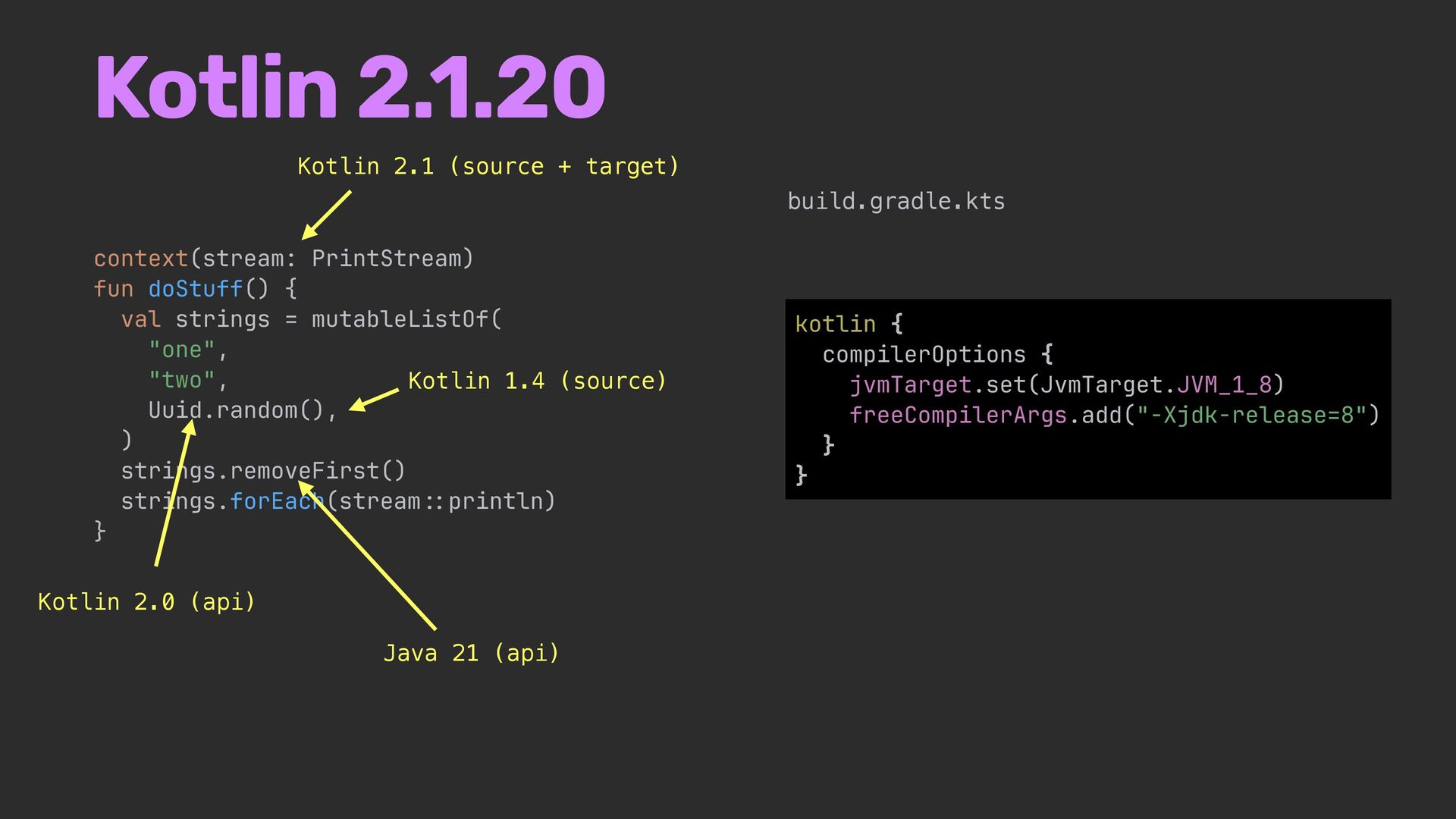

10. Kotlin 2.1.20 context(stream: PrintStream) fun doStuff() { val strings = mutableListOf( "one", "two", Uuid.random(), ) strings.removeFirst() strings.forEach(stream :: println) } kotlin { compilerOptions { jvmTarget.set(JvmTarget.JVM_1_8) freeCompilerArgs.add("-Xjdk-release=8") } } Kotlin 2.1 (source + target) Kotlin 2.0 (api) Java 21 (api) build.gradle.kts Kotlin 1.4 (source)

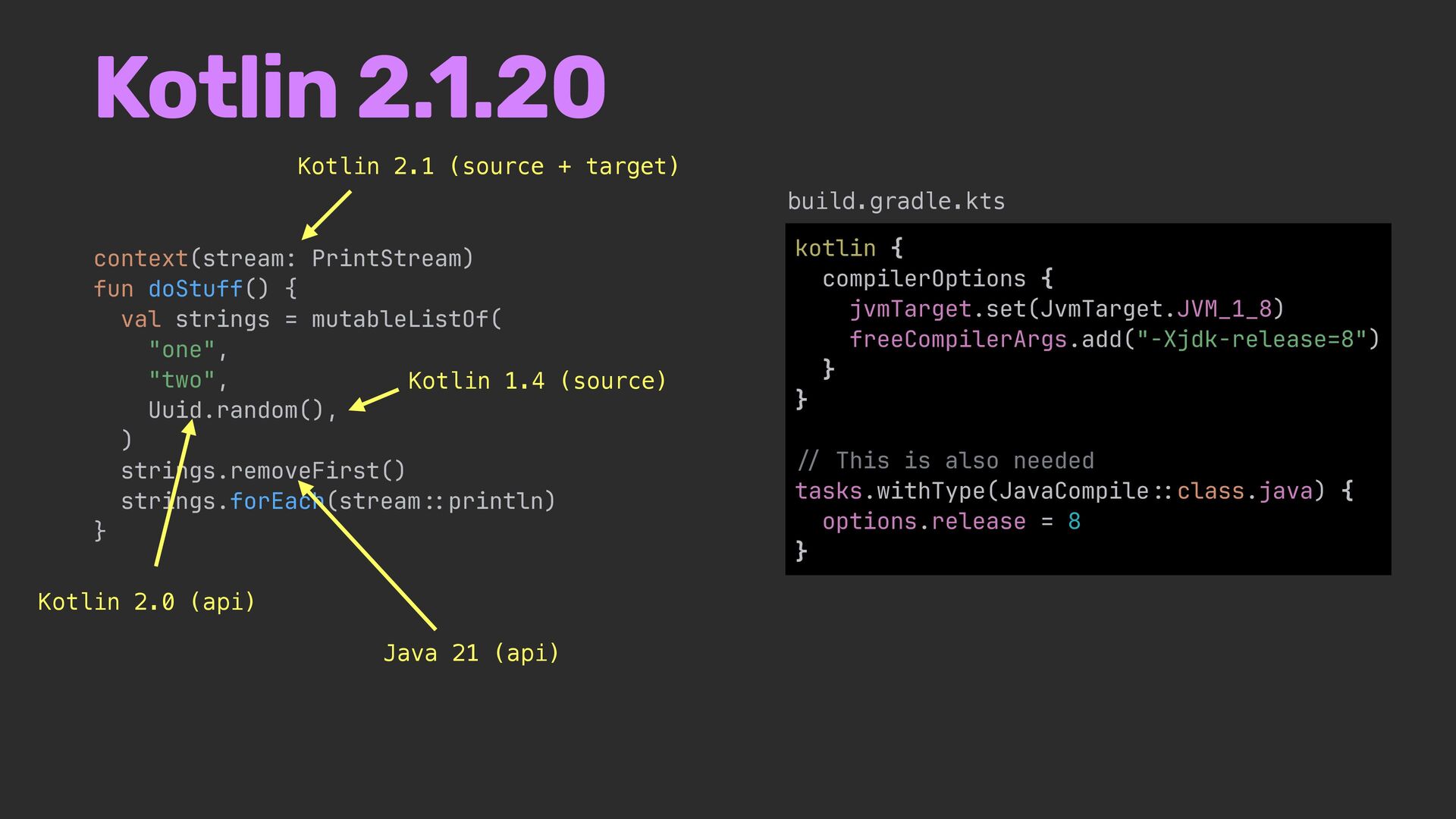

11. Kotlin 2.1.20 context(stream: PrintStream) fun doStuff() { val strings = mutableListOf( "one", "two", Uuid.random(), ) strings.removeFirst() strings.forEach(stream :: println) } kotlin { compilerOptions { jvmTarget.set(JvmTarget.JVM_1_8) freeCompilerArgs.add("-Xjdk-release=8") } } // This is also needed tasks.withType(JavaCompile :: class.java) { options.release = 8 } Kotlin 2.1 (source + target) Kotlin 2.0 (api) Java 21 (api) build.gradle.kts Kotlin 1.4 (source)

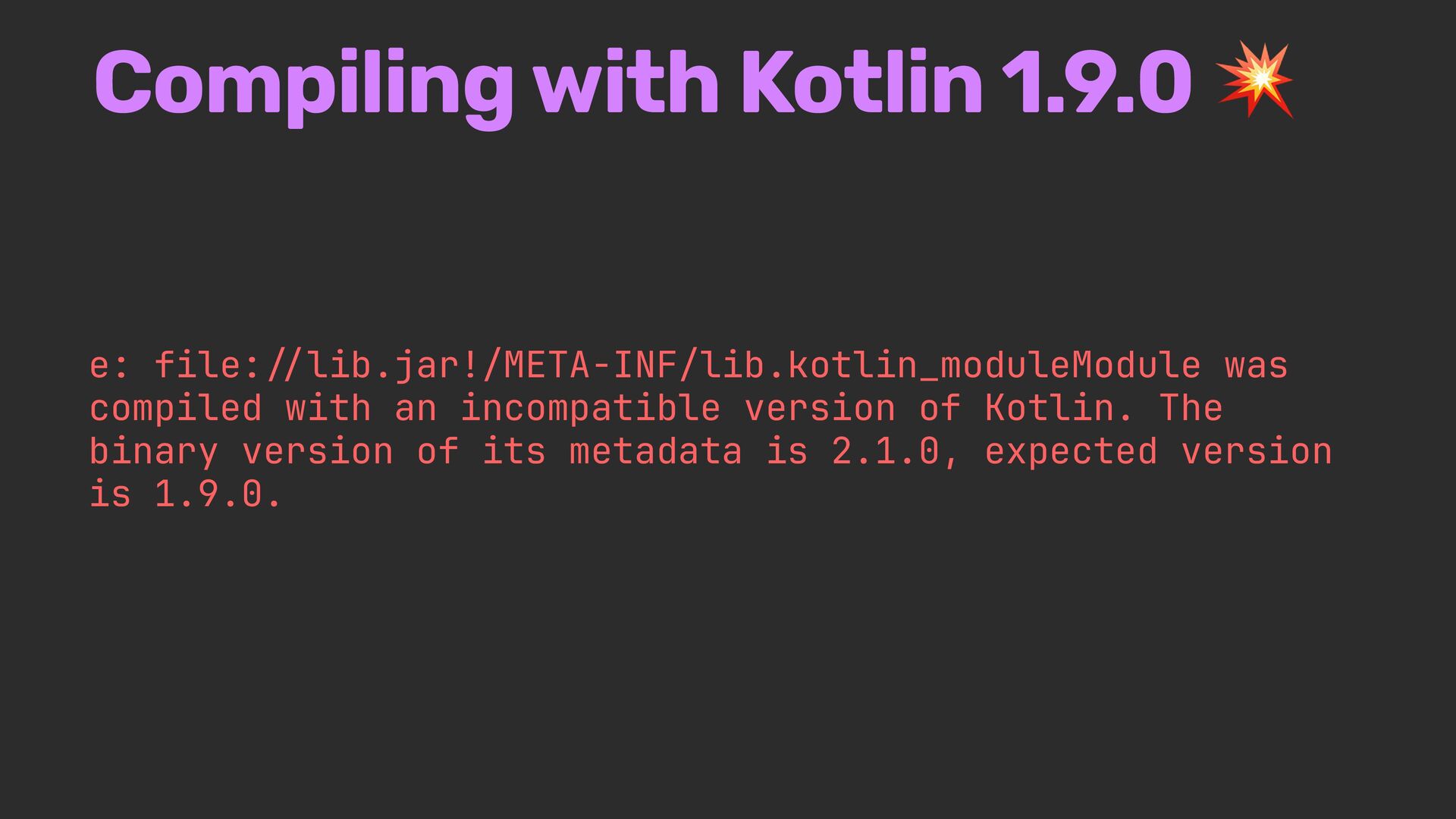

12. e: file: // lib.jar!/META-INF/lib.kotlin_moduleModule was compiled with an incompatible version of Kotlin. The binary version of its metadata is 2.1.0, expected version is 1.9.0. Compiling with Kotlin 1.9.0 💥

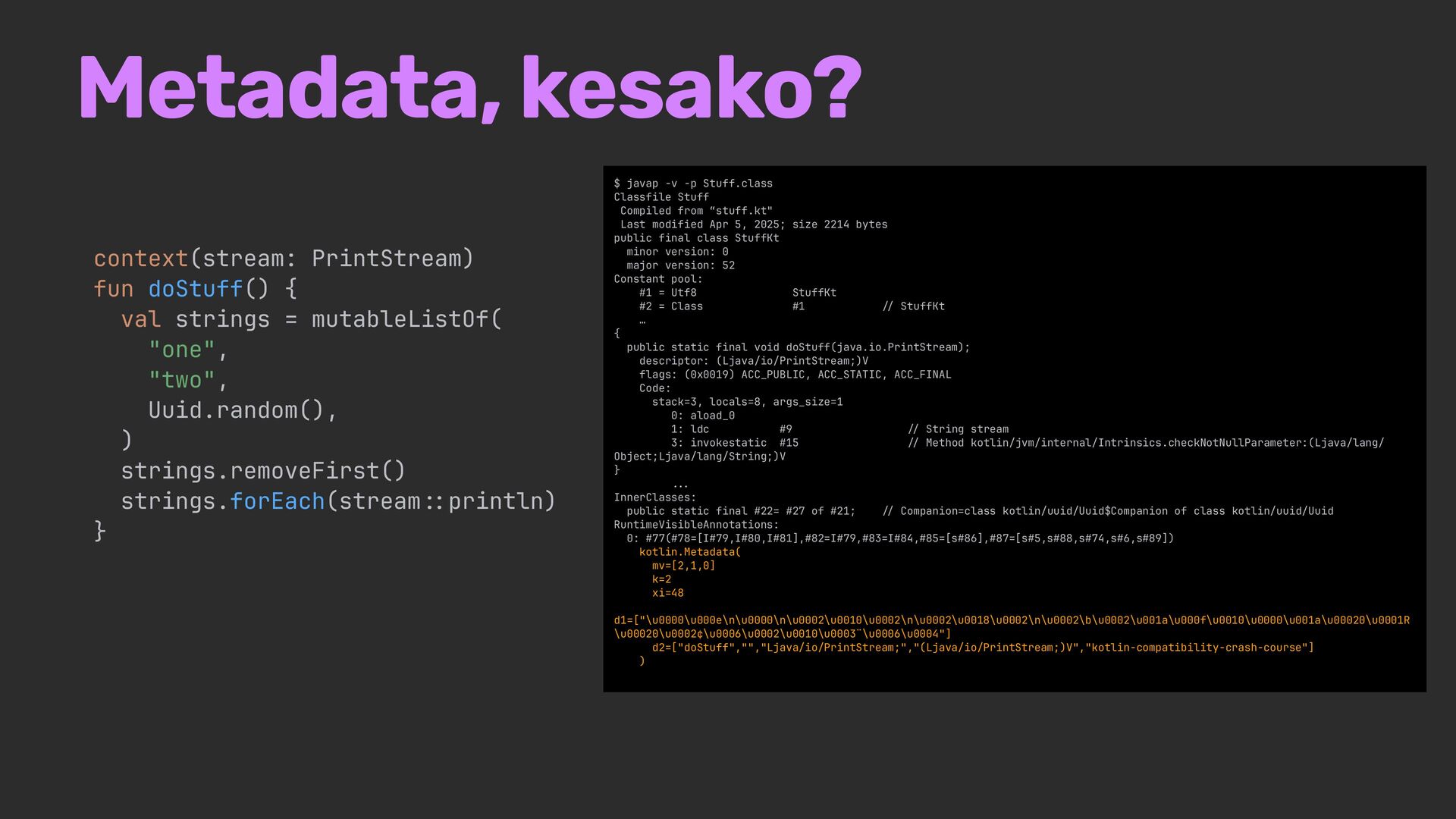

13. Metadata, kesako? $ javap -v -p Stuff.class Classfile Stuff Compiled from “stuff.kt" Last modified Apr 5, 2025; size 2214 bytes public final class StuffKt minor version: 0 major version: 52 Constant pool: #1 = Utf8 StuffKt #2 = Class #1 // StuffKt … { public static final void doStuff(java.io.PrintStream); descriptor: (Ljava/io/PrintStream;)V flags: (0x0019) ACC_PUBLIC, ACC_STATIC, ACC_FINAL Code: stack=3, locals=8, args_size=1 0: aload_0 1: ldc #9 / / String stream 3: invokestatic #15 / / Method kotlin/jvm/internal/Intrinsics.checkNotNullParameter:(Ljava/lang/ Object;Ljava/lang/String;)V } ... InnerClasses: public static final #22= #27 of #21; // Companion=class kotlin/uuid/Uuid$Companion of class kotlin/uuid/Uuid RuntimeVisibleAnnotations: 0: #77(#78=[I#79,I#80,I#81],#82=I#79,#83=I#84,#85=[s#86],#87=[s#5,s#88,s#74,s#6,s#89]) kotlin.Metadata( mv=[2,1,0] k=2 xi=48 d1=["\u0000\u000e\n\u0000\n\u0002\u0010\u0002\n\u0002\u0018\u0002\n\u0002\b\u0002\u001a\u000f\u0010\u0000\u001a\u00020\u0001R \u00020\u0002¢\u0006\u0002\u0010\u0003¨\u0006\u0004"] d2=["doStuff","","Ljava/io/PrintStream;","(Ljava/io/PrintStream;)V","kotlin-compatibility-crash-course"] ) context(stream: PrintStream) fun doStuff() { val strings = mutableListOf( "one", "two", Uuid.random(), ) strings.removeFirst() strings.forEach(stream :: println) }

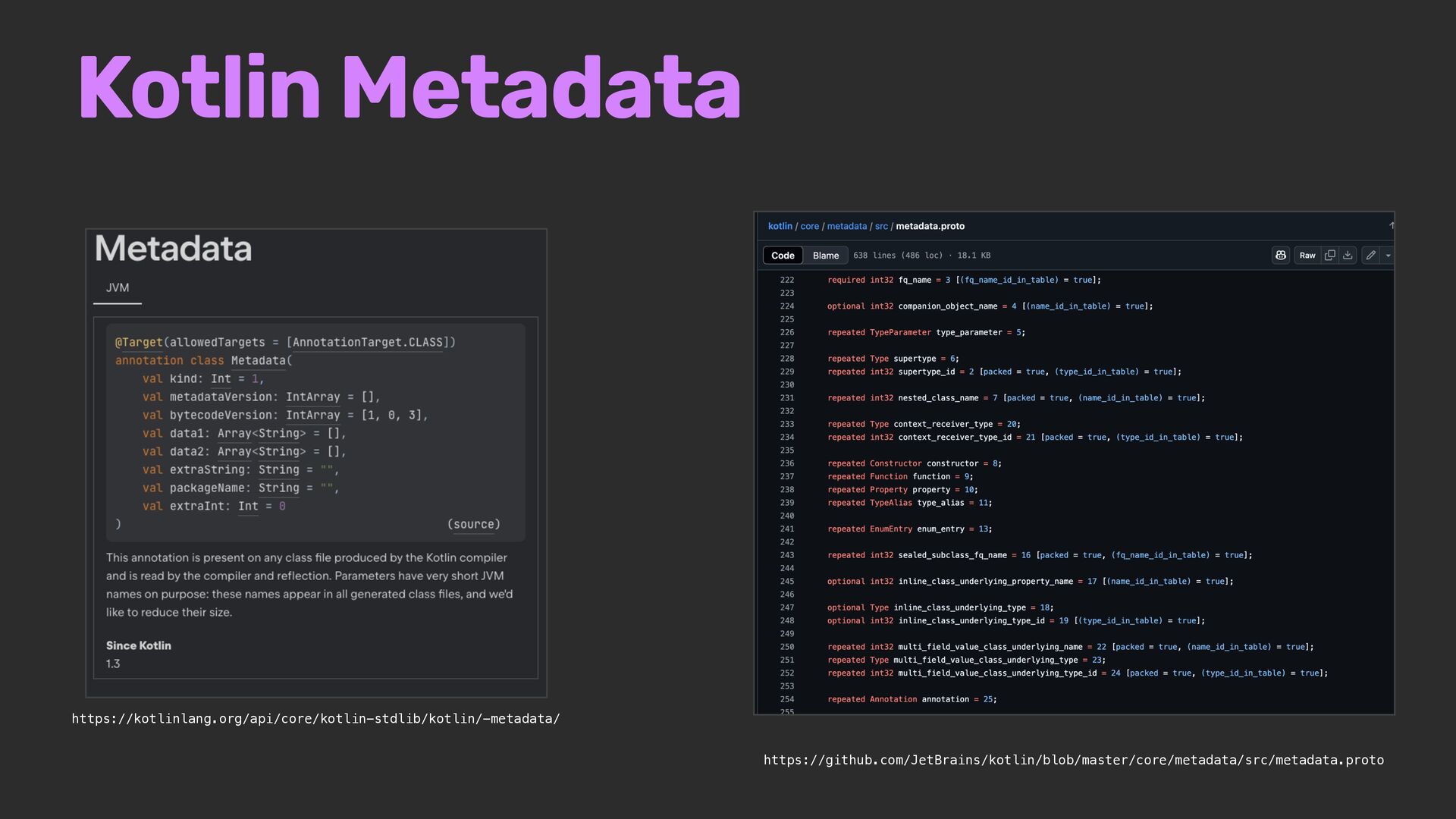

14. Kotlin Metadata https://kotlinlang.org/api/core/kotlin-stdlib/kotlin/-metadata/ https://github.com/JetBrains/kotlin/blob/master/core/metadata/src/metadata.proto

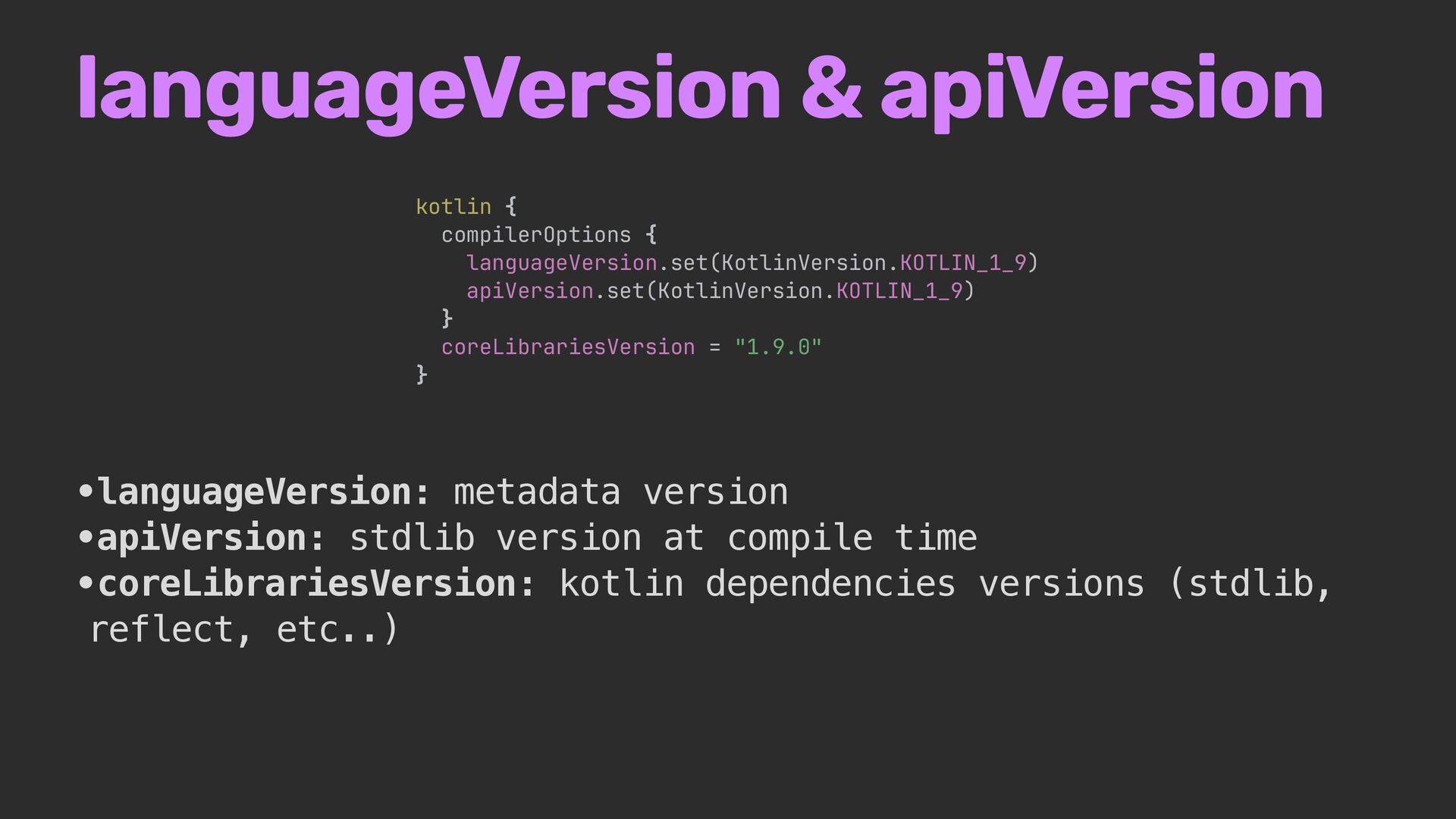

15. kotlin { compilerOptions { languageVersion.set(KotlinVersion.KOTLIN_1_9) apiVersion.set(KotlinVersion.KOTLIN_1_9) } coreLibrariesVersion = "1.9.0" } languageVersion & apiVersion •languageVersion: metadata version •apiVersion: stdlib version at compile time •coreLibrariesVersion: kotlin dependencies versions (stdlib, reflect, etc..)

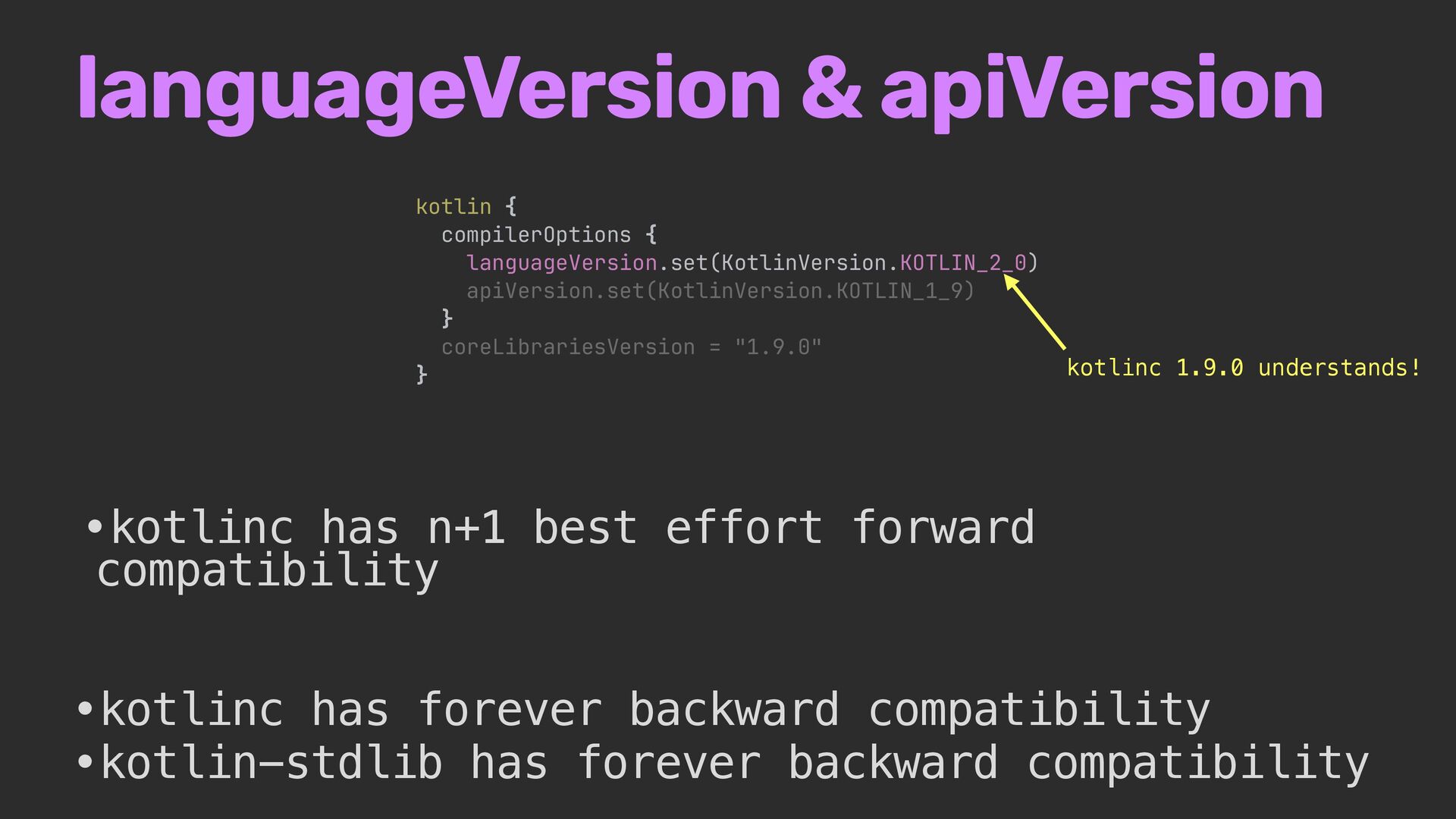

16. kotlin { compilerOptions { languageVersion.set(KotlinVersion.KOTLIN_2_0) apiVersion.set(KotlinVersion.KOTLIN_1_9) } coreLibrariesVersion = "1.9.0" } languageVersion & apiVersion kotlinc 1.9.0 understands! •kotlinc has n+1 best effort forward compatibility •kotlinc has forever backward compatibility •kotlin-stdlib has forever backward compatibility

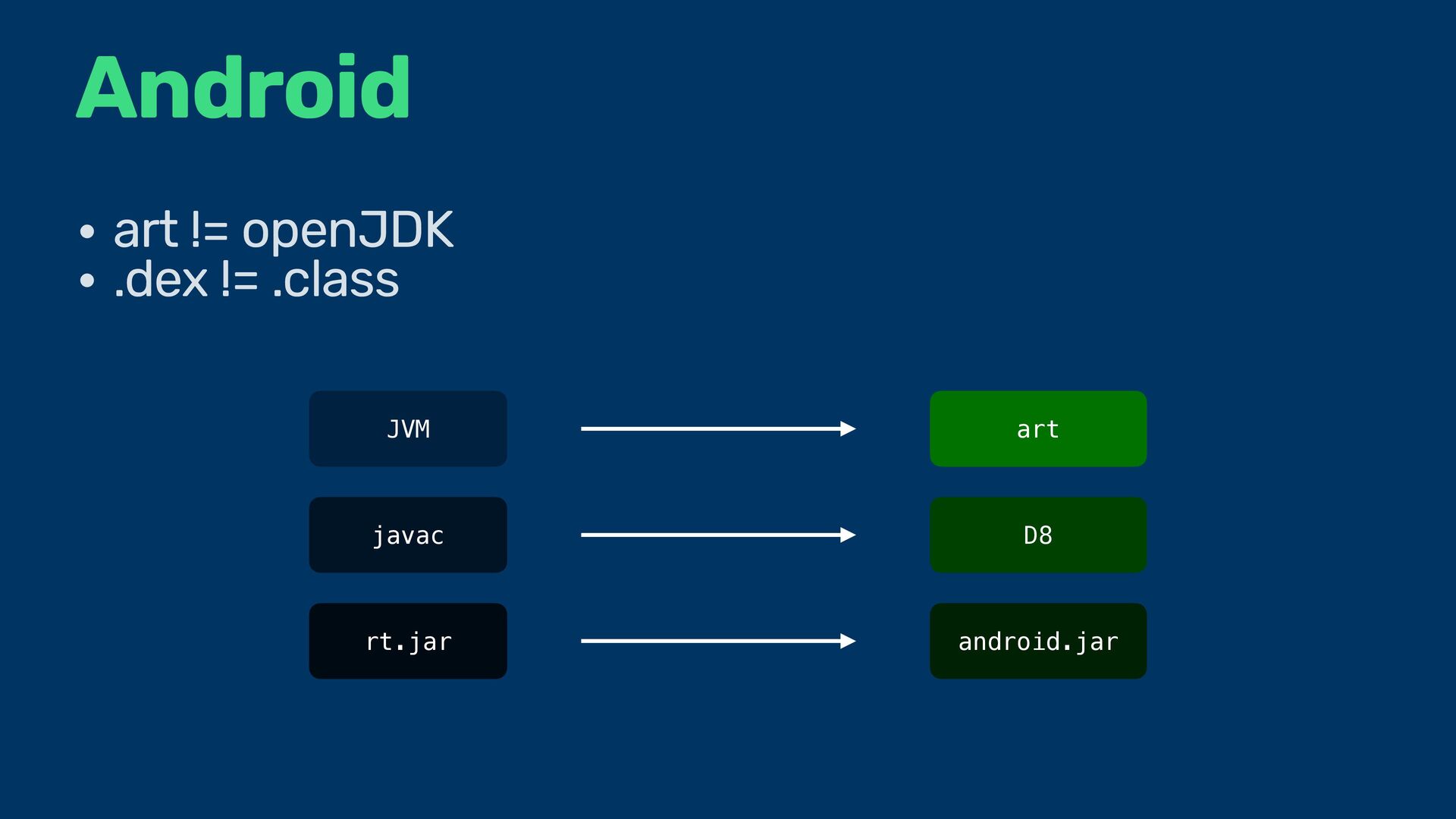

17. Android • art != openJDK • .dex != .class JVM javac rt.jar art D8 android.jar

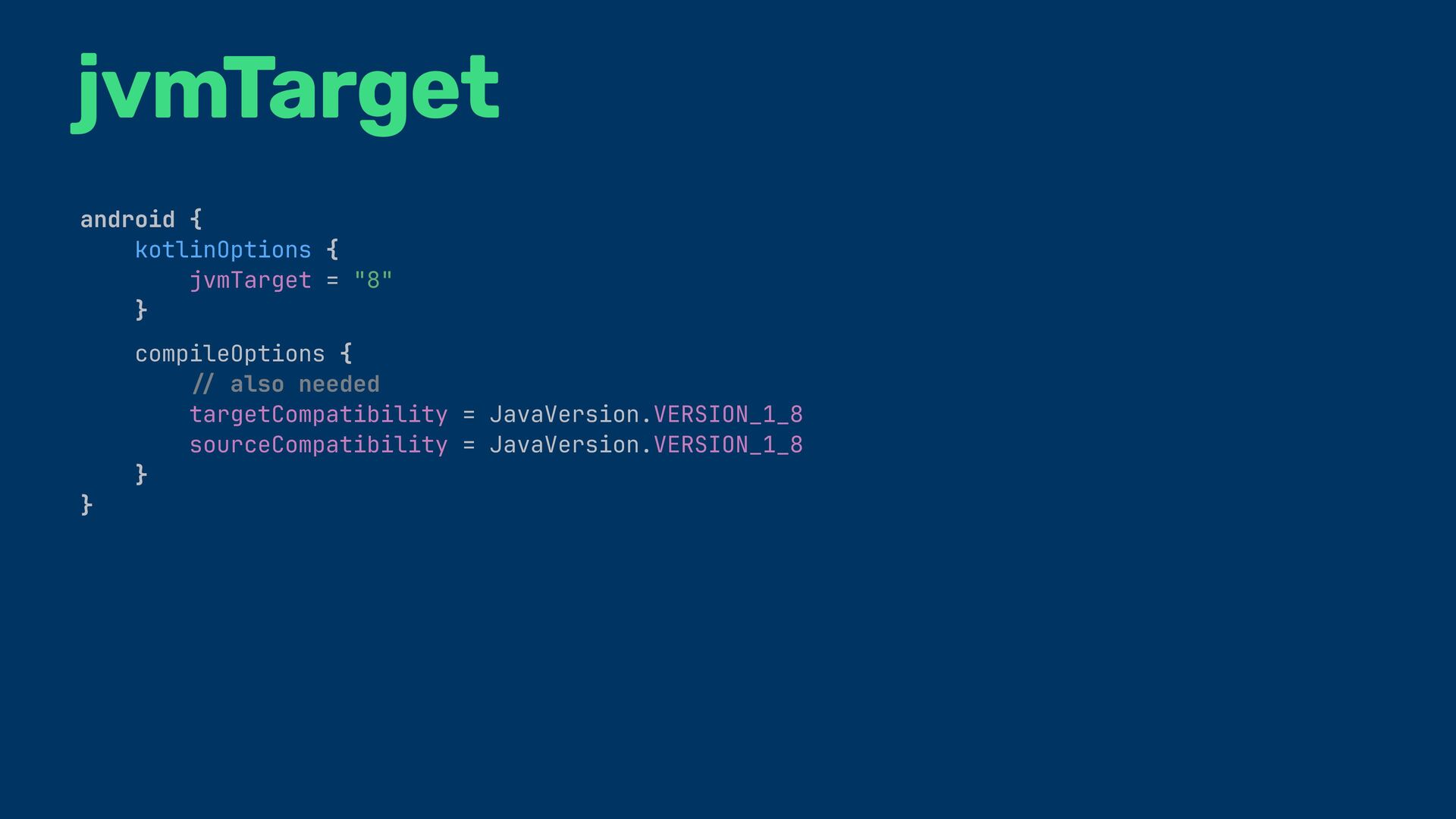

18. android { kotlinOptions { jvmTarget = "8" } compileOptions { // also needed targetCompatibility = JavaVersion.VERSION_1_8 sourceCompatibility = JavaVersion.VERSION_1_8 } } jvmTarget

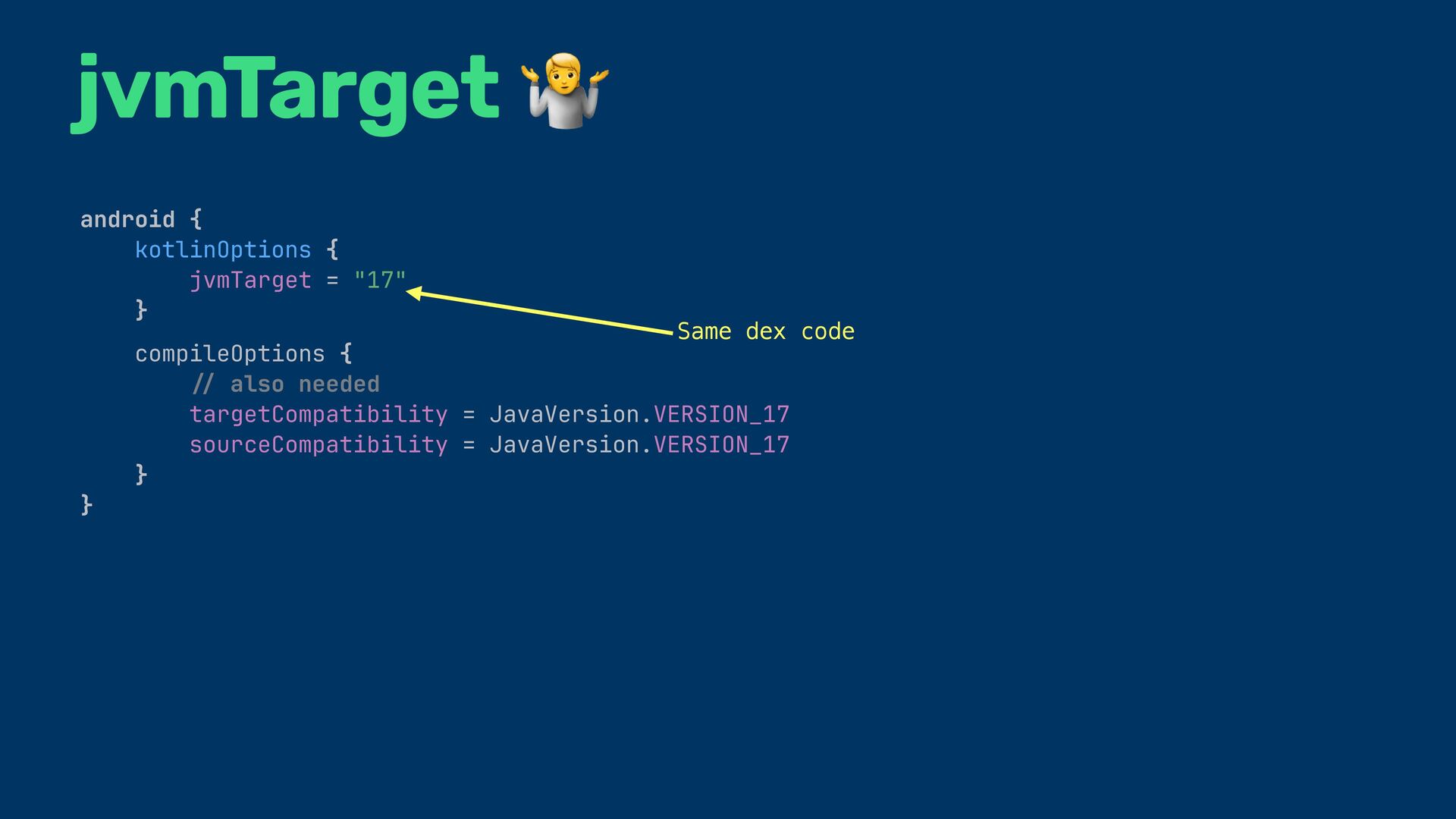

19. android { kotlinOptions { jvmTarget = "17" } compileOptions { // also needed targetCompatibility = JavaVersion.VERSION_17 sourceCompatibility = JavaVersion.VERSION_17 } } Same dex code jvmTarget 🤷

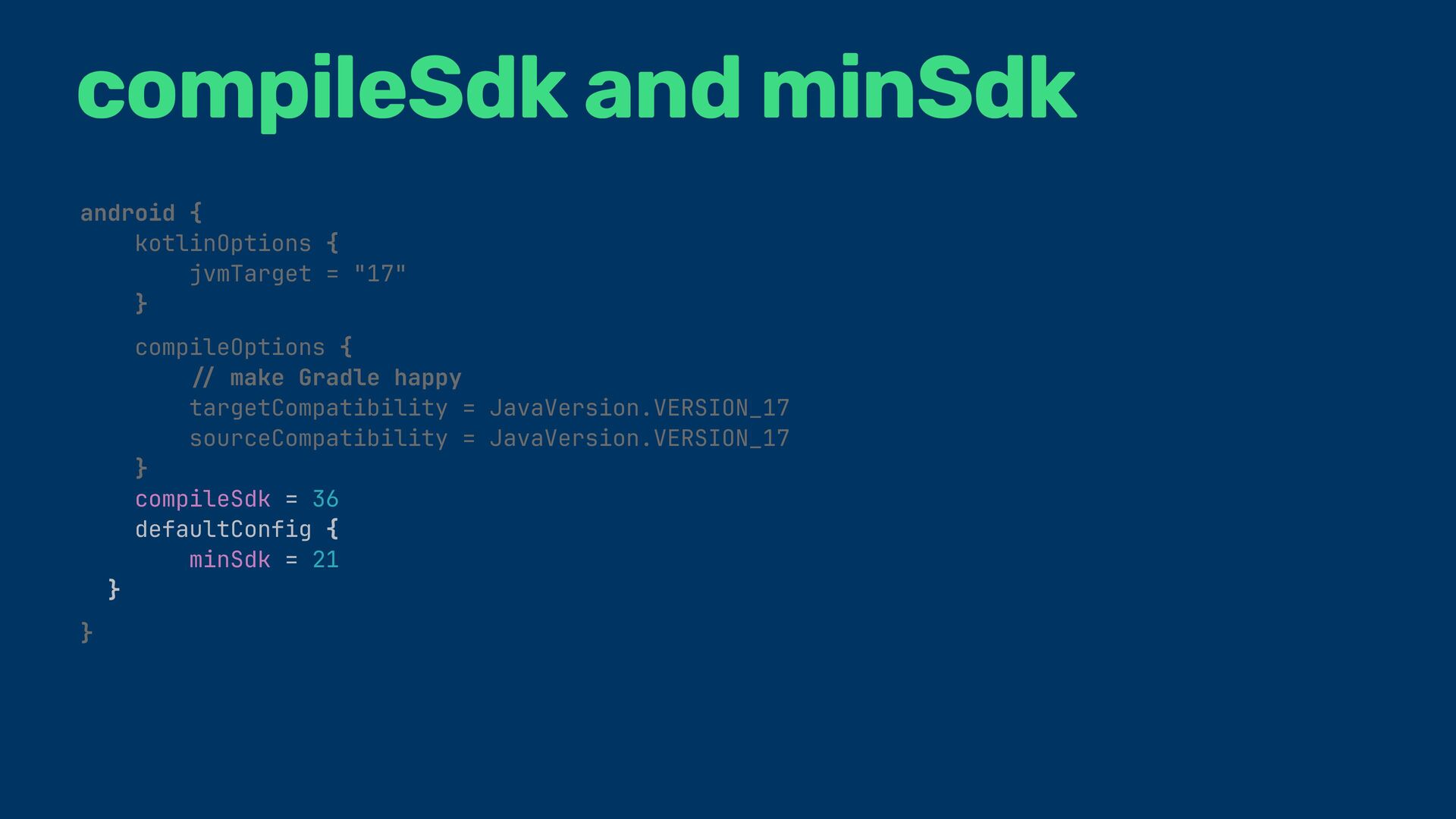

20. android { kotlinOptions { jvmTarget = "17" } compileOptions { // make Gradle happy targetCompatibility = JavaVersion.VERSION_17 sourceCompatibility = JavaVersion.VERSION_17 } compileSdk = 36 defaultConfig { minSdk = 21 } } compileSdk and minSdk

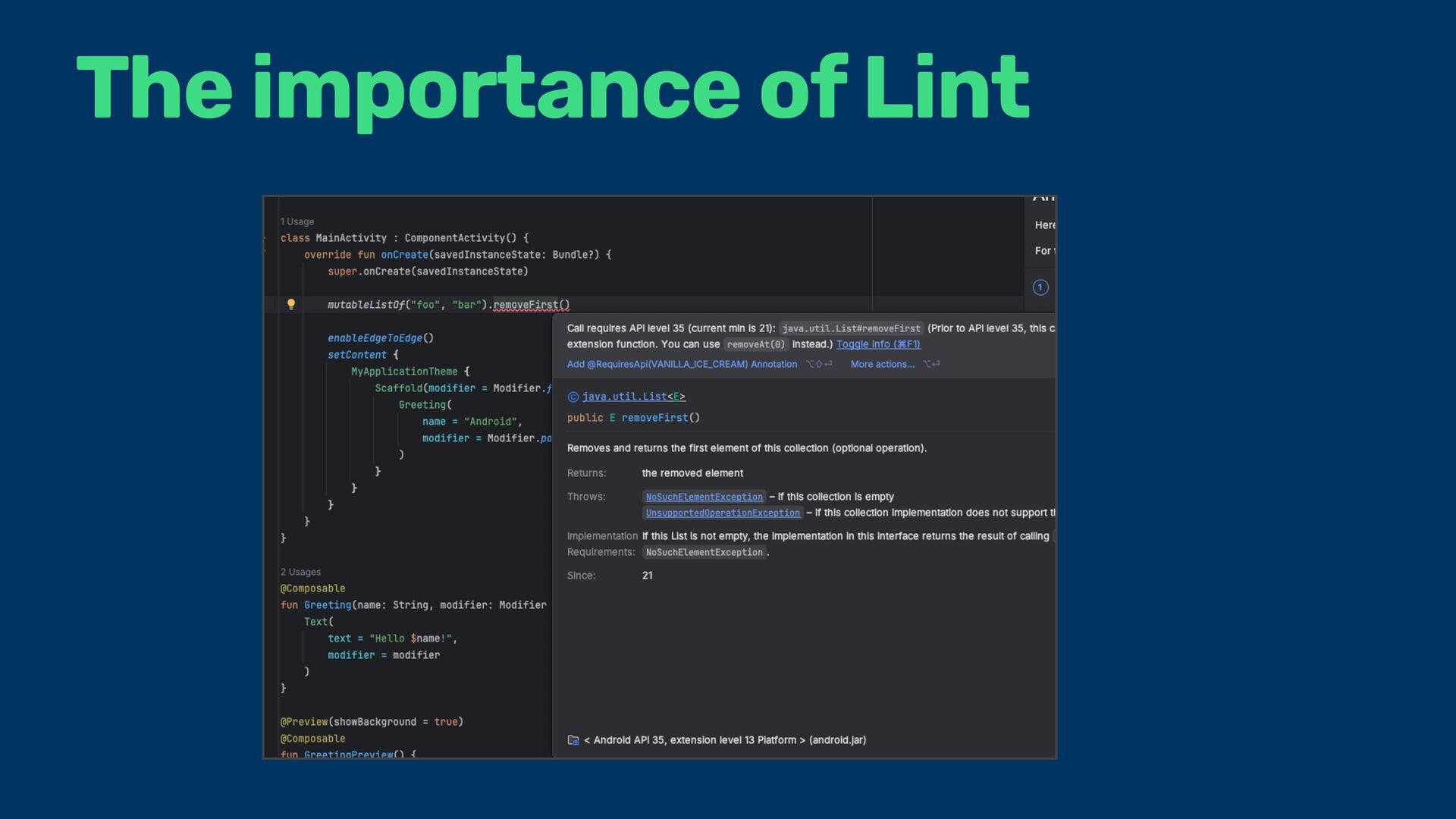

21. The importance of Lint

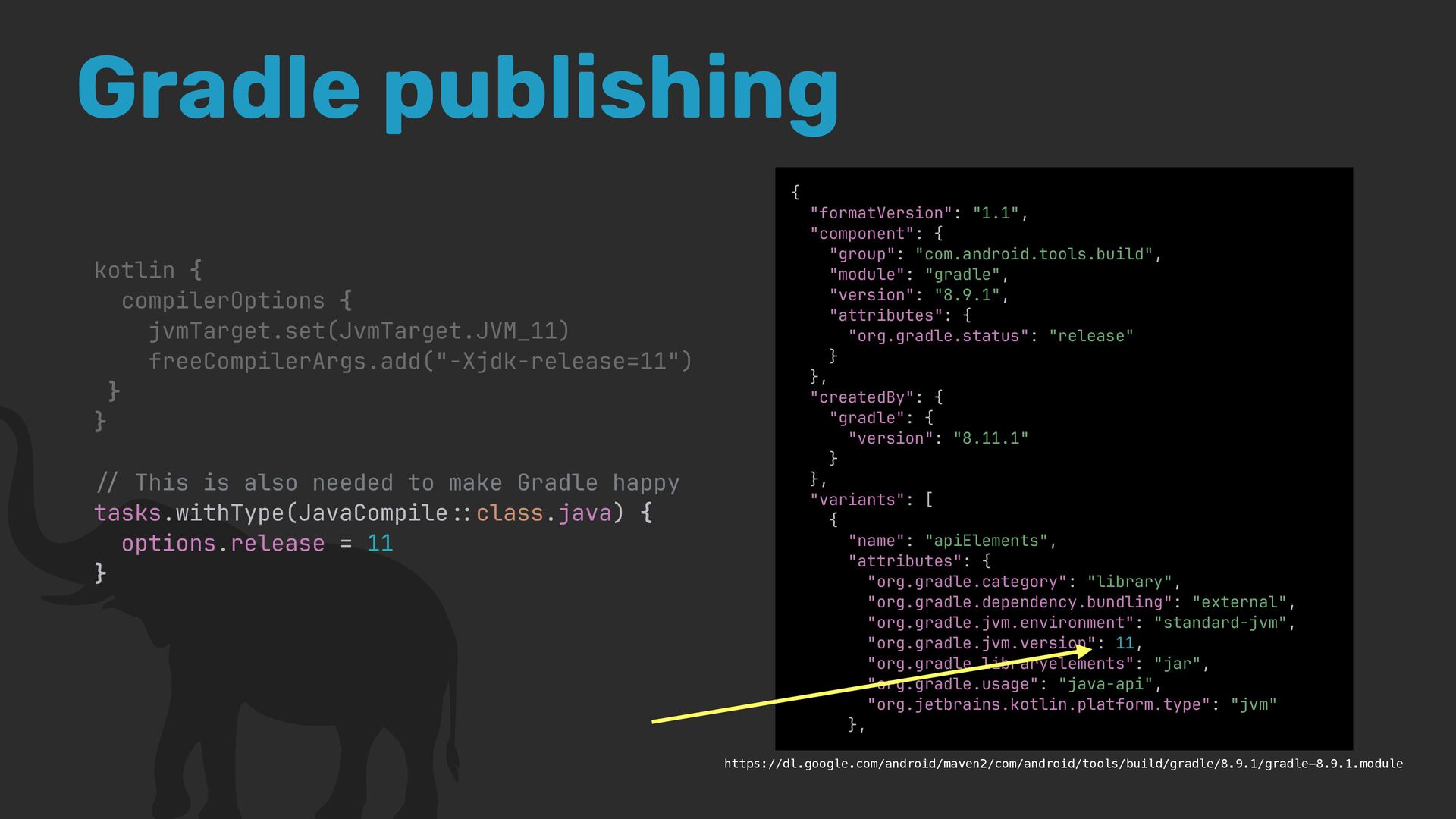

22. Gradle publishing { "formatVersion": "1.1", "component": { "group": "com.android.tools.build", "module": "gradle", "version": "8.9.1", "attributes": { "org.gradle.status": "release" } }, "createdBy": { "gradle": { "version": "8.11.1" } }, "variants": [ { "name": "apiElements", "attributes": { "org.gradle.category": "library", "org.gradle.dependency.bundling": "external", "org.gradle.jvm.environment": "standard-jvm", "org.gradle.jvm.version": 11, "org.gradle.libraryelements": "jar", "org.gradle.usage": "java-api", "org.jetbrains.kotlin.platform.type": "jvm" }, https://dl.google.com/android/maven2/com/android/tools/build/gradle/8.9.1/gradle-8.9.1.module kotlin { compilerOptions { jvmTarget.set(JvmTarget.JVM_11) freeCompilerArgs.add("-Xjdk-release=11") } } // This is also needed to make Gradle happy tasks.withType(JavaCompile :: class.java) { options.release = 11 }

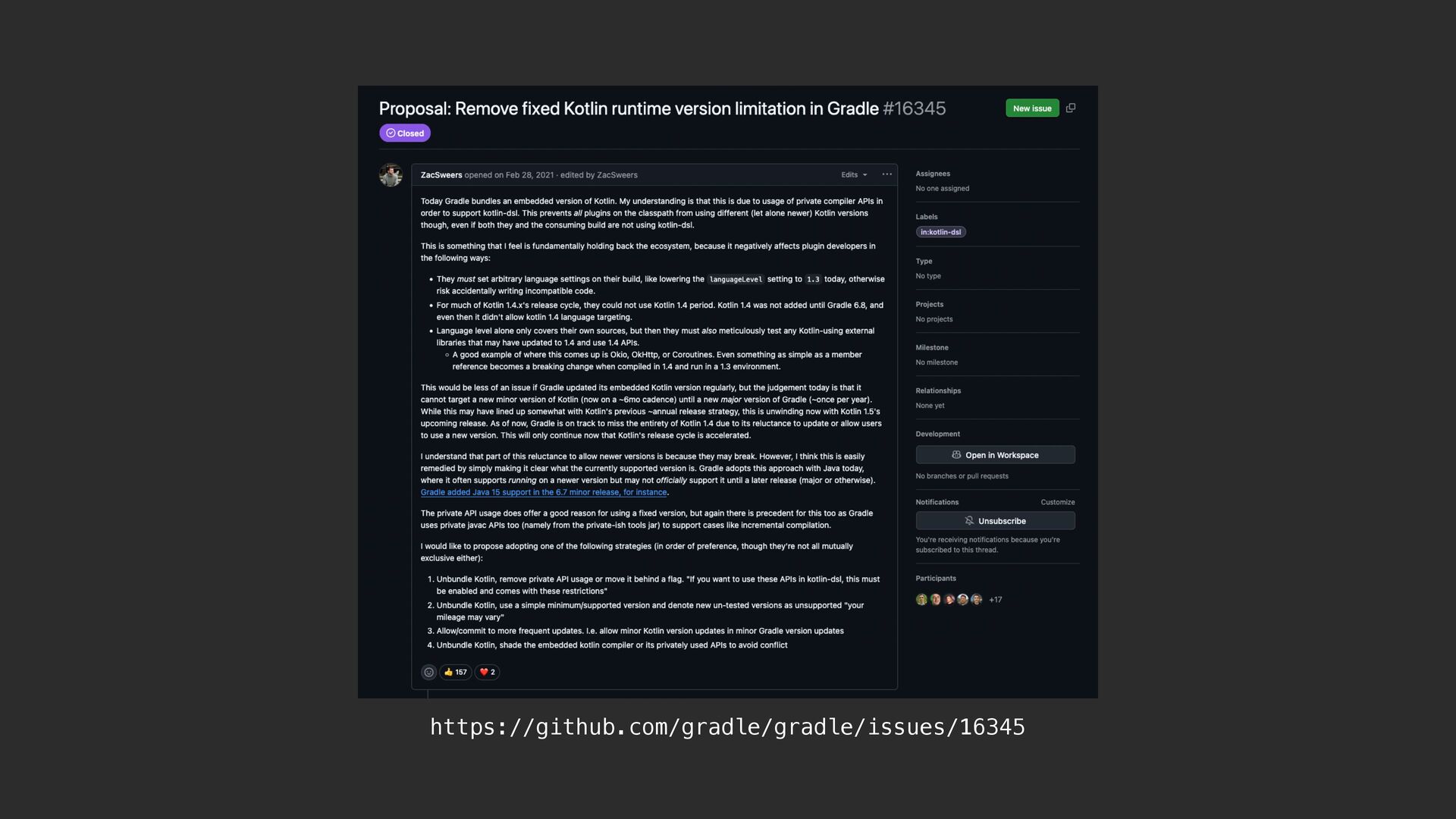

23. https://github.com/gradle/gradle/issues/16345

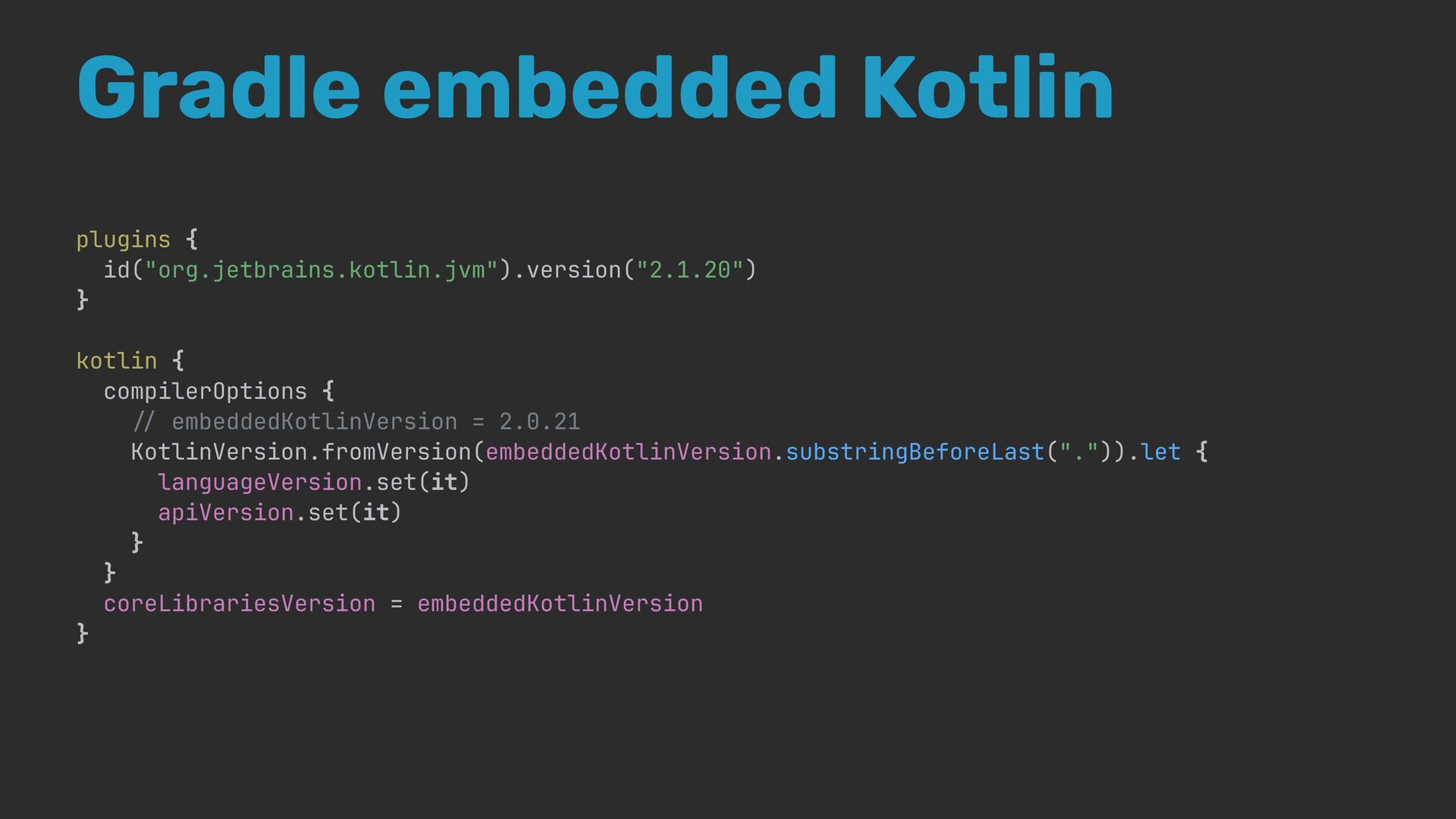

24. Gradle embedded Kotlin plugins { id("org.jetbrains.kotlin.jvm").version("2.1.20") } kotlin { compilerOptions { // embeddedKotlinVersion = 2.0.21 KotlinVersion.fromVersion(embeddedKotlinVersion.substringBeforeLast(".")).let { languageVersion.set(it) apiVersion.set(it) } } coreLibrariesVersion = embeddedKotlinVersion }

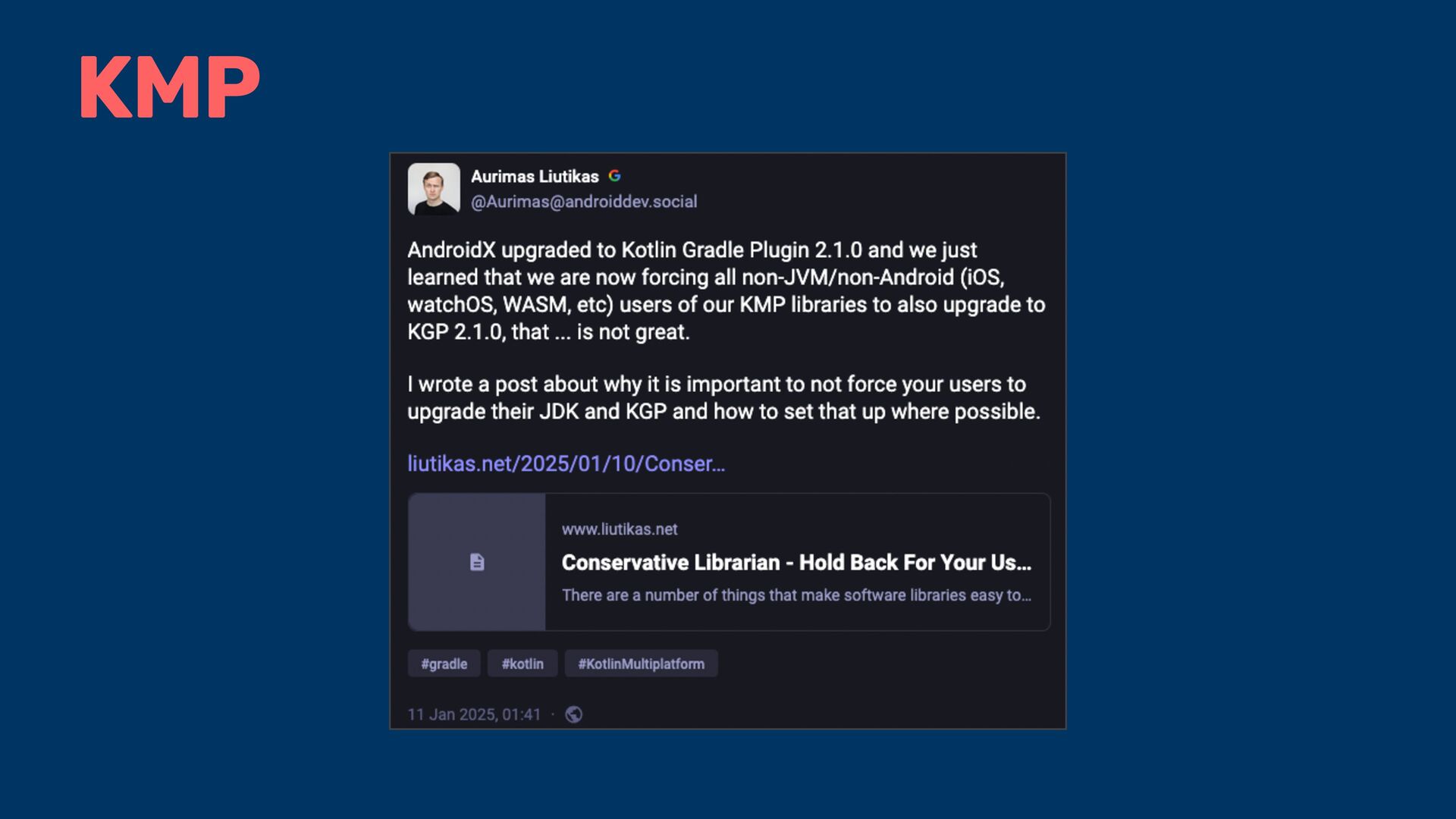

25. KMP

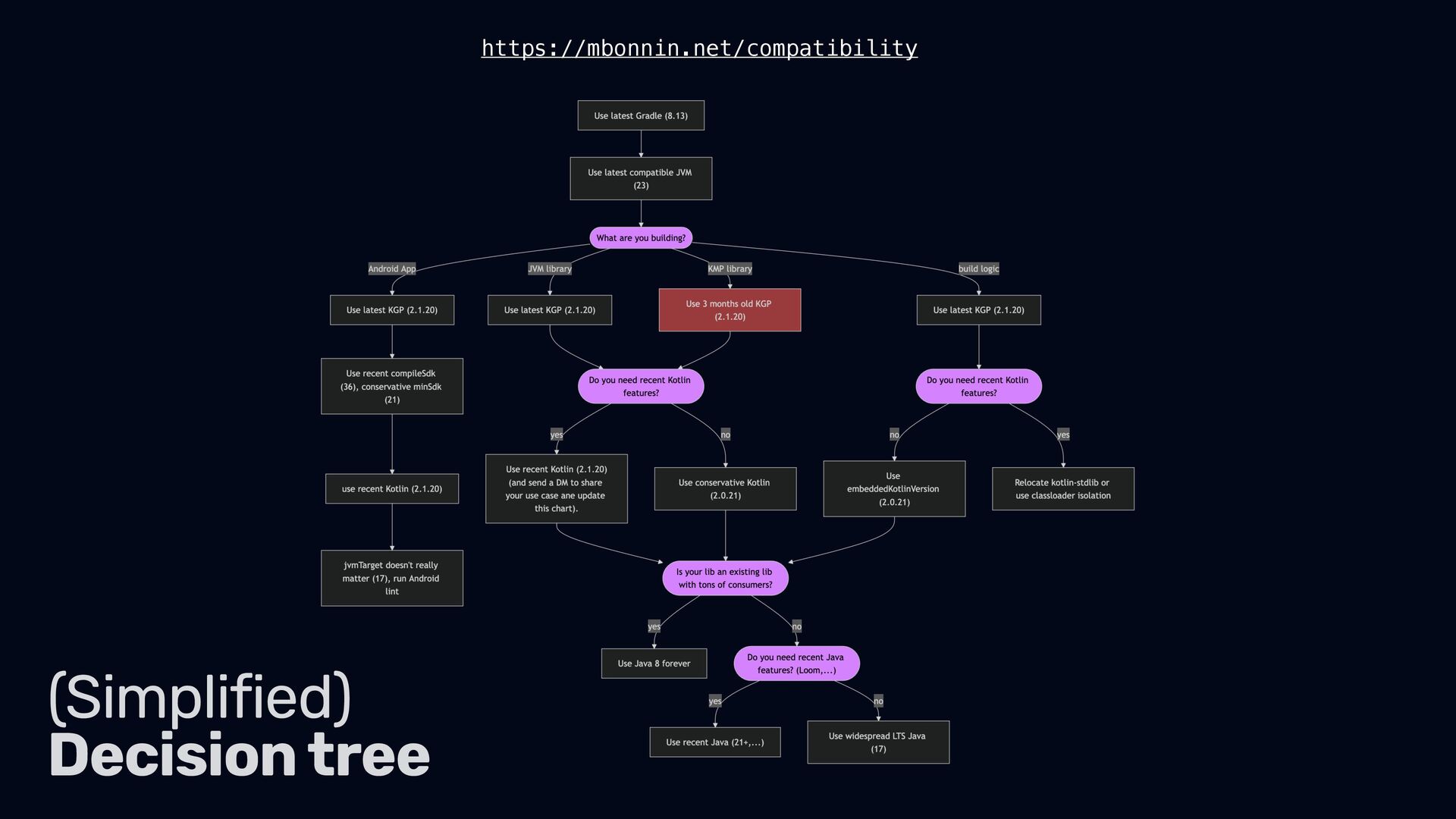

26. (Simplified) Decision tree https://mbonnin.net/compatibility

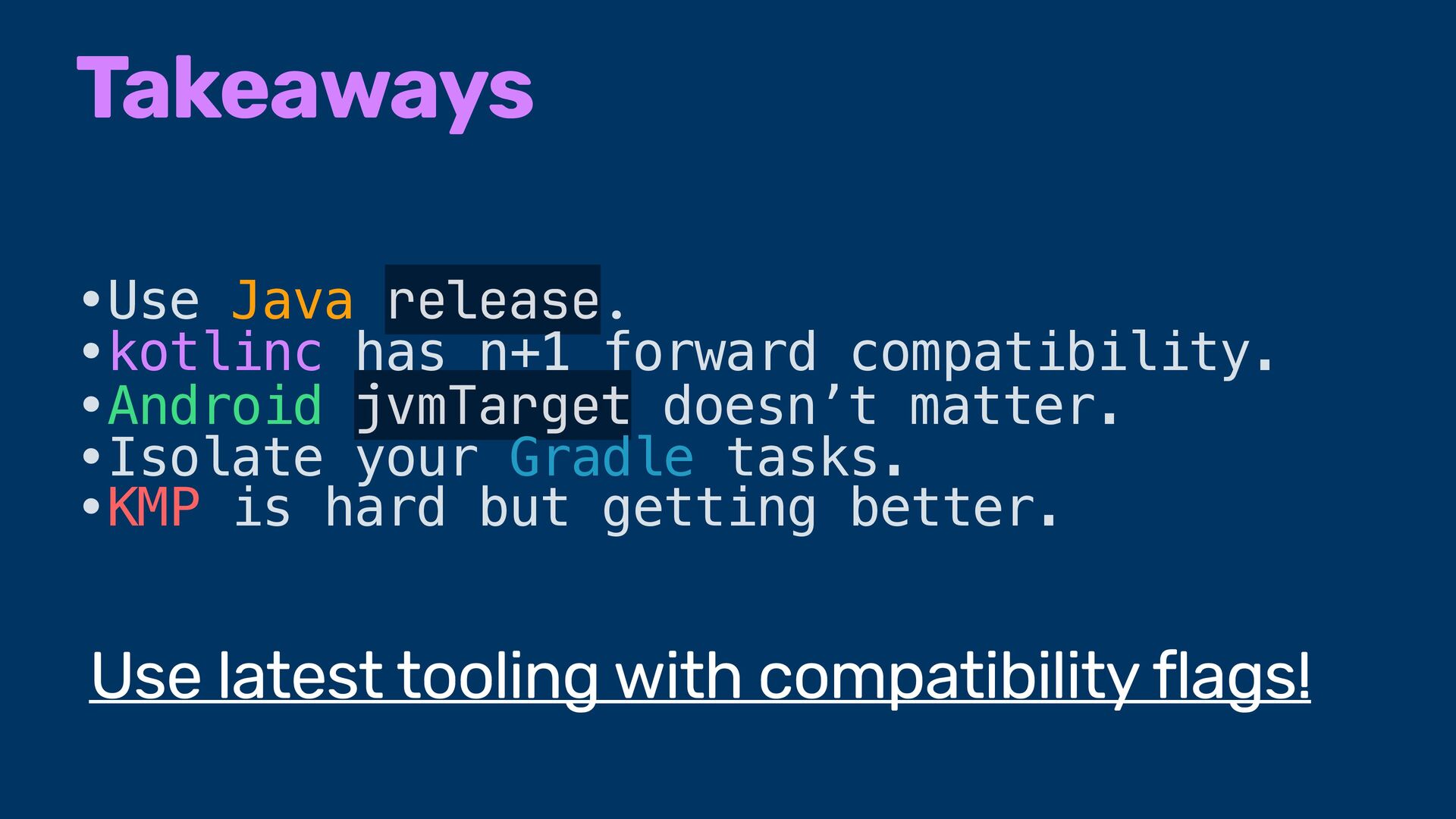

27. •Use Java release. •kotlinc has n+1 forward compatibility. •Android jvmTarget doesn’t matter. •Isolate your Gradle tasks. •KMP is hard but getting better. Takeaways Use latest tooling with compatibility flags!
28. Merci !!! https://github.com/GradleUp/compat-patrouille

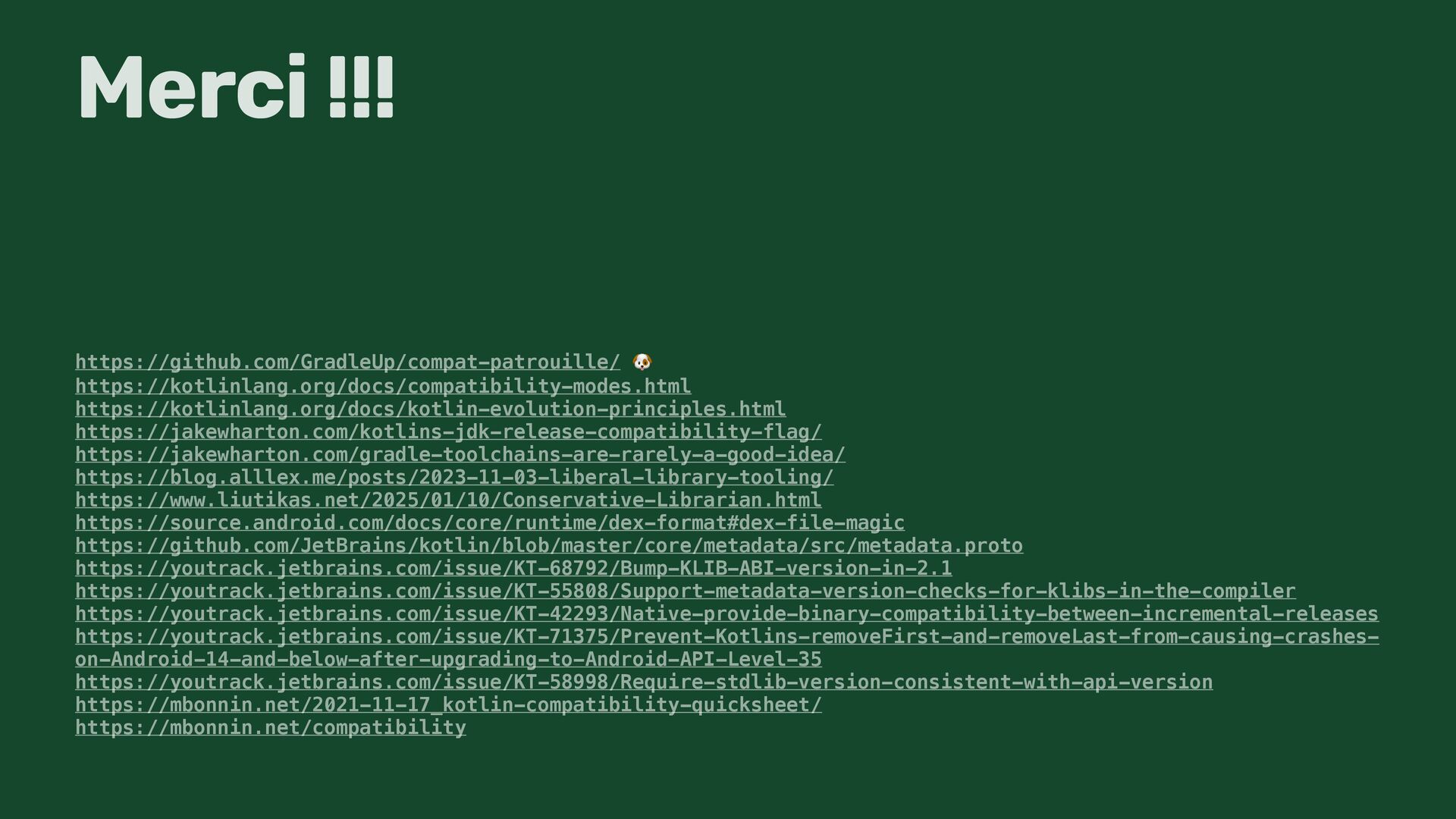

29. Merci !!! https://github.com/GradleUp/compat-patrouille/ 🐶 https://kotlinlang.org/docs/compatibility-modes.html https://kotlinlang.org/docs/kotlin-evolution-principles.html https://jakewharton.com/kotlins-jdk-release-compatibility-flag/ https://jakewharton.com/gradle-toolchains-are-rarely-a-good-idea/ https://blog.alllex.me/posts/2023-11-03-liberal-library-tooling/ https://www.liutikas.net/2025/01/10/Conservative-Librarian.html https://source.android.com/docs/core/runtime/dex-format#dex-file-magic https://github.com/JetBrains/kotlin/blob/master/core/metadata/src/metadata.proto https://youtrack.jetbrains.com/issue/KT-68792/Bump-KLIB-ABI-version-in-2.1 https://youtrack.jetbrains.com/issue/KT-55808/Support-metadata-version-checks-for-klibs-in-the-compiler https://youtrack.jetbrains.com/issue/KT-42293/Native-provide-binary-compatibility-between-incremental-releases https://youtrack.jetbrains.com/issue/KT-71375/Prevent-Kotlins-removeFirst-and-removeLast-from-causing-crashes- on-Android-14-and-below-after-upgrading-to-Android-API-Level-35 https://youtrack.jetbrains.com/issue/KT-58998/Require-stdlib-version-consistent-with-api-version https://mbonnin.net/2021-11-17_kotlin-compatibility-quicksheet/ https://mbonnin.net/compatibility
