New Cache Hierarchy for Container Images and OCI Artifacts in Kubernetes Clusters using Containerd / KubeCon + CloudNativeCon Japan

One of the key bottlenecks in Kubernetes pod startup is the time taken to pull container images and OCI artifacts. It’s also costly to fetch large container images from the registry often. To tackle this problem, we developed a cache system with the following features:

* New Cache Hierarchy: Images pulled by pods are shared across the entire cluster, enabling cluster-wide optimization, not only cluster-local cache.
* Ninja: Users experience faster container image pulls without any changes on their part. Just like a ninja, the system stealthily enhances performance.
* Preheating: It supports pushing images to preheat the cache for subsequent pulls.

Deployed in a production cluster, the cache system has achieved a cache hit rate of around 95%, significantly reducing pod startup times and network communication with registries. Attendees will learn practical insights into leveraging cache and CRI to optimize image and OCI artifact pulls, ultimately enhancing cluster efficiency.
https://sched.co/1x708

Transcript

1. Hidehito Yabuuchi & Toru Komatsu, Preferred Networks, Inc. New Cache Hierarchy for Container Images and OCI Artifacts in Kubernetes Clusters using Containerd
2. Who we are @utam0k @ordovicia KOMATSU Toru Preferred Networks, Inc. YABUUCHI Hidehito Preferred Networks, Inc. 2

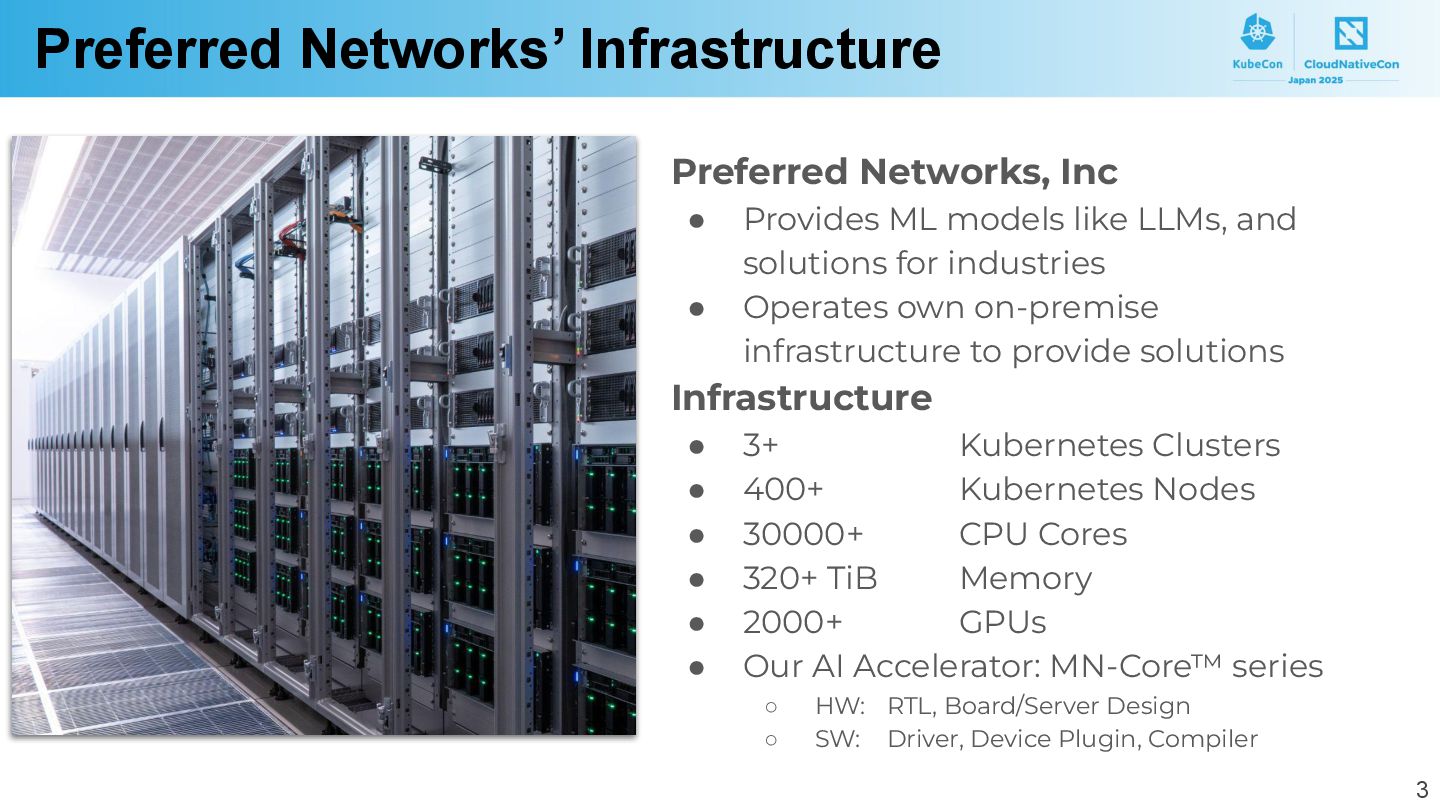

3. Preferred Networks’ Infrastructure Preferred Networks, Inc • Provides ML models like LLMs, and solutions for industries • Operates own on-premise infrastructure to provide solutions Infrastructure • 3+ Kubernetes Clusters • 400+ Kubernetes Nodes • 30000+ CPU Cores • 320+ TiB Memory • 2000+ GPUs • Our AI Accelerator: MN-Core™ series ◦ HW: RTL, Board/Server Design ◦ SW: Driver, Device Plugin, Compiler 3

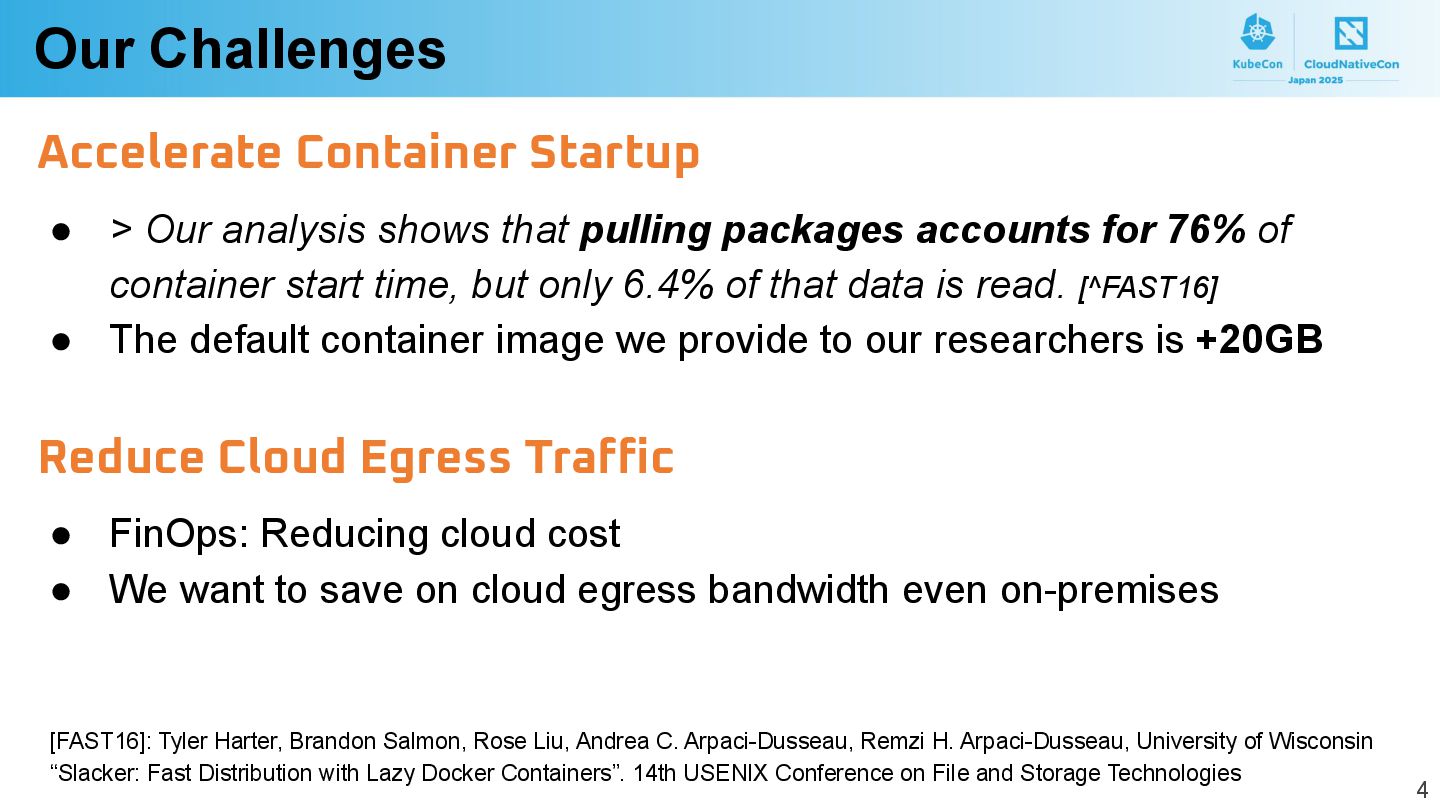

4. Our Challenges Accelerate Container Startup • > Our analysis shows that pulling packages accounts for 76% of container start time, but only 6.4% of that data is read. [^FAST16] • The default container image we provide to our researchers is +20GB Reduce Cloud Egress Traffic • FinOps: Reducing cloud cost • We want to save on cloud egress bandwidth even on-premises [FAST16]: Tyler Harter, Brandon Salmon, Rose Liu, Andrea C. Arpaci-Dusseau, Remzi H. Arpaci-Dusseau, University of Wisconsin “Slacker: Fast Distribution with Lazy Docker Containers”. 14th USENIX Conference on File and Storage Technologies 4

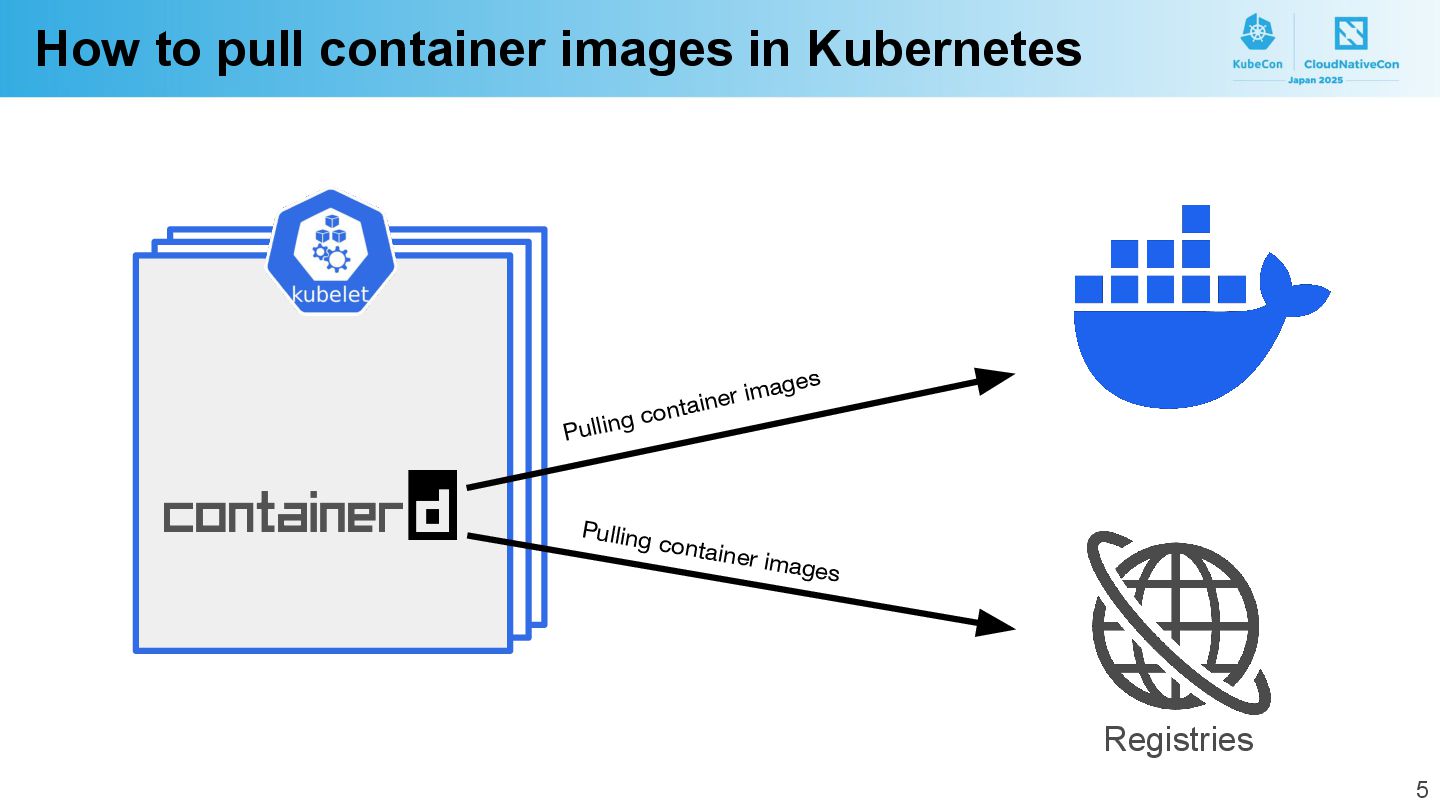

5. How to pull container images in Kubernetes Pulling container images CRI Pulling container images Registries 5

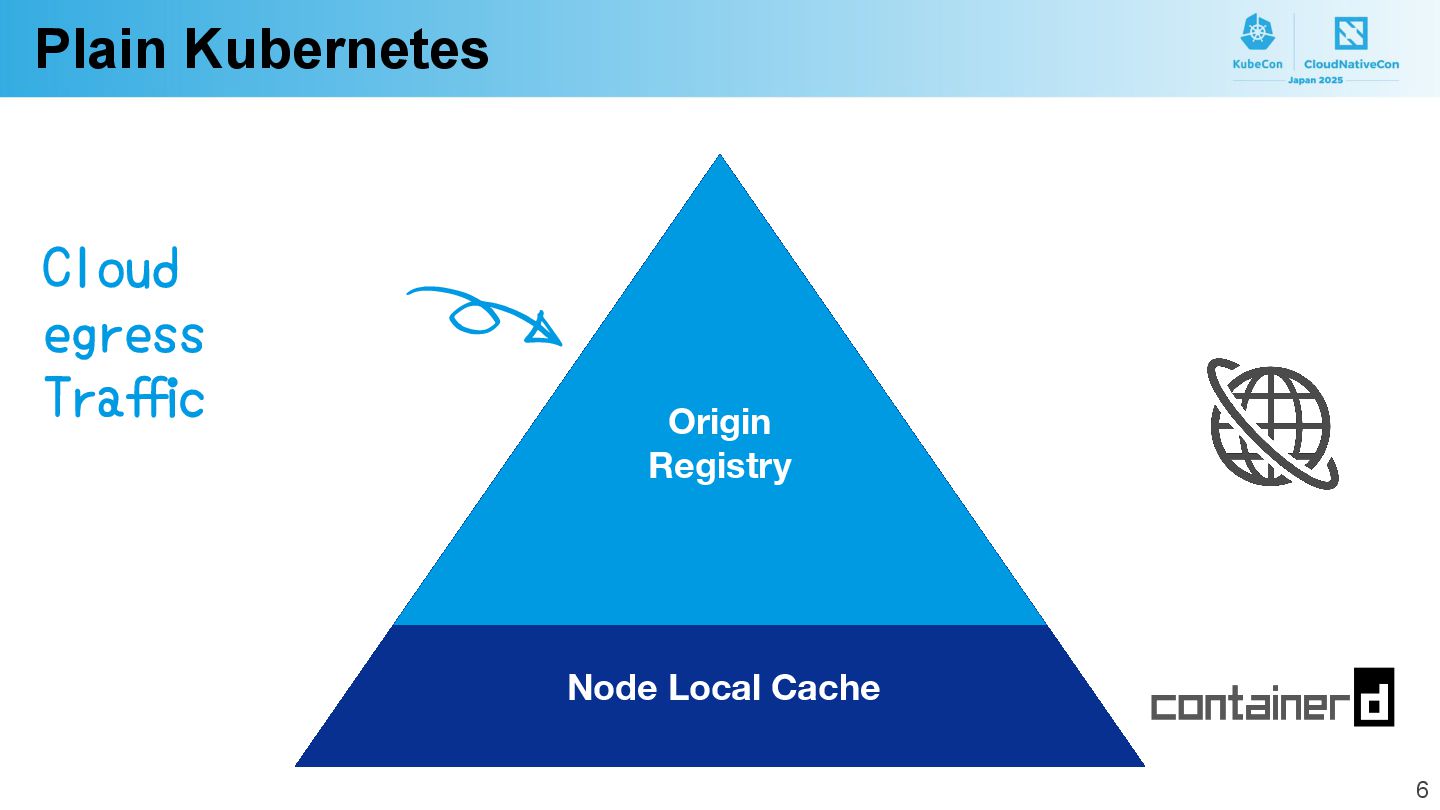

6. Plain Kubernetes Origin Registry Node Local Cache Cloud egress Traffic 6

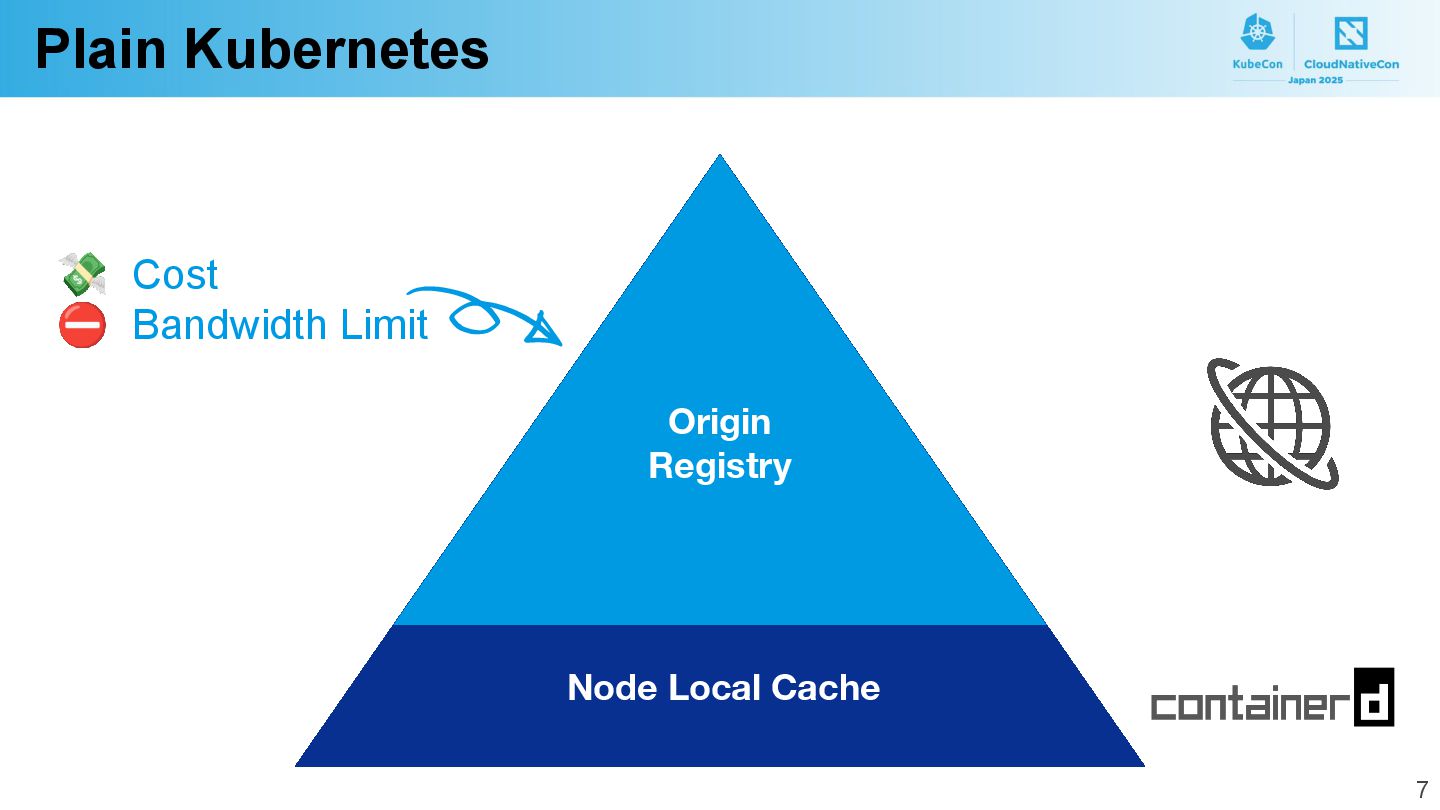

7. Plain Kubernetes Origin Registry Node Local Cache 💸 Cost ⛔ Bandwidth Limit 7

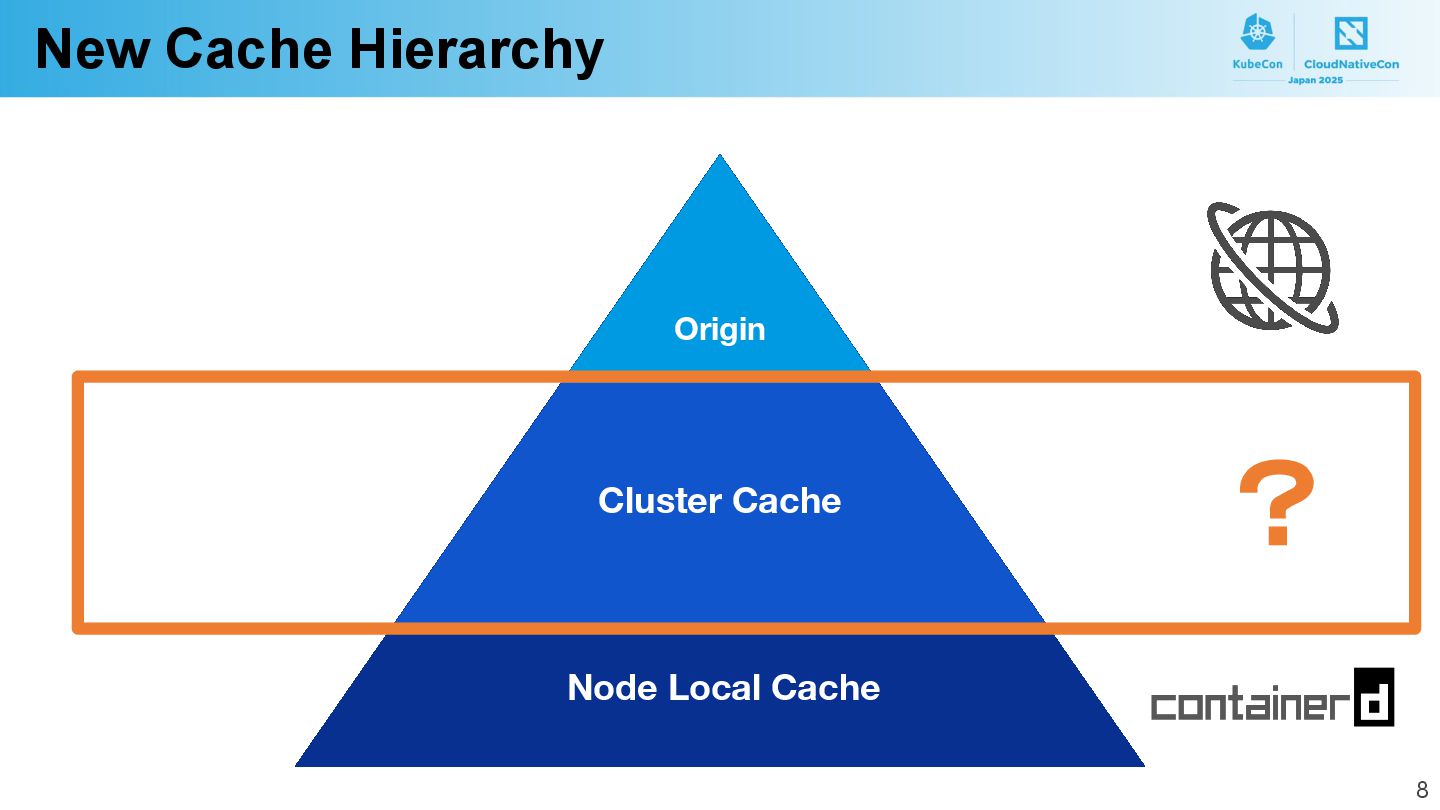

8. New Cache Hierarchy Origin Cluster Cache Node Local Cache ？ 8

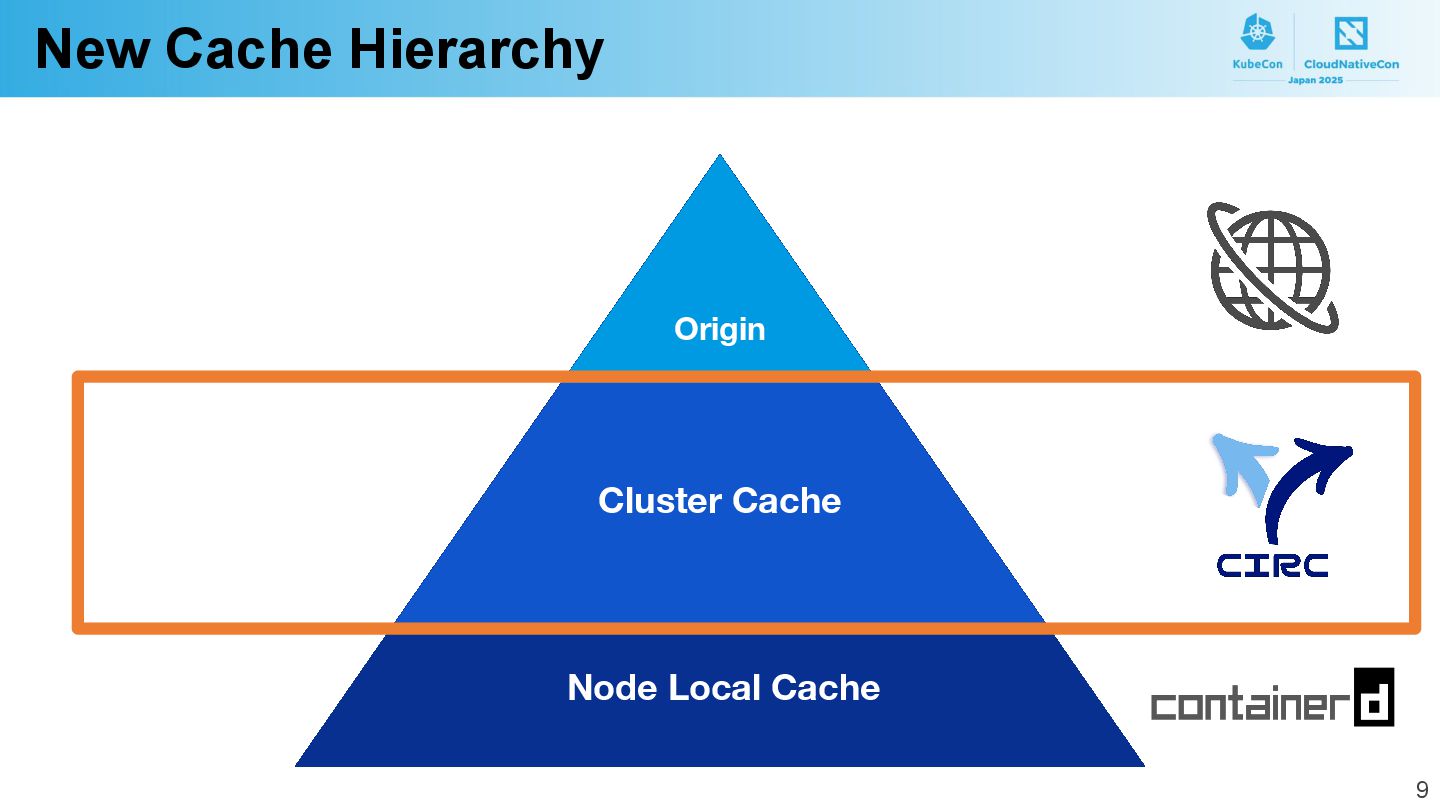

9. New Cache Hierarchy Origin Cluster Cache Node Local Cache 9

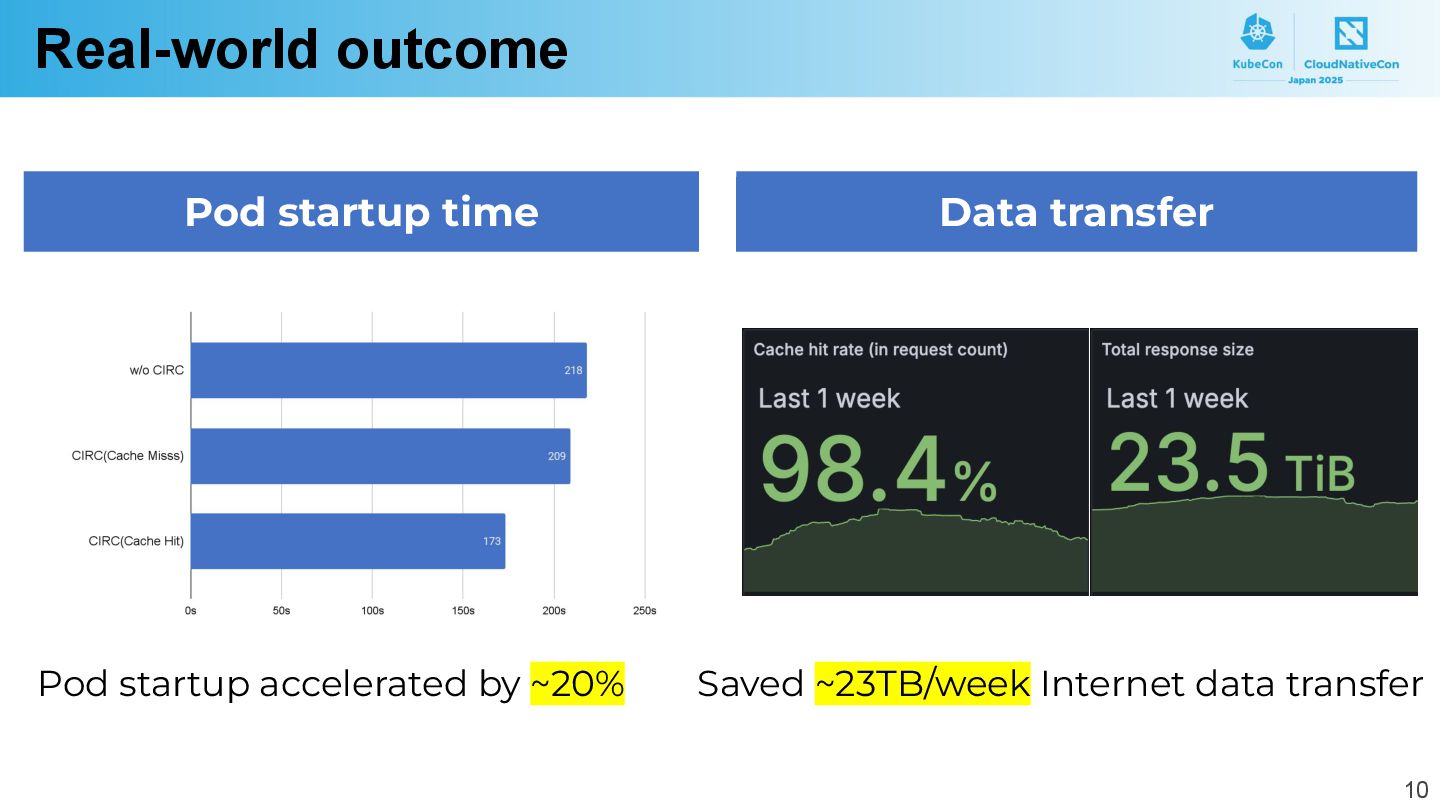

10. Real-world outcome Data transfer Pod startup time Pod startup accelerated by ~20% Saved ~23TB/week Internet data transfer 10
11. Our solution: CIRC

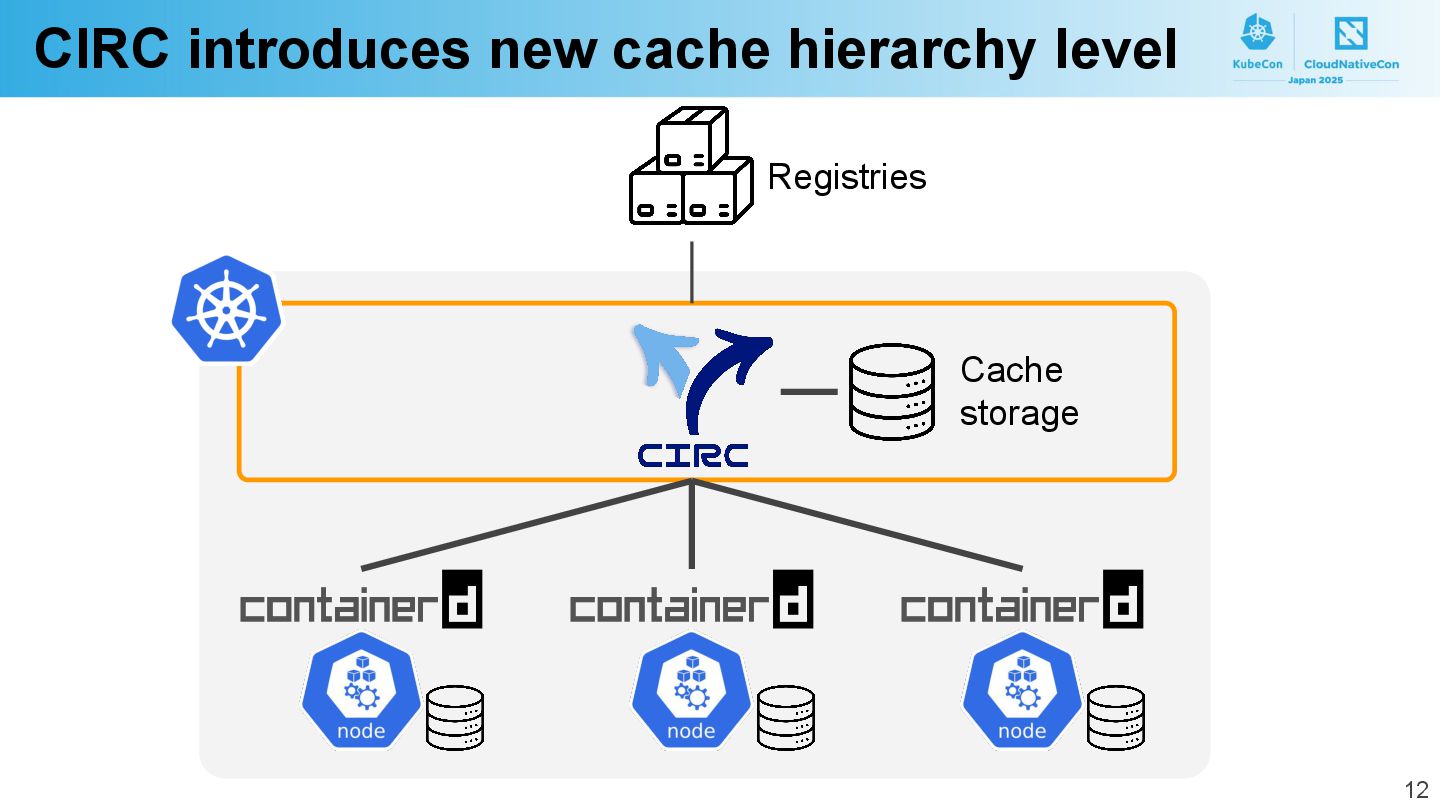

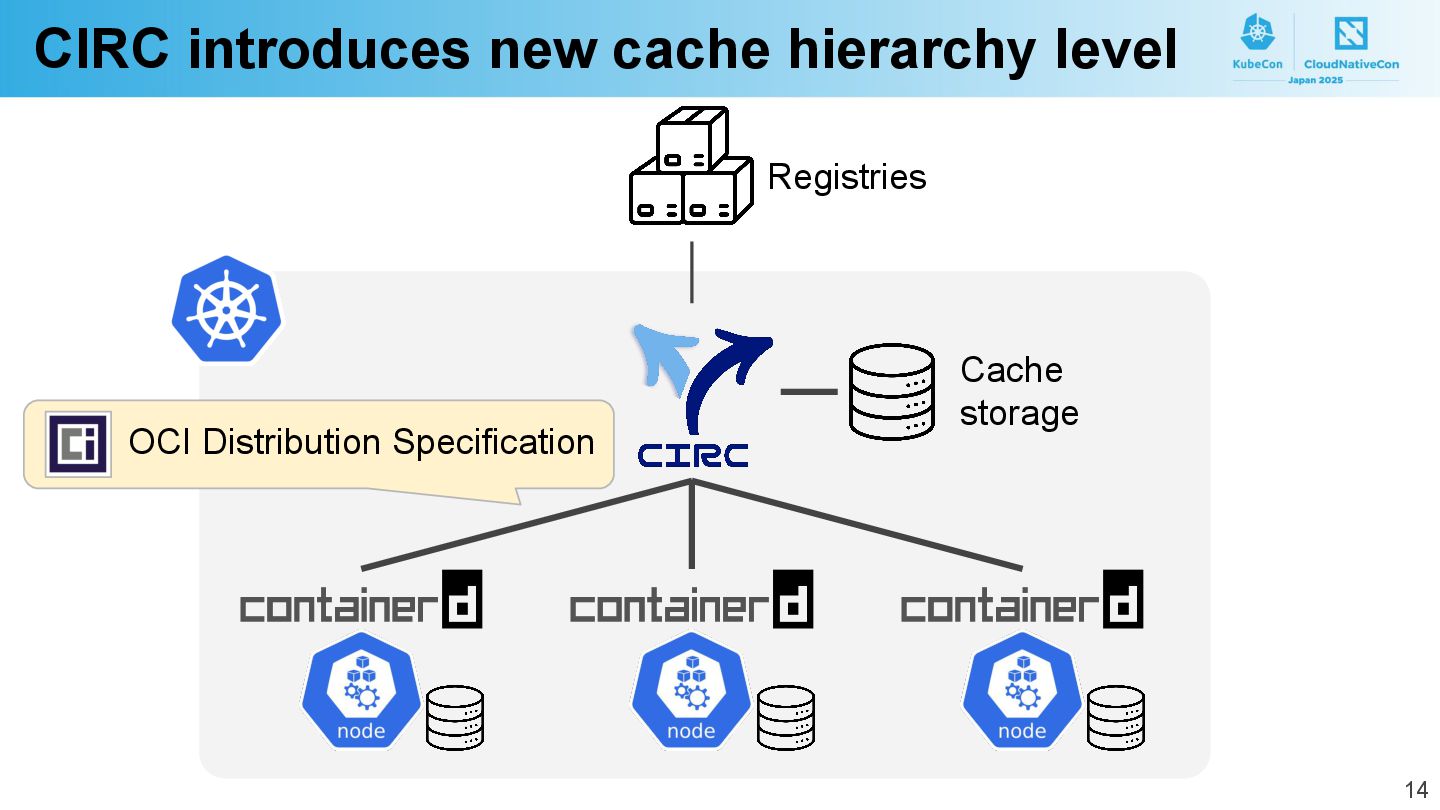

12. CIRC introduces new cache hierarchy level Registries Cache storage 12

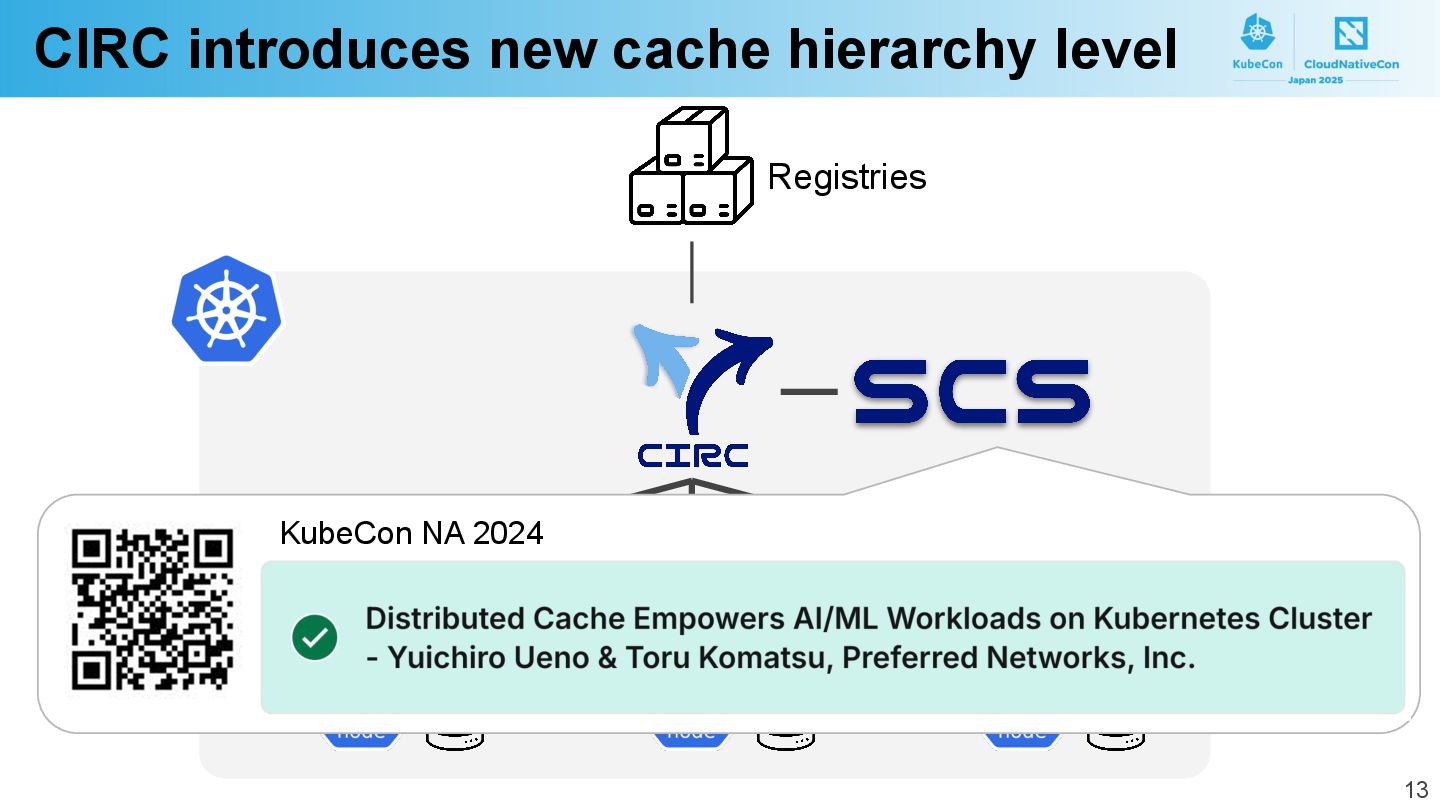

13. CIRC introduces new cache hierarchy level Registries KubeCon NA 2024 13
14. CIRC introduces new cache hierarchy level Registries Cache storage OCI Distribution Specification 14

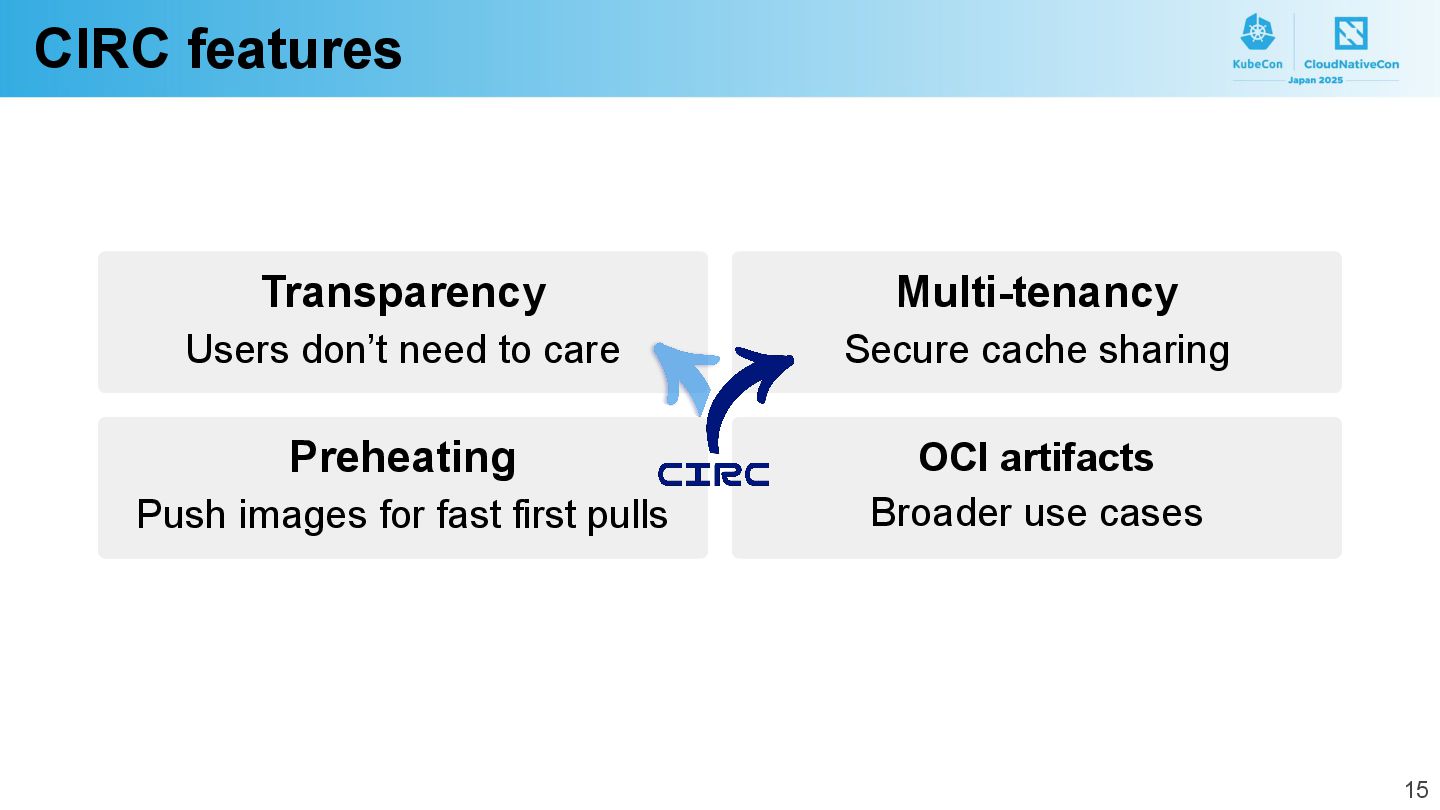

15. CIRC features Transparency Users don’t need to care Multi-tenancy Secure cache sharing Preheating Push images for fast first pulls OCI artifacts Broader use cases 15

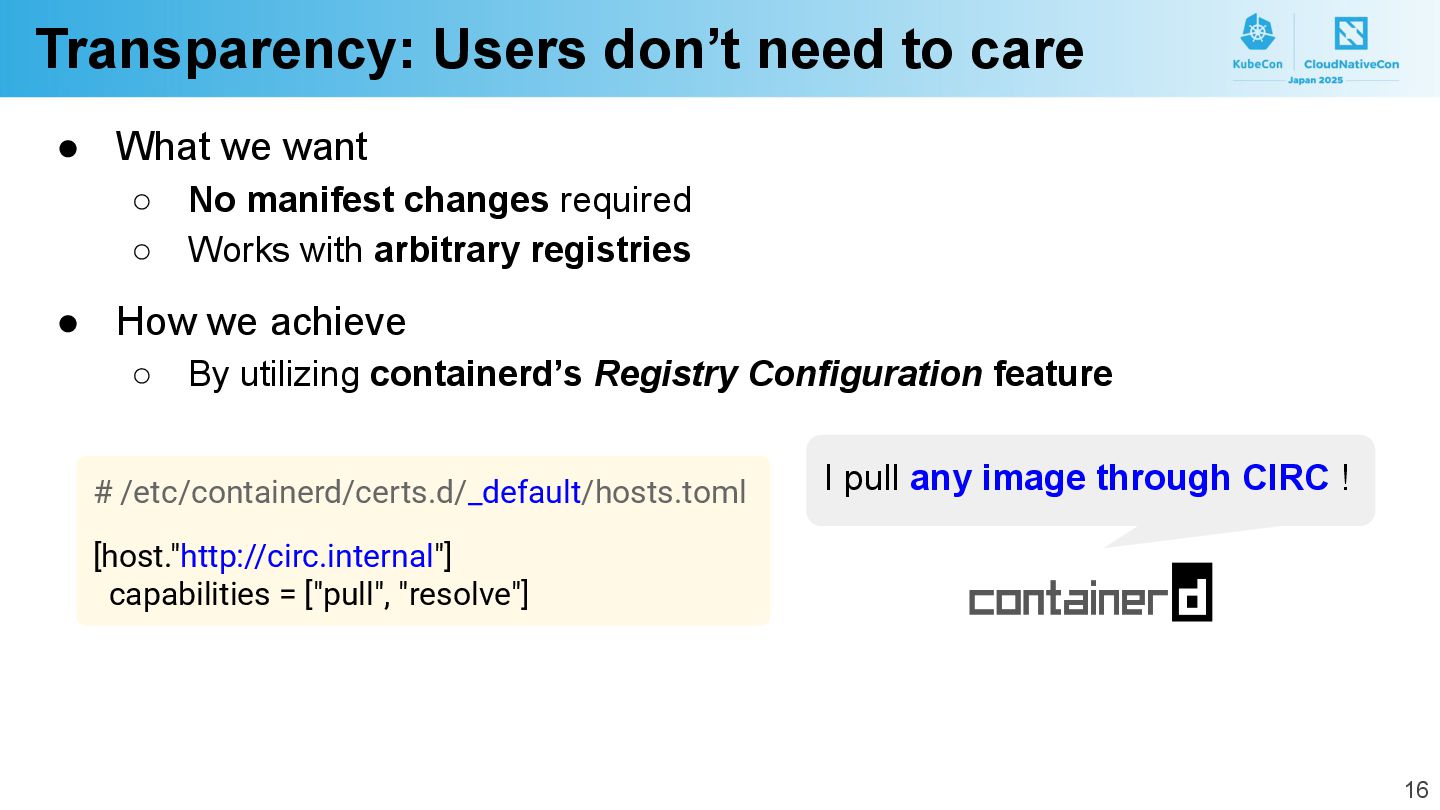

16. Transparency: Users don’t need to care • What we want ◦ No manifest changes required ◦ Works with arbitrary registries • How we achieve ◦ By utilizing containerd’s Registry Configuration feature I pull any image through CIRC ! # /etc/containerd/certs.d/_default/hosts.toml [host."http://circ.internal"] capabilities = ["pull", "resolve"] 16

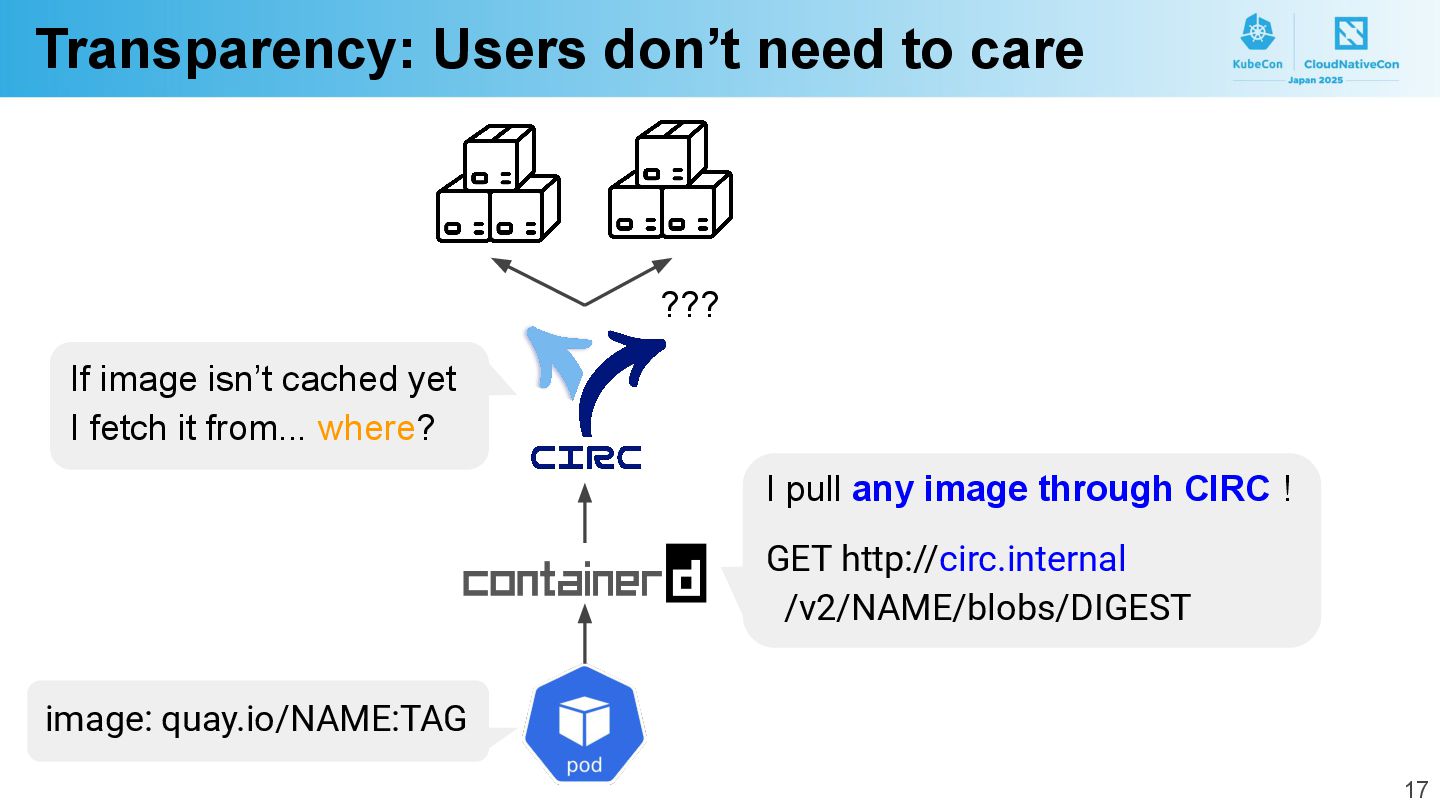

17. Transparency: Users don’t need to care I pull any image through CIRC ! GET http://circ.internal /v2/NAME/blobs/DIGEST image: quay.io/NAME:TAG If image isn’t cached yet I fetch it from... where? ??? 17
18. Transparency: Users don’t need to care I pull any image through CIRC ! GET http://circ.internal /v2/NAME/blobs/DIGEST?ns=quay.io image: quay.io/NAME:TAG If image isn’t cached yet I fetch it from quay.io ! quay.io 18

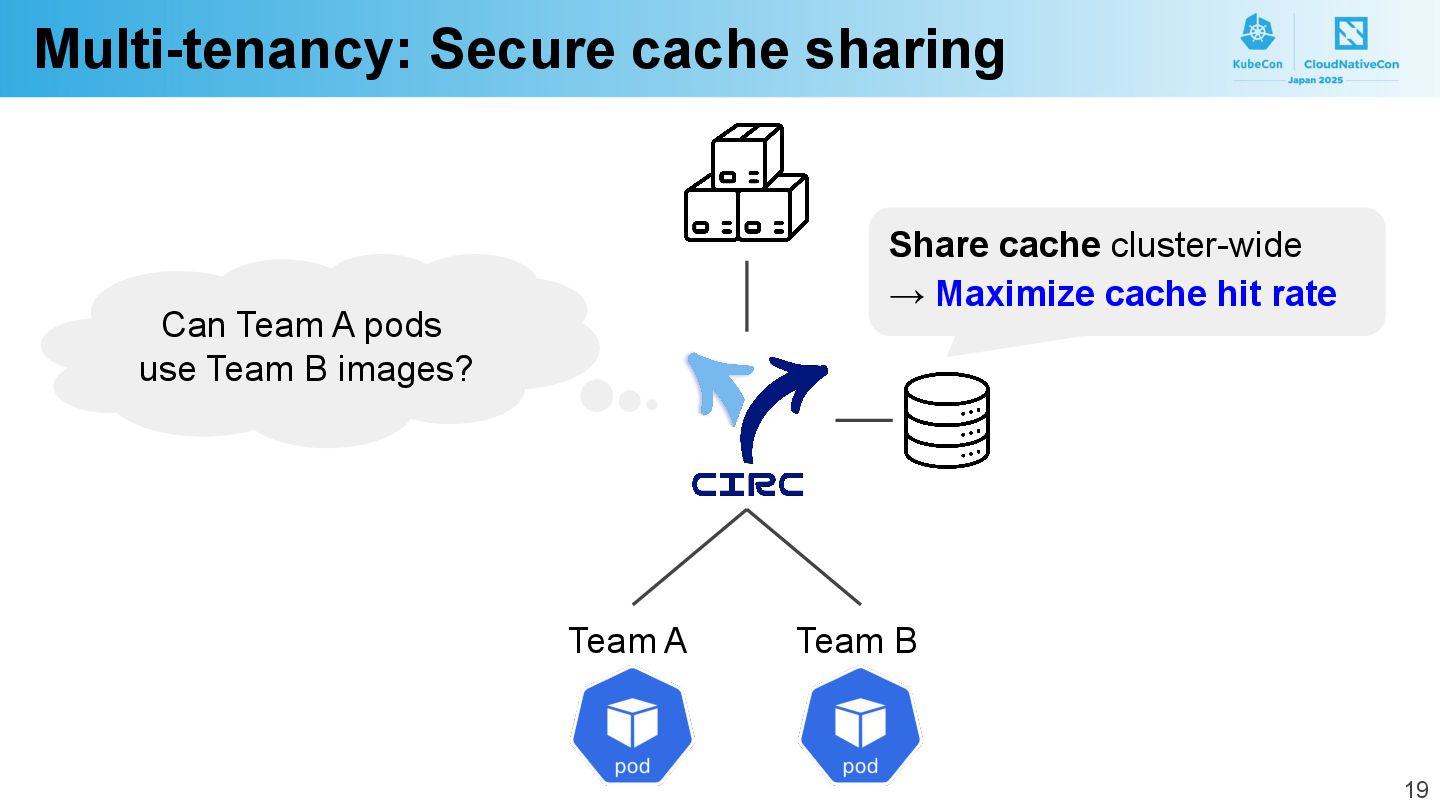

19. Multi-tenancy: Secure cache sharing Share cache cluster-wide → Maximize cache hit rate Team A Team B Can Team A pods use Team B images? 19

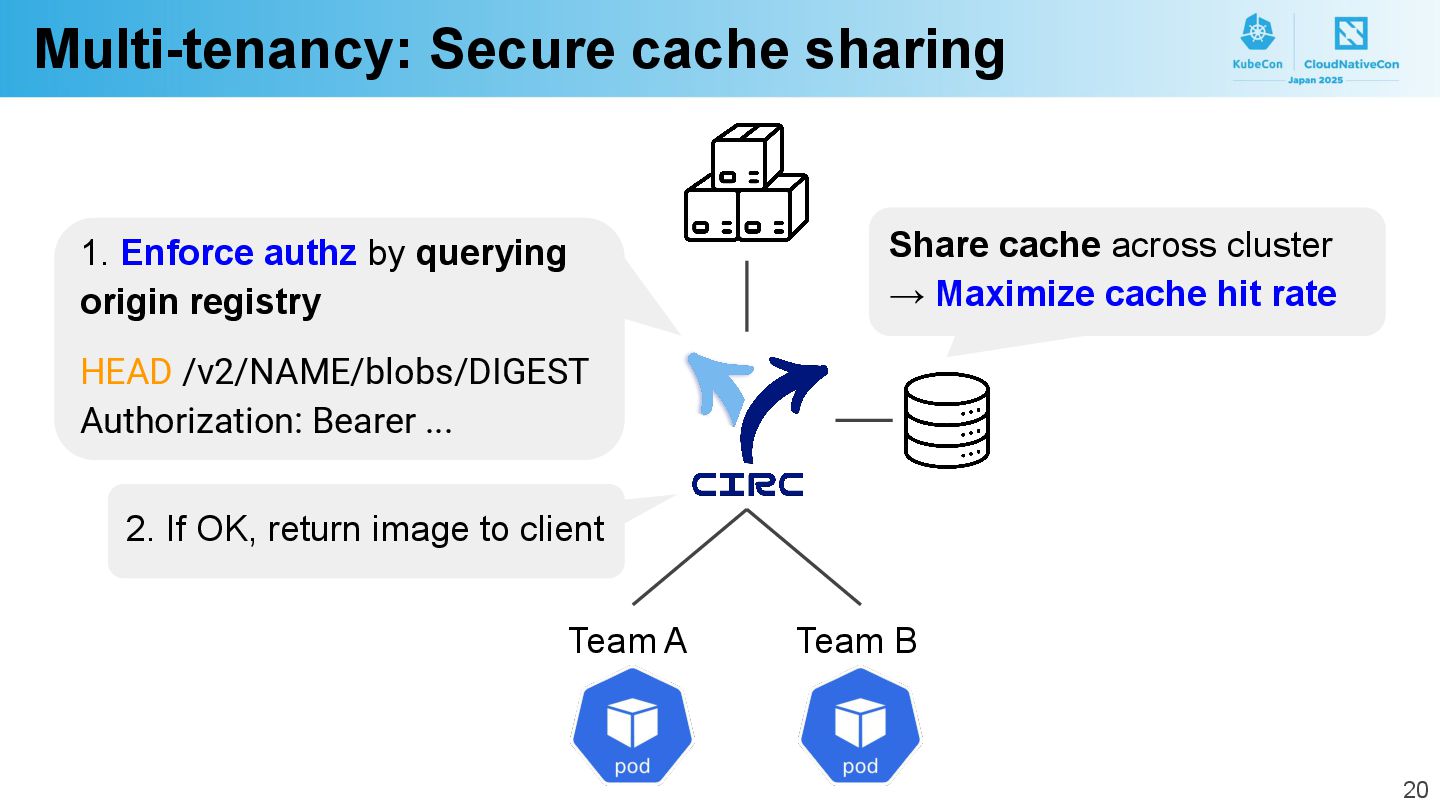

20. Multi-tenancy: Secure cache sharing 1. Enforce authz by querying origin registry HEAD /v2/NAME/blobs/DIGEST Authorization: Bearer ... 2. If OK, return image to client Share cache across cluster → Maximize cache hit rate Team A Team B 20

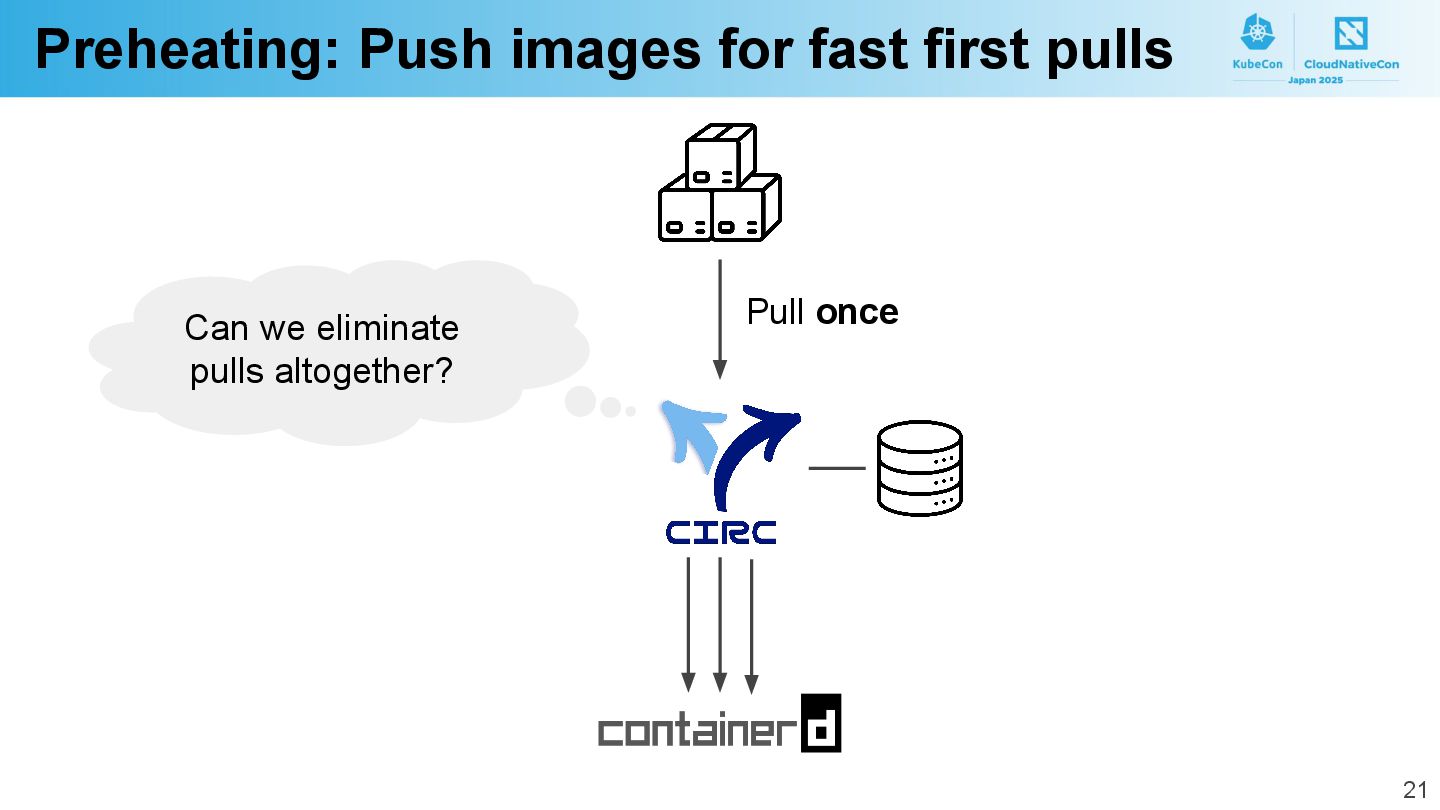

21. Preheating: Push images for fast first pulls Pull once Can we eliminate pulls altogether? 21

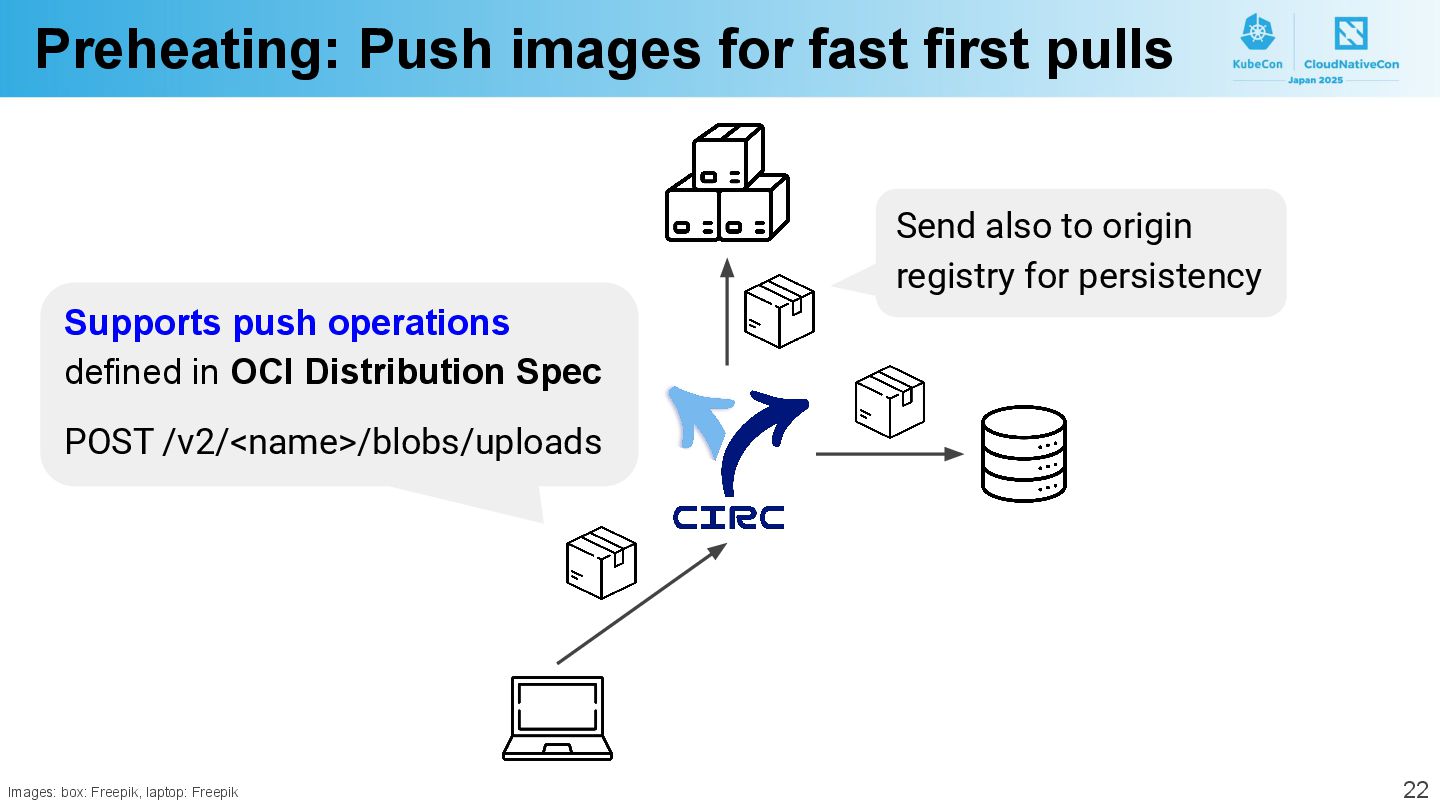

22. Preheating: Push images for fast first pulls Images: box: Freepik, laptop: Freepik Supports push operations defined in OCI Distribution Spec POST /v2/<name>/blobs/uploads Send also to origin registry for persistency 22

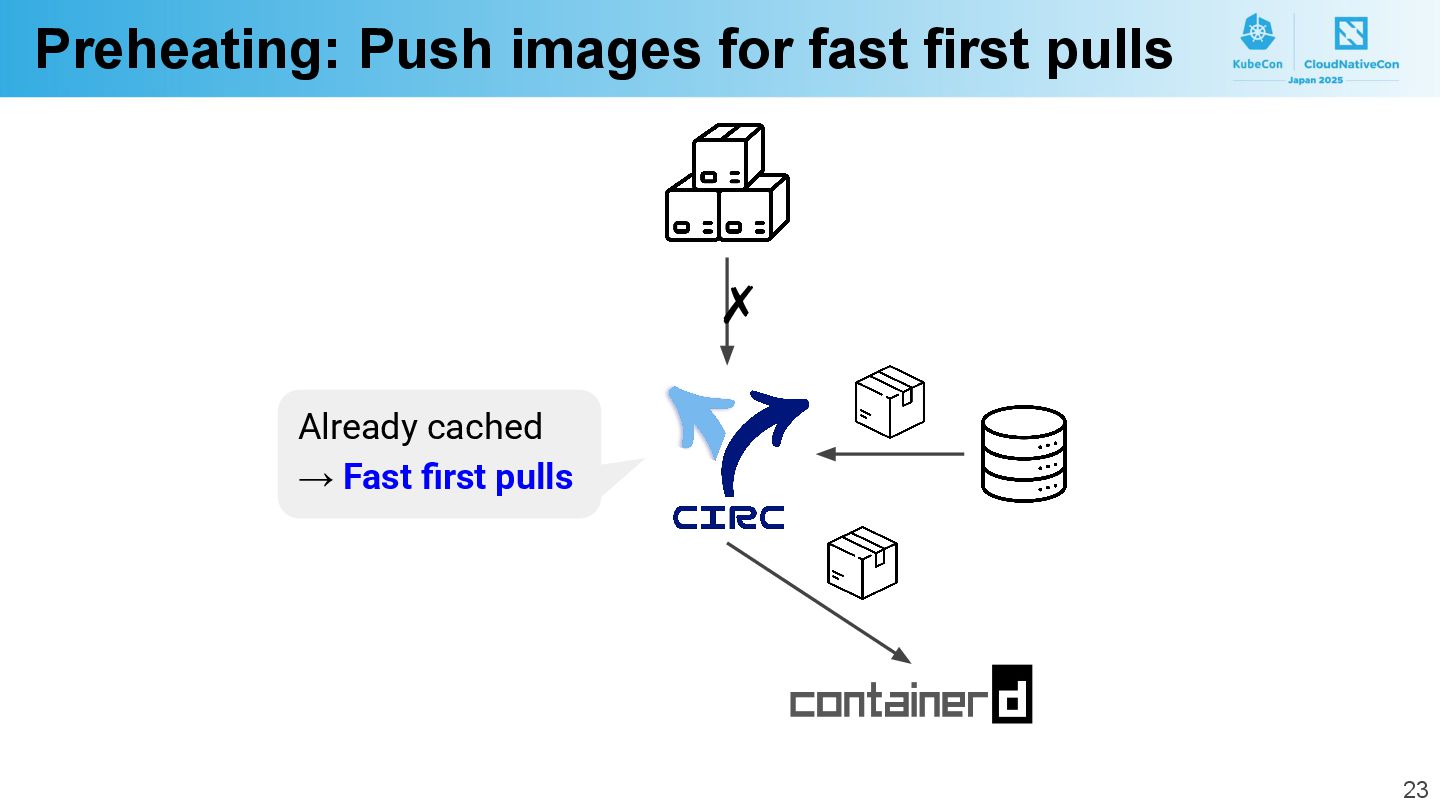

23. Preheating: Push images for fast first pulls Already cached → Fast first pulls ✗ 23

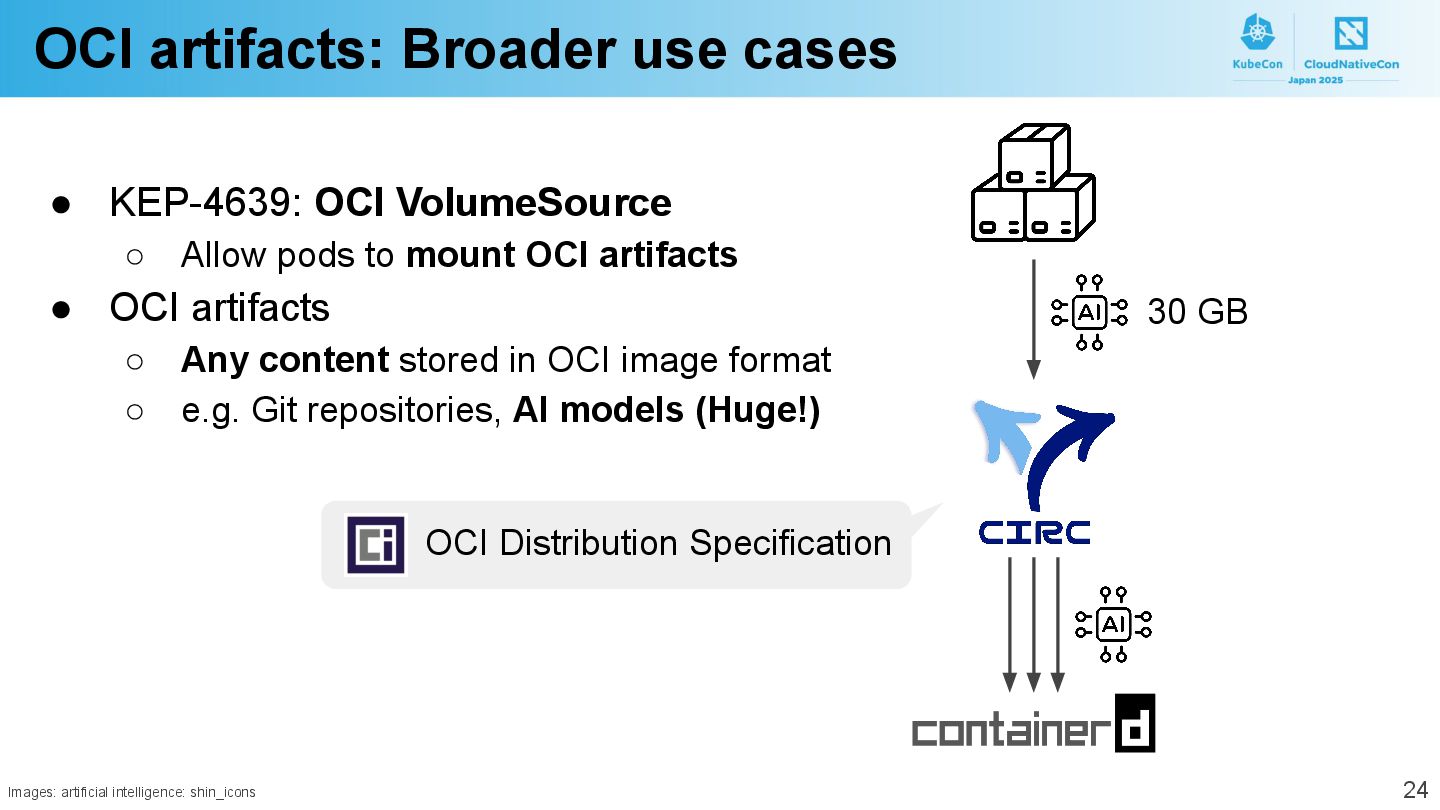

24. OCI artifacts: Broader use cases • KEP-4639: OCI VolumeSource ◦ Allow pods to mount OCI artifacts • OCI artifacts ◦ Any content stored in OCI image format ◦ e.g. Git repositories, AI models (Huge!) Images: artificial intelligence: shin_icons 30 GB OCI Distribution Specification 24

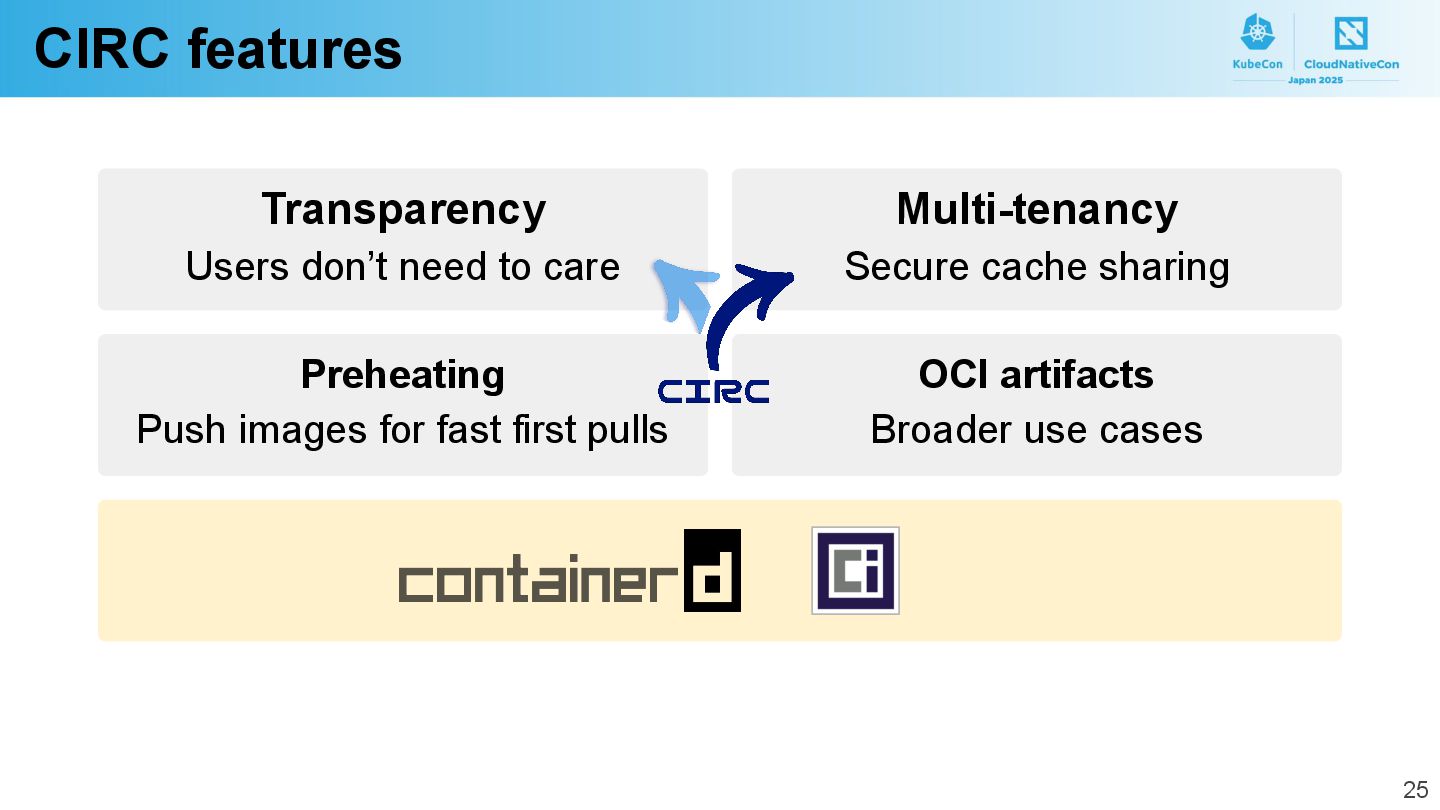

25. CIRC features Transparency Users don’t need to care Multi-tenancy Secure cache sharing Preheating Push images for fast first pulls OCI artifacts Broader use cases 25
26. Real-world outcome Data transfer Pod startup time Pod startup accelerated by ~20% 26 Saved ~23TB/week Internet data transfer
27. Deploying CIRC

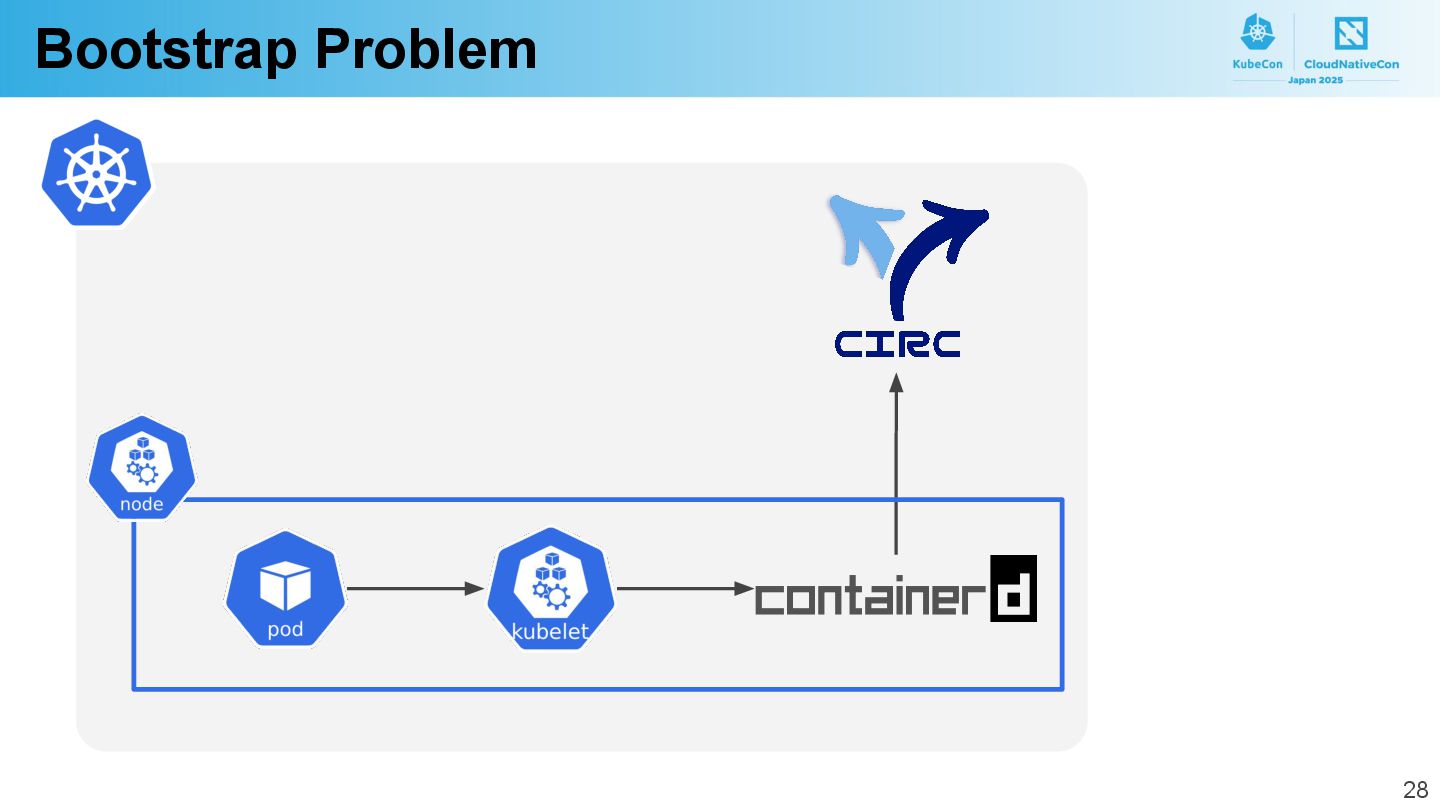

28. Bootstrap Problem 28

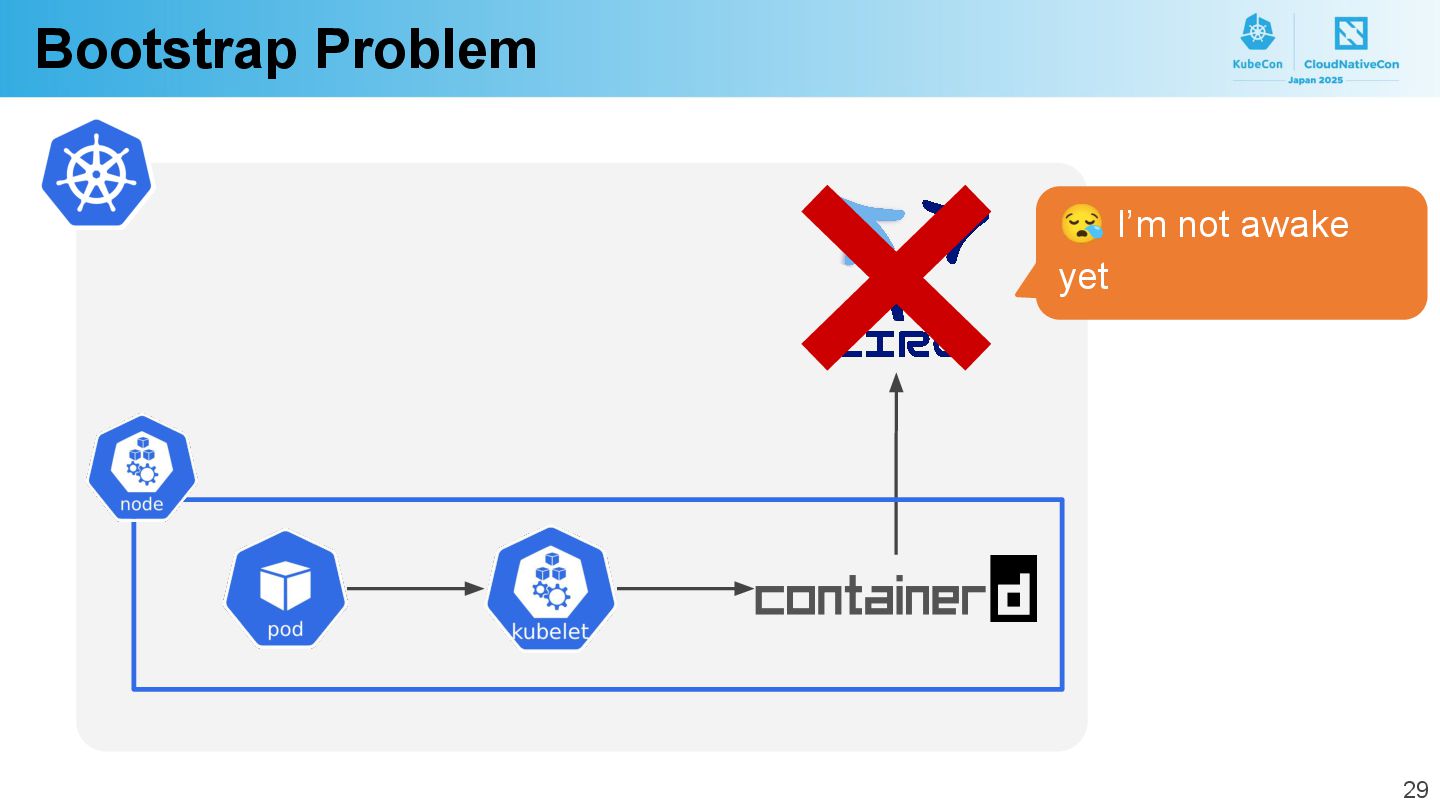

29. Bootstrap Problem 😪 I’m not awake yet 29
30. Bootstrap Problem Fallback Registries 30

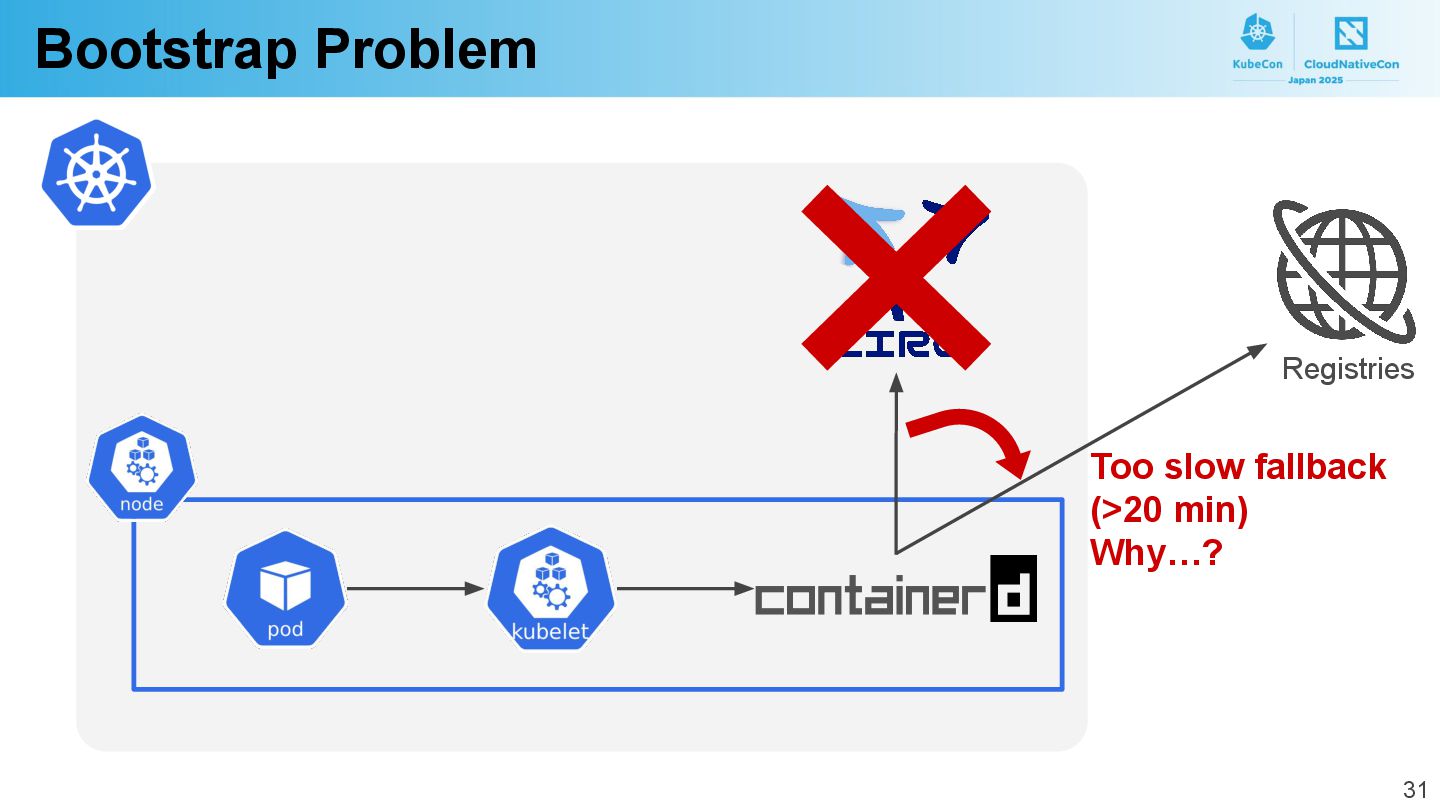

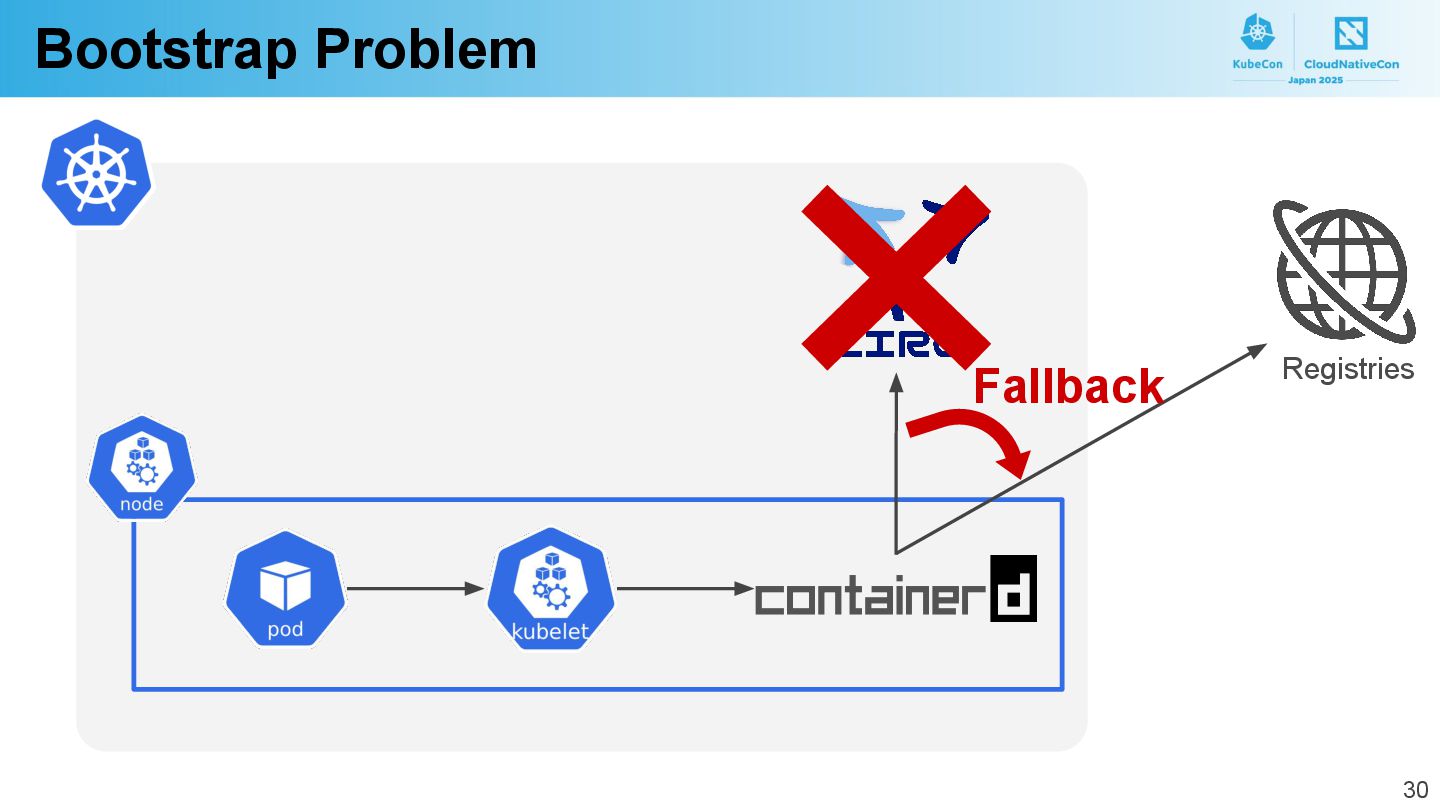

31. Bootstrap Problem Too slow fallback (>20 min) Why…? Registries 31

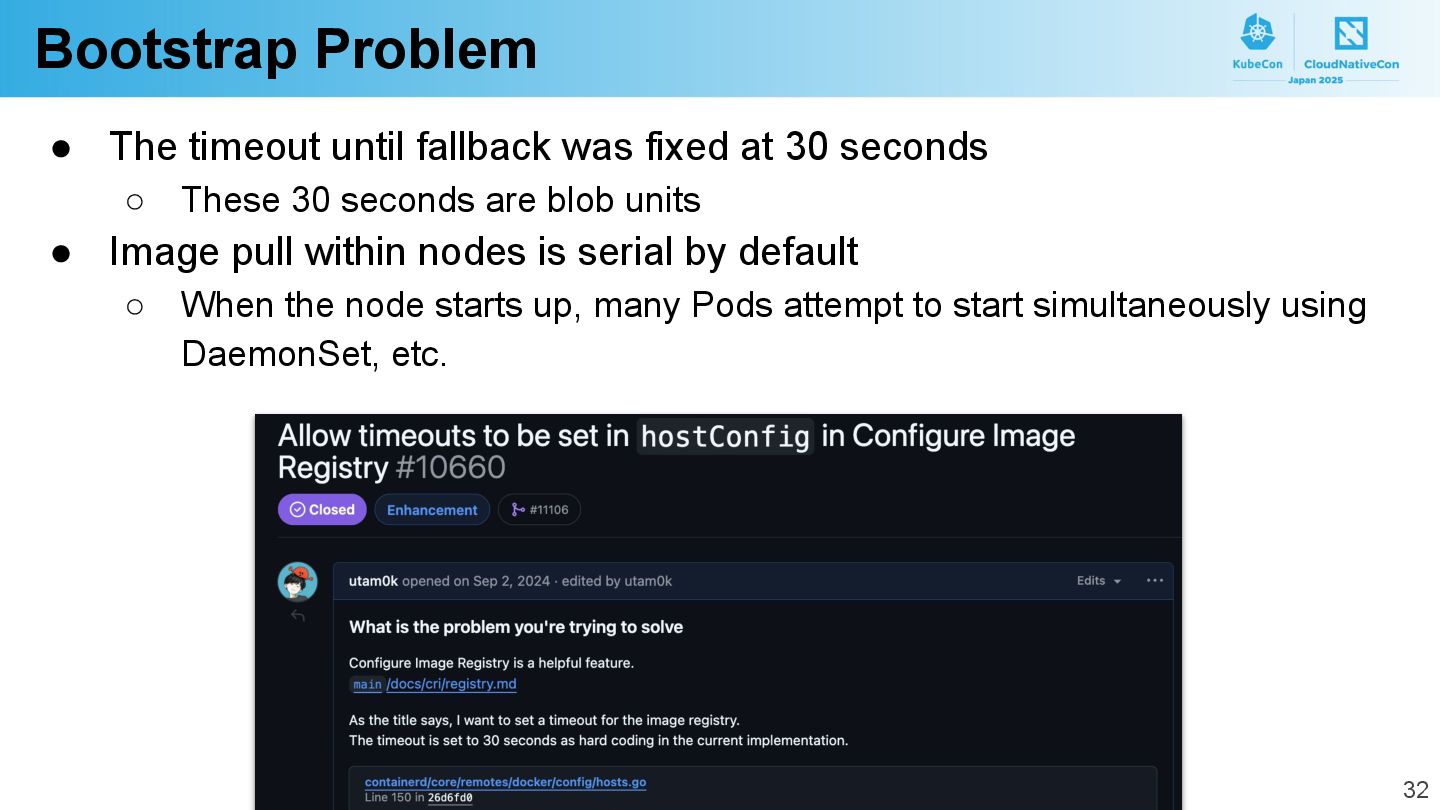

32. Bootstrap Problem • The timeout until fallback was fixed at 30 seconds ◦ These 30 seconds are blob units • Image pull within nodes is serial by default ◦ When the node starts up, many Pods attempt to start simultaneously using DaemonSet, etc. 32

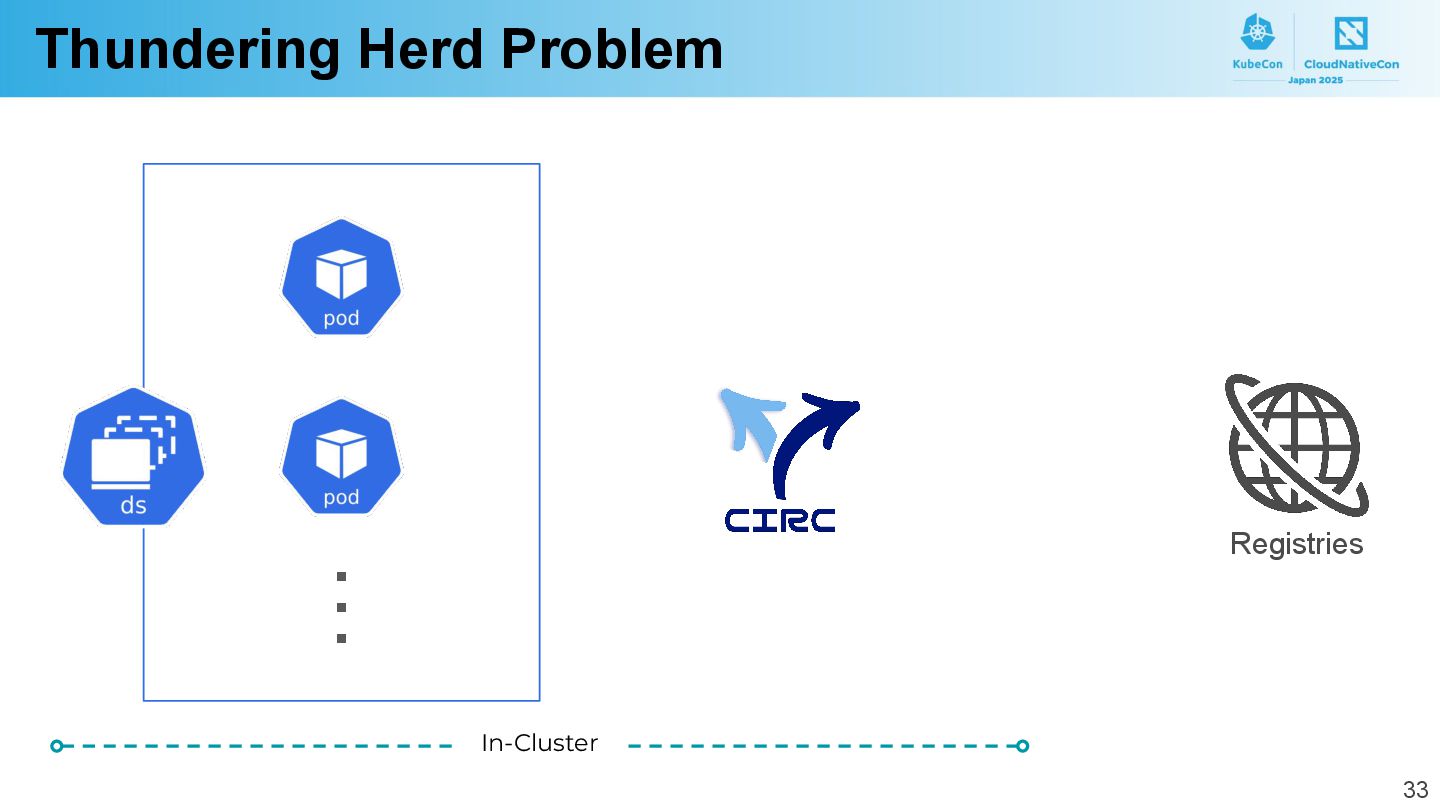

33. Thundering Herd Problem … In-Cluster Registries 33
34. Thundering Herd Problem Pull Image-A Pull Image-A … In-Cluster Registries 34

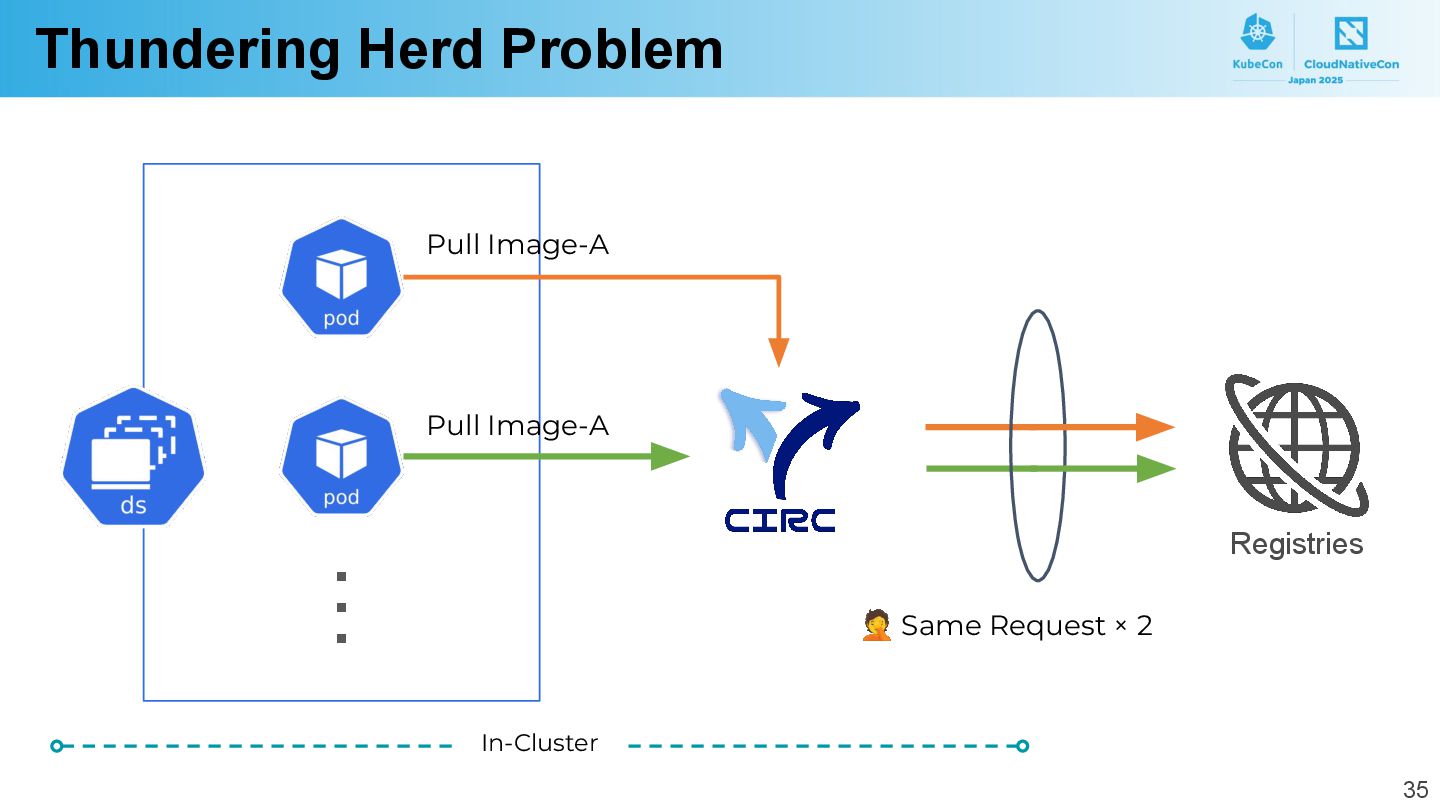

35. Thundering Herd Problem … Pull Image-A Pull Image-A 🤦 Same Request × 2 In-Cluster Registries 35

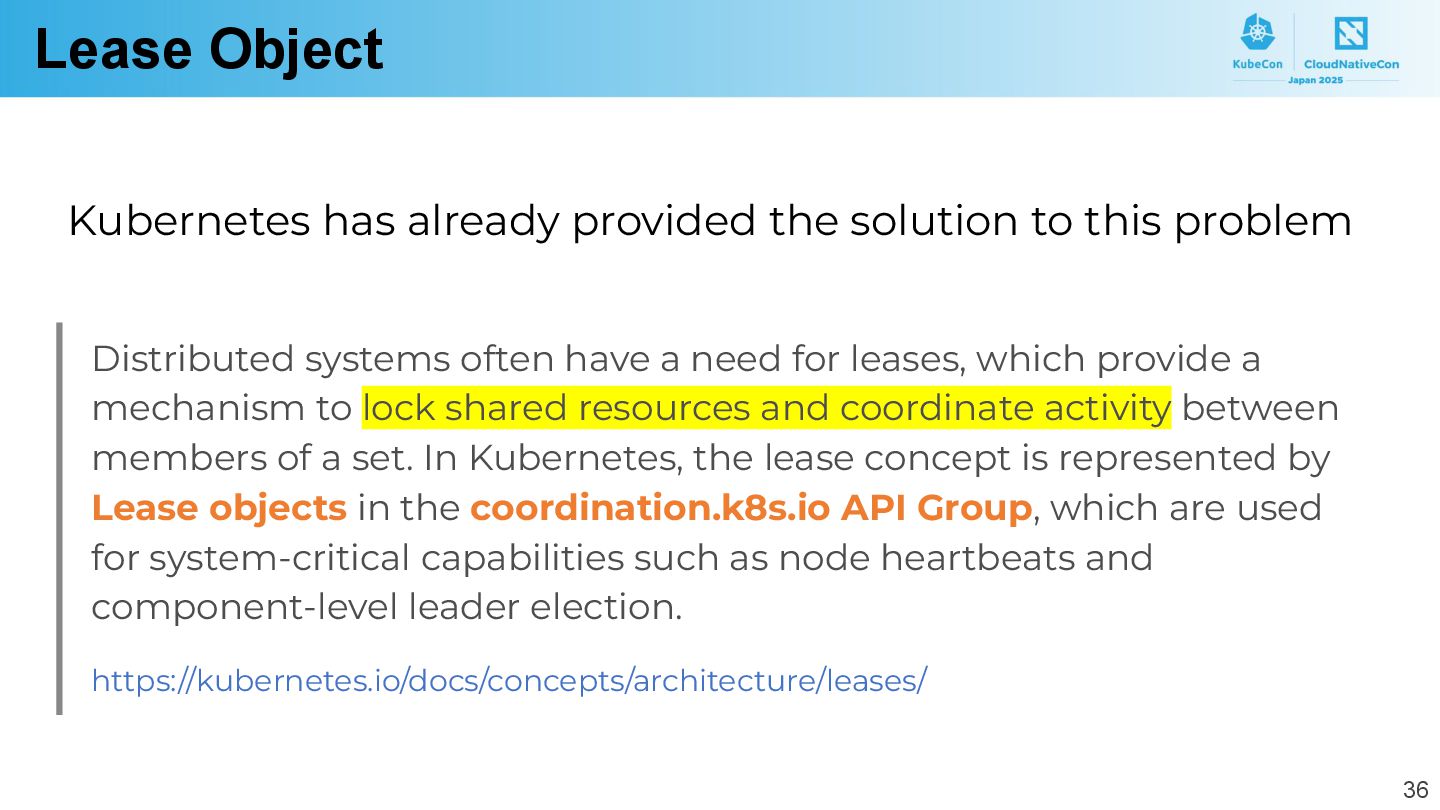

36. Lease Object Distributed systems often have a need for leases, which provide a mechanism to lock shared resources and coordinate activity between members of a set. In Kubernetes, the lease concept is represented by Lease objects in the coordination.k8s.io API Group, which are used for system-critical capabilities such as node heartbeats and component-level leader election. https://kubernetes.io/docs/concepts/architecture/leases/ Kubernetes has already provided the solution to this problem 36

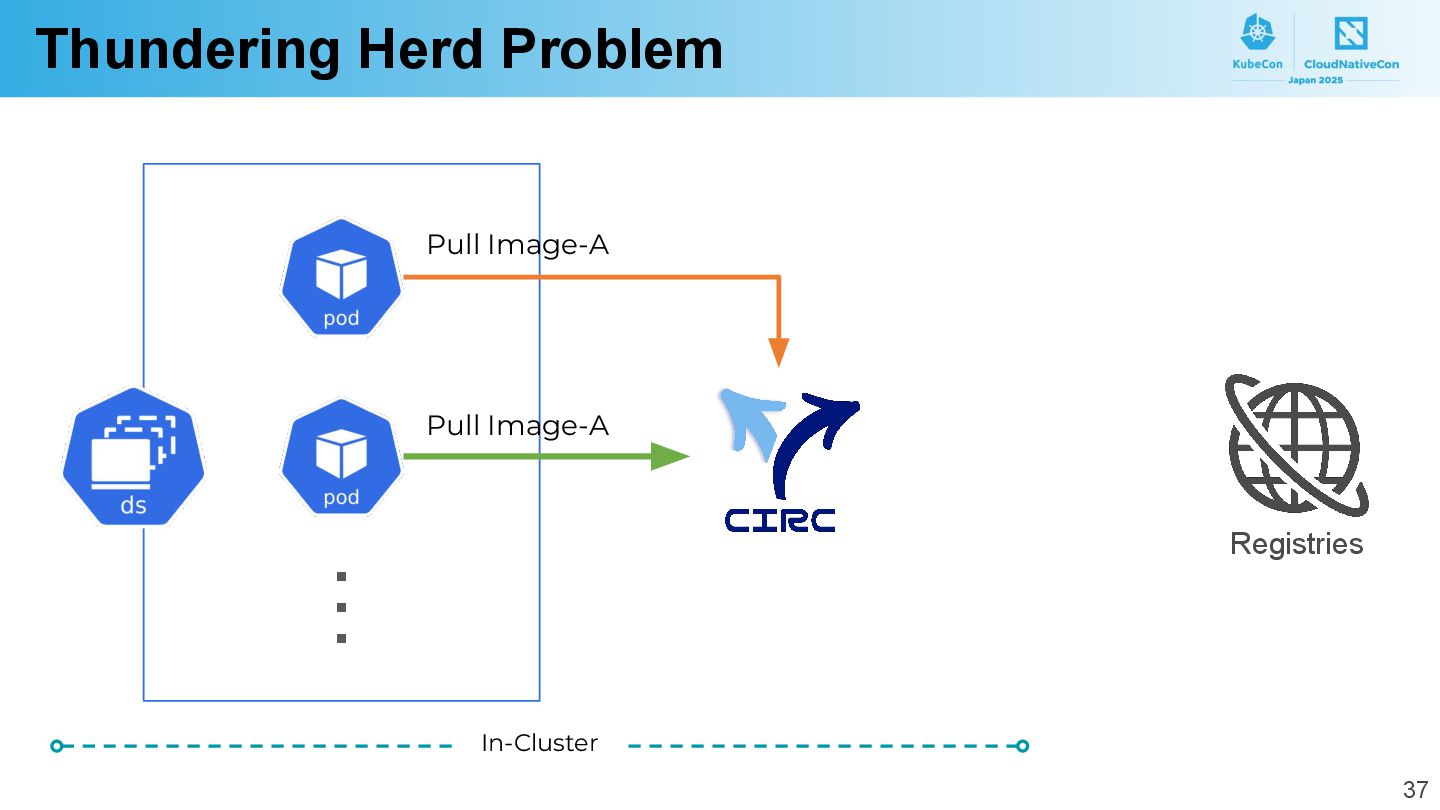

37. Thundering Herd Problem … Pull Image-A Pull Image-A In-Cluster Registries 37

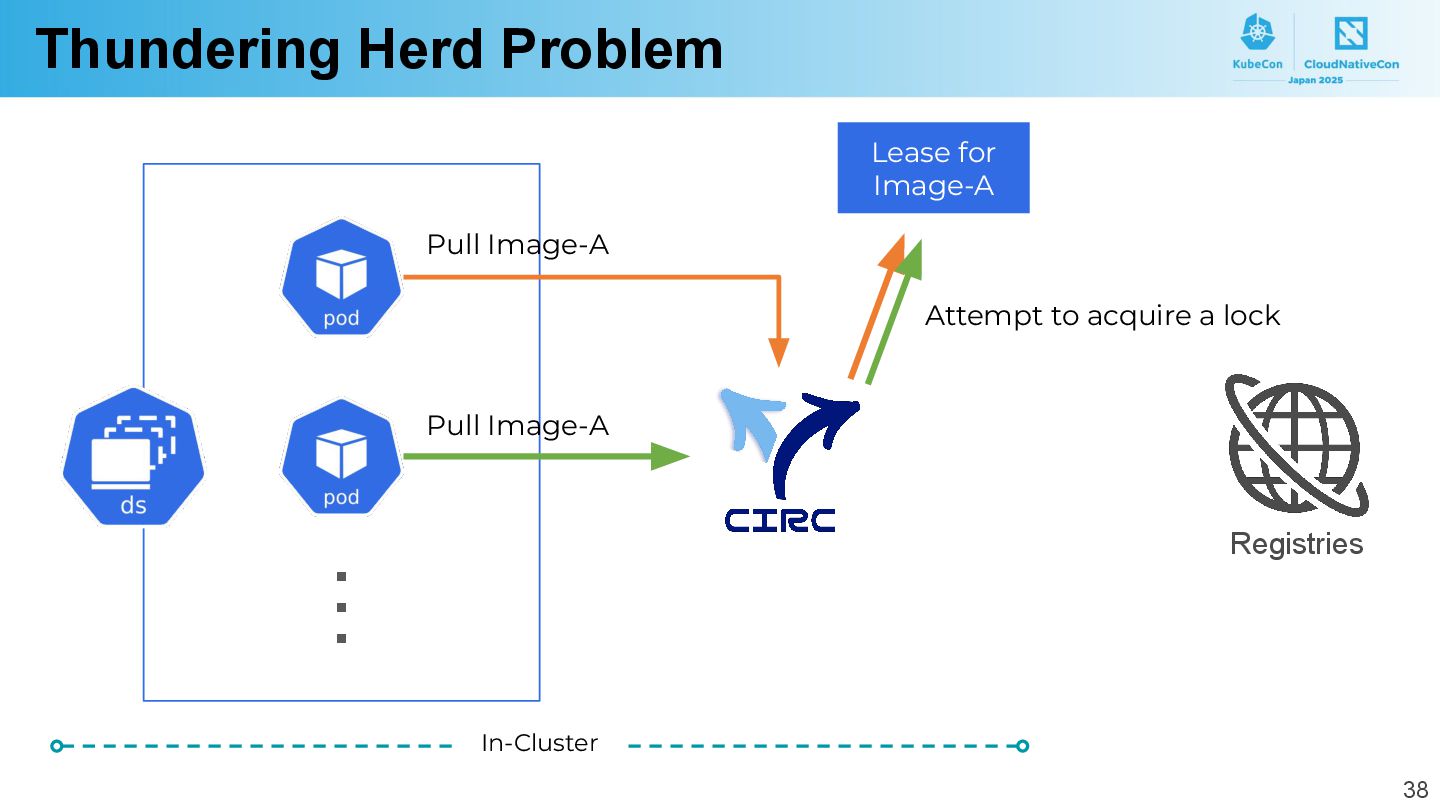

38. Thundering Herd Problem … Pull Image-A Pull Image-A In-Cluster Lease for Image-A Attempt to acquire a lock Registries 38

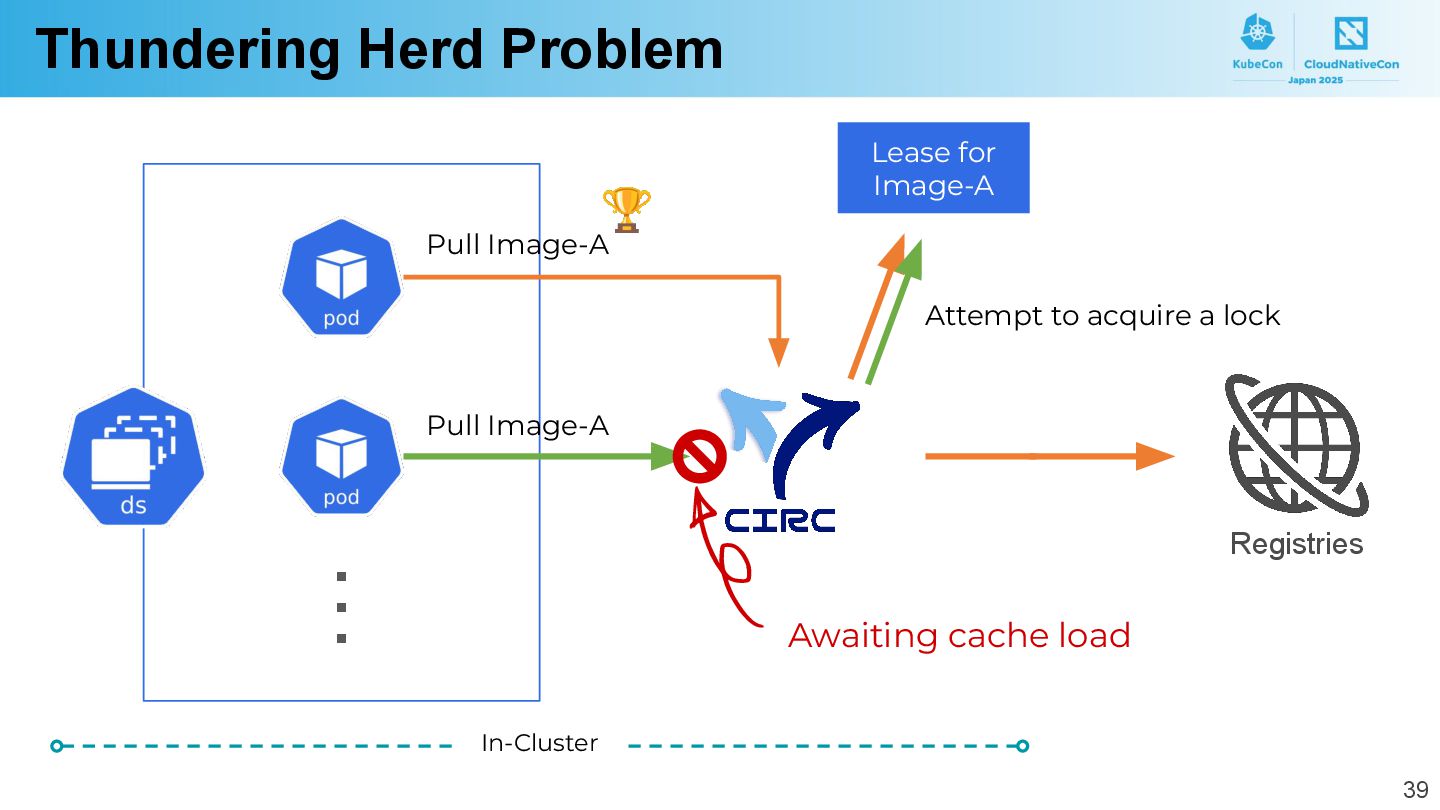

39. Thundering Herd Problem … Pull Image-A Pull Image-A In-Cluster 🏆 Lease for Image-A Attempt to acquire a lock Awaiting cache load Registries 39
40. Conclusion

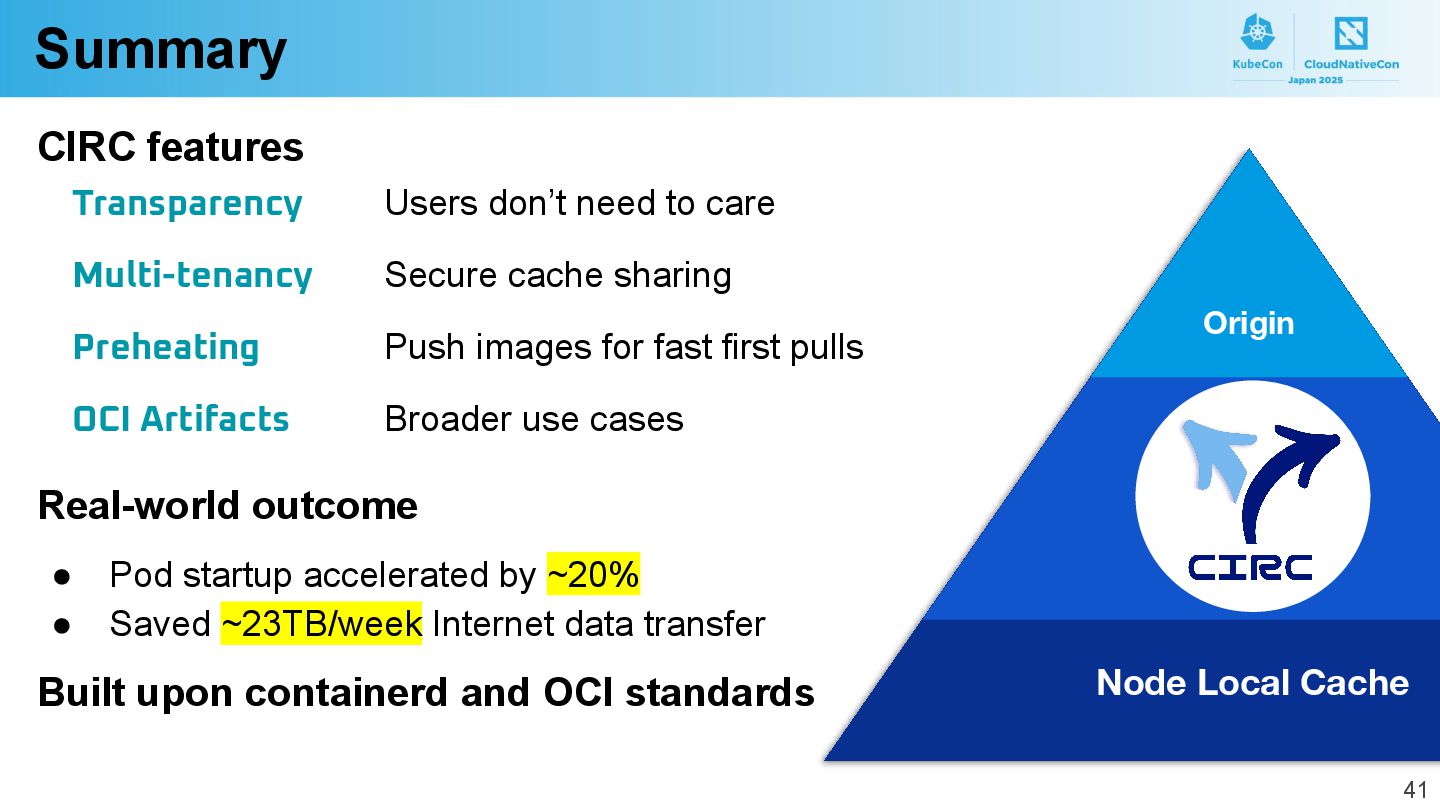

41. Summary CIRC features Transparency Users don’t need to care Multi-tenancy Secure cache sharing Preheating Push images for fast first pulls OCI Artifacts Broader use cases Real-world outcome • Pod startup accelerated by ~20% • Saved ~23TB/week Internet data transfer Built upon containerd and OCI standards Origin Node Local Cache 41
