The Future of Cloud Networking is VMware NSX

The Future of Cloud Networking is VMware NSX

This presentation was first given at Varrow Madness 2014 and discusses why cloud networking (networking in cloud computing environments) demands a new solution like VMware NSX.

Scott Lowe

March 20, 2014
Tweet

More Decks by Scott Lowe

Other Decks in Technology

Transcript

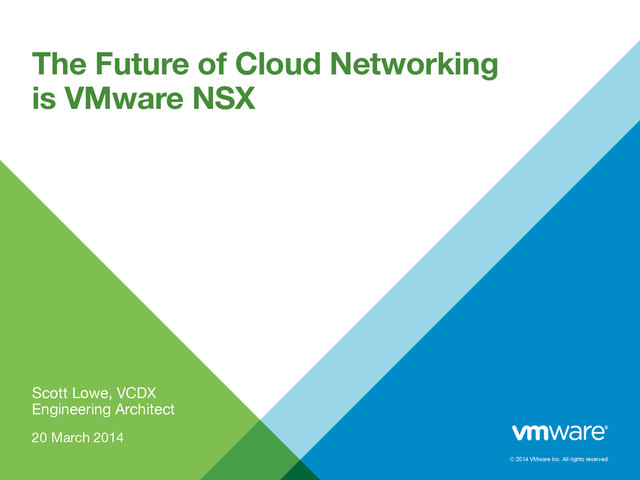

  1. © 2014 VMware Inc. All rights reserved. Scott Lowe, VCDX

    Engineering Architect 20 March 2014 The Future of Cloud Networking is VMware NSX
  2. CONFIDENTIAL Before we begin • Please get involved and ask

    questions—participation is highly encouraged • Feel free participate via social media with pictures, videos, or other updates; use hashtag #VarrowMadness • Please silence your mobile devices for the benefit of all attendees • This presentation will be available after the event 2
  3. Networking in the era of cloud computing Why the term

    “cloud networking” isn’t just marketing-speak
  4. CONFIDENTIAL NIST definition of cloud computing • Five “essential characteristics”

    of cloud computing: • On-demand self-service • Resource pooling • Rapid elasticity • Measured service • Broad network access 6 Taken from http://csrc.nist.gov/publications/nistpubs/800-145/SP800-145.pdf
  5. CONFIDENTIAL How does this affect networking? To support cloud computing,

    networking must: 1. Be fully automated & programmable for integration into CMPs (on-demand self-service) 2. Be abstracted from hardware in order to pool available capacity (resource pooling) 3. Support programmability and integration with orchestration/ provisioning solutions (rapid elasticity) 4. Provide fine-grained visibility & accounting (measured service) 5. Support any network topology & any network equipment (broad network access) 7
  6. Components of a cloud networking platform Looking at what is

    needed to build a platform to address the needs of cloud networking
  7. CONFIDENTIAL What’s in a cloud networking platform? • Virtual switch

    at the edge of the network • Centralized control over/knowledge of the logical network topology • Decoupled control plane and data plane • Network isolation mechanism • Virtualized network services (L2, L3, load balancer, firewall) • Programmatic access for integration with CMP 11
  8. CONFIDENTIAL Peeling back the covers a bit 15 • Key

    components of VMware NSX: • Scale-out, highly-available controller cluster • Northbound RESTful API for CMP integration (vCAC, OpenStack, CloudStack) • Virtual switch in the hypervisors at the edge (Open vSwitch for KVM and Xen; NSX vSwitch for vSphere) • Tunneling protocol for data plane traffic (STT, GRE, VXLAN) • Virtualized and distributed network services (load balancing, firewalling, VPN) • Physical switch integration
  9. CONFIDENTIAL VMware NSX architectural overview 16 VLAN L2 L3 Virtual

    Network L2 NSX Gateway Physical Network vSphere Host vSphere Host KVM Xen Server NSX vSwitch NSX vSwitch Open vSwitch Open vSwitch Hardware Software Controller Cluster VLAN VTEP API HW Partner VM VM “NSX API” CMP
