1. Box on Rails RubyKaigi 2026 Follow up Satoshi Tagomori a.k.a., tagomoris - 2026-09-05
2. 田籠 聡 (Satoshi Tagomori) @tagomoris SAKURA internet (2024.08〜) Cloud Business Strategy Division Maintainer/Founder: OSS: Ruby, Fluentd, MessagePack, Norikra, Woothee, … Event: ISUCON Service: Pathtraq
3. Asakusa.rb fl https://www. ickr.com/photos/takkanm/3978417669
4. Box on Rails RubyKaigi 2026 Follow up Satoshi Tagomori a.k.a., tagomoris - 2026-09-05

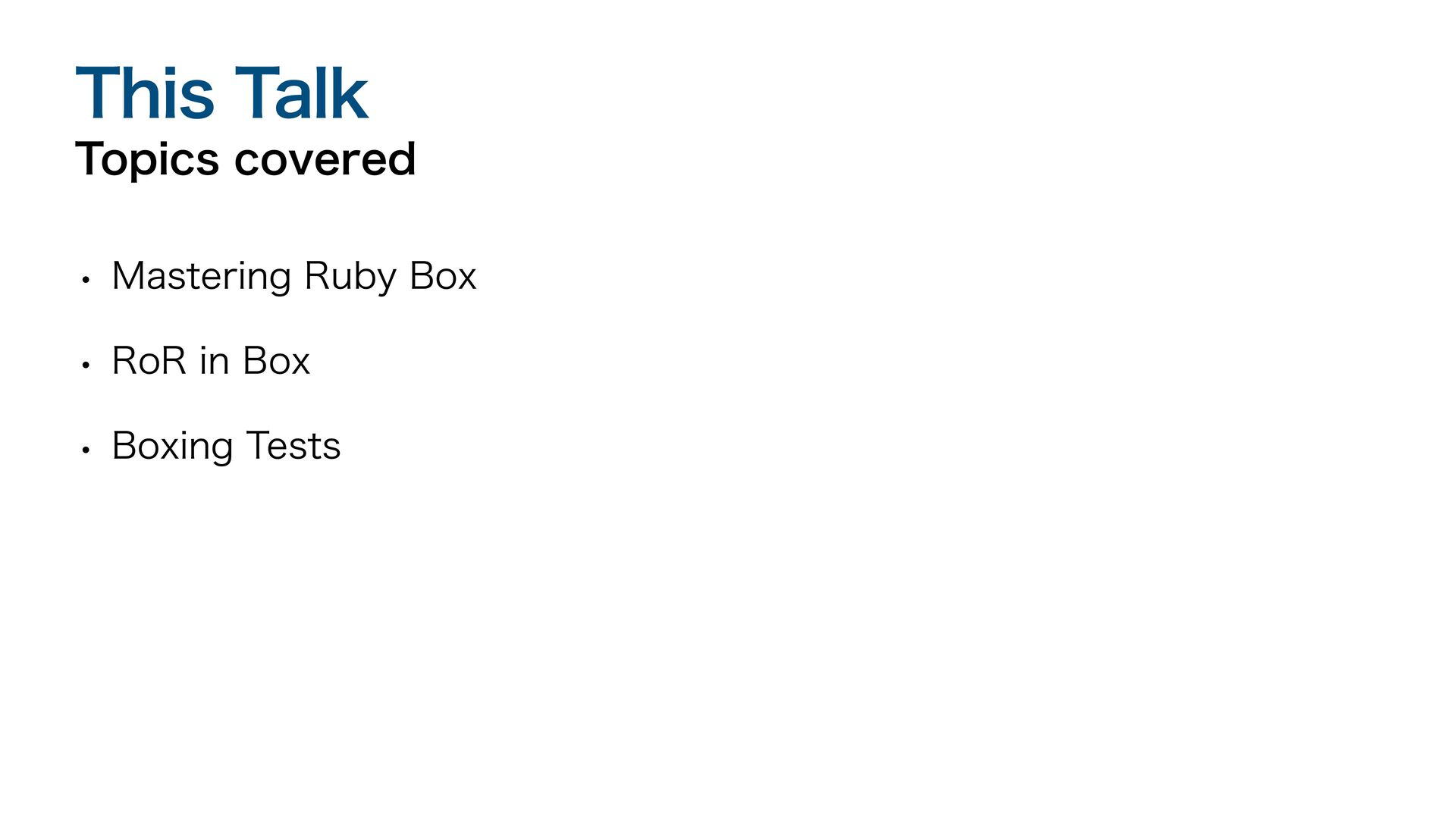

5. This Talk Topics covered • Mastering Ruby Box • RoR in Box • Boxing Tests
6. Mastering Ruby Box

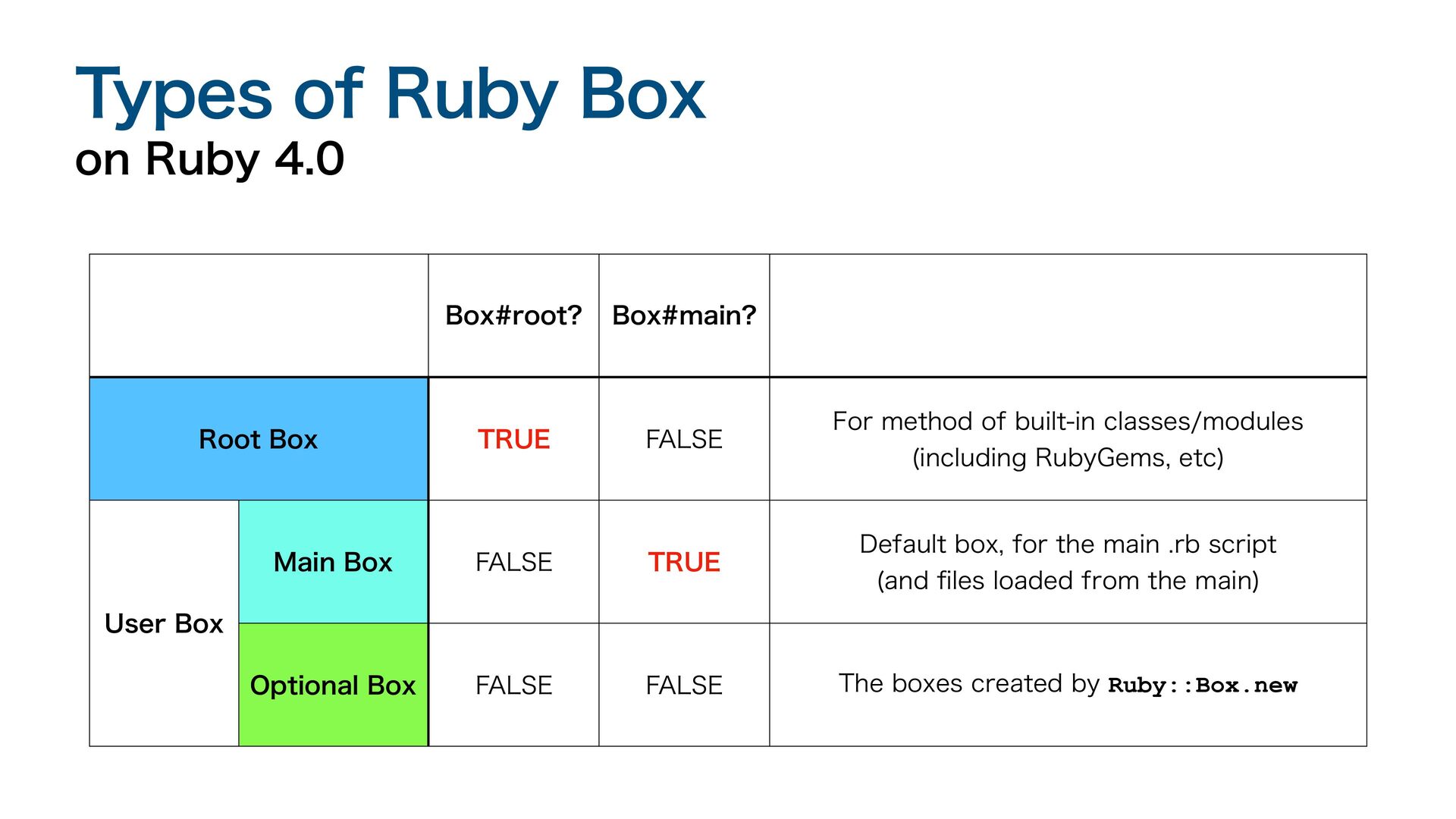

7. Types of Ruby Box on Ruby 4.0 Box#root? Root Box TRUE Box#main? FALSE For method of built-in classes/modules (including RubyGems, etc) Main Box FALSE TRUE Default box, for the main .rb script (and les loaded from the main) Optional Box FALSE FALSE The boxes created by Ruby::Box.new fi User Box

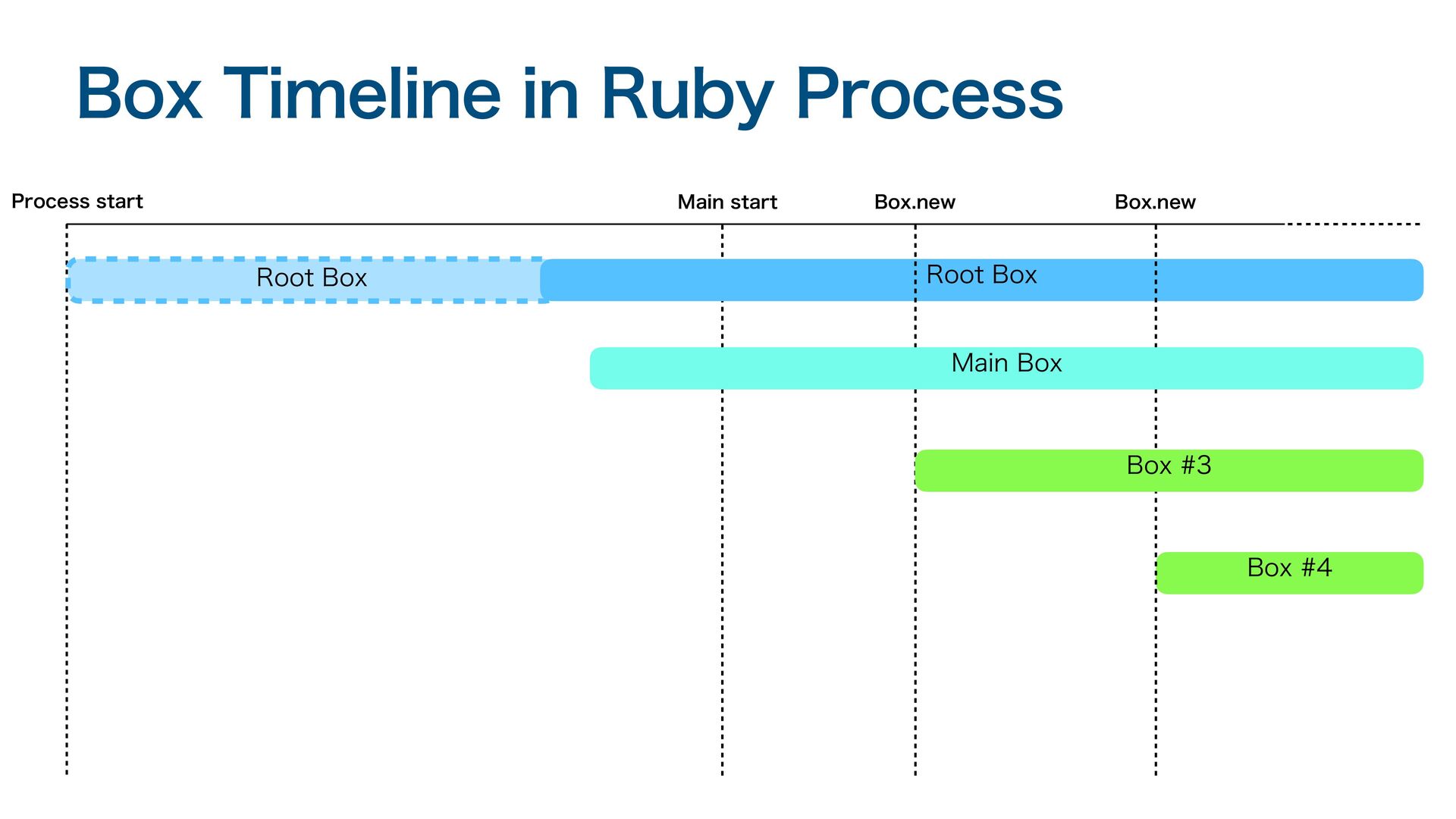

8. Box Timeline in Ruby Process Process start Main start Root Box Box.new Box.new Root Box Main Box Box #3 Box #4

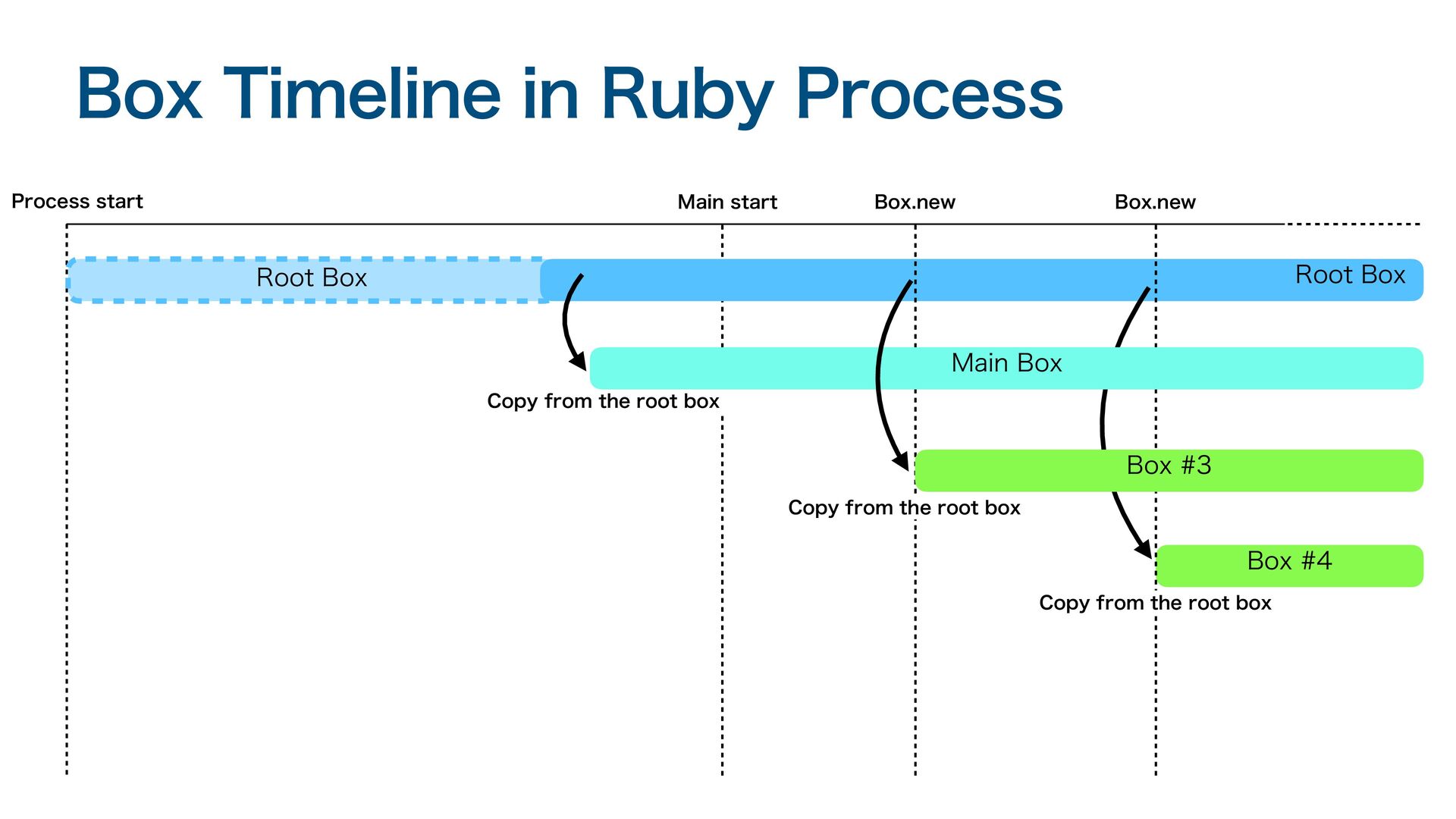

9. Box Timeline in Ruby Process Process start Main start Box.new Box.new Root Box Root Box Main Box Copy from the root box Box #3 Copy from the root box Box #4 Copy from the root box

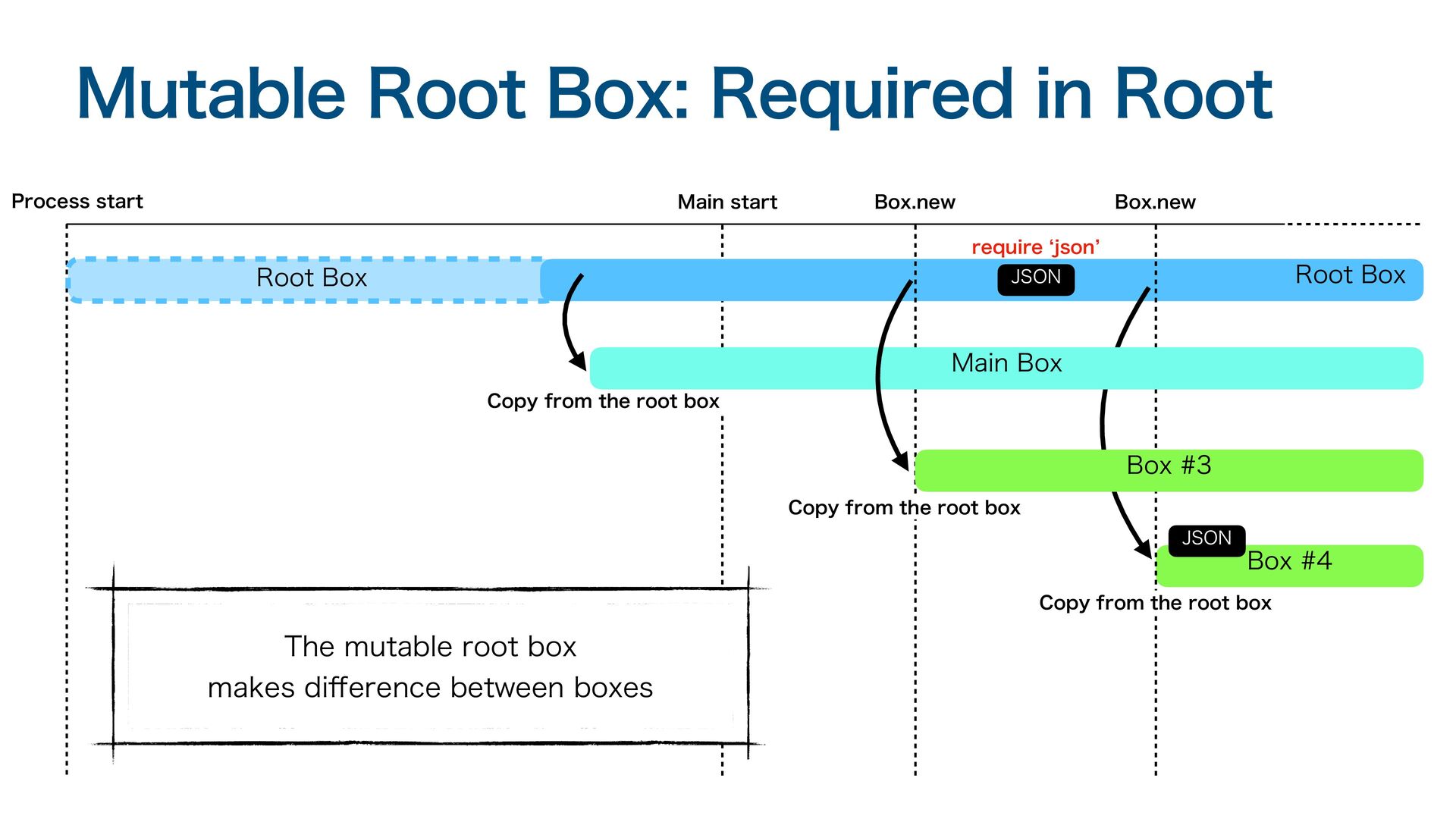

10. Mutable Root Box: Required in Root Process start Main start Box.new Box.new require ʻjsonʼ Root Box Root Box JSON Main Box Copy from the root box Box #3 Copy from the root box JSON Box #4 Copy from the root box ff The mutable root box makes di erence between boxes

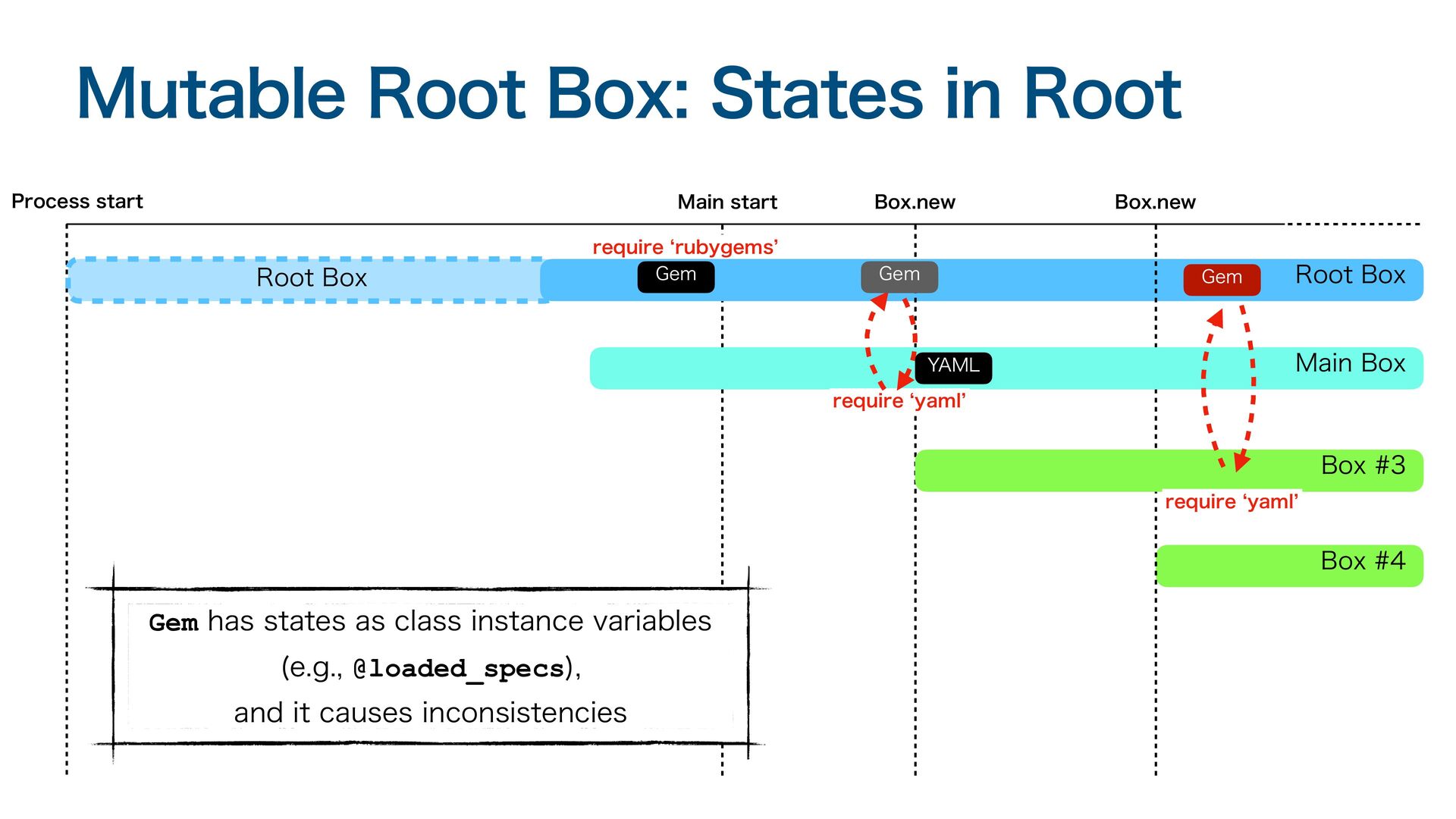

11. Mutable Root Box: States in Root Process start Main start Root Box require ʻrubygemsʼ Gem Box.new Gem Box.new Gem YAML Root Box Main Box require ʻyamlʼ Box #3 require ʻyamlʼ Box #4 Gem has states as class instance variables (e.g., @loaded_specs), and it causes inconsistencies

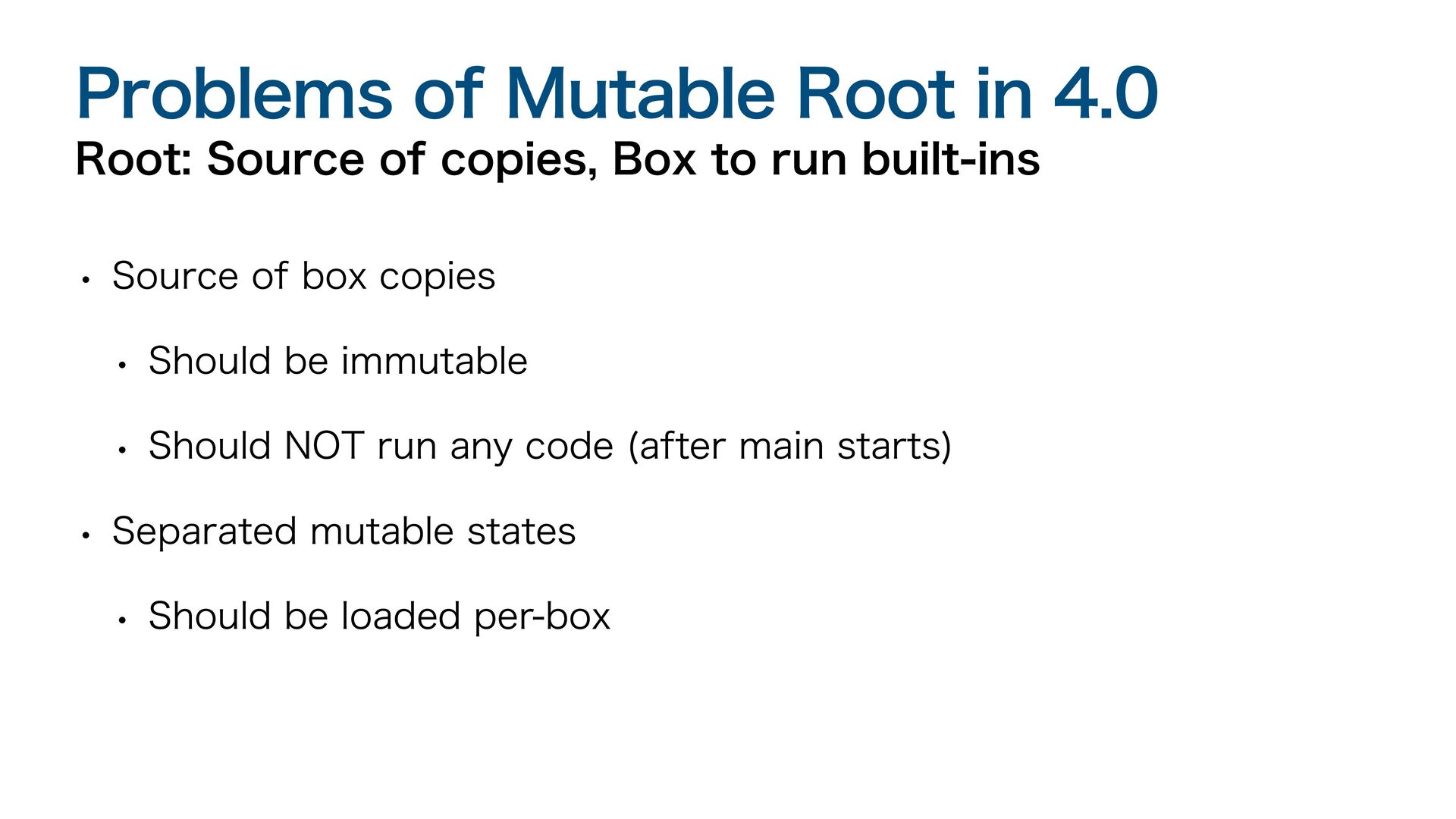

12. Problems of Mutable Root in 4.0 Root: Source of copies, Box to run built-ins • Source of box copies • Should be immutable • Should NOT run any code (after main starts) • Separated mutable states • Should be loaded per-box
13. In master and 4.0.7 (or later)
14. In master: Master-copy of Ruby Boxes
15. In master: Mastering Ruby Boxes

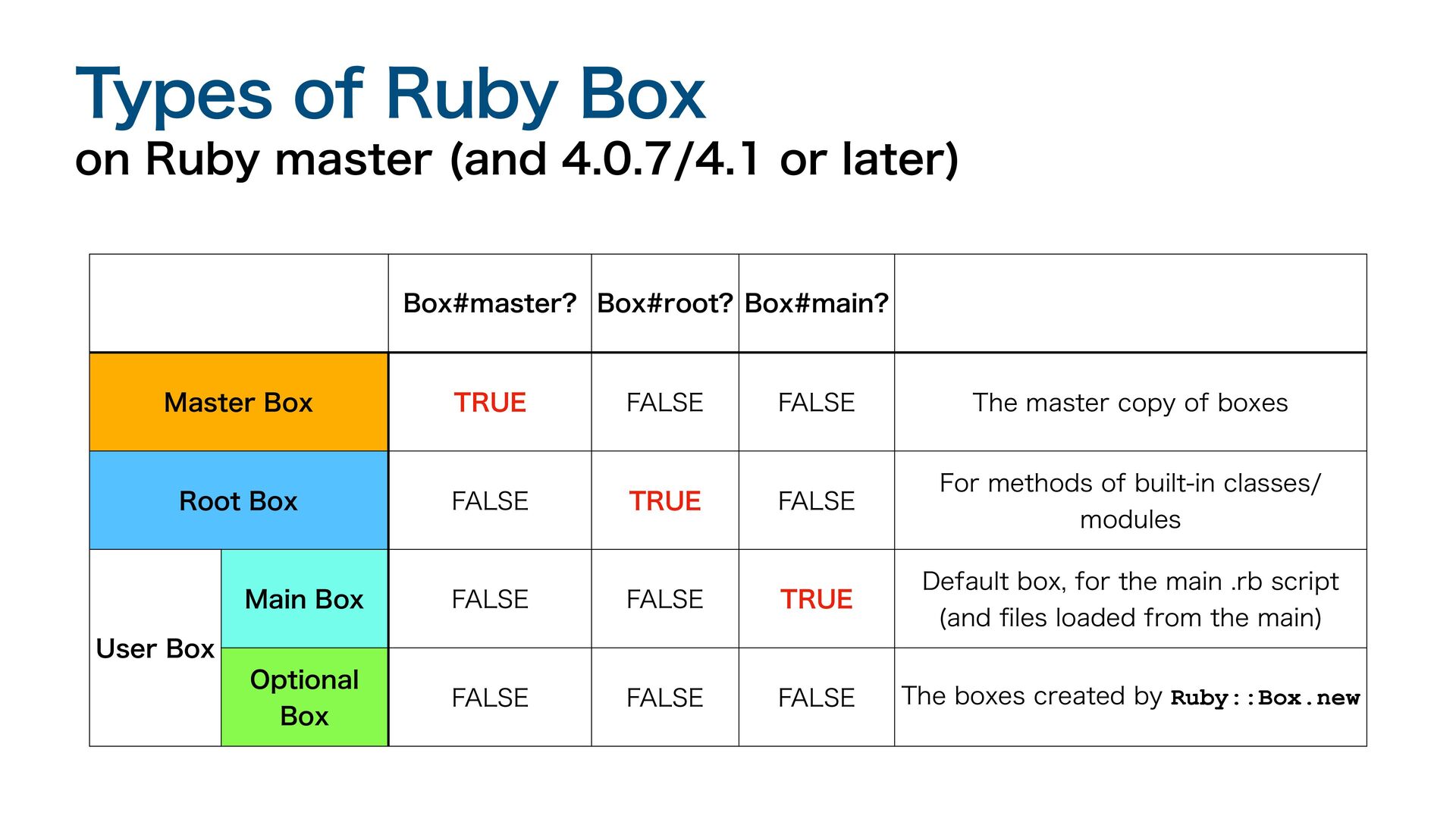

16. Types of Ruby Box on Ruby master (and 4.0.7/4.1 or later) Box#master? Box#root? Box#main? Master Box Root Box TRUE FALSE FALSE TRUE FALSE The master copy of boxes FALSE For methods of built-in classes/ modules Main Box FALSE FALSE TRUE Default box, for the main .rb script (and les loaded from the main) Optional Box FALSE FALSE FALSE The boxes created by Ruby::Box.new fi User Box

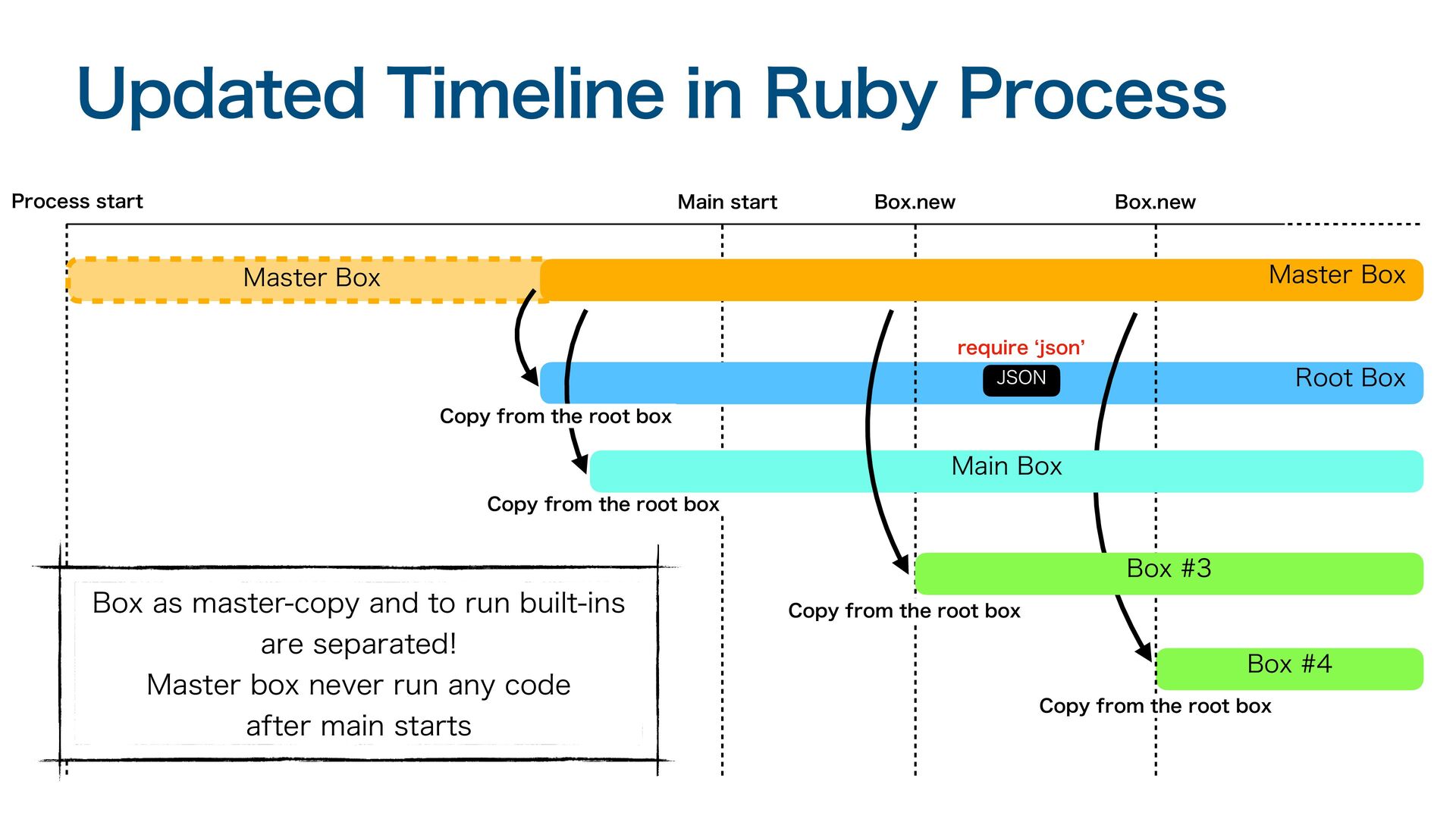

17. Updated Timeline in Ruby Process Process start Main start Box.new Box.new Master Box Master Box require ʻjsonʼ Root Box JSON Copy from the root box Main Box Copy from the root box Box #3 Box as master-copy and to run built-ins are separated! Master box never run any code after main starts Copy from the root box Box #4 Copy from the root box

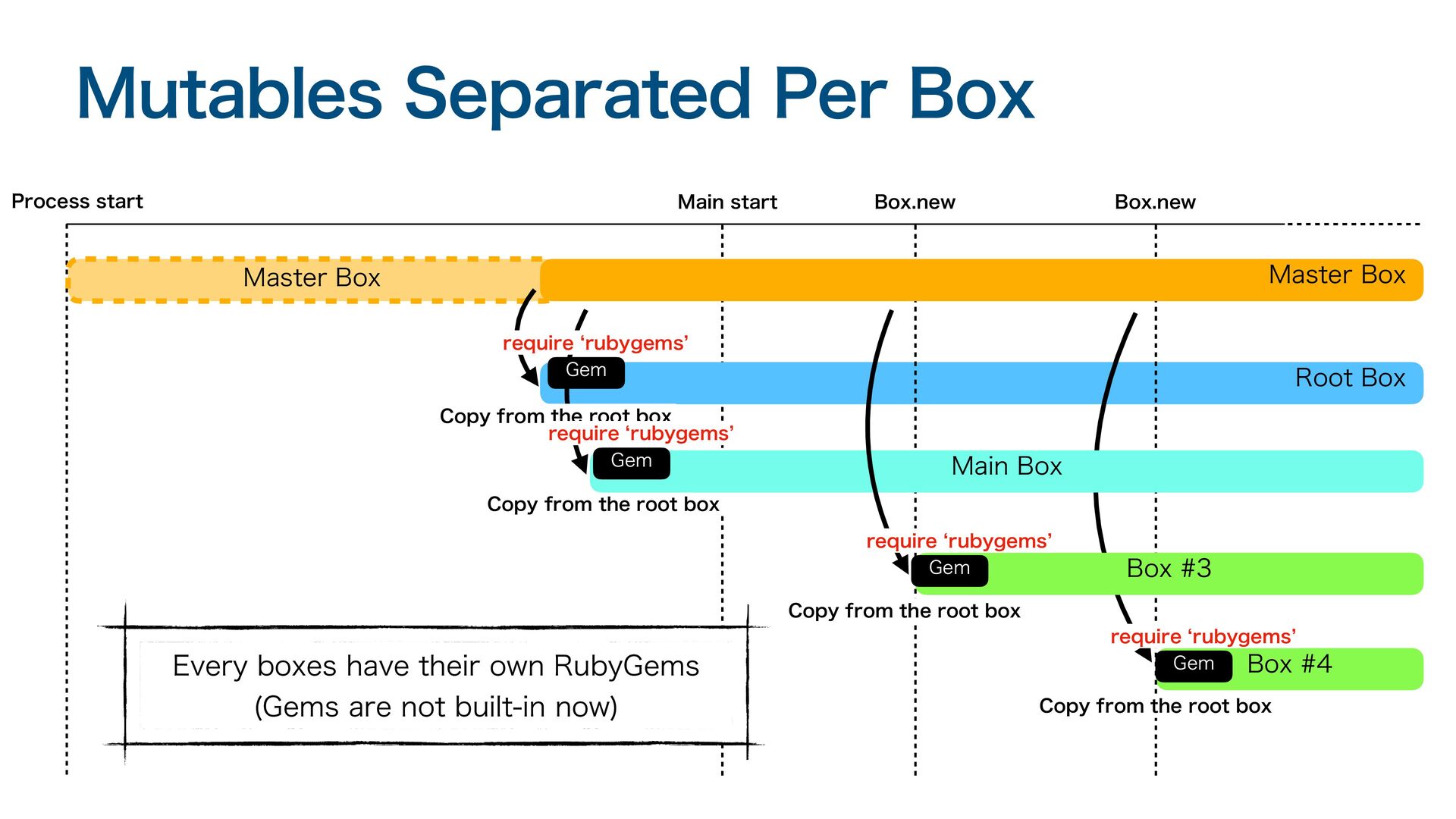

18. Mutables Separated Per Box Process start Main start Box.new Box.new Master Box Master Box require ʻrubygemsʼ Gem Copy from the root box require ʻrubygemsʼ Gem Root Box Main Box Copy from the root box require ʻrubygemsʼ Gem Box #3 Copy from the root box Every boxes have their own RubyGems (Gems are not built-in now) require ʻrubygemsʼ Gem Box #4 Copy from the root box
19. Did You Master Ruby Box?
20. RoR in Box
21. Ruby::Box Can Run Rails! https://github.com/joker1007/with̲box

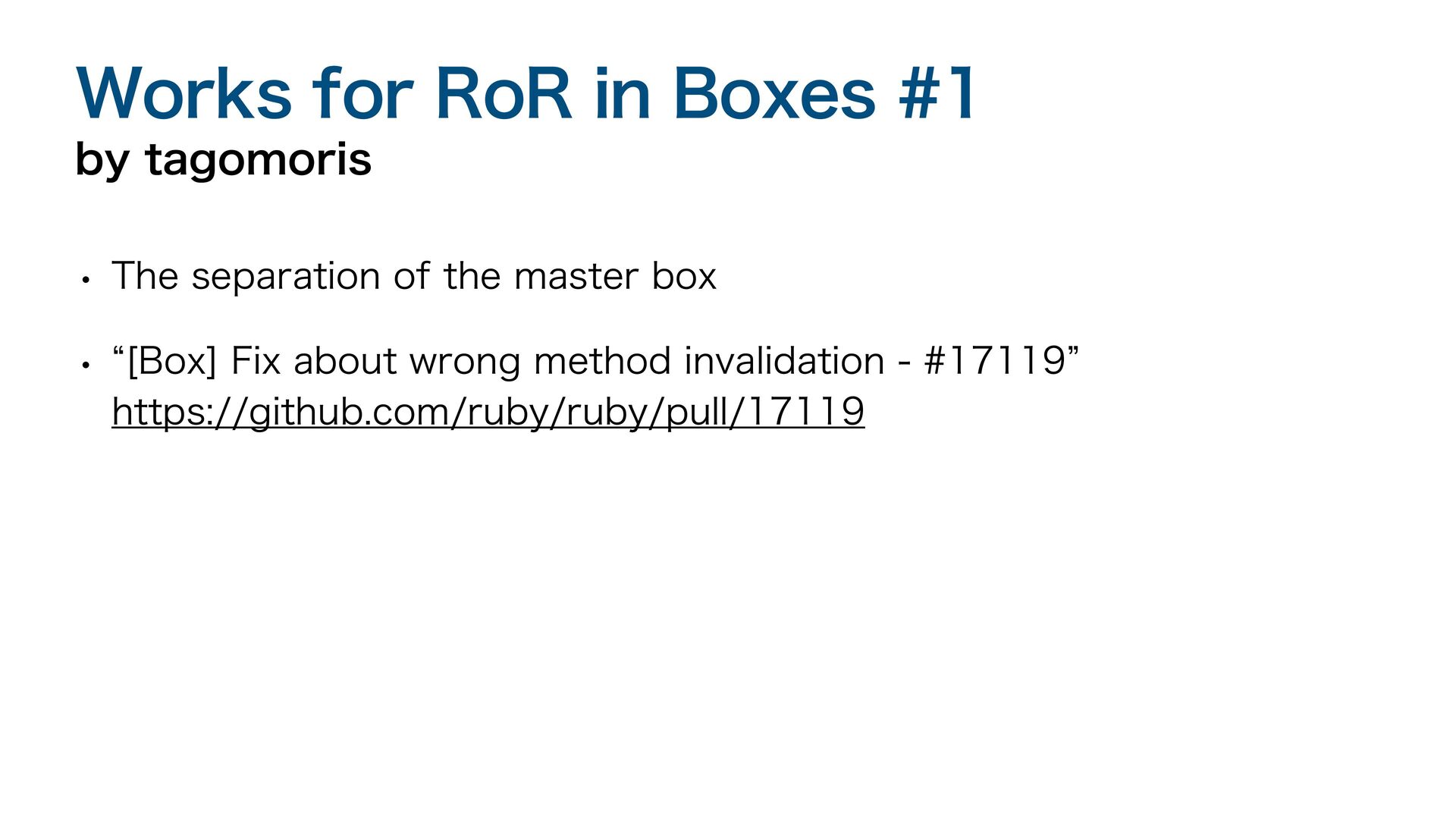

22. Works for RoR in Boxes #1 by tagomoris • The separation of the master box • “[Box] Fix about wrong method invalidation - #17119” https://github.com/ruby/ruby/pull/17119

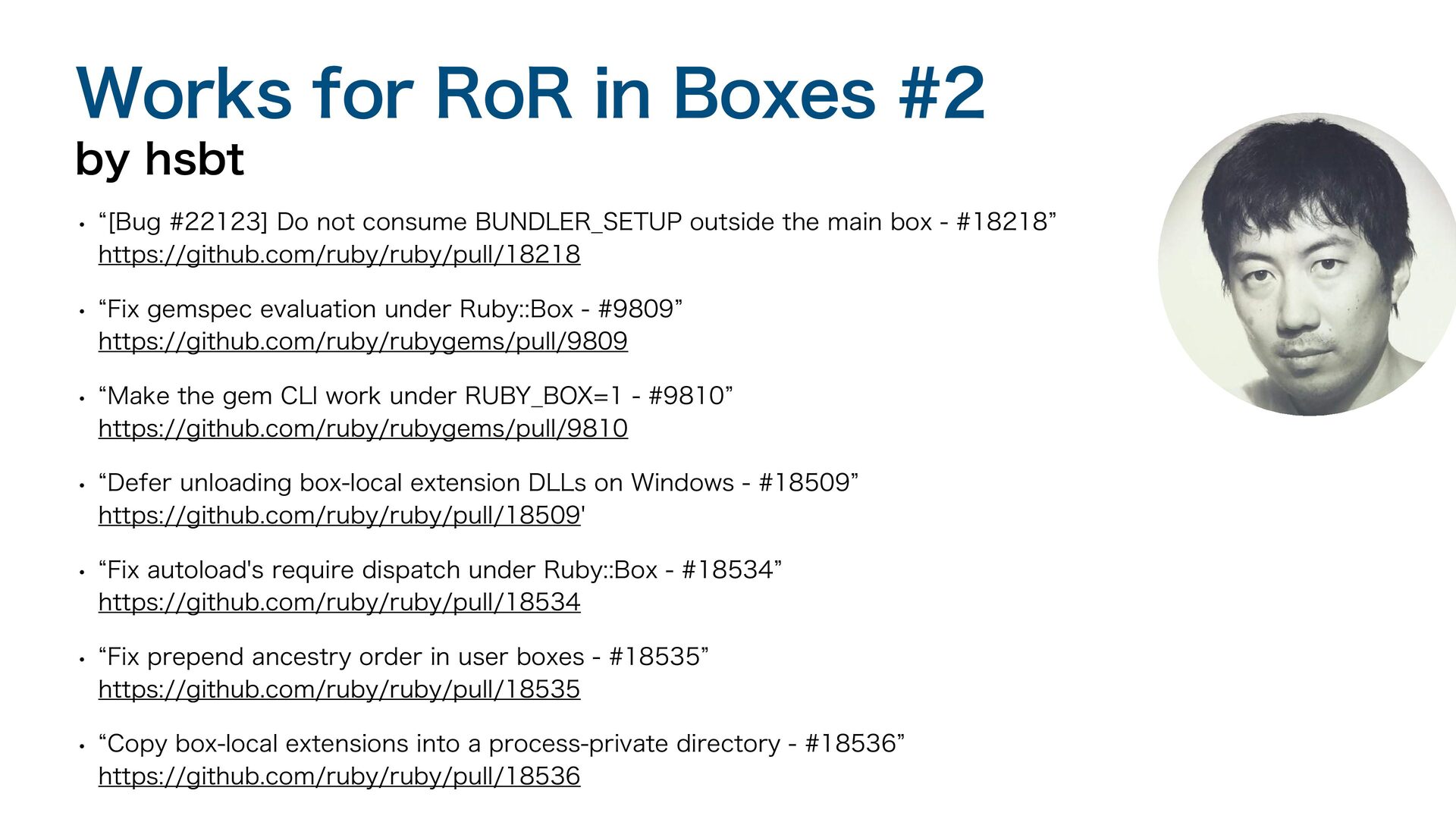

23. Works for RoR in Boxes #2 by hsbt • “[Bug #22123] Do not consume BUNDLER̲SETUP outside the main box - #18218” https://github.com/ruby/ruby/pull/18218 • “Fix gemspec evaluation under Ruby::Box - #9809” https://github.com/ruby/rubygems/pull/9809 • “Make the gem CLI work under RUBY̲BOX=1 - #9810” https://github.com/ruby/rubygems/pull/9810 • “Defer unloading box-local extension DLLs on Windows - #18509” https://github.com/ruby/ruby/pull/18509' • “Fix autoload's require dispatch under Ruby::Box - #18534” https://github.com/ruby/ruby/pull/18534 • “Fix prepend ancestry order in user boxes - #18535” https://github.com/ruby/ruby/pull/18535 • “Copy box-local extensions into a process-private directory - #18536” https://github.com/ruby/ruby/pull/18536

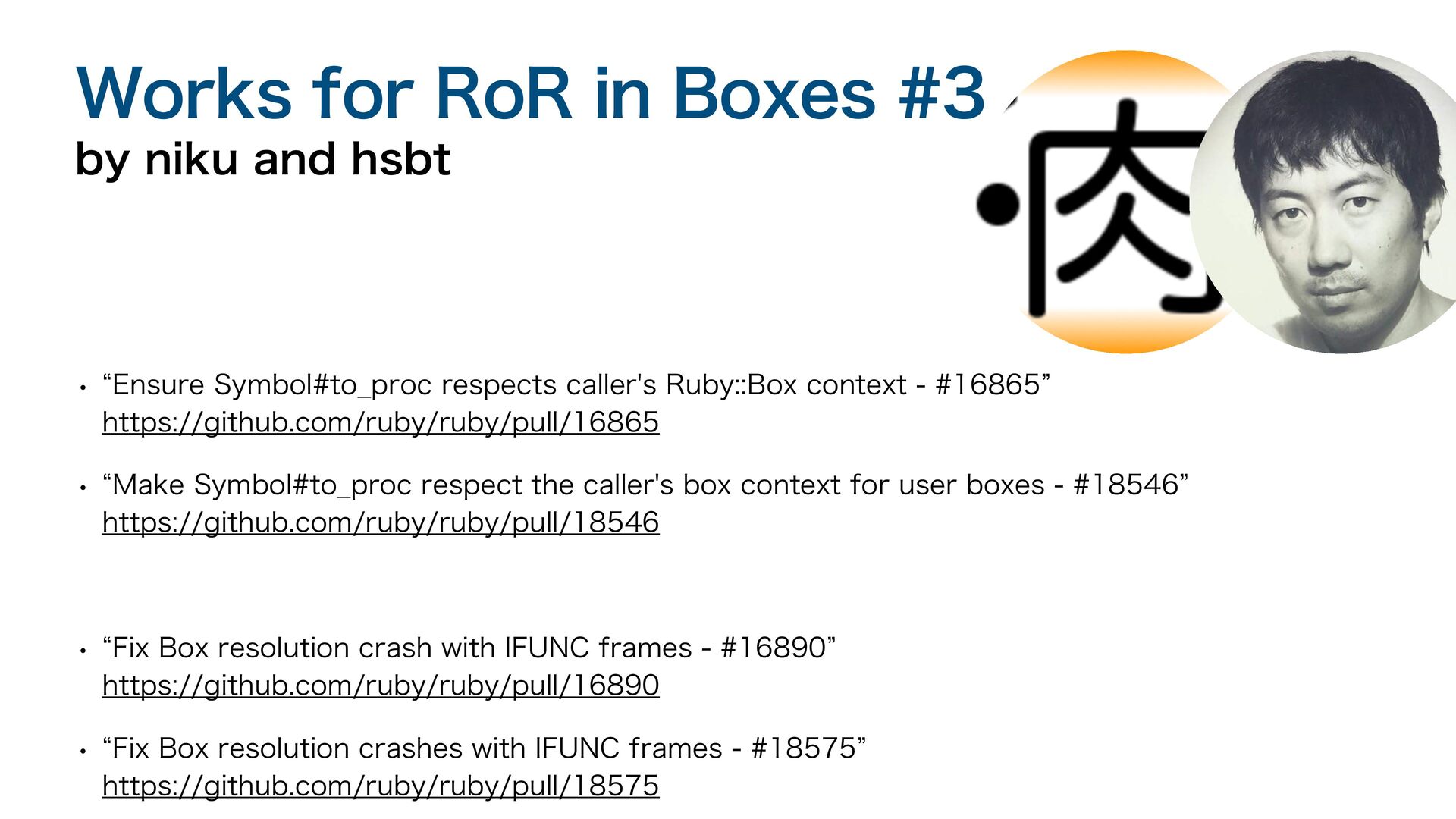

24. Works for RoR in Boxes #3 by niku and hsbt • “Ensure Symbol#to̲proc respects caller's Ruby::Box context - #16865” https://github.com/ruby/ruby/pull/16865 • “Make Symbol#to̲proc respect the caller's box context for user boxes - #18546” https://github.com/ruby/ruby/pull/18546 • “Fix Box resolution crash with IFUNC frames - #16890” https://github.com/ruby/ruby/pull/16890 • “Fix Box resolution crashes with IFUNC frames - #18575” https://github.com/ruby/ruby/pull/18575

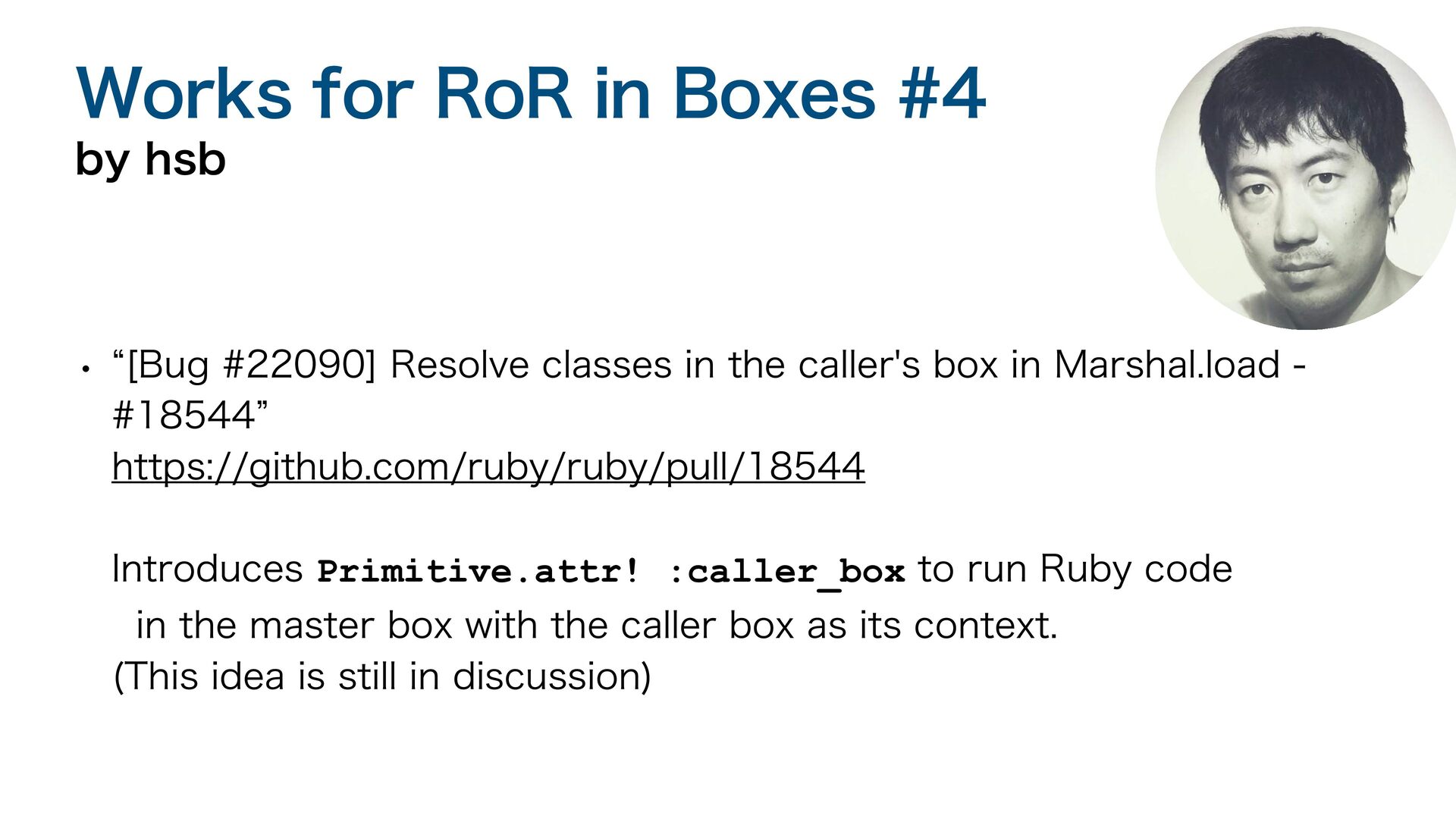

25. Works for RoR in Boxes #4 by hsb • “[Bug #22090] Resolve classes in the caller's box in Marshal.load #18544” https://github.com/ruby/ruby/pull/18544 Introduces Primitive.attr! :caller_box to run Ruby code in the master box with the caller box as its context. (This idea is still in discussion)
26. The Released Feature (Ruby::Box) Can Be Tested/Improved!
27. Boxing Tests

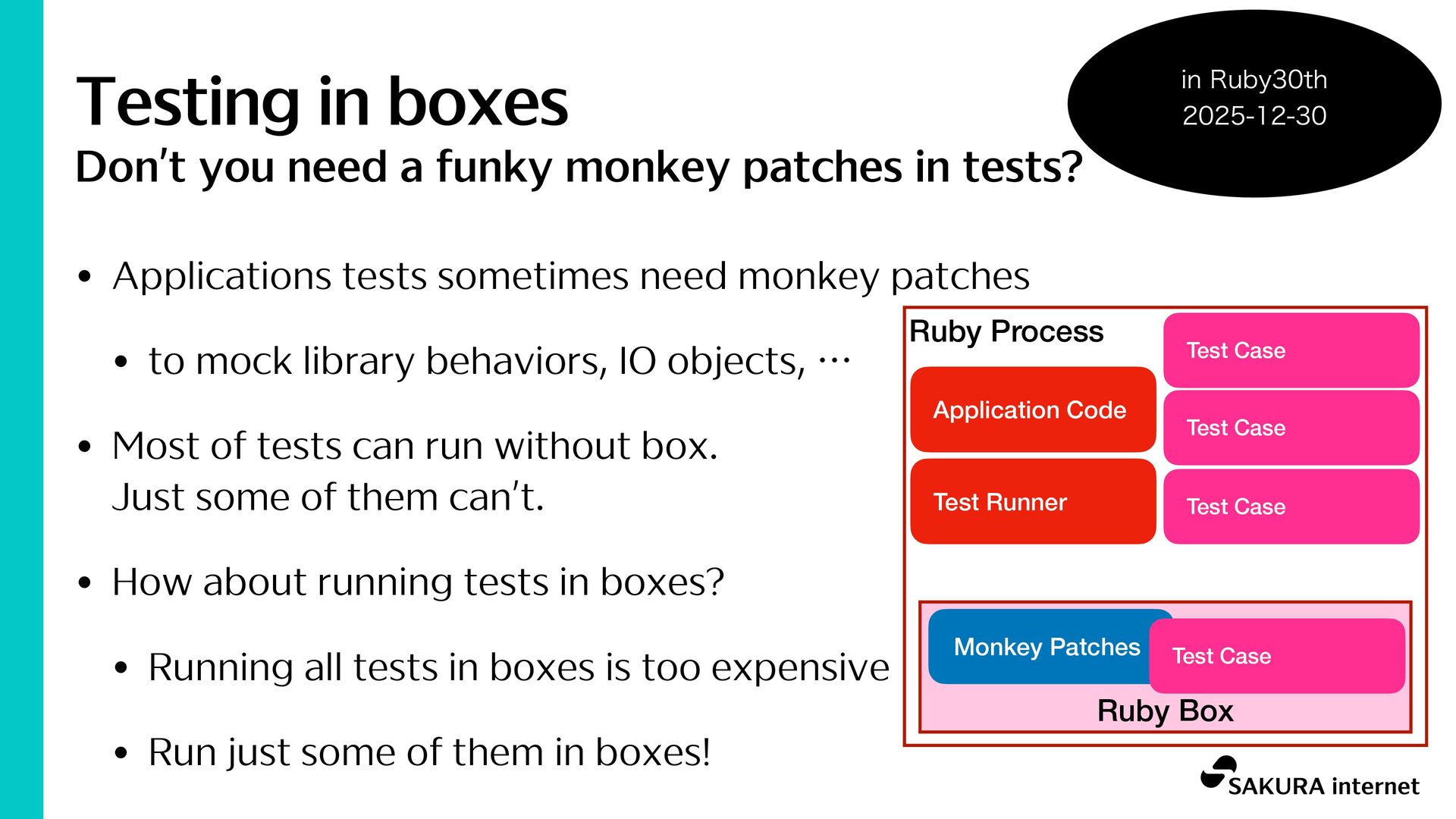

28. in Ruby30th 2025-12-30 Testing in boxes Don t you need a funky monkey patches in tests? • Applications tests sometimes need monkey patches • to mock library behaviors, IO objects, … • Most of tests can run without box. Just some of them can t. Ruby Process Application Code Test Runner Test Case Test Case Test Case • How about running tests in boxes? • Running all tests in boxes is too expensive Monkey Patches Test Case Ruby Box ’ ’ • Run just some of them in boxes!

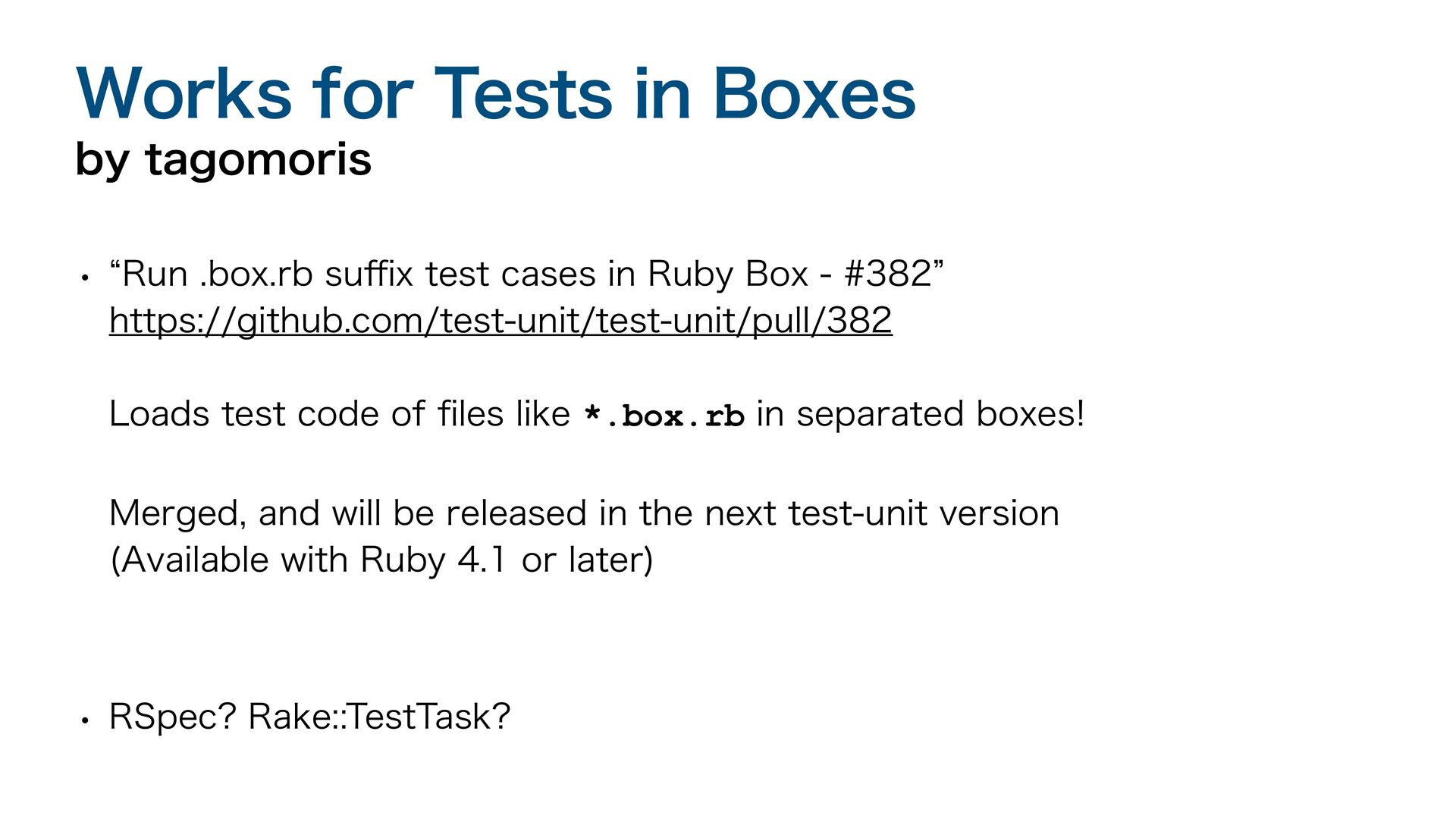

29. Works for Tests in Boxes by tagomoris • “Run .box.rb su x test cases in Ruby Box - #382” https://github.com/test-unit/test-unit/pull/382 Loads test code of les like *.box.rb in separated boxes! Merged, and will be released in the next test-unit version (Available with Ruby 4.1 or later) fi ffi • RSpec? Rake::TestTask?
30. To Be Continued...
