WebGL / WebVR for FrontEnd Engineer

Transcript

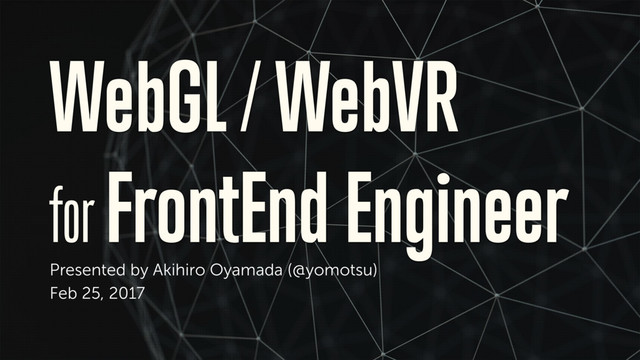

1. WebGL / WebVR
 for FrontEnd Engineer Presented by Akihiro Oyamada (@yomotsu) Feb 25, 2017
2. Frontend Engineer at PixelGrid, Inc. Akihiro Oyamada @yomotsu
3. I don’t talk about WebVR much… Disclaimer...
5. http://yomotsu.net/blog/assets/2016-12-25-xmas/ http://www.welcometofillory.com/ https://plus360degrees.com/uxcars/ http://www.playkeepout.com/
6. Almost native app looks!
 Cuz it works on top of native graphic APIs
8. Sounds difficult? There are libraries!
10. Pros • Strong and large community • Docs and examples • JS friendly easy APIs • Low level WebGL access Cons • Doesn't follow semver,
 Breaking changes sometime • Tricky garbage collection
14. var scene = new THREE.Scene(); var camera = new THREE.PerspectiveCamera( 60, width / height, 1, 1000 ); camera.position.set( 0, 0, 5 ); var renderer = new THREE.WebGLRenderer(); renderer.setSize( width, height ); document.body.appendChild( renderer.domElement ); var light = new THREE.HemisphereLight( 0x443333, 0x332222, 2 ); scene.add( light ); var geometry = new THREE.SphereGeometry( 2, 2, 2 ); var material = new THREE.MeshPhongMaterial( { color: 0xff0000 } ); var mesh = new THREE.Mesh( geometry, material ); scene.add( mesh ); renderer.render( scene, camera );
15. let’s move onto the main topics for today
16. • Avoid unnecessary rendering • Reduce drawcalls • Avoid frequent texture uploading • Consider to use GPU • Compress 3D assets
17. Avoid unnecessary rendering
18. Continuously re-rendering Better
19. demo 19 http://localhost:8000/1_re-rendering/bad.html http://localhost:8000/1_re-rendering/better.html
20. ( function anim () { requestAnimationFrame( anim ); renderer.render( scene, camera ); } )(); Re-rendering may unnecessary
21. window.addEventListener( 'resize', function () { const width = window.innerWidth; const height = window.innerHeight; camera.aspect = width / height; camera.updateProjectionMatrix(); renderer.setSize( width, height );
 renderer.render( scene, camera ); // <- don't do this! } ); Re-rendering may unnecessary
22. ( function anim () { requestAnimationFrame( anim ); if ( !myApp.needsUpdate ) { return; } renderer.render( scene, camera ); } )(); Pass re-rendering if unnecessary
23. var prevPosition = new THREE.Vector3(); var checkCameraPosition = function () { if ( !approximatelyEqual( camera.position, prevPosition ) ) { myApp.needsUpdate = true; } prevPosition.copy( camera.position ); }; Checking “needsUpdate”
24. window.addEventListener( 'resize', function () { const width = window.innerWidth; const height = window.innerHeight; camera.aspect = width / height; camera.updateProjectionMatrix(); renderer.setSize( width, height );
 myApp.needsUpdate = true; // for next rAF } ); Checking “needsUpdate”
25. Reduce drawcalls
26. Continuously repainting Better 8 drawcalls 1 drawcall
27. demo 27 http://localhost:8000/2_texture-atlas/1_house1.html http://localhost:8000/2_texture-atlas/2_house2.html
28. .FSHF
    NBUFSJBMT
29. 3 drawcalls for 3 objects 1 drawcall 3 objects
30. demo 30 http://localhost:8000/2_texture-atlas/3_house-multi1.html http://localhost:8000/2_texture-atlas/4_house-multi2.html http://localhost:8000/2_texture-atlas/5_house-multi3.html
31. var houseGeometry = ...; var houseGeometry2 = ...;
 houseGeometry2.applyMatrix( new THREE.Matrix4().makeTranslation( -10, 0, 0 ) ); houseGeometry.merge( houseGeometry2 ); Merge geometries
32. Avoid frequent
 texture uploading
34. demo 34 http://localhost:8000/3_spriteAnim/bad.html http://localhost:8000/3_spriteAnim/better.html
37. $16
    BOE
    (16
 BSF
    QIZTJDBMMZ
    TFQBSBUFE
38. ( function anim () { var elapsed = clock.getElapsedTime(); requestAnimationFrame( anim ); texture.image = images[ frame ]; texture.needsUpdate = true; renderer.render( scene, camera ); frame = ( elapsed * 20 % images.length ) | 0; } )(); Bad: Replacing image
39. ( function anim () { var elapsed = clock.getElapsedTime(); requestAnimationFrame( anim ); texture.offset.set( frame % frameCol / frameCol, ( frameRow - 1 ) / frameRow - ( ( frame / frameCol ) | 0 ) / frameRow ); renderer.render( scene, camera ); frame = ( elapsed * 20 % frameLength ) | 0; } )(); Better: Use UV offset
41. var rtt = new THREE.WebGLRenderTarget( 512, 512,
 { minFilter: THREE.LinearFilter, magFilter: THREE.NearestFilter, format: THREE.RGBFormat } ); renderer.render( sceneRTT, cameraRTT, rtt, true ); RTT
42. GPU may be utilised
44. demo 44 http://localhost:8000/4_particle/bad.html http://localhost:8000/4_particle/better.html
45. requestAnimationFrame( anim ); for ( var i = 0, l = particleLength; i < l; i ++ ) { if ( geometry.attributes.position.array[ i * 3 + 1 ] > - boxHeight * 0.5 ) { geometry.attributes.position.array[ i * 3 + 1 ] -= delta; } else { geometry.attributes.position.array[ i * 3 + 1 ] = boxHeight * 0.5; } }; geometry.attributes.position.needsUpdate = true; Calc in CPU
46. uniform float time; uniform float height; uniform float scale; void main () { vec3 pos = vec3( position.x, position.y - time * 1.0, position.z ); pos.y = mod( pos.y, height ) - ( height * 0.5 ); vec4 mvPosition = modelViewMatrix * vec4( pos, 1.0 ); gl_Position = projectionMatrix * mvPosition; gl_PointSize = 1.0; } Calc in GPU (Shader)
47. Compress 3D assets
48. 3D Model file consists of mostly numbers
49. 3D scanned(ish) Model file
50. http://localhost:8000/5_compress/bad.html
52. Save 70% of size!
54. zip is an
 archive format
55. Multiple files
 in one zip file
56. • Contains multi files • Compressed One file • Arrows you to make
 a progressive bar • UnZip JS libs are
 available on GitHub
59. https://opensource.googleblog.com/2017/01/introducing-draco-compression-for-3d.html As of Jan 13, 2017
60. • Compressing lib for 3D assets • Developed by Google • Decompressor is available in JS
 (but 800kb emscripten) Might be still early…?
61. Conclusion
62. WebGL is… • Click, then it will open • No installing, but loading • Devices/Browsers are unspecified
63. • Write your code efficiently • CPU and GPU are separated • Compress 3D assets Conclusion
64. WebVR?
65. https://www.youtube.com/watch?v=cBvCS78ZC1c
66. https://w3c.github.io/webvr/
67. Navigator.getVRDisplays() params and states
68. Navigator.getVRDisplays() params and states •d[ i ].VREyeParameters •FOV •offset (eye transition) •d[ i ].getPose() •position •orientation (quaternion) and etc…
69. WebVR is a small API!
72. One more thing
74. ... mounted () { const scene = this.getScene(); scene.add( this.mesh ); }, beforeDestroy () { const scene = this.getScene(); // optional // this.mesh.material.map.dispose(); // this.mesh.geometry.dispose(); // this.mesh.material.dispose(); scene.remove( this.mesh ); },
75. WebGL can be used
 with WebApp frameworks!
76.
 for FrontEnd Engineer Presented by Akihiro Oyamada (@yomotsu) Feb 25, 2017 WebGL / WebVR

77. three.js
 for FrontEnd Engineer Presented by Akihiro Oyamada (@yomotsu) Feb 25, 2017
78. gl.finish(); @yomotsu
