[Fork It! Tunis 2025] How I Ported Doom to the Browser with WebAssembly

Transcript

1. How it started
2. How it's going
4. Yassine Benabbas DevRel engineer @ Worldline Teacher ( yostane.github.io/lectures ) Lille Android User Group Video game collector @yostane

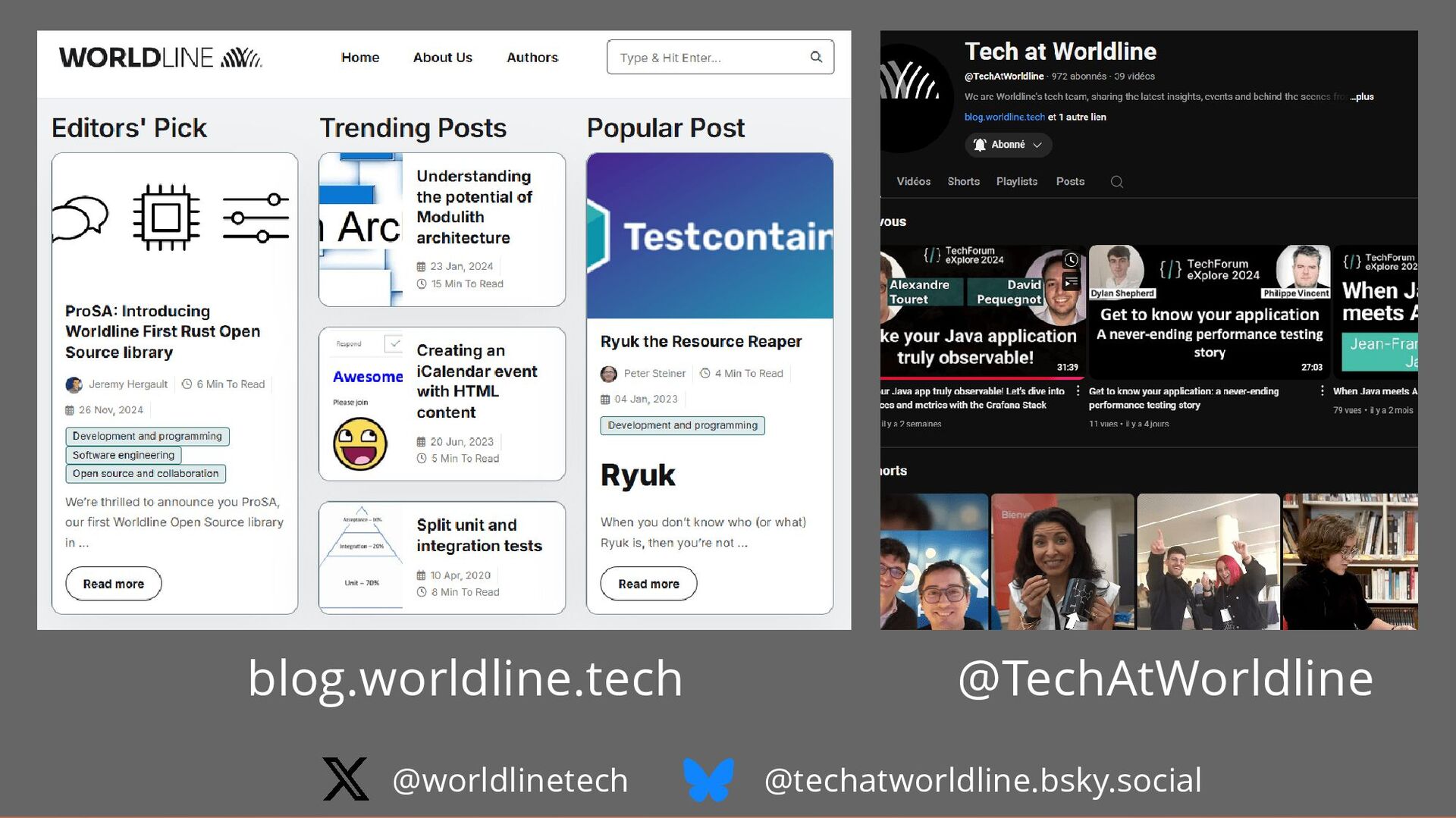

5. blog.worldline.tech @TechAtWorldline @techatworldline.bsky.social @worldlinetech

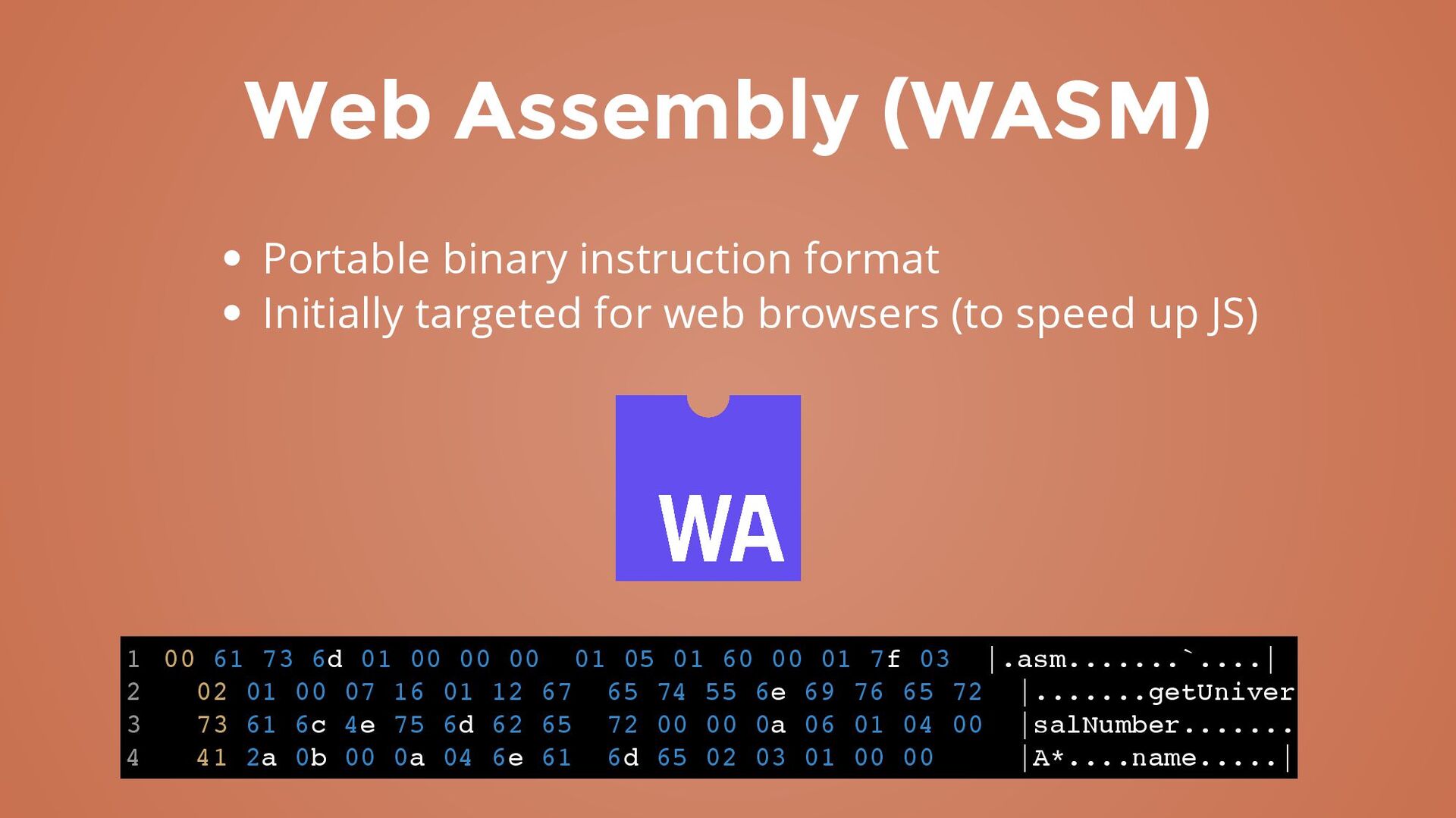

7. Web Assembly (WASM) Portable binary instruction format Initially targeted for web browsers (to speed up JS) 00 61 73 6d 01 00 00 00 01 05 01 60 00 01 7f 03 |.asm.......`....| 02 01 00 07 16 01 12 67 65 74 55 6e 69 76 65 72 |.......getUniver 73 61 6c 4e 75 6d 62 65 72 00 00 0a 06 01 04 00 |salNumber....... 41 2a 0b 00 0a 04 6e 61 6d 65 02 03 01 00 00 |A*....name.....| 1 2 3 4

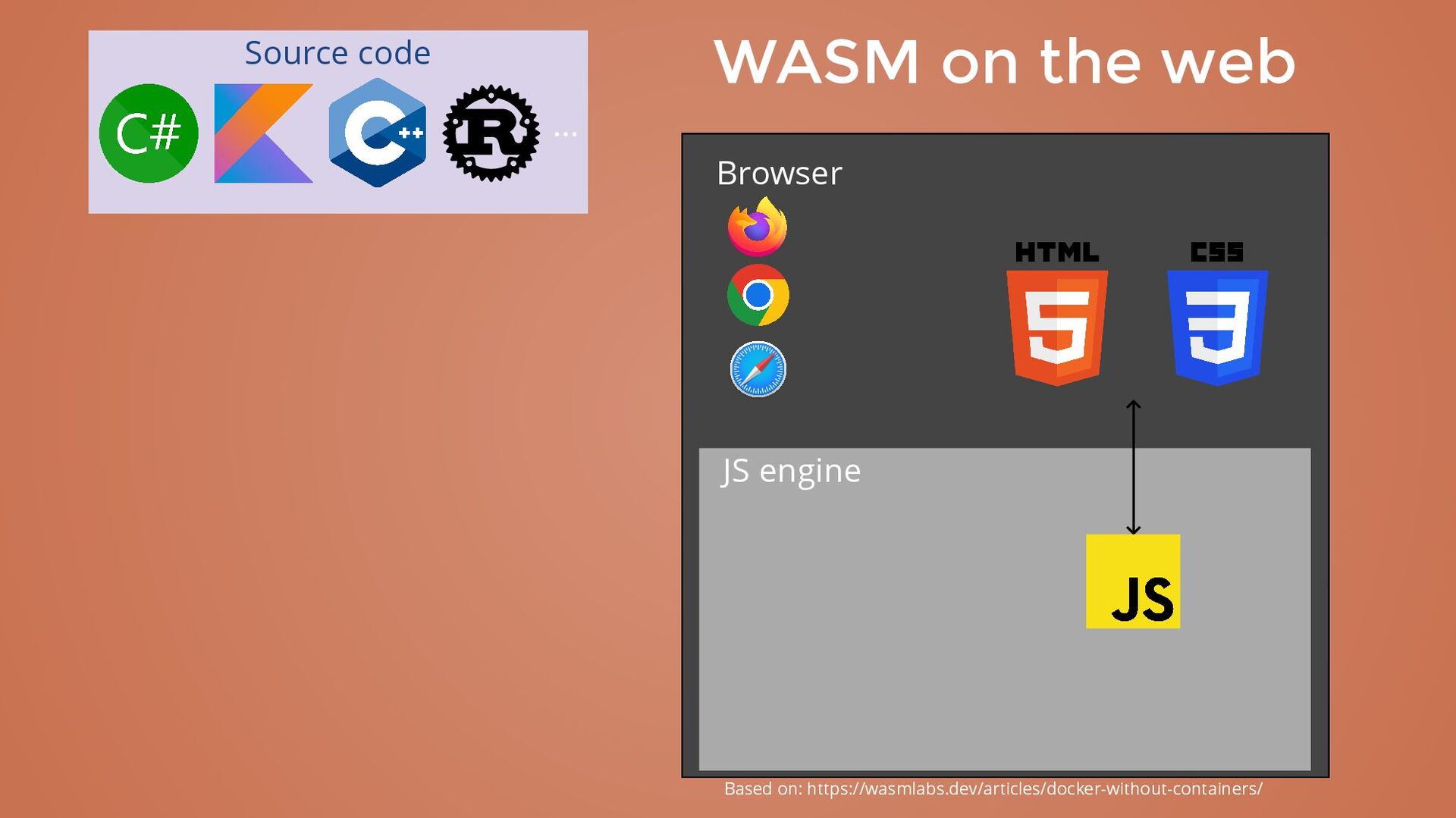

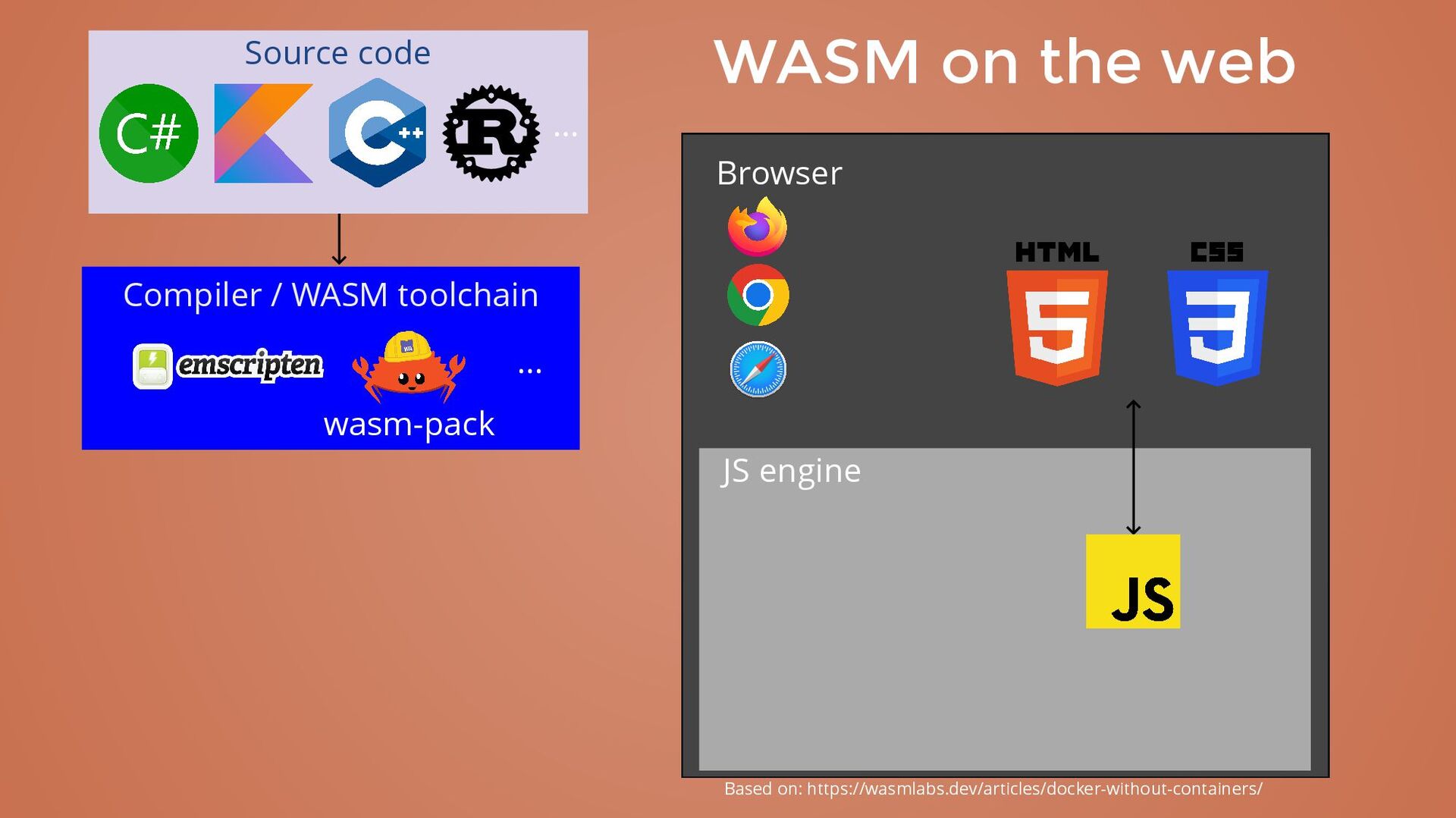

8. Browser Source code JS engine Based on: https://wasmlabs.dev/articles/docker-without-containers/ WASM on the web ...
9. Browser Source code JS engine Based on: https://wasmlabs.dev/articles/docker-without-containers/ WASM on the web Compiler / WASM toolchain wasm-pack ... ...

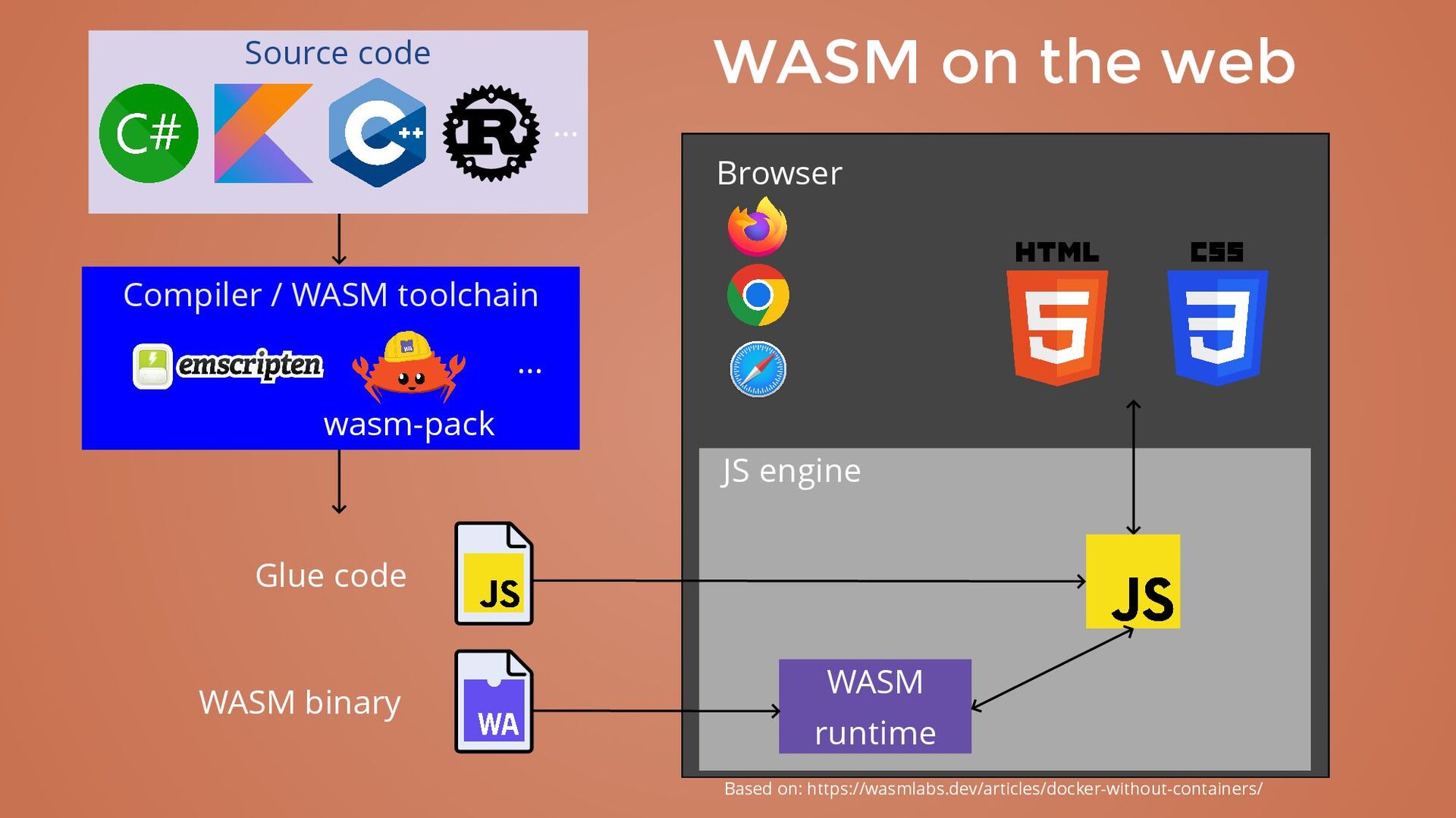

10. Browser Source code JS engine Based on: https://wasmlabs.dev/articles/docker-without-containers/ WASM on the web Compiler / WASM toolchain wasm-pack ... ... WASM binary Glue code
11. Browser Source code WASM runtime JS engine Based on: https://wasmlabs.dev/articles/docker-without-containers/ WASM on the web Compiler / WASM toolchain wasm-pack ... ... WASM binary Glue code
12. Need to do something related to WASM

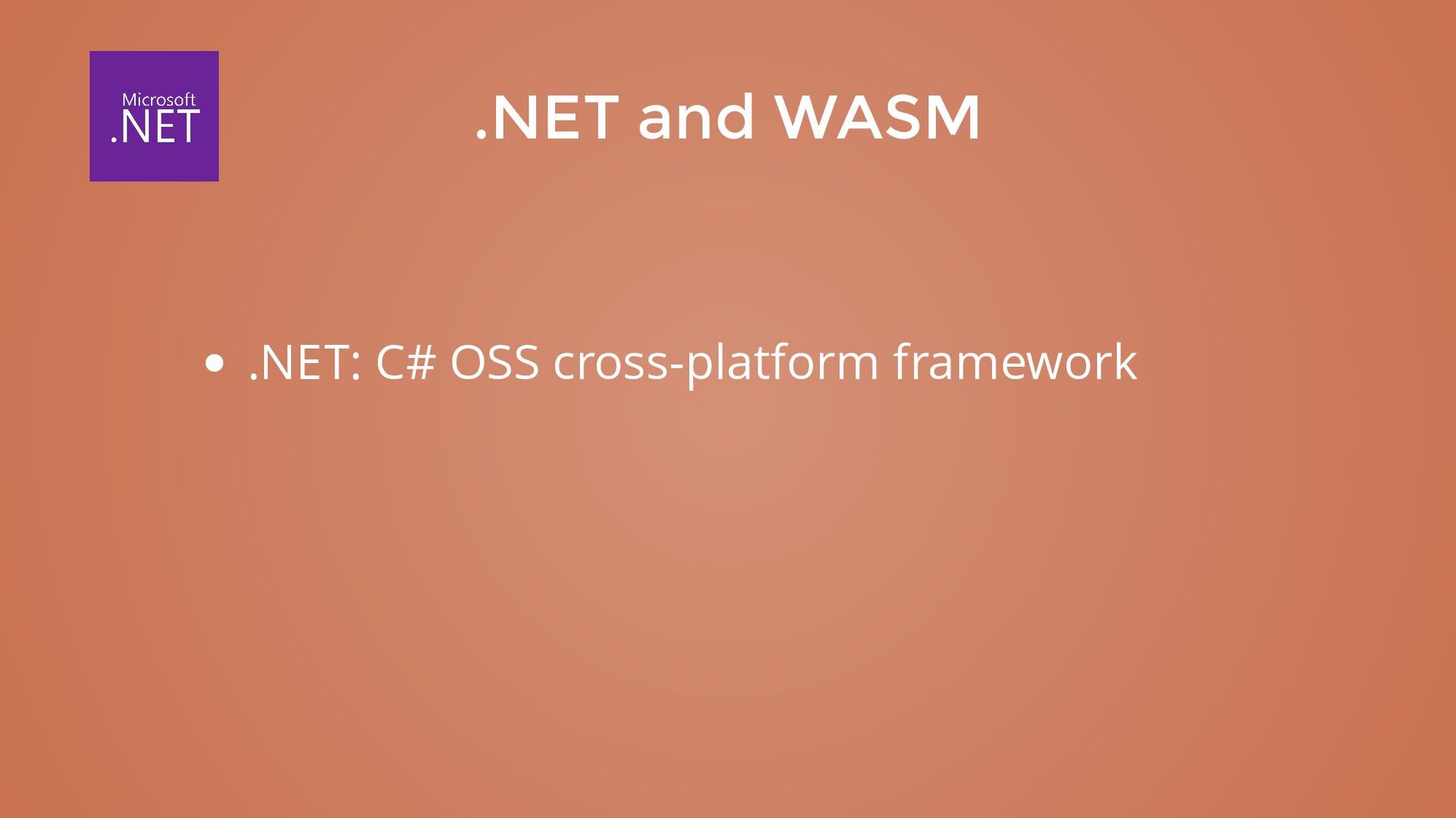

14. .NET and WASM .NET: C# OSS cross-platform framework

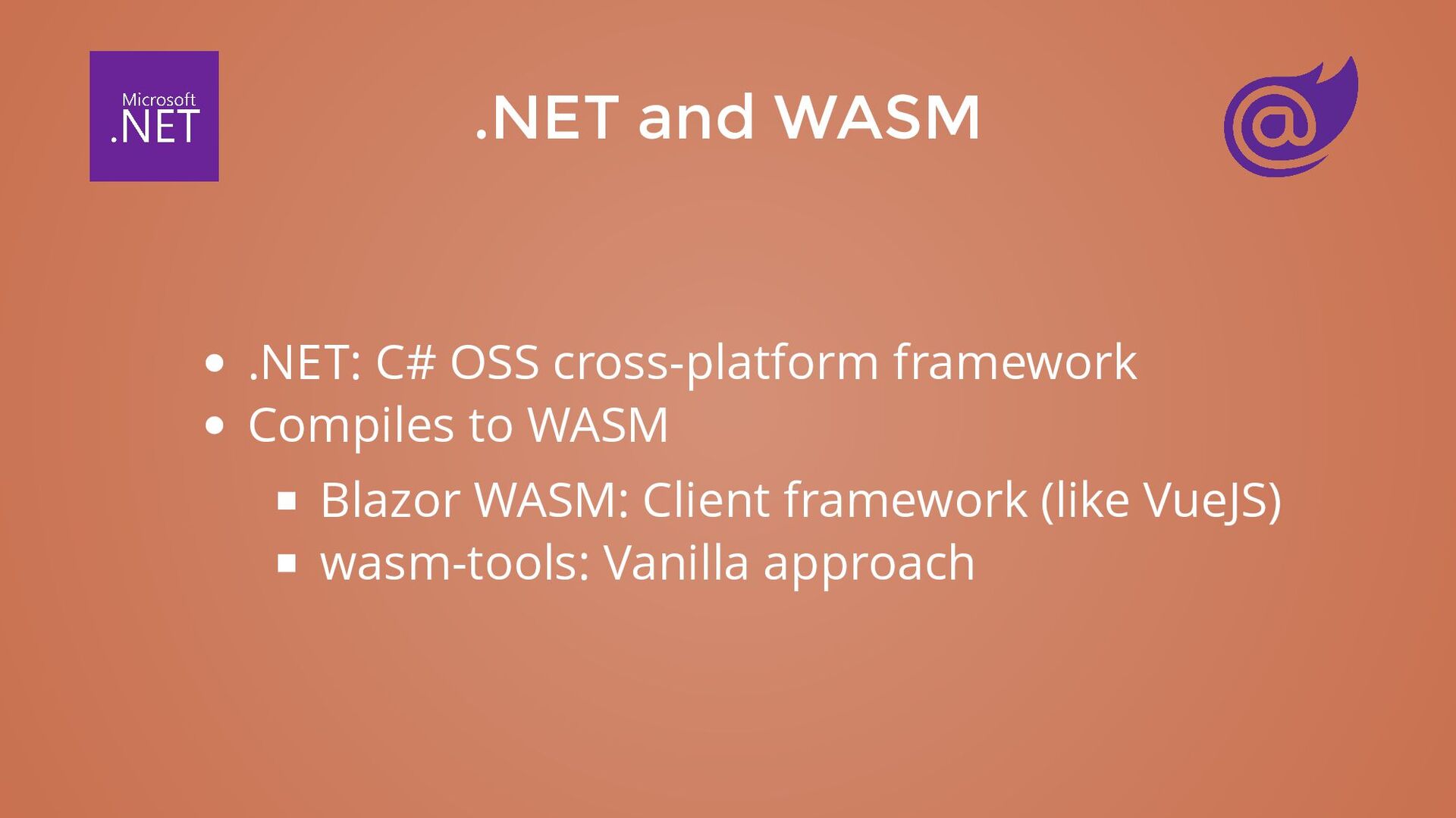

15. .NET and WASM .NET: C# OSS cross-platform framework Compiles to WASM Blazor WASM: Client framework (like VueJS) wasm-tools: Vanilla approach

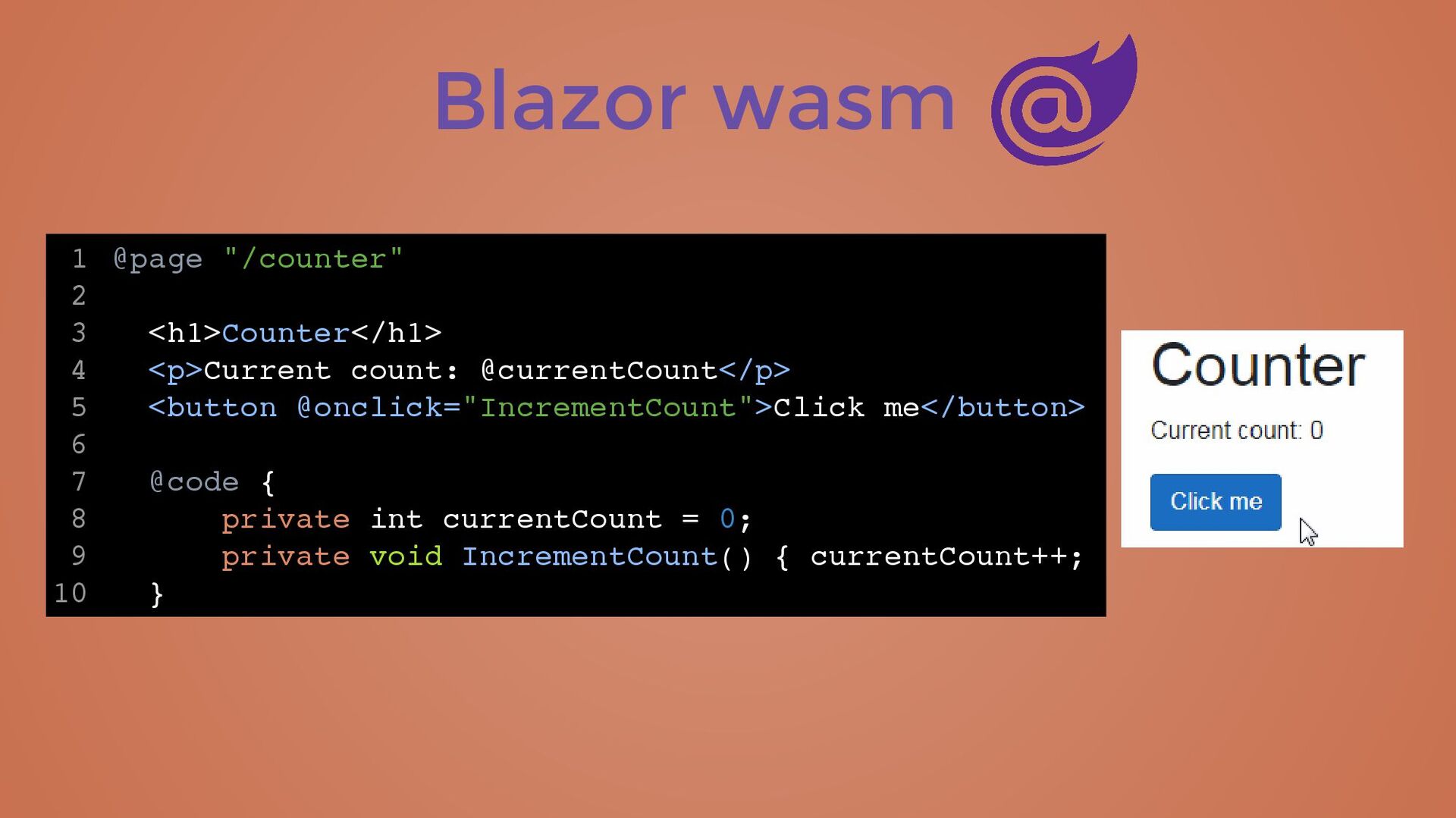

16. @page "/counter" <h1>Counter</h1> <p>Current count: @currentCount</p> <button @onclick="IncrementCount">Click me</button> @code { private int currentCount = 0; private void IncrementCount() { currentCount++; } 1 2 3 4 5 6 7 8 9 10 Blazor wasm

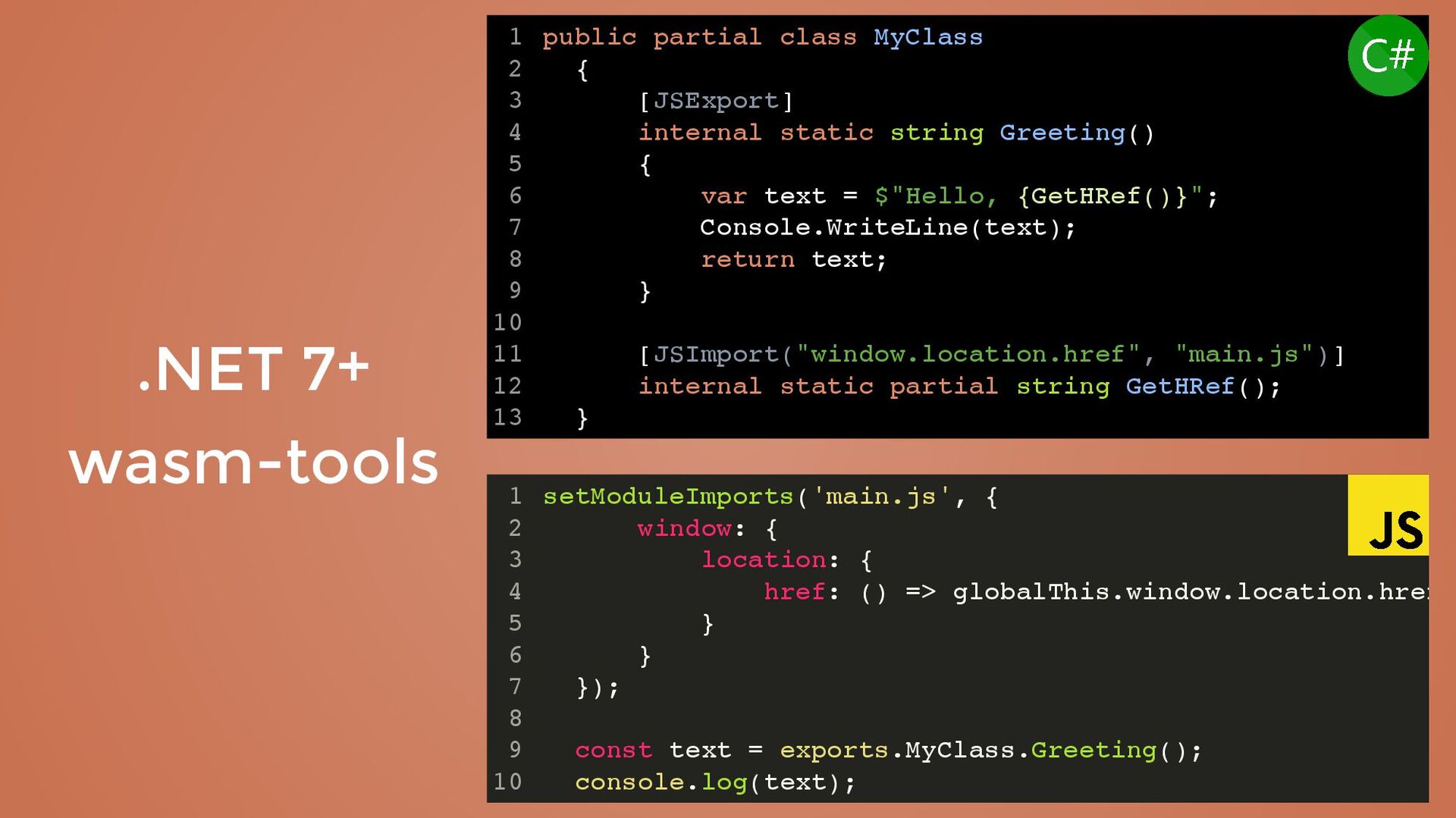

17. public partial class MyClass { [JSExport] internal static string Greeting() { var text = $"Hello, {GetHRef()}"; Console.WriteLine(text); return text; } [JSImport("window.location.href", "main.js")] internal static partial string GetHRef(); } 1 2 3 4 5 6 7 8 9 10 11 12 13 setModuleImports('main.js', { window: { location: { href: () => globalThis.window.location.href } } }); const text = exports.MyClass.Greeting(); console.log(text); 1 2 3 4 5 6 7 8 9 10 .NET 7+ wasm-tools
18. public partial class MyClass { [JSExport] internal static string Greeting() { var text = $"Hello, {GetHRef()}"; Console.WriteLine(text); return text; } [JSImport("window.location.href", "main.js")] internal static partial string GetHRef(); } 1 2 3 4 5 6 7 8 9 10 11 12 13 setModuleImports('main.js', { window: { location: { href: () => globalThis.window.location.href } } }); const text = exports.MyClass.Greeting(); console.log(text); 1 2 3 4 5 6 7 8 9 10 .NET 7+ wasm-tools
19. public partial class MyClass { [JSExport] internal static string Greeting() { var text = $"Hello, {GetHRef()}"; Console.WriteLine(text); return text; } [JSImport("window.location.href", "main.js")] internal static partial string GetHRef(); } 1 2 3 4 5 6 7 8 9 10 11 12 13 setModuleImports('main.js', { window: { location: { href: () => globalThis.window.location.href } } }); const text = exports.MyClass.Greeting(); console.log(text); 1 2 3 4 5 6 7 8 9 10 .NET 7+ wasm-tools
20. dotnet wasmbrowser template project dotnet wasmbrowser template project
21. Let's port a .NET game !
23. Game porting Make a game run in platforms other than its original ones By rewriting / adapting the source code for the new platform(s) Not porting: virtual machine or emulator MVG's video is a great source of inspiration
24. 1993 for DOS

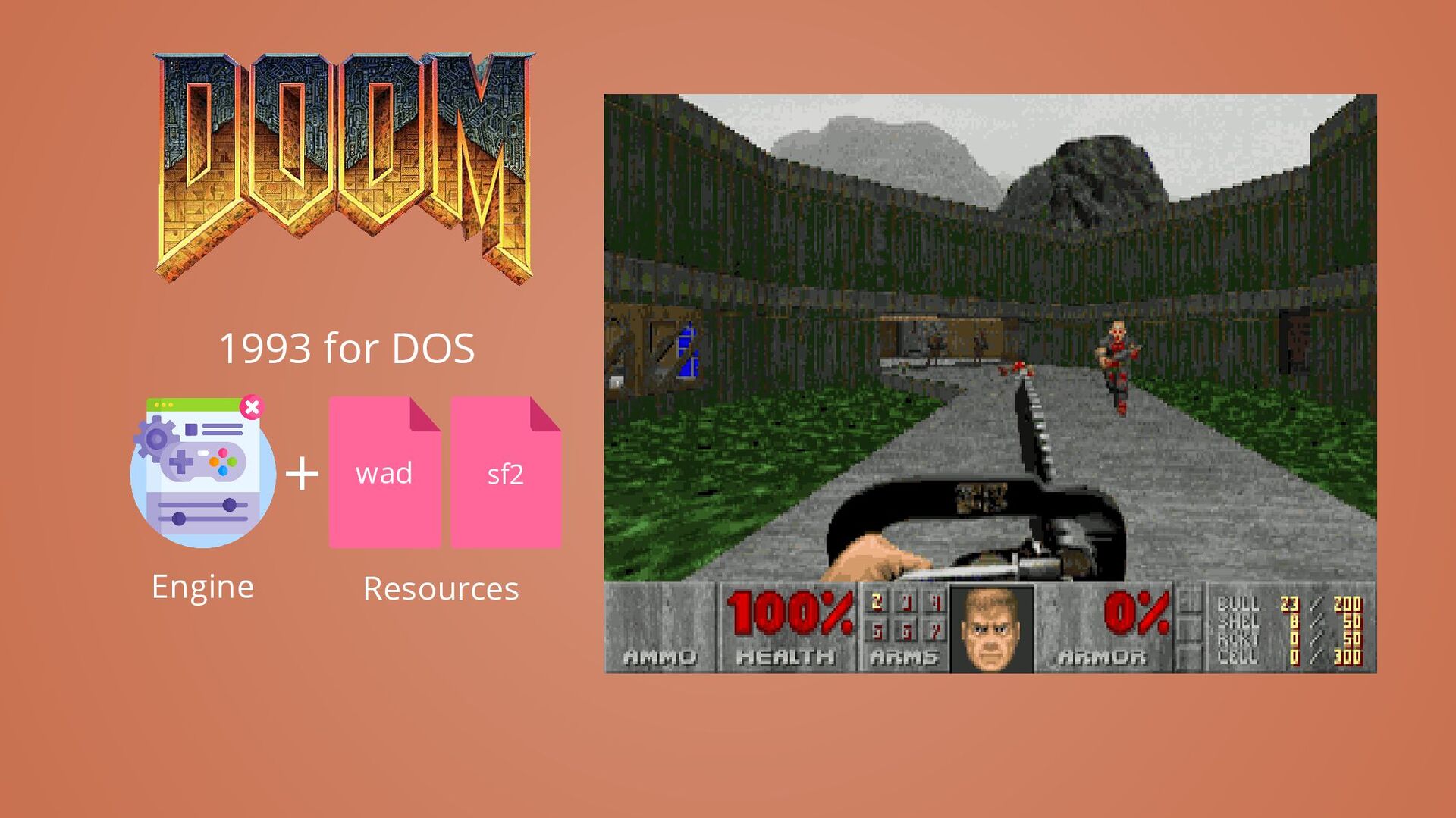

25. 1993 for DOS Engine
26. 1993 for DOS Engine + wad Resources sf2
27. 1993 for DOS 🌟Doom is portable by design 🌟 Engine + wad Resources sf2
28. http://mrglitchsreviews.blogspot.com/2012/09/doom-console-ports.html Ported to a LOT of platforms 25 official licensed ports https://www.thegamer.com/doom-how-many-platforms-ports-consoles

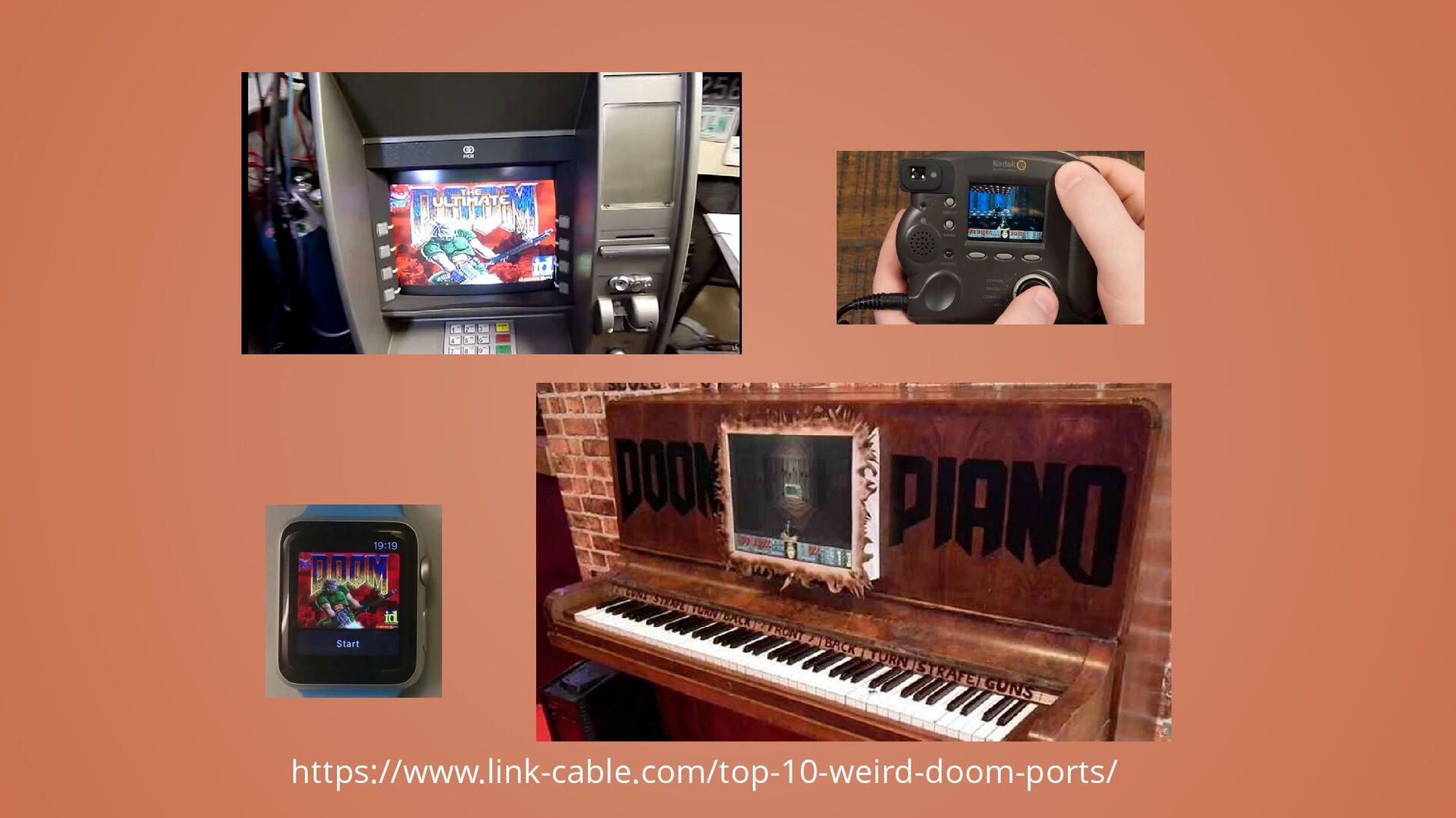

29. https://www.link-cable.com/top-10-weird-doom-ports/

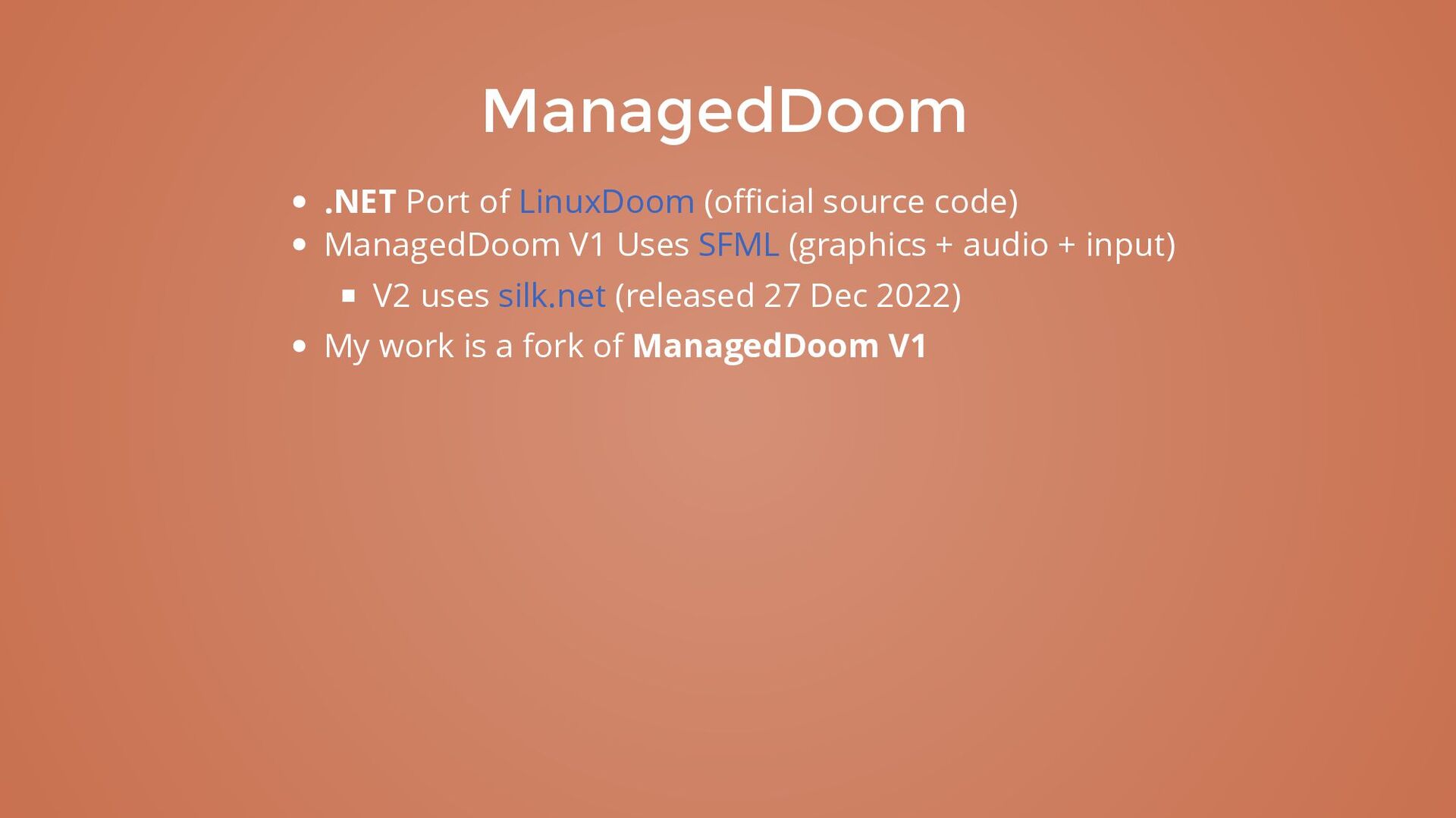

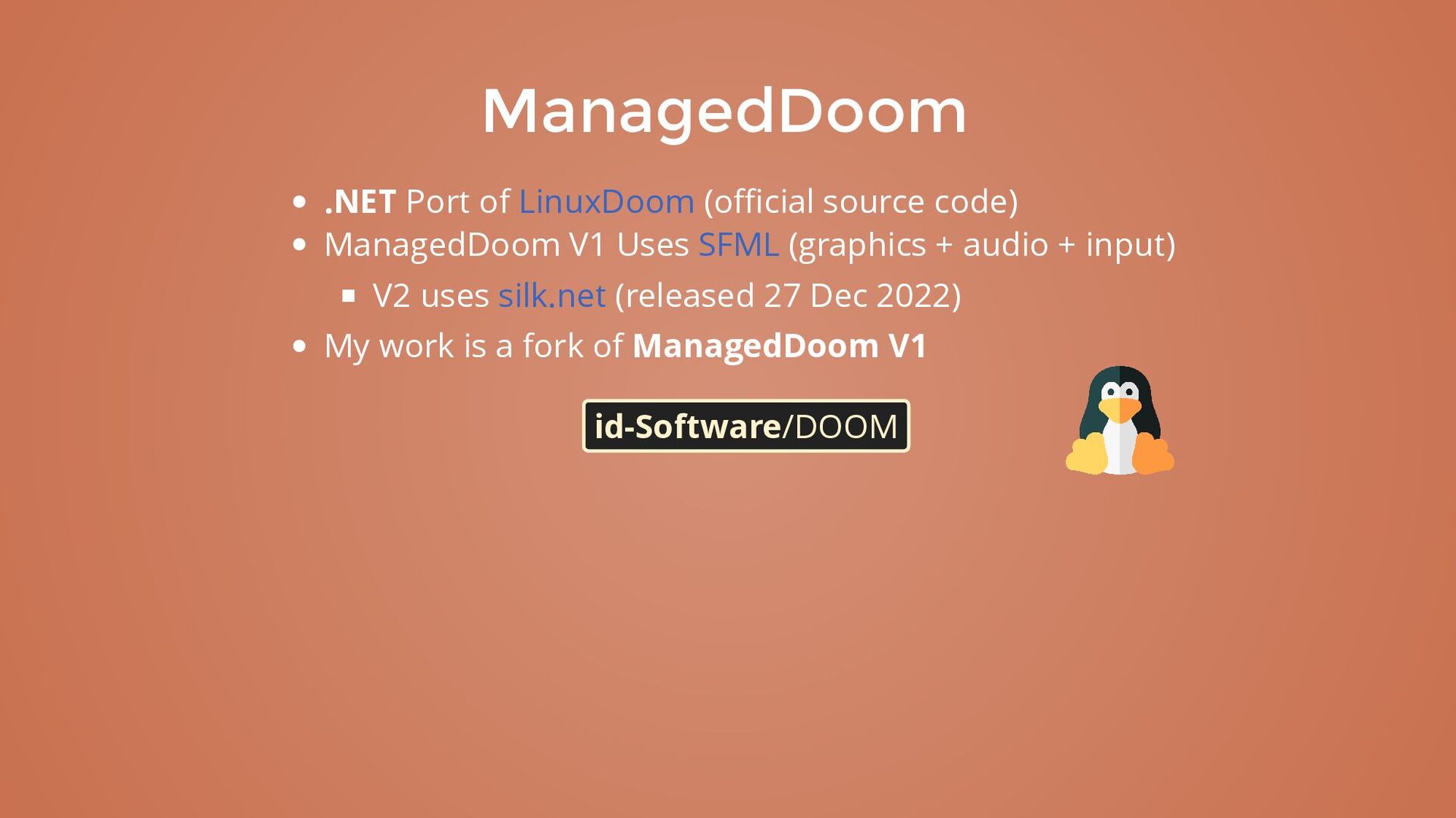

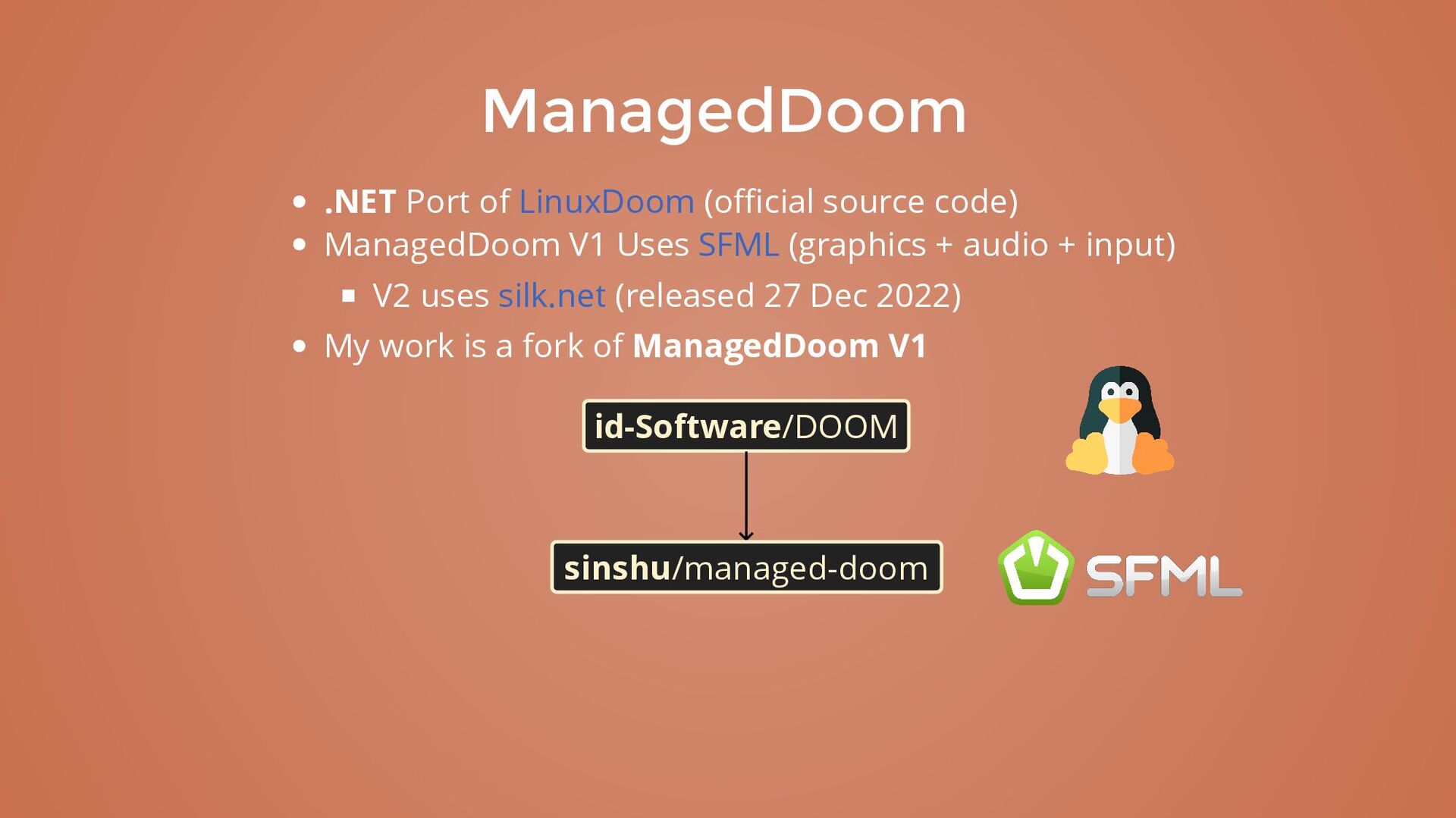

30. ManagedDoom .NET Port of (official source code) ManagedDoom V1 Uses (graphics + audio + input) V2 uses (released 27 Dec 2022) My work is a fork of ManagedDoom V1 LinuxDoom SFML silk.net
31. ManagedDoom .NET Port of (official source code) ManagedDoom V1 Uses (graphics + audio + input) V2 uses (released 27 Dec 2022) My work is a fork of ManagedDoom V1 LinuxDoom SFML silk.net id-Software/DOOM
32. ManagedDoom .NET Port of (official source code) ManagedDoom V1 Uses (graphics + audio + input) V2 uses (released 27 Dec 2022) My work is a fork of ManagedDoom V1 LinuxDoom SFML silk.net id-Software/DOOM sinshu/managed-doom

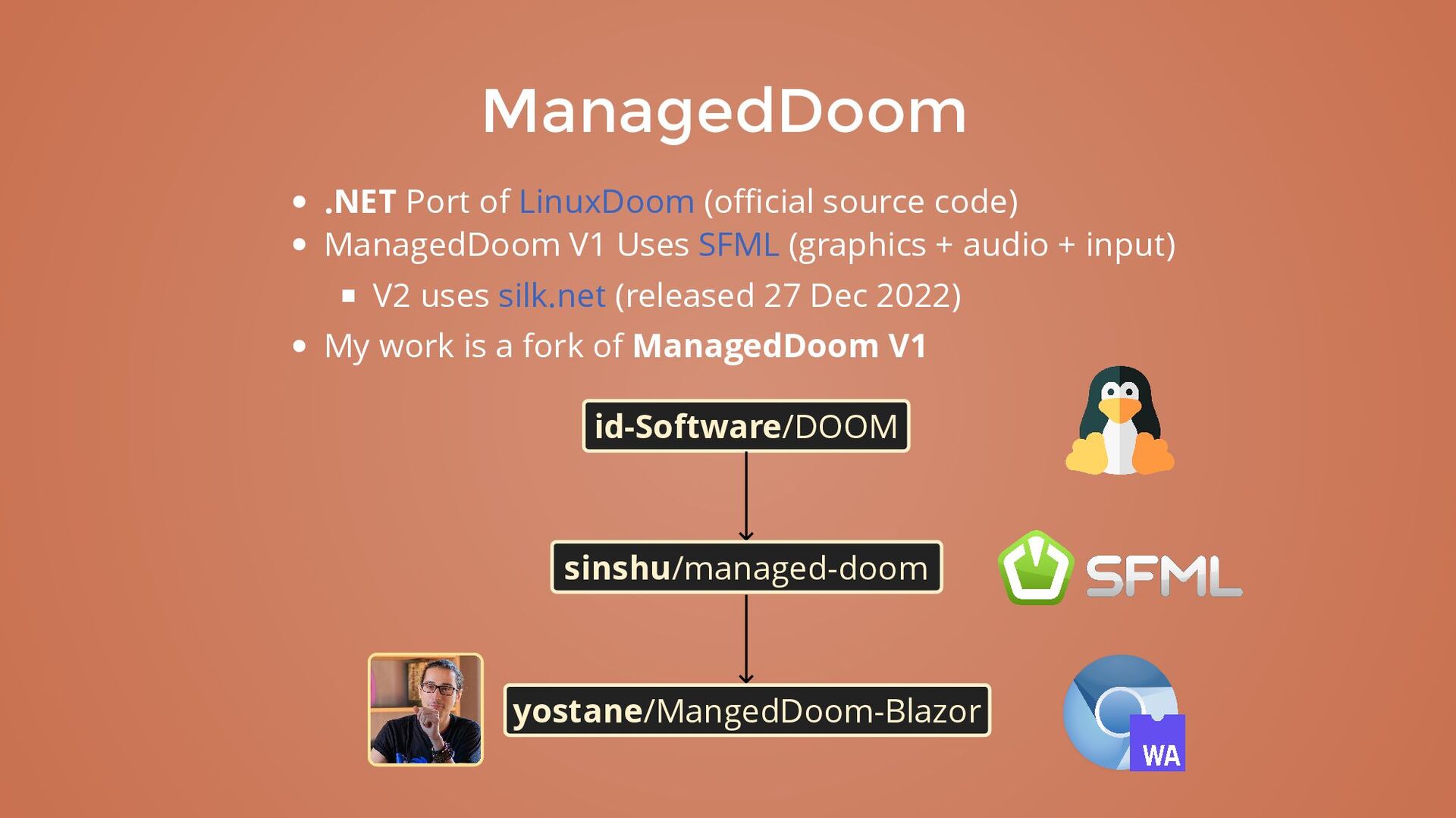

33. ManagedDoom .NET Port of (official source code) ManagedDoom V1 Uses (graphics + audio + input) V2 uses (released 27 Dec 2022) My work is a fork of ManagedDoom V1 LinuxDoom SFML silk.net id-Software/DOOM sinshu/managed-doom yostane/MangedDoom-Blazor

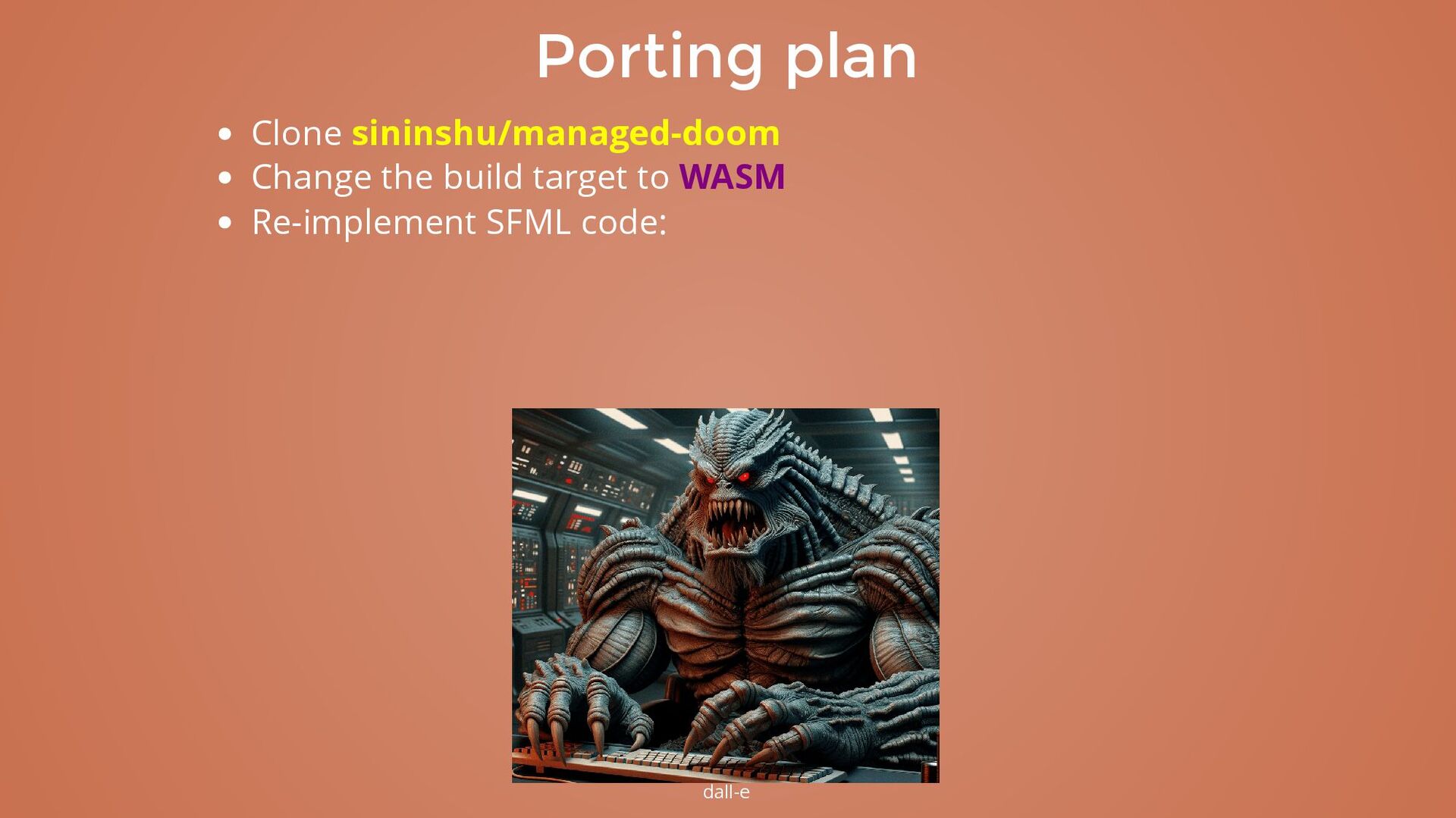

35. Porting plan Clone sininshu/managed-doom Change the build target to WASM Re-implement SFML code: dall-e

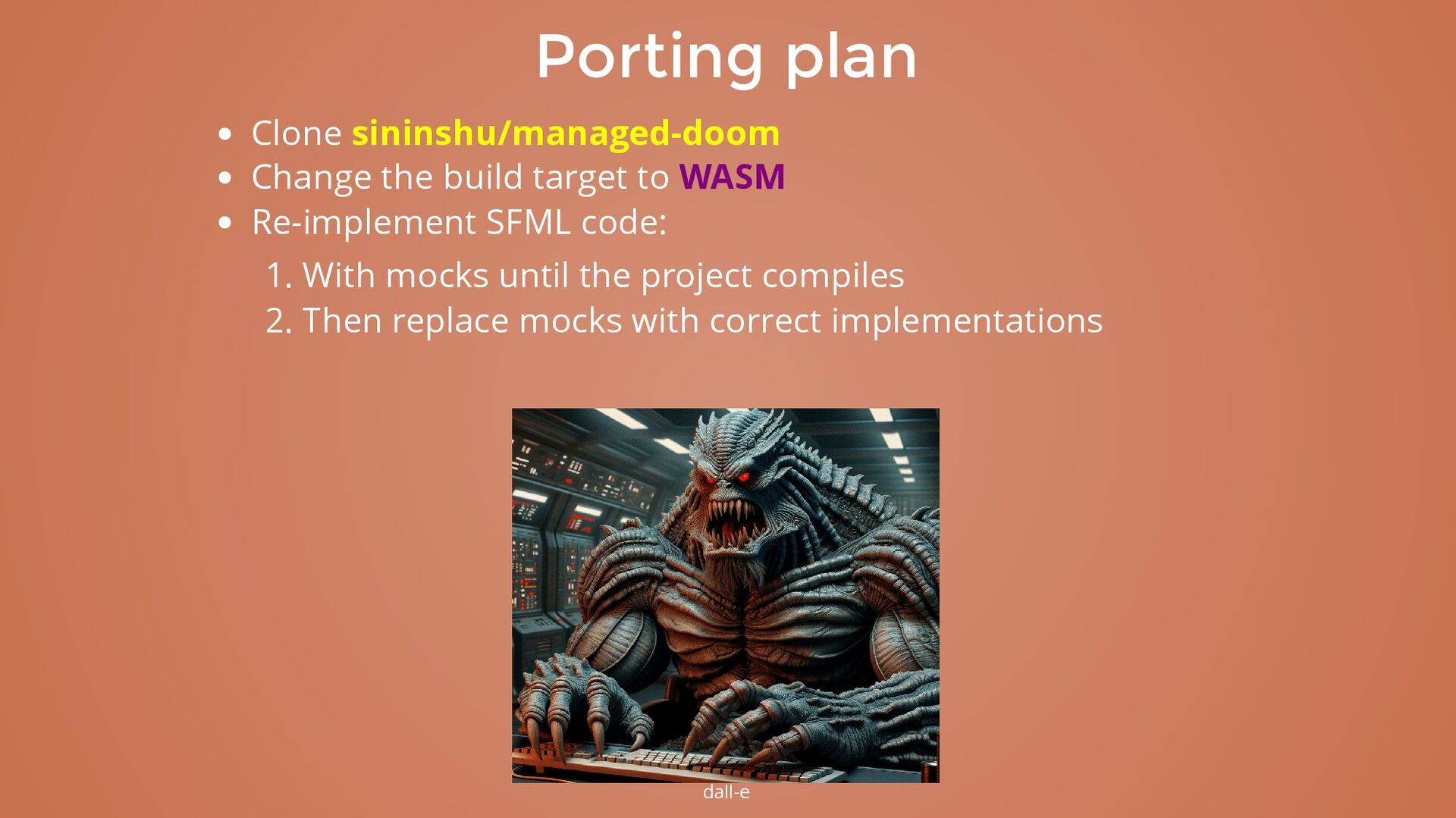

36. Porting plan Clone sininshu/managed-doom Change the build target to WASM Re-implement SFML code: 1. With mocks until the project compiles dall-e
37. Porting plan Clone sininshu/managed-doom Change the build target to WASM Re-implement SFML code: 1. With mocks until the project compiles 2. Then replace mocks with correct implementations dall-e
38. Porting plan Clone sininshu/managed-doom Change the build target to WASM Re-implement SFML code: 1. With mocks until the project compiles 2. Then replace mocks with correct implementations Implemenet minimal JS (gameloop, audio and video rendering) dall-e
39. Porting plan Clone sininshu/managed-doom Change the build target to WASM Re-implement SFML code: 1. With mocks until the project compiles 2. Then replace mocks with correct implementations Implemenet minimal JS (gameloop, audio and video rendering) dall-e
40. Porting plan Clone sininshu/managed-doom Change the build target to WASM Re-implement SFML code: 1. With mocks until the project compiles 2. Then replace mocks with correct implementations Implemenet minimal JS (gameloop, audio and video rendering) dall-e

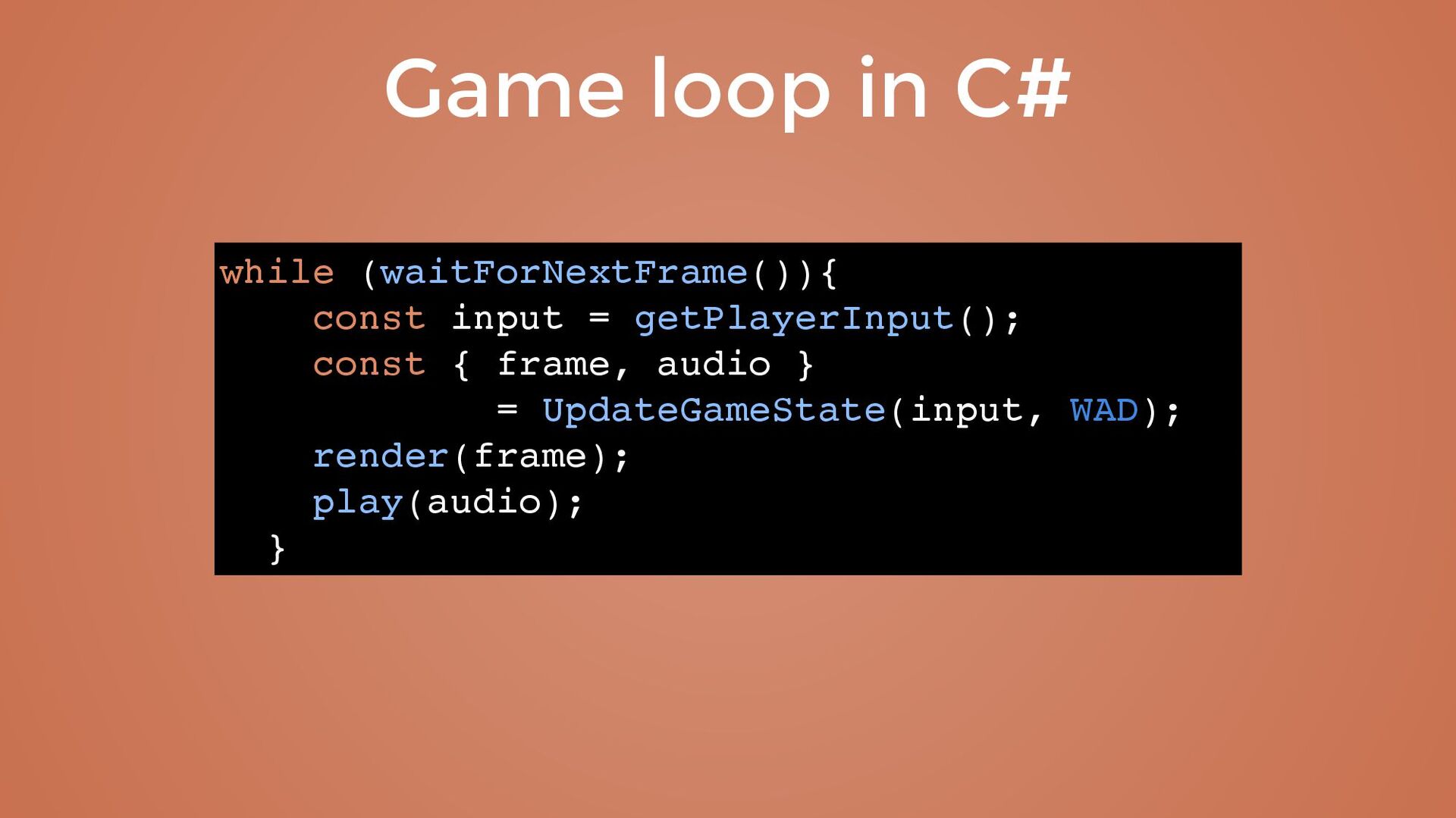

41. Game loop in C# while (waitForNextFrame()){ const input = getPlayerInput(); const { frame, audio } = UpdateGameState(input, WAD); render(frame); play(audio); }

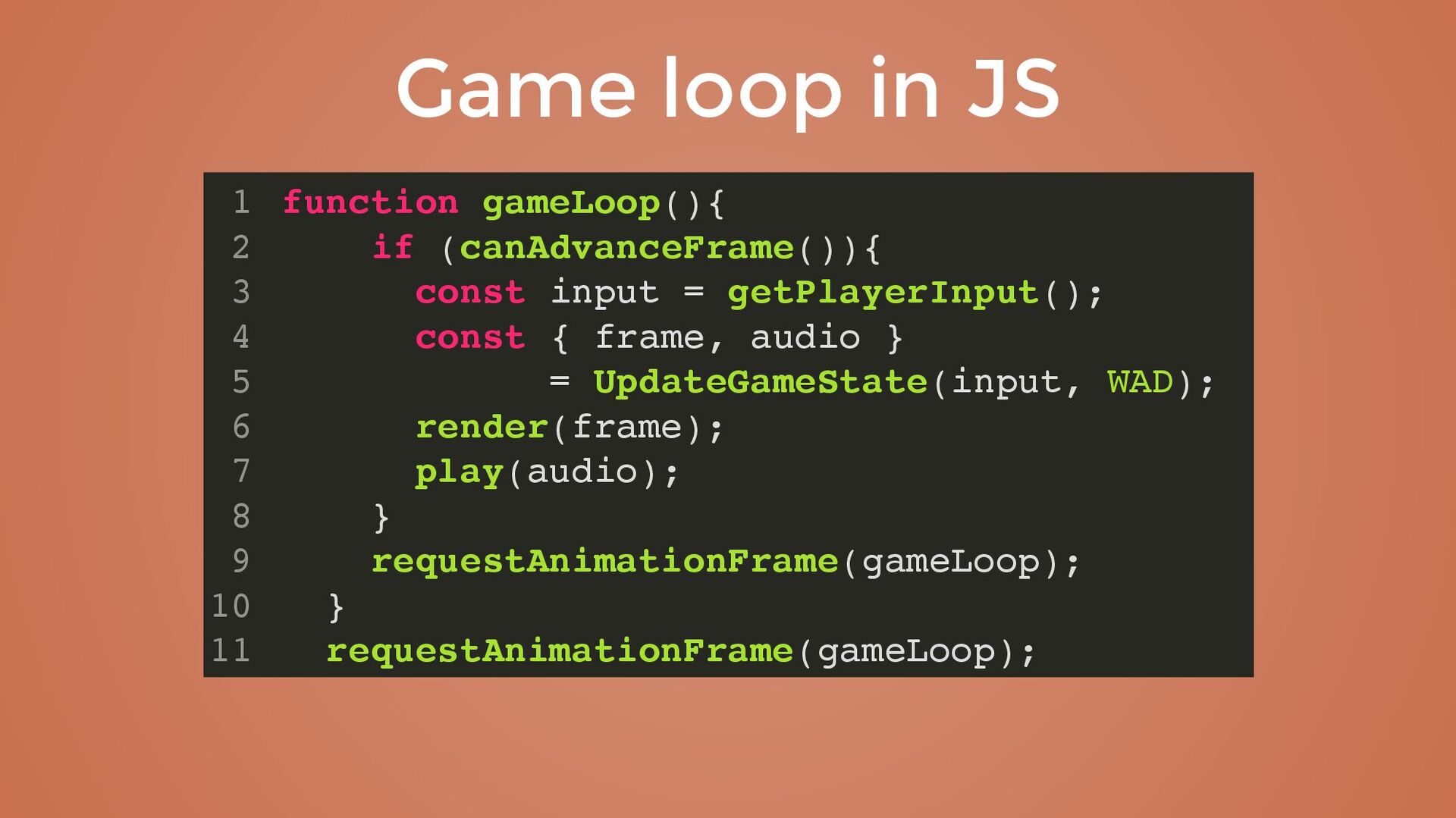

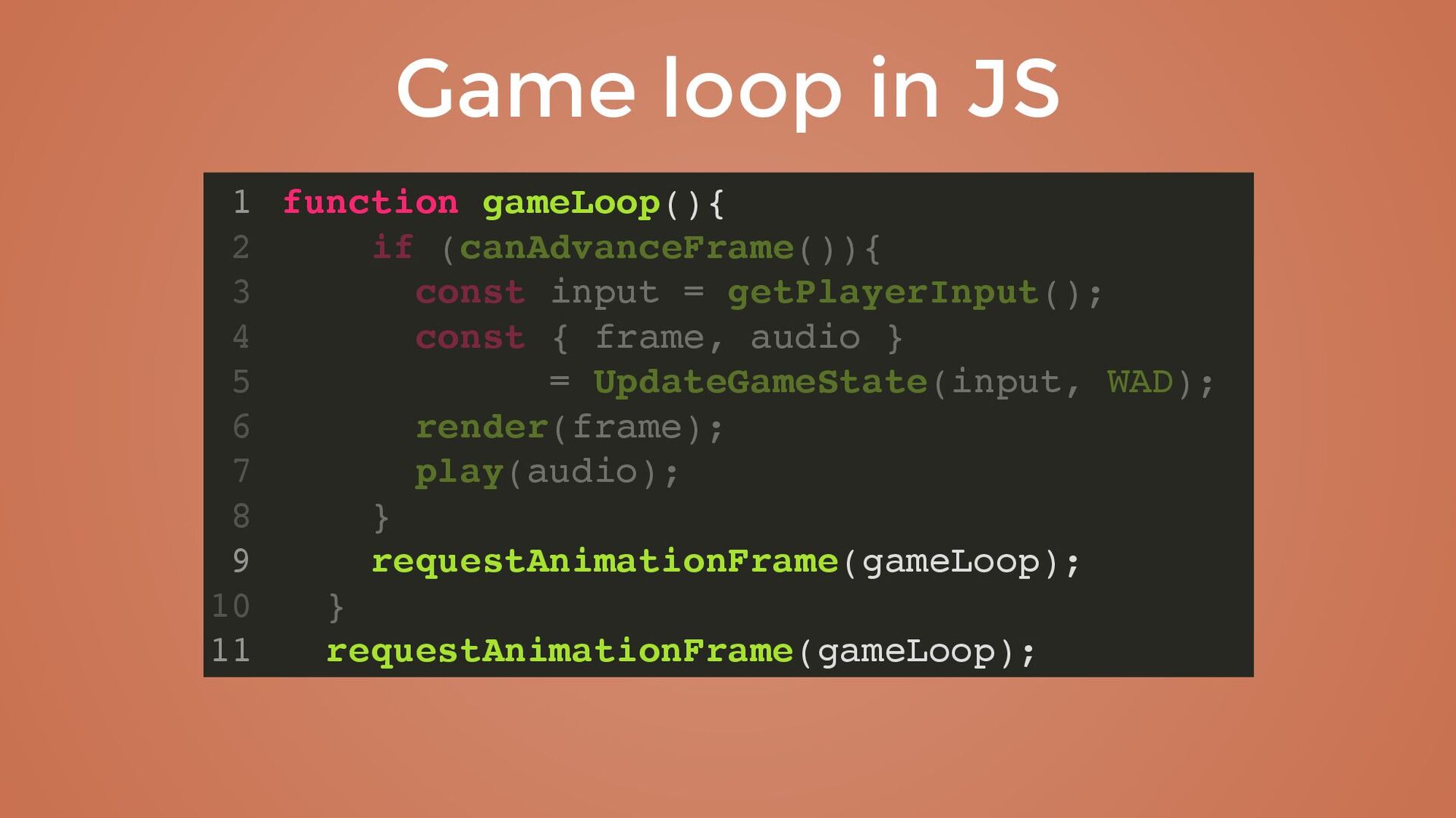

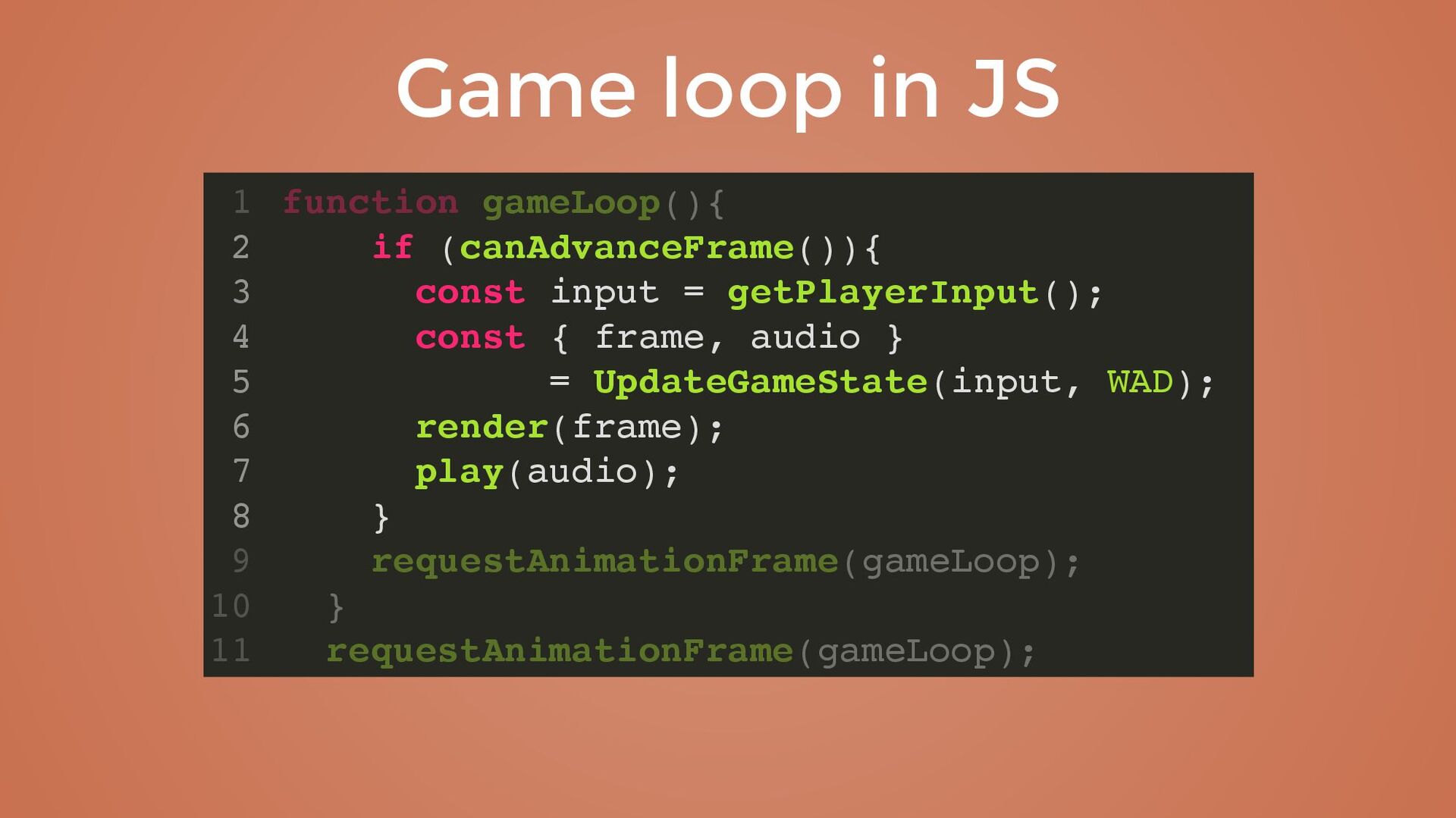

42. Game loop in JS if (canAdvanceFrame()){ const input = getPlayerInput(); const { frame, audio } = UpdateGameState(input, WAD); render(frame); play(audio); } function gameLoop(){ 1 2 3 4 5 6 7 8 requestAnimationFrame(gameLoop); 9 } 10 requestAnimationFrame(gameLoop); 11
43. Game loop in JS if (canAdvanceFrame()){ const input = getPlayerInput(); const { frame, audio } = UpdateGameState(input, WAD); render(frame); play(audio); } function gameLoop(){ 1 2 3 4 5 6 7 8 requestAnimationFrame(gameLoop); 9 } 10 requestAnimationFrame(gameLoop); 11 function gameLoop(){ requestAnimationFrame(gameLoop); requestAnimationFrame(gameLoop); 1 if (canAdvanceFrame()){ 2 const input = getPlayerInput(); 3 const { frame, audio } 4 = UpdateGameState(input, WAD); 5 render(frame); 6 play(audio); 7 } 8 9 } 10 11
44. Game loop in JS if (canAdvanceFrame()){ const input = getPlayerInput(); const { frame, audio } = UpdateGameState(input, WAD); render(frame); play(audio); } function gameLoop(){ 1 2 3 4 5 6 7 8 requestAnimationFrame(gameLoop); 9 } 10 requestAnimationFrame(gameLoop); 11 function gameLoop(){ requestAnimationFrame(gameLoop); requestAnimationFrame(gameLoop); 1 if (canAdvanceFrame()){ 2 const input = getPlayerInput(); 3 const { frame, audio } 4 = UpdateGameState(input, WAD); 5 render(frame); 6 play(audio); 7 } 8 9 } 10 11 function gameLoop(){ if (canAdvanceFrame()){ const input = getPlayerInput(); const { frame, audio } = UpdateGameState(input, WAD); render(frame); play(audio); } requestAnimationFrame(gameLoop); } requestAnimationFrame(gameLoop); 1 2 3 4 5 6 7 8 9 10 11

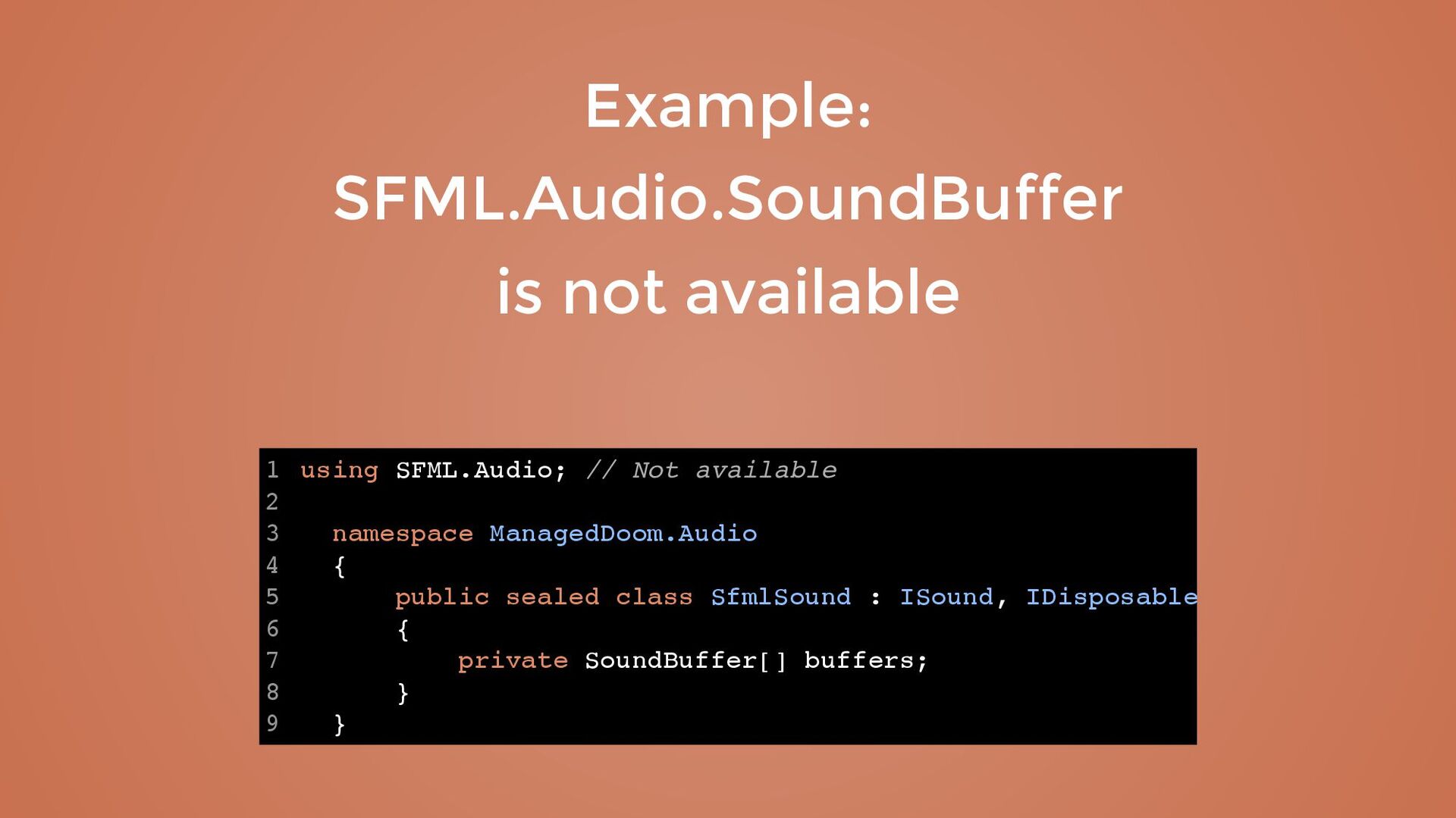

45. using SFML.Audio; // Not available namespace ManagedDoom.Audio { public sealed class SfmlSound : ISound, IDisposable { private SoundBuffer[] buffers; } } 1 2 3 4 5 6 7 8 9 Example: SFML.Audio.SoundBuffer is not available

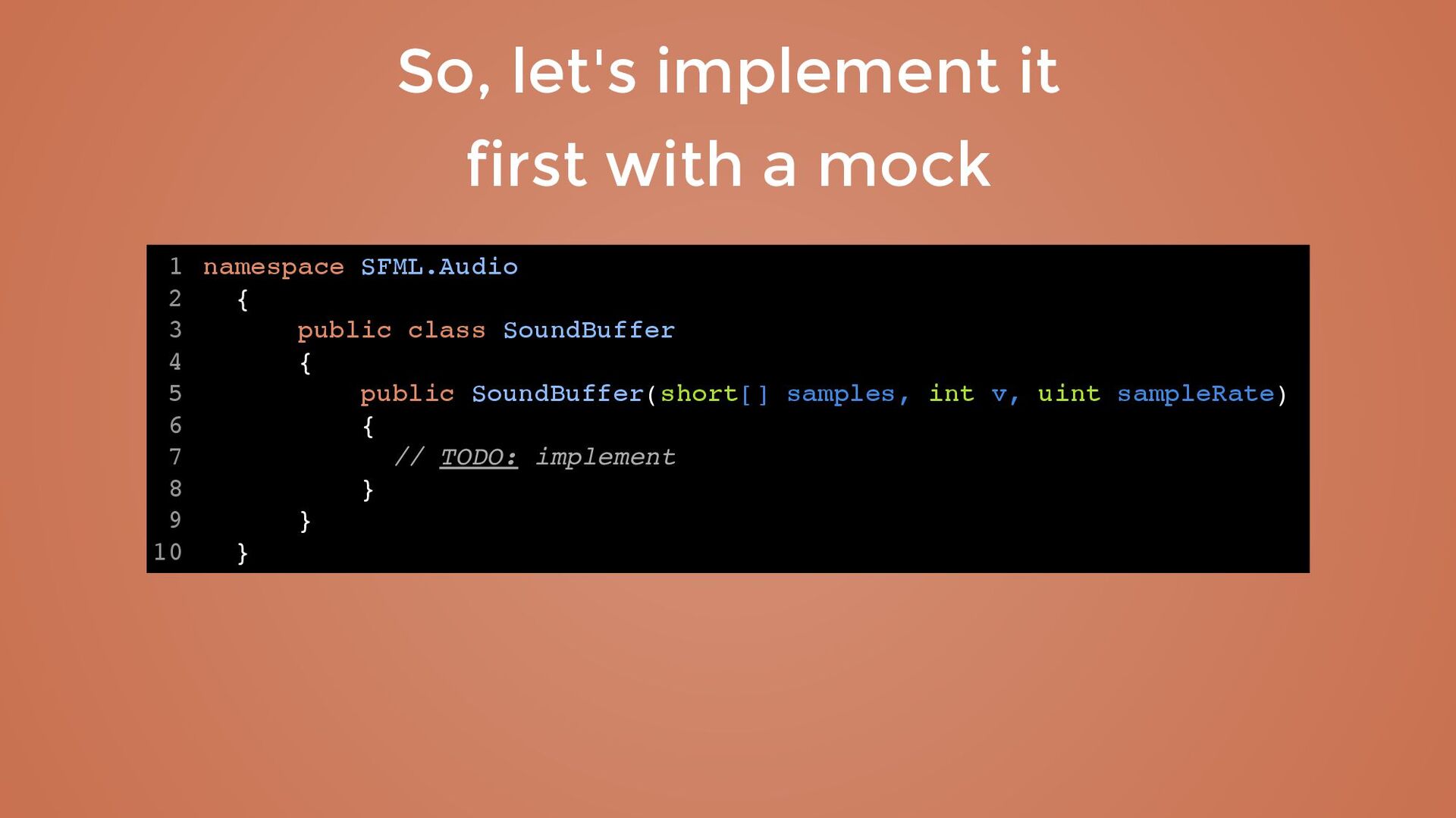

46. namespace SFML.Audio { public class SoundBuffer { public SoundBuffer(short[] samples, int v, uint sampleRate) { // TODO: implement } } } 1 2 3 4 5 6 7 8 9 10 So, let's implement it first with a mock

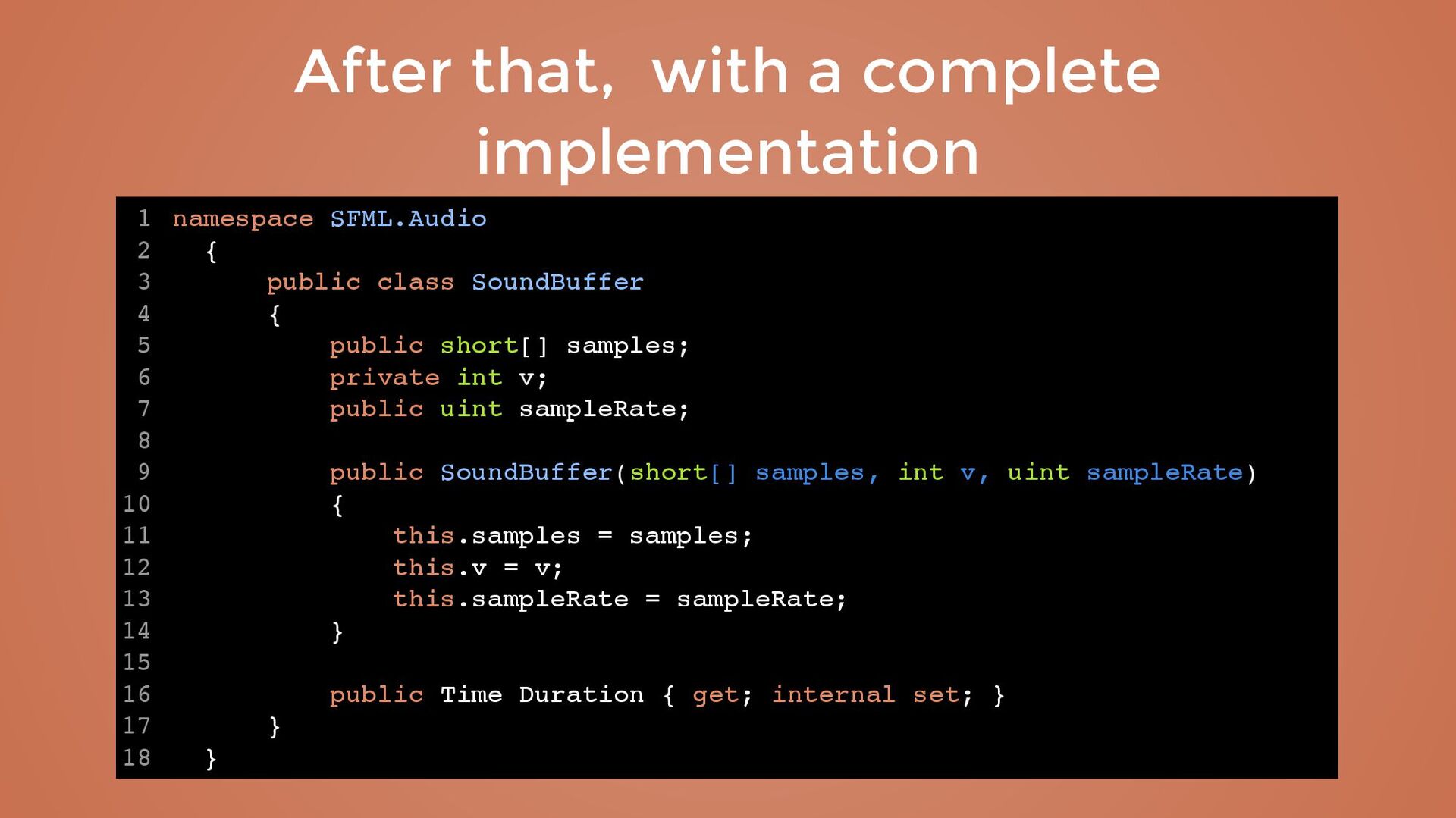

47. namespace SFML.Audio { public class SoundBuffer { public short[] samples; private int v; public uint sampleRate; public SoundBuffer(short[] samples, int v, uint sampleRate) { this.samples = samples; this.v = v; this.sampleRate = sampleRate; } public Time Duration { get; internal set; } } } 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 After that, with a complete implementation

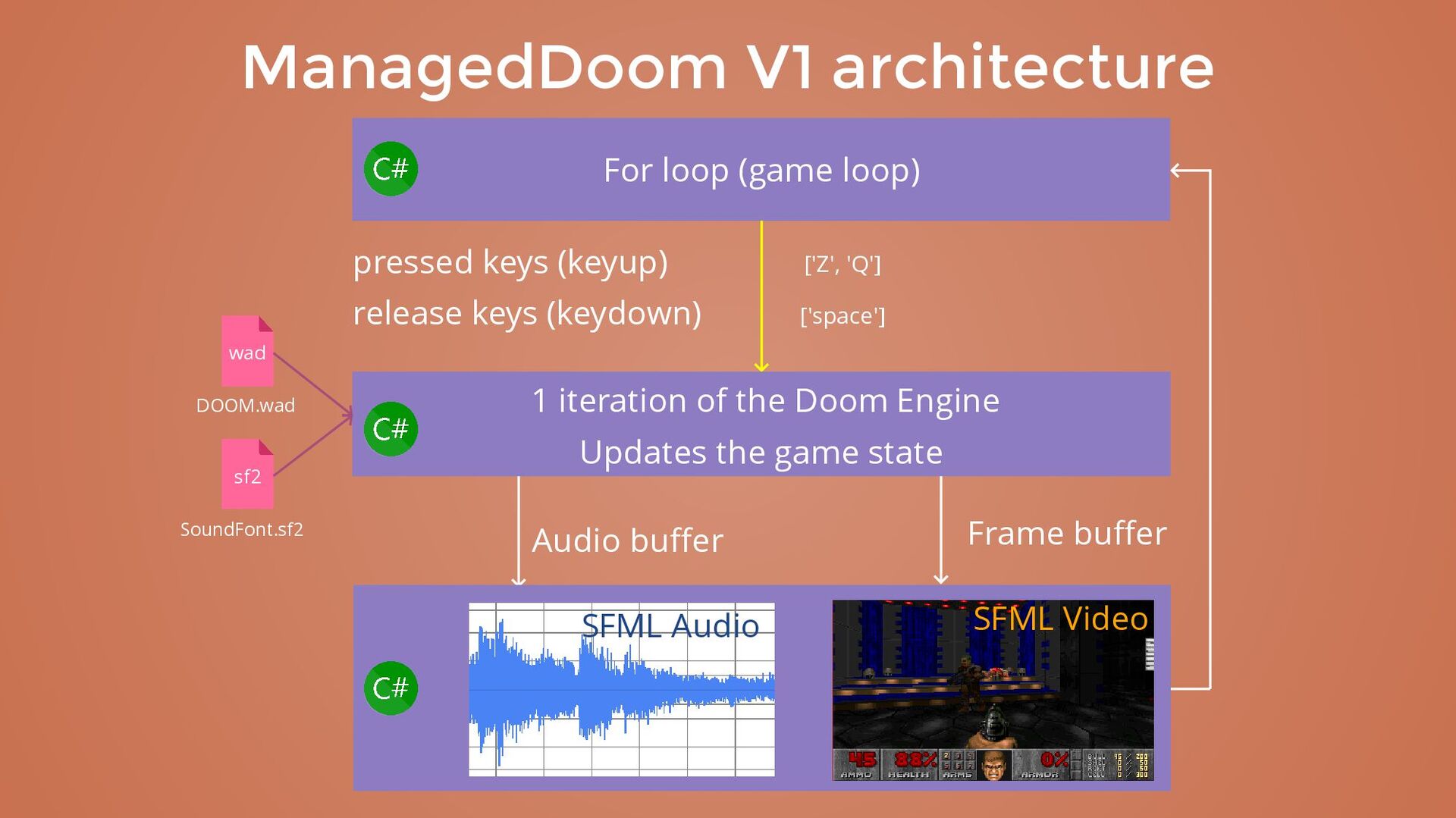

48. ManagedDoom V1 architecture

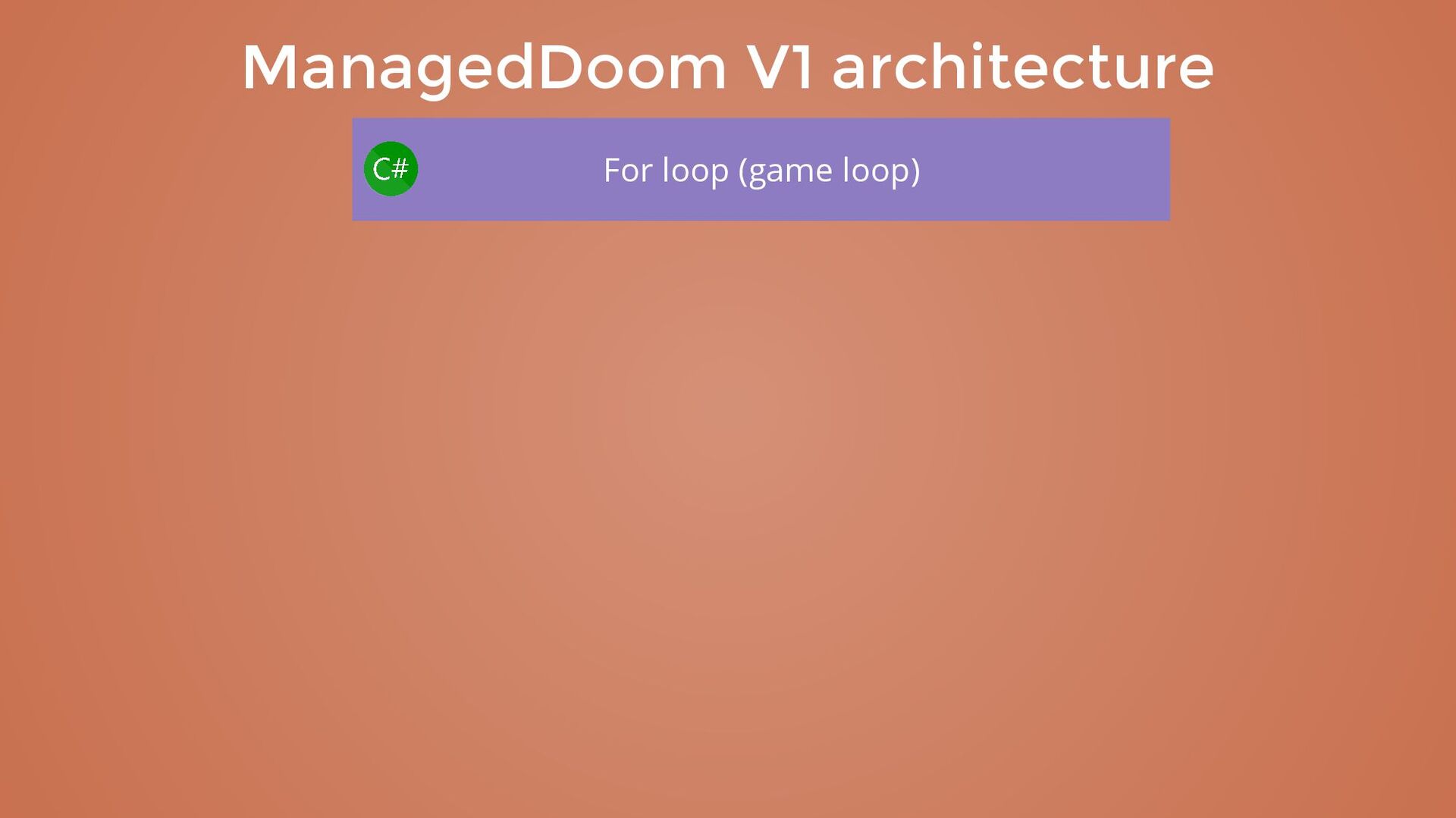

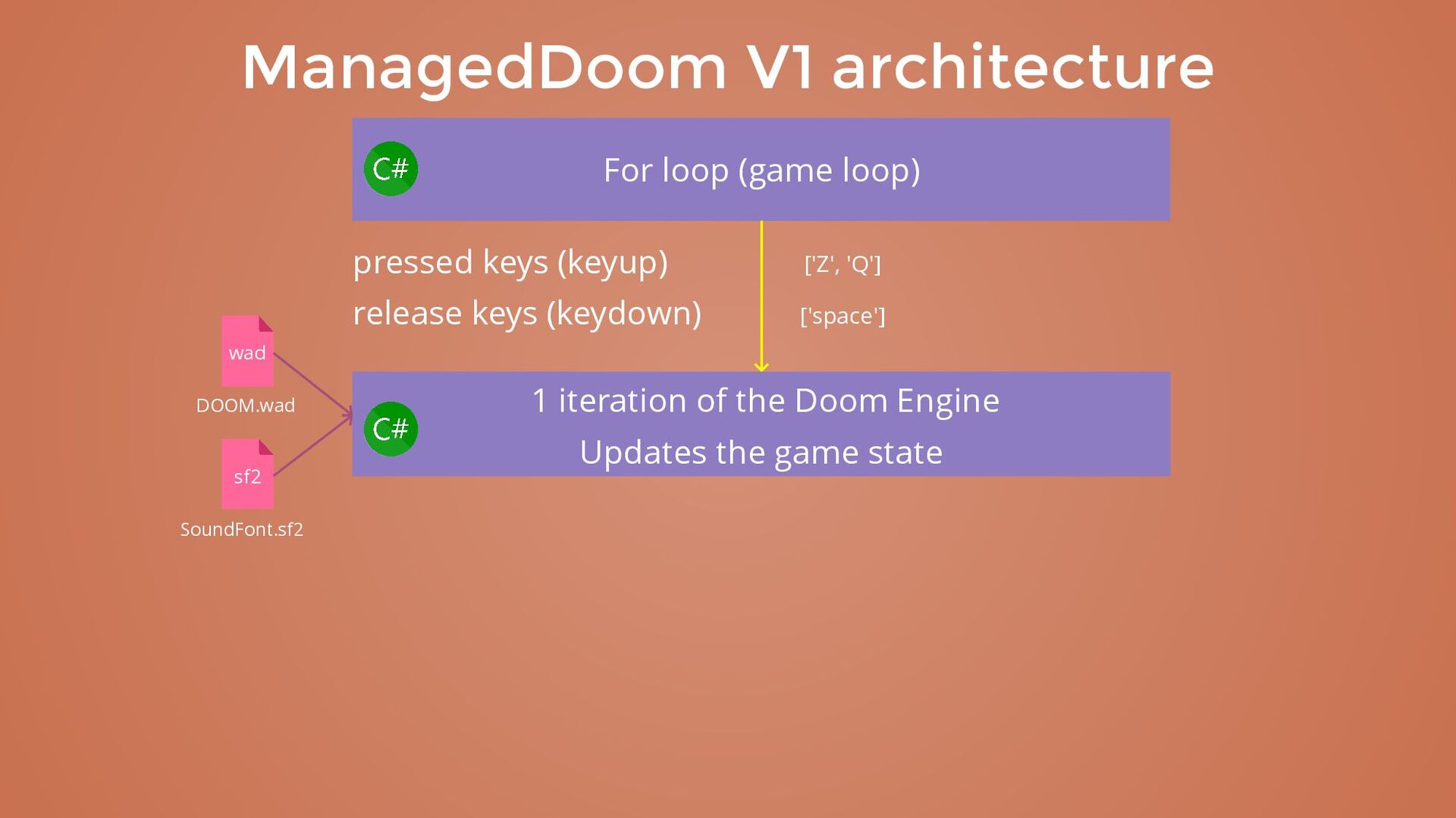

49. For loop (game loop) ManagedDoom V1 architecture

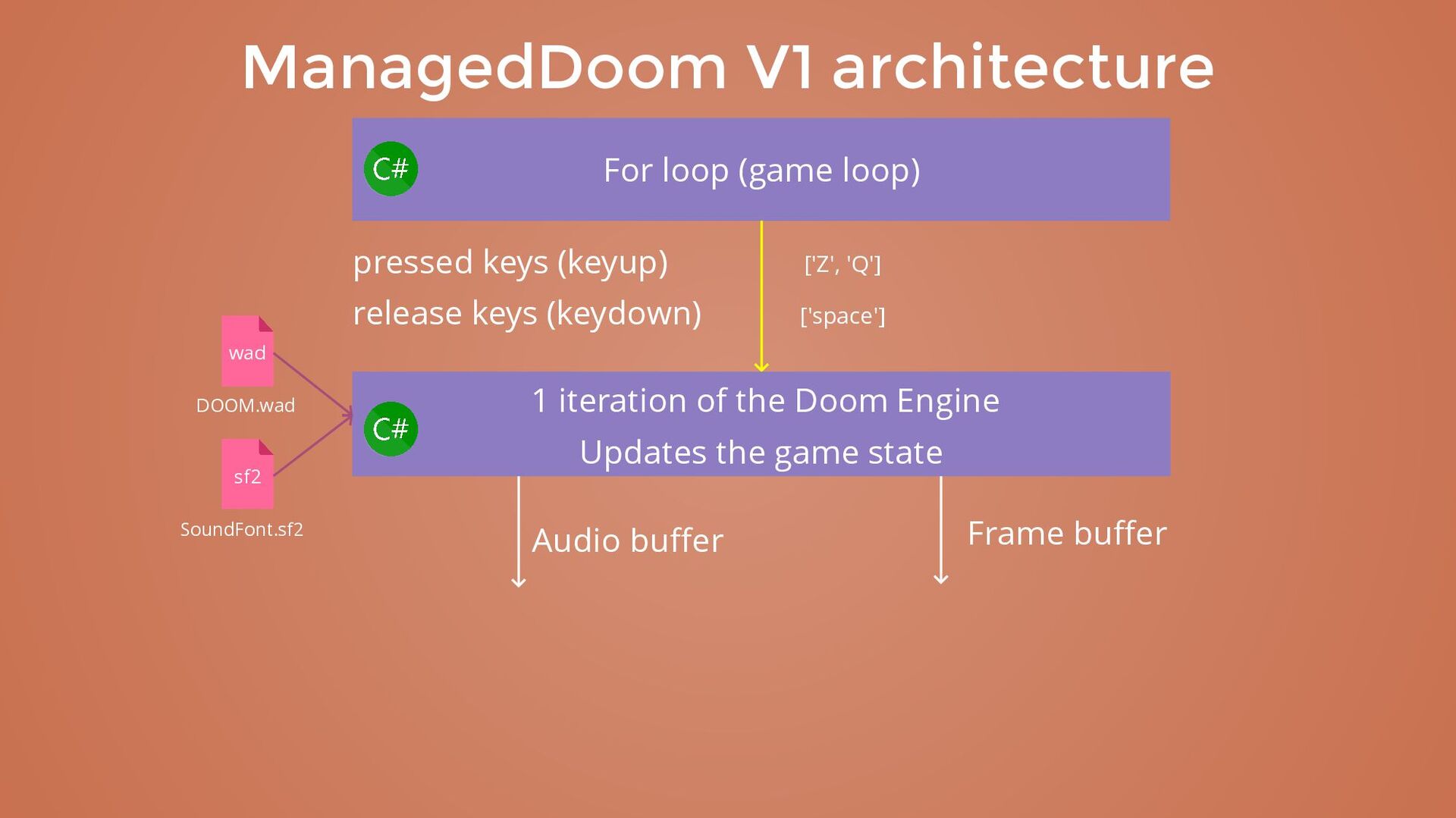

50. For loop (game loop) pressed keys (keyup) release keys (keydown) ['Z', 'Q'] ['space'] ManagedDoom V1 architecture 1 iteration of the Doom Engine Updates the game state wad DOOM.wad sf2 SoundFont.sf2
51. For loop (game loop) pressed keys (keyup) release keys (keydown) ['Z', 'Q'] ['space'] ManagedDoom V1 architecture Frame buffer Audio buffer 1 iteration of the Doom Engine Updates the game state wad DOOM.wad sf2 SoundFont.sf2
52. For loop (game loop) pressed keys (keyup) release keys (keydown) ['Z', 'Q'] ['space'] ManagedDoom V1 architecture Frame buffer Audio buffer SFML Video SFML Audio 1 iteration of the Doom Engine Updates the game state wad DOOM.wad sf2 SoundFont.sf2

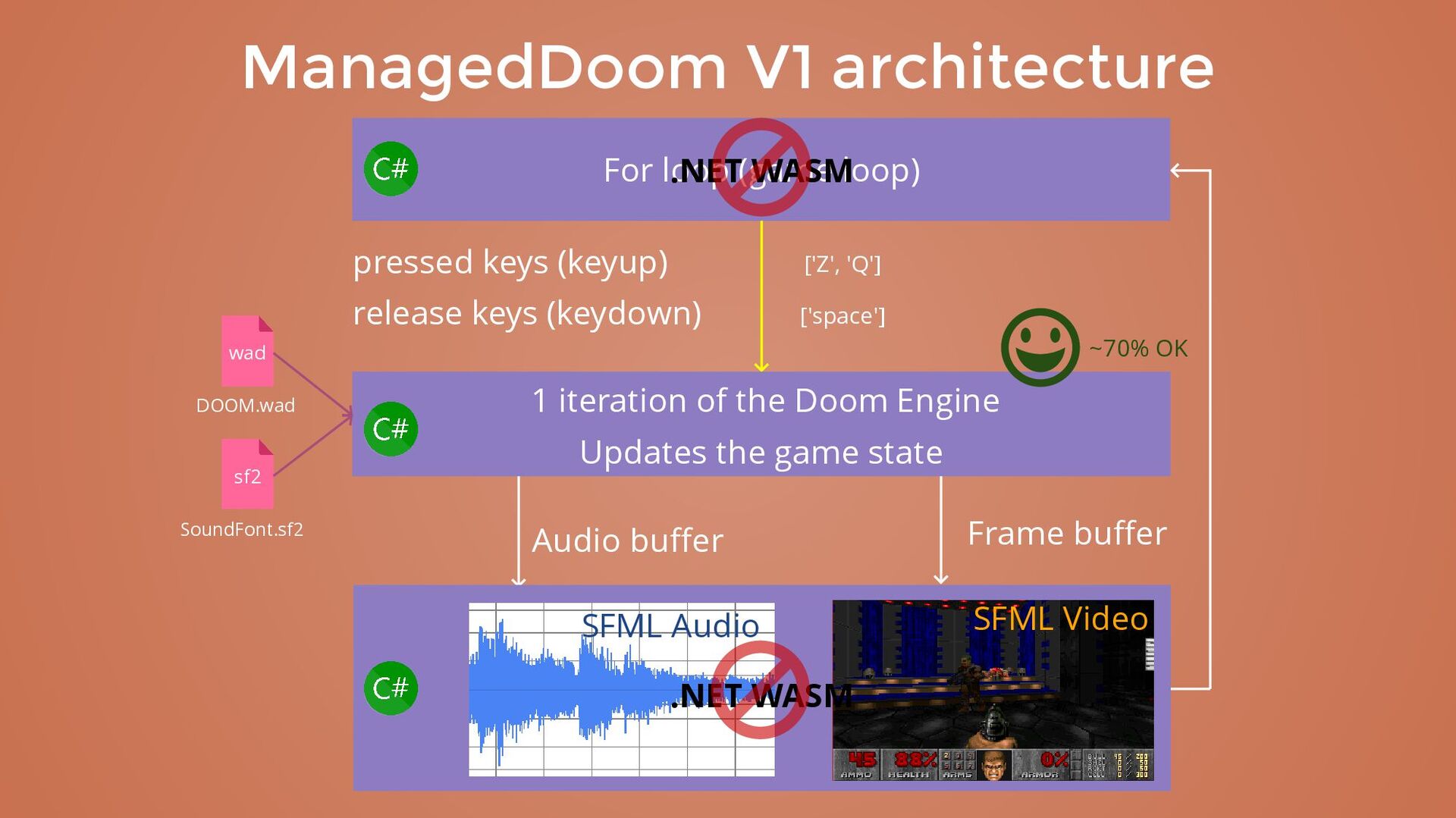

53. For loop (game loop) pressed keys (keyup) release keys (keydown) ['Z', 'Q'] ['space'] ManagedDoom V1 architecture Frame buffer Audio buffer SFML Video SFML Audio 1 iteration of the Doom Engine Updates the game state wad DOOM.wad sf2 SoundFont.sf2
54. For loop (game loop) pressed keys (keyup) release keys (keydown) ['Z', 'Q'] ['space'] ManagedDoom V1 architecture Frame buffer Audio buffer SFML Video SFML Audio 1 iteration of the Doom Engine Updates the game state .NET WASM ~70% OK .NET WASM wad DOOM.wad sf2 SoundFont.sf2

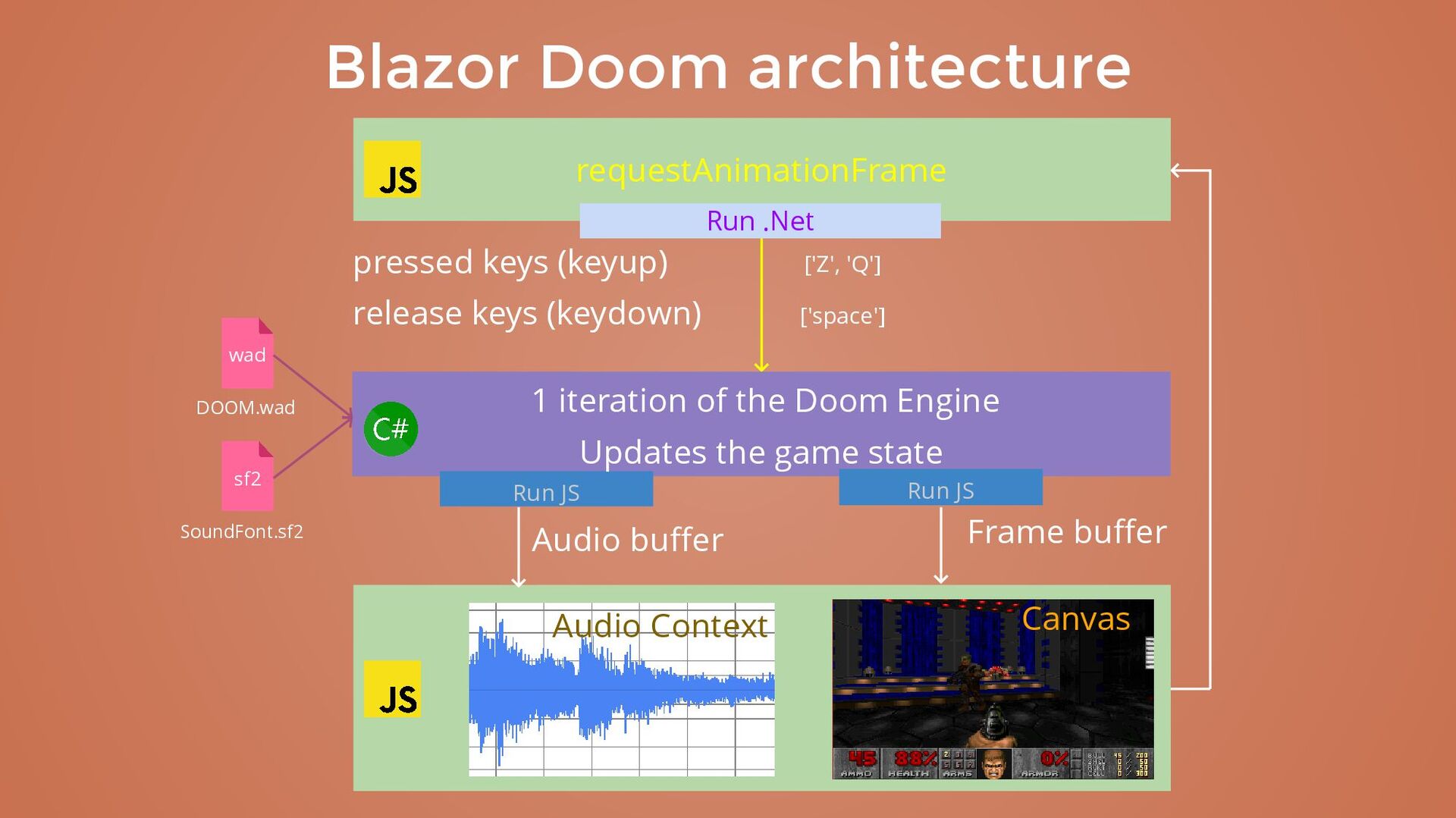

55. pressed keys (keyup) release keys (keydown) ['Z', 'Q'] ['space'] Blazor Doom architecture wad DOOM.wad requestAnimationFrame Run .Net Canvas Run JS Run JS Frame buffer Audio buffer Audio Context 1 iteration of the Doom Engine Updates the game state sf2 SoundFont.sf2

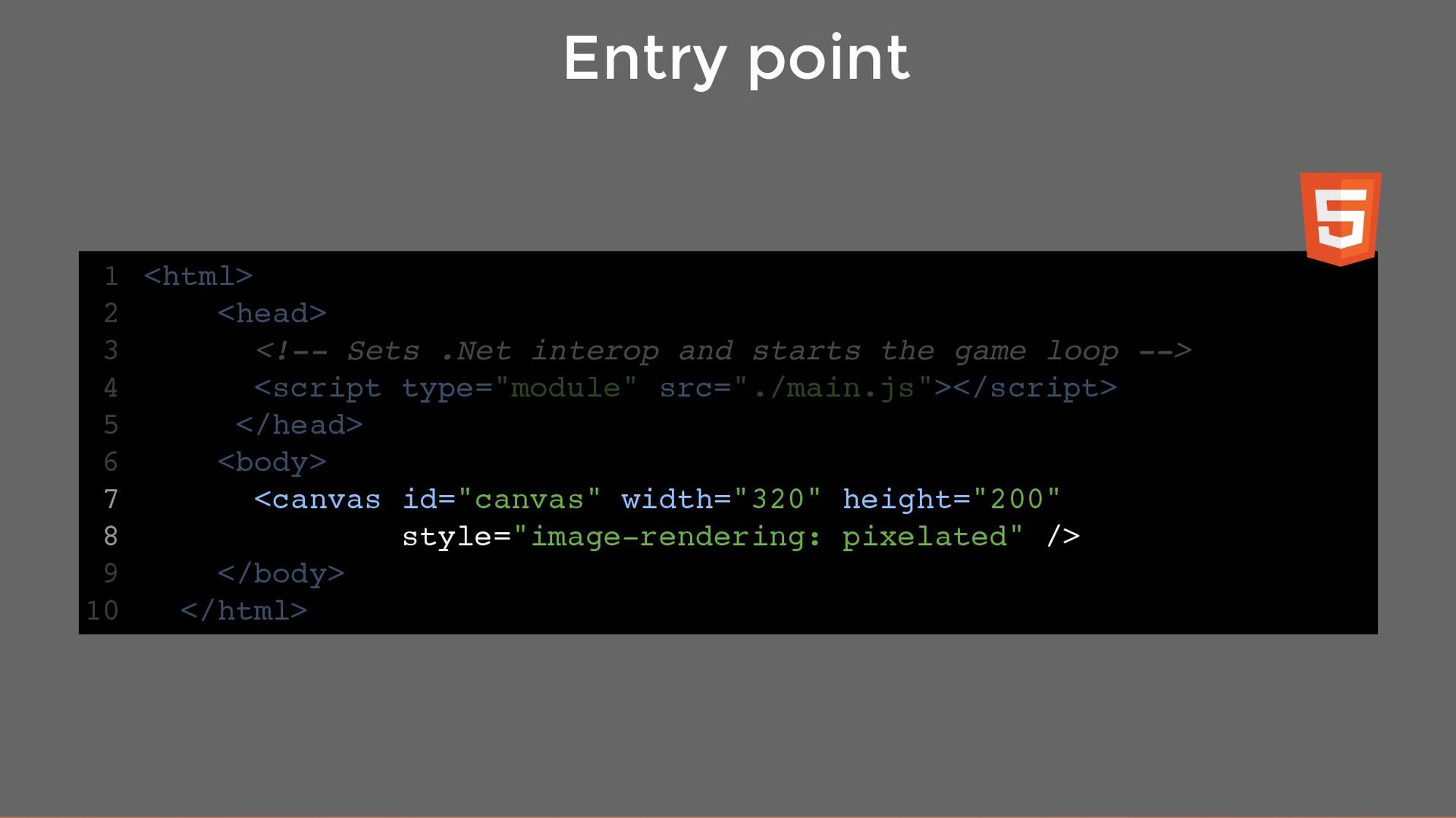

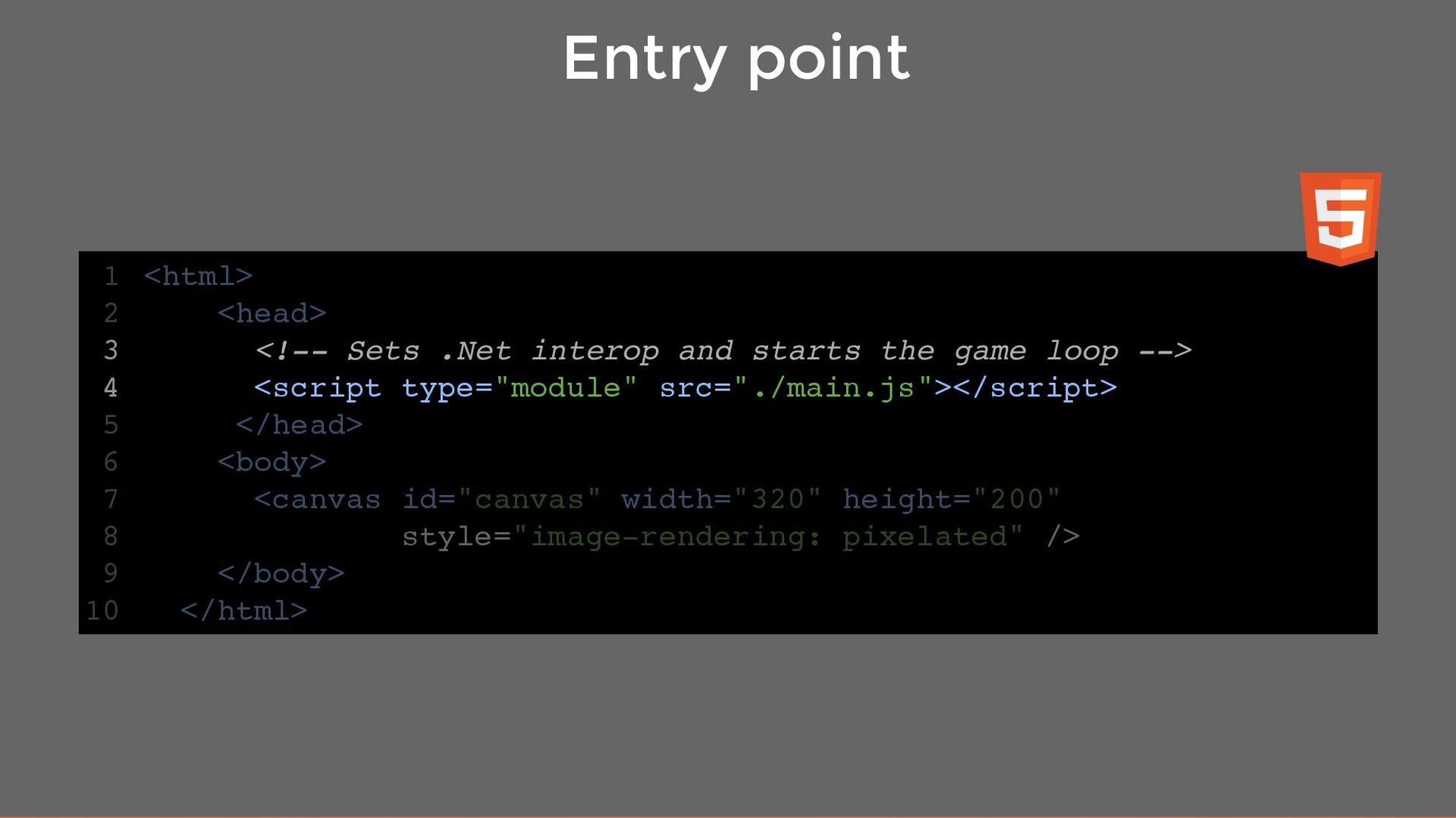

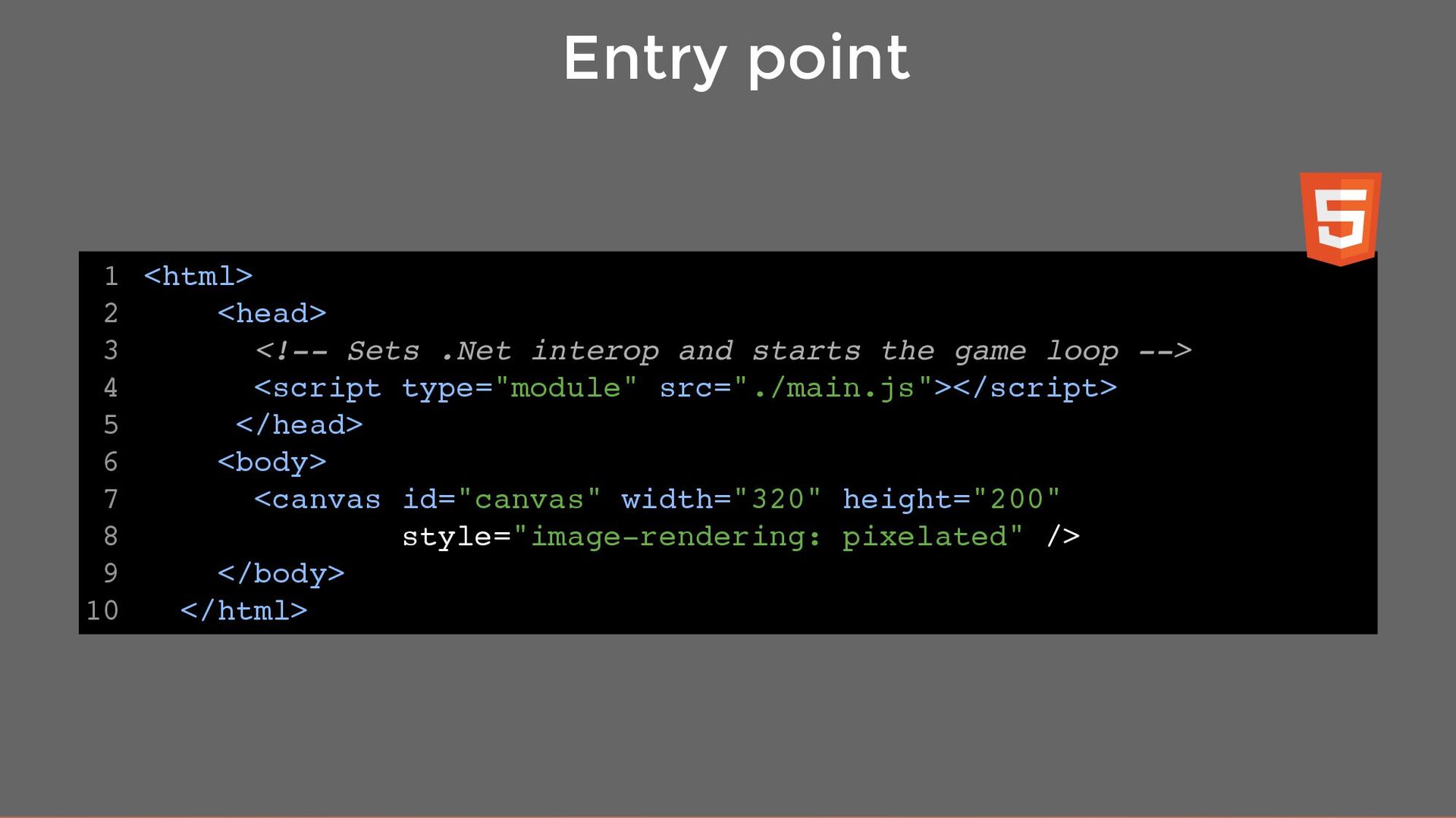

58. <html> <head> <!-- Sets .Net interop and starts the game loop --> <script type="module" src="./main.js"></script> </head> <body> <canvas id="canvas" width="320" height="200" style="image-rendering: pixelated" /> </body> </html> 1 2 3 4 5 6 7 8 9 10 Entry point
59. <html> <head> <!-- Sets .Net interop and starts the game loop --> <script type="module" src="./main.js"></script> </head> <body> <canvas id="canvas" width="320" height="200" style="image-rendering: pixelated" /> </body> </html> 1 2 3 4 5 6 7 8 9 10 <!-- Sets .Net interop and starts the game loop --> <script type="module" src="./main.js"></script> <html> 1 <head> 2 3 4 </head> 5 <body> 6 <canvas id="canvas" width="320" height="200" 7 style="image-rendering: pixelated" /> 8 </body> 9 </html> 10 Entry point
60. <html> <head> <!-- Sets .Net interop and starts the game loop --> <script type="module" src="./main.js"></script> </head> <body> <canvas id="canvas" width="320" height="200" style="image-rendering: pixelated" /> </body> </html> 1 2 3 4 5 6 7 8 9 10 <!-- Sets .Net interop and starts the game loop --> <script type="module" src="./main.js"></script> <html> 1 <head> 2 3 4 </head> 5 <body> 6 <canvas id="canvas" width="320" height="200" 7 style="image-rendering: pixelated" /> 8 </body> 9 </html> 10 <canvas id="canvas" width="320" height="200" style="image-rendering: pixelated" /> <html> 1 <head> 2 <!-- Sets .Net interop and starts the game loop --> 3 <script type="module" src="./main.js"></script> 4 </head> 5 <body> 6 7 8 </body> 9 </html> 10 Entry point

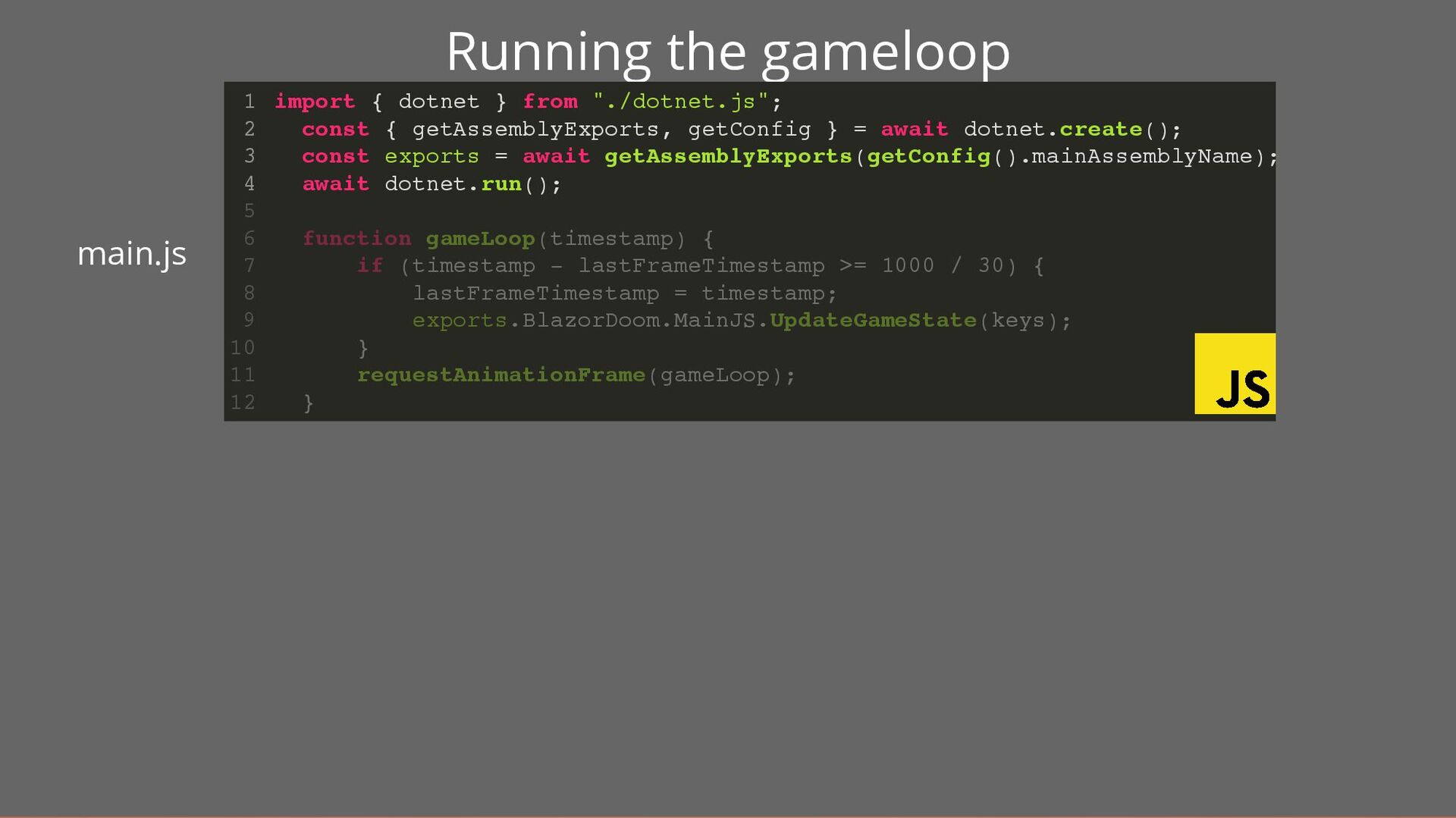

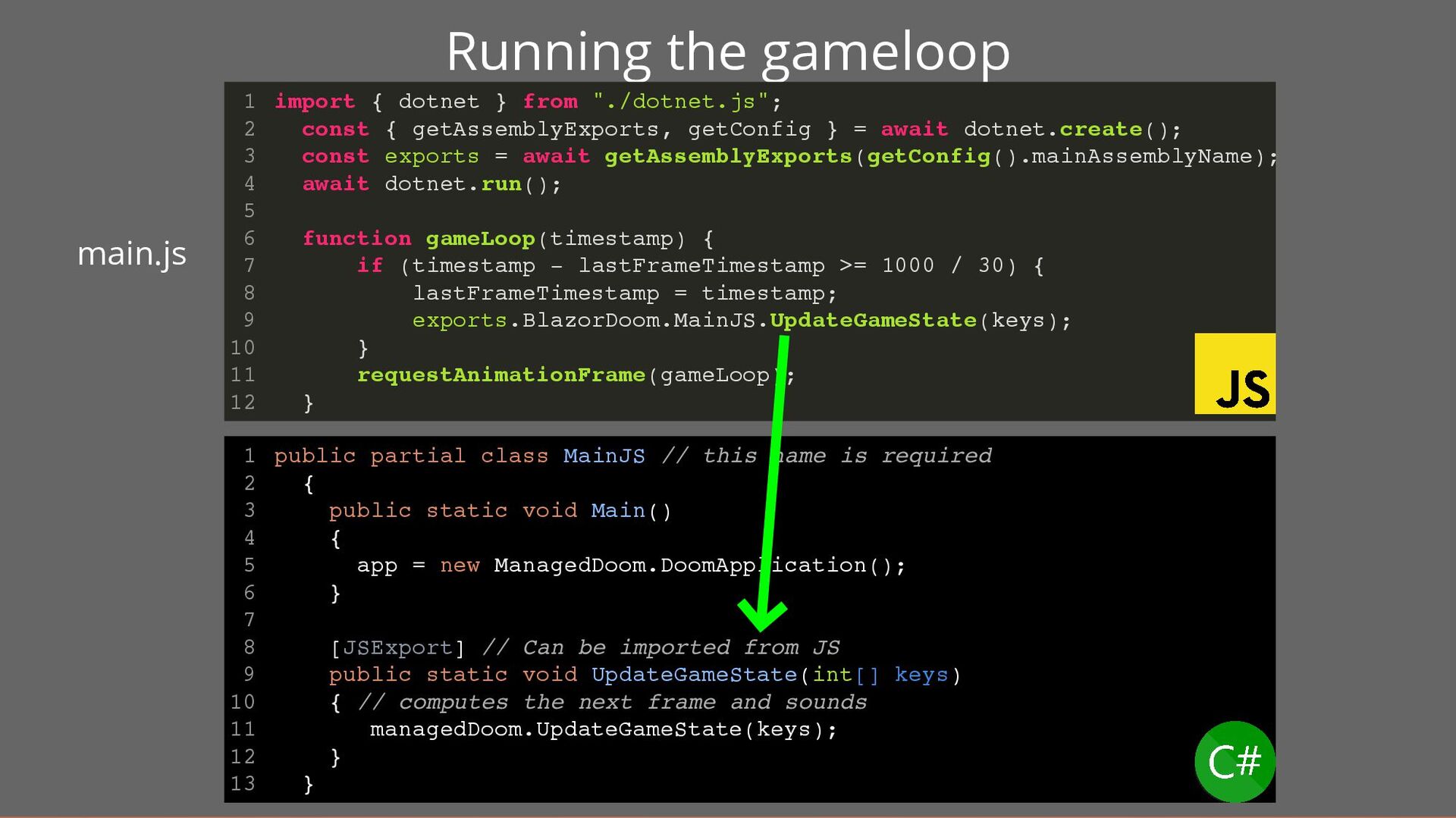

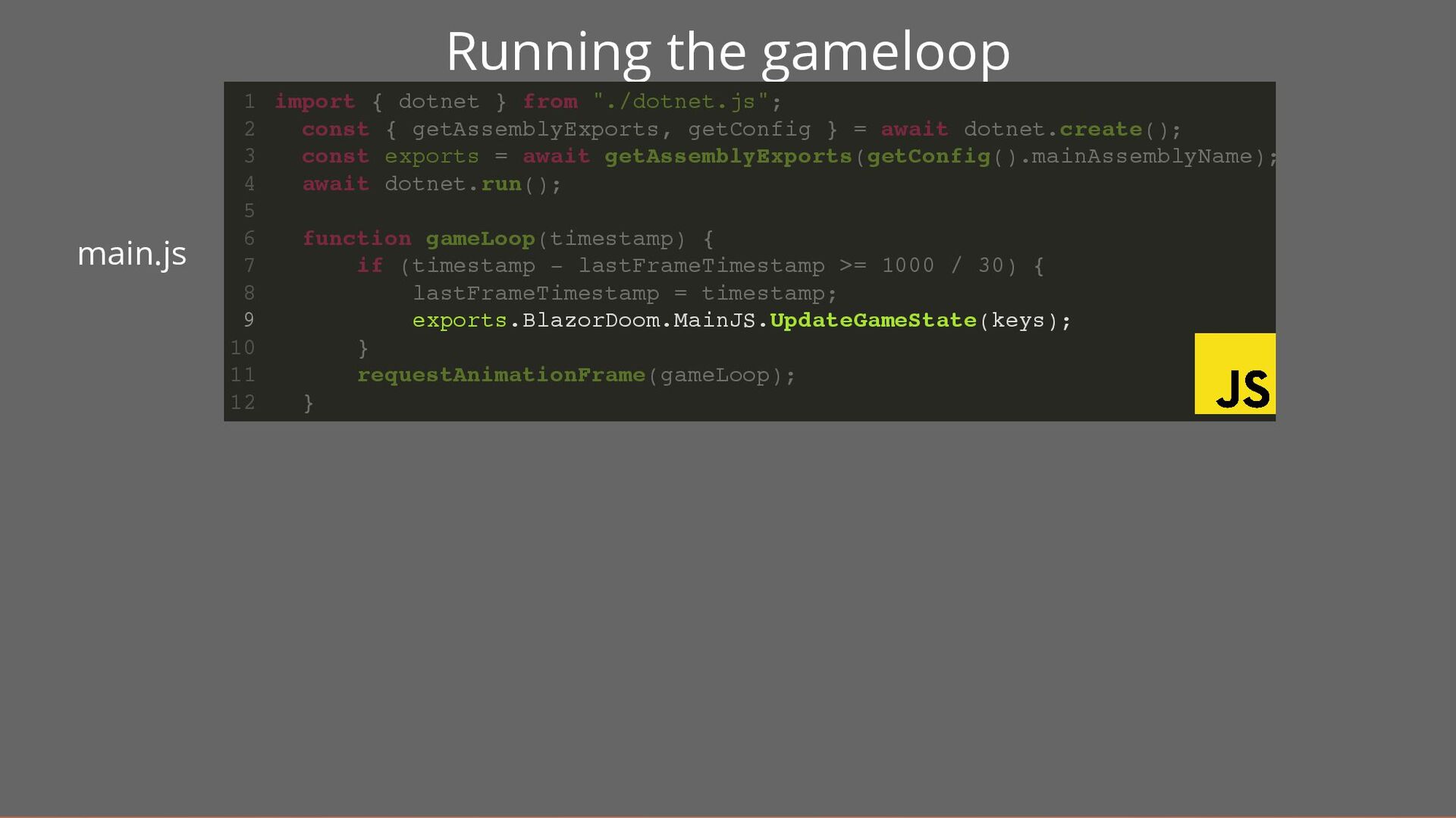

61. Running the gameloop import { dotnet } from "./dotnet.js"; const { getAssemblyExports, getConfig } = await dotnet.create(); const exports = await getAssemblyExports(getConfig().mainAssemblyName); await dotnet.run(); function gameLoop(timestamp) { if (timestamp - lastFrameTimestamp >= 1000 / 30) { lastFrameTimestamp = timestamp; exports.BlazorDoom.MainJS.UpdateGameState(keys); } requestAnimationFrame(gameLoop); } 1 2 3 4 5 6 7 8 9 10 11 12 main.js
62. Running the gameloop import { dotnet } from "./dotnet.js"; const { getAssemblyExports, getConfig } = await dotnet.create(); const exports = await getAssemblyExports(getConfig().mainAssemblyName); await dotnet.run(); function gameLoop(timestamp) { if (timestamp - lastFrameTimestamp >= 1000 / 30) { lastFrameTimestamp = timestamp; exports.BlazorDoom.MainJS.UpdateGameState(keys); } requestAnimationFrame(gameLoop); } 1 2 3 4 5 6 7 8 9 10 11 12 import { dotnet } from "./dotnet.js"; const { getAssemblyExports, getConfig } = await dotnet.create(); const exports = await getAssemblyExports(getConfig().mainAssemblyName); await dotnet.run(); 1 2 3 4 5 function gameLoop(timestamp) { 6 if (timestamp - lastFrameTimestamp >= 1000 / 30) { 7 lastFrameTimestamp = timestamp; 8 exports.BlazorDoom.MainJS.UpdateGameState(keys); 9 } 10 requestAnimationFrame(gameLoop); 11 } 12 main.js
63. Running the gameloop import { dotnet } from "./dotnet.js"; const { getAssemblyExports, getConfig } = await dotnet.create(); const exports = await getAssemblyExports(getConfig().mainAssemblyName); await dotnet.run(); function gameLoop(timestamp) { if (timestamp - lastFrameTimestamp >= 1000 / 30) { lastFrameTimestamp = timestamp; exports.BlazorDoom.MainJS.UpdateGameState(keys); } requestAnimationFrame(gameLoop); } 1 2 3 4 5 6 7 8 9 10 11 12 import { dotnet } from "./dotnet.js"; const { getAssemblyExports, getConfig } = await dotnet.create(); const exports = await getAssemblyExports(getConfig().mainAssemblyName); await dotnet.run(); 1 2 3 4 5 function gameLoop(timestamp) { 6 if (timestamp - lastFrameTimestamp >= 1000 / 30) { 7 lastFrameTimestamp = timestamp; 8 exports.BlazorDoom.MainJS.UpdateGameState(keys); 9 } 10 requestAnimationFrame(gameLoop); 11 } 12 function gameLoop(timestamp) { requestAnimationFrame(gameLoop); import { dotnet } from "./dotnet.js"; 1 const { getAssemblyExports, getConfig } = await dotnet.create(); 2 const exports = await getAssemblyExports(getConfig().mainAssemblyName); 3 await dotnet.run(); 4 5 6 if (timestamp - lastFrameTimestamp >= 1000 / 30) { 7 lastFrameTimestamp = timestamp; 8 exports.BlazorDoom.MainJS.UpdateGameState(keys); 9 } 10 11 } 12 main.js

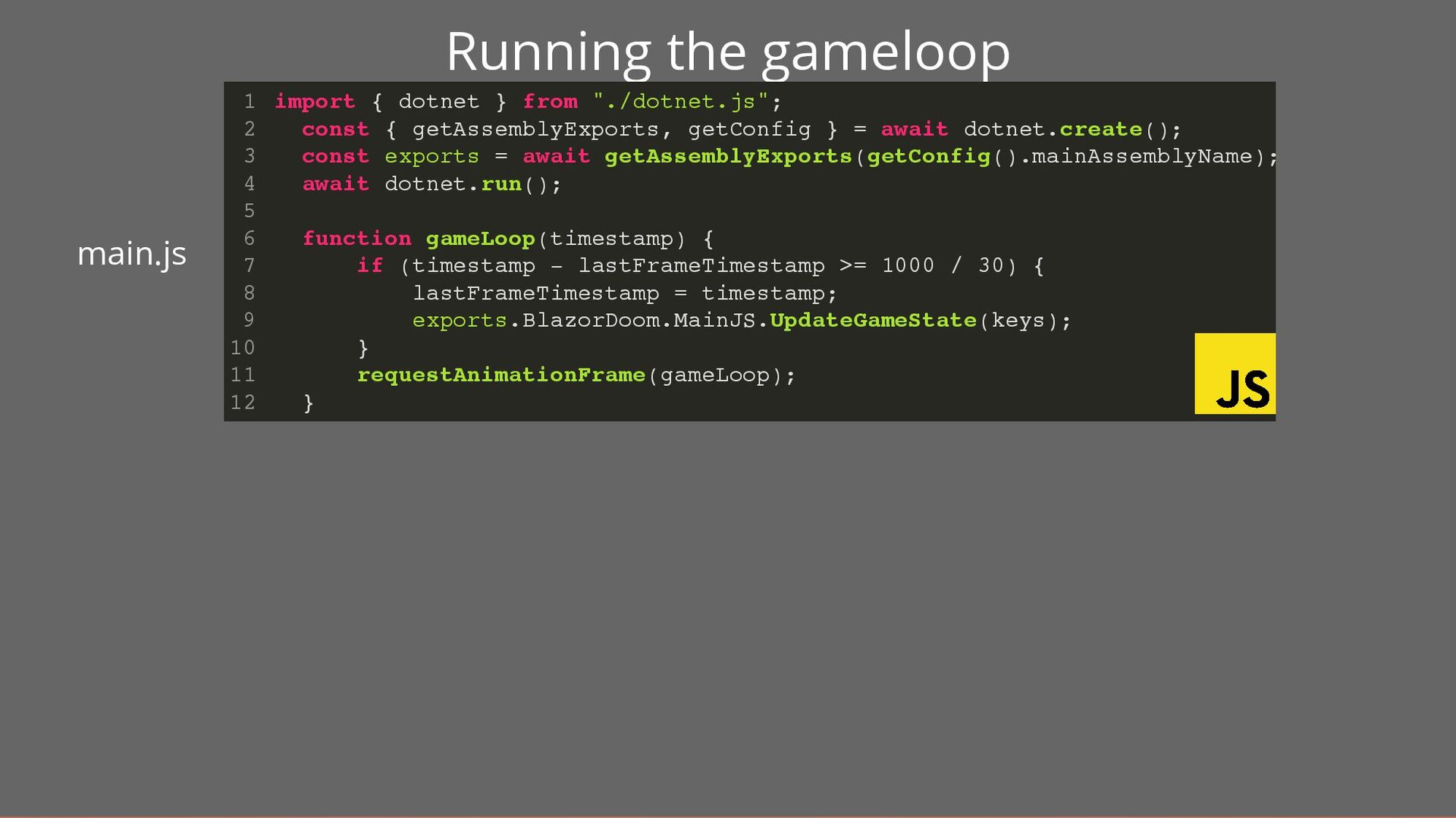

64. Running the gameloop import { dotnet } from "./dotnet.js"; const { getAssemblyExports, getConfig } = await dotnet.create(); const exports = await getAssemblyExports(getConfig().mainAssemblyName); await dotnet.run(); function gameLoop(timestamp) { if (timestamp - lastFrameTimestamp >= 1000 / 30) { lastFrameTimestamp = timestamp; exports.BlazorDoom.MainJS.UpdateGameState(keys); } requestAnimationFrame(gameLoop); } 1 2 3 4 5 6 7 8 9 10 11 12 import { dotnet } from "./dotnet.js"; const { getAssemblyExports, getConfig } = await dotnet.create(); const exports = await getAssemblyExports(getConfig().mainAssemblyName); await dotnet.run(); 1 2 3 4 5 function gameLoop(timestamp) { 6 if (timestamp - lastFrameTimestamp >= 1000 / 30) { 7 lastFrameTimestamp = timestamp; 8 exports.BlazorDoom.MainJS.UpdateGameState(keys); 9 } 10 requestAnimationFrame(gameLoop); 11 } 12 function gameLoop(timestamp) { requestAnimationFrame(gameLoop); import { dotnet } from "./dotnet.js"; 1 const { getAssemblyExports, getConfig } = await dotnet.create(); 2 const exports = await getAssemblyExports(getConfig().mainAssemblyName); 3 await dotnet.run(); 4 5 6 if (timestamp - lastFrameTimestamp >= 1000 / 30) { 7 lastFrameTimestamp = timestamp; 8 exports.BlazorDoom.MainJS.UpdateGameState(keys); 9 } 10 11 } 12 exports.BlazorDoom.MainJS.UpdateGameState(keys); import { dotnet } from "./dotnet.js"; 1 const { getAssemblyExports, getConfig } = await dotnet.create(); 2 const exports = await getAssemblyExports(getConfig().mainAssemblyName); 3 await dotnet.run(); 4 5 function gameLoop(timestamp) { 6 if (timestamp - lastFrameTimestamp >= 1000 / 30) { 7 lastFrameTimestamp = timestamp; 8 9 } 10 requestAnimationFrame(gameLoop); 11 } 12 main.js
65. Running the gameloop import { dotnet } from "./dotnet.js"; const { getAssemblyExports, getConfig } = await dotnet.create(); const exports = await getAssemblyExports(getConfig().mainAssemblyName); await dotnet.run(); function gameLoop(timestamp) { if (timestamp - lastFrameTimestamp >= 1000 / 30) { lastFrameTimestamp = timestamp; exports.BlazorDoom.MainJS.UpdateGameState(keys); } requestAnimationFrame(gameLoop); } 1 2 3 4 5 6 7 8 9 10 11 12 import { dotnet } from "./dotnet.js"; const { getAssemblyExports, getConfig } = await dotnet.create(); const exports = await getAssemblyExports(getConfig().mainAssemblyName); await dotnet.run(); 1 2 3 4 5 function gameLoop(timestamp) { 6 if (timestamp - lastFrameTimestamp >= 1000 / 30) { 7 lastFrameTimestamp = timestamp; 8 exports.BlazorDoom.MainJS.UpdateGameState(keys); 9 } 10 requestAnimationFrame(gameLoop); 11 } 12 function gameLoop(timestamp) { requestAnimationFrame(gameLoop); import { dotnet } from "./dotnet.js"; 1 const { getAssemblyExports, getConfig } = await dotnet.create(); 2 const exports = await getAssemblyExports(getConfig().mainAssemblyName); 3 await dotnet.run(); 4 5 6 if (timestamp - lastFrameTimestamp >= 1000 / 30) { 7 lastFrameTimestamp = timestamp; 8 exports.BlazorDoom.MainJS.UpdateGameState(keys); 9 } 10 11 } 12 exports.BlazorDoom.MainJS.UpdateGameState(keys); import { dotnet } from "./dotnet.js"; 1 const { getAssemblyExports, getConfig } = await dotnet.create(); 2 const exports = await getAssemblyExports(getConfig().mainAssemblyName); 3 await dotnet.run(); 4 5 function gameLoop(timestamp) { 6 if (timestamp - lastFrameTimestamp >= 1000 / 30) { 7 lastFrameTimestamp = timestamp; 8 9 } 10 requestAnimationFrame(gameLoop); 11 } 12 import { dotnet } from "./dotnet.js"; const { getAssemblyExports, getConfig } = await dotnet.create(); const exports = await getAssemblyExports(getConfig().mainAssemblyName); await dotnet.run(); function gameLoop(timestamp) { if (timestamp - lastFrameTimestamp >= 1000 / 30) { lastFrameTimestamp = timestamp; exports.BlazorDoom.MainJS.UpdateGameState(keys); } requestAnimationFrame(gameLoop); } 1 2 3 4 5 6 7 8 9 10 11 12 main.js
66. Running the gameloop public partial class MainJS // this name is required { public static void Main() { app = new ManagedDoom.DoomApplication(); } [JSExport] // Can be imported from JS public static void UpdateGameState(int[] keys) { // computes the next frame and sounds managedDoom.UpdateGameState(keys); } } 1 2 3 4 5 6 7 8 9 10 11 12 13 import { dotnet } from "./dotnet.js"; const { getAssemblyExports, getConfig } = await dotnet.create(); const exports = await getAssemblyExports(getConfig().mainAssemblyName); await dotnet.run(); function gameLoop(timestamp) { if (timestamp - lastFrameTimestamp >= 1000 / 30) { lastFrameTimestamp = timestamp; exports.BlazorDoom.MainJS.UpdateGameState(keys); } requestAnimationFrame(gameLoop); } 1 2 3 4 5 6 7 8 9 10 11 12 main.js

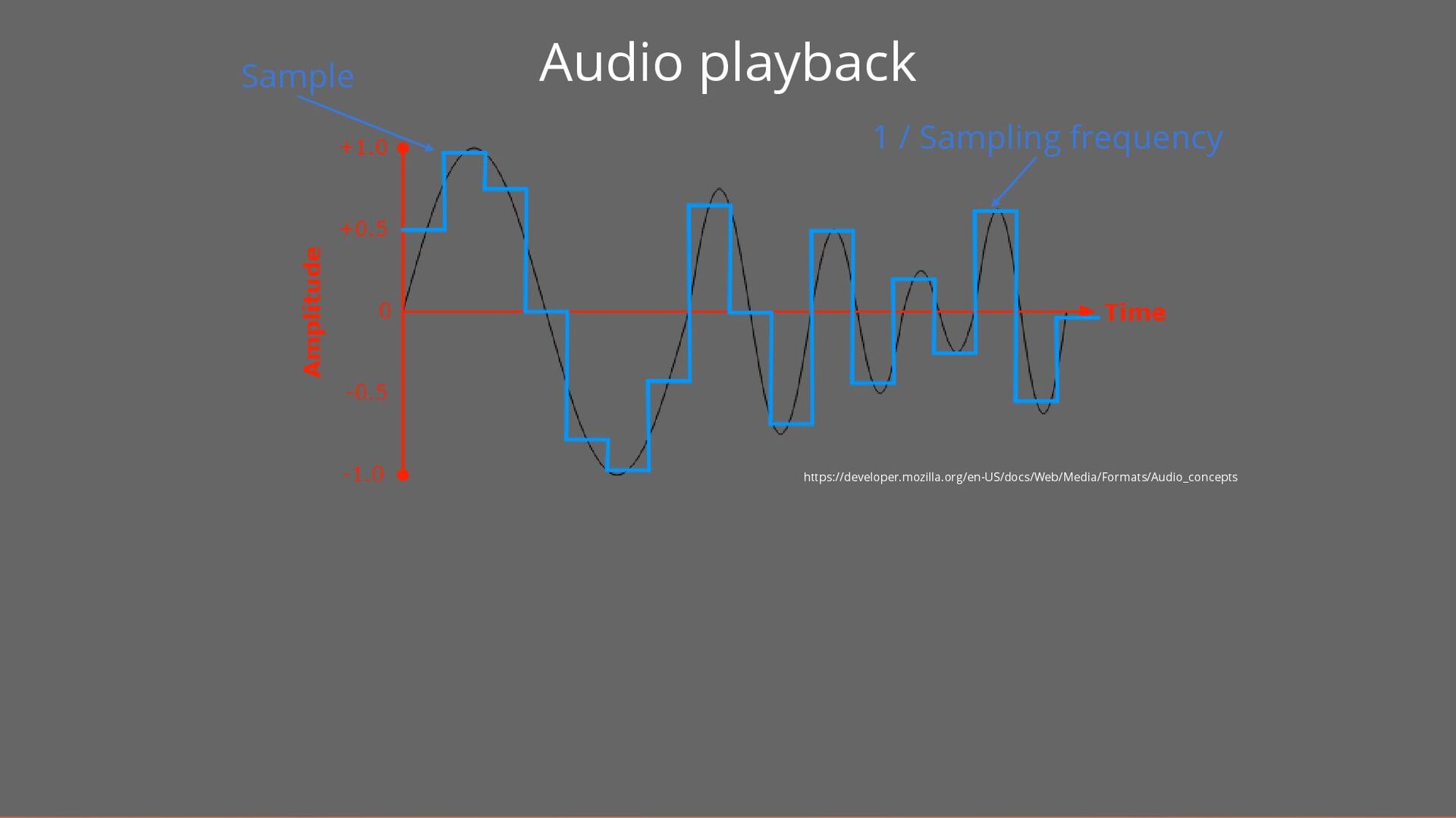

67. Audio playback https://developer.mozilla.org/en-US/docs/Web/Media/Formats/Audio_concepts Sample 1 / Sampling frequency

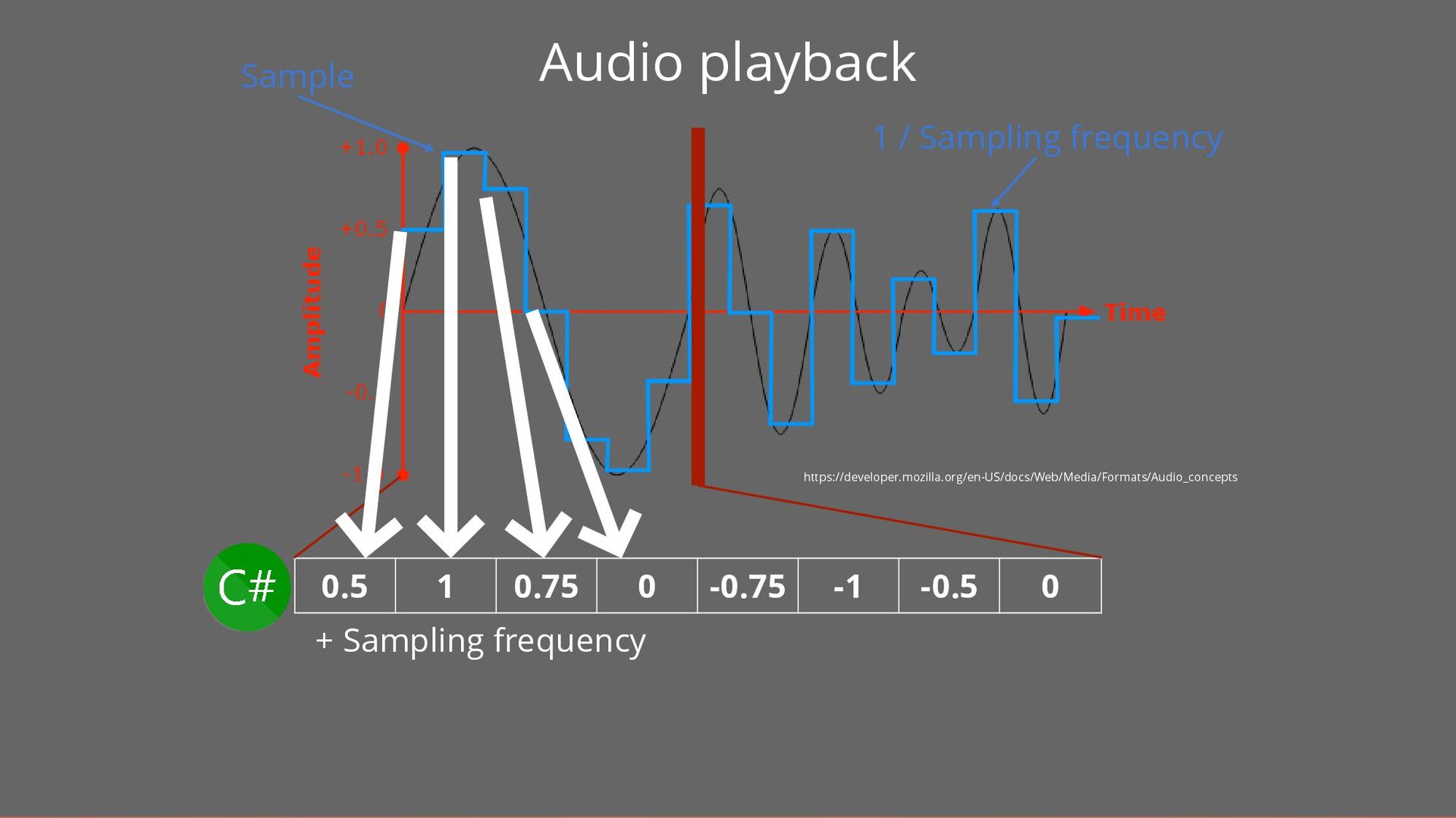

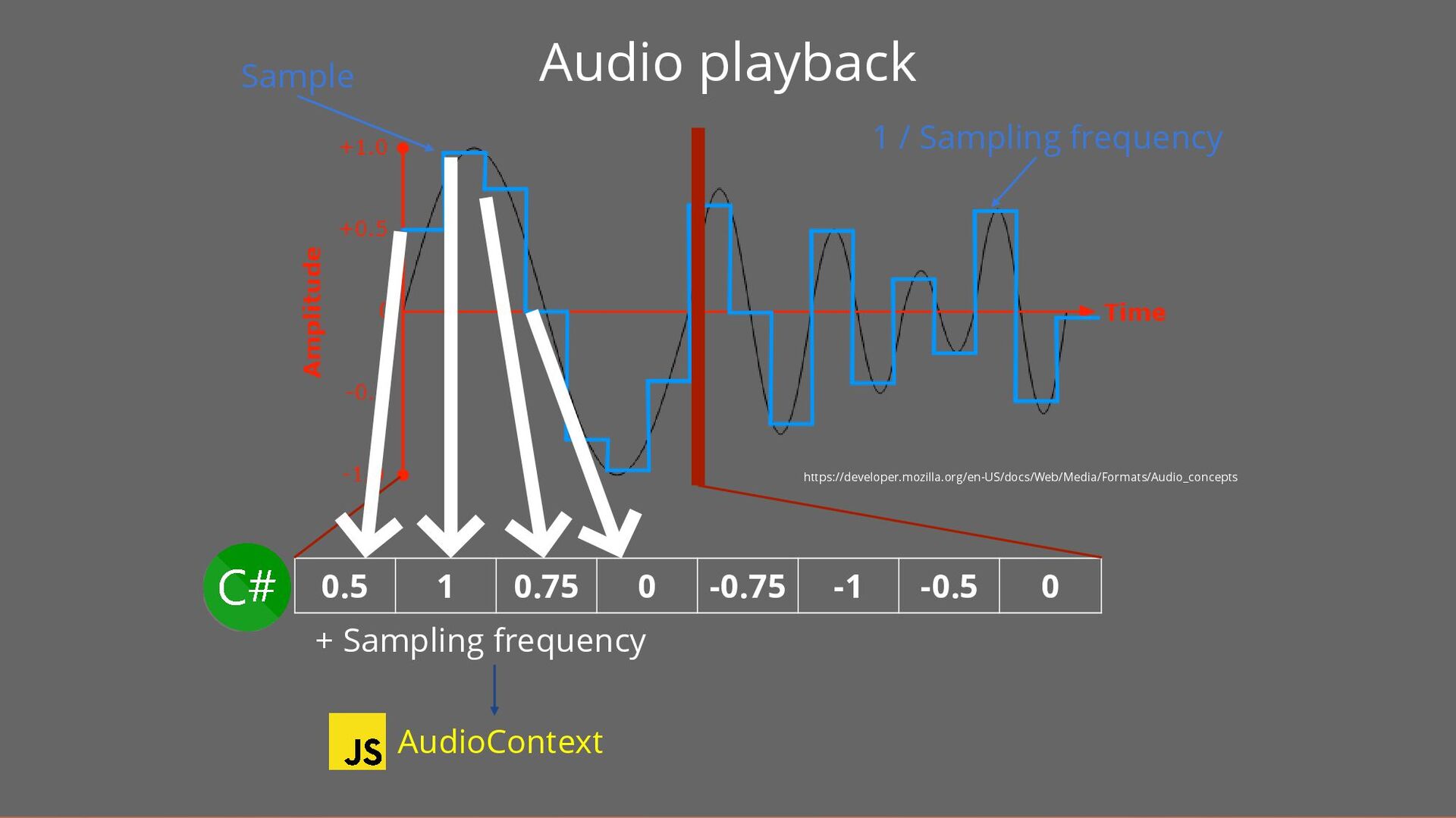

68. Audio playback 0.5 1 0.75 0 -0.75 -1 -0.5 0 https://developer.mozilla.org/en-US/docs/Web/Media/Formats/Audio_concepts Sample 1 / Sampling frequency + Sampling frequency

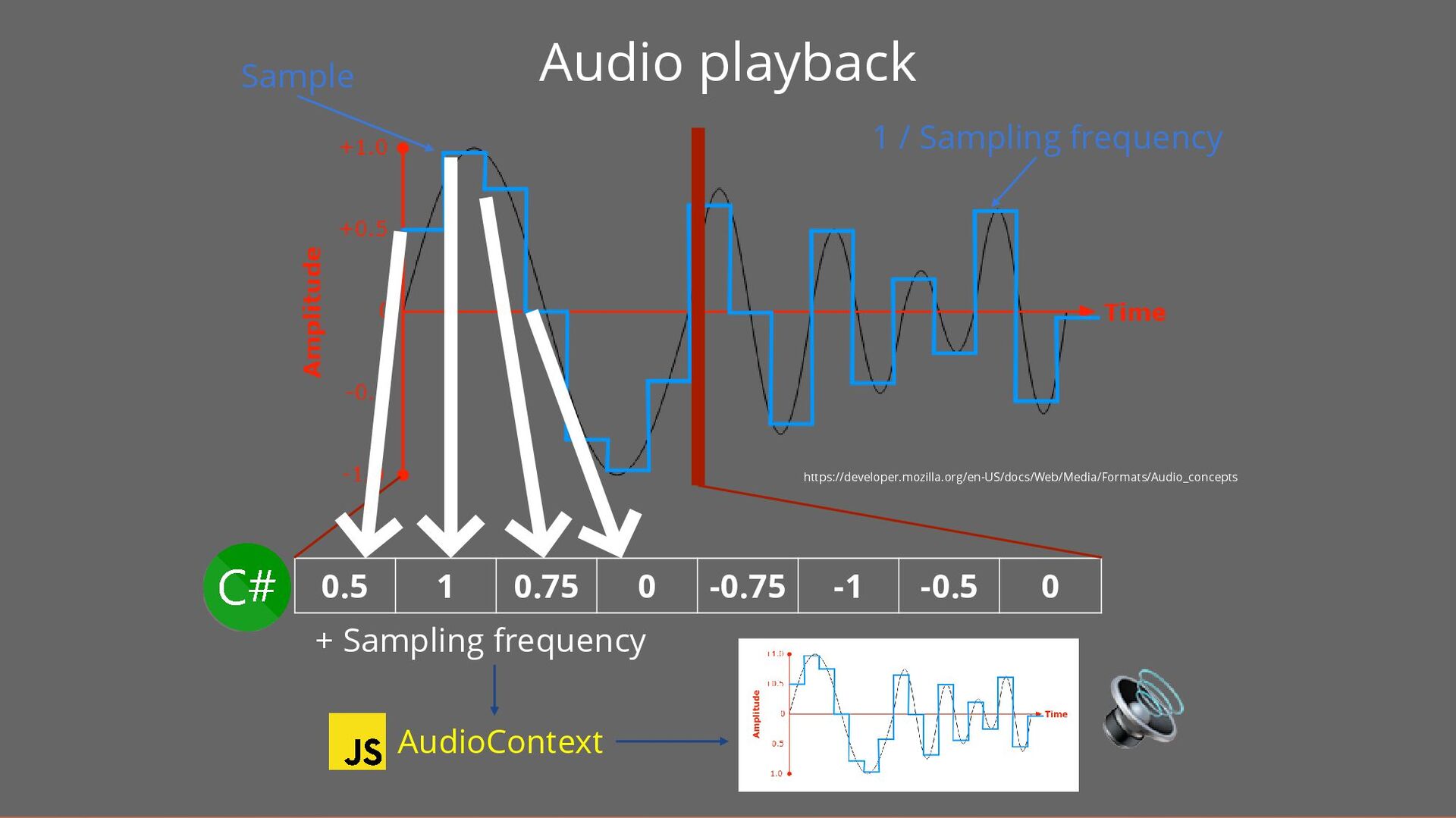

69. Audio playback 0.5 1 0.75 0 -0.75 -1 -0.5 0 https://developer.mozilla.org/en-US/docs/Web/Media/Formats/Audio_concepts AudioContext Sample 1 / Sampling frequency + Sampling frequency
70. Audio playback 0.5 1 0.75 0 -0.75 -1 -0.5 0 https://developer.mozilla.org/en-US/docs/Web/Media/Formats/Audio_concepts AudioContext Sample 1 / Sampling frequency + Sampling frequency 🔊

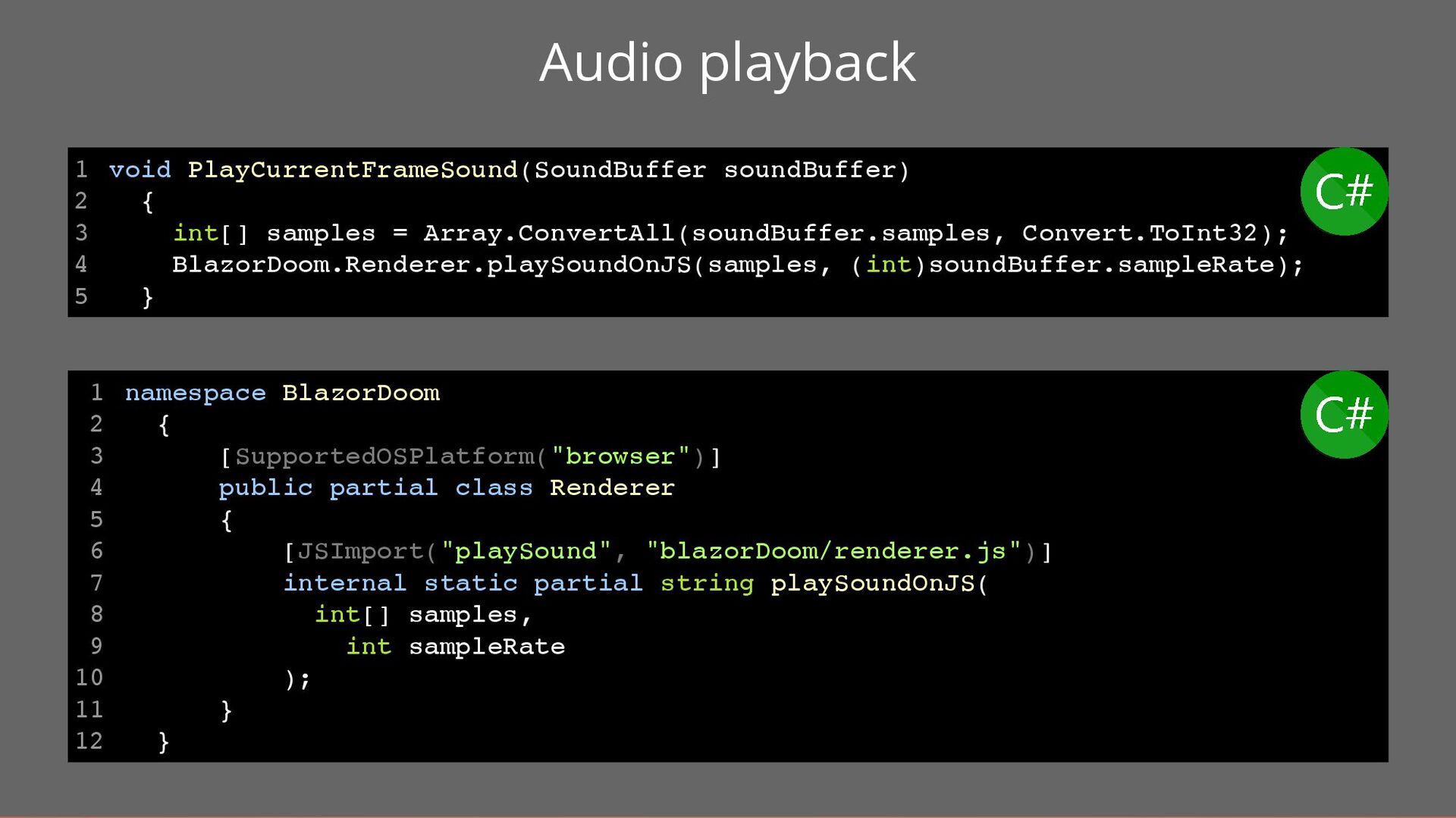

71. Audio playback void PlayCurrentFrameSound(SoundBuffer soundBuffer) { int[] samples = Array.ConvertAll(soundBuffer.samples, Convert.ToInt32); BlazorDoom.Renderer.playSoundOnJS(samples, (int)soundBuffer.sampleRate); } 1 2 3 4 5 namespace BlazorDoom { [SupportedOSPlatform("browser")] public partial class Renderer { [JSImport("playSound", "blazorDoom/renderer.js")] internal static partial string playSoundOnJS( int[] samples, int sampleRate ); } } 1 2 3 4 5 6 7 8 9 10 11 12

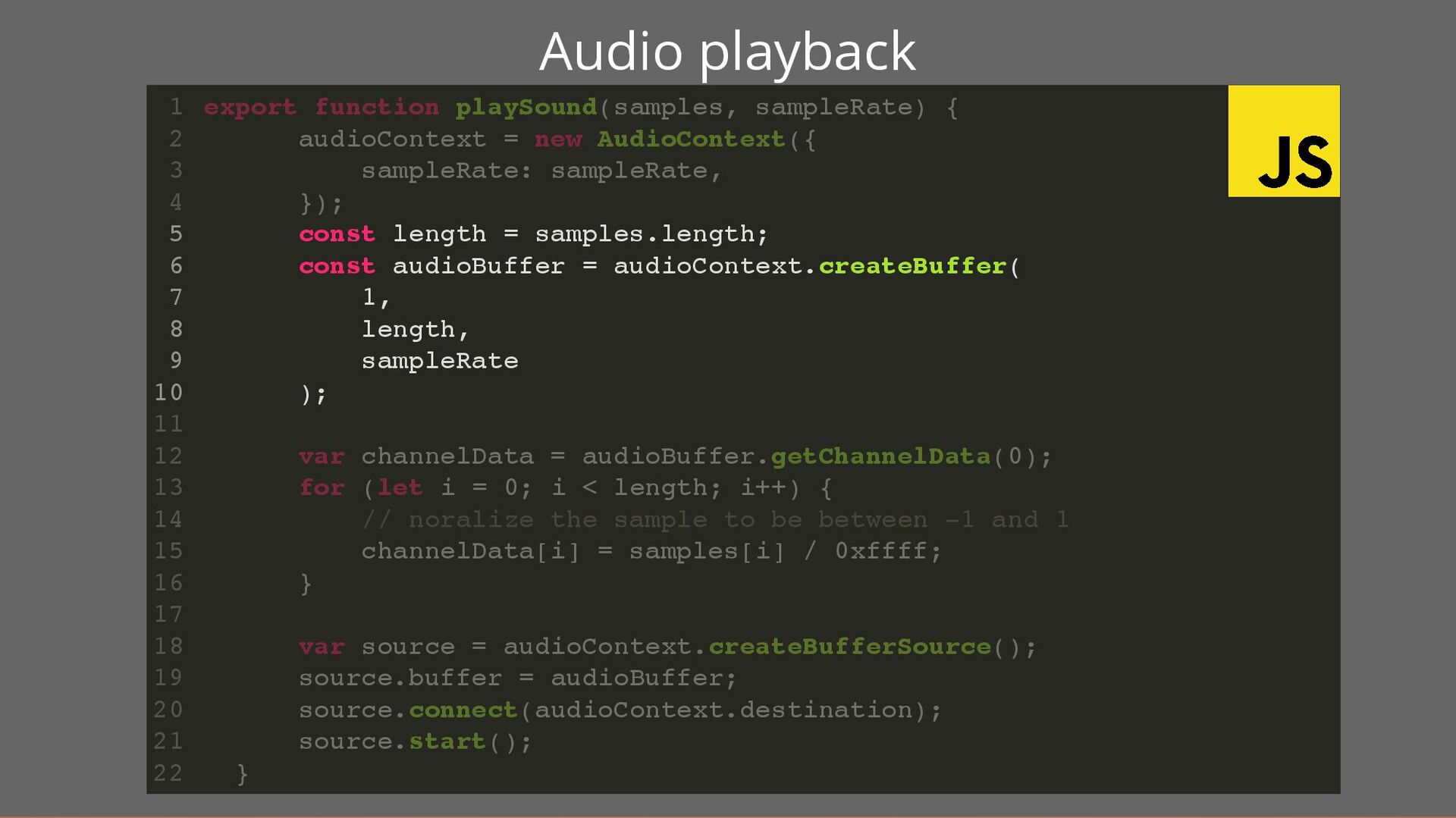

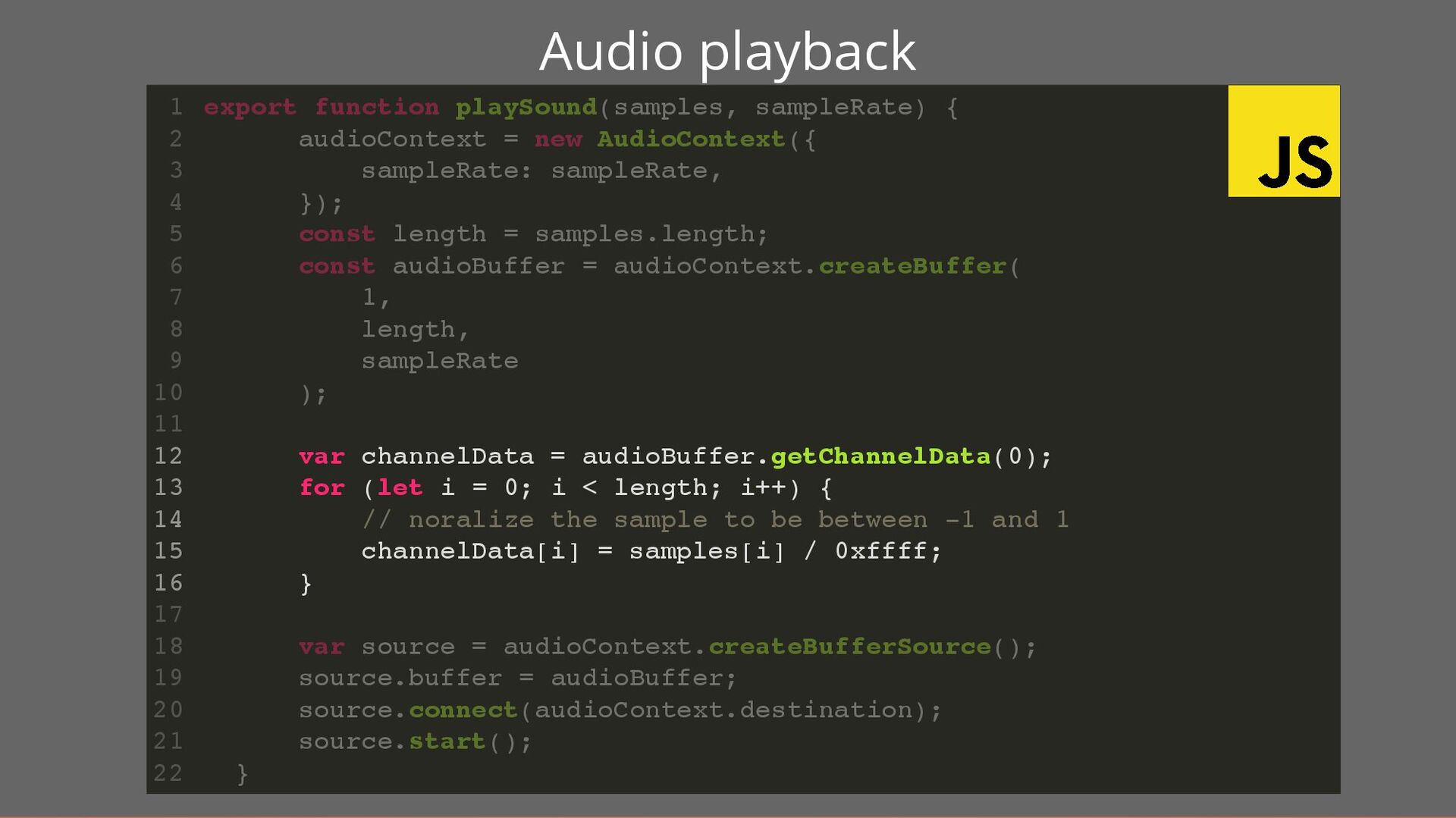

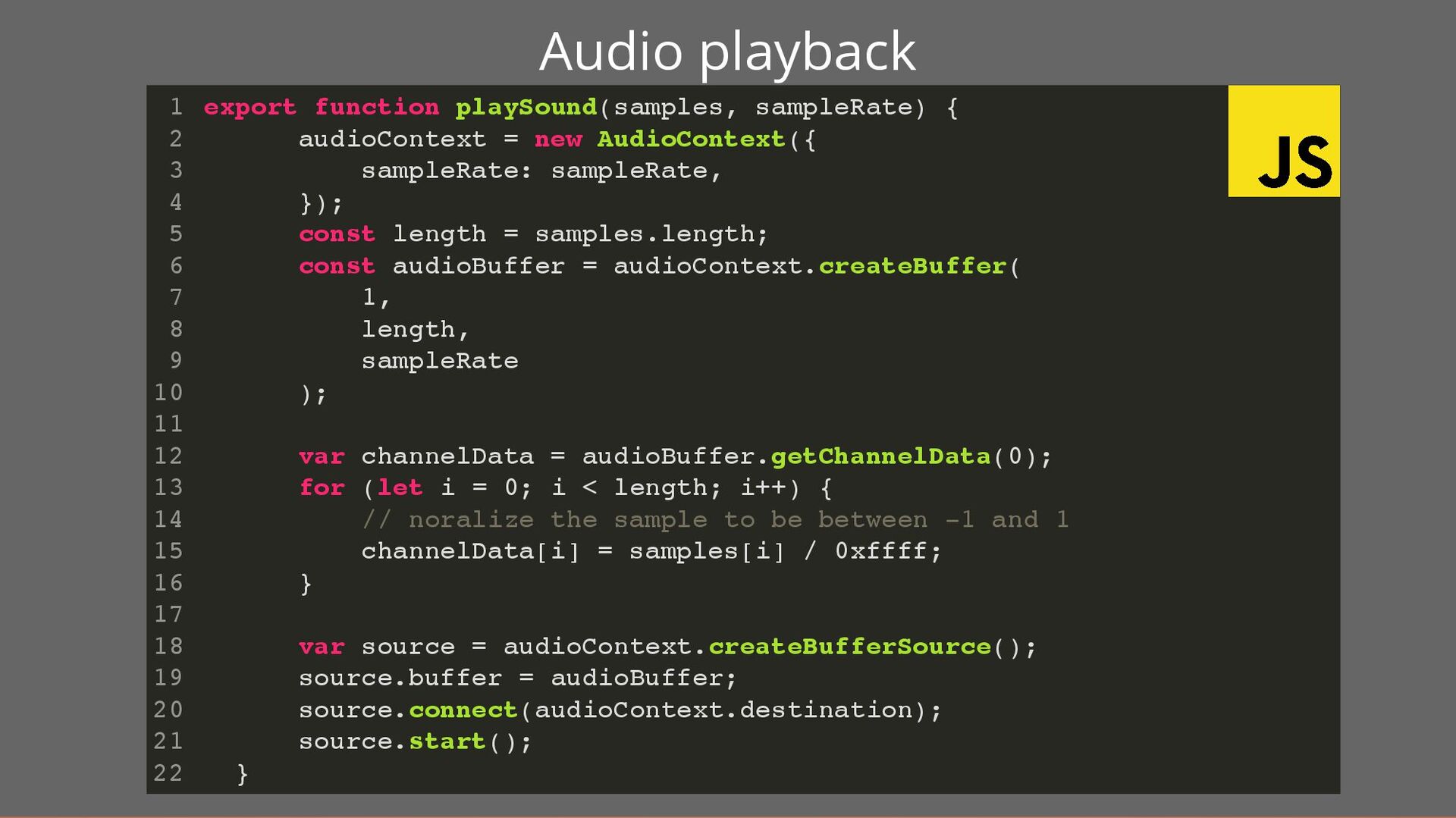

72. Audio playback export function playSound(samples, sampleRate) { audioContext = new AudioContext({ sampleRate: sampleRate, }); const length = samples.length; const audioBuffer = audioContext.createBuffer( 1, length, sampleRate ); var channelData = audioBuffer.getChannelData(0); for (let i = 0; i < length; i++) { // noralize the sample to be between -1 and 1 channelData[i] = samples[i] / 0xffff; } var source = audioContext.createBufferSource(); source.buffer = audioBuffer; source.connect(audioContext.destination); source.start(); } 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
73. Audio playback export function playSound(samples, sampleRate) { audioContext = new AudioContext({ sampleRate: sampleRate, }); const length = samples.length; const audioBuffer = audioContext.createBuffer( 1, length, sampleRate ); var channelData = audioBuffer.getChannelData(0); for (let i = 0; i < length; i++) { // noralize the sample to be between -1 and 1 channelData[i] = samples[i] / 0xffff; } var source = audioContext.createBufferSource(); source.buffer = audioBuffer; source.connect(audioContext.destination); source.start(); } 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 const length = samples.length; const audioBuffer = audioContext.createBuffer( 1, length, sampleRate ); export function playSound(samples, sampleRate) { 1 audioContext = new AudioContext({ 2 sampleRate: sampleRate, 3 }); 4 5 6 7 8 9 10 11 var channelData = audioBuffer.getChannelData(0); 12 for (let i = 0; i < length; i++) { 13 // noralize the sample to be between -1 and 1 14 channelData[i] = samples[i] / 0xffff; 15 } 16 17 var source = audioContext.createBufferSource(); 18 source.buffer = audioBuffer; 19 source.connect(audioContext.destination); 20 source.start(); 21 } 22
74. Audio playback export function playSound(samples, sampleRate) { audioContext = new AudioContext({ sampleRate: sampleRate, }); const length = samples.length; const audioBuffer = audioContext.createBuffer( 1, length, sampleRate ); var channelData = audioBuffer.getChannelData(0); for (let i = 0; i < length; i++) { // noralize the sample to be between -1 and 1 channelData[i] = samples[i] / 0xffff; } var source = audioContext.createBufferSource(); source.buffer = audioBuffer; source.connect(audioContext.destination); source.start(); } 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 const length = samples.length; const audioBuffer = audioContext.createBuffer( 1, length, sampleRate ); export function playSound(samples, sampleRate) { 1 audioContext = new AudioContext({ 2 sampleRate: sampleRate, 3 }); 4 5 6 7 8 9 10 11 var channelData = audioBuffer.getChannelData(0); 12 for (let i = 0; i < length; i++) { 13 // noralize the sample to be between -1 and 1 14 channelData[i] = samples[i] / 0xffff; 15 } 16 17 var source = audioContext.createBufferSource(); 18 source.buffer = audioBuffer; 19 source.connect(audioContext.destination); 20 source.start(); 21 } 22 var channelData = audioBuffer.getChannelData(0); for (let i = 0; i < length; i++) { // noralize the sample to be between -1 and 1 channelData[i] = samples[i] / 0xffff; } export function playSound(samples, sampleRate) { 1 audioContext = new AudioContext({ 2 sampleRate: sampleRate, 3 }); 4 const length = samples.length; 5 const audioBuffer = audioContext.createBuffer( 6 1, 7 length, 8 sampleRate 9 ); 10 11 12 13 14 15 16 17 var source = audioContext.createBufferSource(); 18 source.buffer = audioBuffer; 19 source.connect(audioContext.destination); 20 source.start(); 21 } 22

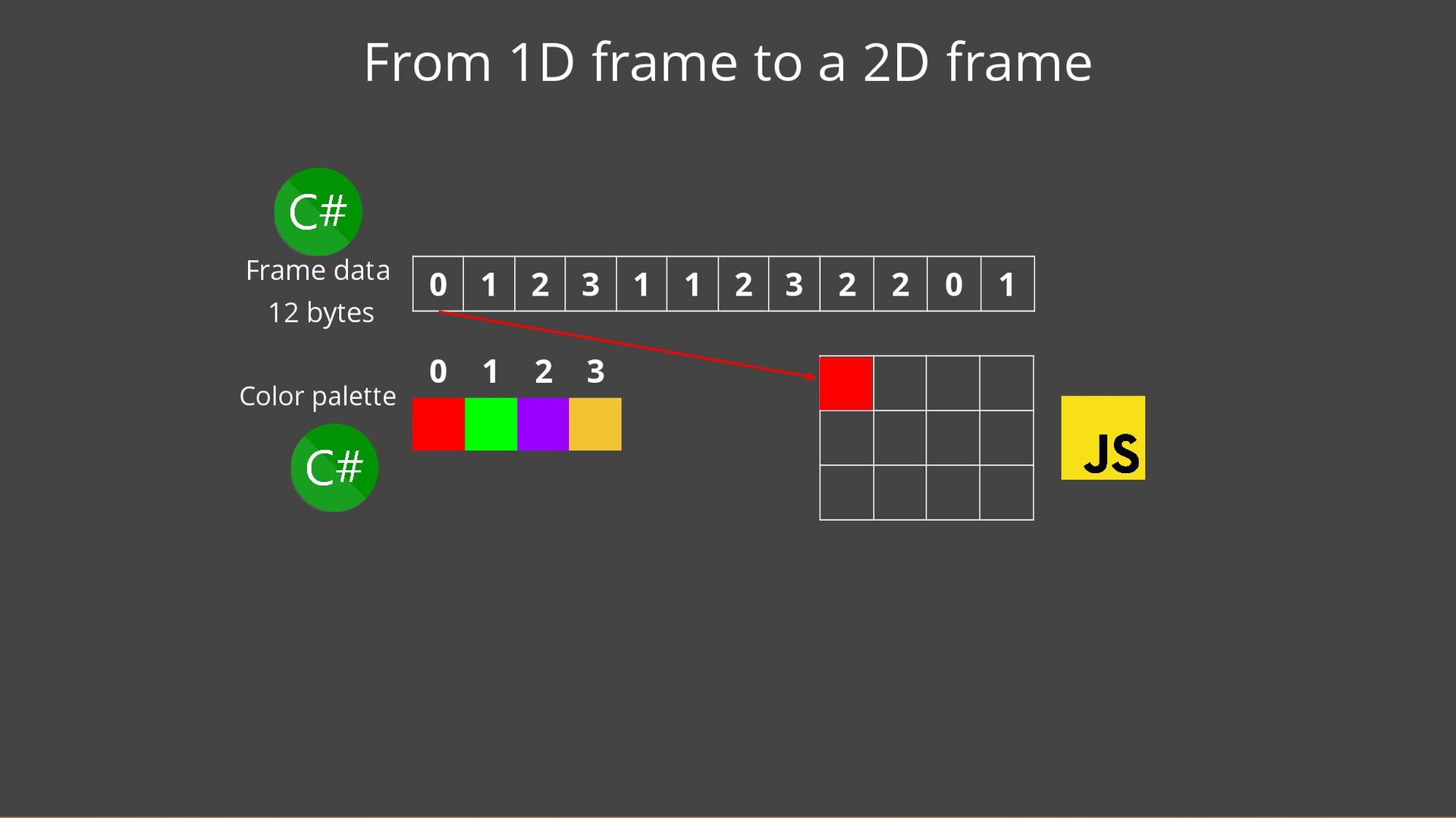

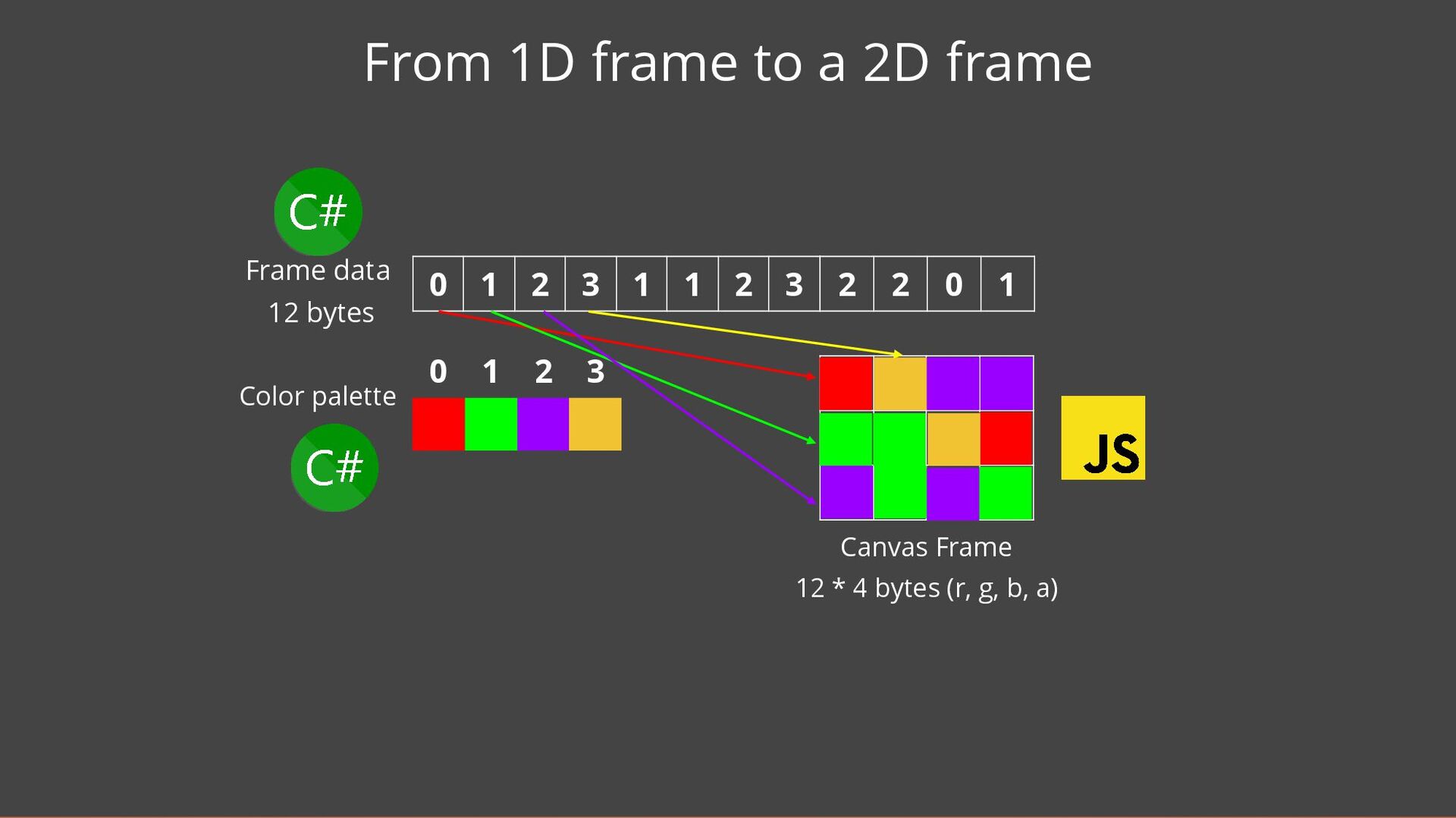

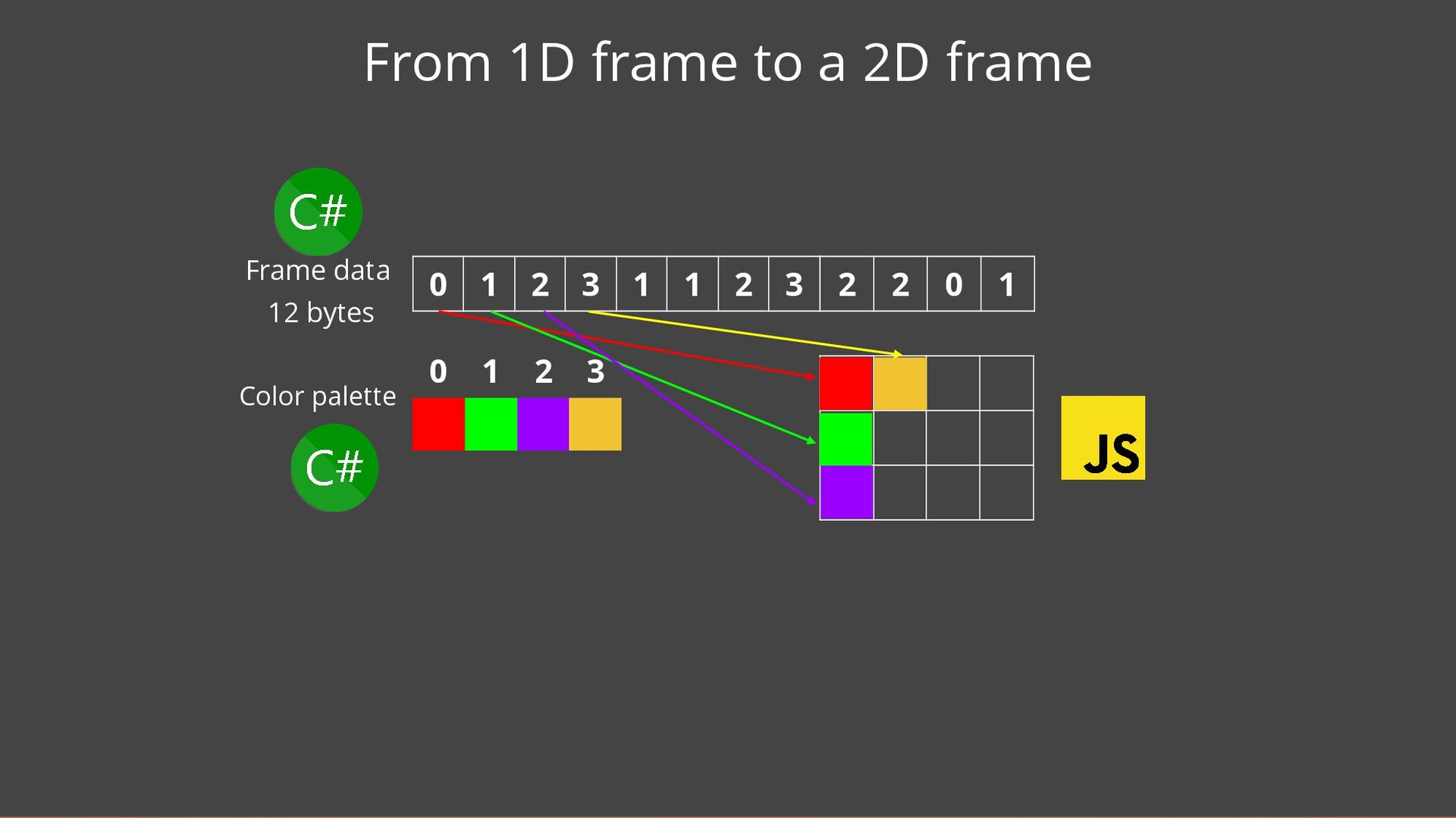

75. 0 1 2 3 1 1 2 3 0 1 2 3 From 1D frame to a 2D frame 2 2 0 1 Frame data 12 bytes Color palette

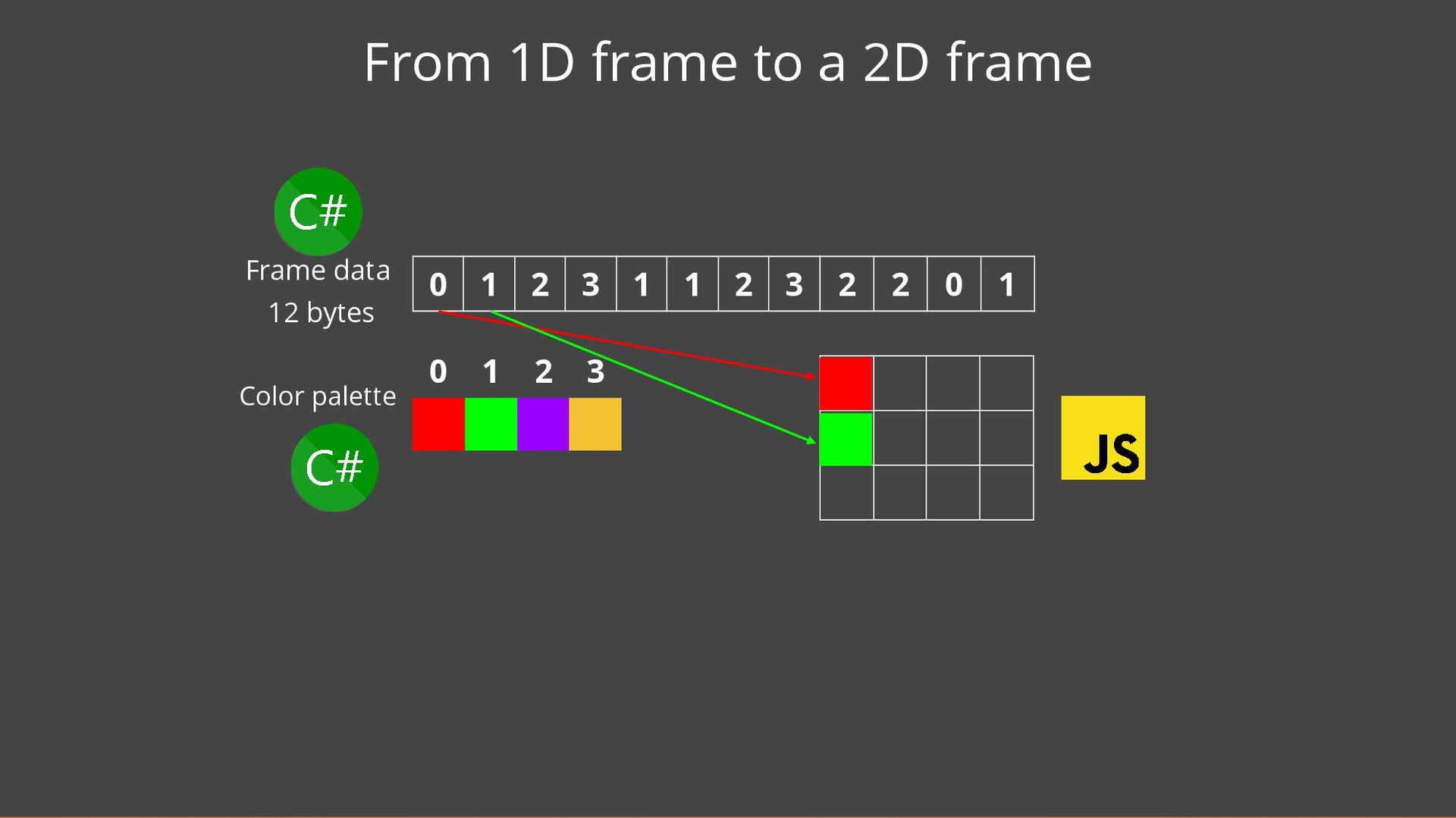

76. 0 1 2 3 1 1 2 3 0 1 2 3 From 1D frame to a 2D frame 2 2 0 1 Frame data 12 bytes Color palette
77. 0 1 2 3 1 1 2 3 0 1 2 3 From 1D frame to a 2D frame 2 2 0 1 Frame data 12 bytes Color palette
78. 0 1 2 3 1 1 2 3 0 1 2 3 From 1D frame to a 2D frame 2 2 0 1 Frame data 12 bytes Color palette
79. 0 1 2 3 1 1 2 3 0 1 2 3 From 1D frame to a 2D frame 2 2 0 1 Frame data 12 bytes Color palette
80. 0 1 2 3 1 1 2 3 0 1 2 3 From 1D frame to a 2D frame 2 2 0 1 Frame data 12 bytes Color palette Canvas Frame 12 * 4 bytes (r, g, b, a)

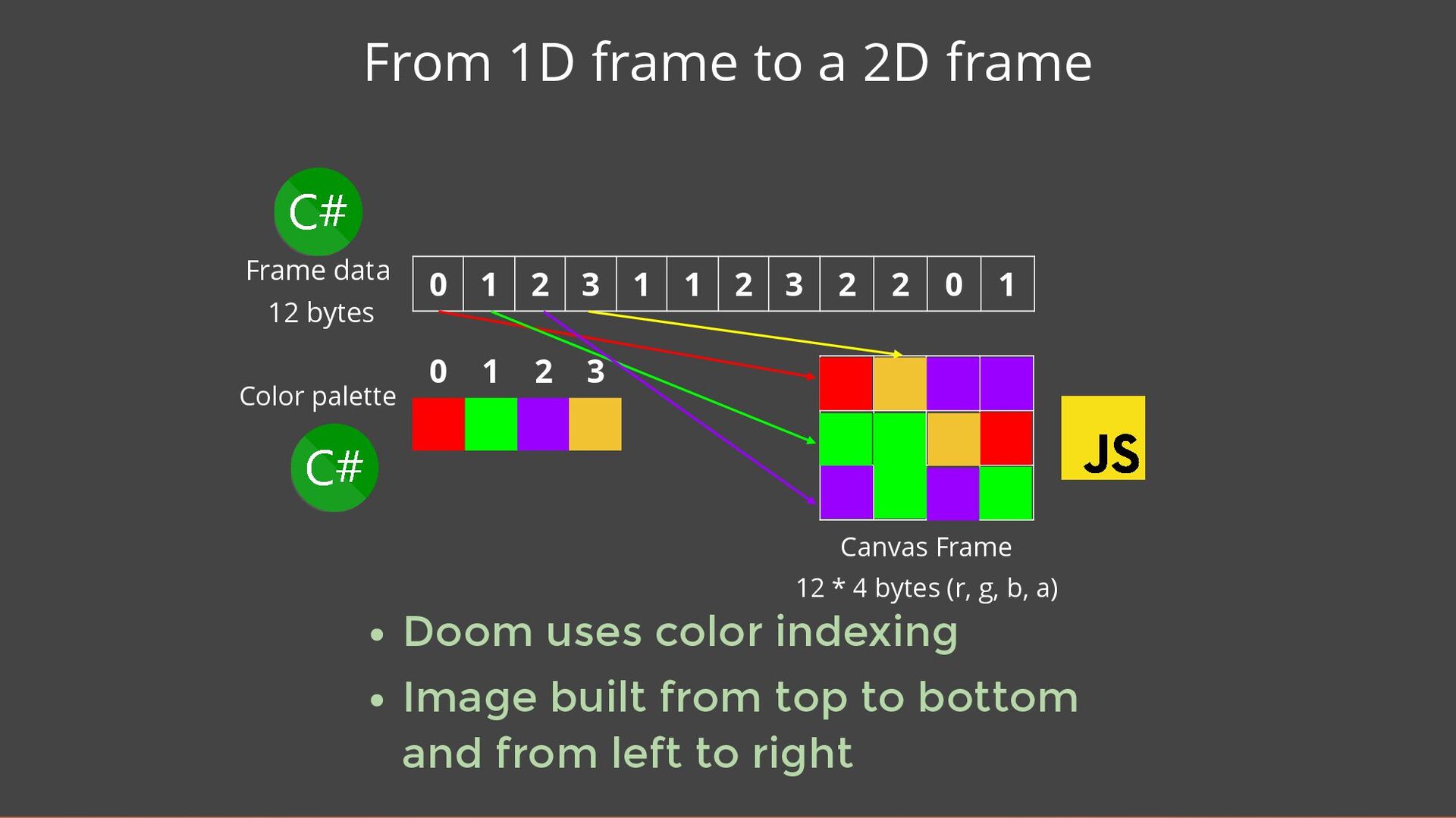

81. 0 1 2 3 1 1 2 3 0 1 2 3 From 1D frame to a 2D frame 2 2 0 1 Frame data 12 bytes Color palette Canvas Frame 12 * 4 bytes (r, g, b, a) Doom uses color indexing Image built from top to bottom and from left to right

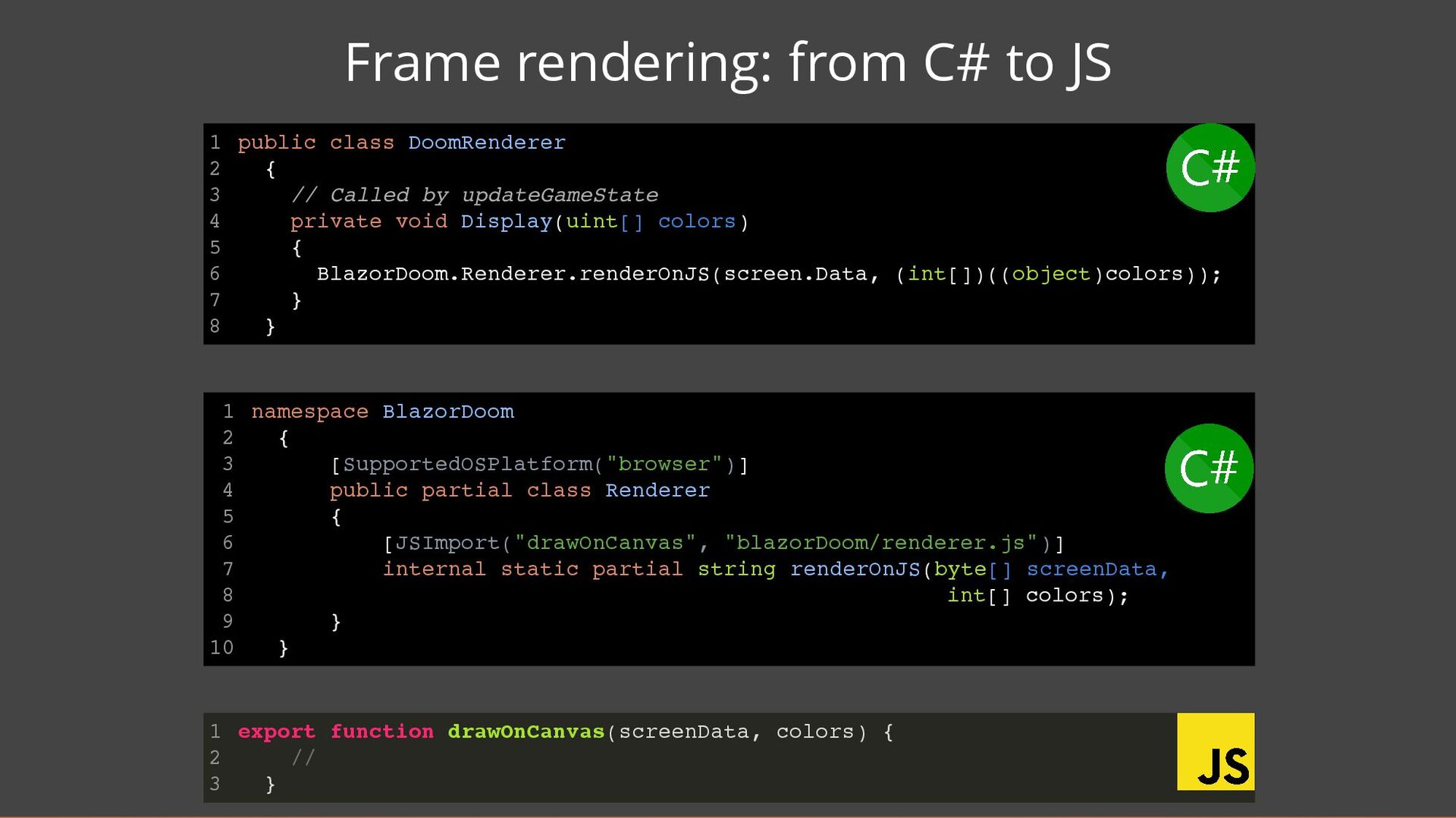

82. Frame rendering: from C# to JS namespace BlazorDoom { [SupportedOSPlatform("browser")] public partial class Renderer { [JSImport("drawOnCanvas", "blazorDoom/renderer.js")] internal static partial string renderOnJS(byte[] screenData, int[] colors); } } 1 2 3 4 5 6 7 8 9 10 export function drawOnCanvas(screenData, colors) { // } 1 2 3 public class DoomRenderer { // Called by updateGameState private void Display(uint[] colors) { BlazorDoom.Renderer.renderOnJS(screen.Data, (int[])((object)colors)); } } 1 2 3 4 5 6 7 8

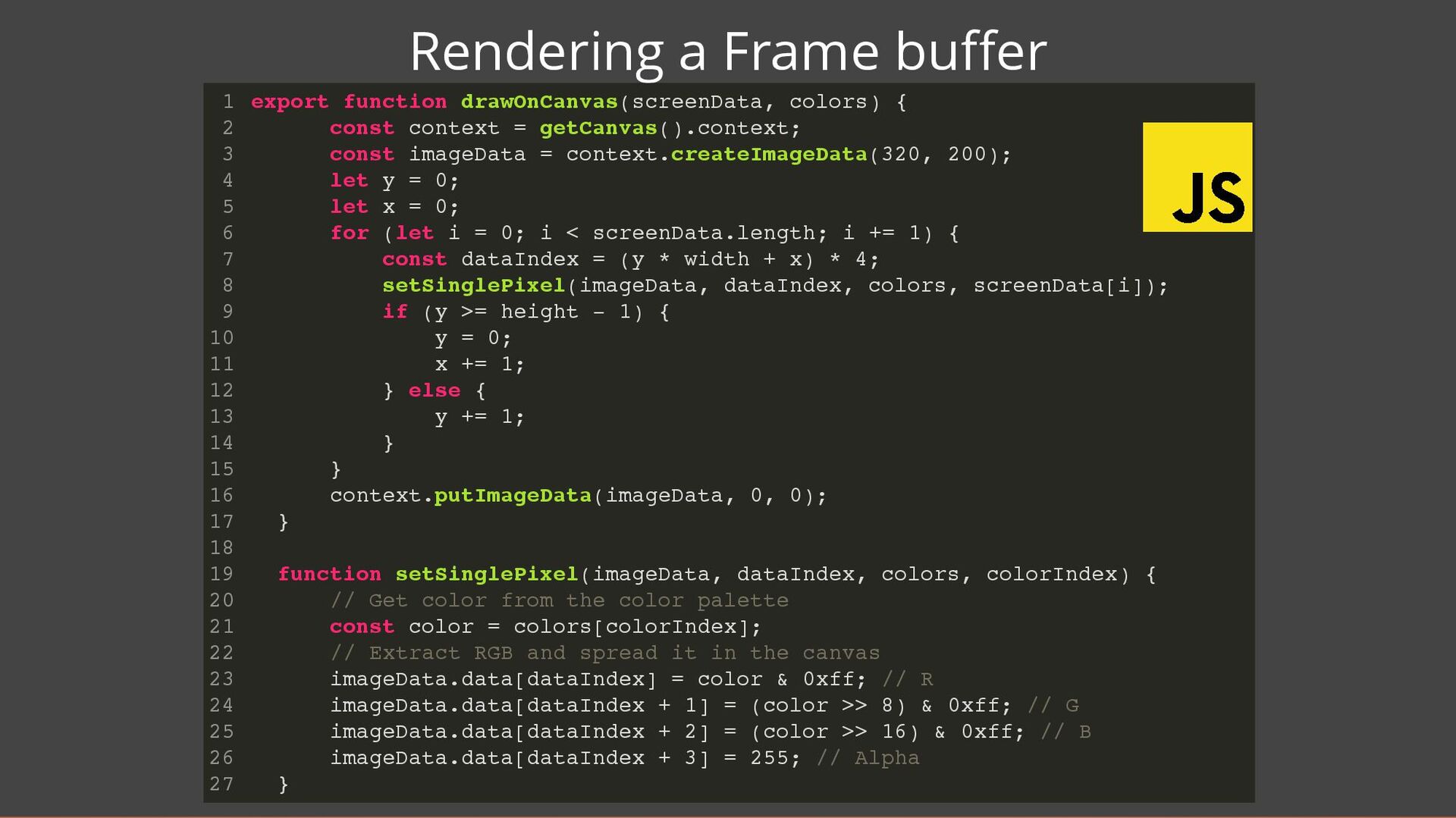

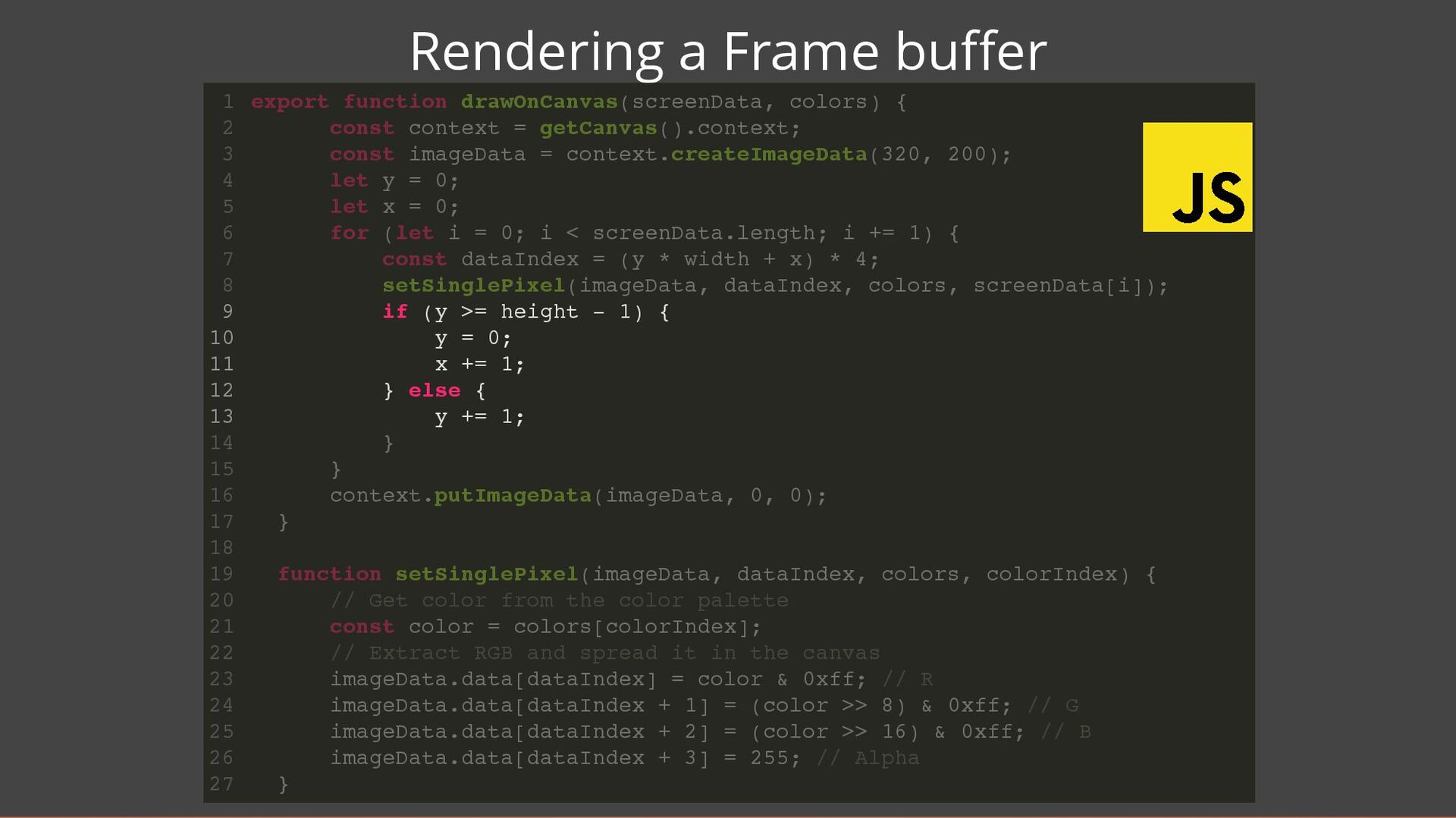

83. Rendering a Frame buffer export function drawOnCanvas(screenData, colors) { const context = getCanvas().context; const imageData = context.createImageData(320, 200); let y = 0; let x = 0; for (let i = 0; i < screenData.length; i += 1) { const dataIndex = (y * width + x) * 4; setSinglePixel(imageData, dataIndex, colors, screenData[i]); if (y >= height - 1) { y = 0; x += 1; } else { y += 1; } } context.putImageData(imageData, 0, 0); } function setSinglePixel(imageData, dataIndex, colors, colorIndex) { // Get color from the color palette const color = colors[colorIndex]; // Extract RGB and spread it in the canvas imageData.data[dataIndex] = color & 0xff; // R imageData.data[dataIndex + 1] = (color >> 8) & 0xff; // G imageData.data[dataIndex + 2] = (color >> 16) & 0xff; // B imageData.data[dataIndex + 3] = 255; // Alpha } 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27
84. Rendering a Frame buffer export function drawOnCanvas(screenData, colors) { const context = getCanvas().context; const imageData = context.createImageData(320, 200); let y = 0; let x = 0; for (let i = 0; i < screenData.length; i += 1) { const dataIndex = (y * width + x) * 4; setSinglePixel(imageData, dataIndex, colors, screenData[i]); if (y >= height - 1) { y = 0; x += 1; } else { y += 1; } } context.putImageData(imageData, 0, 0); } function setSinglePixel(imageData, dataIndex, colors, colorIndex) { // Get color from the color palette const color = colors[colorIndex]; // Extract RGB and spread it in the canvas imageData.data[dataIndex] = color & 0xff; // R imageData.data[dataIndex + 1] = (color >> 8) & 0xff; // G imageData.data[dataIndex + 2] = (color >> 16) & 0xff; // B imageData.data[dataIndex + 3] = 255; // Alpha } 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 if (y >= height - 1) { y = 0; x += 1; } else { y += 1; export function drawOnCanvas(screenData, colors) { 1 const context = getCanvas().context; 2 const imageData = context.createImageData(320, 200); 3 let y = 0; 4 let x = 0; 5 for (let i = 0; i < screenData.length; i += 1) { 6 const dataIndex = (y * width + x) * 4; 7 setSinglePixel(imageData, dataIndex, colors, screenData[i]); 8 9 10 11 12 13 } 14 } 15 context.putImageData(imageData, 0, 0); 16 } 17 18 function setSinglePixel(imageData, dataIndex, colors, colorIndex) { 19 // Get color from the color palette 20 const color = colors[colorIndex]; 21 // Extract RGB and spread it in the canvas 22 imageData.data[dataIndex] = color & 0xff; // R 23 imageData.data[dataIndex + 1] = (color >> 8) & 0xff; // G 24 imageData.data[dataIndex + 2] = (color >> 16) & 0xff; // B 25 imageData.data[dataIndex + 3] = 255; // Alpha 26 } 27
85. Rendering a Frame buffer export function drawOnCanvas(screenData, colors) { const context = getCanvas().context; const imageData = context.createImageData(320, 200); let y = 0; let x = 0; for (let i = 0; i < screenData.length; i += 1) { const dataIndex = (y * width + x) * 4; setSinglePixel(imageData, dataIndex, colors, screenData[i]); if (y >= height - 1) { y = 0; x += 1; } else { y += 1; } } context.putImageData(imageData, 0, 0); } function setSinglePixel(imageData, dataIndex, colors, colorIndex) { // Get color from the color palette const color = colors[colorIndex]; // Extract RGB and spread it in the canvas imageData.data[dataIndex] = color & 0xff; // R imageData.data[dataIndex + 1] = (color >> 8) & 0xff; // G imageData.data[dataIndex + 2] = (color >> 16) & 0xff; // B imageData.data[dataIndex + 3] = 255; // Alpha } 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 if (y >= height - 1) { y = 0; x += 1; } else { y += 1; export function drawOnCanvas(screenData, colors) { 1 const context = getCanvas().context; 2 const imageData = context.createImageData(320, 200); 3 let y = 0; 4 let x = 0; 5 for (let i = 0; i < screenData.length; i += 1) { 6 const dataIndex = (y * width + x) * 4; 7 setSinglePixel(imageData, dataIndex, colors, screenData[i]); 8 9 10 11 12 13 } 14 } 15 context.putImageData(imageData, 0, 0); 16 } 17 18 function setSinglePixel(imageData, dataIndex, colors, colorIndex) { 19 // Get color from the color palette 20 const color = colors[colorIndex]; 21 // Extract RGB and spread it in the canvas 22 imageData.data[dataIndex] = color & 0xff; // R 23 imageData.data[dataIndex + 1] = (color >> 8) & 0xff; // G 24 imageData.data[dataIndex + 2] = (color >> 16) & 0xff; // B 25 imageData.data[dataIndex + 3] = 255; // Alpha 26 } 27 setSinglePixel(imageData, dataIndex, colors, screenData[i]); function setSinglePixel(imageData, dataIndex, colors, colorIndex) { // Get color from the color palette const color = colors[colorIndex]; // Extract RGB and spread it in the canvas imageData.data[dataIndex] = color & 0xff; // R imageData.data[dataIndex + 1] = (color >> 8) & 0xff; // G imageData.data[dataIndex + 2] = (color >> 16) & 0xff; // B export function drawOnCanvas(screenData, colors) { 1 const context = getCanvas().context; 2 const imageData = context.createImageData(320, 200); 3 let y = 0; 4 let x = 0; 5 for (let i = 0; i < screenData.length; i += 1) { 6 const dataIndex = (y * width + x) * 4; 7 8 if (y >= height - 1) { 9 y = 0; 10 x += 1; 11 } else { 12 y += 1; 13 } 14 } 15 context.putImageData(imageData, 0, 0); 16 } 17 18 19 20 21 22 23 24 25 imageData.data[dataIndex + 3] = 255; // Alpha 26 } 27

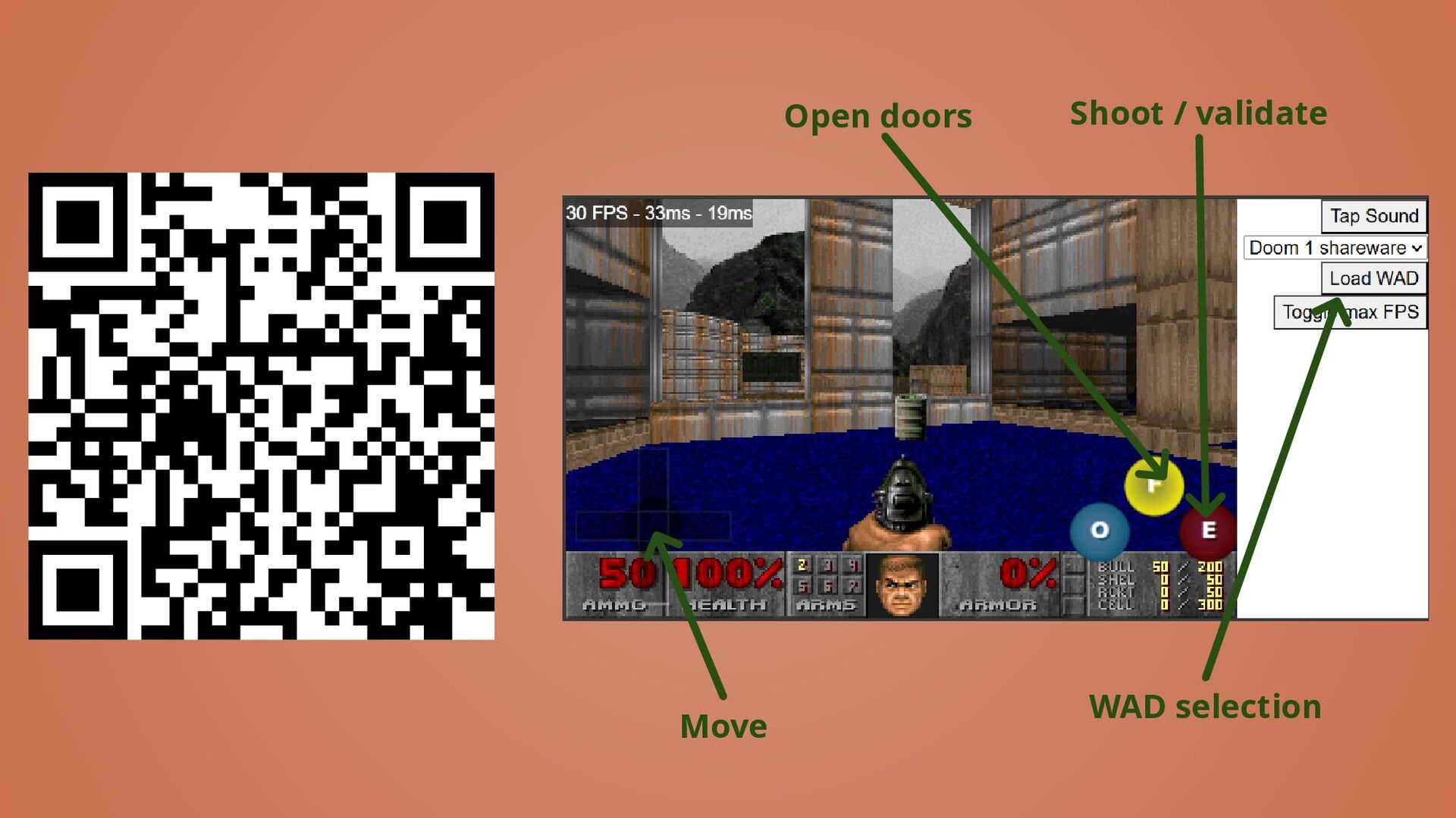

87. Shoot / validate Open doors Move WAD selection
89. Key takeaways
90. Key takeaways WASM possibilities are limitless

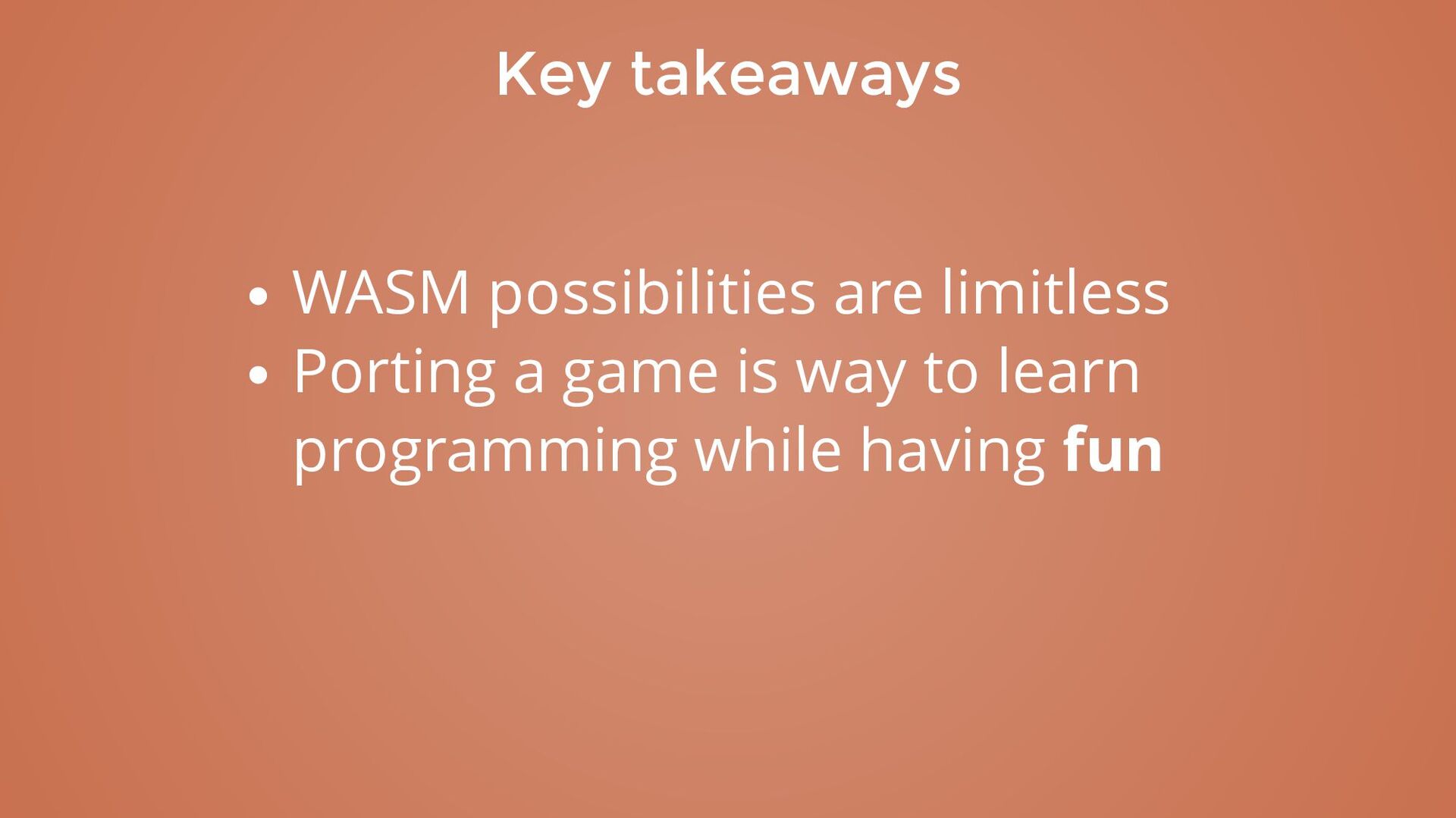

91. Key takeaways WASM possibilities are limitless Porting a game is way to learn programming while having fun
93. Feedback
