[DevoxxUK 2024] Using WASM to port games to the browser: the BlazorDoom use case

WASM is a powerful platform-agnostic technology. Do you know that you can take advantage of it to port games to the browser as long as the source code can be compiled to WASM ? In that regard, I ported ManagedDoom to the Browser thanks to .Net supporting of WASM.

I this talk, I will share with you how I managed to port ManagedDoom to the web. We'll talk about WASM, game porting, .Net and JavaScript. I'll also share the issues that I encountered and how I solved them.

The concepts that I'll present can be applied to any language that targets WASM. So, come and live this porting adventure again with me👍.

Transcript

2. How it started
3. How it's going
4. @yostane #TechAtWorldline Yassine Benabbas DevRel / Teacher Video game collector 😍 Kotlin, WASM, or any fancy technology
5. We design payments technology that powers the growth of millions of businesses around the world. Managing 43+ billion transactions per year 7000+ engineers in over 40 countries #TechAtWorldline Handling 150+ payment methods blog.worldline.tech

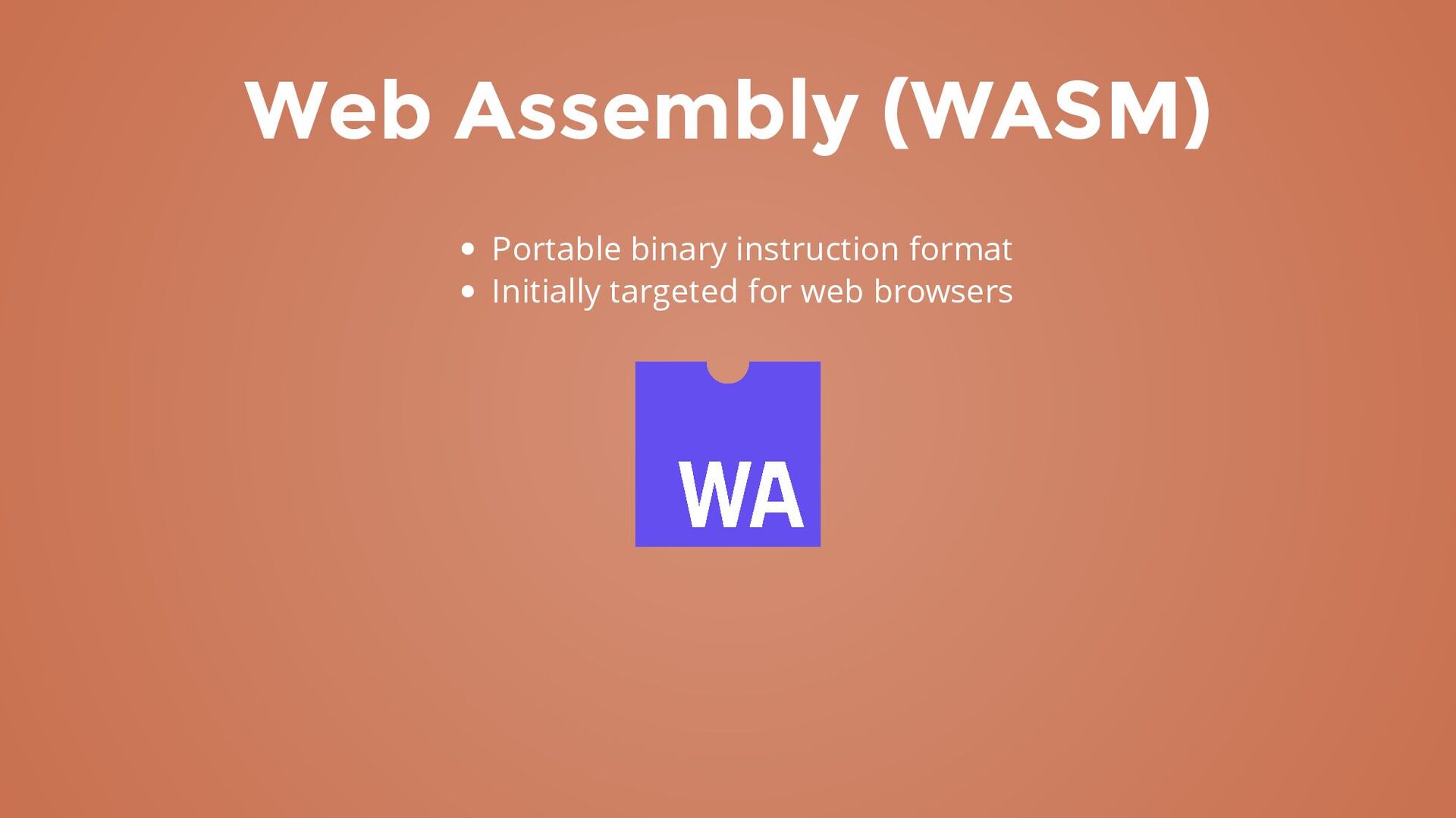

7. Web Assembly (WASM) Portable binary instruction format Initially targeted for web browsers
8. Web Assembly (WASM) Portable binary instruction format Initially targeted for web browsers Faster than JS on compute intensive tasks Many programming languages compile to WASM

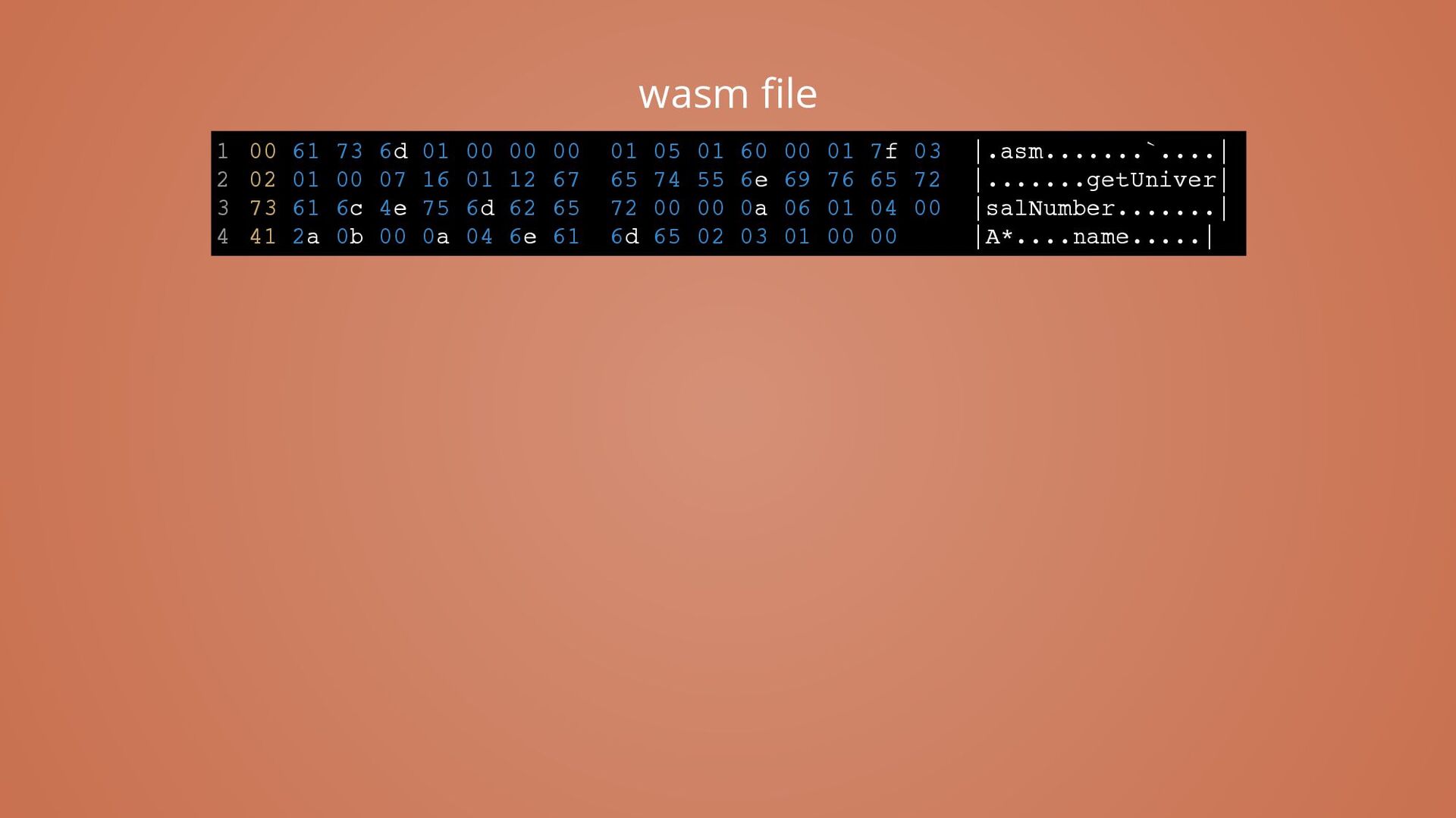

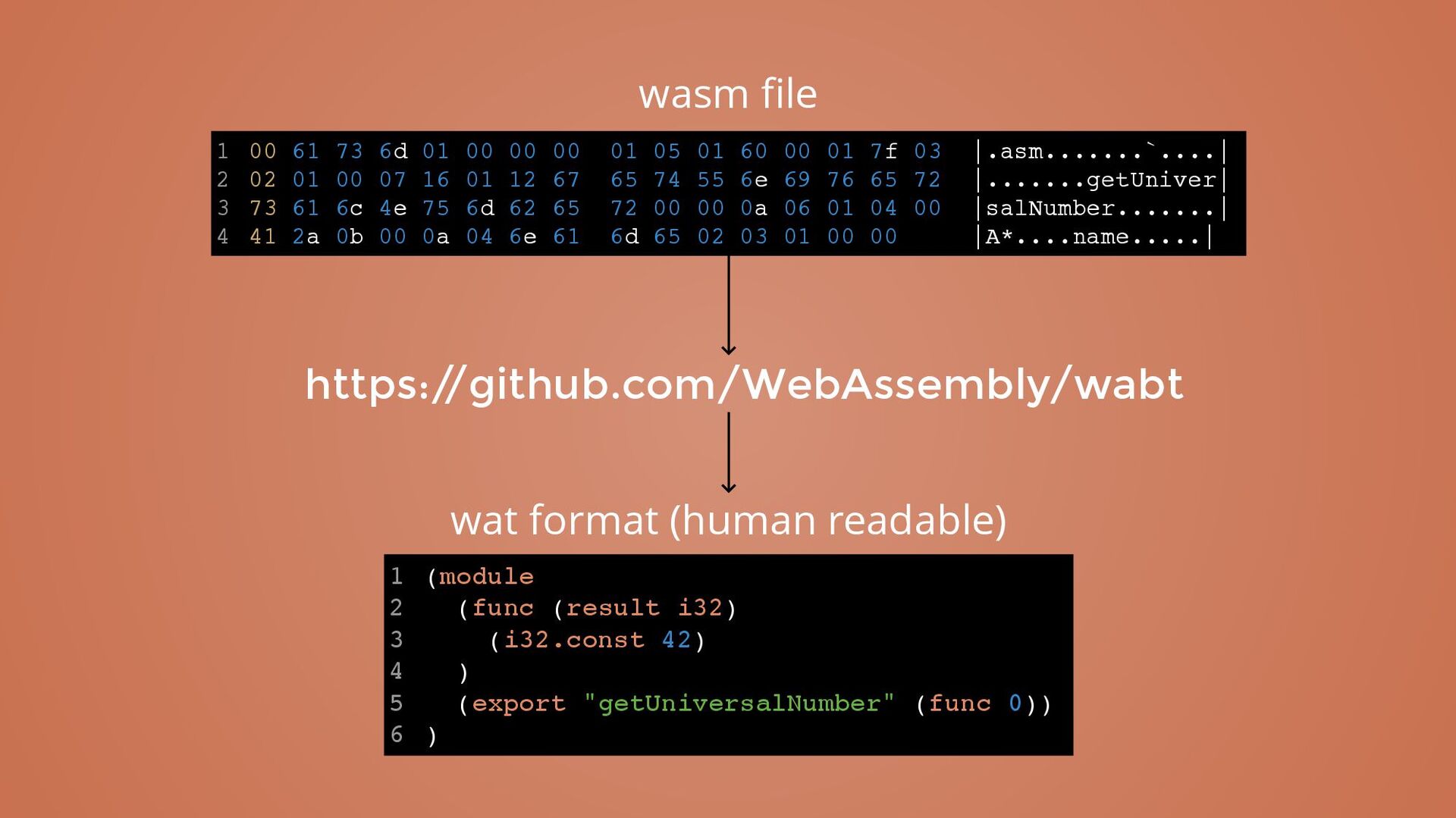

9. 00 61 73 6d 01 00 00 00 01 05 01 60 00 01 7f 03 |.asm.......`....| 02 01 00 07 16 01 12 67 65 74 55 6e 69 76 65 72 |.......getUniver| 73 61 6c 4e 75 6d 62 65 72 00 00 0a 06 01 04 00 |salNumber.......| 41 2a 0b 00 0a 04 6e 61 6d 65 02 03 01 00 00 |A*....name.....| 1 2 3 4 wasm file
10. (module (func (result i32) (i32.const 42) ) (export "getUniversalNumber" (func 0)) ) 1 2 3 4 5 6 00 61 73 6d 01 00 00 00 01 05 01 60 00 01 7f 03 |.asm.......`....| 02 01 00 07 16 01 12 67 65 74 55 6e 69 76 65 72 |.......getUniver| 73 61 6c 4e 75 6d 62 65 72 00 00 0a 06 01 04 00 |salNumber.......| 41 2a 0b 00 0a 04 6e 61 6d 65 02 03 01 00 00 |A*....name.....| 1 2 3 4 wat format (human readable) wasm file https:/ /github.com/WebAssembly/wabt

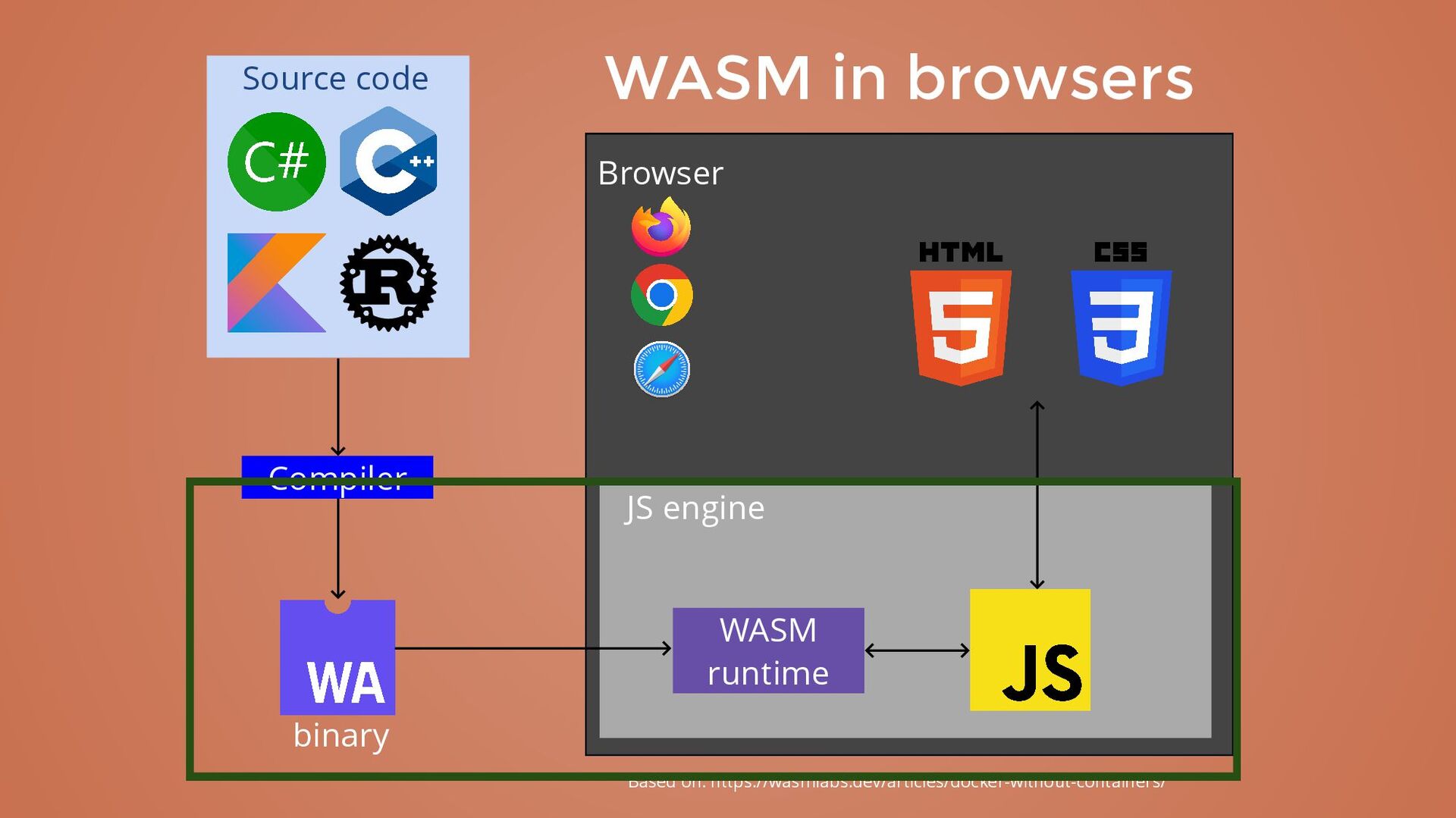

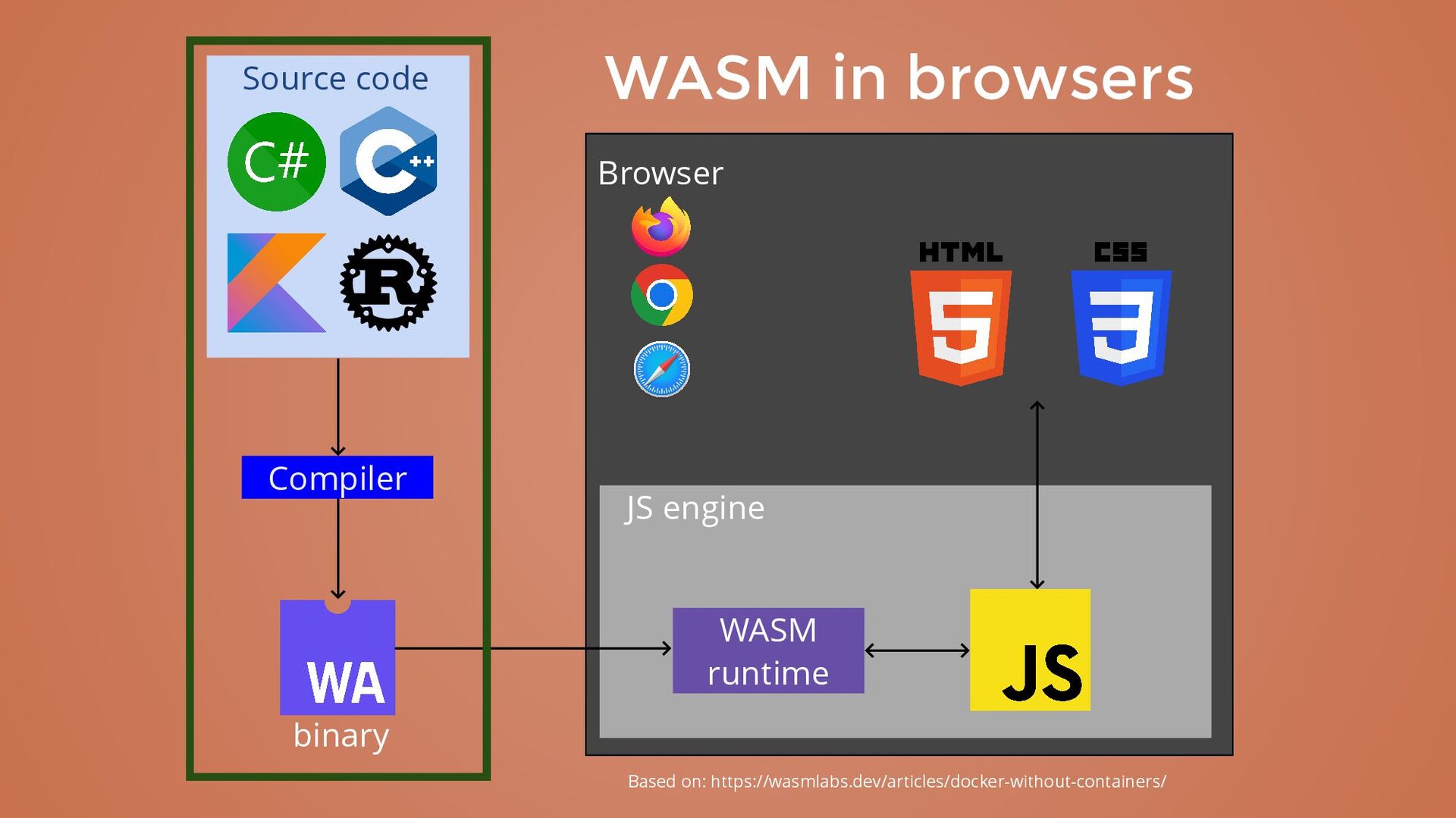

11. Browser Compiler binary Source code WASM runtime JS engine Based on: https://wasmlabs.dev/articles/docker-without-containers/ WASM in browsers
12. Browser Compiler binary Source code WASM runtime JS engine Based on: https://wasmlabs.dev/articles/docker-without-containers/ WASM in browsers
13. Browser Compiler binary Source code WASM runtime JS engine Based on: https://wasmlabs.dev/articles/docker-without-containers/ WASM in browsers

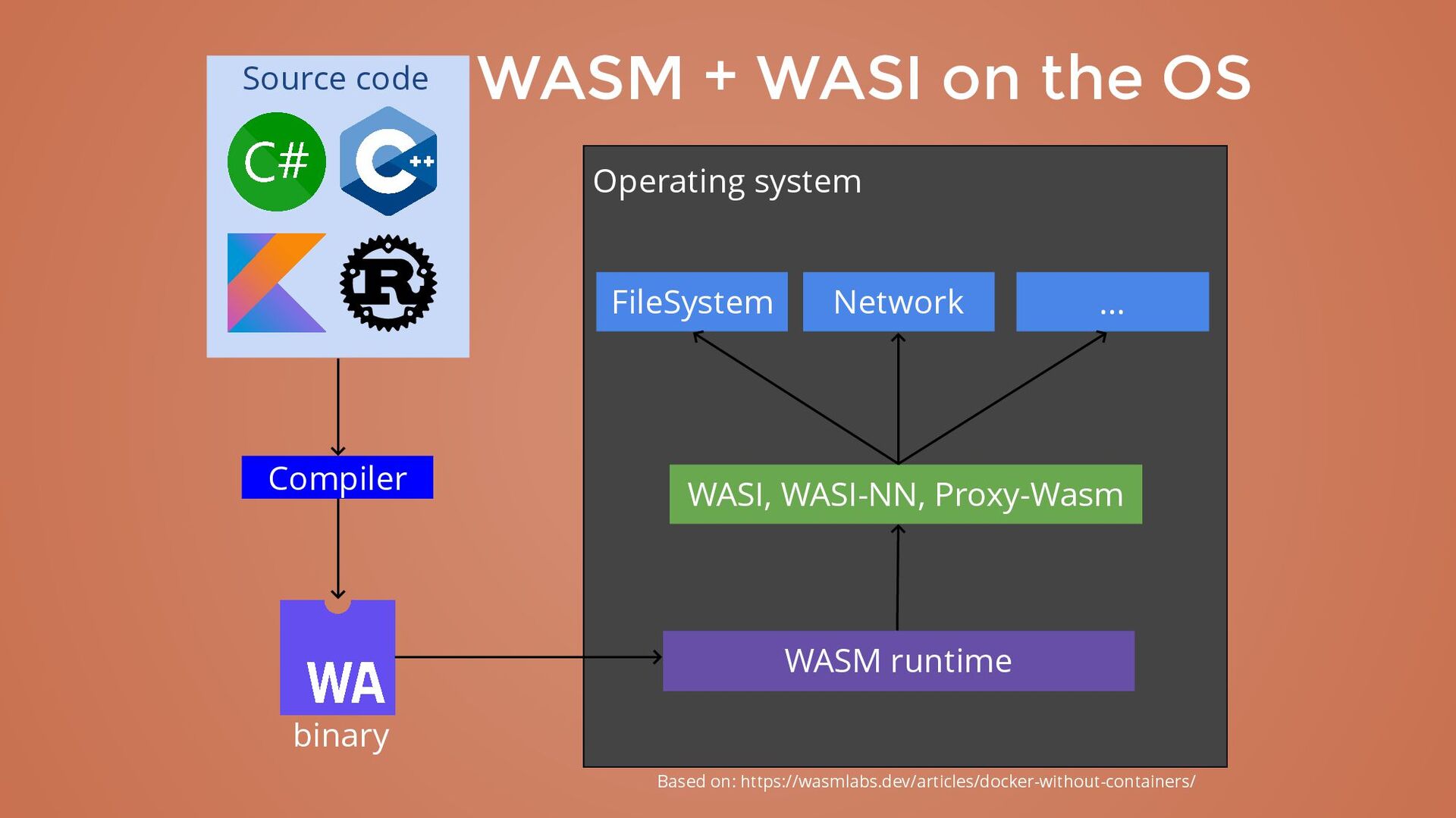

14. Operating system Compiler binary Source code WASM runtime Based on: https://wasmlabs.dev/articles/docker-without-containers/ WASM + WASI on the OS WASI, WASI-NN, Proxy-Wasm FileSystem Network ...
15. WASM on the browser A lot of languages compile to WASM JS interop
16. Need to do something related to WASM

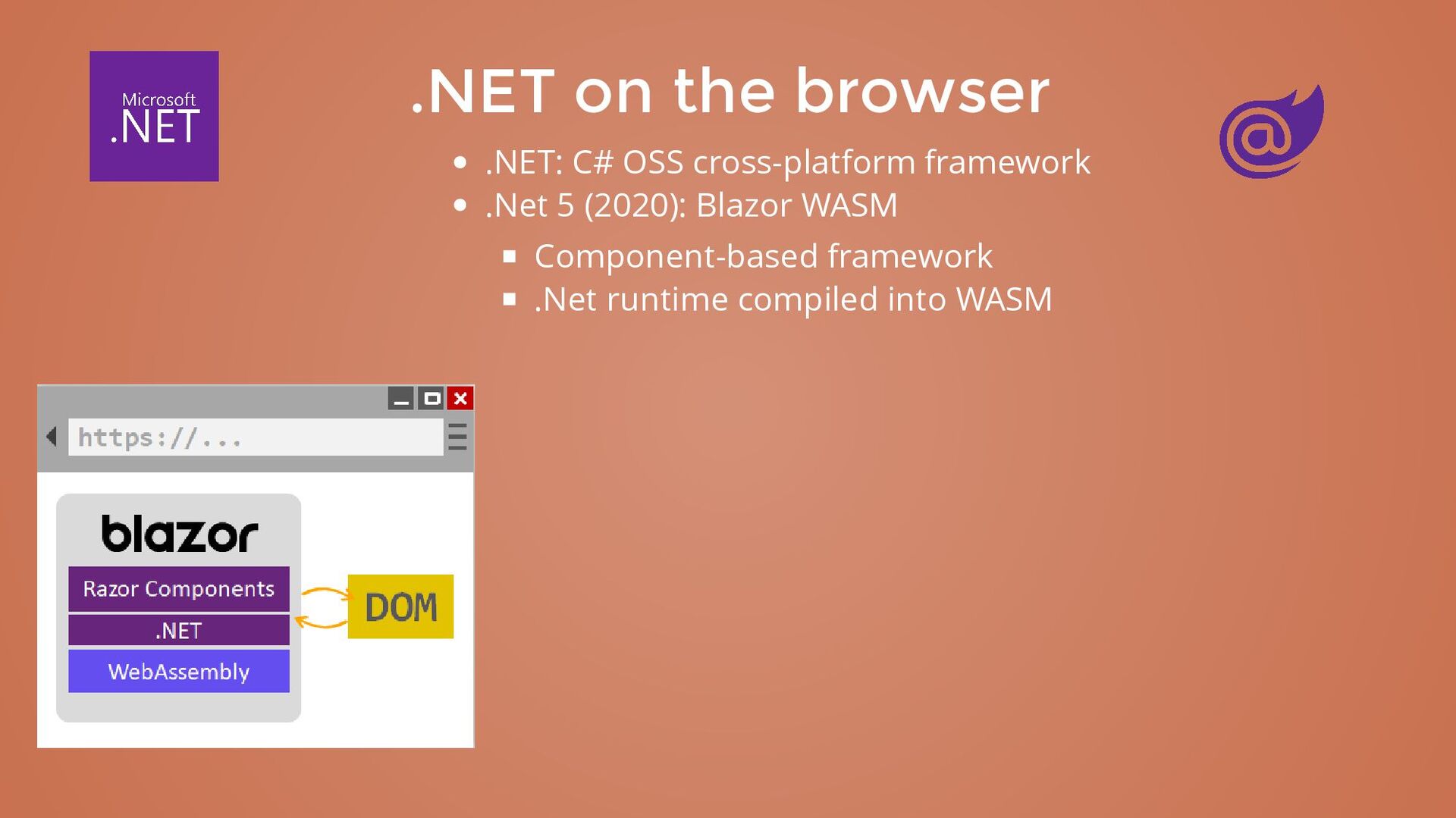

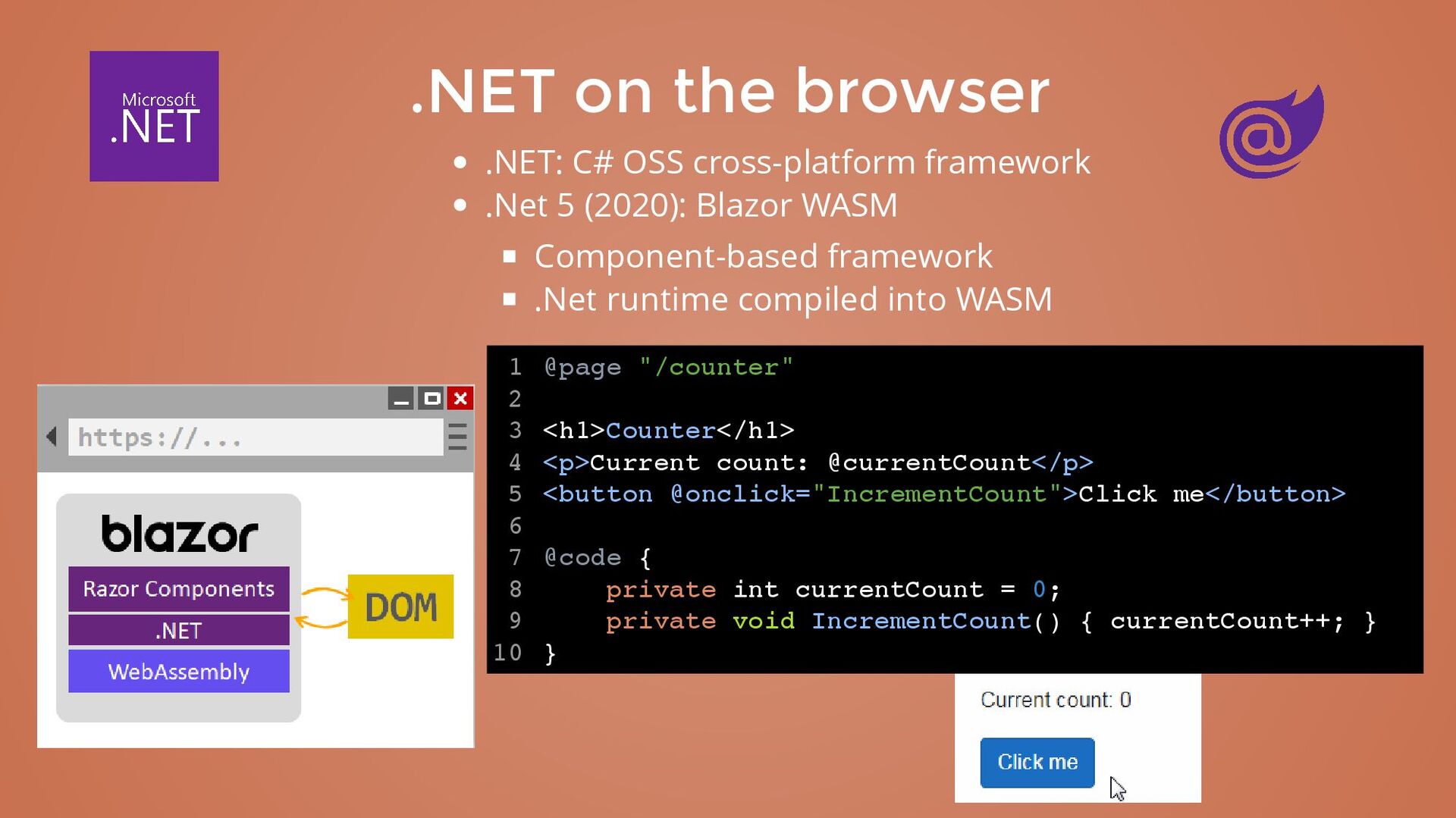

18. .NET on the browser .NET: C# OSS cross-platform framework
19. .NET on the browser .NET: C# OSS cross-platform framework .Net 5 (2020): Blazor WASM Component-based framework .Net runtime compiled into WASM
20. .NET on the browser .NET: C# OSS cross-platform framework .Net 5 (2020): Blazor WASM Component-based framework .Net runtime compiled into WASM @page "/counter" <h1>Counter</h1> <p>Current count: @currentCount</p> <button @onclick="IncrementCount">Click me</button> @code { private int currentCount = 0; private void IncrementCount() { currentCount++; } } 1 2 3 4 5 6 7 8 9 10

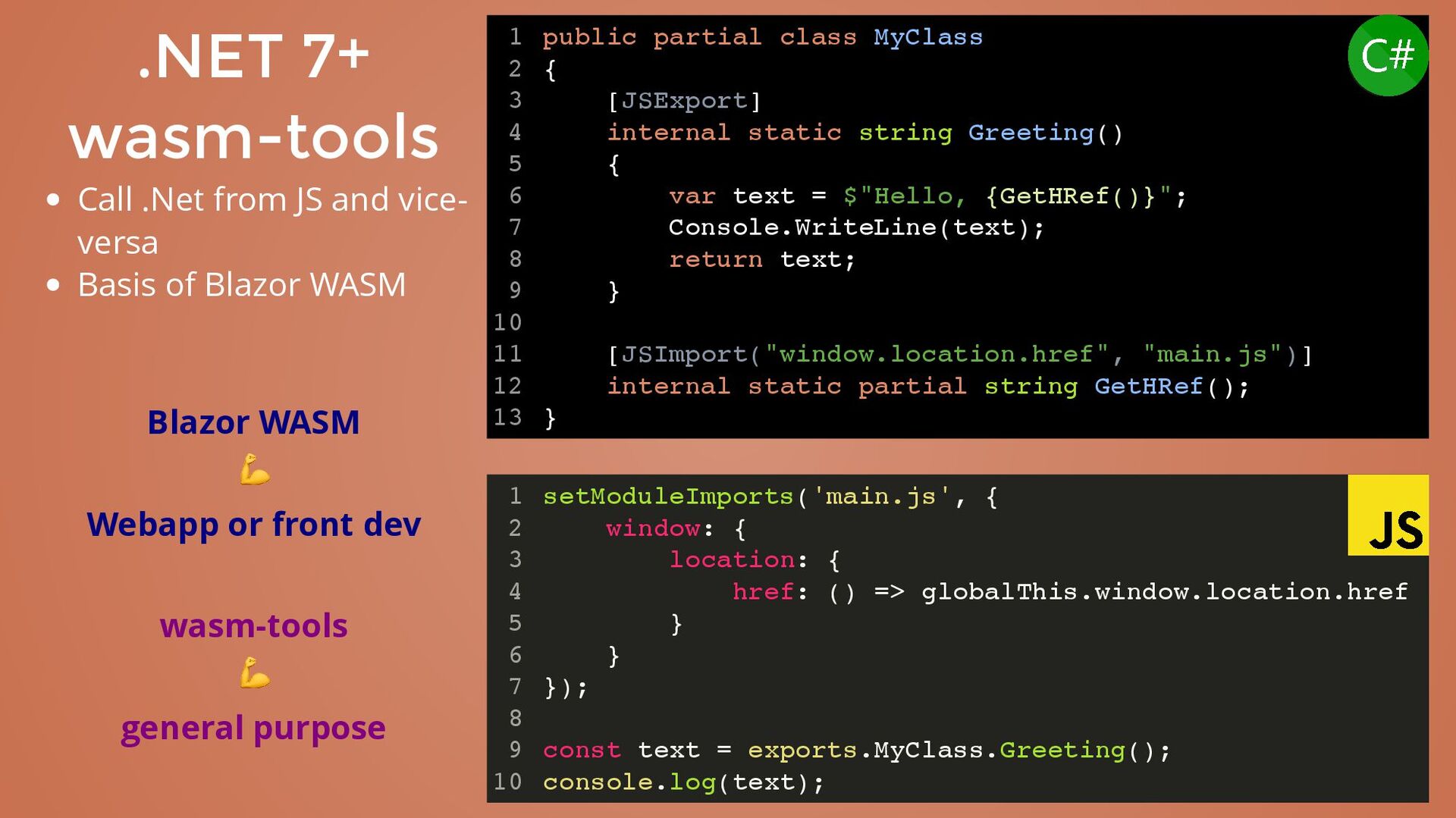

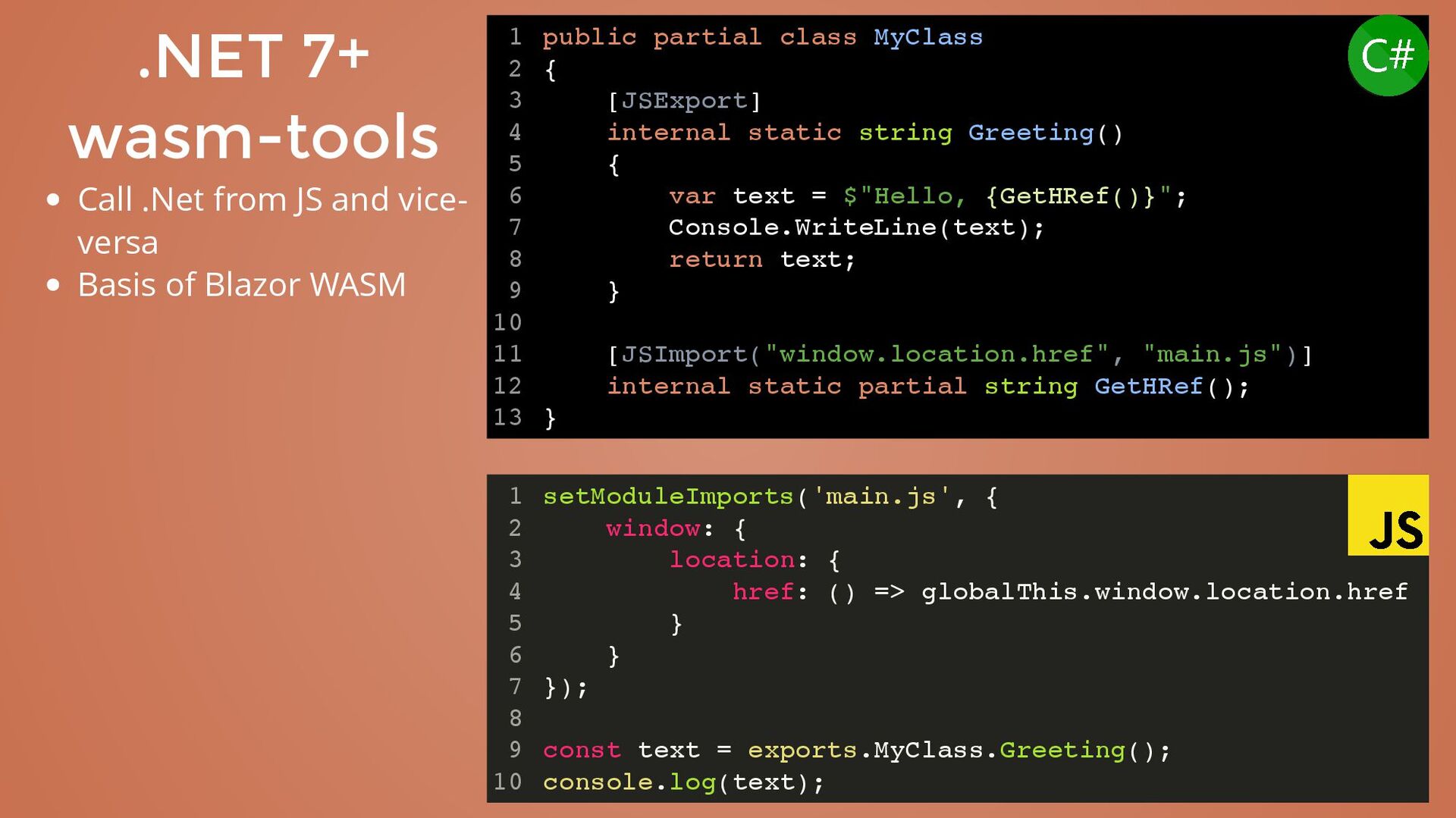

21. public partial class MyClass { [JSExport] internal static string Greeting() { var text = $"Hello, {GetHRef()}"; Console.WriteLine(text); return text; } [JSImport("window.location.href", "main.js")] internal static partial string GetHRef(); } 1 2 3 4 5 6 7 8 9 10 11 12 13 setModuleImports('main.js', { window: { location: { href: () => globalThis.window.location.href } } }); const text = exports.MyClass.Greeting(); console.log(text); 1 2 3 4 5 6 7 8 9 10 .NET 7+ wasm-tools Call .Net from JS and vice- versa Basis of Blazor WASM
22. public partial class MyClass { [JSExport] internal static string Greeting() { var text = $"Hello, {GetHRef()}"; Console.WriteLine(text); return text; } [JSImport("window.location.href", "main.js")] internal static partial string GetHRef(); } 1 2 3 4 5 6 7 8 9 10 11 12 13 setModuleImports('main.js', { window: { location: { href: () => globalThis.window.location.href } } }); const text = exports.MyClass.Greeting(); console.log(text); 1 2 3 4 5 6 7 8 9 10 .NET 7+ wasm-tools Call .Net from JS and vice- versa Basis of Blazor WASM
23. public partial class MyClass { [JSExport] internal static string Greeting() { var text = $"Hello, {GetHRef()}"; Console.WriteLine(text); return text; } [JSImport("window.location.href", "main.js")] internal static partial string GetHRef(); } 1 2 3 4 5 6 7 8 9 10 11 12 13 setModuleImports('main.js', { window: { location: { href: () => globalThis.window.location.href } } }); const text = exports.MyClass.Greeting(); console.log(text); 1 2 3 4 5 6 7 8 9 10 .NET 7+ wasm-tools Call .Net from JS and vice- versa Basis of Blazor WASM
24. public partial class MyClass { [JSExport] internal static string Greeting() { var text = $"Hello, {GetHRef()}"; Console.WriteLine(text); return text; } [JSImport("window.location.href", "main.js")] internal static partial string GetHRef(); } 1 2 3 4 5 6 7 8 9 10 11 12 13 setModuleImports('main.js', { window: { location: { href: () => globalThis.window.location.href } } }); const text = exports.MyClass.Greeting(); console.log(text); 1 2 3 4 5 6 7 8 9 10 .NET 7+ wasm-tools Call .Net from JS and vice- versa Basis of Blazor WASM Blazor WASM 💪 Webapp or front dev wasm-tools 💪 general purpose
25. Let's port a .NET game !
27. Game porting Make a game run in platforms other than its original ones By rewriting / adapting the source code for the new platform(s) Not porting: virtual machine or emulator
28. Game porting Make a game run in platforms other than its original ones By rewriting / adapting the source code for the new platform(s) Not porting: virtual machine or emulator MVG's video is a great source of inspiration
29. Released in 1993 for DOS One the most successful First Person Shooters Has two parts: engine: Game logic + I/O WAD file: all assets and maps 🌟 Doom is portable by design 🌟

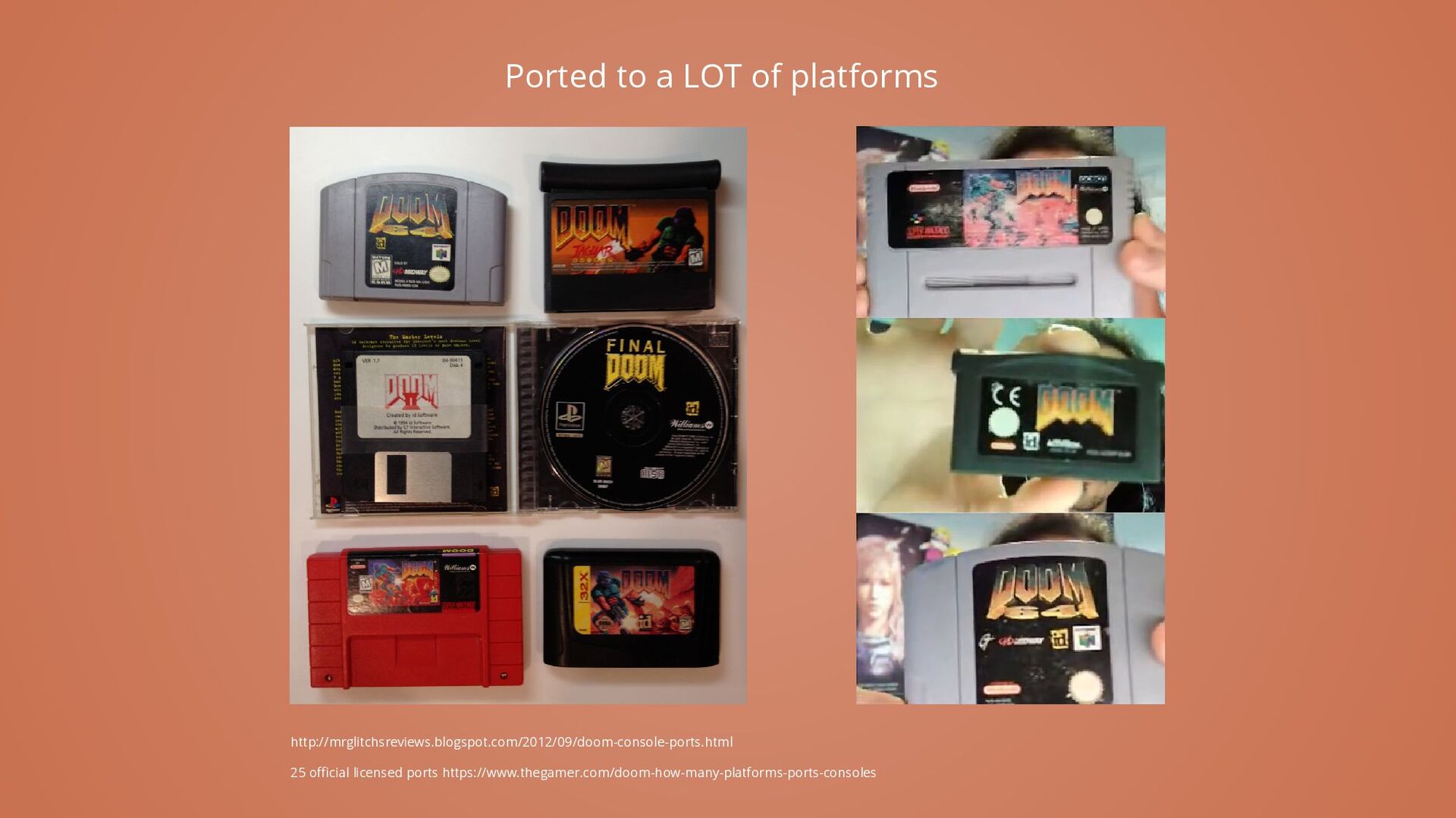

30. http://mrglitchsreviews.blogspot.com/2012/09/doom-console-ports.html Ported to a LOT of platforms 25 official licensed ports https://www.thegamer.com/doom-how-many-platforms-ports-consoles

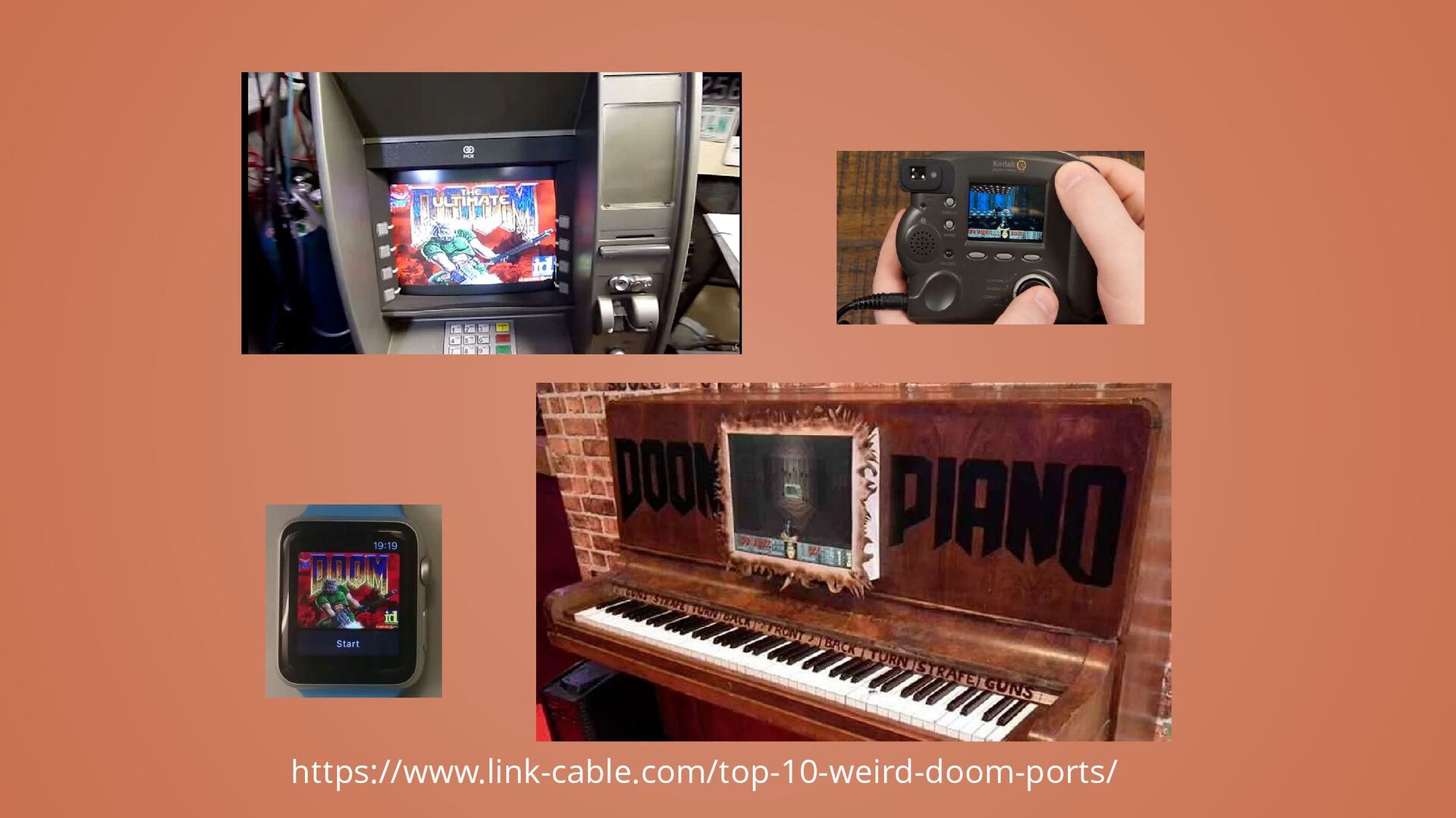

31. https://www.link-cable.com/top-10-weird-doom-ports/
32. Source: https://www.yahoo.com/news/1995-bill-gates-gave-crazy-180900044.html

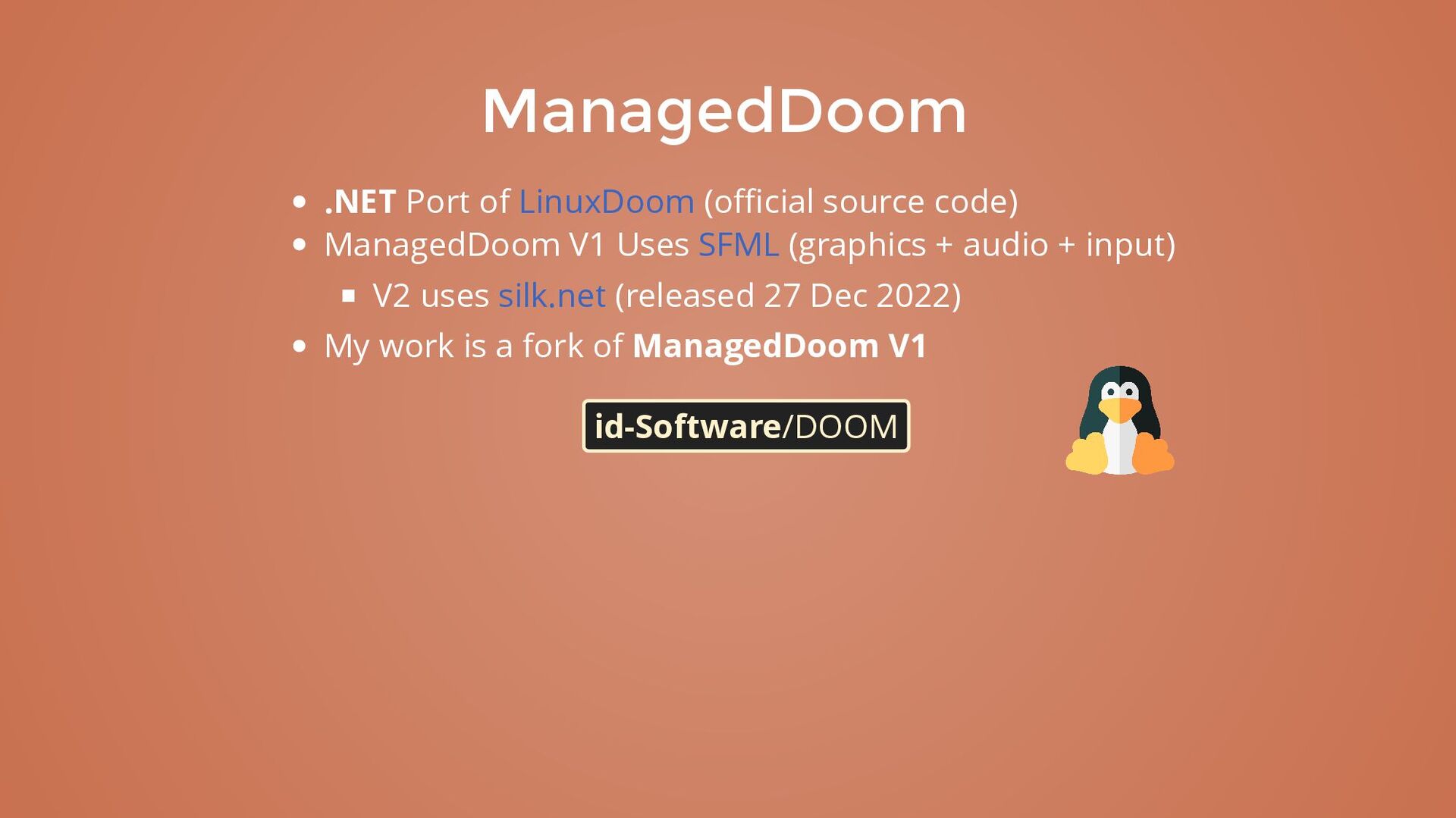

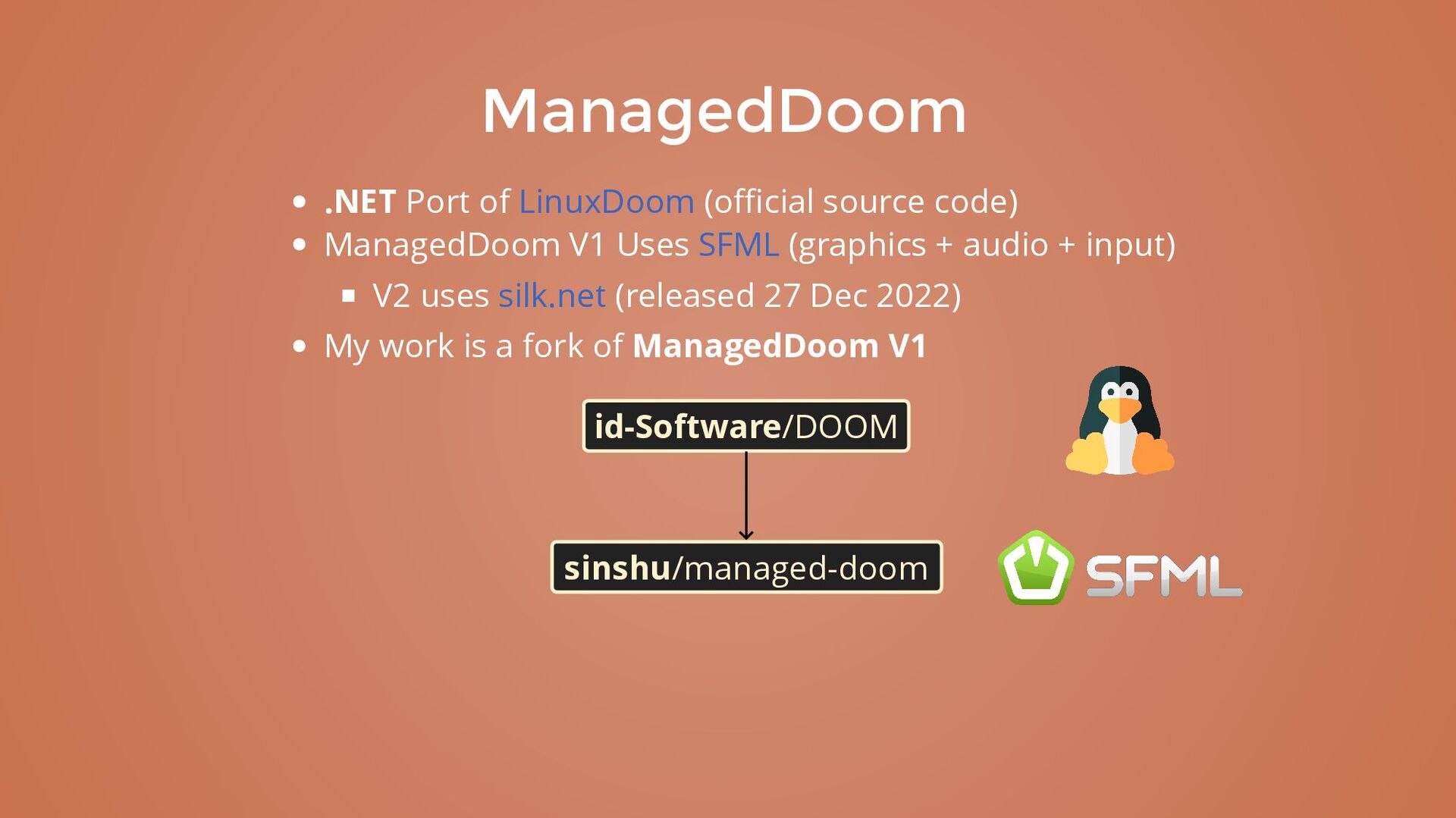

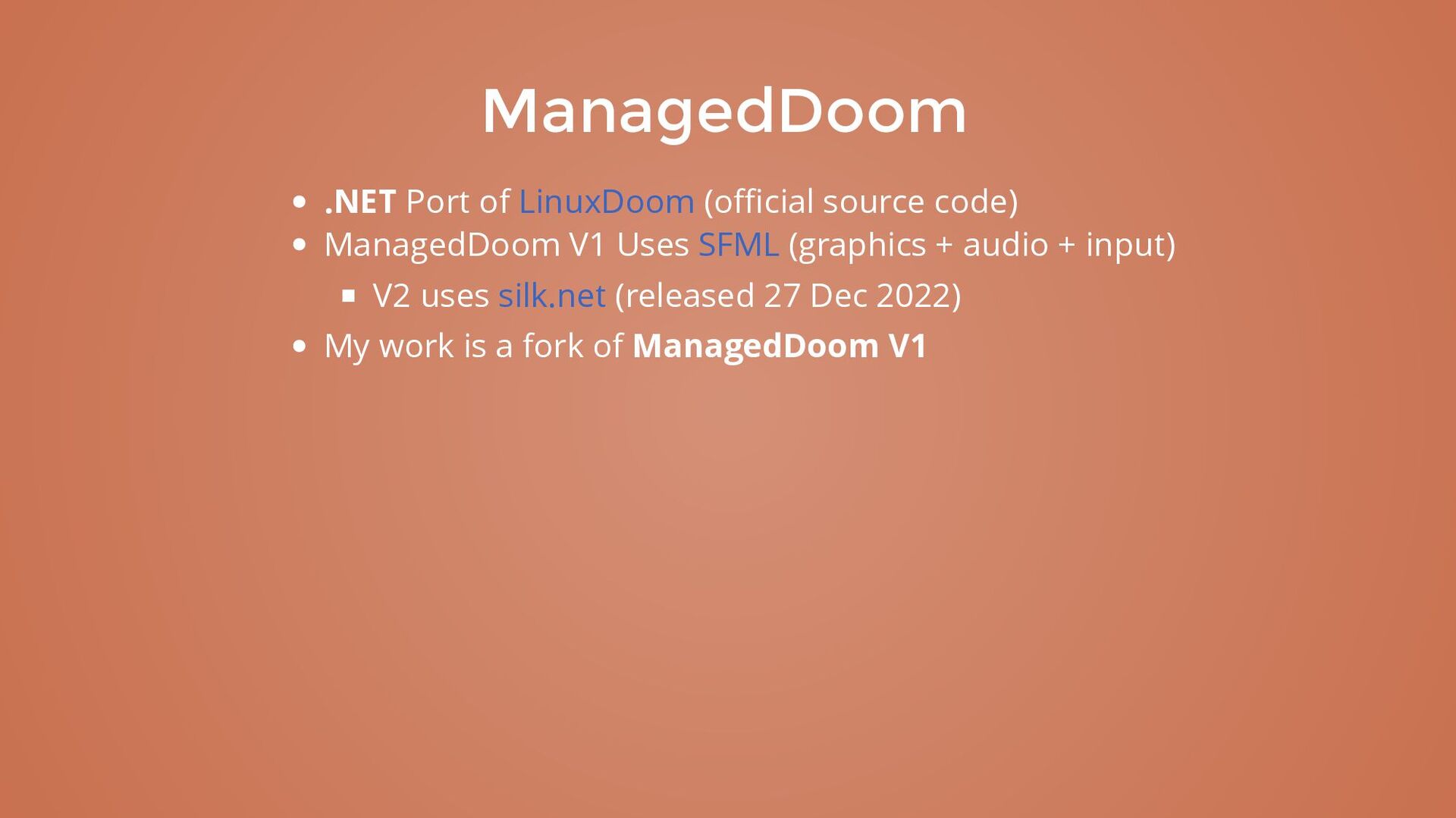

33. ManagedDoom .NET Port of (official source code) ManagedDoom V1 Uses (graphics + audio + input) V2 uses (released 27 Dec 2022) My work is a fork of ManagedDoom V1 LinuxDoom SFML silk.net
34. ManagedDoom .NET Port of (official source code) ManagedDoom V1 Uses (graphics + audio + input) V2 uses (released 27 Dec 2022) My work is a fork of ManagedDoom V1 LinuxDoom SFML silk.net id-Software/DOOM
35. ManagedDoom .NET Port of (official source code) ManagedDoom V1 Uses (graphics + audio + input) V2 uses (released 27 Dec 2022) My work is a fork of ManagedDoom V1 LinuxDoom SFML silk.net id-Software/DOOM sinshu/managed-doom
36. ManagedDoom .NET Port of (official source code) ManagedDoom V1 Uses (graphics + audio + input) V2 uses (released 27 Dec 2022) My work is a fork of ManagedDoom V1 LinuxDoom SFML silk.net id-Software/DOOM sinshu/managed-doom yostane/MangedDoom-Blazor
38. Game loop in C# while (waitForNextFrame()){ const input = getPlayerInput(); const { frame, audio } = UpdateGameState(input, WAD); render(frame); play(audio); }

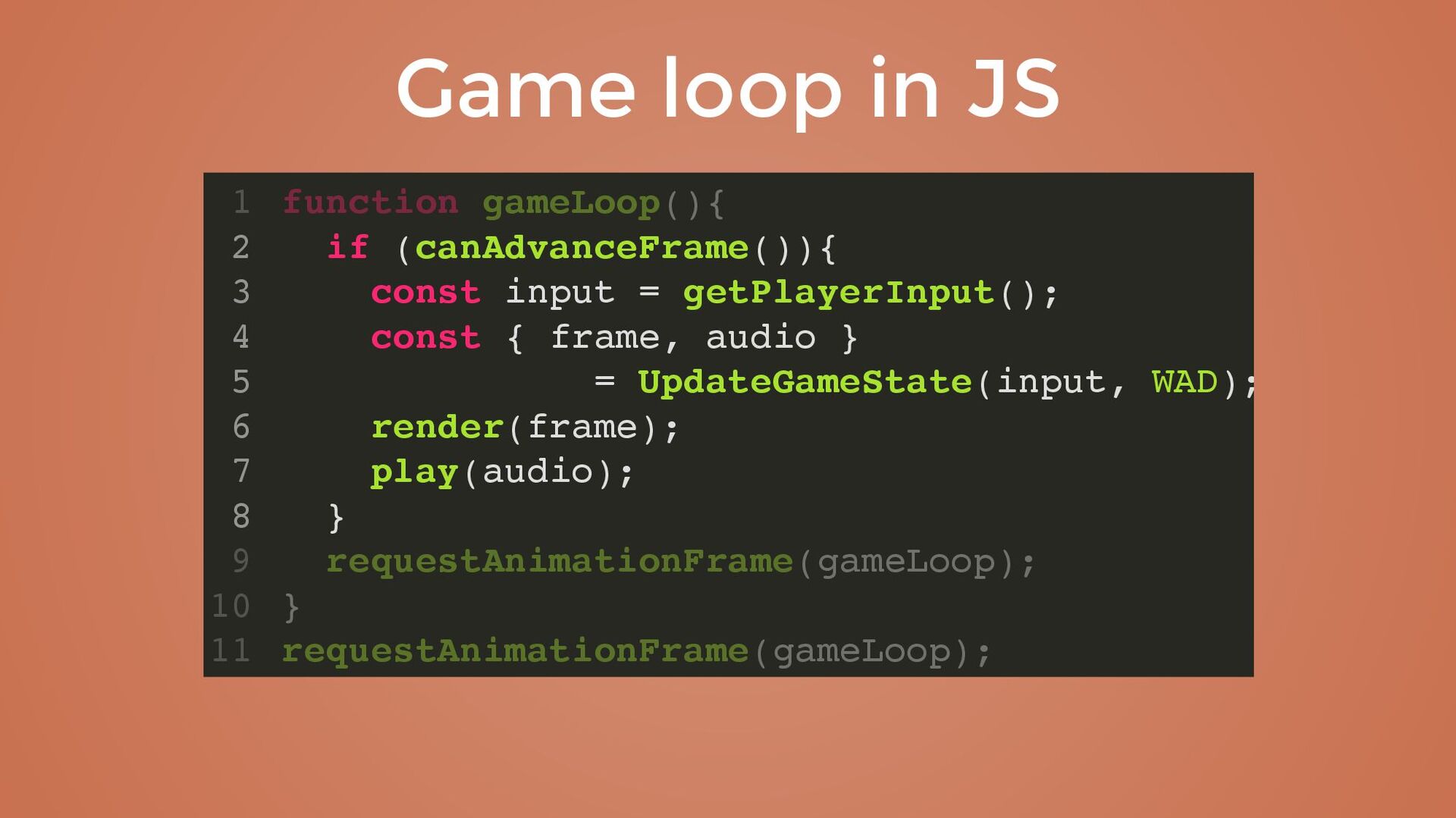

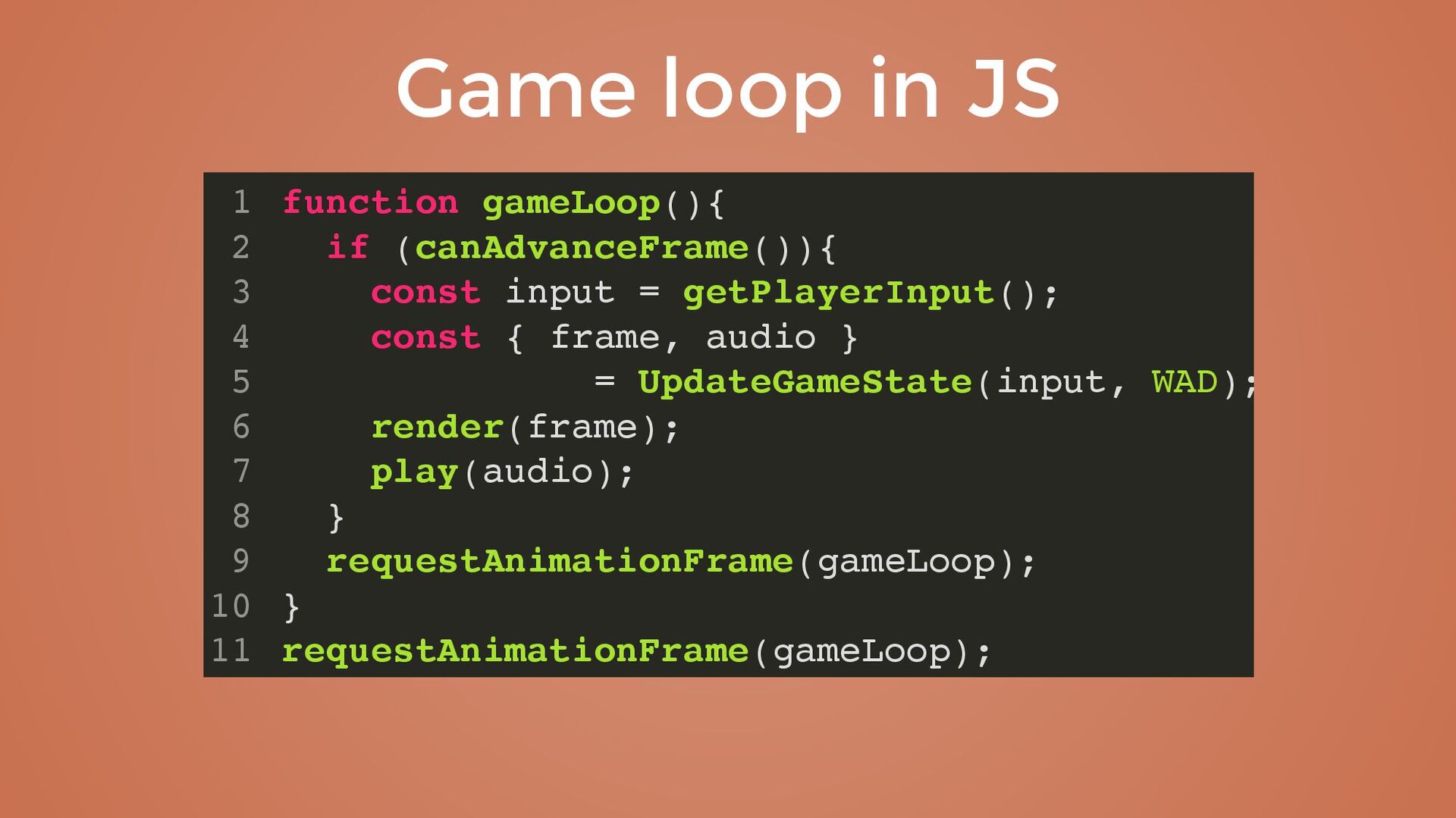

39. Game loop in JS if (canAdvanceFrame()){ const input = getPlayerInput(); const { frame, audio } = UpdateGameState(input, WAD); render(frame); play(audio); } function gameLoop(){ 1 2 3 4 5 6 7 8 requestAnimationFrame(gameLoop); 9 } 10 requestAnimationFrame(gameLoop); 11
40. Game loop in JS if (canAdvanceFrame()){ const input = getPlayerInput(); const { frame, audio } = UpdateGameState(input, WAD); render(frame); play(audio); } function gameLoop(){ 1 2 3 4 5 6 7 8 requestAnimationFrame(gameLoop); 9 } 10 requestAnimationFrame(gameLoop); 11 function gameLoop(){ requestAnimationFrame(gameLoop); requestAnimationFrame(gameLoop); 1 if (canAdvanceFrame()){ 2 const input = getPlayerInput(); 3 const { frame, audio } 4 = UpdateGameState(input, WAD); 5 render(frame); 6 play(audio); 7 } 8 9 } 10 11
41. Game loop in JS if (canAdvanceFrame()){ const input = getPlayerInput(); const { frame, audio } = UpdateGameState(input, WAD); render(frame); play(audio); } function gameLoop(){ 1 2 3 4 5 6 7 8 requestAnimationFrame(gameLoop); 9 } 10 requestAnimationFrame(gameLoop); 11 function gameLoop(){ requestAnimationFrame(gameLoop); requestAnimationFrame(gameLoop); 1 if (canAdvanceFrame()){ 2 const input = getPlayerInput(); 3 const { frame, audio } 4 = UpdateGameState(input, WAD); 5 render(frame); 6 play(audio); 7 } 8 9 } 10 11 function gameLoop(){ if (canAdvanceFrame()){ const input = getPlayerInput(); const { frame, audio } = UpdateGameState(input, WAD); render(frame); play(audio); } requestAnimationFrame(gameLoop); } requestAnimationFrame(gameLoop); 1 2 3 4 5 6 7 8 9 10 11

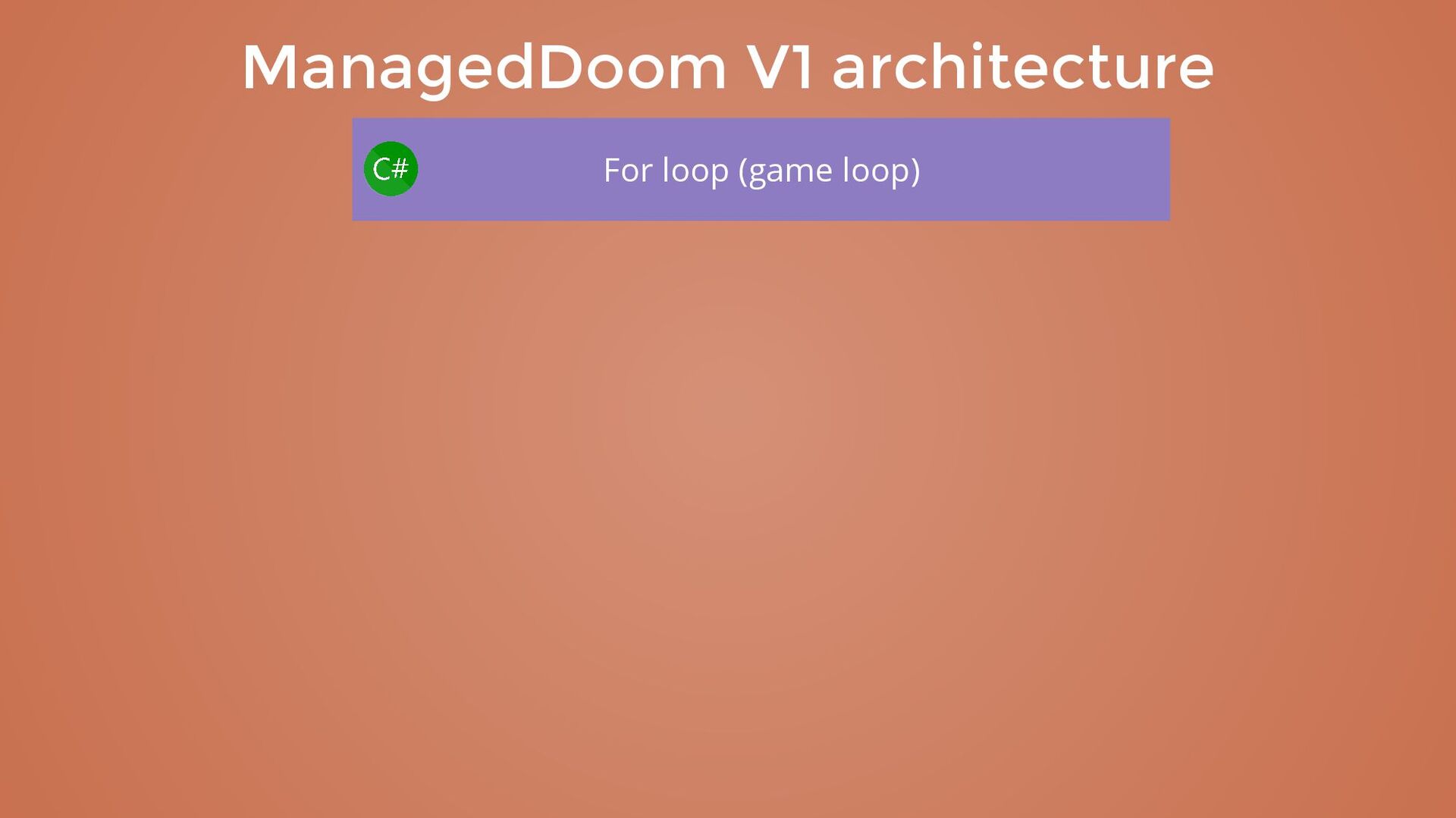

42. ManagedDoom V1 architecture

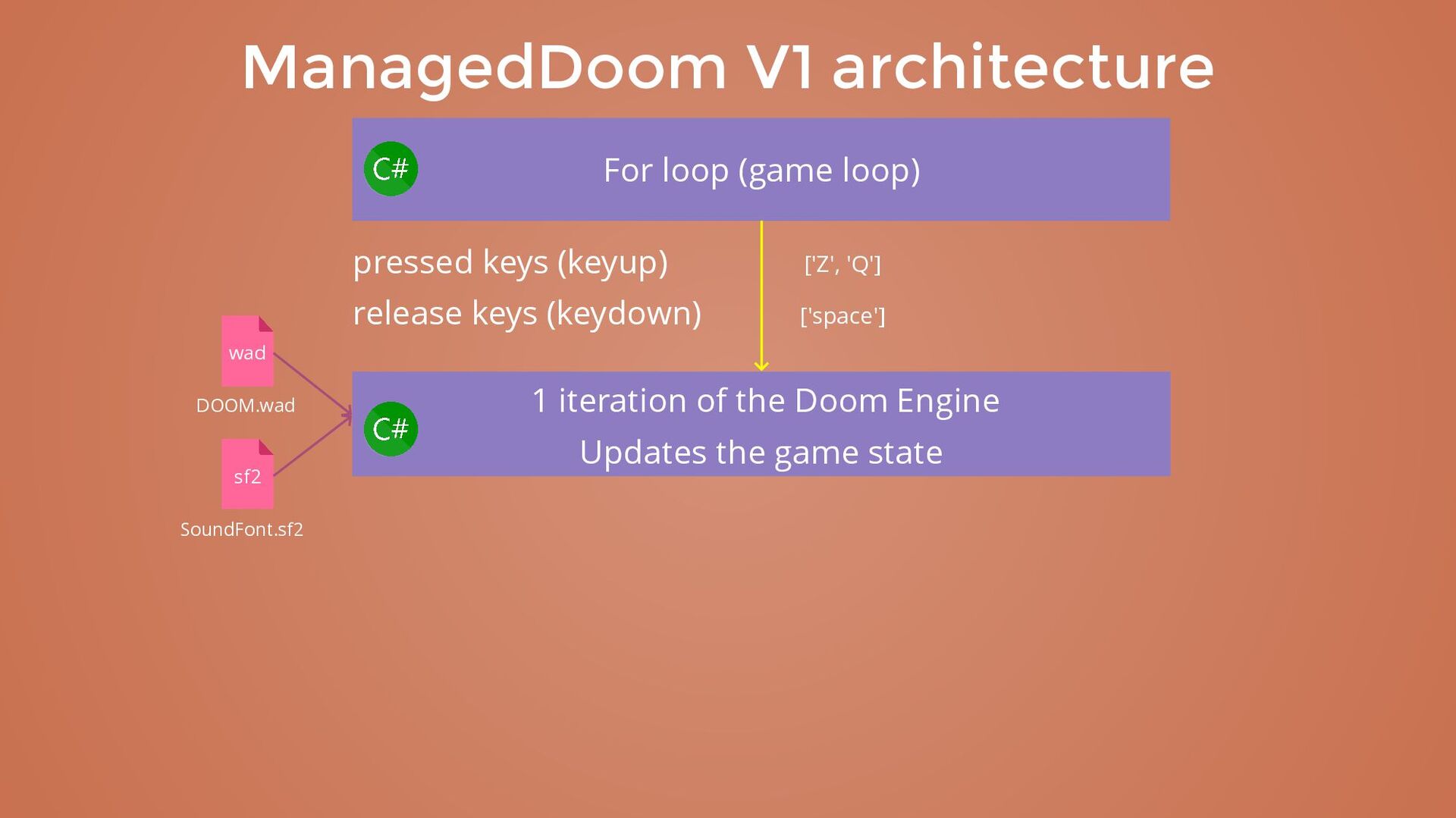

43. For loop (game loop) ManagedDoom V1 architecture

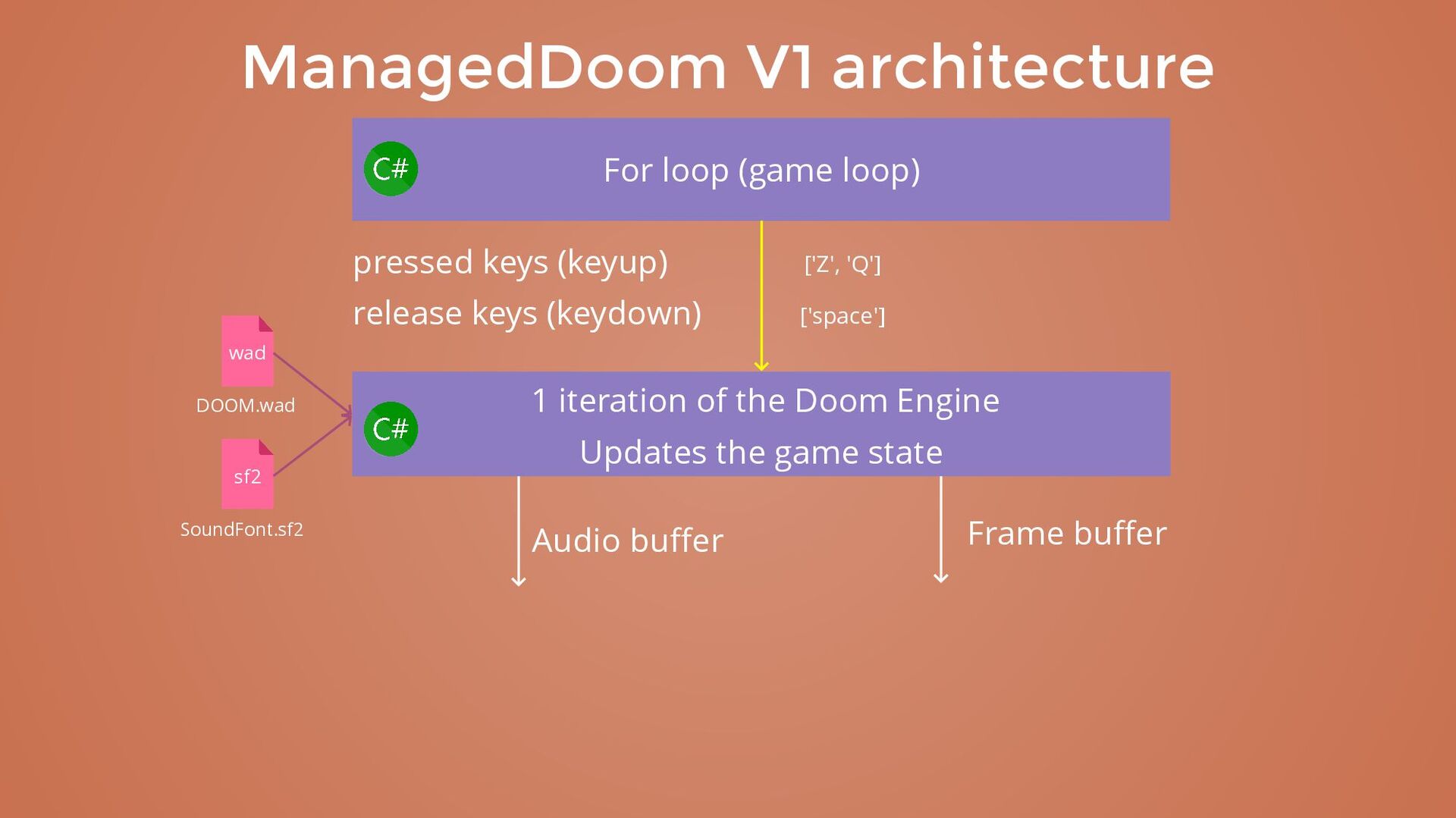

44. For loop (game loop) pressed keys (keyup) release keys (keydown) ['Z', 'Q'] ['space'] ManagedDoom V1 architecture 1 iteration of the Doom Engine Updates the game state wad DOOM.wad sf2 SoundFont.sf2
45. For loop (game loop) pressed keys (keyup) release keys (keydown) ['Z', 'Q'] ['space'] ManagedDoom V1 architecture Frame buffer Audio buffer 1 iteration of the Doom Engine Updates the game state wad DOOM.wad sf2 SoundFont.sf2

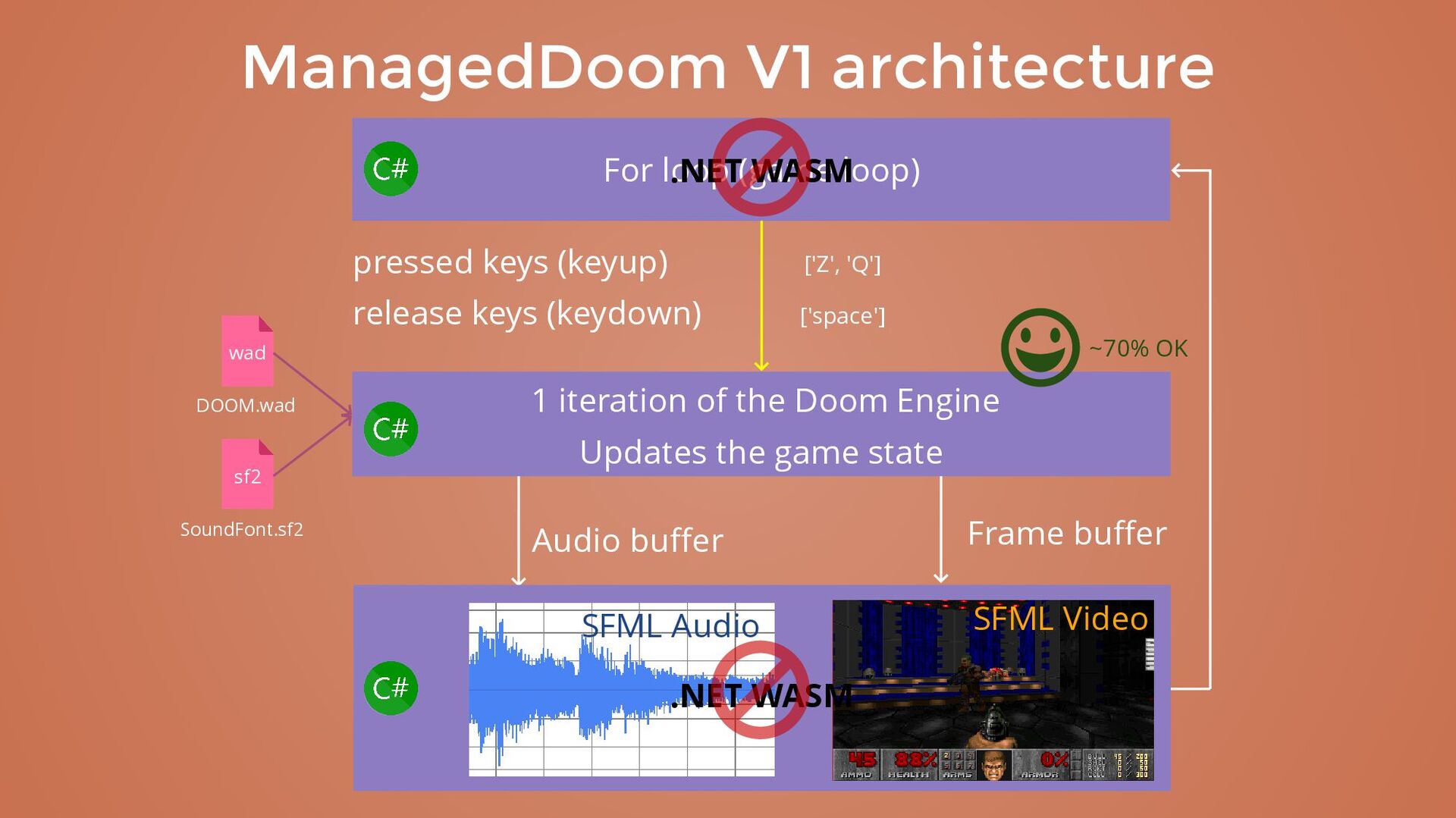

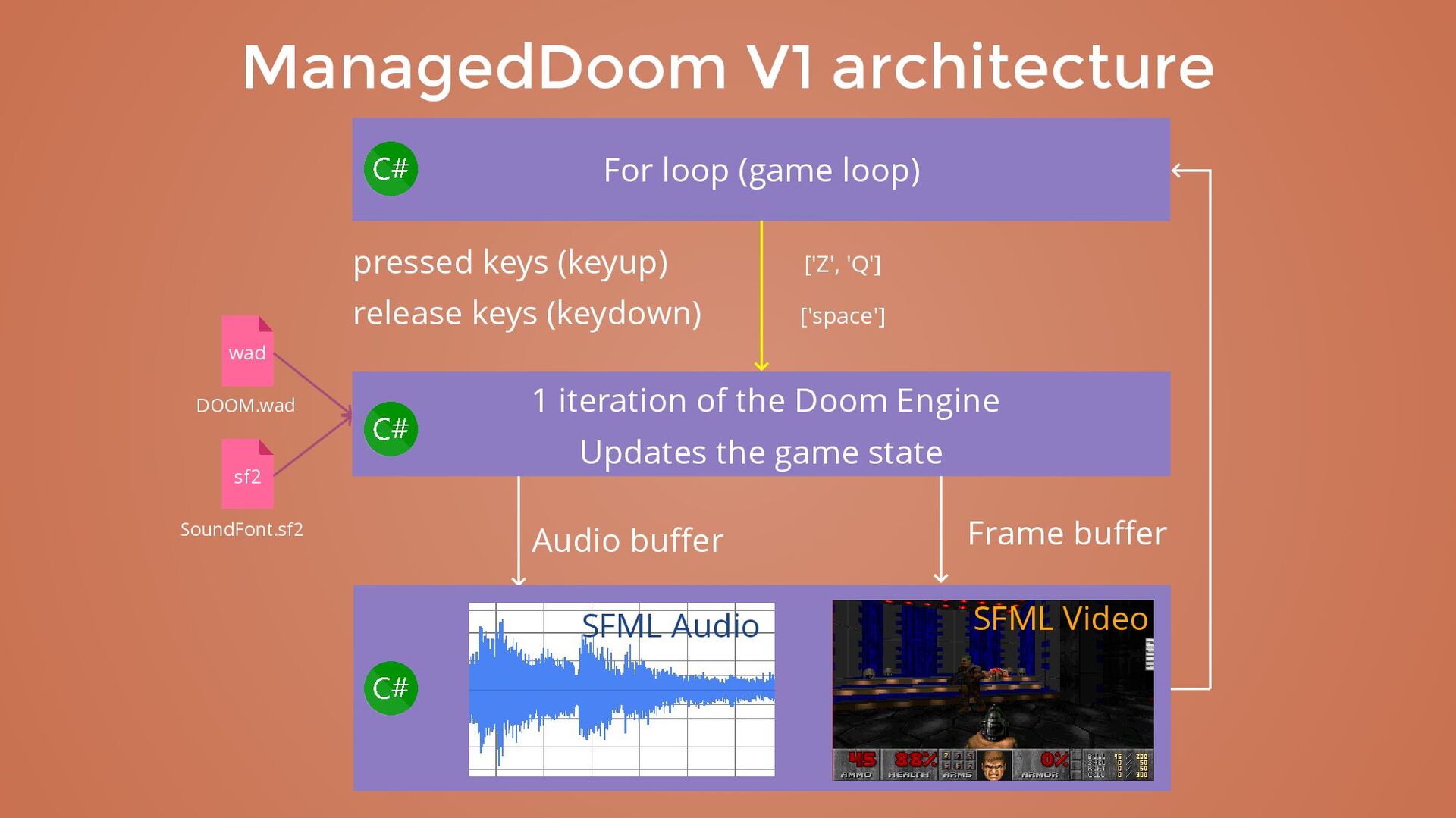

46. For loop (game loop) pressed keys (keyup) release keys (keydown) ['Z', 'Q'] ['space'] ManagedDoom V1 architecture Frame buffer Audio buffer SFML Video SFML Audio 1 iteration of the Doom Engine Updates the game state wad DOOM.wad sf2 SoundFont.sf2
47. For loop (game loop) pressed keys (keyup) release keys (keydown) ['Z', 'Q'] ['space'] ManagedDoom V1 architecture Frame buffer Audio buffer SFML Video SFML Audio 1 iteration of the Doom Engine Updates the game state wad DOOM.wad sf2 SoundFont.sf2
48. For loop (game loop) pressed keys (keyup) release keys (keydown) ['Z', 'Q'] ['space'] ManagedDoom V1 architecture Frame buffer Audio buffer SFML Video SFML Audio 1 iteration of the Doom Engine Updates the game state .NET WASM ~70% OK .NET WASM wad DOOM.wad sf2 SoundFont.sf2

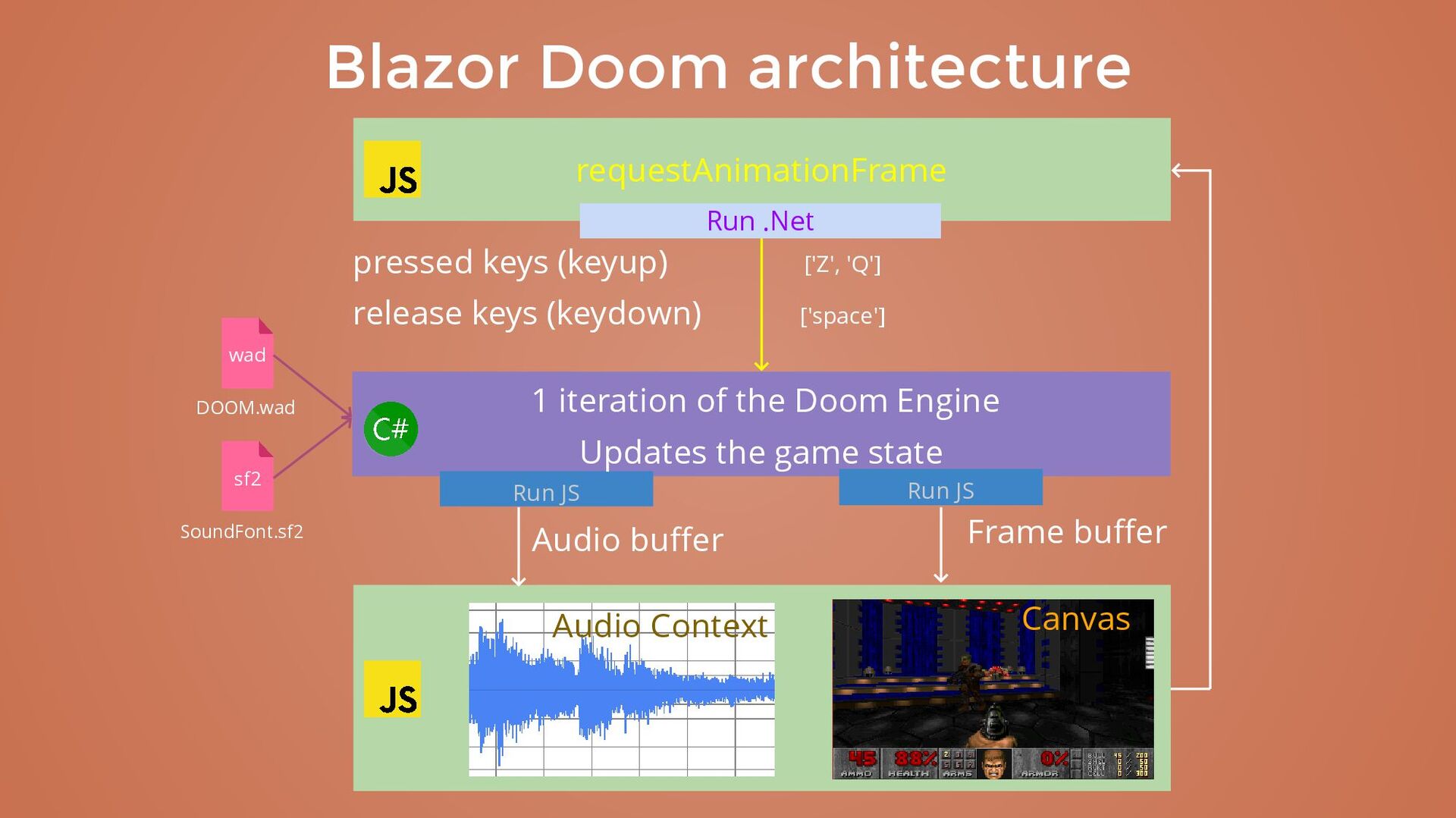

49. pressed keys (keyup) release keys (keydown) ['Z', 'Q'] ['space'] Blazor Doom architecture wad DOOM.wad requestAnimationFrame Run .Net Canvas Run JS Run JS Frame buffer Audio buffer Audio Context 1 iteration of the Doom Engine Updates the game state sf2 SoundFont.sf2
50. Porting strategy Clone sinshu/managed-doom and compile to .NET WASM Reverse engineer SFML: creator.nightcafe.studio
51. Porting strategy Clone sinshu/managed-doom and compile to .NET WASM Reverse engineer SFML: Put empty implementations where it fails and matk them ("TODO: implement") creator.nightcafe.studio
52. Porting strategy Clone sinshu/managed-doom and compile to .NET WASM Reverse engineer SFML: Put empty implementations where it fails and matk them ("TODO: implement") Implement little by little using guesswork and logic creator.nightcafe.studio
53. Porting strategy Clone sinshu/managed-doom and compile to .NET WASM Reverse engineer SFML: Put empty implementations where it fails and matk them ("TODO: implement") Implement little by little using guesswork and logic Delegate to JS when necessary creator.nightcafe.studio

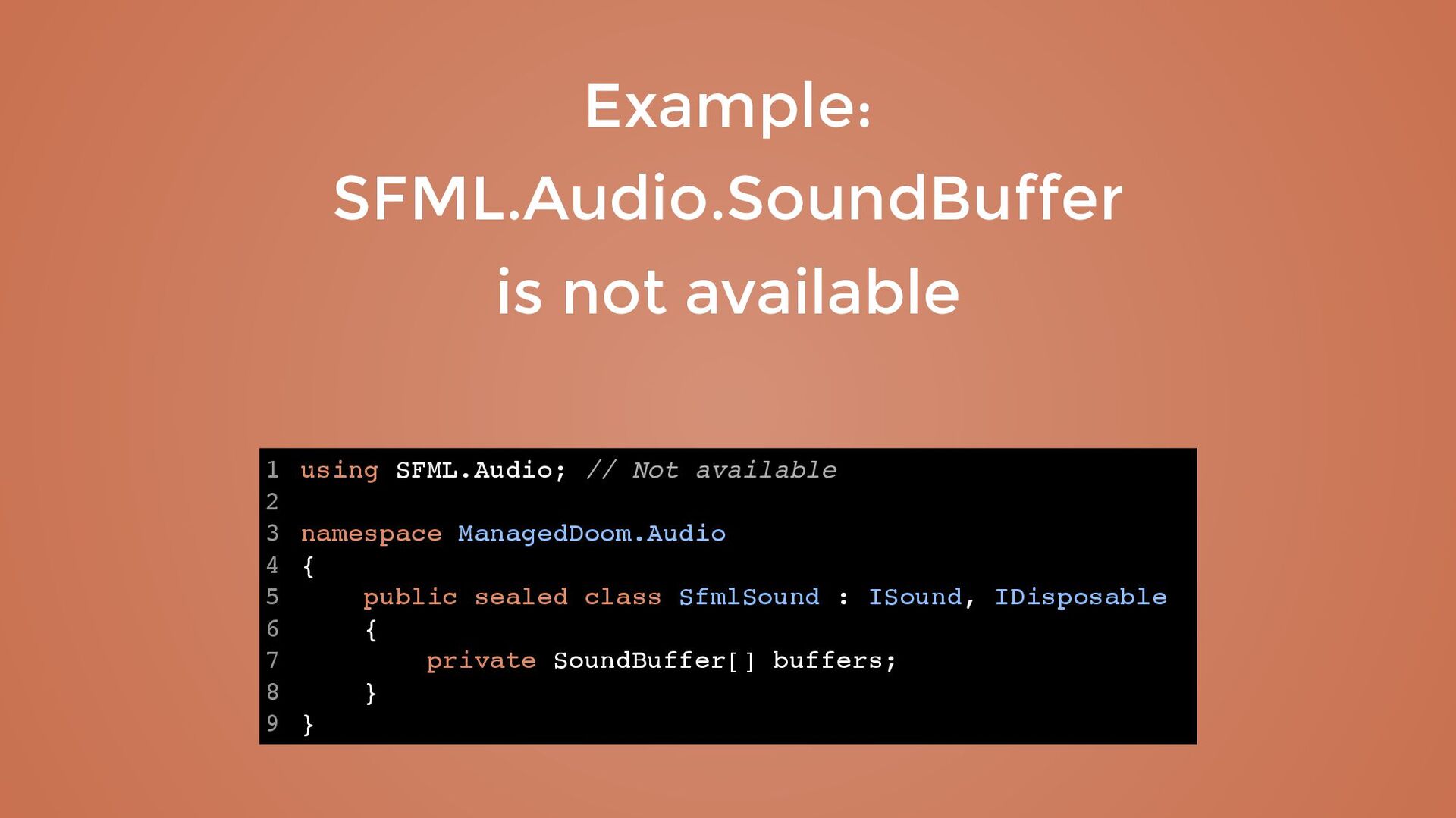

54. using SFML.Audio; // Not available namespace ManagedDoom.Audio { public sealed class SfmlSound : ISound, IDisposable { private SoundBuffer[] buffers; } } 1 2 3 4 5 6 7 8 9 Example: SFML.Audio.SoundBuffer is not available

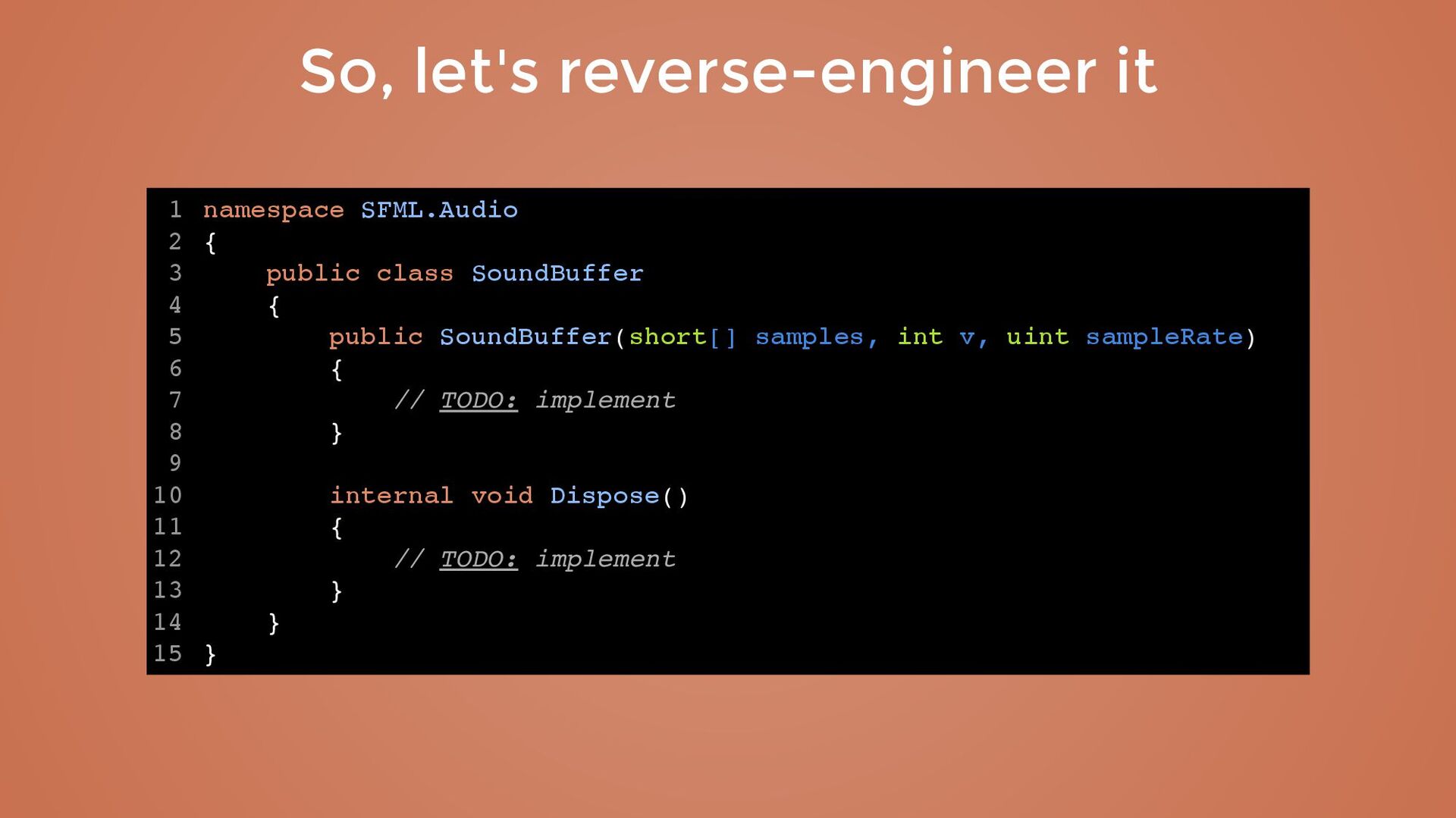

55. namespace SFML.Audio { public class SoundBuffer { public SoundBuffer(short[] samples, int v, uint sampleRate) { // TODO: implement } internal void Dispose() { // TODO: implement } } } 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 So, let's reverse-engineer it
56. namespace SFML.Audio { public class SoundBuffer { public short[] samples; private int v; public uint sampleRate; public SoundBuffer(short[] samples, int v, uint sampleRate) { this.samples = samples; this.v = v; this.sampleRate = sampleRate; } public Time Duration { get; internal set; } internal void Dispose() { // TODO: implement } } } 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

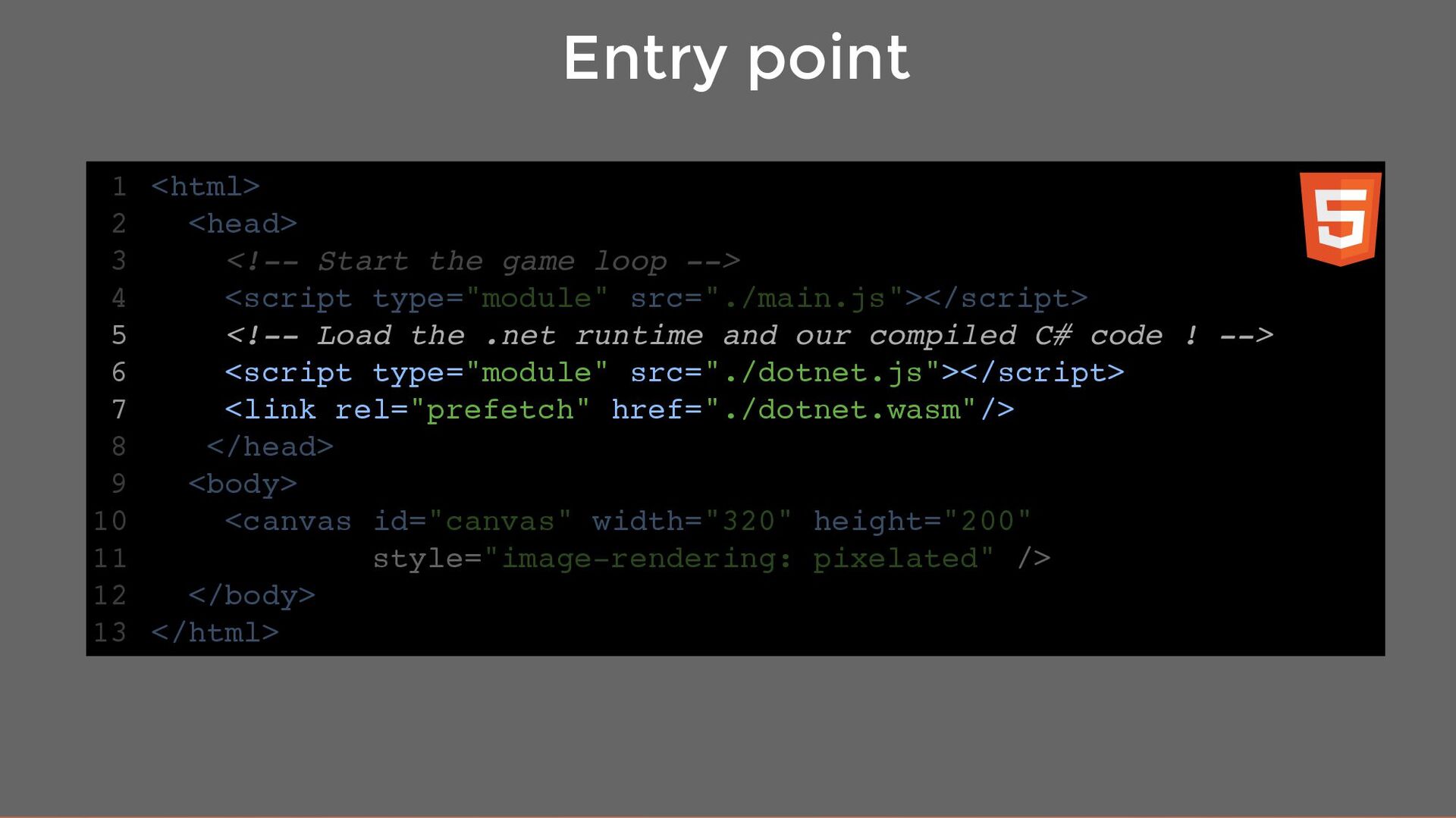

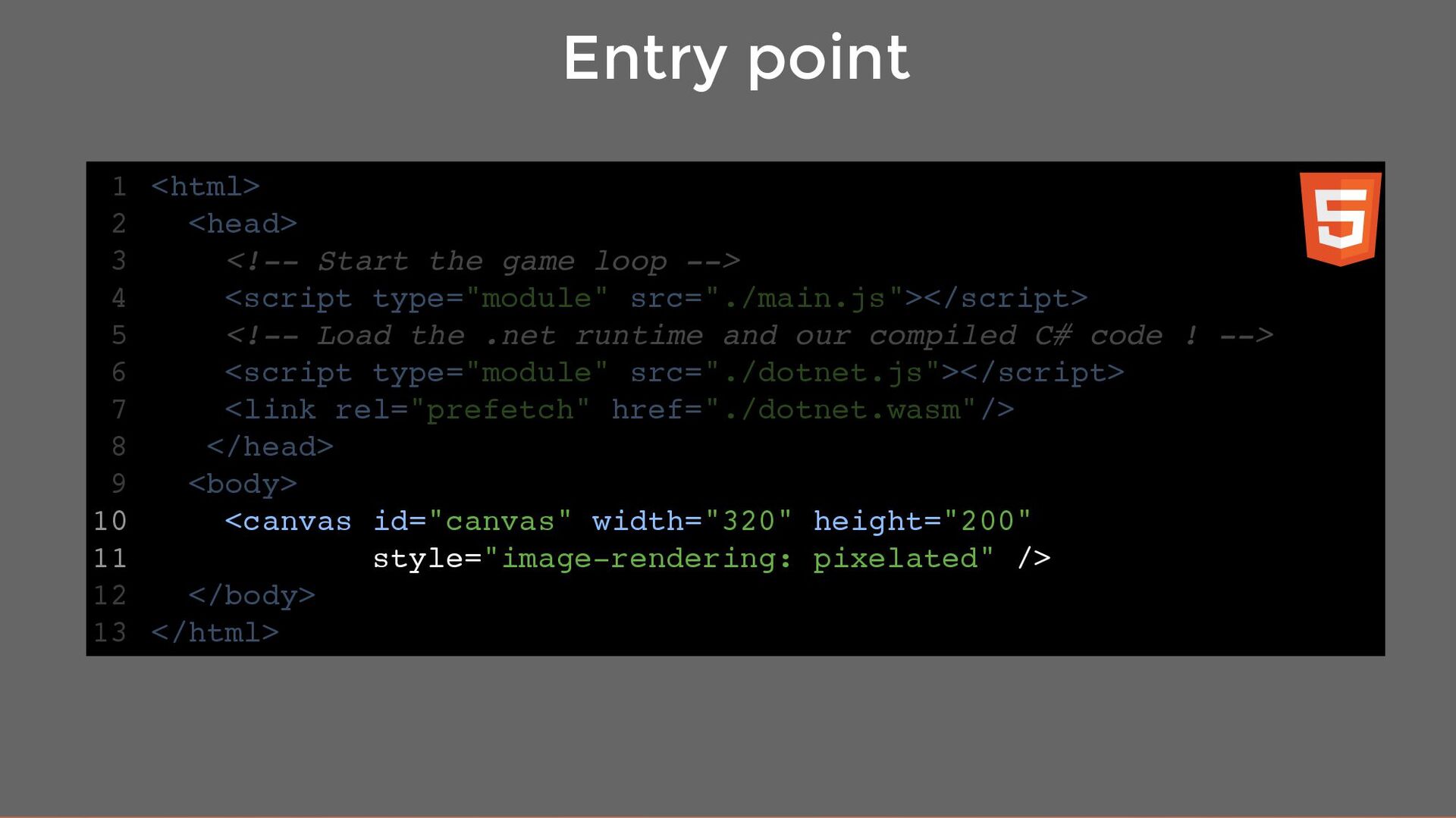

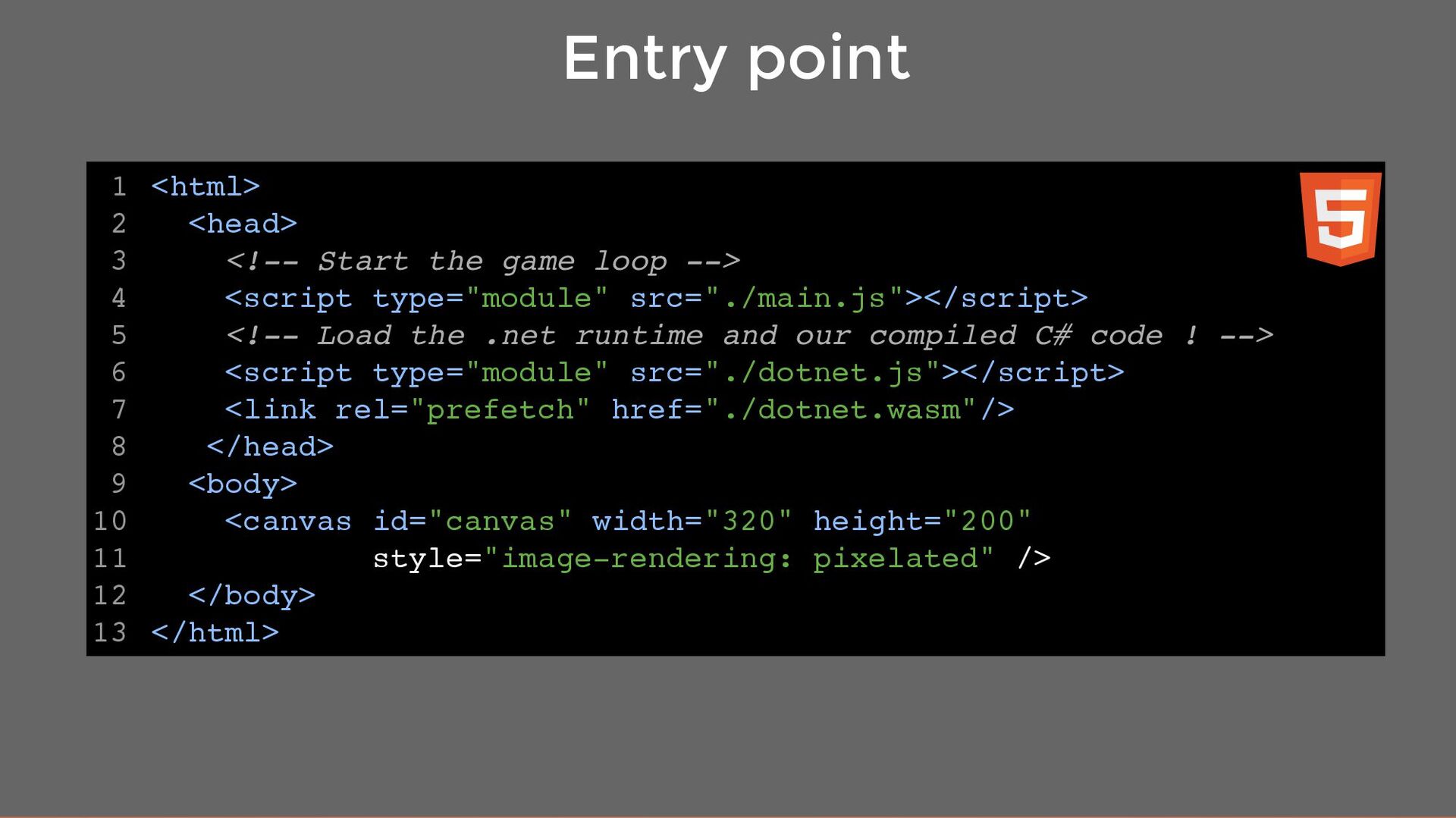

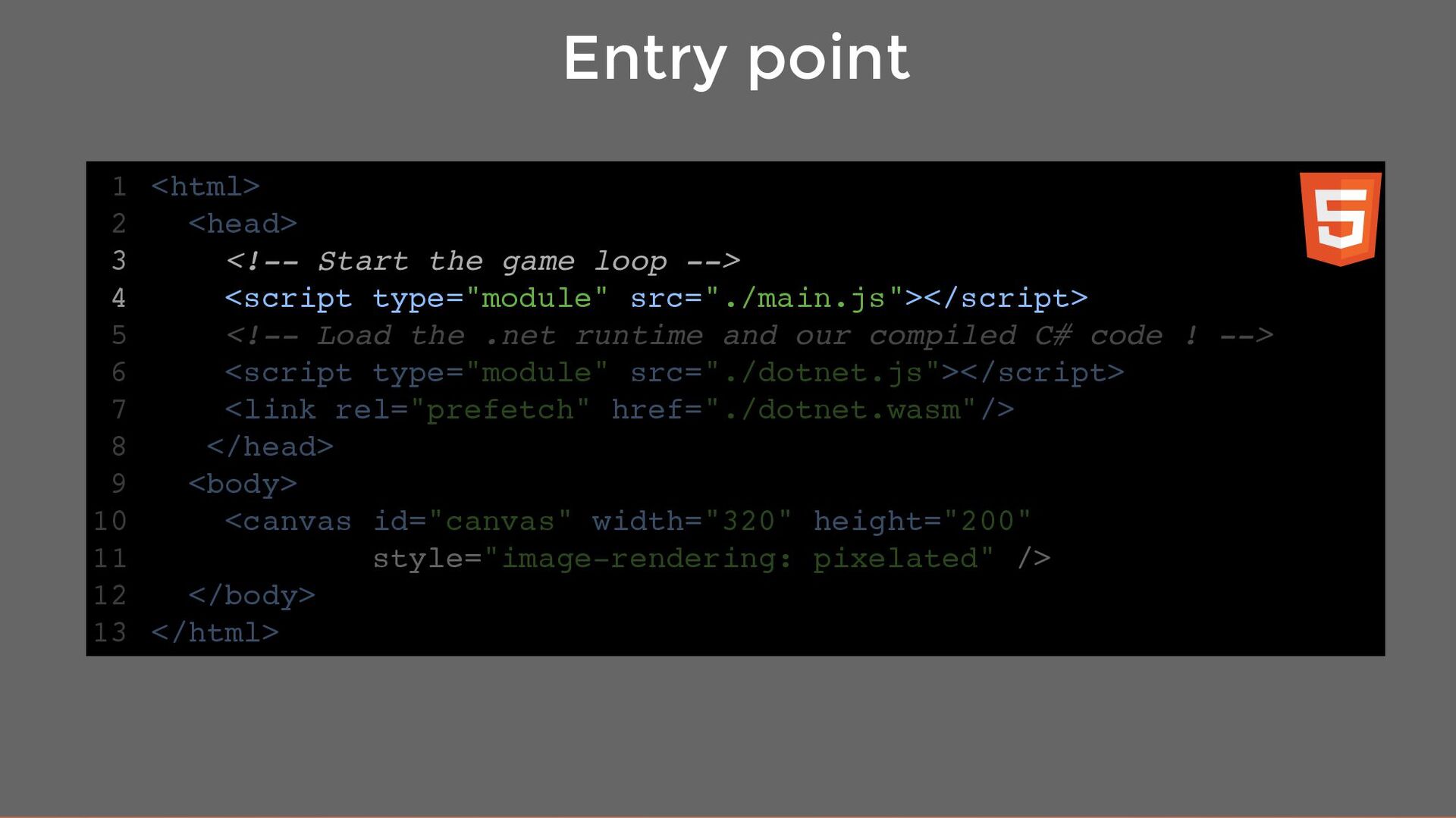

59. <html> <head> <!-- Start the game loop --> <script type="module" src="./main.js"></script> <!-- Load the .net runtime and our compiled C# code ! --> <script type="module" src="./dotnet.js"></script> <link rel="prefetch" href="./dotnet.wasm"/> </head> <body> <canvas id="canvas" width="320" height="200" style="image-rendering: pixelated" /> </body> </html> 1 2 3 4 5 6 7 8 9 10 11 12 13 Entry point
60. <html> <head> <!-- Start the game loop --> <script type="module" src="./main.js"></script> <!-- Load the .net runtime and our compiled C# code ! --> <script type="module" src="./dotnet.js"></script> <link rel="prefetch" href="./dotnet.wasm"/> </head> <body> <canvas id="canvas" width="320" height="200" style="image-rendering: pixelated" /> </body> </html> 1 2 3 4 5 6 7 8 9 10 11 12 13 <canvas id="canvas" width="320" height="200" style="image-rendering: pixelated" /> <html> 1 <head> 2 <!-- Start the game loop --> 3 <script type="module" src="./main.js"></script> 4 <!-- Load the .net runtime and our compiled C# code ! --> 5 <script type="module" src="./dotnet.js"></script> 6 <link rel="prefetch" href="./dotnet.wasm"/> 7 </head> 8 <body> 9 10 11 </body> 12 </html> 13 Entry point
61. <html> <head> <!-- Start the game loop --> <script type="module" src="./main.js"></script> <!-- Load the .net runtime and our compiled C# code ! --> <script type="module" src="./dotnet.js"></script> <link rel="prefetch" href="./dotnet.wasm"/> </head> <body> <canvas id="canvas" width="320" height="200" style="image-rendering: pixelated" /> </body> </html> 1 2 3 4 5 6 7 8 9 10 11 12 13 <canvas id="canvas" width="320" height="200" style="image-rendering: pixelated" /> <html> 1 <head> 2 <!-- Start the game loop --> 3 <script type="module" src="./main.js"></script> 4 <!-- Load the .net runtime and our compiled C# code ! --> 5 <script type="module" src="./dotnet.js"></script> 6 <link rel="prefetch" href="./dotnet.wasm"/> 7 </head> 8 <body> 9 10 11 </body> 12 </html> 13 <!-- Load the .net runtime and our compiled C# code ! --> <script type="module" src="./dotnet.js"></script> <link rel="prefetch" href="./dotnet.wasm"/> <html> 1 <head> 2 <!-- Start the game loop --> 3 <script type="module" src="./main.js"></script> 4 5 6 7 </head> 8 <body> 9 <canvas id="canvas" width="320" height="200" 10 style="image-rendering: pixelated" /> 11 </body> 12 </html> 13 Entry point
62. <html> <head> <!-- Start the game loop --> <script type="module" src="./main.js"></script> <!-- Load the .net runtime and our compiled C# code ! --> <script type="module" src="./dotnet.js"></script> <link rel="prefetch" href="./dotnet.wasm"/> </head> <body> <canvas id="canvas" width="320" height="200" style="image-rendering: pixelated" /> </body> </html> 1 2 3 4 5 6 7 8 9 10 11 12 13 <canvas id="canvas" width="320" height="200" style="image-rendering: pixelated" /> <html> 1 <head> 2 <!-- Start the game loop --> 3 <script type="module" src="./main.js"></script> 4 <!-- Load the .net runtime and our compiled C# code ! --> 5 <script type="module" src="./dotnet.js"></script> 6 <link rel="prefetch" href="./dotnet.wasm"/> 7 </head> 8 <body> 9 10 11 </body> 12 </html> 13 <!-- Load the .net runtime and our compiled C# code ! --> <script type="module" src="./dotnet.js"></script> <link rel="prefetch" href="./dotnet.wasm"/> <html> 1 <head> 2 <!-- Start the game loop --> 3 <script type="module" src="./main.js"></script> 4 5 6 7 </head> 8 <body> 9 <canvas id="canvas" width="320" height="200" 10 style="image-rendering: pixelated" /> 11 </body> 12 </html> 13 <!-- Start the game loop --> <script type="module" src="./main.js"></script> <html> 1 <head> 2 3 4 <!-- Load the .net runtime and our compiled C# code ! --> 5 <script type="module" src="./dotnet.js"></script> 6 <link rel="prefetch" href="./dotnet.wasm"/> 7 </head> 8 <body> 9 <canvas id="canvas" width="320" height="200" 10 style="image-rendering: pixelated" /> 11 </body> 12 </html> 13 Entry point

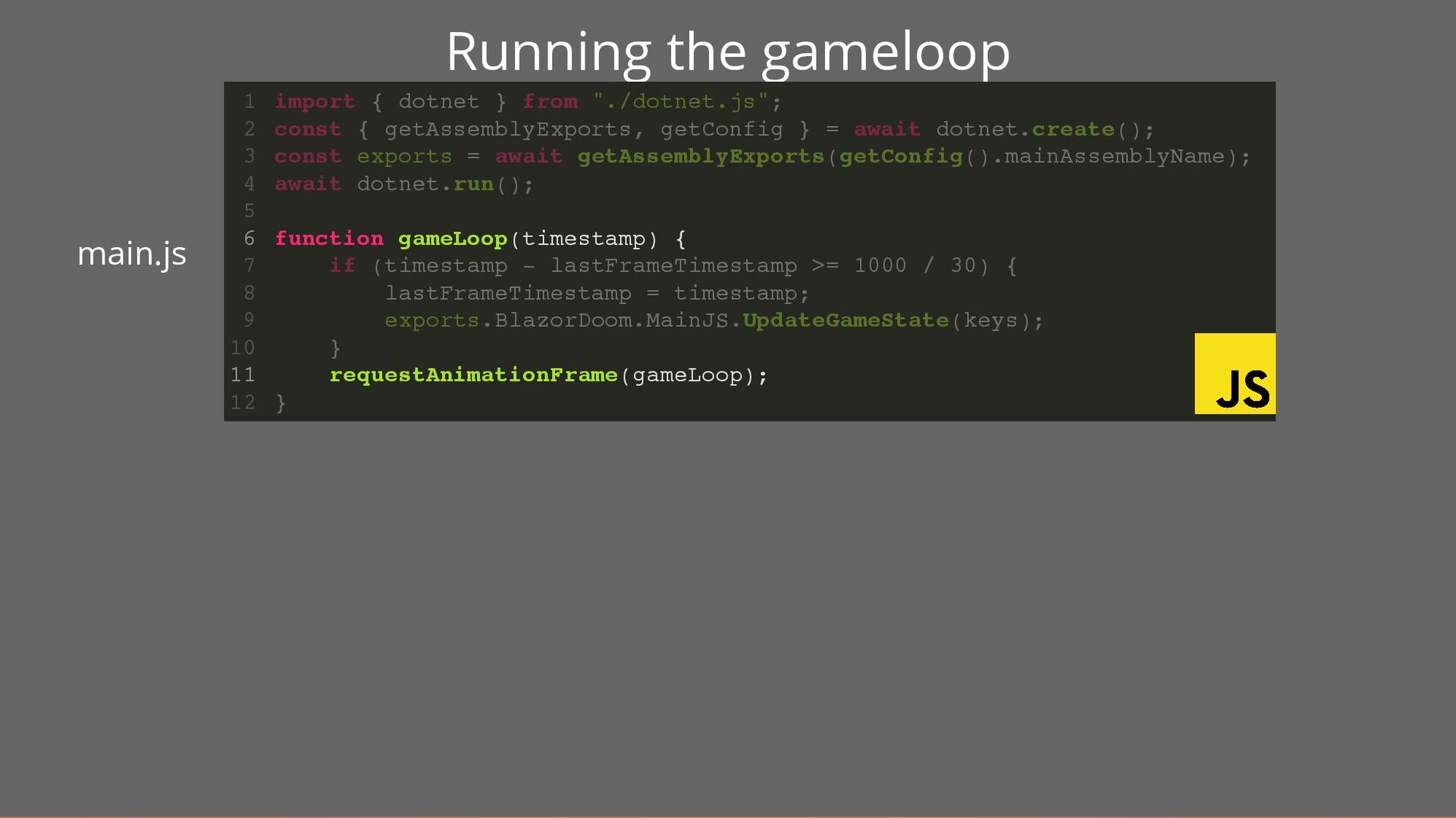

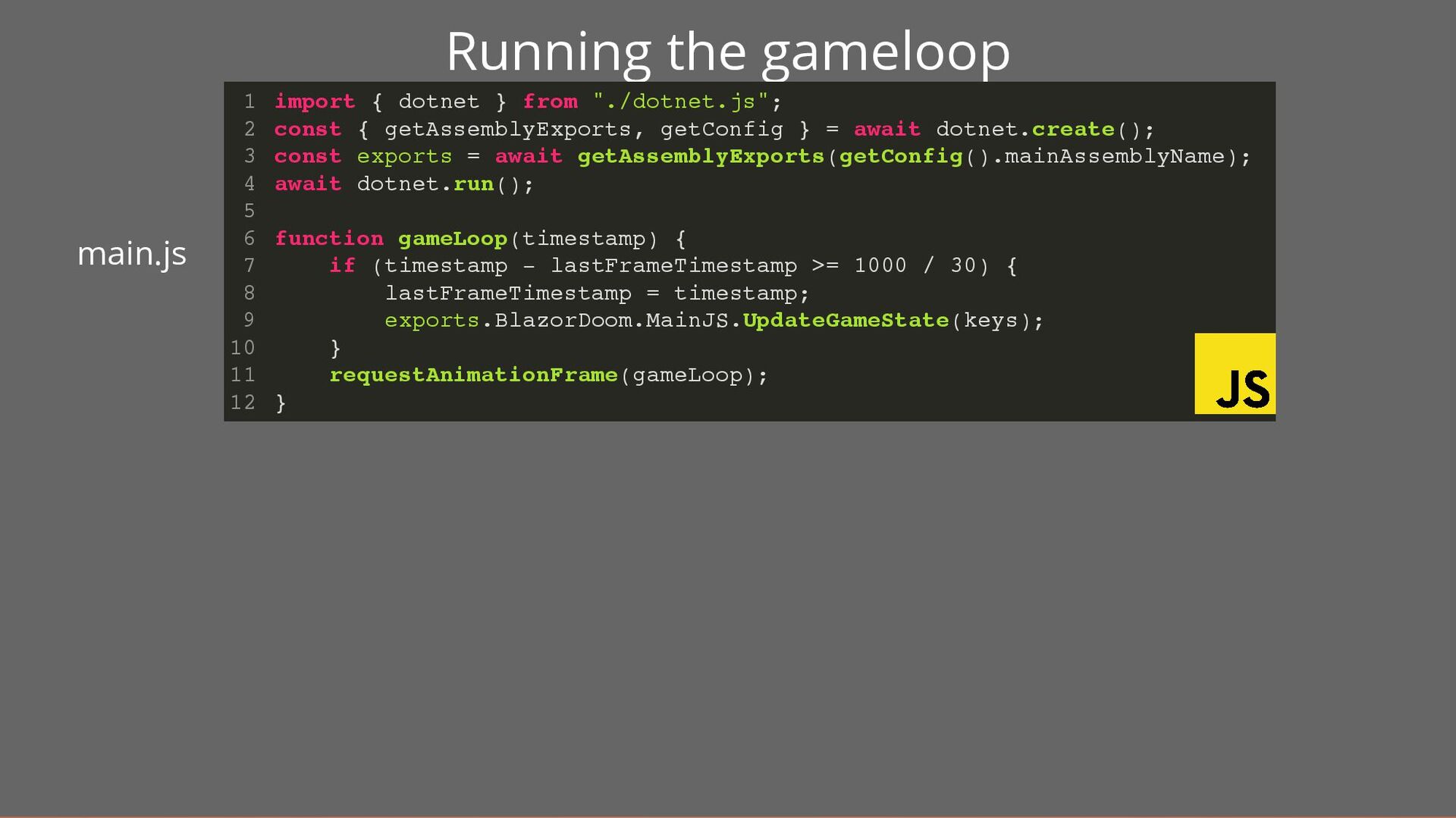

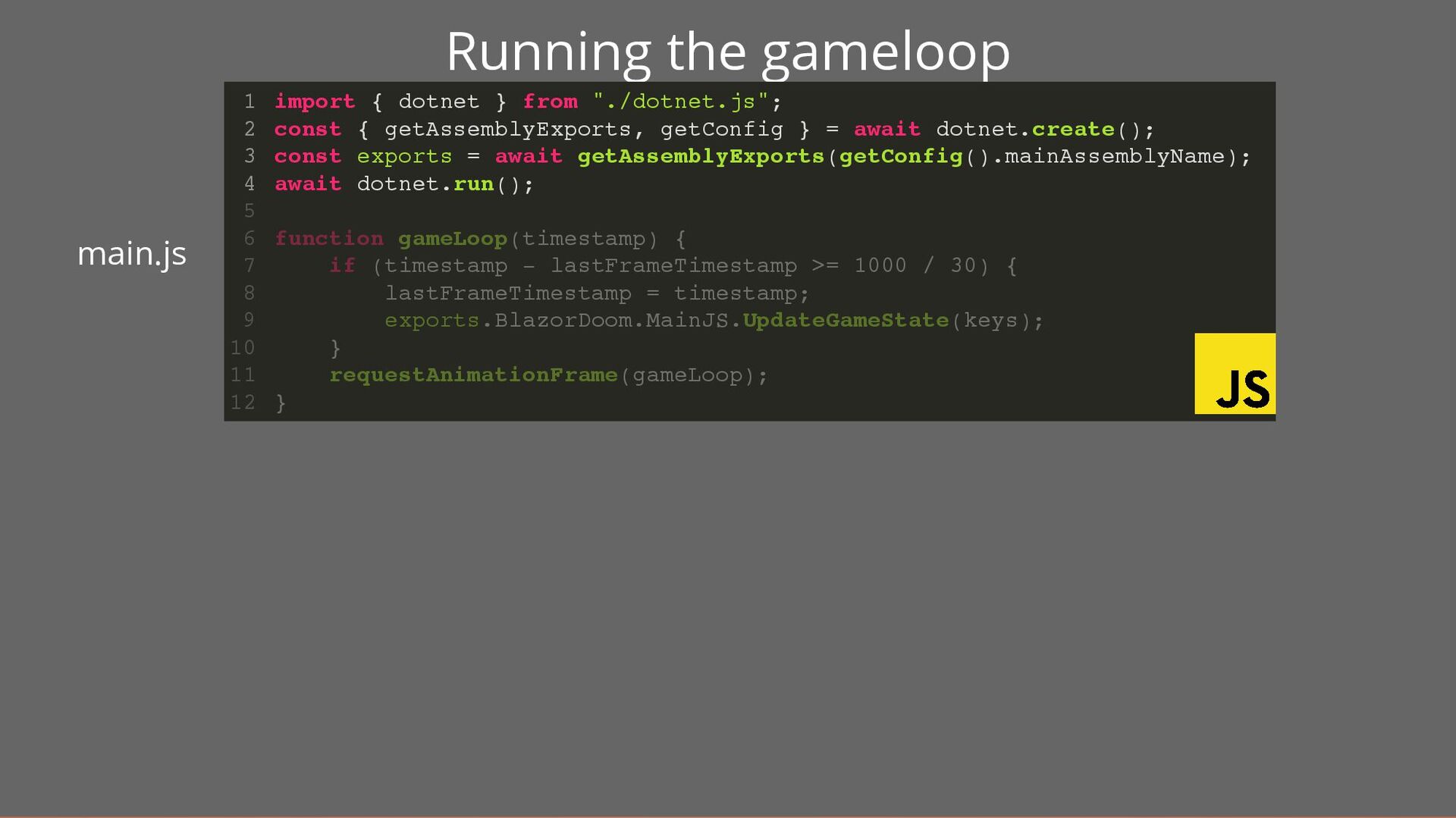

63. Running the gameloop import { dotnet } from "./dotnet.js"; const { getAssemblyExports, getConfig } = await dotnet.create(); const exports = await getAssemblyExports(getConfig().mainAssemblyName); await dotnet.run(); function gameLoop(timestamp) { if (timestamp - lastFrameTimestamp >= 1000 / 30) { lastFrameTimestamp = timestamp; exports.BlazorDoom.MainJS.UpdateGameState(keys); } requestAnimationFrame(gameLoop); } 1 2 3 4 5 6 7 8 9 10 11 12 main.js
64. Running the gameloop import { dotnet } from "./dotnet.js"; const { getAssemblyExports, getConfig } = await dotnet.create(); const exports = await getAssemblyExports(getConfig().mainAssemblyName); await dotnet.run(); function gameLoop(timestamp) { if (timestamp - lastFrameTimestamp >= 1000 / 30) { lastFrameTimestamp = timestamp; exports.BlazorDoom.MainJS.UpdateGameState(keys); } requestAnimationFrame(gameLoop); } 1 2 3 4 5 6 7 8 9 10 11 12 import { dotnet } from "./dotnet.js"; const { getAssemblyExports, getConfig } = await dotnet.create(); const exports = await getAssemblyExports(getConfig().mainAssemblyName); await dotnet.run(); 1 2 3 4 5 function gameLoop(timestamp) { 6 if (timestamp - lastFrameTimestamp >= 1000 / 30) { 7 lastFrameTimestamp = timestamp; 8 exports.BlazorDoom.MainJS.UpdateGameState(keys); 9 } 10 requestAnimationFrame(gameLoop); 11 } 12 main.js
65. Running the gameloop import { dotnet } from "./dotnet.js"; const { getAssemblyExports, getConfig } = await dotnet.create(); const exports = await getAssemblyExports(getConfig().mainAssemblyName); await dotnet.run(); function gameLoop(timestamp) { if (timestamp - lastFrameTimestamp >= 1000 / 30) { lastFrameTimestamp = timestamp; exports.BlazorDoom.MainJS.UpdateGameState(keys); } requestAnimationFrame(gameLoop); } 1 2 3 4 5 6 7 8 9 10 11 12 import { dotnet } from "./dotnet.js"; const { getAssemblyExports, getConfig } = await dotnet.create(); const exports = await getAssemblyExports(getConfig().mainAssemblyName); await dotnet.run(); 1 2 3 4 5 function gameLoop(timestamp) { 6 if (timestamp - lastFrameTimestamp >= 1000 / 30) { 7 lastFrameTimestamp = timestamp; 8 exports.BlazorDoom.MainJS.UpdateGameState(keys); 9 } 10 requestAnimationFrame(gameLoop); 11 } 12 function gameLoop(timestamp) { requestAnimationFrame(gameLoop); import { dotnet } from "./dotnet.js"; 1 const { getAssemblyExports, getConfig } = await dotnet.create(); 2 const exports = await getAssemblyExports(getConfig().mainAssemblyName); 3 await dotnet.run(); 4 5 6 if (timestamp - lastFrameTimestamp >= 1000 / 30) { 7 lastFrameTimestamp = timestamp; 8 exports.BlazorDoom.MainJS.UpdateGameState(keys); 9 } 10 11 } 12 main.js
66. Running the gameloop import { dotnet } from "./dotnet.js"; const { getAssemblyExports, getConfig } = await dotnet.create(); const exports = await getAssemblyExports(getConfig().mainAssemblyName); await dotnet.run(); function gameLoop(timestamp) { if (timestamp - lastFrameTimestamp >= 1000 / 30) { lastFrameTimestamp = timestamp; exports.BlazorDoom.MainJS.UpdateGameState(keys); } requestAnimationFrame(gameLoop); } 1 2 3 4 5 6 7 8 9 10 11 12 import { dotnet } from "./dotnet.js"; const { getAssemblyExports, getConfig } = await dotnet.create(); const exports = await getAssemblyExports(getConfig().mainAssemblyName); await dotnet.run(); 1 2 3 4 5 function gameLoop(timestamp) { 6 if (timestamp - lastFrameTimestamp >= 1000 / 30) { 7 lastFrameTimestamp = timestamp; 8 exports.BlazorDoom.MainJS.UpdateGameState(keys); 9 } 10 requestAnimationFrame(gameLoop); 11 } 12 function gameLoop(timestamp) { requestAnimationFrame(gameLoop); import { dotnet } from "./dotnet.js"; 1 const { getAssemblyExports, getConfig } = await dotnet.create(); 2 const exports = await getAssemblyExports(getConfig().mainAssemblyName); 3 await dotnet.run(); 4 5 6 if (timestamp - lastFrameTimestamp >= 1000 / 30) { 7 lastFrameTimestamp = timestamp; 8 exports.BlazorDoom.MainJS.UpdateGameState(keys); 9 } 10 11 } 12 exports.BlazorDoom.MainJS.UpdateGameState(keys); import { dotnet } from "./dotnet.js"; 1 const { getAssemblyExports, getConfig } = await dotnet.create(); 2 const exports = await getAssemblyExports(getConfig().mainAssemblyName); 3 await dotnet.run(); 4 5 function gameLoop(timestamp) { 6 if (timestamp - lastFrameTimestamp >= 1000 / 30) { 7 lastFrameTimestamp = timestamp; 8 9 } 10 requestAnimationFrame(gameLoop); 11 } 12 main.js
67. Running the gameloop import { dotnet } from "./dotnet.js"; const { getAssemblyExports, getConfig } = await dotnet.create(); const exports = await getAssemblyExports(getConfig().mainAssemblyName); await dotnet.run(); function gameLoop(timestamp) { if (timestamp - lastFrameTimestamp >= 1000 / 30) { lastFrameTimestamp = timestamp; exports.BlazorDoom.MainJS.UpdateGameState(keys); } requestAnimationFrame(gameLoop); } 1 2 3 4 5 6 7 8 9 10 11 12 import { dotnet } from "./dotnet.js"; const { getAssemblyExports, getConfig } = await dotnet.create(); const exports = await getAssemblyExports(getConfig().mainAssemblyName); await dotnet.run(); 1 2 3 4 5 function gameLoop(timestamp) { 6 if (timestamp - lastFrameTimestamp >= 1000 / 30) { 7 lastFrameTimestamp = timestamp; 8 exports.BlazorDoom.MainJS.UpdateGameState(keys); 9 } 10 requestAnimationFrame(gameLoop); 11 } 12 function gameLoop(timestamp) { requestAnimationFrame(gameLoop); import { dotnet } from "./dotnet.js"; 1 const { getAssemblyExports, getConfig } = await dotnet.create(); 2 const exports = await getAssemblyExports(getConfig().mainAssemblyName); 3 await dotnet.run(); 4 5 6 if (timestamp - lastFrameTimestamp >= 1000 / 30) { 7 lastFrameTimestamp = timestamp; 8 exports.BlazorDoom.MainJS.UpdateGameState(keys); 9 } 10 11 } 12 exports.BlazorDoom.MainJS.UpdateGameState(keys); import { dotnet } from "./dotnet.js"; 1 const { getAssemblyExports, getConfig } = await dotnet.create(); 2 const exports = await getAssemblyExports(getConfig().mainAssemblyName); 3 await dotnet.run(); 4 5 function gameLoop(timestamp) { 6 if (timestamp - lastFrameTimestamp >= 1000 / 30) { 7 lastFrameTimestamp = timestamp; 8 9 } 10 requestAnimationFrame(gameLoop); 11 } 12 import { dotnet } from "./dotnet.js"; const { getAssemblyExports, getConfig } = await dotnet.create(); const exports = await getAssemblyExports(getConfig().mainAssemblyName); await dotnet.run(); function gameLoop(timestamp) { if (timestamp - lastFrameTimestamp >= 1000 / 30) { lastFrameTimestamp = timestamp; exports.BlazorDoom.MainJS.UpdateGameState(keys); } requestAnimationFrame(gameLoop); } 1 2 3 4 5 6 7 8 9 10 11 12 main.js

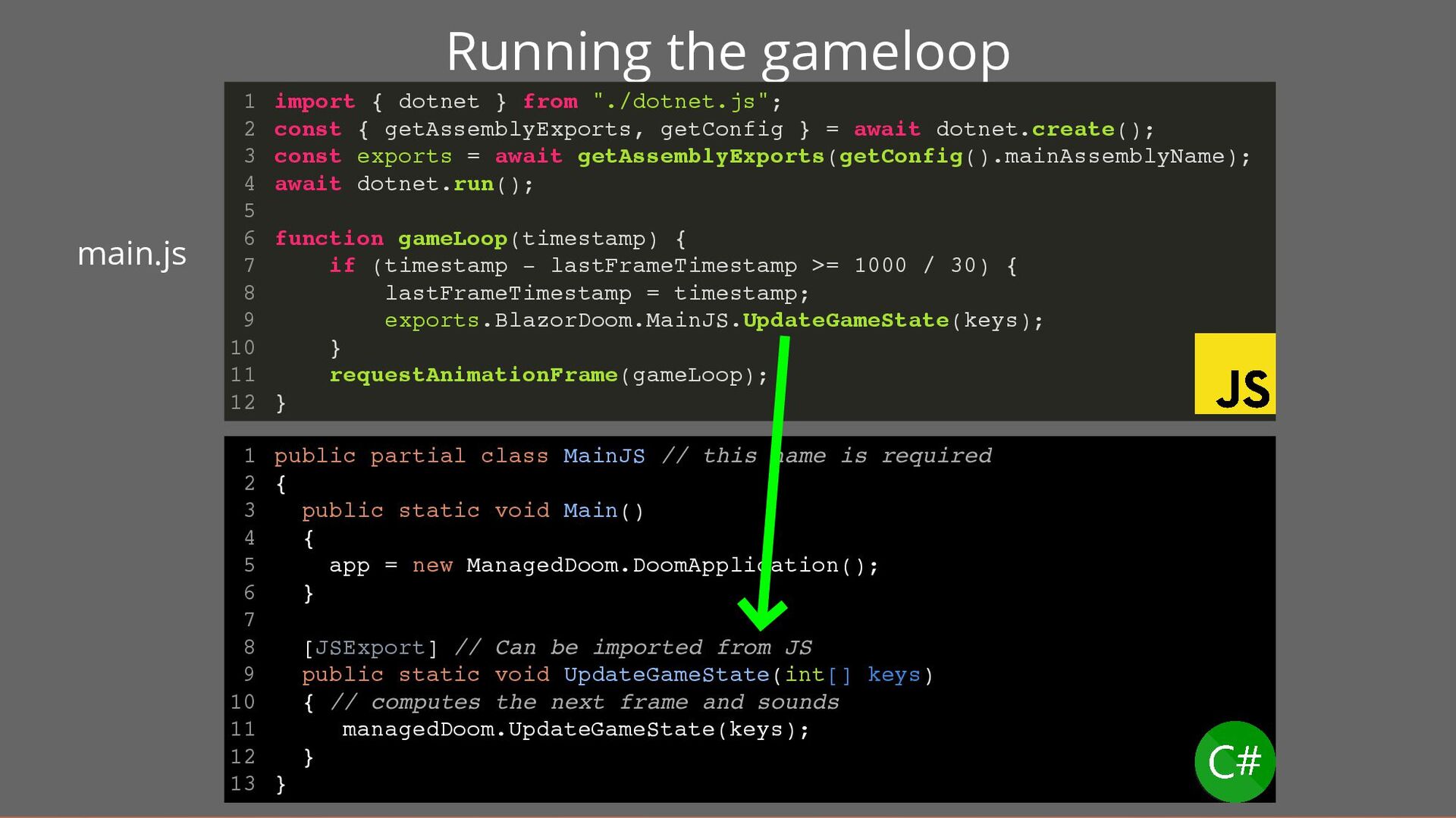

68. Running the gameloop public partial class MainJS // this name is required { public static void Main() { app = new ManagedDoom.DoomApplication(); } [JSExport] // Can be imported from JS public static void UpdateGameState(int[] keys) { // computes the next frame and sounds managedDoom.UpdateGameState(keys); } } 1 2 3 4 5 6 7 8 9 10 11 12 13 import { dotnet } from "./dotnet.js"; const { getAssemblyExports, getConfig } = await dotnet.create(); const exports = await getAssemblyExports(getConfig().mainAssemblyName); await dotnet.run(); function gameLoop(timestamp) { if (timestamp - lastFrameTimestamp >= 1000 / 30) { lastFrameTimestamp = timestamp; exports.BlazorDoom.MainJS.UpdateGameState(keys); } requestAnimationFrame(gameLoop); } 1 2 3 4 5 6 7 8 9 10 11 12 main.js

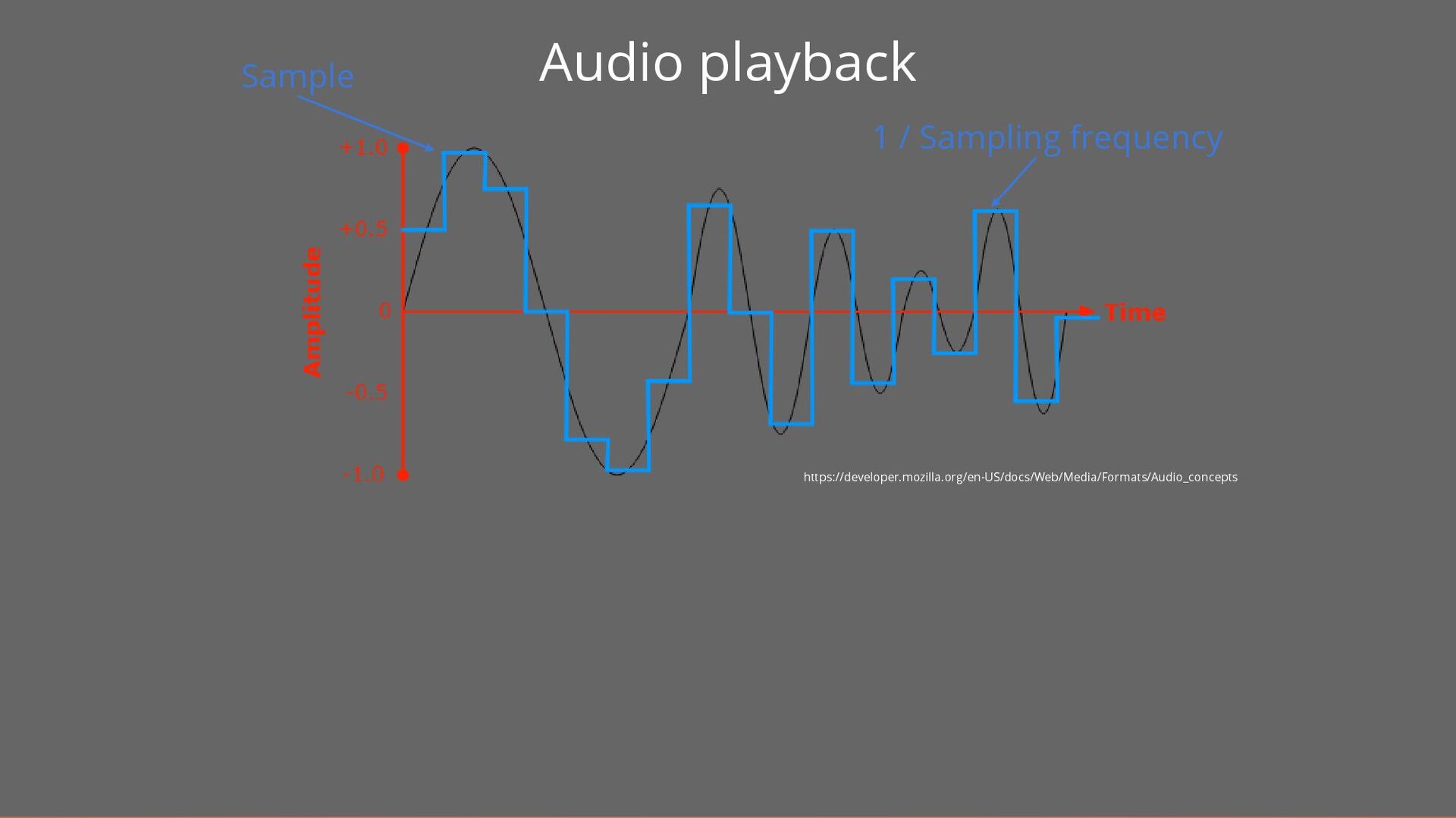

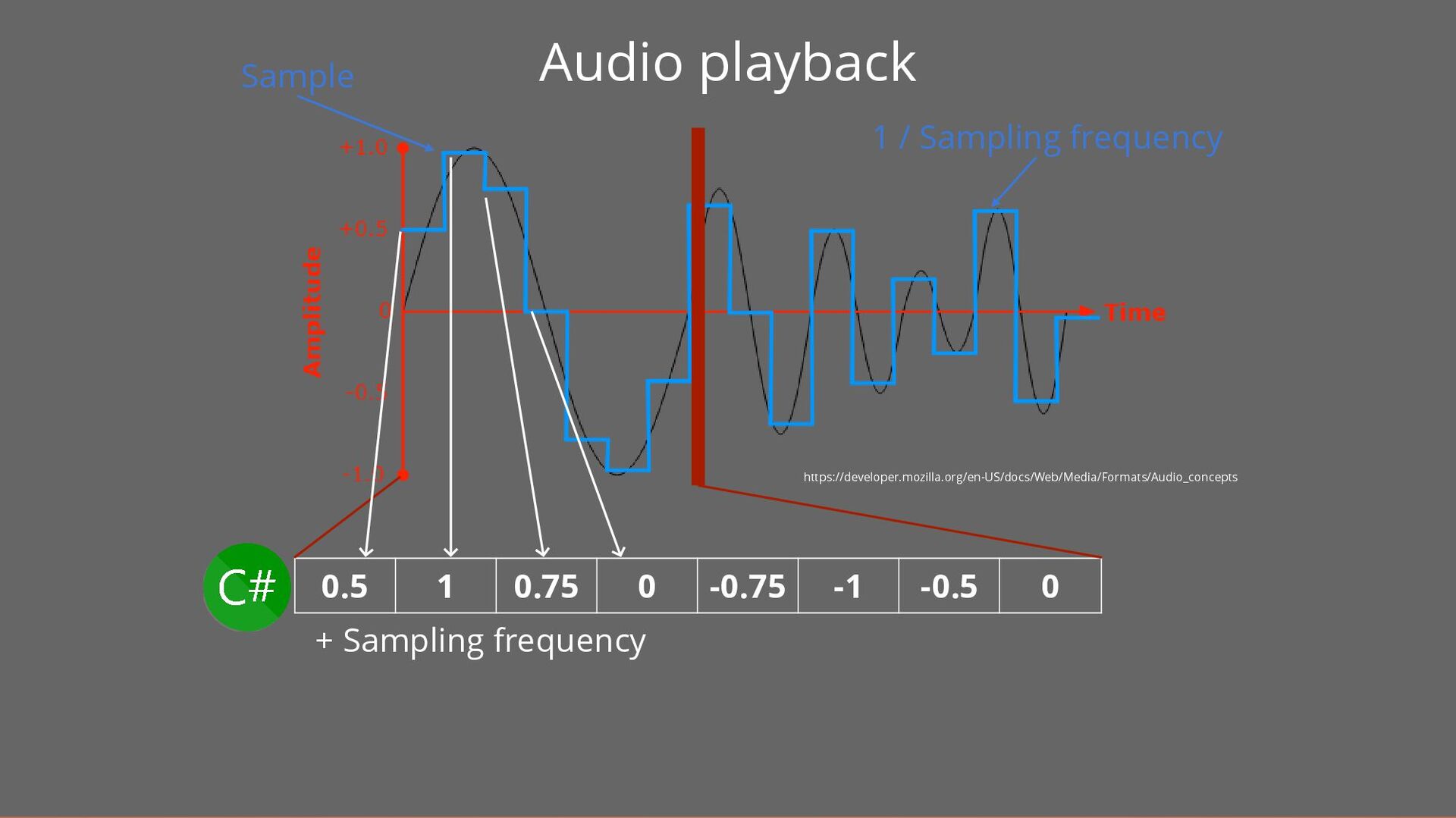

69. Audio playback https://developer.mozilla.org/en-US/docs/Web/Media/Formats/Audio_concepts Sample 1 / Sampling frequency

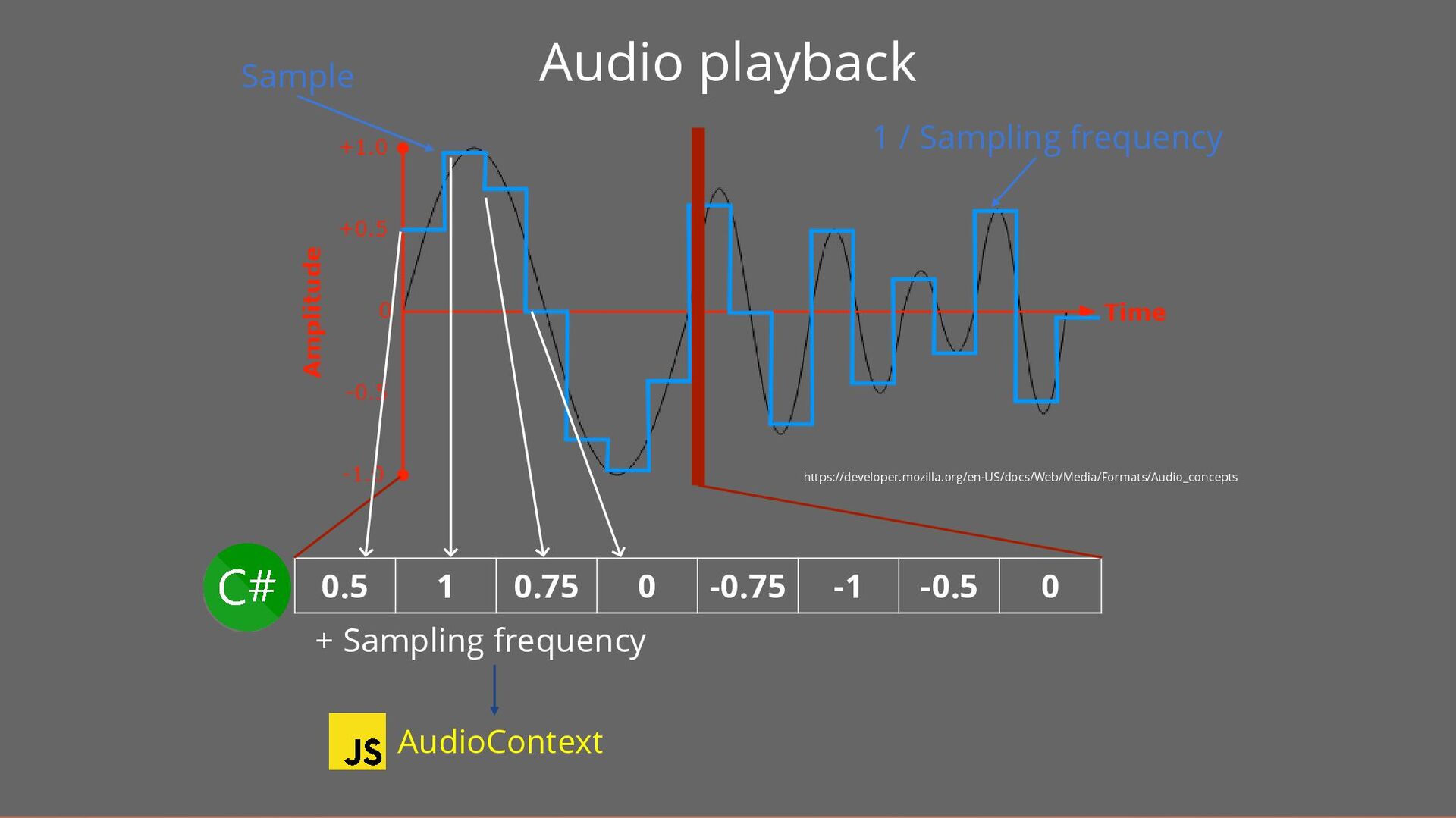

70. Audio playback 0.5 1 0.75 0 -0.75 -1 -0.5 0 https://developer.mozilla.org/en-US/docs/Web/Media/Formats/Audio_concepts Sample 1 / Sampling frequency + Sampling frequency
71. Audio playback 0.5 1 0.75 0 -0.75 -1 -0.5 0 https://developer.mozilla.org/en-US/docs/Web/Media/Formats/Audio_concepts AudioContext Sample 1 / Sampling frequency + Sampling frequency
72. Audio playback 0.5 1 0.75 0 -0.75 -1 -0.5 0 https://developer.mozilla.org/en-US/docs/Web/Media/Formats/Audio_concepts AudioContext Sample 1 / Sampling frequency + Sampling frequency 🔊

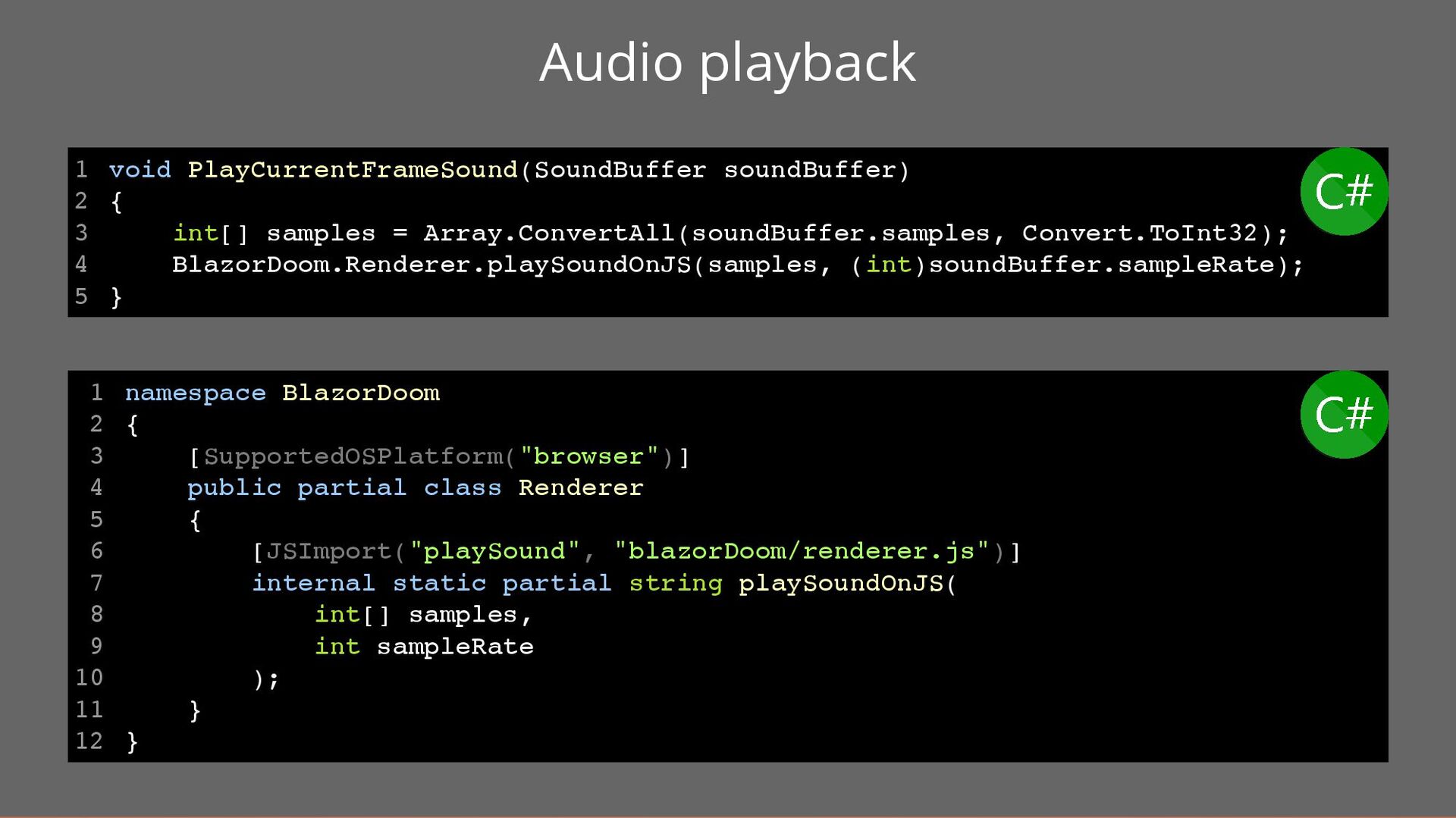

73. Audio playback void PlayCurrentFrameSound(SoundBuffer soundBuffer) { int[] samples = Array.ConvertAll(soundBuffer.samples, Convert.ToInt32); BlazorDoom.Renderer.playSoundOnJS(samples, (int)soundBuffer.sampleRate); } 1 2 3 4 5 namespace BlazorDoom { [SupportedOSPlatform("browser")] public partial class Renderer { [JSImport("playSound", "blazorDoom/renderer.js")] internal static partial string playSoundOnJS( int[] samples, int sampleRate ); } } 1 2 3 4 5 6 7 8 9 10 11 12

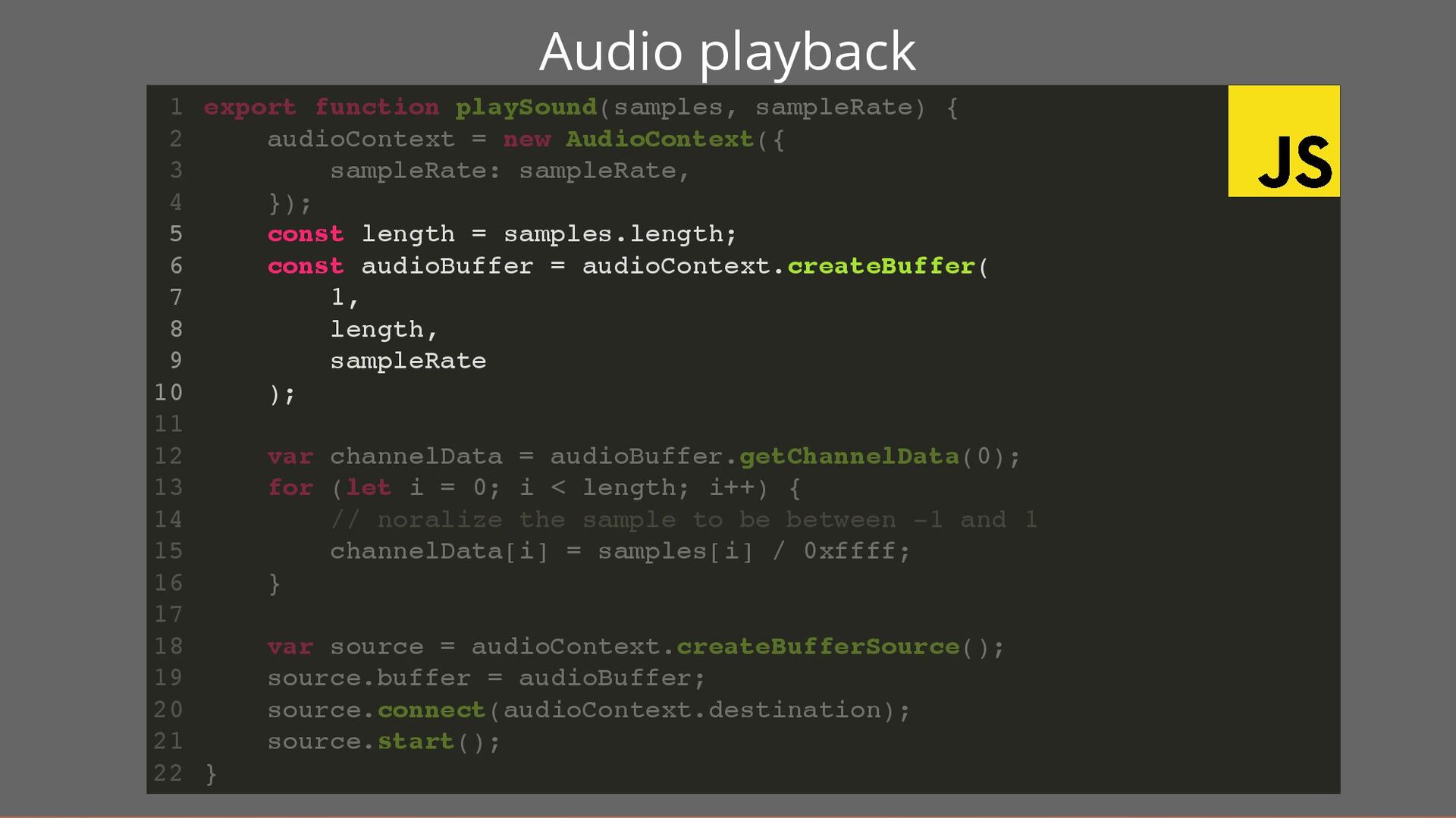

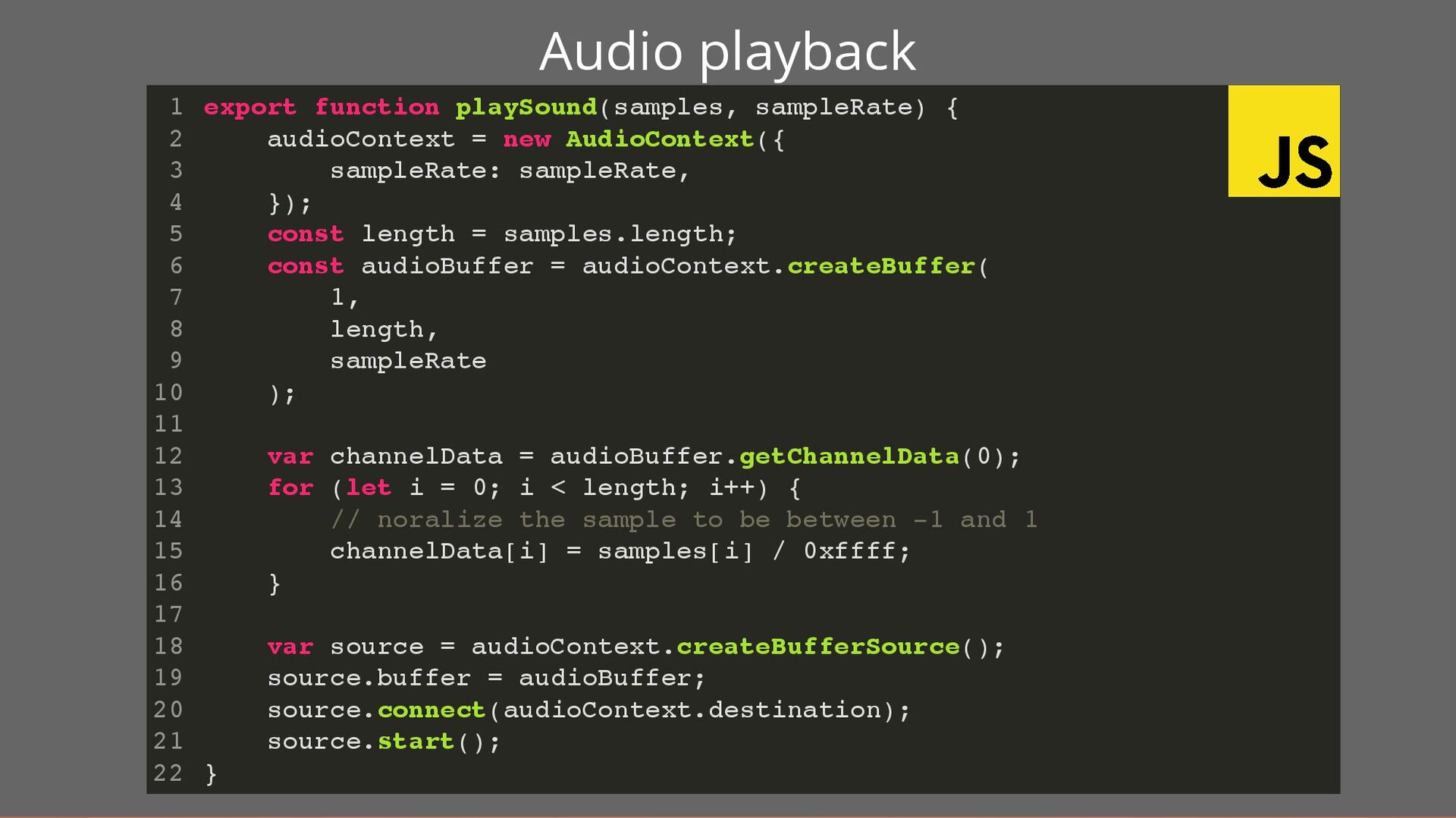

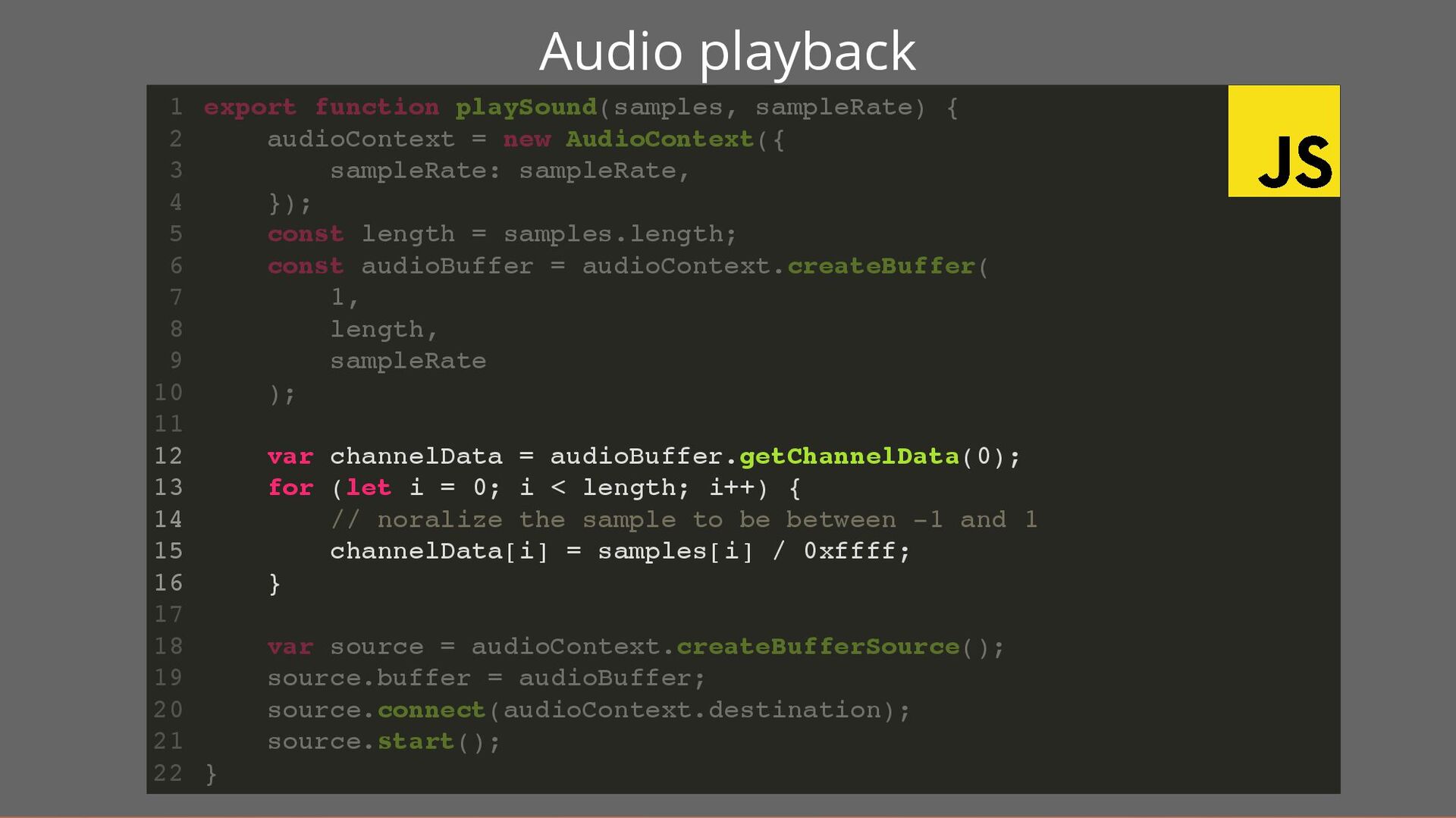

74. Audio playback export function playSound(samples, sampleRate) { audioContext = new AudioContext({ sampleRate: sampleRate, }); const length = samples.length; const audioBuffer = audioContext.createBuffer( 1, length, sampleRate ); var channelData = audioBuffer.getChannelData(0); for (let i = 0; i < length; i++) { // noralize the sample to be between -1 and 1 channelData[i] = samples[i] / 0xffff; } var source = audioContext.createBufferSource(); source.buffer = audioBuffer; source.connect(audioContext.destination); source.start(); } 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
75. Audio playback export function playSound(samples, sampleRate) { audioContext = new AudioContext({ sampleRate: sampleRate, }); const length = samples.length; const audioBuffer = audioContext.createBuffer( 1, length, sampleRate ); var channelData = audioBuffer.getChannelData(0); for (let i = 0; i < length; i++) { // noralize the sample to be between -1 and 1 channelData[i] = samples[i] / 0xffff; } var source = audioContext.createBufferSource(); source.buffer = audioBuffer; source.connect(audioContext.destination); source.start(); } 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 const length = samples.length; const audioBuffer = audioContext.createBuffer( 1, length, sampleRate ); export function playSound(samples, sampleRate) { 1 audioContext = new AudioContext({ 2 sampleRate: sampleRate, 3 }); 4 5 6 7 8 9 10 11 var channelData = audioBuffer.getChannelData(0); 12 for (let i = 0; i < length; i++) { 13 // noralize the sample to be between -1 and 1 14 channelData[i] = samples[i] / 0xffff; 15 } 16 17 var source = audioContext.createBufferSource(); 18 source.buffer = audioBuffer; 19 source.connect(audioContext.destination); 20 source.start(); 21 } 22
76. Audio playback export function playSound(samples, sampleRate) { audioContext = new AudioContext({ sampleRate: sampleRate, }); const length = samples.length; const audioBuffer = audioContext.createBuffer( 1, length, sampleRate ); var channelData = audioBuffer.getChannelData(0); for (let i = 0; i < length; i++) { // noralize the sample to be between -1 and 1 channelData[i] = samples[i] / 0xffff; } var source = audioContext.createBufferSource(); source.buffer = audioBuffer; source.connect(audioContext.destination); source.start(); } 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 const length = samples.length; const audioBuffer = audioContext.createBuffer( 1, length, sampleRate ); export function playSound(samples, sampleRate) { 1 audioContext = new AudioContext({ 2 sampleRate: sampleRate, 3 }); 4 5 6 7 8 9 10 11 var channelData = audioBuffer.getChannelData(0); 12 for (let i = 0; i < length; i++) { 13 // noralize the sample to be between -1 and 1 14 channelData[i] = samples[i] / 0xffff; 15 } 16 17 var source = audioContext.createBufferSource(); 18 source.buffer = audioBuffer; 19 source.connect(audioContext.destination); 20 source.start(); 21 } 22 var channelData = audioBuffer.getChannelData(0); for (let i = 0; i < length; i++) { // noralize the sample to be between -1 and 1 channelData[i] = samples[i] / 0xffff; } export function playSound(samples, sampleRate) { 1 audioContext = new AudioContext({ 2 sampleRate: sampleRate, 3 }); 4 const length = samples.length; 5 const audioBuffer = audioContext.createBuffer( 6 1, 7 length, 8 sampleRate 9 ); 10 11 12 13 14 15 16 17 var source = audioContext.createBufferSource(); 18 source.buffer = audioBuffer; 19 source.connect(audioContext.destination); 20 source.start(); 21 } 22

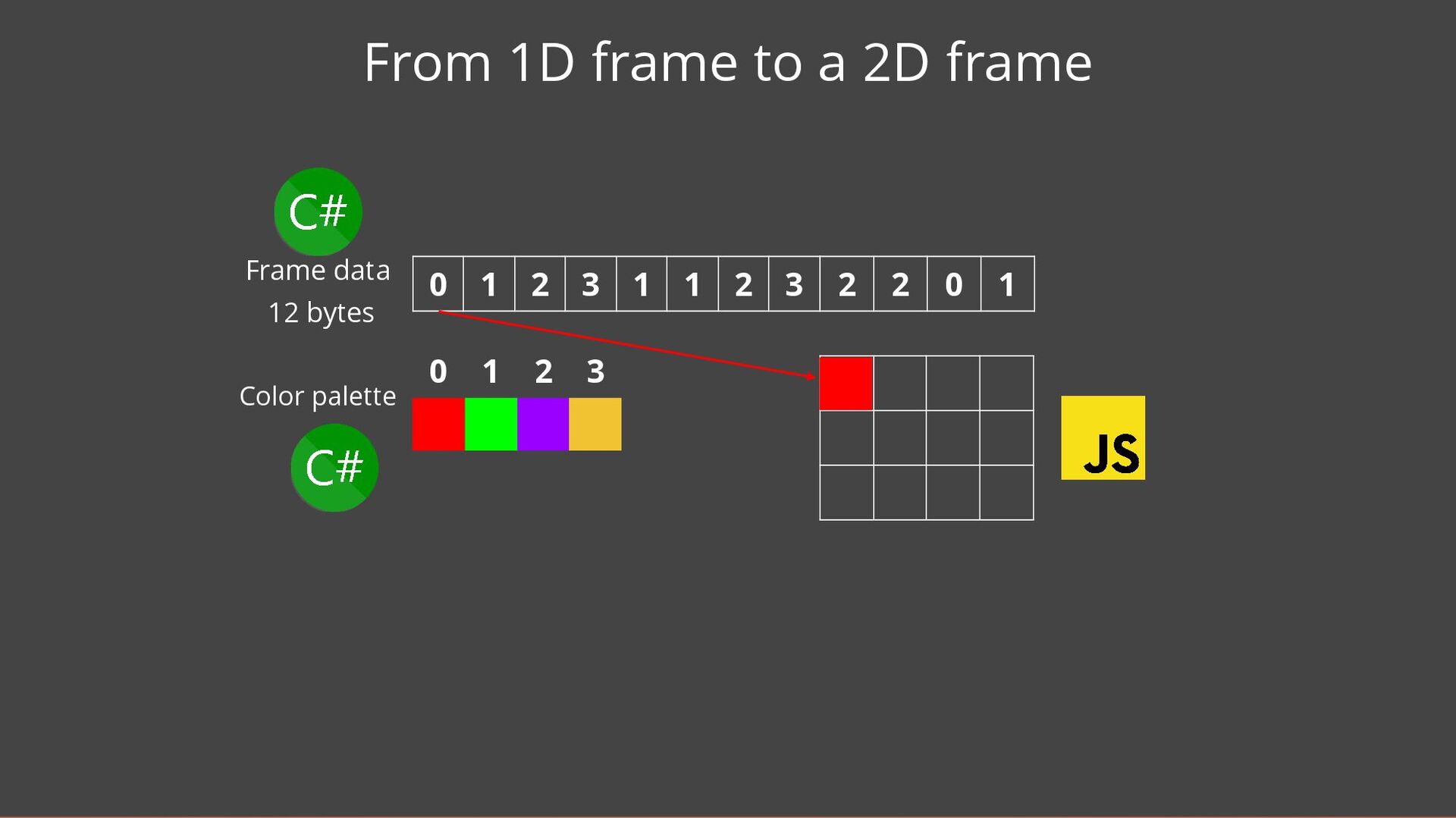

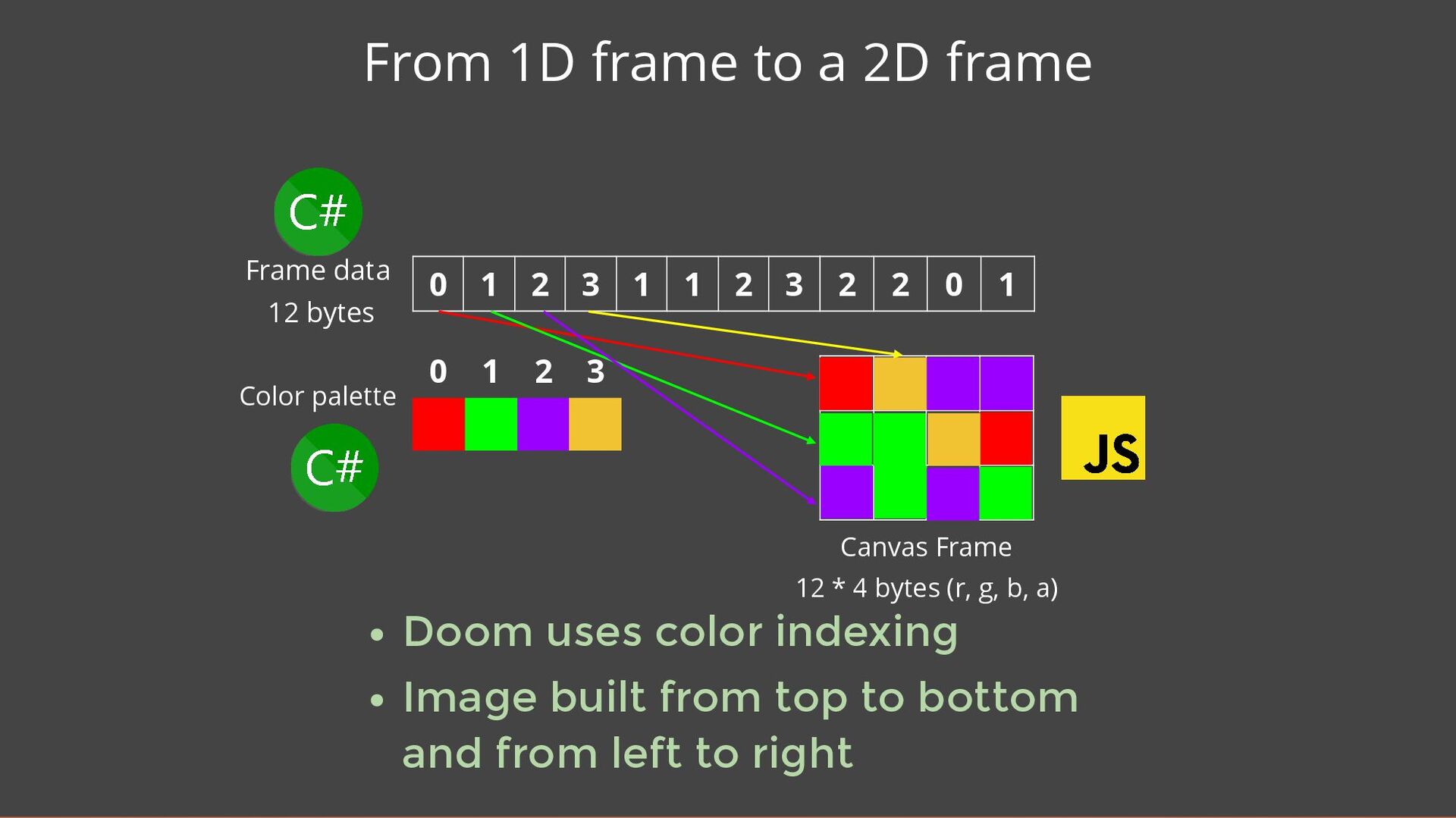

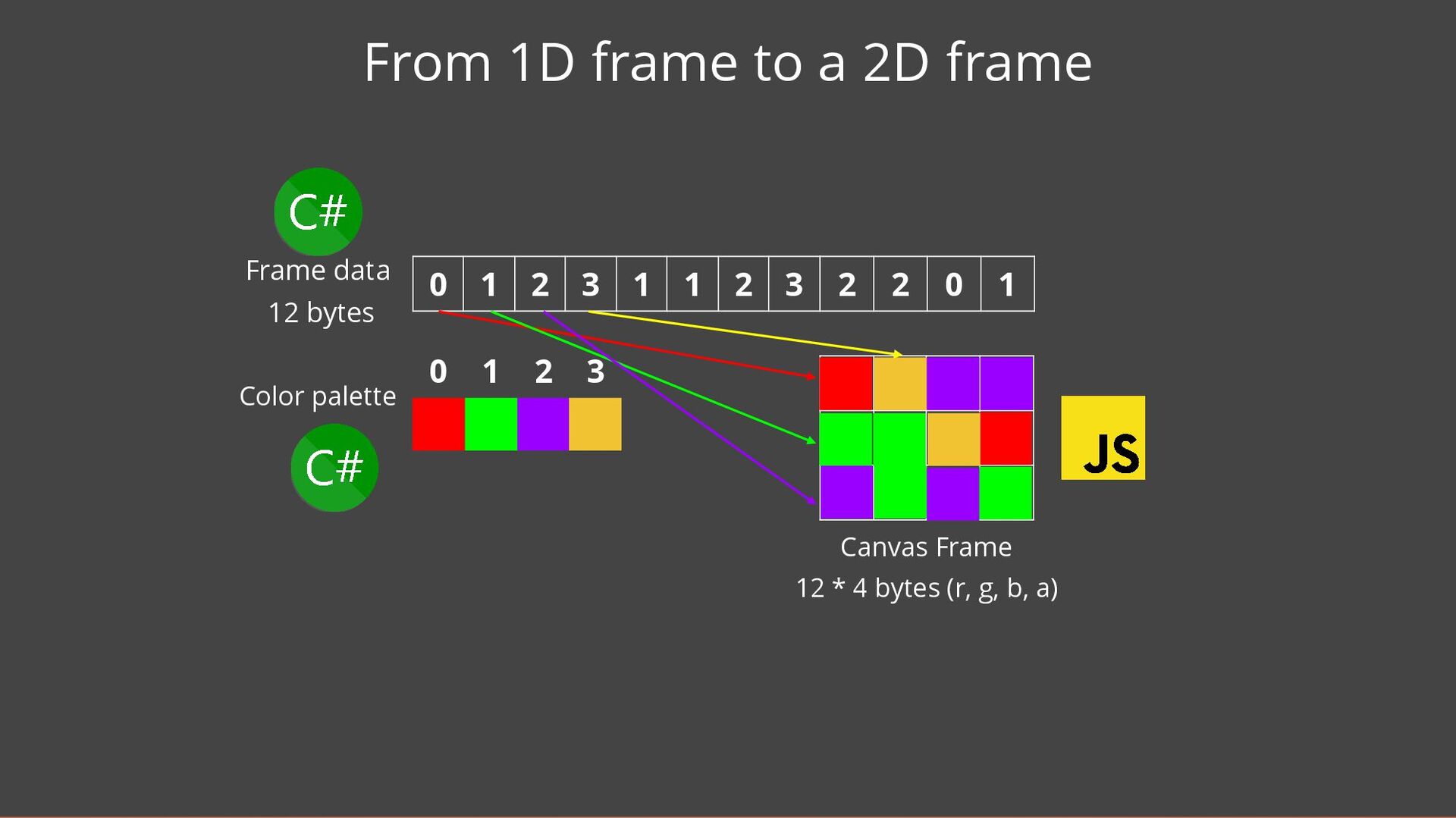

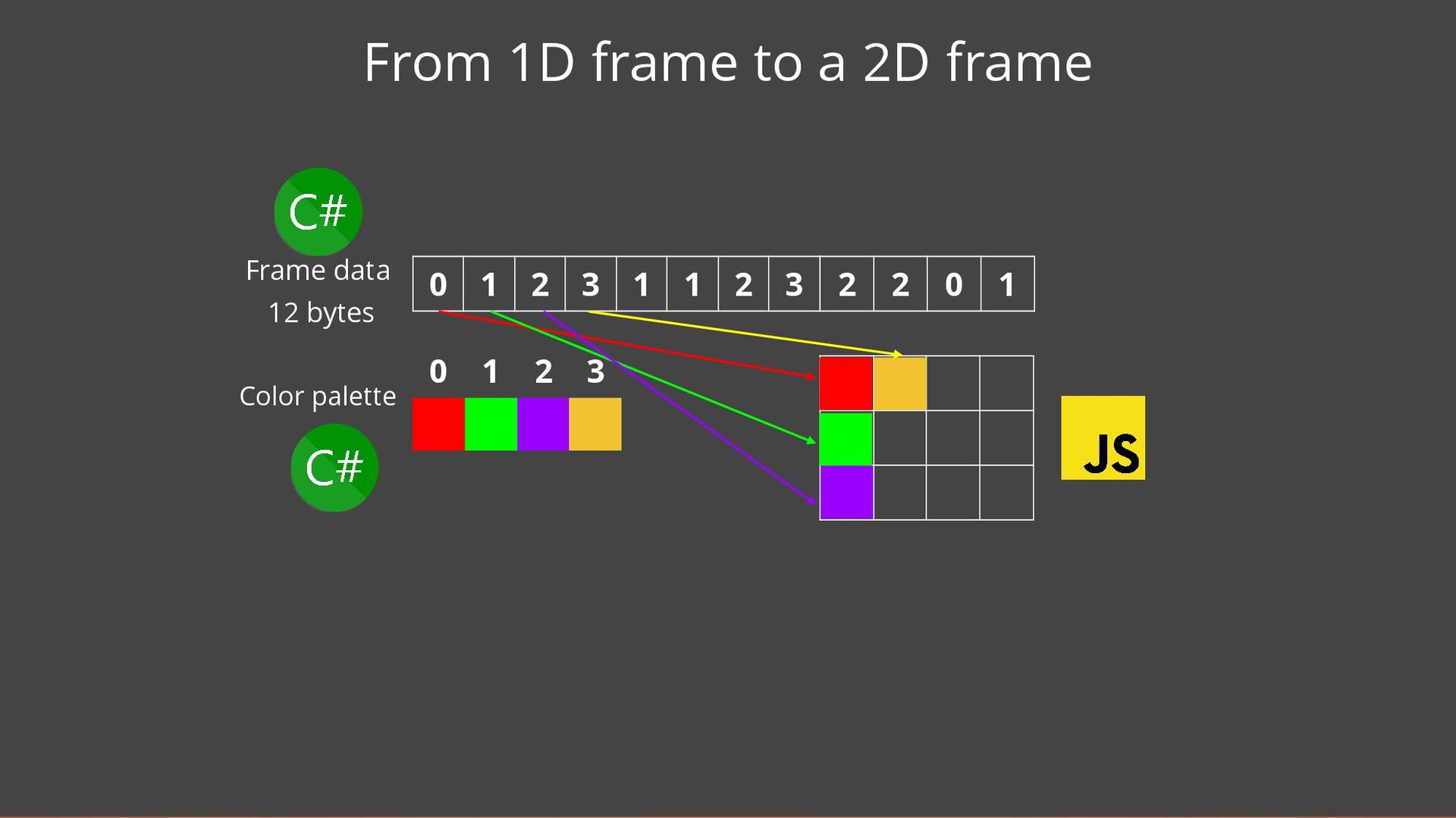

77. 0 1 2 3 1 1 2 3 0 1 2 3 From 1D frame to a 2D frame 2 2 0 1 Frame data 12 bytes Color palette

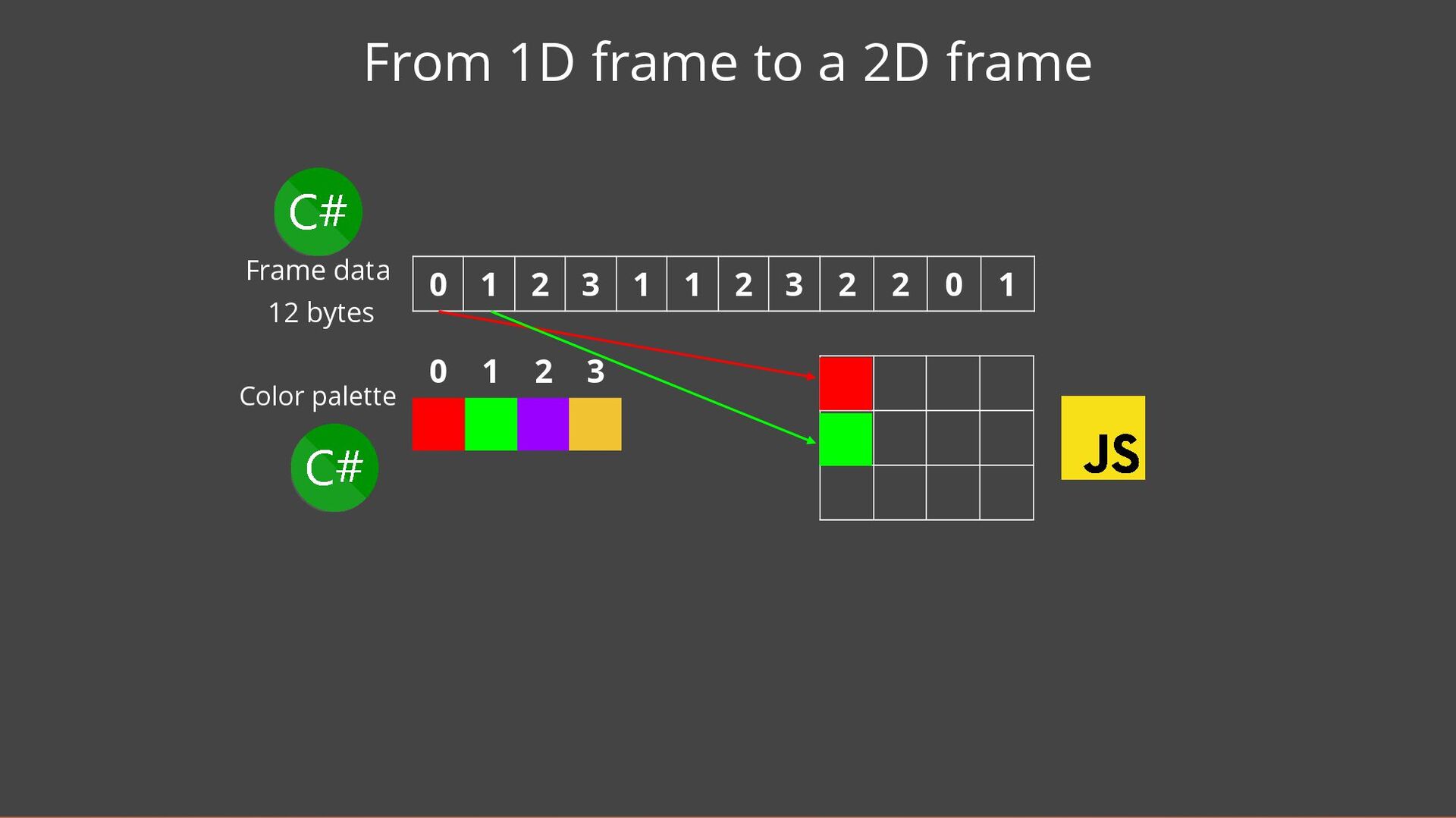

78. 0 1 2 3 1 1 2 3 0 1 2 3 From 1D frame to a 2D frame 2 2 0 1 Frame data 12 bytes Color palette
79. 0 1 2 3 1 1 2 3 0 1 2 3 From 1D frame to a 2D frame 2 2 0 1 Frame data 12 bytes Color palette
80. 0 1 2 3 1 1 2 3 0 1 2 3 From 1D frame to a 2D frame 2 2 0 1 Frame data 12 bytes Color palette
81. 0 1 2 3 1 1 2 3 0 1 2 3 From 1D frame to a 2D frame 2 2 0 1 Frame data 12 bytes Color palette
82. 0 1 2 3 1 1 2 3 0 1 2 3 From 1D frame to a 2D frame 2 2 0 1 Frame data 12 bytes Color palette Canvas Frame 12 * 4 bytes (r, g, b, a)
83. 0 1 2 3 1 1 2 3 0 1 2 3 From 1D frame to a 2D frame 2 2 0 1 Frame data 12 bytes Color palette Canvas Frame 12 * 4 bytes (r, g, b, a) Doom uses color indexing Image built from top to bottom and from left to right

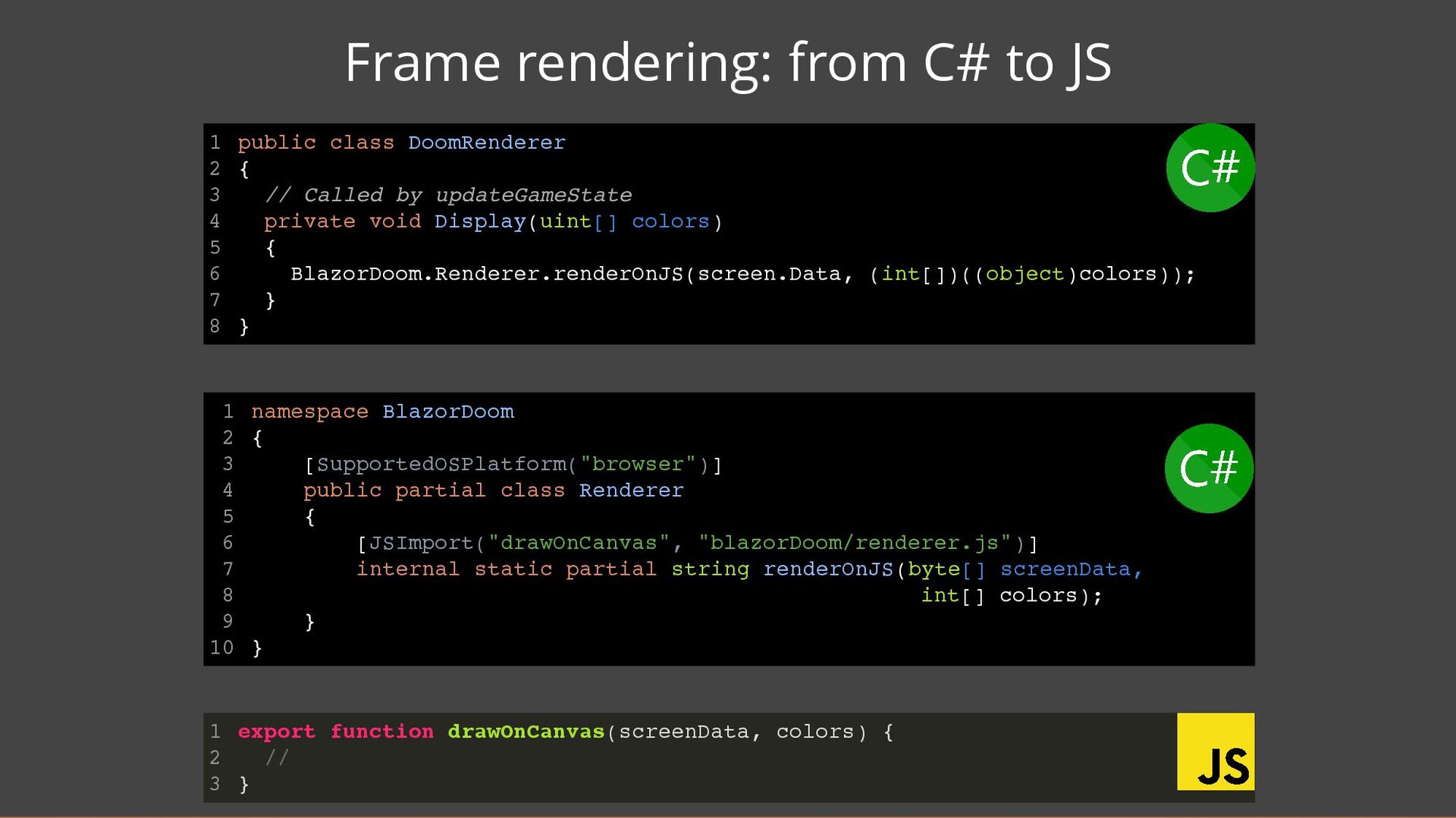

84. Frame rendering: from C# to JS namespace BlazorDoom { [SupportedOSPlatform("browser")] public partial class Renderer { [JSImport("drawOnCanvas", "blazorDoom/renderer.js")] internal static partial string renderOnJS(byte[] screenData, int[] colors); } } 1 2 3 4 5 6 7 8 9 10 export function drawOnCanvas(screenData, colors) { // } 1 2 3 public class DoomRenderer { // Called by updateGameState private void Display(uint[] colors) { BlazorDoom.Renderer.renderOnJS(screen.Data, (int[])((object)colors)); } } 1 2 3 4 5 6 7 8

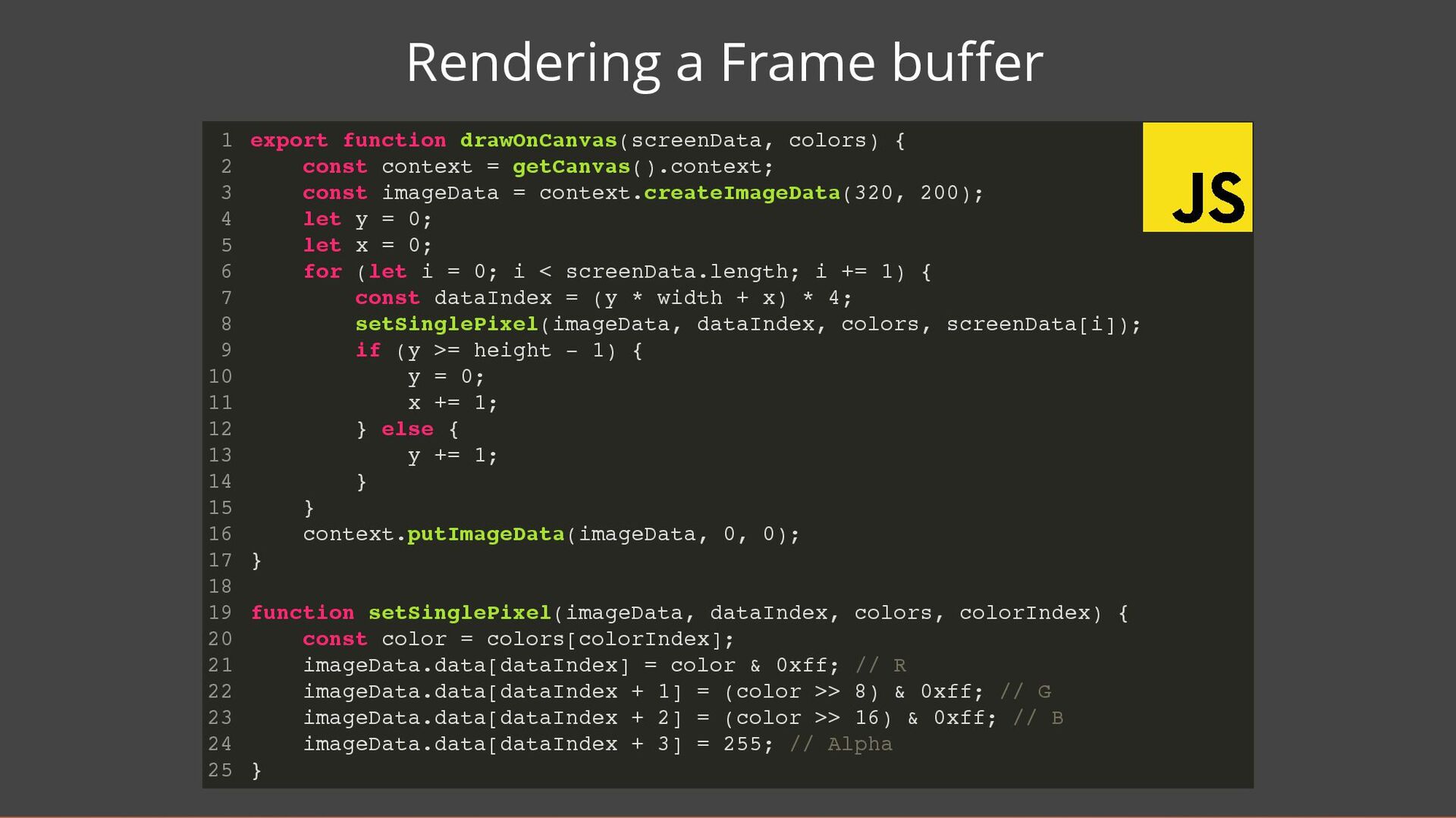

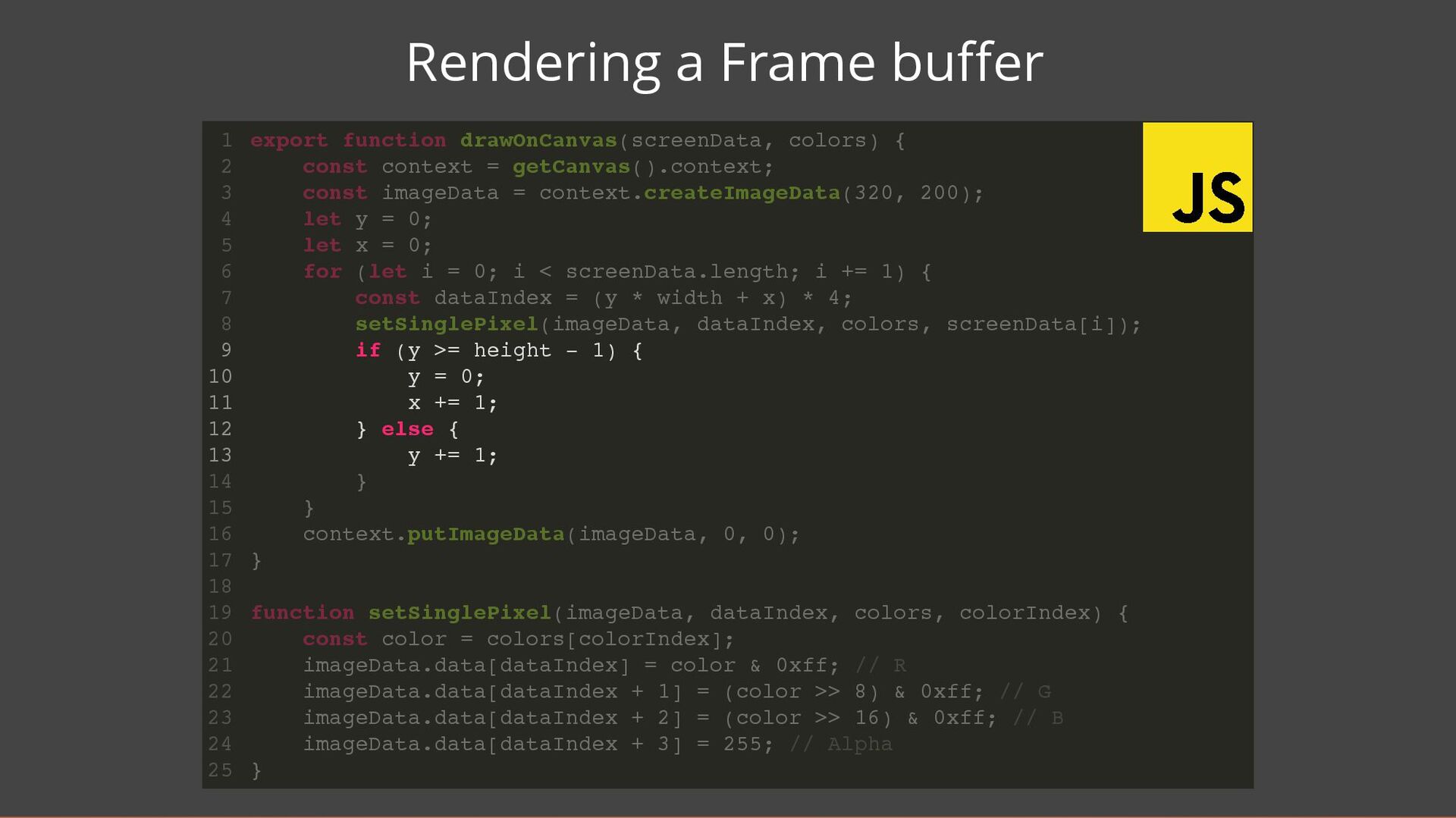

85. Rendering a Frame buffer export function drawOnCanvas(screenData, colors) { const context = getCanvas().context; const imageData = context.createImageData(320, 200); let y = 0; let x = 0; for (let i = 0; i < screenData.length; i += 1) { const dataIndex = (y * width + x) * 4; setSinglePixel(imageData, dataIndex, colors, screenData[i]); if (y >= height - 1) { y = 0; x += 1; } else { y += 1; } } context.putImageData(imageData, 0, 0); } function setSinglePixel(imageData, dataIndex, colors, colorIndex) { const color = colors[colorIndex]; imageData.data[dataIndex] = color & 0xff; // R imageData.data[dataIndex + 1] = (color >> 8) & 0xff; // G imageData.data[dataIndex + 2] = (color >> 16) & 0xff; // B imageData.data[dataIndex + 3] = 255; // Alpha } 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

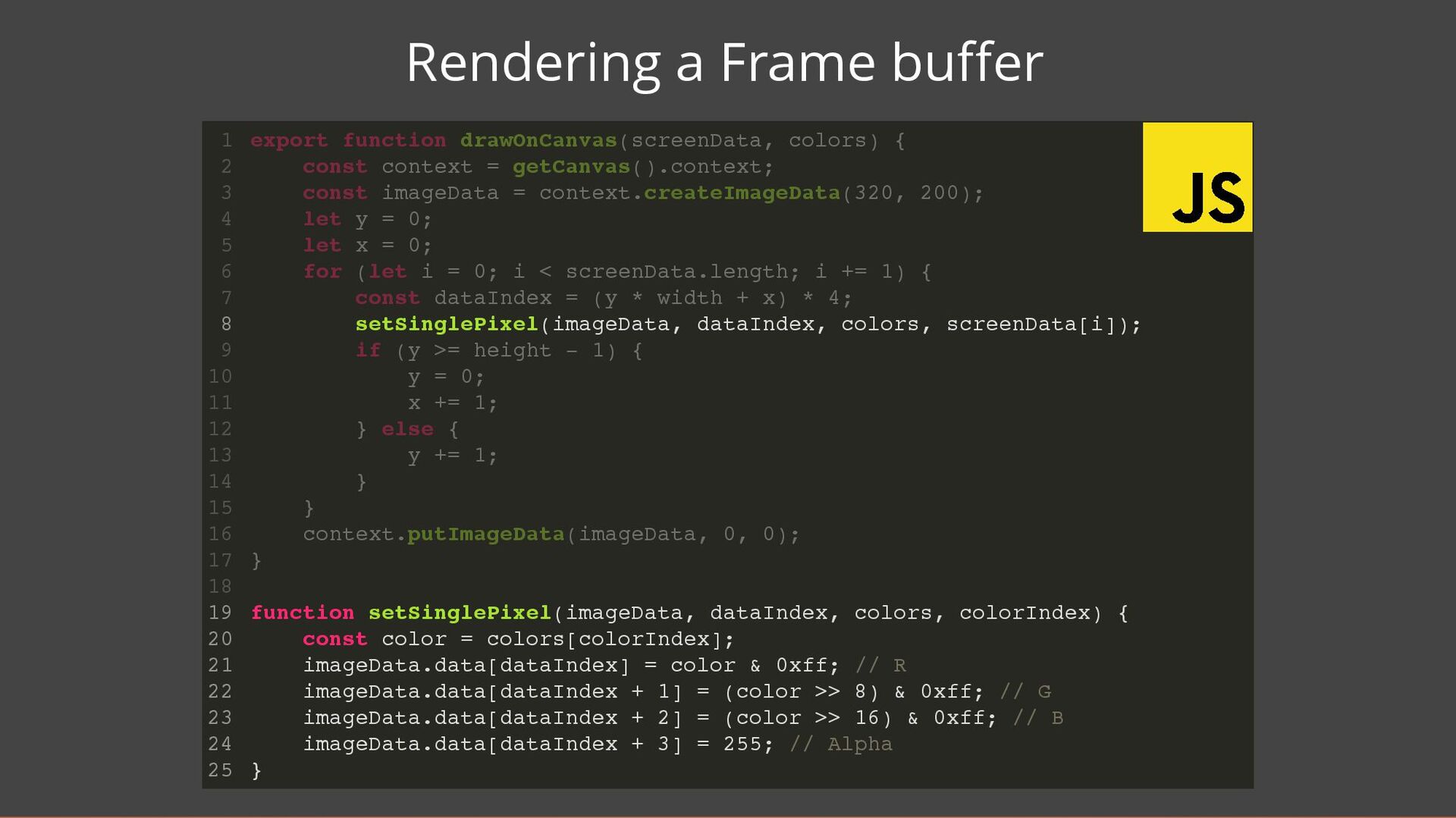

86. Rendering a Frame buffer export function drawOnCanvas(screenData, colors) { const context = getCanvas().context; const imageData = context.createImageData(320, 200); let y = 0; let x = 0; for (let i = 0; i < screenData.length; i += 1) { const dataIndex = (y * width + x) * 4; setSinglePixel(imageData, dataIndex, colors, screenData[i]); if (y >= height - 1) { y = 0; x += 1; } else { y += 1; } } context.putImageData(imageData, 0, 0); } function setSinglePixel(imageData, dataIndex, colors, colorIndex) { const color = colors[colorIndex]; imageData.data[dataIndex] = color & 0xff; // R imageData.data[dataIndex + 1] = (color >> 8) & 0xff; // G imageData.data[dataIndex + 2] = (color >> 16) & 0xff; // B imageData.data[dataIndex + 3] = 255; // Alpha } 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 if (y >= height - 1) { y = 0; x += 1; } else { y += 1; export function drawOnCanvas(screenData, colors) { 1 const context = getCanvas().context; 2 const imageData = context.createImageData(320, 200); 3 let y = 0; 4 let x = 0; 5 for (let i = 0; i < screenData.length; i += 1) { 6 const dataIndex = (y * width + x) * 4; 7 setSinglePixel(imageData, dataIndex, colors, screenData[i]); 8 9 10 11 12 13 } 14 } 15 context.putImageData(imageData, 0, 0); 16 } 17 18 function setSinglePixel(imageData, dataIndex, colors, colorIndex) { 19 const color = colors[colorIndex]; 20 imageData.data[dataIndex] = color & 0xff; // R 21 imageData.data[dataIndex + 1] = (color >> 8) & 0xff; // G 22 imageData.data[dataIndex + 2] = (color >> 16) & 0xff; // B 23 imageData.data[dataIndex + 3] = 255; // Alpha 24 } 25
87. Rendering a Frame buffer export function drawOnCanvas(screenData, colors) { const context = getCanvas().context; const imageData = context.createImageData(320, 200); let y = 0; let x = 0; for (let i = 0; i < screenData.length; i += 1) { const dataIndex = (y * width + x) * 4; setSinglePixel(imageData, dataIndex, colors, screenData[i]); if (y >= height - 1) { y = 0; x += 1; } else { y += 1; } } context.putImageData(imageData, 0, 0); } function setSinglePixel(imageData, dataIndex, colors, colorIndex) { const color = colors[colorIndex]; imageData.data[dataIndex] = color & 0xff; // R imageData.data[dataIndex + 1] = (color >> 8) & 0xff; // G imageData.data[dataIndex + 2] = (color >> 16) & 0xff; // B imageData.data[dataIndex + 3] = 255; // Alpha } 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 if (y >= height - 1) { y = 0; x += 1; } else { y += 1; export function drawOnCanvas(screenData, colors) { 1 const context = getCanvas().context; 2 const imageData = context.createImageData(320, 200); 3 let y = 0; 4 let x = 0; 5 for (let i = 0; i < screenData.length; i += 1) { 6 const dataIndex = (y * width + x) * 4; 7 setSinglePixel(imageData, dataIndex, colors, screenData[i]); 8 9 10 11 12 13 } 14 } 15 context.putImageData(imageData, 0, 0); 16 } 17 18 function setSinglePixel(imageData, dataIndex, colors, colorIndex) { 19 const color = colors[colorIndex]; 20 imageData.data[dataIndex] = color & 0xff; // R 21 imageData.data[dataIndex + 1] = (color >> 8) & 0xff; // G 22 imageData.data[dataIndex + 2] = (color >> 16) & 0xff; // B 23 imageData.data[dataIndex + 3] = 255; // Alpha 24 } 25 setSinglePixel(imageData, dataIndex, colors, screenData[i]); function setSinglePixel(imageData, dataIndex, colors, colorIndex) { const color = colors[colorIndex]; imageData.data[dataIndex] = color & 0xff; // R imageData.data[dataIndex + 1] = (color >> 8) & 0xff; // G imageData.data[dataIndex + 2] = (color >> 16) & 0xff; // B imageData.data[dataIndex + 3] = 255; // Alpha } export function drawOnCanvas(screenData, colors) { 1 const context = getCanvas().context; 2 const imageData = context.createImageData(320, 200); 3 let y = 0; 4 let x = 0; 5 for (let i = 0; i < screenData.length; i += 1) { 6 const dataIndex = (y * width + x) * 4; 7 8 if (y >= height - 1) { 9 y = 0; 10 x += 1; 11 } else { 12 y += 1; 13 } 14 } 15 context.putImageData(imageData, 0, 0); 16 } 17 18 19 20 21 22 23 24 25

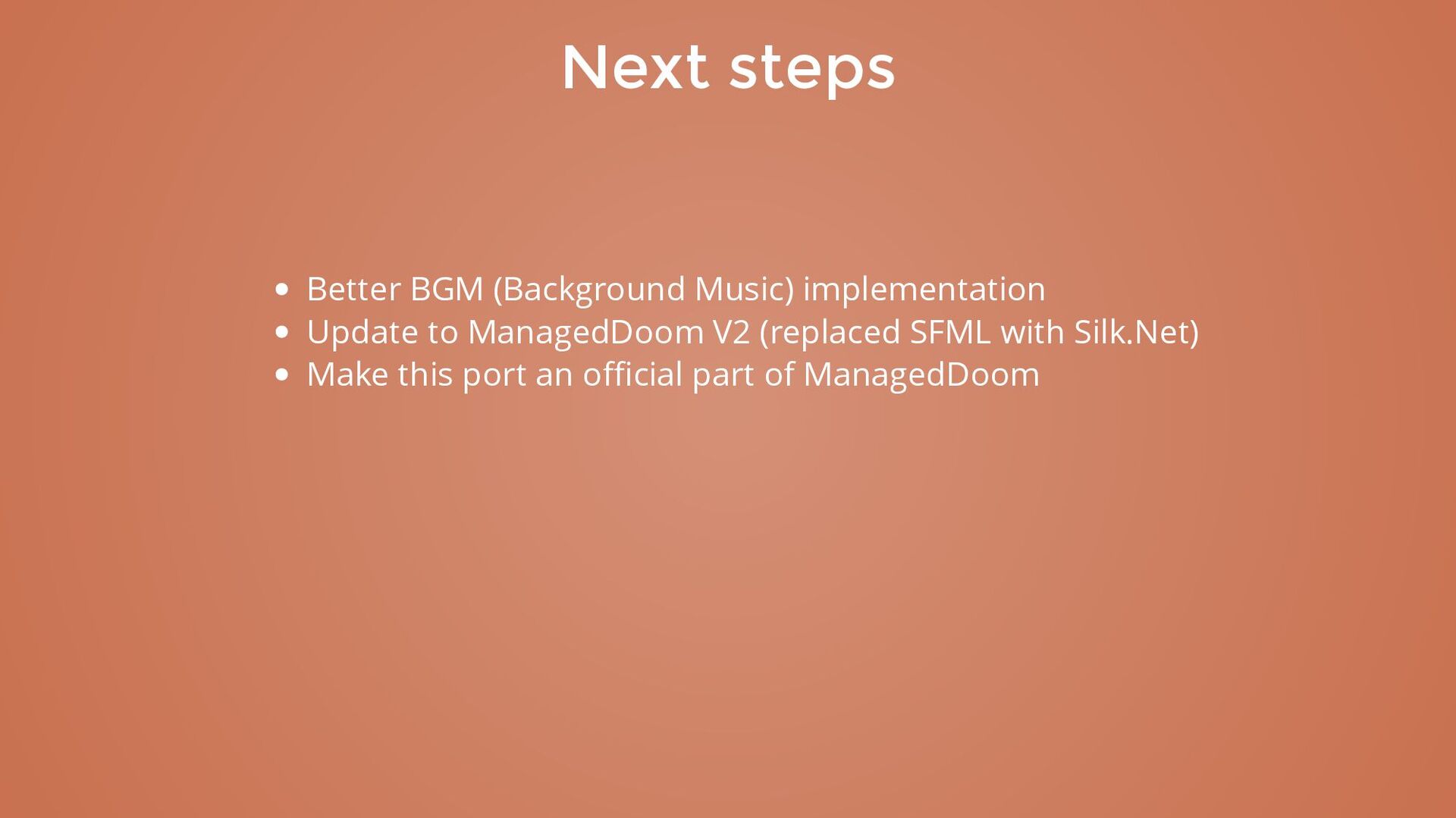

91. Next steps Better BGM (Background Music) implementation Update to ManagedDoom V2 (replaced SFML with Silk.Net) Make this port an official part of ManagedDoom
92. Key takeaways

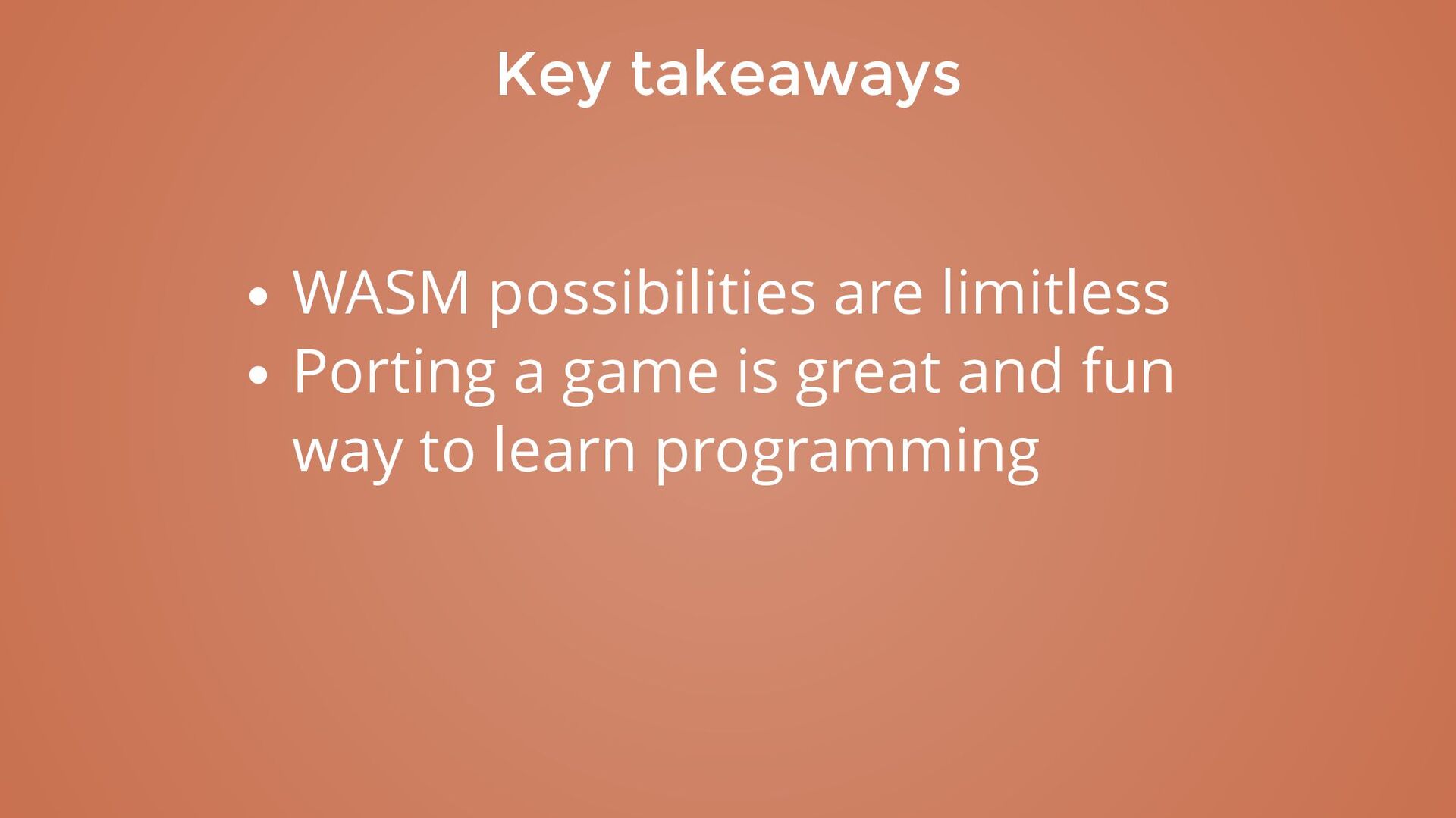

93. Key takeaways WASM possibilities are limitless
94. Key takeaways WASM possibilities are limitless Porting a game is great and fun way to learn programming
95. @yostane Yassine Benabbas
