[DevoxxBe 2024] Run your favorite games everywhere with WASM: the BlazorDoom use case

Web Assembly (WASM) is a powerful technology that opens the door to unlimited development possibilities. As a video game enthusiast, I used it to port the Doom game to the browser, allowing me to play it anywhere, even on my mobile. This is made possible thanks to the availability of an Open Source port of Doom to .Net and its support for compilation to WASM. This tools-in-action session will show you how I ported the MangedDoom game, which is made in .Net, to run in a browser. I will also share my experience on carrying out this port. You'll be surprised to see that this kind of project is very accessible as well as captivating, especially when you see the game running on a mobile browser. Although my work is based on .Net's WASM tooling, it can be applied to any framework that targets WASM. So, come and relive this fun porting adventure with me 👍.

Transcript

2. How it started
3. How it's going
4. @yostane #TechAtWorldline Yassine Benabbas DevRel / Teacher Video game collector 😍 Kotlin, WASM, or any fancy technology
5. We design payments technology that powers the growth of millions of businesses around the world. Managing 43+ billion transactions per year 7000+ engineers in over 40 countries #TechAtWorldline Handling 150+ payment methods blog.worldline.tech

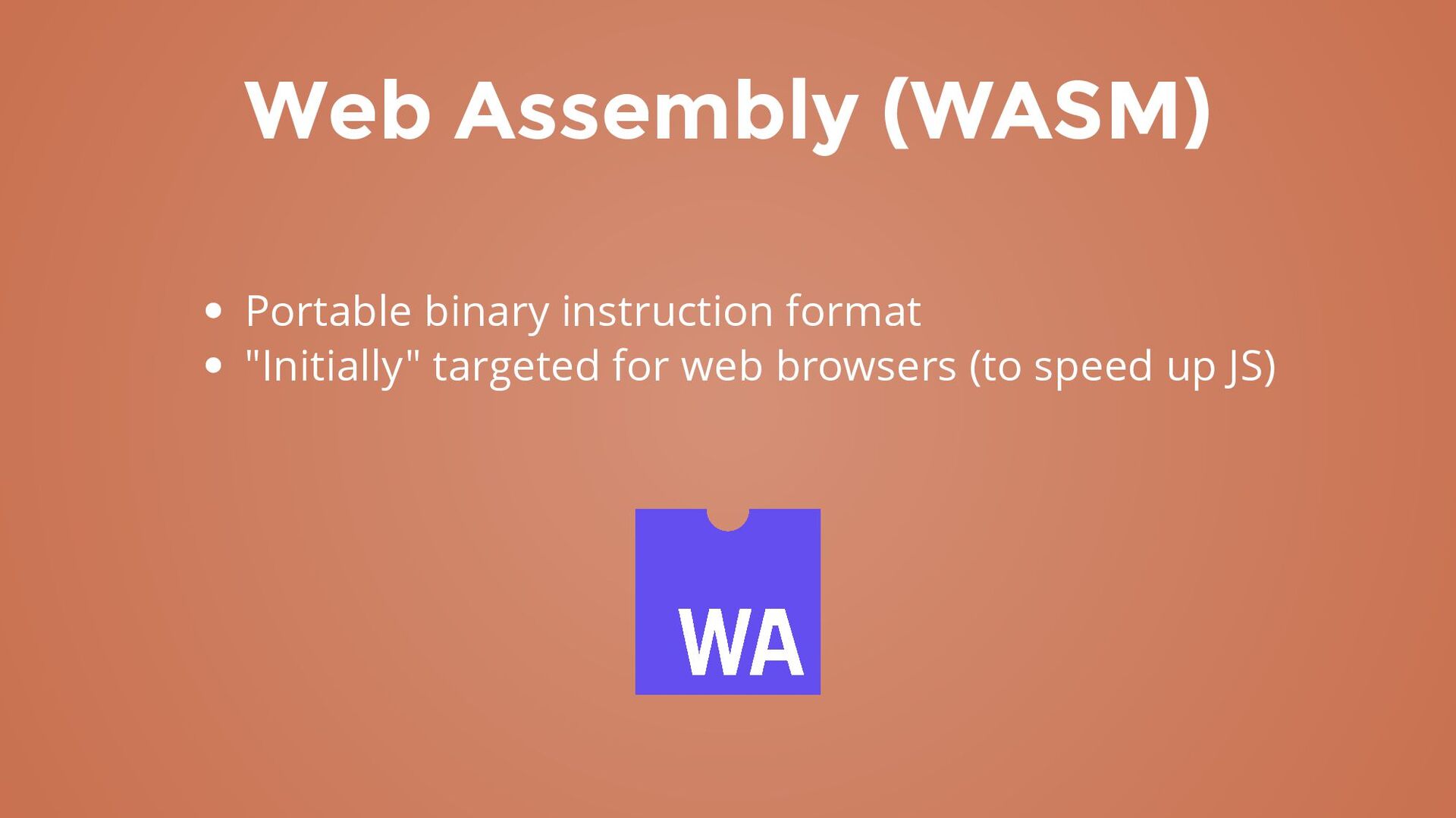

7. Web Assembly (WASM) Portable binary instruction format "Initially" targeted for web browsers (to speed up JS)

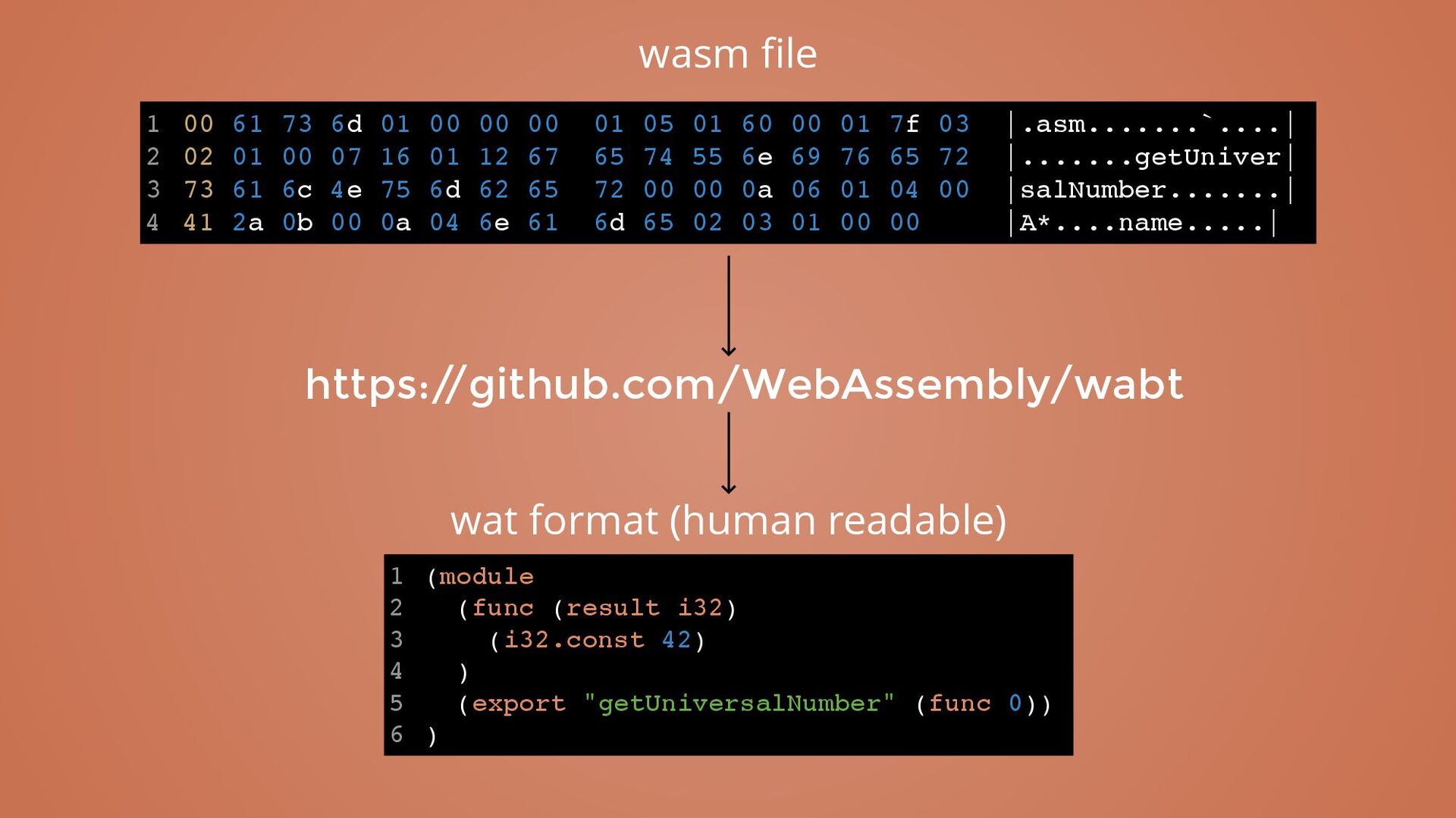

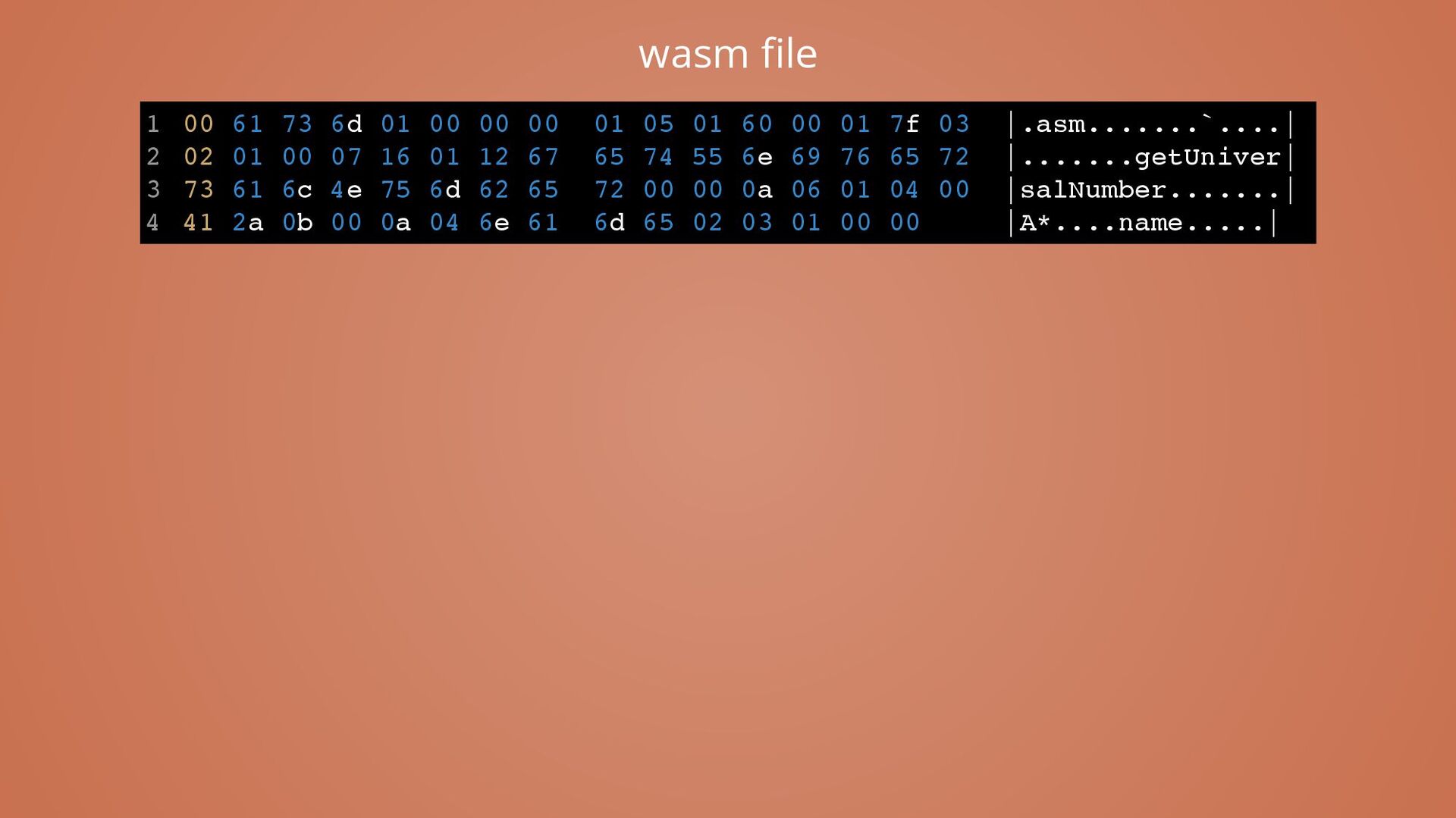

8. 00 61 73 6d 01 00 00 00 01 05 01 60 00 01 7f 03 |.asm.......`....| 02 01 00 07 16 01 12 67 65 74 55 6e 69 76 65 72 |.......getUniver| 73 61 6c 4e 75 6d 62 65 72 00 00 0a 06 01 04 00 |salNumber.......| 41 2a 0b 00 0a 04 6e 61 6d 65 02 03 01 00 00 |A*....name.....| 1 2 3 4 wasm file
9. (module (func (result i32) (i32.const 42) ) (export "getUniversalNumber" (func 0)) ) 1 2 3 4 5 6 00 61 73 6d 01 00 00 00 01 05 01 60 00 01 7f 03 |.asm.......`....| 02 01 00 07 16 01 12 67 65 74 55 6e 69 76 65 72 |.......getUniver| 73 61 6c 4e 75 6d 62 65 72 00 00 0a 06 01 04 00 |salNumber.......| 41 2a 0b 00 0a 04 6e 61 6d 65 02 03 01 00 00 |A*....name.....| 1 2 3 4 wat format (human readable) wasm file https:/ /github.com/WebAssembly/wabt

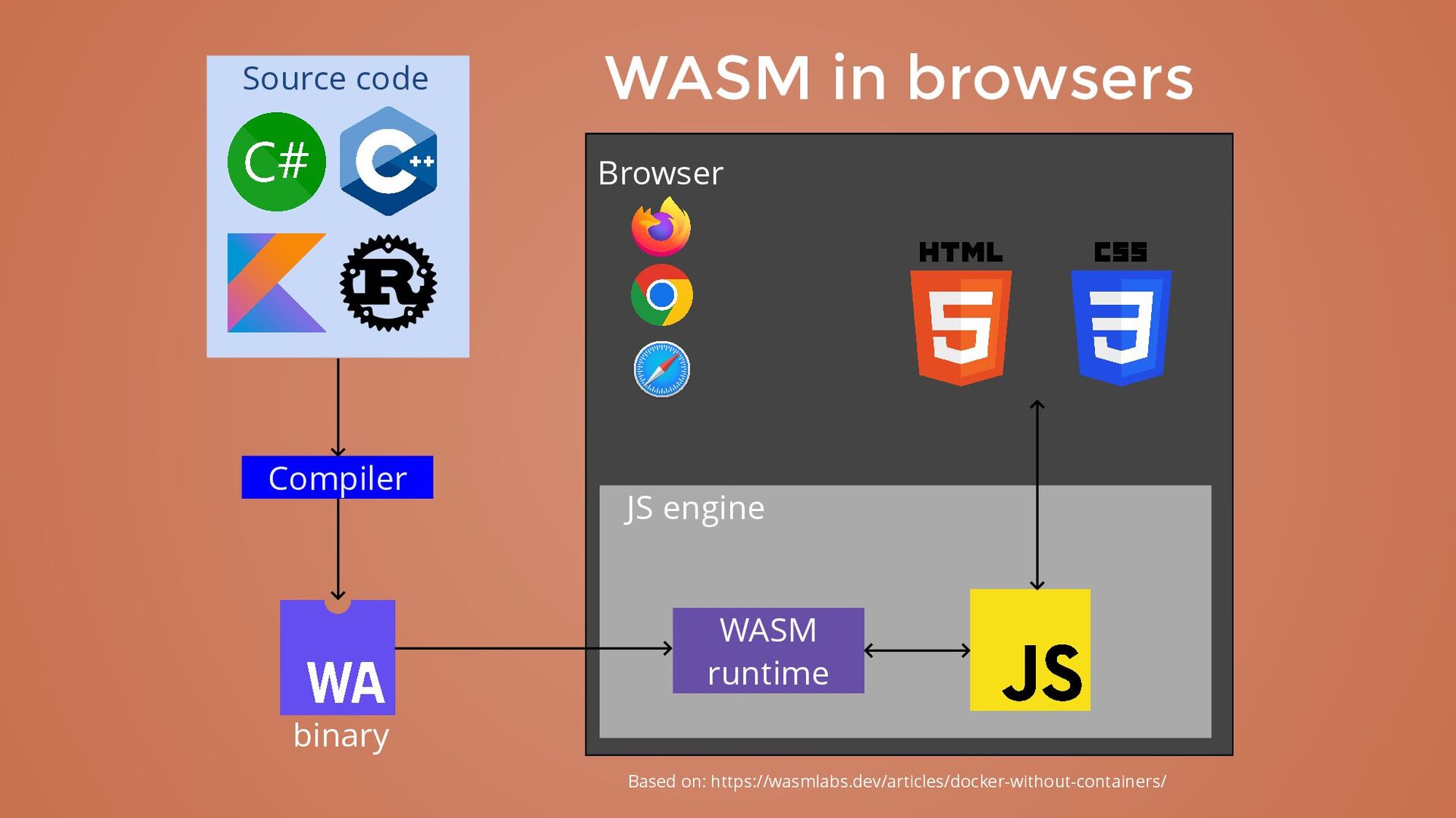

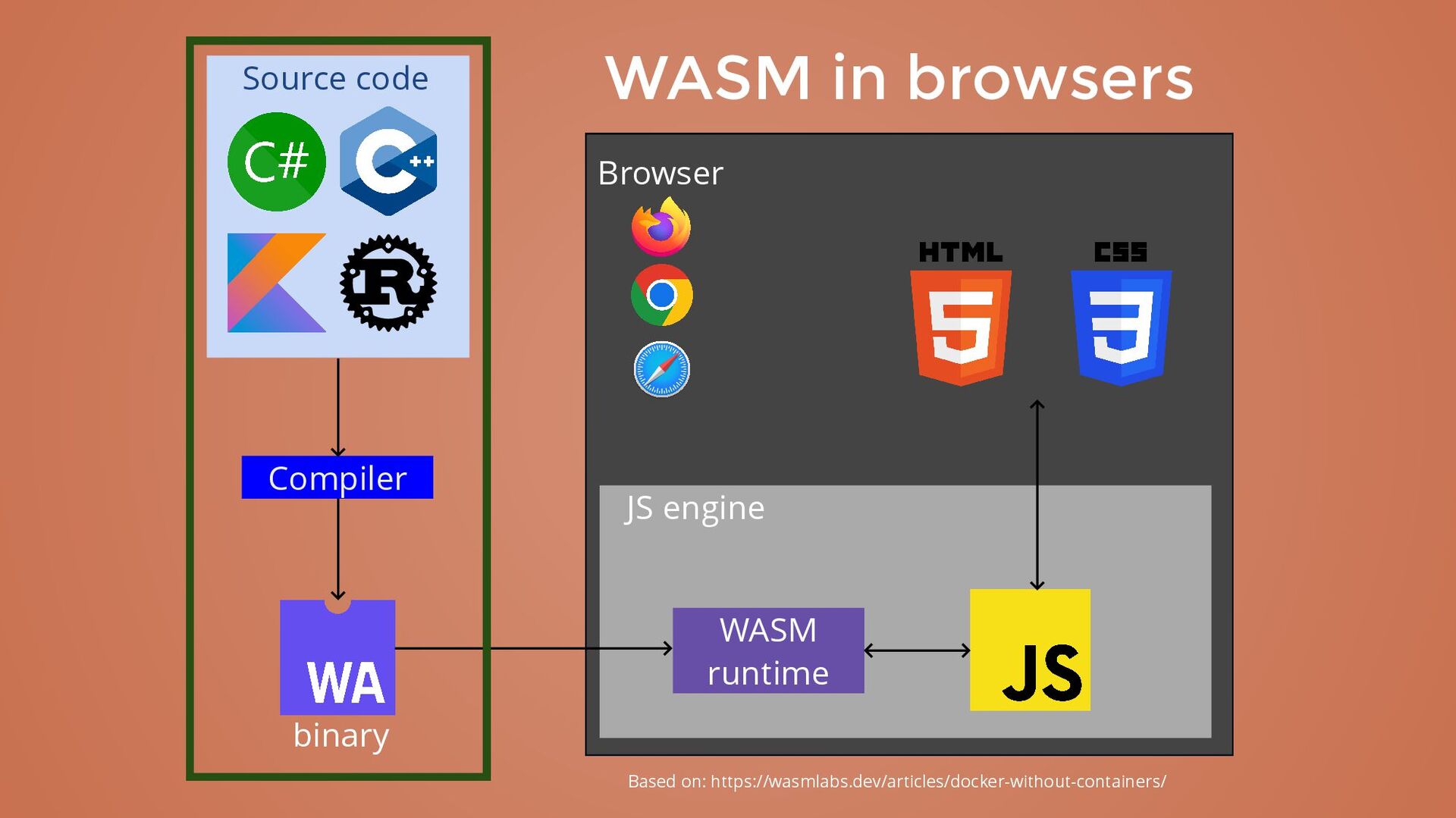

10. Browser Compiler binary Source code WASM runtime JS engine Based on: https://wasmlabs.dev/articles/docker-without-containers/ WASM in browsers
11. Browser Compiler binary Source code WASM runtime JS engine Based on: https://wasmlabs.dev/articles/docker-without-containers/ WASM in browsers
12. Browser Compiler binary Source code WASM runtime JS engine Based on: https://wasmlabs.dev/articles/docker-without-containers/ WASM in browsers

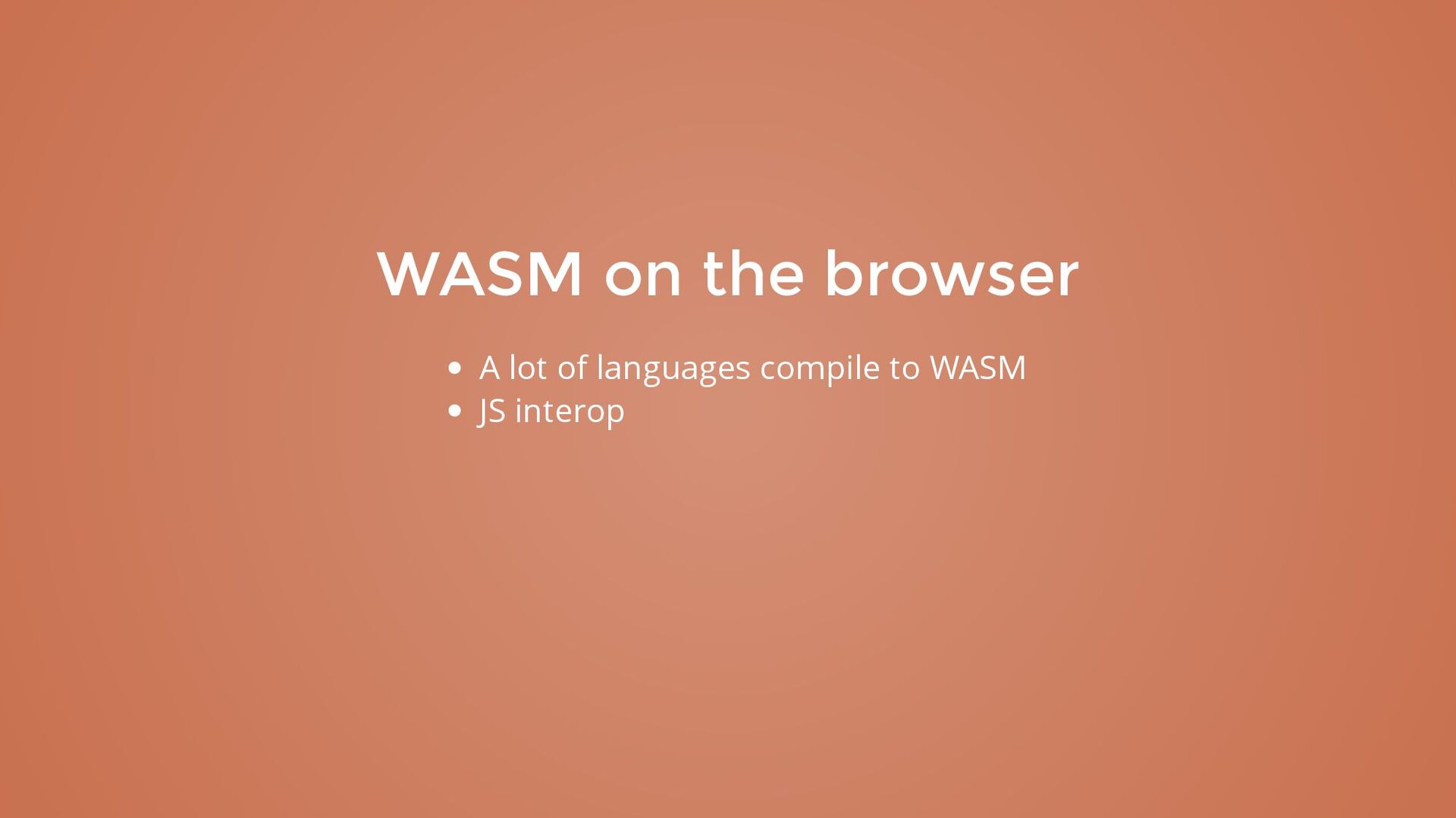

13. WASM on the browser A lot of languages compile to WASM JS interop
14. Need to do something related to WASM

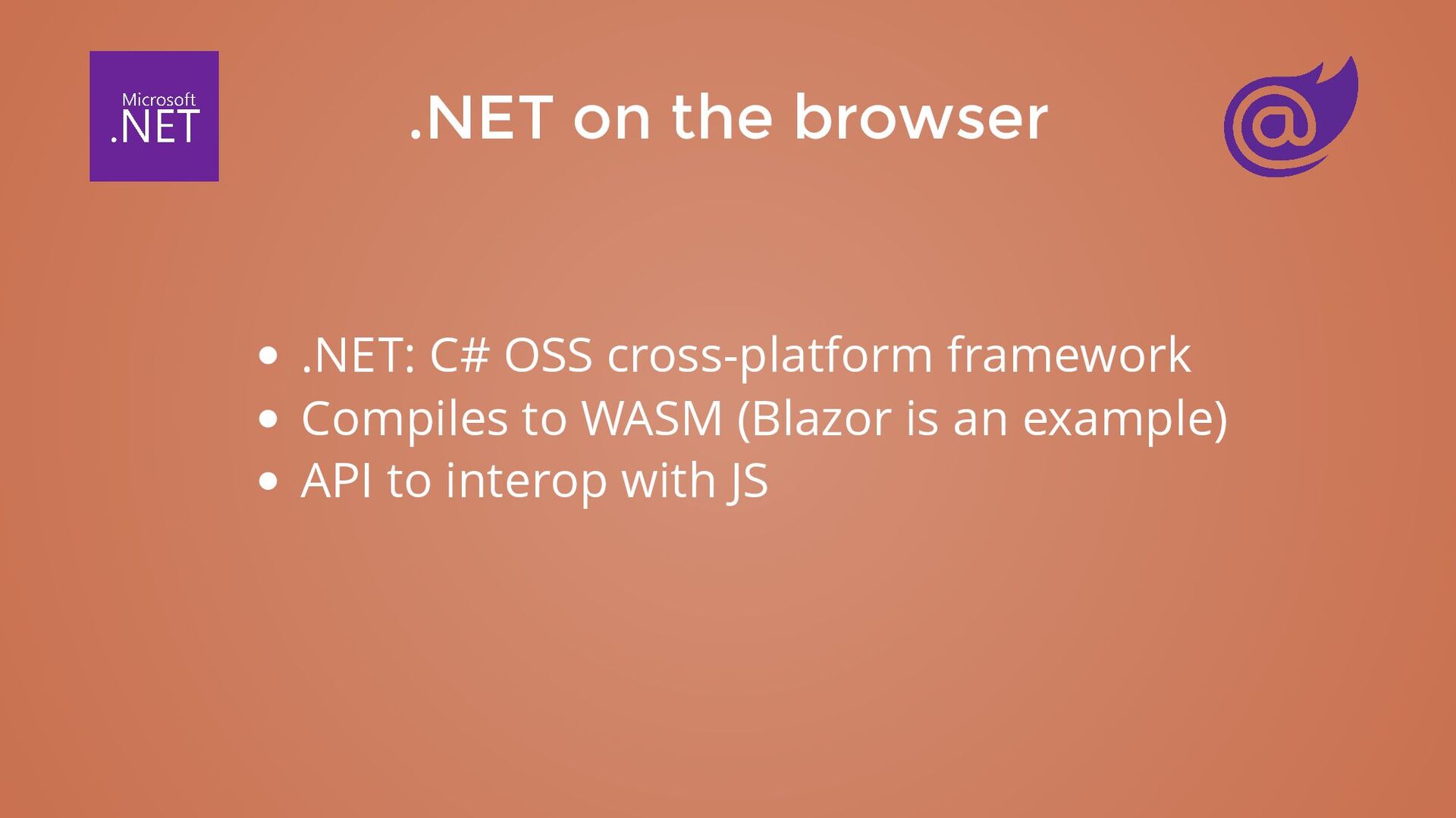

16. .NET on the browser .NET: C# OSS cross-platform framework
17. .NET on the browser .NET: C# OSS cross-platform framework Compiles to WASM (Blazor is an example) API to interop with JS

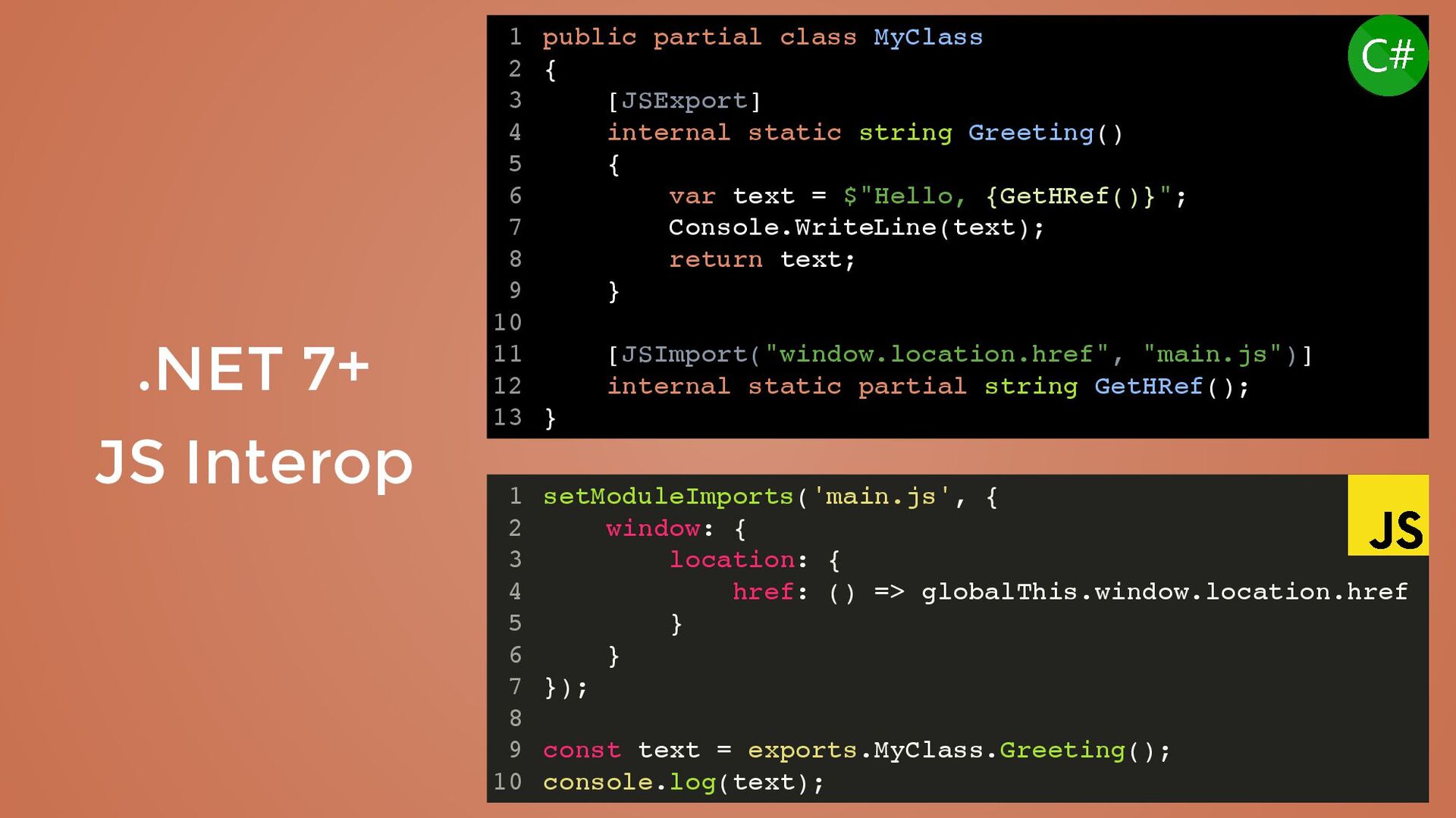

18. public partial class MyClass { [JSExport] internal static string Greeting() { var text = $"Hello, {GetHRef()}"; Console.WriteLine(text); return text; } [JSImport("window.location.href", "main.js")] internal static partial string GetHRef(); } 1 2 3 4 5 6 7 8 9 10 11 12 13 setModuleImports('main.js', { window: { location: { href: () => globalThis.window.location.href } } }); const text = exports.MyClass.Greeting(); console.log(text); 1 2 3 4 5 6 7 8 9 10 .NET 7+ JS Interop
19. public partial class MyClass { [JSExport] internal static string Greeting() { var text = $"Hello, {GetHRef()}"; Console.WriteLine(text); return text; } [JSImport("window.location.href", "main.js")] internal static partial string GetHRef(); } 1 2 3 4 5 6 7 8 9 10 11 12 13 setModuleImports('main.js', { window: { location: { href: () => globalThis.window.location.href } } }); const text = exports.MyClass.Greeting(); console.log(text); 1 2 3 4 5 6 7 8 9 10 .NET 7+ JS Interop
20. public partial class MyClass { [JSExport] internal static string Greeting() { var text = $"Hello, {GetHRef()}"; Console.WriteLine(text); return text; } [JSImport("window.location.href", "main.js")] internal static partial string GetHRef(); } 1 2 3 4 5 6 7 8 9 10 11 12 13 setModuleImports('main.js', { window: { location: { href: () => globalThis.window.location.href } } }); const text = exports.MyClass.Greeting(); console.log(text); 1 2 3 4 5 6 7 8 9 10 .NET 7+ JS Interop
21. Let's port a .NET game !

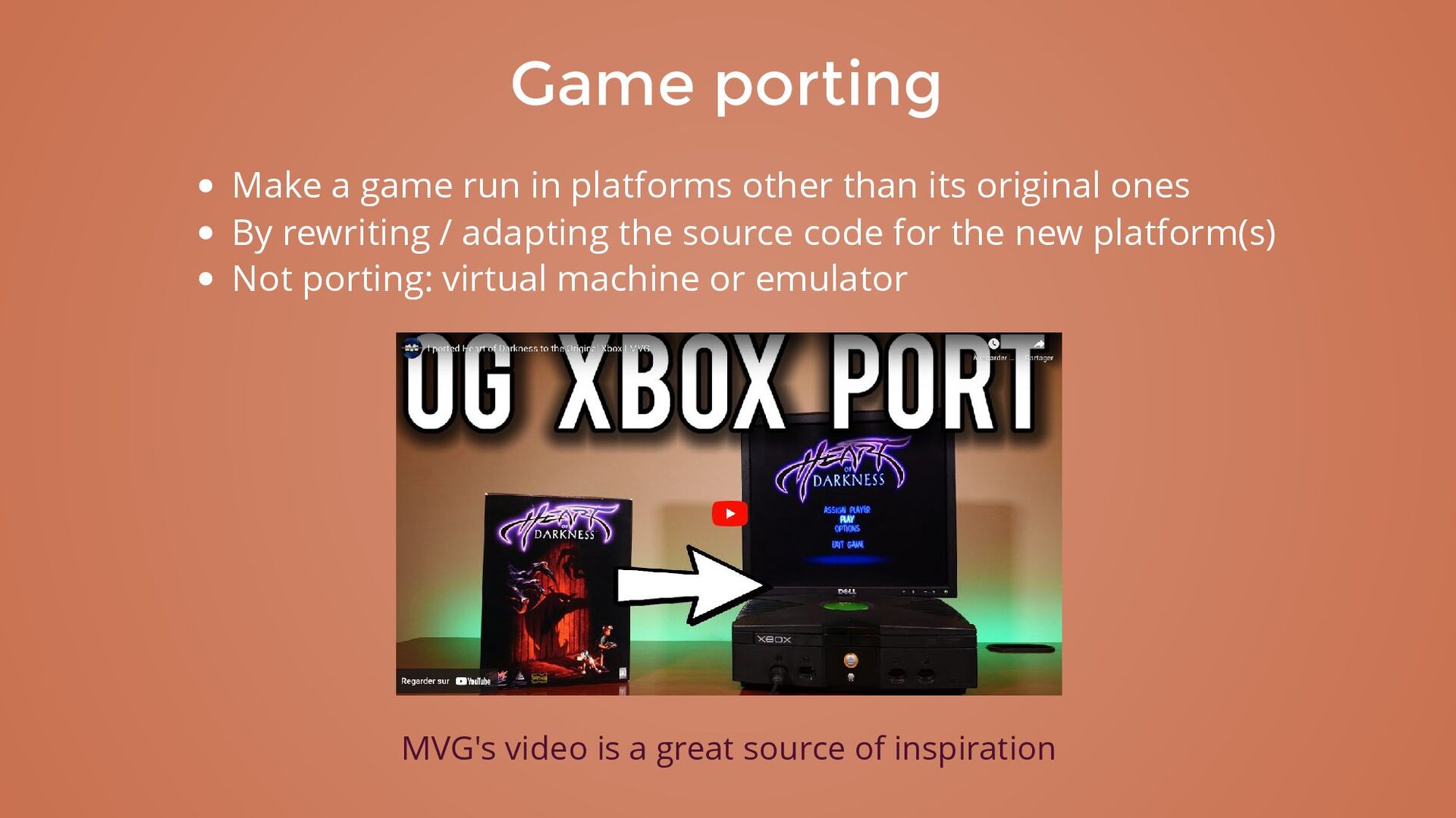

23. Game porting Make a game run in platforms other than its original ones By rewriting / adapting the source code for the new platform(s) Not porting: virtual machine or emulator MVG's video is a great source of inspiration

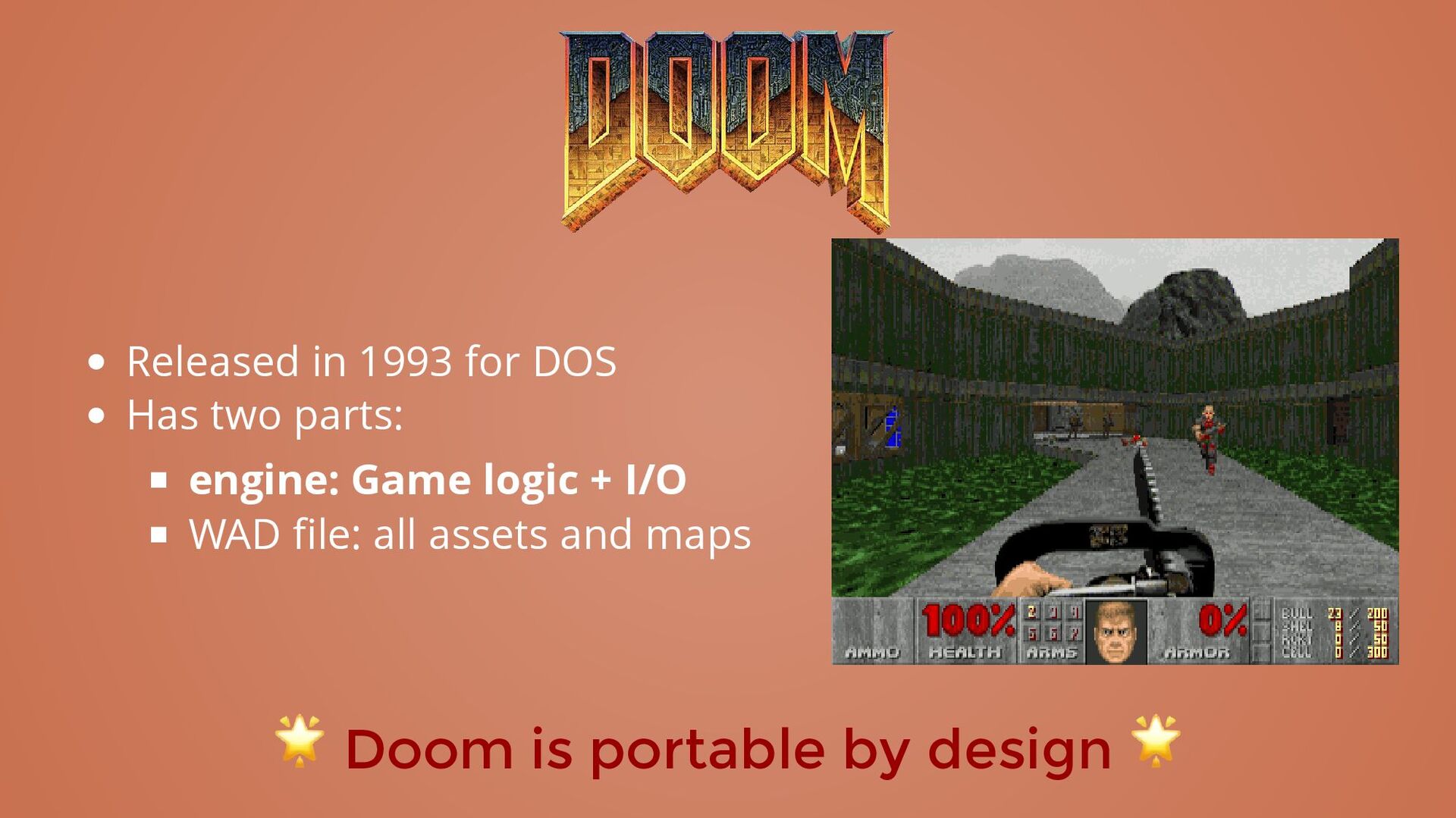

24. Released in 1993 for DOS Has two parts: engine: Game logic + I/O WAD file: all assets and maps 🌟 Doom is portable by design 🌟

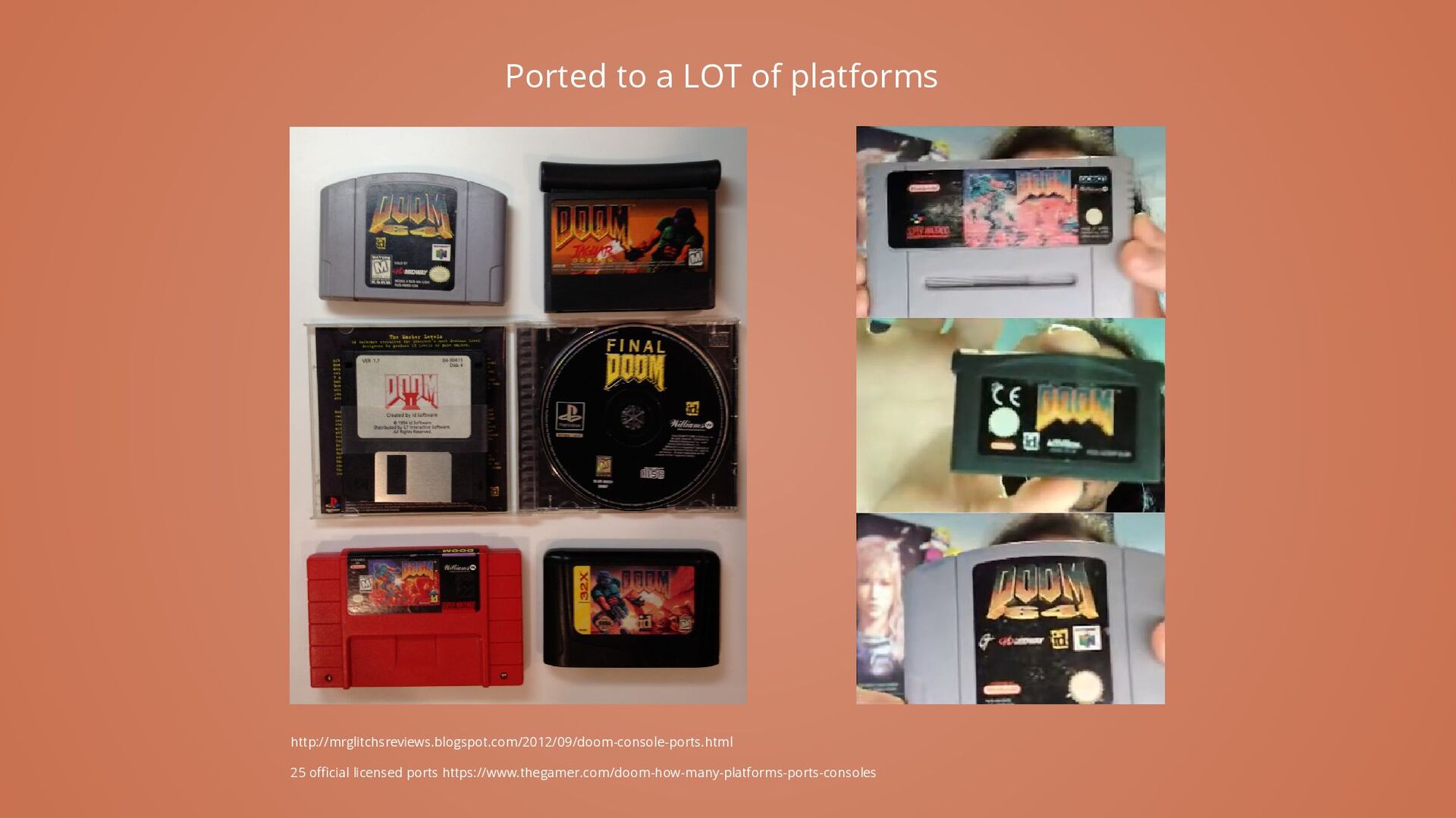

25. http://mrglitchsreviews.blogspot.com/2012/09/doom-console-ports.html Ported to a LOT of platforms 25 official licensed ports https://www.thegamer.com/doom-how-many-platforms-ports-consoles

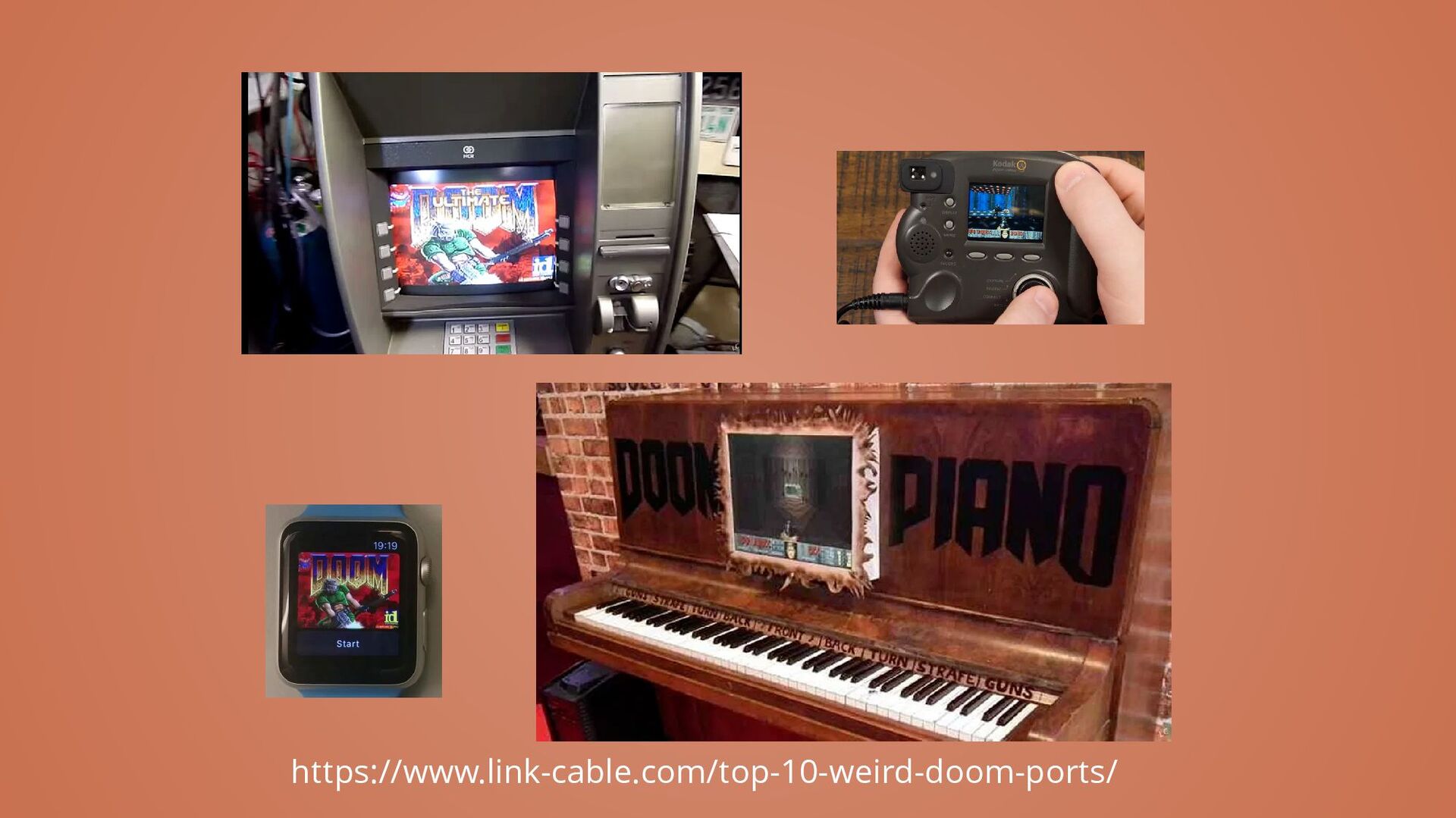

26. https://www.link-cable.com/top-10-weird-doom-ports/
27. Source: https://www.yahoo.com/news/1995-bill-gates-gave-crazy-180900044.html

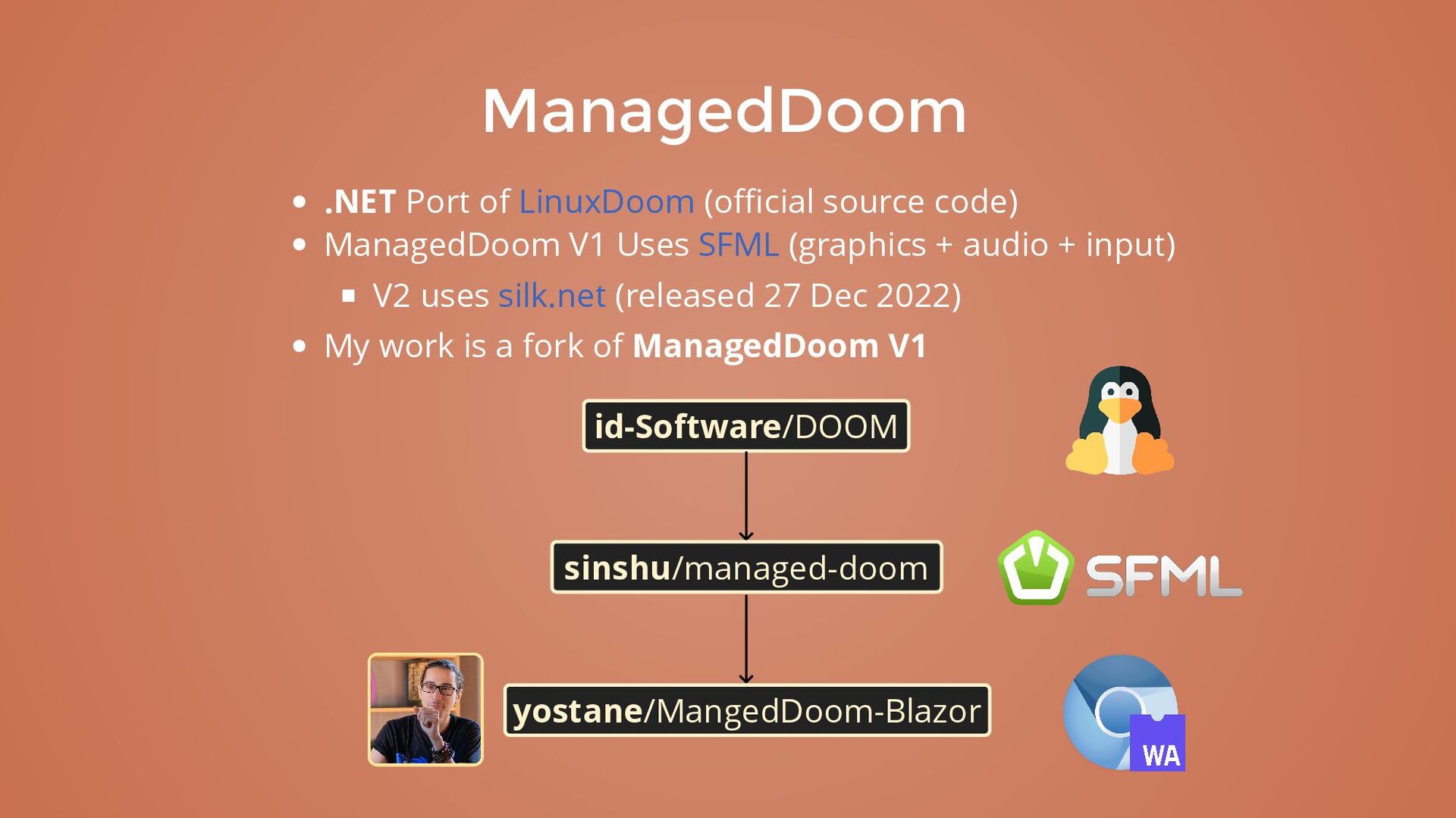

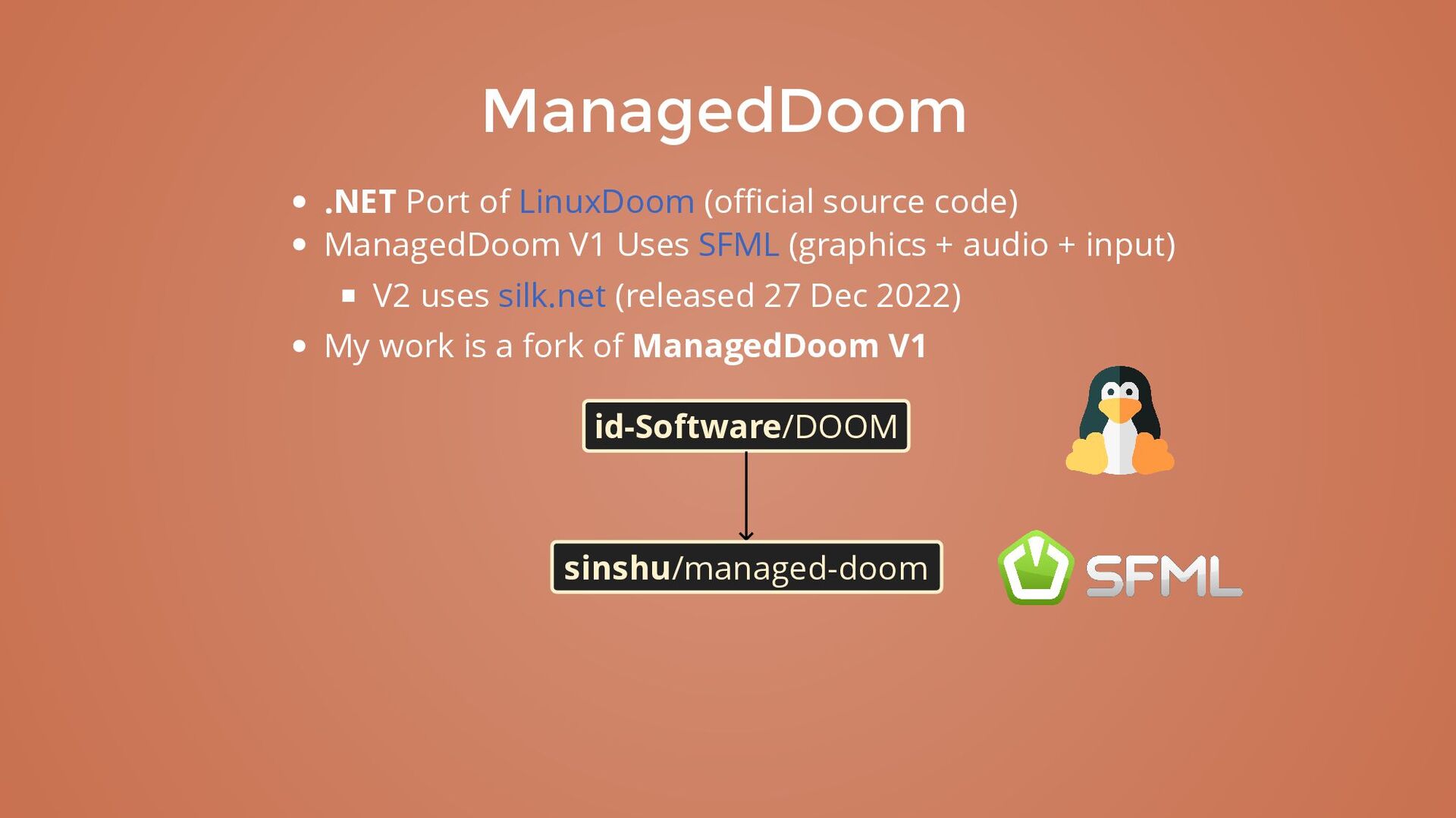

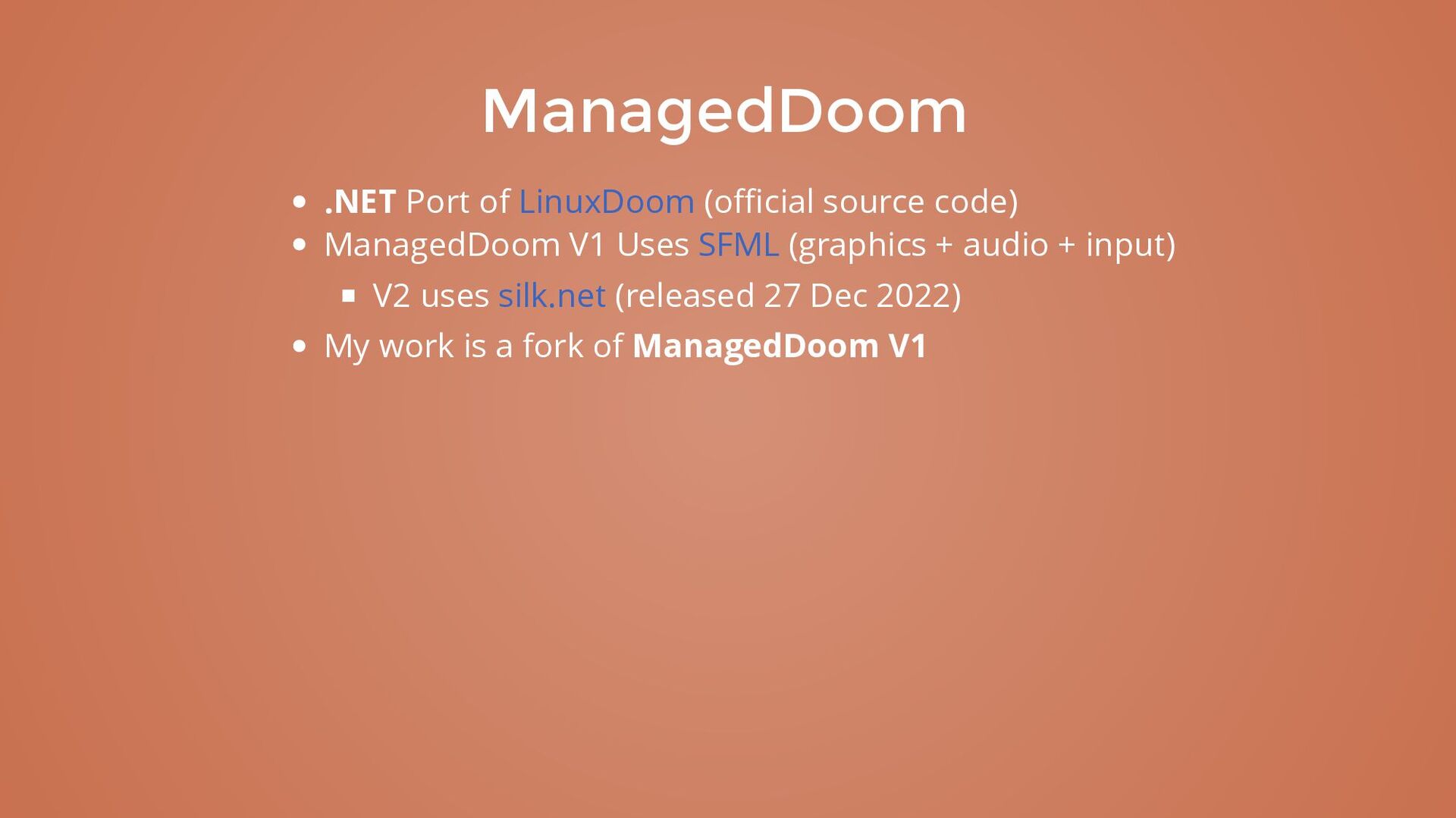

28. ManagedDoom .NET Port of (official source code) ManagedDoom V1 Uses (graphics + audio + input) V2 uses (released 27 Dec 2022) My work is a fork of ManagedDoom V1 LinuxDoom SFML silk.net
29. ManagedDoom .NET Port of (official source code) ManagedDoom V1 Uses (graphics + audio + input) V2 uses (released 27 Dec 2022) My work is a fork of ManagedDoom V1 LinuxDoom SFML silk.net id-Software/DOOM
30. ManagedDoom .NET Port of (official source code) ManagedDoom V1 Uses (graphics + audio + input) V2 uses (released 27 Dec 2022) My work is a fork of ManagedDoom V1 LinuxDoom SFML silk.net id-Software/DOOM sinshu/managed-doom
31. ManagedDoom .NET Port of (official source code) ManagedDoom V1 Uses (graphics + audio + input) V2 uses (released 27 Dec 2022) My work is a fork of ManagedDoom V1 LinuxDoom SFML silk.net id-Software/DOOM sinshu/managed-doom yostane/MangedDoom-Blazor

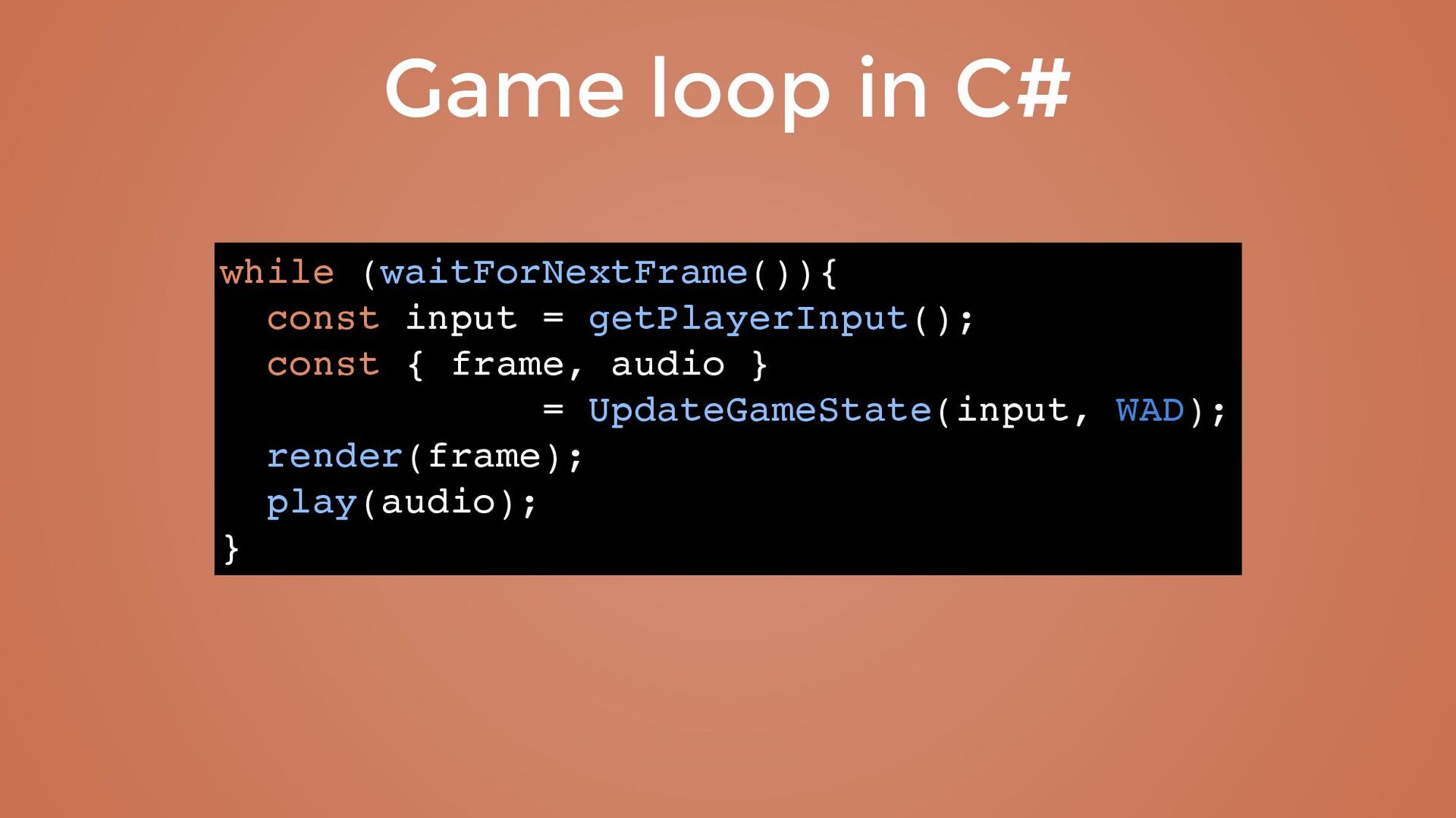

33. Game loop in C# while (waitForNextFrame()){ const input = getPlayerInput(); const { frame, audio } = UpdateGameState(input, WAD); render(frame); play(audio); }

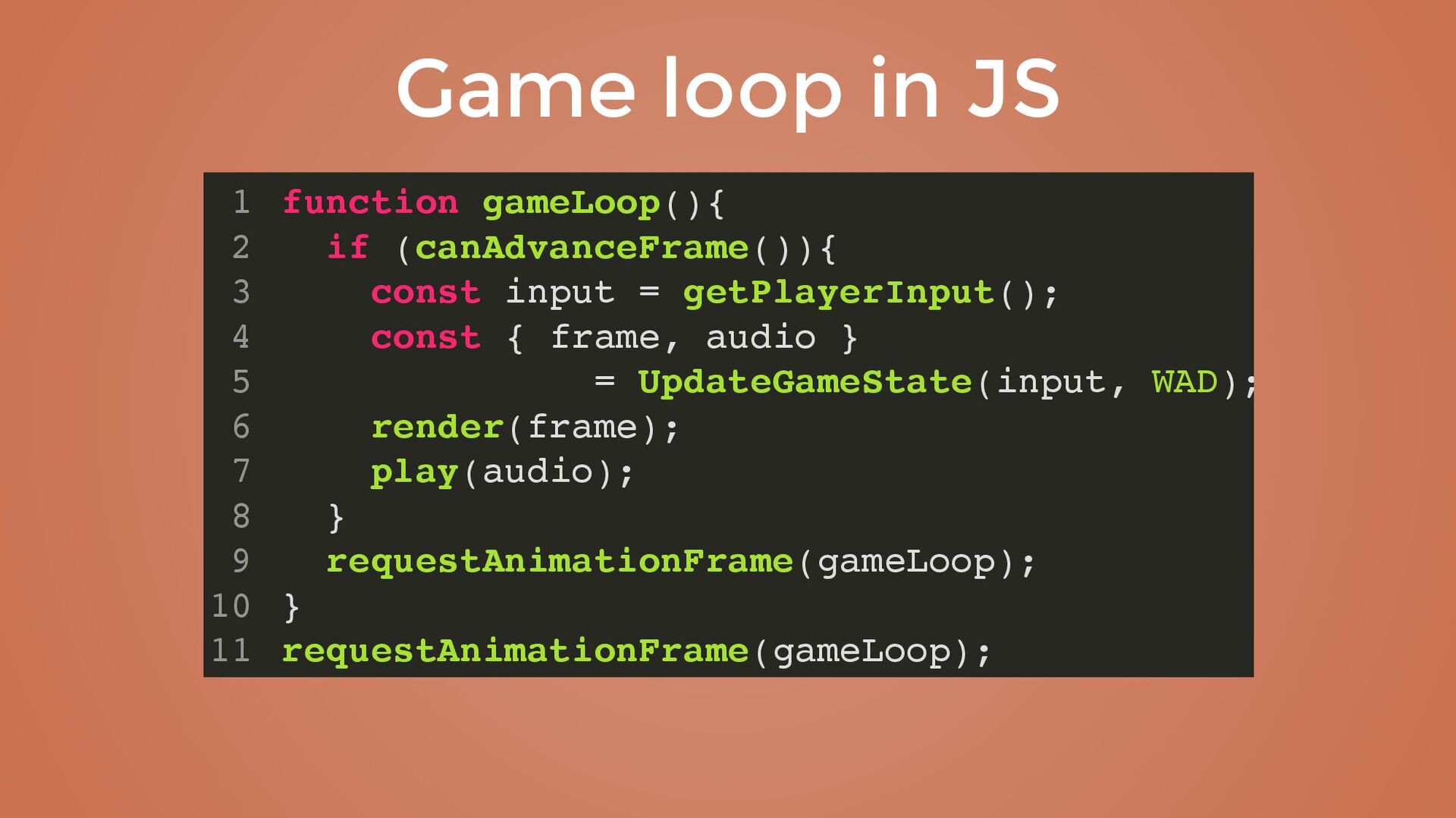

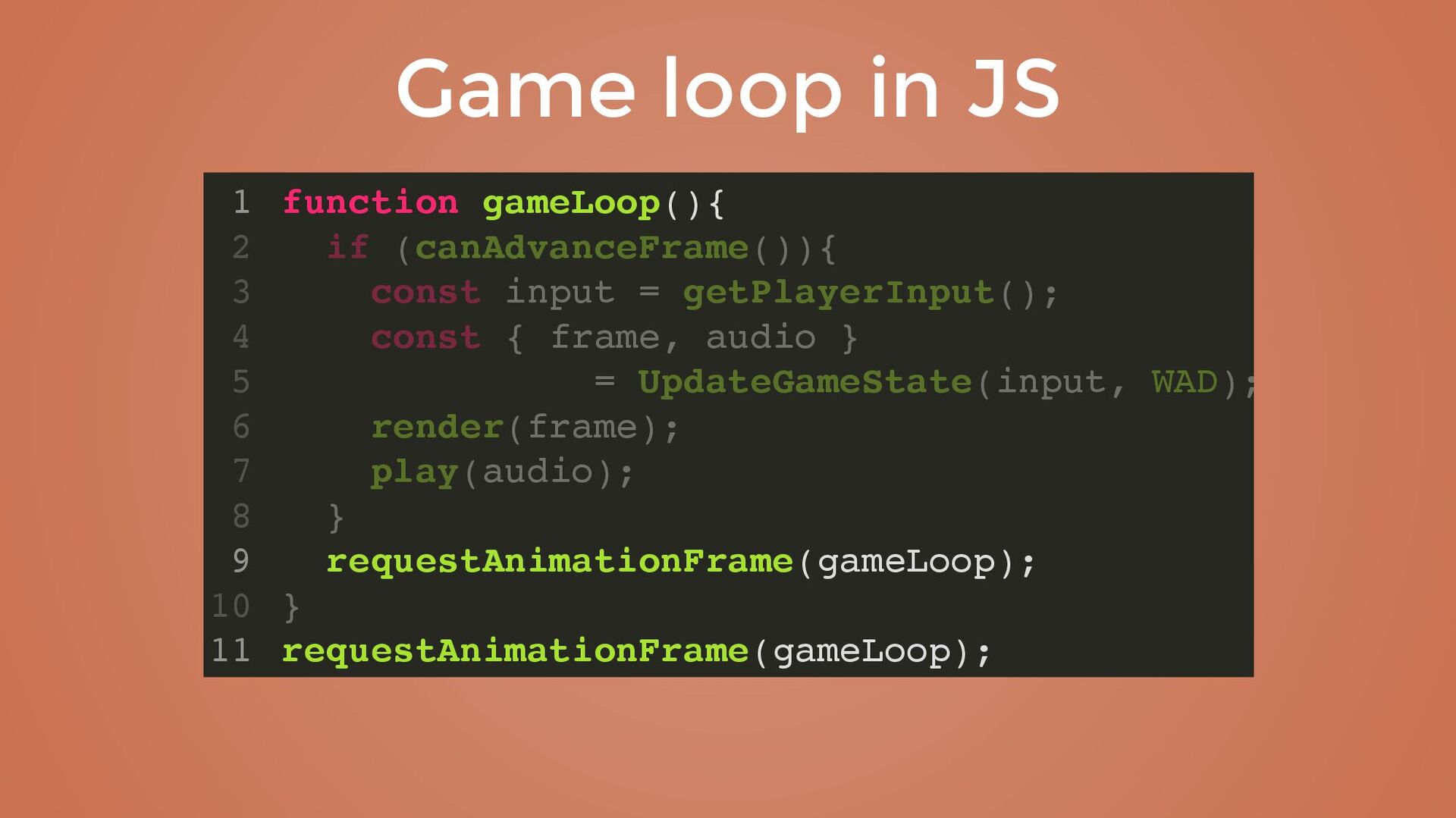

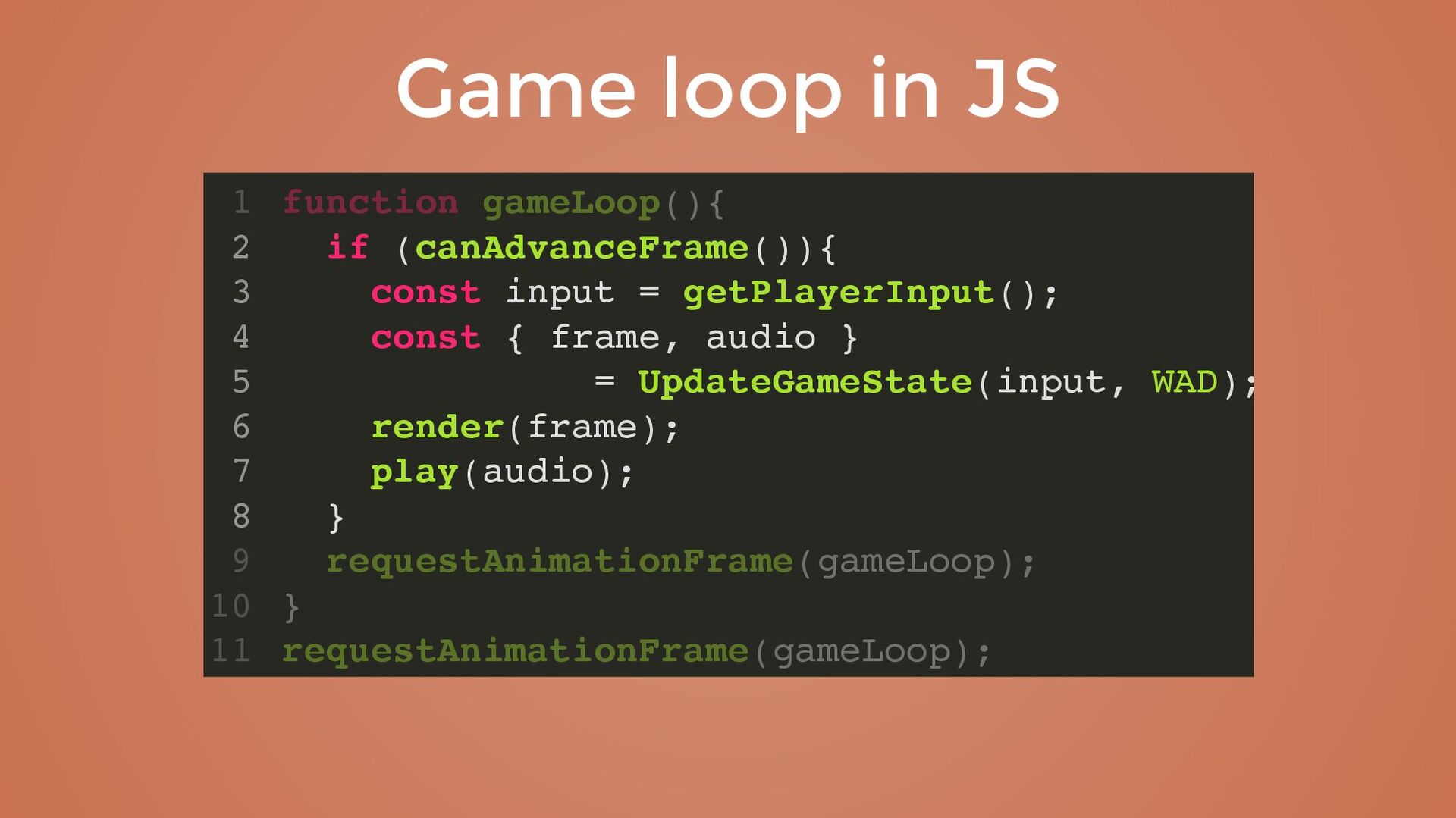

34. Game loop in JS if (canAdvanceFrame()){ const input = getPlayerInput(); const { frame, audio } = UpdateGameState(input, WAD); render(frame); play(audio); } function gameLoop(){ 1 2 3 4 5 6 7 8 requestAnimationFrame(gameLoop); 9 } 10 requestAnimationFrame(gameLoop); 11
35. Game loop in JS if (canAdvanceFrame()){ const input = getPlayerInput(); const { frame, audio } = UpdateGameState(input, WAD); render(frame); play(audio); } function gameLoop(){ 1 2 3 4 5 6 7 8 requestAnimationFrame(gameLoop); 9 } 10 requestAnimationFrame(gameLoop); 11 function gameLoop(){ requestAnimationFrame(gameLoop); requestAnimationFrame(gameLoop); 1 if (canAdvanceFrame()){ 2 const input = getPlayerInput(); 3 const { frame, audio } 4 = UpdateGameState(input, WAD); 5 render(frame); 6 play(audio); 7 } 8 9 } 10 11
36. Game loop in JS if (canAdvanceFrame()){ const input = getPlayerInput(); const { frame, audio } = UpdateGameState(input, WAD); render(frame); play(audio); } function gameLoop(){ 1 2 3 4 5 6 7 8 requestAnimationFrame(gameLoop); 9 } 10 requestAnimationFrame(gameLoop); 11 function gameLoop(){ requestAnimationFrame(gameLoop); requestAnimationFrame(gameLoop); 1 if (canAdvanceFrame()){ 2 const input = getPlayerInput(); 3 const { frame, audio } 4 = UpdateGameState(input, WAD); 5 render(frame); 6 play(audio); 7 } 8 9 } 10 11 function gameLoop(){ if (canAdvanceFrame()){ const input = getPlayerInput(); const { frame, audio } = UpdateGameState(input, WAD); render(frame); play(audio); } requestAnimationFrame(gameLoop); } requestAnimationFrame(gameLoop); 1 2 3 4 5 6 7 8 9 10 11

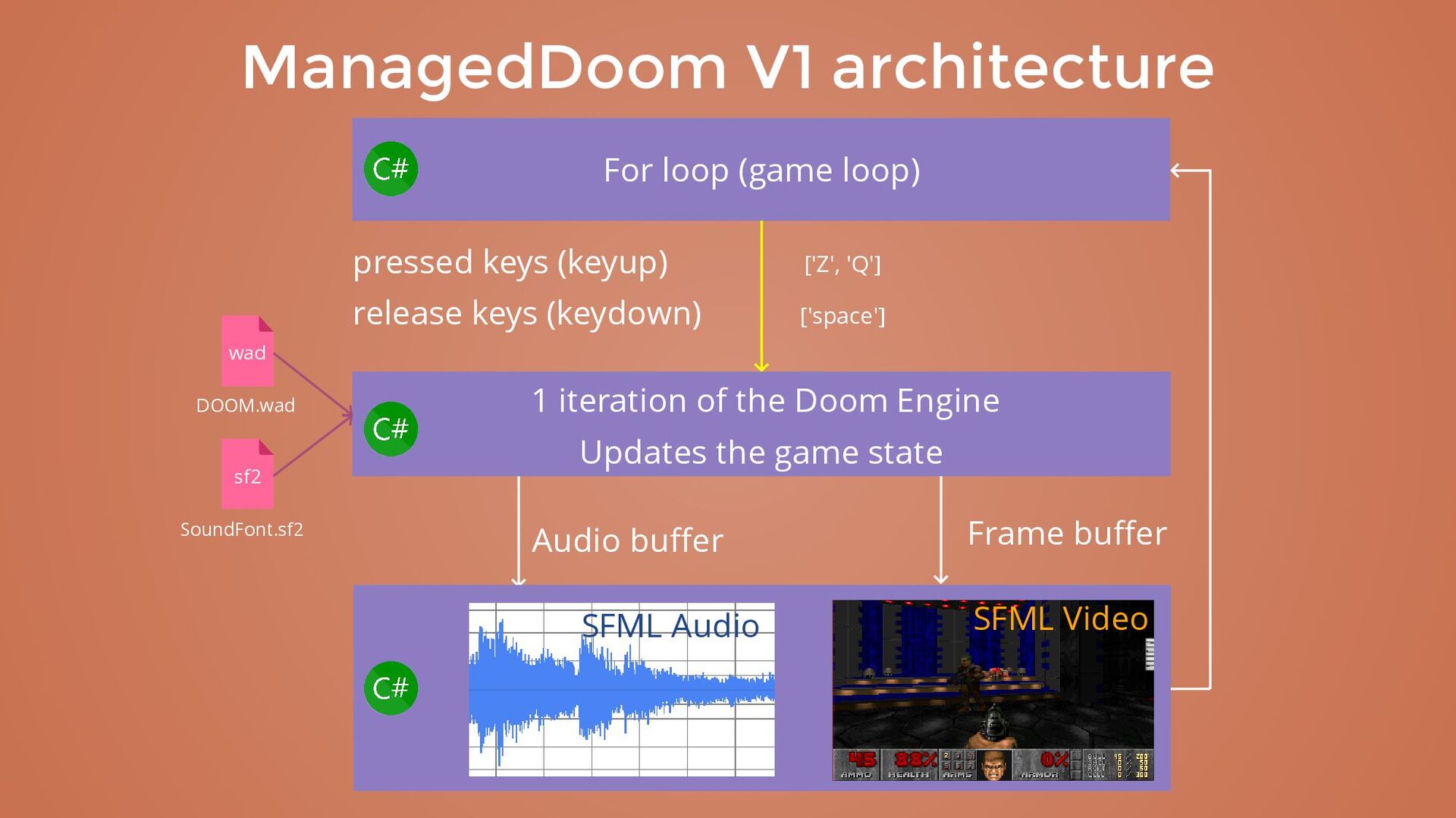

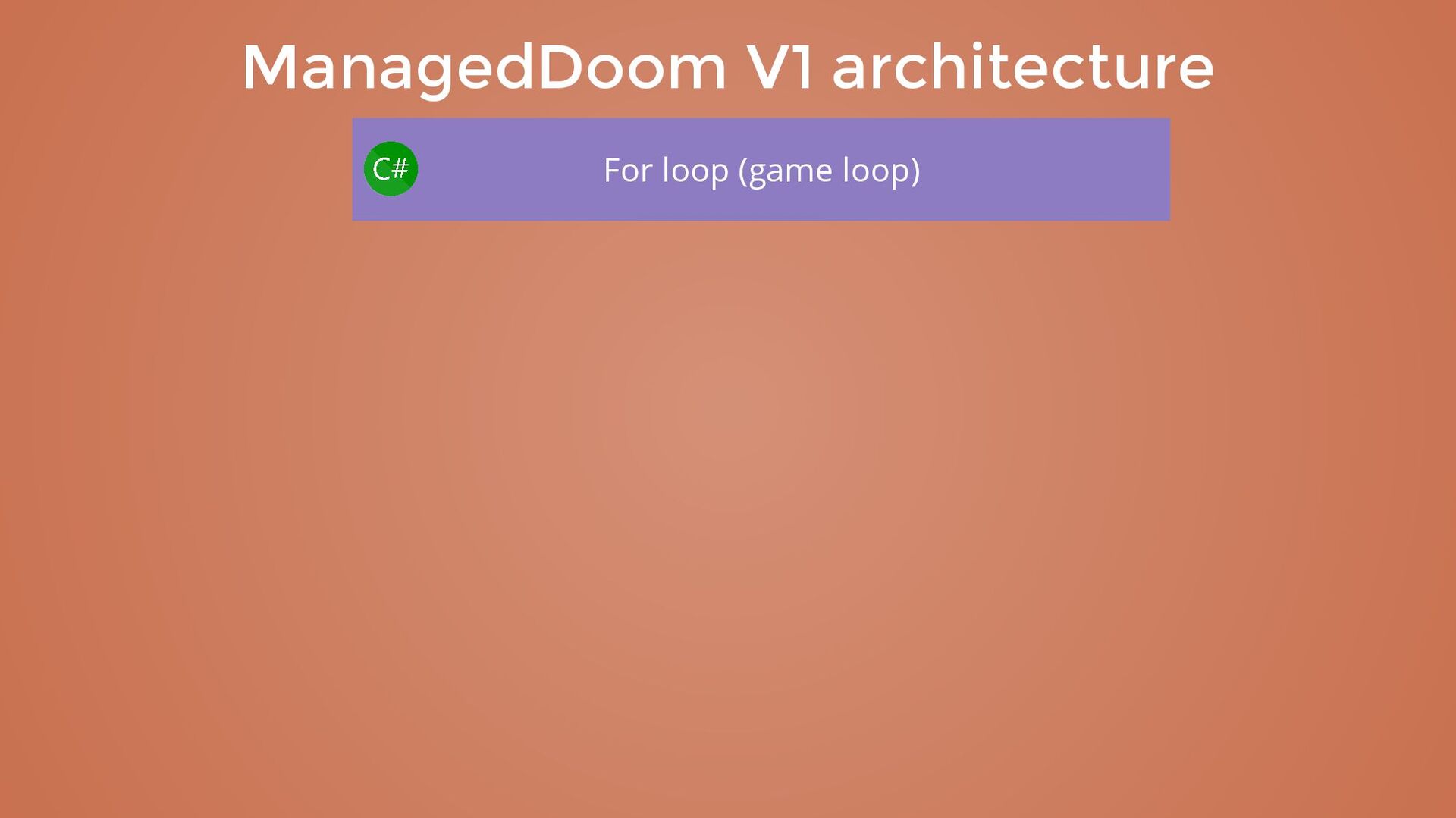

37. ManagedDoom V1 architecture

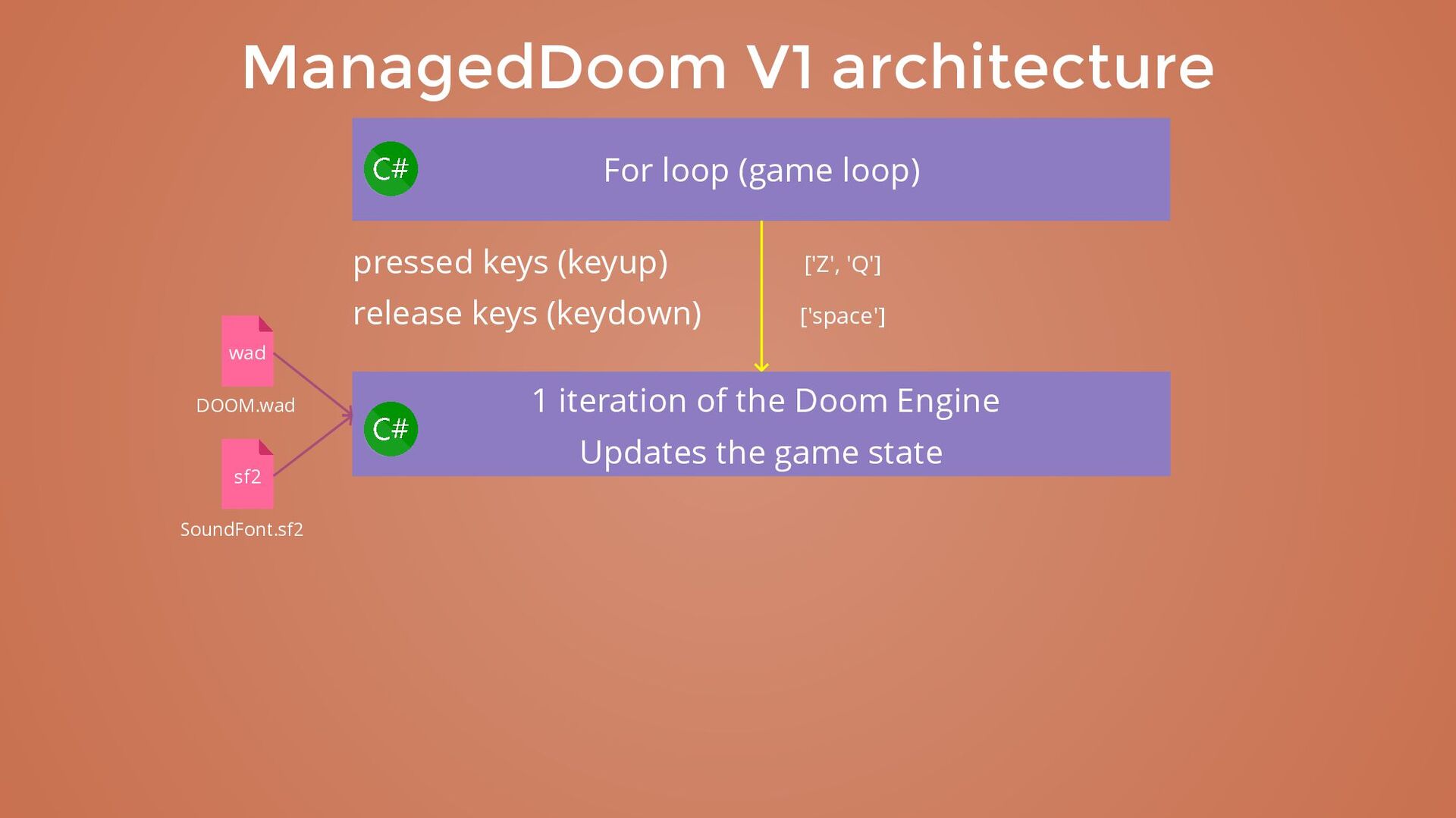

38. For loop (game loop) ManagedDoom V1 architecture

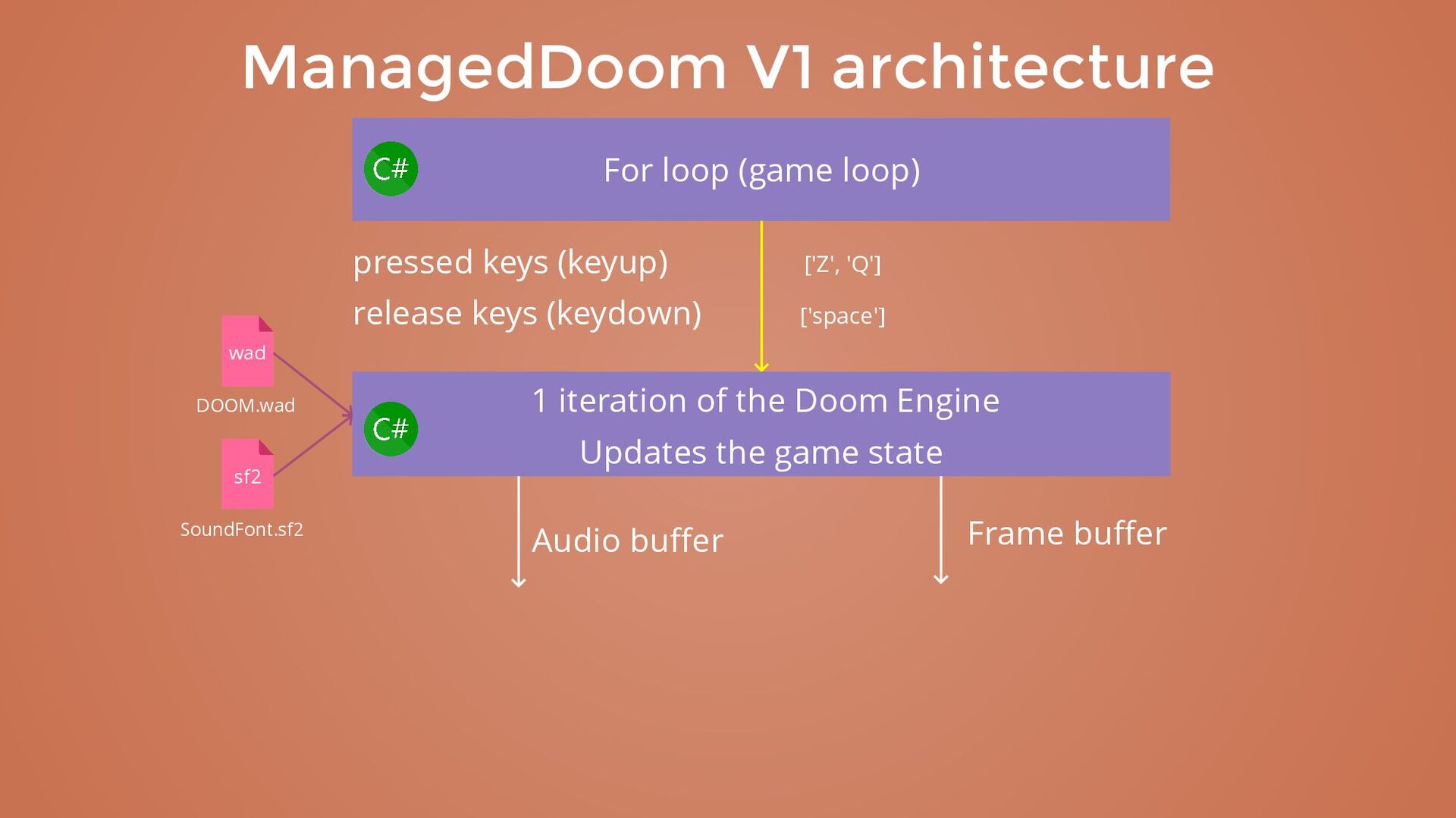

39. For loop (game loop) pressed keys (keyup) release keys (keydown) ['Z', 'Q'] ['space'] ManagedDoom V1 architecture 1 iteration of the Doom Engine Updates the game state wad DOOM.wad sf2 SoundFont.sf2
40. For loop (game loop) pressed keys (keyup) release keys (keydown) ['Z', 'Q'] ['space'] ManagedDoom V1 architecture Frame buffer Audio buffer 1 iteration of the Doom Engine Updates the game state wad DOOM.wad sf2 SoundFont.sf2
41. For loop (game loop) pressed keys (keyup) release keys (keydown) ['Z', 'Q'] ['space'] ManagedDoom V1 architecture Frame buffer Audio buffer SFML Video SFML Audio 1 iteration of the Doom Engine Updates the game state wad DOOM.wad sf2 SoundFont.sf2
42. For loop (game loop) pressed keys (keyup) release keys (keydown) ['Z', 'Q'] ['space'] ManagedDoom V1 architecture Frame buffer Audio buffer SFML Video SFML Audio 1 iteration of the Doom Engine Updates the game state wad DOOM.wad sf2 SoundFont.sf2

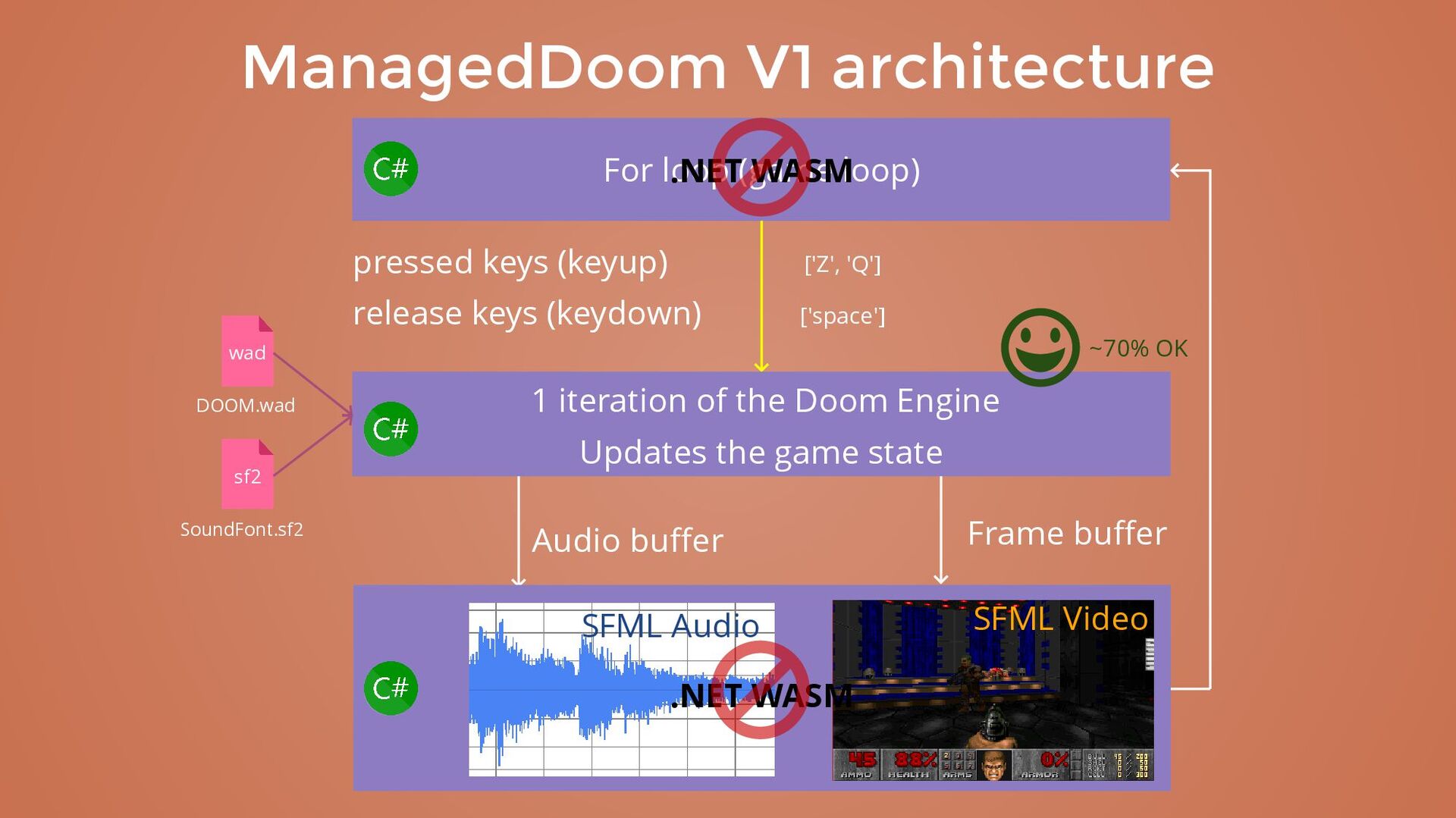

43. For loop (game loop) pressed keys (keyup) release keys (keydown) ['Z', 'Q'] ['space'] ManagedDoom V1 architecture Frame buffer Audio buffer SFML Video SFML Audio 1 iteration of the Doom Engine Updates the game state .NET WASM ~70% OK .NET WASM wad DOOM.wad sf2 SoundFont.sf2

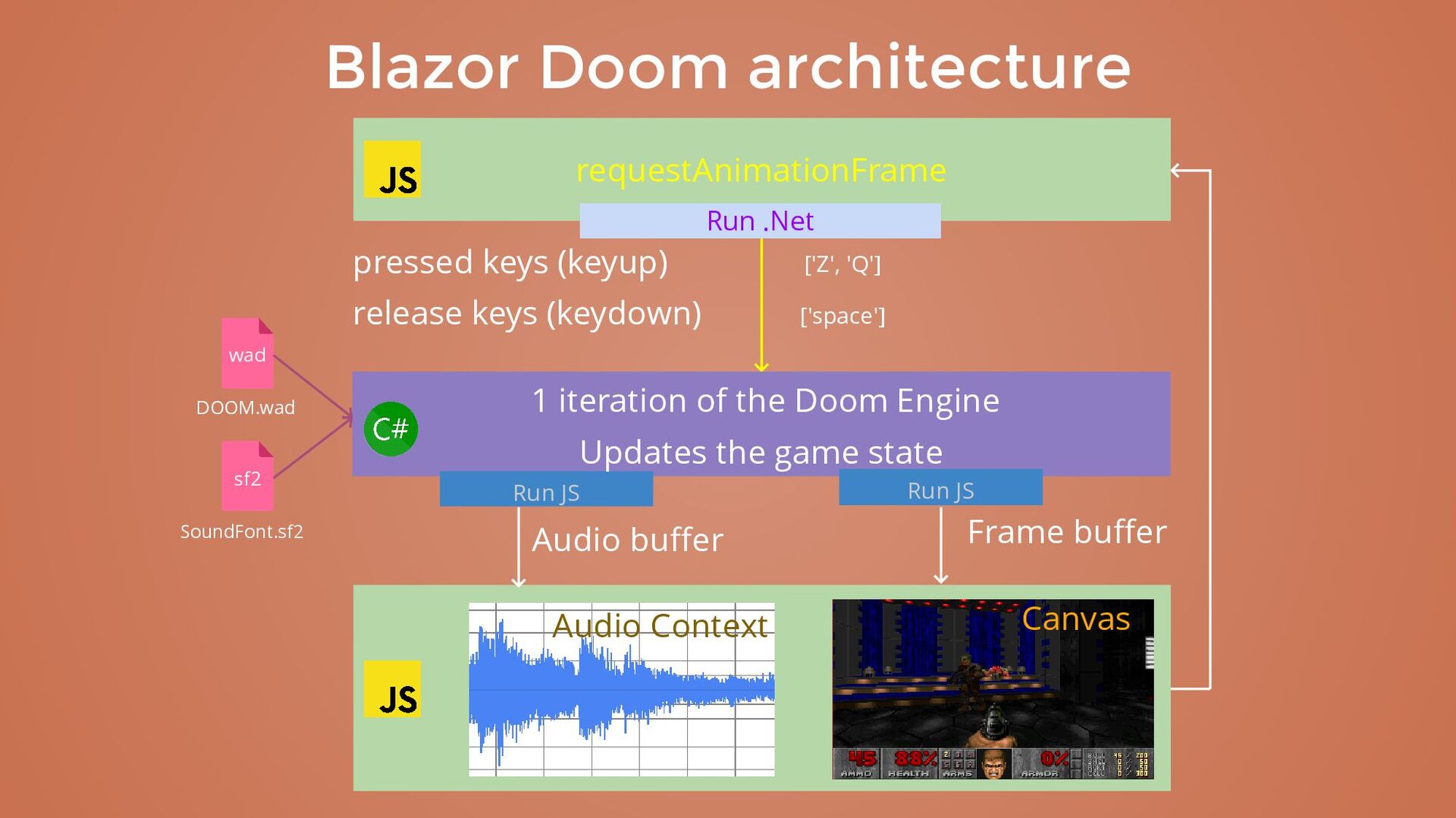

44. pressed keys (keyup) release keys (keydown) ['Z', 'Q'] ['space'] Blazor Doom architecture wad DOOM.wad requestAnimationFrame Run .Net Canvas Run JS Run JS Frame buffer Audio buffer Audio Context 1 iteration of the Doom Engine Updates the game state sf2 SoundFont.sf2
45. Porting strategy Clone sinshu/managed-doom and compile to .NET WASM Reverse engineer SFML: creator.nightcafe.studio
46. Porting strategy Clone sinshu/managed-doom and compile to .NET WASM Reverse engineer SFML: Put empty implementations where it fails and matk them ("TODO: implement") creator.nightcafe.studio
47. Porting strategy Clone sinshu/managed-doom and compile to .NET WASM Reverse engineer SFML: Put empty implementations where it fails and matk them ("TODO: implement") Implement little by little using guesswork and logic creator.nightcafe.studio
48. Porting strategy Clone sinshu/managed-doom and compile to .NET WASM Reverse engineer SFML: Put empty implementations where it fails and matk them ("TODO: implement") Implement little by little using guesswork and logic Delegate to JS when necessary creator.nightcafe.studio

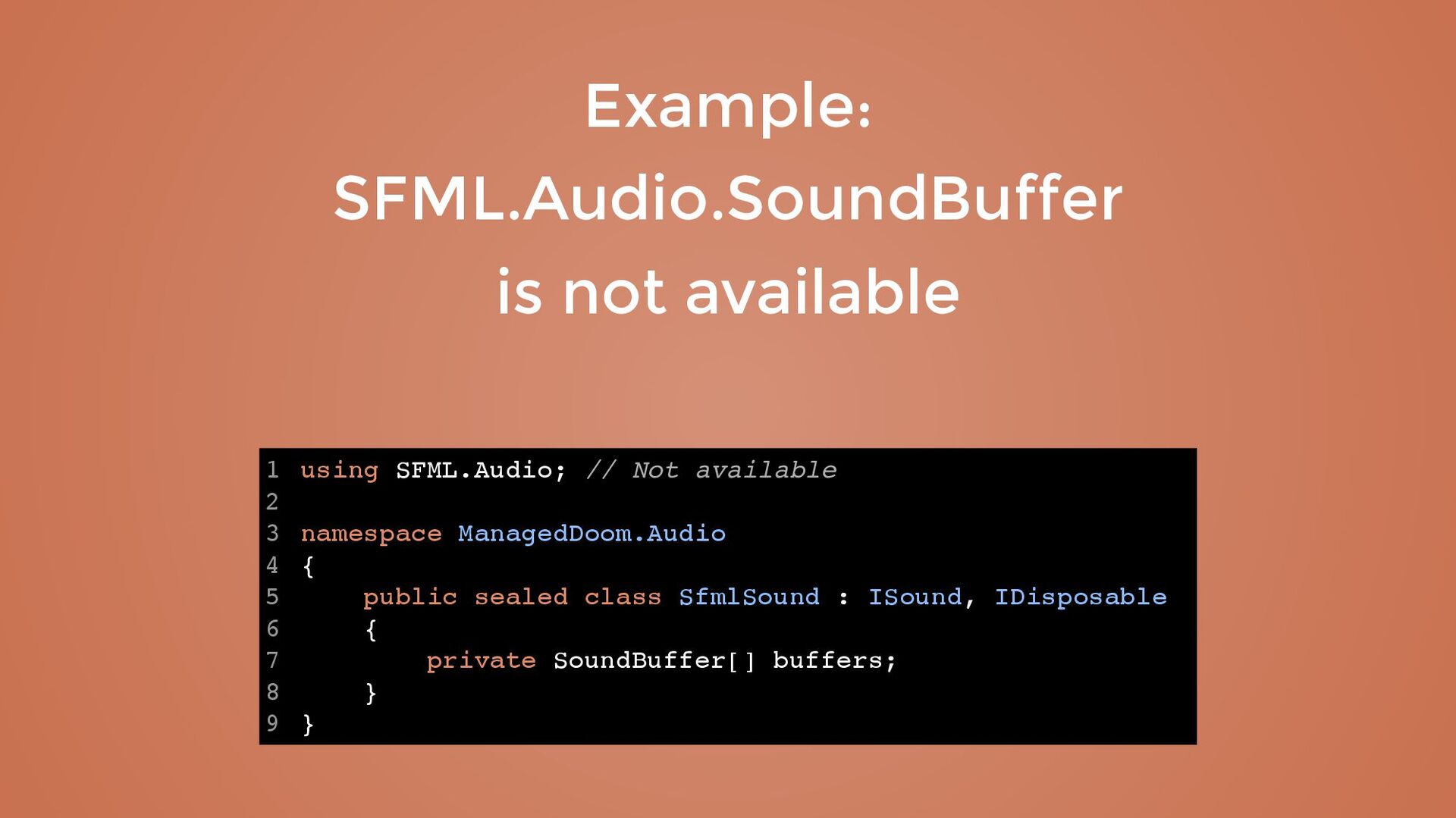

49. using SFML.Audio; // Not available namespace ManagedDoom.Audio { public sealed class SfmlSound : ISound, IDisposable { private SoundBuffer[] buffers; } } 1 2 3 4 5 6 7 8 9 Example: SFML.Audio.SoundBuffer is not available

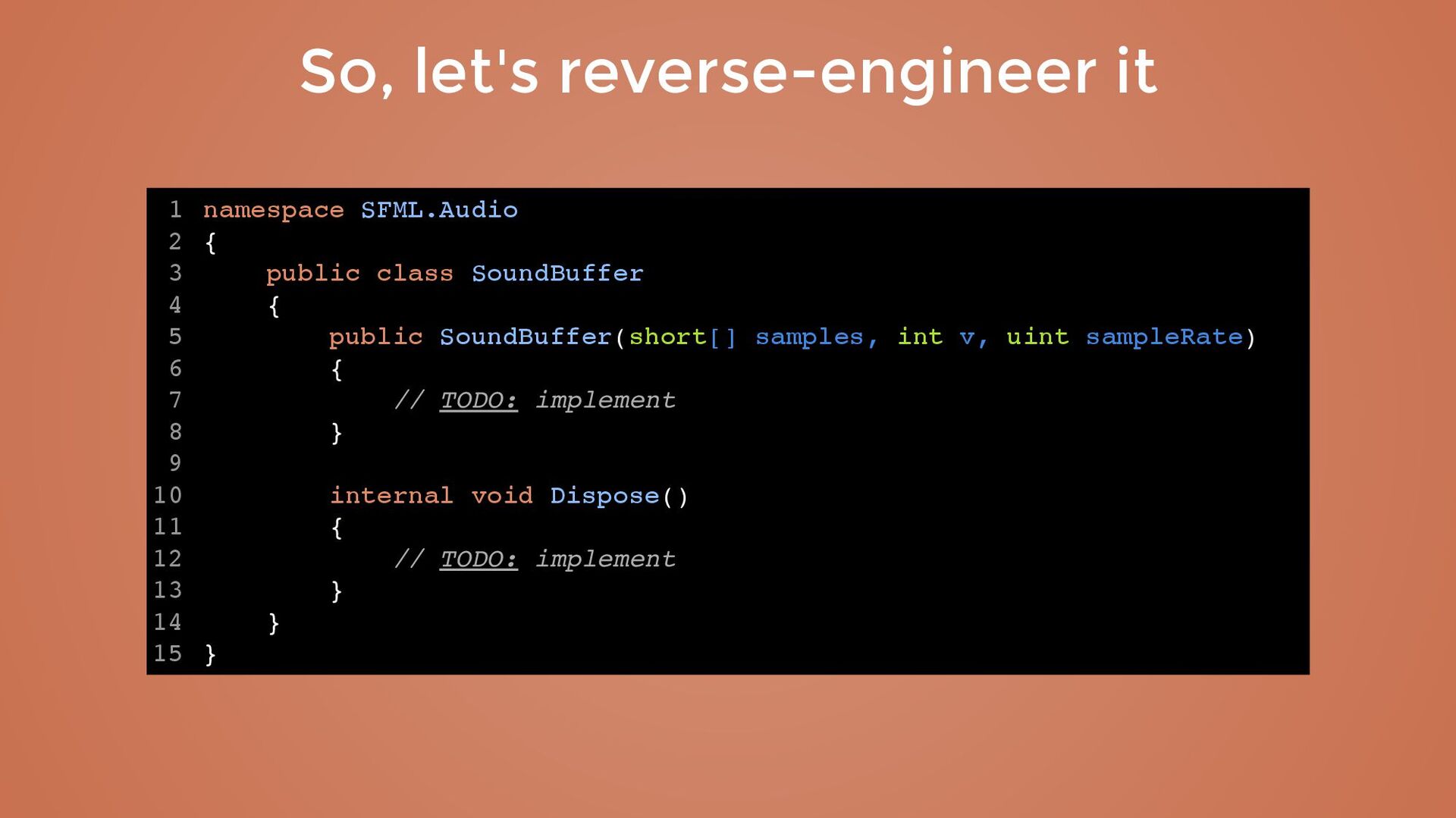

50. namespace SFML.Audio { public class SoundBuffer { public SoundBuffer(short[] samples, int v, uint sampleRate) { // TODO: implement } internal void Dispose() { // TODO: implement } } } 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 So, let's reverse-engineer it

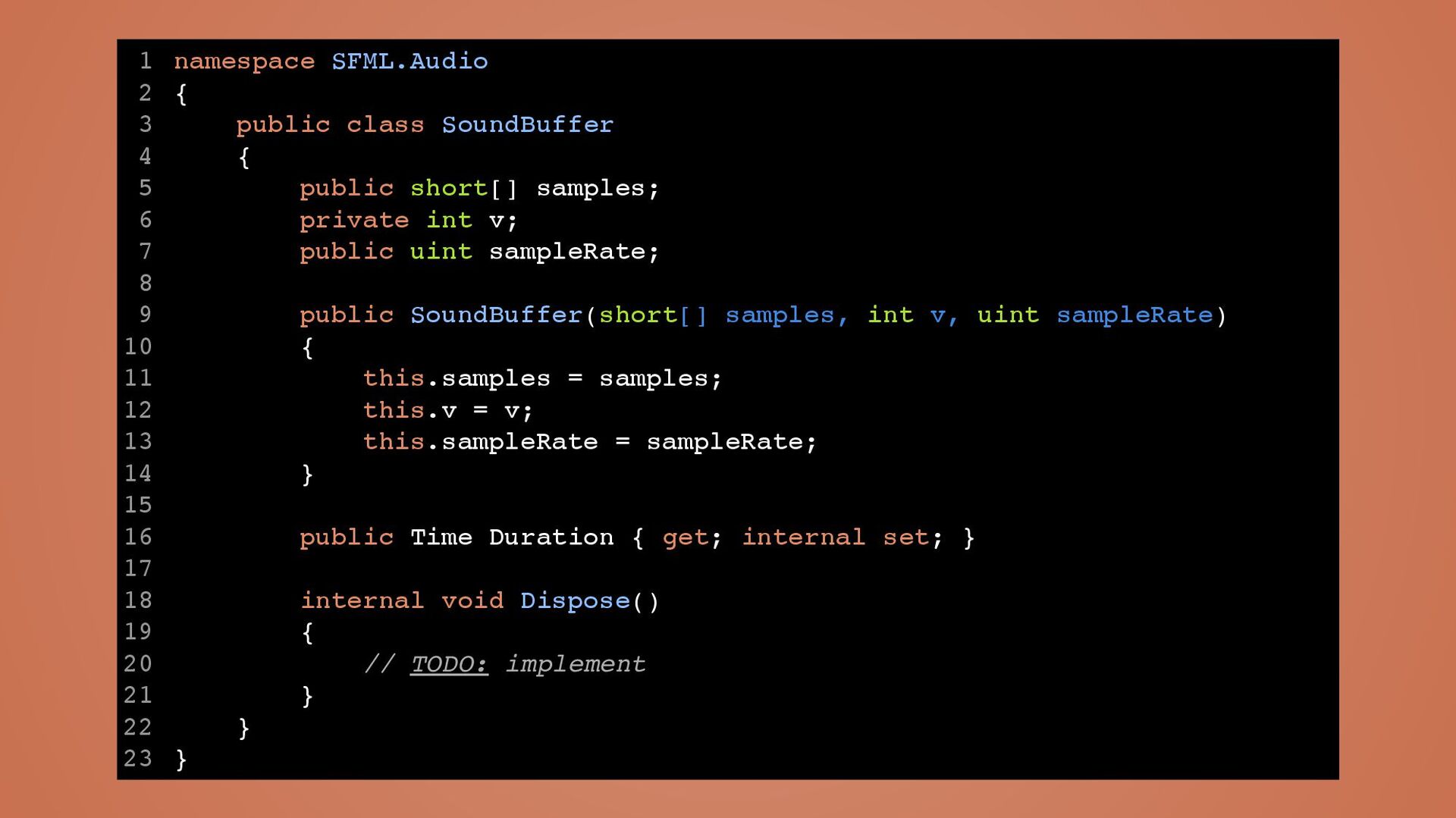

51. namespace SFML.Audio { public class SoundBuffer { public short[] samples; private int v; public uint sampleRate; public SoundBuffer(short[] samples, int v, uint sampleRate) { this.samples = samples; this.v = v; this.sampleRate = sampleRate; } public Time Duration { get; internal set; } internal void Dispose() { // TODO: implement } } } 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

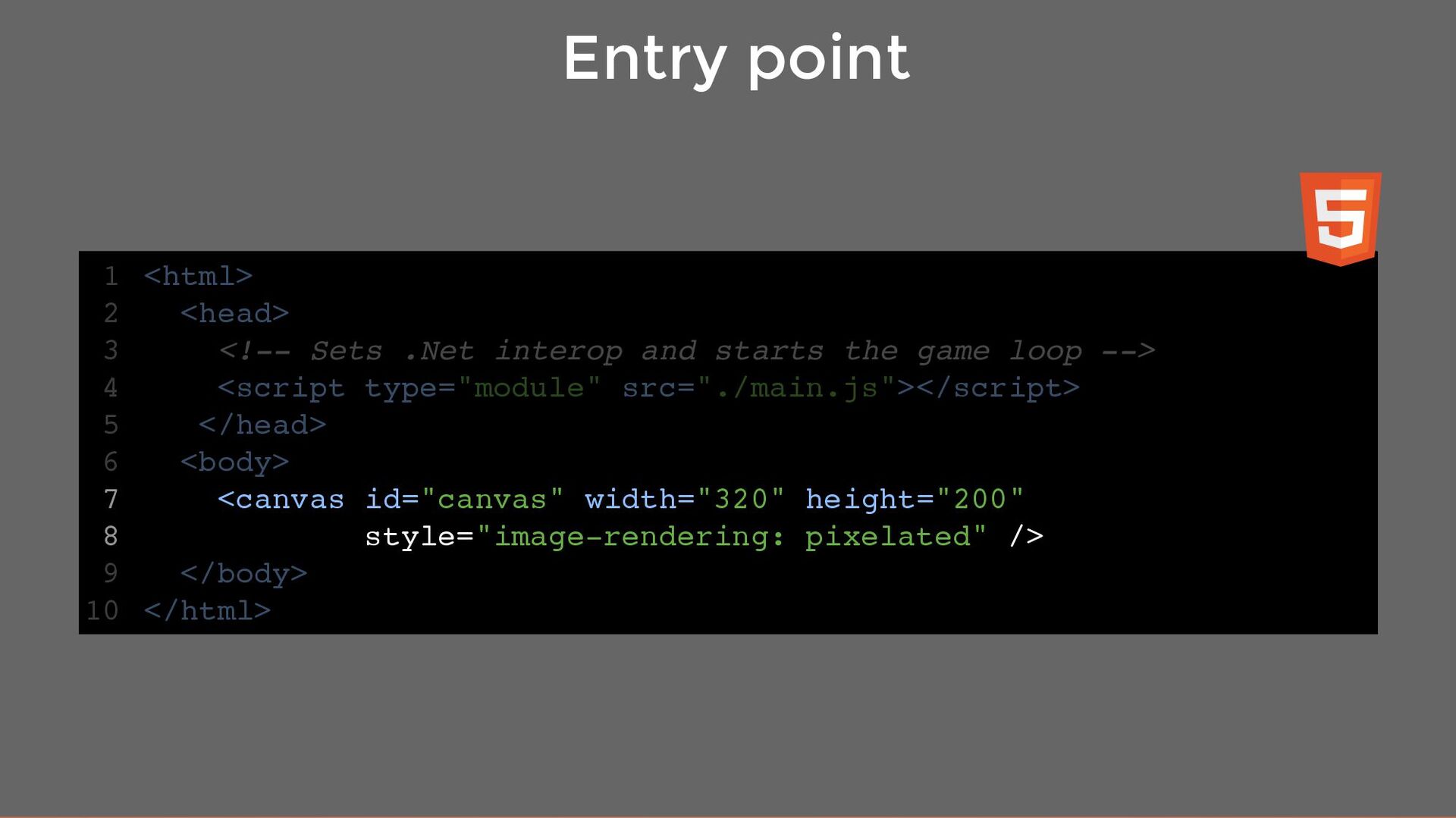

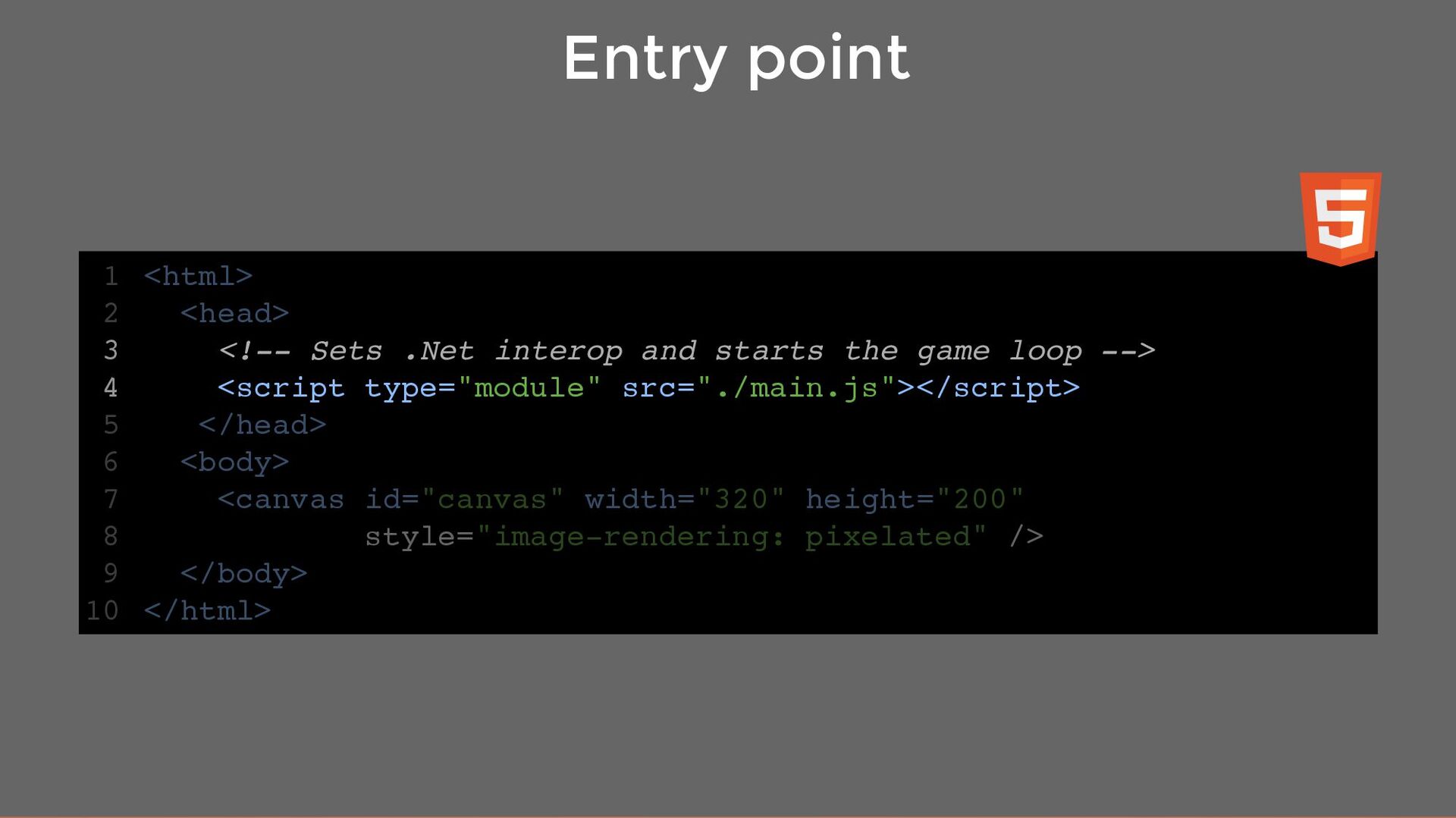

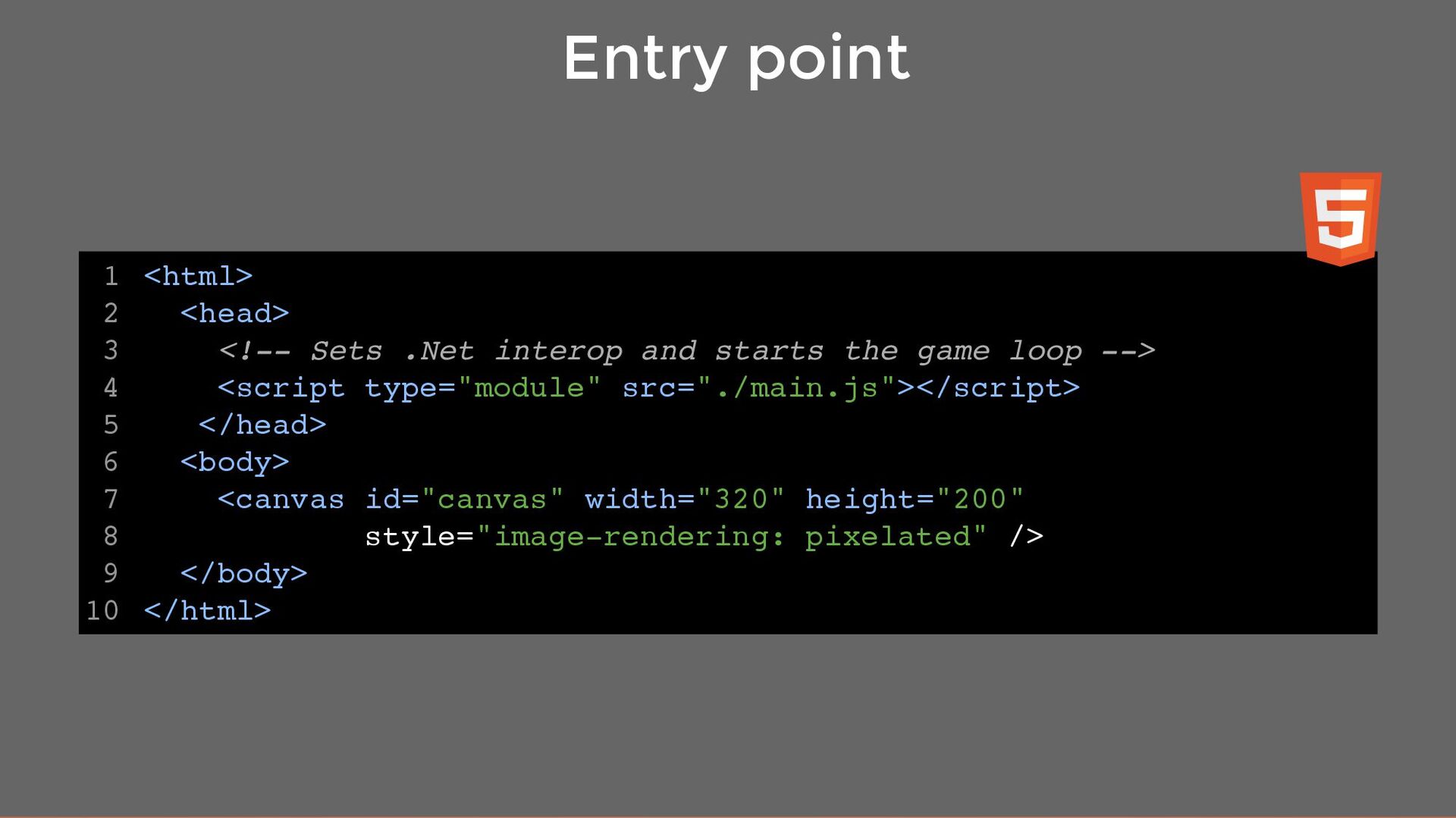

54. <html> <head> <!-- Sets .Net interop and starts the game loop --> <script type="module" src="./main.js"></script> </head> <body> <canvas id="canvas" width="320" height="200" style="image-rendering: pixelated" /> </body> </html> 1 2 3 4 5 6 7 8 9 10 Entry point
55. <html> <head> <!-- Sets .Net interop and starts the game loop --> <script type="module" src="./main.js"></script> </head> <body> <canvas id="canvas" width="320" height="200" style="image-rendering: pixelated" /> </body> </html> 1 2 3 4 5 6 7 8 9 10 <!-- Sets .Net interop and starts the game loop --> <script type="module" src="./main.js"></script> <html> 1 <head> 2 3 4 </head> 5 <body> 6 <canvas id="canvas" width="320" height="200" 7 style="image-rendering: pixelated" /> 8 </body> 9 </html> 10 Entry point
56. <html> <head> <!-- Sets .Net interop and starts the game loop --> <script type="module" src="./main.js"></script> </head> <body> <canvas id="canvas" width="320" height="200" style="image-rendering: pixelated" /> </body> </html> 1 2 3 4 5 6 7 8 9 10 <!-- Sets .Net interop and starts the game loop --> <script type="module" src="./main.js"></script> <html> 1 <head> 2 3 4 </head> 5 <body> 6 <canvas id="canvas" width="320" height="200" 7 style="image-rendering: pixelated" /> 8 </body> 9 </html> 10 <canvas id="canvas" width="320" height="200" style="image-rendering: pixelated" /> <html> 1 <head> 2 <!-- Sets .Net interop and starts the game loop --> 3 <script type="module" src="./main.js"></script> 4 </head> 5 <body> 6 7 8 </body> 9 </html> 10 Entry point

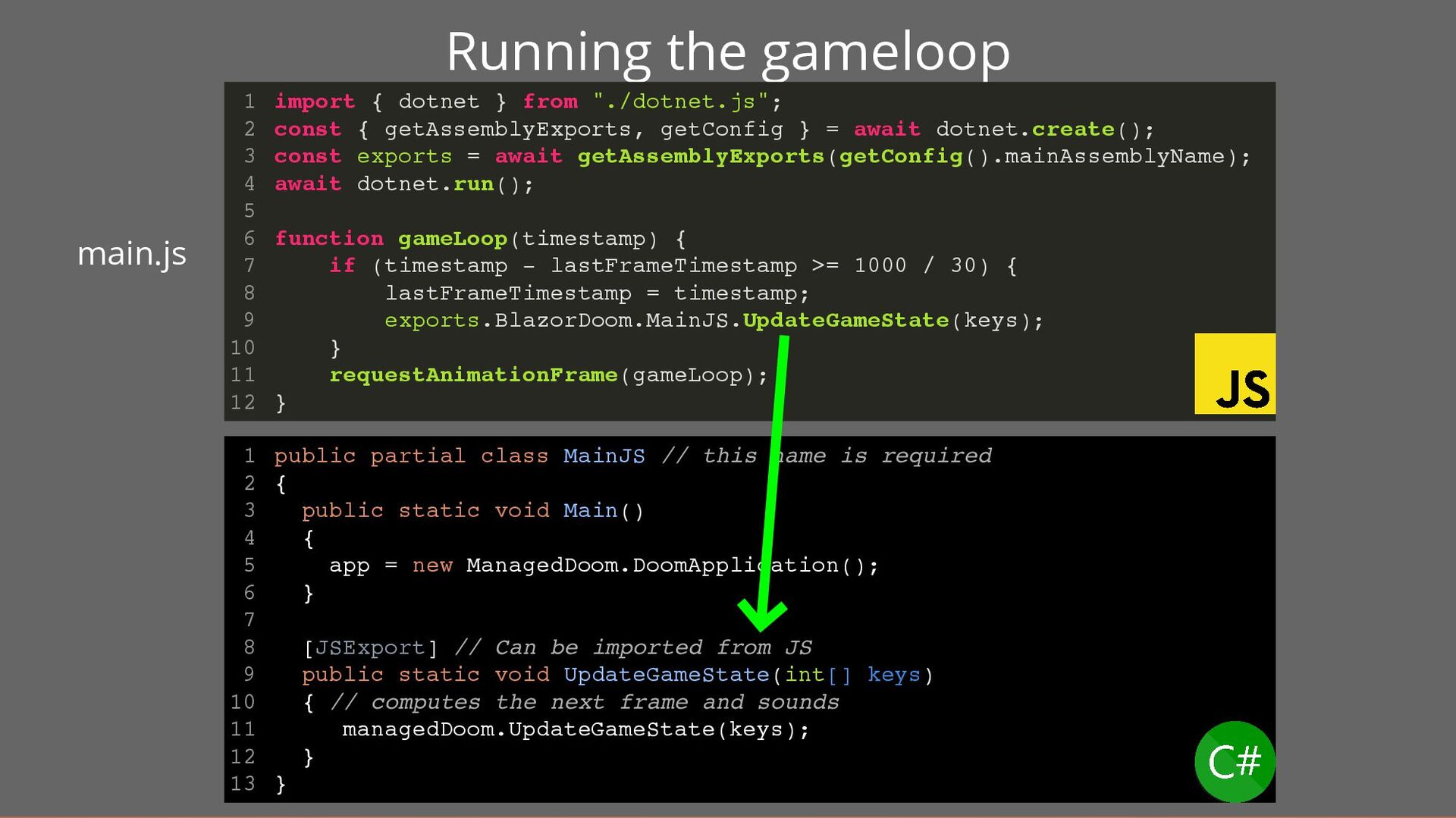

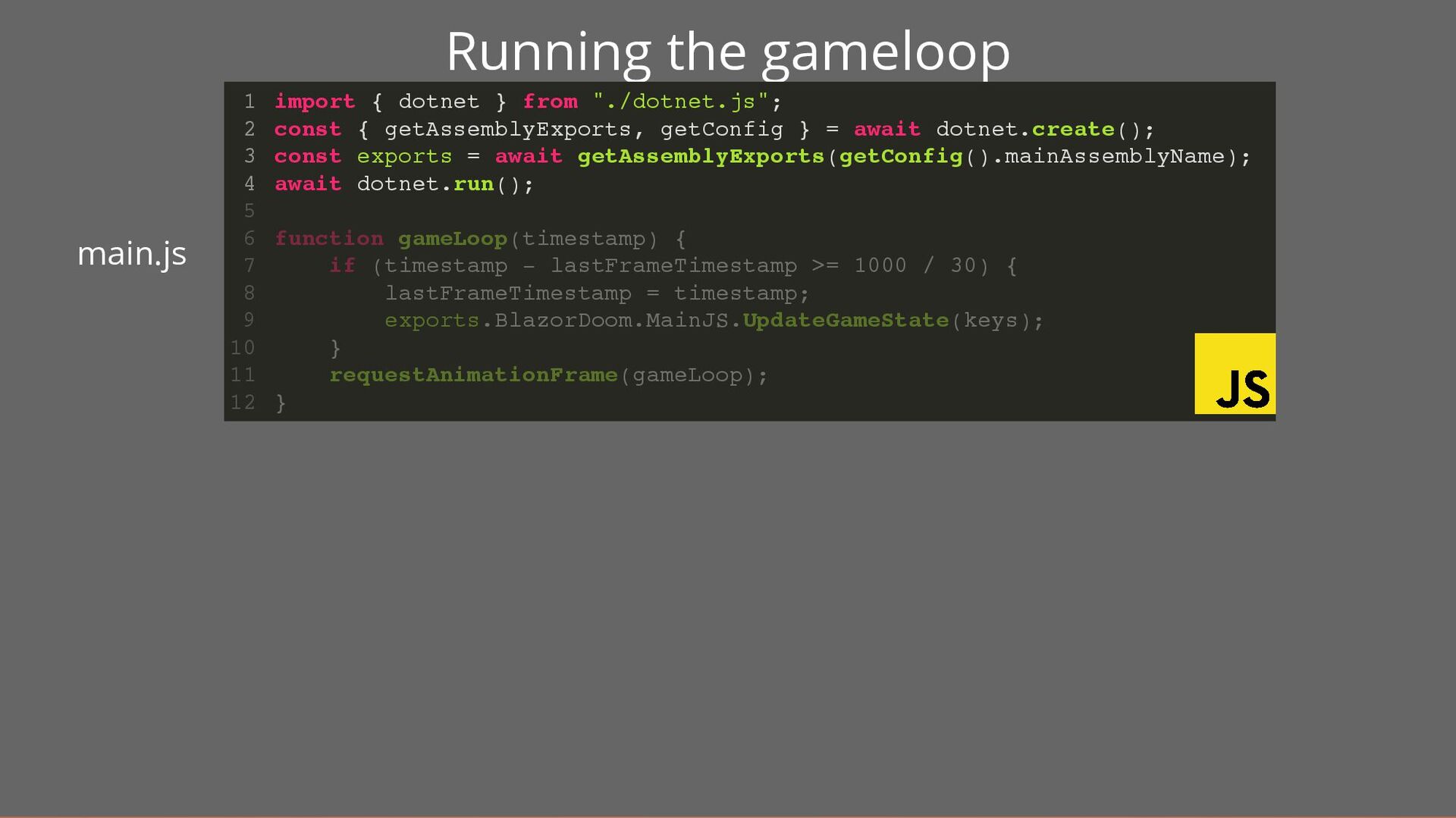

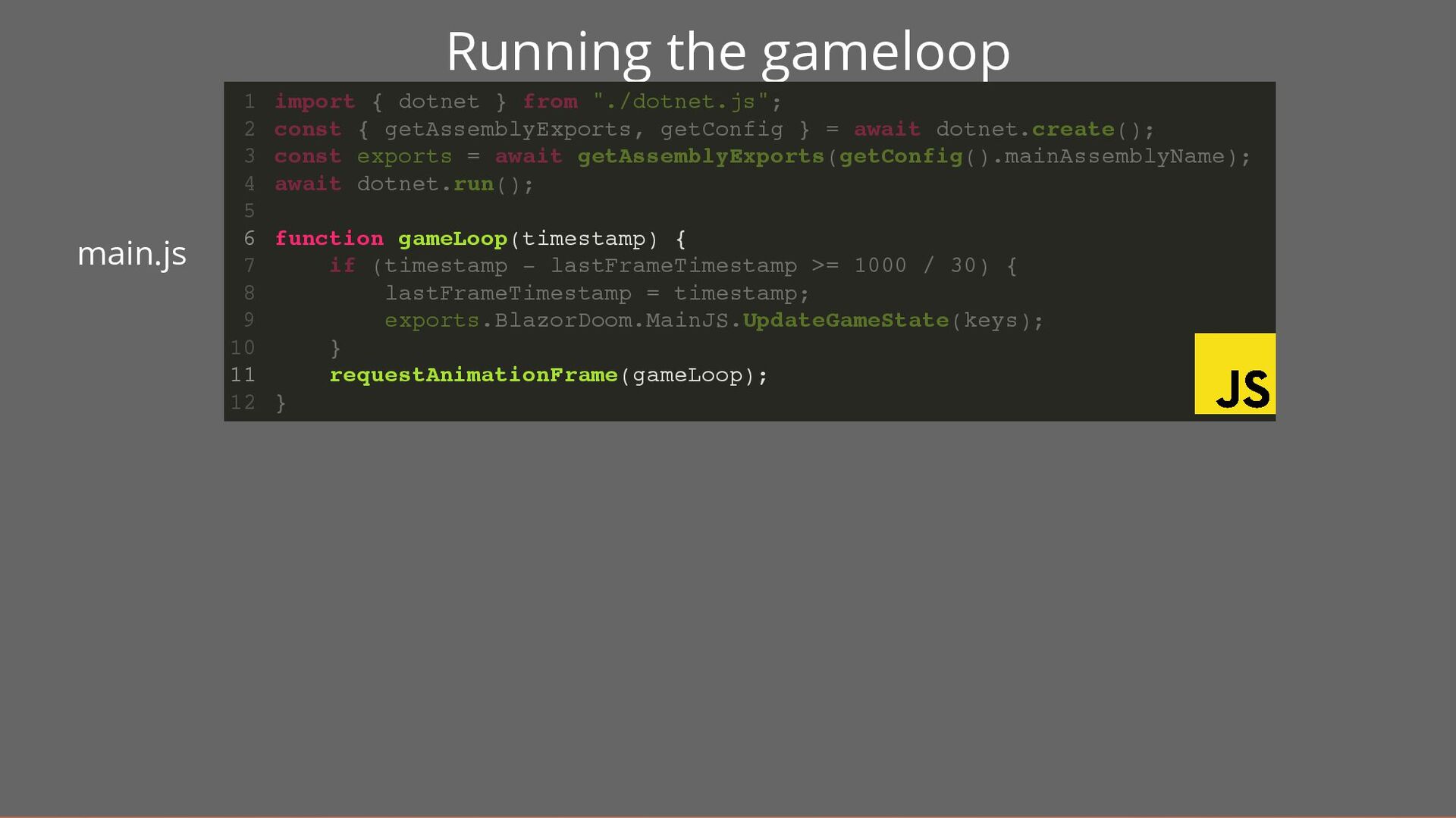

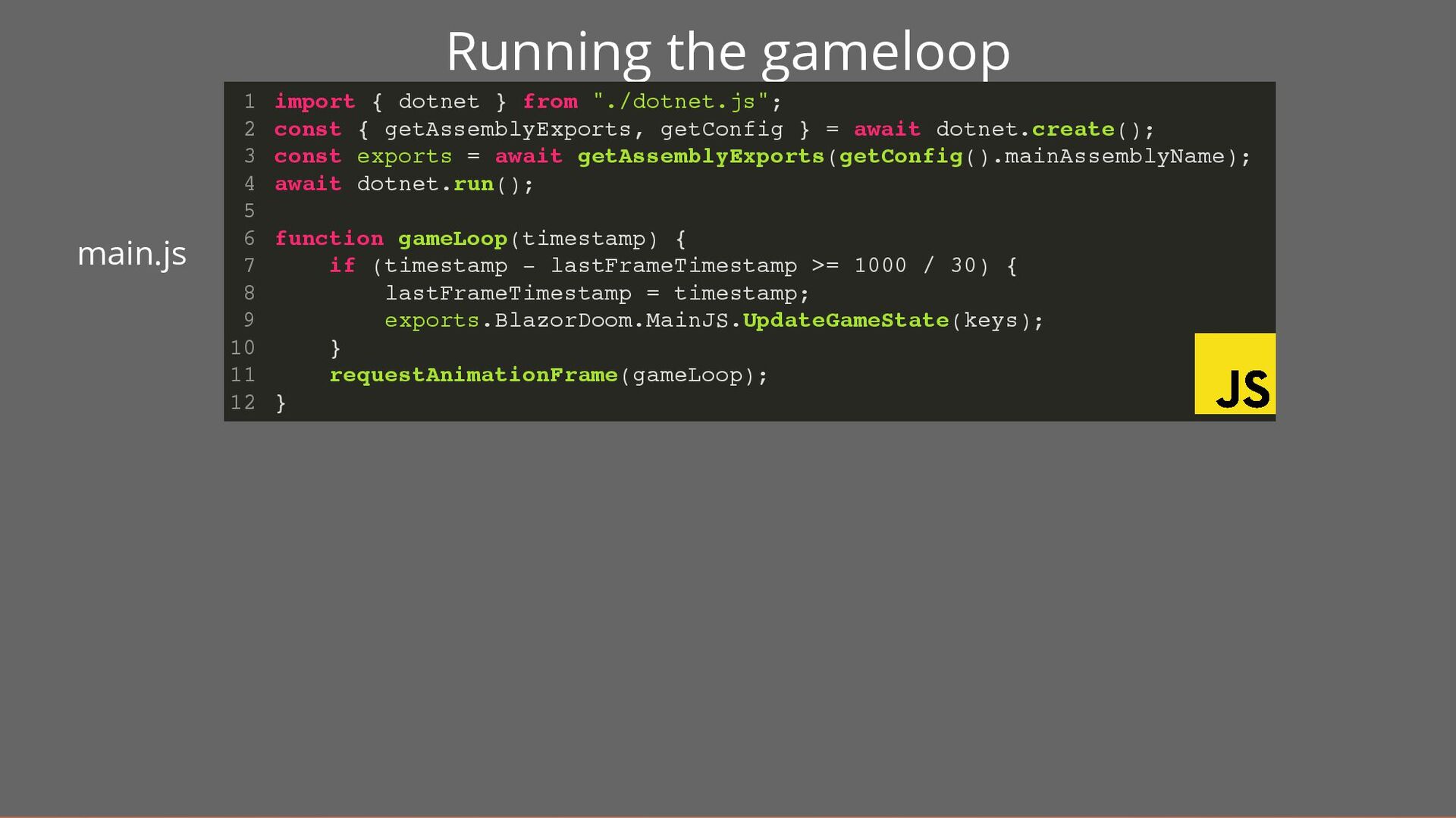

57. Running the gameloop import { dotnet } from "./dotnet.js"; const { getAssemblyExports, getConfig } = await dotnet.create(); const exports = await getAssemblyExports(getConfig().mainAssemblyName); await dotnet.run(); function gameLoop(timestamp) { if (timestamp - lastFrameTimestamp >= 1000 / 30) { lastFrameTimestamp = timestamp; exports.BlazorDoom.MainJS.UpdateGameState(keys); } requestAnimationFrame(gameLoop); } 1 2 3 4 5 6 7 8 9 10 11 12 main.js
58. Running the gameloop import { dotnet } from "./dotnet.js"; const { getAssemblyExports, getConfig } = await dotnet.create(); const exports = await getAssemblyExports(getConfig().mainAssemblyName); await dotnet.run(); function gameLoop(timestamp) { if (timestamp - lastFrameTimestamp >= 1000 / 30) { lastFrameTimestamp = timestamp; exports.BlazorDoom.MainJS.UpdateGameState(keys); } requestAnimationFrame(gameLoop); } 1 2 3 4 5 6 7 8 9 10 11 12 import { dotnet } from "./dotnet.js"; const { getAssemblyExports, getConfig } = await dotnet.create(); const exports = await getAssemblyExports(getConfig().mainAssemblyName); await dotnet.run(); 1 2 3 4 5 function gameLoop(timestamp) { 6 if (timestamp - lastFrameTimestamp >= 1000 / 30) { 7 lastFrameTimestamp = timestamp; 8 exports.BlazorDoom.MainJS.UpdateGameState(keys); 9 } 10 requestAnimationFrame(gameLoop); 11 } 12 main.js
59. Running the gameloop import { dotnet } from "./dotnet.js"; const { getAssemblyExports, getConfig } = await dotnet.create(); const exports = await getAssemblyExports(getConfig().mainAssemblyName); await dotnet.run(); function gameLoop(timestamp) { if (timestamp - lastFrameTimestamp >= 1000 / 30) { lastFrameTimestamp = timestamp; exports.BlazorDoom.MainJS.UpdateGameState(keys); } requestAnimationFrame(gameLoop); } 1 2 3 4 5 6 7 8 9 10 11 12 import { dotnet } from "./dotnet.js"; const { getAssemblyExports, getConfig } = await dotnet.create(); const exports = await getAssemblyExports(getConfig().mainAssemblyName); await dotnet.run(); 1 2 3 4 5 function gameLoop(timestamp) { 6 if (timestamp - lastFrameTimestamp >= 1000 / 30) { 7 lastFrameTimestamp = timestamp; 8 exports.BlazorDoom.MainJS.UpdateGameState(keys); 9 } 10 requestAnimationFrame(gameLoop); 11 } 12 function gameLoop(timestamp) { requestAnimationFrame(gameLoop); import { dotnet } from "./dotnet.js"; 1 const { getAssemblyExports, getConfig } = await dotnet.create(); 2 const exports = await getAssemblyExports(getConfig().mainAssemblyName); 3 await dotnet.run(); 4 5 6 if (timestamp - lastFrameTimestamp >= 1000 / 30) { 7 lastFrameTimestamp = timestamp; 8 exports.BlazorDoom.MainJS.UpdateGameState(keys); 9 } 10 11 } 12 main.js
60. Running the gameloop import { dotnet } from "./dotnet.js"; const { getAssemblyExports, getConfig } = await dotnet.create(); const exports = await getAssemblyExports(getConfig().mainAssemblyName); await dotnet.run(); function gameLoop(timestamp) { if (timestamp - lastFrameTimestamp >= 1000 / 30) { lastFrameTimestamp = timestamp; exports.BlazorDoom.MainJS.UpdateGameState(keys); } requestAnimationFrame(gameLoop); } 1 2 3 4 5 6 7 8 9 10 11 12 import { dotnet } from "./dotnet.js"; const { getAssemblyExports, getConfig } = await dotnet.create(); const exports = await getAssemblyExports(getConfig().mainAssemblyName); await dotnet.run(); 1 2 3 4 5 function gameLoop(timestamp) { 6 if (timestamp - lastFrameTimestamp >= 1000 / 30) { 7 lastFrameTimestamp = timestamp; 8 exports.BlazorDoom.MainJS.UpdateGameState(keys); 9 } 10 requestAnimationFrame(gameLoop); 11 } 12 function gameLoop(timestamp) { requestAnimationFrame(gameLoop); import { dotnet } from "./dotnet.js"; 1 const { getAssemblyExports, getConfig } = await dotnet.create(); 2 const exports = await getAssemblyExports(getConfig().mainAssemblyName); 3 await dotnet.run(); 4 5 6 if (timestamp - lastFrameTimestamp >= 1000 / 30) { 7 lastFrameTimestamp = timestamp; 8 exports.BlazorDoom.MainJS.UpdateGameState(keys); 9 } 10 11 } 12 exports.BlazorDoom.MainJS.UpdateGameState(keys); import { dotnet } from "./dotnet.js"; 1 const { getAssemblyExports, getConfig } = await dotnet.create(); 2 const exports = await getAssemblyExports(getConfig().mainAssemblyName); 3 await dotnet.run(); 4 5 function gameLoop(timestamp) { 6 if (timestamp - lastFrameTimestamp >= 1000 / 30) { 7 lastFrameTimestamp = timestamp; 8 9 } 10 requestAnimationFrame(gameLoop); 11 } 12 main.js
61. Running the gameloop import { dotnet } from "./dotnet.js"; const { getAssemblyExports, getConfig } = await dotnet.create(); const exports = await getAssemblyExports(getConfig().mainAssemblyName); await dotnet.run(); function gameLoop(timestamp) { if (timestamp - lastFrameTimestamp >= 1000 / 30) { lastFrameTimestamp = timestamp; exports.BlazorDoom.MainJS.UpdateGameState(keys); } requestAnimationFrame(gameLoop); } 1 2 3 4 5 6 7 8 9 10 11 12 import { dotnet } from "./dotnet.js"; const { getAssemblyExports, getConfig } = await dotnet.create(); const exports = await getAssemblyExports(getConfig().mainAssemblyName); await dotnet.run(); 1 2 3 4 5 function gameLoop(timestamp) { 6 if (timestamp - lastFrameTimestamp >= 1000 / 30) { 7 lastFrameTimestamp = timestamp; 8 exports.BlazorDoom.MainJS.UpdateGameState(keys); 9 } 10 requestAnimationFrame(gameLoop); 11 } 12 function gameLoop(timestamp) { requestAnimationFrame(gameLoop); import { dotnet } from "./dotnet.js"; 1 const { getAssemblyExports, getConfig } = await dotnet.create(); 2 const exports = await getAssemblyExports(getConfig().mainAssemblyName); 3 await dotnet.run(); 4 5 6 if (timestamp - lastFrameTimestamp >= 1000 / 30) { 7 lastFrameTimestamp = timestamp; 8 exports.BlazorDoom.MainJS.UpdateGameState(keys); 9 } 10 11 } 12 exports.BlazorDoom.MainJS.UpdateGameState(keys); import { dotnet } from "./dotnet.js"; 1 const { getAssemblyExports, getConfig } = await dotnet.create(); 2 const exports = await getAssemblyExports(getConfig().mainAssemblyName); 3 await dotnet.run(); 4 5 function gameLoop(timestamp) { 6 if (timestamp - lastFrameTimestamp >= 1000 / 30) { 7 lastFrameTimestamp = timestamp; 8 9 } 10 requestAnimationFrame(gameLoop); 11 } 12 import { dotnet } from "./dotnet.js"; const { getAssemblyExports, getConfig } = await dotnet.create(); const exports = await getAssemblyExports(getConfig().mainAssemblyName); await dotnet.run(); function gameLoop(timestamp) { if (timestamp - lastFrameTimestamp >= 1000 / 30) { lastFrameTimestamp = timestamp; exports.BlazorDoom.MainJS.UpdateGameState(keys); } requestAnimationFrame(gameLoop); } 1 2 3 4 5 6 7 8 9 10 11 12 main.js
62. Running the gameloop public partial class MainJS // this name is required { public static void Main() { app = new ManagedDoom.DoomApplication(); } [JSExport] // Can be imported from JS public static void UpdateGameState(int[] keys) { // computes the next frame and sounds managedDoom.UpdateGameState(keys); } } 1 2 3 4 5 6 7 8 9 10 11 12 13 import { dotnet } from "./dotnet.js"; const { getAssemblyExports, getConfig } = await dotnet.create(); const exports = await getAssemblyExports(getConfig().mainAssemblyName); await dotnet.run(); function gameLoop(timestamp) { if (timestamp - lastFrameTimestamp >= 1000 / 30) { lastFrameTimestamp = timestamp; exports.BlazorDoom.MainJS.UpdateGameState(keys); } requestAnimationFrame(gameLoop); } 1 2 3 4 5 6 7 8 9 10 11 12 main.js

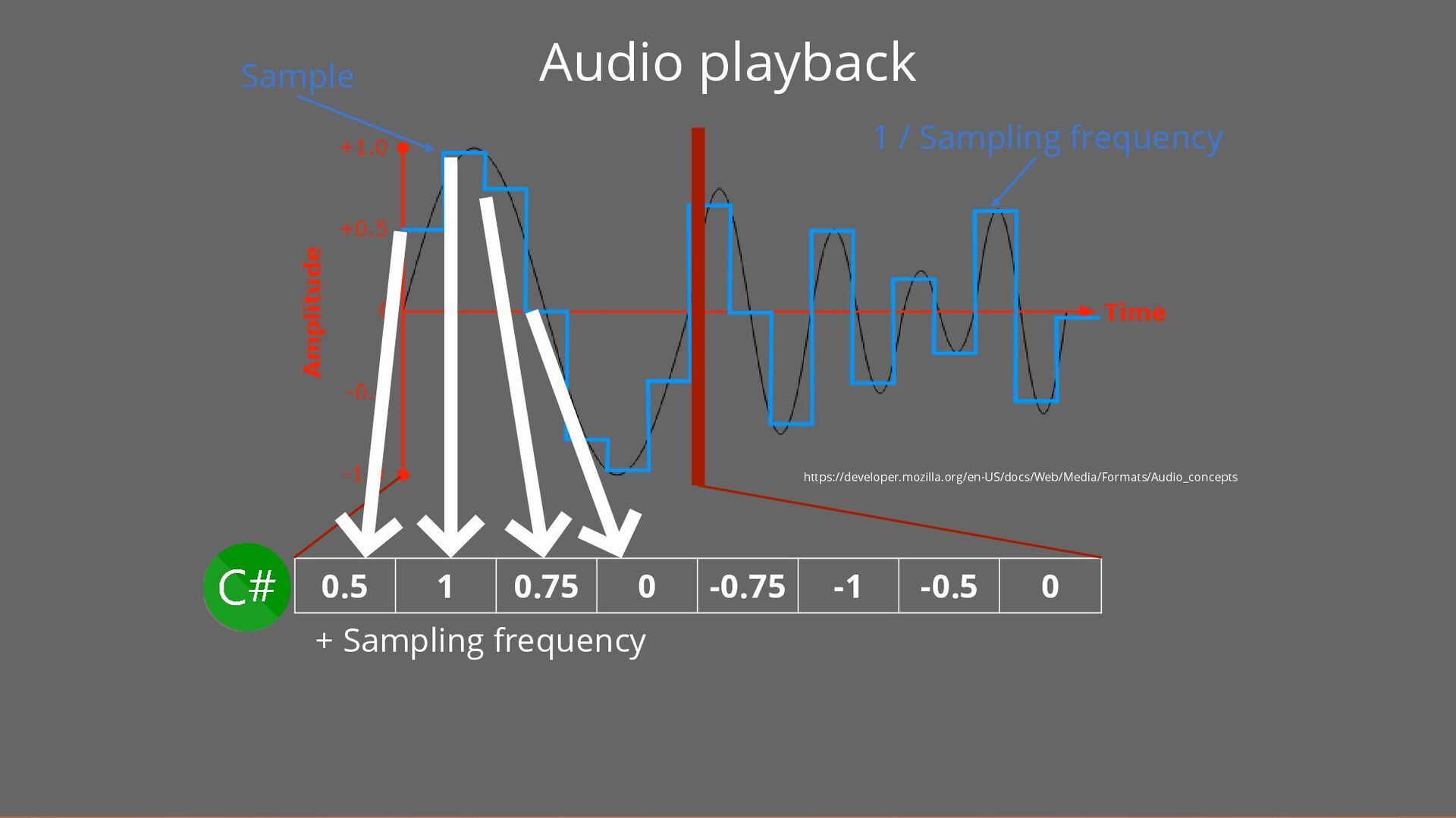

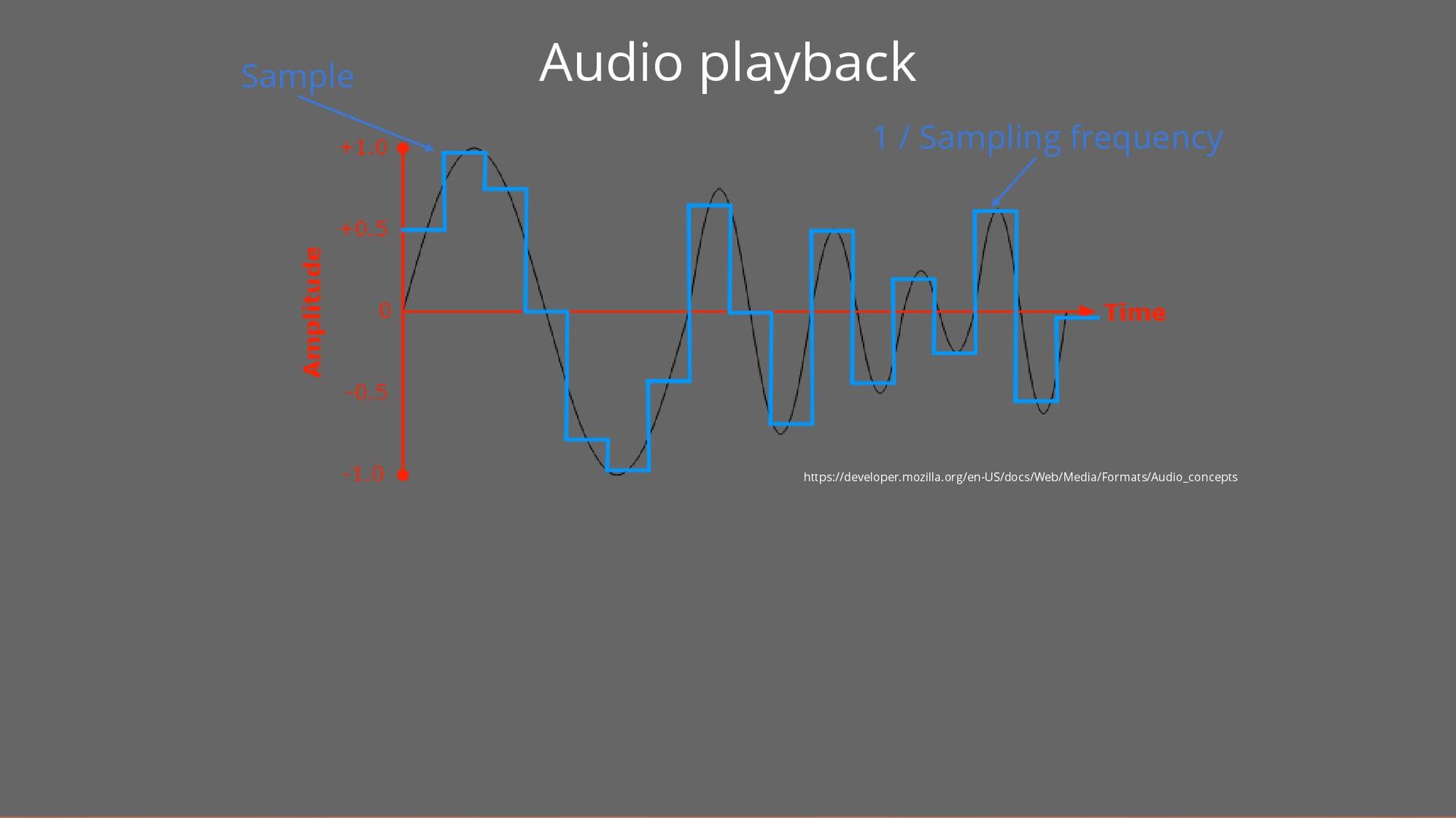

63. Audio playback https://developer.mozilla.org/en-US/docs/Web/Media/Formats/Audio_concepts Sample 1 / Sampling frequency
64. Audio playback 0.5 1 0.75 0 -0.75 -1 -0.5 0 https://developer.mozilla.org/en-US/docs/Web/Media/Formats/Audio_concepts Sample 1 / Sampling frequency + Sampling frequency

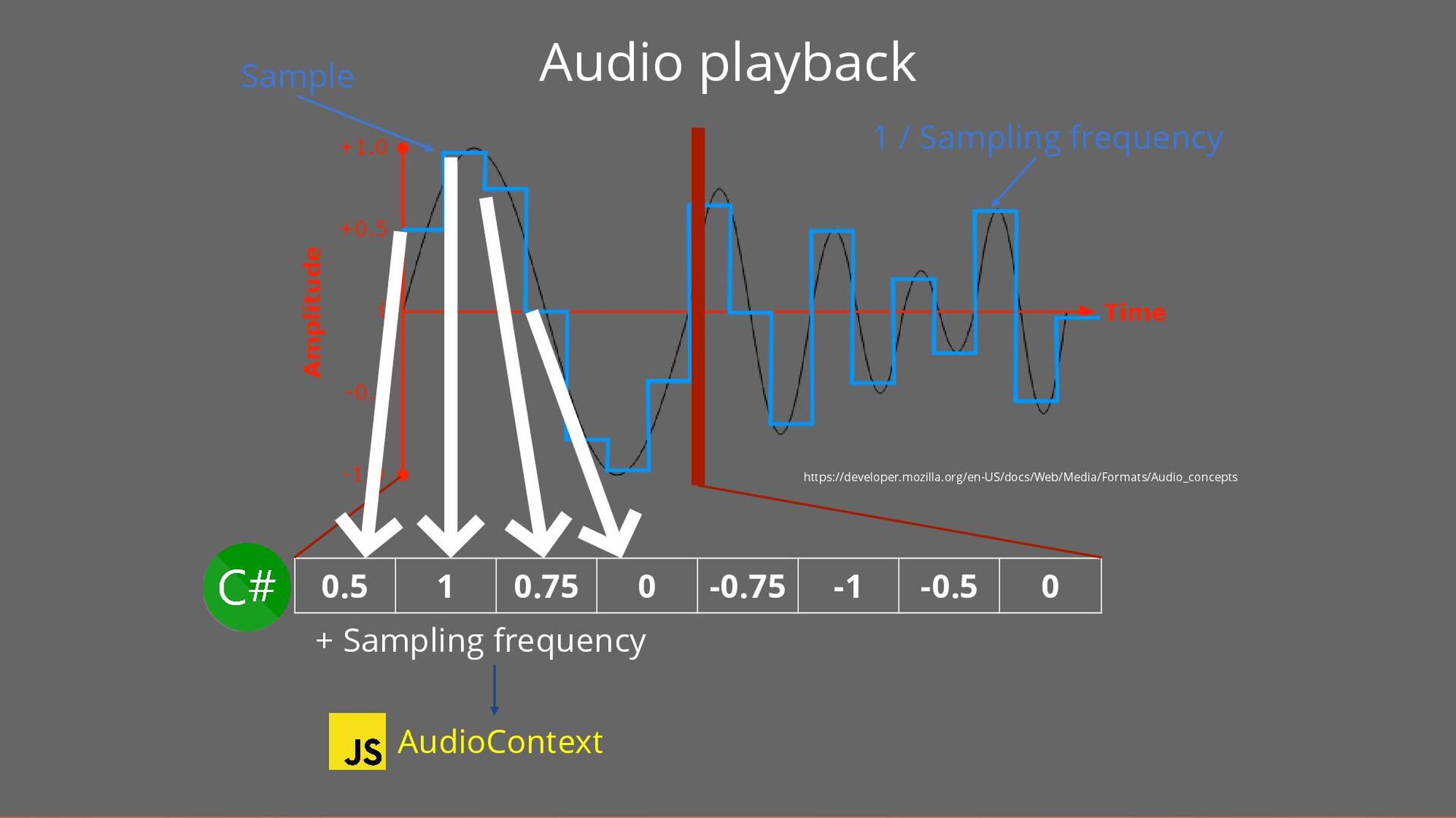

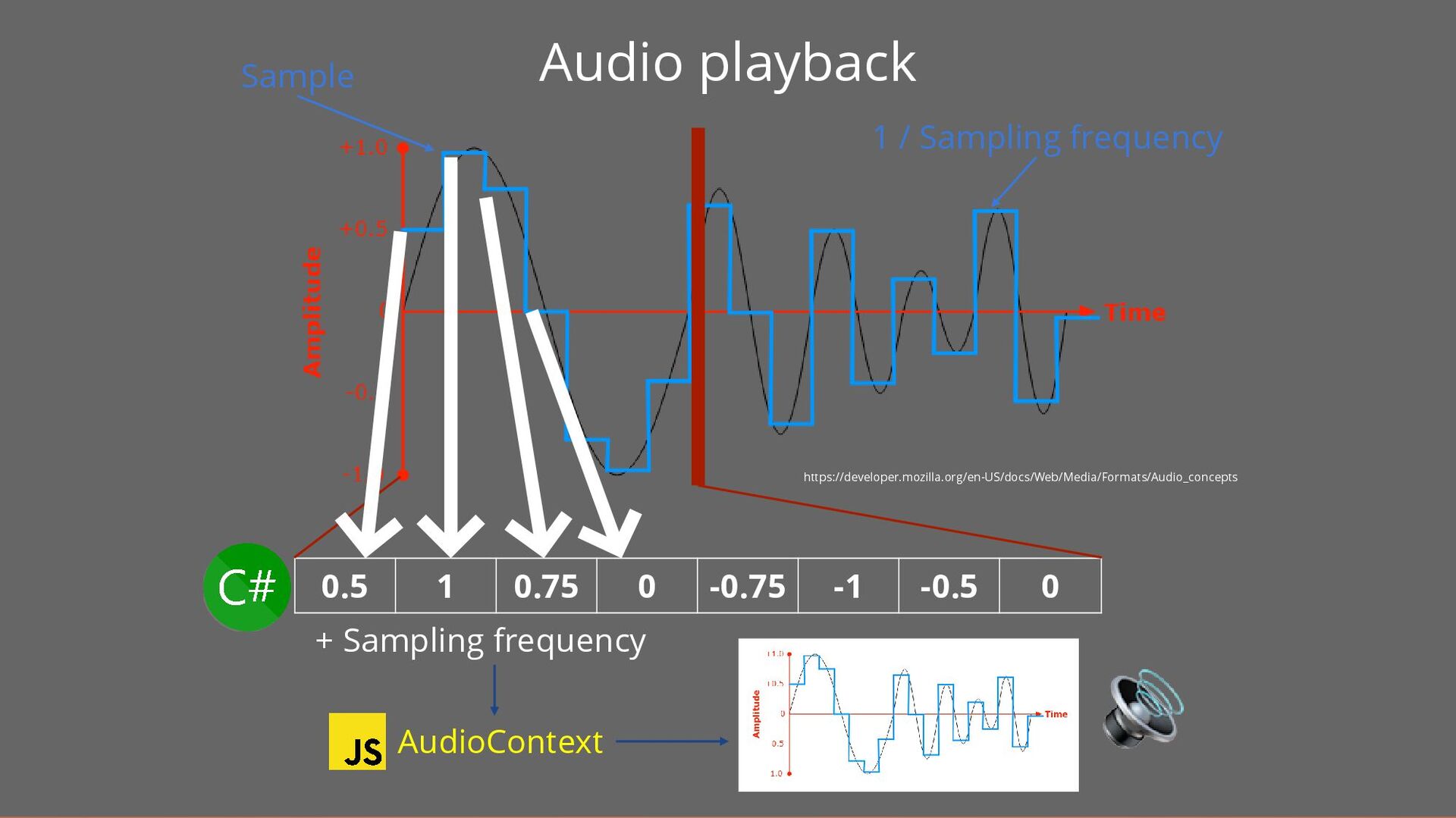

65. Audio playback 0.5 1 0.75 0 -0.75 -1 -0.5 0 https://developer.mozilla.org/en-US/docs/Web/Media/Formats/Audio_concepts AudioContext Sample 1 / Sampling frequency + Sampling frequency
66. Audio playback 0.5 1 0.75 0 -0.75 -1 -0.5 0 https://developer.mozilla.org/en-US/docs/Web/Media/Formats/Audio_concepts AudioContext Sample 1 / Sampling frequency + Sampling frequency 🔊

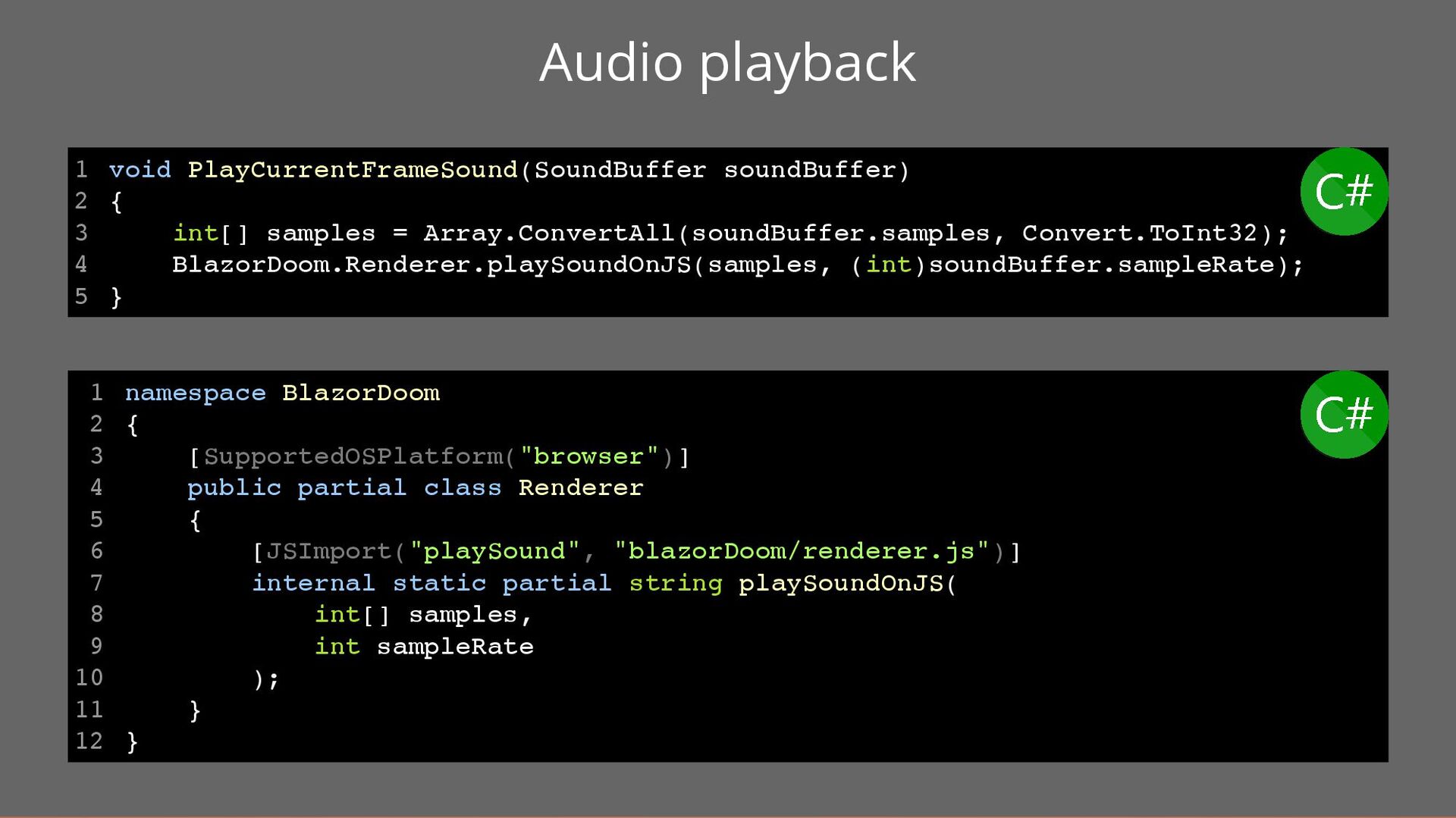

67. Audio playback void PlayCurrentFrameSound(SoundBuffer soundBuffer) { int[] samples = Array.ConvertAll(soundBuffer.samples, Convert.ToInt32); BlazorDoom.Renderer.playSoundOnJS(samples, (int)soundBuffer.sampleRate); } 1 2 3 4 5 namespace BlazorDoom { [SupportedOSPlatform("browser")] public partial class Renderer { [JSImport("playSound", "blazorDoom/renderer.js")] internal static partial string playSoundOnJS( int[] samples, int sampleRate ); } } 1 2 3 4 5 6 7 8 9 10 11 12

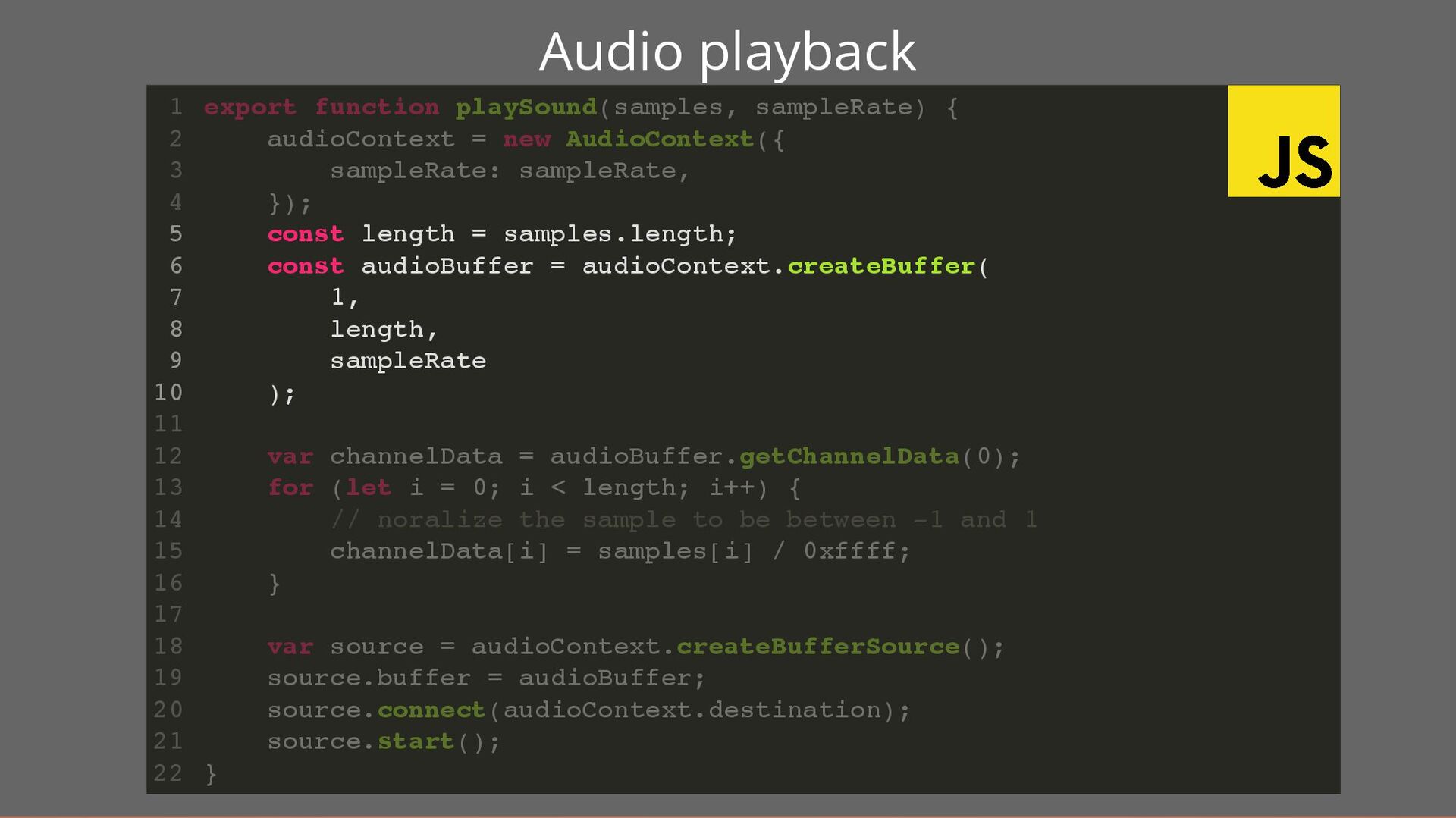

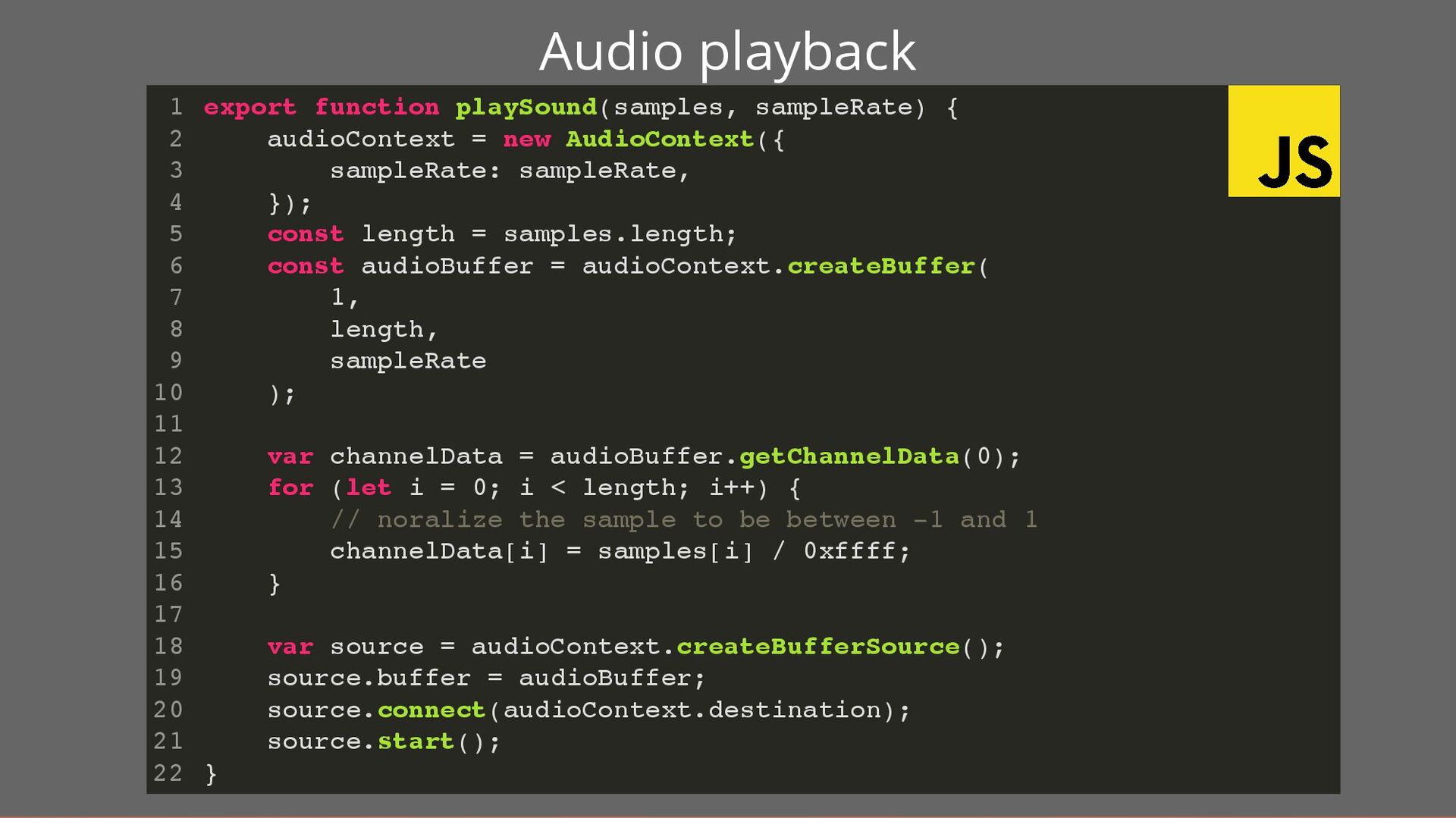

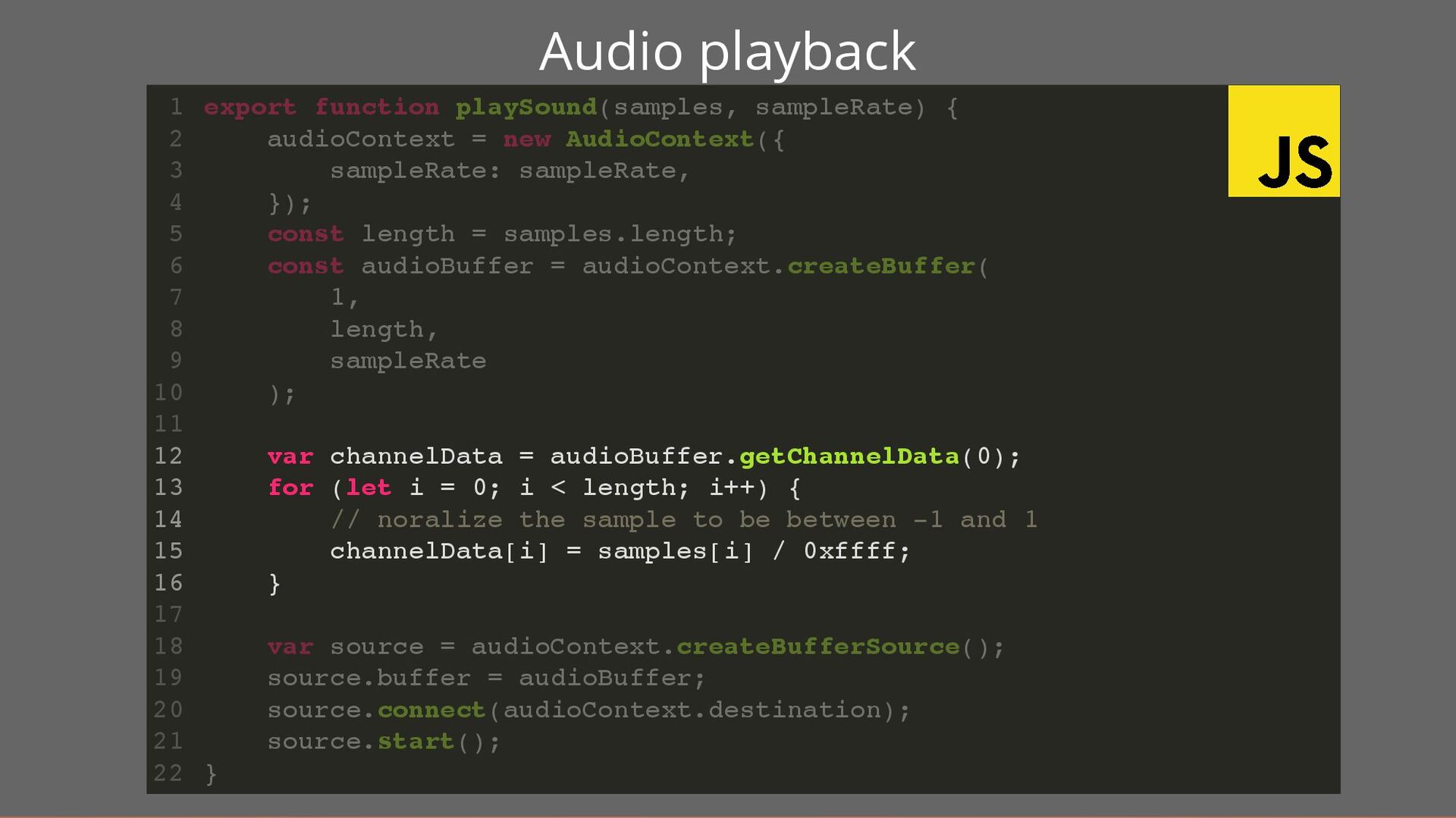

68. Audio playback export function playSound(samples, sampleRate) { audioContext = new AudioContext({ sampleRate: sampleRate, }); const length = samples.length; const audioBuffer = audioContext.createBuffer( 1, length, sampleRate ); var channelData = audioBuffer.getChannelData(0); for (let i = 0; i < length; i++) { // noralize the sample to be between -1 and 1 channelData[i] = samples[i] / 0xffff; } var source = audioContext.createBufferSource(); source.buffer = audioBuffer; source.connect(audioContext.destination); source.start(); } 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
69. Audio playback export function playSound(samples, sampleRate) { audioContext = new AudioContext({ sampleRate: sampleRate, }); const length = samples.length; const audioBuffer = audioContext.createBuffer( 1, length, sampleRate ); var channelData = audioBuffer.getChannelData(0); for (let i = 0; i < length; i++) { // noralize the sample to be between -1 and 1 channelData[i] = samples[i] / 0xffff; } var source = audioContext.createBufferSource(); source.buffer = audioBuffer; source.connect(audioContext.destination); source.start(); } 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 const length = samples.length; const audioBuffer = audioContext.createBuffer( 1, length, sampleRate ); export function playSound(samples, sampleRate) { 1 audioContext = new AudioContext({ 2 sampleRate: sampleRate, 3 }); 4 5 6 7 8 9 10 11 var channelData = audioBuffer.getChannelData(0); 12 for (let i = 0; i < length; i++) { 13 // noralize the sample to be between -1 and 1 14 channelData[i] = samples[i] / 0xffff; 15 } 16 17 var source = audioContext.createBufferSource(); 18 source.buffer = audioBuffer; 19 source.connect(audioContext.destination); 20 source.start(); 21 } 22
70. Audio playback export function playSound(samples, sampleRate) { audioContext = new AudioContext({ sampleRate: sampleRate, }); const length = samples.length; const audioBuffer = audioContext.createBuffer( 1, length, sampleRate ); var channelData = audioBuffer.getChannelData(0); for (let i = 0; i < length; i++) { // noralize the sample to be between -1 and 1 channelData[i] = samples[i] / 0xffff; } var source = audioContext.createBufferSource(); source.buffer = audioBuffer; source.connect(audioContext.destination); source.start(); } 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 const length = samples.length; const audioBuffer = audioContext.createBuffer( 1, length, sampleRate ); export function playSound(samples, sampleRate) { 1 audioContext = new AudioContext({ 2 sampleRate: sampleRate, 3 }); 4 5 6 7 8 9 10 11 var channelData = audioBuffer.getChannelData(0); 12 for (let i = 0; i < length; i++) { 13 // noralize the sample to be between -1 and 1 14 channelData[i] = samples[i] / 0xffff; 15 } 16 17 var source = audioContext.createBufferSource(); 18 source.buffer = audioBuffer; 19 source.connect(audioContext.destination); 20 source.start(); 21 } 22 var channelData = audioBuffer.getChannelData(0); for (let i = 0; i < length; i++) { // noralize the sample to be between -1 and 1 channelData[i] = samples[i] / 0xffff; } export function playSound(samples, sampleRate) { 1 audioContext = new AudioContext({ 2 sampleRate: sampleRate, 3 }); 4 const length = samples.length; 5 const audioBuffer = audioContext.createBuffer( 6 1, 7 length, 8 sampleRate 9 ); 10 11 12 13 14 15 16 17 var source = audioContext.createBufferSource(); 18 source.buffer = audioBuffer; 19 source.connect(audioContext.destination); 20 source.start(); 21 } 22

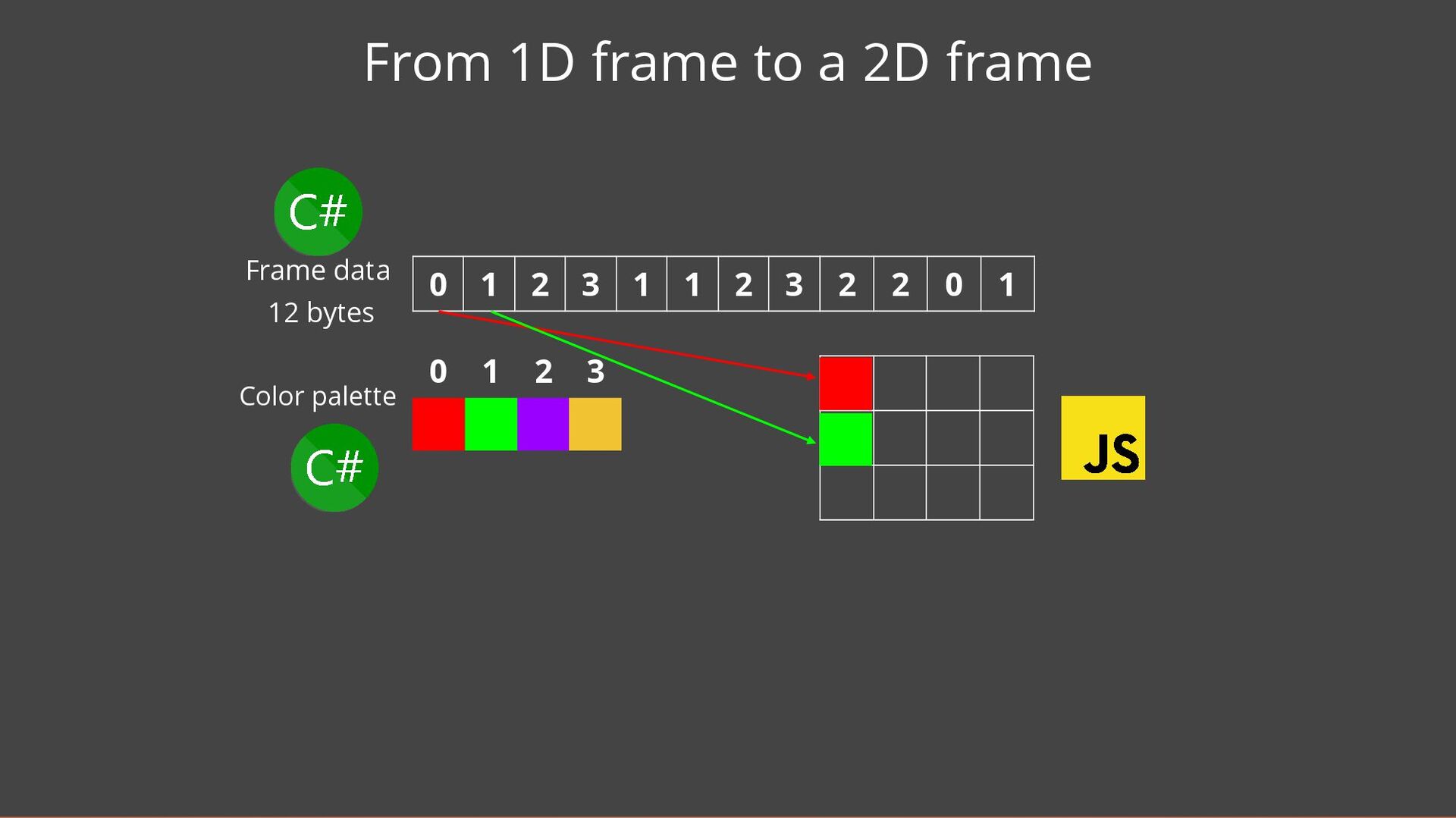

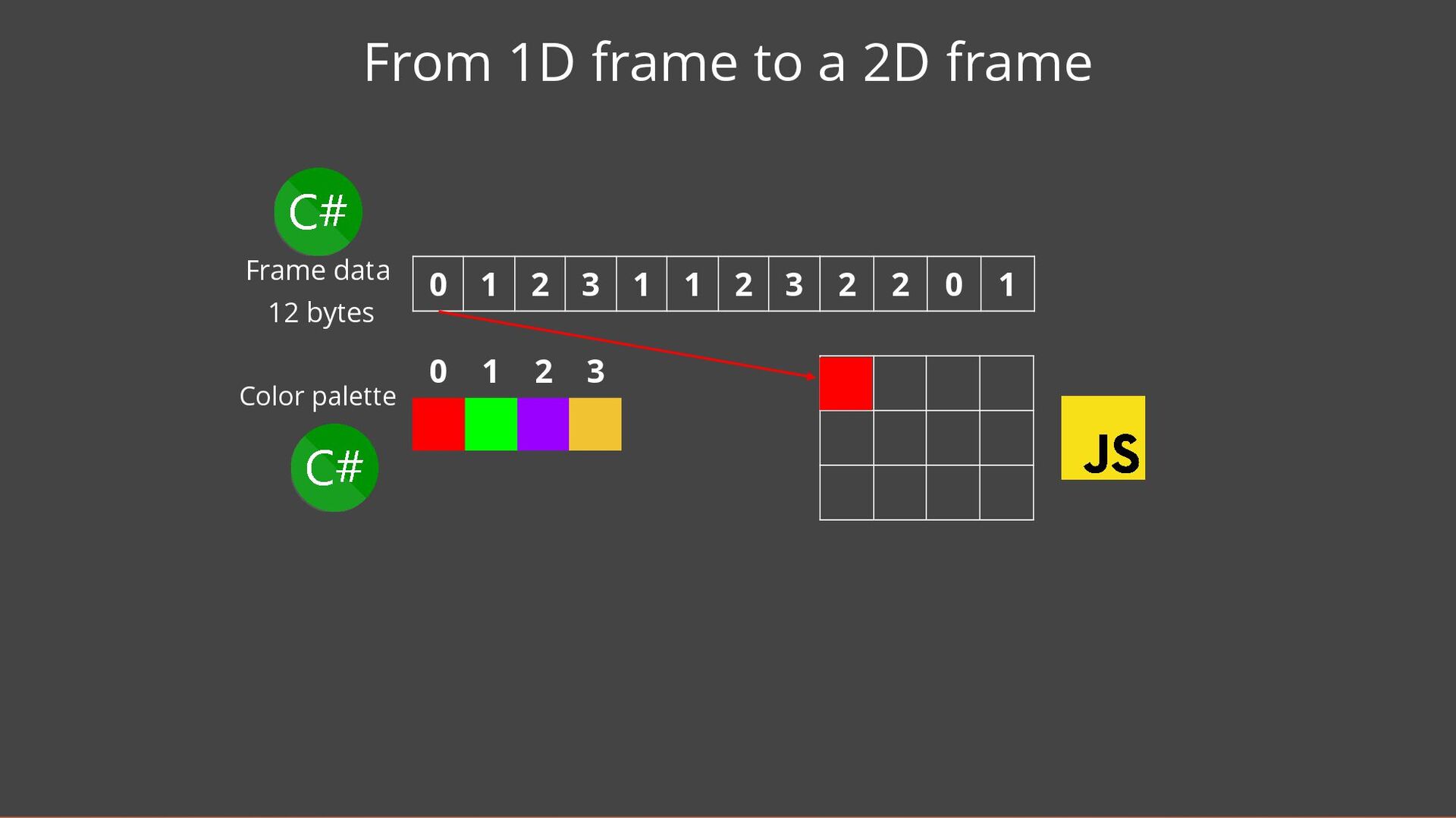

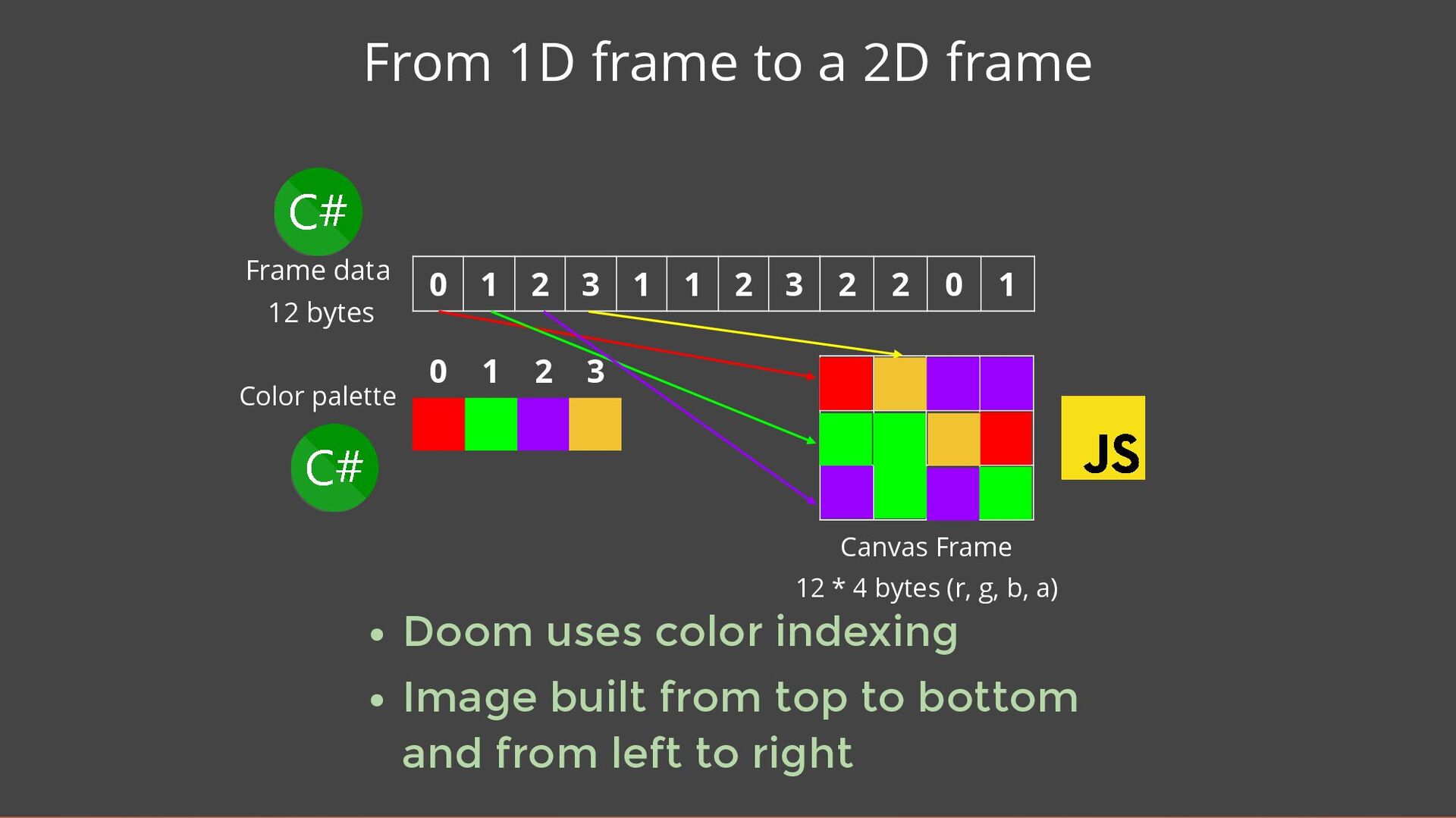

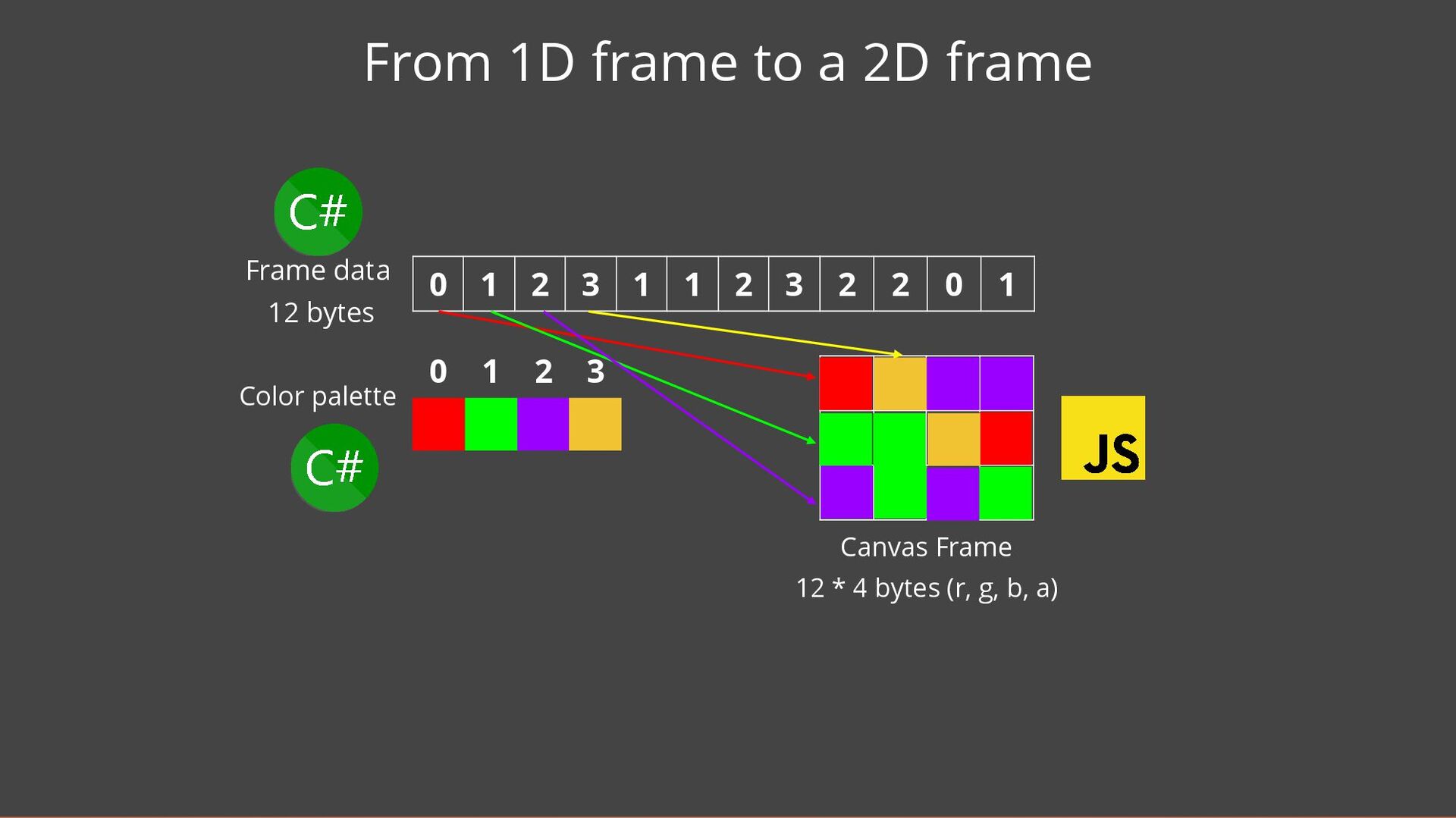

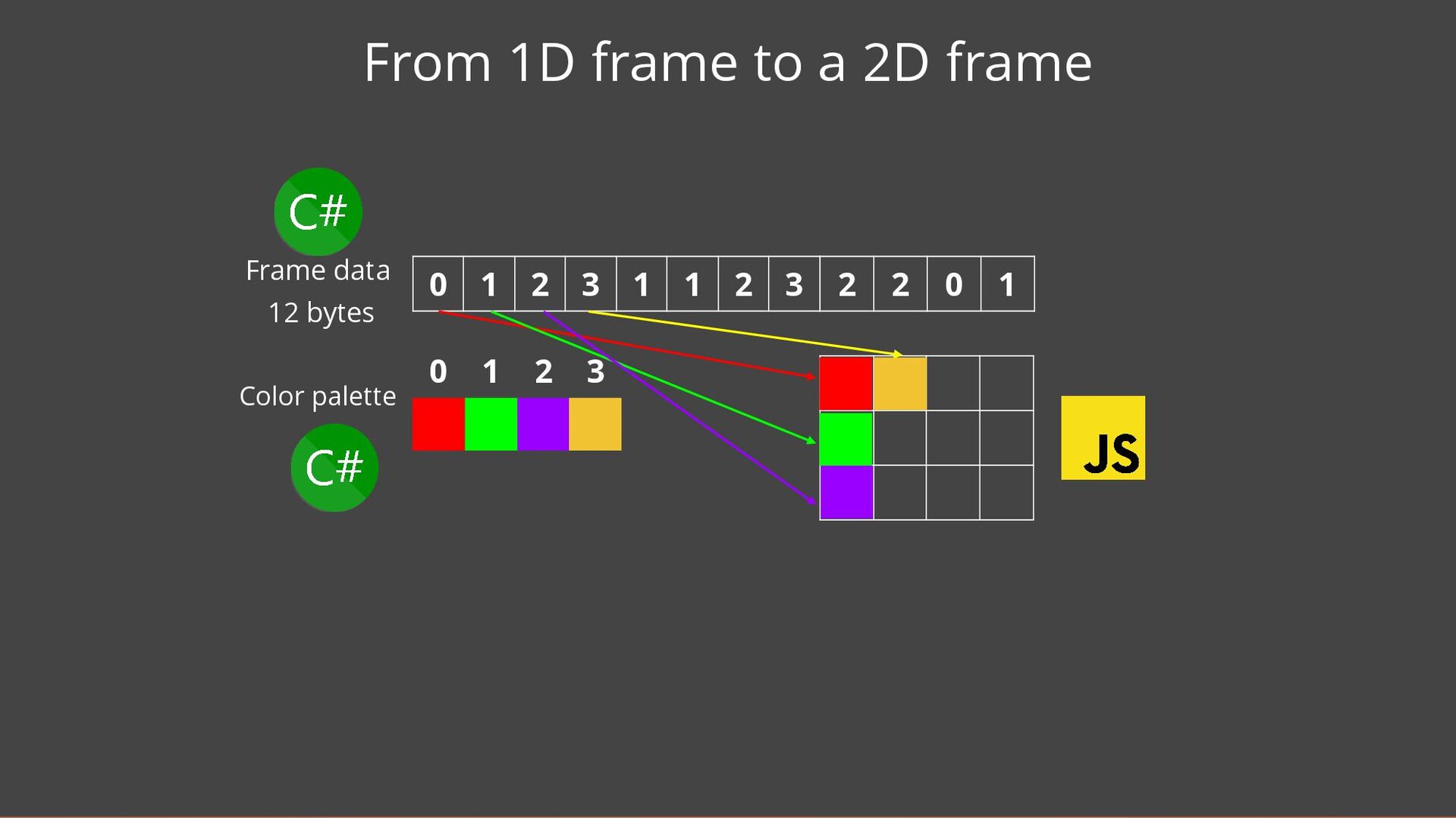

71. 0 1 2 3 1 1 2 3 0 1 2 3 From 1D frame to a 2D frame 2 2 0 1 Frame data 12 bytes Color palette
72. 0 1 2 3 1 1 2 3 0 1 2 3 From 1D frame to a 2D frame 2 2 0 1 Frame data 12 bytes Color palette
73. 0 1 2 3 1 1 2 3 0 1 2 3 From 1D frame to a 2D frame 2 2 0 1 Frame data 12 bytes Color palette
74. 0 1 2 3 1 1 2 3 0 1 2 3 From 1D frame to a 2D frame 2 2 0 1 Frame data 12 bytes Color palette
75. 0 1 2 3 1 1 2 3 0 1 2 3 From 1D frame to a 2D frame 2 2 0 1 Frame data 12 bytes Color palette
76. 0 1 2 3 1 1 2 3 0 1 2 3 From 1D frame to a 2D frame 2 2 0 1 Frame data 12 bytes Color palette Canvas Frame 12 * 4 bytes (r, g, b, a)
77. 0 1 2 3 1 1 2 3 0 1 2 3 From 1D frame to a 2D frame 2 2 0 1 Frame data 12 bytes Color palette Canvas Frame 12 * 4 bytes (r, g, b, a) Doom uses color indexing Image built from top to bottom and from left to right

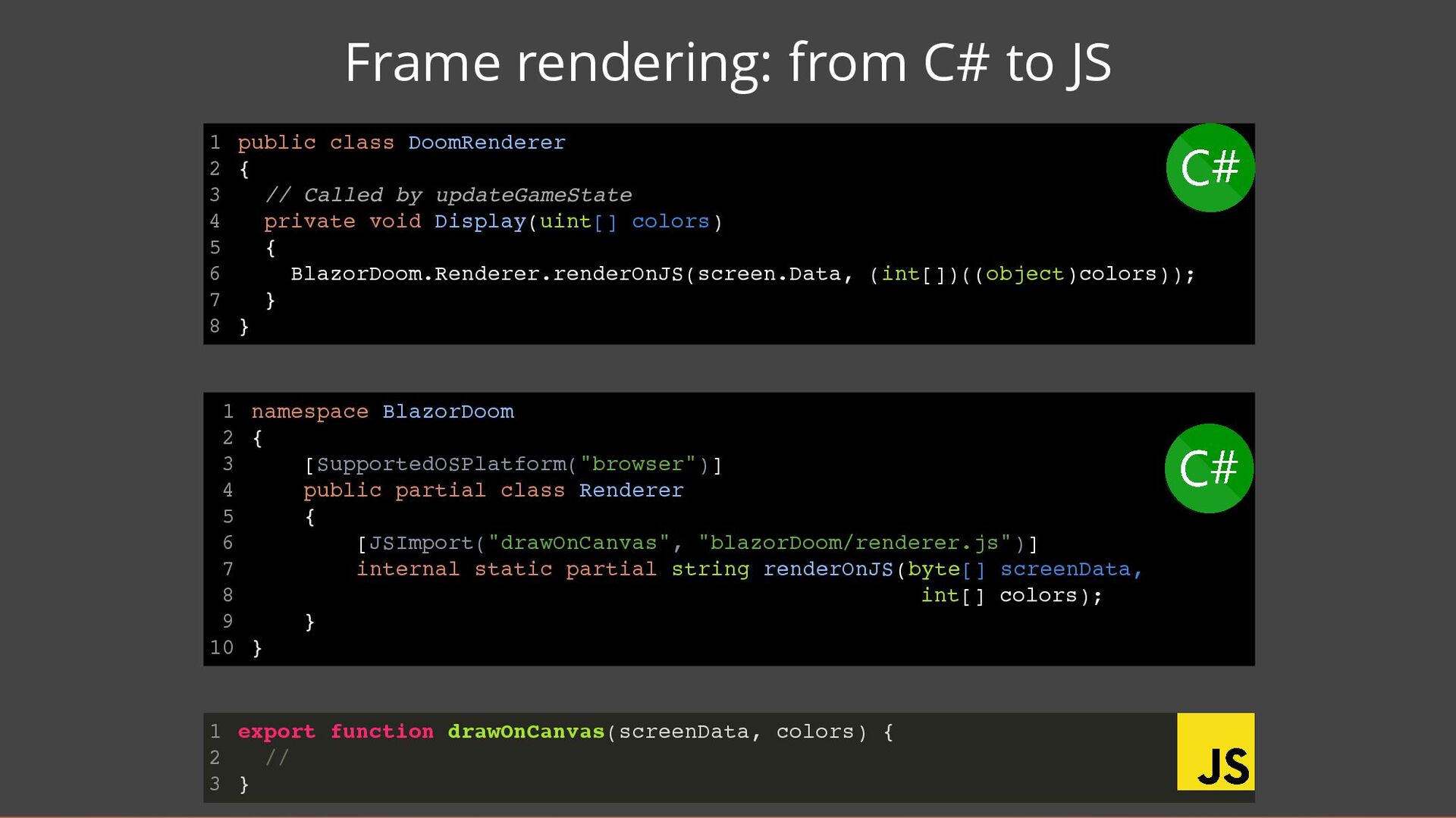

78. Frame rendering: from C# to JS namespace BlazorDoom { [SupportedOSPlatform("browser")] public partial class Renderer { [JSImport("drawOnCanvas", "blazorDoom/renderer.js")] internal static partial string renderOnJS(byte[] screenData, int[] colors); } } 1 2 3 4 5 6 7 8 9 10 export function drawOnCanvas(screenData, colors) { // } 1 2 3 public class DoomRenderer { // Called by updateGameState private void Display(uint[] colors) { BlazorDoom.Renderer.renderOnJS(screen.Data, (int[])((object)colors)); } } 1 2 3 4 5 6 7 8

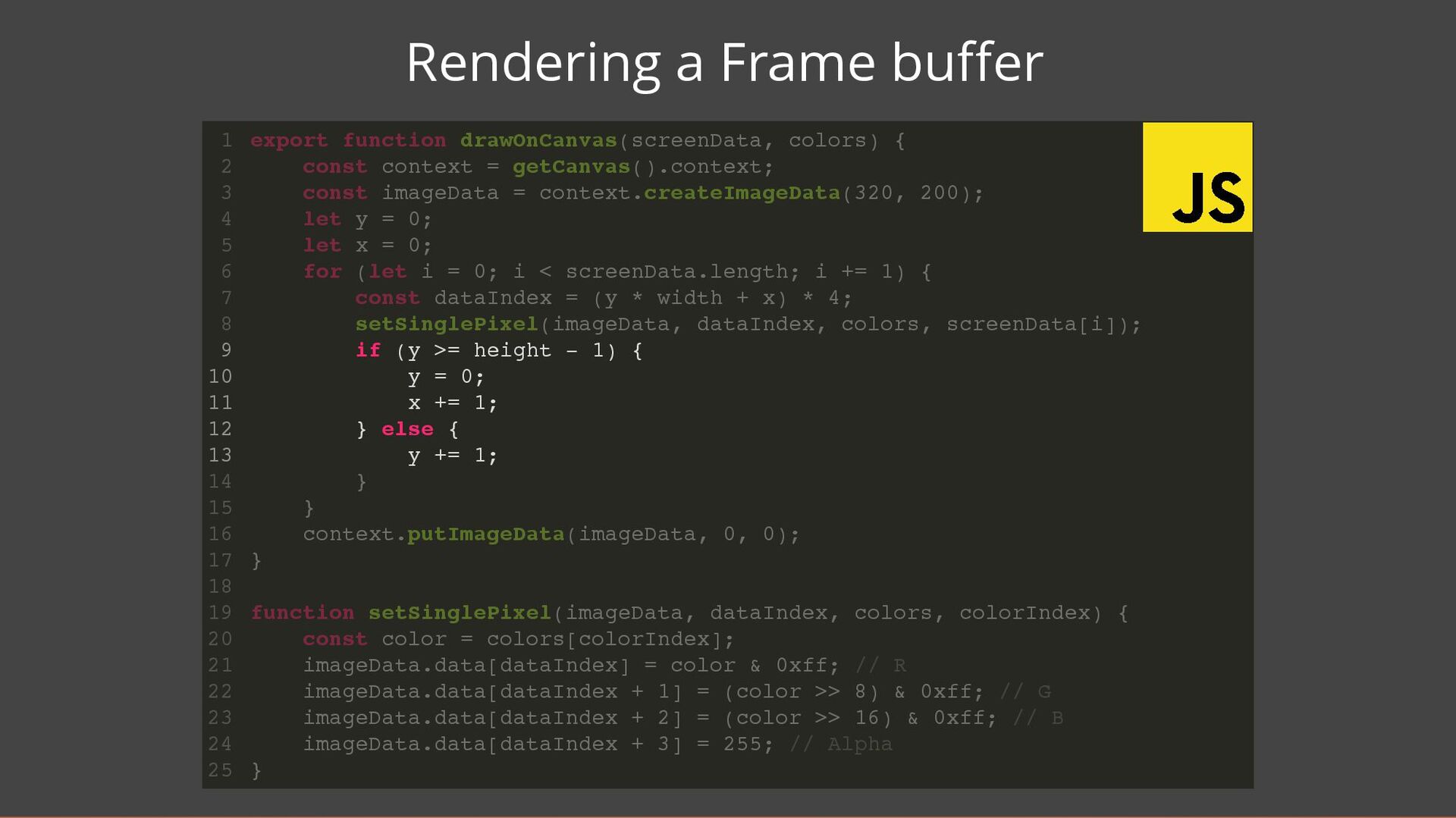

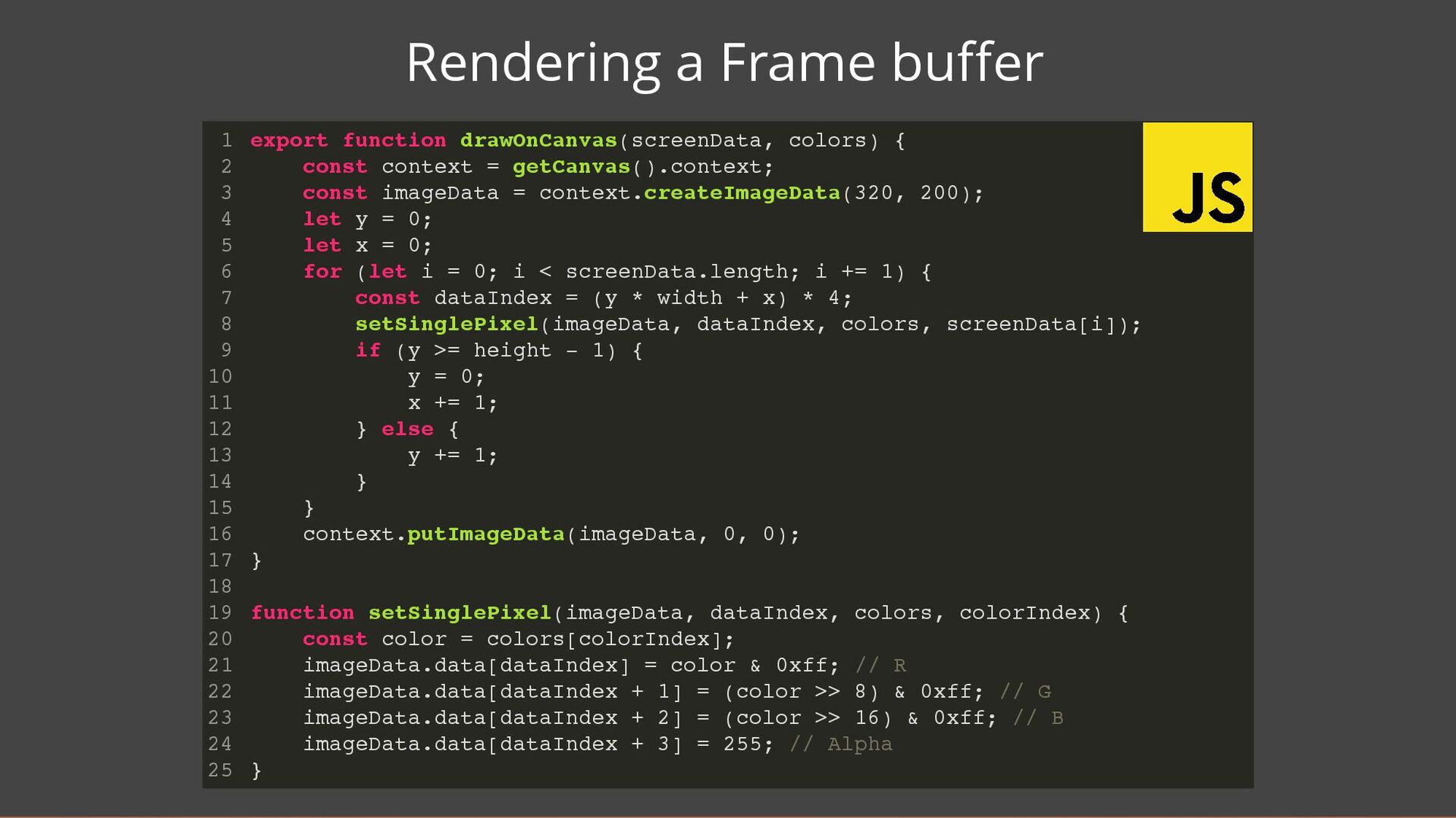

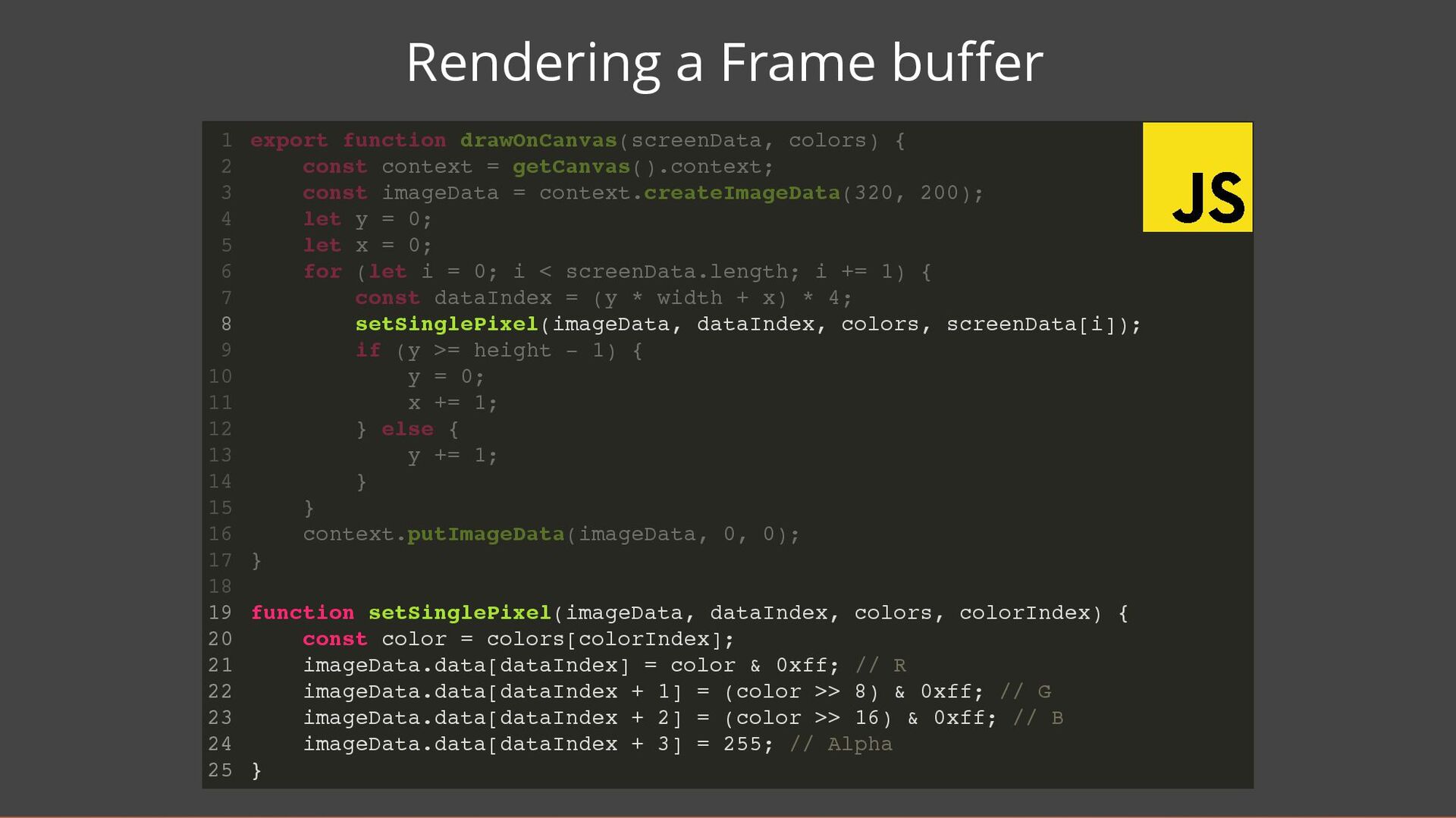

79. Rendering a Frame buffer export function drawOnCanvas(screenData, colors) { const context = getCanvas().context; const imageData = context.createImageData(320, 200); let y = 0; let x = 0; for (let i = 0; i < screenData.length; i += 1) { const dataIndex = (y * width + x) * 4; setSinglePixel(imageData, dataIndex, colors, screenData[i]); if (y >= height - 1) { y = 0; x += 1; } else { y += 1; } } context.putImageData(imageData, 0, 0); } function setSinglePixel(imageData, dataIndex, colors, colorIndex) { const color = colors[colorIndex]; imageData.data[dataIndex] = color & 0xff; // R imageData.data[dataIndex + 1] = (color >> 8) & 0xff; // G imageData.data[dataIndex + 2] = (color >> 16) & 0xff; // B imageData.data[dataIndex + 3] = 255; // Alpha } 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
80. Rendering a Frame buffer export function drawOnCanvas(screenData, colors) { const context = getCanvas().context; const imageData = context.createImageData(320, 200); let y = 0; let x = 0; for (let i = 0; i < screenData.length; i += 1) { const dataIndex = (y * width + x) * 4; setSinglePixel(imageData, dataIndex, colors, screenData[i]); if (y >= height - 1) { y = 0; x += 1; } else { y += 1; } } context.putImageData(imageData, 0, 0); } function setSinglePixel(imageData, dataIndex, colors, colorIndex) { const color = colors[colorIndex]; imageData.data[dataIndex] = color & 0xff; // R imageData.data[dataIndex + 1] = (color >> 8) & 0xff; // G imageData.data[dataIndex + 2] = (color >> 16) & 0xff; // B imageData.data[dataIndex + 3] = 255; // Alpha } 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 if (y >= height - 1) { y = 0; x += 1; } else { y += 1; export function drawOnCanvas(screenData, colors) { 1 const context = getCanvas().context; 2 const imageData = context.createImageData(320, 200); 3 let y = 0; 4 let x = 0; 5 for (let i = 0; i < screenData.length; i += 1) { 6 const dataIndex = (y * width + x) * 4; 7 setSinglePixel(imageData, dataIndex, colors, screenData[i]); 8 9 10 11 12 13 } 14 } 15 context.putImageData(imageData, 0, 0); 16 } 17 18 function setSinglePixel(imageData, dataIndex, colors, colorIndex) { 19 const color = colors[colorIndex]; 20 imageData.data[dataIndex] = color & 0xff; // R 21 imageData.data[dataIndex + 1] = (color >> 8) & 0xff; // G 22 imageData.data[dataIndex + 2] = (color >> 16) & 0xff; // B 23 imageData.data[dataIndex + 3] = 255; // Alpha 24 } 25
81. Rendering a Frame buffer export function drawOnCanvas(screenData, colors) { const context = getCanvas().context; const imageData = context.createImageData(320, 200); let y = 0; let x = 0; for (let i = 0; i < screenData.length; i += 1) { const dataIndex = (y * width + x) * 4; setSinglePixel(imageData, dataIndex, colors, screenData[i]); if (y >= height - 1) { y = 0; x += 1; } else { y += 1; } } context.putImageData(imageData, 0, 0); } function setSinglePixel(imageData, dataIndex, colors, colorIndex) { const color = colors[colorIndex]; imageData.data[dataIndex] = color & 0xff; // R imageData.data[dataIndex + 1] = (color >> 8) & 0xff; // G imageData.data[dataIndex + 2] = (color >> 16) & 0xff; // B imageData.data[dataIndex + 3] = 255; // Alpha } 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 if (y >= height - 1) { y = 0; x += 1; } else { y += 1; export function drawOnCanvas(screenData, colors) { 1 const context = getCanvas().context; 2 const imageData = context.createImageData(320, 200); 3 let y = 0; 4 let x = 0; 5 for (let i = 0; i < screenData.length; i += 1) { 6 const dataIndex = (y * width + x) * 4; 7 setSinglePixel(imageData, dataIndex, colors, screenData[i]); 8 9 10 11 12 13 } 14 } 15 context.putImageData(imageData, 0, 0); 16 } 17 18 function setSinglePixel(imageData, dataIndex, colors, colorIndex) { 19 const color = colors[colorIndex]; 20 imageData.data[dataIndex] = color & 0xff; // R 21 imageData.data[dataIndex + 1] = (color >> 8) & 0xff; // G 22 imageData.data[dataIndex + 2] = (color >> 16) & 0xff; // B 23 imageData.data[dataIndex + 3] = 255; // Alpha 24 } 25 setSinglePixel(imageData, dataIndex, colors, screenData[i]); function setSinglePixel(imageData, dataIndex, colors, colorIndex) { const color = colors[colorIndex]; imageData.data[dataIndex] = color & 0xff; // R imageData.data[dataIndex + 1] = (color >> 8) & 0xff; // G imageData.data[dataIndex + 2] = (color >> 16) & 0xff; // B imageData.data[dataIndex + 3] = 255; // Alpha } export function drawOnCanvas(screenData, colors) { 1 const context = getCanvas().context; 2 const imageData = context.createImageData(320, 200); 3 let y = 0; 4 let x = 0; 5 for (let i = 0; i < screenData.length; i += 1) { 6 const dataIndex = (y * width + x) * 4; 7 8 if (y >= height - 1) { 9 y = 0; 10 x += 1; 11 } else { 12 y += 1; 13 } 14 } 15 context.putImageData(imageData, 0, 0); 16 } 17 18 19 20 21 22 23 24 25
85. Key takeaways
86. Key takeaways WASM possibilities are limitless
87. Key takeaways WASM possibilities are limitless Porting a game is way to learn programming while having fun
88. @yostane Yassine Benabbas
89. Links https://mspoweruser.com/this-doom-digital-camera-source-port-is-amazing-and-bizarre/ https://www.link-cable.com/top-10-weird-doom-ports/ pixabay.com Doom text generator: https://c.eev.ee/doom-text-generator Please leave a review
