Besides the right cloud strategy, a lot of infrastructure decisions must be made by an organization to lead the cloud journey to success. Before start moving workloads or modernizing applications on Azure, enterprises are faced with difficult and complex architectural decisions, like how to protect cloud applications from network-based cyberattacks using the right Azure Network Security services to meet the compliance rules. In this session Stefan will focus on Azure Security topics from the network perspective and describe how Azure Network services, capabilities and mechanisms can be used to build highly secured cloud environments on Azure, focused on the following main areas:

Architectural network security disciplines
Conceptual network design & approaches
Azure Virtual Network as foundation layer
Network segmentation/isolation (zone models)
Traffic management and control on cloud networks
Security for external interfaces and endpoints
The audience will get the knowledge of how to create a secure platform and use Azure services the right way to build secure applications as well as to avoid potential vulnerabilities in the Azure “Landing Zone”. Based on the strict security and compliance requirements of organizations, Stefan will share all relevant recommendations, best practices, practical experience, and potential pitfalls to provision and mange cloud workload in Azure the secure and smart way.
🙂 STEFAN RAPP ⚡️ Cloud Solution Architect @ Xebia | Microsoft Azure Infra-As-Code MVP

Transcript

1. Mastering Network Security on Azure (by Stefan Rapp, 5th June 2025, 13:20 – 14:05, Room 3.53) “Stay safe!”
3. What is Network Security all about? 3 “Network Architecture” → Groundwork Focus on… “Security by Design”
4. …Bad Results 4 • Vulnerabilities & Potential breaches • Network Complexity • Operational Inefficiencies (slower) • Scalability Issues (growth & changes) • Compliance Risks (industry standards & regulations) • Inconsistent Security Settings (each team) Network Security is suffering!
5. Table of contents 5 1. Prerequisites 2. Overview Network Services 3. Virtual Network (VNet) 4. Traffic Management 5. Service & Private Endpoints 6. Infrastructure as Code (IaC) 7. Key Takeaways (Q&A)
6. Prerequisites of Azure Network Services 6 Which requirements must be fulfilled before an enterprise can successfully start with Azure workloads (modernization).

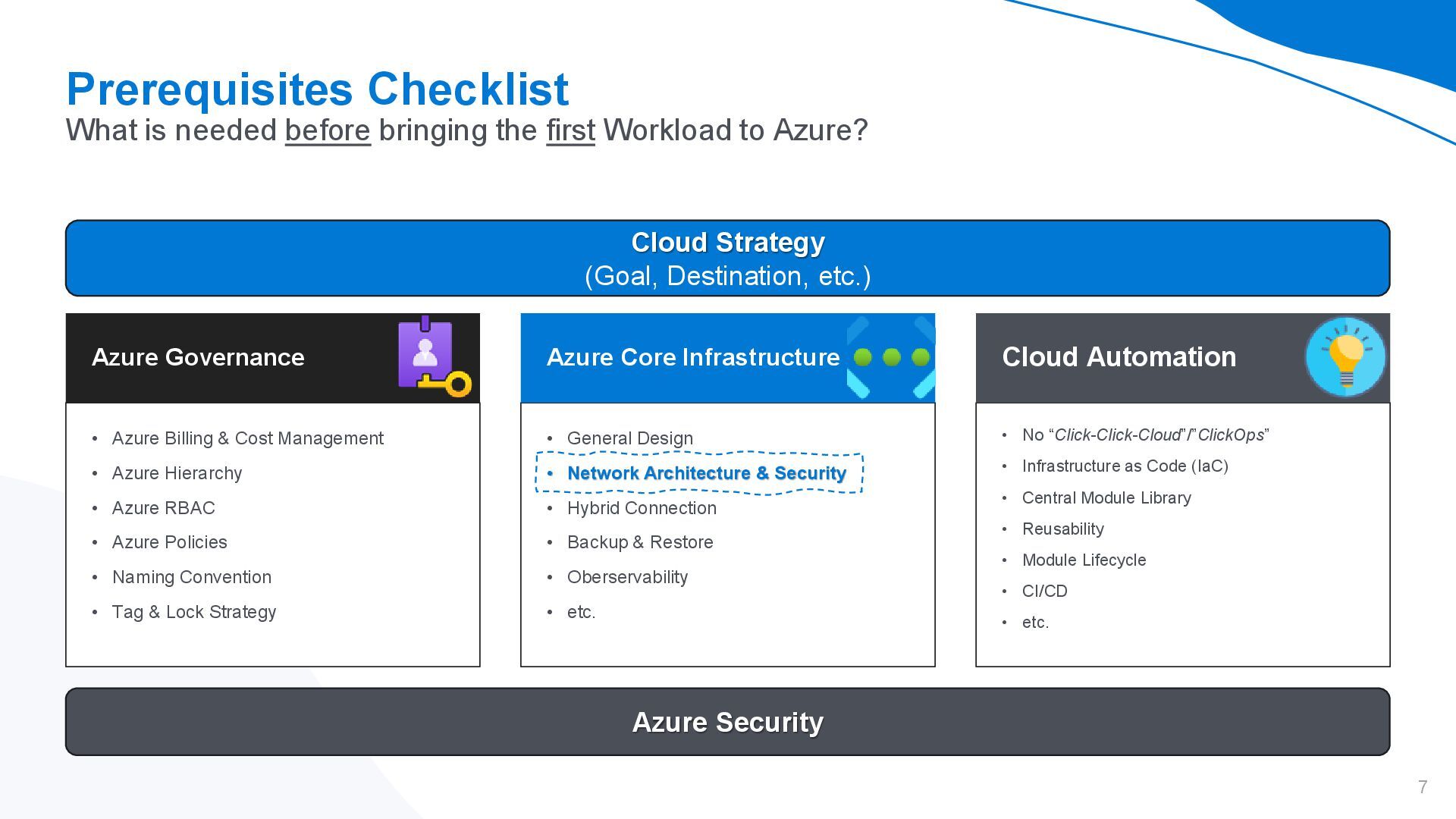

7. Prerequisites Checklist What is needed before bringing the first Workload to Azure? 7 • Azure Billing & Cost Management • Azure Hierarchy • Azure RBAC • Azure Policies • Naming Convention • Tag & Lock Strategy Azure Governance • General Design • Network Architecture & Security • Hybrid Connection • Backup & Restore • Oberservability • etc. Azure Core Infrastructure • No “Click-Click-Cloud”/”ClickOps” • Infrastructure as Code (IaC) • Central Module Library • Reusability • Module Lifecycle • CI/CD • etc. Cloud Automation Cloud Strategy (Goal, Destination, etc.) Azure Security
8. Overview Azure Network Services 8 What kind of Azure resources are relevant to bring application workloads to the cloud?

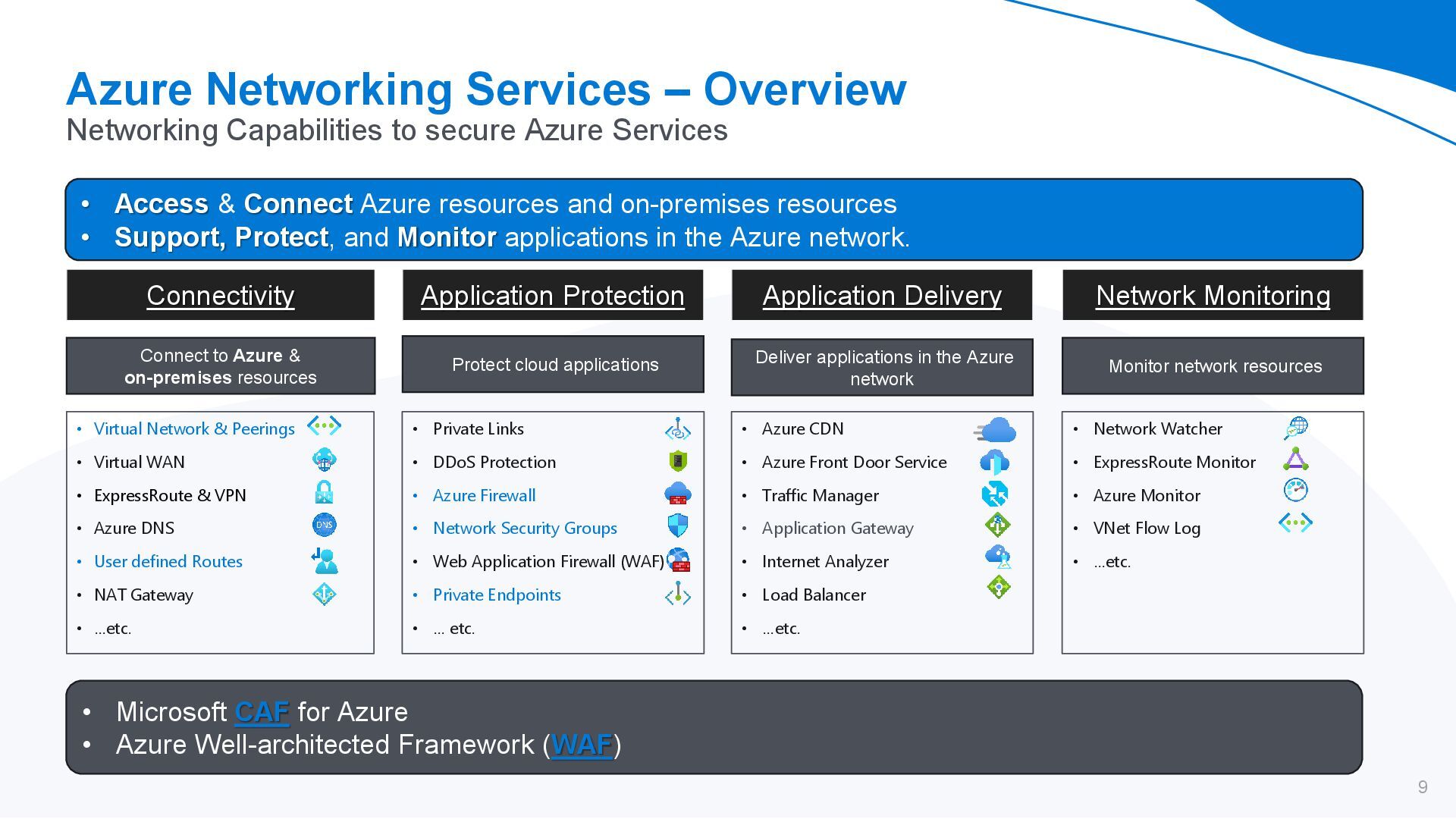

9. Azure Networking Services – Overview Networking Capabilities to secure Azure Services 9 • Virtual Network & Peerings • Virtual WAN • ExpressRoute & VPN • Azure DNS • User defined Routes • NAT Gateway • …etc. Connect to Azure & on-premises resources Connectivity Application Protection Protect cloud applications • Private Links • DDoS Protection • Azure Firewall • Network Security Groups • Web Application Firewall (WAF) • Private Endpoints • … etc. Application Delivery Deliver applications in the Azure network • Azure CDN • Azure Front Door Service • Traffic Manager • Application Gateway • Internet Analyzer • Load Balancer • …etc. • Access & Connect Azure resources and on-premises resources • Support, Protect, and Monitor applications in the Azure network. Network Monitoring Monitor network resources • Network Watcher • ExpressRoute Monitor • Azure Monitor • VNet Flow Log • …etc. • Microsoft CAF for Azure • Azure Well-architected Framework (WAF)
10. Azure Virtual Network 10 Azure Virtual Network (VNet) is the fundamental building block for the private network in Azure.

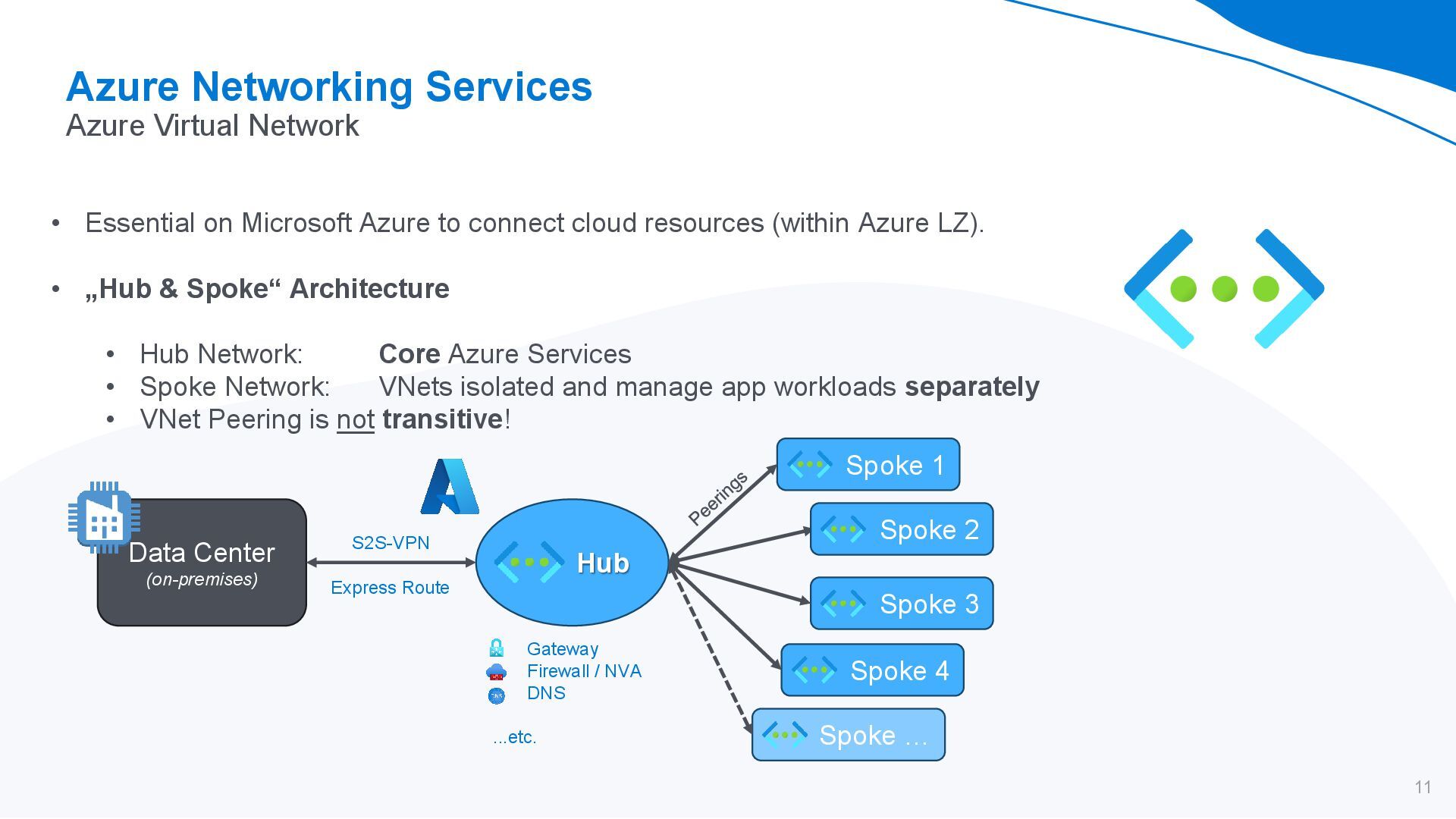

11. Azure Networking Services Azure Virtual Network 11 • Essential on Microsoft Azure to connect cloud resources (within Azure LZ). • „Hub & Spoke“ Architecture • Hub Network: Core Azure Services • Spoke Network: VNets isolated and manage app workloads separately • VNet Peering is not transitive! Hub Spoke 1 • Gateway • Firewall / NVA • DNS ...etc. Data Center (on-premises) S2S-VPN Express Route Spoke 2 Spoke 3 Spoke 4 Spoke …

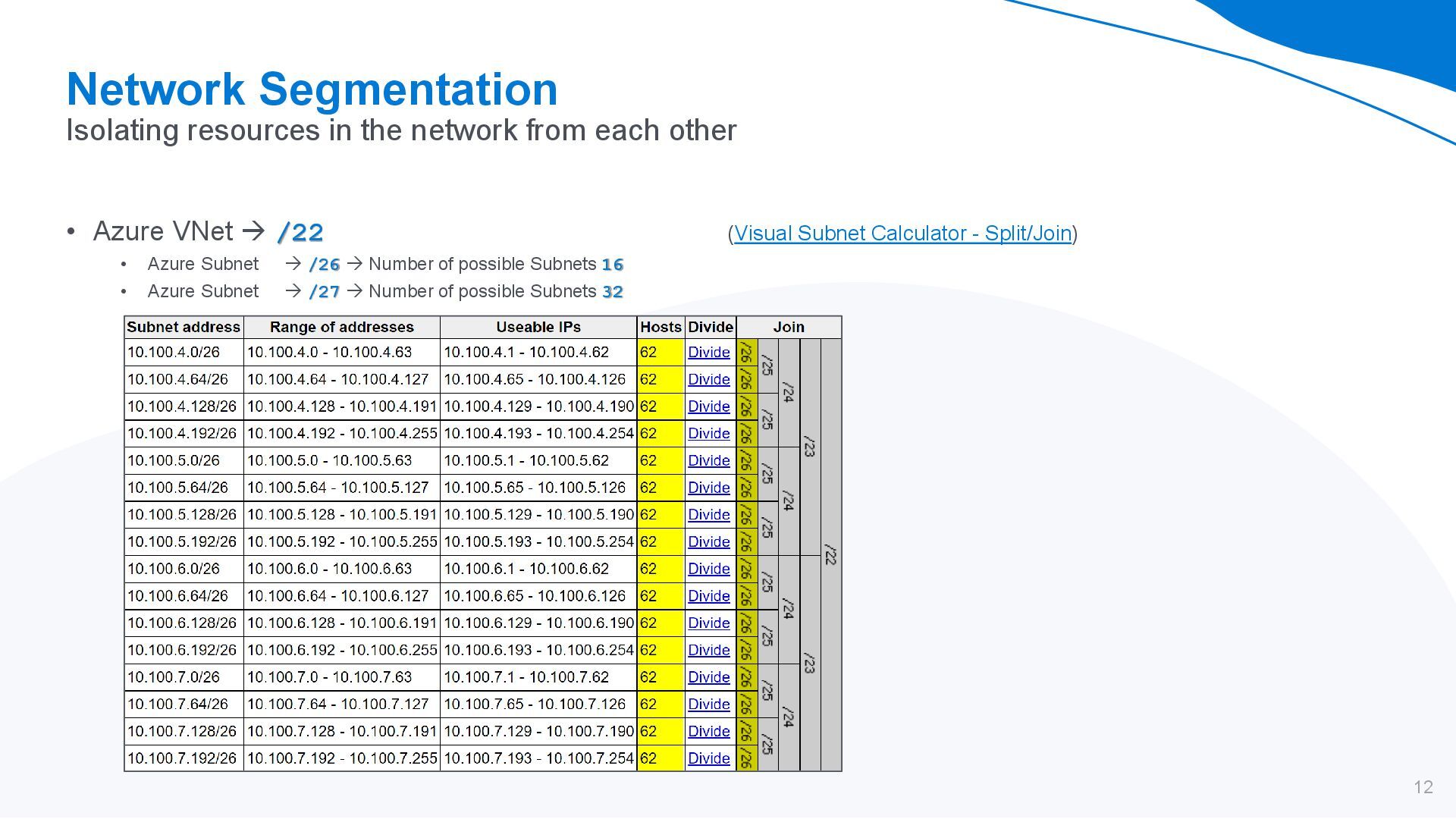

12. Network Segmentation Isolating resources in the network from each other 12 • Azure VNet → /22 (Visual Subnet Calculator - Split/Join) • Azure Subnet → /26 → Number of possible Subnets 16 • Azure Subnet → /27 → Number of possible Subnets 32

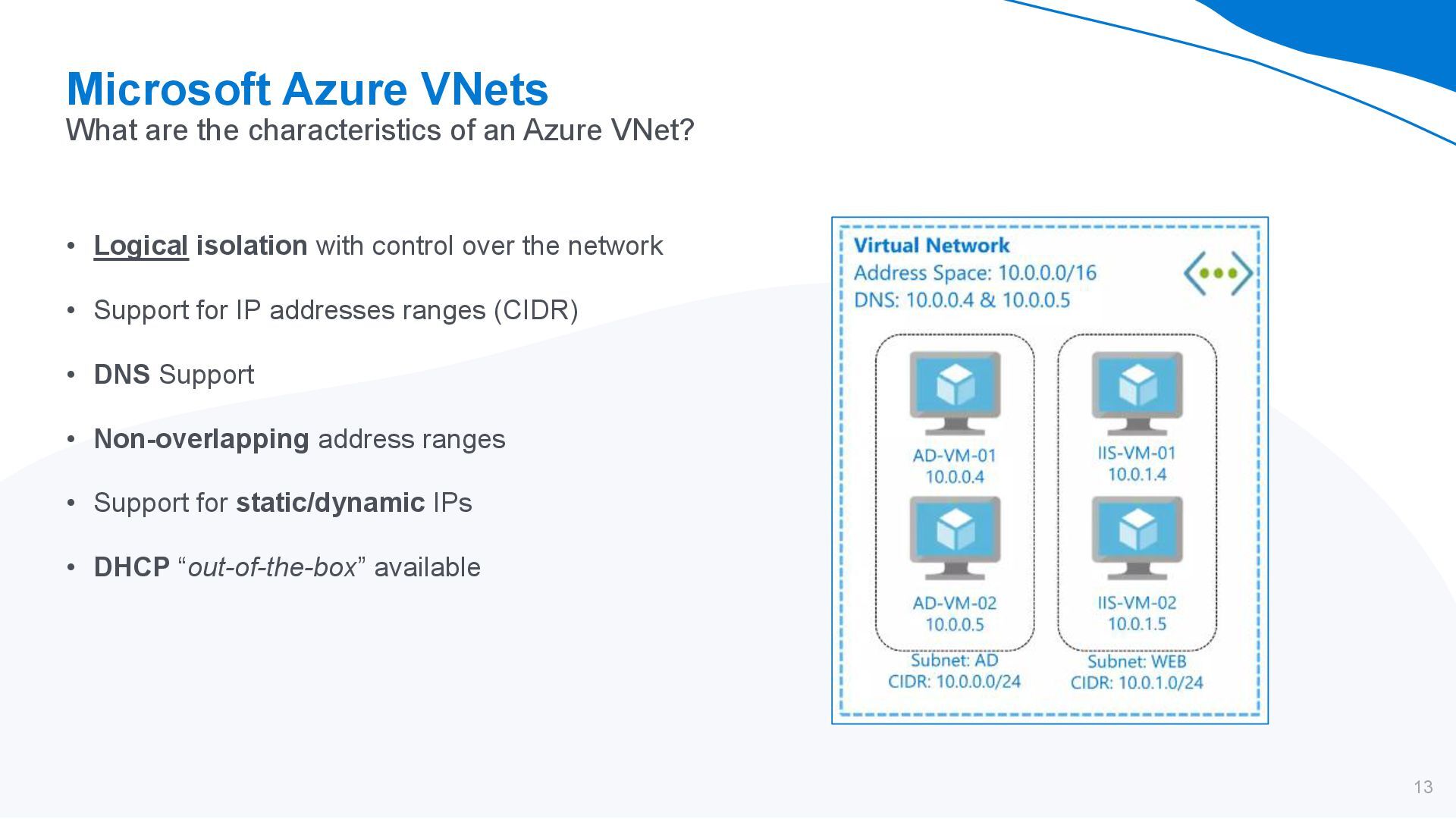

13. Microsoft Azure VNets What are the characteristics of an Azure VNet? 13 • Logical isolation with control over the network • Support for IP addresses ranges (CIDR) • DNS Support • Non-overlapping address ranges • Support for static/dynamic IPs • DHCP “out-of-the-box” available
14. Network Traffic Management 14 How to filter and control traffic?

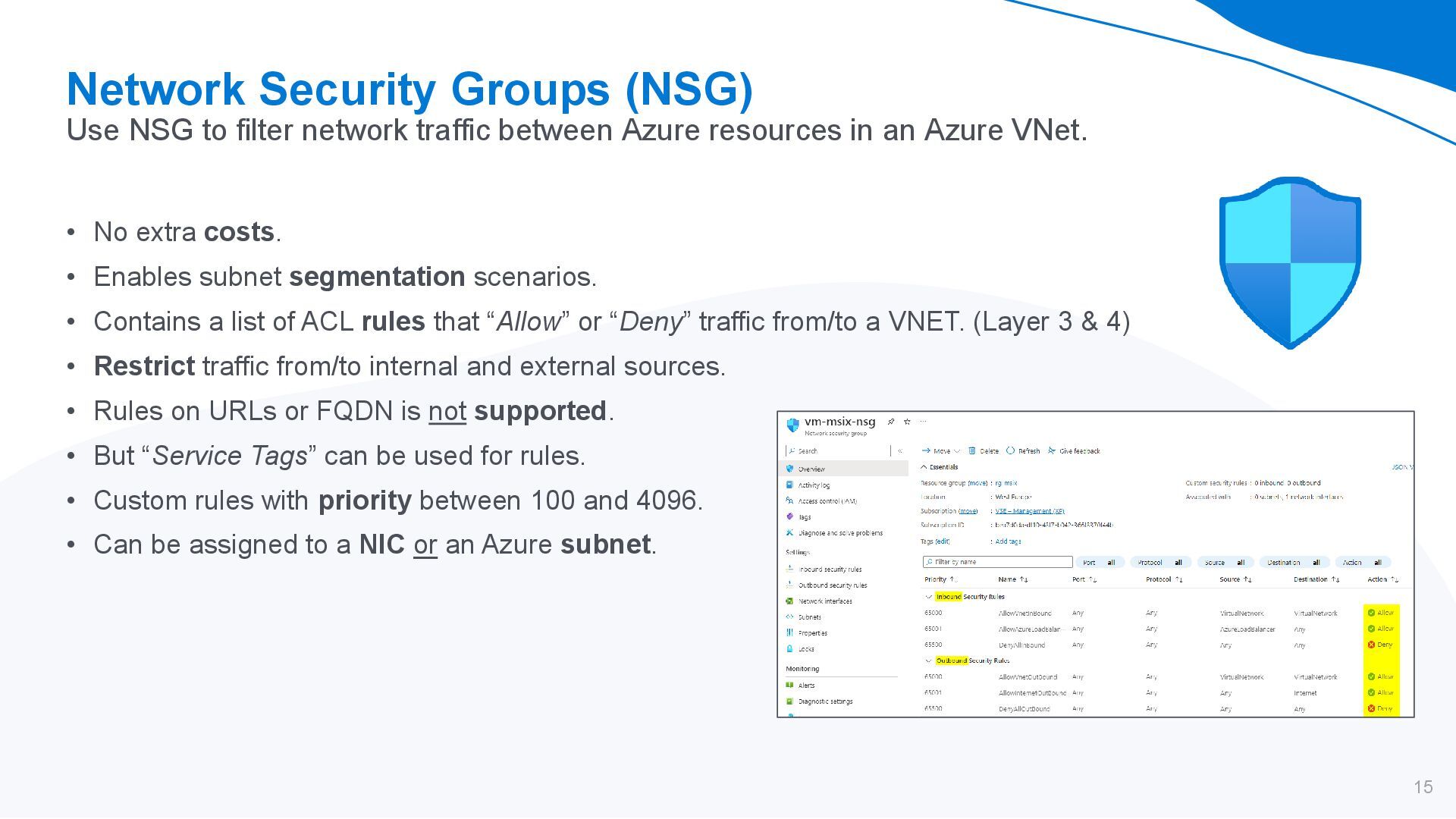

15. Network Security Groups (NSG) Use NSG to filter network traffic between Azure resources in an Azure VNet. 15 • No extra costs. • Enables subnet segmentation scenarios. • Contains a list of ACL rules that “Allow” or “Deny” traffic from/to a VNET. (Layer 3 & 4) • Restrict traffic from/to internal and external sources. • Rules on URLs or FQDN is not supported. • But “Service Tags” can be used for rules. • Custom rules with priority between 100 and 4096. • Can be assigned to a NIC or an Azure subnet.

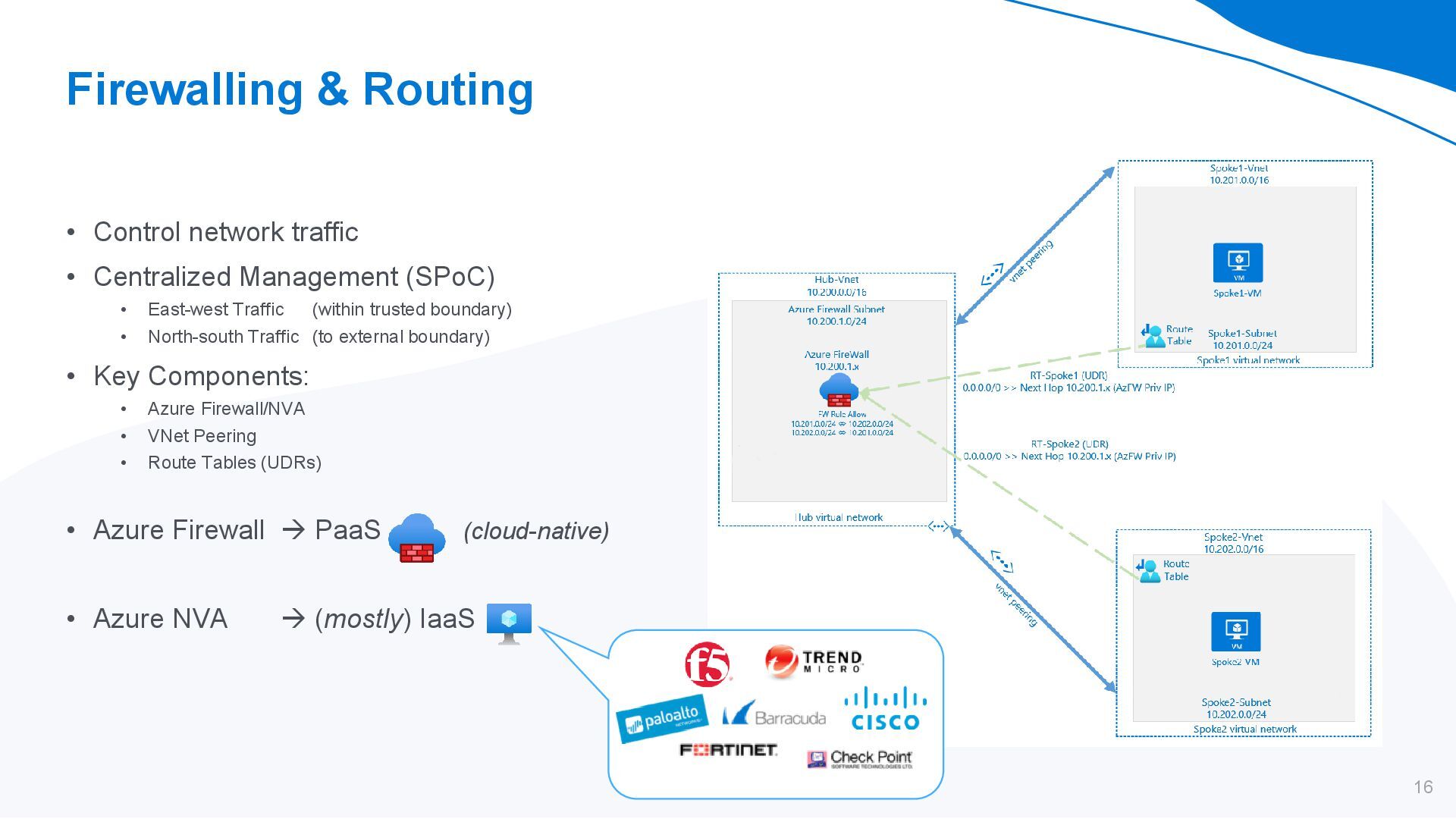

16. Firewalling & Routing 16 • Control network traffic • Centralized Management (SPoC) • East-west Traffic (within trusted boundary) • North-south Traffic (to external boundary) • Key Components: • Azure Firewall/NVA • VNet Peering • Route Tables (UDRs) • Azure Firewall → PaaS (cloud-native) • Azure NVA → (mostly) IaaS

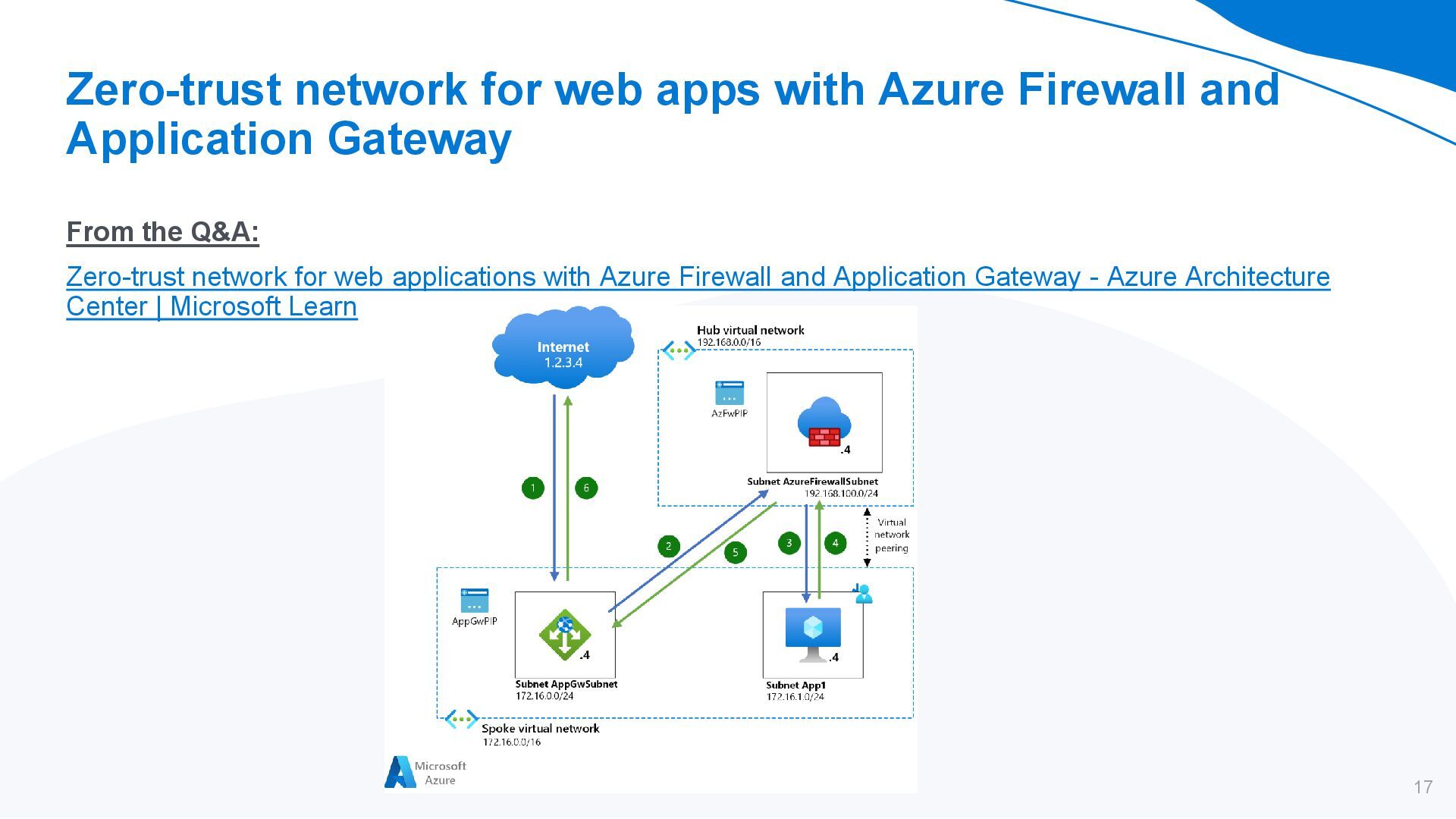

17. Zero-trust network for web apps with Azure Firewall and Application Gateway 17 From the Q&A: Zero-trust network for web applications with Azure Firewall and Application Gateway - Azure Architecture Center | Microsoft Learn
18. Service & Private Endpoints 18 Provide a secure and direct connectivity to Azure services.

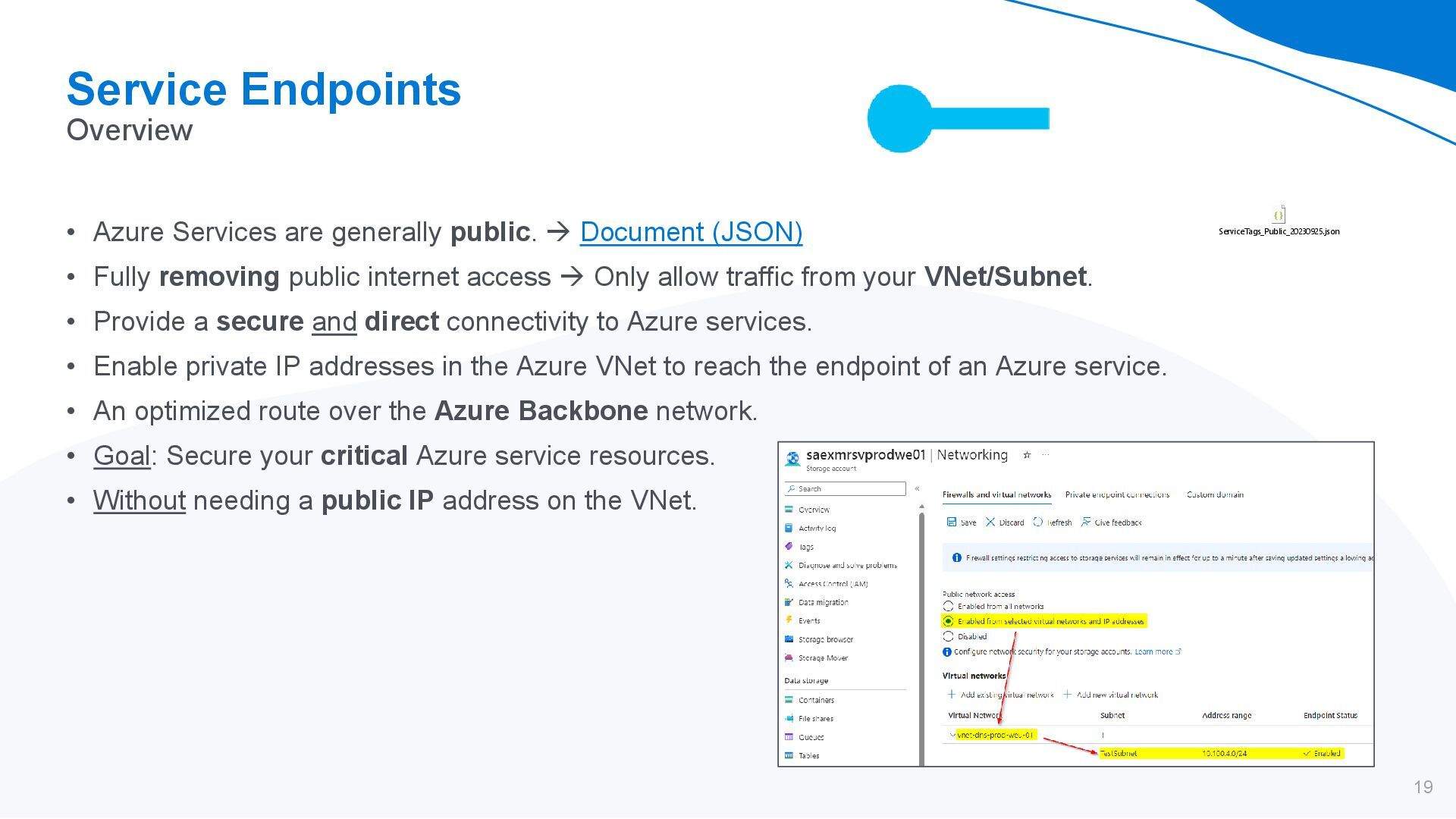

19. Service Endpoints Overview 19 • Azure Services are generally public. → Document (JSON) • Fully removing public internet access → Only allow traffic from your VNet/Subnet. • Provide a secure and direct connectivity to Azure services. • Enable private IP addresses in the Azure VNet to reach the endpoint of an Azure service. • An optimized route over the Azure Backbone network. • Goal: Secure your critical Azure service resources. • Without needing a public IP address on the VNet. ServiceTags_Public_20230925.json

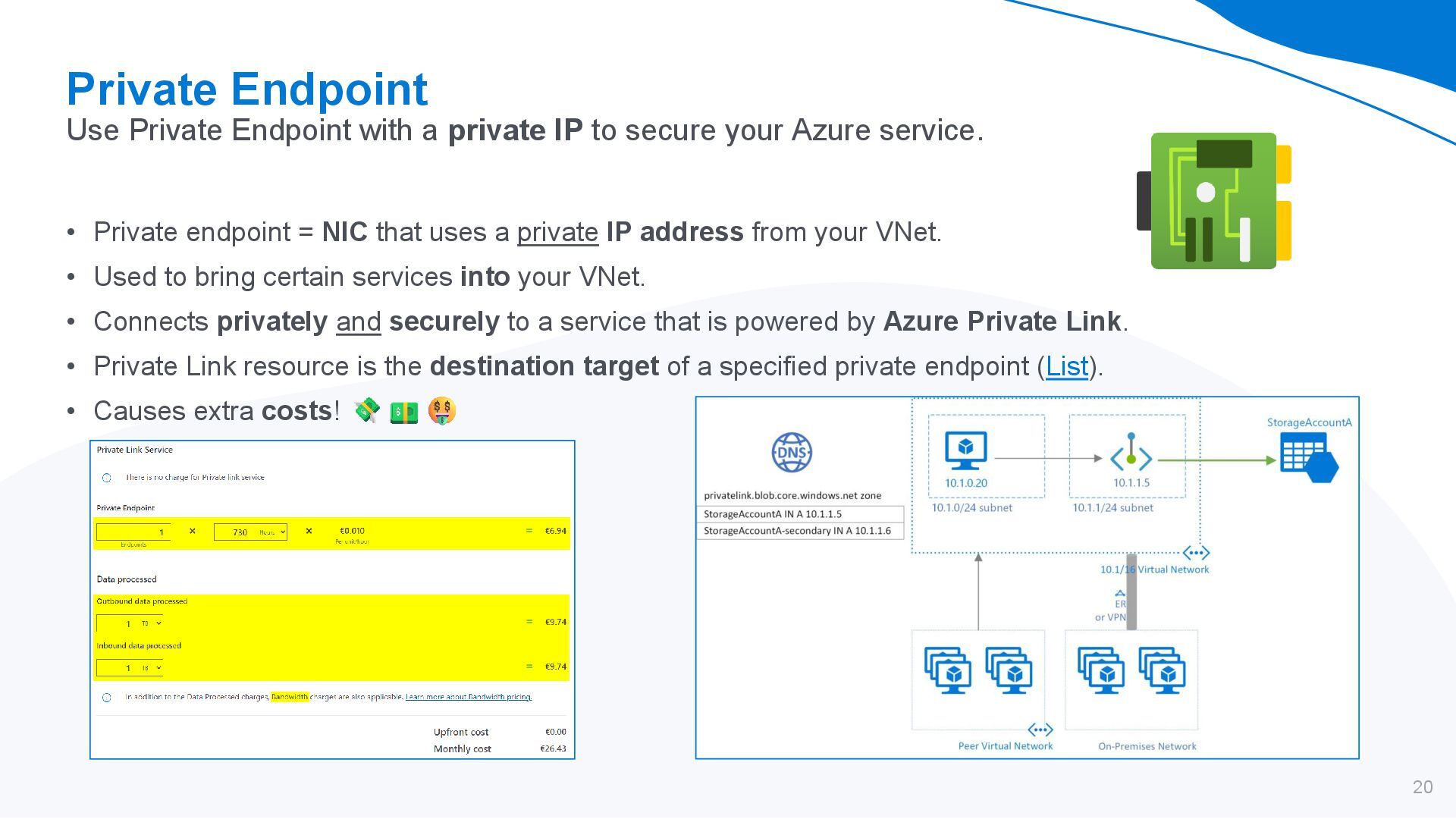

20. Private Endpoint Use Private Endpoint with a private IP to secure your Azure service. 20 • Private endpoint = NIC that uses a private IP address from your VNet. • Used to bring certain services into your VNet. • Connects privately and securely to a service that is powered by Azure Private Link. • Private Link resource is the destination target of a specified private endpoint (List). • Causes extra costs!
21. Infrastructure as Code (IaC) 21 Why IaC is a real game changer?
22. Mind change of (Cloud ) resource deployment „Click-Click-Cloud“ „Click-Ops“ „Clicky-Bunti“ Mind Change: From “static” to “dynamic” infrastructure CI/CD-driven Infrastructure deployment 22
23. Key Takeaways 23 What are the essential takeaways of the session?

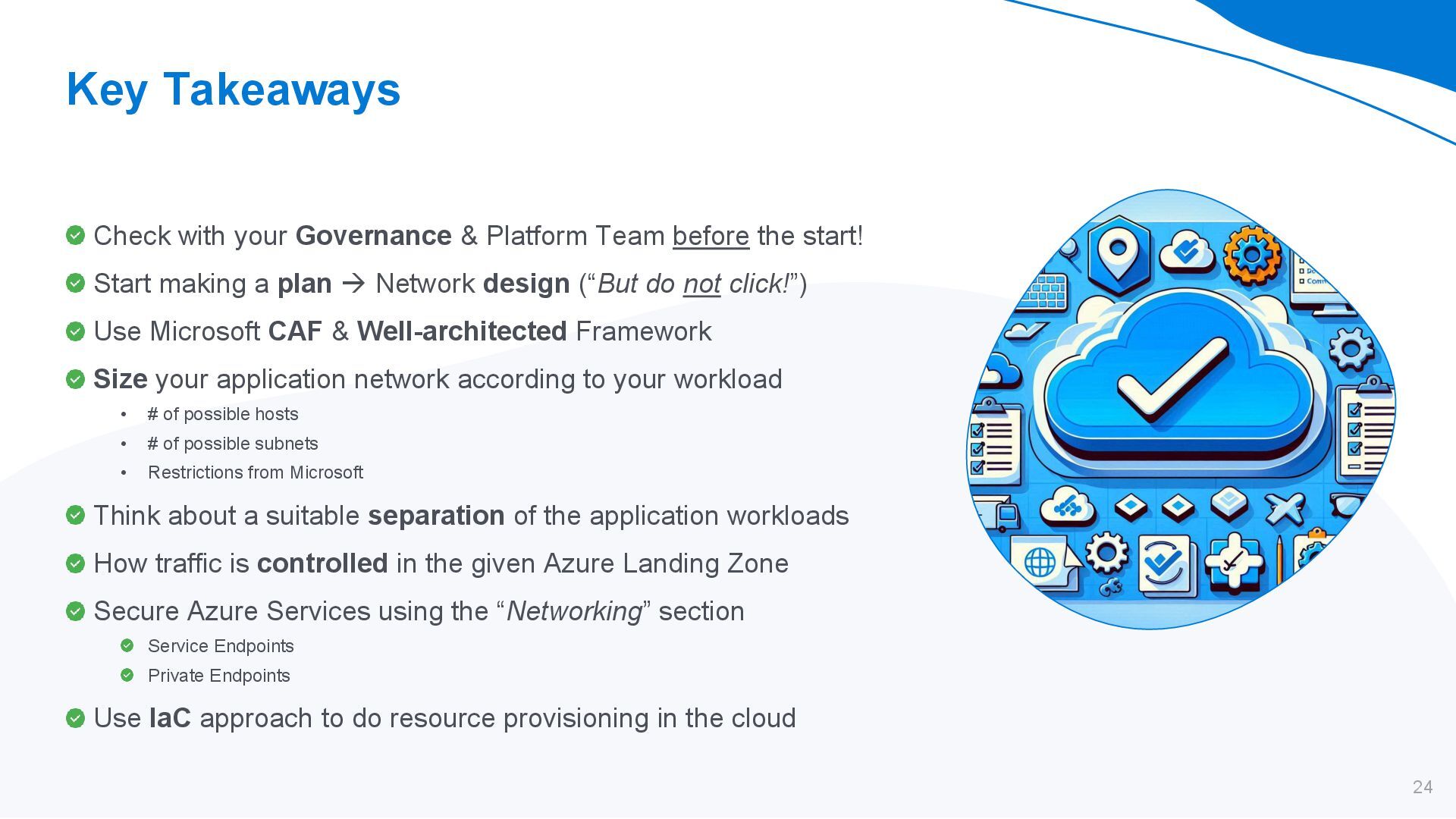

24. Key Takeaways 24 Check with your Governance & Platform Team before the start! Start making a plan → Network design (“But do not click!”) Use Microsoft CAF & Well-architected Framework Size your application network according to your workload • # of possible hosts • # of possible subnets • Restrictions from Microsoft Think about a suitable separation of the application workloads How traffic is controlled in the given Azure Landing Zone Secure Azure Services using the “Networking” section Service Endpoints Private Endpoints Use IaC approach to do resource provisioning in the cloud
