ABCS25: True Tales of Cloud Modernisation: From Legacy to Serverless by Adrian Pritchard

⭐️ True Tales of Cloud Modernisation: From Legacy to Serverless#
A story of how I helped migrate legacy solutions that were built on Microsoft BizTalk Server 2010 and Dynamics CRM 2011 to modern Cloud technologies, such as Azure Functions, Azure Application Insights, Azure SQL, and Dynamics 365. Join me to learn about the interesting set of challenges, trade-offs, and constraints that I faced, the solutions that I designed, and I code that I wrote, on the journey to a truly cloud-native architecture.
🙂 ADRIAN PRITCHARD ⚡️ Lead Developer @ Fujitsu

Transcript

1. FUJITSU-PUBLIC 1 © Fujitsu 2025 FUJITSU-PUBLIC © Fujitsu 2025 True Tales of Cloud Modernisation From Legacy to Serverless Adrian Pritchard, Fujitsu
2. FUJITSU-PUBLIC 2 © Fujitsu 2025 Key technologies Vertical areas 4 cross-industry areas that solve societal issues Horizontal areas 3 technical areas that support cross-industry 7 Key Focus Areas Achieving a Sustainable World Provide digital services originating from cross-industry societal issues, which contribute to customer growth. Computing Network AI Data & Security Converging Technologies Sustainable Manufacturing Consumer Experience Healthy Living Trusted Society Digital Shifts Business Applications Hybrid IT
3. FUJITSU-PUBLIC 3 © Fujitsu 2025 Who Am I? •Writing code since the 1980s •Bits, atoms and creativity •1990s, Fujitsu and uIntegrate

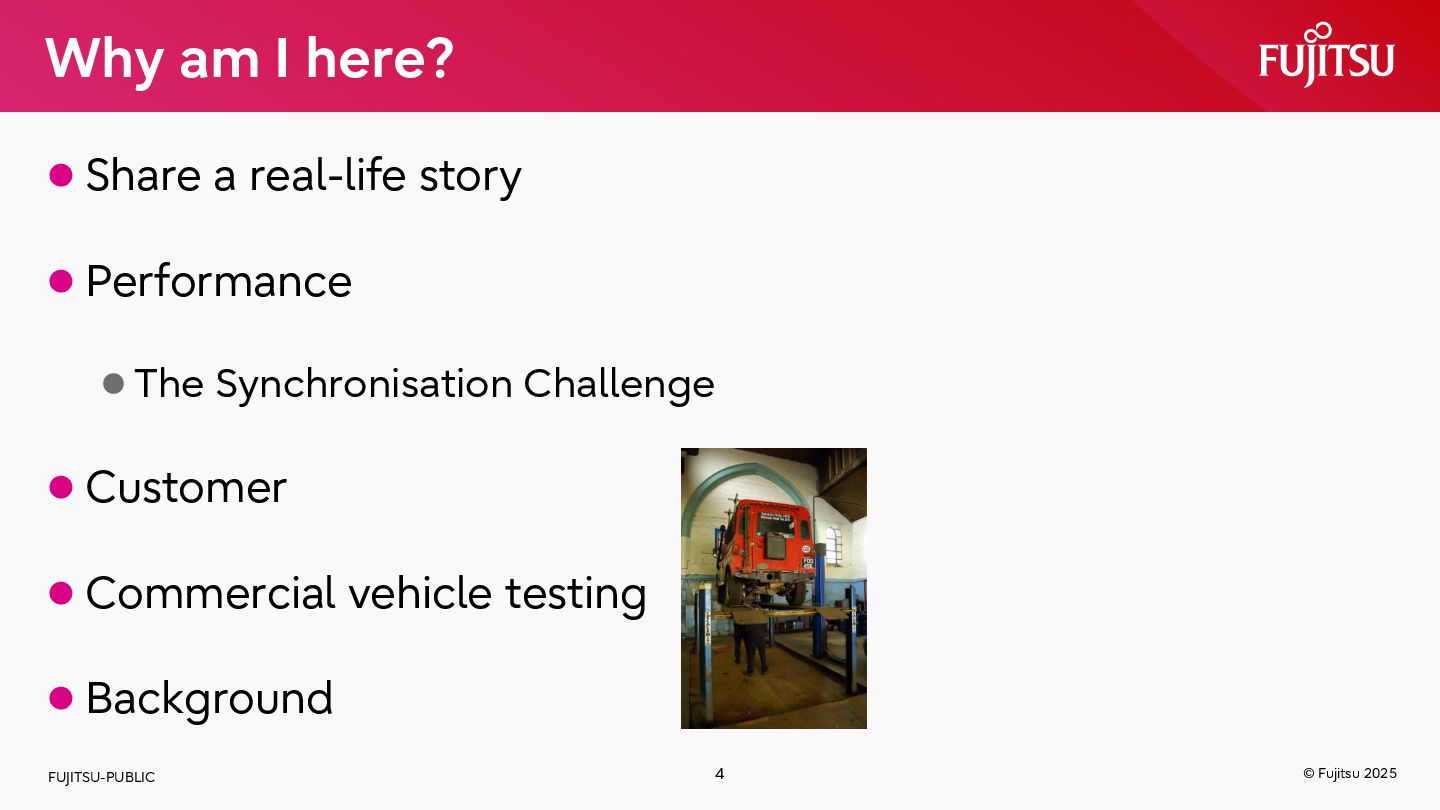

4. FUJITSU-PUBLIC 4 © Fujitsu 2025 Why am I here? •Share a real-life story •Performance •The Synchronisation Challenge •Customer •Commercial vehicle testing •Background

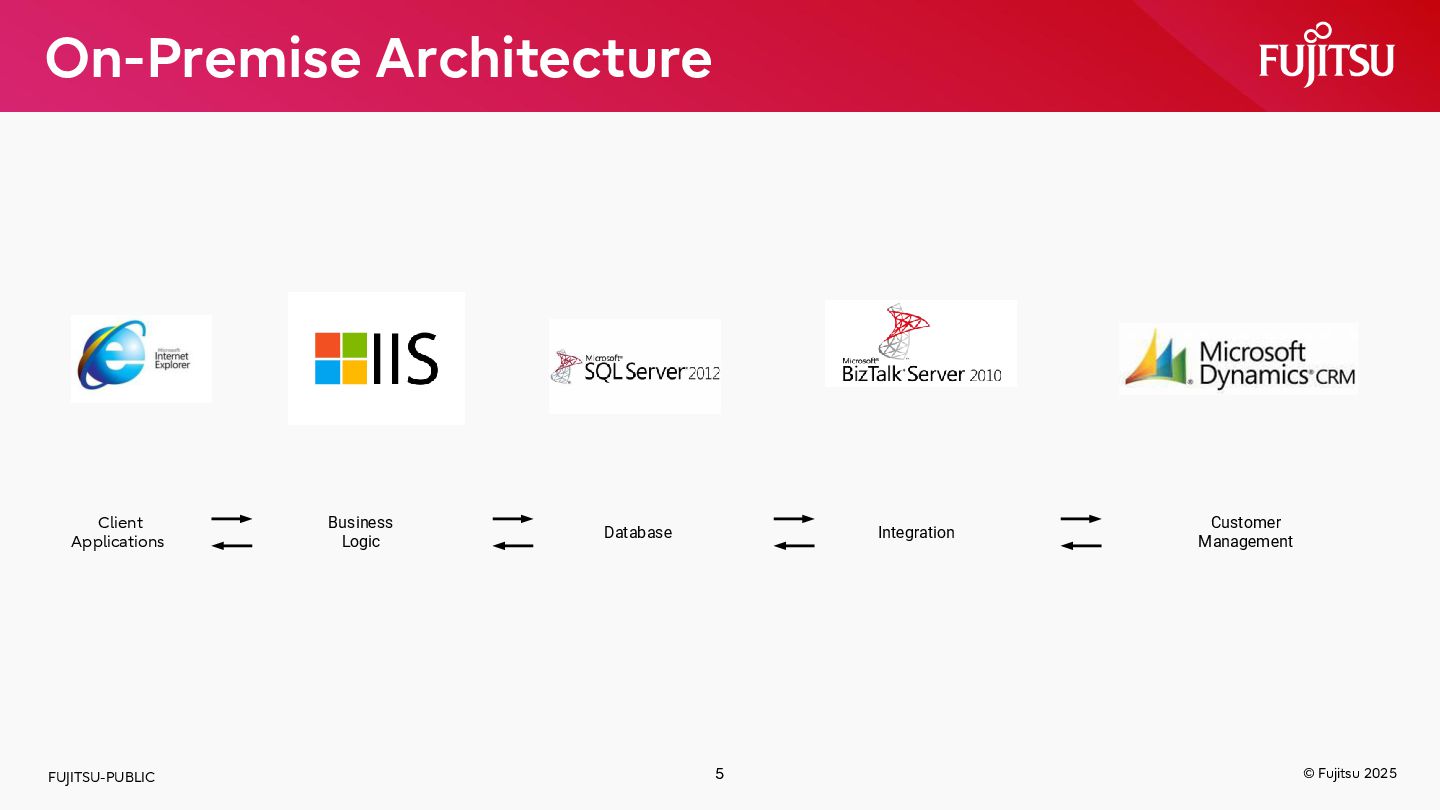

5. FUJITSU-PUBLIC 5 © Fujitsu 2025 On-Premise Architecture Client Applications Business Logic Database Integration Customer Management

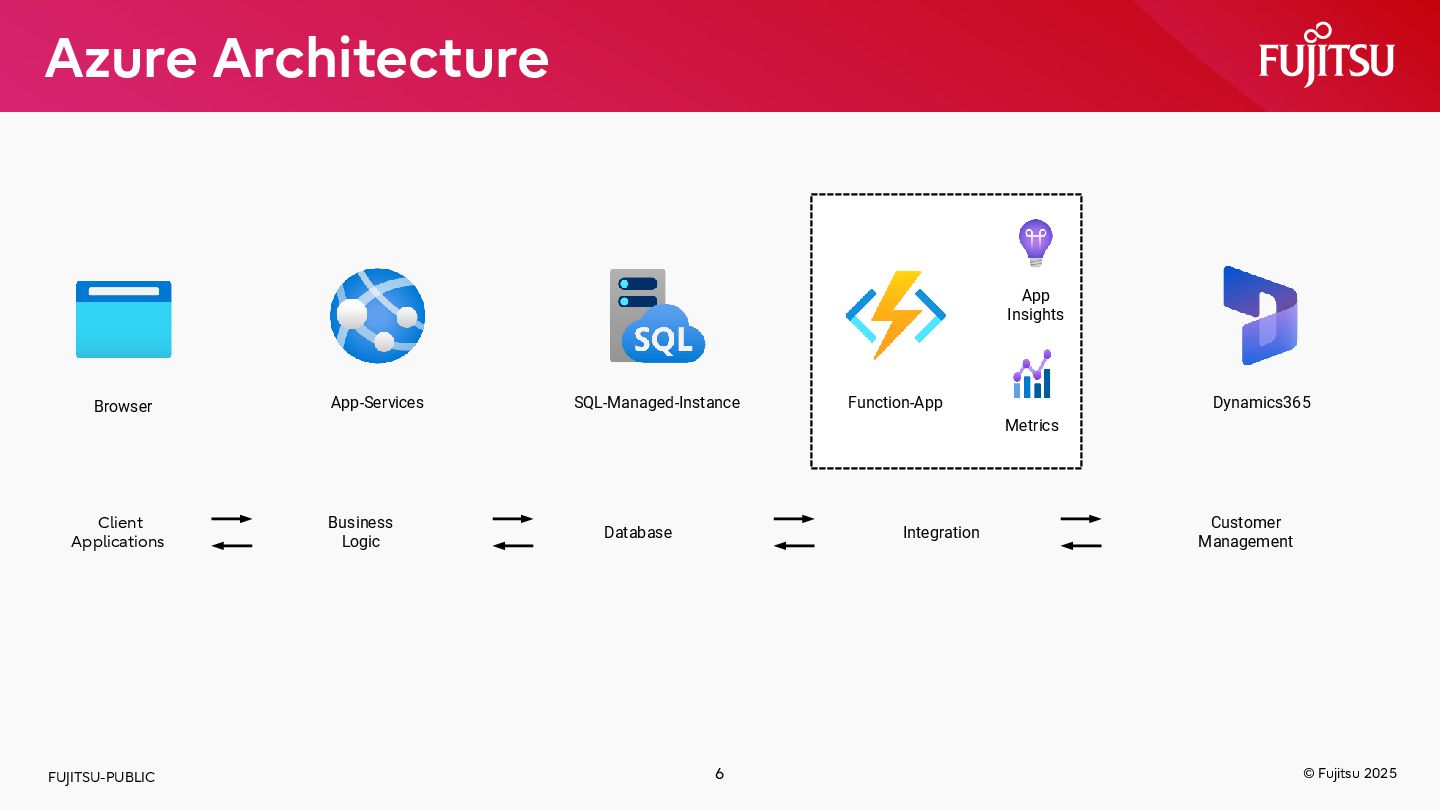

6. FUJITSU-PUBLIC 6 © Fujitsu 2025 Azure Architecture Client Applications Business Logic Database Integration Customer Management Dynamics365 SQL-Managed-Instance App-Services Browser Function-App App Insights Metrics

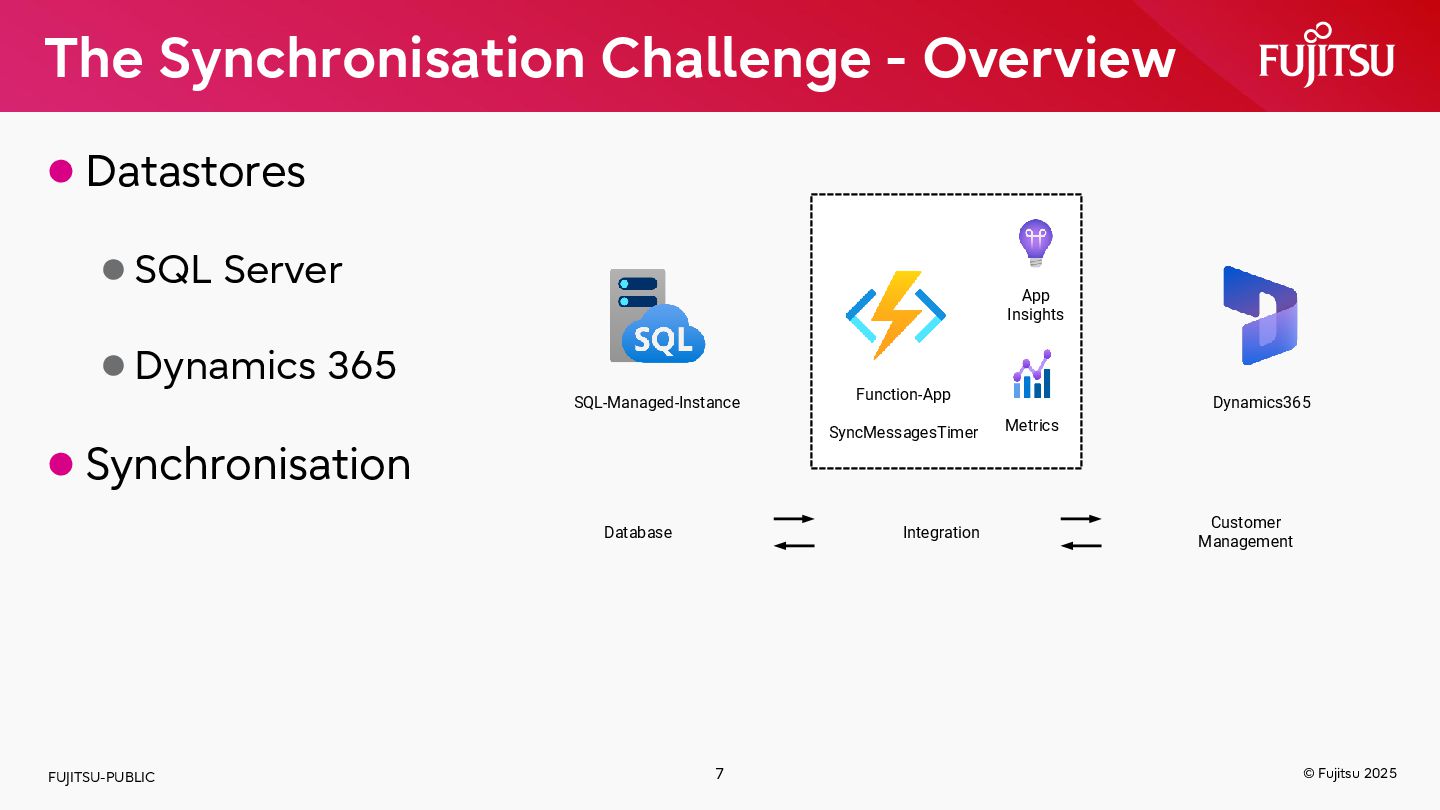

7. FUJITSU-PUBLIC 7 © Fujitsu 2025 The Synchronisation Challenge - Overview •Datastores •SQL Server •Dynamics 365 •Synchronisation Dynamics365 SQL-Managed-Instance Function-App SyncMessagesTimer App Insights Metrics Database Integration Customer Management

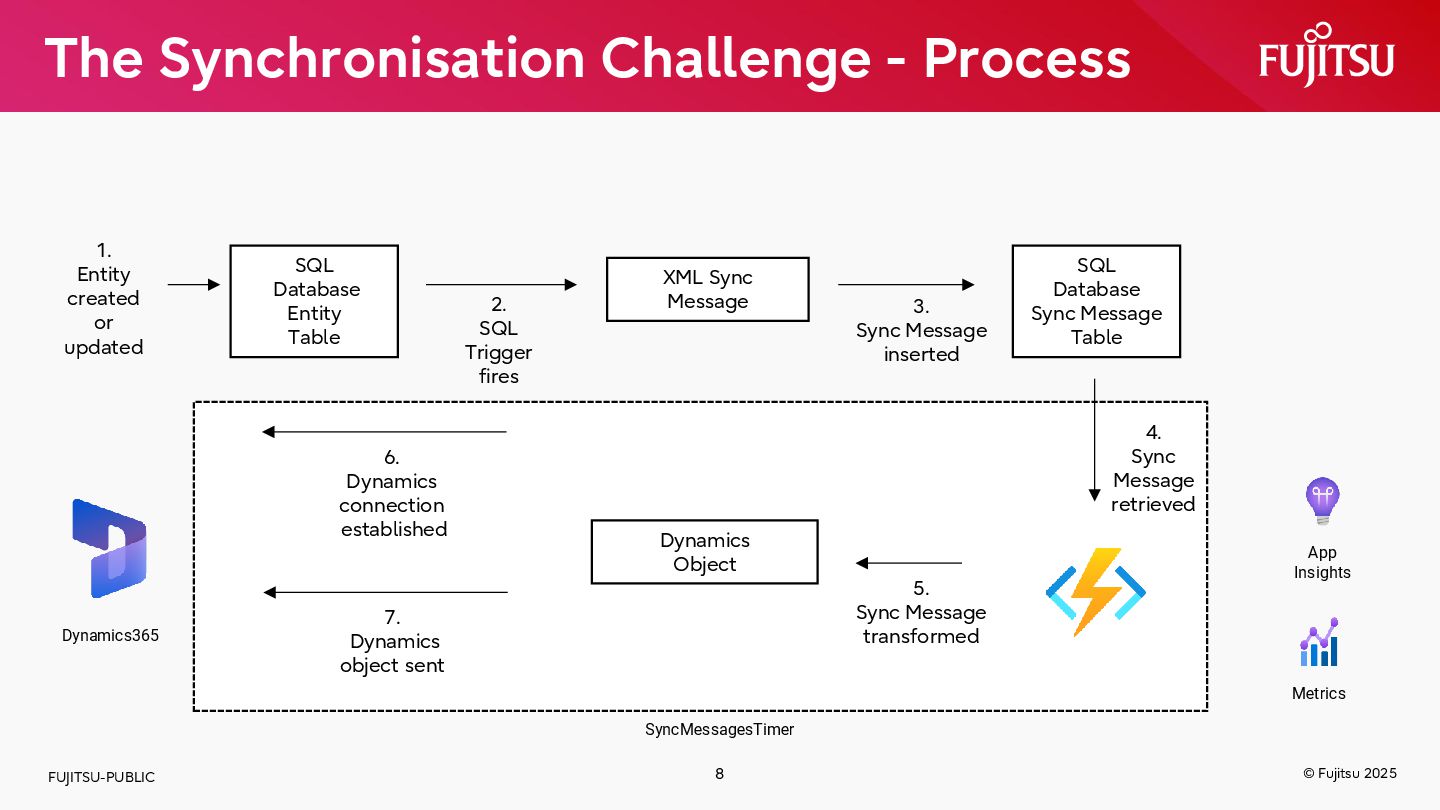

8. FUJITSU-PUBLIC 8 © Fujitsu 2025 The Synchronisation Challenge - Process SQL Database Entity Table 1. Entity created or updated XML Sync Message 2. SQL Trigger fires 3. Sync Message inserted SQL Database Sync Message Table Dynamics365 SyncMessagesTimer App Insights Metrics Dynamics Object 5. Sync Message transformed 6. Dynamics connection established 7. Dynamics object sent 4. Sync Message retrieved

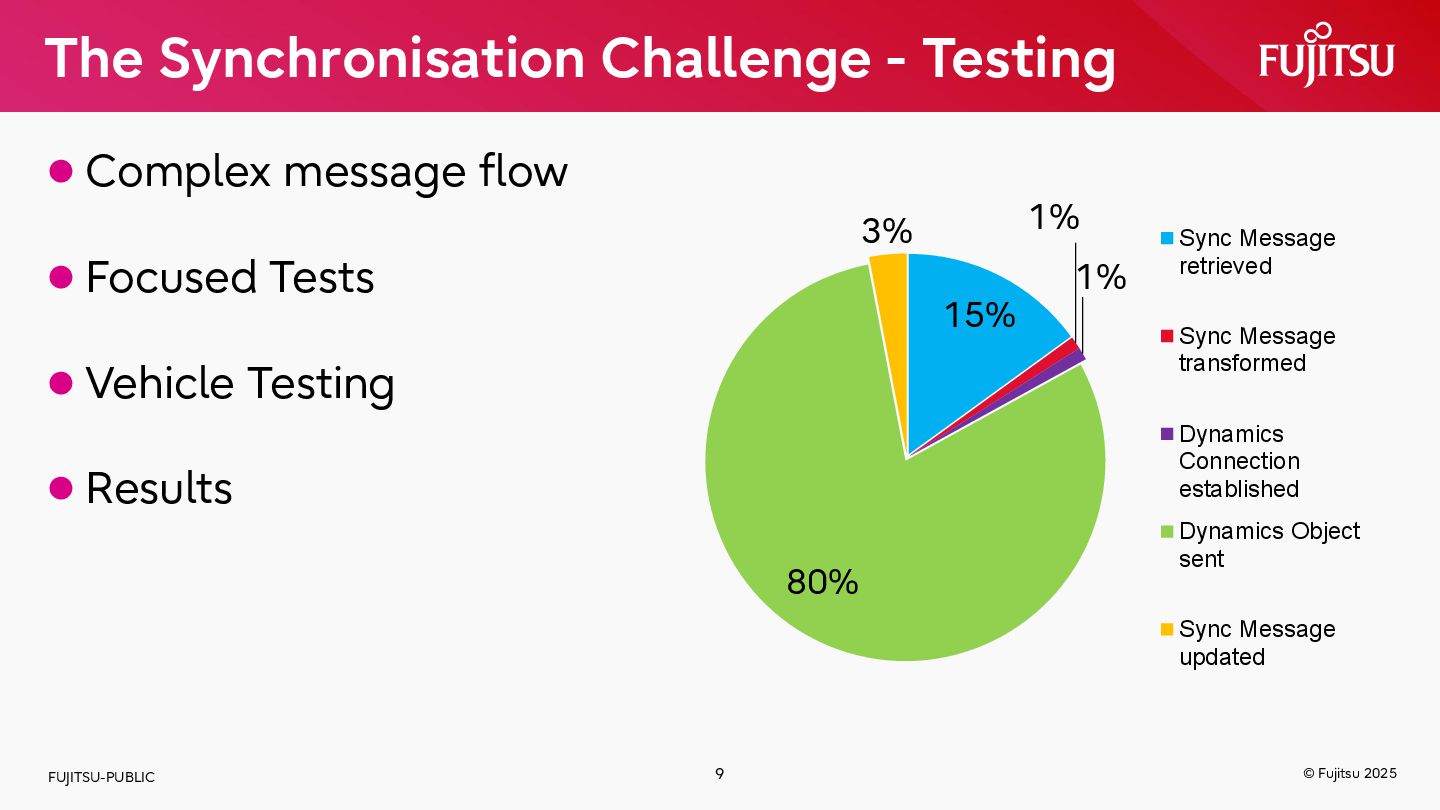

9. FUJITSU-PUBLIC 9 © Fujitsu 2025 The Synchronisation Challenge - Testing •Complex message flow •Focused Tests •Vehicle Testing •Results 15% 1% 1% 80% 3% Sync Message retrieved Sync Message transformed Dynamics Connection established Dynamics Object sent Sync Message updated

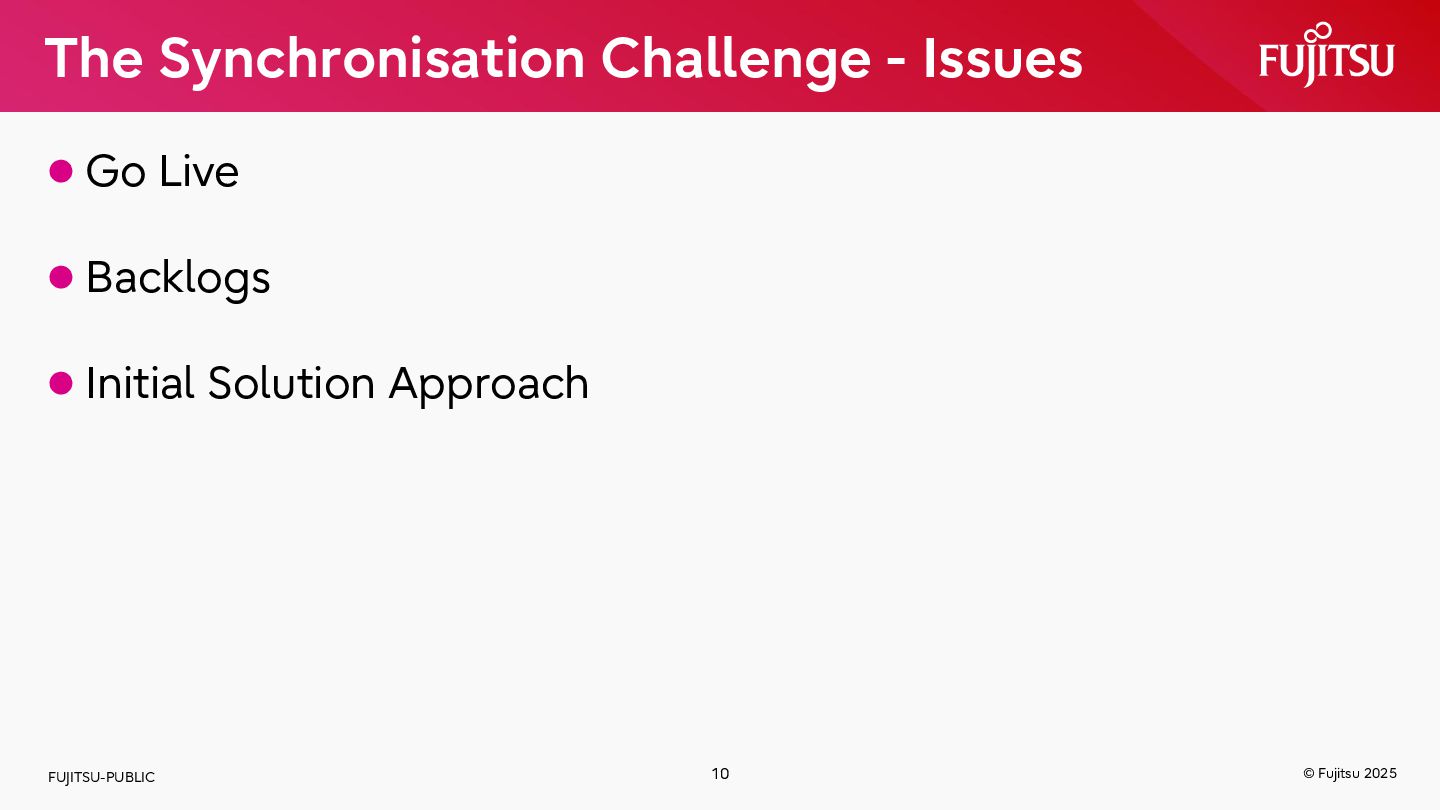

10. FUJITSU-PUBLIC 10 © Fujitsu 2025 The Synchronisation Challenge - Issues •Go Live •Backlogs •Initial Solution Approach

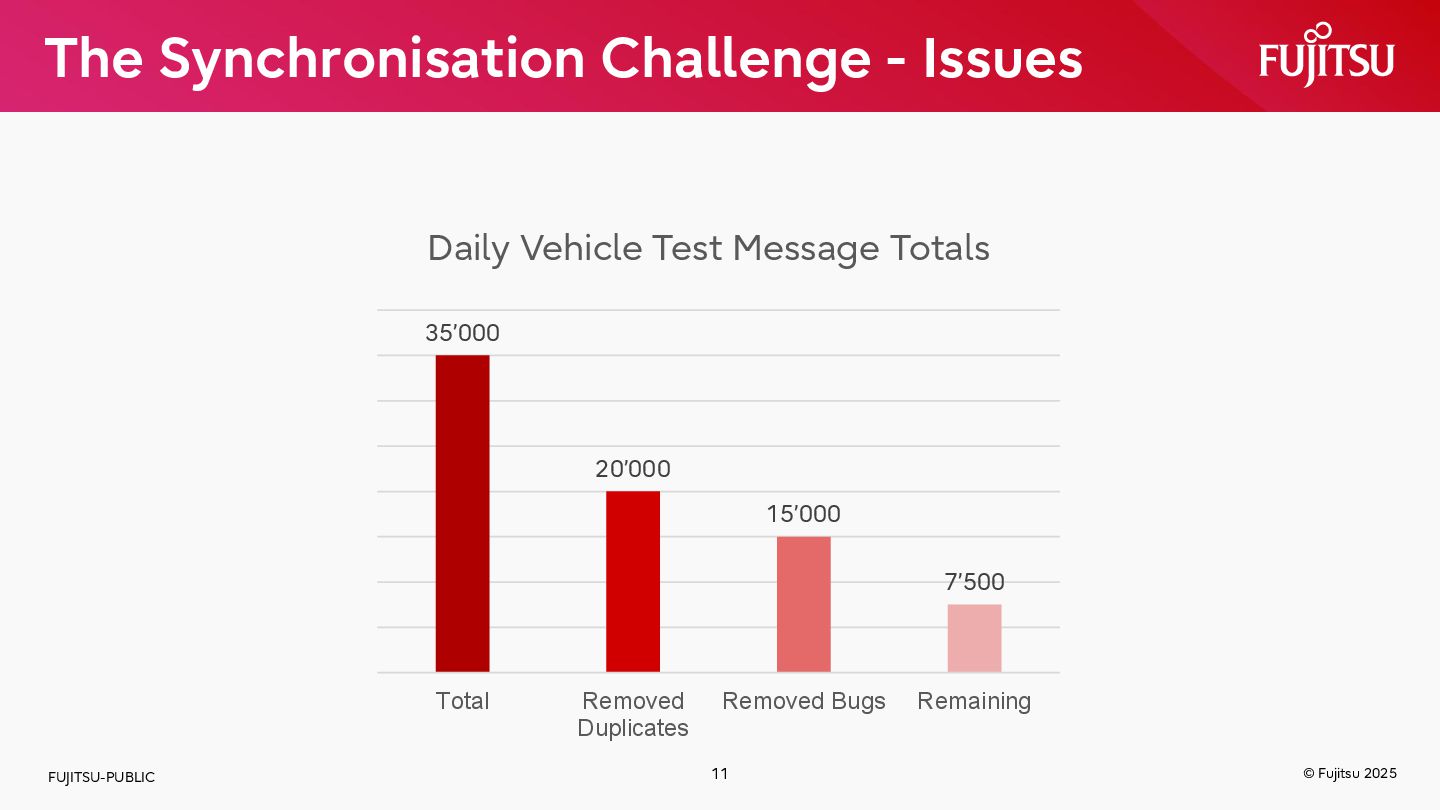

11. FUJITSU-PUBLIC 11 © Fujitsu 2025 The Synchronisation Challenge - Issues 35’000 20’000 15’000 7’500 Total Removed Duplicates Removed Bugs Remaining Daily Vehicle Test Message Totals

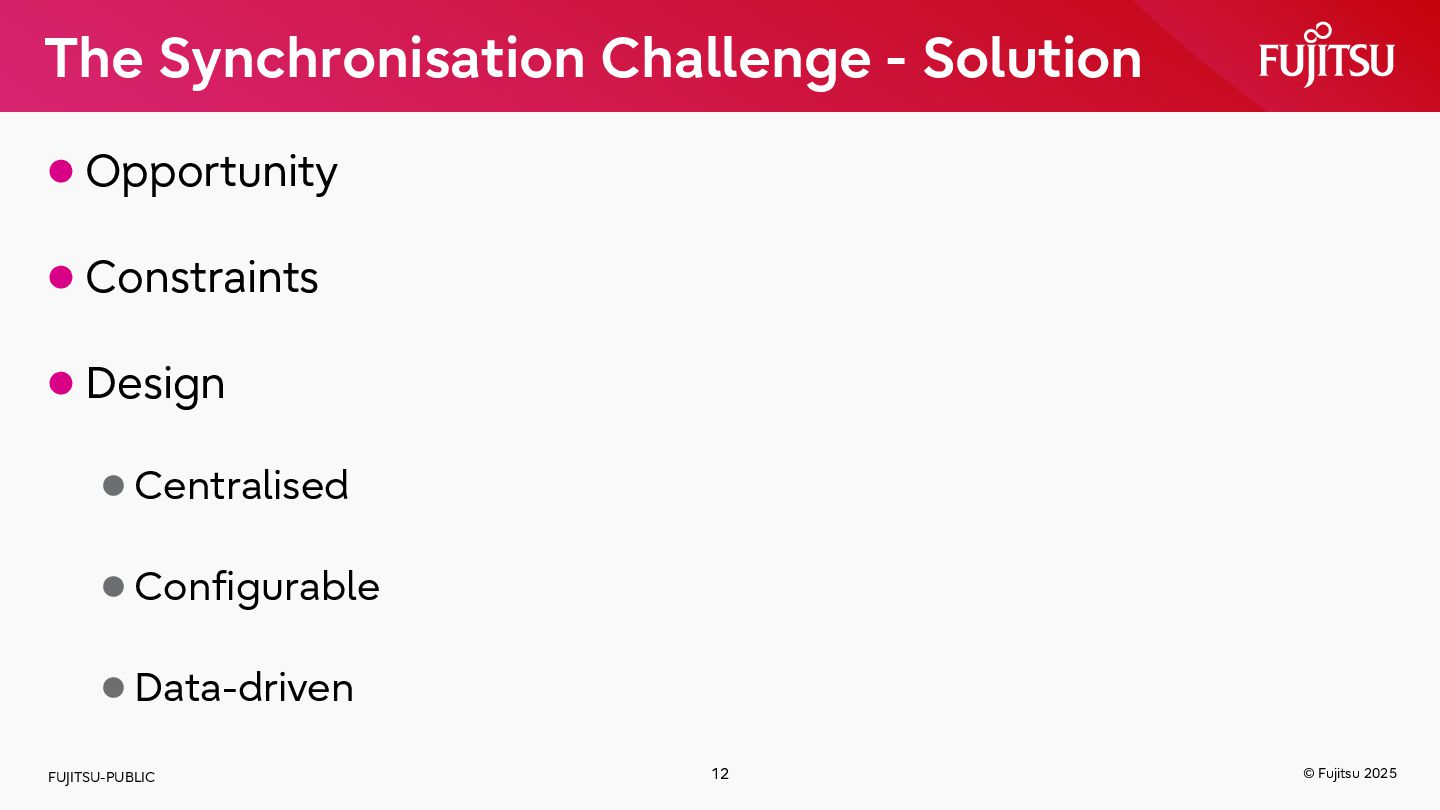

12. FUJITSU-PUBLIC 12 © Fujitsu 2025 The Synchronisation Challenge - Solution •Opportunity •Constraints •Design •Centralised •Configurable •Data-driven

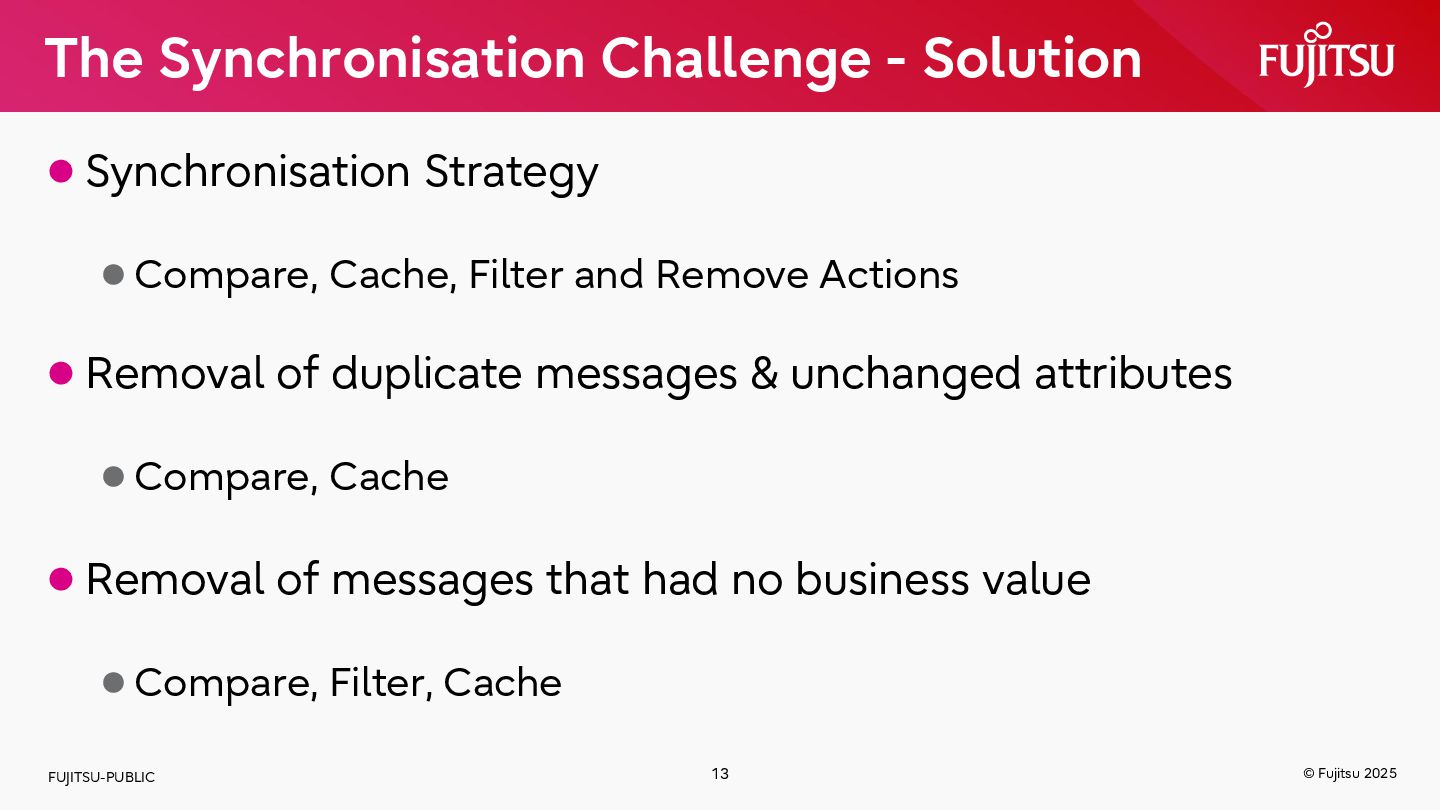

13. FUJITSU-PUBLIC 13 © Fujitsu 2025 The Synchronisation Challenge - Solution •Synchronisation Strategy •Compare, Cache, Filter and Remove Actions •Removal of duplicate messages & unchanged attributes •Compare, Cache •Removal of messages that had no business value •Compare, Filter, Cache

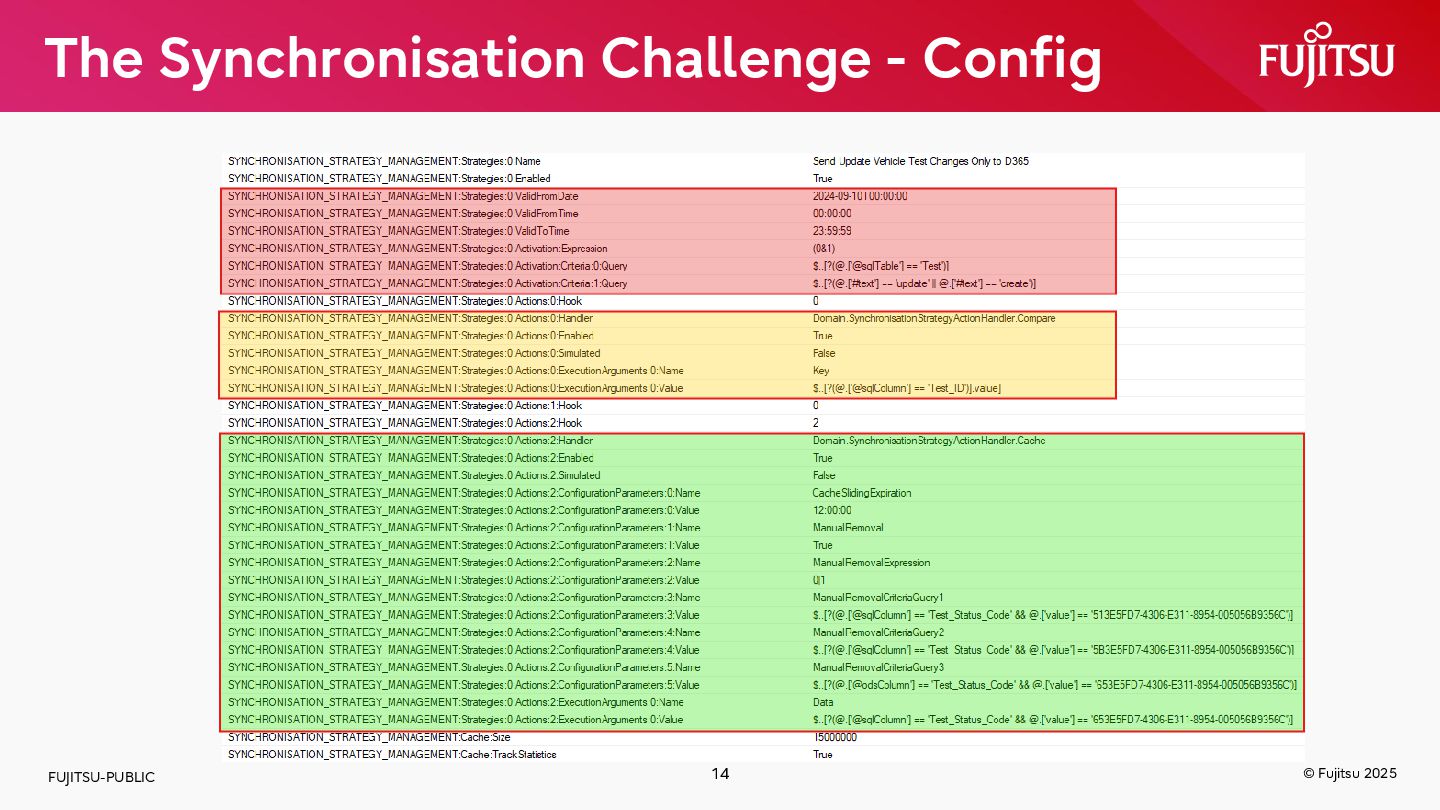

14. FUJITSU-PUBLIC 14 © Fujitsu 2025 The Synchronisation Challenge - Config

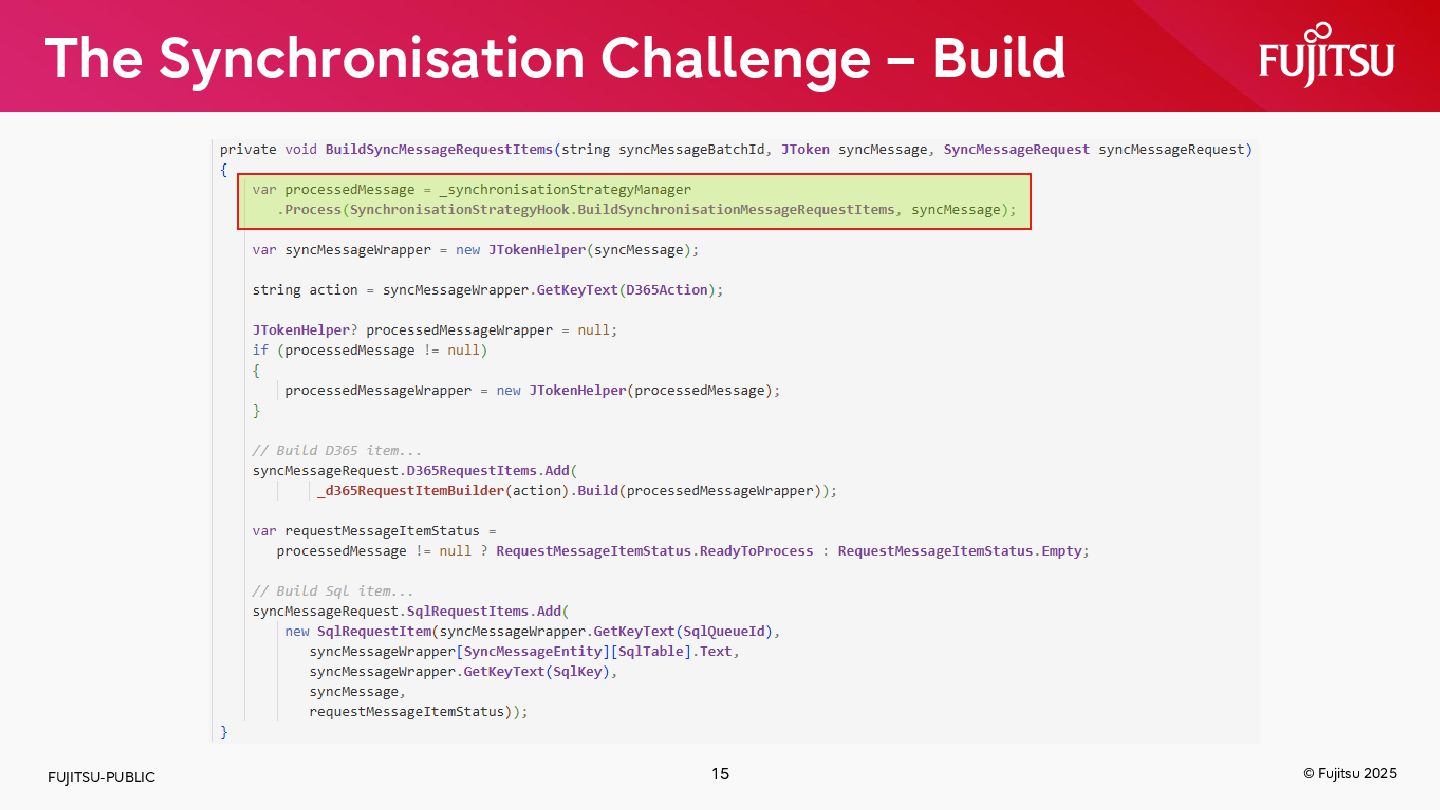

15. FUJITSU-PUBLIC 15 © Fujitsu 2025 The Synchronisation Challenge – Build

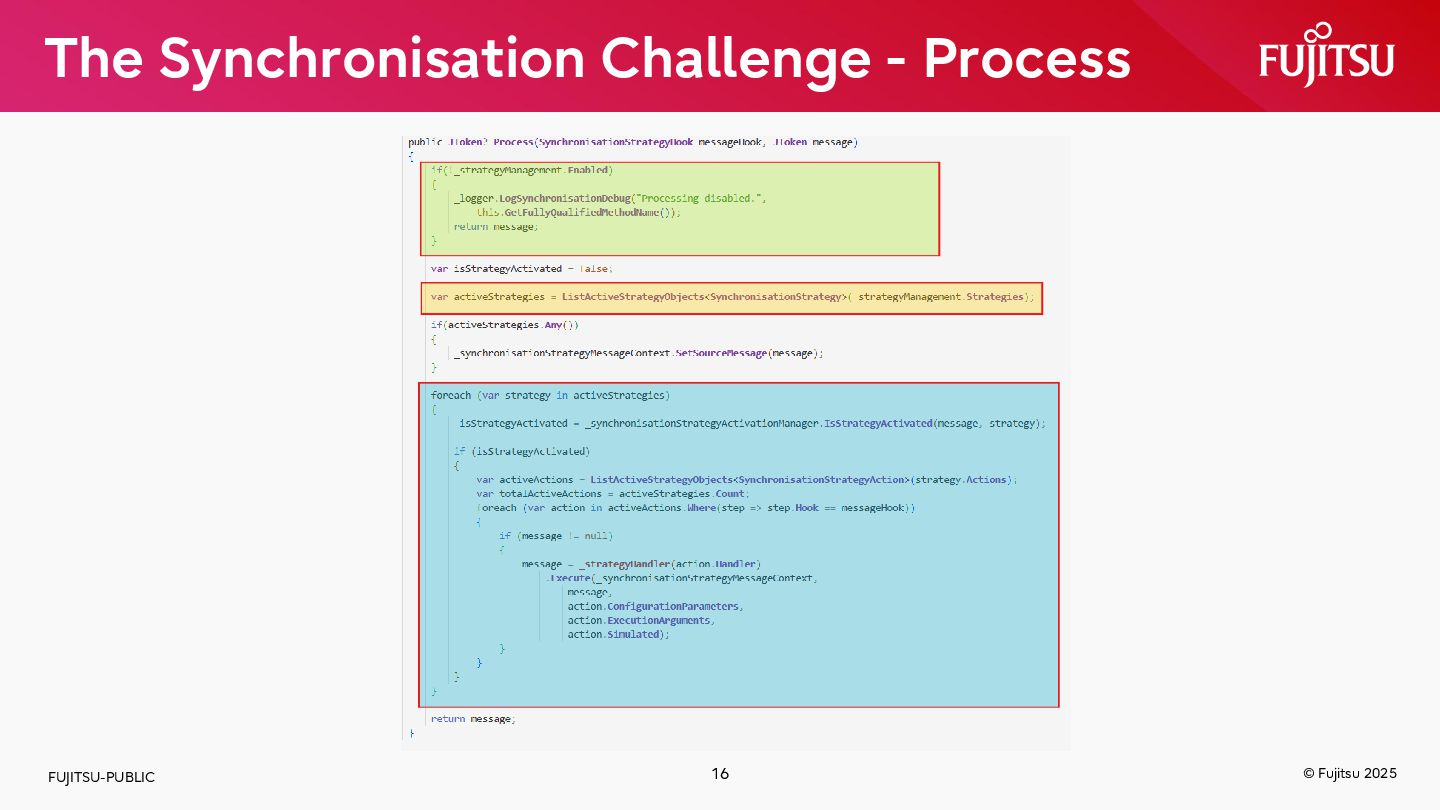

16. FUJITSU-PUBLIC 16 © Fujitsu 2025 The Synchronisation Challenge - Process
17. FUJITSU-PUBLIC 17 © Fujitsu 2025 The Synchronisation Challenge – Compare
18. FUJITSU-PUBLIC 18 © Fujitsu 2025 The Synchronisation Challenge - Cache

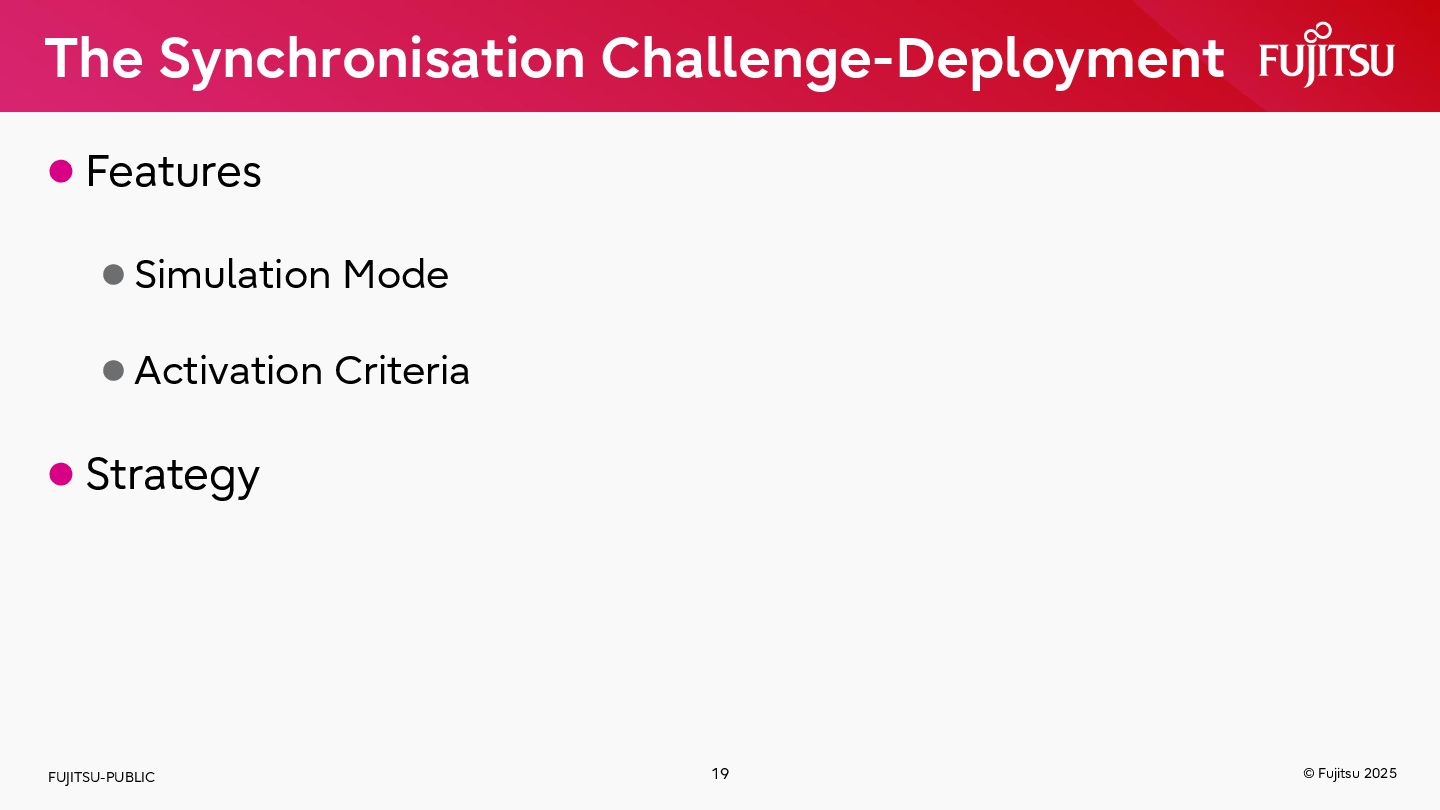

19. FUJITSU-PUBLIC 19 © Fujitsu 2025 The Synchronisation Challenge-Deployment •Features •Simulation Mode •Activation Criteria •Strategy

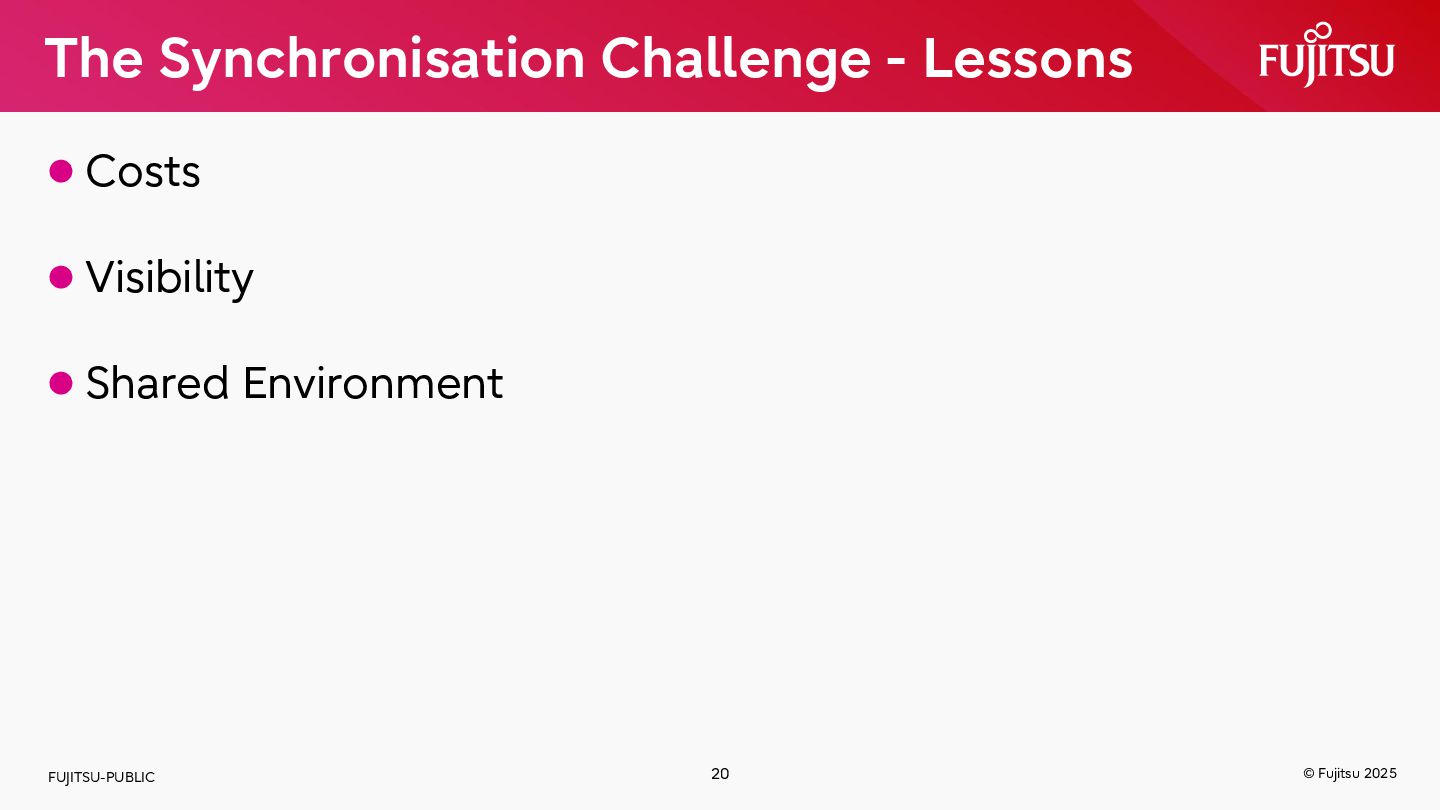

20. FUJITSU-PUBLIC 20 © Fujitsu 2025 The Synchronisation Challenge - Lessons •Costs •Visibility •Shared Environment
21. FUJITSU-PUBLIC 21 © Fujitsu 2025 Q&A
22. FUJITSU-PUBLIC 22 © Fujitsu 2025 Thank you
23. FUJITSU-PUBLIC 23 © Fujitsu 2025
