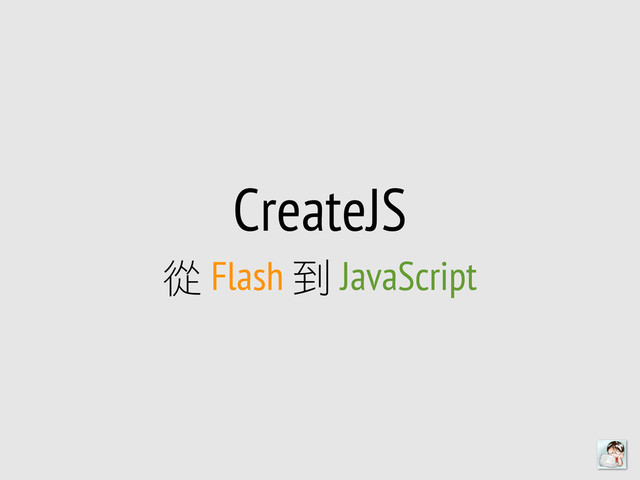

1. CreateJS 從 Flash 到 JavaScript
3. I’m a Ruby guy ≈ 4 years
4. but also a Flash guy ≈ 8 years
5. 目前狀狀態 80% iOS app, 20% Ruby / Rails
8. CreateJS 從 Flash 到 JavaScript
9. 在開始之前..
10. 武林林㆗㊥中, 曾流流傳著許多的 Flash 殺殺手..
11. Flash 真的死了了嗎?
12. 可能吧 :)
13. Flash Play != Flash
15. 如果你曾經是個 Flash 程式設計師 或是現在還靠 Flash 討生活...
16. 該㈻㊫學 HTML5 嗎?
17. 聽說說說 HTML5 的 Canvas ㈲㊒有點難?!
18. Grant Skinner photo by Andy Polaine http://gskinner.com/
19. http://www.createjs.com
20. EaselJS .. provides a full, hierarchical display list, a core interaction model, and helper classes to make working with the HTML5 Canvas element much easier.
21. TweenJS A simple but powerful tweening / animation library for Javascript. Part of the CreateJS suite of libraries.
22. SoundJS A Javascript library for working with Audio. Features a simple interface as the front end to multiple audio APIs via a plugin model. Currently supports HTML5 Audio & Flash.
23. PreloadJS .. makes preloading assets & getting aggregate progress events easier in JavaScript. It uses XHR2 when available, and falls back to tag-based loading when not.
24. 原因?
25. CreateJS 是 真．大神神㊢寫的!
28. Flash-like 的 API
29. ㈲㊒有文件、範例例!
30. 授權?
31. MIT
32. Flash == Commercial software
33. Flash != Not Open
34. 安裝
35. ✴ 就放在你的專案裡裡.. ✴ 或是直接從 CDN 引入.. 安裝 <script src="lib/createjs.js"></script> <script src="http://code.createjs.com/createjs-2013.05.14.min.js"> </script>
37. 哈囉，世界!
38. 哈囉，世界 var canvas = document.getElementById("demo_canvas"); var stage = new createjs.Stage(canvas); var text = new createjs.Text("Hello, World"); text.color = "white"; text.font = "25px Ariel"; text.x = 50; text.y = 50; stage.addChild(text); stage.update();
39. 等等! 剛剛的程式碼裡裡面是不不是㈲㊒有看到 "Stage" 跟 "addChild"..?!
40. 應該是巧合吧 反正程式都都嘛長得很像.. :)
41. 小圈圈
42. 畫圈圈 var canvas = document.getElementById("demo_canvas"); var stage = new createjs.Stage(canvas); var graphic = new createjs.Graphics(); graphic.beginStroke("white"); graphic.setStrokeStyle(5); graphic.beginFill("red"); graphic.drawCircle(100, 100, 50); var shape = new createjs.Shape(graphic); stage.addChild(shape); stage.update();
43. var canvas = document.getElementById("demo_canvas"); var stage = new createjs.Stage(canvas); var graphic = new createjs.Graphics(); graphic.beginStroke("white") .setStrokeStyle(5) .beginFill("red") .drawCircle(100, 100, 50); var shape = new createjs.Shape(graphic); stage.addChild(shape); stage.update(); 畫圈圈
44. var canvas = document.getElementById("demo_canvas"); var stage = new createjs.Stage(canvas); var graphic = new createjs.Graphics(); graphic.s("white") .ss(5) .f("red") .dc(100, 100, 50); var shape = new createjs.Shape(graphic); stage.addChild(shape); stage.update(); 畫圈圈
45. 親愛的， 剛剛是不不是㈲㊒有看到 "Graphics" 跟 "Shape"，還㈲㊒有㆒㈠㊀一些熟悉的畫線、 畫圈圈跟著色的方法..?!
46. 旋轉吧，方塊!
47. 旋轉吧，方塊! var stage, shape; function init() { var canvas = document.getElementById("demo_canvas"); stage = new createjs.Stage(canvas); var g = new createjs.Graphics(); g.s("white").ss(5).f("red").dr(0, 0, 100, 100); shape = new createjs.Shape(g); shape.x = shape.y = 150; shape.regX = shape.regY = 50; stage.addChild(shape); stage.update(); createjs.Ticker.setFPS(30); createjs.Ticker.addEventListener("tick", tickHandler); } function tickHandler (event) { shape.rotation += 4; stage.update(); }
48. Classes in EaselJS
49. DisplayObject Abstract base class for all display elements in EaselJS. Exposes all of the display properties (ex. x, y, rotation, scaleX, scaleY, skewX, skewY, alpha, shadow, etc) that are common to all display objects.
50. Stage The root level display container for display elements. Each time tick() is called on Stage, it will update and render the display list to its associated canvas.
51. 親愛的 Flasher 們, ㈲㊒有種回家、熟悉的感動了了嗎..
52. Container A nestable display container, which lets you aggregate display objects and manipulate them as a group.
53. ㆒㈠㊀一層包㆒㈠㊀一層
54. Text Renders a single line of text to the stage.
55. Bitmap Draws an image, video or canvas to the canvas according to its display properties.
56. Shape Renders a Graphics object within the context of the display list.
57. Graphics Provides an easy to use API for drawing vector data. Can be used with Shape, or completely stand alone.
58. Filter The base filter class that other filters (ex. BoxBlurFilter, ColorMatrixFilter, etc) extend.
59. Ticker Provides a pausable centralized tick manager for ticking Stage instances or other time based code.
60. Rectangle Represents a rectangle as defined by the points (x, y) and (x +width, y+height).
61. SpriteSheet Encapsulates all the data associated with a sprite sheet to be used with BitmapAnimation.
62. 動畫!
64. But!
65. 好啦， 我知道你們㊢寫程式的都都很厲害..
66. 我是美術設計師, 只會畫圖以及用 Flash 拉拉時間軸 做動畫,㊢寫些簡單的 gotoAndPlay( )
67. 工具包?!
68. Zoë A stand alone tool for exporting SWF animations as EaselJS sprite sheets that can be used in Canvas and CSS.
69. CreateJS toolkits
70. 改得動嗎?!
71. 匯出檔案大小?!
72. 效能?!
73. 我沒㈲㊒有評估過所㈲㊒有的 javascript libs..
74. 我只知道, ㊢寫的出來來的東西, 才㈲㊒有所謂的效能可以調校
75. 瀏覽器相容性?!
76. 其實我不不是很在乎.. XD
77. 工商服務 photo by North Carolina Digital Heritage Center
78. - Senior art designer - Mobile app developer 尋找..
80. 750+ attendees in 2013
81. 750+ attendees in 2013
82. 450 tickets sold out in 4 mins
83. WebConf Taiwan 2014
84. Will be held in Jan 2014
85. 850+ in 2014, hopefully.
86. All about web development
87. fun with us :)
88. Q & A
89. Contact ✓ Website ✓ Blog ✓ Facebook ✓ Twitter ✓ Email ✓ Mobile http://www.eddie.com.tw http://blog.eddie.com.tw https://www.facebook.com/eddiekao https://twitter.com/eddiekao eddie@digik.com.tw +886-928-617-687
