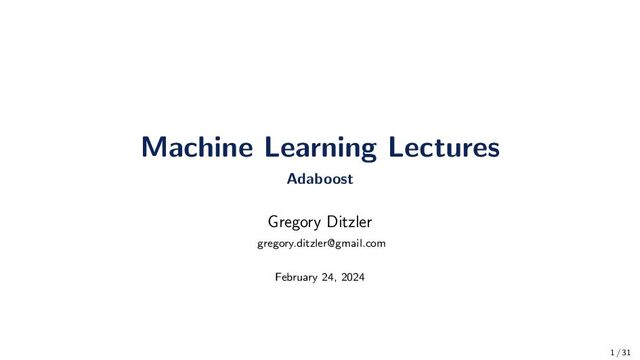

Machine Learning Lectures - Adaboost

Machine Learning Lectures - Adaboost

Gregory Ditzler

February 24, 2024
Tweet

More Decks by Gregory Ditzler

Other Decks in Education

Transcript

  1. Motivation • Learning a “strong” – highly accurate – classifier

    can be difficult to achieve in practice, but learning a “weak” classifier is relatively easy • The weak learner is just a little bit better than a random guess. So for a two class problem the probability of error needs to be less than 0.5 • Constructing a weak learner is easy and low complexity. Think about it: getting a 99% on a Physics I exam is really difficult but getting a 51% is easy(ier)! • How can we generate and combine weak learners in a way that results in a strong classifier? • Adaboost was presented by Freund and Schapire and was the first practical boosting algorithm, and remains one of the most widely used and studied • Bias-Variance Dilemma: Adaboost reduces the bias and the variance of the model! 4 / 31
  2. Definitions • A dataset S := {(xi , yi )}n

    i=1 is available at the time of training. For the moment, we are going to assume that yi ∈ {±1}. We can generalize to multi-class tasks; however, the analysis is a bit easier to start with a binary prediction task. • A hypothesis class, H, is defined prior to training classifiers. Think of H like a type of model that you want to generate (e.g., decision tree, etc.) • The classifiers (hypotheses), ht, are combined with a weighted majority vote: H(x) = T t=1 αt ht (x) where we make a prediction with y = sign(H(x)) and ht (x) ∈ {±1}. • The classifiers are a little bit better than a random guess (i.e., ϵt < 0.5) 6 / 31
  3. Adaboost Pseudo Code Input: Dataset S := {(xi , yi

    )}n i=1 , Hypothesis class H, Rounds T Initialize: D1 (i) = 1/n for all i ∈ [n] for t = 1, . . . , T do 1. ht = WeakLearn(S, Dt , H) % build a hypothesis 2. Measure the error, ϵt, on the distribution Dt % not all errors are equal! ϵt = i:ht(xi)̸=yi Dt (i) 3. Compute ht’s voting weight αt = 1 2 log 1 − ϵt ϵt 4. Update the distribution Dt+1 (i) = Dt (i) Zt exp {−αt yi ht (xi )} endfor 7 / 31
  4. Step 1: Generating the Hypothesis Instruction Generate a hypothesis, ht,

    by calling the function WeakLearn with the distribution Dt ht = WeakLearn(S, Dt , H) How do we generate ht? • Sampling: Sample a new data set from the distribution Dt, where instances with larger weight have a larger probability of appearing in the training data set to learn a classifier ht. • Optimization: Use Dt to directly optimize a cost-sensitive function where some samples take on a larger cost than others. 8 / 31
  5. Step 2: Measure the error, ϵt , on the distribution

    Dt Instruction The (weighted) error is measured w.r.t. the distribution Dt. Samples that are difficult to classify incur a larger penalty than samples that are easily classified. ϵt = i:ht(xi)̸=yi Dt (i) • When t = 1, ϵt is simply the classification error; however, this error is not the classification error for t > 1. • Some samples can be misclassified with little penalty and others carry a very large penalty for misclassification 9 / 31
  6. Step 3: Generating the Hypothesis Instruction Each hypothesis is assigned

    a voting weight that is proportional to the weighted error of the classifier. This voting weight is given by αt = 1 2 log 1 − ϵt ϵt • The voting weight is always greater than zero because of the restriction that ϵt < 0.5 • If ϵt is small then the voting weight of the classifier will be large compared to a classifier with a high error. • Side Note: The connection between the error and the voting weight is intuitive; however, it is not clear why the voting weight is of this form. More on this later! 10 / 31
  7. Step 4: Update the distribution, Dt+1 Instruction Update the distribution

    over the instances for the next time step by using Dt+1 (i) = Dt (i) Zt exp {−αt yi ht (xi )} • Case: ht (xi ) = yi • If ht (xi ) = yi and αt > 0 then sign(ht (xi )yi ) = +1. This means that the exponent will be negative and the instance weight will be reduced since the sample was correctly classified by ht • Case: ht (xi ) ̸= yi • If ht (xi ) ̸= yi and αt > 0 then sign(ht (xi )yi ) = −1. This means that the exponent will be positive and the instance weight will be increased since the sample was incorrectly classified by ht 11 / 31
  8. The error on the next distribution Question What is the

    error of ht on the distribution Dt+1? Approach The answer to this question tells us a lot about the dynamics of Adaboost and how it forces the classifiers to focus on the samples incorrectly classified. The error on Dt+1 is given by err = i:ht(xi)̸=yi Dt+1 (i) = i:ht(xi)̸=yi Dt (i) Zt exp {−αt yi ht (xi )} but we need to take a closer look at Zt to understand what is going on here. 13 / 31
  9. A closer examination of Zt The only term in the

    Adaboost pseudo code that is a little bit ambiguous is the normalization constant. Let us begin this exercise by taking a closer look at Zt Zt = n i=1 Dt (i) exp {−αt yi ht (xi )} = i:ht(xi)=yi Dt (i) exp {−αt yi ht (xi )} + i:ht(xi)̸=yi Dt (i) exp {−αt yi ht (xi )} = exp {−αt} i:ht(xi)=yi Dt (i) + exp {αt} i:ht(xi)̸=yi Dt (i) = (1 − ϵt ) exp {−αt} + ϵt exp {αt} Remember that we also have a definition for αt, which is written in terms of ϵt. We might be able to write Zt as function of ϵt! 14 / 31
  10. A closer examination of Zt Let us take a closer

    look at the exponential terms in the definition of Zt that we found. exp {−αt} = exp − 1 2 log 1 − ϵt ϵt = exp log ϵt 1 − ϵt = ϵt 1 − ϵt exp {αt} = 1 − ϵt ϵt Substitute these back into the expression for Zt Zt = (1 − ϵt ) exp {−αt} + ϵt exp {αt} = (1 − ϵt ) ϵt 1 − ϵt + ϵt 1 − ϵt ϵt = 2 ϵt (1 − ϵt ) 15 / 31
  11. Back to the original question Question What is the error

    of ht on the distribution Dt+1? err = i:ht(xi)̸=yi Dt+1 (i) = i:ht(xi)̸=yi Dt (i) Zt exp {−αt yi ht (xi )} = exp{αt} Zt i:ht(xi)̸=yi Dt (i) = ϵt 1−ϵt ϵt 2 ϵt (1 − ϵt ) = 1 2 16 / 31
  12. What just happened? • The weighted error of the hypothesis

    ht on the distribution Dt+1 is equal to 1/2! This means that if ht+1 makes the exact same errors as ht then the error of ht+1 is 1/2. • This means that the classifier at round t + 1 is equivalent to a random guess if it makes the same mistake • This result forces the classifier generated after ht to focus more on the data that ht could not classify correctly. Question Can we put a bound on Adaboost training error? This might seem odd to bound the training error; however, the result is rather interesting. 17 / 31
  13. Bounding the training error Dt+1 (i) = Dt (i) Zt

    exp (−αt yi ht (xi )) = Dt−1 (i) Zt Zt−1 exp (−αt yi ht (xi )) exp (−αt−1 yi ht−1 (xi )) = Dt−2 (i) Zt Zt−1 Zt−2 exp (−αt yi ht (xi )) exp (−αt−1 yi ht−1 (xi )) exp (−αt−2 yi ht−2 (xi )) = D1 (i) Zℓ exp − αℓ yi hℓ (xi ) = 1 N Zℓ exp − αℓ yi hℓ (xi ) = 1 N Zℓ exp −yi αℓ hℓ (xi ) 18 / 31
  14. What happens when the ensemble makes an error If the

    final classifier makes a mistake on the point xi, then sign αt ht (xi ) ̸= yi and sign yi αt ht (xi ) = −1 then −yi αt ht (xi ) ≥ 0. Hence, exp −yi αt ht (xi ) ≥ 1 if H(xi ) ̸= yi and since exp(x) ≥ 0, we have exp −yi αt ht (xi ) ≥ 0 if H(xi ) = yi 19 / 31
  15. What happens when the ensemble makes an error Question Can

    we put a bound on Adaboost training error? We are now ready to put an upper bound on the error. We finish the proof by writing the misclassification error as err(H) = 1 N N i=1 I[H(xi ) ̸= yi ] ≤ 1 N N i=1 exp −yi αt ht (xi ) = 1 N N i=1 NDt+1 (i) T t=1 Zt = N i=1 Dt+1 (i) T t=1 Zt = T t=1 Zt = 2T T t=1 ϵt (1 − ϵt ) 20 / 31
  16. On the Adaboost training error bound • The training error

    of Adaboost drops off exponentially as the number of hypotheses are added to the ensemble! This is a remarkable result • At first glance it would appear that this result would make us think that Adaboost is susceptible to overtraining; however, this is – generally – not the case. • Adaboost is actually surprisingly robust to overtraining! • The dynamics of Adaboost can be related to a game being played between the learner and the distribution. • Is there a relationship between the boosting algorithm and margin theory? Yup! • Adaboost is an incredibly simple algorithm that is backed by a lot of elegant theory. 21 / 31
  17. One more thing! How did we choose αt ? Question

    Why did we choose αt the way that we did? Recall that the training error is upper bounded by a product of Zt, so why don’t we minimize the upper bound? 22 / 31
  18. One more thing! How did we choose αt ? Minimizing

    the bound on Zt given us Zt = (1 − ϵt ) exp(−αt ) + ϵt exp(αt ), dZt dαt = −(1 − ϵt ) exp(−αt ) + ϵt exp(αt ) = 0 We can use algebra and properties of exponentials to simplify the expression for αt −(1 − ϵt ) exp(−αt ) + ϵt exp(αt ) = 0 [−(1 − ϵt ) exp(−αt ) + ϵt exp(αt )] exp(−αt ) = 0 · exp(−αt ) −(1 − ϵt ) exp(−2αt ) + ϵt = 0 exp(−2αt ) = ϵt 1 − ϵt Therefore, αt = 1 2 log 1−ϵt ϵt . That is very clever! 23 / 31
  19. More on Adaboost • Adaboost can be understood as a

    procedure for greedily minimizing what has come to be called the exponential loss, namely L = 1 n n i=1 exp {−yi H(xi )} • It can be shown that the choices of αt and ht on each round happen to be the same as would be chosen so as to cause the greatest decrease in this loss. • This connection was made by Leo Breiman (i.e., the same person who developed bagging and random forests) • The theory captures the cases in which AdaBoost does overfit, but also predicts (incorrectly) that AdaBoost will always overfit 24 / 31
  20. A visual example of Adaboost m = 1 −1 0

    1 2 −2 0 2 m = 2 −1 0 1 2 −2 0 2 m = 3 −1 0 1 2 −2 0 2 m = 6 −1 0 1 2 −2 0 2 m = 10 −1 0 1 2 −2 0 2 m = 150 −1 0 1 2 −2 0 2 26 / 31
  21. A visual example of Adaboost 4 2 0 2 4

    6 x 4 2 0 2 4 6 8 y Decision Boundary Class A Class B 0.6 0.4 0.2 0.0 0.2 0.4 Score 0 20 40 60 80 100 120 140 160 Samples Decision Scores Class A Class B 27 / 31
  22. Adaboost’s Error Bound 0 25 50 75 100 125 150

    175 200 Rounds 0.0 0.2 0.4 0.6 0.8 1.0 Adaboost Error Bound eps=0.48 eps=0.45 eps=0.4 eps=0.3 28 / 31
  23. Summary • Adaboost is an ensemble algorithm that strategically training

    weak learning models and combines them into a strong hypothesis. Adaboost has been shown to be very robust to overtraining. • There are a bunch of references available to learn more about the theory of Adaboost. • The version of Adaboost that we discussed in this lecture is known as Adaboost.M1, which is for binary prediction tasks. • Adaboost.M2 is for multiclass tasks, and there are many other variations of Adaboost too! 29 / 31
  24. References Christopher Bishop (2007) Pattern Recognition and Machine Learning New

    York, NY: Springer 1st edition. Robert E. Shapire and Yoav Freund (2012) Boosting: Foundations and Algorithms Cambridge, MA: MIT Press 1st edition. 30 / 31
