picel - HTTP middleware for image processing

Undergraduate research project slides.

Work available at:
https://henvic.github.io/undergraduate-work/picel.pdf

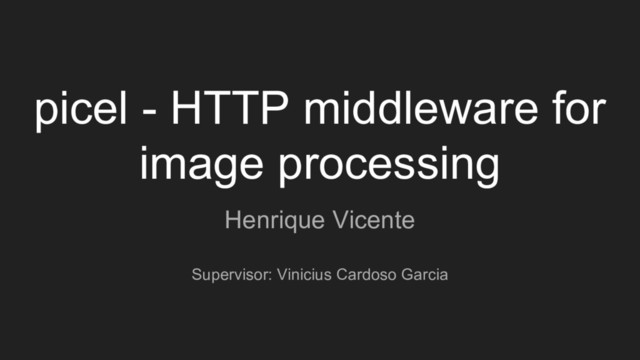

1. picel - HTTP middleware for image processing Henrique Vicente Supervisor: Vinicius Cardoso Garcia
2. Times have changed since WorldWideWeb. In 2004: Average web page size of the top 1000 websites passed 1600KB. By 2015 images comprised 62% of the weight of the top 1000 web pages. Introduction Figure 1. The average web page size is more than 2MB. [1]
3. Common web site structure for large systems Figure 2. Wikimedia multi-tier topology.
4. Similar software and services on the market • thumbor • JPEGmini Server • Imgix
5. Architecture and Handling requests Figure 3. picel handling requests
6. Goals: • Input/output common file formats such as JPEG efficiently. • Do image manipulation for common operations such as cropping. • Propose a deployment architecture to serve content efficiently. • Identify browser capabilities to serve best available format Implementation
7. picel.encode({ prefix: "http://localhost:8123", backend: "https://imgs.xkcd.com", path: "comics/tar_2x.png", crop: {x: 0, y: 0, width: 346, height: 458}, width: 300 }); http://localhost:8123/s:imgs.xkcd.com/comics/tar__2x_0x0:346x458_300x_png Example of image transformation
8. $ picel picel Usage: picel [flags] picel [command] Available Commands: serve Serve images dependencies Verify dependencies help Help about any command Flags: -h, --help Show help message -v, --verbose Verbose mode (show image processing output) --version Print version information and quit Use "picel [command] --help" for more information about a command. Installing and running $ docker pull henvic/picel $ docker run -p 8123:8123 henvic/picel 2017/12/12 19:41:29 picel started listening on :8123
9. • Files should be available on an external HTTP server • Accessing images uses a Composable URIs mechanism: Example: http://<picel-server>/big__sur_50x40:600x600_x300 Output format: better supported (with fallback to JPEG) Crop box points: (x, y, width, height) = (50, 40, 600, 600) Height: 600 Application Programming Interface (API)
10. A working prototype is available on Docker and instructions how to use it are available on https://github.com/henvic/picel With an accompanying image encoder library: https://github.com/henvic/picel-js Future work includes: • Adding guidelines for setting a caching layer on a production environment • Stress tests • Adding support to SVG and HEIF file formats to improve efficiency • Add more encoder libraries for other languages • etc. Conclusion and future work
11. References [1]. Page bloat: The average web page size is more than 2MB. Avaliable in https://www.soasta.com/blog/page-bloat-average-web-page-2-mb/. Last visited on 12th December, 2017.
