Model Pollution

Starring Directed By Special Appearance Introducing With

Hi, I’m Henning

Carola Lilienthal & Henning Schwentner Foreword by Michael Feathers Modernize
Legacy Systems and Mitigate Risk Domain-Driven Transformation

Software != End in itself

@hschwentner ! ! " Software is build Tech people business
people # " for for by

@hschwentner (Application) Programming 1. Learn about a domain 2. Build
a model for it 3. Add technology to build the system: • programming language • UI • database • …

Photo: Henning Schwentner Let’s look at an example!

@hschwentner Example: A Banking Domain bank account customer teller computer
transaction

@hschwentner Example: A Banking Domain computer Banking 3000

@hschwentner Programming 1. Learn about a domain 2. Build a
model for it 3. Add technology to build the system: • programming language • UI • database • …

https://hschwentner.io Read on in:

@hschwentner Rules of thumb: # $

Objects from real world turn into objects in software

«Entity» BankAccount

Actions from real world turn into operations in software

«Entity» BankAccount withdraw() deposit()

=> Object-orientation

@hschwentner Coupling • thus, we build coupling. we couple the
system to technology Model DB UI Programming Language

@hschwentner Coupling— What to Do About It? => it’s a
good idea to localize that coupling! => that’s one of the reasons for modularity

@hschwentner Insertion: History

@hschwentner No Modularity goto goto Program: goto goto goto ==
chaos

@hschwentner Structured Programming Edsger Dijkstra Edgar Dijkstra: Go To Statement
Considered Harmful callable unit callable unit callable unit 1968

@hschwentner Information Hiding David Parnas Programming R. Morris Techniques Editor
On the Criteria To Be Used in Decomposing Systems into Modules D.L. Parnas Carnegie-Mellon University This paper discusses modularization as a mechanism for improving the flexibility and comprehensibility of a system while allowing the shortening of its development time. The effectiveness of a "modularization" is dependent upon the criteria used in dividing the system into modules. A system design problem is presented and both a conventional and unconventional decomposition are described. It is shown that the unconventional decompositions have distinct advantages for the goals outlined. The criteria used in arriving at the decompositions are discussed. The unconventional decomposition, if implemented with the conventional assumption that a module consists of one or more subroutines, will be less efficient in most cases. An alternative approach to implementation which does not have this effect is sketched. Key Words and Phrases: software, modules, modularity, software engineering, KWIC index, software design CR Categories: 4.0 Introduction A lucid statement of the philosophy of modular programming can be found in a 1970 textbook on the design of system programs by Gouthier and Pont [1, ¶I0.23], which we quote below: 1 A well-defined segmentation of the project effort ensures system modularity. Each task forms a separate, distinct program module. At implementation time each module and its inputs and outputs are well-defined, there is no confusion in the intended interface with other system modules. At checkout time the in- tegrity of the module is tested independently; there are few sche- duling problems in synchronizing the completion of several tasks before checkout can begin. Finally, the system is maintained in modular fashion; system errors and deficiencies can be traced to specific system modules, thus limiting the scope of detailed error searching. Usually nothing is said about the criteria to be used in dividing the system into modules. This paper will discuss that issue and, by means of examples, suggest some criteria which can be used in decomposing a system into modules. Copyright @ 1972, Association for Computing Machinery, Inc. General permission to republish, but not for profit, all or part of this material is granted, provided that reference is made to this publication, to its date of issue, and to the fact that reprinting privileges were granted by permission of the Association for Com- puting Machinery. Author's address: Department of Computer Science, Carnegie- Mellon University, Pittsburgh, PA 15213. A Brief Status Report The major advancement in the area of modular programming has been the development of coding techniques and assemblers which (l) allow one module to be written with little knowledge of the code in another module, and (2) allow modules to be reas- sembled and replaced without reassembly of the whole system. This facility is extremely valuable for the production of large pieces of code, but the systems most often used as examples of problem systems are highly- modularized programs and make use of the techniques mentioned above. 1 Reprinted by permission of Prentice-Hall, Englewood interface implementation " # 1972

@hschwentner Separation of Concerns Edsger Dijkstra “…study in depth an
aspect in isolation […], all the time knowing that one is occupying oneself only with one of the aspects.” one aspect in isolation 1974

@hschwentner Separation of Concerns Ø Single responsibility principle Ø do
one thing well Ø Change because of one reason Ø Separation of business logic and technical code Corollaries

@hschwentner Loose Coupling/ High Cohesion Ed Yourdon Larry Constantine !
in which direction? 1979

@hschwentner Layered Architecture

@hschwentner 2 Layer Architecture Program “uses” Legend: DB

@hschwentner below The One Rule above Acyclic Dependency Principle allowed
forbidden

@hschwentner Fundamental Theorem of Software Engineering David Wheeler $ “We
can solve any problem by introducing an extra level of indirection” “…except for the problem of too many levels of indirection”

@hschwentner 3 Layer Architecture Presentation Logic Data

@hschwentner 4 Layer Architecture User Interface Application Domain Infrastructure

@hschwentner Domain Layer and Domain Model

@hschwentner Domain Logic Patterns Martin Fowler !

@hschwentner Domain Logic Patterns Martin Fowler ! • Transaction Script
• Table Module • Domain Model • Anti-Pattern: Anemic Domain Model

@hschwentner Rules of thumb: # $

Objects from real world turn into objects in software

«Entity» BankAccount

Actions from real world turn into operations in software

«Entity» BankAccount withdraw() deposit()

=> Object-orientation

@hschwentner Is everything in the world an object?

@hschwentner Another rule of thumb: # $

Values from real world turn into values in software

«Entity» BankAccount withdraw() deposit() «Value Object» Amount

@hschwentner Domain-Driven Design Eric Evans "

@hschwentner Entity Tactical Design Value Object Is it a thing?
Is it a property of a thing? Can you touch it? Is it identityless? Does it have an identity? Rules of Thumb

@hschwentner Entity vs. Value - Identity - Life cycle -
Can be mutable - No identity - Always immutable Contract Map Name Length 12.5 m “John Miller” Entity Value Object

@hschwentner Entity Value Object Aggregate Service Factory Repository Tactical Design

«Entity» BankAccount withdraw() deposit() «Value Object» Amount

@hschwentner The Domain Model Lives in the Domain Layer User
Interface Application Domain Infrastructure

@hschwentner The Problem with Layers

@hschwentner The Problem Infrastructure User Interface Application Domain allowed BAD!

@hschwentner The Problem Domain Infrastructure bank transaction Oracle DB Concrete
BAD!

@hschwentner Beyond Layered Architecture

@hschwentner below above From above/below to inside/outside outside inside

@hschwentner port port Hexagonal Architecture Foto: Dennis Hamilton/flickr/CC BY 2.0
http://alistair.cockburn.us/Hexagonal%2Barchitecture adapter adapter Alistair Cockburn

@hschwentner Kinds of Ports - For UI etc. - Methods
to be called - “from above” - For DB and infrastructure - Interfaces to be implemented - “from below”

@hschwentner secondary port primary port adapter adapter Kinds of Ports
Legend: Flow of control Dependency

@hschwentner Domain The Solution Domain Infrastructure bank transaction Oracle DB
Infrastructure bank transaction Oracle DB port adapter Step 1

@hschwentner uses implements Legend:

@hschwentner Dependency Inversion Depend on abstractions, not on concretions! Robert
C. Martin “Uncle Bob” "

@hschwentner Onion Architecture U I “application core” domain services domain
model infra app ture struc serv lication ices !

@hschwentner The 4 Tenets •The application is built around an
independent object model •Inner layers define interfaces. Outer layers implement interfaces •Direction of coupling is toward the center •All application core code can be compiled and run separate from infrastructure Jeffrey Palermo ! "

@hschwentner Designed for Testability “All application code can be compiled,
run, and tested separate from infrastructure” Easy unit tests Plays well with TDD !

@hschwentner Clean Architecture Robert C. Martin “Uncle Bob” interactor =
use case object U I entities DB devices w eb control use cases gate presenters lers ways

The price of cleanness is eternal mapping

Explicit Architecture Herberto Graca #

@hschwentner Putting it all together

@hschwentner Architecture Hamburger Application Domain Infrastructure UI coarse grained Henning
Schwentner $

@hschwentner Architecture Hamburger fine grained model repository interface controller use
case service entity value object view data model repository implementation widget library REST framework transaction handling domain library programming language ORM file system access domain event

@hschwentner Pollution by Frameworks

@hschwentner What about Spring, JPA, Hibernate & co.?

@hschwentner class BankAccount { void deposit(Amount amount) void withdraw(Amount amount)
/*...*/ } class Amount { /*...*/ }} «Entity» BankAccount withdraw() deposit() «Value Object» Amount

@hschwentner class BankAccount { /*...*/ } class Amount { /*...*/
}}

@hschwentner class BankAccount { final IBAN iban; Amount balance; /*...*/
}} class Amount { /*...*/ }}

@hschwentner class BankAccount { final IBAN iban; Amount balance; BankAccount(IBAN
iban) {this.iban = iban} /*...*/ }} class Amount { /*...*/ }} the identity should never change …and it should be initialized at creation, i.e. in the constructor

@hschwentner import javax.persistence.*; @Entity class BankAccount { @Id final IBAN
iban; @Embedded Amount balance; BankAccount(IBAN iban) {this.iban = iban} /*...*/ }} @Embeddable class Amount { /*...*/ }}

@hschwentner import javax.persistence.*; @Entity class BankAccount { @Id final IBAN
iban; @Embedded Amount balance; BankAccount(IBAN iban) {this.iban = iban} /*...*/ }} @Embeddable class Amount { /*...*/ }} When you use this You have to have this

@hschwentner import javax.persistence.*; @Entity class BankAccount { @Id IBAN iban;
@Embedded Amount balance; BankAccount() {} /*...*/ }} @Embeddable class Amount { /*...*/ }} When you use this You have to have this …and a default constructor …and fields cannot be final

@hschwentner import jakarta.persistence.*; @Entity class BankAccount { @Id IBAN iban;
@Embedded Amount balance; BankAccount() {} /*...*/ }} @Embeddable class Amount { /*...*/ }} when someone changes the technology, we have to change the business logic, too

@hschwentner Pollution by Frameworks

@hschwentner What about Entity Framework & co.?

@hschwentner class BankAccount { void Deposit(Amount amount) void Withdraw(Amount amount)
/*...*/ } readonly record struct Amount { /*...*/ }} «Entity» BankAccount withdraw() deposit() «Value Object» Amount

@hschwentner class BankAccount { /*...*/ } readonly record struct Amount
{ /*...*/ }}

@hschwentner class BankAccount { readonly IBAN iban; Amount balance; /*...*/
}} readonly record struct Amount { /*...*/ }}

@hschwentner class BankAccount { readonly IBAN iban; Amount balance; BankAccount(IBAN
iban) {this.iban = iban} /*...*/ }} readonly record struct Amount { /*...*/ }} the identity should never change …and it should be initialized at creation, i.e. in the constructor

@hschwentner How to Use Entity Framework?

@hschwentner using System.ComponentModel.DataAnnotations; using Microsoft.EntityFrameworkCore; class BankAccount { [Key] readonly
IBAN iban; Amount balance; BankAccount(IBAN iban) {this.iban = iban} /*...*/ }} [Owned] readonly record struct Amount { /*...*/ }}

IBAN iban; Amount balance; BankAccount(IBAN iban) {this.iban = iban} /*...*/ }} [Owned] readonly record struct Amount { /*...*/ }} Fields can still be readonly (because reflection does not respect it) ! Identity as primary key -> Technology "

IBAN iban; Amount balance; BankAccount() {} /*...*/ }} [Owned] readonly record struct Amount { /*...*/ }} …and you must have a default constructor " Identity as primary key -> Technology " Fields can still be readonly (because reflection does not respect it) !

@hschwentner And when we use FluentAPI?

@hschwentner using System.ComponentModel.DataAnnotations; using Microsoft.EntityFrameworkCore; class BankAccount { readonly IBAN
iban; Amount balance; BankAccount() {} /*...*/ }} readonly record struct Amount { /*...*/ }} But you STILL must have a default constructor " No more compile time dependencies to EF ! Fields can still be readonly (because reflection does not respect it) !

@hschwentner LeasingNinja https://leasingninja.io

xMolecules

xMolecules $ Henning Schwentner Stephan Pirnbaum Oliver Drotbohm

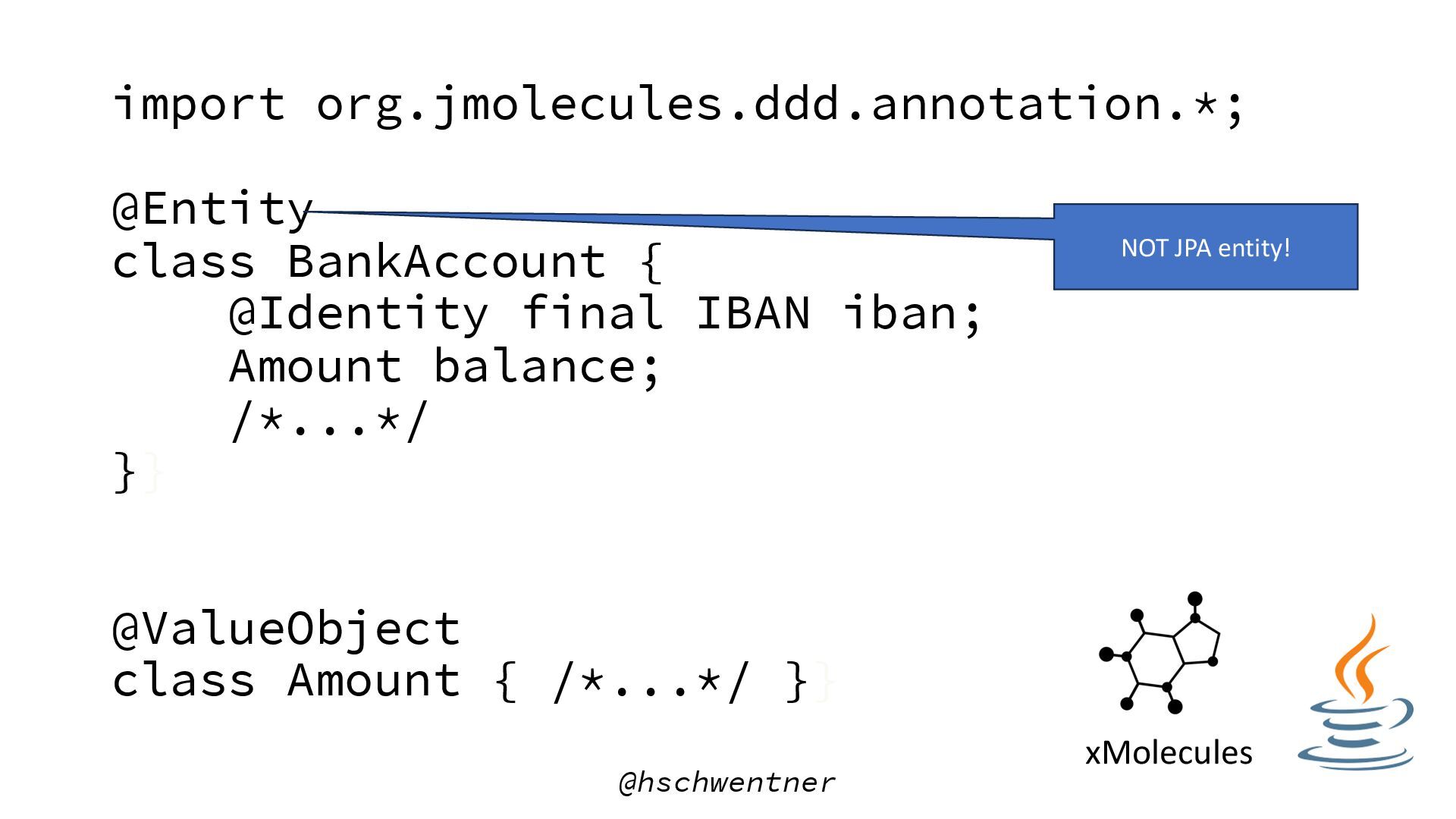

@hschwentner import org.jmolecules.ddd.annotation.*; @Entity class BankAccount { @Identity final IBAN
iban; Amount balance; /*...*/ }} @ValueObject class Amount { /*...*/ }} NOT JPA entity! xMolecules

@hschwentner Boilerplate and Model Pollution Reduction

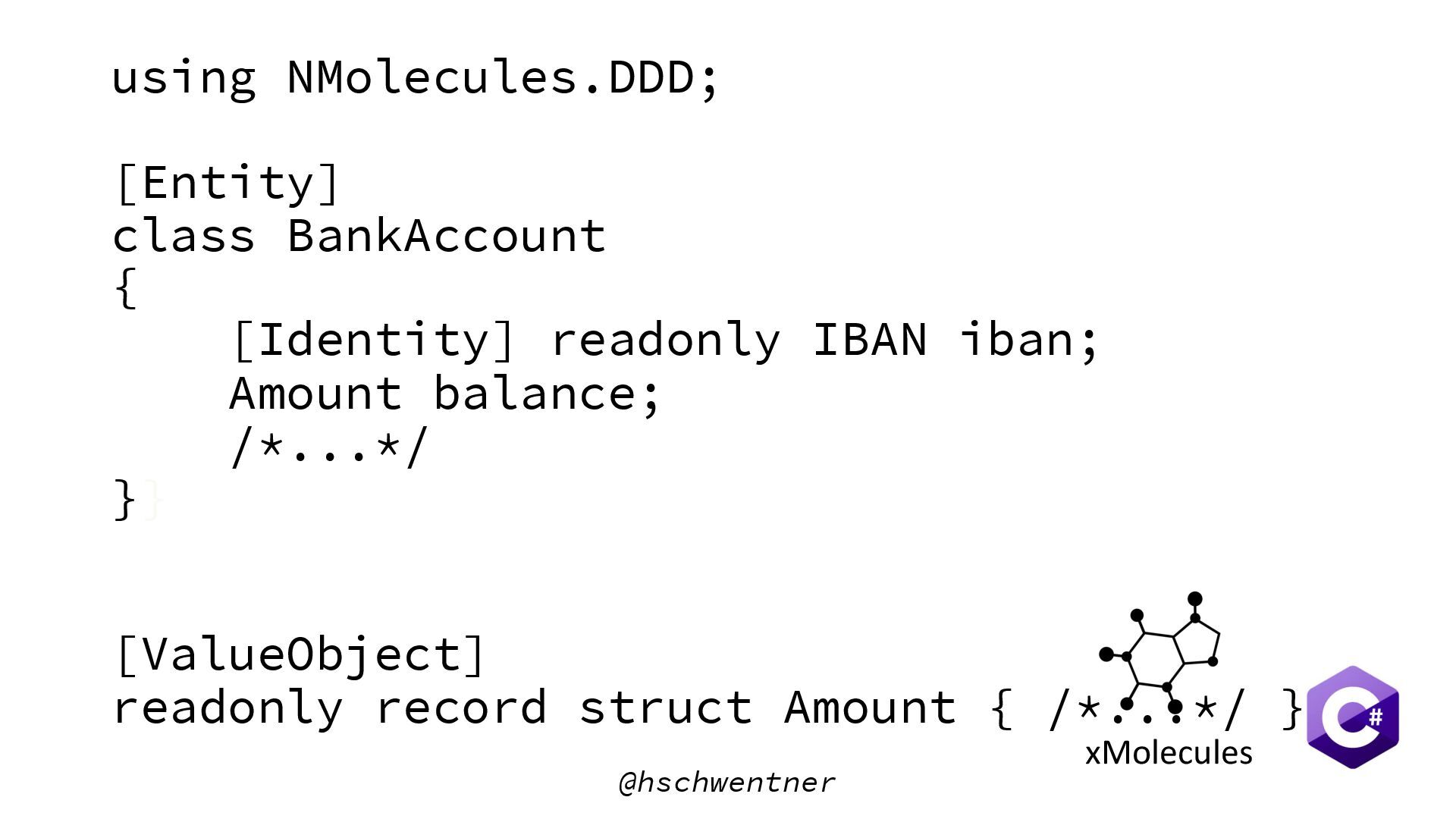

@hschwentner using NMolecules.DDD; [Entity] class BankAccount { [Identity] readonly IBAN
iban; Amount balance; /*...*/ }} [ValueObject] readonly record struct Amount { /*...*/ }} xMolecules

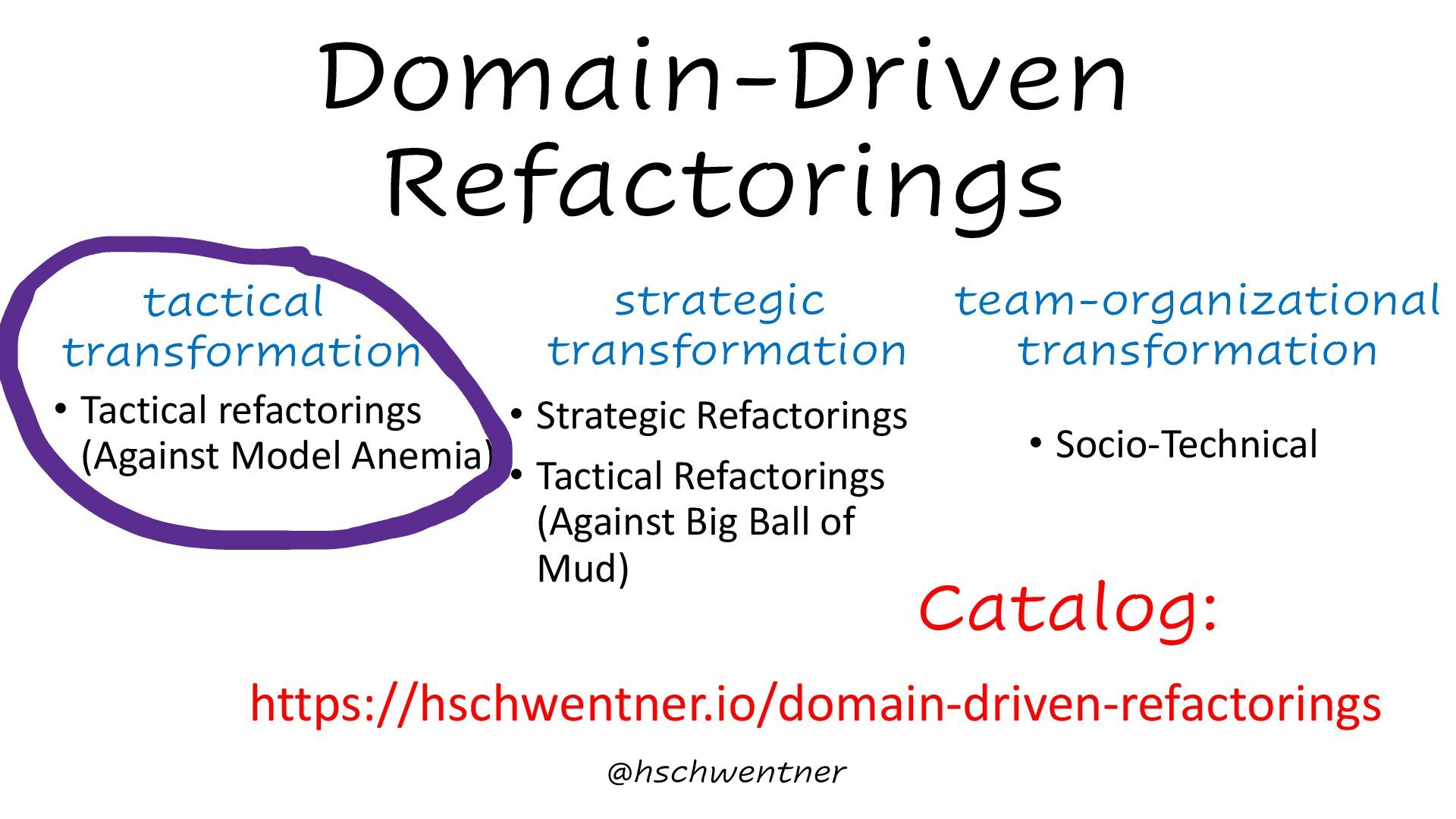

@hschwentner Domain-Driven Refactorings • Strategic Refactorings • Tactical Refactorings (Against
Big Ball of Mud) Catalog: https://hschwentner.io/domain-driven-refactorings strategic transformation tactical transformation team-organizational transformation • Socio-Technical • Tactical refactorings (Against Model Anemia)

https://hschwentner.io Read on in: https://hschwentner.io/domain-driven-refactorings Carola Lilienthal & Henning Schwentner
Foreword by Michael Feathers Modernize Legacy Systems and Mitigate Risk Domain-Driven Transformation

Consulting

@hschwentner FEEDBACK

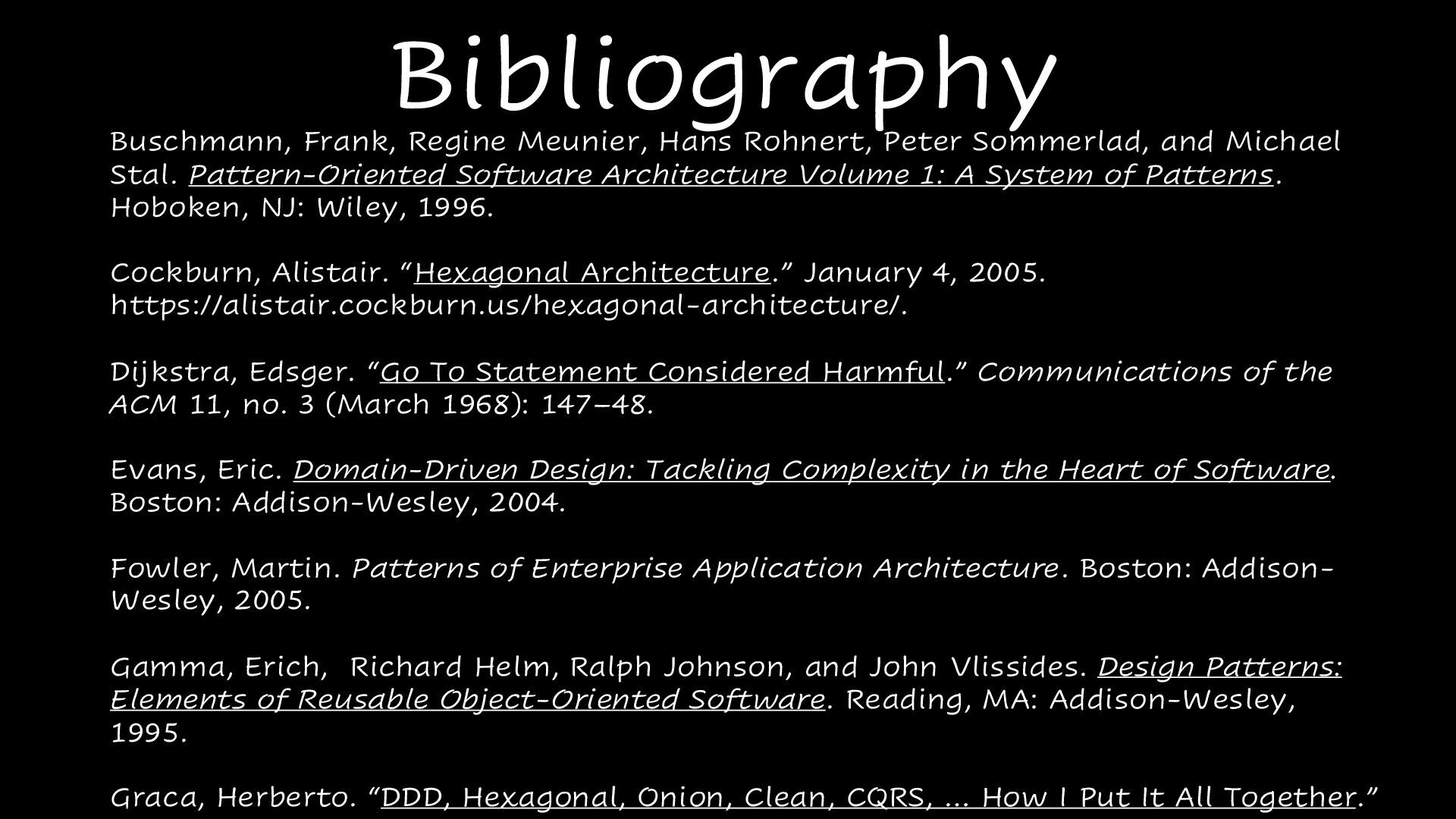

@hschwentner Bibliography Buschmann, Frank, Regine Meunier, Hans Rohnert, Peter Sommerlad,
and Michael Stal. Pattern-Oriented Software Architecture Volume 1: A System of Patterns. Hoboken, NJ: Wiley, 1996. Cockburn, Alistair. “Hexagonal Architecture.” January 4, 2005. https://alistair.cockburn.us/hexagonal-architecture/. Dijkstra, Edsger. “Go To Statement Considered Harmful.” Communications of the ACM 11, no. 3 (March 1968): 147–48. Evans, Eric. Domain-Driven Design: Tackling Complexity in the Heart of Software. Boston: Addison-Wesley, 2004. Fowler, Martin. Patterns of Enterprise Application Architecture. Boston: Addison- Wesley, 2005. Gamma, Erich, Richard Helm, Ralph Johnson, and John Vlissides. Design Patterns: Elements of Reusable Object-Oriented Software. Reading, MA: Addison-Wesley, 1995. Graca, Herberto. “DDD, Hexagonal, Onion, Clean, CQRS, … How I Put It All Together.”

Henning Schwentner https://hschwentner.io in/henningschwentner [email protected] Kolleg:in gesucht (Deutschlandweit) Carola Lilienthal
& Henning Schwentner Foreword by Michael Feathers Modernize Legacy Systems and Mitigate Risk Domain-Driven Transformation
