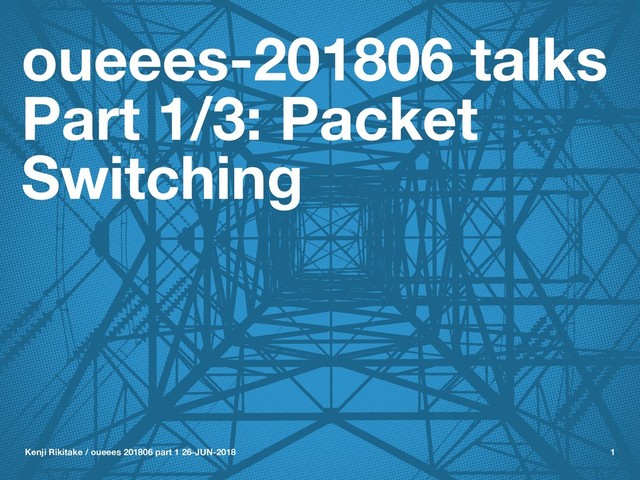

  1. Kenji Rikitake 26-JUN-2018 School of Engineering Science Osaka University Toyonaka,

    Osaka, Japan @jj1bdx Copyright ©2018 Kenji Rikitake. This work is licensed under a Creative Commons Attribution 4.0 International License. Kenji Rikitake / oueees 201806 part 1 26-JUN-2018 2
  2. Reporting —Keyword at the end of the talk —URL for

    submitting the report at the end of the talk Kenji Rikitake / oueees 201806 part 1 26-JUN-2018 4
  3. Before starting the today's talk: the risk of being a

    professional and exposure to the public —You might be harassed, harmed, and attacked at any time —The attackers are anonymous while you are well-identified —Anyone can be a target —Stay low profile when you can —Stay vigilant Kenji Rikitake / oueees 201806 part 1 26-JUN-2018 5
  4. Communication: sharing a medium —Sharing a physical link between two

    or multiple parties —The physical layer —A medium could be: electric wires, optic fibers, radio airwaves, sound, flying birds like pigeons Kenji Rikitake / oueees 201806 part 1 26-JUN-2018 7
  5. Connecting unconnected nodes There are many ways to connect the

    dots in this picture Kenji Rikitake / oueees 201806 part 1 26-JUN-2018 8
  6. Simplest way: star/ centralized connection —Centralized connection was the easiest

    way to connect the nodes —Very much susceptible to network link failures —Links should stay connected during the connection Kenji Rikitake / oueees 201806 part 1 26-JUN-2018 9
  7. Fallen telephone lines by frost at Jönköping, Sweden, 1929 Kenji

    Rikitake / oueees 201806 part 1 26-JUN-2018 11
  8. Multiplexing: sharing the same link by multiple nodes and communication

    devices Kenji Rikitake / oueees 201806 part 1 26-JUN-2018 13
  9. Multiplexing enables decentralization —Some links carry shared traffics for many

    different nodes Kenji Rikitake / oueees 201806 part 1 26-JUN-2018 14
  10. How to multiplex different types of information, and put them

    together for sharing a same medium? Kenji Rikitake / oueees 201806 part 1 26-JUN-2018 15
  11. Signal characteristics used for multiplexing —Space division (multiple lines or

    multiple beam-formed antennas) —Time division —Frequency/wavelength division —Polarization division —Code division (multiple codes of very small cross-correlation) Kenji Rikitake / oueees 201806 part 1 26-JUN-2018 16
  12. Packet switching What if you can split a stream into

    the packets and let them be delivered through different links for each packet? Kenji Rikitake / oueees 201806 part 1 26-JUN-2018 17
  13. How to form a packet (1/2) —Split a stream into

    multiple pieces of data ABCDEFHIJ -> ABC DEF HIJ —Put a header on each piece ABC DEF HIJ -> P1-ABC P2-DEF P3-HIJ Kenji Rikitake / oueees 201806 part 1 26-JUN-2018 18
  14. How to form a packet (2/2) —Add source and destination

    addresses to each packet P1-ABC P2-DEF P3-HIJ -> FromXtoY-P1-ABC FromXtoY-P2-DEF FromXtoY-P3-HIJ —Then send them on the network! Kenji Rikitake / oueees 201806 part 1 26-JUN-2018 19
  15. Packet switching and the nodes —Each communication node must know

    how to assemble/disassemble information to/from the packets —Each communication node must know which link should be used to send a packet for the given destination —Packets can be lost; relaying nodes cannot detect a lost packet Kenji Rikitake / oueees 201806 part 1 26-JUN-2018 21
  16. Packet (dis)assembly issues —The sequence of delivered packets may differ

    from that of the sender intents; holding the out-of-sequence packets are required —Retransmission is required to recover a lost packet for a reliable communication Kenji Rikitake / oueees 201806 part 1 26-JUN-2018 22
  17. Packet switching enables —Changing the packet relay routes during the

    communication —Using multiple routes for a single communication link —Aggregating multiple communication links into a physical link —Connectionless and connection- oriented communication simultaneously Kenji Rikitake / oueees 201806 part 1 26-JUN-2018 24
  18. Truly distributed networks are feasible by packet switching —No centralized

    nodes —Each link can be utilized by all nodes —A disconnection of the link will not be fatal so long as one link is connected to a node Kenji Rikitake / oueees 201806 part 1 26-JUN-2018 25
  19. Disadvantages of packet switching —Each node must be able to

    form/ generate and decode/interpret a packet —Forming and decoding a packet takes time and the computing resources —Reliability and latency can be a trade-off —Relay nodes can be neutralized by denial-of-service attacks —Difficult to manage Kenji Rikitake / oueees 201806 part 1 26-JUN-2018 26
  20. Topics on next talk —IP addresses —Routing and the information

    dissemination —Transport protocols (TCP, UDP, HTTP(/ 2), QUIC) Kenji Rikitake / oueees 201806 part 1 26-JUN-2018 27
