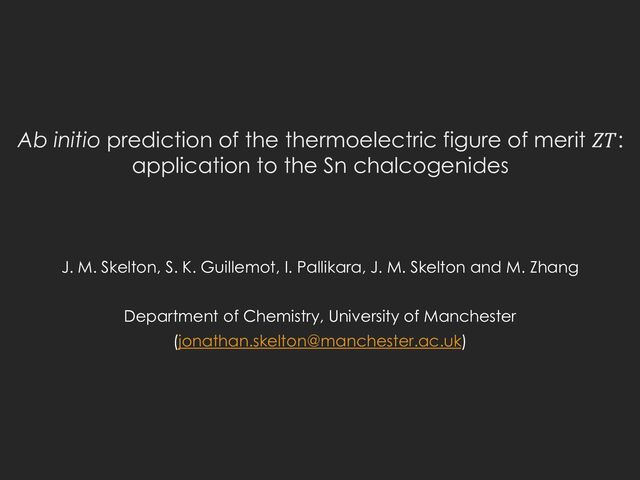

  1. J. M. Skelton, S. K. Guillemot, I. Pallikara, J. M.

    Skelton and M. Zhang Department of Chemistry, University of Manchester ([email protected]) Ab initio prediction of the thermoelectric figure of merit 𝑍𝑇: application to the Sn chalcogenides
  2. The thermoelectric figure of merit Dr Jonathan Skelton EPSRC TE

    Network Meeting, 16th Nov 2023 | Slide 2 𝑍𝑇 = 𝑆2𝜎 𝜅el + 𝜅latt 𝑇 𝑆 - Seebeck coefficient 𝜎 - electrical conductivity 𝜅el - electronic thermal conductivity 𝜅latt - lattice thermal conductivity Tan et al., Chem. Rev. 116 (19), 12123 (2016)
  3. Electron transport: 𝑺, 𝝈 and 𝜿𝐞𝐥 Dr Jonathan Skelton EPSRC

    TE Network Meeting, 16th Nov 2023 | Slide 3 Ganose et al., Nature Comm. 12, 2222 (2021) We first define the spectral conductivity tensor: Σ𝛼𝛽 𝜖, 𝑇 = 1 8𝜋3 ෍ 𝑗 න 𝑣𝒌𝑗,𝛼 𝑣𝒌𝑗,𝛽 𝜏𝒌𝑗 𝑇 𝛿 𝜖 − 𝜖𝒌𝑗 𝑑𝒌 This is used to calculate the 𝑛th-order moments of the generalised transport coefficients: ℒ𝛼𝛽 𝑛 𝜖F , 𝑇 = න Σ𝛼𝛽 𝜖, 𝑇 𝜖 − 𝜖F 𝑛 − 𝜕𝑓 𝜖, 𝜖F , 𝑇 𝜕𝜖 𝜕𝜖 𝑓 𝜖, 𝜖F , 𝑇 = 1 exp Τ 𝜖 − 𝜖F 𝑘B 𝑇 + 1 Where: o The 𝒗𝒌𝑗 are obtained from a high-quality band structure o The 𝜏𝒌𝑗 can be: treated as a constant 𝜏el ; approximated by model equations for different scattering processes; or calculated from the electron-phonon coupling o The 𝜖F (= 𝜇) is set by the DoS and a specified extrinsic carrier concentration 𝑛
  4. Electron transport: 𝑺, 𝝈 and 𝜿𝐞𝐥 Dr Jonathan Skelton EPSRC

    TE Network Meeting, 16th Nov 2023 | Slide 4 The 𝓛𝑛(𝜖F , 𝑇) are determined from a band structure, a model for the 𝜏𝑗𝒌 , and a specified 𝑛/𝑇: ℒ𝛼𝛽 𝑛 𝜖F , 𝑇 = න Σ𝛼𝛽 𝜖, 𝑇 𝜖 − 𝜖F 𝑛 − 𝜕𝑓 𝜖, 𝜖F , 𝑇 𝜕𝜖 𝜕𝜖 The electrical transport coefficients can be determined from the 𝓛𝑛(𝜖F , 𝑇) as: 𝜎𝛼𝛽 (𝜖F , 𝑇) = ℒ𝛼𝛽 0 (𝜖F , 𝑇) 𝑆𝛼𝛽 (𝜖F , 𝑇) = 1 𝑒𝑇 ℒ𝛼𝛽 1 (𝜖F , 𝑇) ℒ 𝛼𝛽 0 (𝜖F , 𝑇) 𝜅el,𝛼𝛽 (𝜖F , 𝑇) = 1 𝑒2𝑇 ℒ𝛼𝛽 1 (𝜖F , 𝑇) 2 ℒ 𝛼𝛽 0 (𝜖F , 𝑇) − ℒ𝛼𝛽 2 (𝜖F , 𝑇) Note that when using the CRTA (i.e. 𝜏𝒌𝑗 → 𝜏el ): o The 𝑺 are the ratio of two 𝓛𝑛 and the 𝜏el cancel o The 𝝈 and 𝜿el are obtained with respect to 𝜏el (𝜏el ~ 10-14 s) Ganose et al., Nature Comm. 12, 2222 (2021)
  5. Electron transport: 𝑷𝒏𝒎𝒂 SnS/Se Dr Jonathan Skelton EPSRC TE Network

    Meeting, 16th Nov 2023 | Slide 5 Flitcroft et al., Solids 3 (1), 155 (2022) Fixed 𝑇 = 800 K Fixed 𝑛ℎ = 1019 cm-3
  6. Phonon transport: 𝜿𝐥𝐚𝐭𝐭 Dr Jonathan Skelton EPSRC TE Network Meeting,

    16th Nov 2023 | Slide 6 A. Togo et al., Phys. Rev. B 91, 094306 (2015) The simplest model for 𝜅latt is the single-mode relaxation time approximation (SM-RTA) - a closed solution to the phonon Boltzmann transport equations: 𝜿latt,𝛼𝛽 (𝑇) = 1 𝑁𝒒 𝑉 ෍ 𝒒𝑗 𝜅𝒒𝑗,𝛼𝛽 (𝑇) = 1 𝑁𝒒 𝑉 ෍ 𝒒𝑗 𝐶𝒒𝑗 (𝑇)𝑣𝒒𝑗,𝛼 𝑣𝒒𝑗,𝛽 𝜏𝒒𝑗 (𝑇) Where: o 𝑁𝒒 is the number of wavevectors 𝒒 included in the summation and 𝑉 is the cell volume o The heat capacities 𝐶𝒒𝑗 and group velocities 𝒗𝒒𝑗 are determined from the phonon frequencies 𝜔𝒒𝑗 and the frequency dispersion Τ 𝜕𝜔𝒒𝑗 𝜕𝒒 o The 𝜏𝒒𝑗 are determined from the 𝜔𝒒𝑗 and eigenvectors 𝑾𝒒𝑗 plus the anharmonic third- (or higher-)order force constants
  7. Phonon transport: 𝑷𝒏𝒎𝒂 SnS/Se Dr Jonathan Skelton EPSRC TE Network

    Meeting, 16th Nov 2023 | Slide 7 Skelton, J. Mater. Chem. C 9, 11772 (2021)
  8. 𝑨𝒃 𝒊𝒏𝒊𝒕𝒊𝒐 prediction of 𝒁𝑻 Dr Jonathan Skelton EPSRC TE

    Network Meeting, 16th Nov 2023 | Slide 8 We can now combine our workflows for predicting the electrical and phonon transport coefficients (i.e. 𝑆/𝜎/𝜅el and 𝜅latt ) to calculate 𝑍𝑇: 𝑍𝑇𝛼𝛽 (𝑛, 𝑇) = 𝑆𝛼𝛽 𝑛, 𝑇 2 𝜎𝛼𝛽 (𝑛, 𝑇) 𝜅el,𝛼𝛽 (𝑛, 𝑇) + 𝜅latt,𝛼𝛽 (𝑇) × 𝑇 Skelton, J. Mater. Chem. C 9, 11772 (2021) Flitcroft et al., Solids 3 (1), 155 (2022)
  9. 𝑨𝒃 𝒊𝒏𝒊𝒕𝒊𝒐 prediction of 𝒁𝑻 Dr Jonathan Skelton EPSRC TE

    Network Meeting, 16th Nov 2023 | Slide 9 𝑛 [cm-3] 𝑇 [K] 𝑍𝑇 𝝈 [S cm-1] 𝑆 [𝝁V K-1] PF [mW m-1 K-2] 𝜅𝐞𝐥 + 𝜅𝐥𝐚𝐭𝐭 = 𝜅𝐭𝐨𝐭 [W m-1 K-1] Ref. 1 1019 823 0.7-2.4 14-85 326-386 0.21-1 0.22-0.25 0.25-0.35 Calc. 1019 820 1-2.2 33-196 373-388 0.5-2.8 0.06-0.23 0.35-0.79 0.4-1 Ref. 2 4 × 1019 773 1.1-2.1 40-150 300 0.25-1.5 0.4-0.6 Calc. 4.6 × 1019 780 1.5-2.3 159-918 240-257 1-5.4 0.17-1 0.36-0.83 0.53-1.83 Ref. 3 1019 773 3.1 110 250 0.85 0.23 Calc. 1019 780 1.8 122 374 1.7 0.14 0.61 0.75 General trend for calculations to overestimate 𝜎 and PFs, under/overestimate 𝑆 in some cases, overestimate 𝜅latt , but often get reasonable “ballpark” values for 𝑍𝑇 [1] Zhao et al., Nature 508, 373 (2014) [2] Zhao et al., Science 351 (6269), 141 (2015) [3] Zhou et al., Nature Mater. 20, 1378 (2021) Skelton, J. Mater. Chem. C 9, 11772 (2021) Flitcroft et al., Solids 3 (1), 155 (2022)
  10. 𝑷𝒏𝒎𝒂 SnSe: p- vs n-type Dr Jonathan Skelton EPSRC TE

    Network Meeting, 16th Nov 2023 | Slide 10 Flitcroft et al., Solids 3 (1), 155 (2022) Zhang et al., J. Mater. Chem. C 11, 14833 (2023)
  11. Flitcroft et al., Solids 3 (1), 155 (2022) Zhang et

    al., J. Mater. Chem. C 11, 14833 (2023) 𝑷𝒏𝒎𝒂 SnSe: p- vs n-type Dr Jonathan Skelton EPSRC TE Network Meeting, 16th Nov 2023 | Slide 11
  12. 𝑷𝒏𝒎𝒂 SnSe: p- vs n-type Dr Jonathan Skelton EPSRC TE

    Network Meeting, 16th Nov 2023 | Slide 12 Duong et al., Nature Comm. 7, 13713 (2016) Zhang et al., J. Alloys Compd. 910, 164900 (2022) Literature suggests n-doping can achieve 𝑍𝑇 approaching p-doped SnSe: 1. Bi-doped SnSe: 𝑛 = 2.1 × 1019 cm-3, 𝑍𝑇 = 0.4-2.2 @ 773 K 2. NdCl3 -doped SnSe: 𝑛 = 4.78 × 1015 cm-3, 𝑍𝑇 = 0.5-1.3 @ 773 K
  13. Trends in 𝜿𝐥𝐚𝐭𝐭 with structure type EPSRC TE Network Meeting,

    16th Nov 2023 | Slide 13 𝑃𝑛𝑚𝑎 𝐶𝑚𝑐𝑚 𝑅3𝑚 𝐹𝑚ത 3𝑚 Lower group velocities 𝒗λ Stronger anharmonicity = shorter lifetimes 𝜏λ Larger “scattering phase space” = shorter 𝜏λ Dr Jonathan Skelton Guillemot et al., ChemRxiv preprint, DOI: 10.26434/chemrxiv-2023-5q2v1 (2023)
