Scaling, Extending and Expanding your apps through messaging

Transcript

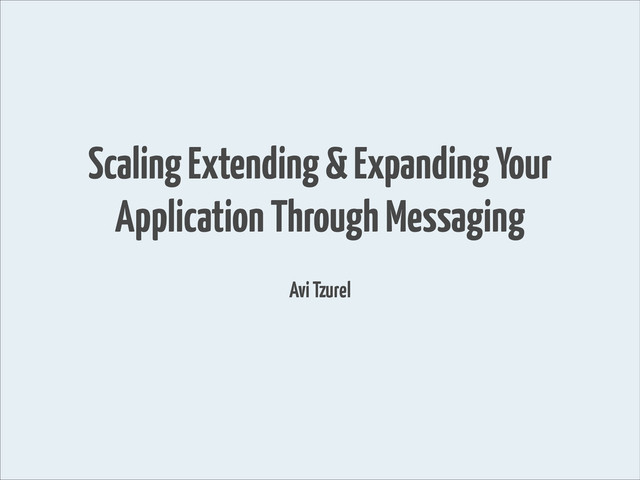

1. Scaling Extending & Expanding Your Application Through Messaging ! Avi Tzurel
2. ME • Avi Tzurel • avi@kensodev.com • @KensoDev (Twitter, Github, Facebook)
3. What are we talking about? • Current way of building 95% of rails apps • Why is that broken? • Why should you care? • New and improved way of building connected apps
4. Our Use Case
6. Writing a review • Set the review language • Set the review rank (based on some rules) • Update the user score • Was he first to write a full review? (better score) • Update the place score • Update the place score in a travel style • Update the personal place score for user graph
7. The Rails Way • How would you say rails is designed to do this?
8. Yes, I am asking a question
   ! What would you say is the rails way?
9. The Rails Way
10. Problems
11. Problems • Overloading the Lib Directory • Lib directory gets to be the junk of rails apps
12. It goes on and on....
13. Problems • Application is bloating beyond your control • Gemfile • Initializers • Models • Super slow startup times • Super slow testing times
14. The slightly better way
16. Again... • Working with workers will make life a bit better • Still lots of bloat in the lib dir • Lots of workers in the application code to load • Where the hell is my logic? • Some engineers put it in the worker, some do classes
18. It Still Sucks!
19. • Going into the better way I will try… • Being framework Agnostic • Giving the concept, you make it great for you. • Making sure you know it’s not a one size fits all There’s a better way
20. NOT • Not a single application • Not a single logic location • Not a single test suite • Not a single Gemfile • Not a magic solution for all apps • Not something to start with right away (for a MVP)
23. Publishing Events • Working with Events, not workers or classes • Every model/class can publish any event • There’s no ACK on the other side, it’s just publishing the message to your broker (I said I will be agnostic) • The model/observer responsibility ends here
24. Subscribing • On the other side, your “mini-apps” can subscribe to those events • Events can be unique strings or topics • For example “recommendation_change” is a topic • Any app that cares about this, will register on the event
25. Our Mini apps • LanguageDetectionApp • RecommendationRankingApp • PlaceScoringApp • TravelStyleScoringApp • UserScoringSystem • GraphScoringSystem
26. • Apps can be written in • Full rails apps • Ruby • Sinatra apps • Go • Java more on apps
27. more on apps • Different Gems for different apps • Tests only run on those apps on change • Now, when you change your main app, it runs only those relevant specs • Different API’s, can even be different languages
28. Message Types
29. Publisher => Consumer
30. send.rb #!/usr/bin/env ruby
 # encoding: utf-8

 require "bunny"

 conn = Bunny.new(:automatically_recover => false)
 conn.start

 ch = conn.create_channel
 q = ch.queue("hello")

 ch.default_exchange.publish("Hello World!", :routing_key => q.name)
 puts " [x] Sent 'Hello World!'"

 conn.close
31. receive.rb #!/usr/bin/env ruby
 # encoding: utf-8

 require "bunny"

 conn = Bunny.new(:automatically_recover => false)
 conn.start

 ch = conn.create_channel
 q = ch.queue("hello")

 begin
 puts " [*] Waiting for messages. To exit press CTRL+C"
 q.subscribe(:block => true) do |delivery_info, properties, body|
 puts " [x] Received #{body}"
 end
 rescue Interrupt => _
 conn.close

 exit(0)
 end
32. Work Queues
33. new_task.rb #!/usr/bin/env ruby
 # encoding: utf-8

 require "bunny"

 conn = Bunny.new(:automatically_recover => false)
 conn.start

 ch = conn.create_channel
 q = ch.queue("task_queue", :durable => true)

 msg = ARGV.empty? ? "Hello World!" : ARGV.join(" ")

 q.publish(msg, :persistent => true)
 puts " [x] Sent #{msg}"

 conn.close
34. worker.rb #!/usr/bin/env ruby
 # encoding: utf-8

 require "bunny"

 conn = Bunny.new(:automatically_recover => false)
 conn.start

 ch = conn.create_channel
 q = ch.queue("task_queue", :durable => true)

 ch.prefetch(1)
 puts " [*] Waiting for messages. To exit press CTRL+C"

 begin
 q.subscribe(:manual_ack => true, :block => true) do |delivery_info, properties, body|
 puts " [x] Received '#{body}'"
 # imitate some work
 sleep body.count(".").to_i
 puts " [x] Done"
 ch.ack(delivery_info.delivery_tag)
 end
 rescue Interrupt => _
 conn.close
 end
35. Exchance *Not the MS exchange
36. Topics
37. Topics • Possibly the most powerful feature of RabbitMQ • You can register to a topic via string/partial/regex • Exchange publishes to queues and consumers consume
38. emit_log_topic.rb #!/usr/bin/env ruby
 # encoding: utf-8

 require "bunny"

 conn = Bunny.new
 conn.start

 ch = conn.create_channel
 x = ch.topic("topic_logs")
 severity = ARGV.shift || "anonymous.info"
 msg = ARGV.empty? ? "Hello World!" : ARGV.join(" ")

 x.publish(msg, :routing_key => severity)
 puts " [x] Sent #{severity}:#{msg}"

 conn.close
39. receive_logs_topic.rb #!/usr/bin/env ruby
 # encoding: utf-8

 require "bunny"

 if ARGV.empty?
 abort "Usage: #{$0} [binding key]"
 end

 conn = Bunny.new
 conn.start

 ch = conn.create_channel
 x = ch.topic("topic_logs")
 q = ch.queue("", :exclusive => true)

 ARGV.each do |severity|
 q.bind(x, :routing_key => severity)
 end

 puts " [*] Waiting for logs. To exit press CTRL+C"

 begin
 q.subscribe(:block => true) do |delivery_info, properties, body|
 puts " [x] #{delivery_info.routing_key}:#{body}"
 end
 rescue Interrupt => _
 ch.close
 conn.close
 end
40. Receiving Logs # All Logs
 ruby -rubygems receive_logs_topic.rb "#"

 # Logs that start with kern
 ruby -rubygems receive_logs_topic.rb "kern.*"

 # Only Critical
 ruby -rubygems receive_logs_topic.rb "*.critical"

 # Multiple
 ruby -rubygems receive_logs_topic.rb "kern.*" "*.critical"

 # Emiting kern facility log
 ruby -rubygems emit_log_topic.rb "kern.critical" "A critical kernel error"
41. Full Architecture
42. Full Flow
43. Full Flow
45. Gotchas • Configuration of apps • Redis connection • DB connection • Mongo Connection • Memcached connection • Deployments
46. • Application config can be stored in... • Chef Data Bags (recommended) • ENV Variables (requires a bit more hassle) we work this way right now and making a move to the previous • Thanks to Avner @ Fiverr for the Chef idea Gotchas
47. Advantages • Full decoupling • Throw complete chunks of code to the trash • No more feature XXX, no problem • Adding another feature dependent on an event, No problem, Main app does not change (doesn’t even have to be redeployed) AMAZING RIGHT?
48. Advantages #2 • Improved response time (any async will give you that though) • Reduced complexity by decoupling • Build apps that use the language best suited instead of one gigantic monster app in Ruby/Rails • Deploy separately, scale separately
49. Read more • Bunny for RabbitMQ • Sneakers (Awesome!!! Thanks to @jundot) • RabbitMQ docs • http://www.rubyinside.com/why-rubyists-should-care- about-messaging-a-high-level-intro-5017.html • http://en.wikipedia.org/wiki/ Fallacies_of_Distributed_Computing • Messaging middleware used at Wikipedia
50. Thank you! ! Questions?
