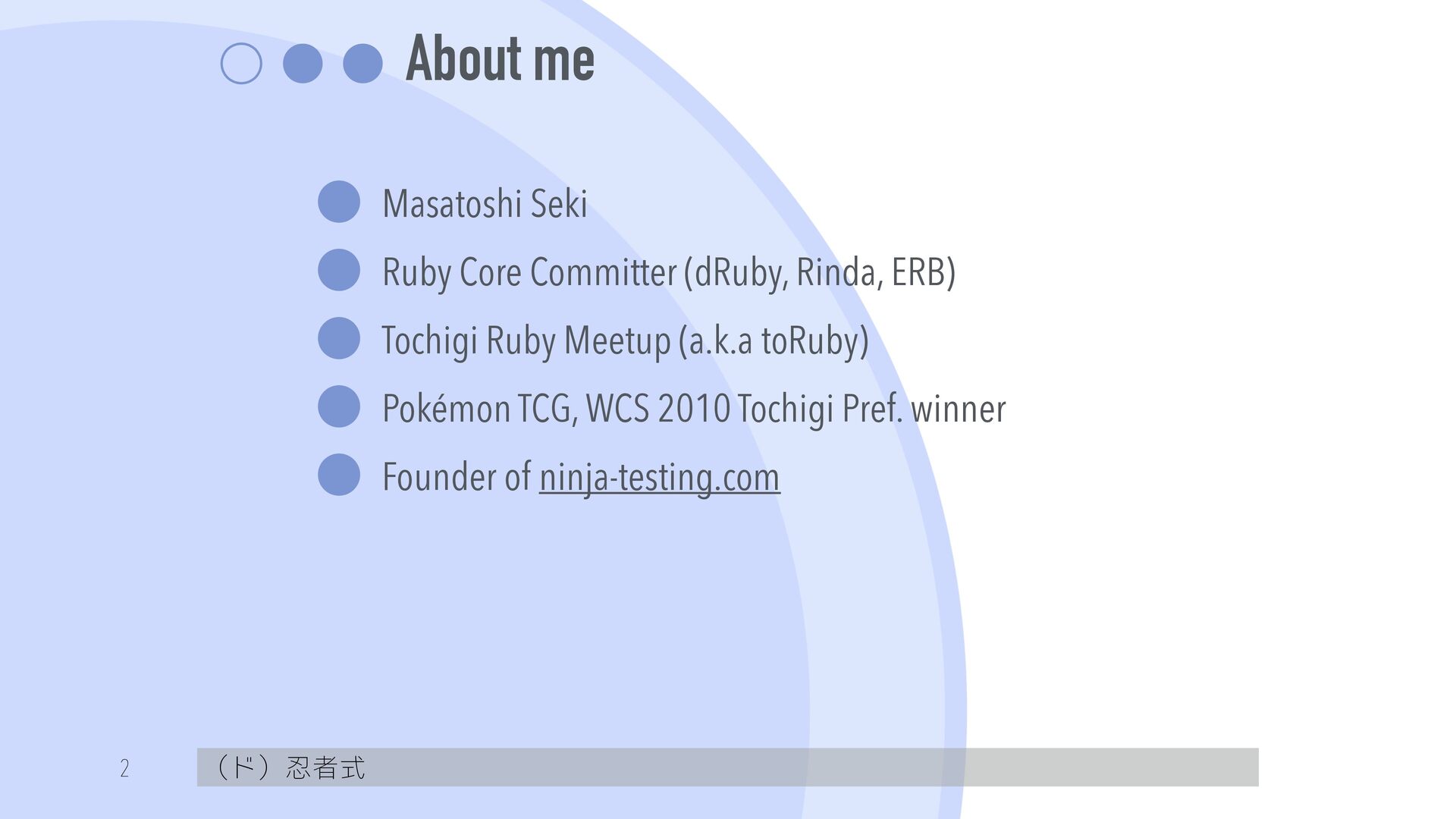

About me Masatoshi Seki Ruby Core Committer (dRuby, Rinda, ERB)
Tochigi Ruby Meetup (a.k.a toRuby) Pokémon TCG, WCS 2010 Tochigi Pref. winner Founder of ninja-testing.com (ド)忍者式 2 -

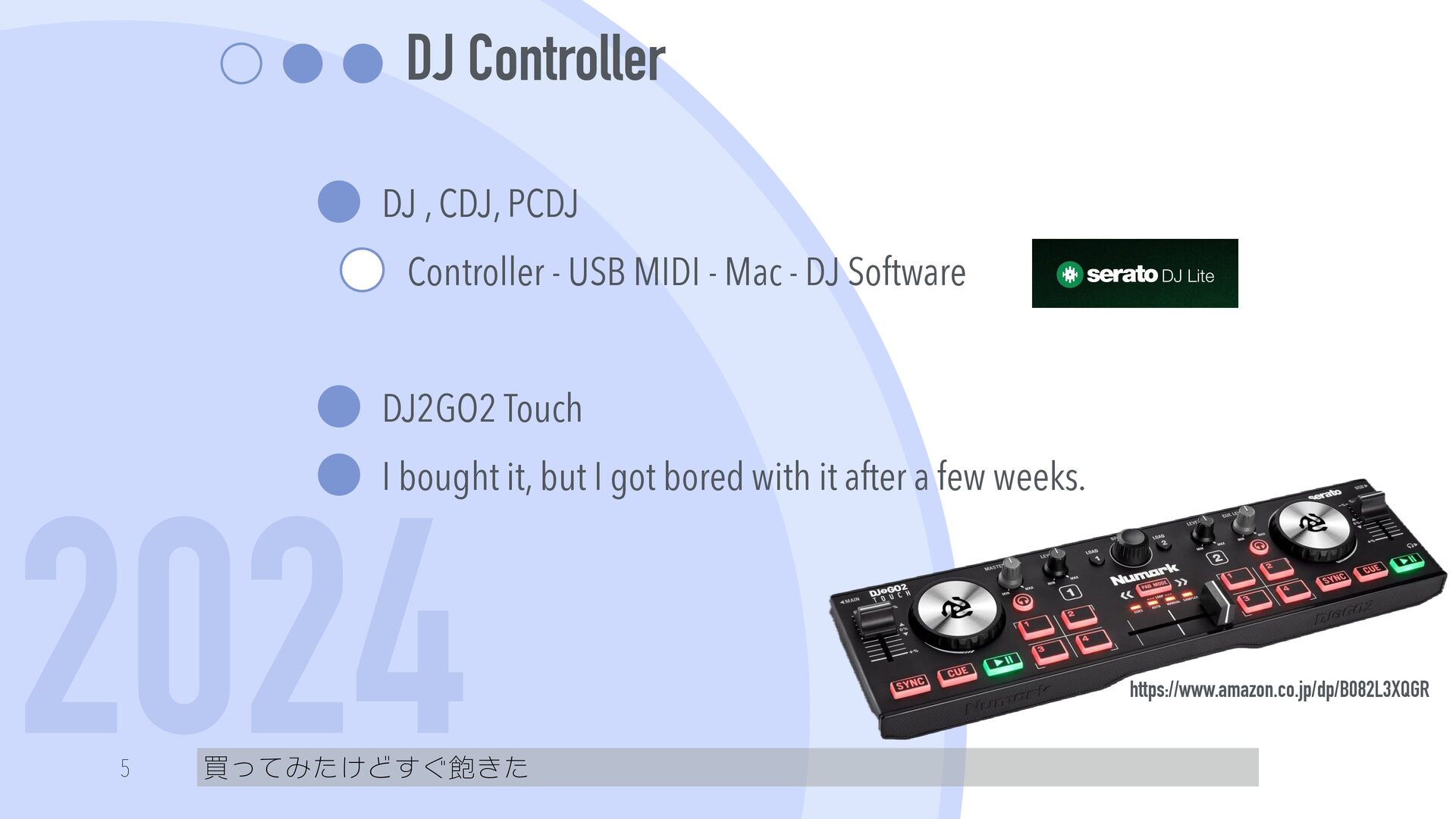

DJ Controller DJ , CDJ, PCDJ Controller - USB MIDI
- Mac - DJ Software DJ2GO2 Touch I bought it, but I got bored with it after a few weeks. 買ってみたけどすぐ飽きた 5 2024 https://www.amazon.co.jp/dp/B082L3XQGR -
6 How to make the Groovebox How to make the
Groovebox 2025 asonas's talk -

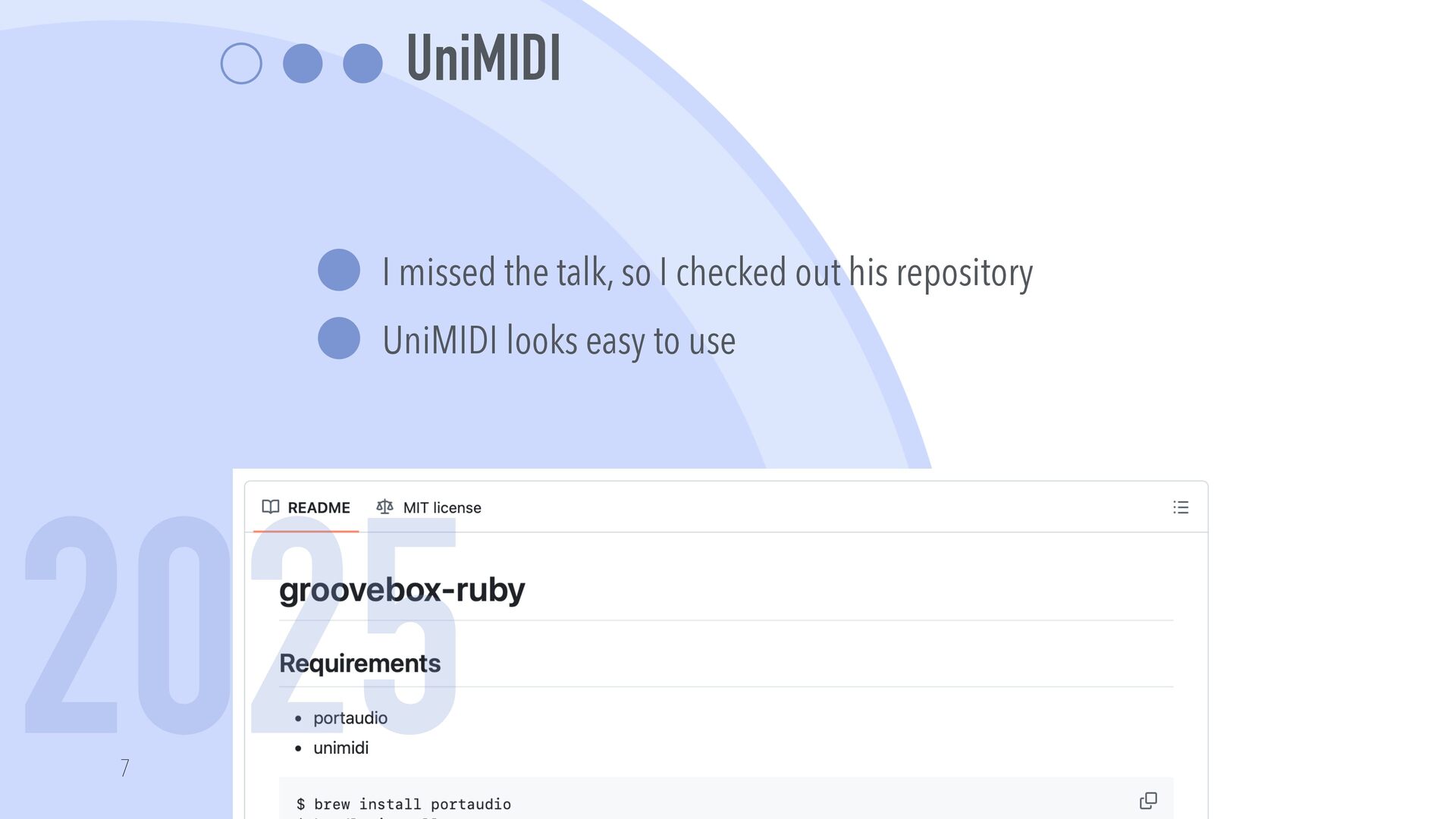

UniMIDI I missed the talk, so I checked out his
repository UniMIDI looks easy to use 7 2025 -

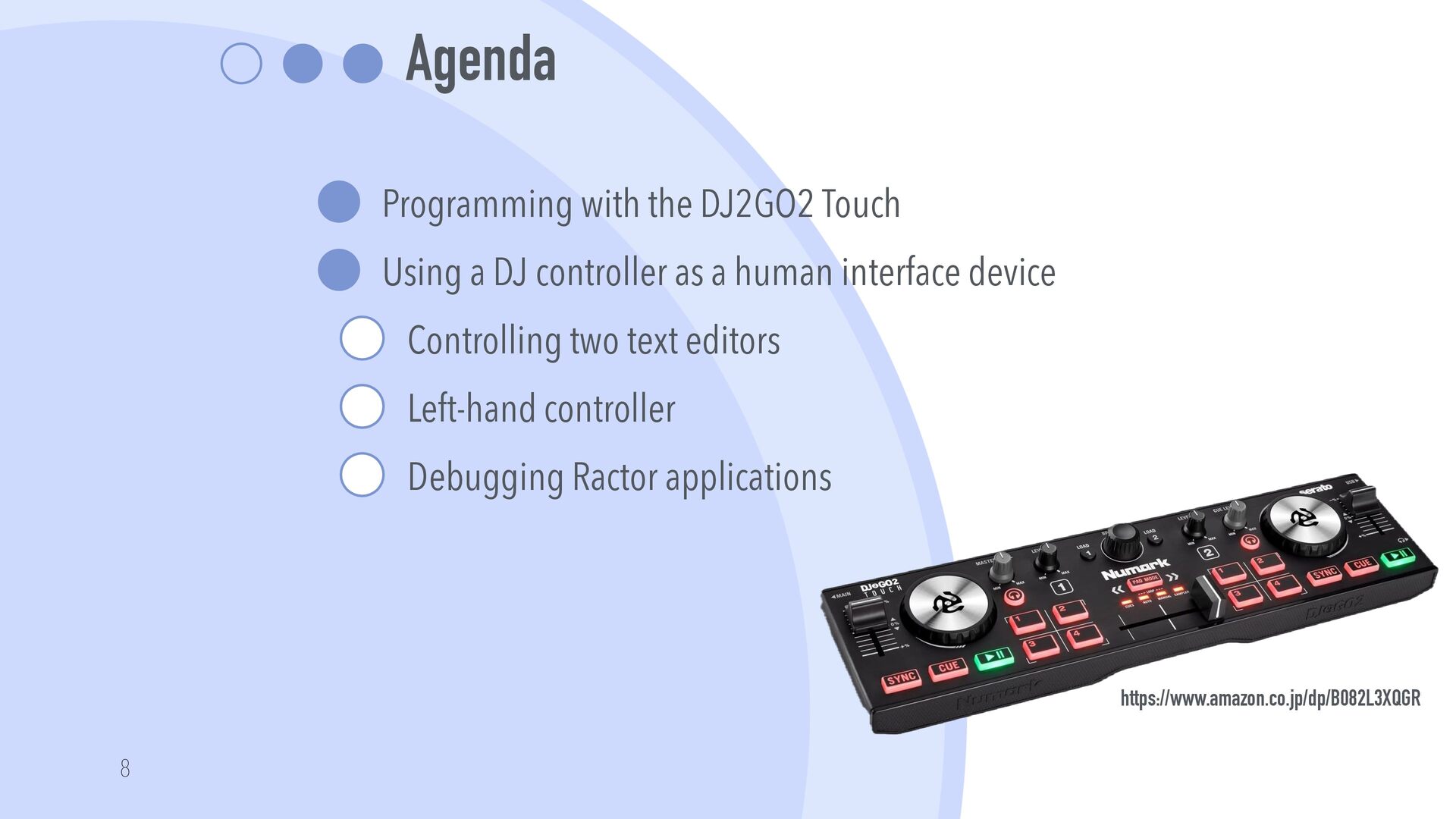

Agenda Programming with the DJ2GO2 Touch Using a DJ controller
as a human interface device Controlling two text editors Left-hand controller Debugging Ractor applications 8 https://www.amazon.co.jp/dp/B082L3XQGR -

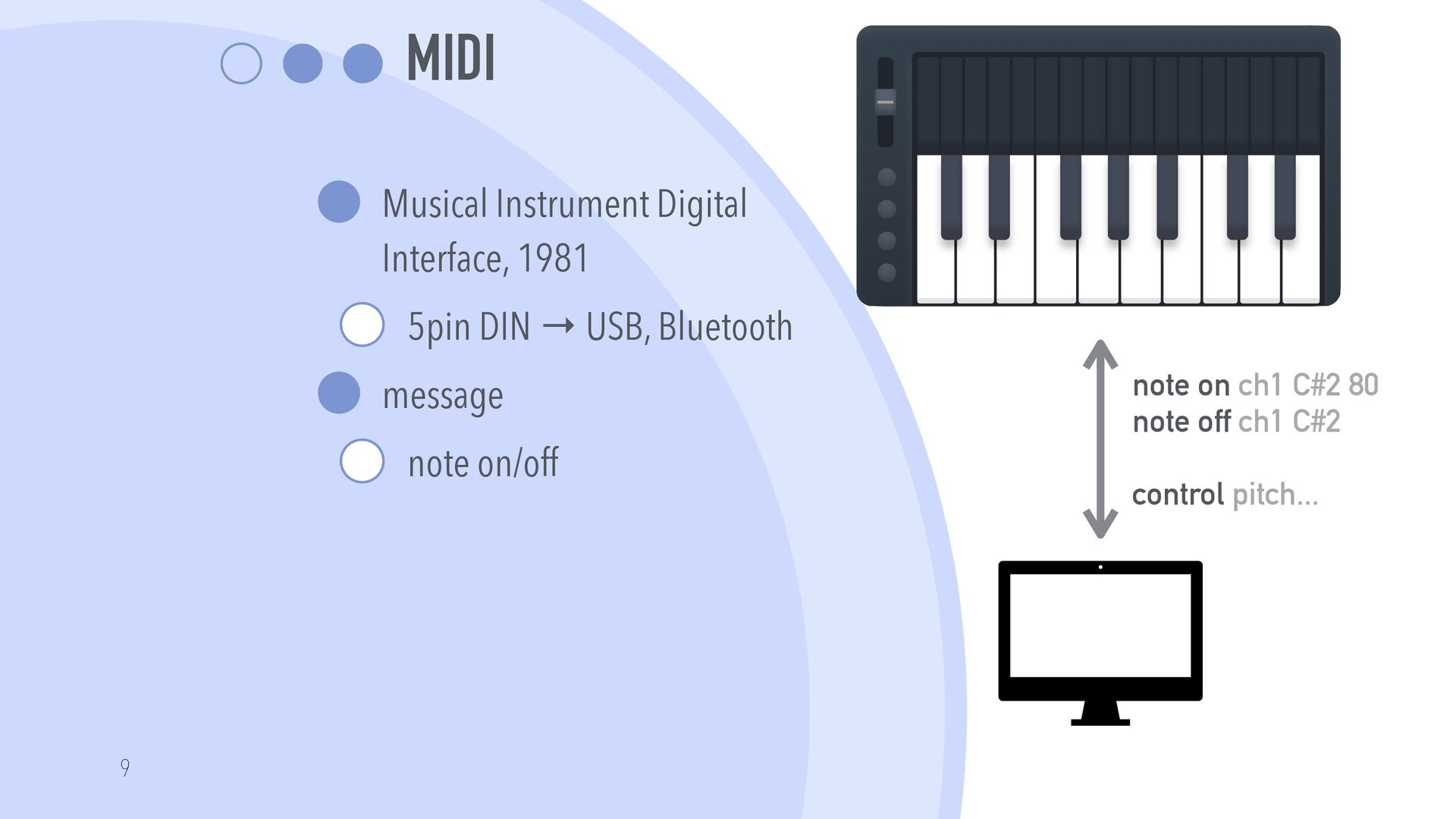

MIDI Musical Instrument Digital Interface, 1981 5pin DIN → USB,
Bluetooth message note on/off 9 note on ch1 C#2 80 note off ch1 C#2 control pitch... -

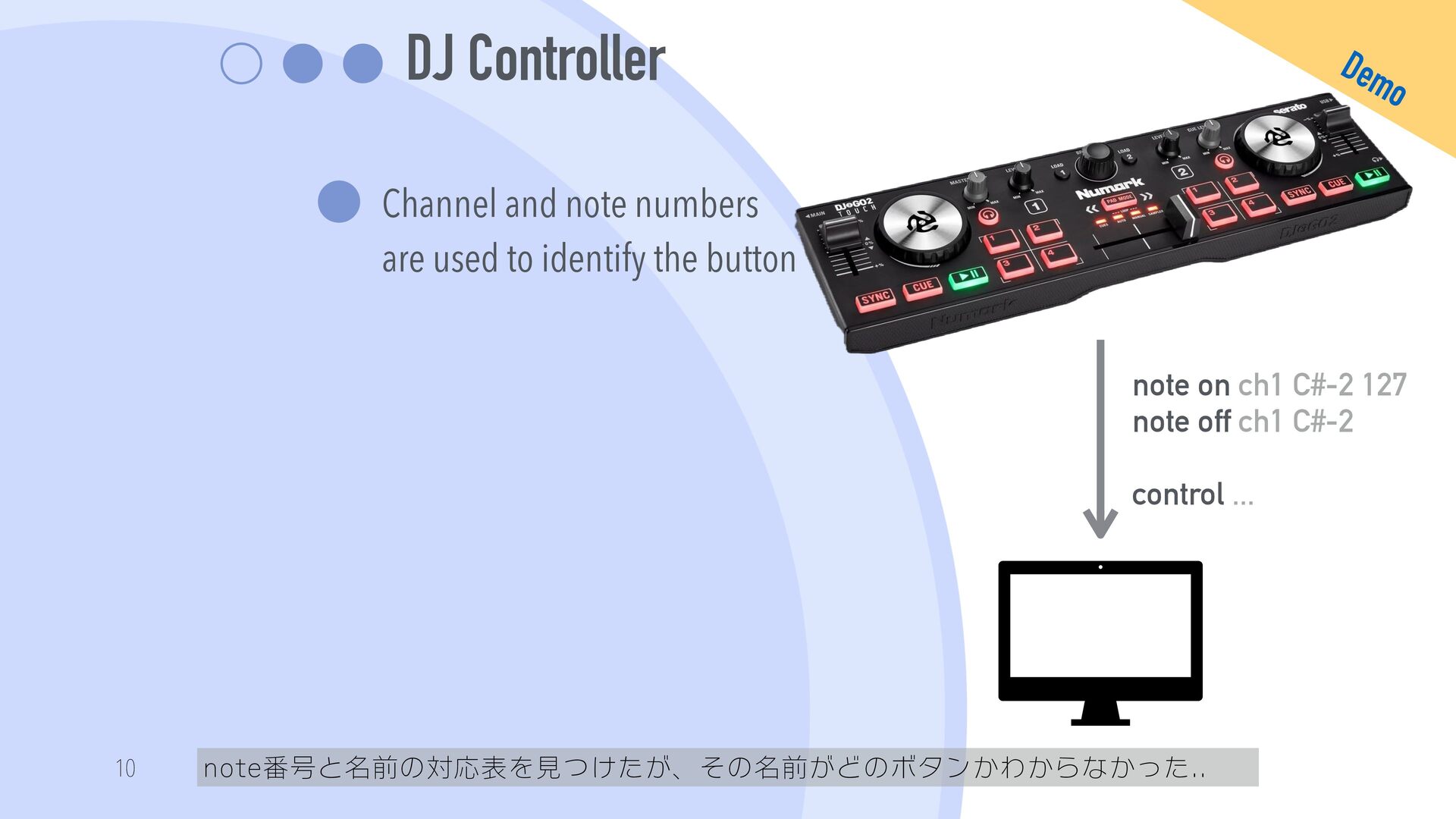

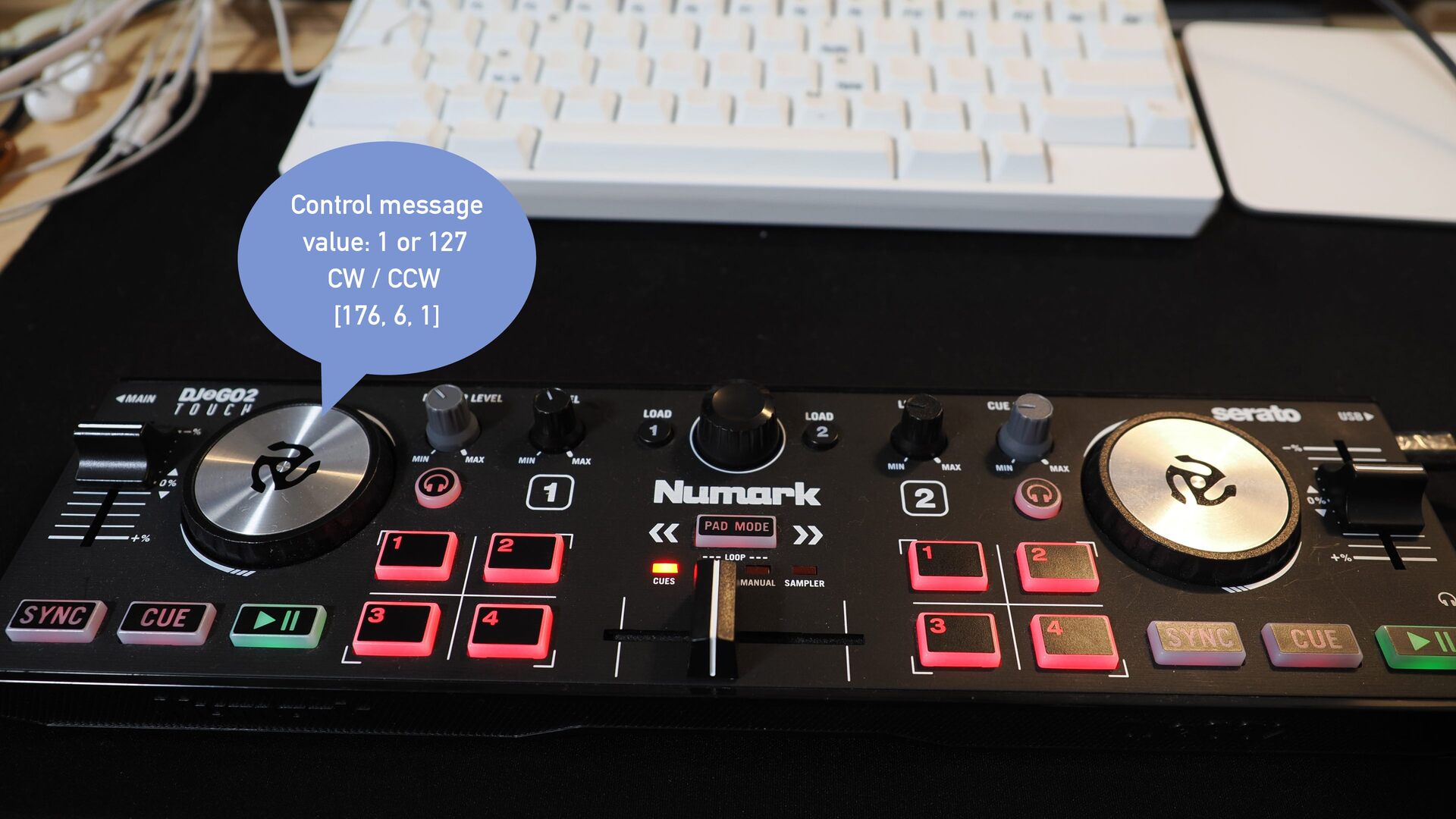

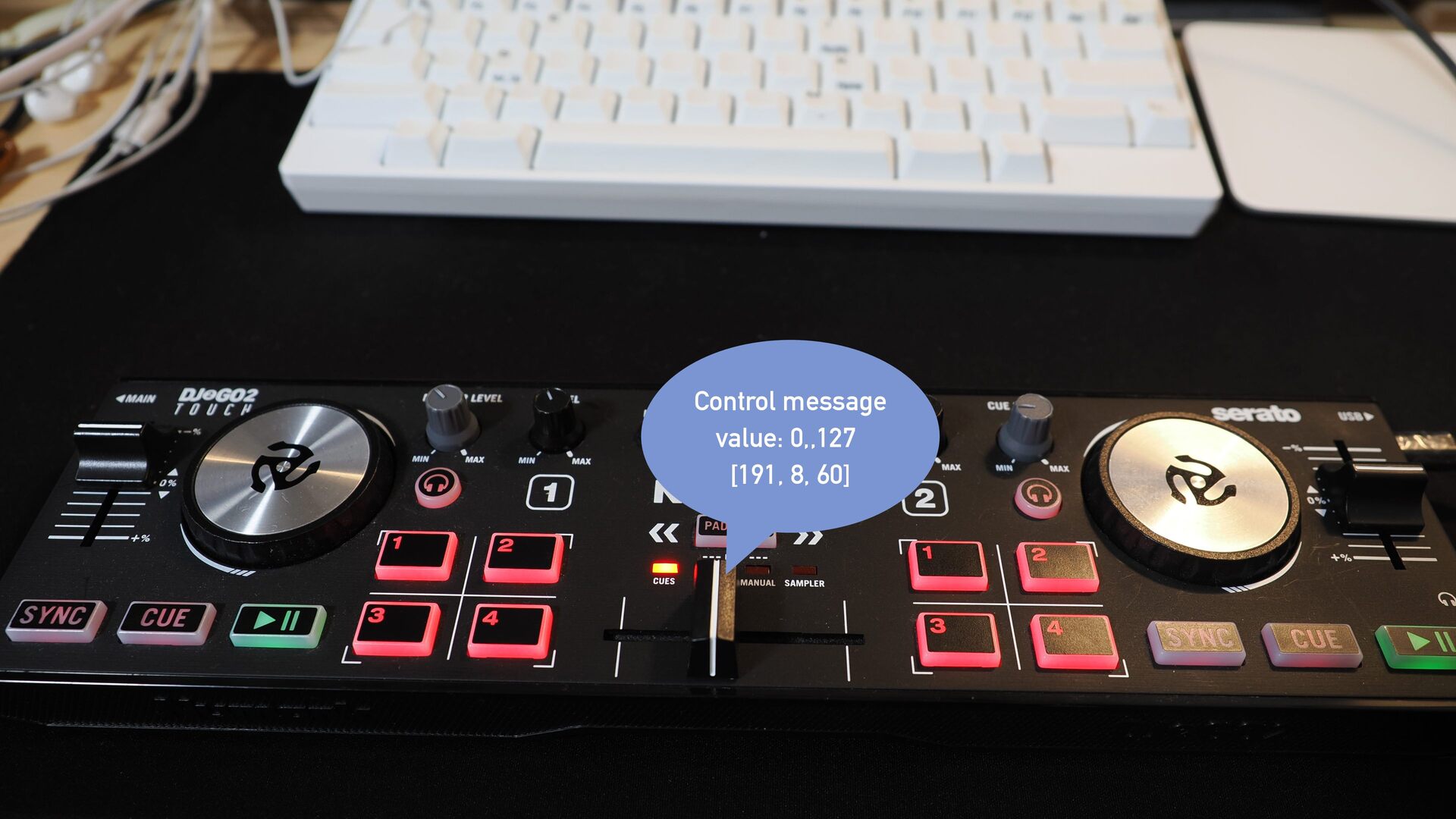

DJ Controller Channel and note numbers are used to identify
the button note番号と名前の対応表を見つけたが、その名前がどのボタンかわからなかった.. 10 note on ch1 C#-2 127 note off ch1 C#-2 control ... Demo -

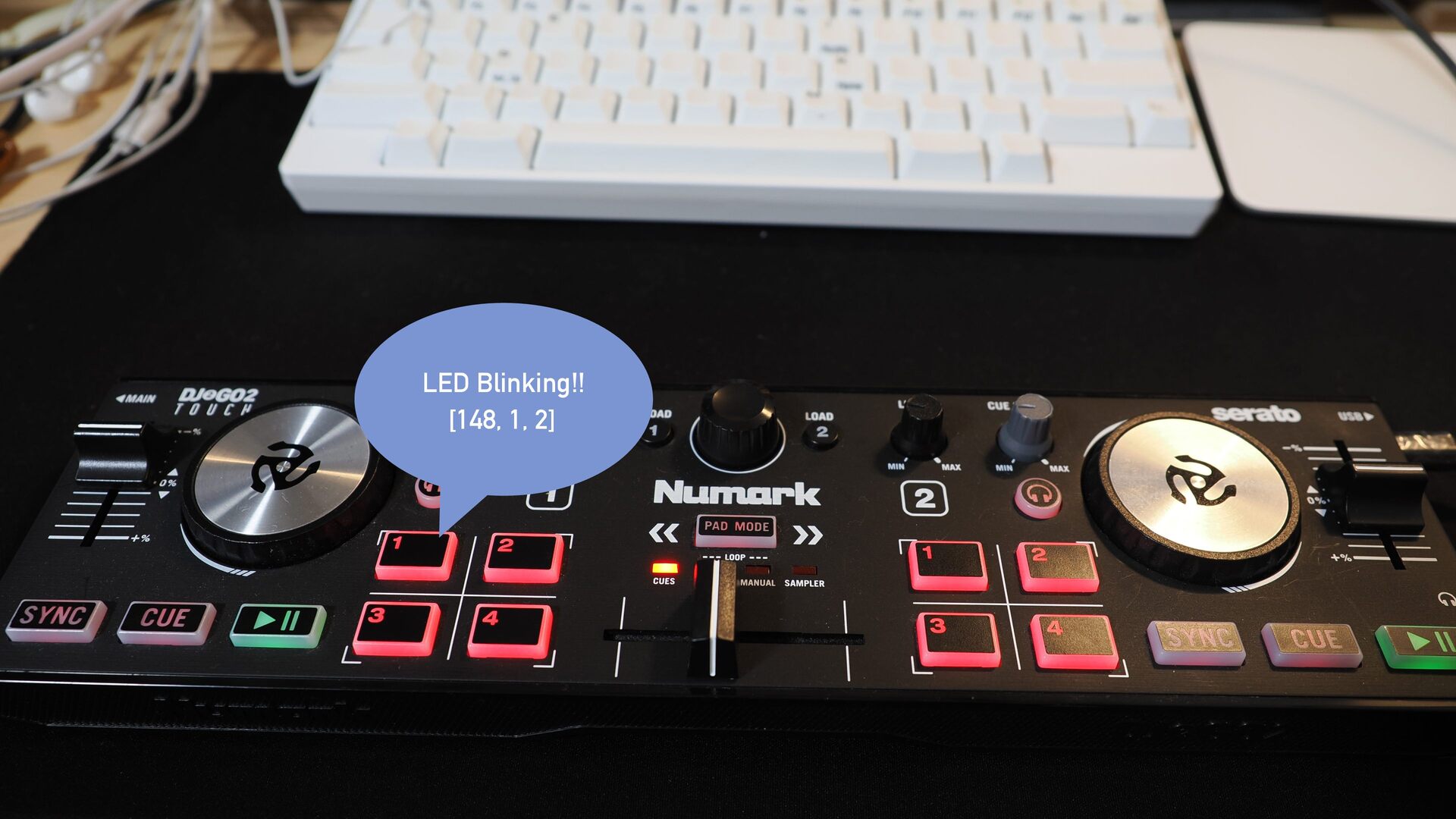

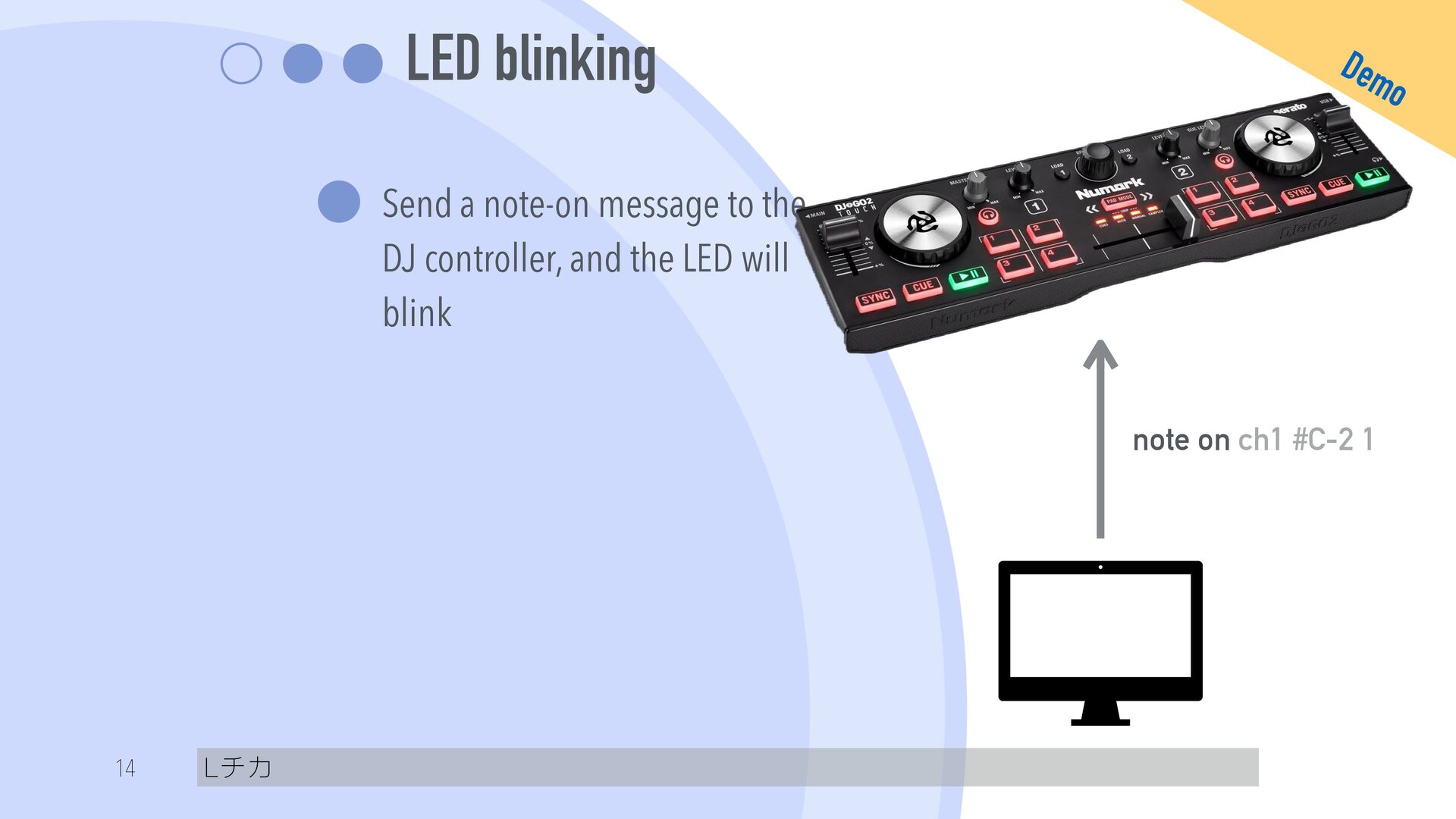

LED blinking Send a note-on message to the DJ controller,
and the LED will blink Lチカ 14 note on ch1 #C-2 1 Demo -
How to get the current value Not included in standard
MIDI But DJ software can query this information 初期状態(現在の状態)を知るプロトコルがない!?でもDJソフトはできてるぞ?? どうやってるんだ 16 -

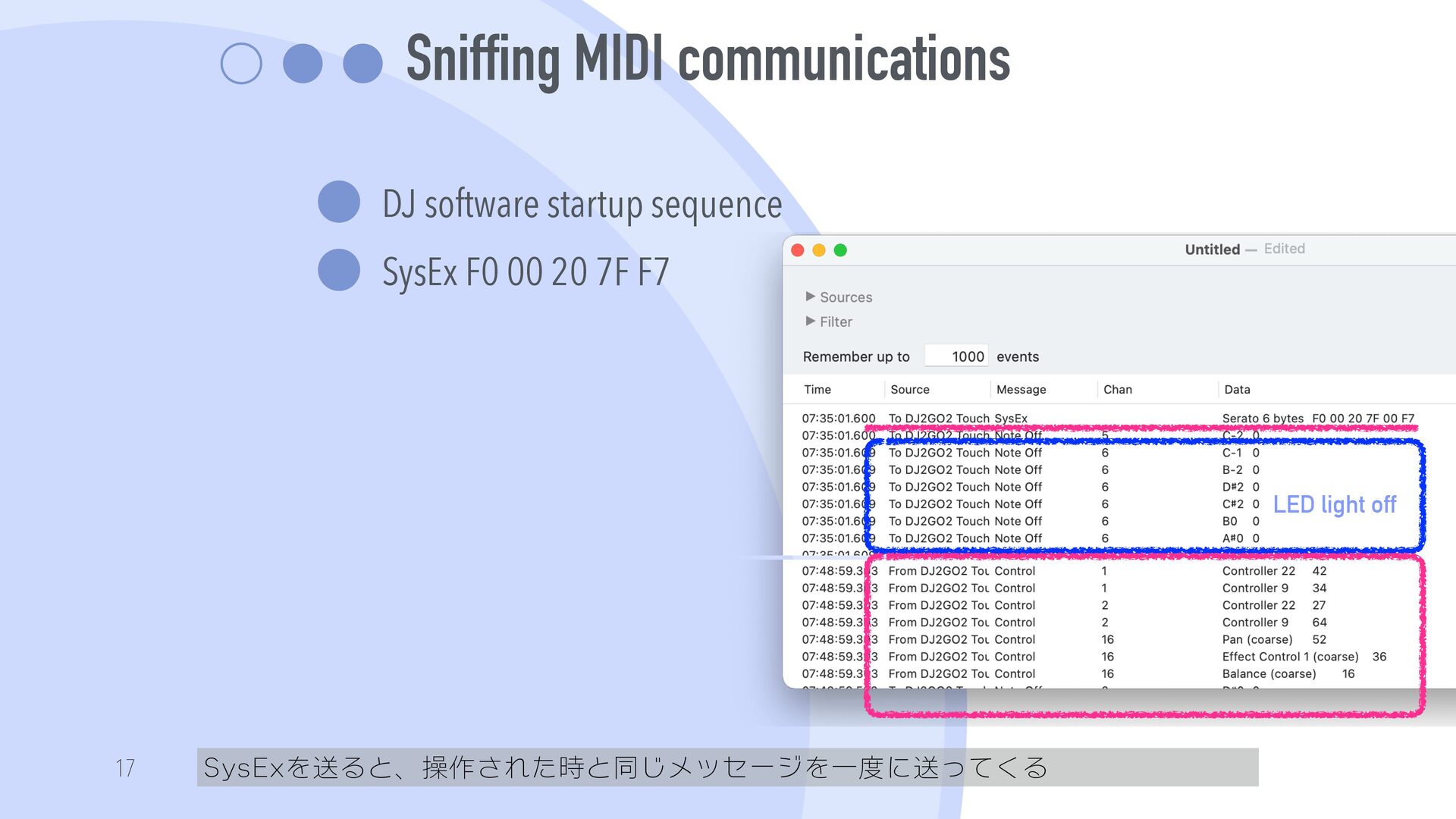

Sniffing MIDI communications DJ software startup sequence SysEx F0 00
20 7F F7 SysExを送ると、操作された時と同じメッセージを一度に送ってくる 17 LED light off -

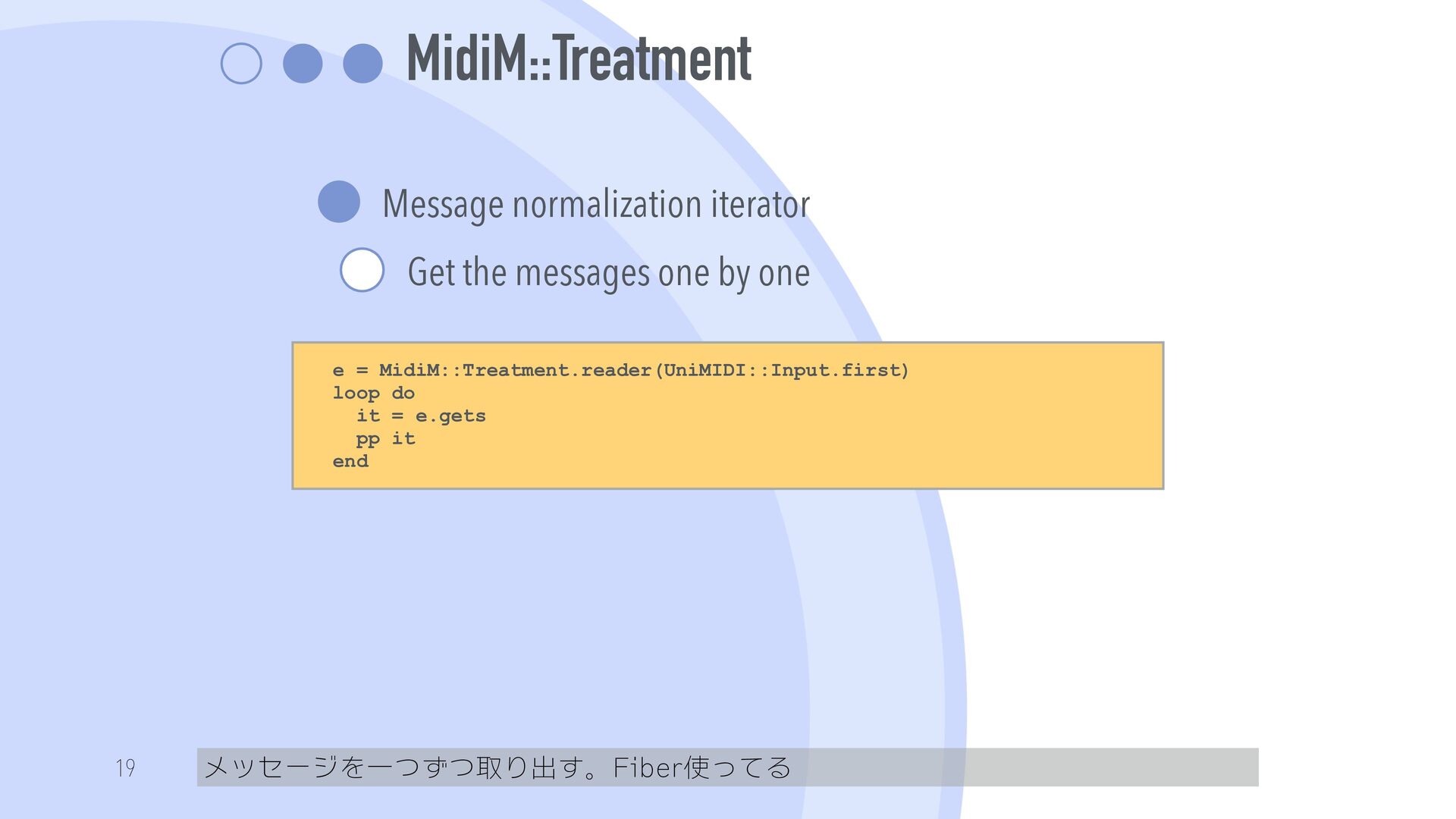

MidiM::Treatment Message normalization iterator Get the messages one by one
メッセージを一つずつ取り出す。Fiber使ってる 19 e = MidiM::Treatment.reader(UniMIDI::Input.first) loop do it = e.gets pp it end -

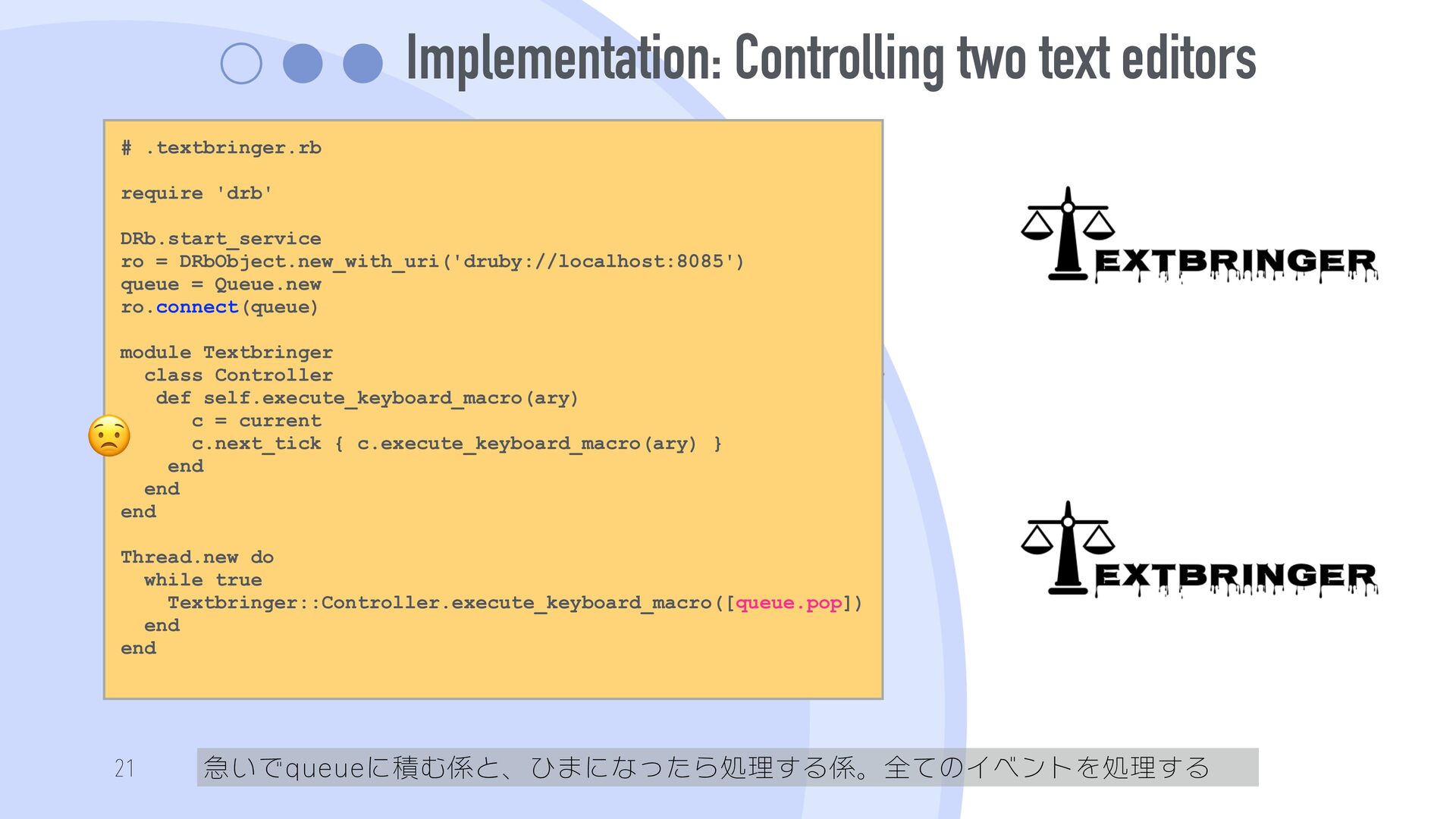

Implementation: Controlling two text editors Control two text editors 急いでqueueに積む係と、ひまになったら処理する係。全てのイベントを処理する
21 # .textbringer.rb require 'drb' DRb.start_service ro = DRbObject.new_with_uri('druby://localhost:8085') queue = Queue.new ro.connect(queue) module Textbringer class Controller def self.execute_keyboard_macro(ary) c = current c.next_tick { c.execute_keyboard_macro(ary) } end end end Thread.new do while true Textbringer::Controller.execute_keyboard_macro([queue.pop]) end end 😟 -

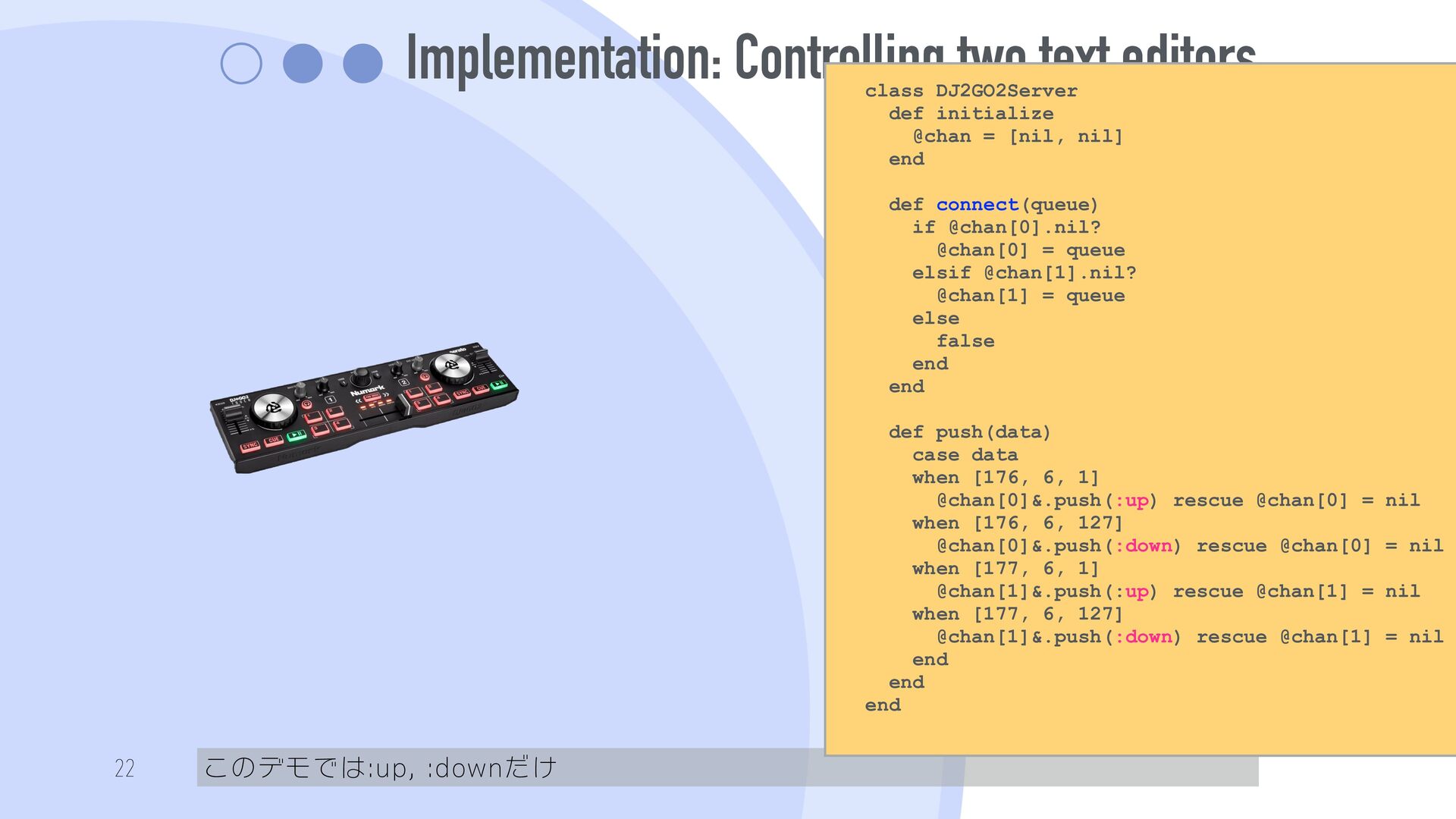

Implementation: Controlling two text editors このデモでは:up, :downだけ 22 class DJ2GO2Server
def initialize @chan = [nil, nil] end def connect(queue) if @chan[0].nil? @chan[0] = queue elsif @chan[1].nil? @chan[1] = queue else false end end def push(data) case data when [176, 6, 1] @chan[0]&.push(:up) rescue @chan[0] = nil when [176, 6, 127] @chan[0]&.push(:down) rescue @chan[0] = nil when [177, 6, 1] @chan[1]&.push(:up) rescue @chan[1] = nil when [177, 6, 127] @chan[1]&.push(:down) rescue @chan[1] = nil end end end -

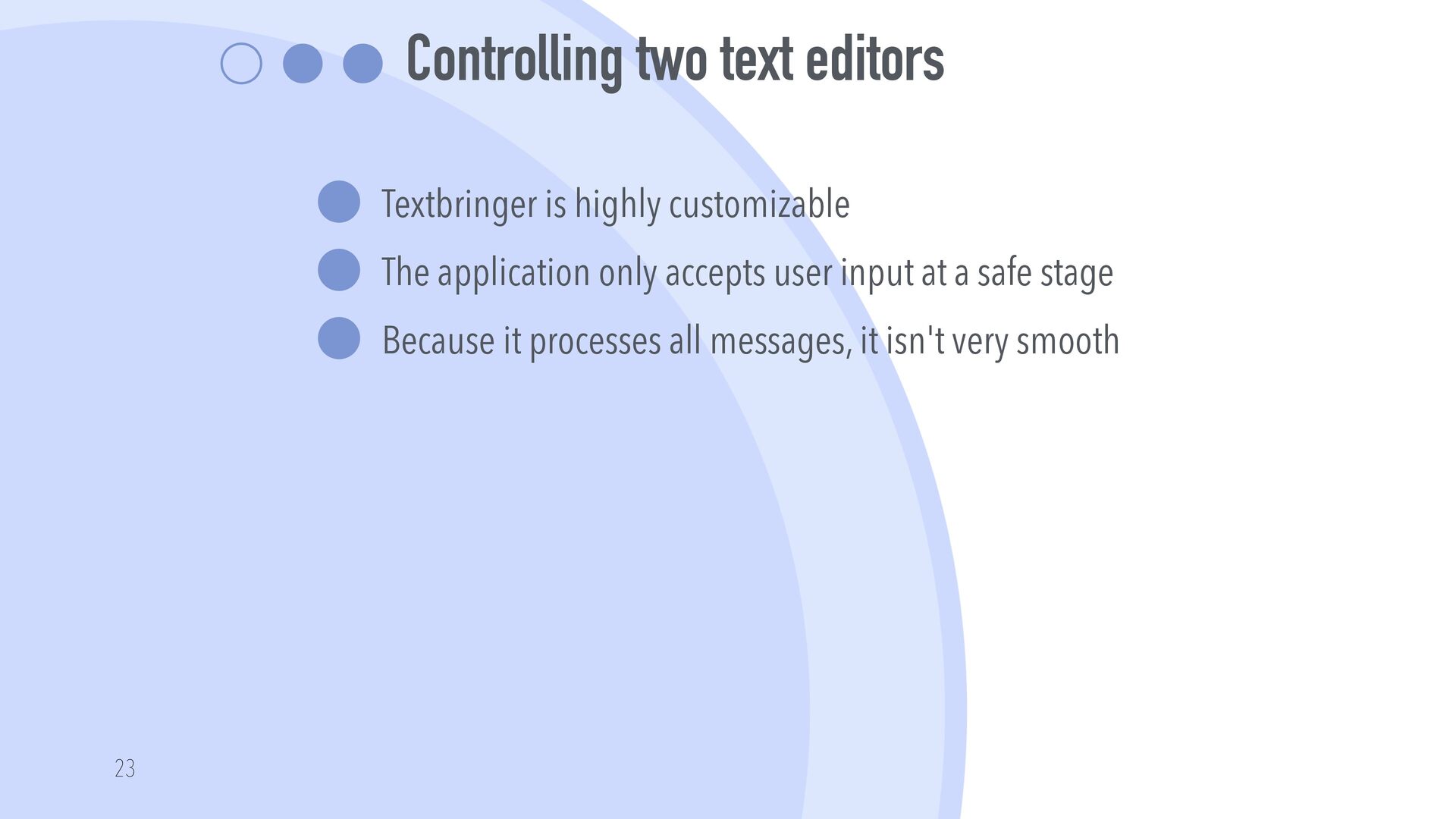

Controlling two text editors Textbringer is highly customizable The application
only accepts user input at a safe stage Because it processes all messages, it isn't very smooth 23 -

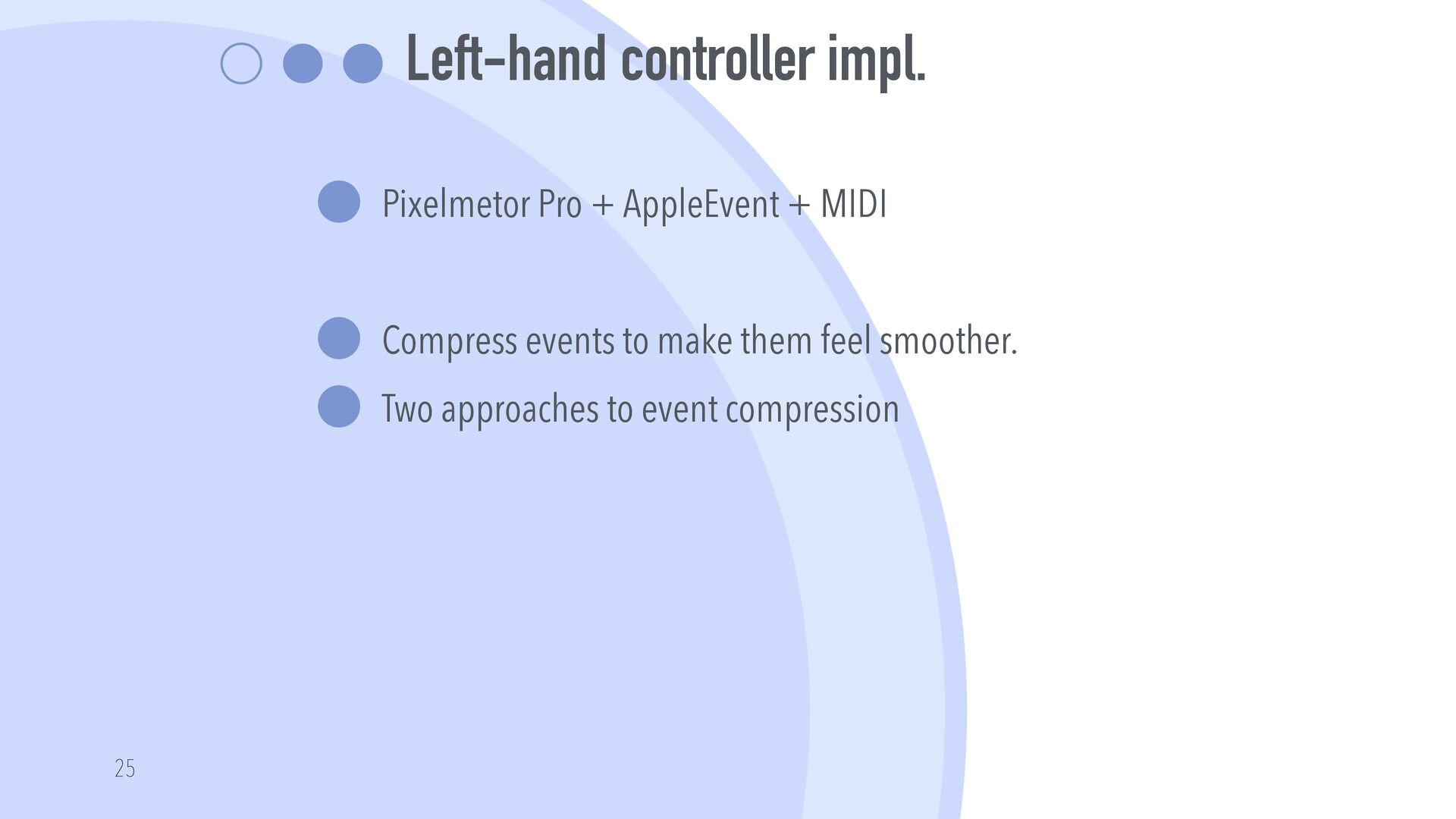

Left-hand controller impl. Pixelmetor Pro + AppleEvent + MIDI Compress
events to make them feel smoother. Two approaches to event compression 25 -

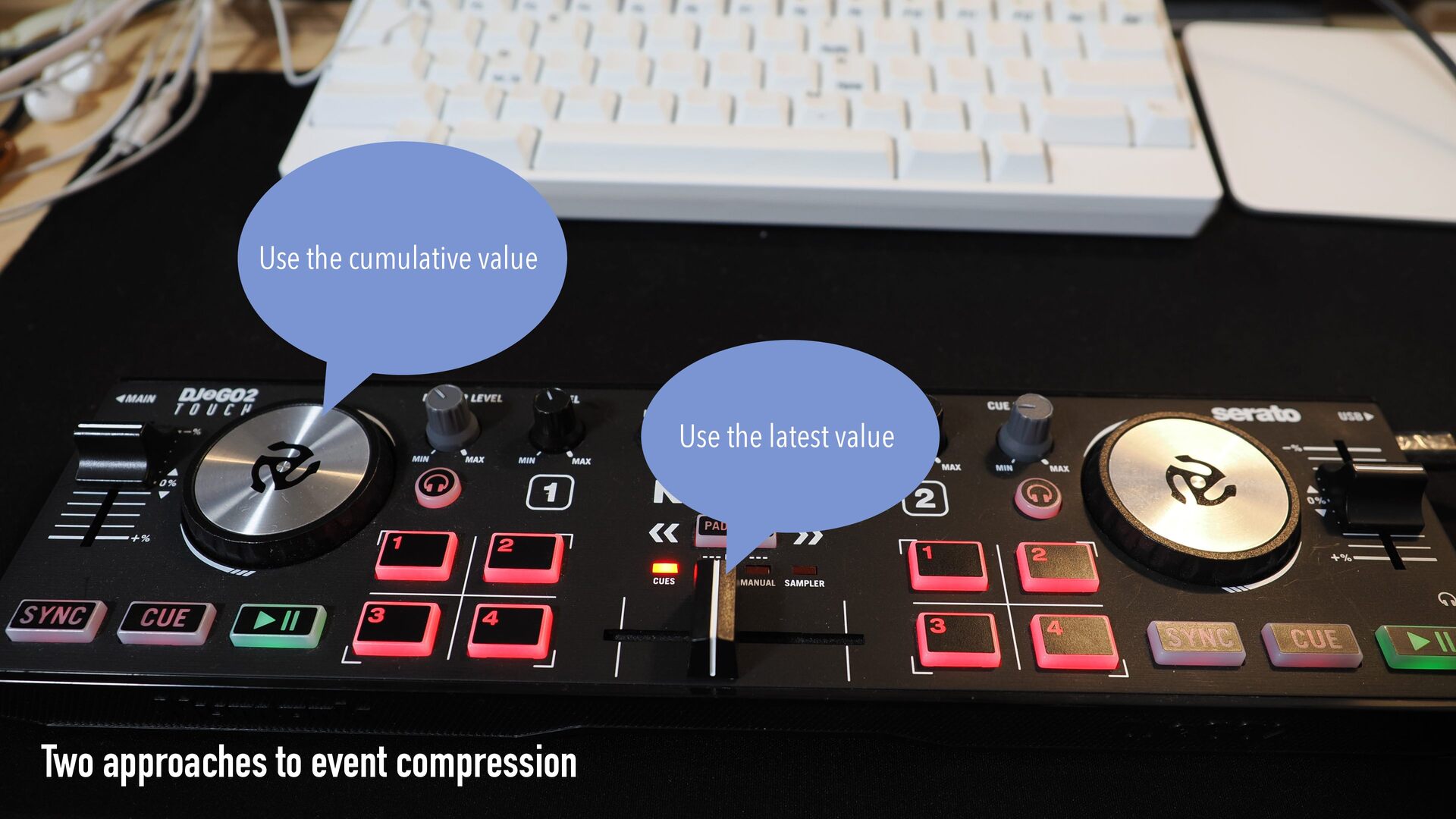

note number C ノート番号とデバイスのコントローラーの名称の対応表を見つけたが、その名称とデ バイス上のコントローラーの関係がわからない→結局全部操作して確かめた 26 Use the latest value
Use the cumulative value Two approaches to event compression -

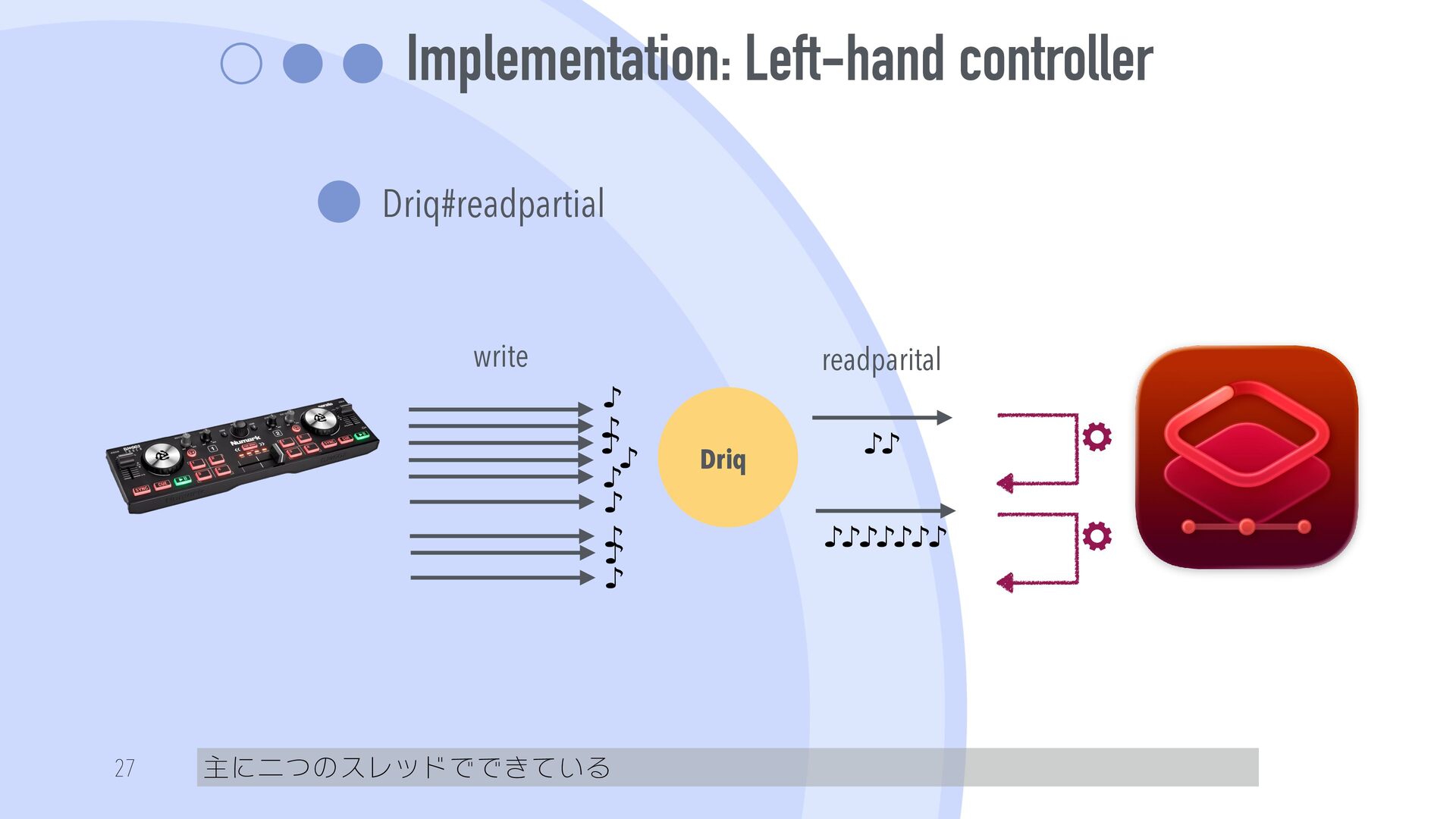

Implementation: Left-hand controller Driq#readpartial 主に二つのスレッドでできている 27 Driq ♪ ♪ ♪♪
♪ ♪ ♪♪ ♪♪♪♪♪♪♪ ♪ ♪ ♪ readparital write -

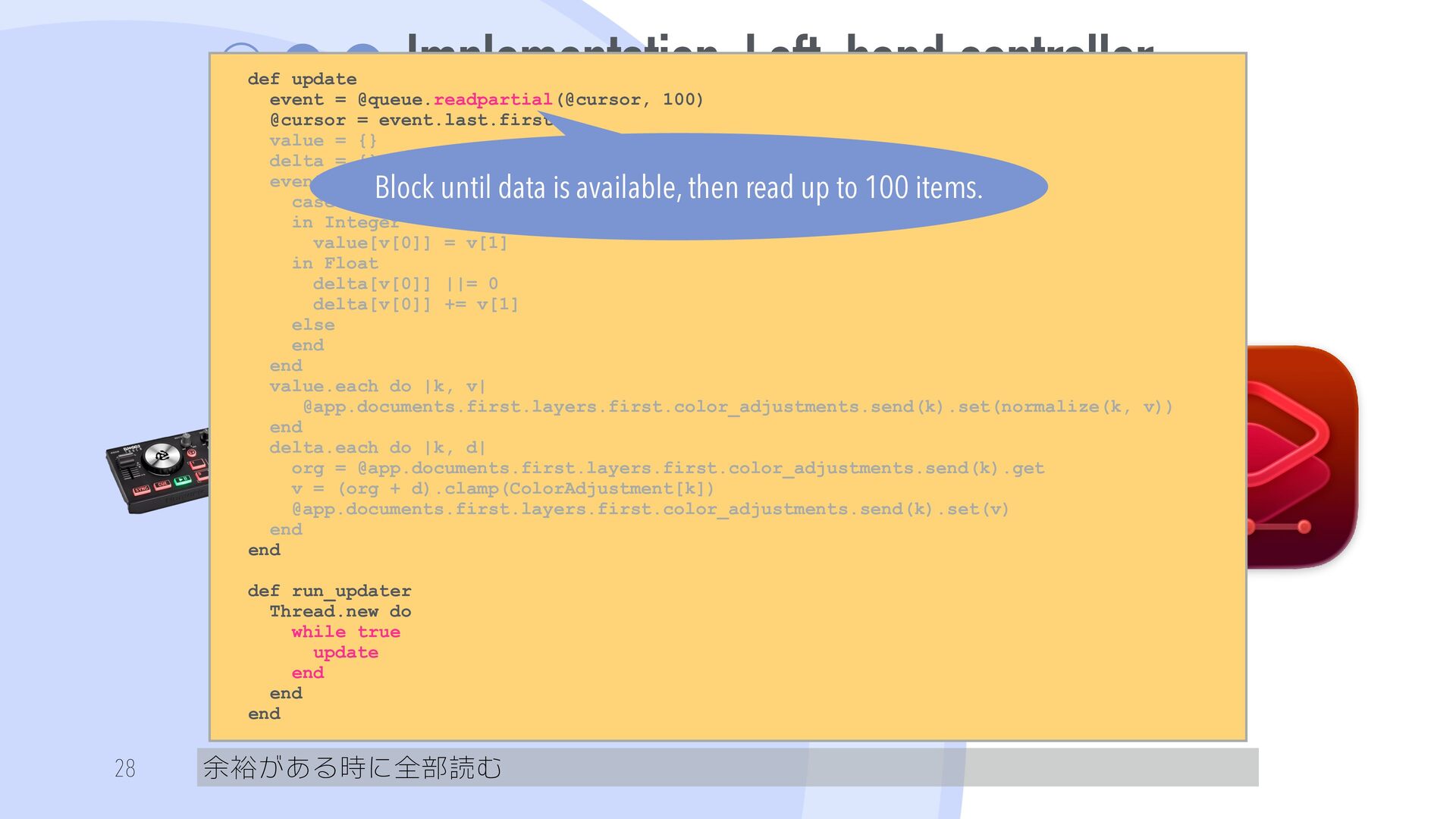

Implementation: Left-hand controller Driq#readpartial 余裕がある時に全部読む 28 Driq ♪ ♪ ♪♪
♪ ♪ ♪♪ ♪♪♪♪♪♪♪ ♪ ♪ ♪ readparital write def update event = @queue.readpartial(@cursor, 100) @cursor = event.last.first value = {} delta = {} event.each do |k, v| case v[1] in Integer value[v[0]] = v[1] in Float delta[v[0]] ||= 0 delta[v[0]] += v[1] else end end value.each do |k, v| @app.documents.first.layers.first.color_adjustments.send(k).set(normalize(k, v)) end delta.each do |k, d| org = @app.documents.first.layers.first.color_adjustments.send(k).get v = (org + d).clamp(ColorAdjustment[k]) @app.documents.first.layers.first.color_adjustments.send(k).set(v) end end def run_updater Thread.new do while true update end end end Block until data is available, then read up to 100 items. -

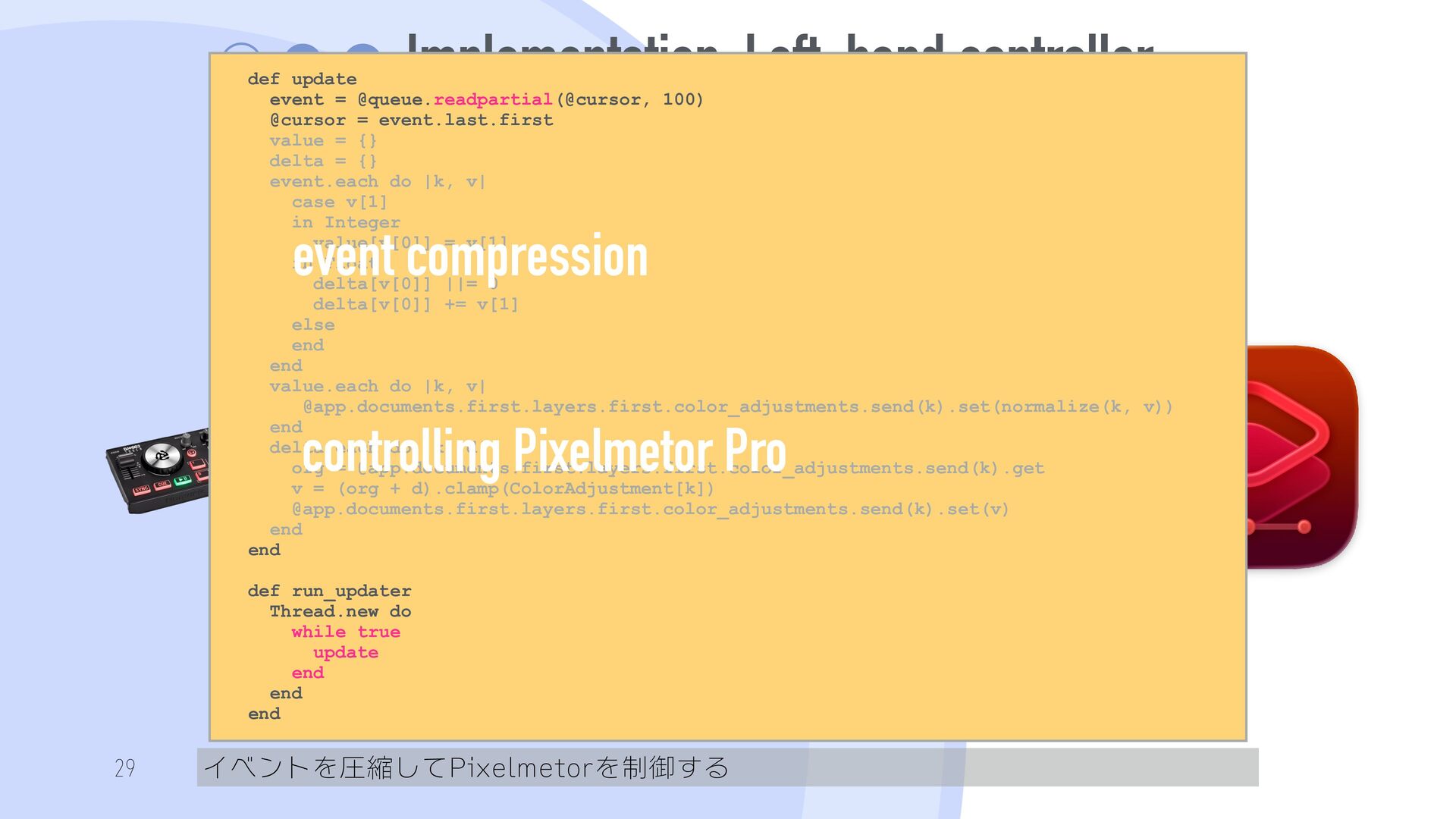

Implementation: Left-hand controller Driq#readpartial イベントを圧縮してPixelmetorを制御する 29 Driq ♪ ♪ ♪♪
♪ ♪ ♪♪ ♪♪♪♪♪♪♪ ♪ ♪ ♪ readparital write def update event = @queue.readpartial(@cursor, 100) @cursor = event.last.first value = {} delta = {} event.each do |k, v| case v[1] in Integer value[v[0]] = v[1] in Float delta[v[0]] ||= 0 delta[v[0]] += v[1] else end end value.each do |k, v| @app.documents.first.layers.first.color_adjustments.send(k).set(normalize(k, v)) end delta.each do |k, d| org = @app.documents.first.layers.first.color_adjustments.send(k).get v = (org + d).clamp(ColorAdjustment[k]) @app.documents.first.layers.first.color_adjustments.send(k).set(v) end end def run_updater Thread.new do while true update end end end event compression controlling Pixelmetor Pro -
Debugging Ractor applications Logging with sound Suspend and resume a
Ractor with a DJ controller Listen to N-Queens music 複数ワーカーのログを読むのはごちゃごちゃしてたいへん!音にしてみればいいのでは?? ワーカーの停止や再開をDJコントローラーで操作するよ。NQueensの音楽聴いて! 30 Demo -

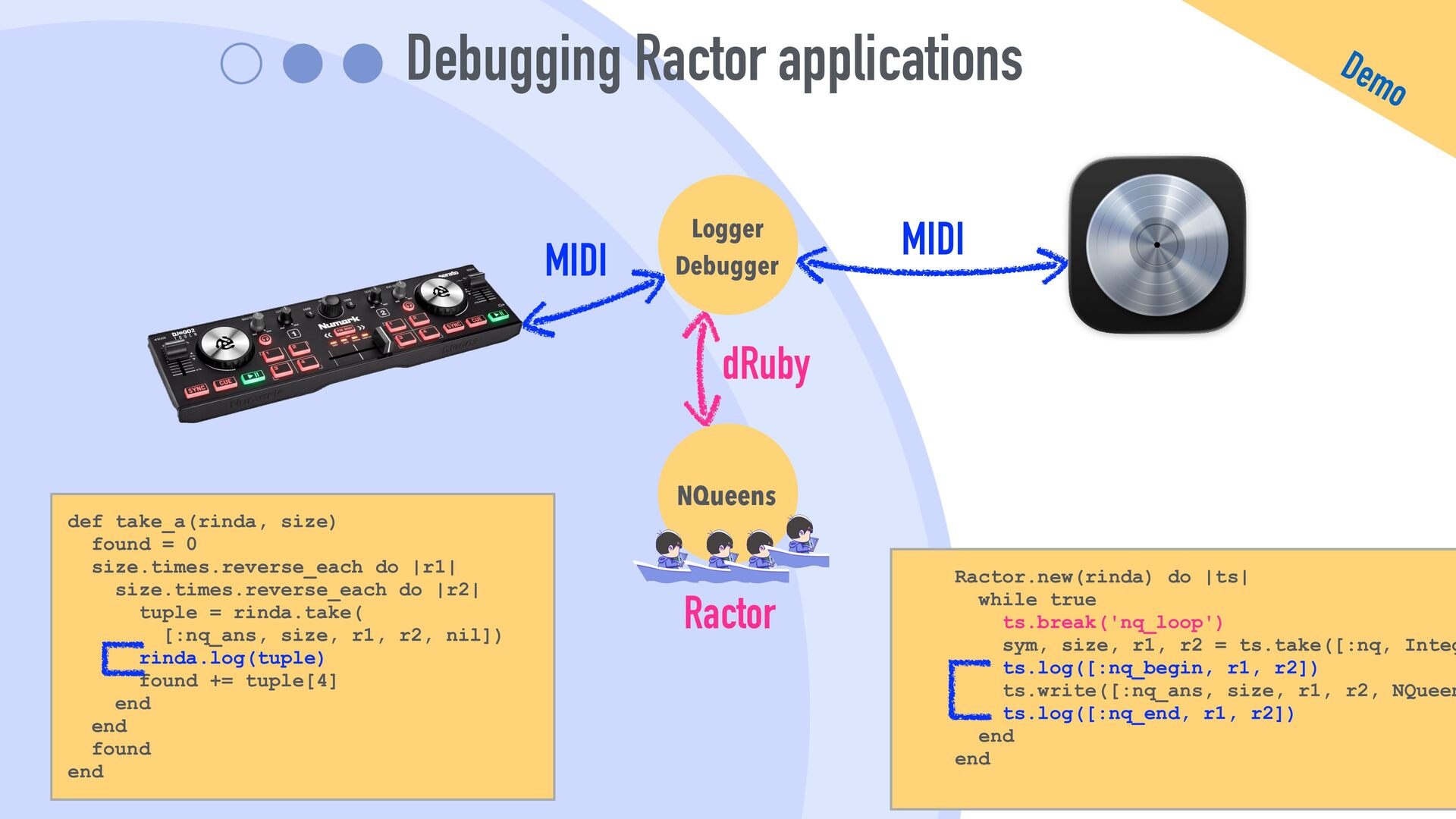

Debugging Ractor applications 31 Demo NQueens Logger Debugger MIDI MIDI
dRuby Ractor Ractor.new(rinda) do |ts| while true ts.break('nq_loop') sym, size, r1, r2 = ts.take([:nq, Integ ts.log([:nq_begin, r1, r2]) ts.write([:nq_ans, size, r1, r2, NQueen ts.log([:nq_end, r1, r2]) end end def take_a(rinda, size) found = 0 size.times.reverse_each do |r1| size.times.reverse_each do |r2| tuple = rinda.take( [:nq_ans, size, r1, r2, nil]) rinda.log(tuple) found += tuple[4] end end found end -
Debugging Ractor applications ワーカーは音程でRactorを、マスターはドラムで結果の違いを表現してるよ! 32 Demo NQueens Logger Debugger MIDI
MIDI dRuby Ractor Ractor.new(rinda) do |ts| while true ts.break('nq_loop') sym, size, r1, r2 = ts.take([:nq, Integer, Integer, Integer]) ts.log([:nq_begin, r1, r2]) ts.write([:nq_ans, size, r1, r2, NQueen.nq2(size, r1, r2)]) ts.log([:nq_end, r1, r2]) end end def take_a(rinda, size) found = 0 size.times.reverse_each do |r1| size.times.reverse_each do |r2| tuple = rinda.take( [:nq_ans, size, r1, r2, nil]) rinda.log(tuple) found += tuple[4] end end found end -
Agenda Programming with the DJ2GO2 Touch Using a DJ controller
as a human interface device Controlling two text editors Left-hand controller Debugging Ractor applications 33 https://www.amazon.co.jp/dp/B082L3XQGR -

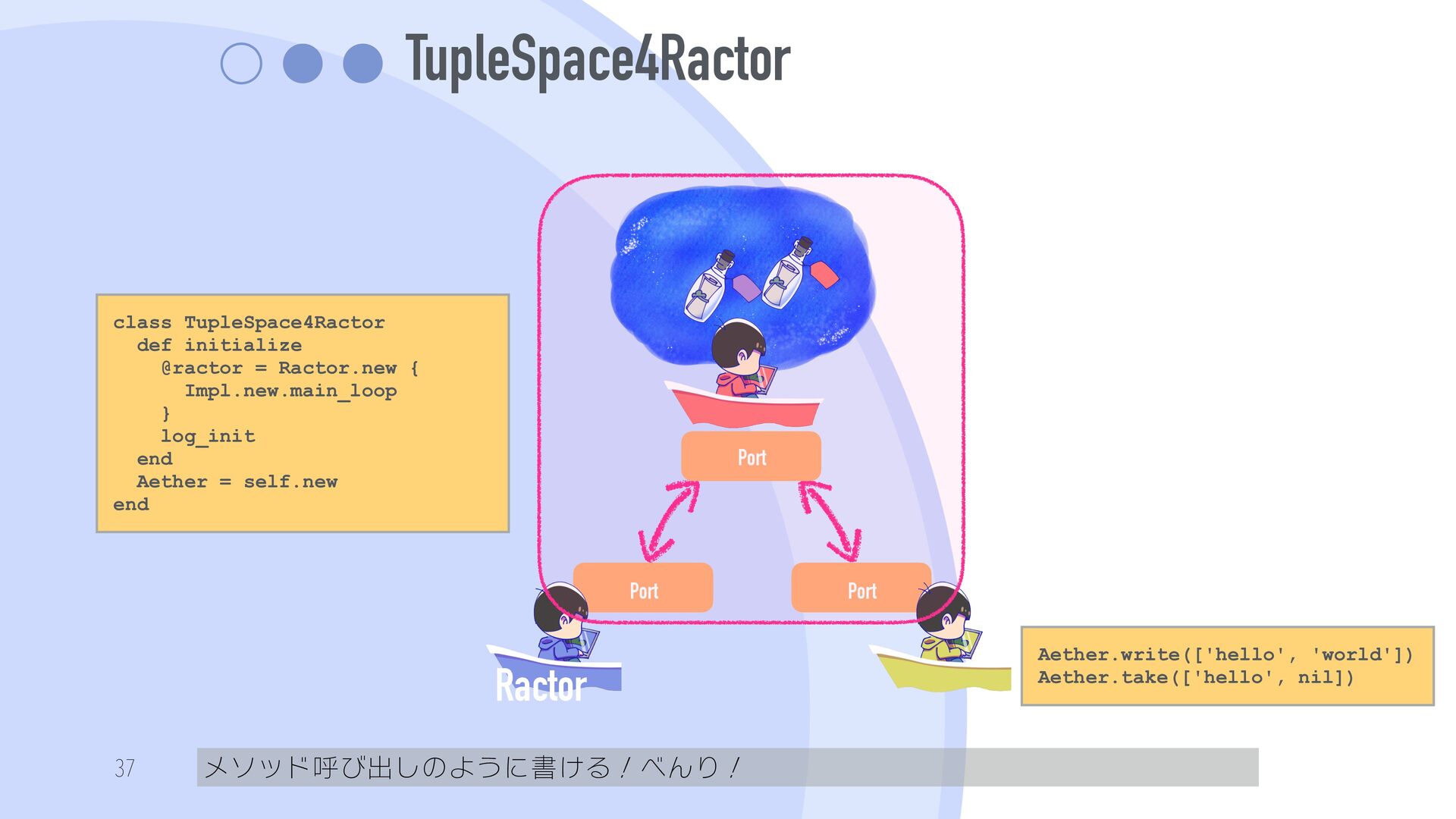

TupleSpace4Ractor メソッド呼び出しのように書ける!べんり! 37 Port Port Port Ractor class TupleSpace4Ractor def
initialize @ractor = Ractor.new { Impl.new.main_loop } log_init end Aether = self.new end Aether.write(['hello', 'world']) Aether.take(['hello', nil]) -

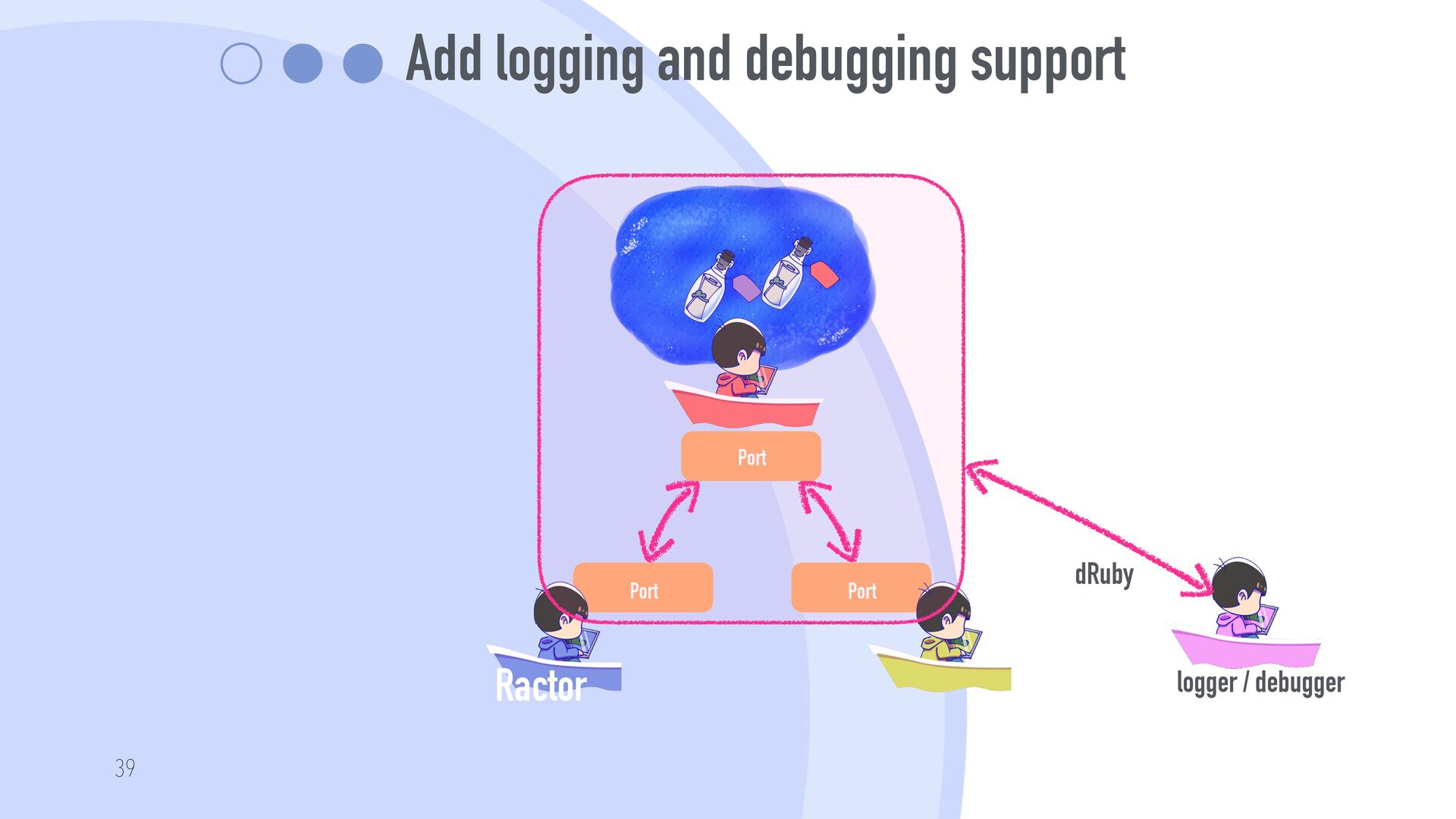

Add logging and debugging support 39 Port Port Port Ractor
logger / debugger dRuby -

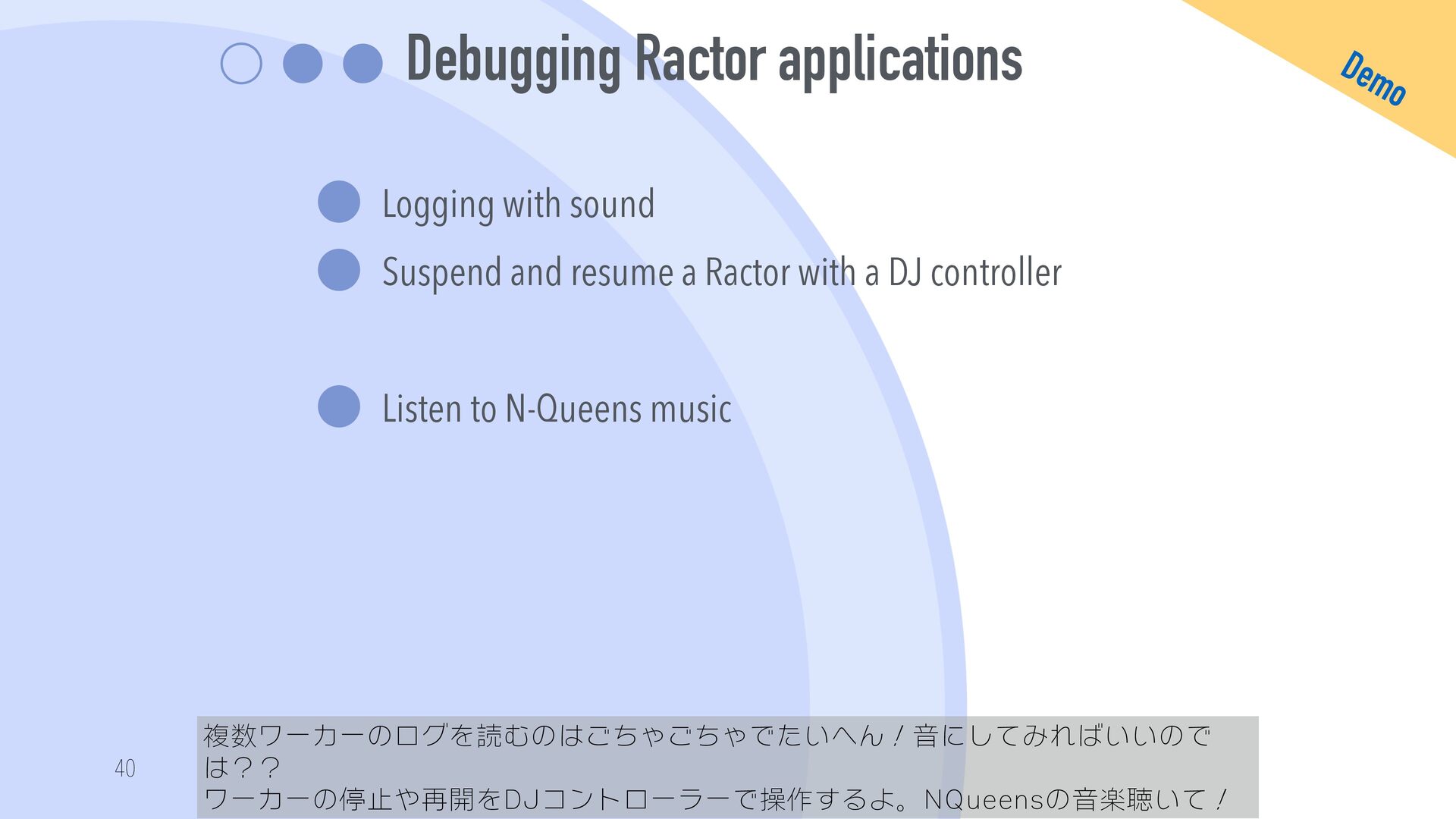

Debugging Ractor applications Logging with sound Suspend and resume a
Ractor with a DJ controller Listen to N-Queens music 複数ワーカーのログを読むのはごちゃごちゃでたいへん!音にしてみればいいので は?? ワーカーの停止や再開をDJコントローラーで操作するよ。NQueensの音楽聴いて! 40 Demo -
Debugging Ractor applications 41 Demo NQueens Logger Debugger MIDI MIDI
dRuby Ractor Ractor.new(rinda) do |ts| while true ts.break('nq_loop') sym, size, r1, r2 = ts.take([:nq, Integ ts.log([:nq_begin, r1, r2]) ts.write([:nq_ans, size, r1, r2, NQueen ts.log([:nq_end, r1, r2]) end end def take_a(rinda, size) found = 0 size.times.reverse_each do |r1| size.times.reverse_each do |r2| tuple = rinda.take( [:nq_ans, size, r1, r2, nil]) rinda.log(tuple) found += tuple[4] end end found end -

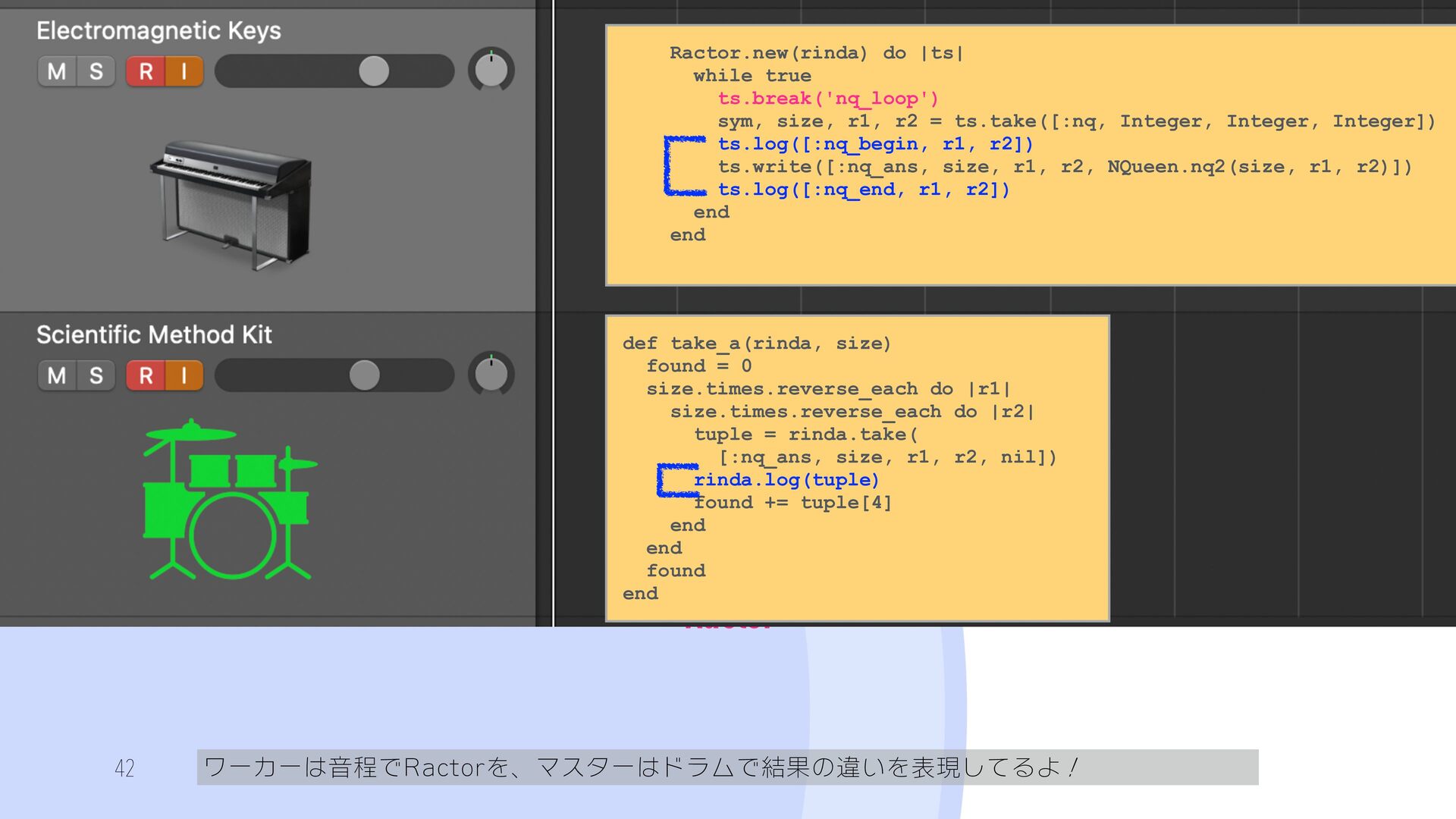

Debugging Ractor applications ワーカーは音程でRactorを、マスターはドラムで結果の違いを表現してるよ! 42 Demo NQueens Logger Debugger MIDI
MIDI dRuby Ractor Ractor.new(rinda) do |ts| while true ts.break('nq_loop') sym, size, r1, r2 = ts.take([:nq, Integer, Integer, Integer]) ts.log([:nq_begin, r1, r2]) ts.write([:nq_ans, size, r1, r2, NQueen.nq2(size, r1, r2)]) ts.log([:nq_end, r1, r2]) end end def take_a(rinda, size) found = 0 size.times.reverse_each do |r1| size.times.reverse_each do |r2| tuple = rinda.take( [:nq_ans, size, r1, r2, nil]) rinda.log(tuple) found += tuple[4] end end found end
