1. Lessons learned decoupling Architecture Components from platform specific code Jeremy Woods, Marcello Galhardo linkedIn@jeremybwoods 🦋 @marcellogalhardo.dev
2. Architecture Components Team
3. • 6 people across 3 countries. Architecture Components Team
4. • 6 people across 3 countries. • 12 different libraries ◦ Activity, DataStore, Fragment, Hilt, Lifecycle, Navigation, Paging, Room, SavedState, ViewModel, SQLite, XProcessing Architecture Components Team • 6 people across 3 countries.
5. • 6 people across 3 countries. • 14 different libraries ◦ Lifecycle, SavedState, ViewModel. Navigation, Activity, Fragment, Room, DataStore, Paging, Dagger Hilt, SQLite, XProcessing. ◦ Navigation3, NavigationEvent Architecture Components Team • 6 people across 3 countries. • 1 different libraries ◦ Activity, DataStore, Fragment, Hilt, Lifecycle, Navigation, Paging, Room, SavedState, ViewModel, SQLite, XProcessing
6. Today’s agenda 01 02 03 04
7. Today’s agenda Motivation: why KMP? 01 02 03 04
8. Today’s agenda Motivation: why KMP? 01 Migrating an existing library 02 03 04

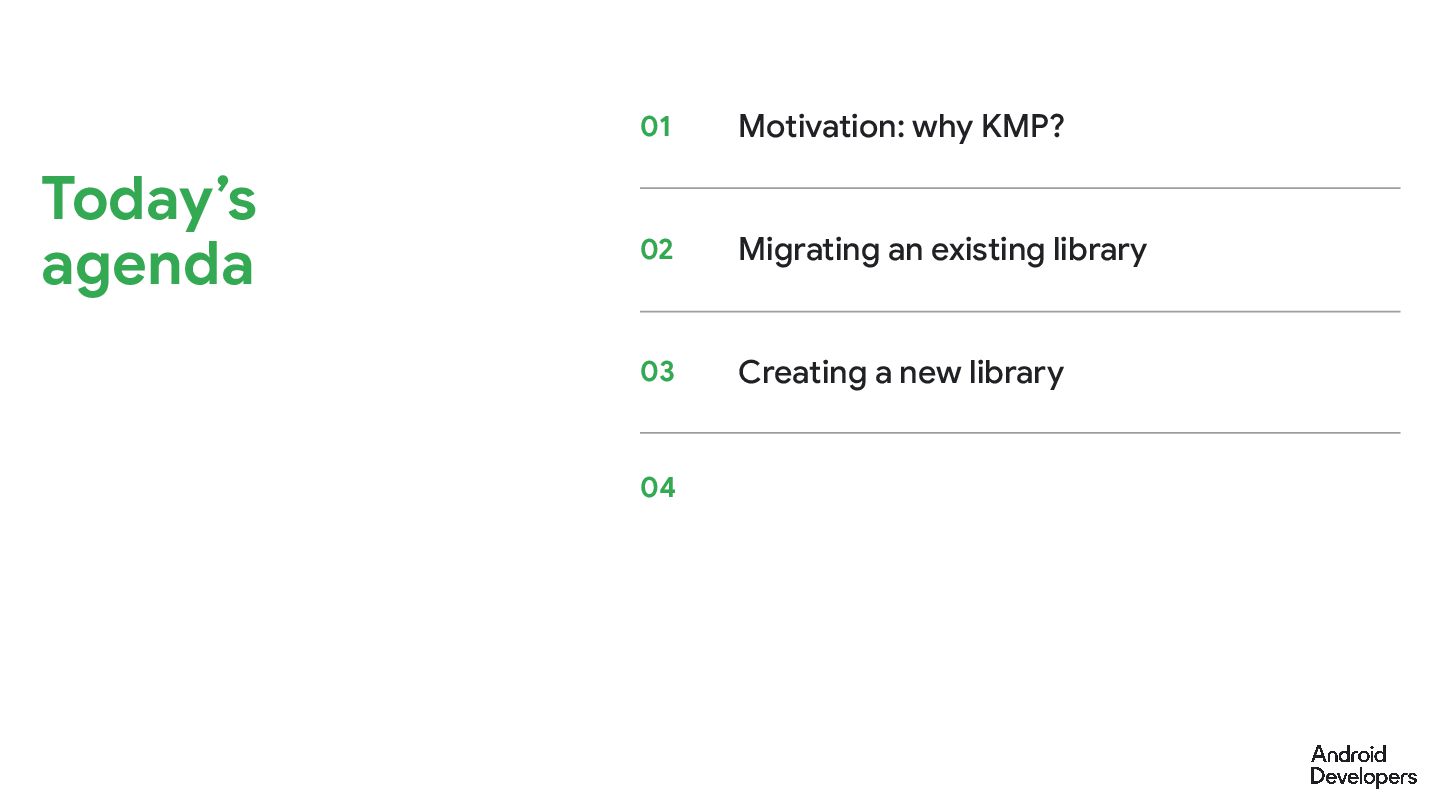

9. Today’s agenda Motivation: why KMP? 01 Migrating an existing library 02 Creating a new library 03 04

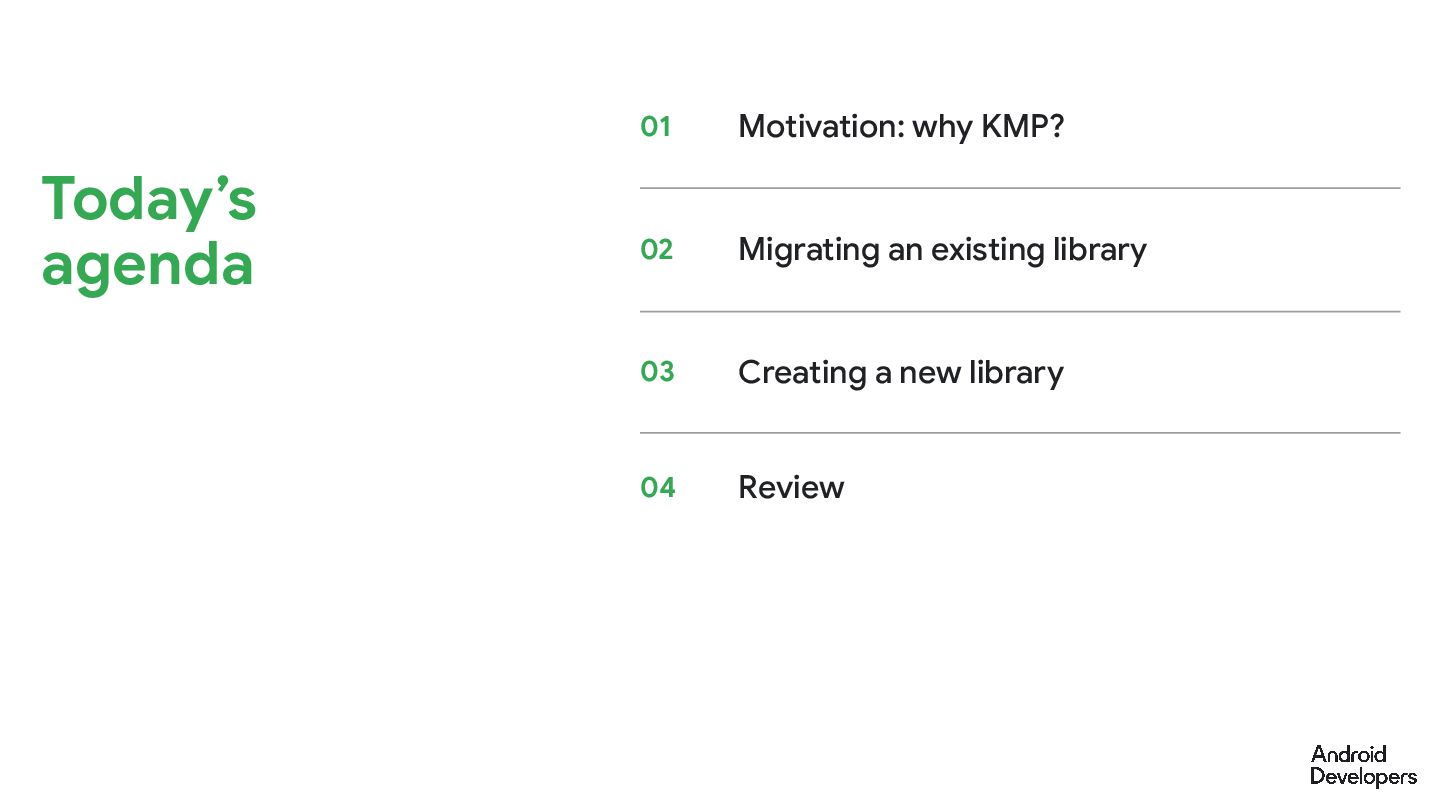

10. Today’s agenda Motivation: why KMP? 01 Migrating an existing library 02 Creating a new library 03 04 Review
11. Proprietary + Confidential 01 Motivation: why KMP?
12. Why KMP?
13. • Android is Kotlin-first (since 2019). Why KMP?

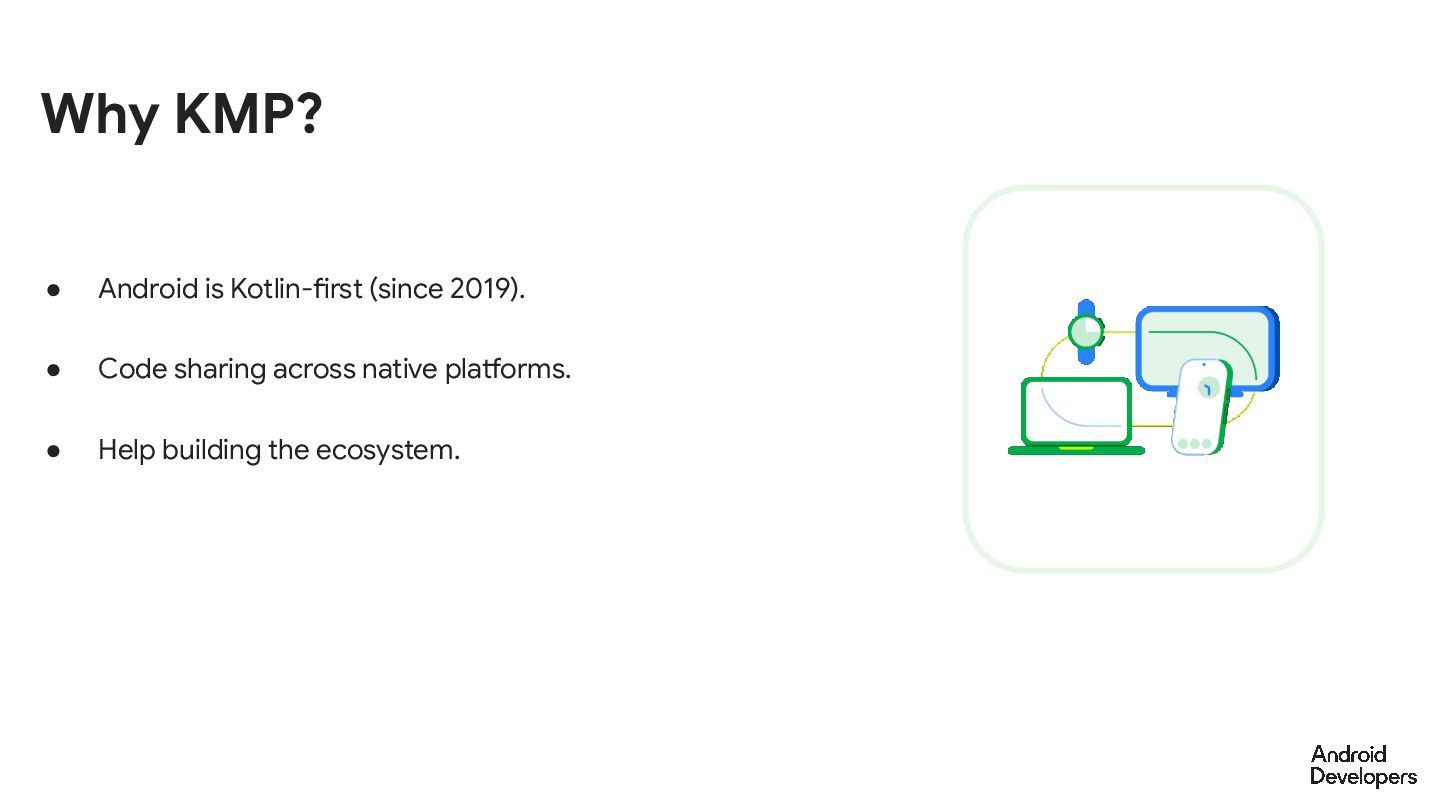

14. • Android is Kotlin-first (since 2019). • Code sharing across native platforms. Why KMP? • Android is Kotlin-first (since 2019).
15. • Android is Kotlin-first (since 2019). • Code sharing across native platforms. • Help building the ecosystem. Why KMP? • Android is Kotlin-first (since 2019). • Code sharing across native platforms.

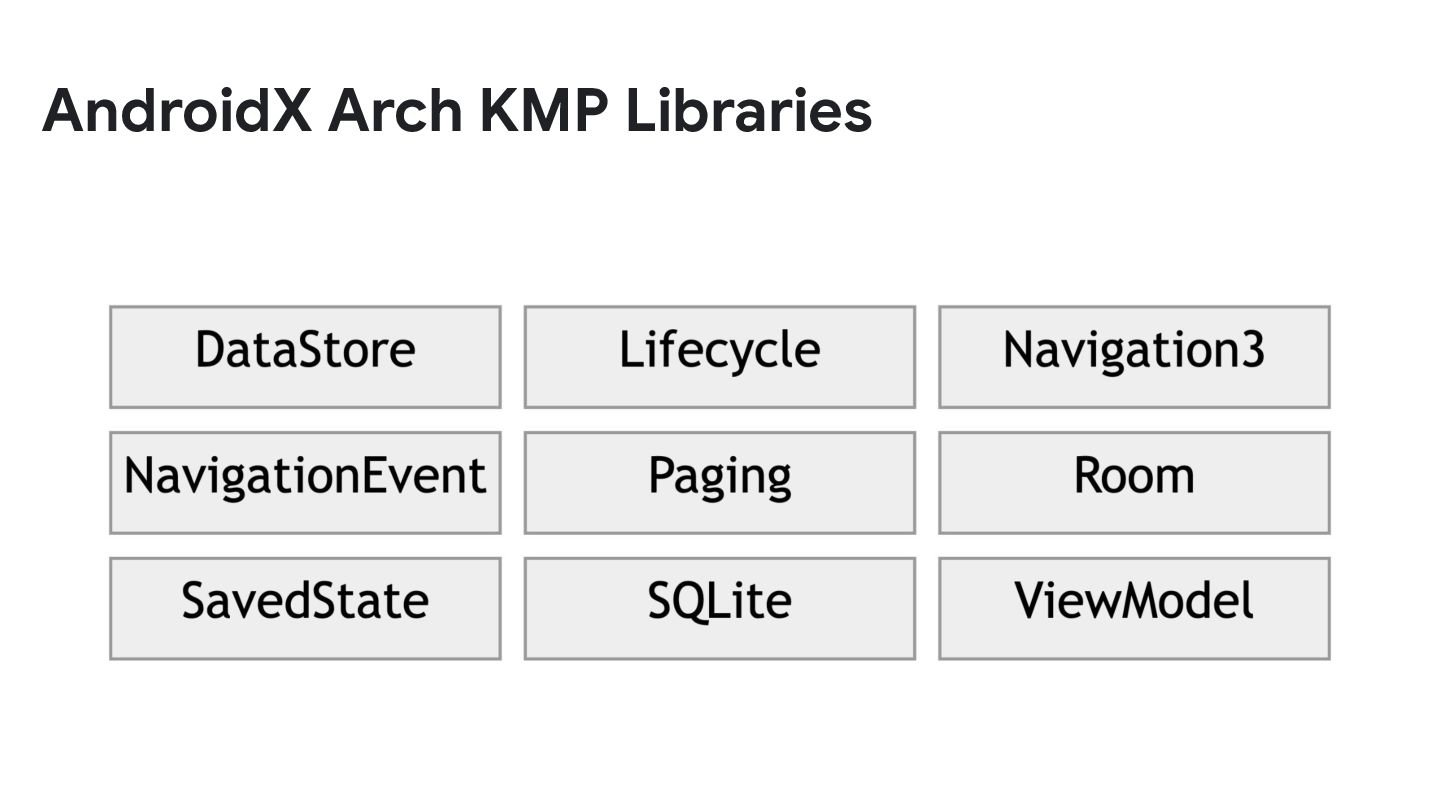

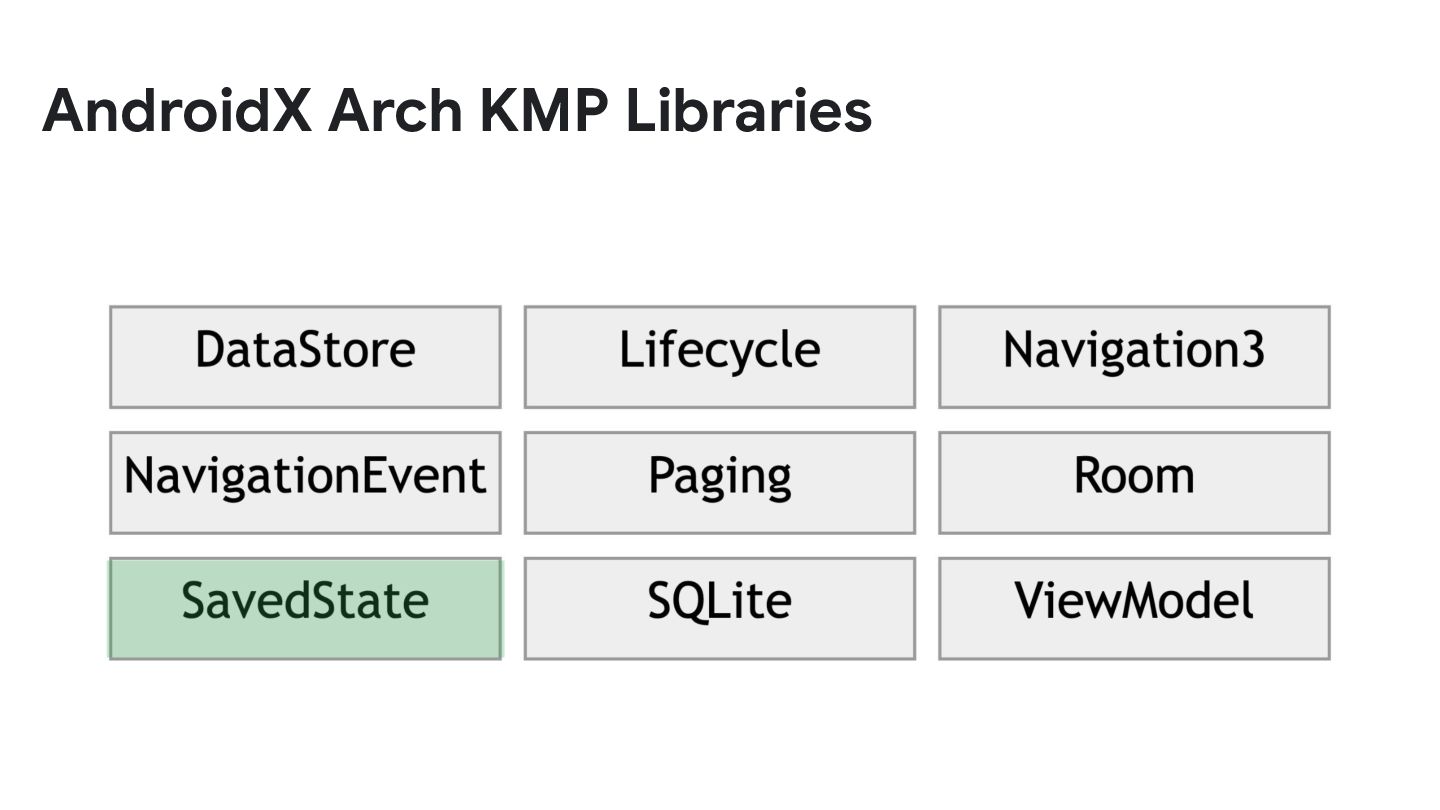

16. AndroidX Arch KMP Libraries

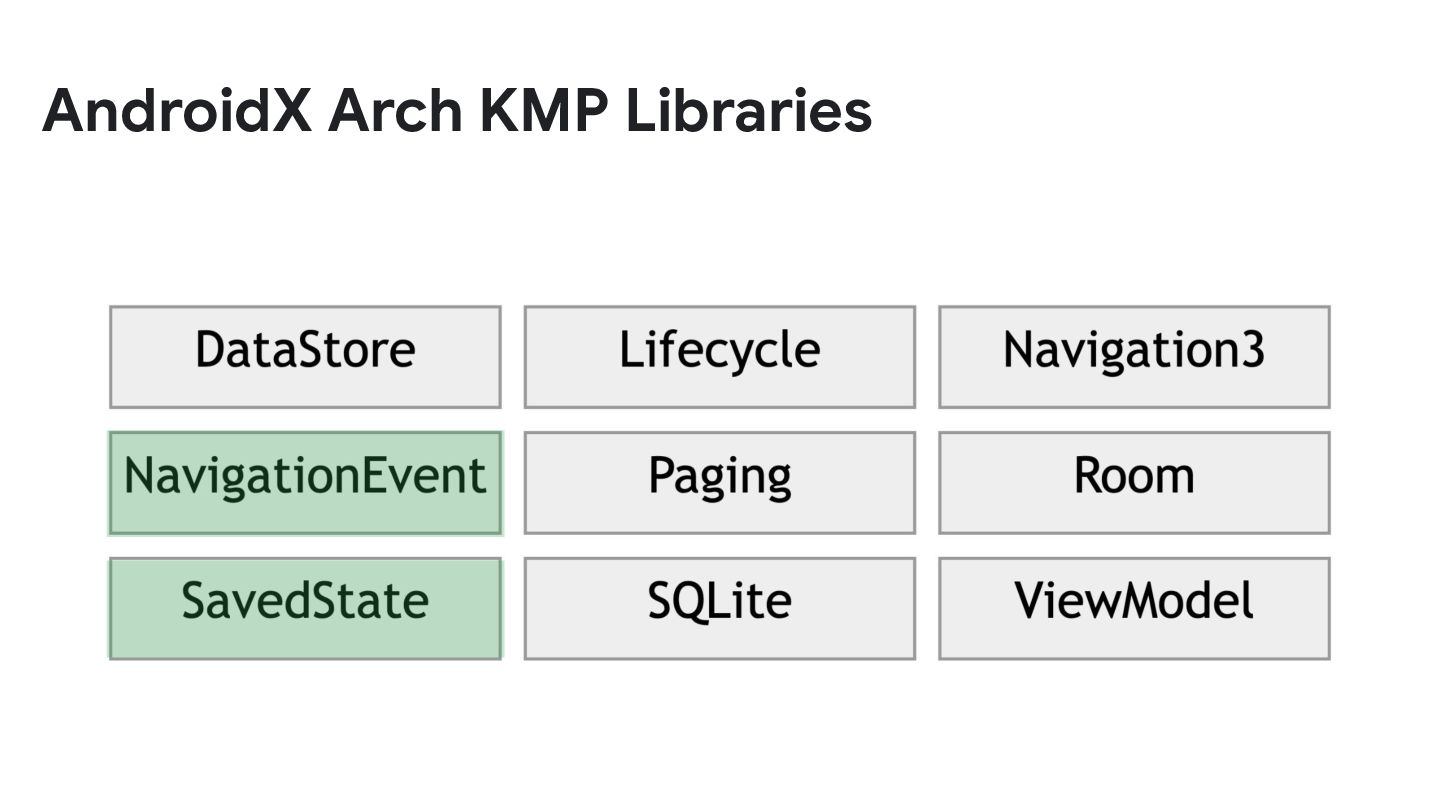

17. AndroidX Arch KMP Libraries
18. AndroidX Arch KMP Libraries
19. Proprietary + Confidential 02 Migrating an existing library
20. • Used to save and restore state in a process death. • First alpha released in December 2018, written in Java. • KMP-compatible release in May 2025 (1.3.0). AndroidX SavedState

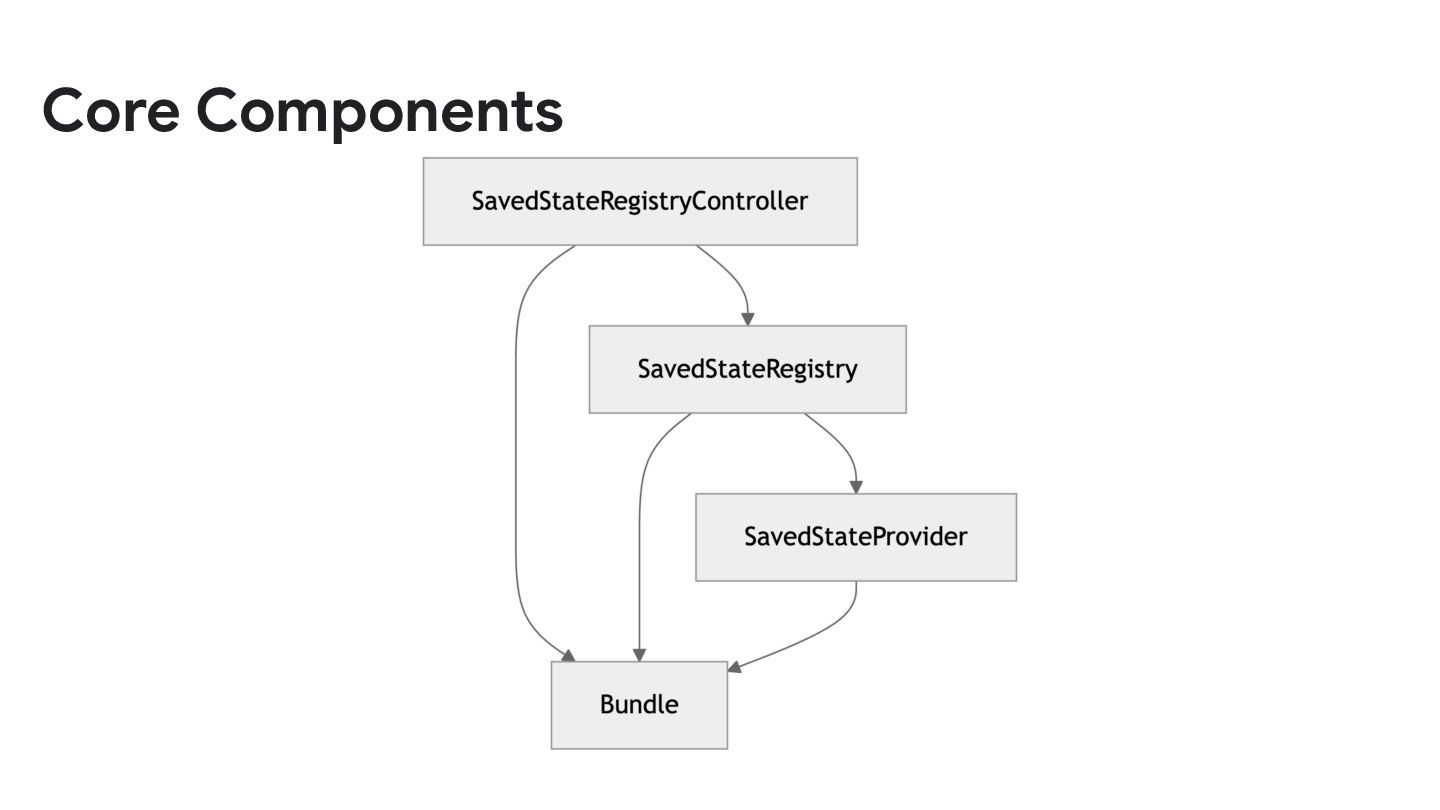

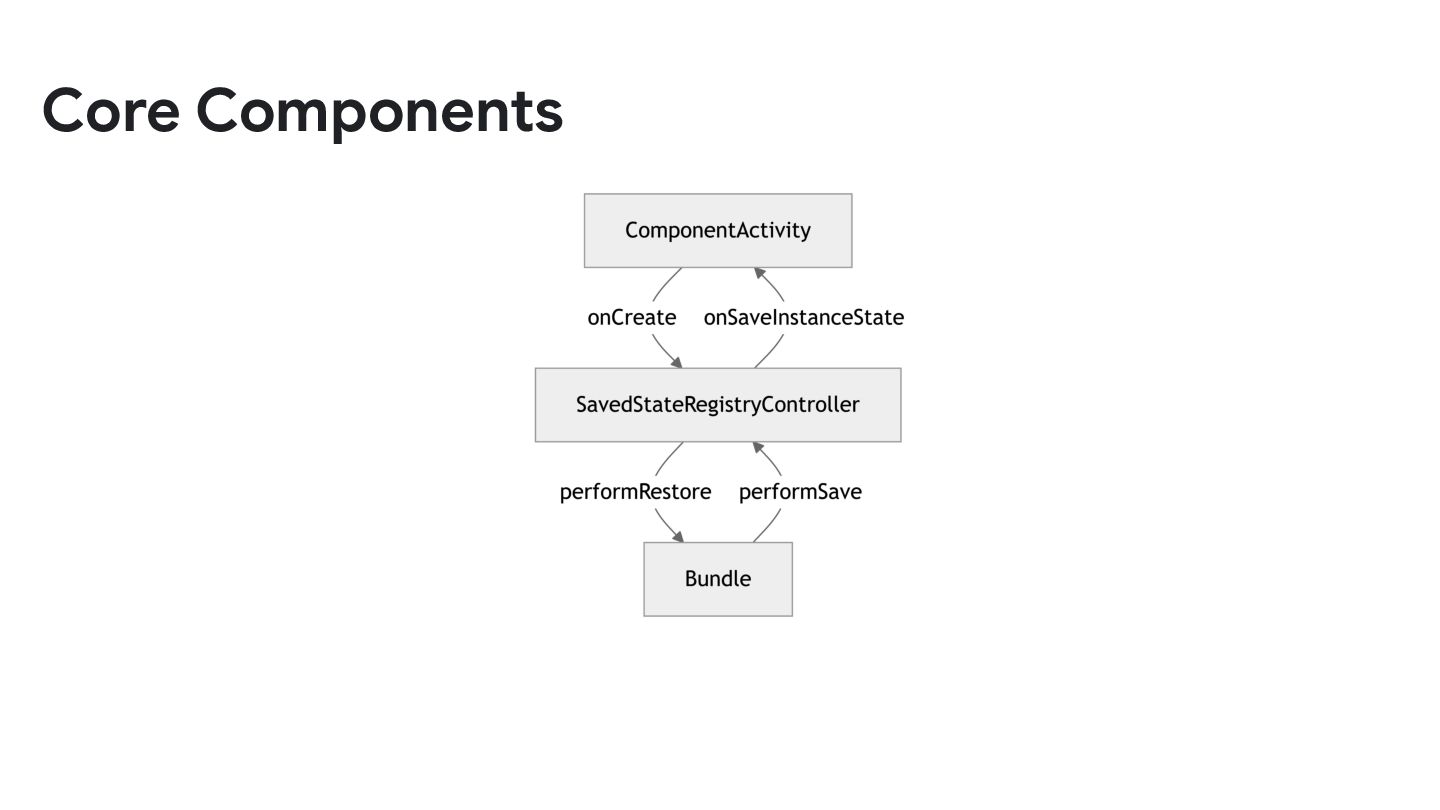

21. Core Components
22. Core Components
23. How these APIs look?

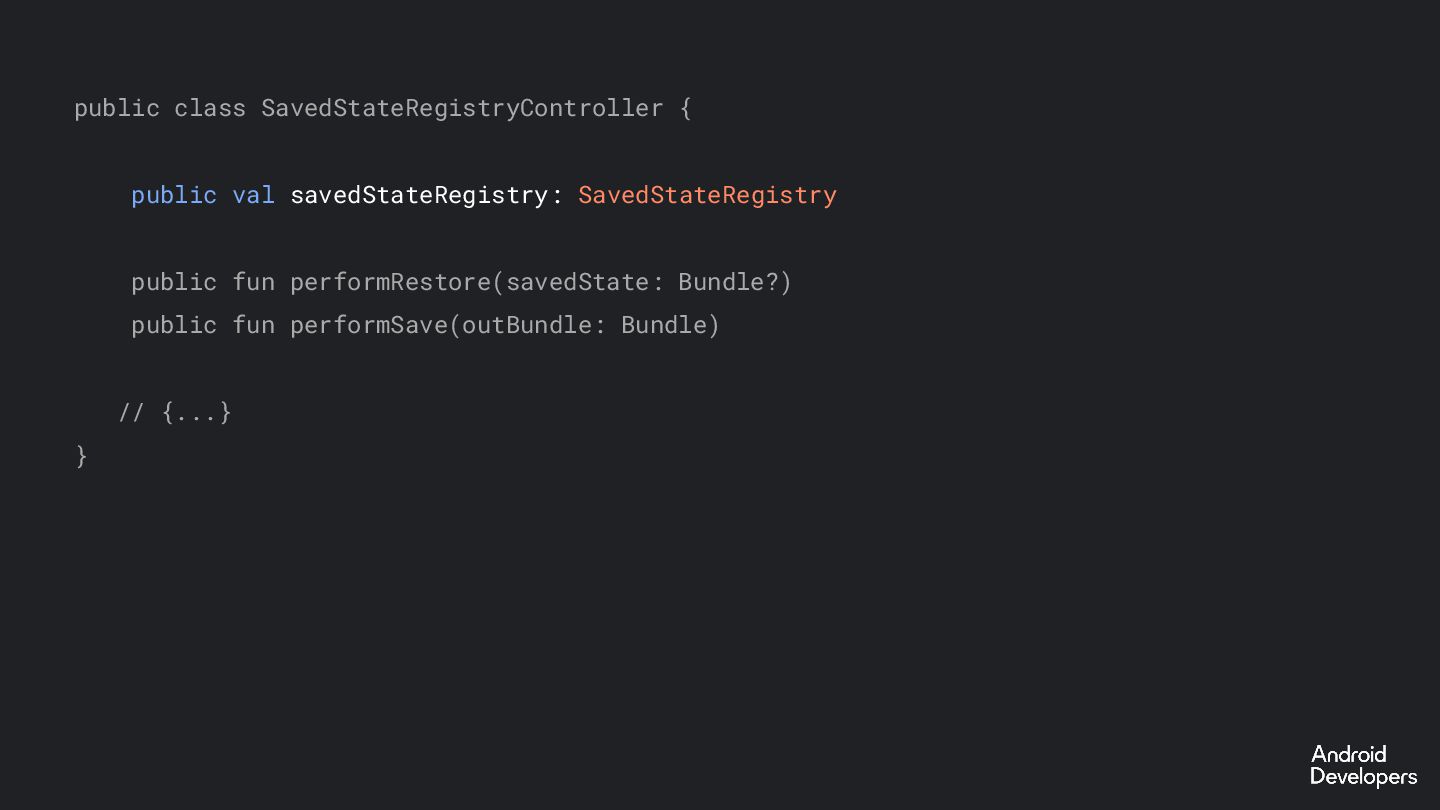

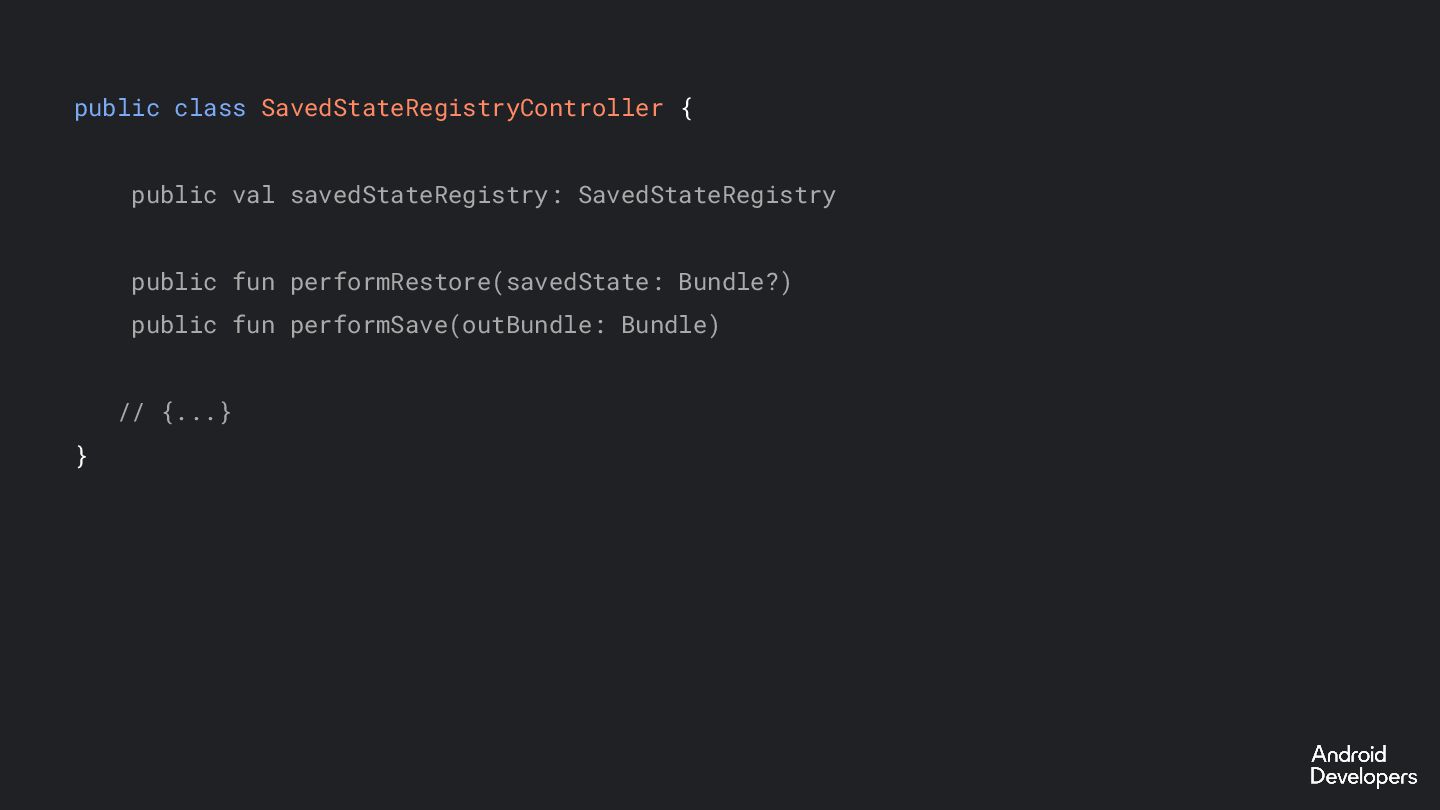

24. public class SavedStateRegistryController { public val savedStateRegistry: SavedStateRegistry public fun performRestore(savedState: Bundle?) public fun performSave(outBundle: Bundle) // {...} }

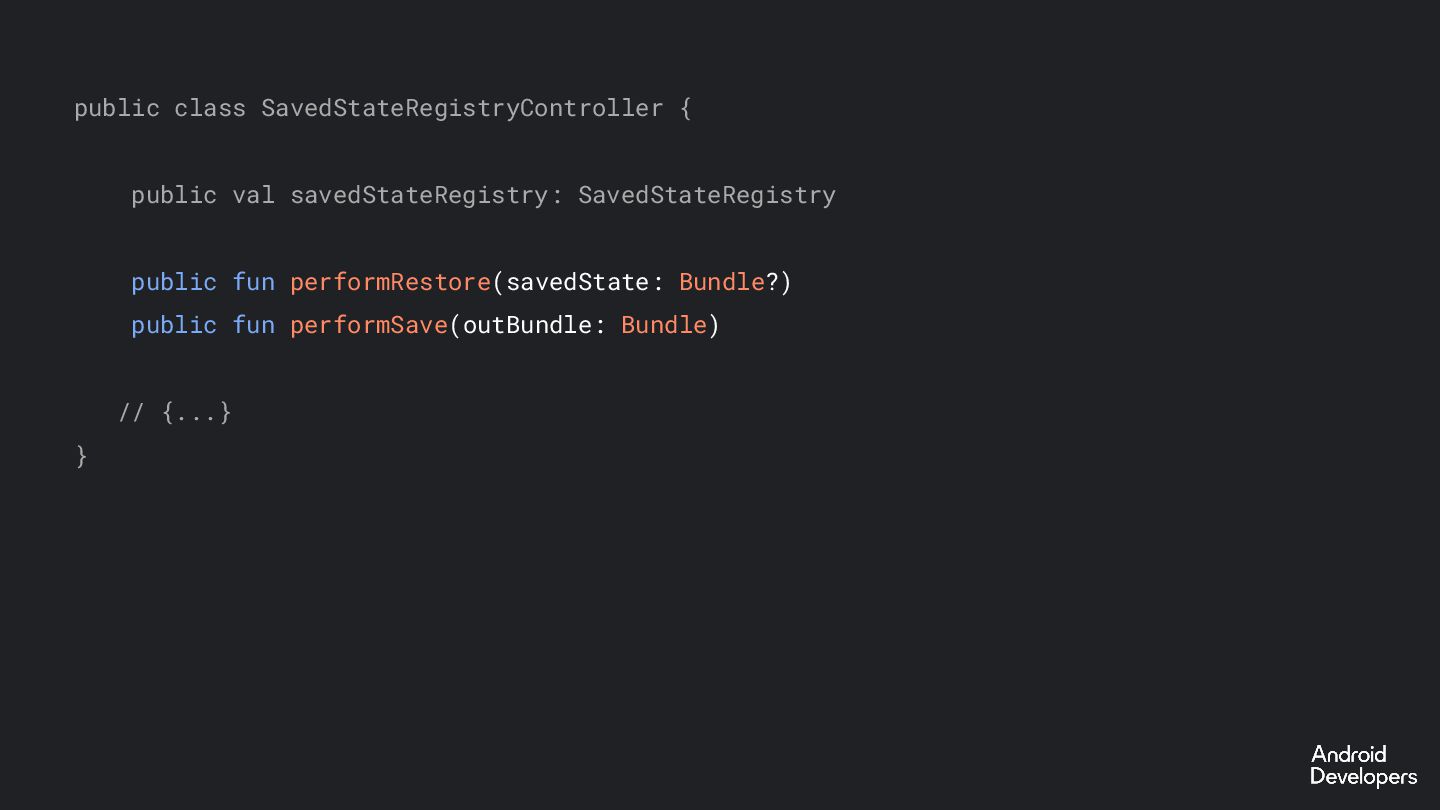

25. public class SavedStateRegistryController { public val savedStateRegistry: SavedStateRegistry public fun performRestore(savedState: Bundle?) public fun performSave(outBundle: Bundle) // {...} }
26. public class SavedStateRegistryController { public val savedStateRegistry: SavedStateRegistry public fun performRestore(savedState: Bundle?) public fun performSave(outBundle: Bundle) // {...} }

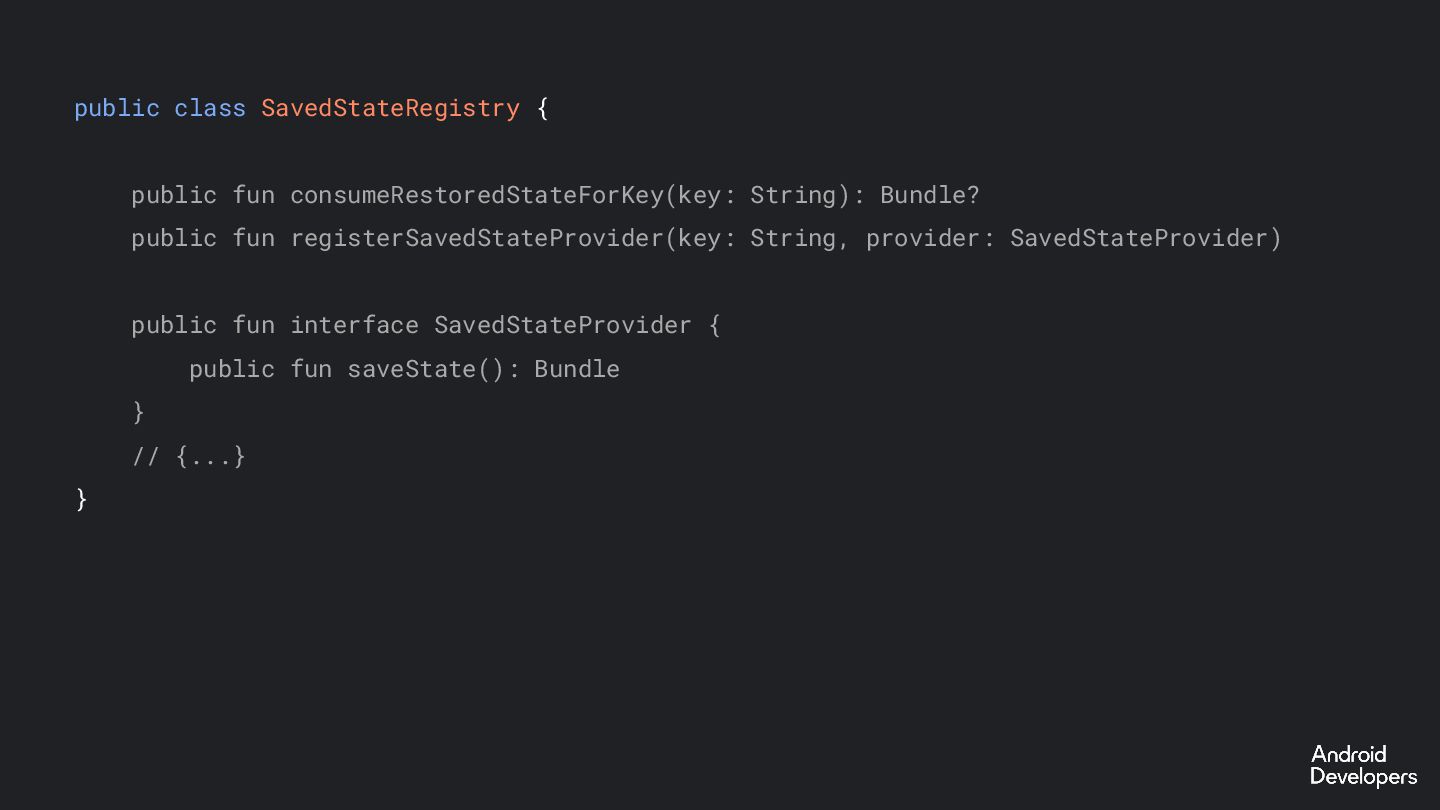

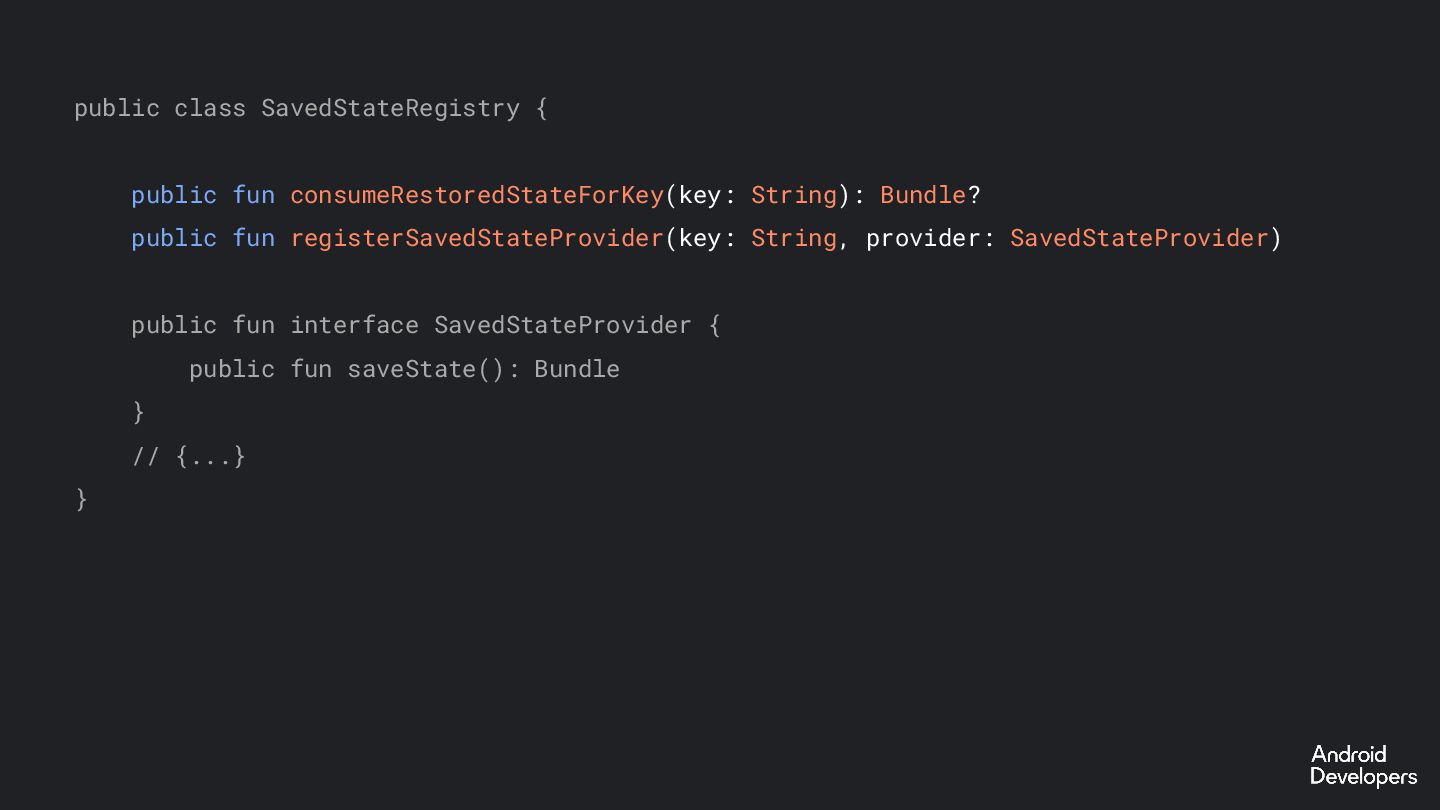

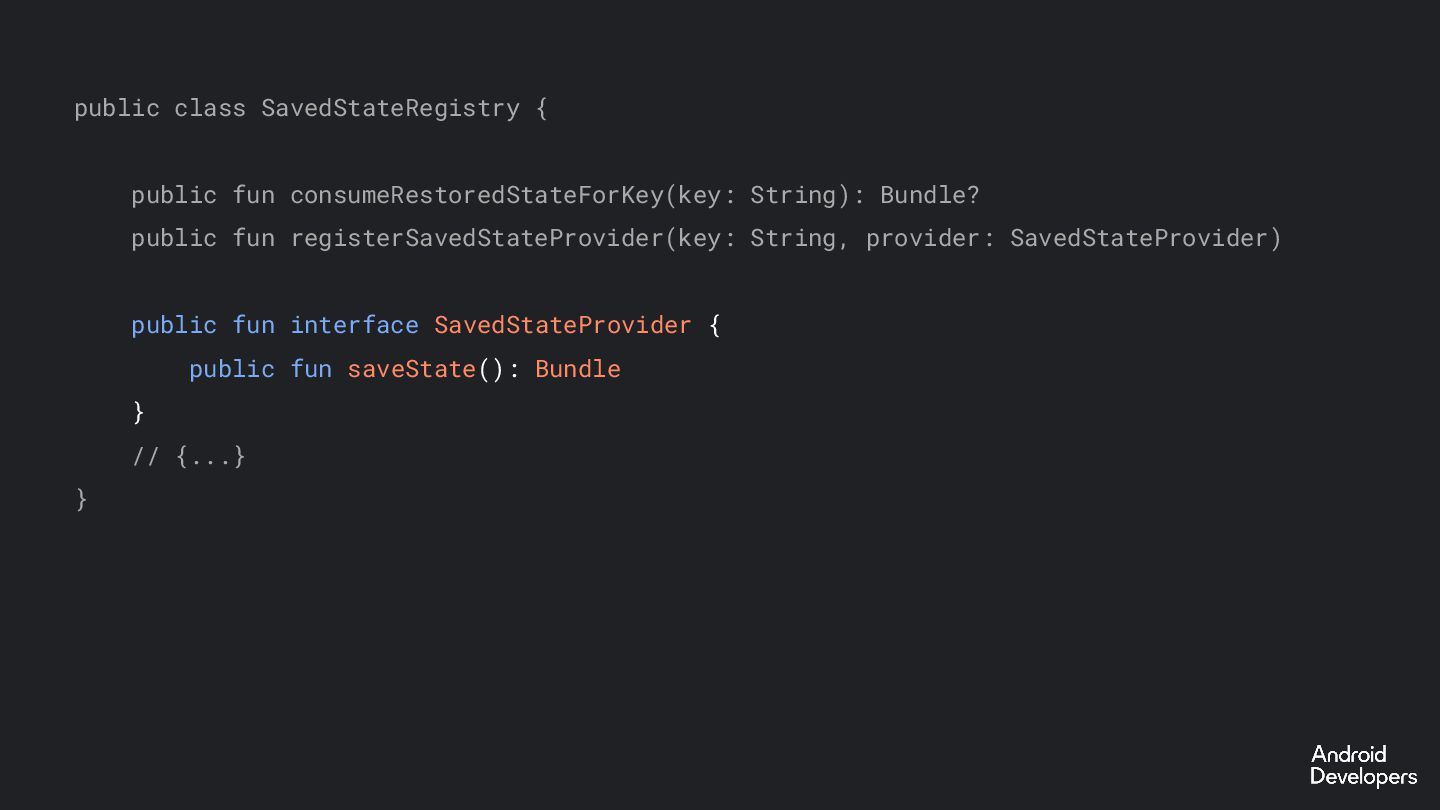

27. public class SavedStateRegistry { public fun consumeRestoredStateForKey(key: String): Bundle? public fun registerSavedStateProvider(key: String, provider: SavedStateProvider) public fun interface SavedStateProvider { public fun saveState(): Bundle } // {...} }
28. public class SavedStateRegistry { public fun consumeRestoredStateForKey(key: String): Bundle? public fun registerSavedStateProvider(key: String, provider: SavedStateProvider) public fun interface SavedStateProvider { public fun saveState(): Bundle } // {...} }
29. public class SavedStateRegistry { public fun consumeRestoredStateForKey(key: String): Bundle? public fun registerSavedStateProvider(key: String, provider: SavedStateProvider) public fun interface SavedStateProvider { public fun saveState(): Bundle } // {...} }
30. class ComponentActivity : Activity() { val controller = SavedStateRegistryController.create(owner = this) override fun onCreate(savedInstanceState: Bundle?) { controller.performRestore(savedInstanceState) // {...} } override fun onSaveInstanceState(outState: Bundle) { // {...} controller.performSave(outState) } }
31. class ComponentActivity : Activity() { val controller = SavedStateRegistryController.create(owner = this) override fun onCreate(savedInstanceState: Bundle?) { controller.performRestore(savedInstanceState) // {...} } override fun onSaveInstanceState(outState: Bundle) { // {...} controller.performSave(outState) } }

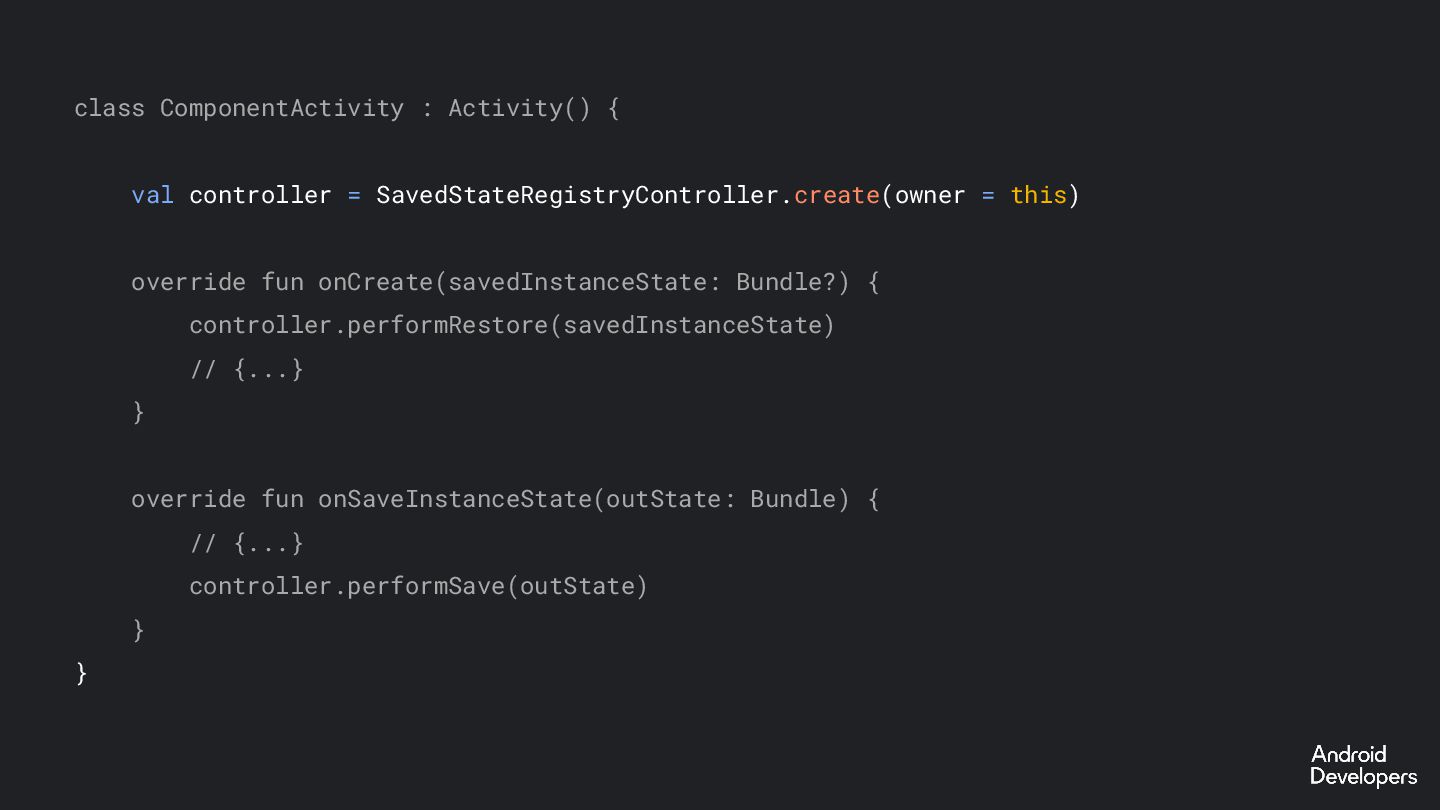

32. class ComponentActivity : Activity() { val controller = SavedStateRegistryController.create(owner = this) override fun onCreate(savedInstanceState: Bundle?) { controller.performRestore(savedInstanceState) // {...} } override fun onSaveInstanceState(outState: Bundle) { // {...} controller.performSave(outState) } }

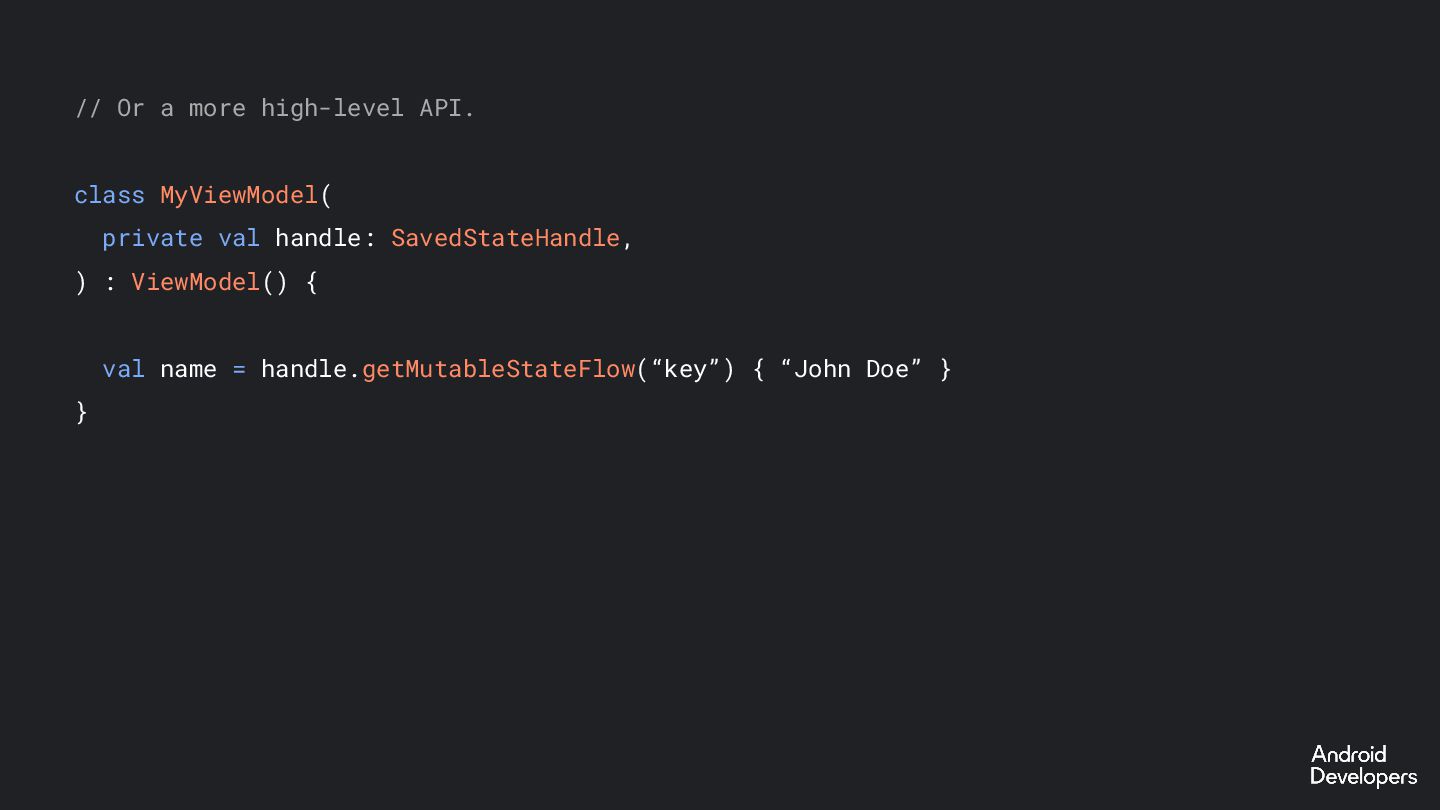

33. // Or a more high-level API. class MyViewModel( private val handle: SavedStateHandle, ) : ViewModel() { val name = handle.getMutableStateFlow(“key”) { “John Doe” } }
34. Why?

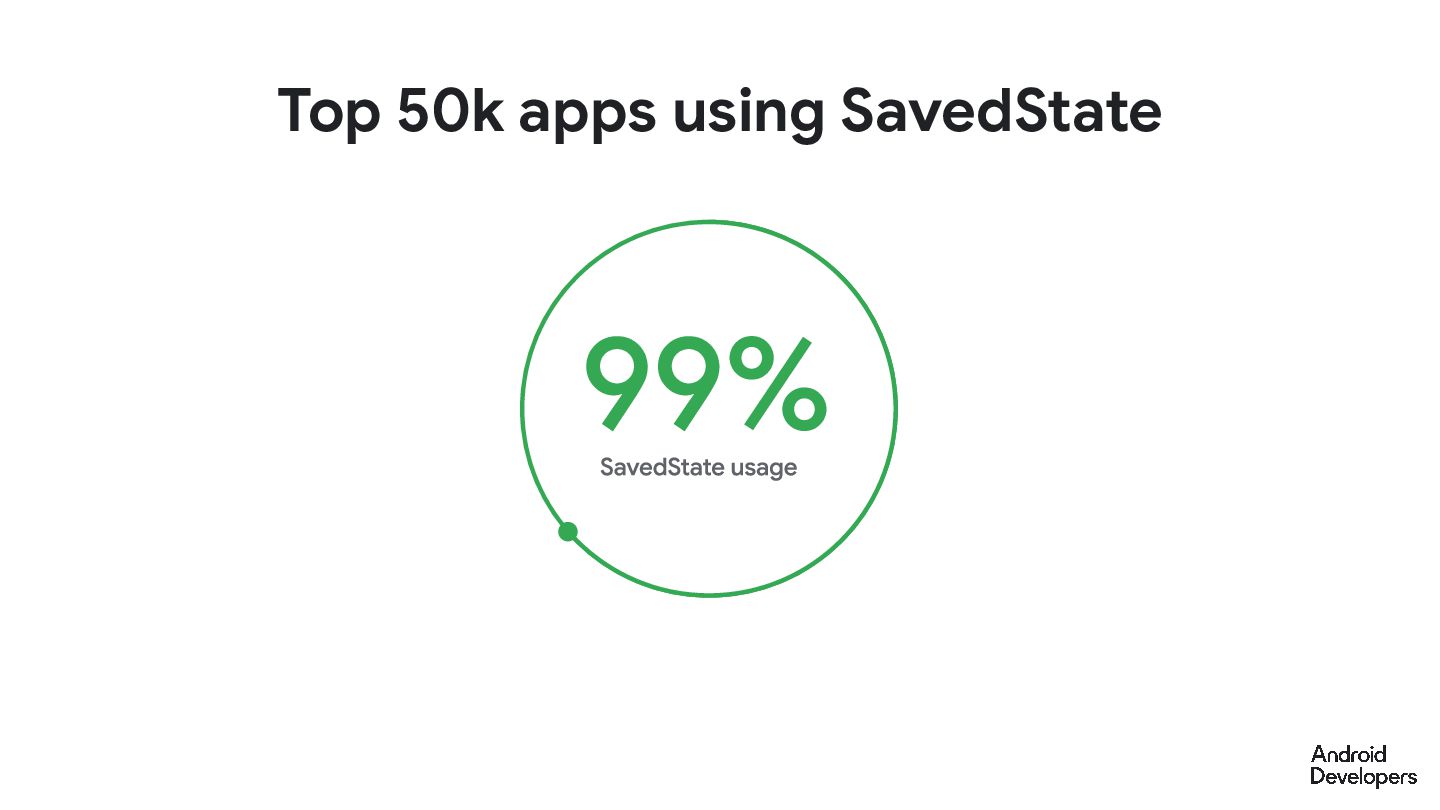

35. Top 50k apps using SavedState
36. class Bundle { constructor(capacity: Int) constructor(b: Bundle?) constructor(persistableBundle: PersistableBundle) fun putAll(bundle: Bundle) fun size(): Int fun isEmpty(): Boolean fun clear() public override fun clone(): Any fun putBoolean(key: String, value: Boolean) fun putByte(key: String, value: Byte) fun putChar(key: String, value: Char) fun putShort(key: String, value: Short) fun putInt(key: String, value: Int) fun putLong(key: String, value: Long) fun putFloat(key: String, value: Float) fun putDouble(key: String, value: Double) fun putString(key: String, value: String?) fun putCharSequence(key: String, value: CharSequence?) fun putParcelable(key: String, value: Parcelable?) fun putParcelableArray(key: String, value: Array<Parcelable?>?) fun putParcelableArrayList(key: String, value: ArrayList<out Parcelable>?) fun putSparseParcelableArray(key: String, value: android.util.SparseArray<out Parcelable>?) fun putSerializable(key: String, value: Serializable?) fun putIntegerArrayList(key: String, value: ArrayList<Int>?) fun putStringArrayList(key: String, value: ArrayList<String>?) fun putCharSequenceArrayList(key: String, value: ArrayList<CharSequence>?) fun putBundle(key: String, value: Bundle?) fun putBooleanArray(key: String, value: BooleanArray?) fun putByteArray(key: String, value: ByteArray?) fun putShortArray(key: String, value: ShortArray?) fun putCharArray(key: String, value: CharArray?) fun putIntArray(key: String, value: IntArray?) fun putLongArray(key: String, value: LongArray?) fun putFloatArray(key: String, value: FloatArray?) fun putDoubleArray(key: String, value: DoubleArray?) fun putStringArray(key: String, value: Array<String?>?) fun putCharSequenceArray(key: String, value: Array<CharSequence?>?) fun putParcelableArray(key: String, value: Array<Parcelable?>?) fun putSize(key: String, value: Size?) fun putSizeF(key: String, value: SizeF?) fun getBoolean(key: String): Boolean fun getBoolean(key: String, defaultValue: Boolean): Boolean fun getByte(key: String): Byte fun getByte(key: String, defaultValue: Byte): Byte fun getChar(key: String): Char fun getChar(key: String, defaultValue: Char): Char fun getShort(key: String): Short fun getShort(key: String, defaultValue: Short): Short fun getInt(key: String): Int fun getInt(key: String, defaultValue: Int): Int fun getLong(key: String): Long fun getLong(key: String, defaultValue: Long): Long fun getFloat(key: String): Float fun getFloat(key: String, defaultValue: Float): Float fun getDouble(key: String): Double fun getDouble(key: String, defaultValue: Double): Double fun getString(key: String): String? fun getCharSequence(key: String): CharSequence? fun <T : Parcelable?> getParcelable(key: String): T? fun <T : Parcelable?> getParcelableArray(key: String): Array<T?>? fun <T : Parcelable?> getParcelableArrayList(key: String): ArrayList<T>? fun <T : Parcelable?> getSparseParcelableArray(key: String): android.util.SparseArray<T>? fun getSerializable(key: String): Serializable? fun getIntegerArrayList(key: String): ArrayList<Int>? fun getStringArrayList(key: String): ArrayList<String>? fun getCharSequenceArrayList(key: String): ArrayList<CharSequence>? fun getBundle(key: String): Bundle? fun getBooleanArray(key: String): BooleanArray? fun getByteArray(key: String): ByteArray? fun getShortArray(key: String): ShortArray? fun getCharArray(key: String): CharArray? fun getIntArray(key: String): IntArray? fun getLongArray(key: String): LongArray? fun getFloatArray(key: String): FloatArray? fun getDoubleArray(key: String): DoubleArray? fun getStringArray(key: String): Array<String?>? fun getCharSequenceArray(key: String): Array<CharSequence?>? fun getSize(key: String): Size? fun getSizeF(key: String): SizeF? fun containsKey(key: String): Boolean fun remove(key: String) fun keySet(): Set<String> }

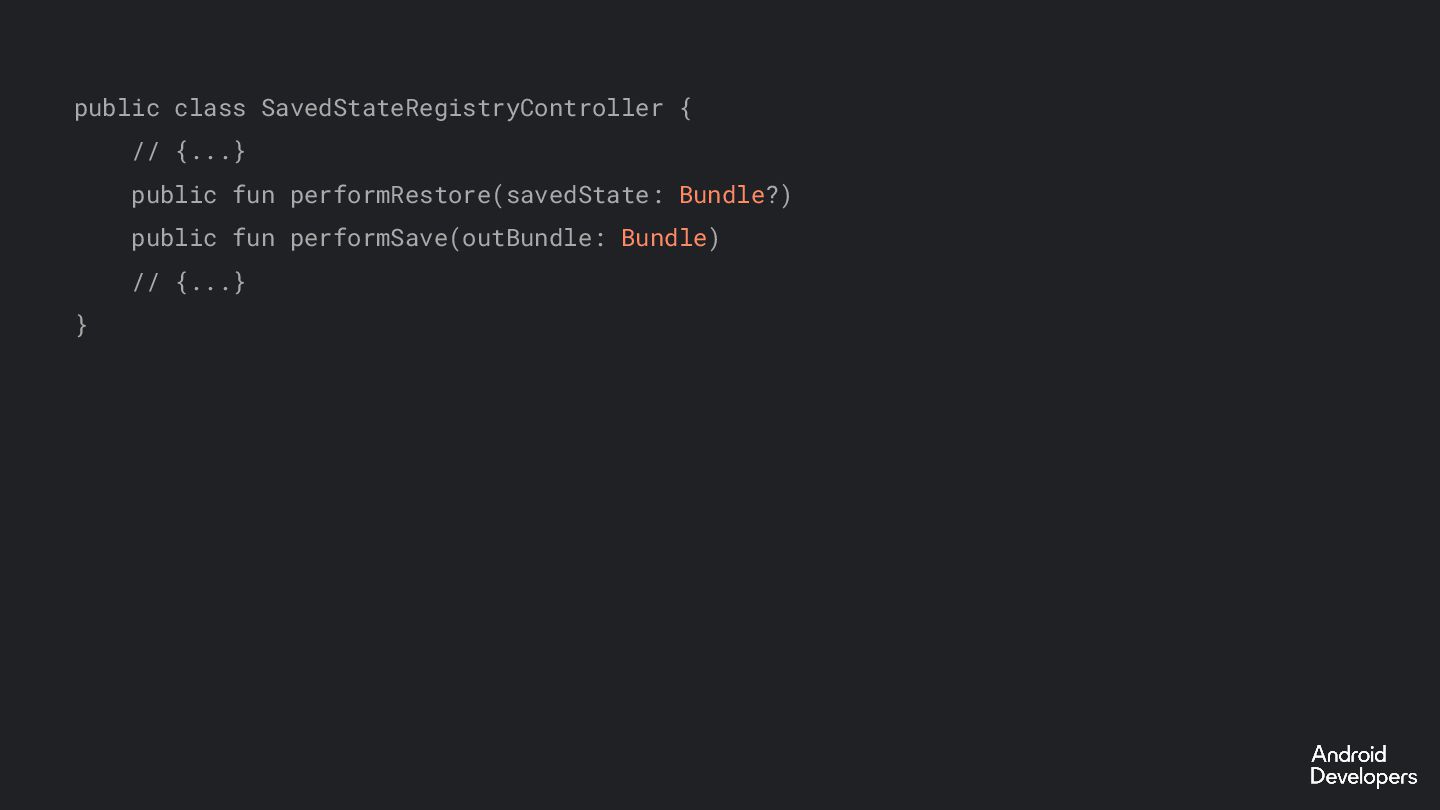

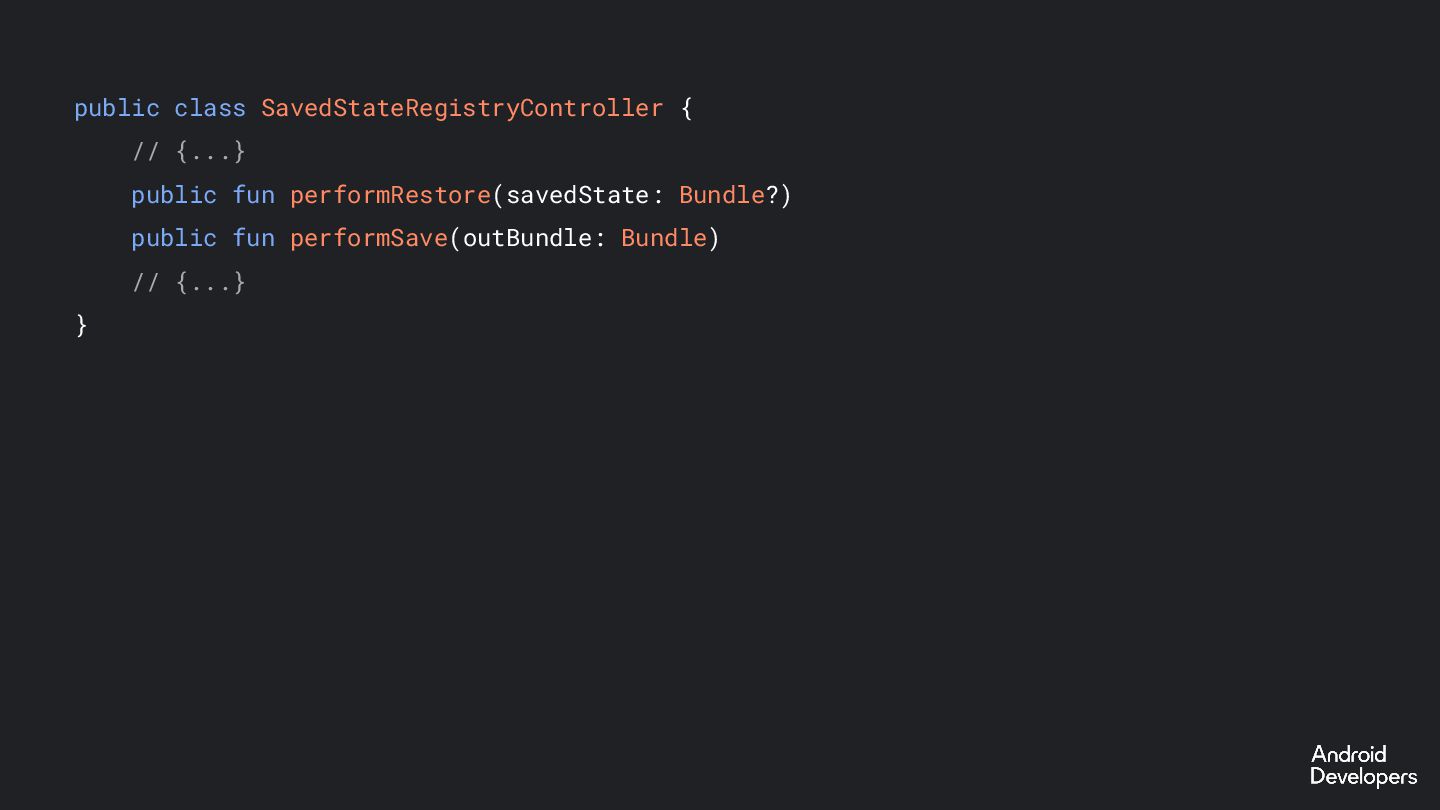

37. public class SavedStateRegistryController { // {...} public fun performRestore(savedState: Bundle?) public fun performSave(outBundle: Bundle) // {...} }
38. public class SavedStateRegistryController { // {...} public fun performRestore(savedState: Bundle?) public fun performSave(outBundle: Bundle) // {...} }
40. Android Framework Team !== AndroidX Team
41. “Extension is shadowed by a member”
42. Zero-cost abstraction

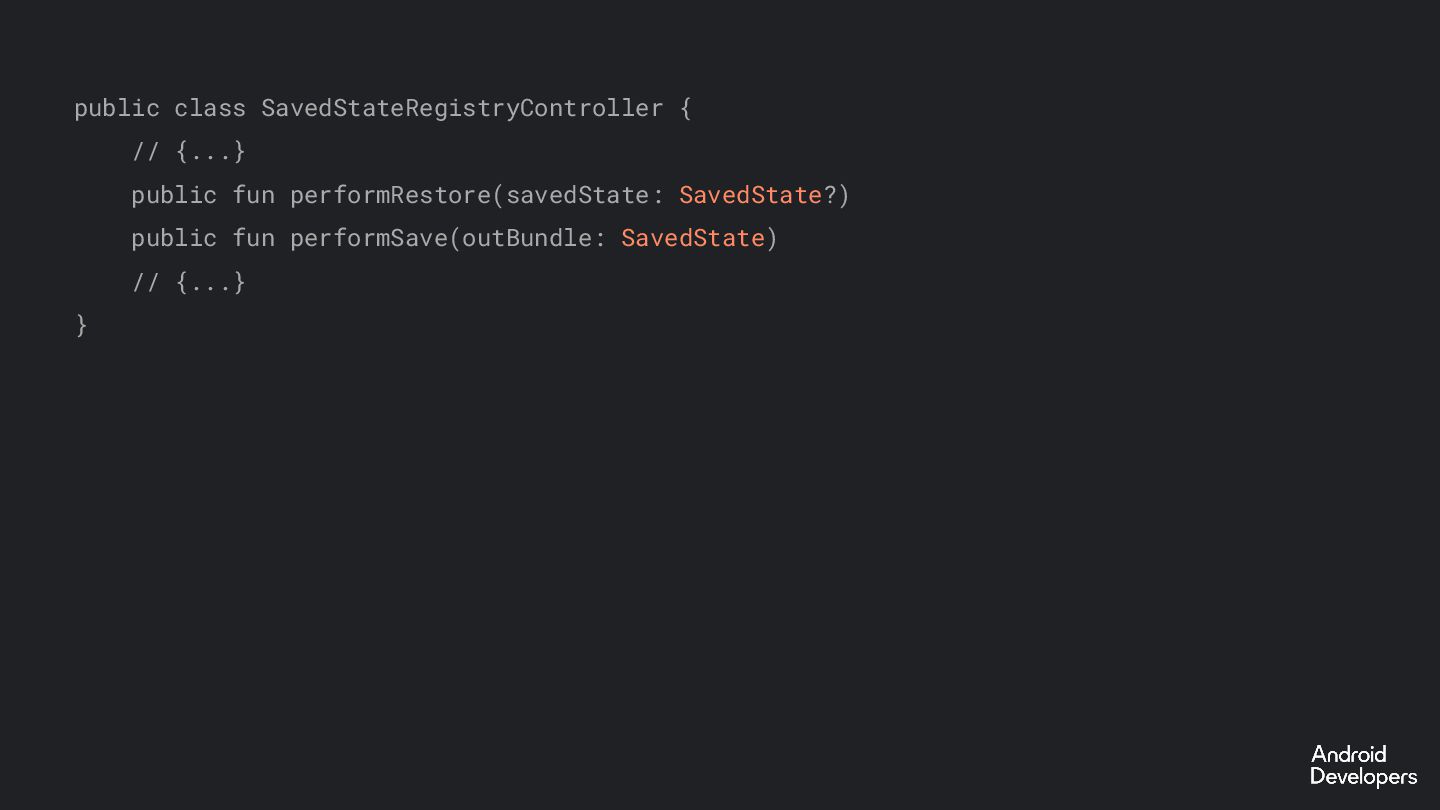

43. public class SavedStateRegistryController { // {...} public fun performRestore(savedState: Bundle?) public fun performSave(outBundle: Bundle) // {...} }
44. public class SavedStateRegistryController { // {...} public fun performRestore(savedState: SavedState?) public fun performSave(outBundle: SavedState) // {...} }
45. Expect Actual
46. // commonMain public expect class SavedState // androidMain public actual typealias SavedState = android.os.Bundle // nonAndroidMain public actual class SavedState(map: MutableMap<String, Any?>)

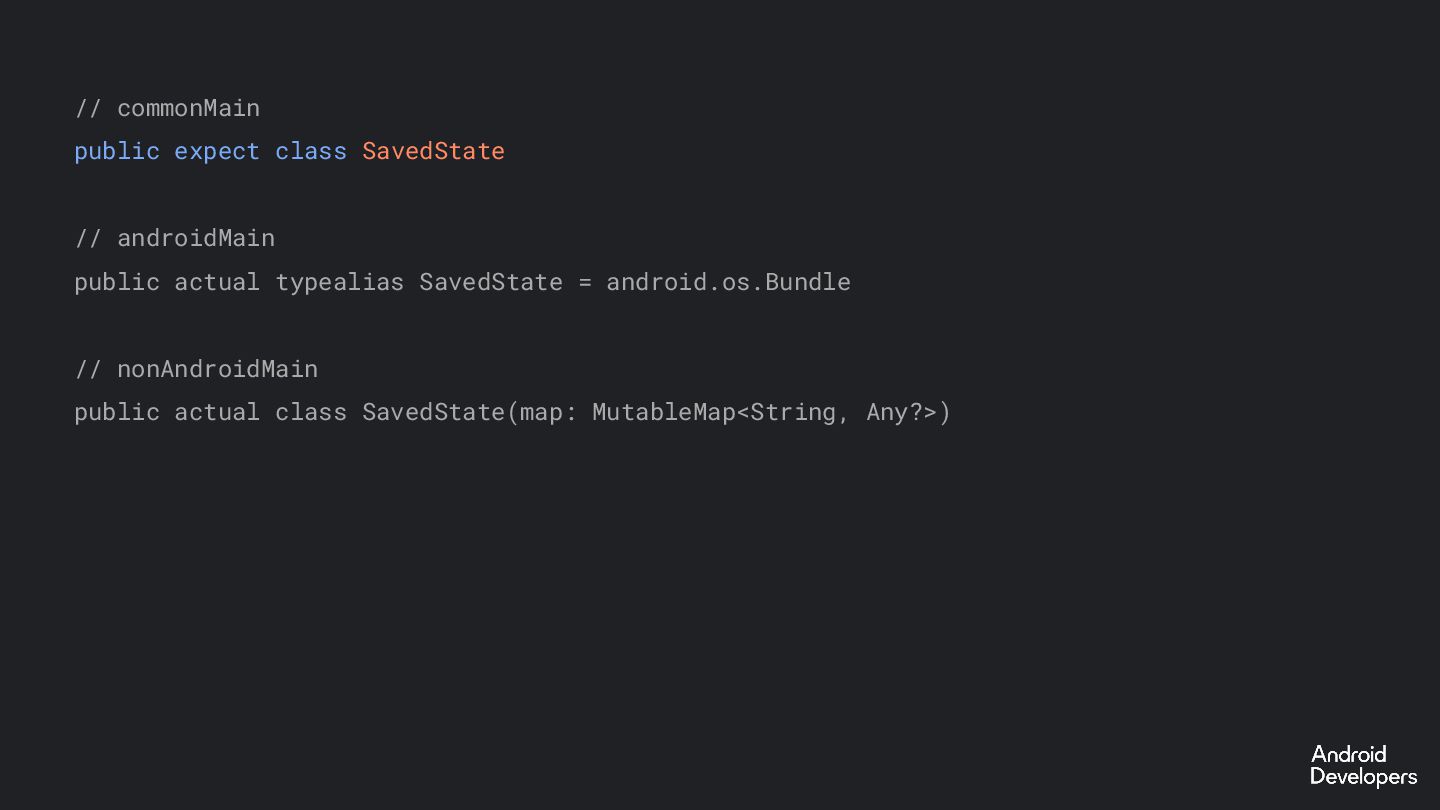

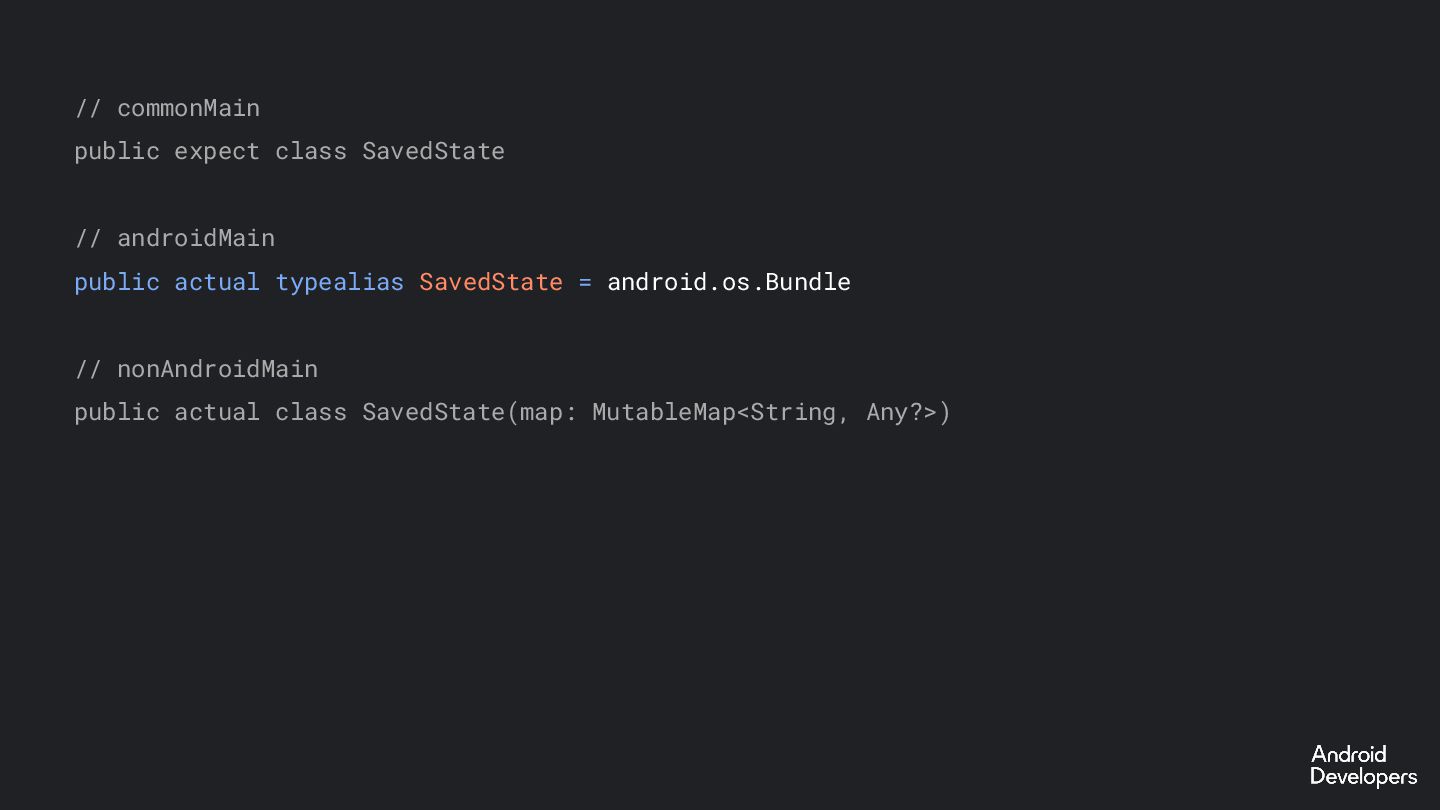

47. // commonMain public expect class SavedState // androidMain public actual typealias SavedState = android.os.Bundle // nonAndroidMain public actual class SavedState(map: MutableMap<String, Any?>)
48. // commonMain public expect class SavedState // androidMain public actual typealias SavedState = android.os.Bundle // nonAndroidMain public actual class SavedState(map: MutableMap<String, Any?>)

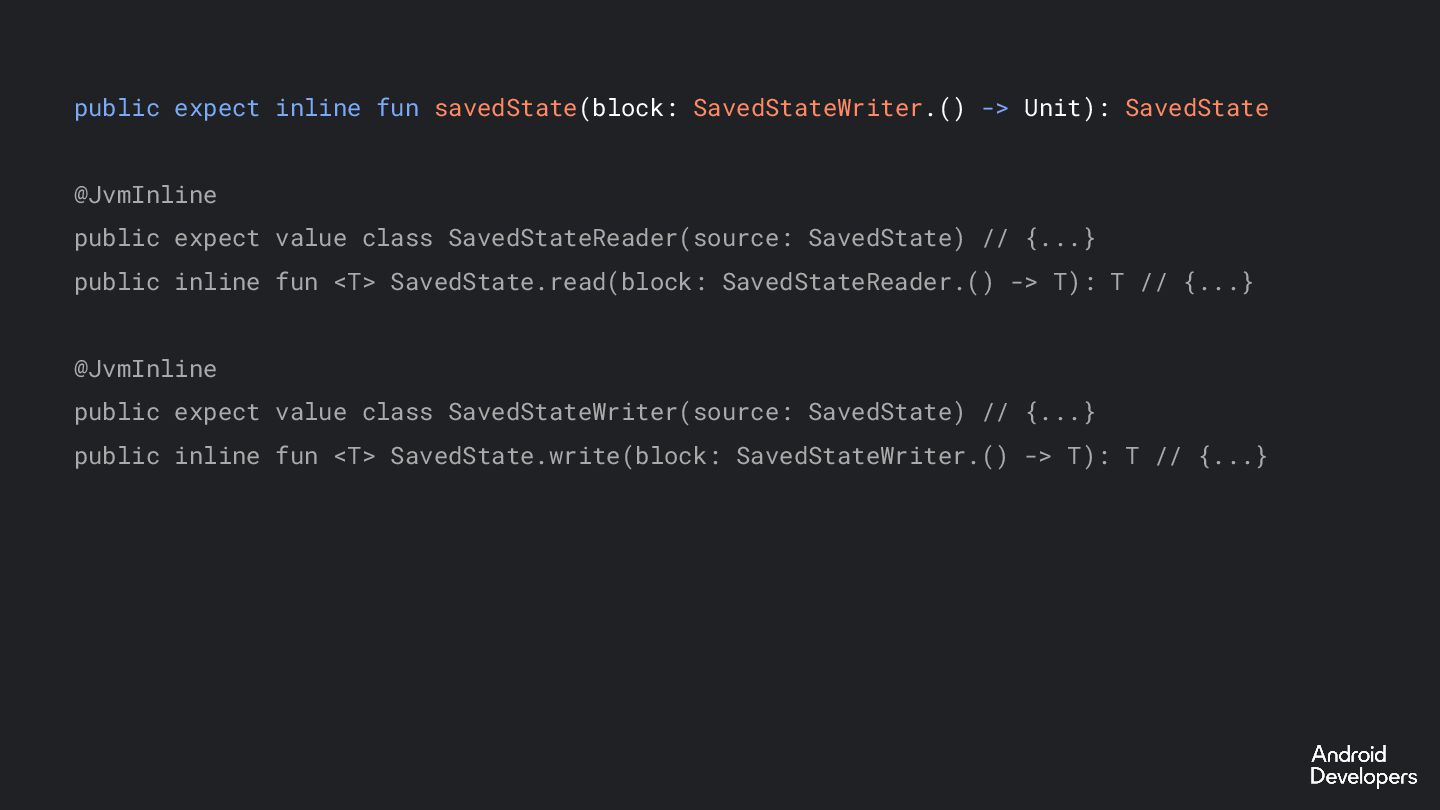

49. public expect inline fun savedState(block: SavedStateWriter.() -> Unit): SavedState @JvmInline public expect value class SavedStateReader(source: SavedState) // {...} public inline fun <T> SavedState.read(block: SavedStateReader.() -> T): T // {...} @JvmInline public expect value class SavedStateWriter(source: SavedState) // {...} public inline fun <T> SavedState.write(block: SavedStateWriter.() -> T): T // {...}

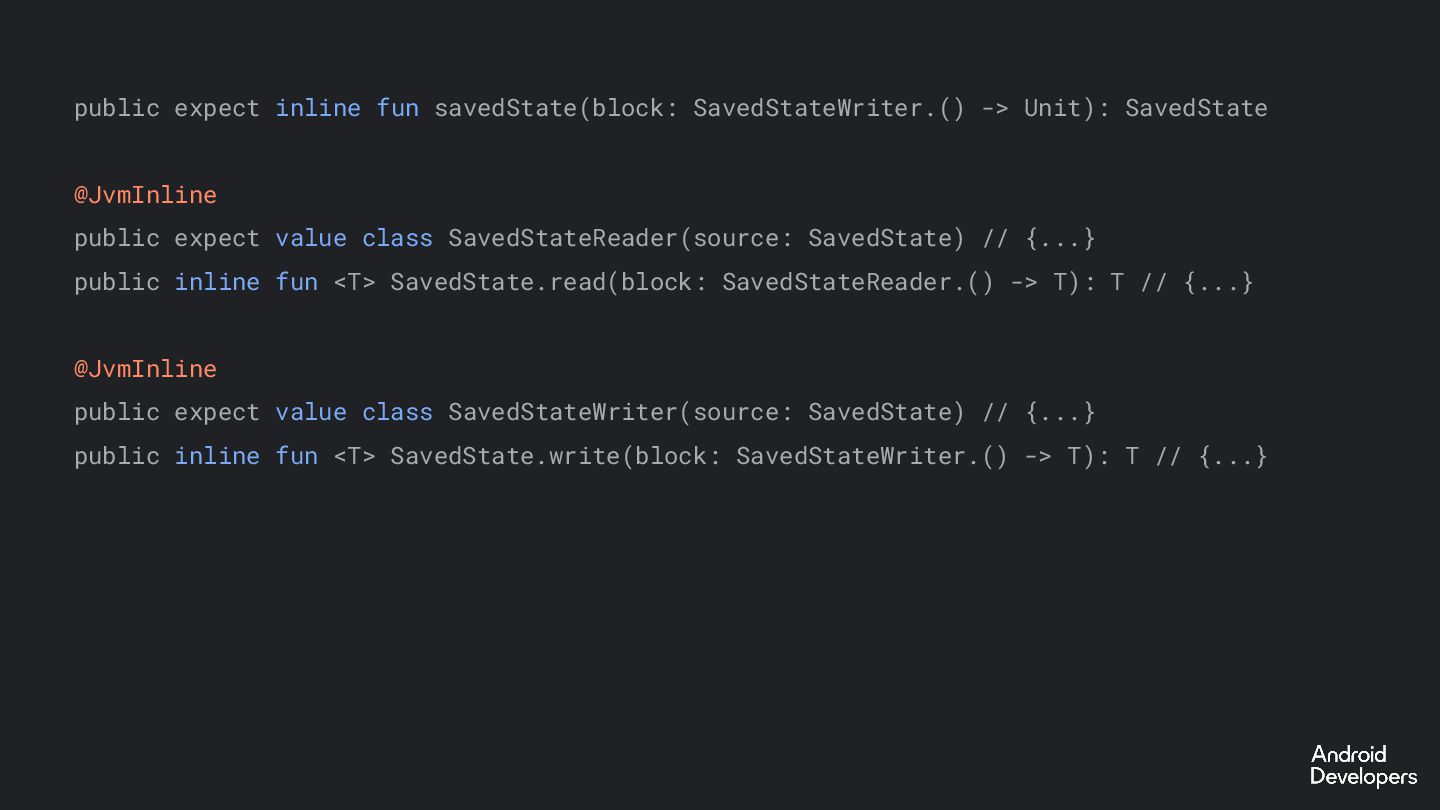

50. public expect inline fun savedState(block: SavedStateWriter.() -> Unit): SavedState @JvmInline public expect value class SavedStateReader(source: SavedState) // {...} public inline fun <T> SavedState.read(block: SavedStateReader.() -> T): T // {...} @JvmInline public expect value class SavedStateWriter(source: SavedState) // {...} public inline fun <T> SavedState.write(block: SavedStateWriter.() -> T): T // {...}

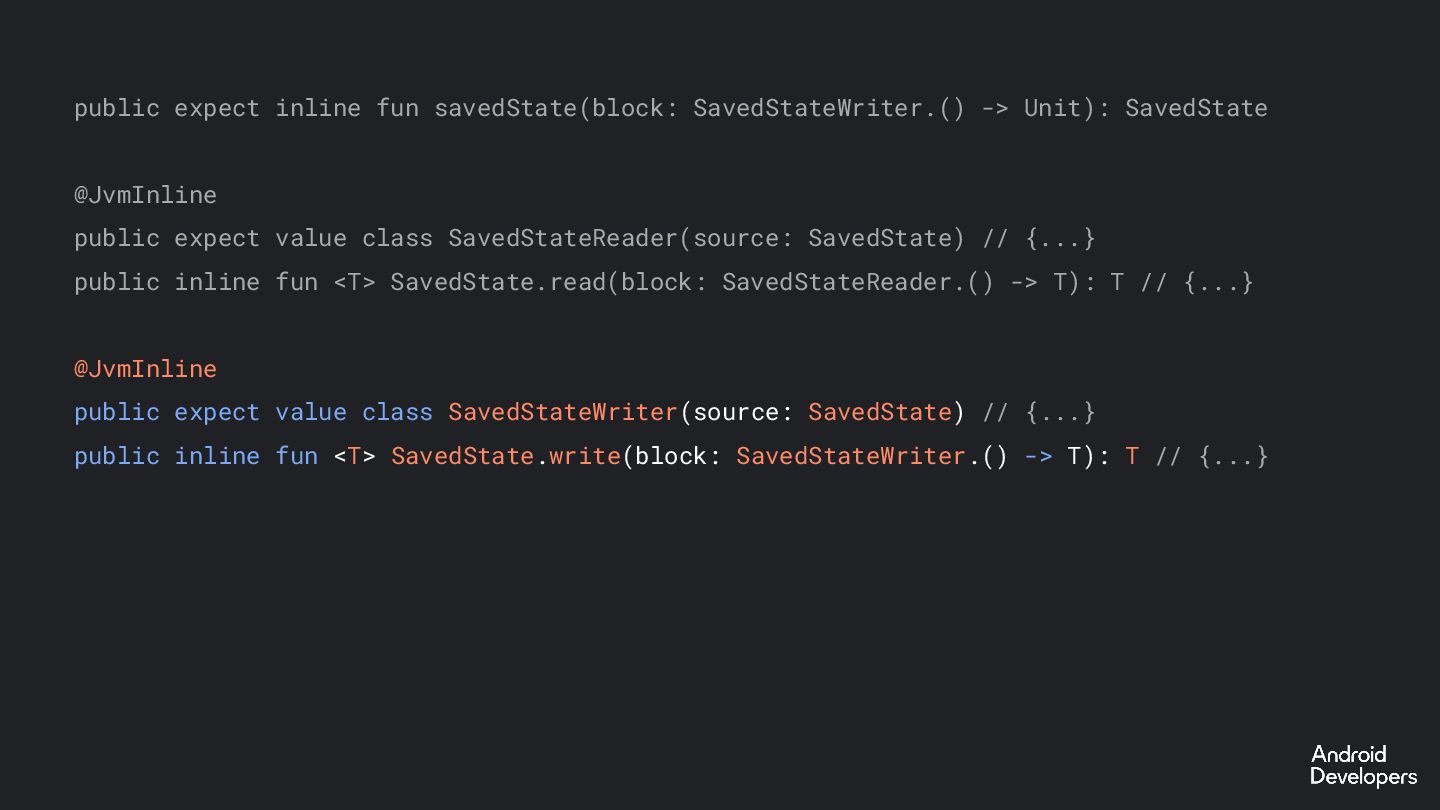

51. public expect inline fun savedState(block: SavedStateWriter.() -> Unit): SavedState @JvmInline public expect value class SavedStateReader(source: SavedState) // {...} public inline fun <T> SavedState.read(block: SavedStateReader.() -> T): T // {...} @JvmInline public expect value class SavedStateWriter(source: SavedState) // {...} public inline fun <T> SavedState.write(block: SavedStateWriter.() -> T): T // {...}
52. public expect inline fun savedState(block: SavedStateWriter.() -> Unit): SavedState @JvmInline public expect value class SavedStateReader(source: SavedState) // {...} public inline fun <T> SavedState.read(block: SavedStateReader.() -> T): T // {...} @JvmInline public expect value class SavedStateWriter(source: SavedState) // {...} public inline fun <T> SavedState.write(block: SavedStateWriter.() -> T): T // {...}
53. public expect inline fun savedState(block: SavedStateWriter.() -> Unit): SavedState @JvmInline public expect value class SavedStateReader(source: SavedState) // {...} public inline fun <T> SavedState.read(block: SavedStateReader.() -> T): T // {...} @JvmInline public expect value class SavedStateWriter(source: SavedState) // {...} public inline fun <T> SavedState.write(block: SavedStateWriter.() -> T): T // {...}

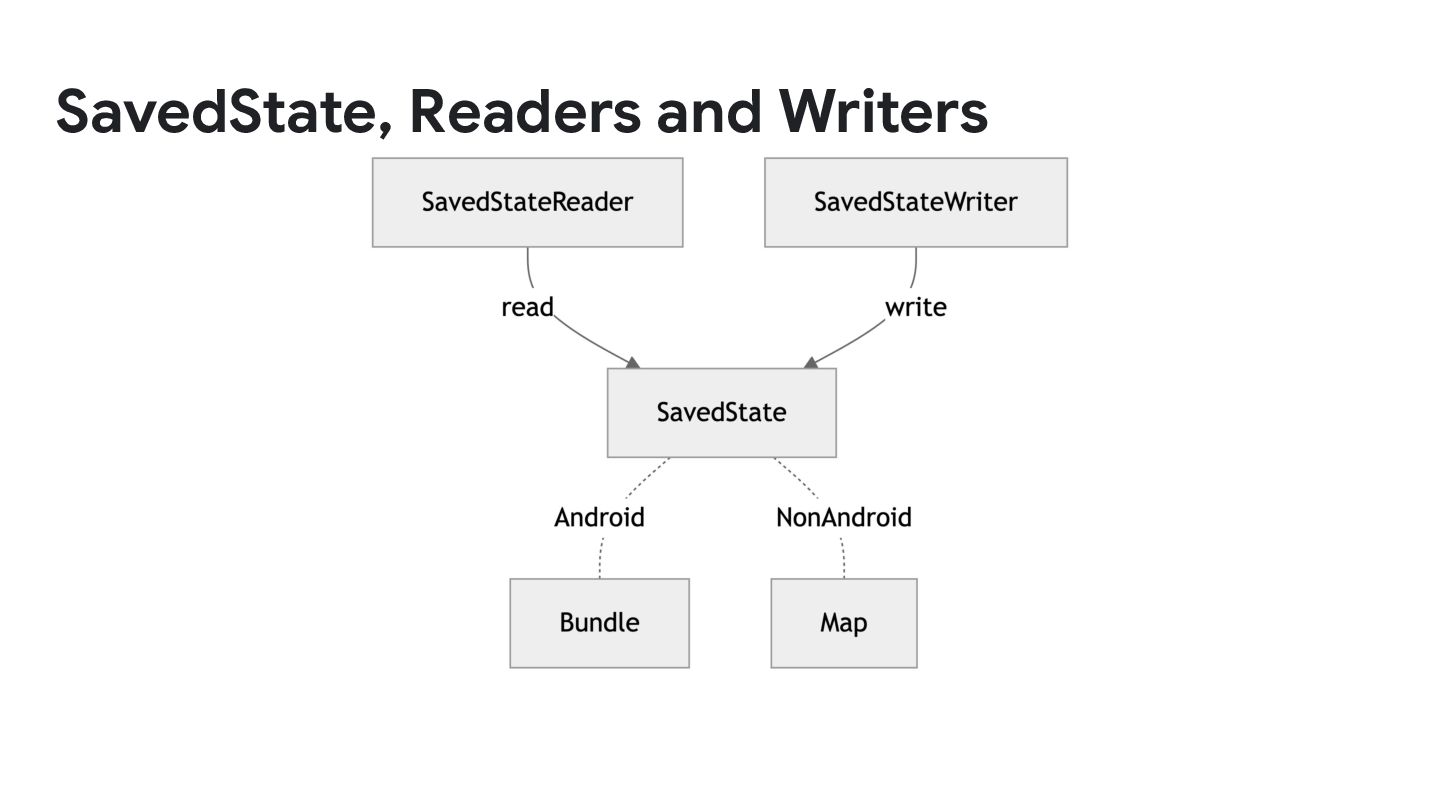

54. SavedState, Readers and Writers

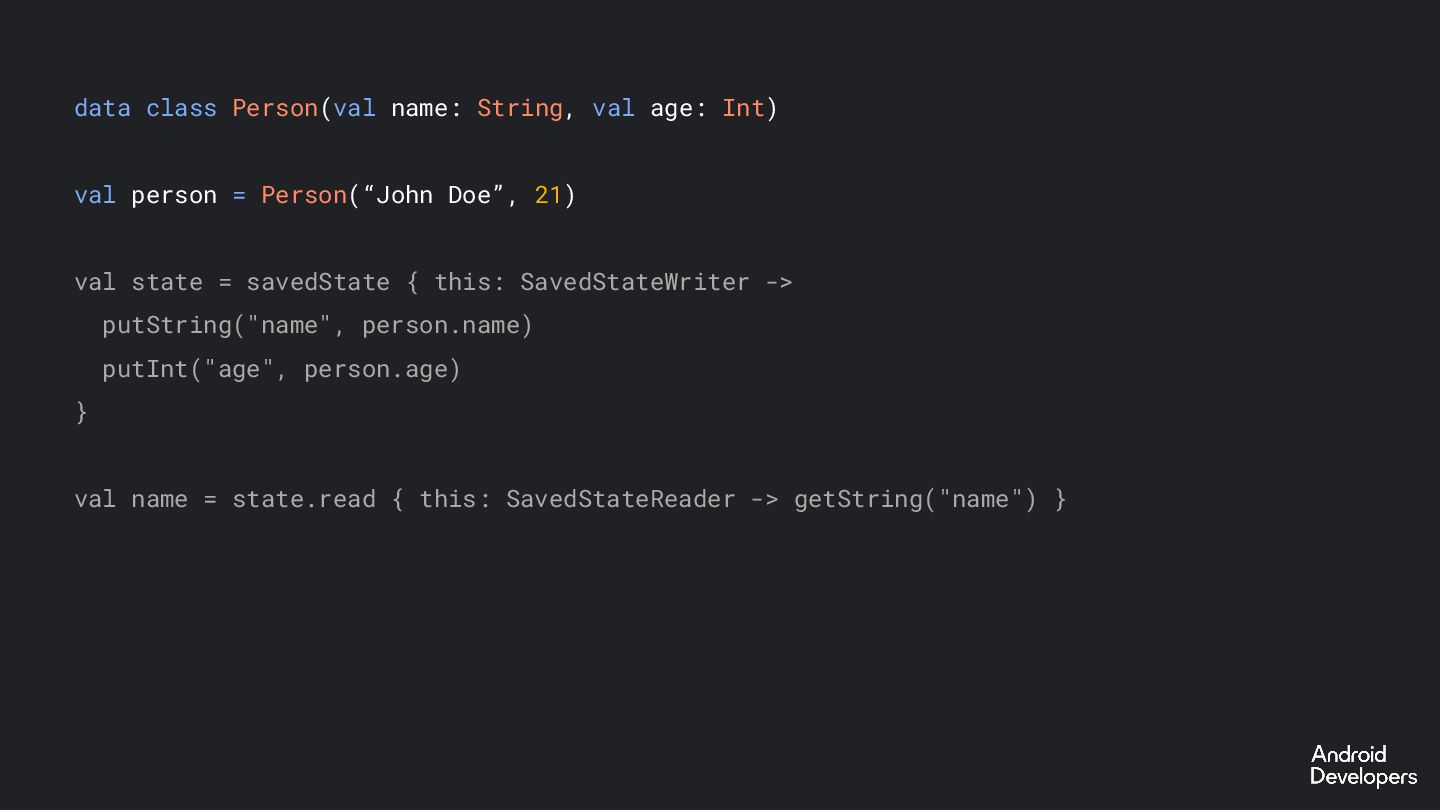

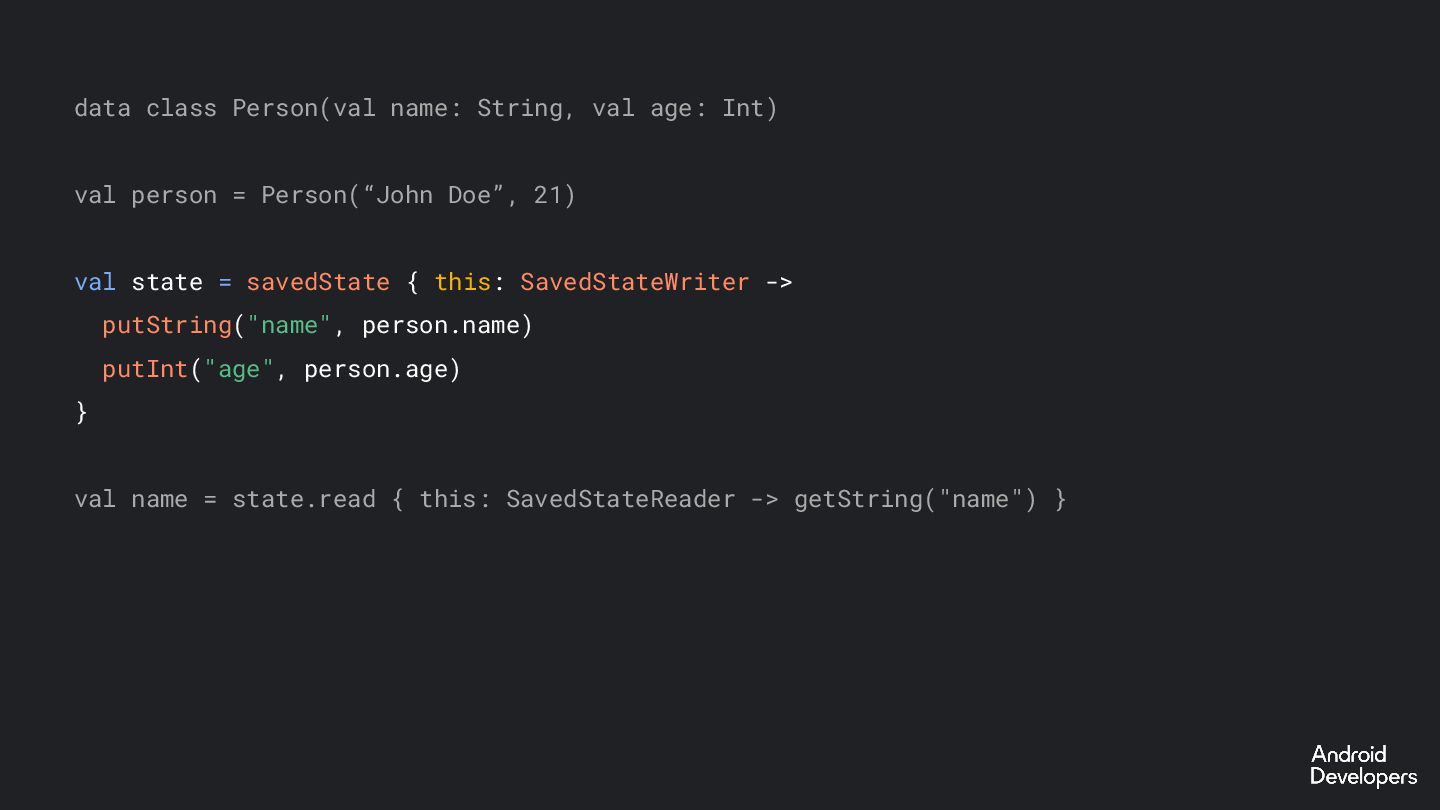

55. data class Person(val name: String, val age: Int) val person = Person(“John Doe”, 21) val state = savedState { this: SavedStateWriter -> putString("name", person.name) putInt("age", person.age) } val name = state.read { this: SavedStateReader -> getString("name") }

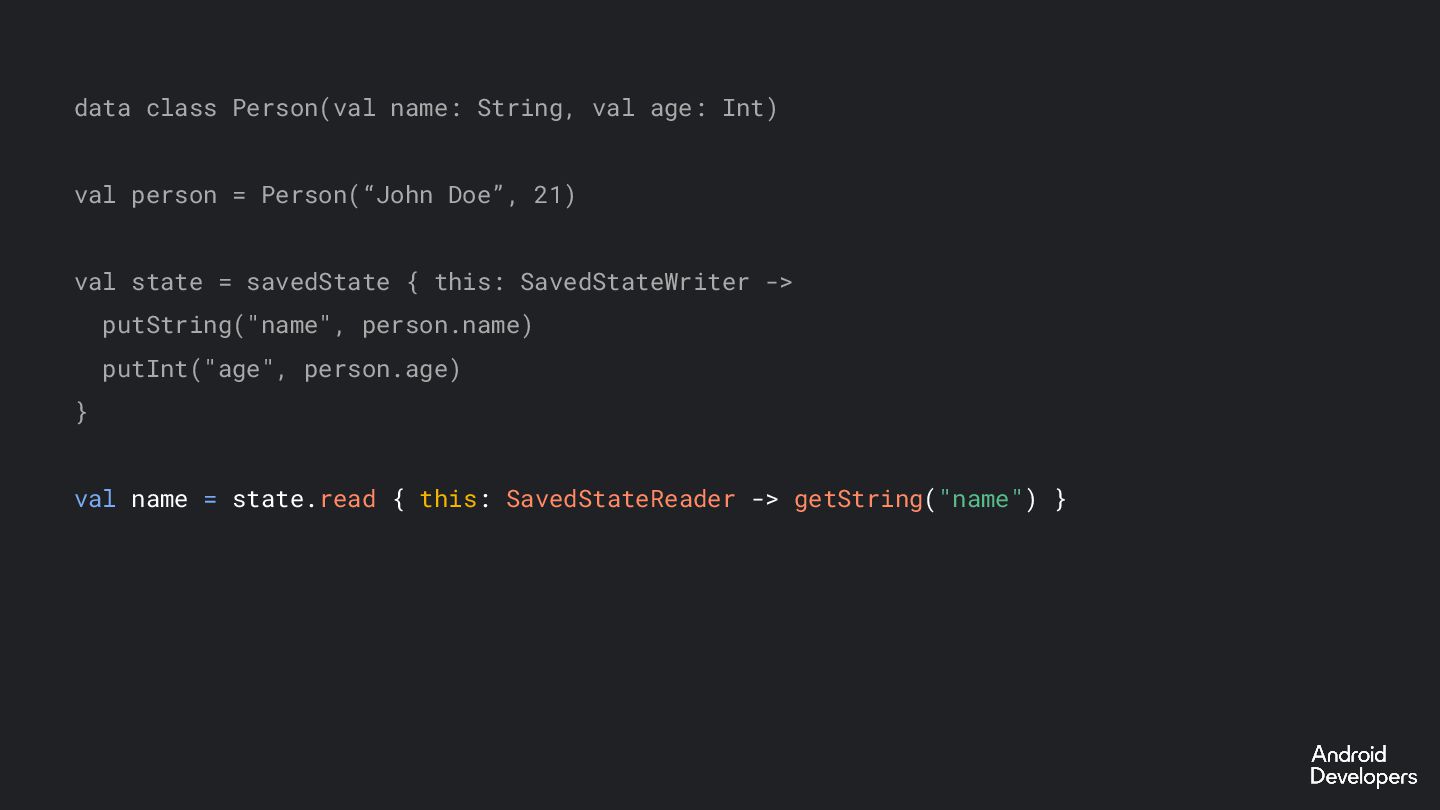

56. data class Person(val name: String, val age: Int) val person = Person(“John Doe”, 21) val state = savedState { this: SavedStateWriter -> putString("name", person.name) putInt("age", person.age) } val name = state.read { this: SavedStateReader -> getString("name") }
57. data class Person(val name: String, val age: Int) val person = Person(“John Doe”, 21) val state = savedState { this: SavedStateWriter -> putString("name", person.name) putInt("age", person.age) } val name = state.read { this: SavedStateReader -> getString("name") }

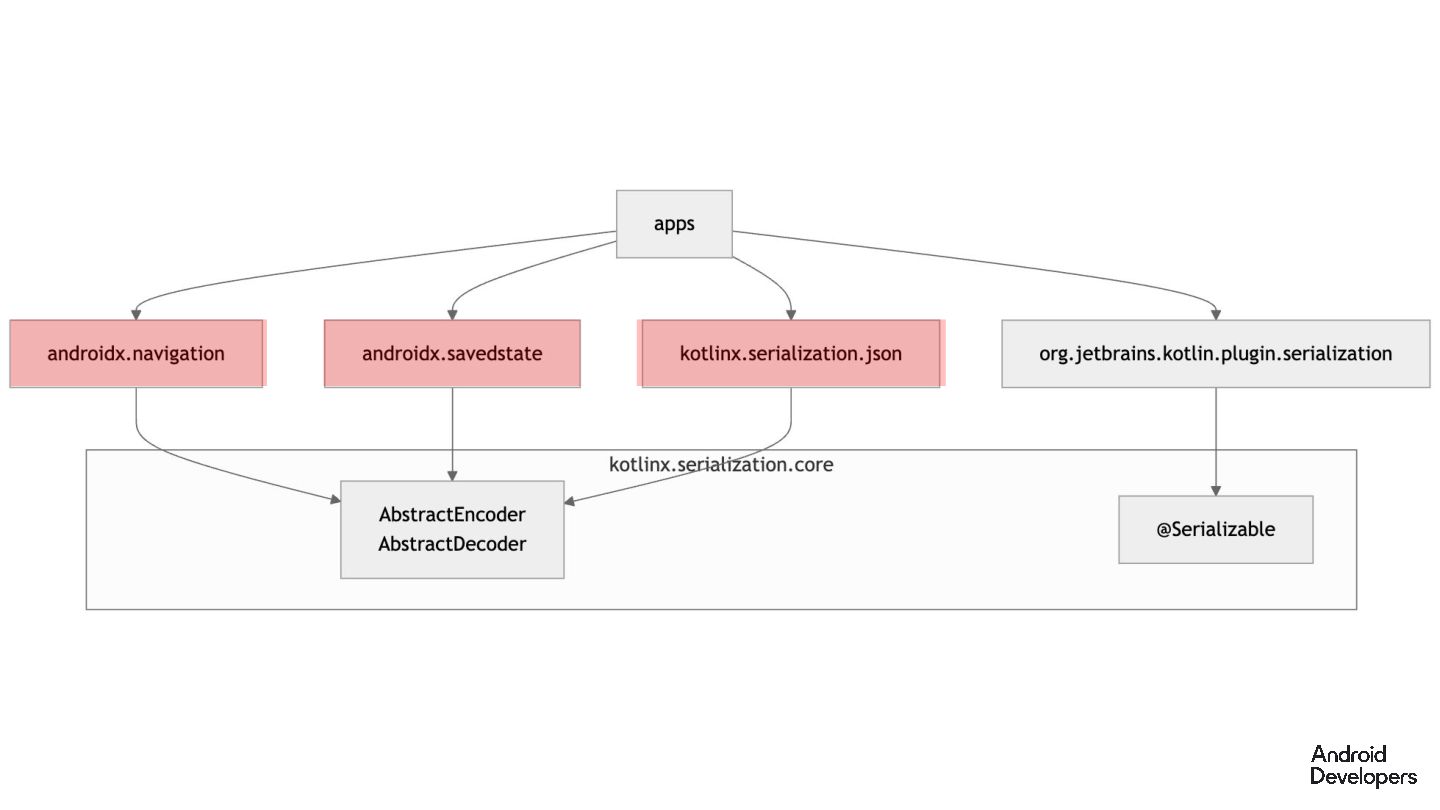

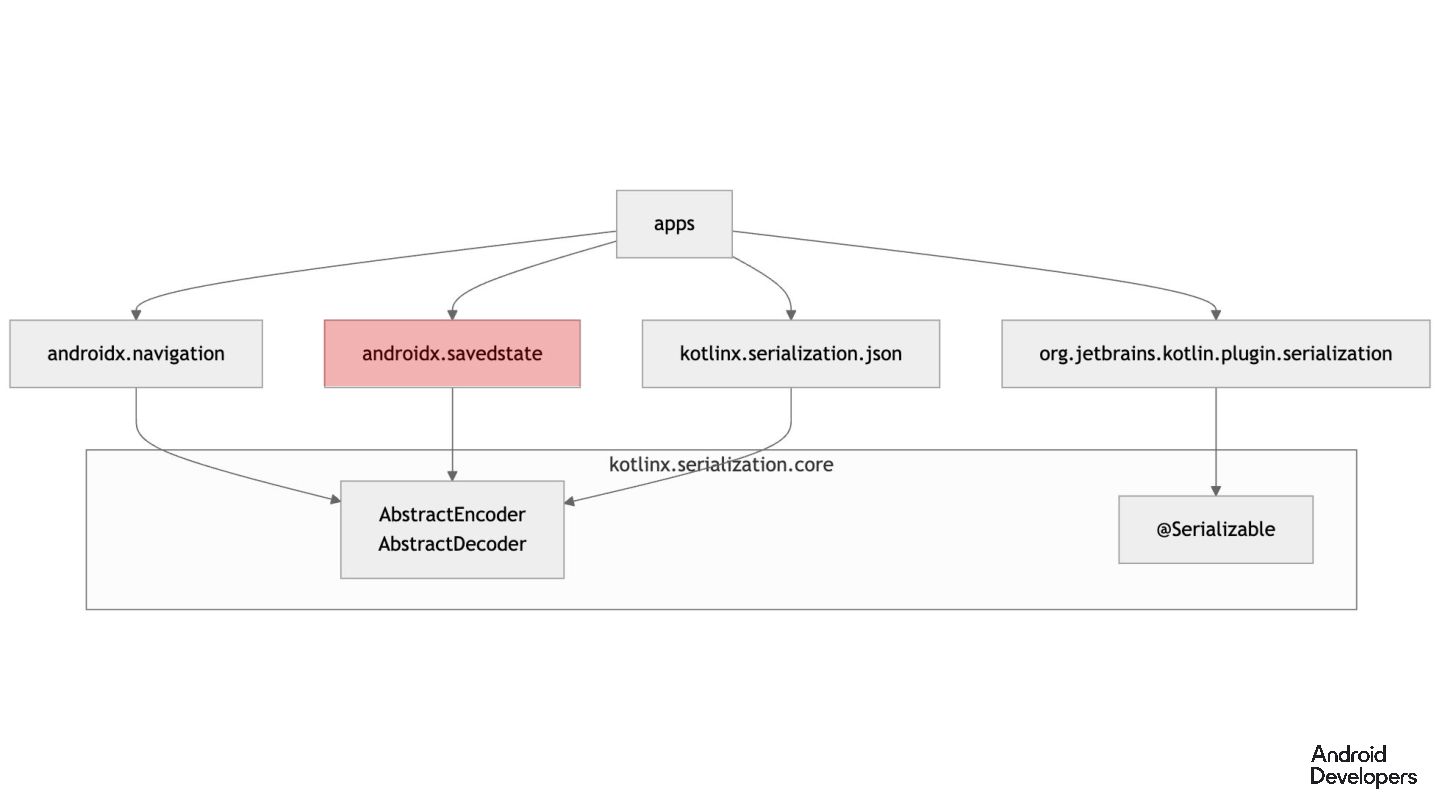

58. KotlinX Serialization + Compose

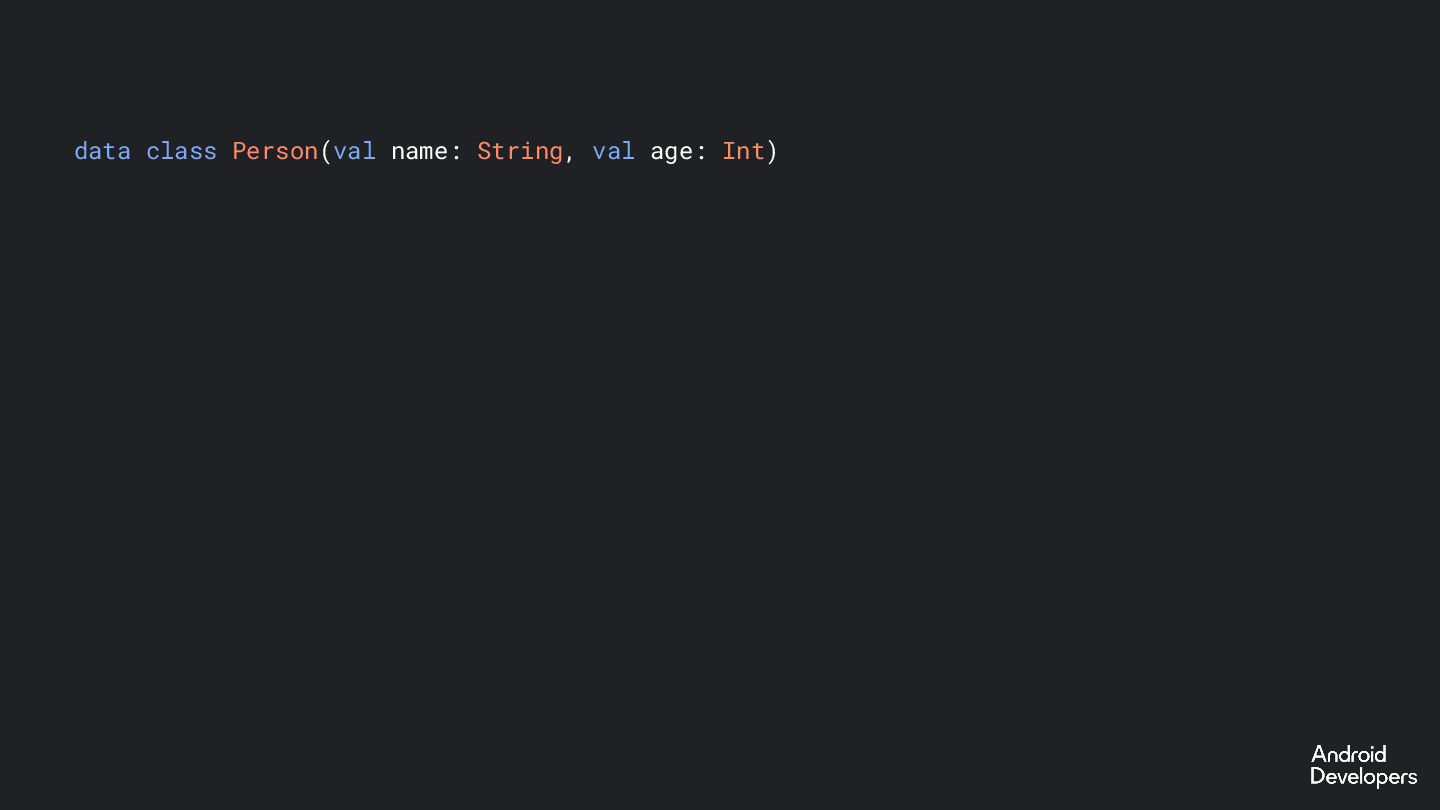

61. data class Person(val name: String, val age: Int)

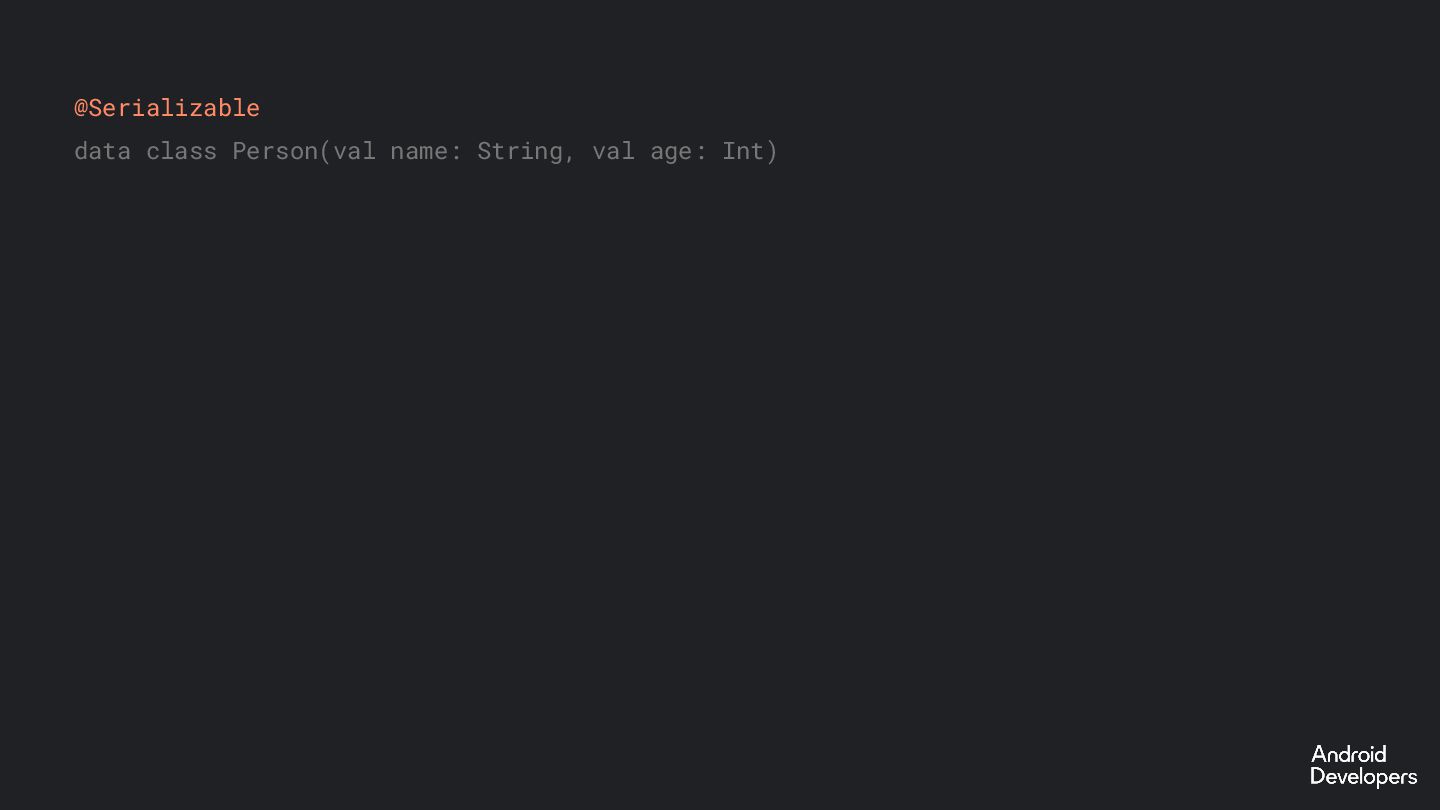

62. @Serializable data class Person(val name: String, val age: Int)

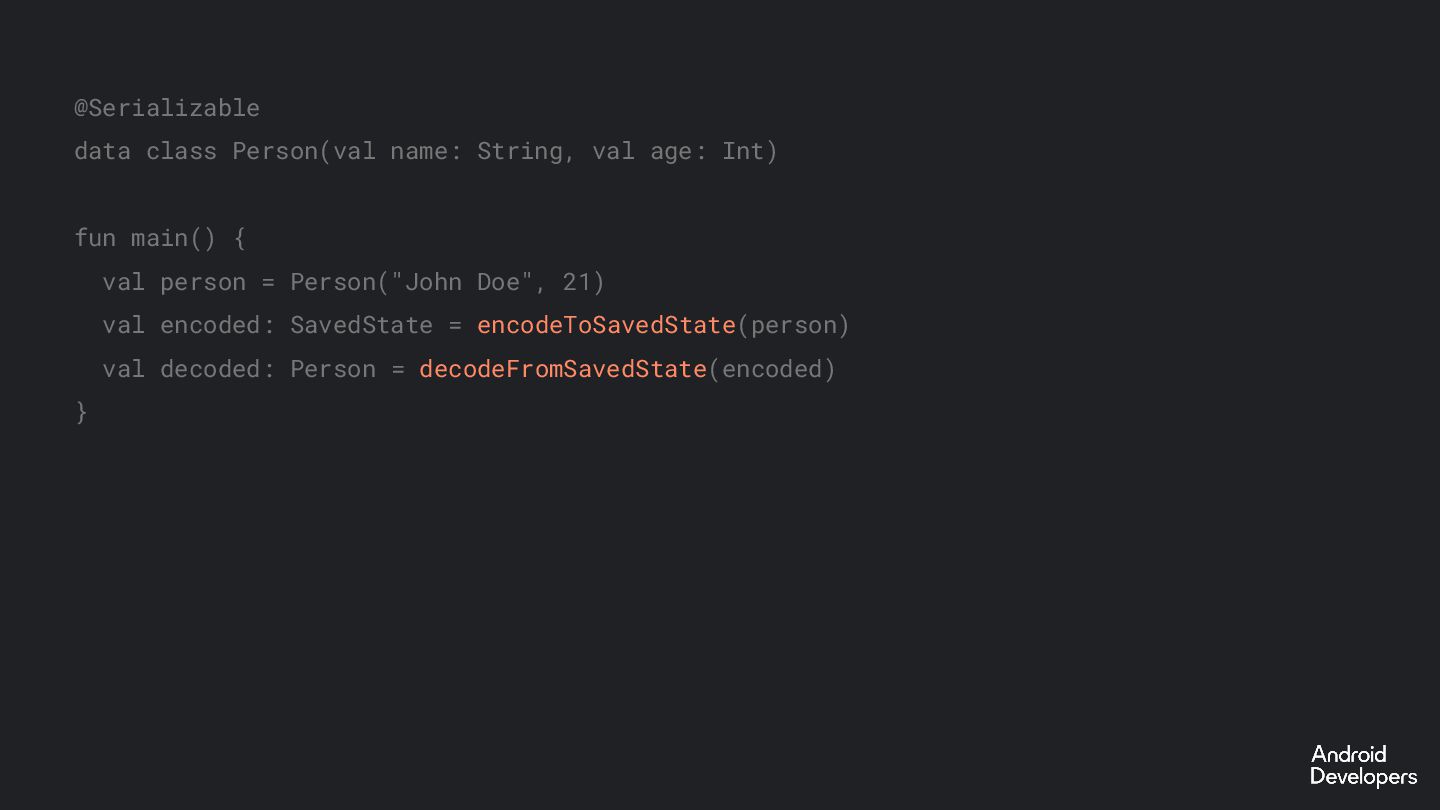

63. @Serializable data class Person(val name: String, val age: Int) fun main() { val person = Person("John Doe", 21) val encoded: SavedState = encodeToSavedState(person) val decoded: Person = decodeFromSavedState(encoded) }

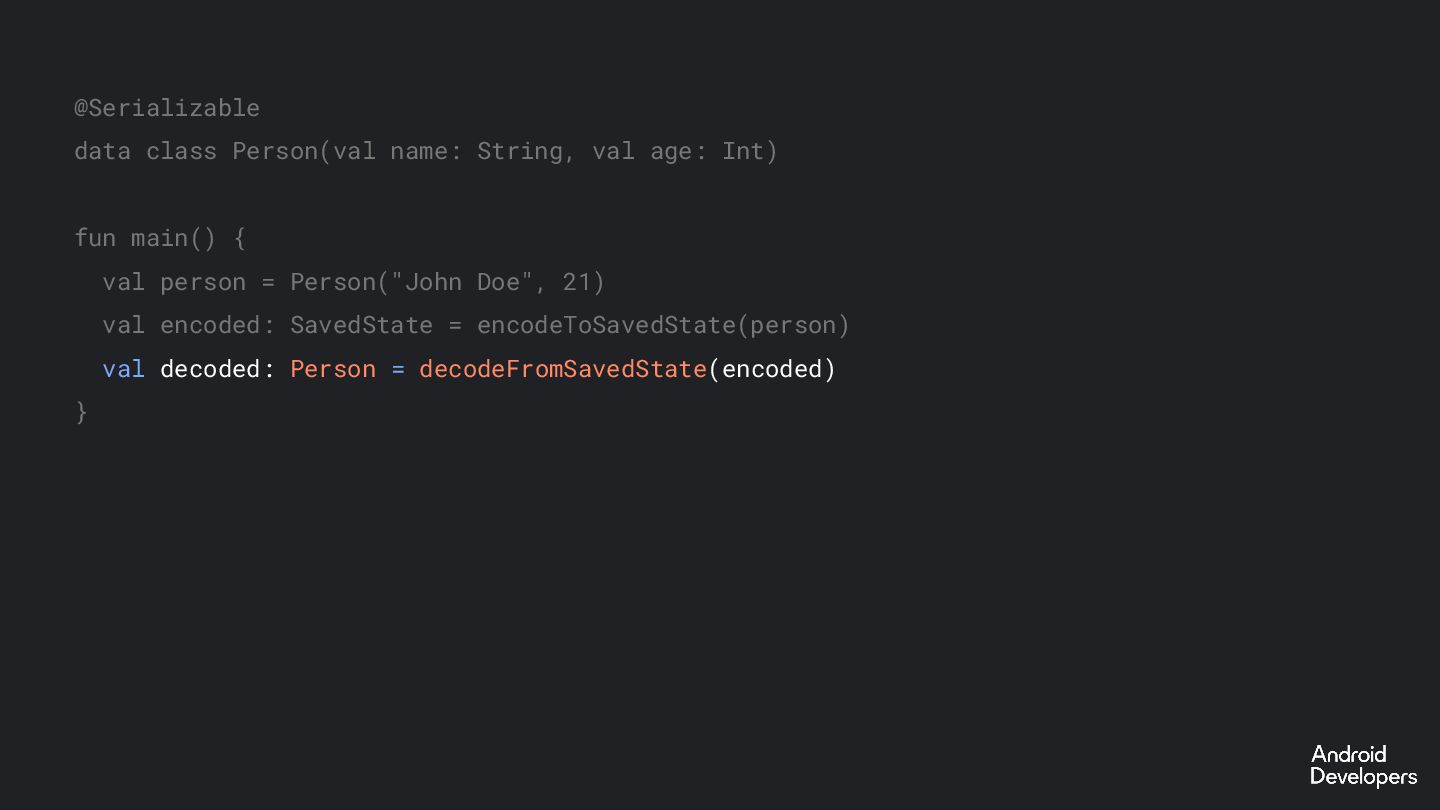

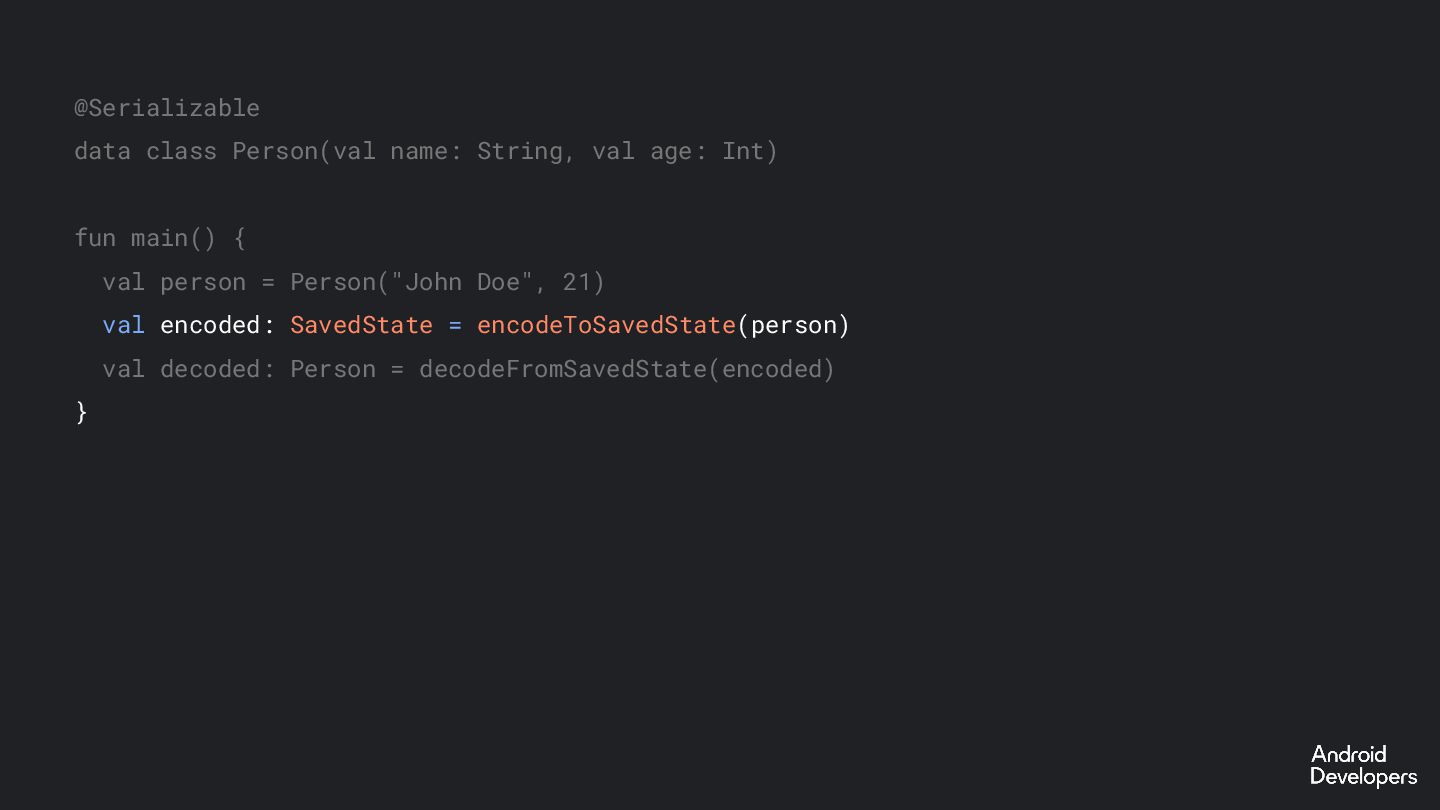

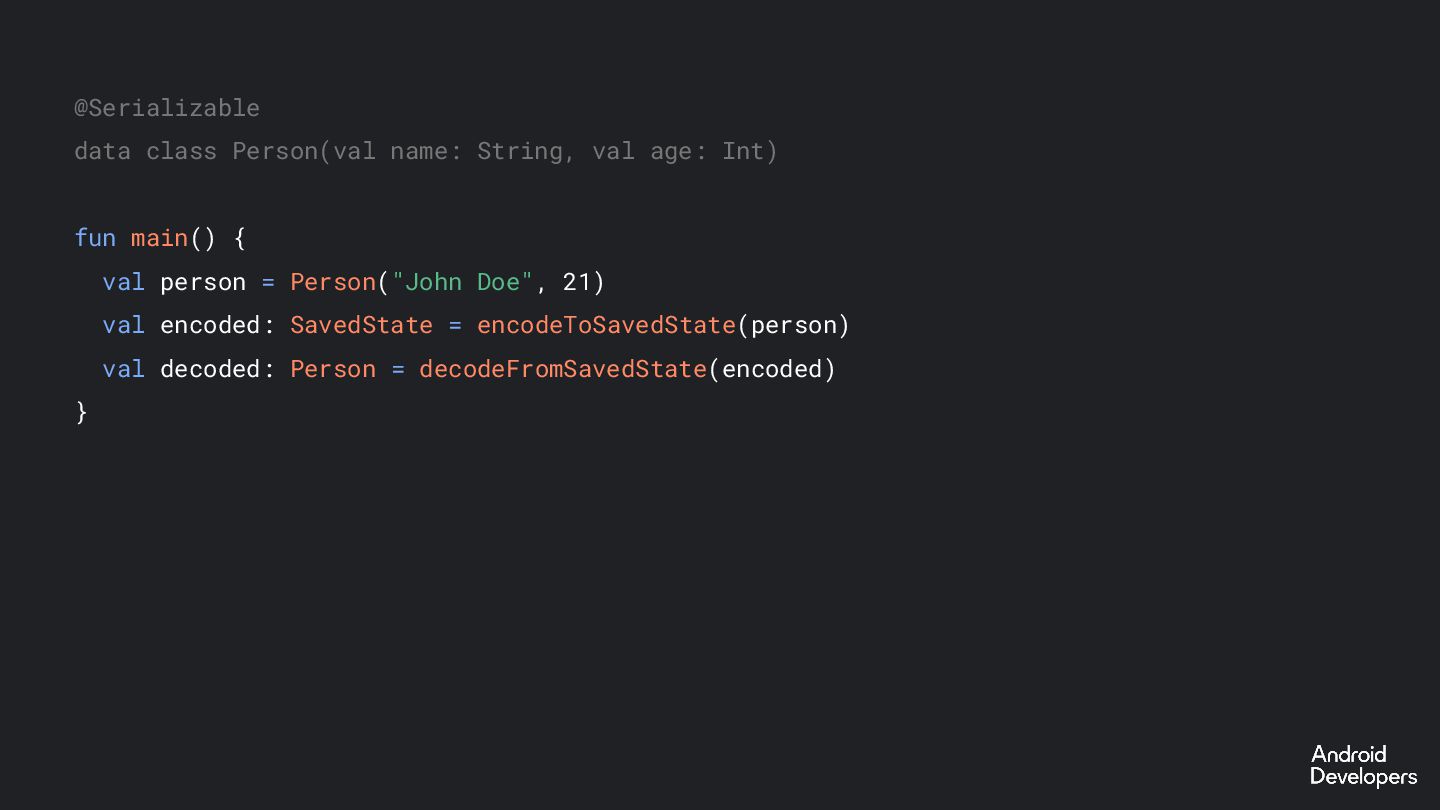

64. @Serializable data class Person(val name: String, val age: Int) fun main() { val person = Person("John Doe", 21) val encoded: SavedState = encodeToSavedState(person) val decoded: Person = decodeFromSavedState(encoded) }
65. @Serializable data class Person(val name: String, val age: Int) fun main() { val person = Person("John Doe", 21) val encoded: SavedState = encodeToSavedState(person) val decoded: Person = decodeFromSavedState(encoded) }
66. @Serializable data class Person(val name: String, val age: Int) fun main() { val person = Person("John Doe", 21) val encoded: SavedState = encodeToSavedState(person) val decoded: Person = decodeFromSavedState(encoded) }

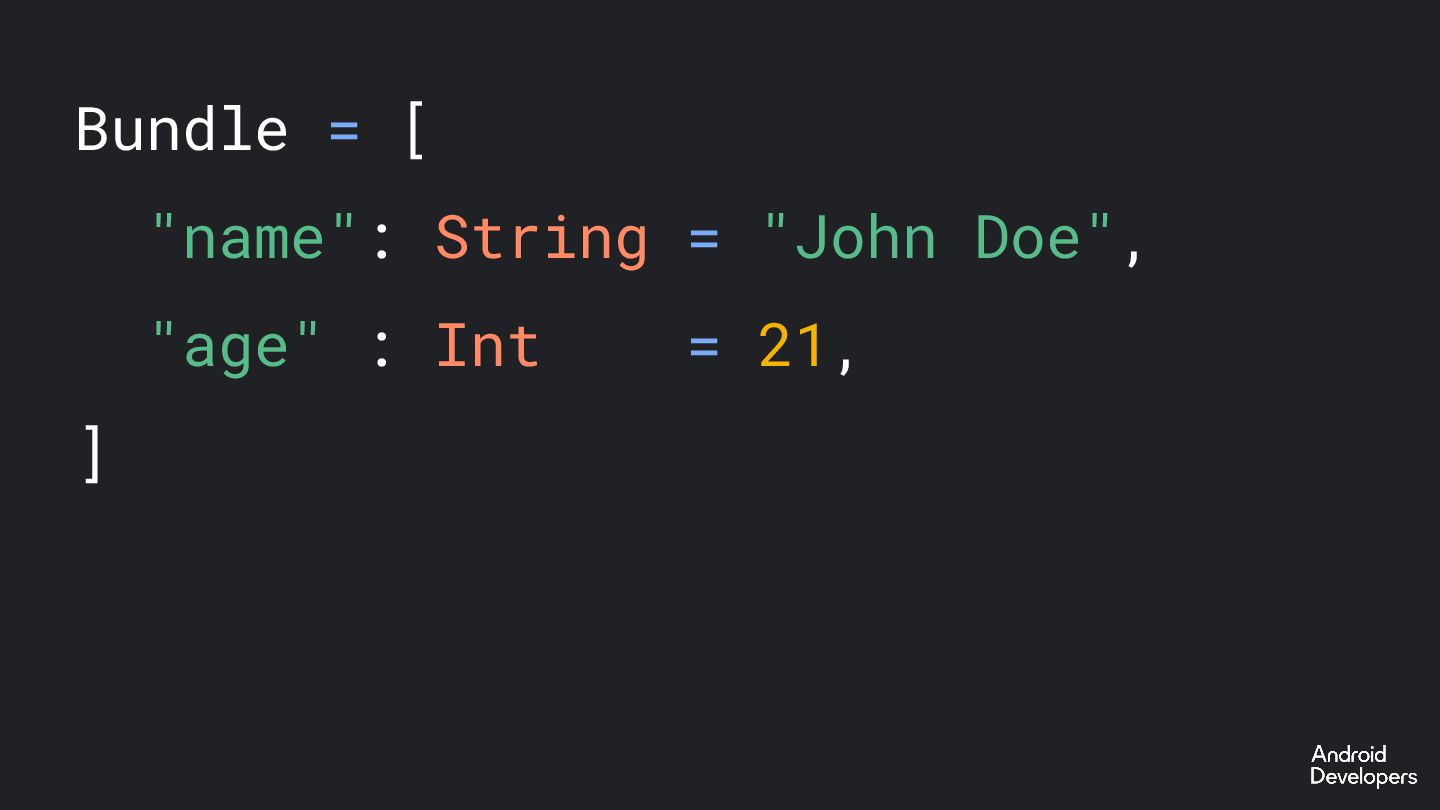

67. Bundle = [ "name": String = "John Doe", "age" : Int = 21, ]

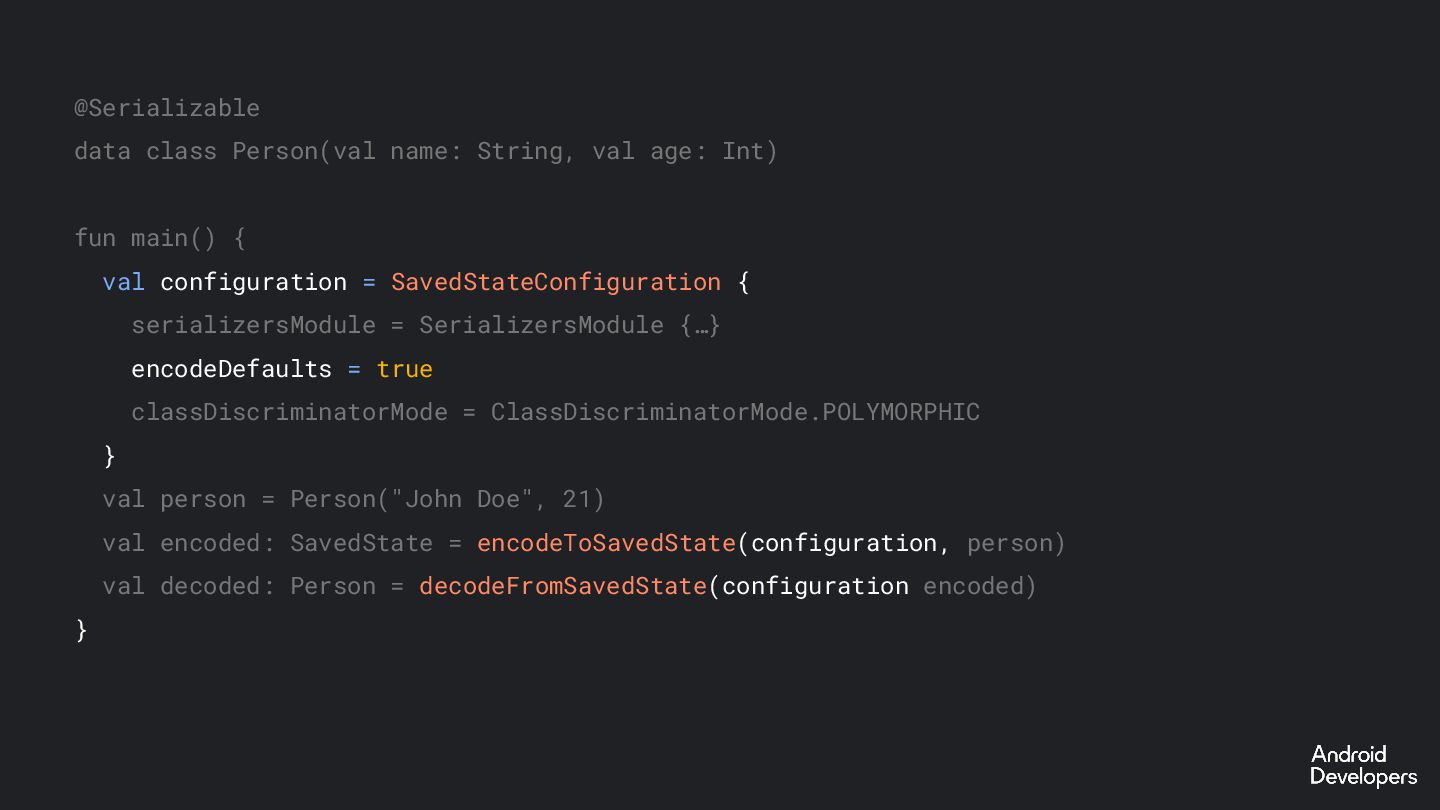

68. @Serializable data class Person(val name: String, val age: Int) fun main() { val configuration = SavedStateConfiguration { serializersModule = SerializersModule {…} encodeDefaults = true classDiscriminatorMode = ClassDiscriminatorMode.POLYMORPHIC } val person = Person("John Doe", 21) val encoded: SavedState = encodeToSavedState(configuration, person) val decoded: Person = decodeFromSavedState(configuration encoded) }

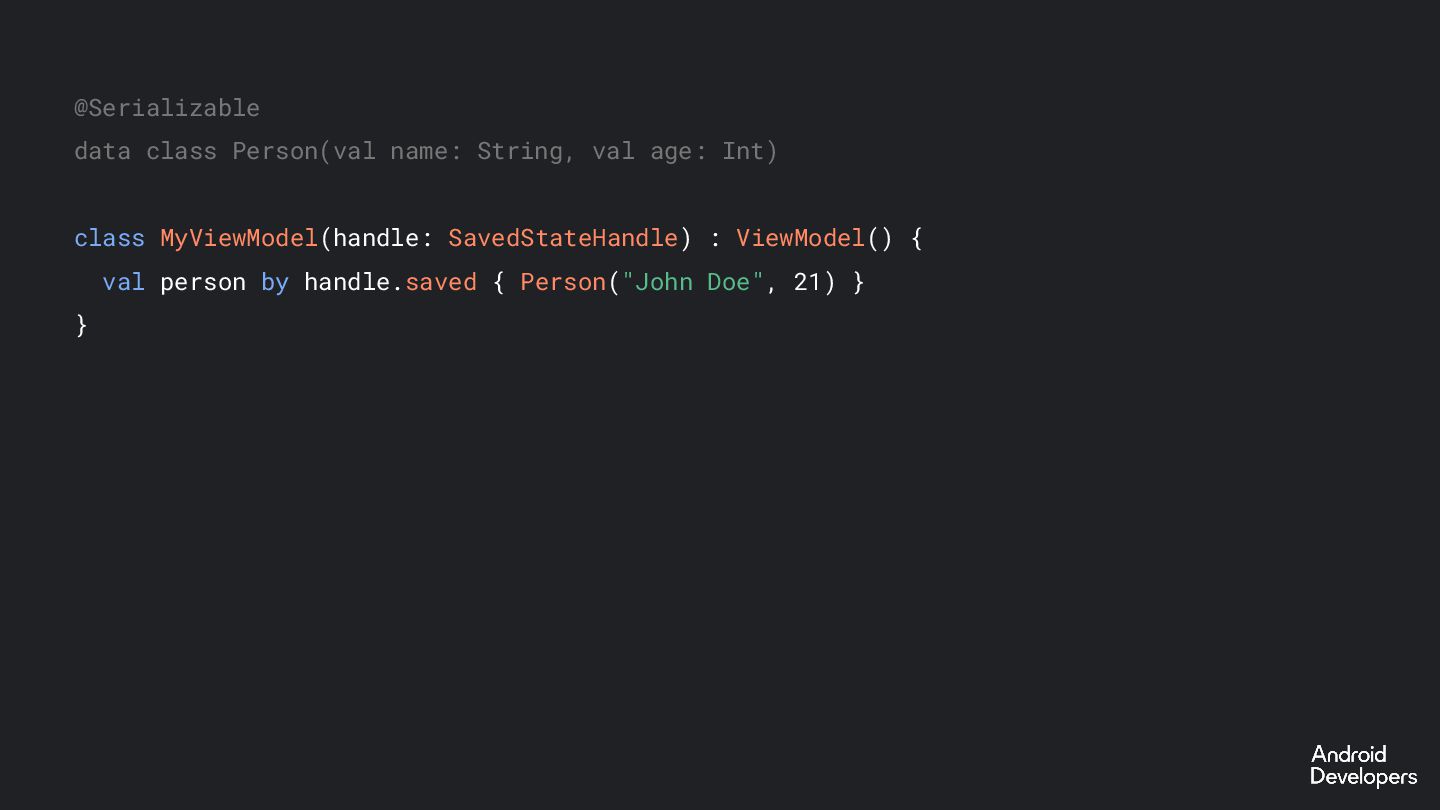

69. @Serializable data class Person(val name: String, val age: Int) class MyViewModel(handle: SavedStateHandle) : ViewModel() { val person by handle.saved { Person("John Doe", 21) } }
70. @Serializable data class Person(val name: String, val age: Int) class MyComponent : SavedStateRegistryOwner { val person by saved { Person("John Doe", 21) } }

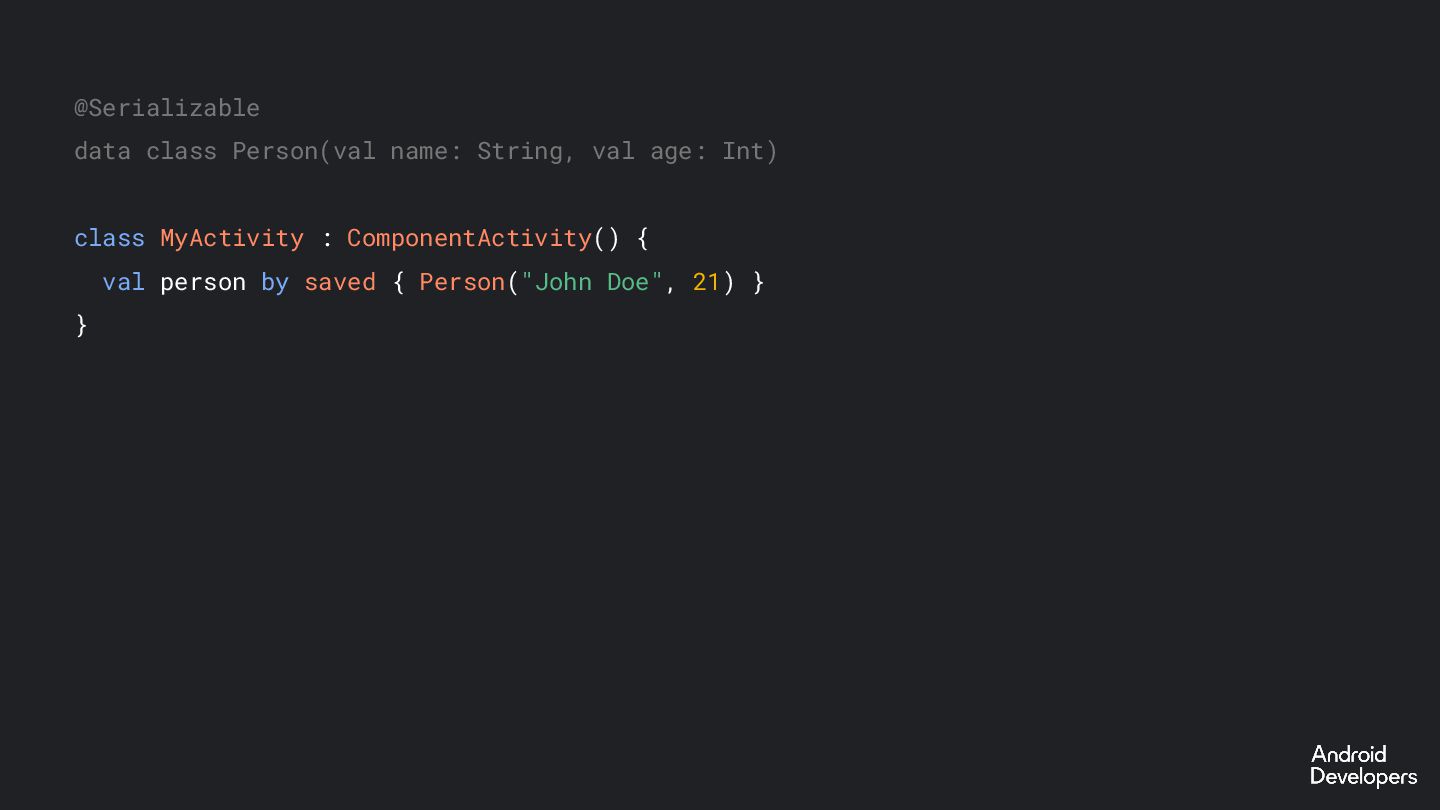

71. @Serializable data class Person(val name: String, val age: Int) class MyActivity : ComponentActivity() { val person by saved { Person("John Doe", 21) } }

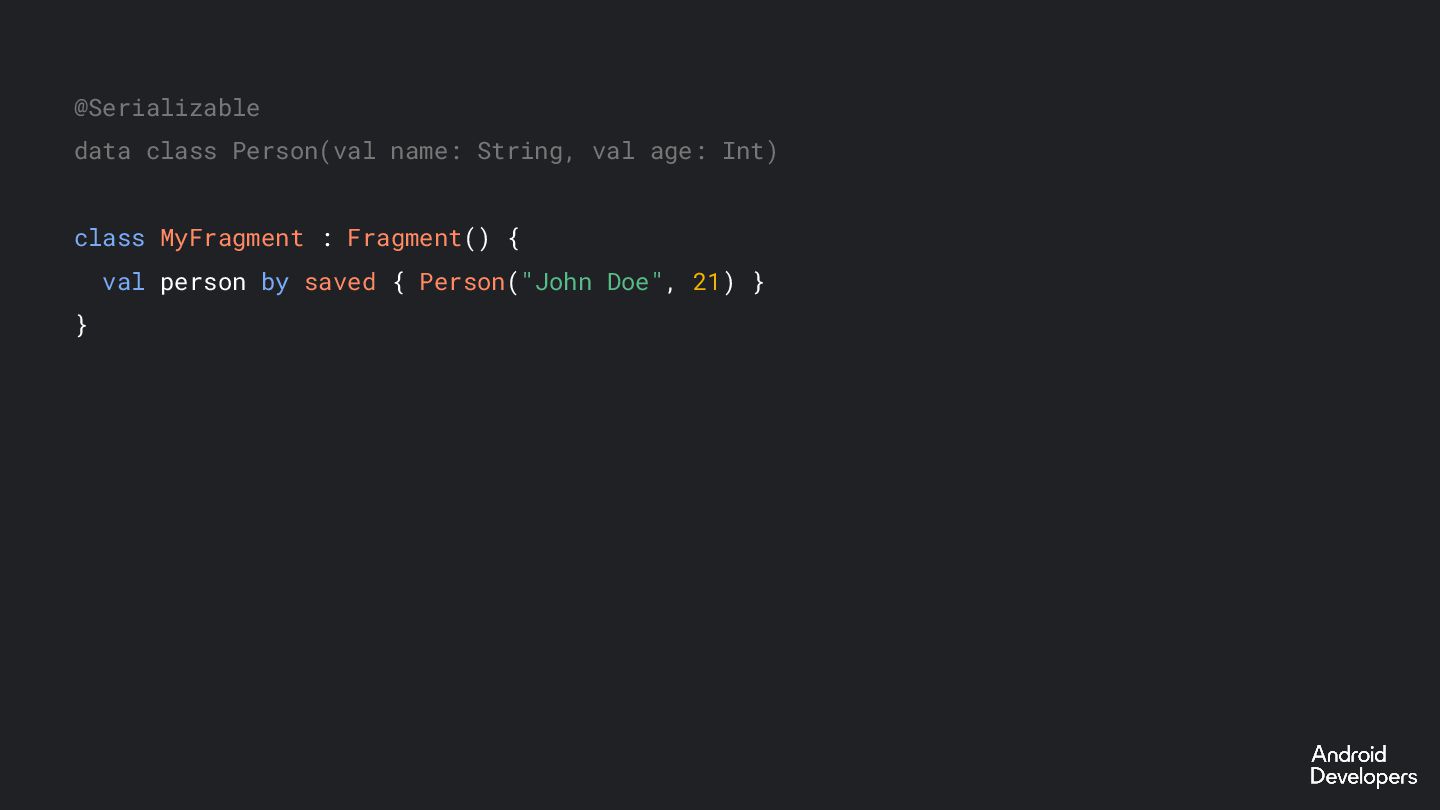

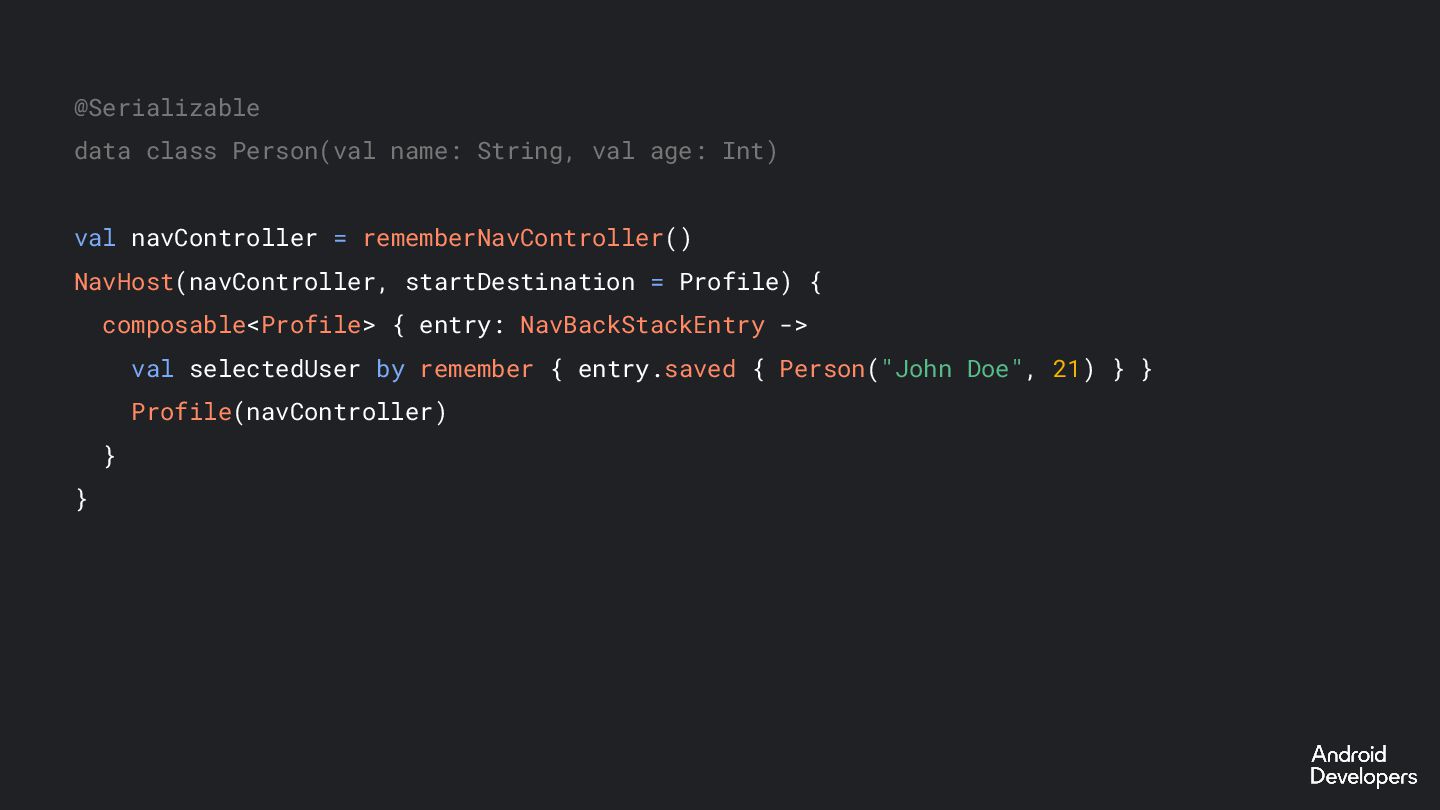

72. @Serializable data class Person(val name: String, val age: Int) class MyFragment : Fragment() { val person by saved { Person("John Doe", 21) } }
73. @Serializable data class Person(val name: String, val age: Int) val navController = rememberNavController() NavHost(navController, startDestination = Profile) { composable<Profile> { entry: NavBackStackEntry -> val selectedUser by remember { entry.saved { Person("John Doe", 21) } } Profile(navController) } }
74. @Serializable data class Person(val name: String, val age: Int) val backStack = rememberNavBackStack() NavDisplay(backStack, entryProvider = entryProvider { entry<Profile> { val owner = LocalSavedStateRegistryOwner.current.savedStateRegistry val selectedUser by remember { owner.saved { Person("John Doe", 21) } } Profile(navController) } )
75. KotlinX Serialization + Compose

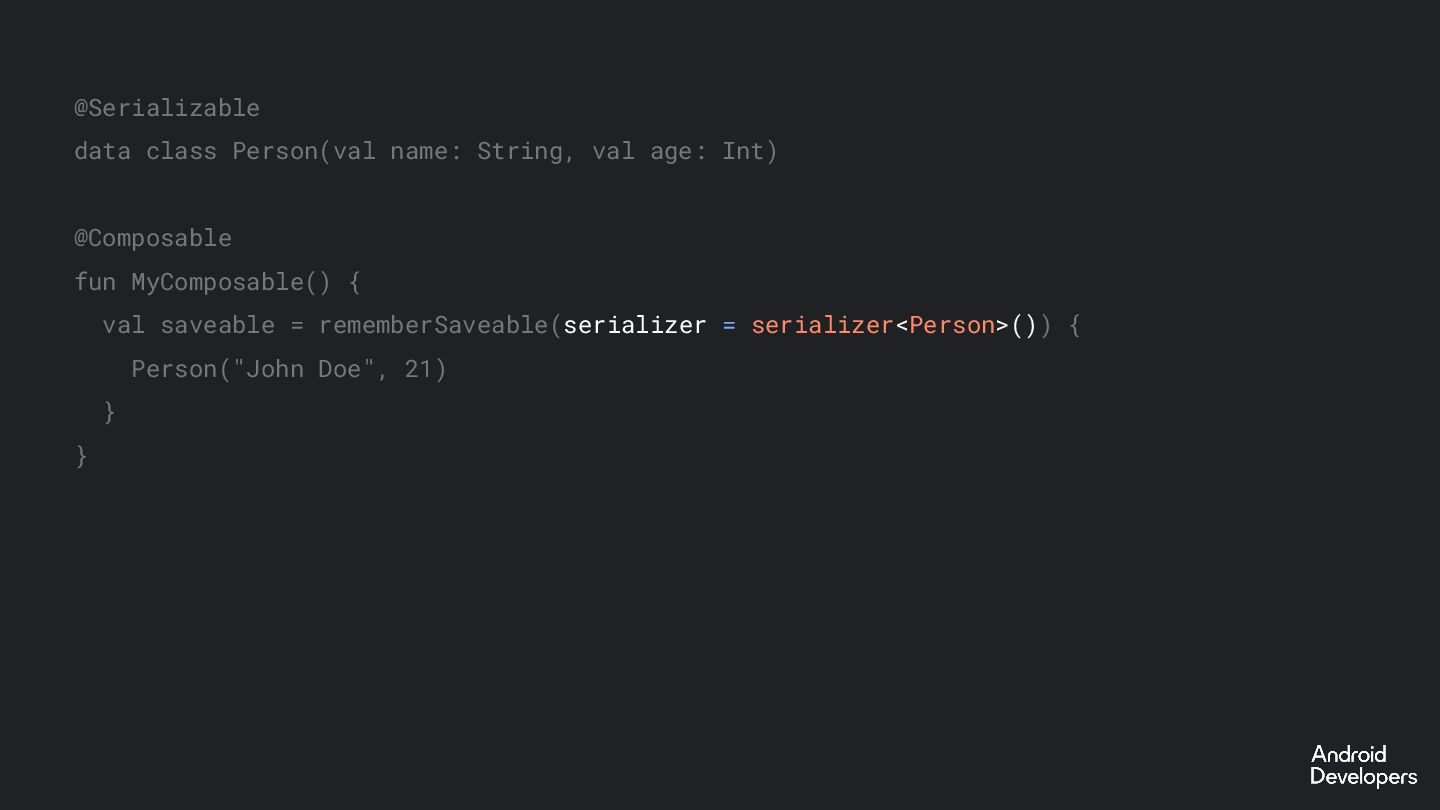

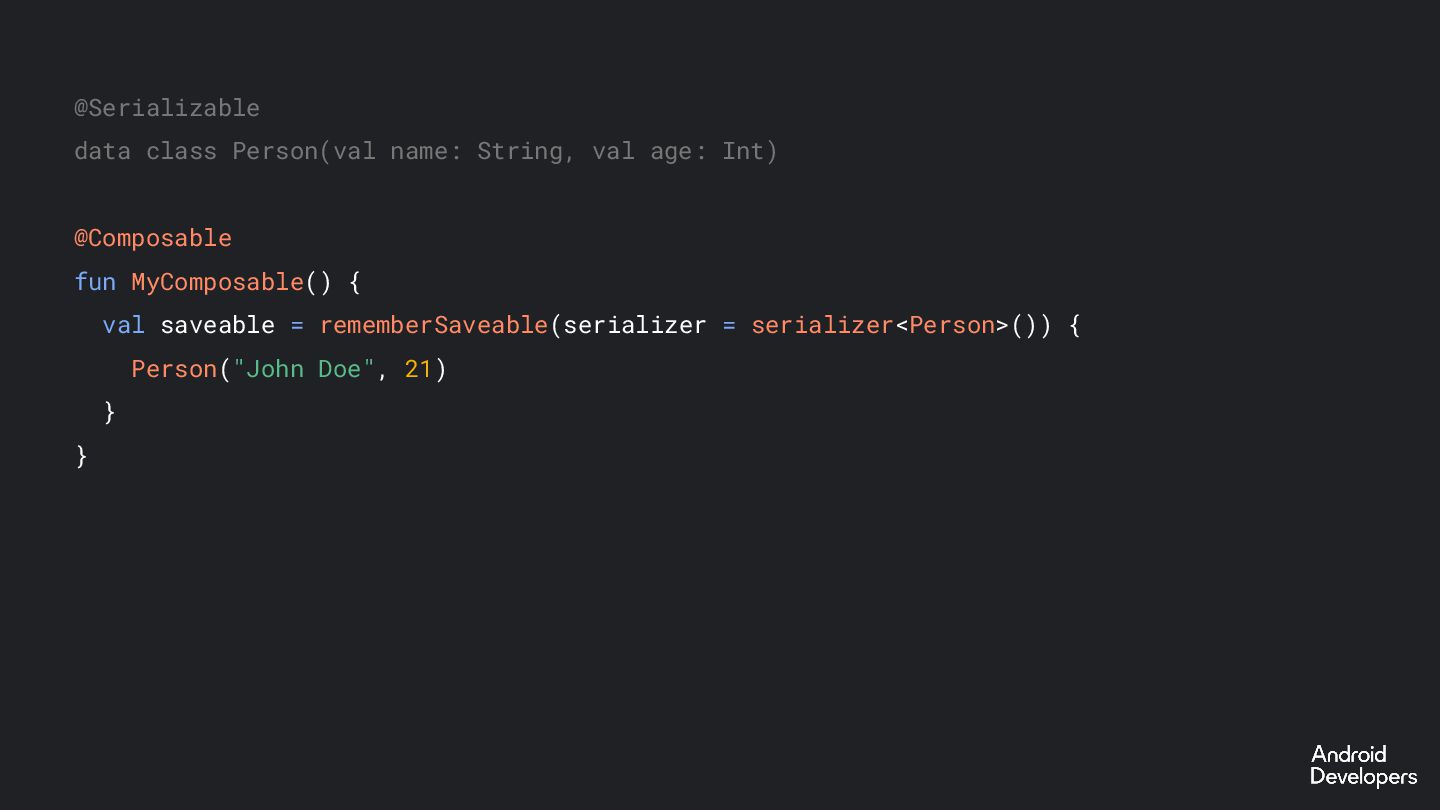

76. @Serializable data class Person(val name: String, val age: Int) @Composable fun MyComposable() { val saveable = rememberSaveable(serializer = serializer<Person>()) { Person("John Doe", 21) } }

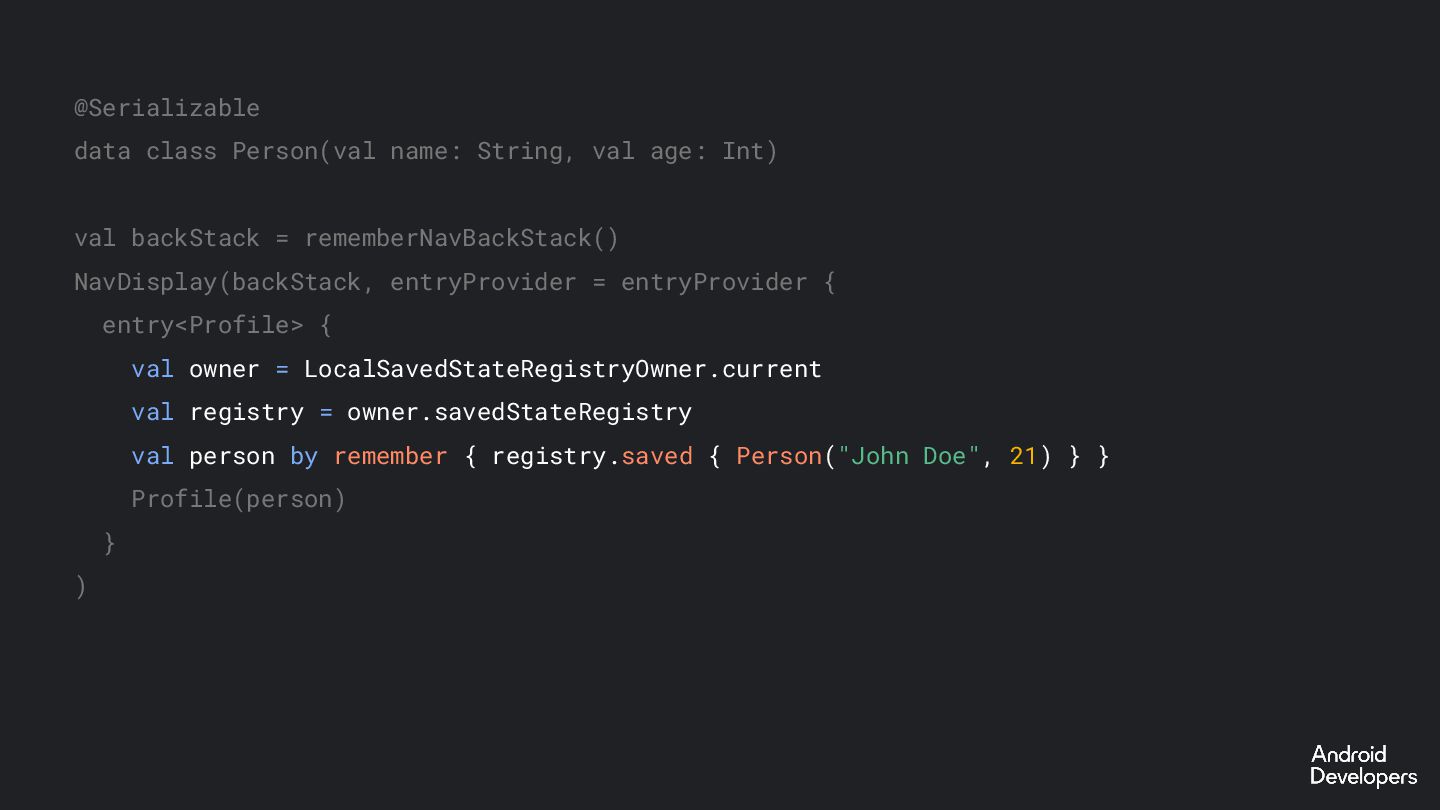

77. @Serializable data class Person(val name: String, val age: Int) @Composable fun MyComposable() { val saveable = rememberSaveable(serializer = serializer<Person>()) { Person("John Doe", 21) } }
78. @Serializable data class Person(val name: String, val age: Int) val backStack = rememberNavBackStack() NavDisplay(backStack, entryProvider = entryProvider { entry<Profile> { val owner = LocalSavedStateRegistryOwner.current val registry = owner.savedStateRegistry val person by remember { registry.saved { Person("John Doe", 21) } } Profile(person) } )

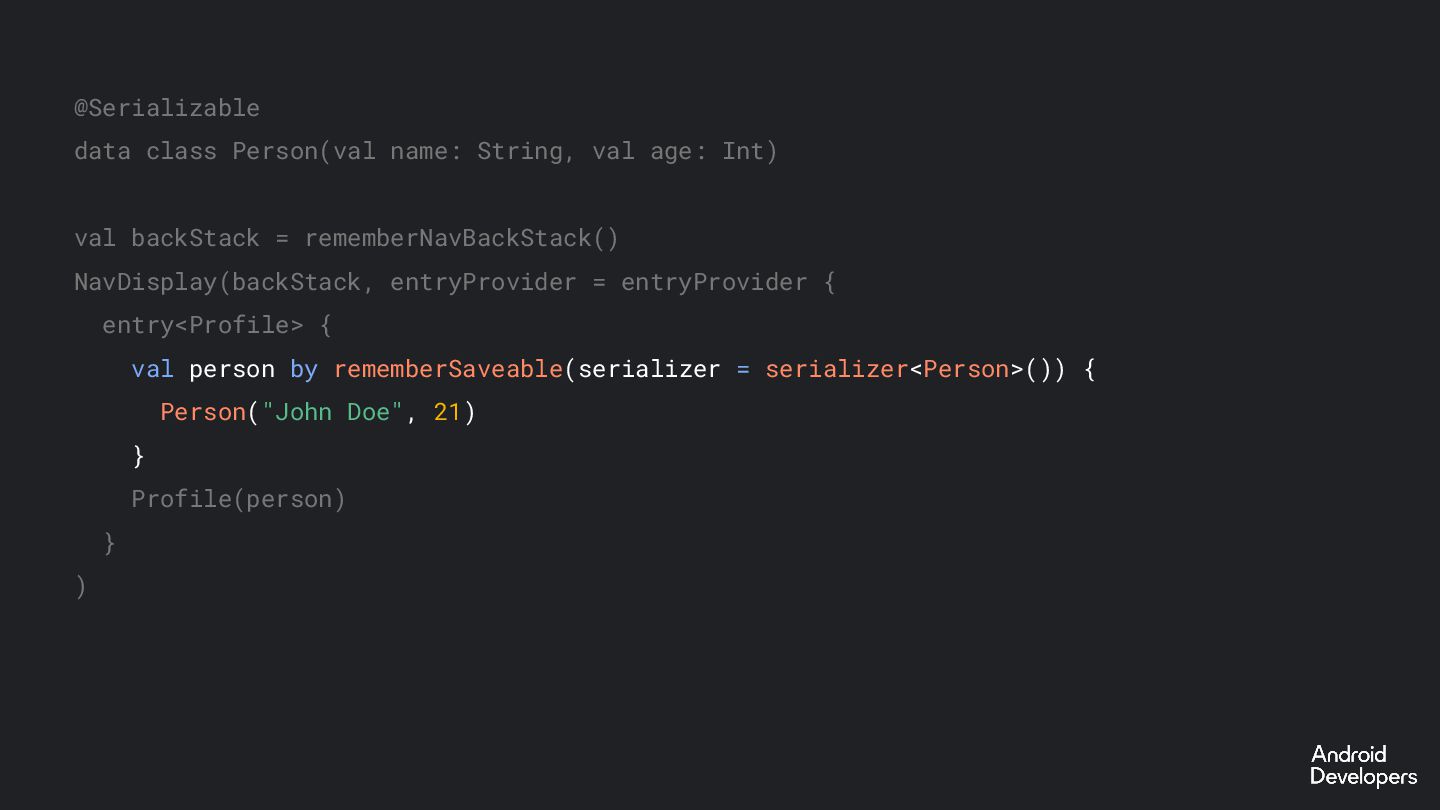

79. @Serializable data class Person(val name: String, val age: Int) val backStack = rememberNavBackStack() NavDisplay(backStack, entryProvider = entryProvider { entry<Profile> { val person by rememberSaveable(serializer = serializer<Person>()) { Person("John Doe", 21) } Profile(person) } )
80. Proprietary + Confidential 03 Creating a new library for KMP

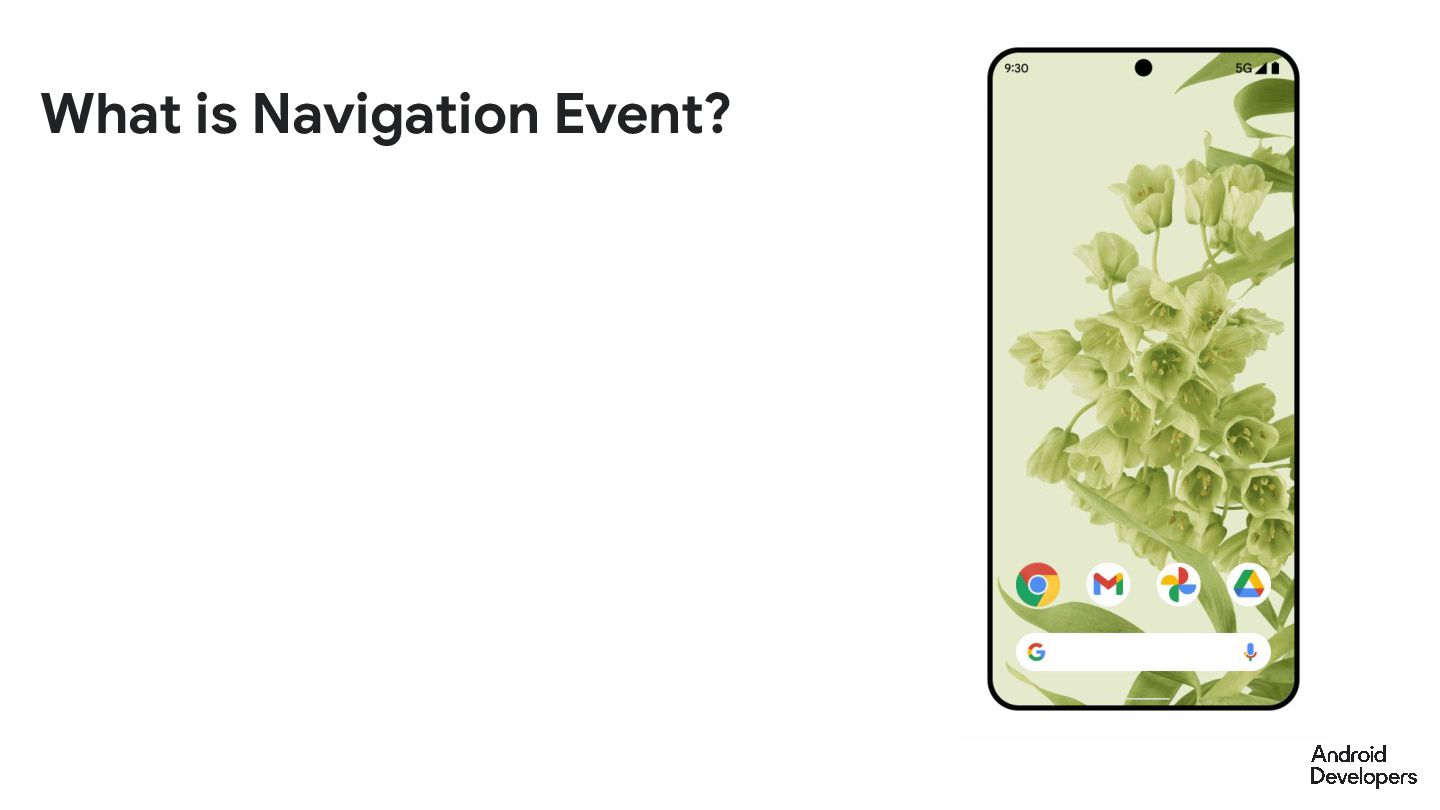

81. What is Navigation Event?
82. • System Back ◦ Predictive Back What is Navigation Event?

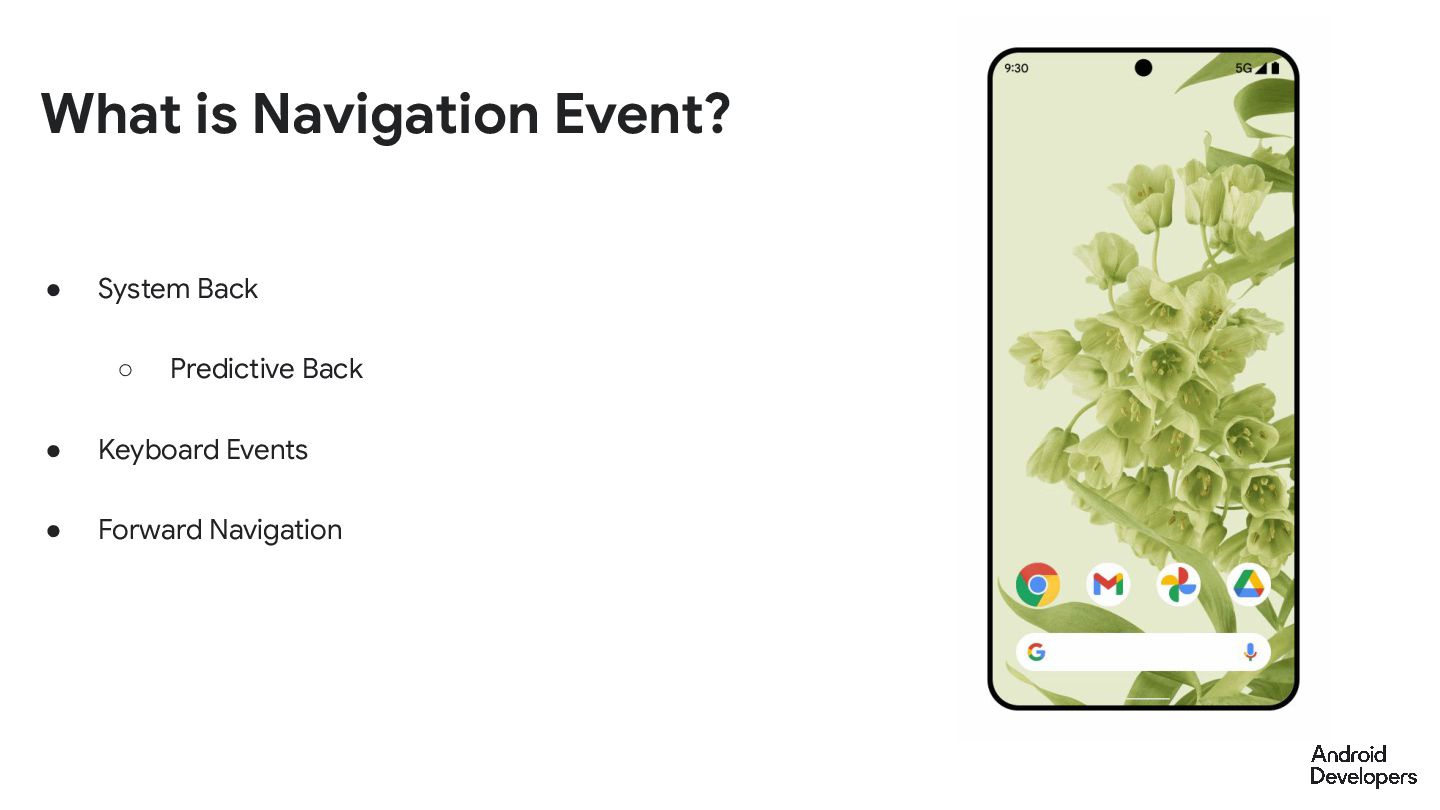

83. • System Back ◦ Predictive Back • Keyboard Events What is Navigation Event? • System Back ◦ Predictive Back
84. • System Back ◦ Predictive Back • Keyboard Events • Forward Navigation What is Navigation Event? • System Back ◦ Predictive Back • Keyboard Events

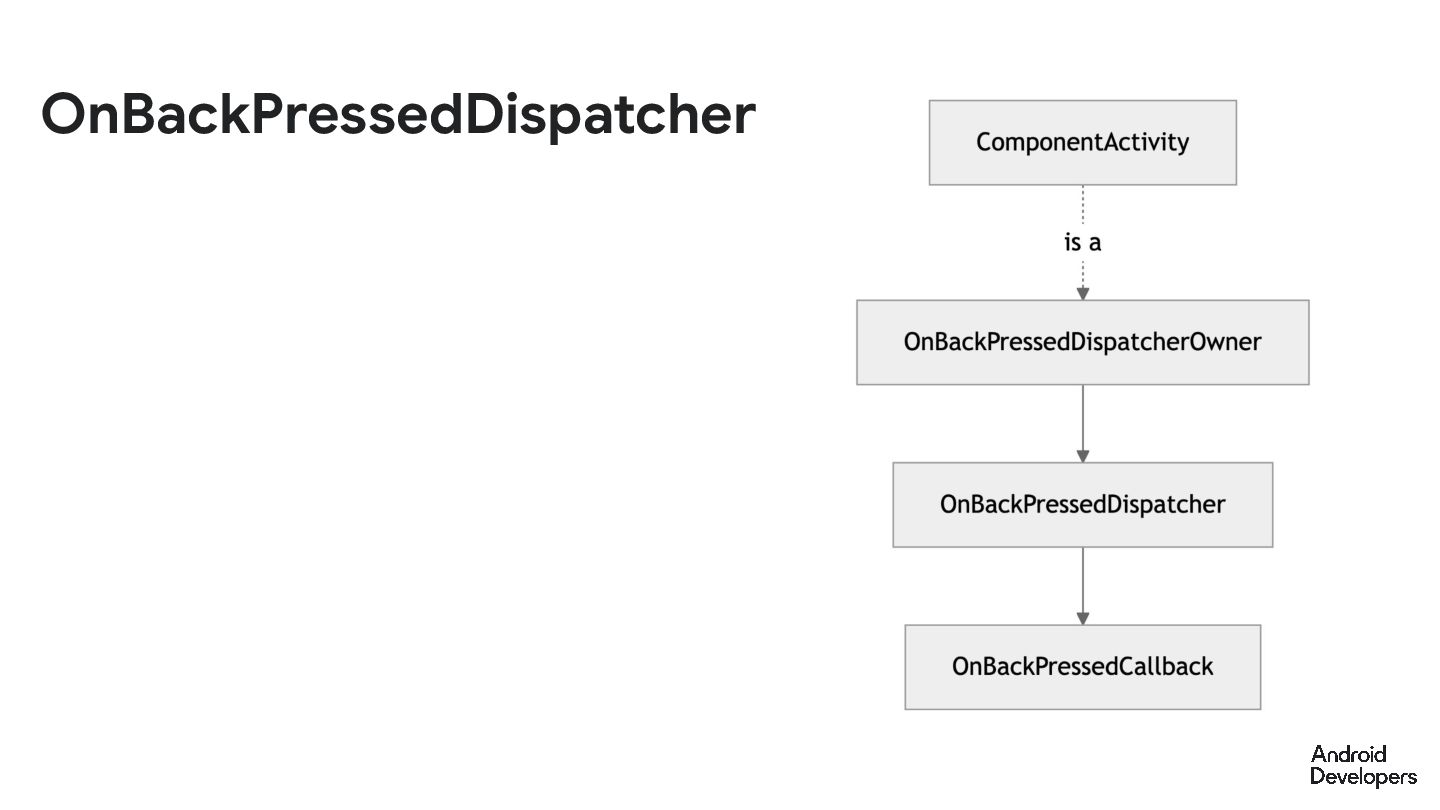

85. OnBackPressedDispatcher

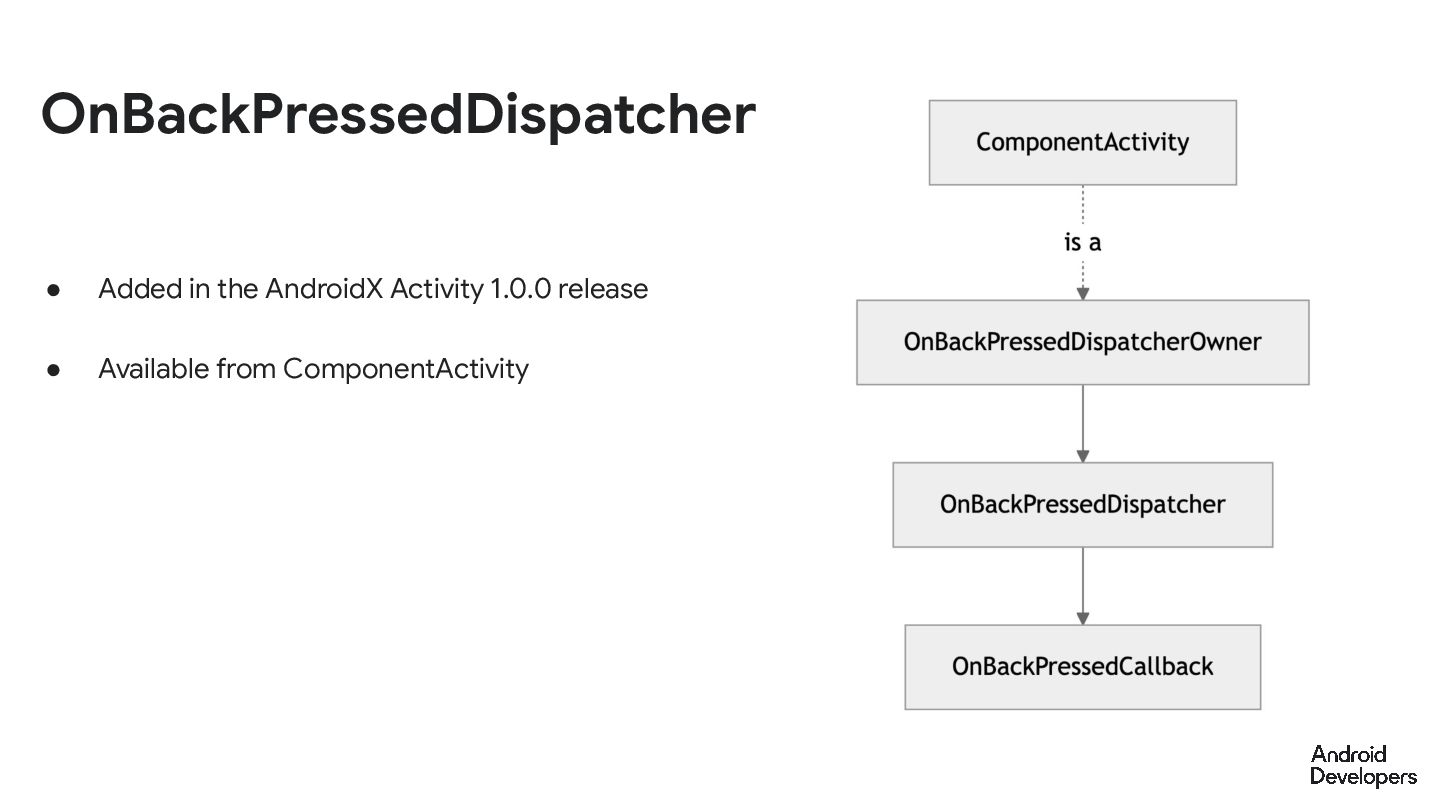

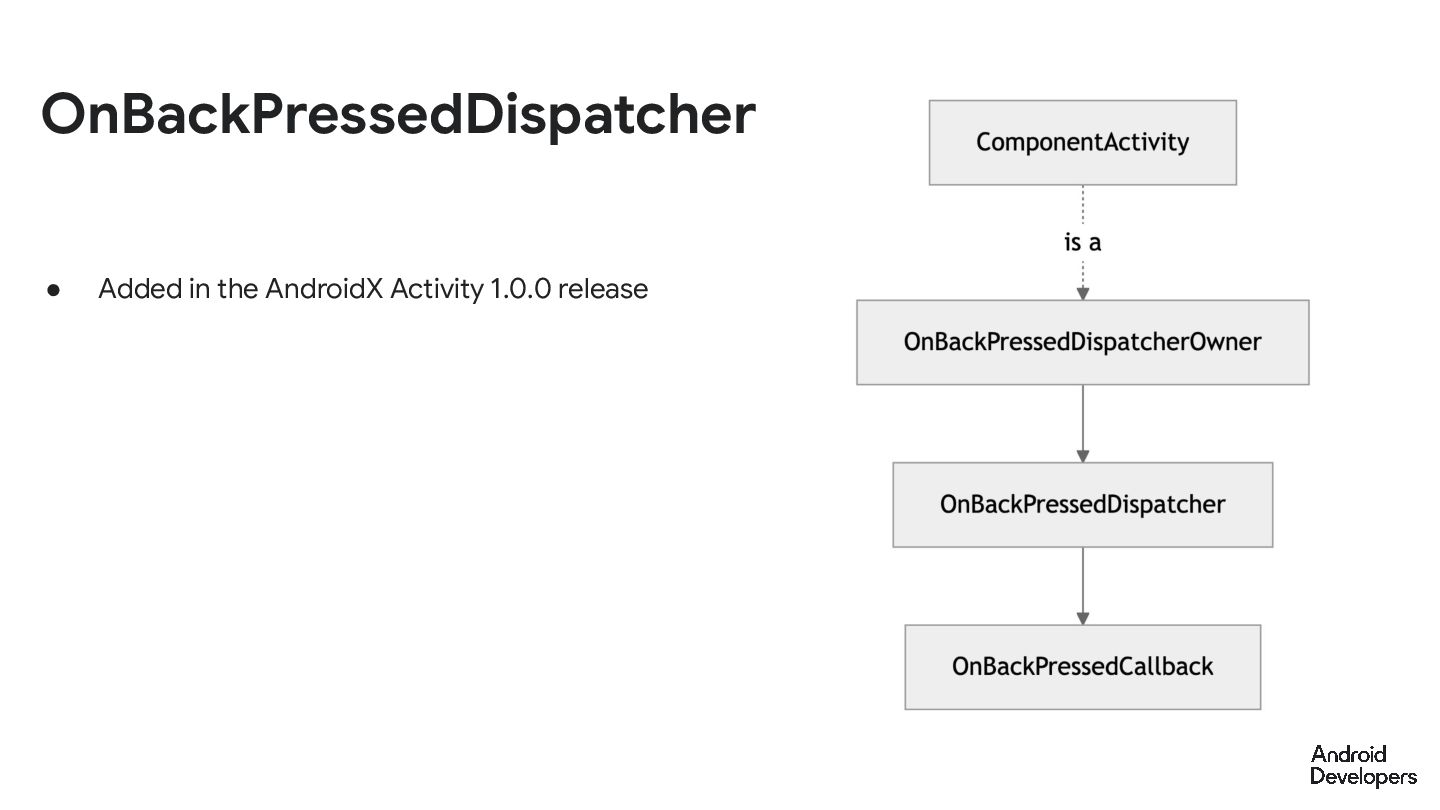

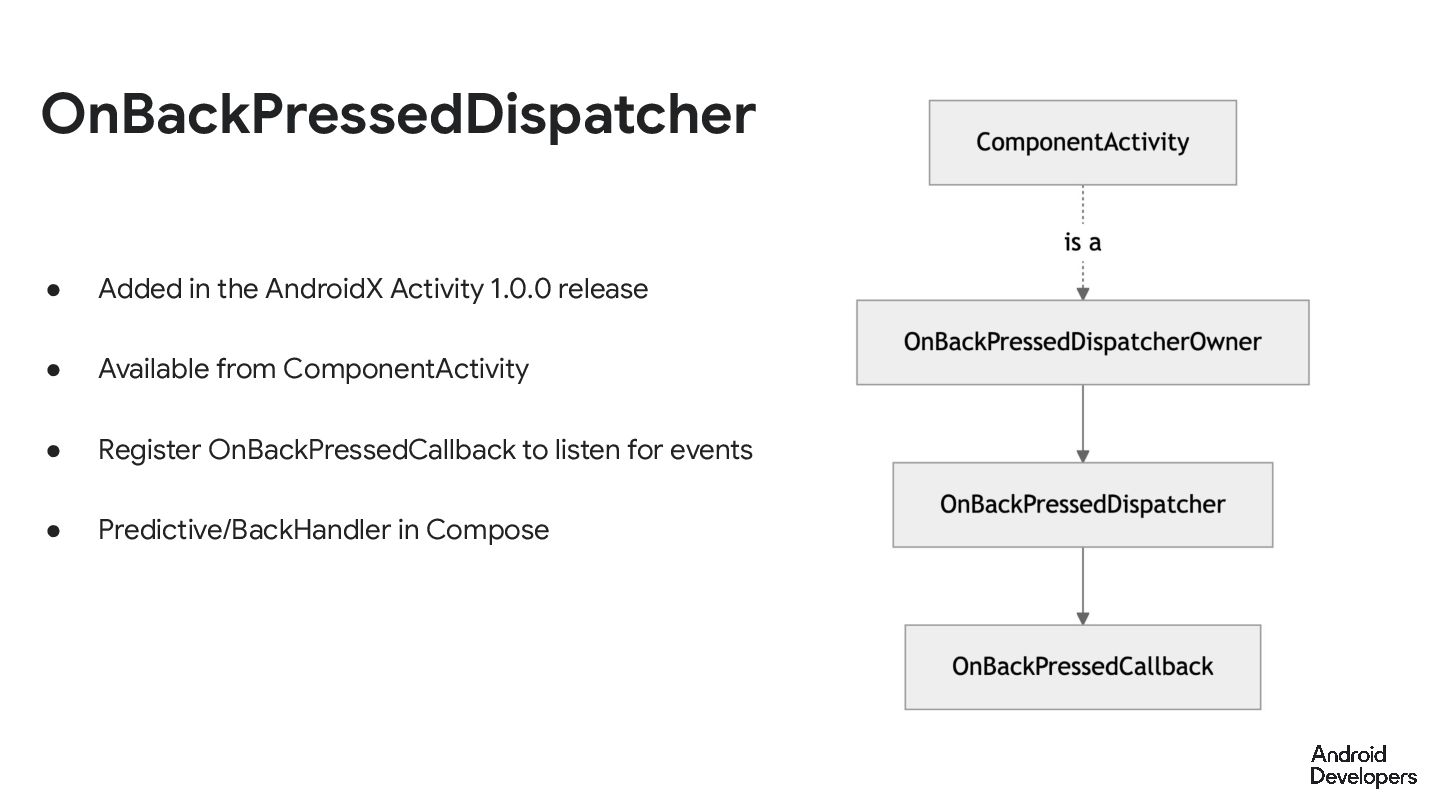

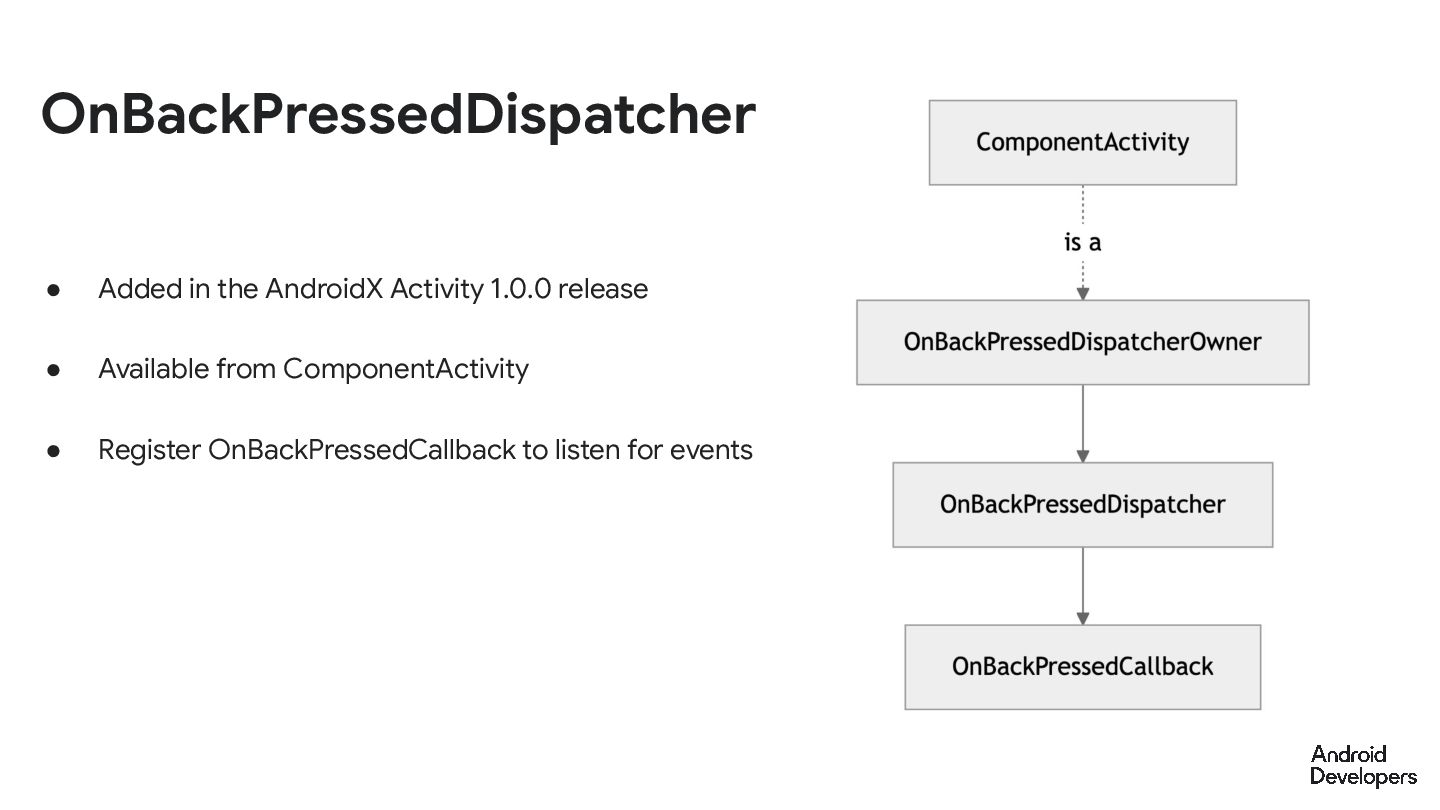

86. OnBackPressedDispatcher • Added in the AndroidX Activity 1.0.0 release
87. OnBackPressedDispatcher • Added in the AndroidX Activity 1.0.0 release • Available from ComponentActivity • Added in the AndroidX Activity 1.0.0 release
88. OnBackPressedDispatcher • Added in the AndroidX Activity 1.0.0 release • Available from ComponentActivity • Register OnBackPressedCallback to listen for events • Added in the AndroidX Activity 1.0.0 release • Available from ComponentActivity

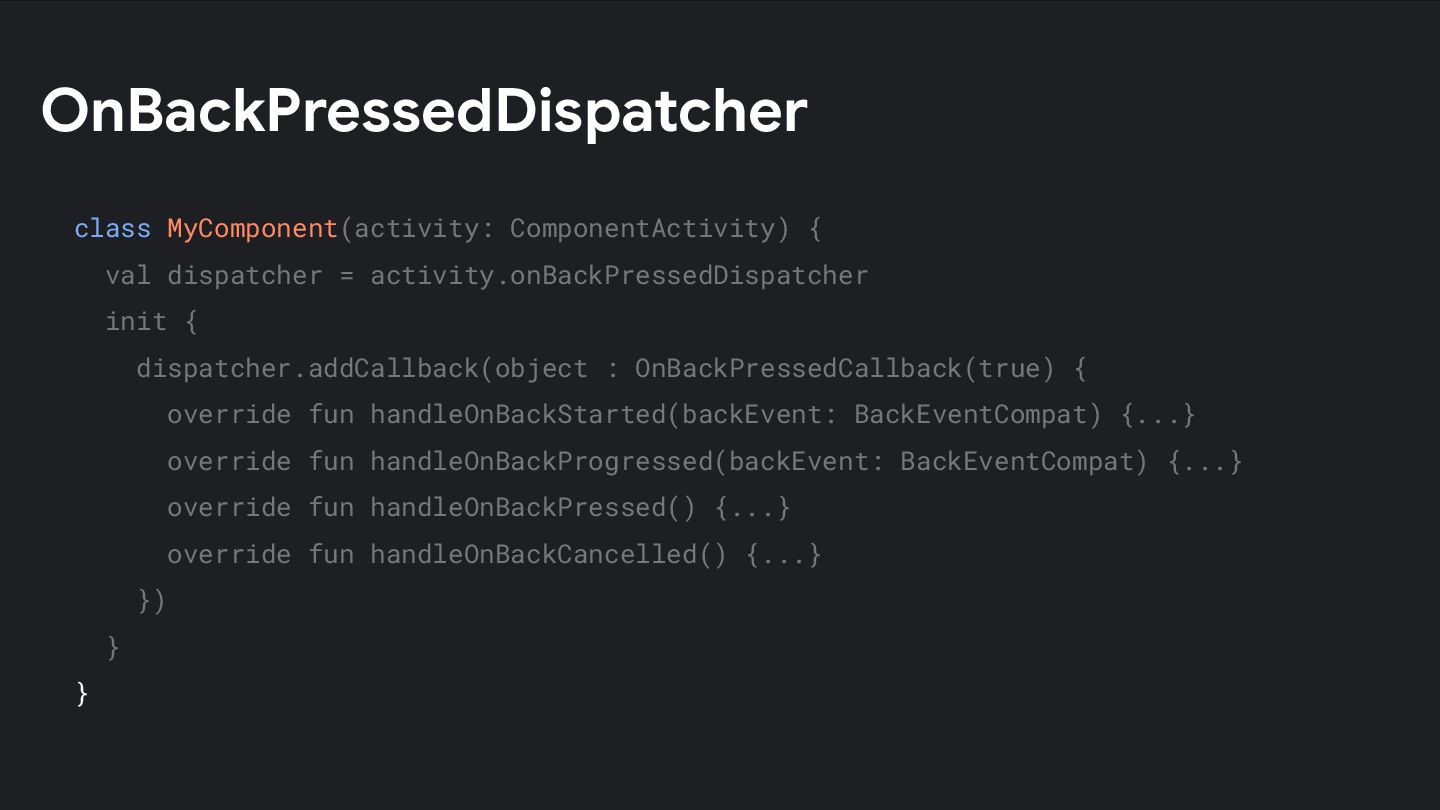

89. OnBackPressedDispatcher • Added in the AndroidX Activity 1.0.0 release • Available from ComponentActivity • Register OnBackPressedCallback to listen for events • Predictive/BackHandler in Compose • Added in the AndroidX Activity 1.0.0 release • Available from ComponentActivity • Register OnBackPressedCallback to listen for events

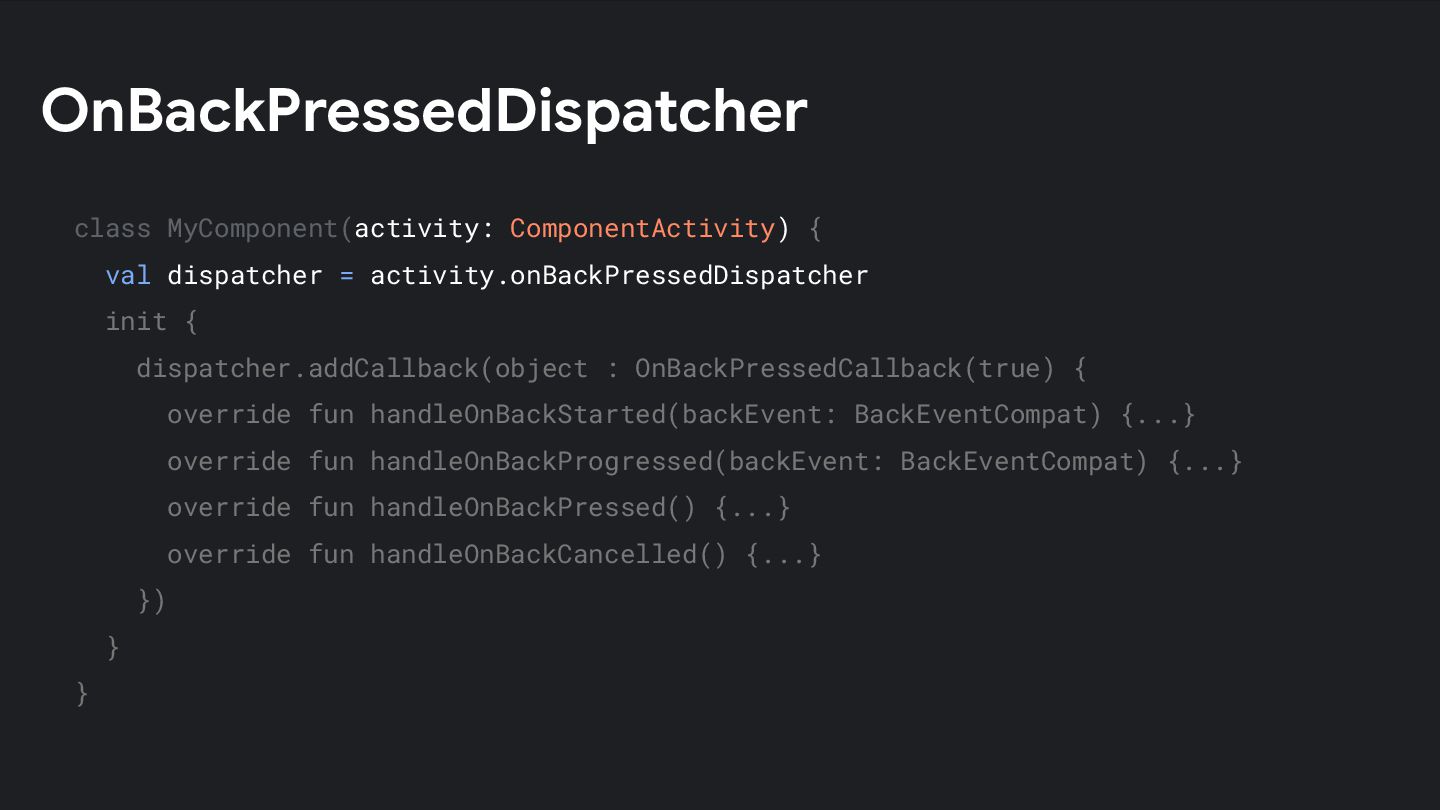

90. class MyComponent(activity: ComponentActivity) { val dispatcher = activity.onBackPressedDispatcher init { dispatcher.addCallback(object : OnBackPressedCallback(true) { override fun handleOnBackStarted(backEvent: BackEventCompat) {...} override fun handleOnBackProgressed(backEvent: BackEventCompat) {...} override fun handleOnBackPressed() {...} override fun handleOnBackCancelled() {...} }) } } OnBackPressedDispatcher

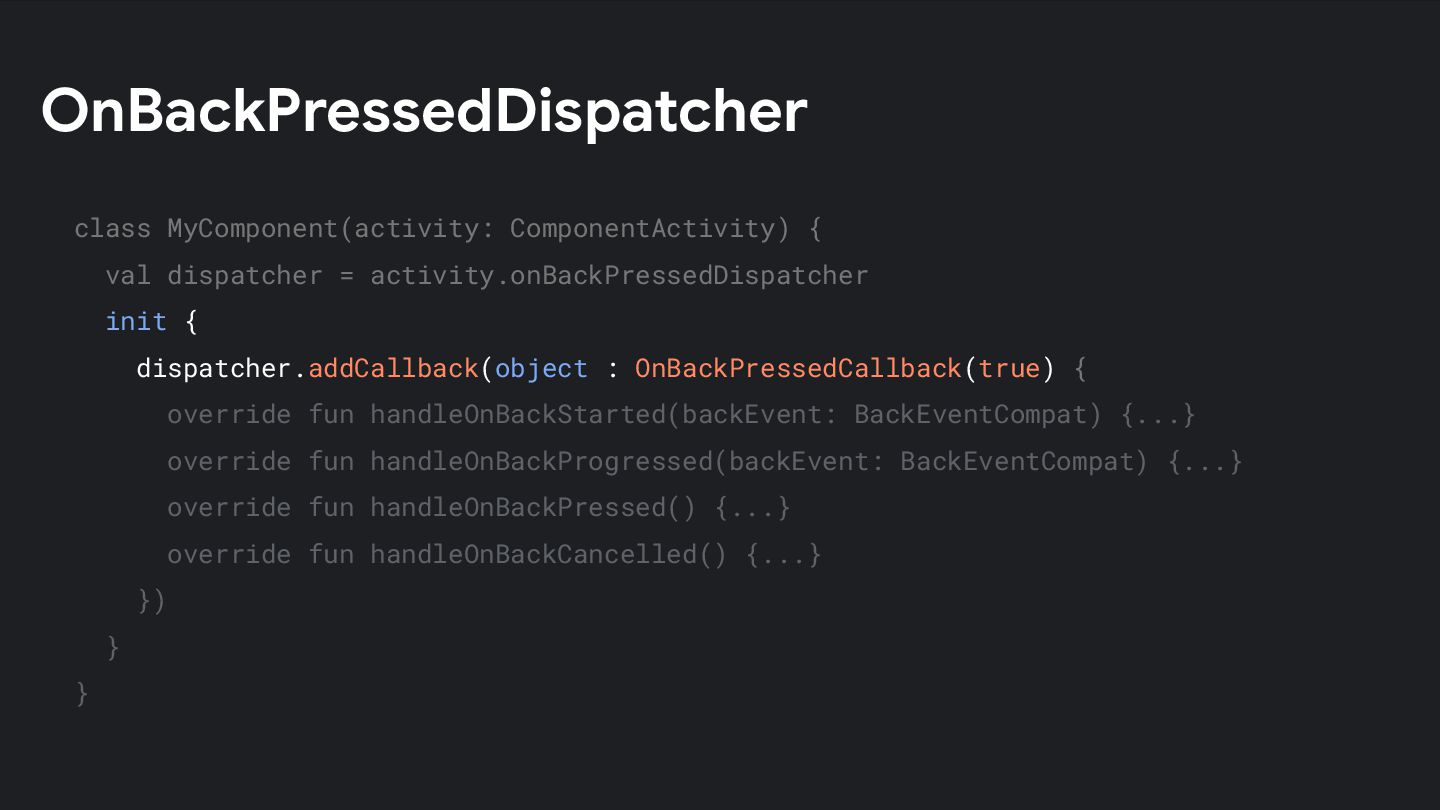

91. class MyComponent(activity: ComponentActivity) { val dispatcher = activity.onBackPressedDispatcher init { dispatcher.addCallback(object : OnBackPressedCallback(true) { override fun handleOnBackStarted(backEvent: BackEventCompat) {...} override fun handleOnBackProgressed(backEvent: BackEventCompat) {...} override fun handleOnBackPressed() {...} override fun handleOnBackCancelled() {...} }) } } OnBackPressedDispatcher
92. class MyComponent(activity: ComponentActivity) { val dispatcher = activity.onBackPressedDispatcher init { dispatcher.addCallback(object : OnBackPressedCallback(true) { override fun handleOnBackStarted(backEvent: BackEventCompat) {...} override fun handleOnBackProgressed(backEvent: BackEventCompat) {...} override fun handleOnBackPressed() {...} override fun handleOnBackCancelled() {...} }) } } OnBackPressedDispatcher

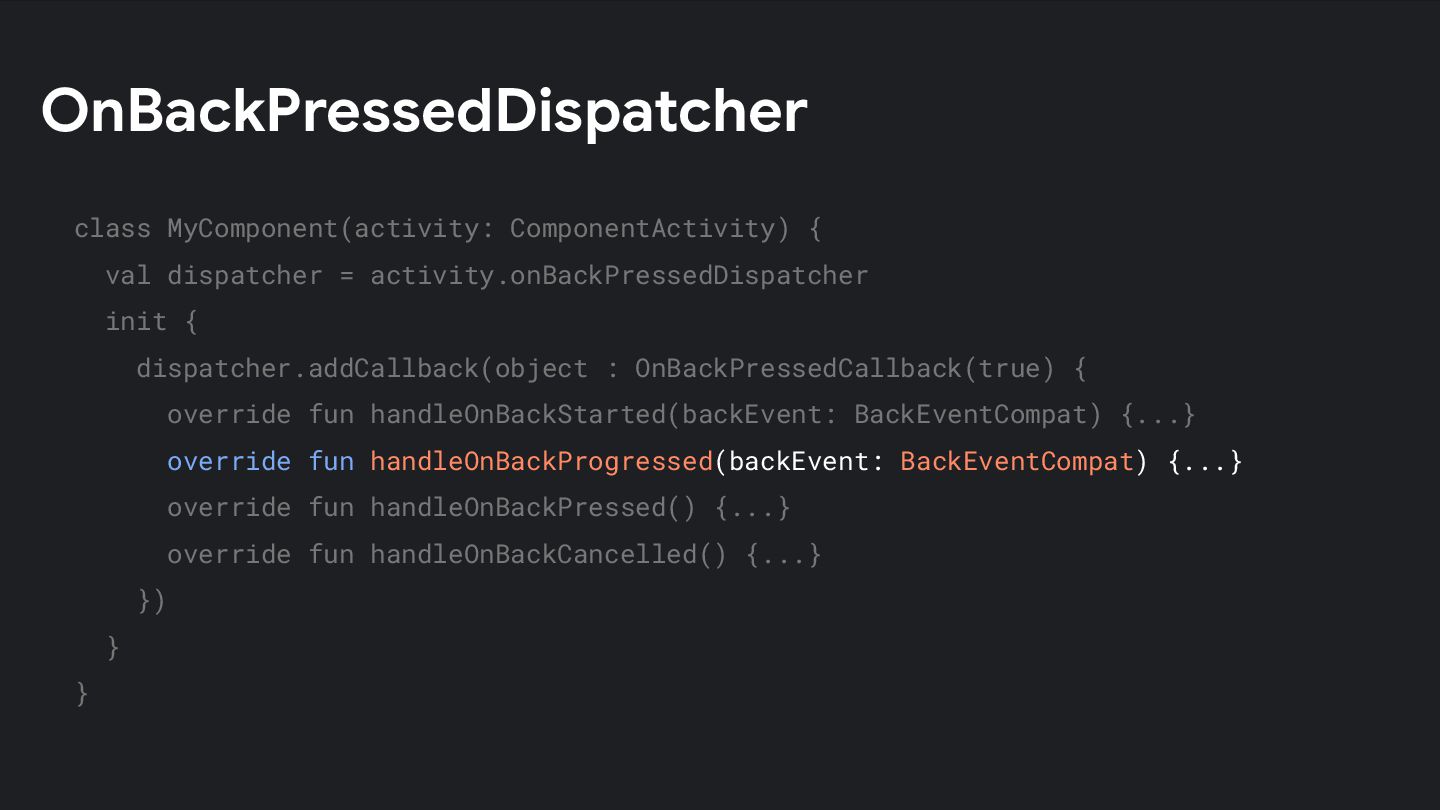

93. class MyComponent(activity: ComponentActivity) { val dispatcher = activity.onBackPressedDispatcher init { dispatcher.addCallback(object : OnBackPressedCallback(true) { override fun handleOnBackStarted(backEvent: BackEventCompat) {...} override fun handleOnBackProgressed(backEvent: BackEventCompat) {...} override fun handleOnBackPressed() {...} override fun handleOnBackCancelled() {...} }) } } OnBackPressedDispatcher

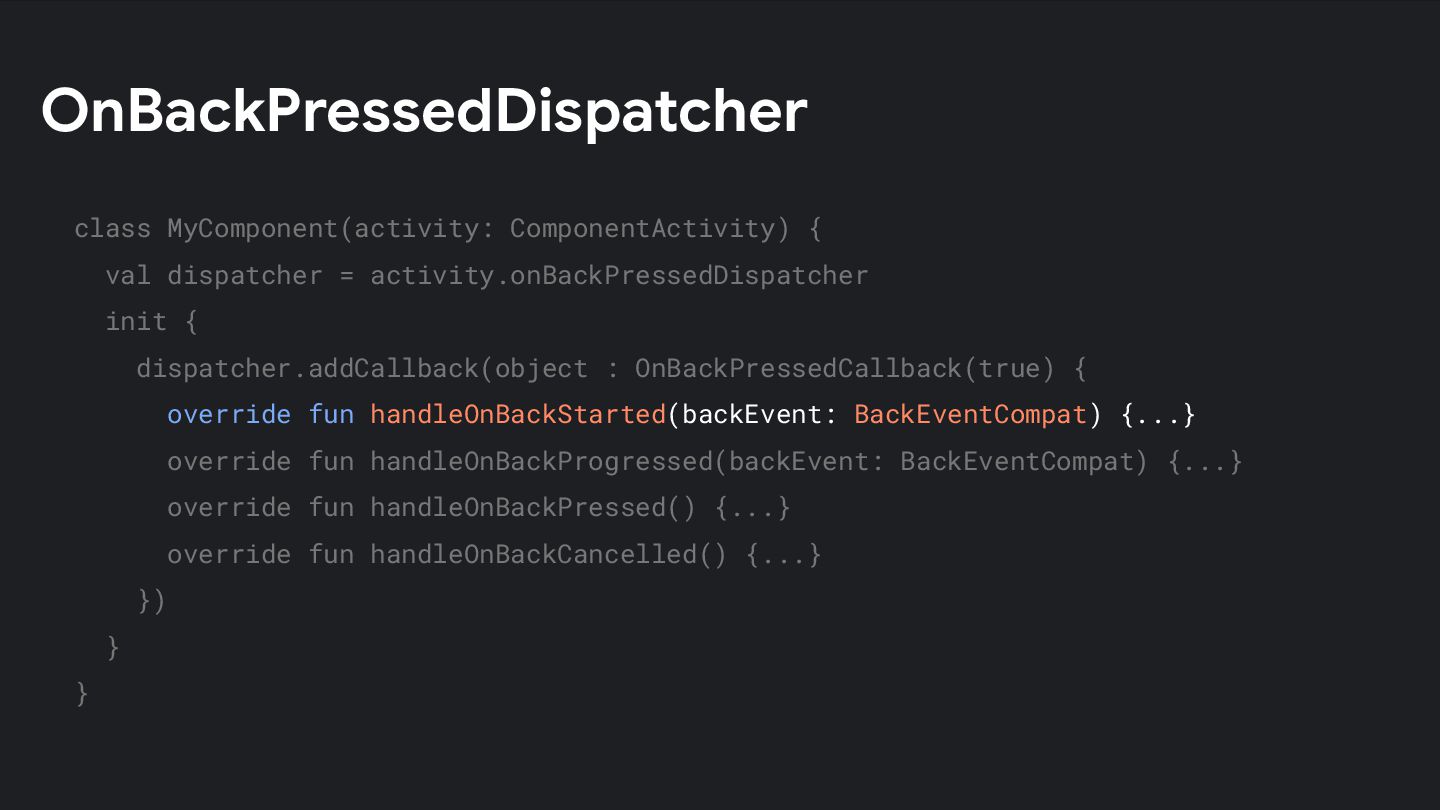

94. class MyComponent(activity: ComponentActivity) { val dispatcher = activity.onBackPressedDispatcher init { dispatcher.addCallback(object : OnBackPressedCallback(true) { override fun handleOnBackStarted(backEvent: BackEventCompat) {...} override fun handleOnBackProgressed(backEvent: BackEventCompat) {...} override fun handleOnBackPressed() {...} override fun handleOnBackCancelled() {...} }) } } OnBackPressedDispatcher
95. class MyComponent(activity: ComponentActivity) { val dispatcher = activity.onBackPressedDispatcher init { dispatcher.addCallback(object : OnBackPressedCallback(true) { override fun handleOnBackStarted(backEvent: BackEventCompat) {...} override fun handleOnBackProgressed(backEvent: BackEventCompat) {...} override fun handleOnBackPressed() {...} override fun handleOnBackCancelled() {...} }) } } OnBackPressedDispatcher

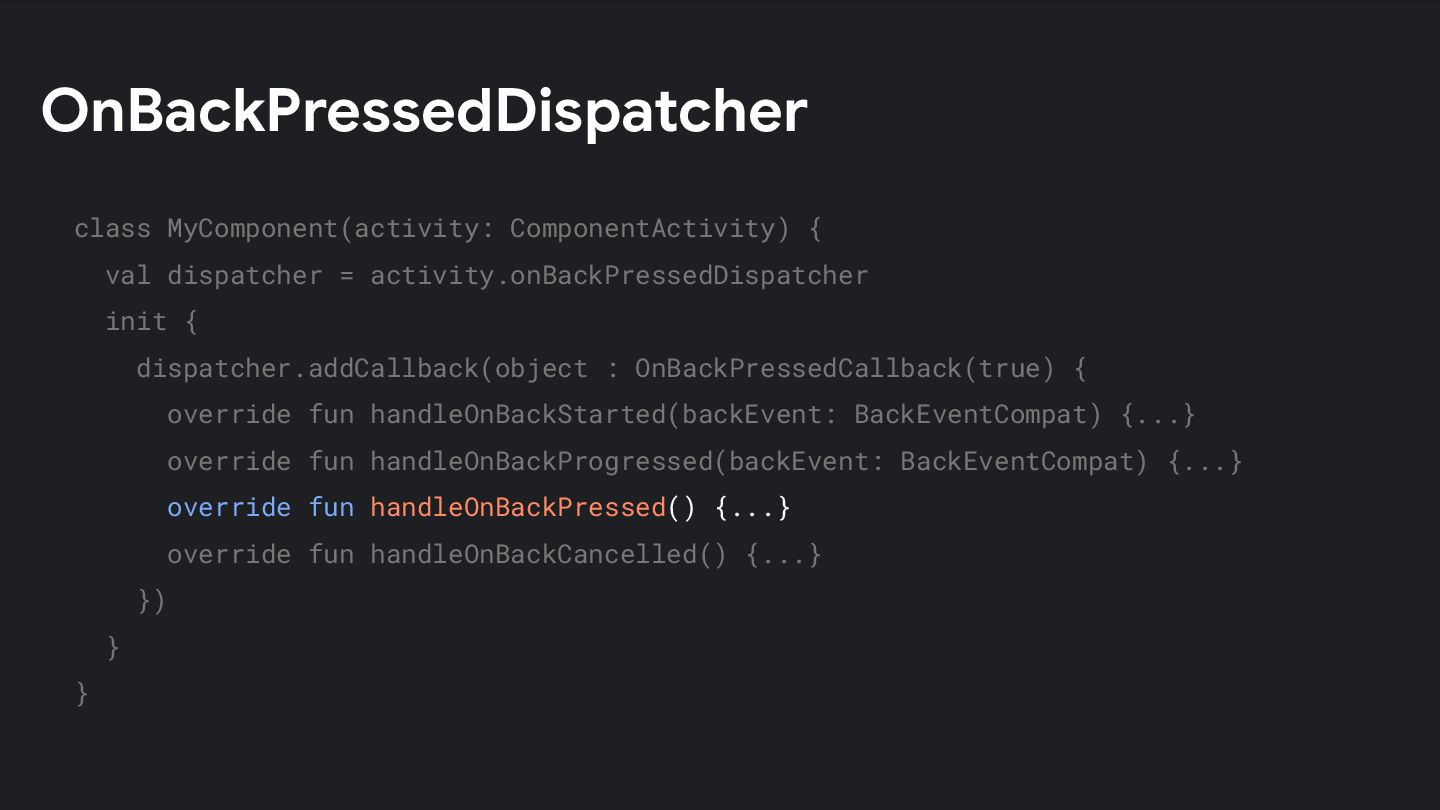

96. class MyComponent(activity: ComponentActivity) { val dispatcher = activity.onBackPressedDispatcher init { dispatcher.addCallback(object : OnBackPressedCallback(true) { override fun handleOnBackStarted(backEvent: BackEventCompat) {...} override fun handleOnBackProgressed(backEvent: BackEventCompat) {...} override fun handleOnBackPressed() {...} override fun handleOnBackCancelled() {...} }) } } OnBackPressedDispatcher

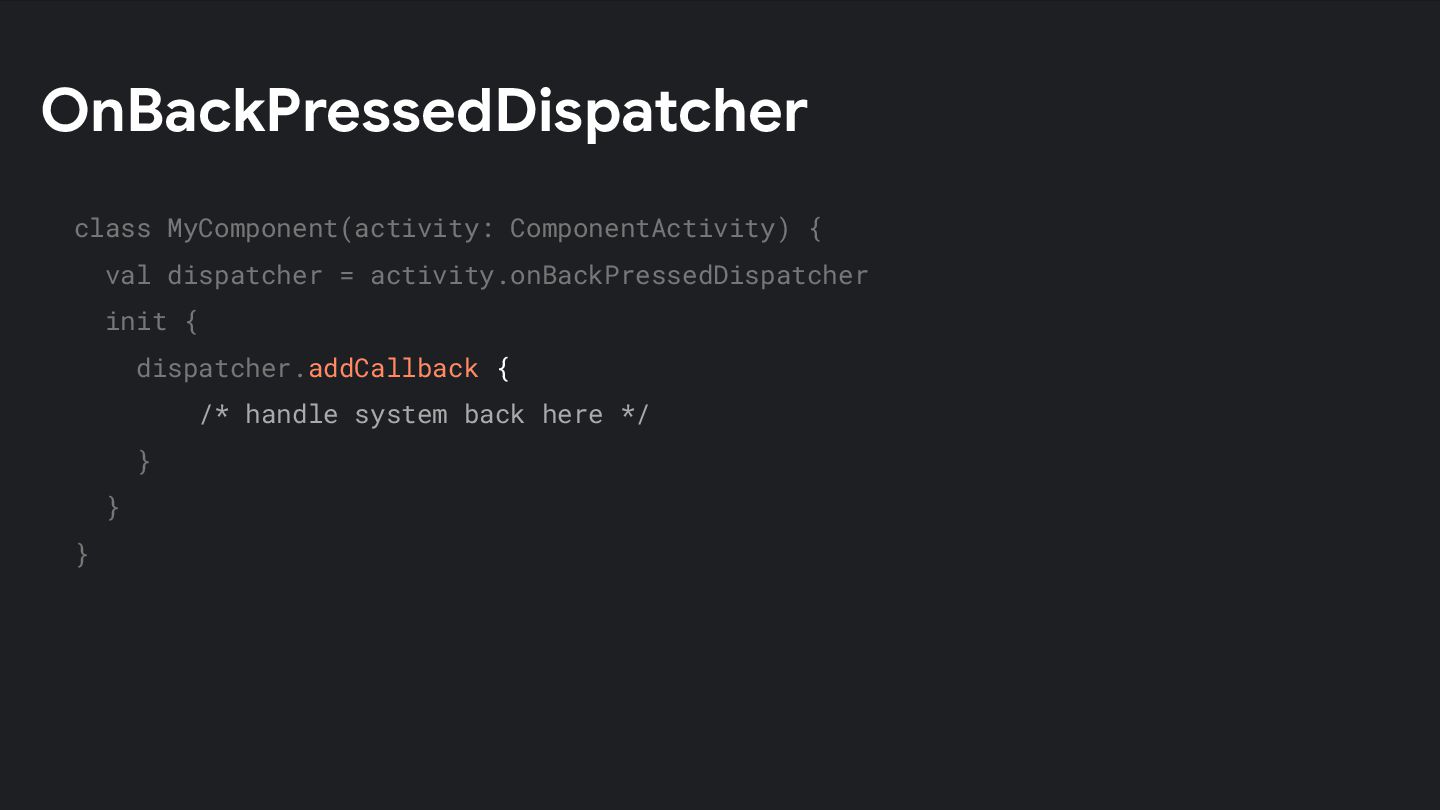

97. class MyComponent(activity: ComponentActivity) { val dispatcher = activity.onBackPressedDispatcher init { dispatcher.addCallback { /* handle system back here */ } } } OnBackPressedDispatcher
98. class MyComponent(activity: ComponentActivity) { val dispatcher = activity.onBackPressedDispatcher init { dispatcher.addCallback { /* handle system back here */ } } } OnBackPressedDispatcher

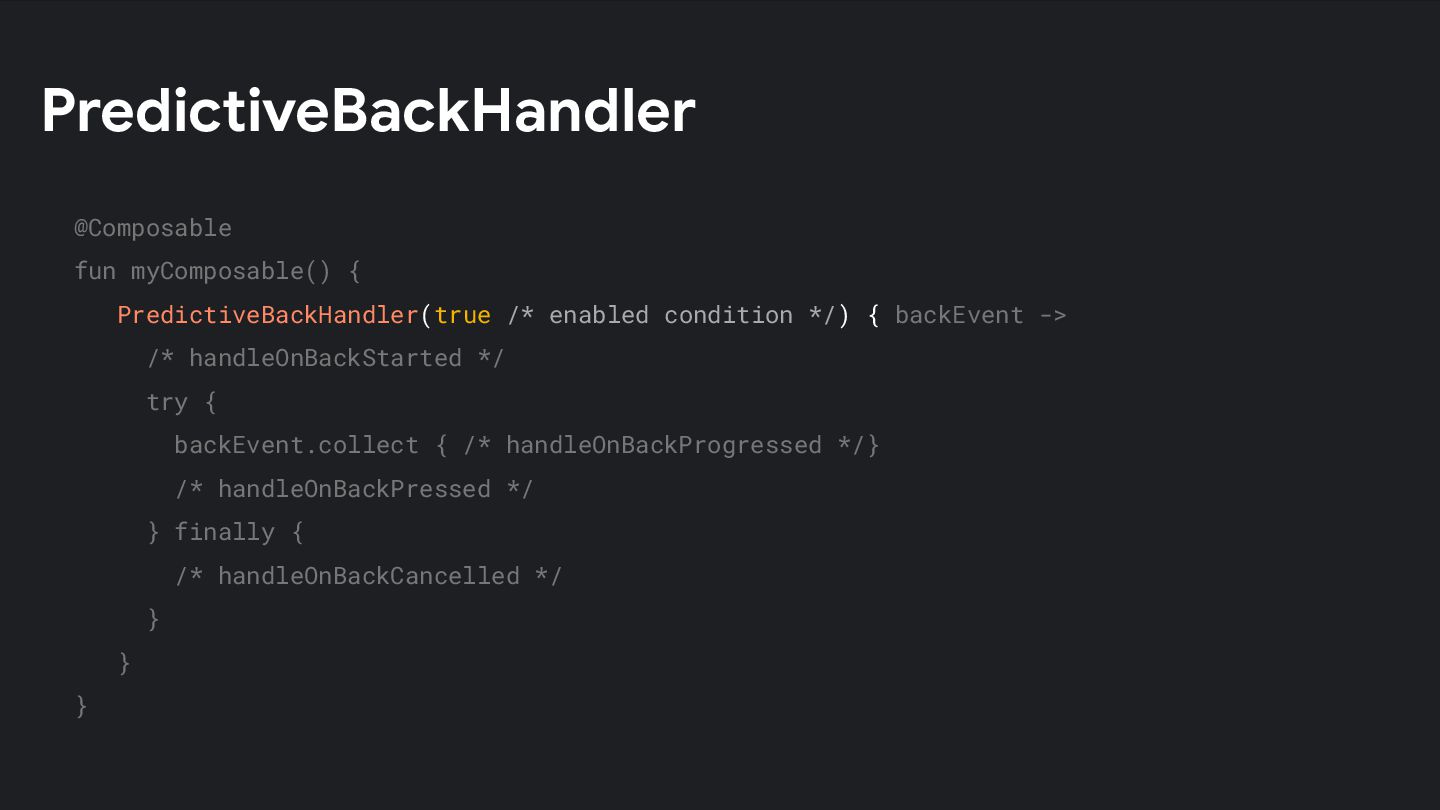

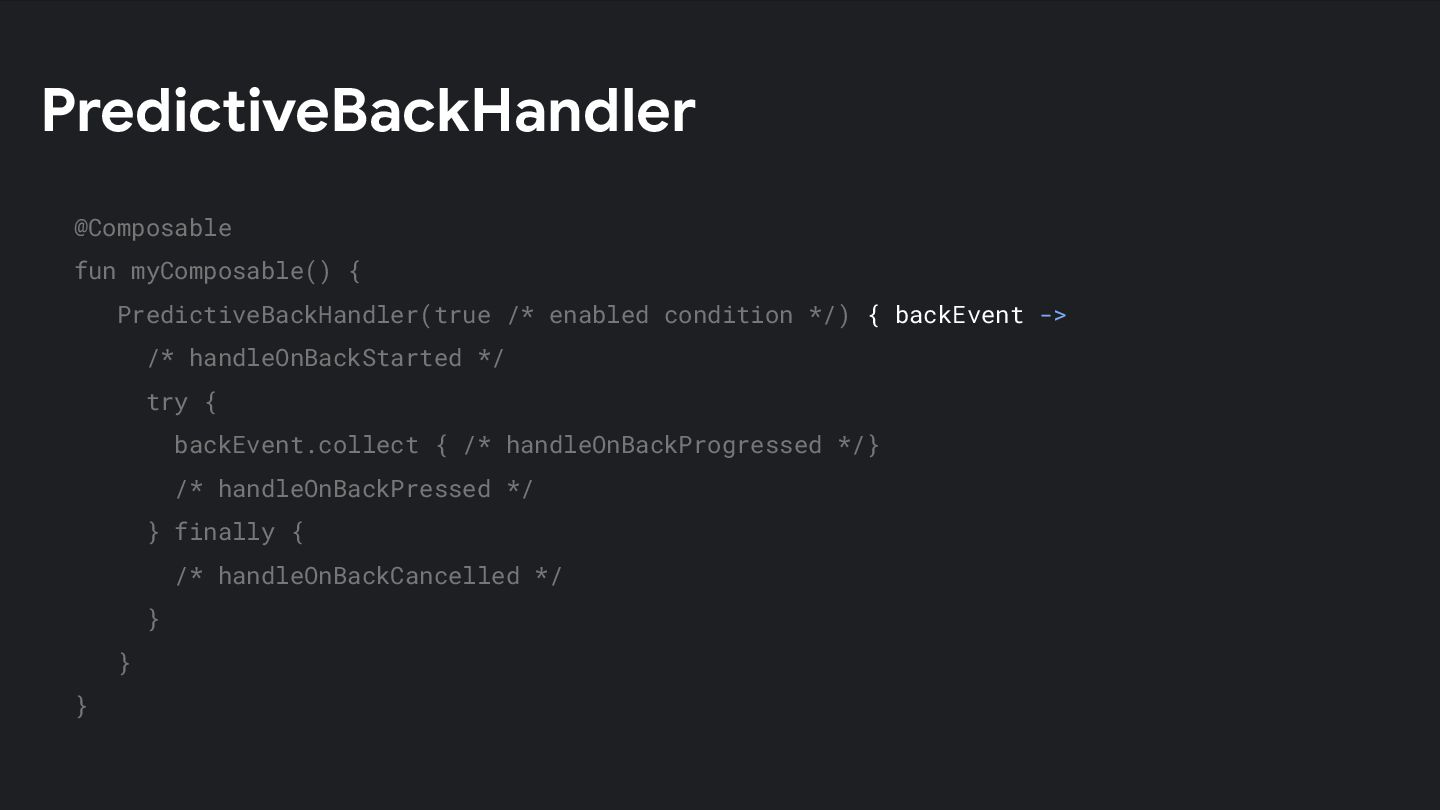

99. @Composable fun myComposable() { PredictiveBackHandler(true /* enabled condition */) { backEvent -> /* handleOnBackStarted */ try { backEvent.collect { /* handleOnBackProgressed */} /* handleOnBackPressed */ } finally { /* handleOnBackCancelled */ } } } PredictiveBackHandler
100. @Composable fun myComposable() { PredictiveBackHandler(true /* enabled condition */) { backEvent -> /* handleOnBackStarted */ try { backEvent.collect { /* handleOnBackProgressed */} /* handleOnBackPressed */ } finally { /* handleOnBackCancelled */ } } } PredictiveBackHandler
101. @Composable fun myComposable() { PredictiveBackHandler(true /* enabled condition */) { backEvent -> /* handleOnBackStarted */ try { backEvent.collect { /* handleOnBackProgressed */} /* handleOnBackPressed */ } finally { /* handleOnBackCancelled */ } } } PredictiveBackHandler
102. @Composable fun myComposable() { PredictiveBackHandler(true /* enabled condition */) { backEvent -> /* handleOnBackStarted */ try { backEvent.collect { /* handleOnBackProgressed */} /* handleOnBackPressed */ } finally { /* handleOnBackCancelled */ } } } PredictiveBackHandler

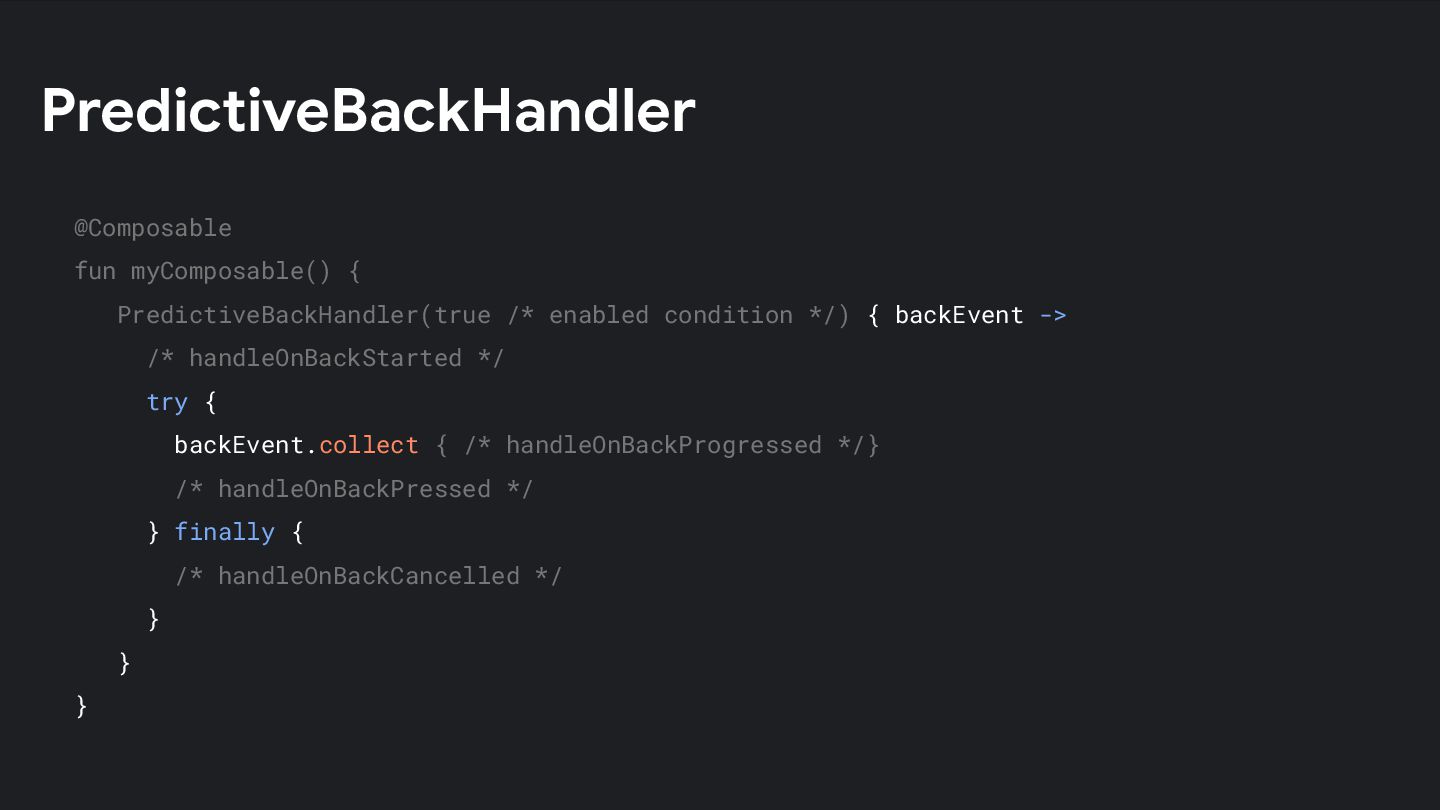

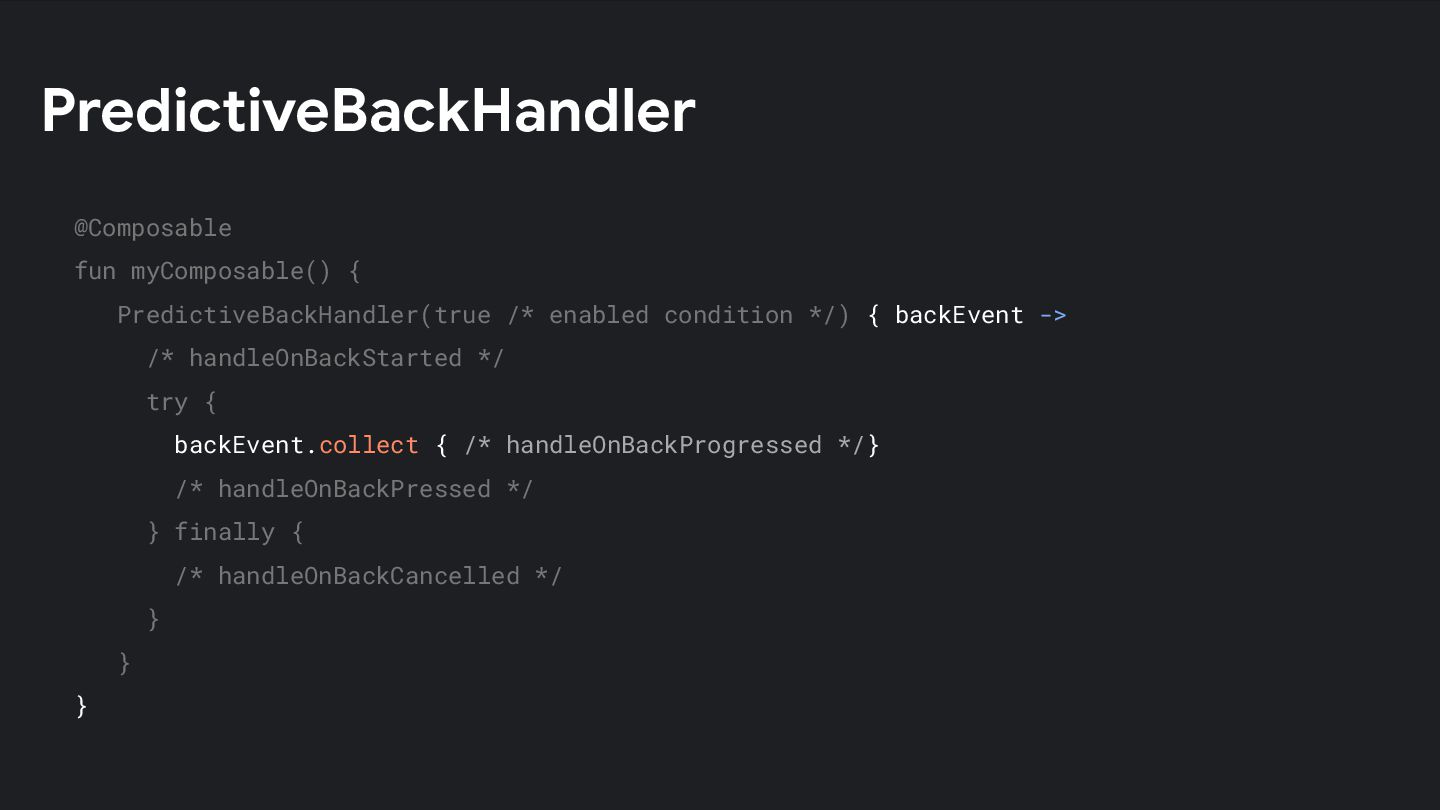

103. @Composable fun myComposable() { PredictiveBackHandler(true /* enabled condition */) { backEvent -> /* handleOnBackStarted */ try { backEvent.collect { /* handleOnBackProgressed */} /* handleOnBackPressed */ } finally { /* handleOnBackCancelled */ } } } PredictiveBackHandler
104. @Composable fun myComposable() { PredictiveBackHandler(true /* enabled condition */) { backEvent -> /* handleOnBackStarted */ try { backEvent.collect { /* handleOnBackProgressed */} /* handleOnBackPressed */ } finally { /* handleOnBackCancelled */ } } } PredictiveBackHandler
105. @Composable fun myComposable() { PredictiveBackHandler(true /* enabled condition */) { backEvent -> /* handleOnBackStarted */ try { backEvent.collect { /* handleOnBackProgressed */} /* handleOnBackPressed */ } finally { /* handleOnBackCancelled */ } } } PredictiveBackHandler

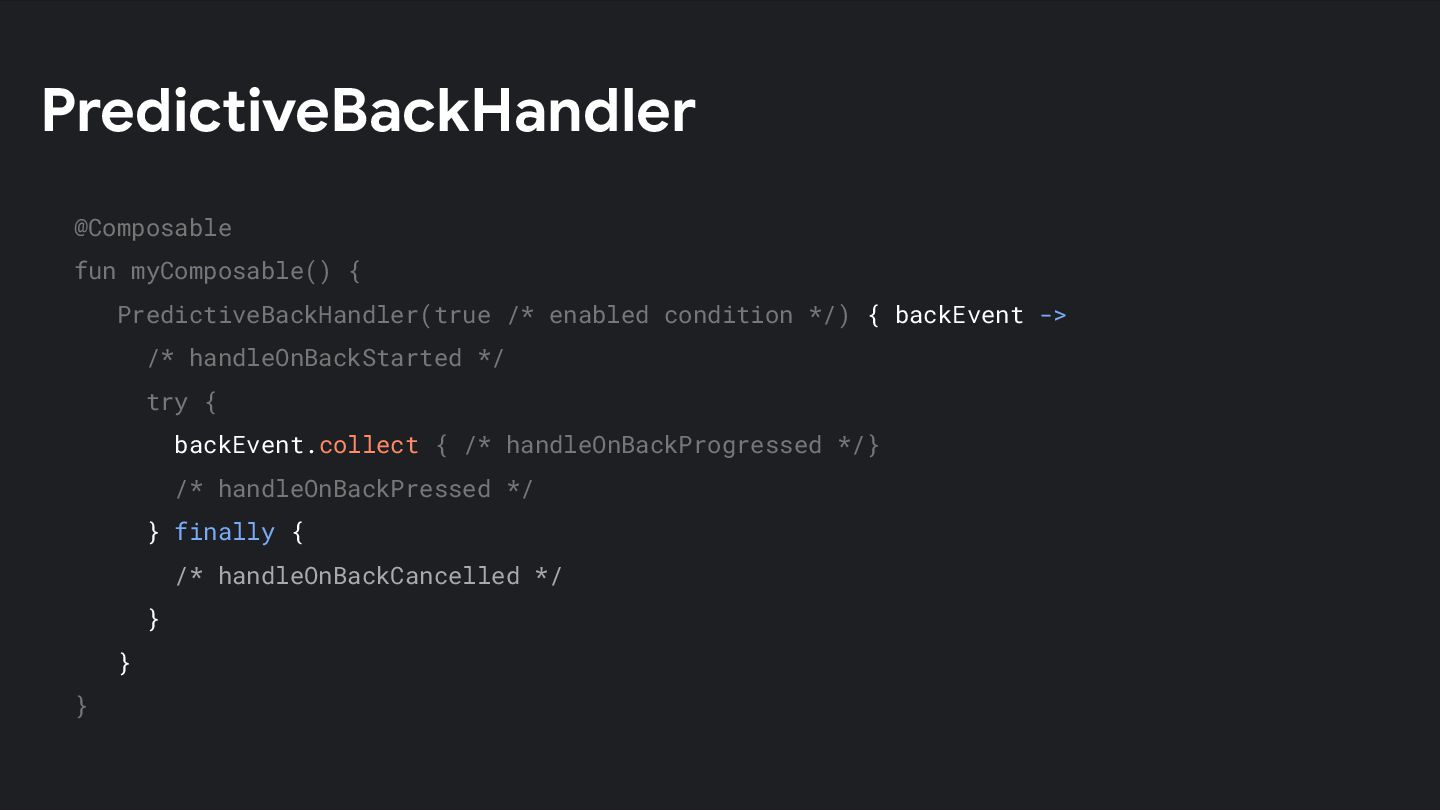

106. @Composable fun myComposable() { PredictiveBackHandler(true /* enabled condition */) { backEvent -> /* handleOnBackStarted */ try { backEvent.collect { /* handleOnBackProgressed */} /* handleOnBackPressed */ } finally { /* handleOnBackCancelled */ } } } PredictiveBackHandler
107. @Composable fun myComposable() { PredictiveBackHandler(true /* enabled condition */) { backEvent -> /* handleOnBackStarted */ try { backEvent.collect { /* handleOnBackProgressed */} /* handleOnBackPressed */ } finally { /* handleOnBackCancelled */ } } } PredictiveBackHandler
108. Brief Vocabulary

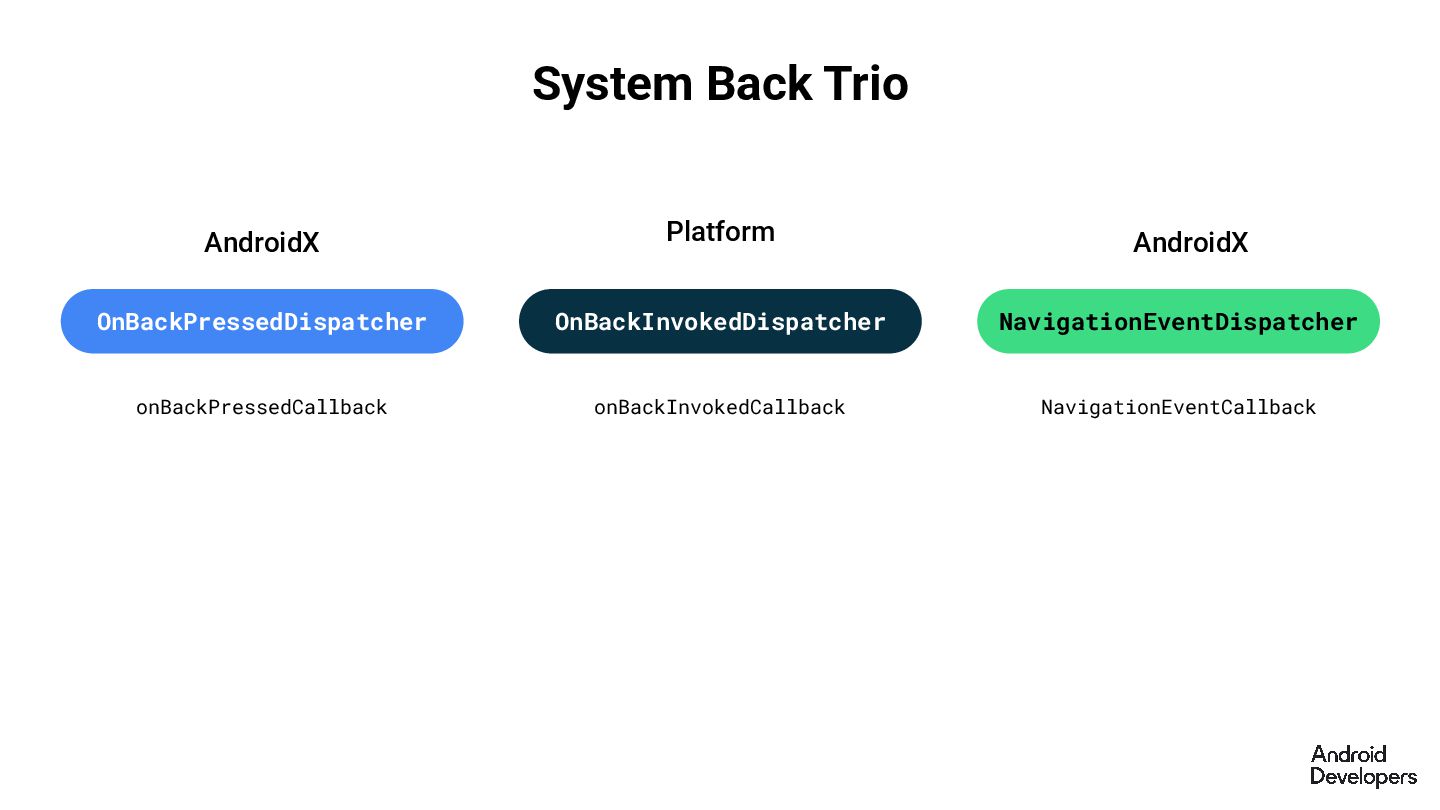

109. System Back Trio onBackPressedCallback onBackInvokedCallback NavigationEventCallback OnBackPressedDispatcher OnBackInvokedDispatcher NavigationEventDispatcher Platform AndroidX AndroidX

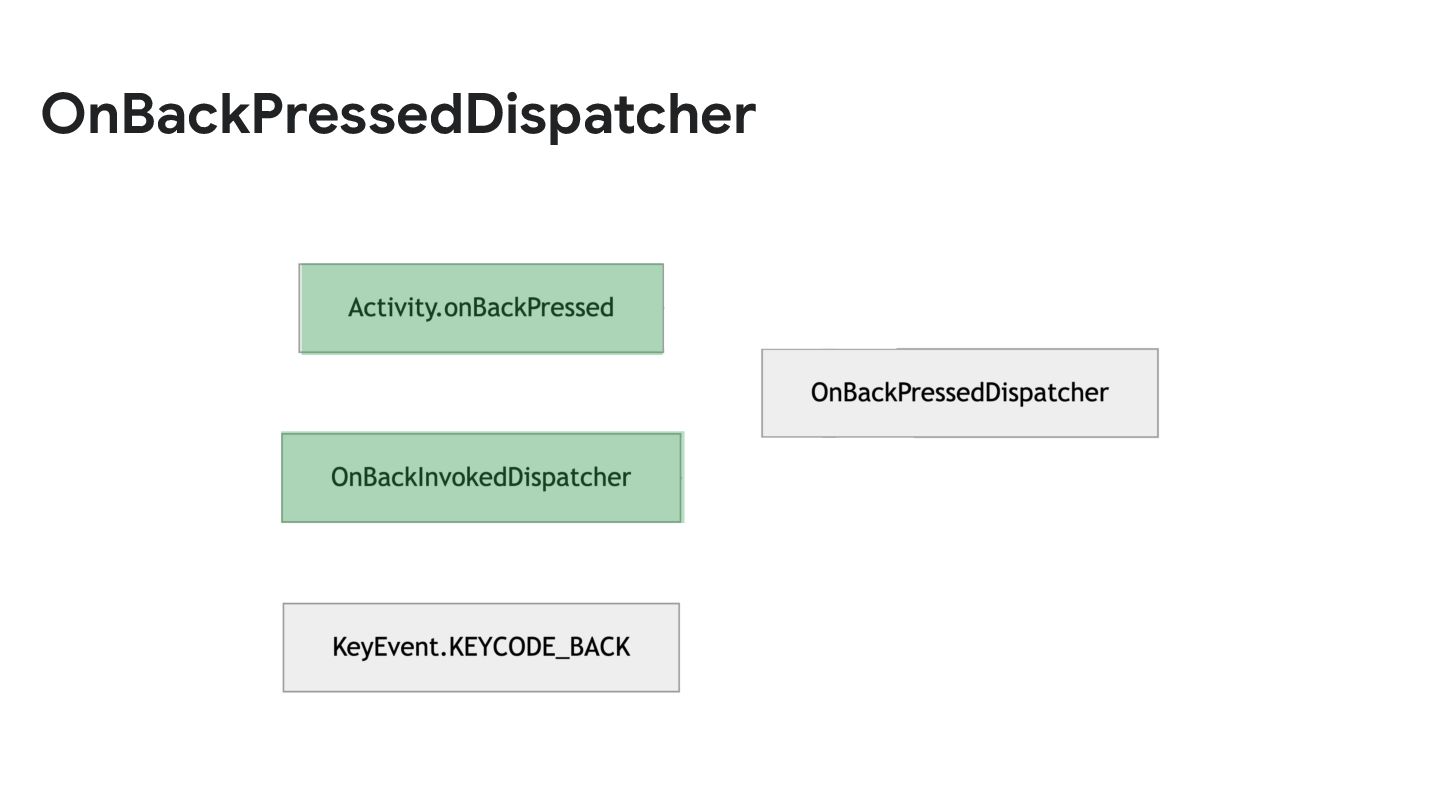

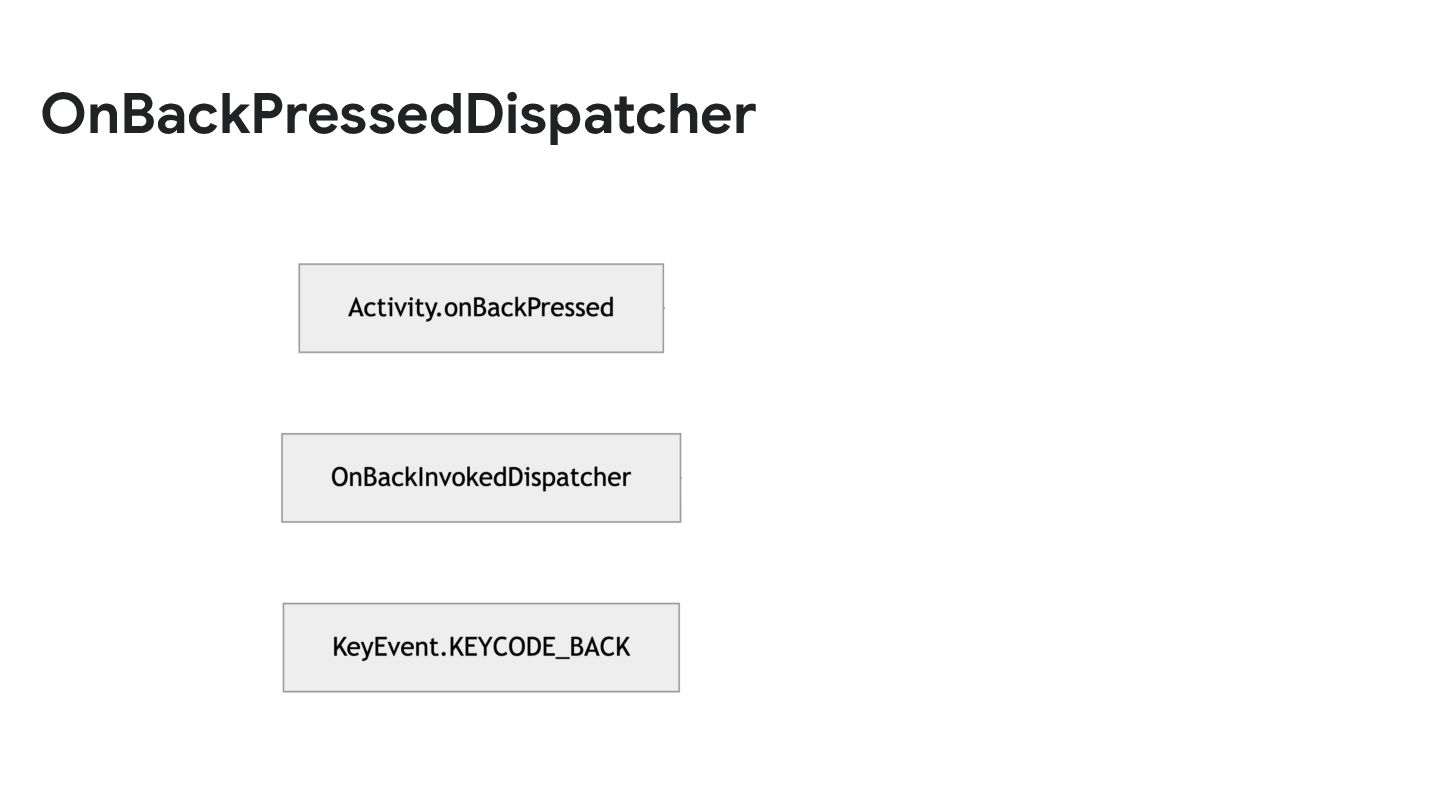

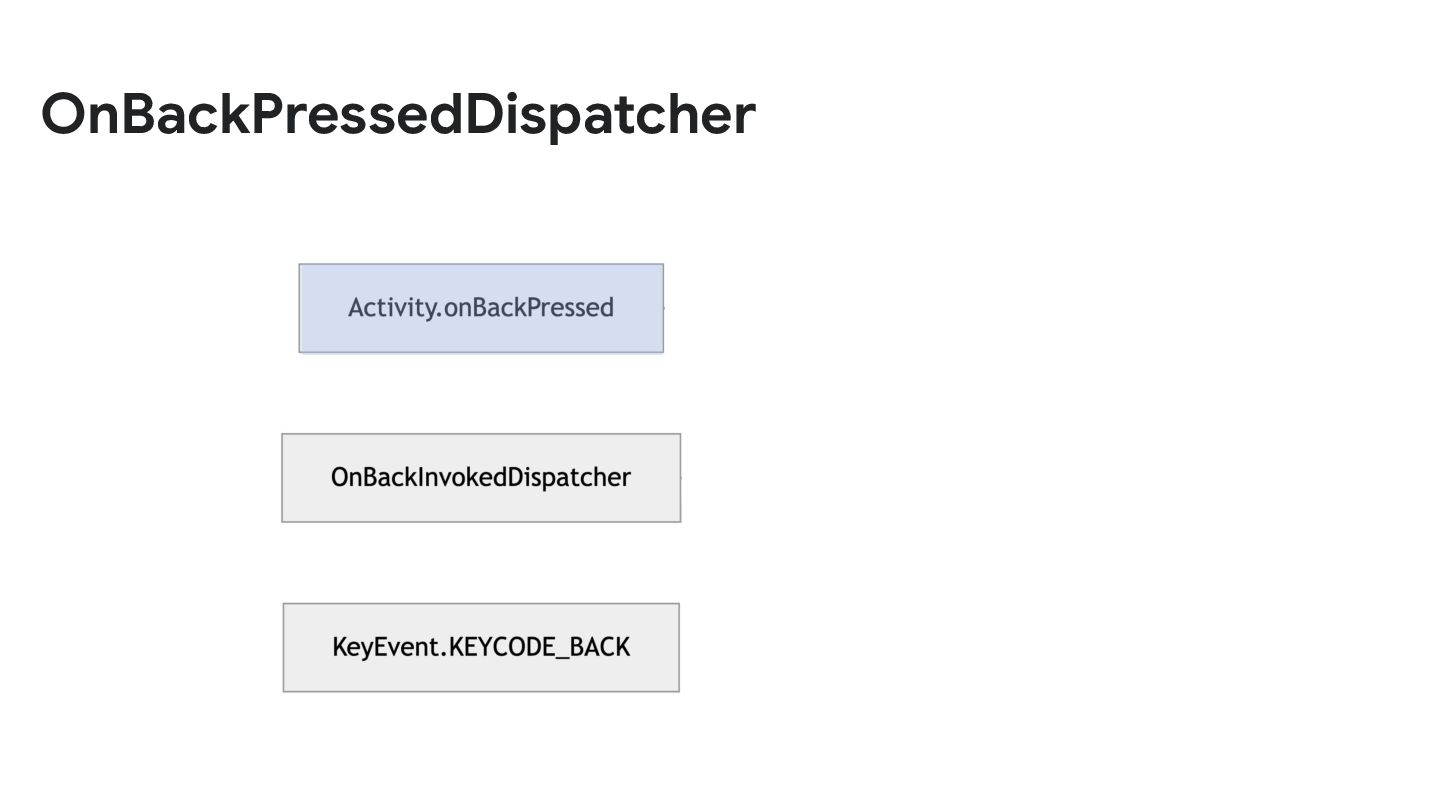

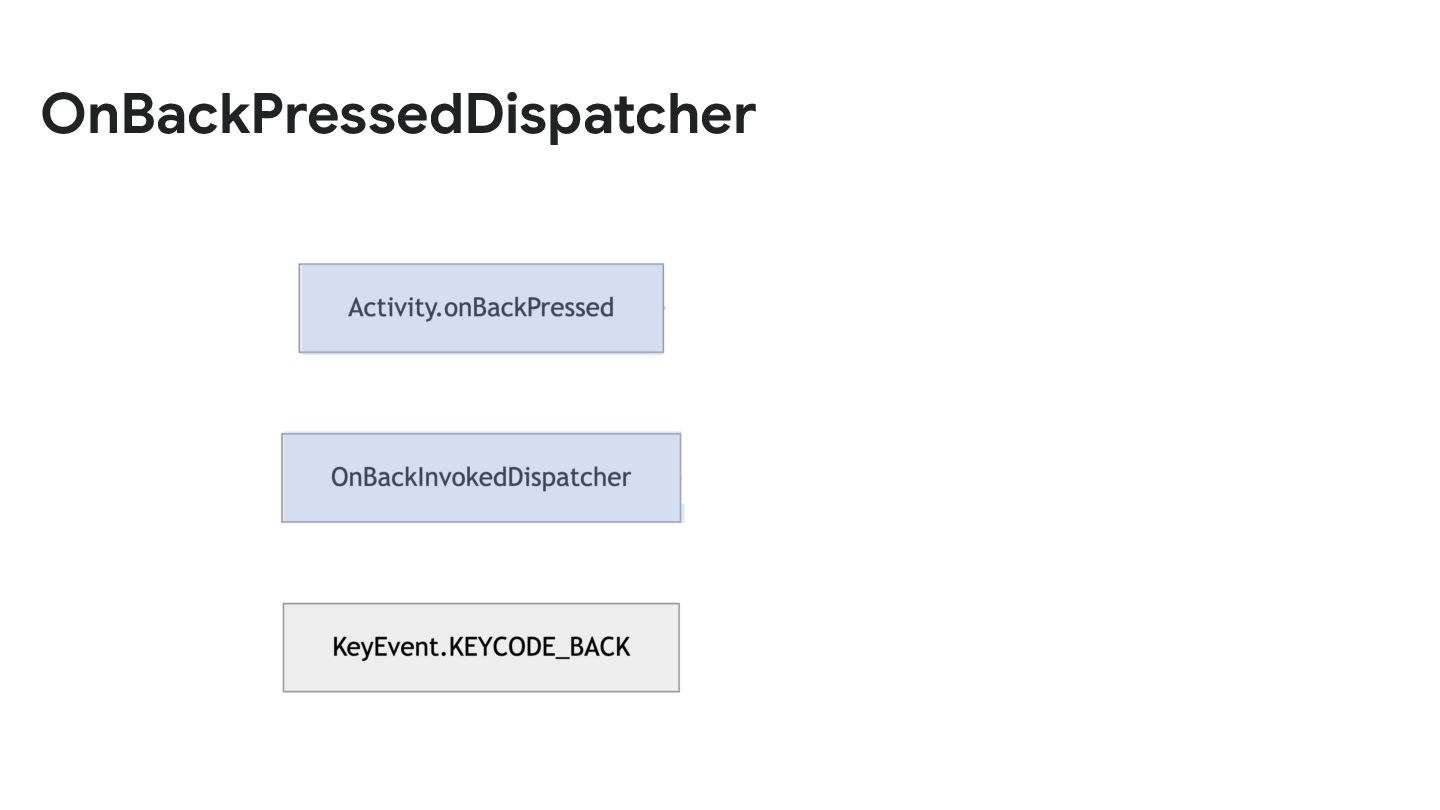

110. OnBackPressedDispatcher
111. OnBackPressedDispatcher
112. OnBackPressedDispatcher
113. OnBackPressedDispatcher

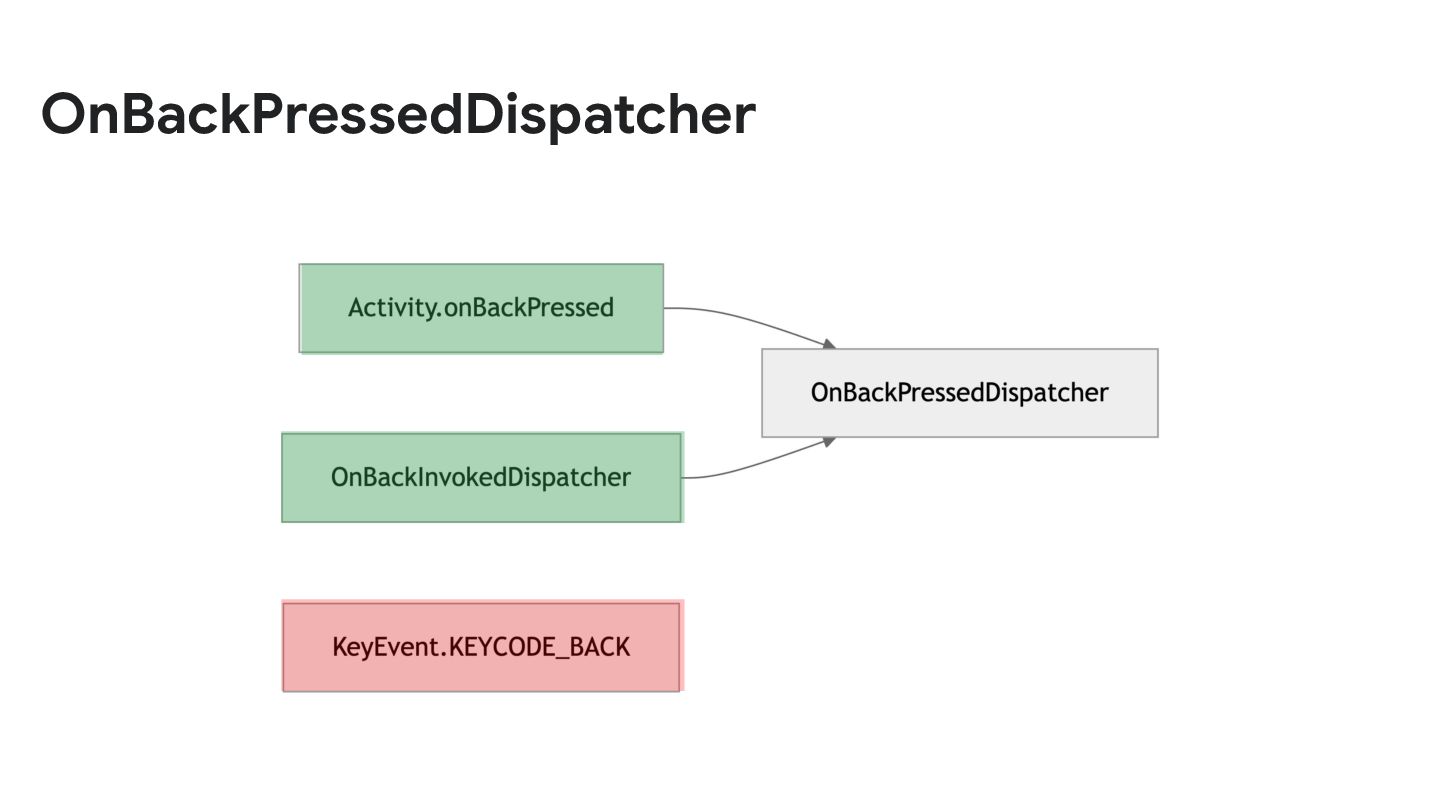

114. OnBackPressedDispatcher
115. OnBackPressedDispatcher
116. OnBackPressedDispatcher

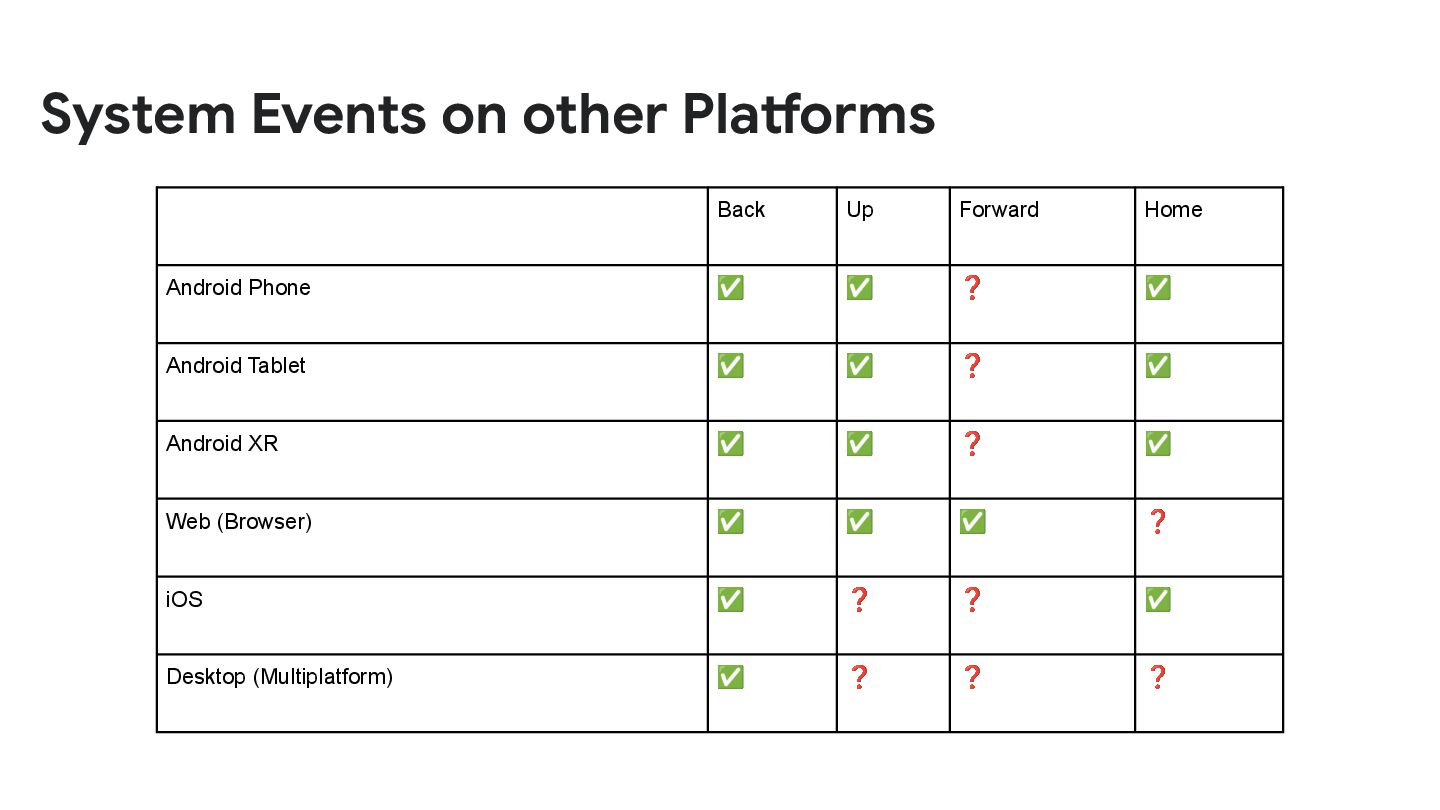

117. Back Up Forward Home Android Phone ✅ ✅ ❓ ✅ Android Tablet ✅ ✅ ❓ ✅ Android XR ✅ ✅ ❓ ✅ Web (Browser) ✅ ✅ ✅ ❓ iOS ✅ ❓ ❓ ✅ Desktop (Multiplatform) ✅ ❓ ❓ ❓ System Events on other Platforms

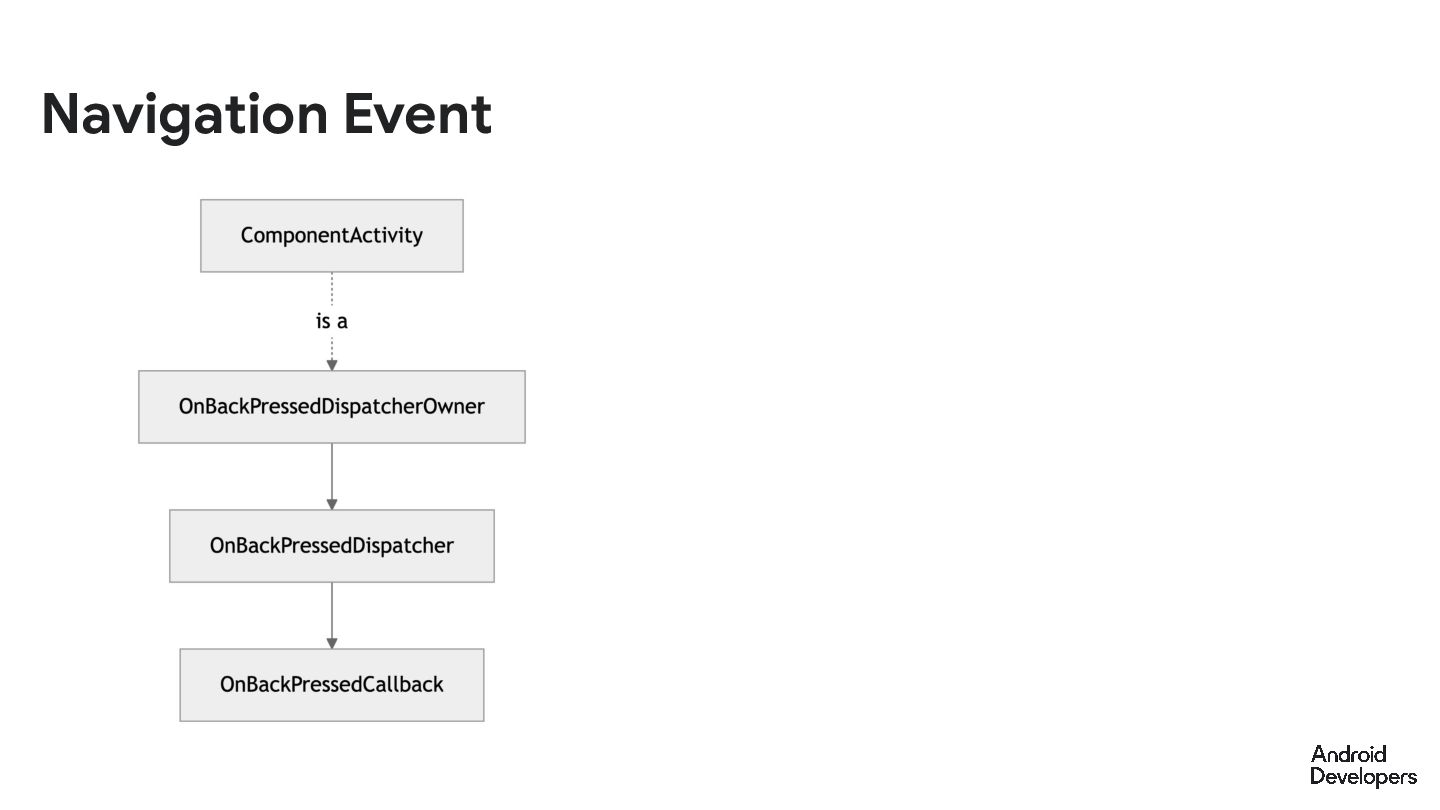

118. Navigation Event

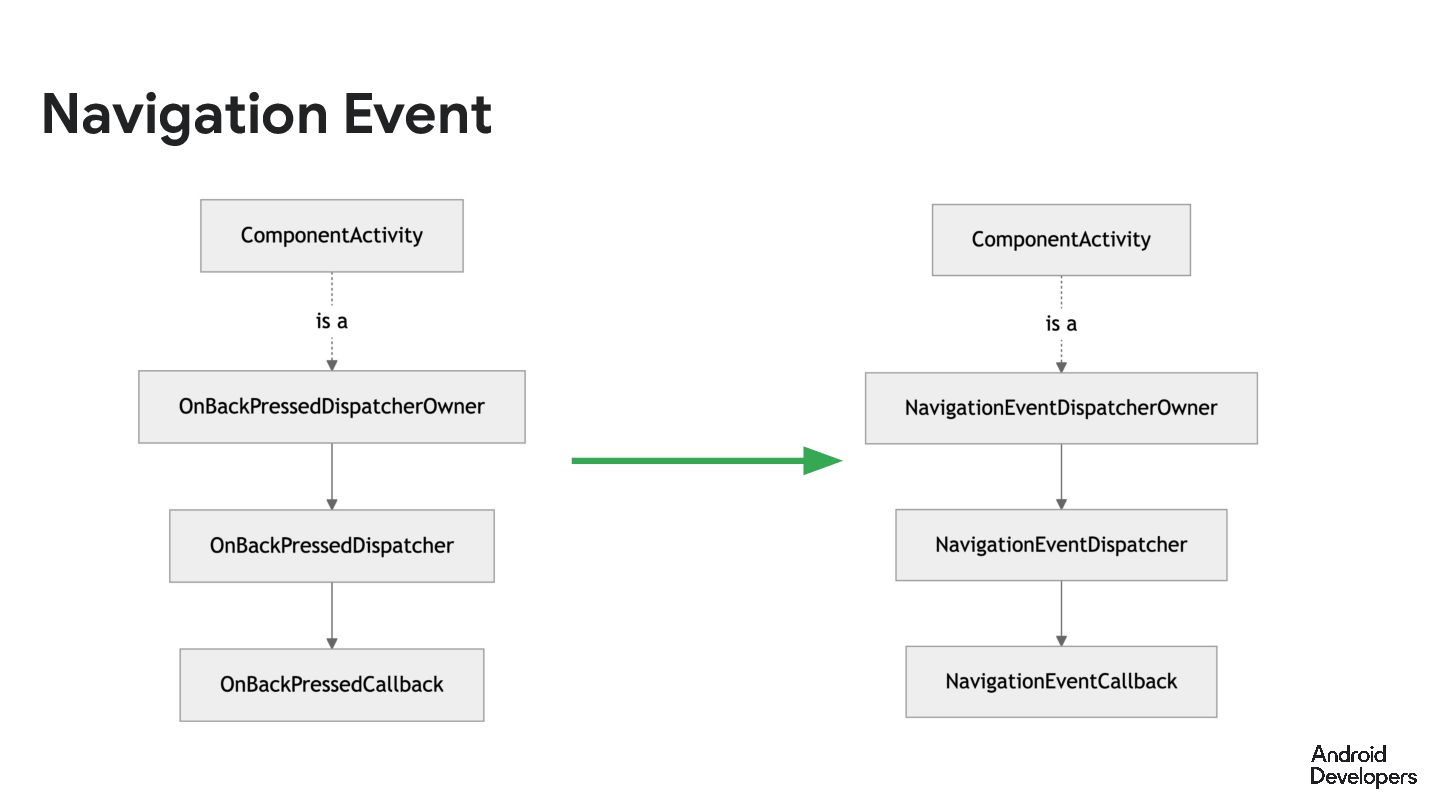

119. Navigation Event
120. Navigation Event
121. Expect Actual

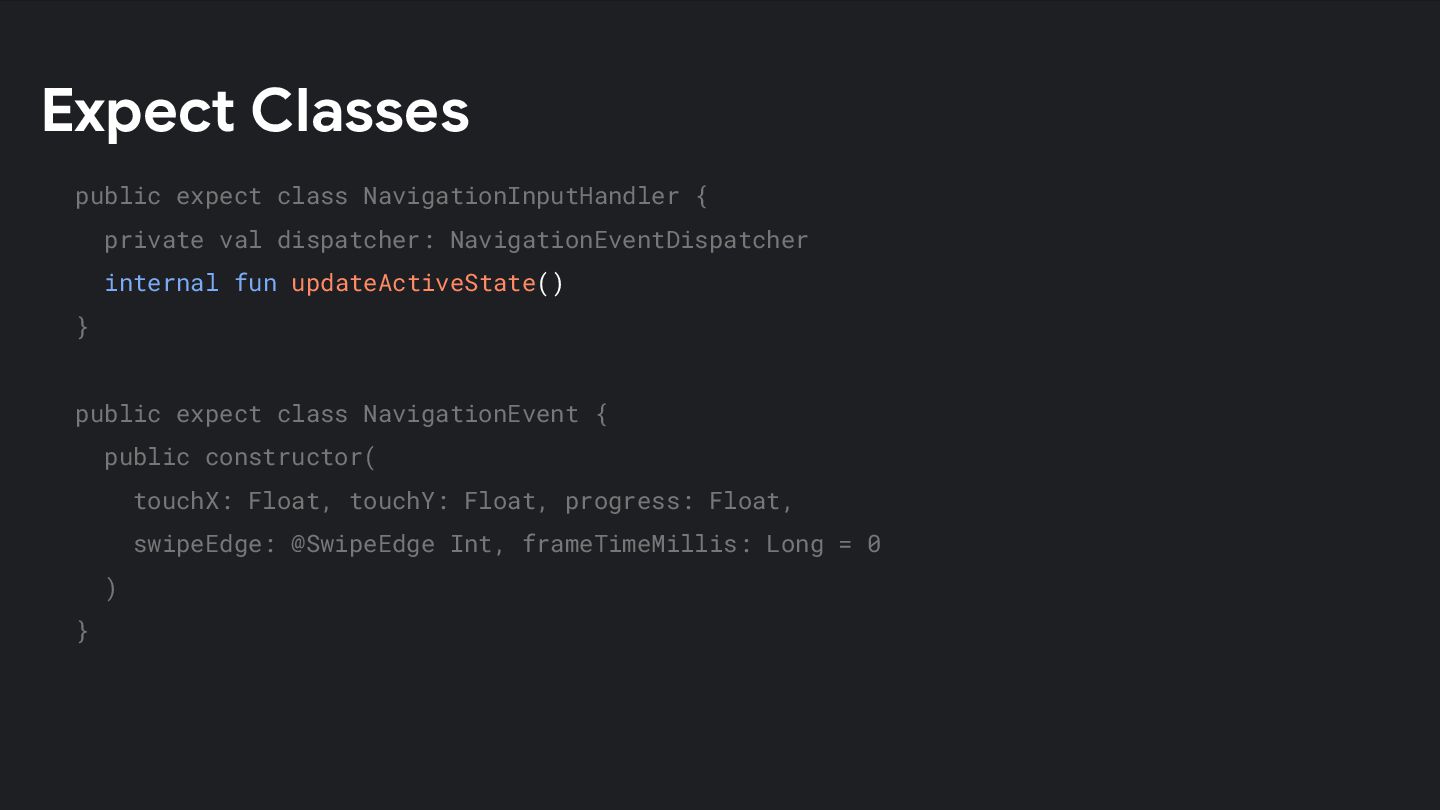

122. public expect class NavigationInputHandler { private val dispatcher: NavigationEventDispatcher internal fun updateActiveState() } public expect class NavigationEvent { public constructor( touchX: Float, touchY: Float, progress: Float, swipeEdge: @SwipeEdge Int, frameTimeMillis: Long = 0 ) } Expect Classes
123. public expect class NavigationInputHandler { private val dispatcher: NavigationEventDispatcher internal fun updateActiveState() } public expect class NavigationEvent { public constructor( touchX: Float, touchY: Float, progress: Float, swipeEdge: @SwipeEdge Int, frameTimeMillis: Long = 0 ) } Expect Classes
124. public expect class NavigationInputHandler { private val dispatcher: NavigationEventDispatcher internal fun updateActiveState() } public expect class NavigationEvent { public constructor( touchX: Float, touchY: Float, progress: Float, swipeEdge: @SwipeEdge Int, frameTimeMillis: Long = 0 ) } Expect Classes
125. public expect class NavigationInputHandler { private val dispatcher: NavigationEventDispatcher internal fun updateActiveState() } public expect class NavigationEvent { public constructor( touchX: Float, touchY: Float, progress: Float, swipeEdge: @SwipeEdge Int, frameTimeMillis: Long = 0 ) } Expect Classes
126. public expect class NavigationInputHandler { private val dispatcher: NavigationEventDispatcher internal fun updateActiveState() } public expect class NavigationEvent { public constructor( touchX: Float, touchY: Float, progress: Float, swipeEdge: @SwipeEdge Int, frameTimeMillis: Long = 0 ) } Expect Classes

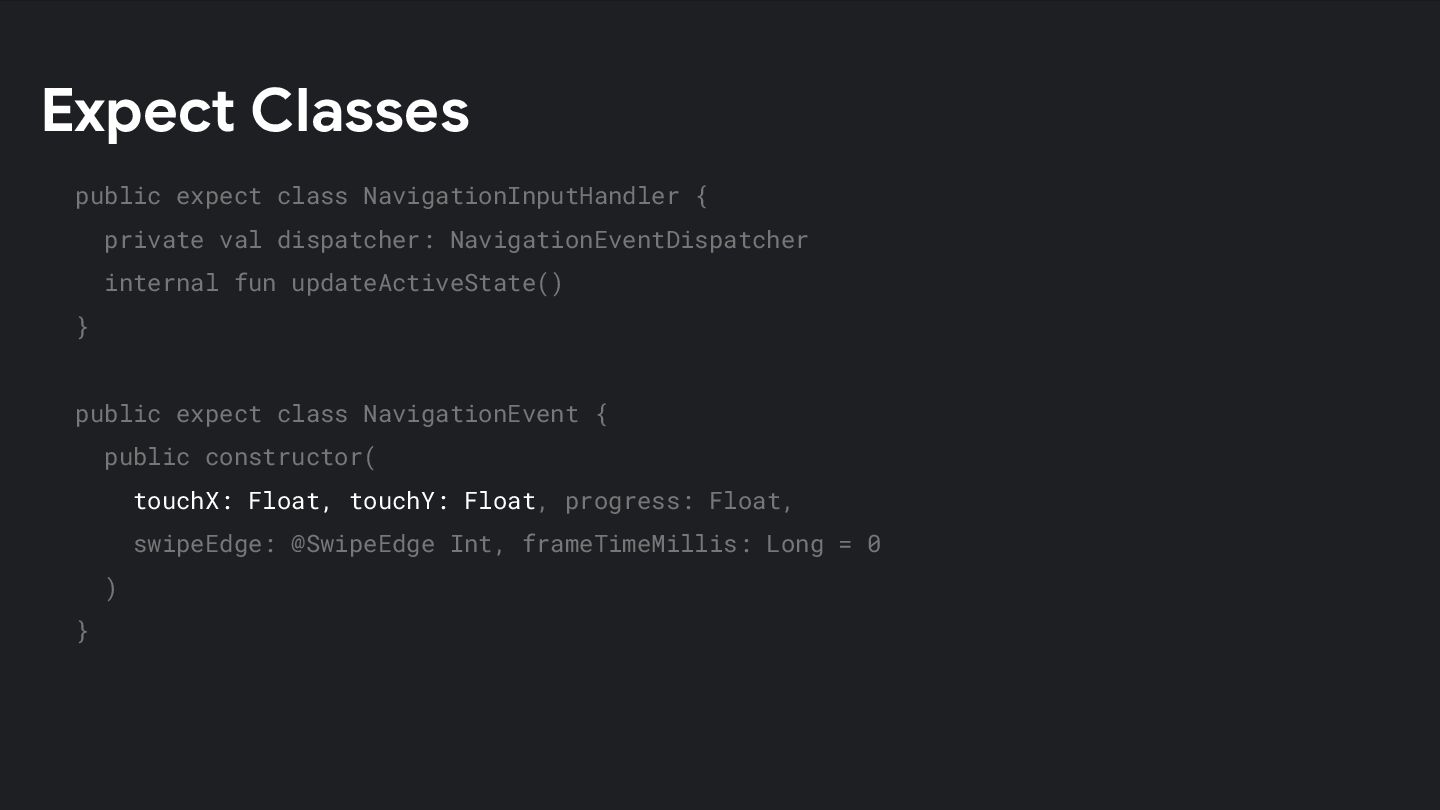

127. public expect class NavigationInputHandler { private val dispatcher: NavigationEventDispatcher internal fun updateActiveState() } public expect class NavigationEvent { public constructor( touchX: Float, touchY: Float, progress: Float, swipeEdge: @SwipeEdge Int, frameTimeMillis: Long = 0 ) } Expect Classes
128. public expect class NavigationInputHandler { private val dispatcher: NavigationEventDispatcher internal fun updateActiveState() } public expect class NavigationEvent { public constructor( touchX: Float, touchY: Float, progress: Float, swipeEdge: @SwipeEdge Int, frameTimeMillis: Long = 0 ) } Expect Classes

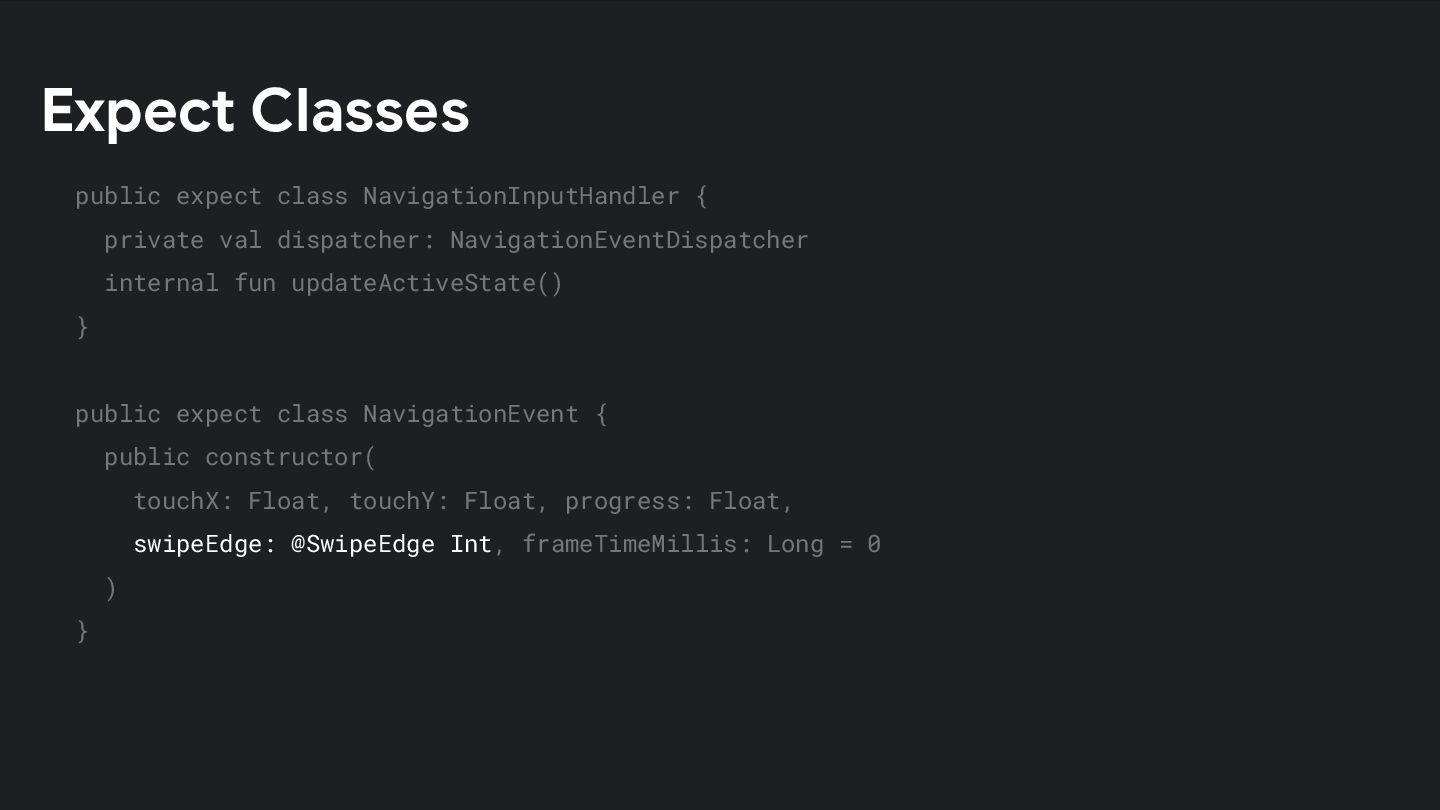

129. public expect class NavigationInputHandler { private val dispatcher: NavigationEventDispatcher internal fun updateActiveState() } public expect class NavigationEvent { public constructor( touchX: Float, touchY: Float, progress: Float, swipeEdge: @SwipeEdge Int, frameTimeMillis: Long = 0 ) } Expect Classes
130. public expect class NavigationInputHandler { private val dispatcher: NavigationEventDispatcher internal fun updateActiveState() } public expect class NavigationEvent { public constructor( touchX: Float, touchY: Float, progress: Float, swipeEdge: @SwipeEdge Int, frameTimeMillis: Long = 0 ) } Expect Classes

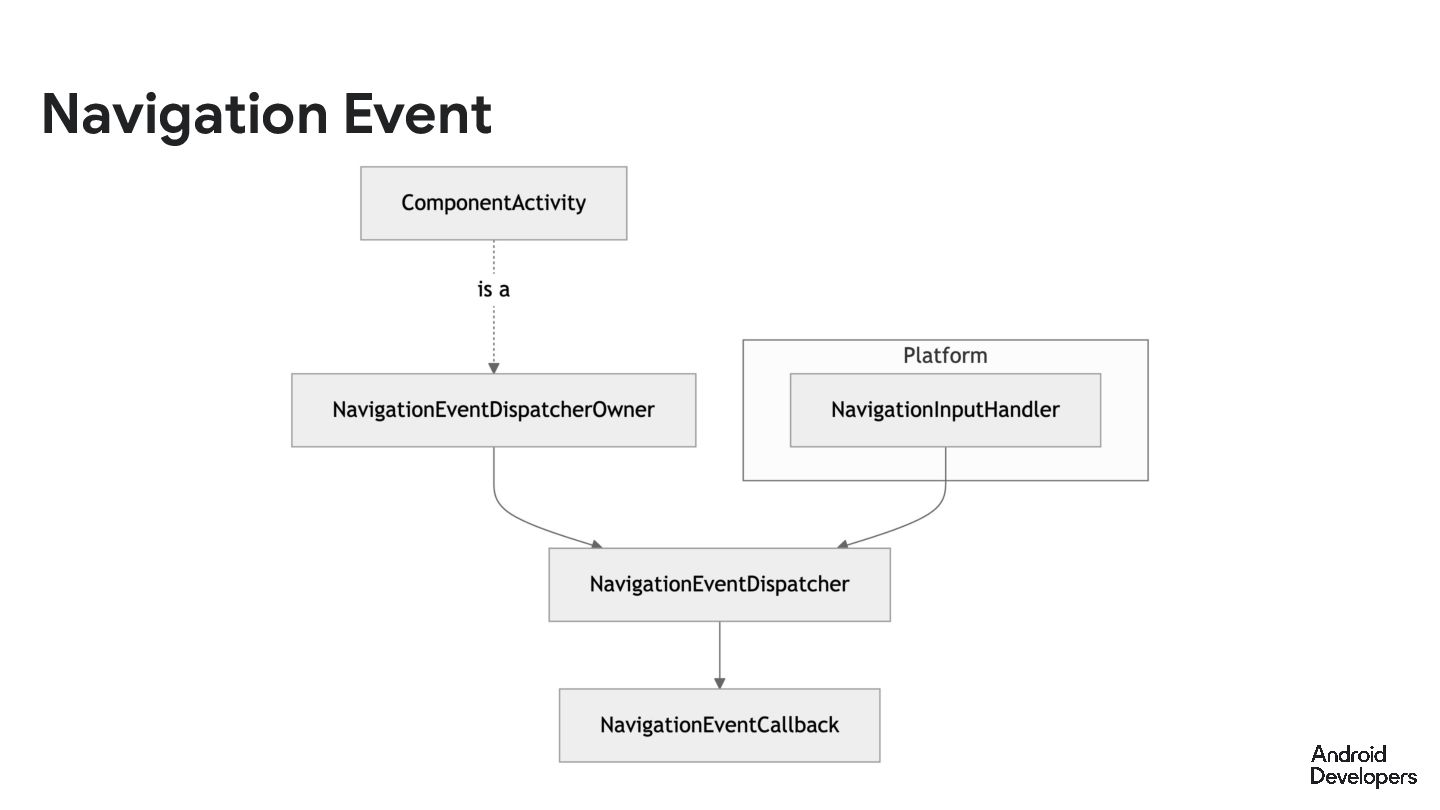

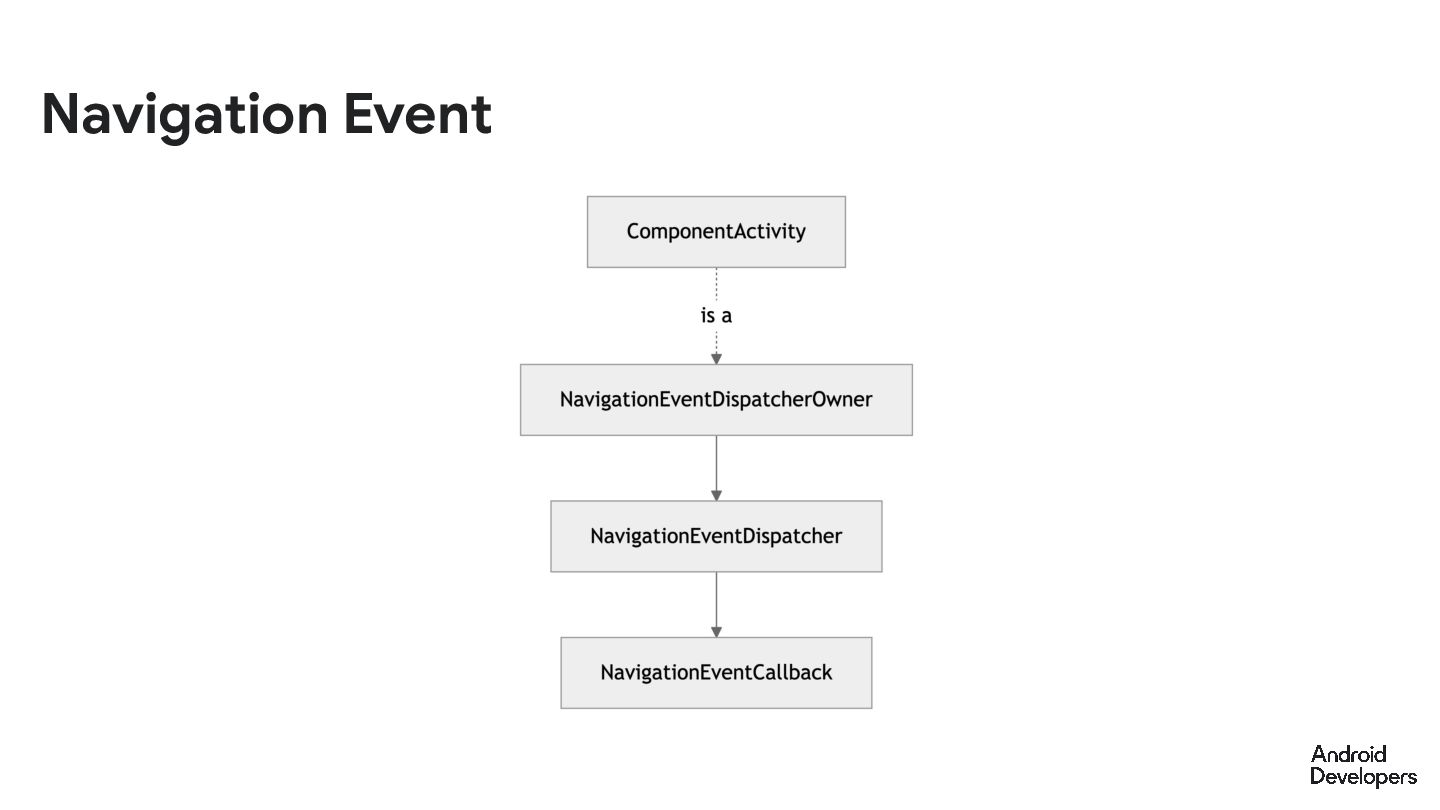

131. Navigation Event
132. Navigation Event

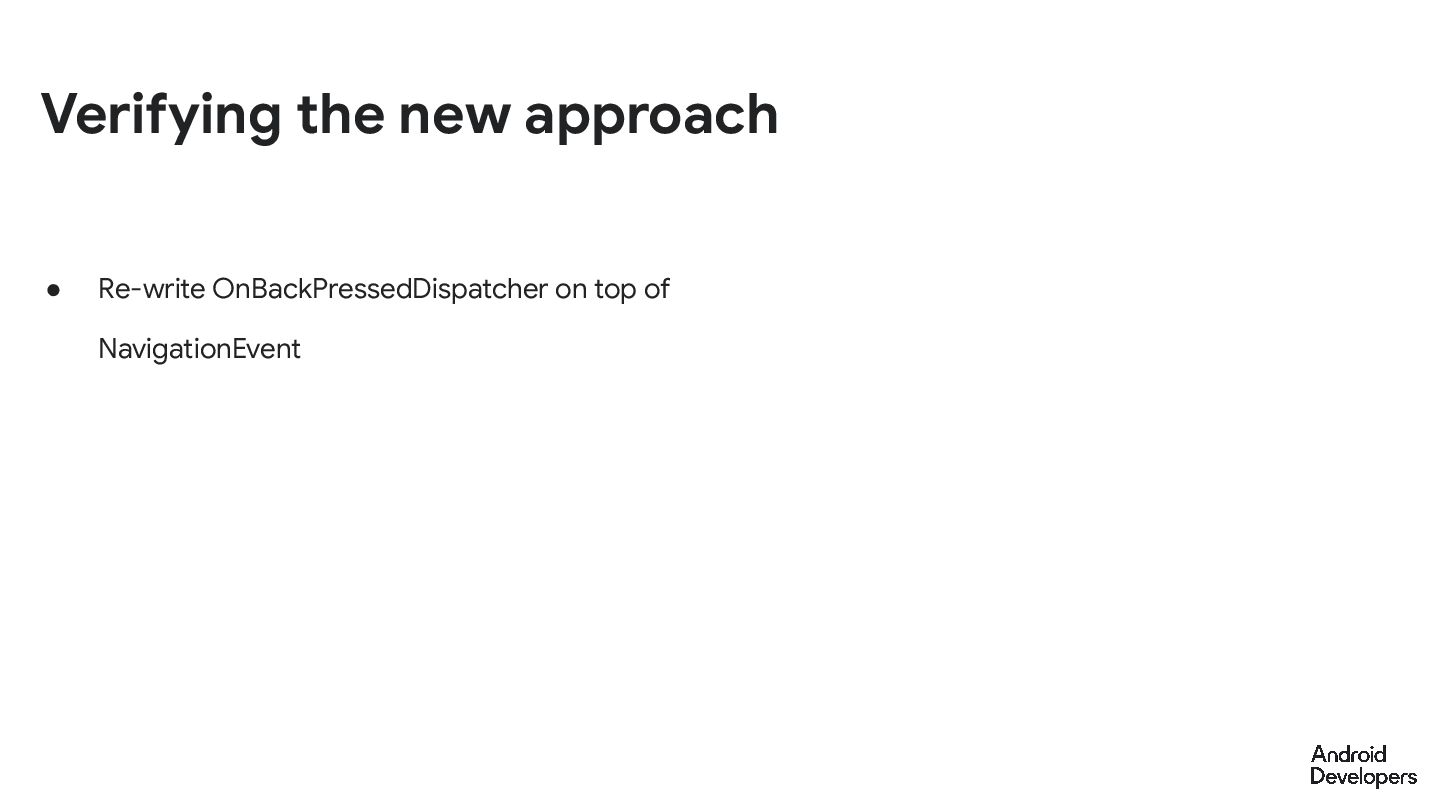

133. Verifying the new approach

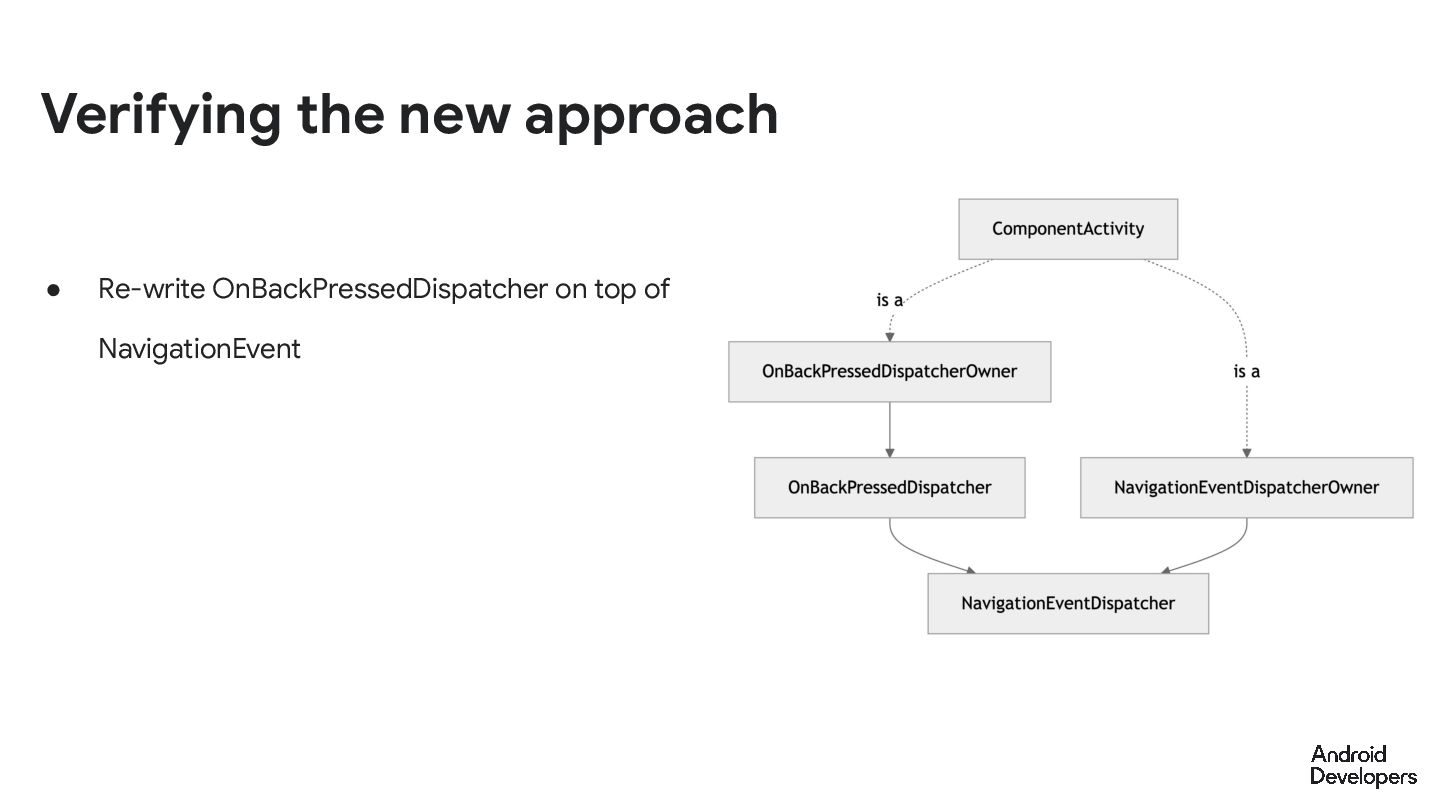

134. • Re-write OnBackPressedDispatcher on top of NavigationEvent Verifying the new approach
135. • Re-write OnBackPressedDispatcher on top of NavigationEvent Verifying the new approach

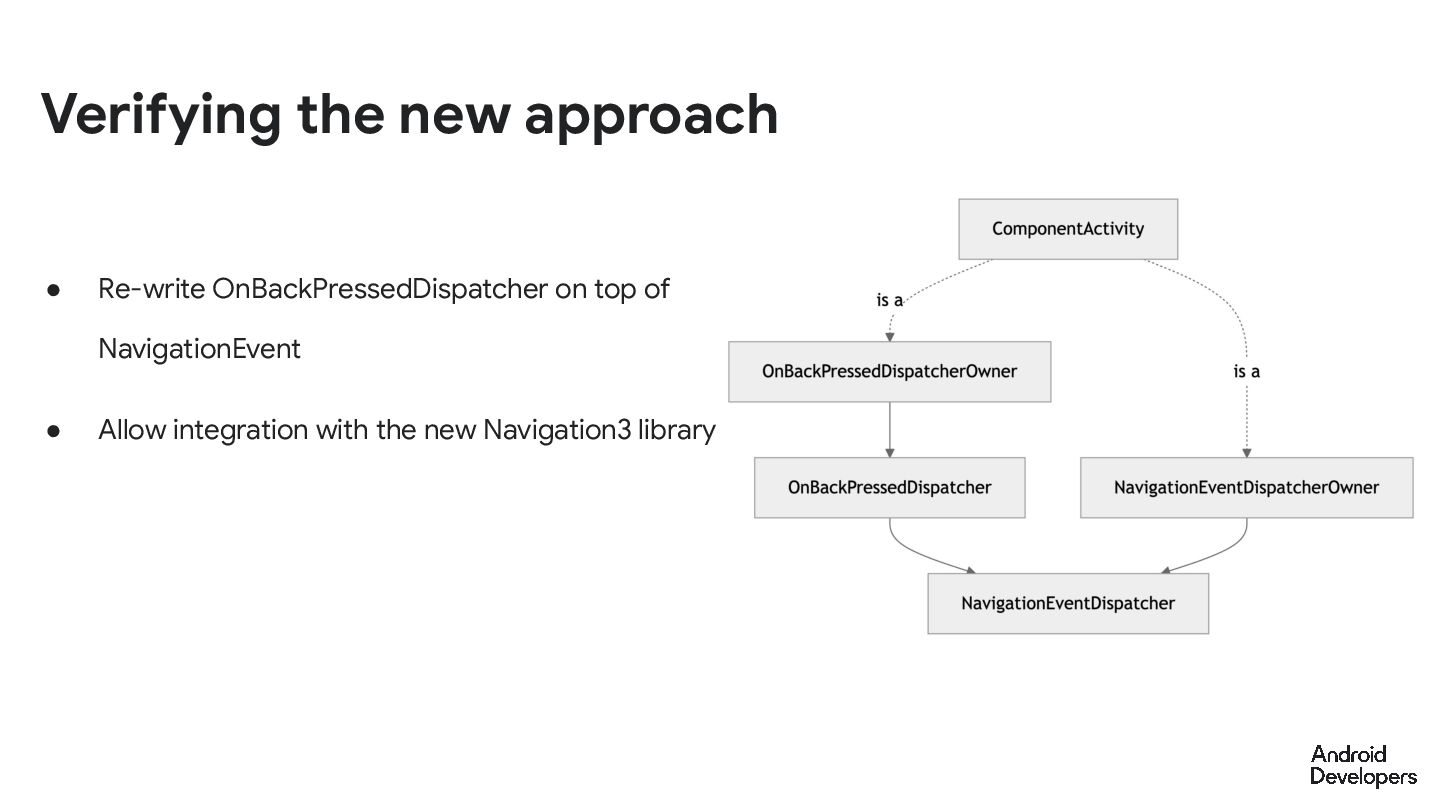

136. • Re-write OnBackPressedDispatcher on top of NavigationEvent • Allow integration with the new Navigation3 library Verifying the new approach • Re-write OnBackPressedDispatcher on top of NavigationEvent

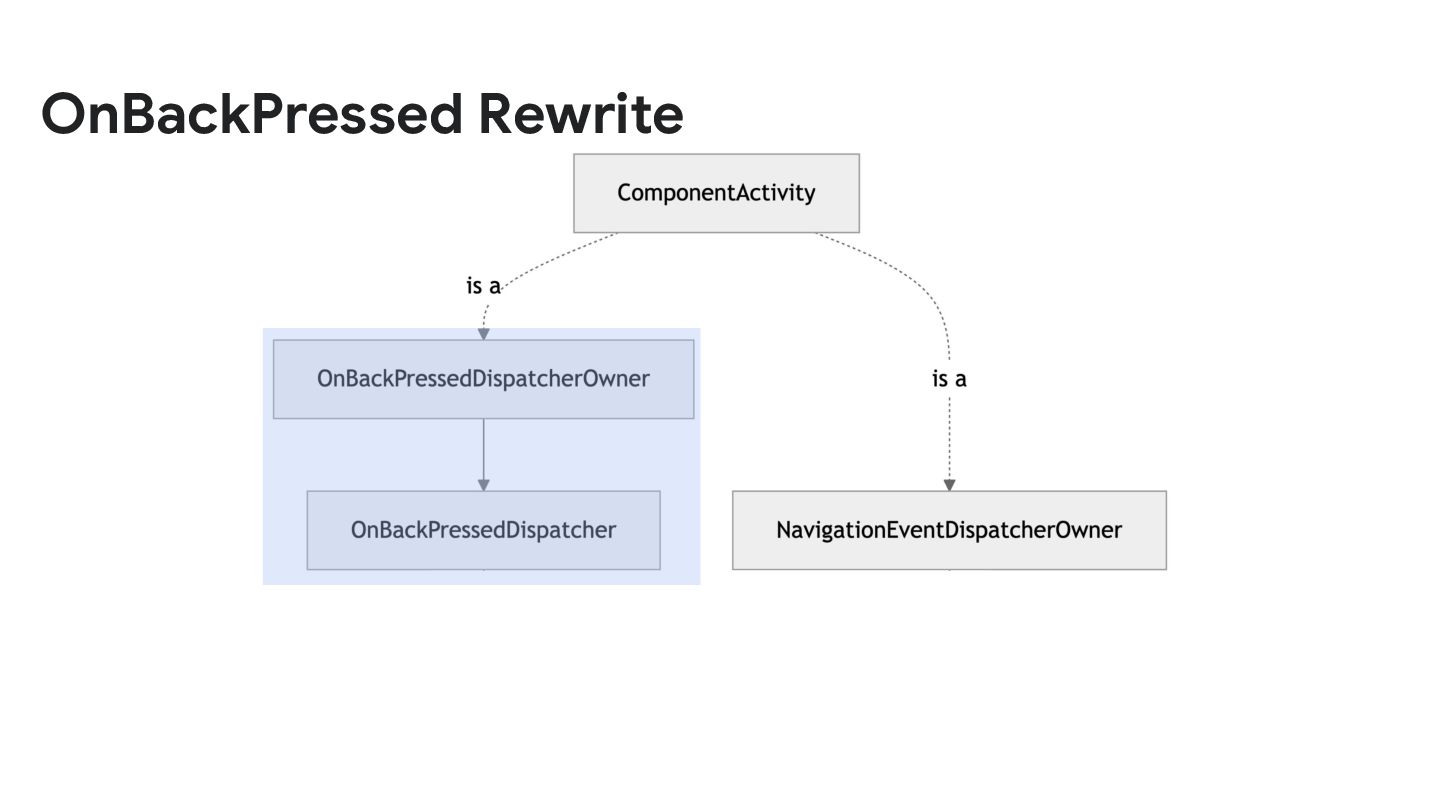

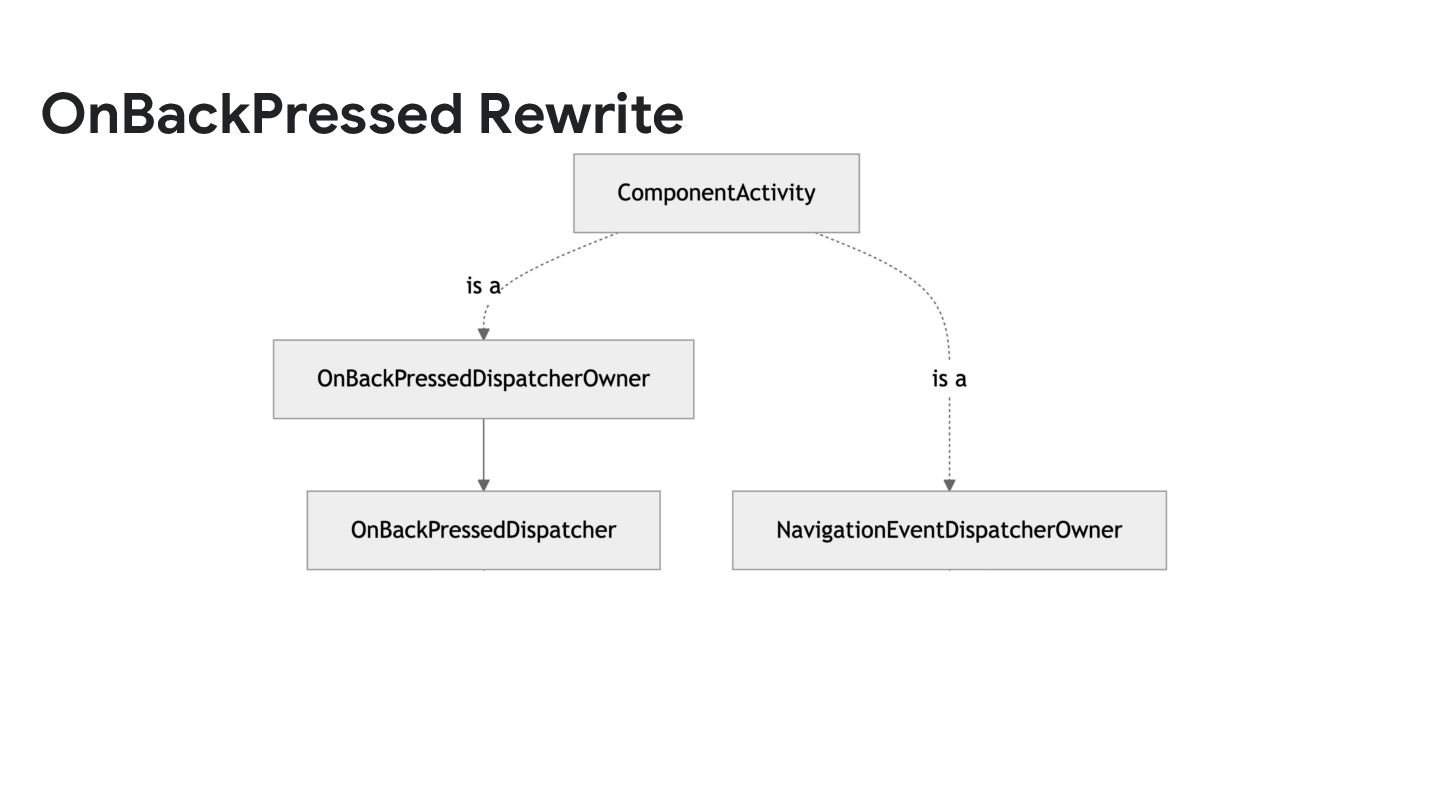

137. OnBackPressed Rewrite
138. OnBackPressed Rewrite

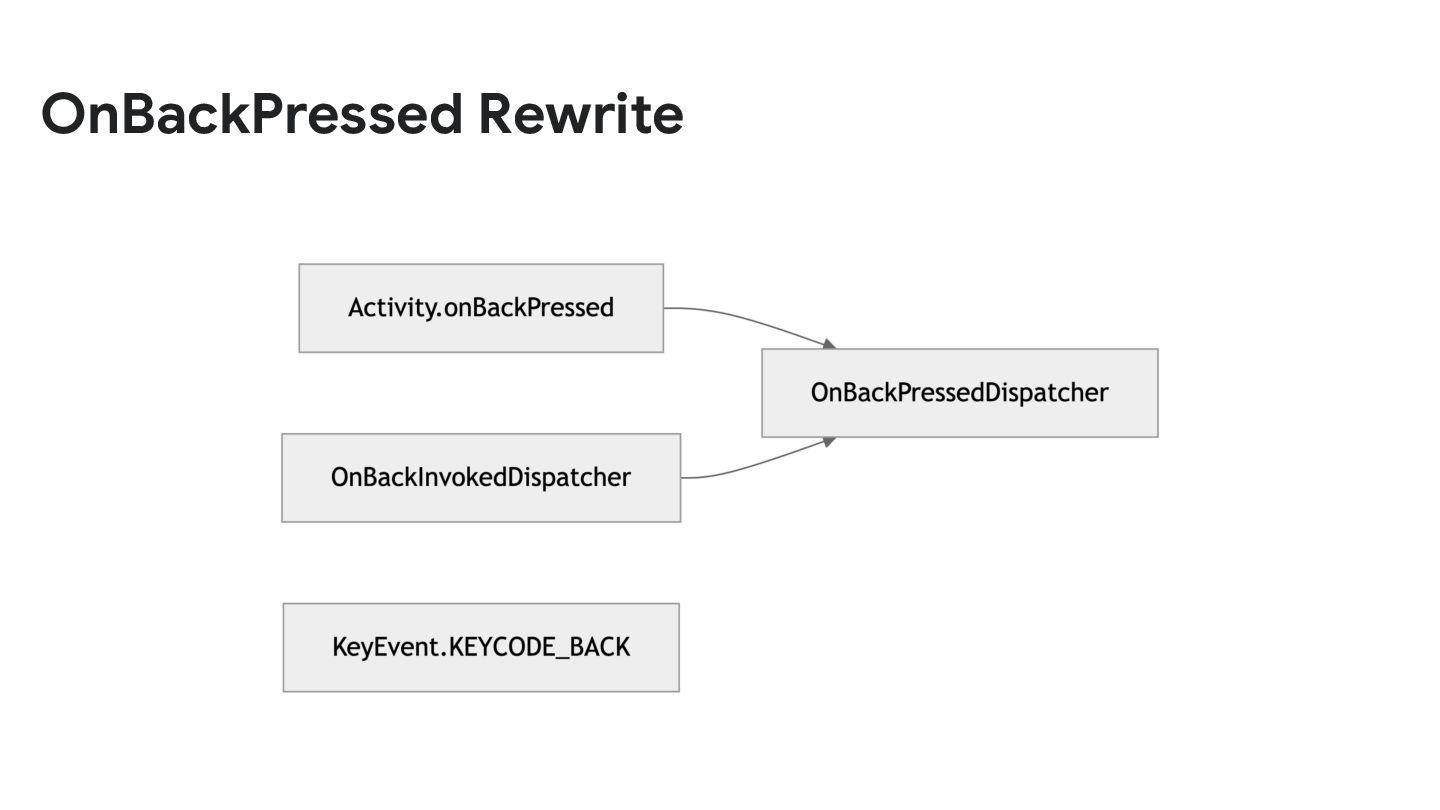

139. OnBackPressed Rewrite

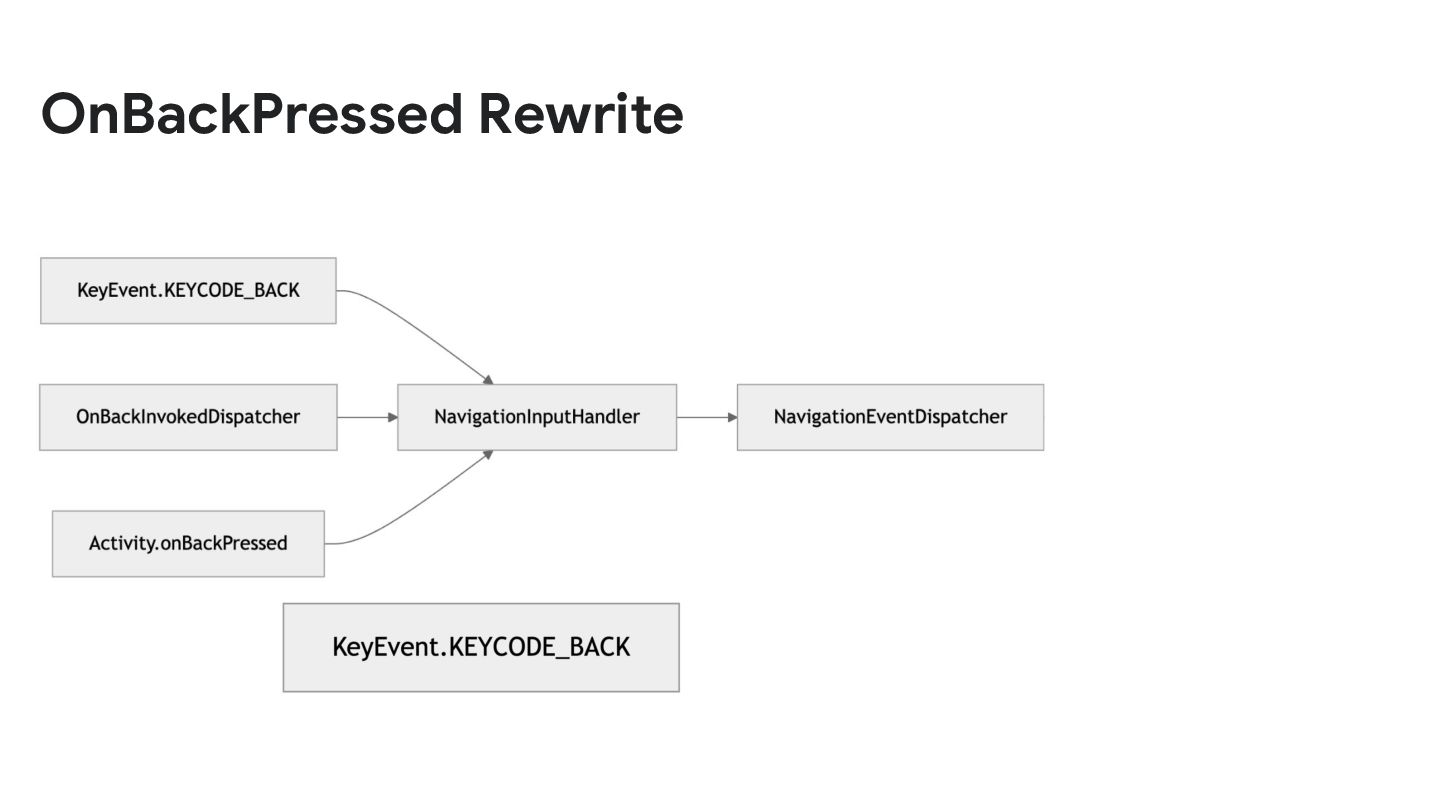

140. OnBackPressed Rewrite

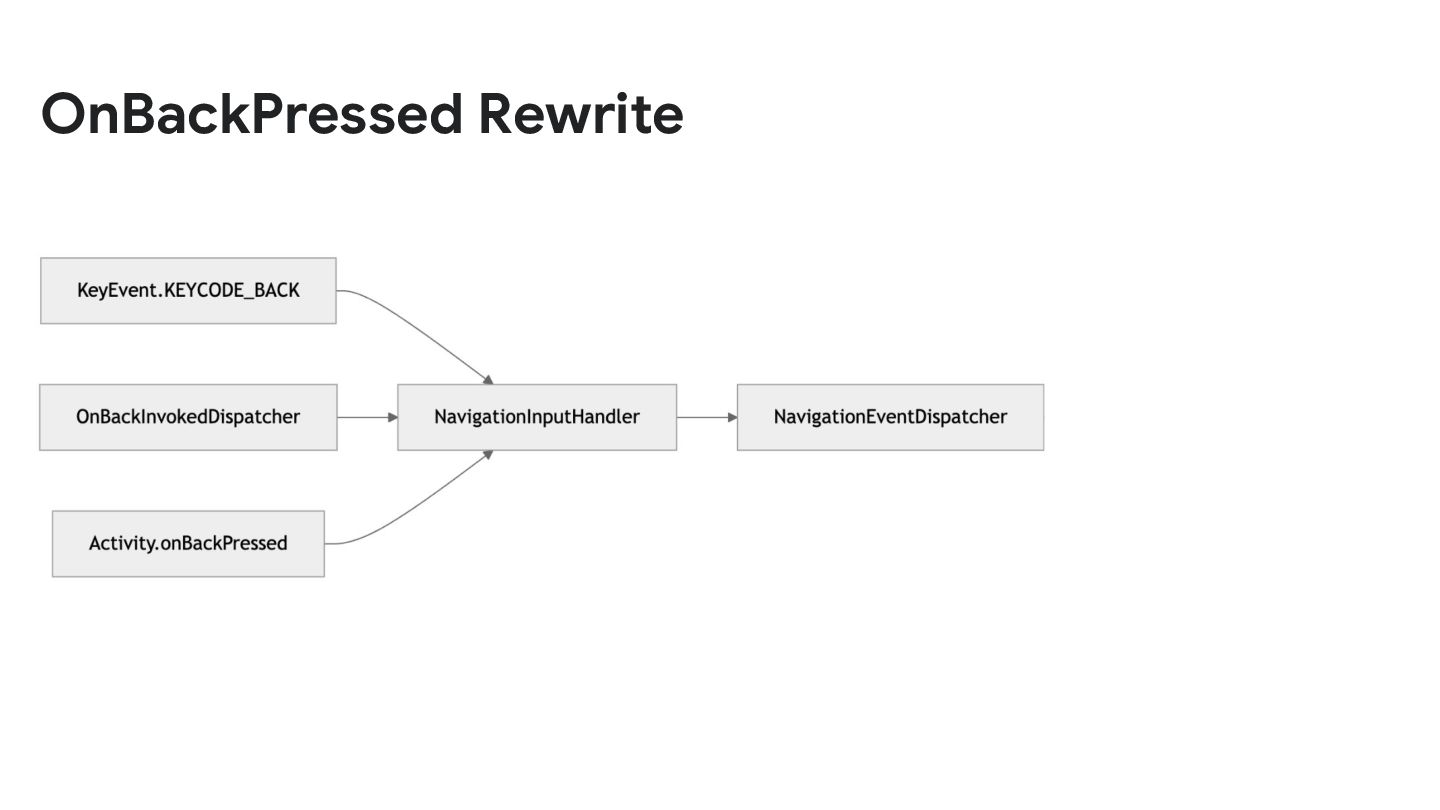

141. OnBackPressed Rewrite
142. OnBackPressed Rewrite

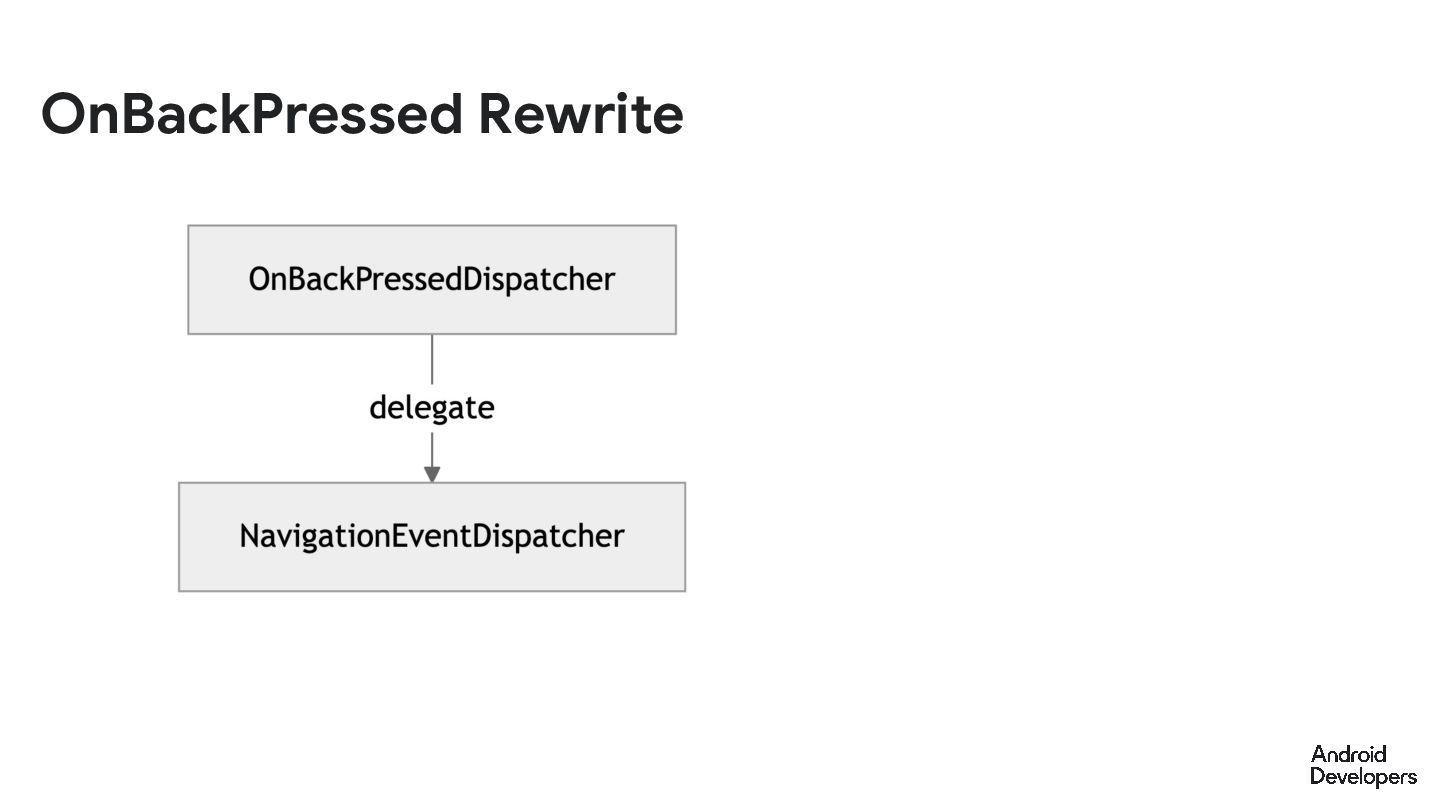

143. OnBackPressed Rewrite
144. OnBackPressed Rewrite

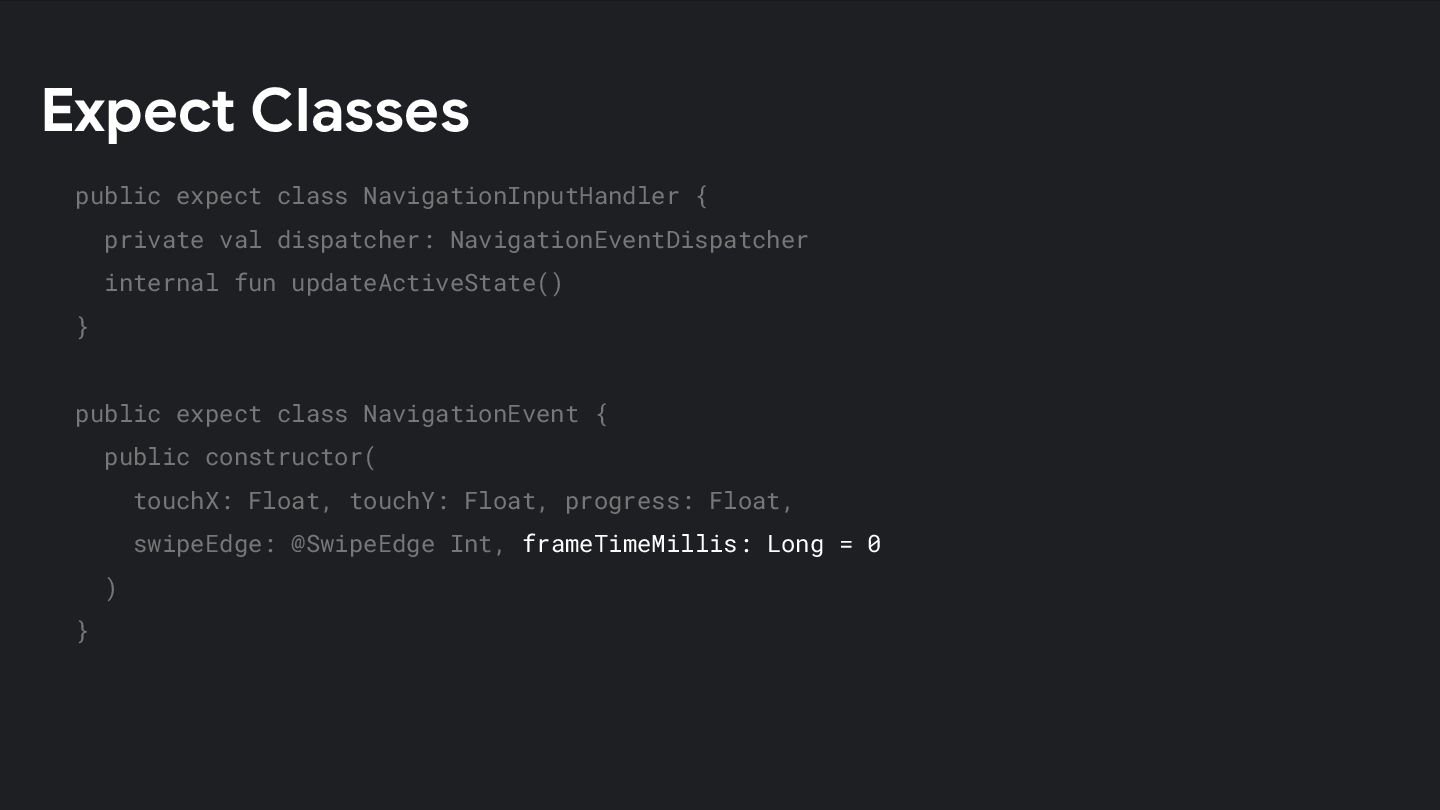

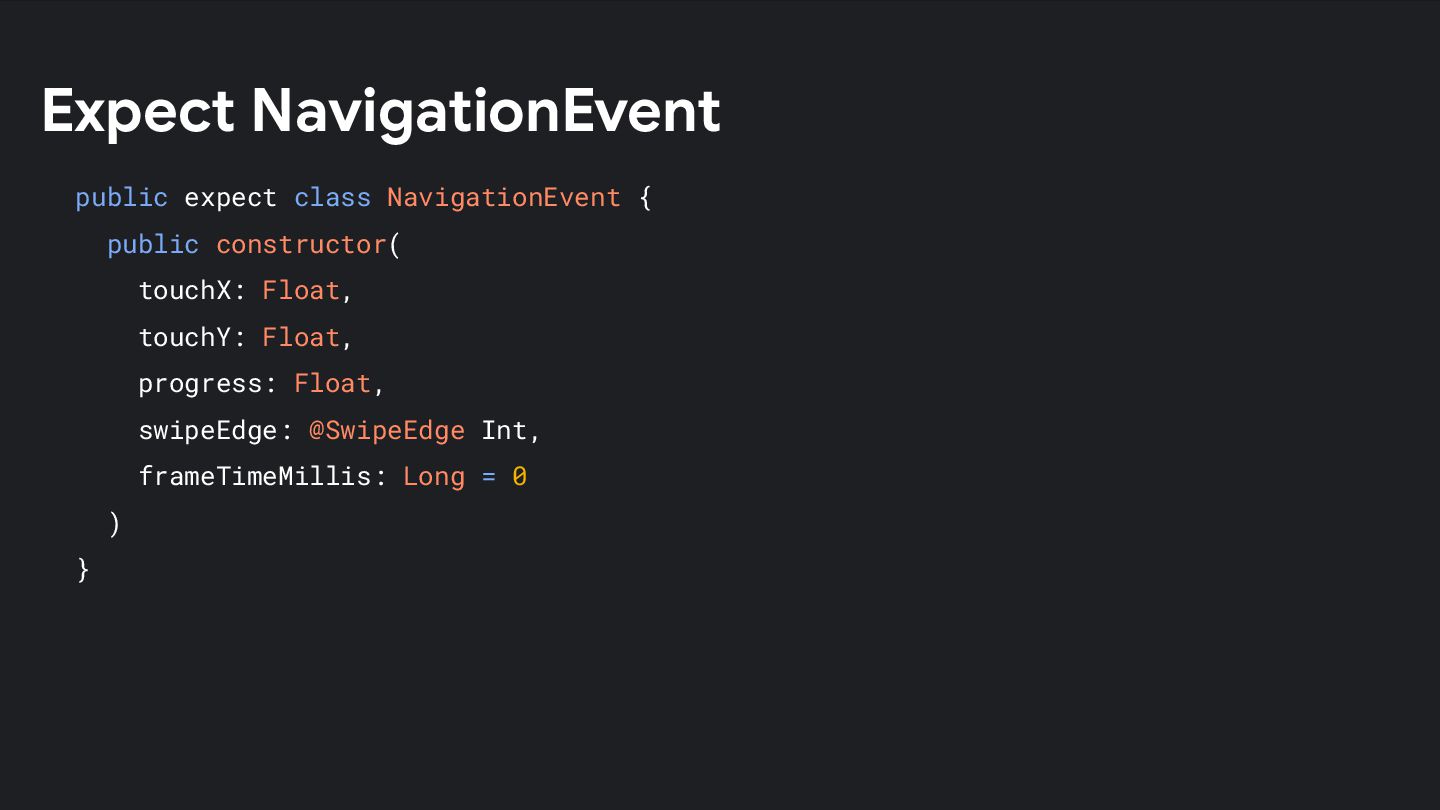

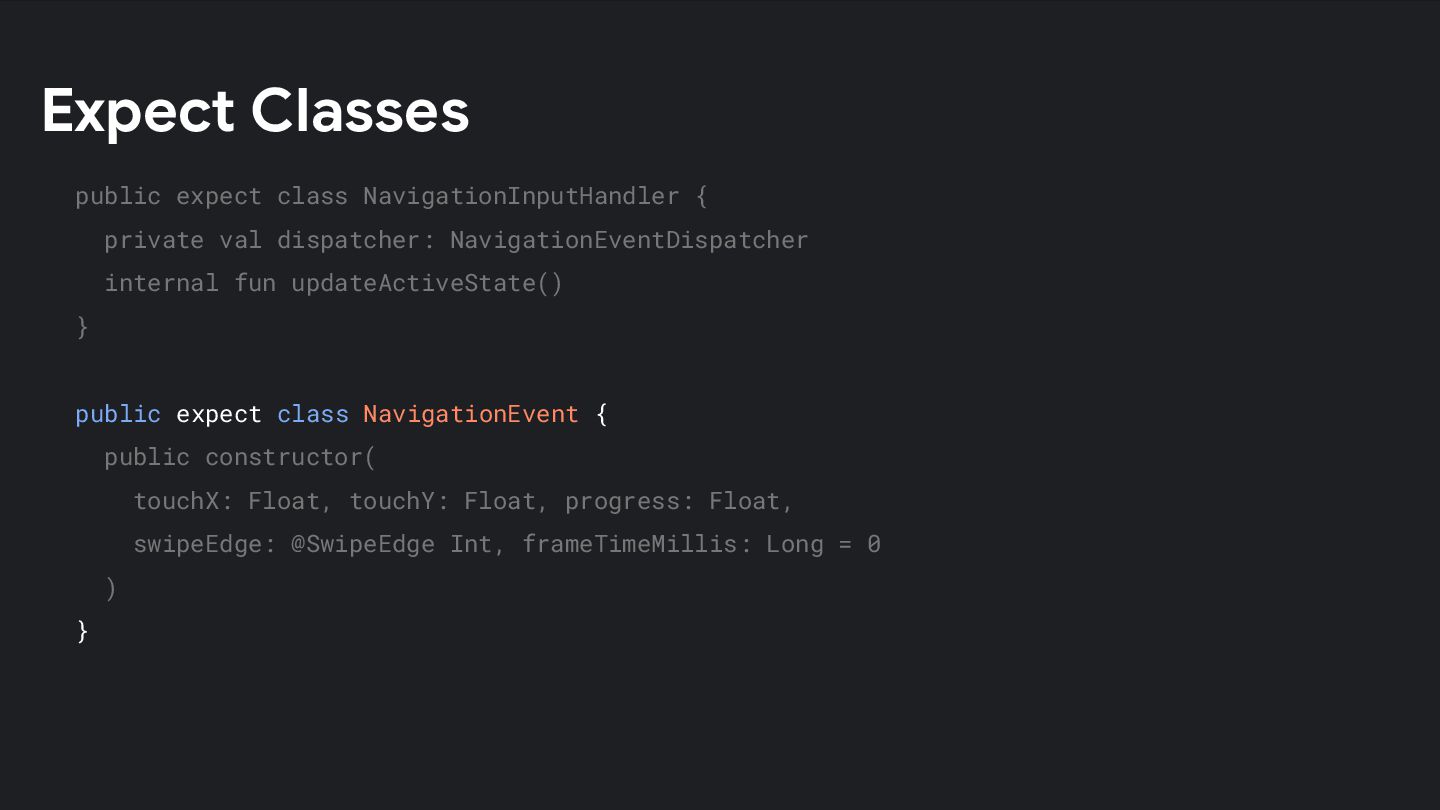

145. public expect class NavigationEvent { public constructor( touchX: Float, touchY: Float, progress: Float, swipeEdge: @SwipeEdge Int, frameTimeMillis: Long = 0 ) } Expect NavigationEvent

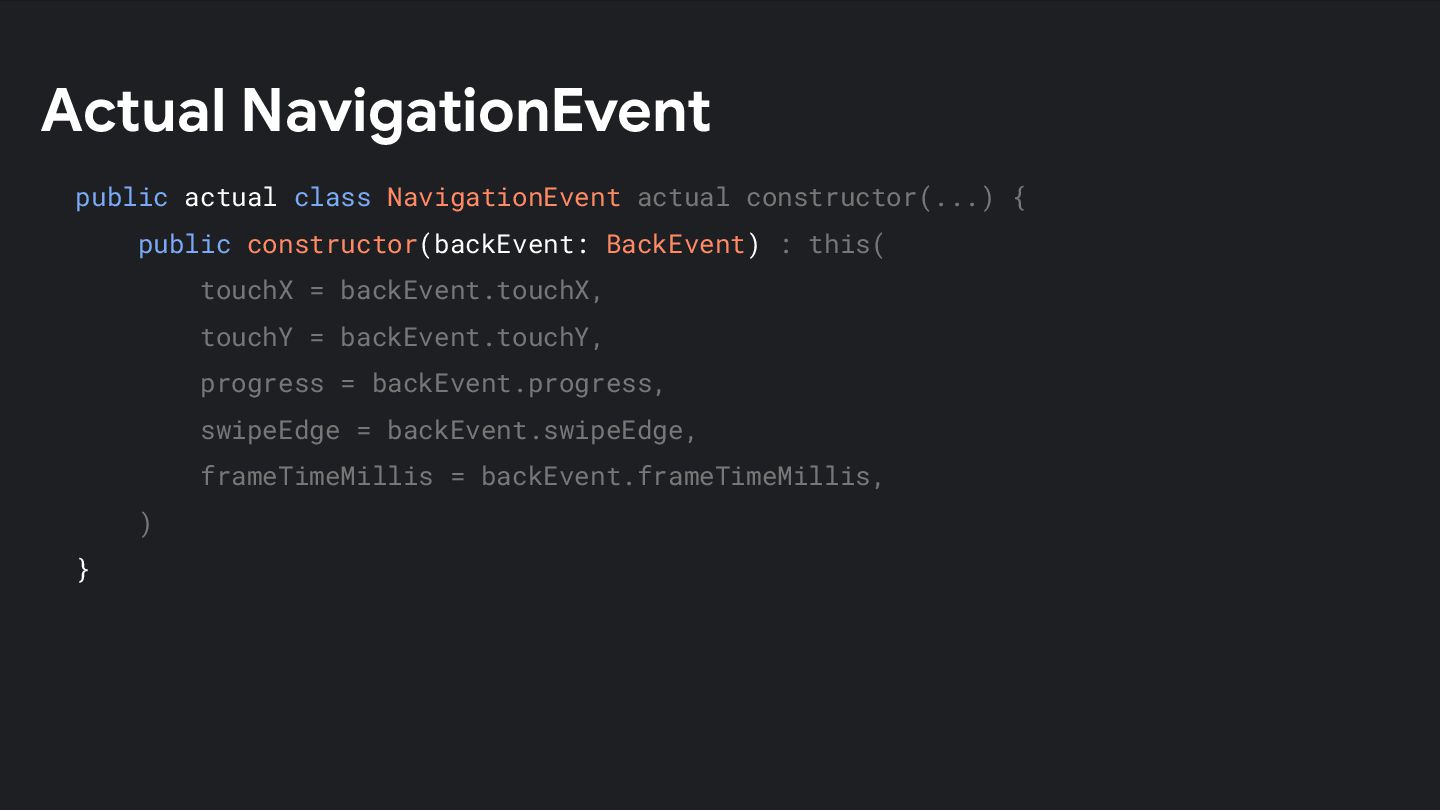

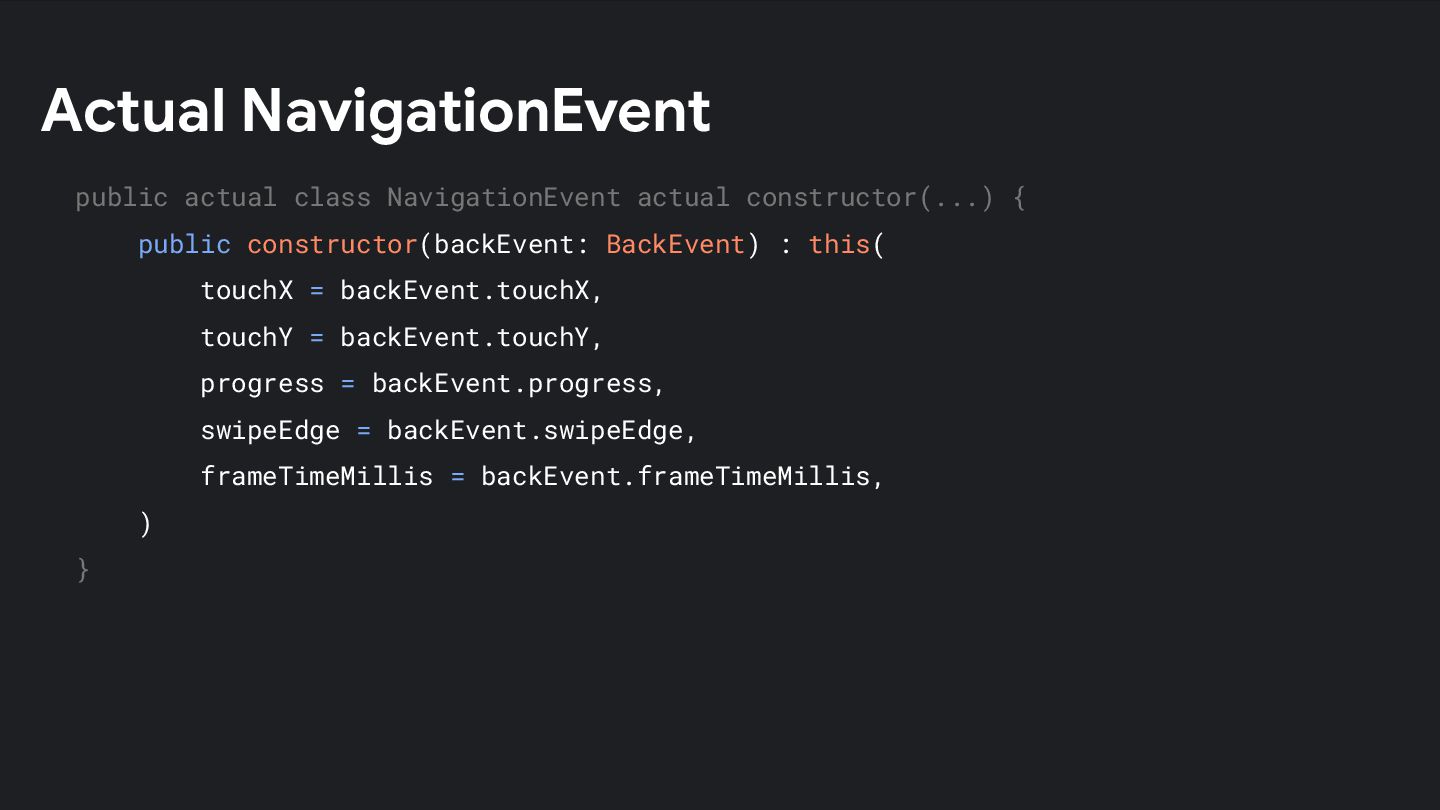

146. public actual class NavigationEvent actual constructor(...) { public constructor(backEvent: BackEvent) : this( touchX = backEvent.touchX, touchY = backEvent.touchY, progress = backEvent.progress, swipeEdge = backEvent.swipeEdge, frameTimeMillis = backEvent.frameTimeMillis, ) } Actual NavigationEvent
147. public actual class NavigationEvent actual constructor(...) { public constructor(backEvent: BackEvent) : this( touchX = backEvent.touchX, touchY = backEvent.touchY, progress = backEvent.progress, swipeEdge = backEvent.swipeEdge, frameTimeMillis = backEvent.frameTimeMillis, ) } Actual NavigationEvent

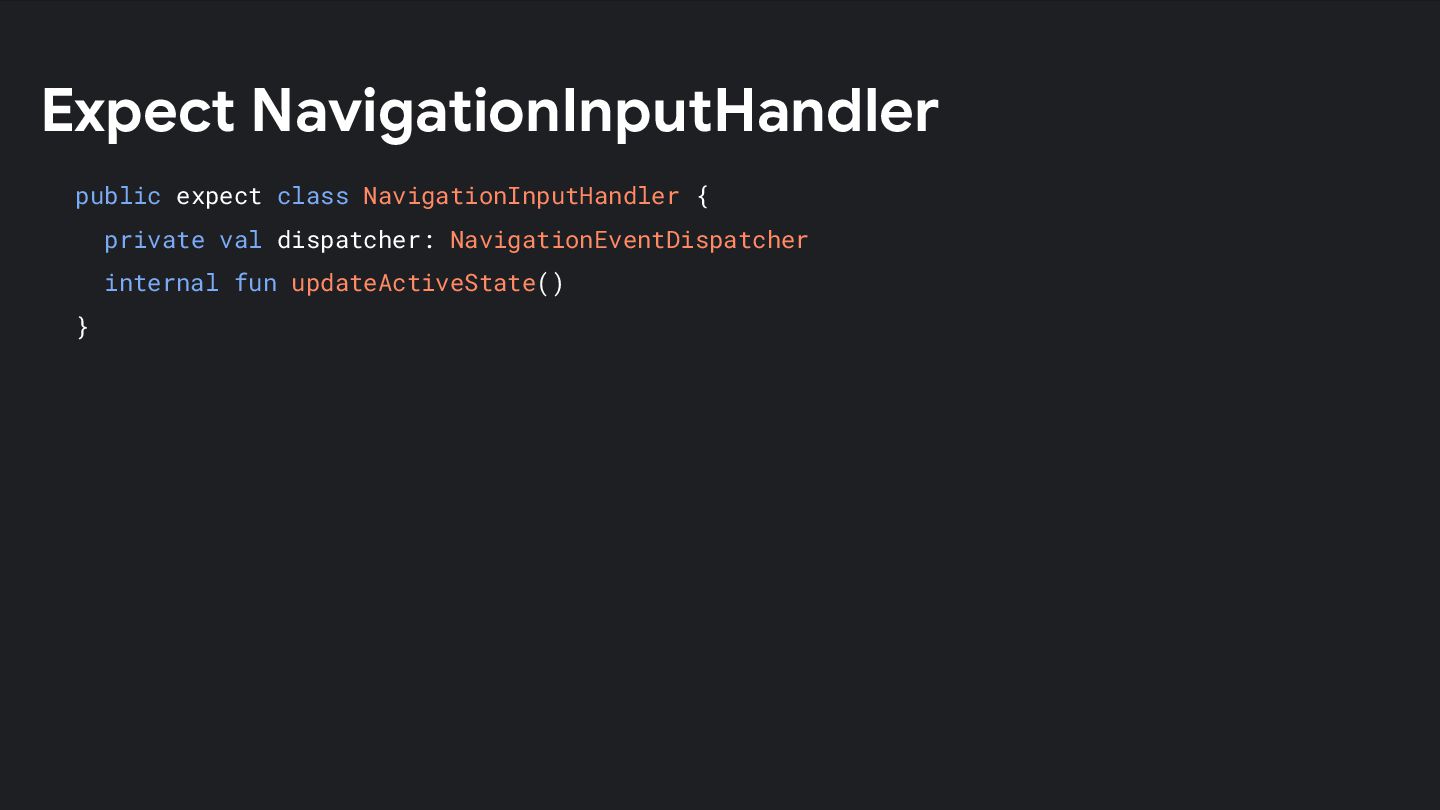

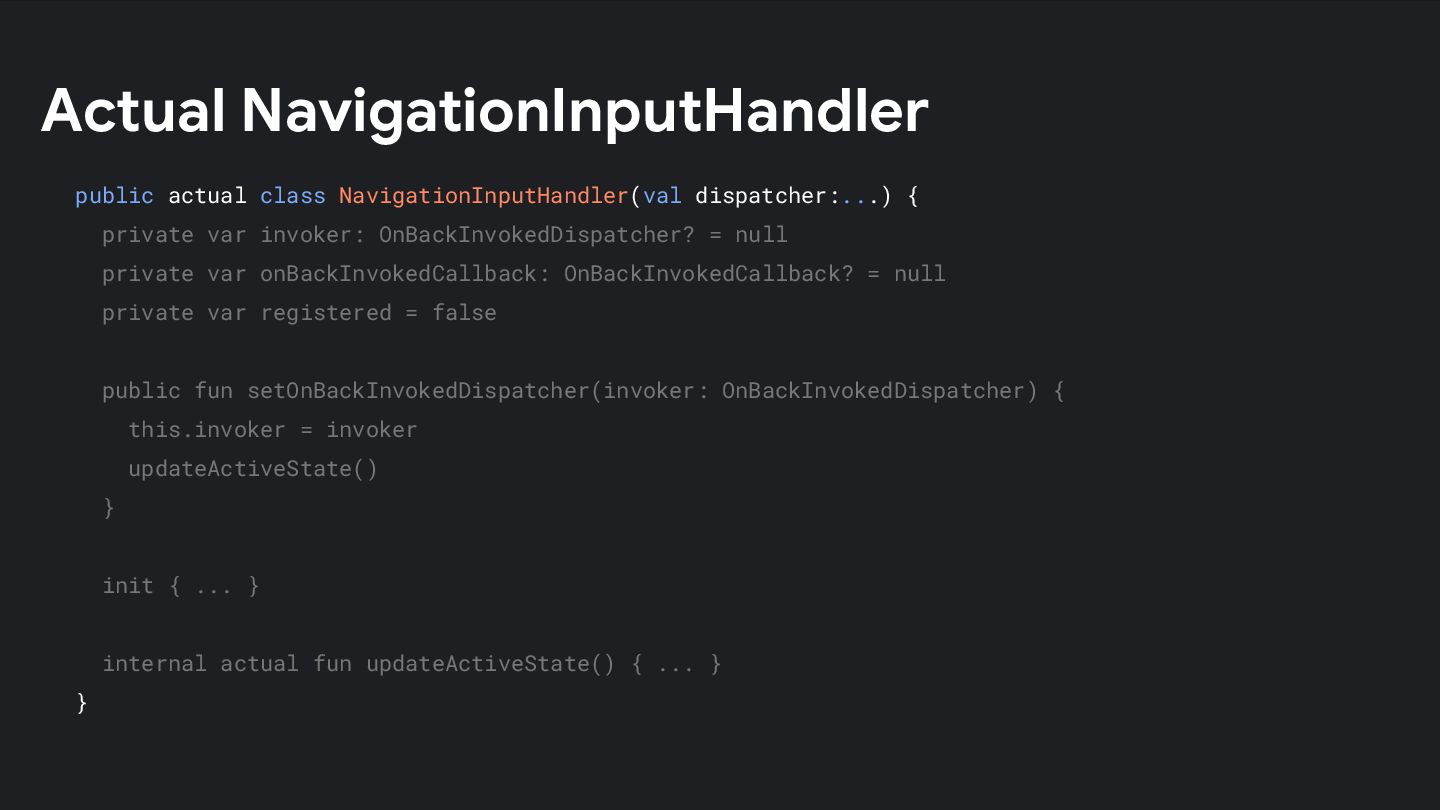

148. public expect class NavigationInputHandler { private val dispatcher: NavigationEventDispatcher internal fun updateActiveState() } Expect NavigationInputHandler

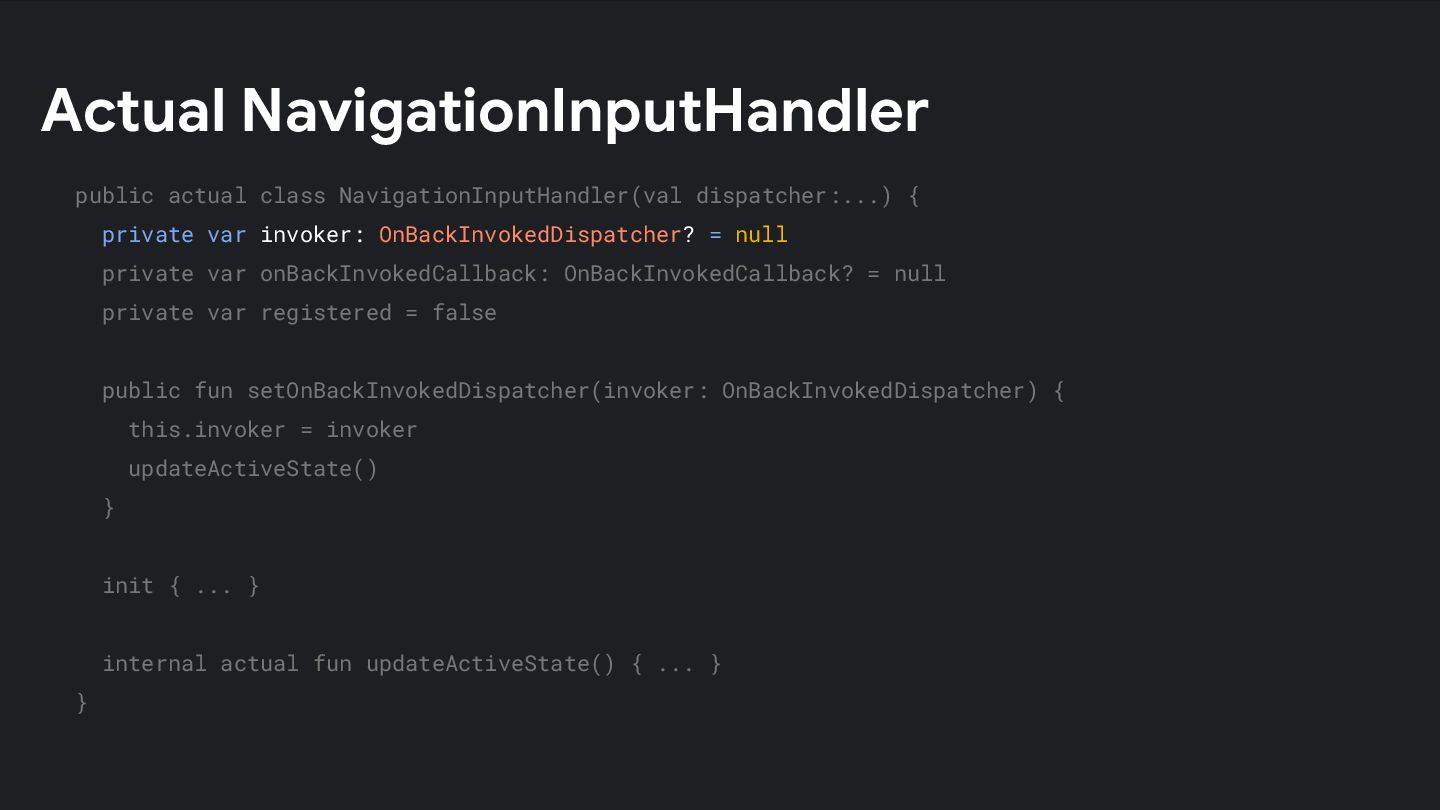

149. public actual class NavigationInputHandler(val dispatcher:...) { private var invoker: OnBackInvokedDispatcher? = null private var onBackInvokedCallback: OnBackInvokedCallback? = null private var registered = false public fun setOnBackInvokedDispatcher(invoker: OnBackInvokedDispatcher) { this.invoker = invoker updateActiveState() } init { ... } internal actual fun updateActiveState() { ... } } Actual NavigationInputHandler
150. public actual class NavigationInputHandler(val dispatcher:...) { private var invoker: OnBackInvokedDispatcher? = null private var onBackInvokedCallback: OnBackInvokedCallback? = null private var registered = false public fun setOnBackInvokedDispatcher(invoker: OnBackInvokedDispatcher) { this.invoker = invoker updateActiveState() } init { ... } internal actual fun updateActiveState() { ... } } Actual NavigationInputHandler

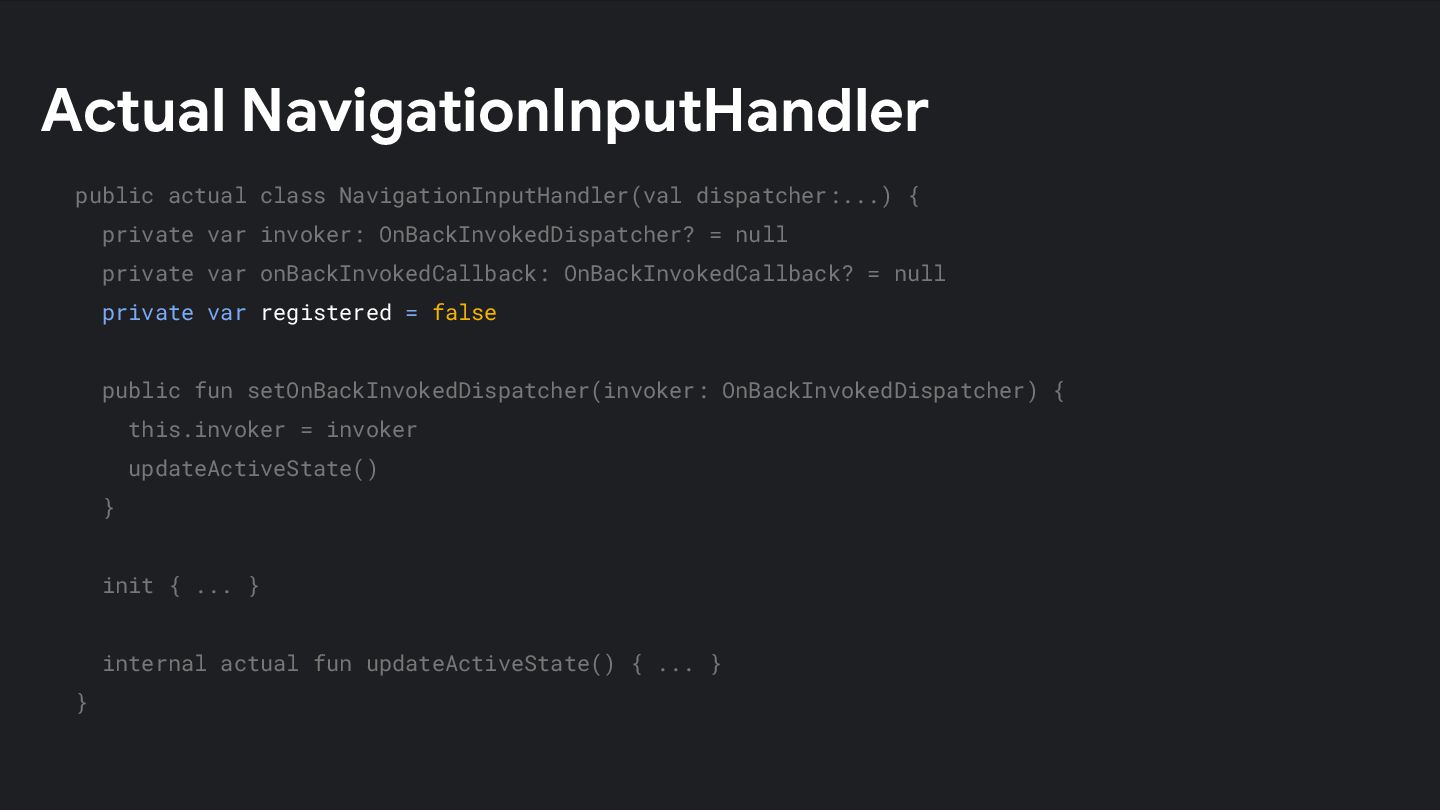

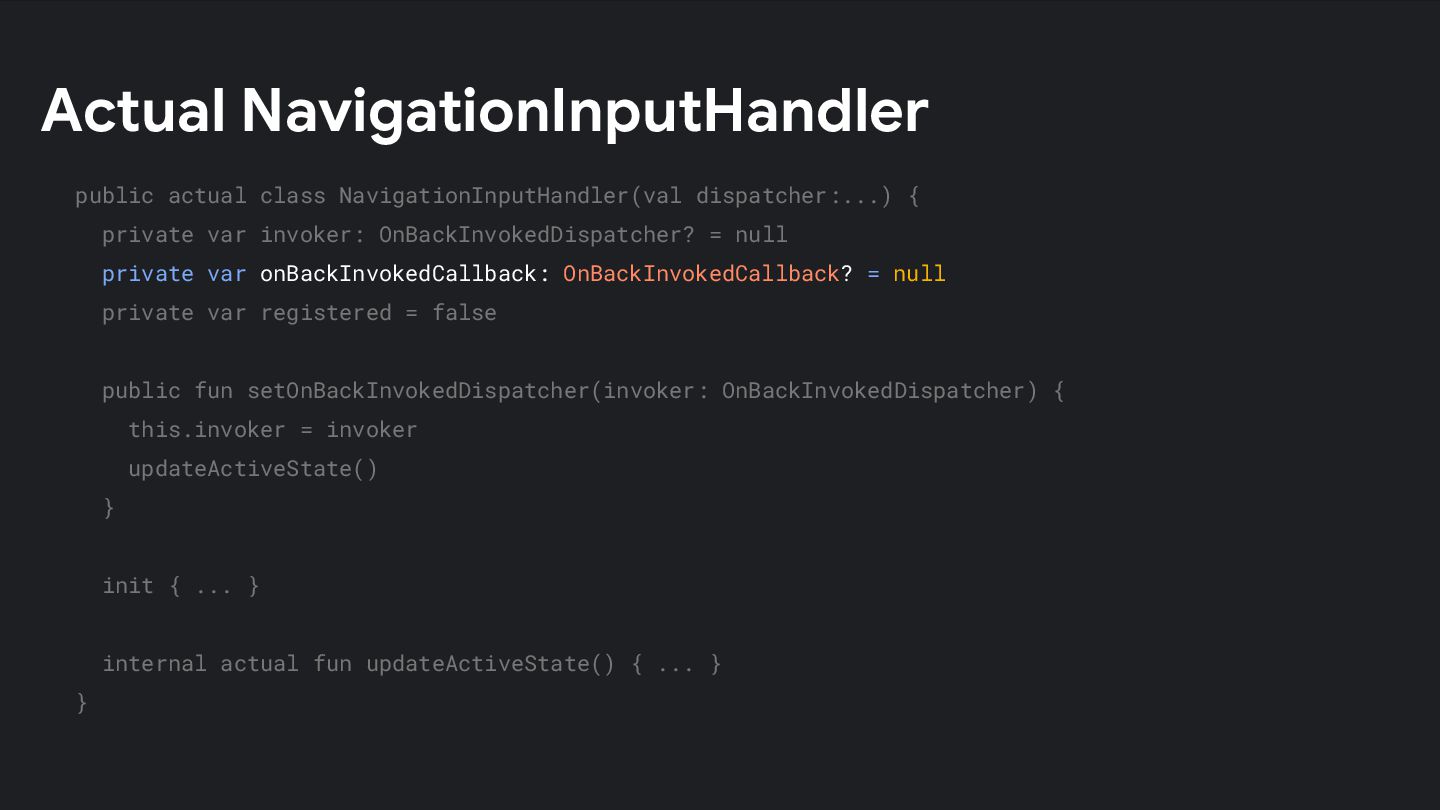

151. public actual class NavigationInputHandler(val dispatcher:...) { private var invoker: OnBackInvokedDispatcher? = null private var onBackInvokedCallback: OnBackInvokedCallback? = null private var registered = false public fun setOnBackInvokedDispatcher(invoker: OnBackInvokedDispatcher) { this.invoker = invoker updateActiveState() } init { ... } internal actual fun updateActiveState() { ... } } Actual NavigationInputHandler
152. public actual class NavigationInputHandler(val dispatcher:...) { private var invoker: OnBackInvokedDispatcher? = null private var onBackInvokedCallback: OnBackInvokedCallback? = null private var registered = false public fun setOnBackInvokedDispatcher(invoker: OnBackInvokedDispatcher) { this.invoker = invoker updateActiveState() } init { ... } internal actual fun updateActiveState() { ... } } Actual NavigationInputHandler

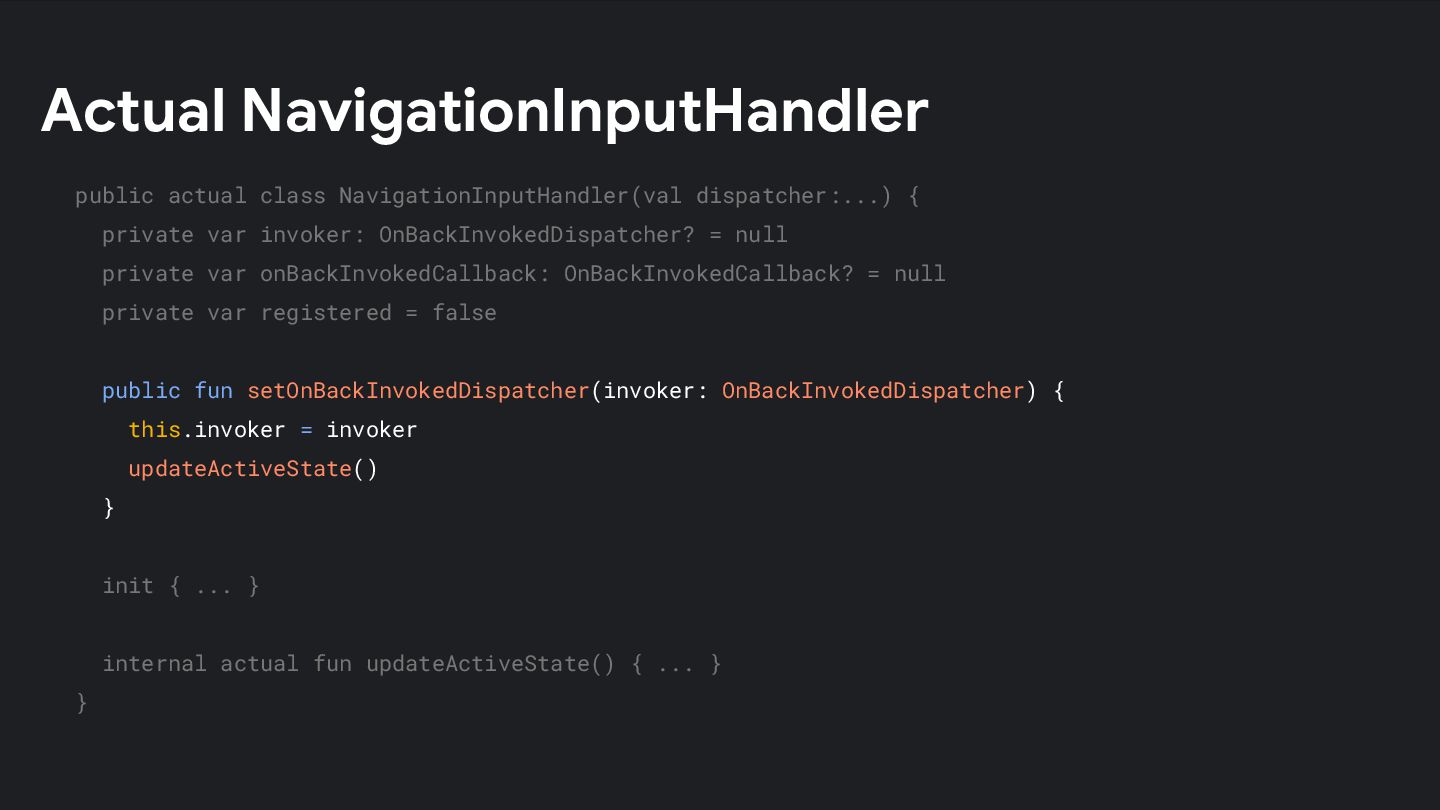

153. public actual class NavigationInputHandler(val dispatcher:...) { private var invoker: OnBackInvokedDispatcher? = null private var onBackInvokedCallback: OnBackInvokedCallback? = null private var registered = false public fun setOnBackInvokedDispatcher(invoker: OnBackInvokedDispatcher) { this.invoker = invoker updateActiveState() } init { ... } internal actual fun updateActiveState() { ... } } Actual NavigationInputHandler

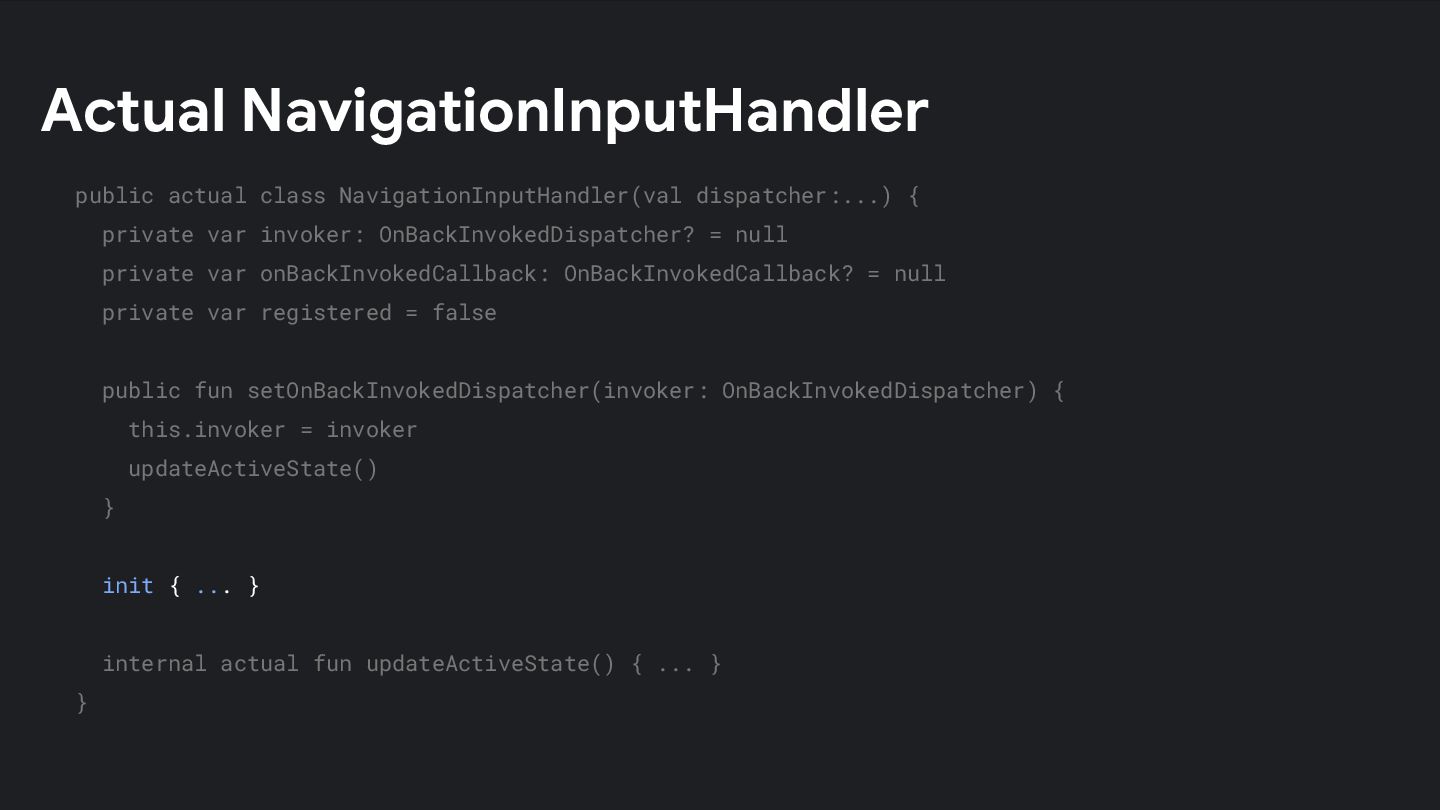

154. public actual class NavigationInputHandler(val dispatcher:...) { private var invoker: OnBackInvokedDispatcher? = null private var onBackInvokedCallback: OnBackInvokedCallback? = null private var registered = false public fun setOnBackInvokedDispatcher(invoker: OnBackInvokedDispatcher) { this.invoker = invoker updateActiveState() } init { ... } internal actual fun updateActiveState() { ... } } Actual NavigationInputHandler

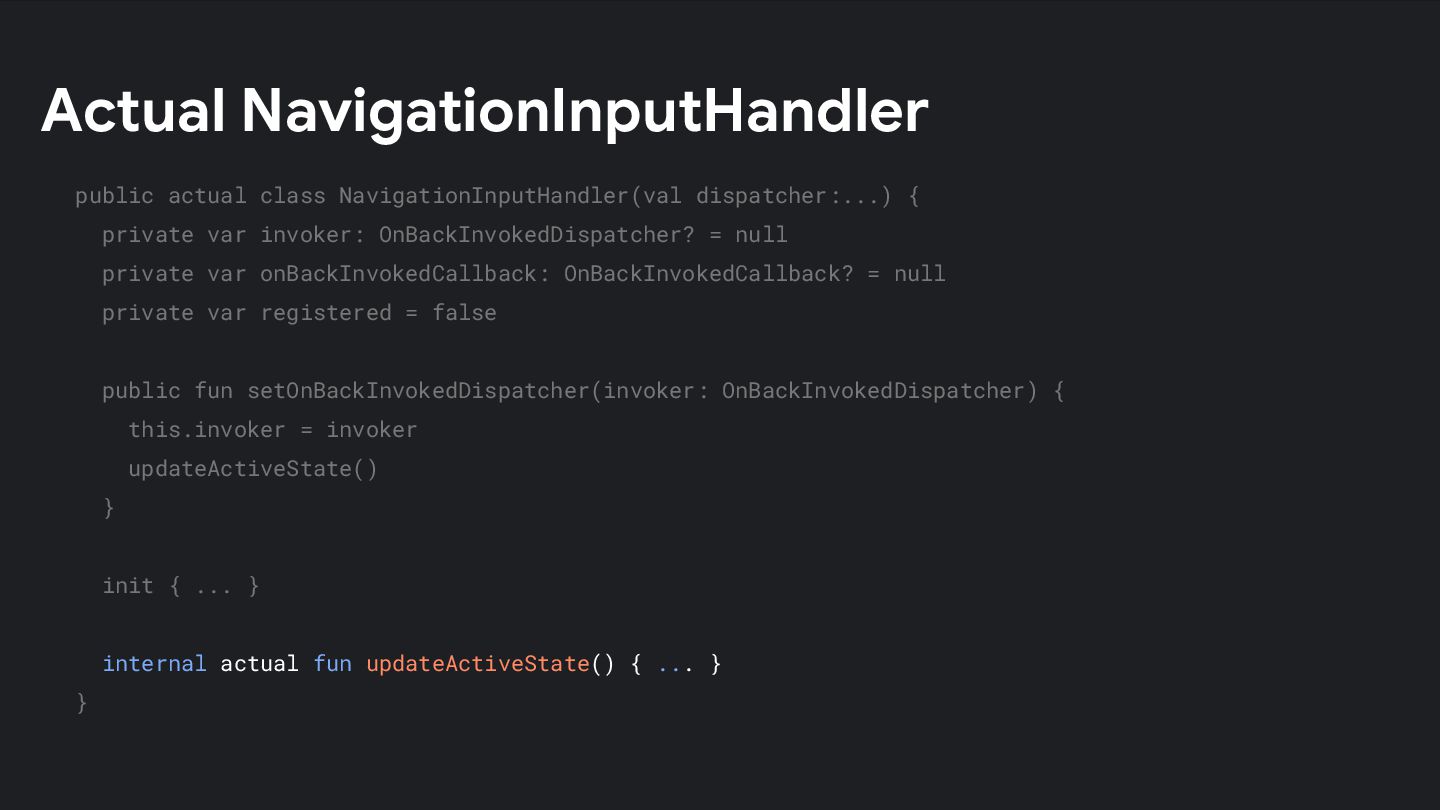

155. public actual class NavigationInputHandler(val dispatcher:...) { private var invoker: OnBackInvokedDispatcher? = null private var onBackInvokedCallback: OnBackInvokedCallback? = null private var registered = false public fun setOnBackInvokedDispatcher(invoker: OnBackInvokedDispatcher) { this.invoker = invoker updateActiveState() } init { ... } internal actual fun updateActiveState() { ... } } Actual NavigationInputHandler
156. public actual class NavigationInputHandler(val dispatcher:...) { private var invoker: OnBackInvokedDispatcher? = null private var onBackInvokedCallback: OnBackInvokedCallback? = null private var registered = false public fun setOnBackInvokedDispatcher(invoker: OnBackInvokedDispatcher) { this.invoker = invoker updateActiveState() } init { ... } internal actual fun updateActiveState() { ... } } Actual NavigationInputHandler
157. internal actual fun updateActiveState() { val shouldBeRegistered = dispatcher.hasEnabledCallbacks()\ if (shouldBeRegistered && !registered) { registerOnBackInvokedCallback(...) } else if (!shouldBeRegistered && registered) { unregisterOnBackInvokedCallback(...) } } Actual NavigationInputHandler
158. internal actual fun updateActiveState() { val shouldBeRegistered = dispatcher.hasEnabledCallbacks() if (shouldBeRegistered && !registered) { registerOnBackInvokedCallback(...) } else if (!shouldBeRegistered && registered) { unregisterOnBackInvokedCallback(...) } } Actual NavigationInputHandler
159. internal actual fun updateActiveState() { val shouldBeRegistered = dispatcher.hasEnabledCallbacks() if (shouldBeRegistered && !registered) { registerOnBackInvokedCallback(...) } else if (!shouldBeRegistered && registered) { unregisterOnBackInvokedCallback(...) } } Actual NavigationInputHandler

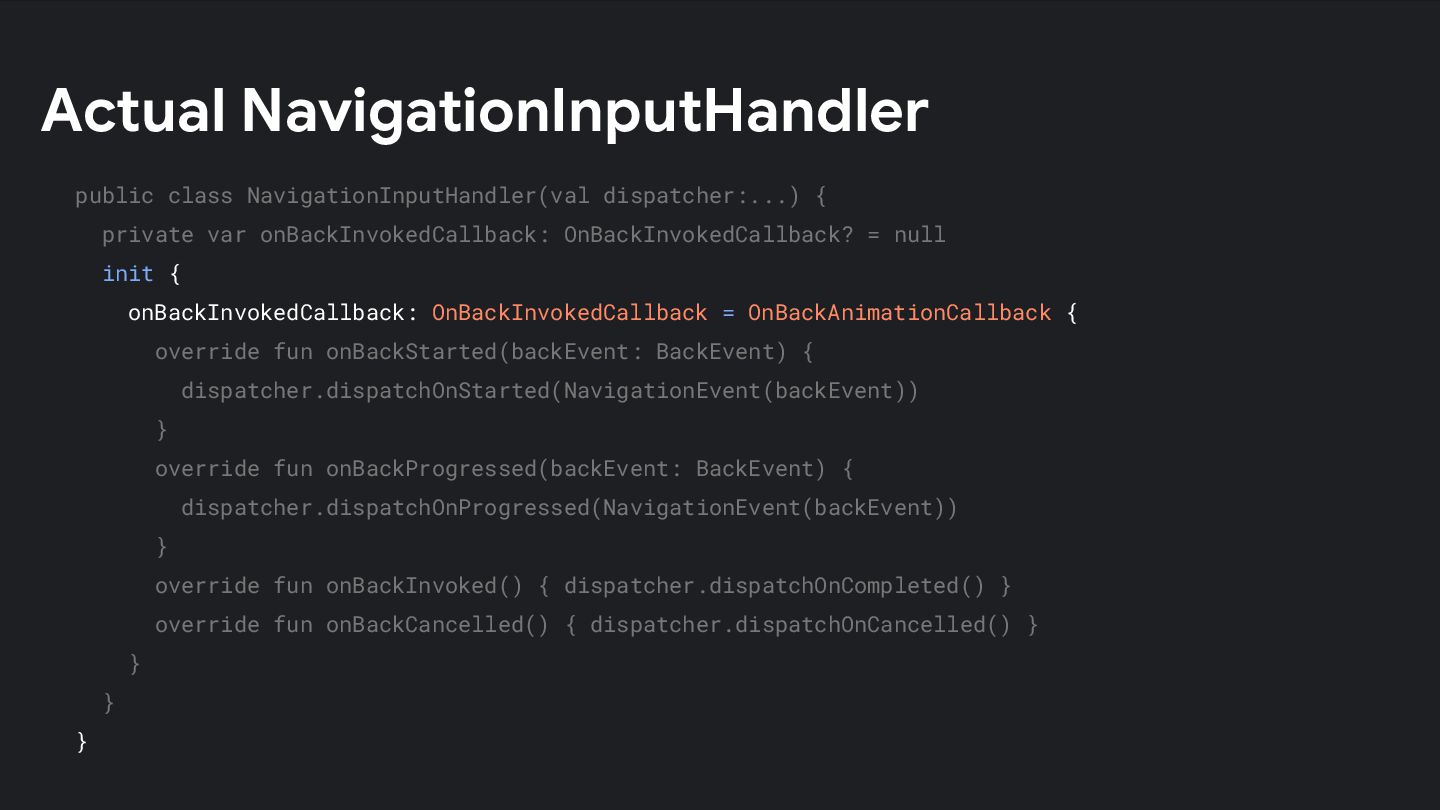

160. public actual class NavigationInputHandler(val dispatcher:...) { private var invoker: OnBackInvokedDispatcher? = null private var onBackInvokedCallback: OnBackInvokedCallback? = null private var registered = false public fun setOnBackInvokedDispatcher(invoker: OnBackInvokedDispatcher) { this.invoker = invoker updateActiveState() } init { ... } internal actual fun updateActiveState() { ... } } Actual NavigationInputHandler

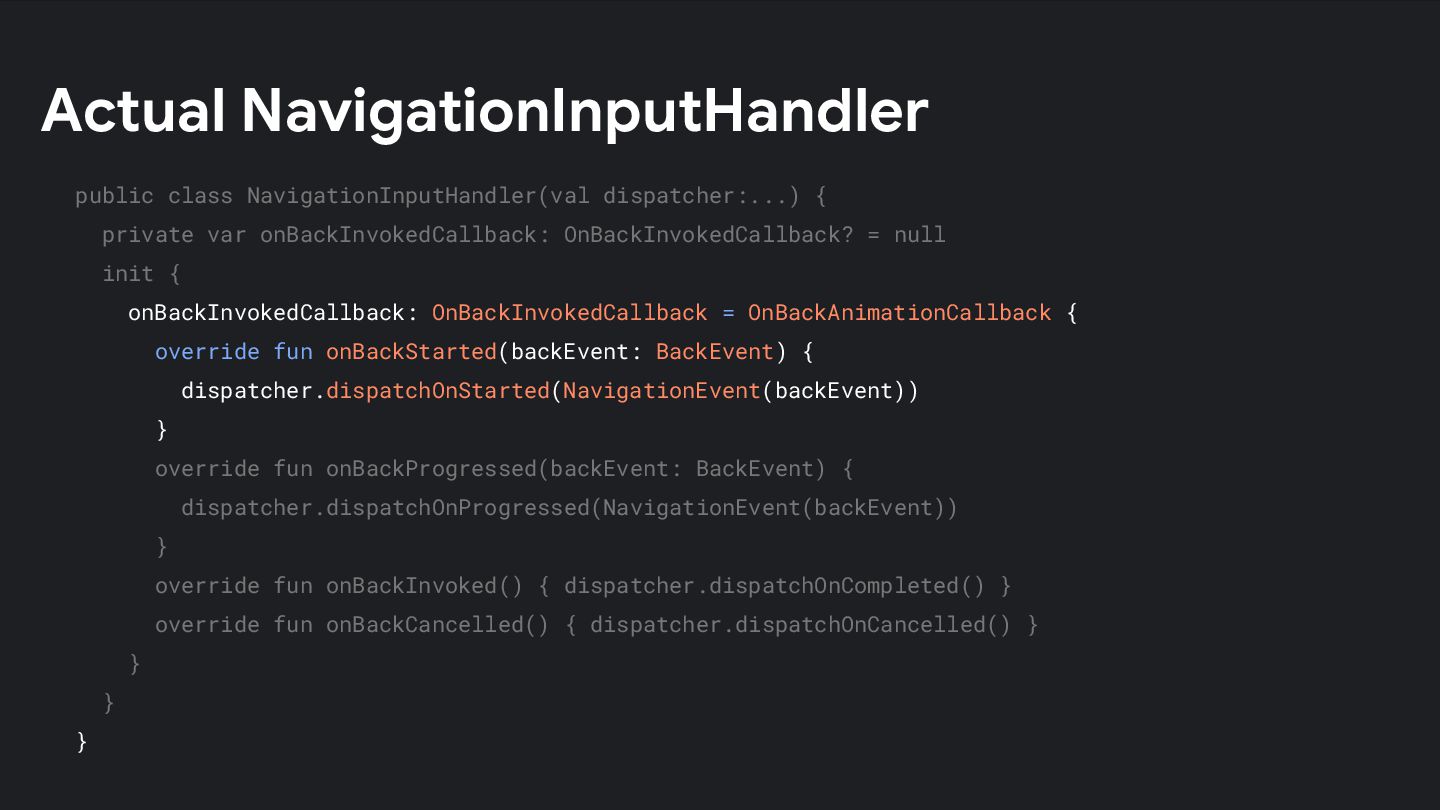

161. public class NavigationInputHandler(val dispatcher:...) { private var onBackInvokedCallback: OnBackInvokedCallback? = null init { onBackInvokedCallback: OnBackInvokedCallback = OnBackAnimationCallback { override fun onBackStarted(backEvent: BackEvent) { dispatcher.dispatchOnStarted(NavigationEvent(backEvent)) } override fun onBackProgressed(backEvent: BackEvent) { dispatcher.dispatchOnProgressed(NavigationEvent(backEvent)) } override fun onBackInvoked() { dispatcher.dispatchOnCompleted() } override fun onBackCancelled() { dispatcher.dispatchOnCancelled() } } } } Actual NavigationInputHandler
162. public class NavigationInputHandler(val dispatcher:...) { private var onBackInvokedCallback: OnBackInvokedCallback? = null init { onBackInvokedCallback: OnBackInvokedCallback = OnBackAnimationCallback { override fun onBackStarted(backEvent: BackEvent) { dispatcher.dispatchOnStarted(NavigationEvent(backEvent)) } override fun onBackProgressed(backEvent: BackEvent) { dispatcher.dispatchOnProgressed(NavigationEvent(backEvent)) } override fun onBackInvoked() { dispatcher.dispatchOnCompleted() } override fun onBackCancelled() { dispatcher.dispatchOnCancelled() } } } } Actual NavigationInputHandler
163. public class NavigationInputHandler(val dispatcher:...) { private var onBackInvokedCallback: OnBackInvokedCallback? = null init { onBackInvokedCallback: OnBackInvokedCallback = OnBackAnimationCallback { override fun onBackStarted(backEvent: BackEvent) { dispatcher.dispatchOnStarted(NavigationEvent(backEvent)) } override fun onBackProgressed(backEvent: BackEvent) { dispatcher.dispatchOnProgressed(NavigationEvent(backEvent)) } override fun onBackInvoked() { dispatcher.dispatchOnCompleted() } override fun onBackCancelled() { dispatcher.dispatchOnCancelled() } } } } Actual NavigationInputHandler

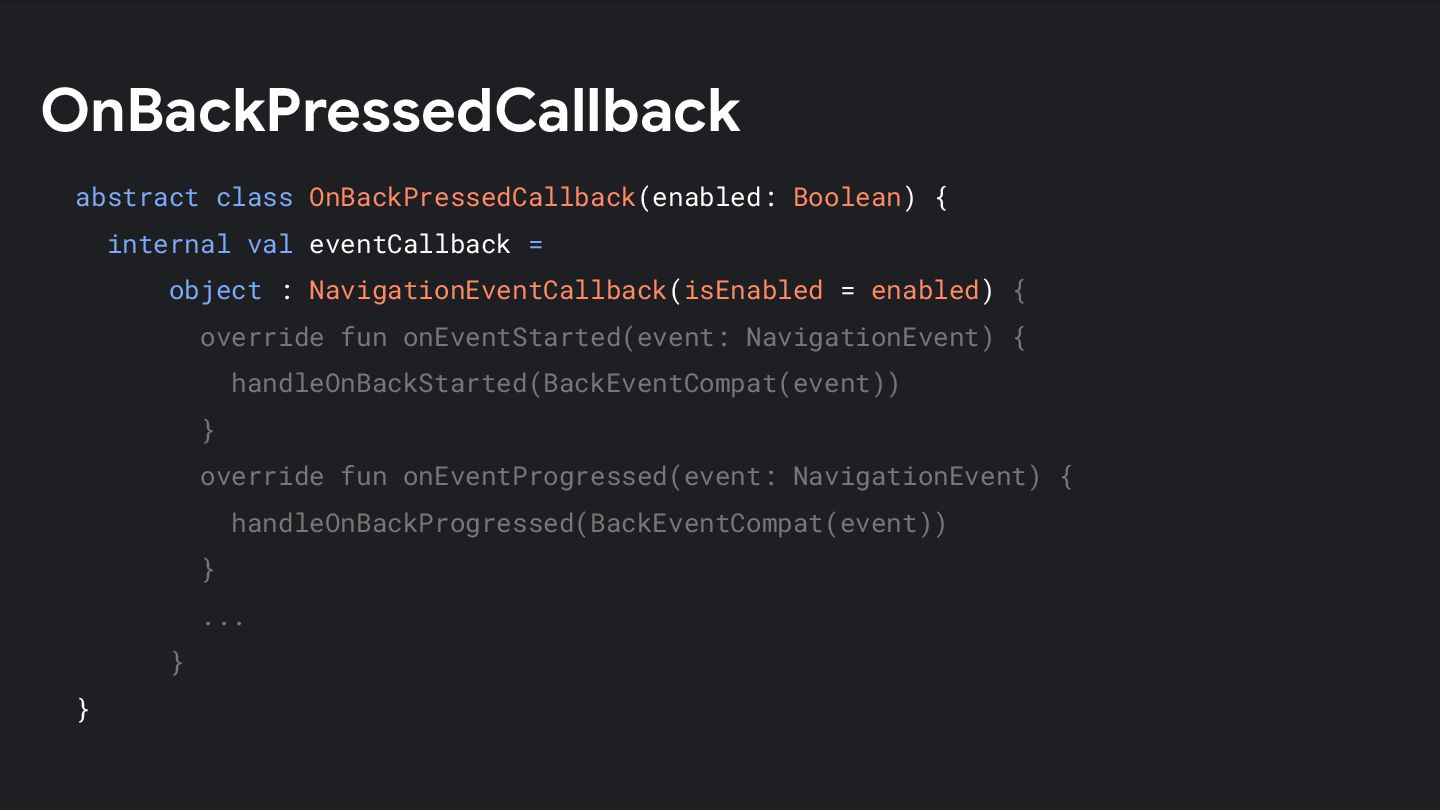

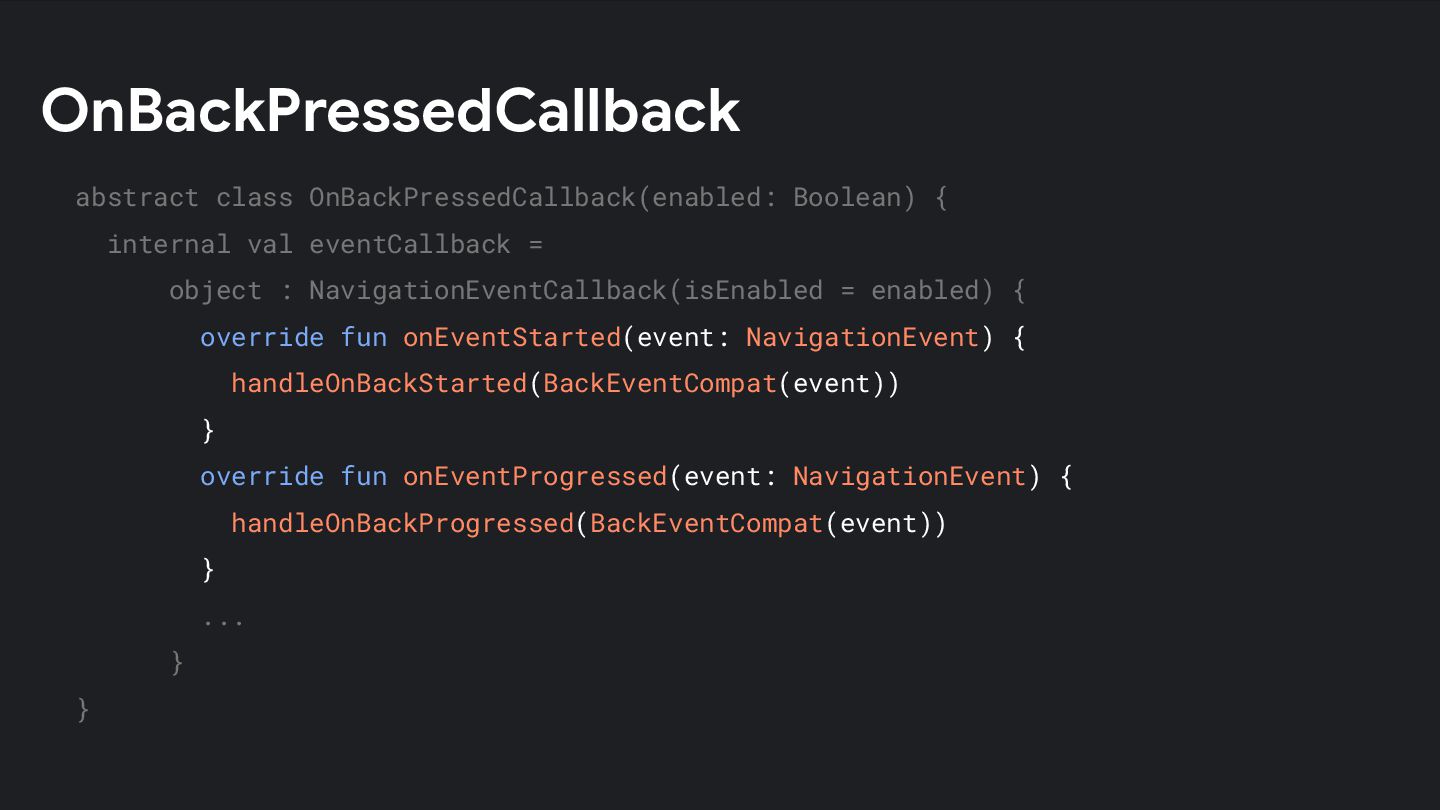

164. abstract class OnBackPressedCallback(enabled: Boolean) { internal val eventCallback = object : NavigationEventCallback(isEnabled = enabled) { override fun onEventStarted(event: NavigationEvent) { handleOnBackStarted(BackEventCompat(event)) } override fun onEventProgressed(event: NavigationEvent) { handleOnBackProgressed(BackEventCompat(event)) } ... } } OnBackPressedCallback
165. abstract class OnBackPressedCallback(enabled: Boolean) { internal val eventCallback = object : NavigationEventCallback(isEnabled = enabled) { override fun onEventStarted(event: NavigationEvent) { handleOnBackStarted(BackEventCompat(event)) } override fun onEventProgressed(event: NavigationEvent) { handleOnBackProgressed(BackEventCompat(event)) } ... } } OnBackPressedCallback

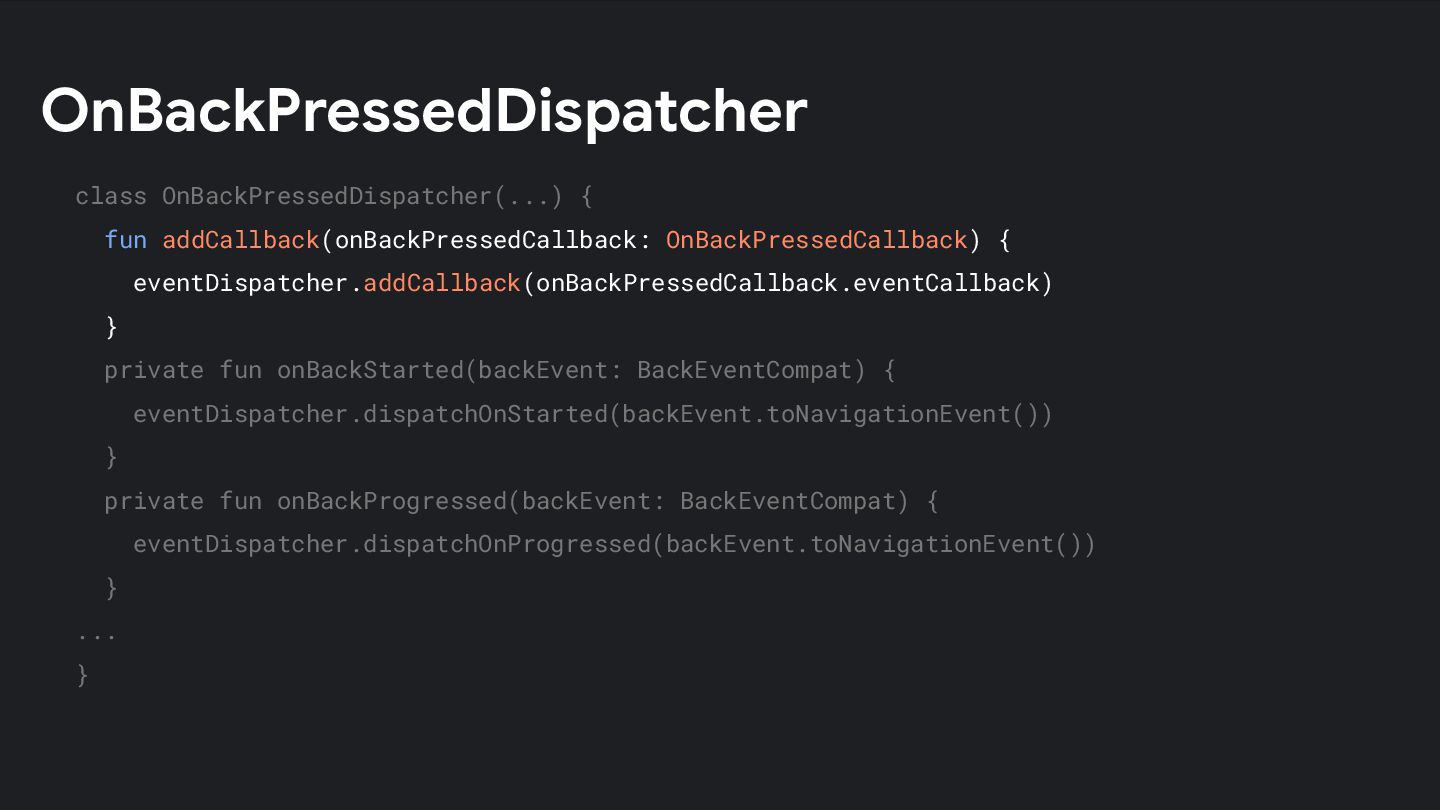

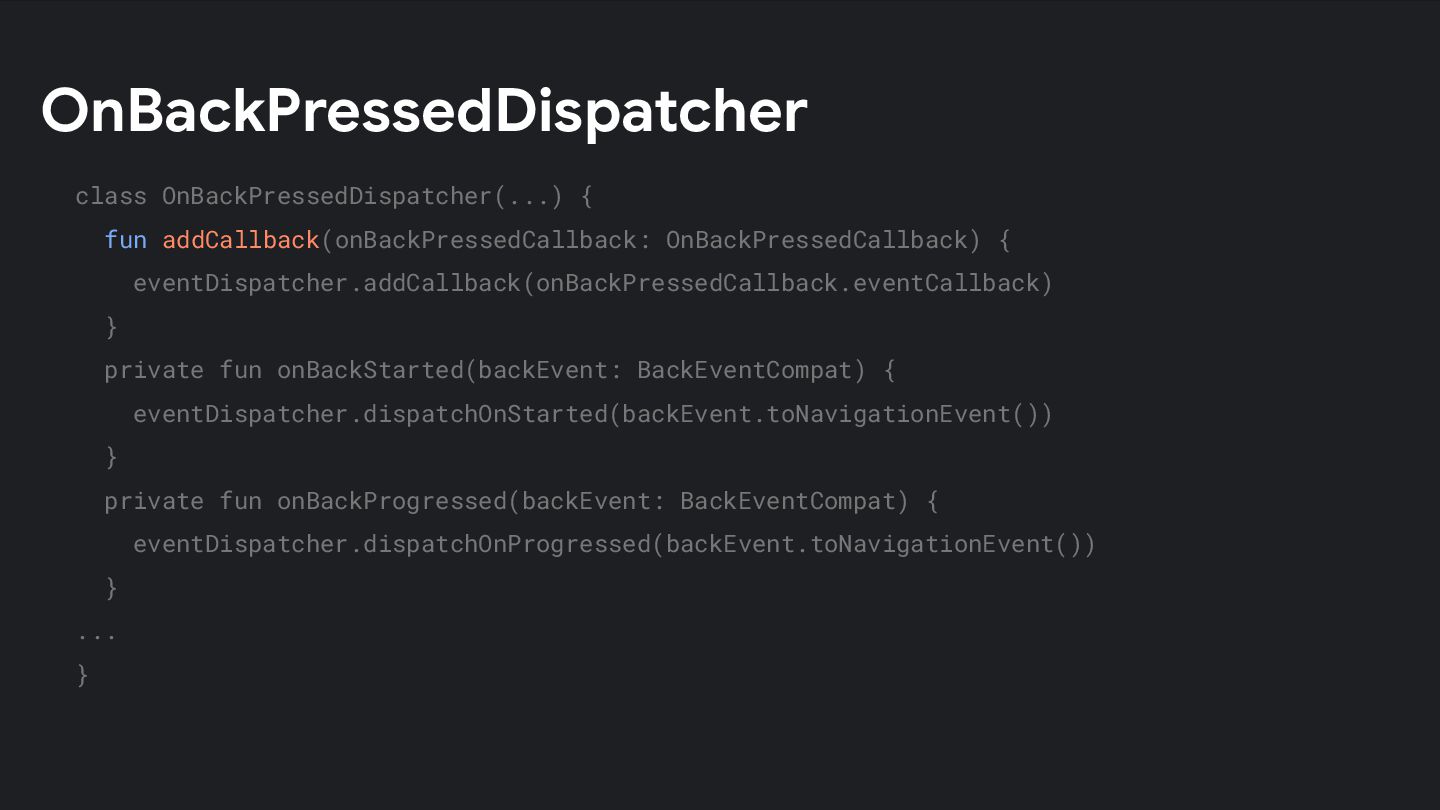

166. class OnBackPressedDispatcher(...) { fun addCallback(onBackPressedCallback: OnBackPressedCallback) { eventDispatcher.addCallback(onBackPressedCallback.eventCallback) } private fun onBackStarted(backEvent: BackEventCompat) { eventDispatcher.dispatchOnStarted(backEvent.toNavigationEvent()) } private fun onBackProgressed(backEvent: BackEventCompat) { eventDispatcher.dispatchOnProgressed(backEvent.toNavigationEvent()) } ... } OnBackPressedDispatcher
167. class OnBackPressedDispatcher(...) { fun addCallback(onBackPressedCallback: OnBackPressedCallback) { eventDispatcher.addCallback(onBackPressedCallback.eventCallback) } private fun onBackStarted(backEvent: BackEventCompat) { eventDispatcher.dispatchOnStarted(backEvent.toNavigationEvent()) } private fun onBackProgressed(backEvent: BackEventCompat) { eventDispatcher.dispatchOnProgressed(backEvent.toNavigationEvent()) } ... } OnBackPressedDispatcher

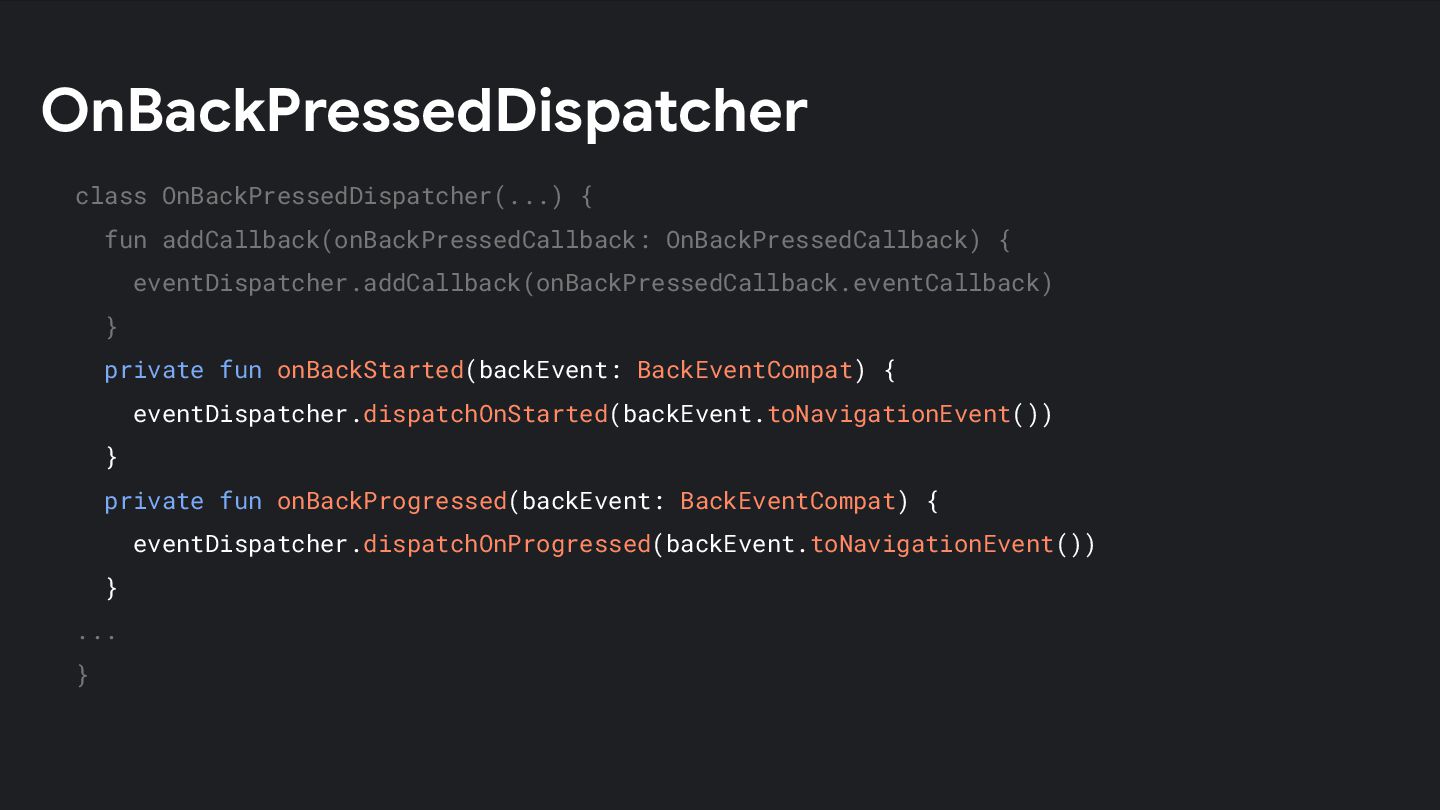

168. class OnBackPressedDispatcher(...) { fun addCallback(onBackPressedCallback: OnBackPressedCallback) { eventDispatcher.addCallback(onBackPressedCallback.eventCallback) } private fun onBackStarted(backEvent: BackEventCompat) { eventDispatcher.dispatchOnStarted(backEvent.toNavigationEvent()) } private fun onBackProgressed(backEvent: BackEventCompat) { eventDispatcher.dispatchOnProgressed(backEvent.toNavigationEvent()) } ... } OnBackPressedDispatcher
169. class OnBackPressedDispatcher(...) { fun addCallback(onBackPressedCallback: OnBackPressedCallback) { eventDispatcher.addCallback(onBackPressedCallback.eventCallback) } private fun onBackStarted(backEvent: BackEventCompat) { eventDispatcher.dispatchOnStarted(backEvent.toNavigationEvent()) } private fun onBackProgressed(backEvent: BackEventCompat) { eventDispatcher.dispatchOnProgressed(backEvent.toNavigationEvent()) } ... } OnBackPressedDispatcher

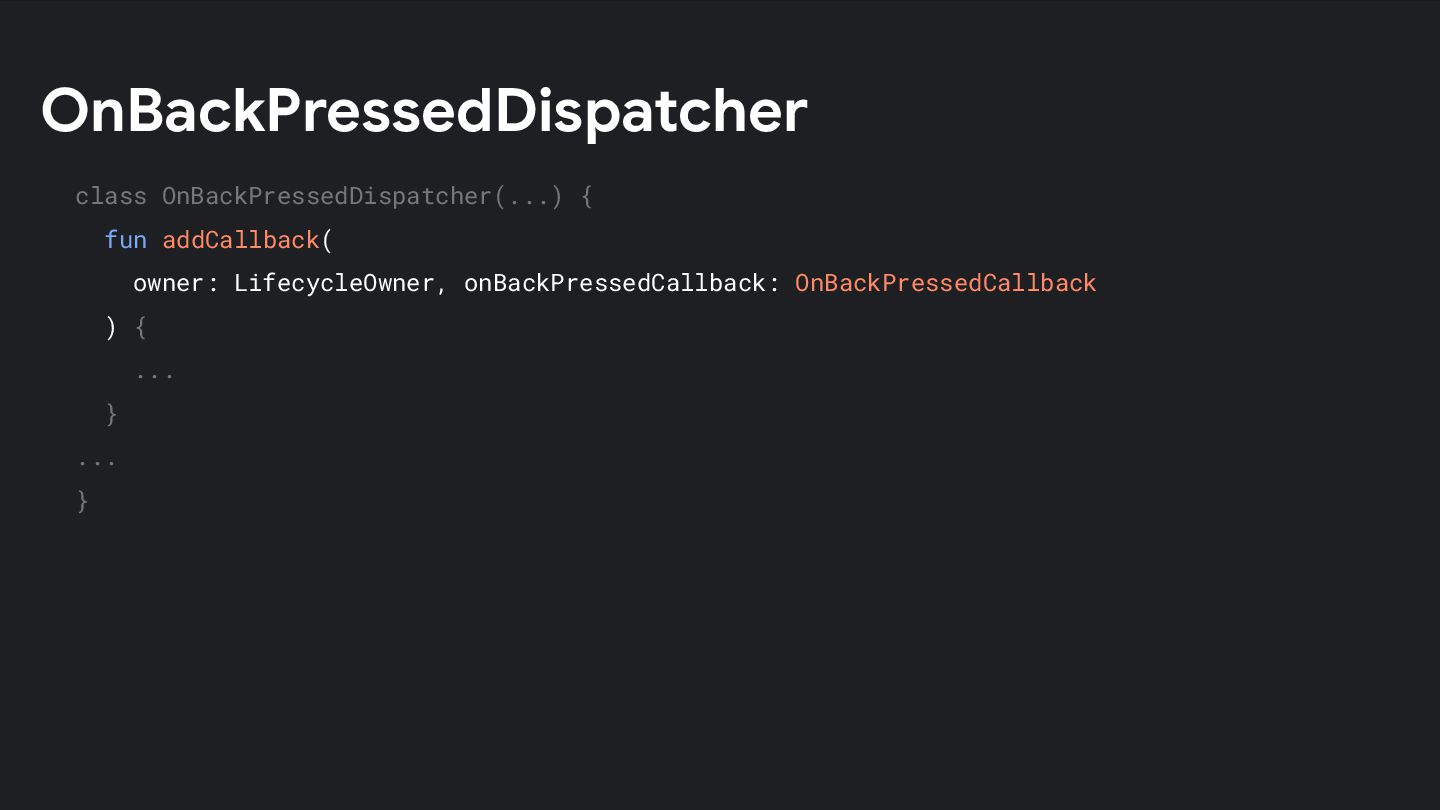

170. class OnBackPressedDispatcher(...) { fun addCallback( owner: LifecycleOwner, onBackPressedCallback: OnBackPressedCallback ) { ... } ... } OnBackPressedDispatcher
171. Navigation 3 Integration

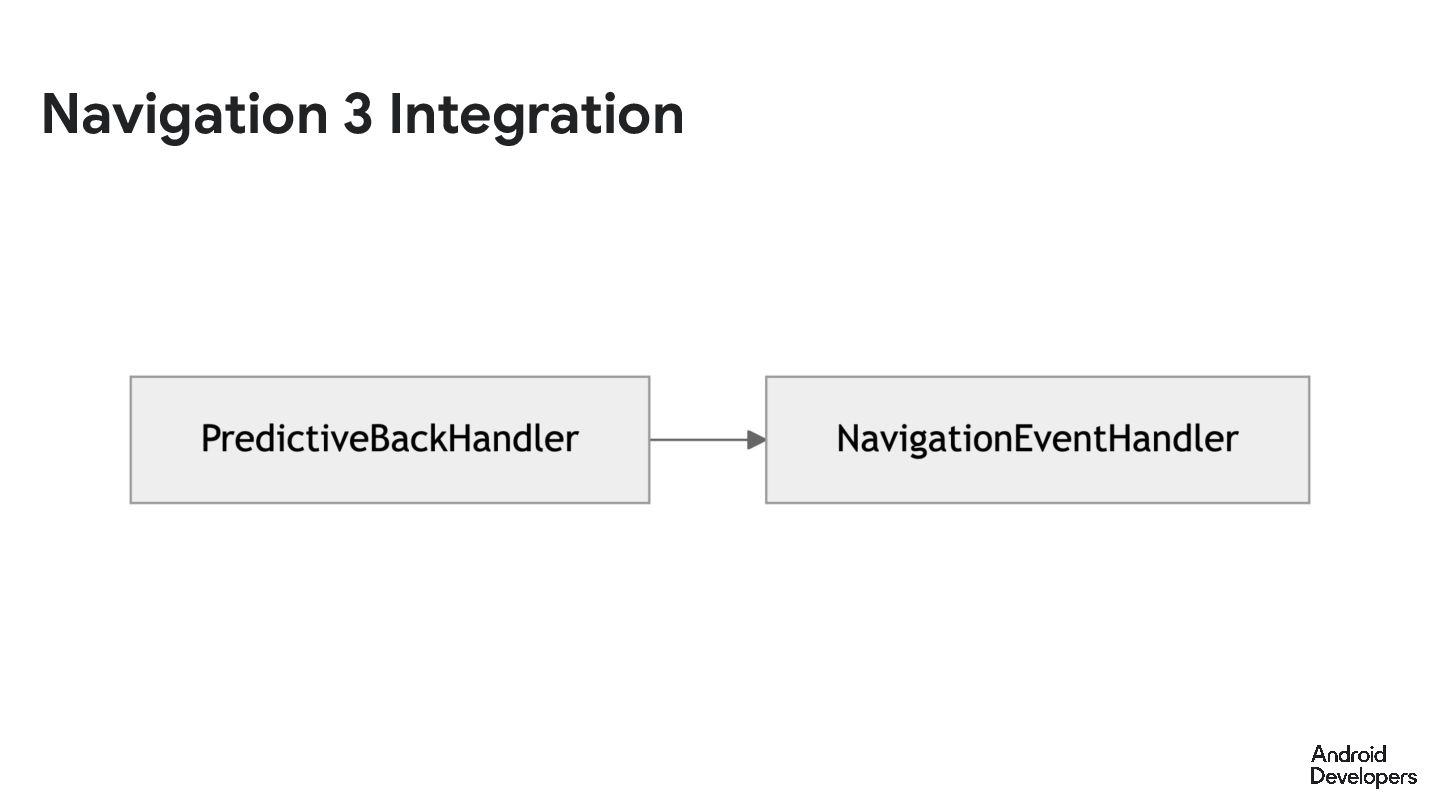

172. Navigation 3 Integration

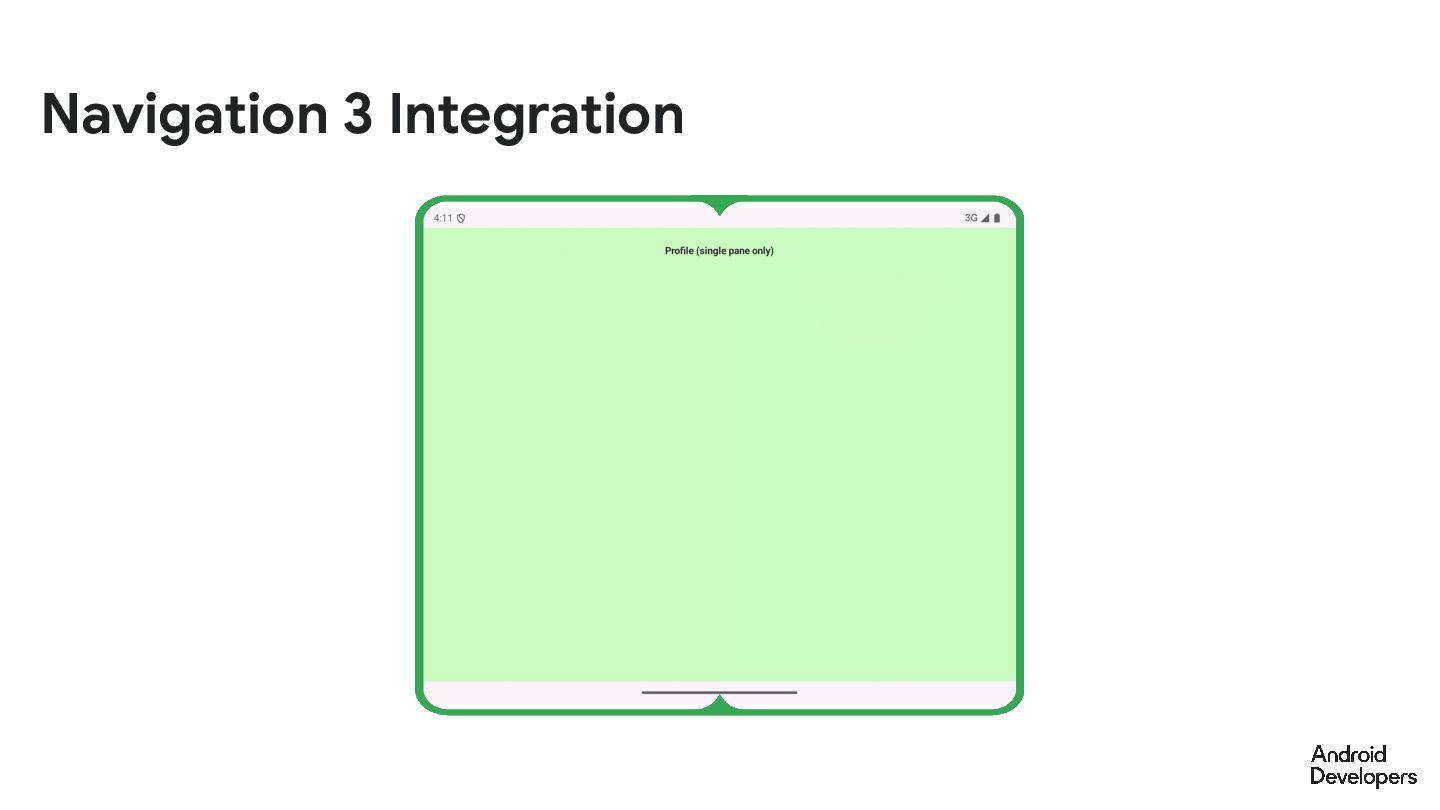

173. Navigation 3 Integration

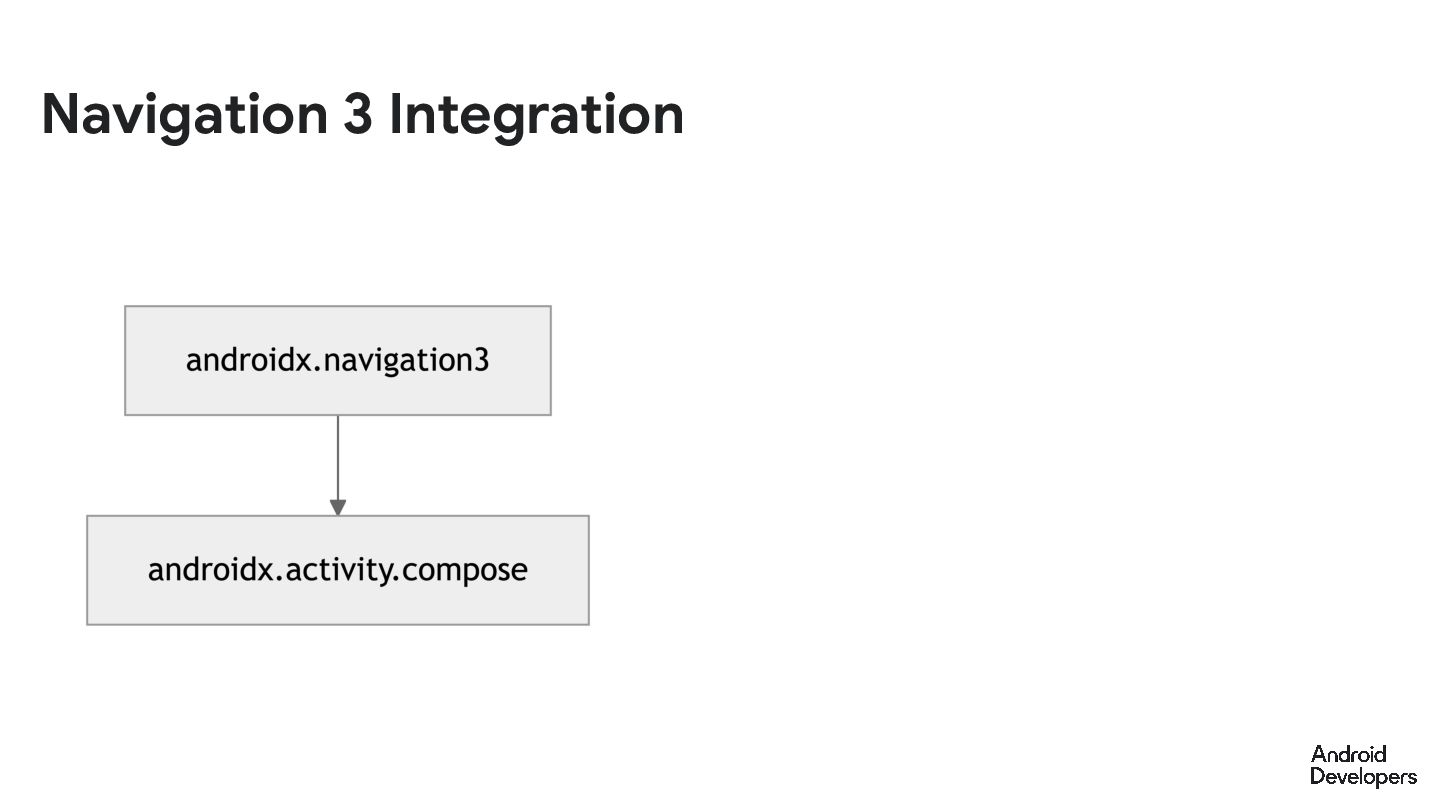

174. Navigation 3 Integration

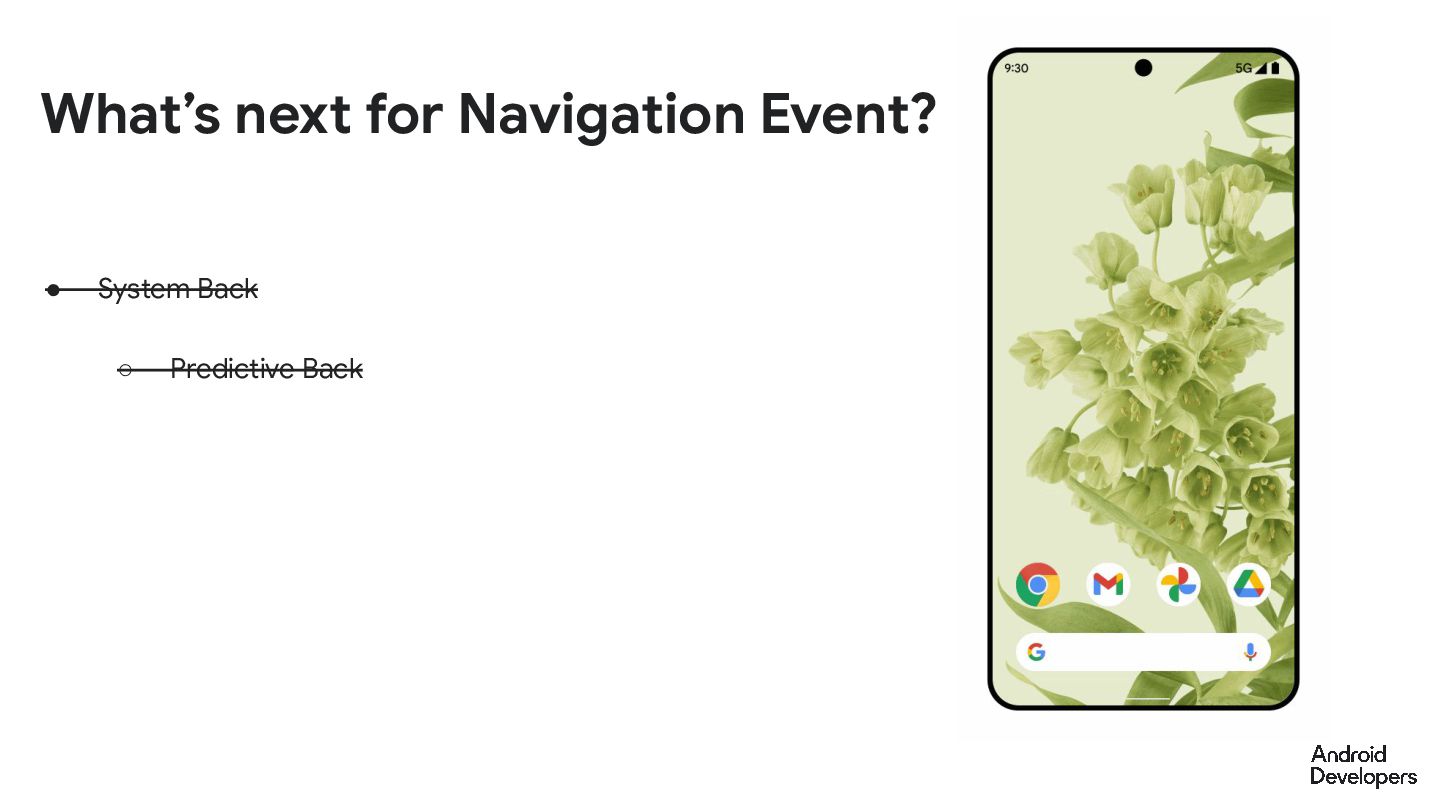

175. What’s next for Navigation Event?
176. • System Back ◦ Predictive Back What’s next for Navigation Event?
177. • System Back ◦ Predictive Back • Keyboard Events What’s next for Navigation Event? • System Back ◦ Predictive Back

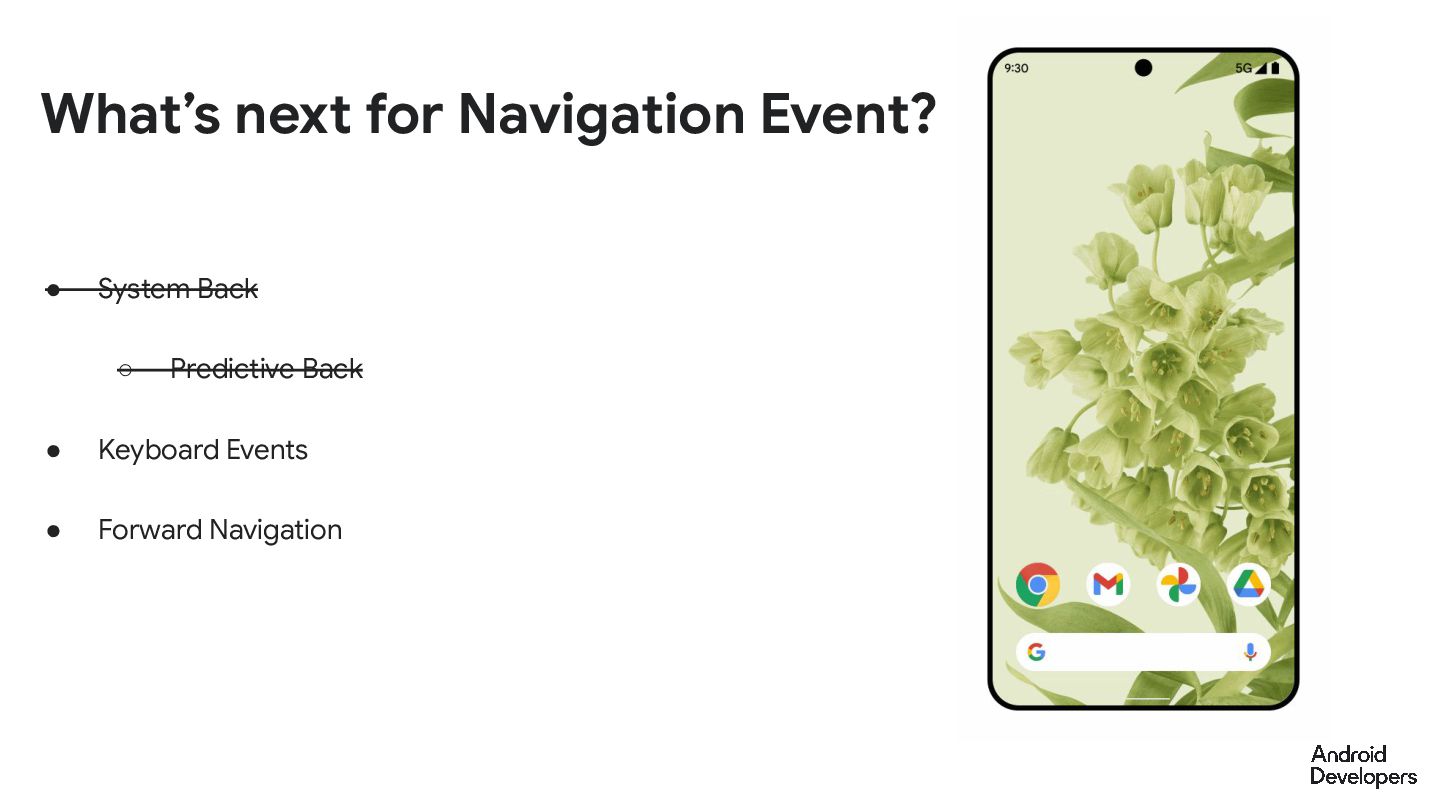

178. • System Back ◦ Predictive Back • Keyboard Events • Forward Navigation What’s next for Navigation Event? • System Back ◦ Predictive Back • Keyboard Events
179. Proprietary + Confidential 04 Review

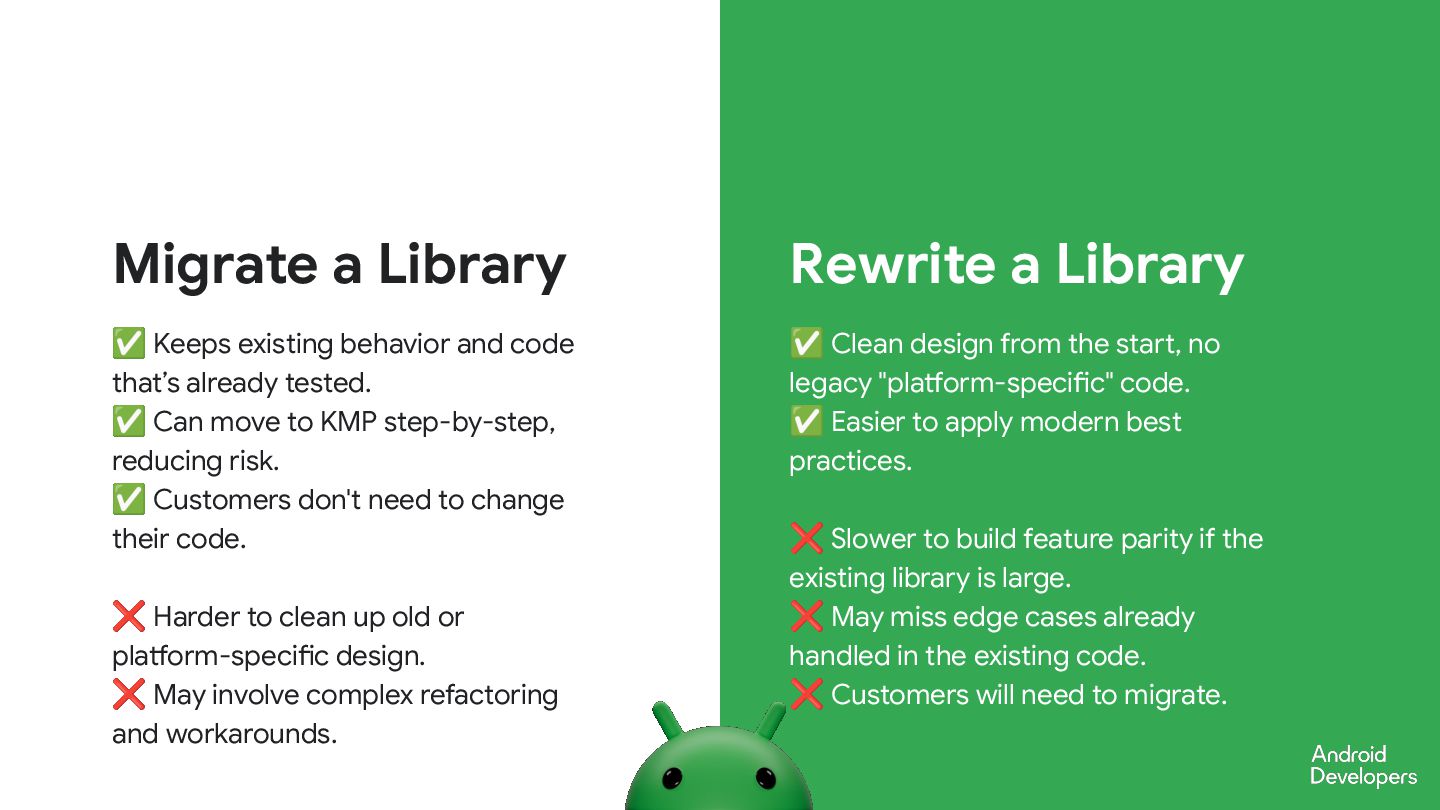

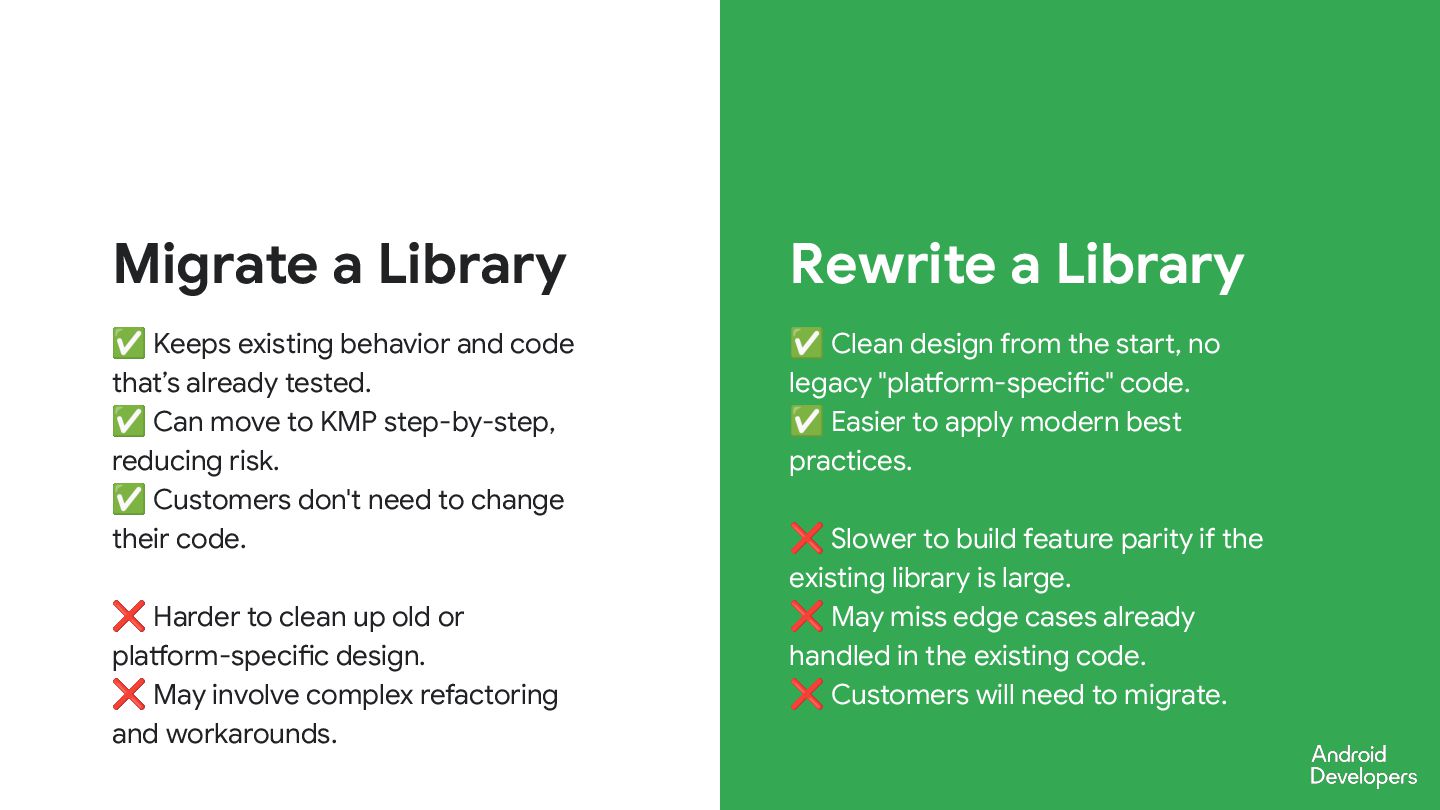

181. ✅ Keeps existing behavior and code that’s already tested. ✅ Can move to KMP step-by-step, reducing risk. ✅ Customers don't need to change their code. ❌ Harder to clean up old or platform-specific design. ❌ May involve complex refactoring and workarounds. Migrate a Library
182. ✅ Keeps existing behavior and code that’s already tested. ✅ Can move to KMP step-by-step, reducing risk. ✅ Customers don't need to change their code. ❌ Harder to clean up old or platform-specific design. ❌ May involve complex refactoring and workarounds. Migrate a Library ✅ Clean design from the start, no legacy "platform-specific" code. ✅ Easier to apply modern best practices. ❌ Slower to build feature parity if the existing library is large. ❌ May miss edge cases already handled in the existing code. ❌ Customers will need to migrate. Rewrite a Library
183. ✅ Keeps existing behavior and code that’s already tested. ✅ Can move to KMP step-by-step, reducing risk. ✅ Customers don't need to change their code. ❌ Harder to clean up old or platform-specific design. ❌ May involve complex refactoring and workarounds. Migrate a Library ✅ Clean design from the start, no legacy "platform-specific" code. ✅ Easier to apply modern best practices. ❌ Slower to build feature parity if the existing library is large. ❌ May miss edge cases already handled in the existing code. ❌ Customers will need to migrate. Rewrite a Library
184. • SavedState 1.3 (KMP + Serialization) • NavigationEvent Alpha01 • Navigation3 Alpha01 New Releases! goo.gle/nav3
185. Thank You, and Donʼt Forget to Vote linkedIn@jeremybwoods 🦋 @marcellogalhardo.dev

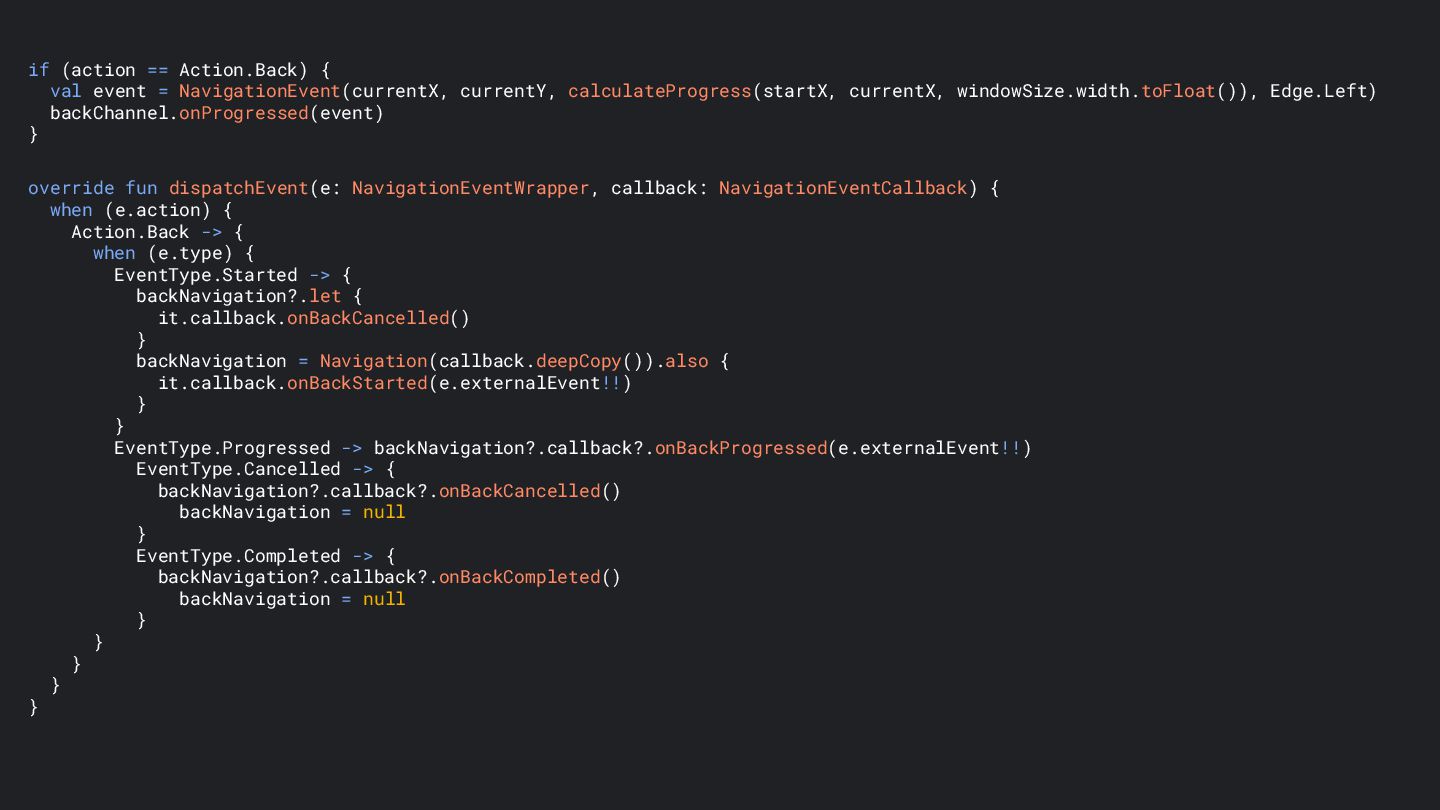

186. if (action == Action.Back) { val event = NavigationEvent(currentX, currentY, calculateProgress(startX, currentX, windowSize.width.toFloat()), Edge.Left) backChannel.onProgressed(event) } override fun dispatchEvent(e: NavigationEventWrapper, callback: NavigationEventCallback) { when (e.action) { Action.Back -> { when (e.type) { EventType.Started -> { backNavigation?.let { it.callback.onBackCancelled() } backNavigation = Navigation(callback.deepCopy()).also { it.callback.onBackStarted(e.externalEvent!!) } } EventType.Progressed -> backNavigation?.callback?.onBackProgressed(e.externalEvent!!) EventType.Cancelled -> { backNavigation?.callback?.onBackCancelled() backNavigation = null } EventType.Completed -> { backNavigation?.callback?.onBackCompleted() backNavigation = null } } } } }
