MCP & AG-UI: Offene Protokolle für modulare Agent-UI-Integration

Webanwendungen integrieren zunehmend intelligentes und adaptives Verhalten – von KI-Vorschlägen bis zu Echtzeit-Aufgabenunterstützung. Der Bedarf an strukturierter, standardisierter Interaktion zwischen Agenten und Benutzeroberflächen wird damit immer kritischer. Ad-hoc-APIs oder geschlossene SDKs führen schnell zu begrenzter Erweiterbarkeit, Technical-Debt und inkonsistenten UX-Mustern.

Dieser Vortrag stellt zwei offene Protokolle vor – AG-UI (Agent-User Interaction Protocol) und MCP (Model Context Protocol) – die Klarheit, Modularität und Interoperabilität in die Interaktion von Agenten mit modernen Web-Frontends bringen.

MCP ermöglicht dynamische Kontext-Hydration und semantische Einordnung, sodass Agenten mit strukturierten und unstrukturierten Eingaben auf spezifische Aufgaben reagieren können. AG-UI spezifiziert die Echtzeit-Darstellung von Agenten-Absichten, Updates und Feedback in der Benutzeroberfläche.

Zusammen bieten sie eine konsistente Methode, Agenten mit UI-Komponenten über Frameworks wie Angular, React, Vue oder Vanilla JavaScript zu verbinden.

Sie sehen, wie diese Protokolle in Frontend-Code angewendet werden, um intelligente Features ohne strikt gekoppelte Integrationen zu entwickeln.

Diese Session richtet sich an Entwickler, die KI modular und verständlich integrieren möchten.

Transcript

1. MCP & AG-UI Offene Protokolle für modulare Agent-UI Integration BASTA! Max Marschall @MaxOSchulte Consultant / Architect @ Thinktecture

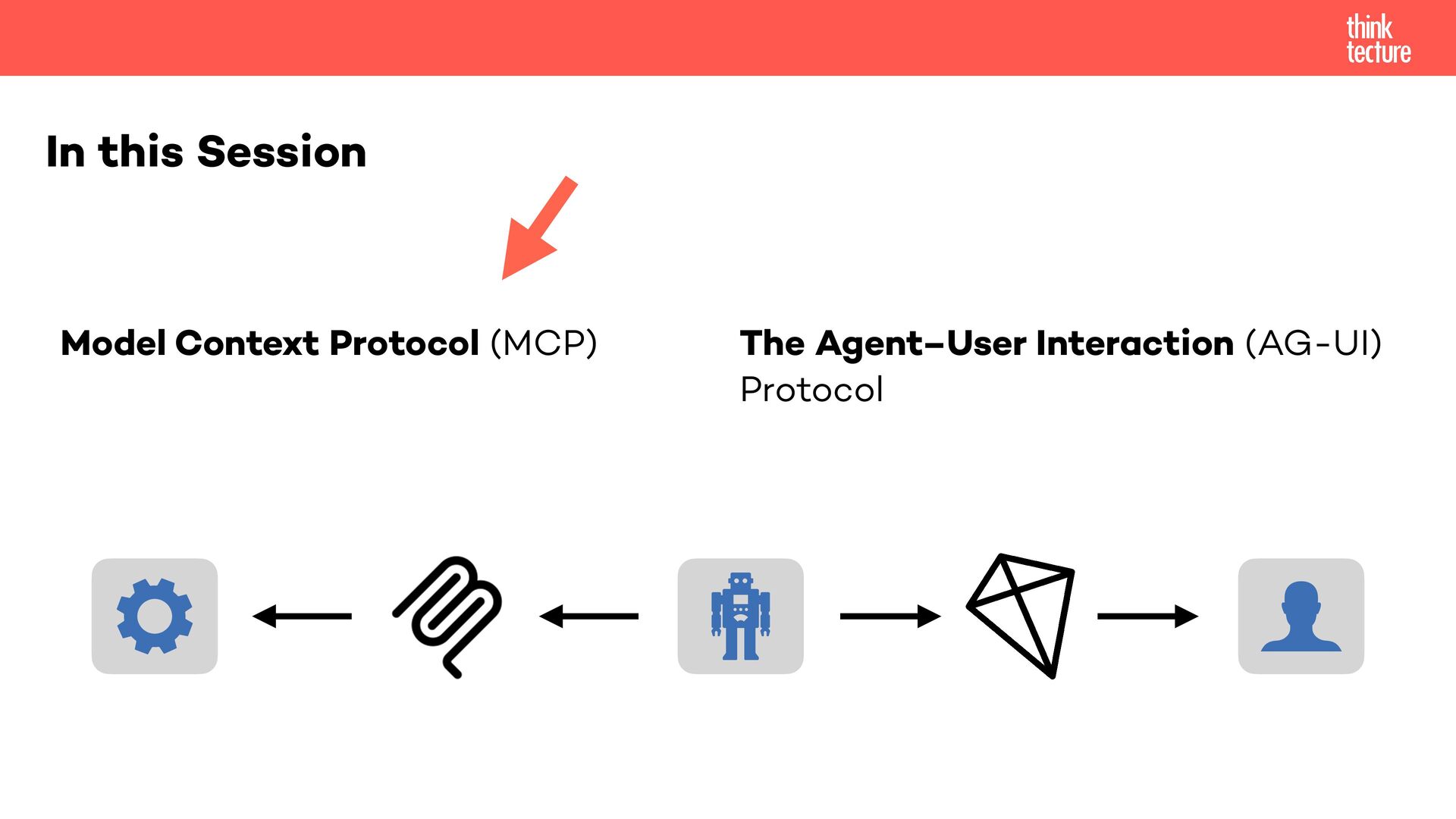

2. Model Context Protocol (MCP) In this Session The Agent–User Interaction (AG-UI) Protocol

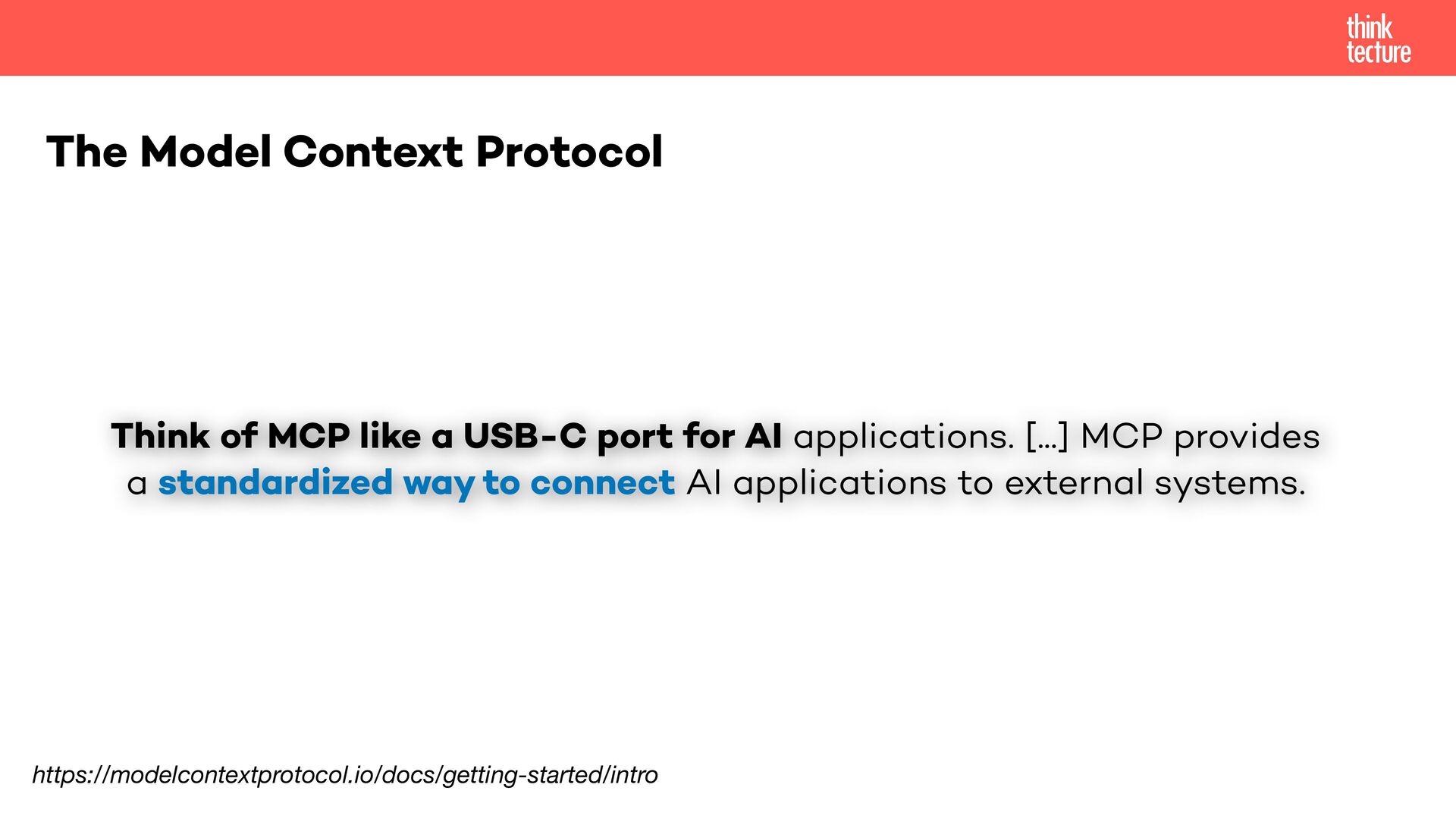

3. The Model Context Protocol Think of MCP like a USB-C port for AI applications. [...] MCP provides a standardized way to connect AI applications to external systems. https://modelcontextprotocol.io/docs/getting-started/intro

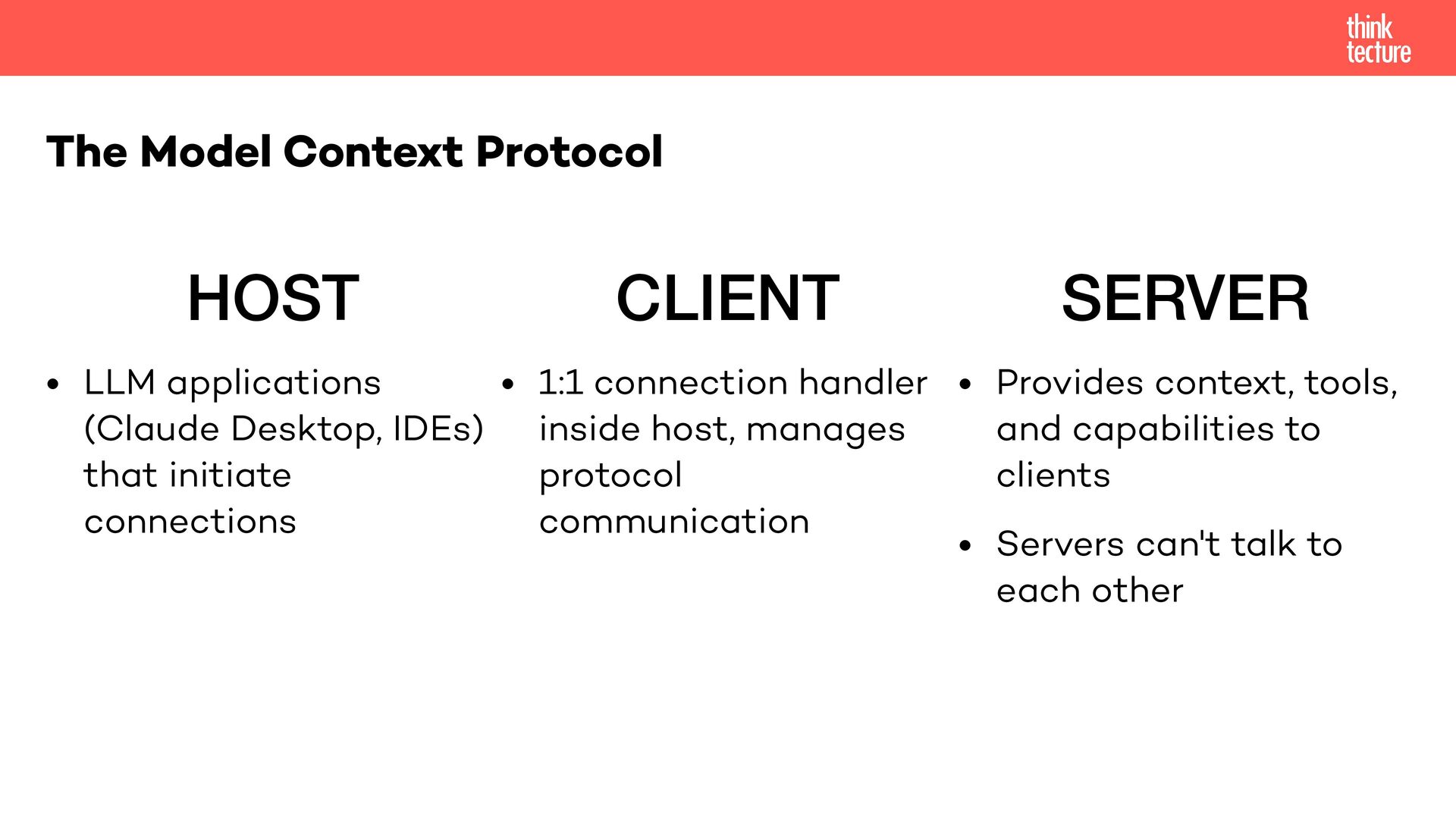

4. HOST • LLM applications (Claude Desktop, IDEs) that initiate connections The Model Context Protocol CLIENT • 1:1 connection handler inside host, manages protocol communication SERVER • Provides context, tools, and capabilities to clients • Servers can't talk to each other

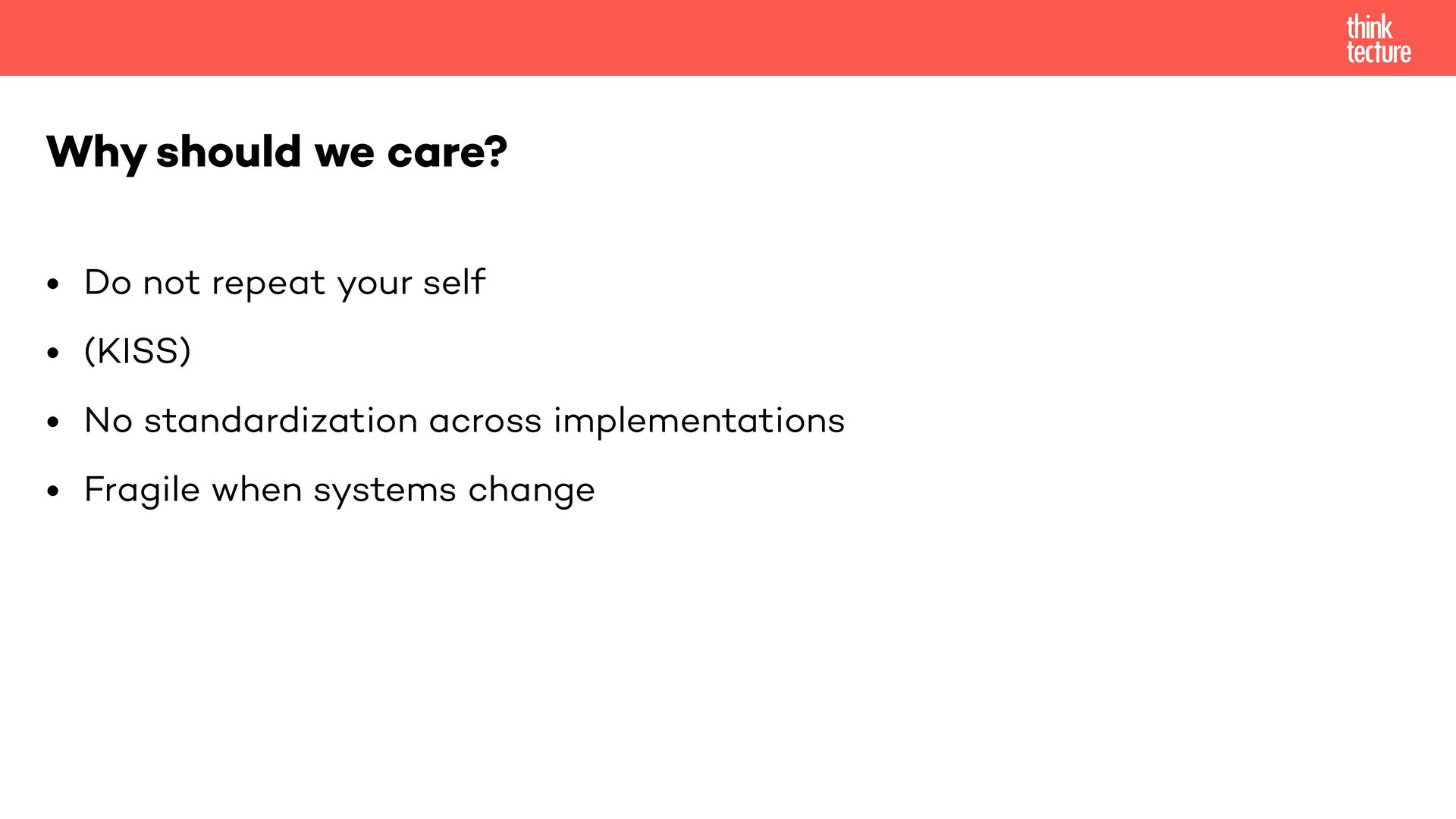

5. • Do not repeat your self • (KISS) • No standardization across implementations • Fragile when systems change Why should we care?

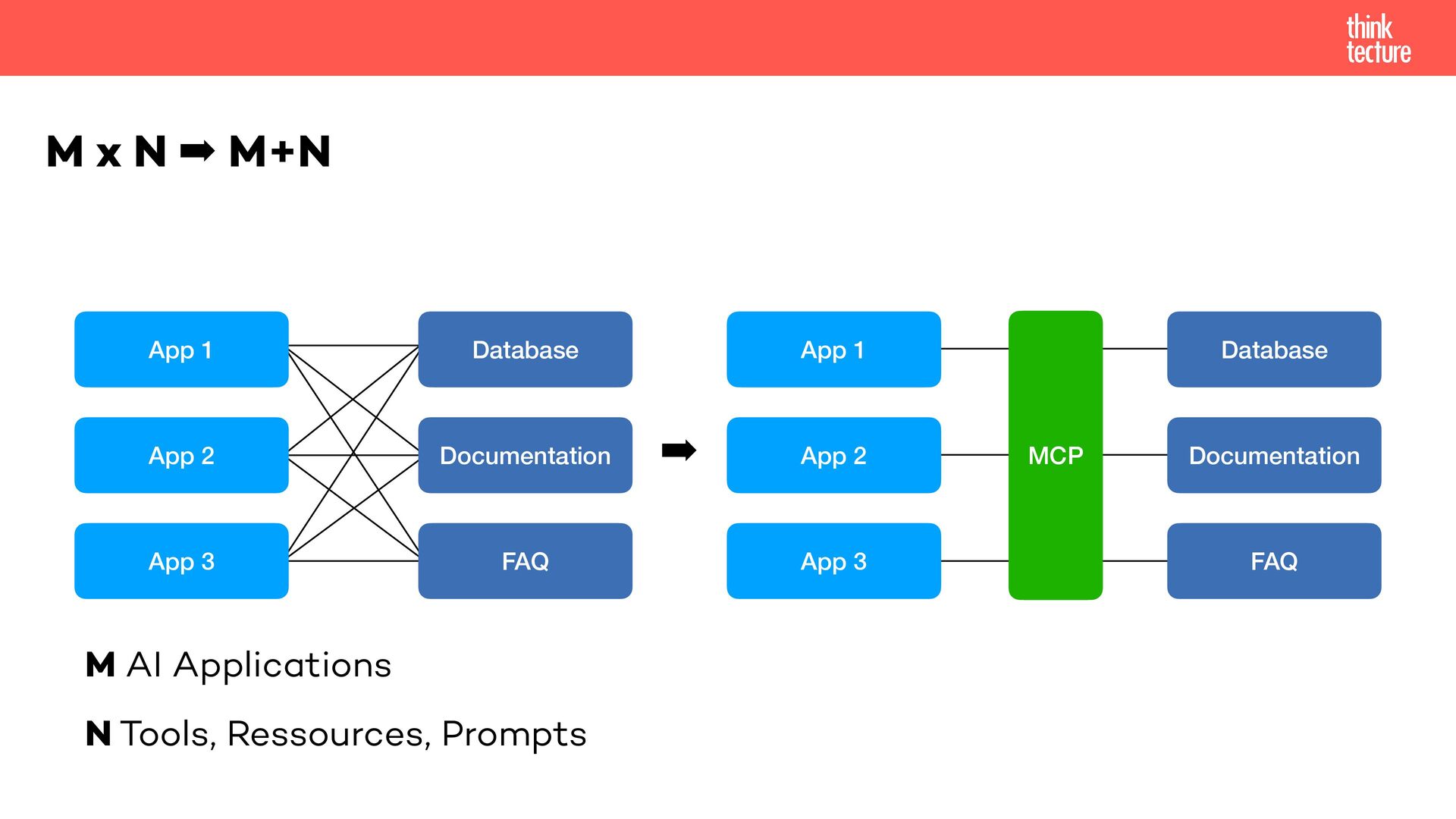

6. M x N ➡ M+N App 1 App 3 App 2 Database Documentation FAQ App 1 App 3 App 2 Database Documentation FAQ MCP M AI Applications N Tools, Ressources, Prompts ➡

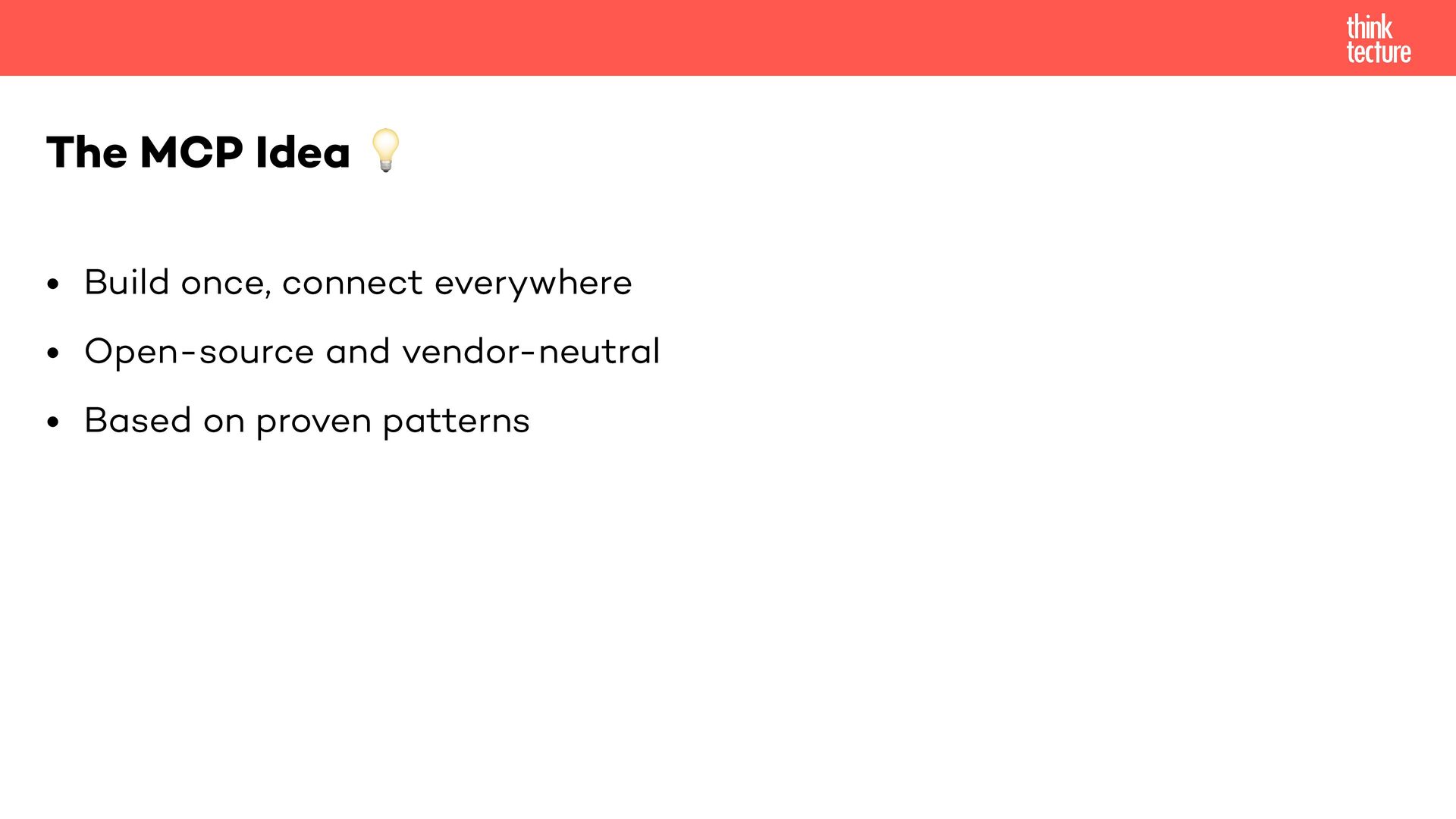

7. • Build once, connect everywhere • Open-source and vendor-neutral • Based on proven patterns The MCP Idea 💡

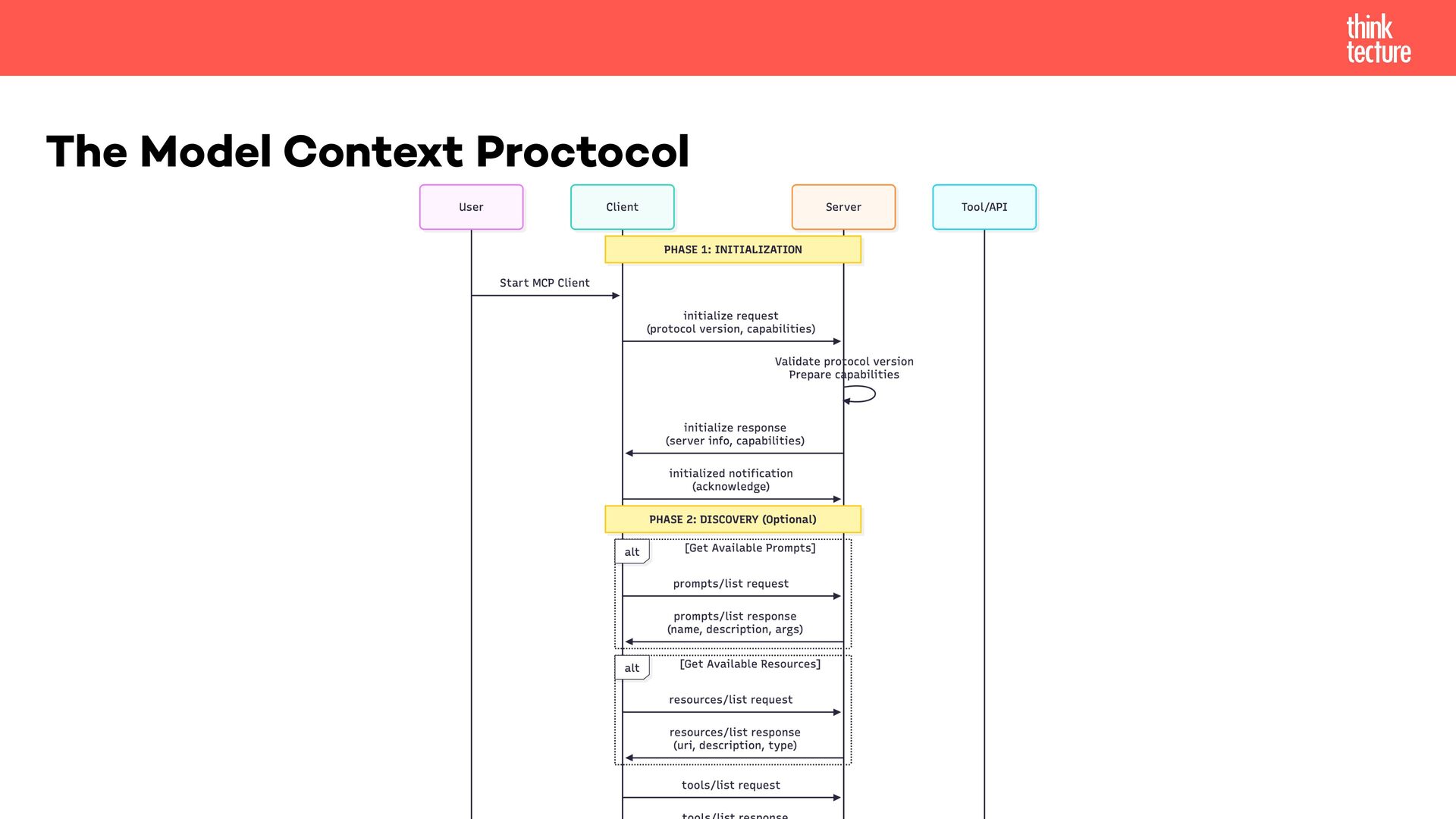

8. The Model Context Proctocol
9. The Model Context Proctocol

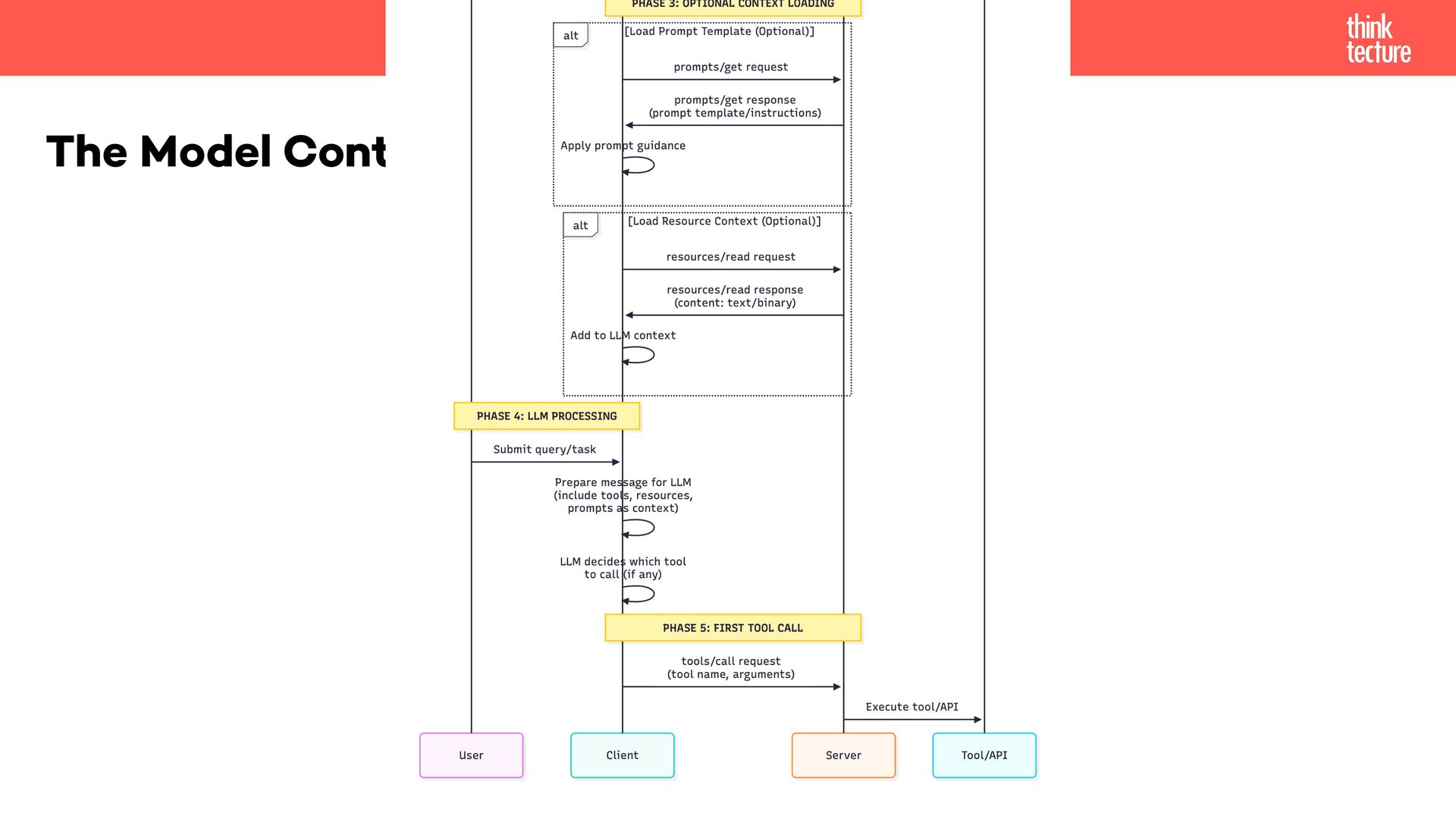

10. The Model Context Proctocol

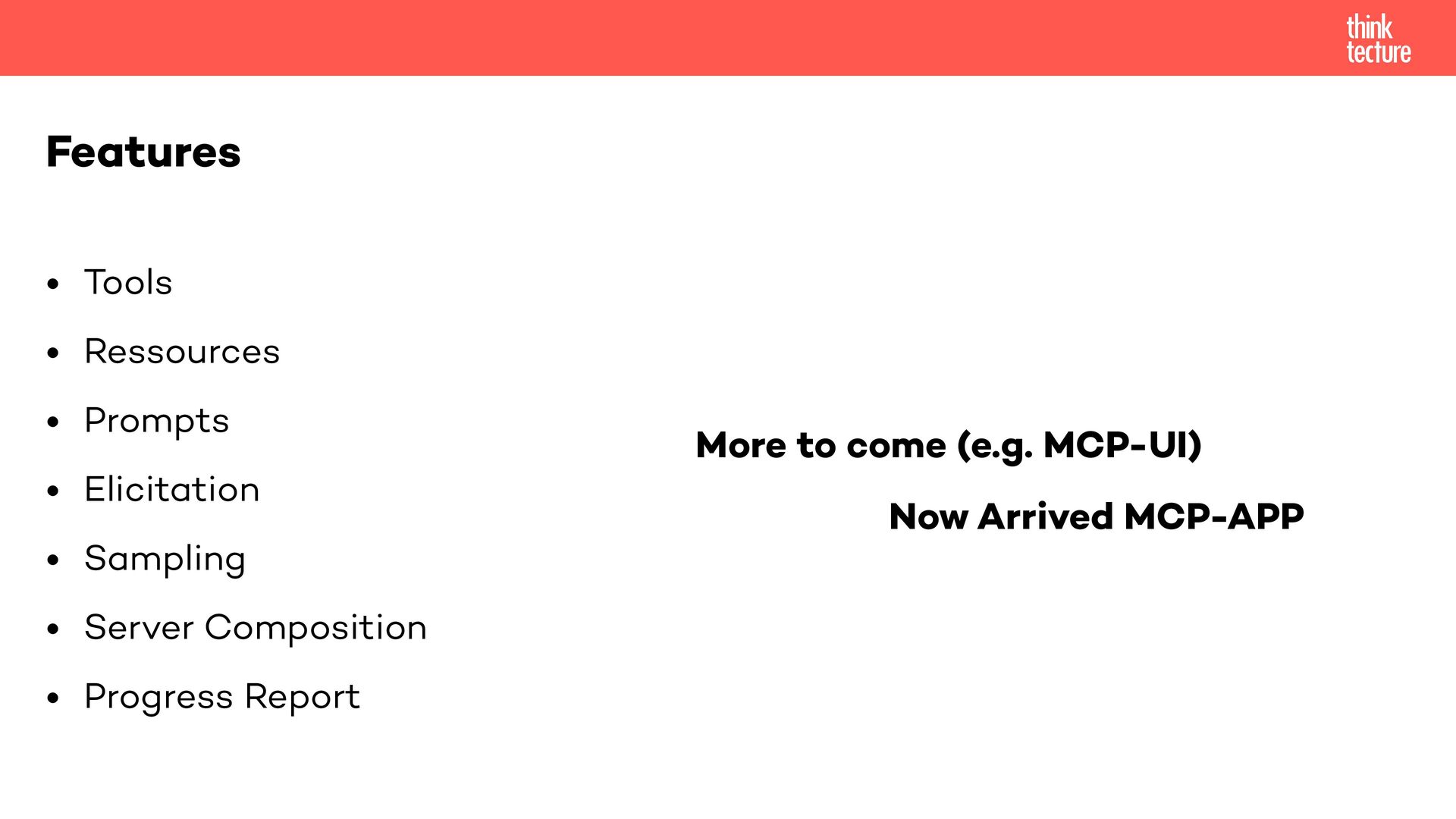

11. • Tools • Ressources • Prompts • Elicitation • Sampling • Server Composition • Progress Report Features More to come (e.g. MCP-UI) Now Arrived MCP-APP

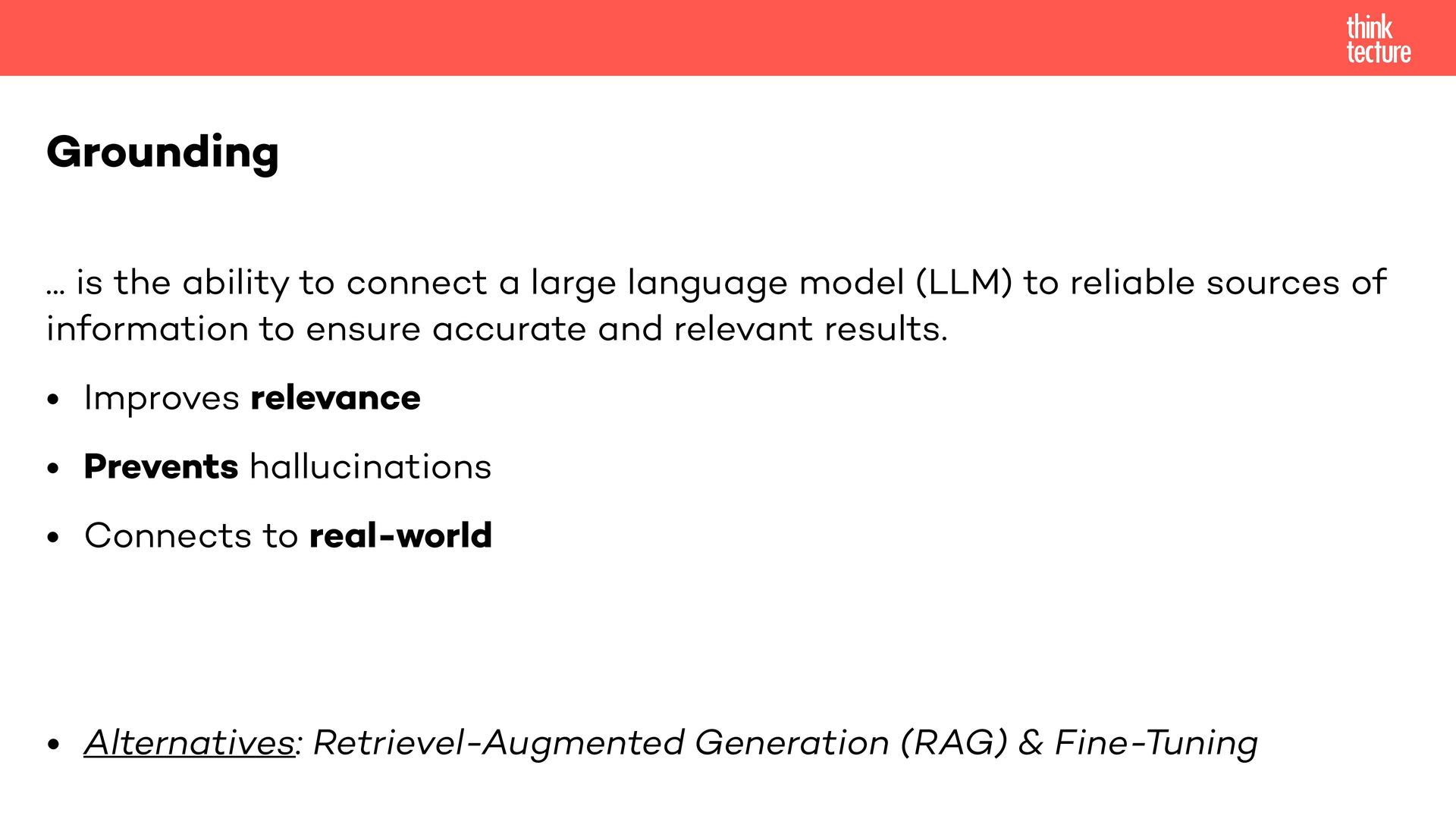

12. ... is the ability to connect a large language model (LLM) to reliable sources of information to ensure accurate and relevant results. • Improves relevance • Prevents hallucinations • Connects to real-world • Alternatives: Retrievel-Augmented Generation (RAG) & Fine-Tuning Grounding

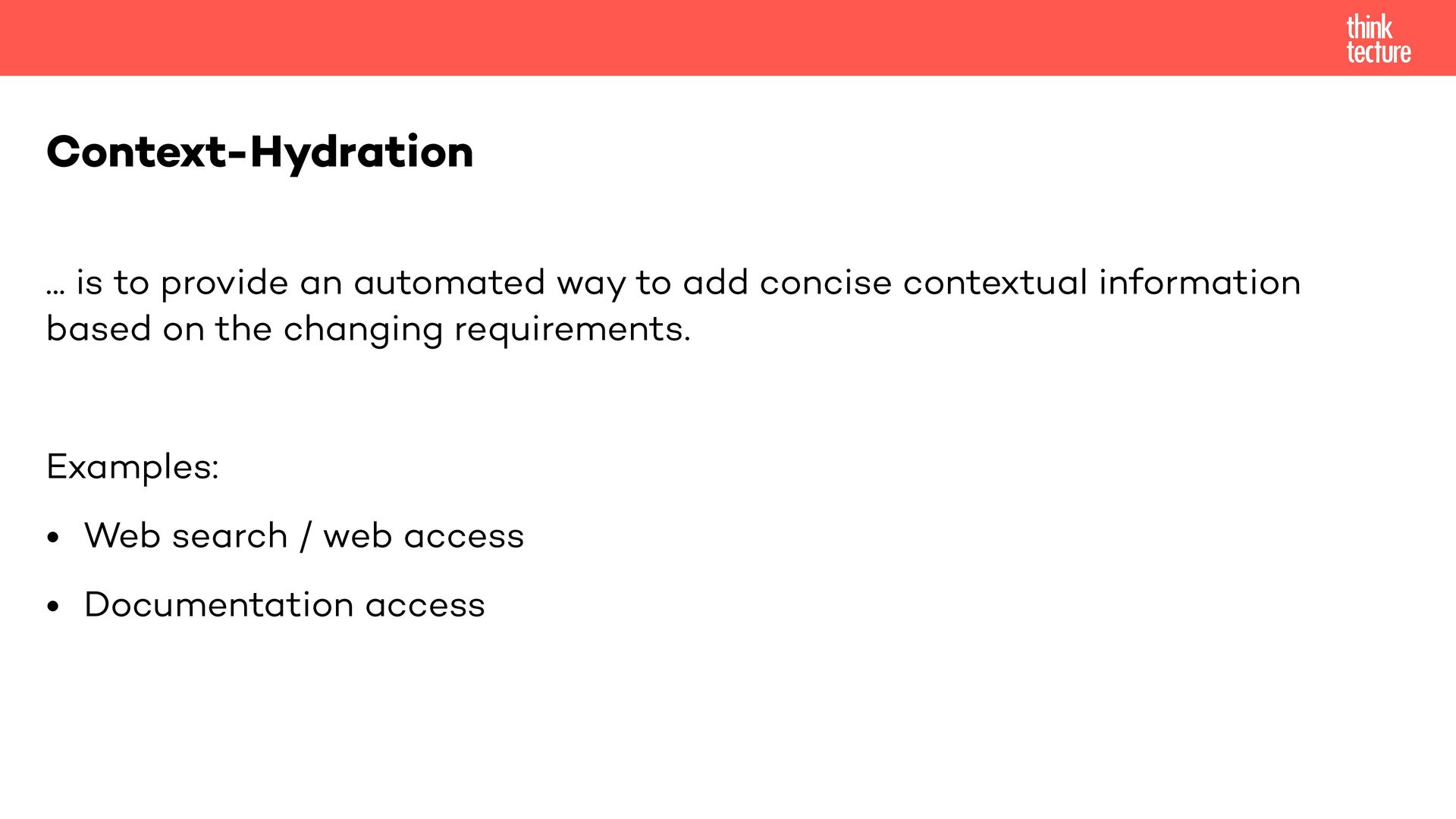

13. ... is to provide an automated way to add concise contextual information based on the changing requirements. Examples: • Web search / web access • Documentation access Context-Hydration

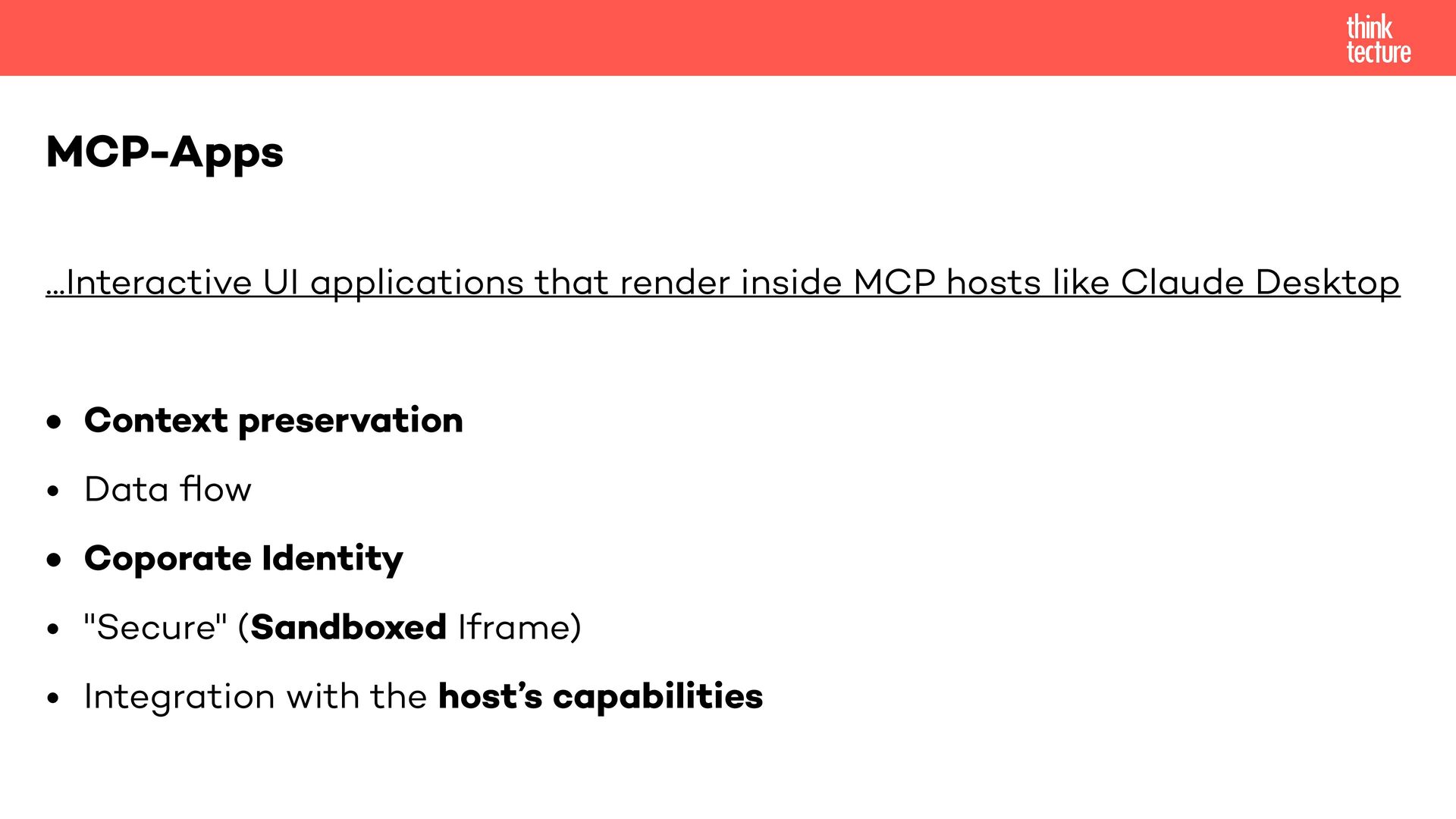

14. ...Interactive UI applications that render inside MCP hosts like Claude Desktop • Context preservation • Data fl ow • Coporate Identity • "Secure" (Sandboxed Iframe) • Integration with the host’s capabilities MCP-Apps

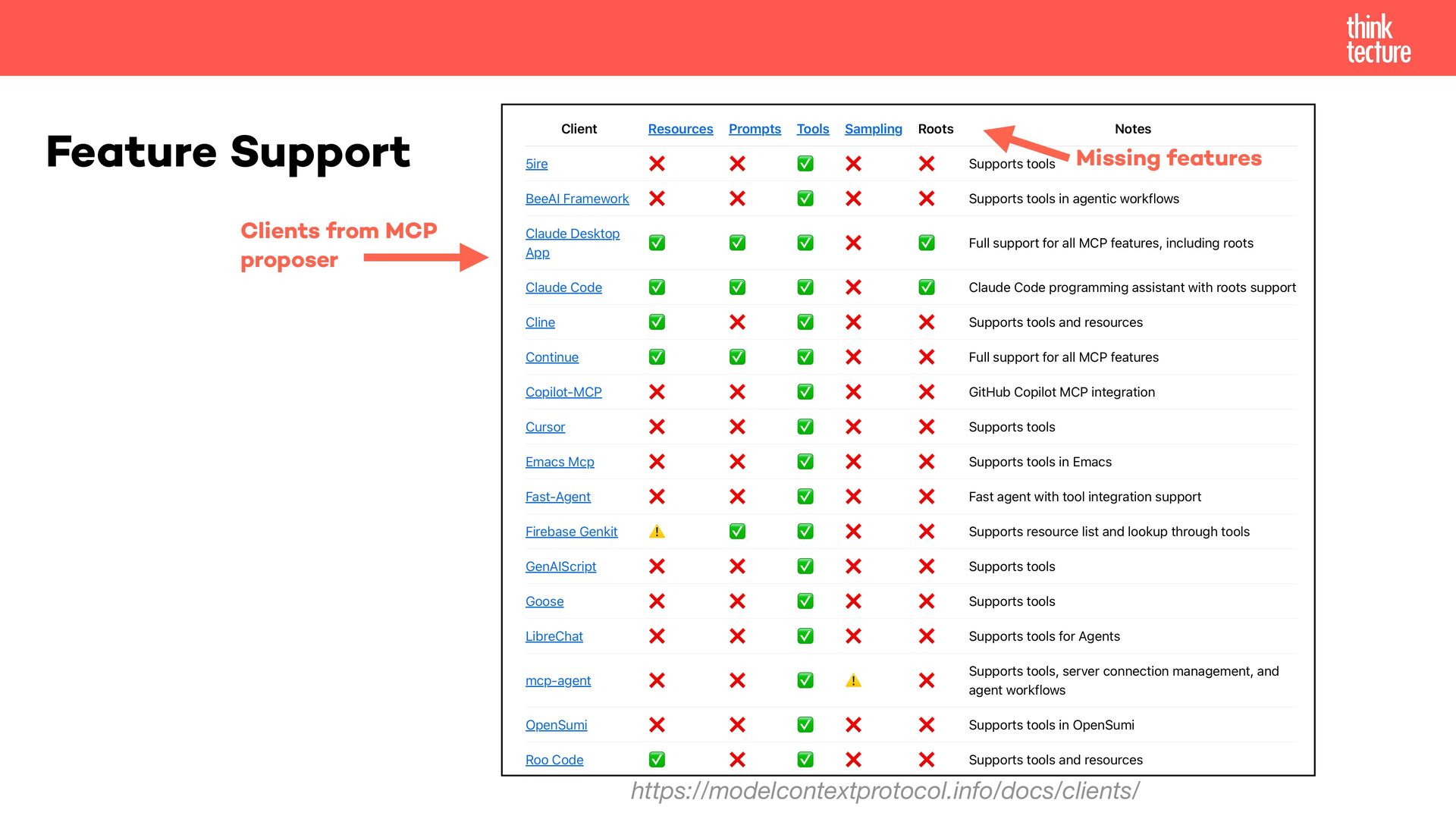

15. https://modelcontextprotocol.info/docs/clients/ Feature Support Missing features Clients from MCP proposer

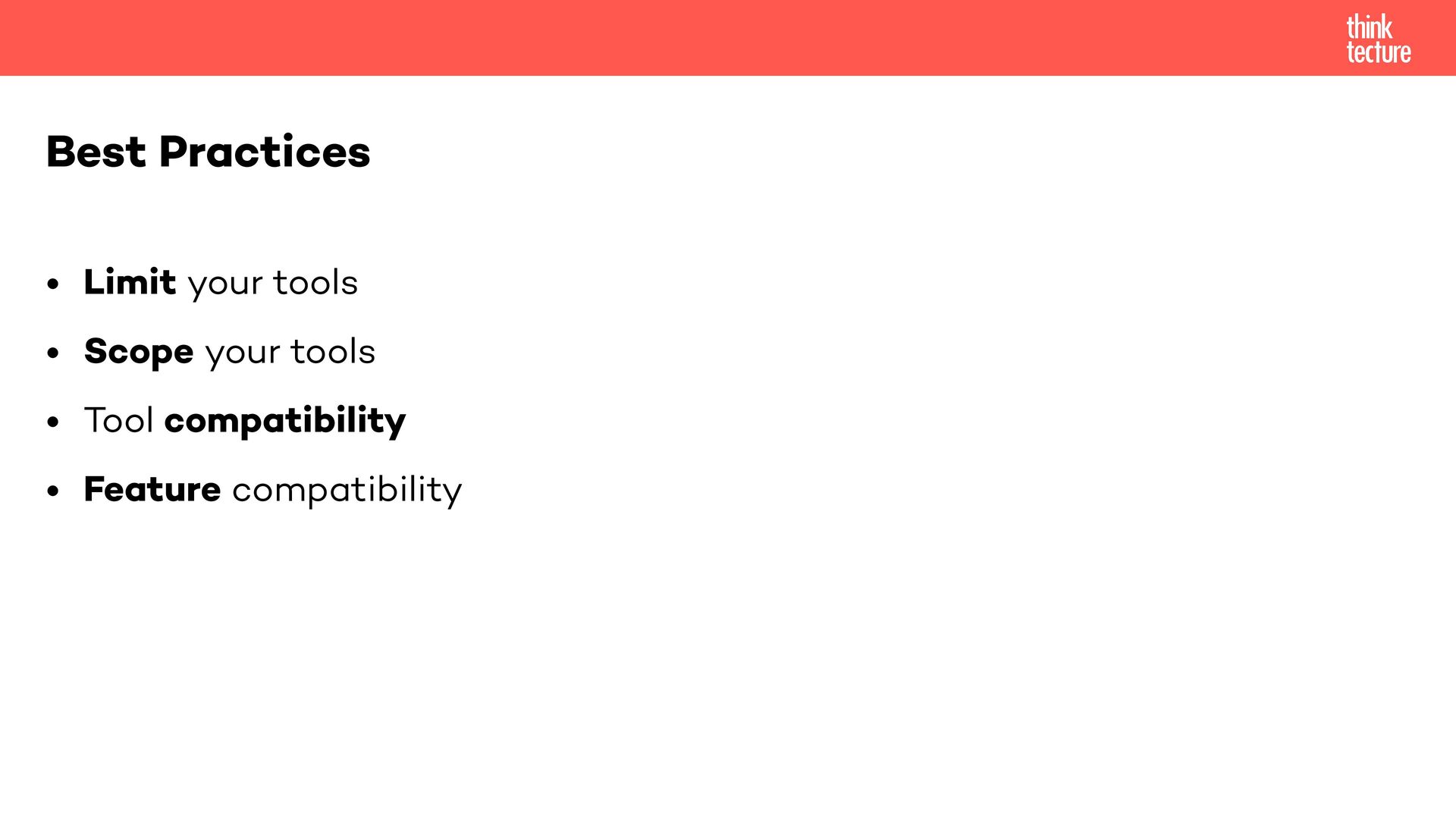

16. • Limit your tools • Scope your tools • Tool compatibility • Feature compatibility Best Practices

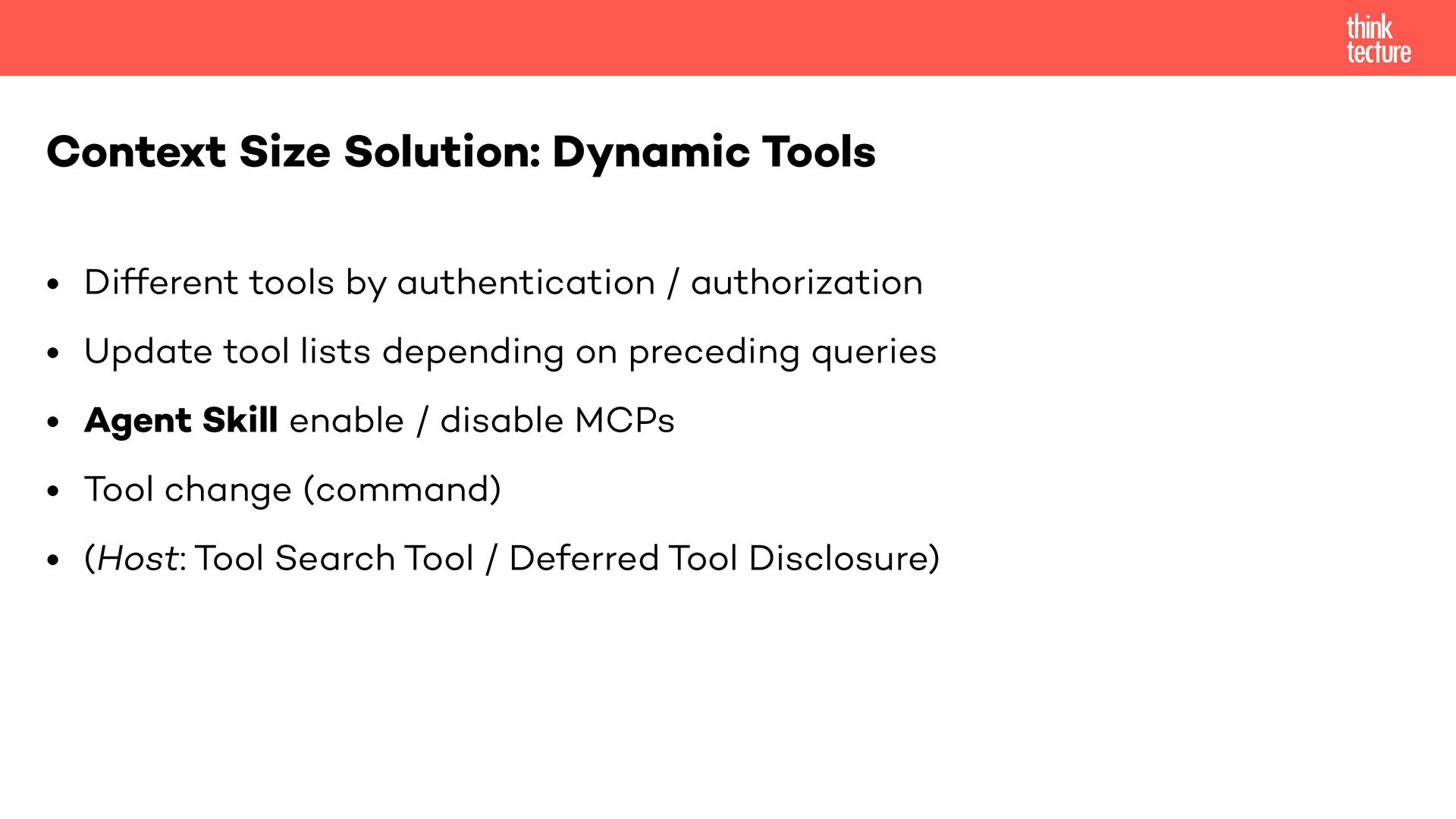

17. • Different tools by authentication / authorization • Update tool lists depending on preceding queries • Agent Skill enable / disable MCPs • Tool change (command) • (Host: Tool Search Tool / Deferred Tool Disclosure) Context Size Solution: Dynamic Tools
18. • Async-Tools • Code execution • (Antrophic / Claude) Agent Skills + MCP = RAG-MCP. Not “more tools,” but a better relationship to tools • Future of MCP Transports Outlook
19. • No session tracking, no sticky sessions, no Redis/DynamoDB • No handshake and initialization • Less Stateful • Proper Scaling • Server Cards • Elicitations & Evictions • HTTP Standarts Exploring the Future of MCP Transports https://blog.modelcontextprotocol.io/posts/2025-12-19-mcp-transport-future/

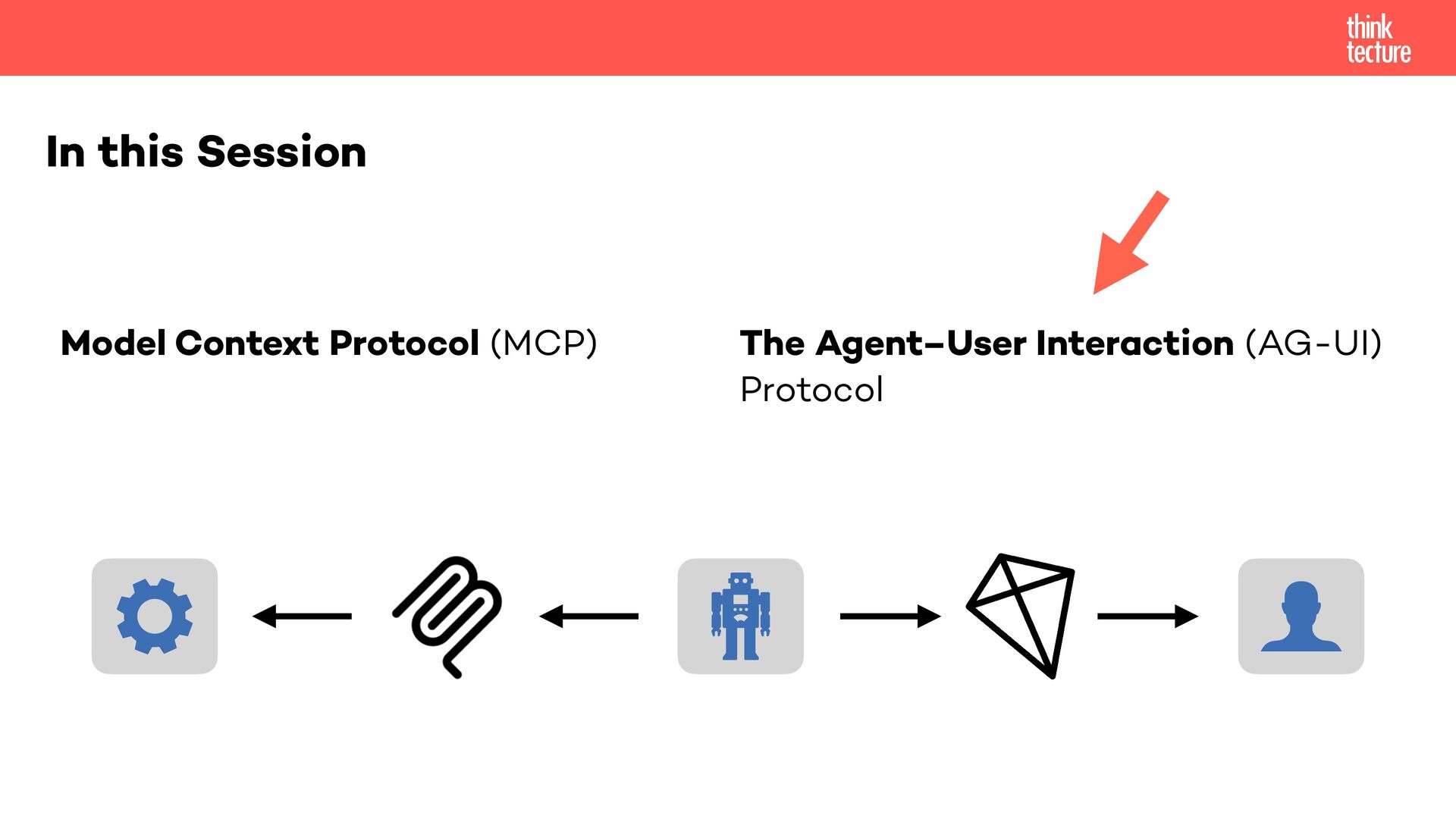

20. Model Context Protocol (MCP) In this Session The Agent–User Interaction (AG-UI) Protocol

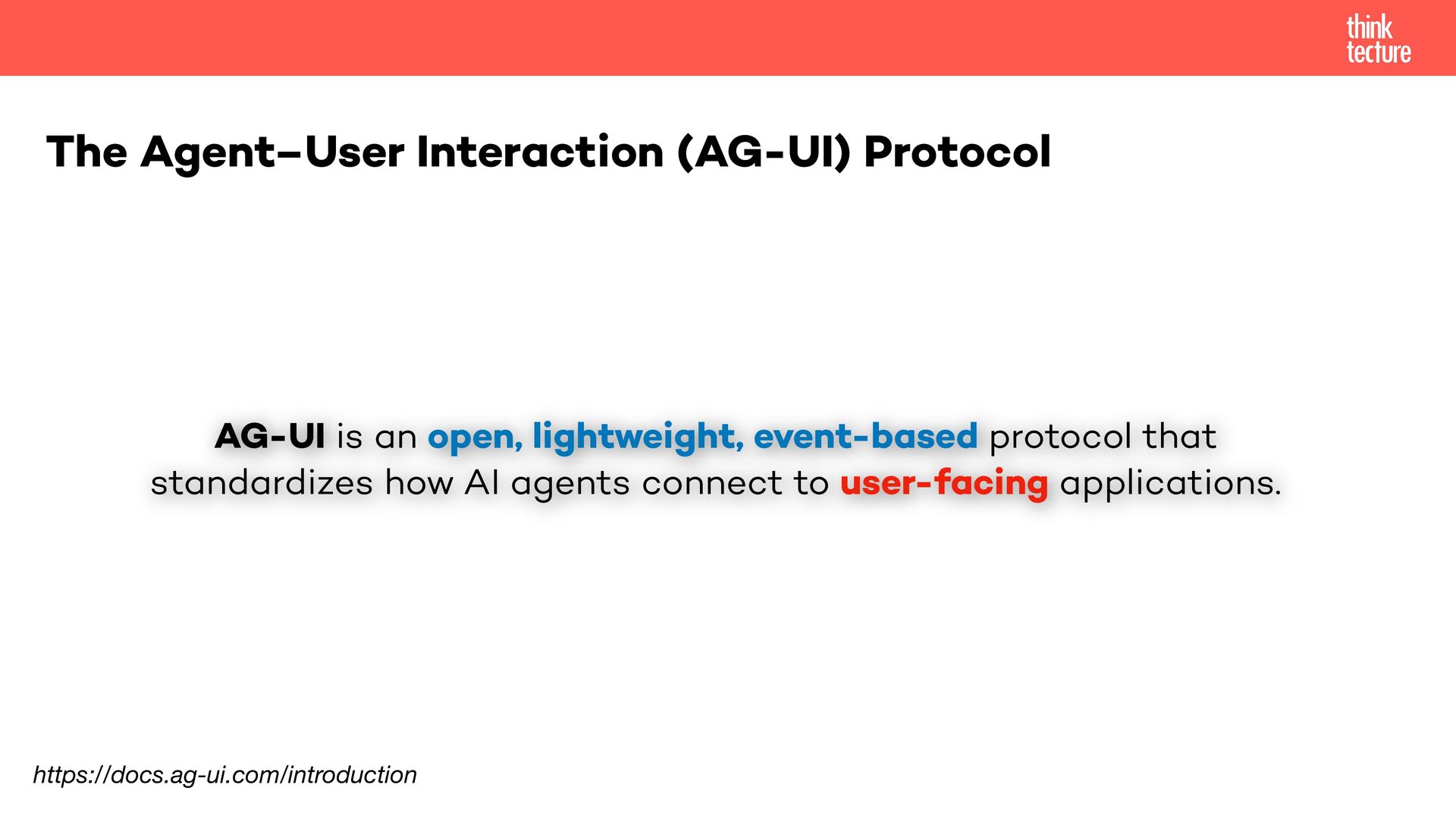

21. The Agent–User Interaction (AG-UI) Protocol AG-UI is an open, lightweight, event-based protocol that standardizes how AI agents connect to user-facing applications. https://docs.ag-ui.com/introduction

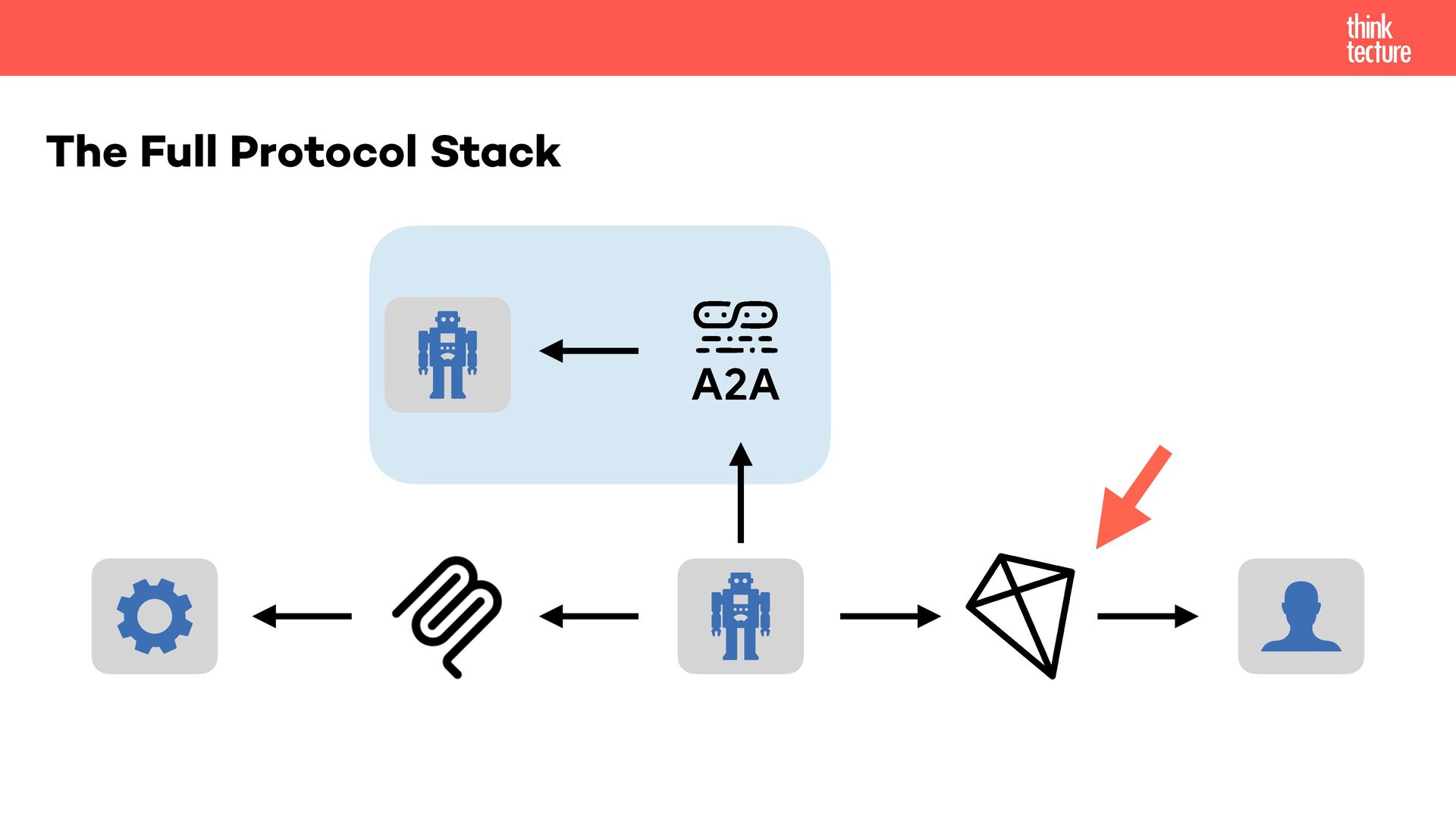

22. The Full Protocol Stack

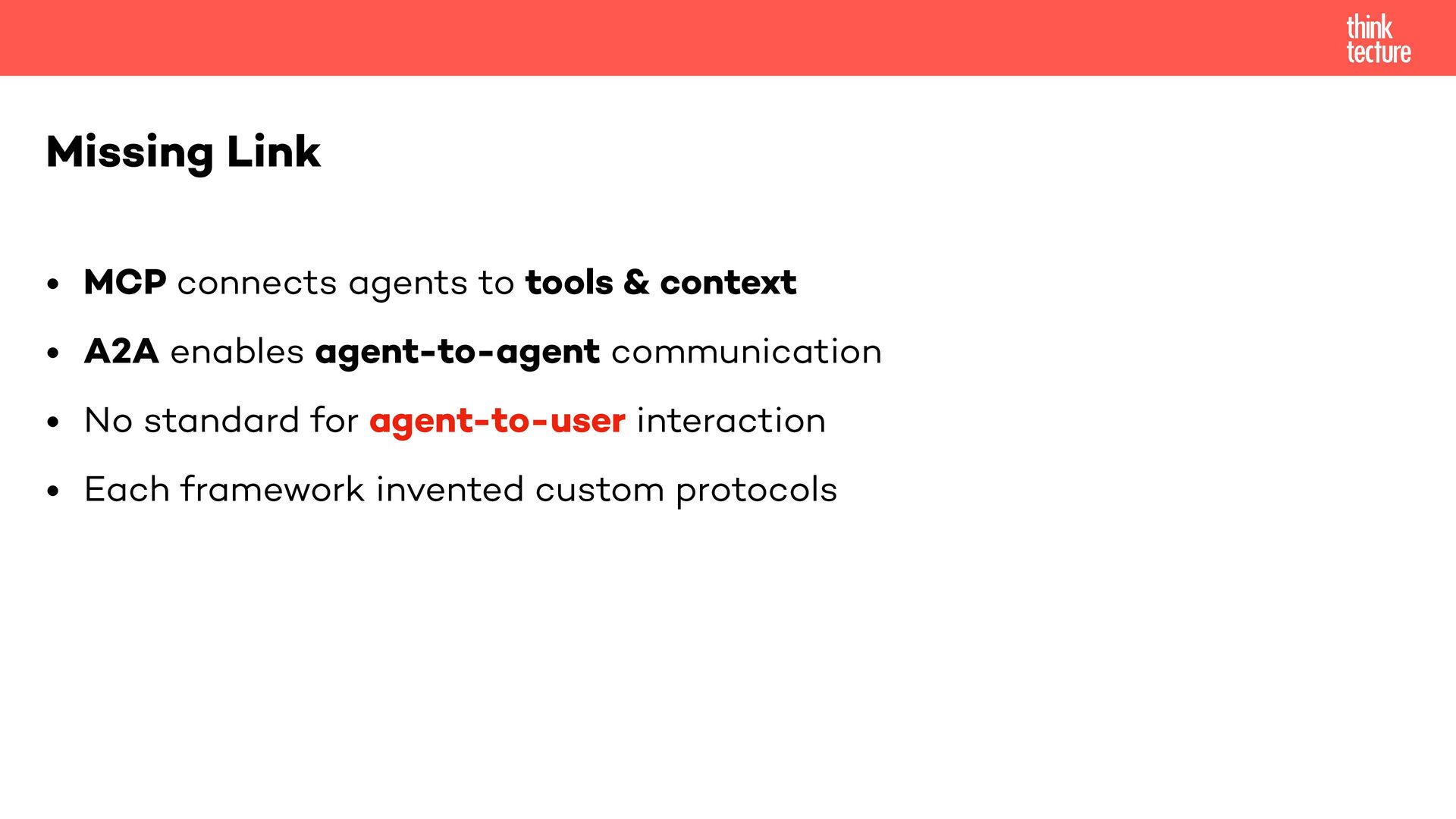

23. • MCP connects agents to tools & context • A2A enables agent-to-agent communication • No standard for agent-to-user interaction • Each framework invented custom protocols Missing Link

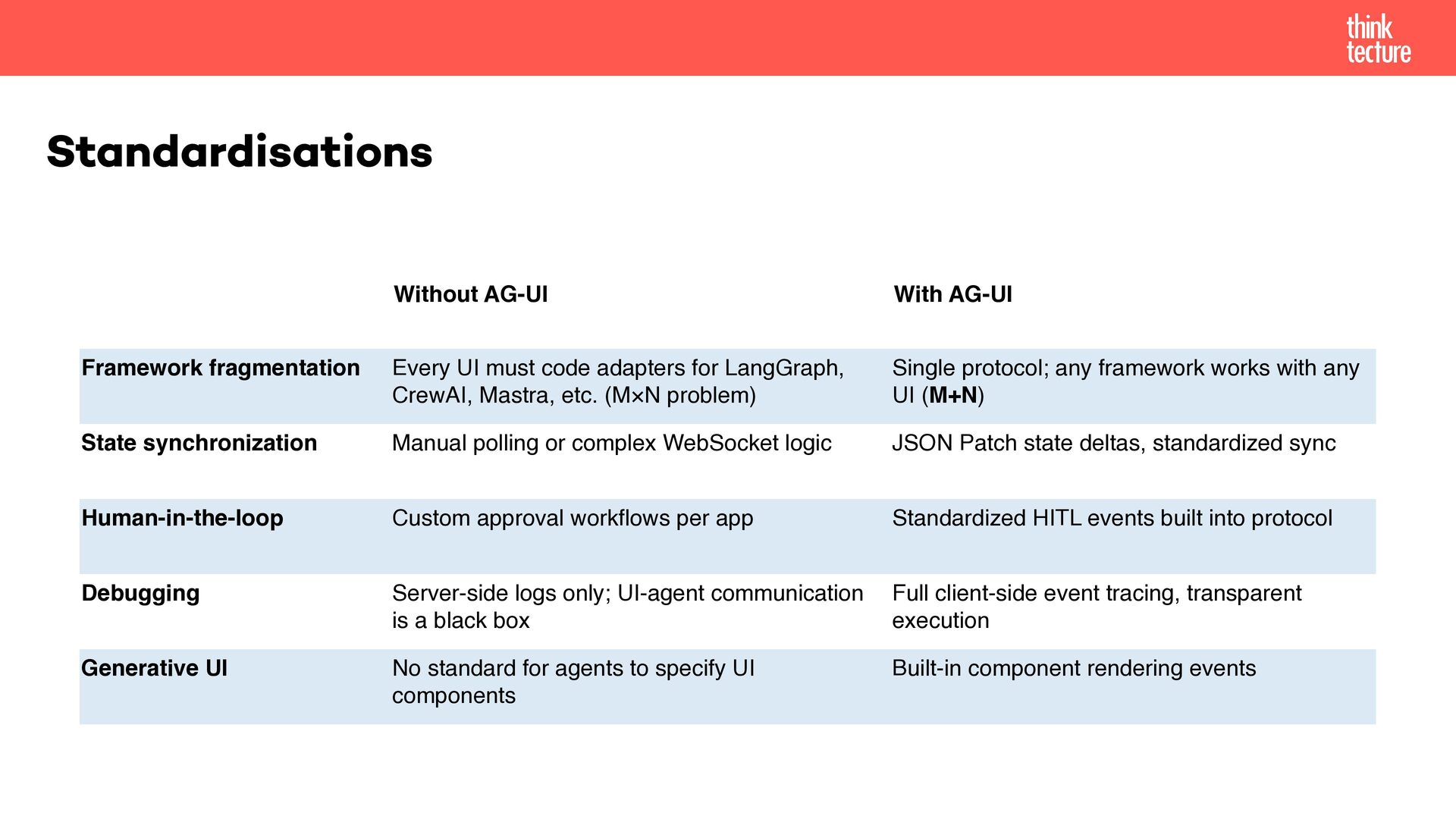

24. Standardisations Without AG-UI With AG-UI Framework fragmentation Every UI must code adapters for LangGraph, CrewAI, Mastra, etc. (M×N problem) Single protocol; any framework works with any UI (M+N) State synchronization Manual polling or complex WebSocket logic JSON Patch state deltas, standardized sync Human-in-the-loop Custom approval workflows per app Standardized HITL events built into protocol Debugging Server-side logs only; UI-agent communication is a black box Full client-side event tracing, transparent execution Generative UI No standard for agents to specify UI components Built-in component rendering events
25. Ecosystem Pydantic AI

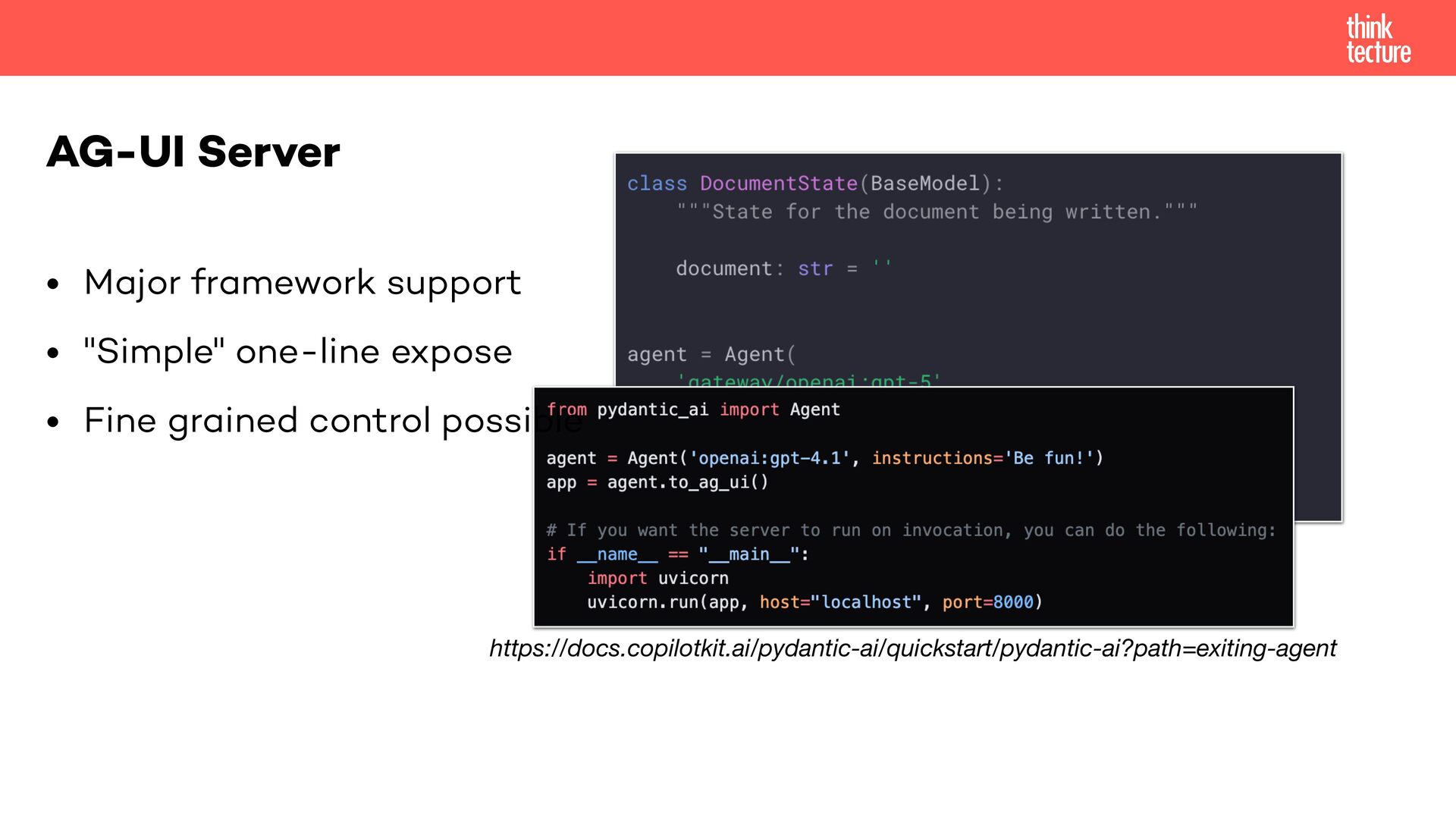

26. AG-UI Server https://ai.pydantic.dev/ui/ag-ui/#examples https://docs.copilotkit.ai/pydantic-ai/quickstart/pydantic-ai?path=exiting-agent • Major framework support • "Simple" one-line expose • Fine grained control possible

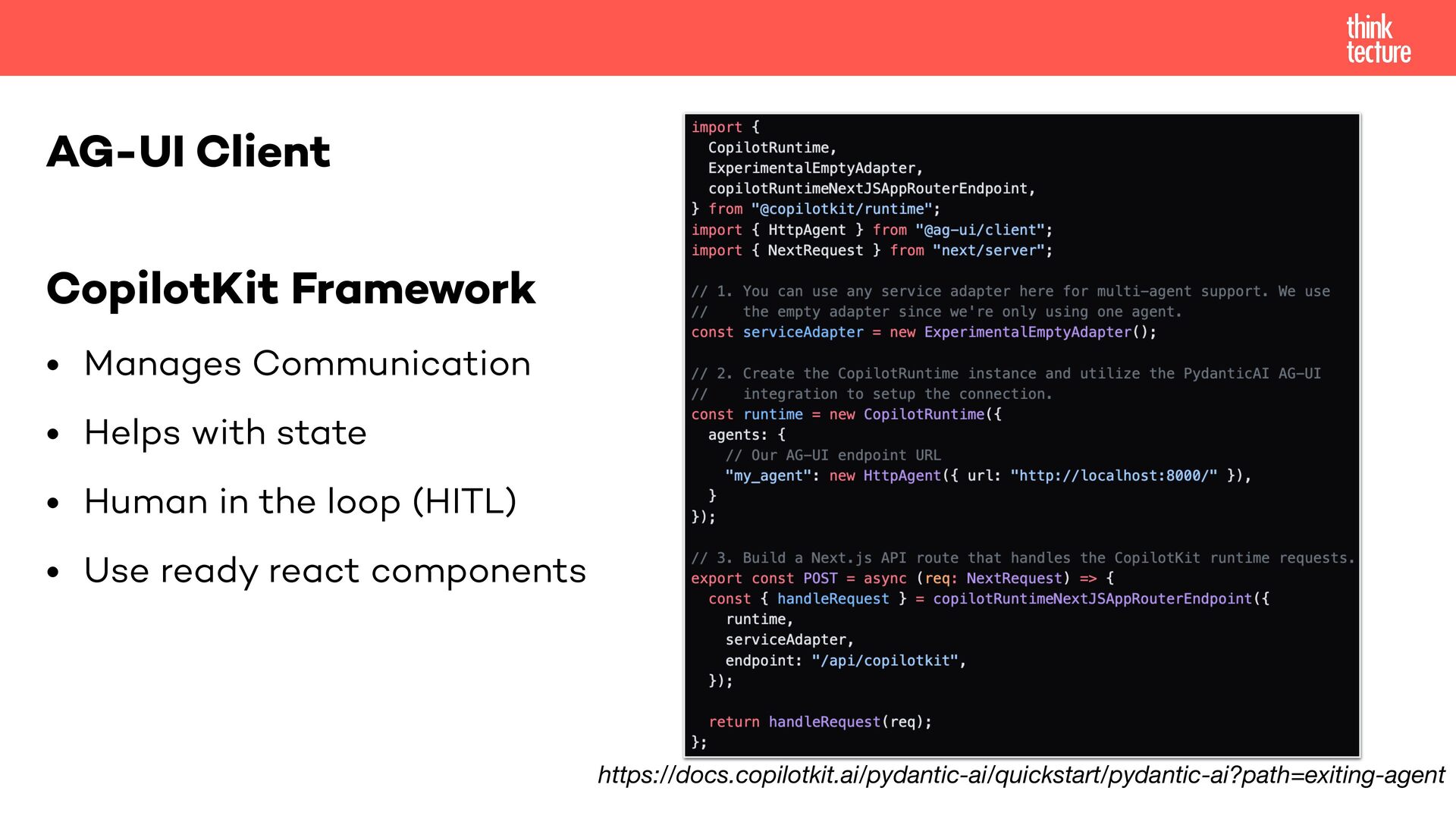

27. CopilotKit Framework • Manages Communication • Helps with state • Human in the loop (HITL) • Use ready react components AG-UI Client https://docs.copilotkit.ai/pydantic-ai/quickstart/pydantic-ai?path=exiting-agent

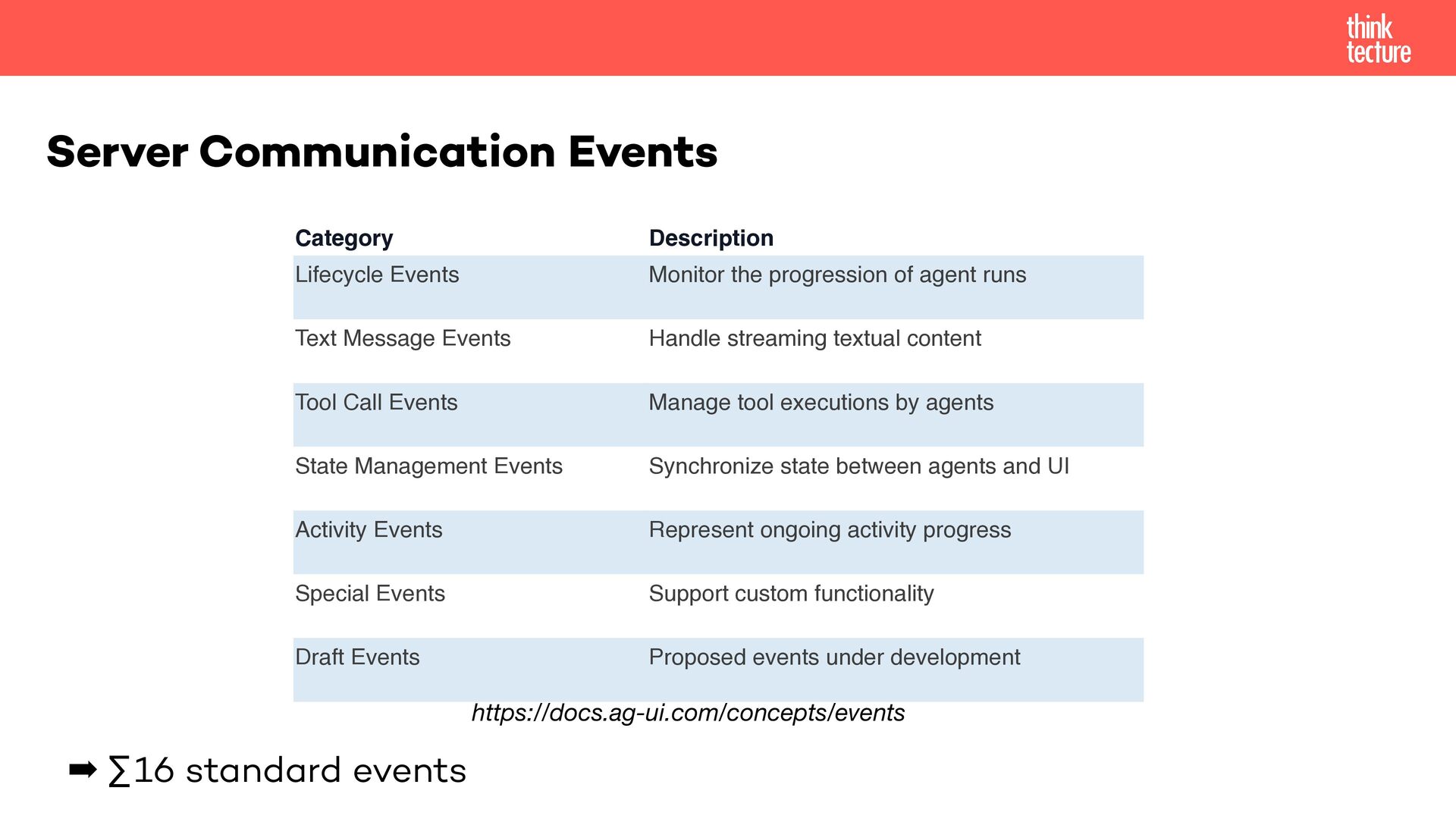

28. Server Communication Events Category Description Lifecycle Events Monitor the progression of agent runs Text Message Events Handle streaming textual content Tool Call Events Manage tool executions by agents State Management Events Synchronize state between agents and UI Activity Events Represent ongoing activity progress Special Events Support custom functionality Draft Events Proposed events under development https://docs.ag-ui.com/concepts/events ➡ ∑16 standard events

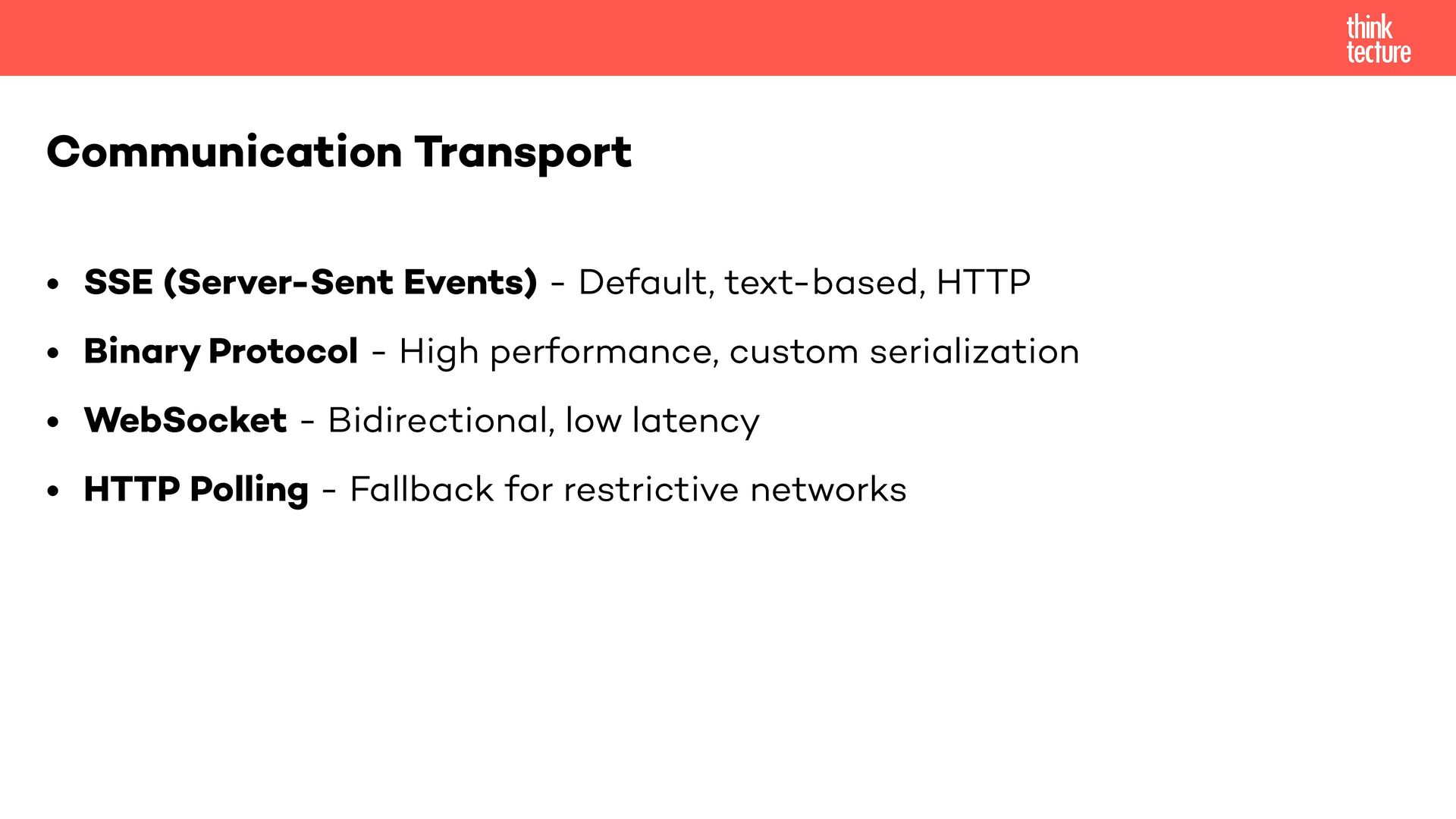

29. • SSE (Server-Sent Events) - Default, text-based, HTTP • Binary Protocol - High performance, custom serialization • WebSocket - Bidirectional, low latency • HTTP Polling - Fallback for restrictive networks Communication Transport

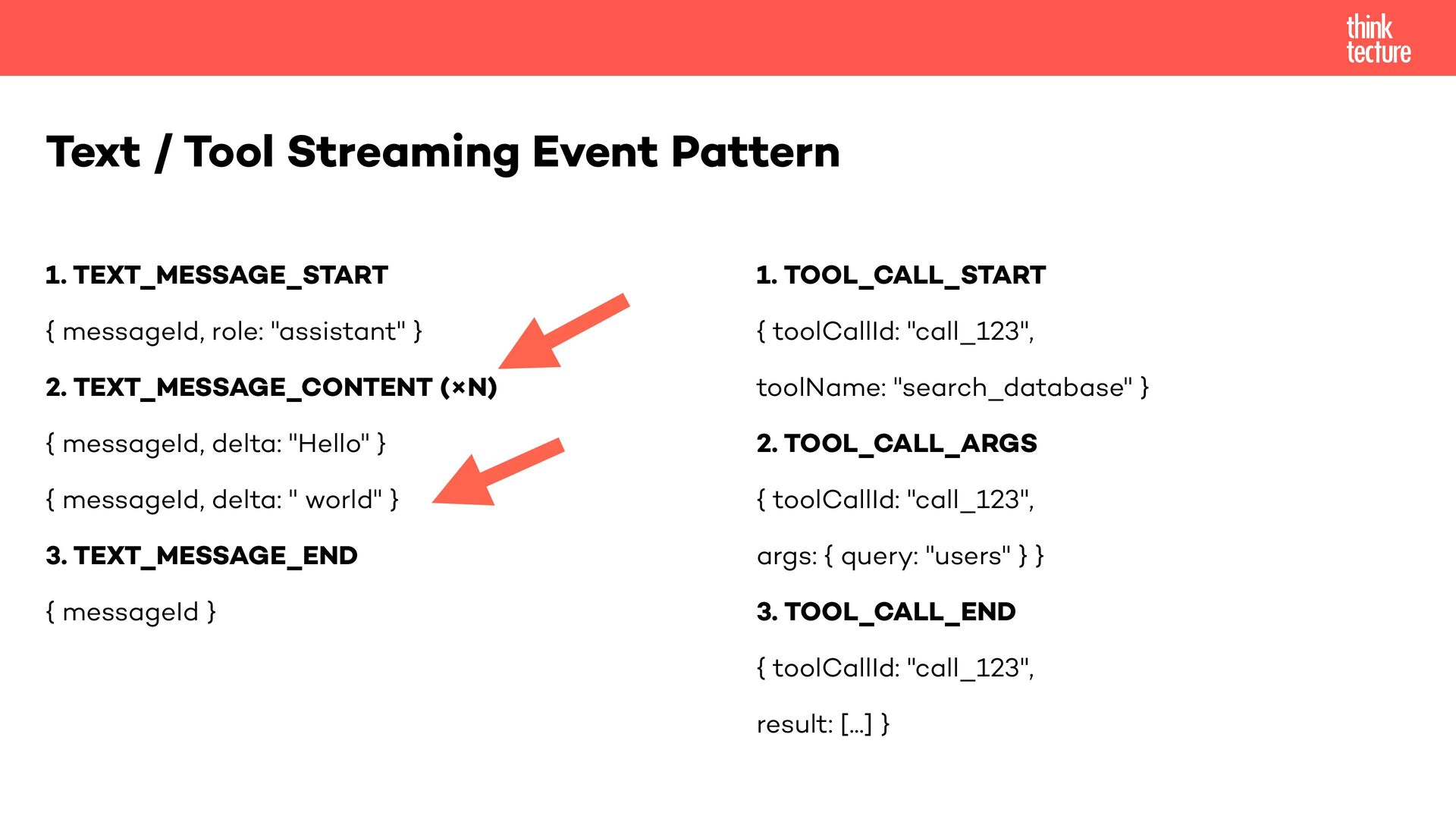

30. 1. TEXT_MESSAGE_START { messageId, role: "assistant" } 2. TEXT_MESSAGE_CONTENT (×N) { messageId, delta: "Hello" } { messageId, delta: " world" } 3. TEXT_MESSAGE_END { messageId } Text / Tool Streaming Event Pattern 1. TOOL_CALL_START { toolCallId: "call_123", toolName: "search_database" } 2. TOOL_CALL_ARGS { toolCallId: "call_123", args: { query: "users" } } 3. TOOL_CALL_END { toolCallId: "call_123", result: [...] }

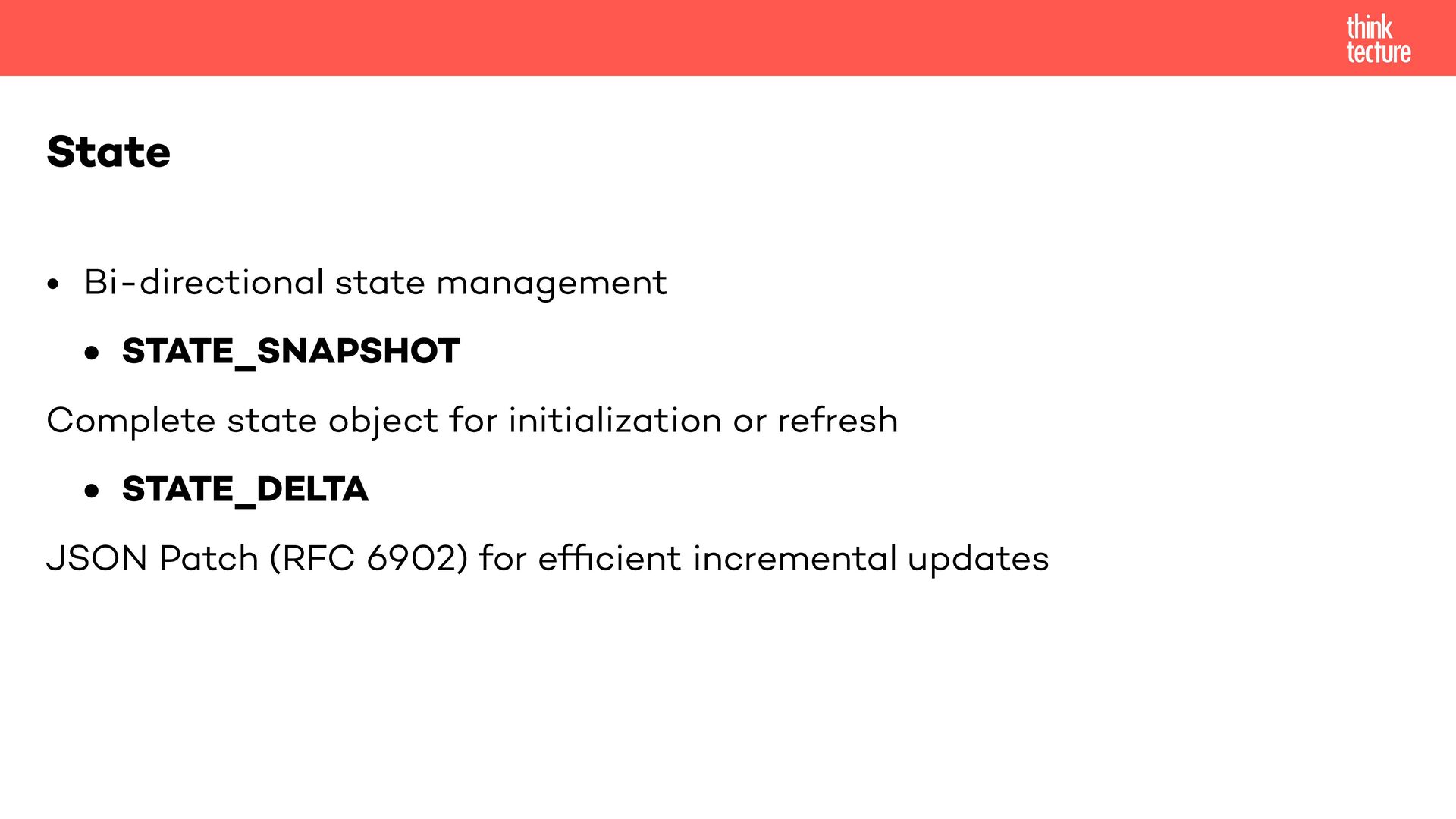

31. • Bi-directional state management • STATE_SNAPSHOT Complete state object for initialization or refresh • STATE_DELTA JSON Patch (RFC 6902) for ef fi cient incremental updates State
32. Static • Agent speci fi es exact component and props to render • E.g. Component is mapped to a speci fi c event in the UI UI Capbilities Declarative • Agent describes intent, framework selects components • Agent knows about components and props

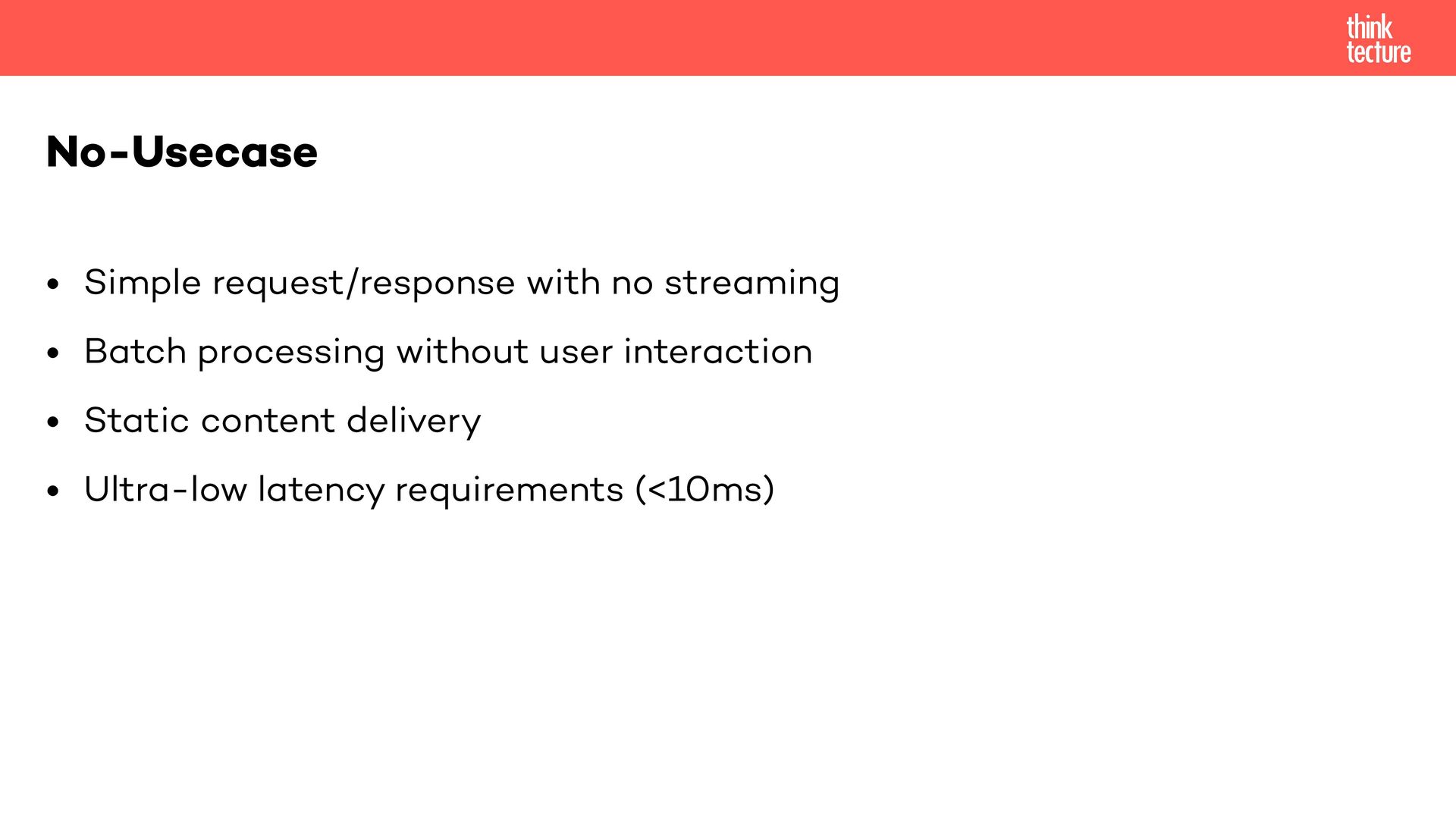

33. • Simple request/response with no streaming • Batch processing without user interaction • Static content delivery • Ultra-low latency requirements (<10ms) No-Usecase

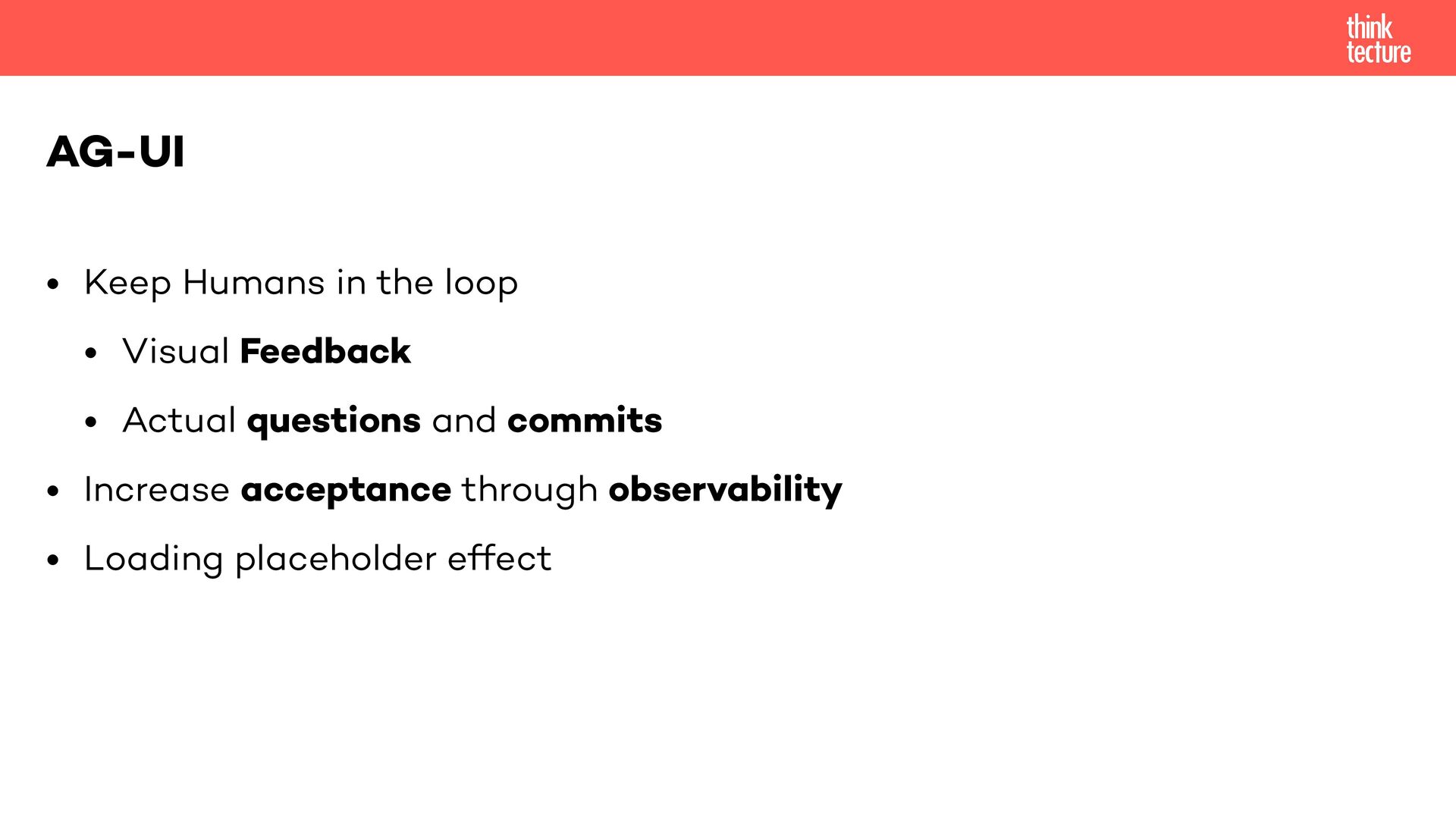

34. • Keep Humans in the loop • Visual Feedback • Actual questions and commits • Increase acceptance through observability • Loading placeholder effect AG-UI

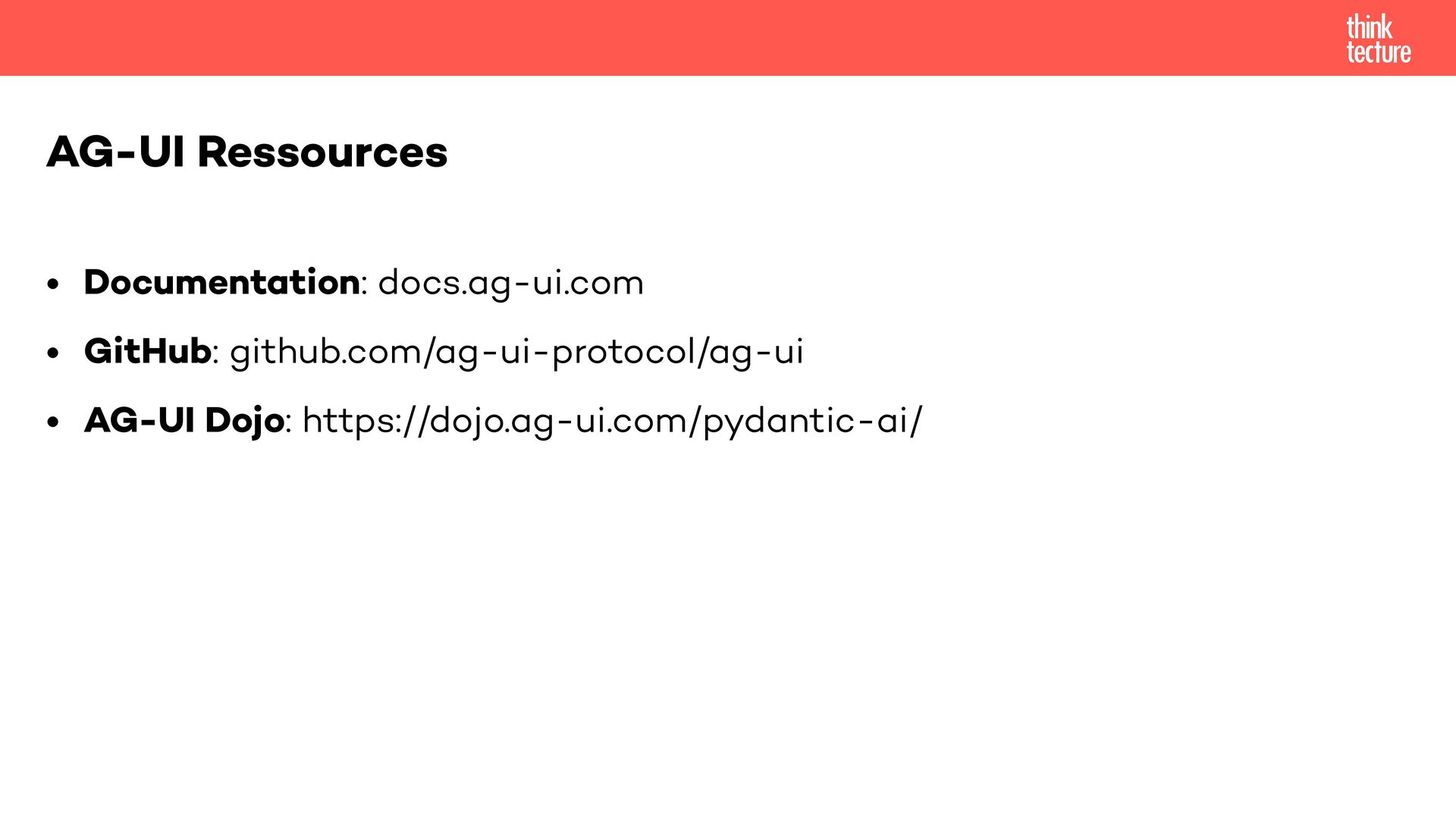

35. • Documentation: docs.ag-ui.com • GitHub: github.com/ag-ui-protocol/ag-ui • AG-UI Dojo: https://dojo.ag-ui.com/pydantic-ai/ AG-UI Ressources
36. It's a wrap! • Slides: https://thinktecture.com/max-marschall • Contact: @MaxOSchulte, max.marschall@thinktecture.com
